User Manual

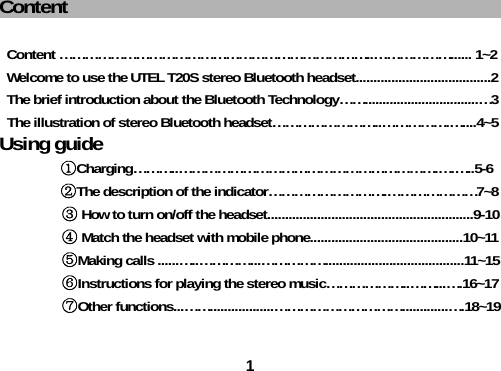

1Content Content ………………………………………………………………..………………...... 1~2 Welcome to use the UTEL T20S stereo Bluetooth headset......................................2 The brief introduction about the Bluetooth Technology……................................…3 The illustration of stereo Bluetooth headset……………………..…………….…....4~5 Using guide ①Charging………..…………………………………………………….….…..5-6 ②The description of the indicator……………………….…………………7~8 ③ How to turn on/off the headset..........................................................9-10 ④ Match the headset with mobile phone...........................................10~11 ⑤Making calls ......…..…………...…………….......................................11~15 ⑥Instructions for playing the stereo music………………..……...….16~17 ⑦Other functions...……..................………………………….............….18~19

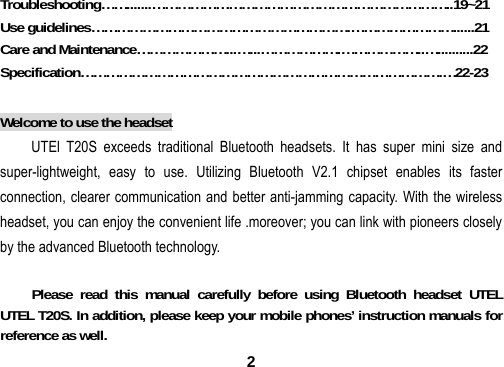

2Troubleshooting…….......……………………………………………………………..19~21 Use guidelines…………………………………………………….……………………......21 Care and Maintenance…………………...…...……………….………………..…..........22 Specification………………………………………………………………………….…22-23 Welcome to use the headset UTEl T20S exceeds traditional Bluetooth headsets. It has super mini size and super-lightweight, easy to use. Utilizing Bluetooth V2.1 chipset enables its faster connection, clearer communication and better anti-jamming capacity. With the wireless headset, you can enjoy the convenient life .moreover; you can link with pioneers closely by the advanced Bluetooth technology. Please read this manual carefully before using Bluetooth headset UTEL UTEL T20S. In addition, please keep your mobile phones’ instruction manuals for reference as well.

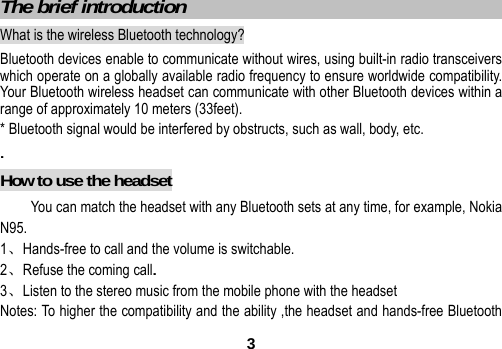

3 The brief introduction What is the wireless Bluetooth technology? Bluetooth devices enable to communicate without wires, using built-in radio transceivers which operate on a globally available radio frequency to ensure worldwide compatibility. Your Bluetooth wireless headset can communicate with other Bluetooth devices within a range of approximately 10 meters (33feet). * Bluetooth signal would be interfered by obstructs, such as wall, body, etc. . How to use the headset You can match the headset with any Bluetooth sets at any time, for example, Nokia N95. 1、Hands-free to call and the volume is switchable. 2、Refuse the coming call. 3、Listen to the stereo music from the mobile phone with the headset Notes: To higher the compatibility and the ability ,the headset and hands-free Bluetooth

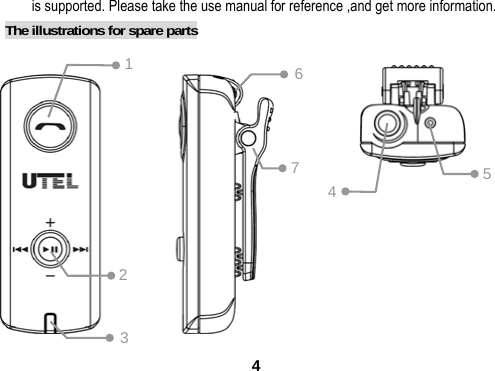

4is supported. Please take the use manual for reference ,and get more information. The illustrations for spare parts 1236745

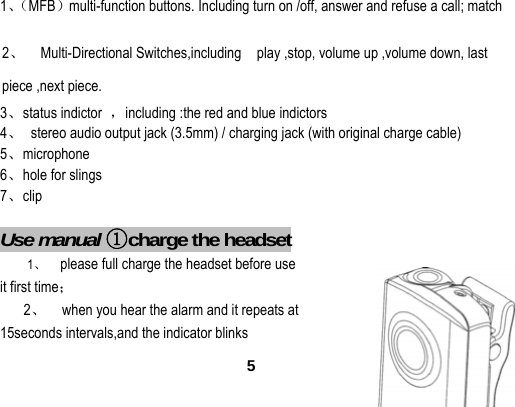

51、（MFB）multi-function buttons. Including turn on /off, answer and refuse a call; match 2、 Multi-Directional Switches,including play ,stop, volume up ,volume down, last piece ,next piece. 3、status indictor ，including :the red and blue indictors 4、 stereo audio output jack (3.5mm) / charging jack (with original charge cable) 5、microphone 6、hole for slings 7、clip Use manual ①charge the headset 1、 please full charge the headset before use it first time； 2、 when you hear the alarm and it repeats at 15seconds intervals,and the indicator blinks

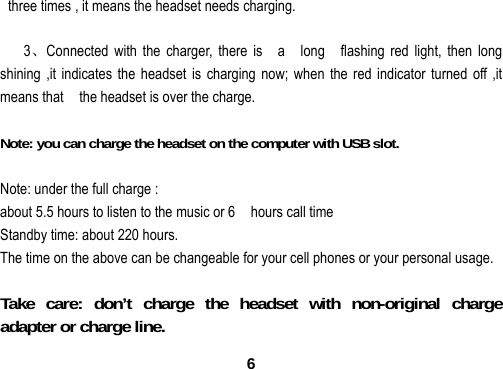

6 three times , it means the headset needs charging. 3、Connected with the charger, there is a long flashing red light, then long shining ,it indicates the headset is charging now; when the red indicator turned off ,it means that the headset is over the charge. Note: you can charge the headset on the computer with USB slot. Note: under the full charge : about 5.5 hours to listen to the music or 6 hours call time Standby time: about 220 hours. The time on the above can be changeable for your cell phones or your personal usage. Take care: don’t charge the headset with non-original charge adapter or charge line.

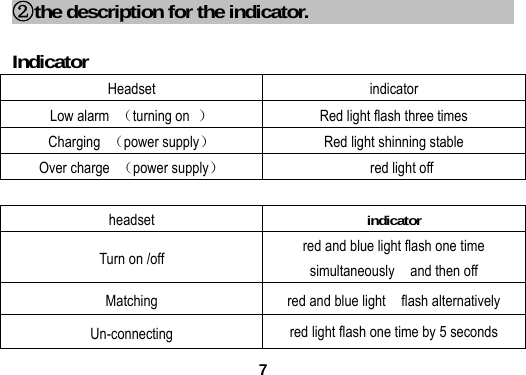

7②the description for the indicator. Indicator Headset indicator Low alarm （turning on ） Red light flash three times Charging （power supply） Red light shinning stable Over charge （power supply） red light off headset indicator Turn on /off red and blue light flash one time simultaneously and then off Matching red and blue light flash alternatively Un-connecting red light flash one time by 5 seconds

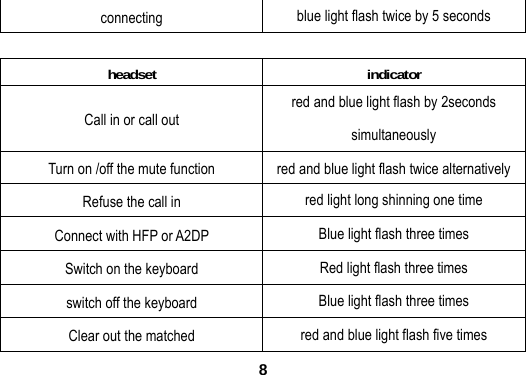

8connecting blue light flash twice by 5 seconds headset indicator Call in or call out red and blue light flash by 2seconds simultaneously Turn on /off the mute function red and blue light flash twice alternatively Refuse the call in red light long shinning one time Connect with HFP or A2DP Blue light flash three times Switch on the keyboard Red light flash three times switch off the keyboard Blue light flash three times Clear out the matched red and blue light flash five times

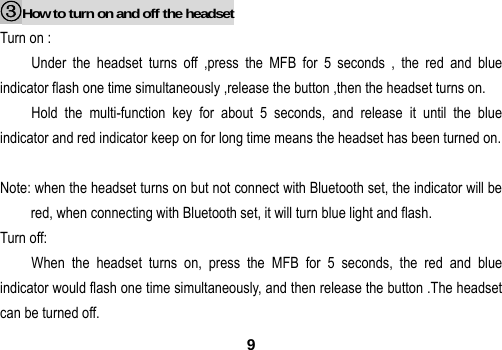

9 ③How to turn on and off the headset Turn on : Under the headset turns off ,press the MFB for 5 seconds , the red and blue indicator flash one time simultaneously ,release the button ,then the headset turns on. Hold the multi-function key for about 5 seconds, and release it until the blue indicator and red indicator keep on for long time means the headset has been turned on. Note: when the headset turns on but not connect with Bluetooth set, the indicator will be red, when connecting with Bluetooth set, it will turn blue light and flash. Turn off: When the headset turns on, press the MFB for 5 seconds, the red and blue indicator would flash one time simultaneously, and then release the button .The headset can be turned off.

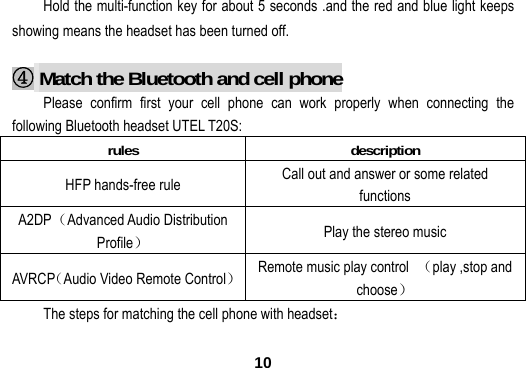

10Hold the multi-function key for about 5 seconds .and the red and blue light keeps showing means the headset has been turned off. ④ Match the Bluetooth and cell phone Please confirm first your cell phone can work properly when connecting the following Bluetooth headset UTEL T20S: rules description HFP hands-free rule Call out and answer or some related functions A2DP（Advanced Audio Distribution Profile） Play the stereo music AVRCP（Audio Video Remote Control） Remote music play control （play ,stop and choose） The steps for matching the cell phone with headset：

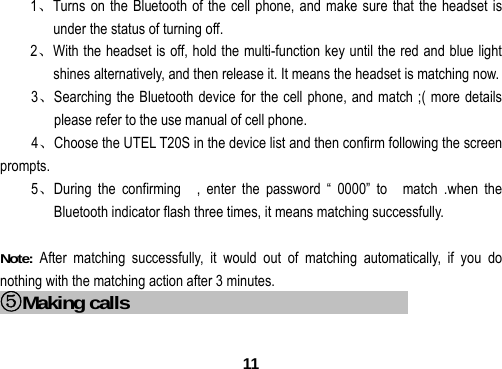

111、Turns on the Bluetooth of the cell phone, and make sure that the headset is under the status of turning off. 2、With the headset is off, hold the multi-function key until the red and blue light shines alternatively, and then release it. It means the headset is matching now. 3、Searching the Bluetooth device for the cell phone, and match ;( more details please refer to the use manual of cell phone. 4、Choose the UTEL T20S in the device list and then confirm following the screen prompts. 5、During the confirming , enter the password “ 0000” to match .when the Bluetooth indicator flash three times, it means matching successfully. Note: After matching successfully, it would out of matching automatically, if you do nothing with the matching action after 3 minutes. ⑤Making calls

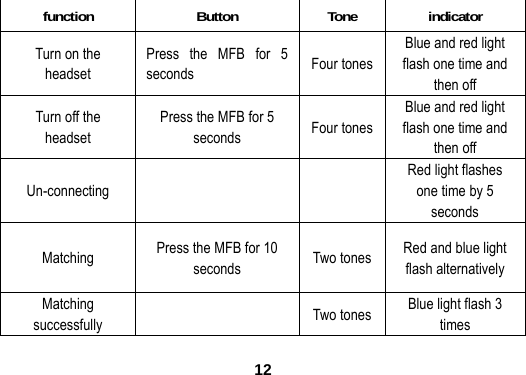

12function Button Tone indicator Turn on the headset Press the MFB for 5 seconds Four tones Blue and red light flash one time and then off Turn off the headset Press the MFB for 5 seconds Four tones Blue and red light flash one time and then off Un-connecting Red light flashes one time by 5 seconds Matching Press the MFB for 10 seconds Two tones Red and blue light flash alternatively Matching successfully Two tones Blue light flash 3 times

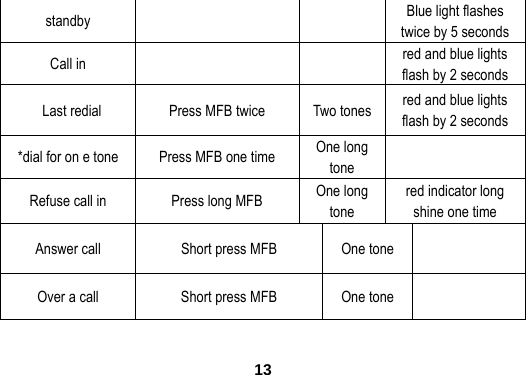

13standby Blue light flashes twice by 5 seconds Call in red and blue lights flash by 2 seconds Last redial Press MFB twice Two tones red and blue lights flash by 2 seconds *dial for on e tone Press MFB one time One long tone Refuse call in Press long MFB One long tone red indicator long shine one time Answer call Short press MFB One tone Over a call Short press MFB One tone

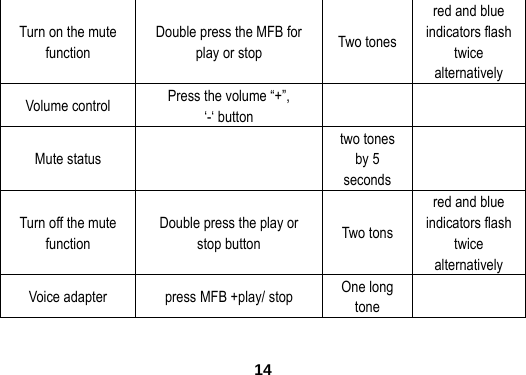

14Turn on the mute function Double press the MFB for play or stop Two tones red and blue indicators flash twice alternatively Volume control Press the volume “+”, ‘-‘ button Mute status two tones by 5 seconds Turn off the mute function Double press the play or stop button Two tons red and blue indicators flash twice alternatively Voice adapter press MFB +play/ stop One long tone

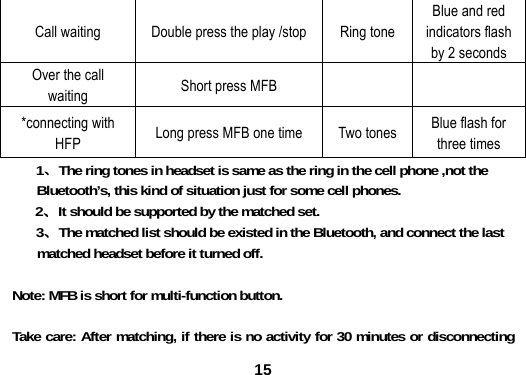

15Call waiting Double press the play /stop Ring tone Blue and red indicators flash by 2 seconds Over the call waiting Short press MFB *connecting with HFP Long press MFB one time Two tones Blue flash for three times 1、The ring tones in headset is same as the ring in the cell phone ,not the Bluetooth’s, this kind of situation just for some cell phones. 2、It should be supported by the matched set. 3、The matched list should be existed in the Bluetooth, and connect the last matched headset before it turned off. Note: MFB is short for multi-function button. Take care: After matching, if there is no activity for 30 minutes or disconnecting

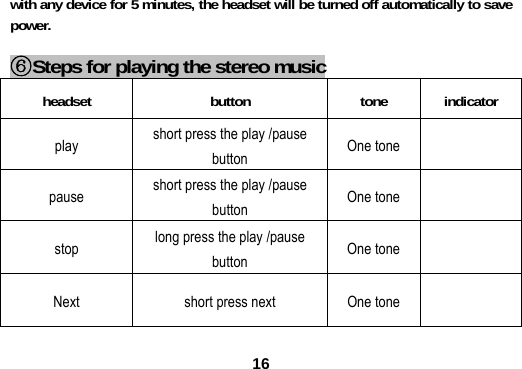

16with any device for 5 minutes, the headset will be turned off automatically to save power. ⑥Steps for playing the stereo music headset button tone indicator play short press the play /pause button One tone pause short press the play /pause button One tone stop long press the play /pause button One tone Next short press next One tone

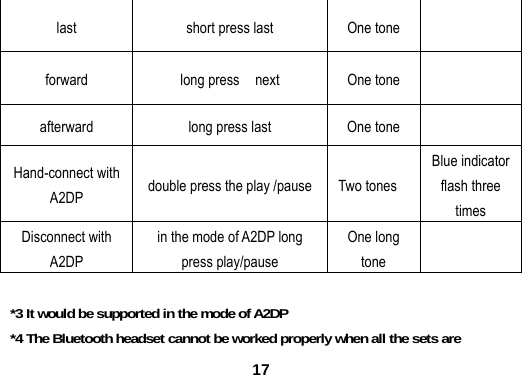

17last short press last One tone forward long press next One tone afterward long press last One tone Hand-connect with A2DP double press the play /pause Two tones Blue indicator flash three times Disconnect with A2DP in the mode of A2DP long press play/pause One long tone *3 It would be supported in the mode of A2DP *4 The Bluetooth headset cannot be worked properly when all the sets are

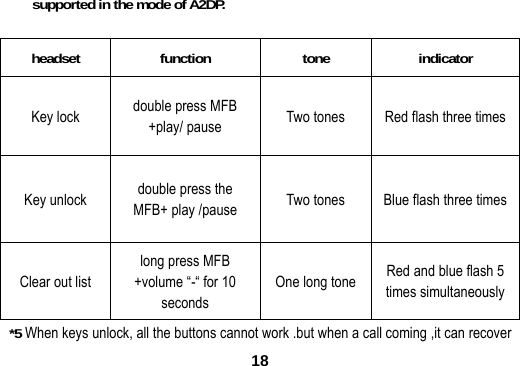

18supported in the mode of A2DP. headset function tone indicator Key lock double press MFB +play/ pause Two tones Red flash three times Key unlock double press the MFB+ play /pause Two tones Blue flash three times Clear out list long press MFB +volume “-“ for 10 seconds One long tone Red and blue flash 5 times simultaneously *5 When keys unlock, all the buttons cannot work .but when a call coming ,it can recover

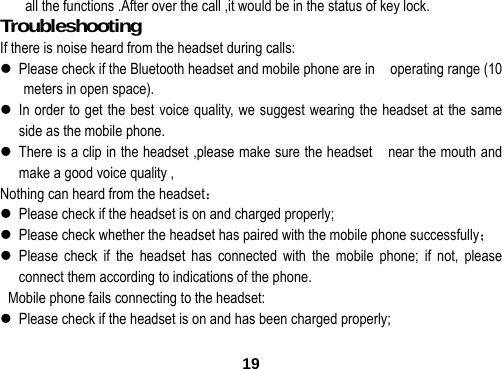

19all the functions .After over the call ,it would be in the status of key lock. Troubleshooting If there is noise heard from the headset during calls:  Please check if the Bluetooth headset and mobile phone are in operating range (10 meters in open space).  In order to get the best voice quality, we suggest wearing the headset at the same side as the mobile phone.  There is a clip in the headset ,please make sure the headset near the mouth and make a good voice quality , Nothing can heard from the headset：  Please check if the headset is on and charged properly;  Please check whether the headset has paired with the mobile phone successfully；  Please check if the headset has connected with the mobile phone; if not, please connect them according to indications of the phone. Mobile phone fails connecting to the headset:  Please check if the headset is on and has been charged properly;

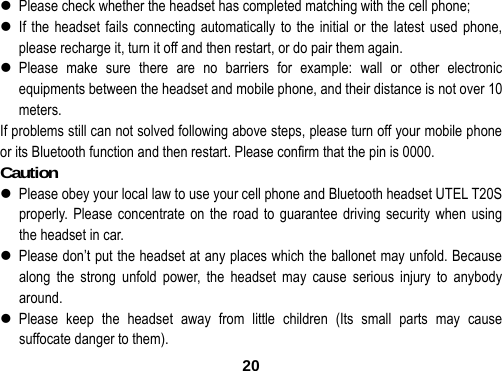

20 Please check whether the headset has completed matching with the cell phone;  If the headset fails connecting automatically to the initial or the latest used phone, please recharge it, turn it off and then restart, or do pair them again.  Please make sure there are no barriers for example: wall or other electronic equipments between the headset and mobile phone, and their distance is not over 10 meters. If problems still can not solved following above steps, please turn off your mobile phone or its Bluetooth function and then restart. Please confirm that the pin is 0000. Caution  Please obey your local law to use your cell phone and Bluetooth headset UTEL T20S properly. Please concentrate on the road to guarantee driving security when using the headset in car.  Please don’t put the headset at any places which the ballonet may unfold. Because along the strong unfold power, the headset may cause serious injury to anybody around.  Please keep the headset away from little children (Its small parts may cause suffocate danger to them).

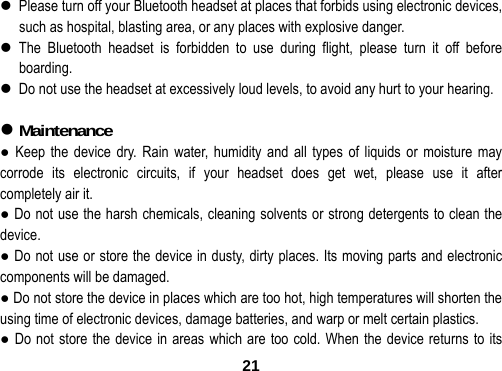

21 Please turn off your Bluetooth headset at places that forbids using electronic devices, such as hospital, blasting area, or any places with explosive danger.  The Bluetooth headset is forbidden to use during flight, please turn it off before boarding.  Do not use the headset at excessively loud levels, to avoid any hurt to your hearing.  Maintenance ● Keep the device dry. Rain water, humidity and all types of liquids or moisture may corrode its electronic circuits, if your headset does get wet, please use it after completely air it. ● Do not use the harsh chemicals, cleaning solvents or strong detergents to clean the device. ● Do not use or store the device in dusty, dirty places. Its moving parts and electronic components will be damaged. ● Do not store the device in places which are too hot, high temperatures will shorten the using time of electronic devices, damage batteries, and warp or melt certain plastics. ● Do not store the device in areas which are too cold. When the device returns to its

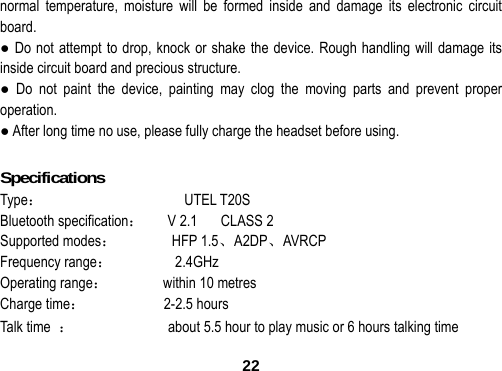

22normal temperature, moisture will be formed inside and damage its electronic circuit board. ● Do not attempt to drop, knock or shake the device. Rough handling will damage its inside circuit board and precious structure. ● Do not paint the device, painting may clog the moving parts and prevent proper operation. ● After long time no use, please fully charge the headset before using. Specifications Type： UTEL T20S Bluetooth specification： V 2.1 CLASS 2 Supported modes： HFP 1.5、A2DP、AVRCP Frequency range： 2.4GHz Operating range： within 10 metres Charge time： 2-2.5 hours Talk time ： about 5.5 hour to play music or 6 hours talking time

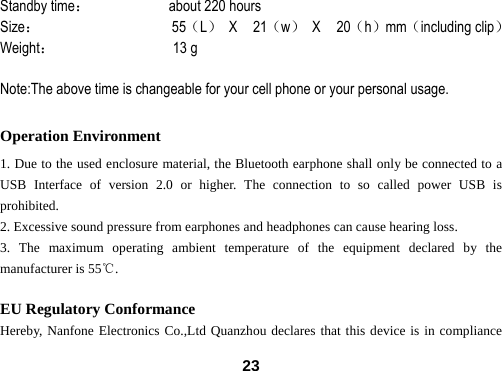

23Standby time： about 220 hours Size： 55（L） X 21（w） X 20（h）mm（including clip） Weight： 13 g Note:The above time is changeable for your cell phone or your personal usage. Operation Environment 1. Due to the used enclosure material, the Bluetooth earphone shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. 2. Excessive sound pressure from earphones and headphones can cause hearing loss. 3. The maximum operating ambient temperature of the equipment declared by the manufacturer is 55℃. EU Regulatory Conformance Hereby, Nanfone Electronics Co.,Ltd Quanzhou declares that this device is in compliance

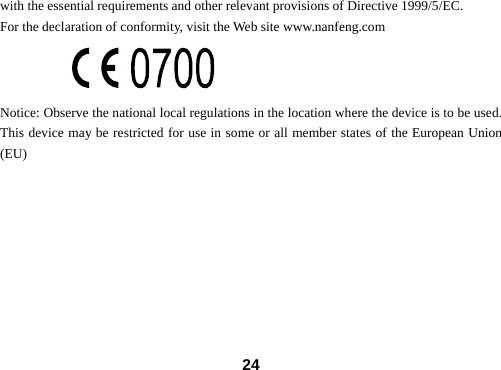

24with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the declaration of conformity, visit the Web site www.nanfeng.com Notice: Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the European Union (EU)

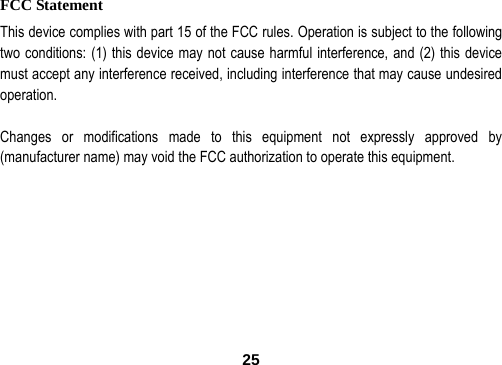

25FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment.
