User manual
Revision 6.0
User Manual
December 2000
March 2000, Revision 5.0, Added FCC Regulations
December 2000, Revision 6.0, Added new features from HALO™ software version 3.1
© Copyright 2000, EXI Wireless Systems Inc., All rights reserved.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 2 December 2000
Revision 6.0
Table of Contents
ABOUT THIS DOCUMENT..........................................................................................................................3
1. SYSTEM INTRODUCTION..................................................................................................................5
1.1. SYSTEM COMPONENTS ......................................................................................................................5
1.2. TERMS USED IN THIS DOCUMENT........................................................................................................5
1.3. COMPUTER DISPLAY CONVENTIONS ..................................................................................................6
2. USER LEVEL FUNCTIONS..................................................................................................................8
2.1. ADMITTING A PATIENT.......................................................................................................................8

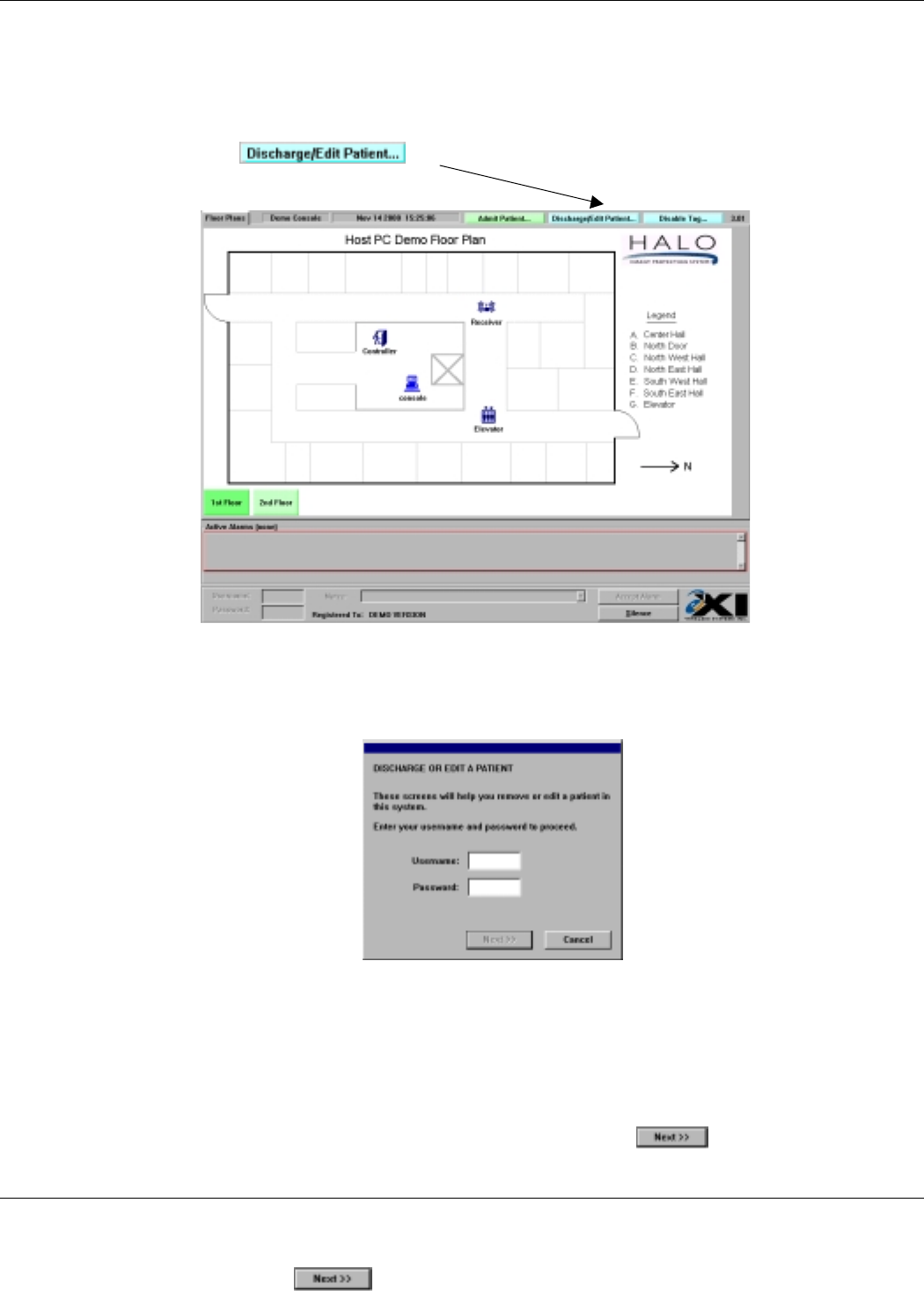

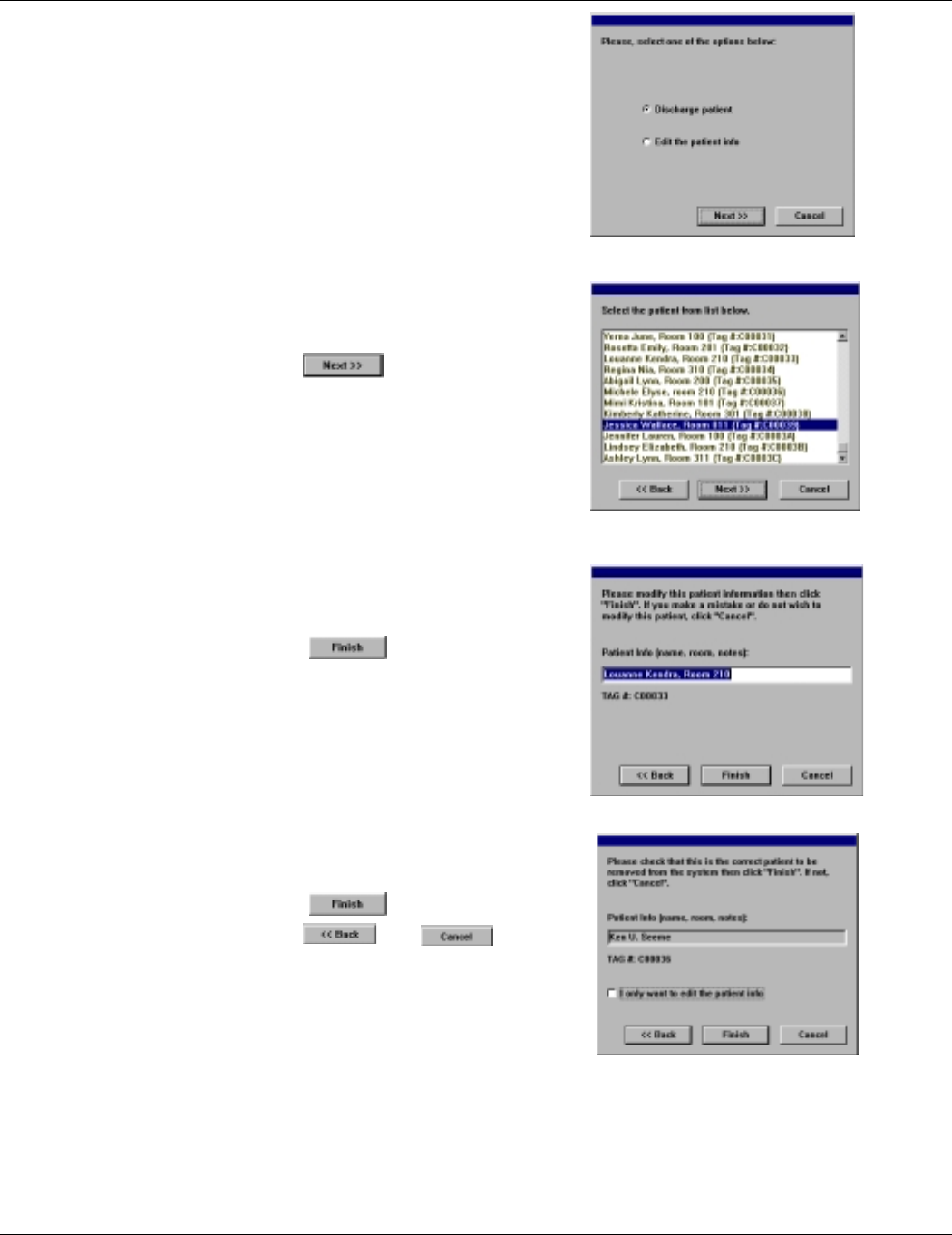

2.2. DISCHARGING OR EDITING A PATIENT..............................................................................................11
2.3. DISABLING A TAG TEMPORARILY.....................................................................................................13
2.4. SILENCING AND ACCEPTING ALARMS ..............................................................................................15
2.5. “NURSE SAVER” AND “LOITERING” FEATURES.................................................................................17

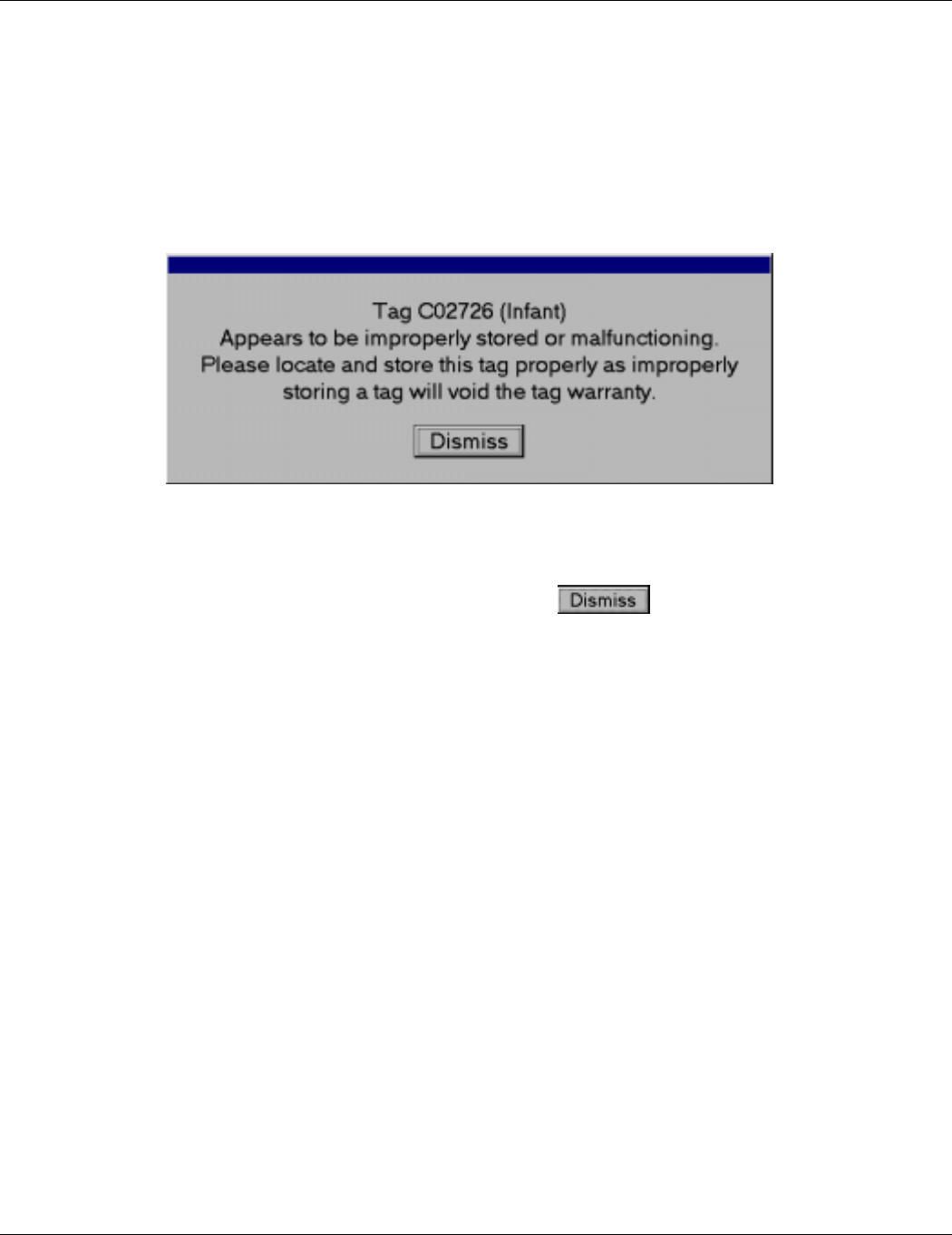

2.6. IMPROPERLY STORED TAGS..............................................................................................................17
3. SUPERVISOR LEVEL FUNCTIONS.................................................................................................19
3.1. ACCESSING SUPERVISOR LEVEL.......................................................................................................19
3.2. EXITING SUPERVISOR LEVEL ............................................................................................................20
4. ACTIVITY LOG MANAGEMENT.....................................................................................................21

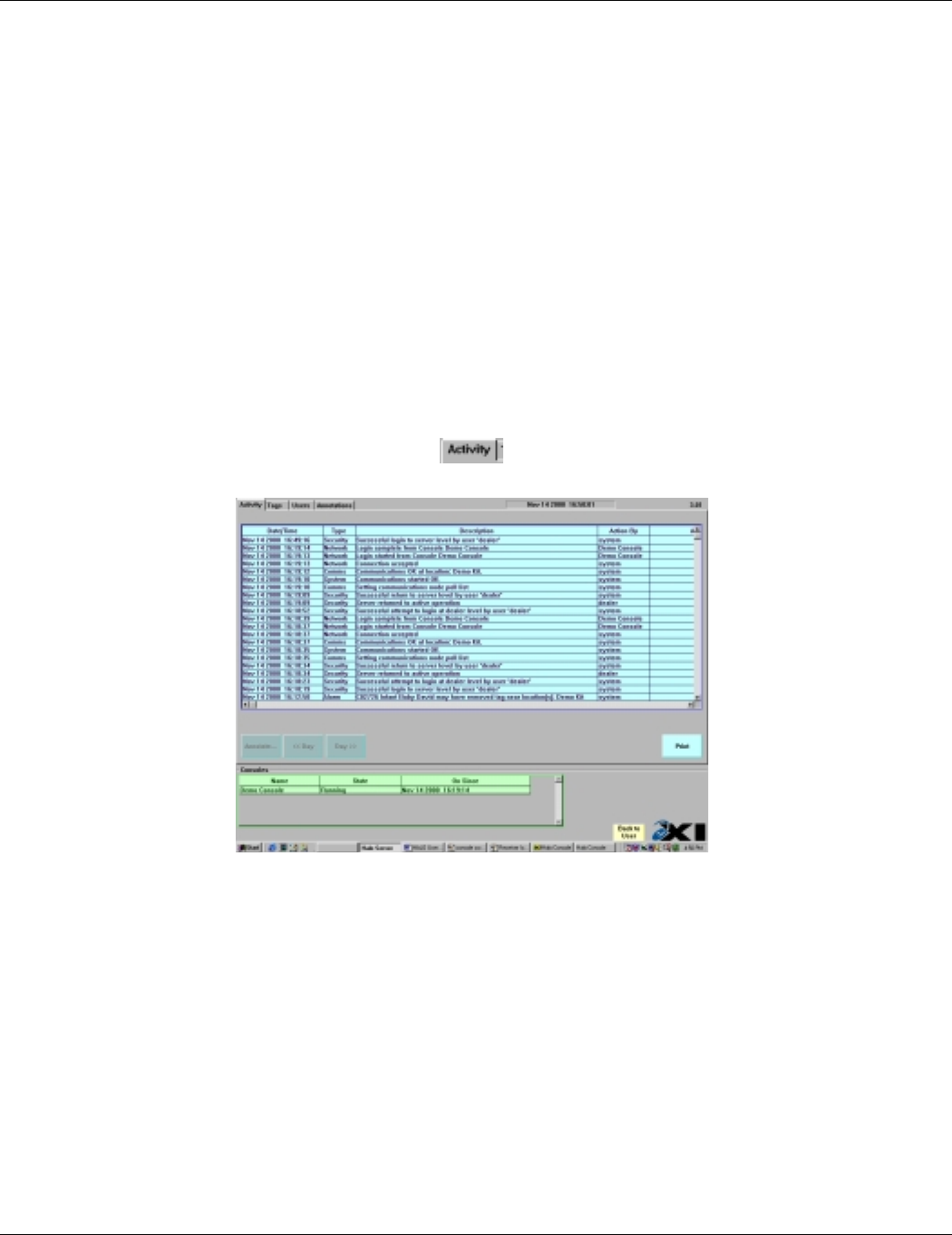

4.1. ACTIVITY LOGS................................................................................................................................21
4.2. NAVIGATING THE ACTIVITY LOG .......................................................................................................22
4.3. ADDING A SUPERVISOR ANNOTATION TO AN ALARM........................................................................22

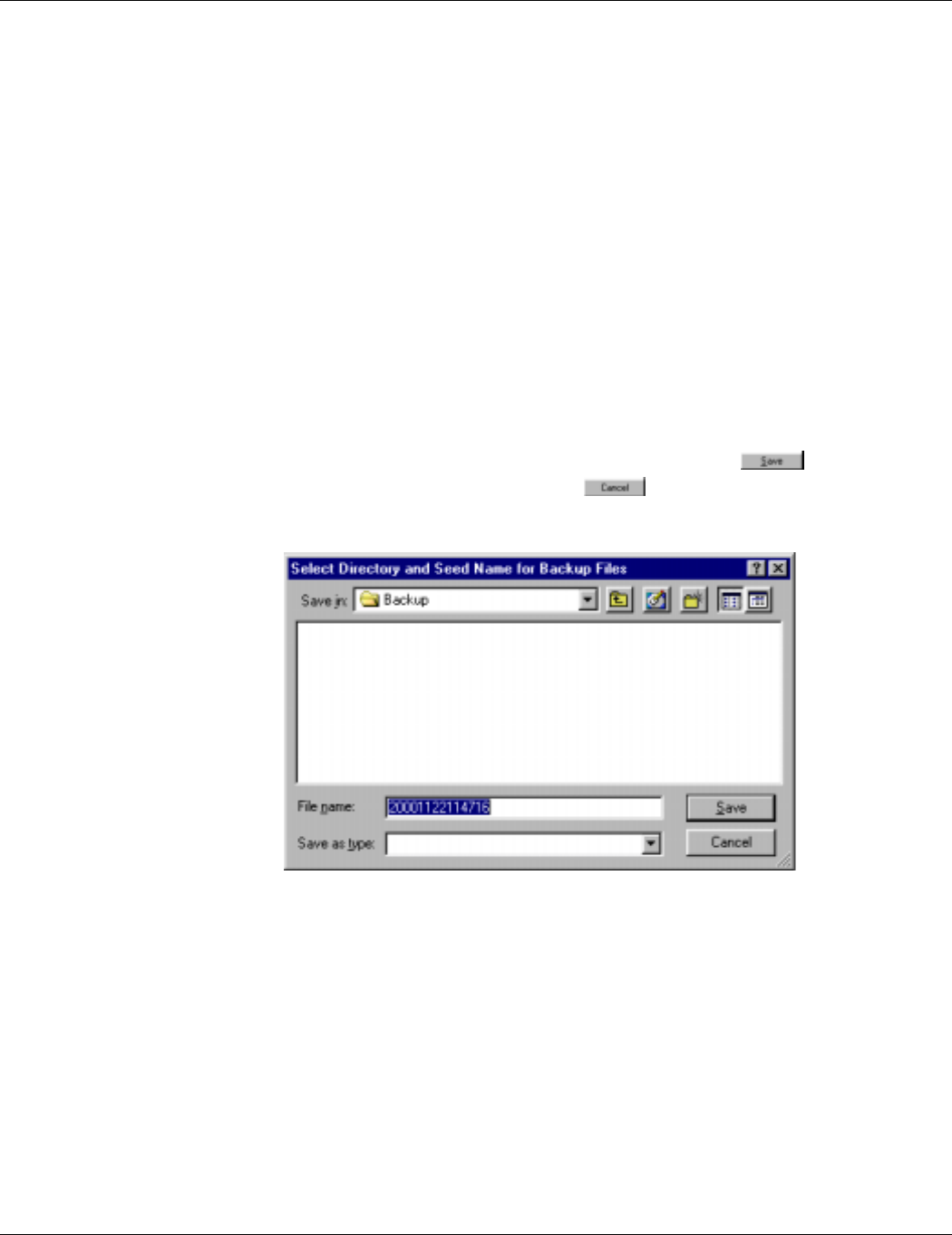

4.4. BACKING UP ACTIVITY LOGS...........................................................................................................23
5. MANAGING TAGS..............................................................................................................................24

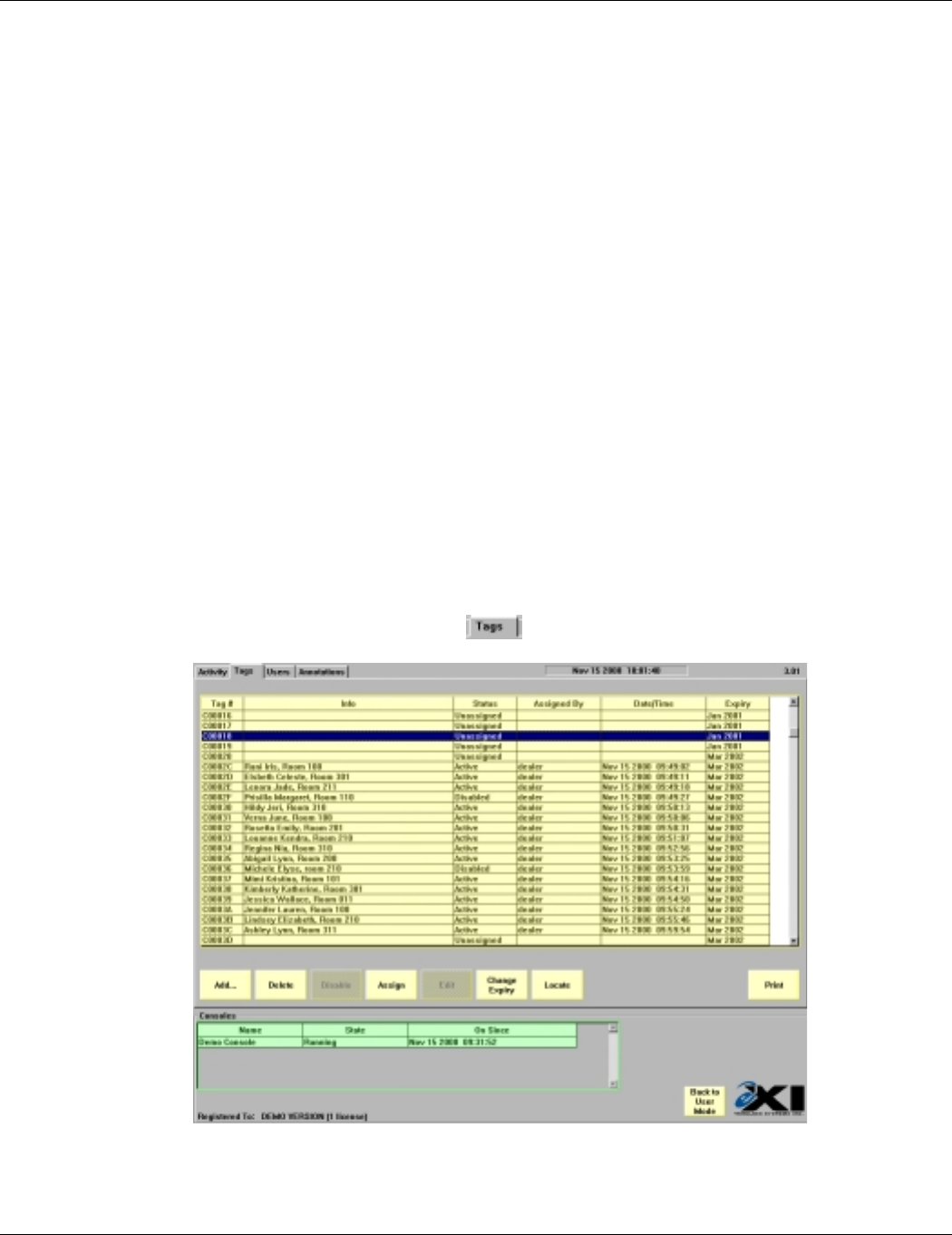

5.1. TAGS ...............................................................................................................................................24

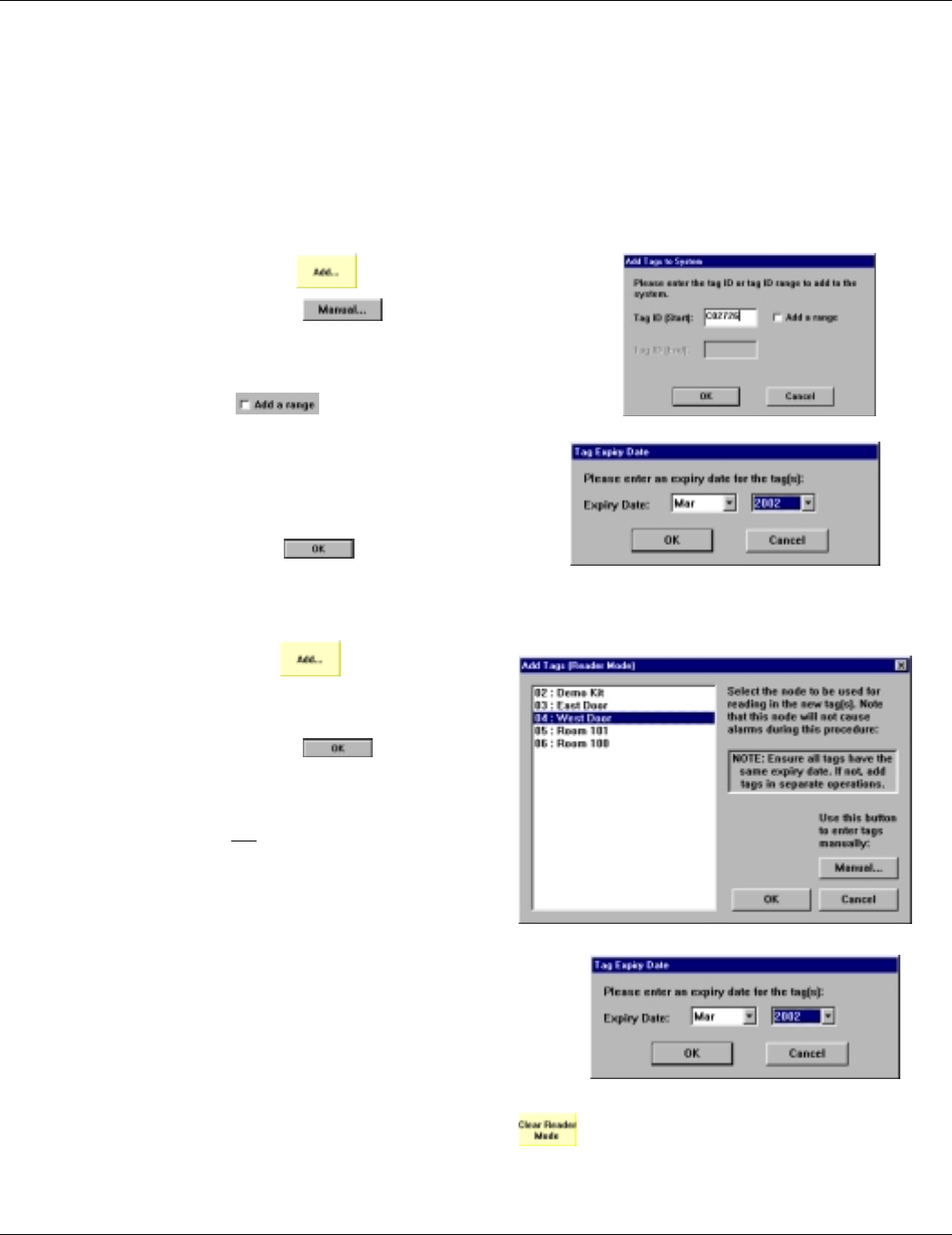

5.2. ADDING A NEW P-TAG TO THE SYSTEM ............................................................................................25
5.3. DELETING A P-TAG FROM THE SYSTEM.............................................................................................26
5.4. DISABLING A P-TAG.........................................................................................................................27
5.5. UNASSIGNING A P-TAG....................................................................................................................27

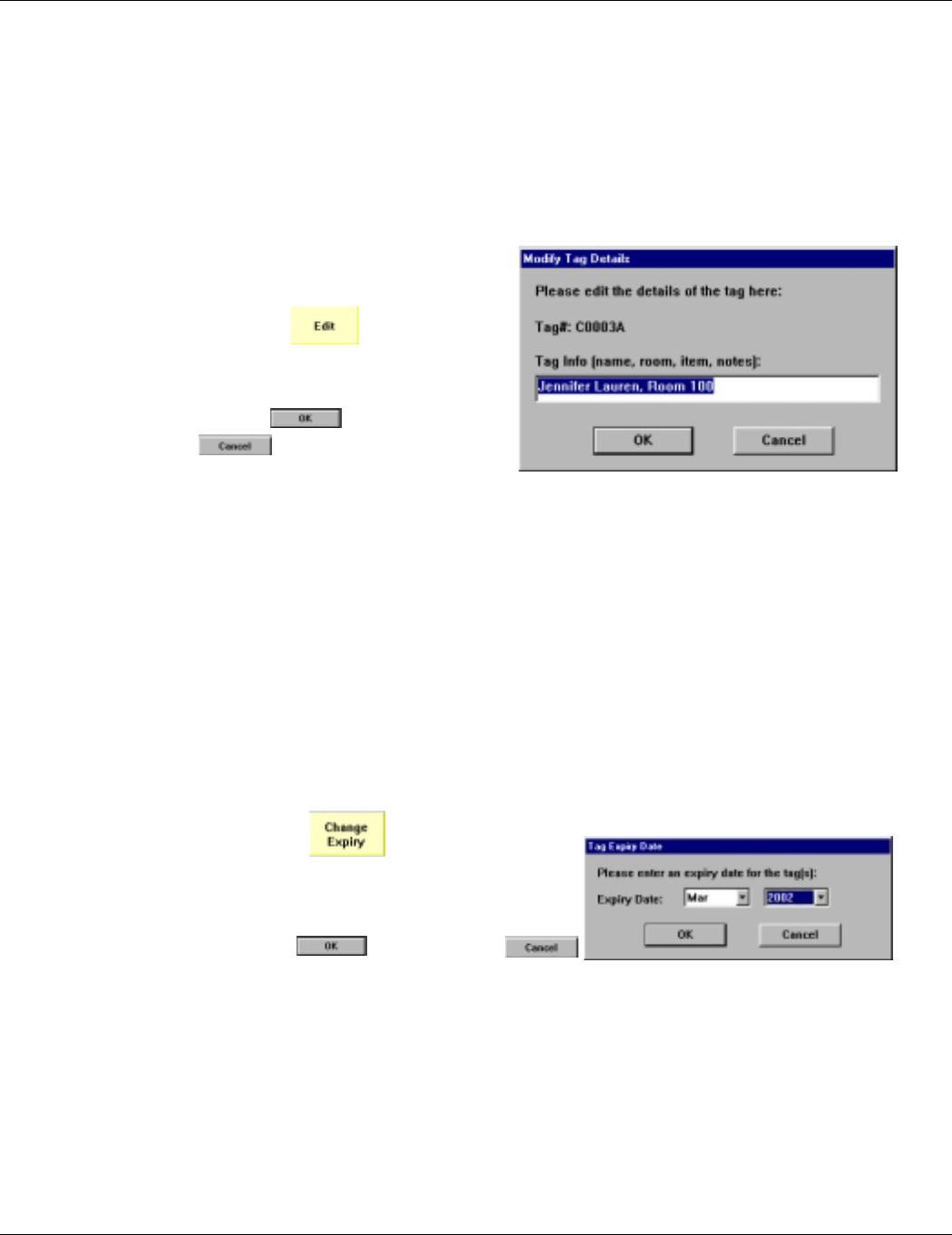

5.6. EDITING A P-TAG RECORD...............................................................................................................28
5.7. CHANGING A TAG’S EXPIRY DATE ...................................................................................................28

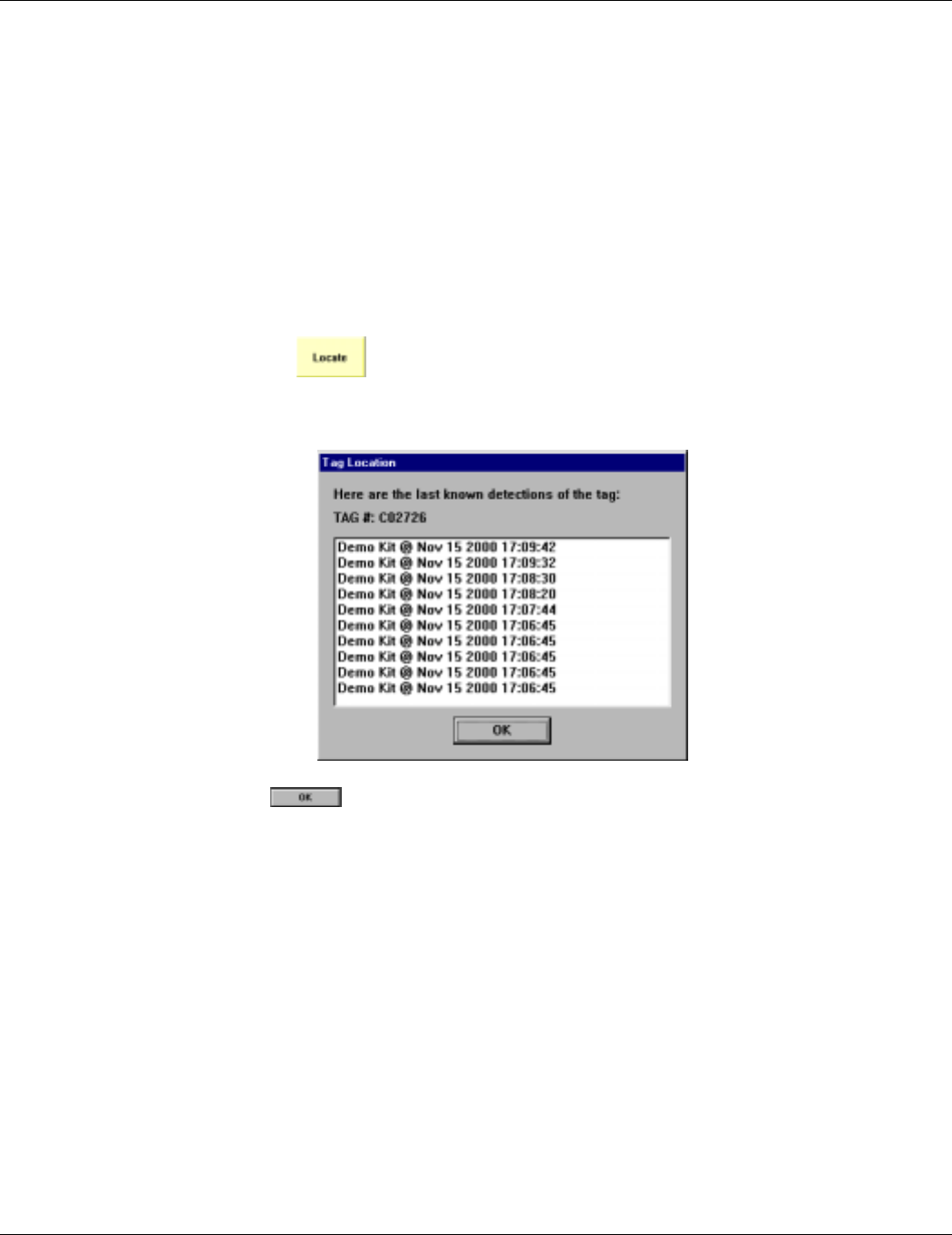

5.8. LOCATE A TAG.................................................................................................................................29
6. MANAGING SYSTEM USERS...........................................................................................................30

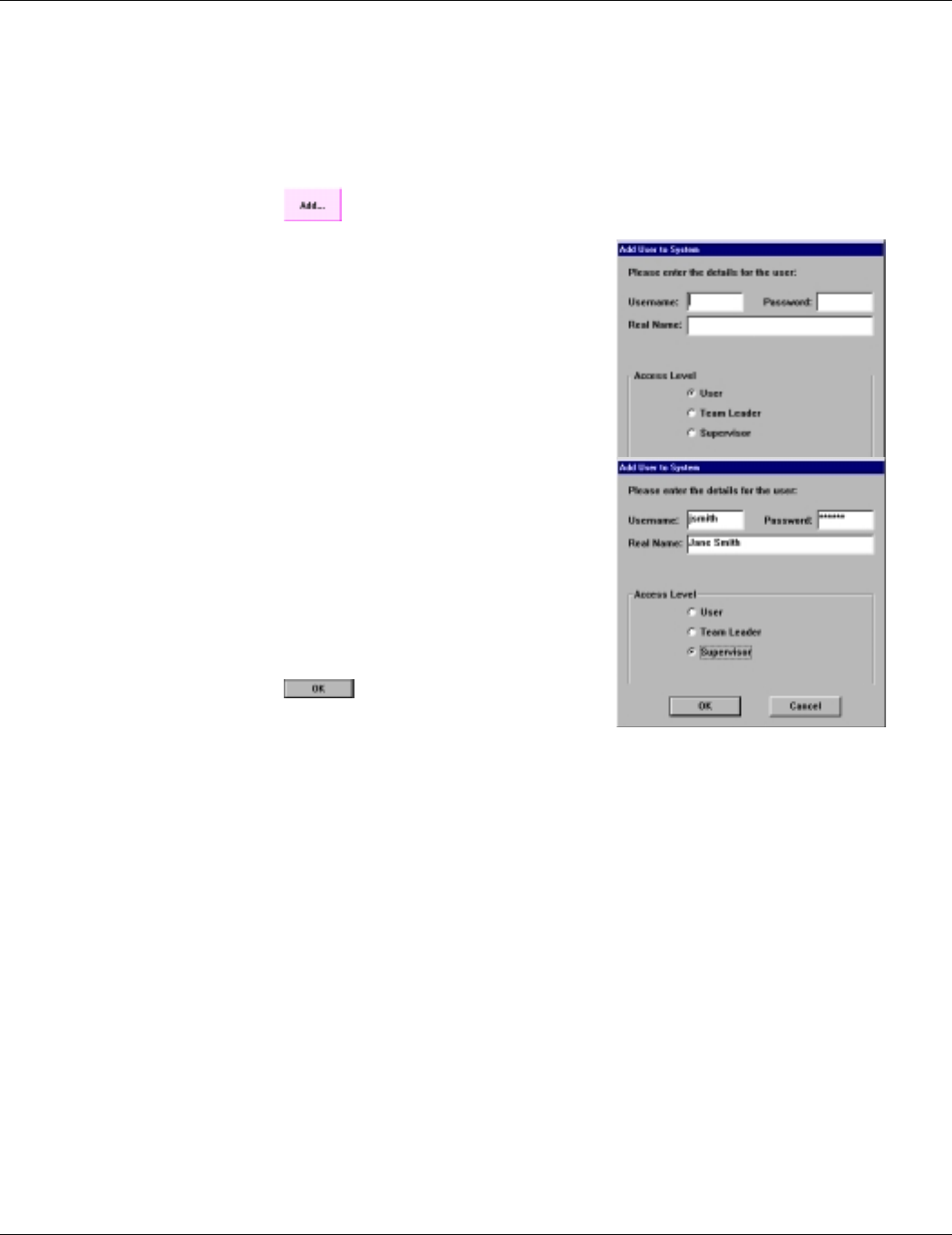

6.1. ADDING A NEW USER TO THE SYSTEM ...............................................................................................31
6.2. DELETING A USER FROM THE SYSTEM ...............................................................................................32
6.3. DISABLING A SYSTEM USER ..............................................................................................................32
6.4. EDITING A SYSTEM USER’S ACCESS LEVEL ........................................................................................32
7. PRINTING LOGS ................................................................................................................................33
8. MANAGING ALARM ANNOTATIONS............................................................................................34
8.1. ADDING AN ANNOTATION ...............................................................................................................35
8.2. DELETING AN ANNOTATION.............................................................................................................35
8.3. EDITING AN ANNOTATION ...............................................................................................................35
9. SHUTTING DOWN AND RESTARTING THE SYSTEM................................................................36
9.1. SHUTTING DOWN .............................................................................................................................36
9.2. RESTARTING THE SYSTEM.................................................................................................................36
APPENDIX A - LIMITED WARRANTY....................................................................................................37
APPENDIX B - FCC REGULATIONS .......................................................................................................38
APPENDIX C - SYSTEM MAINTENANCE...............................................................................................39
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 3 December 2000
Revision 6.0
ABOUT THIS DOCUMENT
Intended Audience
This manual is intended for system users (typically duty nurses), team leaders, and supervisory level us-
ers who manage the system and the system users.
Scope
This manual will provide step-by-step instructions for users and supervisors who administer the usage of
the system. The HALO™ system features a very simple user interface that guides the user through each
step.
About the Halo Infant Protection System
• HALO™ is a premium infant protection system.
• HALO™ works in conjunction with the EXI P-tag patient transponder that is capable of sensing
if it has been removed from the infant.
• HALO™ is an electronic system, which, in conjunction with staff diligence, creates a secure
perimeter to deter infant abductions.
• HALO™ will detect if an infant is near a controlled exit and invoke countermeasures.
• The system will identify the infant, the location and the time.
• Alarms must be accepted by staff using password access to the system.
• The system maintains a log of all activity.
Access Levels
The HALO™ system has three separate access levels:
• User
• Team Leader
• Supervisor
Level Password
required Functions Access Management
User Yes Admit Patients
Discharge Patients
Accept/Silence alarms
Toggle between floor plans
Access controlled by Supervisor level
users
Team Leader Yes All user functions
Temporarily Disable Patient
Access controlled by Supervisor level
users
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 4 December 2000
Revision 6.0
Supervisor Yes All team leader functions
Manage user list
Assign usernames and passwords
View and annotate activity logs
Add/Delete tags from fleet
Add alarm annotations
Initiate System Data Backups
Print logs
Exit the HALO™ system
The first Supervisor is setup by the
installing dealer. This Supervisor may
add more assigned supervisory access.
System Conventions
Each user in the system has a unique identity (username) and password. The Supervisor assigns both the
username and password. It is suggested that both be kept between 4-8 characters to provide sufficient
security and allow users to easily enter and remember their system access codes. For example: a user
named Barbara Smith would have a username such as bsmith or barbs. Note that that each user must
have a unique name.
The system prompts the user for any text entry such as usernames or infant names, etc. To move from one
field to the next, the user may press Tab key on the keyboard or place the mouse cursor over the field and
Click the left button.
System Support
For system service or support contact your installing dealer
Or contact:
EXI Wireless Systems Inc.
Suite 100-13551 Commerce Parkway
Richmond, BC V6V 2L1
Canada
Ph: 1-800-667-9689
Fax: 604-207-7760
Website: www.exi.com
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 5 December 2000
Revision 6.0
1. SYSTEM INTRODUCTION
1.1. System Components
HALO™ Software: Primary user interface that assists in the assignment and tracking of Transponders,
and displays alarms and other activities in graphical format. It also stores and al-
lows printing of all system events that have been logged.
Controllers: Controls an egress point and reports any Tag presence at the egress point to the
computer. Depending on system configuration, controllers may control door locks
and local alarms, and allow keypad input for door bypass. They may also provide a
“Nurse Saver” and “Loiter” feature. The “Nurse Saver” feature eliminates nuisance
alarms by not setting off an alarm when the presence of a Tag is detected and the
door is sensed as closed. In the event that the door is open, or is opened when the
Tag is at the egress point, the system will alarm. The “Loiter” feature sounds an
alarm if a Tag detected at a door remains at that door for a period of time, regard-
less of the fact that the door may be sensed as closed.
Controllers will also detect a “Tag off body” condition in its area, as does a Re-
ceiver.
Receivers: Detects “Tag off body” condition when a Tag is removed from a patient, and reports
this activity to the computer.
Transponders: Also referred to as “Tags”, these devices are attached to the patient. Tags initiate
two different kinds of alarm conditions as follows:
TIC - Tag-initiated-Communications:
This alarm is initiated in the event that a Tag is removed from a patient. This
occurs when the Tag can no longer sense the body of the patient.
TIF - Tag-in-field Communications:
This alarm is initiated when a Tag enters an area protected by a Controller.
The Controller’s antenna(s) emit a constant field of radio waves that is
picked up by the Tag when in the proximity of the Controller. The Tag re-
ports its presence to the Controller, and therefore the system, when it senses
this field of radio waves.
1.2. Terms used in this document
The following terms are used to help explain user functions in this document:
- Press means to press a key on the keyboard
- Click means click the left mouse button once. This term is usually used for an action button,
for example, to complete a function place the mouse pointer over the button then
click the left mouse button.
- Select means you position the mouse pointer in a data area and click the left mouse button.
This term is usually used to highlight data, for example when that data is to be changed, or de-
leted..
- Θ Names of keys are shown as the physical keys on a keyboard.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 6 December 2000
Revision 6.0
- Names of dialog boxes, screens, and field titles in forms are bolded or
shown graphically.
- Names of buttons are shown as on screen.
1.3. Computer Display Conventions
The computer displays various types of information, which is color-coded, to differentiate between the
Supervisor and User modes. In addition, the “Icons” that display the locations of the various system
components such as the Controllers and the Receivers, and the on-screen “buttons” may also change
color to indicate their status.

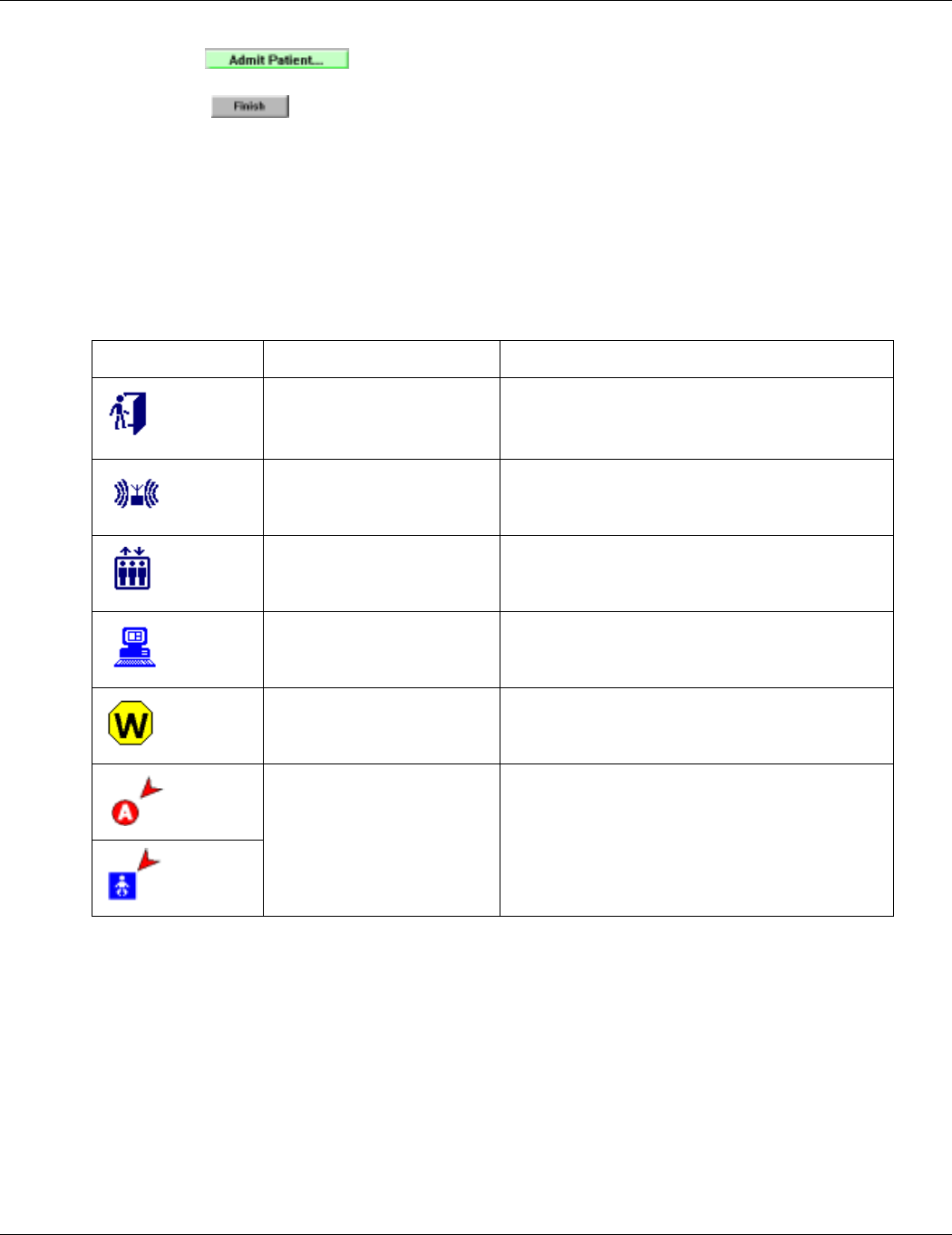

The table below shows the various icons, and alarm conditions.
Icon Name Description
Controllers The controllers are located near egress points, such
as doors. This icon will flash red if there is a
communication problem.
Receivers Receivers can be placed anywhere, and will only
detect off-body TIC alarms.
Elevators Elevators are controllers which detect TIC or TIF
alarms near an elevator.
Console The console is the computer that runs the HALO™
software.
Pre-alarm
Alarm Condition Controllers or Receivers will flash these two icons
when they receive a TIC, a TIF, or a loiter alarm.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 7 December 2000
Revision 6.0

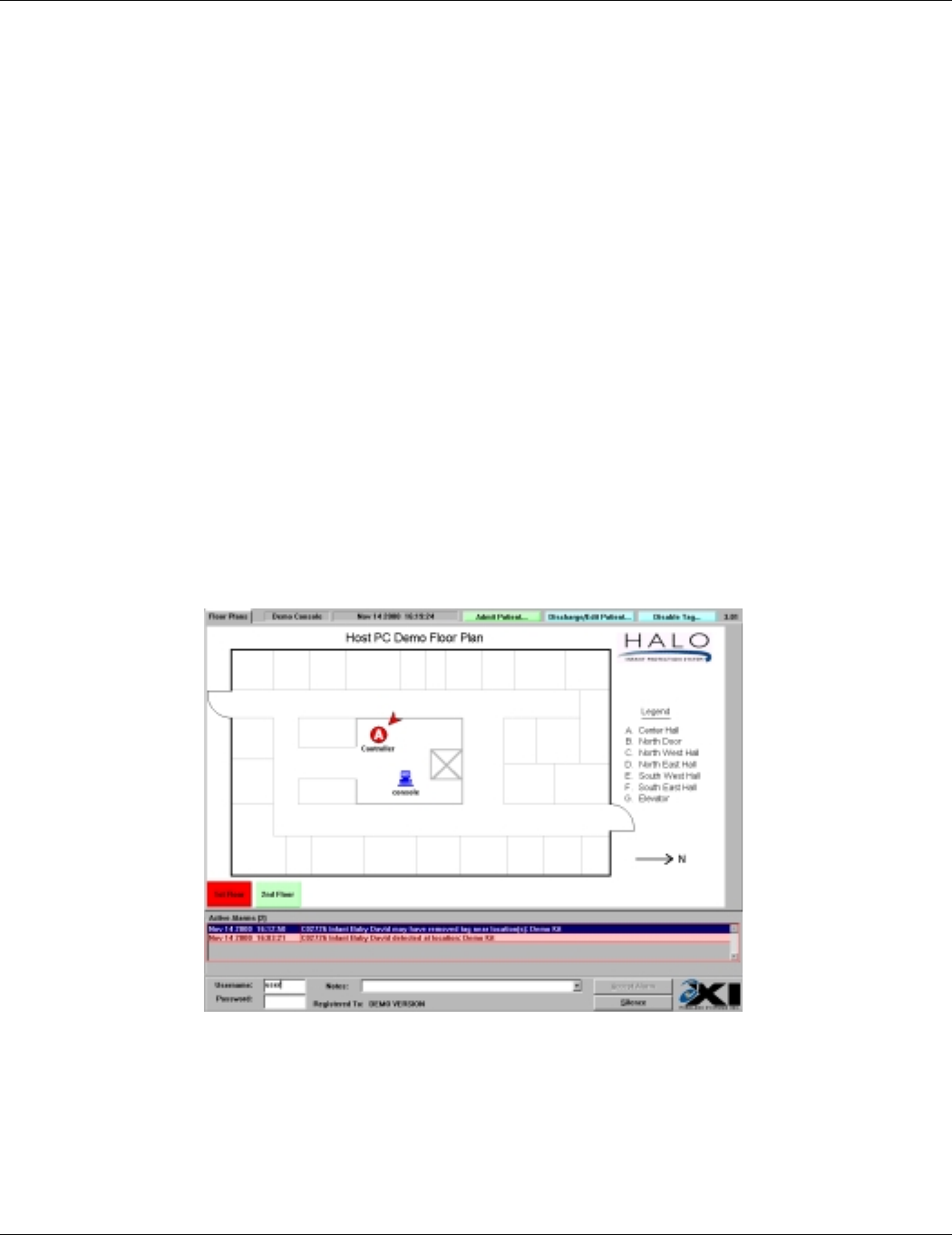

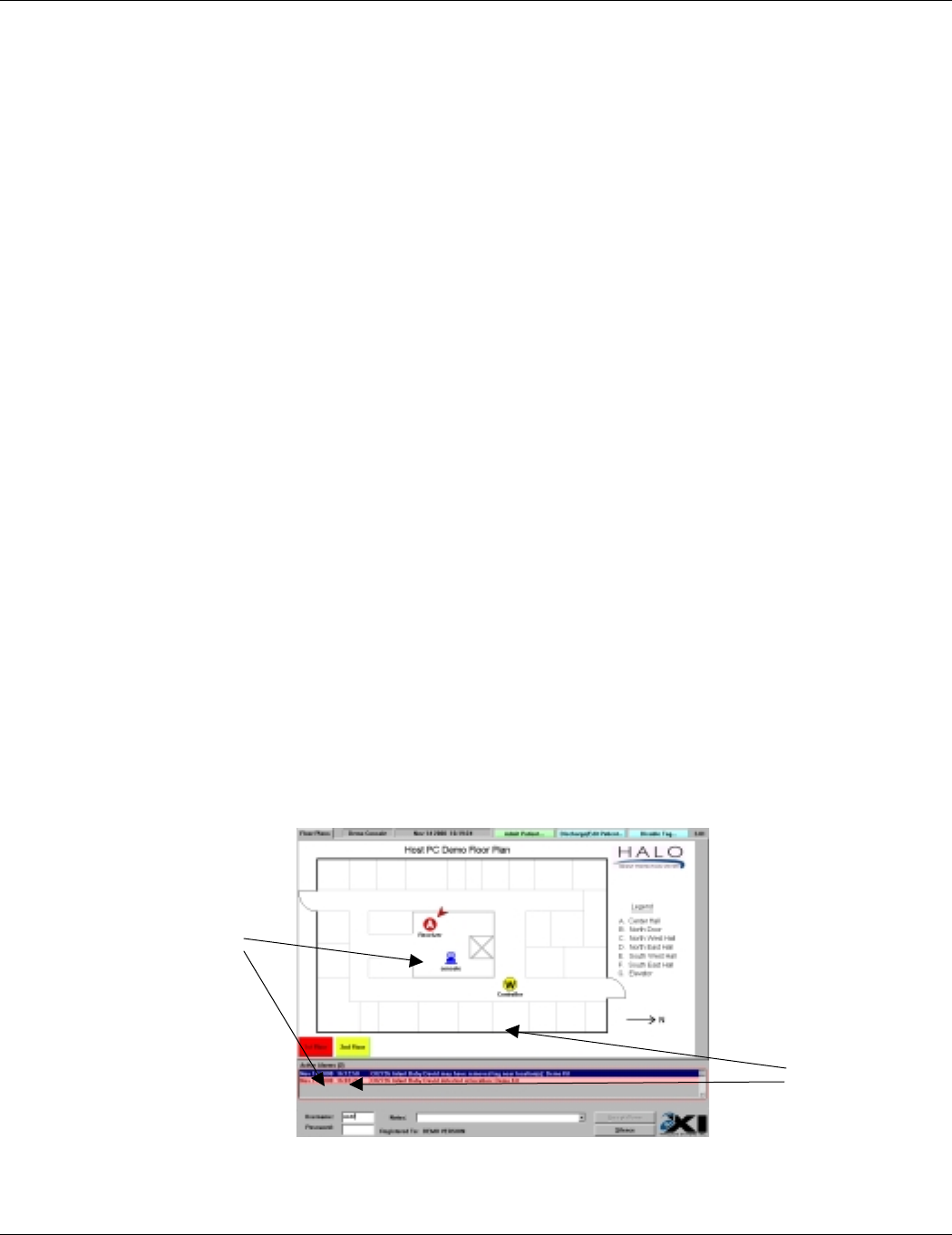

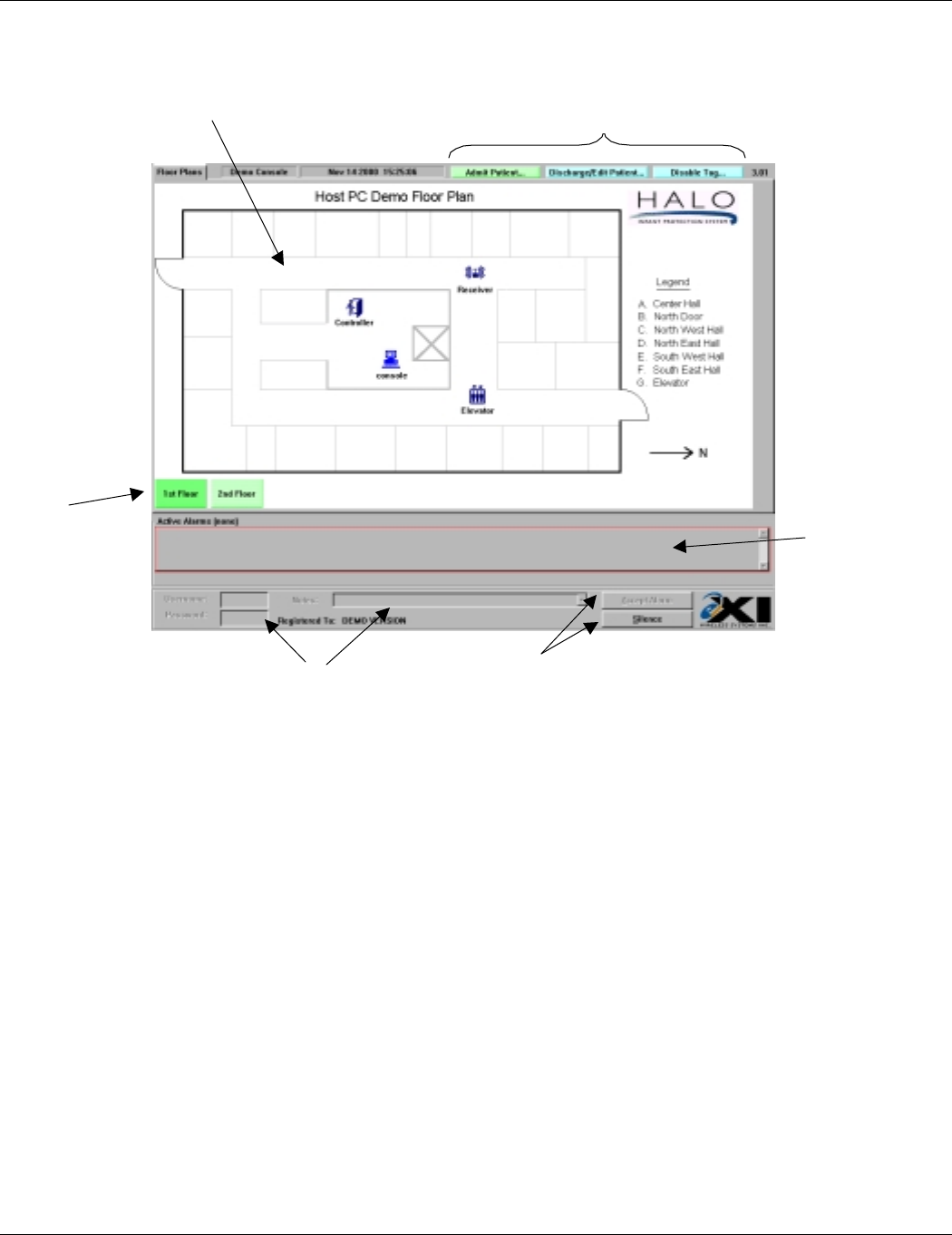

The figure below shows a typical user screen and identifies its components.
Walk around:
1. This is the floor plan area. It shows the positions of all controllers, receivers, elevators, and con-
soles that are installed in your system.
2. Floor navigation buttons. Clicking on the desired floor will cause that floor to be displayed on the
screen. The buttons will change color depending on the alarms have occurred on each floor:-
Green: Normal
Blue: Indicates that the cursor is positioned over button
Yellow: Indicates Pre-alarm condition on floor
Red: Alarm condition on this floor
3. These are the action buttons. From here you can Admit a Patient and Discharge or Edit a Patient.
Team leaders may also Disable a Tag.

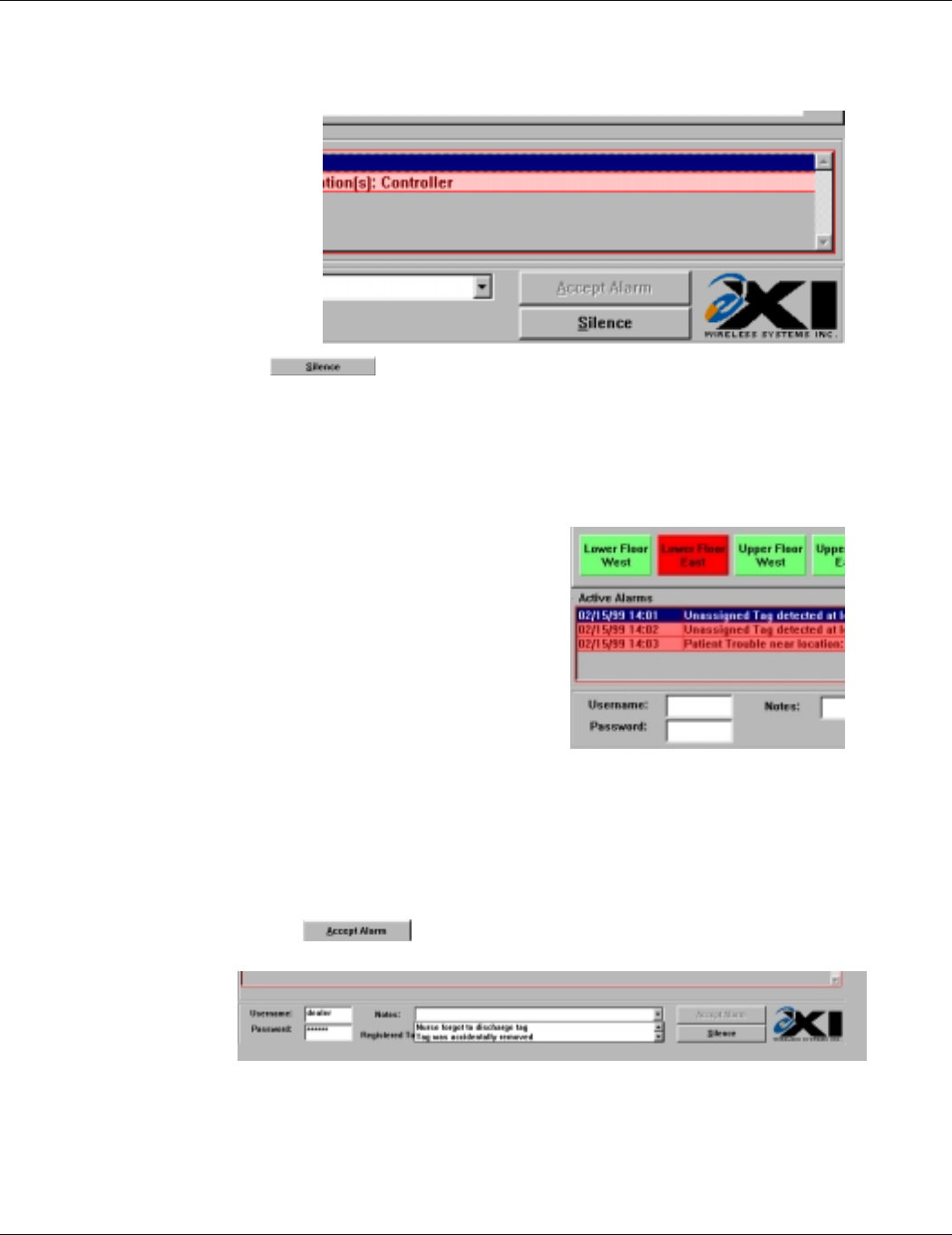

4. This is the list of Active Alarms. When an alarm occurs, the description of the alarm will be dis-
played in this window. In order to Silence or Accept the Alarm, you must point the mouse to the
line with alarm, and click the left mouse button to select. When the alarm is selected it will turn
blue.
5. Once an alarm has been selected from the Active Alarms list, the Username, Password, and Notes
fields will become active. In order to accept an alarm, these three fields must be filled in.
6. These are the Accept Alarm and Silence buttons. Once the Username, Password, and Notes fields
are filled in, the Accept Alarm button will become active. Click on the Accept Alarm button to
accept the alarm. The Silence button is always available after selecting an alarm from the list.
1
2
3
6
4
5
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 8 December 2000
Revision 6.0
2. USER LEVEL FUNCTIONS
The Halo system provides a simple, intuitive user interface. After each step, the system will automatically take
you to the next step until the task is complete.
2.1. Admitting a Patient
Select the button on the top right of the screen.
Main Screen - User Level
Enter Username and Password:
1. Type in your Username as assigned by your supervisor.
2. Press the Θ key on the keyboard
3. Type in your Password
4. Press the ≅key on the keyboard, or click on the button.
5. The Select a tag screen will appear.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 9 December 2000
Revision 6.0

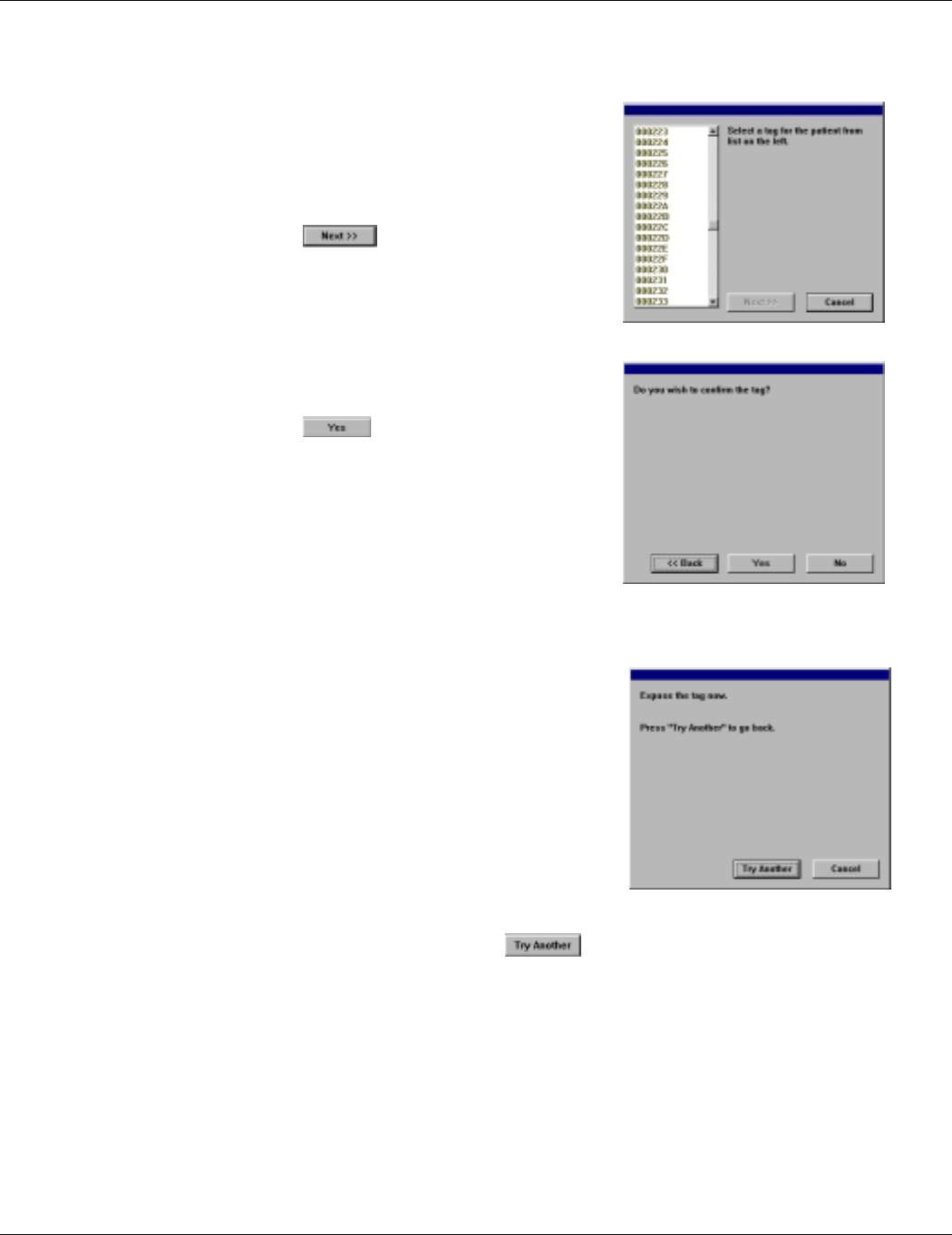

Select a Tag:
1. Select the tag number that corresponds to the serial
number on the side of the tag you wish to use. The
list contains only available tags which have been
registered in the system but not assigned to an
infant.
2. Click on to go to the Confirm Tag step
.
Confirm Tag:
1. Click on to begin a test of the tag.
• We recommend that you test each tag before use.
The system will guide you through the process
Test tag
1. Expose the tag, or trigger an off-body TIC alarm
• During this test, the system is
• verifying the tag serial number
• testing the tag removal alarm
• generating an activity log entry to document the
test.
If the test is successful, the system will take you to the next step in the admit process.
If the controller cannot detect the tag, select to go back and try another tag.
Ensure the bottom of the tag is held stable on your skin during the test for about 10 seconds prior to
removing.
If the test fails, try it once more on your wrist.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 10 December 2000
Revision 6.0

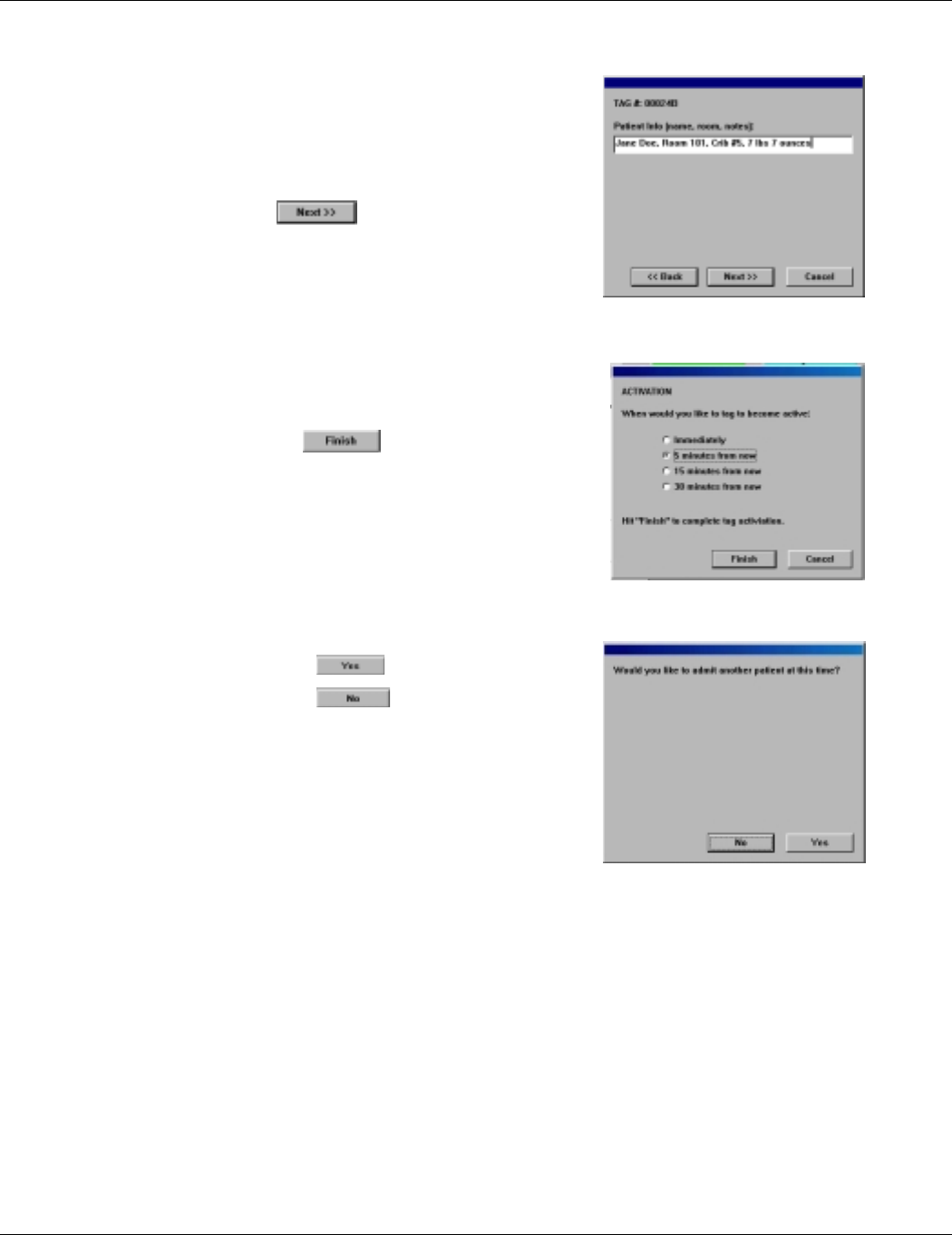

Enter Patient Information:
1. Verify that the Tag # shown matches the serial
number on the Tag you have just selected
2. Type the Patient info
3. Click when done.
Choose Activation Delay:
1. Select the required Activation delay
2. Click on to complete the admission
3. NOTE that Delays apply to sensing “off- body” or
TIC alarms only. Tag will still initiate alarms at
egress points.
1. Click on to admit another patient
2. Click on to return to the main screen
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 11 December 2000
Revision 6.0
2.2. Discharging or Editing a Patient
Select the button on the top right of the screen.
Main Screen - User Level
Enter Username and Password:
1. Type in your Username as assigned by your supervisor.
2. Press the Θ key on the keyboard
3. Type in your Password
4. Press the ≅ key on the keyboard, or click on the button.
Select Option
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 12 December 2000
Revision 6.0
1. Select the option require.
2. Click on
Select Patient:
1. Select the Patient Name/Tag that you wish to
either discharge or edit
2. Click on .
Editing a Patient’s Info:
1. Type the changes to the existing information
2. Click on
Discharging a Patient:
1. Verify the Infant Name
2. Click on to discharge the infant
3. Click on or if the infant
is not to be discharged.
4. Note: The system will continue to respond to a
tag detected at an egress point, such as a
doorway or elevator, and control that egress
point even after the tag has been discharged.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 13 December 2000
Revision 6.0

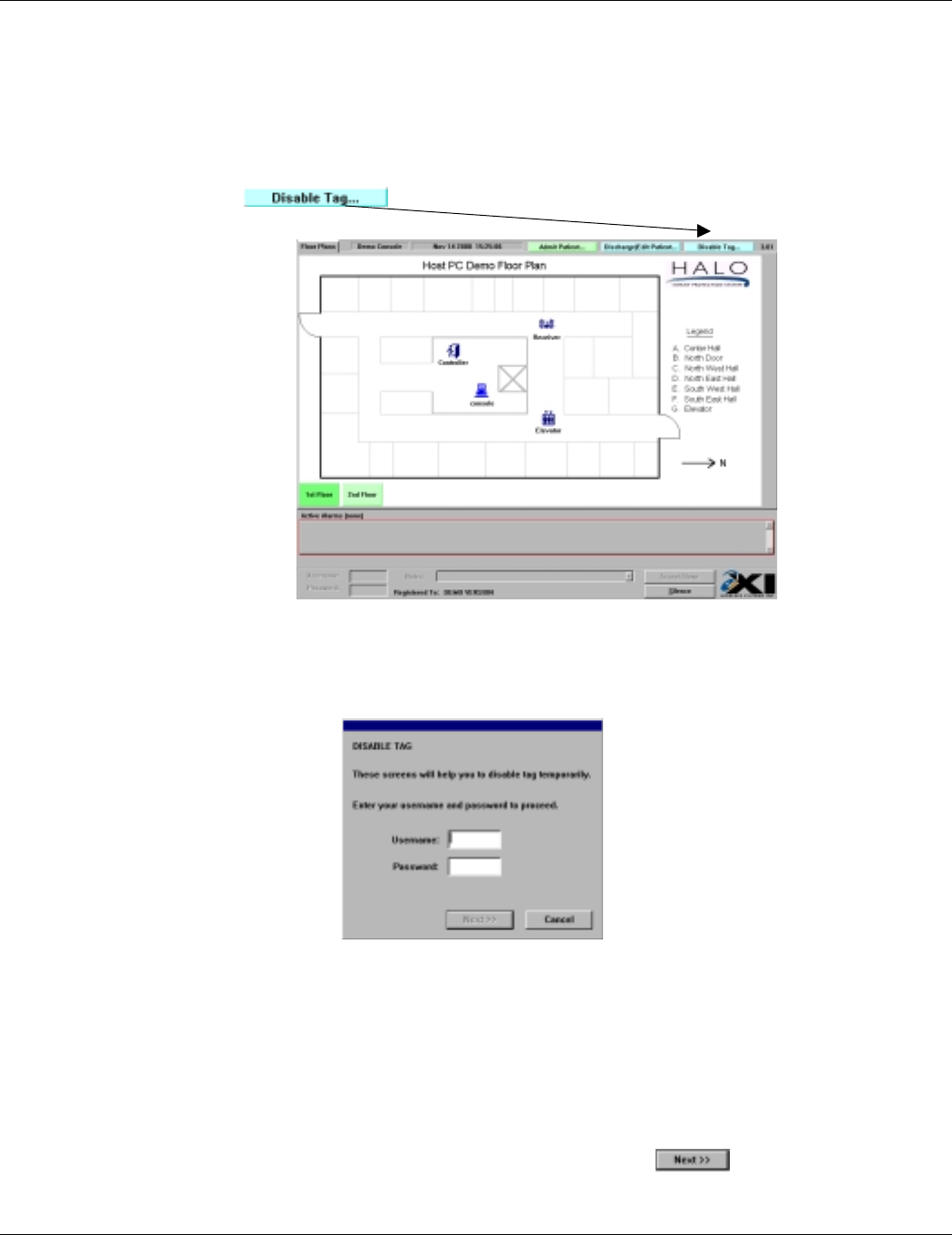

2.3. Disabling a Tag Temporarily
The newest version of the HALO™ software allows a user with Team Leader or Supervisor access to
temporarily disable a tag for a period of 5, 10 or 15 minutes.
To temporarily disable a P-Tag from the console:
Select the button on the top-right hand corner of the console.
Main Screen - User Level
Enter username and password:
1. Type in your Username as assigned by your supervisor.
2. Press the Θ key on the keyboard
3. Type in your Password
4. Press the ≅ key on the keyboard, or click on the button.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 14 December 2000
Revision 6.0
Select patient:
1. Select the patient whose tag you wish to disable
2. Click on press the button.
Choose time delay:
1. Select the length of time the tag is to be disabled for
2. Click on
• Choose the minimum time that you think is necessary
• The Disable Tag feature accessible from the Control
Panel only
• Only off-body (TIC) alarms are delayed for the
selected amount of time.
• TIF alarms, created when a tag is near an egress point can still be triggered during this pe-
riod.
Click on to disable another tag
Click on to return to the main screen
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 15 December 2000
Revision 6.0
Alarm
Acceptance
Area
2.4. Silencing and Accepting Alarms
The HALO™ system will cause an alarm when:
• An assigned infant tag has been removed from an infant (off-body or TIC).
• When an infant tag is detected near a controlled egress area (in-field or TIF).
When an alarm occurs, the Alarm Acceptance Area will appear and the system will:
• Identify the infant associated with the detected tag.
• Identify the location by flashing an icon and expressing the location name.
• Identify the alarm type as a tag removal or egress area detection.
• Sound an audible alarm at the computer.
When multiple system devices see the same tag in alarm, the system will condense them into one inci-
dent. However, each alarm must be Accepted individually.
Main Screen - User Level
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 16 December 2000
Revision 6.0
Silencing an alarm
1. Click on
• After the alarm has been investigated you must Accept it.
Accepting an alarm
• Select the alarm condition in the Active Alarms field. If only one alarm exists, it will
automatically be selected.
1. Type in your Username
2. Press the Θ key.
3. Type in your Password
4. Press the ≅ key.
5. Enter a note in the Notes field You may not proceed until a Note has been entered
• by typing from the keyboard
or

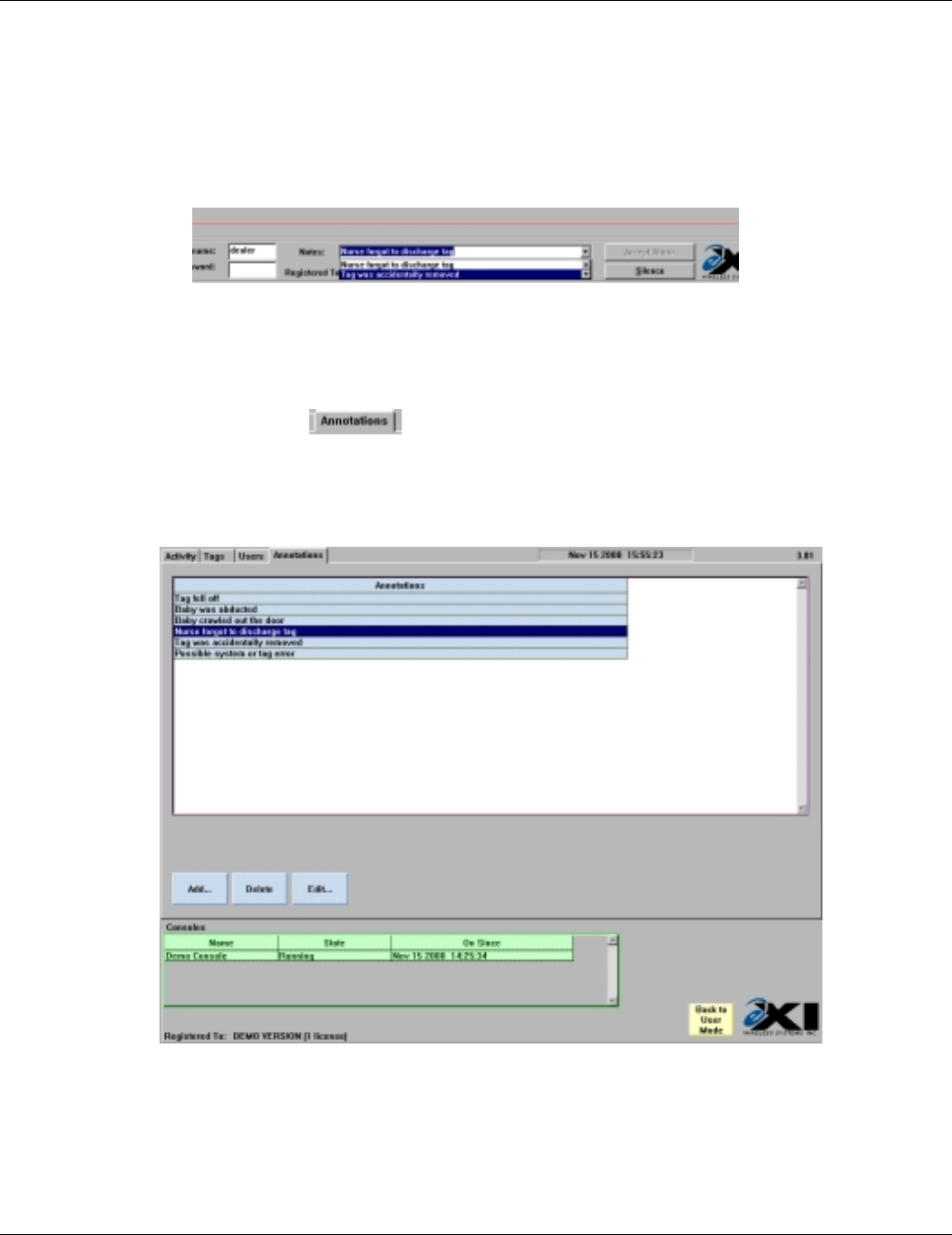

• selecting a pre-defined note from the drop down list. Use the up and down arrows to
find the note you want, and then select that note
6. Click on
The system will log the following incident details:
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 17 December 2000
Revision 6.0
• Alarm type (tag removal or egress alarm)
• Infant name
• Tag number
• Time
• ID of staff member accepting the alarm
• Staff member notes on alarm incident
2.5. “Nurse Saver” and “Loitering” Features
• If the system is installed with the “Nurse Saver” feature, Tags detected at egress points that
are secured will not set off nuisance alarms.
• A Tag detected near a door that is closed will result in the appropriate floor button on the
computer screen turning yellow (pre-alarm), and the icon associated with that door also
turning yellow.
• If a bypass keypad is installed at the door, it will flash a light and emit periodic “beeps” to
indicate the presence of the Tag. This event is logged into the computer as “Tag detected
at location xxx”, but will not create an alarm condition.
• If the door is opened while the Tag is still near the door an alarm will be initiated. This
feature can only operate if the door is equipped with a magnetic switch to sense whether it
is open or closed.
• If the tag remains near the door for a period of one minute or more, an egress alarm will be
initiated and the button and the icon on the screen will both turn to red. This is the “Loi-
tering” feature.
Pre-Alarm
(Yellow)
Alarm (Red)
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 18 December 2000
Revision 6.0
2.6. Improperly Stored Tags
• When a tag generates 20 or more off-body (TIC) alarms in a 24-hour period this usually means that the
tag is improperly stored.
• When this occurs, a warning message will be displayed on the screen.
1. Note the Tag number
2. Follow the Instructions in the Warning Message
3. When you have read the message, click the button.
• It is recommended that you attempt to locate the tag after the above message is given.
• Improperly storing a tag will void the tag warranty
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 19 December 2000
Revision 6.0
Supervisor Tabs
3. SUPERVISOR LEVEL FUNCTIONS
3.1. Accessing Supervisor Level
1. Hold the Ξ down, and press the Θ key.
2. Enter your Username
3. Press the Θ key on the keyboard
4. Enter your Password
5. Click on the Supervisor screen will appear - as shown below.
Supervisor’s Screen
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 20 December 2000
Revision 6.0
Supervisor mode has four different functions, each of which can be accessed from one of the four super-
visor tabs shown in the figure above. There are:
• Activity
• Tags
• Users
• Annotations
Supervisor Level Functions
Supervisor tab Access Functions
Activity Supervisor only View activity logs
Annotate activity logs

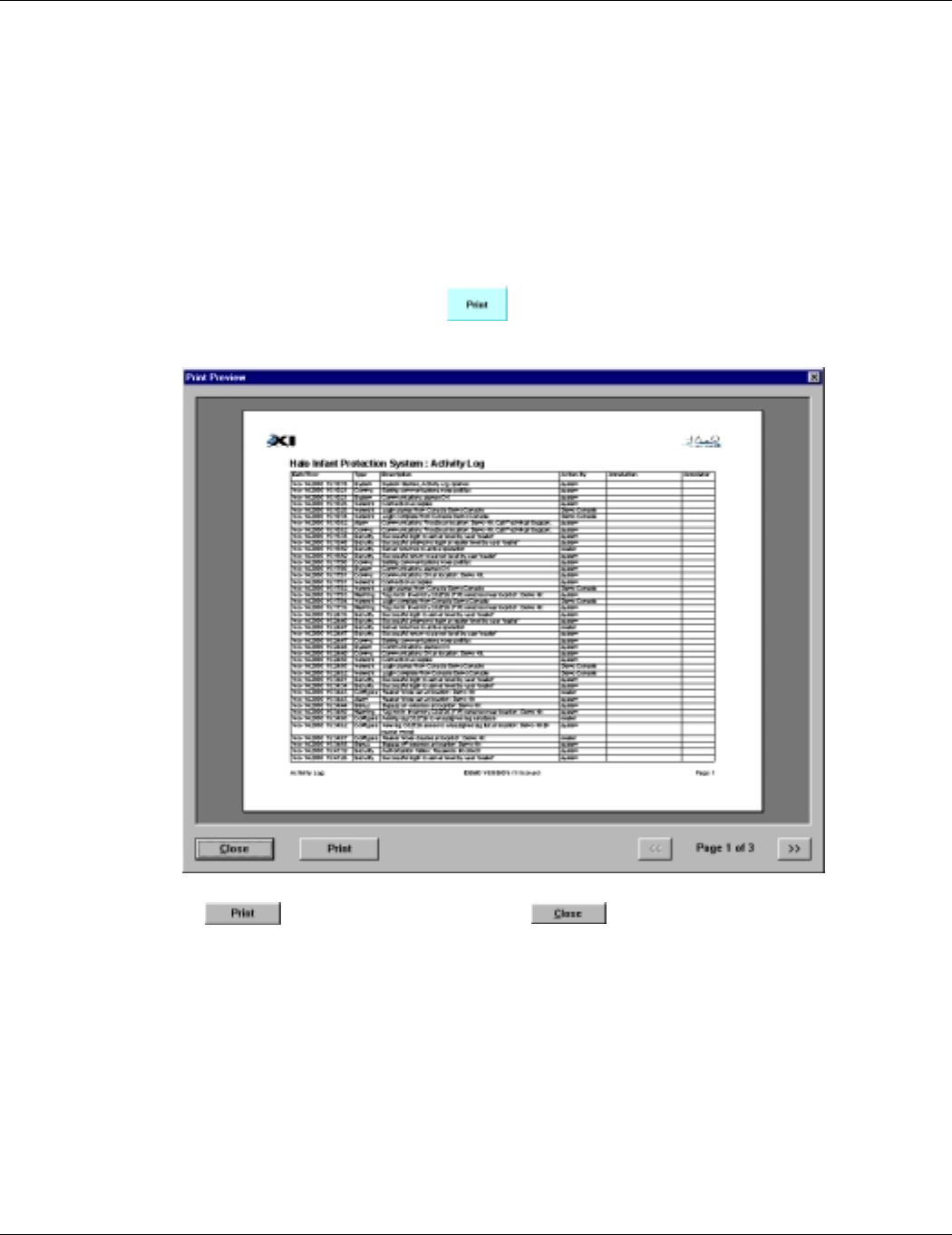

Print logs

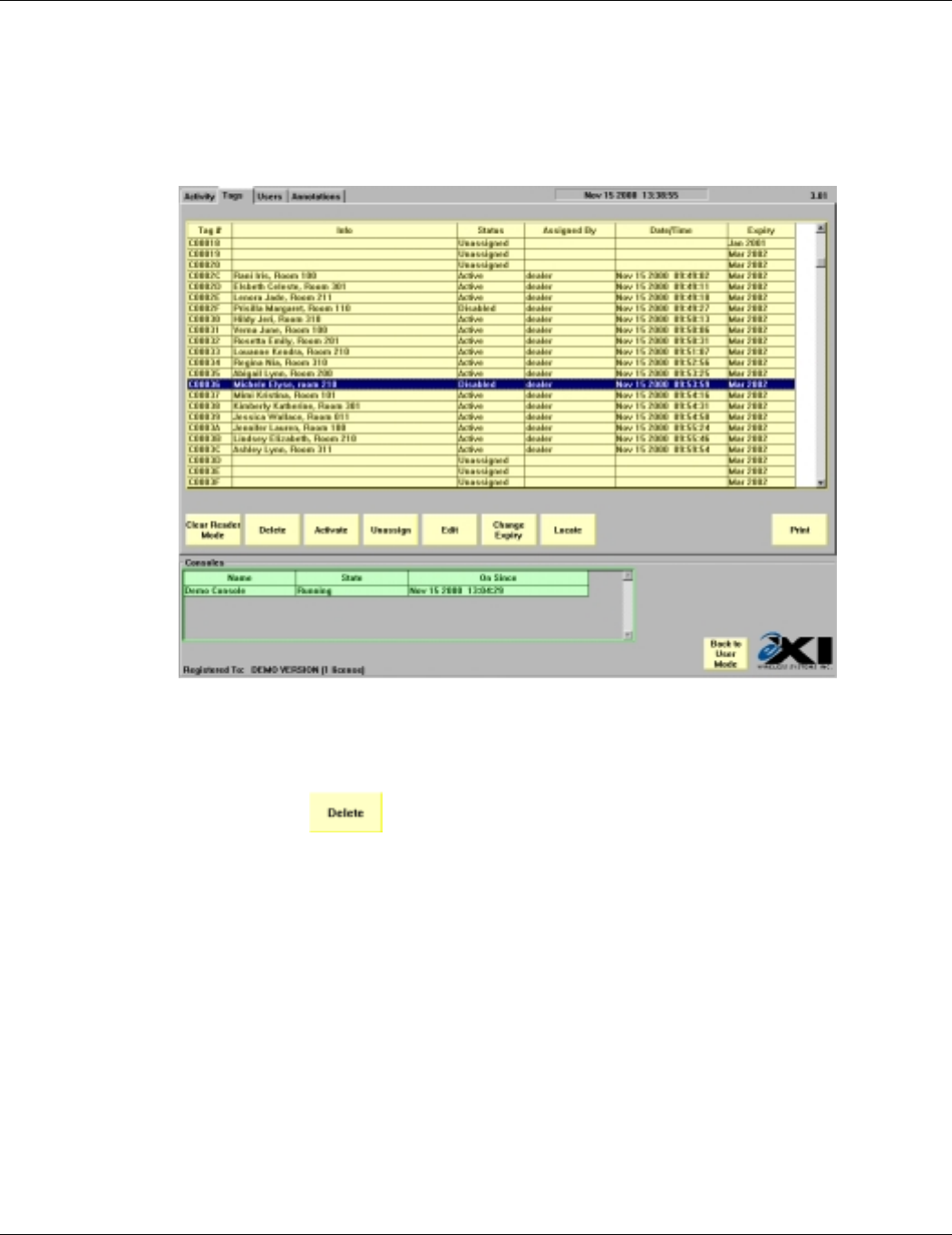

Tags Supervisor only Add or delete tags
View registered tag list
Disable a tag
Unassign a tag
Edit patient information for tag
View current infant population
Change expiry date of tags
Locate a tag
Print list of tags

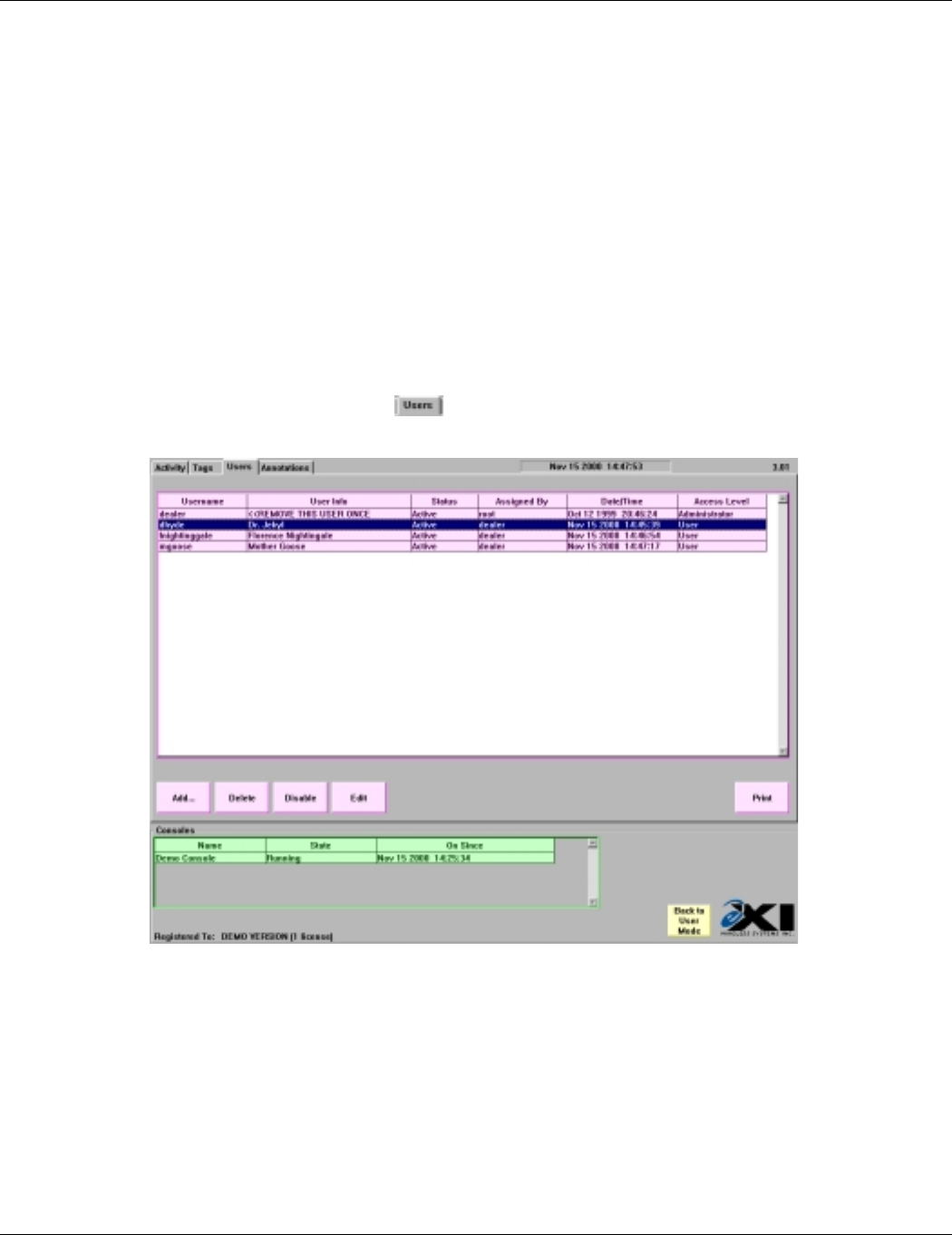

Users Supervisor only Add or delete a user
Disable or Activate a user
Change user passwords

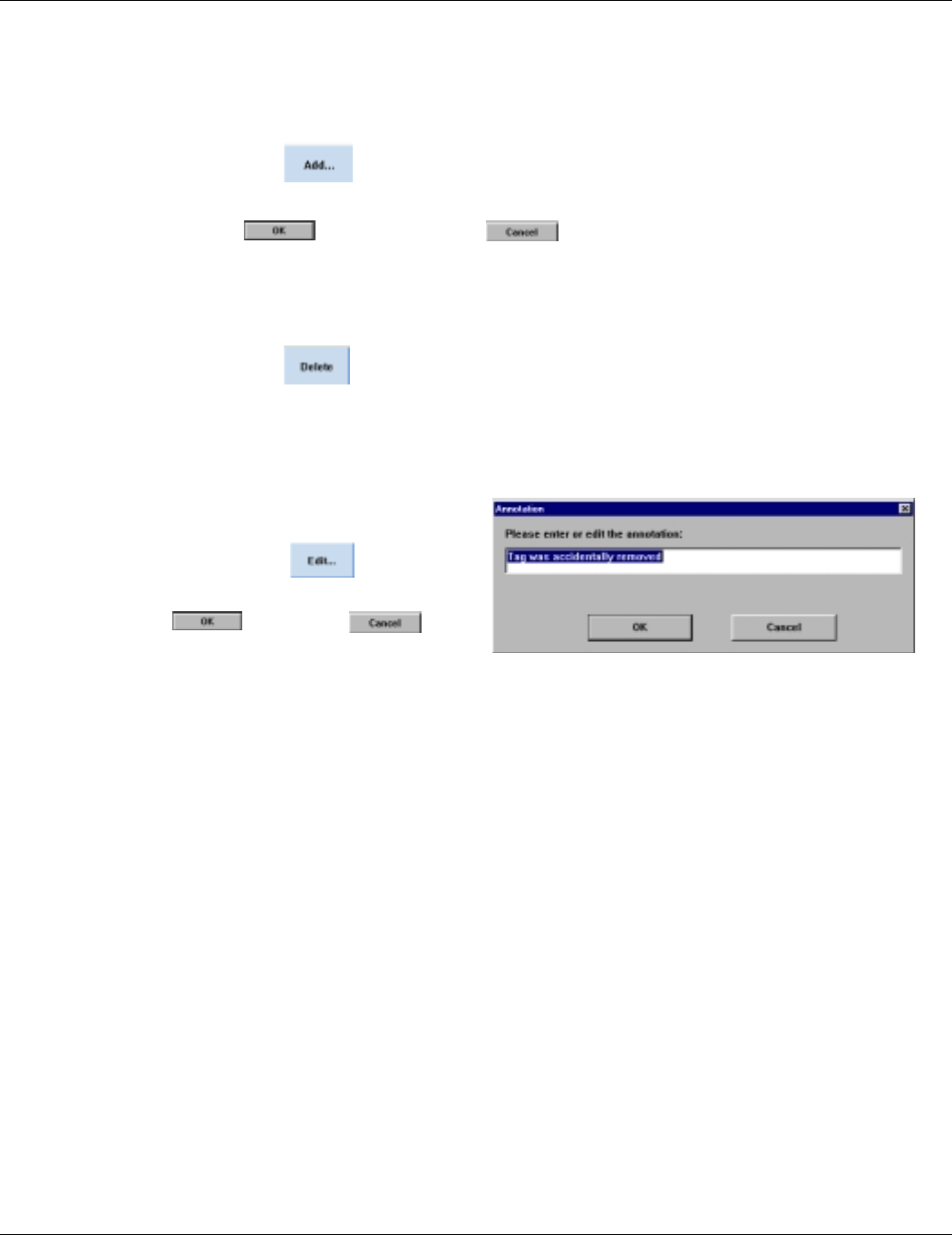

Annotations Supervisor only Add or delete alarm annotations
Edit an annotation
3.2. Exiting Supervisor Level
Click on the button at the bottom of the screen.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 21 December 2000
Revision 6.0
4. ACTIVITY LOG MANAGEMENT
4.1. Activity Logs
The system gives supervisors the ability to search the historical activity log. The system will record:
• Patient admission and discharge
• Alarm events including acceptance parameters
• System diagnostics
• Entry and Deletion of new tags and users
• Warning of unassigned tags or tags not in the database
• Door bypass activity

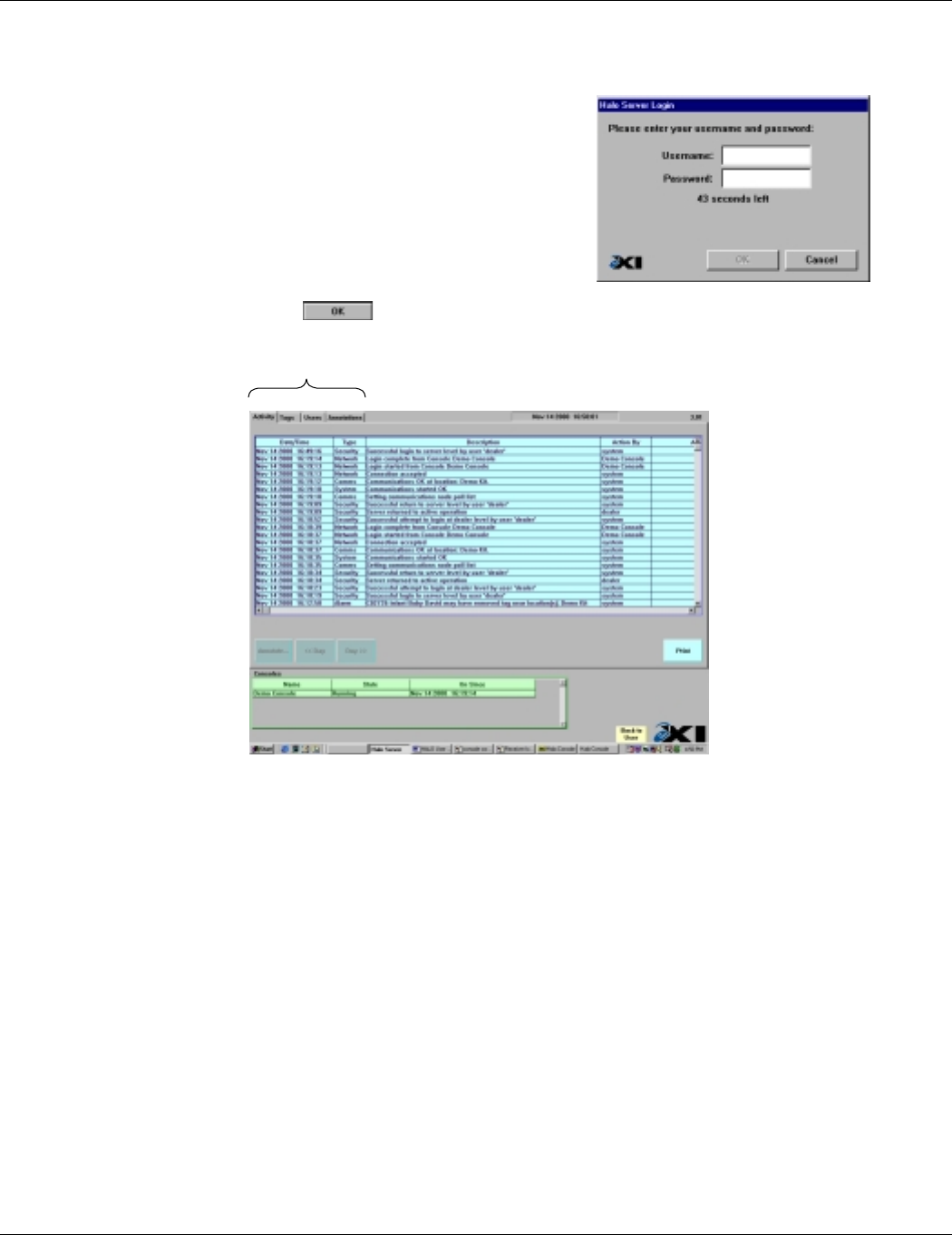

From the Supervisor Screen
Click on the Supervisor function tab
Activity Screen - Supervisor Level
The activity log screen will display:
• The time and day of activity
• The type of activity
• Description of the activity
• The user name associated with the activity
• The user notes.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 22 December 2000
Revision 6.0
4.2. Navigating the activity log
To look at an activity event on a specific day find the day using the “Day” buttons.
To step one day back, click on
To step one day forward, click on
The date you are viewing will appear in the leftmost column.
4.3. Adding a Supervisor annotation to an alarm
1. Select the particular alarm you wish to annotate.
2. .Click on the Supervisor tab labeled
3. Enter the note
4. Select to accept, or to
cancel
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 23 December 2000
Revision 6.0
4.4. Backing up Activity Logs
For security and audit purpose we recommend that you copy the Activity Logs on a regular basis. The
system is capable of storing 14,000 events in the Activity Logs. After the 14,000 events are captured,
subsequent events displace the first log in the list. That is, events are purged on a first-in first-out basis
after the 14,000 limit is reached.
Remember that all system activities, including alarm conditions, pre-alarm conditions, door access and
bypass activities are logged.
To make a copy, or back-up, file of an Activity Log on the computer Hard Drive
1. you must be in Supervisor mode — see section 3.
2. Simultaneously press the Ξ and β keys on the Keyboard.
3. A window will appear, asking you to specify the filename and directory for the backup file
storage. This window contains the default directory “Backup” and the default file name of
the year, month, date, hour, minutes, and seconds when the backup was initiated. You can
type in your own file name, or use the default. Click on the button to save the
backup file to the hard drive, or press to cancel the backup operation.
4. To access the back-up file look in the HALO™ directory using Windows Explorer
To make copies of these files for archiving, you will need to exit the HALO™ Console application and
manually copy the back-up file to the removable back-up media (such as a ZIP Disk) using the Windows
Explorer program.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 24 December 2000
Revision 6.0
5. MANAGING TAGS
5.1. Tags
Your system requires each infant to wear a P-Tag. You should have a fleet of tags on hand that exceeds
your peak demand. Each tag has a unique serial number that is on the side of the tag.
The tag management tab allows a Supervisor to:
• Add new tags to the system.
• Delete tags from the system.
• View the existing tag fleet and edit the properties of each.
• Disable or Unassign a tag.
• Edit patient information for an assigned tag.
• Print the list of tags in the fleet.
• Change a tag’s expiry date.
• Locate a tag.
• Print the tag listing.
To manage tags, you must be in the Supervisor mode – see Section 3.
• Click on the Supervisor tab labeled
Tags Management Screen - Supervisor Level
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 25 December 2000
Revision 6.0
5.2. Adding a new P-Tag to the system
To add a new P-Tag to the system, you must be at the Tags Management Screen
P-Tags may be added to the system manually from the console, or by using the HALO™ network to read
them.
When a number of Tags are to be added we suggest that you use the HALO™ network
To add manually:
1. Click on on Tag Management Screen
2. Click on
3. Enter the serial number in the Tag ID (Start) field.
4. If you wish to enter a Range of tags, click the
button, if not skip to step 6.
5. Enter the Starting ID and the End ID.
6. Enter the tag Expiry Date either by keying
the month and year or selecting from the
menus using the drop-down arrows.
7. Select
To use the HALO™ network to read the tags in:
1. Select
2. Select the device you wish to use to
read the tags
3. Click on
• The device will be Reader Mode
• Note – a device in Reader Mode is
not available for normal alarms
4. Enter the tag expiry date either by
keying the month and year or selecting from the
menus using the drop-down arrows.
5. Wave the tag in the air ensuring you are not
contacting the bottom of the tag. The HALO™
software will read the tag in to the system
automatically.
6. Exit Reader Mode by clicking on the button.
• It is important to Clear Reader Mode to ensure that the device comes back on line and is ready
to report alarms.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 26 December 2000
Revision 6.0
5.3. Deleting a P-Tag from the system
To delete a P-Tag, you must be at the Tags Management Screen
Tags Management Screen - Supervisor Level
To delete a tag:
1. Select the tag to be deleted
2. Click on button.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 27 December 2000
Revision 6.0
5.4. Disabling a P-Tag
• Disabling a tag can now be done from the console screen or from the supervisor level.
• Tag disabling allows for removal of the tag from the infant without triggering an alarm. The infant is
not discharged from the system.
• Once you have disabled the tag you are responsible to enable it again or remove the infant from the
system.
• This event is captured in the Activity log.
To disable a P-Tag
1. Select the tag to be disabled
2. Click on
5.5. Unassigning a P-Tag
• P-Tags can only be unassigned from the Tags Management Screen
• The patient’s name will be removed from the system when the tag is unassigned.
To unassign a tag:
1. Select the tag to unassign
2. Click on
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 28 December 2000
Revision 6.0
5.6. Editing a P-Tag Record
• P-Tags can only be edited from the Tags Management Screen in Supervisor level.
• Only P-Tags assigned to a patient may be edited.
• The edit function allows a Supervisor to edit the Tag info associated with the tag serial number
To edit a P-Tag record
1. Select the tag to be edited
2. Click on
3. Enter the required details in the Tag info
field
4. Click on to accept changes,
or to undo changes.
5.7. Changing a Tag’s Expiry Date
• P-Tags Expiry dates can only be changed from the Tags Management Screen
• This feature should be used with extreme caution
• The tag’s expiry date is an important safety feature, which is meant to prevent tags which have
old batteries from being used in the field.
To change a tag’s expiry date
1. Select the tag on the Tags Management Screen
2. Click on.
3. Enter the tag Expiry Date either by keying the
month and year or selecting from the menus us-
ing the drop-down arrows.
4. Click on to accept change,
to abandon change.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 29 December 2000
Revision 6.0
5.8. Locate a Tag
! This feature allows you to see the last ten detections of a certain tag.
! If an infant has been abducted, this is an easy way to determine the route that the sus-
pected kidnapper may have taken.
To locate a tag:
1. Select the tag by highlighting the appropriate line on the Tags Management Screen.
2. Click on
• A screen will appear showing the last ten detections for the selected tag.
3. Click on when you are finished viewing.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 30 December 2000
Revision 6.0
6. MANAGING SYSTEM USERS
• Only supervisors can give a user access to the system, and assign their level of access.
A supervisor can assign, delete, and edit another supervisor’s access level.
• Every system user requires a username and password, and these can only be assigned
and entered into the system by a supervisor.
• The installer/administrator will assign access to the first supervisor. The default ad-
ministrator user name is “dealer” and password is “dealer”.
• After assigning access it is important that the first administrator change the default
password
To access the User Management Screen
• Click on the tab on the Supervisor’s Screen
User Management Screen - Supervisor Level
The user management screen displays:
• The current authorized users
• The usernames
• Status (Active or Disabled)
• The identity of the Supervisor assigning the user
• The last date of user file edit or entry
• The access level of the user
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 31 December 2000
Revision 6.0
6.1. Adding a new user to the system
• New users can only be added from the User Management Screen
1. Click on
2. Enter the Username followed by the Θ key
3. Enter the Password followed by the Θ key
4. Enter the Real Name.
5. Select an Access Level
6. Choose the user’s Access Level
• User level gives access to the console to accept
alarms, silence alarms, admit and discharge
patients.
• Team Leader level gives access to the User
functions plus the Disable Tag feature.
• Supervisor level gives access to all functions as
described in Section 3.1.
7. Click on
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 32 December 2000
Revision 6.0
6.2. Deleting a user from the system
• Users can only be deleted from the User Management Screen
1. Select the user you wish to delete
2. Check that you have selected the required user — this step cannot be undone.
3. Click on
6.3. Disabling / Enabling a system user
• This function allows a supervisor to temporarily disable the access of a particular user;
and re-enable them later.
• This may be useful when a nurse is away for a short period but is expected to return.
• Instead of deleting and re-entering all of the nurses’ information, the user’s data remains in
the system when the user is Disabled and is quickly restored with the Enable function.
• Users can only be Disabled / Enabled from the User Management Screen.
1. Select the user you wish to Disable / Enable
2. Click on the Disable button or the Enable button as required. The user’s status field will
read Disabled or Enabled as appropriate
6.4. Editing a system user’s access level
• A supervisor may change a user’s password, “real name”, and access.
• The system user name may not be changed — the user name must be Deleted and the new
one Added.
• User details can only be Edited from the User Management Screen.
1. Select the user you wish to edit
2. Click on
3. Enter the changes
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 33 December 2000
Revision 6.0
7. PRINTING LOGS
You can print the following logs:-
• activity log
• tag listing
• user listing.
To initiate printing, click on the button. A preview of the printout will appear as
shown below.
Click on to proceed with printing, or on to cancel.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 34 December 2000
Revision 6.0
8. MANAGING ALARM ANNOTATIONS
• When a user Accepts an alarm (see Section 2.4) they have the option either to enter a Note
or to select a Note from a menu which a supervisor has created. The Notes are entered in
the Alarm Acceptance Area of the screen.
• Supervisors may add a new note, or change an existing note in the Notes list
• Click the tab on the Supervisor Screen
• You will see the list of Notes already available to users when Accepting an Alarm
Annotation Management Screen – Supervisor Level
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 35 December 2000
Revision 6.0
8.1. Adding an Annotation
1. Click on
2. Type in your annotation in the window that appears
3. Click to accept changes or to cancel .
8.2. Deleting an Annotation
1. Select the Annotation you want to delete
2. Click on
• The annotation will be deleted.
8.3. Editing an Annotation
1. Select the Annotation you want to
change
2. Click on
3. Edit the Annotation and select
to accept or to
undo changes.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 36 December 2000
Revision 6.0
9. SHUTTING DOWN AND RESTARTING THE SYSTEM
9.1. Shutting down
• The system can only be shut down from the Supervisor Level.
• We recommended that the system is shut down only for servicing because once it is shut
down events will not be logged.
• Door units will remain active and the exit doors will be locked if your system is designed
to do so.
• To shut down the system:
1. Press the Ξ and θ keys on the keyboard simultaneously.
9.2. Restarting the system — if this is required more than once a week, contact your dealer
To restart the system either
1. Turn off the computer, then turn it on again. (HALO™ will automatically launch).

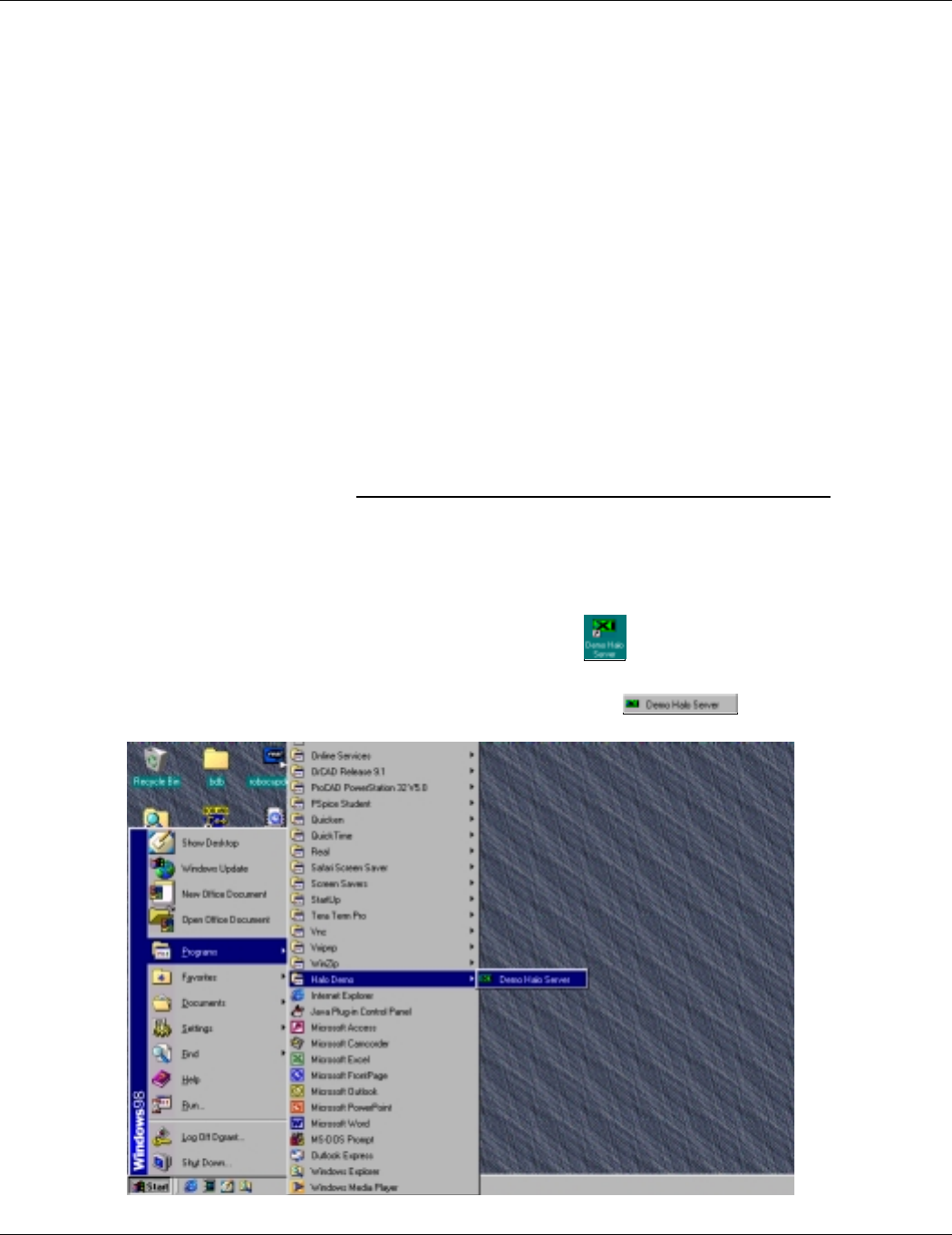

2. From the Windows 98 desktop, either
1. double-click on the “Halo Console” icon
or
2. select Start Menu, Programs, Halo, and click on
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 37 December 2000
Revision 6.0
APPENDIX A - LIMITED WARRANTY
1. Warranty: Subject to the limiting conditions set forth below, EXI Wireless Systems Inc. (“EXI”) hereby warrants that: (a) each prod-
uct, other than transponders (the “Transponders”), accompanying this warranty (the “Product”), will be free of defects in materials and
workmanship for a period (the “Product Warranty Period”) of two years after the date of the original sale by EXI of the Product; and (b)
each Transponder accompanying this warranty will be free of defects and workmanship for a period (the “Transponder Warranty Pe-
riod”) of, in the case of a WTX-INF/WS Transponder, four years, and in the case of all other Transponders, three years, after the date of
the original sale by EXI of the Transponder.
2. Notification: If the original or any subsequent purchaser (collectively, the “Purchaser”) of the Product or Transponder, as the case
may be, discovers a defect in materials or workmanship of a Product within the Product Warranty Period, or a Transponder within the
applicable Transponder Warranty Period, the Purchaser must, within 30 days after the date of such discovery, notify EXI of such defect,
and at EXI’s request, return the defective Product or Transponder, as case the may be, to EXI.
3. Repair or Replacement: Subject to §4, upon acceptance by EXI of responsibility for the defect, EXI will, in its sole discretion, (a)
in the case of a Product, either replace the Product, or provide the Purchaser with replacement parts for, or repair, the same; and (b) in
the case of a Transponder, replace the Transponder at a discounted price equal to the product of: (i) the nearest whole number of months
remaining in the applicable Transponder Warranty Period; and (ii) the amount of the then monthly credit available from EXI for the appli-
cable Transponder. EXI’s warranty in respect of any replacement Product, part thereof, or Transponder, as the case may be, will be for
the unexpired portion of the original warranty period applicable to the relevant Product or Transponder.
4. Exclusion: The warranty referred to in §1 is the sole warranty made by EXI with respect to its Products and Transponders. EXI
makes no other warranty or representation, express or implied, and hereby disclaims any implied warranty of merchantability or fitness for
a particular purpose, statutory or otherwise, concerning its Products and Transponders. In addition, the warranty will not apply if EXI has
not received a fully completed warranty registration card in respect of the Product or Transponder, as the case may be, within 30 days
after the date of the original purchase from EXI of the same, or the Product or Transponder, as the case may be, or any part thereof: (a) is
damaged by misuse, accident, negligence, lightning, power surge, brown-out, or leaking, damaged or inoperative batteries, or failure to
maintain the Product or Transponder as specified or required by EXI; (b) is damaged by modifications, alterations or attachments thereto
which are not authorized by EXI; (c) is installed, operated or repaired contrary to the instructions of EXI; (d) is opened, modified or dis-
assembled in any way without EXI’s consent; or (d) is used in combination with items, articles or materials not authorized by EXI.
5. Limitation: EXI will only be liable to the Purchaser for direct damages suffered by the Purchaser up to a maximum amount equal to
the total amount of the purchase price actually paid by the Purchaser to EXI for the Product or Transponder, as the case may be. Spe-
cifically, EXI will not be liable for: (a) any special, indirect or consequential damage, including lost profits, lost revenues, failure to realize
expected savings, or other commercial or economic losses of any kind, even if EXI has been advised of the possibility of such damage;
(b) any loss or damage to any property or for any personal injury or economic loss or damage caused by the connection of the Product or
Transponder, as applicable, to other devices or systems; (c) any damage or injury arising from or as a result of, misuse, abuse or incorrect
installation, integration or operation of the Product or Transponder, as applicable, by persons not authorized by EXI; or (d) any defect in
any batteries added to or used in conjunction with the Product or Transponder.
6. Product Limitation: The Purchaser (a) acknowledges that (i) the Products and the Transponders are not, nor can they be, guaran-
teed to prevent wandering patients, infant abductions, theft or any other event for which they were purchased, (ii) the Products and
Transponders are only intended to provide additional safeguards to assist in the prevention of events such as those described in §(i), and
(b) understands fully the foregoing limitations concerning the Products and Transponders, including EXI’s limitation on liability described in
§5, and agrees to warn, and obtain acknowledgements from, all users thereof of the same.
7. No Additional Warranties: The terms and conditions herein contain all the warranties and representations concerning EXI’s Prod-
ucts and Transponders and supersede all previous negotiations, understandings, communications, representations, warranties and
agreements, whether verbal or written, concerning the Products and Transponders.
8. Deemed Acceptance: The installation or use of the Product or Transponder by or at the direction of the Purchaser will be deemed as
an acceptance by the Purchaser of the terms hereof.
9. Governing Law: The warranty herein will be governed by the domestic laws of the Province of British Columbia, Canada and the
Purchaser hereby attorns to the exclusive jurisdiction of the laws of British Columbia. The provisions of the United Nations Convention
on Contracts for the International Sale of Goods is hereby excluded.
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 38 December 2000
Revision 6.0
APPENDIX B - FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference re-
ceived, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
EXI Wireless Systems Model No.: Patient Tag
CANADA: 287710217261A FCC ID: HE7 PTG
* This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two rules: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.Made in Canada
EXI Wireless Systems Model No.: Halo Infant/ECO tag
CANADA: 28771031940 FCC ID: HE7 ETG
* This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two rules: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.Made in Canada
EXI Wireless Systems Model No.: Halo Asset tag
CANADA: 28771032080 FCC ID: HE7 ATG
* This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two rules: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.Made in Canada
EXI HALO User Manual 980-000002-000
EXI Wireless Systems Inc. 39 December 2000
Revision 6.0
APPENDIX C - SYSTEM MAINTENANCE
HALO™ is designed to assist staff in providing a higher degree of safety for patients. It is not intended as
the sole means of protection in preventing a wanderer or infant from leaving the premises. Regular checks to
verify that your HALO™ system is operational are highly recommended.
SYSTEM MAINTENANCE SHOULD INCLUDE THE FOLLOWING STEPS:
• All Tags should be checked for physical damage after each cleaning, disinfecting or steriliza-
tion procedure.
• Each Tag should be tested for correct operation before being attached to an infant. The
HALO™ software prompts for testing of Tags prior to their deployment. Please refer to the
appropriate section in this manual for the instructions.
• The warranty on Tags is 2 years, and the batteries within the Tags are expected to last in ex-
cess of the warranty period, depending on the usage pattern. Do not leave Tags in the
detection field for long periods of time, and store them in the foil bags supplied. Failure to
do so will result in false alarms, and will reduce battery life.
• Set up a regular system check schedule to verify that the Controllers, Receivers and Tags are
operational. Controllers should have the “Ready” light illuminated to show that they are
powered. Check the operation of the Controller daily by starting a bypass or triggering an
alarm using a Tag to ensure that it is fully operational and protecting the egress point where it
is located.
• Check each Receiver on a regular basis to ensure that it can receive signals from Tags in the
“Off Body” condition. Failure to regularly check for this operation may lead to failure to de-
tect a Tag that is removed from an infant, and therefore compromising protection for the
infant.
• Whenever you see a known wandering patient, look for the Tag on their person to verify they
are still wearing it. This may require special knowledge as to the placement of the Tag.
• Conduct frequent back-ups of Activity Logs for future reference.
