Xplore Technologies of America IWM3945ABG Motion Computing Tablet PC LE1700 (Model T006) User Manual LE 1700 User Guide
Xplore Technologies Corp of America Motion Computing Tablet PC LE1700 (Model T006) LE 1700 User Guide
User Manual
Motion™ LE1700 Tablet PC
User’s Guide
Windows XP Tablet PC Edition 2005
DRAFT
© 2006 Motion Computing, Inc. All rights reserved.
This document contains information protected by
copyright. No part of this document may be
reproduced in any form without written consent from
Motion.
The information in this document is provided “as is”
and is subject to change without notice. Motion is not
liable for errors or omissions in this document.
Motion, Motion Computing, Speak Anywhere, and
View Anywhere are trademarks or registered
trademarks of Motion Computing, Inc. in the U.S.A.
and other countries.
Acrobat is a registered trademark of Adobe Systems
Incorporated.
Atheros. the Atheros logo, Super G, Super A/G, Wake-
on-Wireless, and Wake-on-Theft are registered
trademarks of Atheros Communications, Inc.
AuthenTec is a registered trademark of AuthenTec, Inc.
Bluetooth is a registered trademark owned by the
Bluetooth SIG, Inc., U.S.A. and licensed to Motion
Computing, Inc.
Intel, Intel Inside, the Intel Inside logo, Pentium,
Centrino, and PROSet are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in
the United States and other countries.
Knowles and IntelliSonic are trademarks or registered
trademarks of Knowles Acoustics, Inc.
Microsoft Windows, Windows XP, Windows XP Tablet
PC Edition, and Windows Journal are trademarks or
registered trademarks of Microsoft Corporation in the
United States and/or other countries.
OmniPass is a trademark of Softex, Inc.
Realtek is a trademark of Realtek Semiconductor
Corporation.
SigmaTel is a registered trademark and Universal Jacks
is a trademark of SigmaTel Corporation.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
End users may not loan, rent, lease, lend, or otherwise
transfer the CDs or DVDs provided for recovery
purposes to another user, except as permitted in the
End User License Agreement for such product.
This product incorporates copy protection technology
that is protected by U.S. and foreign patents, including
patent numbers 5,315,448 and 6,836,549, and other
intellectual property rights. The use of Macrovision's
copy protection technology in the product must be
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Motion Computing, Inc. has made every effort to
identify trademarked properties and owners on this
page. All brands and product names used in this
document are for identification purposes only and
may be trademarks or registered trademarks of their
respective companies.
The warranties for Motion products are set forth in the
express limited warranty statements accompanying
such products. Nothing in this document constitutes
an additional warranty.
The Motion Computing products and services may be
covered by one or more patent-protected inventions.
Additional patents may also be pending. For more
information, see
www.motioncomputing.com/info/patents.asp.
PN 024-02-0118
Revision X00
March 2007
iii
Contents
Chapter 1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Finding information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting up the LE1700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
WriteTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

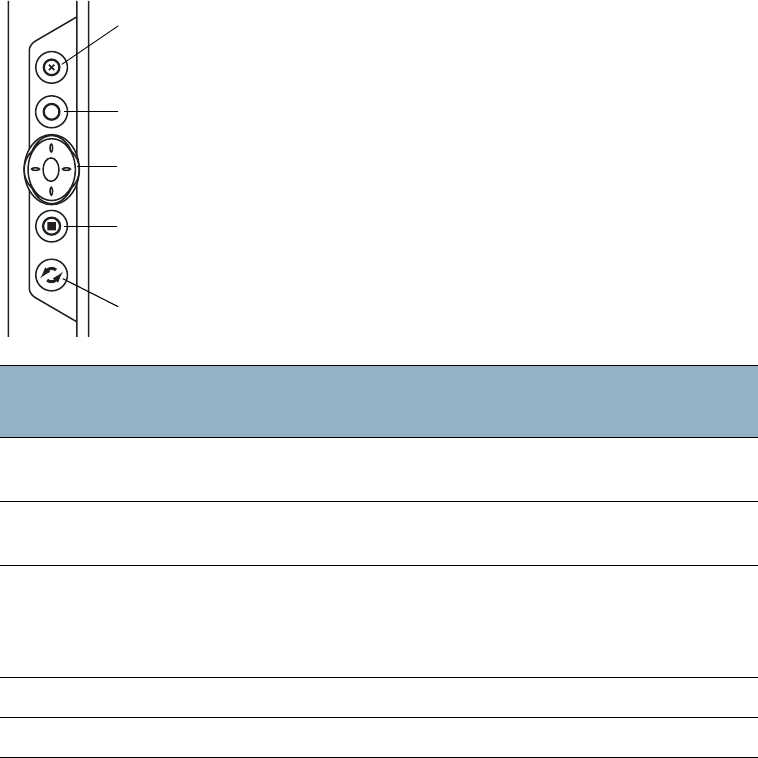

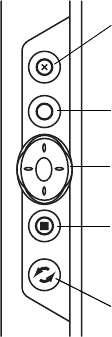

Front panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Status lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows Security button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
View Anywhere display (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ambient light sensor (ALS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Accelerometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Infrared (IrDA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
USB 2.0 ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Headphones port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Microphone port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Security slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VGA port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DVI-D port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Docking port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ethernet port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SD (Secure Digital) card slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PC card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SIM card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wi-Fi (802.11a/b/g wireless). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Wireless Broadband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bluetooth wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

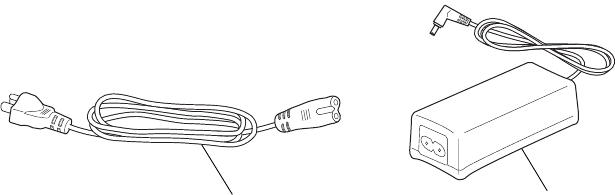

Power adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 3 Using your Tablet PC. . . . . . . . . . . . . . . . . . . . .19

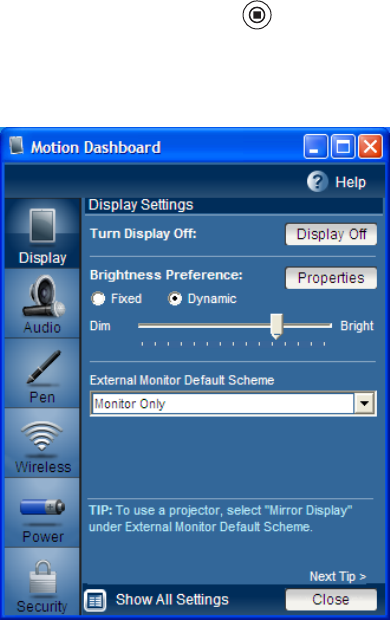

Using Motion Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

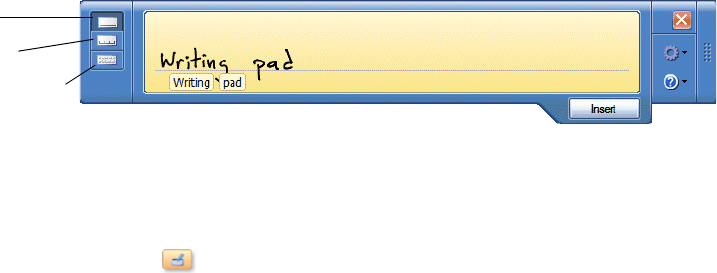

Using Tablet PC Input Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configuring pen options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
iv Contents
Using WriteTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Opening WriteTouch Tablet Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Selecting the input mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching input modes using the Function button . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching input modes using the switching gesture . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Selecting a switching gesture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using touch mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Resetting touch input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Configuring front panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting the display brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

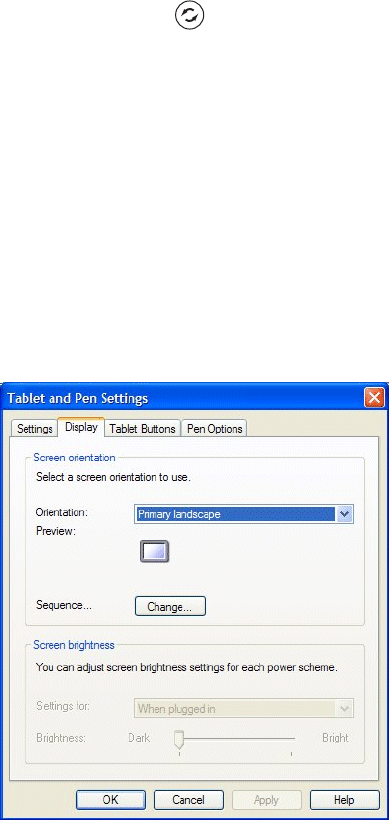

Rotating the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing the display rotation sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

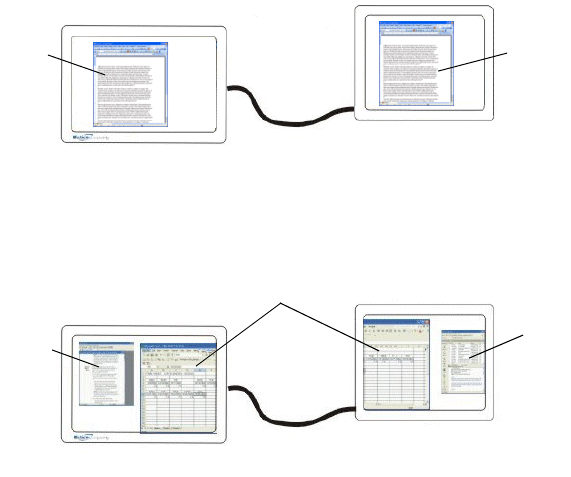

Setting up an external display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the built-in microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting up the angle of acceptance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting up the skew angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting headphones, external speakers, or a microphone . . . . . . . . . . . . . . . . . . . 30
Using speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting up speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Starting speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using Hibernate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Checking battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Removing and replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Swapping the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Disposing of used batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

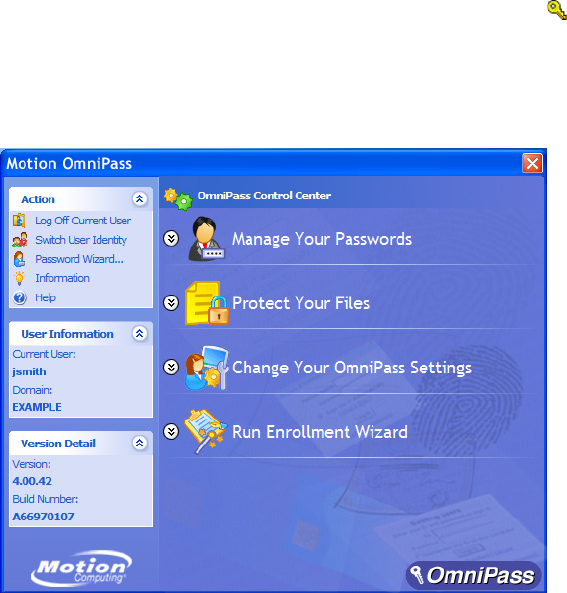

Using Motion OmniPass and the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

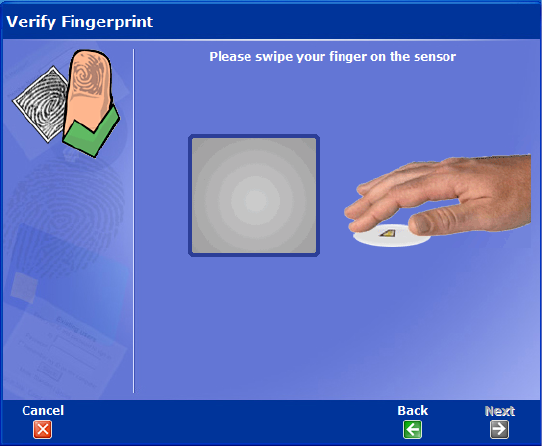

Capturing a fingerprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using password replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the password wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Logging on to a remembered site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Setting up a smart card device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Setting up strong logon security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

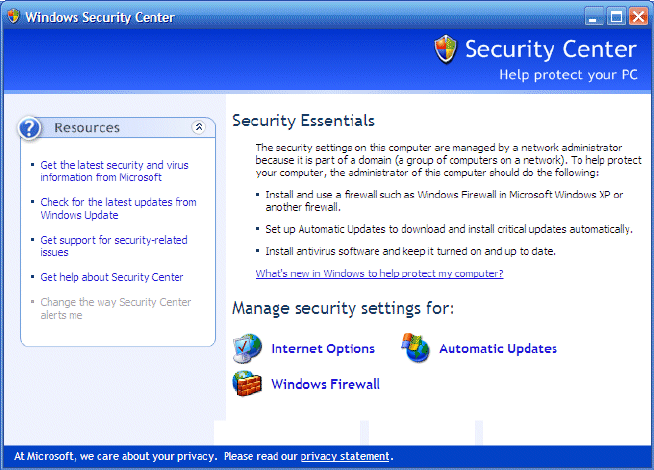

Using Windows Security Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting up users and passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting up Windows user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting a BIOS password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting up a hard disk drive (HDD) password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Using Wi-Fi (802.11a/b/g). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Enabling or disabling Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Setting up a Wi-Fi connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Contents v
Using Wireless Broadband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Activating your Wireless Broadband service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Enabling Wireless Broadband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Starting the connection manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Connecting and disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Finding your ESN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Enabling or disabling Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting up a Bluetooth device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
If the device is not discovered… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using infrared . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Finding additional software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 4 Care and Maintenance . . . . . . . . . . . . . . . . . . .53
General care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Standard display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
View Anywhere display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cleaning in a health care environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Disinfecting procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Training and documentation considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Cleaning solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cleaning the fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Replacing pen tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Ordering new pens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Replacing the antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Traveling with your Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Traveling by air. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
FAA Wireless air travel requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
System repair and recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix A Troubleshooting and Support. . . . . . . . . .61
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Frequently asked questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Warranty and Insurance Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
vi Contents
1
Getting Started 1
The Motion Computing LE1700 is a full-featured Tablet PC, combining performance, long
battery life, and a lightweight, sleek design. The LE1700 offers the latest innovations in
mobile computing: a user-focused design, unmatched mobility, and state-of-the-art
security.
If you are new to Tablet PCs, use the information in this section to get started quickly. If you
are already familiar with tablet computers, you can skip to the next chapter to find out
about the features of the LE1700. If there are certain things you want to learn about your
new Tablet PC, look on the Contents page.
Finding information
If you are viewing this PDF document on your screen, you can use the following methods to
find information:
•In the Bookmark pane, click or tap a topic to view it. If the Bookmark pane is not visible,
select View > Navigation Tabs > Bookmarks.
•On the Contents page, click or tap a topic to view it.
•To search the document, select Edit > Find.
Because you typically use a tablet pen instead of a mouse with a Tablet PC, we use the term
tap instead of click in most situations.
2Chapter 1 Getting Started
Overview

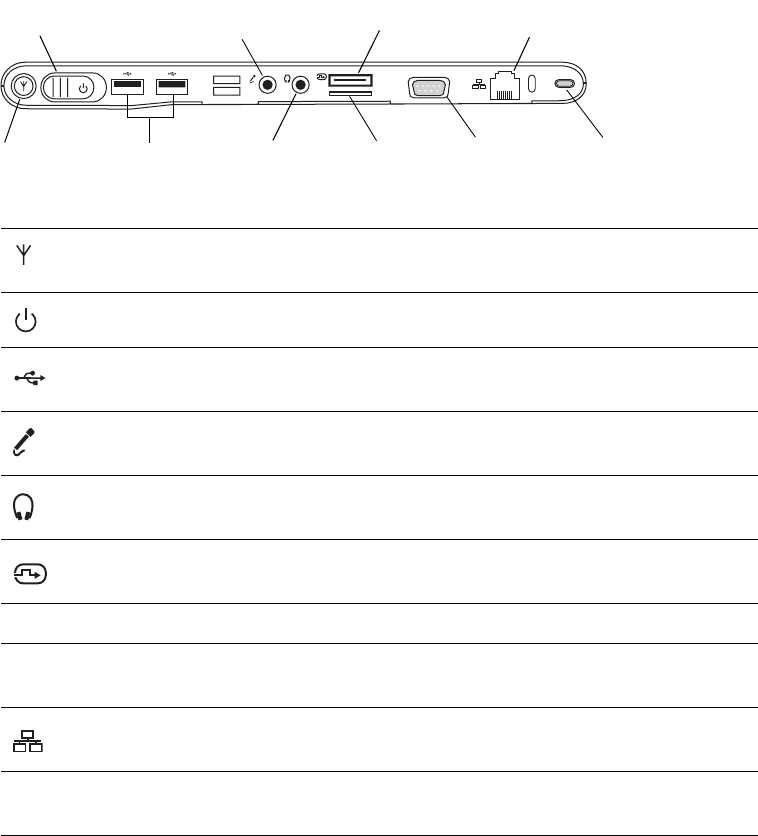

The following illustrations show the buttons, slots, and ports on the Motion LE1700
Tablet PC. Although there are no controls on the back side, there is a sliding panel that
covers the Extended Battery connector.
Wireless switch Enable and disable the Wi-Fi, Bluetooth, and Wireless
Broadband adapters (page 16).
Power switch Turns the Tablet PC on and off.
USB 2.0 ports Connect USB devices, such as a mouse, digital camera,
printer, or external storage device (page 13).
Audio in/
Microphone port
Connect a microphone or other audio source using a
3.5 mm jack (page 13).
Audio out/
Headphone port
Connect headphones, speakers, or audio equipment
using a 3.5 mm jack (page 13).
DVI-D port Connect an external monitor using DVI. Requires an
optional adapter (page 14).
SIM card slot Attach a SIM card (page 15).
VGA port Connect an external monitor using the standard
DB-15 VGA connector (page 14).
Gigabit Ethernet
port
Connect to a 10/100/1000 Ethernet network (page 14).
Security slot Connect a security cable to protect your tablet from theft
(page 14).
Power switch
Audio in/
Microphone port DVI-D port Gigabit Ethernet port
Wireless
switch
USB 2.0
ports
Audio out/
Headphones port
VGA port Security slot
SIM card
slot
Chapter 1 Getting Started 3
Battery Powers the Tablet PC when it is not plugged in (page 18).
Antenna Improves the reception of the Wireless Broadband adapter
(page 17).
Microphones Record sounds and use for speech recognition (page 12).
Esc button Cancel the current task. Equivalent to the Esc key on a keyboard
(page 9).
Function button Activate secondary functions for other buttons (page 9).
Directional pad Use for basic navigation. Equivalent to the arrow keys on a
keyboard. The center button is equivalent to Enter (page 9).
Dashboard
button
Open Motion Dashboard (page 9).
Rotate display
button
Rotate the display orientation (page 9).
Speakers Listen to music or other audio (page 12).
Ambient light
sensor
Measures background light and can automatically adjust the
display brightness (page 12).
Windows
Security button
Use to log on to or lock your tablet. Equivalent to Ctrl+Alt+Del
on a keyboard (page 11).
Fingerprint
reader
Scan your fingerprints for added security. You can also use the
fingerprint reader as a navigation device (page 11).
Status lights Show battery and power status (page 10).
Battery
Status lights
Microphone
Esc
Function
Directional
pad
Rotate
Microphone
Speakers
Ambient light sensor
Microphone
Fingerprint
reader
Windows Security
display
Antenna
Dashboard
button
4Chapter 1 Getting Started

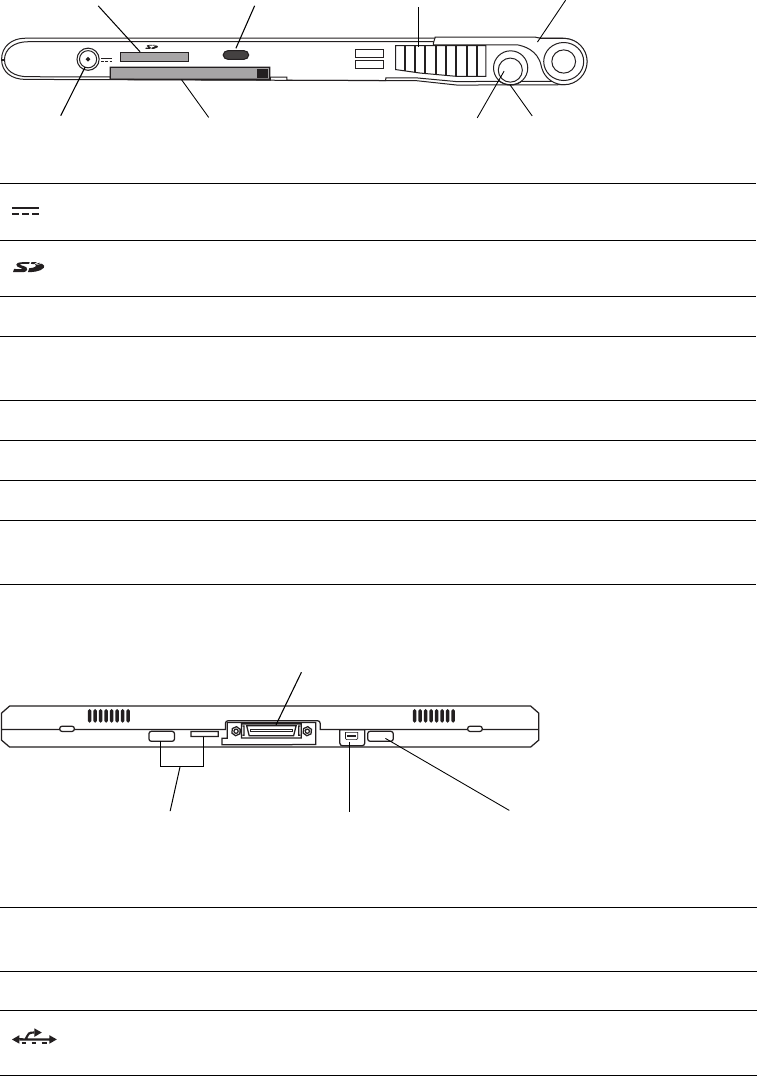

Power adapter port Connect the power adapter (page 17).
SD card slot Attach an SD (Secure Digital) card (page 15).
PC card slot Attach a Type-I or Type-II PCMCIA card (page 15).
Infrared Communicate with other devices using Infrared
(page 13).
Air vent Dissipates heat from the tablet.
Pen bay Store the pen when not in use.
Pen tether Attach the pen tether.
Antenna Improves the reception of the Wireless Broadband
adapter.
Docking
attachments
Attachment points for docks, keyboards, and other
accessories.
Docking port Interface for docks, keyboards, and other accessories.
Accessory port Connect Motion Computing accessories, such as
external drives.
SD card slot Infrared Air vent
Pen tether
port PC card slot Pen bayPower adapter
Antenna
Docking attachment
Accessory port
Docking attachments
Docking port
Chapter 1 Getting Started 5
Setting up the LE1700
The LE1700 is self-contained, so you can start using it immediately. You should connect AC
power until the battery is fully charged. Use the following steps to get started.
Step 1: Plug in the power adapter
•Plug the power cord in to the power adapter. Insert the power cord into an outlet and
the power adapter plug into the power adapter port on the Tablet PC.
Step 2: Connect the cables
•If you want to connect your Tablet PC to a network, insert an Ethernet cable into the
Ethernet port.
To connect to a wireless network, see “Using Wi-Fi (802.11a/b/g)” on page 46. To connect
using docking stations and other accessories, refer to the documentation for that product.
Step 3: Turn on the Tablet PC
•Slide the power switch on.
As the Tablet PC starts, the power light comes on.
The first time Windows starts, the Windows XP Tablet PC Edition 2005 Tutorials appear. If
you do not want this screen to appear every time you start the computer, select Do not
show me this again. To run the tutorials later, select Start > All Programs > Tablet PC >
Tablet PC Tutorials.
Power adapterPower cord
6Chapter 1 Getting Started
Step 4: Calibrate the digitizer
With a Tablet PC, you frequently use a tablet pen instead of a mouse and keyboard for input.
Use the pen to move the pointer around the screen, and tap the screen to click. Use
Tablet PC Input Panel and handwriting recognition to enter text.
The digitizer detects the position of the pen or your finger on the display. You should
calibrate the digitizer the first time you start the Tablet PC, and again whenever the pointer
does not align with the pen tip or your finger.
To calibrate the digitizer
1. Press the Dashboard button ( ) to start Motion Dashboard.
You can use Motion Dashboard to configure your Tablet PC and to start commonly used
tablet applications. See “Using Motion Dashboard” on page 20.
2. Under Pen, tap Calibrate Digitizer.
3. Follow the instructions in the calibration program.
Note: If you are left-handed, see “How do I adjust the Tablet PC for left-handed use?” on
page 66.
Step 5: Get familiar with your Tablet PC
Motion Computing offers free Web-based Quick Start Training that you can use to
familiarize yourself with the features of your Tablet PC. If you are new to tablet computing,
you can use the training to get started quickly. You can find the training at
http://training.motioncomputing.com.
You can also use the Windows Tablet PC tutorials to learn about the special capabilities of
Windows XP Tablet PC Edition. Windows XP Tablet PC Edition includes many features that
other editions of Windows XP do not, such as pen support, touch screen support, digital ink
input, and handwriting recognition.
To start the tutorials, select Start > All Programs > Tablet PC > Tablet PC Tutorials.
7
Features 2
The Motion Computing LE1700 Tablet PC has the power and features of a notebook
computer, while giving you the added mobility and versatility of a tablet computer.
Use the information in this chapter to get more familiar with the hardware features of your
LE1700 Tablet PC, such as buttons, slots, connectors, and wireless adapters
The LE1700 Tablet PC includes the following features:
•Intel® Core™2 Duo 1.5 GHz Processor or
Intel® Core™ Solo 1.2 GHz Processor
•Mobile Intel® 945GM Express Chipset
•Integrated Wi-Fi (802.11a/b/g) networking
•Integrated Bluetooth® and infrared
•Integrated Wireless Broadband
•Integrated accelerometer to help protect the hard drive
•DDR2 RAM
•12.1" SXGA+ TFT LCD
•Integrated fingerprint reader
•Integrated Ethernet
8Chapter 2 Features
Pen
An important difference between traditional PCs and Tablet PCs is that you frequently use
the tablet pen to interact with the computer instead of a mouse and keyboard. The pen
includes a pressure-sensitive tip, a function button, and on some models, an eraser. The pen
contains no batteries and requires no external power.
Note: The eraser is not functional on WriteTouch models.
For information about using the pen, see “Using the pen” on page 21.
WriteTouch
With the optional WriteTouch dual mode feature, the LE1700 includes an active digitizer as
well as a touch-sensitive display. This enables you to use the digitizer pen or your fingertips
to interact with the Tablet PC. The digitizer pen gives you more precision, but touch can be
more convenient.
The WriteTouch touch screen uses capacitive touch technology, and therefore responds
only to finger touches. The touch screen does not respond to a gloved hand or a stylus.
Note: The tablet pen eraser is not functional on WriteTouch models.
For more information, see “Using WriteTouch” on page 23.
Tip Function button
Eraser
Chapter 2 Features 9
Front panel buttons
You can use the buttons on the front of the tablet to perform many functions without
having to use the pen. The buttons are customizable, so you can modify their functions to
suit the way you work. See “Configuring front panel buttons” on page 25.
The directional pad orientation rotates to match the display orientation. To move the
pointer in a certain direction, press that direction on the pad regardless of orientation. For
example, the “up” direction in landscape orientation becomes the “left” direction in portrait
orientation.
Button Primary Secondary
(Function + button)
Esc Cancels the current task. Equivalent
to the Esc key.
Alt + Tab
Function Activates secondary function for
other buttons
N/A
Directional pad Use to move the pointer or navigate
through documents. Equivalent to
arrow keys on a keyboard. The center
button is equivalent to Enter.
Left = Shift +Tab
Right = Tab
Up = Page Up
Down = Page Down
Dashboard Starts Motion Dashboard Starts Windows Journal
Rotate screen Rotates the orientation of the display Starts Tablet PC Input Panel
Esc
Function
Directional pad
Dashboard
Rotate screen
10 Chapter 2 Features
Status lights
You can use the indicator lights on the front of the LE1700 to monitor the status of the
tablet. The following illustration shows the status lights on the LE1700.
Security
The LE1700 provides a safe computing environment that enables strong security protection
and serves as the foundation for complementary security technologies.
The core security features include password-protected Phoenix TrustedCore BIOS with HDD
locking and networking control, a built-in fingerprint reader, a universal security lock, the
Dashboard Security Center, TPM (Trusted Platform Module), and a Smart Card-ready
platform.
With the built-in TPM and Infineon Security Platform Tools, you can create and manage
digital certificates for user and platform authentication. These features are most commonly
used by enterprises and enabled by the system administrator. To learn more about TPM, go
to www.motioncomputing.com/support/support_documentation.asp.
Light Status Description
Power Steady blue On
Blinking blue The Tablet PC is in Standby mode
Battery Steady blue The battery is fully charged and the
Tablet PC is running on AC power
Steady amber Charging
Flashing amber (fast) 5% charge or less remaining
Flashing amber (slow) The battery is too hot to charge
Off The Tablet PC is running on battery
power
Power light
Battery light
Windows Security
Fingerprint
reader
button
Chapter 2 Features 11
Windows Security button
You can use the Windows Security button to log on to or lock your Tablet PC. Pressing the
Windows Security button is equivalent to pressing Ctrl+Alt+Del on a keyboard.
Fingerprint reader
Using the fingerprint reader, you can log on to your Tablet PC by scanning your fingerprint
instead of entering a password. This presents an added level of security for your tablet.
You can use the OmniPass application to associate your fingerprint with passwords for Web
pages and other applications. You can also use the fingerprint reader as a navigation device.
Move your finger on the fingerprint reader to move the pointer on the screen.
Note: The scroll function is disabled while scanning a fingerprint.
For information about setting up and using the fingerprint reader, see “Capturing a
fingerprint” on page 38.
Display
The LE1700 includes a 12.1-inch SXGA+ display with the following features:
•A highly readable LCD (liquid crystal display).
•Resolution up to 1400 × 1050 pixels.
•A protective layer that offers a firm writing surface and minimizes glare.
•A digitizer panel that enables handwritten entry with the tablet pen.
Scan fingerprint
Navigate
Windows Security button
Fingerprint reader
12 Chapter 2 Features
View Anywhere display (optional)
The View Anywhere™ display option enhances outdoor viewing and bright-light viewing
environments. The View Anywhere display includes all the features of the standard display
plus:
•A protective layer that improves the sunlight contrast ratio and significantly reduces
reflection and glare.
•Improved sunlight contrast ratio, which enhances viewability at wide viewing angles.
•Reduced reflection and glare and improved light pass-through efficiency.
Note: The View Anywhere display option is available on the LE1700 only. It is not available
on the LE1700WT or LE1700TS.
Microphones
The LE1700 is equipped with two microphones that you can use to record audio, dictate
notes, and use voice commands without the need for an external microphone.
You can also use the Microphone port to connect an external microphone or microphone
headset. See “Connecting headphones, external speakers, or a microphone” on page 30.
Speakers
The LE1700 is equipped with integrated stereo speakers that you can use to listen to music,
movies, or other multimedia applications.
You can also use the headphones port to connect external speakers or headphones. See
“Connecting headphones, external speakers, or a microphone” on page 30.
Ambient light sensor (ALS)
If you have dynamic brightness selected and are running on battery power, the ambient
light sensor measures the surrounding light and adjusts the display brightness and contrast
accordingly. This ensures that you have proper settings for all lighting conditions. To enable
dynamic brightness, see “Adjusting the display brightness” on page 26.
Accelerometer
The LE1700 includes an accelerometer, which is designed to detect shocks, extreme
vibrations, and falls. If detected, the accelerometer moves the drive heads away from the
disk, which can prevent hard drive failures and data loss.
Chapter 2 Features 13
Infrared (IrDA)
Your Tablet PC has integrated Infrared, which you can use to connect your tablet to other
computers and devices wirelessly. The LE1700 supports the IrDA standard (Infrared Data
Association), which ensures that you can connect to printers, modems, cellular phones, and
other devices. Infrared has a range of approximately one meter, and requires line-of-sight
alignment between the two devices.
USB 2.0 ports
Two USB 2.0 (High-speed USB) ports can be used to attach any USB device such as a mouse,
digital camera, printer, or external storage device. The USB ports are compatible with older
USB devices (USB 1.1).
For more information, see “Using USB” on page 26.
Headphones port
The headphones port is on the left edge of the Tablet PC. It is marked with a small
headphones symbol and is designed as an audio output channel only. You can attach
headphones or external speakers to this port.
For more information, see “Connecting headphones, external speakers, or a microphone”
on page 30.
Microphone port
The microphone port is on the left edge of the Tablet PC. It is marked with a small
microphone symbol and is designed as an audio input/line in channel only. You can attach
an external microphone directly to this port to enhance your audio recording capabilities.
The internal microphones are disabled when an external microphone is attached.
For more information, see “Connecting headphones, external speakers, or a microphone”
on page 30.
14 Chapter 2 Features
Security slot
You can use the security slot to attach your tablet to a desk, table or other fixture. You must
purchase a security lock separately.
VGA port
You can use the VGA port to connect standard VGA monitors. When you attach an external
monitor, you can use the external monitor only, or the external monitor and the Tablet PC
display together. See “Setting up an external display” on page 28.
DVI-D port
The DVI-D (Digital Video Interface) connector is on the left edge of the tablet and is
identified by the DVI-D designation. With an optional DVI-D cable, you can attach a digital
video monitor. For more information, go to the Motion Computing accessories page at
www.motioncomputing.com/accessories.
When you attach an external monitor, you can use the external monitor only, or use the
monitor and the Tablet PC display as a mirrored or extended display. See “Setting up an
external display” on page 28.
Docking port
The LE1700 has a docking port that you can use to connect the tablet to a dock or other
accessory. When the tablet is connected to a dock, the port connections are replicated on
the dock. This enables you to connect a monitor, keyboard, mouse, or external drive to the
dock and easily dock and undock the tablet. For more information about docks and other
accessories, go to the Motion Computing accessories page at www.motioncomputing.com/
accessories.
Ethernet port
The LE1700 comes with an integrated 10/100/1000Base-T Ethernet port (RJ-45), which you
can use to connect to an Ethernet network or another computer.
For more information, see “Using Ethernet” on page 26.
Chapter 2 Features 15
SD (Secure Digital) card slot
The SD card slot holds one SD card for storage or accessories. SD memory cards are a
storage media that provide large capacity and fast access.
•To insert an SD card, place it in the slot, label side up, until it clicks into place.
•To remove the SD card, press the card in slightly until it pops out.
PC card slot
The PC card slot holds one Type-I or Type-II PC card for networking, memory expansion, or
accessories. PC cards are also called PCMCIA cards.
•To insert a PC card, place it in the slot with the label side up.
•To remove the card, push the button next to the slot until it pops out, then push it in
again to eject the card.
The LE1700 includes a plastic blank card in the PC card slot. To protect the PC card slot, you
should leave the blank card in place when you do not have a PC card in the slot.
SIM card slot
The SIM card slot holds one SIM (Subscriber Identity Module) card. A SIM card is a smart
card, about the size of a postage stamp, that stores information about your wireless
account.
You need to use a SIM card only if you are using Wireless Broadband on an HSDPA (High
Speed Downlink Packet Access) network. Contact your service provider for details.
•To insert a SIM card, place it in the slot, label side up, until it clicks into place.
•To remove the SIM card, press the card in slightly until it pops out.
16 Chapter 2 Features
Wi-Fi (802.11a/b/g wireless)
Your Tablet PC has integrated Wi-Fi (802.11a/b/g) that you can use to connect to the
Internet and other computers wirelessly. You can use Wi-Fi in your home, and in many
schools, hotels, airports, and restaurants.
Note: Wireless access requires an 802.11a, 802.11b, or 802.11g access point. Internet access
requires a working Internet connection.
Your ability to use Wi-Fi depends on the several conditions:
•Distance from the access point.
•Ability to connect to the access point.
•Access rights (which may require an account fee, user name, password, an/or network
set up through an administrator).
•Security settings, such as whether the network broadcasts a network name or uses
encryption.
For more information, see “Using Wi-Fi (802.11a/b/g)” on page 46.
Wireless Broadband
The LE1700 Tablet PC is available with an optional Wireless Broadband adapter that you can
use to send and receive data wirelessly. By using Wireless Broadband, you can browse the
Internet, send and receive email, connect to your company’s intranet, or use Web-based
applications.
Wireless Broadband is based on cellular network technology, so you can use it in more
places than other wireless technologies. With Wireless Broadband, your Tablet PC connects
to a service provider’s base station, which in turn is connected to the Internet. Unlike Wi-Fi,
you do not need to search for Wi-Fi hotspots or buy base stations. You can typically use
Wireless Broadband anywhere you can use your mobile phone. For more information, see
“Using Wireless Broadband” on page 47.
Bluetooth wireless
Your Tablet PC has an integrated Bluetooth adapter. With Bluetooth, computers and other
devices—such as mice, keyboards, cameras, and PDAs—can be interconnected using a
short-range wireless connection. Bluetooth devices can connect wirelessly at distances up
to 33 feet (10 meters).
For more information, see “Using Bluetooth” on page 49.
Chapter 2 Features 17
Antenna
The antenna improves the reception of the optional Wireless Broadband adapter. You can
raise the antenna if your Wireless Broadband reception is poor.
To raise the antenna, insert your finger into the notch and lift up.
For information about using Wireless Broadband, see “Using Wireless Broadband” on
page 47.
Power adapter
The power adapter provides power to the Tablet PC and charges the battery when it is in
the Tablet PC. The power adapter has the following components:
•Power cord
•Power adapter
WARNING: Use the Motion power adapter with your Motion Tablet PC only. Do not use the
adapter to power any other electronic devices.
Power adapterPower cord
18 Chapter 2 Features

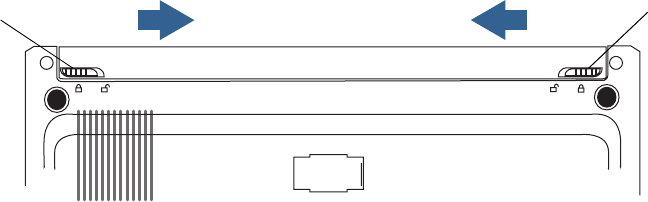

Battery
The LE1700 includes a high-capacity Lithium-ion battery that mounts at the top of the
Tablet PC. Under normal conditions, you can run the tablet on battery power for up to three
hours. You can maximize battery life by optimizing your power scheme. See “Using power
management” on page 31.
For information about charging and checking battery status, see “Using the battery” on
page 34.
An optional extended battery is also available. The small sliding door on the back of the
Tablet PC is for connecting the extended battery. For more information, go to the Motion
Computing accessories page at www.motioncomputing.com/accessories.
Important: To avoid personal injury, handle the battery with care. Do not open, puncture,
short, or expose it to fire or water. Keep the battery in an ambient temperature of less than
+104°F (+40°C). For example, do not leave the battery in a closed car in hot weather for an
extended time. For more information, see the Safety and Regulatory Guide included with
your Tablet PC.
19
Using your Tablet PC 3
The LE1700 Tablet PC runs Microsoft Windows XP Tablet PC edition, which includes ink-to-
text and word recognition, voice recognition, and improved security to help defend against
viruses, worms, and other threats. And unlike PDAs or other handheld devices, the LE1700
can run any Windows XP-compatible application.
Use the information in this chapter to learn about common tasks, such as using the tablet
pen to enter text, using Motion Dashboard, using speech recognition, and customizing the
tablet to fit the way you work.
20 Chapter 3 Using your Tablet PC
Using Motion Dashboard
Motion Dashboard puts many common tablet-related settings and tasks at your fingertips.
For example, you can enable or disable Bluetooth and Wi-Fi, calibrate the digitizer, or check
your remaining battery power.
To start Motion Dashboard
•Press the Dashboard button ( ) on the front of the tablet.
You can use Motion Dashboard in the Category view (default) or the Classic view. Use the
Show All Settings button to go to Classic view.
When you change a setting on Motion Dashboard, the change occurs immediately. You do
not need to tap Apply or OK.
For more information, see Motion Dashboard Help.
Chapter 3 Using your Tablet PC 21
Using the pen
You can use the tablet pen to write on the display and navigate the operating system. A pen
can feel more natural in your hand than a mouse, and you can use the pen while standing or
walking. The following table show the various pen actions and their mouse equivalents.
Some software applications, such as Microsoft Word, support ink drawing and ink
annotations. Some applications, such as art or drawing programs, are designed especially
for ink input. For more information about a particular application, open the application help
and search for “pen”, “ink”, or “tablet“.
You can use Tablet PC Input Panel instead of a keyboard to enter text. For more information,
see “Using Tablet PC Input Panel” on page 22.
Store the pen in the pen bay when not in use. To store the pen in the pen bay, insert it into
the bay and press it until it clicks. To remove the pen, press it again. If you have the pen
tether attached, ensure that you have released the pen before you pull it out using the
tether.
The pen includes extra tips. You can use the included replacement tool to change the tips.
See “Replacing pen tips” on page 57.
Important: The Tablet PC responds only to the tablet pen. Do not use traditional pens or
other pointing devices with the Tablet PC.
Mouse action Pen equivalent
Point Point
Click Tap
Double-click Double-tap
Drag Drag
Right-click Tap and hold
Right-click Press Function button and then tap
22 Chapter 3 Using your Tablet PC
Using Tablet PC Input Panel
You can use Tablet PC Input Panel instead of a keyboard to enter text on your Tablet PC. Use
the writing pad or the character pad to convert your handwriting to text, or tap characters
using the on-screen keyboard.
You can also use Input Panel to dictate text or use voice commands. For more information
about Speech Recognition, see “Using speech recognition” on page 30.
The following illustration shows Input Panel open to the writing pad.
To start Input Panel
•Do one of the following:
– Tap at the place you want to enter text, such as a text box. Then tap the Tablet PC
Input Panel icon ( ).
– Tap the Tablet PC Input Panel icon on the Windows taskbar.
To switch among the writing pad, the character pad, and the on-screen keyboard, tap the
appropriate button.
Use the tutorial to get acquainted with Input Panel. Tap Help, then tap Tutorial.
For more information about using Input Panel, see the Input Panel Help.
Configuring pen options
You can use pen options to enable or disable the pen function button and the pen eraser.
To configure pen options
1. Open Motion Dashboard to the Pen panel (page 20).
2. Tap the Pen & Button Options button.
3. In the Tablet and Pen Settings window, tap the Pen Options tab.
4. For pen buttons, do one of the following:
•To enable the function button, select Use pen button to right-click.
•To enable the eraser, select Use the top of the pen to erase.
Note: The tablet pen eraser is not functional on WriteTouch models.
Writing pad
Character pad
On-screen keyboard
Chapter 3 Using your Tablet PC 23
Using WriteTouch
If your Tablet PC includes the WriteTouch option, you can use the tablet pen or touch screen
for input. For more information, see “WriteTouch” on page 8.
Opening WriteTouch Tablet Settings
Use the WriteTouch Tablet Settings window to configure the options for WriteTouch input.
To open WriteTouch Tablet Settings
•In Control Panel, open WriteTouch Tablet Settings.
You can also open the WriteTouch Tablet Settings by tapping the WriteTouch icon ( ) in
the notification area.
For information about WriteTouch Tablet Settings, see the WriteTouch Tablet Settings Help.
Selecting the input mode
The input mode determines whether the Tablet PC accepts pen input, touch input, or
allows you to switch between the two using the switching gesture.
To configure the input mode
1. In Control Panel, open WriteTouch Tablet Settings.
2. Tap the Digitizer Options tab.
3. Select one of the following:
•Pen only. Use the pen to interact with the Tablet PC.
•Touch only. Use touch to interact with the Tablet PC.
•Auto mode. Switch between pen and touch input by using the switching gesture
(page 24).
Switching input modes using the Function button
You can use the Function button to change between Pen only and Auto mode without
having to open the WriteTouch Tablet Settings window.
To switch input modes using the Function button
•Press and hold the Function button ( ) for a half second.
24 Chapter 3 Using your Tablet PC
Switching input modes using the switching gesture
If you have configured the input mode to Auto mode, you use the switching gesture to
change modes. The icon in the notification area changes to indicate the current mode.
Selecting a switching gesture
Use the switching gesture to switch between pen mode and touch mode. You must have
the input mode set to Auto to use a switching gesture.
To select a switching gesture
1. Open the WriteTouch Tablet Settings window (page 23).
2. Tap the Interaction Options tab.
3. For Switching Gestures, select the appropriate option.
Using touch mode
With touch mode selected, you can use your finger directly on the screen to do things like
select, drag, and open files.
A touch on the touch screen with your finger is equivalent to a mouse click. The following
table shows the similarities between mouse functions and touch functions.
Resetting touch input
Use touch tuning to reset the touch sensor to the default calibration. Occasionally, you may
be prompted to calibrate the touch sensor if the software detects that it is necessary.
To calibrate touch input
1. Open the WriteTouch Tablet Settings window (page 23).
2. Tap the Digitizer Options tab.
3. Tap the Reset button.
To calibrate the tablet pen, see “Calibrate the digitizer” on page 6.
Icon Mode
Pen and auto
Touch
Mouse action Touch screen equivalent
Point and click Tap the object on the display
Double-click Double-tap the object on the display
Click and drag Tap and drag
Chapter 3 Using your Tablet PC 25
Configuring front panel buttons
As you become more familiar with your Tablet PC, you may want to customize the buttons
on the front panel. You can configure the buttons to start your favorite program, run a
command, or enter a key combination.
To change the front panel buttons
1. Open Motion Dashboard to the Pen panel (page 20).
2.Tap Pen and Button Options.
3. Tap the Tablet Buttons tab.
4. Select the button combination you want to change. The currently selected buttons
appear in red.
5. Tap Change.
6. For Action, select an action to assign to the button.
For some actions, you must enter more information, such as the location of a program to
start. Tap Help for more information.
Esc
Function
Directional pad
Hot 1
Hot 2
26 Chapter 3 Using your Tablet PC
Using USB
You can use the two integrated USB 2.0 ports to connect USB devices, such as digital
cameras, printers, external storage devices, keyboards, and mice. USB devices typically use
power from the computer, so you should use AC power or have adequate battery power
while you are using USB devices.
To use a USB device, connect the device to the USB port ( ) on the side of the Tablet PC.
When you connect a USB device, the Tablet PC recognizes it and loads the appropriate
device driver. You can connect and disconnect USB devices without shutting down your
computer.
Using Ethernet
You can use the integrated 10/100/1000Base-T Ethernet port (RJ-45) to connect to an
Ethernet network, high-speed modem, or another computer.
To connect to an Ethernet network or device, connect the Ethernet cable to the Ethernet
port ( ) on the left side of the Tablet PC.
Using the display
Use the procedures in this section to customize your display settings. You can adjust the
brightness level, rotate the display, and change the order in which the display rotates.
Adjusting the display brightness
Use this procedure to change the brightness of the display.
To adjust the display brightness
1. Open Motion Dashboard to the Display panel (page 20).
2. Set the Brightness slider to the appropriate level.
For optimal battery conservation and viewability, set the brightness scale to the mid-
point or slightly above.
3. Select one of the following:
•Fixed. Sets the display brightness to a constant level. Use the slider to adjust the
display to the desired brightness level. The ambient light sensor is not used with fixed
brightness.
•Dynamic. Uses the ambient light sensor to maintain an appropriate brightness level
for the current lighting conditions. Using dynamic brightness helps to reduce power
consumption while running on battery power.
Chapter 3 Using your Tablet PC 27
Rotating the display
You can easily change the screen orientation to fit your current task. You may want to use
the portrait orientation for filling out forms or reading an e-book. At other times, you may
want a landscape orientation for Web browsing or sketching.
To rotate the display
•Press the Rotate ( ) button on the front of the tablet.
Note: If you change the screen orientation, you may need to recalibrate the tablet pen. See
“Calibrate the digitizer” on page 6.
Changing the display rotation sequence
Use this procedure to change the order in which the display rotates.
To change the rotation sequence
1. Open Motion Dashboard to the Pen panel (page 20).
2. Tap the Pen and Button Options button.
3. Tap the Display tab.
4. For Sequence, click Change.
5. Select orientations for 1 and 2.
You can select None to skip a particular view in the rotation sequence.
28 Chapter 3 Using your Tablet PC
Setting up an external display
If you want more desktop real estate, or the flexibility of multiple monitors, you can connect
an external display, such as a monitor or projector.
You can extend your display to the external monitor, mirror your display on the external
monitor, or use the external monitor only. Because the tablet pen does not work on the
external display, you should typically use a keyboard and mouse when you have an external
display attached.
To set up an external monitor
1. Connect the monitor cable into the appropriate display port on the Tablet PC or docking
station. You can use the VGA port or the DVI-D port (with optional adapter).
2. Plug in the external monitor and turn it on.
3. If necessary, install software and drivers for the monitor. See the manufacturer’s
documentation for more information.
4. Open Motion Dashboard to the Display panel (page 20).
5. For External Monitor, select one of the following:
•Mirror Display. Duplicates the Tablet PC display on the external monitor or projector.
The same desktop is visible on both displays. The external monitor must use the same
display resolution as the Tablet PC.
•Extended with Monitor Primary. Enlarges the desktop area to include the external
monitor as the primary monitor. The external monitor can use a different display
resolution than the Tablet PC.
•Extended with Tablet Primary. Enlarges the desktop area to include the external
monitor as the secondary monitor. The external monitor can use a different display
resolution than the Tablet PC.
•Monitor Only. Uses the external monitor only.
•Tablet Only. Uses the Tablet PC display only.
To learn more about custom monitor schemes, go to www.motioncomputing.com/tips.
Document Document
Tablet PC
External monitor
Spreadsheet
Document Email
Tablet PC
External monitor
Chapter 3 Using your Tablet PC 29
Using the built-in microphones
You can use the built-in microphones to record audio, dictate notes, and use voice
commands. The two microphones are used at the same time to optimize sound detection
for speech recognition and voice recording.
You can use the Speak Anywhere acoustics software to fine tune the built-in microphones
to suit your environment. The software enables you to use the microphones in a variety of
settings, including small or large groups, noisy environments, or for individual dictation or
voice commands. The software improves the microphone reception by:
•Removing all sounds outside of the user-defined angle of acceptance.
•Minimizing background and ambient noise.
•Removing echo caused by the microphone picking up the speaker output (feedback).

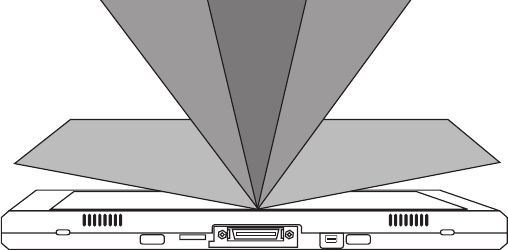

Setting up the angle of acceptance
The angle of acceptance defines how the built-in microphones detect sounds. You can
remove all sounds outside of a specified angle. When recording, dictating, or using voice
commands, you may need to adjust this setting until you achieve the desired results.
To set up the angle of acceptance
1. Open Motion Dashboard to the Audio panel (page 20).
2. Under Microphone, select one of the following:
•Narrow angle. Configures the microphones to detect sound on a narrow angle near
the bottom center of the display. Narrow is the best setting for dictation, Voice over IP,
or “voice noisy” environments.
•Medium angle. Configures the microphones to detect sound at a wider angle.
Medium is the best setting for a small group, conference table, or “voice quiet”
environment.
•Wide angle. The microphones detect sound at the widest angle. If the microphones
are detecting too much background noise, change to a narrower setting.
If a sound is loud enough, the microphones will pick it up regardless of the angle of
acceptance setting.
You can limit the detection of these outside sounds by turning down the microphone level
and speaking louder. This reduces the microphones’ range and restricts the capability to
detect extraneous sounds.
Narrow
Medium
Wide
30 Chapter 3 Using your Tablet PC
Setting up the skew angle
The default sound detection area is directly in front of the Tablet PC, but you can use the
skew angle to offset the sound detection area toward one side or the other.
To set up the skew angle
1. Open Motion Dashboard to the Audio panel (page 20).
2. Under Microphone, ensure that Narrow Angle or Medium Angle is selected. You
cannot use a skew angle with the Wide angle setting.
3. Move to where you want the microphone to detect your voice.
4. Tap Calibrate. A block of text appears.
5. Read the text aloud, speaking normally towards the Tablet PC microphones. This process
takes about 30 seconds.
In many cases, you will not need to calibrate the built-in microphones because the audio
system filters out many unwanted sounds. If you are dictating in an office or recording
during a meeting, the audio system may work well with no additional calibration.
Note: The audio system does not store calibrations. If you change to another angle or
position and then return to the previous one, you must re-calibrate the audio system.
Connecting headphones, external speakers, or a
microphone
You can connect headphones or external speakers to the headphones port using a 3.5 mm
plug. When speakers or headphones are connected, the internal speakers are disabled.
You can connect an external microphone or headset to the microphone port using a
3.5 mm plug. When a microphone is connected, the internal microphones are disabled.
Using speech recognition
You can use speech recognition to interact with your Tablet PC by voice. You can dictate
documents and emails, or use voice commands to control programs.
•Dictation mode. With Dictation mode, your computer listens to everything you say and
converts your words to text. You can use dictation mode to enter text directly into any
document or text box.
•Voice command mode. With Voice command mode, your computer listens for specific
words that correspond to a list of available voice commands. You can use commands to
switch between programs, save documents, copy, paste, or undo.
Chapter 3 Using your Tablet PC 31
Setting up speech recognition
Before you can use speech recognition, you must configure the microphones and train the
system for the characteristics of your voice. The entire process takes about 10 minutes. You
should move to a quiet environment before starting this procedure.
To set up speech recognition
1. Open Motion Dashboard to the Audio panel (page 20).
2. Ensure that the speakers and microphone are set to appropriate levels.
3. Start Input Panel (page 22).
4. Tap the Tools and Options button ( ), then tap Speech.
5. Tap Next and follow the instructions in the setup program.
You can improve speech recognition by running additional speech training sessions. In
Control Panel, open Speech.
Starting speech recognition
After you have set up speech recognition, you can start it from Input Panel.
To start speech recognition
1. Start Input Panel (page 22).
2. Tap the Tools and Options button ( ), then tap Speech.
3. Select Dictation or Commands.
For more information about Dictation and Commands, see the Input Panel Help and the
Tablet PC Tutorials.
Using power management
The LE1700 includes a comprehensive suite of power management functions. By using
Motion Dashboard, you can control the following:
•Power schemes
•Alarms for low and critical battery
•Power meter readings for up to two batteries
•Advanced power settings
•Hibernation settings
Power Schemes
Use the Power Schemes tab to select from a set of pre-defined power schemes that are
appropriate for various computing environments. You can also define your own scheme, or
save one to another name that makes more sense to you.
32 Chapter 3 Using your Tablet PC
Alarms
Use the Alarms tab to specify the point at which battery alarms are activated for the low and
critically low battery level states. You can also define what happens when that battery level
is reached. For example, you may choose to have the tablet sound an alarm, or you may
prefer to receive a visual reminder.
Power Meter
Use the Power Meter tab to see a visual indication of the power status. If you select the
Show Details option, you can tap a battery icon for more information.
Advanced
Use the Advanced tab to define the power-saving settings that you want to use. You can
specify what you want the Tablet PC to do when you press the Power switch.
Hibernate
Use the Hibernate tab enable or disable hibernation. This tab also shows information about
the disk space used for hibernation. To use Hibernation, see “Using Hibernate” on page 33.
To manage power settings
1. Open Motion Dashboard to the Power panel (page 20).
2. Tap the Properties button.
The following illustration shows the window open to the Power Schemes tab, which defines
the power settings for the Tablet PC.
Chapter 3 Using your Tablet PC 33
Using Standby
Standby is a state in which your display and hard disks turn off, so that your computer uses
less power. When you want to use the computer again, it comes out of standby quickly,
although you may have to log on again.
Use standby to save power when you will be away from the computer for a short time while
working. Because Standby does not save your desktop state to disk, a power failure while
on Standby can cause you to lose unsaved information.
To put your computer on Standby
1. Open Motion Dashboard to the Power panel (page 20).
2. For Power Button, select Standby.
3. To put your computer on Standby, slide the power switch.
To turn your computer back on, slide the power switch.
Using Hibernate
Hibernation is a state in which your computer shuts down to save power but first saves
everything in memory on your hard disk. When you restart the computer, your desktop is
restored exactly as you left it. Use hibernation to save power when you will be away from
the computer for an extended time.
Hibernation has the following advantages over Standby:
•Hibernate saves the state of the desktop and applications.
•Hibernate consumes no battery power.
•When you return from the Hibernate state, you return to where you were when you
entered hibernation.
To enable Hibernation
1. Open Motion Dashboard to the Power panel (page 20).
2. Tap the Properties button.
3. In the Power Options Properties window, tap the Hibernate tab.
4. Select Enable Hibernation.
To put your computer on Hibernate
1. Ensure that Hibernate is enabled.
2. Open Motion Dashboard to the Power panel (page 20).
3. For Power Button, select Hibernate.
4. To put your computer on Hibernate, slide the power switch.
To turn your computer back on, slide the power switch.
34 Chapter 3 Using your Tablet PC
Using the battery
The Tablet PC runs on battery power when it is not plugged in. The standard battery is
located at the top of the Tablet PC.
Checking battery power
You can check the remaining battery power from Motion Dashboard, from the battery icon
in the notification area, or from the battery itself.
To check the remaining battery power
•Open Motion Dashboard to the Power panel (page 20).
You can also place the pointer over the battery icon in the notification area. The battery icon
provides a graphical representation of the remaining battery power. If a standard battery
and extended battery are both attached, the power reading is the cumulative charge of
both batteries.
For the standard battery, you can check the remaining battery power from the battery itself,
although you have to remove the battery to do so. For the extended battery, you can check
the battery gauge without removing the battery.
To check the battery gauge
1. Remove the battery (page 35).
2. Locate the gauge on the back of the battery and press the button. The indicator lights
show the remaining charge. Each light represents approximately 20% of the total
available charge.
Charging the battery
When the Tablet PC (with a standard battery) is connected to AC power, the battery
automatically charges until it reaches full charge, even if the Tablet PC is being used.
If two batteries (standard battery and extended battery) are attached, the standard battery
charges first, then the extended battery. The charging sequence is staggered to ensure that
both batteries become fully charged at nearly the same time. The standard battery charges
to the 95% level, followed by the extended battery charging to the 95% level. Then each
battery charges for a short interval until both reach 100%. When running on battery power,
the extended battery discharges first, then the standard battery.
For information about the battery status light, see “Status lights” on page 10.
WARNING: To avoid injury, keep the battery within the recommended temperature range
when charging it. Wait until it cools to room temperature before recharging it in the
Tablet PC or the battery charger. For more information, see the Tablet PC Safety and
Regulatory Guide or the battery charger documentation. You can find these documents at
www.motioncomputing.com/support.
Chapter 3 Using your Tablet PC 35
Removing and replacing the battery
You can remove the battery to check the remaining power, or to replace it with a fully
charged battery.
To remove the battery
1. Ensure that the Tablet PC is plugged in or turned off.
2. Turn the Tablet PC over so that the back side is up.
3. Slide the locking latch toward the center of the battery to unlock it.
4. Slide the spring-loaded latch toward the center of the battery and hold it while you
remove the battery.
To replace the battery
1. Slide the spring-loaded latch toward the center of the battery and hold it while you
insert the battery down into the Tablet PC.
2. Release the spring-loaded latch.
3. Slide the locking latch toward the outside of the battery to lock it.
Swapping the battery
You can swap the standard battery while the system is on, with or without having the
Tablet PC plugged in to AC power.
To swap batteries
1. Put the computer in Hibernate or Standby mode (page 33).
•With Standby, the Tablet PC will maintain your system for up to 30 seconds while you
swap the battery. You may have less than 30 seconds if you have many applications
running.
•With Hibernate, you will have as long as you need to swap the battery.
2. Remove the battery (page 35).
3. Insert the new battery (page 35).
Important: Use only Motion Computing L-Series batteries.
Locking latch
Spring-loaded Slide latches toward the center
latch
36 Chapter 3 Using your Tablet PC
Disposing of used batteries
Lithium-ion (Li-ion) batteries should be disposed of at a hazardous materials recycling
center when it is no longer serviceable. Do not throw it in a waste receptacle because the
battery could end up in a landfill.
Battery and power management tips
•To lengthen the battery’s usable life, use AC power when you can. The battery will charge
automatically while you run on AC power, so leave the battery in the tablet while you are
working.
•Use AC power when installing software or writing to a CD, and for optimal battery life,
when using a CD or DVD player.
•When using battery power, place the system in Hibernate or Standby mode if you are
going to leave it unattended for more than a few minutes (page 33).
•Remember that the display, processor, PC Cards, SD cards, wireless cards, and accessory
drives all draw on the battery, so adjust properties and disable unused accessories while
operating on battery power.
•When using battery power, adjust the display brightness to a dimmer setting and enable
dynamic display brightness. See “Adjusting the display brightness” on page 26.
•Turn off wireless devices when they are not being used.
Chapter 3 Using your Tablet PC 37
Using Motion OmniPass and the fingerprint reader
Motion OmniPass offers a secure and convenient system for managing your passwords and
providing confidentiality for your sensitive data through file encryption.
To start Motion OmniPass
•In the notification area, double-tap the Motion OmniPass icon ( ).
You can also start Motion OmniPass from the Security panel of Motion Dashboard.
The following illustration shows the Motion OmniPass Control Center.
From the OmniPass Control Center, you can manage OmniPass users and settings (distinct
from Windows users), change OmniPass settings, manage passwords, and protect your files.
For more information, see the OmniPass Help.
38 Chapter 3 Using your Tablet PC
Capturing a fingerprint
After you capture your fingerprints, you can associate the fingerprints with an OmniPass
user. This offers a quick and convenient way to log on to your Tablet PC, provides global
password management, and helps protect your data from unauthorized access.
Use this procedure to enroll a new user and capture a fingerprint for authentication.
To capture a fingerprint
1. Start Motion OmniPass (page 37) and tap Run Enrollment Wizard.
2. Enter the Windows account information for the new user and tap Next. The fields may
default to the user name of the current user.
3. If you are prompted to select an authentication device, select Fingerprint Device.
4. In the Choose Finger window, tap on the finger you want to enroll, then tap Next or
Practice. Practice allows you to do a trial run of the fingerprint capture.
5. Place the selected finger over the fingerprint reader and slowly drag your finger across
the sensor from right to left or left to right.
If the capture is successful, a green fingerprint image will appear in the capture area. If
the capture is unsuccessful, follow the instructions on the screen to improve the scan.
Chapter 3 Using your Tablet PC 39
After you have successfully captured your fingerprint, scan your fingerprint one more
time for verification.
6. Tap Next, then tap Ye s if you want to enroll a second fingerprint (recommended). If you
injure a finger, you can use a second finger to authenticate.
You can also capture a second fingerprint later. From the OmniPass Control Center, tap
Run Enrollment Wizard, then tap Modify a user’s device enrollment.
7. Select I am done with enrolling security authentication devices and tap Next.
8. Select your user preferences and tap Next. On the Backup User Profile screen, tap Next.
9. Select a location for your back up profile and tap Save. Enter a password and tap OK. On
the final screen, tap Done.
You should keep your backup profile in a secure location, such as on an external drive
that you can remove and store in a secure environment.
If your profile is lost or corrupted, you can restore it later. You should back up your profile
periodically to protect your configuration and any stored passwords and encryption
keys. For more information, see the OmniPass Help.
40 Chapter 3 Using your Tablet PC
Fingerprint reader tips
•Be consistent. Hold your finger and scan at the same angle each time. For example, if you
enroll your finger with your hand open, hold your hand this way each time you scan.
•The scanner is bi-directional. You can move your finger from right to left or left to right.
•Read the prompts carefully and ensure that you wait for the prompt before you swipe.
•Swiping too fast or too slow can make a capture unsuccessful. Change the swipe speed
until you learn what speed works best.
•When scanning, press hard enough to fully contact both the nickel-colored ring and the
sensor; you do not have to press hard.
•Rub your fingers together to stimulate the natural skin oils so your fingerprint is easier to
detect. Conversely, wipe your finger off so nothing interferes with the scan.
•If you are having trouble enrolling a specific finger, enroll a different finger. Typically, you
should scan an index finger, thumb, middle finger, ring finger, and little finger in that
order.
•If you are repeatedly having trouble getting a good scan, you may need to clean the
sensor. See “Cleaning the fingerprint reader” on page 56.
Using password replacement
OmniPass can manage your passwords for other applications, such as Web sites, Internet
email, FTP, or any restricted-access network resource. After OmniPass registers your
credentials, you can access any of these restricted areas by using your fingerprint or the
master password.
To register passwords
1. When you encounter a user name and password prompt, enter your user name and
password, but do not log on. (Do not tap Enter, Submit, or OK.)
2. Right-click the OmniPass icon, and select Remember Password. The Windows arrow
pointer changes to the OmniPass golden key.
3. Click the key cursor on the window that has the password that you want OmniPass to
remember.
Note: For some applications, you may have to use the password wizard to register
passwords. See “Using the password wizard” on page 41.
4. Enter the following information:
•Friendly Name. A descriptive name to identify the password box.
•Automatically enter. Instantly accesses the site without requiring a password or
fingerprint scan. If you are logged in to OmniPass and you access a secure Web site,
OmniPass will automatically submit your user name and password without
prompting for verification.
•Automatically click. Prompts you for your OmniPass/Windows password or
fingerprint scan when you access the site (default).
5. Tap Finish.
6. If prompted, swipe your fingerprint or enter your master password to authenticate these
settings.
Chapter 3 Using your Tablet PC 41
Using the password wizard
Certain applications require more sophisticated user input for authentication. For these
applications, you may need to use the password wizard to set up password replacement.
To run the password wizard
1. Start Motion OmniPass (page 37).
2. In the left pane, tap Password Wizard.
3. Follow the instructions in the wizard program.
Logging on to a remembered site
To log on to a remembered site, open the Web site or application that you have set up with
password replacement. See “Using password replacement” on page 40. Swipe your finger
or enter the master password when prompted.
To remove a remembered site, tap Manage Passwords.
Setting up a smart card device
Before you start this procedure you should have already enrolled as an OmniPass user. To
enroll as an OmniPass user with the fingerprint reader device, see “Capturing a fingerprint”
on page 38.
To set up a smart card, you must purchase a smart card reader separately. For more
information, go to the Motion Computing accessories page at
www.motioncomputing.com/accessories.
To set up a smart card device
1. Install the card reader according to the manufacturer’s instructions.
2. Start Motion OmniPass (page 37).
3. Tap Run Enrollment Wizard.
4. Tap Modify a user’s device enrollment. If prompted, authenticate with OmniPass.
5. Select SmartCard and tap Next. Insert the smart card into the smart card reader if you
have not done so already.
6. Enter the PIN for the smart card.
7. On the confirmation screen, tap Next.
8. On the Device Enrollment Complete screen, select I am done with enrolling devices
and tap Next.
42 Chapter 3 Using your Tablet PC
Setting up strong logon security
For an additional level of security, you can enable strong logon security. Strong logon
security forces you to authenticate with a specific security device (such as the fingerprint
reader or a Smart Card) before allowing access to Windows.
After strong logon security is enabled, the Windows Welcome screen and Windows Fast
User Switching are disabled.
To enable strong logon security
1. Start Motion OmniPass (page 37).
2. Tap Change Your OmniPass Settings.
3. Tap the Change System Settings tab.
4. Select the Enable strong logon security check box.
5. Tap Save all changes.
6. Tap OK and restart your computer.
After you restart your computer, you should configure the authentication rules for strong
logon security.
To configure authentication rules
1. Start Motion OmniPass (page 37).
2. Tap Change Your OmniPass Settings.
3. Tap Set user authentication rules and policies.
4. Select the appropriate authentication rules.
5. Tap OK.
Chapter 3 Using your Tablet PC 43
Using Windows Security Center
Windows Security Center provides a central location for you to manage your computer’s
security settings and learn more about improving security. If a problem is detected (such as
an out-of-date antivirus application), the Security Center sends you an alert and provides
recommendations for how to remedy the situation.
Windows Security Center manages the following:
•Windows Firewall. Protects your computer against viruses and other security threats,
such as intruders who might try access over the Internet or a network.
•Automatic Updates. Keeps your computer up to date by notifying you of important
Windows updates. You can configure Automatic Updates to download and install
updates automatically.
•Internet Options. Protects you from Web sites that could damage your computer,
blocks pop-ups, and protects your privacy. Internet Options allow you to change the
settings of Internet Explorer, but it cannot be used to change the settings of other Web
browsers.
To learn more about Windows Security Center, open Motion Dashboard to the Security
panel, then tap Windows Security Center.
44 Chapter 3 Using your Tablet PC
Setting up users and passwords
You can use different types of user accounts and passwords to create various levels of
protection for your Tablet PC and its data, depending on the level of security that you need.
Setting up Windows user accounts
You can use Windows user accounts to help secure the files on your computer from other
users. You must have an administrator account on the computer to add a new user to the
computer.
To set up a Windows user account
1. In Control Panel, open User Accounts.
2. Tap Create a new account.
3. Enter the appropriate information for the new user account.
Setting a BIOS password
You can use a BIOS password to secure the basic input/output system of the computer.
WARNING: Read this section carefully to understand the implications of creating a BIOS
system password. If you forget the password, you will not be able to access your Tablet PC. If
this happens, contact Motion Computing Technical Support at
www.motioncomputing.com/support. Have your serial number ready. You can find the
serial number on the back of the Tablet PC.
To set a BIOS password
1. Start the Tablet PC.
2. When the Motion Computing splash screen appears, press the Rotate button ( ). If
you miss the splash screen, restart the computer and try again.
3. Quickly tap the screen with the tablet pen to open the system setup menu. If you have a
keyboard attached, you can also press the space bar to open the system setup menu.
4. Tap Password Options.
5. In the Password window, select Change current password and enter a password using
the on-screen keyboard.
6. Select Password on boot, if desired.
A BIOS password requires the user to enter a password to open the BIOS. A password on
boot requires the user to enter a password to start the computer.
7. Tap OK.
To clear the password, select Change current password, leave the password fields blank,
then tap OK.
Chapter 3 Using your Tablet PC 45
Setting up a hard disk drive (HDD) password
You can use a HDD password to protect the computer and the hard disk drive. The
computer cannot be started without the HDD password, and the data on the disk drive
cannot be accessed, even if it is removed and attached to a different computer.
To set up an HDD password
1. Start the Tablet PC.
2. When the Motion Computing splash screen appears, press the Rotate button ( ). If
you miss the splash screen, restart the computer and try again.
3. In the PhoenixBIOS Set Up Utility, tap Security on the menu bar.
4. Double-tap Enter for Set Hard Disk Password.
5. Enter a password using the on-screen keyboard and tap Enter. Enter the password again
to confirm it and tap Enter.
6. Tap Exit, then select Exit Saving Changes.
To clear the password, double-tap Enter for Set Hard Disk Password. Enter the current
password, then tap Enter twice to leave the Enter New Password fields blank.
46 Chapter 3 Using your Tablet PC
Using Wi-Fi (802.11a/b/g)
Use the information in this section to set up a Wi-Fi connection. Wireless access requires an
802.11a, 802.11b, or 802.11g access point. Internet access requires a working Internet
connection.
WARNING: FAA regulations require that you disable any wireless connection when
traveling by air. Failure to disable the wireless connection on the Tablet PC while traveling
by air can cause communications problems with aircraft instruments.
Enabling or disabling Wi-Fi
Before you can establish a Wi-Fi connection, you must enable the Wi-Fi adapter. You can
enable the Wi-Fi adapter using Motion Dashboard.
To enable or disable Wi-Fi
1. Open the Motion Dashboard to the Wireless panel (page 20).
2. Select or clear the Enable Internal 802.11 Wireless check box.
Setting up a Wi-Fi connection
Use this procedure to create a Wi-Fi connection.
To set up a Wi-Fi connection
1. Open the Motion Dashboard to the Wireless panel (page 20).
2. Ensure that Enable Internal 802.11 Wireless is selected.
3. Tap the Properties button.
4. In the Wireless Network Connection Properties window, tap the Wireless Networks tab.
5. Tap View Wireless Networks to see a list of available networks.
6. Select the network you want to connect to and tap Connect. If you are connecting to a
secure network, you may need to enter authentication information.
For more information about Wi-Fi, see “Wi-Fi (802.11a/b/g wireless)” on page 16.
Chapter 3 Using your Tablet PC 47
Using Wireless Broadband
Use the information in this section to set up a Wireless Broadband connection. Wireless
Broadband access requires a service contract from a Broadband Wireless service provider.
For more information, see “Wireless Broadband” on page 16.
WARNING: FAA regulations require that you disable any wireless connection when
traveling by air. Failure to disable the wireless connection on the Tablet PC while traveling
by air can cause communications problems with aircraft instruments.
Activating your Wireless Broadband service
Before you can use the Wireless Broadband service, you must activate your service with the
service provider you chose when you ordered your Tablet PC.
You may be able to activate your service using the connection manager, or you may have to
call your service provider to activate. For more information about starting the connection
manager, see the Wireless Broadband document in the Tablet PC box.
Enabling Wireless Broadband
Before you can establish a Wireless Broadband connection, you must enable the Wireless
Broadband adapter. You can enable the Wireless Broadband adapter using Motion
Dashboard.
To enable Wireless Broadband
1. Open the Motion Dashboard to the Wireless panel (page 20).
2. Select the Enable Wireless Broadband check box.
Starting the connection manager
The connection manager software is preinstalled on your Tablet PC based on the service
provider you chose when you ordered the Tablet PC.
To start the connection manager
•Double-tap the connection manager shortcut on your desktop.
For more information, see the connection manager help.
Note: The connection manager software you use depends on your wireless service provider.
48 Chapter 3 Using your Tablet PC
Connecting and disconnecting
Use the connection manager software to connect to your provider’s Wireless Broadband
network.
To connect and disconnect
1. Start the connection manager (page 47).
2. Do one of the following:
•To connect, click Connect.
•To disconnect, click Disconnect.
Finding your ESN
The ESN (Electronic Serial Number) uniquely identifies your Tablet PC on a Wireless
Broadband network. You may need your ESN when you activate your service.
To find your ESN
1. Start the connection manager (page 47).
2. Select Help > Show ESN.
Chapter 3 Using your Tablet PC 49
Using Bluetooth
You can use Bluetooth® to connect to accessory devices or other computers. The devices
can communicate with each other when they are in range. For more information, see
“Bluetooth wireless” on page 16.
Enabling or disabling Bluetooth
Before you can set up a Bluetooth device, you must enable the Bluetooth adapter on the
Tablet PC. After you enable Bluetooth, the Bluetooth icon ( ) appears in the notification
area. You can tap on this icon to get shortcuts to the Bluetooth Settings window, the
Bluetooth File Transfer Wizard, and the Add New Connection Wizard.
To enable or disable Bluetooth
1. Open Motion Dashboard to the Wireless panel (page 20).
2. Select or clear Enable Internal Bluetooth Wireless.
After you enable Bluetooth, the Bluetooth adapter tries to discover other Bluetooth devices
within range. When a Bluetooth device is discoverable, it is visible to other Bluetooth
devices in range. For information about making a device discoverable, see the device’s
documentation.
Setting up a Bluetooth device
Before you can use a Bluetooth device with your Tablet PC, you need to set up the device.
After you set up the device, it is paired with your Tablet PC, and uses a passkey to create a
secure connection between the Tablet PC and the Bluetooth device.
Note: Although the passkey exchange helps to secure your data, Bluetooth wireless
technology should not be considered completely secure.
To set up a Bluetooth connection
1. Ensure that Bluetooth is enabled.
2. Tap Start > All Programs > Bluetooth > Bluetooth Settings to open the Bluetooth
Settings window.
3. Place the Bluetooth device in discoverable mode. Each Bluetooth device may have a
different way to make it discoverable. See the manufacturer’s documentation for more
information.
4. Tap the New Connection button.
5. In the Add New Connection window, select Express and tap Next.
6. Under Bluetooth devices, select the appropriate device and tap Next. If the device is not
discovered, see “If the device is not discovered…” on page 50.
7. If required, enter the number shown in the Passkey field and press Enter. See the
manufacturer’s documentation for more information.
8. Enter a name for the device and tap Next. After the Bluetooth installation finishes, tap
Finish.
50 Chapter 3 Using your Tablet PC
The Bluetooth device is ready to use. Paired devices are shown in the Bluetooth Settings
window. The following illustration shows a Bluetooth Settings window with a Bluetooth
keyboard and mouse.
If the device is not discovered…
If the Bluetooth device is not detected after multiple attempts, try the following:
•Ensure that Bluetooth is enabled (page 49).
•Ensure that the device you are adding is discoverable. See the manufacturer’s
documentation for more information.
•Ensure that the Bluetooth device has good batteries.
•For keyboards, mice, and printers, ensure that you select My device is set up and ready
to be found in the Add Bluetooth Device Wizard.
•For Tablet PCs transferring files, both tablets must turn on the device transfer wizard,
although only the receiving Tablet PC needs to be discoverable. Tap the Bluetooth icon
and then Send a file or Receive a file. When you do this, discovery is automatically
turned on for the receiving device.
•Select Allow Bluetooth devices to connect to this computer to connect to keyboards,
mice, printers, and other devices. You find this by right-clicking the Bluetooth icon >
Show Bluetooth Devices > Options.
•Check which Bluetooth devices are connected. Tap the Bluetooth Devices icon > Open
Bluetooth Settings. On the Devices window, you should be able to see Bluetooth devices
that are currently connected.
If the Tablet PC still cannot detect the Bluetooth device, contact the device manufacturer
for assistance.
Chapter 3 Using your Tablet PC 51
Bluetooth wireless tips
Motion Computing and its Bluetooth partners have worked to ensure a positive experience
with this technology, and to ensure Bluetooth interoperability. In doing so, we have found
the following issues:
•If you are running Bluetooth and Wi-Fi at the same time, interference can affect the
Bluetooth performance. This is most noticeable when you try to transfer large amounts
of data, such as file transfers or printing large documents. This may also be noticeable
when you try to transfer large or small amounts of data may if several Bluetooth devices
are operating simultaneously in an office.
•Bluetooth audio has not been fully developed for speech recognition. Therefore, for
speech recognition, we recommend that you not use a Bluetooth wireless headset.
Moreover, Motion Speak Anywhere can record clear audio, dictate notes, and use voice
commands without a microphone headset.
•Some Bluetooth devices will disconnect when they go into power-saving mode. Most
devices will automatically reconnect when they become active again.
•If you attempt to install other wireless headset or other audio drivers (such as Bluetooth
or USB) over the Tablet PC audio drivers, a malfunction of the Tablet PC audio system
may occur because the drivers may not be compatible.
•Occasionally, some Bluetooth device compatibility issues can occur. If you are having
problems with interoperability of Bluetooth devices, contact the manufacturer of your
Bluetooth device and check its compatibility with the Bluetooth software installed on
your Tablet PC.
•Your Tablet PC comes with Bluetooth software from Toshiba, although you can use other
Bluetooth software. For more information, go to the Motion Computing Knowledge Base
at http://www.motioncomputing.com/kb and search for “Bluetooth”.
52 Chapter 3 Using your Tablet PC
Using infrared
You can use infrared to connect to printers, modems, cellular phones, and other devices.
Use the Wireless Link window to control infrared connections.
To open the Wireless Link window
•In Control Panel, open Wireless Link.
To establish an infrared connection
1. Ensure that infrared is enabled on both devices.
2. Position the devices so that the two infrared transceivers are pointing at each other, and
the devices are within one meter of each other.
When the devices establish a connection, the Infrared icon ( ) appears on the taskbar.
3. Double-tap the Infrared icon.
Depending on the type of device, you can send or receive files, connect to a printer, or
access the Internet.
4. Follow the instructions in the Wireless Link program.
Finding additional software
For information about other tablet-oriented software, go to the Motion Computing
software page at www.motioncomputing.com/products/software_motion.asp.
You will find links to software solutions for purchase as well as free downloads from Motion
software and service partners.
53
Care and Maintenance 4
Proper care and maintenance will keep your Tablet PC working and in good condition for a
long time. For general information about care of the Tablet PC and its components and
accessories, see the Safety and Regulatory Guide included with your Tablet PC.
This chapter describes the care and maintenance procedures for your LE1700 Tablet PC.
Important: Follow the guidelines listed below when caring for your Tablet PC and its
components. Improper use may damage the Tablet PC and its components and void the
warranty.
General care
•Protect the Tablet PC from exposure to extreme temperatures, shock, liquids, and strong
magnetic fields.
•If you are storing the Tablet PC for a long time, unplug the power adapter and remove
the battery after partially discharging it.
•Do not place heavy objects on top of the Tablet PC.
•Do not open the Tablet PC case except to replace Motion-authorized components.
Always follow the instructions included with these accessories when performing these
procedures.
54 Chapter 4 Care and Maintenance
Standard display
•Clean fingerprints and most marks from the display surface by wiping it with the soft
cloth (provided). Never spray or pour liquids directly onto the display surface itself. Never
use an abrasive cleaner on the display. If liquid is spilled on the display, wipe it up
immediately.
•If needed, spray a soft cloth (not directly on the display) with a window-type cleaner and
wipe the display.
•Avoid using tissues or paper towels to clean the display surface. These contain wood
fibers that can scratch the display.
•Use only the tablet pen on the display. Do not write on the display with an ink pen or
pencil, or any other object that could damage the display surface.
•Protect the display surface from unnecessary contact by using a case when transporting
the Tablet PC.
•Avoid exposing the display to direct sunlight for long periods of time.
View Anywhere display
•Clean fingerprints and most marks from the display surface by wiping it with the soft
cloth (provided). Never spray or pour liquids directly onto the display surface itself. Never
use an abrasive cleaner on the display. If liquid is spilled on the display, wipe it up
immediately.
•If needed, clean with any alcohol-based product recommended for anti-reflective glass.
Other cleaning products might leave a residue.
•Avoid using tissues or paper towels to clean the display surface. These contain wood
fibers that can scratch the display.
•Use only the tablet pen on the display. Do not write on the display with an ink pen or
pencil, or any other object that could damage the display.
•Protect the display surface from unnecessary contact by using a case when transporting
the Tablet PC.
•Avoid exposing the display to direct sunlight for long periods of time.
Chapter 4 Care and Maintenance 55
Cleaning in a health care environment
This section describes the cleaning procedures for a Tablet PC in a health care environment.
Disinfecting procedures
You should periodically disinfect the tablet according to the institutional polices of surface
and equipment safety and cleanliness.
According to the Centers for Disease Control, “items that do not ordinarily touch the patient
or touch only intact skin are not involved in disease transmission, and generally do not
necessitate disinfection between uses on different patients”.1 We recommend using an EPA-
approved low-level disinfectant when general cleaning is required. For a list of cleaning
solutions tested by Motion Computing, see “Cleaning solutions” on page 56.
If the tablet becomes soiled with blood or other body fluids, chemical germicides that are
EPA-approved for use as hospital disinfectants and that are tuberculocidal/virucidal when
used at recommended dilutions and contact times can be used. Visibly soiled areas should
first be cleaned and then chemically decontaminated. For disinfection, the cleaned areas
should be moistened with the appropriate germicide and allowed to air dry.2
If a tablet is used with patients who are infected or colonized with vancomycin-resistant
enterococci or other drug-resistant microorganisms judged by the infection control
program (based on current state, regional, or national recommendations, to be of special or
clinical or epidemiologic significance or with highly virulent microorganisms such as Ebola
or Lassa), then the tablet should be dedicated to one patient or patient cohort or subjected
to low-level disinfection between patient uses.1
Training and documentation considerations
All users of Motion Tablet PCs in the health care environment should be provided with
training on proper cleaning procedures. Cleaning procedures should be added to the
institution's policies and procedures for infection control.
1. Centers for Disease Control and Prevention. “Sterilization or Disinfection of Medical Devices-General Principles.” 2002.
<www.cdc.gov/ncidod/dhqp/bp_sterilization_medDevices.html> (20 Sept. 2006).
2. Centers for Disease Control and Prevention. “Sterilization or Disinfection of Patient-Care Equipment-HIV Related.” 2000.
<www.cdc.gov/ncidod/dhqp/bp_sterilization_patient_care.html> (20 Sept. 2006).
56 Chapter 4 Care and Maintenance
Cleaning solutions
This section describes various cleaning solutions that have been tested by
Motion Computing. Please review the manufacturer's guidelines for proper use of the
product.
Cleaning the fingerprint reader
Under normal circumstances, you should clean the fingerprint reader once a month, or
whenever necessary.
To clean the fingerprint reader
1. Shut down the Tablet PC, unplug it, and remove the battery.
2. Lightly spray a cotton swab with household window cleaner.
3. Gently rub the sensor surface with the cotton swab, slowly rotating the swab so a new,
clean surface of the swab is constantly exposed to the sensor surface. Do not allow
cleaner to drip or run down into the electronics around the sensor.
Do not use bleach, solvents, or abrasives. Do not spray or pour any liquid directly on the
sensor.
4. After cleaning, gently rub the surfaces again with a clean, dry cotton swab. Use a clean
swab each time you clean the sensor.
Product Type Manufacturer Comments
Alcohol Prep Pads Dynarex For general purpose use only. Not considered a
disinfectant for health care environments.
Cavi-Wipes Metrex Can be difficult to clean off. Can leave a film on
the product.
Germicidal Wipes
(Super Sani-Cloth)
PDI Requires gloves for use and can be difficult to
clean off. Effective on acrylic displays but can be
difficult to clean off the ViewAnywhere display.
MOC Reviver MOC Can be difficult to clean off. Can leave a film on
the product.
PVP-I Prep Pads Triad Can leave a yellow film on the product.
Sani-Cloth PDI Requires gloves for use and can be difficult to
clean off.
Screen Cleaner Office Depot For general purpose use only. Not considered a
disinfectant for health care environments.
Vira-Guard Veridien Highly recommended.
Virex Virex Can be difficult to clean off. Can leave a film on
the product.
Chapter 4 Care and Maintenance 57
Pen
•Store the pen in the pen bay or in a case when not in use.
•Do not store the pen vertically on the tip. Constant pressure on the tip can affect the
pen-to-digitizer interaction.
•Change the pen tip regularly. See “Replacing pen tips” on page 57.
•Do not immerse the pen in liquid. It contains electronic components that could be
damaged.
•In certain environments, particles or debris can stick to the pen tip or the Tablet PC
display. To avoid damaging the display, clean it frequently with the provided cleaning
cloth. Also, change pen tips regularly, especially if you drop the pen onto a rough surface
that could damage the tip or embed debris in it. Damaged pen tips can scratch the
display.
Replacing pen tips
Pen tips eventually wear down or get damaged, so the pen includes extra tips and a tool for
replacing them.
With typical use, you should change the pen tip every 90 days. If you use the pen in a dirty
environment, you should change the pen tip every 30 days. Particles can become
embedded in the pen tip and scratch the display.
To replace the pen tip
1. Grasp the old tip with the tip replacement tool. Use the notch on the ring to grab the tip.
2. Pull the old tip out of the pen.
3. Insert a new tip.
4. Apply slight pressure to push it into place.
Ordering new pens
To order additional pens, go to the Motion Computing accessories page at
www.motioncomputing.com/accessories.
Replacing the antenna
If the antenna becomes detached from the Tablet PC, you can snap it back in to place.
If the antenna breaks, you can order another one from Motion Computing. Go to the
Motion Computing accessories page at www.motioncomputing.com/accessories.
58 Chapter 4 Care and Maintenance
Traveling with your Tablet PC
Use the following tips when you travel with your Tablet PC:
•Remove all accessories and cables. Remember to pack those you will need while
traveling, including at least one tablet pen.
•Put the Tablet PC into a portfolio or other case to protect the display.
•Protect the pen by keeping it in the pen bay or in a case during travel.
•Pack the Tablet PC securely in a briefcase or hand-carried luggage, and keep it separate
from toiletries, liquids, and food. Do not pack it in checked luggage.
•Keep the Tablet PC stable during travel. Secure it to prevent it from sliding around in
overhead bins and car trunks.
•Before extended use in the field or long trips away from AC power, adjust the power
properties to maximize battery conservation. You can adjust the power properties from
Motion Dashboard. See “Using power management” on page 31.
•For international travel, obtain and use the appropriate adapters for your destination’s
electrical outlets. A current converter is not necessary.
•You may want to carry proof of ownership or a merchandise passport when traveling
internationally.
•Consult your insurance company and credit card company to learn about emergency
travel assistance in case your Tablet PC becomes lost or disabled.
Traveling by air
Use the following tips when traveling by air.
•Have a fully charged battery in case security personnel ask you to start the Tablet PC.
•Have it hand-inspected or sent through the X-ray scanner, but never carry it through the
metal detector.
•Turn off the Tablet PC off or place it in hibernation mode for takeoff and landing.
FAA Wireless air travel requirement
The FAA requires that you suspend wireless operations, such as Wi-Fi and Bluetooth, before
boarding a plane. You can disable all wireless by pressing the Wireless power button for a
half-second.
To disable external wireless, remove any wireless PC cards. Failure to suspend wireless
operations while traveling by air can cause problems with aircraft instruments.
Important: Do not transport Li-ion batteries in checked baggage. The baggage hold can
get very hot, which can overheat the Li-ion battery and result in an explosion. You can take
up to two spare batteries in carry-on luggage, in addition to the one in your Tablet PC.
Transporting batteries in checked baggage or transporting more than two spare batteries is
a violation of federal transportation regulations.
Chapter 4 Care and Maintenance 59
System repair and recovery
If your system shows signs of instability or corruption, you can use this procedure to return
your computer to an earlier operating state.
Note: You need an external CD-ROM drive for this procedure.
In most cases, the setup program can repair damaged Windows components, allowing you
to keep your system data, applications, and settings.
If the setup program can not repair the damaged components, it will write over your
existing data. You will have an opportunity to cancel the procedure before you lose any
data. You may want to contact your system administrator for assistance.
To run the repair and recovery procedure
1. If possible, back up your data files.
2. Shut down the Tablet PC.
3. Insert the Motion Operating System Recovery CD into the CD-ROM drive and start the
Tablet PC. When prompted, press any key to boot from the CD.
4. On the Setup screen, select ENTER to set up Windows XP.
Note: Do not select R=Repair before you accept the End User License Agreement (EULA).
If you do, you must exit this procedure, shut down and restart your Tablet PC, then
accept the EULA before proceeding.
5. Press F8 to accept the terms of the End User License Agreement.
6. When the next options appear, select from the following:
•R = Repair. Re-installs only damaged Windows components. This option preserves
your system data, applications, passwords, and settings.
•Esc = Don’t Repair. Formats your hard disk drive and installs Windows completely. If
Windows Setup selects this option automatically, you can format now or cancel.
Note: If the setup program cannot repair your system, the Don’t Repair option is selected
automatically.
7. Follow the instructions in the setup program.
8. After your operating system has been repaired, you will be prompted to insert the
Motion Drivers and Utilities Recovery CD.
•For a repaired system, this process finishes quickly.
•For a reformatted system, this process takes some time while the drivers and utilities
are reinstalled. Once Windows loads, your settings and drivers are installed. Your
system may reboot several times during this process. After the recovery process
finishes, you may need to install other applications from the Motion Application CD.
60 Chapter 4 Care and Maintenance
61
Troubleshooting and
Support A
Motion Computing Tablet PCs are thoroughly tested for performance and quality, but
occasionally problems still occur. If you do not find the information you are looking for in
this section, go to the Motion Computing support page at www.motioncomputing.com/
support.
Troubleshooting
Use the information in this section to identify and resolve common issues. If an issue has
more than one potential cause, the most common cause is listed first.
Power
The computer does not turn on
•The power switch might not be fully engaged. Slide and hold the power switch for at
least a half-second, but no more than three seconds.
•The computer might not be plugged in or battery might be depleted. Plug the computer
in to AC power.
The computer does not shut down
•An application might have stopped responding. Use Task Manager to manually stop the
application. (Press the Windows Security button and tap the Task Manager button.) For
more information, open Windows Help and Support and search for “task manager”. You
can also slide and hold the power switch for five seconds to force the computer to shut
down.
The computer will not enter Hibernation mode.
•Hibernation might not be enabled. Use Motion Dashboard to enable Hibernation. See
“Using Hibernate” on page 33.
The computer does not return from Hibernation while on battery power
•The battery might be depleted. Plug the computer in to AC power.
62 Appendix A Troubleshooting and Support
The display goes black while the Tablet PC is still turned on
•The computer might have turned off the display to save power. To restore the display,
touch the screen with the tablet pen or press a button.
•The computer might have gone into Standby mode. In Standby mode, the power status
light flashes blue. Slide and hold the power switch for about one second.
•The computer might have gone into low-battery Hibernation mode. In low-battery
Hibernation mode, the power status light is off. Plug the computer in to AC power, then
slide and hold the power switch for about one second.
Battery
The battery does not last very long (less than three hours)
•Hot or cold conditions can adversely affect the battery charge. Use AC power if you are
operating the computer in these conditions.
•Accessory devices, such as a DVD player, and applications that make heavy use of the
hard drive can drain the battery more quickly. Remove the accessory devices or use AC
power if possible.
•The battery may be weakening. Use a different battery if possible. To order a new battery,
go to www.motioncomputing.com/accessories.
I lost data while swapping batteries
•The computer will maintain data and settings for 30 seconds in Standby mode. This time
may vary due to your system and the programs you are running. Try putting your
computer into Hibernate mode before you swap batteries. See “Using Hibernate” on
page 33.
Display
The desktop area is larger than the Tablet PC display
•If the display resolution is set higher than the display can support, the desktop area
scrolls as you move around. Decrease the display resolution so that the entire desktop is
visible. For more information, open Windows Help and Support and search for “change
resolution”.
When I disconnect an external monitor, the desktop area is larger than the Tablet PC
display
•The computer may have expanded the desktop beyond the display area of the Tablet PC
display. Use Motion Dashboard to set the Tablet PC as the active display. For more
information, see “Setting up an external display” on page 28.
1. Open Motion Dashboard to the Display panel (page 20).
2. Tap the Properties button
3. Select Notebook to make the Tablet PC the primary display.
The display is too dim
•The brightness may be set too low. Use Motion Dashboard to increase the brightness.
See “Adjusting the display brightness” on page 26.
Appendix A Troubleshooting and Support 63
The display is unreadable or distorted
•The screen resolution and color quality may be set incorrectly. Use Windows Display
Properties to reset the display settings.
1. In Control Panel, open Display.
2. Click the Settings tab.
3. For Screen resolution, select 1024 x 768
4. For Color quality, select Highest (32 bit).
•The display driver may have been removed or become corrupted. Use Windows Device
Manager to reinstall the driver.
1. In Control Panel, open System.
2. Open the Hardware tab, then tap Device Manager.
3. Expand Display adapters.
4. Select the adapter and select Action > Update driver.
5. Follow the instructions in the setup program.
Input
The Tablet PC does not respond to the pen I am using
•You may be using an improper input device. Only Motion tablet pens can be used to
write on the Tablet PC display. The Tablet PC does not respond to other pens or to a
plastic stylus.
•You may be using the wrong tablet pen. Occasionally, a particular tablet pen may not
work with a particular Tablet PC. If you are in an environment with multiple tablets and
pens, try using a different pen. You can also tether the pen to the tablet to ensure that a
pen stays with its tablet.
The pointer on the screen does not align with the tablet pen
•The pen may need to be calibrated. See “Calibrate the digitizer” on page 6.
When I write, I inadvertently click the function button on the pen
•Try adjusting how you hold the pen. Avoid resting your finger on the function button.
You can use the Pen and Input Devices window to disable the button.
The function button does not work
•The function button may not be enabled. You can use Tablet and Pen Settings window
to enable the function button. See “Configuring pen options” on page 22.
•You may not be pressing the button early enough. Try pressing the function button
before you touch the pen to the display surface.
The eraser does not work
•The eraser may not be enabled. You can use Tablet and Pen Settings window to enable
the eraser. See “Configuring pen options” on page 22. The eraser works on ink only, not
text. The eraser is not functional on WriteTouch Tablet PCs.
64 Appendix A Troubleshooting and Support
The buttons on the Tablet PC do not do what I expect them to do
•The button functions may have been customized. You can use the Tablet and Pen
Settings window to change the buttons to the desired functions. See “Configuring front
panel buttons” on page 25.
Ports and connectors
The system does not recognize the PC card I inserted
•The card might be inserted improperly. Eject the card and re-insert it. Ensure the label
side is up. See “PC card slot” on page 15.
•The device may not have been tested for Windows compatibility. For a list of tested
products, go to the Windows Marketplace Tested Products page at
www.microsoft.com/whdc/hcl.
The system does not recognize a USB device
•Windows may take a short time to recognize a USB device. Wait a few moments to see if
Windows recognizes the device.
•The device may not be connected properly. Check the connection and ensure it is
inserted properly into a USB port. You can also try a different port.
•The correct driver might not be included with Windows. Check the manufacturer’s Web
site for a current driver, or use the installation CD that came with the device.
The Tablet PC is in its dock, but the system does not recognize any accessory devices,
such as the external disk drive or monitor
•The Tablet PC may not be fully seated in the dock. Remove the Tablet PC from the dock
and then replace it.
Network
The wireless adapter keeps connecting even when I do not want it to
•The wireless adapter is enabled. You can use Motion Dashboard to disable the wireless
adapter. See “Enabling or disabling Wi-Fi” on page 46.
I cannot connect to a network using the Ethernet adapter
•The Ethernet cable may not be connected properly. Remove and reconnect the Ethernet
cable or replace the cable.
Audio
No sound is coming from the built-in speakers
•Ensure that nothing is connected to the audio out port. Connecting headphones or
external speakers disables the built-in speakers. Disconnect the headset or external
speakers if not in use.
Appendix A Troubleshooting and Support 65
No sound is coming from any speakers
•The volume may be set too low or muted. You can use Motion Dashboard to increase the
volume or turn mute off.
•The integrated audio components may have been overwritten. If you install a third-party
audio device (such as a USB or Bluetooth device), the integrated audio may stop
working. If this happens, reinstall the SigmaTel and Knowles Acoustics audio drivers.
After you install these, if you still have problems recording, contact
Motion Technical Support.
System
I forgot my BIOS password and cannot access my computer
•You can enter several incorrect passwords before the BIOS temporarily locks the system.
You can try again by restarting the system. If you still cannot log on, contact Motion
Computing Technical Support at www.motioncomputing.com/support.
An application has stopped responding, but I can still move the pointer and use other
applications
•The application may have stopped responding. Use Task Manager to manually stop the
application. (Press the Windows Security button and tap Task Manager.) See Windows
Help and Support for more information.
The computer seems to be operating more slowly than usual
•The hard disk drive may be full or nearly full. You can use Disk Cleanup to free up space
on your hard drive. For more information, open Windows Help and Support and search
for “disk cleanup”.
•The hard disk may need to be defragmented. You can use Disk Defragmenter to
consolidate files and folders on the hard drive. For more information, open Windows
Help and Support and search for “disk defragmenter”.
Frequently asked questions
How can I make the battery charge last longer?
•For maximum conservation, you can use the Max Battery power scheme. To select this
scheme, open Motion Dashboard to the Power panel.
•Use the Dynamic brightness display setting. This automatically controls the display
brightness to conserve power. See “Adjusting the display brightness” on page 26.
•Set the display brightness to the dimmest level you are comfortable with. See “Adjusting
the display brightness” on page 26.
•Disconnect any Ethernet connections that are not being used. Disable the wireless
adapter and Bluetooth adapter if you are not using them. Disconnect unnecessary USB
devices.
•Stop unnecessary background applications and processes.
66 Appendix A Troubleshooting and Support
What do I need to use the Tablet PC in another country?
•You will need a travel plug adapter. You can find these in airports and travel stores. You
do not need to buy a voltage converter; the Motion AC adapter will automatically adjust
to different voltages.
How do I clean the View Anywhere display screen?
•To clean the View Anywhere display screen, wipe it with a soft cloth (like the one
supplied). If needed, clean with any alcohol-based product recommended for use on
anti-reflective glass. Other cleaning products may leave a residue. Do not spray cleaners,
spray/pour any liquid, nor wipe any abrasive cleaner on the screen nor any surface of the
Tablet PC. Do not use tissues or paper towels to clean the screen. They contain wood
fibers and may scratch the surface.
How do I clean the standard display screen?
•To clean the acrylic display screen, wipe it with a soft cloth (like the one supplied) onto
which you have sprayed a window-type cleaner. Do not spray cleaners, spray/pour any
liquid, nor wipe any abrasive cleaner on the screen nor any surface of the Tablet PC. Do
not use tissues or paper towels to clean the screen. They contain wood fibers and may
scratch the surface.
Will scratches affect the performance of the display or digitizer?
•Our testing has not found appreciable loss of performance on a scratched display.
How sensitive is the screen to various elements?
•As with any computer or electronic device, you should protect the Tablet PC from liquids,
dirt and sand, other contaminants, and extreme heat.
Will any monitor, USB device, keyboard, or mouse work with the Tablet PC?
•If the device has a driver for Windows, it will work with the Tablet PC. For a list of
products that have been tested for Windows, go to the Windows Marketplace Tested
Products page at www.microsoft.com/whdc/hcl.
Why is the Tablet PC lacking parallel, serial, and PS2 (mouse) ports?
•Microsoft Tablet PC certification requires the system to be completely Grab-and-Go—
that is, to be able to dock with and undock from all accessories without putting the
system into suspend or shutting it down. Connecting through legacy ports such as serial,
parallel, and PS2 often requires suspending or restarting the system, which prevents you
from moving between desktop mode and mobile mode seamlessly in one docking/
undocking step.
How do I adjust the Tablet PC for left-handed use?
•Open the Tablet and Pen Settings window (page 22). You can select left- or right-handed
and change the location of the menus. You should calibrate the pen if you change any
pen options (page 6).
Appendix A Troubleshooting and Support 67
Specifications

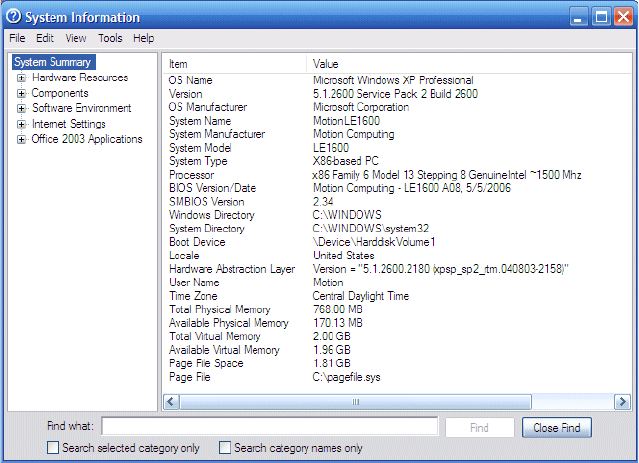

You can use System Information to find out more about your hardware and software
environment. From the Start menu, choose All Programs > Accessories > System Tools >
System Information.
You can find the specifications for other Motion Computing products at
www.motioncomputing.com/products.
Warranty and Insurance Programs
Motion Computing currently provides limited warranties on Motion products and
accessories. See the Warranty packaged with your Motion product or accessory or visit our
Web site at www.motioncomputing.com.
In addition, Motion Computing offers extended warranties along with various screen and
configuration insurance programs. Go to the Motion Computing Support and Services page
at www.motioncomputing.com/support.
Service and Support
If you need help with your Motion Computing LE1700 Tablet PC, go to the Motion
Computing Support and Services page at www.motioncomputing.com/support.
This page will provide you links to all the information you need about Motion products,
technical support, customer services and professional services.
68 Appendix A Troubleshooting and Support
69
Index
Numerics
10/100/1000 Base-T Ethernet
about 14
using 26
802.11a/b/g
about 16
enabling 46
setting up 46
switch 2
using 46
A
AC adapter
about 17
using 5
accessory port 4
adjusting display brightness 26
alarms 32
ALS See ambient light sensor
Alt + Tab 9
amber lights 10
ambient light sensor 3, 12
angle of acceptance
about 29
using 29
audio in port 2
audio out port 2
Automatic Updates 43
B
battery
about 3, 18
checking status 34
gauge 34
notification area status 34
status light 10
swapping 35
tips 36
using 34
BIOS
setting a password 44
blinking lights 10
blue lights 10
Bluetooth
about 16
discovery 50
enabling 49
setting up 49
tips 51
using 49
bookmarks, using 1
buttons
about 9
configuring 25
functions 9
C
calibrating the digitizer 6
calibrating the pen 6
capturing a fingerprint 38
care and maintenance
display 54
fingerprint reader 56
general care 53
pen 57
repair and recovery 59
replacement pens 57
replacing pen tips 57
screen 54
tablet pen 57
View Anywhere display 54
character pad 22
charging the battery 34
checking battery gauge 34
checking battery status 34
configuring
front panel buttons 25
pen options 22
rotation sequence 27
connecting
external speakers 30
headphones 30
microphone 30
cord 17
Ctrl+Alt+Del 3, 11
customizing buttons 25
70 Index
D
Dashboard
starting 20
using 20
Dashboard button
about 3, 9
configuring 25
dictation mode 30
digital monitor port 14
digitizer pen
about 21
calibrating 6
directional pad 3, 9
disabling
the eraser 22
the pen button 22
display
about 11
brightness 26
dynamic brightness 26
extended 28
features 11
fixed brightness 26
mirrored 28
rotating 27
rotation sequence 27
using 26
disposing of used batteries 36
docking port 4, 14
document, about 1
DVI port 2, 14
dynamic brightness 26
E
enabling
802.11a/b/g 46
Bluetooth 49
eraser 22
Hibernate 33
pen button 22
Wi-Fi 46
Wireless Broadband 47
eraser
about 21
enabling 22
Esc button
about 3, 9
configuring 25
Ethernet
connections 5
port 2, 14
using 26
extended display 28
external display 14
connecting 14
using 28
F
FAA wireless air travel requirement 58
features overview 7
finding additional tablet PC software 52
fingerprint reader
about 3, 11
setting up 38
tips 40
five-way directional controller 3, 9
fixed brightness 26
flashing lights 10
frequently asked questions 65
front panel buttons
about 9
configuring 25
front panel lights 10
Function button
about 3, 9
configuring 25
G
getting started 5
Gigabit Ethernet 14
H
handwriting recognition
about 21
using 22
hardware overview 2, 7
HDD password, setting up 45
headphones port 2, 13
headphones, connecting 30
Hibernate
about 32, 33
enabling 33
using 33
I
indicator lights 10
Infineon Security Platform Tools 10
Index 71
infrared
about 4, 13
using 52
infrared data association 13
Input Panel
starting 9
using 22
insurance 67
integrated microphones 12, 29
integrated speakers 12
Internet Options 43
IrDA
about 4, 13
using 52
K
key button 11
keyboard 22
L
landscape mode 27
LCD
about 11
care and cleaning 54
View Anywhere 12
Li-ion battery 18
liquid crystal display See LCD
Lithium-ion battery See Li-ion battery
logging on to a remembered site 41
M
maintenance procedures 53
medium angle setting 29
memory card slot 15
microphone port 2, 13
microphones
about 12
built-in 3
external 30
using 29
mini-plug 17
mirror display 28
monitor only display 28
monitor port 14
Motion Dashboard
using 20
Motion Dashboard button 9
N
narrow angle setting 29
network connections 5
network port 14
networking
Bluetooth 16
wireless 16
O
OmniPass
about 11, 37
starting 37
on-screen keyboard 22
ordering replacement pens 57
overview
hardware 7
ports and connectors 2
P
Page Down 9
Page Up 9
password replacement
about 40
using 40, 41
PC card
about 4, 15
using 15
PC card slot 4, 15
PCMCIA See PC card
pen
about 21
actions 21
bay 4
calibrating 6
care and maintenance 57
configuring options 22
storing 21
tether 4, 21
Pen and Button Options 22, 25
plug 17
plugging in 5
portrait mode 27
power adapter
about 17
port 4
using 5
power cord
about 17
using 5
power light 10
72 Index
power meter 32
power schemes 31
power switch 2
R
removing the battery 35
replacing pen tips 57
replacing the battery 35
right-clicking 21
RJ-45 jack 14
Rotate button
