Y Soft a s 0YX0MP04016 Terminal Pro 125kHz ASK FSK User Manual

Y Soft Corporation, a.s. Terminal Pro 125kHz ASK FSK

User Manual

YSOFT SAFEQ TERMINAL PROFESSIONAL 3.8 USER’S GUIDE 1

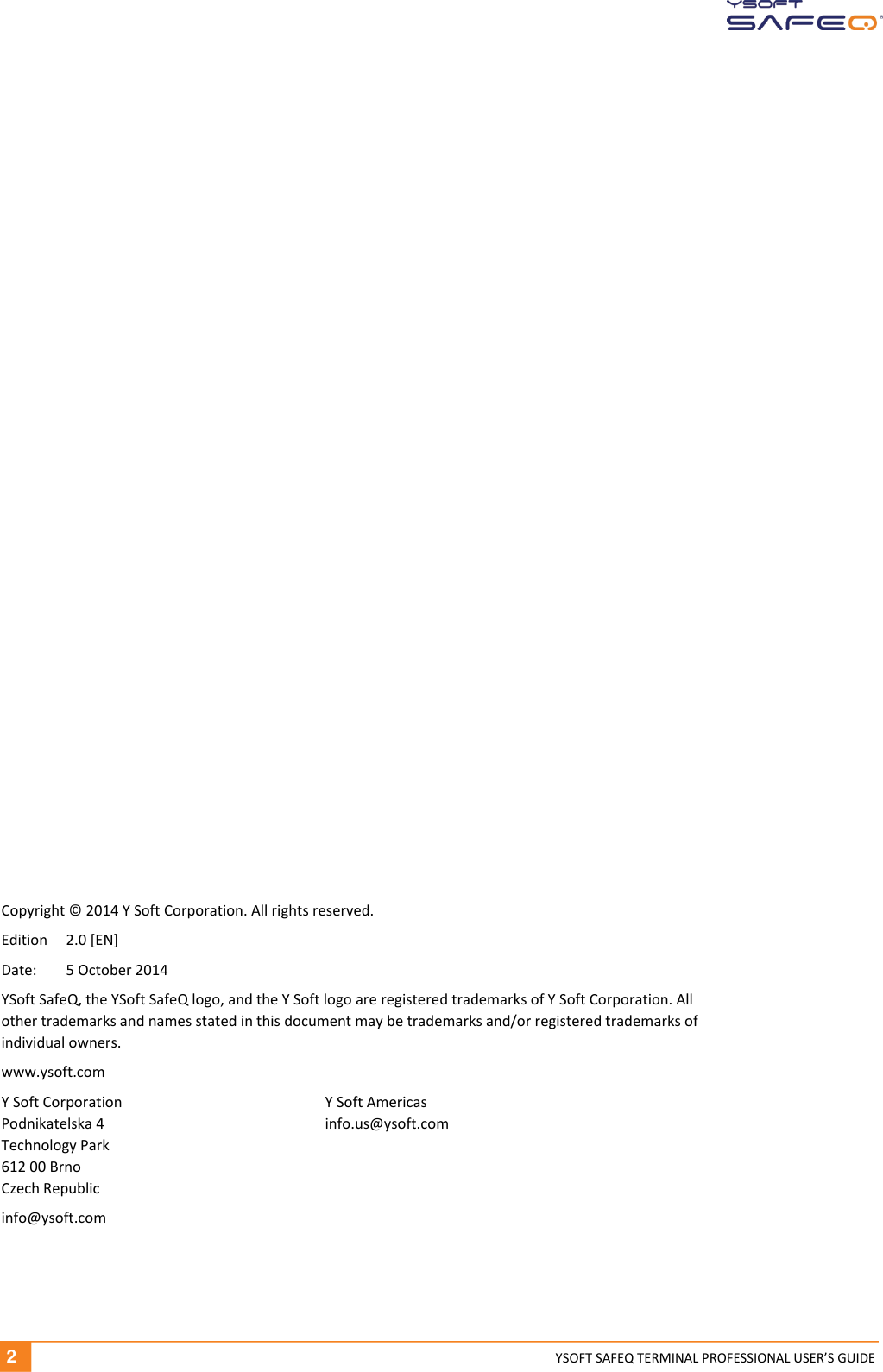

2 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Copyright © 2014 Y Soft Corporation. All rights reserved. Edition 2.0 [EN] Date: 5 October 2014 YSoft SafeQ, the YSoft SafeQ logo, and the Y Soft logo are registered trademarks of Y Soft Corporation. All other trademarks and names stated in this document may be trademarks and/or registered trademarks of individual owners. www.ysoft.com Y Soft Corporation Y Soft Americas Podnikatelska 4 info.us@ysoft.com Technology Park 612 00 Brno Czech Republic info@ysoft.com

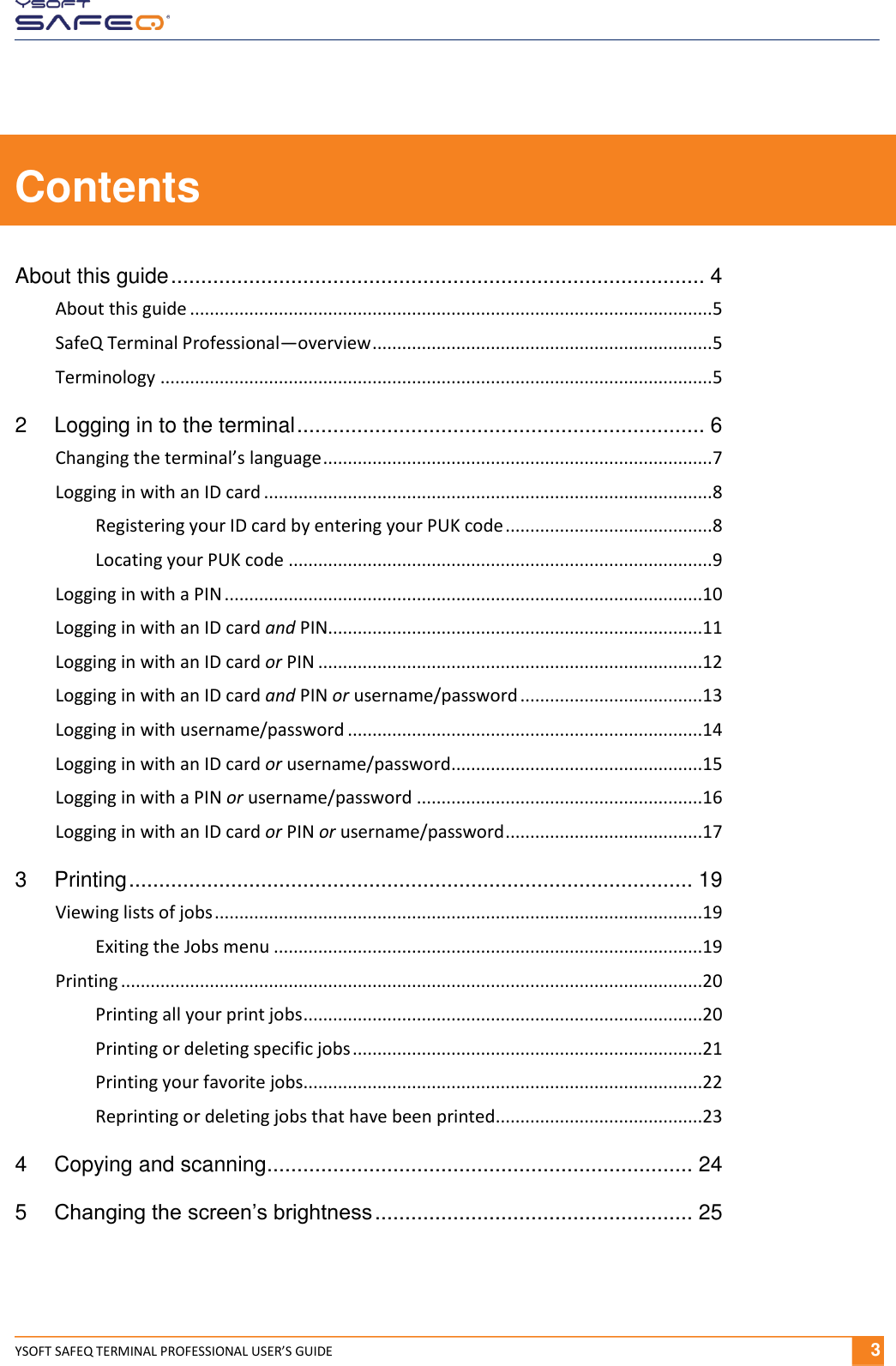

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 3 Contents About this guide ......................................................................................... 4 About this guide .......................................................................................................... 5 SafeQ Terminal Professional—overview ..................................................................... 5 Terminology ................................................................................................................ 5 2 Logging in to the terminal .................................................................... 6 Changing the terminal’s language ............................................................................... 7 Logging in with an ID card ........................................................................................... 8 Registering your ID card by entering your PUK code .......................................... 8 Locating your PUK code ...................................................................................... 9 Logging in with a PIN .................................................................................................10 Logging in with an ID card and PIN............................................................................11 Logging in with an ID card or PIN ..............................................................................12 Logging in with an ID card and PIN or username/password .....................................13 Logging in with username/password ........................................................................14 Logging in with an ID card or username/password ...................................................15 Logging in with a PIN or username/password ..........................................................16 Logging in with an ID card or PIN or username/password ........................................17 3 Printing .............................................................................................. 19 Viewing lists of jobs ...................................................................................................19 Exiting the Jobs menu .......................................................................................19 Printing ......................................................................................................................20 Printing all your print jobs .................................................................................20 Printing or deleting specific jobs .......................................................................21 Printing your favorite jobs.................................................................................22 Reprinting or deleting jobs that have been printed ..........................................23 4 Copying and scanning ....................................................................... 24 5 Changing the screen’s brightness ..................................................... 25

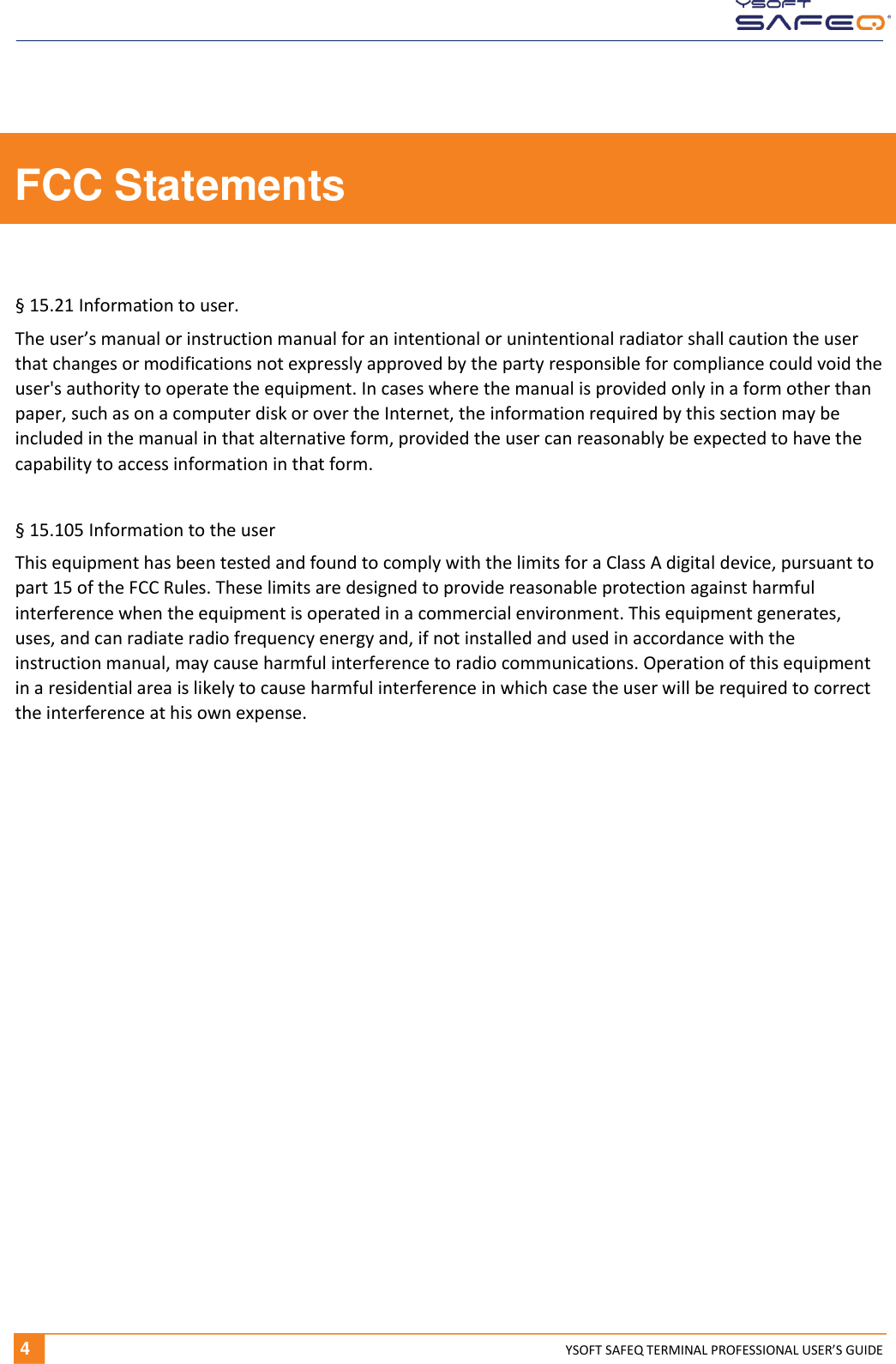

4 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE FCC Statements § 15.21 Information to user. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. § 15.105 Information to the user This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

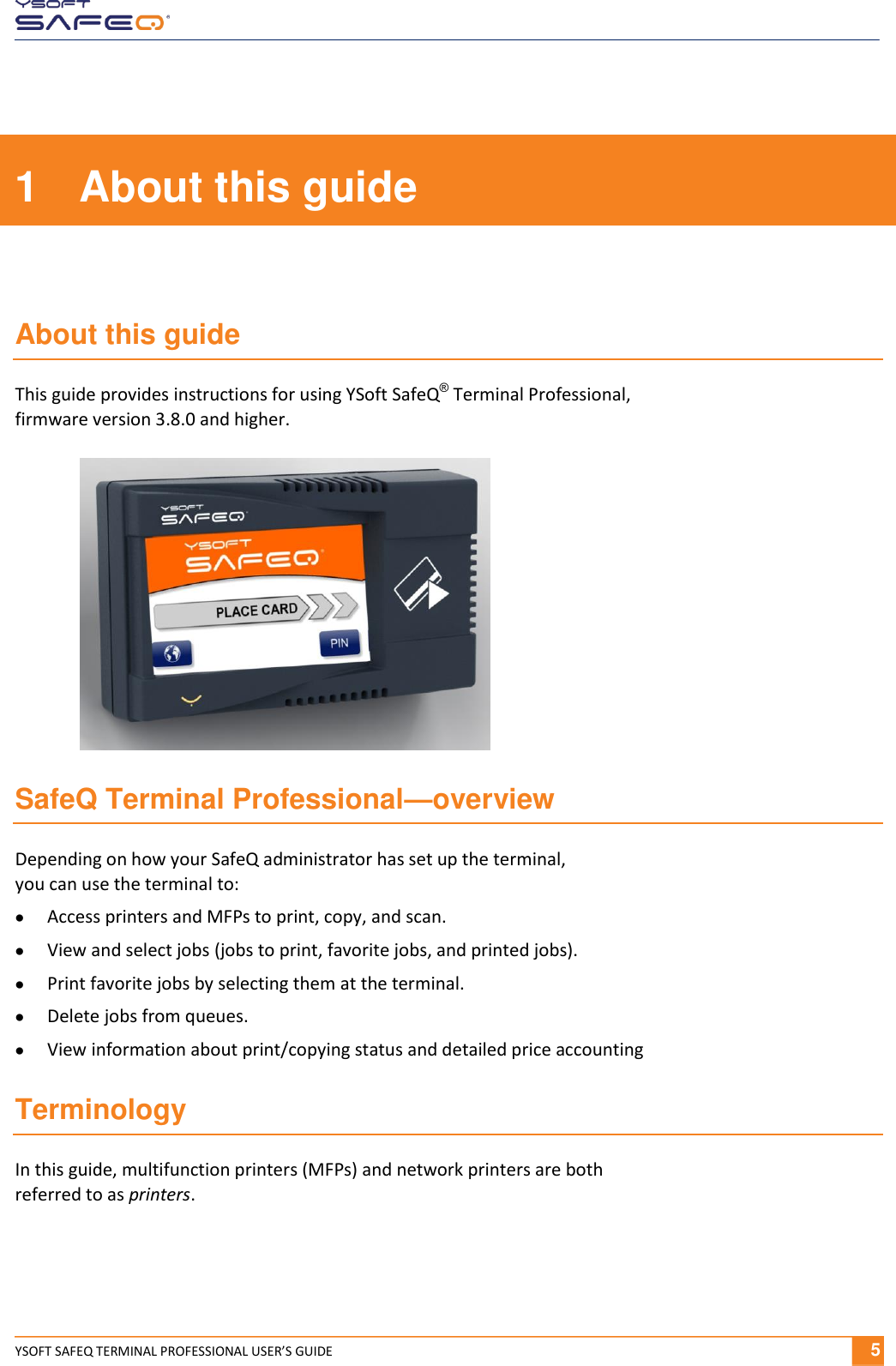

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 5 1 About this guide About this guide This guide provides instructions for using YSoft SafeQ® Terminal Professional, firmware version 3.8.0 and higher. SafeQ Terminal Professional—overview Depending on how your SafeQ administrator has set up the terminal, you can use the terminal to:  Access printers and MFPs to print, copy, and scan.  View and select jobs (jobs to print, favorite jobs, and printed jobs).  Print favorite jobs by selecting them at the terminal.  Delete jobs from queues.  View information about print/copying status and detailed price accounting Terminology In this guide, multifunction printers (MFPs) and network printers are both referred to as printers.

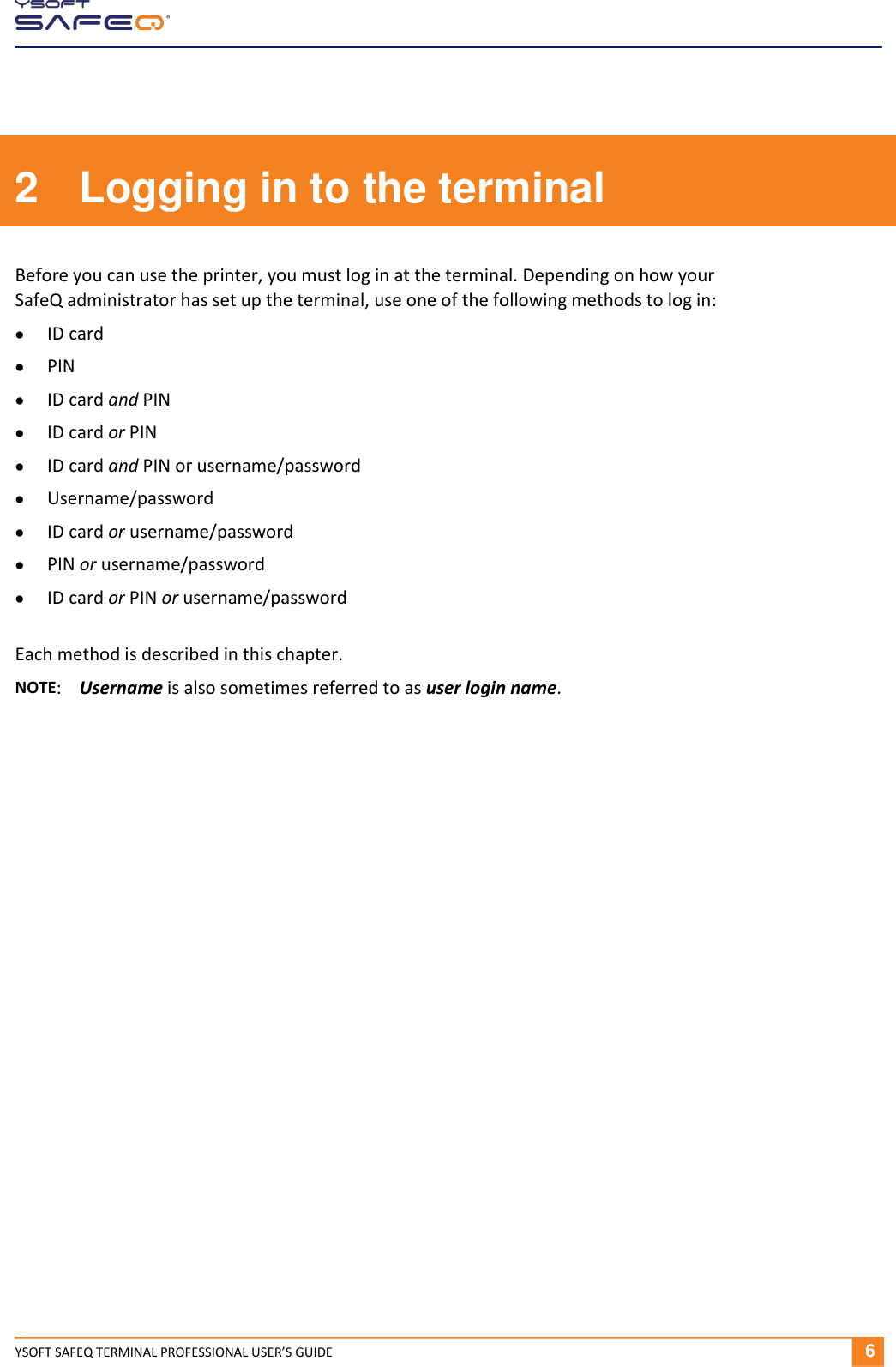

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 6 2 Logging in to the terminal Before you can use the printer, you must log in at the terminal. Depending on how your SafeQ administrator has set up the terminal, use one of the following methods to log in:  ID card  PIN  ID card and PIN  ID card or PIN  ID card and PIN or username/password  Username/password  ID card or username/password  PIN or username/password  ID card or PIN or username/password Each method is described in this chapter. NOTE: Username is also sometimes referred to as user login name.

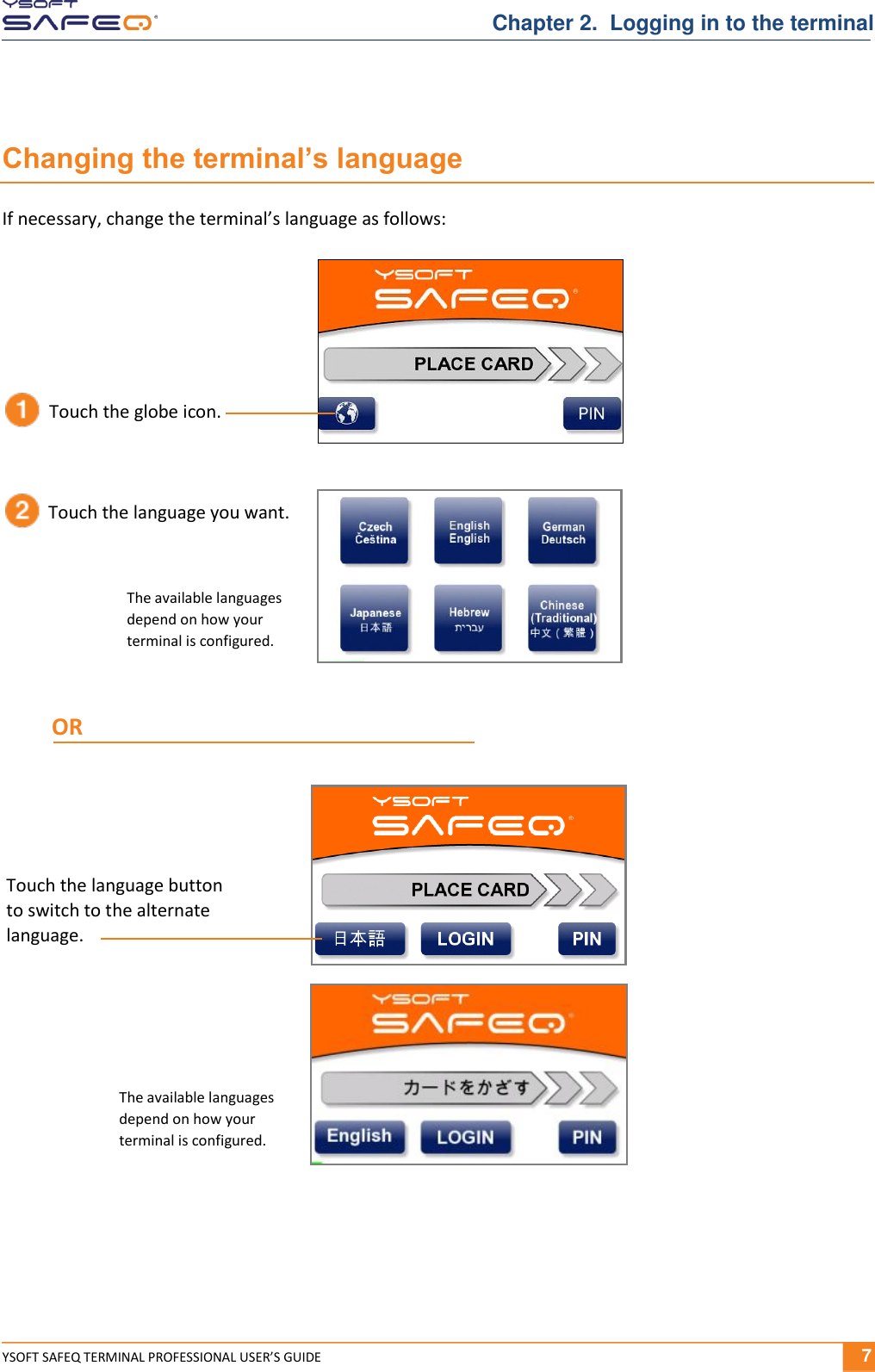

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 7 Chapter 2. Logging in to the terminal Changing the terminal’s language If necessary, change the terminal’s language as follows: Touch the globe icon. Touch the language you want. The available languages depend on how your terminal is configured. Touch the language button to switch to the alternate language. The available languages depend on how your terminal is configured. OR

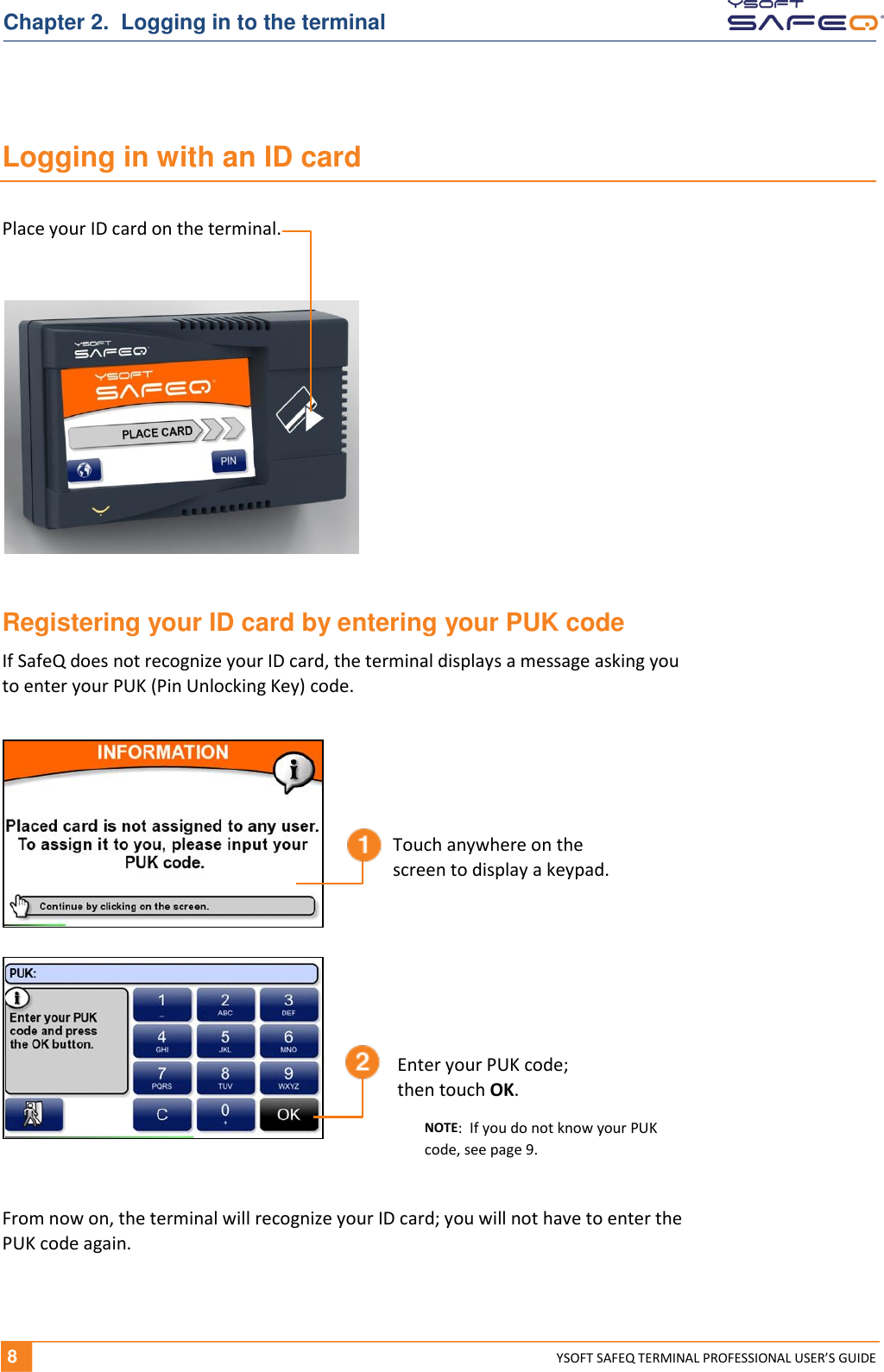

8 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Logging in with an ID card Registering your ID card by entering your PUK code If SafeQ does not recognize your ID card, the terminal displays a message asking you to enter your PUK (Pin Unlocking Key) code. From now on, the terminal will recognize your ID card; you will not have to enter the PUK code again. Place your ID card on the terminal. Touch anywhere on the screen to display a keypad. Enter your PUK code; then touch OK. NOTE: If you do not know your PUK code, see page 9.

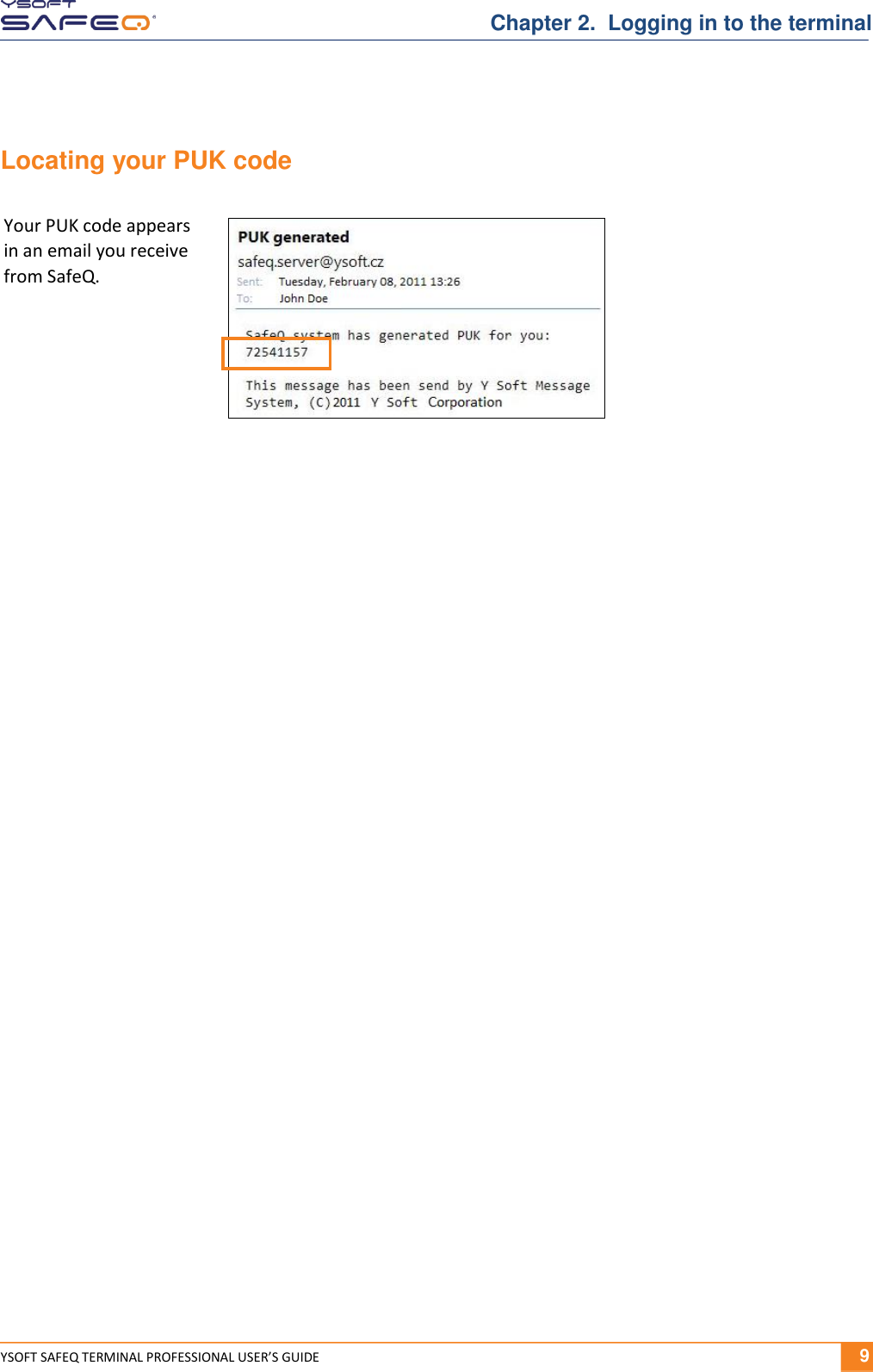

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 9 Chapter 2. Logging in to the terminal Locating your PUK code Your PUK code appears in an email you receive from SafeQ.

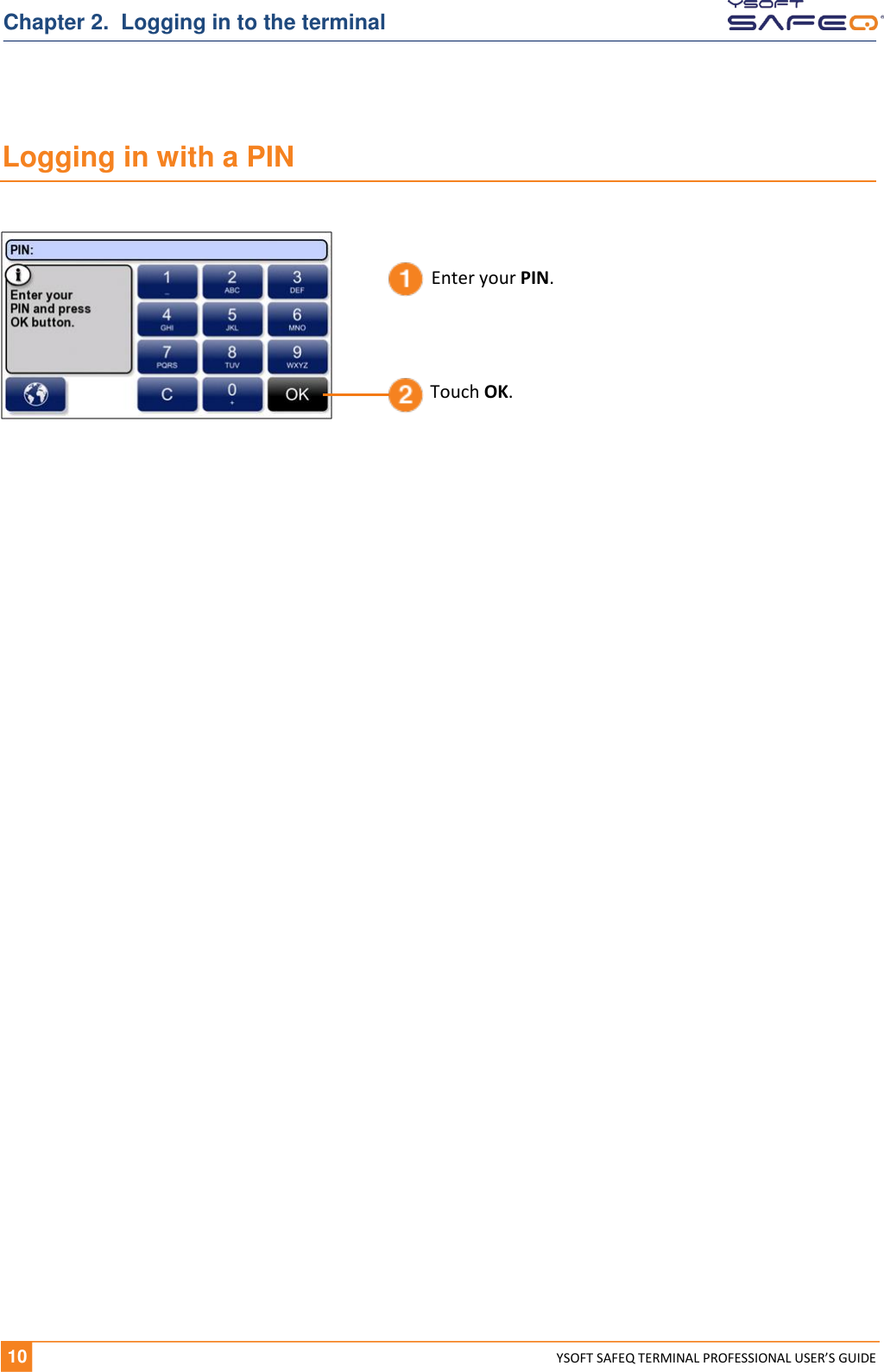

10 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Logging in with a PIN Enter your PIN. Touch OK.

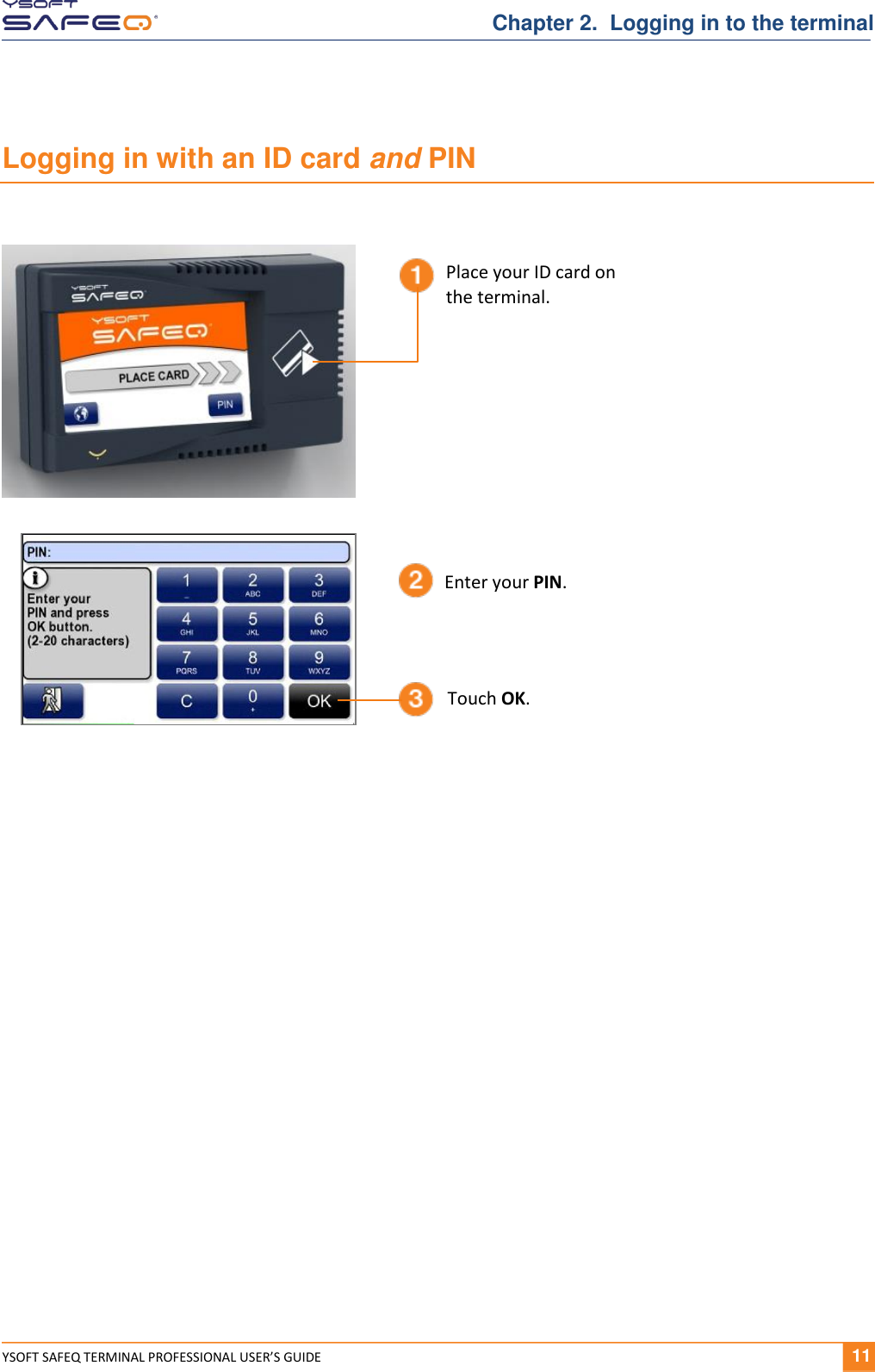

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 11 Chapter 2. Logging in to the terminal Logging in with an ID card and PIN Enter your PIN. Touch OK. Place your ID card on the terminal.

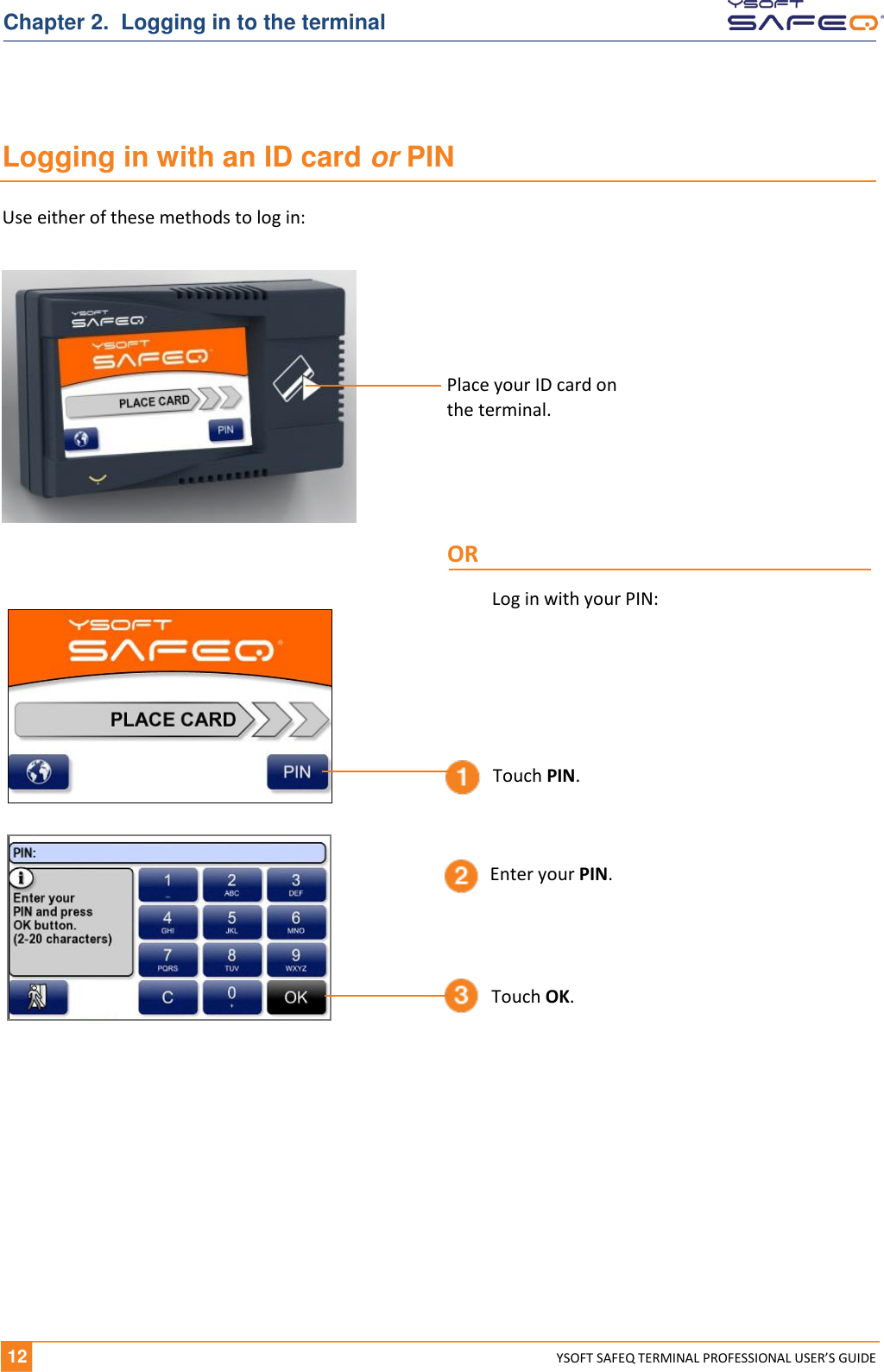

12 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Logging in with an ID card or PIN Use either of these methods to log in: Enter your PIN. Touch OK. Place your ID card on the terminal. OR Touch PIN. Log in with your PIN:

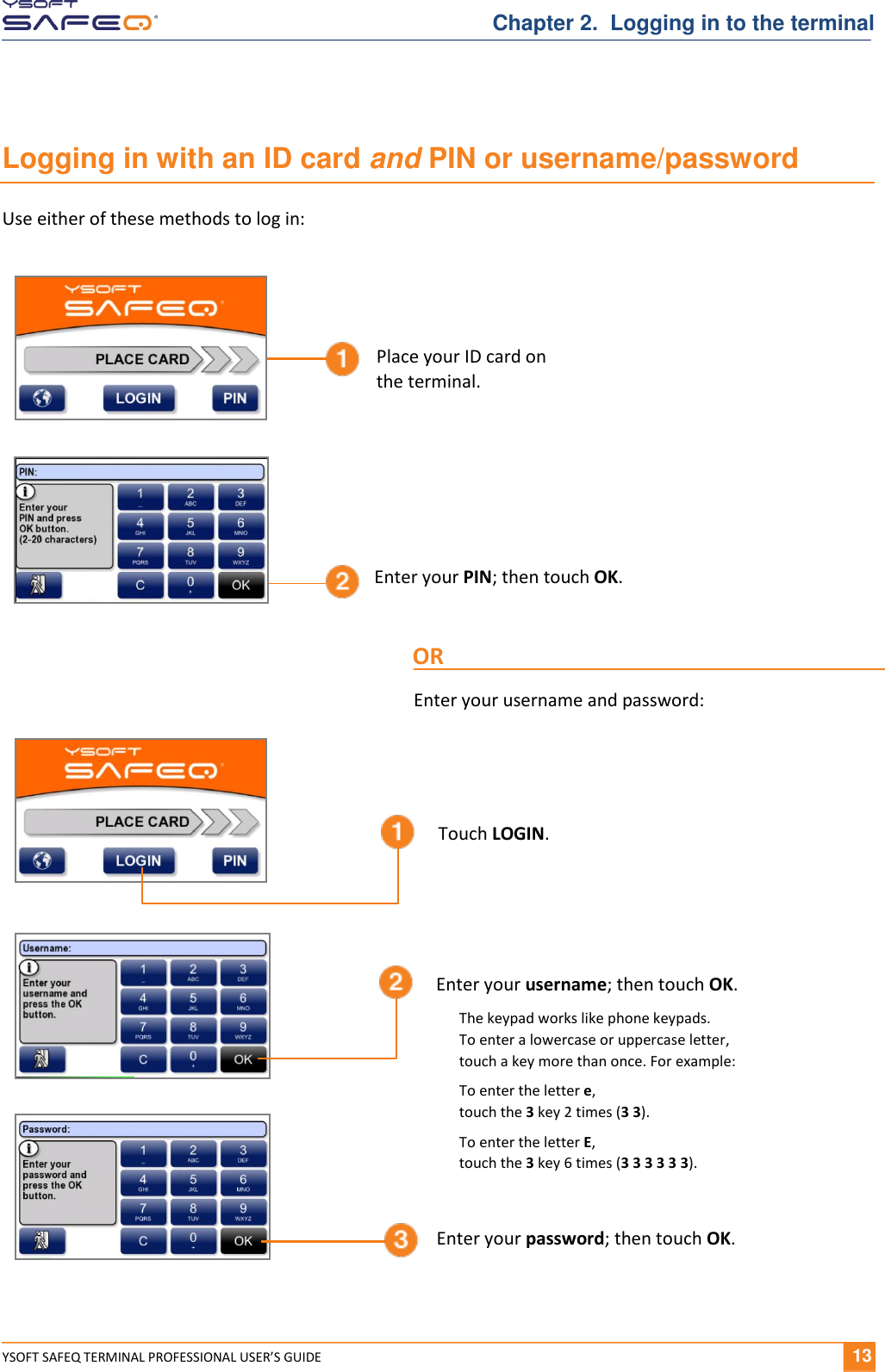

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 13 Chapter 2. Logging in to the terminal Logging in with an ID card and PIN or username/password Use either of these methods to log in: Enter your PIN; then touch OK. Place your ID card on the terminal. OR Enter your username and password: Enter your username; then touch OK. Enter your password; then touch OK. The keypad works like phone keypads. To enter a lowercase or uppercase letter, touch a key more than once. For example: To enter the letter e, touch the 3 key 2 times (3 3). To enter the letter E, touch the 3 key 6 times (3 3 3 3 3 3). Touch LOGIN.

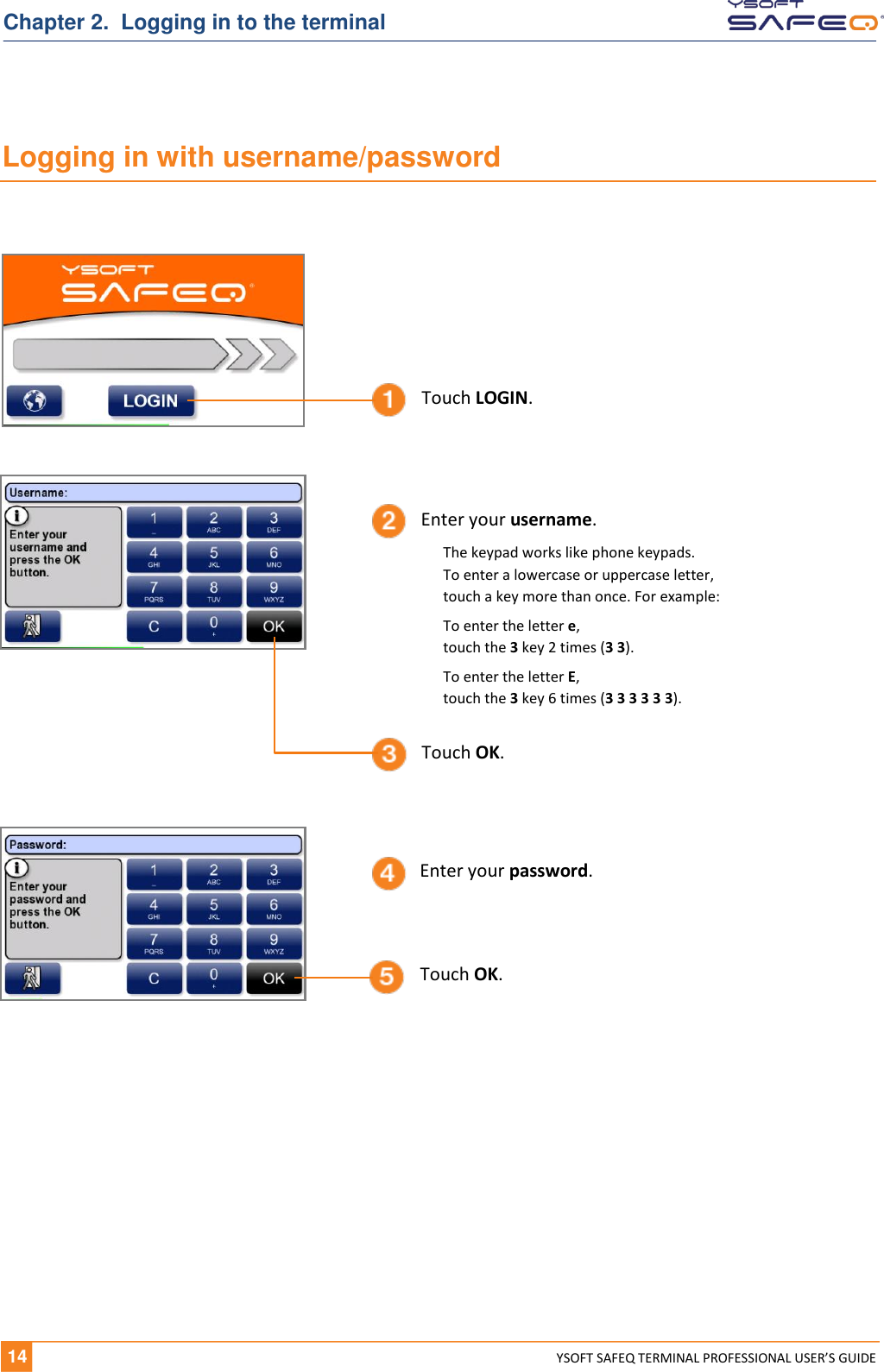

14 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Logging in with username/password Enter your username. Touch OK. Touch LOGIN. Enter your password. Touch OK. The keypad works like phone keypads. To enter a lowercase or uppercase letter, touch a key more than once. For example: To enter the letter e, touch the 3 key 2 times (3 3). To enter the letter E, touch the 3 key 6 times (3 3 3 3 3 3).

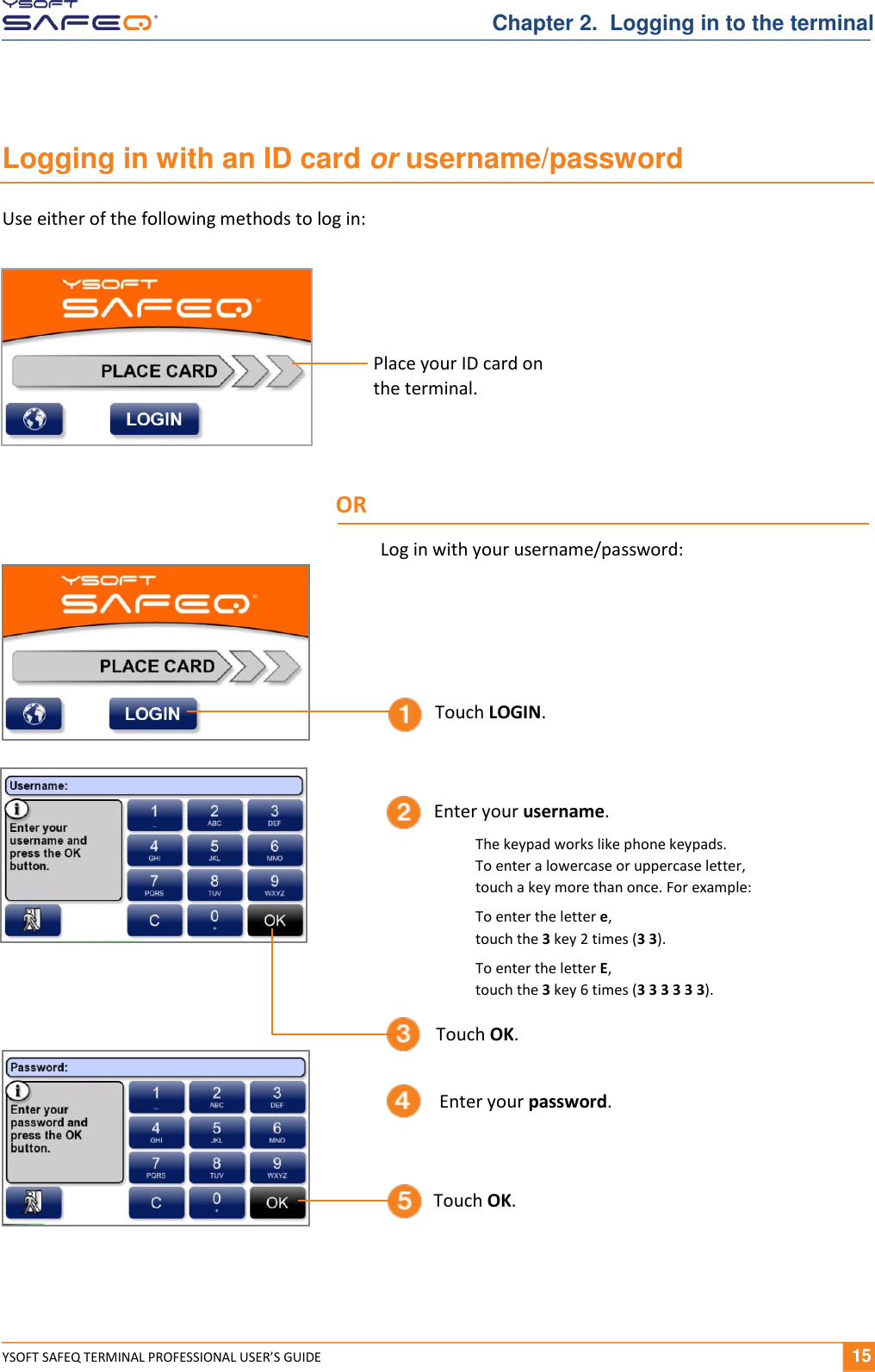

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 15 Chapter 2. Logging in to the terminal Logging in with an ID card or username/password Use either of the following methods to log in: Enter your username. Touch OK. Touch LOGIN. Enter your password. Touch OK. Place your ID card on the terminal. OR Log in with your username/password: The keypad works like phone keypads. To enter a lowercase or uppercase letter, touch a key more than once. For example: To enter the letter e, touch the 3 key 2 times (3 3). To enter the letter E, touch the 3 key 6 times (3 3 3 3 3 3).

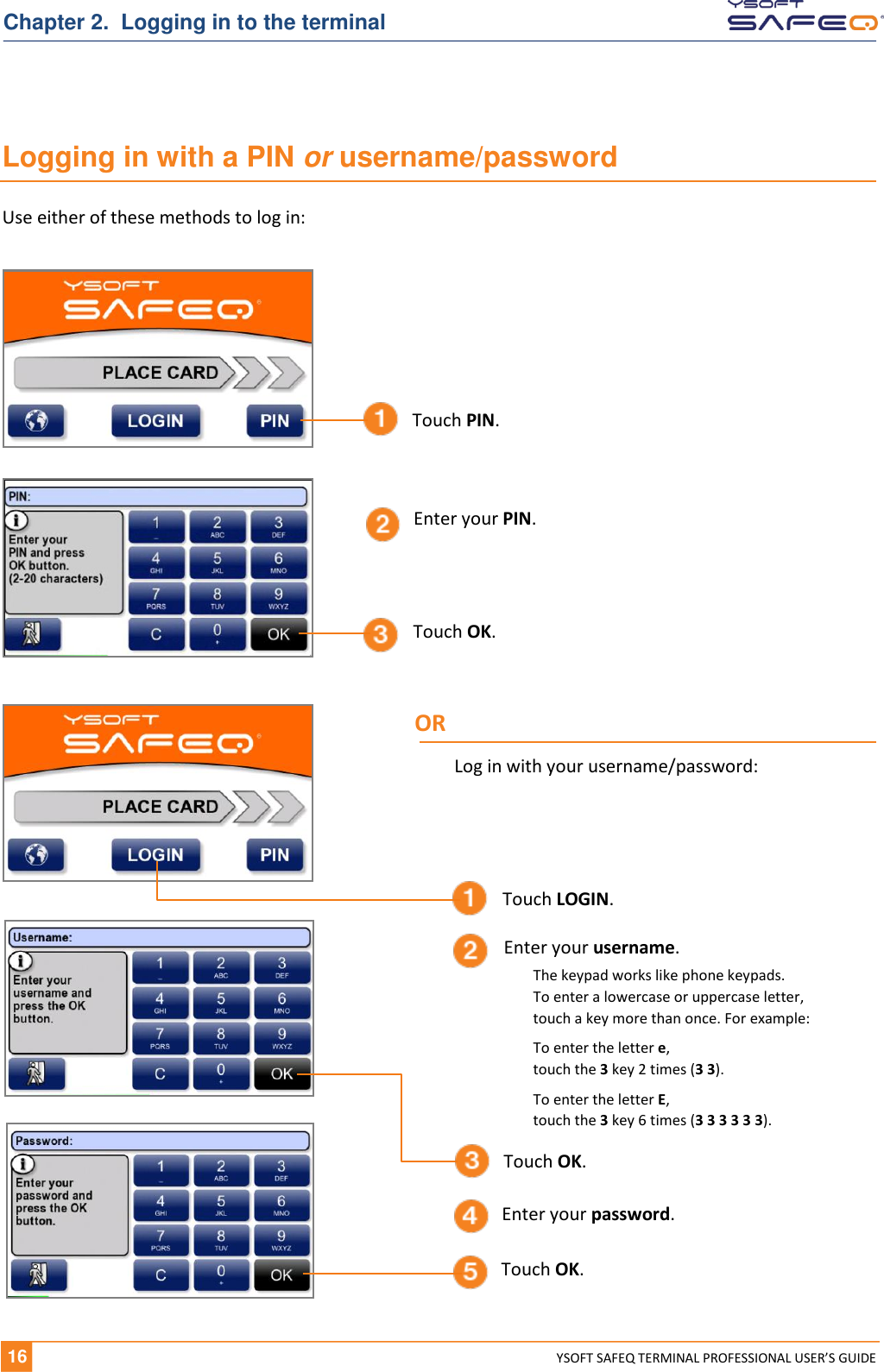

16 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Logging in with a PIN or username/password Use either of these methods to log in: Enter your PIN. Touch OK. Touch PIN. Touch OK. Touch LOGIN. Touch OK. Enter your username. Enter your password. OR Log in with your username/password: The keypad works like phone keypads. To enter a lowercase or uppercase letter, touch a key more than once. For example: To enter the letter e, touch the 3 key 2 times (3 3). To enter the letter E, touch the 3 key 6 times (3 3 3 3 3 3).

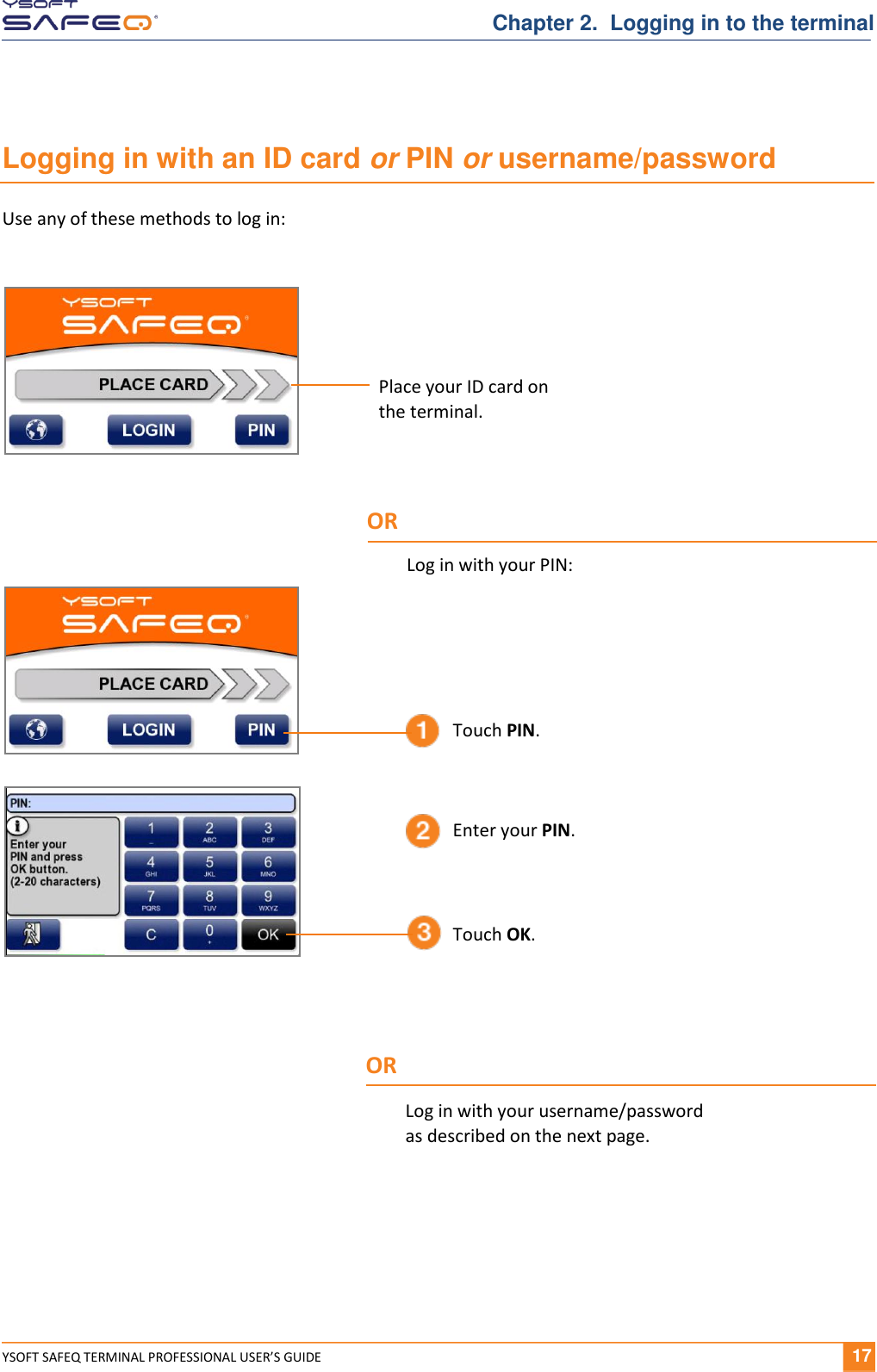

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 17 Chapter 2. Logging in to the terminal Logging in with an ID card or PIN or username/password Use any of these methods to log in: Enter your PIN. Touch OK. Place your ID card on the terminal. Touch PIN. Log in with your username/password as described on the next page. OR Log in with your PIN: OR

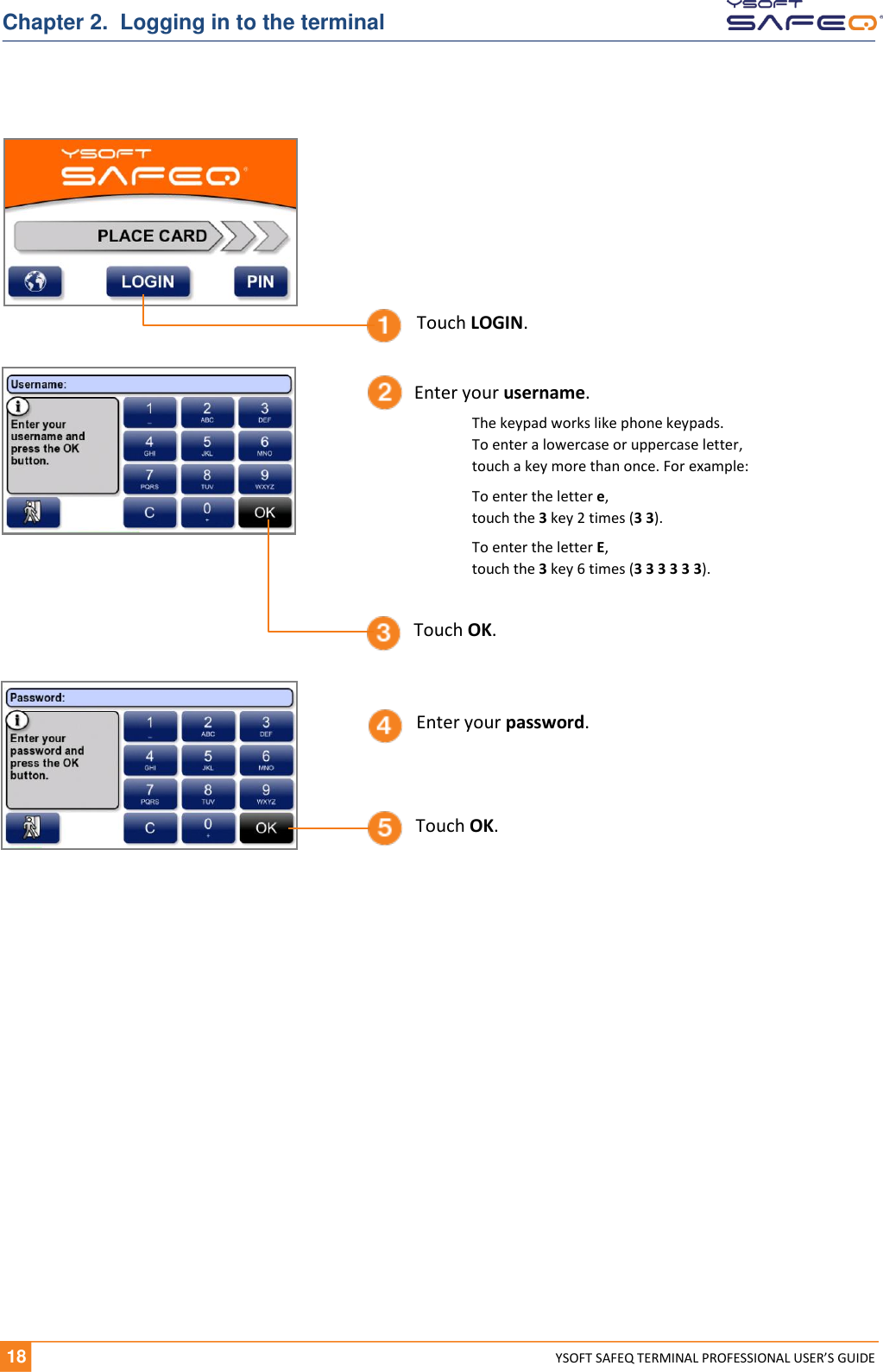

18 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 2. Logging in to the terminal Touch OK. Touch LOGIN. Touch OK. Enter your username. Enter your password. The keypad works like phone keypads. To enter a lowercase or uppercase letter, touch a key more than once. For example: To enter the letter e, touch the 3 key 2 times (3 3). To enter the letter E, touch the 3 key 6 times (3 3 3 3 3 3).

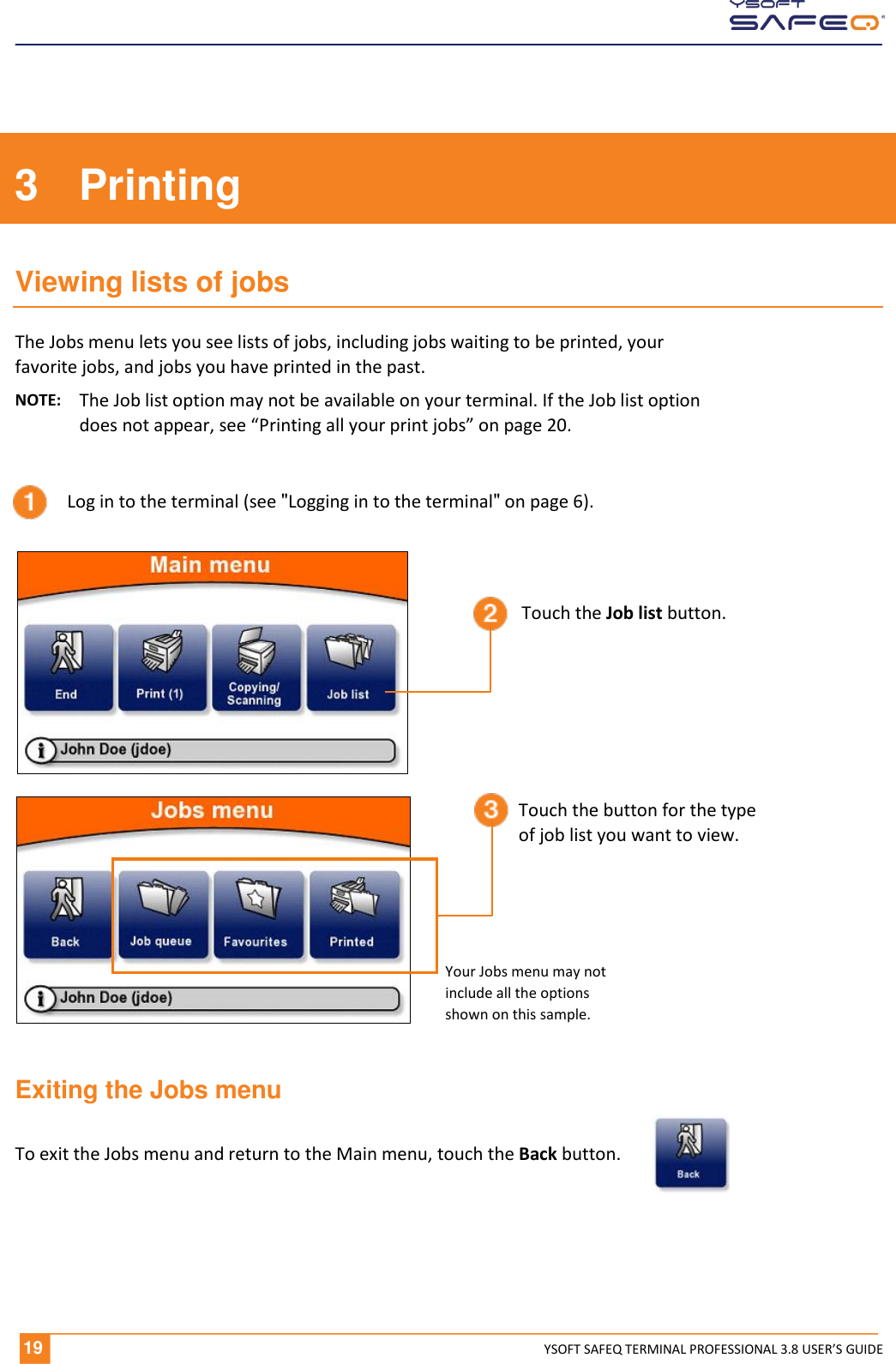

19 YSOFT SAFEQ TERMINAL PROFESSIONAL 3.8 USER’S GUIDE 3 Printing Viewing lists of jobs The Jobs menu lets you see lists of jobs, including jobs waiting to be printed, your favorite jobs, and jobs you have printed in the past. NOTE: The Job list option may not be available on your terminal. If the Job list option does not appear, see “Printing all your print jobs” on page 20. Exiting the Jobs menu To exit the Jobs menu and return to the Main menu, touch the Back button. Log in to the terminal (see "Logging in to the terminal" on page 6). Touch the Job list button. Touch the button for the type of job list you want to view. Your Jobs menu may not include all the options shown on this sample.

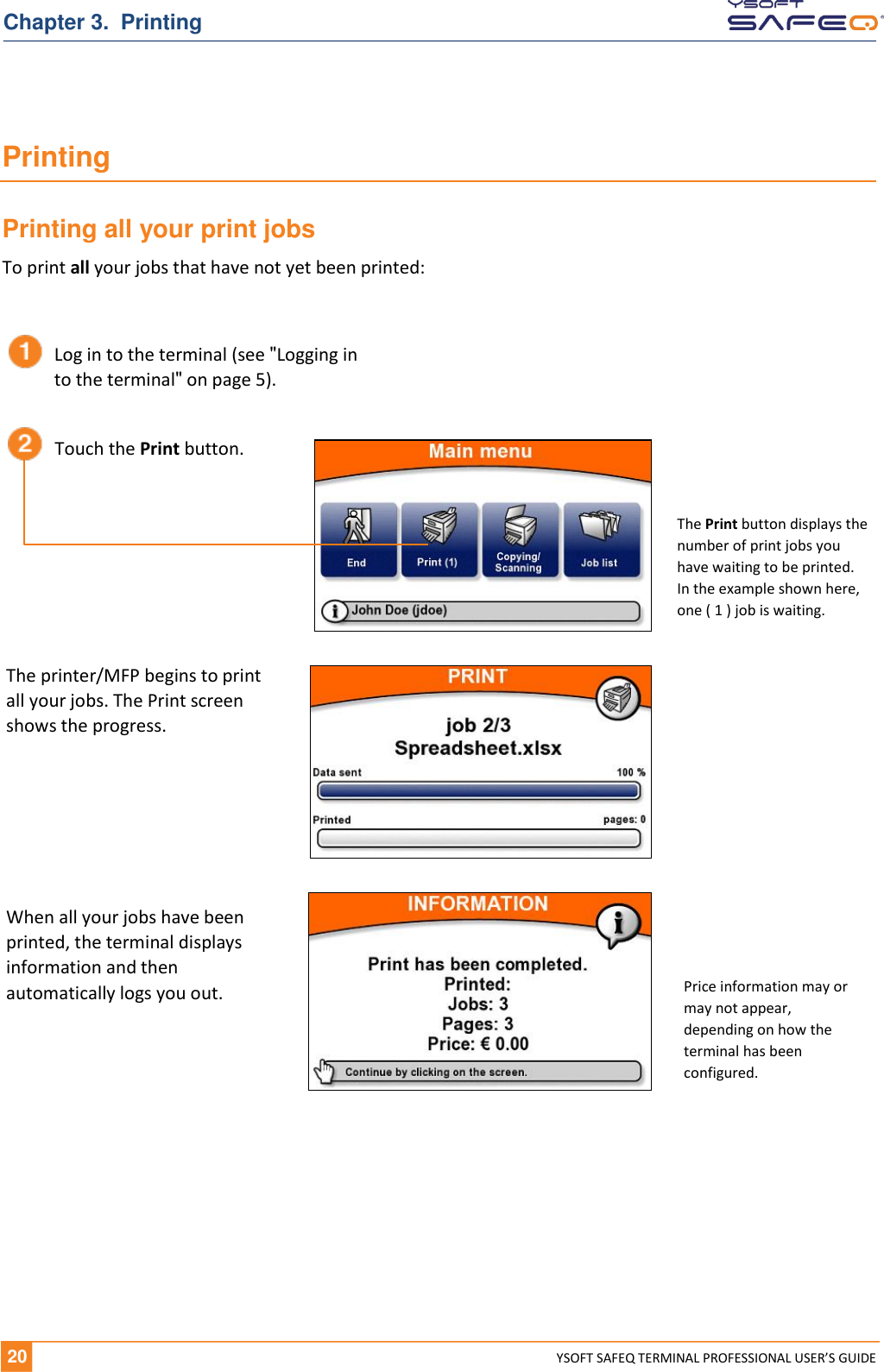

20 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 3. Printing Printing Printing all your print jobs To print all your jobs that have not yet been printed: Log in to the terminal (see "Logging in to the terminal" on page 5). Touch the Print button. The printer/MFP begins to print all your jobs. The Print screen shows the progress. When all your jobs have been printed, the terminal displays information and then automatically logs you out. The Print button displays the number of print jobs you have waiting to be printed. In the example shown here, one ( 1 ) job is waiting. Price information may or may not appear, depending on how the terminal has been configured.

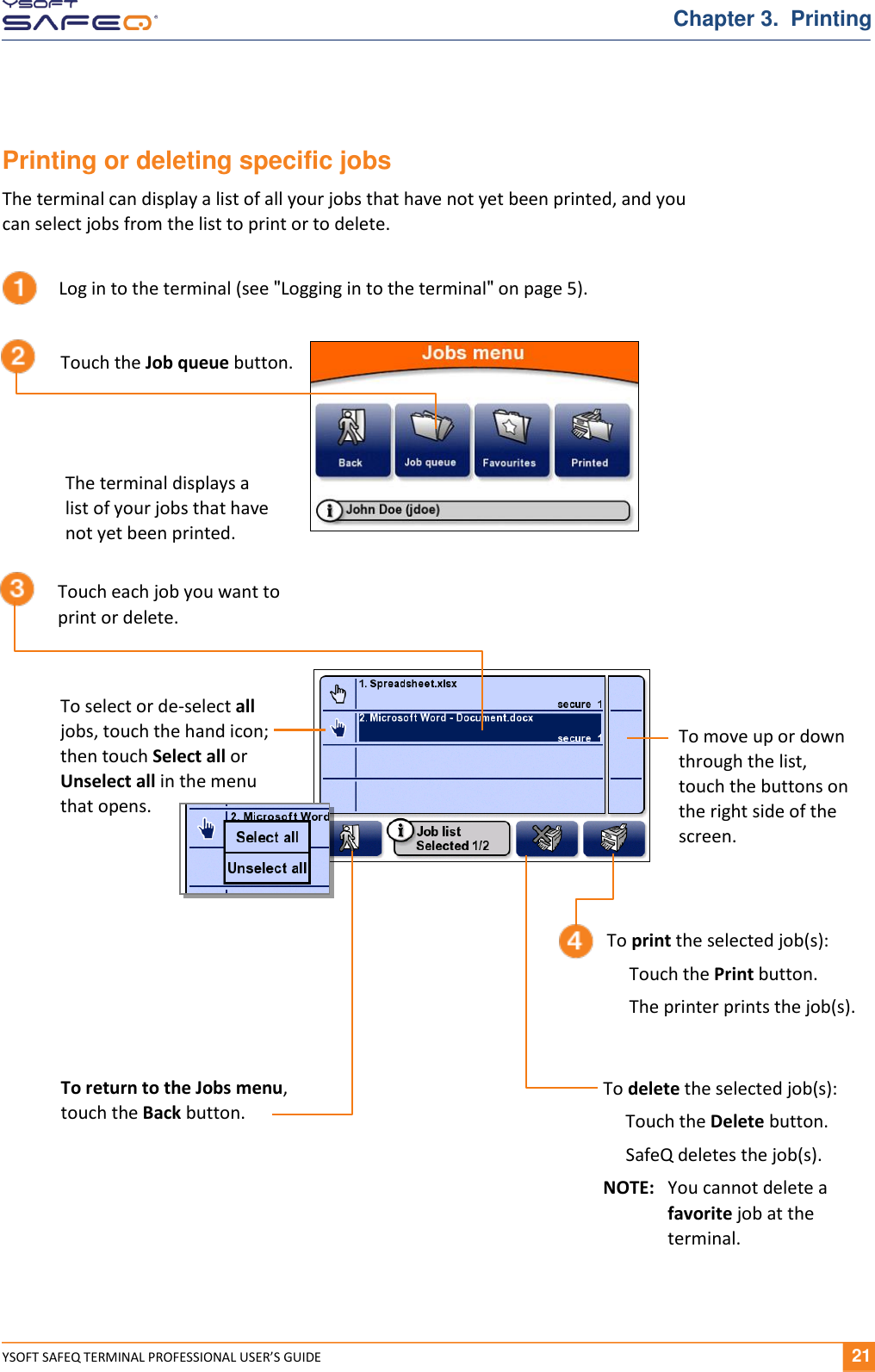

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 21 Chapter 3. Printing Printing or deleting specific jobs The terminal can display a list of all your jobs that have not yet been printed, and you can select jobs from the list to print or to delete. Log in to the terminal (see "Logging in to the terminal" on page 5). Touch the Job queue button. Touch each job you want to print or delete. The terminal displays a list of your jobs that have not yet been printed. To select or de-select all jobs, touch the hand icon; then touch Select all or Unselect all in the menu that opens. To move up or down through the list, touch the buttons on the right side of the screen. To print the selected job(s): Touch the Print button. The printer prints the job(s). To return to the Jobs menu, touch the Back button. To delete the selected job(s): Touch the Delete button. SafeQ deletes the job(s). NOTE: You cannot delete a favorite job at the terminal.

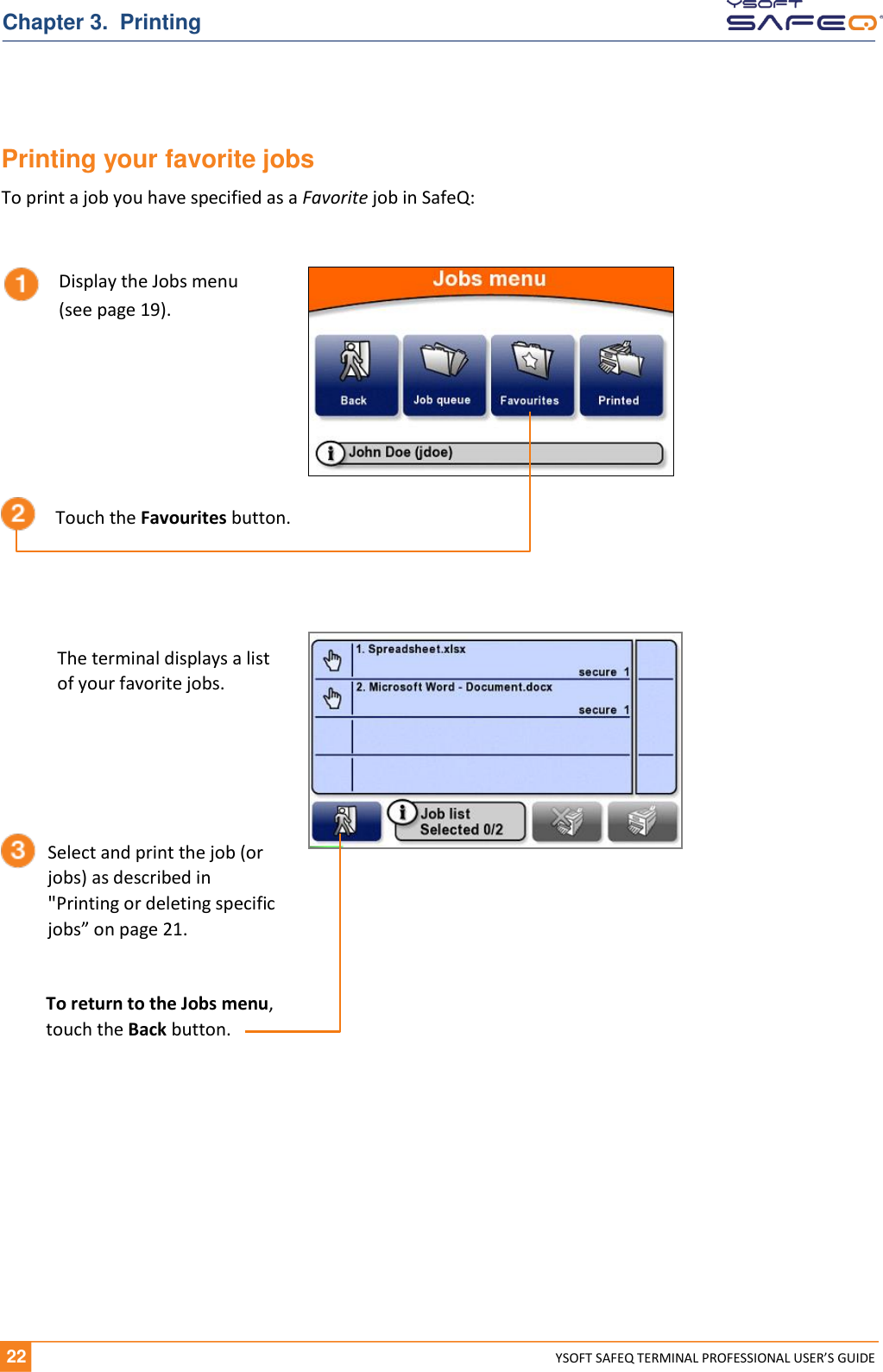

22 YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE Chapter 3. Printing Printing your favorite jobs To print a job you have specified as a Favorite job in SafeQ: Display the Jobs menu (see page 19). Touch the Favourites button. The terminal displays a list of your favorite jobs. Select and print the job (or jobs) as described in "Printing or deleting specific jobs” on page 21. To return to the Jobs menu, touch the Back button.

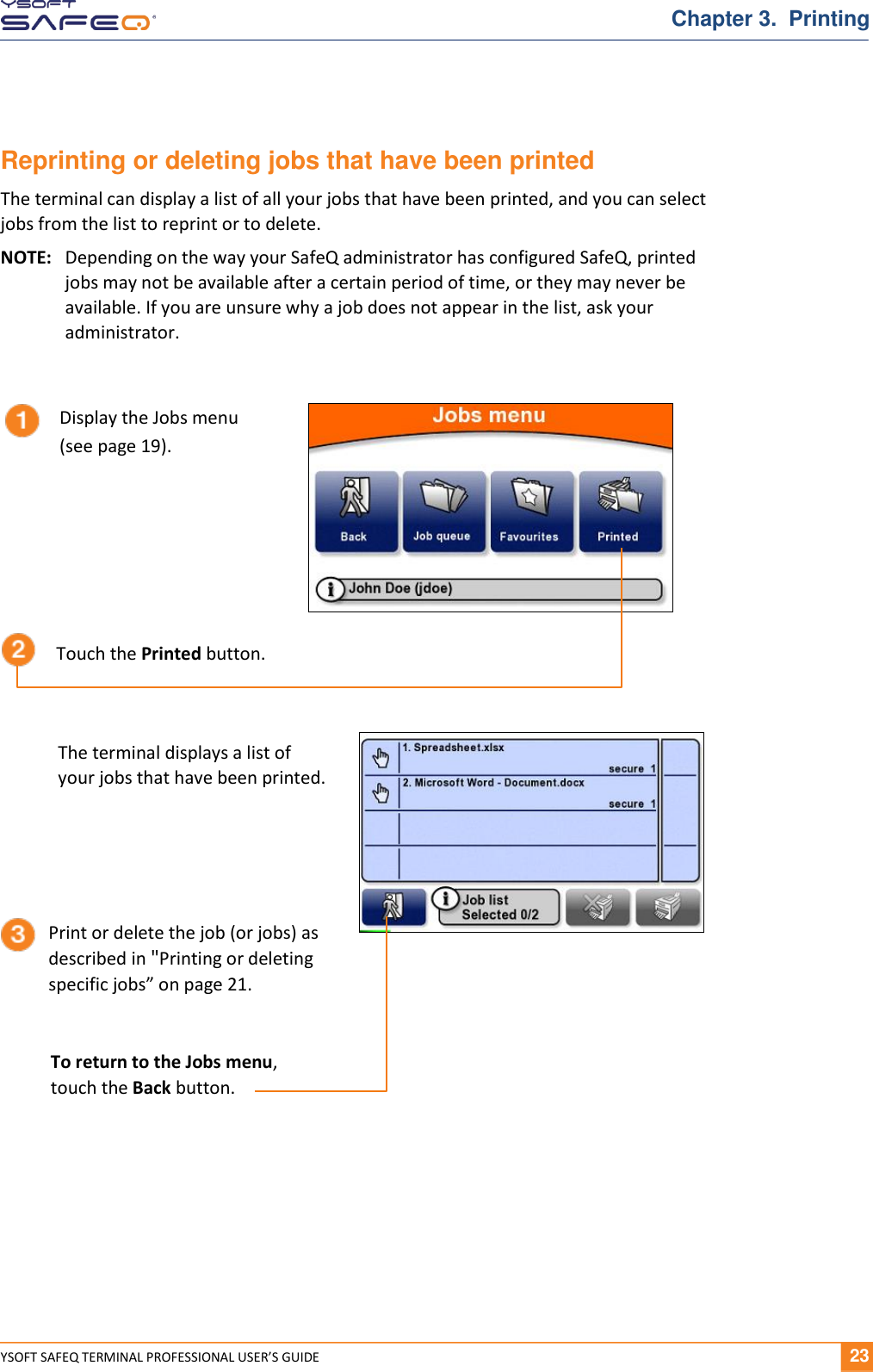

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 23 Chapter 3. Printing Reprinting or deleting jobs that have been printed The terminal can display a list of all your jobs that have been printed, and you can select jobs from the list to reprint or to delete. NOTE: Depending on the way your SafeQ administrator has configured SafeQ, printed jobs may not be available after a certain period of time, or they may never be available. If you are unsure why a job does not appear in the list, ask your administrator. Display the Jobs menu (see page 19). Touch the Printed button. The terminal displays a list of your jobs that have been printed. Print or delete the job (or jobs) as described in "Printing or deleting specific jobs” on page 21. To return to the Jobs menu, touch the Back button.

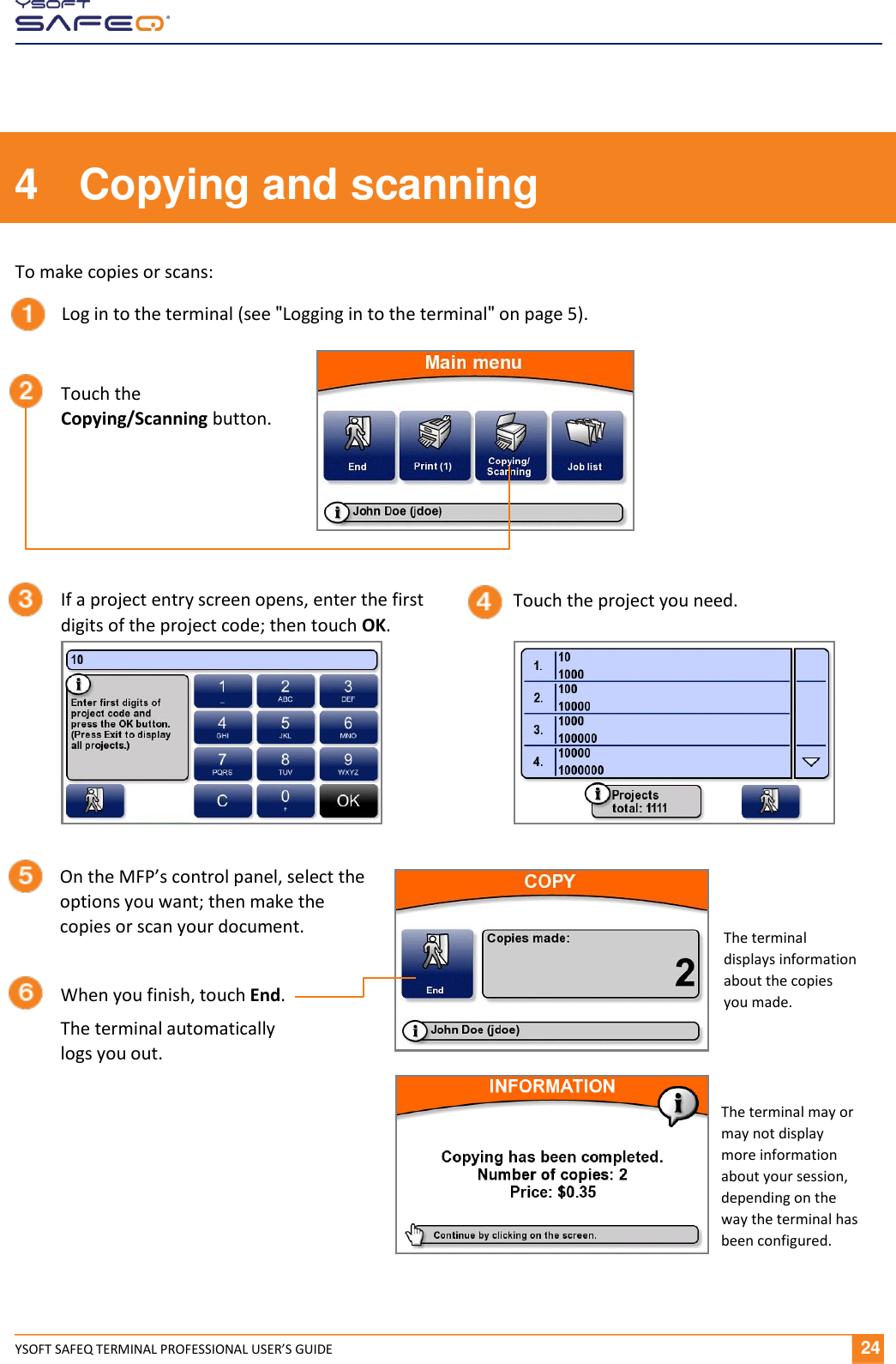

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 24 4 Copying and scanning To make copies or scans: Log in to the terminal (see "Logging in to the terminal" on page 5). Touch the Copying/Scanning button. If a project entry screen opens, enter the first digits of the project code; then touch OK. On the MFP’s control panel, select the options you want; then make the copies or scan your document. When you finish, touch End. The terminal automatically logs you out. The terminal may or may not display more information about your session, depending on the way the terminal has been configured. Touch the project you need. The terminal displays information about the copies you made.

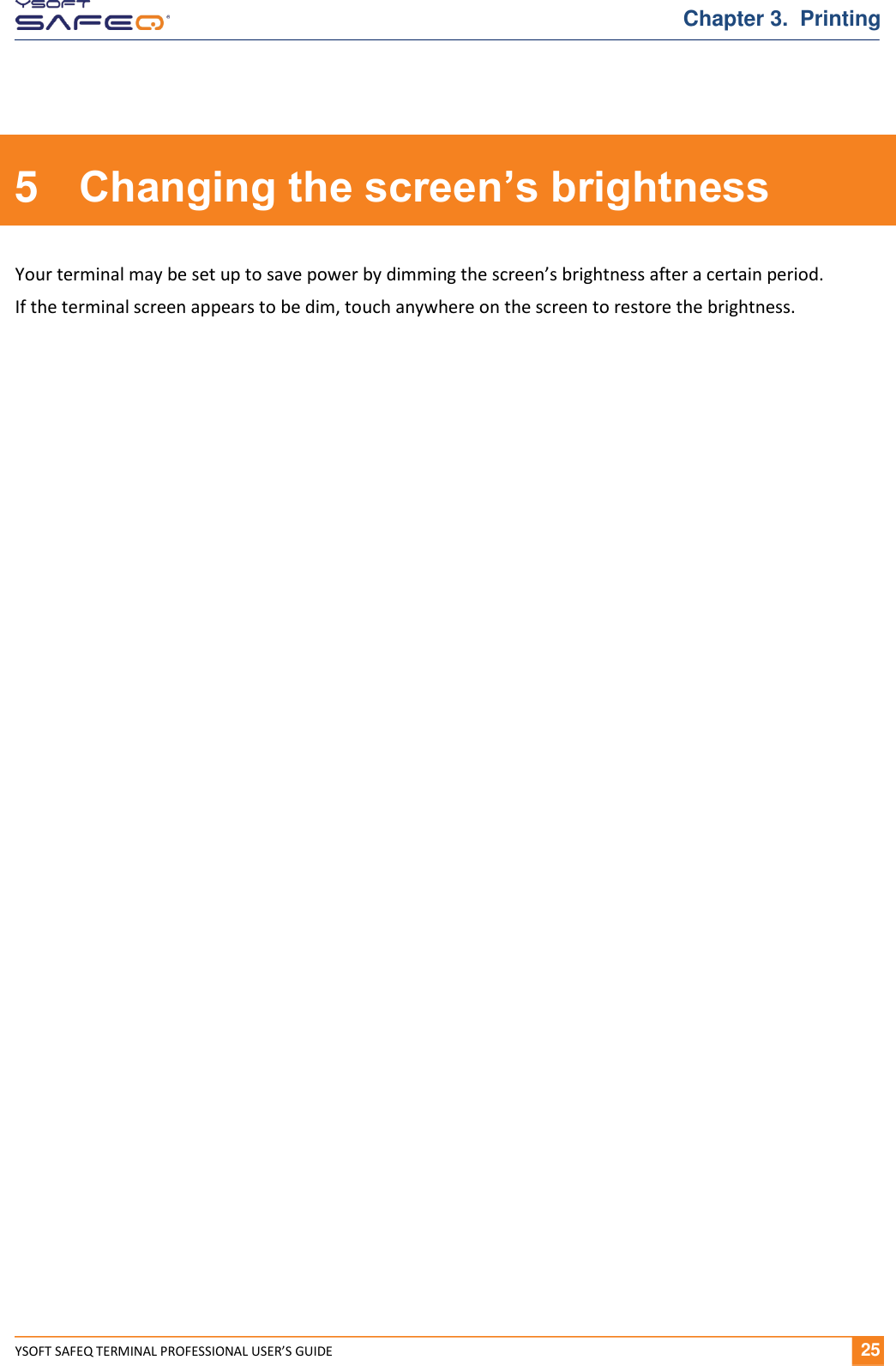

YSOFT SAFEQ TERMINAL PROFESSIONAL USER’S GUIDE 25 Chapter 3. Printing 5 Changing the screen’s brightness Your terminal may be set up to save power by dimming the screen’s brightness after a certain period. If the terminal screen appears to be dim, touch anywhere on the screen to restore the brightness.
