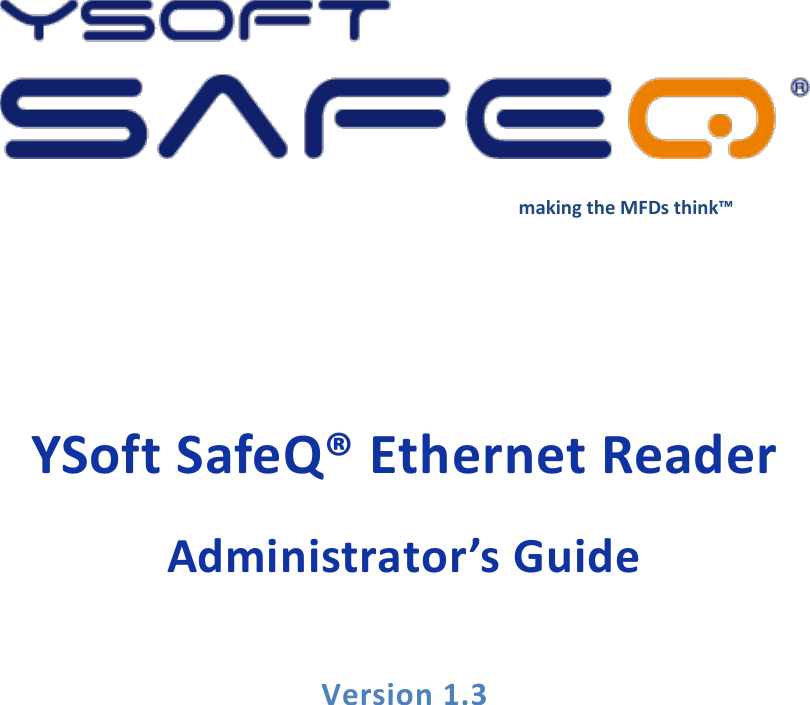

making the MFDs think™ YSoft SafeQ® Ethernet Reader Administrator’s Guide Version 1.3

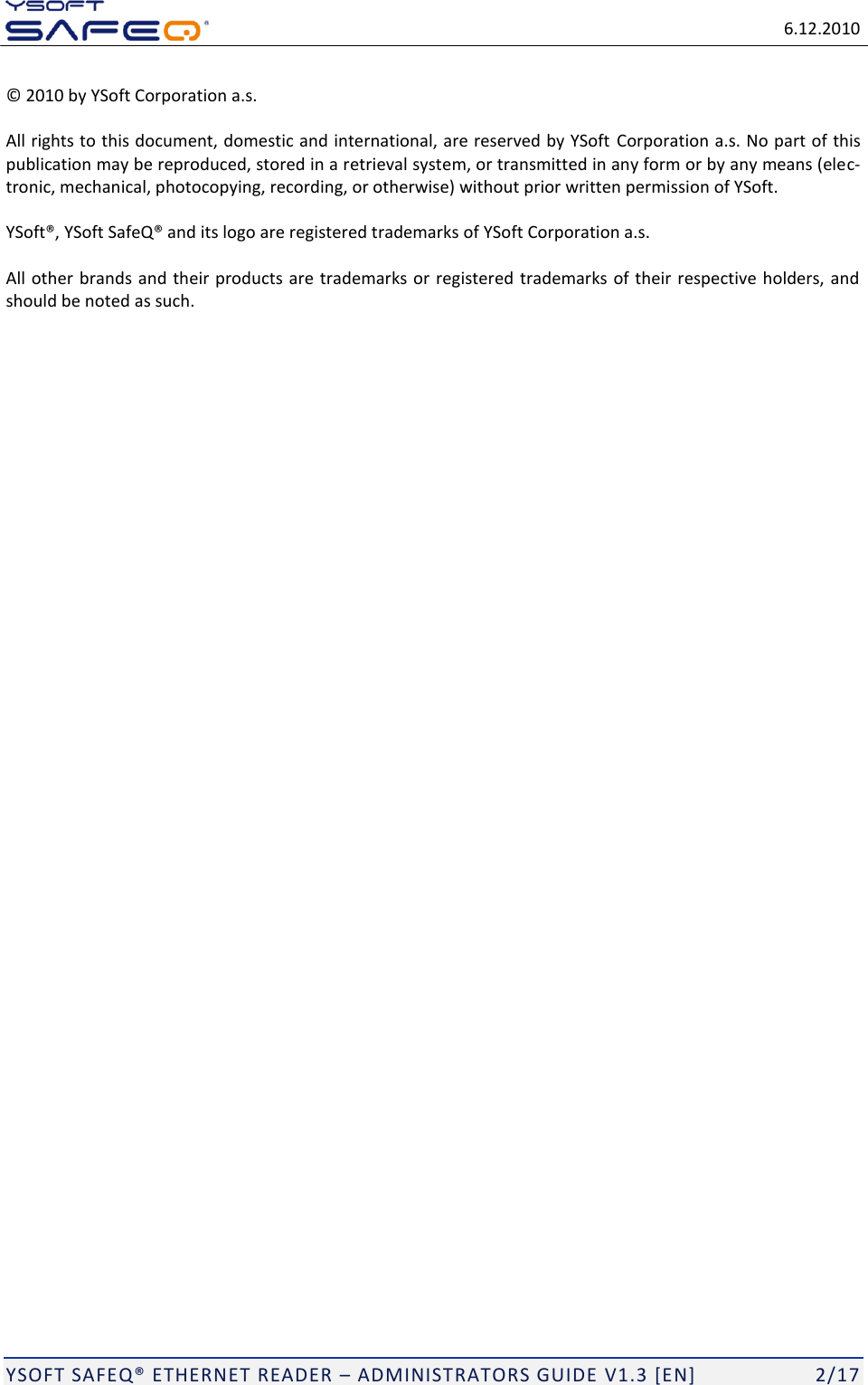

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 2/17 10 by YSoft Corporation a.s. All rights to this document, domestic and international, are reserved by YSoft Corporation a.s. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means (elec-tronic, mechanical, photocopying, recording, or otherwise) without prior written permission of YSoft. egistered trademarks of YSoft Corporation a.s. All other brands and their products are trademarks or registered trademarks of their respective holders, and should be noted as such.

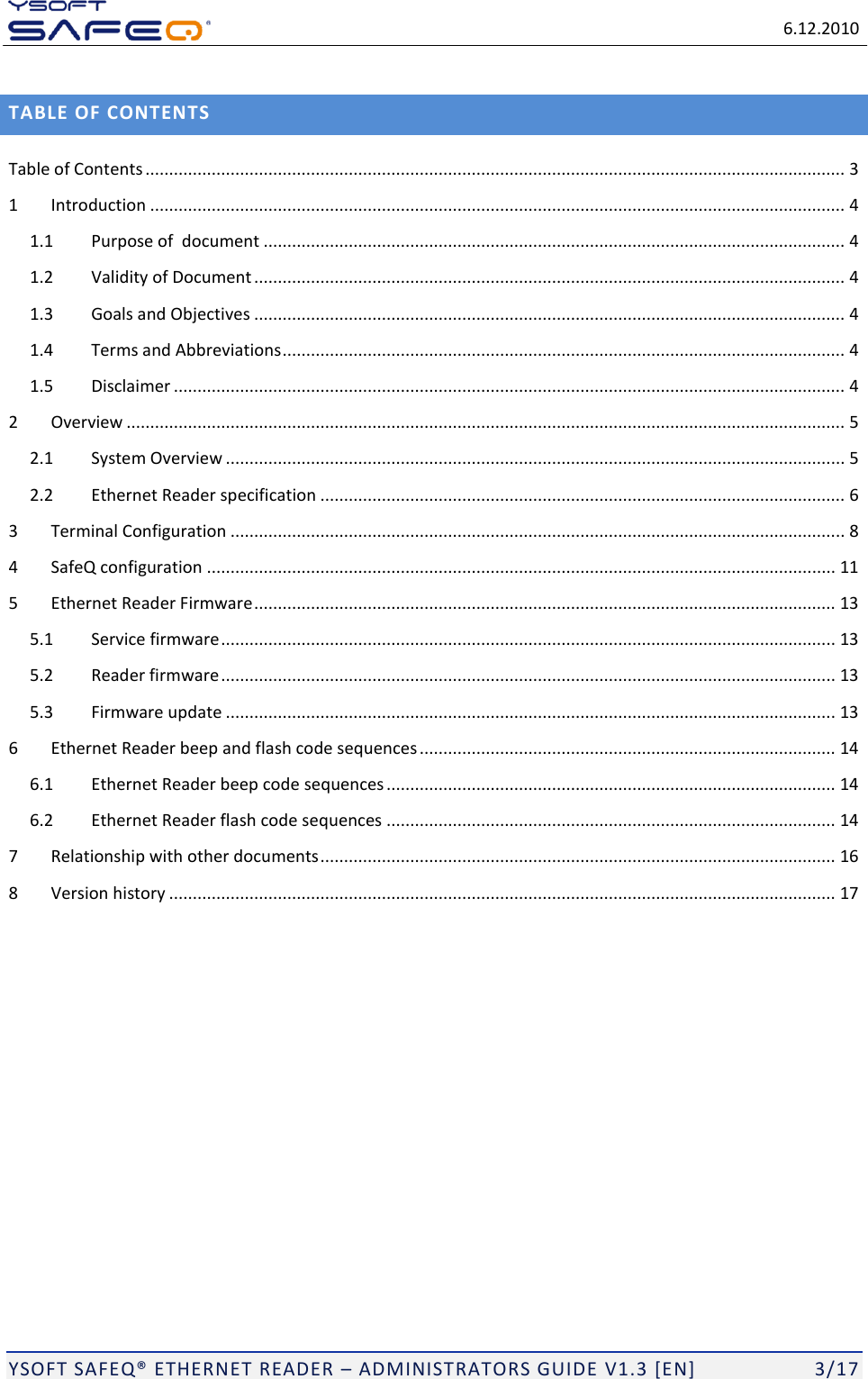

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 3/17 TABLE OF CONTENTS Table of Contents .................................................................................................................................................... 3 1 Introduction ................................................................................................................................................... 4 1.1 Purpose of document ........................................................................................................................... 4 1.2 Validity of Document ............................................................................................................................. 4 1.3 Goals and Objectives ............................................................................................................................. 4 1.4 Terms and Abbreviations ....................................................................................................................... 4 1.5 Disclaimer .............................................................................................................................................. 4 2 Overview ........................................................................................................................................................ 5 2.1 System Overview ................................................................................................................................... 5 2.2 Ethernet Reader specification ............................................................................................................... 6 3 Terminal Configuration .................................................................................................................................. 8 4 SafeQ configuration ..................................................................................................................................... 11 5 Ethernet Reader Firmware ........................................................................................................................... 13 5.1 Service firmware .................................................................................................................................. 13 5.2 Reader firmware .................................................................................................................................. 13 5.3 Firmware update ................................................................................................................................. 13 6 Ethernet Reader beep and flash code sequences ........................................................................................ 14 6.1 Ethernet Reader beep code sequences ............................................................................................... 14 6.2 Ethernet Reader flash code sequences ............................................................................................... 14 7 Relationship with other documents ............................................................................................................. 16 8 Version history ............................................................................................................................................. 17

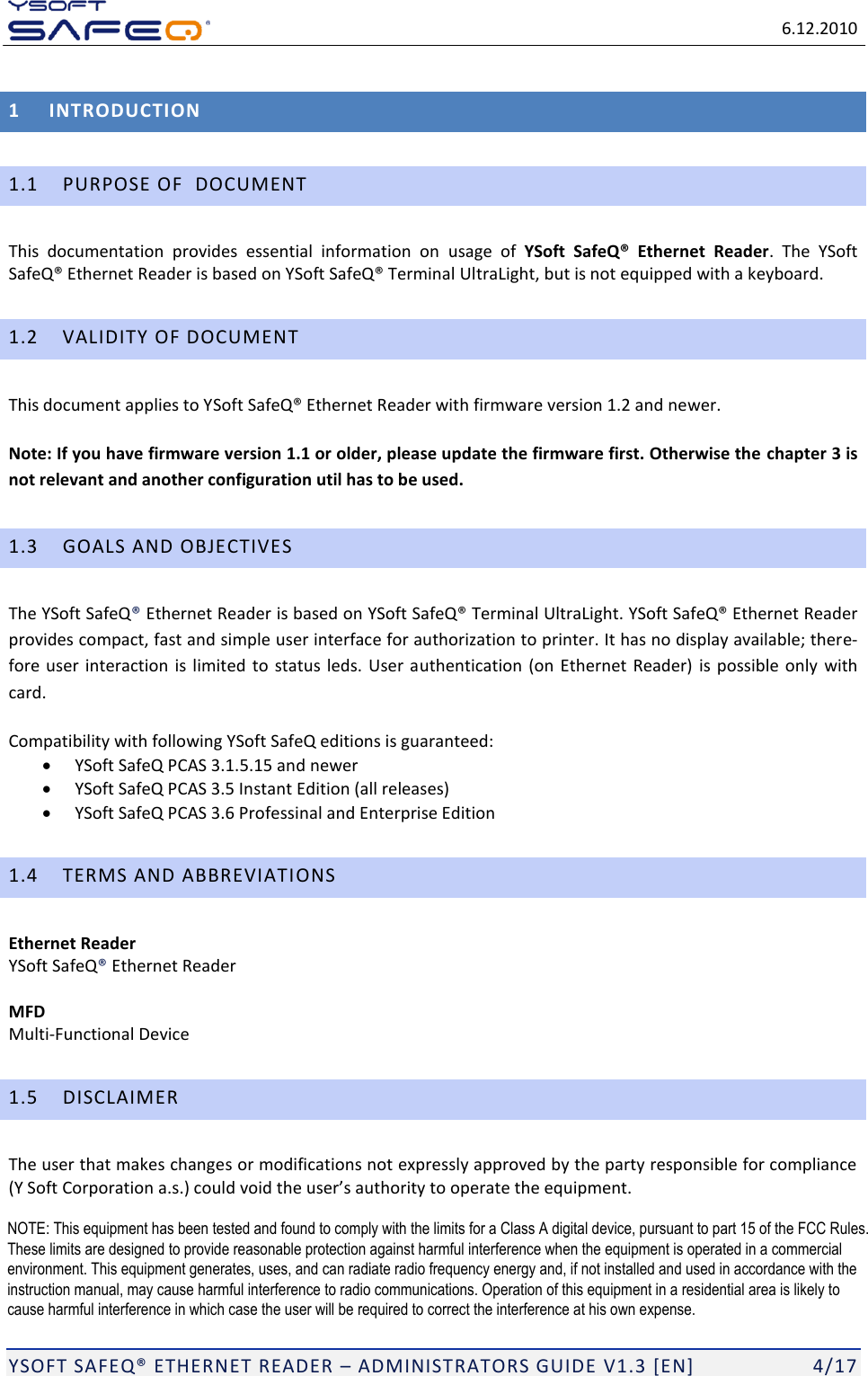

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 4/17 1 INTRODUCTION 1.1 PURPOSE OF DOCUMENT This documentation provides essential information on usage of YSoft SafeQ® Ethernet Reader. The YSoft traLight, but is not equipped with a keyboard. 1.2 VALIDITY OF DOCUMENT This document applies to Ywer. Note: If you have firmware version 1.1 or older, please update the firmware first. Otherwise the chapter 3 is not relevant and another configuration util has to be used. 1.3 GOALS AND OBJECTIVES The YSoft SafeQ Ethernet Reader is based on Terminal UltraLight. YSoft SafeQ Ethernet Reader provides compact, fast and simple user interface for authorization to printer. It has no display available; there-fore user interaction is limited to status leds. User authentication (on Ethernet Reader) is possible only with card. Compatibility with following YSoft SafeQ editions is guaranteed:  YSoft SafeQ PCAS 3.1.5.15 and newer  YSoft SafeQ PCAS 3.5 Instant Edition (all releases)  YSoft SafeQ PCAS 3.6 Professinal and Enterprise Edition 1.4 TERMS AND ABBREVIATIONS Ethernet Reader YSoft SafeQ Ethernet Reader MFD Multi-Functional Device 1.5 DISCLAIMER The user that makes changes or modifications not expressly approved by the party responsible for compliance (Y Soft Corporation a.s NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

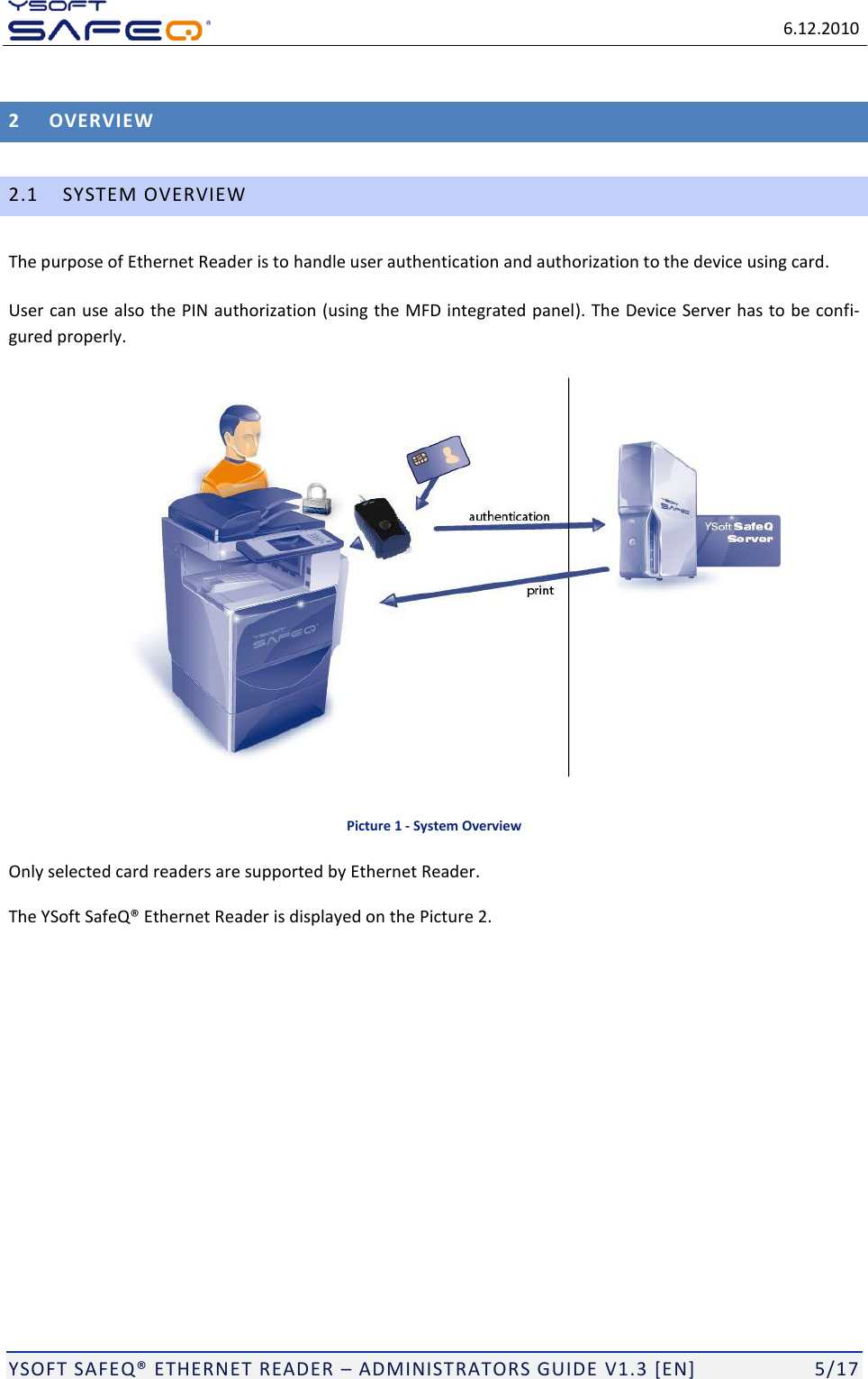

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 5/17 2 OVERVIEW 2.1 SYSTEM OVERVIEW The purpose of Ethernet Reader is to handle user authentication and authorization to the device using card. User can use also the PIN authorization (using the MFD integrated panel). The Device Server has to be confi-gured properly. Picture 1 - System Overview Only selected card readers are supported by Ethernet Reader. The Ethernet Reader is displayed on the Picture 2.

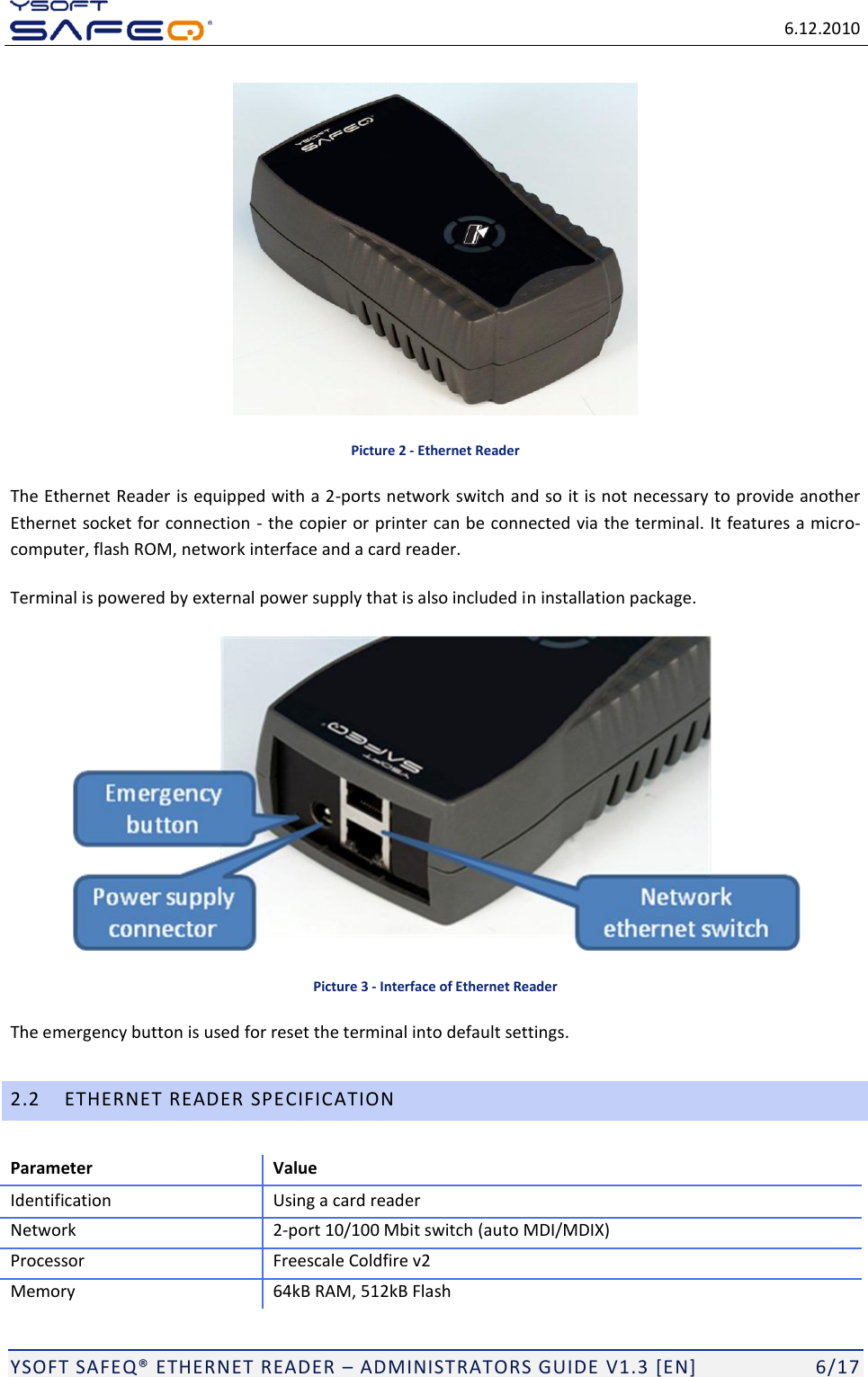

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 6/17 Picture 2 - Ethernet Reader The Ethernet Reader is equipped with a 2-ports network switch and so it is not necessary to provide another Ethernet socket for connection - the copier or printer can be connected via the terminal. It features a micro-computer, flash ROM, network interface and a card reader. Terminal is powered by external power supply that is also included in installation package. Picture 3 - Interface of Ethernet Reader The emergency button is used for reset the terminal into default settings. 2.2 ETHERNET READER SPECIFICATION Parameter Value Identification Using a card reader Network 2-port 10/100 Mbit switch (auto MDI/MDIX) Processor Freescale Coldfire v2 Memory 64kB RAM, 512kB Flash

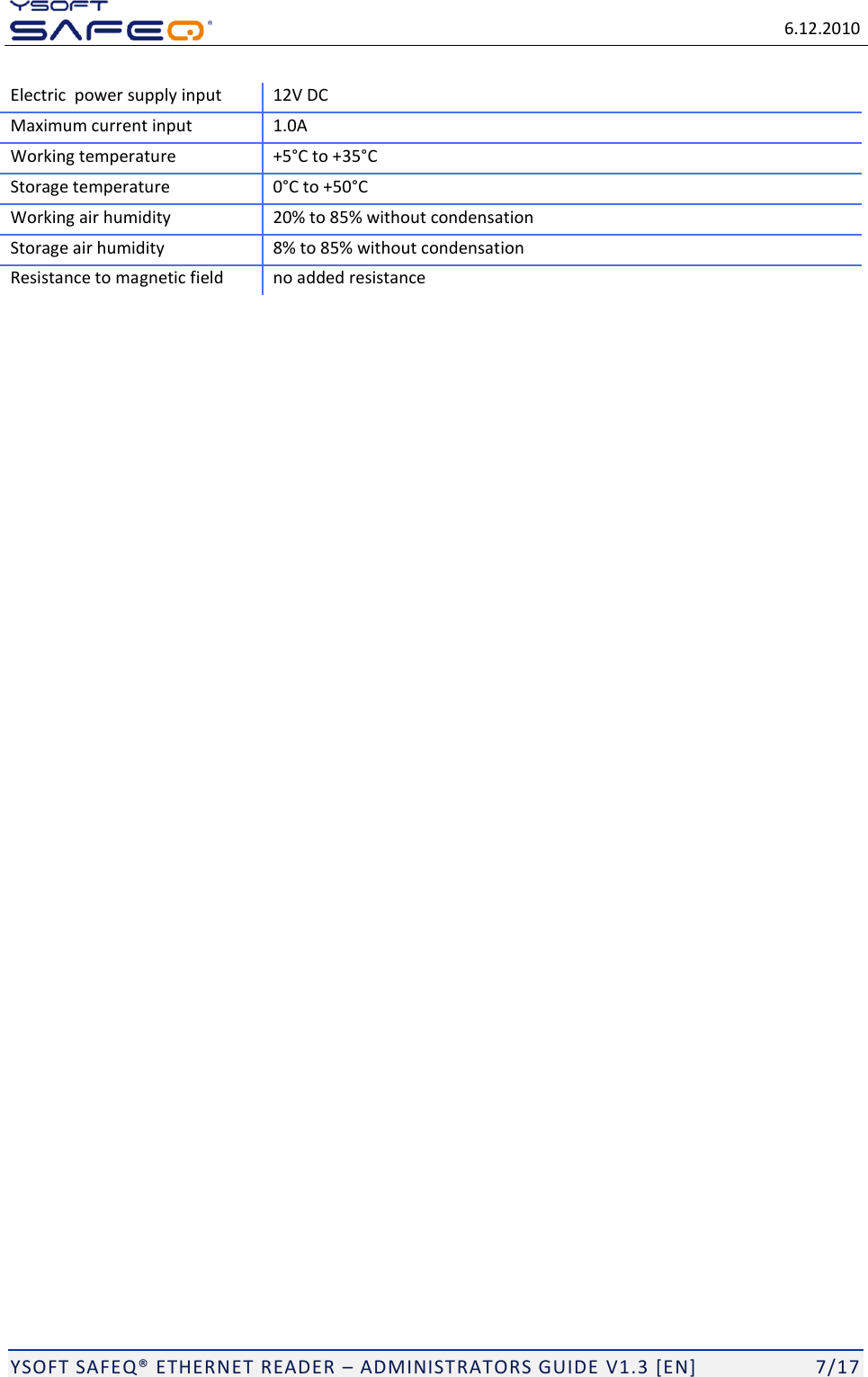

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 7/17 Electric power supply input 12V DC Maximum current input 1.0A Working temperature +535 Storage temperature  Working air humidity 20% to 85% without condensation Storage air humidity 8% to 85% without condensation Resistance to magnetic field no added resistance

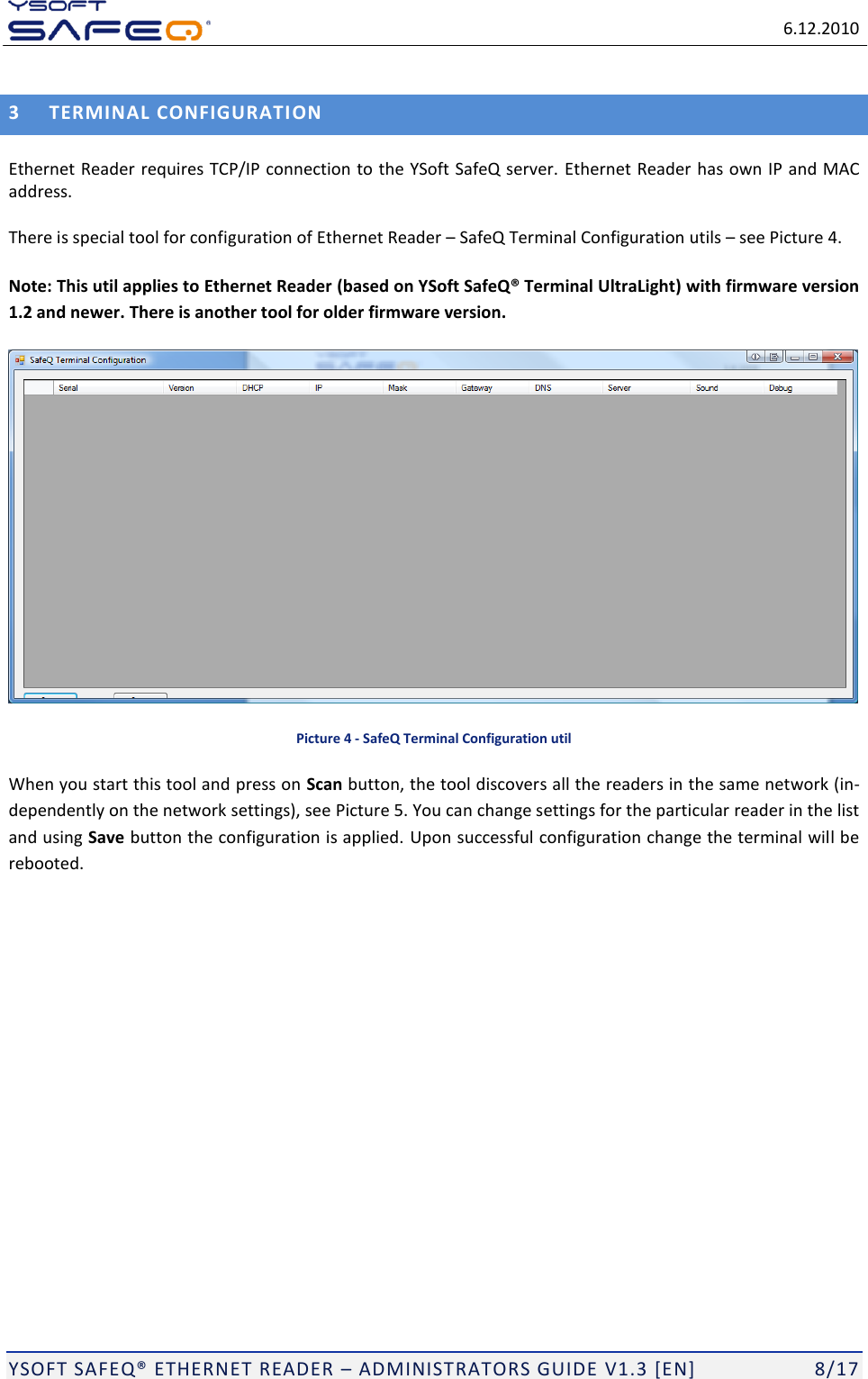

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 8/17 3 TERMINAL CONFIGURATION Ethernet Reader requires TCP/IP connection to the YSoft SafeQ server. Ethernet Reader has own IP and MAC address. There is special tool for configuration of Ethernet Reader  SafeQ Terminal Configuration utils  see Picture 4. Note: This util applies to Ethernet Reader (based on YSoft SafeQ® Terminal UltraLight) with firmware version 1.2 and newer. There is another tool for older firmware version. Picture 4 - SafeQ Terminal Configuration util When you start this tool and press on Scan button, the tool discovers all the readers in the same network (in-dependently on the network settings), see Picture 5. You can change settings for the particular reader in the list and using Save button the configuration is applied. Upon successful configuration change the terminal will be rebooted.

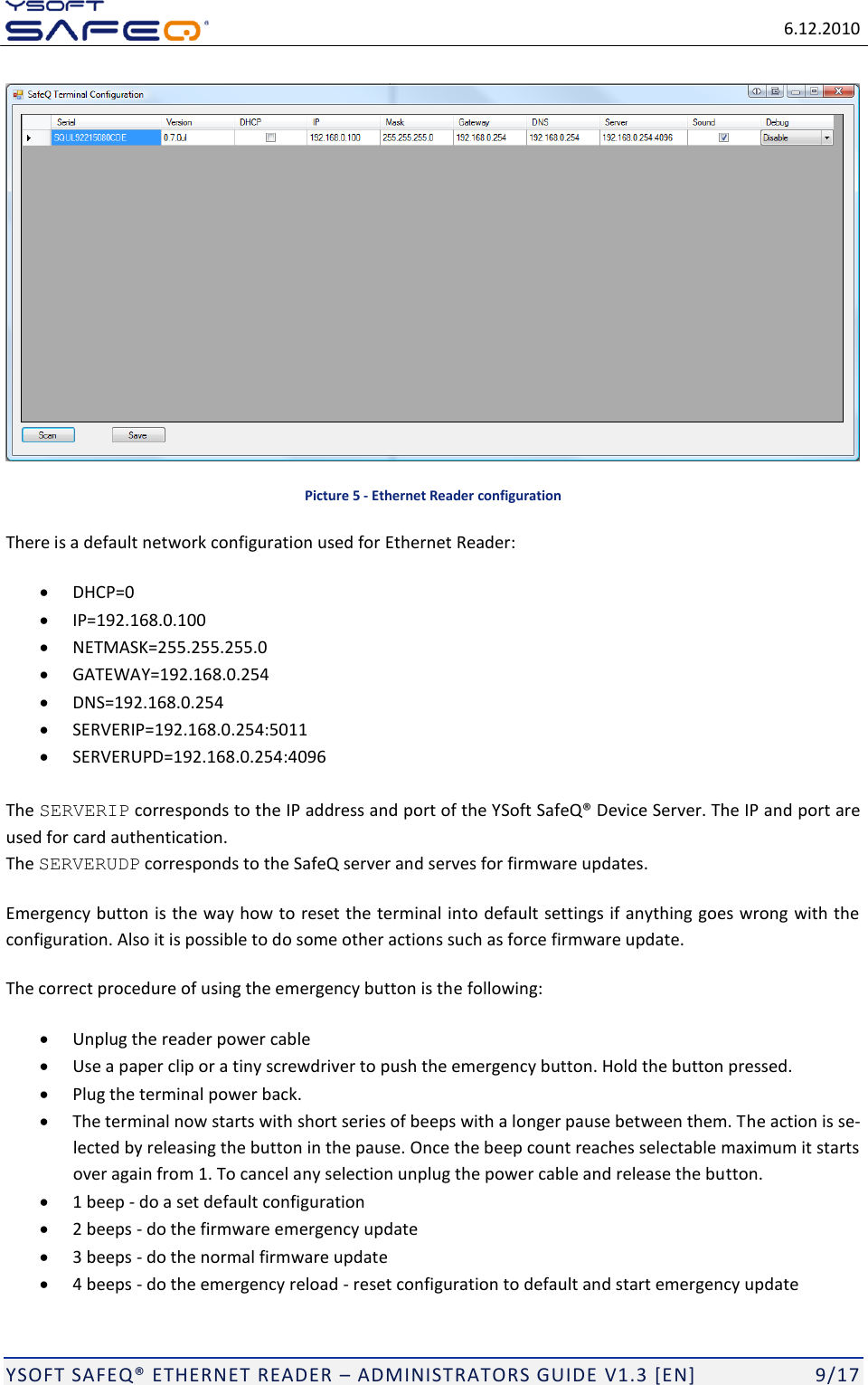

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 9/17 Picture 5 - Ethernet Reader configuration There is a default network configuration used for Ethernet Reader:  DHCP=0  IP=192.168.0.100  NETMASK=255.255.255.0  GATEWAY=192.168.0.254  DNS=192.168.0.254  SERVERIP=192.168.0.254:5011  SERVERUPD=192.168.0.254:4096 The SERVERIP corresponds to the IP address and port of the Yused for card authentication. The SERVERUDP corresponds to the SafeQ server and serves for firmware updates. Emergency button is the way how to reset the terminal into default settings if anything goes wrong with the configuration. Also it is possible to do some other actions such as force firmware update. The correct procedure of using the emergency button is the following:  Unplug the reader power cable  Use a paper clip or a tiny screwdriver to push the emergency button. Hold the button pressed.  Plug the terminal power back.  The terminal now starts with short series of beeps with a longer pause between them. The action is se-lected by releasing the button in the pause. Once the beep count reaches selectable maximum it starts over again from 1. To cancel any selection unplug the power cable and release the button.  1 beep - do a set default configuration  2 beeps - do the firmware emergency update  3 beeps - do the normal firmware update  4 beeps - do the emergency reload - reset configuration to default and start emergency update

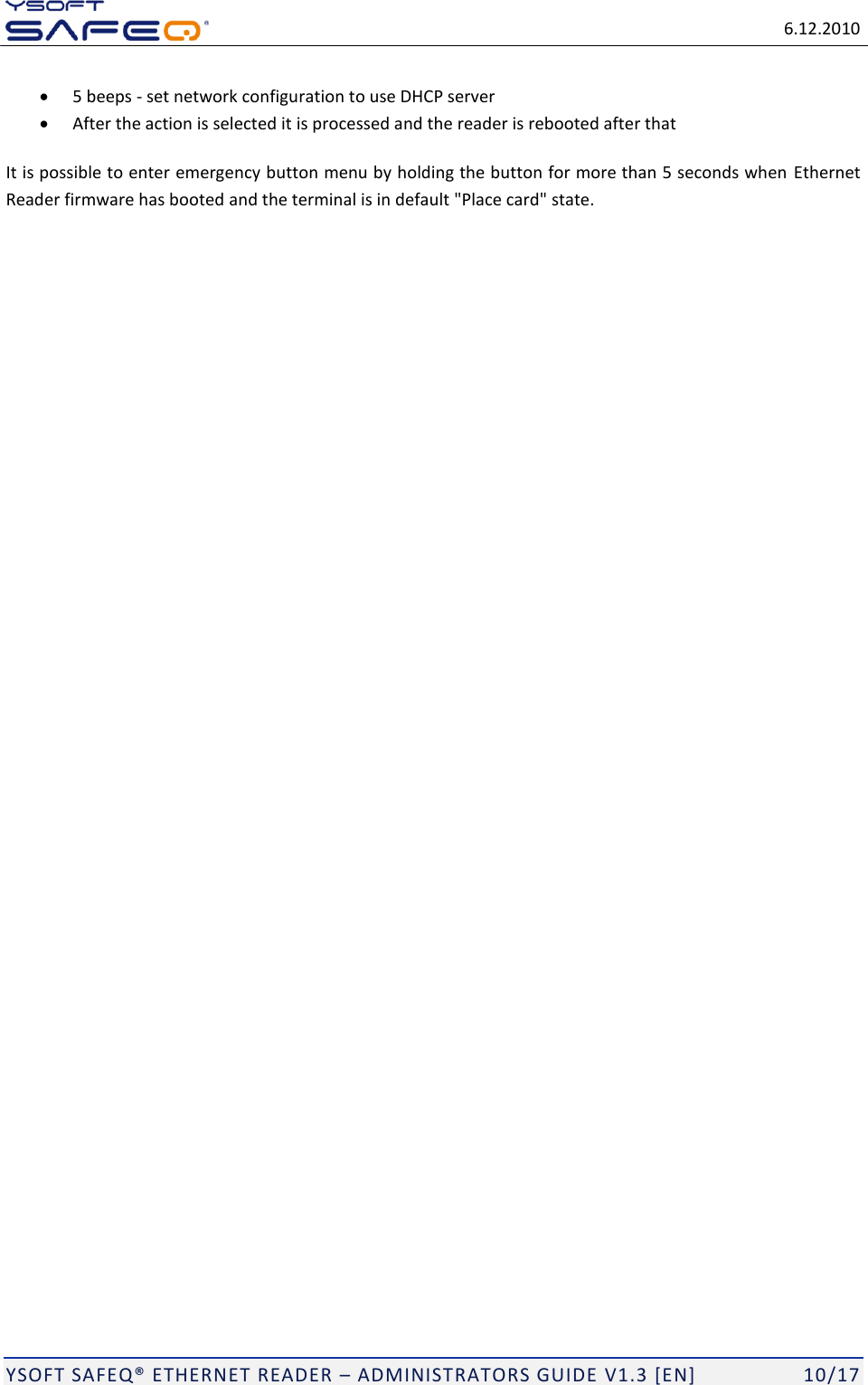

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 10/17  5 beeps - set network configuration to use DHCP server  After the action is selected it is processed and the reader is rebooted after that It is possible to enter emergency button menu by holding the button for more than 5 seconds when Ethernet Reader firmware has booted and the terminal is in default "Place card" state.

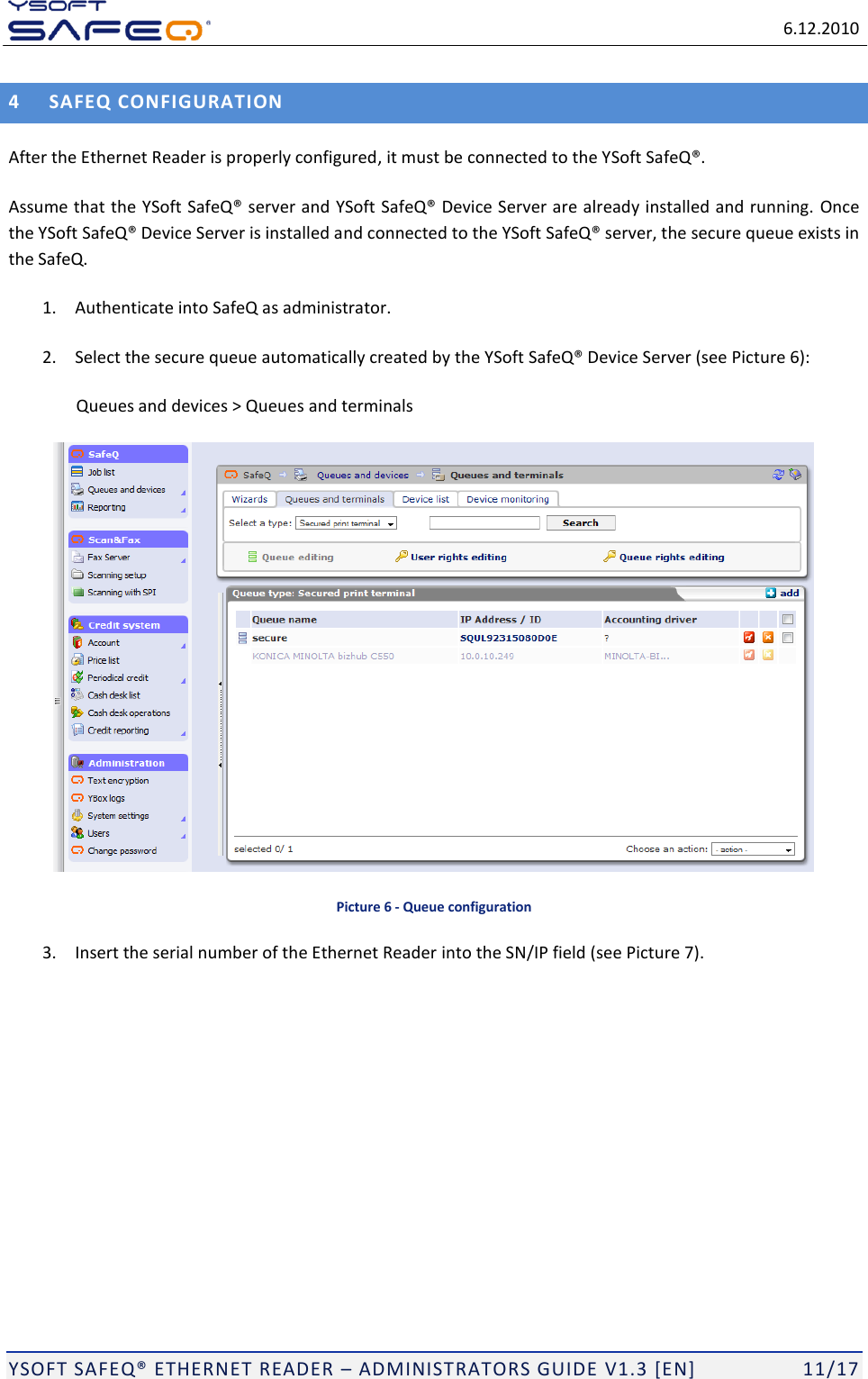

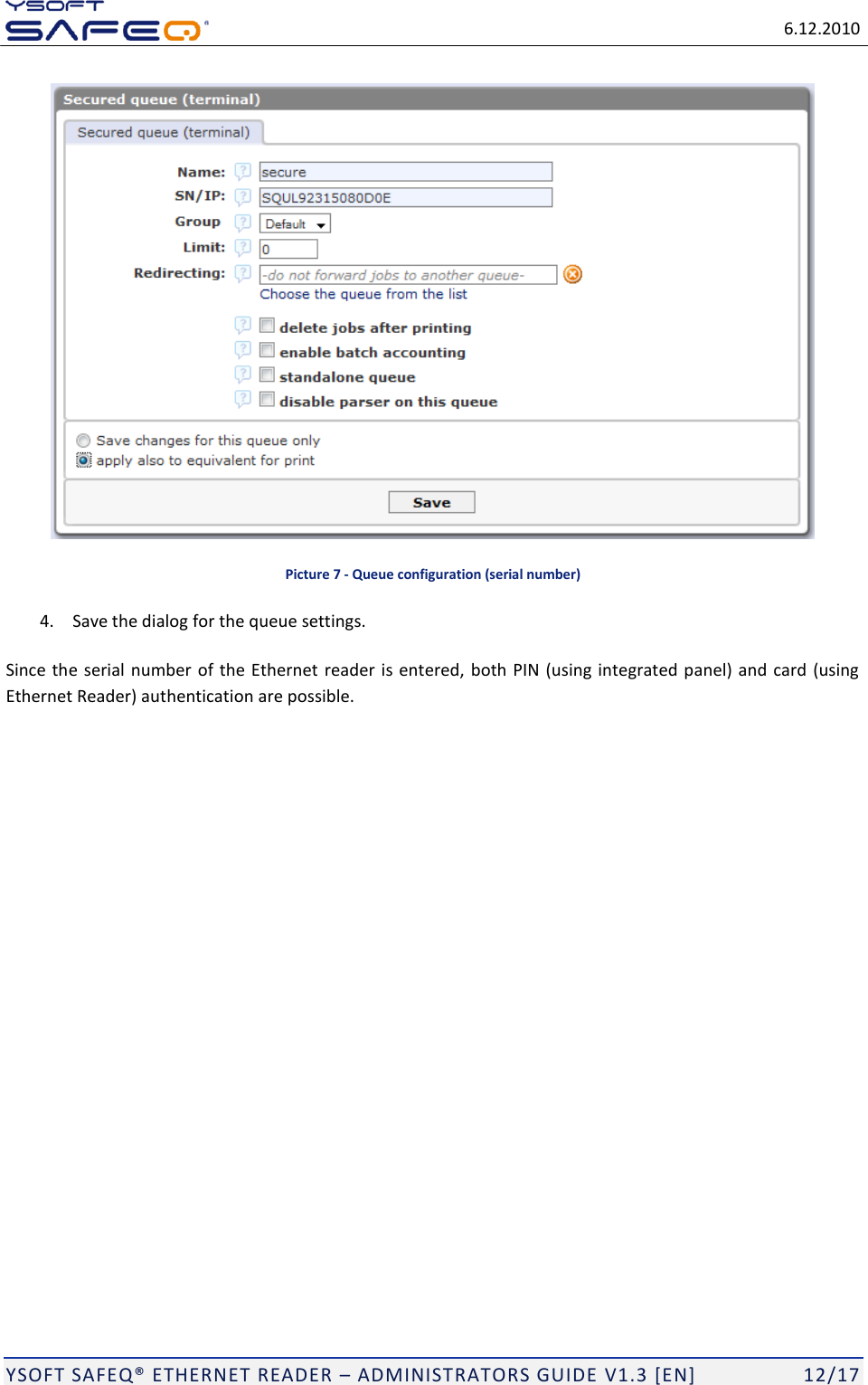

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 11/17 4 SAFEQ CONFIGURATION After the Ethernet Reader is properly configured, it must be connected to the Y Assume that the Y server and Y Once the Ynd connected to the Ythe SafeQ. 1. Authenticate into SafeQ as administrator. 2. Select the secure queue automatically created by the YPicture 6): Queues and devices > Queues and terminals Picture 6 - Queue configuration 3. Insert the serial number of the Ethernet Reader into the SN/IP field (see Picture 7).
6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 12/17 Picture 7 - Queue configuration (serial number) 4. Save the dialog for the queue settings. Since the serial number of the Ethernet reader is entered, both PIN (using integrated panel) and card (using Ethernet Reader) authentication are possible.

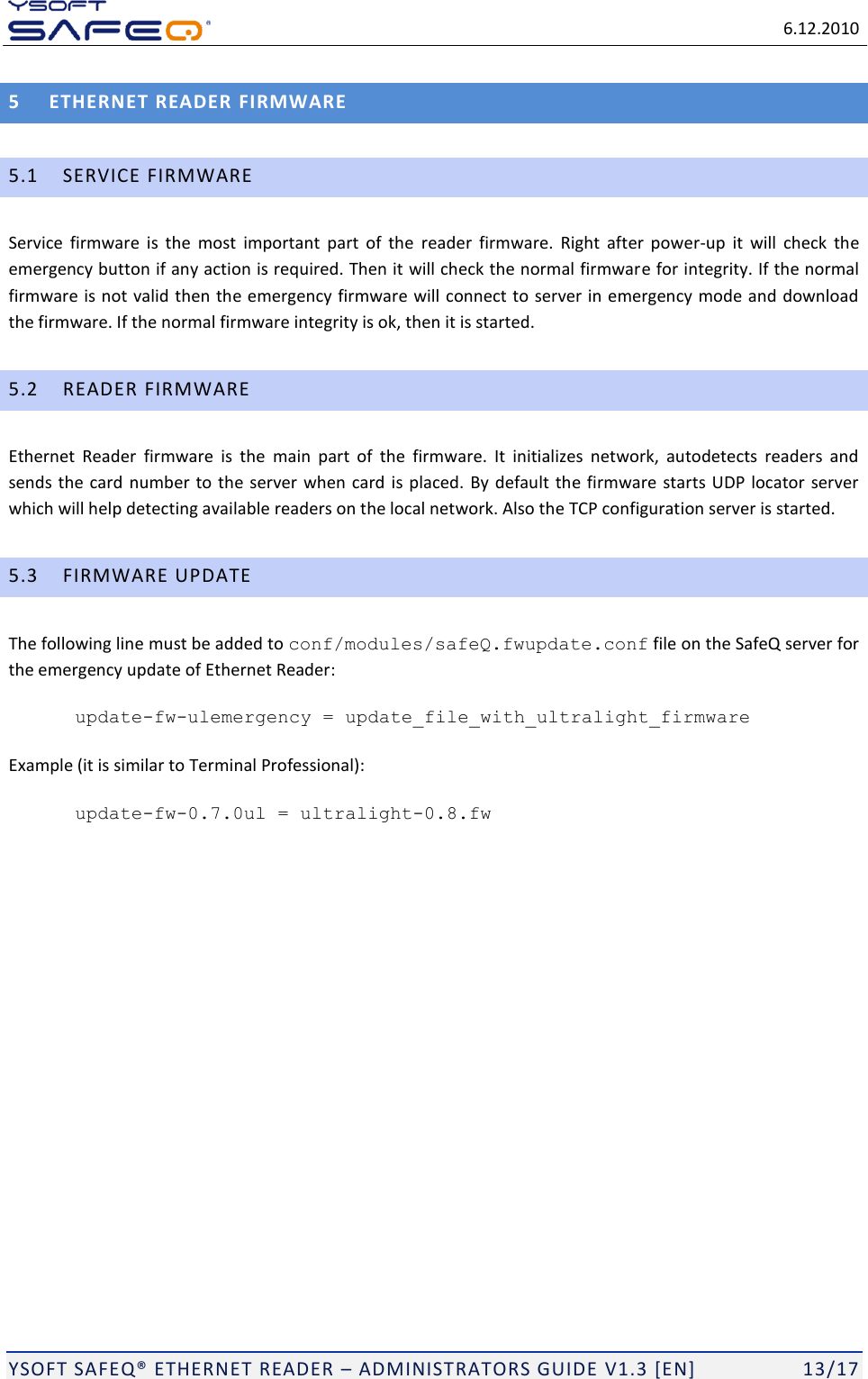

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 13/17 5 ETHERNET READER FIRMWARE 5.1 SERVICE FIRMWARE Service firmware is the most important part of the reader firmware. Right after power-up it will check the emergency button if any action is required. Then it will check the normal firmware for integrity. If the normal firmware is not valid then the emergency firmware will connect to server in emergency mode and download the firmware. If the normal firmware integrity is ok, then it is started. 5.2 READER FIRMWARE Ethernet Reader firmware is the main part of the firmware. It initializes network, autodetects readers and sends the card number to the server when card is placed. By default the firmware starts UDP locator server which will help detecting available readers on the local network. Also the TCP configuration server is started. 5.3 FIRMWARE UPDATE The following line must be added to conf/modules/safeQ.fwupdate.conf file on the SafeQ server for the emergency update of Ethernet Reader: update-fw-ulemergency = update_file_with_ultralight_firmware Example (it is similar to Terminal Professional): update-fw-0.7.0ul = ultralight-0.8.fw

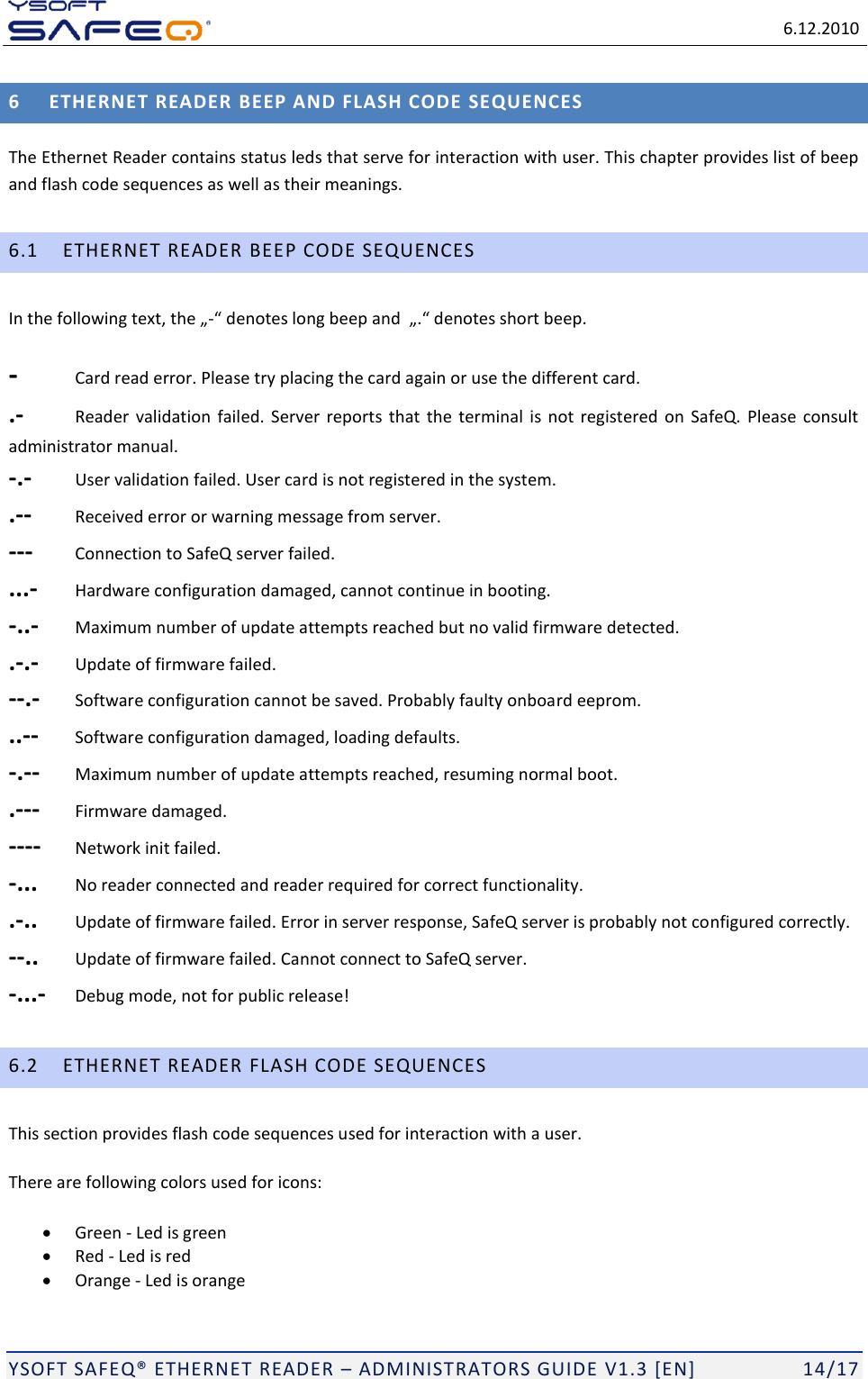

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 14/17 6 ETHERNET READER BEEP AND FLASH CODE SEQUENCES The Ethernet Reader contains status leds that serve for interaction with user. This chapter provides list of beep and flash code sequences as well as their meanings. 6.1 ETHERNET READER BEEP CODE SEQUENCES - - Card read error. Please try placing the card again or use the different card. .- Reader validation failed. Server reports that the terminal is not registered on SafeQ. Please consult administrator manual. -.- User validation failed. User card is not registered in the system. .-- Received error or warning message from server. --- Connection to SafeQ server failed. ...- Hardware configuration damaged, cannot continue in booting. -..- Maximum number of update attempts reached but no valid firmware detected. .-.- Update of firmware failed. --.- Software configuration cannot be saved. Probably faulty onboard eeprom. ..-- Software configuration damaged, loading defaults. -.-- Maximum number of update attempts reached, resuming normal boot. .--- Firmware damaged. ---- Network init failed. -... No reader connected and reader required for correct functionality. .-.. Update of firmware failed. Error in server response, SafeQ server is probably not configured correctly. --.. Update of firmware failed. Cannot connect to SafeQ server. -...- Debug mode, not for public release! 6.2 ETHERNET READER FLASH CODE SEQUENCES This section provides flash code sequences used for interaction with a user. There are following colors used for icons:  Green - Led is green  Red - Led is red  Orange - Led is orange

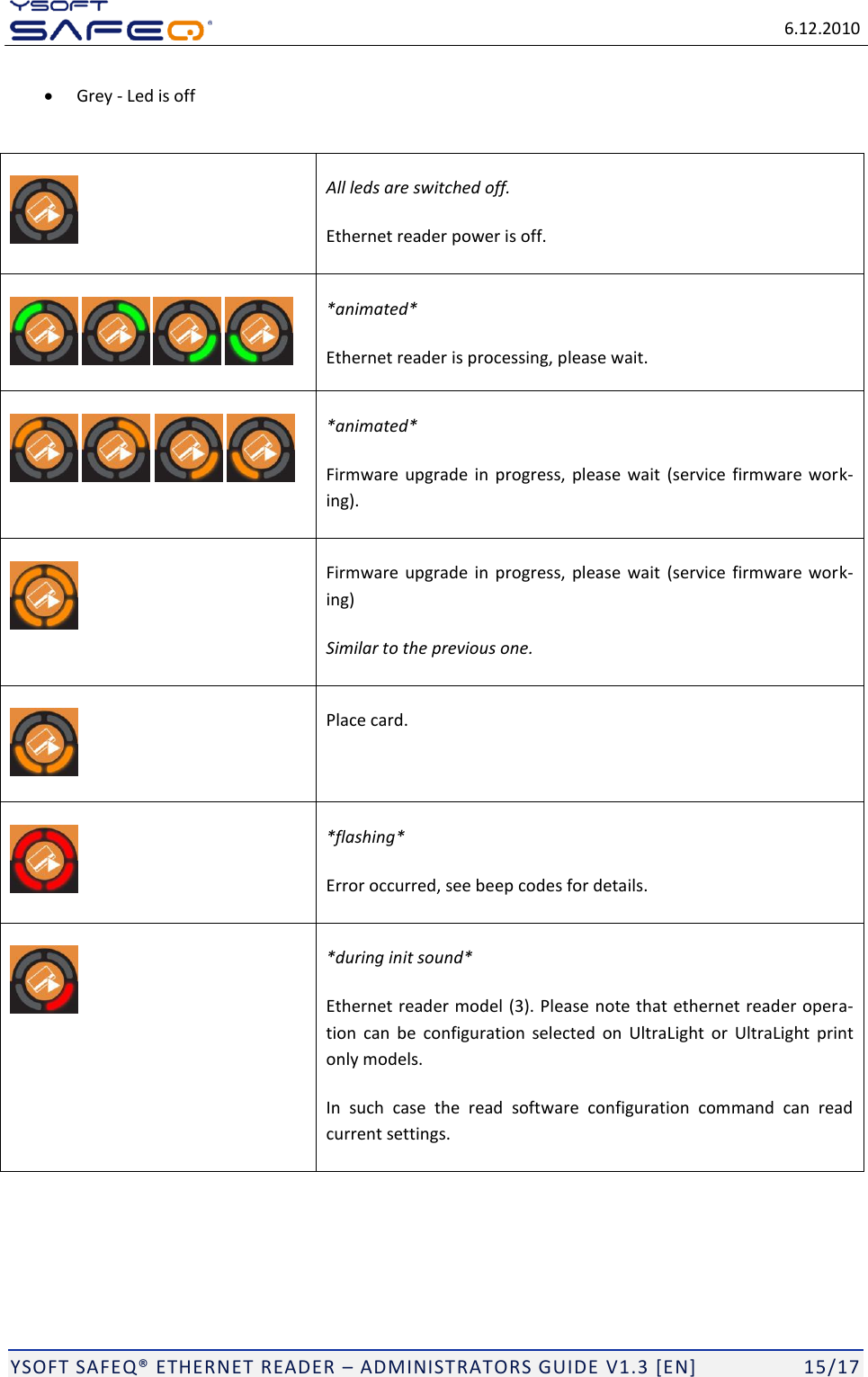

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 15/17  Grey - Led is off All leds are switched off. Ethernet reader power is off. *animated* Ethernet reader is processing, please wait. *animated* Firmware upgrade in progress, please wait (service firmware work-ing). Firmware upgrade in progress, please wait (service firmware work-ing) Similar to the previous one. Place card. *flashing* Error occurred, see beep codes for details. *during init sound* Ethernet reader model (3). Please note that ethernet reader opera-tion can be configuration selected on UltraLight or UltraLight print only models. In such case the read software configuration command can read current settings.

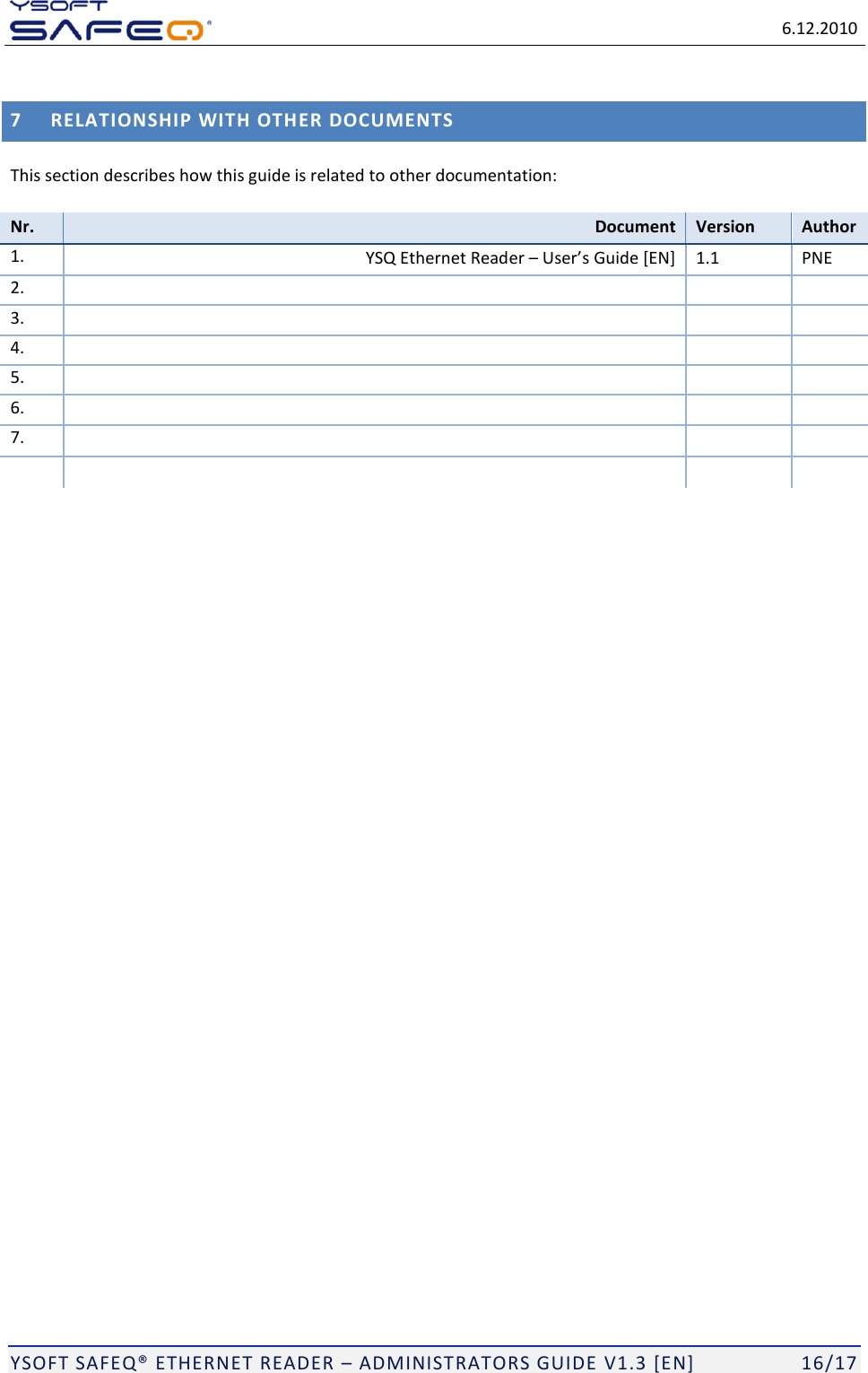

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 16/17 7 RELATIONSHIP WITH OTHER DOCUMENTS This section describes how this guide is related to other documentation: Nr. Document Version Author 1. YSQ Ethernet Reader   1.1 PNE 2. 3. 4. 5. 6. 7.

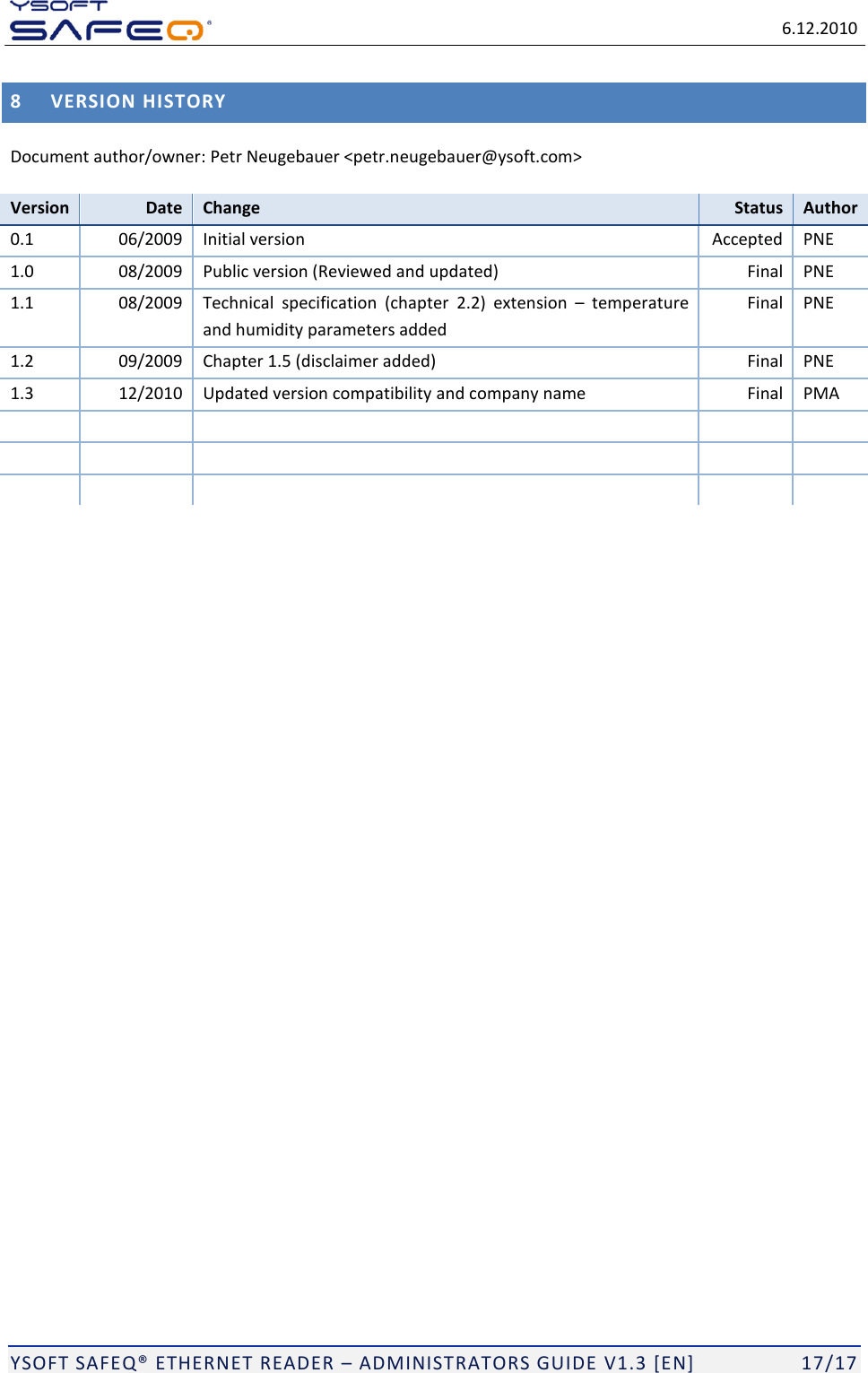

6.12.2010 YSOFT SAFEQ ETHERNET READER  ADMINISTRATORS GUIDE V1.3 [EN] 17/17 8 VERSION HISTORY Document author/owner: Petr Neugebauer <petr.neugebauer@ysoft.com> Version Date Change Status Author 0.1 06/2009 Initial version Accepted PNE 1.0 08/2009 Public version (Reviewed and updated) Final PNE 1.1 08/2009 Technical specification (chapter 2.2) extension  temperature and humidity parameters added Final PNE 1.2 09/2009 Chapter 1.5 (disclaimer added) Final PNE 1.3 12/2010 Updated version compatibility and company name Final PMA
