YONGNUO PHOTOGRAPHIC EQUIPMENT YN622N-TX i-TTL Wireless Flash Controller User Manual
SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD i-TTL Wireless Flash Controller
User Manual
User Manual
用户手册
-TX
Wireless Flash Controller
Please turn off power supplies of all equipment when
connecting or installing the product.
Please keep it dry. Be sure not to use wet hand to touch the
product. It is also not allowed to immerse the product into waster
or make it be exposed in the rain; otherwise it may not work
normally or even be damaged.
Do not use it in explosive situations; violation of this warning
may cause an explosion or fire.
This product involves battery, please be in strict accordance
with the relevant provisions on the use of the battery, otherwise it
would cause property damage or personal injury.
Cautions
Contents
General Description .................1
Conventions used in the manual. . . . . . . . . . . 2
Supported Functions List ...............3
Name of Parts/LCD .................4
Name of Parts/Quick Start Guide ............5
Preparation Before Use . . . . . . . . . . . . . 6-7
Setting .....................8-10
Flash awaking and triggering . . . . . . . . . . . 11
The other Trigger Modes . . . . . . . . . . . . . 12

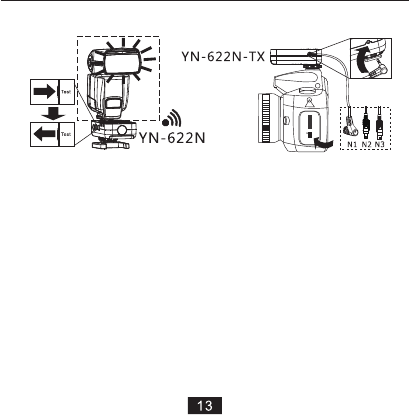

Shutter Release Function . . . . . . . . . . . . 13
Reference ...................14-15
Troubleshooting ..................16
Specifications ...................17
Thank you for purchase the products of Yongnuo firstly.
YN-622N-TX i-TTL wireless flash controller is for supporting
the use of YN-622N i-TTL wireless flash trigger transceiver.
This product adopts flexible LCD menu control, supporting
mixed use of the A/B/C three groups of flashes using i-TTL,
manua, or super sync flash mode, can be adjusted the exposure
compensation or flash output of each group. In addition, it
supports setting different focal length(zoom)of the three groups
of flash, the remote-controlled distance can reach 100M,
supporting seven wireless channels and A/B/C three groups, and
equipped with the AF-assist beam emitter. Support USB
firmware upgrade.
General Description
Compatible camera list:
Nikon
D70/D70S/D80/D90/D200/D300/D300S/D600/D700/D800/
D3000series/D5000series/D7000series
Include items:
1×YN-622N-TX Controller
1×Usermanual
1×LS-2.5/N1 shutter connecting cable
1×LS-2.5/N3 shutter connecting cable

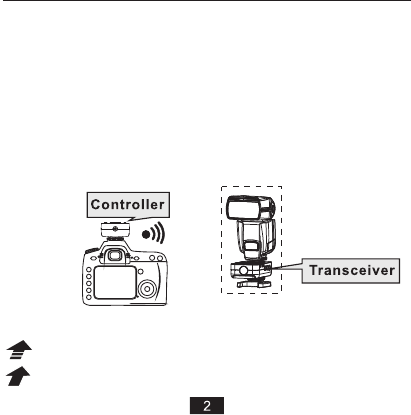

This manual to assume that using the compatible
camera/flash, and using the YN-622N transceiver with
same channel. Functions supported by the product depend
on the camera and flash used. Concerning the operation of
YN-622N transceiver, camera and flash , please read the
user manual respectively.
The latest version of the compatibility list and user
manual, firmware, please visit www.hkyongnuo.com.
Upgrade to the latest firmware version before
using(P15).
Refers to short press the button.
Refers to long press(hold down) the button.
YN-622N-TX
YN-622N
Conventions used in the manual
The below icon used in this manual:
LCD screen display, multi-buttons quick operation
The firmware can be upgraded through the USB interface
Support wireless shutter release function
The focal length(zoom)of the A/B/C three groups of flash
can be adjusted separately
Equipped with the AF focus assist light (can be disabled)
Grouping flash mode: i-TTL/Manual flash/Super sync
Supporting mixed use of the A/B/C three groups of flashes with i-
TTL flash mode
The exposure compensation or flash output of A/B/C three groups
of flashes can be adjusted separately
Shutter Sync: first curtain sync, second curtain sync and FP high-
speed sync, the highest sync speed is 1/8000s
Support exposure compensation, flash value lock function(FVL)
Support simulate (modeling) flash, red-eye reduction flash
Support the flash zooming (auto)
Super Sync (SS) time delay adjustment, for higher x-sync speed
than the camera allows
Settings saved automatically
The flash sync signal can be input through the PC port
Support the basic flash trigger (max sync speed is 1/250s) of
standard hot shoe (non Nikon body)
*The above functions need to be used with the YN-622N
transceiver.
, Manual flash, or Super sync
Parts of functions may refer to the manufacturer
of the camera and flash.(FVL,Modeling Flash, Red-eye
Reduction Flash etc. ).
Supported Functions List
※The protective film can be torn out.

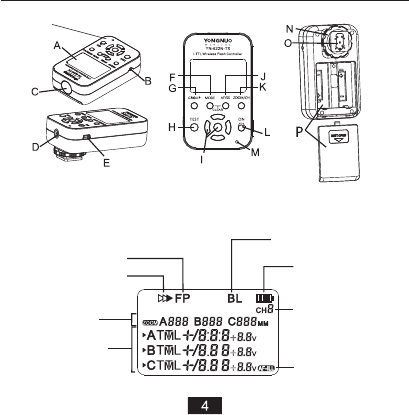

Name of Parts/LCD
High speed sync
ZOOM
i-TTL balanced
fill-flash
Battery electricity
Channel
Flash parameter
area
LCD
Rear curtain Sync
AF assist beam
emitter
A-LCD: Display all the settings of controller, convenient for your
view and setup.
B-2.5MM Shutter release interface: Wireless shutter release
function(P.13).
C-AF assist beam emitter: (P.10)
D-PC interface: Input the flash sync signal(P.12).

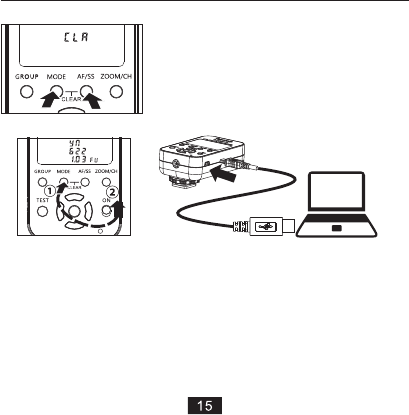

E-USB interface: Firmware upgrade through connecting the
computer(P.15).
F-Mode button: Each time you press the switch in the flash
mode(P.8).
G-Group button: The arrow shown the switch setting group(P.8).
H-TEST button: Long press for flash awaken, loosen for flash
testing(P.11).
I-Select/Set button group: Multifunction button group, including
the [UP] [DOWN] [LEFT] [RIGHT] and [OK] buttons, which can set
the channel, ZOOM, flash output and other parameters.
J-AF/SS button: Short press for AF
switch(P.10), long press for [Super Sync] parameter setting (P.9).
K-ZOOM/CH button: Each short press for A/B/C three groups
switch(P.10), long press for channel setting(P.7) .
L-Power switch: Slide to ON for power on.
M-Status indicator : The green light will bright when in
communication, while the red light will bright when in triggering (or
shutter releasing).
N-Locking ring and locking pin: (P.6)
O-Hot shoe Mounting foot and contacts: (P.6)
P-Battery compartment and battery cover: (P.6)
assist beam emitter
Name of Parts/Quick Start Guide
2.Installing the Controller on the Camera
1). Unscrew the locking ring of the controller.
2). Slip the mounting foot into the hot shoe of the camera.
3). Turn the locking ring according to the direction of arrow,
the locking pin will protrude from the mounting foot.
Open the cover and install two AA
batteries (excluded)according to the
marks , rechargeable batteries of 1.2V
can be used.
1. Installing the Batteries
Remove the batteries when the product is
not used for long time. Please replace the
both two batteries at the same time.
3. Power ON.
Power on when the power switch slides to [ON].
Preparation Before Use

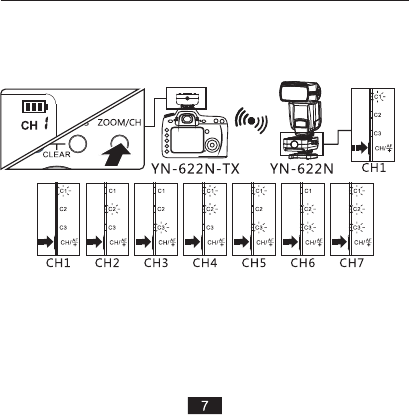

4.Channel Setting：
Long press the [ZOOM/CH] button, then press the [UP] or
[RIGHT] for increasing, press the [DOWN] or [LEFT] for
decreasing, press [OK] for confirm. Set the same channel
as the YN-622N transceiver.
5. ：
1).
2).
*For non-i-TLL
flash mode or other triggering mode, refer to P.12).
Transceiver and Flash Settings
Set the transceiver’s receiving group, and set the same
channel as the YN-622N-TX controller.
Set the flash to i-TTL flash mode*, the flash will fire
according to the flash mode and parameters set by the
controller, support i -TTL/manual flash. (
Preparation Before Use

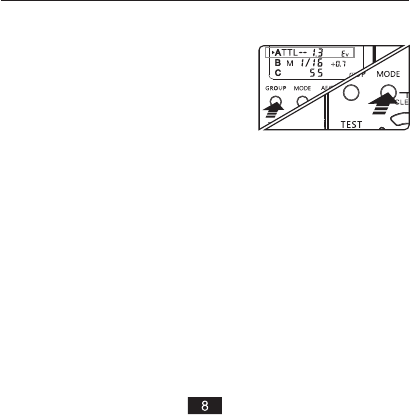

1) .P r es s t he [G RO U P] b ut to n to
choose the setup group, press with
the arrow to select A/B/C group.
2).Press the [MODE] button to set the
flash mode of selected group, each
press for the settings as below:
TTL: i-TTL Flash, the FEC adjustment range is within -3-
+3EV, press [LEFT] or [RIGHT] button to increase and
reduce 1EV, press [UP] or [RIGHT] button to increase and
reduce 0.3EV.
M: Manual Flash, The adjustment range is within 1/128-1/1,
press [LEFT] or [RIGHT] button to adjust, press the [UP] or
[RIGHT] button for fine adjustment.
SS: (Super Sync, refer to Page 9)
(None):The group is not participate in flash.
It is supported to set the FEC on the flash
directly, the compensation value shall be superposed
according to flash setting plus the controller setting.
When setting the flash mode and parameters on the
controller, the screen of the flash on the transceiver will
not change.
1. Groups and Modes Setting(Remote Control)
Setting
Shooting with a Different Flash Mode for Each Group

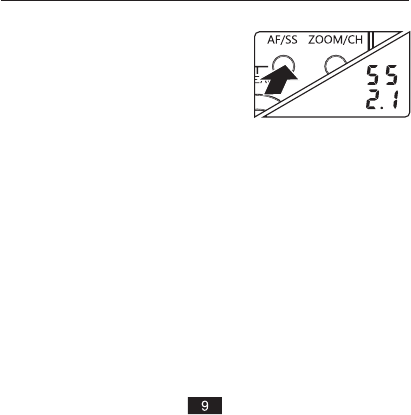

1.Set the time delay parameter of controller SS:
Long press the [AF/SS] button to proceed setting, press the
[UP][DOWN][LEFT][RIGHT] button to adjust, press [OK] to
confirm and exit setup, supports Automatic Setup (AU) or Manual
Setup 0.1-3.0.
Using Super Sync:
1).Set the flash in manual mode, Support transceiver using hot
shoe flash or connecting to the PC port . and it may needs
setting at manual full-power flash output (1/1).
According to the flash model, output power and shutter speed
to adjust controller “SS” to a suitable time delay parameters.
2.
2).Set the flash sync speed of the camera as AUTO FP, the
maximum shutter sync speeds can reach to 1/8000s.
3).Take photos and check whether the photos are synchronous ,
it may see gradations or variations in the photos, results
depend on the camera and flash.
2.
Use the non-high speed sync
flash to realize higher sync speed,
this function is more applicable to
strobe flashes whose flash duration
is longer, and it is for the camera
w h i c h s u p p o r t A u t o FP o n l y.
S u p p o r t
About the Super Sync(SS)
s e t u p t h e t i m e d e l a y
parameter of Super Sync.
Setting
※It need to using single AF of the camera.
4.
bea m e m i tte r o f th e co n t orl l e r w il l b e em i t ted
automatically to make it easier to autofocus.
Short press the [AF/SS] button to enable/disable the AF
Assist Beam Emitter function, the LCD will displayed the
icon.

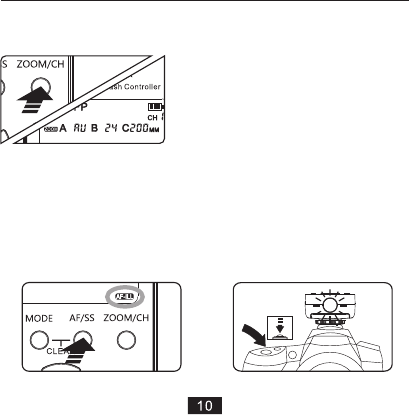

AF Assist Beam Emitter
When using AF under low-light, the built-in AF-assist
3.ZOOM
Each short press the [ZOOM/CH]
button, choose one of the A/B/C
group, press the [UP] [DOWN]
[LEFT] [RIGHT] buttons to setup,
supports the range of setup: 24-
200,AU (automa tic), press the
[OK] button to confirm.
It support the controller setting the the focal length of
the flash lamp holder on the transceiver.
Setting

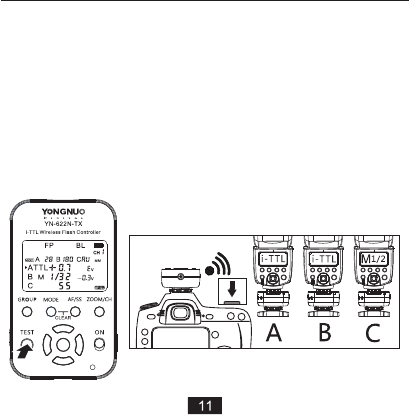

When half press the shutter button of the camera or press
the [TEST] button of the controller , the awaking indicator
light of green light will bright, the hot-shoe flash on the
transceiver will be awakened.
Completely press the shutter button of the camera will
trigger the flash synchronously, the triggering indicator light
of red light will bright.
When loosing the [TEST]
button, the groups have been selected of flash will be tested
for once.
2.Flash triggering
Flash awaking and triggering
1.Flash awaking&Testing flash
Examples:

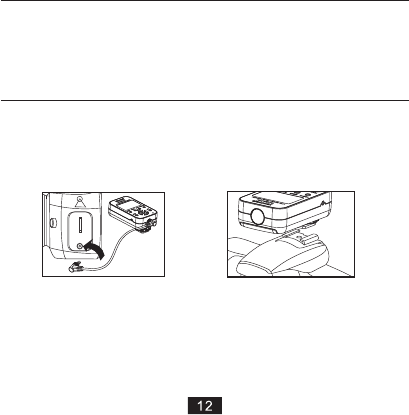

2.PC & Basic flash Trigger(Support non Nikon body)
PC (input) Use LS-PC/PC cable (option)to
connect the controller and the PC interface of camera.
Basic flash (Single Contact) trigger: Install the controller
on the camera hot shoe.
interface
interface trigger:
1).Transmitting group setup: Group setup according to the
controller.
2).Flash mode setup: Set the manual flash(M) mode through
the flash control panel, change the flash output manually, use
the controller PC interface or main flash contact trigger, not
support high speed sync or other TTL function (the highest
synchronous speed is 1/250s or lower).
Set the compatible flash on the transceiver to Manual or RPT
flash mode, the flash will work according to the mode and
parameters displayed, the controller will not support the remote
controlling the flash mode or flash exposure compensation (flash
output).
The other Trigger Modes
1.Non-Remote Control Mode:
1).Install the YN-622N-TX controller on the camera’s hot shoe,
and use LS-2.5 series shutter connecting cable(may
additional purchases) to connect the controller and camera.
Support single shot only.
If the controller does not installed on the compatible
camera’s hot shoe, the shutter will release when pressing
the [TEST] button of transceiver.
2).Long press the [TEST] button of YN-622N transceiver to
focus, loosen the [TEST] button to shot. If the flash installed
o n t h e Y N - 6 2 2 N t r a n s c e i v e r, t h e f l a s h w i l l f i r e
synchronously.
Use the YN-622N transceiver for wireless transmitting, the
YN-622N-TX controller as the shutter signal output.
Shutter Release Function
The compatible shutter release cable list:
LS-2.5/N1:
LS-2.5/N3:
LS-2.5/N2(Optional):
D200/D300/D300S/D700/D800
D90/D600/D3100/D3200/D5000Series/D7000Series
D70/D70S/D80
Reference
1.Flash Shutter Sync:
Refer to the camera’s setting. Supports front-curtain
sync, rear-curtain sync and high speed synchronous(Auto
FP*).The relevant icons will be displayed on the LCD(P.4).
Using high-speed synchronization need to set the
flash sync speed of the camera to “AUTO FP”. The
maximum sync speed is 1/8000s or 1/4000s (depends
on the camera).
Some models of camera does not support the HSS
(without Auto FP option), the shutter speed will be
limited to 1/250s or less when using this kind of camera.
2.About the LCD backlight:
Press any button, the LCD backlight will light for 5 seconds.
3.About the battery electricity display :
The battery icon in the upper right corner of the LCD will
display the current electricity. When in low battery, the
battery icon will blink, please replace the battery.
4. About the Automatic Save Function:
Then controller will automatically save the settings of
channel, grouping, flash mode, AF
etc.
assist beam emitter
5.Factory Reset
6.USB Firmware Upgrade
Hold down the [MODE] and [AF/SS]
buttons at the same time until the
screen as shown, then loosen to
restore factory settings.
1).Visit YONGNUO official website:
http://www.hkyongnuo.com/e-detail.php?ID=339
to download the firmware upgrade software and the latest
firmware.
2).Turn off . Keep pressing [mode] button and turn on again. The
screen will show
3).Connect the controller to PC via USB-MINIB cable
.
4).Complete the firmware upgrade operation according to the
prompt of software.
firmware upgrade interface(
).
(not
include)
will display the
current version
Reference
Troubleshooting
1. Fail to power on or automatic shutdown:
The battery is loaded inversely or exhausted.
ØInstall the battery according to the correct direction the
battery compartment indicates and ensure the battery is full
and restart the power .
2. The flash doesn't fire
ØEnsure the power of all equipments are full, the flash is
in ready state(the flash-ready indicator on)
ØThe conn ection among th e co ntr oll er( tran scei ver),
camera and the flash is reliable;
ØWhether the controller and transceivers are set in the
same channels and controllable groups.
3. i-TTL underexposure or overexposure:
Check whether the camera body or the flash set
compensation setting. It may be underexpose if exceeds the
flashing effect distance . It may overexposure when TTL and
manual flash are used at the same time, now the manual
flash suits to be used as a backlight.
vIt is suggested using the following procedures to
deal with when other trouble occur during the using:
1). Restart all the equipments.
2). Replace the batteries of the controller and transceivers.
3). Reset the factory set of the controller and transceivers.
4).Reset the factory set of the camera/flash.
The functions of this user manual are based on test
conditions of our company. Further notice will not be given if
the design and specifications change.
The YONGNUO logo in this manual includes the registered
trademark or trademark of Shenzhen Yongnuo Photography
Equipment Co.,Ltd in China or/and other countries(regions).
All other trademarks are the property of their respective
owners.
Specifications
System type: Digital FSK 2.4GHz wireless controller
Distance: 100M
Channel: 7
Flash mode: i-TTL, Manual flash, Super Sync
Sync mode: front-curtain sync, rear-curtain sync, Hi-speed
sync(Auto FP)
Groups: 3Groups (A/B/C)
MAX Sync speed: 1/8000s
Trigger Interface: Hot-shoe,PC
Shutter release interface: 2.5MM shutter release interface
USB Firmware Upgrade: support
AF Assist Beam Emitter: support
Battery: AAX2(support 1.2 V rechargeable battery)3V
Stand-by time: 120h
Dimensions: 89.5×53×39mm
Weight:82g
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment。
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2ACYPYN622N-TX
SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD
Model name: i-TTL Wireless Flash Controller
Model No.: YN622N-TX
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
