Yaesu Musen Co., Ltd. ULTRA LOW POWER WIFI MODULE Operating Manual
Operating Manual
SCU-30
Wireless Access Point
The SCU-30 is wireless access point supplied with 5 feet of cable that plugs into your compatible Stan-
dard Horizon VHF radio to wireless connect with the SSM-71H Wireless Remote Access Microphone
RAM4W. Please refer to the STANDARD HORIZON products catalog or web site for compatibility.
Owner’s Manual
The details of the installation and operation of the SCU-30 are included in the owner’s manual of
the compatible xed mount radio, or can be downloaded at www.standardhorizon.com.
Supplied Accessories
Antenna Unit (5 feet cable) .................................................................................................................... 1
Antenna Base (Socket, Part number: RA6054200) .............................................................................. 1
Screws (M3X8 SUS, Part number: U20308020) .................................................................................. 3
Installing
The SCU-30 is designed to be mounted on a base, installed on an extension pole or ush mounted.
Choose a location for the antenna unit that has not located within 3 feet of radar or other transmitting
antenna. Ensure there are no major obstructions or xtures in the immediate proximity to the anten-
na unit. If you are unsure of the location, temporarily mount the antenna to verify correct operation. If
mounted close to a radar, turn on the radar and check the to verify correct operation.
Compass Safe Distance
This antenna unit at least 0.2m (0.66 feet) from magnet-
ic compass.

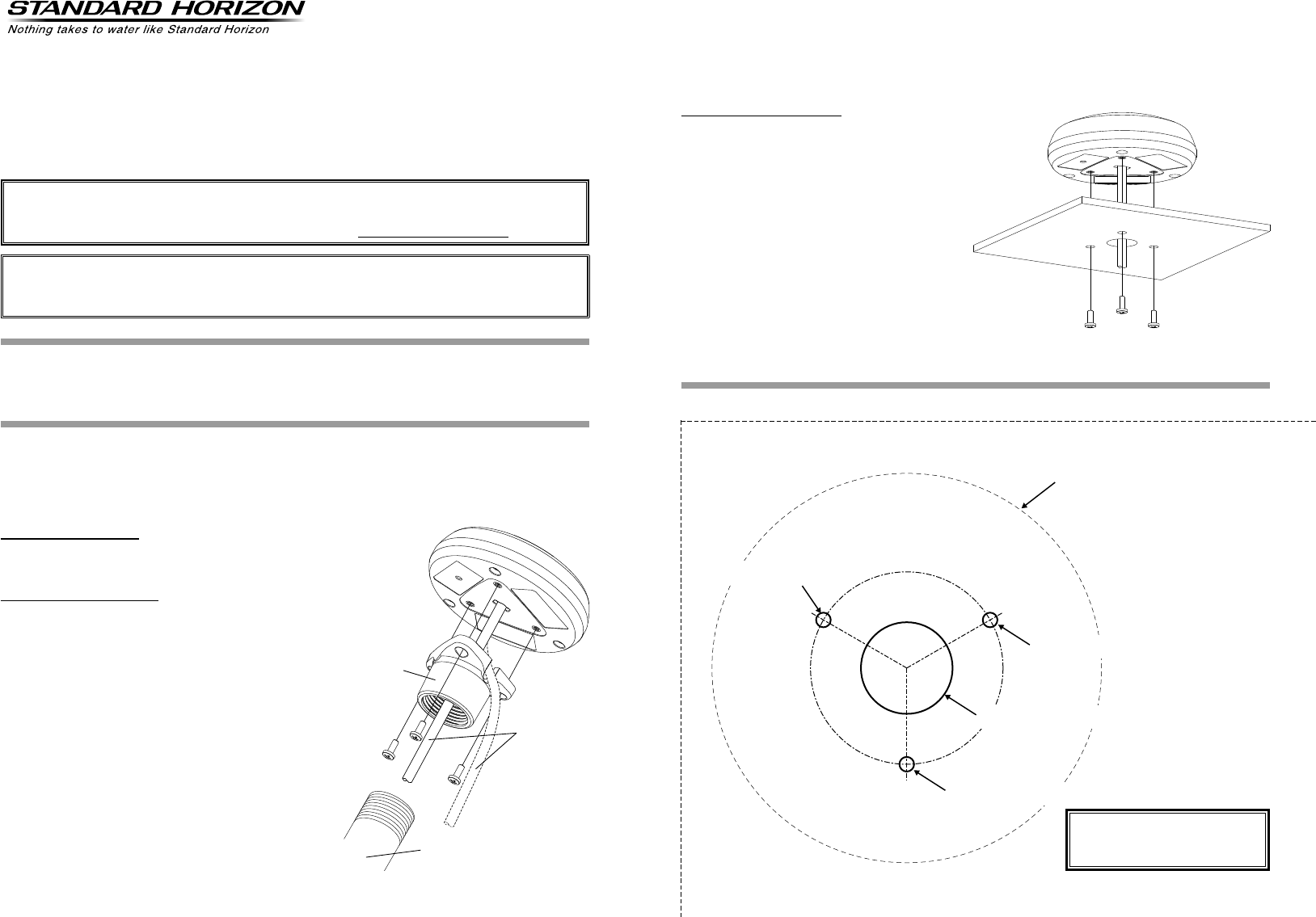

Base Mounting the antenna
The thread used on the base of antenna (1 inch, 14 TPI)
is an industry standard used on a wide range of commer-
cially available mounting brackets or extension poles.
Due to the manufacturing process of the mounting brack-
ets, the antenna may not tighten all the way down onto all
the threads. This is of no concern however as the anten-
na must be tightened until the antenna stops rotating.
1. When passing the antenna cable through a mounting
bracket or extension pole, make sure to pass the ca-
ble through the antenna base.
NOTES:
・When routing the antenna cable along the outside of
the extension pole, pass the cable through the groove
as shown by the dotted lines in the gure on the right.
(Please cut the blank panel with a long-nose pliers.)
・The antenna cable can be cut and spliced to ease installation. Care must be taken when reconnecting
the antenna cable to protect from water and corrosion.
2. Mount the antenna base to the antenna using the supplied three screws.
3. Screw the antenna base to the mounting bracket or extension pole.
4. Install the mounting bracket or extension pole.
Flush Mounting the antenna
NOTE: Before drilling the mounting holes, it is
recommended to verify correct opera-
tion in the desired location.
1. To ease installation use the supplied flush
mount template.
2. Apply the ush mounting template sticker.
3. Drill the 0.78” (20 mm) and 0.13” (3.2 mm)
holes, and remove the template.
4. Insert the cable into the 0.78” (20 mm) hole
and route to the transceiver.
5. Apply a small amount or RTV to the under-
side of the antenna.
6. Place the antenna and screw into place us-
ing the supplied screws.
Template
Use this template to mark the
location where the hole for
the ush mount is to be cut.
cut here
cut here
TEMPLATE for the SCU-30
Antenna Base
Pole
Antenna Cable
Antenna Unit
φ3.2 mm [0.13 inch]
φ20 mm [0.78 inch] or greater
φ3.2 mm [0.13 inch]
φ3.2 mm [0.13 inch]
Safety Precautions (Be Sure to Read)
Be sure to read the safety precautions of Operating Manual of the compatible xed mount VHF
radio to use this product safely.
FCC Notice
YAESU MUSEN CO., LTD.
Tennozu Parkside Building
2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan
YAESU USA
6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
YAESU UK
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to this device not expressly approved by YAESU U.S.A. could void the User’s authoriza-
tion to operate this device.
Specications
Supply Voltage: Normal: 13.8 VDC (Supplied from the transceiver)
Power Consumption: 1.4 W (Max.)
Operating Temperature: −4 °F to +140 °F (−20 °C to +60 °C)
Storage Temperature: −22 °F to +185 °F (−30 °C to +85 °C)
Wireless Networking Module: FCC ID: K660A300910, IC: 511B-0A300910*
Frequency Band: 2412 to 2462 MHz
RF Output Power: 0.095 W
Wireless Networking Standard: IEEE 802.11 b/g/n
Dimensions: 85 x 30 mm in height (ush mounted) or 60 mm on base mount
Weight (approx., without cable): 2.8 oz (80 g)
Cable (approx.): 5 feet (1.5 m)
* The original Gainspan Corporation grant notes indicate that the module was approved as single modular approval.
The module is only approved for use in mobile congurations.
* This module is for Yaesu Musen Co., Ltd's internal use only for their host, model SCU-30 which is an access point.
Disposal of Electrical and Electronic Equipment
Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.
Electronic and Electrical Equipment should be recycled at a facility capable of handling these items
and their waste byproducts.
Please contact a local equipment supplier representative or service center for information about the
waste collection system in your country.

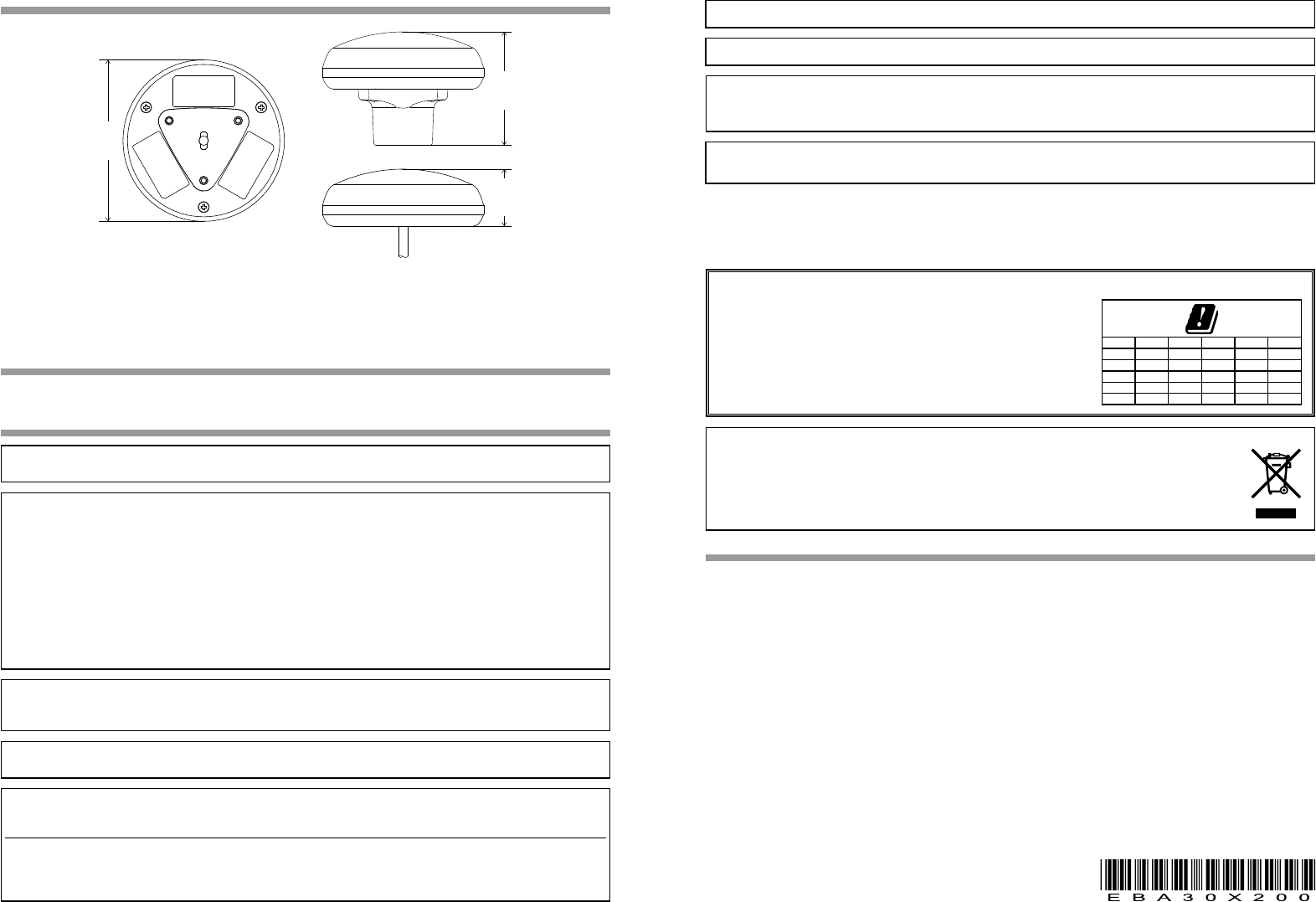

Dimensions
85 mm
30 mm 60 mm
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Unauthorized changes or modications to this equipment may void compliance with FCC Rules. Any change or
modication must be approved in writing by STANDARD HORIZON.
Printed in Japan
The Wireless Networking Module is limited to SCU-30 installation ONLY.
This equipment is dened as a transmitting device designed to be used in other than xed locations. In this
context, the term “xed location” means that the device is physically secured at one location and is not able to be
easily moved to another location.
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
RF Exposure
The RF output power of the module is 0.095 Watts. This power output is below the RF exposure
threshold for use mobile devices. See FCC document KDB 447498 for additional information.
EU Declaration of Conformity
We, Yaesu Musen Co. Ltd of Tokyo, Japan, hereby declare that this radio equipment SCU-30 is in full compliance with
EU Radio Equipment Directive 2014/53/EU. The full text of the Declaration of Conformity for this product is available
to view at http://www.yaesu.com/jp/red
ATTENTION – Conditions of usage
This transceiver works on frequencies that are regulated and not
permitted to be used without authorisation in the EU countries shown
in this table. Users of this equipment should check with their local
spectrum management authority for licensing conditions applicable for
this equipment.
AT BE BG CY CZ DE
DK ES EE FI FR UK
GR HR HU IE IT LT
LU LV MT NL PL PT
RO SK SI SE CH IS
LI NO – – – –
Yaesu Musen Co. Ltd is responsible for ensuring that the end-user has no manual instructions to remove or install module.
Statements and Requirements
This module has been approved as single modular approval. The module is limited to
installation in mobile or fixed applications according to FCC Rules Part 2.1091(b).
Separate approval is required for all other operating configurations, including portable
configurations with respect to FCC Rules Part 2.1093 and different antenna configurations.
The frequency range of the module is 2412 to 2462 MHz.
The radiated RF power output of the module is 0.095 Watts.
This module is for Yaesu Musen Co., Ltd’s internal use only for their host, model SCU-30 which
is an access point..
The host must have a label indicating the FCC ID of the module and be worded as follows.
Contains FCC ID: K660A300910
For ISED Canada the label must be worded: Contains IC: 511B-0A300910
RF Exposure
The RF output power of the module is 0.095 Watts or 95 mW. This power output is below the
RF exposure threshold for use mobile devices. See FCC document KDB 447498 for additional
information.
Host User Manual
The host user manual must contain wording that directs the user to the fact that:
“OEM integrators are responsible for ensuring that the end-user has no manual instructions to
remove or install module”.
The user manual for the host must contain the following regulatory wording. The wording below
satisfies both the FCC and ISED Canada requirements.
This device complies with part 15 of the FCC and Canadian Rules. Operation is subject to the following
two conditions:
(1)
This device may not cause harmful interference, and
(2)
this device must accept any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1)
l’appareil ne doit pas produire de brouillage;
(2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
This equipment has been tested and found to comply within the limits of a Class B digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception (which can be
determined by turning the equipment on and off), the user is encouraged to try to correct the interference
by using one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's (or your) authority to operate the equipment.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada
