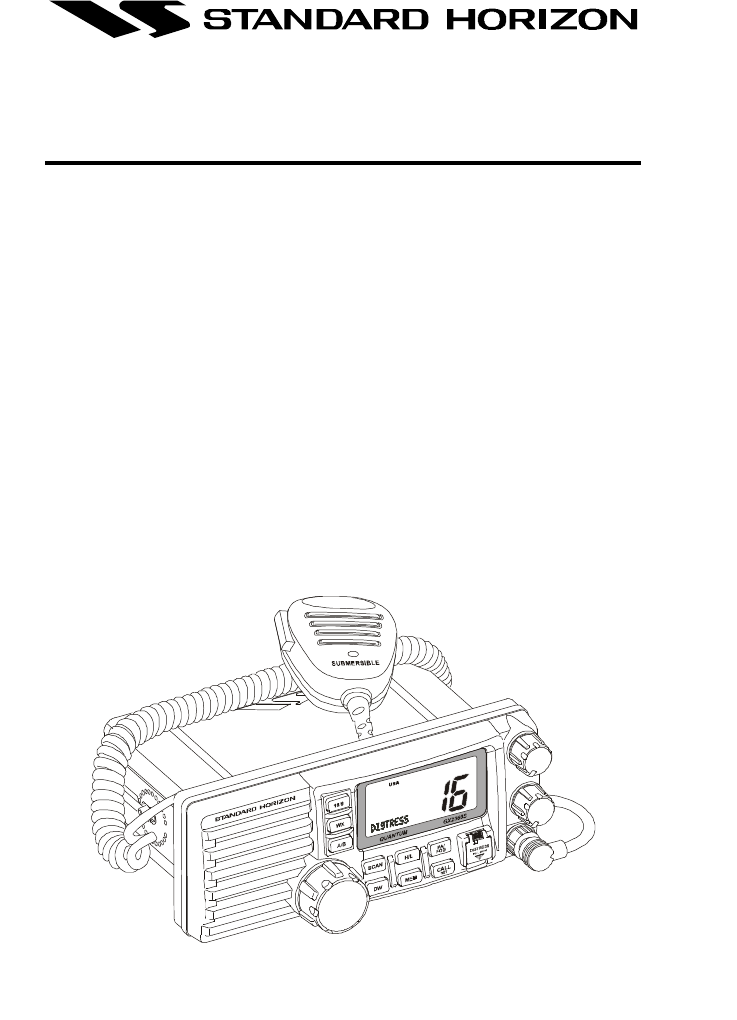

Page 1GX2360S
QUANTUM GX2360S
25 Watt VHF/FM
Marine Transceiver
Owner's Manual
lHuge alphanumeric LCD, knobs and keys
lLarge 2.8 inch internal loudspeaker producing louder audio
l30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles
lRemovable ClearVoice speaker microphone with 16/9 key and channel
selection
lDisplay shows channel names, and repeats GPS information]
lCapable of connecting 2 optional RAM+ second station remote micro-
phones
lDSC distress call automatically broadcasts lat/long and vessel ID]
lDSC position request function and NMEA data input/output to connect to
GPS Plotter]
lVersatile user-programmable Scanning, Priority Scan and Dual Watch
lNOAA Weather channels and Alert
lOne-button access to Channel 16 and 9
lOne-button access to user selectable preset channels
lAccess to all US, Canadian and International channels
]with GPS attached
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 2
TABLE OF CONTENTS
SAFETY/WARNING INFORMATION ............................................................................. 4
FCC RADIO LICENSE INFORMATION ......................................................................... 5
FCC NOTICE ................................................................................................................... 6
GETTING STARTED ....................................................................................................... 7
ABOUT VHF RADIO ................................................................................................ 7
SELECTING AN ANTENNA .................................................................................... 7

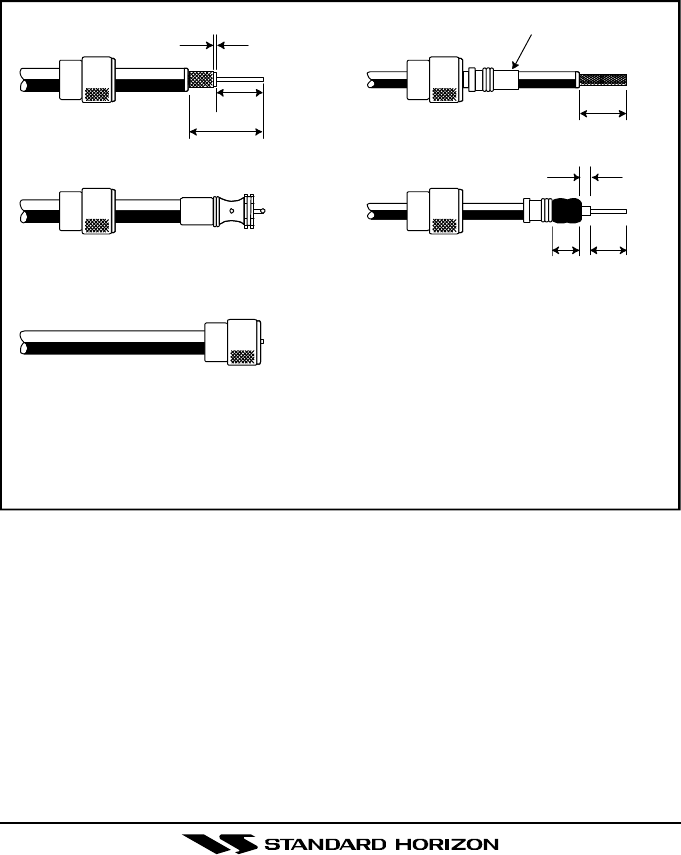

COAXIAL CABLE ...................................................................................................... 8
1GENERAL INFORMATION ....................................................................................... 9
1.1 INTRODUCTION ............................................................................................... 9
1.2 FCC / INDUSTRY CANADA INFORMATION ................................................. 9
2PACKING LIST ........................................................................................................10
3OPTIONS .................................................................................................................10
4INSTALLATION ....................................................................................................... 11
4.1 LOCATION ....................................................................................................... 11
4.2 ELECTRICAL CONNECTIONS ..................................................................... 11
4.3 ACCESSORY CABLE ....................................................................................12

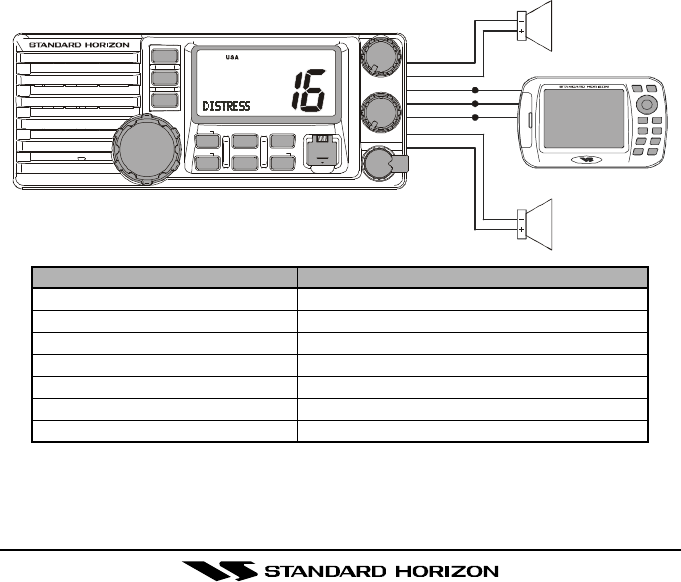

4.4 CONNECTION OF GPS WITH NMEA OUTPUT......................................13
4.5 CHECKING GPS CONNECTIONS ..............................................................14
4.6 CHANGING THE GPS TIME .......................................................................14
4.7 CHANGING COG TO TRUE OR MAGNETIC ..........................................15
4.8 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION .............................. 16

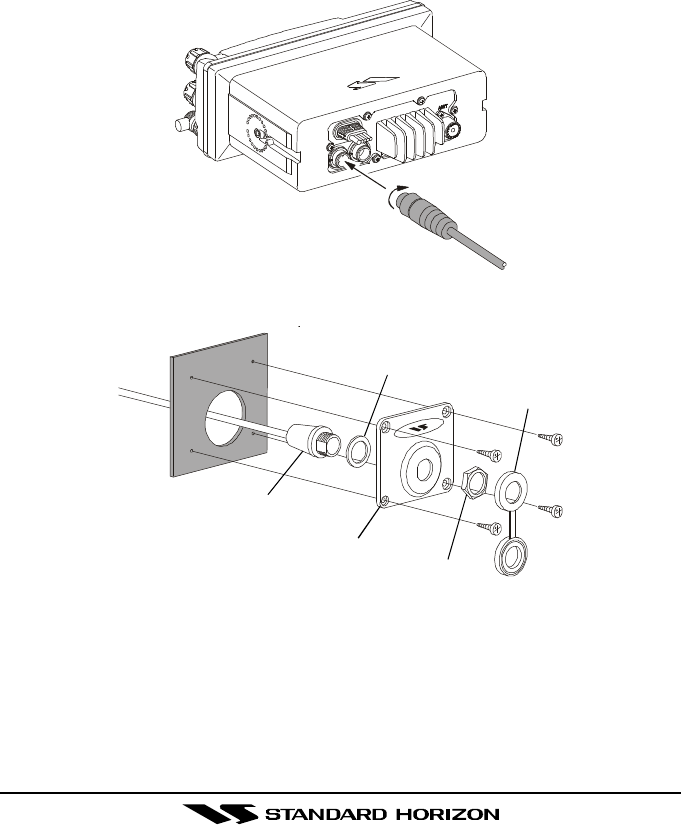

4.9 OPTIONAL CMP25 RAM+ MIC INSTALLATION ....................................... 17
5CONTROLS AND INDICATORS ............................................................................ 18

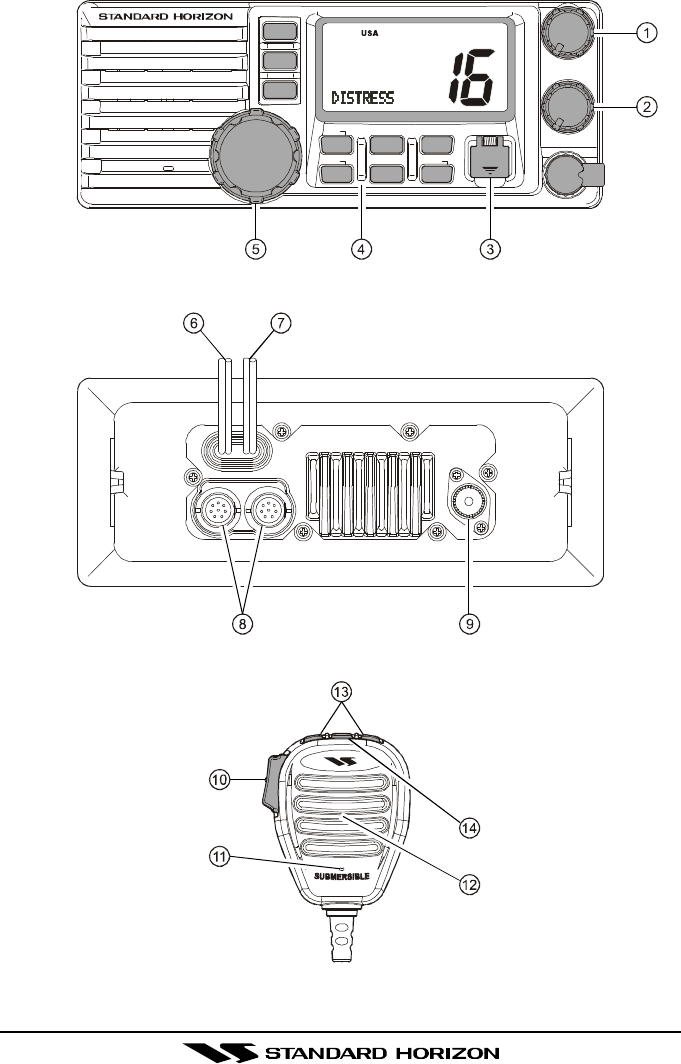

5.1 CONTROLS AND CONNECTIONS..............................................................18
6BASIC OPERATION................................................................................................23
6.1 RECEPTION ....................................................................................................23
6.2 TRANSMISSION .............................................................................................23
6.3 TRANSMIT TIME-OUT TIMER (TOT)........................................................... 23
6.4 SIMPLEX/DUPLEX CHANNEL USE ............................................................24
6.5 USA, CANADA, AND INTERNATIONAL MODE ..........................................24
6.6 NOAA WEATHER CHANNELS .................................................................... 24
6.7 NOAA WEATHER ALERT .............................................................................25
6.8 NOAA WEATHER ALERT TESTING ........................................................... 25
6.9 EMERGENCY (CHANNEL 16 USE) ............................................................25
6.10 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ..............................26
6.11 MAKING TELEPHONE CALLS .................................................................. 27
6.12 OPERATING ON CHANNELS 13 AND 67 ............................................. 27
6.13 PROHIBITED COMMUNICATIONS ............................................................27
6.14 DUAL WATCH (TO CH16) ...........................................................................27

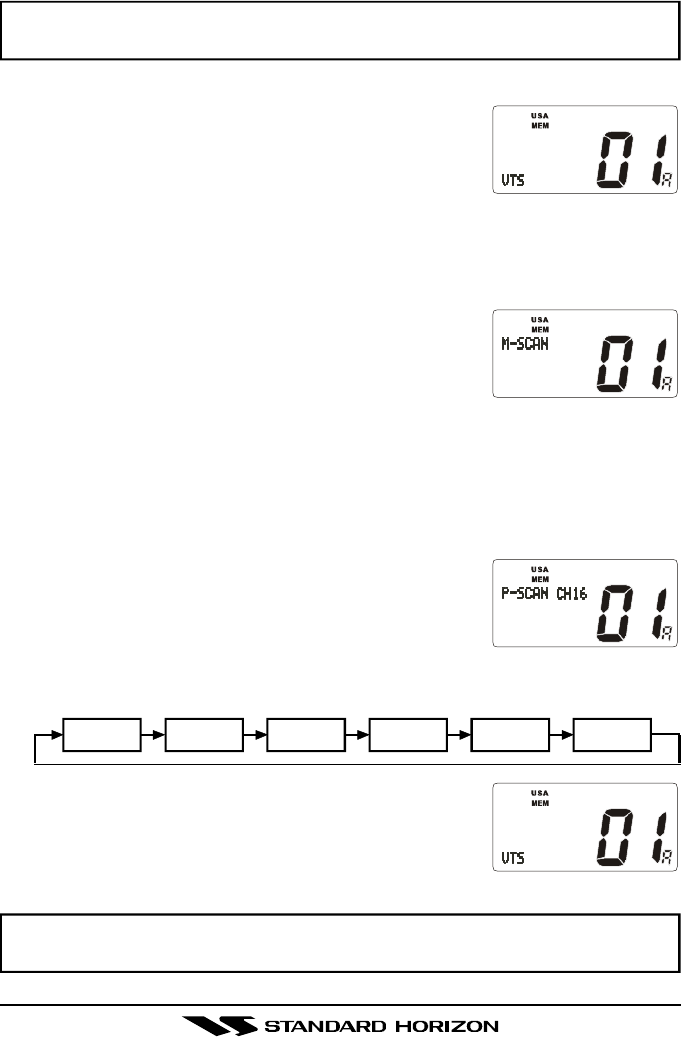

6.15 MEMORY SCANNING (M-SCAN) ............................................................... 28
6.16 PRIORITY SCANNING (P-SCAN) ..............................................................28
6.17 CHANNEL A/B INSTANT CALL .................................................................29

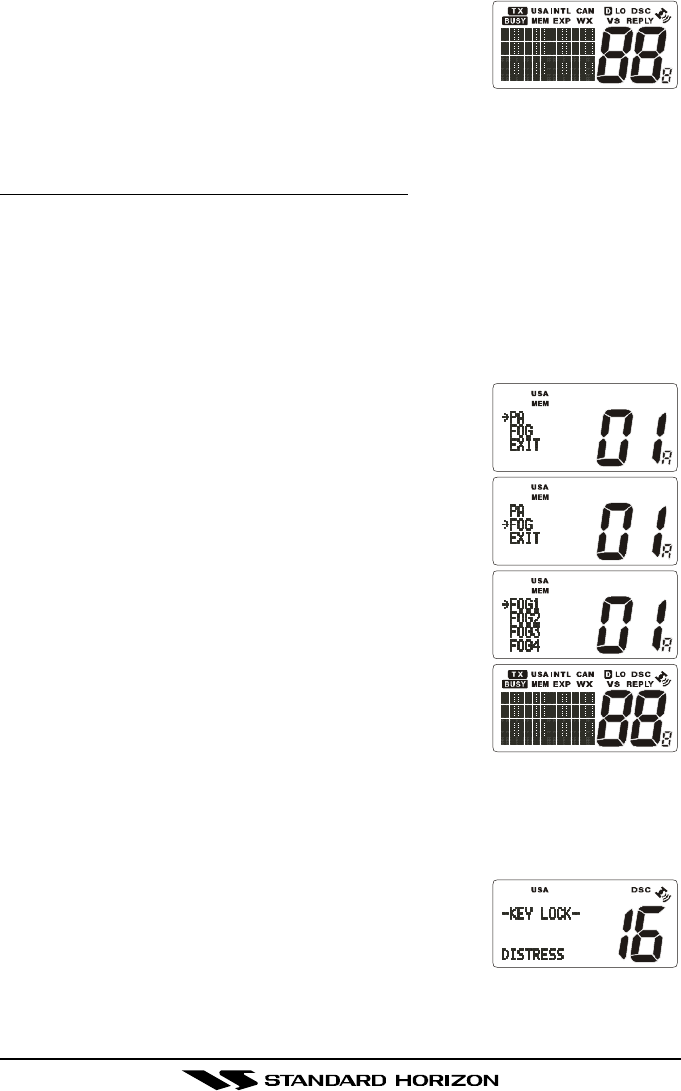

6.18 PA/FOG OPERATION ..................................................................................29
6.19 KEYPAD LOCKING ...................................................................................... 30
6.20 NAVIGATION INDICATION ..........................................................................31
6.21 INTERCOM OPERATION ............................................................................31
6.22 VOICE SCRAMBLER ..................................................................................32
6.23 RESETTING THE TRANSCEIVER’S MICROPROCESSOR .................. 32
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 3GX2360S
7DIGITAL SELECTIVE CALLING ............................................................................33
7.1 GENERAL ........................................................................................................33
7.2 DSC SCAN......................................................................................................33
7.3 USCG DSC WATCH......................................................................................34
7.3.1 Maritime Mobile Service Identity (MMSI) .............................................34

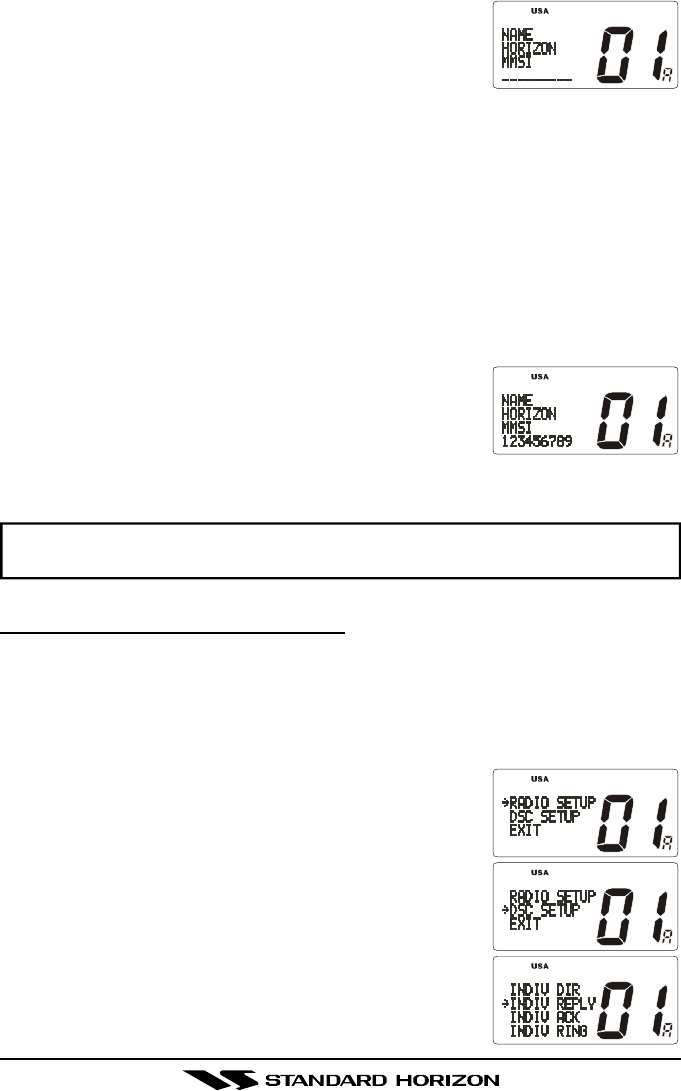

7.3.2 Programming the MMSI .........................................................................34
7.4 ADDITIONAL DIGITAL SELECTIVE CALLING INFORMATION ...............35
7.5 DSC DISTRESS CALL .................................................................................. 35
7.5.1 Transmitting a DSC Distress Call ........................................................ 35
7.5.2 Receiving a DSC Distress Call ............................................................36
7.6 ALL SHIPS CALL...........................................................................................37
7.6.1 Transmitting an All Ships Call .............................................................. 37
7.6.2 Receiving an All Ships Call .................................................................. 38
7.7 INDIVIDUAL CALL..........................................................................................38
7.7.1 Setting up the Individual / Position Call Directory ............................. 38

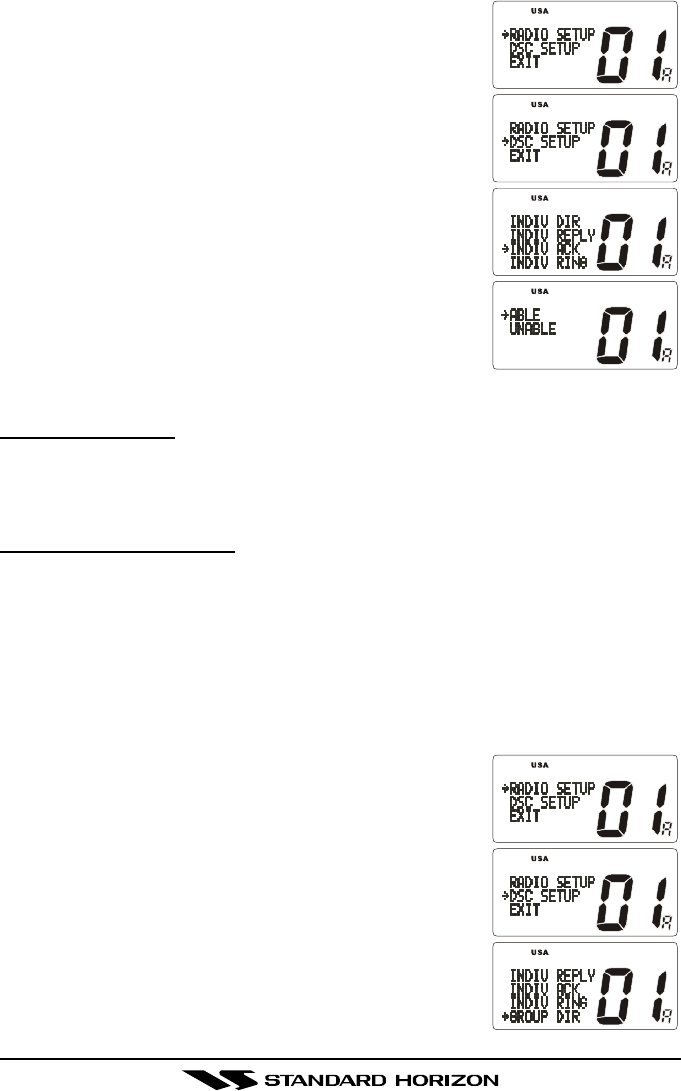

7.7.2 Setting up Individual Reply ...................................................................39
7.7.3 Setting up Individual Call Ringer ......................................................... 40
7.7.4 Transmitting an Individual Call .............................................................40
7.7.5 Receiving an Individual Call .................................................................41
7.7.6 Setting Up the Call Waiting Function ................................................. 41
7.8 ADVANCED DSC CALLS .............................................................................42
7.8.1 Group Call .................................................................................................42
7.8.1.1Setup a Group Call .............................................................................42
7.8.1.2Transmitting a Group Call ...................................................................43
7.8.1.3Receiving a Group Call .......................................................................44

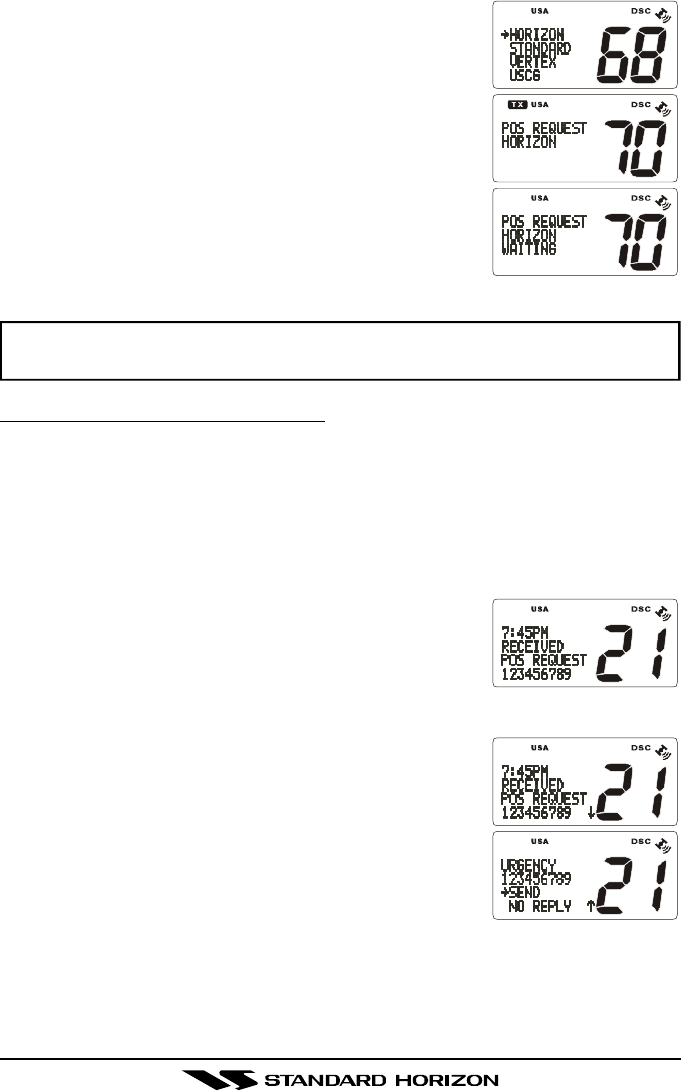

7.8.2 Position Request .....................................................................................44
7.8.2.1Setting up Position Reply ................................................................... 45
7.8.2.2Transmitting a Position Request to Another Vessel ...................... 45
7.8.2.3Receiving a Position Request ............................................................46
7.8.3 Position Send .......................................................................................... 47
7.8.3.1Transmitting a DSC Position Send Call ........................................... 47
7.8.3.2Receiving a DSC Position Send Call ............................................... 47
8RADIO SETUP MODE ............................................................................................ 48

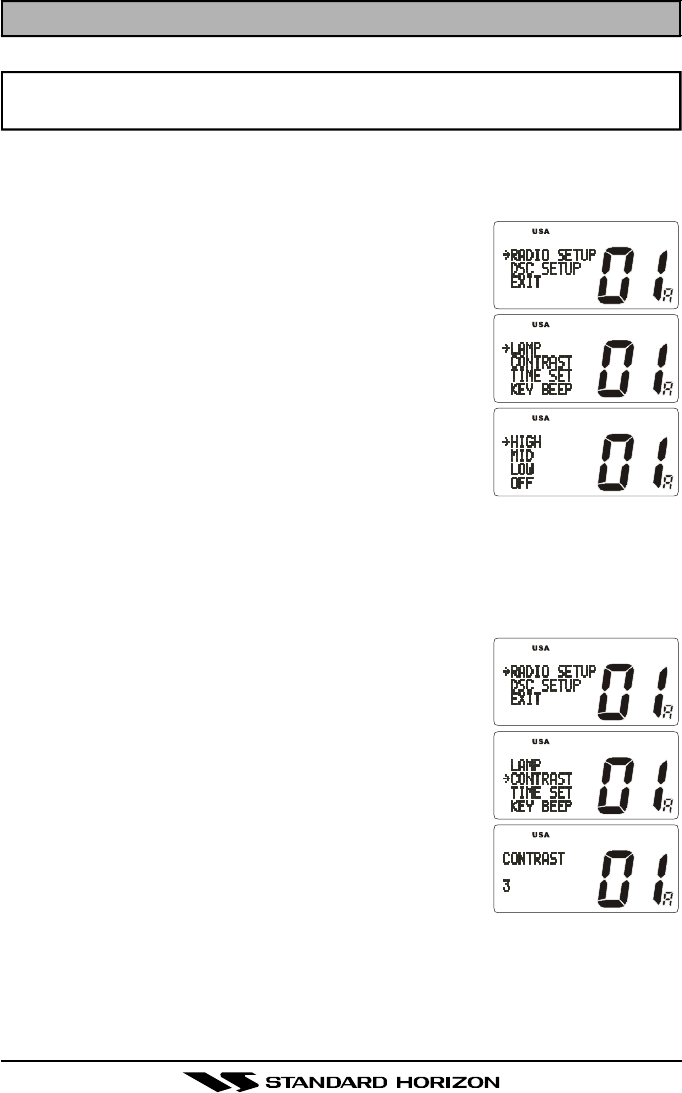

8.1 LAMP ADJUSTING ......................................................................................... 48
8.2 LCD CONTRAST ............................................................................................48

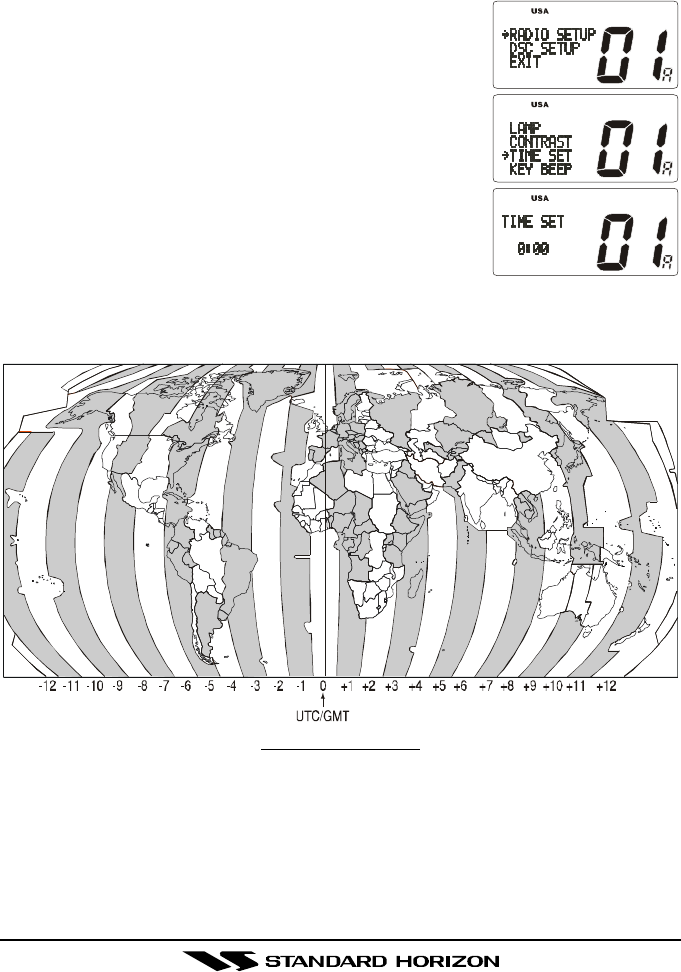

8.3 TIME OFFSET ................................................................................................ 49
8.4 KEY BEEP (ON / OFF) ...................................................................................50
8.5 WX ALERT (ON / OFF) ..................................................................................50
8.6 VOICE SCRAMBLER .....................................................................................51

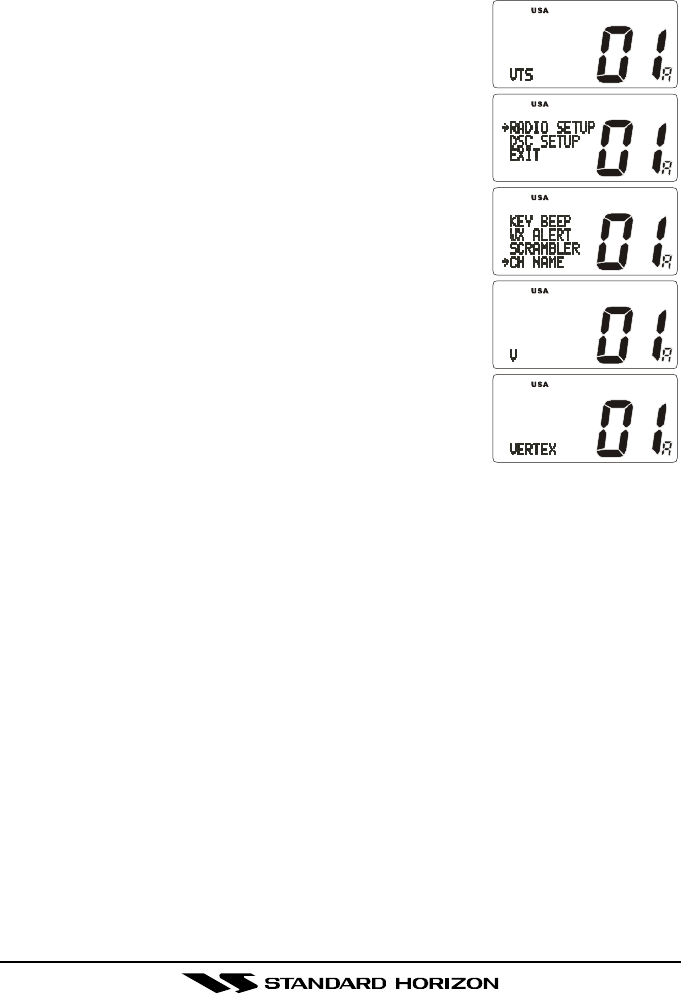

8.7 CHANNEL NAMING .......................................................................................52

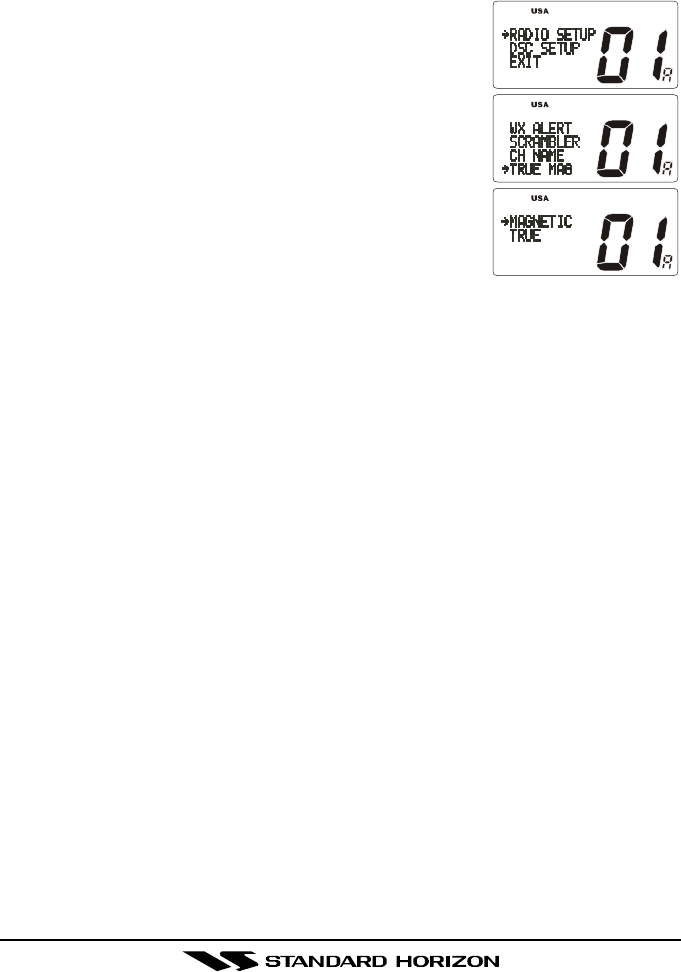

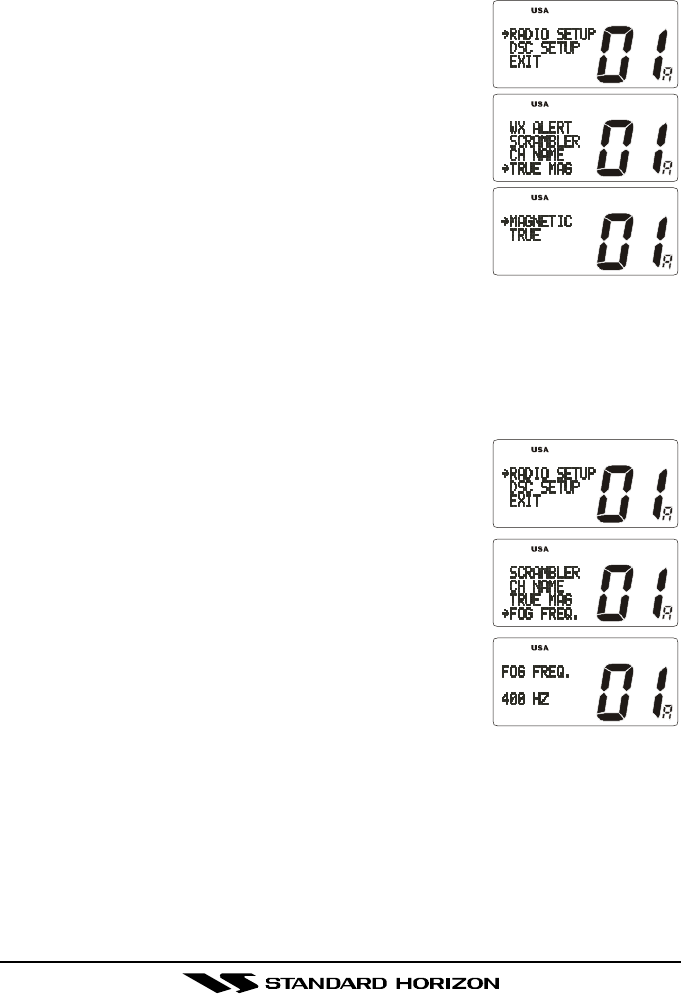

8.8 TRUE MAGNETIC CHANGE (NAV display) ................................................ 53
8.9 FOG ALERT TONE FREQUENCY ................................................................53
9RAM MIC OPERTION ............................................................................................. 54
9.1 RAM MIC CONTROLS .................................................................................. 54

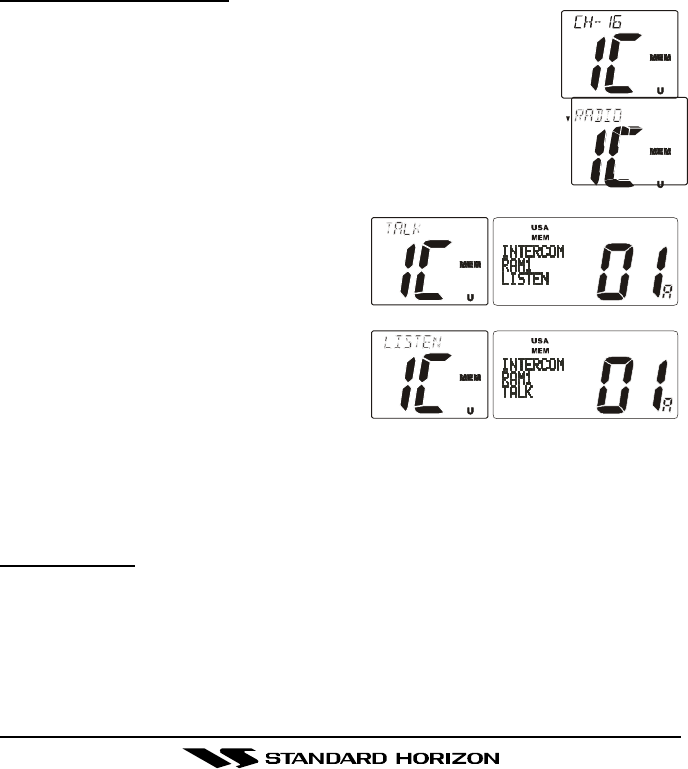

9.2 INTERCOM OPERTION.................................................................................57
9.2.1 Communication......................................................................................... 57
9.2.2 Calling .......................................................................................................57
9.3 DSC / RADIO SETUP MODE ........................................................................58
10 MAINTENANCE .......................................................................................................59
10.1 REPLACEMENT PARTS ...............................................................................59
10.2 FACTORY SERVICE ..................................................................................... 60
10.3 TROUBLESHOOTING CHART ....................................................................60
11 CHANNEL ASSIGNMENTS .................................................................................... 61
12 WARRANTY .............................................................................................................67
13 SPECIFICATIONS ...................................................................................................70
TABLE OF CONTENTS
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 4
SAFETY / WARNING INFORMATION
This radio is restricted to occupational use, work related operations only where
the radio operator must have the knowledge to control the exposure conditions
of its passengers and bystanders by maintaining the minimum separation dis-
tance of 0.6 m (2 feet).
Failure to observe these restrictions will result in exceeding the FCC RF expo-
sure limits.
Antenna Installation:
The antenna must be located at least 0.6 m (2 feet) away from passengers in
order to comply with the FCC RF exposure requirements.
ON-LINE WARRANTY REGISTRATION
Please visit www.standardhorizon.com to register the QUANTUM Ma-
rine VHF. It should be noted that visiting the Web site from time to time
may be beneficial to you, as new products are released they will appear
on the STANDARD HORIZON Web site.
PRODUCT SUPPORT INQUIRIES
If you have any questions or comments regarding the use of the QUAN-
TUM, you can visit the STANDARD HORIZON Web site to send an E-
Mail or contact the Product Support team at 800-767-2450 M-F 7:00-
5:00PST.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 5GX2360S
FCC RADIO LICENSE INFORMATION
Standard Horizon radios comply with the Federal Communication Commission
(FCC) requirements that regulate the Maritime Radio Service.
STATION LICENSE
An FCC ship station license is no longer required for any vessel traveling in
U.S. waters (except Hawaii) which is under 20 meters in length. However, any
vessel required to carry a marine radio on an international voyage, carrying a
HF single side band radiotelephone or marine satellite terminal is required to
have a ship station license. FCC license forms, including applications for ship
(506) and land station licenses can be downloaded via the Internet at
www.fcc.gov/forms. To obtain a form from the FCC, call (888) 225-5322.
RADIO CALL SIGN
Currently the FCC does not require recreational boaters to have a Ship Radio
Station License. The USCG recommends the boats registration number and
the state to be used.
CANADIAN SHIP STATION LICENSING
You may need a license when traveling in Canada. If you do need a license
contact their nearest field office or regional office or write:
Industry Canada
Radio Regulatory Branch
Attn: DOSP
300 Slater Street
Ottawa, Ontario
Canada, KIA 0C8
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 6
FCC NOTICE
NOTICE
Unauthorized changes or modifications to this equipment may void com-
pliance with FCC Rules. Any change or modification must be approved
in writing by STANDARD HORIZON.
NOTICE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 7GX2360S
GETTING STARTED
ABOUT VHF RADIO
The radio frequencies used in the VHF marine band lie between 156 and 158
MHz with some shore stations available between 161 and 163 MHz. The ma-
rine VHF band provides communications over distances that are essentially
“line of sight” (VHF signals do not travel well through objects such as buildings,
hills or trees). Actual transmission range depends much more on antenna type,
gain and height than on the power output of the transmitter. On a fixed mount
25W radio transmission expected distances can be greater than 15 miles, for a
portable 5W radio transmission the expected distance can be greater than 5
miles in “line of sight”.
SELECTING AN ANTENNA
Marine antennas are made to radiate signals equally in all horizontal directions,
but not straight up. The objective of a marine antenna is to enhance the signal
toward the horizon. The degree to which this is accomplished is called the
antenna’s gain. It is measured in decibels (dB) and is one of the major factors
in choosing an antenna. In terms of effective radiated power (ERP), antennas
are rated on the basis of how much gain they have over a theoretical antenna
with zero gain. A 3 foot, 3dB gain antenna represents twice as much gain over
the imaginary antenna.
Typically a 3 foot 3dB gain stainless steel whip is used on a sailboat mast. The
longer 8 foot 6dB fiberglass whip is primarily used on power boats that require
the additional gain.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 8
COAXIAL CABLE
VHF antennas are connected to the transceiver by means of a coaxial cable –
a shielded transmission line. Coaxial cable is specified by it’s diameter and
construction.
For runs less than 20 feet, RG-58/U, about 1/4 inch in diameter is a good choice.
For runs over 20 feet but less than 50 feet, the larger RG-8X or RG-213/U
should be used for cable runs over 50 feet RG-8X should be used. For installa-
tion of the connector onto the coaxial cable refer to the figure below.
To get your coax cable through a fitting and into your boat’s interior, you
may have to cut off the end plug and reattach it later. You can do this if
you follow the directions that come with the connector. Be sure to make
good soldered connections.
1/16''
3/4''
3/4''
1 1/8''
1/8''
5/8''3/8''
Adapter
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 9GX2360S
1 GENERAL INFORMATION
1.1 INTRODUCTION
The STANDARD HORIZON QUANTUM is a VHF/FM transceiver designed for
use in the frequency range of 156.025 to 163.275 MHz. The QUANTUM can be
operated from 11 to 16 VDC and has a switchable RF output power of 1 watt or
25 watts.
The QUANTUM is capable of RTCM SC101 DSC (Digital Selective Calling)
operation and second station operation with the use of the improved optional
RAM+ mic (CMP25 remote-control speaker/microphone with display).
The QUANTUM operates on all currently-allocated marine channels which are
switchable for use with USA, International, or Canadian regulations. It has an
emergency channel 16 which can be immediately selected from any channel
by pressing the red [16/9] key. NOAA Weather channels can also be accessed
immediately by pressing the [WX] key with channel selection.
Other features of the transceiver include: scanning, priority scanning, submers-
ible speaker mic, high and low voltage warning, and GPS repeatability.
1.2 FCC / INDUSTRY CANADA INFORMATION
The following data pertaining to the transceiver is necessary to fill out the li-
cense application.
Type Acceptance ....................................................................... FCC Part 80
Output Power .............................................. 1 Watt (low) and 25 Watts (high)
Emission .......................................................................16K0G3E, 16K0G2B
Frequency Range ....................................................156.025 to 163.275 MHz
FCC Type Number ................................................................. K6630043X30
Industry Canada Type Approval ............................................511B-30043X30
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 10
2 PACKING LIST
When the package containing the transceiver is first opened, please check it
for the following contents:
ŸGX2360S QUANTUM Transceiver
ŸMounting Bracket and attaching hardware
ŸOwner’s Manual
ŸQuick-Reference Card
ŸPower Cord
3 OPTIONS
MMB-84 ....................................................................... Flush-Mount Bracket
CMP25B/W ............... Remote-Access Microphone (RAM+ Mic, Black/White)
CT-100 ...............................................10-foot Extension Cable for RAM+ Mic
CVS2500 ............................................................................ Voice Scrambler
101S ........................................................................ Mini Extension Speaker
201S ......................................................................White Extension Speaker
201SZ ................................................White Flush Mount Extension Speaker
201SBK.................................................................. Black Extension Speaker
201SBKZ ........................................... Black Flush Mount Extension Speaker
220SW .................................................................... 4.5” Round Hail/PA Horn
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 11GX2360S
4 INSTALLATION
4.1 LOCATION
The radio can be mounted at any angle. Choose a mounting location that:
•is far enough from any compass to avoid any deviation in compass read-
ing due to the speaker magnet
•provides accessibility to the front panel controls
•allows connection to a power source and an antenna
•has nearby space for installation of a microphone hanger
•the antenna must be mounted at least 3 feet from radio
Note: To insure the radio does not affect the compass or radios performance is
not affected by the antenna location, temporarily connect the radio in the de-
sired location and:
a. Examine the compass to see if the radio causes any deviation
b. Connect the antenna and key the radio. Check to ensure the radio is
operating correctly by requesting a radio check.
4.2 ELECTRICAL CONNECTIONS
CAUTION
Reverse polarity connections will damage the radio!
Connect the power cord and antenna to the radio. Antenna and Power Supply
connections are as follows (see Figure 1):
1. Mount the antenna at least 3 feet away from the radio. At the rear of the
radio, connect the antenna cable. It must have a PL259 connector. RG-8/U
coaxial cable must be used if the antenna is 25 feet or more from the radio.
RG58 cable can be used for distances less than 25 feet.
Figure 1. General Installation
GPS Navigation Receiver
Accessory Cable
Optional Speaker
Antenna
Fuse
Red
Power Source
Black
Water proof
Deck Outlet
Optional HAIL/PA Horn
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 12
2. Connect the red power wire to a 13.8 VDC ±20% power source. Connect
the black power wire to a negative ground.
3. If an optional remote extension speaker is to be used, refer to section 3.3
for connections.
4. It is advisable to have a Certified Marine Technician check the power output
and the standing wave ratio of the antenna after installation.
4.3 ACCESSORY CABLE
White: External speaker (+)
Shield: External speaker (–)
Red: PA speaker (+)
Shield: PA speaker (–)
Blue: NMEA IN (+) from GPS navigation receiver
Green: NMEA IN (–) from GPS navigation receiver
Gray: NMEA OUT (+) to GPS navigation receiver
Brown: Test port (for the Service Technician)
When connecting the external speaker or GPS navigation receiver, strip off
about 1 inch (2.5 cm) of the specified wire’s insulation, then splice the ends
together.
Wire Color/Description
WHITE - External Speaker (+)
SHILED - External Speaker (–)
RED - PA Speaker (+)
SHILED - PA Speaker (–)
GREEN - NMEA Ground
BLUE- NMEA Input (+)
GRAY-NMEA Output (+)
Connection Examples
Connect to external 4 Ohm audio speaker
Connect to external 4 Ohm audio speaker
Connect to external 4 Ohm PA speaker
Connect to external 4 Ohm PA speaker
Connect to NMEA (–) connection of GPS
Connect to NMEA (+) output of GPS
Connect to NMEA (+) input of GPS
External Speaker
PA Speaker
Green
Gray
Blue
Shield
Shield
Red
White
Brown
Green
Blue
DISTRESS
PULL OPEN
VOL/PWR
SQL
CALL
PA/
FOG
SCAN
MEM
DW
IC
NAV MENU
SET
A/B
WX
16/9
QUANTUM GX2360S
H/L
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 13GX2360S
4.4 CONNECTION OF GPS WITH NMEA OUTPUT
Additional Information:
•The GPS must have the NMEA Output turned on and set to 4800 Baud in
the setup menu. If there is a selection for parity select none.
•For further information on interfacing /setting up your GPS. Please contact
the manufacturer of the GPS receiver.
•QUANTUM can read NMEA-0183 version 2.0 or higher.
•The NMEA supported sentences are:
•GLL, GGA, RMC and GNS (RMC sentence is recommended)
If you have further inquires, please feel free to contact Product Support at:
Phone: (800) 767-2450
Email: marinetech@vxstdusa.com
Manufacturer/Model
Lowrance Portable
Magellan Fixed Mount
Magellan Portable
Northstar
Raytheon 420
Raytheon 520 / 620
Raytheon RL SERIES
Simrad
Sitex Neptune, Nautilus
Wires
Orange
Black (GND)
Gray
Black (GND)
Orange
Black (GND)
Yellow
Black (GND)
Yellow
Brown
Blue
Brown
White
Brown
White
Brown
Gray
Brown
QUANTUM
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Wires
Green
Brown
White
Blue
White
Black
Blue
Black (GND)
Brown
Black (GND)
Yellow
Green
Green
Black
White
Black
White
Black (GND)
Manufacturer/Model
Furuno GP30, 36
Furuno GP1650, 1850
Garmin Fixed Mounts
Garmin Portables
JRC GPS500
JRC 100 SERIES
JRC 200 SERIES
Lowrance Fixed Mount
QUANTUM
Green
Blue
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
STANDARD HORIZON
CP150, CP160 and
CP-170C
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 14
4.5 CHECKING GPS CONNECTIONS
After connections have been made between the QUANTUM and the GPS, a
small satellite icon will appear on the top right corner of the LCD display. To see
additional GPS information press and hold the [H/L(NAV)] key until the
QUANTUM shows the Date, Time, SOG and COG.
4.6 CHANGING THE GPS TIME
From the Factory the QUANTUM shows GPS satellite time or UTC time. A time
offset is needed to offset this time to show the local time in your area.
1. Press and hold down the [CALL/SET(MENU)] key until “RADIO SETUP”
menu appears.
2. Press the [CALL/SET(MENU)] key, then select
“TIME SET” with the CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select time off-
set from UTC. See illustration below to find your off-
set time from UTC. If “0:00” is assigned, the time is
the same as UTC (Universal Time Coordinated or
GMT Greenwich Mean Time).
5. Press the [CALL/SET(MENU)] key to store the time
offset.
6. Press the [16/9] key or turn the CHANNEL selector knob to select “EXIT,”
then press the [CALL/SET(MENU)] key to return to the “RADIO SETUP”
menu, select “EXIT” and press the [CALL/SET(MENU)] key to return to
radio operation.
OFFSET TIME TABLE
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 15GX2360S
4.7 CHANGING COG TO TRUE OR MAGNETIC
Allows customizing the NAV data showing GPS Course Over Ground (COG).
Factory default is True however following the steps below the COG can be
changed to Magnetic.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select
“TRUE MAG” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select “MAG-
NETIC” or “TRUE.”
5. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
6. Turn the CHANNEL selector knob to select “EXIT,”
then press the [CALL/SET(MENU)] key to return to the “RADIO SETUP”
menu, select “EXIT” and press the [CALL/SET(MENU)] key to return to
radio operation.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 16
4.8 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION
1. Make a rectangular template for the flush mount measuring 2-5/8” H x
6-5/8” W.
2. Use the template to mark the location where the rectangular hole is to be
cut. Confirm the space behind the dash or panel is deep enough to accom-
modate the transceiver (at least 6 inches deep).
There should be at least 1/2 inch between the transceiver’s heatsink and
any wiring, cables or structures.
3. Cut out the rectangular hole and insert the transceiver.
4. Fasten the brackets to the sides of the transceiver with the lock washer nut
combination; so that the mounting screw base faces the mounting surface
(see Figure 2).
5. Turn the adjusting screw to adjust the tension so that the transceiver is tight
against the mounting surface.
Figure 2. MMB-84 Flush Mount Instllation
Bracket
Adjusting Screw
Lock-washer nut combination
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 17GX2360S
4.9 OPTIONAL CMP25 RAM+ MIC INSTALLATION
1. Connect the RAM+ MIC Cable to the RAM MIC CONNECTOR on the rear
panel, then tighten the Cable Nut (See Figure 3).
2. Referring to Figure 3, make a 1.2” (30 mm) hole in the wall, then insert the
RAM+ MIC Cable into this hole. Connect the Gasket and Mount Base to the
RAM+ MIC Cable Connector using the Nut.
3. Drill the four Screw holes (approx. 2 mm) on the wall, then install the Mounting
Base to the wall using four screws.
4. Put the Rubber Cap on to the Nut. The installation is now completed.
Figure 3. CMP25 RAM+ MIC Instllation
Wall
Gasket
Mounting Bracket
RAM MIC Cable
Cap
Nut
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 18
5 CONTROLS AND INDICATORS
NOTE
This section defines each control of the transceiver. See Figure 4 for
location of controls. For detailed operating instructions refer to chapter 6
of this manual.
5.1 CONTROLS AND CONNECTIONS
POWER SWITCH/VOLUME CONTROL (VOL/PWR)
Turns the transceiver on and off as well as adjusts the audio volume. To
turn the transceiver on press and hold this knob until the LCD turns on. To
turn it off, press and hold this knob until the LCD turns off. When the power
is turned on, the transceiver is set to the last selected channel.
Secondary Use
When the transceiver is turned on while the [SCAN] and [WX] keys are held
down, the internal microprocessor is reset. This clears the memory and all
user-programmed settings, such as scan memory, and priority scan as-
signments. This condition is known as the default condition, the same as
when shipped from the factory. For a list of these defaults, see the section
6.18 Resetting the Transceiver’s Microprocessor.
NOTE
Resetting the microprocess will not erase the DSC MMSI and the
Individual Directory Call information.
SQUELCH CONTROL (SQL)
Adjusting this control clockwise, sets the point at which random noise on
the channel does not activate the audio circuits but a received signal does.
This point is called the squelch threshold. Further adjustment of the squelch
control will degrade reception of wanted transmissions.

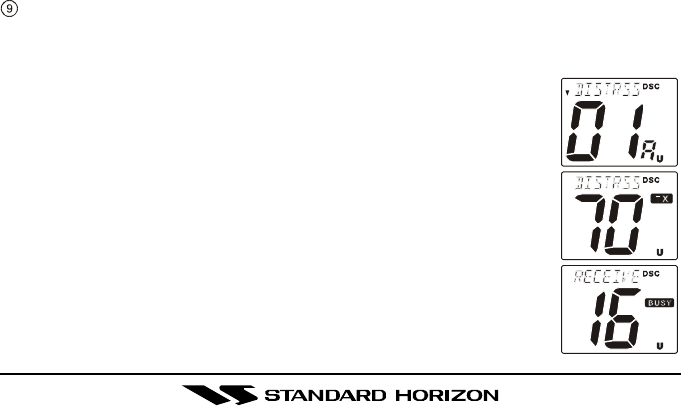

[DISTRESS] Key
Used to send a DSC Distress Call. To send the distress call refer to section
7.5.1 (Transmitting A DSC Distress Call).
KEYPAD
[16/9] Key
Immediately recalls channel 16 from any channel location. Holding down
this key recalls channel 9. Pressing the [16/9] key again reverts to the
previous selected working channel.
Secondary use
Press and hold the [16/9] key then press the [WX] key to switch between
USA, International and Canadian bands.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 19GX2360S
DISTRESS
PULL OPEN
VOL/PWR
SQL
CALL
PA/
FOG
SCAN
MEM
DW
IC
NAV MENU
SET
A/B
WX
16/9
QUANTUM GX2360S
H/L
Figure 4. Controls and Connectors
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 20
[WX] Key
Immediately recalls the previously selected NOAA weather channel from
any channel.
Secondary use
1. Holding down the [16/9] key while pressing the [WX] key changes the
mode from USA to International or Canadian.
2. Holding down the [WX] and [SCAN] key while turning the power on
resets the microprocessor and erases scan channels from memory.
This clears the memory and establishes the factory-set defaults. For
a list of these defaults, see the section on 6.19 Resetting the
Transceiver’s Microprocessor.
[A/B] Key
Immediately recalls two user assigned channels from any channel.
[DW(IC)] Key
Scans for voice communications on CH16 and another selected channel
until a signal is received on either channel. (Dual watch)

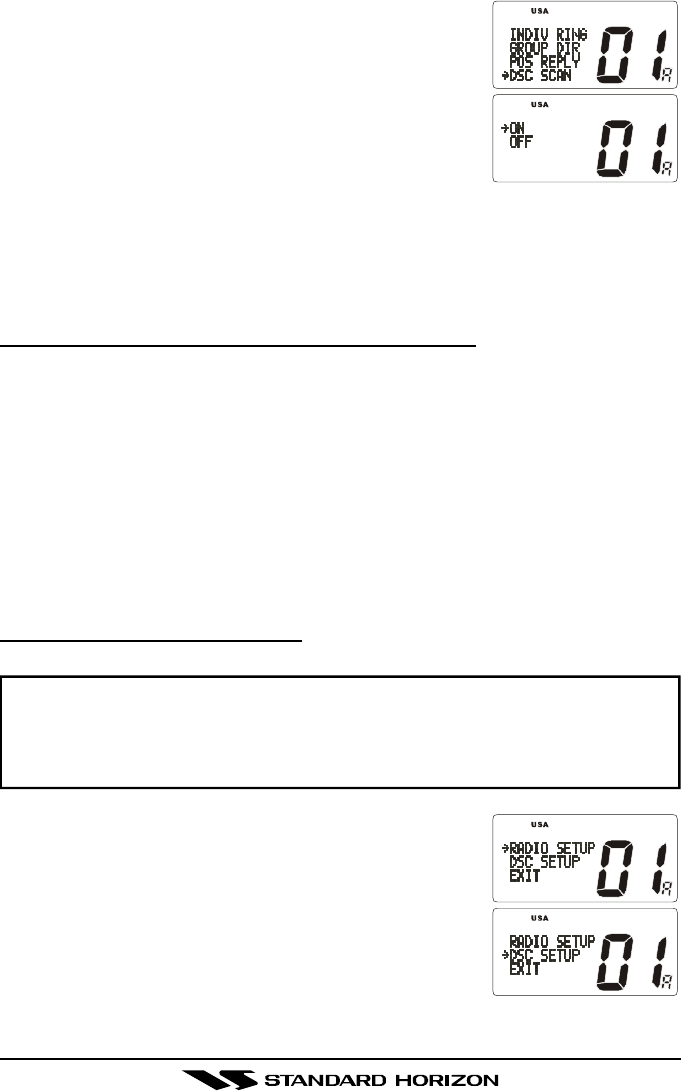

NOTE: When the DSC SCANNING feature is enabled (see section 7.2
DSC SCAN), the radio watches for a transmission on CH16, another
selected channel, and CH70 until a signal is received (Triple watch).
Secondary use

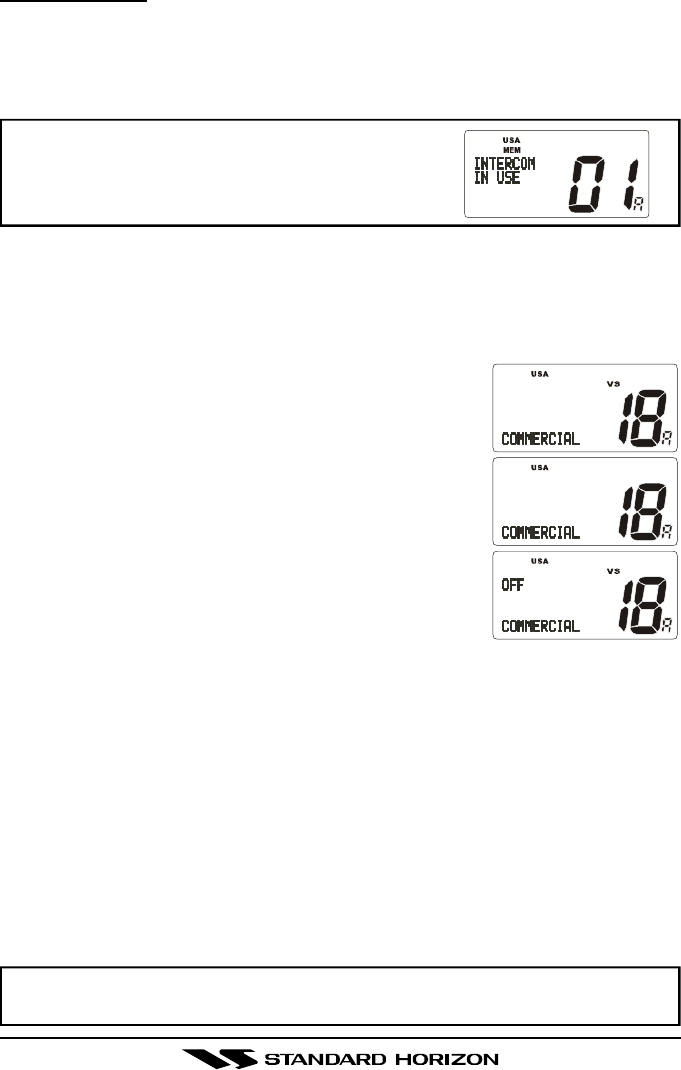

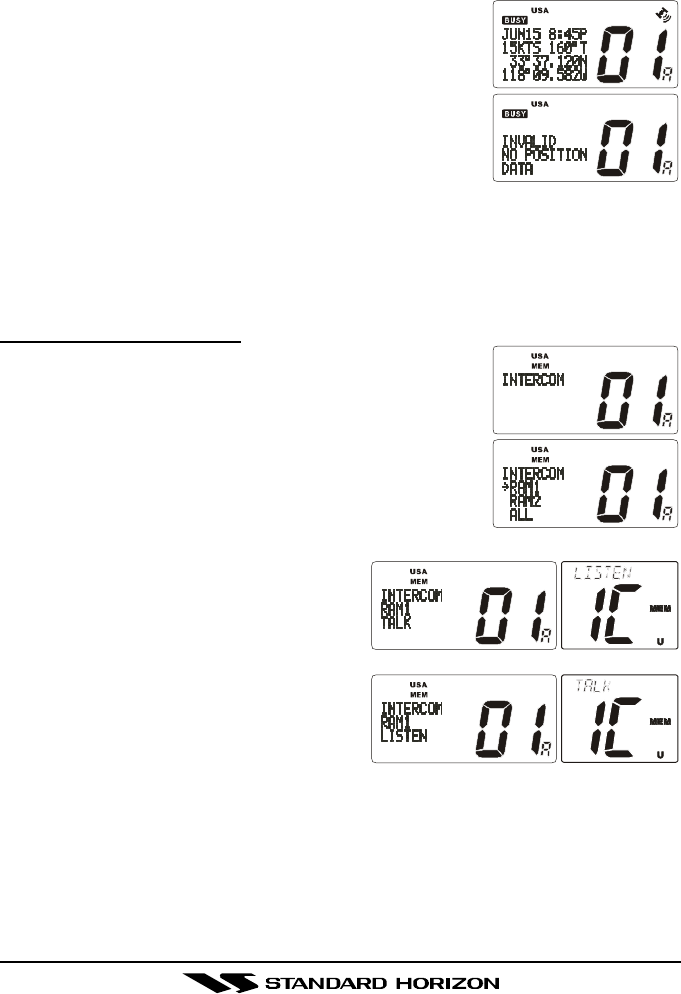

Press and hold [DW(IC)] key, when the optional RAM+ Mic is connected,
intercom operation will operate between radio and RAM+ Mic.
[H/L(NAV)] Key
Toggles between 25 W (High) and 1 W (Low) power. When the [H/L(NAV)]
key is pressed while the transceiver is on channel 13 or 67, the power
will temporarily switch from LO to HI power until the PTT is released. The
[H/L(NAV)] key does not function on transmit inhibited and low power
only channels.
Secondary use
Press and hold [H/L(NAV)] key, the LCD displays NAV GPS Data, Time,
SOG (Speed Over Ground), and COG (Course Over Ground) when a
GPS is connected to the accessory cable of the QUANTUM. See sec-
tion 4.4 CONNECTION OF GPS WITH NMEA OUTPUT.
[SCAN] Key
1. Starts and stops scanning of programmed channels.
2. If held while the [UP(p)] or [DOWN(q)] key on the microphone are
pressed or CHANNEL selector knob on radio is turned, the radio will
show the channels programmed in scan memory. This function will
not work if the unit is scanning.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 21GX2360S
NOTE: The priority channel is channel 16 only.
3. Pressing and holding again will delete the channel from scan memory.
[MEM] Key
Memorizes the selected channel into the transceivers scan memory for
scanning. When pressed again, it DELETES the channel from the scan
memory.
Secondary use
Press and hold [MEM] key to lock out the front panel keys and CHAN-
NEL selector konb. Press and hold [MEM] key again, unlock the front
panel keys (except [16/9] and [DISTRESS] keys) and CHANNEL selec-
tor konb.

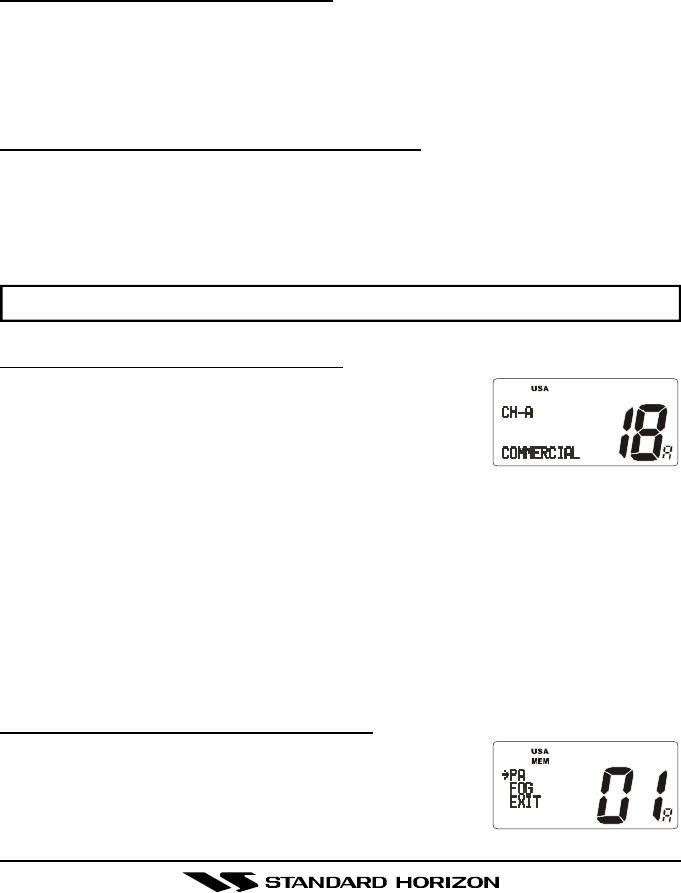

[PA/FOG] Key
Available to operate the PA dfunction or the FOG HORN function.
[CALL/SET(MENU)] Key
The [CALL/SET(MENU)] key functions as the enter key.
Secondary use

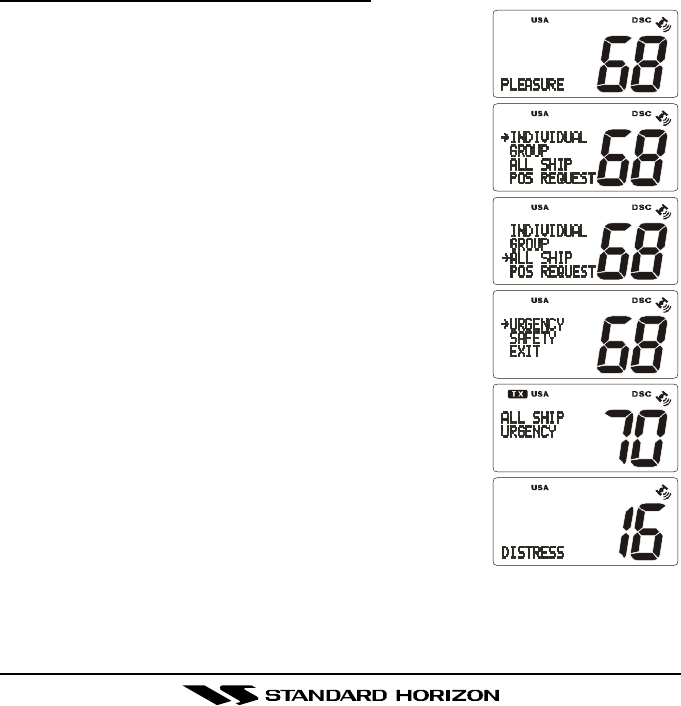

Press the [CALL/SET(MENU)] key to access the DSC OPERATION
menu. The “INDIVIDUAL CALL,” “GROUP CALL,” “ALL SHIPS CALL,”
“POSITION REQUEST,” “POSITION SEND,” “STANDBY MODE,” and
“CALL WAITING” functions can be accessed from the DSC OPERA-
TION menu.

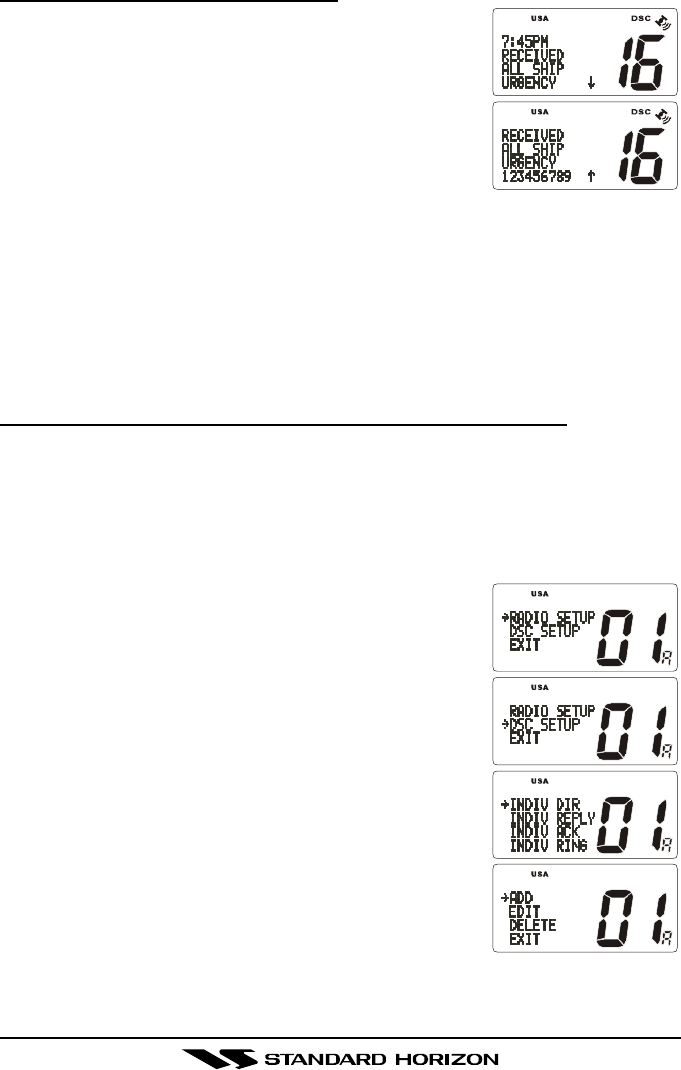

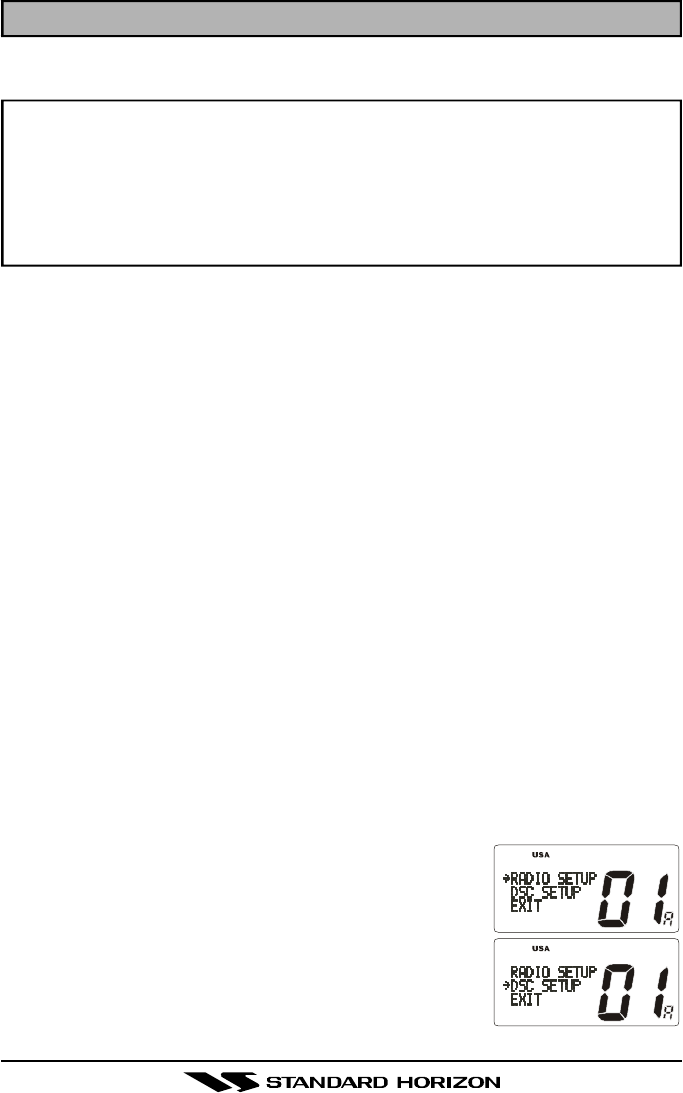

Press and hold the [CALL/SET(MENU)] key to access the RADIO SETUP
or DSC SETUP menu. The following functions can be accessed in the
menu (refer to Section7).

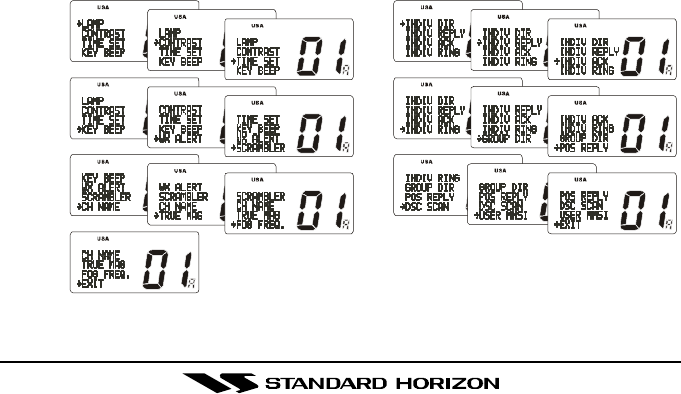

RADIO SETUP-menu DSC SETUP-menu
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 22
CHANNEL SELECTOR KNOB
Rotary knob used to select channels and to choose menu items (such as
the DSC menu, radio setup and DSC setup menu). The [UP(p)] /
[DOWN(q)] key on the microphone can also be used to select channels
and menu items.
Secondary Use
ŸWhile holding down the [SCAN] key and turning the CHANNEL selector
knob, you can confirm memory channels for scanning.
ŸAdjust the audio output level while in the PA/FOG mode.
ACCESSORY CONNECTION CABLE
Connects the QUANTUM to a GPS, and an external speaker. See section
3 OPTIONS for a list of speakers STANDARD HORIZON offers.
DC INPUT CABLE
Connects the radio to a DC power supply capable of delivering 12V DC.
RAM MIC CONNECTORS
Connects the QUANTUM to the enhanced RAM+ MIC (Remote Access
Microphone). Refer to section 9 RAM+ MIC OPERATION.
ANTENNA JACK
Connects an antenna to the transceiver. Use a marine VHF antenna with
an impedance of 50 ohms.
PTT (Push-To-Talk) SWITCH
Keys the transmitter when the transceiver is in radio mode. If the transceiver
is in the intercom operation mode (between the RAM+ and the QUANTUM),
it activates the QUANTUM microphone for voice communications.
MICROPHONE
Transmits the voice message with reduction of background noise.
MICROPHONE SPEAKER
The same audio heard through internal radio speaker is heard through mi-
crophone speaker.
[UP(p)] / [DOWN(q)] KEYS
The [UP(p)] and [DOWN(q)] on the microphone function the same as the
CHANNEL selector knob on the front panel of the transceiver.
[16/9] Key
Pressing the [16/9] key immediately recalls channel 16 from any location.
Press and hold the [16/9] key to recall channel 9. Pressing the [16/9] key
again will revert the radio to the previous selected channel.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 23GX2360S
6 BASIC OPERATION
6.1 RECEPTION
1. After the transceiver has been installed, ensure that the power supply and
antenna are properly connected.
2. Press and hold the VOL/PWR knob until the radio turns on.
3. Turn the SQL knob fully counterclockwise. This state is known as “squelch
off”.
4. Turn up the VOL/PWR knob until noise or audio from the speaker is at a
comfortable level.
5. Turn the SQL knob clockwise until the random noise disappears. This state
is known as the “squelch threshold.”
6. Turn the CHANNEL selector knob to select the desired channel. Refer to
the channel chart on page 62 for available channels.
7. When a message is received, adjust the volume to the desired listening
level. The “BUSY” indicator in the LCD is displayed indicating that the channel
is being used.
6.2 TRANSMISSION
1. Perform steps 1 through 6 of RECEPTION.
2. Before transmitting, monitor the channel to ensure it is clear.
THIS IS AN FCC REQUIREMENT!
3. Press the PTT (push-to-talk) switch. The “TX” indicator on the LCD is dis-
played.
4. Speak slowly and clearly into the microphone.
5. When the transmission is finished, release the PTT switch.
NOTE
This is a noise-canceling microphone. The oval slot on the bottom of micro-
phone should be positioned within 1 inch (2.5 cm) from the mouth for opti-
mum performance.
6.3 TRANSMIT TIME - OUT TIMER (TOT)
When the PTT switch on the microphone is held down, transmit time is limited to
5 minutes. This limits unintentional transmissions due to a stuck microphone.
About 10 seconds before automatic transmitter shutdown, a warning beep will be
heard from the speaker(s). The transceiver will automatically go to receive mode,
even if the PTT switch is continually held down. Before transmitting again, the PTT
switch must first be released and then pressed again.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 24
6.4 SIMPLEX/DUPLEX CHANNEL USE
Refer to the VHF MARINE CHANNEL CHART (page 63) for instructions on use
of simplex and duplex channels.
NOTE
All channels are factory-programmed in accordance with FCC (USA),
Industry Canada (Canada), and International regulations. Mode of op-
eration cannot be altered from simplex to duplex or vice-versa.
6.5 USA, CANADA, AND INTERNATIONAL MODE
1. To change the modes, hold the [16/9] key and press the [WX] key. The
mode changes from USA to International to Canadian with each press of
the [WX] key.
2. “USA” will be displayed on the LCD for USA mode, “INTL” will be displayed
for International mode, and “CAN” will be displayed for Canadian mode.
3. Refer to the VHF MARINE CHANNEL CHART (page 63) for allocated chan-
nels in each mode.
6.6 NOAA WEATHER CHANNELS
1. To receive a NOAA weather channel, press the [WX] key from any channel.
The transceiver will go to the last selected weather channel.
2. Turn the CHANNEL selector knob on the radio or [UP(p)] / [DOWN(q)]
keys on the microphone to select a different NOAA weather channel.
3. To exit from the NOAA weather channels, press the [WX] key. The trans-
ceiver returns to the channel it was on prior to a weather channel.
6.7 NOAA WEATHER ALERT
In the event of extreme weather disturbances, such as storms and hurricanes,
the NOAA (National Oceanic and Atmospheric Administration) sends a weather
alert accompanied by a 1050 Hz tone and subsequent weather report on one of
the NOAA weather channels. When the Weather Alert feature is enabled (see
section 8.5 WX ALERT), the transceiver is capable of receiving this alert if the
following is performed:
1. Program NOAA weather channels into the transceiver’s memory for scan-
ning. Follow the same procedure as for regular channels under section
6.15.
2. Press the [SCAN] key once to start memory scanning or hold down the
[SCAN] key during memory scanning to start priority scanning.
3. The programmed NOAA weather channels will be scanned along with the
regular-programmed channels. However, scanning will not stop on a nor-
mal weather broadcast unless a NOAA alert is received.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 25GX2360S
4. When an alert is received on a NOAA weather channel, scanning will stop and
the transceiver will emit a loud beep to alert the user of a NOAA broadcast.
5. Press the [WX] key to stop the alert tone and receive the weather report.
NOTE
If the [WX] key is not pressed the alert tone will be emitted for 5 minutes
and then the weather report will be received.
NOTE
The Weather Alert feature is also engaged while the transceiver is re-
ceiving on one of the NOAA weather channels.
6.8 NOAA WEATHER ALERT TESTING
In the event of a major storm or other appreciable weather condition requiring
vessels at sea or other bodies of water to be notified, the NOAA (National Oceano-
graphic and Atmospheric Administration) broadcasts a 1050 Hz tone that some
marine VHF radios can detect. (Refer to Section 6.7 “NOAA WEATER ALERT”
on how to use this feature.) This tone, when detected, will produce a loud beep
from the radio speaker to signal that a weather alert is being broadcast.
In order to test this system, the NOAA broadcasts the 1050 Hz tone every
Wednesday, sometime between 11 AM and 1 PM.
6.9 EMERGENCY (CHANNEL 16 USE)
Channel 16 is known as the Hail and Distress Channel. An emergency may be
defined as a threat to life or property. In such instances, be sure the transceiver
is on and set to CHANNEL 16. Then use the following procedure:
1. Press the microphone push-to-talk switch and say “Mayday, Mayday, May-
day. This is , , ” (your vessel’s name).
2. Then repeat once: “Mayday, ” (your vessel’s name).
3. Now report your position in latitude/longitude, or by giving a true or mag-
netic bearing (state which) to a well-known landmark such as a navigation
aid or geographic feature such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, fire, heart
attack, life-threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
8. Give your vessel’s description: length, design (power or sail), color and
other distinguishing marks. The total transmission should not exceed 1
minute.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 26
9. End the message by saying “OVER”. Release the microphone button and
listen.
10. If there is no answer, repeat the above procedure. If there is still no re-
sponse, try another channel.
6.10 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other vessels.
Use of channel 16 for hailing must be limited to initial contact only. Calling
should not exceed 30 seconds, but may be repeated 3 times at 2-minute inter-
vals. In areas of heavy radio traffic, congestion on channel 16 resulting from its
use as a hailing channel can be reduced significantly in U.S. waters by using
channel 9 as the initial contact (hailing) channel for non-emergency communi-
cations. Here, also, calling time should not exceed 30 seconds but may be
repeated 3 times at 2-minute intervals.
Prior to making contact with another vessel, refer to the channel charts in this
manual, and select an appropriate channel for communications after initial con-
tact. For example, Channels 68 and 69 of the U.S. VHF Charts are some of the
channels available to non-commercial (recreational) boaters. Monitor your de-
sired channel in advance to make sure you will not be interrupting other traffic,
and then go back to either channel 16 or 9 for your initial contact.
When the hailing channel (16 or 9) is clear, state the name of the other vessel
you wish to call and then “this is” followed by the name of your vessel and your
Station License (Call Sign). When the other vessel returns your call, immedi-
ately request another channel by saying “go to,” the number of the other chan-
nel, and “over.” Then switch to the new channel. When the new channel is not
busy, call the other vessel.
After a transmission, say “over,” and release the microphone’s push-to-talk
(PTT) switch. When all communication with the other vessel is completed, end
the last transmission by stating your Call Sign and the word “out.” Note that it is
not necessary to state your Call Sign with each transmission, only at the begin-
ning and end of the contact.
Remember to return to Channel 16 when not using another channel. Some
radios automatically monitor Channel 16 even when set to other channels or
when scanning.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 27GX2360S
6.11 MAKING TELEPHONE CALLS
To make a radiotelephone call, use a channel designated for this purpose, The
fastest way to learn which channels are used for radiotelephone traffic is to ask
at a local marina. Channels available for such traffic are designated Public
Correspondence channels on the channel charts in this manual. Some ex-
amples for USA use are Channels 24, 25, 26, 27, 28, 84, 85, 86, and 87. Call
the marine operator and identify yourself by your vessel’s name, The marine
operator will then ask you how you will pay for the call (telephone credit card,
collect, etc.) and then link your radio transmission to the telephone lines.
The marine telephone company managing the VHF channel you are using may
charge a link-up fee in addition to the cost of the call.
6.12 OPERATING ON CHANNELS 13 AND 67
Channel 13 is used at docks and bridges and by vessels maneuvering in port.
Messages on this channel must concern navigation only, such as meeting and
passing in restricted waters.
Channel 67 is used for navigational traffic between vessels.
By regulation, power is normally limited to 1 Watt on these channels. Your radio
is programmed to automatically reduce power to this limit on these channels.
However, in certain situations it may be necessary to temporarily use a higher
power. See page 20 (H/L key) for means to temporarily override the low-power
limit on these two channels.
6.13 PROHIBITED COMMUNICATIONS
The FCC prohibits the following communications:
•False distress or emergency messages:
•Messages to “any boat” except in emergencies and radio tests;
•Messages to or from a vessel on land;
•Transmission while on land;
•Obscene, indecent, or profane language (potential fine of $10,000).

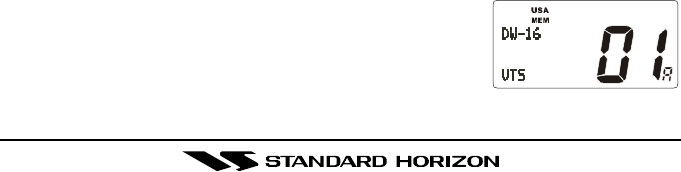

6.14 DUAL WATCH (TO CH16)
1. Adjust the SQL knob until the background noise disappears.
2. Select the channel you wish to dual watch to CH16.
3. Press the [DW(IC)] key. The display will scan between CH16 and the chan-
nel that was selected in step 2.
If a transmission is received on the channel selected
in step 2, the QUANTUM will dual watch to CH16.
4. To stop Dual Watch press the [DW(IC)] key again.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 28
3. To stop scanning, press the [SCAN], [16/9], [WX],
[CALL/SET(MENU)], or PTT key.
NOTE
Triple watch (T/W) means the radio is watching CH70 for DSC Calls.
Dual watch (D/W) means the radio is not watching CH70 for DSC Calls.
6.15 MEMORY SCANNING (M-SCAN)
NOTE
During scanning, the dot matrix area of the LCD will show “M-SCAN” or
“P-SCAN” depending on the scan mode selected.
1. Adjust the SQL knob until background noise disappears.
2. Select a desired channel to be scanned using the
CHANNEL selector knob. Press and hold the
[SCAN] key, “MEM” will appear on the LCD which
indicates the channel has been programmed into
the transceivers memory.
3. Repeat step 2 for all the desired channels to be scanned.
4. To DELETE a channel from the transceiver’s memory, select the channel
then press and hold the [SCAN] key, “MEM” will disappear in the LCD.
5. To start scanning, press the [SCAN] key. Scanning
will proceed from the lowest to the highest pro-
grammed channel number and will stop on a chan-
nel when a transmission is received.
6. The channel number will blink during reception.
7. To stop scanning, press the [SCAN], [16/9], [WX], [CALL/SET(MENU)], or
PTT key.
6.16 PRIORITY SCANNING (P-SCAN)
1. Channel 16 is set as the priority channel and cannot be changed.
2. To select priority scanning, press the [SCAN] key to
start memory scanning (“M-SCAN” will appears),
then press and hold down the [SCAN] key until “P-
SCAN” appears on the LCD. Scanning will proceed
between the memorized channels and the priority channel. CH 16 the prior-
ity channel will be scanned after each programmed channel.
MEM CH. CH. 16 CH. 70øMEM CH. CH. 16 CH. 70ø
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 29GX2360S
6.17 CHANNEL A /B INSTANT CALL
Two calling channels (used by an organization or a favorite channel) can be
preset. But USA channels 9 and 16, and WX channels should not be assigned
as A or B channels because they are readily available with the [16/9] and [WX]
keys. If the [A/B] key is pressed and no channel A or B has been assigned, the
alert signal will be present.
6.17.1 Storing new channel A/B
1. Press and hold down the [A/B] key and rotate the CHANNEL Selector knob
to select the desired channel.
2. Release the [A/B] key to store a desired channel as channel A/B.
3. Repeat steps to program second channel A/B.
6.17.2 Changing the stored channel A/B
1. Press the [A/B] key for memorized channel to appear.
2. Press and hold down the [A/B] key and rotate the Channel Selector knob to
select the desired channel.
3. Release the [A/B] key to store a desired channel as channel A/B.
NOTE
The stored channels will delete in microprocessor resetting mode only.
6.17.3 Operating the channel A/B
Pressing the [A/B] key more than once toggles between
channel A, channel B and the channel that was received
on.
6.18 PA/FOG OPERATION
PA HAIL mode:
PA HAIL mode allows the transceiver to be used as a power hailer when an
optional 4 ohm HAIL/PA speaker is installed. The Hail mode has a listen-back
feature which provides two way communication through the HAIL/PA speaker.
FOG HORN mode:
Automatic signaling is transmitted through the HAIL/PA speaker.
6.18.1 Operating the PA HAIL mode
1. Press the [PA/FOG] key, then select “PA” with the
CHANNEL selector knob.
2. Press the [CALL(MENU)] key.
3. Press the PTT switch to speak through the
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 30
HAIL/PAspeaker.
Rotate the CHANNEL selector knob to control the
AF output level. The AF output level can be set from
0 to 30 watts.
4. To exit the PA HAIL mode, press the [16/9], [WX] or [CALL/SET(MENU)]
key.
6.18.2 Operating the FOG HORN mode
Operator can select from FOG 1, FOG 2, FOG 3, FOG 4, HORN, SIREN,
AGROUND, or ANCHOR.
FOG 1: POWER BOAT UNDERWAY
FOG 2: POWER BOAT STOPPED
FOG 3: SAIL BOAT, FISH VESSEL, TOW VESSEL
FOG 4: VESSEL UNDER TOW
1. Press the [PA/FOG] key, then select “FOG” with the
CHANNEL selector knob.
2. Press the [CALL/SET(MENU)] key.
3. Turn the CHANNEL selector knob to select the func-
tion.
4. Press the [CALL/SET(MENU)] key.
5.On the HORM and SIREN modes, press the PTT
switch to activate the tone through the HAIL/PA
speaker.
Rotate the CHANNEL selector knob to control the
AF output level. The AF output level can be set from
0 to 30 watts.
6. To exit the FOG HORN mode, press the [16/9], [WX]
or [CALL/SET(MENU)] key.
6.19 KEYPAD LOCKING
To oder to prevent accidental frequency change, front panel keys (except [DIS-
TRESS], [16/9] and [CALL/SET(MENU)] key) and CHANNEL selector knob
may be locked out.
Press and hold [MEM] key to lock out the front panel
keys and CHANNEL selector konb. Press and hold
[MEM] key again, unlock the front panel keys and CHAN-
NEL selector konb.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 31GX2360S
6.20 NAVIGATION INDICATION
The transceiver has the ability to display the time, SOG and COG date, as well
as the vessel’s position (LAT/LON), when connected to a GPS receiver.
1. Press and hold the [H/L(NAV)] key to display posi-
tion information. If the GPS receiver is not receiving
a fix, the display will be as shown in the illustration
on the right.
2. To hide the position information, press the
[H/L(NAV)] key.
6.21 INTERCOM OPERATION
If the RAM+ Mic is connected to the QUANTUM, you may communicate be-
tween the QUANTUM and RAM+ Mic, or RAM+ Mic and RAM+ Mic (See page
57 for Intercom Operation of the RAM+ Mic).
6.22.1 Communication
1. Press and hold the [DW(IC)] key while in the “RA-
DIO” mode, the mode is changed to “INTERCOM”
mode.
2. If your QUANTUM is equipped two RAM+ Mic, se-
lect the companion you wish to communicate (RAM1,
RAM2, or ALL) with the CHANNEL selector knob,
then press the [CALL/SET(MENU)] key to termi-
nated.
2. When the “INTERCOM” operation is
activated, “INTERCOM” is displayed
on the QUANTUM, and “IC” is dis-
played on the RAM+ Mic.
3. Press the PTT switch. The “TALK” is
displayed.
NOTE: A warning beep is emitted
when the QUANTUM microphone’s
PTT switch is pressed while the RAM+
Mic’s PTT switch is pressed.
4. Speak slowly and clearly into the microphone, hold the microphone about
1/2 inch away from your mouth.
5. When finished, release the PTT switch.
6. Press and hold the [DW(IC)] key again the mode will revert to “RADIO”
mode.
(RAM+ Mic’s PTT switch is pressed)
(MATRIX’s PTT switch is pressed)
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 32
6.22.2 Calling
Hold down the [DW(IC)] key for 1 second or more, when the “INTERCOM”
operation is activated. A calling beep is emitted twice from the transceiver
speaker.
NOTE
Disable any operation of the QUANTUM, when
communicate the both RAM+ Mic while “INTER-
COM” mode.
6.22 VOICE SCRAMBLER
If privacy of communications is desired, a CVS2500 voice scrambler (VS) can
be installed in the transceiver. Contact your Dealer to have a CVS2500 installed.
Refer to the section 8.9 VOICE SCRAMBLER to program the voice scrambler.
1. Turn on the transceiver.
2. Select a channel that was programmed for scram-
bler mode (“VS” will appear on the LCD).
ŸIf a channel is not set for the voice scrambler, the
display will be as shown in the illustration at the
right (“VS” will disappear from the LCD).
ŸIf a voice scrambler is canceled temporarily in the
“SETUP” menu, the display will be as shown in
the illustration at the right.
3. Monitor the channel before transmitting.
4. Transmit the voice message. The signal sent will be
scrambled.
6.23 RESETTING THE TRANSCEIVER’S MICROPROCESSOR
Resetting the microprocessor restores the initial, factory supplied conditions in
the transceiver. These are called the default conditions.
To reset the microprocessor, first turn the transceiver off. Then while pressing
the [WX] and [SCAN] keys, turn the transceiver on. The default conditions are:
ŸNo channels in the SCAN memory.
ŸChannel 16 will be selected when the transceiver is turned on.
ŸWX channel 01 will be recalled when the [WX] key is pressed.
ŸKey beep will be on.
NOTE
Resetting the microprocessor will not erase DSC MMSI and Directory
Call Waiting information.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 33GX2360S
7 DIGITAL SELECTIVE CALLING
7.1 GENERAL
WARNING
This radio is designed to generate a digital maritime distress and safety
call to facilitate search and rescue. To be effective as a safety device,
this equipment must be used only within communication range of a shore-
based VHF marine channel 70 distress and safety watch system. The
range of signal may vary but under normal conditions should be approxi-
mately 20 nautical miles.
Digital Selective Calling is a semi-automated method of establishing a radio
call, it has been designated by the International Maritime Organization (IMO)
as an international standard for establishing VHF, MF and HF radio calls. It has
also been designated as part of the Global Maritime Distress and Safety Sys-
tem (GMDSS). It is planned that DSC will eventually replace aural watches on
distress frequencies and will be used to announce routine and urgent maritime
safety information broadcasts.
This new system allows mariners to instantly send a distress call with GPS
position (when connected to the transceiver) to the US Coast Guard and other
vessels within range of the transmission. DSC will also allow mariners to initiate
or receive Distress, Urgency, Safety, Routine, POSITION REQUEST, POSI-
TION SEND, and Group calls to or from another vessel equipped with a DSC
transceiver.
7.2 DSC SCAN
When the radio is shipped from the factory it is programmed so CH70 (the DSC
channel) is scanned at all times. A selection is provided in the SETUP MENU to
disable the DSC SCAN. Turning off DSC SCAN will disable the radio from re-
ceiving DSC calls (i.e.: Distress Call, Individual Call, All Ships Call, and Position
Requests). If you want to use any of the functions the selection must be left ON.
To Change DSC SCAN Method:
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select “DSC
SCAN” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 34
5. Turn the CHANNEL selector knob to select “ON”or
“OFF.”
6. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
7.3 USCG DSC WATCH
The USCG has plans to upgrade its VHF National Distress System (expected
by 2005), so at the time of printing only larger vessels that are required to carry
VHF DSC radios will be able to hear your distress transmission.
7.3.1 Maritime Mobile Service Identity (MMSI)
What is an MMSI?
An MMSI is a nine digit number used on Marine Transceivers capable of using
Digital Selective Calling (DSC). This number is used like a telephone number to
selectively call other vessels.
THIS NUMBER MUST BE PROGRAMMED INTO THE RADIO TO OPERATE
THE MATRIX DSC FUCTIONS.
How can I obtain an MMSI assignment?
Boat US offers free MMSI numbers. Visit the following to register:
http://www.boatus.com/mmsi/.
7.3.2 Programming the MMSI
NOTE
User MMSI can be input only twice. If the user tries to input MMSI more
than twice, the radio will show the display on the right. If the user needs
to change the MMSI more than twice, the transceiver will have to be sent
to Factory Service. Refer to the section 10.2 FACTORY SERVICE.
1. Press and hold down the [CALL/SET(MENU)] key
until the “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to the left to se-
lect “DSC SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select
“USER MMSI” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key. The “User
MMSI” number will appear, and the first space will
flash.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 35GX2360S
5. Select first number of your MMSI, then press the
[CALL/SET(MENU)] key to step to the next number.
6. Repeat step 5 to set your MMSI (up to nine digits).
7. When finished programming the number, press and
hold the [CALL/SET(MENU)] key to store the num-
ber in memory.
8. To exit this menu and return to radio operation mode
press the [16/9] key.
7.4 ADDITIONAL DIGITAL SELECTIVE CALLING INFORMATION
For additional information the USCG has an excellent site that should be visited
at www.navcen.uscg.mil/marcoms/gmdss/dsc.html.
7.5 DSC DISTRESS CALL
The QUANTUM is capable of transmitting and receiving DSC Distress mes-
sages to all DSC radios. The QUANTUM may be connected to a GPS to also
transmit the Latitude, Longitude of the vessel.
7.5.1 Transmitting A DSC Distress Call
NOTE
To be able to transmit a DSC distress call a MMSI number must be
programmed, refer to section 7.3.2 Programming the MMSI
In order for your ships location to be transmitted a GPS must be connected to
the QUANTUM, refer to section 4.4 CONNECTION OF GPS WITH NMEA OUT-
PUT
1. Lift the red spring loaded DISTRESS cover and
press the [DISTRESS] key. The “DISTRESS” menu
will appear on the LCD.
2. Press and hold the [DISTRESS] key. The radios dis-
play will count down (3-2-1) and then transmit the
Distress call.
3. When the distress signal is sent, CH70 and “TX”
icon will appear on the LCD. After the message has
been sent, the radio will sound a Distress Alarm.
4. The transceiver “shadow-watches” for a transmis-
sion between CH16 and CH70 until an acknowledg-
ment signal is received. “DISTRESS” and “WAIT-
ING” will appear on the LCD.
5. If an acknowledgement is received, select channel
16 and advise your distress situation.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 36
6. If no acknowledgment is received, the distress call
is repeated in 4 minute intervals until an acknowl-
edgment is received.
7. When a DSC Distress acknowledgment is received,
a distress alarm sounds and channel 16 is automatically selected. The LCD
shows the MMSI of the ship responding to your distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast sta-
tion.
8. To cancel the DSC distress alarm signal from the speaker, press any key.
Cancel a DSC Distress Call
If a DSC Distress call was sent by error the QUANTUM allows you to send a
message to other vessels to cancel the Distress Call that was made in error.
Press the [CALL/SET(MENU)] key, turn the CHANNEL selector knob to select
“CANCEL.” Then, press the [CALL/SET(MENU)] key or turn off the radio.
7.5.2 Receiving a DSC Distress Call
1. A distress call is received. An emergency alarm
sounds.
Then channel 16 is automatically selected.
2. Press any key to stop the alarm.
3. Turn the CHANNEL selector knob to change the dis-
play to show the position of the vessel in distress.
4If the position of the vessel distress data does not
include position, the LCD will show the display on
the left.
NOTE
You must continue monitoring channel 16 as a coast station may require
assistance in the rescue attempt.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 37GX2360S
7.6 ALL SHIPS CALL
The All Ships Call function allows contact to be established with other vessel
stations without having their ID in the individual calling directory. Also, priority
for the call can be designated as Urgency or Safety.
URGENCY Call: This type of call is used when a vessel may not truly be in
distress, but have a potential problem that may lead to a dis-
tress situation. This call is the same as saying PAN PAN PAN
on channel 16.
SAFETY Call: Used to transmit boating safety information to other vessels.
This message usually contains information about an overdue
boat, debris in the water. Loss of a navigation aid or an impor-
tant meteorological message. This call is the same as saying
Securite” Securite” Securite’.
7.6.1 Transmitting an All Ships Call
1. Press the [CALL/SET(MENU)] key. The “DSC OP-
ERATION” menu will appear.
2. Turn the CHANNEL selector knob to select “ALL
SHIPS.”
3. Press the [CALL/SET(MENU)] key. (To cancel, turn
the CHANNEL selector knob to select “EXIT.”)
5. Turn the CHANNEL selector knob to select the na-
ture of call (“URGENCY” or “SAFETY”).
6. Press the [CALL/SET(MENU)] key to transmit the
selected type of all ships DSC call.
7. After the ALL SHIPS CALL is transmitted, the trans-
ceiver will switch to CH16.
8. Listen to the channel to make sure it is not busy,
then key the microphone and say PAN PAN PAN or
Securite” Securite” Securite depending on the prior-
ity of the call. Then announce your call sign and an-
nounce the channel you wish to switch to for com-
munications.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 38
7.6.2 Receiving an All Ships Call
1. When an all ships call is received, an emergency
alarm sounds.
The radio will automatically change to channel 16.
2. Press any key to stop the alarm.
3. Turn the CHANNEL selector knob to see the MMSI
of the vessel transmitting the All Ships Call.
4. Monitor channel 16 or traffic channel until the UR-
GENCY voice communication is completed.
7.7 INDIVIDUAL CALL
This feature allows the QUANTUM to contact another vessel with a DSC VHF
radio and automatically switch the receiving radio to a desired communications
channel. This feature is similar to calling a vessel on CH16 and requesting to
go to another channel (switching to the channel is private between the two
stations).
7.7.1 Setting up the Individual / Position Call Directory
The QUANTUM has a DSC directory that allows you to store a vessel or per-
son names and the MMSI number associated with vessels you wish to transmit
Individual calls, Position Requests and Position Send transmissions.
To transmit an Individual call you must program this directory with information
of the persons you wish to call, similar to a cellular phones telephone directory.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.

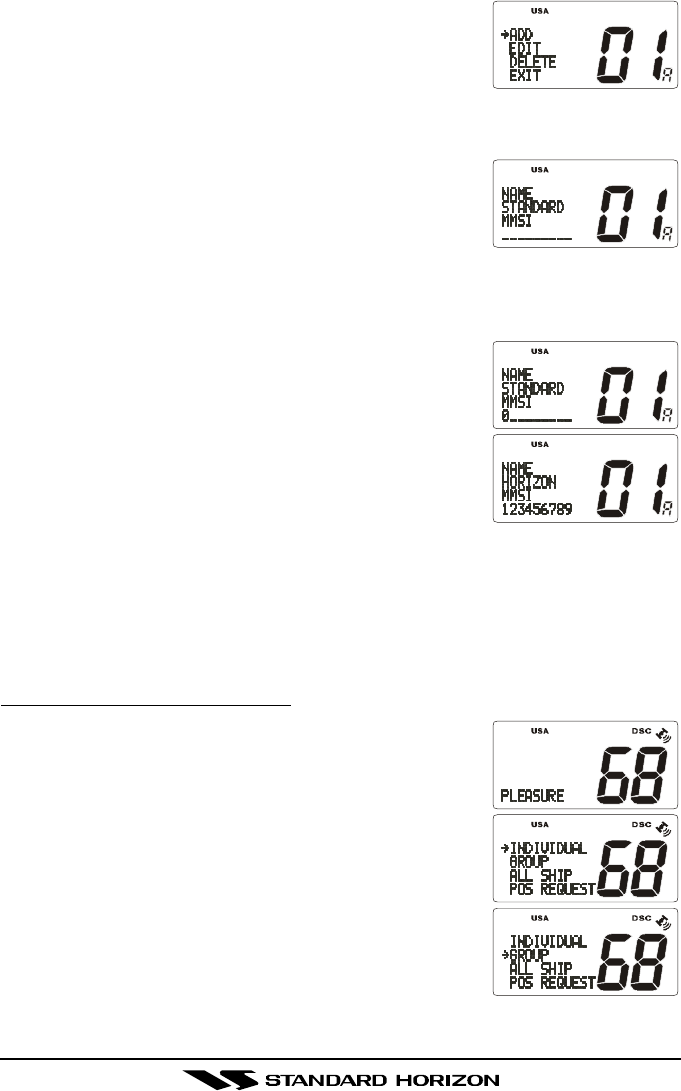

3. Press the [CALL/SET(MENU)] key, then select
“INDIV DIR” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key, then select
“ADD” with the CHANNEL selector knob.
5. Press the [CALL/SET(MENU)] key.
6. Turn the CHANNEL selector knob to scroll through
the first letter of the name of the vessel or person
you want to reference in the directory.
7. Press the [CALL/SET(MENU)] key to store the first
letter in the name and step to the next letter to the
right.
8. Repeat step 6 and 7 until the name is complete. The name can consist of
up to eleven characters, if you do not use all eleven characters press the
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 39GX2360S
[CALL/SET(MENU)] key to move to the next space.
This method can also be used to enter a blank space
in the name. To clear the previous letter, press the
[H/L(NAV)] key.
9. After the eleventh letter or space has been entered, press the [CALL/
SET(MENU)] key to advance to the MMSI (Maritime Mobile Service Iden-
tity Number) number entry.
10. Turn the CHANNEL selector knob to scroll through numbers, 0-9. To enter
the desired number and move one space to the right press the
[CALL/SET(MENU)] key. Repeat this procedure until all nine space of the
MMSI number are entered.
11. If a mistake was made entering in the name or the MMSI number repeat
pressing the [CALL/SET(MENU)] key until the wrong character is selected,
then move the channel knob to correct the entry.
12. To store the data entered, press and hold
the [CALL/SET(MENU)] key.
13. To enter another individual address, repeat steps 4
through 13.
14. To exit this menu and return to radio operation mode press the [16/9] key.
NOTE
Selecting “NEXT” or “EXIT” will automatically save the name and MMSI
number into memory.
7.7.2 Setting up Individual Reply
Allows setting up the radio to automatically (default setting) or manually re-
spond to a DSC Individual call requesting you to switch to a working channel for
voice communications. When Manual is selected the MMSI of the calling ves-
sel is shown allowing you to see who is calling. This function is similar to caller
id on a cellular phone.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select
“INDIV REPLY” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)]key.
5. Turn the CHANNEL selector knob to select “AUTO”
or “MANUAL.”
6. Press the [CALL/SET(MENU)] key to store the se-
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 40
lected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.

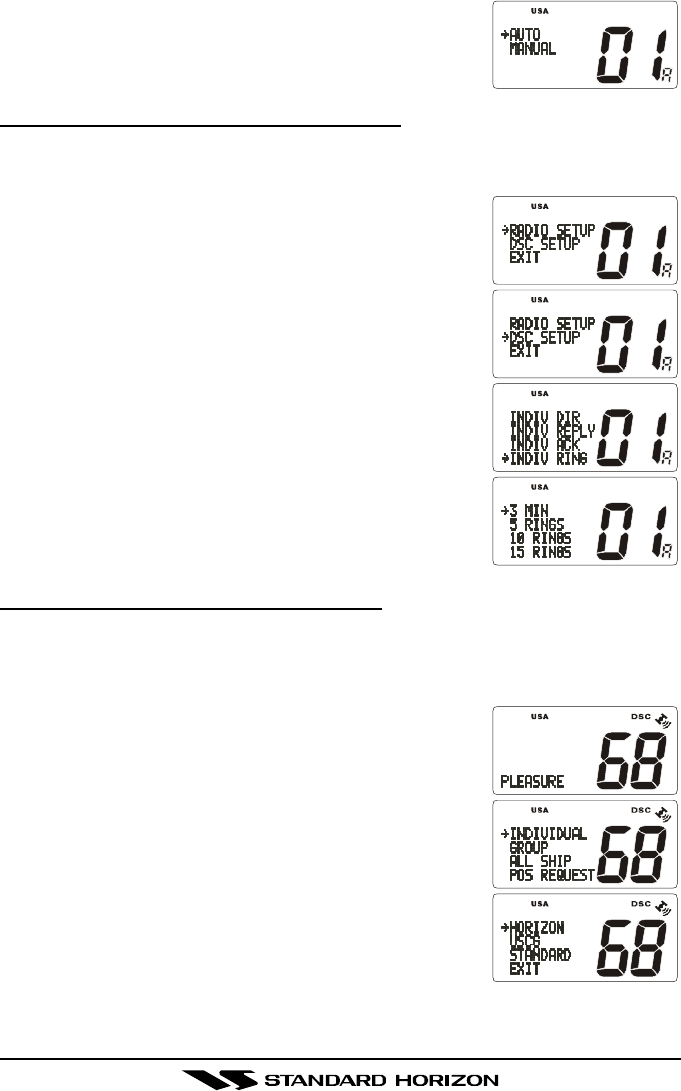

7.7.3 Setting up Individual Call Ringer
When a Individual call is received the radio will produce a ringing tone for 3
minutes. This selection allows the Individual Call ringer time to be changed.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select
“INDIV RING” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key.
5. Turn the CHANNEL selector knob to select ringing
time of a Individual Call.
6. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
7.7.4 Transmitting an Individual Call
This feature allows the user to contact another vessel with a DSC radio. This
feature is similar to calling a vessel on CH16 and requesting to go to another
channel. Select the traffic channel for voice communication.
1. Press the [CALL/SET(MENU)] key. The “DSC OP-
ERATION” menu will appear.
2. Turn the CHANNEL selector knob to select “INDI-
VIDUAL.” (To cancel, select “EXIT” with the CHAN-
NEL selector knob or press the [16/9] key.)
3. Press the [CALL/SET(MENU)] key. The transceiver
will beep, and the “Individual directory” will appear.
4. Turn the CHANNEL selector knob to select the “In-
dividual” you want to contact.
5. Press the [CALL/SET(MENU)] key to transmit the
individual DSC signal.
6. After INDIVIDUAL CALL is transmitted, the transceiver will wait 8 seconds
for the acknowledgment. If the reply signal is not received, the transceiver
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 41GX2360S
will transmit again.

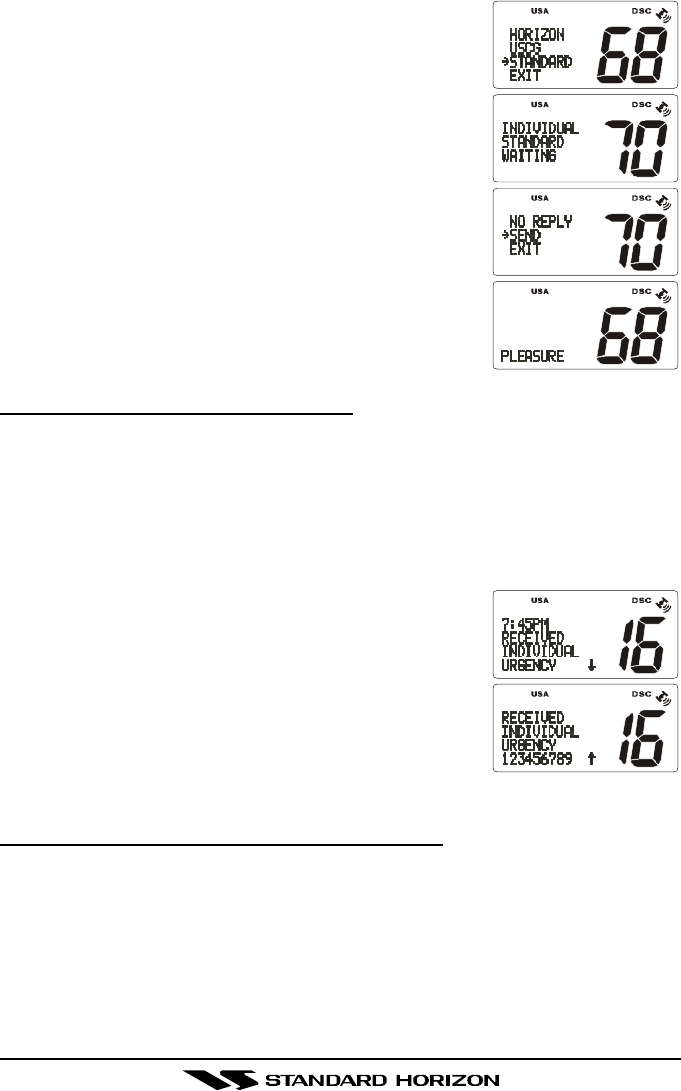

7. After the second INDIVIDUAL CALL is transmitted,
if the reply signal is not received, the dot matrix area
of the LCD will display “àSEND” to prompt the user
to send the call again or exit the mode.
8. When an individual call acknowledgment is received,
the established channel is automatically selected and
a ringing tone sounds.
9. Press the [CALL/SET(MENU)] key to listen to the
channel to make sure it is not busy, then key the
microphone and call the other vessel you desire to
communicate with.
7.7.5 Receiving an Individual Call
When receiving an individual call, an acknowledgment must be sent back to the
calling station. The QUANTUM default setting is Automatic, but has a selection
that allows you to manually send a reply before the radio will switch to the re-
quested calling channel. This selection is useful if you want to see who is calling
and requesting you to switch to a channel for communications, similar to caller id
on a cellular phone.
1. When an individual call is received, an individual call
ringing alarm sounds.
The radio automatically (automatic mode selected)
switches to the requested channel.
2. Press any key to stop the alarm.
3. Press the PTT on the mic and talk to the calling ship.
4. Turn the CHANNEL selector knob to see the MMSI
of the vessel calling.
7.7.6 Setting Up the Call Waiting Function
Allows the QUANTUM to be setup to reply (ABLE) or set the radio so it trans-
mits a call that advises to the vessel the person is UNABLE to reply to the call
at this time. This function is similar to a answering machine. When set up in
UNABLE and a individual call is received the Individual call from the other
vessel is logged in the CALL WAITING directory for you to review and call back
at a later time.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 42
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select
“INDIV ACK” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key.
5. Turn the CHANNEL selector knob to select “ABLE”
or “UNABLE.”
6. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
7.8 ADVANCED DSC CALLS
7.8.1 Group Call
This feature allows the user to contact a group of specific vessels (example
members of a yacht club) using DSC radios with Group call function to auto-
matically switch to a desired channel for voice communications.
7.8.1.1 Setup a Group Call
For this function to operate the same Group MMSI must be programmed into
all the DSC VHF radios within the group of vessels that will be using this fea-
ture. The group MMSI is a 9 digit (first digit permanently set to “0”) that will allow
other radios to call your vessel along with others to automatically switch to a
working channel for voice communications. This function is very useful for yacht
clubs and vessels traveling together that want to collectively make announce-
ments on a predetermined channel.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select
“GROUP DIR” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key, then select
“ADD” with the CHANNEL selector knob.
5. Press the [CALL/SET(MENU)] key.
6. Turn the CHANNEL selector knob to scroll through
the first letter of the name of the group you want to
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 43GX2360S
reference in the directory.
7. Press the [CALL/SET(MENU)] key to store the first
letter in the name. Press the [CALL/SET(MENU)]
key to move the cursor one space to the right.
8. Repeat step 6 and 7 until the name is complete. The name can consist of
up to eleven characters, if you do not use all eleven characters press the
[CALL/SET(MENU)] key to move to the next space.
This method can also be used to enter a blank space
in the name. To clear the previous letter, press the
[H/L(NAV)] key.
9. After the eleventh letter or space has been entered, press the
[CALL/SET(MENU)] key to advance to the GROUP MMSI (Maritime Mo-
bile Service Identity Number) number entry.
10. Turn the CHANNEL selector knob to scroll through
numbers, 0-9.
11. To enter the desired number and move one space
to the right press the [CALL/SET(MENU)] key. Re-
peat procedure until all nine spaces of MMSI num-
ber are entered.
12. If a mistake was made entering in the name or the
MMSI number repeat pressing the
[CALL/SET(MENU)] key until the wrong character is selected, then move
the CHANNEL selector knob to correct the entry.
13. To store the data entered, press and hold the [CALL/SET(MENU)] key.
14. To enter another individual address, repeat steps 4 through 13.
15. To exit this menu and return to radio operation mode press the [16/9] key.
7.8.1.2 Transmitting a Group Call
1. Select the desired channel to use Group Call for
voice communications.
2. Press the [CALL/SET(MENU)] key. The “DSC OP-
ERATION” menu will appear.
3. Turn the CHANNEL selector knob to select
“GROUP.” (To cancel, select “EXIT” with the CHAN-
NEL selector knob or press [16/9] key.)
4. Press the [CALL/SET(MENU)] key. The transceiver
will beep, and the “Group directory” will appear.
5. Turn the CHANNEL selector knob to select the
“Group” you want to contact.
6. Press the [CALL/SET(MENU)] key to transmit the
Group Call signal.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 44
7. When the Group Call signal is sent, the dot-matrix
area of the LCD will be as shown in the illustration at
the right.
8. After the GROUP CALL is transmitted, all the radios
in the group will switch to the designated channel.
9. Listen to the channel to make sure it is not busy,
then key the microphone and call the other vessels
you desire to communicate with.
7.8.1.3 Receiving a Group Call
1. When a group call is received, the QUANTUM will produce a ringing alarm
sound.
2. The radio automatically switches to the requested channel.
3. Press any key to stop the alarm.
4. Monitor the channel for the person calling the Group for a message.
5. If you want to respond, monitor the channel to make sure it is clear, then
press the PTT on the mic and talk to the calling ship(s).
NOTE
After a Group call is received, the time the call was made and the ships
MMSI or vessels name will appear on the LCD.
7.8.2 Position Request
Advancements in DSC have made it possible to poll the location of another
vessel and show the position of that vessel on the display of the QUANTUM.
Standard Horizon has taken this feature one step further, if any Standard Hori-
zon GPS is connected to the QUANTUM, the polled position of the vessel is
shown on the display of the GPS chart plotter making it easy to navigate to the
location of the polled vessel. This is a great feature for anyone wanting to know
the position of another vessel. For example you buddy that is catching fish, or
finding the location of a person you are cruising with.
NOTE
The other vessel must have an operating GPS receiver connected to its
DSC transceiver and must not have its transceiver set to deny position
requests. (Refer the section 7.9 to enter information into the individual
directory).
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 45GX2360S
7.8.2.1 Setting up Position Reply
The QUANTUM can be set up to automatically or manually send your position
to another vessel. This selection is important if you are concerned about some-
one polling the position of your vessel that you may not want to. In the manual
mode you will see the MMSI or persons name shown on the display allowing
you to choose to send your position to the requesting vessel.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
SETUP” menu.
3. Press the [CALL/SET(MENU)] key, then select “POS
REPLY” with the CHANNEL selector knob.
4. Press the [CALL/SET(MENU)] key.
5. Turn the CHANNEL selector knob to select “AUTO”
or “MANUAL.” In “AUTO” mode, after a DSC POS
Request is received, the radio will automatically
transmit your vessels position. In “MANUAL” mode,
the display of the QUANTUM will show who is re-
questing the position.
6. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
7. To exit this menu and return to radio operation mode press the [16/9] key.
7.8.2.2 Transmitting a Position Request to Another Vessel
NOTE
To transmit a Position Request, you must setup the QUANTUM DSC
Individual / Position Call Directory with the name of the vessel(s) or per-
son and the MMSI of the DSC radio you wish to poll. To setup this direc-
tory refer to section 12.1 Setting up the Individual / Position Call Direc-
tory
1. Press the [CALL/SET(MENU)] key. The “DSC OP-
ERATION” menu will appear in the display.
2. Turn the CHANNEL selector knob to select the “POS
REQUEST.”
3. Press [CALL/SET(MENU)] key to show the Posi-
tion request directory. This directory uses the INDI-
VIDUAL Directory information.
4. Turn the CHANNEL selector knob to select a name.
5. Press the [CALL/SET(MENU)] key to transmit the position request DSC
call.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 46
6. After a DSC position request is transmitted, the trans-
ceiver remains on channel 70 until position data is
received from the polled vessel.
7. When the QUANTUM receives the position from the
polled vessel it is shown on the radio display and
also transferred to the GPS Chart plotter.
8. If the QUANTUM does not receive a reply, the LCD
will display “àSEND” to prompt the user to send
the call again or exit the mode.
NOTE
If the QUANTUM does not receive position data from the polled vessel,
the LCD will show “NO POSITION DATA.”
7.8.2.3 Receiving a Position Request
When a position request call is received from another vessel, a ringing alarm
will sound and POS REQUEST will be show in the LCD. Operation and trans-
ceiver function differs depending on “POS REPLY” in the “DSC SETUP” menu
setting.
Automatically reply:
1. When a position request call is received, a calling alarm sounds 4 times.
Then requested position coordinates are transmit-
ted automatically to the vessel requesting your ves-
sels position.
2. To exit from position request display, press any key.
Manually reply:
1. When a position request call is received from an-
other vessel, the LCD will be as shown in the illus-
tration at the right.
2. A ringing alarm sounds 4 times. Then select type of
reply function “REPLY” or “NO REPLY” by using the
CHANNEL selector knob.
3. The QUANTUM display will show “REPLY” or “NO
REPLY” allowing you choose to send your vessels
location by using the CHANNEL selector knob.
4. When “REPLY” is selected, press the [CALL/SET(MENU)] key. And the
your position will be transmitted to the requesting vessel.
5. To exit from position request display, press any key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 47GX2360S
7.8.3 Position Send
The feature is similar to Position Request, however instead of requesting a
position of another vessel this function allows you to send your position to an-
other vessel. Your vessel must have an operating GPS receiver connected for
the QUANTUM to send the position.
NOTE
To transmit a Position Send Call, you must setup the QUANTUM DSC
Individual / Position Call Directory with the name of the vessel(s) or per-
son and the MMSI of the DSC radio you wish to send your position to. To
setup this directory refer to section 7.7.1 Setting up the Individual / Posi-
tion Call Directory.

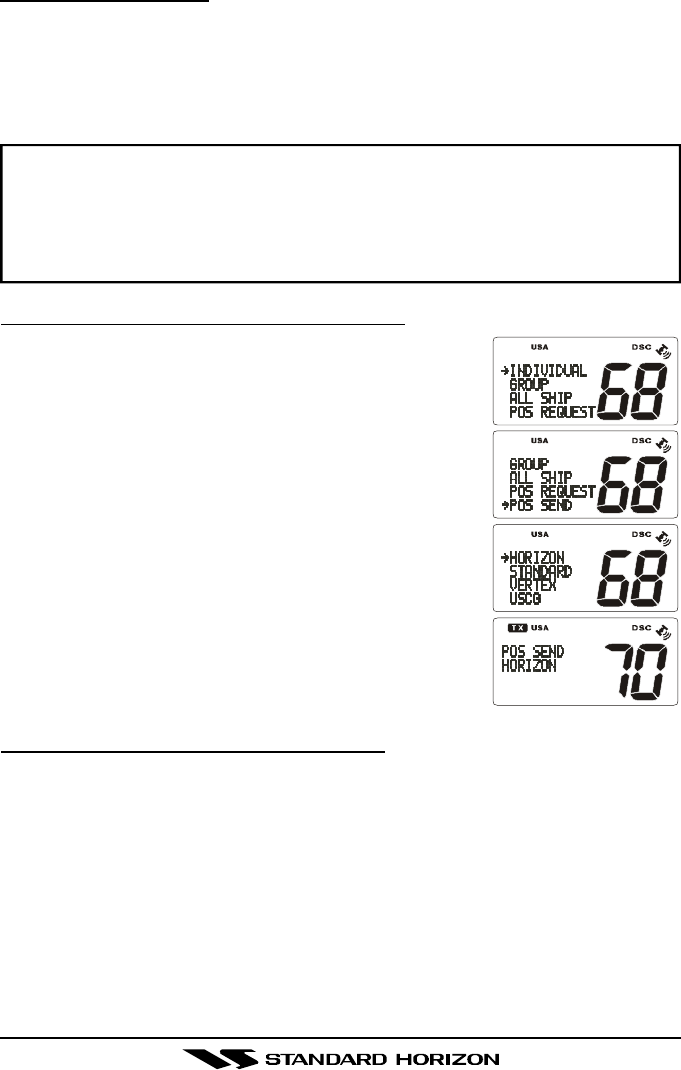

7.8.3.1 Transmitting a DSC Position Send Call
1. Press the [CALL/SET(MENU)] key. The “DSC OP-
ERATION” menu will appear in the display.
2. Turn the CHANNEL selector knob to select the “POS
SEND.”
3. Press the [CALL/SET(MENU)] key to select the In-
dividual directory.
4. Turn the CHANNEL selector knob to select a name
in the directory.
5. Press the [CALL/SET(MENU)] key to send your po-
sition to the selected vessel.
6. After your position is transmitted, the resend menu
will appear. To send your position again, select
“SEND” and press the [CALL/SET(MENU)] key.
7. To exit the mode, select “EXIT” and press the
[CALL/SET(MENU)] key.
7.8.3.2 Receiving a DSC Position Send Call
When another vessel transmits their vessels location to the QUANTUM the
following will happen:
1. A ringing sound will be produced when the call is received.
2. Press the [16/9] key to stop ringing
3. The position from the vessel sending it's position will be shown on the dis-
play of the radio and also transferred to any Standard Horizon GPS Chart
plotter if connected.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 48
8 RADIO SETUP
NOTE
The optional RAM+ MIC CMP25 can be also change the SETUP menu.
Refer to page 54 for details.
8.1 LAMP ADJUSTING
Allows setting up the backlight intensity or to turn it off.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select
“LAMP” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select the de-
sired level. When “OFF” is selected, the lamp is ex-
tinguished.
5. Press the [CALL/SET(MENU)] key to store the se-
lected level.
6. To exit this menu and return to radio operation mode press the [16/9] key.
8.2 LCD CONTRAST
Due to varying mounting (overhead or below) this selection sets up the display
for best viewabilty.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select
“CONTRAST” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET] key.
4. Turn the CHANNEL selector knob to select the de-
sired level. The contrast level can be set from “1” to
“7.”
5. Press the the [CALL/SET(MENU)] key to store the
selected level.
6. To exit this menu and return to radio operation mode press the [16/9] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 49GX2360S
8.3 TIME OFFSET
Sets the time offset between local time and UTC (time GPS sends to radio).
Time is displayed when GPS position (LAT/LON) is displayed by pressing the
[H/L(NAV)] key.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select
“TIME SET” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select time off-
set from UTC. See illustration below to find your off-
set time from UTC. If “0:00” is assigned, the time is
the same as UTC (Universal Time Coordinated or
GMT Greenwich Mean Time).
5. Press the [CALL/SET(MENU)] key to store the time offset.
6. To exit this menu and return to radio operation mode press the [16/9] key.
OFFSET TIME TABLE
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 50
8.4 KEY BEEP (ON/OFF)
This selection allows the beep tone when a key is pressed to be turned off.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select “KEY
BEEP” in the “RADIO SETUP” menu with the CHAN-
NEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select “ON” or
“OFF.”
5. Press the [CALL/SET(MENU)] key to set the key
beep condition.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
NOTE
Emergency alarm and beeps for DSC operation cannot be turned OFF.
8.5 WX ALERT (ON/OFF)
This selection allows the radios NOAA Weather alert to be turned off. Default
setting is ON.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key, then select “WX
ALERT” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select “ON” or
“OFF.”
5. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 51GX2360S
8.6 VOICE SCRAMBLER
(Operates only when the optional CVS2500 is installed)
This menu is used to setup the channels to be scrambled and the scrambler
code.
NOTE
This menu will not appear unless a CVS2500 is installed.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appears.
2. Press the [CALL/SET(MENU)] key then select
“SCRAMBLER” in the “RADIO SETUP” menu with
the CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key then select
“CODE” in the “SCRAMBLER” menu with the CHAN-
NEL selector knob.
4Press the [CALL/SET(MENU)] key then turn the
CHANNEL selector knob to change the scrambler
code. The scrambler code can be set from “0” to “3”
and “OFF.” When “OFF” is selected the voice scram-
bler is disabled.
5. Press the [CALL/SET(MENU)] key to store the se-
lected code.
6. Select “CHANNEL” in the “SCRAMBLER” menu with
the CHANNEL selector knob, then press the [CALL/
SET] key.
7. Turn the CHANNEL selector knob to change the
Scrambler channel.
8. Press the [SCAN] key to store the selected chan-
nel. Repeat steps 6 and 7 to set other channels.
9. Press the [CALL/SET(MENU)] key to return to the “SCRAMBLER” menu.
10. To exit this menu and return to radio operation mode press the [16/9] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 52
8.7 CHANNEL NAMING
This selection allows you to customize the name of a channel from the default
name.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appear.
2. Press the [CALL/SET(MENU)] key, then select “CH
NAME” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select the chan-
nel to be named and press the [CALL/SET(MENU)]
key.
5. Turn the CHANNEL selector knob scroll through the
alphabet and 0 - 9.
6. Press the [CALL/SET(MENU)] key to enter the de-
sired letter and move the cursor one space to the
right.
7. Repeat procedure until the name is complete. The
name can consist of up to twelve characters. If you
do not use all twelve character, press the
[CALL/SET(MENU)] key to move to the next space.
To clear the previous letter, press the [H/L(NAV)]
key.
8. Press and hold down the [CALL/SET(MENU)] key to enter the name and
exit from the “CH NAME” menu. The LCD will return to the “SETUP” menu.
9. If you want to enter the name of another channel, repeat steps 3 through 8.
10. To exit this menu and return to radio operation mode press the [16/9] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 53GX2360S
8.8 TRUE MAGNETIC CHANGE (NAV display)
Allows customizing the GPS COG (Course Over Ground) displayed on the LCD
to be in True or Magnetic.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appear.
2. Press the [CALL/SET(MENU)] key, then select
“TRUE MAG” in the “RADIO SETUP” menu with the
CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select “MAG-
NETIC” or “TRUE.”
5. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
8.9 FOG ALERT TONE FREQUENCY
This selection allows you to select the Alert Tone Frequency for the PA/FOG
Operation. Available selections are “250 Hz” through “850 Hz” in 50 Hz step
multiple.
1. Press and hold down the [CALL/SET(MENU)] key
until “RADIO SETUP” menu appear.
2. Press the [CALL/SET(MENU)] key, then select
“FOG FREQ.” in the “RADIO SETUP” menu with
the CHANNEL selector knob.
3. Press the [CALL/SET(MENU)] key.
4. Turn the CHANNEL selector knob to select desired
tone frequency.
5. Press the [CALL/SET(MENU)] key to store the se-
lected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 54
9 RAM+ MIC OPERATION
If the enhanced optional RAM+ Mic (CMP25) is connected to the remote micro-
phone connector on the transceiver’s rear panel, the transceiver can use the
remote control operation except for a few functions. The RAM+ Mic supplied
with 23 feet (7 m) of routing cable and can be extended up to 70 feet (21 m)
using three 23 feet extension cables model CT-100. The intercom operation
can be used between the RAM+ Mic and the transceiver.
9.1 RAM+ MIC CONTROLS
SQUELCH CONTROL (SQL)
Activates the squelch adjusting mode.
Press this key to activate the squelch adjusting mode. Press the
microphone’s [p] or [q] key to adjust the squelch.
When this key is pressed and held down for 1 second or more, the squelch
is turned off.
VOLUME KEY (VOL)
Activates the volume adjusting mode.
Press this key to activate the volume adjusting mode. Press the
microphone’s [p] or [q] to adjust the volume.
SCAN DW
NAV
WX
CALL
SET
MEM IC
U.I.C
MENU
16
9
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 55GX2360S
POWER SWITCH (PWR)
Press and hold down this key to turn to the transceiver and RAM+ Mic on
and off.
PTT (Push-To-Talk) SWITCH
Activates transmission.
[H/L] KEY
Toggles between high and low power. When the [H/L] key is pressed while
the transceiver is on channel 13 or 67, the power will temporarily switch
from LO to HI power until the PTT is released. The [H/L] key does not
function on transmit inhibited and low power only channels.
[p](UP)/[q](DOWN) KEY
These keys are used to select channels, adjusts the volume and squelch
level, and to choose the item selection of different functions (such as the
DSC operation). In many ways, these keys emulate the function of the
transceiver’s CHANNEL selector knob.
[16/9] KEY
Immediately recalls channel 16 from any channel location. Holding down
this key recalls channel 9. Pressing the [16/9] key reverts to the previous
selected working channel.
Secondary use
Please see secondary use for the [WX] and [MEM] key.
KEY PAD
[SCAN] Key
1. Starts and stops scanning of programmed channels.
2. If held while the [UP(p)] or [DOWN(q)] key on the microphone are
pressed or CHANNEL selector knob on radio is turned, the radio will
show the channels programmed in scan memory. This function will
not work if the unit is scanning.
NOTE: The priority channel is channel 16 only.
[CALL/SET] Key
The [CALL/SET] key functions as the enter key.
Secondary use
Press the [CALL/SET] key to access the DSC OPERATION menu.
Press and hold the [CALL/SET] key to access the SETUP menu.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 56
[DW] Key
Watches for a transmission on CH16 and another selected channel until
either signal is received. (Dual watch)
NOTE: When the DSC SCANNING feature is enabled (see section 7.15
DSC SCAN), the radio watches for a transmission on CH16, another
selected channel, and CH70 until either signal is received (Triple watch).
Secondary use
Press and hold [DW] key, intercom operation will operate between radio
and RAM Mic.
[NAV] Key
Press and hold this key, when connected to the GPS receiver, the LCD
displays Position Data, Time, SOG (Speed Over Ground), and COG (Course
Over Ground) from the GPS.
[WX] Key
Immediately recalls the previously selected NOAA weather channel from
any channel location.
Secondary use
1. Holding down the [16/9] key while pressing the [WX] key changes the
mode from USA to International or Canadian.
NOTE: If position is displayed, this icon will be hidden.
2. Holding down the [WX] and [SCAN] key while turning the power on re-
sets the microprocessor and erases scan channels from memory. This
clears the memory and establishes the factory-set defaults. For a list of
these defaults, see the section on Resetting the Transceiver’s Micropro-
cessor.
[DISTRESS] KEY
Used to send a DSC Distress Call. To send the distress call:
1. Lift the red rubber cover.
2. Press and hold the Red button. The RAM+ display will
count down (3-2-1) and then transmit the Distress call.
3. When the distress signal is sent, Ch70 and “TX” icon will
appear on the LCD. After the message has been sent,
the radio will sound a Distress Alarm.
4. The transceiver “shadow-watches” for a transmission on
CH16 or CH70 until an acknowledgment signal is re-
ceived. “DISTRESS” and “WAITING” will appear on the
LCD.
5. If an acknowledgement is received, select channel 16 and
advise your distress situation.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 57GX2360S
6. If no acknowledgment is received, the distress call is repeated in 4 minute
intervals until an acknowledgment is received.
7. When a DSC Distress acknowledgment is received, a distress alarm
sounds and channel 16 is automatically selected. The LCD shows the
MMSI of the ship responding to your distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast
station.
8. To cancel the DSC distress alarm signal from the speaker, press any
key.
9.2 INTERCOM OPERATION
9.2.1 Communication
1. Press and hold the [DW] key while in the “RADIO” mode,
the mode is changed to “INTERCOM” mode.
2. If your QUANTUM is equipped two RAM+ Mic, select the
companion you wish to communicate (RADIO, RAM, or ALL)
with the [p]/[q] key, then press the [CALL/SET] key to ter-
minated.
3.When the “INTERCOM” operation is activated, “IC” is dis-
played on the RAM+ Mic and “INTERCOM” is displayed on
the QUANTUM.
4.Press the PTT switch. The “TALK” is
displayed.
NOTE: A warning beep is emitted
when the RAM+ Mic PTT switch is
pressed while the transceiver
microphone’s PTT switch is pressed.
5.Speak slowly and clearly into the mi-
crophone, hold the microphone about
1/2 inch away from your mouth.
6.When finished, release the PTT switch.
7. Press the [DW] key again the mode will revert to “RADIO” mode.
9.2.2 Calling
Hold down the [DW] key for 1 second or more, when the “INTERCOM” opera-
tion is activated. A calling beep is emitted twice from the transceiver speaker.
(RAM+ Mic’s PTT switch is pressed)
(MATRIX’s PTT switch is pressed)
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 58
9.3 DSC/RADIO SETUP MODE
The CMP25 can access the DSC / RADIO setup menu (refer to section 7
“DSC/RADIO SETUP” for details). However, the LAMP, CONTRAST, and KEY
BEEP menu item which is accessed from the CMP25 only controls the CMP25’s
display and speaker.
DSC/RADIO Setup mode from the CMP25:
1. Press and hold down the [CALL/SET] key until “RADIO SETUP” menu
appears.
2. Press the [p]/[q] key to select “RADIO SET” or “DSC SETUP” menu.
3. Press the [CALL/SET] key, then select the menu item you wish to work on
by pressing the [p]/[q] key.
4. Press the [CALL/SET] key.
5. Press the [p]/[q] key to change the value or condition for the menu item,
then press the [CALL/SET] key to save the new setting.
6. Press the [p]/[q] key to select “EXIT,” then press the [CALL/SET] key to
return to the normal operation.
RADIO SETUP-menu DSC SETUP-menu
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 59GX2360S
10 MAINTENANCE
The inherent quality of the solid-state components used in this transceiver will
provide many years of continuous use. Taking the following precautions will
prevent damage to the transceiver.
•Keep the microphone connected or the jack covered at all times to prevent
corrosion of electrical contacts;
•Never key the microphone unless an antenna or suitable dummy load is
connected to the transceiver.
•Ensure that the supply voltage to the transceiver does not exceed 16 VDC
or fall below 11 VDC.
•Use only STANDARD HORIZON-approved accessories and replacement
parts.
In the unlikely event of serious problems, please contact your Dealer or our
repair facility. Address and phone numbers for this facility, as well as warranty
information, are contained in section 12 WARRANTY.
10.1 REPLACEMENT PARTS
Occasionally an owner needs a replacement mounting bracket or knob.
These can be ordered from our Parts Department by writing or calling:
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Telephone (714) 827-7600
Commonly requested parts, and their part numbers are listed below.
•Power Code: T9023306
•VOL/SQL Knob: RA0542600
•Rotary Channel Knob: RA0542500
•Mounting Bracket: RA0544200
•Mounting Bracket Knob: RA045910A
•Microphone Hanger: RA0458800
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 60
10.2 FACTORY SERVICE
In the unlikely event that the radio fails to perform or needs servicing, please
contact the following:
Standard Horizon
Attention Marine Repair Department
10900 Walker Street
Cypress, CA 90630
Telephone (800) 366-4566
An “RA” Return Authorization number is not necessary to send a product in for
service. Include a brief note describing the problem along with your name, re-
turn address, phone number, and proof of purchase.
10.3 TROUBLESHOOTING CHART
SYMPTON
Transceiver fails to
power up.
Transceiver blows fuse
when connected to
power supply.
Popping or whining
noise from the speaker
while engine runs.
Sound is not emitted
from the external
speaker.
Receiving station re-
port low transmit
power, even with trans-
ceiver set to HI power.
“HI BATTERY” or “LO
BATTERY” message is
appeared when the
power is turned on.
Your position is not dis-
played.
PROBABLE CAUSE
No DC voltage to the
transceiver, or blown
fuse.
Reversed power
wires.
Engine noise.
Accessory cable.
Antenna.
The power supply
voltage is too high or
too low.
Accessory cable.
Setting of the GPS
navigation receiver.
REMEDY
a. Check the 12VDC battery connections and
the fuse.
b. The VOL/PWR knob needs to be pressed
and held to turn the radio on.
Check the power cable for DC voltage, or re-
place the fuse (6A 250V).
Make sure the red wire is connected to the posi-
tive (+) battery post, and the black wire is con-
nected to the negative (-) battery post. If the
fuse still blows, contact your Dealer.
Reroute the DC power cables away from the
engine. Add noise suppressor on power cable.
Change to resistive spark plug wires and/or add
an alternator whine filter.
Check the connections of the accessory cable.
Have the antenna checked or test the trans-
ceiver with another antenna. If the problem per-
sists, contact your Dealer for servicing.
Confirm that the connected power supply volt-
age is not 17 volts or lower than 10 volts. Con-
firm that the generator has not malfunctioned.
Check the accessory cable connection.
Some GPS use the battery ground line for
NMEA connection.
Check the output signal format of the GPS navi-
gation receiver. This radio requires NMEA0183
format with GLL sentence as an output signal.
If the GPS has a baud rate setting make sure
to select 4800 and parity to NONE.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 61GX2360S
11. CHANNEL ASSIGNMENTS
Tables on the following columns list the VHF Marine Channel assignments for
U.S.A. and International use. Below are listed some data about the charts.
1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s
Vessel Traffic System.
2. Alpha channel numbers, that is, channel numbers followed by the letter A
(such as Channel 07A) are simplex channels on the U.S.A. or Canadian
channel assignments whose counterparts in the International assignments
are duplex channels. International channels do not use “alpha” numbers. If
you call the Coast Guard on Channel 16, they will sometimes ask you to
“go to channel 22 Alpha.” This is a channel assigned to U.S.A, and Cana-
dian Coast Guards for handling distress and other calls. If your radio is set
for International operation you will go to Channel 22 instead of 22A, and
will not be able to communicate with the Coast Guard. To use Channel 22A,
your radio must be set for USA or Canada operation, usually by a U/I/C
(USA/International/Canada) control or combination of controls. Channel 22
(without an “A”) is an International duplex channel for port operations.
Some radios indicate an “A” adjacent to the alpha channels on the display;
on others “alpha” is not indicated but the proper channel is selected based
on the U/I/C setting.
3. Bridge-to-Bridge channels (for example, Channel 13) are for use by bridge
operators on intercoastal waterways and rivers. It is also used by marine
vessels in the vicinity of these bridges for navigation and for communicat-
ing with the bridge operators. Note that a limit of 1 Watt is specified for
these channels. See page 27 for additional information.
4. The S/D column on the chart indicates either S (simplex) or D (duplex).
Simplex means transmitting and receiving on the same frequency. Only
one party at a time can talk, unlike a telephone. Be sure to say “over” and
release your microphone push-to-talk switch at the end of each transmis-
sion. Duplex operation involves the use of one frequency for transmitting
and a separate frequency for receiving. On channels specified as duplex
on the charts, correct mode of operation is established automatically by
your radio when you select a channel; you cannot change the mode. And
you still must release the push-to-talk switch after each transmission in
order to listen to the radio.
5. Channels normally used by recreational boaters are those that include the
term “non-commercial” in the Channel Use column of the chart. Some of
these are shared with other users and some are used only in certain geo-
graphic regions.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 62
6. Marine vessels equipped with VHF radios are required to monitor
Channel 16.
VHF MARINE CHANNEL CHART
CH U C IS/D TX RX CHANNEL USE
01 XXD156.050 160.650 Public Correspondence (Marine Operator)
01A X S 156.050 Port Operation and Commercial.
VTS in selected areas
02 XXD156.100 160.700 Public Correspondence (Marine Operator)
03 XXD156.150 160.750 Public Correspondence (Marine Operator)
03A X S 156.150 US Government only, Coast Guard
04 XD156.200 160.800 Public Correspondence (Marine Operator),
Port operation, ship movement
04A X S 156.200 Pacific coast: Coast Guard, East Coast:
Commercial fishing
05 XD156.250 160.850 Public Correspondence (Marine Operator),
Port operation, ship movement
05A X X S 156.250 Port operation. VTS in Seattle
06 X X X S 156.300 Inter-ship Sefety
07 XD156.350 160.950 Public Correspondence (Marine Operator),
Port operation, ship movement
07A X X S 156.350 Commercial
08 X X X S 156.400 Commercial (Inter-ship only)
09 X X X S 156.450 Boater Calling channel, Commercial &
Non-commercial (Recreational)
10 X X X S 156.500 Commercial
11 X X X S 156.550 Commercial. VTS in selected areas.
12 X X X S 156.600 Port operation. VTS in selected areas.
13 X X X S 156.650 Inter-ship Navigation Safety (Bridge-to-bridge)
14 X X X S 156.700 Port operation. VTS in selected areas.
15 X S - - - 156.750 Environmental (Receive only)
15 X X S 156.750 Commercial, non-commercial, ship movement (1 W)
16 X X X S 156.800 International Distress, Safety and Calling
17 X X X S 156.850 State Controlled (1 W)
18 XD156.900 161.500 Port operation, ship movement
18A X X S 156.900 Commercial
19 XD156.950 161.550 Port operation, ship movement
19A X S 156.950 US: Commercial
19A X S 156.950 Coast Guard
20 XXXD157.000 161.600 Canadian Coast Guard Only,
International: port operations and shipment
20A X S 157.000 Port operation
21 XD157.050 161.650 Port operation, ship movement
21A X X S 157.050 U.S. Government Only, Canadian Coast Guard
22 XD157.100 161.700 Port operation, ship movement
22A X X S 157.100 US and Canadian Coast Guard Liaison and
Maritime Safety Information Broadcasts announced
on channel 16
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 63GX2360S
VHF MARINE CHANNEL CHART
CH U C IS/D TX RX CHANNEL USE
23 XXD157.150 161.750 Public Correspondence (Marine Operator)
23A X S 157.150 U.S. Government Only
24 XXXD157.200 161.800 Public Correspondence (Marine Operator)
25 XXXD157.250 161.850 Public Correspondence (Marine Operator)
26 XXXD157.300 161.900 Public Correspondence (Marine Operator)
27 XXXD157.350 161.950 Public Correspondence (Marine Operator)
28 XXXD157.400 162.000 Public Correspondence (Marine Operator)
60 XXD156.025 160.625 Public Correspondence (Marine Operator)
61 XD156.075 160.675 Public Correspondence (Marine Operator),
Port operation, ship movement
61A X X S 156.075 U.S. Government Only, Canadian Coast Guard-
Pacific Coast, Commercial Fishing-East Coast
62 XD156.125 160.725 Public Correspondence (Marine Operator),
Port operation, ship movement
62A X S 156.125 Public Coast: Coast Guard;
East Coast: commercial fishing only
63 XD156.175 160.775 Public Correspondence (Marine Operator),
Port operation, ship movement
63A X S 156.175 Port Operation and Commercial.
VTS in selected areas.
64 XXD156.225 160.825 Public Correspondence (Marine Operator),
Port operation, ship movement
64A X X S 156.225 U.S. Government Only,
Canadian Commercial Fishing
65 XD156.275 160.875 Public Correspondence (Marine Operator),
Port operation, ship movement
65A X X S 156.275 Port Opeations
66 XD156.325 160.925 Public Correspondence (Marine Operator),
Port operation, ship movement
66A X X S 156.325 Port Operations
67 X X X S 156.375 US: Commercial. Used for Bridge-to-bridge com
muni-cations in lower Mississippi River. Inter-ship
only,
Canada: Commercial fishing, S&R
68 X X X S 156.425 Non-commercial (Recreational)
69 X X X S 156.475 US: Non-commercial (Recreational),
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
70 X X X S 156.525 Digital selective calling (voice communications not
allowed)
71 X X X S 156.575 US, Canada: Non-commercial (Recreational),
International: Port opertions and Ship movement
72 X X X S 156.625 Non-commercial (Inter-ship only)
73 X X X S 156.675 US: Port Operations,
Canada: Commercial fish ing only,
International: Inter-ship, Port opertions and Ship
movement
74 X X X S 156.725 US: Port Operations,
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 64
VHF MARINE CHANNEL CHART
CH U C IS/D TX RX CHANNEL USE
75 X S 156.775 Port Operations (Inter-ship only) (1W)
76 X S 156.825 Port Operations (Inter-ship only) (1W)
77 X X S 156.875 Port Operations (Inter-ship only) (1W)
77 X S 156.875 Port Operations (Inter-ship only)
78 XD156.925 161.525 Public Correspondence (Marine Operator),
Port operation, ship-movement
78A X X S 156.925 Non-commercial (Recreational)
79 XD156.975 161.575 Port operation and Ship movement
79A X X S 156.975 Commercial
80 XD157.025 161.625 Port operation, ship movement
80A X X S 157.025 Commercial
81 XD157.075 161.675 Port operation, ship movement
81A X X S 157.075 U.S. Government Only -
Environmental protection operations.
82 XD157.125 161.725 Public Correspondence (Marine Operator),
Port operation, ship movement
82A X X S 157.125 U.S. Government Only,
Canadian Coast Guard Only
83 XXD157.175 161.775 Canadian Coast Guard Only
83A X X S 157.175 U.S. Government Only,
Canadian Coast Guard Only
83 XXD157.175 161.775 Public Correspondence (Marine Operator)
84 XXXD157.225 161.825 Public Correspondence (Marine Operator)
85 XXXD157.275 161.875 Public Correspondence (Marine Operator)
86 XXXD157.325 161.925 Public Correspondence (Marine Operator)
87 XXXD157.375 161.975 Public Correspondence (Marine Operator)
88 XXXD157.425 162.025 Public Correspondence (ship-to-coast)
88A X S 157.425 Commercial, Inter-ship Only
WX01
XXXD- - - 162.550 Weather (receive only)
WX02
XXXD- - - 162.400 Weather (receive only)
WX03
XXXD- - - 162.475 Weather (receive only)
WX04
XXXD- - - 162.425 Weather (receive only)
WX05
XXXD- - - 162.450 Weather (receive only)
WX06
XXXD- - - 162.500 Weather (receive only)
WX07
XXXD- - - 162.525 Weather (receive only)
WX08
XXXD- - - 161.650 Weather (receive only)
WX09
XXXD- - - 161.775 Weather (receive only)
WX10
XXXD- - - 163.275 Weather (receive only)
The above BOLD channels are not for use of the general public in U.S. waters, unless proper authorization is
given.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 65GX2360S
1: 156.050 MHz and 156.175 MHz are available for port operations and commercial com-
munications purposes when used only within the U.S. Coast Guard designated Vessel
Traffic Services (VTS) area of New Orleans, on the lower Mississippi River from the
various pass entrances in the Gulf of Mexico to Devil’s Swamp Light at River Mile 242.4
above head of passes near Baton Rouge.
2: 156.250 MHz is available for port operations communications use only within the U.S.
Coast Guard designated VTS radio protection areas of New Orleans and Houston de-
scribed in Sec. 80.383. 156.250 MHz is available for intership port operations communi-
cations used only within the area of Los Angeles and Long Beach harbors, within a 25-
nautical mile radius of Point Fermin, California.
3: 156.550 MHz, 156.600 MHz and 156.700 MHz are available in the U.S. Coast Guard
designated port areas only for VTS communications and in the Great Lakes available
primarily for communications relating to the movement of ships in sectors designated by
the St. Lawrence Seaway Development Corporation or the U.S. Coast Guard. The use of
these frequencies outside VTS and ship movement sector protected areas is permitted
provided they cause no interference to VTS and ship movement communications in thier
respective designated sectors.
Noncommercial
6817 156.425 156.425
0916 156.450 156.450
69 156.475 156.475
71 156.575 156.575
72 156.625 ........ Intership only.
78A 156.925 156.925
79A 156.975 156.975 Great Lakes only.
80A 157.025 157.025 Do.
6714 156.375 ....... Internship only.
Distress, Safety and Calling
16 156.800 156.800 EPRIB
Intership Safety
06 156.300 ........ a. Intership, or
b. For SAR: Ship
and aircraft for the
U.S. Coast Guard.
Environmental
1513 ........ 156.750 Coast to ship only.
Maritime Control
179,10 156.850 156.850
Liaison, U.S. Coast Guard
22A11 157.100 157.100 Ship, aircraft, and
coast stations of
the U.S. Coast
Guard and at
Lake Mead, Nev.,
ship and coast
stations of the
National Park
Service, U.S.
Department of the
Interior.
Port Operations
01A1156.050 156.050
63A1156.175 156.175
052156.250 156.250
65A 156.275 156.275
66A 156.325 156.325
123156.600 156.600
73 156.675 156.675
143156.700 156.700
74 156.725 156.725
774156.875 Intership only.
20A12 157.000 Intership only.
Navigational (Bridge-to-Bridge)5
136156.650 156.650
677156.375 156.375
Commercial
01A1156.050 156.050
63A1156.175 156.175
07A 156.350 156.350
677156.375 Intership only.
08 156.400 ........ Do.
09 156.450 156.450
10 156.500 156.500
113156.550 156.550
18A 156.900 156.900
19A 156.950 156.950
79A 156.975 156.975
80A 157.025 157.025
88A8157.425 ........ Intership only.
7214 156.625 ........ Internship only.
Digital Selective Calling
7015 156.525 156.525
Ship
transmit
Channel
designator
Carrier frequency
(
MHz
)
Points of communica-
tion
(
Intership and be-
tween coast and ship
unless otherwise
iandicated
)
Coast
transmit Ship
transmit
Channel
designator
Carrier frequency
(
MHz
)
Points of communica-
tion
(
Intership and be-
tween coast and ship
unless otherwise
iandicated
)
Coast
transmit
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 66
4: Use of 156.875 MHz is limited to communications with pilots regarding the movement
and docking of ships. Normal output power must not exceed 1 watt.
5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational commu-
nications. These frequencies are available between coast and ship on a secondary basis
when used on or in the vicinity of locks or drawbridges. Normal output power must not
exceed 1 watt. Maximum output power must not exceed 10 watts for coast stations or 25
watts for ship stations.
6: On the Great Lakes, in addition to bridge-to-bridge communications, 156.650 MHz is
available for vessel control purposes in established vessel traffic systems. 156.650 MHz
is not available for use in the Mississippi River from South Pass Lighted Whistle Buoy “2”
and Southwest Pass entrance Midchannel Lighted Whistle Buoy to mile 242.4 above
Head of Passes near Baton Rouge. Additionally it is not available for use in the Missis-
sippi River-Gulf Outlet, the Mississippi River-Gulf Outlet Canal, and the Inner Harbor
Navigational Canal, except to aid the transition from these areas.
7: Use of 156.375 MHz is available for navigational communications only in the Mississippi
River from South Pass Lighted Whistle Buoy “2” and Southwest Pass entrance Mid-
channel Lighted Whistle Buoy to mile 242.4 above head of Passes near Baton Rouge,
and in addition over the full length of the Mississippi River-Gulf Outlet Canal from en-
trance to its junction with the Inner Harbor Navigation Canal, and over the ull length of
the Inner Harbor Navigation Canal from its junction with the Mississippi River to its entry
to Lake Pontchartrain at the New Seabrook vehicular bridge.
8: Within 120 km (75 miles) of the United States/Canada border, in the area of the Puget
Sound and the Strait of Juan de Fuca and its approaches, 157.425 MHz is half of the
duplex pair designated as Channel 88. In this area, Channel 88 is available to ship
stations for communications with public coast stations only. More than 120 km (75 miles)
from the United States/Canada border in the area of the Puget Sound and the Strait of
Juan de Fuca, its approaches, the Great Lakes, and the St. Lawrence Seaway, 157.425
MHz is available for intership and commercial communications. Outside Puget Sound
area and its approaches and the Great Lakes, 157.425 MHz is also available for commu-
nications between commercial fishing vessels and associated aircraft while engaged in
commercial fishing activities.
9: When the frequency 156.850 MHz is authorized, it may be used additionally for search
and rescue training exercises conducted by state or local governments.
10: The frequency 156.850 MHz is additionally available to coast stations on the Great Lakes
for transmission of scheduled Coded Marine Weather Forecasts (MAFOR), Great Lakes
Weather Broadcast (LAWEB) and nscheduled Notices to Mariners or Bulletins. F3C and
J3C emissions are permitted. Coast Stations on the Great Lakes must cease weather
broadcasts which cause interference to stations operating on 156.800 MHz until the
interference problem is resolved.
11: The frequency 157.100 MHz is authorized for search and rescuetraining exercises by
state or local government in conjunction with U.S. Coast Guard stations. Prior U.S. Coast
Guard approval is required. Use must cease immediately on U.S. Coast Guard request.
12: The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to coast
station communications.
13: Available for assignment to coast stations, the use of which is in accord with an agreed
program, for the broadcast of information to ship stations concerning the environmental
conditions in which vessels operate, i.e., weather; sea conditions; time signals; notices
to mariners; and hazards to navigation.
14: Available only in the Puget Sound and the Strait of Juan de Fuca.
15: The frequency 156.525 MHz is to be used exclusively for distress, safety and calling
using digital selective calling techniques. No other uses are permitted.
16: The frequency 156.450 MHz is available for intership, ship and coast general purpose
calling by noncommercial vessels, such as recreational boats and private coast stations.
17: The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska for
facsimile transmissions as well as voice communications.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 67GX2360S
12. WARRANTY
Marine Products Limited Warranty
STANDARD HORIZON (a division of VERTEX STANDARD) warrants, to the
original purchaser only, each new Marine Communications Product (“Product”)
manufactured and/or supplied by STANDARD HORIZON against defects in
materials and workmanship under normal use and service for a period of time
from the date of purchase as follows:
Fixed Mount and Portable Transceivers
1 year - if purchased before 01/01/91
3 years - if purchased between 01/01/91 and 01/01/94
3 years Waterproof - if purchased after 01/01/94
Loud hailers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Chargers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Batteries - 18 months. Note: Batteries will be deemed deflective
only if storage capacity drops below 80% of rated capacity or if leakage devel-
ops.
Associated Accessories - 1 year. Includes: Microphones/Handsets, External
Speakers, Antennas, Carrying Accessories, Power Supplies, and Signaling
Boards.
To receive warranty service, the purchaser must deliver the Product, transpor-
tation and insurance prepaid, to STANDARD HORIZON (a division of VERTEX
STANDARD), Attention Marine repairs 10900 Walker Street, Cypress, CA 90630.
Include proof of purchase indicating model. serial number, and date of pur-
chase. STANDARD HORIZON will return the Product to the purchaser freight
prepaid. Products purchased prior to January 1, 1991 will bear the STANDARD
HORIZON warranty terms in effect prior to that date.
In the event of a defect, malfunction or failure of the Product during the war-
ranty period, STANDARD HORIZON’s liability for any breach of contract or any
breach of express or implied warranties in connection with the sale of Products
shall be limited solely to repair or replacement, at its option, of the Product or
part(s) therein which, upon examination by STANDARD HORIZON, appear to
be defective or not up to factory specifications. STANDARD HORIZON may, at
its option, repair or replace parts or subassemblies with new or reconditioned
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 68
parts and subassemblies. Parts thus repaired or replaced are warranted for the
balance of the original applicable warranty.
STANDARD HORIZON will not warrant installation, maintenance or service of
the Products. In all instances, STANDARD HORIZON’s liability for damages
shall not exceed the purchase price of the defective Product.
This warranty only extends to Products sold within the 50 States of the United
States of America and the District of Columbia.
STANDARD HORIZON will pay all labor to repair the product and replacement
parts charges incurred in providing the warranty service except where purchaser
abuse or other qualifying exceptions exist. The purchaser must pay any trans-
portation expenses incurred in returning the Product to STANDARD HORIZON
for service.
This limited warranty does not extend to any Product which has been subjected
to misuse, neglect, accident, incorrect wiring by anyone other than STANDARD
HORIZON, improper installation, or subjected to use in violation of instructions
furnished by STANDARD HORIZON, nor does this warranty extend to Prod-
ucts on which the serial number has been removed, defaced, or changed. STAN-
DARD HORIZON cannot be responsible in any way for ancillary equipment not
furnished by STANDARD HORIZON which is attached to or used in connection
with STANDARD HORIZON’s Products, or for the operation of the Product with
any ancillary equipment, and all such equipment is expressly excluded from
this warranty. STANDARD HORIZON disclaims liability for range, coverage, or
operation of the Product and ancillary equipment as a whole under this war-
ranty. STANDARD HORIZON reserves the right to make changes or improve-
ments in Products, during subsequent production, without incurring the obliga-
tion to install such changes or improvements on previously manufactured Prod-
ucts.
The implied warranties which the law imposes on the sale of this Product are
expressly LIMITED, in duration, to the time period specified above. STANDARD
HORIZON shall not be liable under any circumstances for consequential dam-
ages resulting from the use and operation of this Product, or from the breach of
this LIMITED WARRANTY, any implied warranties, or any contract with STAN-
DARD HORIZON. IN CONNECTION WITH THE SALE OF ITS PRODUCTS,
STANDARD HORIZON MAKES NO WARRANTIES, EXPRESS OR IMPLIED
AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE OR OTHERWISE, EXCEPT AS EXPRESSLY SET FORTH HEREIN.
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
Page 69GX2360S
Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, or limitation on how long an implied warranty lasts, so the above
limitations or exclusions may not apply. This warranty gives specific legal rights,
and there may be other rights which may vary from state to state.
ONLY PRODUCTS SOLD ON OR AFTER JANUARY 1, 1991 ARE COVERED
UNDER THE TERMS OF THIS LIMITED WARRANTY.
ON-LINE WARRANTY REGISTRATION
THANK YOU for buying STANDARD HORIZON (a division of Vertex Stan-
dard) products! We are confident your new radio will serve your needs
for many years!
Please visit www.standardhorizon.com to register the QUANTUM Ma-
rine VHF. It should be noted that visiting the Web site from time to time
may be beneficial to you, as new products are released they will appear
on the STANDARD HORIZON Web site. Also a statement regarding prod-
uct support should be added to the manual.
Product Support Inquiries
If you have any questions or comments regarding the use of the QUAN-
TUM, you can visit the STANDARD HORIZON Web site to send an E-
Mail or contact the Product Support team at (714) 827-7600 ext 6300 M-
F 7:00-5:00PST.
In addition to the warranty, STANDARD HORIZON includes a lifetime
“flat rate” program to provide service after the warranty period has ex-
pired. If you wish to obtain the flat rate price for out-of-warranty repair,
you must include the information on the Owner’s Record with the unit
when you return it to your Dealer or to STANDARD HORIZON.
Lifetime Flat Rate Service Program: For the original Owner only, for the
lifetime of the unit, STANDARD HORIZON will repair the unit to original
specifications.
Note: The flat rate amount is payable by the Owner only if STANDARD
HORIZON or the STANDARD HORIZON Dealer determines that a re-
pair is needed. After the repair, a 90-day warranty will be in effect from
the date of return of the unit to the Owner.
This service program is not available for equipment which has failed as a
result of neglect, accident, breakage, misuse, improper installation or
modification, or water damage (depending on the product).
FCC ID: K6630043X30 / IC ID: 511B-30043X30
Vertex Standard Co., Ltd.
GX2360SPage 70
13 SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are
subject to change without notice.
13.1 GENERAL
Channels............................................... All USA, International and Canadian
Input Voltage ........................................................................13.8 VDC ±20%
Current Drain
Standby ........................................................................................... 0.5 A
Receive........................................................................................... 1.5 A
Transmit ................................................................... 5.0 A (Hi); 1.5 A (Lo)
Dimensions ...................................................3-1/4” H x 7-1/4” W x 6-5/16” D
(83 H x 184 W x 135 D mm)
Flush-Mount Dimensions .................................2-5/8” H x 6-5/8” W x 5-1/8” D
(67 H x 168 W x 130 D mm)
Weight ..................................................................................... 2.2 lbs (1 kg)
13.2 TRANSMITTER
Frequency Range ....................................................156.025 to 157.425 MHz
RF Output ...................................................................... 25 W (Hi); 1 W (Lo)
Conducted Spurious Emissions ................................... 80 dB (Hi); 60 dB (Lo)
Audio Response ................................................ within +1/-3 of a 6 dB/octave
pre-emphasis characteristic at 300 to 3000 Hz
Audio Distortion ...................................................................................... 5 %
Modulation ...................................................... 16K0G3E, for DSC 16K0G2B
Frequency Stability (-20°C to +50°C) .............................................. ±0.0005%
FM Hum and Noise ............................................................................. 50 dB
13.3 RECEIVER
Frequency Range ....................................................156.050 to 163.275 MHz
Sensitivity
20 dB Quieting ............................................................................ 0.35 µV
12 dB SINAD ............................................................................... 0.25 µV
Squelch Sensitivity (Threshold) .................................................... 0.13 µV
Modulation Acceptance Bandwidth................................................... ±7.5 kHz
Selectivity
Spurious and Image Rejection ...................................... better than -70 dB
Intermodulation and Rejection at 12 dB SINAD ............. better than -70 dB
Audio Output ....................................................................................... 4.5 W
Audio Response .............................................. within + 2/–8 of a 6 dB/octave
de-emphasis characteristic at 300 to 3000 Hz
Frequency Stability (-20°C to +50°C) ............................................. ±0.0005 %
Channel Spacing ................................................................................25 kHz
DSC Format ............................................................................. RTCMSC101
NMEA Input/Output .........................................................Output - DSC, DSE
Input - GLL, GGA, RMC and GNS
