Yaesu Musen 30063X30 MARINE MOBILE TRANSCEIVER User Manual GX3500S p65
Yaesu Musen Co., Ltd. MARINE MOBILE TRANSCEIVER GX3500S p65
USERS MANUAL
Page 1GX3500S
GX3500S
25 Watt VHF/FM
ITU Class D DSC Marine Transceiver
Owner's Manual
Oversized alphanumeric LCD, knobs and keys
30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles
Direct keypad entry of a channel using the keypad
Removable ClearVoice speaker microphone with 16/9 key and channel
selection
Display shows channel names, and repeats GPS information8
Capable of connecting 2 optional enhanced RAM+ second station re-
mote microphones
DSC distress call automatically broadcasts lat/long and vessel ID8
DSC position request function and NMEA data input/output to connect to
GPS Plotter8
Versatile user-programmable Scanning, Priority Scan and Dual Watch
One-button access to Channel 16 and 9
8with GPS attached
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 2
TABLE OF CONTENTS
1 GENERAL INFORMATION ...................................................................................... 4
2 PACKING LIST ........................................................................................................ 4
3 OPTIONS ................................................................................................................. 4
4 SAFETY / WARNING INFORMATION ...................................................................... 5
5 FCC RADIO LICENSE INFORMATION ................................................................... 6
6 FCC NOTICE ........................................................................................................... 7
7 GETTING STARTED ................................................................................................ 8
7.1 ABOUT VHF RADIO ...................................................................................... 8
7.2 SELECTING AN ANTENNA ........................................................................... 8

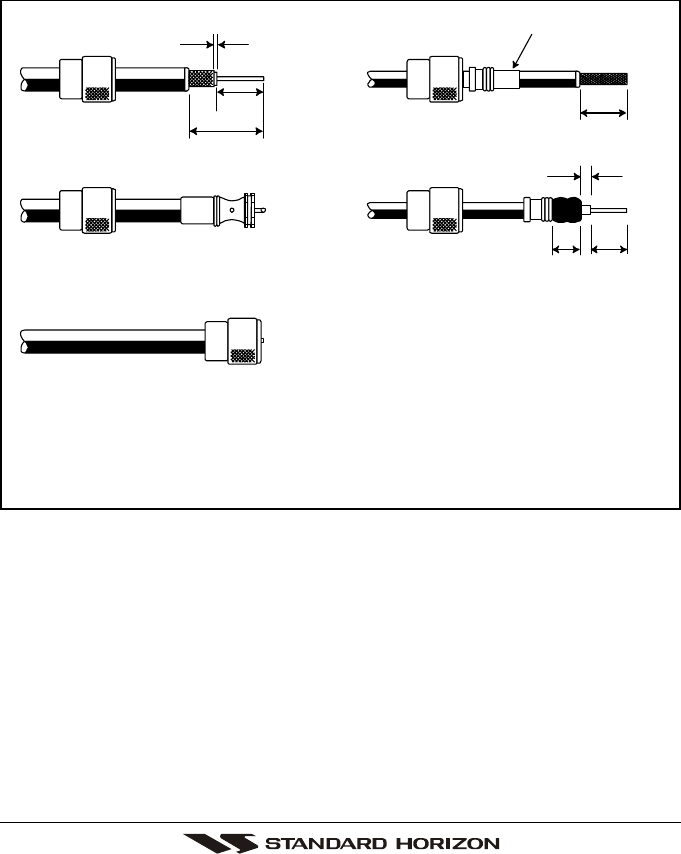

7.3 COAXIAL CABLE ............................................................................................ 9
8 INSTALLATION ...................................................................................................... 10

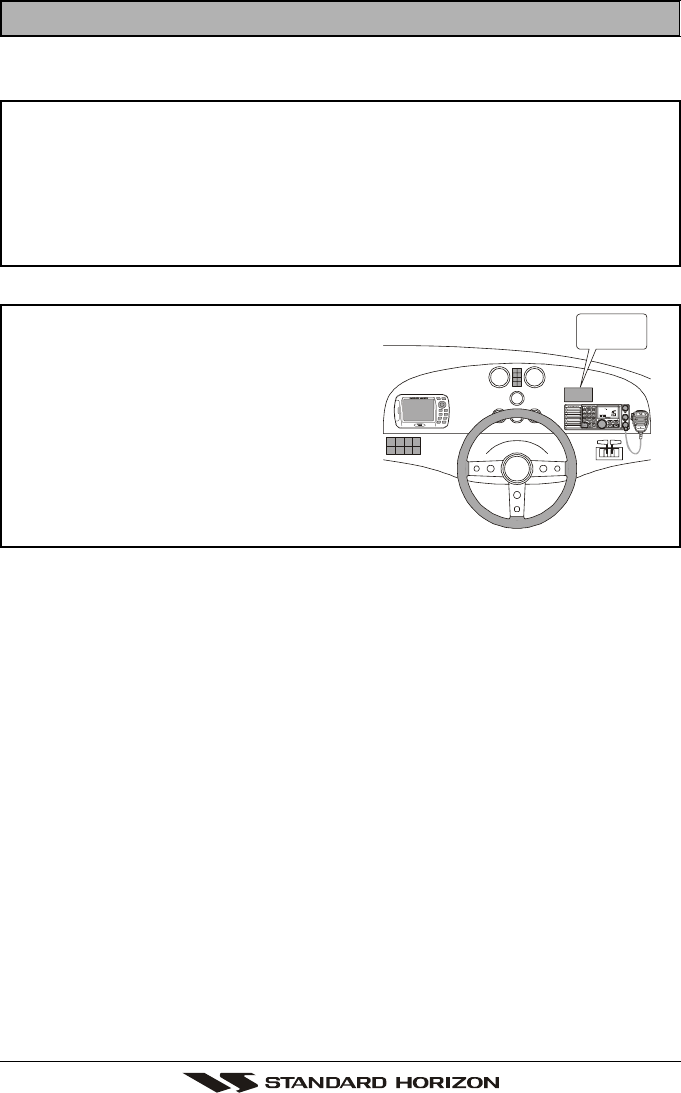

8.1 LOCATION ..................................................................................................... 10

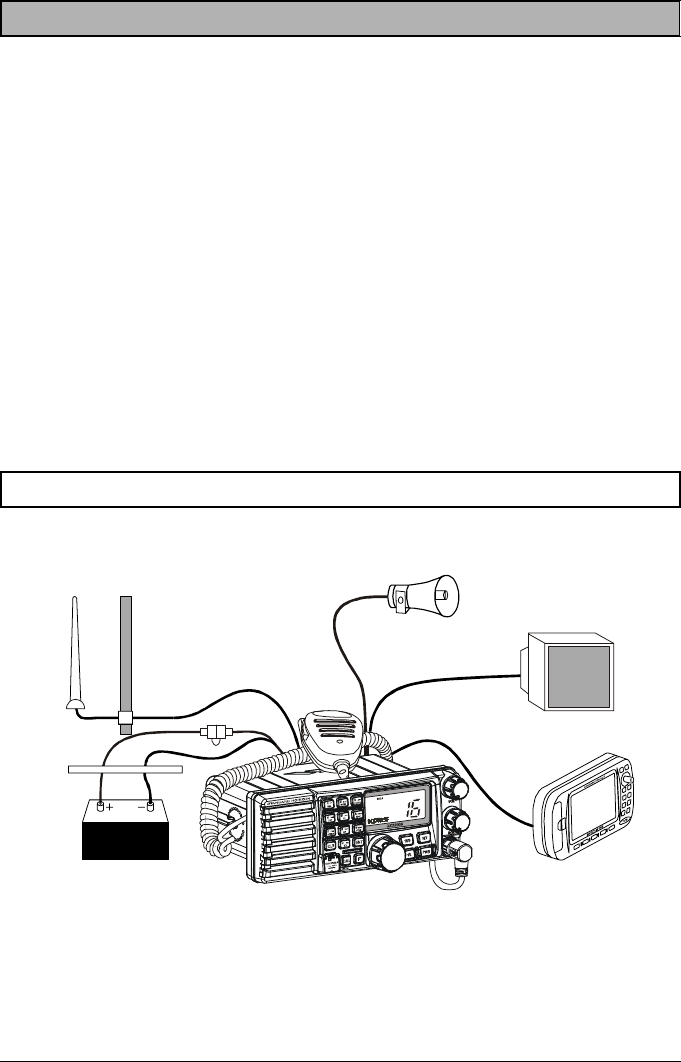

8.2 ELECTRICAL CONNECTIONS ..................................................................... 10

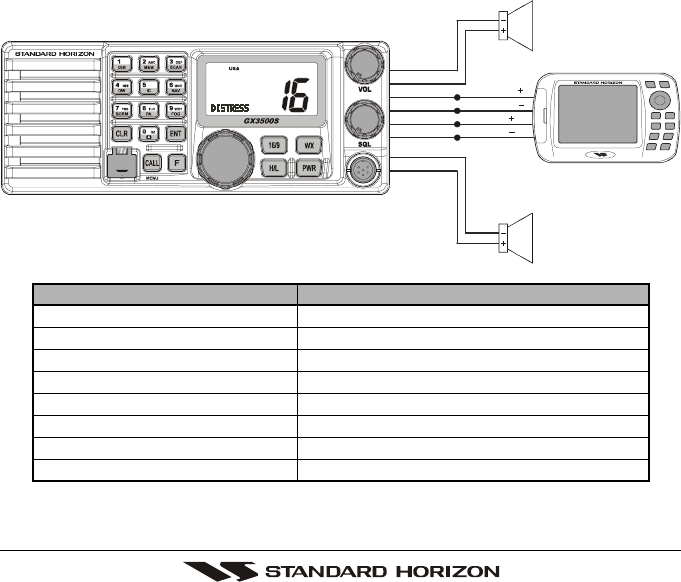

8.3 ACCESSORY CABLE ................................................................................... 11
8.4 CONNECTION OF GPS WITH NMEA OUTPUT ...................................... 12
8.5 CHECKING GPS CONNECTIONS .............................................................. 12
8.6 CHANGING THE GPS TIME ....................................................................... 13

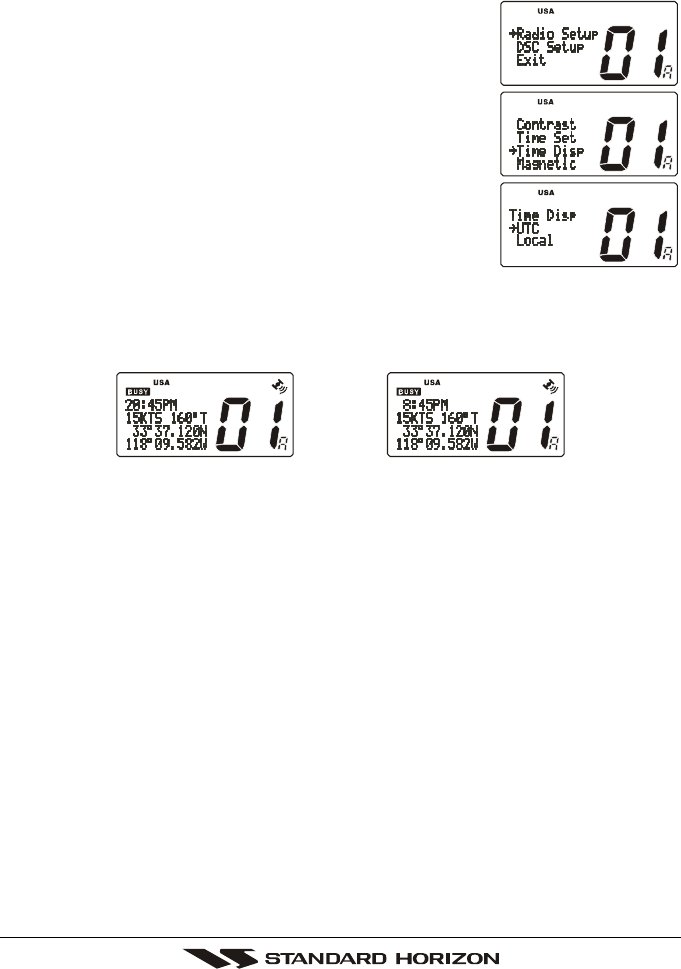

8.7 CHANGING THE TIME LOCATION ............................................................ 14

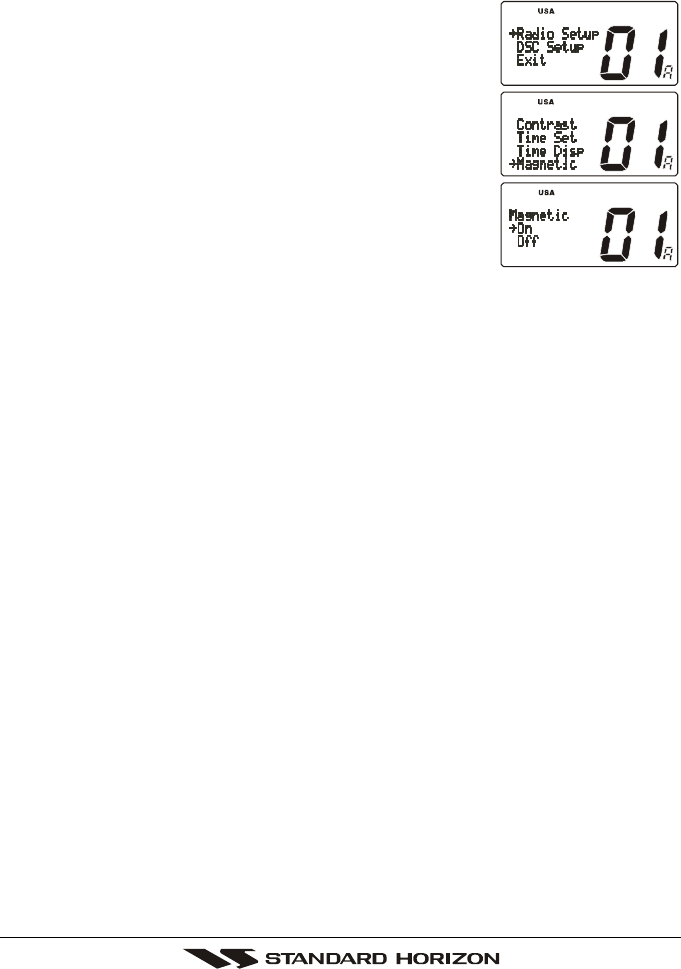

8.8 CHANGING COG TO TRUE OR MAGNETIC ........................................... 15

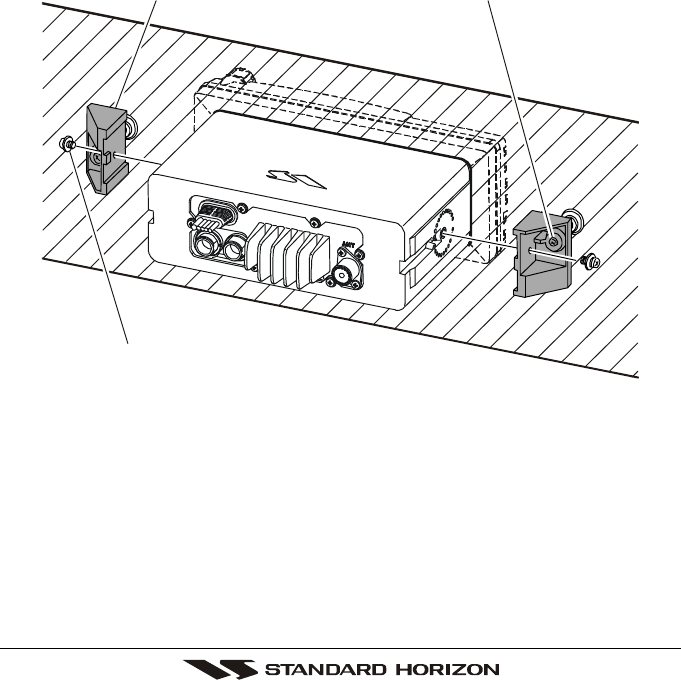

8.9 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION .............................. 16
8.10 OPTIONAL ENHANCED RAM+ SECOND STATION MIC INSTALLATION ....... 17

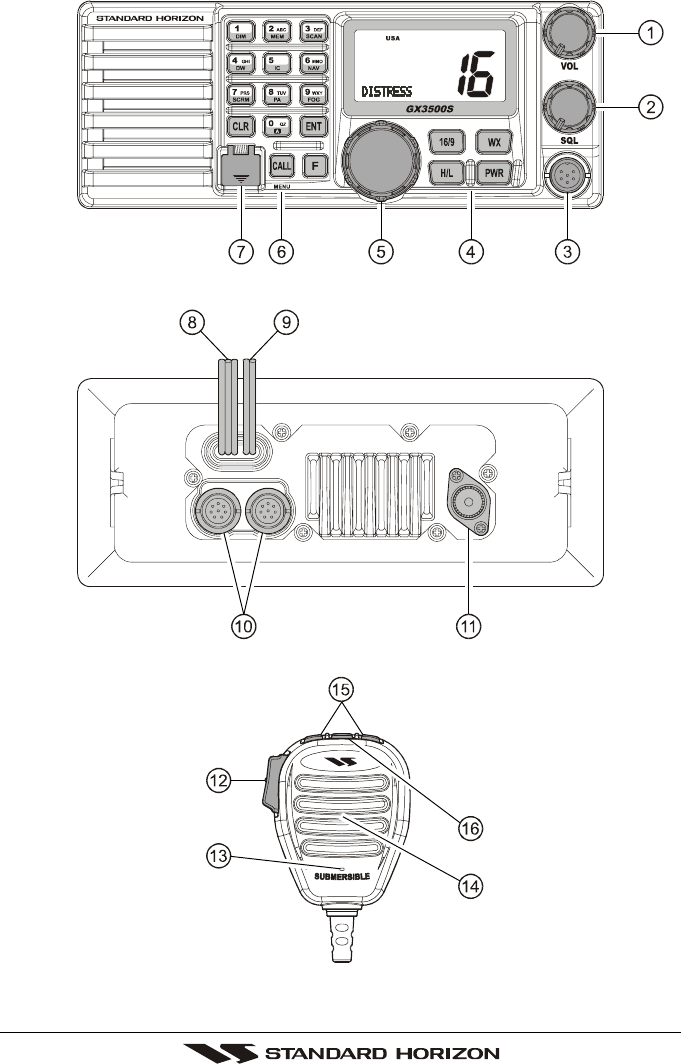

9 CONTROLS AND INDICATORS ............................................................................ 18
10 BASIC OPERATION .............................................................................................. 24
10.1 RECEPTION .................................................................................................. 24
10.2 TRANSMISSION ............................................................................................ 24
10.3 TRANSMIT TIME-OUT TIMER (TOT) .......................................................... 25
10.4 SIMPLEX / DUPLEX CHANNEL USE .......................................................... 25
10.5 USA, CANADA, AND INTERNATIONAL MODE .......................................... 25
10.6 NOAA WEATHER CHANNELS .................................................................... 25
10.6.1 NOAA Weather Alert ............................................................................ 25
10.6.2 NOAA Weather Alert Testing ............................................................... 26
10.7 EMERGENCY (CHANNEL 16 USE) ............................................................ 26
10.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ................................ 27
10.9 MAKING TELEPHONE CALLS .................................................................. 28
10.10 OPERATING ON CHANNELS 13 AND 67 .............................................. 28

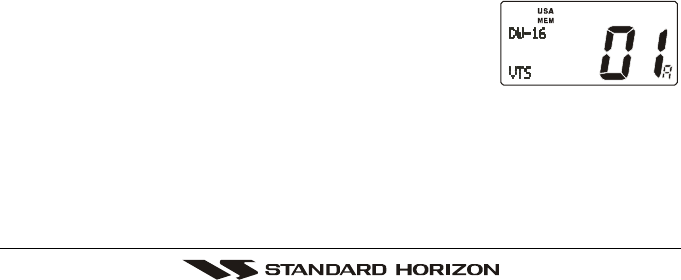

10.11 DUAL WATCH (TO CH16) .......................................................................... 28

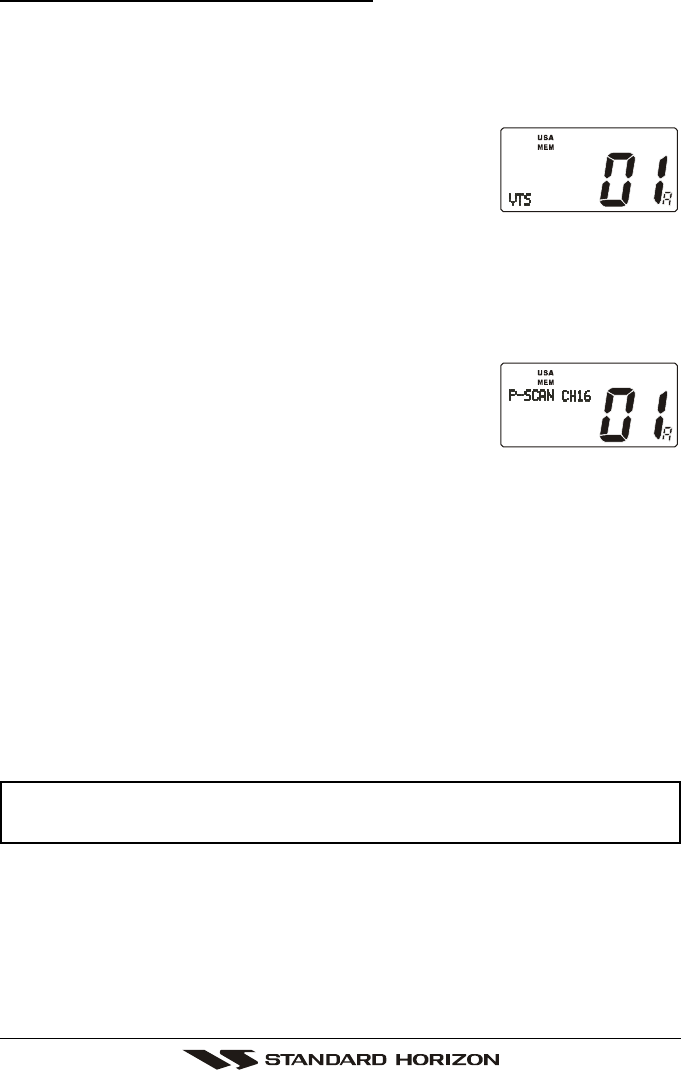

10.12 SCANNING .................................................................................................. 29
10.12.1 Selecting the Scan Mode ..................................................................... 29
10.12.2 Memory Scanning (M-SCAN) ............................................................. 29
10.12.3 Priority Scanning (P-SCAN) ................................................................ 30

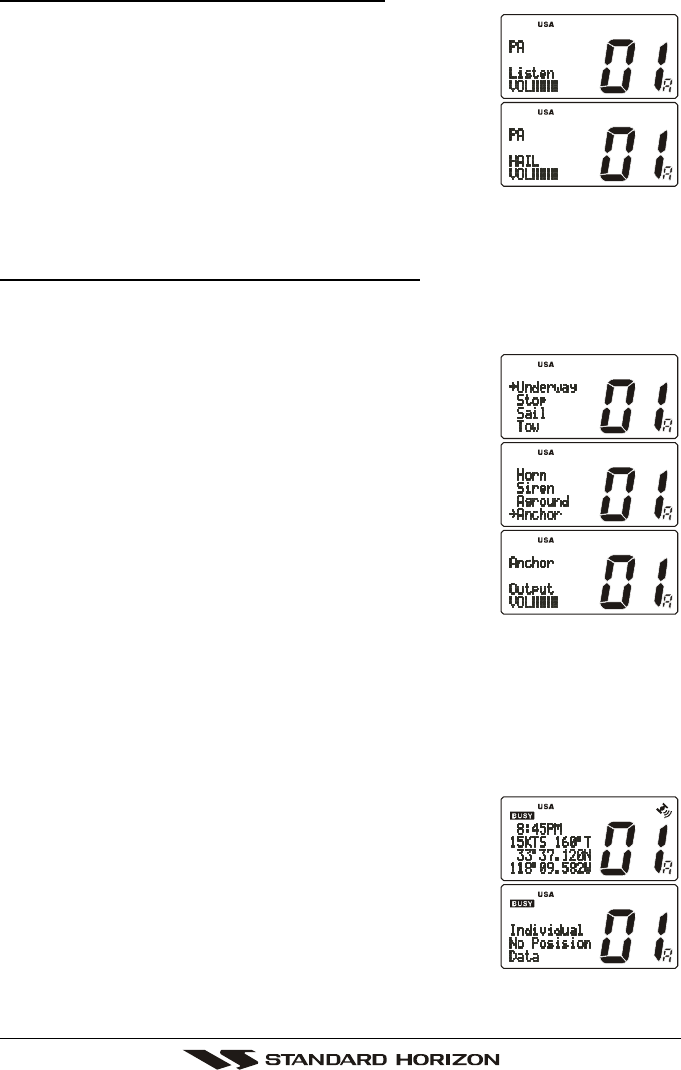

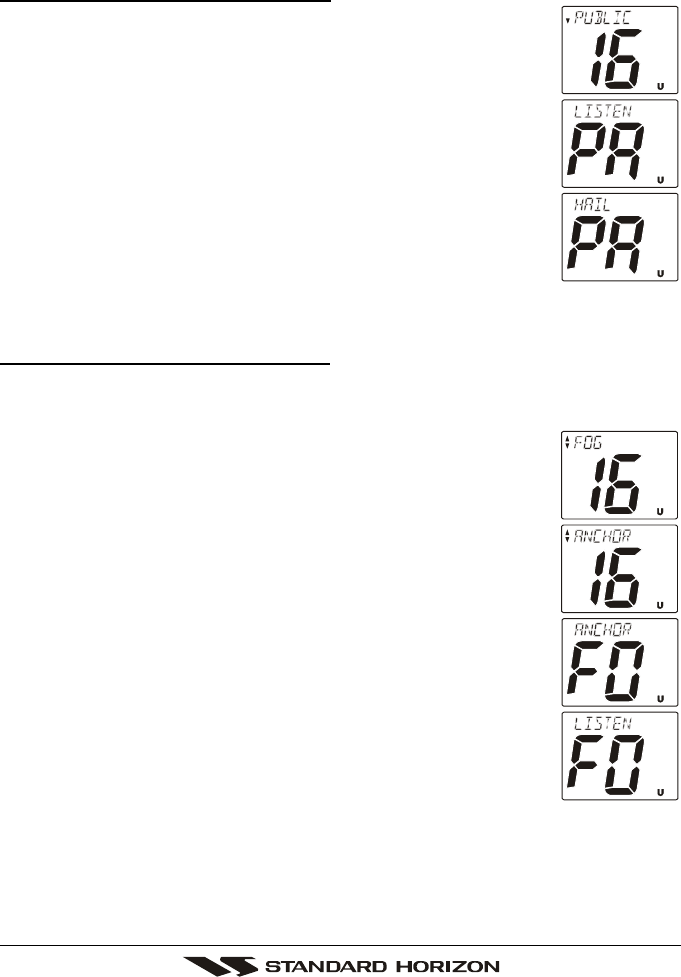

10.13 PA / FOG OPERATION ............................................................................. 30
10.13.1 Operating the PA HAIL Mode .......................................................... 31
10.13.2 Operating the PA FOG HORN Mode .............................................. 31
10.14 NAVIGATION INDICATION ....................................................................... 31
10.15 LCD DIMMER ............................................................................................ 32

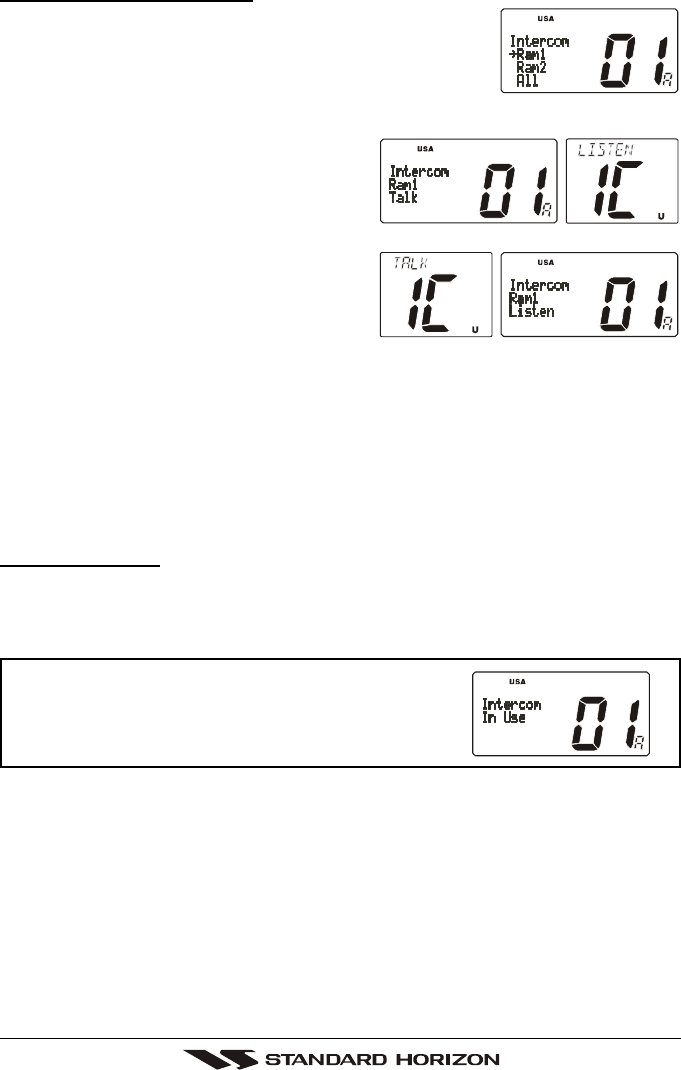

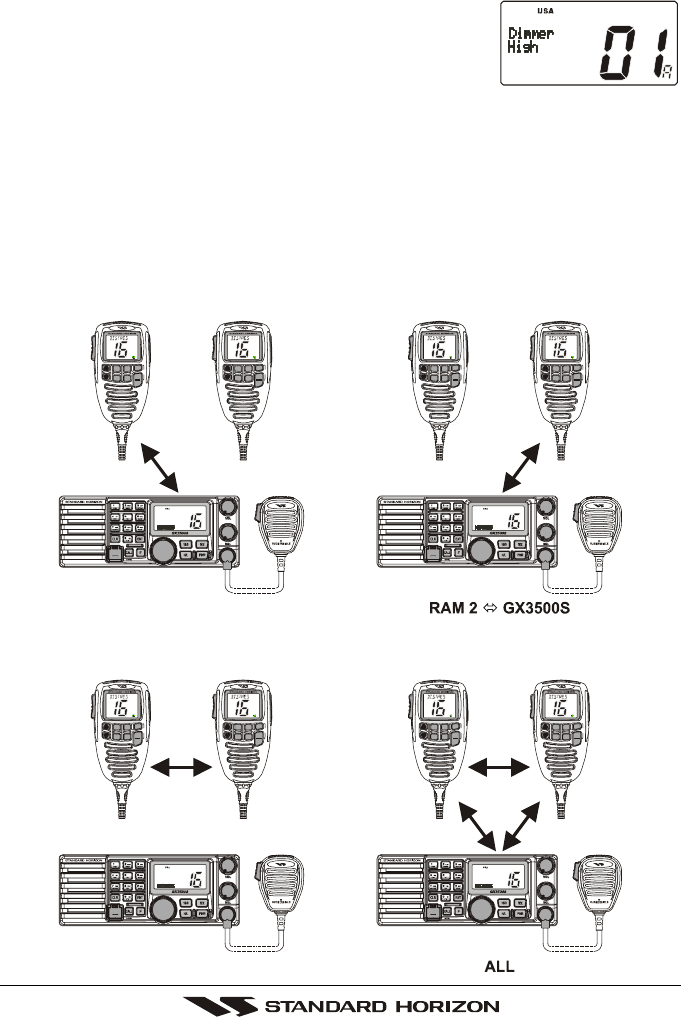

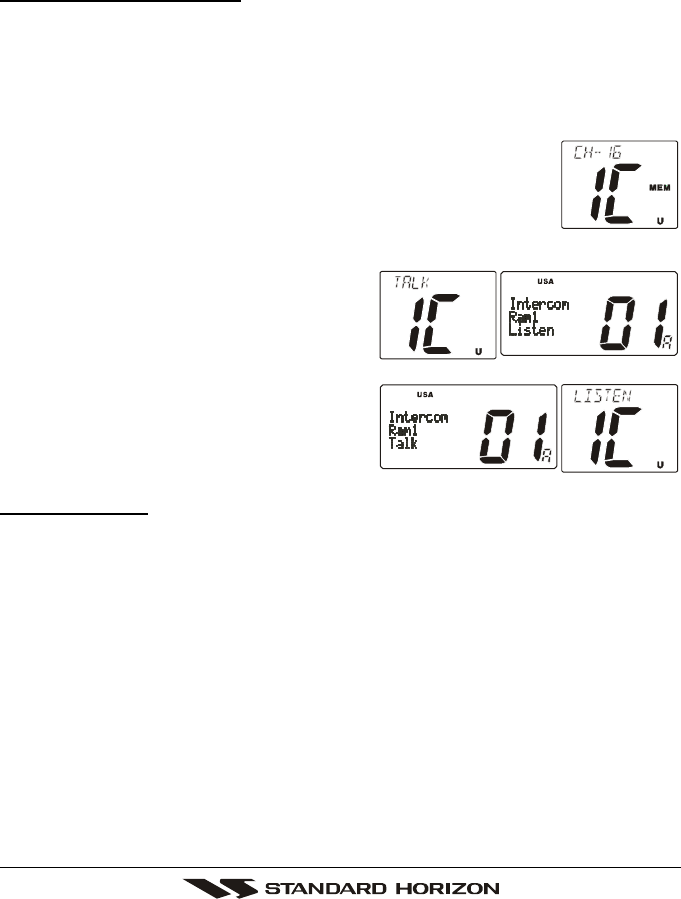

10.16 INTERCOM OPERATION ......................................................................... 32
10.16.1 Communication ................................................................................... 33
10.16.2 Calling ................................................................................................. 33

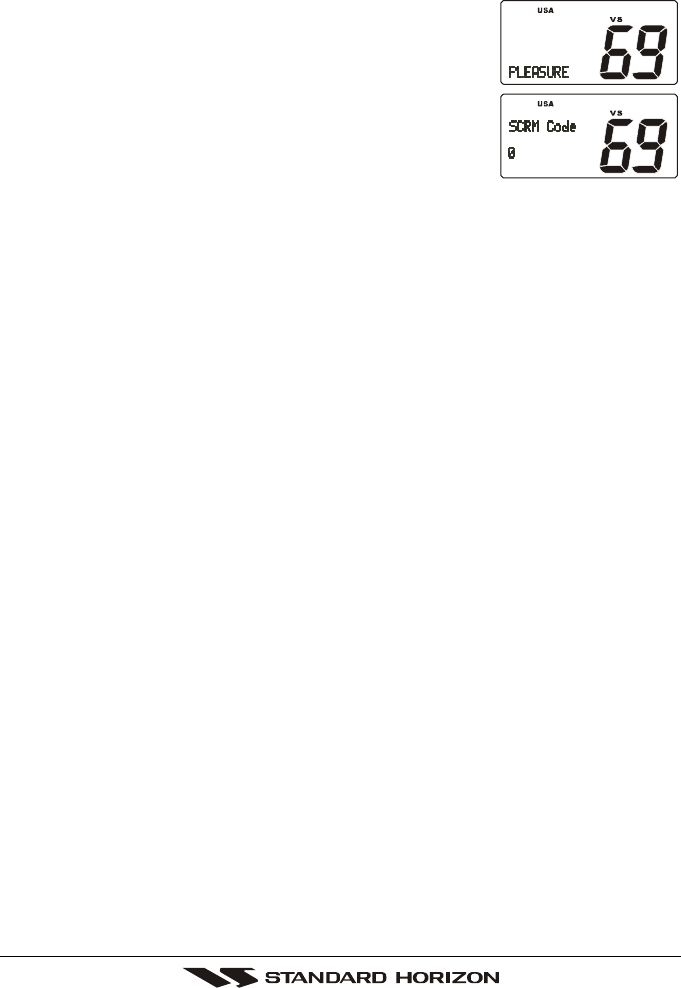

10.17 VOICE SCRAMBLER ............................................................................... 34
11 DIGITAL SELECTIVE CALLING ............................................................................ 36
11.1 GENERAL ...................................................................................................... 36
11.2 MARITIME MOBILE SERVICE IDENTITY (MMSI) ........................................ 37
11.2.1 What is an MMSI?................................................................................. 37
11.2.2 Programming the MMSI ...................................................................... 37
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 3GX3500S

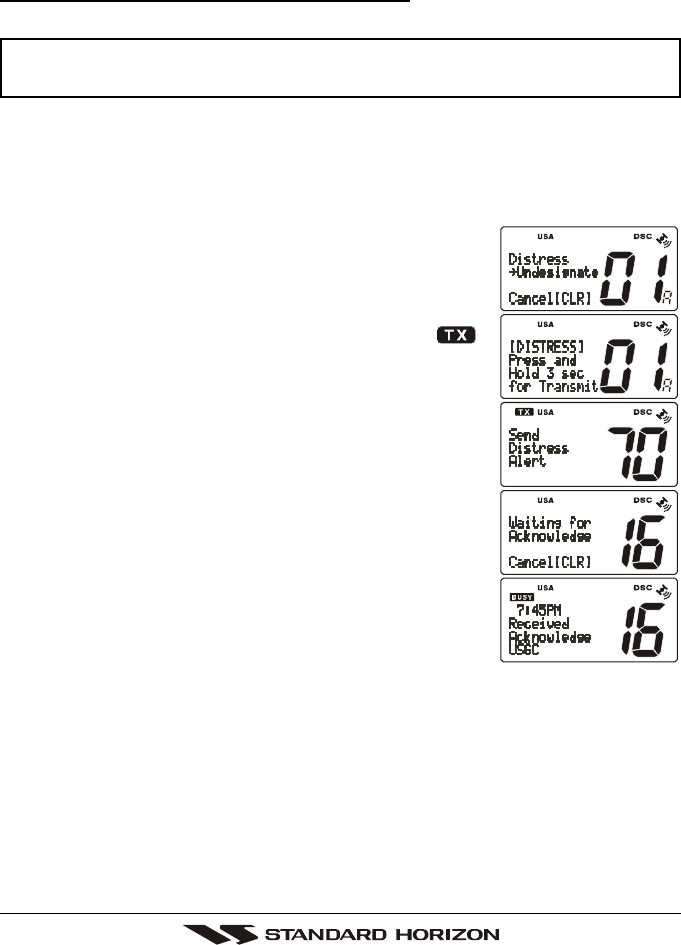

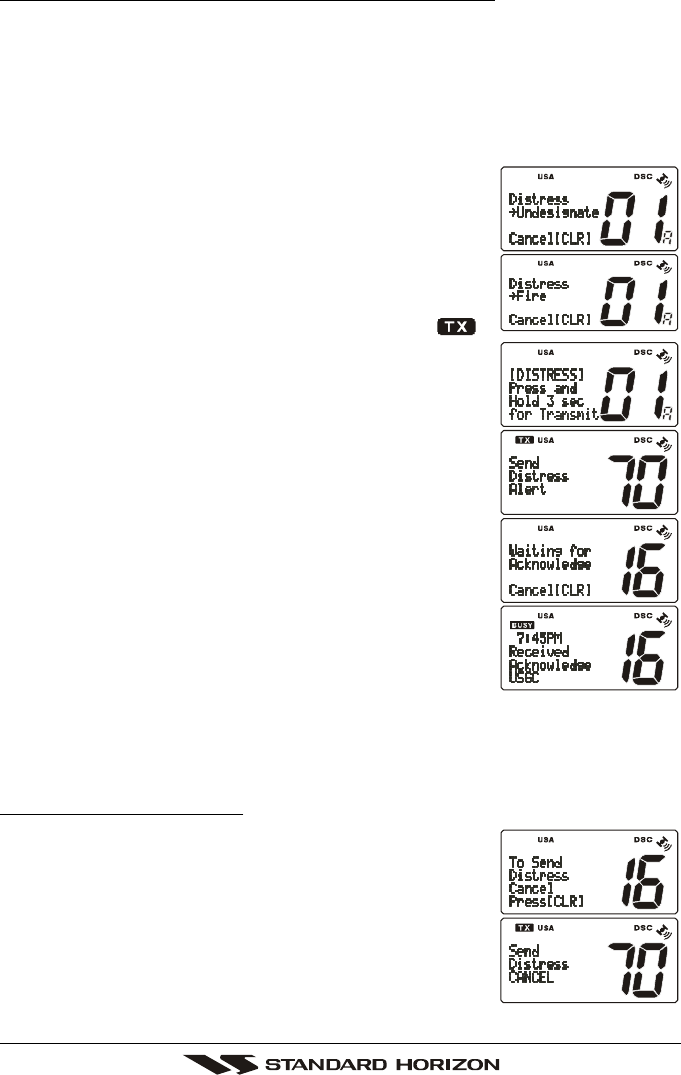

11.3 DSC DISTRESS CALL ................................................................................. 38
11.3.1 Tansmitting a DSC Distress Call ........................................................ 38
11.3.2 Receiving a DSC Distress Call .......................................................... 40

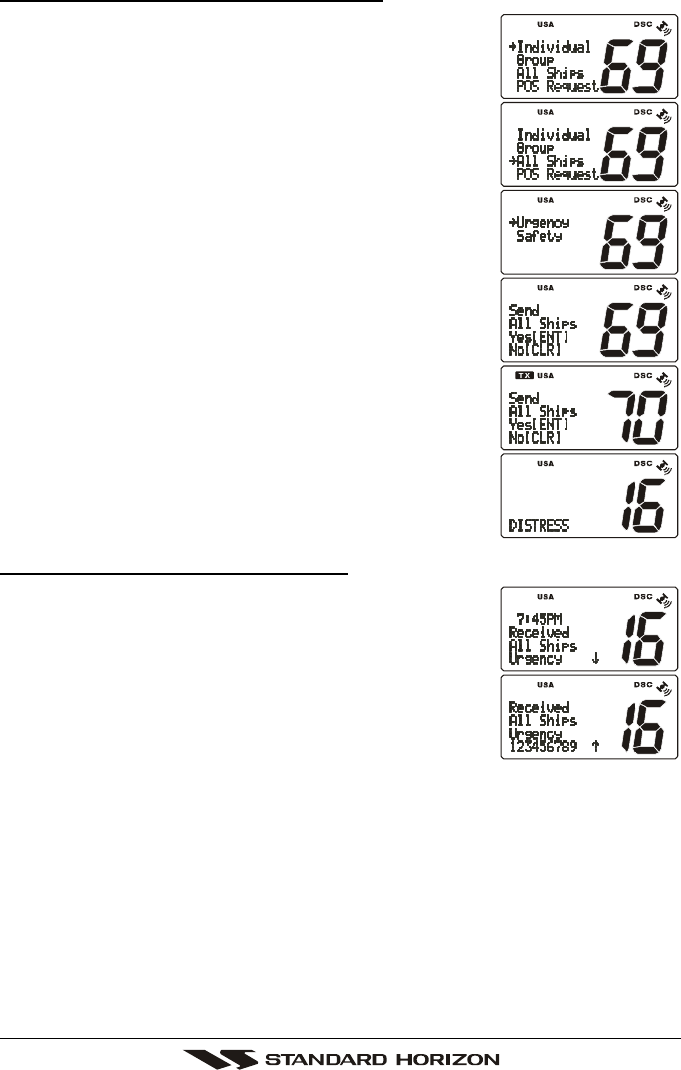

11.4 ALL SHIPS CALL ......................................................................................... 40
11.4.1 Transmitting an All Ships Call ............................................................ 41
11.4.2 Receiving an All Ships Call ............................................................... 41
11.5 INDIVIDUAL CALL ........................................................................................ 42

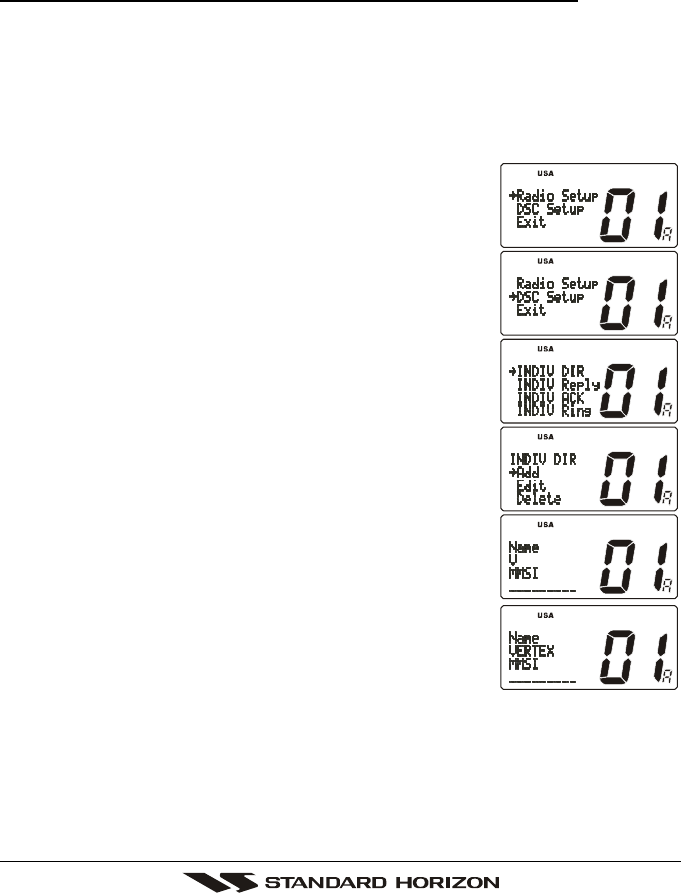

11.5.1 Setting up the Individual / Position Call Directory ............................. 42

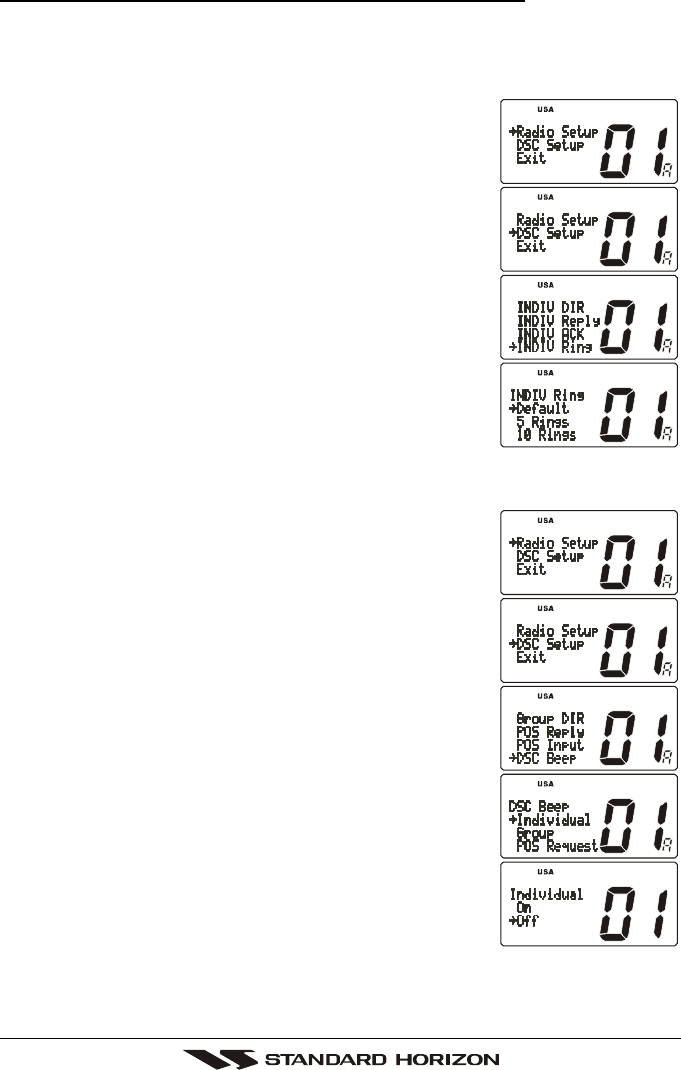

11.5.2 Setting up Individual Ringer ............................................................... 43
11.5.3 Setting up Individual / Group Call Ringer .......................................... 44

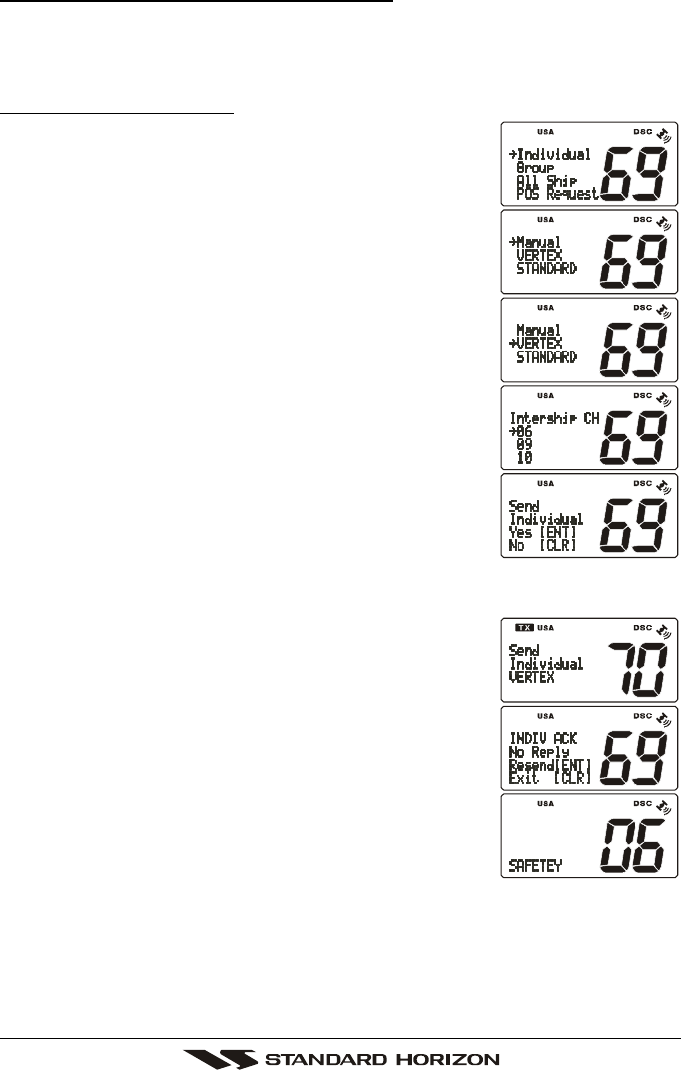

11.5.4 Transmitting an Individual Call ........................................................... 45

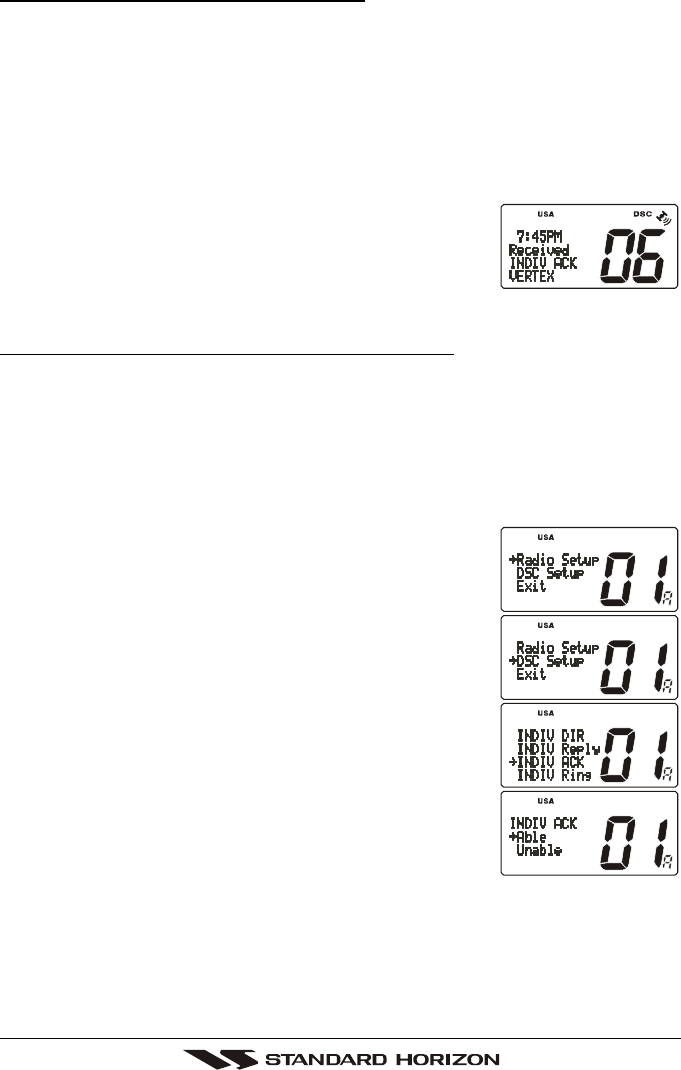

11.5.5 Receiving an Individual Call ............................................................... 47
11.5.6 Setting up the Call Waiting Function ................................................ 47

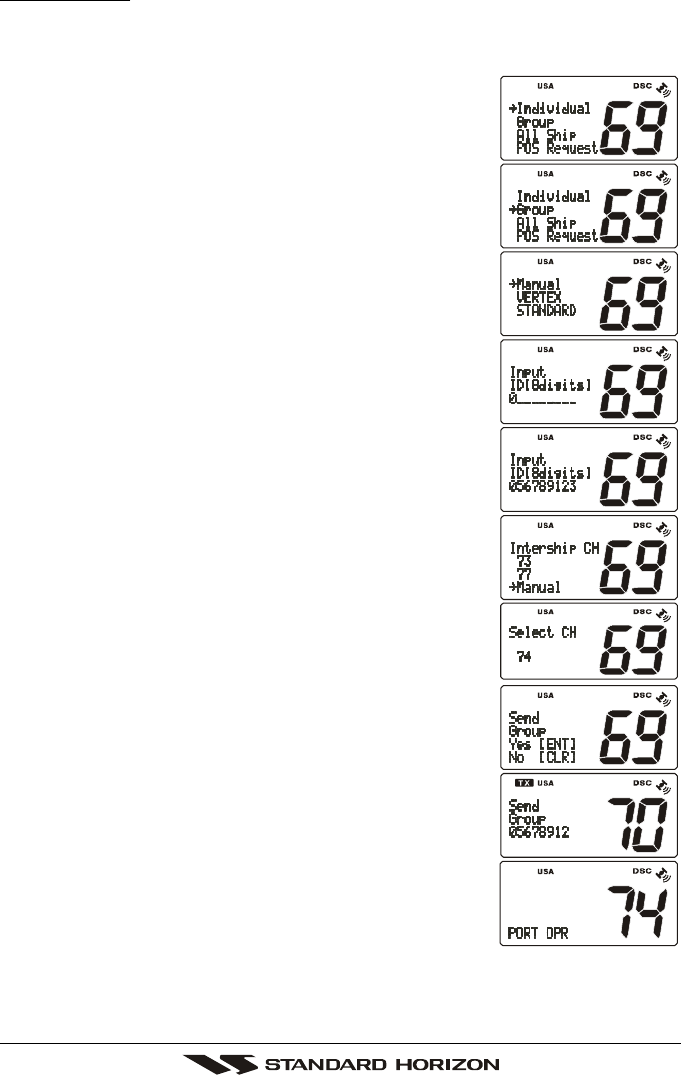

11.6 GROUP CALL ............................................................................................... 48

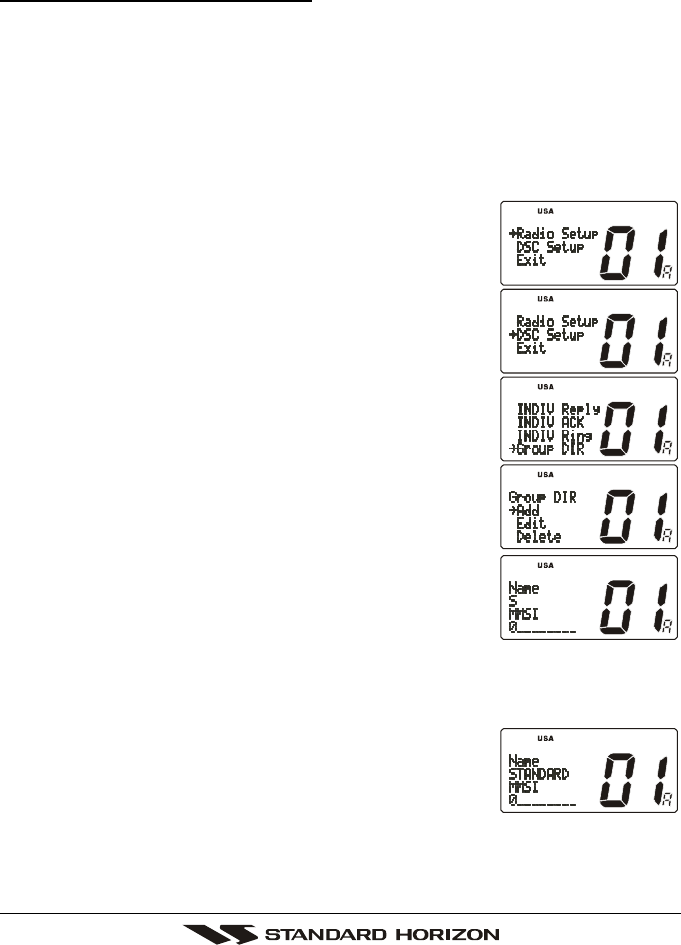

11.6.1 Setting up a Group Call ..................................................................... 48
11.6.2 Transmitting a Group Call .................................................................. 49

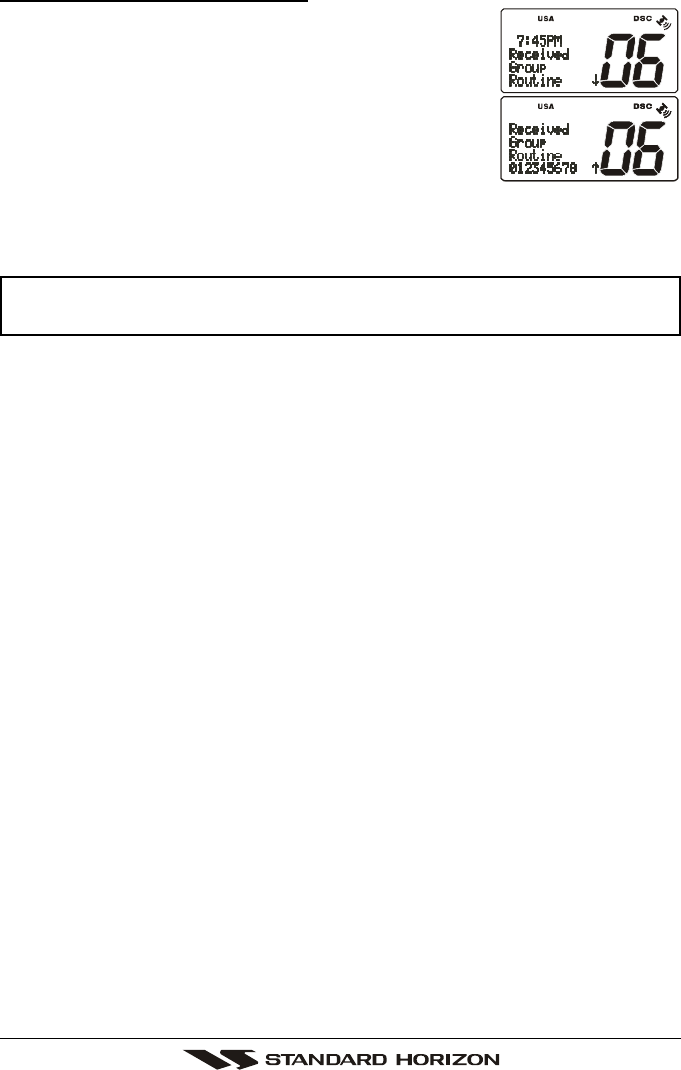

11.6.3 Receiving a Group Call ...................................................................... 51
11.7 POSITION REQUEST ................................................................................... 52

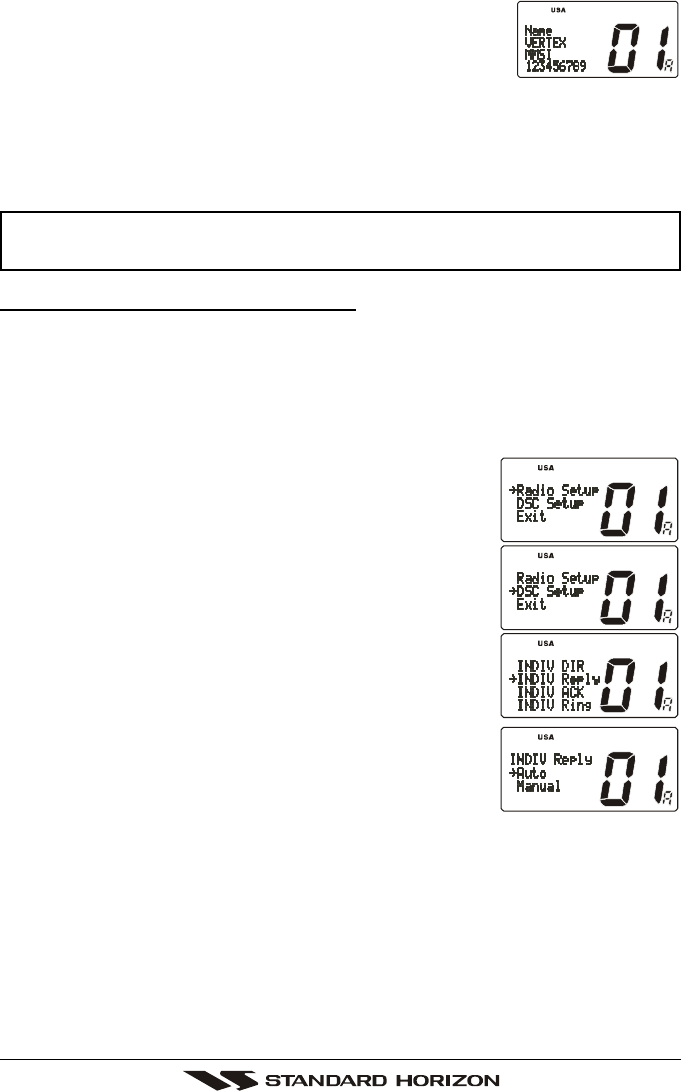

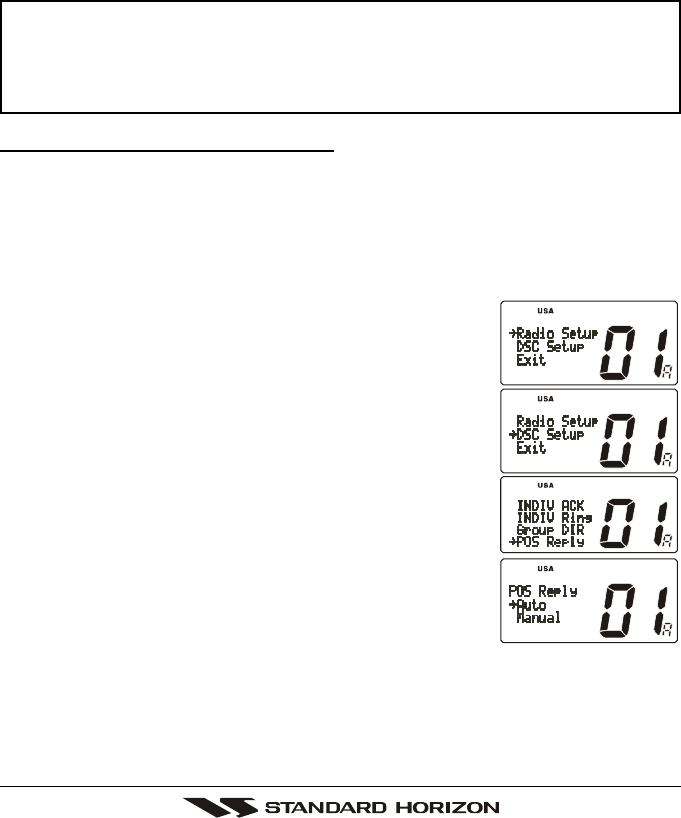

11.7.1 Setting up Position Reply ................................................................... 52

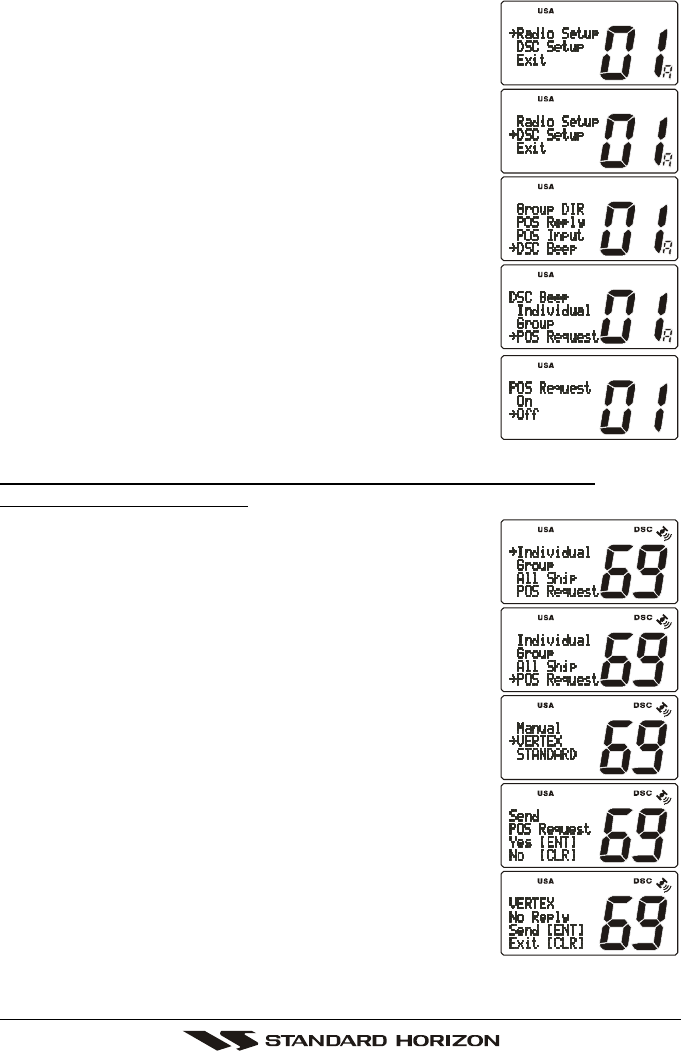

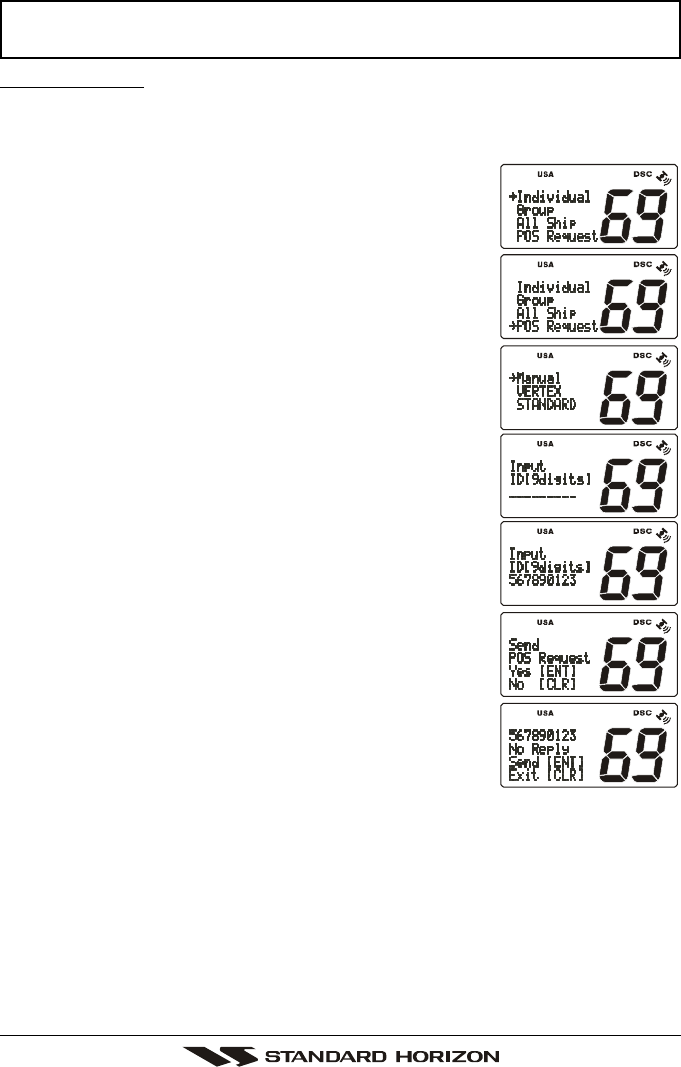

11.7.2 Transmitting a Position Request to Another Vessel......................... 53

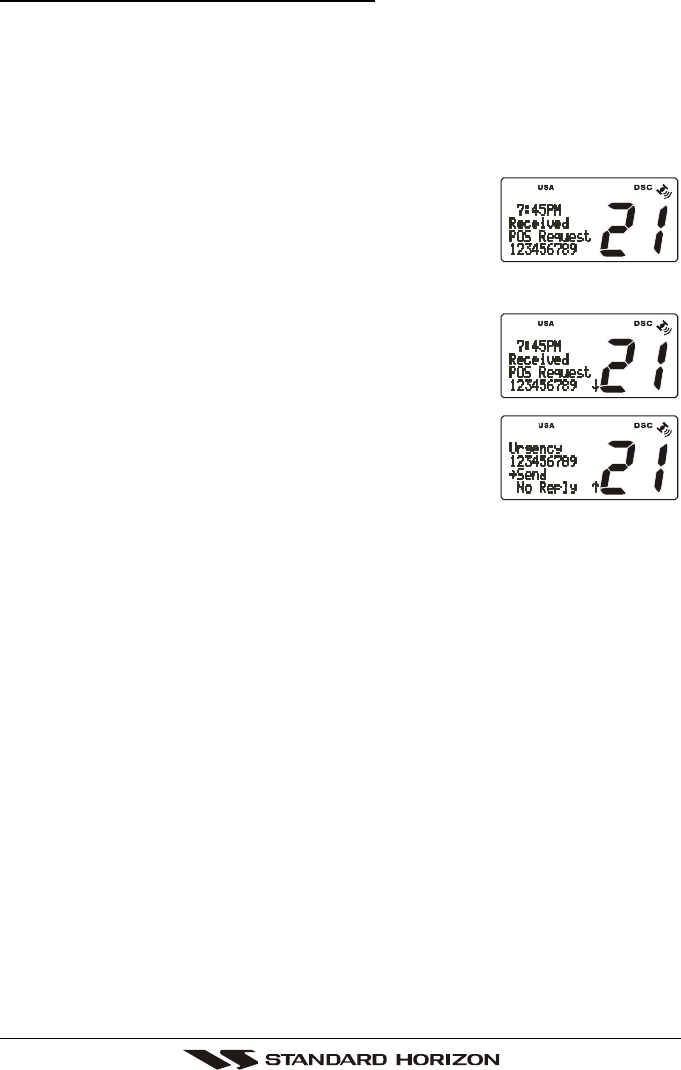

11.7.3 Receiving a Position Request ............................................................ 55
11.8 POSITION SEND .......................................................................................... 56
11.8.1 Setting up Position Send Ringer ....................................................... 56

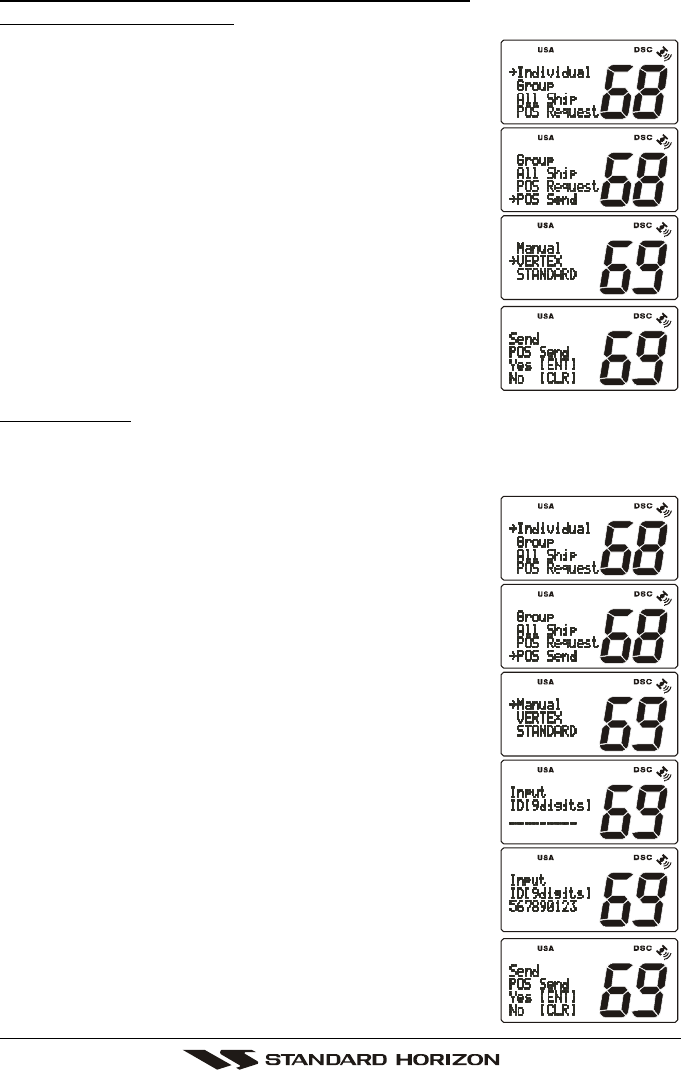

11.8.2 Transmitting a DSC Position Send Call ............................................ 57
11.8.3 Receiving a DSC Position Send Call ............................................... 57

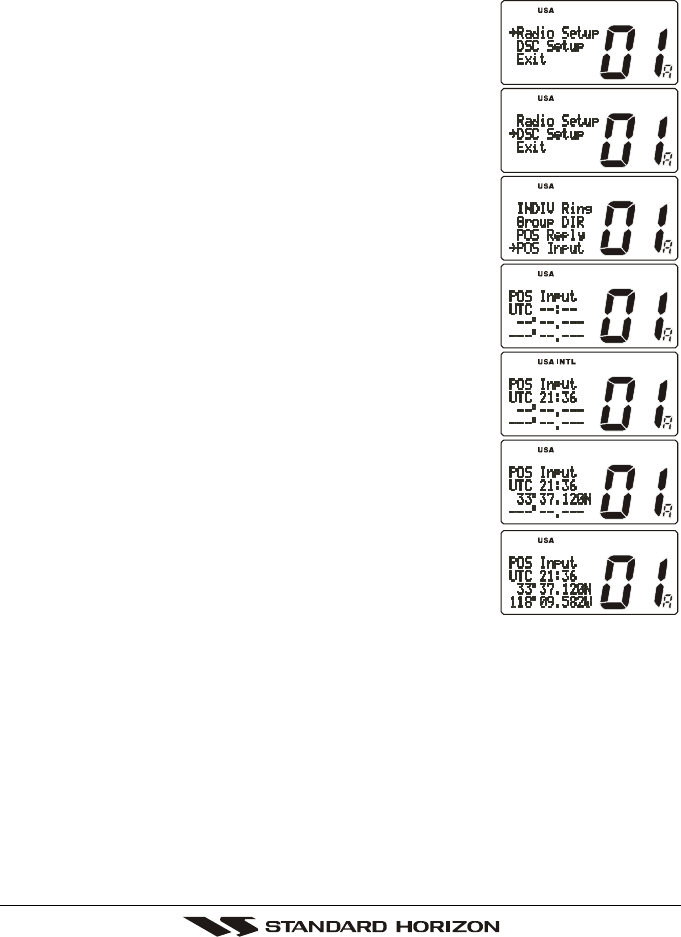

11.9 MANUAL INPUTTING OF THE GPS LOCATION (LAT/LON) ................... 59

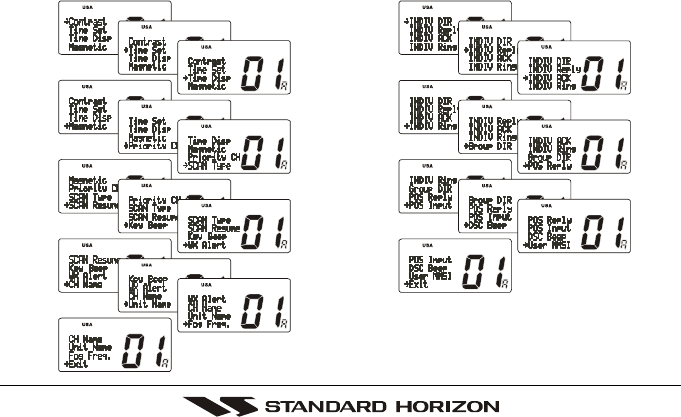

12 RADIO SETUP MODE ........................................................................................... 60

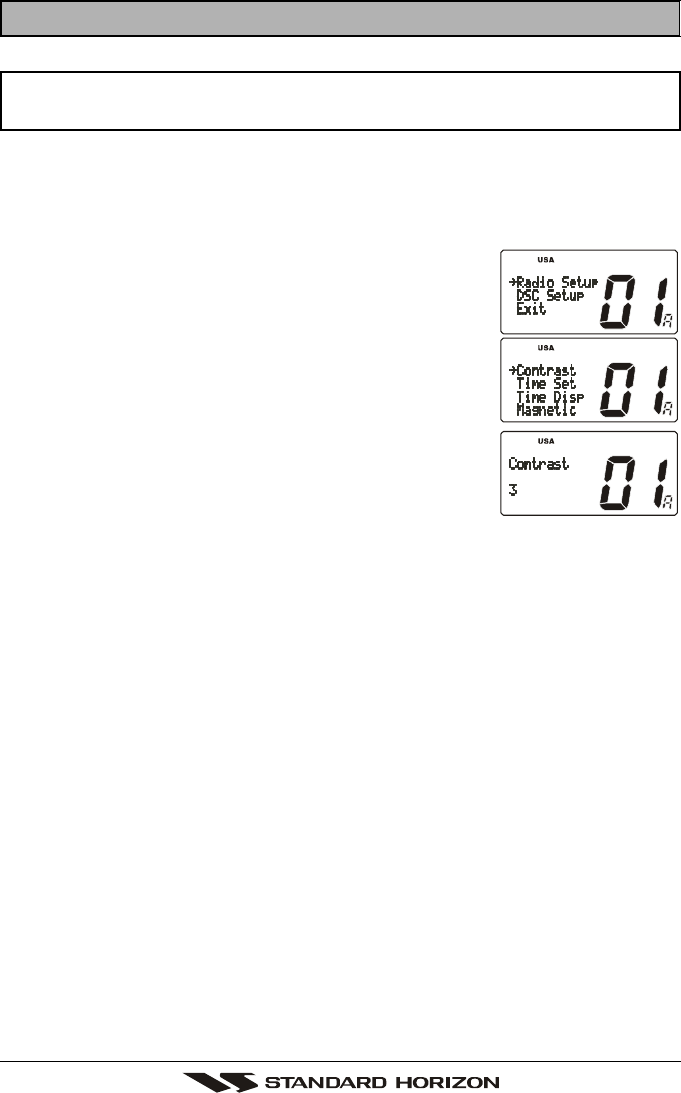

12.1 LCD CONTRAST .......................................................................................... 60

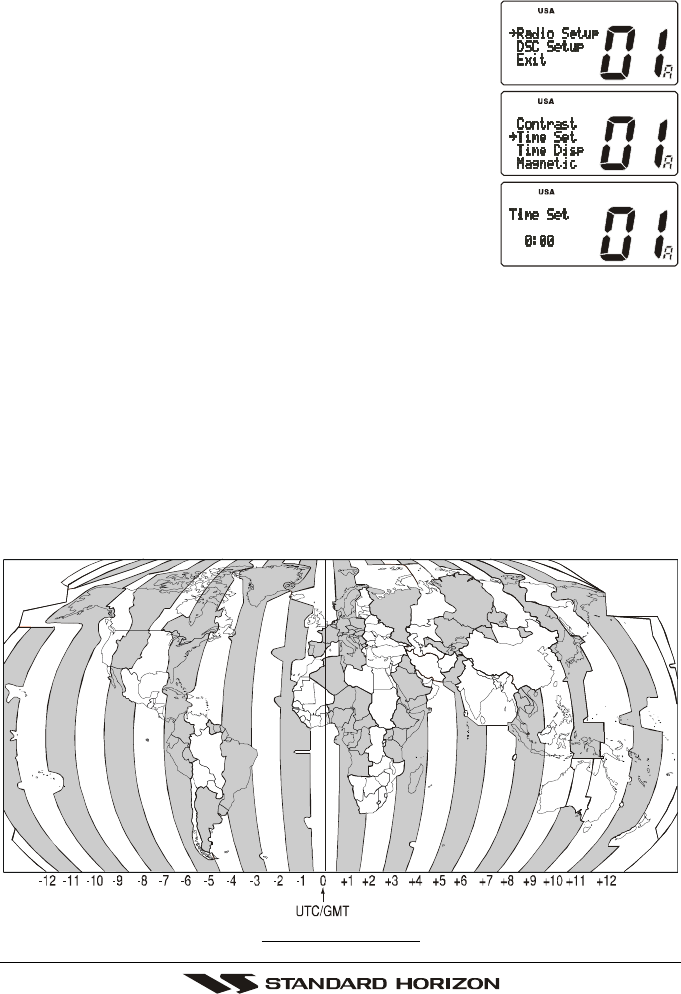

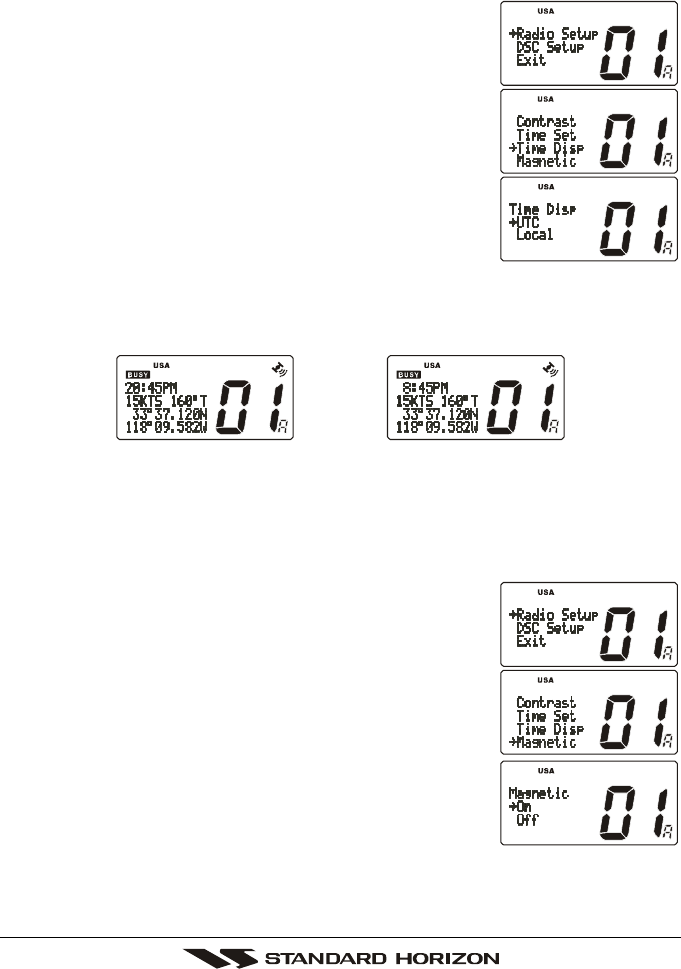

12.2 TIME OFFSET .............................................................................................. 61
12.3 TIME LOCATION ............................................................................................ 62
12.4 TRUE MAGNETIC CHANGE (NAV display) ................................................. 62

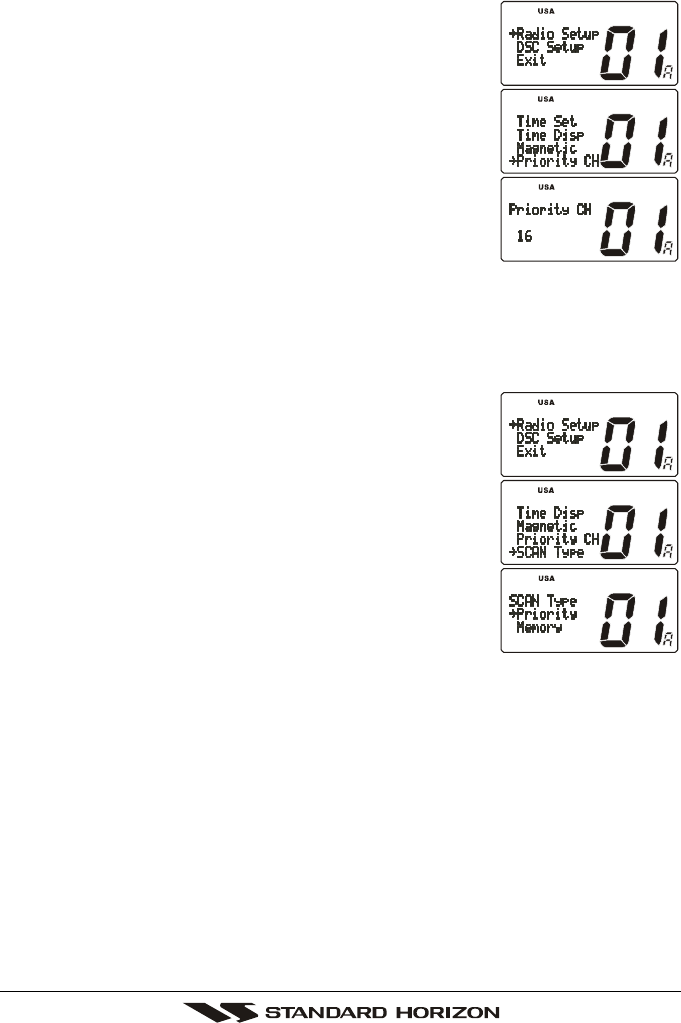

12.5 PRIORITY CHANNEL SET .......................................................................... 63

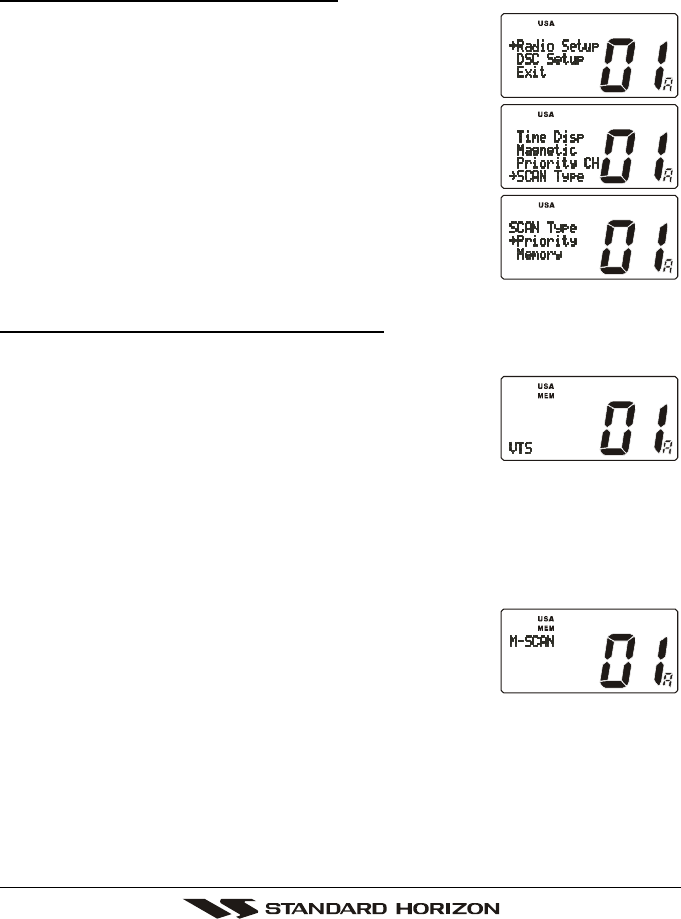

12.6 SCAN TYPE .................................................................................................. 63

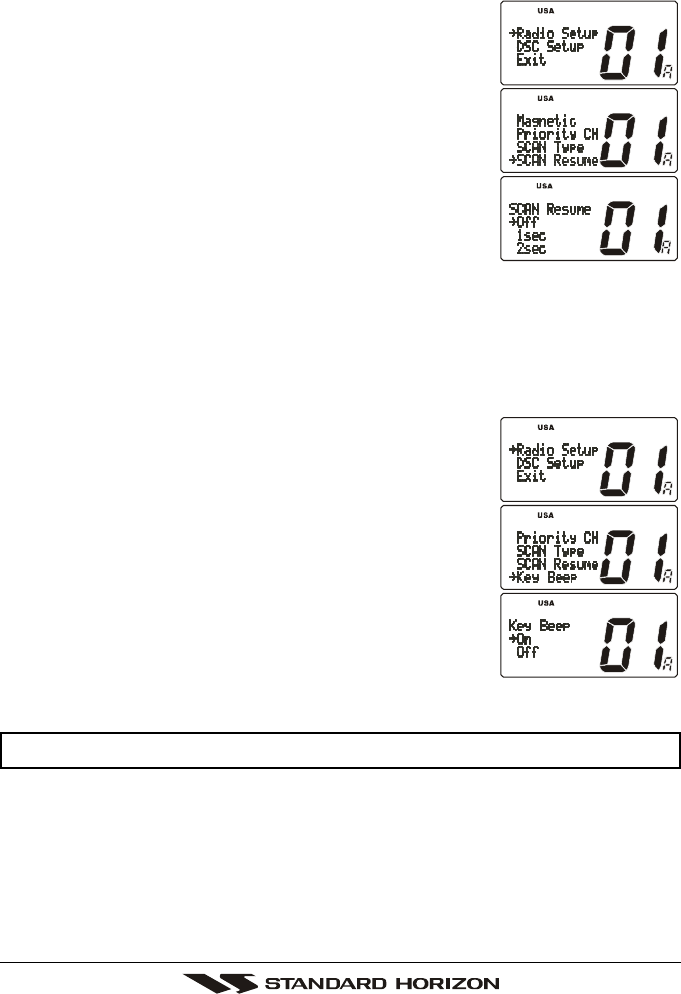

12.7 SCAN RESUME TIME ................................................................................. 64
12.8 KEY BEEP (ON/OFF) ................................................................................... 64

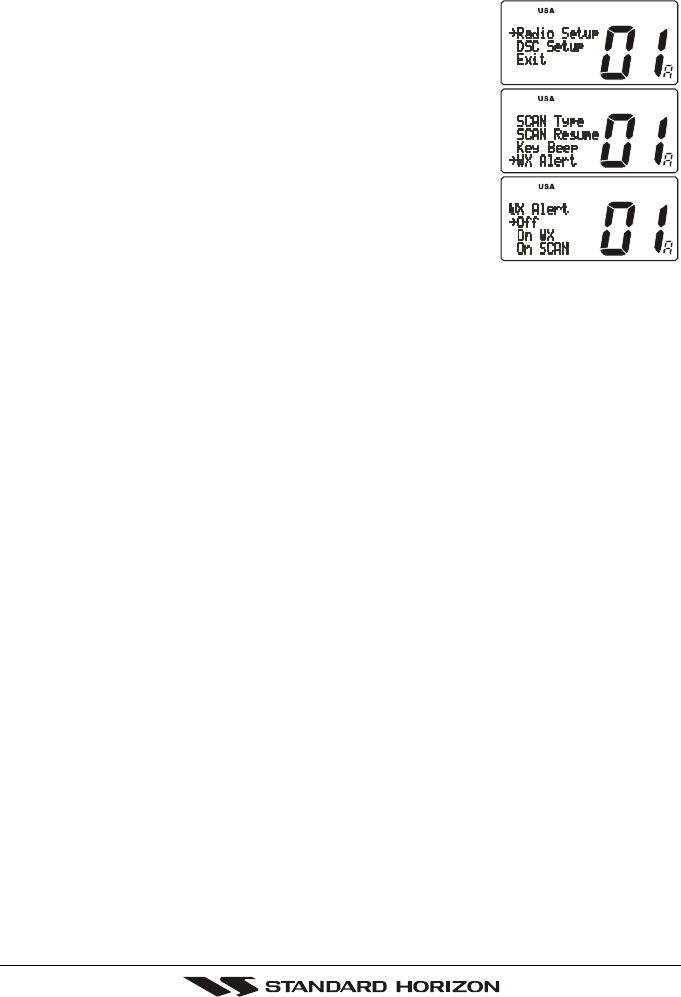

12.9 WX ALERT .................................................................................................... 65

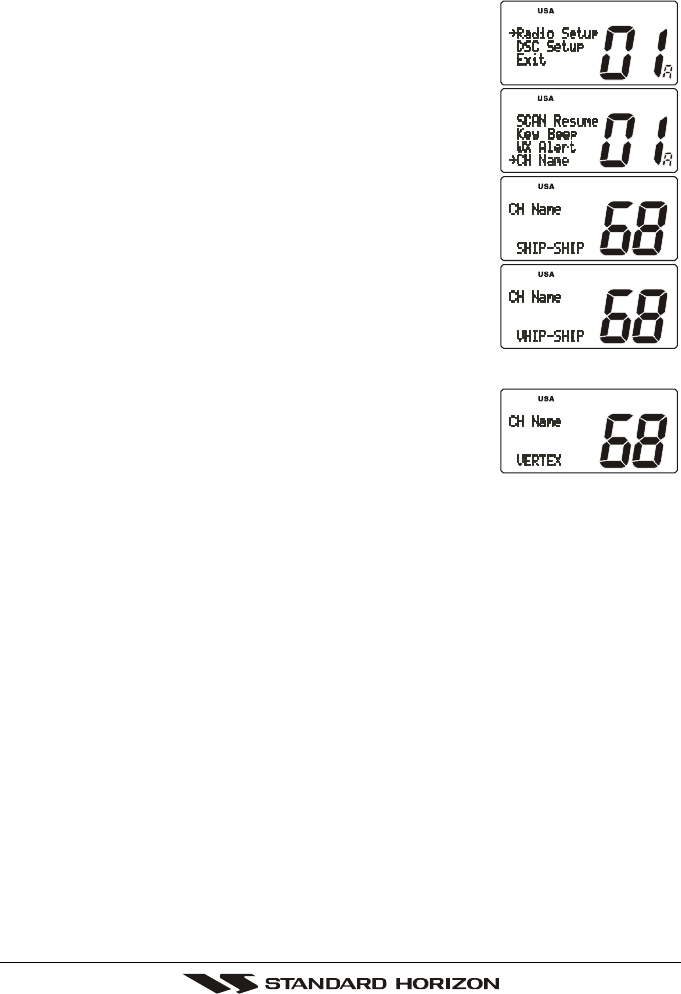

12.10 CHANNEL NAME CHANGE ...................................................................... 66
12.11 NAMING THE RADIO OR RAM+ STATIONS ......................................... 67
12.12 FOG ALERT TONE FREQUENCY.............................................................. 68
13 ENHANCED RAM+ MIC OPERTION ..................................................................... 69
13.1 RAM+ MIC CONTROLS ............................................................................... 69
13.2 INTERCOM OPERTION ............................................................................... 72
13.2.1 Communication ..................................................................................... 72
13.2.2 Calling ................................................................................................... 72
13.3 PA / FOG OPERATION ................................................................................. 73
13.3.1 Operating the PA / Hailer ....................................................................... 73
13.3.2 Operating the FOG / HORN ................................................................... 73
13.3 DSC / RADIO SETUP MODE ........................................................................ 74
14 MAINTENANCE ..................................................................................................... 75
14.1 REPLACEMENT PARTS .............................................................................. 75
14.2 FACTORY SERVICE .................................................................................... 75
14.3 TROUBLESHOOTING CHART .................................................................... 76
15 CHANNEL ASSIGNMENTS ................................................................................... 77
16 WARRANTY ........................................................................................................... 83
17 SPECIFICATIONS .................................................................................................. 86
18 APPENDIX ............................................................................................................. 87
TABLE OF CONTENTS
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 4
1 GENERAL INFORMATION
The Vertex Standard GX3500S is a VHF/FM transceiver designed for use in
the frequency range of 156.025 to 163.275 MHz. The GX3500S can be oper-
ated from 11 to 16 VDC and has a switchable RF output power of 1 watt or 25
watts.
The GX3500S is capable of DSC (Digital Selective Calling) Class D operation
and an Enhanced second station RAM+ mic (CMP25 remote-control speaker/
microphone with display). Class D operation allows continous receiving of Digi-
tal Selective Calling functions on channel 70 even if the radio is receiving a call.
Other features of the GX3500S include: Direct keypad entry of a channel using
the keypad, 30W PA/Fog, multi-station intercom, scanning, priority scanning,
submersible speaker mic, high and low voltage warning, and GPS repeatability.
2 PACKING LIST
When the package containing the transceiver is first opened, please check it
for the following contents:
GX3500S Transceiver
Mounting Bracket and attaching hardware
Owner’s Manual
Quick-Reference Card
Power Cord
3 OPTIONS
MMB-84 .......................................................................... Flush-Mount Bracket
CMP25B/W ............... Remote-Access Microphone (RAM+ Mic, Black/White)
CT-100 ............................................... 10-foot Extension Cable for RAM+ Mic
CVS2500 ............................................................................... Voice Scrambler
101W ....................................................................... White Extension Speaker
201SW .................................................................... White Extension Speaker
201SWZ ............................................. White Flush Mount Extension Speaker
201SB...................................................................... Black Extension Speaker
201SBK ............................................... Black Flush Mount Extension Speaker
220SW ..................................................................... 4.5” Round Hail/PA Horn
240SW ........................................................... 5 x 8 Rectangular Hail/PA Horn
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 5GX3500S
4 SAFETY / WARNING INFORMATION
This radio is restricted to occupational use, work related operations only where
the radio operator must have the knowledge to control the exposure conditions
of its passengers and bystanders by maintaining the minimum separation dis-
tance of 0.6 m (2 feet).
Failure to observe these restrictions will result in exceeding the FCC RF expo-
sure limits.
Antenna Installation:
The antenna must be located at least 0.6 m (2 feet) away from passengers in
order to comply with the FCC RF exposure requirements.
ON-LINE WARRANTY REGISTRATION
Please visit www.standardhorizon.com to register the GX3500S Marine
VHF. It should be noted that visiting the Web site from time to time may
be beneficial to you, as new products are released they will appear on
the Marine Division of Vertex Standard Web site.
PRODUCT SUPPORT INQUIRIES
If you have any questions or comments regarding the use of the GX3500S,
you can visit the Marine Division of Vertex Standard Web site to send an
E-Mail or contact the Product Support team at 800-767-2450 M-F 7:00-
5:00PST.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 6
5 FCC RADIO LICENSE INFORMATION
Vertex Standard radios comply with the Federal Communication Commission
(FCC) requirements that regulate the Maritime Radio Service.
STATION LICENSE
An FCC ship station license is no longer required for any vessel traveling in
U.S. waters (except Hawaii) which is under 20 meters in length. However, any
vessel required to carry a marine radio on an international voyage, carrying a
HF single side band radiotelephone or marine satellite terminal is required to
have a ship station license. FCC license forms, including applications for ship
(506) and land station licenses can be downloaded via the Internet at
www.fcc.gov/forms. To obtain a form from the FCC, call (888) 225-5322.
RADIO CALL SIGN
Currently the FCC does not require recreational boaters to have a Ship Radio
Station License. The USCG recommends the boats registration number and
the state to be used.
CANADIAN SHIP STATION LICENSING
You may need a license when traveling in Canada. If you do need a license
contact their nearest field office or regional office or write:
Industry Canada
Radio Regulatory Branch
Attn: DOSP
300 Slater Street
Ottawa, Ontario
Canada, KIA 0C8
FCC / INDUSTRY CANADA INFORMATION
The following data pertaining to the transceiver is necessary to fill out the li-
cense application.
Type Acceptance ......................................................................... FCC Part 80
Output Power ............................................... 1 Watt (low) and 25 Watts (high)
Emission ......................................................................... 16K0G3E, 16K0G2B
Frequency Range ..................................................... 156.025 to 163.275 MHz
FCC Type Number....................................................................
Industry Canada Type Approval.................................................
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
K6630063X30
511B-30063X30
Page 7GX3500S
6 FCC NOTICE
NOTICE
Unauthorized changes or modifications to this equipment may void com-
pliance with FCC Rules. Any change or modification must be approved
in writing by Marine Division of Vertex Standard.
NOTICE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 8
7 GETTING STARTED
7.1 ABOUT VHF RADIO
The radio frequencies used in the VHF marine band lie between 156 and 158
MHz with some shore stations available between 161 and 163 MHz. The ma-
rine VHF band provides communications over distances that are essentially
“line of sight” (VHF signals do not travel well through objects such as buildings,
hills or trees). Actual transmission range depends much more on antenna type,
gain and height than on the power output of the transmitter. On a fixed mount
25W radio transmission expected distances can be greater than 15 miles.
7.2 SELECTING AN ANTENNA
Marine antennas are made to radiate signals equally in all horizontal directions,
but not straight up. The objective of a marine antenna is to enhance the signal
toward the horizon. The degree to which this is accomplished is called the
antenna’s gain. It is measured in decibels (dB) and is one of the major factors
in choosing an antenna. In terms of effective radiated power (ERP), antennas
are rated on the basis of how much gain they have over a theoretical antenna
with zero gain. A 3 foot, 3dB gain antenna represents twice as much gain over
the imaginary antenna.
Typically a 3 foot 3dB gain stainless steel whip is used on a sailboat mast. The
longer 8 foot 6dB fiberglass whip is primarily used on power boats that require
the additional gain.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 9GX3500S
7.3 COAXIAL CABLE
VHF antennas are connected to the transceiver by means of a coaxial cable –
a shielded transmission line. Coaxial cable is specified by it’s diameter and
construction.
For runs less than 20 feet, RG-58/U, about 1/4 inch in diameter is a good choice.
For runs over 20 feet but less than 50 feet, the larger RG-8X or RG-213/U
should be used for cable runs over 50 feet RG-8X should be used. For installa-
tion of the connector onto the coaxial cable refer to the figure below.
To get your coax cable through a fitting and into your boat’s interior, you
may have to cut off the end plug and reattach it later. You can do this if
you follow the directions that come with the connector. Be sure to make
good soldered connections.
1/16''
3/4''
3/4''
1 1/8''
1/8''
5/8''3/8''
Adapter
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Vertex Standard Co., Ltd.
GX3500SPage 10
8 INSTALLATION
8.1 LOCATION
The radio can be mounted at any angle. Choose a mounting location that:
• is far enough from any compass to avoid any deviation in compass read-
ing due to the speaker magnet
• provides accessibility to the front panel controls
• allows connection to a power source and an antenna
• has nearby space for installation of a microphone hanger
• the antenna must be mounted at least 3 feet from radio
Note: To insure the radio does not affect the compass or radios performance is
not affected by the antenna location, temporarily connect the radio in the de-
sired location and:
a. Examine the compass to see if the radio causes any deviation
b. Connect the antenna and key the radio. Check to ensure the radio is
operating correctly by requesting a radio check.
8.2 ELECTRICAL CONNECTIONS
CAUTION
Reverse polarity connections will damage the radio!
Connect the power cord and antenna to the radio. Antenna and Power Supply
connections are as follows (see Figure 1):
1. Mount the antenna at least 3 feet away from the radio. At the rear of the
radio, connect the antenna cable. It must have a PL259 connector. RG-8/U
coaxial cable must be used if the antenna is 25 feet or more from the radio.
RG58 cable can be used for distances less than 25 feet.
Figure 1. General Installation
GPS Navigation Receiver
Accessory Cable
Optional Speaker
Antenna
Fuse
Red
Power Source
Black
Water proof
Deck Outlet
Optional HAIL/PA Horn
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 11GX3500S
2. Connect the red power wire to a 13.8 VDC ±20% power source. Connect
the black power wire to a negative ground.
3. If an optional remote extension speaker is to be used, refer to next section
for connections.
4. It is advisable to have a Certified Marine Technician check the power output
and the standing wave ratio of the antenna after installation.
8.3 ACCESSORY CABLE
White: External speaker (+)
Shield: External speaker (–)
Red: PA speaker (+)
Shield: PA speaker (–)
Blue: NMEA IN (+) from GPS navigation receiver
Green: NMEA IN (–) from GPS navigation receiver
Gray: NMEA OUT (+) to GPS navigation receiver
Brown: NMEA OUT (–) to GPS navigation receiver
When connecting the external speaker or GPS navigation receiver, strip off
about 1 inch (2.5 cm) of the specified wire’s insulation, then splice the ends
together using proper waterproofing techniques.
Wire Color/Description
WHITE - External Speaker (+)
SHIELD - External Speaker (–)
RED - PA Speaker (+)
SHIELD - PA Speaker (–)
BLUE- NMEA Input (+)
GREEN - NMEA Input (–)
GRAY- NMEA Output (+)
BROWN-NMEA Output (–)
Connection Examples
Connect to external 4 Ohm audio speaker
Connect to external 4 Ohm audio speaker
Connect to external 4 Ohm PA speaker
Connect to external 4 Ohm PA speaker
Connect to NMEA (+) output of GPS
Connect to NMEA (–) output of GPS
Connect to NMEA (+) input of GPS
Connect to NMEA (–) input of GPS
External Speaker
GPS Receiver
PA Speaker
Green
Blue NMEA OUT
NMEA OUT
NMEA IN
NMEA IN
( )
( )
( )
( )
Gray
Brown
Shield
Shield
Red
Wh i te
DISTRESS
PULL OPE N
-/*
JKL
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 12
8.4 CONNECTION OF GPS WITH NMEA OUTPUT
• The GPS must have the NMEA Output turned on and set to 4800 Baud in
the setup menu. If there is a selection for parity select none.
• For further information on interfacing /setting up your GPS. Please contact
the manufacturer of the GPS receiver.
•GX3500S can read NMEA-0183 version 2.0 or higher.
• The NMEA supported sentences are:
Input: GLL, GGA, RMC and GNS (RMC sentence is recommended)
Output: DSC and DSE
(DSC sentences to Standard Horizon Plotter for Position Polling)
If you have further inquires, please feel free to contact Product Support at:
Phone: (800) 767-2450
Email: marinetech@vxstdusa.com
8.5 CHECKING GPS CONNECTIONS
After connections have been made between the GX3500S and the GPS, a
small satellite icon will appear on the top right corner of
the LCD display. To see additional GPS information, press
the [F] key momentarily, then press the [6(NAV)] key.
The GX3500S shows the Date, Time, SOG and COG.
Manufacturer/Model
Lowrance Portable
Magellan Fixed Mount
Magellan Portable
Northstar
Raytheon 420
Raytheon 520 / 620
Raytheon RL SERIES
Simrad
Sitex Neptune, Nautilus
Wires
Orange
Black (GND)
Gray
Black (GND)
Orange
Black (GND)
Yellow
Black (GND)
Yellow
Brown
Blue
Brown
White
Brown
White
Brown
Gray
Brown
GX3500S
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Wires
Green
Blue
Brown
White
Blue
White
Black
Blue
Black (GND)
Brown
Black (GND)
Yellow
Green
Green
Black
White
Black
White
Black (GND)
Manufacturer/Model
STANDARD HORIZON
Furuno GP30, 36
Furuno GP1650, 1850
Garmin Fixed Mounts
Garmin Portables
JRC GPS500
JRC 100 SERIES
JRC 200 SERIES
Lowrance Fixed Mount
GX3500S
Green
Gray
Blue
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 13GX3500S
8.6 CHANGING THE GPS TIME
From the Factory the GX3500S shows GPS satellite time or UTC time. A time
offset is needed to show the local time in your area.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Time Set” with the
CHANNEL selector knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select time off-
set from UTC. See illustration below to find your off-
set time from UTC. If “0:00” is assigned, the time is
the same as UTC (Universal Time Coordinated or
GMT Greenwich Mean Time).
5. Press the [ENT] key to store the time offset.
6. Press the [16/9] key or turn the CHANNEL selector knob to select “Exit,”
then press the [ENT] key to return to the “Radio Setup” menu, select “Exit”
and press the [ENT] key to return to radio operation.
OFFSET TIME TABLE
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 14
8.7 CHANGING THE TIME LOCATION
You may select the time display between local time and UTC (time GPS sends
to radio). Time is displayed when GPS position (LAT/LON) is displayed by press-
ing the [F] key followed by the [6(NAV)] key.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Time Disp” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “UTC” or
“Local.”
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
In the local time mode, the display shows the time by the 12-hour system.
Meanwhile, the display shows the time by the 24-hour system in the UTC mode.
(“UTC” mode)(
“LOCAL” mode)
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 15GX3500S
8.8 CHANGING COG TO TRUE OR MAGNETIC
Allows customizing the NAV data showing GPS Course Over Ground (COG).
Factory default is True however following the steps below the COG can be
changed to Magnetic.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Magnetic” with the
CHANNEL selector knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “On” (rep-
resenting “Magnetic”) or “Off” (representing “True”).
5. Press the [ENT] key to store the selected setting.
6. Turn the CHANNEL selector knob to select “Exit,”
then press the [ENT] key to return to the “Radio
Setup” menu, select “Exit” and press the [ENT] key
to return to radio operation.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 16
8.9 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION
1. To assist in flush mounting, a template has been included. Use this tem-
plate to find the mounting location.
2. Use the template to mark the location where the rectangular hole is to be
cut. Confirm the space behind the dash or panel is deep enough to accom-
modate the transceiver (at least 6 inches or 15 cm deep).
There should be at least 1/2 inch (1.3 cm) between the transceiver’s heatsink
and any wiring, cables or structures.
3. Cut out the rectangular hole and insert the transceiver.
4. Fasten the brackets to the sides of the transceiver with the lock washer nut
combination; so that the mounting screw base faces the mounting surface
(see Figure 2).
5. Turn the adjusting screw to adjust the tension so that the transceiver is tight
against the mounting surface.
Figure 2. MMB-84 Flush Mount Installation
Bracket
A
djusting Screw
Lock-washer nut combination
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 17GX3500S
8.10
OPTIONAL ENHANCED RAM+ SECOND STATION MIC INSTALLATION
The GX3500S is capable of using up to 2 Enhanced RAM+ mics to remotely
control the Radio, DSC and PA/Fog functions. In addition the GX3500S can
operate as a full function intercom system. With 2 RAM+ mics connected the
GX3500S or RAM+ mics can selective call each station individually or all at one
time.
1. Connect the RAM+ MIC Cable to the RAM MIC CONNECTOR on the rear
panel, then tighten the Cable Nut (See Figure 3).
2. Referring to Figure 3, make a 1.2” (30 mm) hole in the wall, then insert the
RAM+ MIC Cable into this hole. Connect the Gasket and Mount Base to the
RAM+ MIC Cable Connector using the Nut.
3. Drill the four Screw holes (approx. 2 mm) on the wall, then install the Mounting
Base to the wall using four screws.
4. Put the Rubber Cap on to the Nut. The installation is now complete.
5. Wires for a external speaker are provided on the RAM+ mic cable. Connect
any 8 Ohm external speaker. When connected the RAM+ controls the vol-
ume level of this speaker.
RAM+ or External Speaker Selection
By default the RAM+ internal speaker is turned on, however using the RAM+
mic this speaker can be turned off so the external speaker can be used.
1. Press and hold the [CALL/SET] key on the RAM+ Mic.
2. Using the [] or [] keys to select “RAM
SPK” and press the [CALL/SET] key.
3. Press the [] or [] key to turn the RAM+
Speaker “oF.”
4. Press the [16/9] key to exit this mode.

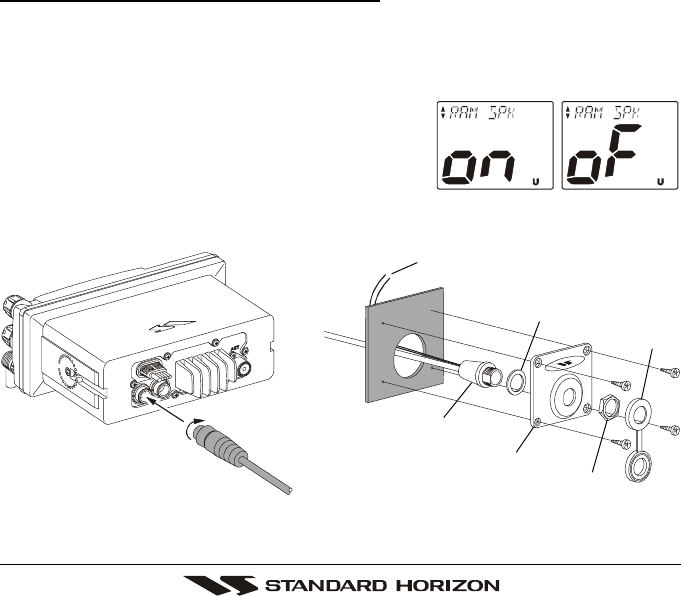

Figure 3. Enhanced RAM+ MIC Installation
Wall Gasket
Mounting Bracket
RAM MIC Cable
Cap
Nut
EXP SP Cable for the RAM+ MIC
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 18
9 CONTROLS AND INDICATORS
NOTE
This section defines each control of the transceiver. See Figure 4 for
location of controls. For detailed operating instructions refer to section
“10 BASIC OPERATION.”
VOLUME CONTROL (VOL)
Adjusting this control clockwise, increases the audio volume level.
SQUELCH CONTROL (SQL)
Adjusting this control clockwise, sets the point at which random noise on
the channel does not activate the audio circuits but a received signal does.
This point is called the squelch threshold. Further adjustment of the squelch
control will degrade reception of wanted transmissions.
MICROPHONE CONNECTOR
Connect the supplied MH-63A6 Hand Microphone to this jack.
KEY BUTTON
[16/9] Key
Immediately recalls channel 16 from any channel location. Holding down
this key recalls channel 9. Pressing the [16/9] key again reverts to the
previous selected working channel.
Secondary use
Press and hold the [16/9] key then press the [WX] key to switch the
Channel Group.
[WX] Key
Immediately recalls the previously selected NOAA weather channel from
any channel.
Secondary use
Holding down the [16/9] key while pressing the [WX] key changes the
Channel Group.
[H/L] Key
Toggles between 25 W (High) and 1 W (Low) power. When the [H/L] key
is pressed while the transceiver is on channel 13 or 67, the power will
temporarily switch from LO to HI power until the PTT is released.
The [H/L] key does not function on transmit inhibited and low power only
channels.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 19GX3500S
Figure 4. Controls and Connectors
DISTRESS
PULL OPEN
-/*
JKL
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 20
[PWR] Key
Turns the transceiver on and off. To turn the transceiver on, press and
hold this key until the LCD turns on. To turn it off, press and hold this key
until the LCD turns off. When the power is turned on, the transceiver is
set to the last selected channel.
CHANNEL SELECTOR KNOB
Rotary knob used to select channels and to choose menu items (such as the
DSC menu, radio setup menu, and DSC setup menu). The [UP()] /
[DOWN()] keys on the microphone can also be used to select channels and
menu items.
When the PA/FOG mode is activated, the CHANNEL selector knob adjust
the audio output level.
Secondary Use (Depends on the transceiver version)
While holding down the [SCAN] key and turning the CHANNEL selector
knob, you can confirm memory channels for scanning.
KEYPAD
[1(DIM)] Key
When in radio mode, this key is used to directly select channel digit “1” in
a channel number.
Secondary use
Press the [F] key first then press the [1(DIM)] key, access the LCD Dim-
mer menu. Refer to section “10.15 LCD DIMMER” for details.
[2(MEM)] Key
When in radio mode, this key is used to directly select channel digit “2” in
a channel number.
Secondary use (Depends on the transceiver version)
Press the [F] key first then press the [2(MEM)] key, memorize the se-
lected channel into the transceiver scan memory for scanning. When
repeat the same procedures ([F] [2(MEM)]), DELETES the channel
from the scan memory. Refer to section “10.12 SCANNING” for details.
[3(SCAN)] Key
When in radio mode, this key is used to directly select channel digit “3” in
a channel number.
Secondary use (Depends on the transceiver version)
Press the [F] key first then press the [3(SCAN)] key, start and stop the
scanning of programmed channels. Refer to section “10.12 SCANNING”
for details.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 21GX3500S
[4(DW)] Key
When in radio mode, this key is used to directly select channel digit “4” in
a channel number.
Secondary use (Depends on the transceiver version)
Press the [F] key first then press the [4(DW)] key, scan for voice commu-
nications on the priority channel and another selected channel until a
signal is received on either channel (Dual Watch). Refer to section “10.11
DUAL WATCH (TO PRIORITY CHANNEL)” for details.
[5(IC)] Key
When in radio mode, this key is used to directly select channel digit “5” in
a channel number.
Secondary use
Press the [F] key first then press the [5(IC)] key, when the optional RAM+
Mic is connected, intercom operation will operate between radio and RAM+
Mic. Refer to section “10.16 INTERCOM OPERATION” for details.
[6(NAV)] Key
When in radio mode, this key is used to directly select channel digit “6” in
a channel number.
Secondary use
Press the [F] key first then press the [6(NAV)] key, the LCD displays NAV
GPS Data, Time, SOG (Speed Over Ground), and COG (Course Over
Ground) when a GPS is connected to the accessory cable of the
GX3500S. See section “8.4 CONNECTION OF GPS WITH NMEA OUT-
PUT” for details.
[7(SCRM)] Key
When in radio mode, this key is used to directly select channel digit “7” in
a channel number.
Secondary use
Press the [F] key first then press the [7(SCRM)] key, when the optional
CVS2500 Voice Scrambler Unit is installed, available to operate the Voice
Scrambler function. Refer to section “10.17 VOICE SCRAMBLER” for
details.
[8(PA)] Key
When in radio mode, this key is used to directly select channel digit “8” in
a channel number.
Secondary use
Press the [F] key first then press the [8(PA)] key, available to operate the
30 Watt PA function. Refer to section “10.13 PA/FOG OPERATION” for
details.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 22
[9(FOG)] Key
When in radio mode, this key is used to directly select channel digit “9” in
a channel number.
Secondary use
Press the [F] key first then press the [9(FOG)] key, available to operate
the Fog Horn function. Refer to section “10.13 PA/FOG OPERATION”
for details.
[0] Key
When in radio mode, this key is used to directly select channel digit “0” in
a channel number.
[CLR] Key
Press the [CLR] Key to cancel the menu selection and/or keypad entry.
[ENT] Key
Press the [ENT] Key to determine the menu selection and/or keypad
entry.
[CALL(MENU)] Key
Press the [CALL(MENU)] key to access the DSC OPERATION menu.
The “INDIVIDUAL CALL,” “GROUP CALL,” and “ALL SHIPS CALL” func-
tions can be accessed from the DSC OPERATION menu.
Secondary use
Press and hold the [CALL(MENU)] key to access the “Radio Setup”
(refer to section “12 RADIO SETUP”) or “DSC Setup” menu (refer to
section “11 DIGITAL SELECTIVE CALLING”).

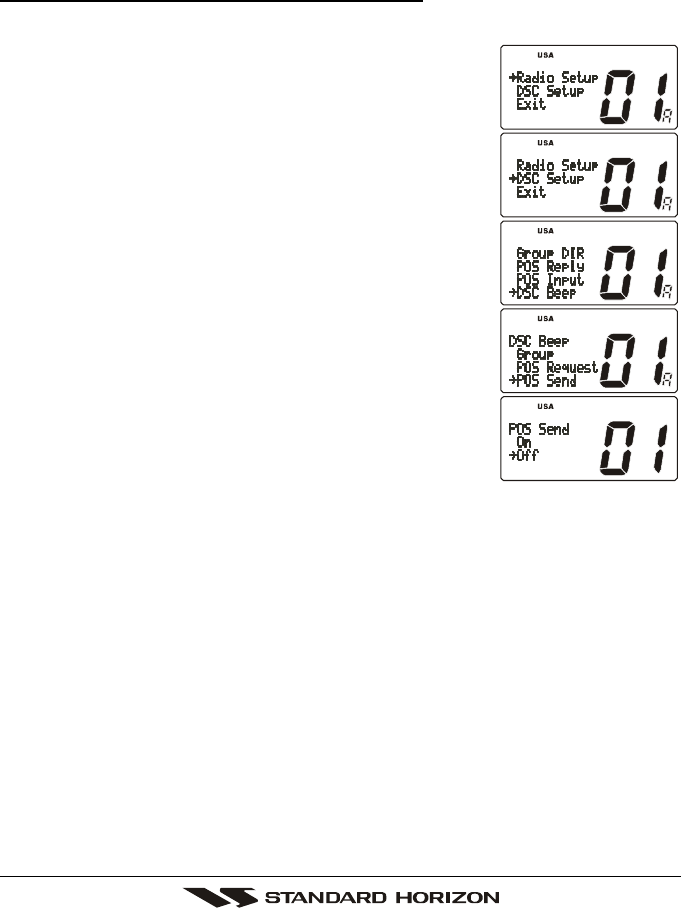

“Radio Setup” menu “DSC Setup” menu
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 23GX3500S
[F] Key
Press the [F] key to activate the “Alternate” key function.
[DISTRESS] Key
Used to send a DSC Distress Call. To send the distress call refer to section
“11.3.1 (Transmitting A DSC Distress Call).”
ACCESSORY CONNECTION CABLE
Connects the GX3500S to a GPS, a PA speaker, and an external speaker.
DC INPUT CABLE
Connects the radio to a DC power supply capable of delivering 12V DC.
RAM+ MIC CONNECTORS
Connects the GX3500S to the enhanced RAM+ MIC (Remote Access Mi-
crophone). Refer to section “13 ENHANCED RAM+ MIC OPERATION” for
details.
ANTENNA JACK
Connects an antenna to the transceiver. Use a marine VHF antenna with
an impedance of 50 ohms.
PTT (Push-To-Talk) SWITCH
Keys the transmitter when the transceiver is in radio mode. If the transceiver
is in the intercom operation mode (between the RAM+ and the GX3500S),
or PA mode, it activates the GX3500S microphone for voice communica-
tions.
MICROPHONE
Transmits the voice message with reduction of background noise, using
Clear Voice Noise Reduction Technology.
MICROPHONE SPEAKER
The audio heard through internal radio speaker is heard through micro-
phone speaker.
[UP()] / [DOWN()] KEYS
The [UP()] and [DOWN()] on the microphone function the same as the
CHANNEL selector knob on the front panel of the transceiver.
[16/9] Key
Pressing the [16/9] key immediately recalls channel 16 from any location.
Press and hold the [16/9] key to recall channel 9. Pressing the [16/9] key
again will revert the radio to the previous selected channel.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 24
10 BASIC OPERATION
10.1 RECEPTION
1. After the transceiver has been installed, ensure that the power supply and
antenna are properly connected.
2. Press and hold the [PWR] key until the radio turns on.
3. Turn the SQL knob fully counterclockwise. This state is known as “squelch off”.
4. Turn up the VOL knob until noise or audio from the speaker is at a comfort-
able level.
5. Turn the SQL knob clockwise until the random noise disappears. This state
is known as the “squelch threshold.”
6. Turn the CHANNEL selector knob to select the desired channel. Refer to
the channel chart on page 78 for available channels.
7. The keypad on the front may be used to directly select channels. Example
to select channel 68:
1. Press [6(NAV)]
2. Press [8(PA)]
3. Press [ENT]
In the USA and Canadian modes, press and hold in the [0] key to select the
“A” channel. Example to select channel 22A:
1. Press [2(MEM)]
2. Press [2(MEM)]
3. Press [0] until “A” appears to the right of the channel number
4. Press [ENT]
8. When a message is received, adjust the volume to the desired listening
level. The “ ” indicator in the LCD is displayed indicating that the chan-
nel is being used.
10.2 TRANSMISSION
1. Perform steps 1 through 6 of RECEPTION.
2. Before transmitting, monitor the channel to ensure it is clear.
THIS IS AN FCC REQUIREMENT!
3 Press the PTT (push-to-talk) switch. The “ ” indicator in the LCD is
displayed.
4. Speak slowly and clearly into the microphone.
5. When the transmission is finished, release the PTT switch.
NOTE
This is a noise-canceling microphone. The oval slot on the bottom of
microphone should be positioned within 1/2 inch (1.3 cm) from the mouth
for optimum performance.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 25GX3500S
10.3 TRANSMIT TIME - OUT TIMER (TOT)
When the PTT switch on the microphone is held down, transmit time is limited to
5 minutes. This limits unintentional transmissions due to a stuck microphone.
About 10 seconds before automatic transmitter shutdown, a warning beep will be
heard from the speaker(s). The transceiver will automatically go to receive mode,
even if the PTT switch is continually held down. Before transmitting again, the PTT
switch must first be released and then pressed again.
10.4 SIMPLEX/DUPLEX CHANNEL USE
Refer to the VHF MARINE CHANNEL CHART (page 78) for instructions on use
of simplex and duplex channels.
NOTE
All channels are factory-programmed in accordance with International,
Industry Canada (Canada), and FCC (USA) regulations. Mode of opera-
tion cannot be altered from simplex to duplex or vice-versa.
10.5 INTERNATIONAL, USA, AND CANADA MODE
1. To change the modes, hold the [16/9] key and press the [WX] key. The
mode changes from International to Canadian to USA with each press of
the [WX] key.
2. “INTL” will be displayed for International mode, and “CAN” will be displayed
for Canadian mode, and “USA” will be displayed on the LCD for USA mode.
3. Refer to the VHF MARINE CHANNEL CHART (page 78) for allocated chan-
nels in each mode.
10.6 NOAA WEATHER CHANNELS
NOTE
NOAA Weather channels are available in the waters of USA and Canada only.
1. To receive a NOAA weather channel, press the [WX] key from any channel.
The transceiver will go to the last selected weather channel.
2. Turn the CHANNEL selector knob on the radio or [UP()] / [DOWN()]
keys on the microphone to select a different NOAA weather channel.
3. To exit from the NOAA weather channels, press the [WX] key. The trans-
ceiver returns to the channel it was on prior to a weather channel.
10.6.1 NOAA Weather Alert
In the event of extreme weather disturbances, such as storms and hurricanes,
the NOAA (National Oceanic and Atmospheric Administration) sends a weather
alert accompanied by a 1050 Hz tone and subsequent weather report on one of
the NOAA weather channels. When the Weather Alert feature is enabled (see
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 26
section “12.9 WX ALERT”), the transceiver is capable of receiving this alert if
the following is performed:
1. Program NOAA weather channels into the transceiver’s memory for scan-
ning. Follow the same procedure as for regular channels under section “10.12.”
2. Press the [SCAN] key once to start memory scanning or hold down the
[SCAN] key during memory scanning to start priority scanning.
3. The programmed NOAA weather channels will be scanned along with the
regular-programmed channels. However, scanning will not stop on a nor-
mal weather broadcast unless a NOAA alert is received.
4. When an alert is received on a NOAA weather channel, scanning will stop and
the transceiver will emit a loud beep to alert the user of a NOAA broadcast.
5. Press the [WX] key to stop the alert tone and receive the weather report.
NOTE
If the [WX] key is not pressed the alert tone will be emitted for 5 minutes
and then the weather report will be received.
NOTE
The Weather Alert feature is also engaged while the transceiver is re-
ceiving on one of the NOAA weather channels.
10.6.2 NOAA Weather Alert Testing
NOAA tests the alert system ever Wednesday between 11AM and 1PM. To test
the QUANTUM’s NOAA Weather feature, on Wednesday between 11AM and
1PM, setup as in previous section and confirm the alert is heard.
10.7 EMERGENCY (CHANNEL 16 USE)
Channel 16 is known as the Hail and Distress Channel. An emergency is de-
fined as a threat to life or property. In such instances, be sure the transceiver is
on and set to CHANNEL 16. Then use the following procedure:
1. Press the microphone push-to-talk switch and say “Mayday, Mayday, May-
day. This is , , ” (your vessel’s name).
2. Then repeat once: “Mayday, ” (your vessel’s name).
3. Now report your position in latitude/longitude, or by giving a true or mag-
netic bearing (state which) to a well-known landmark such as a navigation
aid or geographic feature such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, fire, heart
attack, life-threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 27GX3500S
8. Give your vessel’s description: length, design (power or sail), color and
other distinguishing marks. The total transmission should not exceed 1
minute.
9. End the message by saying “OVER.” Release the microphone button and
listen.
10. If there is no answer, repeat the above procedure. If there is still no re-
sponse, try another channel.
10.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other vessels.
Use of channel 16 for hailing must be limited to initial contact only. Calling
should not exceed 30 seconds, but may be repeated 3 times at 2-minute inter-
vals. In areas of heavy radio traffic, congestion on channel 16 resulting from its
use as a hailing channel can be reduced significantly in U.S. waters by using
channel 9 as the initial contact (hailing) channel for non-emergency communi-
cations. Here, also, calling time should not exceed 30 seconds but may be
repeated 3 times at 2-minute intervals.
Prior to making contact with another vessel, refer to the channel charts in this
manual, and select an appropriate channel for communications after initial con-
tact. For example, Channels 68 and 69 are some of the channels available to
non-commercial (recreational) boaters. Monitor your desired channel in advance
to make sure you will not be interrupting other traffic, and then go back to either
channel 16 or 9 for your initial contact.
When the hailing channel (16 or 9) is clear, state the name of the other vessel
you wish to call and then “this is” followed by the name of your vessel and your
Station License (Call Sign). When the other vessel returns your call, immedi-
ately request another channel by saying “go to,” the number of the other chan-
nel, and “over.” Then switch to the new channel. When the new channel is not
busy, call the other vessel.
After a transmission, say “over,” and release the microphone’s push-to-talk
(PTT) switch. When all communication with the other vessel is completed, end
the last transmission by stating your Call Sign and the word “out.” Note that it is
not necessary to state your Call Sign with each transmission, only at the begin-
ning and end of the contact.
Remember to return to Channel 16 when not using another channel. Some
radios automatically monitor Channel 16 even when set to other channels or
when scanning.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 28
10.9 MAKING TELEPHONE CALLS
To make a radiotelephone call, use a channel designated for this purpose, The
fastest way to learn which channels are used for radiotelephone traffic is to ask
at a local marina. Channels available for such traffic are designated Public
Correspondence channels on the channel charts in this manual. Some ex-
amples for USA use are Channels 24, 25, 26, 27, 28, 84, 85, 86, and 87. Call
the marine operator and identify yourself by your vessel’s name, The marine
operator will then ask you how you will pay for the call (telephone credit card,
collect, etc.) and then link your radio transmission to the telephone lines.
The marine telephone company managing the VHF channel you are using may
charge a link-up fee in addition to the cost of the call.
10.10 OPERATING ON CHANNELS 13 AND 67
Channel 13 is used at docks and bridges and by vessels maneuvering in port.
Messages on this channel must concern navigation only, such as meeting and
passing in restricted waters.
Channel 67 is used for navigational traffic between vessels.
By regulation, power is normally limited to 1 Watt on these channels. Your radio
is programmed to automatically reduce power to this limit on these channels.
However, in certain situations it may be necessary to temporarily use a higher
power. See page 18 ([H/L] key) for means to temporarily override the low-power
limit on these two channels.
10.11 DUAL WATCH (TO PRIORITY CHANNEL)
Dual watch allows the radio to monitor one channel and the assigned Priority
channel. By default the priority channel is set to 16, however the priority chan-
nel may be changed by referring to section 12.5 Priority Channel set.
1. Adjust the SQL knob until the background noise disappears.
2. Select the channel you wish to dual watch to “Priority channel.”
3. Press the [F] key followed by the [4(DW)] key.
The display will scan between Priority channel and
the channel that was selected in step 2.
If a transmission is received on the channel selected
in step 2, the GX3500S will dual watch between the
working channel and the Priority channel.
4. To stop Dual Watch, press the [CLR] key or press the [F] key followed by
the [4(DW)] key again.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 29GX3500S
10.12 SCANNING
Allows the user to select the scan type from Memory scan or Priority scan.
“Memory scan” scans the channels that were programmed into memory. “Pri-
ority scan” scans the channels programmed in memory with the priority chan-
nel.
10.12.1 Selecting the Scan Type
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “SCAN Type” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “Prior-
ity” or “Memory.”
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
10.12.2 Memory Scanning (M-SCAN)
1. Adjust the SQL knob until background noise disappears.
2. Select a desired channel to be scanned using the
CHANNEL selector knob. Press the [F] key followed
by the [2(MEM)] key, “MEM” will appear on the LCD
which indicates the channel has been programmed
into the transceivers memory.
3. Repeat step 2 for all the desired channels to be scanned.
4. To DELETE a channel from the transceiver’s memory, select the channel
then press the [F] key followed by the [2(MEM)] key, “MEM” will disappear
in the LCD.
5. To start scanning, press the [F] key followed by the
[3(SCAN)] key.
“M-SCAN” appears on the LCD. Scanning will pro-
ceed from the lowest to the highest programmed
channel number and will stop on a channel when a transmission is received.
6. The channel number will blink during reception.
7. To stop scanning, press the [16/9], [WX], [CALL(MENU)], or PTT key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 30
10.12.3 Priority Scanning (P-SCAN)
In the default setting, Channel 16 is set as the priority channel. You may change
the priority channel to the desired channel from the Channel 16 by the Radio
Setup Mode, refer to section “12.5 PRIORITY CHANNEL SET.”
1. Adjust the SQL knob until background noise disappears.
2. Select a desired channel to be scanned using the
CHANNEL selector knob. Press the [F] key followed
by the [2(MEM)] key, “MEM” will appear on the LCD
which indicates the channel has been programmed
into the transceivers memory.
3. Repeat step 2 for all the desired channels to be scanned.
4. To DELETE a channel from the transceiver’s memory, select the channel
then press the [F] key followed by the [2(MEM)] key, “MEM” will disappear
in the LCD.
5. To start priority scanning, press the [F] key followed
by the [3(SCAN)] key. “P-SCAN” appears on the LCD.
Scanning will proceed between the memorized chan-
nels and the priority channel. CH 16 the priority chan-
nel will be scanned after each programmed channel.
6. To stop scanning, press the [16/9], [WX], [CALL(MENU)], or PTT key.
You may change the scan resume time by the Radio Setup Mode, refer to
section “12.7 SCAN RESUME TIME.”
10.13 PA/FOG OPERATION
PA/FOG mode allows the transceiver to be used as a 30W hailer when an
optional STANDARD HORIZON 220SW or 240SW HAIL/PA Horn is installed.
When in Hail mode the HAIL/PA Listen’s Back (acts as a microphone and sends
sound to the front panel speaker) through the HAIL/PA speaker which provides
two-way communications through the HAIL/PA speaker.
NOTE
When in PA or FOG mode the GX3500S will receive the last selected VHF
channel before entering into the PA or FOG mode and receive DSC calls.
PA HAIL mode: Allows the transceiver to be used as a power hailer when
an optional STANDARD HORIZON 220SW or 240SW
HAIL/PA Horn is installed. The Hail mode has a listen-back
feature which provides two way communication through
the HAIL/PA speaker.
FOG HORN mode: Automatic signaling is transmitted through the HAIL/PA
speaker.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 31GX3500S
10.13.1 Operating the PA HAIL mode
1. Press the [F] key followed by the [8(PA)] key to acti-
vate the PA HAIL mode.
2. Press the PTT switch to speak through the HAIL/PA
speaker.
Rotate the CHANNEL selector knob to control the
AF output level. The AF output level can be set from
0 to 30 watts.
3. To exit the PA HAIL mode and return to radio opera-
tion mode, press the [F] key followed by the [8(PA)] key again.
10.13.2 Operating the FOG HORN mode
Operator can select from Underway, Stop, Sail, Tow, Horn, Siren, Aground, or
Anchor. Please refer to page 87 for FOG Horn Timing Chart.
1. Press the [F] key followed by the [9(FOG)] key, acti-
vate the “FOG HORN” menu.
2. Turn the CHANNEL selector knob to select the one
of the eight functions described above.
3. Press the [ENT] key.
4. On the “Horn” and “Siren” modes, press the PTT
switch to activate the tone through the HAIL/PA
speaker.
Rotate the CHANNEL selector knob to control the
AF output level. The AF output level can be set from
0 to 30 watts.
5. To exit the “FOG HORN” mode and return to radio operation mode, press
the [F] key followed by the [9(FOG)] key again.
10.14 NAVIGATION INDICATION
The transceiver has the ability to display Date, Time, SOG, COG, as well as the
position (LAT/LON), when connected to a GPS receiver.
1. Press the [F] key followed by the [6(NAV)] key, dis-
play the position information on the LCD. If the GPS
receiver is not receiving a fix, the display will be as
shown in the illustration on the right.
2. To hide the position information, press the [F] key
followed by the [6(NAV)] key again.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 32
10.15 LCD DIMMER
Allows setting up the backlight intensity or to turn it off.
1. Press the [F] key followed by the [1(DIM)] key to en-
abling the setting up the backlight intensity.
2. Turn the CHANNEL selector knob to select the de-
sired backlight intensity. You will be able to see the
effects of your changes.
3. When you have completed the adjustment, press the [F] key followed by
the [1(DIM)] key again, return to radio operation mode.
10.16 INTERCOM OPERATION
If the RAM+ Mic is connected to the GX3500S, you may communicate between
the GX3500S and RAM+ Mic, or RAM+ and RAM+ Mic (Refer to section “13.2
INTERCOM OPERATION”).
SCAN DW
NAV
WX
CALL
SET
MEM IC
U .I. C
MENU
16
9
SCAN DW
NAV
WX
CALL
SET
MEM IC
U.I.C
MENU
16
9
SCAN DW
NAV
WX
CA LL
SET
MEM IC
U .I. C
MENU
16
9
SCAN DW
NAV
WX
CA LL
SET
MEM IC
U.I.C
MENU
16
9
SCAN DW
NAV
WX
CALL
SET
MEM IC
U .I. C
MENU
16
9
SCAN DW
NAV
WX
CALL
SET
MEM IC
U.I.C
MENU
16
9
SCAN DW
NAV
WX
CA LL
SET
MEM IC
U .I. C
MENU
16
9
SCAN DW
NAV
WX
CA LL
SET
MEM IC
U.I.C
MENU
16
9
RAM 1
RAM 1
RAM 1
RAM 1
RAM 1 RAM 2
RAM 1 GX3500S
RAM 2
RAM 2
RAM 2
RAM 2
DIST RE SS
PULL OPEN
-/*
JKL
DIST RE SS
PULL OPEN
-/*
JKL
DISTRESS
PULL OPE N
-/*
JKL
DISTRESS
PULL OPE N
-/*
JKL
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 33GX3500S
10.16.1 Communication
1. Press the [F] key followed by the [5(IC)] key, the mode
is changed to “INTERCOM” mode.
2. If your GX3500S is equipped two RAM+ Mic’s, se-
lect the companion you wish to communicate (RAM1,
RAM2, or ALL) with the CHANNEL selector knob, then press the [ENT] key.
3. When the “INTERCOM” operation is
activated, “Intercom” is displayed on
the GX3500S, and “IC” is displayed on
the RAM+ Mic.
4. Press the PTT switch. “Talk” will be
shown on the display.
NOTE: A warning beep will be emitted
when the GX3500S microphone’s PTT
switch is pressed while the RAM+ Mic’s
PTT switch is pressed.
5. Speak slowly and clearly into the microphone, hold the microphone about
1/2 inch away from your mouth.
6. When finished, release the PTT switch.
7. To exit the “INTERCOM” mode and return to radio operation mode, press
the [F] key followed by the [5(IC)] key again.
10.16.2 Calling
Press and hold the [5(IC)] key for 1 second when the “INTERCOM” operation is
activated, a calling beep is emitted twice from the transceiver speaker.
NOTE
When both RAM+ microphones are set to inter-
com mode, the GX3500S will be temporarily dis-
abled until the RAM+(s) exit the RAM+ to RAM+
intercom mode.
(RAM+ Mic’s PTT switch is pressed)
(GX3500S’s PTT switch is pressed)
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 34
10.17 VOICE SCRAMBLER
If privacy of communications is desired, a CVS2500 voice scrambler (VS) can
be installed in the transceiver. Contact your Dealer to have a CVS2500 installed.
1. Press the [F] key followed by the [7(SCRM)] key, the
voice scrambler is activated. “VS” will appear on the
LCD.
2. Press the [F] key then press and hold the [7(SCRM)]
key for 1 second, the “SCRM Code” will appear.
3. Turn the CHANNEL selector knob to change the
scrambler code. The scrambler code can be set from
“0” to “3.”
4. Press the [ENT] key to save the scrambler code and return to radio opera-
tion mode (with voice scrambler).
5. Monitor the channel before transmitting.
6. To disable the voice scrambler, press the [F] key followed by the [7(SCRM)]
key again.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 35GX3500S
MEMO
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 36
11 DIGITAL SELECTIVE CALLING
11.1 GENERAL
WARNING
This radio is designed to generate a digital maritime distress and safety
call to facilitate search and rescue. To be effective as a safety device,
this equipment must be used only within communication range of a shore-
based VHF marine channel 70 distress and safety watch system. The
range of signal may vary but under normal conditions should be approxi-
mately 20 nautical miles.
NOTE
A DSC Warning sticker is included
with the GX3500S. To comply with
FCC regulations this sticker must be
mounted in a location that can be eas-
ily viewed from the location of the
GX3500S. Make sure the chosen lo-
cation is clean and dry before apply-
ing the sticker.
Digital Selective Calling is a semi-automated method of establishing a radio
call, it has been designated by the International Maritime Organization (IMO)
as an international standard for establishing VHF, MF and HF radio calls. It has
also been designated as part of the Global Maritime Distress and Safety Sys-
tem (GMDSS). It is planned that DSC will eventually replace aural watches on
distress frequencies and will be used to announce routine and urgent maritime
safety information broadcasts.
This new system allows mariners to instantly send a distress call with GPS posi-
tion (when connected to the transceiver) to the Coast Guard and other vessels
within range of the transmission. DSC will also allow mariners to initiate or receive
Distress, Urgency, Safety, Routine, POSITION REQUEST, POSITION SEND, and
Group calls to or from another vessel equipped with a DSC transceiver.
-/*
JKL
DISTRES S
PULL OPEN
WARNING
STICKER
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 37GX3500S
11.2 MARITIME MOBILE SERVICE IDENTITY (MMSI)
11.2.1 What is an MMSI?
An MMSI is a nine digit number used on Marine Transceivers capable of using
Digital Selective Calling (DSC). This number is used like a telephone number to
selectively call other vessels.
THIS NUMBER MUST BE PROGRAMMED INTO THE RADIO TO OPERATE
THE GX3500S DSC FUCTIONS.
How can I obtain an MMSI assignment?
Boat US offers online registration of a MMSI. Visit www.boatus.com/mmsi
11.2.2 Programming the MMSI
WARNING
User MMSI can be input only twice. If the user tries to input an MMSI
more than twice, the radio will show the display on
the right. If the user needs to change the MMSI
more than twice, the transceiver will have to be
sent to Factory Service. Refer to the section “14.2.
FACTORY SERVICE.”
1. Press and hold down the [CALL(MENU)] key until
the “Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to the left to se-
lect “DSC Setup” menu.
3. Press the [ENT] key, then select “User MMSI” with
the CHANNEL selector knob.
4. Press the [ENT] key. The “User MMSI” number will
appear, and the first digit will be flashing.
5. Enter the your MMSI (up to nine digits) from the key-
pad.
6. Press and hold the [ENT] key to store the number in
memory.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 38
11.3 DSC DISTRESS CALL
The GX3500S is capable of transmitting and receiving DSC Distress messages
to all DSC radios. The GX3500S may be connected to a GPS to also transmit
the Latitude, Longitude of the vessel.
11.3.1 Transmitting a DSC Distress Call
NOTE
To be able to transmit a DSC distress call an MMSI number must be
programmed, refer to section “11.2.2 Programming the MMSI.”
In order for your ships location to be transmitted a GPS must be connected to
the GX3500S, refer to section “8.4 CONNECTION OF GPS WITH NMEA OUT-
PUT.”
1. Lift the red spring loaded DISTRESS cover and press the [DISTRESS] key.
The “DISTRESS” menu will appear on the LCD.
2. Press and hold the [DISTRESS] key. The radios dis-
play will count down (3-2-1) and then transmit the
Distress call.
3. When the distress signal is sent, CH70 and “ ”
icon will appear on the LCD. After the message has
been sent, the radio will sound a Distress Alarm.
4. The transceiver will watch for a DSC acknowledg-
ment transmission on CH70 and also receive calls
on CH16.
5. If an acknowledgement is received, select channel
16 and advise your distress situation.
6. If no acknowledgment is received, the distress call is
repeated in 4 minute intervals until a DSC acknowl-
edgment is received.
7. When a DSC Distress acknowledgment is received,
a distress alarm sounds and channel 16 is automati-
cally selected. The LCD shows the MMSI of the ship
responding to your distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast station.
8. To cancel the DSC distress alarm signal from the speaker, press any key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 39GX3500S
Transmitting a DSC Distress Call with Nature of Distress
The GX3500S is capable of transmitting a DSC Distress Call with the following
“Nature of Distress” categories:
Undesignated, Fire, Flooding, Collision, Grounding, Capsizing, Sinking,
Adrift, Abandoning, Piracy, MOB
1. Lift the red spring loaded DISTRESS cover and press the [DISTRESS] key.
The “DISTRESS” menu will appear on the LCD.
2. Turn the CHANNEL selector knob to select the de-
sired nature of distress category.
3. Press and hold the [DISTRESS] key. The radios dis-
play will count down (3-2-1) and then transmit the
Distress call.
4. When the distress signal is sent, CH70 and “ ”
icon will appear on the LCD. After the message has
been sent, the radio will sound a Distress Alarm.
5. The transceiver will watch for a DSC acknowledg-
ment transmission on CH70 and also receive calls
on CH16.
6. If an acknowledgement is received, select channel
16 and advise your distress situation.
7. If no acknowledgment is received, the distress call is
repeated in 4 minute intervals until a DSC acknowl-
edgment is received.
8. When a DSC Distress acknowledgment is received,
a distress alarm sounds and channel 16 is automati-
cally selected. The LCD shows the MMSI of the ship
responding to your distress.
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast station.
9. To cancel the DSC distress alarm signal from the speaker, press any key.
Cancel a DSC Distress Call
If a DSC Distress call was sent by error the GX3500S
allows you to send a message to other vessels to cancel
the Distress Call that was made in error.
Press the [CLR] key, then press the [ENT] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 40

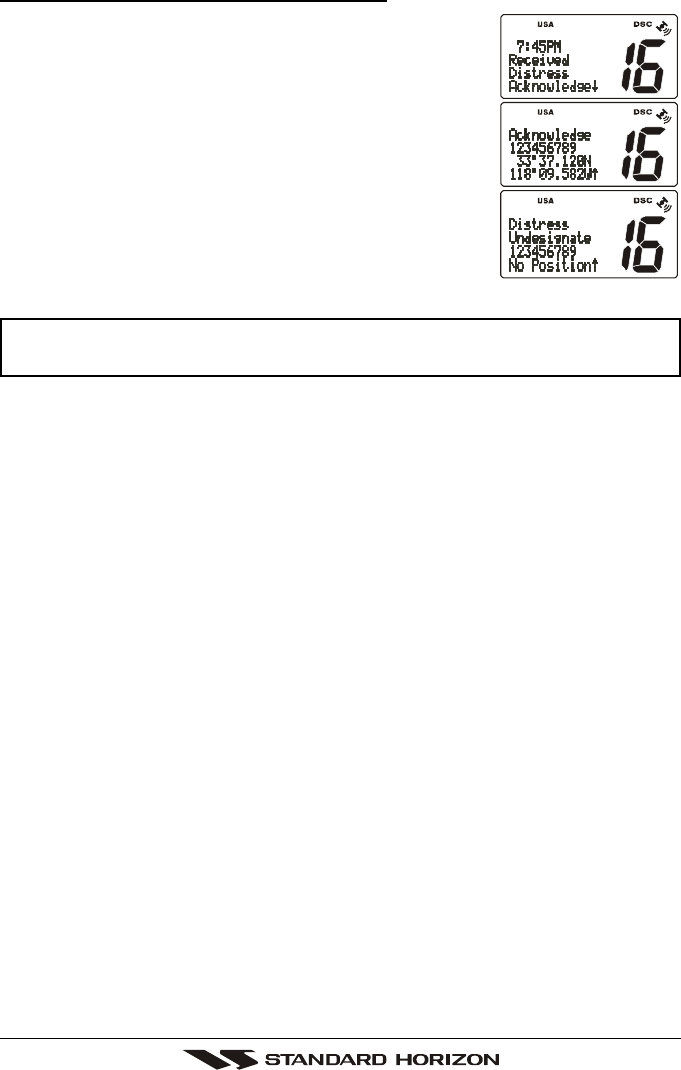

11.3.2 Receiving a DSC Distress Call
1. When a DSC Distress call is received, an emergency
alarm sounds.
Then channel 16 is automatically selected.
2. Press any key to stop the alarm.
3. Turn the CHANNEL selector knob to change the dis-
play to show the position of the vessel in distress.
4 If the position of the vessel distress data does not
include position, the LCD will show the display on the
left.
NOTE
You must continue monitoring channel 16 as a coast station may require
assistance in the rescue attempt.
11.4 ALL SHIPS CALL
The All Ships Call function allows contact to be established with other vessel
stations without having their ID in the individual calling directory. Also, priority
for the call can be designated as Urgency or Safety.
URGENCY Call: This type of call is used when a vessel may not truly be in
distress, but have a potential problem that may lead to a dis-
tress situation. This call is the same as saying PAN PAN PAN
on channel 16.
SAFETY Call: Used to transmit boating safety information to other vessels.
This message usually contains information about an overdue
boat, debris in the water, loss of a navigation aid or an impor-
tant meteorological message. This call is the same as saying
Securite, Securite, Securite.”
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 41GX3500S
11.4.1 Transmitting an All Ships Call
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear.
2. Turn the CHANNEL selector knob to select “All Ships.”
3. Press the [ENT] key. (To cancel, turn the CHANNEL
selector knob to select “Exit.”)
4. Turn the CHANNEL selector knob to select the call
(“Urgency” or “Safety”).
5. Press the [ENT] key to transmit the selected type of
all ships DSC call.
6. After the ALL SHIPS CALL is transmitted, the trans-
ceiver will switch to CH16.
7. Listen to the channel to make sure it is not busy, then
key the microphone and say PAN PAN PAN or
“Securite, Securite, Securite” depending on the pri-
ority of the call. Say your call sign and announce the
channel you wish to switch to for communications.
11.4.2 Receiving an All Ships Call
1. When an all ships call is received, an emergency
alarm sounds.
The radio will automatically change to channel 16.
2. Press any key to stop the alarm.
3. Turn the CHANNEL selector knob to see the MMSI
of the vessel transmitting the All Ships Call.
4. Monitor channel 16 or traffic channel until the UR-
GENCY voice communication is completed.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 42

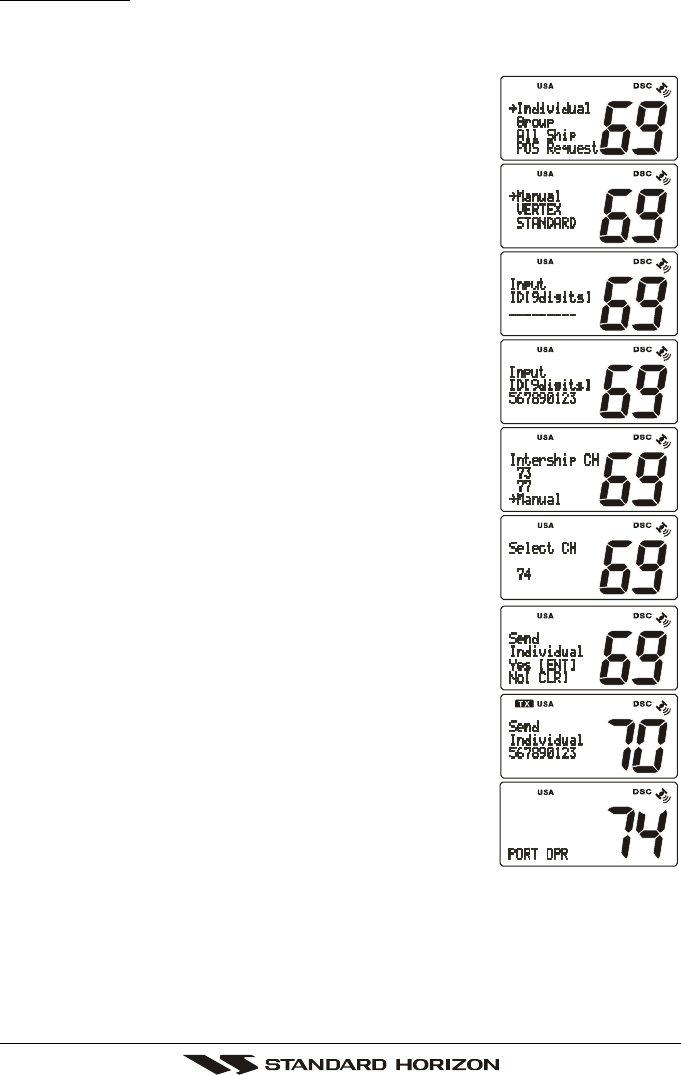

11.5 INDIVIDUAL CALL
This feature allows the GX3500S to contact another vessel with a DSC VHF
radio and automatically switch the receiving radio to a desired communications
channel. This feature is similar to calling a vessel on CH16 and requesting to
go to another channel (switching to the channel is private between the two
stations).
11.5.1 Setting up the Individual / Position Call Directory
The GX3500S has a DSC directory that allows you to store a vessel or person’s
name and the MMSI number associated with vessels you wish to transmit Indi-
vidual calls, Position Requests and Position Send transmissions.
To transmit an Individual call you must program this directory with information
of the persons you wish to call, similar to a cellular phones telephone directory.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “INDIV DIR” with the
CHANNEL selector knob.
4. Press the [ENT] key, then select “Add” with the CHAN-
NEL selector knob.
5. Press the [ENT] key.
6. Press the one of the Keypad keys to enter the first
letter of the name of the vessel or person you want to
reference in the directory.
Example: Press the [2(MEM)] key repeatedly to toggle
among the seven available characters associated
with that key: 2 A B C a b c.
If a mistake was made entering in the name, press-
ing the [CLR] key to delete the wrong character.
7. Press the [ENT] key to store the first letter in the name
and step to the next letter to the right.
8. Repeat step 6 and 7 until the name is complete. The
name can consist of up to eleven characters, if you
do not use all eleven characters press the [ENT] key to move to the next
space. This method can also be used to enter a blank space in the name.
To clear the previous letter, press the [CLR] key.
9. After the eleventh letter or space has been entered, press the [ENT] key to
advance to the MMSI (Maritime Mobile Service Identity Number) number
entry.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 43GX3500S
10. Enter the MMSI number by the keypad. If a mistake
was made entering in the number, pressing the [CLR]
key to delete the wrong character.
11. To store the data entered, press and hold the [ENT]
key.
12. To enter another individual address, repeat steps 4 through 12.
13. To exit this menu and return to radio operation mode press the [16/9] key.
NOTE
Selecting “Next” or “Exit” will automatically save the name and MMSI
number into memory.
11.5.2 Setting up Individual Reply
Allows setting up the radio to automatically (default setting) or manually re-
spond to a DSC Individual call requesting you to switch to a working channel for
voice communications. When Manual is selected the MMSI of the calling ves-
sel is shown allowing you to see who is calling. This function is similar to caller
id on a cellular phone.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “INDIV Reply” with
the CHANNEL selector knob.
4. Press the [ENT]key.
5. Turn the CHANNEL selector knob to select “Auto”
or “Manual.”
6. Press the [ENT] key to store the selected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 44
11.5.3 Setting up the Individual/Group Call Ringer
When a Individual Call or Group Call is received the radio will produce a ringing
tone for 3 minutes. This selection allows the Individual Call ringer time to be
changed.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “INDIV Ring” with
the CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select ringing
time of a Individual Call.
6. Press the [ENT] key to store the selected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
The GX3500S has the capability to turn off the Individual call ringer.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “DSC Beep” with the
CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select “Individual”
if you wish to disable the Individual Call ringer, or
“Group” if you wish to disable the Group Call ringer
and press the [ENT] key.
6. Turn the CHANNEL selector knob to select “Off.”
7. Press the [ENT] key to store the selected setting.
8. To exit this menu and return to radio operation mode
press the [16/9] key.
If you wish to return to enabling the ringer tone, just re-
peat the above procedure, turning the CHANNEL selec-
tor knob to select “On” in step “6” above.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 45GX3500S
11.5.4 Transmitting an Individual Call
This feature allows the user to contact another vessel with a DSC radio. This
feature is similar to calling a vessel on CH16 and requesting to go to another
channel.
Pre-Programmable Calling
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear.
2. Turn the CHANNEL selector knob to select “Indi-
vidual.” (To cancel, select “Exit” with the CHANNEL
selector knob or press the [16/9] key.)
3. Press the [ENT] key. The transceiver will beep, and
the “Individual directory” will appear.
4. Turn the CHANNEL selector knob to select the “Indi-
vidual” you want to contact.
5. Press the [ENT] key, then turn the CHANNEL selec-
tor knob to select the operating channel you want to
communicate on and press the [ENT] key.
6. Press the [ENT] key again to transmit the individual
DSC signal.
7. After INDIVIDUAL CALL is transmitted, the trans-
ceiver will wait 8 seconds for the acknowledgment. If
the reply signal is not received, the transceiver will
transmit again.
8. After the second INDIVIDUAL CALL is transmitted, if the reply signal is not
received, the display will be as shown in the illustra-
tion on the right. To send the call again, press the
[ENT] key.
9. When an individual call acknowledgment is received,
the established channel is automatically changed to
the channel which is selected on step 5 above and a
ringing tone sounds.
10. Press any key to listen to the channel to make sure it
is not busy, then key the microphone and call the
other vessel you desire to communicate with.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 46
Manual Calling
You may enter an MMSI number manually to contact without the Setting up the
Individual Directory.
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear.
2. Turn the CHANNEL selector knob to select “Indi-
vidual.” (To cancel, select “Exit” with the CHANNEL
selector knob or press the [16/9] key.)
3. Press the [ENT] key. The transceiver will beep, and
the “Individual directory” will appear.
4. Turn the CHANNEL selector knob to select “Manual,”
then press the [ENT] key.
5. Enter the MMSI number (nine digits) which you want
to contact by the keypad, then press the [ENT] key.
6. Turn the CHANNEL selector knob to select “Manual,”
then press the [ENT] key.
7. Turn the CHANNEL selector knob to select the oper-
ating channel which you want to use for communica-
tion, then press the [ENT] key.
8. Press the [ENT] key again to transmit the individual
DSC signal.
9. After INDIVIDUAL CALL is transmitted, the trans-
ceiver will wait 8 seconds for the acknowledgment. If
the reply signal is not received, the transceiver will
transmit again.
10. After the second INDIVIDUAL CALL is transmitted, if
the reply signal is not received, the display will be as
shown in the illustration on the right. To send the call
again, press the [ENT] key or to exit the mode, press
the [CLR] key.
11. When an individual call acknowledgment is received,
the established channel is automatically changed to
the channel which is selected on step 5 above and a
ringing tone sounds.
9. Press any key to listen to the channel to make sure it is not busy, then key
the microphone and call the other vessel you desire to communicate with.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 47GX3500S
11.5.5 Receiving an Individual Call
When receiving an individual call, an acknowledgment must be sent back to the
calling station. The GX3500S default setting is Automatic, but has a selection
that allows you to manually send a reply before the radio will switch to the re-
quested calling channel. This selection is useful if you want to see who is calling
and requesting you to switch to a channel for communications, similar to caller id
on a cellular phone.
1. When an individual call is received, an individual call ringing alarm sounds.
The radio automatically switches to the requested
channel.
2. Press any key to stop the alarm.
3. Press the PTT on the mic and talk to the calling ship.
11.5.6 Setting Up the Call Waiting Function
Allows the GX3500S to be setup to reply (ABLE) or set the radio so it transmits
a call that advises the calling vessel the person is UNABLE to reply to the call at
this time. This function is similar to an answering machine. When set up in
UNABLE and a individual call is received the Individual call from the other ves-
sel is logged in the CALL WAITING directory for you to review and call back at
a later time.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “INDIV ACK” with
the CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select “Able” or
“Unable.”
6. Press the [ENT] key to store the selected setting.
7. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 48
11.6 GROUP CALL
This feature allows the user to contact a group of specific vessels (example
members of a yacht club) using DSC radios with Group call function to auto-
matically switch to a desired channel for voice communications.
11.6.1 Setting up a Group Call
For this function to operate the same Group MMSI must be programmed into
all the DSC VHF radios within the group of vessels that will be using this fea-
ture. The group MMSI is a 9 digit (first digit permanently set to “0”) that will allow
other radios to call your vessel along with others to automatically switch to a
working channel for voice communications. This function is very useful for yacht
clubs and vessels traveling together that want to collectively make announce-
ments on a predetermined channel.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “Group DIR” with
the CHANNEL selector knob.
4. Press the [ENT] key, then select “Add” with the
CHANNEL selector knob.
5. Press the [CALL(MENU)] key.
6. Press the one of the Keypad keys to enter the first
letter of the name of the group you want to reference
in the directory.
Example: Press the [2(MEM)] key repeatedly to toggle
among the seven available characters associated
with that key: 2 A B C a b c.
If a mistake was made entering in the name, press-
ing the [CLR] key to delete the wrong character.
7. Press the [ENT] key to enter the desired letter and
move the cursor one space to the right.
8. Repeat step 6 and 7 until the name is complete. The name can consist of
up to eleven characters, if you do not use all eleven
characters press the [ENT] key to move to the next
space. This method can also be used to enter a blank
space in the name. To clear the previous letter, press
the [CLR] key.
9. After the eleventh letter or space has been entered, press the [ENT] key to
advance to the GROUP MMSI (Maritime Mobile Service Identity Number)
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 49GX3500S
number entry.
10. Enter the MMSI number by the keypad. If a mistake
was made entering in the number, press the [CLR]
key to delete the wrong character.
11. To enter the desired number and move one space to
the right press the [ENT] key. Repeat procedure until all nine spaces of
MMSI number are entered.
12. If a mistake was made entering in the name or the MMSI number repeat
pressing the [ENT] key until the wrong character is selected, then move the
CHANNEL selector knob to correct the entry.
13. To store the data entered, press and hold the [ENT] key.
14. To enter another individual address, repeat steps 4 through 13.
15. To exit this menu and return to radio operation mode press the [16/9] key.
11.6.2 Transmitting a Group Call
Pre-Programmable Calling
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear.
2. Turn the CHANNEL selector knob to select “Group.”
(To cancel, select “Exit” with the CHANNEL selector
knob or press [16/9] key.)
3. Press the [ENT] key. The transceiver will beep, and
the “Group Directory” will appear.
4. Turn the CHANNEL selector knob to select the
“Group” you want to contact.
5. Press the [ENT] key, then turn the CHANNEL selec-
tor knob to select the operating channel you want to
communicate on and press the [ENT] key.
6. Press the [ENT] key again to transmit the Group Call
signal.
7. After the GROUP CALL is transmitted, all the radios
in the group will switch to the designated channel.
8. Listen to the channel to make sure it is not busy, then
key the microphone and call the other vessels you
desire to communicate with.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 50
Manual Calling
You may enter an MMSI number manually to contact without the Setting up the
Group call number.
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear.
2. Turn the CHANNEL selector knob to select “Group.”
(To cancel, select “Exit” with the CHANNEL selector
knob or press [16/9] key.)
3. Press the [ENT] key. The transceiver will beep, and
the “Group Directory” will appear.
4. Turn the CHANNEL selector knob to select “Manual,”
then press the [ENT] key.
5. Enter the MMSI number (eight digits) which you want
to contact by the keypad, then press the [ENT] key.
6. Turn the CHANNEL selector knob to select “Manual,”
then press the [ENT] key.
7. Turn the CHANNEL selector knob to select the oper-
ating channel which you want to communicate on,
then press the [ENT] key.
8. Press the [ENT] key again to transmit the Group Call
signal.
9. After the GROUP CALL is transmitted, all the radios
in the group will switch to the designated channel.
10. Listen to the channel to make sure it is not busy, then
key the microphone and call the other vessels you
desire to communicate with.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 51GX3500S
11.6.3 Receiving a Group Call
1. When a group call is received, the GX3500S will pro-
duce a ringing alarm sound.
2. The radio automatically switches to the requested
channel.
3. Press any key to stop the alarm.
4. Monitor the channel for the person calling the Group
for a message.
5. If you want to respond, monitor the channel to make sure it is clear, then
press the PTT on the mic and talk to the calling ship(s).
NOTE
After a Group call is received, the time the call was made and the ships
MMSI or vessels name will appear on the LCD.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 52
11.7 POSITION REQUEST
Advancements in DSC have made it possible to poll the location of another
vessel and show the position of that vessel on the display of the GX3500S.
Standard Horizon has taken this feature one step further, if any Standard Hori-
zon GPS is connected to the GX3500S, the polled position of the vessel is
shown on the display of the GPS chart plotter making it easy to navigate to the
location of the polled vessel. This is a great feature for anyone wanting to know
the position of another vessel. For example your buddy that is catching fish, or
finding the location of a person you are cruising with.
NOTE
The other vessel must have an operating GPS receiver connected to its
DSC transceiver and must not have its transceiver set to deny position
requests. (Refer the section 11.5.1 to enter information into the indi-
vidual directory).
11.7.1 Setting up Position Reply
The GX3500S can be set up to automatically or manually send your position to
another vessel. This selection is important if you are concerned about some-
one polling the position of your vessel that you may not want to. In the manual
mode you will see the MMSI or persons name shown on the display allowing
you to choose to send your position to the requesting vessel.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “POS Reply” with
the CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select “Auto”
or “Manual.” In “Auto” mode, after a DSC POS Re-
quest is received, the radio will automatically trans-
mit your vessels position. In “Manual” mode, the dis-
play of the GX3500S will show who is requesting the
position.
6. Press the [ENT] key to store the selected setting.
7. To exit this menu and return to radio operation mode press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 53GX3500S
The GX3500S has the capability to turn off the Position Request ringer.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appear.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “DSC Beep” with the
CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select “POS
Request.”
6. Turn the CHANNEL selector knob to select “Off.”
7. Press the [ENT] key to store the selected setting.
8. To exit this menu and return to radio operation mode
press the [16/9] key.
If you wish to return to enabling the ringer tone, just re-
peat the above procedure, turning the CHANNEL selec-
tor knob to select “On” in step “6” above.
11.7.2 Transmitting a Position Request to Another Vessel
Pre-Programmable Request
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear in the display.
2. Turn the CHANNEL selector knob to select “POS Re-
quest.”
3. Press [ENT] key to show the Position request direc-
tory. This directory uses the INDIVIDUAL Directory
information.
4. Turn the CHANNEL selector knob to select a name,
then press the [ENT] key.
5. Press the [ENT] key to transmit the position request
DSC call.
6. When the GX3500S receives the position from the
polled vessel it is shown on the radio display and
also transferred to the GPS Chart plotter.
7. If the GX3500S does not receive a reply, the display
will be as shown in the illustration on the right. To
send again, press the [ENT] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 54
NOTE
If the GX3500S does not receive position data from the polled vessel,
the LCD will show “NO POSITION DATA.”
Manual Request
You may enter an MMSI number manually to contact without the Setting up the
Individual / Position Call Directory.
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear in the display.
2. Turn the CHANNEL selector knob to select “POS Re-
quest.”
3. Press [ENT] key to show the Position request direc-
tory. This directory uses the INDIVIDUAL Directory
information.
4. Turn the CHANNEL selector knob to select the
“Manual,” then press the [ENT] key.
5. Enter the MMSI number (eight digits) which you want
to contact by the keypad, then press the [ENT] key.
6. Press the [ENT] key to transmit the position request
DSC call.
7. When the GX3500S receives the position from the
polled vessel it is shown on the radio display and
also transferred to the GPS Chart plotter.
8. If the GX3500S does not receive a reply, the display
will be as shown in the illustration on the right. To
send again, press the [ENT] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 55GX3500S
11.7.3 Receiving a Position Request
When a position request call is received from another vessel, a ringing alarm
will sound and POS REQUEST will be show in the LCD. Operation and trans-
ceiver function differs depending on “POS Reply” in the “DSC Setup” menu
setting.
Automatically reply:
1. When a position request call is received, a calling alarm sounds 4 times.
Then requested position coordinates are transmit-
ted automatically to the vessel requesting your ves-
sels position.
2. To exit from position request display, press any key.
Manually reply:
1. When a position request call is received from an-
other vessel, the LCD will be as shown in the illustra-
tion at the right.
2. A ringing alarm sounds 4 times. Then select type of
reply function “Send” or “No Reply” by using the
CHANNEL selector knob.
3. The GX3500S display will show “Send” or “No Re-
ply” allowing you to send your vessels location by
using the CHANNEL selector knob.
4. When “Send” is selected, press the [ENT] key. And your position will be
transmitted to the requesting vessel.
5. To exit from position request display, press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 56
11.8 POSITION SEND
The feature is similar to Position Request, however instead of requesting a
position of another vessel this function allows you to send your position to an-
other vessel. Your vessel must have an operating GPS receiver connected for
the GX3500S to send the position.
11.8.1 Setting up a Position Send Ringer
The GX3500S has the capability to turn off the Position Send ringer.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “DSC Beep” with the
CHANNEL selector knob.
4. Press the [ENT] key.
5. Turn the CHANNEL selector knob to select “POS
Send.”
6. Turn the CHANNEL selector knob to select “Off.”
7. Press the [ENT] key to store the selected setting.
8. To exit this menu and return to radio operation mode
press the [16/9] key.
If you wish to return to enabling the ringer tone, just re-
peat the above procedure, turning the CHANNEL selec-
tor knob to select “On” in step “6” above.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 57GX3500S
11.8.2 Transmitting a DSC Position Send Call
Pre-Programmable Calling
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear in the display.
2. Turn the CHANNEL selector knob to select the “POS
Send.”
3. Press the [ENT] key to select the Individual directory.
4. Turn the CHANNEL selector knob to select a name
in the directory, then press the [ENT] key.
5. Press the [ENT] key to send your position to the se-
lected vessel.
Manual Calling
You may enter an MMSI number manually to contact without the Setting up the
Individual / Position Call Directory.
1. Press the [CALL(MENU)] key. The “DSC Operation”
menu will appear in the display.
2. Turn the CHANNEL selector knob to select the “POS
Send.”
3. Press [ENT] key to show the Position Send directory.
This directory uses the INDIVIDUAL Directory infor-
mation.
4. Turn the CHANNEL selector knob to select “Manual,”
then press the [ENT] key.
5. Enter the MMSI number (eight digits) which you want
to contact by the keypad, then press the [ENT] key.
6. Press the [ENT] key to send your position to the se-
lected vessel.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 58
11.8.3 Receiving a DSC Position Send Call
When another vessel transmits their vessels location to the GX3500S the fol-
lowing will happen:
1. A ringing sound will be produced when the call is received.
2. Press the [16/9] key to stop ringing
3. The position from the vessel sending it's position will be shown on the dis-
play of the radio and also transferred to any Standard Horizon GPS Chart
plotter if connected.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 59GX3500S
11.9 MANUAL INPUTTING OF THE GPS LOCATION (LAT/LON)
You may send the Latitude/Longitude of your vessel manually even if the
GX3500S is not connected the GPS receiver unit.
After the position is entered, transmitting a DSC Distress, Position Request, or
Position Send will contain the manually entered position.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Turn the CHANNEL selector knob to select “DSC
Setup” menu.
3. Press the [ENT] key, then select “POS Input” with
the CHANNEL selector knob.
4. Press the [ENT] key. The transceiver will beep, and
the display will be as shown in the illustration on the
right.
5. Enter the your local time from the keypad by the 24-
hour system on the UTC time, then press the [ENT]
key.
6. Enter the Latitude/Longitude of your vessel location
by the keypad, then press the [ENT] key. To select
North (N) press [6(NAV)] key, South (S) press the
[7(SCRM)] key, East (E) press the [3(SCAN)] key or
West (W) press the [9(FOG)] key.
7. To store the data entered, press the [16/9] key to exit
this menu and return to radio operation mode.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 60
12 RADIO SETUP
NOTE
The optional RAM+ MIC CMP25 can also change the RADIO SETUP
menu. Refer to page 74 for details.
12.1 LCD CONTRAST
This selection sets up the display for best viewabilty for the varying mounting
locations (overhead or below).
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Contrast” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the de-
sired level. The contrast level can be set from “0” to
“31.”
5. Press the [ENT] key to store the selected level.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 61GX3500S
12.2 TIME OFFSET
This selection sets the time offset between local time and UTC (time GPS
sends to radio). Time is displayed when GPS position (LAT/LON) is displayed
by pressing the [F] key followed by the [6(NAV)] key.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Time Set” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select time off-
set from UTC. See illustration below to find your off-
set time from UTC. If “0:00” is assigned, the time is
the same as UTC (Universal Time Coordinated or
GMT Greenwich Mean Time).
5. Press the [ENT] key to store the time offset.
6. To exit this menu and return to radio operation mode press the [16/9] key.
OFFSET TIME TABLE
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 62
12.3 TIME LOCATION
This selection selects the time display between local time and UTC (time GPS
sends to radio). Time is displayed when GPS position (LAT/LON) is displayed
by pressing the [F] key followed by the [6(NAV)] key.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Time Disp.” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “UTC” or
“Local.”
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
n the local time mode, the display shows the time by the 12-hour system. Mean-
while, the display shows the time by the 24-hour system in the UTC mode.
12.4 TRUE MAGNETIC CHANGE (NAV display)
This selection allows customizing the GPS COG (Course Over Ground) dis-
played on the LCD to be in True or Magnetic.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Magnetic” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “On” (rep-
resenting “Magnetic”) or “Off” (representing “True”).
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
(“UTC” mode)(
“LOCAL” mode)
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 63GX3500S
12.5 PRIORITY CHANNEL SET
Allows selection of the priority channel.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Priority CH” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the chan-
nel to be a priority.
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
12.6 SCAN TYPE
This selection selects the scan mode between “Memory Scan” and “Priority
Scan.”
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “SCAN Type” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “Prior-
ity” or “Memory.”
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 64
12.7 SCAN RESUME TIME
This selection is used to select the time the GX3500S waits after a transmis-
sion ends before starting scanning.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “SCAN Resume” in
the “Radio Setup” menu with the CHANNEL selec-
tor knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the de-
sired resume time. The resume time can be set to
“1sec,” “2sec,” “3sec,” or “Off.” In the “Off” selec-
tion, the scanner will resume after the other station
stops transmitting (carrier drops).
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode press the [16/9] key.
12.8 KEY BEEP (ON/OFF)
This selection allows the beep tone when a key is pressed to be turned off.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Key Beep” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select “On” or
“Off.”
5. Press the [ENT] key to set the key beep condition.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
NOTE
Emergency alarm and beeps for DSC operation cannot be turned OFF.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 65GX3500S
12.9 WX ALERT
This selection allows the radios NOAA Weather alert to be turned off. Default
setting is ON.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “WX Alert” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the de-
sired WX alert mode. The WX alert mode can be set
to “On WX,” “On SCAN,” “On SCAN/WX,” or “Off.”
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 66
12.10 CHANNEL NAME CHANGE
This selection allows you to customize the name of a channel from the default
name.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “CH Name” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the chan-
nel to be named, then press the [ENT] key.
5. Press the one of the Keypad keys to enter the first
letter of the channel name.
Example: Press the [2(MEM)] key repeatedly to toggle
among the seven available charactors associated
with that key: A B C a b c 2.
6. Press the [ENT] key to enter the desired letter and
move the cursor one space to the right.
7. Repeat procedure until the name is complete. The
name can consist of up to twelve characters. If you
do not use all twelve character, press the [ENT] key
to move to the next space. To clear the previous let-
ter, press the [H/L(NAV)] key.
8. Press and hold the [ENT] key to enter the name and exit from the “CH
Name” menu. The LCD will return to the “Radio Setup” menu.
9. If you want to enter the name of another channel, repeat steps 3 through 8.
10. To exit this menu and return to radio operation mode press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 67GX3500S
12.11 NAMING THE RADIO OR RAM+ STATIONS
This selection allows you to provide the name to the radio and optional RAM+
Mic’s when connected.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appears.
2. Press the [ENT] key, then select “Unit Name” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select the Unit
(Radio, RAM 1, or RAM2) to be named, then press
the [ENT] key.
5. Press the one of the Keypad keys to enter the first
letter of the unit name.
Example: Press the [2(MEM)] key repeatedly to toggle
among the seven available charactors associated
with that key: 2 A B C a b c.
6. Press the [ENT] key to enter the desired letter and
move the cursor one space to the right.
7. Repeat procedure until the name is complete. The
name can consist of up to twelve characters. If you
do not use all twelve character, press the [ENT] key
to move to the next space.
8. Press and hold the [ENT] key to enter the name and
exit from the “Unit Name” menu. The LCD will return to the “Radio Setup”
menu.
9. If you want to enter the name of another unit, repeat steps 3 through 8.
10. To exit this menu and return to radio operation mode press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 68

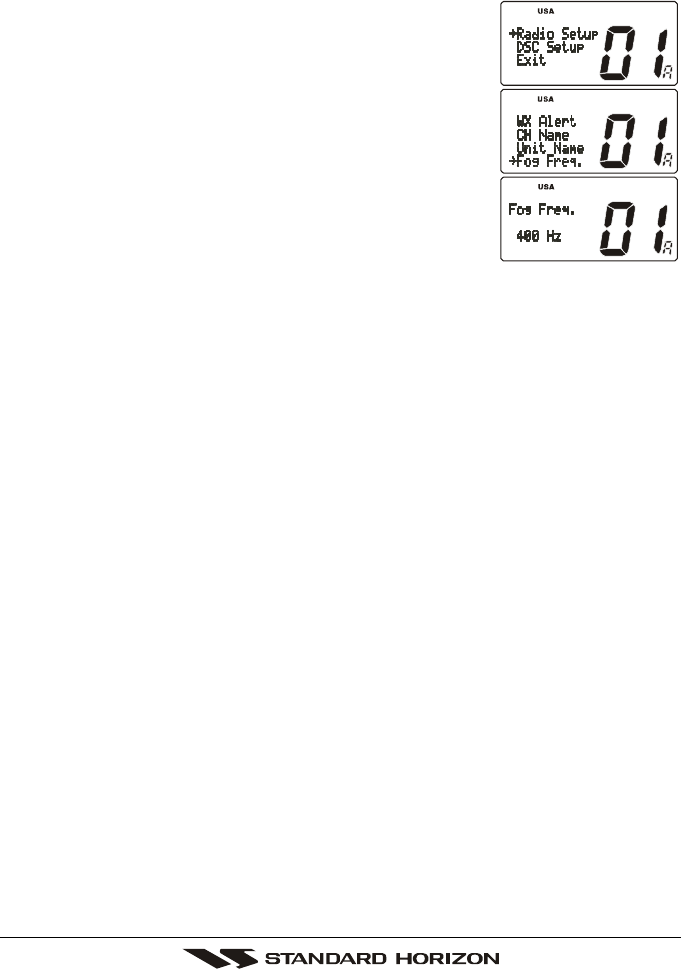

12.12 FOG ALERT TONE FREQUENCY
This selection allows you to select the Alert Tone Frequency for the PA/FOG
Operation. Available selections are “200 Hz” through “850 Hz” in 50 Hz steps.
The default Alert Tone Frequency is 400 Hz.
1. Press and hold down the [CALL(MENU)] key until
“Radio Setup” menu appear.
2. Press the [ENT] key, then select “Fog Freq.” in the
“Radio Setup” menu with the CHANNEL selector
knob.
3. Press the [ENT] key.
4. Turn the CHANNEL selector knob to select desired
tone frequency.
5. Press the [ENT] key to store the selected setting.
6. To exit this menu and return to radio operation mode
press the [16/9] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 69GX3500S
13 ENHANCED RAM+ MIC OPERATION
When the RAM+ microphone is connected to the GX3500S, most VHF, DSC,
setup menus and PA modes can be remotely operated. The RAM+ Mic sup-
plied with 23 feet (7 m) of routing cable and can be extended up to 70 feet (21
m) using three 23 feet extension cables model CT-100. The intercom operation
can be used between the RAM+ Mic and the transceiver.
13.1 RAM+ MIC CONTROLS
SQUELCH CONTROL (SQL)
Activates the squelch adjusting mode.
Press this key to activate the squelch adjusting mode. Press the
microphone’s [] or [] key to adjust the squelch.
When this key is pressed and held down for 1 second or more, the squelch
is turned off.
VOLUME KEY (VOL)
Activates the volume adjusting mode.
Press this key to activate the volume adjusting mode. Press the
microphone’s [] or [] to adjust the volume.
SCAN DW
NAV
WX
CALL
SET
ME M IC
U.I.C
MENU
16
9
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 70
POWER SWITCH (PWR)
Press and hold down this key to turn to the transceiver and RAM+ Mic on
and off.
PTT (Push-To-Talk) SWITCH
Activates transmission.
[H/L] KEY
Toggles between high and low power. When the [H/L] key is pressed while
the transceiver is on channel 13 or 67, the power will temporarily switch
from LO to HI power until the PTT is released. The [H/L] key does not
function on transmit inhibited and low power only channels.
[](UP)/[](DOWN) KEY
These keys are used to select channels, adjust the volume and squelch
level, and to choose the item selection of different functions (such as the
DSC operation). In many ways, these keys emulate the function of the
transceiver’s CHANNEL selector knob.
[16/9] KEY
Immediately recalls channel 16 from any channel location. Holding down
this key recalls channel 9. Pressing the [16/9] key reverts to the previous
selected working channel.
Secondary use
Please see secondary use for the [WX] and [MEM] key.
KEY PAD
[SCAN] Key
1. Starts and stops scanning of programmed channels.
2. If held while the [UP()] or [DOWN()] key on the microphone are
pressed, the radio will show the channels programmed in scan
memory. This function will not work if the unit is scanning.
NOTE: The priority channel by default is Channel 16, however the
priority channel can be changed. To select a different priority channel
refer to section “12.6 SCAN TYPE.”
[CALL/SET] Key
The [CALL/SET] key functions as the enter key.
Secondary use
Press the [CALL/SET] key to access the DSC OPERATION menu.
Press and hold the [CALL/SET] key to access the SETUP menu.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 71GX3500S
[DW] Key
Watches for a transmission on CH16 and another selected channel until
either signal is received. (Dual watch)
Secondary use
Press and hold [DW] key, intercom operation will operate between radio
and RAM+ Mic.
[NAV] Key
Press this key, when connected to the GPS receiver, the LCD displays
Position Data and Time from the GPS.
Secondary use
Press and hold [NAV] key to access PA/FOG function menu.
[WX] Key
Immediately recalls the previously selected US NOAA weather channel from
any channel location.
Secondary use
Holding down the [16/9] key while pressing the [WX] key switch the Chan-
nel Group.
NOTE: If position is displayed, this icon will be hidden.

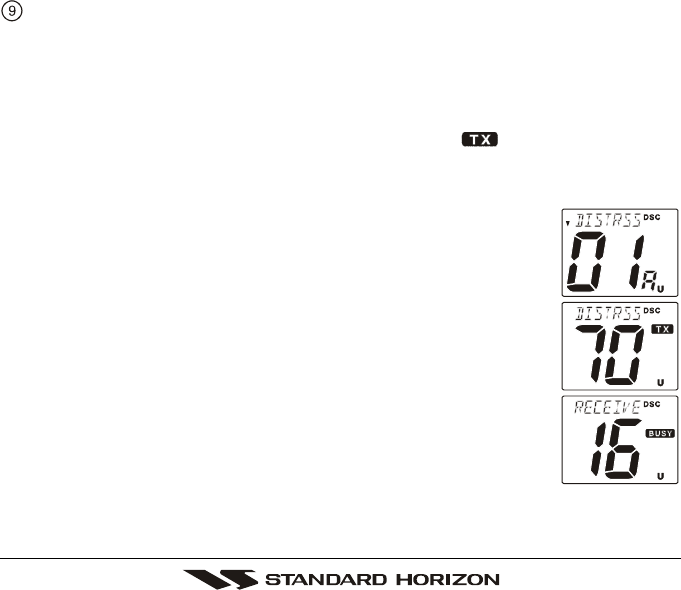

[DISTRESS] KEY
Used to send a DSC Distress Call. To send the distress call:
1. Lift the red rubber cover.
2. Press and hold the Red button. The RAM+ display will count down (3-2-
1) and then transmit the Distress call.
3. When the distress signal is sent, Ch70 and “ ” icon will appear on
the LCD. After the message has been sent, the radio and RAM+ will
sound a Distress Alarm.
4. The transceiver “shadow-watches” for a transmission on
CH16 or CH70 until an acknowledgment signal is re-
ceived. “DISTRESS” and “WAITING” will appear on the
LCD.
5. If an acknowledgement is received, select channel 16
and advise your distress situation.
6. If no acknowledgment is received, the distress call is
repeated in 4 minute intervals until an acknowledgment
is received.
7. When a DSC Distress acknowledgment is received, a
distress alarm sounds and channel 16 is automatically
selected. The LCD shows the MMSI of the ship responding to your dis-
tress.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 72
RECEIVED ACK: acknowledgment signal is received.
RECEIVED RLY: relay signal is received from another vessel or coast
station.
8. To cancel the DSC distress alarm signal from the speaker, press any
key.
13.2 INTERCOM OPERATION
13.2.1 Communication
1. Press and hold the [DW] key while in the “RADIO” mode, the mode is
changed to “INTERCOM” mode.
2. If your GX3500S is equipped with two RAM+ Mic, select the companion you
wish to communicate (RADIO, RAM, or ALL) with the []/[] key, then
press the [CALL/SET] key.
3. When the “INTERCOM” operation is activated, “IC” is dis-
played on the RAM+ Mic and “INTERCOM” is displayed on
the GX3500S.
4. Press the PTT switch, “TALK” is displayed.
NOTE: A warning beep is emitted when the RAM+ Mic PTT switch is pressed
while the transceiver microphone’s PTT
switch is pressed.
5. Speak slowly and clearly into the mi-
crophone, hold the microphone about
1/2 inch away from your mouth.
6. When finished, release the PTT switch.
7. Press the [DW] key again the mode will
revert to “RADIO” mode.
13.2.2 Calling
Hold down the [DW] key for 1 second or more, when the “INTERCOM” opera-
tion is activated. A calling beep is emitted twice from the transceiver speaker.
(RAM+ Mic’s PTT switch is pressed)
(GX3500S’s PTT switch is pressed)
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 73GX3500S
13.3 PA/FOG OPERATION
The RAM+ is capable of controlling the 30W Public address, 4 fog horns, bells
and whistles.
13.3.1 Operating the PA / Hailer
1. Press and hold the [NAV] key then select PA with the [] or
[] key.
2. Press the [CALL/SET] key.
3. Press the PTT switch and speak into the microphone.
4. To turn up the PA Volume, press the PTT switch and press
the [] or [] keys to adjust the Audio output level. The
level can be set from 0 to 30W.
5. To adjust the listen back volume, (while in listenback mode)
press the [VOL] Key, then press the [] or [] key to the
desired listen back volume.
To exit from the PA Hailer mode, press the [CALL/SET], [16/9],
or [WX] key.
13.3.2 Operating the FOG Horn
The GX3500S is capable of sending Underway, Stop, Sail, Tow, Horn, Siren,
Aground and Anchor signals.
1. Press and hold the [NAV] key then select FOG with the []
or [] key.
2. Press the [CALL/SET] key.
3. Select the one of the eight functions described above with
the [] or [] key and press the [CALL/SET] key.
4. On the “Horn” and “Siren” modes, press the PTT switch to
activate the tone through the HAIL/PA speaker.
Press the [] or [] keys to adjust the Audio output level.
The level can be set from 0 to 30W.
5. To adjust the listen back volume, (while in listenback mode)
press the [VOL] Key, then press the [] or [] key to the
desired listen back volume.
To exit from the FOG HORN mode, press the [16/9], [WX], or
[CALL/SET] key.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 74
13.4 DSC/RADIO SETUP MODE
The RAM+ can access the DSC / RADIO setup menu (refer to section “10
DIGITAL SELECTIVE CALLING” and section “12 RADIO SETUP” for details).
The LAMP, CONTRAST, and KEY BEEP menu item accessed from the RAM+
only controls the RAM+’s display and speaker.
DSC/RADIO Setup mode from the RAM+:
1. Press and hold down the [CALL/SET] key until “RADIO SETUP” menu ap-
pears.
2. Press the []/[] key to select “RADIO SETUP” or “DSC SETUP” menu.
3. Press the [CALL/SET] key, then select the menu item you wish to work on
by pressing the []/[] key.
4. Press the [CALL/SET] key.
5. Press the []/[] key to change the value or condition for the menu item,
then press the [CALL/SET] key to save the new setting.
6. Press the []/[] key to select “EXIT,” then press the [CALL/SET] key to
return to the normal operation.

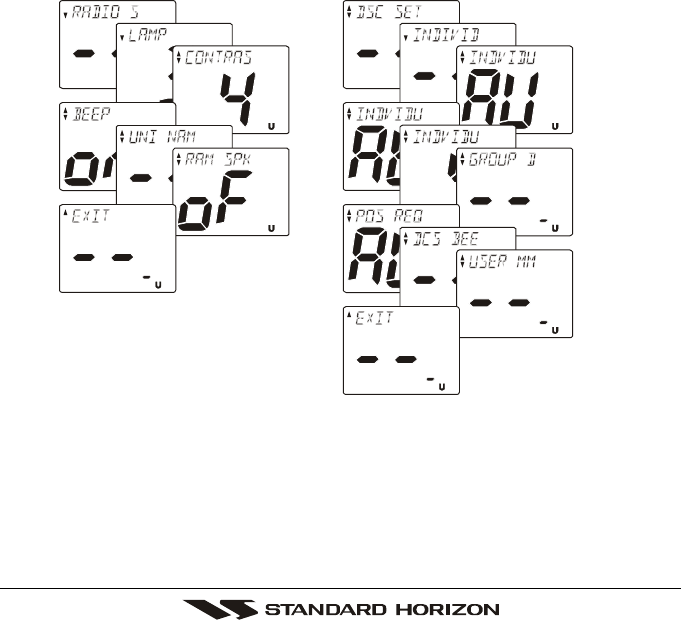

RADIO SETUP-menu DSC SETUP-menu
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 75GX3500S
14 MAINTENANCE
The inherent quality of the solid-state components used in this transceiver will
provide many years of continuous use. Taking the following precautions will pre-
vent damage to the transceiver.
• Keep the microphone connected or the jack covered at all times to prevent
corrosion of electrical contacts;
• Never key the microphone unless an antenna or suitable dummy load is con-
nected to the transceiver.
• Ensure that the supply voltage to the transceiver does not exceed 16 VDC or
fall below 11 VDC.
• Use only STANDARD HORIZON-approved accessories and replacement parts.
In the unlikely event of serious problems, please contact your Dealer or our repair
facility. Address and phone numbers for this facility, as well as warranty informa-
tion, are contained in section “16 WARRANTY.”
14.1 REPLACEMENT PARTS
Occasionally an owner needs a replacement mounting bracket or knob.
These can be ordered from our Parts Department by writing or calling:
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Telephone (714) 827-7600
Commonly requested parts, and their part numbers are listed below.
•Power Cord: T9023306
•VOL/SQL Knob: RA0542600
•Rotary Channel Knob: RA0569500
•Mounting Bracket: RA0544200A
•Mounting Bracket Knob: RA045910A
•Microphone Hanger: RA0458800
•Microphone Assembly: M3090118
•RAM+ Mic Routing Cable Assembly: S8101512
14.2 FACTORY SERVICE
In the unlikely event that the radio fails to perform or needs servicing, please con-
tact the following:
Standard Horizon
Attention Marine Repair Department
10900 Walker Street, Cypress, CA 90630
Telephone (800) 366-4566
An “RA” Return Authorization number is not necessary to send a product in for
service. Include a brief note describing the problem along with your name, return
address, phone number, and proof of purchase.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 76
SYMPTOM
Transceiver fails to
power up.
Transceiver blows fuse
when connected to
power supply.
Popping or whining
noise from the speaker
while engine runs.
Sound is not emitted
from the internal or ex-
ternal speaker.
Receiving station re-
port low transmit
power, even with trans-
ceiver set to HI power.
“HI BATTERY” or “LO
BATTERY” message is
appeared when the
power is turned on.
“PA ERROR” or “FOG
ERROR” message is
shown when the PA/
FOG mode is acti-
vated.
Your position is not dis-
played.
PROBABLE CAUSE
No DC voltage to the
transceiver, or blown
fuse.
Reversed power
wires.
Engine noise.
Accessory cable.
Antenna.
The power supply
voltage is too high or
too low.
Accessory cable.
Accessory cable.
Setting of the GPS
navigation receiver.
REMEDY
a. Check the 12VDC battery connections and
the fuse.
b. The PWR key needs to be pressed and held
to turn the radio on.
Check the power cable for DC voltage, or re-
place the fuse (6A 250V).
Make sure the red wire is connected to the posi-
tive (+) battery post, and the black wire is con-
nected to the negative (-) battery post. If the
fuse still blows, contact your Dealer.
Reroute the DC power cables away from the
engine. Add noise suppressor on power cable.
Change to resistive spark plug wires and/or add
an alternator whine filter.
Check the connections of the accessory cable
(Possible short circuit on the External speaker
cable WHITE/SHIELD).
Have the antenna checked or test the trans-
ceiver with another antenna. If the problem per-
sists, contact your Dealer for servicing.
Confirm that the connected power supply volt-
age is not 17 volts or lower than 10 volts. Con-
firm that the generator has not malfunctioned.
Check the accessory cable connection (Pos-
sible short circuit on the PA speaker cable RED/
SHIELD).
Check the accessory cable connection.
Some GPS use the battery ground line for
NMEA connection.
Check the output signal format of the GPS navi-
gation receiver. This radio requires NMEA0183
format with GLL, RMB, GGA, or GNS sentence
as an output signal. If the GPS has a baud rate
setting make sure to select 4800 and parity to
NONE.
14.3 TROUBLESHOOTING CHART
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 77GX3500S
15. CHANNEL ASSIGNMENTS
Tables on the following columns list the VHF Marine Channel assignments for
U.S.A. and International use. Below are listed some data about the charts.
1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s
Vessel Traffic System.
2. Alpha channel numbers, that is, channel numbers followed by the letter A
(such as Channel 07A) are simplex channels on the U.S.A. or Canadian
channel assignments whose counterparts in the International assignments
are duplex channels. International channels do not use “alpha” numbers. If
you call the Coast Guard on Channel 16, they will sometimes ask you to
“go to channel 22 Alpha.” This is a channel assigned to U.S.A, and Cana-
dian Coast Guards for handling distress and other calls. If your radio is set
for International operation you will go to Channel 22 instead of 22A, and
will not be able to communicate with the Coast Guard. To use Channel 22A,
your radio must be set for USA or Canada operation, usually by a U/I/C
(USA/International/Canada) control or combination of controls. Channel 22
(without an “A”) is an International duplex channel for port operations.
Some radios indicate an “A” adjacent to the alpha channels on the display;
on others “alpha” is not indicated but the proper channel is selected based
on the U/I/C setting.
3. Bridge-to-Bridge channels (for example, Channel 13) are for use by bridge
operators on intercoastal waterways and rivers. It is also used by marine
vessels in the vicinity of these bridges for navigation and for communicat-
ing with the bridge operators. Note that a limit of 1 Watt is specified for
these channels. See page 27 for additional information.
4. The S/D column on the chart indicates either S (simplex) or D (duplex).
Simplex means transmitting and receiving on the same frequency. Only
one party at a time can talk, unlike a telephone. Be sure to say “over” and
release your microphone push-to-talk switch at the end of each transmis-
sion. Duplex operation involves the use of one frequency for transmitting
and a separate frequency for receiving. On channels specified as duplex
on the charts, correct mode of operation is established automatically by
your radio when you select a channel; you cannot change the mode. And
you still must release the push-to-talk switch after each transmission in
order to listen to the radio.
5. Channels normally used by recreational boaters are those that include the
term “non-commercial” in the Channel Use column of the chart. Some of
these are shared with other users and some are used only in certain geo-
graphic regions.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 78
6. Marine vessels equipped with VHF radios are required to monitor
Channel 16.
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
01 X X D 156.050 160.650 Public Correspondence (Marine Operator)
01A X S 156.050 Port Operation and Commercial.
VTS in selected areas
02 X X D 156.100 160.700 Public Correspondence (Marine Operator)
03 X X D 156.150 160.750 Public Correspondence (Marine Operator)
03A X S 156.150 US Government only, Coast Guard
04 X D 156.200 160.800 Public Correspondence (Marine Operator),
Port operation, ship movement
04A X S 156.200 Pacific coast: Coast Guard, East Coast:
Commercial fishing
05 X D 156.250 160.850 Public Correspondence (Marine Operator),
Port operation, ship movement
05A X X S 156.250 Port operation. VTS in Seattle
06 X X X S 156.300 Inter-ship Sefety
07 X D 156.350 160.950 Public Correspondence (Marine Operator),
Port operation, ship movement
07A X X S 156.350 Commercial
08 X X X S 156.400 Commercial (Inter-ship only)
09 X X X S 156.450 Boater Calling channel, Commercial &
Non-commercial (Recreational)
10 X X X S 156.500 Commercial
11 X X X S 156.550 Commercial. VTS in selected areas.
12 X X X S 156.600 Port operation. VTS in selected areas.
13 X X X S 156.650 Inter-ship Navigation Safety (Bridge-to-bridge)
14 X X X S 156.700 Port operation. VTS in selected areas.
15 X S - - - 156.750 Environmental (Receive only)
15 X X S 156.750 Commercial, non-commercial, ship movement (1 W)
16 X X X S 156.800 International Distress, Safety and Calling
17 X X X S 156.850 State Controlled (1 W)
18 X D 156.900 161.500 Port operation, ship movement
18A X X S 156.900 Commercial
19 X D 156.950 161.550 Port operation, ship movement
19A X S 156.950 US: Commercial
19A X S 156.950 Coast Guard
20 X X X D 157.000 161.600 Canadian Coast Guard Only,
International: port operations and shipment
20A X S 157.000 Port operation
21 X D 157.050 161.650 Port operation, ship movement
21A X X S 157.050 U.S. Government Only, Canadian Coast Guard
22 X D 157.100 161.700 Port operation, ship movement
22A X X S 157.100 US and Canadian Coast Guard Liaison and
Maritime Safety Information Broadcasts announced
on channel 16
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 79GX3500S
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
23 X X D 157.150 161.750 Public Correspondence (Marine Operator)
23A X S 157.150 U.S. Government Only
24 X X X D 157.200 161.800 Public Correspondence (Marine Operator)
25 X X X D 157.250 161.850 Public Correspondence (Marine Operator)
26 X X X D 157.300 161.900 Public Correspondence (Marine Operator)
27 X X X D 157.350 161.950 Public Correspondence (Marine Operator)
28 X X X D 157.400 162.000 Public Correspondence (Marine Operator)
60 X X D 156.025 160.625 Public Correspondence (Marine Operator)
61 X D 156.075 160.675 Public Correspondence (Marine Operator),
Port operation, ship movement
61A X X S 156.075 U.S. Government Only, Canadian Coast Guard-
Pacific Coast, Commercial Fishing-East Coast
62 X D 156.125 160.725 Public Correspondence (Marine Operator),
Port operation, ship movement
62A X S 156.125 Public Coast: Coast Guard;
East Coast: commercial fishing only
63 X D 156.175 160.775 Public Correspondence (Marine Operator),
Port operation, ship movement
63A X S 156.175 Port Operation and Commercial.
VTS in selected areas.
64 X X D 156.225 160.825 Public Correspondence (Marine Operator),
Port operation, ship movement
64A X X S 156.225 U.S. Government Only,
Canadian Commercial Fishing
65 X D 156.275 160.875 Public Correspondence (Marine Operator),
Port operation, ship movement
65A X X S 156.275 Port Opeations
66 X D 156.325 160.925 Public Correspondence (Marine Operator),
Port operation, ship movement
66A X X S 156.325 Port Operations
67 X X X S 156.375 US: Commercial. Used for Bridge-to-bridge com
muni-cations in lower Mississippi River. Inter-ship
only,
Canada: Commercial fishing, S&R
68 X X X S 156.425 Non-commercial (Recreational)
69 X X X S 156.475 US: Non-commercial (Recreational),
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
70 X X X S 156.525 Digital selective calling (voice communications not
allowed)
71 X X X S 156.575 US, Canada: Non-commercial (Recreational),
International: Port opertions and Ship movement
72 X X X S 156.625 Non-commercial (Inter-ship only)
73 X X X S 156.675 US: Port Operations,
Canada: Commercial fish ing only,
International: Inter-ship, Port opertions and Ship
movement
74 X X X S 156.725 US: Port Operations,
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 80
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
75 X S 156.775 Port Operations (Inter-ship only) (1W)
76 X S 156.825 Port Operations (Inter-ship only) (1W)
77 X X S 156.875 Port Operations (Inter-ship only) (1W)
77 X S 156.875 Port Operations (Inter-ship only)
78 X D 156.925 161.525 Public Correspondence (Marine Operator),
Port operation, ship-movement
78A X X S 156.925 Non-commercial (Recreational)
79 X D 156.975 161.575 Port operation and Ship movement
79A X X S 156.975 Commercial
80 X D 157.025 161.625 Port operation, ship movement
80A X X S 157.025 Commercial
81 X D 157.075 161.675 Port operation, ship movement
81A X X S 157.075 U.S. Government Only -
Environmental protection operations.
82 X D 157.125 161.725 Public Correspondence (Marine Operator),
Port operation, ship movement
82A X X S 157.125 U.S. Government Only,
Canadian Coast Guard Only
83 X X D 157.175 161.775 Canadian Coast Guard Only
83A X X S 157.175 U.S. Government Only,
Canadian Coast Guard Only
83 X X D 157.175 161.775 Public Correspondence (Marine Operator)
84 X X X D 157.225 161.825 Public Correspondence (Marine Operator)
85 X X X D 157.275 161.875 Public Correspondence (Marine Operator)
86 X X X D 157.325 161.925 Public Correspondence (Marine Operator)
87 X X X D 157.375 161.975 Public Correspondence (Marine Operator)
88 X X X D 157.425 162.025 Public Correspondence (ship-to-coast)
88A X S 157.425 Commercial, Inter-ship Only
WX01
X X X D - - - 162.550 Weather (receive only)
WX02
X X X D - - - 162.400 Weather (receive only)
WX03
X X X D - - - 162.475 Weather (receive only)
WX04
X X X D - - - 162.425 Weather (receive only)
WX05
X X X D - - - 162.450 Weather (receive only)
WX06
X X X D - - - 162.500 Weather (receive only)
WX07
X X X D - - - 162.525 Weather (receive only)
WX08
X X X D - - - 161.650 Weather (receive only)
WX09
X X X D - - - 161.775 Weather (receive only)
WX10
X X X D - - - 163.275 Weather (receive only)
The above BOLD channels are not for use of the general public in U.S. waters, unless proper authorization is
given.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 81GX3500S
Noncommercial
6817 156.425 156.425
0916 156.450 156.450
69 156.475 156.475
71 156.575 156.575
72 156.625 ........ Intership only.
78A 156.925 156.925
79A 156.975 156.975 Great Lakes only.
80A 157.025 157.025 Do.
6714 156.375 ....... Internship only.
Distress, Safety and Calling
16 156.800 156.800 EPRIB
Intership Safety
06 156.300 ........ a. Intership, or
b. For SAR: Ship
and aircraft for the
U.S. Coast Guard.
Environmental
1513 ........ 156.750 Coast to ship only.
Maritime Control
179,10 156.850 156.850
Liaison, U.S. Coast Guard
22A11 157.100 157.100 Ship, aircraft, and
coast stations of
the U.S. Coast
Guard and at
Lake Mead, Nev.,
ship and coast
stations of the
National Park
Service, U.S.
Department of the
Interior.
Port Operations
01A1156.050 156.050
63A1156.175 156.175
052156.250 156.250
65A 156.275 156.275
66A 156.325 156.325
123156.600 156.600
73 156.675 156.675
143156.700 156.700
74 156.725 156.725
774156.875 Intership only.
20A12 157.000 Intership only.
Navigational (Bridge-to-Bridge)5
136156.650 156.650
677156.375 156.375
Commercial
01A1156.050 156.050
63A1156.175 156.175
07A 156.350 156.350
677156.375 Intership only.
08 156.400 ........ Do.
09 156.450 156.450
10 156.500 156.500
113156.550 156.550
18A 156.900 156.900
19A 156.950 156.950
79A 156.975 156.975
80A 157.025 157.025
88A8157.425 ........ Intership only.
7214 156.625 ........ Internship only.
Digital Selective Calling
7015 156.525 156.525
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise
iandicated)
Coast
transmit
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise
iandicated)
Coast
transmit
1: 156.050 MHz and 156.175 MHz are available for port operations and commercial com-
munications purposes when used only within the U.S. Coast Guard designated Vessel
Traffic Services (VTS) area of New Orleans, on the lower Mississippi River from the
various pass entrances in the Gulf of Mexico to Devil’s Swamp Light at River Mile 242.4
above head of passes near Baton Rouge.
2: 156.250 MHz is available for port operations communications use only within the U.S.
Coast Guard designated VTS radio protection areas of New Orleans and Houston de-
scribed in Sec. 80.383. 156.250 MHz is available for intership port operations communi-
cations used only within the area of Los Angeles and Long Beach harbors, within a 25-
nautical mile radius of Point Fermin, California.
3: 156.550 MHz, 156.600 MHz and 156.700 MHz are available in the U.S. Coast Guard
designated port areas only for VTS communications and in the Great Lakes available
primarily for communications relating to the movement of ships in sectors designated by
the St. Lawrence Seaway Development Corporation or the U.S. Coast Guard. The use of
these frequencies outside VTS and ship movement sector protected areas is permitted
provided they cause no interference to VTS and ship movement communications in thier
respective designated sectors.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 82
4: Use of 156.875 MHz is limited to communications with pilots regarding the movement
and docking of ships. Normal output power must not exceed 1 watt.
5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational commu-
nications. These frequencies are available between coast and ship on a secondary basis
when used on or in the vicinity of locks or drawbridges. Normal output power must not
exceed 1 watt. Maximum output power must not exceed 10 watts for coast stations or 25
watts for ship stations.
6: On the Great Lakes, in addition to bridge-to-bridge communications, 156.650 MHz is
available for vessel control purposes in established vessel traffic systems. 156.650 MHz
is not available for use in the Mississippi River from South Pass Lighted Whistle Buoy “2”
and Southwest Pass entrance Midchannel Lighted Whistle Buoy to mile 242.4 above
Head of Passes near Baton Rouge. Additionally it is not available for use in the Missis-
sippi River-Gulf Outlet, the Mississippi River-Gulf Outlet Canal, and the Inner Harbor
Navigational Canal, except to aid the transition from these areas.
7: Use of 156.375 MHz is available for navigational communications only in the Mississippi
River from South Pass Lighted Whistle Buoy “2” and Southwest Pass entrance Mid-
channel Lighted Whistle Buoy to mile 242.4 above head of Passes near Baton Rouge,
and in addition over the full length of the Mississippi River-Gulf Outlet Canal from en-
trance to its junction with the Inner Harbor Navigation Canal, and over the ull length of
the Inner Harbor Navigation Canal from its junction with the Mississippi River to its entry
to Lake Pontchartrain at the New Seabrook vehicular bridge.
8: Within 120 km (75 miles) of the United States/Canada border, in the area of the Puget
Sound and the Strait of Juan de Fuca and its approaches, 157.425 MHz is half of the
duplex pair designated as Channel 88. In this area, Channel 88 is available to ship
stations for communications with public coast stations only. More than 120 km (75 miles)
from the United States/Canada border in the area of the Puget Sound and the Strait of
Juan de Fuca, its approaches, the Great Lakes, and the St. Lawrence Seaway, 157.425
MHz is available for intership and commercial communications. Outside Puget Sound
area and its approaches and the Great Lakes, 157.425 MHz is also available for commu-
nications between commercial fishing vessels and associated aircraft while engaged in
commercial fishing activities.
9: When the frequency 156.850 MHz is authorized, it may be used additionally for search
and rescue training exercises conducted by state or local governments.
10: The frequency 156.850 MHz is additionally available to coast stations on the Great Lakes
for transmission of scheduled Coded Marine Weather Forecasts (MAFOR), Great Lakes
Weather Broadcast (LAWEB) and nscheduled Notices to Mariners or Bulletins. F3C and
J3C emissions are permitted. Coast Stations on the Great Lakes must cease weather
broadcasts which cause interference to stations operating on 156.800 MHz until the
interference problem is resolved.
11: The frequency 157.100 MHz is authorized for search and rescue training exercises by
state or local government in conjunction with U.S. Coast Guard stations. Prior U.S. Coast
Guard approval is required. Use must cease immediately on U.S. Coast Guard request.
12: The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to coast
station communications.
13: Available for assignment to coast stations, the use of which is in accord with an agreed
program, for the broadcast of information to ship stations concerning the environmental
conditions in which vessels operate, i.e., weather; sea conditions; time signals; notices
to mariners; and hazards to navigation.
14: Available only in the Puget Sound and the Strait of Juan de Fuca.
15: The frequency 156.525 MHz is to be used exclusively for distress, safety and calling
using digital selective calling techniques. No other uses are permitted.
16: The frequency 156.450 MHz is available for intership, ship and coast general purpose
calling by noncommercial vessels, such as recreational boats and private coast stations.
17: The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska for
facsimile transmissions as well as voice communications.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 83GX3500S
16. WARRANTY
Marine Products Limited Warranty
STANDARD HORIZON (a division of Vertex Standard) warrants, to the original
purchaser only, each new Marine Communications Product (“Product”) manu-
factured and/or supplied by STANDARD HORIZON against defects in materi-
als and workmanship under normal use and service for a period of time from
the date of purchase as follows:
Fixed Mount and Portable Transceivers
1 year - if purchased before 01/01/91
3 years - if purchased between 01/01/91 and 01/01/94
3 years Waterproof - if purchased after 01/01/94
Loud hailers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Chargers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Batteries - 1 year. Note: Batteries will be deemed deflective only if
storage capacity drops below 80% of rated capacity or if leakage develops.
Associated Accessories - 1 year. Includes: Microphones/Handsets, External
Speakers, Antennas, Carrying Accessories, Power Supplies, and Signaling Boards.
To receive warranty service, the purchaser must deliver the Product, transpor-
tation and insurance prepaid, to STANDARD HORIZON (a division of Vertex
Standard), Attention Marine repairs 10900 Walker Street, Cypress, CA 90630.
Include proof of purchase indicating model. serial number, and date of pur-
chase. STANDARD HORIZON will return the Product to the purchaser freight
prepaid. Products purchased prior to January 1, 1991 will bear the STANDARD
HORIZON warranty terms in effect prior to that date.
In the event of a defect, malfunction or failure of the Product during the war-
ranty period, STANDARD HORIZON’s liability for any breach of contract or any
breach of express or implied warranties in connection with the sale of Products
shall be limited solely to repair or replacement, at its option, of the Product or
part(s) therein which, upon examination by STANDARD HORIZON, appear to
be defective or not up to factory specifications. STANDARD HORIZON may, at
its option, repair or replace parts or subassemblies with new or reconditioned
parts and subassemblies. Parts thus repaired or replaced are warranted for the
balance of the original applicable warranty.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 84
STANDARD HORIZON will not warrant installation, maintenance or service of
the Products. In all instances, STANDARD HORIZON’s liability for damages shall
not exceed the purchase price of the defective Product.
This warranty only extends to Products sold within the 50 States of the United
States of America and the District of Columbia.
STANDARD HORIZON will pay all labor to repair the product and replacement
parts charges incurred in providing the warranty service except where purchaser
abuse or other qualifying exceptions exist. The purchaser must pay any trans-
portation expenses incurred in returning the Product to STANDARD HORIZON
for service.
This limited warranty does not extend to any Product which has been subjected
to misuse, neglect, accident, incorrect wiring by anyone other than STANDARD
HORIZON, improper installation, or subjected to use in violation of instructions
furnished by STANDARD HORIZON, nor does this warranty extend to Prod-
ucts on which the serial number has been removed, defaced, or changed. STAN-
DARD HORIZON cannot be responsible in any way for ancillary equipment not
furnished by STANDARD HORIZON which is attached to or used in connection
with STANDARD HORIZON’s Products, or for the operation of the Product with
any ancillary equipment, and all such equipment is expressly excluded from
this warranty. STANDARD HORIZON disclaims liability for range, coverage, or
operation of the Product and ancillary equipment as a whole under this war-
ranty. STANDARD HORIZON reserves the right to make changes or improve-
ments in Products, during subsequent production, without incurring the obliga-
tion to install such changes or improvements on previously manufactured Prod-
ucts.
The implied warranties which the law imposes on the sale of this Product are
expressly LIMITED, in duration, to the time period specified above. STANDARD
HORIZON shall not be liable under any circumstances for consequential dam-
ages resulting from the use and operation of this Product, or from the breach of
this LIMITED WARRANTY, any implied warranties, or any contract with STAN-
DARD HORIZON. IN CONNECTION WITH THE SALE OF ITS PRODUCTS,
STANDARD HORIZON MAKES NO WARRANTIES, EXPRESS OR IMPLIED
AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE OR OTHERWISE, EXCEPT AS EXPRESSLY SET FORTH HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, or limitation on how long an implied warranty lasts, so the above
limitations or exclusions may not apply. This warranty gives specific legal rights,
and there may be other rights which may vary from state to state.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 85GX3500S
ONLY PRODUCTS SOLD ON OR AFTER JANUARY 1, 1991 ARE COVERED
UNDER THE TERMS OF THIS LIMITED WARRANTY.
ON-LINE WARRANTY REGISTRATION
THANK YOU for buying Marine Division of Vertex Standard products!
We are confident your new radio will serve your needs for many years!
Please visit www.standardhorizon.com to register the GX3500S
Marine VHF. It should be noted that visiting the Web site from time to
time may be beneficial to you, as new products are released they will
appear on the STANDARD HORIZON Web site. Also a statement re-
garding product support should be added to the manual.
Product Support Inquiries
If you have any questions or comments regarding the use of the GX3500S,
you can visit the STANDARD HORIZON Web site to send an E-Mail or
contact the Product Support team at (714) 827-7600 ext 6300 M-F 7:00-
5:00PST.
In addition to the warranty, STANDARD HORIZON includes a lifetime “flat
rate” and “customer loyalty” programs to provide service after the warranty
period has expired. If you wish to obtain the flat rate price for out-of-war-
ranty repair, you must include the information on the Owner’s Record with
the unit when you return it to your Dealer or to STANDARD HORIZON.
Lifetime Flat Rate Service Program: For the original Owner only, for the
lifetime of the unit, STANDARD HORIZON will repair the unit to original
specifications.
Note: The flat rate amount is payable by the Owner only if STANDARD
HORIZON or the STANDARD HORIZON Dealer determines that a re-
pair is needed. After the repair, a 90-day warranty will be in effect from
the date of return of the unit to the Owner.
This service program is not available for equipment which has failed as a
result of neglect, accident, breakage, misuse, improper installation or
modification, or water damage (depending on the product).
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 86
17 SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are
subject to change without notice.
17.1 GENERAL
Channels ............................................................. All USA, International and Canadian
Input Voltage ....................................................................................... 13.8 VDC ±20%
Current Drain
Standby ........................................................................................................... 0.5 A
Receive ........................................................................................................... 1.5 A
Transmit ................................................................................... 5.0 A (Hi); 1.5 A (Lo)
Dimensions ........................................................... 3-9/16” H x 9-1/16” W x 5-29/32” D
(90 H x 230 W x 150 D mm)
Flush-Mount Dimensions ........................................ 2-27/32” H x 8-5/64” W x 5-1/8” D
(72 H x 205 W x 130 D mm)
Weight ................................................................................................. 3.2 lbs (1.45 kg)
17.2 TRANSMITTER
Frequency Range .................................................................. 156.025 to 157.425 MHz
RF Output ...................................................................................... 25 W (Hi); 1 W (Lo)
Conducted Spurious Emissions ................................................. 80 dB (Hi); 60 dB (Lo)
Audio Response ..............................................................within +1/-3 of a 6 dB/octave
pre-emphasis characteristic at 300 to 3000 Hz
Audio Distortion ...................................................................................................... 5 %
Modulation ..................................................................... 16K0G3E, for DSC 16K0G2B
Frequency Stability (-20°C to +50°C) ............................................................ ±0.0005%
FM Hum and Noise .............................................................................................. 50 dB
17.3 RECEIVER
Frequency Range .................................................................. 156.050 to 163.275 MHz
Sensitivity
12 dB SINAD ............................................................................................... 0.25 µV
12 dB SINAD (70 CH Receiver) .................................................................. 0.30 µV
Squelch Sensitivity (Threshold) ................................................................... 0.13 µV
Modulation Acceptance Bandwidth ................................................................. ±7.5 kHz
Selectivity
Spurious and Image Rejection ................................................... better than -70 dB
Intermodulation and Rejection at 12 dB SINAD ......................... better than -70 dB
Audio Output ........................................................................................................4.5 W
Audio Response ............................................................ within + 2/–8 of a 6 dB/octave
de-emphasis characteristic at 300 to 3000 Hz
Frequency Stability (-20°C to +50°C) ........................................................... ±0.0005 %
Channel Spacing ................................................................................................ 25 kHz
DSC Format ............................................................................................. RTCMSC101
NMEA Input/Output ........................................................................ Output - DSC, DSE
Input - GLL, GGA, RMC and GNS
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
Page 87GX3500S
18 APPENDIX
FOG HORN TIMING CHART
The fog horn function sounds a horn repeatedly until the function is turned off.
TYPE PATTERN USAGE
120s
Listen Back
5s 5s
2s 2s
120s
Listen Back
1s 1s1s 1s
2s 2s2s 2s
120s
Listen Back
1s 1s1s 1s1s 1s
2s 2s2s 2s2s 2s
120s
Listen Back
60s
Listen Back
60s
Listen Back
UNDERWAY
STOP
SAIL
TOW
AGROUND
ANCHOR One 5-second rings evey 60 seconds.
One 5-second blasts evey 120 seconds.
Two 5-second blasts (separated by 2
seconds) evey 120 seconds.
One 5-second blasts followed by two 1-
second blasts (separated by 2 seconds)
evey 120 seconds.
One 5-second blasts followed by three 1-
second blasts (separated by 2 seconds)
evey 120 seconds.
One 11-second rings evey 60 seconds.
Motor vessel underway and
making way.
Motor vessel underway but
stopped (not making way).
Sailling vessel underway, fish-
ing vessel (underway or an-
chored), vessel not under
command, a vessel restricted
in her ability to maneuver (un-
derway or at anchor), or a
vessel towing or pushing an-
other ahead.
Vessel under tow (manned).
Vessel is aground.
Vessel is at anchor.
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
GX3500SPage 88
Copyright 2004
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
0409X-0Y
Marine Division of VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
www.standardhorizon.com
EM006N200
Vertex Standard Co., Ltd.
FCC ID: K6630063X30 / IC ID: 511B-30063X30
