Yaesu Musen 30383X20 HANDHELD MARINE TRANSCEIVER User Manual HX280S pmd
Yaesu Musen Co., Ltd. HANDHELD MARINE TRANSCEIVER HX280S pmd
Users Manual
Page 1HX280S
HX280S
VHF FM Marine Transceiver
Owner’s Manual
HX280SPage 2
TABLE OF CONTENTS
RF EXPOSURE SAFETY STATEMENT .................................................................................... 4
FCC AND CANADA RADIO LICENSE INFORMATION .......................................................... 5
FCC NOTICE ................................................................................................................................ 6
1. GENERAL INFORMATION .................................................................................................... 7
1.1 INTRODUCTION ......................................................................................................... 7
2. ACCESSORIES ...................................................................................................................... 8
2.1 PACKING LIST ........................................................................................................... 8
2.2 OPTIONS ..................................................................................................................... 8
3. ABOUT THIS RADIO ............................................................................................................9
3.1 ABOUT THE VHF MARINE BAND .......................................................................... 9
4. GETTING STARTED ............................................................................................................ 10
4.1 RADIO CARE ............................................................................................................ 10
4.2 BATTERIES AND CHARGERS ............................................................................... 10
4.2.1 BATTERY SAFETY ....................................................................................... 10

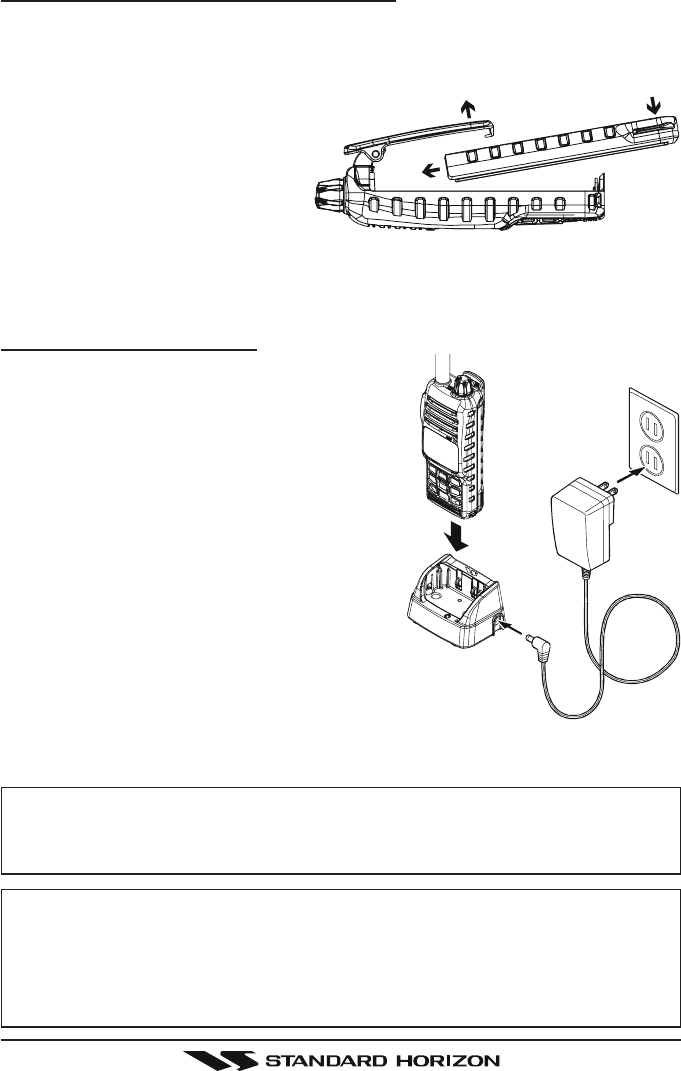

4.2.2 BATTERY INSTALLATION / REMOVAL ....................................................... 12
4.2.3 BATTERY CHARGING ................................................................................. 12
4.3 INSTALLATION OF OPTION ..................................................................................... 13

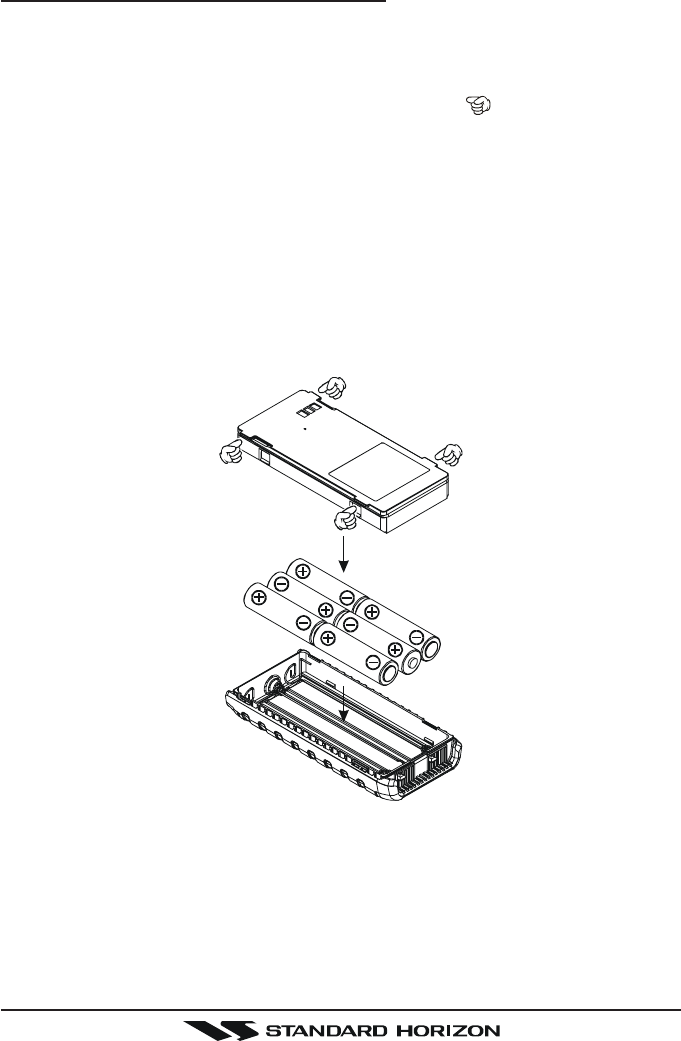

4.3.1 FBA-40 ALKALINE BATTERY CASE ........................................................... 13
5. CONTROLS AND INDICATORS ......................................................................................... 14

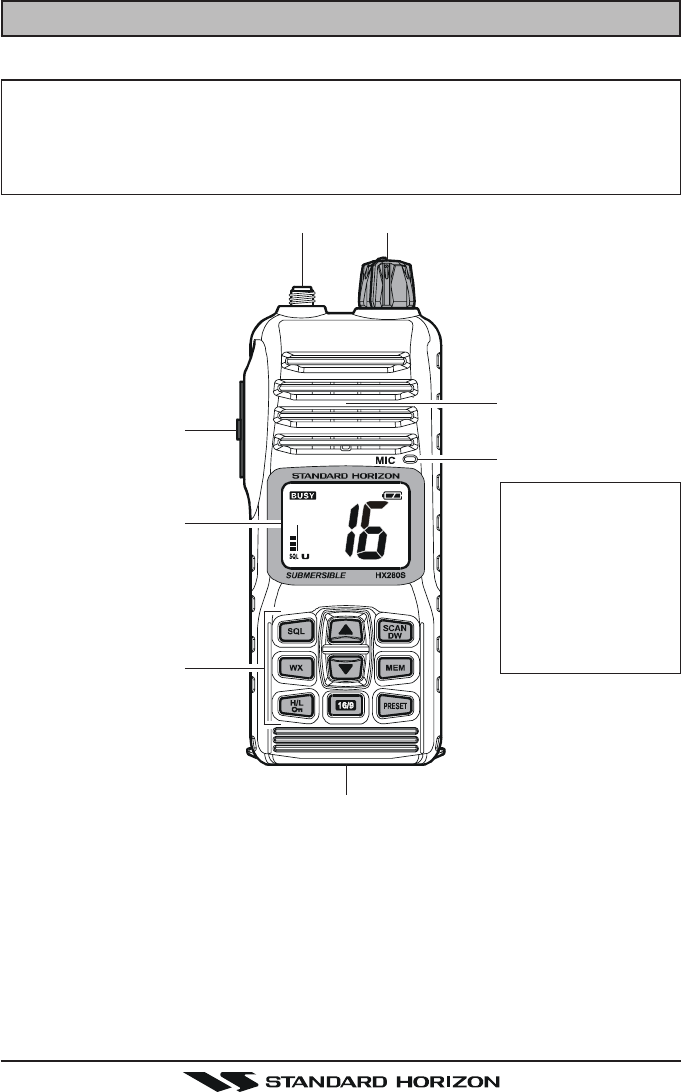

5.1 CONTROLS AND SWITCHES ................................................................................ 14

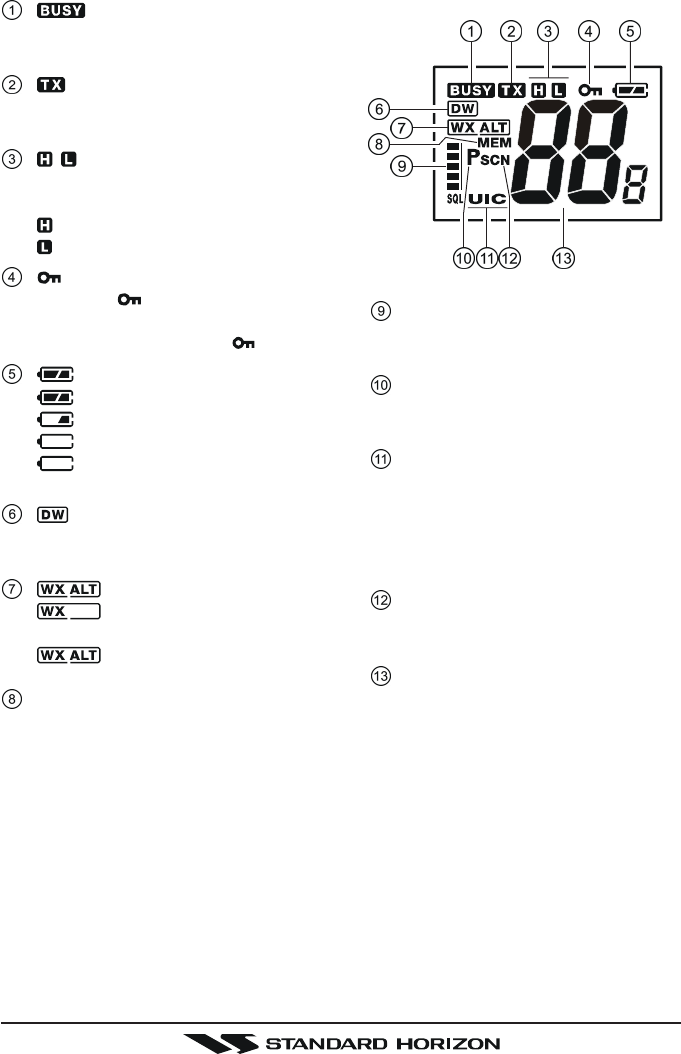

5.2 INDICATORS ............................................................................................................. 17
6. BASIC OPERATION ............................................................................................................ 18
6.1 PROHIBITED COMMUNICATIONS ......................................................................... 18
6.2 INITIAL SETUP ......................................................................................................... 18

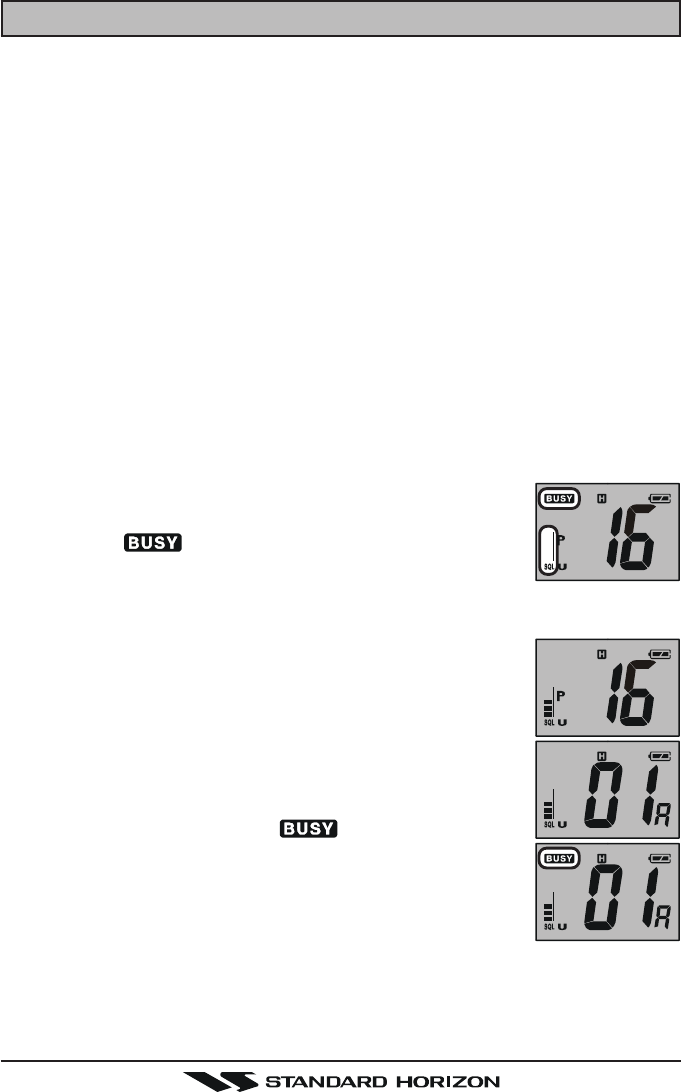

6.3 RECEPTION .............................................................................................................. 18

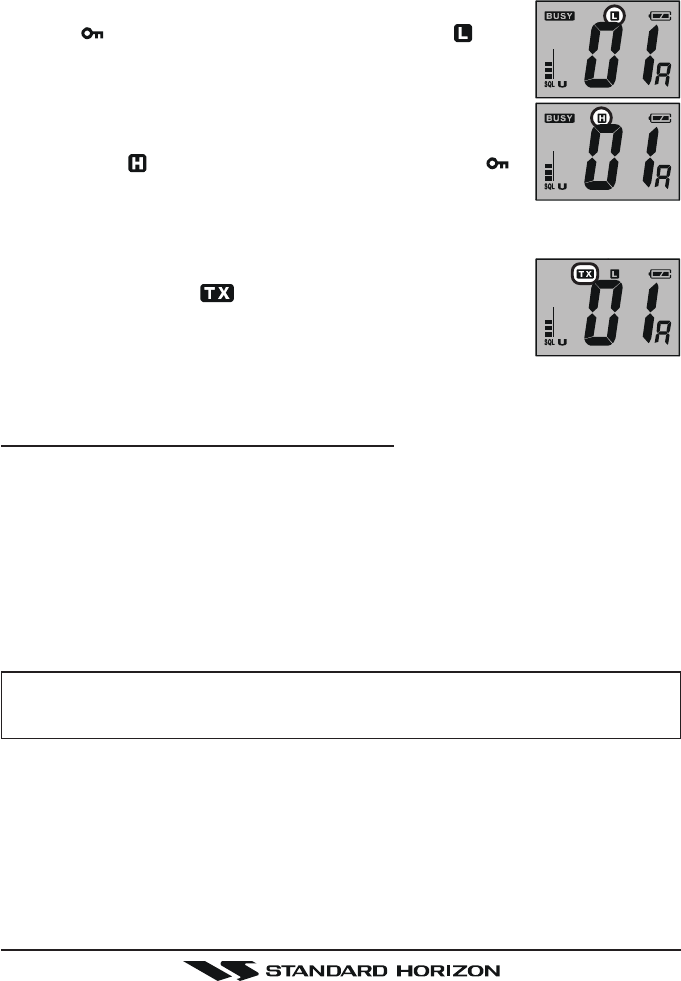

6.4 TRANSMISSION ....................................................................................................... 19
6.4.1 TRANSMIT TIME-OUT TIMER (TOT)........................................................... 19
6.5 USA, CANADIAN, AND INTERNATIONAL CHANNELS ....................................... 20
6.6 SIMPLEX/DUPLEX CHANNEL USE ....................................................................... 20
6.7 KEYPAD LOCKING .................................................................................................. 20
6.8 NOAA WEATHER CHANNELS ............................................................................... 21

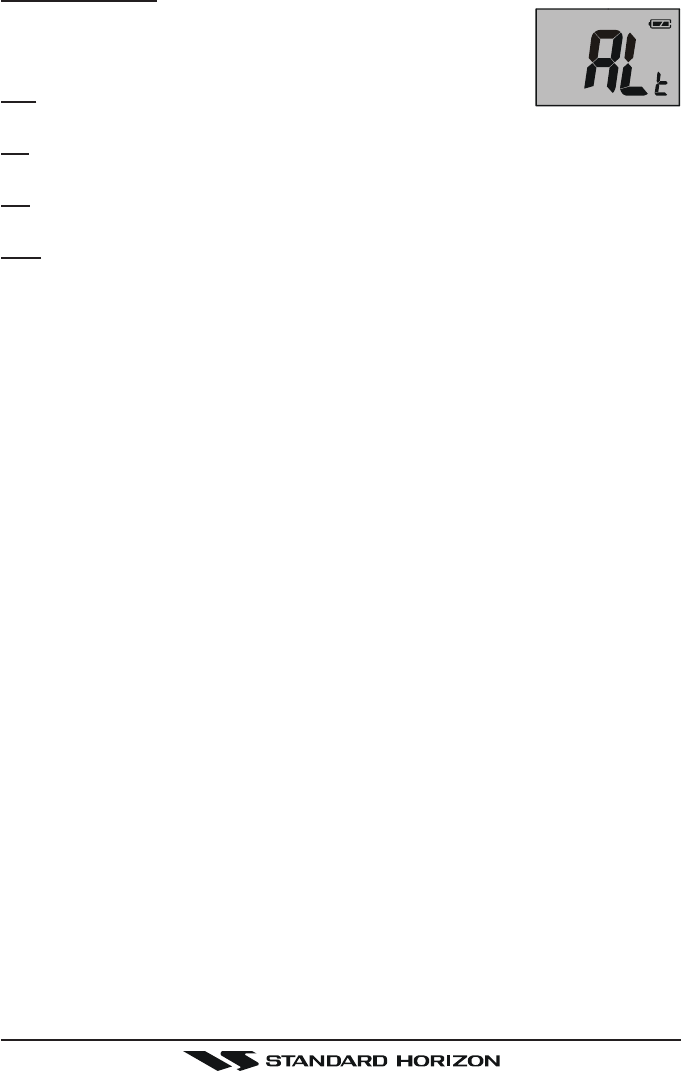

6.8.1 NOAA WEATHER ALERT ............................................................................. 21
6.8.2 NOAA WEATHER ALERT TESTING ............................................................ 21

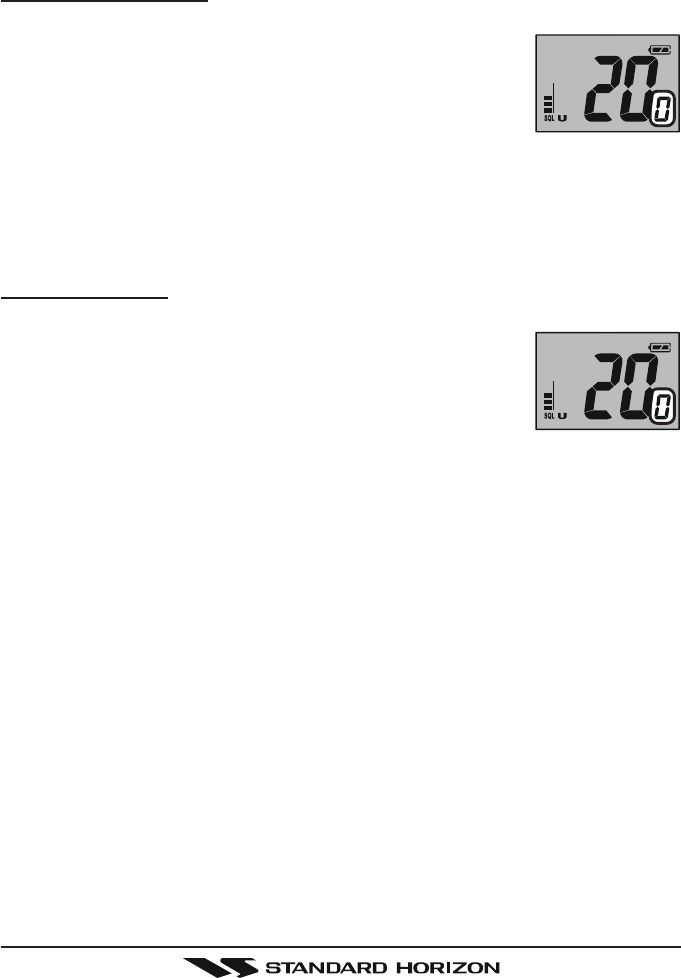

6.9 PRESET CHANNELS (0 ~ 9): INSTANT ACCESS ................................................ 22
6.9.1 PROGRAMMIMG ......................................................................................... 22
6.9.2 OPERATION ................................................................................................. 22
6.10 SCANNING ................................................................................................................ 23

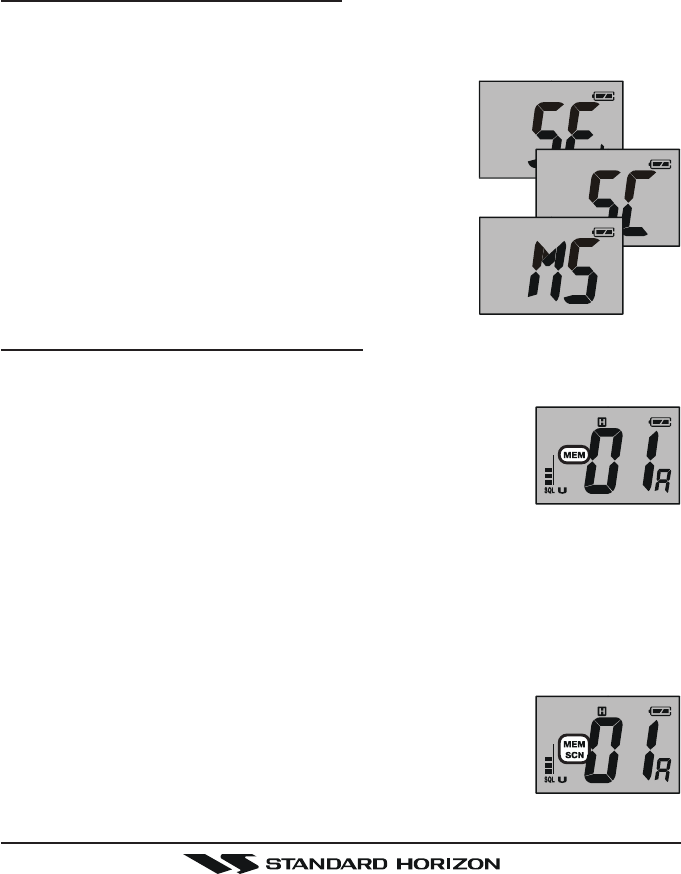

6.10.1 SELECTING THE SCAN TYPE .................................................................... 23
6.10.2 MEMORY SCANNING (M-SCAN)................................................................ 23
6.10.3 PRIORITY SCANNING (P-SCAN)................................................................ 24
6.11 DUAL WATCH ........................................................................................................... 25
6.12 EMERGENCY (CHANNEL 16 USE)........................................................................ 25
6.13 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9).......................................... 26
6.14 OPERATING ON CHANNEL 13 ............................................................................. 27
6.15 OPERATING ON CHANNEL 67 ............................................................................. 27

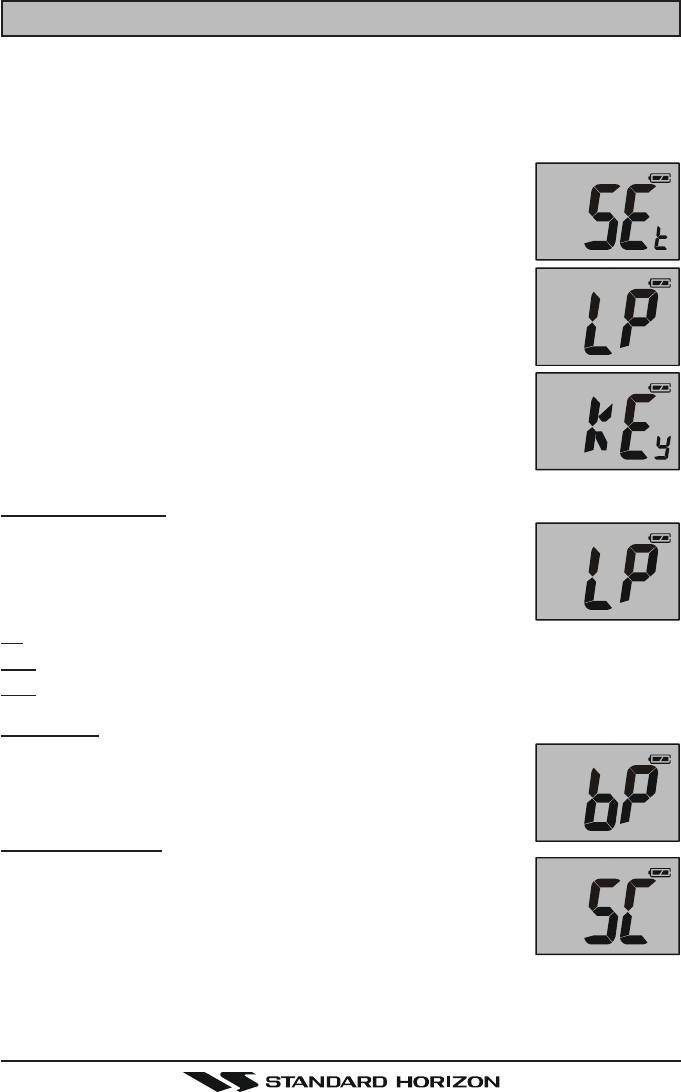

7. MENU (“SET”) MODE .......................................................................................................... 28
8. MAINTENANCE .................................................................................................................... 30
8.1 GENERAL .................................................................................................................. 30
8.2 REPLACEMENT PARTS .......................................................................................... 30
8.3 TROUBLESHOOTING CHART ................................................................................ 31
9. VHF MARINE CHANNEL ASSIGNMENT .......................................................................... 32
10. WARRANTY .......................................................................................................................... 38
11. SPECIFICATIONS ................................................................................................................. 48
11.1 GENERAL .................................................................................................................. 48
11.2 TRANSMITTER ......................................................................................................... 48
11.3 RECEIVER ................................................................................................................ 48
Page 3HX280S
Congratulations on your purchase of the HX280S! Whether this is your first
portable marine VHF transceiver, or if you have other STANDARD HORIZON
equipment, the STANDARD HORIZON organization is committed to ensuring
your enjoyment of this high performance transceiver, which should provide
you with many years of satisfying communications even in the harshest of
environments. STANDARD HORIZON technical support personnel stands
behind every product sold, and we invite you to contact us should you require
technical advice or assistance.
We appreciate your purchase of the HX280S, and encourage you to read this
manual thoroughly, so as to learn and fully understand the capabilities of the
HX280S.
WARNING
This radio is capable of transmitting on Marine VHF.
The FCC allows the use of VHF Marine band on water areas only. How-
ever the FCC does not allow the use of the VHF Marine band when on
land. If persons use the VHF Marine Band on land and interfere with
others communicating, the FCC will be notified and search for the inter-
ference. Responsible parties found to be transmitting on the VHF Ma-
rine Band on land could be fined up to $10,000 for the first offense.
HX280SPage 4
RF EXPOSURE SAFETY STATEMENT
SAFETY INFORMATION
Your wireless handheld portable transceiver contains a low power trans-
mitter. When the Push-to-Talk (PTT) button is pushed, the transceiver
sends out radio frequency (RF) signals. In August 1996, the Federal
Communications Commission adopted RF exposure guidelines with
safety levels for hand-held wireless devices.
This device is authorized to operate at a duty factor not to exceed 50%
(this corresponds to 50% transmission time and 50% reception time).
WARNING: To maintain compliance with the FCC’s RF exposure guide-
lines, this transmitter and its antenna must maintain a separation dis-
tance of at least 1 inch (2.5 centimeters) from your face. Speak in a
normal voice, with the antenna pointed up and away from the face at the
required separation distance.
Use only the supplied antenna. Unauthorized antennas, modifications,
or attachments could damage the transmitter, and may violate FCC regu-
lations.
Page 5HX280S
FCC AND CANADA RADIO LICENSE INFORMATION
Standard Horizon radios comply with the Federal Communication Commis-
sion (FCC) and Industry-Canada requirements that regulate the Maritime Ra-
dio Service.
MARITIME STATION LICENSE
An FCC ship station license is no longer required for any vessel traveling in
U.S. waters which uses a VHF marine radio, RADAR or EPIRB, and which is
not required to carry radio equipment. However, any vessel required to carry a
marine radio on an international voyage, carrying a HF single side band radio-
telephone or marine satellite terminal. FCC license forms, including applica-
tions for ship (605) and land station licenses can be downloaded via the Internet
at www.fcc.gov/Forms/Form605/605.html. To obtain a form from the FCC, call
(888) 225-5322.
MARINE RADIO CALL SIGN
Currently the FCC does not require recreational boaters to have a Ship Radio
Station License. The USCG recommends the boats registration number and
the state to be used.
CANADIAN SHIP STATION LICENSING
You may need a license when traveling in Canada. If you do need a license
contact their nearest field office or regional office or write:
Industry Canada
Radio Regulatory Branch
Attn: DOSP
300 Slater Street
Ottawa, Ontario
Canada, KIA 0C8
FCC / INDUSTRY CANADA INFORMATION
The following data pertaining to the transceiver is necessary to fill out the li-
cense application.
FCC Type Accepted: ........................................................................... Part 80
Output Power with FNB-V105LI: ................................... 1.0/5.0 W (Low/High)
Emission: ......................................................................................... 16K0G3E
Frequency Range: .................................................... 156.025 to 163.275MHz
FCC Type Number: .................................................................. K6630383X20
Industry Canada Type Approval: ........................................... 511B-30383X20
HX280SPage 6
FCC NOTICE
Unauthorized changes or modifications to this equipment may void compli-
ance with FCC Rules. Any change or modification must be approved in writing
by STANDARD HORIZON, a Marine Division of VERTEX STANDARD.
NOTICE
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
yConsult the dealer or an experienced marine electronics technician for
help.
Page 7HX280S
1. GENERAL INFORMATION
1.1 INTRODUCTION
The HX280S is a Submersible 5-Watt portable two way marine transceiver.
The transceiver has all allocated USA, International, or Canadian channels. It
has emergency channel 16 which can be immediately selected from any chan-
nel by pressing the [16/9] key. NOAA (National Oceanic and Atmospheric Ad-
ministration) Weather channels can also be accessed immediately by press-
ing the [WX] key.
The HX280S includes the following features: Memory Scanning, Priority Scan-
ning, NOAA Weather Alert, Battery Saver, easy-to-read large LCD display,
EEPROM memory back-up, Battery Life displayed on LCD, and a transmit
Time-Out Timer (TOT).
The HX280S transmitter provides a full 5 Watt of transmit power and also is
selectable to 1 Watt to assist the user in ensuring maximum battery life.
HX280SPage 8
2. ACCESSORIES

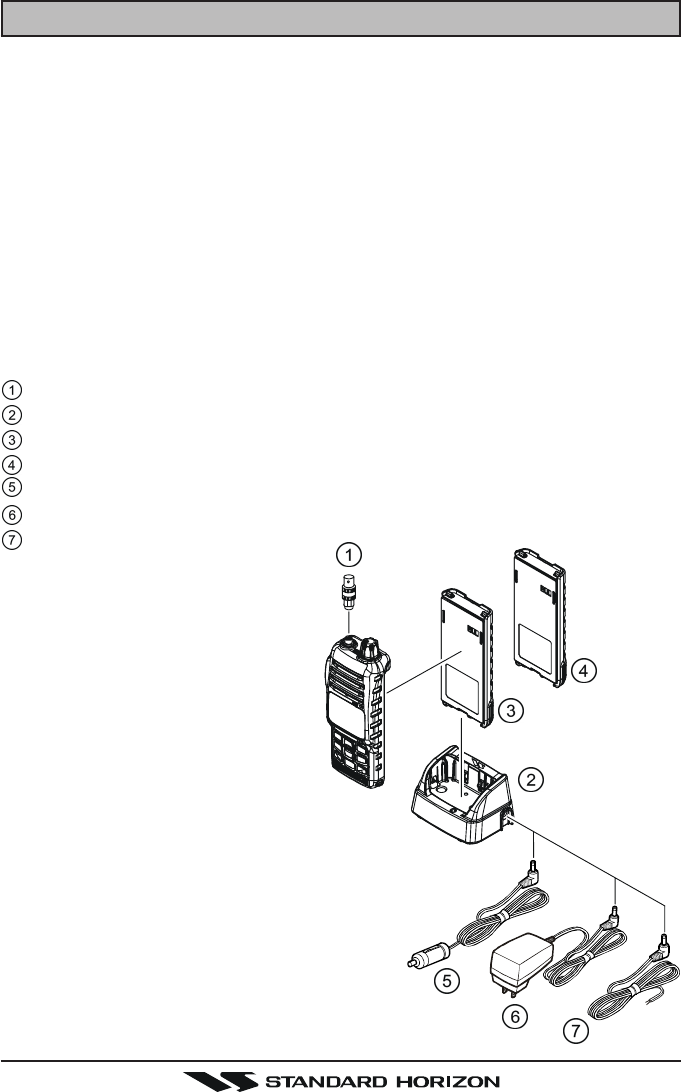

2.1 PACKING LIST
When the package containing the transceiver is first opened, please check it
for the following contents:
yHX280S Transceiver
yCAT460 Antenna
yFNB-V105LI 7.4 V, 1650 mAh Li-Ion Battery Pack
yCD-46 Charger Cradle for HX280S
yNC-90B 120VAC Wall Charger for CD-46
yE-DC-19A DC Cable with 12 V Cigarette Lighter Plug
yCLIP-920 Belt Clip
yOwner’s Manual
2.2 OPTIONS
CN-3 Radio-to-Ship’s-Antenna Adapter
CD-46 Charger Cradle
FNB-V105LI 7.4 V, 1650 mAh Li-Ion Battery Pack
FBA-40 Alkaline Battery Case
E-DC-19A DC Cable with 12 V Cigarette Lighter Plug
NC-90B/C/UÚAC Wall Charger for the FNB-V105LI
E-DC-6 DC Cable; plug
and wire only
Ú: “B” suffix is for use with 120 VAC
(Type-A plug), “C” suffix is for use
with 230 VAC (Type-C plug), and
“U” suffix is for use with 230 VAC
(Type-BF plug).
Note: Before operating the HX280S
for the first time, it is recommended
that the battery be charged. Please
see section “4.2.3 BATTERY
CHARGING” for details.
Page 9HX280S
3. ABOUT THIS RADIO
3.1 ABOUT THE VHF MARINE BAND
WARNING
The radio frequencies used in the VHF marine band lie between 156
and 158 MHz with NOAA Weather stations available between 161 and
163 MHz. The marine VHF band provides communications over dis-
tances that are essentially “Line of sight” Actual transmission range de-
pends much more on antenna type, gain and height than on the power
output of the transmitter. On a fixed mount 25 W radio transmission
expected distances can be greater than 15 miles, for a portable 5 W
radio transmission the expected distance can be greater than 5 miles in
“Line of sight”.
The user of a Marine VHF radio is subject to severe fines if the radio is
used on land. The reasoning for this is you may be near an inland water-
way, or propagation anomalies may cause your transmission to be heard
in a waterway. If this occurs, depending upon the marine VHF channel
on which you are transmitting, you could interfere with a search and
rescue case, or contribute to a collision between passing ships. For
VHF Marine channel assignments refer to page 32 section 9.
HX280SPage 10
4. GETTING STARTED
4.1 RADIO CARE
CAUTION
Before following the instructions below, insure the battery pack is in place
and firmly tightened. Care must be taken if the radio was dropped and a
close inspection may be needed to insure the radio case and gaskets
are in adequate condition.
Clean the radio with fresh water after exposure to salt water by rinsing the
radio under a sink faucet or by dunking the radio in a bucket of fresh water.
After washing, use a soft cloth and thoroughly dry all parts of the radio. This is
to keep the rubber switches and speaker grill clean and in top operating condi-
tion.
4.2 BATTERIES AND CHARGERS
If the radio has never been used, or its charge is depleted, it may be charged
by connecting the CD-46 Charger Cradle with the NC-90B battery charger, as
shown in the illustration. If 12V DC power is available, the optional E-DC-19A
DC Cable with 12 V Cigarette Lighter Plug or the optional E-DC-6 DC Cable
may be used for charging the battery. The NC-90B, E-DC-19A, and E-DC-6
will charge a completely discharged FNB-V105LI battery pack in about 6 hours.
The FNB-V105LI is a high performance Li-Ion battery providing high capacity
in a compact package.
CAUTION
To avoid risk of explosion and injury, FNB-V105LI battery pack should
only be removed, charged or recharged in non-hazardous environments.
4.2.1 BATTERY SAFETY
Battery packs for your transceiver contain Li-Ion batteries. This type of battery
stores a charge powerful enough to be dangerous if misused or abused, espe-
cially when removed from the transceiver. Please observe the following pre-
cautions:
DO NOT SHORT BATTERY PACK TERMINALS: Shorting the terminals that
power the transceiver can cause sparks, severe overheating, burns, and bat-
tery cell damage. If the short is of sufficient duration, it is possible to melt
battery components. Do not place a loose battery pack on or near metal sur-
faces or objects such as paper clips, keys, tools, etc. When the battery pack is
installed on the transceiver, the terminals that transfer current to the trans-
ceiver are not exposed. The terminals that are exposed on the battery pack
Page 11HX280S
when it is mounted on the transceiver are charging terminals only and do not
constitute a hazard.
DO NOT INCINERATE: Do not dispose of any battery in a fire or incinerator.
The heat of fire may cause battery cells to explode and/or release dangerous
gases.
Battery Maintenance
For safe and proper battery use, please observe the following:
yBattery packs should be charged only in non-hazardous environments;
yUse only STANDARD HORIZON-approved batteries;
yUse only a STANDARD HORIZON approved charger. The use of any
other charger may cause permanent damage to the battery.
yFollow charging instructions provided with the chargers.
yKeep the battery contacts clean.
Battery Storage
Store the batteries in a cool place to maximize storage life. Since batteries are
subject to self-discharge, avoid high storage temperatures that cause large
self-discharge rates. After extended storage, a full recharge is recommended.
Battery Recycling
DO NOT PLACE USED BATTERIES IN YOUR REGULAR TRASH!
LI-ION BATTERIES MUST BE COLLECTED, RECYCLED OR DISPOSED
OF IN AN ENVIRONMENTALLY SOUND MANNER.
The incineration, land filling or mixing of Li-Ion batteries with the municipal
solid waste stream is PROHIBITED BY LAW in most areas.
Return batteries to an approved Li-Ion battery recycler. This may be where
you purchased the battery.
Contact your local waste management officials for other information regarding
the environmentally sound collection, recycling and disposal of Li-Ion batter-
ies.
HX280SPage 12
4.2.2 BATTERY INSTALLATION/REMOVAL
To install the battery pack, hold the transceiver with your left hand, so your
palm is over the speaker and your thumb is on the top of the belt clip. Insert
the battery pack into the bat-
tery compartment on the back
of the radio while tilting the Belt
Clip outward, then push the
bottom side of the battery pack
until the battery pack locks with
the Battery Pack Latch.
To remove the battery, turn the radio off. Slide the Battery Pack Latch on
the bottom of the radio, then slide the battery downward and out from the
radio while holding the Belt Clip.
4.2.3 BATTERY CHARGING
1. Turn the transceiver off.
2. Insert the DC plug from the NC-90B into
the DC jack on the CD-46 side panel, then
plug the NC-90B into the AC line outlet.
3. Insert the HX280S (with the battery pack)
into the CD-46; the antenna should be at
the left side when viewing the charger from
the front.
4. If the HX280S is inserted correctly, the
Red “CHARGING” indicator will glow. A
fully-discharged pack will be charged com-
pletely in approximately 7 hours.
5. When charging is completed, the red LED
indicator will change to green. Remove the
transceiver from the CD-46, and unplug
the NC-90B from the AC line outlet.
CAUTION
The CD-46 is NOT designed to be waterproof. Do not attempt to charge
in water hazardous locations.
NOTE
The CD-46 is only designed for the charging of the HX280S’s battery,
and is not suitable for other purposes. The CD-46 may contribute noise
to TV and radio reception in the immediate vicinity, so we do not recom-
mend its use adjacent to such device.
NC-90B
CD-46
Tilt the Belt Clip
Insert the Battery Pack
Push the bottom side of
the battery pack
Page 13HX280S
4.3 INSTALLATION OF OPTION
4.3.1 FBA-40 ALKALINE BATTERY CASE
FBA-40 is a battery case that holds six AA size Alkaline batteries and is used
with the HX280S transceiver. When the FBA-40 is installed into the HX280S
the radio can withstand immersion in water up to 3.3ft for 30 minutes.
1. On the FBA-40, remove the battery case cover ( ).
2. Slide the six AA size Alkaline batteries into the FBA-40 Battery Case with
the Negative (–) side of the batteries touching the spring connections in-
side the FBA-40 Battery Case.
3. Attach the battery cover to the FBA-40 Battery Case while being careful so
that o-ring is not twisted.
4. Insert the FBA-40 Battery Case into the battery compartment on the back
of the HX280S transceiver while tilting the Belt Clip outward, then push the
bottom side of the FBA-40 Battery Case until the Battery Case locks with
the Battery Pack Latch.
HX280SPage 14
5. CONTROLS AND INDICATORS
5.1 CONTROLS AND SWITCHES
NOTE
This section defines each control of the transceiver. For detailed operat-
ing instructions, refer to section 6 “BASIC OPERATION”. Refer to illustra-
tions for the location of the following controls, switches, and connections.
cANT Jack (Top Panel)
The supplied CAT460 flexible antenna is attached here.
dPOWER Switch/VOLUME Control (VOL)
Turns the transceiver on and off as well as adjusts the speakers audio
volume.
Turn this knob clockwise to turn the radio on and increase the speakers
audio volume.
Turn fully counter-clockwise to turn the radio off.
dc
g
f
h
i
j
e
NOTE
When transmitting,
position your mouth
about 1/2 to 1 inch (1.2
~ 2.5 cm) away from
the small mic hole.
Speak slowly and
clearly into the micro-
phone.
Page 15HX280S
ePTT (PUSH-TO-TALK) Switch
When pushed activates the transmitter.
fLCD Display
This display shows current operating conditions, as indicated on the page
17.
gKeypad
[SQL] Key
Press this key to activate the squelch adjusting mode. Press the [T] or [S]
key to adjust the squelch threshold level.
Press and hold this key for 3 seconds to open the squelch, allowing you to
monitor the operating channel. Release the key to resume normal (quiet)
monitoring.
[SCAN(DW)] Key
Starts scanning and priority scanning of programmed channels.
Secondary use:
Press and hold the [SCAN(DW)] key for two seconds to activate the Dual
Watch feature.
[S(UP)] Key
Press the key momentarily to increase the channel one step. Hold the key
down to increase the channel continuously.
Secondary use:
Used to adjust the squelch threshold level up after the [SQL] key is pressed.
[T(DOWN)] Key
Press the key momentarily to decrease the channel one step. Hold the key
down to decrease the channel continuously.
Secondary use:
Used to adjust the squelch threshold level down after the [SQL] key is
pressed.
[WX] Key
Immediately recalls the last-used NOAA (National Oceanic and Atmospheric
Administration) Weather Channel from any channel location. Recalls the
previously- selected working channel when the [WX] key is pressed again.
Secondary use:
When the [16/9] key is held and the [WX] key is pressed, the radio will
change the marine band between the USA, International, and Canadian
channels.
HX280SPage 16
[MEM] Key
Press this key to memorize the selected channel for scanning. When
pressed a “MEM” icon will be shown on the LCD display indicating the
channel has been saved to scan memory.
To delete the channel from scan memory, select the channel and press
this key until “MEM” is removed from the display.
[H/L()] Key
Press this key to toggle the transmitter output power between “High” (5
Watts) and “Low” (1 Watt) power. This key does not function on the “Trans-
mission Inhibited” and “Low power only” channels.
Secondary use:
Hold down this key to lock the keypad (except the [SQL], [H/L()] and
PTT keys) so that they are not accidentally changed. The “ ” icon will
appear at the bottom right corner on the display, to indicate that the func-
tions are locked. Hold down this key until the “ ” icon disappears to un-
lock the radio.
[16/9] Key
Pressing this key immediately recalls channel 16 from any channel loca-
tion. Holding down this key recalls channel 9. Pressing this key again re-
verts to the previous selected working channel.
[PRESET] Key
Immediately recalls one of up to 10 user preset memories for each band
(shown as “0” - “9” on the LCD). Pressing this key repeatedly scrolls through
the preset memory channels.
hSpeaker
The internal speaker is located here.
iMicrophone
The internal microphone is located here.
When transmitting, position your mouth about 1/2 to 1 inch (1.2 ~ 2.5 cm)
away from the small mic hole. Speak slowly and clearly into the micro-
phone.
jBattery Pack Lock (Bottom side)
Slide the Battery Pack Lock to the “W” position for battery removal.
Page 17HX280S
5.2 LCD INDICATORS
“” Indicator
This indicator appears when a sig-
nal is being received.
“” Indicator
This indicator appears during trans-
mission.
“ / ” Indicators
This indicator shows the TX output
power.
“”: High power (5 Watts)
“”: Low power (1 Watt).
“” Indicator
When the “ ” icon is shown on the
LCD, all keys are disabled except for
the PTT, [SQL], and [H/L()] keys.
“” Battery Indicator
“”: Full battery
“”: Lower battery
“”: Battery is very low
“ (Blinking)”: Prepare to charge
the battery
“” Indicator
This indicator appears when the Dual
Watch is activated.
“” Indicator
“”: NOAA weather channel
is selected.
“”: “weather alert” is re-
ceived.
“MEM” Indicator
This indicator shows the channel is
in the transceiver’s “Scan Memory”.
SQL Indicator
This indicator shows the squelch
level.
“P” Indicator
This indicator shows the channel is
in the “Priority Channel”.
“U/I/C” Indicator
These indicators show the “band” of
operation for the particular channel.
“U” indicates the USA band; “I” indi-
cates the International band; and “C”
indicates the Canadian band.
“SCN” Indicator
This indicator appears when the
Scan is activated.
Channel Display
The operating channel is shown on
the LCD in both the transmission and
reception modes.
HX280SPage 18
6. BASIC OPERATION
6.1 PROHIBITED COMMUNICATIONS
The FCC prohibits the following communications:
yFalse distress or emergency messages:
yMessages to “any boat” except in emergencies and radio tests;
yMessages to or from a vessel on land;
yTransmission while on land;
yObscene, indecent, or profane language (potential fine of $10,000).
6.2 INITIAL SETUP
1. Install the battery pack on the transceiver (see section “4.2.2 BATTERY
INSTALLATION/REMOVAL”).
2. Install the antenna onto the transceiver; hold the bottom end of the an-
tenna, then screw it onto the mating connector on the transceiver until it is
snug. Do not over-tighten.
6.3 RECEPTION
1. Turn the VOL knob clockwise to turn the transceiver on.
2. Press the [SQL] key to activate the squelch adjusting
mode (The “SQL” indicator will blink). Press the [T] key
until the “ ” indicator will appear on the display,
then press the [SQL] key again.
3. Turn up the VOL knob until the noise or audio from the speaker is at a
comfortable level.
4. Press the [SQL] key, then press the [S] key until the
random noise disappears. This state is known as the
“Squelch Threshold”.
5. Press the [T] or [S] key to select the desired channel.
Refer to the channel chart on page 33 for available chan-
nels.
6. When a signal is received, adjust the VOL knob to the
desired listening level. The “ ” indicator in the LCD
is displayed indicating that the channel is being used.
Page 19HX280S
6.4 TRANSMISSION
1. Perform “6.3 RECEPTION” discussion above.
2. Before transmitting, monitor the channel and make sure it is clear.
THIS IS AN FCC REQUIREMENT!
3. For communications over short distances, press the
[H/L()] key to select the Low power (1 watt: “ ” icon
appears).
Note: Transmitting on Low power prolongs battery life.
Low power should be selected whenever possible.
4. If using Low power is not effective, select High power
(5 watts: “ ” icon appears) by pressing the [H/L()]
key.
5. When receiving a signal, wait until the incoming signal stops before trans-
mitting. The transceiver cannot transmit and receive simultaneously.
6. Press the PTT (Push-To-Talk) switch to transmit. During
transmission, the “ ” indicator will appear on the dis-
play.
7. Position your mouth about 1/2 to 1 inch (1.2 ~ 2.5 cm)
away from the mic hole. Speak slowly and clearly into the microphone.
8. When the transmission is finished, release the PTT switch.
6.4.1 TRANSMIT TIME - OUT TIMER (TOT)
While the PTT switch is held down, transmission time is limited to 5 minutes.
This prevents prolonged (unintentional) transmissions. About 10 seconds be-
fore automatic transmitter shutdown, a warning beep will sound from the
speaker. The transceiver automatically switches to the receiving mode, even if
the PTT switch is held down. Before transmitting again, the PTT switch must
first be released, then wait 10 seconds and then pressed again. This Time-
Out-Timer (TOT) prevents a continuous transmission that would result from an
accidentally stuck PTT switch.
The PTT switch is ignored for 10 seconds after the transceiver auto-
matically switches to the receiving mode by the TOT feature.
HX280SPage 20
6.5 USA, CANADIAN, AND INTERNATIONAL CHANNELS
1. To change from US to International or Canadian Marine Channels, hold
down the [16/9] key and press the [WX] key. The band will change from
USA, to International, and to Canadian with each press.
2. “U” appears on the LCD for the USA band, “I” appears
for the International band, and “C” appears for the Ca-
nadian band
3. Refer to the marine channel charts in section 9 “VHF MARINE CHANNEL
ASSIGNMENTS” for allocated channels.
6.6 SIMPLEX/DUPLEX CHANNEL USE
Refer to the VHF MARINE CHANNEL CHART (page 33) for instructions on
use of simplex and duplex channels.
NOTE
All channels are factory-programmed in accordance with FCC (USA),
Industry Canada and International regulations. The mode of operation
cannot be altered from simplex to duplex or vice-versa. Simplex (ship to
ship) or duplex (marine operator) mode is automatically activated, de-
pending on the channel and whether the USA, International or Cana-
dian operating band is selected.
6.7 KEYPAD LOCKING
In order to prevent accidental channel change, the HX280S’s keypad may be
locked out.
Hold down the [H/L()] key to lock the keypad (except the
PTT, [SQL], and [H/L()] keys) so that they are not acci-
dentally changed. The “ ” icon will appear on the channel
number of the display, to indicate that the functions are
locked.
Hold down the [H/L()] key until the “ ” icon disappears to unlock the ra-
dio.
Page 21HX280S
6.8 NOAA WEATHER CHANNELS
1. To receive a NOAA (National Oceanic and Atmospheric
Administration) weather broadcast, press the [WX] key.
The transceiver changes to the weather channel mode.
This mode consists of a preset memory bank containing
the NOAA weather channels.
2. When the [WX] key is pressed, the transceiver will be set to the last used
NOAA weather channel. Press the [T] or [S] key to change to other weather
channels.
3. To exit from the weather channel mode, press the [WX] key. The trans-
ceiver will revert to the channel you were using prior to switching to the
weather channel mode.
6.8.1 NOAA WEATHER ALERT
In the event of extreme weather disturbances such as storms and hurricanes,
NOAA sends a “weather alert” consisting of a 1050 Hz tone, followed by weather
reports on the weather channels.
When a “weather alert” is received on a weather channel,
the transceiver emits a beep tone and “ ” icon is
shown on the display. Press the [WX] key to stop the beep
tone and listen to the weather reports.
NOTE
Options for the Weather Alert feature are available, refer to Menu Mode
Item “ALt (WX ALERT)” on page 29 for details.
6.8.2 NOAA WEATHER ALERT TESTING
In the event of a major storm or other appreciable weather condition requiring
vessels at sea (or other bodies of water) to be notified, the NOAA (National
Oceanographic and Atmospheric Administration) broadcasts a 1050 Hz tone
that some VHF radios, including your HX280S, can detect for “Weather Alarm”
purposes (refer to section “6.8.1 NOAA WEATHER ALERT” for a discussion
of how to use this feature). The 1050 Hz tone, when detected, will produce a
loud beep in the speaker of the HX280S, to signal that a Weather Alert Broad-
cast is being received.
In order to test this system, NOAA broadcasts the 1050 Hz tone every Wednes-
day sometime between 11 AM and 1 PM local time. You may use this opportu-
nity to test your HX280S periodically to confirm that the Weather Alert feature
is working, or for training crew members on how to configure the HX280S to
receive the NOAA Weather Alerts.
HX280SPage 22
6.9 PRESET CHANNELS (0 ~ 9): INSTANT ACCESS
Ten user assigned channels can be programmed for instant access. Pressing
the [PRESET] key activates the user assigned channel bank.
6.9.1 PROGRAMMING
1. Select the desired channel to be assigned into the Preset Channel Bank
using the [T] or [S] key.
2. Press and hold the [PRESET] key until the Preset Chan-
nel Number “00
00
0” is shown at the right of the channel num-
ber on the display.
3. Repeat steps 1 and 2 to program the desired channels into Preset Chan-
nels “11
11
1” ~ “99
99
9”.
4. To delete a Preset Channel, select the Preset Channel Number to be de-
leted using the [T] or [S] key, then press and hold the [PRESET] key until
the Preset Channel Number is removed from the display.
6.9.2 OPERATION
Pressing the [PRESET] key will toggle between Preset Channels “00
00
0” through
“99
99
9” and the last selected “regular” channel. Preset Channel
“00
00
0” is represented by “00
00
0” to the right of the channel number
on the display for one second, and preset channel “11
11
1” is
represented by “11
11
1” and so forth. The preset channel number
will disappear after one second.
Page 23HX280S
6.10 SCANNING
The HX280S allows the user to select the scan type from “Memory Scan” or
“Priority Scan”. “Memory Scan” scans the channels that were programmed
into memory. “Priority Scan” scans the channels that were programmed into
memory with the priority channel (Channel 16). When an incoming signal is
detected on one of the channels during scan, the radio will pause on that
channel, allowing you to listen to the incoming transmission.
6.10.1 SELECTING THE SCAN TYPE
1. Turn the transceiver off by rotating the VOL knob fully counter-clockwise.
2. Hold down the [SQL] key, and then turn on the transceiver while still hold-
ing down the [SQL] key.
3. “SEtSEt
SEtSEt
SEt” will appear on the display, indicating the Menu
(“Set”) Mode has been activated.
4. Press the [SQL] key, repeatedly if necessary to
select the Menu item “SCSC
SCSC
SC”.
5. Press the [T] or [S] key to select “PSPS
PSPS
PS (Priority Scan)” or
“MSMS
MSMS
MS (Memory Scan)”. The factory default is “PSPS
PSPS
PS
(Priority Scan)”.
6. After completing your selection, turn the trans-
ceiver off and on by rotating the VOL knob.

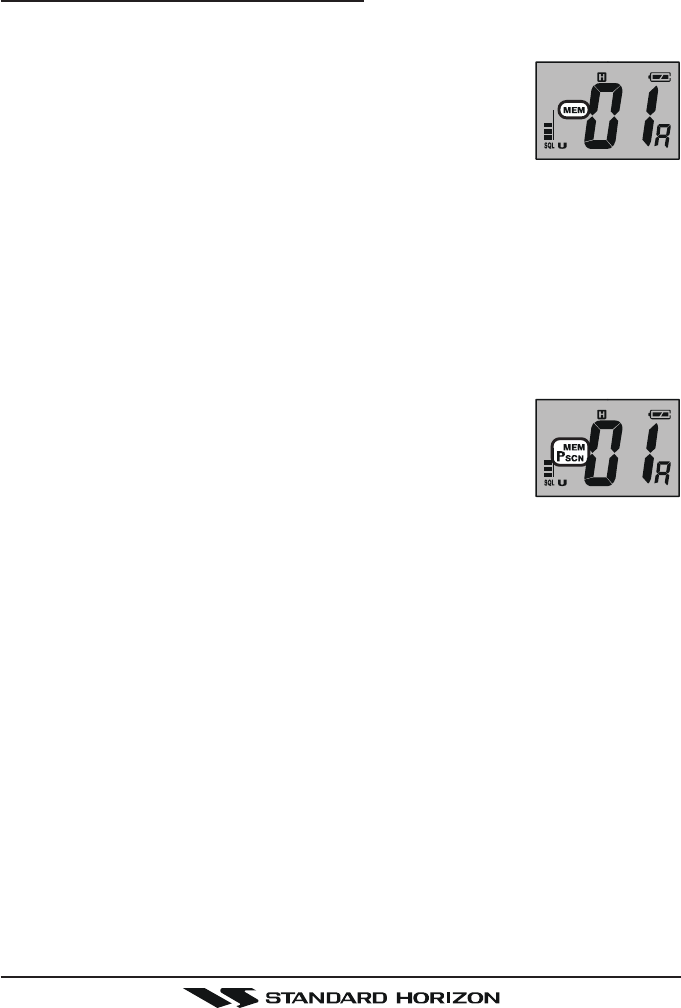

6.10.2 MEMORY SCANNING (M-SCAN)
1. Select the desired channel to be included in the scan memory using the
[T] or [S] key.
2. Press the [MEM] key to store the channel into the
transceiver’s scan memory. “MEM” will be displayed on
the LCD.
3. Repeat steps 1 and 2 for all the channels to be scanned.
4. To delete a channel from the transceiver’s scan memory, select the memo-
rized channel, then press the [MEM] key to delete the channel from scan
memory.
5. All channels programmed remain in the transceiver’s scan memory even if
the power is turned off.
6. Adjust the SQL level until background noise is eliminated by pressing the
[SQL] key followed by the [T] / [S] key.
7. To start scanning, press the [SCAN(DW)] key. The scan
proceeds from the lowest to the highest programmed
channel and stops scanning when a transmission is re-
ceived. Scanning will resume when the incoming signal
disappears at the end of the transmission. The “MEM” and “SCN” icon will
HX280SPage 24
appear at the left of the channel number on the display during scanning.
8. To stop the scan, press the [SCAN(DW)] key.
6.10.3 PRIORITY SCANNING (P-SCAN)
1. Select the desired channel to be included in the scan memory using the
[T] or [S] key.
2. Press the [MEM] key to store the channel into the
transceiver’s scan memory. “MEM” will be displayed on
the LCD.
3. Repeat steps 1 and 2 for all the channels to be scanned.
4. To delete a channel from the transceiver’s scan memory, select the memo-
rized channel, then press the [MEM] key to delete the channel from scan
memory.
5. All channels programmed remain in the transceiver’s scan memory even if
the power is turned off.
6. Adjust the Squelch Level until background noise is eliminated by pressing
the [SQL] key followed by the [T] / [S] key.
7. To start scanning, press the [SCAN(DW)] key. A “SCN” icon and blinking
“P” and “MEM” icons will appears at the left of the channel number on the
display during scanning. The scan proceeds between
the memorized channels and the Priority Channel (Chan-
nel 16).
As an example of priority scanning, let us say that ma-
rine channels “06”, “07”, and “08” are memorized in the transceiver’s scan
memory. Priority scanning will proceed in the following sequence:
[CH06] Æ (CH16)Ú Æ [CH07] Æ (CH16)Ú Æ
[CH08] Æ (CH16)Ú Æ [CH06] Æ (CH16)Ú Æ [CH07] .....
Ú: Priority Channel
4. Even when the transceiver stops and listens to the signal of a programmed
channel, the transceiver will “dual watch” between this channel and the
priority channel. This allows the radio to be able to receive calls on chan-
nel 16 (priority channel) even when the radio is receiving on another chan-
nel.
5. To stop the Priority Scanning, press the [SCAN(DW)] key.
Page 25HX280S
6.11 DUAL WATCH
The Dual Watch feature allows the radio watch the Priority Channel “Channel
16” and one other channel.
1. Select the desired channel using the [T] or [S] key.
2. Press and hold the [SCAN(DW)] key for two seconds to
activate the Dual Watch feature. A “ ” icon will ap-
pear on the upper left of the display when the Dual Watch
feature is activated.
3. When a transmission is received on the “Priority Channel”, the radio re-
ceives the “Priority Channel” until the incoming signal disappears.
4. When the radio receives a transmission on the working channel, the radio
will dual watch between the working channel and Channel 16.
5. The Dual Watch feature will resume when the incoming signal disappears
at the end of the transmission.
6. To stop the Dual Watch feature and return to normal operation, press and
hold the [SCAN(DW)] key for two seconds again.
6.12 EMERGENCY (CHANNEL 16 USE)
Channel 16 is known as the Hail and Distress Channel. An emergency may be
defined as a threat to life or property. In such instances, be sure the trans-
ceiver is on and set to “Channel 16”. Then use the following procedure:
1. Press the PTT (Push-To-Talk) switch and say “Mayday, Mayday, Mayday.
This is _____, _____, _____” (your vessel’s name).
2. Then repeat once: “Mayday, _____” (your vessel’s name).
3. Now report your position in latitude/longitude, or by giving a true or mag-
netic bearing (state which) to a well-known landmark such as a navigation
aid or geographic feature such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, fire, heart
attack, life-threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
8. Give your vessel’s description: length, design (power or sail), color and
other distinguishing marks. The total transmission should not exceed 1
minute.
9. End the message by saying “OVER”. Release the PTT switch and listen.
10. If there is no answer, repeat the above procedure. If there is still no re-
sponse, try another channel.
HX280SPage 26
6.13 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other vessels.
Use of channel 16 for hailing must be limited to initial contact only. Calling
should not exceed 30 seconds, but may be repeated 3 times at 2-minute inter-
vals. In areas of heavy radio traffic, congestion on channel 16 resulting from its
use as a hailing channel can be reduced significantly in U.S. waters by using
Channel 9 as the initial contact (hailing) channel for non-emergency communi-
cations. Here, also, calling time should not exceed 30 seconds but may be
repeated 3 times at 2-minute intervals.
Prior to making contact with another vessel, refer to the channel charts in this
manual, and select an appropriate channel for communications after initial
contact. For example, Channels 68 and 69 of the U.S. VHF Charts are some of
the channels available to non-commercial (recreational) boaters. Monitor your
desired channel in advance to make sure you will not be interrupting other
traffic, and then go back to either channel 16 or 9 for your initial contact.
When the hailing channel (16 or 9) is clear, state the name of the other vessel
you wish to call and then “this is” followed by the name of your vessel and
your Station License (Call Sign). When the other vessel returns your call, im-
mediately request another channel by saying “go to”, the number of the other
channel, and “over”. Then switch to the new channel. When the new channel
is not busy, call the other vessel.
After a transmission, say “over”, and release the PTT (Push-To-Talk) switch.
When all communication with the other vessel is completed, end the last trans-
mission by stating your Call Sign and the word “out”. Note that it is not neces-
sary to state your Call Sign with each transmission, only at the beginning and
end of the contact.
Remember to return to Channel 16 when not using another channel. Some
radios automatically monitor Channel 16 even when set to other channels or
when scanning.
Page 27HX280S
6.14 OPERATING ON CHANNEL 13
Channel 13 is used at docks, bridges and for maneuvering in port. Messages
on this channel must concern navigation only, such as meeting and passing in
restricted waters. In emergencies and when approaching blind river bends,
High power is allowed. Pressing the [H/L()] key will change the power out-
put from Low Power (1 Watt) to High (5 Watts). When you change from this
channel then return to it, low power will be automatically selected.
6.15 OPERATING ON CHANNEL 67
When channel 67 is used for navigational bridge-to-bridge traffic between ships,
Normal, High or Medium power may be used temporarily (in the USA band) by
pressing the [H/L()] key. When you select this channel again, the trans-
ceiver will revert to low power.
HX280SPage 28
7. MENU (“SET”) MODE
The HX280S’s Menu Mode allows a number of the HX280S operating param-
eters to be custom-configured for your operating requirements.
The Menu Mode is easy to activate and set, using the following procedure:
1. Turn the transceiver off by rotating the VOL knob fully counter-clockwise.
2. Hold down the [SQL] key, and then turn on the trans-
ceiver while still holding down the [SQL] key.
3. “SEtSEt
SEtSEt
SEt” will appear on the display, indicating the Menu
(“Set”) Mode has been activated.
4. Press the [SQL] key to select the Menu item to be ad-
justed.
5. Press the [T] or [S] key to enable adjustment of the
selected Menu item. The menu item will blink.
6. Press the [SQL] key to select the status or value of the
Menu item.
7. After completing your adjustment, turn the transceiver
off and on by rotating the VOL knob.
LP (LAMP MODE)
Function: Selects the Lamp illumination method for the LCD/
Keypad.
Available Values: on / kEY / oFF
Default: kEY
on: Illuminates the LCD/Keypad continuously.
kEY: Illuminates the LCD/Keypad for 5 seconds when any key is pressed.
oFF: Turns off the backlight for the LCD and keys.
bP (BEEP)
Function: Enable/Disable the Keypad beeper.
Available Values: HI / Lo / oFF
Default: HI
SC (SCAN TYPE)
Function: Selects the Scan mode.
Available Values: PS (Priority Scan) / MS (Memory Scan)
Default: PS (Priority Scan)
Page 29HX280S
ALt (WX ALERT)
Function: Enable/Disable the Weather Alert feature.
Available Values: ALL / SC / CH / OFF
Default: on SC
ALL: When on a weather channel, the radio will alarm when
the Weather Alert is received.
SC: Emits a loud beep when the Weather Alert is received while scanning
the Weather channels.
CH: Emits a loud beep when the Weather Alert is received while receiving
the Weather channel and/or scanning the Weather channels.
OFF: Disables the Weather Alert function.
HX280SPage 30
8. MAINTENANCE
8.1 GENERAL
The inherent quality of the solid-state components in STANDARD HORIZON
radios will provide many years of continuous use. Take the following precau-
tions to prevent damage to the radio.
yTo prevent corrosion of electrical contacts and keep the water resistance,
keep the microphone connected or the jack covered at all times.
yNever key the transmitter unless an antenna or suitable dummy load is
connected to the antenna receptacle.
yEnsure that the input voltage does not exceed the value specified in your
Owner’s Manual.
yUse only STANDARD HORIZON-approved accessories and replacement
parts.
8.2 REPLACEMENT PARTS
Occasionally an owner needs a replacement part. These can be ordered from
our Parts Department by writing or calling (in USA or Canada), or Standard
Horizon/Vertex Standard authorized dealers (outside USA or Canada).
Marine Division of Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Telephone (714) 827-7600
Commonly requested parts, and their part numbers are listed below.
yVOL Knob: RA1078700
yCD-46 Charger Cradle: CB4777001
yCAT460 Antenna: Q3000176
yCLIP-920 Belt Clip: AAE51X001
Page 31HX280S
8.3 TROUBLESHOOTING CHART
SYMPTOM
The [SCAN(DW)] key
does not start the scan.
Cannot select between
USA, INTL, or Canadian
bands.
Some keys do not
operate.
Cannot select keylock
function.
Charging indicator on
CD-46 does not
illumininate.
PROBABLE CAUSE
No channels memorized.
Squelch is not adjusted.
Proper operation not
followed.
Low battery.
Audio volume level is too low.
Key Lock is on.
Proper operation not
followed.
Defective battery FNB-V105LI.
REMEDY
Use the [MEM] key to enter desired
channels into the transceiver’s
memory.
Adjust the squelch to threshold or
to the point where noise just dis-
appears. Further adjustment of the
squelch control may eliminate in-
coming signals.
HOLD down the [16/9] key and
press the [WX] key.
Charge battery. Refer to section
4.2.3 of this manual.
Turn the VOL knob clockwise.
Turn Key Lock off. Refer to section
5.1 of this manual ([H/L()] key).
Hold down the [H/L()] key for 2
seconds.
Contact your Standard Horizon
dealer.
Speaker audio is not
heard when the [SQL]
key is press and held.
HX280SPage 32
9. VHF MARINE CHANNEL ASSIGNMENTS
Tables on the following pages list the VHF Marine Channel assignments for
U.S.A. and International use. Below are listed some data about the charts.
1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s
Vessel Traffic System.
2. Alpha channel numbers, that is, channel numbers followed by the letter A
(such as Channel 07A) are simplex channels on the U.S.A. or Canadian
channel assignments whose counterparts in the International assignments
are duplex channels. International channels do not use “alpha” numbers.
If you call the Coast Guard on Channel 16, they will sometimes ask you to
“go to channel 22 Alpha.” This is a channel assigned to U.S.A, and Cana-
dian Coast Guards for handling distress and other calls. If your radio is set
for International operation you will go to Channel 22 instead of 22A, and
will not be able to communicate with the Coast Guard. To use Channel
22A, your radio must be set for USA or Canada operation, usually by a U/
I/C (USA/International/Canada) control or combination of controls. Chan-
nel 22 (without an “A”) is an International duplex channel for port opera-
tions. Some radios indicate an “A” adjacent to the alpha channels on the
display; on others “alpha” is not indicated but the proper channel is se-
lected based on the U/I/C setting.
3. Bridge-to-Bridge channels (for example, Channel 13) are for use by bridge
operators on inter-coastal waterways and rivers. It is also used by marine
vessels in the vicinity of these bridges for navigation and for communicat-
ing with the bridge operators. Note that a limit of 1 Watt is specified for
these channels.
4. The S/D column on the chart indicates either S (simplex) or D (duplex). Sim-
plex means transmitting and receiving on the same frequency. Only one party
at a time can talk, unlike a telephone. Be sure to say “over” and release your
microphone push-to-talk switch at the end of each transmission. Duplex op-
eration involves the use of one frequency for transmitting and a separate fre-
quency for receiving. On channels specified as duplex on the charts, correct
mode of operation is established automatically by your radio when you select a
channel; you cannot change the mode. And you still must release the push-to-
talk switch after each transmission in order to listen to the radio.
5. Channels normally used by recreational boaters are those that include the
term “non-commercial” in the Channel Use column of the chart. Some of
these are shared with other users and some are used only in certain geo-
graphic regions.
6. Marine vessels equipped with VHF radios are required to monitor Channel 16.
Page 33HX280S
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
01 X X D 156.050 160.650 Public Correspondence (Marine Operator)
01A X S 156.050 Port Operation and Commercial.
VTS in selected areas
02 X X D 156.100 160.700 Public Correspondence (Marine Operator)
03 X X D 156.150 160.750 Public Correspondence (Marine Operator)
03A X S 156.150 U.S. Government Only, Coast Guard
04 X D 156.200 160.800 Public Correspondence (Marine Operator),
Port operation, ship movement
04A X S 156.200 Pacific coast: Coast Guard, East Coast:
Commercial fishing
05 X D 156.250 160.850 Public Correspondence (Marine Operator),
Port operation, ship movement
05A X X S 156.250 Port operation. VTS in Seattle
06 X X X S 156.300 Inter-ship Sefety
07 X D 156.350 160.950 Public Correspondence (Marine Operator),
Port operation, ship movement
07A X X S 156.350 Commercial
08 X X X S 156.400 Commercial (Inter-ship only)
09 X X X S 156.450 Boater Calling channel, Commercial &
Non-commercial (Recreational)
10 X X X S 156.500 Commercial
11 X X X S 156.550 Commercial. VTS in selected areas.
12 X X X S 156.600 Port operation. VTS in selected areas.
13 X X X S 156.650 Inter-ship Navigation Safety (Bridge-to-bridge)
14 X X X S 156.700 Port operation. VTS in selected areas.
15 X S - - - 156.750 Environmental (Receive only)
15 X X S 156.750 Commercial, non-commercial, ship movement (1 W)
16 X X X S 156.800 International Distress, Safety and Calling
17 X X X S 156.850 State Controlled (1 W)
18 X D 156.900 161.500 Port operation, ship movement
18A X X S 156.900 Commercial
19 X D 156.950 161.550 Port operation, ship movement
19A X S 156.950 US: Commercial
19A X S 156.950 Coast Guard
20 X X X D 157.000 161.600 Canadian Coast Guard Only,
International: port operations and shipment
20A X S 157.000 Port operation
21 X D 157.050 161.650 Port operation, ship movement
21A X X S 157.050 U.S. Government Only, Canadian Coast Guard
22 X D 157.100 161.700 Port operation, ship movement
22A X X S 157.100 US and Canadian Coast Guard Liaison and
Maritime Safety Information Broadcasts announced
on channel 16
23 X X D 157.150 161.750 Public Correspondence (Marine Operator)
23A X S 157.150 U.S. Government Only
24 X X X D 157.200 161.800 Public Correspondence (Marine Operator)
25 X X X D 157.250 161.850 Public Correspondence (Marine Operator)
26 X X X D 157.300 161.900 Public Correspondence (Marine Operator)
27 X X X D 157.350 161.950 Public Correspondence (Marine Operator)
28 X X X D 157.400 162.000 Public Correspondence (Marine Operator)
HX280SPage 34
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
60 X X D 156.025 160.625 Public Correspondence (Marine Operator)
61 X D 156.075 160.675 Public Correspondence (Marine Operator),
Port operation, ship movement
61A X X S 156.075 Public Coast: Coast Guard;
East Coast: commercial fishing only
62 X D 156.125 160.725 Public Correspondence (Marine Operator),
Port operation, ship movement
62A X S 156.125 Public Coast: Coast Guard;
East Coast: commercial fishing only
63 X D 156.175 160.775 Public Correspondence (Marine Operator),
Port operation, ship movement
63A X X S 156.175 Port Operation and Commercial.
VTS in selected areas.
64 X X D 156.225 160.825 Public Correspondence (Marine Operator),
Port operation, ship movement
64A X X S 156.225 Public Correspondence (Marine Operator),
Port operation, ship movement
65 X D 156.275 160.875 Public Correspondence (Marine Operator),
Port operation, ship movement
65A X X S 156.275 Port Opeations
66 X D 156.325 160.925 Public Correspondence (Marine Operator),
Port operation, ship movement
66A X X S 156.325 Port Operations
67 X X X S 156.375 US: Commercial. Used for Bridge-to-bridge com
muni-cations in lower Mississippi River. Inter-ship
only,
Canada: Commercial fishing, S&R
68 X X X S 156.425 Non-commercial (Recreational)
69 X X X S 156.475 US: Non-commercial (Recreational),
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
70 X X X S 156.525 Digital selective calling (voice communications not
allowed)
71 X X X S 156.575 US, Canada: Non-commercial (Recreational),
International: Port opertions and Ship movement
72 X X X S 156.625 Non-commercial (Inter-ship only)
73 X X X S 156.675 US: Port Operations,
Canada: Commercial fish ing only,
International: Inter-ship, Port opertions and Ship
movement
74 X X X S 156.725 US: Port Operations,
Canada: Commercial fishing only,
International: Inter-ship, Port opertions and Ship
movement
75 X X X S 156.775 Port Operations (Inter-ship only) (1W)
76 X X X S 156.825 Port Operations (Inter-ship only) (1W)
77 X X S 156.875 Port Operations (Inter-ship only) (1W)
77 X S 156.875 Port Operations (Inter-ship only)
78 X D 156.925 161.525 Public Correspondence (Marine Operator),
Port operation, ship-movement
78A X X S 156.925 Non-commercial (Recreational)
79 X D 156.975 161.575 Port operation and Ship movement
79A X X S 156.975 Commercial
Page 35HX280S
VHF MARINE CHANNEL CHART
CH U C I S/D TX RX CHANNEL USE
80 X D 157.025 161.625 Port operation, ship movement
80A X X S 157.025 Commercial
81 X D 157.075 161.675 Port operation, ship movement
81A X S 157.075 U.S. Government Only -
Environmental protection operations.
81A X S 157.075 Canadian Coast Guard Only
82 X D 157.125 161.725 Public Correspondence (Marine Operator),
Port operation, ship movement
82A X X S 157.125 U.S. Government Only,
Canadian Coast Guard Only
83 X D 157.175 161.775 Canadian Coast Guard Only
83 X D 157.175 161.775 Public Correspondence (Marine Operator)
83A X X S 157.175 U.S. Government Only,
Canadian Coast Guard Only
84 X X X D 157.225 161.825 Public Correspondence (Marine Operator)
85 X X X D 157.275 161.875 Public Correspondence (Marine Operator)
86 X X X D 157.325 161.925 Public Correspondence (Marine Operator)
87 X X S 157.375 Port operation, ship movement
87A X S 157.375 Public Correspondence (Marine Operator)
88 X X S 157.425 Port operation, ship movement
88A X S 157.425 Commercial, Inter-ship Only
WX01
X X X D - - - 162.550 Weather (receive only)
WX02
X X X D - - - 162.400 Weather (receive only)
WX03
X X X D - - - 162.475 Weather (receive only)
WX04
X X X D - - - 162.425 Weather (receive only)
WX05
X X X D - - - 162.450 Weather (receive only)
WX06
X X X D - - - 162.500 Weather (receive only)
WX07
X X X D - - - 162.525 Weather (receive only)
WX08
X X X D - - - 161.650 Weather (receive only)
WX09
X X X D - - - 161.775 Weather (receive only)
WX10
X X X D - - - 163.275 Weather (receive only)
NOTE: Simplex channels, 3A, 21A, 23A, 61A, 64A, 81A, 82A and 83A CANNOT be lawfully used
by the general public in U.S.A. waters.
HX280SPage 36
1: 156.050 MHz and 156.175 MHz are available for port operations and commercial com-
munications purposes when used only within the U.S. Coast Guard designated Vessel
Traffic Services (VTS) area of New Orleans, on the lower Mississippi River from the
various pass entrances in the Gulf of Mexico to Devil’s Swamp Light at River Mile 242.4
above head of passes near Baton Rouge.
2: 156.250 MHz is available for port operations communications use only within the U.S.
Coast Guard designated VTS radio protection areas of New Orleans and Houston de-
scribed in Sec. 80.383. 156.250 MHz is available for intership port operations communi-
cations used only within the area of Los Angeles and Long Beach harbors, within a 25-
nautical mile radius of Point Fermin, California.
3: 156.550 MHz, 156.600 MHz and 156.700 MHz are available in the U.S. Coast Guard
designated port areas only for VTS communications and in the Great Lakes available
primarily for communications relating to the movement of ships in sectors designated by
the St. Lawrence Seaway Development Corporation or the U.S. Coast Guard. The use
of these frequencies outside VTS and ship movement sector protected areas is permit-
ted provided they cause no interference to VTS and ship movement communications in
their respective designated sectors.
Noncommercial
6817 156.425 156.425
0916 156.450 156.450
69 156.475 156.475
71 156.575 156.575
72 156.625 ........ Intership only.
78A 156.925 156.925
79A 156.975 156.975 Great Lakes only.
80A 157.025 157.025 Do.
6714 156.375 ....... Internship only.
Distress, Safety and Calling
16 156.800 156.800 EPRIB
Intership Safety
06 156.300 ........ a. Intership, or
b. For SAR: Ship
and aircraft for the
U.S. Coast Guard.
Environmental
1513 ........ 156.750 Coast to ship only.
Maritime Control
179,10 156.850 156.850
Liaison, U.S. Coast Guard
22A11 157.100 157.100 Ship, aircraft, and
coast stations of
the U.S. Coast
Guard and at
Lake Mead, Nev.,
ship and coast
stations of the
National Park
Service, U.S.
Department of the
Interior.
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise
iandicated)
Coast
transmit
Port Operations
01A1156.050 156.050
63A1156.175 156.175
052156.250 156.250
65A 156.275 156.275
66A 156.325 156.325
123156.600 156.600
73 156.675 156.675
143156.700 156.700
74 156.725 156.725
774156.875 Intership only.
20 157.000 161.600
20A12 157.000 Intership only.
Navigational (Bridge-to-Bridge)5
136156.650 156.650
677156.375 156.375
Commercial
01A1156.050 156.050
63A1156.175 156.175
07A 156.350 156.350
677156.375 Intership only.
08 156.400 ........ Do.
09 156.450 156.450
10 156.500 156.500
113156.550 156.550
18A 156.900 156.900
19A 156.950 156.950
79A 156.975 156.975
80A 157.025 157.025
88A8157.425 ........ Intership only.
7214 156.625 ........ Internship only.
Digital Selective Calling
7015 156.525 156.525
Ship
transmit
Channel
designator
Carrier frequency
(MHz)
Points of communica-
tion (Intership and be-
tween coast and ship
unless otherwise
iandicated)
Coast
transmit
Page 37HX280S
4: Use of 156.875 MHz is limited to communications with pilots regarding the movement
and docking of ships. Normal output power must not exceed 1 watt.
5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational com-
munications. These frequencies are available between coast and ship on a secondary
basis when used on or in the vicinity of locks or drawbridges. Normal output power must
not exceed 1 watt. Maximum output power must not exceed 10 watts for coast stations or
25 watts for ship stations.
6: On the Great Lakes, in addition to bridge-to-bridge communications, 156.650 MHz is
available for vessel control purposes in established vessel traffic systems. 156.650 MHz
is not available for use in the Mississippi River from South Pass Lighted Whistle Buoy “2”
and Southwest Pass entrance Mid-channel Lighted Whistle Buoy to mile 242.4 above
Head of Passes near Baton Rouge. Additionally it is not available for use in the Missis-
sippi River-Gulf Outlet, the Mississippi River-Gulf Outlet Canal, and the Inner Harbor
Navigational Canal, except to aid the transition from these areas.
7: Use of 156.375 MHz is available for navigational communications only in the Mississippi
River from South Pass Lighted Whistle Buoy “2” and Southwest Pass entrance Mid-
channel Lighted Whistle Buoy to mile 242.4 above head of Passes near Baton Rouge,
and in addition over the full length of the Mississippi River-Gulf Outlet Canal from en-
trance to its junction with the Inner Harbor Navigation Canal, and over the full length of
the Inner Harbor Navigation Canal from its junction with the Mississippi River to its entry
to Lake Pontchartrain at the New Seabrook vehicular bridge.
8: Within 120 km (75 miles) of the United States/Canada border, in the area of the Puget
Sound and the Strait of Juan de Fuca and its approaches, 157.425 MHz is half of the
duplex pair designated as Channel 88. In this area, Channel 88 is available to ship
stations for communications with public coast stations only. More than 120 km (75 miles)
from the United States/Canada border in the area of the Puget Sound and the Strait of
Juan de Fuca, its approaches, the Great Lakes, and the St. Lawrence Seaway, 157.425
MHz is available for intership and commercial communications. Outside Puget Sound
area and its approaches and the Great Lakes, 157.425 MHz is also available for commu-
nications between commercial fishing vessels and associated aircraft while engaged in
commercial fishing activities.
9: When the frequency 156.850 MHz is authorized, it may be used additionally for search
and rescue training exercises conducted by state or local governments.
10: The frequency 156.850 MHz is additionally available to coast stations on the Great Lakes
for transmission of scheduled Coded Marine Weather Forecasts (MAFOR), Great Lakes
Weather Broadcast (LAWEB) and nscheduled Notices to Mariners or Bulletins. F3C and
J3C emissions are permitted. Coast Stations on the Great Lakes must cease weather
broadcasts which cause interference to stations operating on 156.800 MHz until the
interference problem is resolved.
11: The frequency 157.100 MHz is authorized for search and rescue training exercises by
state or local government in conjunction with U.S. Coast Guard stations. Prior U.S. Coast
Guard approval is required. Use must cease immediately on U.S. Coast Guard request.
12: The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to coast
station communications.
13: Available for assignment to coast stations, the use of which is in accord with an agreed
program, for the broadcast of information to ship stations concerning the environmental
conditions in which vessels operate, i.e., weather; sea conditions; time signals; notices
to mariners; and hazards to navigation.
14: Available only in the Puget Sound and the Strait of Juan de Fuca.
15: The frequency 156.525 MHz is to be used exclusively for distress, safety and calling
using digital selective calling techniques. No other uses are permitted.
16: The frequency 156.450 MHz is available for intership, ship and coast general purpose
calling by noncommercial vessels, such as recreational boats and private coast stations.
17: The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska for
facsimile transmissions as well as voice communications.
HX280SPage 38
10. WARRANTY
Marine Products Limited Warranty
PLEASE NOTE
The following “Limited Warranty” is for valid for products that have been
purchased in the United States and Canada. For limited Warranty de-
tails outside the United States, contact the dealer in your country.
STANDARD HORIZON (a division of VERTEX STANDARD) warrants, to the
original purchaser only, each new Marine Communications Product (“Prod-
uct”) manufactured and/or supplied by STANDARD HORIZON against defects
in materials and workmanship under normal use and service for a period of
time from the date of purchase as follows:
Fixed Mount and Portable Transceivers
1 year - if purchased before 01/01/91
3 years - if purchased between 01/01/91 and 01/01/94
3 years Waterproof - if purchased after 01/01/94
Loud hailers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Chargers
1 year - if purchased before 01/01/91
3 years - if purchased after 01/01/91
Associated Batteries - 18 months. Note: Batteries will be deemed defective
only if storage capacity drops below 80% of rated capacity or if leakage develops.
Associated Accessories - 1 year. Includes: Microphones/Handsets, External
Speakers, Antennas, Carrying Accessories, Power Supplies, and Signaling
Boards.
To receive warranty service, the purchaser must deliver the Product, transpor-
tation and insurance prepaid, to STANDARD HORIZON (a division of VER-
TEX STANDARD). Include proof of purchase indicating model. serial number,
and date of purchase. STANDARD HORIZON will return the Product to the
purchaser freight prepaid. Products purchased prior to January 1, 1991 will
bear the STANDARD HORIZON warranty terms in effect prior to that date.
In the event of a defect, malfunction or failure of the Product during the war-
ranty period, STANDARD HORIZON’s liability for any breach of contract or
any breach of express or implied warranties in connection with the sale of
Products shall be limited solely to repair or replacement, at its option, of the
Product or part(s) therein which, upon examination by STANDARD HORIZON,
Page 39HX280S
appear to be defective or not up to factory specifications. STANDARD HORI-
ZON may, at its option, repair or replace parts or subassemblies with new or
reconditioned parts and subassemblies. Parts thus repaired or replaced are
warranted for the balance of the original applicable warranty.
STANDARD HORIZON will not warrant installation, maintenance or service of
the Products. In all instances, STANDARD HORIZON’s liability for damages
shall not exceed the purchase price of the defective Product.
This warranty only extends to Products sold within the 50 States of the United
States of America and the District of Columbia.
STANDARD HORIZON will pay all labor to repair the product and replacement
parts charges incurred in providing the warranty service except where pur-
chaser abuse or other qualifying exceptions exist. The purchaser must pay
any transportation expenses incurred in returning the Product to STANDARD
HORIZON for service.
This limited warranty does not extend to any Product which has been sub-
jected to misuse, neglect, accident, incorrect wiring by anyone other than STAN-
DARD HORIZON, improper installation, or subjected to use in violation of in-
structions furnished by STANDARD HORIZON, nor does this warranty extend
to Products on which the serial number has been removed, defaced, or changed.
STANDARD HORIZON cannot be responsible in any way for ancillary equip-
ment not furnished by STANDARD HORIZON which is attached to or used in
connection with STANDARD HORIZON’s Products, or for the operation of the
Product with any ancillary equipment, and all such equipment is expressly
excluded from this warranty. STANDARD HORIZON disclaims liability for range,
coverage, or operation of the Product and ancillary equipment as a whole
under this warranty. STANDARD HORIZON reserves the right to make changes
or improvements in Products, during subsequent production, without incurring
the obligation to install such changes or improvements on previously manu-
factured Products.
The implied warranties which the law imposes on the sale of this Product are
expressly LIMITED, in duration, to the time period specified above. STAN-
DARD HORIZON shall not be liable under any circumstances for consequen-
tial damages resulting from the use and operation of this Product, or from the
breach of this LIMITED WARRANTY, any implied warranties, or any contract
with STANDARD HORIZON. IN CONNECTION WITH THE SALE OF ITS
PRODUCTS, STANDARD HORIZON MAKES NO WARRANTIES, EXPRESS
OR IMPLIED AS TO THE MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE OR OTHERWISE, EXCEPT AS EXPRESSLY SET
FORTH HEREIN.
HX280SPage 40
Some states do not allow the exclusion or limitation of incidental or conse-
quential damages, or limitation on how long an implied warranty lasts, so the
above limitations or exclusions may not apply. This warranty gives specific
legal rights, and there may be other rights which may vary from state to state.
ONLY PRODUCTS SOLD ON OR AFTER JANUARY 1, 1991 ARE COVERED
UNDER THE TERMS OF THIS LIMITED WARRANTY.
ON-LINE WARRANTY REGISTRATION
THANK YOU for buying STANDARD HORIZON (a division of Vertex
Standard) products! We are confident your new radio will serve your
needs for many years!
Please visit www.standardhorizon.com to register the HX280S Marine
VHF. It should be noted that visiting the Web site from time to time may
be beneficial to you, as new products are released they will appear on
the STANDARD HORIZON Web site.
Product Support Inquiries
If you have any questions or comments regarding the use of the HX280S,
you can visit the STANDARD HORIZON Web site to send an E-mail or
contact the Product Support team at (714) 827-7600 ext 6300 M-F 7:00-
5:00PST.
In addition to the warranty, STANDARD HORIZON includes a lifetime
"flat rate" program to provide service after the warranty period has ex-
pired. If you wish to obtain the flat rate price for out-of-warranty repair,
you must include the information on the Owner's Record with the unit
when you return it to your Dealer or to STANDARD HORIZON.
Lifetime Flat Rate Service Program: For the original Owner only, for the
lifetime of the unit, STANDARD HORIZON will repair the unit to original
specifications.
Note: The flat rate amount is payable by the Owner only if STANDARD
HORIZON or the STANDARD HORIZON Dealer determines that a re-
pair is needed. After the repair, a 90-day warranty will be in effect from
the date of return of the unit to the .Owner.
This service program is not available for equipment which has failed as
a result of neglect, accident, breakage, misuse, improper installation or
modification, or water damage (depending on the product).
Page 41HX280S
11. SPECIFICATIONS
Performance specifications are nominal, unless otherwise indicated, and are
subject to change without notice.
11.1 GENERAL
Frequency Ranges: TX: 156.025 MHz - 157.425 MHz
RX: 156.050 MHz - 163.275 MHz
Channel Spacing: 25 kHz
Frequency Stability: ±5 ppm
(–4 °F to +140 °F [–20 °C to +60 °C])
Emission Type: 16K0G3E
Antenna Impedance: 50 Ω
Supply Voltage: 7.4V DC, Negative Ground
(Battery Terminal)
Current Consumption: 320 mA (Receive, Typical at AF MAX.)
50 mA (Standby)
1.6 A / 0.7 A (TX: 5 W / 1W)
Operating Temperature: –4 °F to +140 °F (–20 °C to +60 °C)
Case Size (W x H x D): 2.20” x 5.24” x 1.08” (56 x 133 x 27.5 mm)
(w/o knob & antenna)
Weight (Approx.): 10.9 oz (310 g)
(w/FNB-V105LI, Belt Clip, & Antenna)
11.2 TRANSMITTER
RF Power Output: 5 W / 1 W (@7.4 V )
Modulation Type: Variable Reactance
Maximum Deviation: ±5 kHz
Spurious Emission: –75 dBc typical
Microphone Impedance:2 kΩ
11.3 RECEIVER
Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies: 1st: 21.7 MHz, 2nd: 450 kHz
Adjacent Channel Selectivity: 70 dB typical
Intermodulation: 68 dB typical
Hum & Noise Ratio: 40 dB typical
Sensitivity: 0.25 μV for 12 dB SINAD
Selectivity: 25 kHz (–70 dB)
AF Output (Internal SP): 700 mW @16 Ω for 10 % THD (@7.4 V)
Measured in accordance with TIA/EIA-603.
HX280SPage 42
MEMO
Page 43HX280S
This device complies with part 15 of the FCC rules. Operation is subject
to the condition that this device does not cause harmful interference.
Part 15.21: Changes or modifications to this device not expressly ap-
proved by Vertex Standard could void the User’s authorization to oper-
ate this device.
HX280SPage 44
Copyright 2008
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
Printed in China
Marine Division of VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
EM038N102
