Drive Unit Display Unit Battery Pack Battery ChargerORIGINAL INSTRUCTIONSq READ THIS MANUAL CAREFULLY!It contains important safety information.(3$&.0DQXDOB(8B(QJLQGG 
(3$&.0DQXDOB(8B(QJLQGG 
TABLE OF CONTENTSINTRODUCTION ..................................................................1LOCATION OF THE WARNING AND SPECIFICATION LABELS ...............................................................................4DESCRIPTION .....................................................................6E-BIKE SYSTEMS ...............................................................7SAFETY INFORMATION ...................................................10INSTRUMENT AND CONTROL FUNCTIONS ..................13BATTERY PACK AND CHARGING PROCEDURE ..........33CHECKING THE RESIDUAL BATTERY CAPACITY .......41PRE-OPERATION CHECK ................................................43CLEANING AND STORAGE .............................................44TRANSPORT .....................................................................46CONSUMER INFORMATION ............................................47TROUBLESHOOTING .......................................................48SPECIFICATIONS .............................................................54(3$&.0DQXDOB(8B(QJLQGG 
1INTRODUCTIONThese original instructions have been prepared for your Drive Unit, display unit, battery pack and battery charger.FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERI-OUS INJURY OR DEATH.Particularly important information is distinguished in this manual by the following notations:This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.A WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.A NOTICE indicates special precautions that must be taken to avoid damage to the vehicle or other property.TIP A TIP provides key information to make procedures easier or clearer. Indicates prohibited items that you must not do for safety reasons.* Product and specifications are subject to change without notice.WARNINGNOTICE(3$&.0DQXDOB(8B(QJLQGG 

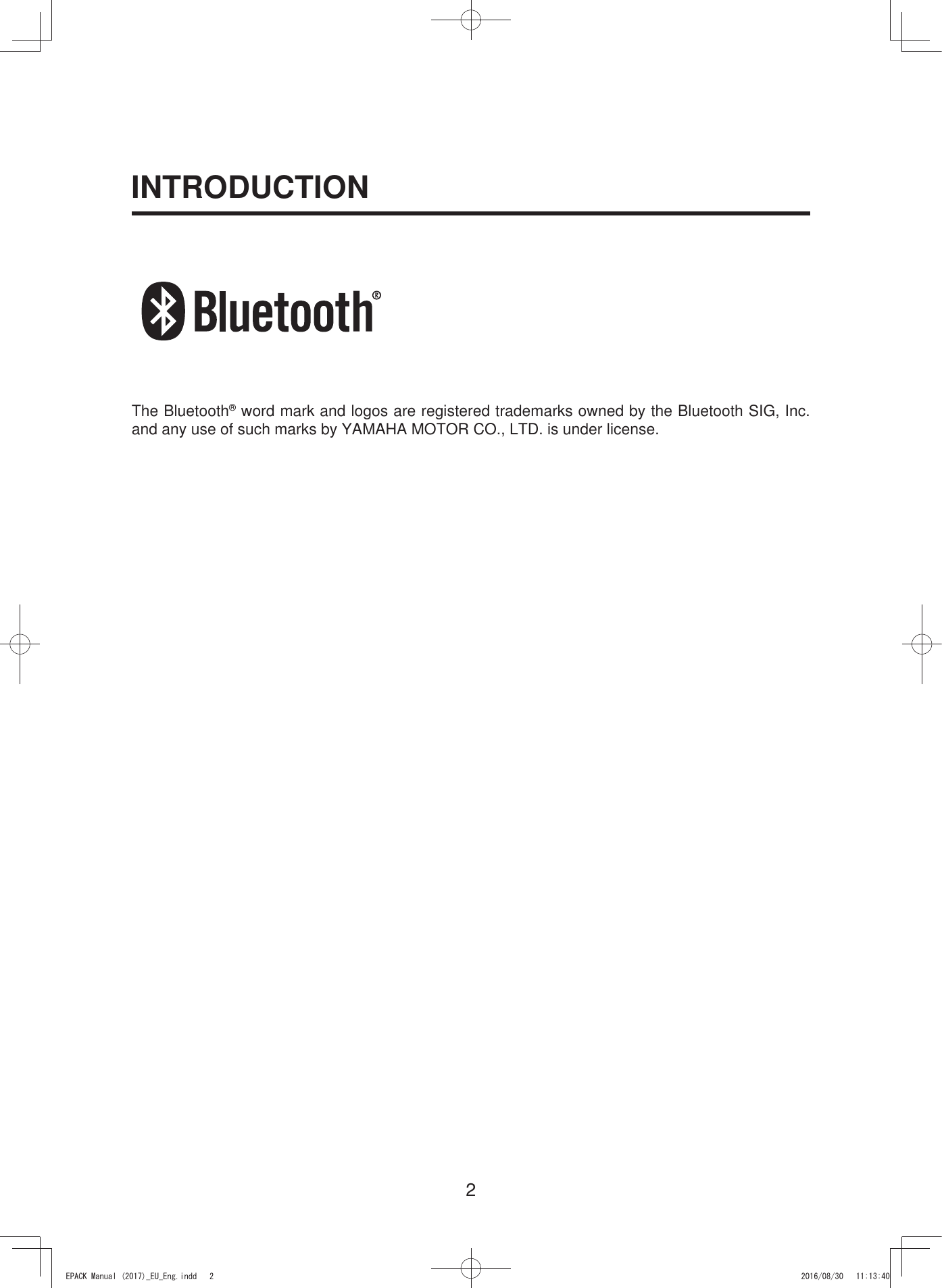

2INTRODUCTIONThe Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by YAMAHA MOTOR CO., LTD. is under license.(3$&.0DQXDOB(8B(QJLQGG 

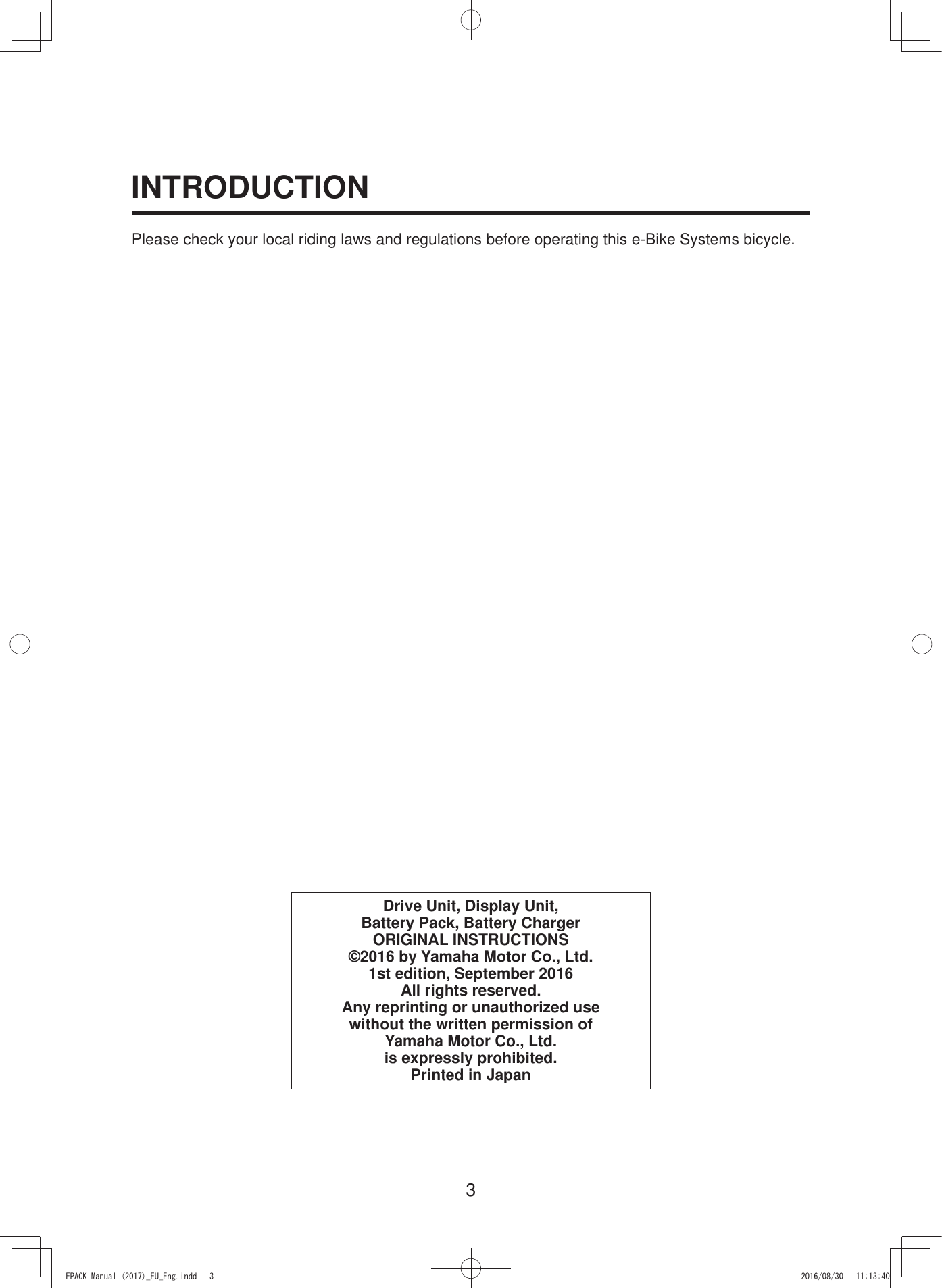

3INTRODUCTIONPlease check your local riding laws and regulations before operating this e-Bike Systems bicycle.Drive Unit, Display Unit, Battery Pack, Battery ChargerORIGINAL INSTRUCTIONS©2016 by Yamaha Motor Co., Ltd.1st edition, September 2016All rights reserved.Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.is expressly prohibited.Printed in Japan(3$&.0DQXDOB(8B(QJLQGG 

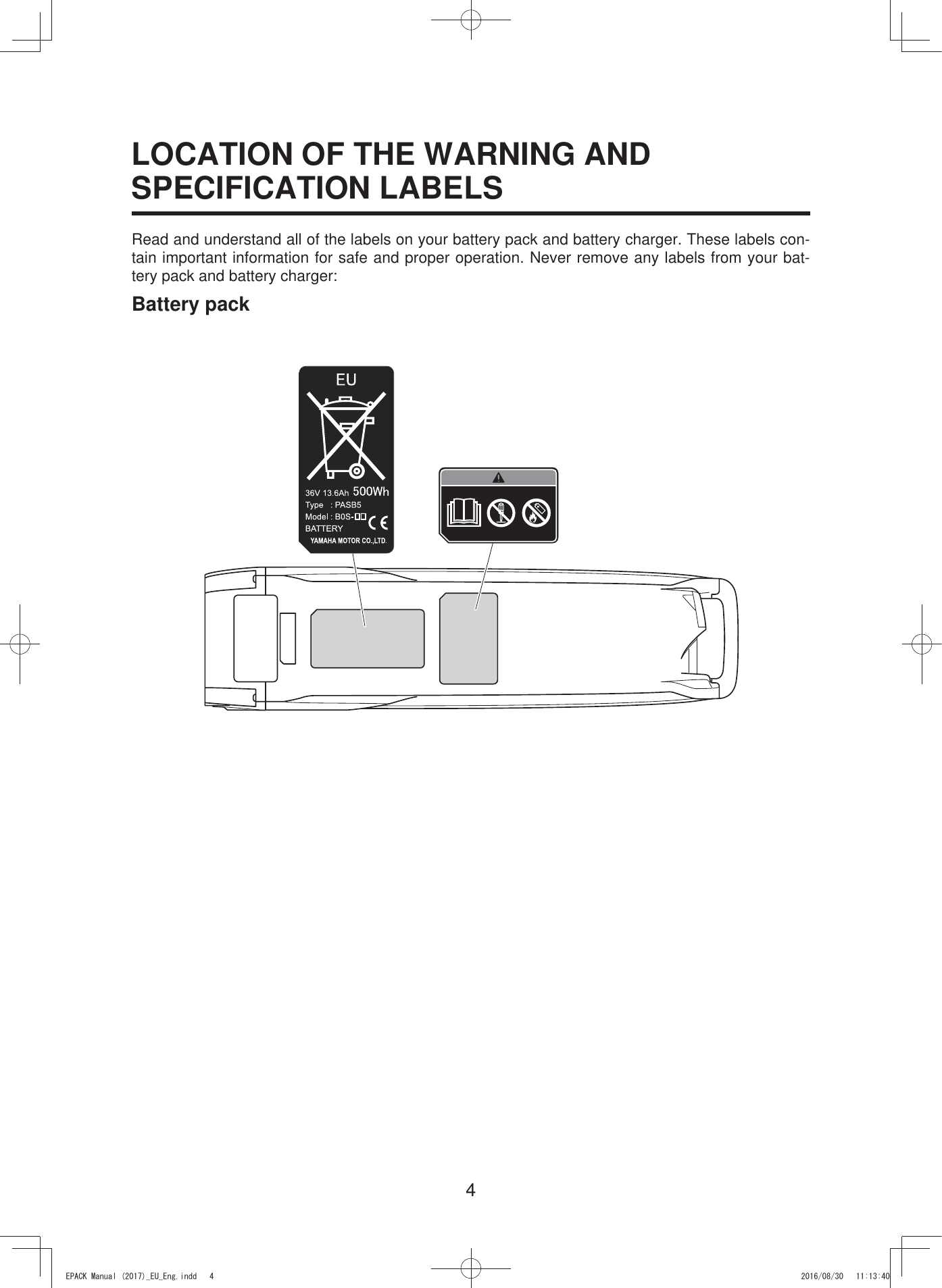

4LOCATION OF THE WARNING AND SPECIFICATION LABELSRead and understand all of the labels on your battery pack and battery charger. These labels con-tain important information for safe and proper operation. Never remove any labels from your bat-tery pack and battery charger:Battery pack(3$&.0DQXDOB(8B(QJLQGG 

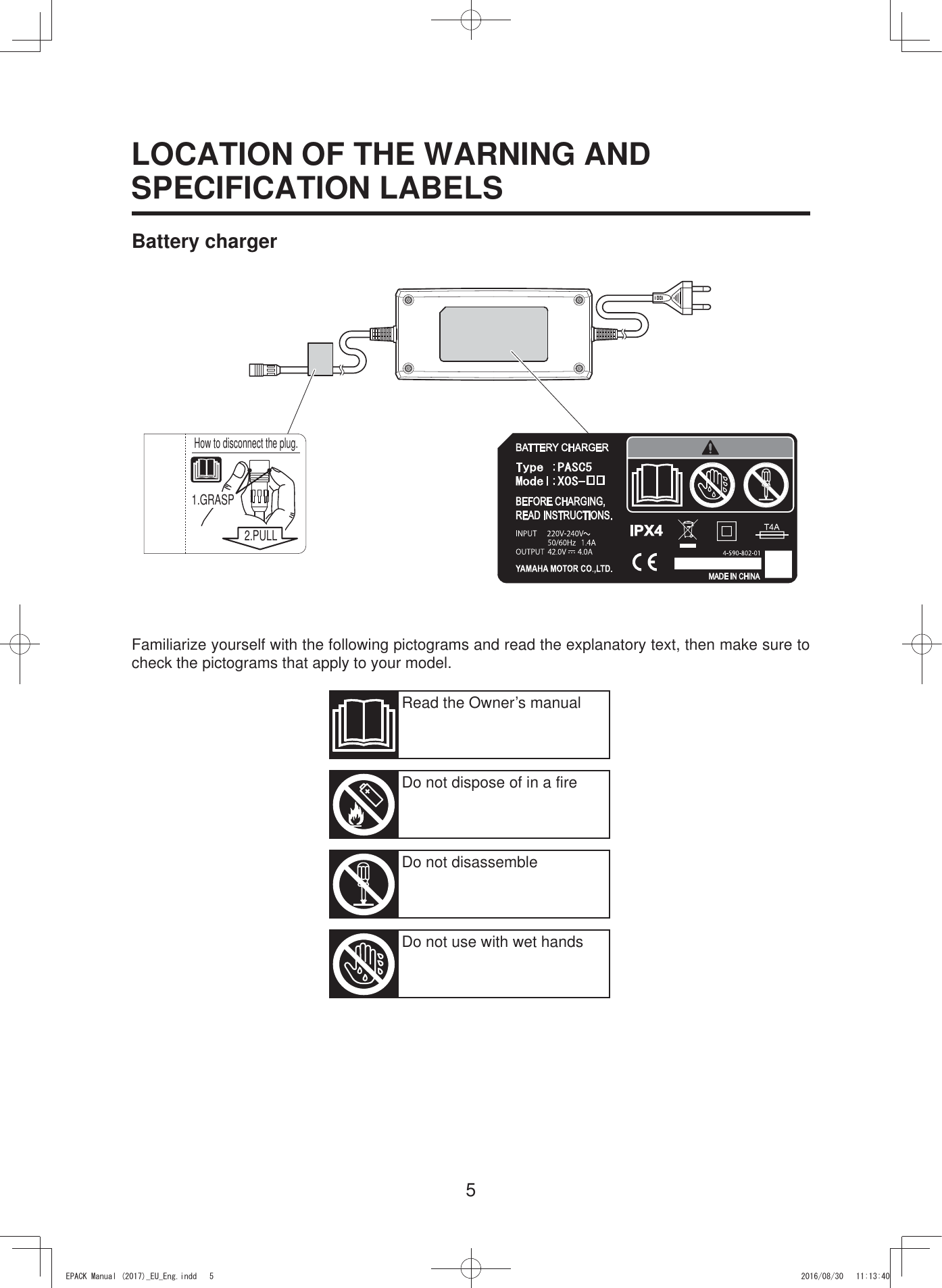

5LOCATION OF THE WARNING AND SPECIFICATION LABELSHow to disconnect the plug.1.GRASP2.PULLFamiliarize yourself with the following pictograms and read the explanatory text, then make sure to check the pictograms that apply to your model.Read the Owner’s manualDo not dispose of in a fireDo not disassembleDo not use with wet handsBattery charger(3$&.0DQXDOB(8B(QJLQGG 
6DESCRIPTIONabcab1. Drive Unit2. Speed sensor set a) Magnet sensor spoke type b) Pick up3. Display unit a) Display b) Clamp c) Switch4. Battery pack (400 Wh/500 Wh)5. Battery charger12435(3$&.0DQXDOB(8B(QJLQGG 

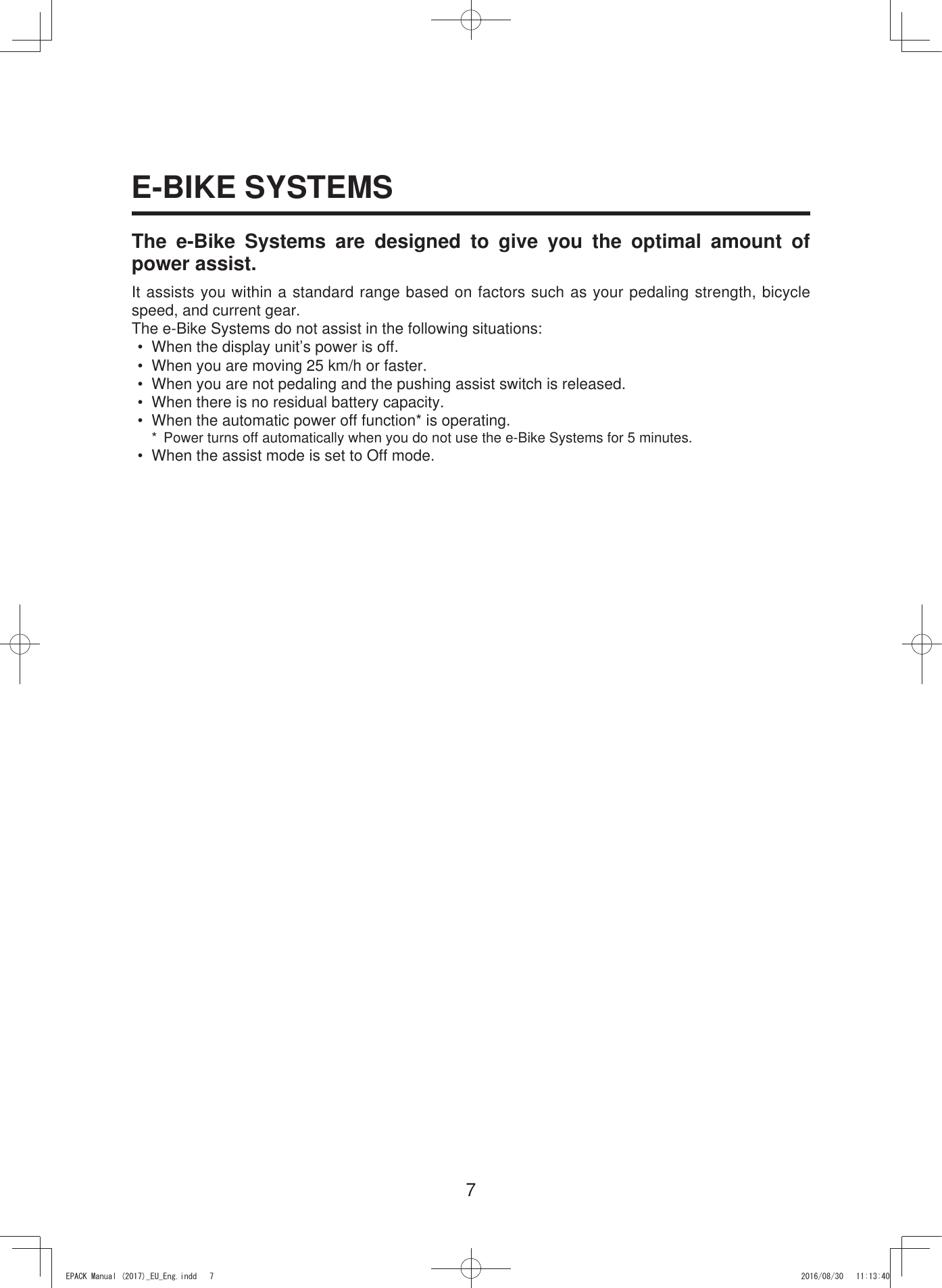

7E-BIKE SYSTEMSThe e-Bike Systems are designed to give you the optimal amount of power assist.It assists you within a standard range based on factors such as your pedaling strength, bicycle speed, and current gear.The e-Bike Systems do not assist in the following situations:• When the display unit’s power is off.• When you are moving 25 km/h or faster.• When you are not pedaling and the pushing assist switch is released.• When there is no residual battery capacity.• When the automatic power off function* is operating.* Power turns off automatically when you do not use the e-Bike Systems for 5 minutes.• When the assist mode is set to Off mode.(3$&.0DQXDOB(8B(QJLQGG 
8E-BIKE SYSTEMS* This illustration is for reference purposes only. Actual performance may vary depending on road conditions, wind, and other factors.Extra Power mode Use when climbing rough terrain.* This illustration is for reference purposes only. Actual performance may vary depending on road conditions, wind, and other factors.High-Performance mode Use when you want to ride more comfortably, such as when climbing a steep hill.Standard mode Use when riding on flat roads or climbing gentle hills.Eco mode+Eco mode Use when you want to ride as far as possible.Off mode Use when you want to ride without power assist. You can still use the other display unit functions.Multiple power assist modes are available.Choose from Extra Power mode, High-Performance mode, Standard mode, Eco mode, +Eco mode and Off mode to suit your riding conditions.See “Displaying and switching the assist mode” for information on switching between assist modes.Extra Power modePower-savingHighLowStarting off Level road Inclined roadAssist powerSteep inclineEco mode +Eco modeHigh-Performance modeStandard mode(3$&.0DQXDOB(8B(QJLQGG 

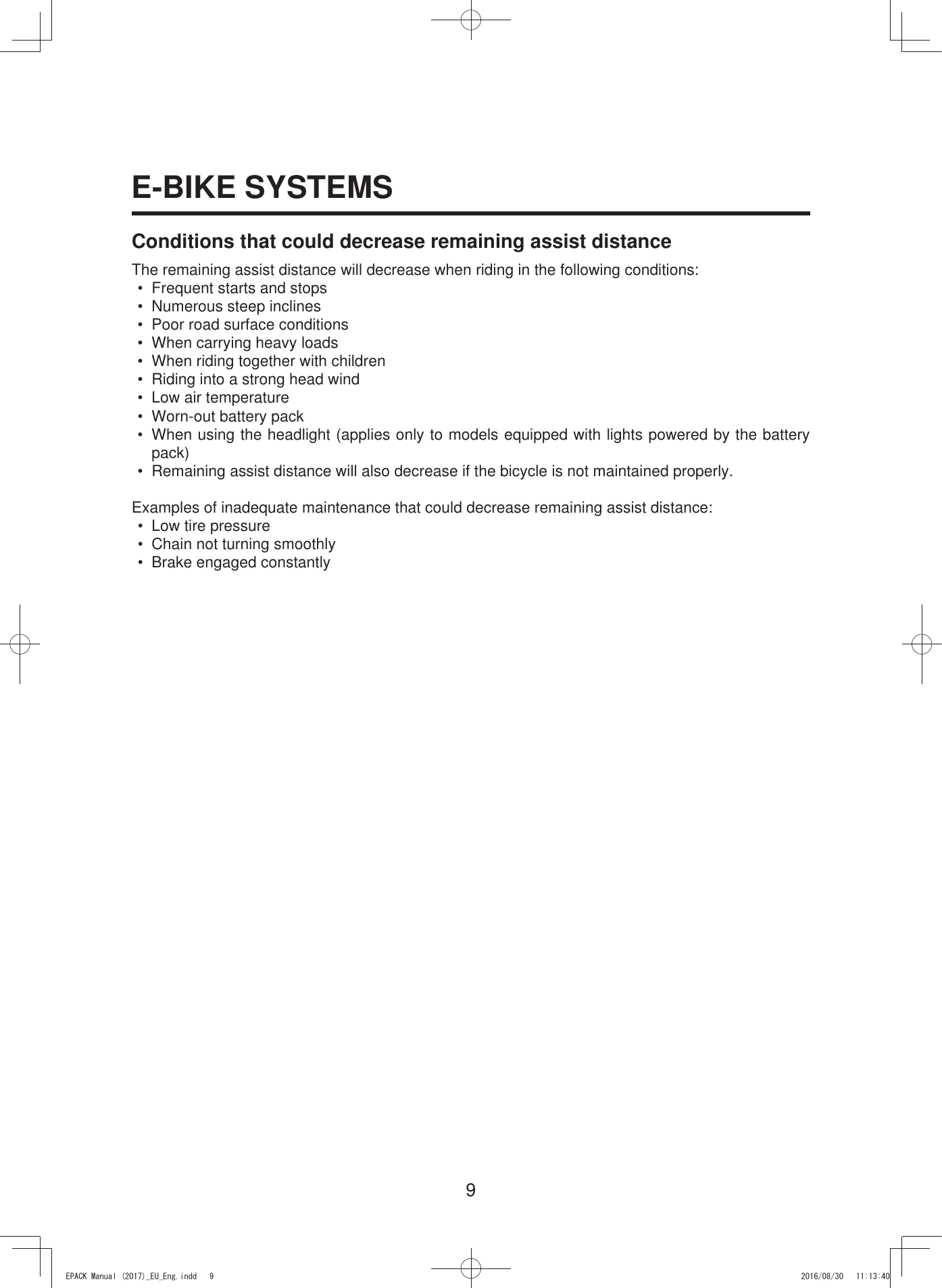

9E-BIKE SYSTEMSConditions that could decrease remaining assist distanceThe remaining assist distance will decrease when riding in the following conditions:• Frequent starts and stops• Numerous steep inclines• Poor road surface conditions• When carrying heavy loads• When riding together with children• Riding into a strong head wind• Low air temperature• Worn-out battery pack• When using the headlight (applies only to models equipped with lights powered by the battery pack)• Remaining assist distance will also decrease if the bicycle is not maintained properly.Examples of inadequate maintenance that could decrease remaining assist distance:• Low tire pressure• Chain not turning smoothly• Brake engaged constantly(3$&.0DQXDOB(8B(QJLQGG 

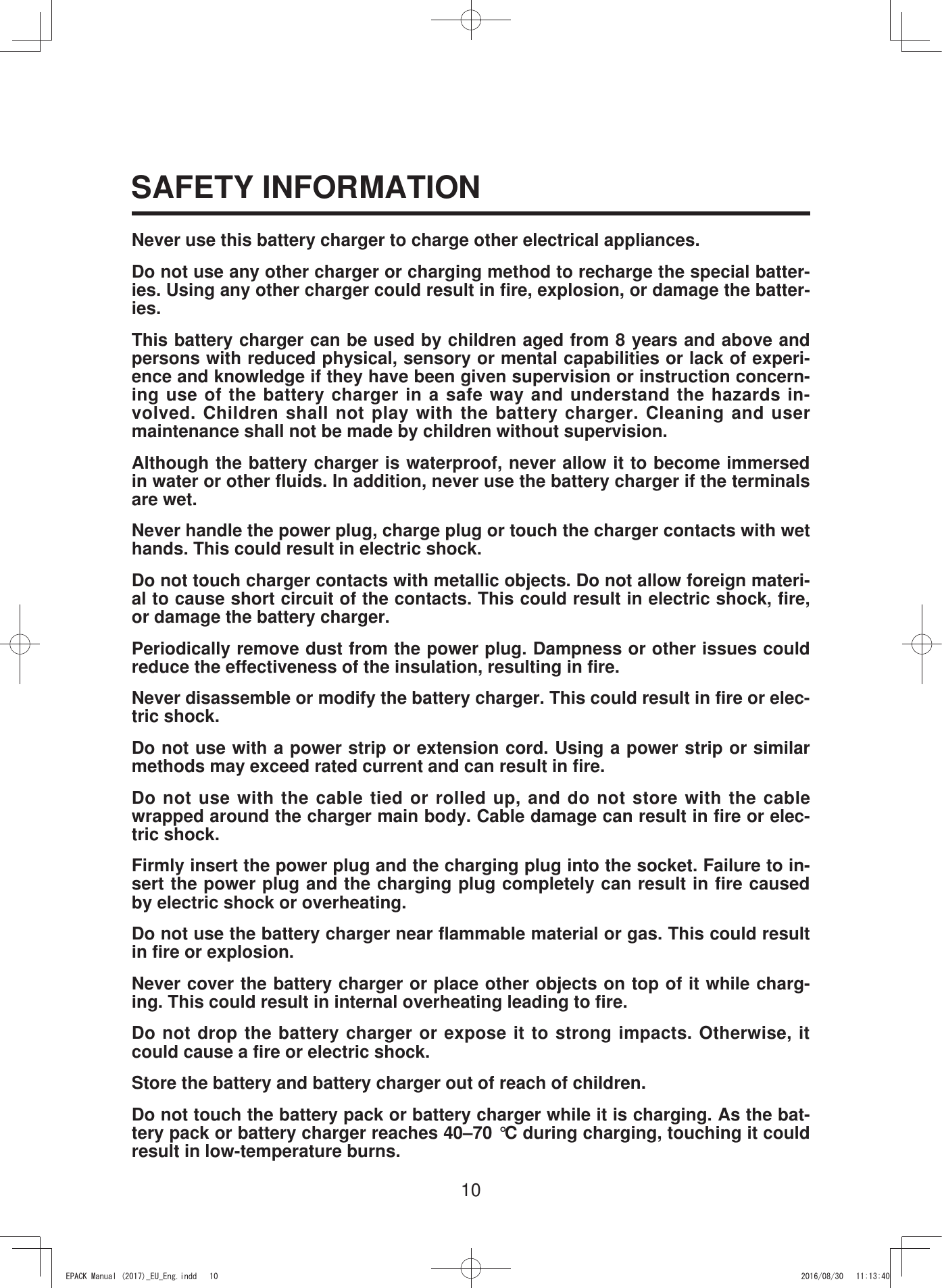

10SAFETY INFORMATIONNever use this battery charger to charge other electrical appliances.Do not use any other charger or charging method to recharge the special batter-ies. Using any other charger could result in fire, explosion, or damage the batter-ies.This battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experi-ence and knowledge if they have been given supervision or instruction concern-ing use of the battery charger in a safe way and understand the hazards in-volved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.Although the battery charger is waterproof, never allow it to become immersed in water or other fluids. In addition, never use the battery charger if the terminals are wet.Never handle the power plug, charge plug or touch the charger contacts with wet hands. This could result in electric shock.Do not touch charger contacts with metallic objects. Do not allow foreign materi-al to cause short circuit of the contacts. This could result in electric shock, fire, or damage the battery charger.Periodically remove dust from the power plug. Dampness or other issues could reduce the effectiveness of the insulation, resulting in fire.Never disassemble or modify the battery charger. This could result in fire or elec-tric shock.Do not use with a power strip or extension cord. Using a power strip or similar methods may exceed rated current and can result in fire.Do not use with the cable tied or rolled up, and do not store with the cable wrapped around the charger main body. Cable damage can result in fire or elec-tric shock.Firmly insert the power plug and the charging plug into the socket. Failure to in-sert the power plug and the charging plug completely can result in fire caused by electric shock or overheating.Do not use the battery charger near flammable material or gas. This could result in fire or explosion.Never cover the battery charger or place other objects on top of it while charg-ing. This could result in internal overheating leading to fire.Do not drop the battery charger or expose it to strong impacts. Otherwise, it could cause a fire or electric shock.Store the battery and battery charger out of reach of children.Do not touch the battery pack or battery charger while it is charging. As the bat-tery pack or battery charger reaches 40–70 °C during charging, touching it could result in low-temperature burns.(3$&.0DQXDOB(8B(QJLQGG 

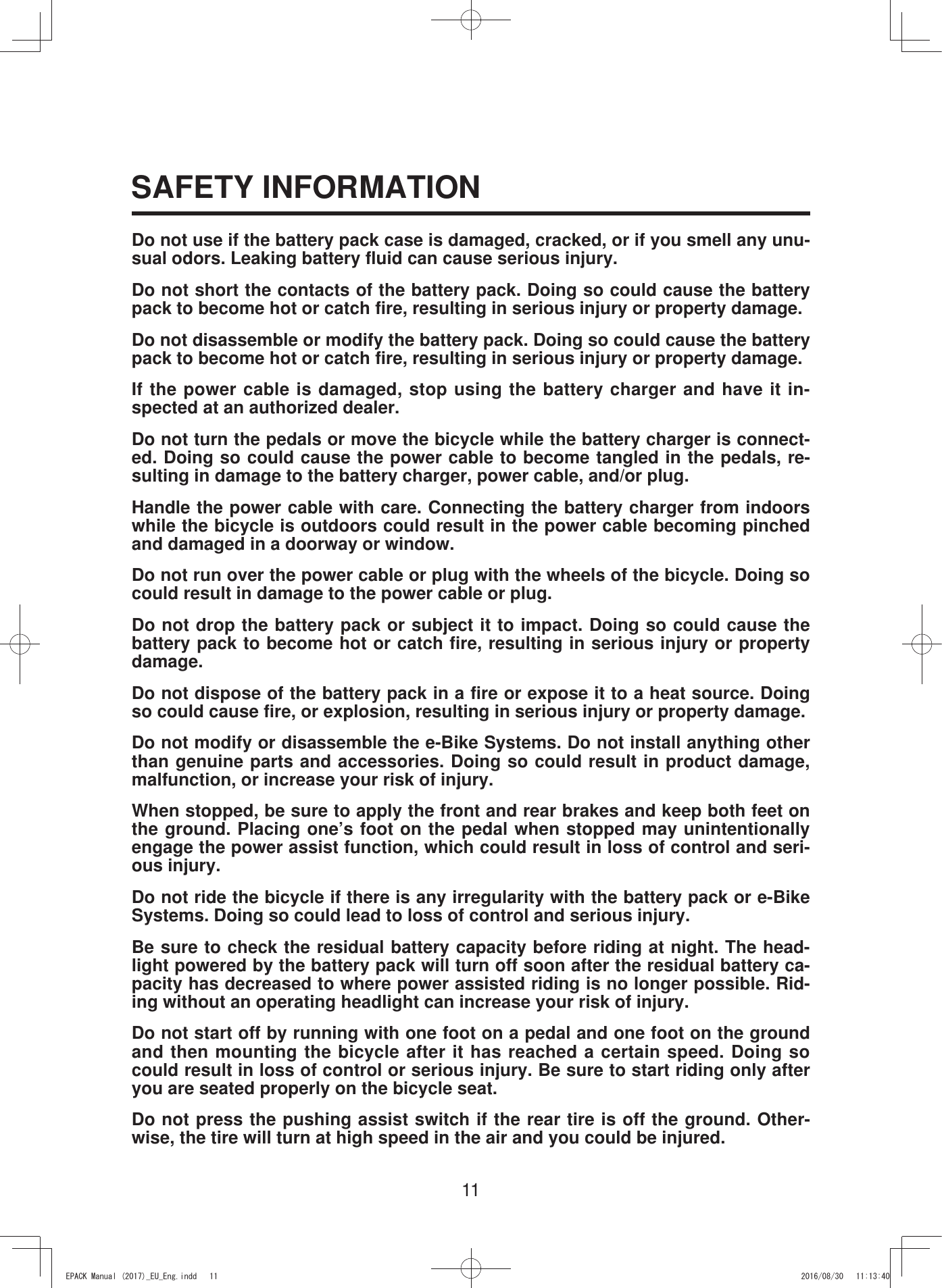

11SAFETY INFORMATIONDo not use if the battery pack case is damaged, cracked, or if you smell any unu-sual odors. Leaking battery fluid can cause serious injury.Do not short the contacts of the battery pack. Doing so could cause the battery pack to become hot or catch fire, resulting in serious injury or property damage.Do not disassemble or modify the battery pack. Doing so could cause the battery pack to become hot or catch fire, resulting in serious injury or property damage.If the power cable is damaged, stop using the battery charger and have it in-spected at an authorized dealer.Do not turn the pedals or move the bicycle while the battery charger is connect-ed. Doing so could cause the power cable to become tangled in the pedals, re-sulting in damage to the battery charger, power cable, and/or plug.Handle the power cable with care. Connecting the battery charger from indoors while the bicycle is outdoors could result in the power cable becoming pinched and damaged in a doorway or window.Do not run over the power cable or plug with the wheels of the bicycle. Doing so could result in damage to the power cable or plug.Do not drop the battery pack or subject it to impact. Doing so could cause the battery pack to become hot or catch fire, resulting in serious injury or property damage.Do not dispose of the battery pack in a fire or expose it to a heat source. Doing so could cause fire, or explosion, resulting in serious injury or property damage.Do not modify or disassemble the e-Bike Systems. Do not install anything other than genuine parts and accessories. Doing so could result in product damage, malfunction, or increase your risk of injury.When stopped, be sure to apply the front and rear brakes and keep both feet on the ground. Placing one’s foot on the pedal when stopped may unintentionally engage the power assist function, which could result in loss of control and seri-ous injury.Do not ride the bicycle if there is any irregularity with the battery pack or e-Bike Systems. Doing so could lead to loss of control and serious injury.Be sure to check the residual battery capacity before riding at night. The head-light powered by the battery pack will turn off soon after the residual battery ca-pacity has decreased to where power assisted riding is no longer possible. Rid-ing without an operating headlight can increase your risk of injury. Do not start off by running with one foot on a pedal and one foot on the ground and then mounting the bicycle after it has reached a certain speed. Doing so could result in loss of control or serious injury. Be sure to start riding only after you are seated properly on the bicycle seat.Do not press the pushing assist switch if the rear tire is off the ground. Other-wise, the tire will turn at high speed in the air and you could be injured.(3$&.0DQXDOB(8B(QJLQGG 

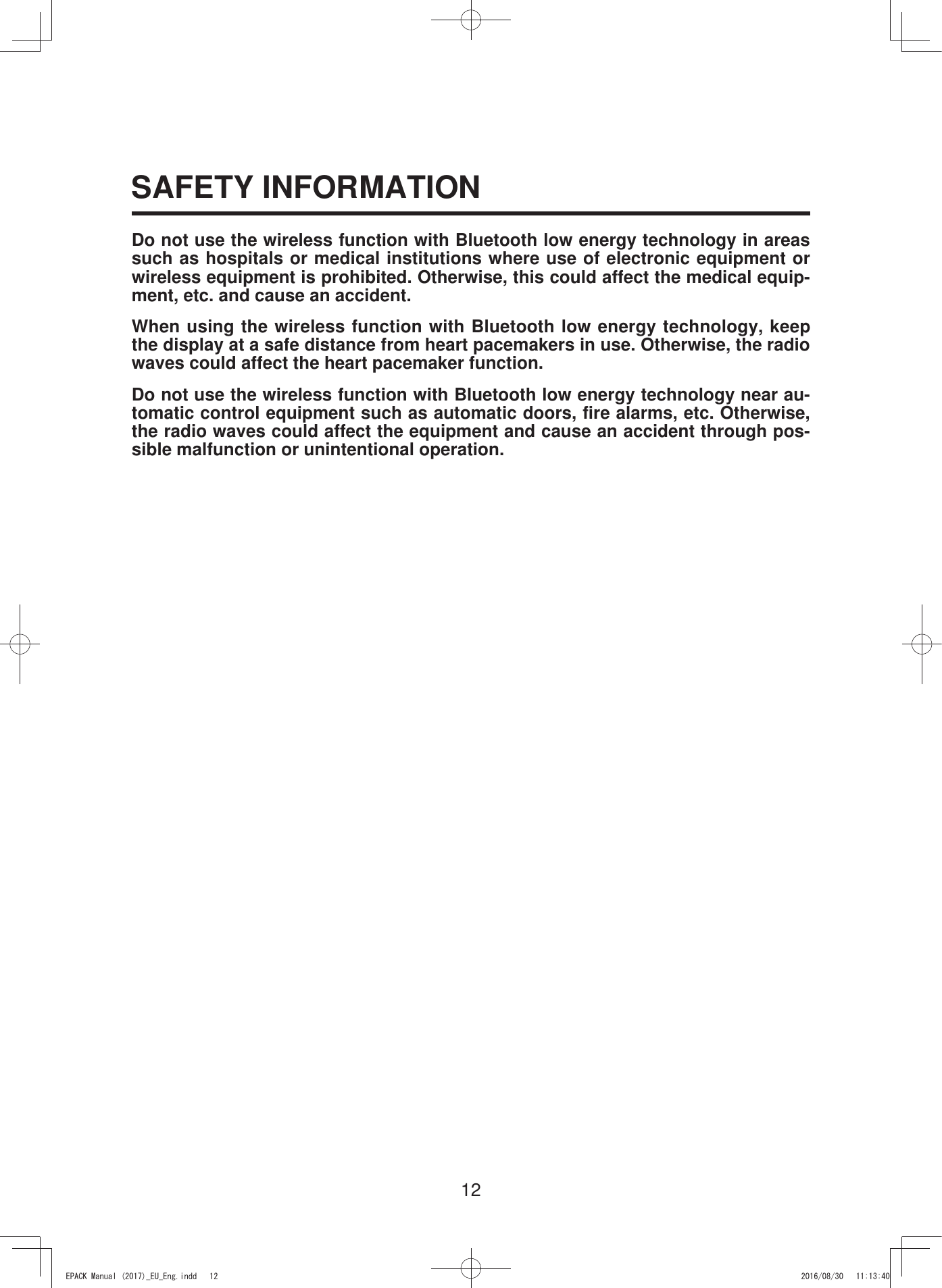

12SAFETY INFORMATIONDo not use the wireless function with Bluetooth low energy technology in areas such as hospitals or medical institutions where use of electronic equipment or wireless equipment is prohibited. Otherwise, this could affect the medical equip-ment, etc. and cause an accident.When using the wireless function with Bluetooth low energy technology, keep the display at a safe distance from heart pacemakers in use. Otherwise, the radio waves could affect the heart pacemaker function. Do not use the wireless function with Bluetooth low energy technology near au-tomatic control equipment such as automatic doors, fire alarms, etc. Otherwise, the radio waves could affect the equipment and cause an accident through pos-sible malfunction or unintentional operation.(3$&.0DQXDOB(8B(QJLQGG 
13INSTRUMENT AND CONTROL FUNCTIONSDisplay unitFunction select switchUSB receptacleAssist mode lampPushing assist switchAssist mode switch (up)Battery capacity indicatorBluetooth indicatorAssist power meterAssist mode indicatorFunction displaySpeedometerPower switch Light switchAssist mode switch (down)(3$&.0DQXDOB(8B(QJLQGG 
14Display unitThe display unit offers the following operations and infor-mation displays.2 Installing the batteryThe display needs to be removed and installed for chang-ing the battery.• Remove the two bolts on back side of the clamp, and then remove the display.• When installing the display, tighten the two display bolts from the back side of the clamp.WARNINGTighten the display bolts to 1.5–2.5 N·m. During rid-ing, vibration could cause the bolts to come loose with the risk that the display may fall off.TIP• The clamp and display might be installed on the right side of the stem.• For models without this clamp, the above note does not apply.2 BatteryCheck if the rated battery (CR2032) is installed in the rear of the display.If a battery is not installed, or if there is not sufficient bat-tery power remaining, install a new battery.To adjust the time and set the units for distance and speed, see “Stopwatch and settings”.TIP• Make sure that the waterproof seal is installed correct-ly.• Use a new type CR2032 button cell battery (sold sepa-rately).INSTRUMENT AND CONTROL FUNCTIONSClampDisplay boltCloseCoverWaterproof sealBattery(3$&.0DQXDOB(8B(QJLQGG 

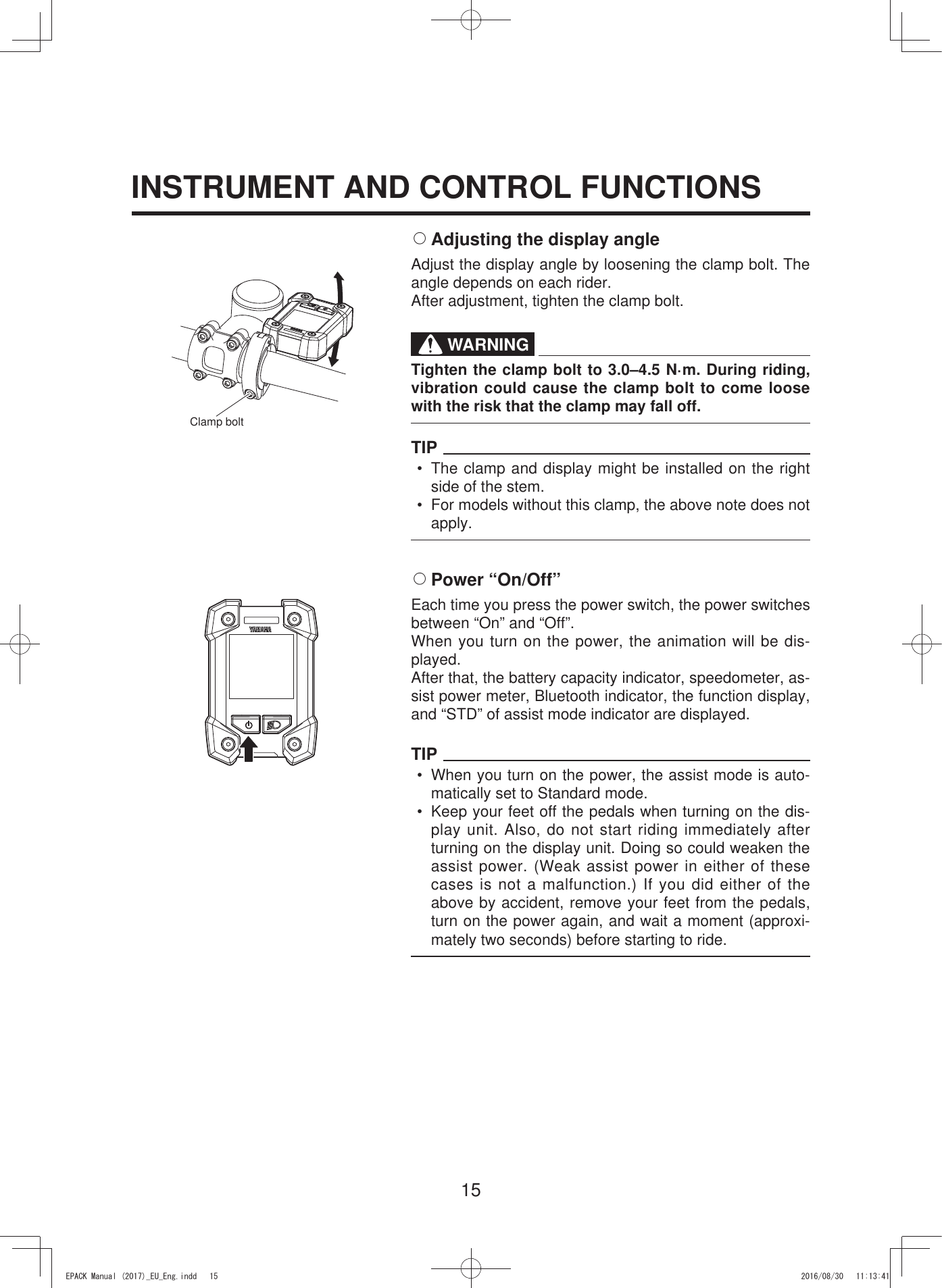

15INSTRUMENT AND CONTROL FUNCTIONS2 Adjusting the display angleAdjust the display angle by loosening the clamp bolt. The angle depends on each rider.After adjustment, tighten the clamp bolt.WARNINGTighten the clamp bolt to 3.0–4.5 N·m. During riding, vibration could cause the clamp bolt to come loose with the risk that the clamp may fall off.TIP• The clamp and display might be installed on the right side of the stem.• For models without this clamp, the above note does not apply.2 Power “On/Off”Each time you press the power switch, the power switches between “On” and “Off”.When you turn on the power, the animation will be dis-played. After that, the battery capacity indicator, speedometer, as-sist power meter, Bluetooth indicator, the function display, and “STD” of assist mode indicator are displayed.TIP• When you turn on the power, the assist mode is auto-matically set to Standard mode.• Keep your feet off the pedals when turning on the dis-play unit. Also, do not start riding immediately after turning on the display unit. Doing so could weaken the assist power. (Weak assist power in either of these cases is not a malfunction.) If you did either of the above by accident, remove your feet from the pedals, turn on the power again, and wait a moment (approxi-mately two seconds) before starting to ride.Clamp bolt(3$&.0DQXDOB(8B(QJLQGG 

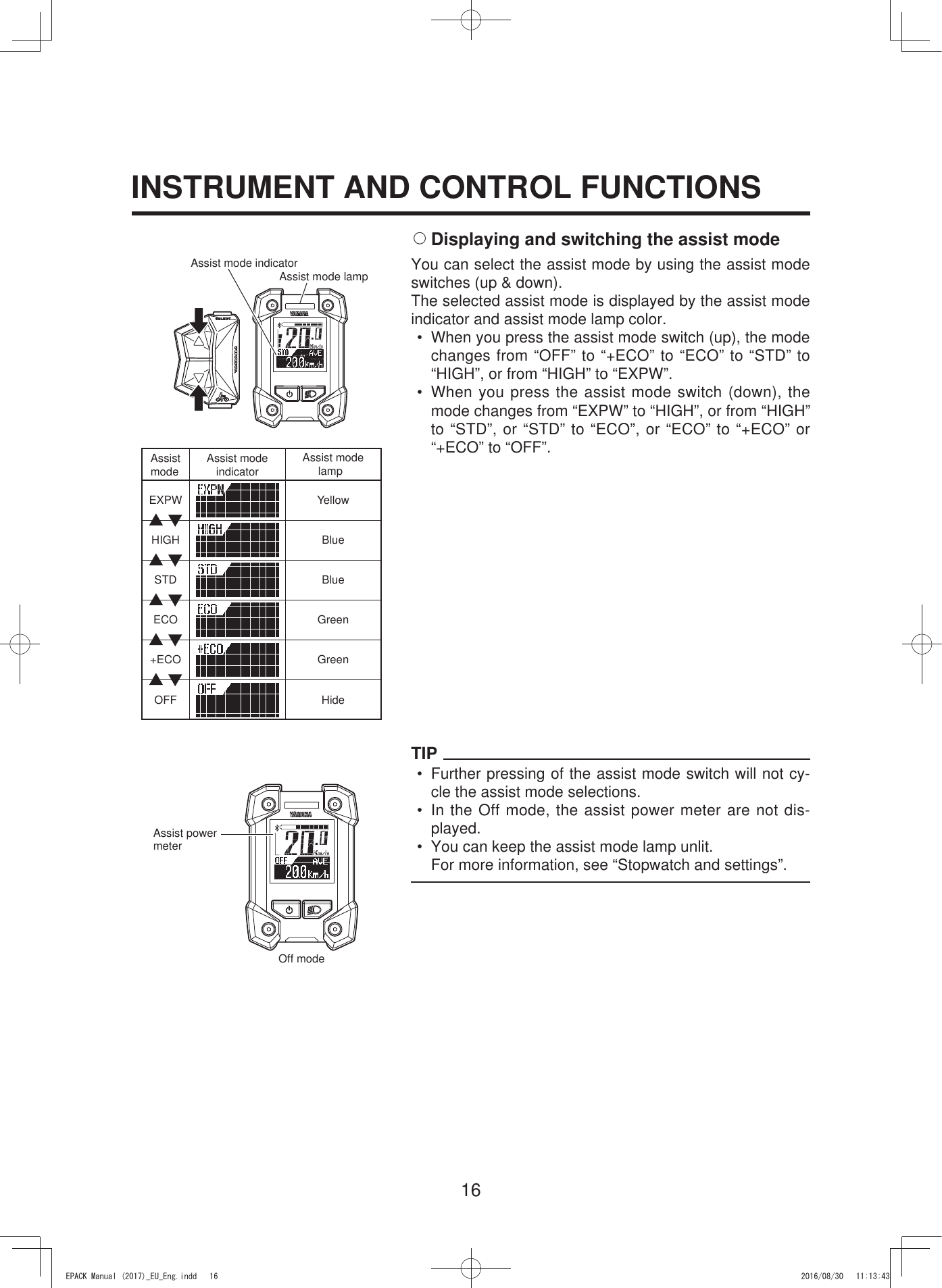

16INSTRUMENT AND CONTROL FUNCTIONS2 Displaying and switching the assist modeYou can select the assist mode by using the assist mode switches (up & down).The selected assist mode is displayed by the assist mode indicator and assist mode lamp color.• When you press the assist mode switch (up), the mode changes from “OFF” to “+ECO” to “ECO” to “STD” to “HIGH”, or from “HIGH” to “EXPW”.• When you press the assist mode switch (down), the mode changes from “EXPW” to “HIGH”, or from “HIGH” to “STD”, or “STD” to “ECO”, or “ECO” to “+ECO” or “+ECO” to “OFF”.TIP• Further pressing of the assist mode switch will not cy-cle the assist mode selections.• In the Off mode, the assist power meter are not dis-played.• You can keep the assist mode lamp unlit.For more information, see “Stopwatch and settings”.EXPW YellowAssistmode Assist mode indicator Assist mode lampHIGH BlueSTD BlueECO Green+ECO GreenOFF HideOff modeAssist mode indicatorAssist mode lampAssist power meter(3$&.0DQXDOB(8B(QJLQGG 
17INSTRUMENT AND CONTROL FUNCTIONS2 SpeedometerThe speedometer displays your bicycle speed (in kilome-ter per hour or mile per hour). To select the km/mile, see “Stopwatch and settings”.TIPIf your bicycle speed is less than 2.0 km/h or 1.2 MPH, the speedometer displays “0.0 km/h or 0.0 MPH”.2 Battery capacity indicatorThe battery capacity indicator displays an estimate of how much capacity is left in the battery on an 11-segment scale.2 Assist power meterThe assist power meter displays an estimate of the assist power during riding on a 5-segment scale.When the e-Bike Systems are not in operation, none of the segments of the assist power meter are displayed. When the e-Bike Systems are operating, as the assist power increases, the segments of the assist power meter are added one by one.Battery capacity indicatorAssist power meterSpeedometer(3$&.0DQXDOB(8B(QJLQGG 

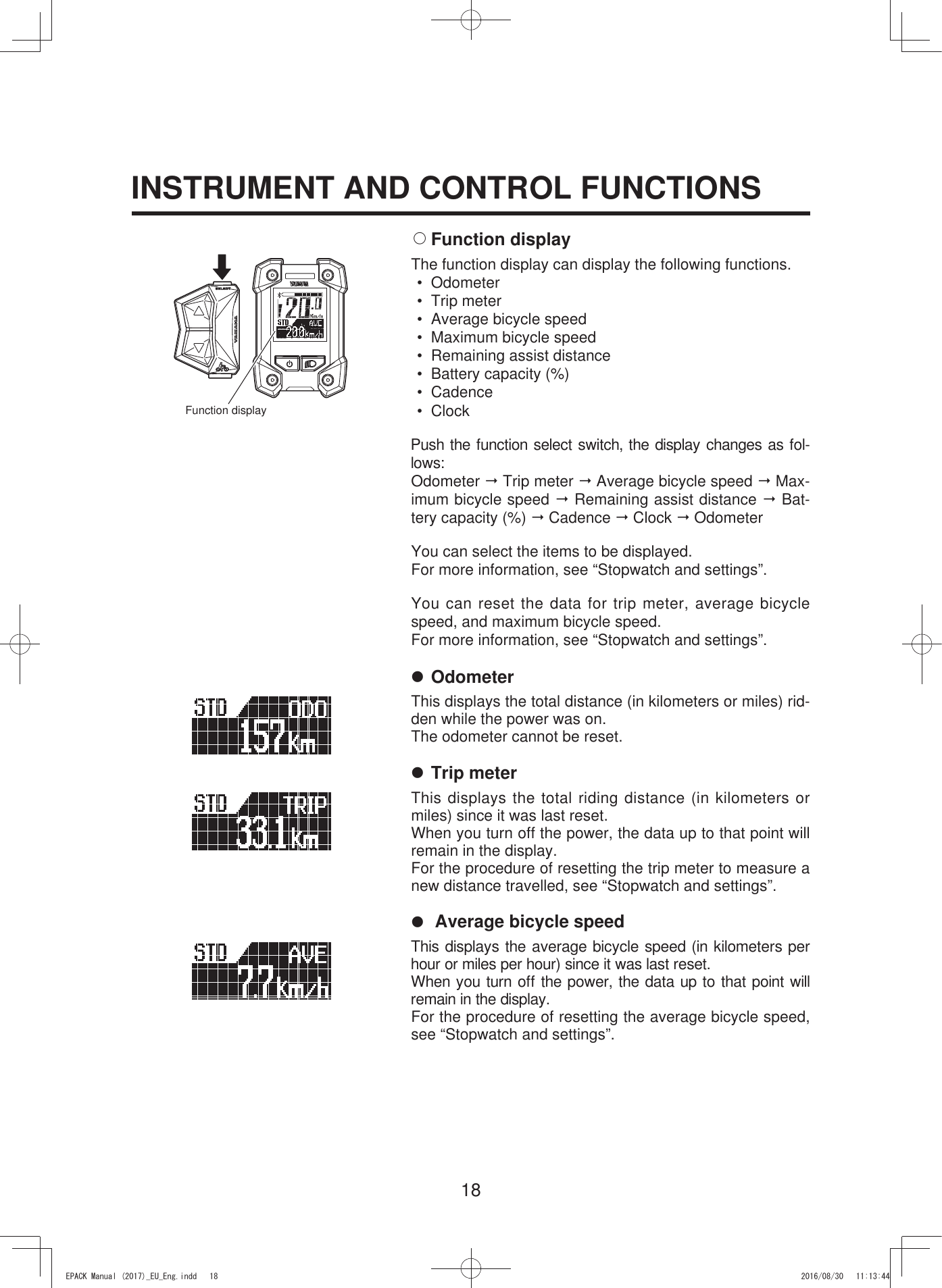

18INSTRUMENT AND CONTROL FUNCTIONS2 Function displayThe function display can display the following functions.• Odometer• Trip meter• Average bicycle speed• Maximum bicycle speed• Remaining assist distance• Battery capacity (%)• Cadence• ClockPush the function select switch, the display changes as fol-lows:Odometer  Trip meter  Average bicycle speed  Max-imum bicycle speed  Remaining assist distance  Bat-tery capacity (%)  Cadence  Clock  OdometerYou can select the items to be displayed.For more information, see “Stopwatch and settings”.You can reset the data for trip meter, average bicycle speed, and maximum bicycle speed.For more information, see “Stopwatch and settings”.7 OdometerThis displays the total distance (in kilometers or miles) rid-den while the power was on.The odometer cannot be reset.7 Trip meterThis displays the total riding distance (in kilometers or miles) since it was last reset.When you turn off the power, the data up to that point will remain in the display.For the procedure of resetting the trip meter to measure a new distance travelled, see “Stopwatch and settings”.7 Average bicycle speedThis displays the average bicycle speed (in kilometers per hour or miles per hour) since it was last reset.When you turn off the power, the data up to that point will remain in the display.For the procedure of resetting the average bicycle speed, see “Stopwatch and settings”.Function display(3$&.0DQXDOB(8B(QJLQGG 

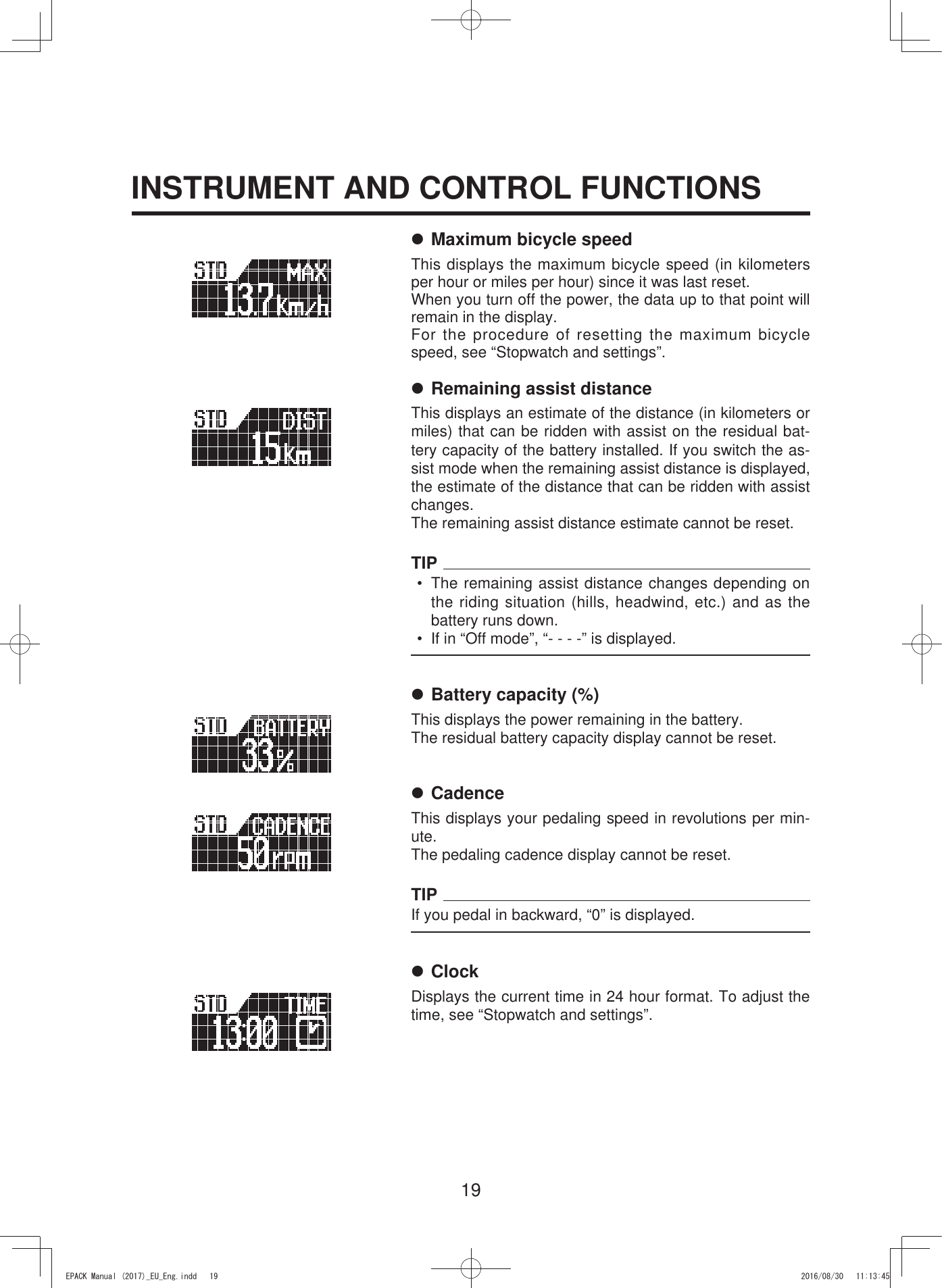

19INSTRUMENT AND CONTROL FUNCTIONS7 Maximum bicycle speedThis displays the maximum bicycle speed (in kilometers per hour or miles per hour) since it was last reset.When you turn off the power, the data up to that point will remain in the display.For the procedure of resetting the maximum bicycle speed, see “Stopwatch and settings”.7 Remaining assist distanceThis displays an estimate of the distance (in kilometers or miles) that can be ridden with assist on the residual bat-tery capacity of the battery installed. If you switch the as-sist mode when the remaining assist distance is displayed, the estimate of the distance that can be ridden with assist changes.The remaining assist distance estimate cannot be reset.TIP• The remaining assist distance changes depending on the riding situation (hills, headwind, etc.) and as the battery runs down.• If in “Off mode”, “- - - -” is displayed.7 Battery capacity (%)This displays the power remaining in the battery.The residual battery capacity display cannot be reset.7 CadenceThis displays your pedaling speed in revolutions per min-ute. The pedaling cadence display cannot be reset.TIPIf you pedal in backward, “0” is displayed.7 ClockDisplays the current time in 24 hour format. To adjust the time, see “Stopwatch and settings”.(3$&.0DQXDOB(8B(QJLQGG 

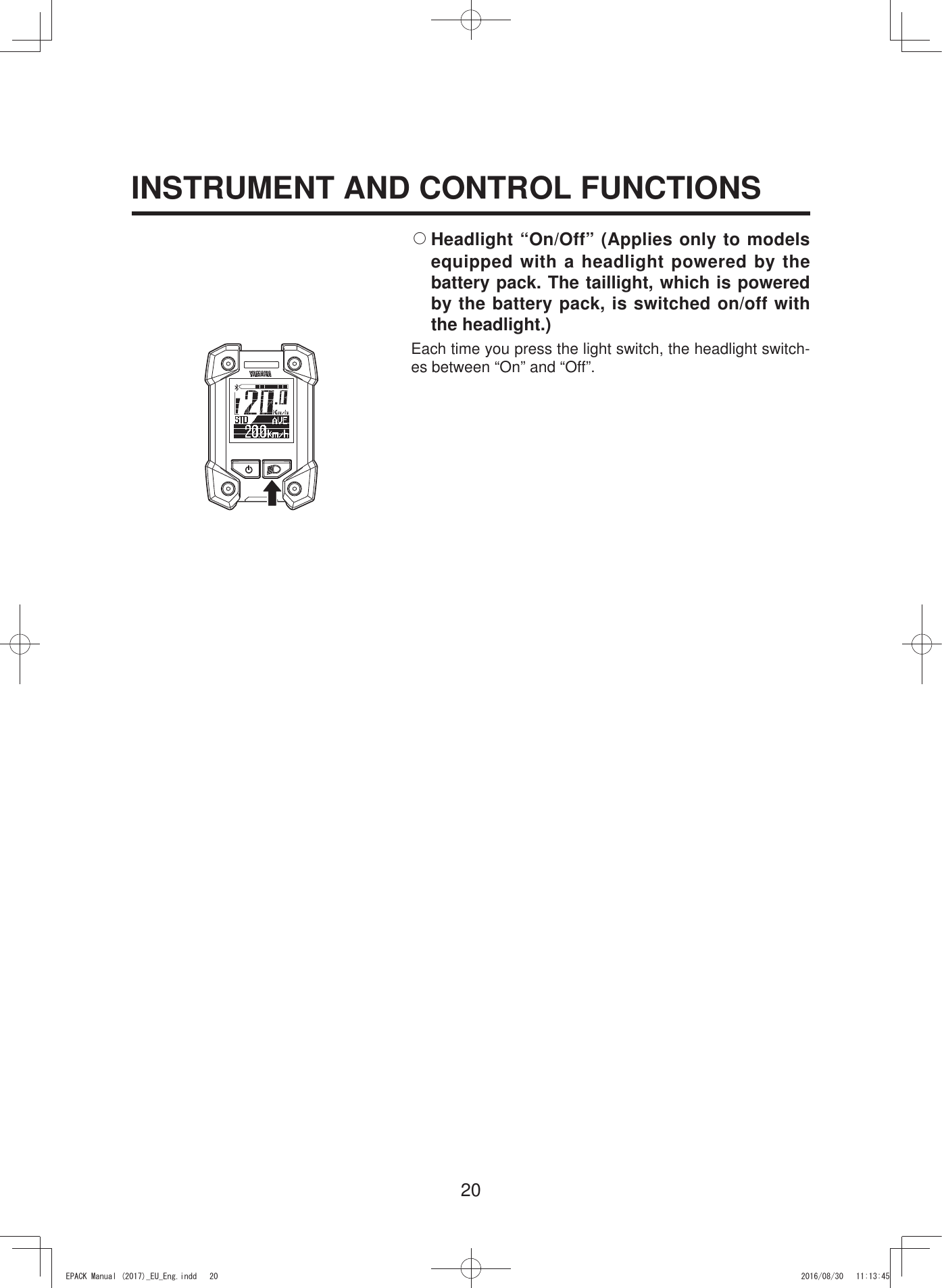

20INSTRUMENT AND CONTROL FUNCTIONS2 Headlight “On/Off” (Applies only to models equipped with a headlight powered by the battery pack. The taillight, which is powered by the battery pack, is switched on/off with the headlight.)Each time you press the light switch, the headlight switch-es between “On” and “Off”.(3$&.0DQXDOB(8B(QJLQGG 

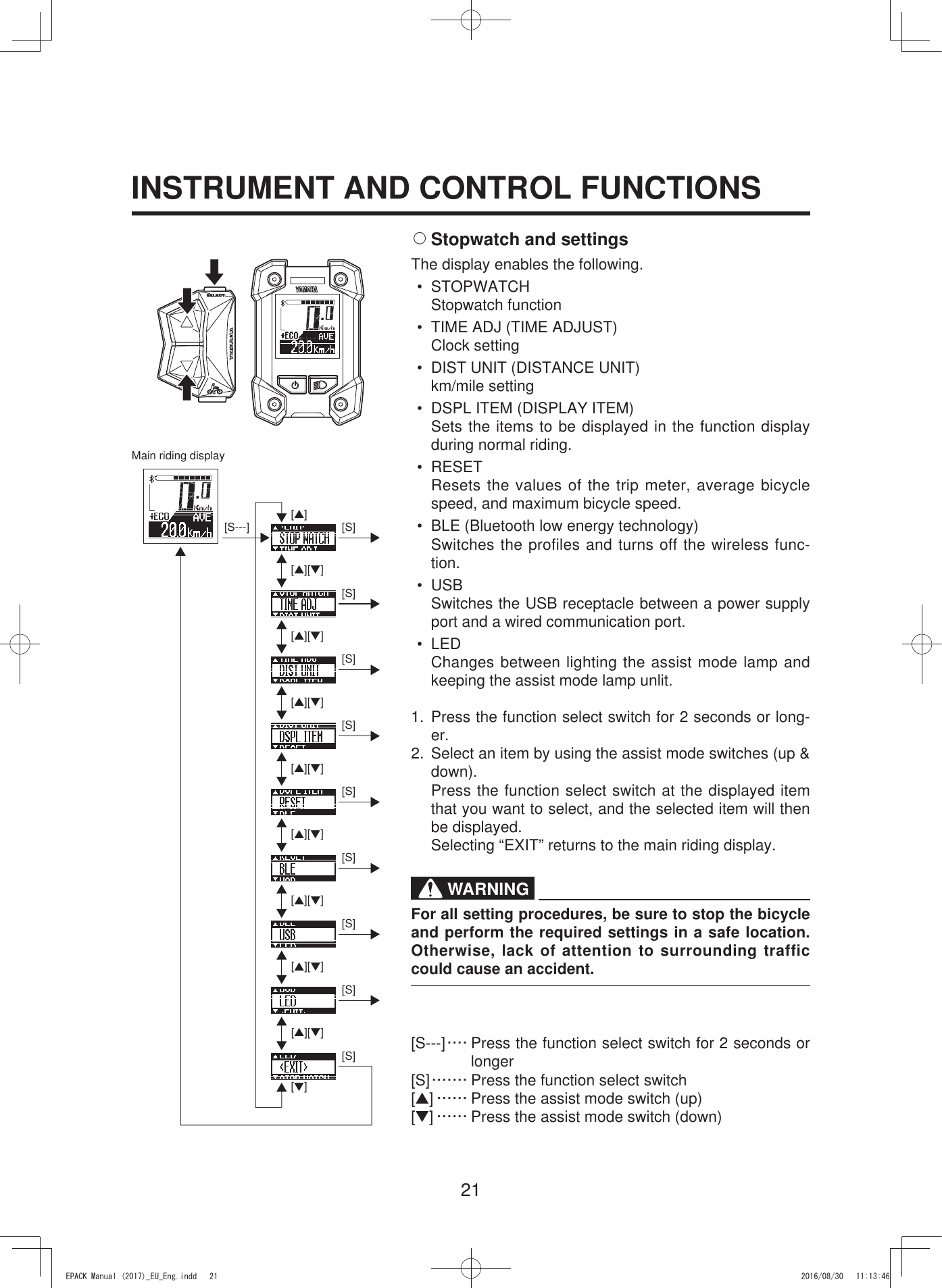

21INSTRUMENT AND CONTROL FUNCTIONS[S---] [▲][S][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][S][S][S][S][S][S][S][S][▼]2 Stopwatch and settingsThe display enables the following.• STOPWATCHStopwatch function• TIME ADJ (TIME ADJUST)Clock setting• DIST UNIT (DISTANCE UNIT)km/mile setting• DSPL ITEM (DISPLAY ITEM)Sets the items to be displayed in the function display during normal riding.• RESETResets the values of the trip meter, average bicycle speed, and maximum bicycle speed.• BLE (Bluetooth low energy technology)Switches the profiles and turns off the wireless func-tion.• USBSwitches the USB receptacle between a power supply port and a wired communication port.• LEDChanges between lighting the assist mode lamp and keeping the assist mode lamp unlit.1. Press the function select switch for 2 seconds or long-er.2. Select an item by using the assist mode switches (up & down). Press the function select switch at the displayed item that you want to select, and the selected item will then be displayed. Selecting “EXIT” returns to the main riding display.WARNINGFor all setting procedures, be sure to stop the bicycle and perform the required settings in a safe location. Otherwise, lack of attention to surrounding traffic could cause an accident.[S---] ···· Press the function select switch for 2 seconds or longer[S] ······· Press the function select switch[▲] ······ Press the assist mode switch (up)[▼] ······ Press the assist mode switch (down)Main riding display(3$&.0DQXDOB(8B(QJLQGG 

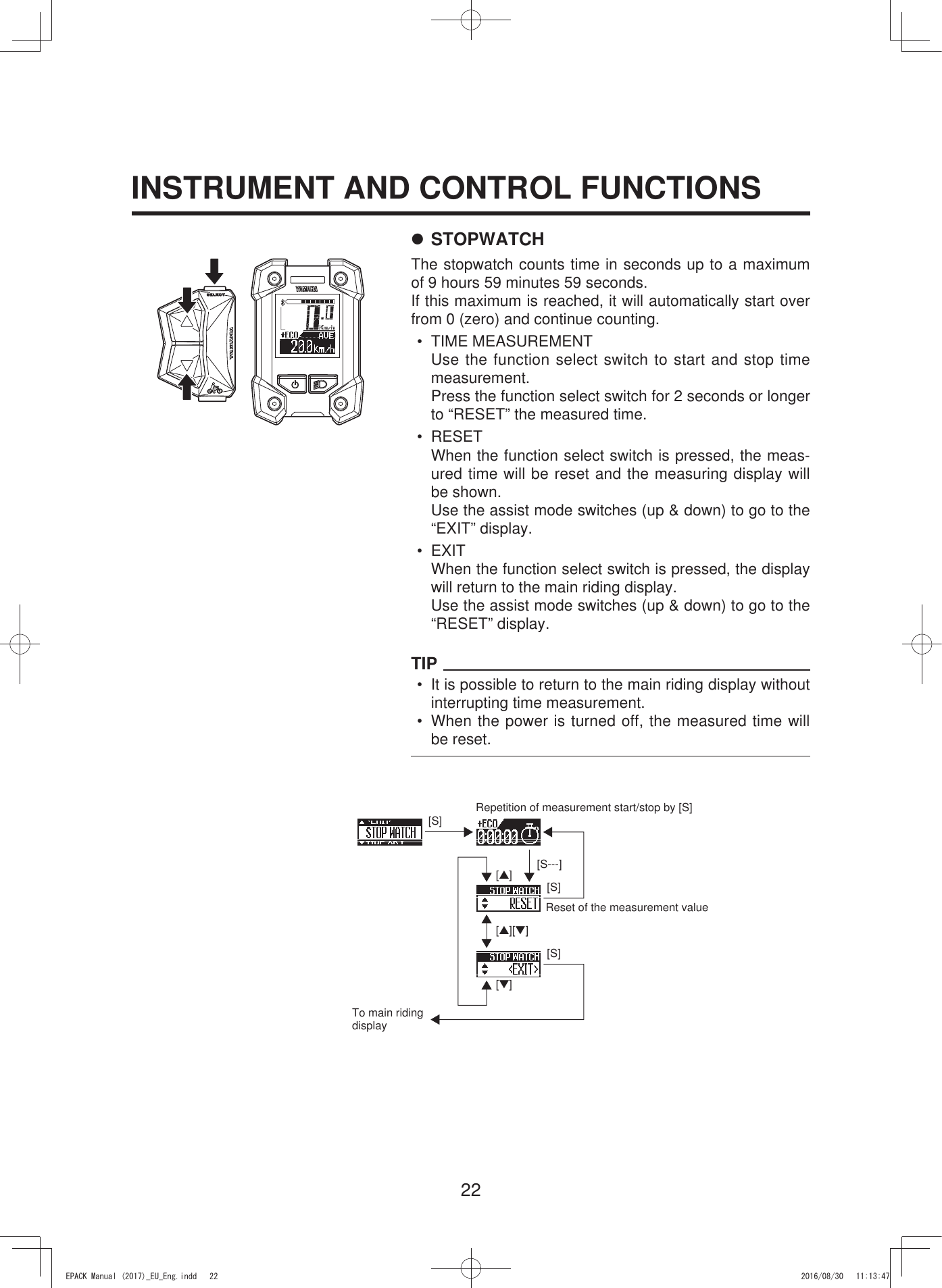

22INSTRUMENT AND CONTROL FUNCTIONS7 STOPWATCHThe stopwatch counts time in seconds up to a maximum of 9 hours 59 minutes 59 seconds.If this maximum is reached, it will automatically start over from 0 (zero) and continue counting.• TIME MEASUREMENTUse the function select switch to start and stop time measurement.Press the function select switch for 2 seconds or longer to “RESET” the measured time.• RESETWhen the function select switch is pressed, the meas-ured time will be reset and the measuring display will be shown.Use the assist mode switches (up & down) to go to the “EXIT” display.• EXITWhen the function select switch is pressed, the display will return to the main riding display.Use the assist mode switches (up & down) to go to the “RESET” display.TIP• It is possible to return to the main riding display without interrupting time measurement.• When the power is turned off, the measured time will be reset.[S---][S][S][S][▲][▼][▲][▼]Repetition of measurement start/stop by [S]To main riding displayReset of the measurement value(3$&.0DQXDOB(8B(QJLQGG 

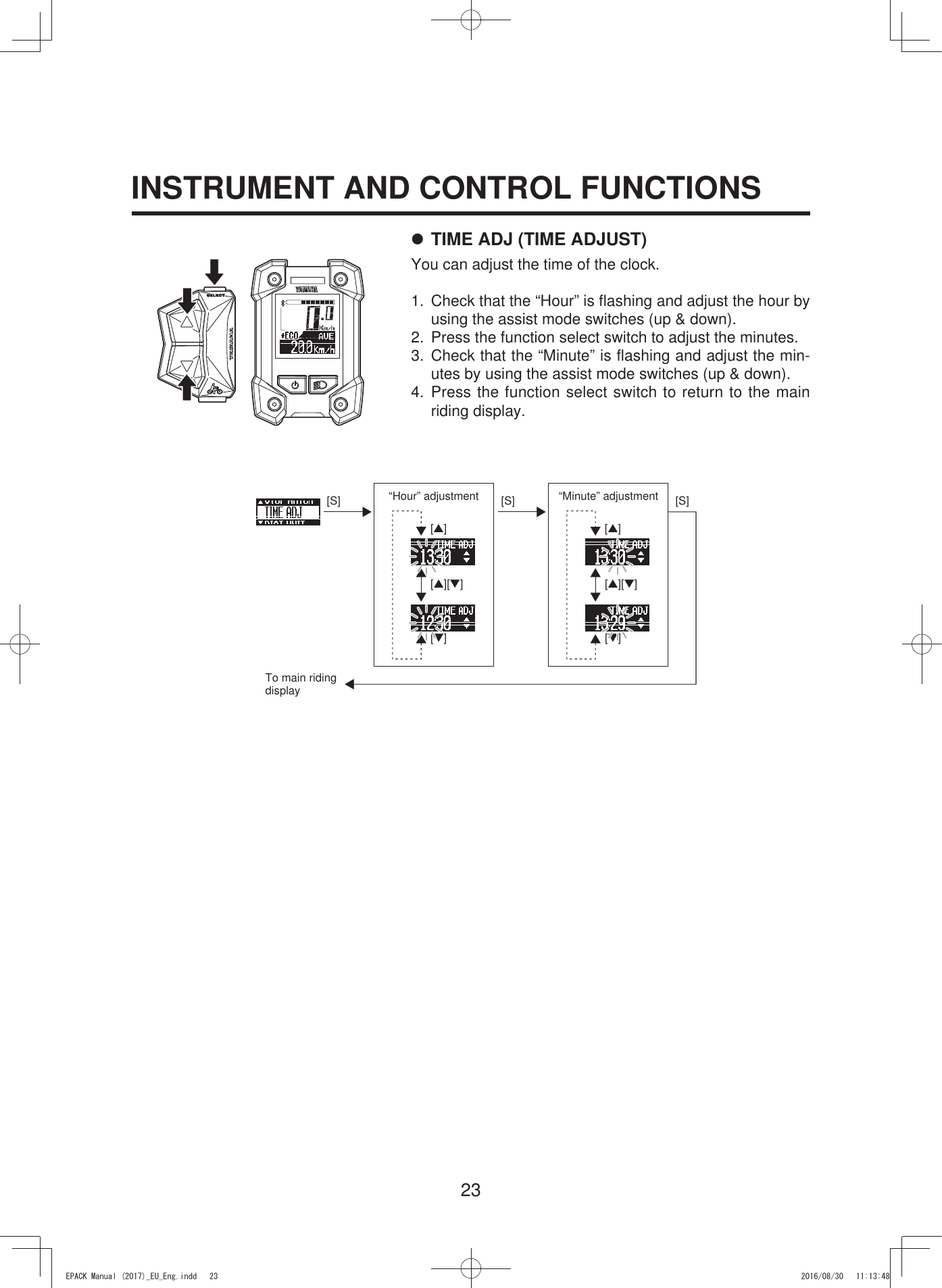

23INSTRUMENT AND CONTROL FUNCTIONS7 TIME ADJ (TIME ADJUST)You can adjust the time of the clock.1. Check that the “Hour” is flashing and adjust the hour by using the assist mode switches (up & down).2. Press the function select switch to adjust the minutes.3. Check that the “Minute” is flashing and adjust the min-utes by using the assist mode switches (up & down).4. Press the function select switch to return to the main riding display.[S][▼][▲][S] [S][▼][▲][▲][▼][▲][▼]To main riding display“Hour” adjustment “Minute” adjustment(3$&.0DQXDOB(8B(QJLQGG 
24INSTRUMENT AND CONTROL FUNCTIONS7 DIST UNIT (DISTANCE UNIT)You can select the display units for distance and speed.When “km” is selected, the travelled distance will be indi-cated in kilometers and the speed in km/h.When “mile” is selected, the travelled distance will be indi-cated in miles and the speed in mph.1. Select “km” or “mile” by using the assist mode switches (up & down).2. Press the function select switch when the desired unit is indicated in the display. This setting will then be kept and the display will return to the main riding display.[S][▼][▲][S][▲][▼]To main riding displaySelection of “km” or “mile”(3$&.0DQXDOB(8B(QJLQGG 

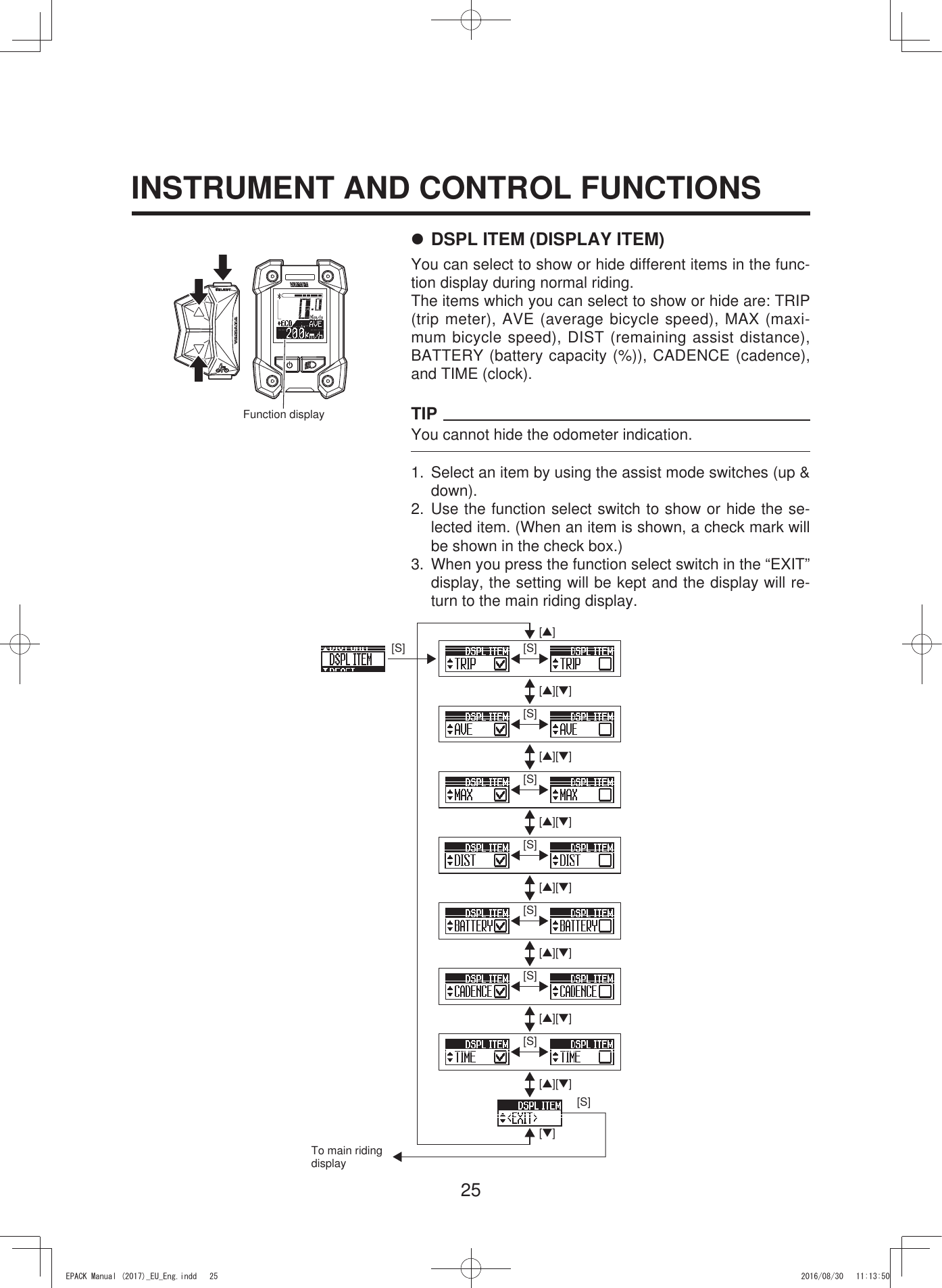

25INSTRUMENT AND CONTROL FUNCTIONSFunction display7 DSPL ITEM (DISPLAY ITEM)You can select to show or hide different items in the func-tion display during normal riding.The items which you can select to show or hide are: TRIP (trip meter), AVE (average bicycle speed), MAX (maxi-mum bicycle speed), DIST (remaining assist distance), BATTERY (battery capacity (%)), CADENCE (cadence), and TIME (clock).TIPYou cannot hide the odometer indication.1. Select an item by using the assist mode switches (up & down).2. Use the function select switch to show or hide the se-lected item. (When an item is shown, a check mark will be shown in the check box.)3. When you press the function select switch in the “EXIT” display, the setting will be kept and the display will re-turn to the main riding display.[S][S][▲][S][S][S][S][S][S][S][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼][▲][▼]To main riding display(3$&.0DQXDOB(8B(QJLQGG 

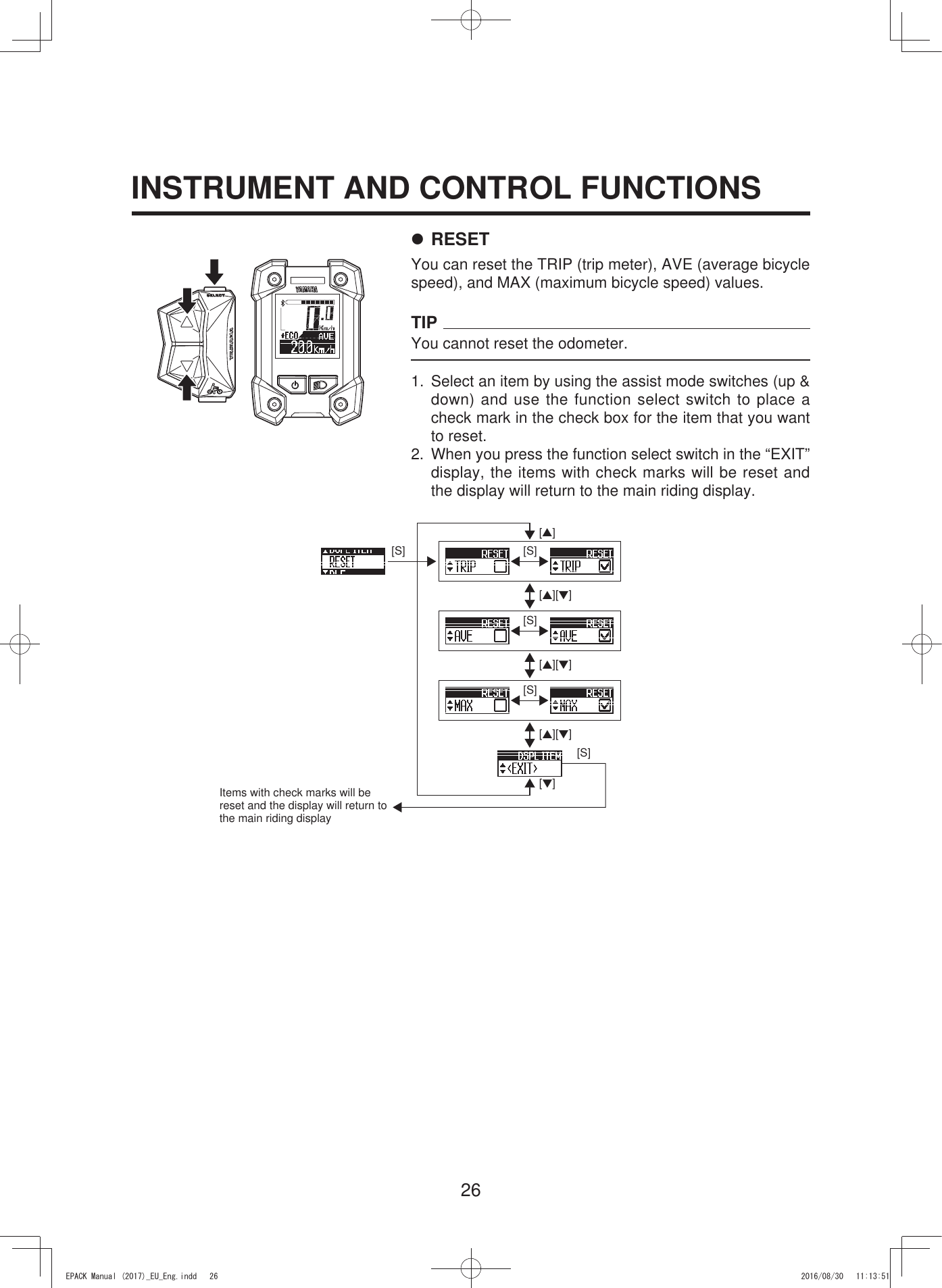

26INSTRUMENT AND CONTROL FUNCTIONS7 RESETYou can reset the TRIP (trip meter), AVE (average bicycle speed), and MAX (maximum bicycle speed) values.TIPYou cannot reset the odometer.1. Select an item by using the assist mode switches (up & down) and use the function select switch to place a check mark in the check box for the item that you want to reset.2. When you press the function select switch in the “EXIT” display, the items with check marks will be reset and the display will return to the main riding display.[S][S][▲][S][S][S][▼][▲][▼][▲][▼][▲][▼]Items with check marks will be reset and the display will return to the main riding display(3$&.0DQXDOB(8B(QJLQGG 
27INSTRUMENT AND CONTROL FUNCTIONS7 BLE (Bluetooth low energy technology)You can set the profile to use the wireless function with Bluetooth low energy technology, or you can select not to use the wireless function.When “CSCP” is selected, the Cycling Speed and Ca-dence Profile will be available.When “CPP” is selected, the Cycling Power Profile will be available.When “OFF” is selected, the wireless function will be inac-tive.TIP• Set the profile according to the wireless communication equipment that communicates via Bluetooth low energy technology.• For the output power level of each profile, see “SPECI-FICATIONS”.• Even if the power is turned off, the setting will be kept. When the power is turned on the next time, the last used setting will be selected.1. Select “CSCP”, “CPP”, or “OFF” by using the assist mode switches (up & down).2. When you press the function select switch at the de-sired item display, the setting will be kept and the main riding display will be shown.[S][▼][▲][S][▲][▼][▲][▼]To main riding displaySelection of “CSCP”, “CPP”, or “OFF”(3$&.0DQXDOB(8B(QJLQGG 

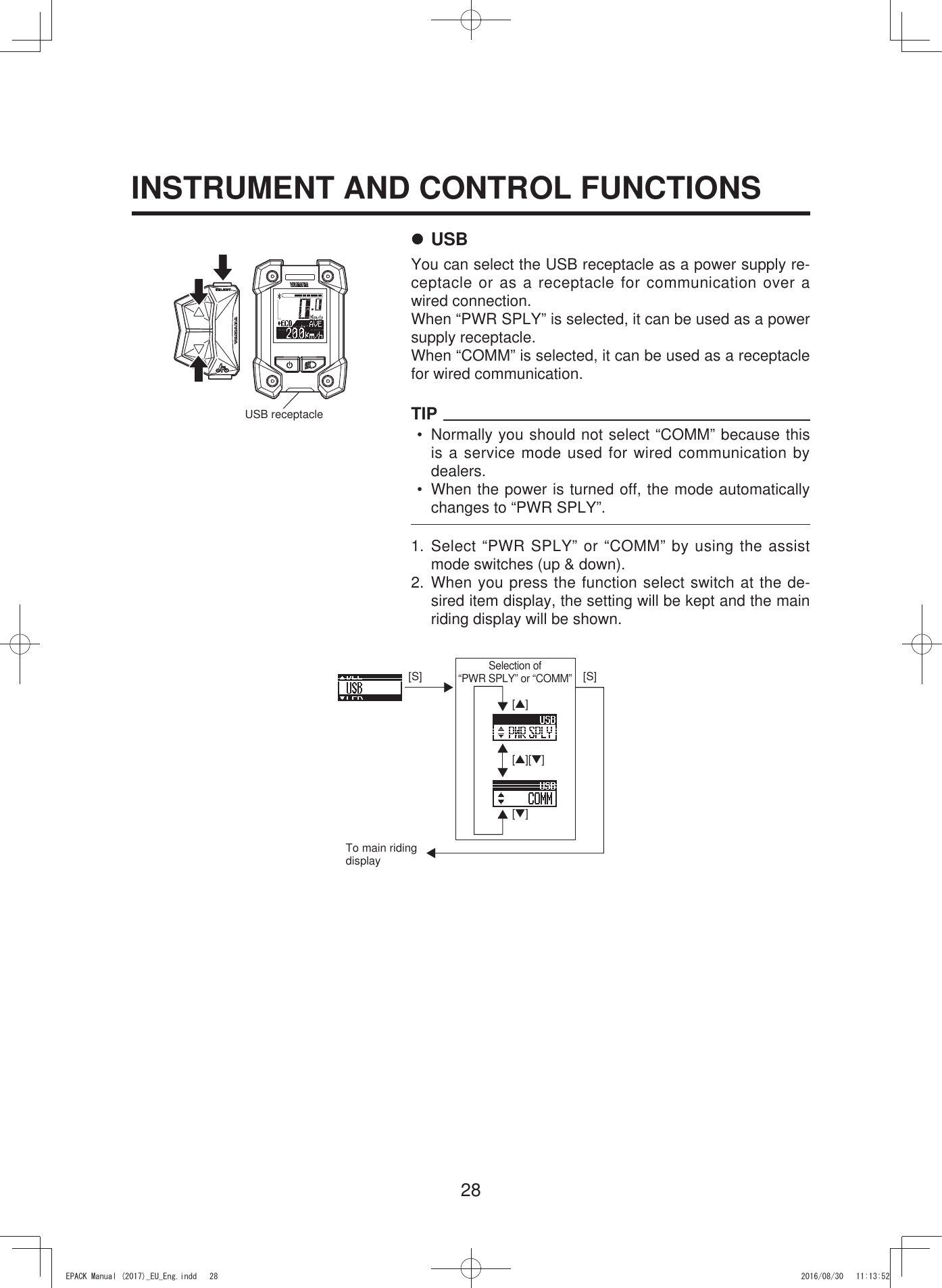

28INSTRUMENT AND CONTROL FUNCTIONS7 USBYou can select the USB receptacle as a power supply re-ceptacle or as a receptacle for communication over a wired connection.When “PWR SPLY” is selected, it can be used as a power supply receptacle.When “COMM” is selected, it can be used as a receptacle for wired communication.TIP• Normally you should not select “COMM” because this is a service mode used for wired communication by dealers.• When the power is turned off, the mode automatically changes to “PWR SPLY”.1. Select “PWR SPLY” or “COMM” by using the assist mode switches (up & down).2. When you press the function select switch at the de-sired item display, the setting will be kept and the main riding display will be shown.USB receptacle[S][▲][S][▼][▲][▼]To main riding displaySelection of “PWR SPLY” or “COMM”(3$&.0DQXDOB(8B(QJLQGG 

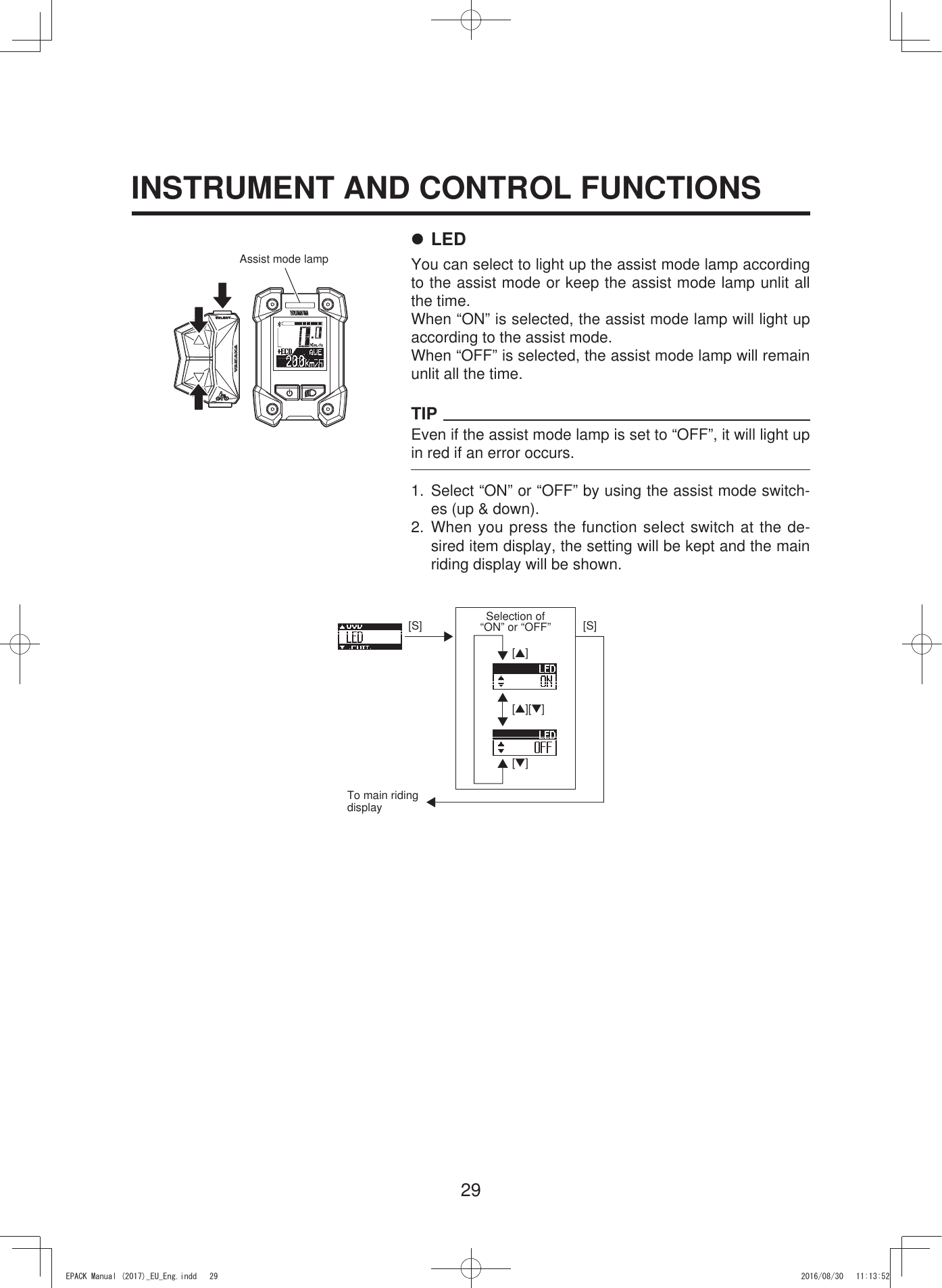

29[S][▲][S][▼][▲][▼]INSTRUMENT AND CONTROL FUNCTIONSAssist mode lampTo main riding displaySelection of “ON” or “OFF”7 LEDYou can select to light up the assist mode lamp according to the assist mode or keep the assist mode lamp unlit all the time.When “ON” is selected, the assist mode lamp will light up according to the assist mode.When “OFF” is selected, the assist mode lamp will remain unlit all the time.TIPEven if the assist mode lamp is set to “OFF”, it will light up in red if an error occurs.1. Select “ON” or “OFF” by using the assist mode switch-es (up & down).2. When you press the function select switch at the de-sired item display, the setting will be kept and the main riding display will be shown.(3$&.0DQXDOB(8B(QJLQGG 

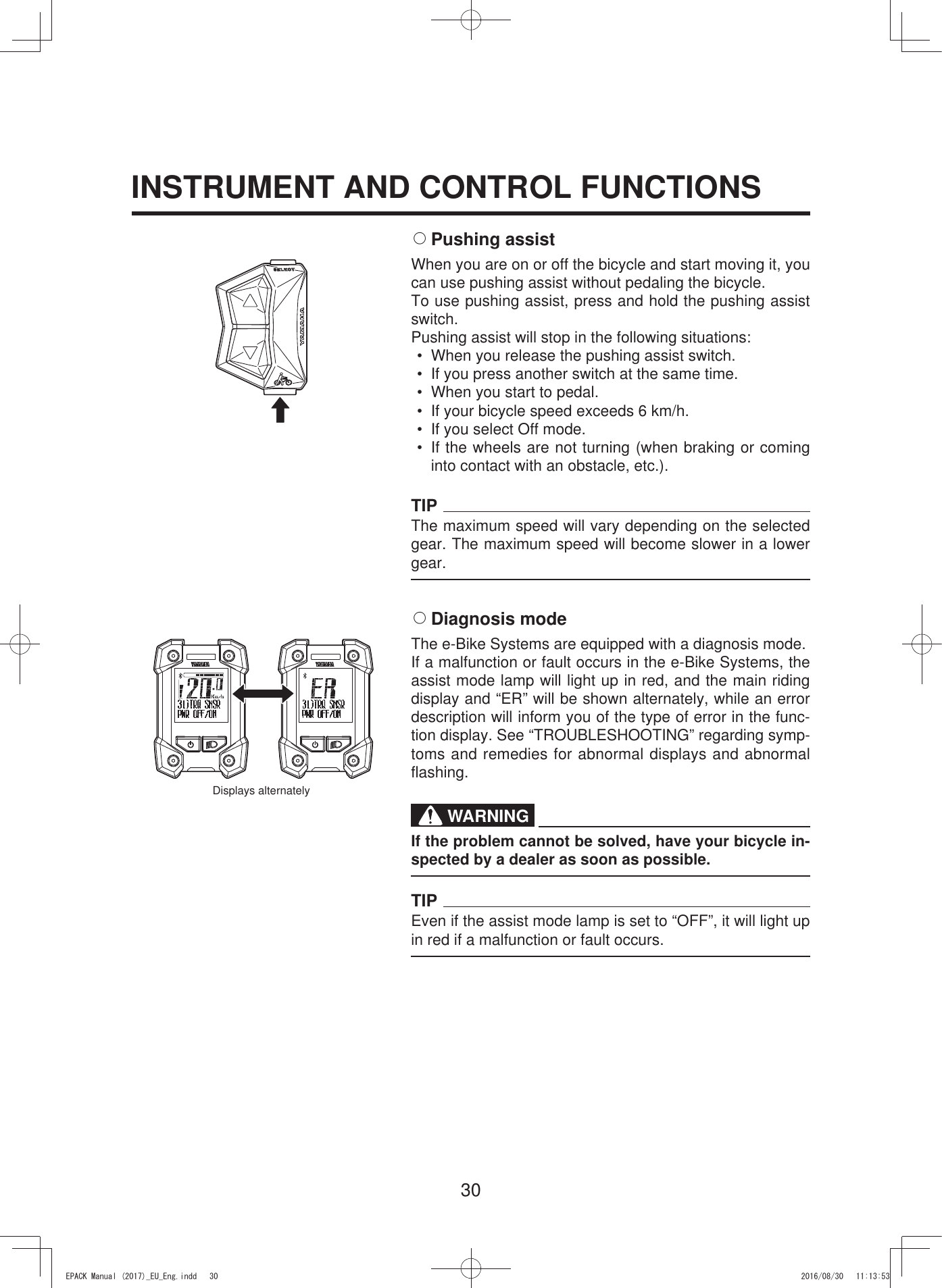

30INSTRUMENT AND CONTROL FUNCTIONS2 Pushing assistWhen you are on or off the bicycle and start moving it, you can use pushing assist without pedaling the bicycle.To use pushing assist, press and hold the pushing assist switch.Pushing assist will stop in the following situations:• When you release the pushing assist switch.• If you press another switch at the same time.• When you start to pedal.• If your bicycle speed exceeds 6 km/h.• If you select Off mode.• If the wheels are not turning (when braking or coming into contact with an obstacle, etc.).TIPThe maximum speed will vary depending on the selected gear. The maximum speed will become slower in a lower gear.2 Diagnosis modeThe e-Bike Systems are equipped with a diagnosis mode.If a malfunction or fault occurs in the e-Bike Systems, the assist mode lamp will light up in red, and the main riding display and “ER” will be shown alternately, while an error description will inform you of the type of error in the func-tion display. See “TROUBLESHOOTING” regarding symp-toms and remedies for abnormal displays and abnormal flashing.WARNINGIf the problem cannot be solved, have your bicycle in-spected by a dealer as soon as possible.TIPEven if the assist mode lamp is set to “OFF”, it will light up in red if a malfunction or fault occurs.Displays alternately(3$&.0DQXDOB(8B(QJLQGG 
31INSTRUMENT AND CONTROL FUNCTIONS2 Power supply to external devicesPower can be supplied to most external devices (e.g. vari-ous smart phones etc.) by connecting a commercial USB 2.0 OTG cable.[To supply power]1. Open the USB receptacle cap of the display. 2. Connect the USB cable to the switch and external de-vice.3. Turn on the power of the vehicle. [To stop the power supply]1. Turn off the power of the vehicle.2. Disconnect the USB cable and put on the cap of the USB receptacle. NOTICE• Do not apply unreasonable force on the USB plug or pull the USB cable. • Check that the USB plug is facing the right way and not totally out-of-position with the USB receptacle or slanted, and make sure it is fully inserted all the way in. • Do not connect the USB receptacle and the USB plug in a wet state. • Use a USB 2.0 OTG cable that conforms to the standards. • Do not insert foreign objects into the USB recepta-cle unit. Otherwise the display unit and external device may malfunction.TIP• Power is supplied automatically when an external de-vice is connected with the USB cable. • No power is supplied if the remaining capacity of the battery pack is low. • The power supply of the vehicle will go off and power supplied by the USB connection will also stop if the ve-hicle is not operated for 5 minutes.(3$&.0DQXDOB(8B(QJLQGG 

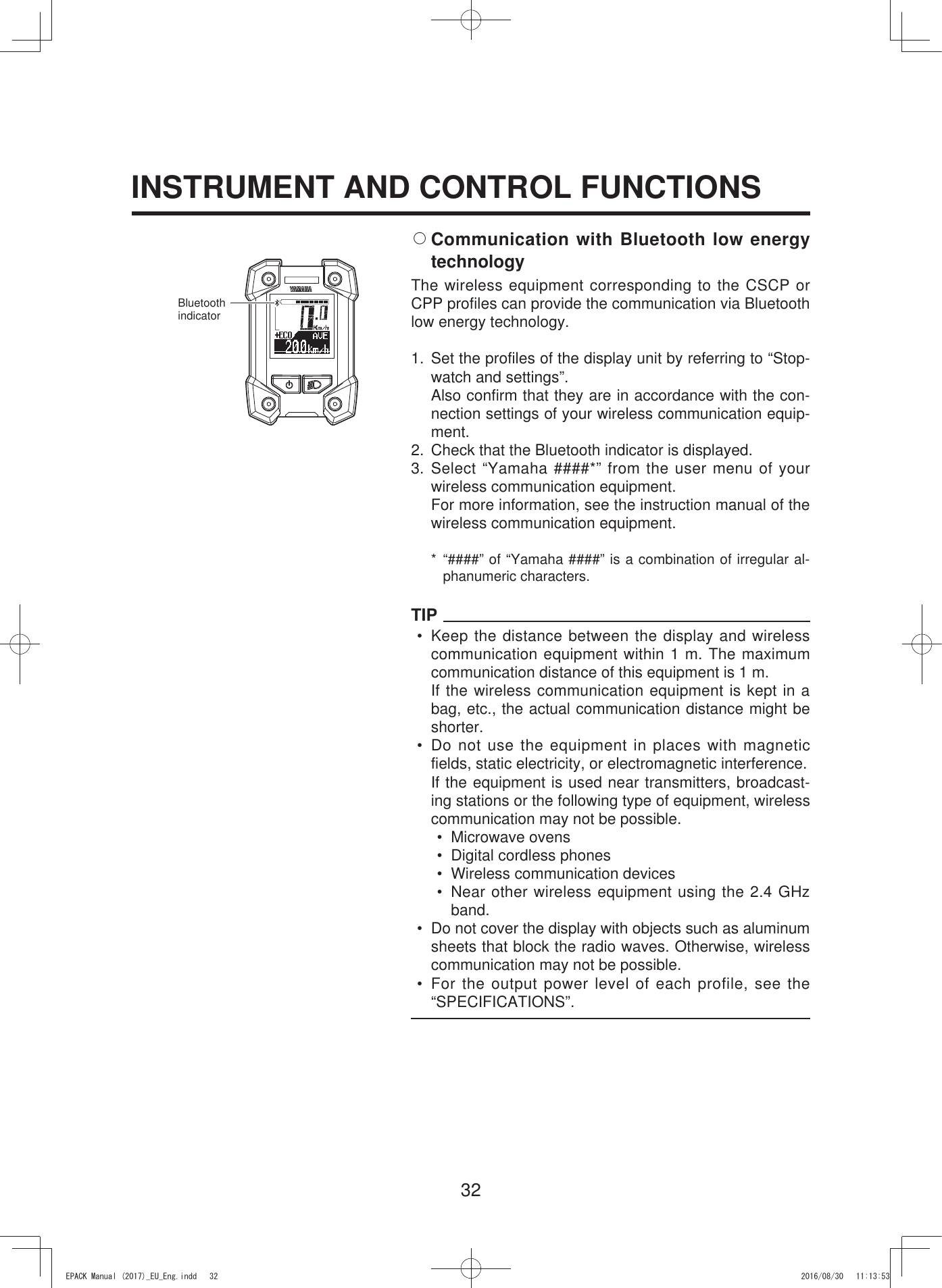

32INSTRUMENT AND CONTROL FUNCTIONS2 Communication with Bluetooth low energy technologyThe wireless equipment corresponding to the CSCP or CPP profiles can provide the communication via Bluetooth low energy technology.1. Set the profiles of the display unit by referring to “Stop-watch and settings”. Also confirm that they are in accordance with the con-nection settings of your wireless communication equip-ment.2. Check that the Bluetooth indicator is displayed.3. Select “Yamaha ####*” from the user menu of your wireless communication equipment. For more information, see the instruction manual of the wireless communication equipment.* “####” of “Yamaha ####” is a combination of irregular al-phanumeric characters.TIP• Keep the distance between the display and wireless communication equipment within 1 m. The maximum communication distance of this equipment is 1 m.If the wireless communication equipment is kept in a bag, etc., the actual communication distance might be shorter.• Do not use the equipment in places with magnetic fields, static electricity, or electromagnetic interference.If the equipment is used near transmitters, broadcast-ing stations or the following type of equipment, wireless communication may not be possible.• Microwave ovens• Digital cordless phones• Wireless communication devices• Near other wireless equipment using the 2.4 GHz band.• Do not cover the display with objects such as aluminum sheets that block the radio waves. Otherwise, wireless communication may not be possible.• For the output power level of each profile, see the “SPECIFICATIONS”.Bluetooth indicator(3$&.0DQXDOB(8B(QJLQGG 
33BATTERY PACK AND CHARGING PROCEDUREThe battery pack equipped for the Yamaha e-Bike Sys-tems is a lithium-ion battery. The lithium-ion battery is lightweight and offers superior capacity. However, it does have the following characteristics.• Its performance decreases in extremely hot or cold en-vironments.• It naturally loses its charge.The battery pack for the Yamaha e-Bike Systems also has an embedded computer which notifies you of estimated residual battery capacity and suspected faults via the bat-tery capacity indicator lamp.By pressing the battery capacity indicator button, you can display the residual battery capacity for approximately 5 seconds. See “CHECKING THE RESIDUAL BATTERY CAPACITY” for the estimate of the residual battery capacity. See “TROUBLESHOOTING” for information on fault flashing.Charging plug Power plugBattery charger lampCharger displayCharging connector Battery capacity indicator buttonBattery capacity indicatorBattery capacity indicator lamp(3$&.0DQXDOB(8B(QJLQGG 
34BATTERY PACK AND CHARGING PROCEDUREAppropriate charging environmentsFor safe and efficient charging, use the battery charger in a location that is:• Flat and stable (when on the bicycle)• Free of rain or moisture• Out of direct sunlight• Well-ventilated and dry• Not accessible to children or pets• Temperature between 15–25 °C Inappropriate charging environments and solutions.The hot and cold environments described below can cause charging to enter standby or suspension without fully charging the battery.• Summertime charging standby/suspensionIf charging in a location receiving direct summer sun-light or immediately after riding, the battery charger might enter charging standby (all four battery capacity indicator lamps flash slowly). See “Reading the charg-ing status”. This is to automatically stop charging in or-der to protect the battery from exceeding the specified temperature while charging. You can avoid charging suspension by starting to charge with the battery cold or at a room temperature of 15–25 °C. If charging sus-pension occurs, move the battery charger to a cool lo-cation to reduce the charging standby time.• Wintertime charging standby/suspensionCharging standby will occur if the temperature is 0 °C lower. If charging is started and the temperature drops below this level due to late-night cooling or other fac-tors, charging is suspended and standby mode is en-tered to protect the battery. In such cases, restart charging at an indoor location with a temperature of 15–25 °C.• Noise on televisions/radios/computersCharging next to televisions, radios, or similar appli-ances might cause static, flickering images, and other interference. If this occurs, recharge in a location fur-ther away from the television or radio (such as in an-other room).(3$&.0DQXDOB(8B(QJLQGG 
35BATTERY PACK AND CHARGING PROCEDUREWARNINGIf a charging fault occurs during charging, remove the power plug of the battery charger from the socket and wait for the battery pack/battery charger to cool.[CHARGING THE BATTERY PACK MOUNTED ON THE BICYCLE]1. Connect the power plug of the battery charger to a household power outlet.2. Remove the cap of charging inlet from the charging connector on the battery pack, and connect it to the charging plug on the battery charger.NOTICE• Do not connect the charging plug of the battery charger with the charging connector of the battery in a wet state.• Be sure to connect the charging plug only after the charging connector on the battery pack is com-pletely dry.Otherwise the battery charger and battery may mal-function.• Do not apply excessive force to the charging plug or pull on the cord with the charging plug connect-ed to the battery.Otherwise, the plug or connector may be damaged.3. See “Reading the charging status”, and check that the battery charger is charging the battery pack.4. The battery capacity indicator lamps will light up one by one until all four are on. Then, when charging is com-plete, all of the lamps will go off.5. Confirm that charging is complete, and then disconnect the charging plug from the battery pack. How to disconnect the plug (see the left figure) Grasp the lock-release ring. Pull it out straight.6. Place the cap of charging inlet on the battery pack’s charging connector.WARNINGNever handle the power plug, charging plug or touch the charger contacts with wet hands. This could result in electric shock.Lock-release ring(3$&.0DQXDOB(8B(QJLQGG 
36BATTERY PACK AND CHARGING PROCEDURETIP• Charging will start automatically.• If the display unit is turned on while the battery pack is charging, all normal displays will be shown, including the battery capacity indicator, but the assist system will not function.• When the battery pack is connected to the battery charger, battery charger lamp will flash at approximate-ly 0.2 second intervals to indicate that charging is pre-paring to charge the battery pack. Leave it as it is and charging will start normally.[CHARGING THE BATTERY PACK REMOVED FROM THE BICYCLE]1. Turn the display unit off.2. Insert the key into the battery lock, and turn it to re-lease the battery lock.3. Remove the battery pack.WARNINGUse both hands when removing the battery pack, be-ing careful not to drop it. Dropping the battery pack on your foot could result in injury.4. Connect the power plug of the battery charger to a household power outlet.5. Remove the cap from the charging connector on the battery pack, and connect it to the charging plug on the battery charger.NOTICE• Do not connect the charging plug of the battery charger with the charging connector of the battery in a wet state.• Be sure to connect the charging plug only after the charging connector on the battery pack is com-pletely dry.Otherwise the battery charger and battery may mal-function.• Do not apply excessive force to the charging plug or pull on the cord with the charging plug connect-ed to the battery.Otherwise, the plug or connector may be damaged.(3$&.0DQXDOB(8B(QJLQGG 
37BATTERY PACK AND CHARGING PROCEDURE6. See “Reading the charging status”, and check that the battery charger is charging the battery pack.7. The battery capacity display lamps will light up one by one until all four are on. Then, when charging is com-plete, all of the lamps will go off.8. Confirm that charging is complete, and then discon-nect the charging plug from the battery pack. How to disconnect the plug (see the left figure) Grasp the lock-release ring. Pull it out straight.9. Place the cap on the battery pack’s charging connec-tor.10. Mount the battery pack on the bicycle.TIPMounting method of the battery pack• Insert the battery in the direction of the arrow so that the battery bottom is aligned to the top of the case.• Insert the upper part of the battery in the direction of the arrow so that the battery handle is aligned to the top of the key lock.• Press the upper part of the battery toward the frame until it clicks into place to secure it.Lock-release ringTop of the caseBattery bottomKey lockBattery handle(3$&.0DQXDOB(8B(QJLQGG 
38BATTERY PACK AND CHARGING PROCEDURE11. Make sure that it is securely attached by pulling the battery after installation.NOTICEMake sure there is no foreign matter on the battery pack contacts before inserting the battery pack.(3$&.0DQXDOB(8B(QJLQGG 
39BATTERY PACK AND CHARGING PROCEDUREReading the charging statusBattery charger lamp Battery capacity indicator lamps Current status DetailsOnLit power lamps indicate the amount of charging completed. A flashing power lamp indicates current progress.Charging During charging, the battery capacity indicator lamps light up one by one.(Example: Battery is approximately 50–75 % charged.)OffCharging completedWhen charging is complete, the charging lamp on the battery charger and the battery capacity indicator lamp on the battery pack go off.OffFour lamps flash simultaneously. Battery is in standby mode.* The battery internal temperature is too high or too low.Charging will automatically restart when a temperature is reached that allows charging. (See “Appropriate charging environments”.)When possible, always perform charging at the optimal temperature of 15–25 °C.Battery is in fault mode.There is a fault in the charging system. See “TROUBLESHOOTING”.(3$&.0DQXDOB(8B(QJLQGG 

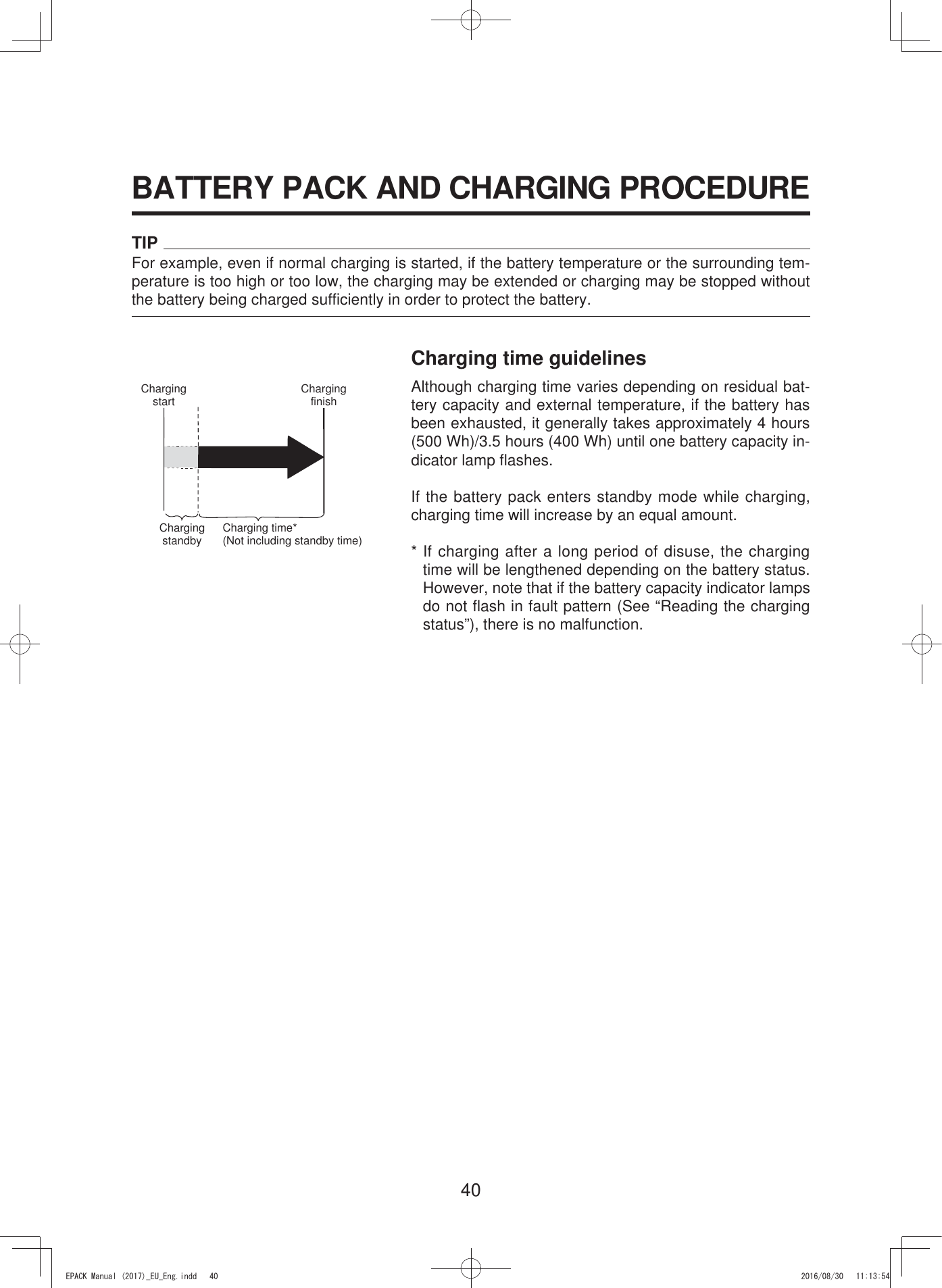

40BATTERY PACK AND CHARGING PROCEDURECharging time guidelinesAlthough charging time varies depending on residual bat-tery capacity and external temperature, if the battery has been exhausted, it generally takes approximately 4 hours (500 Wh)/3.5 hours (400 Wh) until one battery capacity in-dicator lamp flashes.If the battery pack enters standby mode while charging, charging time will increase by an equal amount.* If charging after a long period of disuse, the charging time will be lengthened depending on the battery status. However, note that if the battery capacity indicator lamps do not flash in fault pattern (See “Reading the charging status”), there is no malfunction.TIPFor example, even if normal charging is started, if the battery temperature or the surrounding tem-perature is too high or too low, the charging may be extended or charging may be stopped without the battery being charged sufficiently in order to protect the battery.Charging start Charging finishCharging standby Charging time*(Not including standby time)(3$&.0DQXDOB(8B(QJLQGG 
41You can check the estimate of how much capacity is left in the battery and to what extent it is charged. The check can be performed using either the display unit’s residual battery capacity indi-cator or the battery’s residual battery capacity indicator lamps.TIP• Even if the battery’s capacity reaches 0 (zero), you can still ride the bicycle as a regular bicycle.• If you are using an old battery pack, the residual battery capacity indicator may suddenly display very little power when you start moving. This is not a malfunction. Once riding stabilizes and the load is reduced, the proper value is displayed.Residual battery capacity indicator display and estimate of residual bat-tery capacity for display unitThe residual battery capacity can be displayed as a numerical value on the LCD display.Display of the residual battery capacity for the display unitDisplay of the residual battery capacityApplicable situation100–11 %When you turn on the power of the LCD multi-function drive controller and ride continually after the battery is fully charged, the segments for the residual battery capacity indicator go out one by one each time the residual battery capacity is reduced by 10 %.Slow flashing <every 0.5 seconds>10–1 % There is very little residual battery capacity left. Please charge the battery soon.Fast flashing <every 0.2 seconds>0 %There is no more residual battery capacity. Turn off the power for the LCD multi-function drive controller and charge the battery pack soon.* Assist is stopped, but you can still ride the bicycle as a regular bicycle.CHECKING THE RESIDUAL BATTERY CAPACITY(3$&.0DQXDOB(8B(QJLQGG 
42Display of the battery capacity indicator lamps and the estimate of the residual battery capacityWhen checking the residual battery capacity, push the battery capacity indicator button “ ”.Display of the battery capacity indicator lampsEstimate of the residual battery capacityApplicable situation100–76 %From full charge (100 %), the battery capacity indicator lamps turn off, one by one.75–51 %50–26 %25–11 %10–1 % There is very little battery capacity left.The bottom of lamp slow flashing <0.5 second interval>0 % The battery capacity has reached 0 (zero). Please charge the battery pack.The bottom of lamp fast flashing <0.2 second interval>CHECKING THE RESIDUAL BATTERY CAPACITY(3$&.0DQXDOB(8B(QJLQGG 

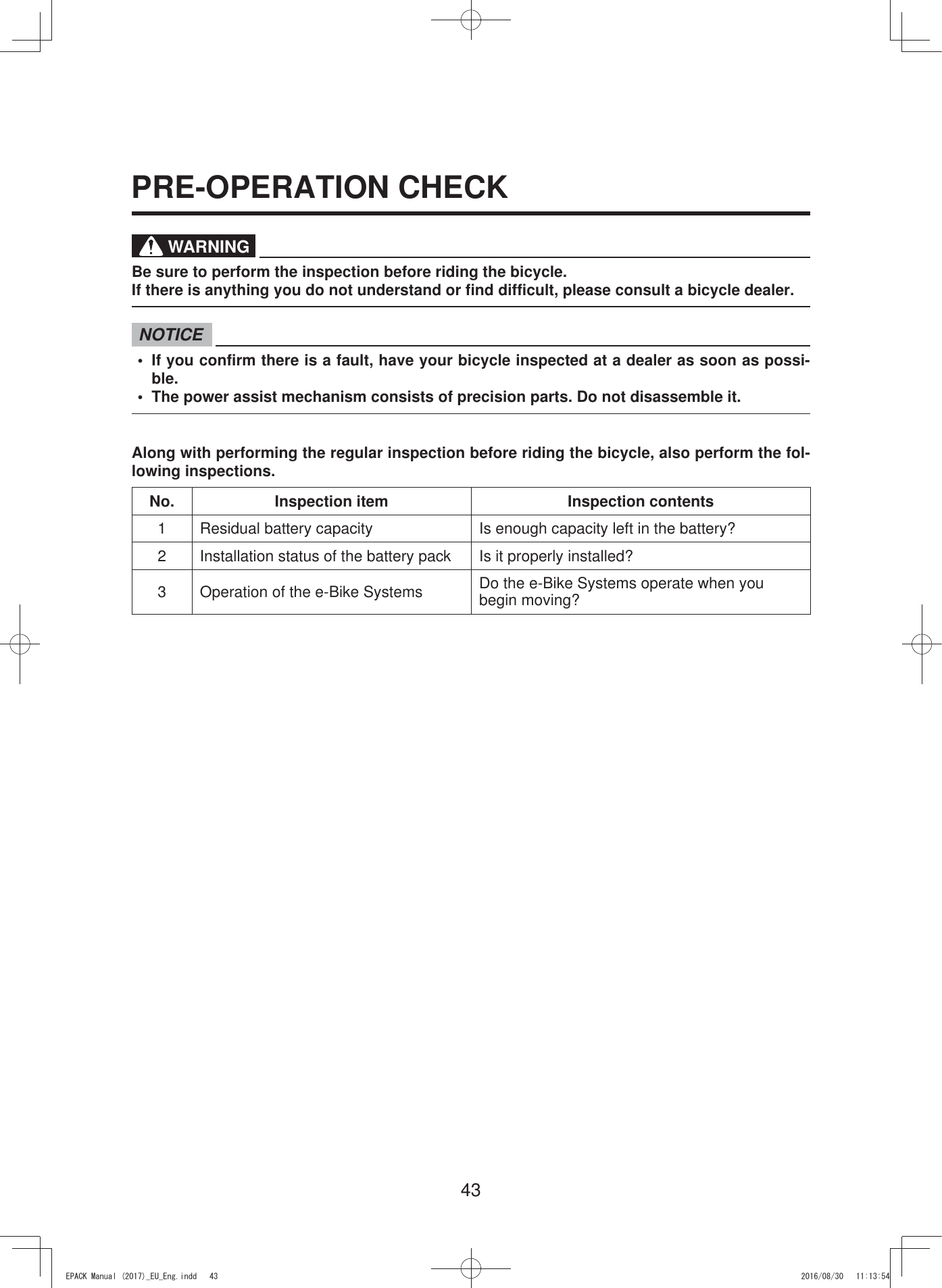

43WARNINGBe sure to perform the inspection before riding the bicycle.If there is anything you do not understand or find difficult, please consult a bicycle dealer.NOTICE• If you confirm there is a fault, have your bicycle inspected at a dealer as soon as possi-ble.• The power assist mechanism consists of precision parts. Do not disassemble it.Along with performing the regular inspection before riding the bicycle, also perform the fol-lowing inspections.No. Inspection item Inspection contents1 Residual battery capacity Is enough capacity left in the battery?2 Installation status of the battery pack Is it properly installed?3 Operation of the e-Bike Systems Do the e-Bike Systems operate when you begin moving?PRE-OPERATION CHECK(3$&.0DQXDOB(8B(QJLQGG 

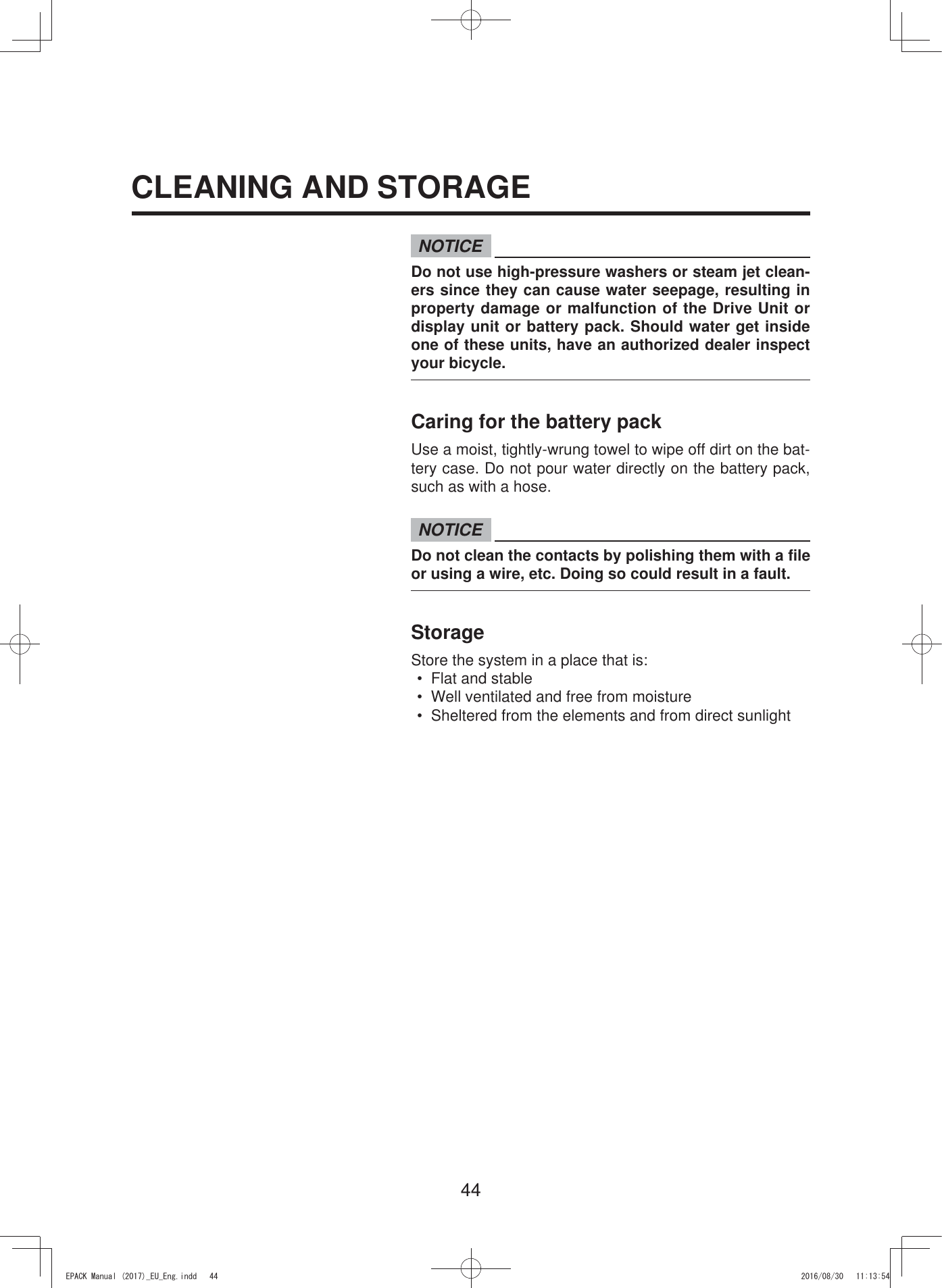

44NOTICEDo not use high-pressure washers or steam jet clean-ers since they can cause water seepage, resulting in property damage or malfunction of the Drive Unit or display unit or battery pack. Should water get inside one of these units, have an authorized dealer inspect your bicycle.Caring for the battery packUse a moist, tightly-wrung towel to wipe off dirt on the bat-tery case. Do not pour water directly on the battery pack, such as with a hose.NOTICEDo not clean the contacts by polishing them with a file or using a wire, etc. Doing so could result in a fault.StorageStore the system in a place that is:• Flat and stable• Well ventilated and free from moisture• Sheltered from the elements and from direct sunlightCLEANING AND STORAGE(3$&.0DQXDOB(8B(QJLQGG 

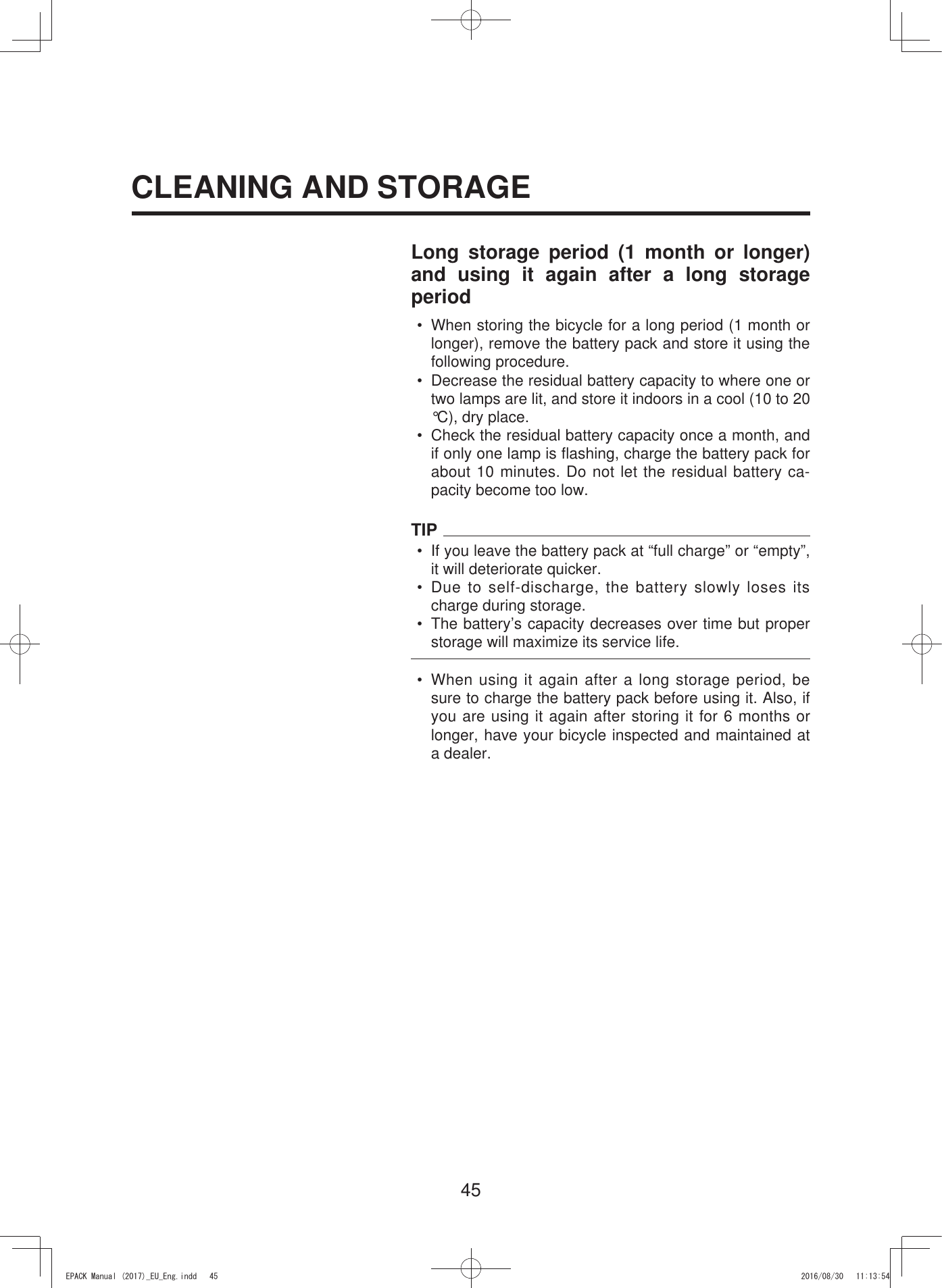

45Long storage period (1 month or longer) and using it again after a long storage period• When storing the bicycle for a long period (1 month or longer), remove the battery pack and store it using the following procedure.• Decrease the residual battery capacity to where one or two lamps are lit, and store it indoors in a cool (10 to 20 °C), dry place.• Check the residual battery capacity once a month, and if only one lamp is flashing, charge the battery pack for about 10 minutes. Do not let the residual battery ca-pacity become too low.TIP• If you leave the battery pack at “full charge” or “empty”, it will deteriorate quicker.• Due to self-discharge, the battery slowly loses its charge during storage.• The battery’s capacity decreases over time but proper storage will maximize its service life.• When using it again after a long storage period, be sure to charge the battery pack before using it. Also, if you are using it again after storing it for 6 months or longer, have your bicycle inspected and maintained at a dealer.CLEANING AND STORAGE(3$&.0DQXDOB(8B(QJLQGG 
46The batteries are subject to the Dangerous Goods Legislation requirements. When being transport-ed by third parties (e.g. via air transport or forwarding agency), special requirements on packaging and labels must be observed. To prepare the item for shipping, consult a hazardous materials ex-pert. The customer can transport the batteries by road without further requirements. Do not trans-port damaged batteries.Tape or mask off open contacts and pack up the battery pack in such a manner that it cannot move around in the packaging. Be sure to observe all local and national regulations. In case of questions concerning transport of the batteries, please refer to an authorized bicycle dealer.TRANSPORT(3$&.0DQXDOB(8B(QJLQGG 

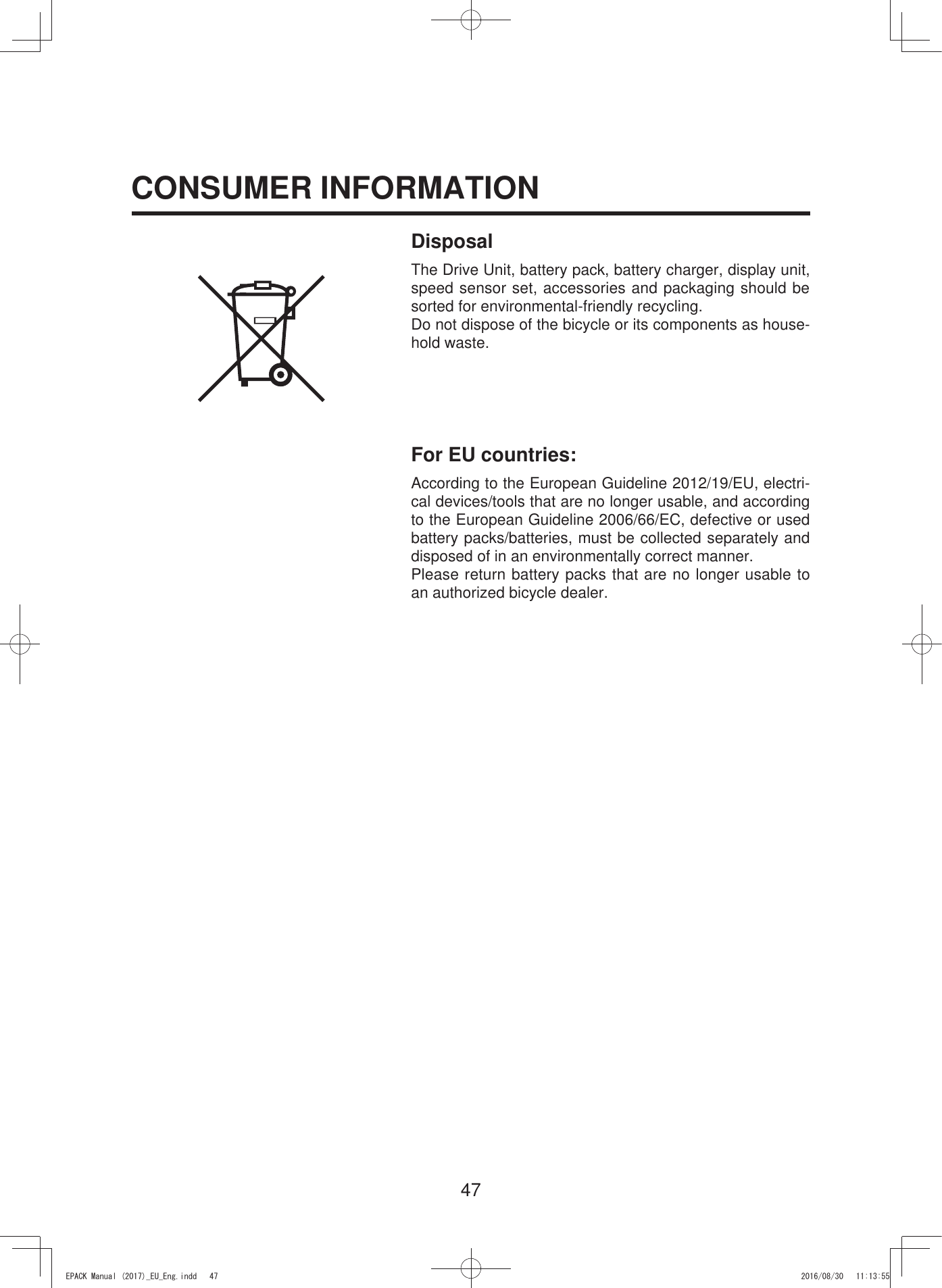

47DisposalThe Drive Unit, battery pack, battery charger, display unit, speed sensor set, accessories and packaging should be sorted for environmental-friendly recycling.Do not dispose of the bicycle or its components as house-hold waste.For EU countries:According to the European Guideline 2012/19/EU, electri-cal devices/tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.Please return battery packs that are no longer usable to an authorized bicycle dealer.CONSUMER INFORMATION(3$&.0DQXDOB(8B(QJLQGG 
48TROUBLESHOOTINGE-Bike SystemsSymptom Check ActionPedaling is difficult.Is the display unit’s power on? Press the power switch on the display unit to turn the power on.Is the battery pack installed? Install a charged battery pack.Is the battery pack charged? Charge the battery pack.Has the bicycle remained stationary for 5 minutes or longer? Turn the power on again.Are you riding on a long inclined road or carrying a heavy load during summertime?This is not a malfunction. It is a safeguard engaged when the temperature of the battery pack or the Drive Unit is too high. Power assist will be restored once the temperature of the battery pack or the Drive Unit has decreased. Also, you can make this less likely to occur by shifting to a lower gear than you would usually use (for example, by shifting from second to first gear).Is the air temperature low (roughly 10 °C or below)?During the wintertime, store the battery pack indoors before use.Are you charging the battery pack while it is mounted on the bicycle?Stop charging the battery pack.The Drive Unit turns on and off while riding.Is the battery pack correctly installed?Check to make sure the battery pack is locked in place.If this problem still occurs with the battery pack firmly locked in place, there may be a loose connection the battery pack terminals or wires. Have an authorized dealer inspect your bicycle.Strange rumbling or crunching noises come from the Drive Unit.There could be a problem inside the Drive Unit.Smoke or unusual odor comes from the Drive Unit.There could be a problem inside the Drive Unit.(3$&.0DQXDOB(8B(QJLQGG 
49TROUBLESHOOTINGSymptom Check ActionThe assist mode lamp lights up in red, the main riding display and “ER” are displayed alternately, and an error description is indicated in the function display.Displays alternatelyError displaysThe problem occurs in the e-Bike Systems. Turn off the power and then turn it on again.If the problem cannot be solved, have your bicycle inspected by a dealer as soon as possible.The display unit shuts down immediately (approx. 4 seconds later) after switching the power on.Are the bicycle’s battery pack connection terminals dirty?Remove the battery pack, clean the bicycle’s terminals with a dry cloth or cotton swab, and then install the battery pack again.Traveling range has decreased.Are you fully charging the battery pack? Charge the battery pack until full (F).Are you using the system under low-temperature conditions?Normal traveling range will be restored when the ambient temperature rises. Additionally, storing the battery pack indoors (in a warm location) before use will improve traveling range under cold conditions.Is the battery pack worn out? Replace the battery pack.(3$&.0DQXDOB(8B(QJLQGG 
50TROUBLESHOOTINGSymptom Check ActionAn assist mode lamp lights up in red and an error description is indicated in the function display.Error displaysThe speed sensor cannot detect a correct signal.Turn off the power to the display unit and then turn it on again, select the assist mode and then ride for short distance.Also, make sure the magnet is mounted correctly on the spokes of the wheels.Pushing assist functionSymptom Check ActionThe pushing assist function turns off.Is the tire locked for a few seconds?Release your finger from the pushing assist switch for a moment, and after making sure that the tires turn, push the switch again.Did you pedal while the pushing assist function was running?Take your feet off the pedals, and remove your finger from the pushing assist switch for a moment, and then press it again.(3$&.0DQXDOB(8B(QJLQGG 
51TROUBLESHOOTINGPower supply of external devices via USB connectionSymptom Check ActionPower is not supplied.Is the display unit’s power on? Press the power switch on the display unit to turn the power on.Is the USB version correct? Use an external device that complies with USB 2.0.Is the USB cable type correct? Use an OTG cable. And connect the host side to the switch.Is the USB cable firmly connected? Re-connect the USB cable.Is the USB receptacle or USB plug terminal dirty or wet?Disconnect the USB cable from the display unit and external device. Remove the dirt and water on the USB receptacle and USB plug terminal and re-connect the cable.Is USB set to “COMM”?Set the USB settings to “PWR SPLY” by referring to “Stopwatch and settings” or turn off the power and then turn it on again.Wireless communication with Bluetooth low energy technologySymptom Check ActionWireless communication cannot be used.Are both the wireless communication settings of the display unit and your wireless communication equipment turned off? Set the communication profiles by referring to “Stopwatch and settings”, and then set the correct communication profiles of the wireless equipment or application software.Are the communication profiles of the wireless equipment or application software that communicates wirelessly with the communication profiles of the display correct?The display values of the external wireless communication equipment are wrong.Did you change the settings of the communication profiles?Reset pairing for a moment, set the communication profiles of the display, and then establish pairing again.For resetting of pairing and the procedure of establishing pairing, refer to the instruction manual supplied with the wireless communication equipment.(3$&.0DQXDOB(8B(QJLQGG 

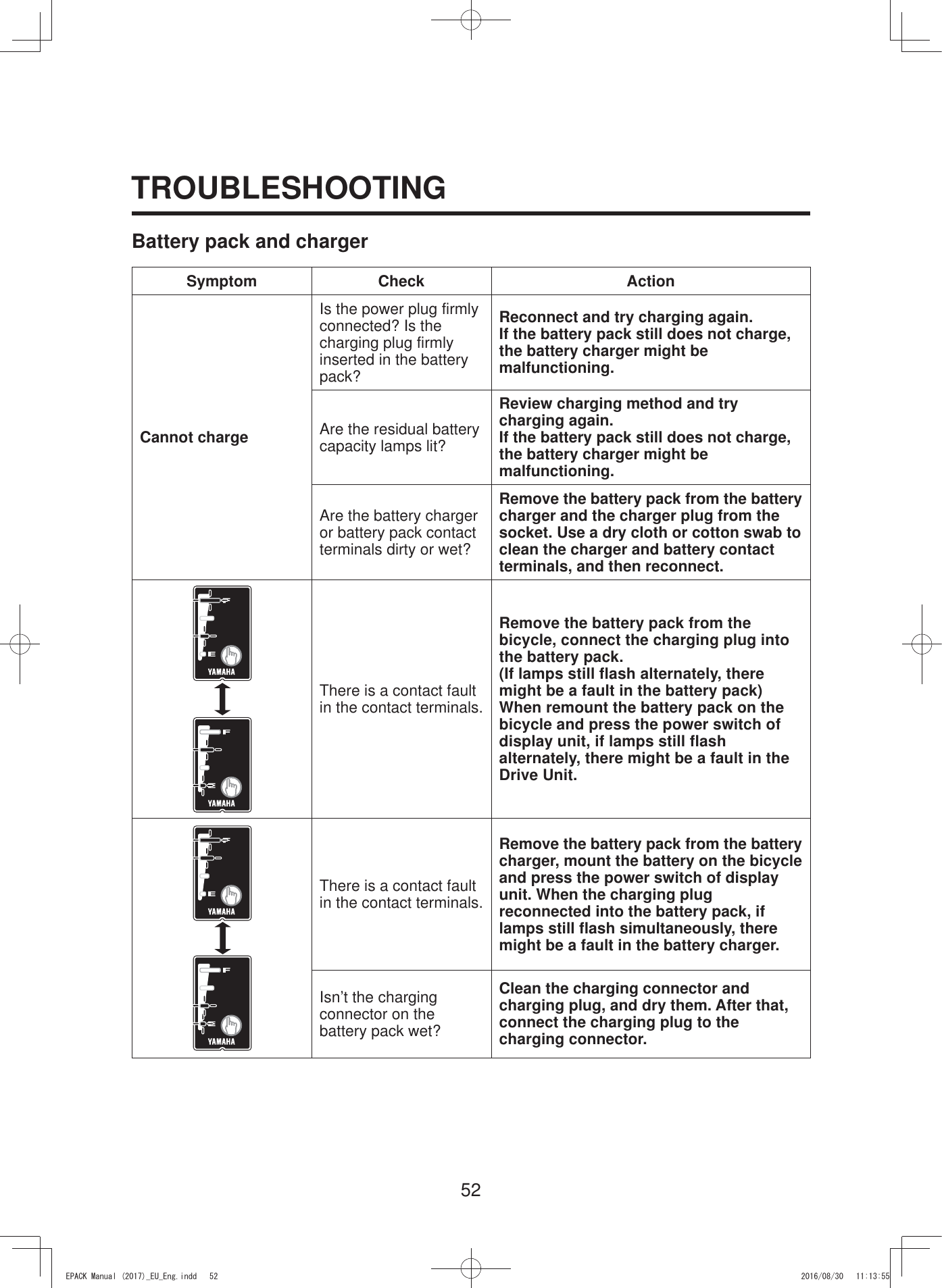

52TROUBLESHOOTINGBattery pack and chargerSymptom Check ActionCannot chargeIs the power plug firmly connected? Is the charging plug firmly inserted in the battery pack?Reconnect and try charging again.If the battery pack still does not charge, the battery charger might be malfunctioning.Are the residual battery capacity lamps lit?Review charging method and try charging again.If the battery pack still does not charge, the battery charger might be malfunctioning.Are the battery charger or battery pack contact terminals dirty or wet?Remove the battery pack from the battery charger and the charger plug from the socket. Use a dry cloth or cotton swab to clean the charger and battery contact terminals, and then reconnect.There is a contact fault in the contact terminals.Remove the battery pack from the bicycle, connect the charging plug into the battery pack.(If lamps still flash alternately, there might be a fault in the battery pack)When remount the battery pack on the bicycle and press the power switch of display unit, if lamps still flash alternately, there might be a fault in the Drive Unit.There is a contact fault in the contact terminals.Remove the battery pack from the battery charger, mount the battery on the bicycle and press the power switch of display unit. When the charging plug reconnected into the battery pack, if lamps still flash simultaneously, there might be a fault in the battery charger.Isn’t the charging connector on the battery pack wet?Clean the charging connector and charging plug, and dry them. After that, connect the charging plug to the charging connector.(3$&.0DQXDOB(8B(QJLQGG 

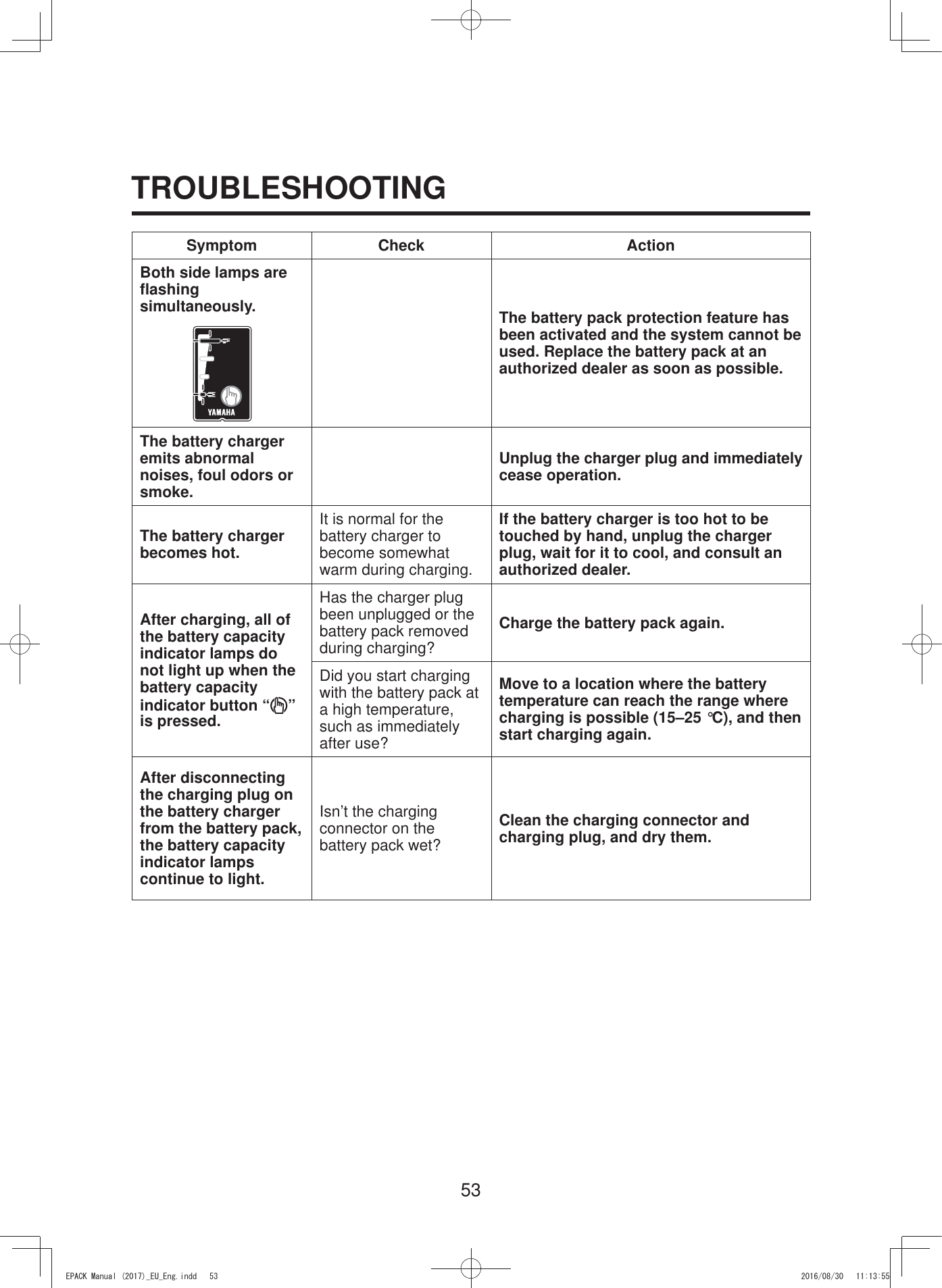

53TROUBLESHOOTINGSymptom Check ActionBoth side lamps are flashing simultaneously. The battery pack protection feature has been activated and the system cannot be used. Replace the battery pack at an authorized dealer as soon as possible.The battery charger emits abnormal noises, foul odors or smoke.Unplug the charger plug and immediately cease operation.The battery charger becomes hot.It is normal for the battery charger to become somewhat warm during charging.If the battery charger is too hot to be touched by hand, unplug the charger plug, wait for it to cool, and consult an authorized dealer.After charging, all of the battery capacity indicator lamps do not light up when the battery capacity indicator button “ ” is pressed.Has the charger plug been unplugged or the battery pack removed during charging?Charge the battery pack again.Did you start charging with the battery pack at a high temperature, such as immediately after use?Move to a location where the battery temperature can reach the range where charging is possible (15–25 °C), and then start charging again.After disconnecting the charging plug on the battery charger from the battery pack, the battery capacity indicator lamps continue to light.Isn’t the charging connector on the battery pack wet?Clean the charging connector and charging plug, and dry them.(3$&.0DQXDOB(8B(QJLQGG 

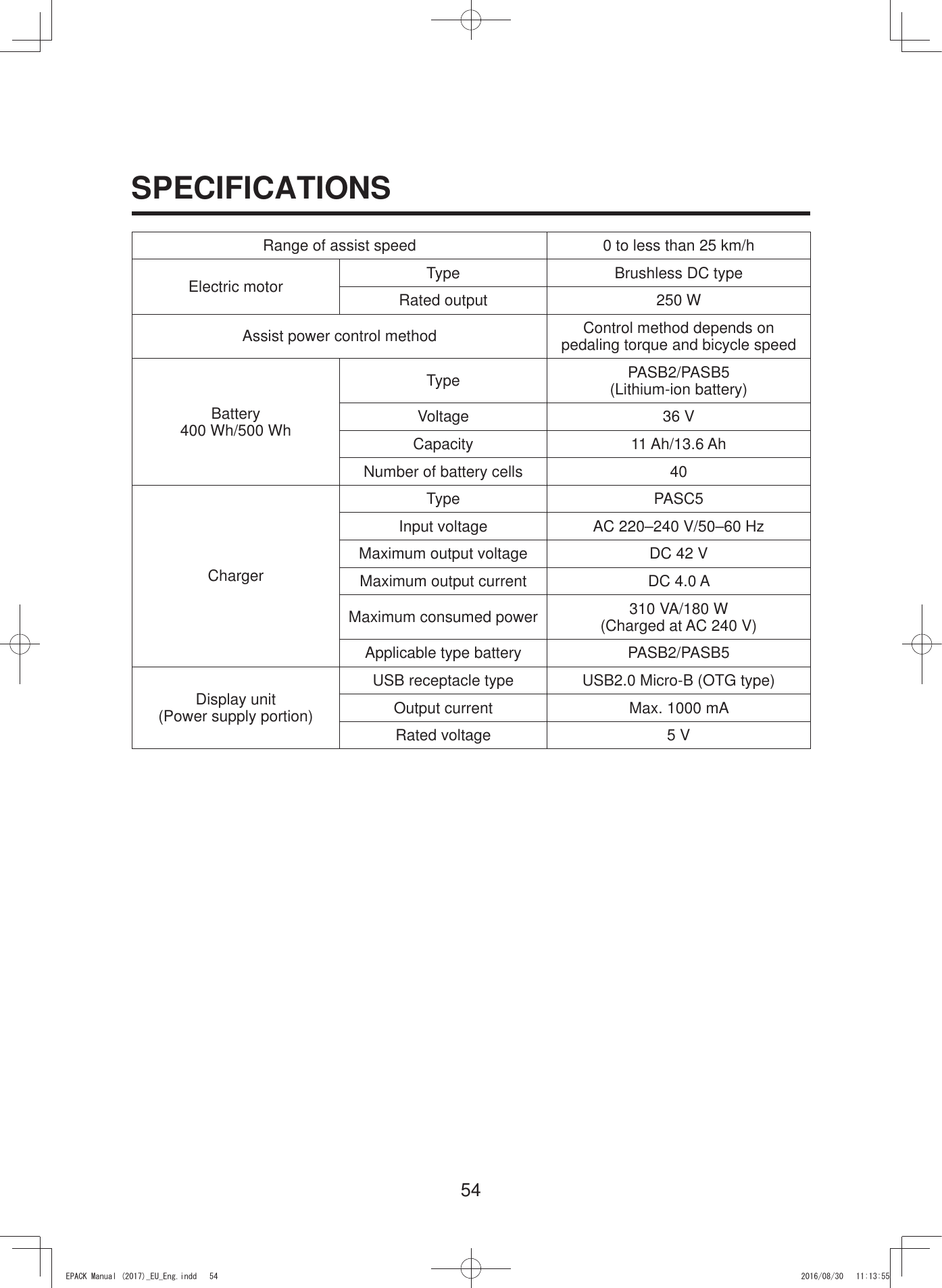

54SPECIFICATIONSRange of assist speed 0 to less than 25 km/hElectric motor Type Brushless DC typeRated output 250 WAssist power control method Control method depends on pedaling torque and bicycle speedBattery400 Wh/500 WhType PASB2/PASB5(Lithium-ion battery)Voltage 36 VCapacity 11 Ah/13.6 AhNumber of battery cells 40ChargerType PASC5Input voltage AC 220–240 V/50–60 HzMaximum output voltage DC 42 VMaximum output current DC 4.0 AMaximum consumed power 310 VA/180 W (Charged at AC 240 V)Applicable type battery PASB2/PASB5Display unit(Power supply portion)USB receptacle type USB2.0 Micro-B (OTG type)Output current Max. 1000 mARated voltage 5 V(3$&.0DQXDOB(8B(QJLQGG 

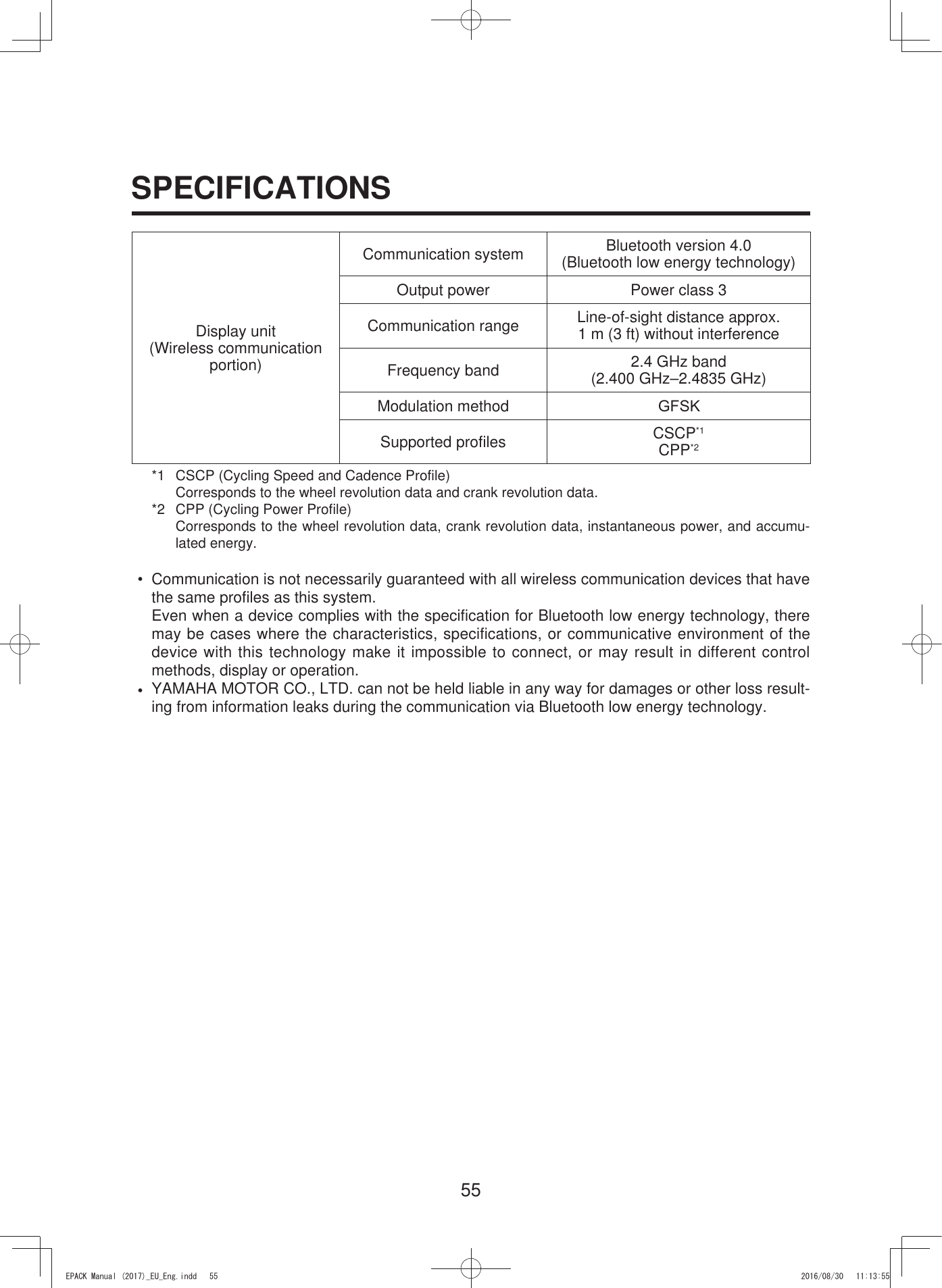

55SPECIFICATIONSDisplay unit(Wireless communication portion)Communication system Bluetooth version 4.0(Bluetooth low energy technology)Output power Power class 3Communication range Line-of-sight distance approx. 1 m (3 ft) without interferenceFrequency band 2.4 GHz band(2.400 GHz–2.4835 GHz)Modulation method *)6.Supported profiles CSCP*1CPP*2*1 CSCP (Cycling Speed and Cadence Profile)Corresponds to the wheel revolution data and crank revolution data.*2 CPP (Cycling Power Profile)Corresponds to the wheel revolution data, crank revolution data, instantaneous power, and accumu-lated energy.• Communication is not necessarily guaranteed with all wireless communication devices that havethe same profiles as this system.Even when a device complies with the specification for Bluetooth low energy technology, theremay be cases where the characteristics, specifications, or communicative environment of thedevice with this technology make it impossible to connect, or may result in different controlmethods, display or operation.•YAMAHA MOTOR CO., LTD. can not be held liable in any way for damages or other loss result-ing from information leaks during the communication via Bluetooth low energy technology.(3$&.0DQXDOB(8B(QJLQGG 
(3$&.0DQXDOB(8B(QJLQGG 

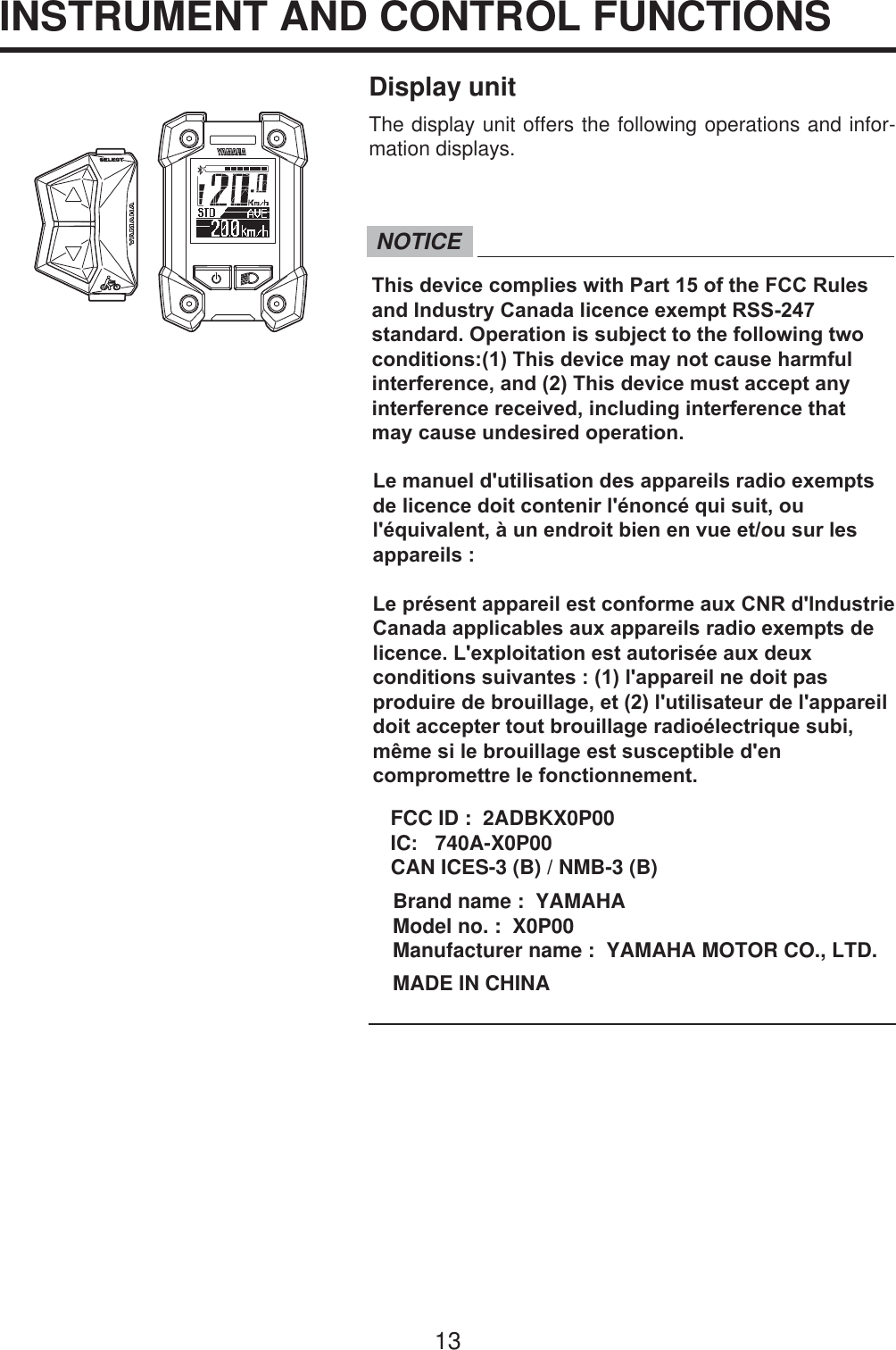

13Display unitThe display unit offers the following operations and infor-mation displays.INSTRUMENT AND CONTROL FUNCTIONS(3$&.0DQXDOB(8B(QJLQGG NOTICE7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHVDQG,QGXVWU\&DQDGDOLFHQFHH[HPSW566VWDQGDUG2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG7KLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ/HPDQXHOGXWLOLVDWLRQGHVDSSDUHLOVUDGLRH[HPSWVGHOLFHQFHGRLWFRQWHQLUOpQRQFpTXLVXLWRXOpTXLYDOHQWjXQHQGURLWELHQHQYXHHWRXVXUOHVDSSDUHLOV/HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGHOLFHQFH/H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHVODSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHWOXWLOLVDWHXUGHODSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXELPrPHVLOHEURXLOODJHHVWVXVFHSWLEOHGHQFRPSURPHWWUHOHIRQFWLRQQHPHQWFCC ID : 2ADBKX0P00IC 740A-X0P00CAN ICES-3 (B) / NMB-3 (B)Brand name : YAMAHAModel no. : X0P00Manufacturer name : YAMAHA MOTOR CO., LTD.MADE IN CHINA
