HTR-6240

AV Receiver

OWNER’S MANUAL

Caution-i En

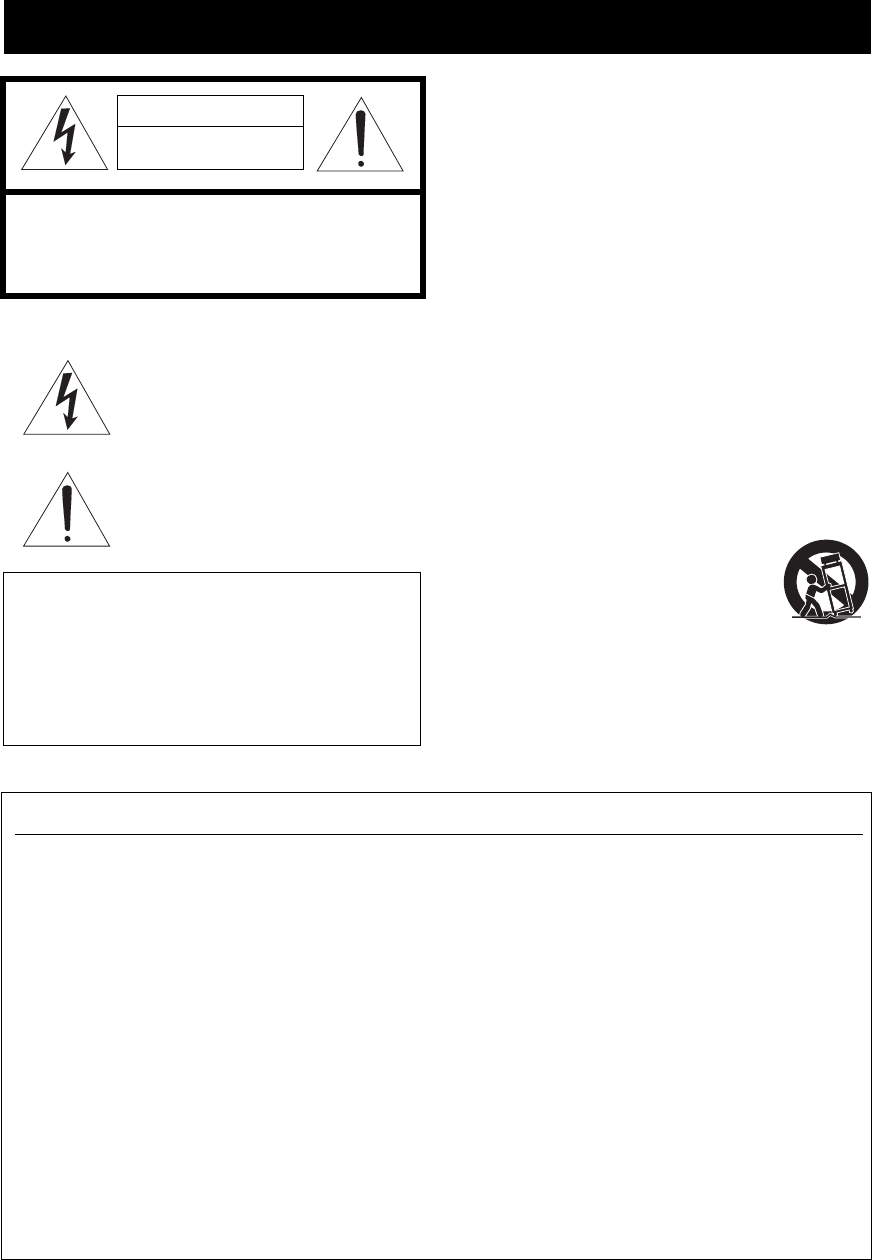

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert you to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert you to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

6Clean only with dry cloth.

7Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

Note to CATV system installer:

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions

contained in this manual, meets FCC requirements. Modifications

not expressly approved by Yamaha may void your authority,

granted by the FCC, to use the product.

2 IMPORTANT:

When connecting this product to accessories

and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used. Follow all

installation instructions. Failure to follow instructions could void

your FCC authorization to use this product in the USA.

3NOTE:

This product has been tested and found to comply with

the requirements listed in FCC Regulations, Part 15 for Class “B”

digital devices. Compliance with these requirements provides a

reasonable level of assurance that your use of this product in a

residential environment will not result in harmful interference with

other electronic devices.

This equipment generates/uses radio frequencies and, if not

installed and used according to the instructions found in the users

manual, may cause interference harmful to the operation of other

electronic devices.

Compliance with FCC regulations does not guarantee that

interference will not occur in all installations. If this product is

found to be the source of interference, which can be determined by

turning the unit “OFF” and “ON”, please try to eliminate the

problem by using one of the following measures:

Relocate either this product or the device that is being affected by

the interference.

Utilize power outlets that are on different branch (circuit breaker or

fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the

antenna. If the antenna lead-in is 300 ohm ribbon lead, change the

lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results,

please contact the local retailer authorized to distribute this type of

product. If you can not locate the appropriate retailer, please

contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe

Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by

Yamaha Corporation of America or its subsidiaries.

CAUTION

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Caution-ii En

1To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration,

dust, moisture, and/or cold. Allow ventilation space of at least

30 cm on the top, 20 cm on the left and right, and 20 cm on

the back of this unit.

3Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with

high humidity (i.e. a room with a humidifier) to prevent

condensation inside this unit, which may cause an electrical

shock, fire, damage to this unit, and/or personal injury.

5Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or

splashing. On the top of this unit, do not place:

– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to

this unit.

6Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature

inside this unit rises, it may cause fire, damage to this unit,

and/or personal injury.

7Do not plug in this unit to a wall outlet until all connections

are complete.

8Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may

cause fire, damage to this unit, and/or personal injury. Yamaha

will not be held responsible for any damage resulting from use

of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit

during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The

cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall

outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press ASTANDBY/ON to set this

unit in the standby mode, and disconnect the AC power plug

from the wall outlet.

19 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit

must be set for your local main voltage BEFORE plugging

into the AC wall outlet. Voltages are:

.......AC 110/120/220/230–240 V, 50/60 Hz (General model)

.......................... AC 220/230–240 V, 50/60 Hz (Asia model)

20 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

21 Excessive sound pressure from earphones and headphones can

cause hearing loss.

22 When replacing the batteries, be sure to use batteries of the

same type. Danger of explosion may happen if batteries are

incorrectly replaced.

Caution: Read this before operating your unit.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

As long as this unit is connected to the AC wall outlet,

it is not disconnected from the AC power source even

if you turn off this unit by ASTANDBY/ON. In this

state, this unit is designed to consume a very small

quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to

wide slot and fully insert.

This Class B digital apparatus complies with Canadian

ICES-003.

POUR LES CONSOMMATEURS CANADIENS

Pour éviter les chocs électriques, introduire la lame la

plus large de la fiche dans la borne correspondante de

la prise et pousser jusqu’au fond.

Cet appareil numérique de la classe B est conforme à

la norme NMB-003 du Canada.

IMPORTANT

Please record the serial number of this unit in the space

below.

MODEL:

Serial No.:

The serial number is located on the rear of the unit.

Retain this Owner’s Manual in a safe place for future

reference.

1 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Features.................................................................... 2

About this manual................................................... 3

Supplied accessories................................................ 3

Part names and functions....................................... 4

Front panel ................................................................. 4

Rear panel .................................................................. 5

Front panel display..................................................... 6

Remote control........................................................... 7

Quick start guide.....................................................8

Preparing remote control ....................................... 9

Installing batteries in the remote control ................... 9

Using the remote control............................................ 9

Connections ...........................................................10

Placing speakers....................................................... 10

Connecting speakers ................................................ 11

Information on jacks and cable plugs ...................... 13

Connecting a TV monitor or projector .................... 14

Connecting other components ................................. 15

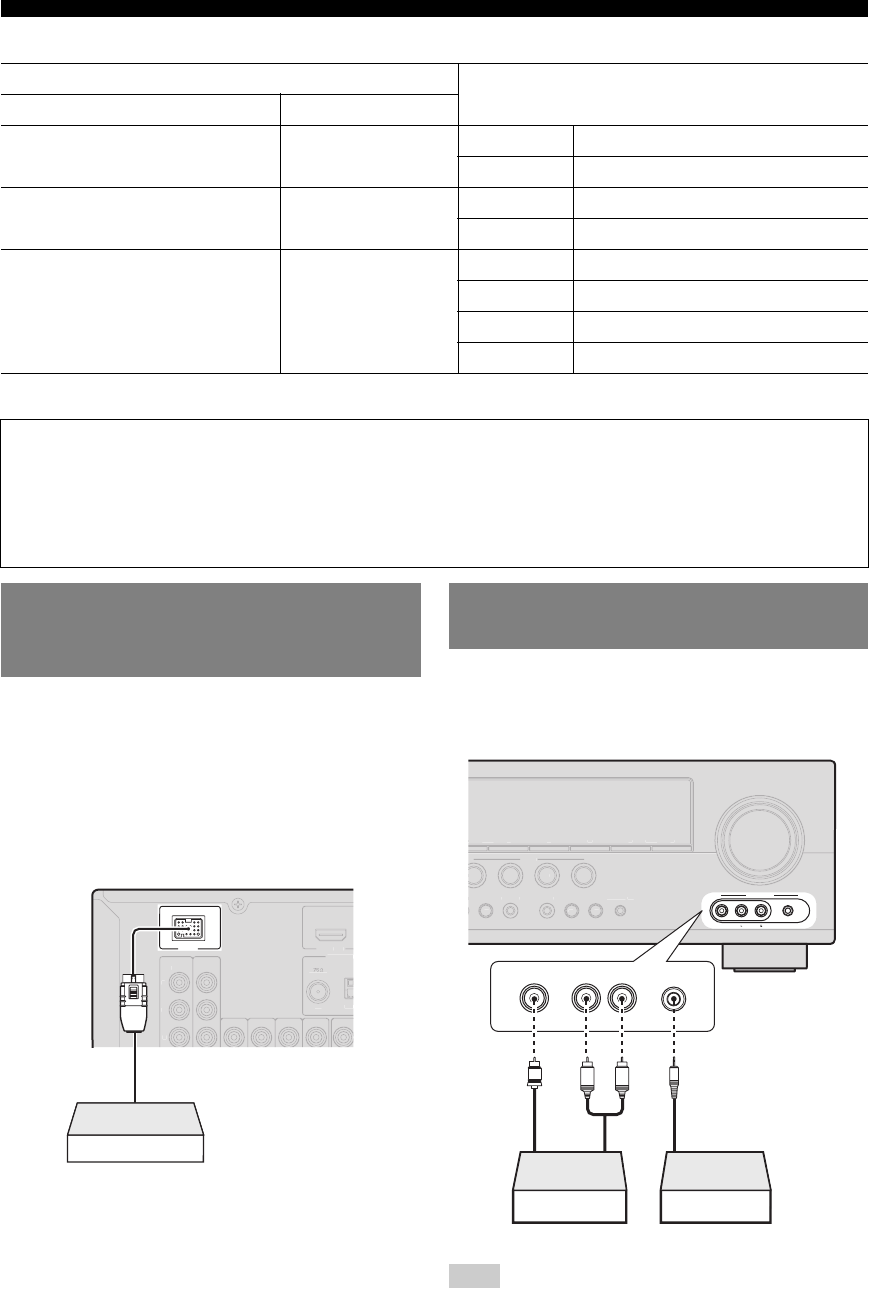

Connecting a Yamaha iPod universal dock or

Bluetooth™ wireless audio receiver.................... 16

Using the VIDEO AUX jacks on the front panel .... 16

Connecting the FM and AM antennas ..................... 17

Connecting the power cable..................................... 17

Turning this unit on and off ..................................... 17

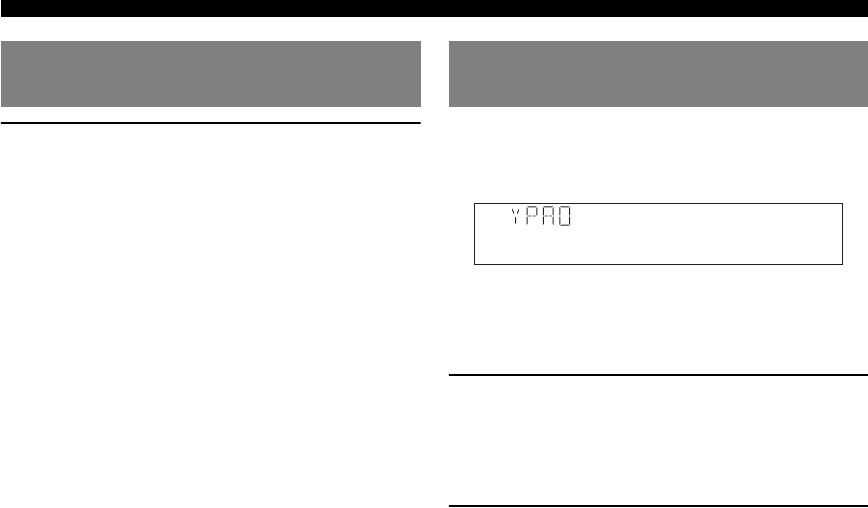

Optimizing the speaker setting for your listening

room (YPAO) ....................................................18

Using Auto Setup..................................................... 18

When an error message is displayed during

measurement ........................................................ 20

When a warning message is displayed after

measurement ........................................................ 20

Playback.................................................................21

Basic procedure........................................................ 21

Using the SCENE function ...................................... 21

Muting audio output temporarily (MUTE).............. 22

Adjusting high/low frequency sound

(tone control) ....................................................... 22

Enjoying pure hi-fi sound ........................................ 22

Using the sleep timer ............................................... 22

Using your headphones............................................ 22

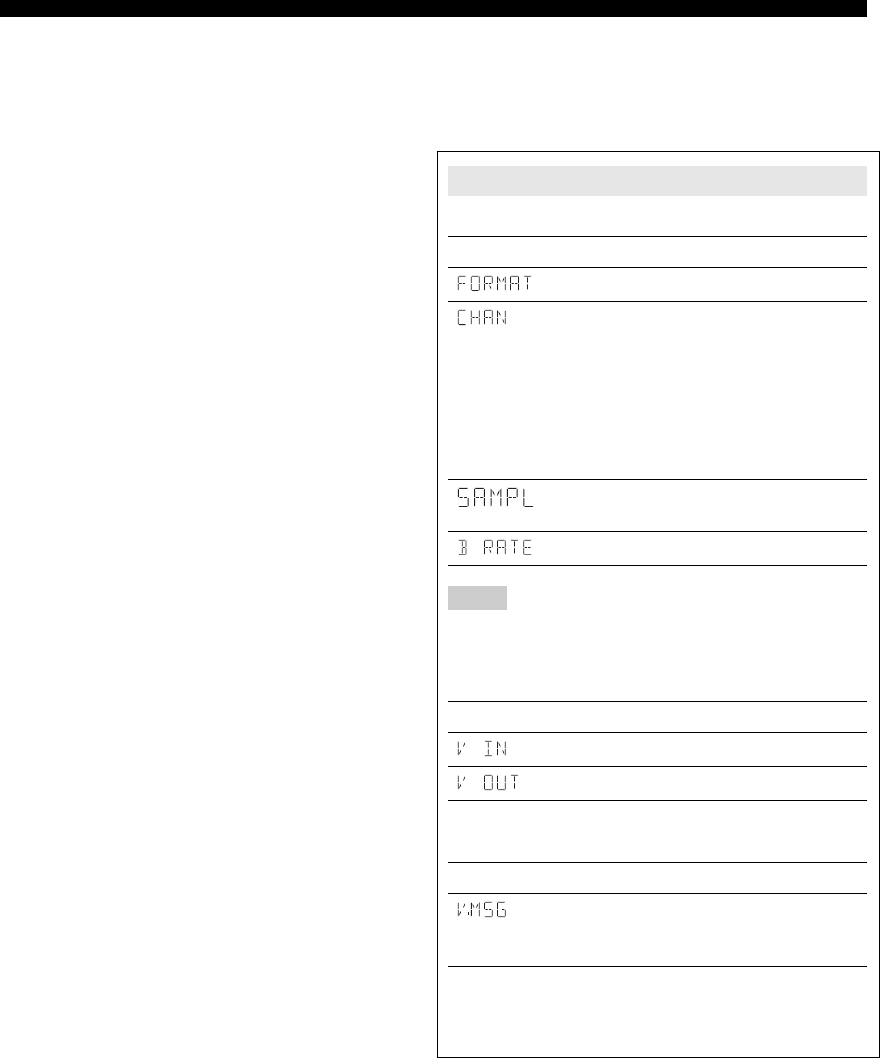

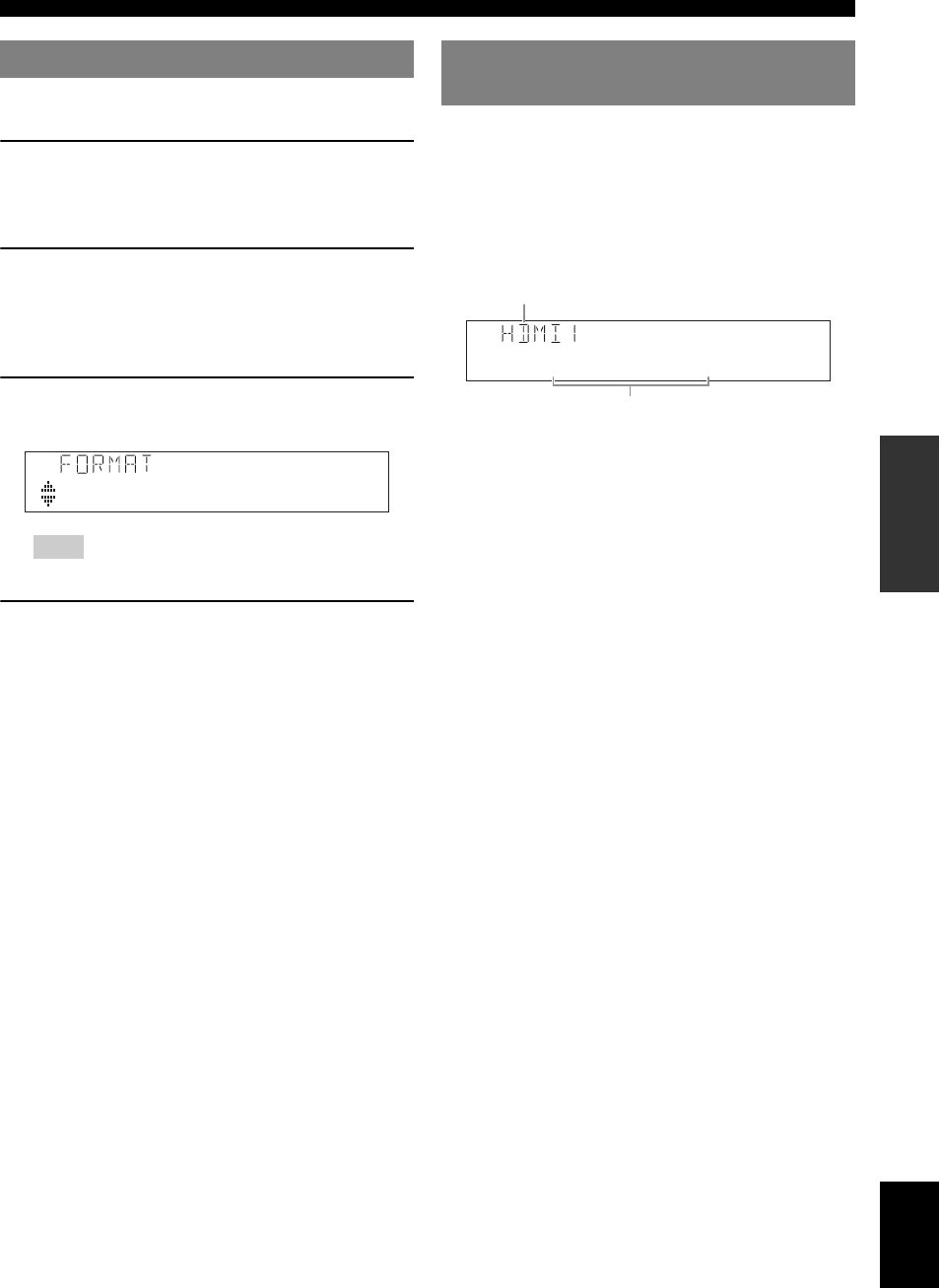

Displaying input signal information ........................ 23

Changing information on the front panel display .... 23

Enjoy the sound field programs .......................... 24

Selecting sound field programs................................ 24

Enjoying unprocessed input sources (Straight

decoding mode) ................................................... 27

Enjoying sound field programs without surround

speakers (Virtual CINEMA DSP) ....................... 27

Enjoy sound field programs with headphones

(SILENT CINEMA™) ........................................ 27

FM/AM tuning ......................................................28

Tuning in to the desired FM/AM station (Frequency

tuning).................................................................. 28

Registering FM/AM stations and tuning in (Preset

tuning).................................................................. 28

Using iPod™ .......................................................... 30

Controlling iPod™................................................... 30

Using Bluetooth™ components ........................... 32

Pairing the Bluetooth™ wireless audio receiver and

your Bluetooth component .................................. 32

Playback of the Bluetooth™ component ................. 32

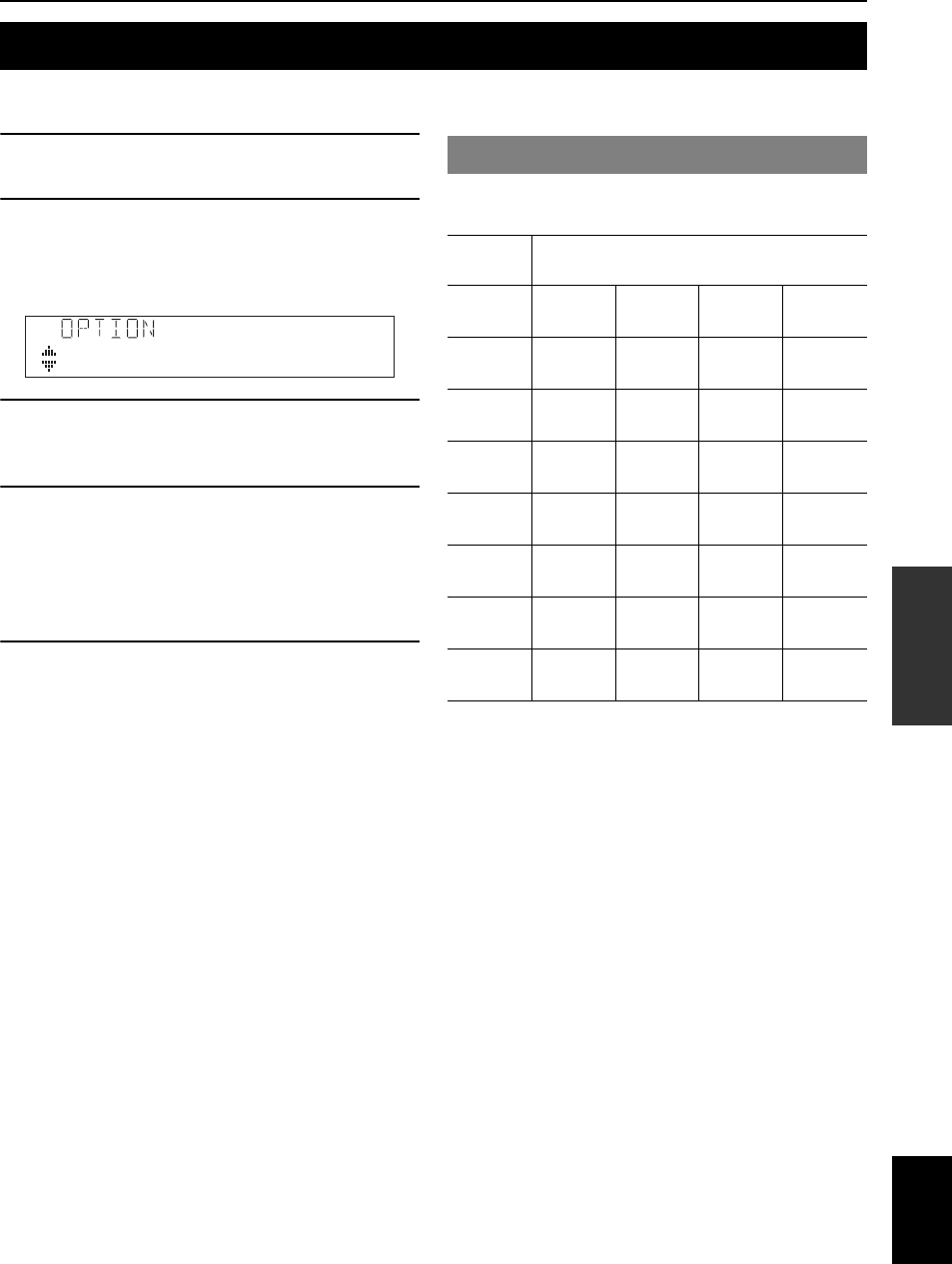

Setting the option menu for each input source

(OPTION menu) ............................................... 33

OPTION menu items ............................................... 33

Editing surround decoders/sound field programs

............................................................................ 36

Selecting a decoder used with a sound field program

............................................................................. 36

Setting sound field parameters................................. 36

Sound field parameters ............................................ 36

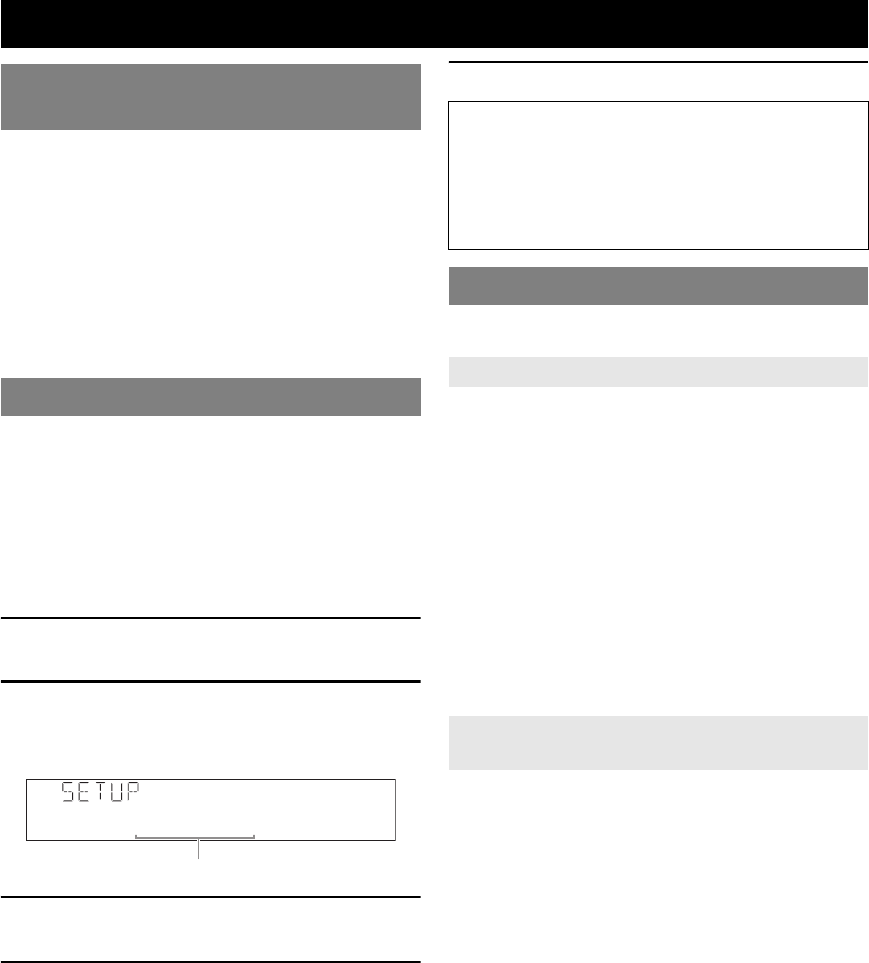

Operating various settings for this unit

(Setup menu) ..................................................... 38

Basic operation of the setup menu ........................... 39

Speaker Setup .......................................................... 39

Sound Setup ............................................................. 41

Function Setup ......................................................... 42

DSP Parameter ......................................................... 43

Memory Guard......................................................... 43

Controlling other components with the remote

control................................................................ 44

Setting remote control codes.................................... 44

Resetting all remote control codes........................... 44

Advanced setup..................................................... 45

Troubleshooting.................................................... 46

General..................................................................... 46

HDMI....................................................................... 49

Tuner (FM/AM) ....................................................... 49

Remote control......................................................... 50

iPod .......................................................................... 50

Bluetooth™.............................................................. 51

Auto Setup (YPAO)................................................. 51

Glossary ................................................................. 53

Sound field program information ....................... 55

Information on HDMI™...................................... 55

Specifications......................................................... 56

Index ...................................................................... 57

(at the end of this manual)

Contents

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERATION

APPENDIX

List of remote control codes...................................i

2 En

INTRODUCTION

■Built-in 5-channel power amplifier

•Minimum RMS output power (1 kHz, 0.9% THD, 8 Ω)

•FRONT L/R: 105 W + 105 W

•CENTER: 105 W

•SURROUND L/R: 105 W + 105 W

■Speaker/Preout outputs

•Speaker jacks (5-channel), preout output jacks

(surround back L/R, subwoofer)

■Input/Output terminals

Input terminals

•HDMI input x 4

•Audio/Visual input

[Audio] Digital input (coaxial) x 2, digital input

(optical) x 2, analog input x 2

[Video] Component video x 2, composite video x 4

•Audio input (analog) x 2

•Dock input x 1

•V-AUX input

[Audio] Analog x 1

[Video] Composite video x 1

Output terminals

•Monitor output

[Audio/Video] HDMI x 1

[Video] Component video x 1, Composite video x 1

•Audio/Visual output

[Audio] Analog x 1

[Video] Composite video x 1

•Audio output

Analog x 1

■Proprietary Yamaha technology for the

creation of sound fields

•CINEMA DSP

•Compressed Music Enhancer mode

•Virtual CINEMA DSP

•SILENT CINEMA

■Digital audio decoders

•Dolby TrueHD, Dolby Digital Plus decoder

•DTS-HD Master Audio, DTS-HD High Resolution

Audio, DTS Express

•Dolby Digital/Dolby Digital EX decoder

•DTS, DTS 96/24 decoder, DTS-ES Matrix 6.1,

DTS-ES Discrete 6.1

•Dolby Pro Logic/Dolby Pro Logic II/Dolby Pro Logic

IIx decoder

•DTS NEO:6 decoder

■Sophisticated FM/AM tuner

•40-station random and direct preset tuning

•Automatic preset tuning

■HDMI™

(High-Definition Multimedia Interface)

•HDMI interface for standard, enhanced or high-

definition video as well as multi-channel digital audio.

–Automatic audio and video synchronization (lip sync)

information capability

–Deep Color video signal (30/36 bit) transmission

capability

–“x.v.Color” video signal transmission capability

–High refresh rate and high resolution video signals

capability

–High definition digital audio format signals capability

■DOCK terminal

•DOCK terminal to connect a Yamaha iPod universal

dock (such as YDS-11, sold separately) or Bluetooth

wireless audio receiver (such as YBA-10, sold

separately)

■Automatic speaker setup features

•“YPAO” (Yamaha Parametric Room Acoustic

Optimizer) for automatically optimizing speaker

outputs suitable for listening environments.

■Other features

•192-kHz/24-bit D/A converter

•Direct mode for pure hi-fi sound for all sources

•Adaptive dynamic range controlling capability

•Sleep timer

Features

3 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby

Laboratories

Manufactured under license under U.S. Patent No’s:

5,451,942;5,956,674;5,974,380;5,978,762;6,226,616;6,487,535 &

other U.S. and worldwide patents issued & pending. DTS is a

registered trademark and the DTS logos, Symbol, DTS-HD and DTS-

iPod™

“iPod” is a trademark of Apple Inc., registered in the U.S. and other

countries.

Bluetooth™

Bluetooth is a registered trademark of Bluetooth SIG and is used by

Yamaha in accordance with a license agreement.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia

Interface” are trademarks, or registered trademarks of HDMI

Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation. “SILENT CINEMA”

is a trademark of Yamaha Corporation.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

Check that you received all of the following parts.

•Remote control

•Batteries (2) (AAA, R03, UM-4)

•Optimizer microphone

•AM loop antenna

•Indoor FM antenna

About this manual

•y indicates a tip for your operation.

•Some operations can be performed by using either the keys on the front panel or the ones on the remote control. In case the key names differ between

the front panel and the remote control, the key name on the remote control is given in parentheses.

•This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of

differences between the manual and product, the product has priority.

•“ASTANDBY/ON” or “gHDMI 1” (example) indicates the name of the parts on the front panel or the remote control. Refer to the attached sheet

or the pages at the end of this manual for the information about each position of the parts.

•☞ indicates the page describing the related information.

Supplied accessories

4 En

ASTANDBY/ON

Switches this unit between standby and on (see page 17).

BPHONES jack

For plugging headphones (see page 22).

CINFO

Changes information display screens on the front panel display

(see page 23).

DMEMORY

Registers FM/AM stations as preset stations (see page 29).

EPRESET l / h

Selects an FM/AM preset station (see page 29).

FFM

Sets the FM/AM tuner band to FM (see page 28).

GAM

Sets the FM/AM tuner band to AM (see page 28).

HTUNING l / h

Changes FM/AM tuner frequencies (see page 28).

ISCENE

Switches between linked sets of input sources and sound field

programs (see page 21).

JTONE CONTROL

Adjusts high-frequency/low-frequency output of speakers (see

page 22).

KPROGRAM l / h

Changes sound field programs (see page 24).

LSTRAIGHT

Changes a sound field program to straight decoding mode (see

page 27).

MDIRECT

Changes a sound field program to direct mode (see page 22).

NINPUT l / h

Selects an input source (see page 21).

OOPTIMIZER MIC jack

For connecting the supplied optimizer microphone and adjusting

output characteristics of speakers (see page 18).

PVOLUME control

Controls the volume of this unit (see page 21).

QVIDEO (VIDEO AUX) jack

For connecting the video output cable of a camcorder or game

console (see page 16).

RAUDIO L/R (VIDEO AUX) jack

For connecting the audio output cable of a camcorder or game

console (see page 16).

SPORTABLE (VIDEO AUX) jack

For connecting the audio output cable of a portable music player

(see page 16).

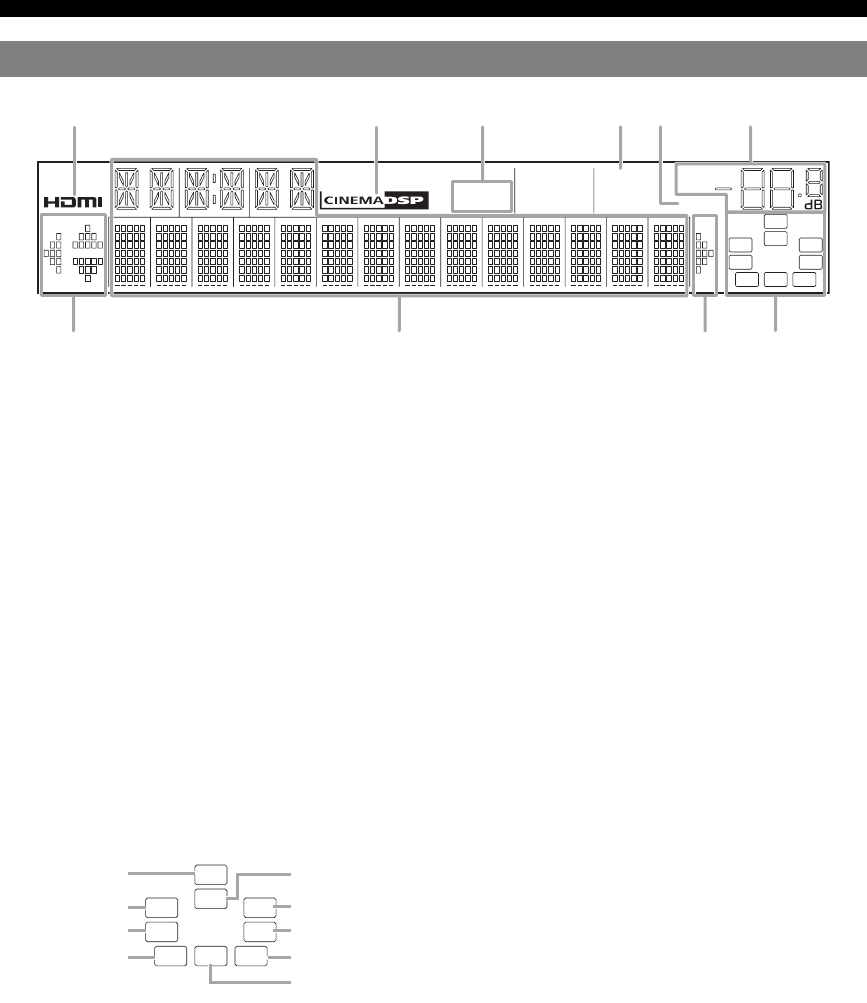

TFront panel display

Displays information on this unit (see page 6).

UHDMI THROUGH

Lights up during pass-through output of an HDMI signal input

to this unit while this unit is on standby (see page 42).

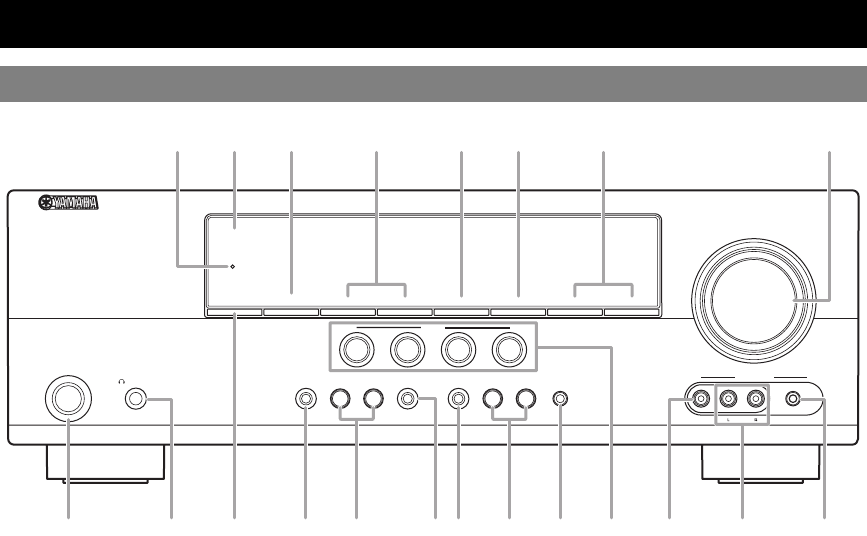

Part names and functions

Front panel

PHONES

SILENT

CINEMA

TONE

CONTROL

PROGRAM

STRAIGHT

INPUT

OPTIMIZER

MIC

VIDEO

AUDIO

PORTABLE

THROUGH

VIDEO

AUX

VOLUME

HDMI

EFFECT

lhlh

BD/DVD

RADIO

SCENE

INFO

MEMORY

PRESET

lhlh

TUNING

FM AM

STANDBY

/ON

DIRECT

T D G

J MC OK N

U PFE H

I RBLQS

5 En

Part names and functions

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

aDOCK terminal

For connecting an optional Yamaha iPod universal dock (YDS-

11) or Bluetooth wireless audio receiver (YBA-10) (see

page 16).

bHDMI OUT/HDMI 1-4

For connecting an HDMI-compatible video monitor or external

components for HDMI inputs 1-4 (see page 15).

cANTENNA jack

For connecting supplied FM and AM antennas (see page 17).

dSPEAKERS terminal

For connecting front right and left, center and surround speakers

(see page 11).

eAV 1-6

For connecting external components for audio/visual inputs 1-6

(see page 15).

fAV OUT

Outputs audio/visual signals from a selected analog input source

to an external component (see page 16).

gAUDIO 1/2

For connecting external components for audio inputs 1-2 (see

page 16).

hMONITOR OUT

Outputs visual signals from this unit to a video monitor, such as

a TV (see page 14).

iAUDIO OUT

Outputs audio signals from a selected analog input source to an

external component (see page 16).

jPRE OUT

Outputs the surround back L/R channel signals and subwoofer

channel signals. For connecting an external amplifier or

subwoofer (see page 11).

kPower Cable

For connecting this cable to an AC wall outlet (see page 17).

Rear panel

ANTENNA

UNBAL.

GND

COMPONENT

VIDEO

DOCK

VIDEO

OPTICAL

( TV )

AV 1

AV 2

COAXIAL

AV 3

(CD)

COAXIAL OPTICAL

AV 4 AV 5

OUT

AUDI O1

AUDIO2

VIDEO

HDMI

HDMI 1

(BD/DVD)

HDMI 2 HDMI 3 HDMI 4

OUT

AV 6

VIDEO

MONITOR OUT

AUDIO

OUT

SPEAKERS

FRONT

CENTER

SURROUND

COMPONENT

PRE OUT

SUBWOOFER

SURROUND BACK

abc

efg i j

6 En

Part names and functions

aHDMI indicator

Lights up during normal communication when HDMI is

selected as an input source.

bCINEMA DSP indicator

Lights up when a sound field program that uses CINEMA DSP

is selected.

cTuner indicator

Lights up while receiving a radio broadcast signal from an FM/

AM station (see page 28).

dSLEEP indicator

Lights up when the sleep timer is activated (see page 22).

eVOLUME indicator

Displays volume levels.

fMUTE indicator

Flashes when audio is muted.

gCursor indicators

Light up if corresponding cursors on the remote control are

available for operations.

hMulti information display

Displays menu items and settings for the current operation.

iSpeaker indicators

Indicate speaker terminals or the PRE OUT jack from which

signals are currently output.

Front panel display

STEREO

SLEEP

VOL.

TUNED

SL SR

SBL SB SBR

MUTE

abcdef

gh ig

SL SR

SBL SB SBR

Subwoofer

Front L

Surround L

Surround back L

Center

Front R

Surround R

Surround back R

Surround back

7 En

Part names and functions

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

aRemote control signal transmitter

Transmits infrared signals.

bTRANSMIT

Lights up when a signal is output from the remote control.

cCODE SET

Sets remote control codes for external component operations

(see page 44).

dSOURCE POWER

Switches an external component on and off.

eSLEEP

Switches the sleep timer operations (see page 22).

fPOWER

Switches this unit on and standby.

gInput selection keys

hTuner keys

iINFO

Changes the information shown on the front panel display (see

page 23).

jSound selection keys

Selects sound field programs (see pages 22 and 24).

kSCENE

Switches between linked sets of input sources and sound field

programs (see page 21).

lSETUP

Displays the setup menu (see page 39).

mOPTION

Displays the option menu (see page 33).

nCursors k / n / l / h/ENTER/RETURN

oVOLUME +/–

Adjust the volume of this unit (see page 21).

pDISPLAY

Changes the operation mode of the iPod connected to the

Yamaha iPod universal dock (see page 30).

qMUTE

Turns the mute function of the sound output on and off (see

page 22).

rExternal component operation keys

Operate recording, playback etc. of external components (see

page 44).

sNumeric keys

Enter numbers.

tTV control keys

Operate a monitor such as a TV or projector.

Remote control

POWER

1234

1256

1234

7856

1234

POWER

SOURCE

V-AU X

[ A ] [ B ] DOCK

TUNER

MOVIE

DVD

TOP

MUSIC

SCENE

OPTIONSETUP

RETURN

REC

ENT

POWER

TV VOL

INPUT

MUTE

TV CH

ENTER

VOLUME

DISPLAY

MUTE

RADIO

STEREO

ENHANCER SUR. DECODE

DIRECTSTRAIGHT

INFO

MEMORY

PRESET

SLEEP

HDMI

AUDIO

TRANSMIT

CODE SET

TUNING

def

HDMI 1-4 Selects HDMI inputs 1 through 4.

AV 1-6 Selects AV inputs 1 through 6.

AUDIO 1/2 Selects AUDIO inputs 1 and 2.

V-AUX Selects the V-AUX jack on the front

panel of this unit.

[A]/[B] To control external components using

the rExternal component

operation keys separately from

operations of this unit (see page 44).

DOCK Selects a Yamaha iPod universal dock/

Bluetooth wireless audio receiver

connected to the DOCK jack.

TUNER Selects the FM/AM tuner.

FM Switches a band between FM and AM.

MEMORY Presets radio stations.

PRESET k / nSelects a preset station.

TUNING k / nChanges tuning frequencies.

Cursors k / n / l / hSelect menu items displayed on the

front panel display or change

settings.

ENTER Confirms a selected item.

RETURN Returns to the previous screen or

ends the menu screen.

8 En

When you use this product for the first time, perform setup following the steps below. See the related pages for details on

operations and settings.

Prepare speakers, DVD player, cables, and other items

necessary for setup.

For example, prepare the following items for setting up a

5.1-channel sound system.

•Prepare two speakers (for front). The priority of the requirement of other

speakers is as follows:

1 Two surround speakers

2 One center speaker

•For surround back speakers, prepare speakers with a another amplifier

connected.

•If your video monitor is a CRT, we recommend that you use magnetically

shielded speakers.

Place your speakers in the room and connect them to this

unit.

•This unit has a YPAO (Yamaha Parametric Room Acoustic Optimizer)

that automatically optimizes this unit based on room acoustic

characteristics (audio characteristics of the speakers, speaker positions,

and room acoustics, etc.).

You can enjoy good balanced sound without special knowledge by using

the YPAO technology (see page 18).

Connect your TV, DVD player, or other components.

Connect the power cable and turn on this unit.

Select the component connected in the step 3 as an input

source and start playback.

•This unit supports the SCENE function that changes the input source and

sound field program at one time. Four scenes are preset for different

purposes for Blu-ray disc, DVD and CD, and you can select from a scene

from those just by pressing a remote control key. See page 21 for details.

Quick start guide

Step 1: Prepare items for setup

Requirements qty.

Speakers Front speaker 2

Center speaker 1

Surround speaker 2

Active subwoofer 1

Speaker cable 5

Subwoofer cable 1

Reproduction component such as DVD player 1

Video monitor such as TV 1

Video cable or HDMI cable 2

Audio cable 2

Front right speaker

Subwoofer

Surround left speaker

Surround right speaker

Front left speaker

Video monitor

Center speaker

Components

(such as DVD player)

Step 2: Set up your speakers

•Placing speakers ☞P. 10

•Connecting speakers ☞P. 11

Step 3: Connect your components

•Connecting a TV monitor or projector ☞P. 14

•Connecting other components ☞P. 15

•Connecting a Yamaha iPod universal dock or

Bluetooth wireless audio receiver ☞P. 1 6

•Connecting the FM and AM antennas ☞P. 17

Step 4: Turn on the power

•Connecting the power cable ☞P. 17

•Turning this unit on and off ☞P. 17

Step 5: Select the input source and start

playback

•Basic procedure ☞P. 21

•Selecting sound field programs ☞P. 24

9 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

PREPARATION

1Take off the battery compartment cover.

2Insert the two supplied batteries (AAA, R03,

UM-4) according to the polarity markings (+

and –) on the inside of the battery

compartment.

3Snap the battery compartment cover back

into place.

Notes

•Change all batteries if you notice the following conditions:

–the operation range of the remote control narrows

–the transmit indicator does not flash or is dim

•Do not use old batteries together with new ones.

This may shorten the life of the new batteries or cause old batteries

to leak.

•Do not use different types of batteries (such as alkaline and

manganese batteries) together. Specification of batteries may be

different even though they look the same.

•If you find leaking batteries, discard the batteries immediately,

taking care not to touch the leaked material. If the leaked material

comes into contact with your skin or gets into your eyes or mouth,

rinse it away immediately and consult a doctor. Clean the battery

compartment thoroughly before installing new batteries.

•Dispose of the old batteries correctly in accordance with your local

regulations.

•If the remote control is without batteries for more than 2 minutes,

or if exhausted batteries remain in the remote control, the contents

of the memory may be cleared. In such a case, install new batteries

and set the remote control code.

The remote control transmits a directional infrared ray. Be

sure to aim the remote control directly at the remote

control sensor on this unit during operation.

Notes

•Do not spill water or other liquids on the remote control.

•Do not drop the remote control.

•Do not leave or store the remote control in the following conditions:

–places of high humidity, such as near a bath

–places of high temperatures, such as near a heater or stove

–places of extremely low temperatures

–dusty places

•You can operate external components with this remote control by setting

the remote control code. See page 44 for details.

Preparing remote control

Installing batteries in the remote

control

Using the remote control

30 30

Remote control sensor window

within 6 m (20 ft)

10 En

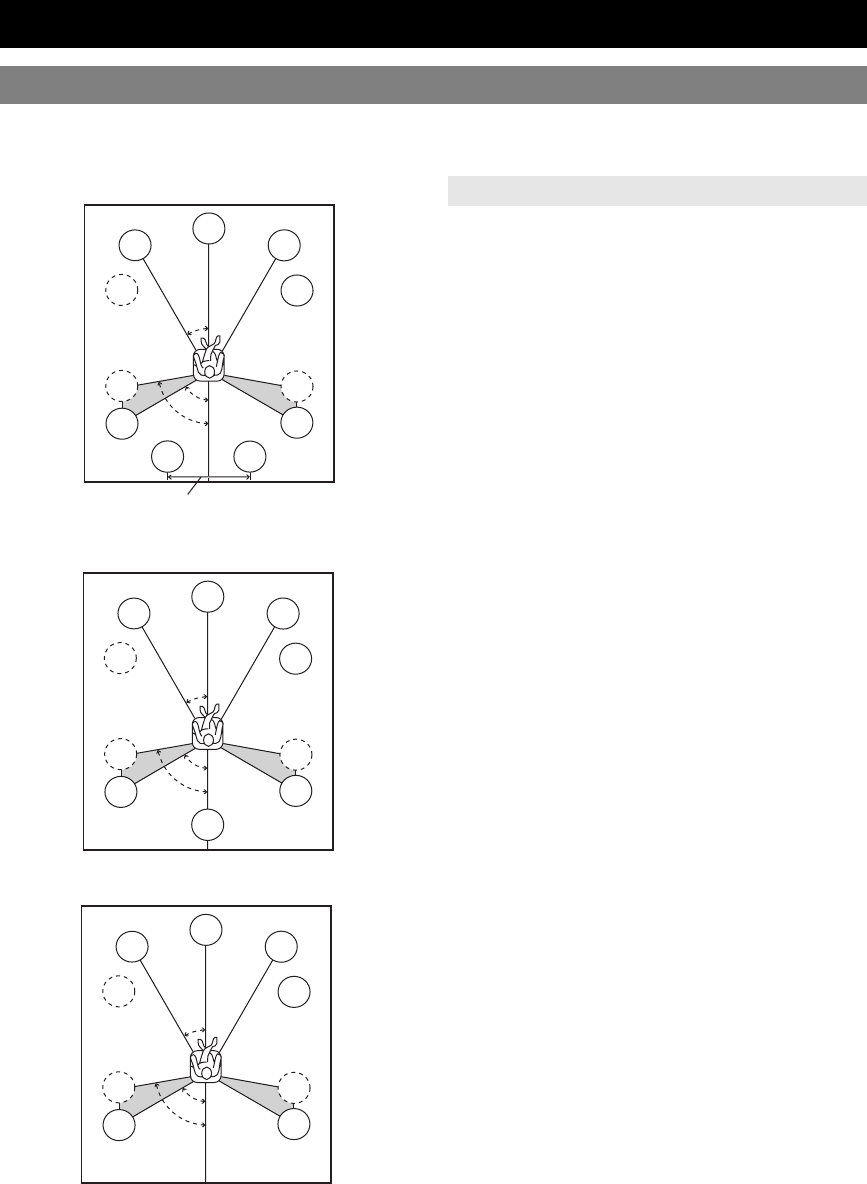

This unit supports up to 7.1-channel surround. We recommended the following speaker layout in order to obtain the

optimum surround effect.

7.1-channel speaker layout

6.1-channel speaker layout

5.1-channel speaker layout

■Front left and right speakers (FL and FR)

The front speakers are used for the front channel sounds

(stereo sound) and effect sounds. Place these speakers at

an equal distance from the ideal listening position. When

using a screen, the appropriate top positions of the

speakers are about 1/4 of the screen from the bottom.

■Center speaker (C)

The center speaker is for the center channel sounds

(dialog, vocals, etc.). Place it halfway between the left and

right speakers. When using a TV, place the speaker just

above or just under the center of the TV with the front

surfaces of the TV and the speaker aligned. When using a

screen, place it just under the center of the screen.

■Surround left and right speakers (SL and SR)

The surround speakers are used for effect and surround

sounds.

Place them at the rear left and rear right facing the

listening position.

To obtain a natural sound flow in the 5.1-channel speaker

layout, place them slightly further back than in the 7.1-

channel speaker layout.

■Surround back left and right speakers (SBL

and SBR) / Surround back speaker (SB)

The surround back left and right speakers are used for rear

effect sounds. When using the surround back speakers,

connect an external amplifier to the SURROUND BACK

jacks of the PRE OUT terminals. Place them at the rear of

the room facing the listening position at least 30 cm away

from each other, ideally at the same distance as that

between the front left and right speakers.

In the 6.1-channel speaker layout, surround back left and

right channel sound signals are mixed down and output

from the single surround back speaker.

In the 5.1-channel speaker layout, surround back left and

right channel sound signals are output from the surround

left and right speakers.

■Subwoofer (SW)

The subwoofer speaker is used for bass sounds and low-

frequency effect (LFE) sounds included in Dolby Digital

and DTS signals. Use a subwoofer with a built-in

amplifier, such as the Yamaha Active Servo Processing

Subwoofer System. Place it exterior to the front left and

right speakers facing slightly inward to reduce reflections

from a wall.

Connections

Placing speakers

60˚

30˚

SBR

SBL

80˚

30 cm (12 in) or more

60˚

30˚

80˚

60˚

30˚

80˚

Speaker channels

11 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

When you connect speakers, connect them to the respective terminals as follows, according to your speaker layout.

■5.1-channel

Connecting an external amplifier to the SURROUND

BACK L/R jacks of the PRE OUT terminals allows you to

create the maximum of 7.1-channel surround system with

a surround back channel.

For a 6.1-channel system, connect the external amplifier to

the SURROUND BACK L jack of the PRE OUT

terminals.

For a 7.1-channel system, connect it to the SURROUND

BACK L/R jacks.

You can adjust the surround back speaker volume with a

volume control of the external amplifier. To obtain the

balanced sound during playback, set the speaker output

characteristics in advance using the Yamaha Parametric

Room Acoustic Optimize (YPAO, see page 18) or

“Speaker Setup” of the setup menu (see page 39).

Connecting speakers

Speakers Jacks on this unit

aFront speaker L FRONT (L)

bFront speaker R FRONT (R)

cCenter speaker CENTER

dSurround speaker L SURROUND (L)

eSurround speaker R SURROUND (R)

fSubwoofer SUB WOOFER

PEAKER

FRONT

CENTER

SURROUND

RE OUT

SUBWOOFER

SURROUND BACK

DMI 3

HDMI 4

e d

Connecting the surround back speakers

SUBWOOFER

SURROUND BACK

Surround Back L/R speakers

External Amplifier

SURROUND BACK L

(white)

SURRUND BACK R

(red)

12 En

Connections

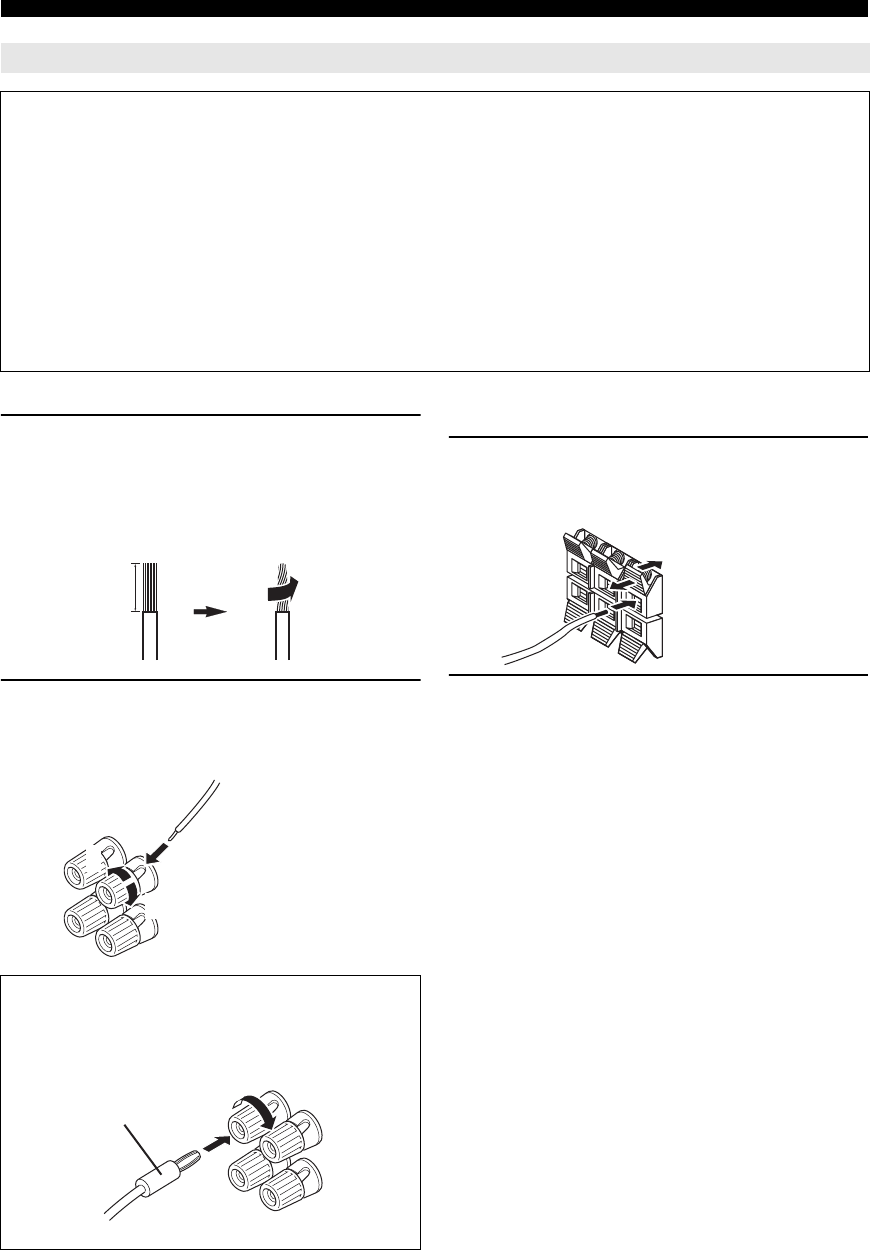

■Connecting to the FRONT terminals

1Remove approximately 10 mm (0.4 in) of

insulation from the end of each speaker

cable and then twist bare wires of the cable

together so that they will not cause a short

circuits.

2Loosen the knob, insert the twisted bare

wires into the hole, and then tighten the

knob.

■Connecting to the CENTER and SURROUND

terminals

1Press down the tab and insert the bare end of

the speaker cable into the hole in the

terminal.

2Release the tab to secure the wire.

Connecting the speaker cable

Caution

•A speaker cable is a pair of insulated cables running side by side in general. One of the cables is colored differently

or striped to indicate a polarity. Connect one end of the colored/striped cable to the “+” (red) terminal of this unit

and the other end to that of your speaker, and connect one end of the other cable to the “–” (black) terminal of this

unit and the other end to that of your speaker.

•Before connecting the speakers, be sure to disconnect the power cable.

•Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or

speakers. If the circuit shorts out, “CHECK SP WIRES!” appears on the front panel display when this unit is turned on.

•Use magnetically shielded speakers. If images on the monitor are still distorted even when you use the magnetically

shielded speakers, place the speakers away from the monitor.

•Use speakers with an impedance of 6-ohm or larger. Set speaker impedance in “ADVANCED SETUP” before

connecting the speakers (see page 45).

Connecting the banana plug (Except U.K.,

Europe, Asia and Korea models)

Tighten the knob, and then insert the banana plug into

the end of the terminal.

10 mm (0.4 in)

Red: positive (+)

Black: negative (–)

Banana plug

Red: positive (+)

Black: negative (–)

13 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are

connecting.

■Audio jacks

■Video jacks

■Video/audio jacks

•We recommend that you use a commercially available 19-pin HDMI

cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.

•You can check the potential problem about the HDMI connection (see

page 23).

•You can check error information on HDMI connections (see page 23).

Information on jacks and cable plugs

Jack and cables Description

AUDIO jacks To transmit conventional analog

left and right audio signals. Use

stereo pin cables. Connect red

plugs to red jacks (R) and white

plugs to white jacks (L).

COAXIAL jacks To transmit coaxial digital audio

signals. Use pin cables for digital

audio signals.

OPTICAL jacks To transmit optical digital audio

signals. Use optical fiber cables for

optical digital audio signals.

Jack and cables Description

VIDEO jacks To transmit conventional

composite video signals. Use video

pin cables.

COMPONENT VIDEO

jacks

To transmit component video

signals that include luminance (Y),

chrominance blue (PB) and

chrominance red (PR) components.

Use component video cables.

AUDIO

(white)

(red)

COAXIAL

(orange)

OPTICAL

VIDEO

(yellow)

COMPONENT

VIDEO

(red)

(blue)

(green)

Jack and cables Description

HDMI jacks To transmit digital video and

digital audio signals. Use HDMI

cables.

A video signal input to this unit is output from the

output terminals in MONITOR OUT for the same kind

of signal as the input signal.

For example, if a VCR with a composite output signal

and a DVD player with a COMPONENT VIDEO

output signal are connected, connect both VIDEO jack

and COMPONENT VIDEO jack in MONITOR OUT

to the video monitor.

HDMI

VIDEO

COMPONENT

VIDEO

HDMI

VIDEO

COMPONENT

VIDEO

Input Output

14 En

Connections

Connect a video monitor such as a TV or projector to an output terminal of this unit. You can select one of the following

three types according to the input signal format supported by the video monitor.

Note

•When you connect this unit to the video monitor, make sure that this unit is on standby.

■To connect an HDMI video monitor

•This unit supports the HDMI control function. By connecting a TV that

supports the HDMI control, operations of this unit can be controlled with

the remote control of the TV. For details, see page 44.

■To connect component video monitor

Note

•Only video signals input from this unit via the component input terminal

are output from the component output terminal.

■To connect composite video monitor

Note

•Only video signals input from this unit via the composite video input

terminal are output from the composite video output terminal.

To output sound of a TV from this unit, make connection

between the AV input 1-6 and an audio output terminal.

If the TV supports an optical digital output, we

recommend that you use the AV input 1. Connecting to the

AV input 1 allows you to switch an input source to the AV

input 1 with just a single key operation using the SCENE

function (see page 21).

Connecting a TV monitor or projector

Jacks on components Jacks on this unit

aHDMI input HDMI OUT

Jacks on components Jacks on this unit

bComponent video output MONITOR OUT

(COMPONENT VIDEO)

Jacks on components Jacks on this unit

cVideo input (composite) MONITOR OUT (VIDEO)

COMPONENT

VIDEO

HDMI

OUT

VIDEO

MONITOR OUT

NBAL.

ANTENNA

HDMI 1

(

DVD

)

HDMI 2 H

HDMI

TV, or projector Outputting sound of a TV from this unit

OPTICAL

(

)

AV 1

UNBAL.

GND

AV 1

AV 2

COAXIAL

AV 3

(

)

COAXIAL

OPTICAL

AV 4

AV 5

OUT

AUDIO1

VIDEO

AV 6

Digital output

(optical)

TV, or projector

15 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

This unit has input and output terminals for respective input and output sources. You can reproduce sound and movies

from input sources selected with the front panel display or remote control.

Note

•When you connect this unit to the external components, make sure that this unit is on standby.

■Audio and video player / Set-top box

•Input sources in parentheses are recommended to connect to the respective jacks. If your Yamaha component has the Remote in/out terminal, you can

switch the input source to that component with a single key operation using the SCENE function (see page 21).

•You can change the name of the input source displayed on the front panel display as necessary (see page 43).

Connecting other components

Output jacks on the connected external component

Input sources/jacks of this unit

External

components Signals Output jacks

External component

with HDMI output

Audio/Video HDMI output HDMI 1 (BD/DVD) HDMI 1

HDMI 2 HDMI 2

HDMI 3 HDMI 3

HDMI 4 HDMI 4

External component

with component video

output

Audio Optical digital output AV 1 (TV) OPTICAL

Video Component video COMPONENT VIDEO

Audio Coaxial digital output AV 2 COAXIAL

Video Component video output COMPONENT VIDEO

External component

with composite video

output

Audio Coaxial digital output AV 3 (CD) COAXIAL

Video Composite output VIDEO

Audio Optical digital output AV 4 OPTICAL

Video Composite output VIDEO

Audio Analog audio output AV 5 AUDIO

Video Composite output VIDEO

Audio Analog audio output AV 6 AUDIO

Video Composite output VIDEO

VIDEO

OPTICAL

( TV )

AV 1

AV 2

COAXIAL

AV 3

(CD)

COAXIAL OPTICAL

AV 4 AV 5

OUT

AUDIO1

AUDIO2

VIDEO

HDMI 1

(BD/DVD)

HDMI 2 HDMI 3 HDMI 4

AV 6

MONITO

AUDIO

OUT

COMPONENT

ANTENNA

UNBAL

NEN

IDE

DOC

HDMI

VIDE

MONITOR OUT

RONT

Audio / video input (AV 1-6) Audio / video output (AV OUT)

Audio input (AUDIO 1-2)

HDMI input

(HDMI 1-4)

Audio output

(AUDIO OUT)

16 En

Connections

■Audio player

•We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.

This unit has the DOCK jack, to which you can connect a

Yamaha iPod universal dock (YDS-11, sold separately) or

a Bluetooth wireless audio receiver (YBA-10, sold

separately). You can play an iPod or a Bluetooth

component with this unit by connecting it to the DOCK

jack.

Use a dedicated cable for connection between the dock/

receiver and this unit.

Use the VIDEO AUX jacks on the front panel to connect a

game console or a video camera to this unit. Be sure to

turn down the volume of this unit and other components

before making connections.

Note

•When external components are connected both the PORTABLE jack and

AUDIO jack, sound input from the PORTABLE jack is output.

Output jacks on the connected external component

Input sources/jacks of this unit

External components Output jacks

External component with optical digital

output

Optical digital output AV 1 (TV) OPTICAL

AV 4 OPTICAL

External component with coaxial digital

output

Coaxial digital output AV 2 COAXIAL

AV 3 (CD) COAXIAL

External component with analog audio

output

Analog audio output AV 5 AUDIO

AV 6 AUDIO

AUDIO 1 AUDIO

AUDIO 2 AUDIO

About audio/video output terminals

Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the

selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal,

COMPONENT VIDEO input signal or digital audio input signal cannot be output.

When using the AV OUT jack: connect an external component to the composite or analog audio terminal.

When using the AUDIO OUT jack: connect an external component to the analog audio terminal.

Connecting a Yamaha iPod universal

dock or Bluetooth™ wireless audio

receiver

DOCK

UNBAL

ANTENNA

IDE

HDMI

OUT

NENT

Yamaha iPod universal

dock/Bluetooth wireless

audio receiver

Using the VIDEO AUX jacks on the

front panel

VIDEO

AUDIO

PORTABLE

VIDEO

AUX

TRAI

INPUT

PTIMIZE

EFFE

D/DV

RADI

ENE

UNIN

DIRE

AUDIO

VIDEO

PORTABLE

Game console/Camcorder Music player

Analog audio

output

Analog audio

output

Video output

17 En

Connections

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

An indoor FM antenna and an AM loop antenna are

supplied with this unit. Connect these antennas properly to

the respective jacks.

•The supplied antennas are normally sensitive enough to obtain good

reception.

•Position the AM loop antenna away from this unit.

•If you cannot get good reception, we recommend that you use an outdoor

antenna. For more details, consult the nearest authorized Yamaha dealer

or service center.

•Always use the AM loop antenna even when the outdoor antenna is

connected.

Assembling the AM loop antenna

Connecting the AM loop antenna

The wires of the AM loop antenna have no polarity. You

can connect either wire to the AM terminal and the other

to the GND terminal.

After all connections are complete, plug the AC power

cable of this unit into an AC wall outlet.

1Press ASTANDBY/ON on the front panel (or

fPOWER on the remote control) to turn on

this unit.

2Press ASTANDBY/ON (or fPOWER) again

to turn off this unit (standby mode).

•The unit needs a few seconds until ready to play back.

•You can also turn on this unit by pressing ISCENE (or kSCENE).

•This unit consumes a small amount of electricity even in the standby

mode. We recommend disconnecting the power cable from the AC wall

outlet.

Connecting the FM and AM antennas

UNBAL.

GND

ANTENNA

NEN

VIDE

HDMI

HDMI 1

(

)

HDMI

VIDE

NIT

NEN

Outdoor AM antenna

Connect a 5 to 10 m (16

to 33 ft) vinyl-covered

wire, and extend it

outdoors (use the AM

loop antenna together

with this antenna).

Ground (GND terminal)

The GND terminal is not for earth

grounding.

To reduce noises, connect a ground bar or a

vinyl-covered wire with a copper plate at its

tip, and place it in the moist ground.

Indoor FM antenna AM loop

antenna

Press and hold ReleaseInsert

Connecting the power cable

Turning this unit on and off

Caution

Do not unplug this unit while it is turned on. Doing so

may damage this unit or cause the settings of this unit

to be saved incorrectly.

To the AC wall outlet

Power cable

18 En

This unit has a Yamaha Parametric Acoustic Optimizer (YPAO). With the YPAO, this unit automatically adjusts the

output characteristics of your speakers based on speaker position, speaker performance, and the acoustic characteristics

of the room. We recommend that you first adjust the output characteristics with the YPAO when you use this unit.

1Check the following points.

Before starting the automatic setup, check the

following.

•All speakers and subwoofer are connected

properly.

•Headphones are disconnected from this unit.

•If the surround back speakers are connected to this

unit via an external amplifier, turn on the external

amplifier and adjust the volume to the proper level.

•The connected subwoofer is turned on and the

volume level is set to about half way (or slightly

less).

•The crossover frequency controls of the connected

subwoofer are set to the maximum.

Note

•If the volume of the external amplifier is not set at the proper level

while the surround speakers being connected, the surround back

speakers may not be recognized by the YPAO or a warning

message may appear.

2Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

“MIC ON. YPAO START” appears on the front panel

display.

•You can bring up the “Auto Setup” from the setup menu (see page 39).

3Place the optimizer microphone at your

normal listening position on a flat level

surface with the omni-directional

microphone heading upward.

•It is recommended that you use a tripod or something similar to fix the

optimizer microphone at the same height as your ears would be when

seated in your listening position. You can fix the optimizer microphone to

the tripod with the attaching screw of the tripod.

Optimizing the speaker setting for your listening room (YPAO)

Caution

•Be advised that it is normal for loud test tones to be

output during the “Auto Setup” procedure. Do not

allow small children to enter the room during the

procedure.

•To achieve the best results, make sure the room is as

quiet as possible while the “Auto Setup” procedure is

in progress. If there is too much ambient noise, the

results may not be satisfactory.

•See page 39 for the “Manual Setup” procedure.

Using Auto Setup

VOLUME

MIN MAX

CROSSOVER/

HIGH CUT

MIN MAX

Subwoofer

IDE

UDI

RTABLE

VIDE

OPTIMIZER

MIC

Optimizer microphone

19 En

Optimizing the speaker setting for your listening room (YPAO)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

4To select a sound character for adjustment,

press nCursor k to select “EQ” and then

press nCursor l / h.

If this unit does not work when you press nCursor,

press lSETUP once and then operate this unit.

This unit has a parametric equalizer that adjusts the

output levels for each frequency range. The equalizer

is adjusted to produce a cohesive sound field based on

automatically measured speaker characteristics.

In “EQ,” you can select the following parametric

equalizer characteristics suitable for the desired

sound characteristics.

Natural

This adjusts all speakers to achieve natural sound.

Select this if sounds in the high frequency range seem

too strong when “EQ” is set to “Flat.”

Flat

This adjusts each speaker to obtain the same

characteristics. Select this if your speakers have

similar qualities.

Front

This adjusts each speaker to obtain the same

characteristics as the front left and right speakers.

Select this if your front left and right speakers have

significantly better qualities than the other speakers.

5Press nCursor n to select “Start” and then

press nENTER to start the setup procedure.

A countdown starts and a measurement starts in 10

seconds. A loud test tone is output during

measurement.

Notes

•During the automatic setup procedure, do not perform any

operation on this unit.

•Press nCursor k to cancel the automatic setup procedure.

When measurement is successfully completed,

“YPAO Complete” appears on the front panel display.

Notes

•When “E-xx” (xx indicates the number) appears during Auto

Setup, it means that measurement is canceled due to an error. For

details, see “When an error message is displayed during

measurement” (page 20).

•When an error occurs during measurement, “W-xx” (xx indicates

the number) appears. For details, see “When a warning message is

displayed after measurement” (page 20).

6Press nENTER to confirm the settings.

The speaker characteristics are adjusted according to

measurement results.

7To cancel the operation, press nCursor l /

h to select “Cancel” and press nENTER.

When “Disconnect MIC” appears, remove the

optimizer microphone. Auto Setup is complete.

•If you do not want to apply the measurement results, select “Cancel.”

•Perform “Auto Setup” again if you change the number or positions of

speakers.

•If you press nENTER before removing the optimizer microphone,

“1 Auto Setup” of “Speaker Setup” in the setup menu (see page 39) is

displayed.

Measurement takes about 3 minutes. To obtain precise

results, stay where you will not disturb the

measurement, such as to the side of or behind the

speakers or outside the room.

EQ;;;;;Natural

YPAOComplete

The optimizer microphone is sensitive to heat. Store it

in a cool place and away from direct sunlight after

measurement. Do not leave it in a place where it will be

subjected to high temperatures such on an AV

component.

>SetCancel

20 En

Optimizing the speaker setting for your listening room (YPAO)

Select “Retry” or “Exit” using nCursor l / h

and then press nENTER.

Retry

Performs “Auto Setup” again.

Exit

Terminates the measurement and “Auto Setup.”

•See page 51 for details on error messages.

•When “E-5:NOISY” appears, you can continue measurement. To

continue measurement, select “Proceed.” However, we recommend that

you solve the problem first and then perform measurement again.

If a problem occurs during measurement, “W-xx” (xx

indicates the number) is displayed on the front panel

display. Check the error and solve the problems.

•See page 52 for details on warning messages.

•Optimization will not be performed while a warning message is

displayed. We recommend that you solve the problem and perform “Auto

Setup” again.

1If a warning message is displayed, press

nENTER.

Details of the warning message are displayed. If there

are multiple warning messages, you can display the

next message using nCursor h.

2To return to the top result display, press

nENTER again.

When an error message is displayed

during measurement

When a warning message is displayed

after measurement

W-1:PHASE

21 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

BASIC OPERATION

1Turn on external components (TV, DVD

player, etc.) connected to this unit.

2Press NINPUT l / h (or gInput

selection keys) to select an input source.

The name of the selected input source is displayed for

a few seconds.

3Play the external component that you have

selected as the source input, or select a radio

station on the tuner.

Refer to the operating instructions of the external

component for details on playback. For selecting

radio stations or playback of an iPod or Bluetooth

component using this unit, see the following.

•FM/AM radio tuning (see page 28)

•Bluetooth component playback (see page 32)

•iPod playback (see page 30)

4Turn the PVOLUME control to adjust the

volume (or press oVOLUME +/–).

This unit has a SCENE function that allows you to change

input sources and sound field programs with one key. Four

scenes are available for different usages, such as playing

movies or music. The following input sources and sound

field programs are provided as the initial factory settings.

•When this unit is on standby, you can turn on this unit by pressing the

SCENE key.

Press ISCENE (or kSCENE).

Select the desired input source/sound field

program, and pressing down ISCENE (or

kSCENE) until “SET Complete” appears on the

front panel display.

You can operate an external component with the remote

control of this unit by setting a remote control code for the

external component for each input source. Setting remote

control codes for desired input sources allows you to

switch between external components linked to scene

selections.

1Register the remote control code of an

external component to the desired input

source (see page 44).

Note

•Remote control codes cannot be registered to a TUNER input.

Playback

Basic procedure

Note

When you play back a DTS-CD, noise may be output in some

conditions, which may cause a speaker malfunction. Make sure

that the volume is set to low before starting playback. If noise is

output, do the following.

1) When only noise is output

If a DTS bitstream signal is not properly input to this unit,

only noise is output. Connect the playback component to this

unit by digital connection and play back the DTS-CD. If the

condition is not improved, the problem may results from the

playback component. Consult the manufacturer of the

playback component.

2) When noise is output during playback or skip operation

Before playing back the DTS-CD, display the option menu

after selecting the input source and set “Decoder Mode” to

“DTS” (see page 33).

VOL.

AV1

Input source name

VOL.

SL SR

Volume-18.5dB

Volume

Using the SCENE function

Input source Sound field program

BD/DVD HDMI 1 Straight

TV AV 1 Straight

CD AV 3 Straight

RADIO TUNER 7ch Enhancer

Selecting a SCENE

Registering input source/sound field

program

Switching remotely controlled external

components linked to scene selections

22 En

Playback

2Press gInput selection keys on the

remote control for the input source whose

remote control code was registered in step 1

for about 3 seconds while pressing down

kSCENE key whose assignment you want

to change.

The external component can now be controlled

remotely just by selecting a scene.

1Press qMUTE on the remote control to mute

the audio output.

The MUTE indicator on the front panel display

flashes while audio output is muted.

2Press qMUTE again to resume audio

output.

You can adjust the balance of the high frequency range

(Treble) and low frequency range (Bass) of sounds output

from the front left and right speakers to obtain desired

tone.

1Press JTONE CONTROL on the front panel

repeatedly to select “Treble” or “Bass.”

The current setting is displayed on the front panel

display.

2Adjust the frequency range using

KPROGRAM l / h.

Control range: –10.0 dB to +10.0 dB

The display returns the previous screen soon after you

release the key.

Notes

•The tone control settings are not effective during playback in direct

mode.

•If you set the balance extremely off, sounds may not match those from

other channels well.

Use Direct mode to enjoy the pure high fidelity sound of

the selected source. When Direct mode is activated, this

unit plays back the selected source with the least circuitry.

Press MDIRECT (or jDIRECT) to turn the

Direct mode on or off.

The following features are disabled in Direct mode.

–sound field program, tone control

–display and operation of the option menu and setup

•While direct mode is on, the front panel display becomes dim. When

setting it back off, the brightness of the front panel display returns to the

previous setting.

The sleep timer is useful if you want to go to sleep while

this unit is playing or recording a source.

Press eSLEEP repeatedly to set the amount of

time.

Each time you press eSLEEP, the front panel display

changes as shown below.

When the sleep timer is set, the SLEEP indicator on the

front panel display lights up.

Press eSLEEP on the remote control repeatedly until

“Sleep Off” appears on the front panel display.

Plug your headphones in the BPHONES jack on

the front panel.

When you select a sound field program while using the

headphones, the mode is automatically set to SILENT

CINEMA mode.

Notes

•When you connect headphones, no signals are output at the speaker

terminals.

•When multi-channel signals are processed, sounds in all channels are

divided to left and right channels.

Muting audio output temporarily

(MUTE)

Adjusting high/low frequency sound

(tone control)

Treble

0.0dB

Enjoying pure hi-fi sound

Using the sleep timer

Using your headphones

Sleep 120min. Sleep 90min.

Sleep 60min.Sleep 30min.Sleep Off

23 En

Playback

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can display information on audio/video signals input

to this unit for each input source.

1Select the desired input source, and press

mOPTION.

The option menu for the selected input source is

displayed (see page 33).

2Press nCursor k / n to select “Signal Info,”

and press nENTER.

Information on input signals is displayed. See

page 34 on messages displayed on the front panel

display.

3Press nCursor k / n to select the desired

item.

Note

•If an HDMI related error occurs, when an HDMI related error has

occurred, press nCursor to display an error message.

4To end the information display, press

mOPTION.

Information displayed on the front panel display can be

changed by pressing CINFO (or iINFO).

The following information can be displayed according to

the input source.

For example, if you select HDMI1 input and display “DSP

Program,” the following screen appears on the front panel

display.

The following information is displayed for each input

source.

Displaying input signal information

DolbyD

Changing information on the front

panel display

HDMI1-4: Input, DSP Program, Audio Decoder

AV1-6: Input, DSP Program, Audio Decoder

AUDIO1-2: Input, DSP Program, Audio Decoder

V-AUX: Input, DSP Program, Audio Decoder

FM/AM: Frequency, DSP Program, Audio

Decoder

iPod (Simple remote mode): Input, DSP Program, Audio Decoder

iPod (Menu browse mode): (in PlayInfo displayed) Artist, Album,

Song, DSP Program, Audio Decoder

(in Play menu displayed) List

Bluetooth: Input, DSP Program, Audio Decoder

Straight

Input source

Sound field program (DSP program)

24 En

This unit is also equipped with a Yamaha digital sound field processing (DSP) chip. You can enjoy multi-channel sounds

for almost all input sources using various sound field programs stored on the chip and a variety of surround decoders.

■Selecting a sound field program on the front panel

Press KPROGRAM l / h repeatedly to select a desired sound field program.

■Selecting a sound field program with the remote control

Perform the following operations depending on the category of the sound field programs.

Sound field programs for movies/TV programs ...............................Press jMOVIE repeatedly.

Sound field programs for music........................................................Press jMUSIC repeatedly.

Stereo reproduction ...........................................................................Press jSTEREO repeatedly.

Multi-channel stereo reproduction....................................................Press jSTEREO repeatedly.

Compressed music enhancer.............................................................Press jSTEREO repeatedly.

Surround decoder ..............................................................................Press jSUR.DECODE repeatedly.

For example, if you select “Sci-Fi” in “movie/TV program,” the following screen appears on the front panel display.

Notes

•Sound field programs are stored for each input source. When you change the input source, the sound field program previously selected for that input

source is applied again.

•When you play back the Dolby Digital Plus, Dolby TrueHD, DTS Express, DTS-HD Master Audio, or DTS-HD High Resolution Audio sources, this unit

does not apply any sound field program other than the surround decoder and they are played back in straight decode mode.

•If the sampling frequency of an input source is higher than 96 kHz, this unit does not apply any sound field programs.

This unit provides sound field programs for multiple categories including music, movies and stereo reproduction. Select

a sound field program based on your listening preference, not merely on the name of the program, etc.

•You can check what speakers are currently outputting signals with the speaker indicators on the front panel display (see page 6).

•Each program can adjust sound field elements (sound field parameters). For details, see page 36.

• in the table indicates the sound field program with CINEMA DSP.

Enjoy the sound field programs

Selecting sound field programs

Sound field program descriptions

For movie/TV program sources

Program Descriptions

Standard This program creates a sound field emphasizing the surrounding feeling without disturbing the original acoustic

positioning of multi-channel audio such as Dolby Digital and DTS. It has been designed with the concept of “an

ideal movie theater,” in which the audience is surrounded by beautiful reverberations from the left, right and rear.

Spectacle This program represents the spectacular feeling of large-scale movie productions.

It reproduces a broad theater sound field matching the cinemascope and wider-screen movies with an excellent

dynamic range from very small to extremely large sound.

Sci-Fi This program clearly reproduces the finely elaborated sound design of the latest science fiction and special effects-

featuring movies.

You can enjoy a variety of cinematographically created virtual spaces reproduced with clear separation between

dialog, sound effects and background music.

Adventure This program is ideal for precisely reproducing the sound design of action and adventure movies.

The sound field restrains reverberations but puts emphasis on reproducing a powerful space expanded widely to

the left and right. The reproduced depth is also restrained relatively to ensure the separation between audio

channels and the clarity of the sound.

Sci-Fi

Program name

Sound field program category

25 En

Enjoy the sound field programs

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

•When multi-channel signals (Dolby Digital and DTS) are input, they are downmixed to 2 channels and output from the front left and right speakers.

Drama This sound field features stable reverberations that match a wide range of movie genres from serious dramas to

musicals and comedies. The reverberations are modest but offer an optimum 3D feeling, reproducing effects tones

and background music softly but cubically around clear words and center positioning in a way that does not fatigue

the listener even after long hours of viewing.

Mono Movie This program is provided for reproducing monaural video sources such as a classic movie in an atmosphere of a

good old movie theater.

The program produces the optimum expansion and reverberation to the original audio to create a comfortable

space with a certain sound depth.

Sports This program allows the listeners to enjoy stereo sport broadcasts and studio variety programs with enriched live

feeling. In sports broadcasts, the voices of the commentator and sportscaster are positioned clearly at the center

while the atmosphere of the stadium expands in an optimum space to offer the listeners with a feeling of presence

in the stadium.

Action Game This sound field has been suitable for action games such as car racing and FPS games. It uses the reflection data

that limits the effects range per channel in order to offer a powerful playing environment with a being-there feeling

by enhancing various effects tones while maintaining a clear sense of directions.

Roleplaying Game This sound field has been suitable for role-playing and adventure games. It combines the sound field effects for

movies and the sound field designs for “Action Game” to represent the depth and 3D feeling of the field during

play, while offering movie-like surround effects in the movie scenes in the game.

For audio music sources

Program Descriptions

Hall in Munich This sound field simulates a concert hall with approximately 2500 seats in Munich, using stylish wood for the

interior finishing as normal standards for European concert halls. Fine, beautiful reverberations spread richly,

creating a calming atmosphere. The listener’s virtual seat is at the center left of the arena.

Hall in Vienna This is an approximately 1700-seated, middle-sized concert hall with a shoebox shape that is traditional in Vienna.

Pillars and ornate carvings create extremely complex reflections from all around the audience, producing a very

full, rich sound.

Chamber This program creates a relatively wide space with a high ceiling like an audience hall in a palace. It offers pleasant

reverberations that are suitable for courtly music and chamber music.

Cellar Club This program simulates a live house with a low ceiling and homey atmosphere. A realistic, live sound field

features powerful sound as if the listener is in a row in front of a small stage.

The Roxy Theatre This is the sound field of a rock music live house in Los Angeles, with approximately 460 seats. The listener’s

virtual seat is at the center left of the hall.

The Bottom Line This is the sound field at stage front in The Bottom Line, that was a famous New York jazz club once. The floor

can seat 300 people to the left and right in a sound field offering real and vibrant sound.

Music Video This sound field offers an image of a concert hall for live performance of pop, rock and jazz music. The listener

can indulge oneself in a hot live space thanks to the presence sound field that emphasizes the vividness of vocals

and solo play and the beat of rhythm instruments, and to the surround sound field that reproduces the space of a

big live hall.

For stereo reproduction

Program Descriptions

2ch Stereo Use this program to mix down multi-channel sources to 2 channels.

Program Descriptions

26 En

Enjoy the sound field programs

Select this program to playback sources with selected decoders. You can playback 2-channel sources on multi-channels.

•An input source is played back in straight decode mode (see page 27) when multi-channel audio signal is input.

For Multi-channel stereo reproduction

Program Descriptions

7ch Stereo Use this program to output sound from all speakers. When you play back multi-channel sources, this unit

downmixes the source to 2 channels, and then outputs the sound from all speakers. This program creates a larger

sound field and is ideal for background music at parties, etc.

The Compressed Music Enhancer

Program Descriptions

Straight Enhancer Use this program to enhance the sound nearest to the original depth and width of the 2-channel or multi-channel

compression artifacts.

7ch Enhancer Use this program to play back compression artifacts in 7-channel stereo.

Surround decode mode

Decoder Descriptions

Pro Logic Dolby Pro Logic decoder suitable for all kinds of sources.

PLIIx Movie /

PLII Movie

Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder suitable for movies. If your listening environment is as fol-

lows, you cannot select the Dolby Pro Logic IIx decoder.

•When the surround back speakers are not connected

•When headphones are connected

PLIIx Music /

PLII Music

Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder suitable for music. If your listening environment is as fol-

lows, you cannot select the Dolby Pro Logic IIx decoder.

•When the surround back speakers are not connected

•When headphones are connected

PLIIx Game /

PLII Game

Dolby Pro Logic IIx (or Dolby Pro Logic II) decoder suitable for games. If your listening environment is as fol-

lows, you cannot select the Dolby Pro Logic IIx decoder.

•When the surround back speakers are not connected

•When headphones are connected

Neo:6 Cinema DTS decoder suitable for movies.

Neo:6 Music DTS decoder suitable for music.

27 En

Enjoy the sound field programs

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

In straight decoding mode, sounds are reproduced without

sound field effect. 2-channel stereo sources are output

from only the front left and right speakers. Multi-channel

input sources are decoded straight into the appropriate

channels and multi-channel sounds are reproduced

without a sound field effect.

1To enable straight decoding mode, press

LSTRAIGHT (or jSTRAIGHT).

“Straight” appears on the front panel display.

2To cancel straight decoding mode, press

LSTRAIGHT (or jSTRAIGHT) again.

A sound field program name appears on the front

panel display, and sound is reproduced with that

sound field effect.

Virtual CINEMA DSP allows you to enjoy DSP sound

field surround effects even without any surround speakers

by using virtual surround speakers. You can even enjoy

Virtual CINEMA DSP using a minimal two-speaker

system that does not include a center speaker.

When “Sur. L/R” in the setup menu is set to “None” (see

page 40), this unit operates in Virtual CINEMA DSP

mode.

Note

•Virtual CINEMA DSP is not available in the following conditions even if

you set “Sur. L/R” to “None” (see page 40).

–headphone plug is connected to the PHONES jack.

–7ch Stereo of the field sound program is selected.

–direct mode or straight decoding mode is used.

SILENT CINEMA allows you to enjoy multi-channel

sources with your headphones. SILENT CINEMA mode

is automatically selected when you connect the headphone

plug to the PHONES jack.

Note

•SILENT CINEMA mode is not available in the following conditions.

–2ch Stereo of the sound field program is selected.

–direct mode or straight decoding mode is selected.

Enjoying unprocessed input sources

(Straight decoding mode)

Enjoying sound field programs without

surround speakers (Virtual CINEMA

DSP)

Enjoy sound field programs with

headphones (SILENT CINEMA™)

28 En

The FM/AM tuner of this unit provides the following two

modes for tuning.

■Frequency tuning mode (Auto tuning /

Manual tuning)

You can tune in to a desired FM/AM station by searching

or specifying its frequency.

■Preset tuning mode (Preset tuning)

You can preset the frequencies of FM/AM stations by

registering them to specific numbers, and later just select

those numbers to tune in.

Note

•Adjust the FM/AM antennas connected to this unit for the best reception.

1Press NINPUT l / h (or gTUNER)

repeatedly and switch the input source to

“TUNER.”

2Press FFM (hFM) or GAM (hAM) to select

a band.

“FM” or “AM” appears on the front panel display

according to the band that you have selected.

3Press HTUNING l / h (or hTUNING k /

n) to specify the frequency.

To adjust the frequency to a higher range, press h (or

k). To adjust it to the lower range, press l (or n).

The TUNED indicator on the front panel display

lights up when the tuner is tuned in to a station. The

STEREO indicator also lights up if the program being

broadcasted is in stereo.

The frequency changes in the following manner according

to how you press HTUNING l / h (or hTUNING k

/ n).

When you press the key more than 1 second.

The tuner searches the frequency of a station that is

detectable around the current frequency. This is effective

when the tuner can receive strong signals without any

interference. Once the search starts, release the key.

When you keep holding the key, the search continues even

when a station is detected. This is useful when you want to

tune in to a specific station.

When you press and release the key

The tuner increases or decreases the frequency in steps.

Use this method when the tuner cannot receive strong

signals and stations are skipped during the search. You can

listen to better quality sound even when the tuner cannot

receive a strong signal.

•You can switch between stereo and monaural for FM broadcast in the

option menu (see page 34).

4To tune in by direct frequency tuning, enter

the frequency of the desired station using

the numeric keys on the remote control.

Enter only integers. For example, if you want to set

the frequency to 88.9 MHz, enter “889” using

sNumeric keys.

Note

•“Wrong Station!” appears on the front panel display when you

enter a frequency that is out of receivable range. Make sure that the

entered frequency is correct.

You can register up to 40 FM/AM stations (Preset) using

“Automatic station preset” or “Manual station preset.”

The tuner automatically detects FM stations with strong

signals and registers up to 40 stations. AM stations cannot

be automatically registered. Use manual station preset.

1Press NINPUT l / h repeatedly (or press

gTUNER) to switch the input source to

“TUNER.”

2Press mOPTION on the remote control.

The option menu screen for setting options of tuner

input appears on the front panel display.

•For details on the option menu, see page 33.

3Select “Auto Preset,” and press nENTER.

Automatic station preset starts about 5 seconds later

from the lowest frequency upwards.

•You can select the preset number at which the preset starts by

pressing hPRESET k / n or nCursor k / n while the front

panel display is in the state as shown in the below figure.

•To cancel registration, press nRETURN on the remote control.

FM/AM tuning

Tuning in to the desired FM/AM station

(Frequency tuning)

STEREO

TUNED

FM92.5MHz

Registering FM/AM stations and

tuning in (Preset tuning)

Registering stations by automatic station

preset

Auto Preset

01:FM87.5MHz

Preset number Frequency

Status

29 En

FM/AM tuning

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

During the automatic station preset, the upper area of

the screen changes as follows: READY → SEARCH

→ MEMORY each time a station is registered.

When registration is complete, “FINISH” appears

and the option menu screen automatically reappears.

When you press mOPTION on the remote control,

the screen returns to the original state.

You can manually register AM stations or FM stations

with weak signals.

1Tune in to a station referring to “Tuning in to

the desired FM/AM station (Frequency

tuning)” (see page 28).

2Press DMEMORY (or hMEMORY).

“Manual Preset” appears on the front panel display,

followed soon by the preset number to which the

station will be registered.

•By pressing down DMEMORY (or hMEMORY) for more

than 2 seconds, you can skip step 3 and register the preset number

to be one higher than the last preset number.

3Press EPRESET l / h (or hPRESET k / n)

on the remote control to select the preset

number to which the station will be

registered.

When you select a preset number to which no station

is registered, “Empty” appears on the display. When

you select a registered preset number, a registered

frequency is displayed on the right of the preset

number.

•You can select a preset number using the sNumeric keys.

4Press DMEMORY (or hMEMORY) again to

When registration is complete, the screen returns to

the original state.

To end the operation, press mOPTION.

•To cancel registration, press nRETURN on the remote control

or leave the tuner without any operations for about 30 seconds.

You can call preset stations registered by automatic station

preset or manual station preset.

Press EPRESET l / h (or hPRESET k / n) to

select a preset number.

•Preset numbers to which no stations are registered will be skipped.

•When “No Presets” or “No Presets in Memory” is displayed it means that

no stations are registered. See page 28 and register stations.

•You can directly select a preset number by pressing a sNumeric

keys while calling a preset station. “Empty” appears on the display if

you enter a preset number to which no station is registered. “Wrong

Num.” appears if you enter an invalid number.

1Press NINPUT l / h repeatedly (or press

gTUNER) to switch the input source to

“TUNER.”

2Press mOPTION on the remote control.

The option menu screen for setting options of tuner

input appears on the front panel display.

3Display “Clear Preset” using the nCursor k

/ n and press nENTER.

The following screen appears on the display.

•You can cancel the operation and return to the option menu screen

by pressing nRETURN on the remote control.

4Select the preset number of the registered

station you want to clear using the nCursor

k / n and press nENTER.

The preset station registered to the selected preset

number is cleared. To clear the registration of

multiple preset numbers, repeat the above steps.

To end the operation, press mOPTION.

Registering stations by manual station

preset

01:Empty

Flashing

New registered frequency

Empty (or frequency that is currently

registered to the preset number)

Preset

number

Calling a preset station (Preset tuning)

Clearing the preset station

01:FM92.5MHz

Preset number of the registered station you want to clear.

30 En

Once you have stationed your iPod in a Yamaha iPod universal dock (such as the YDS-11, sold separately) connected to

the DOCK terminal on the rear panel of this unit (see page 16), you can enjoy playback of your iPod using the supplied

remote control. You can also use the Compressed Music Enhancer mode of this unit to improve the sound quality of the

compression artifacts (such as MP3 format) stored on your iPod (see page 24).

Notes

•iPod touch, iPod (Click and Wheel including iPod classic), iPod nano, and iPod mini are supported.

•Some features may not be compatible depending on the model or the software version of your iPod.

•Some features may not be available depending on the model of Yamaha iPod universal dock. The following sections describe the procedure when using

the YDS-11.

•Once the connection between your iPod and this unit is complete, “iPod connected” appears on the front panel display.

•For a complete list of status messages that appear on the front panel display, see the “iPod” section on page 50.

You can control your iPod when you set it in the iPod

universal dock and switch the input source to DOCK. The

operations of your iPod can be done with the aid of the

front panel display (menu browse mode) or without it

(simple remote mode).

When you connect your iPod to this unit, you can perform

the following operations with the remote control.

•You can directly operate your iPod while it is connected to this unit.

1Change the input source to “iPod (DOCK)”

using NINPUT l / h (or gDOCK).

Press pDISPLAY on the remote control to change

between menu browse mode and simple remote

mode, as required.

When you select menu browse mode, the front panel

display changes as follows.

2Press nCursor k / n / l / h to select a

menu item and then nENTER to start

playback.

The following menu items are available.

Playlists, Artists, Albums, Songs, Genres, Composers

•Playlists > Songs

•Artists > Albums > Songs

•Albums > Songs

•Songs

•Genres > Artists > Albums > Songs

•Composers > Albums > Songs

•You can change information screens on the front panel display

using CINFO (or iINFO) (see page 23). Items displayed on the

front panel display vary depending on mode that is currently

selected.

Using iPod™

Controlling iPod™

Key Function

ENTER Subsequent menu

kMenu up

nMenu down

lPrevious menu

hSubsequent menu

wSearch backward (Press and hold)

fSearch forward (Press and hold)

aSkip forward

bSkip backward

sStop

ePause (Menu browse mode)

Play/Pause (Simple remote mode)

pPlay (Menu browse mode)

Play/Pause (Simple remote mode)

pDISPLAY Switch between Menu browse mode and

Simple remote mode

VOL.

SL SR

Music

31 En

Using iPod™

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

You can use a special playback function such as shuffle

playback and repeat playback by setting the option menu.

1Press pDISPLAY to switch to menu browse

mode while “DOCK” is selected as the input

source.

The option menu can be displayed only in menu

browse mode. Press pDISPLAY to switch to menu

browse mode before starting shuffle or repeat

playback.

2Press mOPTION.

The option menu is displayed.

3Press nCursor k / n to select the desired

playback function, Shuffle or Repeat, then

press nENTER.

The following playback styles are available

depending on the playback function selected.

Shuffle: Plays back songs or albums in random

order (Choices: Off, Songs, Albums).

•Select “Off” if you do not want to play back in

random order.

•Select “Songs” to play back songs in random order.

•Select “Albums” to play back albums in random

order.

Repeat: Plays back songs or albums repeatedly

(Choices: Off, One, All).

•Select “Off” if you do not want to play back

repeatedly.

•Select “One” to repeat each song.

•Select “All” to repeat all songs.

4Select the desired style using nCursor l /

The style is selected. Playback starts with the

function selected in step 3.

To return to the previous screen, press nRETURN.

To return to the previous playback function, redo the

above steps.

Shuffle/repeat playback

32 En

You can connect a Yamaha Bluetooth wireless audio receiver (such as YBA-10, sold separately) to the DOCK terminal of

this unit and enjoy the music contents stored in your Bluetooth component (such as a portable music player) without

wiring between this unit and the Bluetooth component. You need to perform “Pairing” the connected Bluetooth wireless

audio receiver and your Bluetooth component in advance.

Note

•This unit supports A2DP (Advanced Audio Distribution Profile) of the Bluetooth profile.

“Pairing” refers to the operation of registering a Bluetooth

component for Bluetooth communications. Pairing must

be performed when using a Bluetooth component with the

Bluetooth wireless audio receiver connected to this unit

for the first time or if the pairing data has been deleted.

•You only need the pairing operation for the first time that you use the

Bluetooth component with the Bluetooth wireless audio receiver.

•Pairing requires operations on this unit and on the other component with

which Bluetooth communications are to be established. If necessary,

refer to the other component’s operating instructions.

■Pairing the Bluetooth™ wireless audio

receiver and your Bluetooth™ component

1Change the input source to “DOCK” using

NINPUT l / h (or gDOCK).

2Turn on the Bluetooth component you want

to pair with and set it to pairing mode.

For details on operation of the Bluetooth component,

refer to its operating instructions.

3Press mOPTION.

The option menu for DOCK input appears on the

front panel display.

4Press nCursor n to select “Pairing” and

press nENTER.

“Searching” appears on the front panel display and

the pairing operation starts.

•To cancel pairing, press nRETURN.

•You can also start pairing operation by pressing and holding

DMEMORY on the front panel.

5Make sure the Bluetooth component

recognizes the Bluetooth wireless audio

receiver.

If the Bluetooth have recognized the Bluetooth

wireless audio receiver, “YBA-10 YAMAHA,” for

instance, is displayed in the Bluetooth device list.

6Select the Bluetooth wireless audio receiver

from the Bluetooth device list, and enter a

path key “0000” into the Bluetooth

component.

When pairing is complete, “Completed” appears on

the front panel display.

•The Yamaha Bluetooth wireless audio receiver can be paired with up to

eight Bluetooth components. When pairing is conducted successfully

with a ninth component and the pairing data is registered, the pairing data

for the least recently used other component is cleared.

1Change the input source to “DOCK” using

NINPUT l / h (or gDOCK).

2Press mOPTION.

3Press nCursor n repeatedly to select

“Connect” and press nENTER.

After you execute “Connect,” communication with

the Bluetooth component is established. When the

connected Bluetooth wireless audio receiver

recognizes the Bluetooth component, “BT

Connected” appears on the front panel display.

•When you press nENTER on the remote control, the connected

Bluetooth wireless audio receiver searches and connects to the last

connected Bluetooth component. If the Bluetooth wireless audio

receiver cannot find the Bluetooth component, “Not found”

appears on the front panel display.

•To disconnect the Bluetooth wireless audio receiver from the

Bluetooth component, display the option menu again, select

“Disconnect,” and press nENTER.

4Start playback of the Bluetooth component.

Using Bluetooth™ components

Pairing the Bluetooth™ wireless audio

receiver and your Bluetooth

component

To ensure security, a time limit of 8 minutes is set for

the pairing operation. You are recommended to read

and fully understand all the instructions before starting.

Playback of the Bluetooth™

component

33 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

ADVANCED OPERATION

This unit has an OPTION menu of frequently used menu items for input sources compatible with this unit. The procedure

for setting the OPTION menu items is described below.

1Select an input source using NINPUT l / h

(or gInput selection keys).

2Press mOPTION on the remote control.

The OPTION menu appears. The displayed OPTION

menu items differ depending on the input source. For

details, see the following section.

3Select the desired menu item using

nCursor k / n, and press nENTER.

Parameters of the selected menu item are displayed.

4Change the setting of the selected menu item

(or enable a function) using nCursor k / n /

l / h and nENTER.

Details of the selected menu item are displayed.

Parameters you can set differ depending on the menu

items.

5To close the OPTION menu, press

mOPTION.

You can also use nRETURN to return to the

previous screen or close the OPTION menu.

•When nCursor or other keys do not work after completing the

menu, select the input source again using gInput selection

keys.

The following menu items are provided for each input

source.

Details of the menu items are as follows:

•The default settings are marked with “*.”

■Volume Trim

Reduces any change in volume when switching input

sources by correcting volume differences between input

sources.

You can set this parameter for each input source.

Setting the option menu for each input source (OPTION menu)

VolumeTrim

OPTION menu items

Input

Source Menu item

HDMI1-4 Volume

Trim

Decoder

Mode

EXTD

Surround

Signal Info

AV1-4 Volume

Trim

Decoder

Mode

EXTD

Surround

Signal Info

AV5-6 Volume

Trim

AUDIO1-2 Volume

Trim

V-AUX Volume

Trim

TUNER Volume

Trim

FM Mode Auto

Preset

Clear

Preset

iPod

(DOCK)

Vo l u m e

Trim

Shuffle Repeat

Bluetooth

(DOCK)

Vo l u m e

Trim

Connect/

Disconnect

Pairing

Input source: All

Adjustable range: -6.0 dB to 0.0 dB* to +6.0 dB

(in 0.5 dB steps)

34 En

Setting the option menu for each input source (OPTION menu)

■Decoder Mode

Selects DTS digital audio signals for reproduction.

■EXTD Surround

Selects whether to reproduce multi-channel input signals

in 6.1- or 7.1-channel when surround back speakers are

used.

Signal Info

Displays information on audio and video signals on the

front panel display. You can change items to be displayed

using nCursor k / n.

■Audio information

Notes

•“No Signal” is displayed when no signals are input and “---” is displayed

when signals that this unit cannot recognize are input.

•The bit rate may vary during playback.

■Video information

HDMI error information

(appears only when an error has occurred)

■FM Mode

Sets FM broadcasting receiving mode.

Input source: HDMI1-4, AV1-4

Choices: Auto*/DTS

Auto Automatically selects audio input signals.

DTS Selects DTS signals only. Other input signals

are not reproduced.

Input source: HDMI1-4, AV1-4

Choices: Auto*/PLIIxMovie/PLIIxMusic/EX/ES/

Off

Auto Automatically selects the most suitable

decoder according to whether a flag for

reproducing surround back channel is present,

and reproduces the signals in 6.1- or 7.1-

channel.

PLIIx

Movie

Always reproduces signals in 6.1- or 7.1-

channel using the PLIIxMovie decoder

whether or not surround back channel signals

are contained. You can select this parameter

when one or two speakers are connected.

PLIIx

Music

Always reproduces signals in 6.1- or 7.1-

channel using the PLIIxMusic decoder whether

or not surround back channel signals are

contained. You can select this parameter when

one or two speakers are connected.

EX/ES Automatically selects the most suitable

decoder for input signals whether or not the

flag for reproducing surround back channel is

present, and always reproduces signals in 6.1-

channel.

Off Always reproduces signals in 5.1-channel

whether or not the flag for reproducing

surround back channel is present.

Input source: HDMI1-4, AV1-4

Signal Info parameters

Information Description

Format of digital audio signals.

The number of input signal channels (front/

surround/LFE).

For example, if input signal channels are 3

front channels, 2 surrounds and LFE, “3/2/

0.1” is displayed.

If a channel that cannot be expressed as the

above, a total number of channels such as

“5.1ch” may be displayed.

The sampling frequency per second in

analog-to-digital conversion.

The bit rate of input signal per second.

Information Description

Format and resolution of video input signal.

Format and resolution of video output signal.

Information Description

Error messages about HDMI signals and

HDMI components.See the following for

details of the error messages.

HDCP Error HDCP authentication failed.

Device Over The number of HDMI components

connected is over the limit.

Input source: TUNER

Choices: Stereo*/Mono

Stereo Receives in stereo mode.

Mono Receives in monaural mode. You can get better

reception in MONO mode.

35 En

Setting the option menu for each input source (OPTION menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Auto Preset

Automatically detects radio stations in the FM frequency

band and registers them as preset stations (see page 28).

■Clear Preset

Clears the preset stations (see page 29).

■Shuffle

Changes the shuffle playback style (see page 31).

■Repeat

Changes the repeat playback style (see page 31).

■Connect / Disconnect

Switches communication with a Bluetooth component on

and off (see page 32).

■Pairing

Performs pairing of this unit and a Bluetooth component

(see page 32).

Input source: TUNER

Input source: iPod (DOCK)

Choices: Off*/Songs/Albums

Input source: iPod (DOCK)

Choices: Off*/One/All

Input source: Bluetooth (DOCK)

36 En

When using sound field programs for movies or TV

programs (except for Mono Movie), you can select a

surround decoder to be used with the sound field program

after setting the parameters from the following decoders.

To set the parameters for sound field programs, see the

following section.

Decoders that can be used with a sound field

program

•PLIIx Movie (PLII Movie)

•Neo:6 Cinema

Although the field sound programs would satisfy you as

they are with the default parameters, you can arrange

sound effect or decoders suitable for acoustical conditions

of sources or rooms by setting the parameters (sound field

elements).

•You can protect the sound field against the changes of parameters the

sound filed parameters when “Memory Guard” of the setup menu is set

to “On” (see page 43). To change the parameters, set it to “Off.”

1Press lSETUP on the remote control.

The setup menu appears on the front panel display.

2Press nCursor k / n to select “DSP

Parameter” and press nENTER.

The screen changes as follows.

3Press nCursor l / h to select the sound

field program.

4Press nCursor k / n to select the parameter

that you want to change, and press nCursor

l / h to change the parameter.

You can change the parameter display in the

following order by pressing nCursor n repeatedly.

•sound field program

•surround decoder

•sound field parameter

For sound field parameters, see “Sound field

parameters” on this page.

•Repeat steps 4 and 5 to change other sound field program

parameters.

5To end the edit, press nRETURN.

•The default settings are marked with “*.”

DSP Level

Fine adjusts an effect level (level of the sound field effect

to be added). You can adjust the level of the sound field

effect while checking sound levels. Adjust “DSP Level” as

follows.

•The effect sound is too soft.

•There are no differences between effects of the sound

field programs.

→Increase the effect level.

•The sound is dull.

•The sound field effect is added too much.

→Reduce the effect level.

■2ch Stereo only

Direct

Automatically bypasses the DSP circuit and tone control

circuit when an analog sound source is selected as the

input source. You can enjoy a higher quality sound.

■7ch Stereo only

CT Level/SL Level/SR Level/

SB Level

Adjusts the volume of the center (CT), surround L (SL)

surround R (SR) and surround back (SB) channels in the

7ch Stereo program. The available parameters differ

depending on the setting of the speakers.

Editing surround decoders/sound field programs

Selecting a decoder used with a sound

field program

Setting sound field parameters

PRM:Sci-Fi

Sound field program

To initialize the parameters of the selected sound field

program, nCursor n repeatedly to select “Initialize”

and then press, nCursor h. When “Press Again h”

appears on the front panel display, press nCursor h

again, press nCursor h to confirm the initialization

or nCursor l to cancel it.

Sound field parameters

CINEMA DSP parameters

Adjustable range: -6 dB to 0 dB* to +3 dB

Parameters only usable in certain sound

field programs

Choices: Auto*/Off

Auto Outputs sound by bypassing the DSP circuit and

tone control circuit when the “Bass” and “Treble”

tone controls are both set to 0 dB.

Off Do not bypass the DSP circuit and tone control

circuit.

Adjustable range: 0 to 100%

37 En

Editing surround decoders/sound field programs

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Straight Enhancer/7ch Enhancer only

EFCT LVL

Adjusts the Compressed Music Enhancer effect level.

When the high-frequency signals of the source is

emphasized too much, set the effect level to “Low.” To

reduce the effect, set this parameter to “Low.” To increase

the effect, set it to “High.”

You can customize decoder effects by setting the

following parameters. For kinds of decoders, see page 26.

■When PLIIx Music/PLII Music is selected

Panorama

Adjusts the soundscape of the front sound field. Sends

stereo signals to the surround speakers as well as the front

speakers for a wraparound effect.

Dimension

Adjusts the difference in level between the front sound

field and the surround sound field. You can adjust the

difference in level created by the software being played

back to obtain the preferred sound balance. The surround

sound gets stronger as you make the value more negative

and the front sound gets stronger as you make the value

more positive.

CT Width

You can spread the center sound toward left and right

according to your preference. Set this parameter to 0 for

outputting the center sound from the center speaker only,

or to 7 for outputting it from the front left/right speaker.

■When Neo:6 Music is selected

C.Image

Adjusts the front left and right channel output relative to

the center channel to make the center channel more or less

dominant as necessary.

Choices: High*/Low

Decoder parameters

Choices: Off*/On

Adjustable range: -3 to STD* to +3

Adjustable range: 0 to 3* to 7

Adjustable range: 0.0 to 0.3* to 1.0

38 En

You can call the setup menu using the remote control and change the settings of various menus.

You can change the following settings in the setup menu. For details, read “Basic operation of the setup menu” first, and

see the respective pages.

Operating various settings for this unit (Setup menu)

Menu/Submenu Function Page

Speaker Setup Sets items for speakers. 39

1 Auto Setup (YPAO) Automatically adjusts output characteristics of speakers. 39

2 Manual Setup Manually adjusts output characteristics of speakers. 39

A)Config Sets speaker configurations, such as connection status of speaker and a size of the

connected speaker (sound reproduction capacity), suitable for the listening

environment.

B)Level Separately adjusts volume of each speaker. 41

C)Distance Adjusts timing at which each speaker outputs sound based on distances between

speakers and the listening position.

D)Equalizer Selects an equalizer that adjusts speaker output characteristics. 41

E)Test Tone Generates test tones. 41

Sound Setup Sets various items for sound outputs. 41

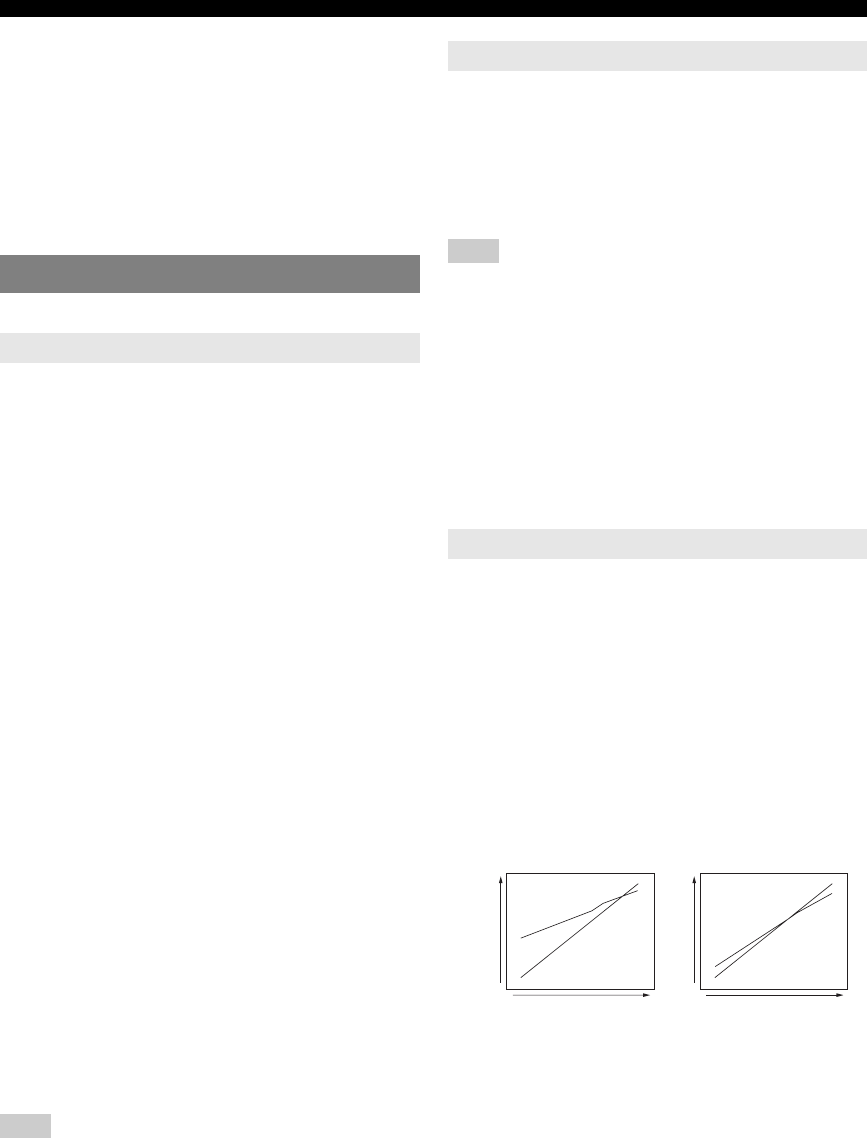

1 D. Range Adjusts dynamic ranges of speakers and headphones. 41

2 Lipsync Adjusts delay in output timing between video signals and audio signals. 41

HDMI Auto Sets on or off of automatic adjustments for delay between output timing between

video signals input from the HDMI jack and audio signals.

Auto Fine adjusts a delay time of HDMI Auto. 42

Manual Manually fine adjusts the delay of audio and visual output. 42

Func. Setup Set various items for HDMI and display. 42

1 HDMI Sets various items for input sources. 42

Standby Selects on or off of output of HDMI signals input from the HDMI IN jack to the

HDMI OUT jack when this unit is on standby.

Audio Selects this unit or a component connected to this unit via the HDMI OUT jack of

this unit for reproducing sound signals input from the HDMI IN jack.

2 Display Set items for the front panel display. 42

Dimmer Sets brightness of the front panel display. 42

FL Scroll Selects the way to display characters on the front panel display. 42

3 Volume Sets items for volumes. 42

Adptv DRC Adjust the dynamic range (difference between the maximum volume and the

minimum volume) in conjunction with the volume level.

MaxVol Sets the maximum volume level so that the volume will not be accidentally

increased.

IniVol Sets the volume at the time this unit is turned on. 43

4 Input Rename Changes input source names to be displayed on the front panel display. 43

DSP Parameter Sets parameters for the sound field programs. 43

Memory Guard Protects some settings against accidental alteration. 43

39 En

Operating various settings for this unit (Setup menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

1Press lSETUP on the remote control.

The setup menu screen appears.

2Select a menu using nCursor k / n, and

press nENTER.

Items of the selected menu are displayed. For

example, the following screen appears when you

select “Function Setup.”

•You can return to the previous screen by pressing nRETURN.

3To display submenus, select a menu that you

want to set using nCursor k / n, and press

nENTER.

For example, the following screen appears when you

select “2 Display.”

4Select an item using nCursor k / n, and

change the setting of the item using

nCursor l / h.

•You can change other items by repeating step 4.

5To finish the setting, press lSETUP.

•When nCursor or other keys do not work after completing the menu,

select the input source again using gInput selection keys.

You can set various items for speakers. Two kinds of

adjustments are available. One is “Auto Setup (YPAO)”

for automatic adjustment and another is “Manual Setup”

for manual adjustment.

•The default settings are marked with “*.”

Automatically adjusts output characteristics of speakers to

obtain optimum balance for the output sound based on

positions and performances of the speakers and acoustic

characteristics or the room, which are automatically

measured. For details on operations, see page 18.

Adjusts output characteristics of speakers based on

manually set parameters.

After Auto Setup (YPAO) is performed, you can check

automatically adjusted parameters in the Manual Setup

menu. Fine adjust the parameters for your preference if

necessary.

■A)Config

Sets speaker configurations, such as connection status of

speaker and a size of the connected speaker (sound

reproduction capacity), suitable for the listening

environment.

•The speaker configuration includes items for defining a speaker size:

Large or Small. Large and Small refer to speakers with woofer diameters

16 cm or larger and smaller than 16 cm, respectively.

Bass Out

Selects speaker(s) for outputting low-frequency

components of the LFE (low-frequency effect sound)

channel or other channels. The output status is as follows.

LFE channel signals

Basic operation of the setup menu

1HDMI

Dimmer;;;;;;;0

Speaker Setup

1 Auto Setup

2 Manual Setup

Choices: SWFR/Front/Both*

Parameter Subwoofer Front

speakers

Other

speakers

Both Output Not output Not output

SWFR Output Not output Not output

Front Not output Output Not output

40 En

Operating various settings for this unit (Setup menu)

Low-frequency components of other channel signals

Front

Sets the sizes of front left and right speakers.

Note

•When “Bass Out” is set to “Front,” you can only select “Large.” If “Bass

Out” is changed to “Front,” “Front” automatically switches to “Large”

even when it is set to “Small.”

Center

Sets the size of center speaker.

Sur. LR

Sets sizes of left and right surround speakers.

•When “None” is selected, the sound field programs automatically enter

the Virtual CINEMA DSP mode.

Sur. B

Sets sizes of left and right surround back speakers. When

using the surround back speakers, connect an external

amplifier to the SURROUND BACK jacks of the PRE

OUT terminals.

•When “None” is selected, “PLIIx Movie” or “PLIIx Music” cannot be

selected.

Crossover

Sets the lower limit of the low frequency component

output from a speaker with a size set to “Small (SMLx1/

SMLx2).” Sound with a frequency below that limit is

output from a subwoofer or front speakers.

If your subwoofer has a volume control or a crossover

frequency control, set the volume to half or the crossover

frequency at the maximum.

SWFR Phase

Sets the phase of your subwoofer if bass sounds are

lacking or unclear.

Parameter Subwoofer Front

speakers

Other

speakers

Both [1] [2] [3]

SWFR [4] [3] [3]

Front Not output [1] [3]

[1] Outputs low-frequency components of the front left and right

channels and the channel of speaker, the size of which is set to

“Small.”

[2] Outputs low-frequency components of the front left and right

channels.

[3] Outputs low frequency components when the sizes of speakers

are set to “Large.”

[4] Outputs low-frequency components of the channel of speaker,

the size of which is set to “Small.”

Choices: Small/Large*

Small Select this when small speakers are

connected. Low-frequency components of the

front left and right channels are output from a

subwoofer.

Large Select this when large speakers are

connected.

Choices: None/Small*/Large

None Select this when no center speaker is

connected. Center channel signals are spread

to front left and right speakers.

Small Select this when a small center speaker is

connected. Low-frequency components of

center channel are output from a subwoofer.

If a subwoofer is not connected they are

output from front speakers.

Large Select this when a large center speaker is

connected.

Choices: None/Small*/Large

None Select this when no surround speakers are

connected. Surround channel signals are

spread to front left and right speakers.

“Sur.B” automatically switches to “None”

when this is selected.

Small Select this when small surround speakers are

connected. Low-frequency components of

surround channels are output from a

subwoofer. If a subwoofer is not connected

they are output from front speakers.

Large Select this when large surround speakers are

connected.

Choices: None*/SMLx1/SMLx2/LRGx1/LRGx2

None Select this when no surround back speaker

are connected. Surround back channel signals

are output from the surround L/R speakers

and subwoofer. If the subwoofer is disabled,

they are output from the surround L/R

speakers and front speakers.

SMLx1 Select this when one small surround back

speaker is connected to an external amplifier

for the surround back speaker.

SMLx2 Select this when two small surround back

speakers are connected to an external

amplifier for the surround back speakers.

LRGx1 Select this when one large surround back

speaker is connected to an external amplifier

for the surround back speaker.

LRGx2 Select this when two large surround back

speakers are connected to an external

amplifier for the surround back speakers.

Choices: 40Hz/60Hz/80Hz*/90Hz/100Hz/110Hz/120Hz/

160Hz/200Hz

Choices: NRM*/REV

NRM Select this not to change the phase of your

subwoofer.

REV Select this to reverse the phase of your

subwoofer.

41 En

Operating various settings for this unit (Setup menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■B)Level

Separately adjusts volume of each speaker so that the

sounds form speakers are at the same volume at the

listening position. Items to be displayed vary depending

on the number of speakers connected.

•When only one surround back speaker is connected, “SB” appears

instead of “SBL” and “SBR.”

•You can adjust the volume listening to test tones when you set “Test

Tone” to “On” (see page 41).

•If your subwoofer has a volume control or a crossover frequency control,

set the volume to half or the crossover frequency at the maximum.

■C)Distance

Adjusts timing at which each speaker outputs sound so

that sounds from speakers reach the listening position at

the same time. Set unit (Unit) first and set the distance of

each speaker.

Unit

Front L / Front R / Center / Sur. L /

Sur. R / Sur.B L / Sur.B R / SWFR

•Different items are displayed depending on settings of “A)Config” (see

page 39).

•When only one surround back speaker is connected, “Sur. B” appears

instead of “Sur.B L” and “Sur.B R.”

Note

•If Auto Setup is executed while an external amplifier for the surround

back speaker being connected, a distance to the surround back speaker

longer than an actual distance may be displayed depending on the

volume or balance setting of the external amplifier.

■D)Equalizer

Adjusts sound quality and tone using a parametric graphic

equalizer.

EQ Select

Select an equalizer type.

GEQ

Adjusts sound quality of each speaker using a graphic

equalizer. The graphic equalizer of this unit can adjust

signal levels in 7 frequency ranges.

To adjust the signal level within each range, select the

desired speaker with nCursor l / h while “Channel”

is displayed, then the desired frequency band with

nCursor k / n, and adjust the signal level with

nCursor l / h.

■E)Test Tone

Switches between on and off of an oscillator that generates

test tones. To turn on the oscillator, select “On” using

nCursor l / h. When “On” is selected, you can adjust

the settings of “2 Manual Setup” while listening to a test

tone.

You can set various items for sound outputs.

■1 D.Range

Selects the dynamic range adjustment method for

reproducing bitstream signals.

■2 Lipsync

Adjusts delay between video output and audio output.

HDMI Auto

Automatically adjusts output timing of audio and video

signals when a monitor that supports an automatic lip-

sync function is connected to this unit.

Adjustable range: -10.0dB to +10.0dB (0.5 dB step)

Defaults: “FL/FR/SW” 0dB*

“C/SL/SR/SBL/SBR” -1.0dB

Choices: meters (m)/feet (ft)*

meters (m) Displays the speaker distance in meters.

feet (ft) Displays the speaker distance in feet.

Adjustable range: 0.30m to 24.00m (1.0ft to 80.0ft)

Defaults: 3.00m (10.0ft) “Front L/Front R/

SWFR”

2.60m (8.5ft) “Center”

2.40m (8.0ft) “Sur. L/Sur. R/

Sur.B L/Sur.B R”

Choices: PEQ/GEQ*/Off

PEQ Uses a parametric equalizer selected in

“1 Auto Setup.”

GEQ Uses a graphic equalizer. Press nENTER

to adjust the characteristics of the graphic

equalizer.

Off Not use a graphic equalizer.

Choices: 63Hz/160Hz/400Hz/1kHz/2.5kHz/

6.3kHz/16kHz

Adjustable range: -6.0dB to 0dB* to +6.0dB (0.5 dB step)

Choices: Off*/On

Off Not generate test tones.

On Generates test tones.

Sound Setup

Choices: Min/Auto/STD/Max*

Min/Auto (Min) Sets the dynamic range suitable for

low volume or a quiet environment, such as

at night, for bitstream signals except for

Dolby TrueHD signals.

(Auto) Adjusts the dynamic range for Dolby

TrueHD signals based on input signal

information.

STD Sets the standard dynamic range

recommended for regular home use.

Max Outputs sound without adjusting the

dynamic range of the input signals.

Choices: Off*/On

Off Select this when the connected monitor does

not support the automatic lip-sync function or

you do not use the automatic lip-sync

function. Set the correction time in “Manual.”

On Select this when the connected monitor

supports the automatic lip-sync function. Fine

adjust the correction time in “Auto Delay.”

42 En

Operating various settings for this unit (Setup menu)

Auto

Enables manual fine adjustment of the correction time

when “HDMI Auto” is set to “On.”

Manual

Manually adjusts the correction time. Select this when the

connected monitor does not support the automatic lip-sync

function or you set “HDMI Auto” to “Off.”

You can set various items for HDMI and display.

You can set items for HDMI.

■Standby

Selects on or off of output of HDMI signals input from the

HDMI IN jack to the HDMI OUT jack when this unit is on

standby. When this parameter is set to “On” signals input

from the HDMI 1-4 jacks can be output to a monitor

component.

•To enables pass-through output, any one of the input sources connected

to the HDMI1-4 must be selected before switching to standby.

•When Standby Through turns on, the HDMI THROUGH indicator on the

front panel display lights up. While the indicator lights up, this unit

consumes up to 3W of power even on standby.

■Audio

Selects this unit or a component connected to this unit via

the HDMI OUT jack of this unit for reproducing sound

signals input from the HDMI IN jack.

Note

•Signal formats of audio and visual signals output from this unit to the

monitor vary depending on specifications of the monitor.

You can set items for the front panel display.

■Dimmer

Sets brightness of the front panel display. As the value is

lowered, the brightness of the front panel display is

darkened.

Note

•The brightness of display does not become bright in direct mode even if

the value is increased.

■FL Scroll

Selects the way to scroll the screen when a total number of

characters exceed a display area of the front panel display.

You can set items for volumes.

■Adptv DRC

Adjust the dynamic range in conjunction with the volume

level. This feature is useful when you are listening at

lower volumes or at night. When this function is enabled,

the dynamic range is adjusted as follows.

If the VOLUME setting is low:

the dynamic range is narrow

If the VOLUME setting is high:

the dynamic range is wide

•The Adaptive DRC setting is effective for headphones.

Adjustable range: 0 to 240ms (1 ms step)

Adjustable range: 0* to 240ms (1 ms step)

Function Setup

1 HDMI

Choices: On/Off*

On Outputs the HDMI signals to the HDMI OUT

jack.

Off Not output the HDMI signals to the HDMI

OUT jack.

Choices: Amp*/TV/Amp+TV

Amp Outputs HDMI sound signals form the

speakers connected to this unit.

TV Outputs HDMI sound signals from the

speakers of a TV connected to this unit.

Sound output from the speakers connected to

this unit is muted.

Amp+TV Outputs HDMI sound signals from the

speakers connected to this unit and the

speakers of a TV connected to this unit.

2 Display

Adjustable range: -4 to 0*

Choices: Cont*/Once

Cont Repeatedly displays all characters by

scrolling.

Once Displays all characters by scrolling once,

halts scrolling, and then displays first 14

characters.

3 Volume

Choices: Auto/Off*

Auto Adjusts the dynamic range automatically.

Off Not adjust the dynamic range automatically.

VOLUME: highVOLUME: low

Input levelInput level

Output level

Auto

Off Off

Auto

43 En

Operating various settings for this unit (Setup menu)

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■MaxVol

Sets the maximum volume level so that the volume will

not be accidentally increased. For example, you can adjust

the volume between –80.0 dB and –5.0 dB when you set

this parameter to “–5.0dB.” The volume increases to the

maximum level when this parameter is set to +16.5 dB

(default).

■IniVol

Sets the volume at the time this unit is turned on. When

this parameter is set to “Off,” the volume is set to a level

that last time this unit is set to standby.

Note

•When you set “MaxVol” and “IniVol,” the setting of “MaxVol” becomes

effective. For example, when you set “MaxVol” to “–30.0dB” and

“IniVol” to “0.0dB,” the volume is automatically set to “–30.0dB” at the

next time this unit is turned on.

Changes input source names to be displayed on the front

panel display.

You can select an input source that you want to change the

name to be displayed using nCursor.

Selecting a name to be displayed from templates

Select an input source that you want to change the name,

and select a name from the following templates using

Cursor.

Entering an original name

Select an input source that you want to name, and press

nENTER. You can enter up to 9 characters by selecting

one character at a time with the following keys according

to the following operation.

The following characters are available for input.

A to Z, 0 to 9, a to z, symbols (#, *, –, +, etc.) and space

You can set parameters for the sound field programs. For

details, see page 36.

Protects settings of setup menu against accidental

alteration.

Adjustable range: -30.0dB to +15.0dB/+16.5dB* (5.0 dB

step)

Choices: Off*/Mute/-80.0dB to +16.5dB (0.5 dB step)

4 Input Rename

–Blu-ray –Satellite

–DVD –VCR

–SetTopBox –Tape

–Game –MD

–TV –PC

–DVR –iPod

–CD –HD DVD

–CD-R –“blank”

nCursor l / hFor selecting characters that you

want to change

nCursor k / nFor selecting characters to be

entered

nENTER For entering the selected characters

DSP Parameter

Memory Guard

Choices: Off*/On

Off Not protect settings.

On Protects the settings of the setup menu

(except for the Memory Guard setting).

44 En

You can control external components for a selected input source with the remote control. The keys available for

controlling external components are as follows:

dSOURCE POWER

Turns on and off an external component.

nCursor, ENTER, RETURN

Operates the menus of external components.

pDISPLAY

Switches between the screens of external components.

rExternal component operation keys

Function as a recording or playback key of an external

component, or a menu display key.

sNumeric keys

Function as numeric keys of an external component.

tTV control keys

•You can use tTV control keys only for controls of TV regardless

of selected input sources.

•You need to set the remote control code first to control external

components.

•The remote control keys for controlling external components are

available only when the external components have corresponding control

keys.

The following remote control codes are assigned to input

sources as factory default settings. For a complete list of

available remote control codes, refer to “List of remote

control codes” at the end of this manual.

■Default remote control code settings

“—” indicates no assignment

•An external component that is controlled by the remote control can be

automatically selected according to selection of the scenes (see page 21).

You can control other components by setting the

appropriate remote control codes. For a complete list of

available remote control codes, refer to “List of remote

control codes” at the end of this manual.

1Press cCODE SET on the remote control

using a pointed object such as the tip of a

ballpoint pen.

bTRANSMIT on the remote control blinks twice.

2Press gInput selection keys.

3Enter a remote control code using

sNumeric keys.

Once the remote control code is registered,

bTRANSMIT on the remote control blinks twice.

If it fails, bTRANSMIT blinks six times. Repeat

from step 1.

You can clear all the remote control codes previously set,

and reset all of them to the initial factory settings.

1Press cCODE SET on the remote control

using a pointed object such as a tip of a

ballpoint pen.

bTRANSMIT on the remote control blinks twice.

2Press lSETUP on the remote control.

3Enter “9981” using sNumeric keys.

Once the initialization is complete, bTRANSMIT

on the remote control blinks twice. If it fails,

bTRANSMIT blinks six times. Repeat from

step 1.

Controlling other components with the remote control

INPUT Switches visual inputs of TV

MUTE Mute audio of TV

TV VOL +/– Controls the volume of TV

TV CH +/– Switches channels of TV

POWER Turns on and off TV

Input source Category Manufacturer Default

code

[HDMI1] Blu-ray Disc Yamaha 2018

[HDMI2] — — —

[HDMI3] — — —

[HDMI4] — — —

[AV1] ———

[AV2] ———

[AV3] CD Yamaha 5013

[AV4] ———

[AV5] ———

[AV6] ———

[AUDIO1] — — —

[AUDIO2] — — —

[V-AUX] — — —

[TUNER] Tuner Yamaha 5007

[DOCK] DOCK Yamaha 5011

[A]/[B] — — —

Setting remote control codes

Resetting all remote control codes

Input source Category Manufacturer Default

code

45 En

English

INTRODUCTION

ADDITIONAL

INFORMATION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

In the advanced setup, you can set basic operations of this

unit, such as on and off of a bi-amp connection, or

initialize user settings. Perform the following steps to

change settings.

1Set this unit to the standby mode.

2Press ASTANDBY/ON while pressing and

holding LSTRAIGHT on the front panel.

The advanced setup menu appears on the front panel

display.

3Press KPROGRAM l / h repeatedly to

select the parameter you want to change.

The default setting are marked with “*.”

•XXX in the following parameters indicate the set values.

SP IMP. - XXX

Selects output impedance of this unit according to

connected speakers.

REMOTE ID-XXX

Sets a remote control ID. When using multiple

Yamaha AV receivers, you can operate them with a

single remote control by setting the receiver IDs to

the same setting.

INIT-XXXXXXXXX

Initializes various settings stored in this unit. You can

select an initialization method from the following.

DSP PARAM: All parameters of sound field

programs

ALL: Reset this unit to initial factory

settings

CANCEL: Cancellation of initialization

4Press LSTRAIGHT a few times to select the

value you want to change.

The value selected here becomes effective when this

unit is turned on the next time. You can change

multiple settings by repeating steps 3 and 4.

5Press ASTANDBY/ON, turns off this

system, and press ASTANDBY/ON again.

The value set in step 3 becomes effective, and this

unit turns on. When you select initialization in step 3,

the initialization is performed.

Two IDs are provided for the remote control of this unit. If

another Yamaha amplifier is in the same room, setting a

different remote control ID to this unit prevents unwanted

operation of the other amplifier.

ID1 is set for both remote control and amplifier by default.

When you change the remote control ID, display

“Advance Setup” (see the previous section) and change the

ID for the amplifier too.

1Press cCODE SET on the remote control

using a pointed object such as the tip of a

ballpoint pen.

bTRANSMIT blinks twice.

2Press lSETUP on the remote control.

3Enter the desired remote control ID code.

To switch to ID1:

Enter “5019” using sNumeric keys.

To switch to ID2:

Enter “5020” using sNumeric keys.

Once the remote control code is registered,

bTRANSMIT blinks twice.

If it fails, bTRANSMIT blinks six times. Repeat

from step 1.

•Initializing the remote control code (see page 44) returns it to ID1.

Advanced setup

Choices: 6 MIN/8 MIN*

Choices: ID1*/ID2

Choices: DSP PARAM/ALL/CANCEL

ADVANCEDSETUP

Setting a remote control ID

46 En

APPENDIX

Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized

Yamaha dealer or service center.

Troubleshooting

General

Problem Cause Remedy See

page

This unit fails to turn

on or enters the

standby mode soon

after the power is

turned on.

The power cable is not connected or the

plug is not completely inserted.

Connect the power cable properly to an AC wall

outlet.

—

The speaker impedance setting is

incorrect.

Set the speaker impedance to match your speakers. 45

(When this unit is turned back on and

“CHECK SP WIRES!” is displayed.) The

protection circuitry has been activated

because this unit was turned on while a

speaker cable was shorted.

Make sure that all speaker cables between this unit

and speakers are connected properly.

This unit cannot be

turned off.

The internal microcomputer is frozen due

to an external electric shock (such as

lightning or excessive static electricity) or

by a drop in power supply voltage.

Disconnect the power cable from the AC wall outlet,

wait about 30 seconds and then plug it in again.

—

No sound. “Audio” in “1 HDMI” of Function Setup

is set to “TV.”

Select a choice for “Audio” (Function

Setup→1HDMI→Audio) other than “TV.”

A proper audio decoder is not selected. Display the OPTION menu and set “Decoder Mode”

to “Auto.”

Incorrect input or output cable

connections.

Connect the cables properly. If the problem persists,

the cables may be defective.

14-16

No appropriate input source has been

selected.

Select an appropriate input source with NINPUT l

/ h or the gInput selection keys on the

remote control.

Speaker connections are not secure. Secure the connections. 11

The volume is turned down or muted. Turn up the volume. —

Signals this unit cannot reproduce are

being input from a source component,

such as a CD-ROM.

Display Signal info of the option menu and check the

input signal format.

If “No Signal” is displayed, check if the playback

component is properly connected to this unit (or a

proper input source is selected).

If “___” is displayed, the input signal in that format

cannot be reproduced by this unit.

—

The HDMI components connected to this

unit do not support the HDCP copy

protection standards.

Connect HDMI components that support the HDCP

copy protection standards.

47 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

No picture. An appropriate video input is not selected

on the monitor.

Select an appropriate video input on the monitor. —

The composite output terminals are used

to output a component video signal, or the

COMPONENT VIDEO jacks are used to

output a composite video signal.

If your monitor does not support the HDMI

connection, connect it to the COMPONENT OUT

jacks or the composite output terminals and select an

appropriate video input on the monitor.

Non-standard video signals are input. Connect the monitor to this unit via the

COMPONENT OUT jacks or the composite output

terminals.

The sound suddenly

goes off.

The protection circuitry has been activated

because of a short circuit, etc.

Check that the speaker impedance setting is correct. 45

Check that the speaker wires are not touching each

other and then turn this unit back on.

—

The sleep timer has turned off this unit. Turn on this unit, and play the source again. —

Sound is heard from

the speaker on one

side only.

The playback component or speakers are

not connected properly.

Connect the cables properly. If the problem persists,

the cables may be defective.

The speaker level settings are incorrect. Adjust “B)Level” settings. 41

Only the center

speaker outputs

substantial sound.

When a monaural source sound field

program is applied, sound of all channels

are output from the center speaker for

some surround decoders.

Try another sound field program. 24

No sound is output

from a specific

speaker.

Output from that speaker is disabled. Check the Speaker indicators on the front panel

display. If the corresponding indicator is turned off,

try the following.

1) Change the input source to another one.

2) With the selected sound field program, sound is not

output from that speaker. Select another sound field

program.

3) “None” may have been selected for that speaker on

this unit. Display Speaker Setup in the Setup menu

and enables output of that speaker.

6, 21, 24,

The volume of that speaker is set to

minimum in Speaker Setup in the Setup

menu.

Display Speaker Setup in the Setup menu and adjust

the volume (Manual Setup→B)Level).

This unit or speaker is malfunction. Check the Speaker indicators on the front panel

display. If the corresponding indicator lights up,

connect another speaker and check if sound is output.

If sound is not output, this unit may be malfunction.

6, 10

No sound is heard

from the surround

speakers.

This unit is in the “STRAIGHT” mode

and a monaural source is being played

back.

Press LSTRAIGHT or the jSTRAIGHT on the

remote control to turn off the “STRAIGHT” mode.

Sound may not be output from certain

channels depending on input sources or

sound field programs.

Try another sound field program. 24

Problem Cause Remedy See

page

48 En

Troubleshooting

No sound is heard

from the subwoofer.

“Bass Out” of “A)Config” in “Speaker

Setup” of the setup menu (Speaker

Setup→Manual Setup→A)Config) is set

to “Front” when a Dolby Digital, DTS or

AAC signal is being played.

Set “Bass Out” to “SWFR” or “Both.” 39

“Bass Out” of “A)Config” in “Speaker

Setup” of the setup menu (Speaker

Setup→Manual Setup→A)Config) is set

to “SWFR” or “Front” when a 2-channel

source is being played.

Set “Bass Out” to “Both.” 39

The source does not contain low

frequency signals.

No sound is heard

from the surround

back speakers.

“EXTD Surround” in the OPTION menu

is set to “Off,” or an input signal does not

contain a surround back flag with “EXTD

Surround” set to “Auto.”

Set “EXTD Surround” other than “Off” or “Auto.” 40

The audio input

sources cannot be

played in the desired

digital audio signal

format.

The connected component is not set to

output the desired digital audio signals.

Set the playback component properly referring to its

operating instructions.

—

Noise/hum noise is

heard.

Incorrect cable connection. Connect the audio cables properly. If the problem

persists, the cables may be defective.

—

A DTS-CD is being played back. 1) When only noise is output

If a DTS bitstream signal is not properly input to this

unit, only noise is output. Connect the playback

component to this unit by digital connection and play

back the DTS-CD. If the condition is not improved,

the problem may results from the playback

component. Consult the manufacturer of the playback

component.

2) When noise is output during playback or skip

operation

Before playing back the DTS-CD, display the option

menu after selecting the input source and set

“Decoder Mode” to “DTS.”

16, 34

“Memory Guard!” is

displayed and the

setting cannot be

changed.

“Memory Guard” in “Set Menu” is set to

“On.”

Set “Memory Guard” to “Off.” 43

This unit does not

operate properly.

The internal microcomputer is frozen due

to an external electric shock (such as

lightning or excessive static electricity) or

by a drop in power supply voltage.

Disconnect the power cable from the AC wall outlet,

wait about 30 seconds and then plug it in again.

—

“CHECK SP WIRES!”

appears on the front

panel display.

Speaker cables are short-circuited. Make sure all speaker cables are connected correctly. 12

There is noise

interference from

digital or radio

frequency equipment.

This unit is too close to other digital or

radio frequency equipment.

Move this unit further away from such equipment. —

Problem Cause Remedy See

page

49 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

The picture is

disturbed.

The video software is copy-protected.

This unit suddenly

enters the standby

mode.

The internal temperature becomes too

high and the overheat protection circuitry

has been activated.

Wait about 1 hour for this unit to cool down and then

turn it back on.

—

HDMI

Problem Cause Remedy See

page

No picture or sound. The number of the connected HDMI

components is over the limit.

Disconnect some of the HDMI components. —

The connected HDMI component does not

support high-bandwidth digital copyright

protection (HDCP).

Connect an HDMI component that supports HDCP. 15

Tuner (FM/AM)

Problem Cause Remedy See

page

FM stereo reception is

noisy.

You are too far from the station

transmitter or the input from the

antenna is weak.

Check the antenna connections. 17

Replace the outdoor antenna with a more

sensitive multi-element antenna.

—

Switch to monaural mode. 34

There is distortion, and

clear reception cannot

be obtained even with a

good FM antenna.

There is multi-path interference. Adjust the antenna height or orientation, or

place it in a different location.

—

The desired station

cannot be tuned into

with the automatic

tuning method.

You are in an area far from a station or

an input from the antenna is weak.

Replace an outdoor antenna with more

sensitive multi element antenna.

—

Tune in manually or by direct frequency

tuning.

The desired station

cannot be tuned into

with the automatic

tuning method.

The signal is weak or the antenna

connections are loose.

Adjust the AM loop antenna orientation. 17

Use the manual tuning method. 28

There are continuous

crackling and hissing

noises.

Supplied AM loop antenna is not

connected.

Connect the AM loop antenna correctly even

if you use an outdoor antenna.

The noises may be caused by lightning,

fluorescent lamps, motors, thermostats

and other electrical equipment.

It is difficult to completely eliminate noise,

but it can be reduced by installing and

properly grounding an outdoor AM antenna.

There are buzzing and

whining noises.

A TV set is being used nearby. Move this unit away from the TV set. —

Problem Cause Remedy See

page

50 En

Troubleshooting

Note

•In case of a transmission error without a status message appearing on the front panel display, check the connection of your iPod (see page 16).

Remote control

Problem Cause Remedy See

page

The remote control

does not work or

function properly.

Wrong distance or angle. The remote control will function within a maximum

range of 6 m (20 ft) and no more than 30 degrees

offaxis from the front panel.

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, strobe

light, etc.) is striking the remote control

sensor of this unit.

Adjust the lighting angle or reposition this unit. —

The batteries are weak. Replace all batteries. 9

The remote control ID of the remote

control and this unit do not match.

Match the remote control ID of this unit and the

remote control.

The remote control code is not correctly

set.

Set the remote control code correctly using “List of

remote control codes” at the end of this manual.

Try setting another code of the same manufacturer

using “List of remote control codes” at the end of this

manual.

If this unit does not work when you press nCursor,

do the following.

When the key does not work during DVD disc menu

operation: press the gInput selection keys on

the remote control again.

When the key does not work during OPTION menu/

SETUP menu operation: press the key applicable for

the current menu operation again.

—

Even if the remote control code is

correctly set, there are some models that

do not respond to the remote control.

iPod

Problem Cause Remedy See

page

Loading... This unit is in the middle of recognizing

the connection with your iPod.

This unit is in the middle of acquiring

song lists from your iPod.

Connect error There is a problem with the signal path

from your iPod to this unit.

Turn off this unit and reconnect the Yamaha iPod

universal dock to the DOCK terminal of this unit.

Remove your iPod in the Yamaha iPod universal dock

and then place it back in the dock.

Unknown iPod The iPod being used is not supported by

this unit.

This unit supports iPod Touch, iPod (Click Wheel),

iPod nano and iPod mini.

—

iPod Connected Your iPod is properly placed in the

Yamaha iPod universal dock.

Disconnected Your iPod is removed from the Yamaha

iPod universal dock.

Place your iPod in the Yamaha iPod universal dock. 16

51 En

Troubleshooting

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

Notes

•If the “ERROR” or “WARNING” message appears, resolve the problem and then run “Auto Setup” again.

•Warning message “W-2” or “W-3” indicates that the adjusted settings may not be optimal.

•Depending on the speakers, warning message “W-1” may appears even if the speaker connections are correct.

•If error message “E-10” occurs repeatedly, contact a qualified Yamaha service center.

Unable to play This unit cannot play back the songs

currently stored on your iPod.

Check that the songs currently stored on your iPod

are playable.

—

Store some other playable music files on your iPod. —

Bluetooth™

Problem Cause Remedy See

page

Searching... The Bluetooth wireless audio receiver and

the Bluetooth component are in the

middle of the pairing.

The Bluetooth wireless audio receiver and

the Bluetooth component are in the

middle of establishing the connection.

Completed The pairing is completed.

Canceled The pairing is canceled.

BT Connected The connection between the Yamaha

Bluetooth wireless audio receiver and the

Bluetooth component is established.

BT Disconnected The Bluetooth component is disconnected

from the Yamaha Bluetooth wireless

audio receiver.

Auto Setup (YPAO)

Before Auto Setup

Error message Cause Remedy See

page

Connect MIC! Optimizer microphone is not connected. Connect the supplied optimizer microphone to the

OPTIMIZER MIC jack on the front panel.

Unplug HP! Headphones are connected. Unplug the headphones. —

Memory Guard! The parameters of this unit are protected. Set “Memory Guard” to “Off.” 43

During Auto Setup

Error message Cause Remedy See

page

E-1:NO FRONT SP Front L/R channel signals are not

detected.

Check the front L/R speaker connections. 11

E-2:NO SUR. SP Only a signal from one of the surround

channels are detected.

Check the surround L/R speaker connections. 11

E-4:SBR->SBL Only right surround back channel signal

is detected.

If you connect only one surround back speaker,

connect it to the L-side (SINGLE) terminal.

Problem Cause Remedy See

page

52 En

Troubleshooting

E-5:NOISY Measurement cannot be performed

accurately due to loud ambient noise.

Try running “Auto Setup” in a quiet environment. —

Turn off noisy electric equipment like air

conditioners or move them away from the optimizer

microphone.

—

E-6:CHECK SUR. Surround back speakers are connected,

though surround L/R speakers are not.

When using surround back speakers, you need to

connect surround L/R speakers.

E-7:NO MIC The optimizer microphone was

unplugged during the “Auto Setup”

procedure.

Do not touch the optimizer microphone during “Auto

Setup.”

E-8:NO SIGNAL The optimizer microphone does not

detect test tones.

Check whether the microphone is properly placed. 18

Check whether the speakers are properly placed and

connected.

The optimizer microphone or OPTIMIZER MIC

jack may be defective. Contact the nearest Yamaha

dealer or service center.

E-9:USER CANCEL “Auto Setup” was cancelled due to an

inappropriate user operation.

Run “Auto Setup” again. 18

E-10:INTERNAL ERROR An internal error occurred. Run “Auto Setup” again. 18

After Auto Setup

Error message Cause Remedy See

page

W-1:OUT OF PHASE Speaker polarity is not correct. This

message may appear depending on the

speakers even when the speakers are

connected correctly.

Check the polarities (+, –) of the displayed speaker.

If they are correct, the speakers work properly even

when this message is displayed.

W-2:OVER 24m (80ft) The distance between the speaker and the

listening position is over 24 m (80 ft).

Bring the speaker within 24 m (80 ft.) area around

the listening position.

—

W-3:LEVEL ERROR The difference of volume level among

speakers is excessive.

Recheck the speaker positions and make sure all

speakers are placed in a similar environment.

—

Check the polarities (+, –) of the speakers. 11

We recommended that you use speakers with the

same or similar specifications.

—

Adjust the output volume of the subwoofer. —

If a warning message related to the

surround back speaker is displayed, the

volume or right and left balance of the

external amplifier may not be properly

set.

Check if the volume or balance of the external

amplifier is proper.

—

Error message Cause Remedy See

page

53 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Audio and video synchronization (lip sync)

Lip sync, an abbreviation for lip synchronization, is a technical term

that involves both a problem and a capability of maintaining audio and

video signals synchronized during post-production and transmission.

Whereas the audio and video latency requires complex end-user

adjustments, HDMI version 1.3 incorporates an automatic audio and

video syncing capability that allows devices to perform this

synchronization automatically and accurately without user interaction.

■Bi-amplification connection

A bi-amplification connection uses two amplifiers for a speaker.

One amplifier is connected to the woofer section of a loudspeaker

while the other is connected to the combined mid and tweeter section.

With this arrangement each amplifier operates over a restricted

frequency range. This restricted range presents each amplifier with a

much simpler job and each amplifier is less likely to influence the

sound in some way.

■Component video signal

With the component video signal system, the video signal is separated

into the Y signal for the luminance and the PB and PR signals for the

chrominance. Color can be reproduced more faithfully with this

system because each of these signals is independent. The component

signal is also called the “color difference signal” because the

luminance signal is subtracted from the color signal. A monitor with

component input jacks is required in order to output component

signals.

■Composite video signal

With the composite video signal system, the video signal is composed

of three basic elements of a video picture: color, brightness and

synchronization data. A composite video jack on a video component

transmits these three elements combined.

■Deep Color

Deep Color refers to the use of various color depths in displays, up

from the 24-bit depths in previous versions of the HDMI specification.

This extra bit depth allows HDTVs and other displays go from

millions of colors to billions of colors and eliminate on-screen color

banding for smooth tonal transitions and subtle gradations between

colors. The increased contrast ratio can represent many times more

shades of gray between black and white. Also Deep Color increases

the number of available colors within the boundaries defined by the

RGB or YCbCr color space.

■Dolby Digital

Dolby Digital is a digital surround sound system that gives you

completely independent multi-channel audio. With 3 front channels

(front L/R and center), and 2 surround stereo channels, Dolby Digital

provides 5 full-range audio channels. With an additional channel

especially for bass effects, called LFE (Low Frequency Effect), the

system has a total of 5.1-channels (LFE is counted as 0.1 channel). By

using 2-channel stereo for the surround speakers, more accurate

moving sound effects and surround sound environment are possible

than with Dolby Surround. The wide dynamic range from maximum

to minimum volume reproduced by the 5 full-range channels and the

precise sound orientation generated using digital sound processing

provide listeners with unprecedented excitement and realism.

With this unit, any sound environment from monaural up to a 5.1-

channel configuration can be freely selected for your enjoyment.

■Dolby Digital Surround EX

Dolby Digital EX creates 6 full-bandwidth output channels from 5.1-

channel sources.

For the best results, Dolby Digital EX should be used with movie

sound tracks recorded with Dolby Digital Surround EX. With this

additional channel, you can experience more dynamic and realistic

moving sound especially with scenes with “fly-over” and “fly-

around” effects.

■Dolby Digital Plus

Dolby Digital Plus is an advanced audio technology developed for

high-definition programming and media including HD broadcasts,

and Blu-ray Disc. Selected as an optional audio standard for Blu-ray

Disc, this technology delivers multichannel sound with discrete

channel output. Supporting bitrates up to 6.0 Mbps, Dolby Digital

Plus can carry up to 7.1 discreet audio channels simultaneously.

Supported by HDMI version 1.3 and designed for the optical disc

players and AV receivers/amplifiers of the future, Dolby Digital Plus

also remains fully compatible with the existing multichannel audio

systems that incorporate Dolby Digital.

■Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to decode vast

numbers of existing Dolby Surround sources. This new technology

enables a discrete 5-channel playback with 2 front left and right

channels, 1 center channel, and 2 surround left and right channels

instead of only 1 surround channel for conventional Pro Logic

technology. There are three modes available: “Music mode” for music

sources, “Movie mode” for movie sources and “Game mode” for

game sources.

■Dolby Pro Logic IIx

Dolby Pro Logic IIx is a new technology enabling discrete

multichannel playback from 2-channel or multi-channel sources.

There are three modes available: “Music mode” for music sources,

“Movie mode” for movie sources (for 2-channel sources only) and

“Game mode” for game sources.

■Dolby Surround

Dolby Surround is widely used with nearly all video tapes and laser

discs, and in many TV and cable broadcasts as well. Dolby Surround

uses a 4-channel analog recording system to reproduce realistic and

dynamic sound effects: 2 front left and right channels (stereo), a

center channel for dialog (monaural), and a surround channel for

special sound effects (monaural). The surround channel reproduces

sound within a narrow frequency range. The Dolby Pro Logic decoder

built into this unit employs a digital signal processing system that

automatically stabilizes the volume on each channel to enhance

moving sound effects and directionality.

■Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology developed

for high-definition disc-based media including Blu-ray Disc. Selected

as an optional audio standard for Blu-ray Disc, this technology

delivers sound that is bit-for-bit identical to the studio master, offering

a high-definition home theater experience.

Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up to 8

discrete channels of 24-bit/96 kHz audio simultaneously.

Dolby TrueHD also remains fully compatible with the existing

multichannel audio systems and retains the metadata capability of

Dolby Digital, allowing dialog normalization and dynamic range

control.

Glossary

54 En

Glossary

■DSD

Direct Stream Digital (DSD) technology stores audio signals on

digital storage media, such as Super Audio CDs. Using DSD, signals

are stored as single bit values at a high-frequency sampling rate of

2.8224 MHz, while noise shaping and oversampling are used to

reduce distortion, a common occurrence with very high quantization

of audio signals. Due to the high sampling rate, better audio quality

can be achieved than that offered by the PCM format used for normal

audio CDs. The frequency is equal to or higher than 100 kHz and the

dynamic range is 120 dB. This unit can transmit or receive DSD

signals via the HDMI jack.

■DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality for multi-

channel sound on DVD video, and is fully backward-compatible with

all DTS decoders. “96” refers to a 96 kHz sampling rate compared to

the typical 48 kHz sampling rate. “24” refers to 24-bit word length.

DTS 96/24 offers sound quality transparent to the original 96/24

master, and 96/24 5.1-channel sound with full-quality full-motion

video for music programs and motion picture soundtracks on DVD

video.

■DTS Digital Surround

DTS digital surround was developed to replace the analog soundtracks

of movies with a 5.1-channel digital sound track, and is now rapidly

gaining popularity in movie theaters around the world. DTS, Inc. has

developed a home theater system so that you can enjoy the depth of

sound and natural spatial representation of DTS digital surround in

your home. This system produces practically distortion-free 6-channel

sound (technically, front left and right, center, surround left and right,

and LFE 0.1 (subwoofer) channels for a total of 5.1 channels). This

unit incorporates a DTS-ES decoder that enables 6.1-channel

reproduction by adding the surround back channel to the existing 5.1-

channel format.

■DTS Express

This is an audio format for next-generation optical discs such as Blu-

ray discs. It uses optimized low bit rate signals for network streaming.

In the case of a Blu-ray disc, this format is used with secondary audio,

enabling you to enjoy the commentary of the movie producer via the

Internet while playing the main program.

■DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is a high resolution audio

technology developed for high-definition disc-based media including

Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc,

this technology delivers sound that is virtually indistinguishable from

the original, offering a high-definition home theater experience.

Supporting bitrates up to 6.0 Mbps for Blu-ray Disc, DTS-HD High

Resolution Audio can carry up to 7.1 discrete channels of 24-bit/96

kHz audio simultaneously.

DTS-HD High Resolution Audio also remains fully compatible with

the existing multichannel audio systems that incorporate DTS Digital

Surround.

■DTS-HD Master Audio

DTS-HD Master Audio is an advanced lossless audio technology

developed for high-definition disc-based media including Blu-ray

Disc. Selected as an optional audio standard for Blu-ray Disc, this

technology delivers sound that is bit-for-bit identical to the studio

master, offering a high-definition home theater experience.

Supporting bitrates up to 24.5 Mbps for Blu-ray Disc, DTS-HD

Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz

audio simultaneously. Supported by HDMI version 1.3 and designed

for the optical disc players and AV receivers/amplifiers of the future,

DTS-HD Master Audio also remains fully compatible with the

existing multichannel audio systems that incorporate DTS Digital

Surround.

■HDMI

HDMI (High-Definition Multimedia Interface) is the first industry-

supported, uncompressed, all-digital audio/video interface. Providing

an interface between any source (such as a set-top box or AV receiver)

and an audio/video monitor (such as a digital television), HDMI

supports standard, enhanced or high-definition video as well as multi-

channel digital audio using a single cable. HDMI transmits all ATSC

HDTV standards and supports 8-channel digital audio, with

bandwidth to spare to accommodate future enhancements and

requirements.

When used in combination with HDCP (High-bandwidth Digital

Content Protection), HDMI provides a secure audio/video interface

that meets the security requirements of content providers and system

operators. For further information on HDMI, visit the HDMI website

at “http://www.hdmi.org/.”

■LFE 0.1 channel

This channel reproduces low-frequency signals. The frequency range

of this channel is from 20 Hz to 120 Hz. This channel is counted as

0.1 because it only enforces a low-frequency range compared to the

full-range reproduced by the other 5/6 channels in Dolby Digital or

DTS 5.1/6.1-channel systems.

■Neo:6

Neo:6 decodes the conventional 2-channel sources for 6- channel

playback by the specific decoder. It enables playback with the full-

range channels with higher separation just like digital discrete signal

playback. There are two modes available: “Music mode” for music

sources and “Cinema mode” for movie sources.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is

digitized, recorded and transmitted without using any compression.

This is used as a method of recording CDs and DVD audio. The PCM

system uses a technique for sampling the size of the analog signal per

very small unit of time. Standing for “Pulse Code Modulation,” the

analog signal is encoded as pulses and then modulated for recording.

■Sampling frequency and number of

quantized bits

When digitizing an analog audio signal, the number of times the

signal is sampled per second is called the sampling frequency, while

the degree of fineness when converting the sound level into a numeric

value is called the number of quantized bits. The range of rates that

can be played back is determined based on the sampling rate, while

the dynamic range representing the sound level difference is

determined by the number of quantized bits. In principle, the higher

the sampling frequency, the wider the range of frequencies that can be

played back, and the higher the number of quantized bits, the more

finely the sound level can be reproduced.

■“x.v.Color”

A color space standard supported by HDMI version 1.3. It is a more

extensive color space than sRGB, and allows the expression of colors

that could not be expressed before. While remaining compatible with

the color gamut of sRGB standards, “x.v.Color” expands the color

space and can thus produce more vivid, natural images. It is

particularly effective for still pictures and computer graphics.

55 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed

for use in movie theaters, their effect is best felt in a theater having

many speakers designed for acoustic effects. Since home conditions,

such as room size, wall material, number of speakers, and so on, can

differ so widely, it is inevitable that there are differences in the sound

heard.

Based on a wealth of actually measured data, Yamaha CINEMA DSP

provides the audiovisual experience of a movie theater in the listening

room of your own home by using the Yamaha original sound field

technology combined with various digital audio systems.

■SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm

for headphones. Parameters for headphones have been set for each

sound field so that accurate representations of all the sound field

programs can be enjoyed on headphones.

■Virtual CINEMA DSP

Yamaha has developed a Virtual CINEMA DSP algorithm that allows

you to enjoy DSP sound field surround effects even without any

surround speakers by using virtual surround speakers. It is even

possible to enjoy Virtual CINEMA DSP using a minimal two-speaker

system that does not include a center speaker.

■Compressed Music Enhancer

The Compressed Music Enhancer feature of this unit enhances your

listening experience by regenerating the missing harmonics in a

compression artifact. As a result, flattened complexity due to the loss

of high-frequency fidelity as well as lack of bass due to the loss of

low-frequency bass is compensated, providing improved performance

of the overall sound system.

■HDMI signal compatibility

Audio signals

•If the input source component can decode the bitstream audio signals of audio commentaries, you can play back the audio sources with the audio

commentaries mixed down by using the DIGITAL INPUT OPTICAL (or COAXIAL) connections.

•Refer to the supplied instruction manuals of the input source component, and set the component appropriately.

Notes

•When CPPM copy-protected DVD-Audio is played back, video and audio signals may not be output depending on the type of the DVD player.

•This unit is not compatible with HDCP-incompatible HDMI or DVI components.

•To decode audio bitstream signals on this unit, set the input source component appropriately so that the component outputs the bitstream audio signals

directly (does not decode the bitstream signals on the component). Refer to the supplied instruction manuals for details.

•This unit is not compatible with the audio commentary features (for example, the special audio contents downloaded via Internet) of Blu-ray Disc or HD

DVD. This unit does not play back the audio commentaries of the Blu-ray Disc or HD DVD contents.

Video signals

This unit is compatible with the video signals of the following resolutions:

•480i/60 Hz

•576i/50 Hz

•480p/60 Hz

•576p/50 Hz

•720p/60 Hz, 50 Hz

•1080i/60 Hz, 50 Hz

•1080p/60 Hz, 50 Hz, 24 Hz

Sound field program information

Information on HDMI™

Audio signal types Audio signal formats Compatible media

2ch Linear PCM 2ch, 32-192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc.

Multi-ch Linear PCM 8ch, 32-192 kHz, 16/20/24 bit DVD-Audio, Blu-ray Disc, HD DVD, etc.

DSD 2/5.1ch, 2.8224 MHz, 1 bit SA-CD, etc.

Bitstream Dolby Digital, DTS DVD-Video, etc.

Bitstream (High definition audio) Dolby TrueHD, Dolby Digital Plus, DTS-HD

Master Audio, DTS-HD High Resolution Audio,

DTS Express

Blu-ray Disc, HD DVD, etc.

56 En

AUDIO SECTION

• Minimum RMS Output Power for Front, Center, Surround,

Surround back

[U.S.A. and Canada models]

1 kHz, 0.9% THD, 8 Ω........................................................ 105 W

[Other models]

1 kHz, 0.9% THD, 6 Ω........................................................ 105 W

• Dynamic Power (IHF)

[U.S.A. and Canada models]

Front Speakers 8/6/4/2 Ω................................ 110/130/160/180 W

[Other models]

Front Speakers 6/4/2 Ω.......................................... 100/130/150 W

• Maximum Useful Output Power (JEITA) [China, Korea, General

and Asia models]

1 kHz, 10% THD, 6 Ω......................................................... 140 W

• Maximum Output Power [U.K., Europe and Asia models]

1 kHz, 0.7% THD, 4 Ω........................................................ 120 W

• Dynamic Headroom [U.S.A. and Canada models]

8 Ω.........................................................................................0.2 dB

• IEC Output Power [U.K., Europe and Asia models]

Front Speakers 1 kHz, 0.9% THD, 8 Ω............................... 105 W

• Input Sensitivity/Input Impedance

AV5, etc................................................................... 200 mV/47 kΩ

• Maximum Input Voltage

AV5, etc. (1 kHz, 0.5% THD) ...................................2.3 V or more

• Rated Output Voltage/Output Impedance

AUDIO OUT.......................................................... 200 mV/1.2 kΩ

PRE OUT ................................................................... 1.0 V/1.2 kΩ

SUBWOOFER (2ch Stereo & Front: Small)

................................................................................. 1.0 V/1.2 kΩ

• Headphone Jack Rated Output/Impedance

AV5, etc. (1 kHz, 50 mV, 8 Ω) ................................ 100 mV/470 Ω

• Frequency Response

AV5 to FRONT ..................................10 Hz to 100 kHz, +0/–3 dB

• Total Harmonic Distortion

AV5, etc. to FRONT, Pure Direct

[U.S.A. and Canada models]

(1 kHz, 50 W, 8 Ω)..................................................0.06% or less

[Other models]

(1 kHz, 50 W, 6 Ω)..................................................0.06% or less

• Signal to Noise Ratio (IHF-A Network)

AV5, etc. Input Shorted (250 mV to Front Speakers)

............................................................................. 100 dB or more

• Residual Noise (IHF-A Network)

Front Speakers..........................................................150 µV or less

• Channel Separation (1 kHz/10 kHz)

AV5, etc. (5.1 kΩ shortened)......................... 60 dB/45 dB or more

• Volume Control ................................... MUTE / –80 dB to +16.5 dB

• Tone Control (Front Speakers)

BASS Boost/Cut....................................................±10 dB at 50 Hz

BASS Turnover Frequency ..................................................350 Hz

TREBLE Boost/Cut ............................................±10 dB at 20 kHz

TREBLE Turnover Frequency ............................................3.5 kHz

• Filter Characteristics (fc=40/60/80/90/100/110/120/160/200 Hz)

H.P.F. (Front, Center, Surround, Surround back: Small)

......................................................................................12 dB/oct.

L.P.F. (Subwoofer) ..........................................................24 dB/oct.

VIDEO SECTION

• Video Signal Type (Gray Back)

[U.S.A., Canada, Korea and General models] .......................NTSC

[Other models]..........................................................................PAL

• Signal Level

Composite................................................................... 1 Vp-p/75 Ω

Component............................................................1 Vp-p/75 Ω (Y)

• Maximum Input Level (Video Conversion Off)

............................................................................. 1.5 Vp-p or more

• Signal to Noise Ratio ...................................................50 dB or more

• Frequency Response [MONITOR OUT]

Component (Video Conversion Off)

................................................................ 5 Hz to 60 MHz, –3 dB

FM SECTION

• Tuning Range

[U.S.A. and Canada models] ............................ 87.5 to 107.9 MHz

[Asia and General models] ......... 87.5/87.50 to 108.0/108.00 MHz

[Other models].............................................. 87.50 to 108.00 MHz

• 50 dB Quieting Sensitivity (IHF)

Mono................................................................... 3.0 µV (20.8 dBf)

• Signal to Noise Ratio (IHF)

Mono/Stereo ............................................................... 74 dB/69 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ..................................................................... 0.3/0.3%

• Antenna Input (unbalanced) .......................................................75 Ω

AM SECTION

• Tuning Range

[U.S.A. and Canada models] ................................ 530 to 1710 kHz

[Asia and General models] ...................530/531 to 1710/1611 kHz

[Other models]...................................................... 531 to 1611 kHz

GENERAL

• Power Supply

[U.S.A. and Canada models] ............................... AC 120 V, 60 Hz

[General models] ...............AC 110/120/220/230–240 V, 50/60 Hz

[China model] ...................................................... AC 220 V, 50 Hz

[Korea model]...................................................... AC 220 V, 60 Hz

[Australia model]................................................. AC 240 V, 50 Hz

[U.K. and Europe models]................................... AC 230 V, 50 Hz

[Asia models]................................... AC 220/230–240 V, 50/60 Hz

• Power Consumption

[U.S.A. and Canada models] ...................................270 W/320 VA

[Other models]...................................................................... 280 W

• Standby Power Consumption

Standby through off ....................................................0.2 W or less

Standby through on........................................................3 W or less

• Dimensions (W x H x D)...................................435 x 151 x 364 mm

(17-1/8 x 6 x 14-3/8 in)

• Weight...................................................................... 8.4 kg (18.5 lbs)

* Specifications are subject to change without notice.

Specifications

57 En

English

INTRODUCTION APPENDIX

PREPARATION

BASIC

OPERATION

ADVANCED

OPERATION

■Numerics

1 Dynamic Range, sound setup ......................41

1 HDMI, function setup .................................42

2 Display, function setup ................................42

2 Lipsync, sound setup ...................................41

2ch Stereo, sound field program ....................25

3 Volume, function setup ...............................42

4 Input Rename, function setup .....................43

5.1-channel speaker layout .............................10

6.1-channel speaker layout .............................10

7.1-channel speaker layout .............................10

7ch Enhancer, sound field program ...............26

7ch Stereo, sound field program ....................26

■A

A)Config, speaker setup .................................39

Action Game, sound field program ................25

Adjusting high frequency sound ....................22

Adjusting low frequency sound .....................22

Adptv DRC, 3 Volume, function setup ..........42

Advanced setup ..............................................45

Adventure, sound field program ....................24

AM antenna connection .................................17

AM tuning ......................................................28

AM, front panel ................................................4

ANTENNA jack, rear panel .............................5

AUDIO 1/2, rear panel .....................................5

Audio and video player connection ................15

AUDIO jack ...................................................13

Audio jack ......................................................13

AUDIO L/R jack, front panel ...........................4

AUDIO OUT, rear panel ..................................5

Audio player connection ................................16

Audio, 1 HDMI, function setup .....................42

Auto Preset, OPTION menu ..........................35

Auto Setup (YPAO), troubleshooting ............51

Auto, 2 Lipsync, sound setup .........................42

Automatic setup .............................................18

AV 1-6, rear panel ............................................5

AV OUT, rear panel .........................................5

■B

B)Level, speaker setup ...................................41

Basic operation, setup menu ..........................39

Bass Out, A)Config, speaker setup ................39

Bluetooth component playback ......................32

Bluetooth wireless audio receiver

connection .................................................16

Bluetooth, troubleshooting .............................51

■C

C)Distance, speaker setup ..............................41

C.Image, decoder parameter ..........................37

Cellar Club, sound field program ...................25

Center speaker ................................................10

Center width, decoder parameter ...................37

Center, A)Config, speaker setup ....................40

Center, C)Distance, speaker setup .................41

Chamber, sound field program .......................25

CINEMA DSP indicator,

front panel display .......................................6

CINEMA DSP parameter ...............................36

Clear Preset, OPTION menu ..........................35

COAXIAL jack ..............................................13

CODE SET, remote control .............................7

COMPONENT VIDEO jack ..........................13

Connect, OPTION menu ................................35

Connecting AM antenna ................................17

Connecting audio and video player ................15

Connecting audio player ................................16

Connecting Bluetooth wireless audio

receiver ......................................................16

Connecting FM antenna .................................17

Connecting iPod universal dock .....................16

Connecting power cable .................................17

Connecting projector ......................................14

Connecting set-top box .................................. 15

Connecting speaker ........................................ 11

Connecting speaker cable .............................. 12

Connecting the surround back speakers ........ 11

Connecting TV monitor ................................. 14

Connection ..................................................... 10

Controlling other component,

remote control ........................................... 44

Crossover, A)Config, speaker setup .............. 40

CT Level, sound field parameter ................... 36

Cursor indicator, front panel display ............... 6

Cursors k / n / l / h, remote control ........... 7

■D

D)Equalizer, speaker setup ............................ 41

Decoder Mode, OPTION menu ..................... 34

Decoder parameter ......................................... 37

Dimension, decoder parameter ...................... 37

Dimmer, 2 Display, function setup ................ 42

DIRECT, front panel ....................................... 4

Direct, sound field parameter ........................ 36

Disconnect, OPTION menu ........................... 35

DISPLAY, remote control ............................... 7

Displaying input signal information .............. 23

DOCK terminal, rear panel .............................. 5

Drama, sound field program .......................... 25

DSP Level, sound field parameter ................. 36

DSP Parameter, Setup menu .......................... 43

■E

E)Test Tone, speaker setup ............................ 41

Editing sound field program .......................... 36

Editing surround decoder ............................... 36

EFCT LVL, sound field parameter ................ 37

ENTER, remote control ................................... 7

EQ Select, D)Equalizer, speaker setup .......... 41

EXTD Surround, OPTION menu .................. 34

External component operation key,

remote control ............................................. 7

■F

FL Scroll, 2 Display, function setup .............. 42

FM antenna connection .................................. 17

FM Mode, OPTION menu ............................. 34

FM tuning ...................................................... 28

FM, front panel ................................................ 4

Frequency tuning ........................................... 28

Front L, C)Distance, speaker setup ................ 41

Front left speaker ........................................... 10

Front panel ....................................................... 4

Front panel display .......................................... 6

Front panel display, front panel ....................... 4

Front R, C)Distance, speaker setup ............... 41

Front right speaker ......................................... 10

Front, A)Config, speaker setup ...................... 40

Function setup, setup menu ........................... 42

■H

Hall in Munich, sound field program ............ 25

Hall in Vienna, sound field program .............25

HDMI Auto, 2 Lipsync, sound setup ............. 41

HDMI indicator, front panel display ............... 6

HDMI information ......................................... 55

HDMI jack ..................................................... 13

HDMI OUT/HDMI 1-4, rear panel ................. 5

HDMI THROUGH, front panel ....................... 4

HDMI, troubleshooting .................................. 49

Headphones using .......................................... 22

Hi-fi sound playback ...................................... 22

High frequency sound adjustment ................. 22

■I

INFO, front panel ............................................. 4

INFO, remote control ....................................... 7

INIT, advanced setup ..................................... 45

Initialize setting, advanced setup ................... 45

IniVol, 3 Volume, function setup .................. 43

INPUT l / h, front panel .............................. 4

Input selection key, remote control ................. 7

Input signal information displaying .............. 23

Input source registration ................................ 21

Installing batteries, remote control .................. 9

iPod playback ................................................ 30

iPod universal dock connection ..................... 16

iPod, troubleshooting .................................... 50

■L

Low frequency sound adjustment ................. 22

■M

Manual, 2 Lipsync, sound setup .................... 42

MaxVol, 3 Volume, function setup ............... 43

Memory guard, setup menu ........................... 43

MEMORY, front panel ................................... 4

MONITOR OUT, rear panel ........................... 5

Mono Movie, sound field program ............... 25

Multi information display,

front panel display ...................................... 6

Music Video, sound field program ................ 25

MUTE indicator, front panel display .............. 6

MUTE, remote control .................................... 7

■N

Numeric key, remote control ........................... 7

■O

OPTICAL jack .............................................. 13

OPTIMIZER MIC jack, front panel ................ 4

OPTION menu .............................................. 33

OPTION, remote control ................................. 7

■P

Pairing Bluetooth components ...................... 32

Pairing, OPTION menu ................................. 35

Panorama, decoder parameter ....................... 37

PHONES jack, front panel .............................. 4

Placing speaker .............................................. 10

PORTABLE jack, front panel ......................... 4

Power cable connection ................................. 17

Power Cable, rear panel .................................. 5

POWER, remote control ................................. 7

PRE OUT, rear panel ...................................... 5

PRESET l / h, front panel ........................... 4

Preset tuning .................................................. 28

PROGRAM l / h, front panel ...................... 4

Projector connection ...................................... 14

■R

Registering input source ................................ 21

Registering sound field program ................... 21

Remote control ................................................ 7

Remote control code resetting ....................... 44

Remote control code setting .......................... 44

Remote control ID, advanced setup .............. 45

Remote control signal transmitter,

remote control ............................................. 7

Remote control, controlling other

component ................................................ 44

Remote control, preparation ............................ 9

Remote control, troubleshooting ................... 50

REMOTE ID, advanced setup ....................... 45

Repeat playback, iPod ................................... 31

Repeat, OPTION menu ................................. 35

Resetting remote control code ....................... 44

RETURN, remote control ............................... 7

Roleplaying Game, sound field program ...... 25

■S

SB Level, sound field parameter ................... 36

SCENE function ............................................ 21

SCENE, front panel ......................................... 4

Index

58 En

SCENE, remote control ................................... 7

Sci-Fi, sound field program ........................... 24

Selecting SCENE ........................................... 21

Setting remote control code ........................... 44

Set-top box connection .................................. 15

Setup menu .................................................... 38

Setup menu basic operation ........................... 39

SETUP, remote control ................................... 7

Shuffle playback, iPod ................................... 31

Shuffle, OPTION menu ................................. 35

Signal Info parameter .................................... 34

Signal Info, OPTION menu ........................... 34

SILENT CINEMA ......................................... 27

SL Level, sound field parameter .................... 36

SLEEP indicator, front panel display .............. 6

Sleep timer ..................................................... 22

SLEEP, remote control .................................... 7

Sound field parameter .................................... 36

Sound field program editing .......................... 36

Sound field program registration ................... 21

Sound selection key, remote control ................ 7

Sound setup, setup menu ............................... 41

SOURCE POWER, remote control ................. 7

SP IMP., advanced setup ............................... 45

Speaker cable connection .............................. 12

Speaker connection ........................................ 11

Speaker impedance, advanced setup ............. 45

Speaker indicator, front panel display ............. 6

Speaker layout ............................................... 10

Speaker placement ......................................... 10

Speaker setup ................................................. 39

SPEAKERS terminal, rear panel ..................... 5

Specifications ................................................ 56

Spectacle, sound field program ..................... 24

Sports, sound field program .......................... 25

SR Level, sound field parameter ................... 36

Standard, sound field program ....................... 24

Standby, 1 HDMI, function setup .................. 42

STANDBY/ON, front panel ............................ 4

Straight decoding mode ................................. 27

Straight Enhancer, sound field program ........ 26

STRAIGHT, front panel .................................. 4

Subwoofer ...................................................... 10

Subwoofer Phase, A)Config,

speaker setup ............................................. 40

Sur. B, A)Config, speaker setup .................... 40

Sur. L, C)Distance, speaker setup .................. 41

Sur. LR, A)Config, speaker setup .................. 40

Sur. R, C)Distance, speaker setup ................. 41

Sur.B L, C)Distance, speaker setup ............... 41

Sur.B R, C)Distance, speaker setup ............... 41

Surround back left speaker ............................ 10

Surround back right speaker .......................... 10

Surround back speaker ................................... 10

Surround decoder editing ............................... 36

Surround left speaker ..................................... 10

Surround right speaker ................................... 10

SWFR, C)Distance, speaker setup ................. 41

■T

The Bottom Line, sound field program ......... 25

The Roxy Theatre, sound field program ........ 25

Tone control ................................................... 22

TONE CONTROL, front panel ....................... 4

TRANSMIT, remote control ........................... 7

Troubleshooting ............................................. 46

Tuner indicator, front panel display ................ 6

Tuner key, remote control ............................... 7

Tuner, troubleshooting .................................. 49

TUNING l / h, front panel .......................... 4

Tuning, AM ................................................... 28

Tuning, FM .................................................... 28

Turning off ..................................................... 17

Turning on ..................................................... 17

TV control key, remote control ....................... 7

TV monitor connection .................................. 14

■U

Using the remote control ................................. 9

■V

VIDEO jack ....................................................13

Video jack ......................................................13

VIDEO jack, front panel ..................................4

Video/audio jack ............................................13

Virtual CINEMA DSP ...................................27

VOLUME +/–, remote control .........................7

VOLUME control, front panel .........................4

VOLUME indicator, front panel display .........6

Volume Trim, OPTION menu .......................33

■Y

YPAO .............................................................18

YPAO, troubleshooting ..................................51

“ASTANDBY/ON” or

“fPOWER” (example) indicates

the name of the parts on the front

panel or the remote control. Refer

to “Part names and functions” on

page 4.

List of remote control codes

A.R. Systems 0274

Acme 0260

Acura 0261, 0273

ADC 0259

Admiral 0100, 0224, 0257,

0258, 0259, 0264,

0265

Advent 0204

Adventura 0107

Adyson 0260, 0327, 0328

Agashi 0327, 0328

Agazi 0259

Aiko 0260, 0261, 0273,

0274, 0327, 0328

Aim 0274

Aiwa 0028, 0297

Akai 0063, 0096, 0101,

0205, 0231, 0261,

0262, 0268, 0271,

0273, 0274, 0327,

0328

Akiba 0262, 0274

Akura 0259, 0262, 0273,

0274

Alaron 0327

Alba 0243, 0260, 0261,

0262, 0266, 0269,

0271, 0273, 0274,

0294, 0300, 0327

Albatron 0222

Alcyon 0249

Alleron 0105

Allorgan 0328

Allstar 0268, 0274

America Action

0225

AMOi 0326

Amplivision 0243, 0260, 0275,

0328

Amstrad 0259, 0261, 0262,

0273, 0274

Amtron 0104

Anam 0225, 0261

Anam National

0102, 0104

Anglo 0261, 0273

Anitech 0249, 0259, 0261,

0273, 0274

Ansonic 0243, 0250, 0261,

0263, 0273, 0274

AOC 0072, 0090, 0096,

0103

Apex 0061, 0117, 0139

Arcam 0327, 0328

Arcam Delta 0260

Aristona 0268, 0271, 0274

Arthur Martin 0275

ASA 0257, 0265

Asberg 0249, 0268, 0274

Astra 0261

Asuka 0259, 0260, 0262,

0327, 0328

Atlantic 0260, 0268, 0271,

0274, 0327

Atori 0261, 0273

Auchan 0275

Audiosonic 0243, 0260, 0261,

0262, 0268, 0271,

0274, 0328

AudioTon 0243, 0260, 0328

Audiovox 0104, 0144, 0225

Ausind 0249

Autovox 0249, 0257, 0259,

0260, 0328

Aventura 0097

Awa 0327, 0328

Axion 0206

Baird 0328

Bang & Olufsen

0230, 0257

Basic Line 0261, 0262, 0268,

0273, 0274, 0328

Bastide 0260, 0328

Baur 0271, 0274

Bazin 0328

Beko 0243, 0269, 0274,

0282, 0351, 0357,

0372, 0380

Belcor 0090

Bell & Howell

0065, 0100

Benq 0051, 0160, 0315

Beon 0268, 0271, 0274

Best 0243

Bestar 0243, 0268, 0274

Binatone 0260, 0328

Blue Sky 0262, 0274

Blue Star 0270

Boots 0260, 0328

BPL 0270, 0274

Bradford 0104, 0225

Brandt 0267, 0272

Brillian 0228

Brinkmann 0274

Brionvega 0257, 0268, 0271,

0274

Britannia 0260, 0327, 0328

Brockwood 0090

Broksonic 0063, 0225

Bruns 0257

BTC 0262

Bush 0261, 0262, 0264,

0266, 0268, 0270,

0271, 0273, 0274,

0282, 0286, 0294,

0300, 0328, 0329,

0351, 0388, 0394,

0413

Candle 0072, 0090, 0096,

0107

Capsonic 0259

Carena 0274

Carnivale 0096

Carrefour 0266

Carver 0088

Cascade 0261, 0273, 0274

Casio 0317

Cathay 0268, 0271, 0274

CCE 0229, 0328

Celebrity 0057, 0101

Celera 0117

Centurion 0268, 0271, 0274

Century 0257

CGE 0243, 0249

Changhong 0117

Chimei 0323

Cimline 0261, 0273

Citizen 0072, 0085, 0090,

0096, 0104

City 0261, 0273

Clarion 0225

Clarivox 0271

Clatronic 0243, 0249, 0259,

0260, 0261, 0262,

0268, 0269, 0273,

0274, 0328

CMS 0327

CMS Hightec 0328

Coby 0151

Colortyme 0072, 0090

Commercial Solutions

0071

Concerto 0072, 0090

Concorde 0261, 0273

Condor 0243, 0260, 0268,

0269, 0273, 0274,

0327

Contec 0225, 0260, 0261,

0266, 0273, 0327

Contec/Cony 0094, 0104

Continental Edison

0267

Cosmel 0261, 0273

Craig 0104, 0225

Crosley 0088, 0119, 0249,

0257

Crown 0104, 0225, 0243,

0249, 0261, 0268,

0269, 0271, 0273,

0274

CS Electronics

0260, 0262, 0327

CTC Clatronic

0263

CTX 0159

Curtis Mathes 0065, 0071, 0072,

0085, 0088, 0090,

0096, 0099, 0224

CXC 0104, 0225

Cybertron 0262

Cytron 0202

Daewoo 0072, 0085, 0090,

0103, 0119, 0245,

0260, 0261, 0268,

0273, 0274, 0281,

0285, 0303, 0321,

0327, 0328, 0344,

0361, 0387

Dainichi 0262, 0327

Dansai 0259, 0268, 0271,

0274, 0327, 0328

Dantax 0243, 0271

Dawa 0274

Daytron 0072, 0085, 0090,

0261, 0273

De Graaf 0264

Decca 0260, 0268, 0271,

0274, 0328

Dell 0167, 0195

Denver 0308, 0312

Desmet 0268, 0271, 0274

Diamant 0274

Diamond 0327

DiamondVision

0213, 0221

Dimensia 0099

Disney 0137

Dixi 0261, 0268, 0271,

0273, 0274, 0328

Dream Vision 0415, 0416

DTS 0261, 0273

Dual 0260, 0274, 0328

Dual-Tec 0260, 0261

Dumont 0076, 0090, 0108,

0257, 0260, 0263,

0328

Durabrand 0077, 0097, 0133,

0225

Dux 0271

Dwin 0224

Dynatron 0268, 0271, 0274

Dynex 0181, 0182

Elbe 0243, 0250, 0274,

0328

Elcit 0257

Electa 0270

ELECTRO TECH

0261

Electroband 0057, 0101

Electrograph 0226

Electrohome 0072, 0090, 0101,

0102

Element 0180

Elin 0260, 0268, 0271,

0273, 0274, 0327

Elite 0262, 0268, 0274

Elman 0263

Elta 0261, 0273, 0327

Emerson 0065, 0072, 00
