YAMAHA ELECTRONICS CORPORATION, USA

6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

YAMAHA CANADA MUSIC LTD.

135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H.

SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A.

RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD.

YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND

YAMAHA SCANDINAVIA A.B.

J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

YAMAHA MUSIC AUSTRALIA PTY, LTD.

17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

©

2004 All rights reserved.

Printed in Malaysia WC85600

HTR-5760

AV Receiver

OWNER’S MANUAL

U

HTR-5760_U_cv.fm Page 1 Thursday, January 15, 2004 5:56 PM

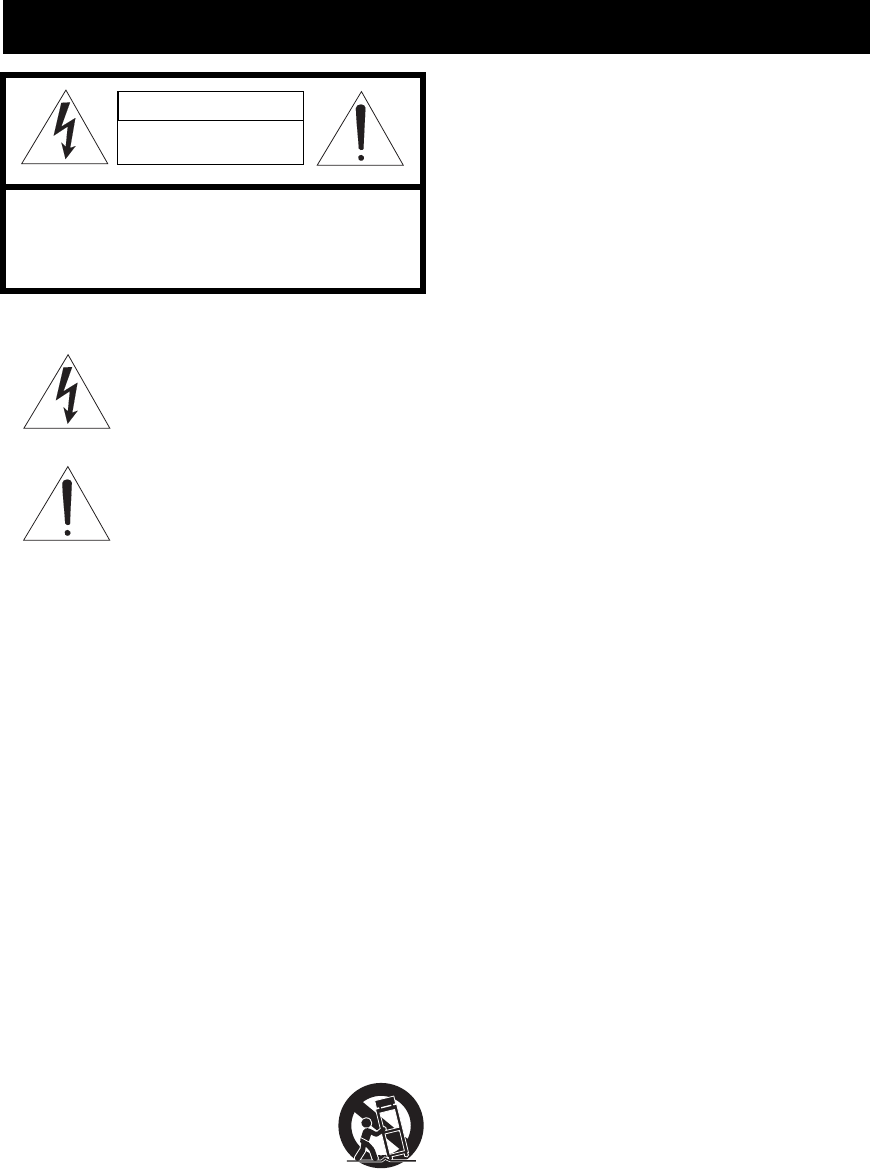

IMPORTANT SAFETY INSTRUCTIONS

i

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert you to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert you to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

1Read Instructions – All the safety and operating instructions

should be read before the product is operated.

2Retain Instructions – The safety and operating instructions

should be retained for future reference.

3Heed Warnings – All warnings on the product and in the

operating instructions should be adhered to.

4Follow Instructions – All operating and use instructions

should be followed.

5Cleaning – Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use

a damp cloth for cleaning.

6Attachments – Do not use attachments not recommended by

the product manufacturer as they may cause hazards.

7Water and Moisture – Do not use this product near water –

for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool;

and the like.

8Accessories – Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may fall,

causing serious injury to a child or adult, and serious

damage to the product. Use only with a cart, stand, tripod,

bracket, or table recommended by the manufacturer, or sold

with the product. Any mounting of the product should

follow the manufacturer’s instructions, and should use a

mounting accessory recommended by the manufacturer.

9A product and cart combination should be moved with care.

Quick stops, excessive force, and uneven

surfaces may cause the product and cart

combination to overturn.

10 Ventilation – Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the

product and to protect it from overheating, and these

openings must not be blocked or covered. The openings

should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should not

be placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer’s

instructions have been adhered to.

11 Power Sources – This product should be operated only from

the type of power source indicated on the marking label. If

you are not sure of the type of power supply to your home,

consult your product dealer or local power company. For

products intended to operate from battery power, or other

sources, refer to the operating instructions.

12 Grounding or Polarization – This product may be equipped

with a polarized alternating current line plug (a plug having

one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you

are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to fit, contact

your electrician to replace your obsolete outlet. Do not

defeat the safety purpose of the polarized plug.

13 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched

by items placed upon or against them, paying particular

attention to cords at plugs, convenience receptacles, and the

point where they exit from the product.

14 Lightning – For added protection for this product during a

lightning storm, or when it is left unattended and unused for

long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent

damage to the product due to lightning and power-line

surges.

15 Power Lines – An outside antenna system should not be

located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside antenna

system, extreme care should be taken to keep from touching

such power lines or circuits as contact with them might be

fatal.

16 Overloading – Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result

in a risk of fire or electric shock.

17 Object and Liquid Entry – Never push objects of any kind

into this product through openings as they may touch

dangerous voltage points or short-out parts that could result

in a fire or electric shock. Never spill liquid of any kind on

the product.

18 Servicing – Do not attempt to service this product yourself

as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

19 Damage Requiring Service – Unplug this product from the

wall outlet and refer servicing to qualified service personnel

under the following conditions:

a) When the power-supply cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the

product,

c) If the product has been exposed to rain or water,

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

00_HTR-5760_U_EN.book Page i Tuesday, February 17, 2004 10:47 AM

IMPORTANT SAFETY INSTRUCTIONS

ii

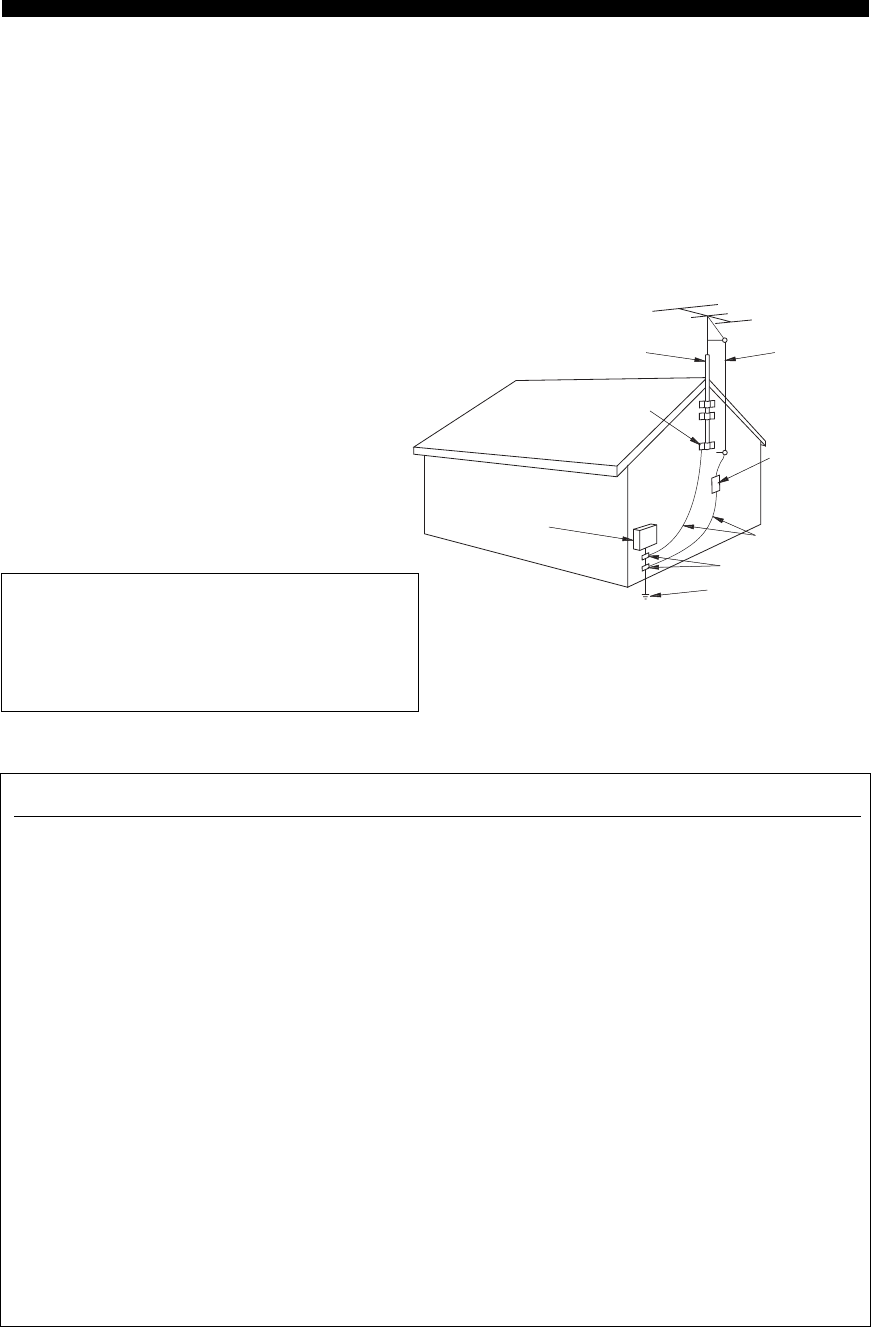

EXAMPLE OF ANTENNA GROUNDING

MAST

GROUND

CLAMP

ANTENNA

LEAD IN

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810–20)

GROUNDING CONDUCTORS

(NEC SECTION 810–21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250. PART H)

ELECTRIC

SERVICE

EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

d) If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to its normal

operation,

e) If the product has been dropped or damaged in any

way, and

f) When the product exhibits a distinct change in perfor-

mance - this indicates a need for service.

20 Replacement Parts – When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer or have the same

characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other

hazards.

21 Safety Check – Upon completion of any service or repairs to

this product, ask the service technician to perform safety

checks to determine that the product is in proper operating

condition.

22 Wall or Ceiling Mounting – The unit should be mounted

to a wall or ceiling only as recommended by the

manufacturer.

23 Heat – The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

24 Outdoor Antenna Grounding – If an outside antenna or

cable system is connected to the product, be sure the antenna

or cable system is grounded so as to provide some

protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70,

provides information with regard to proper grounding of the

mast and supporting structure, grounding of the lead-in wire

to an antenna discharge unit, size of grounding conductors,

location of antenna discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that provides

guidelines for proper grounding and, in particular, specifies

that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as

practical.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the

instructions contained in this manual, meets FCC

requirements. Modifications not expressly approved by

Yamaha may void your authority, granted by the FCC, to

use the product.

2 IMPORTANT: When connecting this product to

accessories and/or another product use only high quality

shielded cables. Cable/s supplied with this product MUST

be used. Follow all installation instructions. Failure to

follow instructions could void your FCC authorization to

use this product in the USA.

3 NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15

for Class “B” digital devices. Compliance with these

requirements provides a reasonable level of assurance that

your use of this product in a residential environment will

not result in harmful interference with other electronic

devices.

This equipment generates/uses radio frequencies and, if

not installed and used according to the instructions found

in the users manual, may cause interference harmful to the

operation of other electronic devices.

Compliance with FCC regulations does not guarantee that

interference will not occur in all installations. If this

product is found to be the source of interference, which

can be determined by turning the unit “OFF” and “ON”,

please try to eliminate the problem by using one of the

following measures:

Relocate either this product or the device that is being

affected by the interference.

Utilize power outlets that are on different branch (circuit

breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient

the antenna. If the antenna lead-in is 300 ohm ribbon lead,

change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory

results, please contact the local retailer authorized to

distribute this type of product. If you can not locate the

appropriate retailer, please contact Yamaha Electronics

Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA

90620.

The above statements apply ONLY to those products

distributed by Yamaha Corporation of America or its

subsidiaries.

00_HTR-5760_U_EN.book Page ii Tuesday, February 17, 2004 10:47 AM

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

iii

1 To assure the finest performance, please read this

manual carefully. Keep it in a safe place for future

reference.

2 Install this sound system in a well ventilated, cool,

dry, clean place — away from direct sunlight, heat

sources, vibration, dust, moisture, and/or cold.

Allow ventilation space of at least 30 cm on the top,

20 cm on the left and right, and 20 cm on the back of

this unit.

3 Locate this unit away from other electrical

appliances, motors, or transformers to avoid

humming sounds.

4 Do not expose this unit to sudden temperature

changes from cold to hot, and do not locate this unit

in a environment with high humidity (i.e. a room with

a humidifier) to prevent condensation inside this

unit, which may cause an electrical shock, fire,

damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may

fall onto this unit and/or this unit may be exposed to

liquid dripping or splashing. On the top of this unit,

do not place:

– Other components, as they may cause damage

and/or discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause

fire, damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall

and liquid may cause electrical shock to the user

and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth,

curtain, etc. in order not to obstruct heat radiation. If

the temperature inside this unit rises, it may cause

fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all

connections are complete.

8 Do not operate this unit upside-down. It may

overheat, possibly causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cord from the wall

outlet, grasp the plug; do not pull the cord.

11 Do not clean this unit with chemical solvents; this

might damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used.

Using this unit with a higher voltage than specified

is dangerous and may cause fire, damage to this

unit, and/or personal injury. YAMAHA will not be

held responsible for any damage resulting from use

of this unit with a voltage other than specified.

13 To prevent damage by lightning, disconnect the

power cord from the wall outlet during an electrical

storm.

14 Do not attempt to modify or fix this unit. Contact

qualified YAMAHA service personnel when any

service is needed. The cabinet should never be

opened for any reasons.

15 When not planning to use this unit for long periods

of time (i.e. vacation), disconnect the AC power plug

from the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section

on common operating errors before concluding that

this unit is faulty.

17 Before moving this unit, press STANDBY/ON to set

this unit in the standby mode, and disconnect the

AC power plug from the wall outlet.

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association's Consumer

Electronics Group want you to get the most out of your

equipment by playing it at a safe level. One that lets the sound

come through loud and clear without annoying blaring or

distortion - and, most importantly, without affecting your

sensitive hearing.

Since hearing damage from loud sounds is often

undetectable until it is too late, YA MAHA and the

Electronic Industries Association’s Consumer

Electronics Group recommend you to avoid

prolonged exposure from excessive volume levels.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

This unit is not disconnected from the AC power source as

long as it is connected to the wall outlet, even if this unit itself

is turned off. This state is called the standby mode. In this

state, this unit is designed to consume a very small quantity of

power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to

wide slot and fully insert.

This Class B digital apparatus complies with Canadian

ICES-003.

IMPORTANT

Please record the serial number of this unit in the space

below.

MODEL:

Serial No.:

The serial number is located on the rear of the unit.

Retain this Owner’s Manual in a safe place for future

reference.

00_HTR-5760_U_EN.book Page iii Tuesday, February 17, 2004 10:47 AM

1

English

PREPARATIONINTRODUCTION

BASIC

OPERATION

SOUND FIELD

PROGRAMS ADVANCED

OPERATION

ADDITIONAL

INFORMATION

FEATURES............................................................. 2

GETTING STARTED............................................ 3

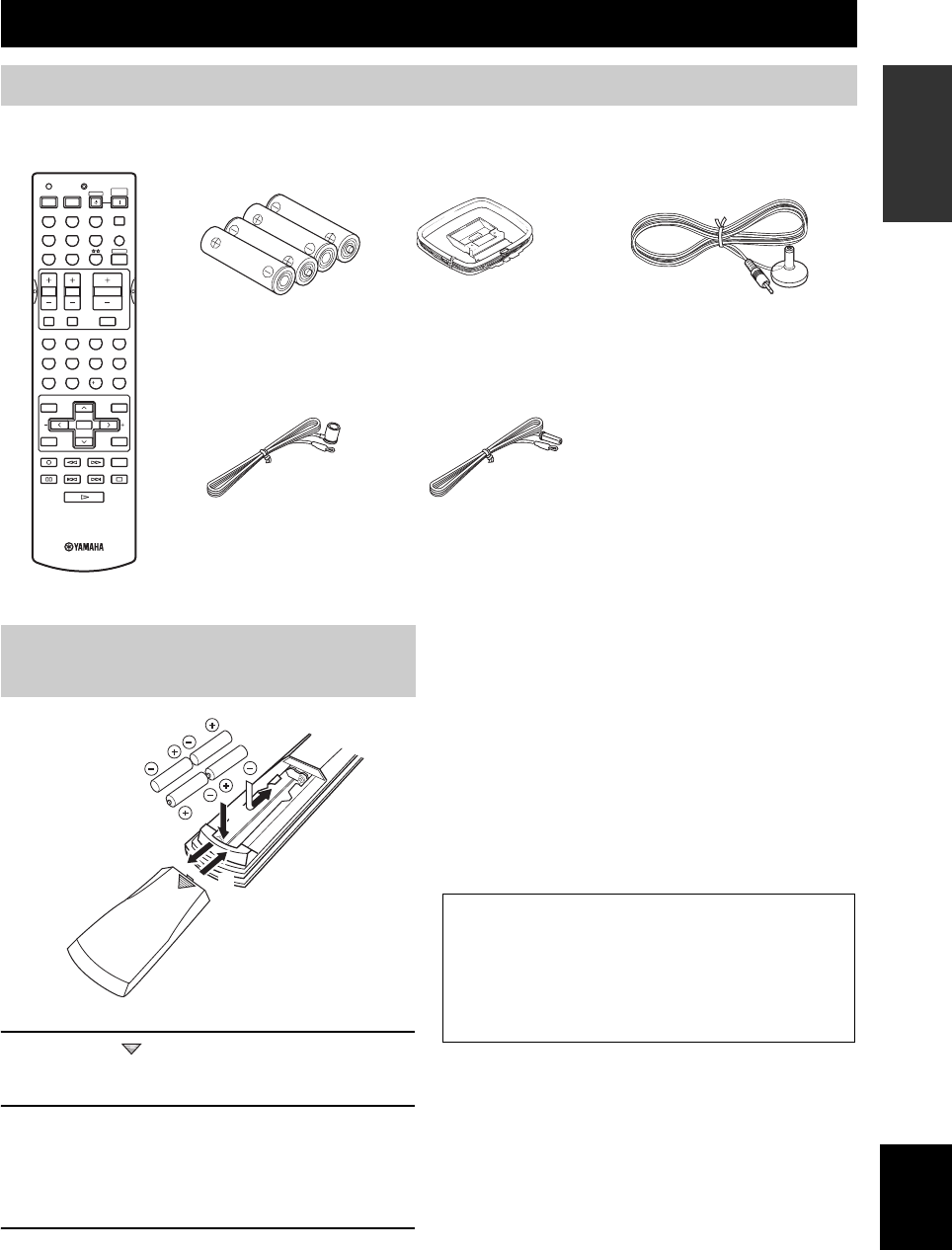

Supplied accessories .................................................. 3

Installing batteries in the remote control ................... 3

CONTROLS AND FUNCTIONS ......................... 4

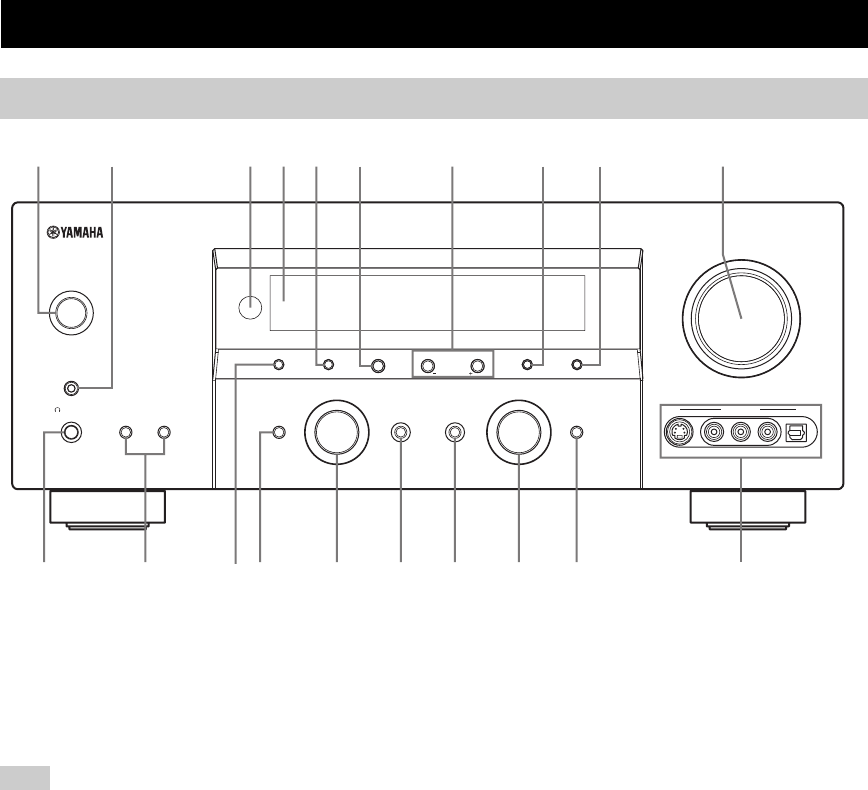

Front panel ................................................................. 4

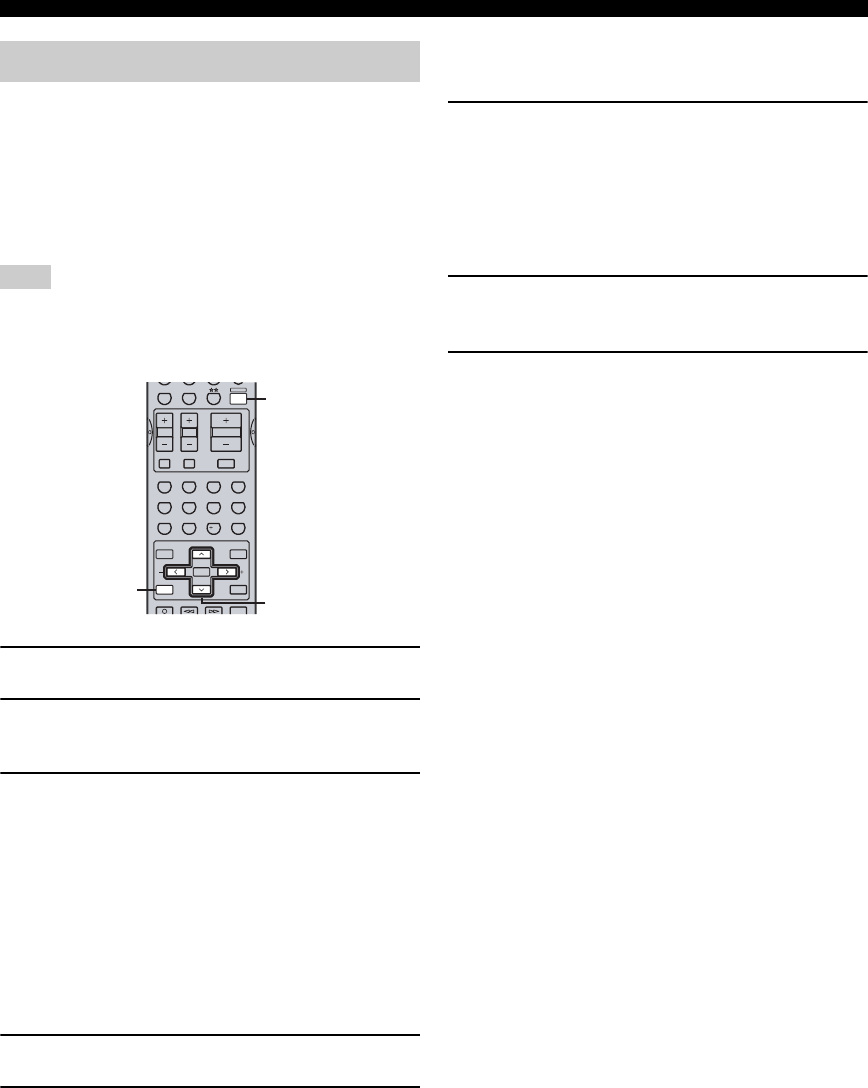

Remote control........................................................... 6

Using the remote control ........................................... 7

Front panel display .................................................... 8

Rear panel ................................................................ 10

SPEAKER SETUP ............................................... 11

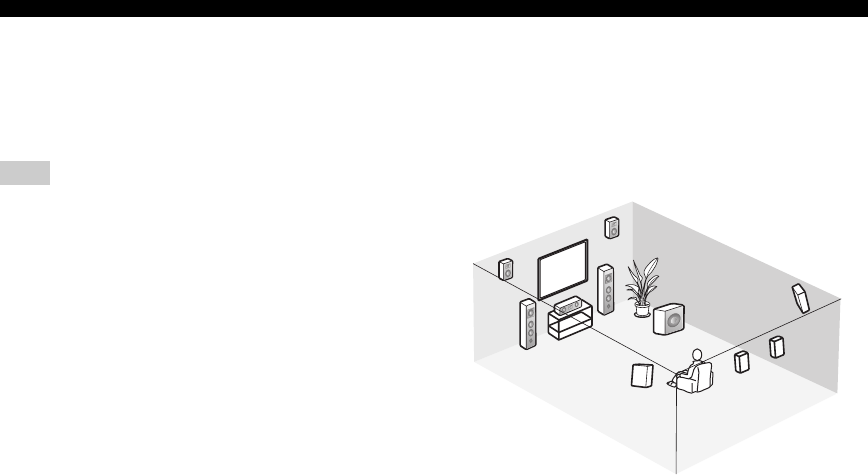

Speaker placement ................................................... 11

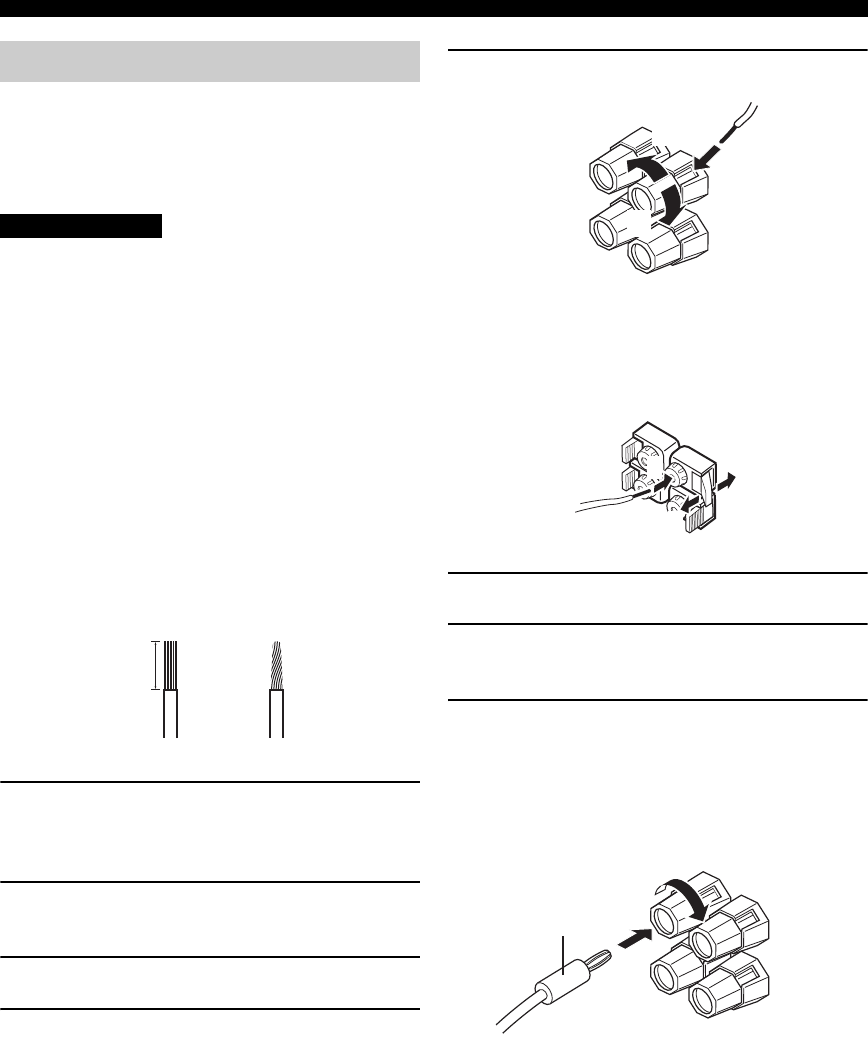

Speaker connections ................................................ 12

CONNECTIONS .................................................. 15

Before connecting components................................ 15

Connecting video components................................. 16

Connecting audio components................................. 19

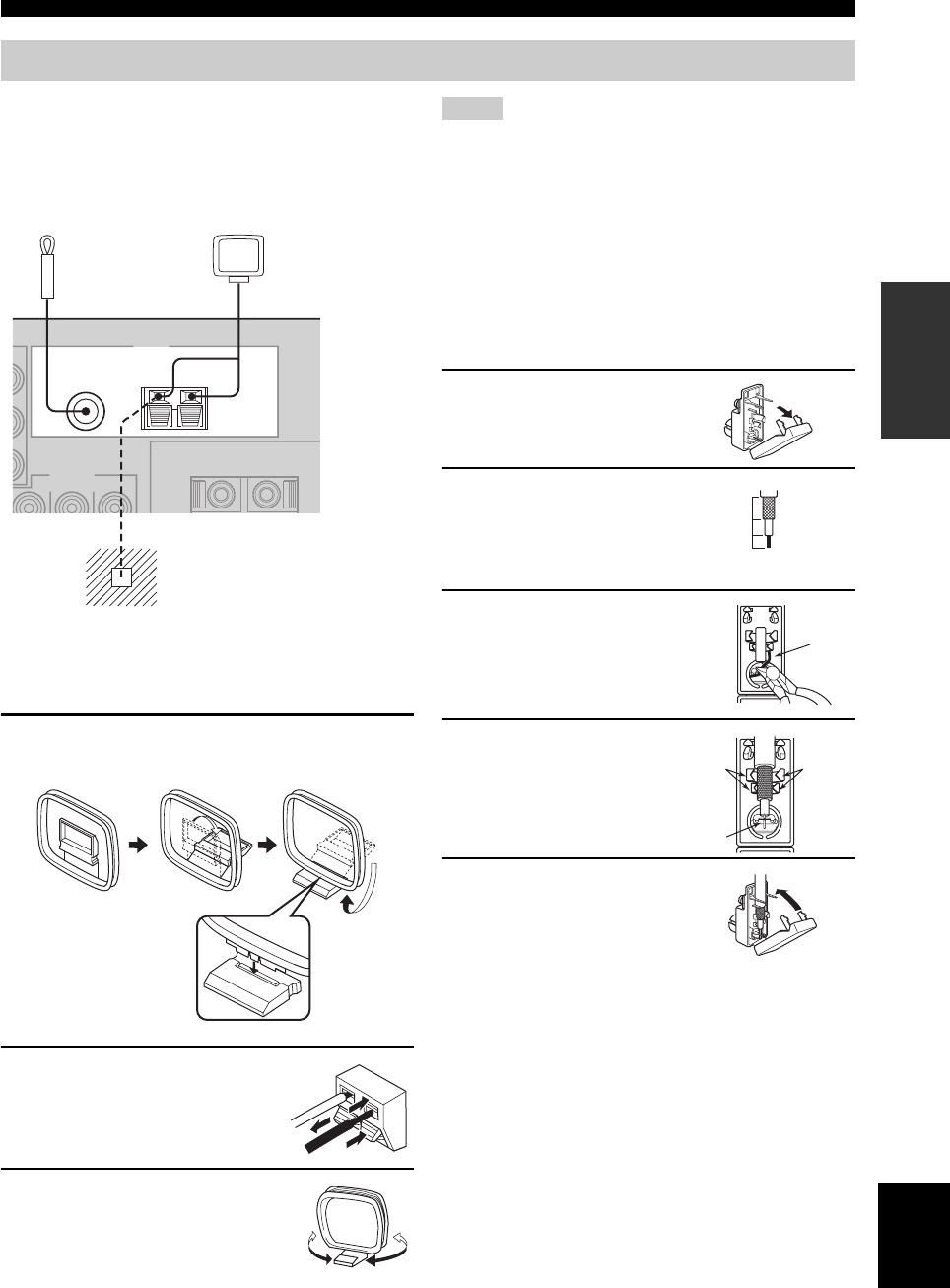

Connecting the antennas.......................................... 21

Connecting the power supply cord .......................... 22

Turning on the power............................................... 24

AUTO SETUP....................................................... 25

Introduction.............................................................. 25

Optimizer microphone setup.................................... 25

Starting the setup ..................................................... 26

PLAYBACK.......................................................... 30

Basic operations....................................................... 30

Selecting sound field programs ............................... 32

Selecting input modes.............................................. 36

TUNING ................................................................ 38

Automatic and manual tuning.................................. 38

Presetting stations .................................................... 39

Selecting preset stations........................................... 41

Exchanging preset stations ...................................... 42

RECORDING ....................................................... 43

SOUND FIELD PROGRAM

DESCRIPTIONS...............................................44

For movie/video sources.......................................... 44

For music sources .................................................... 47

ADVANCED OPERATIONS ..............................48

Selecting the OSD mode.......................................... 48

Using the sleep timer ............................................... 48

Manually adjusting speaker levels........................... 49

Using the test tone ................................................... 50

SET MENU ............................................................51

Using SET MENU................................................... 52

1 SOUND MENU.................................................... 53

2 INPUT MENU...................................................... 57

3 OPTION MENU................................................... 58

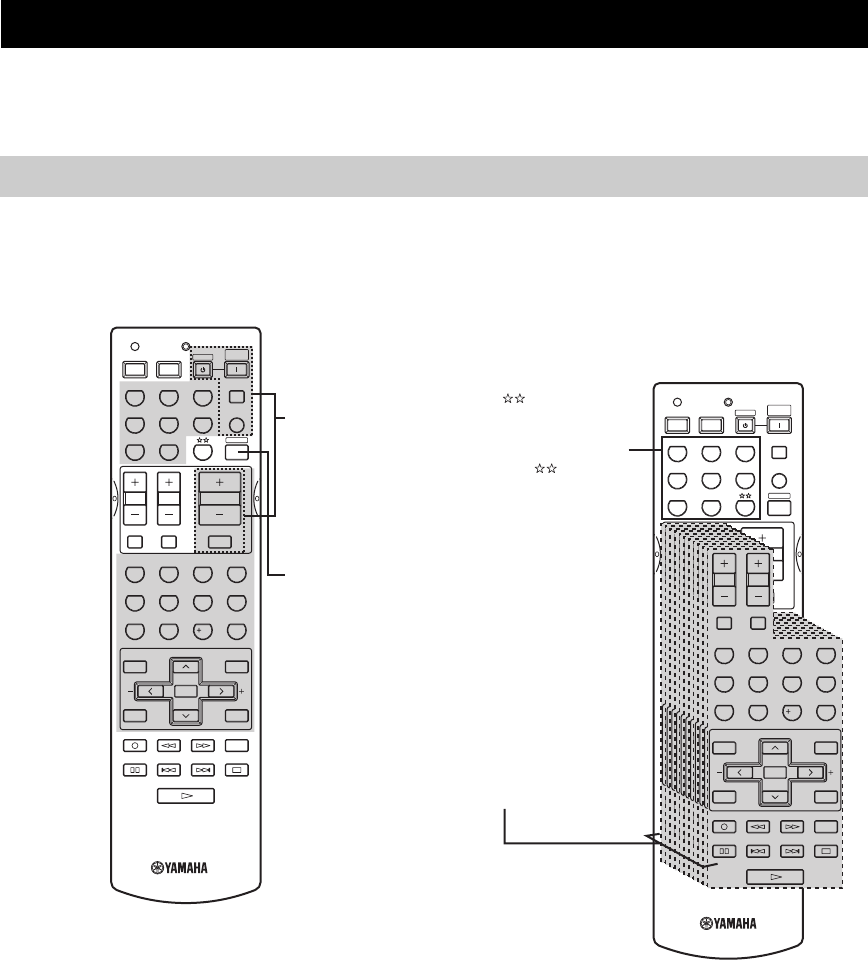

REMOTE CONTROL FEATURES ...................60

Control area ............................................................. 60

Setting manufacturer codes...................................... 61

Controlling other components ................................. 62

Clearing setup manufacturer codes.......................... 63

EDITING SOUND FIELD PARAMETERS ......64

What is a sound field ............................................... 64

Changing parameter settings ................................... 64

SOUND FIELD PARAMETER

DESCRIPTIONS...............................................66

TROUBLESHOOTING .......................................70

RESETTING THE FACTORY PRESETS ........75

GLOSSARY...........................................................76

Audio formats .......................................................... 76

Sound field programs............................................... 77

Audio information ................................................... 77

Video signal information ......................................... 78

SPECIFICATIONS...............................................79

CONTENTS

INTRODUCTION

PREPARATION

BASIC OPERATION

SOUND FIELD PROGRAMS

ADVANCED OPERATION

ADDITIONAL INFORMATION

00_HTR-5760_U_EN.book Page 1 Tuesday, February 17, 2004 10:47 AM

FEATURES

2

Built-in 7-channel power amplifier

◆Minimum RMS output power

(0.06% THD, 20 Hz – 20 kHz, 8Ω)

Front: 95 W + 95 W

Center: 95 W

Surround: 95 W + 95 W

Surround back: 95 W + 95 W

Sound field features

◆Proprietary YAMAHA technology for the creation of

sound fields

◆Dolby Digital/Dolby Digital EX decoder

◆DTS/DTS-ES Matrix 6.1, Discrete 6.1, DTS Neo:6,

DTS 96/24 decoder

◆Dolby Pro Logic/Dolby Pro Logic II/Dolby Pro Logic

IIx decoder

◆Virtual CINEMA DSP

◆SILENT CINEMA™

Sophisticated AM/FM tuner

◆40-station random access preset tuning

◆Automatic preset tuning

◆Preset station shifting capability (preset editing)

Other features

◆YPAO: YAMAHA Parametric Room Acoustic

Optimizer for automatic speaker setup

◆192-kHz/24-bit D/A converter

◆A SET MENU which provides you with items for

optimizing this unit for your audio/video system

◆8 additional input jacks for discrete multi-channel input

◆On-screen display function helpful in controlling this

unit

◆S-Video signal input/output capability

◆Component video input/output capability

◆Video signal conversion (Composite video ↔ S-Video)

capability for monitor out

◆Optical and coaxial digital audio signal jacks

◆Sleep timer

◆Cinema and music night listening modes

◆Remote control with preset manufacturer codes

•y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the main unit or on the remote control. In cases when the button

names differ between the main unit and the remote control, the button name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and product, the product has priority.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, “Surround EX”, and the double-D symbol

are trademarks of Dolby Laboratories.

“SILENT CINEMA” is a trademark of YAMAHA

CORPORATION.

“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of

Digital Theater Systems, Inc.

FEATURES

00_HTR-5760_U_EN.book Page 2 Tuesday, February 17, 2004 10:47 AM

GETTING STARTED

3

English

INTRODUCTION

Please check that you received all of the following parts.

1Press the part and slide the battery

compartment cover off.

2

Insert four supplied batteries (AAA, R03,

UM-4) according to the polarity markings

(+ and –) on the inside of the battery

compartment.

3Slide the cover back until it snaps into place.

Notes on batteries

• Change all of the batteries if you notice the following

conditions; the operation range of the remote control decreases,

the indicator does not flash or its light becomes dim.

• Do not use old batteries together with new ones.

• Do not use different types of batteries (such as alkaline and

manganese batteries) together. Read the packaging carefully as

these different types of batteries may have the same shape and

color.

• If the batteries have leaked, dispose of them immediately. Avoid

touching the leaked material or letting it come into contact with

clothing, etc. Clean the battery compartment thoroughly before

installing new batteries.

GETTING STARTED

Supplied accessories

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

REC

AUDI O

MUTE

MENUTITLE

VOLUME

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

FREQ/RDS EONSTARTMODE PTY SEEK

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

AVTV

SELECT

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

PRESET/CH

Remote control Batteries (4)

(AAA, R03, UM-4)

Indoor FM antenna

(U.S.A., Canada and

China models)

AM loop antenna

Indoor FM antenna

(Australia and Korea

models)

Optimizer microphone

Installing batteries in the remote

control

1

3

2

If the remote control is without batteries for more than

2 minutes, or if exhausted batteries remain in the

remote control, the contents of the memory may be

cleared. When the memory is cleared, insert new

batteries, set up the manufacturer code and program

any acquired functions that may have been cleared.

00_HTR-5760_U_EN.book Page 3 Tuesday, February 17, 2004 10:47 AM

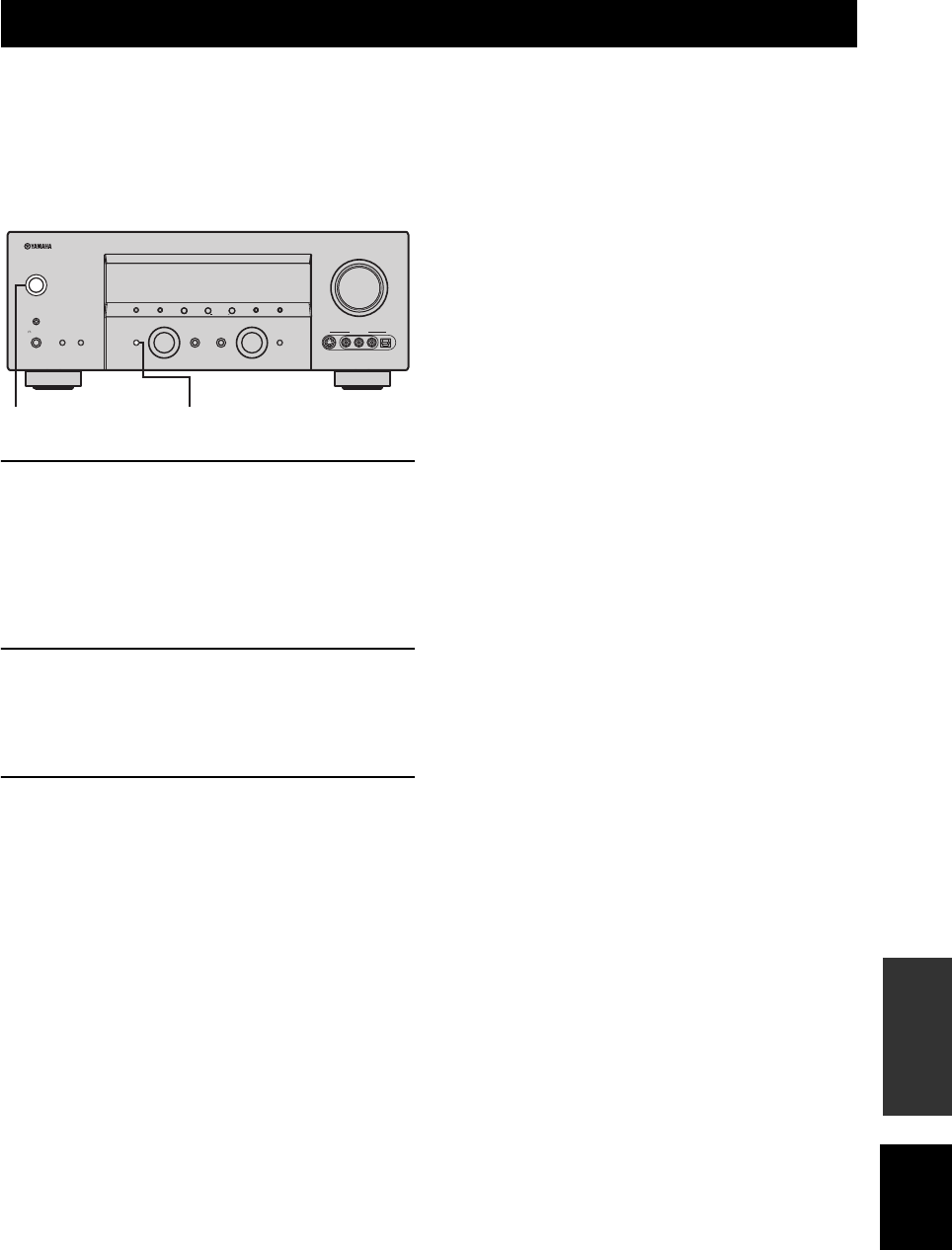

CONTROLS AND FUNCTIONS

4

1STANDBY/ON

Turns on this unit or sets it to the standby mode. When

you turn on this unit, you will hear a click and there will

be a 4 to 5-second delay before this unit can reproduce

sound.

In standby mode, this unit consumes a small amount of power in

order to receive infrared-signals from the remote control.

2OPTIMIZER MIC jack

Use to connect and input audio signals from the supplied

microphone for use with the AUTO SETUP function (see

page 25).

3Remote control sensor

Receives signals from the remote control.

4Front panel display

Shows information about the operational status of this

unit.

5FM/AM

Switches the reception band between FM and AM.

6A/B/C/D/E (NEXT)

Selects one of the 5 preset station groups (A to E) when

the unit is in tuner mode.

Selects the speaker channel to be adjusted when the unit is

not in tuner mode.

7PRESET/TUNING l / h (LEVEL –/+)

Selects preset station number 1 to 8 when the colon (:) is

displayed next to the band indication in the front panel

display when the unit is in tuner mode. Selects the tuning

frequency when the colon (:) is not displayed.

Adjusts the level of the speaker channel selected using

A/B/C/D/E (NEXT) when the unit is not in tuner mode.

8MEMORY (MAN’L/AUTO FM)

Stores a station in the memory. Hold down this button for

more than 3 seconds to start automatic preset tuning.

9TUNING MODE (AUTO/MAN’L MONO)

Switches the tuning mode between automatic (AUTO

indicator on) and manual (AUTO indicator off).

0VOLUME

Controls the output level of all audio channels.

This does not affect the REC OUT level.

CONTROLS AND FUNCTIONS

Front panel

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

31458 96270

IJGFBACDEH

(U.S.A. model)

Note

00_HTR-5760_U_EN.book Page 4 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

5

English

INTRODUCTION

APHONES (SILENT CINEMA) jack

Outputs audio signals for private listening with

headphones. When you connect headphones, no signals

are output to the OUTPUT jacks or to the speakers.

All Dolby Digital and DTS audio signals are mixed down

to the left and right headphone channels.

BSPEAKERS A/B

Turns on or off the set of front speakers connected to the A

and/or B terminals on the rear panel each time the

corresponding button is pressed.

CPRESET/TUNING (EDIT)

Switches the function of PRESET/TUNING l / h

(LEVEL –/+) between selecting preset station numbers

and tuning.

DSTRAIGHT (EFFECT)

Switches the sound fields off or on. When STRAIGHT is

selected, input signals (2-channel or multi-channel) are

output directly from their respective speakers without

effect processing.

EPROGRAM

Use to select sound field programs or adjust the bass/treble

balance (in conjunction with TONE CONTROL).

FTONE CONTROL

Use to adjust the bass/treble balance for the front left and

right, center, presence and subwoofer channels (see

page 31).

GINPUT MODE

Sets the priority (AUTO, DTS, ANALOG) for the type of

signals received when one component is connected to two

or more of this unit’s input jacks (see page 36).

HINPUT selector

Selects the input source you want to listen to or watch.

IMULTI CH INPUT

Selects the source connected to the MULTI CH INPUT

jacks. When selected, the MULTI CH INPUT source takes

priority over the source selected with INPUT (or the input

selector buttons on the remote control).

JVIDEO AUX jacks

Input audio and video signals from a portable external

source such as a game console. To reproduce source

signals from these jacks, select V-AUX as the input

source.

00_HTR-5760_U_EN.book Page 5 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

6

This section describes the function of each control on the

remote control used to control this unit. To operate other

components, see “REMOTE CONTROL FEATURES” on

page 60.

1Infrared window

Outputs infrared control signals. Aim this window at the

component you want to operate.

2CODE SET

Use to set up manufacturer codes (see page 61).

3Input selector buttons

Select the input source and change the control area.

4Sound field program / numeric buttons (1 - 8)

Use to select sound field programs.

Use numbers 1 through 8 to select preset stations when the

unit is in tuner mode.

5NIGHT

Turns on or off the night listening modes (see page 35).

6LEVEL

Selects the speaker channel to be adjusted and sets the

level.

7Cursor buttons u / d / j / i / SELECT

Use to select and adjust sound field program parameters or

SET MENU items.

Press u / d to select preset station numbers when the unit

is in tuner mode.

8TEST (RETURN)

Outputs the test tone to adjust the speaker levels.

Returns to the previous menu level when adjusting the

SET MENU parameters.

9TRANSMIT indicator

Flashes while the remote control is sending signals.

0STANDBY

Sets this unit in the standby mode.

ASYSTEM POWER

Turns on the power of this unit.

BSLEEP

Sets the sleep timer.

CMULTI CH IN

Selects MULTI CH INPUT when using an external

decoder (etc.).

DAMP

Selects the AMP mode. You must select the AMP mode to

control the main unit.

EVOLUME –/+

Increases or decreases the volume level.

FMUTE

Mutes the sound. Press again to restore the audio output to

the previous volume level.

GEX/ES

Switches between 5.1 or 6.1/7.1-channel playback of

multi-channel software.

Remote control

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

POWERPOWER

REC

AUDIO

MUTE

MENUTITLE

VOLUME

DISC SKIP

FREQ/RDS EONSTART

SET MENU

LEVEL

A/B/C/D/E

MODE PTY SEEK

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

AVTV

SELECT

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

PRESET/CH

J

9

0

A

B

C

D

E

F

H

I

1

2

3

4

5

7

8

6

G

00_HTR-5760_U_EN.book Page 6 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

7

English

INTRODUCTION

HSTRAIGHT (EFFECT)

Switches the sound fields off or on. When STRAIGHT is

selected, input signals (2-channel or multi-channel) are

output directly from their respective speakers without

effect processing.

ISET MENU (A/B/C/D/E)

Activates the SET MENU function.

Selects preset station groups when the unit is in tuner

mode.

JON SCREEN

Selects the display mode of the on-screen display (OSD)

this unit sends to your video monitor.

The remote control transmits a directional infrared beam.

Be sure to aim the remote control directly at the remote

control sensor on the main unit during operation.

■Handling the remote control

• Do not spill water or other liquids on the remote

control.

• Do not drop the remote control.

• Do not leave or store the remote control in the

following types of conditions:

– high humidity such as near a bath

– high temperature such as near a heater or stove

– extremely low temperatures

– dusty places

Using the remote control

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

30 30

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

POWERPOWER

REC

AUDIO

MUTE

MENUTITLE

VOLUME

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSICENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

AVTV

SELECT

VCR

DTV/CBL

MULTI CH IN

SLEEP

PRESET/CH

Approximately 6 m (20 ft)

00_HTR-5760_U_EN.book Page 7 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

8

1Decoder indicators

When any of this unit’s decoders function, the respective

indicator lights up.

2SILENT CINEMA indicator

Lights up when headphones are connected and a sound

field program is selected (see page 31).

3NIGHT indicator

Lights up when you select night listening mode.

4Input source indicators

A cursor lights to show the current input source.

5Sound field indicators

Light to indicate the active DSP sound fields.

6CINEMA DSP indicator

Lights up when you select a CINEMA DSP sound field

program.

7AUTO indicator

Lights up when this unit is in automatic tuning mode.

8TUNED indicator

Lights up when this unit is tuned into a station.

9STEREO indicator

Lights up when this unit is receiving a strong signal for an

FM stereo broadcast while the AUTO indicator is lit.

0MEMORY indicator

Blinks to show that a station can be stored.

AMUTE indicator

Blinks while the MUTE function is on.

BVOLUME level indication

Indicates the volume level.

CPCM indicator

Lights up when this unit is reproducing PCM (pulse code

modulation) digital audio signals.

DVIRTUAL indicator

Lights up when Virtual CINEMA DSP is active (see

page 36).

EHeadphones indicator

Lights up when headphones are connected.

FSP A B indicators

Light up according to the set of front speakers selected.

Both indicators light up when both sets of speakers are

selected.

GSLEEP indicator

Lights up while the sleep timer is on.

HHiFi DSP indicator

Lights up when you select a HiFi DSP sound field

program.

IMulti-information display

Shows the current sound field program name and other

information when adjusting or changing settings.

JOPTIMIZER indicator

Lights up during the auto setup procedure and when the

auto setup speaker settings are used without any

modifications.

Front panel display

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR

96

24

q

PL

q

EX

q

PL

MATRIX DISCRETE

SILENT CINEMA NIGHT PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

OPTIMIZER

123456 780AB9

FG H I LKEDC

J

M N

Presence DSP sound field

Listening position

Left surround

DSP sound field

Right surround

DSP sound field

Surround back DSP sound field

00_HTR-5760_U_EN.book Page 8 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

9

English

INTRODUCTION

K96/24 indicator

Lights up when a DTS 96/24 signal is input to this unit.

LLFE indicator

Lights up when the input signal contains the LFE signal.

MInput channel indicators

Indicate the channel components of the current digital

input signal.

NPresence and surround back speaker

indicators

Indicate the connection of presence and/or surround back

speakers when using the SPEAKER LEVEL setting (see

page 55).

00_HTR-5760_U_EN.book Page 9 Tuesday, February 17, 2004 10:47 AM

CONTROLS AND FUNCTIONS

10

1DIGITAL INPUT jacks

See pages 16, 18 and 19 for details.

2Audio component jacks

See page 19 for connection information.

3Video component jacks

See pages 16 and 18 for connection information.

4Antenna terminals

See page 21 for connection information.

5 PRESENCE speaker terminals

See page 13 for connection information.

6AC OUTLET(S)

Use to supply power to your other A/V components (see

page 22).

7DIGITAL OUTPUT jack

See page 19 for details.

8MULTI CH INPUT jacks

See page 17 for connection information.

9PRE OUT jacks

See page 20 for connection information.

0Speaker terminals

See page 13 for connection information.

AIMPEDANCE SELECTOR switch

See page 23.

Rear panel

AUDIO AUDIO

DIGITAL

INPUT

DVD

DVD

CD

COAXIAL

OPTICAL

DTV/CBL

MD/CD-R

MD/CD-R

OPTICAL

SUB

WOOFER

SURROUND

BACK

SURROUND

FRONT

OUT

(REC)

IN

(PLAY)

MD

/CD-R

CD

DVD

VIDEO

VIDEO

S VIDEO MONITOR

OUT

DTV

/CBL

DVD

COMPONENT VIDEO

PRPBY

75Ω UNBAL.

FM

ANT

AM

ANTGND

TUNER

DTV

/CBL

IN

VCR 1

OUT

IN

DVR/

VCR 2

OUT

CENTER

DIGITAL

OUTPUT

MULTI CH INPUT

VIDEO S VIDEO

MONITOR OUT

FRONT SUB

WOOFER

FRONT

A

B

CENTER

PRE OUT

SURROUND SURROUND

BACK

AC OUTLETS

SWITCHED

SPEAKERS

SURROUND

CENTER SURROUND BACK

IMPEDANCE SELECTOR

PRESENCE

12 3 465

78 9 0 A

(U.S.A. model)

00_HTR-5760_U_EN.book Page 10 Tuesday, February 17, 2004 10:47 AM

SPEAKER SETUP

11

English

PREPARATION

The speaker layout below shows the standard ITU-R

speaker setting. You can use it to enjoy CINEMA DSP and

multi-channel audio sources.

Front speakers (FR and FL)

The front speakers are used for the main source sound plus

effect sounds. Place these speakers an equal distance from

the ideal listening position. The distance of each speaker

from each side of the video monitor should be the same.

Center speaker (C)

The center speaker is for the center channel sounds

(dialog, vocals, etc.). If for some reason it is not practical

to use a center speaker, you can do without it. Best results,

however, are obtained with the full system. Align the front

face of the center speaker with the front face of your video

monitor. Place the speaker centrally between the front

speakers and as close to the monitor as possible, such as

directly over or under it.

Surround speakers (SR and SL)

The surround speakers are used for effect and surround

sounds. Place these speakers behind your listening

position, facing slightly inwards, about 1.8 m (6 ft) above

the floor.

Surround back speakers (SBR and SBL)

The surround back speakers supplement the surround

speakers and provide for more realistic front-to-back

transitions. Place these speakers directly behind the

listening position and at the same height as the surround

speakers. They should be positioned at least 30 cm (12 in)

apart. Ideally, they should be positioned at the same width

as the front speakers.

Subwoofer

The use of a subwoofer, such as the YAMAHA Active

Servo Processing Subwoofer System, is effective not only

for reinforcing bass frequencies from any or all channels,

but also for high fidelity reproduction of the LFE (low-

frequency effect) channel included in Dolby Digital and

DTS software. The position of the subwoofer is not so

critical, because low bass sounds are not highly

directional. But it is better to place the subwoofer near the

front speakers. Turn it slightly toward the center of the

room to reduce wall reflections.

Presence speakers (PR and PL)

Presence speakers supplement the sound from the front

speakers with extra ambient effects produced by CINEMA

DSP (see page 44). These effects include sounds that

filmmakers intend to locate a little farther back behind the

screen in order to create more theater-like ambience. Place

these speakers at the front of the room about 0.5 - 1 m

(1 - 3 ft) outside the front speakers, facing slightly

inwards, and about 1.8 m (6 ft) above the floor.

SPEAKER SETUP

Speaker placement

60˚

30˚

PL

PR

SBR

SBL

FL

FR

C

SL

SR

SR

80˚

SL

more than 30 cm (12 in)

1.8 m (6 ft)

1.8 m (6 ft)

00_HTR-5760_U_EN.book Page 11 Tuesday, February 17, 2004 10:47 AM

12

SPEAKER SETUP

Be sure to connect the left channel (L), right channel (R),

“+” (red) and “–” (black) properly. If the connections are

faulty, no sound will be heard from the speakers, and if the

polarity of the speaker connections is incorrect, the sound

will be unnatural and lack bass.

• If you will use 6 ohm speakers, be sure to set

this unit’s speaker impedance setting to 6

ohms before using (see page 23).

• Before connecting the speakers, make sure that the

power of this unit is off.

• Do not let the bare speaker wires touch each other or do

not let them touch any metal part of this unit. This

could damage this unit and/or speakers.

• Use magnetically shielded speakers. If this type of

speakers still creates the interference with the monitor,

place the speakers away from the monitor.

A speaker cord is actually a pair of insulated cables

running side by side. One cable is colored or shaped

differently, perhaps with a stripe, groove or ridges.

Connect the striped (grooved, etc.) cable to the “+” (red)

terminals on this unit and your speaker. Connect the plain

cable to the “–” (black) terminals.

1Remove approximately 10 mm (3/8") of

insulation from the end of each speaker

cable.

2Twist the exposed wires of the cable together

to prevent short circuits.

3Unscrew the knob.

4Insert one bare wire into the hole in the side

of each terminal.

5Tighten the knob to secure the wire.

■Connecting to PRESENCE speaker

terminals

1Open the tab.

2Insert one bare wire into the hole of each

terminal.

3Return the tab to secure the wire.

■Banana plug connections

First, tighten the knob and then insert the banana plug

connector into the end of the corresponding terminal.

y

You can also use banana plugs with the PRESENCE speaker

terminals. Open the tab, then insert one banana plug connector

into the hole of each terminal. Do not attempt to close the tabs

after connecting the banana plugs.

Speaker connections

CAUTION

10 mm (3/8")

12

Red: positive (+)

Black: negative (–)

3

4

5

21

3

Banana plug

00_HTR-5760_U_EN.book Page 12 Tuesday, February 17, 2004 10:47 AM

13

English

SPEAKER SETUP

PREPARATION

FRONT SUB

WOOFER

FRONT

A

B

CENTER

PRE OUT

SURROUND SURROUND

BACK

SPEAKERS

SURROUND

CENTER SURROUND BACK

PRESENCE

1

6 7 10

98

2 3 4 5

Subwoofer

system

Center

speaker

Front speakers (A)

Surround back

speakers

LeftRight

LeftRight

Surround speakers

Front

speakers

(B)

(U.S.A. model)

LeftRight

LeftRight

Presence speakers

You can connect both surround back and presence speakers to this unit, but they do not output sound simultaneously.

• The surround back speakers output the surround back channel included in Dolby Digital EX and DTS-ES software and only

operate when the Dolby Digital EX or DTS-ES decoder is turned on.

• The presence speakers output ambient effects created by the DSP sound fields. They do not output sound when other sound fields

are selected.

00_HTR-5760_U_EN.book Page 13 Tuesday, February 17, 2004 10:47 AM

14

SPEAKER SETUP

■FRONT terminals

Connect one or two speaker systems to these terminals. If

you use only one speaker system, connect it to either the

FRONT A or B terminals.

The Canada model cannot output to two separate speaker systems

simultaneously.

■CENTER terminals

Connect a center speaker to these terminals.

■SURROUND terminals

Connect surround speakers to these terminals.

■SUBWOOFER jack

Connect a subwoofer with built-in amplifier, such as the

YAMAHA Active Servo Processing Subwoofer System,

to this jack.

■SURROUND BACK terminals

Connect surround back speakers to these terminals. If you

only connect one surround back speaker, connect it to the

left (L) terminals.

■PRESENCE terminals

Connect presence speakers to these terminals.

Note

1

6

7

8

9

2

3

5

4

10

Speaker layout

00_HTR-5760_U_EN.book Page 14 Tuesday, February 17, 2004 10:47 AM

CONNECTIONS

15

English

PREPARATION

Do not connect this unit or other components to the mains

power until all connections between components are

complete.

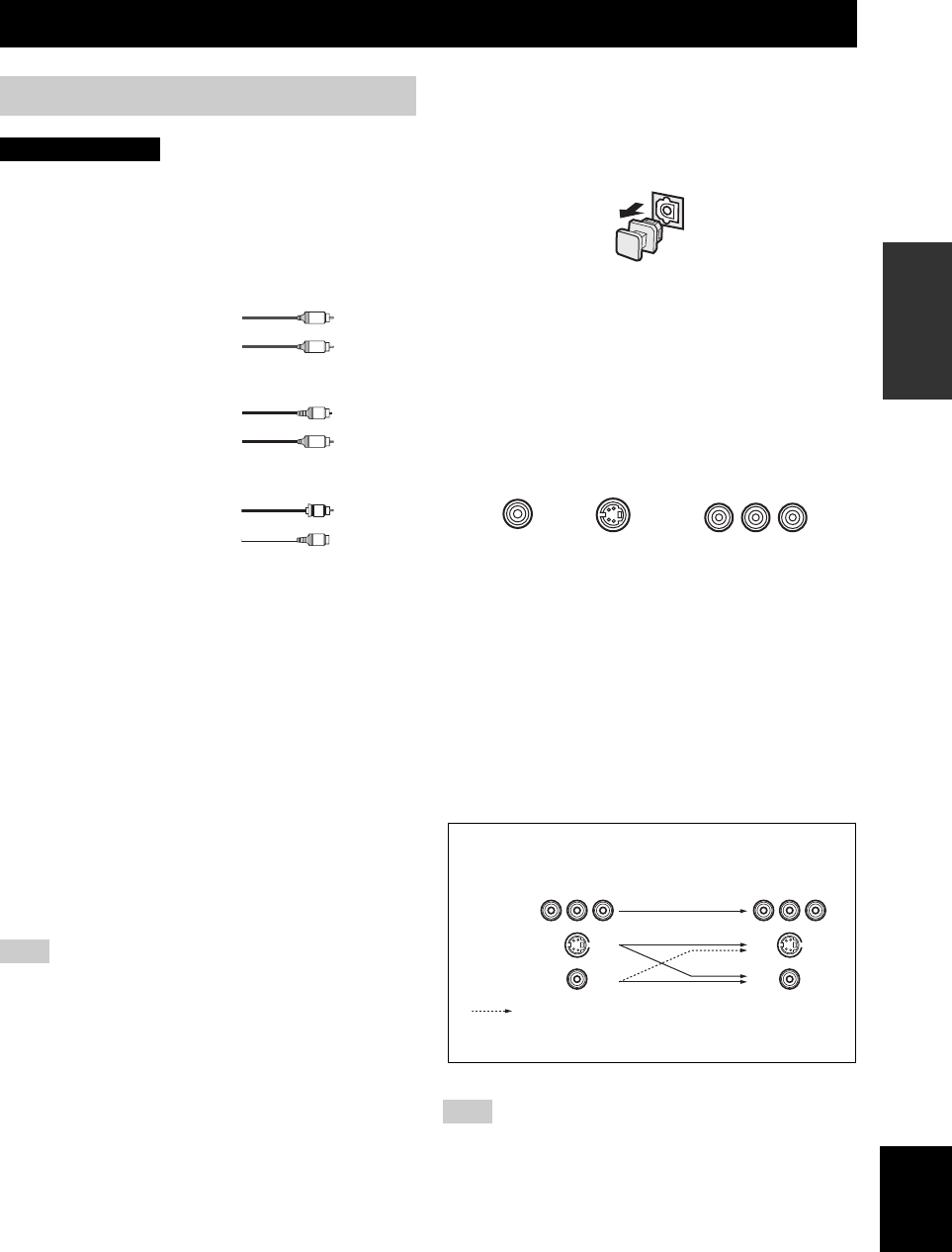

■Cable indications

■Analog jacks

You can input analog signals from audio components by

connecting audio pin cable to the analog jacks on this unit.

Connect red plugs to the right jacks and white plugs to the

left jacks.

■Digital jacks

This unit has digital jacks for direct transmission of digital

signals through either coaxial or fiber optic cables. You

can use the digital jacks to input PCM, Dolby Digital and

DTS bitstreams. When you connect components to both

the COAXIAL and OPTICAL jacks, priority is given to

the input signals from the COAXIAL jack. All digital

input jacks are compatible with 96-kHz sampling digital

signals.

This unit handles digital and analog signals independently. Thus

audio signals input to the analog jacks are only output to the

analog OUT (REC) jacks. Likewise audio signals input to the

digital (OPTICAL or COAXIAL) jacks are only output to the

DIGITAL OUTPUT jack.

Dust protection cap

Pull out the cap from the optical jack before you connect

the fiber optic cable. Do not discard the cap. When you are

not using the optical jack, be sure to put the cap back in

place. This cap protects the jack from dust.

■Video jacks

This unit has three types of video jacks. Connection

depends on the availability of input jacks on your monitor.

The signals input through the S VIDEO jacks on this unit

are automatically converted for output through the VIDEO

jacks. When V CONV. is set to ON (see page 58), signals

input through the VIDEO jacks can be output through the

S VIDEO jacks.

VIDEO jack

For conventional composite video signals.

S VIDEO jack

For S-Video signals, separated into luminance (Y) and

color (C) video signals to achieve high-quality color

reproduction.

COMPONENT VIDEO jacks

For component signals, separated into luminance (Y) and

color difference (PB, PR) to provide the best quality in

picture reproduction.

When signals are input through both the S VIDEO and VIDEO

jacks, signals input through the S VIDEO jack have priority.

CONNECTIONS

Before connecting components

Note

CAUTION

S

V

O

V

V

V

L

R

C

left analog cables

right analog cables

optical cables

coaxial cables

video cables

S-Video cables

For analog signals

For digital signals

For video signals

Note

VIDEO

S VIDEO

COMPONENT VIDEO

P

R

P

B

Y

S VIDEO

VIDEO

COMPONENT

VIDEO

Signal flow inside this unit

Only when V CONV. is set to ON

(see page 58).

Output

(MONITOR OUT)

Input

00_HTR-5760_U_EN.book Page 15 Tuesday, February 17, 2004 10:47 AM

16

CONNECTIONS

■Connections for DVD playback

Connecting video components

AUDIO

DIGITAL

INPUT

DVD

DVD

OPTICAL

DVD

VIDEO

VIDEO

S VIDEO MONITOR

OUT

DVD

COMPONENT VIDEO

PRPBY

VIDEO S VIDEO

MONITOR OUT

LRC

O

DVD player

Video

monitor

(U.S.A. model)

Optical out

Video out

Audio out

Video in

Coaxial out

00_HTR-5760_U_EN.book Page 16 Tuesday, February 17, 2004 10:47 AM

17

English

CONNECTIONS

PREPARATION

■Connecting to the MULTI CH INPUT jacks

This unit is equipped with 8 additional input jacks (left and right FRONT, CENTER, left and right SURROUND, left and

right SURROUND BACK and SUB WOOFER) for discrete multi-channel input from a multi-format player, external

decoder, sound processor or pre-amplifier.

Connect the output jacks on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to

match the left and right outputs to the left and right input jacks for the front and surround channels.

• When you select MULTI CH INPUT as the input source, this unit automatically turns off the digital sound field processor, and you

cannot select sound field programs.

• This unit does not redirect signals input to the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that

you connect at least a 5.1-channel speaker system before using this feature.

• When headphones are used, only front left and right channels are output.

Notes

SUB

WOOFER

SURROUND

FRONT

CENTER

MULTI CH INPUT

LR

LR

SUB

WOOFER

SURROUND

BACK

SURROUND

FRONT

CENTER

MULTI CH INPUT

LR LR

LR

Multi-format player/

External decoder

For 6-channel input

Front

out Surround

out

Subwoofer

out

Center

out

Multi-format player/

External decoder

Front

out Surround

out

Subwoofer

out

Center

out

Surround

back out

For 8-channel input

(U.S.A. model) (U.S.A. model)

00_HTR-5760_U_EN.book Page 17 Tuesday, February 17, 2004 10:47 AM

18

CONNECTIONS

■Connections for other video components

■VIDEO AUX jacks (on the front panel)

Use these jacks to connect any video source, such as a

game console or video camera, to this unit.

AUDIO

DIGITAL

INPUT

DVD

OPTICAL

DTV/CBL

VIDEO

VIDEO

S VIDEO

DTV

/CBL

COMPONENT VIDEO

PRPBY

DTV

/CBL

IN

VCR 1

OUT

O

LR

LR LR

Cable TV or

satellite tuner

DVD recorder

or VCR

Audio out

Video out

Optical out

Audio out Video out

Video in

Audio in

(U.S.A. model)

VIDEOS VIDEO OPTICALL AUDIO R

VIDEO AUX

O

V

S

L

R

Game

console or

video

camera

Video out

Audio out L

Audio out R

Optical out

S-Video out

00_HTR-5760_U_EN.book Page 18 Tuesday, February 17, 2004 10:47 AM

19

English

CONNECTIONS

PREPARATION

■Connections for audio components

Connecting audio components

AUDIO

DIGITAL

INPUT

CD

COAXIAL

OPTICAL

MD/CD-R

MD/CD-R

OPTICAL

OUT

(REC)

IN

(PLAY)

MD

/CD-R

CD

DIGITAL

OUTPUT

L

R

L

R

L

R

O

O

C

CD player

MD recorder or

tape deck

(U.S.A. model)

Coaxial out

Audio out

Audio in

Optical in

Audio out

Optical out

00_HTR-5760_U_EN.book Page 19 Tuesday, February 17, 2004 10:47 AM

20

CONNECTIONS

■Connecting to an external amplifier

If you want to increase the power output to the speakers,

or want to use another amplifier, connect an external

amplifier to the PRE OUT jacks as follows.

• When audio pin plugs are connected to the PRE OUT jacks for

output to an external amplifier, do not make connections to the

corresponding SPEAKERS terminals. Set the volume of the

amplifier connected to this unit to the maximum.

• The signals output through the FRONT PRE OUT and

CENTER PRE OUT jacks are affected by the TONE

CONTROL settings.

• If SPEAKERS A is turned off and SP B is set to ZONE B (see

page 59), signals will only be output from the FRONT PRE

OUT jacks.

1FRONT PRE OUT jacks

Front channel line output jacks.

2SURROUND PRE OUT jacks

Surround channel line output jacks.

3CENTER PRE OUT jack

Center channel line output jack.

4SURROUND BACK PRE OUT jacks

Surround back or presence channel line output jacks.

5SUB WOOFER PRE OUT jack

Connect a subwoofer with built-in amplifier, such as the

YAMAHA Active Servo Processing Subwoofer System,

to this jack.

• Each PRE OUT jack outputs the same channel signals as the

corresponding speaker terminals.

• Adjust the volume level of the subwoofer with the control on

the subwoofer. It is also possible to adjust the volume level

using the remote control (see “Manually adjusting speaker

levels” on page 49).

• Some signals may not be output from the SUB WOOFER PRE

OUT jack depending on the SPEAKER SET (see page 53) and

LFE/BASS OUT (see page 54) settings.

Notes

Notes

CENTER

SUB

WOOFER

SURROUND

PRE OUT

FRONT

R

L

SURROUND

BACK

123

5

4

00_HTR-5760_U_EN.book Page 20 Tuesday, February 17, 2004 10:47 AM

21

English

CONNECTIONS

PREPARATION

Both AM and FM indoor antennas are included with this

unit. In general, these antennas should provide sufficient

signal strength. Connect each antenna correctly to the

designated terminals.

■Connecting the AM loop antenna

1Set up the AM loop antenna, then connect it

to the terminals on this unit.

2Press and hold the tab to

insert the AM loop antenna

lead wires into the AM ANT

and GND terminals.

3Orient the AM loop antenna

for the best reception.

• The AM loop antenna should be placed away from this unit.

• The AM loop antenna should always be connected, even if an

outdoor AM antenna is connected to this unit.

• A properly installed outdoor antenna provides clearer reception

than an indoor one. If you experience poor reception quality, an

outdoor antenna may improve the quality. Consult the nearest

authorized YAMAHA dealer or service center about outdoor

antennas.

■75-ohm/300-ohm antenna adapter

(U.K. model only)

1Open the cover of the

included 75-ohm/300-ohm

antenna adapter.

2Cut the external sleeve

of the 75-ohm coaxial

cable and prepare it for

connection.

3Cut the lead wire and

remove it.

4Insert the cable

wire into the slot,

and clamp it with

pliers.

5Snap the cover

into place.

Connecting the antennas

75Ω UNBAL.

FM

ANT

AM

ANTGND

TUNER

AM loop antenna

(included)

Ground (GND terminal)

For maximum safety and minimum

interference, connect the antenna GND

terminal to a good earth ground. A good

earth ground is a metal stake driven into

moist earth.

Indoor FM antenna

(included)

Notes

11 (7/16)

8 (5/16)

6 (1/14)

Unit:

mm (in)

Lead wire

Clamp

Clamp

I

nsert the wire

i

nto slot.

00_HTR-5760_U_EN.book Page 21 Tuesday, February 17, 2004 10:47 AM

22

CONNECTIONS

■Connecting the AC power cord

Plug the power cord into an AC wall outlet.

■AC OUTLET(S) (SWITCHED)

Australia model .............................................. 1 OUTLET

Korea model ..............................................................None

Other models .................................................2 OUTLETS

Use these outlets to connect the power cords from your

other components to this unit. Power to the AC

OUTLET(S) is controlled by this unit’s STANDBY/ON

(or SYSTEM POWER and STANDBY). The outlet(s)

supply power to any connected component whenever this

unit is turned on. The maximum power (total power

consumption of components) that can be connected to the

AC OUTLET(S) is:

Korea model ............................................................... N/A

China model ............................................................. 50 W

Other models ...........................................................100 W

■Memory back-up

The memory back-up circuit prevents the stored data from

being lost even if this unit is in the standby mode.

However if the power cord is disconnected from the AC

wall outlet, or the power supply is cut for more than one

week, the stored data will be lost.

Connecting the power supply cord

00_HTR-5760_U_EN.book Page 22 Tuesday, February 17, 2004 10:47 AM

23

English

CONNECTIONS

PREPARATION

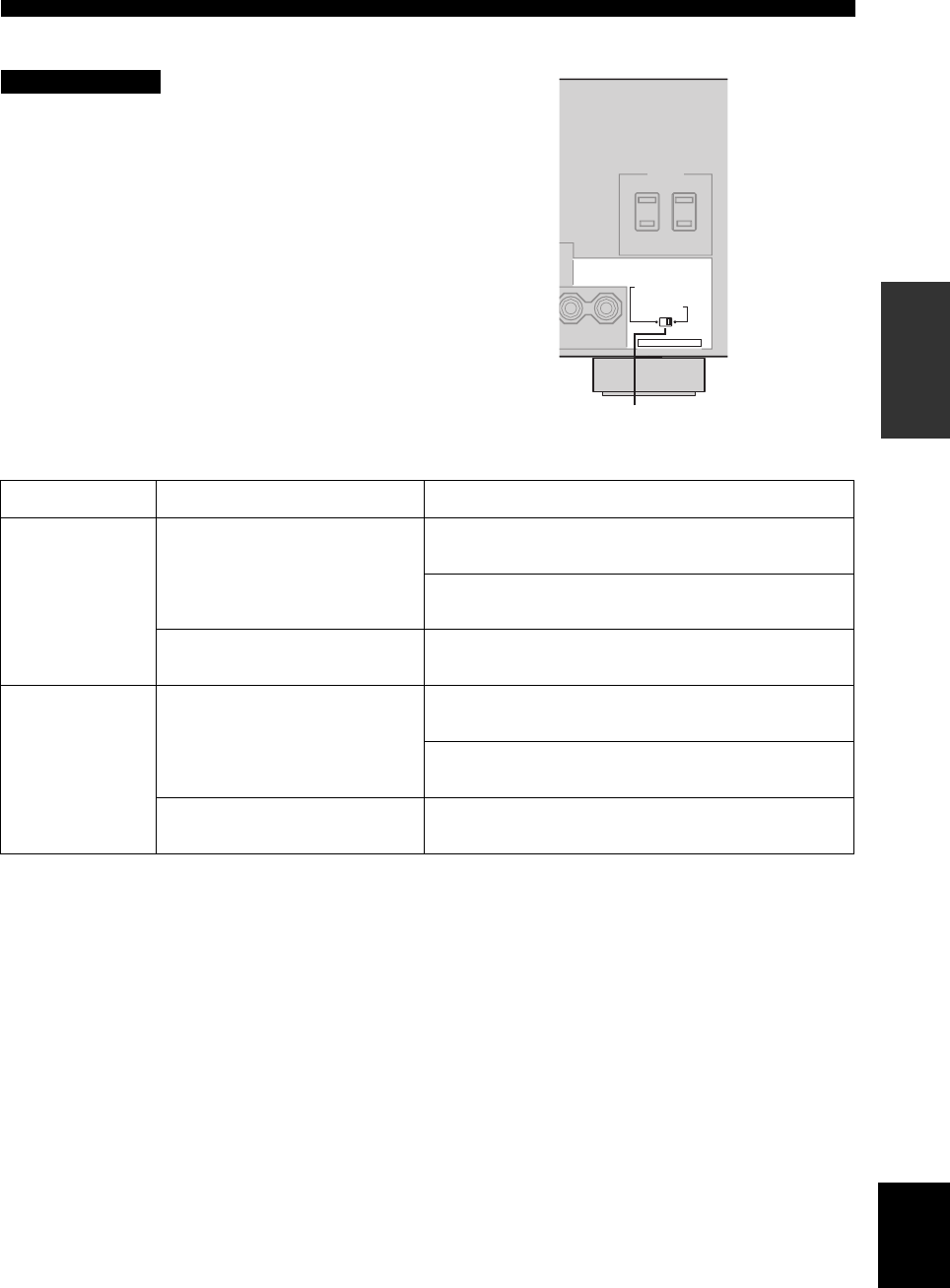

■IMPEDANCE SELECTOR switch

Do not change the setting of the IMPEDANCE

SELECTOR switch when the unit power is switched on,

as doing so may damage the unit.

If this unit fails to turn on when STANDBY/ON is pressed

on either the front panel or remote control, the

IMPEDANCE SELECTOR switch may not be fully slid to

either position. If this is the case, slide the switch all the

way to either position when this unit is in standby mode.

Select the switch position (left or right) according to the

impedance of the speakers in your system.

*The Canada model cannot use two separate speaker systems (A and B) simultaneously when the switch is set to the right position.

CAUTION

SET BEFORE POWER ON

IMPEDANCE SELECTOR

IMPEDANCE SELECTOR switch

(U.S.A. model)

Switch position Speaker Impedance level

Left

Front

If you use one set (A or B), the impedance of each speaker must be

4 Ω or higher.

If you use two sets (A and B), the impedance of each speaker must be

8 Ω or higher.

The impedance of each speaker must be 6 Ω or higher.

Center, Surround, Surround back,

Presence

Right

Front

If you use one set (A or B), the impedance of each speaker must be

8 Ω or higher.

If you use two sets (A and B), the impedance of each speaker must be

16 Ω or higher.*

The impedance of each speaker must be 8 Ω or higher.

Center, Surround, Surround back,

Presence

00_HTR-5760_U_EN.book Page 23 Tuesday, February 17, 2004 10:47 AM

24

CONNECTIONS

When all connections are complete, turn on the power of

this unit.

1Press STANDBY/ON (SYSTEM POWER on the

remote control) to turn on the power of this

unit.

2Turn on the video monitor connected to this

unit.

Turning on the power

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

1

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

1

(U.S.A. model)

STANDBY

/ON

SYSTEM

POWER

or

Front panel Remote control

00_HTR-5760_U_EN.book Page 24 Tuesday, February 17, 2004 10:47 AM

AUTO SETUP

25

English

PREPARATION

This receiver employs YAMAHA Parametric Room

Acoustic Optimizer (YPAO) technology which lets you

avoid troublesome listening-based speaker setup and

achieves highly accurate sound adjustments. The supplied

optimizer microphone collects and analyzes the sound

your speakers produce in your actual listening

environment.

• Please be advised that it is normal for loud test tones to be

output during the auto setup procedure.

• If auto setup stops and error messages appear on the screen,

follow the troubleshooting on page 29.

YPAO performs the following checks and makes

appropriate adjustments to give you the best possible

sound from your system.

WIRING/LEVEL:

Checks which speakers are connected and the polarity of

each speaker. Also checks and adjusts the sound level

(volume) of each speaker so that the sound level of each

speaker is the same when heard from the listening

position.

DISTANCE/PHASE:

Checks the distance of each speaker from the listening

position and adjusts the delay of each channel so that the

sound from each speaker reaches the listening position at

the same time. Also checks the phase of each speaker.

SIZE:

Checks the speakers frequency response and sets the

crossover/high cut frequency for the subwoofer to improve

the sound relationship between the speakers and the

subwoofer.

1Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front

panel.

• After you have completed the auto setup procedure, be sure to

disconnect the optimizer microphone.

• The optimizer microphone is sensitive to heat.

– Keep it away from direct sunlight.

– Do not place it on top of this unit.

2Place the optimizer microphone on a flat

level surface with the omni-directional

microphone head upward, at your normal

listening position.

If possible, use a tripod (etc.) to affix the optimizer

mic at the same height as your ears would be when

you are seated in your listening position.

AUTO SETUP

Introduction

Notes

Optimizer microphone setup

Notes

LEVELNEXTEDIT

EFFECT

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

TONE CONTROL

OPTIMIZER

MIC

(U.S.A. model)

Optimizer microphone position

00_HTR-5760_U_EN.book Page 25 Tuesday, February 17, 2004 10:47 AM

26

AUTO SETUP

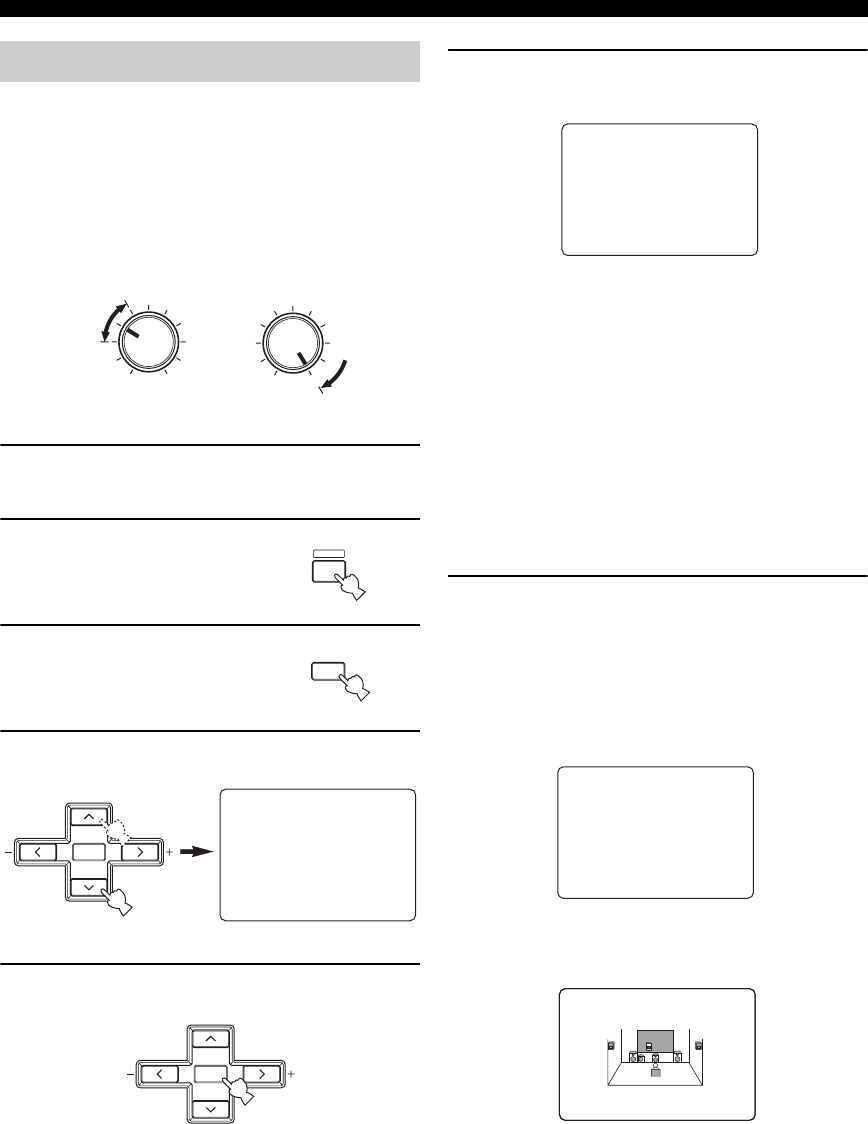

For best results, make sure the room is as quiet as possible

during the auto setup procedure (YPAO). If there is too

much ambient noise, the results may not be satisfactory.

y

If your subwoofer has adjustable volume and crossover/high cut

frequency controls, set the volume between 9 and 11 o’clock (as

viewed on a conventional clockface) and set the crossover/high

cut frequency to the maximum.

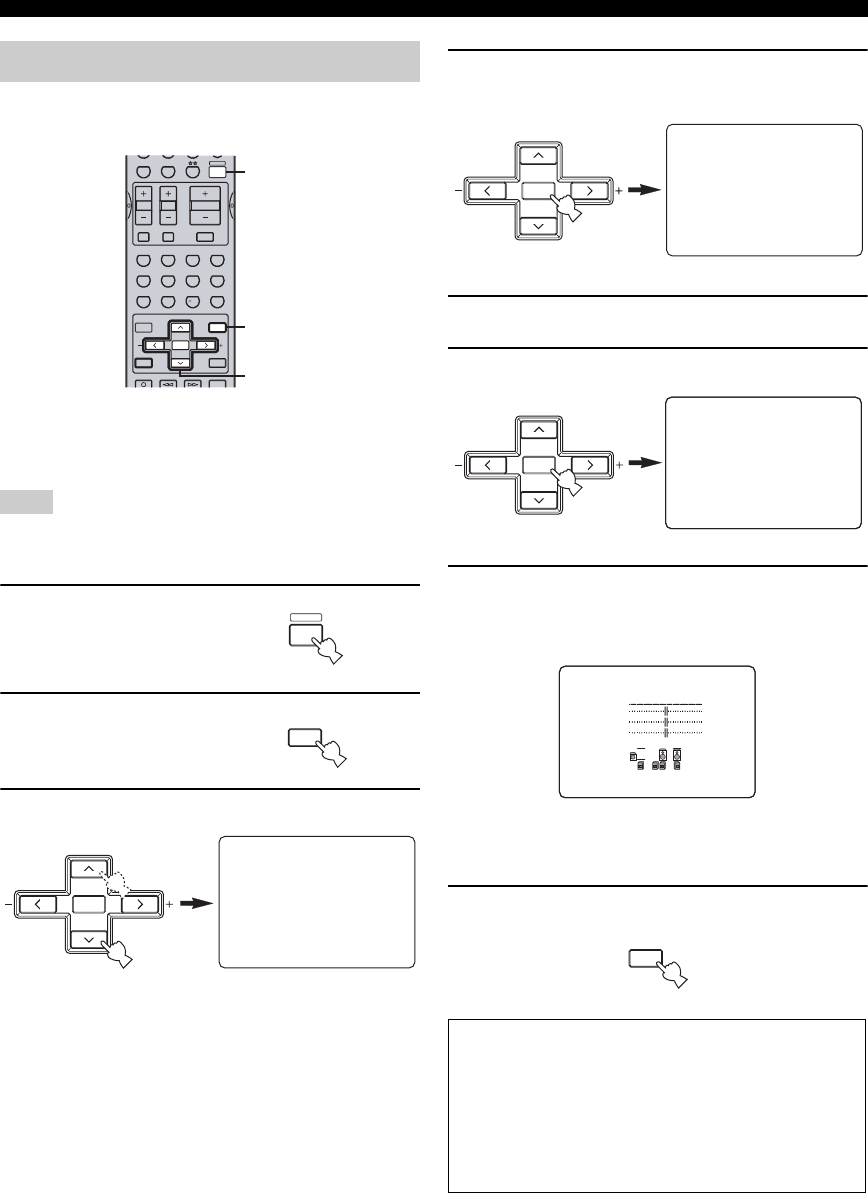

1Switch on this unit and your video monitor.

Make sure the OSD is displayed.

2Press AMP.

3Press SET MENU.

4Press u / d to select AUTO SETUP.

5Press SELECT to enter AUTO SETUP.

6Press u / d to select SETUP, then press j / i

to select the desired setting.

AUTO To perform the auto setup procedure

(YPAO).

RELOAD To reload the last auto setup (YPAO)

settings to override any manual

changes.

UNDO To undo the last auto setup (YPAO) and

restore the previous settings.

DEFAULT To restore the factory preset (default)

setup parameters.

y

You can choose RELOAD or UNDO only if you have

already performed auto setup.

7Press d to select START, then press SELECT

to start the setup procedure.

• If you selected AUTO in step 6, loud test tones will

be output from each speaker in turn; WAIT appears

during the auto setup procedure.

• If you selected DEFAULT, RELOAD or UNDO in

step 6, no test tones are output.

The RESULT:WIRING screen appears after all items

have been measured and set.

• If an ERROR screen appears, see “If an error

screen appears” on page 27.

• If a WARNING screen appears, see “If a warning

screen appears” on page 28.

Starting the setup

VOLUME

MIN MAX

CROSSOVER/

HIGH CUT

MIN MAX

Subwoofer

AMP

MENU

SET MENU

A/B/C/D/E

SELECT

PRESET/CH

SET MENU

.;AUTOSETUP

;MANUALSETUP

[ ]/[ ]:Up/Down

[SELECT]:Enter

p

p

SELECT

PRESET/CH

1 AUTO:MENU

.SETUP;;;;;;;AUTO

START



Automatic

processing

of all items

[ ]/[ ]:Up/Down

[<]/[>]:Select

p

p

1 AUTO:MENU

SETUP;;;;;;;AUTO

.START



Automatic

processing

of all items

[]/[]:Up/Down

[SELECT]:Start

p

p



FRONT



L;;;;;;;OK



[<]/[>]:Select



[SELECT]:Return

RESULT:WIRING

00_HTR-5760_U_EN.book Page 26 Tuesday, February 17, 2004 10:47 AM

27

English

AUTO SETUP

PREPARATION

8Use the cursor buttons to display the results.

• Press u / d to display information about

individual results.

• Press j / i to switch between each result list.

9When finished, press SELECT.

The RESULT:EXIT screen appears.

10 Press u / d to select SET or CANCEL.

SET To apply the auto setup (YPAO)

settings.

CANCEL To cancel the auto setup (YPAO)

without making any changes.

11 Press SELECT to set or cancel the auto

setup settings.

y

If you are not satisfied with the result or want to manually adjust

each setup parameter, use the manual setup parameters (see

page 51).

• If E-10 appears during testing, restart the procedure from step 3.

• To cancel the auto setup procedure before completion, press

SET MENU.

■If an error screen appears

1Press SELECT to display detailed

information about the error.

2Press j / i to switch between error

messages.

For details about each message, see page 29.

3When finished, press SELECT to return to

the main error screen.

4Press u / d to select RETRY or EXIT, then

press SELECT.

RETRY To retry the auto setup procedure.

EXIT To exit auto setup.

Notes



FRONT



L;;;;;;;OK



[<]/[>]:Select



[SELECT]:Return

RESULT:WIRING

RESULT:EXIT

NOWARNING

RESULTLIST



.)SETCANCEL

[]/[]:Up/Down

[SELECT]:Enter

p

p

ERROR

.E-5:NOISY

)RETRYEXIT

[]/[]:Up/Down

[SELECT]:Enter

p

p

ERROR: E-5





<



NOISY



>





Keep



SILENT





[SELECT]:Return

ERROR





E-5:NOISY

.)RETRY



EXIT





[



]/[



]:Up/Down





[SELECT]:Enter

p

p

00_HTR-5760_U_EN.book Page 27 Tuesday, February 17, 2004 10:47 AM

28

AUTO SETUP

■If a warning screen appears

1Press j / i to display detailed information

about each warning.

For details about each message, see page 29.

y

Warnings let you know about potential problems detected

during auto setup. Warnings will not cancel the auto setup.

2When you are finished, press SELECT.

The RESULT:EXIT screen appears.

3Press u / d to select RESULT LIST, then

press SELECT.

The RESULT:WIRING screen appears.

Continue from step 8 on page 27 to display

each result.

• If you change speakers, speaker positions, or the layout of your

listening environment, perform auto setup again to re-calibrate

your system.

• If SWFR PHASE:REV appears in RESULT:WIRING, the SET

MENU “SUBWOOFER PHASE” parameter is automatically

set to REVERSE (see page 55).

• In the DISTANCE results, the distance displayed may be longer

than the actual distance depending on the characteristics of your

subwoofer.

Notes

WARNING:W-1

<OUTOFPHASE>

ReverseChannel

FLFR

--

----

----

----

[<]/[>]:Select

[SELECT]:Return

RESULT:EXIT

WARNINGLIST

.RESULTLIST

)SETCANCEL

[]/[]:Up/Down

[SELECT]:Enter

p

p



FRONT



L;;;;;REV.



[<]/[>]:Select



[SELECT]:Return

RESULT:WIRING

00_HTR-5760_U_EN.book Page 28 Tuesday, February 17, 2004 10:47 AM

29

English

AUTO SETUP

PREPARATION

■ Troubleshooting for auto setup procedure

Before auto setup

Errors during auto setup

Press SELECT to display detailed information about individual errors. Press j / i to switch between error messages.

Warnings after auto setup

Press j / i to display detailed information about individual warnings.

• If the ERROR or WARNING screens appears, check the cause of the problem, then perform the auto setup procedure again.

• If warning W-1 appears, corrections are made, but they may not be optimal.

• If warning W-2 or W-3 appears, no corrections are made.

• If error E-10 occurs repeatedly, please contact a qualified YAMAHA service center.

Error message Cause Remedy

Connect MIC! Optimizer microphone is not connected. • Connect the supplied optimizer microphone to the

OPTIMIZER MIC jack on the front panel.

Unplug HP! Headphones are connected. • Unplug the headphones.

Error message Cause Remedy

E-1:NO FRONT SP Front L/R channel signal(s) is (are) not

detected.

• Select the front speakers with SPEAKER A or B.

• Check the front left and right speaker connections.

E-2:NO SURR.SP A surround channel signal is not detected. • Check the surround speaker connections.

E-3:NO PRES. SP A presence channel signal is not detected. • Check the presence speaker connections.

E-4:SBR->SBL Only right surround back channel signal is

detected.

• Connect the surround back speaker to the LEFT

SURROUND BACK SPEAKERS terminal if you

only have one surround back speaker.

E-5:NOISY Background noise is too loud. • Try the auto setup procedure in a quiet environment.

• Turn off noisy electric equipment like air conditioners

(etc.) or move them away from the optimizer

microphone.

E-6:CHECK SURR. Surround back speaker(s) is (are) connected,

though surround L/R speakers are not.

• Connect surround speakers when you use (a)

surround back speaker(s).

E-7:NO MIC The optimizer microphone was unplugged

during the auto setup procedure.

• Do not touch the optimizer microphone during the

auto setup procedure.

E-8:NO SIGNAL The optimizer microphone does not detect test

tones.

• Check the microphone setting.

• Check the speaker connections and placement.

E-9:USER CANCEL The auto setup procedure was cancelled due to

user activity.

• Perform the auto setup procedure again. Do not adjust

VOLUME (etc.) during the auto setup procedure.

E-10:OTHER ERROR A DSP communication error or hangup

occurred.

• Perform the auto setup procedure again.

Warning message Cause Remedy

W-1:OUT OF PHASE Speaker polarity is not correct. This message

may appear depending on the speakers even

when the speakers are connected correctly.

• Check the speaker connections for proper polarity

(+ or –).

W-2:OVER 24m

(80ft)

The distance between the speaker and the

listening position is over 24 m (80 ft).

• Bring the speaker closer to the listening position.

W-3:LEVEL ERROR The difference of volume level among speakers

is excessive. (No level correction is made.)

• Readjust the speaker installation so that all speakers

are set in locations with similar conditions.

• Check the speaker connections.

• Use speakers of similar quality and efficiency.

• Adjust the output volume of the subwoofer.

00_HTR-5760_U_EN.book Page 29 Tuesday, February 17, 2004 10:47 AM

PLAYBACK

30

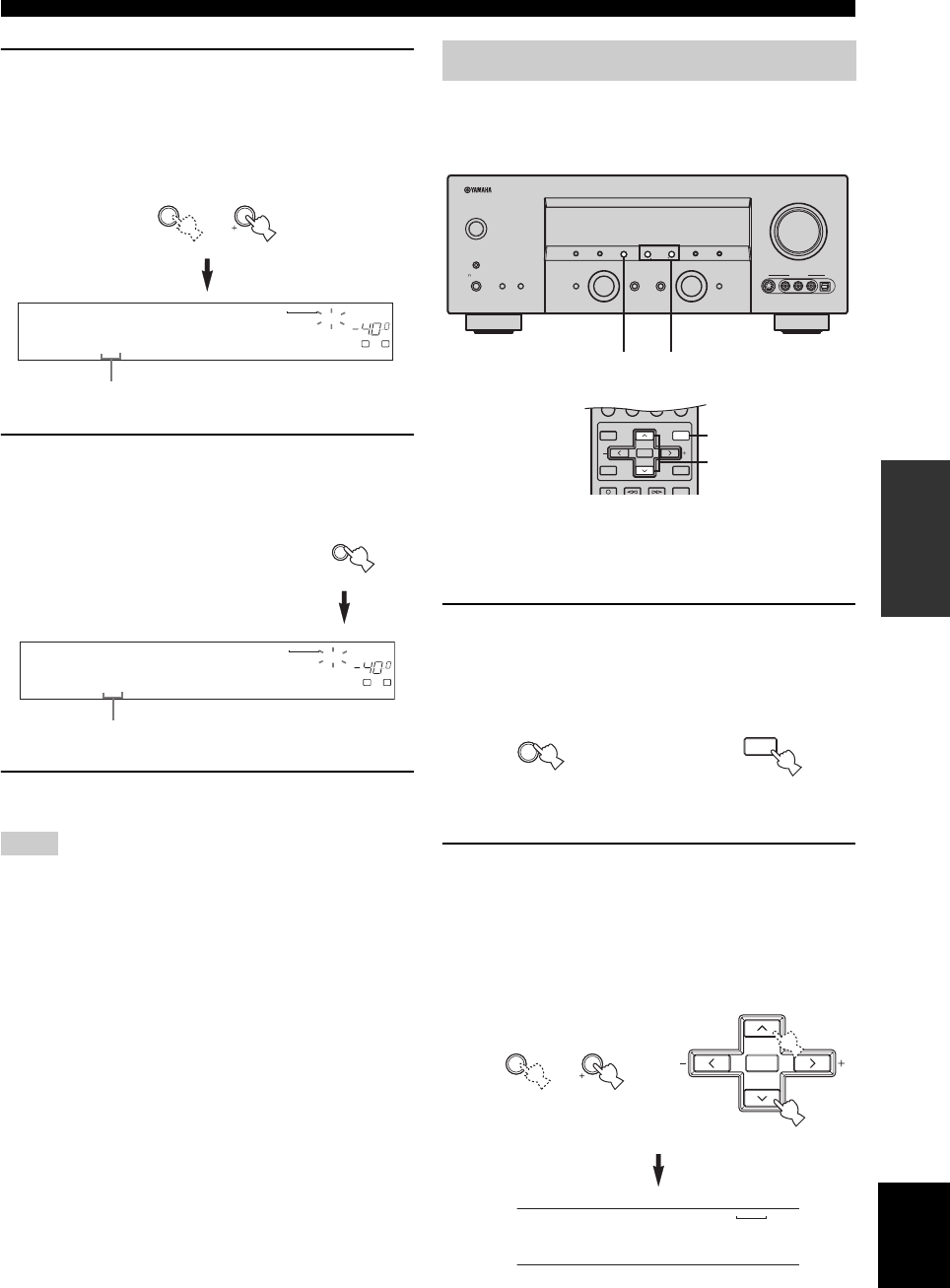

1Press STANDBY/ON (SYSTEM POWER on the

remote control) to turn on the power.

2Turn on the video monitor connected to this

unit.

3Press SPEAKERS A or B on the front panel.

Each press turns the respective speakers on or off.

4Select the input source.

Use INPUT (or press one of the input selector buttons

on the remote control) to select the input you desire.

The current input source name and input mode appear

in the front panel display and video monitor for a few

seconds.

5Start playback or select a broadcast station

on the source component.

Refer to the operating instructions for the component.

6Adjust the volume to the desired output level.

PLAYBACK

Basic operations

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

7 43 61

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

MUTE

VOLUME

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHT

q/DTS

EFFECT

TV MUTE TV INPUT

TV VOL TV CH

PRESET/CH

7

6

1

4

7

(U.S.A. model)

STANDBY

/ON

SYSTEM

POWER

Front panel Remote control

or

SPEAKERS

BA

INPUT

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

Front panel Remote control

or

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

01DDVD DAUTOO00

Selected input source Input mode

VOLUME

VOLUME

or

Remote control

Front panel

00_HTR-5760_U_EN.book Page 30 Tuesday, February 17, 2004 10:47 AM

31

English

PLAYBACK

BASIC

OPERATION

7Select a sound field program if desired.

Use PROGRAM (or press AMP to select the AMP

mode, then press one of the sound field program

buttons repeatedly) to select a sound field program.

See page 44 for details about sound field programs.

To listen with headphones (SILENT CINEMA)

“SILENT CINEMA” allows you to enjoy multi-channel

music or movie sound, including Dolby Digital and DTS

surround, through ordinary headphones. “SILENT

CINEMA” activates automatically whenever you connect

headphones to the PHONES jack while listening to

CINEMA DSP or HiFi DSP sound field programs. When

activated, the “SILENT CINEMA” indicator lights up in

the front panel display.

• This unit will not be set to “SILENT CINEMA” when MULTI

CH INPUT is selected as the input source.

• “SILENT CINEMA” is not effective when the Direct Stereo or

2ch Stereo program is selected, or in STRAIGHT mode.

To adjust the tone

You can adjust the tonal quality

of your front left and right,

center, presence and subwoofer

speakers or headphones (when

connected).

Press TONE CONTROL on the

front panel repeatedly to select

TREBLE or BASS, then rotate

PROGRAM to the right or left to

increase or decrease.

• Select TREBLE to adjust the

high frequency response.

• Select BASS to adjust the low frequency response.

To cancel the tone control, press TONE CONTROL

repeatedly to select BYPASS.

y

Speaker and headphone adjustments are stored independently.

TONE CONTROL is not effective with the Direct Stereo program

(page 35) or MULTI CH INPUT.

To mute the sound

Press MUTE on the remote control.

The MUTE indicator blinks in the

front panel display.

To resume the audio output, press

MUTE again (or press VOLUME –/+).

The MUTE indicator disappears from

the display.

y

You can adjust the muting level (see page 56).

Notes

PROGRAM

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

AMP

Remote control

Front panel

or

Note

TONE CONTROL

PROGRAM

MUTE

00_HTR-5760_U_EN.book Page 31 Tuesday, February 17, 2004 10:47 AM

32

PLAYBACK

■Selecting MULTI CH INPUT

Press MULTI CH INPUT so that “MULTI CH INPUT”

appears in the front panel display and video monitor.

MULTI CH INPUT

When “MULTI CH INPUT” is shown in the front panel display,

no other source can be played. To select another input source with

INPUT (or one of the input selector buttons), press MULTI CH

INPUT to turn off “MULTI CH INPUT” in the front panel

display.

■Playing video sources in the

background

You can combine a video image from a video source with

sound from an audio source. For example, you can enjoy

listening to classical music while viewing beautiful

scenery from the video source on the video monitor.

Use the input selector buttons on the remote

control to select a video source, then select an

audio source.

If you want to enjoy audio from the MULTI CH INPUT jacks

together with a video source, first select the video source, then

press MULTI CH INPUT.

■Front panel operation

Rotate PROGRAM to select the desired program.

The name of the selected program appears in the front

panel display and video monitor.

Note

Note

MULTI CH

INPUT

MULTI CH IN

Front panel Remote control

or

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR1

DTV/CBL

MULTI CH IN

SLEEP

Audio sources

Video sources

Selecting sound field programs

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

PROGRAM

(U.S.A. model)

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

01DJAZZACLUBO00

Program name

PROGRAM

00_HTR-5760_U_EN.book Page 32 Tuesday, February 17, 2004 10:47 AM

33

English

PLAYBACK

BASIC

OPERATION

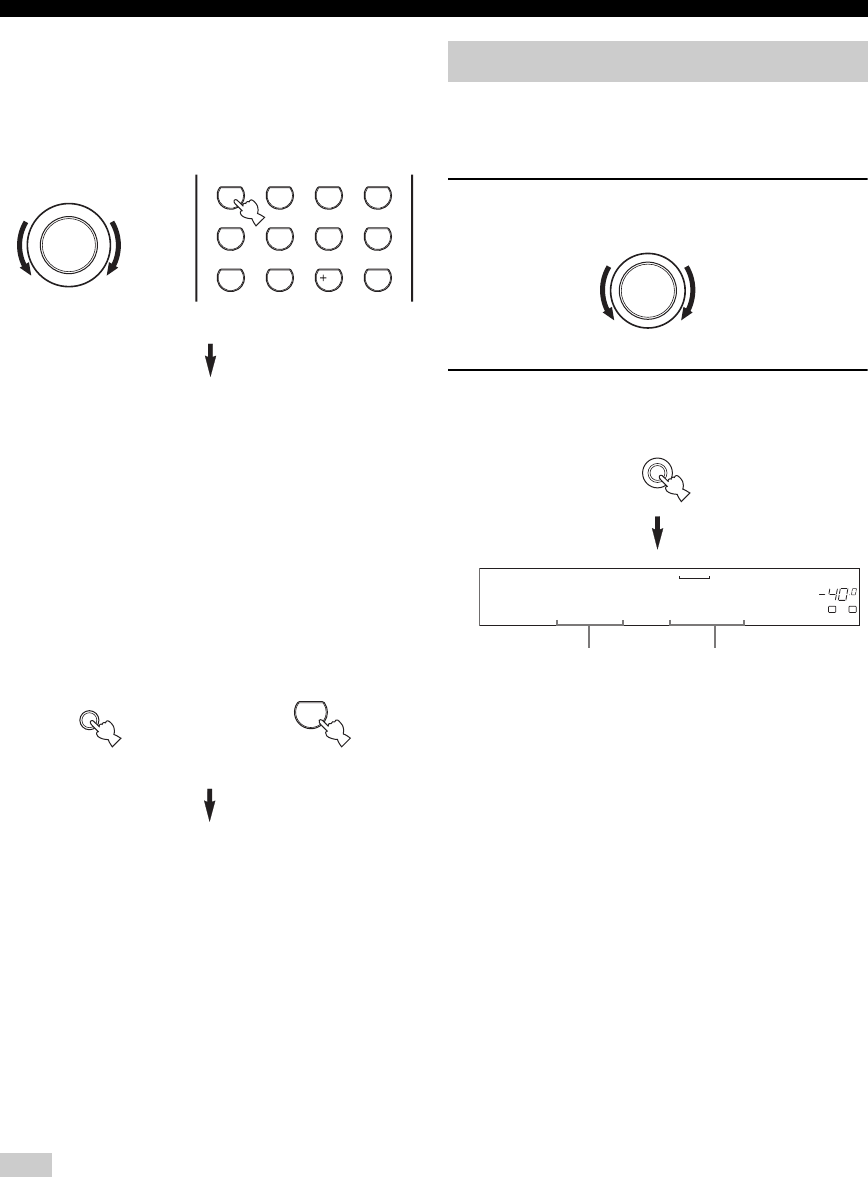

■Remote control operation

Press AMP to select the AMP mode, then press

one of the sound field program buttons

repeatedly to select the desired program.

The name of the selected program appears in the front

panel display.

y

Choose a sound field program based on your listening preference,

and not on the name of the program.

• When you select an input source, this unit automatically selects

the last sound field program used with that source.

• Sound field programs cannot be selected when MULTI CH

INPUT is selected.

• Sampling frequencies higher than 48 kHz (except for DTS 96/

24 signals) will be sampled down to 48 kHz, then sound field

programs will be applied.

■Enjoying multi-channel software

If you connected a surround back speaker, use this feature

to enjoy 6.1/7.1-channel playback for multi-channel

sources using the Dolby Pro Logic IIx, Dolby Digital

Surround EX or DTS-ES decoders.

Press AMP to select the AMP mode, then press

EX/ES on the remote control to switch between

5.1 and 6.1/7.1-channel playback.

To select a decoder, press j / i repeatedly when

PLIIxMusic (etc.) is displayed.

AUTO (AUTO)

When a signal (flag) that can be recognized by the unit is

input, the unit selects the optimum decoder for playing

back the signal in 6.1/7.1 channels.

If the unit cannot recognize the flag or no flag is present in

the input signal, it cannot automatically be played in 6.1/

7.1 channels.

Decoders (select with j / i)

You can select from the following decoders depending on

the format of the software you are playing.

PLIIxMovie

For playing back Dolby Digital or DTS signals in 6.1/7.1

channels using the Pro Logic IIx movie decoder.

PLIIxMusic

For playing back Dolby Digital or DTS signals in 6.1/7.1

channels using the Pro Logic IIx music decoder.

EX/ES

For playing back Dolby Digital signals in 6.1/7.1 channels

using the Dolby Digital Surround EX decoder.

DTS signals are played back in 6.1/7.1 channels using the

DTS-ES decoder.

EX

For playing back Dolby Digital or DTS signals in 6.1/7.1

channels using the Dolby Digital Surround EX decoder.

OFF (OFF)

Decoders are not used to create 6.1/7.1 channels.

y

When “SURR B L/R SP” is set to SMLx1 or LRGx1 (see

page 54), the surround back channel will be output from the left

SURROUND BACK speaker terminals.

Notes

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

MUTE

MENUTITLE

VOLUME

SET MENU

LEVEL

A/B/C/D/E

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHT

q/DTS

EFFECT

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

Sound

field

program

buttons

AMP

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

01DJAZZACLUBO00

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

AMP

Program name

10

EX/ES

SELECT

PRESET/CH

00_HTR-5760_U_EN.book Page 33 Tuesday, February 17, 2004 10:47 AM

34

PLAYBACK

• Some 6.1-channel compatible discs do not have a signal (flag)

which this unit can automatically detect. When playing these

kinds of discs with 6.1-channel, select a decoder (PLIIx Movie,

PLIIx Music, EX/ES or EX) manually.

• 6.1-channel playback is not possible even if EX/ES is pressed in

the following cases:

– When “SURR L/R SP” (see page 53) or “SURR B L/R SP”

(see page 54) is set to NONE.

– When the source connected to the MULTI CH INPUT jack is

being played.

– When the source being played does not contain surround left

and right channel signals.

– When a Dolby Digital KARAOKE source is being played.

– When “2ch Stereo” or Direct Stereo is selected.

• When the power of this unit is turned off, the input mode will be

reset to AUTO.

• When the DTS-ES decoder is applied to DTS 96/24 signals, you

cannot use the DTS 96/24 decoding feature.

• The Pro Logic IIx decoder is not available when “SURR B L/R

SP” is set to NONE (see page 54).

• PLIIxMovie cannot be selected when “SURR B L/R SP” is set

to SMLx1 or LRGx1 (see page 54).

■Enjoying 2-channel software

Signals input from 2-channel sources can also be played

back on multiple channels.

Press q/DTS on the remote control to select the

decoder.

You can select from the following decoders depending on

the type of software you are playing and your personal

preference.

PRO LOGIC SUR. STANDARD

Standard processing for Dolby Surround sources.

PRO LOGIC SUR. ENHANCED

CINEMA DSP enhanced processing for Dolby Surround

sources.

PRO LOGIC IIx Movie*

Dolby Pro Logic II/IIx processing for movie software.

PRO LOGIC IIx Music*

Dolby Pro Logic II/IIx processing for music software.

PRO LOGIC IIx Game*

Dolby Pro Logic II/IIx processing for game software.

DTS Neo:6 Cinema

DTS processing for movie software.

DTS Neo:6 Music

DTS processing for music software.

*Use the PLII/PLIIx parameter to select the Pro Logic II or Pro

Logic IIx decoders (see page 69).

The Pro Logic IIx decoder is not available when “SURR B L/R

SP” is set to NONE (see page 54).

Notes

Note

9

q/DTS

00_HTR-5760_U_EN.book Page 34 Tuesday, February 17, 2004 10:47 AM

35

English

PLAYBACK

BASIC

OPERATION

■Listening to high fidelity stereo sound

(Direct Stereo)

Direct Stereo allows you to bypass this unit’s decoders and

DSP processors to enjoy pure high fidelity sound from 2-

channel PCM and analog sources.

Rotate PROGRAM (or press AMP to select the

AMP mode, then press STEREO repeatedly) to

select “Direct Stereo”.

Direct Stereo

• To avoid unexpected noise, do not play DTS-encoded CDs in

this mode.

• When multi-channel signals (Dolby Digital and DTS) are input,

this unit automatically switches to the corresponding analog

input. (When DTS is selected as an input mode, no sound will

be heard.)

• No sound will be output from the subwoofer.

• CONTROL (page 31) and SET MENU (page 51) settings are

not effective.

• The front panel display automatically dims.

■Night listening modes

The night listening modes are designed to improve

listenability at lower volumes or at night. Choose either

NIGHT:CINEMA or NIGHT:MUSIC depending on the

type of material you are playing.

Press NIGHT on the remote control repeatedly to

select cinema or music.

When night listening is selected, the NIGHT indicator in

the front panel display lights up.

• Select NIGHT:CINEMA when watching films to

reduce the dynamic range of film soundtracks and

make dialog easier to hear at lower volumes.

• Select NIGHT:MUSIC when listening to music sources

to preserve ease-of-listening for all sounds.

• Select OFF if you do not want to use this function.

Press j / i to adjust the effect level while

NIGHT:CINEMA or NIGHT:MUSIC is displayed.

This adjusts the level of compression.

• Select MIN for minimum compression.

• Select MID for standard compression.

• Select MAX for maximum compression.

y

NIGHT:CINEMA and NIGHT:MUSIC adjustments are stored

independently.

• You cannot use the night listening modes with the Direct Stereo

program or MULTI CH INPUT (even though the NIGHT

indicator lights up when Direct Stereo is selected).

• The night listening modes may vary in effectiveness depending

on the input source and surround sound settings you use.

Notes

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

AMP

Front panel

or

PROGRAM

Remote control

Notes

Remote control

0

NIGHT

SELECT

PRESET/CH

Remote control

Effect.Lvl:MID

00_HTR-5760_U_EN.book Page 35 Tuesday, February 17, 2004 10:47 AM

36

PLAYBACK

■Downmixing to 2 channels

You can enjoy 2-channel stereo playback even from multi-

channel sources.

Rotate PROGRAM (or press STEREO on the

remote control) to select 2ch Stereo.

2ch Stereo

y

You can use a subwoofer with this program when SWFR or

BOTH is selected in “BASS OUT”.

■Listening to unprocessed input signals

In STRAIGHT mode, two channel stereo sources are

output from only the front left and right speakers. Multi-

channel sources are decoded straight into the appropriate

channels without any additional effect processing.

Press STRAIGHT (EFFECT) to select STRAIGHT.

STRAIGHT

Press STRAIGHT (EFFECT) again so that “STRAIGHT”

disappears from the display when you want to turn the

sound effect back on.

■Virtual CINEMA DSP

Virtual CINEMA DSP allows you to enjoy the CINEMA

DSP programs without surround speakers. It creates

virtual speakers to reproduce the natural sound field.

If you do not connect surround speakers, Virtual CINEMA

DSP activates automatically whenever you select a

CINEMA DSP sound field program.

Virtual CINEMA DSP will not activate, even when “SURR L/R

SP” is set to NONE (see page 53) in the following cases:

– When MULTI CH INPUT is selected as the input source.

– When headphones are connected to the PHONES jack.

This unit comes with a variety of input jacks. Do the

following to select the type of input signals you want to

use.

1Rotate INPUT to select the input source.

2Press INPUT MODE to select an input mode.

In most cases, use AUTO.

AUTO Automatically selects input signals in

the following order:

1) Digital signals*

2) Analog signals

DTS Selects only digital signals encoded in

DTS. If no DTS signals are input, no

sound is output.

ANALOG Selects only analog signals. If no

analog signals are input, no sound is

output.

* If this unit detects a Dolby Digital or DTS signal, the

decoder automatically switches to the appropriate sound

field program.

y

You can adjust the default input mode this unit selects when the

power is turned on (see page 58).

Note

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

Front panel

or

PROGRAM

Remote control

EFFECT

STRAIGHT

STRAIGHT

ENTER

EFFECT

Front panel Remote control

or

Selecting input modes

INPUT

INPUT MODE

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

01DDVD DAUTOO00

Input modeInput source

00_HTR-5760_U_EN.book Page 36 Tuesday, February 17, 2004 10:47 AM

37

English

PLAYBACK

BASIC

OPERATION

• When you play DTS-encoded CD/LDs with the input mode set

to AUTO:

– This unit automatically switches to the DTS decoding mode.

The unit remains in DTS mode (and the t indicator may

flash) for up to 30 seconds after playback of the DTS source is

complete. To manually release the DTS mode, press INPUT

MODE to reselect AUTO.

– The DTS decoding mode may be released if search or skip

operations are performed for more than 30 seconds. To

prevent this, press INPUT MODE to select DTS.

• If the digital output data of the player has been processed in any

way, you may not be able to perform DTS decoding even if you

make a digital connection between this unit and the player.

Displaying information about the input

source

You can display the type, format and sampling frequency

of the current input signal.

1Select the input source.

2Press AMP to select the AMP mode, then

press STRAIGHT (EFFECT) so that

“STRAIGHT” appears in the display.

STRAIGHT

3Press u / d to display the following

information about the input signal.

(Format) Signal format display. When the unit

cannot detect a digital signal it

automatically switches to analog input.

in Number of source channels in the input

signal. For example, a multi-channel

soundtrack with 3 front channels, 2

surround channels and LFE, is

displayed as “3/2/LFE”.

fs Sampling frequency. When the unit is

unable to detect the sampling

frequency “Unknown” appears.

rate Bit rate. When the unit is unable to

detect the bit rate “Unknown” appears.

flg Flag data encoded with DTS or Dolby

Digital signals that cue this unit to

automatically switch decoders.

Notes

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

STRAIGHT

ENTER

EFFECT

AMP

then

SELECT

PRESET/CH

00_HTR-5760_U_EN.book Page 37 Tuesday, February 17, 2004 10:47 AM

TUNING

38

There are 2 tuning methods; automatic and manual.

Automatic tuning is effective when station signals are

strong and there is no interference.

■Automatic tuning

1Rotate INPUT to select TUNER as the input

source.

2Press FM/AM to select the reception band.

“FM” or “AM” appears in the front panel display.

3Press TUNING MODE (AUTO/MAN’L MONO)

so that the AUTO indicator lights up in the

front panel display.

If a colon (:) appears in the front panel display, tuning

is not possible. Press PRESET/TUNING (EDIT) to

turn the colon (:) off.

4Press PRESET/TUNING l / h once to begin

automatic tuning.

Press h to tune into a higher frequency, or press l

to tune into a lower frequency.

When tuned into a station, the TUNED indicator

lights up and the frequency of the received station is

shown in the front panel display.

TUNING

Automatic and manual tuning

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

3 312 4

(U.S.A. model)

INPUT

FM/AM

or AM

FM

AUTO/MAN'L MONO

TUNING MODE

AUTO

Lights up

EDIT

PRESET/TUNING

TUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

R

/VCR2

T CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO ME

M

SLEEP

T

UAL

A B

SP

A

1

-AAM11440kkHz

TUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

R

/VCR2

T CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO ME

M

SLEEP

T

UAL

A B

SP

A

1

-AAM11530kkHz

LEVEL

l PRESET/TUNING h

00_HTR-5760_U_EN.book Page 38 Tuesday, February 17, 2004 10:47 AM

39

English

TUNING

BASIC

OPERATION

■Manual tuning

If the signal from the station you want to select is weak,

tune into it manually. Manually tuning into an FM station

will automatically switch the tuner to monaural reception

to increase the signal quality.

1Select TUNER and the reception band

following steps 1 and 2 as described in

“Automatic tuning”.

2Press TUNING MODE (AUTO/MAN’L MONO)

so that the AUTO indicator disappears from

the front panel display.

If a colon (:) appears in the front panel display, tuning

is not possible. Press PRESET/TUNING (EDIT) to

turn the colon (:) off.

3Press PRESET/TUNING l / h to tune into

the desired station manually.

Hold down the button to

continue searching.

■Automatically presetting FM stations

You can use the automatic preset tuning feature to store

FM stations. This function enables this unit to

automatically tune into FM stations with strong signals,

and to store up to 40 (8 stations in 5 groups, A1 through

E8) of those stations in order. You can then recall any

preset station easily by selecting the preset station number.

1Press FM/AM to select the FM band.

2Press TUNING MODE (AUTO/MAN’L MONO)

so that the AUTO indicator lights up in the

front panel display.

If a colon (:) appears in the front panel display, tuning

is not possible. Press PRESET/TUNING (EDIT) to

turn the colon (:) off.

AUTO/MAN'L MONO

TUNING MODE

AUTO

Disappears

EDIT

PRESET/TUNING

TUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

R

/VCR2

T CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO ME

M

SLEEP

T

UAL

A B

SP

A

1

-AAM11440kkHz

LEVEL

l PRESET/TUNING h

Presetting stations

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

231

(U.S.A. model)

FM/AM

FM

AUTO/MAN'L MONO

TUNING MODE

AUTO

Lights up

EDIT

PRESET/TUNING

TUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

R

/VCR2

T CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO ME

M

SLEEP

T

UAL

A B

SP

A

1

-AAM11440kkHz

00_HTR-5760_U_EN.book Page 39 Tuesday, February 17, 2004 10:47 AM

40

TUNING

3Press and hold MEMORY (MAN’L/AUTO FM)

for more than 3 seconds.

The preset number, the MEMORY and AUTO

indicators flash. After about 5 seconds, automatic

presetting starts from the frequency currently

displayed and proceeds toward the higher

frequencies.

When automatic preset tuning is completed, the front

panel display shows the frequency of the last preset

station.

• Any stored station data existing under a preset number is

cleared when you store a new station under that preset number.

• If the number of the received stations does not reach 40 (E8),

automatic preset tuning has automatically stopped after

searching all stations.

• Only FM stations with sufficient signal strength are stored

automatically by automatic preset tuning. If the station you

want to store is weak in signal strength, tune into it manually,

and store it by following the procedure in “Manually presetting

stations”.

Automatic preset tuning options

You can select the preset number from which this unit will

store FM stations and/or begin tuning toward lower

frequencies.

After pressing MEMORY in step 3:

1Press A/B/C/D/E, then PRESET/TUNING l / h to

select the preset number under which the first station

will be stored. Automatic preset tuning will stop when

stations have all been stored up to E8.

2Press PRESET/TUNING (EDIT) to turn off the colon

(:) and then press PRESET/TUNING l to begin

tuning toward the lower frequencies.

■Manually presetting stations

You can also store up to 40 stations (8 stations in 5 groups,

A1 through E8) manually.

1Tune into a station.

See page 38 for tuning instructions.

When tuned into a station, the front panel display

shows the frequency of the station received.

2Press MEMORY (MAN’L/AUTO FM).

The MEMORY indicator flashes for about 5 seconds.

3Press A/B/C/D/E repeatedly to select a preset

station group (A to E) while the MEMORY

indicator is flashing.

The group letter appears. Check that the colon (:)

appears in the front panel display.

Notes

Memory back-up

The memory back-up circuit prevents the stored data

from being lost even if this unit is set in the standby

mode, the power cord is disconnected from the AC

outlet, or the power supply is temporarily cut due to

power failure. However, if the power is cut for more

than one week, the preset stations may be cleared. If

so, store the stations again by using the presetting

station methods.

MAN'L/AUTO FM

MEMORY

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

A11:FM187.5kMHz

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

43 2,5

(U.S.A. model)

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

A11:AM18630kkHz

MAN'L/AUTO FM

MEMORY

MEMORY

Flashes

NEXT

A/B/C/D/E

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

C11:AM18630kkHz

Preset group

00_HTR-5760_U_EN.book Page 40 Tuesday, February 17, 2004 10:47 AM

41

English

TUNING

BASIC

OPERATION

4Press PRESET/TUNING l / h to select a

preset station number (1 through 8) while the

MEMORY indicator is flashing.

Press h to select a higher preset station number.

Press l to select a lower preset station number.

5Press MEMORY (MAN’L/AUTO FM) on the

front panel while the MEMORY indicator is

flashing.

The station band and

frequency appear in the front

panel display with the preset

group and number you have

selected.

6Repeat steps 1 to 5 to store other stations.

• Any stored station data existing under a preset number is

cleared when you store a new station under that preset number.

• The reception mode (stereo or monaural) is stored along with

the station frequency.

You can tune any desired station simply by selecting the

preset station number under which it was stored.

When performing this operation with the remote

control, first press TUNER to set the remote to

tuner mode.

1Press A/B/C/D/E to select the preset station

group.

The preset group letter appears in the front panel

display and changes each time you press the button.

2Press PRESET/TUNING l / h (PRESET/CH

u / d on the remote control) to select a

preset station number (1 through 8).

The preset group and number appear on the front

panel display along with the station band, frequency

and the TUNED indicator lights up.

Notes

LEVEL

l PRESET/TUNING h

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

C13:AM18630kkHz

Preset number

MAN'L/AUTO FM

MEMORY

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

C13:AM18630kkHz

Shows the displayed station has been stored as C3.

Selecting preset stations

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

2

1

REC

AUDI O

MENUTITLE

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

1009

ENTER

EX/ESNIGHT

q/DTS

EFFECT

DISPLAYRETURN

SELECT

PRESET/CH

2

1

(U.S.A. model)

NEXT

A/B/C/D/E

MENU

SET MENU

A/B/C/D/E

or

Front panel Remote control

LEVEL

l PRESET/TUNING h

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO

M

MEMORY

SLEEP

VIRTUAL

x

A B

SP

ft

mS

dB

9

E11:FM187.5kMHz

or

Front panel

Remote control

SELECT

PRESET/CH

00_HTR-5760_U_EN.book Page 41 Tuesday, February 17, 2004 10:47 AM

42

TUNING

You can exchange the assignment of two preset stations

with each other. The example below describes the

procedure for exchanging preset station “E1” with “A5”.

1Select preset station “E1” using A/B/C/D/E

and PRESET/TUNING l / h.

See “Selecting preset stations”.

2Press and hold PRESET/TUNING (EDIT) for

more than 3 seconds.

“E1” and the MEMORY indicator flash in the front

panel display.

3Select preset station “A5” using A/B/C/D/E

and PRESET/TUNING l / h.

“A5” and the MEMORY indicator flash in the front

panel display.

4Press PRESET/TUNING (EDIT) again.

The stations stored at the two preset assignments are

exchanged.

Exchanging preset stations

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

2,4 1,31,3

(U.S.A. model)

EDIT

PRESET/TUNING

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO

M

MEMORY

SLEEP

VIRTUAL

x

A B

SP

ft

mS

dB

9

E11:FM187.5kMHz

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO

M

MEMORY

SLEEP

VIRTUAL

x

A B

SP

ft

mS

dB

9

A15:FM190.6kMHz

NEXT

A/B/C/D/E

LEVEL

l PRESET/TUNING h

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO

M

MEMORY

SLEEP

VIRTUAL

x

A B

SP

ft

mS

dB

9

E1 EDIT18E1-A5Hz

EDIT

PRESET/TUNING

00_HTR-5760_U_EN.book Page 42 Tuesday, February 17, 2004 10:47 AM

RECORDING

43

English

BASIC

OPERATION

Recording adjustments and other operations are

performed from the recording components. Refer to the

operating instructions for those components.

1Turn on the power of this unit and all

connected components.

2Select the source component you want to

record from.

3Start playback (or select a broadcast station)

on the source component.

4Start recording on the recording component.

y

Do a test recording before you start an actual recording.

• When this unit is set in the standby mode, you cannot record

between other components connected to this unit.

• The setting of TONE CONTROL, VOLUME, “SPEAKER

LEVEL” (page 55) and programs does not affect recorded

material.

• A source connected to the MULTI CH INPUT jacks of this unit

cannot be recorded.

• S-Video and composite video signals pass independently

through this unit’s video circuits. Therefore, when recording or

dubbing video signals, if your video source component is

connected to provide only an S-Video (or only a composite

video) signal, you can record only an S-Video (or only a

composite video) signal to your VCR.

• Digital signals input to the DIGITAL INPUT jacks are not

output to the analog AUDIO OUT (L/R) jacks for recording.

Likewise, analog signals input to the AUDIO IN (L/R) jacks are

not output to the DIGITAL OUTPUT jack. Therefore, if your

source component is connected to provide only digital (or

analog) signals, you can only record digital (or analog) signals.

• A given input source is not output on the same REC OUT

channel. (For example, the signal input from VCR 1 IN is not

output on VCR 1 OUT.)

• Check the copyright laws in your country to record from

records, CDs, radio, etc. Recording of copyrighted material may

infringe copyright laws.

■Special considerations when recording

DTS software

The DTS signal is a digital bitstream. Attempting to

digitally record the DTS bitstream will result in noise

being recorded. Therefore, if you want to use this unit to

record sources that have DTS signals recorded on them,

the following considerations and adjustments need to be

made.

For DVDs and CDs encoded with DTS, when your player

is compatible with the DTS format, follow its operating

instructions to make a setting so that the analog signal will

be output from the player.

RECORDING

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

21

(U.S.A. model)

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV MUTE TV INPUT

TV VOL TV CH

AVTV

DTV/CBL

MULTI CH IN

SLEEP

1

2

VCR 1 DVR/VCR2

INPUT

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

or

Front panel Remote control

Notes

If you playback a video source that uses scrambled or

encoded signals to prevent it from being dubbed, the

picture itself may be disturbed due to those signals.

00_HTR-5760_U_EN.book Page 43 Tuesday, February 17, 2004 10:47 AM

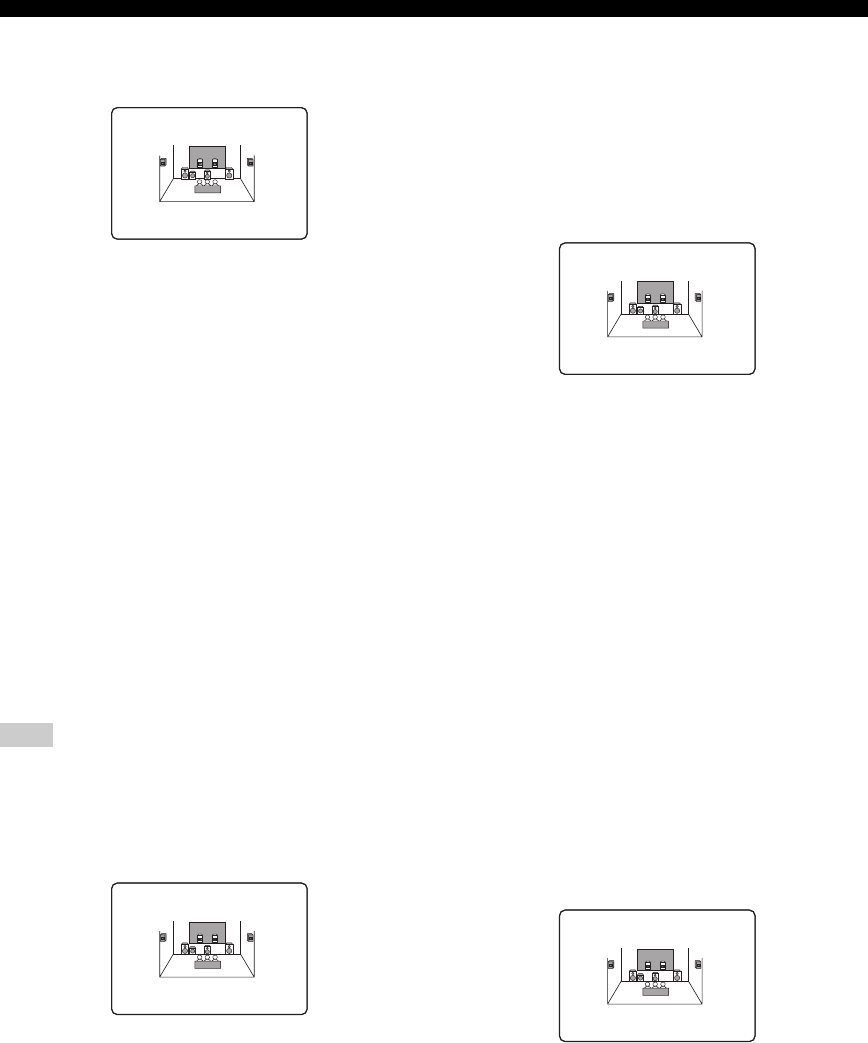

SOUND FIELD PROGRAM DESCRIPTIONS

44

This unit is equipped with a variety of precise digital decoders that allow you to enjoy multichannel playback from

almost any sound source (stereo or multichannel). This unit is also equipped with a YAMAHA digital sound field

processing (DSP) chip containing several sound field programs which you can use to enhance your playback experience.

Most of these sound field programs are precise digital recreations of actual acoustic environments found in famous

concert halls, music venues, and movie theaters.

y

The YAMAHA CINEMA DSP modes are compatible with all Dolby Digital, DTS, and Dolby Surround sources. Set the input mode to

AUTO (see page 36) to enable this unit to automatically switch to the appropriate digital decoder according to the input signal.

• This unit’s DSP sound field programs are recreations of real-world acoustic environments made from precise measurements taken in

the actual hall, etc. Thus you may notice variations in the strength of the reflections coming from the front, back, left and right.

• Feel free to choose a sound field program based on your listening preference, and not purely on the name of the program itself.

You can select from the following sound fields when playing movie or video sources. The sound fields marked “MULTI”

can be used with multi-channel sources, like DVD, digital TV, etc. Those marked “2-CH” can be used with 2-channel

(stereo) sources like TV programs, video tapes, etc.

SOUND FIELD PROGRAM DESCRIPTIONS

Notes

For movie/video sources

Program Features Sources

STEREO:

2ch Stereo

Downmixes multi-channel sources to 2 channel (left and right) or plays back 2-channel

sources as is.

MULTI

2-CH

MUSIC VIDEO This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at

an actual jazz or rock concert.

ENTERTAINMENT:

Game

This program adds a deep and spatial feeling to video game sounds.

TV THEATER:

Mono Movie

This program is provided for reproducing monaural video sources (such as old movies). The

program produces the optimum reverberation to create sound depth using only the presernce

sound field.

TV THEATER:

Variety/Sports

Though the presence sound field is relatively narrow, the surround sound field employs the

sound environment of a large concert hall. This effect enhances the experience of watching

various TV programs such as news, variety shows, music programs or sports programs.

MOVIE THEATER:

Spectacle

CINEMA DSP processing. This program creates the extremely wide sound field of a 70-mm

movie theater. It precisely reproduces the source sound in detail, making both the video and the

sound field incredibly real. This is ideal for any kind of video source encoded with Dolby

Surround, Dolby Digital or DTS (especially large-scale movie productions).

MOVIE THEATER:

Sci-Fi

CINEMA DSP processing. This program clearly reproduces dialog and sound effects in the

latest sound form for science fiction films, thus creating a broad and expansive cinematic space

amid silence. You can enjoy science fiction films in a virtual-space sound field that includes

Dolby Surround, Dolby Digital and DTS-encoded software employing the most advanced

techniques.

MOVIE THEATER:

Adventure

CINEMA DSP processing. This program is ideal for precisely reproducing the sound design of

the newest 70-mm and multichannel soundtrack films. The sound field is made to be similar to

that of the newest movie theaters, so the reverberations of the sound field itself are restrained

as much as possible.

MOVIE THEATER:

General

CINEMA DSP processing. This program is for reproducing sounds from 70-mm and

multichannel soundtrack films, and is characterized by soft and extensive sound field.

00_HTR-5760_U_EN.book Page 44 Tuesday, February 17, 2004 10:47 AM

45

English

SOUND FIELD PROGRAM DESCRIPTIONS

SOUND FIELD

PROGRAMS

DOLBY DIGITAL:

SUR. STANDARD

Standard 5.1-channel processing for Dolby Digital sources.

MULTI

DOLBY DIGITAL:

SUR. ENHANCED

CINEMA DSP enhanced processing for Dolby Digital sources.

q D+PLIIx Movie:

SUR. STANDARD

Standard 6.1/7.1-channel processing (Dolby Pro Logic IIx Movie) for Dolby Digital sources.

q D+PLIIx Movie:

SUR. ENHANCED

CINEMA DSP enhanced 6.1/7.1-channel processing (Dolby Pro Logic IIx Movie) for Dolby

Digital sources.

DOLBY D EX:

SUR. STANDARD

Standard 6.1-channel processing for Dolby Digital sources.

DOLBY D EX:

SUR. ENHANCED

CINEMA DSP enhanced 6.1-channel processing (Dolby Digital EX) for Dolby Digital

sources.

DTS:

SUR. STANDARD

Standard 5.1-channel processing for DTS sources.

DTS 96/24:

SUR. STANDARD

Standard 5.1-channel processing for 96-kHz/24-bit DTS sources.

DTS:

SUR. ENHANCED

CINEMA DSP enhanced processing for DTS and 96-kHz/24-bit DTS sources.

DTS+PLIIx Movie:

SUR. STANDARD

Standard 6.1/7.1-channel processing (Dolby Pro Logic IIx Movie) for DTS sources.

DTS+PLIIx Movie:

SUR. ENHANCED

CINEMA DSP enhanced 6.1/7.1-channel processing (Dolby Pro Logic IIx Movie) for DTS

sources.

DTS+DOLBY EX:

SUR. STANDARD

Standard 6.1-channel processing (Dolby Digital EX) for DTS sources.

DTS+DOLBY EX:

SUR. ENHANCED

CINEMA DSP enhanced 6.1-channel processing (Dolby Digital EX) for DTS sources.

DTS ES Mtrx6.1:

SUR. STANDARD

Standard 6.1-channel processing (DTS-ES Matrix) for DTS sources.

DTS ES Mtrx6.1:

SUR. ENHANCED

CINEMA DSP enhanced processing (DTS-ES Matrix) for DTS sources.

DTS ES Disc6.1:

SUR. STANDARD

Standard 6.1-channel processing (DTS-ES Discrete) for DTS sources.

DTS ES Disc6.1:

SUR. ENHANCED

CINEMA DSP enhanced processing (DTS-ES Discrete) for DTS sources.

Program Features Sources

00_HTR-5760_U_EN.book Page 45 Tuesday, February 17, 2004 10:47 AM

46

SOUND FIELD PROGRAM DESCRIPTIONS

*You can select either Pro Logic IIx or Pro Logic II processing using the PLII/PLIIx parameter on page 69.

PRO LOGIC:

SUR. STANDARD

Standard processing for Dolby Surround sources.

2-CH

PRO LOGIC:

SUR. ENHANCED

CINEMA DSP enhanced processing for Dolby Surround sources.

PRO LOGIC IIx:

PLIIx Movie

Dolby Pro Logic IIx processing for movie software.*

PRO LOGIC II:

PLII Movie

Dolby Pro Logic II processing for movie software.*

PRO LOGIC IIx:

PLIIx Game

Dolby Pro Logic IIx processing for game software.*

PRO LOGIC II:

PLII Game

Dolby Pro Logic II processing for game software.*

DTS: Neo:6 Cinema DTS processing for movie software.

Program Features Sources

00_HTR-5760_U_EN.book Page 46 Tuesday, February 17, 2004 10:47 AM

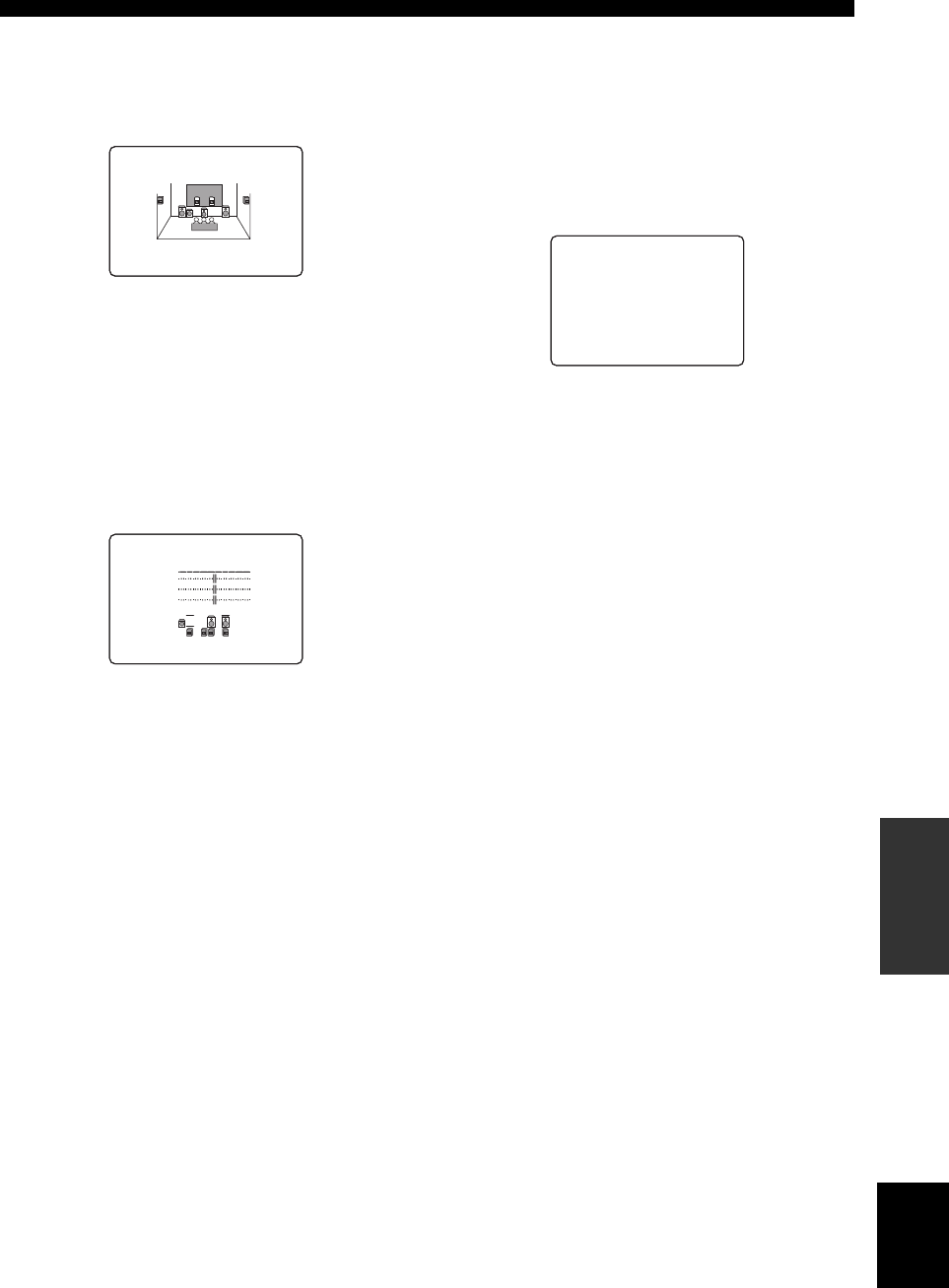

47

English

SOUND FIELD PROGRAM DESCRIPTIONS

SOUND FIELD

PROGRAMS

You can select from the following sound fields when playing music sources, like CD, FM/AM broadcasting, tapes, etc.

*You can select either Pro Logic IIx or Pro Logic II processing using the PLII/PLIIx parameter on page 69.

For music sources

Program Features Sources

CONCERT HALL HiFi DSP processing. A classic shoe-box type concert hall with approximately 1700 seats.

Pillars and ornate carvings create extremely complex reflections which produce a very full,

rich sound.

MULTI

2-CH

JAZZ CLUB HiFi DSP processing. This is the sound field at stage front in “The Bottom Line”, a famous

New York jazz club. The floor can seat 300 people to the left and right in a sound field offering

a real and vibrant sound.

ROCK CONCERT HiFi DSP processing. The ideal program for lively, dynamic rock music. The data for this

program was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-

left of the hall.

ENTERTAINMENT:

Disco

HiFi DSP processing. This program recreates the acoustic environment of a lively disco in the

heart of a big city. The sound is dense and highly concentrated. It is also characterized by high-

energy, “immediate” sound.

q D+PLIIx Music:

SUR. STANDARD

Standard Dolby Digital and Dolby Pro Logic IIx processing for music sources.

MULTI

q D+PLIIx Music:

SUR. ENHANCED

CINEMA DSP enhanced Dolby Digital and Dolby Pro Logic IIx processing for music sources.

DTS+PLIIx Music:

SUR. STANDARD

Standard DTS and Dolby Pro Logic IIx processing for music sources.

DTS+PLIIx Music:

SUR. ENHANCED

CINEMA DSP enhanced DTS and Dolby Pro Logic IIx processing for music sources.

STEREO:

2ch Stereo

2-channel (left and right) playback.

2-CH

STEREO:

Direct Stereo

Use to output stereo sources to only the front left and right speakers without any processing.

STEREO:

7ch Stereo

Use to increase the output stereo sources (in stereo) from all speakers. This provides a larger

sound field and is ideal for background music at parties, etc.

PRO LOGIC IIx:

PLIIx Music

Dolby Pro Logic IIx processing for music software.*

PRO LOGIC II:

PLII Music

Dolby Pro Logic II processing for music software.*

DTS: Neo:6 Music DTS processing for music software.

00_HTR-5760_U_EN.book Page 47 Tuesday, February 17, 2004 10:47 AM

ADVANCED OPERATIONS

48

You can display this unit’s operating information on a

video monitor. If you display the SET MENU and sound

field program parameter settings on a monitor, it is much

easier to see the available options and parameters than it is

by reading this information on the front panel display.

1Turn on the video monitor connected to this

unit.

2Press ON SCREEN repeatedly to change the

OSD mode.

The OSD mode changes in the

following order: full display, short

display, and display off.

Full display

Always shows the sound field program parameter settings

as well as the contents of the front panel display.

Short display

Briefly shows the contents of the front panel display at the

bottom of the screen each time you operate this unit.

Display off

Only operations performed using ON SCREEN are

displayed. The OSD is displayed when using SET MENU

or the test tone feature, settings are displayed, even if the

OSD mode is set to “Display off”.

• The OSD signal is not output to the REC OUT jack, and will

not be recorded.

• You can set the OSD to turn on (gray background) or off when a

video source is not being reproduced (or the source component

is turned off) by using “DISPLAY SET” (see page 58).

Use this feature to automatically set this unit in the

standby mode after a certain amount of time. The sleep

timer is useful when you are going to sleep while this unit

is playing or recording a source. The sleep timer also

automatically turns off any external components

connected to the AC OUTLET(S).

■Setting the sleep timer

1Select a source and start playback on the

source component.

2Press SLEEP repeatedly to set

the amount of time.

Each time you press SLEEP, the front

panel display changes as shown

below. The SLEEP indicator flashes

while switching the amount of time

for the sleep timer.

The SLEEP indicator lights up in the front panel

display, and the display returns to the selected sound

field program.

ADVANCED OPERATIONS

Selecting the OSD mode

Notes

ON SCREEN

DISPLAY

P08

MOVIE THEATER

.General

DSPLEVEL;;;;0dB

P.INIT.DLY;;15ms

P.ROOMSIZE;;1.0

S.INIT.DLY;;20ms

S.ROOMSIZE;;1.0

P08MOVIETHEATER

General

Full display Short display

Using the sleep timer

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

2

SLEEP

SLEEP 90min

SLEEP 60minSLEEP 30minSLEEP OFF

SLEEP 120min

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

E1 SLEEP8120minz

CDTUNER

MD/CD-R

DVD

HiFi DSP

DTV/CBL

V-AUXVCR-1

DVR/VCR2

96

24

q

PL

q

EX

MATRIX DISCRETE

SILENT CINEMA NIGHT

ZONE2

PTY HOLD AUTO

PS RT CT EONPTY

TUNED STEREO MUTE

VOLUME

MEMORY

SLEEP

VIRTUAL

PCM

q

PL

q

PL x

A B

SP

ft

mS

dB

dB

96/24

LFE

LCR

SL SB SR

q

DIGITAL

t

E1 CONCERT2HALLz

SLEEP indicator

00_HTR-5760_U_EN.book Page 48 Tuesday, February 17, 2004 10:47 AM

49

English

ADVANCED OPERATIONS

ADVANCED

OPERATION

■Canceling the sleep timer

Press SLEEP repeatedly until “SLEEP OFF” appears in

the front panel display.

After a few seconds, “SLEEP OFF” disappears, and the

SLEEP indicator goes off.

y

The sleep timer setting can also be canceled by pressing

STANDBY on the remote control (or STANDBY/ON on the front

panel) to set this unit to the standby mode.

You can adjust the output level of each speaker while

listening to a music source. This is also possible when

playing sources through the MULTI CH INPUT jacks.

Please note that this operation will override the level

adjustments made in “AUTO SETUP” (page 25),

“SPEAKER LEVEL” (page 55) and “Using the test tone”

(page 50).

1Press AMP.

2Press LEVEL repeatedly to select the

speaker you want to adjust.

FRONT L Front left speaker level

CENTER Center speaker level

FRONT R Front right speaker level

SUR.R Surround right speaker level

SUR.B.R Surround back right speaker level

SUR.B.L Surround back left speaker level

SUR.L Surround left speaker level

SWFR Subwoofer level

PRES Presence speaker level

y

Once you press LEVEL, you can also select the speaker by

pressing u / d.

3Press j / i to adjust the speaker output level.

The control range is from +10 dB to –10 dB.

4Press SELECT when you have completed

your adjustment.

y

This operation can also be performed using the controls on the

front panel. Press NEXT repeatedly to select the speaker you

want to adjust, then press LEVEL –/+ to adjust the output level.

SLEEP SLEEP OFF

Manually adjusting speaker levels

AMP

REC

AUDIO

MUTE

MENUTITLE

VOLUME

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

VCR 1 DVR/VCR2

PRESET/CH

SELECT

3

4

2

1

00_HTR-5760_U_EN.book Page 49 Tuesday, February 17, 2004 10:47 AM

50

ADVANCED OPERATIONS

You can use the test tone feature to manually balance your

speaker levels. Please note that this operation will override

the level adjustments made in “AUTO SETUP” (page 25),

“SPEAKER LEVEL” (page 55) and “Manually adjusting

speaker levels” (page 49). Use the test tone to set speaker

levels so that the volume from each speaker is identical

when heard from your listening position.

You cannot activate the test tone if headphones are connected to

the PHONES jack. Remove the headphones from the PHONES

jack.

1Press AMP.

2Press TEST.

The unit outputs a test tone.

3Press u / d repeatedly to select the speaker

you want to adjust.

TEST LEFT Front left speaker

TEST CENTER Center speaker

TEST RIGHT Front right speaker

TEST SUR.R Right surround speaker

TEST SUR.B.R Right surround back speaker

TEST SUR.B.L Left surround back speaker

TEST SUR.L Left surround speaker

TEST SUBWOOFER Subwoofer

4Press j / i to adjust the speaker volumes.

5Press TEST when you have completed your

adjustment.

The test tone stops.

If PRESENCE SP in “SPEAKER SET” is set to YES,

you can adjust the presence speaker volumes

(proceed to step 6).

■Outputting the test tone from the

PRESENCE speakers

6Press u / d repeatedly to select the speaker

from which you want to output the test tone.

TEST FRONT Front speakers

TEST PRESENCE Presence speakers

TEST PRES L Left presence speakers

TEST PRES R Right presence speakers

7Press j / i to adjust the presence speaker

volumes.

8Press TEST when you have completed your

adjustment.

The test tone stops.

Using the test tone

Note

AMP

REC

AUDIO

MUTE

MENUTITLE

VOLUME

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHT

q/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

VCR 1 DVR/VCR2

PRESET/CH

3,4,6,7

2,5,8

1

00_HTR-5760_U_EN.book Page 50 Tuesday, February 17, 2004 10:47 AM

SET MENU

51

English

ADVANCED

OPERATION

You can use the following parameters in SET MENU to adjust a variety of system settings and customize the way this

unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening

environment.

■AUTO SETUP

Use to specify which speaker parameters auto setup will adjust, and to activate the auto setup procedure (see page 25).

■MANUAL SETUP

Use to manually adjust speaker and system parameters.

1 SOUND MENU

Use to manually adjust any speaker setting, alter the quality and tone of the sound output by the system or compensate for

video signal processing delays when using LCD monitors or projectors.

y

Most of the parameters described in SOUND MENU are set automatically when you run auto setup (see page 25). You can use SOUND

MENU to make further adjustments, but we recommend running auto setup first.

2 INPUT MENU

Use to reassign digital input/outputs and select the input mode.

3 OPTION MENU

Use to adjust the optional system parameters.

SET MENU

Item Features Page

A)SPEAKER SET Selects the size of each speaker, the speakers for low-frequency signal output, and the cross over

frequency. 53

B)SPEAKER LEVEL Adjusts the output level of each speaker. 55

C)SP DISTANCE Adjusts the delay time of each speaker. 55

D)CENTER GEQ Adjusts the tonal quality of the center speaker. 56

E)LFE LEVEL Adjusts the output level of the LFE channel for Dolby Digital or DTS signals. 56

F)DYNAMIC RANGE Adjusts the dynamic range for Dolby Digital or DTS signals. 56

G)AUDIO SET Customizes the muting level, audio delay and height of the front and center channel sounds. 56

H)PR/SB SELECT Selects priority to either surround back or presence speakers when both sets of speakers are

connected to this unit. 57

Item Features Page

A)I/O ASSIGNMENT Assigns jacks according to the component to be used. 57

B)INPUT MODE Selects the initial input mode of the source. 58

Item Features Page

A)DISPLAY SET Adjusts the brightness of the display and converts video signals. 58

B)MEMORY GUARD Locks sound field program parameters and other SET MENU settings. 59

C)PARAM. INI Initializes the parameters of a group of sound field programs. 59

D)ZONE SET Specifies the location of the speakers connected to the SPEAKERS B terminals. 59

00_HTR-5760_U_EN.book Page 51 Tuesday, February 17, 2004 10:47 AM

52

SET MENU

Use the remote control to access and adjust each

parameter.

y

You can change SET MENU parameters while the unit is

reproducing sound.

You cannot change some SET MENU parameters while the unit

is in either cinema or music night listening mode.

1Press AMP.

2Press SET MENU.

3Press u / d to select MANUAL SETUP.

4Press SELECT to enter MANUAL SETUP.

1 SOUND MENU appears on the front panel display.

5Press u / d to select the desired menu.

6Press SELECT to enter the selected menu.

7Press u / d to select the item you want to

adjust, then press j / i to change the setting

of the item.

Repeat this operation to select and adjust each setting.

To return to the previous menu level, press RETURN.

8To exit, press SET MENU when finished.

Using SET MENU

Note

AMP

REC

AUDIO

MUTE

MENUTITLE

VOLUME

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHT

q/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

VCR 1 DVR/VCR2

PRESET/CH

3-7

1

2,8

AMP

MENU

SET MENU

A/B/C/D/E

SELECT

PRESET/CH



SET MENU

;AUTOSETUP

.;MANUALSETUP

[]/[]:Up/Down

[SELECT]:Enter

p

p

Memory back-up

The memory back-up circuit prevents the stored data

from being lost even if this unit is in the standby mode.

However, if the power cord is disconnected from the

AC outlet, or the power supply is cut for more than one

week, the stored data will be lost. If so, adjust the

items again.

SELECT

PRESET/CH

;MANUAL SETUP

.1SOUNDMENU

2INPUTMENU

3OPTIONMENU

[]/[]:Up/Down

[SELECT]:Enter

p

p

.A)SPEAKERSET

B)SPEAKERLEVEL

C)SPDISTANCE

D)CENTERGEQ

[]/[]:Up/Down

[SELECT]:Enter

p

p

1 SOUND

MENU 1/2

SELECT

PRESET/CH

-+

.FR

C

SL

B)SPEAKER

LEVEL

MENU

SET MENU

A/B/C/D/E

00_HTR-5760_U_EN.book Page 52 Tuesday, February 17, 2004 10:47 AM

53

English

SET MENU

ADVANCED

OPERATION

Use to manually adjust any speaker setting or compensate

for video signal processing delays when using LCD

monitors or projectors. Most of the SOUND MENU

parameters are set automatically when you run auto setup

(see page 25).

■Speaker set A)SPEAKER SET

Use to manually adjust any speaker setting.

y

If you are not satisfied with the bass sounds from your speakers,

you can change these settings according to your preference.

Center speaker CENTER SP

Choices: NONE, SML, LRG

• Select NONE if you do not have a center speaker. The

unit directs all of the center channel signal to the front

left and right speakers.

• Select SML if you have a small center speaker. The

unit directs the low-frequency signals of the center

channel to the speakers selected with “LFE/BASS

OUT”.

• Select LRG if you have a large center speaker. The unit

directs the entire range of the center channel signal to

the center speaker.

Front speakers FRONT SP

Choices: SMALL, LARGE

• Select SMALL if you have small front speakers. The

unit directs the low-frequency signals of the front

channel to the speakers selected with “LFE/BASS

OUT”.

• Select LARGE if you have large front speakers. The

unit directs the entire range of the front left and right

channel signals to the front left and right speakers.

Surround left/right speakers SURR L/R SP

Choices: NONE, SML, LRG

• Select NONE if you do not have surround speakers.

This will set the unit to the Virtual CINEMA DSP

mode (see page 36) and automatically set the surround

back speaker setting (SURR B L/R SP) to NONE.

• Select SML if you have small surround left and right

speakers. The low-frequency signals of the surround

channel are directed to the speakers selected with

“LFE/BASS OUT”.

• Select LRG if you have large surround left and right

speakers. The entire range of the surround channel

signal is directed to the surround left and right

speakers.

1 SOUND MENU

.A)SPEAKERSET

B)SPEAKERLEVEL

C)SPDISTANCE

D)CENTERGEQ

[]/[]:Up/Down

[SELECT]:Enter

p

p

1 SOUND

MENU 1/2

NONE)SMLLRG

CENTER SP

SMALL)LARGE

FRONT SP

NONE)SMLLRG

SURR L/R SP

00_HTR-5760_U_EN.book Page 53 Tuesday, February 17, 2004 10:47 AM

54

SET MENU

Surround back speakers SURR B L/R SP

Choices: NONE, SMLx1, SMLx2, LRGx1, LRGx2

• Select NONE if you do not have a surround back

speaker. The unit directs all of the surround back

channel signal to the surround left and right speakers.

• Select SMLx1 if you have a small surround back

speaker. The low-frequency signals of the surround

back channel are directed to the speakers selected with

“LFE/BASS OUT”, and the rest of the frequency

signals are directed to the left surround back speaker.

• Select SMLx2 if you have 2 small surround back

speakers. The low-frequency signals of the surround

back channels are directed to the speakers selected with

“LFE/BASS OUT”.

• Select LRGx1 if you have a large surround back

speaker. The unit directs the entire range of the

surround back channel signal to the left surround back

speaker.

• Select LRGx2 if you have 2 large surround back

speakers. The unit directs the entire range of the

surround back channel signal to the surround back

speakers.

If you select SMLx1 or LRGx1, connect the speaker to the left

SURROUND BACK speaker terminals.

Presence speakers PRESENCE SP

Choices: NONE, YES

• Select NONE if you do not have presence speakers.

• Select YES if you have presence speakers.

Bass out LFE/BASS OUT

Low-frequency (bass) signals can be directed to the

subwoofer and/or the front left and right speakers

according to the characteristics of your system. This

setting also determines the routing of the LFE (low-

frequency effect) signals found in Dolby Digital or DTS

sources.

Choices: SWFR, FRNT, BOTH

• Select SWFR if you connect a subwoofer. LFE and

low-frequency signals from other channels are directed

to the subwoofer according to the speaker settings.

• Select FRNT if you do not use a subwoofer. LFE and

low frequency signals from other channels are directed

to the front speakers according to the speaker settings

(even if you have previously set front speakers to

SML).

• Select BOTH if you connect a subwoofer and you want

to output low-frequency signals from front channels to

both the front speakers and subwoofer. LFE and low-

frequency signals from other channels are also directed

to the subwoofer according to the speaker settings. Use

this function to reinforce low-frequency signals using

the subwoofer when playing back sources such as CDs.

Cross over CROSS OVER

Use this feature to select a cross-over (cut-off) frequency

for all low-frequency signals. All frequencies below the

selected frequency will be sent to the subwoofer.

Choices: 40Hz, 60Hz, 80Hz, 90Hz, 100Hz, 110Hz,

120Hz, 160Hz, 200Hz

Note

SMLx1)SMLx2

SURR B L/R SP

)NONEYES

PRESENCE SP

SWFRFRNT)BOTH

LFE/BASS OUT

FREQ;;;80Hz

CROSS OVER

00_HTR-5760_U_EN.book Page 54 Tuesday, February 17, 2004 10:47 AM

55

English

SET MENU

ADVANCED

OPERATION

Subwoofer phase SUBWOOFER PHASE

If bass sounds are lacking or unclear, use this feature to

switch the phase of your subwoofer.

Choices: NORMAL (normal), REVERSE (reverse)

• Select NORMAL if you do not want to reverse the

phase of your subwoofer.

• Select REVERSE to reverse the phase of your

subwoofer.

■Speaker level B)SPEAKER LEVEL

Use these settings to manually balance the speaker levels

between the front left or surround left speakers and each

speaker selected in SPEAKER SET (page 53).

Choices: –10.0 dB to +10.0 dB

•FR adjusts the balance of the front left and front right

speakers.

•C adjusts the balance of the front left and center

speakers.

•SL adjusts the balance of the front left and surround

left speakers.

•SBL* adjusts the balance of the surround left and

surround back left speakers.

•SBR* adjusts the balance of the surround left and

surround back right speakers.

•SR adjusts the balance of the surround left and

surround right speakers.

•SWFR adjusts the balance of the front left speaker and

subwoofer.

•PRES adjusts the balance of the front and presence

speakers.

*SB will be displayed if you selected only one surround back

speaker in SURR B L/R SP (page 54).

y

To calibrate, use the test tone feature (see page 50).

■Speaker distance C)SP DISTANCE

Use this feature to manually input the distance of each

speaker and adjust the delay applied to respective channel.

Ideally, each speaker should be the same distance from the

main listening position. However, this is not possible in

most home situations. Thus, a certain amount of delay

must be applied to the sound from each speaker so that all

sound will arrive at the listening position at the same time.

Unit UNIT

Choices: meters (m), feet (ft)

Initial setting:

U.S.A. and Canada models: feet (ft)

Other models: meters (m)

• Select meters to input speaker distances in meters.

• Select feet to input speaker distances in feet.

Speaker distances

Choices: 0.3 to 24.00 m (1 to 80 ft)

•FRONT L adjusts the distance of the front left speaker.

Initial setting: 3.0 m (10.0 ft)

•FRONT R adjusts the distance of the front right

speaker. Initial setting: 3.0 m (10.0 ft)

•CENTER adjusts the distance of the center speaker.

Initial setting: 3.0 m (10.0 ft)

•SURR L adjusts the distance of the surround left

speaker. Initial setting: 3.0 m (10.0 ft)

•SURR R adjusts the distance of the surround right

speaker. Initial setting: 3.0 m (10.0 ft)

•SB L* adjusts the distance of the surround back left

speaker. Initial setting: 2.10 m (7.0 ft)

•SB R* adjusts the distance of the surround back right

speaker. Initial setting: 2.10 m (7.0 ft)

•SWFR adjusts the distance of the subwoofer. Initial

setting: 3.0 m (10.0 ft)

•PRES L adjusts the distance of the presence left

speaker. Initial setting: 3.0 m (10.0 ft)

•PRES R adjusts the distance of the presence right

speaker. Initial setting: 3.0 m (10.0 ft)

*SURR B will be displayed if you selected only one surround

back speaker in SURR B L/R SP (page 54).

)NORMALREVERSE

02ASUBWOOFER PHASE

-+

.FR

C

SL

B)SPEAKER

LEVEL

.UNIT;;;;;;meters

FRONTL;;;;3.00m

FRONTR;;;;3.00m

CENTER;;;;;3.00m

[]/[]:Up/Down

[<]/[>]:Adjust

p

p

C)SP

DISTANCE

00_HTR-5760_U_EN.book Page 55 Tuesday, February 17, 2004 10:47 AM

56

SET MENU

■Center graphic equalizer D)CENTER GEQ

Use this feature to adjust the built-in 5-band graphic

equalizer for the center channel so that the tonal quality of

the center speaker matches that of the front speakers.

You can make adjustments listening to the currently

selected source component or a test tone.

You can adjust 5 frequency bands: 100Hz, 300Hz, 1kHz,

3kHz, 10kHz

Choices: –6 to +6 dB

• Select ON to output test tones from the front left and

center speakers, and adjust the tonal quality of the

center speaker.

• Select OFF to stop the test tone and output the

currently selected source component.

• Press u / d to select a frequency band.

• Press j / i to adjust the selected frequency band.

■Low-frequency effect level E)LFE LEVEL

Use to adjust the output level of the LFE (low-frequency

effect) channel according to the capacity of your

subwoofer or headphones. The LFE channel carries low-

frequency special effects which are only added to certain

scenes. This setting is effective only when this unit

decodes Dolby Digital or DTS signals.

Choices: –20 to 0 dB

Speaker SPEAKER

Select to adjust the speaker LFE level.

Headphone HEADPHONE

Select to adjust the headphone LFE level.

Depending on the settings of “LFE LEVEL”, some signals may

not be output from the SUB WOOFER OUTPUT jack.

■Dynamic range F)D.RANGE

Use to select the amount of dynamic range compression to

be applied to your speakers or headphones. This setting is

effective only when the unit is decoding Dolby Digital and

DTS signals.

Choices: MIN (minimum), STD (standard), MAX

(maximum)

Speaker SP

Select to adjust the speaker compression.

Headphone HP

Select to adjust the headphone compression.

• Select MIN if you regularly listen at low volume levels.

• Select STD for general use.

• Select MAX to preserve the greatest amount of

dynamic range.

■Audio set G)AUDIO SET

Use to customize this units overall audio settings.

Audio mute AUDIO MUTE

Use to adjust how much the mute function reduces the

output volume.

Choices: MUTE, –20 dB

• Select MUTE to completely halt all output of sound.

• Select –20 dB to reduce the current volume by 20 dB.

Audio delay AUDIO DELAY

Use to delay the sound output and synchronize it with the

video image. This may be necessary when using certain

LCD monitors or projectors.

Choices: 0 to 160 mS

Note

.TEST)OFFON

-+

100Hz0dB

300Hz0dB

1kHz0dB

3kHz0dB

10kHz0dB

[]/[]:Up/Down

[<]/[>]:Adjust

D)CENTER GEQ

p

p

.SPEAKER;;;;;;0dB

HEADPHONE;;;;0dB

[]/[]:Up/Down

[<]/[>]:Adjust

p

p

E)LFE

LEVEL

.SP:MINSTD)MAX

HP:MINSTD)MAX

[]/[]:Up/Down

[<]/[>]:Select

p

p

F)DYNAMIC RANGE

.AUDIOMUTE;;MUTE

AUDIODELAY;;0ms

DIALG.LIFT;;;OFF

[]/[]:Up/Down

[<]/[>]:Selet

p

p

G)AUDIO SET

00_HTR-5760_U_EN.book Page 56 Tuesday, February 17, 2004 10:47 AM

57

English

SET MENU

ADVANCED

OPERATION

Dialog lift DIALG.LIFT

Use to turn on and off the DIALG.LIFT parameter (see

page 69). This parameter adjusts the height of the front

and center channel sounds (dialog, vocals, etc.) by

assigning some of the front and center channel elements to

the presence speakers.

Choices: OFF, ON

• Select OFF to turn off DIALG.LIFT effect.

• Select ON to turn on DIALG.LIFT effect.

“DIALG.LIFT” appears only when “PRESENCE SP” is set

to YES (see page 54).

■Presence/surround back channel select

H)PR/SB SELECT

You can select to prioritize either the surround back or

presence speakers when playing sources that contain

surround back channel signals using CINEMA DSP sound

field programs.

Choices: PRch, SBch

• Select PRch to use presence speakers even when

surround back channel signals are input. The signals

for the surround back channel will be output from

surround speakers.

• Select SBch to use surround back speakers when a

surround back channel signal is detected in a CINEMA

DSP program. Presence channel signals will be output

from front speakers.

Use to reassign digital input/outputs and select the input

mode.

■Input/output assignment A)I/O

ASSIGNMENT

You can assign jacks according to the component to be

used if this unit’s initial settings do not correspond to your

needs. Change the following parameters to reassign the

respective jacks and effectively connect more components.

Once the inputs have been reassigned, you can select the

corresponding component by using INPUT on the front

panel or the input selector buttons on the remote control.

For COMPONENT VIDEO jacks A and B

Choices: DVD, V-AUX, DTV/CBL, VCR 1, DVR/VCR2

For OPTICAL OUTPUT jack 1

Choices: MD/CD-R, CD, V-AUX, DTV/CBL, VCR 1,

DVD, DVR/VCR2

For OPTICAL INPUT jacks 2, 3 and 4

Choices: CD, DTV/CBL, VCR 1, DVD, DVR/VCR2,

MD/CD-R

Note

PRch)SBch

[]/[]:Select

[SELECT]:Return

p

p



H)PR/SB



SELECT

2 INPUT MENU

.A)I/OASSIGNMENT

B)INPUTMODE

[]/[]:Up/Down

[SELECT]:Enter



2



INPUT



MENU

p

p

.[A];;;;;DVD

(DVD)

[B];;;;;DTV/CBL

(DTV/CBL)



CMPNT-V



INPUT

.(1);;;;;MD/CD-R

(MD/CD-R )



OPTICAL



OUT

.(2);;;;;MD/CD-R

(MD/CD-R)

(3);;;;; DVD

(DVD )

(4);;;;;DTV/CBL

(DTV/CBL )



OPTICAL



IN

00_HTR-5760_U_EN.book Page 57 Tuesday, February 17, 2004 10:47 AM

58

SET MENU

For COAXIAL INPUT jacks 5 and 6

Choices: CD, V-AUX, DTV/CBL, VCR 1, MD/CD-R,

DVD, DVR/VCR2

• You cannot select a specific item more than once for the same

type of jack.

• When you connect a component to both the COAXIAL and

OPTICAL jacks, priority is given to the input signals from the

COAXIAL jack.

■Input mode B)INPUT MODE

Use this feature to designate the input mode for sources

connected to the DIGITAL INPUT jacks when you turn on

this unit (see page 36 for details about the input mode).

Choices: AUTO, LAST

• Select AUTO to allow this unit to automatically detect

the type of input signal and select the appropriate input

mode.

• Select LAST to set this unit to automatically select the

last input mode used for that source.

Even if LAST is selected, the last setting for the EX/ES button

will not be recalled.

Use to adjust the optional system parameters.

■Display set A)DISPLAY SET

Dimmer DIMMER

Use to adjust the brightness of the front panel display.

Choices: –4 to 0

Video conversion V CONV.

Use this feature to turn on/off conversion of composite

(VIDEO) signals to S-Video signals. This allows you to

output converted video signals from the S VIDEO jacks

when no S-Video signals are input.

Choices: ON, OFF

• Select OFF not to convert any signals.

• Select ON to convert composite signals to S-Video

signals.

Converted video signals are only output to the MONITOR OUT

jacks. When recording you must make the same type of video

connections (i.e., S-Video) between each component.

OSD shift OSD SHIFT

Use to adjust the vertical position of the OSD.

Choices: +5 (downward) to –5 (upward)

• Press + to lower the position of the OSD.

• Press – to raise the position of the OSD.

Gray back GRAY BACK

Selecting AUTO for the on-screen display setting displays

a gray background when there’s no video signal input.

Nothing is displayed if OFF is selected.

Choices: AUTO, OFF

If “GRAY BACK” is set to OFF, no information will be

displayed on the screen when video signals are not being input.

Notes

Note

.(5);;;;; CD

(CD)

(6);;;;; DVD

(DVD )



COAXIAL



IN

)AUTOLAST

[<]/[>]:Select

[SELECT]:Return



B)INPUT



MODE

3 OPTION MENU

Note

Note

.A)DISPLAYSET

B)MEMORYGUARD

C)PARAM.INI

D)ZONESET

[]/[]:Up/Down

[SELECT]:Enter



3



OPTION



MENU1/2

p

p

.DIMMER;;;;;;;;;0

VCONV;;;;;;;;ON

OSDSHIFT;;;;;;0

GRAYBACK;;;AUTO

[]/[]:Up/Down

[<]/[>]:sELECT



A)DISPLAY



SET

p

p

00_HTR-5760_U_EN.book Page 58 Tuesday, February 17, 2004 10:47 AM

59

English

SET MENU

ADVANCED

OPERATION

■Memory guard B)MEMORY GUARD

Use this feature to prevent accidental changes to DSP

program parameter values and other system settings.

Choices: OFF, ON

Select ON to protect:

• DSP program parameters

• All SET MENU items

• All speaker levels

• The on-screen display (OSD) mode

When “MEMORY GUARD” is set to ON, you cannot use the test

tone or select any other SET MENU items.

■Parameter initialization C)PARAM. INI

Use this feature to initialize the parameters for each sound

field program within a sound field program group. When

you initialize a sound field program group, all of the

parameter values within that group revert to their initial

settings.

Press the corresponding numeric button for the sound field

program that you want to initialize.

An asterisk (*) next to a program number means that the

parameter values have been changed from their initial

settings.

• You cannot automatically revert to the previous parameter

settings once you initialize a sound field program group.

• You cannot separately initialize individual sound field

programs.

• You cannot initialize any program groups when “MEMORY

GUARD” is set to ON.

■Zone set D)ZONE SET

Use to specify the location of speakers connected to the

SPEAKERS B terminals.

Speaker B set SP B

Use this feature to select the location of the front speakers

connected to the SPEAKERS B terminals.

Choices: FRONT, ZONE B

• Select FRONT to turn on/off SPEAKERS A and B

when the speakers connected to the SPEAKERS B

terminals are set in the main room.

• Select ZONE B if the speakers connected to the

SPEAKERS B terminals are set in another room. If

SPEAKERS A is turned OFF and SPEAKERS B is

turned ON, all the speakers including the subwoofer in

the main room are muted and the unit outputs sound

from SPEAKERS B only.

• If you connect headphones to the PHONES jack on the unit

when “SP B” is set to ZONE B, the sound is output from both

headphones and SPEAKERS B.

• If a DSP program is selected when “SP B” is set to ZONE B,

the unit automatically enters the Virtual CINEMA DSP mode.

Note

Notes

)OFFON

[<]/[>]:Select

[SELECT]:Return



B)MEMORY



GUARD

1234

567*8

9



C)PARAM.



INI

Notes

SPB;;;;;;FRONT

[<]/[>]:Select

[SELECT]:Return



D)ZONE



SET

00_HTR-5760_U_EN.book Page 59 Tuesday, February 17, 2004 10:47 AM

REMOTE CONTROL FEATURES

60

In addition to controlling this unit, the remote control can also operate other A/V components made by YAMAHA and

other manufacturers. To control other components, you must set up remote control with the appropriate manufacturer

codes.

■Controlling this unit

The shaded areas below can be used to control this unit

when the AMP mode is selected. Press AMP to activate

the AMP mode.

■ Controlling other components

The shaded areas below can be used to control other

components. Each button has a different function

depending on the selected component. Select the

component you want to control by pressing an input

selector button.

REMOTE CONTROL FEATURES

Control area

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

POWERPOWER

REC

AUDIO

MUTE

MENUTITLE

VOLUME

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

AVTV

SELECT

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

PRESET/CH

The buttons in the

dotted lines

(SYSTEM

POWER,

STANDBY,

SLEEP, MULTI CH

IN, VOLUME +/–

and MUTE)

function in any

mode.

Press AMP

to control

this unit.

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

POWERPOWER

REC

AUDIO

MUTE

MENUTITLE

VOLUME

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

AVTV

SELECT

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

TV MUTE TV INPUT

TV VOL TV CH

SELECT

PRESET/CH

The button and input

selector buttons switch the

function of the component

control area below.

* Use the button to

control other components

regardless of whether they

are connected to this unit.

Component control

area

You can control up to 9

different components by

setting appropriate

manufacturer codes (see

page 61).

00_HTR-5760_U_EN.book Page 60 Tuesday, February 17, 2004 10:47 AM

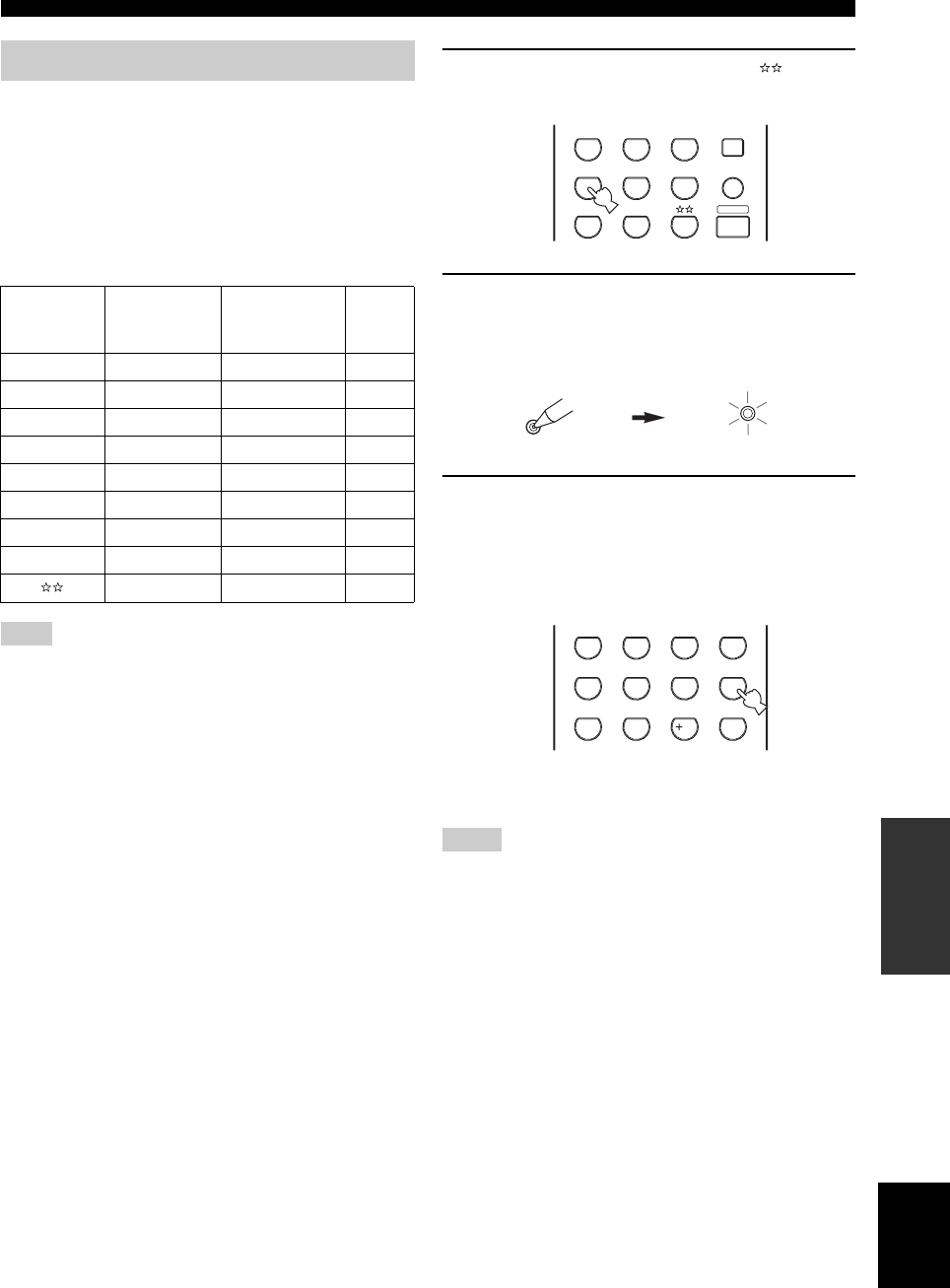

61

English

REMOTE CONTROL FEATURES

ADVANCED

OPERATION

You can control other components by setting the

appropriate manufacturer codes. Codes can be set up for

each input area. For a complete list of available

manufacturer codes, refer to “LIST OF

MANUFACTURER CODES” at the end of this manual.

The following table shows the factory preset component

(Library: component category) and the manufacturer code

for each area.

You may not be able to operate your YAMAHA component even

if a YAMAHA manufacturer code is initially set as listed above.

In this case, try to set other YAMAHA manufacturer code(s).

1Press an input selector button or to

select the component you want to set up.

2Press CODE SET using a ballpoint pen or

similar object.

The TRANSMIT indicator on the remote control

flashes twice.

3Press the numeric buttons to enter the four

digit manufacturer’s code for the component

to be used.

Refer to “LIST OF MANUFACTURER CODES” at

the end of this manual.

The TRANSMIT indicator on the remote control

flashes twice.

• If the manufacturer of your component has more than one code,

try each of them until you find the correct one.

• If you wait for more than 30 seconds during step 3, the setup

process is canceled. If this happens, start over from step 2.

Setting manufacturer codes

Input area

Component

category

(Library)

Manufacturer Code

CD CD YAMAHA 0005

MD/CD-R MD YAMAHA 0024

TUNER TUNER YAMAHA 0003

DVD DVD YAMAHA 0098

DTV/CBL – – –

V-AUX – – –

VCR 1 – – –

DVR/VCR2 –––

–––

Note

Notes

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

TRANSMIT

CODE SET

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

00_HTR-5760_U_EN.book Page 61 Tuesday, February 17, 2004 10:47 AM

62

REMOTE CONTROL FEATURES

Once you set the appropriate manufacturer codes, you can

use this remote to control your other components. Note

that some buttons may not correctly operate the selected

component. Use the input selector buttons to select the

component you want to operate. The remote control

automatically switches to the appropriate control mode for

that component.

*1 This button functions only when the original remote control of the component has a POWER button.

*2 These buttons can operate your TV without switching the input if the manufacturer code is set in DTV/CBL or . When the

manufacturer code for your TV is set up in both the DTV/CBL and areas, priority is given to the signal in the DTV/CBL area.

*3 These buttons can operate your VCR without switching the input to VCR 1 if the manufacturer code is set in VCR 1.

Controlling other components

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

POWERPOWER

MUTE

VOLUME

ROCKJAZZHALLSTEREO

4321

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

REC

AUDIO

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

SELECT

PRESET/CH

4

3

2

5

6

7

8

9

B

D

0

1

A

C

DVD player/

DVD recorder VCR Digital TV/

Cable TV CD player MD/CD

recorder Tuner

1AV P OW ER Power *1 Power *1 VCR power *3 Power *1 Power *1 Power *1

2TV POWER TV power *2 TV power *2 TV power TV power *2 TV power *2 TV power *2

3TV CH + TV channel up *2 TV channel up *2 TV channel up TV channel up *2 TV channel up *2 TV channel up *2

TV CH – TV channel down *2 TV channel down *2 TV channel down TV channel down *2 TV channel down *2 TV channel down *2

4TV VOL + TV volume up *2 TV volume up *2 TV volume up TV volume up *2 TV volume up *2 TV volume up *2

TV VOL – TV volume down *2 TV volume down *2 TV volume down TV volume down *2 TV volume down *2 TV volume down *2

5TV MUTE TV mute *2 TV mute *2 TV mute TV mute *2 TV mute *2 TV mute *2

6TV INPUT TV input *2 TV input *2 TV input TV input *2 TV input *2 TV input *2

71-9, 0, +10 Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Preset stations (1-8)

8TITLE Title

9PRESET/CH uUp VCR channel up Preset up

PRESET/CH dDown VCR channel down Preset down

PRESET/CH jRight

PRESET/CH iLeft

0RETURN Return

AREC/DISC

SKIP

Disc skip (player)

Rec (recorder) Rec VCR rec *3 Rec (MD)

pPlay Play VCR play *3 Play Play

wSearch backward Search backward VCR search

backward *3 Search backward Search backward

fSearch forward Search forward VCR search forward *3 Search forward Search forward

AUDIO Audio

ePause Pause VCR pause *3 Pause Pause

bSkip backward Skip backward Skip backward

aSkip forward Skip forward Skip forward

sStop Stop VCR stop *3 Stop Stop

BENTER Title/Index Enter Enter Index Index

CMENU Menu A/B/C/D/E

DDISPLAY Display Display Display Display

00_HTR-5760_U_EN.book Page 62 Tuesday, February 17, 2004 10:47 AM

63

English

REMOTE CONTROL FEATURES

ADVANCED

OPERATION

■Clearing a setup manufacturer code for

component control

1Press an input selector button or to

select the component control for which you

want to clear the manufacturer code.

2Press CODE SET using a ballpoint pen or

similar object.

The TRANSMIT indicator on the remote control

flashes twice.

3If you do not press any button within 30

seconds after step 2, the clearing process is

canceled. If this happens, start over from

step 1.

4Enter the code number “0000”.

The TRANSMIT indicator on the remote control

flashes twice, and the manufacturer code for the

selected component is cleared.

y

You can clear all setup manufacturer codes at once by entering

the code number “9990”.

Clearing setup manufacturer codes

CD

MD/CD-R

TUNER

V-AUX

DVD

AMP

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

TRANSMIT

CODE SET

00_HTR-5760_U_EN.book Page 63 Tuesday, February 17, 2004 10:47 AM

EDITING SOUND FIELD PARAMETERS

64

What really creates the rich, full tones of a live instrument

are the multiple reflections from the walls of the room. In

addition to making the sound “live”, these reflections

enable us to tell where the player is situated, and the size

and shape of the room in which we are sitting.

■Elements of a sound field

In any environment, in addition to the direct sound coming

straight to our ears from the player’s instrument, there are

two distinct types of sound reflections that combine to

make up the sound field:

Early reflections

Reflected sounds reach our ears extremely rapidly (50 ms

– 100 ms after the direct sound), after reflecting from one

surface only — for example, from the ceiling or a wall.

Early reflections actually add clarity to the direct sound.

Reverberations

These are caused by reflections from more than one

surface — walls, ceiling, the back of the room — so

numerous that they merge together to form a continuous

sonic “afterglow”. They are non-directional, and lessen

the clarity of the direct sound.

Direct sound, early reflections and subsequent

reverberation taken together help us to determine the

subjective size and shape of the room, and it is this

information that the digital sound field processor

reproduces in order to create sound fields.

If you could create the appropriate early reflections and

subsequent reverberations in your listening room, you

would be able to create your own listening environment.

The acoustics in your room could be changed to those of a

concert hall, a dance floor, or virtually any size room at

all. This ability to create sound fields at will is exactly

what YAMAHA has done with the digital sound field

processor.

You can enjoy good quality sound with the factory preset

parameters. Although you do not have to change the initial

settings, you can change some of the parameters to better

suit the input source or your listening room.

1Press AMP.

2Turn on the video monitor and

press ON SCREEN repeatedly

to select the full display

mode.

3Select the sound field program you want to

adjust.

EDITING SOUND FIELD PARAMETERS

What is a sound field Changing parameter settings

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD

MD/CD-R

TUNER

V-AU X

DVD

AMP

POWERPOWER

VOLUME

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR 1 DVR/VCR2

DTV/CBL

MULTI CH IN

SLEEP

REC

AUDI O

MUTE

MENUTITLE

DISC SKIP

SET MENU

LEVEL

A/B/C/D/E

TEST

ON SCREEN

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

DISPLAYRETURN

SELECT

PRESET/CH

4,5

1

3

2

AMP

ON SCREEN

DISPLAY

STRAIGHT

ROCKJAZZHALLSTEREO

4321

8

10

7

09

65

ENTER

MOVIETV THTRMUSIC ENTERTAIN

EX/ESNIGHTq/DTS

EFFECT

P08

MOVIE THEATER

.General

DSPLEVEL;;;;0dB

P.INIT.DLY;;15ms

P.ROOMSIZE;;1.0

S.INIT.DLY;;20ms

S.ROOMSIZE;;1.0

Program No. Program name

Parameters Parameter values

Cursor

00_HTR-5760_U_EN.book Page 64 Tuesday, February 17, 2004 10:47 AM

65

English

EDITING SOUND FIELD PARAMETERS

ADDITIONAL

INFORMATION

4Press u / d to select

the parameters.

5Press j / i to change

the parameter value.

When you set a parameter

to a value other than the

factory-set value, an

asterisk mark (*) appears

by the parameter name on

the front panel display.

6Repeat steps 3 through 5 as necessary to

change other program parameters.

You cannot change parameter values when “MEMORY GUARD”

is set to ON. If you want to change the parameter values, set

“MEMORY GUARD” to OFF (see page 59).

■Resetting parameters to the factory

presets

To reset a certain parameter

Select the parameter you want to reset, then press j / i

repeatedly until the asterisk mark (*) next to the parameter

name disappears.

To reset all parameters

Use PARAM. INI (see page 59).

Note

Memory back-up

The memory back-up circuit prevents the stored data

from being lost even if this unit is set in the standby

mode, the power cord is disconnected from the AC

outlet, or the power supply is temporarily cut due to

power failure. However, if the power is cut for more

than one week, the parameter values will return to the

factory settings. If this happens, edit the parameter

value again.

SELECT

PRESET/CH

SELECT

PRESET/CH

00_HTR-5760_U_EN.book Page 65 Tuesday, February 17, 2004 10:47 AM

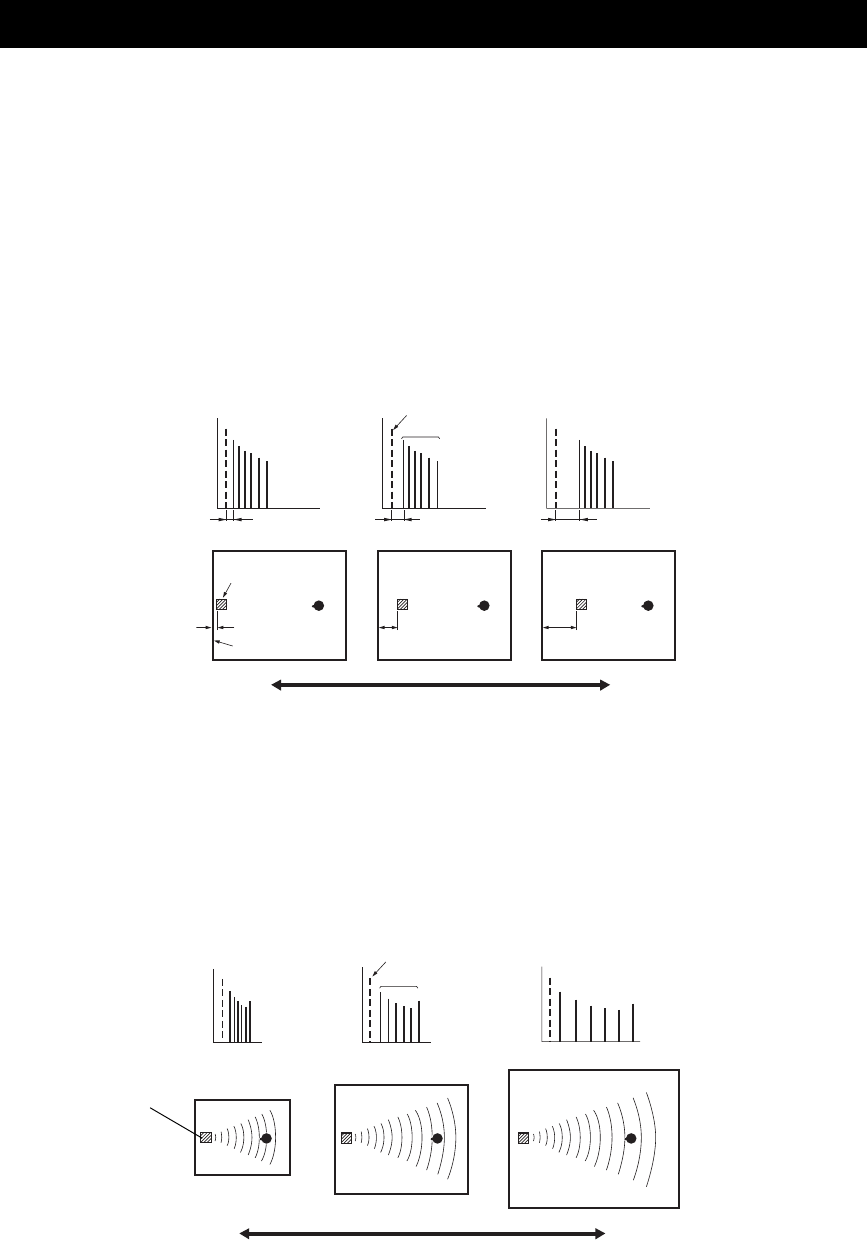

SOUND FIELD PARAMETER DESCRIPTIONS

66

You can adjust the values of certain digital sound field parameters so the sound fields are recreated accurately in your

listening room. Not all of the following parameters are found in every program.

■DSP LEVEL

Function: This parameter adjusts the level of all the DSP effect sounds within a narrow range.

Description: Depending on the acoustics of your listening room, you may want to increase or decrease the DSP

effect level relative to the level of the direct sound.

Control range: –6 dB – +3 dB

■INIT. DLY (Initial delay)

Function: This parameter changes the apparent distance from the source sound by adjusting the delay between the

direct sound and the first reflection heard by the listener.

Description: The smaller the value, the closer the sound source seems to the listener. The larger the value, the farther

it seems. For a small room, set to a small value. For a large room, set to a large value.

Control range: 1 – 99 msec

■ROOM SIZE/P. ROOM SIZE (Room size)

Function: This parameter adjusts the apparent size of the surround sound field. The larger the value, the larger the

surround sound field becomes.

Description: As the sound is repeatedly reflected around a room, the larger the hall is, the longer the time between

the original reflected sound and the subsequent reflections. By controlling the time between the

reflected sounds, you can change the apparent size of the virtual venue. Changing this parameter from

one to two, doubles the apparent length of the room.

Control range: 0.1 – 2.0

SOUND FIELD PARAMETER DESCRIPTIONS

Source Sound

Early

Reflections

Time Time Time

INIT. DLY INIT. DLY INIT. DLY

Sound Source

Reflection Face

Level

Small value = 1 ms Large value = 99 ms

Level

Level

Level

Level

Level

Time Time Time

Source Sound

Early

Reflections

Small value = 0.1 Large value = 2.0

Sound Source

00_HTR-5760_U_EN.book Page 66 Tuesday, February 17, 2004 10:47 AM

67

English

SOUND FIELD PARAMETER DESCRIPTIONS

ADDITIONAL

INFORMATION

■LIVENESS

Function: This parameter adjusts the reflectivity of the virtual walls in the hall by changing the rate at which the

early reflections decay.

Description: The early reflections of a sound source decay much faster in a room with acoustically absorbent wall

surfaces than in one which has highly reflective surfaces. A room with acoustically absorbent surfaces

is referred to as “dead”, while a room with highly reflective surfaces is referred to as “live”. The

LIVENESS parameter lets you adjust the early reflection decay rate, and thus the “liveness” of the

room.

Control range: 0 – 10

■S. INIT. DLY (Surround initial delay)

Function: This parameter adjusts the delay between the direct sound and the first reflection on the surround side of

the sound field. You can only adjust this parameter when at least two front channels and two surround

channels are used.

Control Range: 1 – 49 msec

■S. ROOM SIZE (Surround room size)

Function: This parameter adjusts the apparent size of the surround sound field.

Control Range: 0.1 – 2.0

■S. LIVENESS (Surround liveness)

Function: This parameter adjusts the apparent reflectivity of the virtual walls in the surround sound field.

Control Range: 0 – 10

■SB INIT. DLY (Surround back initial delay)

Function: This parameter adjusts the delay between the direct sound and the first reflection in the surround back

sound field.

Control Range: 1 – 49 msec

■SB ROOM SIZE (Surround back room size)

Function: This parameter adjusts the apparent size of the surround back sound field.

Control Range: 0.1 – 2.0

■SB LIVENESS (Surround back liveness)

Function: This parameter adjusts the apparent reflectivity of the virtual wall in the surround back sound field.

Control Range: 0 – 10

Source Sound

Level

Level

Level

Dead

Live

Time Time Time

Small Reflected

Sound

Large Reflected

Sound

Small value = 0 Large value = 10

00_HTR-5760_U_EN.book Page 67 Tuesday, February 17, 2004 10:47 AM

68

SOUND FIELD PARAMETER DESCRIPTIONS

■REV.TIME (Reverberation time)

Function: This parameter adjusts the amount of time it takes for the dense, subsequent reverberation sound to

decay by 60 dB (at 1 kHz). This changes the apparent size of the acoustic environment over an

extremely wide range.

Description: Set a longer reverberation time for “dead” sources and listening room environments, and a shorter time

for “live” sources and listening room environments.

Control Range: 1.0 – 5.0 sec

■REV.DELAY (Reverberation delay)

Function: This parameter adjusts the time difference between the beginning of the direct sound and the beginning

of the reverberation sound.

Description: The larger the value, the later the reverberation sound begins. A later reverberation sound makes you

feel like you are in a larger acoustic environment.

Control Range: 0 – 250 msec

■REV. LEVEL (Reverberation level)

Function: This parameter adjusts the volume of the reverberation sound.

Description: The larger the value, the stronger the reverberation becomes.

Control Range: 0 – 100%

Reverberation Reverberation

60 dB 60 dB 60 dB

Source Sound

REV.TIME REV.TIME REV.TIME

Early Reflections

Sound Source Short

Reverberation

Long

Reverberation

Small value = 1.0 s Large value = 5.0 s

(dB)

60 dB

Level

Source Sound

Reverberation

REV.TIME

REV.DELAY

Time

Source Sound

Level

REV. LEVEL

Time

00_HTR-5760_U_EN.book Page 68 Tuesday, February 17, 2004 10:47 AM

69

English

SOUND FIELD PARAMETER DESCRIPTIONS

ADDITIONAL

INFORMATION

■DIALG.LIFT (Dialog lift)

Function: This parameter adjusts the height of the front and center channel sounds by assigning some of the front

and center channel elements to the presence speakers.

Description: The larger the parameter, the higher the position of the front and center channel sound.

Choices: 0/1/2/3/4/5, initial setting is 3.

For 7ch Stereo

Function: These parameter adjusts the volume level for each channel in 7-channel stereo mode.

Control Range: 0 – 100%

■CT LEVEL (Center level)

■SL LEVEL (Surround left level)

■SR LEVEL (Surround right level)

■SB LEVEL (Surround back level)

■PR LEVEL (Presence level)

For PRO LOGIC IIx Music and PRO LOGIC II Music

■PANORAMA

Function: Extends the front stereo image to include the surround speakers for wraparound effect.

Choices: OFF/ON, initial setting is OFF.

■DIMENSION

Function: Gradually adjusts the sound field either towards the front or towards the rear.

Control range: –3 (towards the rear) to +3 (towards the front), initial setting is STD (standard).

■CT WIDTH (Center width)

Function: Adjusts the center image from all three front speakers to varying degrees. A larger value adjusts the

center image towards the front left and right speakers.

Control range: 0 (center channel sound is output only from center speaker) to 7 (center channel sound is output only

from front left and right speakers), initial setting is 3.

For PRO LOGIC IIx Movie, Music and Game

■PLII/PLIIx (Pro Logic II/Pro Logic IIx)

Function: Switches the type of Pro Logic decoding to be used. PLII decoding creates 5.1-channel sound from 2-

channel sources. PLIIx decoding creates 6.1/7.1-channel sound from 2-channel sources.

Choices: PLII, PLIIx

For DTS Neo:6 Music

■C. IMAGE (Center image)

Function: This parameter adjusts the center image from all three front speakers to varying degrees.

Control range: 0 – 0.5

00_HTR-5760_U_EN.book Page 69 Tuesday, February 17, 2004 10:47 AM

TROUBLESHOOTING

70

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, set this unit to the standby mode, disconnect the power cord, and contact the

nearest authorized YAMAHA dealer or service center.

■General

TROUBLESHOOTING

Problem Cause Remedy Refer to

page

This unit fails to turn

on when STANDBY/

ON (or SYSTEM

POWER) is pressed,

or enters in the

standby mode soon

after the power has

been turned on.

The power cord is not connected or the

plug is not completely inserted.

Connect the power cord firmly. —

The impedance setting is incorrect. Set the impedance to match your speakers. 23

The protection circuitry has been

activated.

Make sure all speaker wire connections on this unit

and on all speakers are secure and that the wire for

each connection does not touch anything other than

its respective connection.

12-14

This unit has been exposed to a strong

external electric shock (such as lightning

and strong static electricity).

Set this unit in the standby mode, disconnect the

power cord, plug it back in after 30 seconds, then use

it normally.

—

On-screen display

does not appear.

The setting for the on-screen display is set

to “DISPLAY OFF”.

Select the full display or short display mode. 48

“GRAY BACK” in SET MENU is set to

OFF, and no video signal is currently

being received.

Set “GRAY BACK” to AUTO to always show the

OSD.

58

No sound Incorrect input or output cable

connections.

Connect the cables properly. If the problem persists,

the cables may be defective.

16-19

The optimizer microphone is connected. Disconnect the optimizer microphone. 25

The input mode is set to DTS or

ANALOG.

Select AUTO. 36

No appropriate input source has been

selected.

Select an appropriate input source with INPUT,

MULTI CH INPUT or the input selector buttons.

30

Speaker connections are not secure. Secure the connections. 12

The front speakers to be used have not

been selected properly.

Select the front speakers with SPEAKERS A and/or

B.

30

The volume is turned down. Turn up the volume. —

The sound is muted. Press MUTE or any operation buttons of this unit to

cancel a mute and adjust the volume.

31

The input mode is set to ANALOG while

playing a source encoded with a DTS

signal.

Set the input mode to AUTO or DTS. 36

The signals this unit cannot reproduce are

being received from a source component

e.g.: a CD-ROM.

Play a source whose signals this unit can reproduce. —

No picture The output and input for the picture are

connected to different types of video

jacks.

Turn on the video conversion function. 58

00_HTR-5760_U_EN.book Page 70 Tuesday, February 17, 2004 10:47 AM

71

English

TROUBLESHOOTING

ADDITIONAL

INFORMATION

Problem Cause Remedy Refer to

page

The sound suddenly

goes off.

The protection circuitry has been activated

because of a short circuit, etc.

Check that the impedance selector setting is correct. 23

Check that the speaker wires are not touching each

other and then turn this unit back on.

—

The sleep timer has turned the unit off. Turn on the power, and play the source again. —

The sound is muted. Press MUTE to cancel a mute. 31

Only the speaker on

one side can be

heard.

Incorrect cable connections. Connect the cables properly. If the problem persists,

the cables may be defective.

12

Incorrect balance settings in SET MENU. Adjust the SPEAKER LEVEL settings. 55

Only the center

speaker outputs

substantial sound.

When playing a monaural source with a

CINEMA DSP program, the source signal

is directed to the center channel, and the

front and surround speakers output effect

sounds.

No sound from the

effect speakers.

The sound field programs are turned off. Press STRAIGHT (EFFECT) to turn them on. 36

You are using a source or program

combination that does not output sound

from all channels.

Try another sound field program. 44

No sound from the

center speaker.

The output level of the center speaker is

set to minimum.

Raise the level of the center speaker. 55

“CENTER SP” in SET MENU is set to

NONE.

Select the appropriate setting for the center speaker. 53

One of the Hi-Fi DSP programs (except

for 7ch Stereo) has been selected.

Try another sound field program. 44

No sound from the

surround speakers.

The output level of the surround speakers

is set to minimum.

Raise the output level of the surround speakers. 55

“SURR L/R SP” in SET MENU is set to

NONE.

Select the appropriate setting for the surround left and

right speakers.

53

A monaural source is being played with

STRAIGHT.

Press STRAIGHT (EFFECT) to turn on the sound

fields.

—

No sound from the

surround back

speakers.

Presence speakers are selected. Select surround back speakers in PR/SB SELECT. 57

“SURR L/R SP” in SET MENU is set to

NONE.

If the surround left and right speakers are set to

NONE, the surround back speaker setting is

automatically set to NONE. Select the appropriate

setting for the surround speakers.

53

“SURR B L/R SP” in SET MENU is set to

NONE.

Select LRGx1 or SMLx1. 54

No sound from the

subwoofer.

“LFE/BASS OUT” in SET MENU is set

to FRNT when a Dolby Digital or DTS

signal is being played.

Select SWFR or BOTH. 54

“LFE/BASS OUT” in SET MENU is set

to SWFR or FRNT when a 2-channel

source is being played.

Select BOTH. 54

The source does not contain low bass

signals.

00_HTR-5760_U_EN.book Page 71 Tuesday, February 17, 2004 10:47 AM

72

TROUBLESHOOTING

Problem Cause Remedy Refer to

page

Dolby Digital or DTS

sources cannot be

played. (Dolby Digital

or DTS indicator on

the front panel

display does not light

up.)

The connected component is not set to

output Dolby Digital or DTS digital

signals.

Make an appropriate setting following the operations

instructions for your component.

—

The input mode is set to ANALOG. Set the input mode to AUTO or DTS. 36

A “humming” sound

can be heard.

Incorrect cable connections. Firmly connect the audio plugs. If the problem

persists, the cables may be defective.

—

The volume level

cannot be increased,

or the sound is

distorted.

The component connected to the OUT

(REC) jacks of this unit is turned off.

Turn on the power to the component. —

The sound effect

cannot be recorded.

It is not possible to record the sound effect

with a recording component.

A source cannot be

recorded by a digital

recording component

connected to this

DIGITAL OUTPUT

jack.

The source component is not connected to

this unit’s DIGITAL INPUT jacks.

Connect the source component to the DIGITAL

INPUT jacks.

16-19, 43

Some components cannot record the

Dolby Digital or DTS sources.

A source cannot be

recorded by an

analog component

connected to the

AUDIO OUT jacks.

The source component is not connected to

this unit’s analog AUDIO IN jacks.

Connect the source component to the analog AUDIO

IN jacks.

16-19, 43

The sound field

parameters and some

other settings on this

unit cannot be

changed.

“MEMORY GUARD” in SET MENU is

set to ON.

Select OFF. 59

This unit does not

operate properly.

The internal microcomputer has been

frozen by an external electric shock (such

as lightning or excessive static electricity)

or by a power supply with low voltage.

Disconnect the AC power cord from the outlet and

then plug it in again after about 30 seconds.

—

“CHECK SP WIRES”

appears in the front

panel display.

Speaker cables are short circuited. Make sure all speaker cables are connected correctly. 12

00_HTR-5760_U_EN.book Page 72 Tuesday, February 17, 2004 10:47 AM

73

English

TROUBLESHOOTING

ADDITIONAL

INFORMATION

■Tuner

Problem Cause Remedy Refer to

page

There is noise

interference from

digital or high-

frequency equipment,

or this unit.

This unit is too close to the digital or high-

frequency equipment.

Move this unit further away from such equipment. —

The picture is

disturbed.

The video source uses scrambled or

encoded signals to prevent dubbing.

This unit suddenly

turns into the standby

mode.

The internal temperature becomes too

high and the overheat protection circuitry

has been activated.

Wait about 1 hour for this unit to cool down and then

turn it back on.

—

Problem Cause Remedy Refer

to page

FM

FM stereo reception is

noisy.

The characteristics of FM stereo

broadcasts may cause this problem

when the transmitter is too far away or

the antenna input is poor.

Check the antenna connections.

Try using a high-quality directional FM

antenna.

21

Use the manual tuning method. 39

There is distortion, and

clear reception cannot

be obtained even with a

good FM antenna.

There is multipath interference. Adjust the antenna position to eliminate

multipath interference.

—

The desired station

cannot be tuned in with

the automatic tuning

method.

The signal is too weak. Use a high-quality directional FM antenna. 21

Use the manual tuning method. 39

Previously preset

stations can no longer

be tuned in.

This unit has been disconnected for a

long period.

Preset the stations again. 39

AM

The desired station

cannot be tuned in with

the automatic tuning

method.

The signal is weak or the antenna

connections are loose.

Tighten the AM loop antenna connections

and orient it for best reception.

—

Use the manual tuning method. 39

There are continuous

crackling and hissing

noises.

Noises result from lightning,

fluorescent lamps, motors, thermostats

and other electrical equipment.

Use an outdoor antenna and a ground wire.

This will help somewhat, but it is difficult to

eliminate all noise.

—

There are buzzing and

whining noises.

A TV set is being used nearby. Move this unit away from the TV. —

00_HTR-5760_U_EN.book Page 73 Tuesday, February 17, 2004 10:47 AM

74

TROUBLESHOOTING

■Remote control

Problem Cause Remedy Refer to

page

The remote control

does not work nor

function properly.

Wrong distance or angle. The remote control will function within a maximum

range of 6 m (20 ft) and no more than 30 degrees off-

axis from the front panel.

7

Direct sunlight or lighting (from an

inverter type of fluorescent lamp, etc.) is

striking the remote control sensor of this

unit.

Reposition this unit. —

The batteries are weak. Replace all batteries. 3

The manufacturer code was not correctly

set.

Set the manufacturer code correctly using the “LIST

OF MANUFACTURER CODES” at the end of this

manual.

61

Try to set another code for the same manufacturer

using the “LIST OF MANUFACTURER CODES” at

the end of this manual.

61

Even if the manufacturer code is correctly

set, there are some models that do not

respond to the remote control.

00_HTR-5760_U_EN.book Page 74 Tuesday, February 17, 2004 10:47 AM

RESETTING THE FACTORY PRESETS

75

English

ADDITIONAL

INFORMATION

If you want to reset all of your unit’s parameters for any

reason, do the following. This procedure completely resets

ALL parameters, including the SET MENU, level, assign

and tuner presets.

Be sure this unit is in standby mode.

1Hold down STRAIGHT (EFFECT) on the front

panel and press STANDBY/ON.

“FACTORY PRESET” appears in the front panel

display.

y

To cancel the initialization procedure without making any

changes, press STANDBY/ON.

2Press STRAIGHT (EFFECT) to select the

desired setting.

Reset To reset the unit to its factory presets.

Cancel To cancel without making any changes.

3Press STANDBY/ON to confirm your

selection.

If you selected “Reset”, the unit is reset to its factory

presets and switches to standby mode.

If you selected “Cancel”, the unit switches to standby

mode and nothing is reset.

RESETTING THE FACTORY PRESETS

VOLUME

AUTO/MAN'L MONOMAN'L/AUTO FMLEVELNEXTEDIT

EFFECT

MEMORY

FM/AMPRESET/TUNING

A/B/C/D/E

PROGRAM

l PRESET/TUNING h

TUNING MODE

INPUT MODE

STRAIGHT

SPEAKERSPHONES

SILENT CINEMA

STANDBY

/ON

BA

MULTI CH

INPUT

INPUT

TONE CONTROL

OPTIMIZER

MIC

S VIDEO VIDEO OPTICALL AUDIO R

VIDEO AUX

STANDBY/ON STRAIGHT (EFFECT)

(U.S.A. model)

00_HTR-5760_U_EN.book Page 75 Tuesday, February 17, 2004 10:47 AM

GLOSSARY

76

■Dolby Digital

Dolby Digital is a digital surround sound system that gives

you completely independent multi-channel audio. With 3

front channels (left, center, and right), and 2 surround

stereo channels, Dolby Digital provides 5 full-range audio

channels. With an additional channel especially for bass

effects, called LFE (low frequency effect), the system has

a total of 5.1-channels (LFE is counted as 0.1 channel). By

using 2-channel stereo for the surround speakers, more

accurate moving sound effects and surround sound

environment are possible than with Dolby Surround. The

wide dynamic range (from maximum to minimum

volume) reproduced by the 5 full-range channels and the

precise sound orientation generated using digital sound

processing provide listeners with previously unheard of

excitement and realism.

With this unit, any sound environment from monaural up

to a 5.1-channel configuration can be freely selected for

your enjoyment.

■Dolby Digital Surround EX

Dolby Digital EX creates 6 full-bandwidth output

channels from 5.1-channel sources. This is done using a

matrix decoder that derives 3 surround channels from the

2 in the original recording. For the best results, Dolby

Digital EX should be used with movie sound tracks

recorded with Dolby Digital Surround EX. With this

additional channel, you can experience more dynamic and

realistic moving sound especially with scenes with

“flyover” and “fly-around” effects.

■Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to

decode vast numbers of existing Dolby Surround software.

This new technology enables a discrete 5-channel

playback with 2 front left and right channels, 1 center

channel, and 2 surround left and right channels (instead of

only 1 surround channel for conventional Pro Logic

technology). Music and Game modes are also available for

2-channel sources in addition to the Movie mode.

■Dolby Pro Logic IIx

Dolby Pro Logic IIx is a new technology enabling discrete

multi-channel playback from 2-channel or multi-channel

sources. There is a Music mode for music, a Movie mode

for movies and a Game mode for games.

■Dolby Surround

Dolby Surround uses a 4 channel analog recording system

to reproduce realistic and dynamic sound effects: 2 front

left and right channels (stereo), a center channel for dialog

(monaural), and a surround channel for special sound

effects (monaural). The surround channel reproduces

sound within a narrow frequency range.

Dolby Surround is widely used with nearly all video tapes

and laser discs, and in many TV and cable broadcasts as

well. The Dolby Pro Logic decoder built into this unit

employs a digital signal processing system that

automatically stabilizes the volume on each channel to

enhance moving sound effects and directionality.

■DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality

for multi-channel sound on DVD-Video, and is fully

backward-compatible with all DTS decoders. “96” refers

to a 96 kHz sampling rate (compared to the typical 48 kHz

sampling rate). “24” refers to 24-bit word length. DTS 96/

24 offers sound quality transparent to the original 96/24

master, and 96/24 5.1-channel sound with full-quality full-

motion video for music programs and motion picture

soundtracks on DVD-video.

■DTS (Digital Theater Systems)

Digital Surround

DTS digital surround was developed to replace the analog

soundtracks of movies with a 6-channel digital sound

track, and is now rapidly gaining popularity in movie

theaters around the world. Digital Theater Systems Inc.

has developed a home theater system so that you can enjoy

the depth of sound and natural spatial representation of

DTS digital surround in your home. This system produces

practically distortion-free 6-channel sound (technically, a

left, right and center channels, 2 surround channels, plus

an LFE 0.1 channel as a subwoofer, for a total of 5.1-

channels). The unit incorporates DTS-ES decoder that

enables 6.1- channel reproduction by adding the surround

back channel to existing 5.1-channel format.

■Neo:6

Neo:6 decodes the conventional 2-channel sources for 6

channel playback by the specific decoder. It enables

playback with the full-range channels with higher

separation just like digital discrete signal playback. Two

modes are available; “Music mode” for playing music

sources and “Cinema mode” for movies.

GLOSSARY

Audio formats

00_HTR-5760_U_EN.book Page 76 Tuesday, February 17, 2004 10:47 AM

77

English

GLOSSARY

ADDITIONAL

INFORMATION

■CINEMA DSP

Since the Dolby Surround and DTS systems were

originally designed for use in movie theaters, their effect

is best felt in a theater having many speakers and designed

for acoustic effects. Since home conditions, such as room

size, wall material, number of speakers, and so on, can

differ so widely, it’s inevitable that there are differences in

the sound heard as well. Based on a wealth of actually

measured data, YAMAHA CINEMA DSP uses

YAMAHA original sound field technology to combine

Dolby Pro Logic, Dolby Digital and DTS systems to

provide the visual and audio experience of movie theater

in the listening room of your own home.

■SILENT CINEMA

YAMAHA has developed a natural, realistic sound effect

DSP algorithm for headphones.

Parameters for headphones have been set for each sound

field so that accurate representations of all the sound field

programs can be enjoyed on headphones.

■Virtual CINEMA DSP

YAMAHA has developed a Virtual CINEMA DSP

algorithm that allows you to enjoy DSP sound field

surround effects even without any surround speakers by

using virtual surround speakers.

It is even possible to enjoy Virtual CINEMA DSP using a

minimal two-speaker system that does not include a center

speaker.

■ITU-R

ITU-R is the radio communication sector of the ITU

(International Telecommunication Union). ITU-R

recommends a standard speaker placement which is used

in many critical listening rooms, especially for mastering

purposes.

■LFE 0.1 channel

This channel is for the reproduction of low bass signals.

The frequency range for this channel is 20 Hz to 120 Hz.

This channel is counted as 0.1 because it only enforces a

low frequency range compared to the full-range

reproduced by the other 5/6 channels in Dolby Digital or

DTS 5.1/6.1-channel systems.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog

audio signal is digitized, recorded and transmitted without

using any compression. This is used as a method of

recording CDs and DVD audio. The PCM system uses a

technique for sampling the size of the analog signal per

very small unit of time. Standing for “pulse code

modulation”, the analog signal is encoded as pulses and

then modulated for recording.

■Sampling frequency and number of

quantized bits

When digitizing an analog audio signal, the number of

times the signal is sampled per second is called the

sampling frequency, while the degree of fineness when

converting the sound level into a numeric value is called

the number of quantized bits.

The range of rates that can be played back is determined

based on the sampling rate, while the dynamic range

representing the sound level difference is determined by

the number of quantized bits. In principle, the higher the

sampling frequency, the wider the range of frequencies

that can be played back, and the higher the number of

quantized bits, the more finely the sound level can be

reproduced.

Sound field programs Audio information

00_HTR-5760_U_EN.book Page 77 Tuesday, February 17, 2004 10:47 AM

78

GLOSSARY

■Component video signal

With the component video signal system, the video signal

is separated into the Y signal for the luminance and the PB

and PR signals for the chrominance. Color can be

reproduced more faithfully with this system because each

of these signals is independent. The component signal is

also called the “color difference signal” because the

luminance signal is subtracted from the color signal.

A monitor with component input jacks is required in order

to use the component signal for output.

■Composite video signal

With the composite video signal system, the video signal

is composed of three basic elements of a video picture;

color, brightness and synchronization data. A composite

video jack on a video component transmits these three

elements combined.

■S-Video signal

With the S-Video signal system, the video signal normally

transmitted using a pin cable is separated and transmitted

as the Y signal for the luminance and the C signal for the

chrominance through the S-Video cable. Using the

S VIDEO jack eliminates video signal transmission loss

and allows recording and playback of even more beautiful

images.

Video signal information

00_HTR-5760_U_EN.book Page 78 Tuesday, February 17, 2004 10:47 AM

SPECIFICATIONS

79

English

ADDITIONAL

INFORMATION

AUDIO SECTION

• Minimum RMS Output Power for Front, Center, Surround,

Surround back

20 Hz to 20 kHz, 0.06% THD, 8 Ω .......................................95 W

• Maximum Power (EIAJ)

[China and Korea models]

1 kHz, 10% THD, 8 Ω .........................................................135 W

• Dynamic Power (IHF)

8/6/4/2 Ω .........................................................130/165/195/240 W

• Damping Factor (IHF)

20 Hz to 20 kHz, 8 Ω .................................................. 100 or more

• Frequency Response

CD terminal to Front L/R .......................10 Hz to 100 kHz, –3 dB

• Total Harmonic Distortion

CD, etc. to Front L/R (20 Hz to 20 kHz, 50 W, 8 Ω) .......... 0.06%

• Signal to Noise Ratio (IHF-A Network)

CD (250 mV) to Front L/R, Effect Off ...............................100 dB

• Residual Noise (IHF-A Network)

Front L/R ................................................................ 150 µV or less

• Channel Separation (1 kHz/10 kHz)

CD (5.1 kΩ terminated) to Front L/R ........................ 60 dB/45 dB

• Tone Control (Front L/R)

BASS Boost/Cut ........................................................±6 dB/50 Hz

BASS Turnover Frequency ................................................. 350 Hz

TREBLE Boost/Cut ................................................. ±6 dB/20 kHz

TREBLE Turnover Frequency ...........................................3.5 kHz

• Phones Output ........................................................... 150 mV/100 Ω

• Input Sensitivity/Input Impedance

CD, etc. .................................................................. 200 mV/47 kΩ

MULTI CH INPUT ................................................ 200 mV/47 kΩ

• Output Level/Output Impedance

REC OUT ............................................................. 200 mV/1.2 kΩ

PRE OUT ......................................................................2 V/1.2 kΩ

SUB WOOFER .............................................................4 V/1.7 kΩ

VIDEO SECTION

• Video Signal Type ...........................................................PAL/NTSC

• Signal to Noise Ratio ...............................................................50 dB

• Frequency Response (MONITOR OUT)

Composite, S-Video ..................................5 Hz to 10 MHz, –3 dB

Component ................................................5 Hz to 60 MHz, –3 dB

FM SECTION

• Tuning Range

[U.S.A. and Canada models] ............................87.5 to 107.9 MHz

[Other models] .............................................87.50 to 108.00 MHz

• Usable Sensitivity (IHF) ........................................1.0 µV (11.2 dBf)

• Signal to Noise Ratio (IHF)

Mono/Stereo ...............................................................76 dB/70 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ................................................................. 0.2%/0.3%

• Stereo Separation (1 kHz) ........................................................42 dB

• Frequency Response ...........................20 Hz to 15 kHz, +0.5, –2 dB

AM SECTION

• Tuning Range

[U.S.A. and Canada models] ............................... 530 to 1710 kHz

[Other models] .................................................... 531 to 1611 kHz

• Usable Sensitivity .............................................................. 300 µV/m

GENERAL

• Power Supply

[U.S.A. and Canada models] ...............................AC 120 V, 60 Hz

[Australia model] ................................................AC 240 V, 50 Hz

[China model] ......................................................AC 220 V, 50 Hz

[Korea model] .....................................................AC 220 V, 60 Hz

• Power Consumption

[U.S.A. and Canada models] .................................. 400 W/500 VA

[Other models] .................................................................... 440 W

• Standby Power Consumption .................................................. 0.1 W

•AC Outlets

[U.S.A. and Canada models] ............... 2 (Total 100 W maximum)

[Australia model] ................................ 1 (Total 100 W maximum)

[China model] ........................................ 2 (Total 50 W maximum)

• Dimension (W x H x D) ................................... 435 x 171 x 420 mm

(17-1/8” x 6-3/4” x 16-1/2”)

• Weight .............................................................. 12.5 kg (27 lbs 9 oz)

SPECIFICATIONS

00_HTR-5760_U_EN.book Page 79 Tuesday, February 17, 2004 10:47 AM

i

LIST OF MANUFACTURER CODES

TV

A TANDY 0941

ABEX 1151

ADMIRA 1141

ADVENTURA 1131

AIKO 1121

AIWA 1481

AKAI 0331, 1101, 1111

ALBA 0431

ALLERON 1091

AMBASSADOR 1081

AMSTRAD 0481, 1081

ANAM 0251, 1041, 1051,

1061, 1071

ANAM NATIONAL 1041

AOC 0361, 1021, 1031,

1111, 1161

ARCHER 1161

AUDIOSONIC 1001

AUDIOVOX 1051, 1161

BAUER 0441

BAUR 1001

BEIJING 1511, 1551, 1561

BELCOR 1031

BELL & HOWELL 0981, 0991

BEON 1001

BRADFORD 1051

BROCKWOOD 1031

BROKSONIC 1161

BUSH 1001

CANDLE 0351, 0361, 0961,

0971, 1111, 1131

CAPEHART 1021

CARVER 0101

CATHAY 1001

CELEBRITY 0951

CENTURION 0411

CHANGHONG 1541, 1551, 1561,

1621

CITIZEN 0351, 0361, 0921,

0931, 0941, 0961,

0971, 1111, 1121,

1131

CLAIRTONE 1011

CLARIVOX 1001

CONCERTO 0351, 0971

CONROWA 1751

CONTEC 0901, 0911, 1011,

1051

CORANDO 0941

CRAIG 0251, 1051

CROWN 0941, 1051

CURTIS MATHES 0161, 0361,

0931, 0941,

0981, 1111

CXC 1051

DAEWOO 0291, 0301, 0331,

0721, 0941, 1001,

1031, 1121, 1191,

1531, 1581, 1591,

1601

DANSAI 1001

DAYTRON 0941, 1031

DECCA 0271, 1001

DIXI 0331, 1001, 1071

DUMONT 0891, 1031

DYNATECH 0881

ELECTROBAND 0951, 1011

ELECTROHOME 0941

ELECTRON 0941

ELIN 1001

ELTA 0331

EMERSON 0001, 0021, 0061,

0071, 0081, 0091,

0111, 0811, 0821,

0831, 0841, 0851,

0861, 0871, 0901,

0921, 0941, 0981,

1011, 1031, 1051,

1081, 1091

ENVISION 0361, 1111

ERRES 1001

ETRON 0331

FERGUSON 1001

FINLUX 1001

FISHER 0171, 0801, 0981

FORMENTI 0441

FORMONTI 1001

FORTRESS 1141

FUJITSU 1091

FUNAI 1051, 1091, 1501,

1521

FUTURETECH 1051

GE 0131, 0161, 0201,

0751, 0761, 0771,

0781, 0791, 0811,

0861, 1041

GEC 0271, 1001

GEMINI 0391

GENEXXA 0431

GIBRALTER 0891, 1031, 1111

GOODMANS/TASHIKO

0271, 0661, 1001

GRANADA 1001

GRUNDIG 1781, 1791, 1801,

1811, 1821, 1831,

1841, 1851, 1861,

1871, 1881

GUNPY 1051, 1091

HARMAN/KARDON 0721

HALLMARK 0861

HANSEATIC 1001

HARVARD 1051, 1061

HINARI 1001, 1091

HITACHI 0181, 0351, 0671,

0681, 0691, 0701,

0711, 0871, 0941,

0971, 1351

HYPSON 1001

IMA 1051

INDIANA 1001

INFINITY REFERENCE

0101

INTERFUNK 1001

ITT 0611

JANEIL 1131

JBL 0101

JCB 0951

JENSEN 0311

JINXING 1531, 1541, 1551,

1561, 1571, 1621,

1631, 1641, 1651,

1691, 1731

JVC (VICTOR) 0261, 0281, 0641,

0651, 0661, 0841

KAWASHO 0901

KAYPANI 1021

KENWOOD 0361, 1031, 1111

KLOSS 0631, 0721, 1131

KTV 0921, 0941, 1011,

1051, 1111

LEYCO 1001

LG (GOLDSTAR) 0031, 0121,

0351, 0411, 0731,

0741, 0861, 0941,

0971, 1001, 1031,

1111, 1151

LIESENK & TTER 1001

LLOYTRON 0941

LOEWE 1001

LOGIK 0991, 1771

LUXMAN 0351, 0971

LXI 0101, 0621, 0761,

0861, 0981

MAGNAVOX 0101, 0341, 0391,

0401, 0411, 0421,

0581, 0591, 0601,

0611, 0631, 0661,

0961, 1111

MAJESTIC 0991

MARANTZ 0101, 0221, 0361,

1001, 1111

MARK 1001

MATSUI 0271, 0331, 1001

MEDIATOR 1001

MEGATRON 0691, 0861, 1161

MEI 1011

M-ELECTRONIC 1001

MEMOREX 0331, 0571, 0861,

0971, 0981, 0991,

1771

METZ 1791, 1831, 1891,

1901, 1911, 1921,

1931, 1941

MGA 0361, 0561, 0571,

0861, 1031, 1111

MIDLAND 0751, 0761, 0891,

0941, 1151

MITSUBISHI 0221, 0321, 0561,

0571, 0661, 0861,

1031, 1101, 1381

MONTGOMERY 1091

MOTOROLA 1041, 1141

MTC 0351, 0361, 0881,

0931, 0971, 1011,

1031, 1111

MULTITECH 0881, 1051

NAD 0551, 0621, 0861

NEC 0241, 0351, 0361,

0661, 0971, 1031,

1111, 1321, 1711

NECKERMANN 1001

NEI 1001

NIKKAI 0271, 0431, 1001,

1151

NIKKO 0861, 1111, 1121

NOVABEAM 0721

NTC 1121

ONWA 1051

OPTIMUS 0551

OPTONICA 0541, 1141

ORION 0831, 1001

OSAKI 0271, 1151

OTTO VERSAND 1001

PANASONIC 0101, 0191, 0251,

0751, 1041, 1311,

1371, 1431

PANDA 1541, 1721

PENNY 0161, 0361, 0521,

0531, 0621, 0731,

0751, 0761, 0781,

0791, 0861, 0931,

0941, 1031, 1041,

1111, 1151, 1161

PEONY 1561, 1621

PHILCO 0361, 0581, 0591,

0601, 0611, 0631,

0961, 1031, 1111

PHILIPS 0101, 0401, 1001

PHONOLA 1001

PILOT 0941, 1031, 1111

PIONEER 0511, 0551, 0871

PORTLAND 0941, 1031, 1121

PRICECLUB 0931

PRISM 0751

PROSCAN 0761

PROTECH 1001

PROTON 0501, 0861, 0941,

1021, 1161

PULSAR 0891

PULSER 1031

QUASAR 0251, 0751, 1041

QUELLE 1001

RADIO SHACK 0541, 0941,

1031, 1051,

1151

RADIOLA 1001

RCA 0051, 0141, 0151,

0181, 0411, 0491,

0531, 0761, 0771,

0871, 1031

REALISTIC 0541, 0861, 0941,

0971, 0981, 1031,

1051, 1111, 1151

RHAPSODY 1011

R-LINE 1001

RUNCO 0891, 1111

SAISHO 0331, 1081

SAMPO 0361, 0941, 1021,

1111, 1151

SAMSUNG 0331, 0341, 0351,

0361, 0861, 0931,

0941, 0971, 1001,

1031, 1111, 1151

SAMSUX 0941

00_HTR-5760_U_EN.book Page i Tuesday, February 17, 2004 10:47 AM

ii

SANYO 0171, 0231, 0271,

0661, 0801, 0911,

0981, 1231, 1251,

1261

SBR 1001

SCHEIDER 1001

SCIMITSU 1031

SCOTCH 0861

SCOTT 0831, 0861, 0941,

1031, 1051, 1091

SEARS 0101, 0161, 0171,

0351, 0481, 0521,

0621, 0761, 0801,

0861, 0971, 0981,

1091

SHANGHAI 1561, 1681

SHARP 0461, 0471, 0541,

0661, 0911, 0941,

1141

SHOGUN 1031

SIGNATURE 0991, 1771

SIMPSON 0581, 0961

SOLAVOX 1151

SONOKO 1001

SONTEC 1001

SONY 0371, 0451, 0661,

0841, 0951, 1281,

1441

SOUNDESIGN 0861, 0961, 1051,

1091

SOUNDWAVE 1001

SPECTRICON 1161

SQUAREVIEW 0481

SSS 1031, 1051

STAR-LITE 1051

SUPREM 0951

SUPRE-MACY 1131

SURPA 0351, 0971

SYLVANIA 0101, 0361, 0441,

0581, 0591, 0601,

0611, 0631, 0961,

1111

SYMPHONIC 0481

SYSLINE 1001

TANDY 0271, 0431, 1141

TATUNG 0271, 0881, 1001,

1041, 1161

TCL 1561, 1631, 1701

TECHNICS 0751

TECHWOOD 0351, 0751, 0971

TEKNIKA 0101, 0351, 0571,

0931, 0941, 0961,

0971, 0991, 1031,

1051, 1091, 1121,

1131, 1771

TELETECH 0331

TERA 0501

THAKRAL 1671

THORM 1001

TMK 0351, 0861, 0971,

1081

TOSHIBA 0381, 0521, 0621,

0661, 0931, 0981,

1301

TOSONIC 1011

TOTEVISION 0941

TRICAL 0911

UNIVERSAL 0781, 0791

UNIVERSUM 1001

VECTOR RESEARCH

0361, 1111

VESTEL 1001

VIDEO CONCEPT 1101

VIDIKRON 0101, 0211

VIDTECH 0861, 1031

VIKING 1131

WARDS 0101, 0361, 0451,

0541, 0581, 0591,

0601, 0611, 0771,

0781, 0791, 0861,

0971, 0991, 1031,

1091, 1111, 1771

WATSON 1001

XOGEGO 1611, 1621, 1661,

1741, 1761

YAMAHA 0361, 1031, 1111

YOKO 1001

ZENITH 0011, 0041, 0891,

0991, 1771

ZONDA 1161

CABLE TV

ABC 0256, 0376

ANTRONIX 0136

ARCHER 0136, 0286

BBT 0076

CABLETIME 0166

CABLEVISION 0196

COLOUR VOICE 0306, 0346

COMTRONICS 0216, 0276

EAGLE COMTRONICS

0276

EASTERN 0066

ELECTRICORD 0206

ELECTUS 0266

GE 0116, 0126

GEC CABLE SYSTEM

0196

HAMLIN H5 0676

HAMLIN H6 0666

HAMLIN H6S 0656

HAMLIN H8 0646

HAMLIN H9 0636

JERROLD 0256

JERROLD 400L 0626

JERROLD 450L 0616

JERROLD 550 0606

JERROLD OSD CATV

0596

JERROLD SPRUCER

0436

MAGNAVOX/PHILIPS

0416, 0426

MAMM 0296

MEMOREX 0386

MOVIE TIME 0146, 0206

NORTHCOAST 0016

NSC 0146

OAK 0106

OAK SIGMA 450 0546

OAK SIGMA 550 0536

PANASONIC TZ 120/130

0476

PANASONIC TZ 170/180

0446

PANASONIC TZ140 0466

PANASONIC TZ150/160

0456

PARAGON 0386

PHILIPS 0036, 0216, 0306,

0316, 0326, 0336,

0346

PIONEER 0006, 0086

PIONEER BR50 0846

PIONEER BR60/70/80/81/82

0696

PIONEER BR90 0556

PULSAR 0386

RCA DIGITAL SATELLITE

SYSTEM 0396, 0406

REALISTIC 0136

REGENCY/EASTERN0686

RUNCO 0386

SAMSUNG 0276

SCIENTIFIC ATLANTA 175/475

0576

SCIENTIFIC ATLANTA 75

0366, 0586

SCIENTIFIC ATLANTA 8650

0566

SIGNAL 0276

SL MARX 0276

SPECTAVISION 0236

STANDARD COMPONENTS

0186

STARCOM V 0256

STARGATE 0276

SYLVANIA/TEXSCAN

0376, 0496

TEKNIKA 0176

TELESERVICE 0056

TELEVIEW 0276

TEXSCAN 0186, 0376

TFC 0026

TOCOM 0226, 0356

TOCOM 5503A 0526

TOCOM 5503VIP/5507

0516

TOCOM TC56 0506

TOSHIBA 0386

TUDI 0046

UNIKA 0136

UNIVERSAL 0136, 0156, 0206,

0286

VIDEOWAY 0096

VIEWSTAR 0216

ZENITH 0246, 0386, 0486

SATELLITE TUNER

ALPHA STAR 0826

CHAPARRAL 0756

ECHOSTAR 0836

GENERAL INSTRUMENT

0776, 0876

HTS 0836

HUGHES NETWORK SYSTEMS

0816

JERROLD 0776, 0786

PANASONIC 0806

PRIMESTAR 0776, 0786

RCA 0766

SONY 0796

(DBS)

HITACHI 0856

MAGNAVOX 0886

MEMOREX 0886

PANASONIC 0896

PHILIPS 0886

SONY 0906

STAR CHOICE 0876

TOSHIBA 0866, 0916

UNIDEN 0886

VCR

A TANDY 0902

ADVENTURA 0992

AIKO 0982

AIWA 0992

AKAI 0262, 0942, 0952,

0962, 0972

AMERICAN HIGH 0932

AMSTRAD 0992

ASA 0002, 0912

ASHA 0922

AUDIO DYNAMICS 0202

AUDIOVOX 0912

BEAUMARK 0922

BELL & HOWELL 0902

BLAUPUNKT 0412

BROKSONIC 0872, 0882, 0892

BUSH 0852

CALIX 0912

CANON 0862, 0932

CCE 0852, 0982

CITIZEN 0912, 0982

COLT 0852

CRAIG 0832, 0842, 0852,

0912, 0922

CURTIS MATHES 0662, 0822,

0932

CYBERNEX 0922

DAEWOO 0802, 0812, 0982

DBX 0202

DYNATECH 0472, 0992

ELECTROHOME 0912

ELECTROPHONIC 0912

EMEREX 0792

EMERSON 0072, 0132, 0142,

0152, 0162, 0172,

0182, 0192, 0212,

0702, 0712, 0722,

0732, 0742, 0752,

0762, 0772, 0782,

0872, 0882, 0892,

0912, 0952, 0992,

1072

FINLUX 0002, 0992

FISHER 0682, 0692, 0842,

0902

FUJI 0672, 0932

FUNAI 0992

GARRARD 0992

GE 0662, 0822, 0932

GO VIDEO 0642, 0652

GOODMANS 0402

GRADIENTE 0992

GRANDA 0612, 0902

GRUNDIG 0002

HARLEY DAVIDSON

0992

00_HTR-5760_U_EN.book Page ii Tuesday, February 17, 2004 10:47 AM

iii

HARMAN/KARDON

0632, 1082

HARWOOD 0752, 0852

HEADQUARTER 0612

HI-Q 0842

HINARI 0852

HITACHI 0102, 0562, 0572,

0582, 0592, 0602,

0992

ITT 0942

JVC (VICTOR) 0202, 0522, 0532,

0542, 0552

KENWOOD 0202, 0542, 0612,

0632, 0902

KLH 0852

KODAK 0912, 0932

LG (GOLDSTAR) 0082, 0632,

0912

LLOYD 0992

LOGIK 0852

LUXOR 0942

LXI 0022, 0912

MAGNAVOX 0002, 0482, 0492,

0502, 0512, 0932

MAGNIN 0922

MARANTZ 0002, 0202, 0402,

0632, 0932

MARTA 0912

MATSUSHITA 0932

MATSUI 0722

MEI 0222, 0932

MEMOREX 0232, 0242, 0472,

0512, 0612, 0842,

0902, 0912, 0922,

0932, 0992

MGA 0762, 0952

MGA TECHNOLOGY

0922

MINOLTA 0592, 0602

MITSUBISHI 0452, 0462, 0542,

0762, 0952, 1082

MOTOROLA 0472, 0932

MTC 0922, 0992

MULTITECH 0852, 0992

NAD 0442

NEC 0122, 0202, 0292,

0422, 0432, 0542,

0632

NIKKO 0912

NOBLEX 0922

OLYMPUS 0412, 0932

OPTIMUS 0442, 0472, 0912

OPTONICA 0402

ORION 0212, 0722, 0742,

0772

OSAKI 0912

PANASONIC 0012, 0052, 0092,

0222, 0372, 0382,

0392, 0412, 0932

PENNY 0202, 0432, 0602,

0632, 0692, 0912,

0922, 0932

PENTAX 0592, 0602

PERDIO 0992

PHILCO 0002, 0932

PHILIPS 0002, 0282, 0402,

0492, 0932

PILOT 0912

PIONEER 0442, 0542

PROSCAN 1002, 1012, 1022,

1032, 1042, 1052,

1062

PULSAR 0512

QUARTER 0612

QUARTZ 0272, 0612

QUASAR 0382, 0392, 0932

RADIO SHACK 0912, 0992

RADIX 0912

RANDEX 0912

RCA 0112, 0382, 0392,

0482, 0592, 0602,

0662, 0822, 0942

REALISTIC 0402, 0472, 0612,

0682, 0842, 0902,

0912, 0922, 0932,

0992

RICOH 0352, 0362

SAISHO 0212, 0582, 0722,

0732, 0742, 0772

SALORA 0612, 0762

SAMSUNG 0212, 0312, 0922,

0962

SANKY 0472, 0512

SANSUI 0292, 0542, 0832

SANYO 0242, 0612, 0842,

0902, 0922

SBR 0002, 0282

SCHEIDER 0852

SCOTT 0342, 0712, 0762,

0872, 0882, 0892

SEARS 0302, 0592, 0602,

0612, 0682, 0692,

0842, 0902, 0912,

0932

SHARP 0402, 0472

SHINTOM 0852

SHOGUN 0922

SINGER 0852

SONY 0032, 0332, 0352,

0362, 0672, 0792,

0932

STS 0602

SUNPAK 0352

SYLVANIA 0002, 0492, 0502,

0762, 0932, 0992

SYMPHONIC 0992

TANDY 0992

TASHIKO 0712, 0992

TEAC 0992

TECHNICS 0932

TEKNIKA 0322, 0912, 0932,

0992

TELEFUNKEN 0252

TMK 0212, 0732, 0772,

0922

TOSHIBA 0062, 0302, 0342,

0622, 0682, 0712,

0762

TOTEVISION 0912, 0922

UNITECH 0922

VECTOR RESEARCH

0202, 0432, 0632

VIDEO CONCEPTS

0202, 0432, 0632,

0952

WARDS 0322, 0402, 0472,

0482, 0602, 0712,

0842, 0852, 0922,

0932, 0992

YAMAHA 0202, 0632

ZENITH 0042, 0362, 0512,

0672

DVD PLAYER

AKAI 0058

AIWA 0218

DENON 0188

HITACHI 0198

JVC (VICTOR) 0088, 0178

KENWOOD 0148

LG (GOLDSTAR) 0228

MAGNAVOX 0128

MITSUBISHI 0138

ONKYO 0068, 0128

PANASONIC 0028

PHILIPS 0098, 0128

PIONEER 0108, 0118

PROSCAN 0158

RCA 0158

SAMSUNG 0078

SHARP 0038

SONY 0018

TECHNICS 0028

THOMSON 0168

TOSHIBA 0048, 0128

YAMAHA 0008, 0028, 0098

ZENITH 0128

DVD RECORDER

PANASONIC 0238, 0248, 0258

PHILIPS 0208

PIONEER 0278, 0288, 0298

TOSHIBA 0268

YAMAHA 0208

LD PLAYER

AIWA 0157

DENON 0147

DISCO VISION0017

FUNAI 0157

HITACHI (E) 0017

KENWOOD 0087, 0107

MAGNAVOX 0027

MARANTZ 0027

MITSUBISHI 0137

NAD 0137

PANASONIC 0077, 0177

PHILIPS 0027

PIONEER 0017, 0037, 0137

RCA 0167

REALISTIC 0157

SHARP 0127

SONY 0047, 0057, 0117

VICTOR 0097

YAMAHA 0007, 0067

CD PLAYER

ACOUSTIC RESEARCH

1295

ADC 0025, 0065

ADCOM 0205, 0255, 1015

ADS 0265

AIWA 0295, 0945, 1035,

1055

AKAI 0175, 0485, 0535

ALPINE 1215, 1305

AUDIO-TECHNICA 0545

BSR 0245, 0655, 0775

CALIFORNIA AUDIO LAB

0055

CAPETRONIC 1205

CARRERA 0245

CARVER 0285, 1135

CASIO 0345

CROWN 0185

CURTIS MATHES 0345

DENON 0275, 0875, 0885

DEUAL (E) 0505

DYNAMIC BASS (H)

0555

EMERSON 0205, 0325, 1105

EROICA 1275

FISHER 0095, 0555, 0925,

1005

GARRARD 0365

GENEXXA 0305, 0325, 1105

HARMAN/KARDON 0105, 0175,

0465, 0995

HITACHI 0195, 0205, 0505,

0815

INKEL 0115, 0395

JVC (VICTOR) 0315

KENWOOD 0045, 0095, 0405,

0585, 0725, 0735,

0745, 0755, 0895

KYOCERA 0025

LG (GOLDSTAR) 1135, 1225,

1265, 1335

LUXMAN 0075, 0425, 0675,

0705, 0715, 0985

MAGNAVOX 0165, 0215, 0645,

0955

MARANTZ 0215, 0235, 0375,

0785, 1345

MCINTOSH 0355, 1085

MCS 0905, 1315

MEMOREX 0205, 0225, 0235,

0305, 0325, 1105

MGA 0135

MISSION 0215

MITSUBISHI 0135, 0445

MTC 1255

NAD 0035, 0615, 0685,

0695

NAKAMICHI 0125, 0435, 0515

NEC 0255, 0905, 0965

NIKKO 0545, 1005

ONKYO 0155, 0455, 0495,

0805, 1155

OPTIMUS 0225, 0245, 0555,

0595, 0845, 0855,

0865, 0895, 0935

PANASONIC 0055, 0825, 1095,

1125

PENNY 0905

PHILIPS 0165, 0215

PIONEER 0305, 0935, 1045

PROTON 0215, 1185

QUASAR 0055

RCA 0205, 0915, 1115

REALISTIC 0205, 0225, 0235,

0325, 0555, 0845

REVOX 1175

ROTEL 0215

SABA TELECOMMANDER (E)

0505

00_HTR-5760_U_EN.book Page iii Tuesday, February 17, 2004 10:47 AM

iv

SAE 0215

SAMSUNG 1285

SANSUI 0215, 0625, 0975,

1025, 1105

SANYO 0145, 0555, 0635,

0765

SCOTT 0325, 1105

SEARS 0345

SHARP 0235, 0665, 0895,

1065, 1075

SHERWOOD 0115, 0235, 0395,

0475

SIEMENTS GARRARD

1245

SIGNATURE 0175

SONTEC 1165

SONY 0065, 0565, 0865,

1145

STARON 1235

STS 0025

SYLVANIA 0215

SYMPHONIC 0335

TANDY 0305

TANGBERG 1195

TEAC 0235, 0335, 0385,

0525, 0795, 0835,

1355

TECHNICS 0055, 0605, 1095

TECHWOOD 1325

TELEFUNKEN (E) 0505

THOMSON (E) 0505

TOSHIBA 0035, 0685

VECTOR RESEARCH

0065, 1135

WARDS 0175

YAMAHA 0005, 0015, 0085,

0415, 0545, 0575,

1065

CD RECORDER

HITACHI 0474

JVC (VICTOR) 0504

MARANTZ 0484, 0494

PHILIPS 0444

PIONEER 0454, 0464

YAMAHA 0414

MD RECORDER

KENWOOD 0384

PIONEER 0424

SHARP 0434

SONY 0394

YAMAHA 0024, 0394, 0404,

0514

TAPE DECK

AIWA 0094, 0214, 0224

AKAI 0184

CARVER 0094

DENON 0304

FISHER 0144

GARRARD 0194, 0204

JVC (VICTOR) 0274, 0284, 0294

KENWOOD 0124, 0134, 0154,

0234, 0244, 0264

MAGNAVOX 0094

MARANTZ 0094, 0344

MITSUBISHI 0184

OPTIMUS 0034, 0064, 0204,

0334

ONKYO 0364, 0374

PHILIPS 0094

PIONEER 0034, 0044, 0064

REVOX 0354

SANSUI 0094, 0344

SHARP 0264

SHERWOOD 0334

SONY 0054, 0084, 0324

TEAC 0194, 0254

TECHNICS 0074, 0314

WARD S 003 4

YAMAHA 0004, 0014, 0104,

0114, 0164, 0174,

0264
