NP-31/NP-11 MIDI Reference

MIDI Functions

You can make detailed adjustments to MIDI settings.

In Dual, Voice 1 data is transmitted on its

specified channel and Voice 2 data is

transmitted on the next greater channel

number relative to the specified channel.

In this case, no data is transmitted if the

transmit channel is set to “OFF.”

ALL:

“Multi-timbre” Receive. This allows

simultaneous reception of different parts

on all 16 MIDI channels, enabling the

instrument to play multi-channel song

data received from a music computer or

sequencer.

1+2:

“1+2” Receive. This allows simultaneous

reception on channels 1 and 2 only,

enabling the instrument to play 1 and 2

channel song data received from a music

computer or sequencer.

Program change and other like channel

messages received will not affect the

panel settings of the instrument or the

notes you play on the keyboard.

Data for the demo song and piano preset

songs cannot be transmitted via MIDI.

In any MIDI control setup, the MIDI channels of the transmitting and receiving devices must be matched

for proper data transfer.

This parameter enables you to specify the channel on which the instrument transmits or receives MIDI

data.

Setting the Transmit Channel

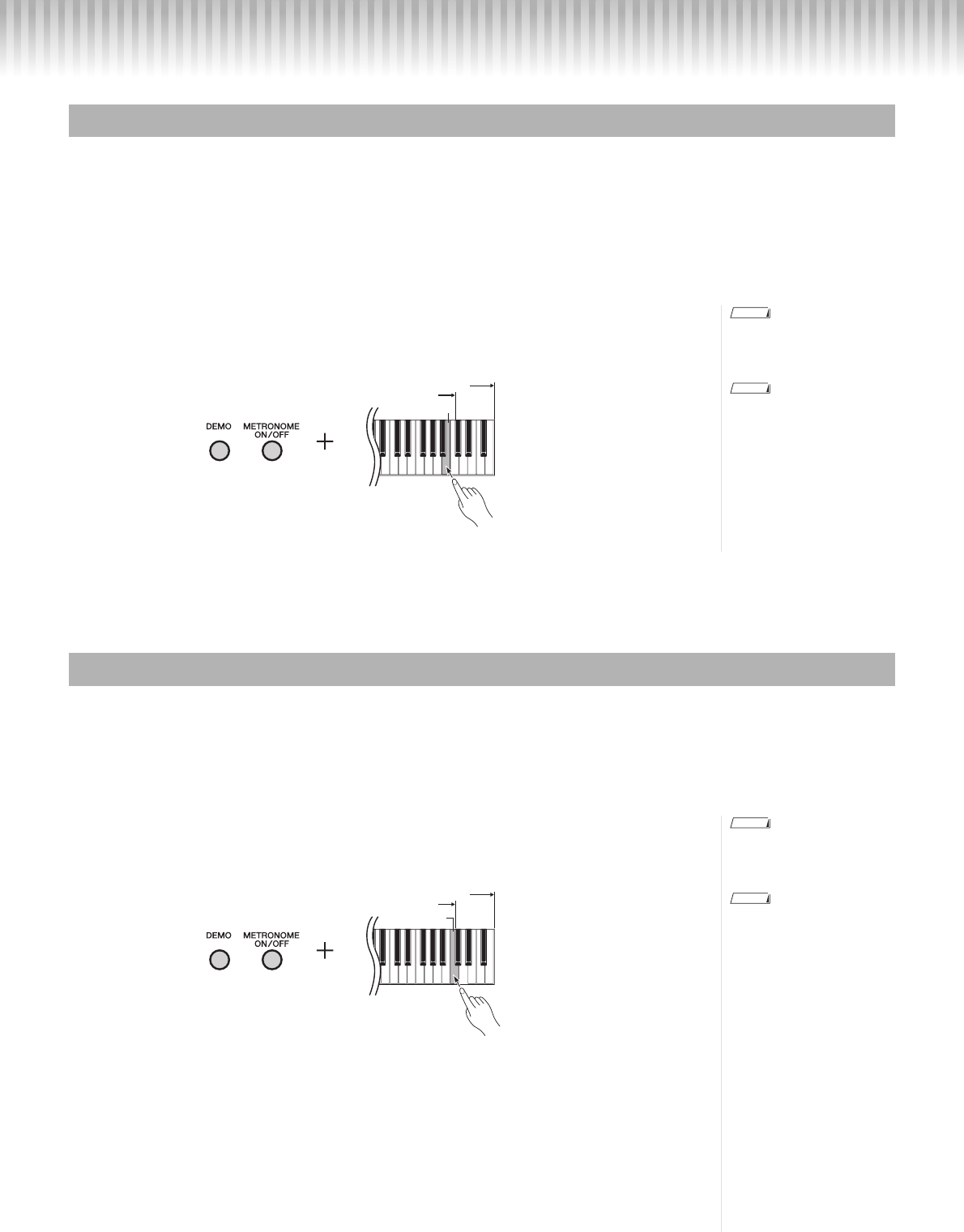

While holding down the [DEMO] button, press and hold the [METRONOME ON/OFF] button,

then press one of the C1–E2 keys.

Setting the Receive Channel

While holding down the [DEMO] button, press and hold the [METRONOME ON/OFF] button,

then press one of the C4–F5 keys.

“Local Control” refers to the fact that, normally, the keyboard of the instrument controls its internal tone generator, allowing the inter-

nal voices to be played directly from the keyboard. This situation is “Local Control On,” since the internal tone generator is controlled

locally by its own keyboard. Local control can be turned OFF, however, so that the the keyboard of the instrument does not play the

internal voices, but the appropriate MIDI information is still transmitted via the MIDI OUT terminal when notes are played on the key-

board. At the same time, the internal tone generator responds to MIDI information received via the MIDI IN terminal.

Default setting: ON

While holding down the [DEMO] button, press and hold the [METRONOME ON/OFF] button,

then press one of the A#5 key. Pressing the A#5 key repeatedly toggles between Local Control On

and Off.

MIDI Transmit/Receive Channel Selection

NOTE

C1 C4

E2 F5

11 14 169

56810121315

OFF

742 11 14 169

56810121315

1+2

ALL

742

NP-31

NP-11

Transmit Channel

(C1–E2)

Receive Channel

(C4–F5)

Local Control ON/OFF

NOTE

A#5

NP-11

NP-31

MIDI Functions

NP-31/NP-11 MIDI Reference 3

Normally the instrument will respond to MIDI program change numbers received from an external keyboard or other MIDI device,

causing the same numbered voice to be selected on the corresponding channel (the keyboard voice does not change). The instrument

will normally also send a MIDI program change number whenever one of its voices is selected, causing the same numbered voice or

program to be selected on the external MIDI device if the device is set up to receive and respond to MIDI program change numbers.

This function makes it possible to cancel program change number reception and transmission so that voices can be selected on the

instrument without affecting the external MIDI device.

For information on program change num-

bers for each of the Voices of the instru-

ment, refer to page 4.

Default setting: ON

While holding down the [DEMO] button, press and hold the [METRONOME ON/OFF] button,

then press one of the B5 key. Pressing the B5 key repeatedly toggles between Program Change On

and Off.

Normally the instrument will respond to MIDI control change data received from an external MIDI device or keyboard, causing the

voice on the corresponding channel to be affected by pedal and other “control” settings received from the controlling device (the key-

board voice is not affected). The instrument also transmits MIDI control change information when the pedal or other appropriate con-

trols are operated. This function makes it possible to cancel control change data reception and transmission so that, for example, the

pedal of the instrument and other controls can be operated without affecting an external MIDI device.

For information on control changes that

can be used with the instrument, refer to

page 4.

Default setting: ON

While holding down the [DEMO] button, press and hold the [METRONOME ON/OFF] button,

then press one of the C6 key. Pressing the C6 key repeatedly toggles between Control Change On

and Off.

Program Change ON/OFF

NOTE

NP-11

NP-31

Control Change ON/OFF

NOTE

NP-11

NP-31

NP-31/NP-11 MIDI Reference

MIDI Data Format

If you’re already very familiar with MIDI, or are using a computer to control your music hardware with computer-generated MIDI

messages, the data provided in this section can help you to control the NP-31 NP-11.

1. NOTE ON/OFF

Data format: [9nH] -> [kk] -> [vv]

9nH = Note ON/OFF event (n = channel number)

kk = Note number (Transmit: 09H–78H = A-2–C8 /

Receive: 00H–7FH = C-2–G8)

vv = Velocity (Key ON = 01H–7FH, Key OFF = 00H)

Data format: [8nH] -> [kk] -> [vv] (reception only)

8nH = Note OFF event (n = channel number)

kk = Note number: 00H–7FH = C-2–G8)

vv = Velocity

2. CONTROL CHANGE

Data format: [BnH] -> [cc] -> [vv]

BnH = Control change (n = channel number)

cc = Control number

vv = Data Range

(1) Bank Select

ccH Parameter Data Range (vvH)

00H Bank Select MSB 00H:Normal

20H Bank Select LSB 00H...7FH

Bank selection processing does not occur until receipt of next Pro-

gram Change message.

(2) Main Volume

ccH Parameter Data Range (vvH)

07H Volume 00H...7FH

(3) Expression (reception only)

ccH Parameter Data Range (vvH)

0BH Expression 00H...7FH

(4) Sustain

ccH Parameter Data Range (vvH)

40H Sustain 00H...7FH

(5) Sostenuto (reception only)

ccH Parameter Data Range (vvH)

42H Sostenuto 00H...3FH:off, 40H...7FH:on

(6) Soft Pedal (reception only)

ccH Parameter Data Range (vvH)

43H Soft Pedal 00H...3FH:off, 40H...7FH:on

(7) Effect1 Depth (Reverb Send Level)

ccH Parameter Data Range (vvH)

5BH Effect1 Depth 00H...7FH

Adjusts the reverb send level.

(8) Effect4 Depth (Variation Effect Send Level)

ccH Parameter Data Range (vvH)

5EH Effect4 Depth 00H...7FH

(9) RPN

65H RPN MSB

64H RPN LSB

06H Data Entry MSB

26H Data Entry LSB

60H Data Increment

61H Data Decrement

* Parameters that are controllable with RPN:

• Coarse Tune

• Fine Tune

• Pitch Bend Range

3. MODE MESSAGES

Data format: [BnH] -> [cc] -> [vv]

BnH = Control event (n = channel number)

cc = Mode Message number

vv = Data Range

(1) All Sound Off

ccH Parameter Data Range (vvH)

78H All Sound Off 00H

(2) Reset All Controllers

ccH Parameter Data Range (vvH)

79H Reset All Controllers 00H

Resets controllers as follows.

Controller Value

Expression 127 (max)

Sustain Pedal 0 (off)

Sostenuto 0 (off)

Soft Pedal 0 (off)

(3) Local Control (reception only)

ccH Parameter Data Range (vvH)

7AH Local Control 00H (off), 7FH (on)

(4) All Notes Off

ccH Parameter Data Range (vvH)

7BH All Notes Off 00H

Switches OFF all the notes that are currently ON on the specified

channel. Any notes being held by the sustain or sostenuto pedal

will continue to sound until the pedal is released.

(5) Omni Off (reception only)

ccH Parameter Data Range (vvH)

7CH Omni Off 00H

Same processing as for All Notes Off.

(6) Omni On (reception only)

ccH Parameter Data Range (vvH)

7DH Omni On 00H

Same processing as for All Notes Off.

(7) Mono (reception only)

ccH Parameter Data Range (vvH)

7EH Mono 00H

Same processing as for All Sound Off.

(8) Poly (reception only)

ccH Parameter Data Range (vvH)

7FH Poly 00H

Same processing as for All Sound Off.

• When Control Change is turned OFF, Control Change messages

will not be transmitted or received.

• Local on/off, OMNI on/off are not transmitted. (The appropriate note

off number is supplied with “All Note Off” transmission).

• When a voice bank MSB/LSB is received, the number is stored in

the internal buffer regardless of the received order, then the stored

value is used to select the appropriate voice when a program

change message is received.

• Poly mode is always active. This mode will not change when the

instrument receives a MONO/POLY mode message.

4. PROGRAM CHANGE

Data format: [CnH] -> [ppH]

CnH = Program event (n = channel number)

ppH = Program change number

P. C . #=Program Change number

• When program change reception is turned OFF, no program change

data is transmitted or received.

• When you specify a program change as a number in the range of

0–127, specify a number that is one less than the program change

number listed above. For example, to specify program change num-

ber 1, you would specify a value of 0.

NP-31 NP-11 MSB LSB P.C.#

Grand Piano 1 0 122 1

Grand Piano 2 0 112 1

E. Piano 1 0 122 6

E. Piano 2 0 122 5

Pipe Organ 1 0 123 20

Pipe Organ 2 0 122 20

Strings 0 122 49

Vibraphone 0 122 12

Harpsichord 1 0 122 7

Harpsichord 2 0 123 7

MIDI Data Format

NP-31/NP-11 MIDI Reference 5

5. Pitch Bend Change (reception only)

[EnH] -> [ccH] -> [ddH]

ccH = LSB

ddH = MSB

6. SYSTEM REALTIME MESSAGES

[rrH]

F8H: Timing clock

FAH: Star t

FCH: Stop

FEH: Active sensing

• If an error occurs during MIDI reception, the Sustain, Sostenuto,

and Soft effects for all channels are turned off and an All Note Off

occurs.

7. SYSTEM EXCLUSIVE MESSAGES

(Universal System Exclusive)

(1) Universal Realtime Message

Data format: [F0H] -> [7FH] -> [XnH] -> [04H] -> [01H] -> [llH] ->

[mmH] -> [F7H]

MIDI Master Volume

• Simultaneously changes the volume of all channels.

• When a MIDI master volume message is received, the volume only

has affect on the MIDI receive channel, not the panel master vol-

ume.

F0H = Exclusive status

7FH = Universal Realtime

7FH = ID of target device

04H = Sub-ID #1=Device Control Message

01H = Sub-ID #2=Master Volume

llH = Volume LSB

mmH = Volume MSB

F7H = End of Exclusive

F0H = Exclusive status

7FH = Universal Realtime

XnH = When received, n=0–F.

X = irrelevant

04H = Sub-ID #1=Device Control Message

01H = Sub-ID #2=Master Volume

llH = Volume LSB

mmH = Volume MSB

F7H = End of Exclusive

(2) Universal Non-Realtime Message (GM On)

General MIDI Mode On

Data format: [F0H] -> [7EH] -> [XnH] -> [09H] -> [01H] -> [F7H]

F0H = Exclusive status

7EH = Universal Non-Realtime

7FH = ID of target device

09H = Sub-ID #1=General MIDI Message

01H = Sub-ID #2=General MIDI On

F7H = End of Exclusive

F0H = Exclusive status

7EH = Universal Non-Realtime

XnH = When received, n=0–F.

X = irrelevant

09H = Sub-ID #1=General MIDI Message

01H = Sub-ID #2=General MIDI On

F7H = End of Exclusive

When the General MIDI mode ON message is received, the MIDI

system will be reset to its default settings.

This message requires approximately 50ms to execute, so suffi-

cient time should be allowed before the next message is sent.

8. SYSTEM EXCLUSIVE MESSAGES (XG Standard)

(1) XG Native Parameter Change

Data format: [F0H] -> [43H] -> [1nH] -> [4CH] -> [hhH] -> [mmH] ->

[llH] -> [ddH] -> [F7H]

F0H = Exclusive status

43H = YAMAHA ID

1nH = When received, n=0–F.

When transmitted, n=0.

4CH = Model ID of XG

hhH = Address High

mmH = Address Mid

llH = Address Low

ddH = Data

F7H = End of Exclusive

Data size must match parameter size (2 or 4 bytes).

When the XG System On message is received, the MIDI system

will be reset to its default settings.

The message requires approximately 50ms to execute, so suffi-

cient time should be allowed before the next message is sent.

(2) XG Native Bulk Data (reception only)

Data format: [F0H] -> [43H] -> [0nH] -> [4CH] -> [aaH] -> [bbH] ->

[hhH] -> [mmH] -> [llH] ->[ddH] ->...-> [ccH] -> [F7H]

F0H = Exclusive status

43H = YAMAHA ID

0nH = When received, n=0–F.

When transmitted, n=0.

4CH = Model ID of XG

aaH = ByteCount

bbH = ByteCount

hhH = Address High

mmH = Address Mid

llH = Address Low

ddH = Data

| |

ccH = Check sum

F7H = End of Exclusive

• Receipt of the XG SYSTEM ON message causes reinitialization of

relevant parameters and Control Change values. Allow sufficient

time for processing to execute (about 50 msec) before sending the

NP-31 NP-11 another message.

• XG Native Parameter Change message may contain two or four

bytes of parameter data (depending on the parameter size).

• For information about the Address and Byte Count values, refer to

Table 1 below. Note that the table’s Total Size value gives the size of

a bulk block. Only the top address of the block (00H, 00H, 00H) is

valid as a bulk data address.

9. SYSTEM EXCLUSIVE MESSAGES

(Digital Piano MIDI Format)

Data format: [F0H] -> [43H] -> [73H] -> [01H] -> [nnH] -> [F7H]

F0H = Exclusive status

43H = Yamaha ID

73H = Digital Piano ID

01H = Product ID (digital piano common)

nnH = Substatus

02H Internal MIDI clock

03H External MIDI clock

F7H = End of Exclusive

Data Transmission Reception

F8H Transmitted every

96 clocks

Received as 96-clock tempo timing

when MIDI clock is set to External.

FAH Song start Song start

Not received when the MIDI clock is set

to Internal.

FCH Song stop Song stop

Not received when the MIDI clock is set

to Internal.

FEH Transmitted every

200 milliseconds

If a signal is not received via MIDI for

more than 400 milliseconds, the same

processing will take place for All Sound

Off, All Notes Off and Reset All Control-

lers as when those signals are

received.

MIDI Data Format

NP-31/NP-11 MIDI Reference

10. SYSTEM EXCLUSIVE MESSAGES (Special Control)

Data format: [F0H] -> [43H] -> [73H] -> [7FH] -> [4BH] -> [11H] ->

[0nH] -> [ccH] -> [vvH] -> [F7H]

F0H = Exclusive status

43H = Yamaha ID

73H = Digital Piano ID

7FH = Extended Product ID

4BH = Product ID (NP-11 : 4BH, NP-31/31S : 4BH)

11H = Special control

0nH = Control MIDI change (n=channel number)

cc = Control number

vv = Value

F7H = End of Exclusive

Control Channel ccH vvH

Channel Detune

ch: 00H–0FH 43H (Sets the Detune value for

each channel)

00H–7FH

Voice Reserve ch: 00H–0FH 45H 00H : Reserve off

7FH : on*

* When Volume, Expression is received for Reserve On, they will

be effective from the next Key On. Reserve Off is normal.

11. SYSTEM EXCLUSIVE MESSAGES (Others)

Data format: [F0H] -> [43H] -> [1nH] -> [27H] -> [30H] -> [00H] ->

[00H] -> [mmH] -> [llH] -> [ccH] -> [F7H]

Master Tuning (XG and last message priority) simultaneously

changes the pitch of all channels.

F0H = Exclusive Status

43H = Yamaha ID

1nH = When received, n=0–F.

When transmitted, n=0.

27H = Model ID of TG100

30H = Sub ID

00H =

mmH = Master Tune MSB

llH = Master Tune LSB

ccH = irrelevant (under 7FH)

F7H = End of Exclusive

MIDI Parameter Change table (SYSTEM)

Address (H) Size (H) Data (H) Parameter Description Default value (H)

00 00 00 4 020C–05F4(*1) MASTER TUNE -50–+50[cent] 00 04 00 00

01 1st bit 3–0 -> bit 15–12 400

02 2nd bit 3–0 -> bit 11–8

03 3rd bit 3–0 -> bit 7–4

4th bit 3–0 -> bit 3–0

04 1 00–7F MASTER VOLUME 0–127 7F

7E 00 XG SYSTEM ON 00=XG sytem ON

7F 00 RESET ALL PARAMETERS 00=ON (receive only)

TOTAL SIZE 07

*1: Values lower than 020CH select -50 cents. Values higher than 05F4H select +50 cents.

MIDI Parameter Change table (EFFECT 1)

Refer to the “Effect MIDI Map” for a complete list of Reverb, Chorus and Variation type numbers.

Address (H) Size (H) Data (H) Parameter Description Default value (H)

02 01 00 2 00–7F REVERB TYPE MSB Refer to Effect MIDI Map 01 (=HALL1)

00–7F REVERB TYPE LSB 00 : basic type 00

02 01 40 2 00–7F VARIATION TYPE MSB Refer to Effect MIDI Map 00 (=Effect off)

00–7F VARIATION TYPE LSB 00 : basic type 00

• “VARIATION” refers to the EFFECT on the panel.

• Effect MIDI Map

REVERB

MSB LSB

ROOM 02H 10H

HALL 1 01H 10H

HALL 2 01H 11H

STAGE 03H 10H

OFF 00H 00H

EFFECT

MSB LSB

CHORUS 42H 10H

PHASER 48H 10H

TREMOLO 46H 10H

ROTARY SP 47H 10H

OFF 00H 00H

NP-31/NP-11 MIDI Reference 7

TransmittedFunction Recognized Remarks

Basic

Channel

Note

Number : True voice

Velocity

After

Touch

Pitch Bend

Control

Change

Prog

Change : True #

System Exclusive

Common : Song Pos.

: Song Sel.

: Tune

System : Clock

Real Time : Commands

: All Sound Off

Aux :

Reset

All

Cntrls

: Local ON/OFF

Mes- : All Notes OFF

sages: Active Sense

: Reset

Notes:

Mode

Default

Changed

Note ON

Note OFF

Key's

Ch's

0,32

6,38

66,67

91,94

96-97

100-101

1 - 16

o 9nH,v=1-127

o 0 - 127

**************

0 - 127

**************

Mode 1 : OMNI ON , POLY Mode 2 : OMNI ON ,MONO

Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF,MONO

x o 0 - 24 semi

1 - 16

o 9nH,v=1-127

o (120,126,127)

o (121)

o (122)

o (123-125)

0 - 127

o : Yes

x : No

Default

Messages

Altered

YAMAHA [ Digital Keyboard ] Date : 11, Nov 2010

Model NP-31 NP-11 MIDI Implementation Chart

Version : 1.0

Bank Select

Modulation

Main Volume

Panpot

Expression

Data Entry

Sustain

Portamento Control

Effect Depth

RPN Inc,Dec

RPN LSB,MSB

o 0 - 127

MIDI Implementation Chart

U.R.G., Digital Musical Instruments Division

103PO-01A

Yamaha NP 31/NP 11 MIDI Reference Np31 En Mr A0

Navigation menu

Versions of this User Manual:

Views

Navigation
