TECHNICAL GUIDE
SPLIT-SYSTEM AIR CONDITIONERS
10 SEER 50 H
Z
H*RA018S78 THRU H*RA036S78 (1 PH)
H*RA036S50 THRU H*RA060S50 (3PH)
(1.5 THRU 5 NOMINAL TONS)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.

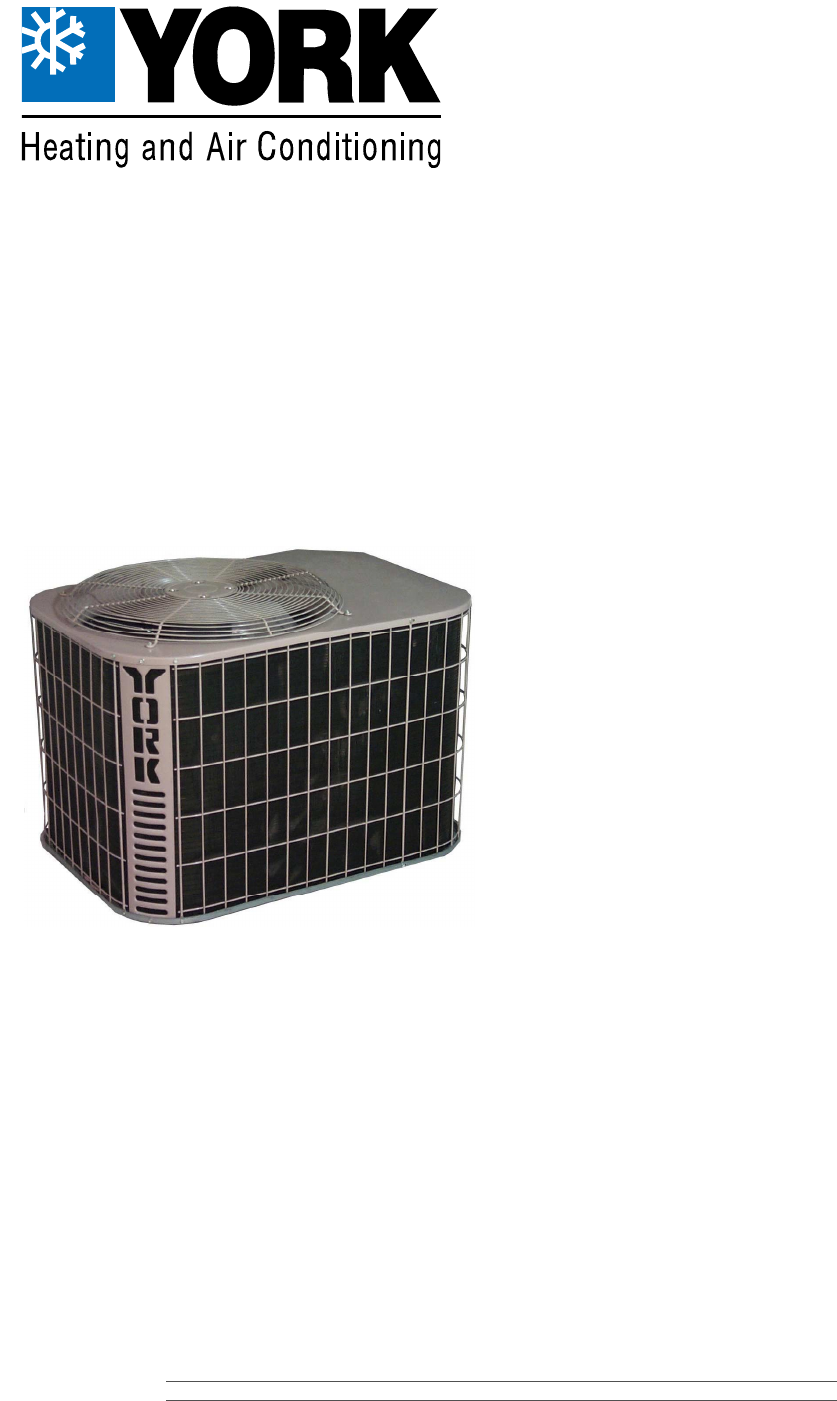

DESCRIPTION
The HRA Series condensing unit is the outdoor part of a ver-
satile system of air conditioning. It is designed to be custom
matched with one of UPG’s complete line of evaporator sec-
tions, each designed to serve a specific function. Matching

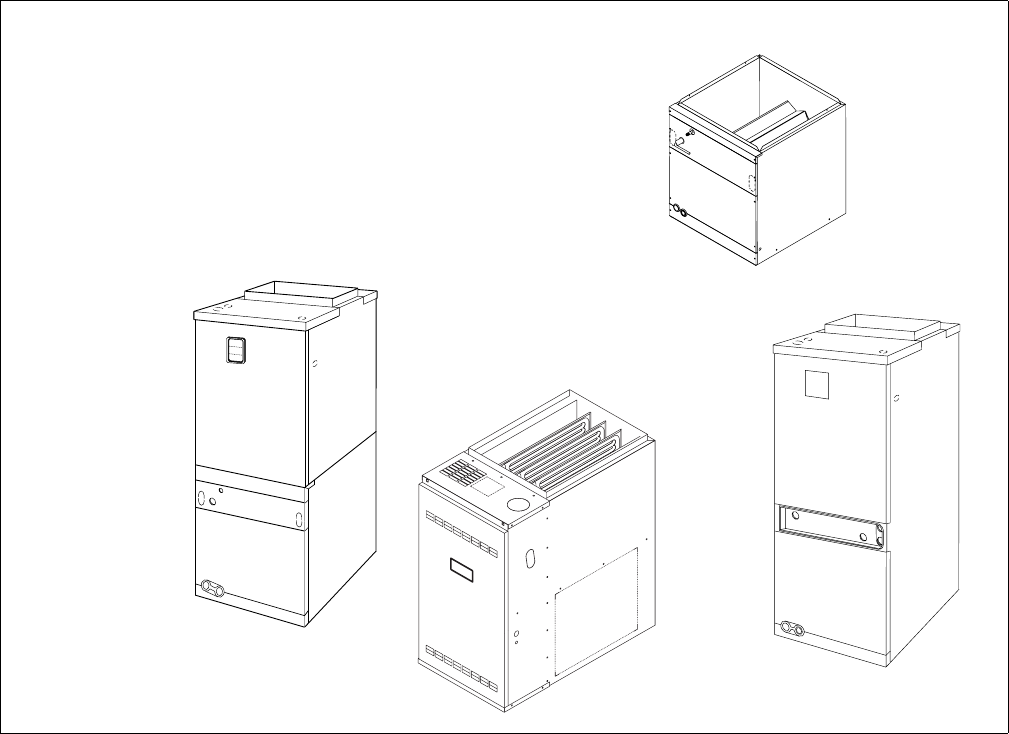

Air Handlers are available for upflow, downflow or horizontal
applications to provide a complete system. Electric Heaters
are available if required. Add-On coils are available for use
with upflow, downflow or horizontal furnaces and air handlers.
FEATURES
QUALITY CONDENSER COILS - The coil is constructed
of enhanced copper tube and aluminum fins.
COIL PROTECTION - Coils are protected from damage by
a polymer mesh applied between the coil face, and a PVC
coated steel coil guard.
PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur. A liquid line filter-drier further protects the
compressor.
DURABLE FINISH - Cabinet is made of pre-painted steel.
The pre-treated flat galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connections.
Discharge line heat exchanger knockouts are provided, if
required. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins of
the condenser coil muffle the normal fan motor and com-
pressor operating sounds.
LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, a single panel covering the electrical controls
and the molex plug in the control box connecting the con-
denser fan, make for easy servicing of the unit.
SECURED SERVICE VALVES - Secured re-usable ser-
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
FACTORY TESTED - to verify system operation and con-
trol functioning before shipment.
036-21103-003 Rev. A (0403)
2Unitary Products Group
PHYSICAL AND ELECTRICAL DATA - 1 & 3 Phase

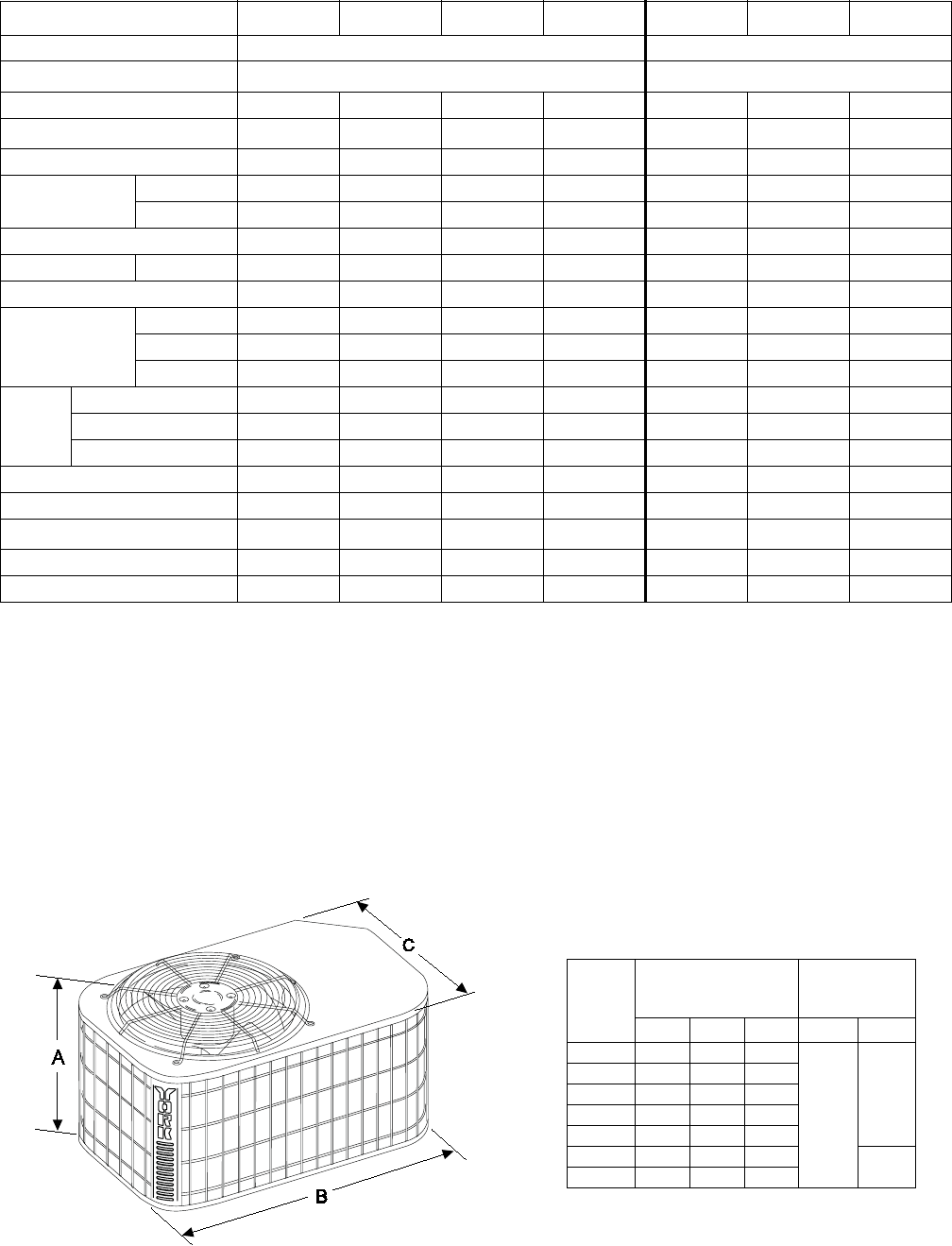

MODEL
H1RA018S78 H1RA024S78 H1RA030S78 H1RA036S78 H1RA036S50 H1RA048S50 H1RA060S50
Unit Supply Voltage 230 – 1 – 50 380/415 – 3 – 50
Normal Voltage Range
1
1. Rated in accordance with ARI Standard 110, utilization range “A”.
207 to 253 342 to 455
Minimum Circuit Ampacity 9.8 14.6 20.4 20.8 7.3 10.8 13.3
Max. Qvercurrent Device Amps
2
2. Dual element fuses or HACR circuit breaker.
15 25 35 35 15 15 20
Compressor Type Recip Recip Recip Recip Recip Recip Recip
Compressor Amps Rated Load 7.4 11.3 15.2 15.5 5.2 7.2 9.2
Locked Rotor53659082395379
Crankcase Heater No No No No No No No
Fan Motor Amps Rated Load .5 .5 1.8 1.8 .8 1.8 1.8
Fan Diameter Inches 18 18 18 18 18 22 22
Fan Motor
Rated HP 1/12 1/12 1/4 1/4 1/4 1/3 1/3
Nominal RPM 970 970 900 900 1,100 1,075 1,075
Nominal CFM 1,650 1,650 2,350 2,350 2,250 3,200 3,300
Coil
Face Area Sq. Ft. 8.00 8.00 9.15 9.15 9.15 15.72 23.58
Rows Deep 1111111
Fin / Inches 14 14 16 16 18 18 18
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 3/4 3/4 3/4 3/4 3/4 7/8 7/8
Unit Charge (Lbs. - Oz.)
3
3. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than
15 feet, refer to publication 035-15893-60*
3 - 13 3 - 14 3 - 15 4 - 11 4 - 11 7 - 10 9 - 12
Charge Per Foot, Oz. 0.66 0.66 0.68 0.68 0.68 0.70 0.70
Operating Weight Lbs. 118 123 135 137 137 206 228
UNIT
MODEL
H1RA
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A
1
1. Including fan guard
B C Liquid Vapor
018S78 17 35 23
3/8”
3/4”
024S78 17 35 23
030S78 19 35 23
036S78 19 35 23
036S50 19 35 23
048S50 27 37 27 7/8”
060S50 39 37 27
All dimensions are in inches. They are subject to
change without notice. Certified dimensions will be
provided upon request.
036-21103-003 Rev. A (0403)
Unitary Products Group 3
1.
TXV = Thermal Expansion Valve kit required. Use 1TV700 series kit.
2.
Single phase units require single phase 2HK heaters — Three phase units require three phase 2HK heaters. (29) indicates 460 volt use only.
3.
G2FD coils available with a factory installed horizontal drain pan. Replace “S” with “H” in the model number.
— = Not Applicable.
Additional R-22 Charge / Orifice Size for Various Matched Systems - 1 & 3 Phase
Additional R-22 Charge / Orifice Size for Various Matched Systems
Outdoor Unit (H1RA) 018S78 024S78 030S78 036S78 036S50 048S50 060S50
Unit Orifice(s)
1
51 57 69 71 71 84
Factory R-22 Charge, lbs-oz 3 - 13 3 - 14 3 - 14 4 - 11 4 - 11 7 - 10 9 - 12
Indoor Coil Coil Orifice
2
System Orifice + Additional Charge, Oz
G2FD024S14,17 61 51 + 0
G2FD030S17 65 57 + 0 69 + 0
G2FD036S17 75 69 + 3 71 + 0 71 + 0
G2FD036S21 75 71 + 2 71 + 2
G2FD042S21 78 71 + 4
G2FD048S21,24 78 84 + 0
G2FD060S24 90 90 + 0
COOLING CAPACITY - With Air Handler Coils
UNIT MODEL
AIR HANDLER
COIL
3
MODEL
COOLING
MODEL ELECTRIC
2
HEAT KW WRATED
CFM
NET MBH KW SEER SEER/TXV
1
EER
TOTAL SENS.
1 PHASE HRA / NAH
H1RA018S78 N1AHB1293 5,8,10,15,18 17 G2FD024S17 650 18.1 12.9 1.86 -- -- --
H1RA024S78 N1AHB1293 5,8,10,15,18 17 G2FD030S17 850 23.4 16.8 2.87 -- -- --
H1RA030S78 N1AHB1293 5,8,10,15,18 17 G2FD030S17 1000 28.9 20.0 3.45 -- -- --
N1AHB1293 5,8,10,15,18 17 G2FD036S17 1000 29.6 20.6 3.57 -- -- --
H1RA036S78 N1AHB1293 5,8,10,15,18 17 G2FD036S17 1250 33.5 25.2 3.83 -- -- --
3 PHASE HRA / NAH
H1RA036S50
N1AHB1293 5,8,10,15,18 17 G2FD036S17 1200 33.6 24.9 3.81 -- -- --
N1AHB1293 5,8,10,15,18 17 G2FD036S21 1200 34.4 25.5 3.87
N1AHC1693 5,8,10,15,20 21 G2FD042S21 1250 35.1 25.9 3.93
H1RA048S50 N1AHC1693 5,8,10,15,18 21 G2FD048S21 1600 48.8 35.9 4.82 -- -- --
H1RA060S50 N1AHD2093 5,8,10,15,18 24 G2FD060S24 1900 60.5 43.0 6.29 -- -- --
1 PHASE HRA / FRP (SINGLE PHASE)
H1RA018S78 F2RP024N93 5,7.5,10 18 -- 650 18.1 12.9 1.86 -- -- --
H1RA024S78 F2RP024N93 5,7.5,10 18 -- 850 23.4 16.8 2.87 -- -- --
H1RA030S78 F2RP036N93 5,7.5,10,15 21 -- 1000 29.6 20.6 3.57 -- -- --
H1RA036S78 F2RP036N93 5,7.5,10,15 21 -- 1250 34.3 25.6 3.86 -- -- --
3 PHASE HRA / FRP (SINGLE PHASE)
H1RA036S50 F2RP036N93 10,15 21 -- 1200 34.4 25.5 3.87 -- -- --
H1RA048S50 F2RP048N93 10,15 24 -- 1600 48.8 35.9 4.82 -- -- --
H1RA060S50 F2RP060N93 10,15 24 -- 1900 60.5 43.0 6.29 -- -- --
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
KW includes compressor, outdoor fan and indoor blower motor watts. Add-on coils include 365 watts/1000 CFM for blower motor.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at a 95°F outdoor ambient divided by the total electric power in watt-hours at
those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the
total electric power
input in watt-hours during the same period.
036-21103-003 Rev. A (0403)
4Unitary Products Group
1.For condensing unit only. Does not include effect of evaporator motor power or heat.
2.Performance based on 15” superheat and 15" sub-cooling at condensing unit.
a.Increase capacity 1% for each 2...increase in sub-cooling.
b.Decrease capacity 1% for each 2 decrease in sub-cooling.
3.Sub-cooling in excess of 20...may result in excessively high condensing temperature with air on condenser above 115° Maximum recommended condensing
temperature is 140..F.
COOLING PERFORMANCE
MODEL
SUCT. T/P
@ COMPR.
AIR TEMP ON CONDENSER
75°F 95°F 115°F 125°F
TEMP. PSIG MBH KW MBH KW MBH KW MBH KW
H1RA018S78
35 61.5 13.1 1.36 13.1 1.36 10.6 1.46 9.3 1.52
40 68.5 14.8 1.42 14.8 1.42 12.8 1.55 10.6 1.61
45 76.0 16.5 1.48 16.5 1.48 13.7 1.62 12.2 1.69
50 84.0 18.4 1.55 18.4 1.55 15.2 1.71 13.7 1.78
H1RA024S78
35 61.5 21.3 1.59 17.7 1.93 14.7 2.14 13.3 2.23
40 68.5 24.1 1.68 20.1 2.04 16.7 2.27 15.1 2.38
45 76.0 26.7 1.77 22.3 2.16 18.9 2.40 17.1 2.53
50 84.0 29.6 1.85 24.9 2.27 21.1 2.55 19.4 2.67
H1RA030S78
35 61.5 28.0 2.31 24.4 2.65 20.1 2.86 18.0 2.96
40 68.5 31.5 2.44 27.5 2.78 22.8 3.02 23.4 3.31
45 76.0 35.1 2.52 30.7 2.91 25.9 3.17 23.4 3.48
50 84.0 38.9 2.62 34.2 3.04 28.8 3.34 26.3 3.48
H1RA036S78
35 61.5 30.6 3.14 27.0 3.48 23.1 3.79 21.0 3.89
40 68.5 34.4 3.28 30.4 3.64 26.1 3.98 23.7 4.10
45 76.0 38.3 3.42 33.9 3.81 29.1 4.17 26.6 4.30
50 84.0 38.9 2.62 34.2 3.04 28.8 3.34 26.3 3.48
H1RA036S50
35 61.5 29.6 3.24 27.8 3.52 25.1 3.73 23.4 3.78
40 68.5 33.2 3.37 31.2 3.68 28.2 3.91 26.4 3.97
45 76.0 36.9 3.51 34.7 3.84 31.4 4.10 29.3 4.16
50 84.0 40.7 3.65 38.2 4.00 34.6 4.28 32.4 4.36
H1RA048S50
35 61.5 43.2 4.17 39.1 4.87 34.4 5.50 31.9 5.87
40 68.5 48.1 4.37 43.6 5.11 38.5 5.80 35.8 6.22
45 76.0 53.2 4.58 48.3 5.35 42.8 6.11 39.8 6.57
50 84.0 58.4 4.79 53.2 5.60 47.2 6.41 44.0 6.91
H1RA060S50
35 61.5 50.6 5.23 48.7 5.73 45.2 6.11 42.7 6.24
40 68.5 55.6 5.37 54.1 5.97 50.8 6.44 48.4 6.61
45 76.0 60.9 5.48 59.7 6.19 56.7 6.76 54.5 6.98
50 84.0 66.3 5.58 65.6 6.40 62.8 7.08 60.8 7.35
036-21103-003 Rev. A (0403)
Unitary Products Group 5
ACCESSORIES
Refer to Price Manual for specific model numbers.
Compressor Blanket - Designed to further reduce the nor-
mal operating sound.
Hard Start Kit (Single Phase Units) - provides required
starting torque for use with thermal expansion valve.
Outdoor Thermostat - 2TD06700124 - Consists of an
adjustable outdoor thermostat and relay in a vented enclo-
sure. It provides additional second stage control of the sup-
plemental resistance heat.(Balance Point Control)
SOUND RATINGS

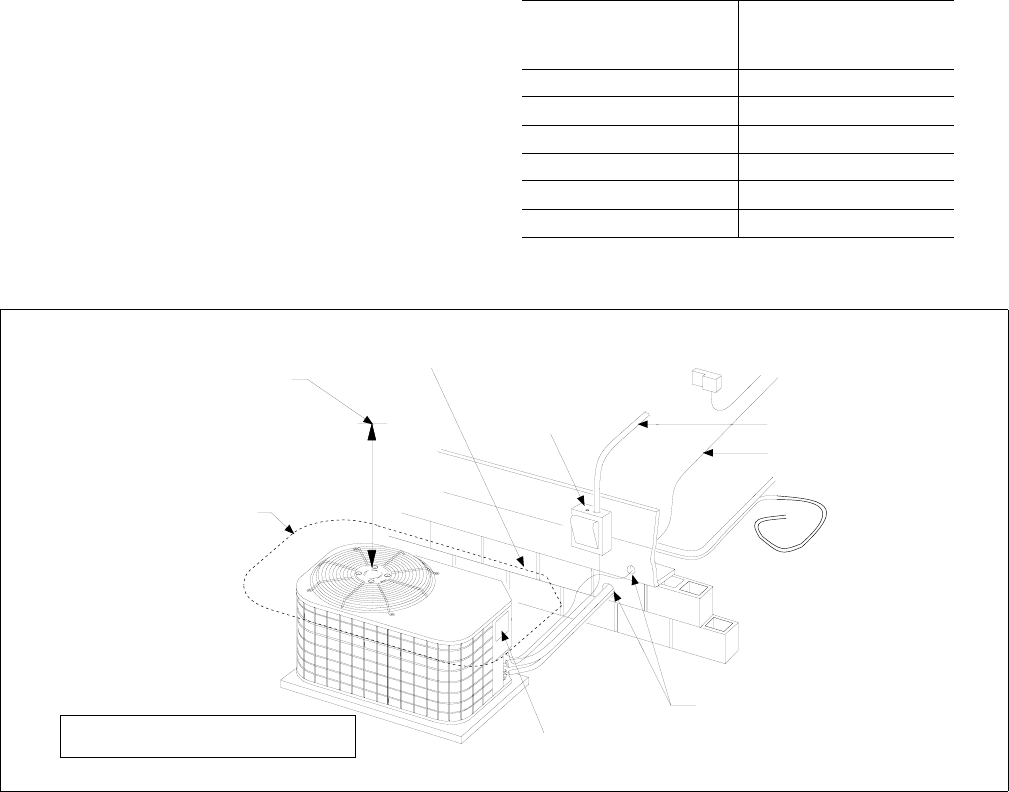

TYPICAL INSTALLATION - H*RA018S78 THRU 036S78 (1 PH) & H*RA 036S50 THRU 060S50 (3 PH)
UNIT MODEL SOUND
RATINGS
DECIBELS
018 76
024 78
030 82
036 82
048 82
060 80
MINIMUM 18” SERVICE ACCESS
CLEARANCE ON ONE SIDE
60” OVERHEAD
CLEARANCE
10” CLEARANCE
COIL AREA
WEATHERPROOF
DISCONNECT
SWITCH
THERMOSTAT TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO INDOOR COIL
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
CONTROL ACCESS PANEL
NOTE: ALL OUTDOOR WIRING MUST
BE WEATHERPROOF.
036-21103-003 Rev. A (0403)
6Unitary Products Group

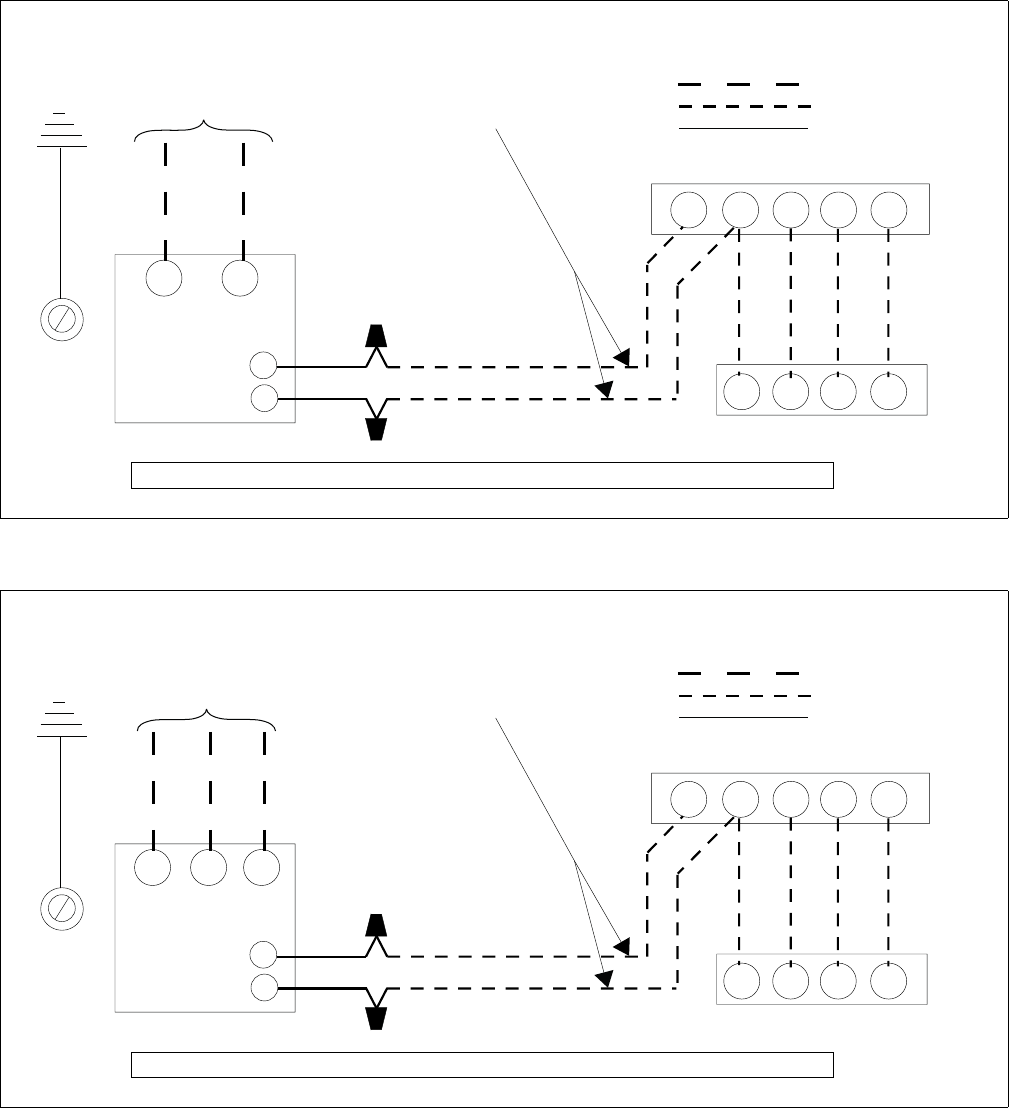

TYPICAL FIELD WIRING - 1 PH APPLICATION (018S78 - 036S78)
TYPICAL FIELD WIRING - 3 PH APPLICATION (036S50 - 060S50)
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
230-1-50
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
380/415-3-50
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
036-21103-003 Rev. A (0403)
Unitary Products Group 7
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA018S78A
INDOOR COIL MODEL NO. G2FD024S17
CONDENSING
ENTERING AIR
TEMPERATURE
IDCFM 500 650 800
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 18.3 18.1 16.5 18.4 18.2 17.2 18.4 18.3 17.8
S.C. 10.6 10.8 10.5 11.0 11.6 11.9 11.4 12.4 13.3
K.W 1.55 1.55 1.53 1.71 1.71 1.69 1.68 1.67 1.66
85
T.C. 17.8 17.2 15.4 18.0 17.5 16.1 18.2 17.8 16.8
S.C. 10.6 10.7 10.2 11.3 11.7 11.6 12.0 12.8 13.1
K.W 1.76 1.74 0.95 1.95 1.93 1.90 1.95 1.93 1.90
95
T.C. 17.3 16.3 14.2 17.6 16.8 15.0 17.9 17.3 15.8
S.C. 10.6 10.5 9.8 11.6 11.8 11.4 12.5 13.1 12.9
K.W 1.79 1.75 1.71 1.95 1.92 1.88 1.92 1.89 1.85
105
T.C. 16.0 14.7 12.6 16.5 15.3 13.3 17.0 15.9 14.1
S.C. 10.0 10.0 9.2 11.4 11.4 10.7 12.7 12.8 12.2
K.W 1.99 1.94 1.90 2.19 2.14 2.09 2.19 2.14 2.09
115
T.C. 14.6 13.1 11.0 15.3 13.8 11.7 16.0 14.4 12.3
S.C. 9.4 9.5 8.5 11.2 11.0 10.0 12.9 12.5 11.5
K.W 2.01 1.94 1.90 2.18 2.12 2.07 2.16 2.10 2.04
125
T.C. 13.0 11.1 9.3 13.7 11.6 9.9 14.3 12.1 10.4
S.C. 9.4 8.5 7.8 11.1 10.0 9.2 12.7 11.5 10.6
K.W 2.11 2.04 1.98 2.28 2.21 2.15 2.26 2.19 2.13
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB1293 G2FD024S17 1.00 1.00 1.00
F2RP024N93 1.00 1.00 1.00
036-21103-003 Rev. A (0403)
8Unitary Products Group
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA024S78A
INDOOR COIL MODEL NO. G2FD030S17
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 650 850 1050
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 26.4 25.3 24.0 26.6 25.7 24.6 26.7 26.1 25.2
S.C. 15.4 15.6 15.4 16.2 16.7 16.8 16.9 17.8 18.2
K.W 2.15 2.11 2.08 2.17 2.13 2.10 2.18 2.15 2.12
85
T.C. 25.4 23.9 21.8 25.7 24.6 22.8 26.1 25.2 23.7
S.C. 15.3 15.1 14.4 16.4 16.6 16.2 17.4 18.2 18.1
K.W 2.31 2.26 1.16 2.33 2.28 2.23 2.36 2.31 2.26
95
T.C. 24.4 22.5 19.6 24.9 23.4 20.9 25.4 24.3 22.2
S.C. 15.3 14.6 13.4 16.6 16.6 15.7 17.9 18.5 17.9
K.W 2.47 2.40 2.31 2.50 2.44 2.35 2.53 2.47 2.39
105
T.C. 22.5 20.1 17.6 23.2 21.1 18.6 23.9 22.1 19.6
S.C. 14.7 13.8 12.7 16.4 15.9 14.7 18.1 17.9 16.8
K.W 2.62 2.53 2.44 2.66 2.57 2.47 2.70 2.61 2.51
115
T.C. 20.6 17.7 15.6 21.5 18.8 16.3 22.4 19.8 16.9
S.C. 14.2 13.0 11.9 16.3 15.2 13.8 18.3 17.3 15.6
K.W 2.76 2.65 2.56 2.81 2.70 2.59 2.86 2.74 2.62
125
T.C. 17.8 15.2 13.3 18.7 15.9 14.0 19.5 16.7 14.7
S.C. 13.3 12.4 11.4 15.4 14.3 13.1 17.4 16.1 14.7
K.W 2.89 2.78 2.69 2.94 2.82 2.72 2.99 2.85 2.75
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB1293 G2FD030S17 1.00 1.00 1.00
F2RP024N93 1.00 1.00 1.00
036-21103-003 Rev. A (0403)
Unitary Products Group 9
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA030S78A
INDOOR COIL MODEL NO. G2FD030S17
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 650 850 1050
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 26.4 25.3 24.0 26.6 25.7 24.6 26.7 26.1 25.2
S.C. 15.4 15.6 15.4 16.2 16.7 16.8 16.9 17.8 18.2
K.W 2.39 2.35 2.32 2.53 2.49 2.46 2.56 2.53 2.50
85
T.C. 25.4 23.9 21.8 25.7 24.6 22.8 26.1 25.2 23.7
S.C. 15.3 15.1 14.4 16.4 16.6 16.2 17.4 18.2 18.1
K.W 2.67 2.62 1.40 2.82 2.76 2.71 2.93 2.88 2.83
95
T.C. 24.4 22.5 19.6 24.9 23.4 20.9 25.4 24.3 22.2
S.C. 15.3 14.6 13.4 16.6 16.6 15.7 17.9 18.5 17.9
K.W 2.71 2.64 2.55 2.86 2.80 2.71 2.91 2.85 2.77
105
T.C. 22.5 20.1 17.6 23.2 21.1 18.6 23.9 22.1 19.6
S.C. 14.7 13.8 12.7 16.4 15.9 14.7 18.1 17.9 16.8
K.W 2.98 2.89 2.80 3.14 3.05 2.95 3.27 3.18 3.08
115
T.C. 20.6 17.7 15.6 21.5 18.8 16.3 22.4 19.8 16.9
S.C. 14.2 13.0 11.9 16.3 15.2 13.8 18.3 17.3 15.6
K.W 3.00 2.88 2.80 3.17 3.05 2.95 3.24 3.12 3.00
125
T.C. 17.8 15.2 13.3 18.7 15.9 14.0 19.5 16.7 14.7
S.C. 13.3 12.4 11.4 15.4 14.3 13.1 17.4 16.1 14.7
K.W 3.13 3.02 2.93 3.30 3.18 3.08 3.37 3.23 3.13
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB1293 G2FD030S17 1.00 1.00 1.00
N1AHB1293 G2FD036S17 1.02 1.03 1.03
F2RP036N93 1.02 1.03 1.03
036-21103-003 Rev. A (0403)
10 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA036S50A
INDOOR COIL MODEL NO. G2FD036S17
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 1100 1250 1400
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 38.6 36.0 33.4 39.0 36.4 33.9 39.4 36.8 34.3
S.C. 26.0 25.7 25.3 25.8 26.4 27.1 25.6 27.2 28.8
K.W 3.20 3.12 3.04 3.30 3.34 3.38 2.99 3.15 3.31
85
T.C. 36.4 33.7 31.0 36.9 34.2 31.4 37.5 34.7 31.9
S.C. 24.8 24.5 24.2 25.2 25.5 25.9 25.5 26.5 27.5
K.W 3.56 3.48 1.88 3.75 3.75 3.75 3.53 3.61 3.69
95
T.C. 34.2 31.3 28.5 34.8 31.9 28.9 35.5 32.5 29.4
S.C. 23.6 23.3 23.0 24.5 24.6 24.7 25.4 25.9 26.3
K.W 3.52 3.44 3.36 3.74 3.70 3.66 3.55 3.55 3.55
105
T.C. 31.9 29.0 26.0 32.8 29.6 26.5 33.6 30.3 27.0
S.C. 22.5 22.2 21.9 23.9 23.7 23.5 25.3 25.2 25.1
K.W 3.88 3.80 3.72 4.19 4.11 4.03 4.09 4.01 3.93
115
T.C. 29.7 26.6 23.5 30.7 27.4 24.0 31.7 28.1 24.5
S.C. 21.3 21.0 20.7 23.2 22.8 22.3 25.2 24.5 23.9
K.W 3.84 3.76 3.68 4.18 4.06 3.94 4.11 3.95 3.79
125
T.C. 27.6 24.3 21.0 28.1 24.9 21.7 28.6 25.5 22.4
S.C. 20.6 20.0 19.4 22.7 21.6 20.5 24.8 23.2 21.7
K.W 3.92 3.92 3.92 4.38 4.26 4.14 4.43 4.19 3.95
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
NAHB1293 G2FD036S17 1.00 1.00 1.00
NAHB1293 G2FD036S21 1.02 1.02 1.02
NAHC1693 G2FD042S21 1.04 1.04 1.03
F2RP036N93 1.02 1.02 1.02
036-21103-003 Rev. A (0403)
Unitary Products Group 11
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA036S78A
INDOOR COIL MODEL NO. G2FD036S17
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 1050 1250 1450
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 38.7 36.8 35.0 39.1 34.7 35.6 39.4 32.5 36.2
S.C. 23.4 23.5 23.4 24.4 24.8 24.8 25.4 26.1 26.2
K.W 3.30 3.25 3.21 3.59 3.54 3.50 3.48 3.43 3.39
85
T.C. 37.4 34.8 31.9 37.7 34.1 32.6 38.1 33.4 33.4
S.C. 23.5 24.0 22.2 24.7 25.2 23.9 25.9 26.4 25.5
K.W 3.74 3.65 1.95 4.06 4.00 3.90 4.00 3.94 3.84
95
T.C. 36.0 32.7 28.7 36.4 33.5 29.6 36.7 34.3 30.5
S.C. 23.6 24.5 21.0 25.0 25.6 22.9 26.4 26.7 24.8
K.W 3.80 3.67 3.51 4.09 3.99 3.83 3.99 3.92 3.76
105
T.C. 32.6 29.1 25.5 33.2 29.9 26.3 33.9 30.7 27.2
S.C. 22.6 22.1 19.6 24.3 23.6 21.5 26.1 25.2 23.3
K.W 4.17 4.00 3.85 4.53 4.36 4.21 4.49 4.32 4.17
115
T.C. 29.2 25.5 22.3 30.1 26.3 23.1 31.0 27.0 23.8
S.C. 21.5 19.6 18.2 23.6 21.6 20.0 25.7 23.6 21.8
K.W 4.16 3.95 3.81 4.50 4.27 4.12 4.45 4.19 4.04
125
T.C. 25.5 22.4 19.6 26.2 22.8 20.0 26.9 23.1 20.4
S.C. 20.3 18.8 17.4 22.3 20.5 18.9 24.3 22.2 20.3
K.W 4.29 4.12 3.99 4.65 4.43 4.29 4.61 4.35 4.20
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB1293 G2FD036S17 1.00 1.00 1.00
F2RP036N93 1.02 1.02 1.01
036-21103-003 Rev. A (0403)
12 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA048S50A
INDOOR COIL MODEL NO. G2FD048S21
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 1400 1450 1500
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 66.1 57.0 47.9 63.5 55.8 48.1 61.0 54.6 48.3
S.C. 34.2 34.3 34.3 34.7 35.1 35.6 35.1 36.0 36.8
K.W 4.49 4.83 4.70 4.99 5.09 4.96 4.98 4.84 4.70
85
T.C. 58.8 51.6 44.5 57.7 51.2 44.7 56.5 50.8 45.0
S.C. 33.2 33.1 32.9 33.9 34.0 34.1 34.6 34.9 35.2
K.W 4.93 5.03 4.80 5.60 5.57 5.42 5.50 5.34 5.18
95
T.C. 51.5 46.3 41.1 51.8 46.6 41.4 52.1 46.9 41.7
S.C. 32.1 31.9 31.6 33.1 32.9 32.6 34.1 33.8 33.6
K.W 5.36 5.22 5.08 5.67 5.51 5.35 5.47 5.29 5.11
105
T.C. 44.2 40.9 37.7 45.9 42.0 38.0 47.6 43.0 38.4
S.C. 31.1 30.7 30.2 32.4 31.7 31.1 33.6 32.8 32.0
K.W 5.82 5.67 5.53 6.16 5.99 5.81 5.99 5.79 5.59
115
T.C. 36.9 35.6 34.3 40.0 37.4 34.7 43.1 39.1 35.1
S.C. 30.1 29.5 28.9 31.6 30.6 29.6 33.1 31.7 30.3
K.W 5.76 5.61 5.46 6.12 5.93 5.75 5.96 5.74 5.52
125
T.C. 39.5 35.3 31.1 39.6 35.4 31.3 39.7 35.6 31.6
S.C. 28.2 27.9 27.5 27.1 28.8 30.5 25.9 29.7 33.6
K.W 6.11 5.93 5.75 6.43 6.23 6.03 6.23 6.01 5.79
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
NAHC1693 G2FD048S21 1.00 1.00 1.00
F2RP048N93 1.00 1.00 1.00
036-21103-003 Rev. A (0403)
Unitary Products Group 13
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA060S50A
INDOOR COIL MODEL NO. G*FD060S24A
CONDENSER
ENTERING AIR
TEMPERATURE
IDCFM 1650 1900 2150
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 65.0 62.4 59.6 65.8 62.8 60.0 66.6 63.3 60.5
S.C. 41.8 41.5 41.0 44.7 44.0 43.6 47.5 46.5 46.1
K.W 5.40 5.36 5.28 5.81 5.76 5.69 5.62 5.56 5.50
85
T.C. 63.9 60.7 56.5 64.7 61.4 57.5 65.4 62.1 58.5
S.C. 41.8 41.1 39.8 44.7 43.7 42.5 47.5 46.4 45.3
K.W 6.11 6.04 5.91 6.57 6.49 6.38 4.41 4.34 4.27
95
T.C. 62.8 59.1 53.5 63.5 60.0 55.0 64.3 60.8 56.5
S.C. 41.8 40.7 38.6 44.6 43.5 41.5 47.5 46.2 44.4
K.W 6.21 6.12 5.94 6.63 6.53 6.39 6.45 6.33 6.23
105
T.C. 60.6 55.3 49.3 61.5 56.6 50.7 62.4 58.0 52.2
S.C. 40.9 39.4 36.8 44.0 42.4 39.8 47.1 45.3 42.9
K.W 6.92 6.74 6.57 7.38 7.22 7.05 7.24 7.10 6.93
115
T.C. 58.5 51.5 45.1 59.6 53.3 46.5 60.6 55.1 47.9
S.C. 40.1 38.2 35.0 43.4 41.3 38.2 46.8 44.4 41.4
K.W 7.03 6.76 6.59 7.44 7.22 7.02 7.25 7.08 6.84
125
T.C. 52.9 47.7 40.4 54.2 48.5 41.9 55.5 49.4 43.5
S.C. 38.7 36.7 32.8 42.0 39.4 35.8 45.4 42.1 38.9
K.W 7.31 7.09 6.84 7.78 7.53 7.29 7.64 7.36 7.13
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
NAHD2093 G2FD060S24 1.00 1.00 1.00
F2RP060N93 1.00 1.00 1.00
036-21103-003 Rev. A (0403)
14 Unitary Products Group
MATCHING INDOOR COMPNENTS
G2FD*
MULTI-POSITION
(UPFLOW, HORIZONTAL
AND DOWNFLOW)
N1AH
MODULAR
BLOWER
F2RP
FAN COIL UNITS
(UPFLOW, HORIZONTAL)
G2FD*
COIL
P6UH
FURNACE
ADD-ON COILS - FOR FURNACE APPLICATION
AIR HANDLERS
036-21103-003 Rev. A (0403)
Unitary Products Group 15
NOTES
Subject to change without notice. Printed in U.S.A. 036-21103-003 Rev. A (0403)
Copyright © by York International Corp. 2003. All rights reserved. Supersedes: 036-21103-002 Rev. A (1101)
Unitary 5005 Norman
Product York OK
Group Drive 73069

Navigation menu
