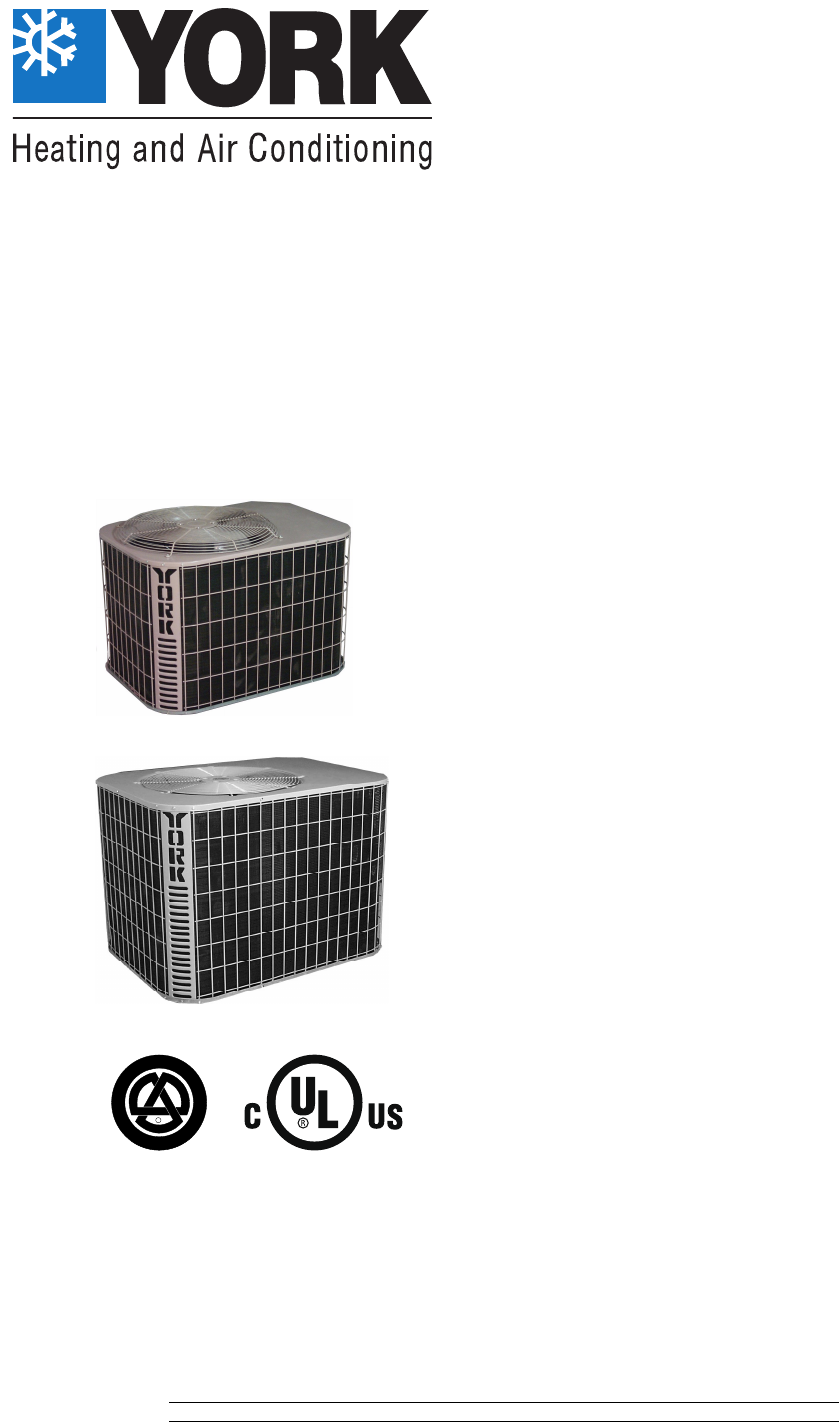

TECHNICAL GUIDE
SPLIT-SYSTEM AIR CONDITIONERS
10 SEER
MODELS:
H*RA018 THRU 060
(1.5 THRU 5 NOMINAL TONS, 1 PH)
H*RA036 THRU 090
(3 THRU 7.5 NOMINAL TONS, 3 PH)
MODELS: 018 - 060 (1 PH & 3 PH)
MODELS: 076 - 090 (3 PH)
Due to continuous product improvement, specifica-
tions are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
R
N
E
M
P
I
U
Q
E
T
Y
R
A
T
I
N
U
0
1
2
ARI
R
A
D
N
A
T
S
D
I
S
N
O
T
C
E
S
F
O
C
C
I
F
I
T
R
E
N
O
I
T
A
H
T
I
W
C
G
N
I
Y
L
P
M
O
S
A
I
R
A
O
T
D
E
I
F
I
T
R
E
C
R
E
R
U
T
C
A
F
U
N
A
M
C
-
G
N
I
N
O
I
T
I
D
N
O
R
I
A
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE
SYSTEM IS LISTED
WITH ARI.
LISTED
®
036-21121-002 Rev. A (0602)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The 10 SEER Series condensing unit is the outdoor part of a
versatile system of air conditioning. It is designed to be cus-

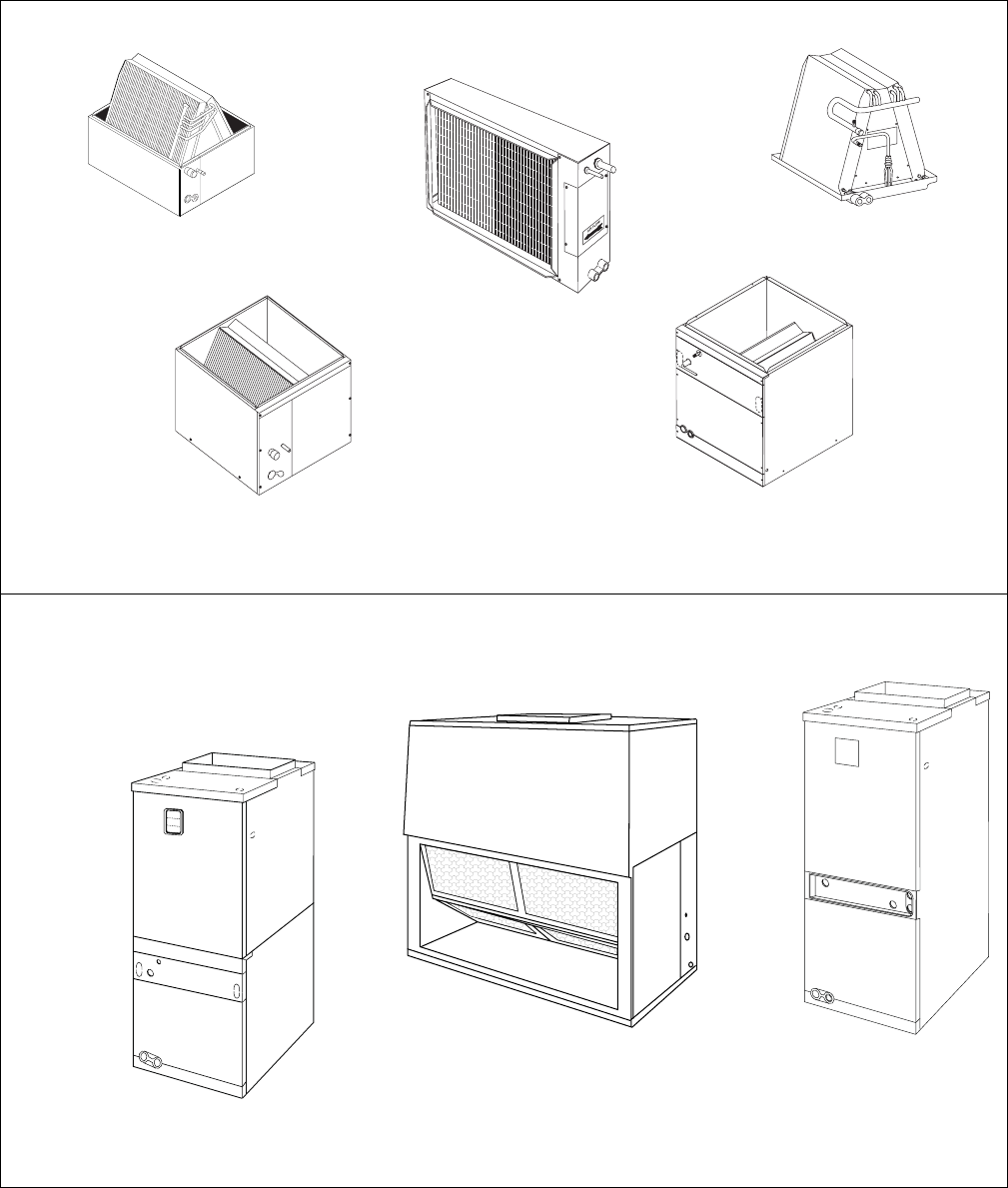

tom-matched with one of UPG’s complete line of evaporator
sections, each designed to serve a specific function. Match-
ing Air Handlers are available for upflow, downflow or hori-
zontal applications to provide a complete system. Electric
Heaters are available if required. Add-On coils are available
for use with upflow, downflow or horizontal furnaces and air
handlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
5-year limited compressor warranty.
Three Phase Units:
1-year limited parts warranty.
5-year limited compressor warranty.
FEATURES
•QUALITY CONDENSER COILS - The coil is constructed
of enhanced copper tube and aluminum fins.
•COIL PROTECTION - Coils are protected from damage by
a polymer mesh applied between the coil face, and a PVC
coated steel coil guard.
•PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure and temperature.
This is accomplished by the simultaneous operation of
high pressure relief valve and a temperature sensor which
protects the compressor if undesirable operating condi-
tions occur. A liquid line filter-drier further protects the
compressor.
•DURABLE FINISH - The cabinet is made of pre-painted
steel. The pre-treated flat galvanized steel provides a bet-
ter paint to steel bond, which resists corrosion and rust
creep. Special primer formulas and matted desert sand fin-
ish insure less fading when exposed to sunlight.
•LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connec-
tions. Discharge line heat exchanger knockouts are pro-
vided, if required. Available in sweat connect models only.
The unit contains enough refrigerant for matching indoor
coils and 15 feet of interconnecting piping. The small base
dimension means less space is required on the ground or
roof.
•TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
•LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins
of the condenser coil muffle the normal fan motor and
compressor operating sounds.
•LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
•EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, a single panel covering the electrical controls
and the molex plug in the control box connecting the con-
denser fan, make for easy servicing of the unit.
•SECURED SERVICE VALVES - Secured re-usable ser-
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
•U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
036-21121-002 Rev. A (0602)
2Unitary Products Group
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker.
3. All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
4.The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or sub-
tract the amount of refrigerant, using the difference in length multiplied by the per foot valve.
Physical and Electrical Data - 1 Phase
MODEL H1RA018S06 H1RA024S06 H2RA030S06 H2RA036S06 H1RA042S06 H1RA048S06 H3RA060S06
Unit Supply Voltage 208/230 – 1 – 60
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 12.5 15.6 17.5 21.5 26.1 30.1 37.3
Max. Overcurrent Device Amps 220 25 30 35 40 45 60
Compressor Type 3Recip Recip Recip Recip Recip Recip Scroll B
Compressor Amps Rated Load 9.6 12.1 13.6 16.1 19.8 23 28.8
Locked Rotor 54 57 73 82 97 110 160
Crankcase Heater No No No No No No No
Fan Motor Amps Rated Load 0.5 0.5 0.5 1.4 1.4 1.3 1.3
Fan Diameter Inches 18 18 18 18 18 22 22
Fan Motor
Rated HP 1/12 1/12 1/12 1/4 1/4 1/4 1/4
Nominal RPM 1,100 1,100 1,100 1,100 1,100 850 850
Nominal CFM 1,850 1,850 1,900 2,750 2,750 3,250 3,300
Coil
Face Area Sq. Ft. 8.00 8.00 9.15 9.15 12.58 15.72 15.72
Rows Deep 1111111
Fin / Inches 14 14 18 18 18 18 22
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 5/8 5/8 3/4 3/4 3/4 7/8 7/8
Unit Charge (Lbs. - Oz.) 43 - 6 3 - 11 3 - 14 3 - 15 5 - 4 7 - 5 6 - 2
Charge Per Foot, Oz. 40.66 0.66 0.68 0.68 0.68 0.70 .070
Operating Weight Lbs. 118 123 135 137 161 176 188
Physical and Electrical Data - 3 Phase
MODEL H1RA
036S25
H1RA
042S25
H1RA
048S25
H1RA
060S25
H1RA
076S25
H1RA
090S25
H1RA
036S25
H1RA
042S46
H1RA
048S46
H1RA
060S46
H1RA
076S46
H1RA
090S46
Unit Supply Voltage 208/230 – 3 – 60 460 - 3 - 60
Normal Voltage Range 1187 to 252 432 to 504
Minimum Circuit Ampacity 15.0 17.4 17.3 21.3 25.8 37.7 8.0 8.4 8.3 10.8 13.0 18.1
Max. Overcurrent Device Amps 2 25 30 30 35 40 50 15 15 15 15 20 25
Compressor Type 3 Recip Recip Recip ScrollBScrollBDual Recip Recip Recip ScrollBScrollBDual
Compressor Amps Rated Load 10.9 12.8 11.7 16.0 18.9 29.4 5.8 6.1 6.1 8.0 9.5 14.0
Locked Rotor 78 78 78 125 146 260 40 39 39 67 73 128
Crankcase Heater No No No No No Yes No No No No No Yes
Fan Motor Amps Rated Load 1.4 1.4 1.3 1.3 2.2 4.6 .8 .8 .7 .8 1.2 2.3
Fan Diameter Inches 18 18 22 22 24 24 18 18 22 22 24 24
Fan Motor
Rated HP 1/4 1/4 1/4 1/4 1/3 3/4 1/4 1/4 1/5 1/4 1/3 3/4
Nominal RPM 1,100 1,100 850 850 1100 1100 1,100 1,100 850 850 1100 1100
Nominal CFM 2,750 2,750 3,250 3,450 4000 5000 2,750 2,750 3,250 3,450 4000 5000
Coil
Face Area Sq. Ft. 9.15 12.58 15.72 23.58 18.0 22.5 9.15 12.58 15.72 23.58 18.0 22.5
Rows Deep 111122111122
Fin / Inches 18 18 18 18 16 16 18 18 18 18 16 16
Liquid Line OD 3/8 3/8 3/8 3/8 1/2 1/2 3/8 3/8 3/8 3/8 1/2 1/2
Vapor Line OD 3/4 3/4 7/8 7/8 1-1/8 1-1/8 3/4 3/4 7/8 7/8 1-1/8 1-1/8
Unit Charge (Lbs. - Oz.) 43 - 15 5 - 4 7 - 5 9 - 7 12-3 15-3 3 - 15 5 - 4 7 - 5 9 - 7 12-3 15-3
Charge Per Foot, Oz.4.68 .68 .70 .70 1.26 1.26 .68 .68 .70 .70 1.26 1.26
Operating Weight Lbs. 170 176 206 228 219 368 170 176 206 228 219 368
036-21121-002 Rev. A (0602)
Unitary Products Group 3
COOLING CAPACITY - With Air Handler Coils
UNIT MODEL
AIR HANDLER
COIL1
MODEL
COOLING
MODEL ELECTRIC2
HEAT KW WRATED
CFM
NET MBH SEER
W/O TXV
SEER
+ TXV3EER
TOTAL SENS.
1 PH 10 SEER AC WITH N1AH / G2FD
H1RA018S06 N1AHB0806 2,5,8,10 17 G2FD024S17 650 19.0 14.1 10.50 - 9.80
H1RA024S06 N1AHB0806 2,5,8,10 17 G2FD024S17 800 24.4 18.1 10.50 - 9.55
N1AHB0806 2,5,8,10 17 G2FD030S17 850 25.0 18.5 10.60 - 9.65
H2RA030S06 N1AHB1206 5,8,10,15,19 17 G2FD030S17 1000 29.0 21.5 10.30 - 9.45
N1AHB1206 5,8,10,15,19 17 G2FD036S17 1000 30.0 22.2 10.50 - 9.65
H2RA036S06 N1AHB1206 5,8,10,15,19 17 G2FD036S17 1200 33.8 25.0 10.00 - 9.20
N1AHB1206 5,8,10,15,19 17 G2FD046S17 1200 34.4 25.5 10.15 - 9.30
H1RA042S06 N1AHC1606 5,8,10,15,20 21 G2FD042S21 1400 39.5 29.2 10.00 - 9.00
N1AHC1606 5,8,10,15,20 21 G2FD048S21 1450 41.0 30.3 10.10 - 9.15
H1RA048S06 N1AHC1606 5,8,10,15,20 21 G2FD048S21 1600 46.0 34.0 10.10 - 9.50
N1AHD2006 8,10,15,20,25,30 24 G2FD060S24 1600 47.0 34.8 10.40 - 9.70
H3RA060S06 N1AHD2006 8,10,15,20,25,30 24 G2FD060S24 1800 56.0 40.2 10.50 - 9.35
3 PH 10 SEER AC WITH N1AH / G2FD
H1RA036 S(25,46) N1AHB1246 10,15 21 G2FD036S17 1200 33.8 25.0 10.00 - 9.20
N1AHB1246 10,15 21 G2FD042S21 1400 40.0 30.1 10.00 9.05
H1RA042S(25,46) N1AHC1646 10,15 21 G2FD042S21 1400 39.5 29.2 10.00 - 9.00
N1AHC1646 10,15 24 G2FD048S21 1450 41.0 30.3 10.10 - 9.15
H1RA048S(25,46)
N1AHC1646 10,15 21 G2FD048S21 1600 46.0 34.0 10.10 - 9.50
N1AHD2046 10,15,29 24 G2FD048S24 1600 24.6 34.0 10.10 - 9.50
N1AHD2046 10,15,29 24 G2FD048S24 1600 46.0 34.0 10.10 - 9.50
H1RA060S(25,46) N1AHD2046 10,15,29 24 G2FD060S24 1750 58.5 39.8 10.00 - 10.25
1 PH 10 SEER AC / F2RP / RC / FC 4,5
H1RA018S06
F2RC/F2FC024 5,8,10 18 - 650 17.4 12.9 10.00 - 9.00
F2RP/F2FP018 2,5,8 18 - 650 17.4 12.3 10.00 - 9.00
F2RP/F2FP024 5,8,10 18 - 650 17.4 12.9 10.00 - 9.00
H1RA024S06 F2RP/F2FP024 5,8,10 18 - 800 23.4 17.3 10.00 - 9.00
F2RP/F2FP030 5,8,10,15 18 - 800 23.6 17.5 10.00 - 9.10
H2RA030S06 F2RP/F2FP030 5,8,10,15 18 - 1000 28.4 21.0 10.00 - 9.50
F2RP/F2FP036 5,8,10,15,19 21 - 1000 28.0 20.0 10.00 - 9.00
H2RA036S06
F2RC/F2FC036 5,8,10,15 21 - 1200 33.6 21.5 10.00 - 9.10
F2RP/F2FP036 5,8,10,15,19 21 - 1200 34.4 25.2 10.20 - 9.30
F2RP/F2FP042 5,8,10,15 21 - 1200 34.4 25.2 10.15 - 9.20
H1RA042S06 F2RP/F2FP042 5,8,10,15 21 - 1400 39.5 28.9 10.00 - 9.00
F2FP048 5,8,10,15,20,25 24 - 1400 40.5 30.0 10.00 - 9.20
H1RA048S06 F2FP048 5,8,10,15,20,25 24 - 1600 45.5 33.7 10.00 - 9.15
F2FP060 5,8,10,15,20,25 24 - 1600 46.5 34.4 10.00 - 9.70
H3RA060S06 F2FP060 5,8,10,15,20,25 24 - 1800 56.0 41.0 10.00 - 9.15
3 PH 10 seer AC with F2RP / FP
H1RA036 S(25,46) F2RC/F2FC036 5,8,10,15 21 - 1200 33.6 25.2 10.00 - 9.10
H1RA042S(25,46) F2RP/F2FP042 5,8,10,15 21 - 1400 39.0 29.2 10.00 - 9.00
F2FP048 5,8,10,15,20,25 24 - 1400 40.5 30.4 10.00 - 9.00
H1RA048S(25,46) F2FP048 5,8,10,15,20,25 24 - 1600 45.5 33.7 10.00 - 9.15
H1RA060S(25,46) F2FP060 5,8,10,15,20,25 24 - 1750 58.5 39.8 10.00 - 9.80
3 PH 10 seer AC WITH K4EV 6
H1RA076S25,46 K4EV090 10,16,26,36 22 -- 2600 73.5 -- -- -- 10.00
H1RA090S25,46 K4EV090 10,16,26,36 22 -- 3280 53.8/
89.0 -- -- -- 9.63/
9.30
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210/240.
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at a 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1 G2FD coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2 Single phase units require single phase 2HK heaters. Three phase units require three phase 2HK heaters.
3 TXV = Use 1TV700 Series Kit.
4 To meet R=4.2 insulation requirements, substitute F2FP for F2RP, and F2FC for F2RC. models. All ratings remain the same.
5 FG8, FG9, and FL8 furnaces and F2RP / F2RC air handlers have B.O.D (Blower on Delay) standard.
6 H*BA-(T,W)090 is field convertible to two stage operation. Its IPLV = 11.2.
— = Not Applicable.
036-21121-002 Rev. A (0602)
4Unitary Products Group
COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils
UNIT MODEL
FURNACE** COIL
MODEL
COOLING
CFM RANGE
(MIN.-MAX.) WRATED
CFM
NET MBH SEER + TXV
W/O TDR
SEER + TXV1
+ TDR* EER
TOTAL SENS.
H1RA018S06 575
725
14,17 G1FA024S14,17 650 18.0 13.3 10.00 - 9.20
14 G1FA030S14 650 19.0 14.1 10.50 - 9.80
- G1HD024 655 18.5 13.7 10.50 - 10.00
17 G1NA024S17G 650 18.0 12.5 10.00 - 9.40
14,17 G1UA024S14,17 650 18.0 13.3 10.00 - 9.20
14 G1UA030S14 650 19.0 14.1 10.50 - 9.80
14,17 G2FD024S14,17 650 19.0 14.1 10.50 - 9.80
17 G2FD030S17 650 19.4 14.4 10.50 - 9.90
14 G2FD035S14 650 19.4 14.4 10.50 - 9.90
H1RA024S06 700
900
14,17 G1FA024S14,17 850 23.8 17.6 10.00 - 9.15
14 G1FA030S14 800 24.4 18.1 10.50 - 9.55
14 G1FA036S14 800 24.0 18.1 10.00 - 9.00
17,21 G1FA036S17,21 850 25.0 18.5 10.00 - 8.95
- G1HD024 820 23.2 17.2 10.00 - 8.80
- G1HD036 800 24.4 18.1 10.60 - 9.80
17 G1NA030S17H 800 23.6 17.5 10.00 - 9.00
21 G1NA030S21B 800 23.6 17.5 10.00 - 9.00
14,17 G1UA024S14,17 850 23.8 17.6 10.00 - 9.15
14 G1UA030S14 800 24.4 18.1 10.50 - 9.55
14 G1UA036S14 800 24.0 18.5 10.00 - 9.00
17,21 G1UA036S17,21 850 25.0 18.5 10.00 - 8.95
14,17 G2FD024S14,17 800 24.4 18.5 10.50 - 9.55
17 G2FD030S17 850 25.0 18.5 10.60 - 9.65
14 G2FD035S14 850 25.0 18.9 10.60 - 9.65
17 G2FD036S17 850 25.6 18.9 10.70 - 9.70
H2RA030S06 875
1125
14 G1FA030S14 1000 28.0 20.7 10.00 - 9.30
14 G1FA036S14 1000 29.2 20.3 10.25 - 9.40
17,21 G1FA036S17,21 1000 29.0 21.5 10.45 - 9.45
- G1HD036 1000 29.6 21.9 10.00 - 9.55
17 G1NA030S17K 1000 29.0 20.4 10.00 - 9.30
21 G1NA030S21M 1050 29.0 20.4 10.00 - 9.20
14 G1UA036S14 1000 29.2 20.3 10.25 - 9.40
17,21 G1UA036S17,21 1000 29.0 21.5 10.45 - 9.45
17 G2FD030S17 1000 29.0 21.5 10.30 - 9.45
14 G2FD035S14 1000 29.0 21.5 10.30 - 9.45
21 G2FD036S21 1000 30.0 22.2 10.50 - 9.65
H2RA036S06 1050
1350
14 G1FA036S14 1200 33.6 24.9 10.00 - 9.10
17,21 G1FA036S17,21 1200 33.6 24.9 10.00 - 9.10
17 G1FA048S17 1200 35.0 25.9 10.30 - 9.40
21,24 G1FA048S21,24 1200 36.0 26.6 10.40 - 9.40
- G1HD036 1200 34.4 25.5 10.00 - 8.90
- G1HD048 1165 34.8 25.8 10.00 - 8.95
17 G1NA036S17J 1200 34.4 25.5 10.00 - 9.20
21 G1NA036S21C 1200 34.4 25.5 10.00 - 9.30
14 G1UA036S14 1200 33.6 24.9 10.00 - 9.10
17,21 G1UA036S17,21 1200 33.6 24.9 10.00 - 9.10
17 G1UA048S17 1200 35.0 25.9 10.30 - 9.40
21,24 G1UA048S21,24 1200 36.0 26.6 10.40 - 9.40
14 G2FD035S14 1200 33.4 24.7 10.00 - 9.10
17 G2FD036S17 1200 33.8 25.0 10.00 - 9.20
21 G2FD036S21 1200 33.8 25.0 10.00 - 9.20
21 G2FD042S21 1200 34.4 25.5 10.15 - 9.30
17 G2FD046S17 1200 34.4 25.5 10.15 - 9.30
For Notes See Page 5.
036-21121-002 Rev. A (0602)
Unitary Products Group 5
*Requires a 2FD Blower Time Delay unless a standard furnace is equipped with one.
** Refer to Quick Selection Chart for specific furnace match-up.
*** This coil is for upflow application only.
H1RA036S25,46 1050
1350
17,21 G1FA036S17,21 1200 33.6 24.9 10.00 - 9.10
21,24 G1FA048S21,24 1200 36.0 26.6 10.40 - 9.40
17 G1NA036S17J 1200 34.4 25.5 10.00 - 9.20
21 G1NA036S21C 1200 34.4 25.5 10.00 - 9.30
17,21 G1UA036S17,21 1200 33.6 24.9 10.00 - 9.10
21,24 G1UA048S21,24 1200 36.0 26.6 10.40 - 9.40
17 G2FD036S17 1200 33.8 25.0 10.00 - 9.20
21 G2FD036S21 1200 33.8 25.0 10.00 - 9.20
H1RA042S06 1225
1575
17 G1FA048S17 1380 40.0 30.2 10.00 - 9.05
21,24 G1FA048S21,24 1400 41.0 30.3 10.00 - 9.25
21,24 G1FA060S21,24 1400 42.0 31.0 10.00 - 9.45
- G1HD048 1390 40.5 30.0 10.00 - 9.05
21 G1NA036S21C 1400 40.0 28.3 10.00 - 9.15
21 G1NA048S21D 1400 40.5 28.6 10.00 - 9.15
17 G1UA048S17 1380 40.0 30.2 10.00 - 9.05
21,24 G1UA048S21,24 1400 41.0 30.3 10.00 - 9.25
21,24 G1UA060S21,24 1400 42.0 31.1 10.00 - 9.45
21 G2FD042S21 1400 39.5 29.2 10.00 - 9.00
17 G2FD046S17 1380 40.0 29.6 10.00 - 9.05
21,24 G2FD048S21,24 1450 41.0 30.3 10.10 - 9.15
24 G2FD060S24 1450 42.0 31.0 10.10 - 9.50
H1RA042S25,46 1225
1575
21,24 G1FA048S21,24 1400 41.0 30.3 10.00 - 9.25
21,24 G1FA060S21,24 1400 42.0 31.0 10.00 - 9.45
21 G1NA036S21C 1400 40.0 28.3 10.00 - 9.15
21 G1NA048S21D 1400 40.5 28.6 10.00 - 9.15
21,24 G1UA048S21,24 1400 41.0 30.3 10.00 - 9.25
21,24 G1UA060S21,24 1400 42.0 31.1 10.00 - 9.45
21 G2FD042S21 1400 39.5 29.2 10.00 - 9.00
17 G2FD046S17 1380 40.0 29.6 10.00 - 9.05
21,24 G2FD048S21,24 1450 41.0 30.3 10.10 - 9.15
H1RA048S06 1400
1800
17 G1FA048S17 1500 44.5 33.5 10.00 - 9.15
21,24 G1FA048S21,24 1600 45.5 33.7 10.00 - 9.45
21,24 G1FA060S21,24 1600 47.0 34.8 10.40 - 9.70
- G1HD048 1600 45.5 33.7 10.00 - 9.50
- G1HD060 1600 46.5 34.4 10.20 - 9.65
21 G1NA048S21D 1400 46.5 34.4 10.00 - 9.50
17 G1UA048S17 1500 44.5 33.5 10.00 - 9.15
21,24 G1UA048S21,24 1600 45.5 33.7 10.00 - 9.45
21,24 G1UA060S21,24 1600 47.0 34.8 10.40 - 9.70
17 G2FD046S17 1500 44.5 32.9 10.00 - 9.15
21,24 G2FD048S21,24 1600 46.0 34.0 10.10 - 9.50
24 G2FD060S24 1600 47.0 34.0 10.40 - 9.70
H1RA048S25,46 1400
1800
21,24 G1FA048S21,24 1600 45.5 33.5 10.00 - 9.45
21 G1NA048S21D 1400 46.5 34.4 10.00 - 9.50
21,24 G1UA048S21,24 1600 45.5 33.5 10.00 - 9.45
21,24 G2FD048S21,24 1600 46.0 34.0 10.10 - 9.50
H3RA060S06 1600
2100
21,24 G1FA060S21,24 1800 56.0 40.2 10.50 - 9.35
- G1HD060 2000 55.5 40.0 10.50 - 9.15
21 G1NA048S21D 1500 51.0 34.8 10.00 - 8.90
24 G1NA060S24T 1800 55.0 39.8 10.50 - 9.25
21,24 G1UA060S21,24 1800 56.0 40.2 10.50 - 9.35
24 G2FD060S24 1800 56.0 40.2 10.50 - 9.35
24 G2FD061H24 2000 57.0 40.9 10.50 - 9.35
H1RA060S25,46 1525
1975
21,24 G1FA060S21,24 1750 58.5 39.8 10.00 - 10.25
24 G1NA060S24T 1750 57.5 39.1 10.00 - 10.00
21,24 G1UA060S21,24 1750 58.5 39.8 10.00 - 10.25
24 G2FD060S24 1750 58.5 39.8 10.00 - 10.25
H1RA076S25,46 2500-3000 35 G2FD090S35*** 3200 73.5 52.9 -- -- 10.00
H1RA090S25,46 2500-3000 35 G2FD090S35*** 4000 90.0 64.8 -- -- 9.35
1 TXV = Use 1TV700 Series Kit.
COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils (Continued)
UNIT MODEL
FURNACE** COIL
MODEL
COOLING
CFM RANGE
(MIN.-MAX.) WRATED
CFM
NET MBH SEER + TXV
W/O TDR
SEER + TXV1
+ TDR* EER
TOTAL SENS.
036-21121-002 Rev. A (0602)
6Unitary Products Group
NOTES:
1. For condensing unit only. Does not include effect of evaporator motor power or heat.
2. Performance based on 15° superheat and 15° sub-cooling at condensing unit.
a. Increase capacity 1% for each 2° increase in sub-cooling.
b. Decrease capacity 1% for each 2° decrease in sub-cooling.
3. Sub-cooling in excess of 20° may result in excessively high condensing temperature with air on condenser above 115°F.
Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE
MODEL
SUCT. T/P
@ COMPR.
AIR TEMP ON CONDENSER
MODEL
SUCT. T/P
@ COMPR.
AIR TEMP ON CONDENSER
75°F95°F115°F75°F95°F115°F
TEMP. PSIG MBH KW MBH KW MBH KW TEMP. PSIG MBH KW MBH KW MBH KW
H1RA018S06
35 61.5 16.2 1.66 13.1 1.84 11.0 1.96
H1RA048S06
H1RA048S(25,46)
35 61.5 39.9 4.18 32.3 4.63 27.0 4.94
40 68.5 17.7 1.67 14.9 1.88 12.8 2.04 40 68.5 43.6 4.21 36.7 4.73 31.4 5.14
45 76.0 19.3 169 16.7 1.92 14.2 2.11 45 76.0 47.6 4.26 41.1 4.84 34.9 5.32
50 84.0 20.8 1.70 18.5 1.96 15.9 2.18 50 84.0 51.1 4.28 45.5 4.94 39.0 5.48
H1RA024S06
35 61.521.02.2317.02.4614.22.63
H3RA060S06
35 61.5 49.4 4.15 43.8 5.13 38.2 6.34
40 68.5 22.9 2.24 19.3 2.52 16.5 2.74 40 68.5 54.0 4.19 48.2 5.14 42.3 6.35
45 76.0 25.0 2.27 21.6 2.58 18.3 2.83 45 76.0 58.4 4.27 52.4 5.25 46.3 6.47
50 84.0 26.8 2.28 23.9 2.63 20.5 2.92 50 84.0 62.7 4.32 56.9 5.38 50.2 5.61
H2RA030S06
35 61.525.12.6820.32.9717.03.17
H1RA060S(25,46)
35 61.5 54.4 4.46 50.5 4.74 46.3 5.08
40 68.5 27.4 2.70 23.1 3.04 19.7 3.30 40 68.5 60.1 4.44 56.0 4.83 51.6 5.18
45 76.0 29.9 2.74 25.8 3.10 21.9 3.41 45 76.0 65.8 4.53 61.6 4.92 56.9 5.26
50 84.0 32.1 2.75 28.6 3.17 24.5 3.51 50 84.0 71.9 4.62 67.5 5.01 62.6 5.36
H2RA036S06
H1RA036 S(25,46)
35 61.530.53.2824.73.6420.63.88
H1RA076S(25,46)
35 61.5 77.4 5.06 63.4 6.08 50.6 7.35
40 68.5 33.3 3.31 28.1 3.72 24.0 4.04 40 68.5 84.5 5.21 69.2 6.23 55.4 7.49
45 76.0 36.4 3.35 31.4 3.80 26.7 4.18 45 76.0 91.8 5.37 75.3 6.38 60.3 7.64
50 84.0 39.1 3.36 34.8 3.88 29.9 4.31 50 84.0 99.4 5.54 81.7 6.55 65.6 7.80
H1RA042S06
H1RA042S(25,46)
35 61.535.83.8328.94.2524.24.53
H1RA090S(25,46)
35 61.5 84.0 8.28 72.9 9.11 61.7 9.87
40 68.5 39.1 3.86 32.9 4.34 28.2 4.72 40 68.5 92.5 8.50 80.8 9.41 68.9 10.26
45 76.0 42.6 3.90 36.8 4.53 31.3 4.87 45 76.0 101.3 8.73 89.0 9.72 76.5 10.66
50 84.0 45.8 3.93 40.8 4.63 35.0 5.03 50 84.0 110.4 8.95 97.5 10.03 84.4 11.08
C
A
B

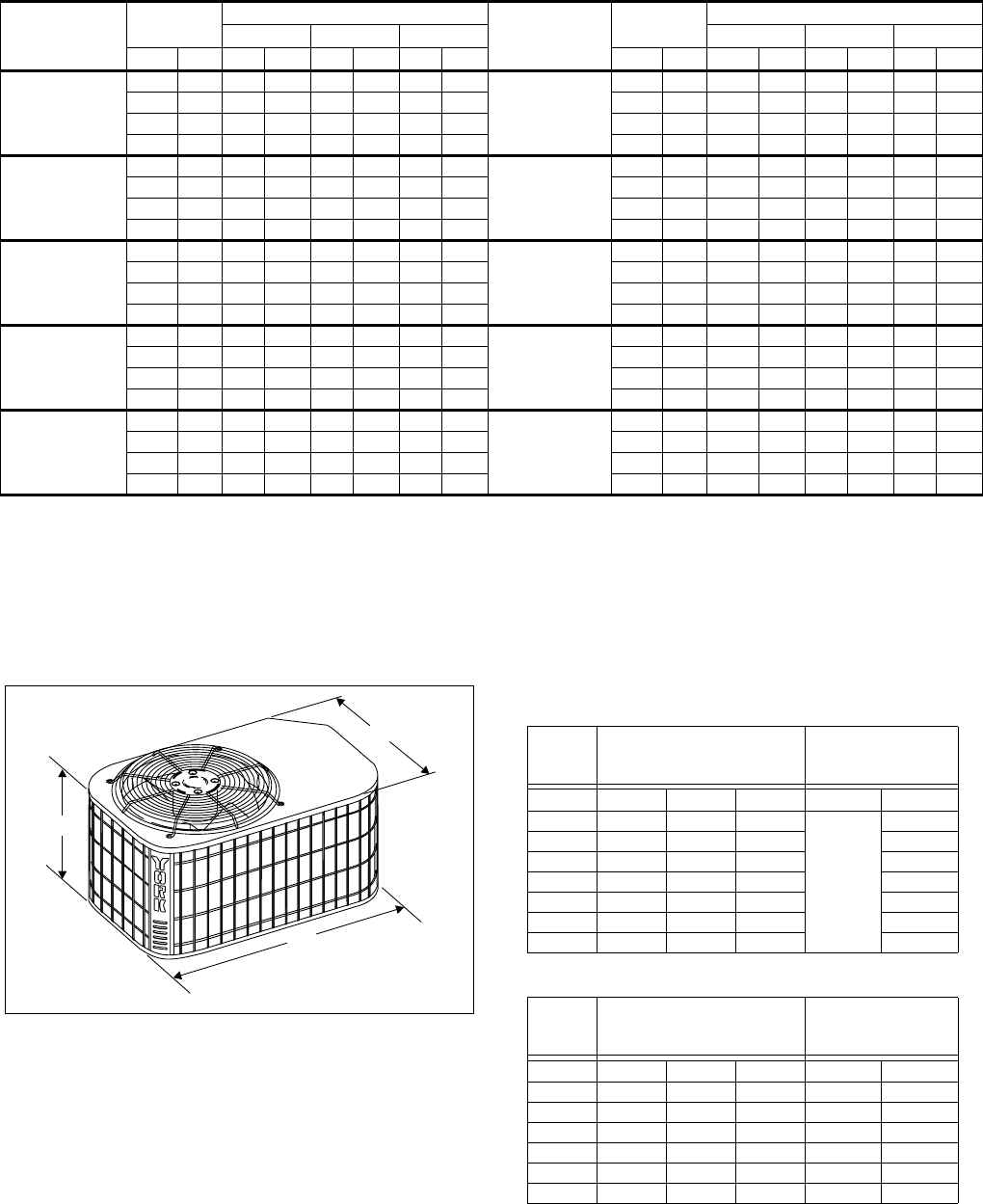

DIMENSIONS - 1 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A 1B C Liquid Vapor
018 17 35 23
3/8”
5/8”
024 17 35 23 5/8”
030 19 35 23 3/4”
036 19 35 23 3/4”
042 25 35 23 3/4”
048 27 37 27 7/8”
060 27 37 27 7/8”
DIMENSIONS - 3 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A1
1 Including Fan guard.
B C Liquid Vapor
036 19 35 23 3/8” 3/4
042 25 35 23 3/8 3/4
048 27 37 27 3/8” 7/8
060 39 37 27 3/8” 7/8
076 26 43 32 1/2 1-1/8
090 32 43 32 1/2 1-1/8
036-21121-002 Rev. A (0602)
Unitary Products Group 7
ACCESSORIES*
Refer to Price Manual for specific model numbers.
Hard Start Kit - Provides increased starting torque for areas
with low voltage.
Compressor Blanket - Designed to further reduce the nor-
mal compressor operating sound. Refer to price pages for
specific match-ups.
Off Cycle Timer Delay - Provides a 5-minute off cycle to pre-
vent rapid recycling of the compressor.
Room Thermostats - A wide selection of compatible thermo-
sets are available to provide optimum performance and fea-
tures for any installation.
1 Heat Stage only, manual, mechanical thermostat. Add sub-
base for 1H/1C.
1H/1C, manual change-over electronic non-programmable
thermostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the
price book or consult factory.
SOUND RATINGS*
*Rated in accordance with ARI Standard 270.
TYPICAL INSTALLATION
UNIT MODEL
SOUND
RATINGS
DECIBELS
018 7.6
024 7.8
030 8.2
036 8.2
042 8.2
048 8.2
060 8.0
076 --
090 9.0

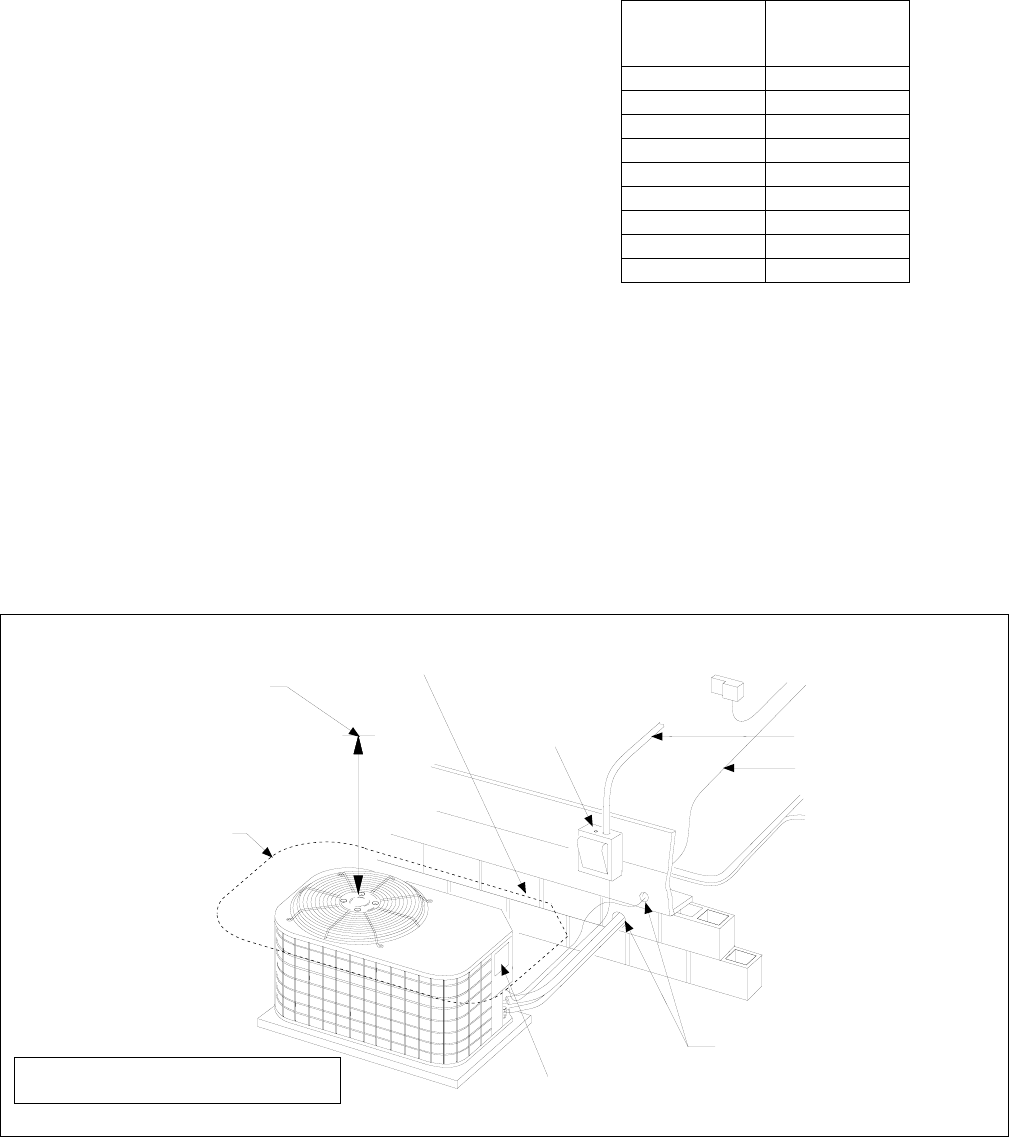

MINIMUM 18” SERVICE ACCESS
CLEARANCE ON ONE SIDE
60” OVERHEAD
CLEARANCE
10” CLEARANCE
COIL AREA
WEATHERPROOF
DISCONNECT
SWITCH
THERMOSTAT TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO INDOOR COIL
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
CONTROL ACCESS PANEL
NOTE: ALL OUTDOOR WIRING MUST
BE WEATHERPROOF.
036-21121-002 Rev. A (0602)
8Unitary Products Group

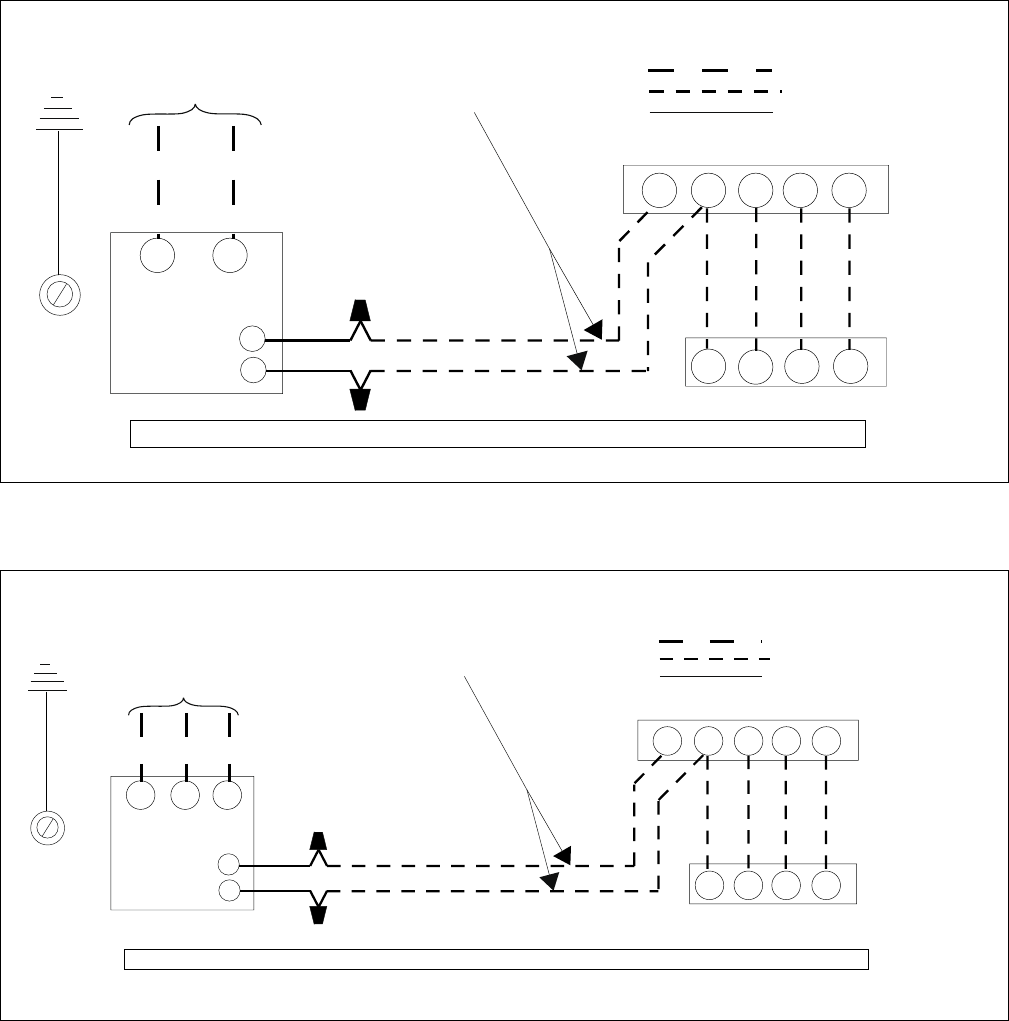

TYPICAL FIELD WIRING - 1 Phase Application
TYPICAL FIELD WIRING - 3 Phase Application
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
208/230-1-60
230-1-50
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
208/230-3-60
460-3-60
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
036-21121-002 Rev. A (0602)
Unitary Products Group 9
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA018S06
INDOOR COIL MODEL NO. G1FA024S14,17
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 550 650 750
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 20.6 19.7 18.1 20.7 19.8 18.5 20.8 19.8 18.9
S.C. 12.7 12.8 12.3 13.3 13.5 13.4 13.7 13.8 14.0
K.W 1.68 1.65 1.64 1.72 1.71 1.70 1.75 1.74 1.73
85
T.C. 20.6 19.3 17.4 20.9 19.6 18.0 21.1 19.8 18.4
S.C. 12.7 12.6 11.9 13.5 13.4 13.1 14.1 14.0 13.8
K.W 1.58 1.54 1.53 1.62 1.59 1.58 1.65 1.63 1.62
95
T.C. 19.0 17.5 15.5 19.5 18.0 16.1 19.8 18.2 16.5
S.C. 12.8 12.4 11.5 13.7 13.3 12.8 14.5 14.1 13.6
K.W 1.97 1.91 1.90 2.02 1.96 1.95 2.05 2.00 1.99
105
T.C. 18.4 16.6 14.2 18.9 17.1 15.0 19.2 17.4 15.4
S.C. 12.5 11.8 10.7 13.6 12.8 12.0 14.4 13.7 12.8
K.W 1.82 1.77 1.75 1.88 1.82 1.80 1.91 1.86 1.83
115
T.C. 16.3 14.5 11.9 16.9 15.0 12.7 17.2 15.2 13.1
S.C. 12.3 11.2 10.0 13.5 12.4 11.2 14.3 13.2 12.0
K.W 2.24 2.19 2.14 2.31 2.24 2.19 2.35 2.28 2.22
125
T.C. 14.3 12.3 9.7 14.9 13.0 10.5 15.2 13.1 10.8
S.C. 12.0 10.6 9.3 13.3 11.9 10.4 14.2 12.8 11.2
K.W 2.66 2.61 2.53 2.74 2.66 2.58 2.79 2.70 2.61
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM
Air Handler Coil T.C. S.C. KW
N1AHB0806 G2FD024S17 1.06 1.06 0.99
F2RC/F2FC024 0.97 0.97 0.99
G1FA030S14 1.06 1.06 0.99
G1HD024 1.03 1.03 0.95
G1NA024S17G 1.00 0.94 0.98
G1UA024S14,17 1.00 1.00 1.00
G1UA030S14 1.06 1.06 0.99
G2FD024S14,17 1.06 1.06 0.99
G2FD030S17 1.08 1.08 1.00
G2FD035S14 1.08 1.08 1.00
036-21121-002 Rev. A (0602)
10 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA024S06
INDOOR COIL MODEL NO. G1FA024S14, 17
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 600 800 1000
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 28.3 25.9 22.7 21.4 28.7 25.1 24.4 21.8 27.5 26.6 24.5 20.9
S.C. 16.9 16.9 15.4 17.0 17.7 16.8 17.0 17.8 17.1 18.0 17.3 17.3
K.W 2.04 1.94 1.78 1.78 2.05 1.87 1.89 1.80 1.97 1.98 1.89 1.72
85
T.C. 28.5 26.0 22.8 21.4 28.9 25.2 24.4 21.8 27.7 26.7 24.6 20.9
S.C. 17.5 17.5 16.0 17.6 18.5 17.6 17.9 18.7 18.0 19.0 18.2 18.3
K.W 2.25 2.14 1.95 1.95 2.28 2.06 2.07 1.96 2.18 2.18 2.07 1.88
95
T.C. 26.9 24.5 21.4 20.1 27.3 23.7 23.0 20.6 26.2 25.2 23.0 19.8
S.C. 17.4 17.4 15.9 17.5 18.5 17.6 17.9 18.8 18.1 19.0 18.3 18.4
K.W 2.42 2.28 2.06 2.06 2.44 2.20 2.20 2.08 2.34 2.32 2.21 1.99
105
T.C. 24.7 22.4 19.5 18.3 24.8 21.6 20.9 18.6 23.8 22.8 21.1 17.9
S.C. 16.8 16.8 15.3 16.9 17.9 16.9 17.3 17.9 17.6 18.4 17.6 17.5
K.W 2.52 2.37 2.15 2.14 2.54 2.30 2.29 2.17 2.43 2.43 2.30 2.07
115
T.C. 22.0 19.9 17.4 16.3 22.2 19.3 18.6 16.9 21.2 20.4 18.8 16.2
S.C. 15.8 15.7 14.3 15.8 17.0 16.2 16.2 16.7 16.7 17.5 16.8 16.1
K.W 2.60 2.45 2.23 2.20 2.63 2.36 2.37 2.25 2.51 2.50 2.37 2.17
125
T.C. 19.4 17.5 15.3 14.2 19.5 16.9 16.3 15.1 18.6 17.9 16.5 14.6
S.C. 14.7 14.7 13.3 14.6 16.0 15.4 15.1 15.4 15.9 16.6 15.9 14.6
K.W 2.68 2.53 2.31 2.26 2.71 2.43 2.44 2.33 2.59 2.57 2.44 2.27
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB0806 G2FD024S14,17 0.98 0.98 0.91
N1AHB0806 G2FD030S17 1.00 1.00 0.93
F2RP/F2FP024 0.94 0.94 0.93
F2RP/F2FP030 0.94 0.95 0.93
G1FA030S14 0.98 0.98 0.91
G1HD024 0.93 0.93 0.94
G1HD036 0.98 0.98 0.89
G1NA030S17H 0.94 0.95 0.94
G1NA030S21B 0.944 0.946 0.939
G1UA024S14,17 0.95 0.95 0.93
G1UA030S14 0.98 0.98 0.91
G1UA036S17,21 1.00 1.00 1.00
G2FD024S14,17 0.98 0.98 0.91
G2FD030S17 1.00 1.00 0.93
G2FD035S14 1.00 1.00 0.93
G2FD036S17 1.02 1.02 0.94
MDD30BSD 0.94 0.95 0.94
036-21121-002 Rev. A (0602)
Unitary Products Group 11
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H2RA030S06
INDOOR COIL MODEL NO. G1FA036S17,21
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 800 1000 1200
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 33.9 31.1 28.7 25.6 34.4 31.5 29.1 26.0 34.7 31.8 29.4 26.3
S.C. 20.5 20.6 19.7 20.7 21.4 21.4 20.6 21.6 22.2 22.2 21.4 22.5
K.W 2.69 2.64 2.59 2.52 2.78 2.73 2.68 2.61 2.86 2.81 2.76 2.69
85
T.C. 33.0 30.2 27.8 24.9 33.4 30.6 28.2 25.5 33.7 30.9 28.5 25.9
S.C. 20.6 20.7 19.9 20.9 21.6 21.7 20.9 22.1 22.6 22.6 21.7 23.0
K.W 2.87 2.79 2.72 2.64 2.94 2.88 2.82 2.75 3.02 2.96 2.90 2.84
95
T.C. 31.3 28.7 26.4 23.7 31.7 29.0 26.7 24.1 31.9 29.2 27.1 24.4
S.C. 20.3 20.4 19.5 20.8 21.5 21.5 20.7 21.6 22.4 22.5 21.7 22.7
K.W 3.07 2.98 2.91 2.81 3.15 3.07 3.00 2.92 3.25 3.16 3.10 2.99
105
T.C. 29.3 26.7 24.6 22.0 29.5 27.0 25.0 22.4 29.7 27.2 25.2 23.1
S.C. 19.9 19.9 19.2 20.0 21.0 21.0 20.1 21.1 22.1 22.1 21.1 22.2
K.W 3.27 3.17 3.09 2.98 3.37 3.27 3.19 3.07 3.45 3.37 3.28 3.19
115
T.C. 26.9 24.5 22.6 20.3 27.1 24.8 22.9 21.0 27.2 25.1 23.1 21.4
S.C. 19.2 19.1 18.3 19.1 20.3 20.3 19.3 20.2 21.2 21.2 20.2 20.6
K.W 3.48 3.37 3.26 3.14 3.57 3.47 3.36 3.26 3.67 3.56 3.46 3.35
125
T.C. 24.5 22.3 20.7 18.6 24.7 22.6 20.9 19.6 24.7 23.0 21.1 19.7
S.C. 18.5 18.3 17.4 18.2 19.6 19.6 18.4 19.3 20.3 20.3 19.3 19.0
K.W 3.69 3.57 3.43 3.30 3.77 3.67 3.53 3.45 3.89 3.75 3.64 3.51
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHB1206 G2FD030S17 1.00 1.00 1.00
N1AHB1206 G2FD036S17 1.03 1.03 1.01
F2RP/F2FP030 0.98 0.98 0.97
F2RP/F2FP036 0.97 0.93 1.01
G1FA030S14 0.97 0.96 0.98
G1FA036S14 1.01 0.94 1.01
G1HD036 1.02 1.02 1.01
G1NA030S17K 1.00 0.95 1.02
G1NA030S21M 1.00 0.95 1.03
G1UA036S14 1.01 0.94 1.01
G1UA036S17,21 1.00 1.00 1.00
G2FD030S17 1.00 1.00 1.00
G2FD035S14 1.00 1.00 1.00
G2FD036S21 1.03 1.03 1.01
MDD30MSD 1.00 0.95 1.03
036-21121-002 Rev. A (0602)
12 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
1 Phase 3 Phase
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H2RA036S06, H1RA036S(25,46)
INDOOR COIL MODEL NO. G1FA036S17,21
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1150 1250 1350
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 38.3 36.1 34.4 37.9 36.3 34.6 38.0 36.4 34.9
S.C. 24.0 23.7 24.0 24.1 24.5 24.7 24.7 25.3 25.2
K.W 3.19 3.14 3.09 3.23 3.20 3.14 3.26 3.23 3.18
85
T.C. 36.9 34.6 32.2 36.9 34.9 32.6 37.0 35.2 33.0
S.C. 24.2 23.7 22.9 24.7 24.6 23.9 25.3 25.5 24.8
K.W 3.45 3.39 3.30 3.50 3.44 3.36 3.53 3.49 3.40
95
T.C. 35.5 33.2 30.0 35.8 33.6 30.4 36.0 34.0 31.0
S.C. 24.3 23.6 21.9 25.4 24.9 23.6 26.0 25.6 24.4
K.W 3.71 3.63 3.52 3.76 3.69 3.58 3.80 3.75 3.62
105
T.C. 33.2 30.4 26.7 33.4 30.8 27.2 33.6 31.3 27.7
S.C. 23.7 22.5 20.7 24.5 23.6 21.9 25.4 24.6 23.0
K.W 3.97 3.84 3.71 4.02 3.91 3.77 4.06 3.96 3.81
115
T.C. 31.0 27.6 23.5 31.1 28.2 24.2 31.3 28.5 24.4
S.C. 23.1 21.3 19.6 23.9 22.6 20.7 24.8 23.7 21.6
K.W 4.22 4.06 3.90 4.29 4.13 3.94 4.33 4.18 4.00
125
T.C. 28.7 24.8 20.2 28.9 25.6 21.1 29.0 25.7 21.0
S.C. 22.5 20.2 18.4 23.2 21.6 19.6 24.2 22.7 20.2
K.W 4.47 4.28 4.09 4.56 4.35 4.11 4.60 4.40 4.19
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM
Air Handler Coil T.C. S.C. KW
N1AHB1206 G2FD036S17 1.01 1.00 1.00
N1AHB1206 G2FD046S17 1.02 1.02 1.00
F2RC/F2FC036 1.00 0.86 1.00
F2RP/F2FP036 1.02 1.01 1.00
F2RP/F2FP042 1.02 1.01 1.01
G1FA036S14 1.00 1.00 1.00
G1FA048S17 1.04 1.04 1.01
G1FA048S21,24 1.07 1.07 1.04
G1HD036 1.02 1.02 1.05
G2FD046S17 1.02 1.02 1.00
G1HD048 1.04 1.04 1.05
G1NA036S17J 1.02 1.02 1.01
G1NA036S21C 1.02 1.02 1.00
G1UA036S14 1.00 1.00 1.00
G1UA036S17,21 1.00 1.00 1.00
G1UA048S17 1.04 1.04 1.01
G1UA048S21,24 1.07 1.07 1.04
G2FD035S14 0.99 0.99 0.99
G2FD036S17 1.01 1.00 1.00
G2FD036S21 1.01 1.00 1.00
G2FD042S21 1.02 1.02 1.00
MDD42CSD 1.02 1.02 1.00
Air Handler Coil T.C. S.C. KW
N1AHB1246 G2FD036S17 1.00 1.00 0.98
N1AHB1246 G2FD046S21 1.02 1.02 1.00
F2RC/F2FC036 1.00 0.86 1.00
G1FA048S21,24 1.07 1.07 1.04
G1NA036S17J 1.02 1.02 1.01
G1NA036S21C 1.02 1.02 1.00
G1UA036S17,21 1.00 1.00 1.00
G1UA048S21,24 1.07 1.07 1.04
G2FD036S17 1.01 1.00 1.00
G2FD036S21 1.01 1.00 1.00
036-21121-002 Rev. A (0602)
Unitary Products Group 13
Multipliers for determining the performance with other indoor sections.
1 Phase 3 Phase
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA042S06, H1RA042S(25,46)
INDOOR COIL MODEL NO. G1FA048S21,24
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1200 1400 1600
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 47.2 44.1 41.2 47.5 44.6 41.9 47.9 45.1 42.6
S.C. 30.2 29.6 29.4 31.9 31.1 31.0 33.6 32.6 32.6
K.W 3.90 3.85 3.78 4.05 3.99 3.94 4.19 4.14 4.09
85
T.C. 45.5 42.1 38.5 45.9 42.8 39.3 46.3 43.4 40.2
S.C. 29.8 28.9 28.1 31.4 30.7 30.0 33.0 32.5 31.9
K.W 4.13 4.06 3.96 4.28 4.21 4.13 4.43 4.36 4.29
95
T.C. 43.9 40.2 35.7 44.3 41.0 36.8 44.8 41.8 37.8
S.C. 29.5 28.2 26.9 30.9 30.3 29.1 32.4 32.4 31.2
K.W 4.36 4.27 4.14 4.52 4.43 4.31 4.67 4.59 4.49
105
T.C. 40.5 36.3 32.0 41.2 37.1 32.8 42.0 38.0 33.7
S.C. 28.1 26.7 25.1 29.9 28.8 27.2 31.7 30.9 29.3
K.W 4.58 4.44 4.30 4.74 4.60 4.47 4.89 4.77 4.64
115
T.C. 37.1 32.3 28.3 38.2 33.3 28.9 39.2 34.2 29.6
S.C. 26.8 25.1 23.3 29.0 27.2 25.4 31.1 29.4 27.4
K.W 4.81 4.62 4.45 4.96 4.78 4.62 5.10 4.95 4.79
125
T.C. 33.7 28.4 24.5 35.1 29.4 25.0 36.4 30.4 25.4
S.C. 25.5 23.5 21.5 28.0 25.7 23.5 30.5 27.9 25.5
K.W 5.04 4.79 4.61 5.18 4.96 4.78 5.32 5.13 4.94
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHC1606 G2FD042S21 0.96 0.96 0.99
N1AHC1606 G2FD048S21 1.00 1.00 1.01
F2RP/F2FP042 0.96 0.95 0.99
F2FP048 0.99 0.99 0.99
G1FA048S17 0.98 1.00 1.00
G1FA060S21,24 1.02 1.02 1.00
G1HD048 0.99 0.99 1.01
G1NA036S21C 0.98 0.93 0.99
G1NA048S21D 0.99 0.94 1.00
G1UA048S17 0.98 1.00 1.00
G1UA048S21,24 1.00 1.00 1.00
G1UA060S21,24 1.02 1.03 1.00
G2FD042S21 0.96 0.96 0.99
G2FD046S17 0.98 0.98 1.00
G2FD048S21,24 1.00 1.00 1.01
G2FD060S24 1.02 1.02 1.00
MDD48DSD 0.99 0.94 1.00
Air Handler Coil T.C. S.C. KW
N1AHC1646 G2FD042S21 0.98 0.99 1.00
N1AHC1646 G2FD048S21 0.99 1.01 1.01
F2RP/F2FP042 0.95 0.95 0.99
F2FP048 0.99 0.99 0.99
G1FA060S21,24 1.02 1.02 1.00
G1NA036S21C 0.98 0.93 0.99
G1NA048S21D 0.99 0.94 1.00
G1UA048S21,24 1.00 1.00 1.00
G1UA060S21,24 1.02 1.03 1.00
G2FD042S21 0.96 0.96 0.99
G2FD046S17 0.98 0.98 1.00
G2FD048S21,24 1.00 1.00 1.01
036-21121-002 Rev. A (0602)
14 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
1 Phase 3 Phase
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA048S06, H1RA048S(25,46)
INDOOR COIL MODEL NO. G1FA048S21,24
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1200 1400 1600
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 53.4 48.9 45.1 40.2 54.3 49.8 45.9 41.3 54.9 50.3 46.4 41.8
S.C. 32.2 32.3 31.0 32.5 34.0 34.0 32.7 34.7 35.2 35.3 33.9 35.9
K.W 4.32 4.15 4.00 3.83 4.44 4.26 4.11 3.95 4.53 4.36 4.21 4.04
85
T.C. 52.0 47.5 43.7 39.2 52.7 48.3 44.5 40.0 53.2 48.7 45.2 40.5
S.C. 32.2 32.3 31.1 32.7 34.1 34.1 32.8 34.7 35.4 35.5 34.5 36.0
K.W 4.62 4.43 4.26 4.07 4.74 4.55 4.38 4.18 4.84 4.65 4.48 4.28
95
T.C. 49.0 44.9 41.3 36.9 49.6 45.5 42.0 37.6 50.0 45.8 42.4 38.3
S.C. 31.6 31.6 30.4 31.8 33.5 33.7 32.4 33.8 34.9 35.0 33.7 35.6
K.W 4.91 4.70 4.51 4.31 5.02 4.81 4.64 4.43 5.13 4.92 4.74 4.53
105
T.C. 45.6 41.6 38.4 34.3 46.0 42.2 39.0 35.0 46.2 42.5 39.3 36.2
S.C. 30.5 30.6 29.5 30.9 32.6 32.8 31.5 32.8 34.1 34.2 32.7 34.5
K.W 5.18 4.96 4.76 4.54 5.30 5.07 4.88 4.67 5.39 5.18 4.99 4.83
115
T.C. 41.8 38.3 35.3 31.7 42.3 38.8 35.8 33.0 42.5 39.0 36.2 33.5
S.C. 29.3 29.5 28.2 29.6 31.6 31.4 30.1 31.5 33.0 32.9 31.5 32.0
K.W 5.42 5.18 4.98 4.76 5.52 5.31 5.10 4.94 5.63 5.41 5.21 5.06
125
T.C. 38.0 35.0 32.3 29.1 38.6 35.4 32.7 31.0 38.8 35.5 33.2 30.8
S.C. 28.1 28.4 26.9 28.3 30.6 30.0 28.7 30.2 31.9 31.6 30.4 29.5
K.W 5.66 5.40 5.20 4.98 5.74 5.55 5.32 5.21 5.87 5.64 5.43 5.29
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHC1606 G2FD048S21 1.01 1.01 1.01
N1AHD2006 G2FD060S24 1.03 1.03 1.01
F2FP048 1.00 1.00 1.03
F2FP060 1.02 1.02 1.00
G1FA048S17 0.98 0.99 1.01
G1FA060S21,24 1.03 1.03 1.01
G1HD048 1.00 1.00 0.99
G1HD060 1.02 1.02 1.00
Air Handler Coil T.C. S.C. KW
N1AHC1646 G2FD048S21 1.01 1.01 1.00
N1AHD2046 G2FD048S24 1.01 1.01 1.00
N1AHD2046 G2FD060S24 1.03 1.03 1.00
F2FP048 1.00 1.00 1.03
G1FA048S21,24 1.00 1.00 1.00
G1NA048S21D 1.02 1.02 1.02
G1UA048S21,24 1.00 1.00 1.00
G2FD048S21,24 1.01 1.01 1.01
036-21121-002 Rev. A (0602)
Unitary Products Group 15
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H3RA060S06
INDOOR COIL MODEL NO. G1FA060S21,24
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 2050 1800 1550
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 64.7 61.9 58.2 64.1 61.2 57.2 63.6 60.5 56.2
S.C. 46.3 44.9 42.9 43.3 42.1 40.3 40.3 39.3 37.7
K.W 5.18 5.13 5.03 5.08 5.02 4.92 4.97 4.91 4.81
85
T.C. 62.8 59.6 55.4 62.3 58.6 54.3 61.8 57.6 53.3
S.C. 45.9 44.3 41.9 42.8 41.2 39.2 39.7 38.2 36.5
K.W 4.94 4.86 4.77 5.58 5.50 5.40 5.48 5.40 5.28
95
T.C. 60.9 57.3 52.7 60.4 56.0 51.5 59.9 54.7 50.3
S.C. 45.7 43.5 40.8 42.4 40.2 38.0 39.2 37.0 35.2
K.W 6.19 6.10 6.00 6.09 5.99 5.87 5.98 5.88 5.74
105
T.C. 57.2 53.4 48.4 56.6 52.3 47.4 56.0 51.1 46.4
S.C. 44.6 42.1 39.3 41.3 39.0 36.6 38.0 35.9 33.8
K.W 6.82 6.70 6.56 6.71 6.59 6.44 6.60 6.47 6.31
115
T.C. 53.5 49.5 44.1 52.8 48.5 43.3 52.1 47.5 42.4
S.C. 43.6 40.5 37.7 40.2 37.6 35.1 36.8 34.7 32.4
K.W 7.47 7.32 7.14 7.35 7.19 7.01 7.22 7.06 6.88
125
T.C. 49.8 45.6 39.9 49.0 44.8 39.2 48.2 43.9 38.5
S.C. 42.5 39.0 36.1 39.0 36.3 33.6 35.6 33.6 31.0
K.W 8.12 7.94 7.72 7.99 7.79 7.58 7.84 7.65 7.45
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1AHD2006 G2FD060S24 1.00 1.00 1.00
F2FP060 1.00 1.02 1.02
G1HD060 0.99 1.00 1.01
G1NA048S21D 0.91 0.87 0.96
G1NA060S24T 0.98 0.99 0.99
G1UA060S21,24 1.00 1.00 1.00
G2FD060S24 1.00 1.00 1.00
G2FD061H24 1.02 1.02 1.02
036-21121-002 Rev. A (0602)
16 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA060S(25,46)
INDOOR COIL MODEL NO. G2FD060S24A
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1450 1700 1950
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 61.258.556.361.859.156.962.359.657.5
S.C. 37.637.437.140.139.939.542.542.341.8
K.W 4.664.574.514.674.584.534.684.584.55
85
T.C. 60.658.055.061.258.655.861.959.356.7
S.C. 37.637.336.540.239.939.142.842.541.7
K.W 5.265.135.085.275.145.105.285.155.11
95
T.C. 60.057.453.760.758.554.861.459.055.8
S.C. 37.537.135.940.339.838.843.142.641.6
K.W 5.865.705.655.875.715.675.885.725.68
105
T.C. 58.154.650.058.955.751.359.756.852.7
S.C. 36.936.034.439.839.037.342.741.940.2
K.W 6.546.396.296.566.426.306.576.456.32
115
T.C. 56.251.846.357.153.247.957.954.549.5
S.C. 36.234.932.939.338.135.942.341.238.8
K.W 7.237.076.927.257.126.947.267.176.97
125
T.C. 54.349.042.655.250.644.556.252.346.4
S.C. 35.633.831.438.737.234.441.940.537.4
K.W 7.927.767.557.947.837.587.967.907.62
Air Handler Coil T.C. S.C. KW
N1AHD2046 G2FD060S24 1.00 1.00 1.00
F2FP060 1.00 1.00 1.05
G1FA060S21,24 1.00 1.00 1.00
G1NA060S24T 0.98 0.98 1.01
G1UA060S21,24 1.00 1.00 1.00
036-21121-002 Rev. A (0602)
Unitary Products Group 17
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA076S(25,46)
INDOOR COIL MODEL NO. K4EV090
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 2100 2600 3100
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 79.1 76.3 73.9 82.0 79.2 76.9 84.9 82.0 79.9
S.C. 48.8 48.6 48.1 55.4 55.3 54.7 62.0 61.9 61.3
K.W 5.98 5.90 5.84 6.28 6.18 6.15 6.58 6.48 6.46
85
T.C. 76.4 73.7 70.6 79.1 76.3 73.4 81.7 79.0 76.2
S.C. 47.9 47.6 46.8 54.7 54.4 53.5 61.5 61.2 60.3
K.W 6.53 6.42 6.37 6.86 6.74 6.70 7.18 7.07 7.04
95
T.C. 73.8 71.1 67.2 76.1 73.5 69.9 78.4 75.9 72.6
S.C. 47.1 46.7 45.4 54.0 53.6 52.4 60.9 60.4 59.4
K.W 7.08 6.94 6.90 7.43 7.30 7.26 7.79 7.65 7.61
105
T.C. 71.1 67.4 62.6 73.1 69.7 65.2 75.1 72.0 67.7
S.C. 46.4 45.4 43.7 53.1 52.2 50.5 59.8 58.9 57.2
K.W 7.84 7.70 7.61 8.21 8.08 7.99 8.57 8.46 8.36
115
T.C. 68.4 63.7 58.0 70.0 67.0 60.4 71.7 68.2 62.9
S.C. 45.4 44.1 42.0 52.0 51.9 48.5 58.6 57.5 55.0
K.W 8.59 8.46 8.32 8.97 8.80 8.71 9.36 9.28 9.10
125
T.C. 65.6 60.1 53.4 67.0 64.3 55.7 68.4 64.3 58.1
S.C. 44.5 42.7 40.2 51.0 51.6 46.5 57.5 56.0 52.8
K.W 9.35 9.21 9.02 9.74 9.51 9.43 10.14 10.09 9.84
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Coil T.C. S.C. KW
G2FD090S35 1.00 0.99 1.01
036-21121-002 Rev. A (0602)
18 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. H1RA090S(25,46)
INDOOR COIL MODEL NO. K4EV090
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 2400 3000 3600
ID DB (°F) 85 80 70 85 80 70 85 80 70
ID WB (°F) 72 67 57 72 67 57 72 67 57
75
T.C. 104.2 97.2 90.1 108.1 100.5 92.8 112.1 103.8 95.5
S.C. 76.5 71.0 65.6 78.7 72.8 66.9 81.0 74.6 68.2
K.W 8.30 8.21 8.13 8.33 8.25 8.18 8.36 8.29 8.23
85
T.C. 99.1 92.4 85.8 102.0 94.7 87.5 104.8 97.0 89.1
S.C. 72.5 67.4 62.3 74.0 68.4 62.8 75.5 69.4 63.4
K.W 8.97 8.86 8.75 9.01 8.90 8.79 9.04 8.94 8.84
95
T.C. 94.0 87.7 81.5 95.8 89.0 82.1 97.5 90.1 82.7
S.C. 68.6 63.8 59.0 69.3 64.0 58.7 70.0 64.2 58.5
K.W 9.64 9.50 9.37 9.68 9.55 9.41 9.72 9.59 9.45
105
T.C. 88.2 82.2 76.1 89.8 83.9 77.9 91.4 85.6 79.7
S.C. 68.7 63.7 58.7 69.2 64.3 59.4 69.8 64.9 60.1
K.W 10.33 10.14 9.96 10.38 10.21 10.03 10.43 10.27 10.10
115
T.C. 82.5 76.6 70.8 83.9 78.8 73.8 85.3 81.0 76.7
S.C. 59.9 55.4 50.9 60.2 56.3 52.4 60.5 57.2 53.9
K.W 11.02 10.79 10.55 11.08 10.87 10.65 11.14 10.95 10.76
125
T.C. 76.7 71.1 65.5 78.0 73.8 69.6 79.2 76.5 73.7
S.C. 55.5 51.2 46.8 55.7 52.4 49.2 55.8 53.7 51.6
K.W 11.71 11.43 11.15 11.78 11.53 11.28 11.86 11.63 11.41
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Coil T.C. S.C. KW
G2FD090S35 1.01 1.01 1.01
036-21121-002 Rev. A (0602)
Unitary Products Group 19
MATCHING INDOOR COMPONENTS
G1UA
1/2 CASED
UPFLOW
G1HD
HORIZONTAL DUCT
G2FD*
MULTI-POSITION
(UPFLOW, HORIZONTAL
AND DOWNFLOW)
* Available with factory installed horizontal drain pan.
ADD-ON COILS - FOR FURNACE APPLICATIONS
G1NA
UNCASED
UPFLOW
G1FA
FULL CASED
UPFLOW G2FD090 is upflow only.
AIR HANDLERS - FOR NON-FURNACE APPLICATIONS
N1AH OR N1VS
MODULAR BLOWER
(UPFLOW, HORIZONTAL
AND DOWNFLOW)
F2RC / F2FC OR
F2RC / F2FP
FAN COIL UNITS
(UPFLOW, HORIZONTAL)
G2FD
COIL
LIGHT COMMERCIAL
APPLICATIONS
Subject to change without notice. Printed in U.S.A. 036-21121-002 Rev. A (0602)
Copyright © by York International Corp. 2002. All rights reserved. Supersedes: 036-21121-001 Rev. A (301)
Unitary 5005 Norman
Products York O
K
Group Drive 73069
NOTES

Navigation menu
