TECHNICAL GUIDE
SINGLE PACKAGE
AIR CONDITIONER/GAS HEAT
14 SEER – R-410A
2 THRU 5 NOMINAL TONS
50 - 125 MBH HEAT INPUT
MODELS: PCG4*24 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at:
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts and compressor warranty
Lifetime gas heat exchanger warranty with registration.
* Extended warranty requires online registration within 90 days of purchase for
replacement or closing for new home purchase. See limited warranty certificate
in User’s Information Manual for details.
®
5005562-YTG-B-0715
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These packaged cooling/heating air conditioners are designed
for outdoor installation. Only utility and duct connections are
required at the point of installation.
FEATURES
•Operating Efficiency - All PCG4 model gas units provide a
minimum AFUE of 81.0% in heating and 14.0 SEER, 11.0
EER rating for cooling operation. All models meet California
Low-Nox requirements of 40 ng/joule emission level for Air
Quality Management Districts.
•On Site Flexibility - All model sizes use a compact design
cabinet in one of two footprints. This provides installer flexi-
bility for placing the proper capacity unit on curbs or pads
with the smallest footprint after the internal load has been
determined. Field convertible duct connections from side
shot to down shot allows the installer to have greater flexibil-
ity with less inventory.
•Lower Installation Cost - Installation time and costs are
reduced by easy power and control wiring connections. The
small base dimension means less space is required on the
ground or roof. All units are completely wired, charged with
R-410A and tested prior to shipment. Test stations using a
state-of-the-art computerized process system are used to
insure product quality. Refrigerant charge and component
part numbers are verified via computers during assembly.
Vital run test statistics such as system pressure, motor cur-
rents, air velocity and temperature, unit vibration, and gas
system safeties are monitored and recorded by the system to
insure unit performance. Equal size side supply and return
duct connections allow easy connection of ducts to match
low crawl spaces without transition pieces.
•Utility Connections Made Easy - Gas and electric utility
access provided through the bottom or the side of the unit.
Utility connections can be made quickly and with a minimum
amount of field labor. A field supplied and field installed elec-
trical disconnect switch must be installed.
•Convertible Airflow Design - The bottom duct openings are
covered when they leave the factory, ready to be used for a
side supply/side return application. If a bottom supply/bottom
return application is desired, simply remove the two panels
from the bottom of the unit and place them in the side supply/
side return duct openings. No panel cutting is required and
no accessory panel is necessary. Convertible airflow design
allows maximum field flexibility and minimum inventory.
•Condensate Pan - A corrosion-resistant, long-lasting, water-
tight pan is positioned below the evaporator coil to collect
and drain all condensate, preventing build-up of stagnant
condensate. The condensate pan conforms to ASHRAE 62-
89 standards (Ventilation for Acceptable Indoor Air Quality).
•Condensate Drain - The 3/4 inch NPT female connection is
rigidly mounted to assure proper fit and leak tight seal.
•Durable Finish - The cabinet is made of G90 galvanized
steel with a powder paint coating for appearance and protec-
tion. The pre-treated galvanized steel provides a better paint-
to-steel bond, which resists corrosion and rust creep. Powder
paint finish insure less fading when exposed to sunlight, and
provides superior corrosion resistance (1000 hour salt spray
tested).
Continued on next page.
5005562-YTG-B-0715
2Johnson Controls Unitary Products
•Full Perimeter Base Rails - The easily removable base rails
provide a solid foundation for the entire unit and protects the
unit during shipment. The rails provide fork lift access from all
sides, and rigging holes are also provided so that an over-
head crane can be used to place the units on a roof. On
applications where the unit is placed on a pad, the base will
keep the unit off the pad to deter corrosion. On applications
where height is limited, the base rails may be removed by
removing 2 screws in each corner.
•More Attractive Appearance - A single-piece top cover
containing a top-discharge outdoor fan arrangement requires
less square footage on installation and provides a wider vari-
ety of installations. The one-piece design adds greater water
integrity. Rounded corners with water drip edges add to the
attractive appearance.
•Top Discharge - The top-discharge outdoor fan does not
disrupt neighboring areas or dry out vegetation surrounding
the unit. The warm air from the top mounted fan is blown up
and away from the structure and any landscaping. This
allows compact location on multi-unit applications.
•Outdoor Coil Grille - All models utilize a stamped slotted
design which provides superior impact protection against
small objects during transit and after installation.
•Low Operating Sound Level - The upward air flow carries
the normal operating noise up and away from the living area.
The rigid top panel effectively isolates noise. Isolator
mounted compressor and the rippled fins of the outdoor coil
muffle the normal fan motor and compressor operating
sounds. The unique formed base pan also aids in sound
attenuation with its structural design. This design strategi-
cally places embossments in the pan for optimum strength
and rigidity.
•Fan System - All models operate over a wide range of
design conditions with a standard ECM indoor fan motor.
These units easily match all types of applications and pro-
vide greater on-site flexibility to match comfort requirements.
The cooling speed is factory-set and can be field-adjusted to
a second speed. The heating speed is factory set to maintain
mid point rise at the units heating input, but can be field
adjusted. This allows maximum comfort conditions.
•Simple Control Circuit - A low voltage gas heat printed cir-
cuit board contains a status/diagnostic indicator light. Field
thermostat wiring connects to color coded leads using twist
on wire connections. Cooling controls use contactor and
relays for simple application and troubleshooting. Mate-n-
lock plug connectors are used. The electrical control box is
not located in the compressor compartment. The controls are
mounted to allow the separate access panel to be removed
for trouble shooting and maintenance without affecting the
normal system operating pressures. All wiring internal to the
unit is color/number coded.
•Protected Compressor - The compressor is internally pro-
tected against high pressure and temperature. This is
accomplished by the simultaneous operation of high pres-
sure relief valve and a temperature sensor which protect the
compressor if undesirable operating conditions occur.
•Pressure Switches - A high pressure switch is standard in
all units. When abnormal conditions are sensed through the
pressure switch, the unit will lock out preventing any further
operation until reset or problem is corrected.
•Exclusive Coil Design - Grooved copper tubes and
enhanced aluminum fin construction improves heat transfer
for maximum efficiency and durability for long-lasting durabil-
ity and efficient operation. Indoor coils use tin-coated copper
tubing with aluminum fins for effective heat transfer.
•Heat Exchangers - Gas heat exchangers use corrosion-
resistant, stainless-steel tubular construction to provide long-
life, trouble-free operation. Gas heat exchangers are offered
with lifetime warranties as standard with registration.
•Post Purge Induced Draft Combustion - Exhausts com-
bustion products from the heat exchanger upon completion
of the heating cycle to prolong the heat exchanger life.
•Spark To Burner Ignition - No pilot assembly required,
which provides more consistent ignition in gas heating mode.
This ignition is highly reliable, durable and eliminates nui-
sance lockouts.
•Multi Port In-shot Burners - No field adjustment is required
to mix the air and gas for natural gas or propane use. These
burners are constructed of high-grade corrosion-resistant,
aluminized steel.
•Low Maintenance - Long life, permanently lubricated out-
door and evaporator fan motor bearings need no annual
maintenance, adding greater reliability to the unit. Slide-out
blower assembly can be easily removed for cleaning.
•Easy Service Access - Individual access panels covering
the electrical and gas controls makes servicing easy. Remov-
ing this panel will allow easy removal of the blower assembly
for maintenance and ease of troubleshooting.
•Replacement Parts - The installer requires no special train-
ing to replace any of the components of these units and the
number of new components have been reduced to minimize
the inventory of unique parts.
•Loss of Charge Sensor (S1-2LC00024) - Kit provides Loss
of Charge sensor and wiring to provide safe shutdown of
compressor.
•Transition Curb Kits (S1-1TC01*) - Adapter kits to allow
field use of pre-existing installed roof curbs to match PHE4
footprint to Affinity roof curbs, Carrier, Trane, or Goodman
curb footprints. Curb adapters are optional for current gener-
ation Carrier replacements but are recommended for previ-
ous generation applications. Refer to the PCE4 price pages
for more details.
5005562-YTG-B-0715
Johnson Controls Unitary Products 3
NOMENCLATURE
COMPONENT LOCATION
PCG 4 A 24 50 2 X 1 A
123456789
1. Model Family
PCG - packaged A/C with gas heat,
PHG - packaged heat pump with gas heat,
PCE - packaged A/C with electric heat,
PHE - packaged heat pump with electric heat
5. Gas Heating Input BTU/Hr x 1000
050 = 50,000 BTU/Hr. input, blank = electric heat
6. Voltage-Phase-Frequency
2 = 208/230-1-60, 3=208/230-3-60, 4 = 460-3-60
2. Nominal Cooling Efficiency
4 = 14 SEER, 6 = 16 SEER, etc. 7. NOx Approval
X = low-NOx, blank = not low-Nox
3. Cabinet Size
A = small 35 x 51, B = large 45 x 51 8. Generation Level
1 = first generation
4. Nominal Air Conditioning Cooling Capacity BTUx1000
24 = 24,000 BTU, etc. 9. Revision Level
A = original release, B = second release
Examples:
PCG4B421002X1A is a packaged A/C with gas heat, 14 SEER, 3-1/2 ton, large cabinet, single-stage heat, 100,000 BTU gas heat, 230 volt, single
phase, low-NOx model (first generation, first release)
FAN MOTOR OUTDOOR FAN
COIL GUARD PANEL
OUTDOOR COIL
(Behind Panel)
CONTROL BOARD
TRANSFORMER
HIGH VOLTAGE
CONTACTOR
PRESSURE SWITCH
DRAFT INDUCER BLOWER
GAS VALVE
BURNER
ASSEMBLY
GAS HEAT
EXCHANGER
BLOWER MOTOR
TXV
INDOOR COIL
INDOOR BLOWER
COMPRESSOR
REMOVABLE
BASE RAILS
A0297-001
Unit Limitations
Model Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
PCG4A24 208/230-1-60 187 252 125
PCG4A30 208/230-1-60 187 252 125
PCG4A36 208/230-1-60 187 252 125
PCG4A42 208/230-1-60 187 252 125
PCG4B48 208/230-1-60 187 252 125
PCG4B60 208/230-1-60 187 252 125
5005562-YTG-B-0715
4Johnson Controls Unitary Products
ACCESSORIES
•Propane Conversion Kit (S1-1NP0702, S1-1NP0701) - Kit
includes burner orifices, gas valve conversion and installa-
tion instructions necessary to field convert unit from natural
gas to propane.
•Economizer for Downflow Applications
(S1-2EE04708424, S1-2EE04708524) - Modulating inte-
grated economizer provides simultaneous operation
between the mechanical cooling and economizer operation.
Independent blade design insures proper control and less
than 1% leak rate. Includes hood and mesh bird screen filter
integrated into the hood, dry bulb sensor and relief damper.
Separate field accessories of single enthalpy and dual
enthalpy are also available.
•Economizer for Horizontal Applications
(S1-2EE04708624, S1-2EE04708724) - Modulating inte-
grated economizer provides simultaneous operation
between the mechanical cooling and economizer operation.
Independent blade design insures proper control and less
than 1% leak rate. Includes hood and mesh bird screen filter
integrated into the hood, dry bulb sensor and relief damper.
Separate field accessories of single enthalpy and dual
enthalpy are also available.
•Single/Dual Enthalpy Sensor (S1-2EC04700624) - Sensor
replaces dry bulb sensor standard in economizer kit. Pro-
vides improved economizer operation by sensing the dry
bulb temperature from outdoors plus the enthalpy content of
the outdoor air.
•CO2 Sensor Kit (S1-2AQ04700824) - Sensor kit detects
CO2 levels automatically and overrides the economizer
when CO2 levels rise above the preset limits.
•Outdoor Temp. Sensor Kit
(S1-2EC04700724S1-2EC04700724v) - Additional outdoor
air temp sensor kit used with economizers.
•Filter/Frame Kit (Single Phase Only)
(S1-1FF0602, S1-1FF0601) - Kit contains the necessary
hardware to field install return air filters into the base unit.
The filter rack is suitable for either 1" or 2" filters. (filters not
supplied) This kit is available for single phase horizontal or
vertical duct applications.
•Motorized Fresh Air Damper
(S1-2MD04705224, S1-2MD04705124) - Designed for duct
mounted side supply/return and unit mounted down supply/
return applications. Damper capable of providing 0% through
50% of outdoor air (field supplied). Closes on power loss,
includes hood and screen assembly.
•Rectangle to Round (Horizontal) Adapter
(S1-1AK0110, S1-1AK0111) - Kit includes one supply and
one return air rectangle to round duct adapter. Adapters are
preformed and designed to fit over current horizontal duct
openings on the base unit. Transition is from rectangle to 12"
round for the 1AK0110 kit and from rectangle to 14" round for
the 1AK0111 kit.
•Rectangle to Round (Downflow) Adapter
(S1-1AK0108, S1-1AK0109) - Kit includes one supply and
one return air rectangle to round duct adapter. Adapters are
preformed and designed to fit into current downflow duct
openings on the roof curb. Transition is from rectangle to 16"
round for the 1AK0108 kit and from rectangle to 18" round for
the 1AK0109 kit.

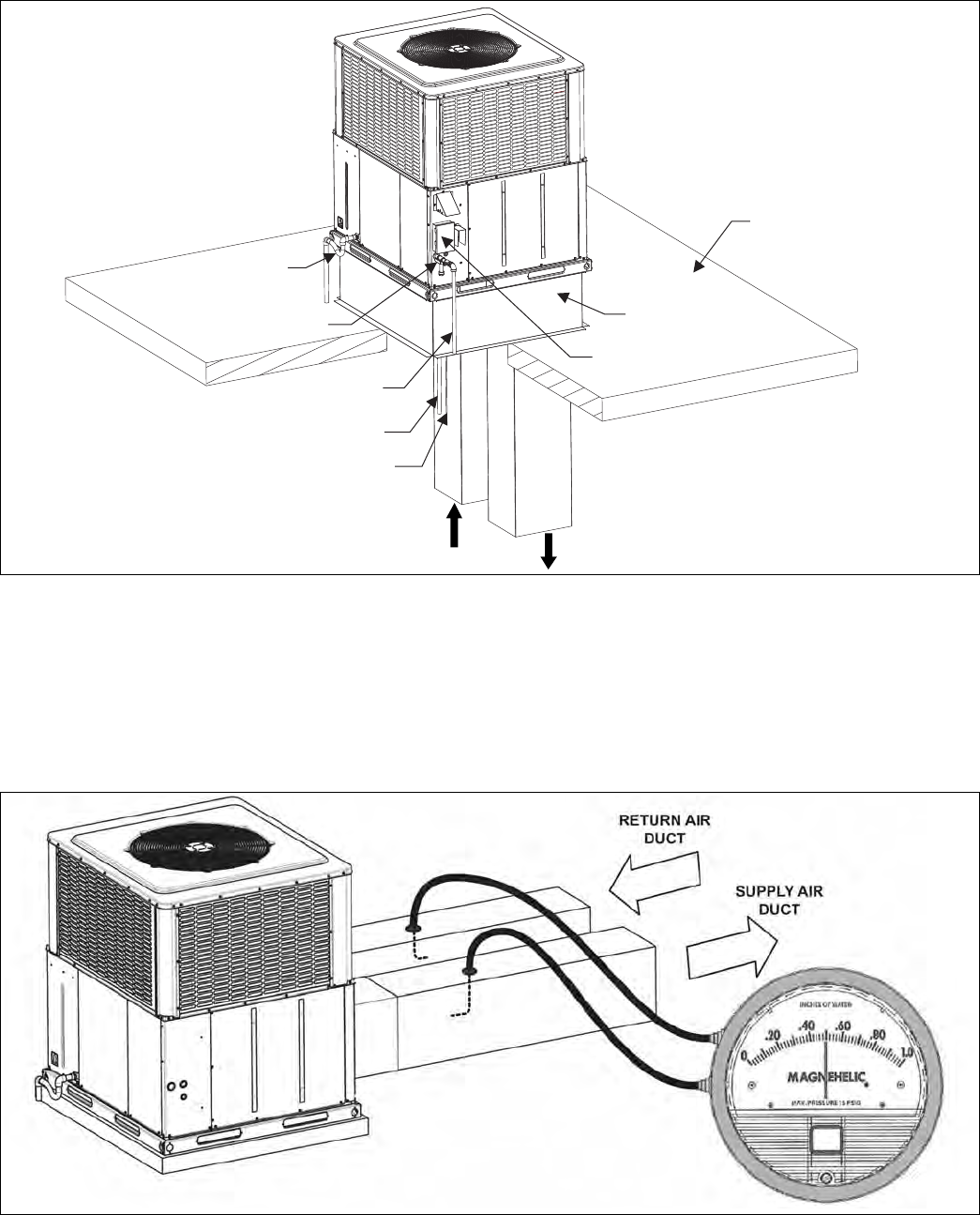

•Roof Curbs (S1-1RC0503, S1-1RC0501) - NRCA approved
curbs provide proper fit to base unit for rooftop installations.
Curbs are designed to be assembled through hinge pins in
each corner. Kit also provides seal strip to assure an air tight
seal. These are 8 inch high roof curbs.
•Roof Curbs (S1-1RC0504, S1-1RC0502) - NRCA approved
curbs provide proper fit to base unit for rooftop installations.
Curbs are designed to be assembled through hinge pins in
each corner. Kit also provides seal strip to assure an air tight
seal. These are 14 inch high roof curbs.
•Manual Outdoor Damper
(S1-1FA0502, S1-1FA0501) - Provides 0% through 50% out-
door air capability (field adjustable). Designed for duct
mounted side supply/return applications. Includes hood and
screen assembly.
•Wall Thermostat - The units are designed to operate with
standard, 24-volt electronic and electro-mechanical thermo-
stats. All units can operate with single stage heat/single
stage cool thermostats - with or without the economizer.
•Low Ambient Kit (S1-2LA04700824) - Kit provides neces-
sary hardware to convert unit to operate in cooling cycle
down to 0º F. Standard unit operation 45º F.
•Transformer Kit (S1-2EC06700124) - Kit provides neces-
sary hardware to provide single phase models from factory
furnished 40 VA transformer capability to 75 VA transformer
capability. (Required on installations with economizer or
motorized damper).
•Base Rail Hole Cover Kit (S1-1HC0101) - Kit provides nec-
essary hardware to close off openings in base rails to block
off openings, i.e. prevent animal entrance.
5005562-YTG-B-0715
Johnson Controls Unitary Products 5
GUIDE SPECIFICATIONS
GENERAL
Units shall be manufactured by Unitary Products in an ISO
9001 certified facility. Package units give you the flexibility and
choices you need in today’s market. These packaged cooling/
heating air conditioners are designed for outdoor installation.
Only utility and duct connections are required at the point of
installation. The single-stage gas fired heaters have stainless
steel tubular heat exchangers and spark to burner ignition.
They are available in natural gas with field conversion to
propane.
DESCRIPTION
Units shall be factory-assembled, single packaged, Electric
Cooling/Gas Heating units, designed for outdoor installation.
For SEER ratings, refer to technical literature. They shall have
built in, equal size, field convertible duct connections for supply/
return or horizontal supply/return. The units shall be factory
wired, piped, charged with R-410A Refrigerant and factory
tested prior to shipment. All unit wiring shall be both numbered
and color coded. All models shall be rated in accordance with
DOE and AHRI test procedures for both heating and cooling
operation. Units shall be CSA listed and classified to ANSI
Z21.47/CAN/ CSA 2.3 standards and UL 1995/CAN/CSA No.
236-M90 standards.
UNIT CABINET
Unit cabinet shall be constructed of G-90 galvanized, powder-
painted steel, certified at 1000 hours salt spray test per ASTM-
B117 standards. The unit top shall be a single piece design,
with drip edges and no-seam corners to provide optimum water
integrity. Unit shall have a rigidly mounted outdoor coil guard to
provide protection from objects and personnel after installation.
Indoor blower section shall be insulated with foil-faced or foam
insulation, fastened to prevent insulation from entering the air
stream. Cabinet panels shall be separate, easily removable for
servicing and maintenance. Unit shall be built on a formed,
design base pan, with embossments at critical points to add
strength and rigidity and to aid in minimizing sound. Full
perimeter base rails shall be provided to assure reliable transit
of equipment, overhead rigging, for truck access and proper
sealing on roof curb applications. Base rails shall be easily
removable, when required to lower unit height. Filters shall be
field installed, furnished and be accessible through a removable
access door, sealed airtight. Units vertical discharge and return
duct configuration shall be designed to fit between standard 24”
O.C. beams without modification to building structure, duct work
and base unit. Condensate pan shall be internally sloped and
conform to ASHRAE 62-89 self-draining standards, with 3/4”
NPT female ridged mount connection.
Indoor Blower Assembly - Fan shall be direct drive design.
Fan wheel shall be double-inlet type with forward-curved
blades, dynamically balanced to operate smoothly throughout
the entire range of operation. Airflow design shall be constant
air volume. Bearings shall be sealed and permanently
lubricated for longer life and no maintenance. Fan assembly
shall be a slide-out design for easy removal and cleaning.
Indoor blower motors shall be equipped with a standard high
efficiency brushless DC motor (constant torque) also known as
a standard ECM motor.
Outdoor Fan Assembly - The outdoor fan shall be of the
direct-driven propeller type, discharge air vertically, have
aluminum blades riveted to corrosion resistant steel spider
bracket and shall be statically balanced for smooth operation.
The outdoor fan motor shall be totally enclosed with
permanently lubricated bearings and internally protected
against overload conditions.
REFRIGERANT COMPONENTS
Compressors:
a. Shall be fully hermetic type, direct drive, internally pro-
tected with internal high-pressure relief and over tempera-
ture protection. The hermetic motor shall be suction gas
cooled and have a voltage range of +/- 10% of the unit
nameplate voltage.
b. Shall have internal isolation and sound muffling to mini-
mize vibration and noise, and be externally isolated on a
dedicated, independent mounting.
Coils:
a. Indoor coils shall have aluminum plate fins mechanically
bonded to seamless internally enhanced tin-coated cop-
per tubes with all joints brazed.
b. Indoor coil shall be of the direct expansion, draw through
design.
c. Outdoor coils shall have aluminum plate fins mechanically
bonded to seamless internally enhanced copper tubes
with all joints brazed.
d. Outdoor coil shall be draw through design.
Refrigerant Circuit and Refrigerant Safety Components shall
include:
a. Thermal expansion devices (TXV's) shall be factory
mounted and provided.
b. Filter/strainer to eliminate any foreign matter.
GAS HEATING SECTION
Heat exchanger and exhaust system shall be constructed of
corrosion-resistant materials and shall be designed with
induced draft combustion with post purge logic and redundant
main gas valve. The heat exchanger shall be of the tubular
type, constructed of stainless steel for corrosion resistance and
allowing minimum mixed air entering temperature of 40 ºF.
Burners shall be of the in-shot type, constructed of
aluminumized steel. All gas piping shall enter the unit cabinet at
a single location through either the side or bottom, without any
field modifications. An integrated control board shall provide
timed control of indoor fan functioning and burner ignition.
Heating section shall be provided with the following minimum
protection:
a. Primary high-temperature limit switch.
b. Induced draft pressure switch.
c. Flame roll out switch(s) (manual reset).
d. Flame proving controls.
All gas heat models will meet the California requirement for
emissions of less than 40 nanograms per Joule (California
requirement on single phase models only).
5005562-YTG-B-0715
6Johnson Controls Unitary Products
PHYSICAL DATA
COMPONENT MODELS
PCG4A24 PCG4A30 PCG4A36 PCG4A42 PCG4B48 PCG4B60
NOMINAL TONNAGE 2.0 2.5 3.0 3.5 4.0 5.0
AHRI Cooling Performance
Gross Capacity @ AHRI A point (MBH) 23.7 30.1 37.2 43.5 47.7 55.0
AHRI net capacity (MBH) 22.8 29.0 34.6 41.0 45.5 52.5
EER 11.0 11.0 11.0 11.0 11.0 11.0
SEER 14.0 14.0 14.0 14.0 14.0 14.0
Nominal CFM 800 1000 1200 1400 1600 2000
System power (KW) 2.1 2.6 3.2 3.8 4.2 4.8
Refrigerant type R410A R410A R410A R410A R410A R410A
Refrigerant charge (lb-oz) 5-4 9-2 8-3 9-4 14-4 14-2
AHRI Gas Heat Performance
Heating model 50 75 50 75 50 75 100 75 100 65 100 125 65 100 125
Heat input (K Btu) 50.0 75.0 50.0 75.0 50.0 75.0 100.0 75.0 100.0 65.0 100.0 125.0 65.0 100.0 125.0
Heat output (K Btu) 40 60 40 60 40 60 80 60 80 52 80 100 52 80 100
AFUE % 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0
No. burners 232323434234234
No. stages 111111111111111
Temperature Rise Range (°F) 40-70 40-70 35-65 40-70 40-70 40-70 40-70
Max. Static Pressure (in. w.c.) 0.5 0.5 0.5 0.5 0.5 0.5
Max. Outlet Air Temp. (°F) 180 180 180 180 180 180
Gas piping connection (in.) 1/2 1/2 1/2 1/2 1/2 1/2
Dimensions (inches)
Length 51-1/4 51-1/4 51-1/4 51-1/4 51-1/4 51-1/4
Width 35-3/4 35-3/4 35-3/4 35-3/4 45-3/4 45-3/4
Height 47 47 47 49 53 55
Operating WT. (lbs.) 359 366 379 386 415 422 426 442 446 495 503 508 522 530 535
Compressors
Type Recip Recip Recip Scroll Scroll Scroll
Condenser Coil Data
Face area (Sq. Ft.) 15.1 17.0 17.0 17.0 23.8 26.0
Rows 23333 3
Fins per inch 16 16 16 16 16 16
Tube diameter 3/8 3/8 3/8 3/8 3/8 3/8
Circuitry Type Interlaced Interlaced Interlaced Interlaced Interlaced Interlaced
Evaporator Coil Data
Face area (Sq. Ft.) 3.4 3.4 3.4 4.4 4.4 4.4
Rows 23333 3
Fins per inch 16 16 16 16 16 16
Tube diameter 3/8 3/8 3/8 3/8 3/8 3/8
Circuitry Type Interlaced Interlaced Interlaced Interlaced Interlaced Interlaced
Refrigerant control TXV TXV TXV TXV TXV TXV
Condenser Fan Data
Fan diameter (Inch) 24 24 24 24 26 26
Type Prop Prop Prop Prop Prop Prop
Drive type Direct Direct Direct Direct Direct Direct
No. speeds 1 1111 1
Motor HP each 1/4 1/4 1/4 1/4 1/3 1/3
RPM 850 850 850 850 850 850
Nominal total CFM 2400 2400 2400 2400 3200 3200
Direct Drive Evaporator Fan Data
Fan Size (Inch) 11 x 8 11 x 8 11 x 10 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal
Motor HP each 1/3 1/2 1/3 1/2 1/2 3/4 3/4 3/4 1
RPM 1200 Max 1200 Max 1200 Max 1200 Max 1200 Max 1200 Max
Frame size 48 48 48 48 48 48
Filters
Quantity - Size
Field-supplied external filters must be sized so as not to exceed 300 FPM air velocity through disposable
filters. For internal filter use, a filter rack kit is available. Consult the instructions supplied with that kit for
replacement filter sizes. Filter sizes: A=20x20, B=20x30.
5005562-YTG-B-0715
Johnson Controls Unitary Products 7
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4A24
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1000 800 600
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 30.0 33.4 33.4 36.7 39.8 27.4 30.9 31.2 34.3 37.6 24.9 28.4 29.0 31.8 35.4
S.C. 30.0 28.6 23.8 23.7 18.7 27.4 25.0 20.9 21.0 16.9 24.9 21.3 18.1 18.2 15.1
K.W. 1.48 1.47 1.47 1.46 1.44 1.44 1.44 1.44 1.42 1.40 1.41 1.41 1.40 1.39 1.37
65 / 55
T.C. 25.9 29.1 28.8 32.1 35.4 25.9 28.7 28.7 31.9 35.4 25.9 28.4 28.6 31.6 35.3
S.C. 25.6 23.6 19.9 19.9 16.0 25.7 23.6 19.7 19.8 16.0 25.9 23.5 19.5 19.7 16.0
K.W. 1.57 1.58 1.57 1.57 1.56 1.58 1.58 1.58 1.54 1.53 1.59 1.59 1.59 1.50 1.49
75 / 63
T.C. 26.9 28.4 28.2 31.4 35.3 24.4 26.6 26.2 29.4 33.2 21.9 24.8 24.2 27.5 31.1
S.C. 26.9 25.8 20.9 21.1 16.8 24.0 22.2 18.5 18.6 15.1 21.2 18.6 16.0 16.1 13.3
K.W. 1.77 1.78 1.78 1.62 1.61 1.72 1.73 1.73 1.65 1.65 1.66 1.68 1.67 1.69 1.69
85 / 69
T.C. 22.0 23.8 23.4 26.5 29.9 22.3 24.1 23.7 26.8 30.2 22.6 24.4 24.1 27.2 30.5
S.C. 21.7 20.6 17.1 17.4 13.7 22.1 20.9 17.2 17.5 13.8 22.5 21.1 17.3 17.5 13.9
K.W. 1.86 1.87 1.87 1.89 1.95 1.85 1.86 1.86 1.84 1.88 1.84 1.86 1.86 1.79 1.81
95 / 75
T.C. 22.1 22.8 22.5 25.5 28.8 20.2 21.6 21.3 24.2 27.3 18.3 20.3 20.1 22.9 25.8
S.C. 22.1 22.7 18.3 18.8 14.1 20.1 19.5 16.0 16.4 12.6 18.2 16.4 13.6 14.0 11.1
K.W. 2.07 2.07 2.06 2.09 2.21 1.98 2.00 2.00 2.03 2.11 1.90 1.94 1.94 1.97 2.00
105 / 83
T.C. 19.3 19.9 19.2 22.0 24.7 17.8 18.8 18.3 21.0 23.7 16.3 17.7 17.3 20.0 22.7
S.C. 19.3 19.8 16.4 17.2 11.9 17.8 17.4 14.4 14.9 10.8 16.2 15.1 12.4 12.7 9.8
K.W. 2.21 2.21 2.20 2.24 2.34 2.12 2.13 2.12 2.17 2.25 2.03 2.06 2.05 2.11 2.15
115 / 89
T.C. 16.6 17.0 16.0 18.5 20.7 15.5 16.1 15.4 17.9 20.2 14.3 15.1 14.7 17.3 19.7
S.C. 16.6 17.0 14.6 15.6 9.6 15.4 15.4 12.9 13.6 9.1 14.3 13.8 11.1 11.5 8.6
K.W. 2.36 2.35 2.32 2.38 2.47 2.25 2.26 2.24 2.31 2.38 2.15 2.17 2.17 2.24 2.30
125 / 95
T.C. 13.9 14.1 12.8 15.1 17.6 13.1 13.4 12.4 14.8 17.2 12.3 12.6 12.0 14.5 16.7
S.C. 13.9 14.1 12.8 14.0 9.4 13.1 13.4 11.4 12.2 8.4 12.3 12.6 9.9 10.3 7.4
K.W. 2.50 2.49 2.45 2.53 2.59 2.39 2.39 2.36 2.45 2.52 2.27 2.29 2.28 2.37 2.45
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4A30
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1200 1000 800
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 41.0 43.6 43.2 44.9 48.3 37.8 41.0 40.8 43.8 47.9 34.5 38.4 38.5 42.8 47.5
S.C. 40.2 38.5 32.6 31.1 24.5 36.9 34.5 29.5 28.8 23.6 33.6 30.5 26.4 26.5 22.6
K.W. 1.71 1.71 1.71 1.68 1.66 1.67 1.66 1.65 1.65 1.62 1.62 1.61 1.60 1.61 1.59
65 / 55
T.C. 37.4 40.0 38.8 41.6 45.6 34.4 37.6 36.9 40.5 44.1 31.4 35.2 35.1 39.4 42.6
S.C. 37.0 36.3 30.5 29.8 23.4 34.0 32.5 27.6 27.3 25.2 31.0 28.7 24.6 24.8 27.0
K.W. 1.88 1.89 1.89 1.88 1.86 1.83 1.83 1.83 1.83 1.82 1.78 1.77 1.78 1.78 1.78
75 / 63
T.C. 33.8 36.4 34.3 38.3 42.9 31.1 34.1 33.0 37.1 40.3 28.4 31.9 31.7 36.0 37.7
S.C. 33.8 34.2 28.4 28.5 22.3 31.1 30.5 25.6 25.8 26.9 28.4 26.9 22.8 23.2 31.5
K.W. 2.04 2.06 2.08 2.08 2.06 1.99 2.00 2.02 2.02 2.02 1.94 1.93 1.95 1.95 1.97
85 / 69
T.C. 30.1 32.3 29.8 34.2 38.6 27.8 30.3 28.8 33.2 36.6 25.5 28.2 27.7 32.1 34.5
S.C. 30.1 31.2 26.1 26.7 20.6 27.8 28.1 23.4 24.0 21.9 25.5 25.0 20.8 21.3 23.3
K.W. 2.22 2.23 2.24 2.27 2.27 2.15 2.16 2.14 2.19 2.22 2.09 2.08 2.03 2.12 2.16
95 / 75
T.C. 26.3 28.3 25.3 30.1 34.3 24.4 26.4 24.5 29.2 32.8 22.6 24.6 23.7 28.2 31.3
S.C. 26.3 28.3 23.7 24.8 18.9 24.4 25.7 21.2 22.2 17.0 22.6 23.1 18.7 19.5 15.1
K.W. 2.39 2.39 2.41 2.45 2.47 2.32 2.31 2.26 2.37 2.41 2.24 2.24 2.11 2.30 2.35
105 / 83
T.C. 21.4 24.8 20.6 25.9 28.7 20.3 22.8 20.0 24.7 27.8 19.2 20.8 19.4 23.4 26.9
S.C. 21.4 24.8 19.5 22.4 16.9 20.3 22.3 17.8 20.0 15.2 19.2 19.9 16.1 17.5 13.6
K.W. 2.57 2.57 2.56 2.61 2.67 2.49 2.49 2.44 2.50 2.61 2.41 2.40 2.32 2.38 2.55
115 / 89
T.C. 16.7 21.3 16.0 21.8 23.3 16.3 19.3 15.6 20.3 23.0 15.9 17.2 15.2 18.8 22.7
S.C. 16.7 21.3 15.5 20.1 14.9 16.3 19.0 14.5 17.8 13.5 15.9 16.7 13.6 15.6 12.0
K.W. 2.74 2.74 2.71 2.77 2.86 2.66 2.65 2.61 2.62 2.80 2.57 2.56 2.52 2.46 2.73
125 / 95
T.C. 12.0 17.9 11.4 17.7 17.8 12.3 15.7 11.2 15.9 18.2 12.6 13.6 11.0 14.1 18.5
S.C. 12.0 17.9 11.4 17.7 13.0 12.3 15.7 11.2 15.7 11.7 12.6 13.6 11.0 13.7 10.5
K.W. 2.91 2.91 2.86 2.92 3.06 2.83 2.82 2.79 2.73 2.99 2.74 2.72 2.72 2.55 2.92
5005562-YTG-B-0715
8Johnson Controls Unitary Products
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4A36
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1600 1400 1200
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 45.3 48.1 48.0 53.1 54.6 42.2 46.3 46.2 51.3 53.5 39.2 44.6 44.5 49.5 52.4
S.C. 45.3 43.2 36.0 36.5 27.9 42.2 39.5 33.3 33.4 26.1 39.2 35.8 30.6 30.4 24.4
K.W. 2.15 2.16 2.16 2.15 2.15 2.07 2.07 2.07 2.06 2.05 1.99 1.99 1.99 1.97 1.95
65 / 55
T.C. 42.0 43.7 43.8 48.6 52.4 39.4 42.5 42.4 47.1 51.0 36.8 41.2 41.0 45.6 49.5
S.C. 42.0 40.3 34.1 34.5 26.6 39.4 36.9 31.3 31.5 24.9 36.8 33.5 28.6 28.5 23.1
K.W. 2.39 2.41 2.40 2.41 2.40 2.30 2.31 2.31 2.32 2.31 2.20 2.22 2.22 2.22 2.21
75 / 63
T.C. 38.7 39.3 39.6 44.1 50.1 36.6 38.6 38.5 42.9 48.4 34.5 37.9 37.4 41.7 46.7
S.C. 38.7 37.4 32.1 32.4 25.4 36.6 34.3 29.3 29.5 23.6 34.5 31.1 26.6 26.7 21.8
K.W. 2.63 2.66 2.64 2.67 2.65 2.52 2.55 2.54 2.57 2.56 2.41 2.45 2.44 2.47 2.46
85 / 69
T.C. 35.3 35.4 35.5 39.4 45.0 33.6 34.8 34.8 38.7 43.8 31.9 34.2 34.0 38.0 42.7
S.C. 35.3 34.4 30.0 30.1 23.6 33.6 32.0 27.5 27.5 21.9 31.9 29.5 25.0 25.0 20.2
K.W. 2.87 2.90 2.88 2.93 2.93 2.75 2.79 2.77 2.83 2.83 2.64 2.68 2.67 2.72 2.73
95 / 75
T.C. 31.9 31.5 31.5 34.8 39.8 30.5 31.0 31.0 34.6 39.2 29.2 30.5 30.6 34.3 38.6
S.C. 31.9 31.5 28.0 27.8 21.8 30.5 29.7 25.7 25.5 20.2 29.2 27.9 23.4 23.3 18.7
K.W. 3.11 3.14 3.12 3.20 3.21 2.99 3.02 3.00 3.08 3.10 2.87 2.91 2.89 2.97 2.99
105 / 83
T.C. 26.5 26.8 26.3 29.0 33.7 26.0 26.5 26.2 29.1 33.5 25.5 26.3 26.0 29.2 33.4
S.C. 26.5 26.8 24.0 24.4 19.3 26.0 25.7 22.6 22.8 18.0 25.5 24.5 21.2 21.3 16.7
K.W. 3.43 3.39 3.35 3.43 3.48 3.27 3.27 3.23 3.32 3.37 3.11 3.14 3.11 3.20 3.25
115 / 89
T.C. 21.4 22.3 21.3 23.4 27.7 21.6 22.2 21.4 23.8 28.0 21.8 22.2 21.5 24.2 28.3
S.C. 21.4 22.3 20.2 21.1 17.0 21.6 21.8 19.7 20.2 15.9 21.8 21.3 19.1 19.3 14.8
K.W. 3.74 3.65 3.57 3.67 3.75 3.54 3.50 3.44 3.54 3.63 3.34 3.36 3.32 3.42 3.50
125 / 95
T.C. 16.2 17.7 16.3 17.7 21.7 17.2 17.9 16.7 18.5 22.5 18.2 18.0 17.0 19.2 23.2
S.C. 16.2 17.7 16.3 17.7 14.6 17.2 17.9 16.7 17.6 13.8 18.2 18.0 17.0 17.4 13.0
K.W. 4.05 3.90 3.79 3.90 4.01 3.81 3.74 3.66 3.77 3.88 3.57 3.58 3.53 3.65 3.76
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4A42
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1600 1400 1200
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 49.4 50.2 50.2 55.5 61.9 46.5 48.6 48.5 53.7 59.6 43.7 46.9 46.8 51.8 57.3
S.C. 47.8 45.0 38.5 39.6 32.6 45.5 42.1 36.2 37.0 30.7 43.1 39.2 33.9 34.4 28.7
K.W. 2.50 2.52 2.51 2.53 2.56 2.42 2.44 2.43 2.45 2.47 2.35 2.36 2.36 2.38 2.38
65 / 55
T.C. 46.6 47.0 47.0 52.1 58.0 44.4 45.6 45.6 50.5 56.1 42.2 44.1 44.1 48.9 54.1
S.C. 45.5 43.2 36.4 37.7 30.8 43.7 40.5 34.4 35.3 29.2 41.9 37.7 32.5 32.8 27.5
K.W. 2.73 2.76 2.74 2.77 2.80 2.55 2.68 2.66 2.70 2.71 2.36 2.61 2.59 2.62 2.61
75 / 63
T.C. 43.8 43.9 43.7 48.7 54.1 42.2 42.6 42.6 47.4 52.5 40.6 41.3 41.4 46.0 51.0
S.C. 43.3 41.4 34.3 35.9 29.0 41.9 38.8 32.7 33.6 27.6 40.6 36.3 31.0 31.3 26.2
K.W. 2.97 3.00 2.97 3.01 3.04 2.67 2.93 2.89 2.94 2.94 2.38 2.86 2.82 2.87 2.84
85 / 69
T.C. 40.7 41.8 40.1 44.9 50.0 39.3 40.0 39.3 43.8 48.8 38.0 38.2 38.4 42.7 47.6
S.C. 40.4 37.7 32.8 33.9 27.3 39.2 36.1 31.0 31.2 25.9 38.0 34.5 29.3 28.5 24.5
K.W. 3.28 3.30 3.28 3.31 3.36 2.98 3.24 3.20 3.24 3.26 2.69 3.17 3.13 3.18 3.15
95 / 75
T.C. 37.6 39.7 36.5 41.1 46.0 36.5 37.4 35.9 40.2 45.1 35.4 35.1 35.4 39.3 44.1
S.C. 37.6 33.9 31.3 32.0 25.5 36.5 33.3 29.4 28.9 24.1 35.4 32.7 27.6 25.8 22.8
K.W. 3.59 3.60 3.59 3.60 3.67 3.29 3.54 3.51 3.54 3.57 3.00 3.48 3.44 3.48 3.47
105 / 83
T.C. 33.3 34.8 31.8 36.1 40.6 32.5 33.0 31.5 35.5 40.0 31.7 31.2 31.2 34.9 39.4
S.C. 33.3 31.0 28.4 29.5 23.3 32.5 30.3 26.9 27.0 22.1 31.7 29.6 25.4 24.5 20.9
K.W. 4.01 4.03 4.01 4.03 4.09 3.72 3.97 3.94 3.97 3.99 3.44 3.90 3.86 3.90 3.90
115 / 89
T.C. 29.2 30.1 27.3 31.1 35.3 28.7 28.8 27.2 30.9 35.0 28.2 27.4 27.1 30.7 34.7
S.C. 29.2 28.2 25.6 27.2 21.2 28.7 27.4 24.4 25.2 20.1 28.2 26.7 23.3 23.1 19.0
K.W. 4.43 4.45 4.42 4.45 4.50 4.14 4.38 4.35 4.37 4.41 3.86 4.31 4.28 4.30 4.31
125 / 95
T.C. 25.1 25.4 22.8 26.2 30.1 24.9 24.5 22.9 26.4 30.1 24.7 23.7 23.0 26.5 30.1
S.C. 25.1 25.4 22.8 24.8 19.1 24.9 24.5 22.0 23.3 18.1 24.7 23.7 21.2 21.8 17.2
K.W. 4.84 4.86 4.83 4.87 4.91 4.57 4.79 4.76 4.78 4.82 4.29 4.71 4.69 4.70 4.73
5005562-YTG-B-0715
Johnson Controls Unitary Products 9
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4B48
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1600 1400 1200
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 58.1 61.5 60.2 66.8 70.0 55.6 59.5 58.7 65.1 70.0 53.1 57.5 57.2 63.4 69.9
S.C. 57.1 53.6 44.4 44.1 33.9 54.5 49.9 42.1 41.9 33.5 51.9 46.3 39.7 39.6 33.0
K.W. 2.21 2.21 2.20 2.23 2.25 2.20 2.21 2.20 2.23 2.24 2.18 2.20 2.19 2.22 2.23
65 / 55
T.C. 54.4 56.8 55.7 62.2 66.3 52.1 55.1 54.4 60.9 65.7 49.8 53.4 53.1 59.5 65.1
S.C. 54.0 51.5 42.4 42.4 32.4 51.6 48.0 40.1 40.2 31.5 49.2 44.5 37.9 38.0 30.6
K.W. 2.46 2.47 2.46 2.49 2.50 2.44 2.46 2.45 2.49 2.49 2.43 2.46 2.45 2.48 2.49
75 / 63
T.C. 50.8 52.2 51.2 57.6 62.5 48.7 50.7 50.1 56.6 61.4 46.5 49.3 49.0 55.6 60.3
S.C. 50.8 49.5 40.4 40.6 30.9 48.7 46.0 38.2 38.5 29.5 46.5 42.6 36.0 36.3 28.2
K.W. 2.71 2.73 2.72 2.75 2.76 2.69 2.72 2.71 2.75 2.75 2.68 2.71 2.70 2.74 2.74
85 / 69
T.C. 46.5 47.2 46.2 52.4 57.6 44.6 46.0 45.1 51.5 56.8 42.8 44.9 44.1 50.6 56.0
S.C. 46.5 45.8 37.7 38.1 28.7 44.6 42.9 35.5 35.9 27.5 42.8 40.0 33.3 33.8 26.3
K.W. 3.05 3.06 3.05 3.08 3.09 3.04 3.05 3.04 3.08 3.09 3.02 3.05 3.03 3.07 3.08
95 / 75
T.C. 42.2 42.2 41.2 47.2 52.7 40.6 41.3 40.2 46.4 52.2 39.0 40.5 39.2 45.5 51.7
S.C. 42.2 42.2 35.0 35.6 26.5 40.6 39.8 32.9 33.4 25.4 39.0 37.4 30.7 31.2 24.3
K.W. 3.39 3.38 3.38 3.41 3.42 3.38 3.38 3.38 3.41 3.42 3.36 3.38 3.37 3.40 3.42
105 / 83
T.C. 37.2 37.0 35.3 40.9 46.8 36.1 36.2 35.0 40.6 46.5 34.9 35.4 34.8 40.3 46.2
S.C. 37.2 37.0 31.2 33.3 24.7 36.1 35.2 30.1 31.3 23.7 34.9 33.4 28.9 29.4 22.7
K.W. 3.85 3.85 3.85 3.88 3.89 3.85 3.85 3.85 3.88 3.89 3.84 3.86 3.84 3.87 3.88
115 / 89
T.C. 32.4 31.9 29.6 34.9 41.1 31.7 31.2 30.1 35.1 41.0 30.9 30.5 30.6 35.3 41.0
S.C. 32.4 31.9 27.5 31.0 23.0 31.7 30.7 27.3 29.3 22.0 30.9 29.5 27.1 27.6 21.0
K.W. 4.31 4.31 4.30 4.33 4.35 4.30 4.31 4.30 4.33 4.34 4.30 4.31 4.30 4.33 4.34
125 / 95
T.C. 27.6 26.9 23.9 28.8 35.5 27.3 26.2 25.1 29.6 35.6 27.0 25.5 26.4 30.3 35.7
S.C. 27.6 26.9 23.9 28.8 21.2 27.3 26.2 24.6 27.4 20.3 27.0 25.5 25.4 25.9 19.4
K.W. 4.76 4.76 4.76 4.79 4.80 4.76 4.77 4.76 4.79 4.80 4.76 4.77 4.76 4.79 4.79
COOLING PERFORMANCE DATA
PACKAGED UNIT MODEL NO. PCG4B60
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1600 1400 1200
IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55 / 45
T.C. 63.1 65.4 65.2 68.7 72.9 60.4 64.1 64.4 68.0 71.8 57.6 62.7 63.6 67.2 70.6
S.C. 63.1 58.0 49.1 46.2 34.9 60.4 54.7 46.3 44.2 33.9 57.6 51.4 43.4 42.2 32.8
K.W. 3.44 3.44 3.43 3.43 3.41 3.28 3.29 3.33 3.34 3.32 3.12 3.14 3.23 3.24 3.23
65 / 55
T.C. 59.1 61.9 28.9 32.9 36.7 56.7 60.5 28.4 32.2 36.0 54.3 59.1 27.9 31.6 35.4
S.C. 59.1 57.3 23.1 23.1 17.6 56.7 53.5 21.5 21.6 16.8 54.3 49.7 20.0 20.0 16.0
K.W. 3.74 3.75 3.74 3.76 3.76 3.57 3.59 3.61 3.63 3.64 3.41 3.43 3.48 3.50 3.52
75 / 63
T.C. 55.1 58.3 57.7 65.7 73.2 53.0 56.9 56.7 64.4 72.0 51.0 55.5 55.7 63.1 70.7
S.C. 55.1 56.5 46.1 46.2 35.2 53.0 52.3 43.0 43.1 33.6 51.0 48.1 40.0 40.0 32.0
K.W. 4.03 4.05 4.05 4.09 4.11 3.87 3.88 3.89 3.92 3.96 3.70 3.72 3.73 3.76 3.80
85 / 69
T.C. 27.6 53.5 52.8 60.0 60.4 26.5 52.5 52.2 59.2 63.2 25.5 51.5 51.6 58.4 65.9
S.C. 27.6 52.6 43.8 44.0 41.4 26.5 49.3 40.9 41.1 35.7 25.5 46.0 38.0 38.1 30.1
K.W. 4.42 4.44 4.45 4.48 4.47 4.26 4.28 4.29 4.31 4.33 4.11 4.12 4.13 4.15 4.19
95 / 75
T.C. 47.5 48.7 47.9 54.3 47.5 46.0 48.1 47.8 54.0 54.3 44.4 47.5 47.6 53.6 61.1
S.C. 47.5 48.7 41.5 41.8 47.5 46.0 46.3 38.8 39.0 37.9 44.4 43.9 36.1 36.3 28.2
K.W. 4.80 4.84 4.84 4.86 4.83 4.66 4.68 4.69 4.71 4.70 4.51 4.52 4.53 4.55 4.57
105 / 83
T.C. 43.0 44.0 39.9 46.0 44.7 41.5 42.6 40.0 46.1 49.5 40.0 41.1 40.1 46.2 54.3
S.C. 43.0 44.0 35.7 37.8 39.3 41.5 41.4 34.1 35.6 32.5 40.0 38.7 32.5 33.3 25.7
K.W. 5.37 5.40 5.41 5.42 5.41 5.23 5.25 5.26 5.26 5.27 5.10 5.09 5.11 5.11 5.13
115 / 89
T.C. 38.6 39.6 32.1 38.0 42.0 37.1 37.2 32.5 38.5 44.8 35.6 34.9 32.9 39.0 47.6
S.C. 38.6 39.6 30.0 33.9 31.3 37.1 36.6 29.5 32.2 27.4 35.6 33.7 29.1 30.5 23.4
K.W. 5.92 5.96 5.97 5.96 5.98 5.79 5.80 5.82 5.81 5.83 5.66 5.64 5.67 5.66 5.67
125 / 95
T.C. 34.2 35.1 24.4 30.0 39.3 32.7 31.9 25.0 31.0 40.1 31.2 28.7 25.6 31.9 41.0
S.C. 34.2 35.1 24.4 30.0 23.4 32.7 31.9 25.0 28.8 22.2 31.2 28.7 25.6 27.6 21.0
K.W. 6.47 6.51 6.53 6.49 6.55 6.35 6.35 6.38 6.35 6.38 6.23 6.19 6.24 6.21 6.21
5005562-YTG-B-0715
10 Johnson Controls Unitary Products
DIMENSIONS
Unit Dimensions
Model Dimensions
ABC
PCG4A24 51-1/4 35-3/4 47
PCG4A30 51-1/4 35-3/4 47
PCG4A36 51-1/4 35-3/4 47
PCG4A42 51-1/4 35-3/4 49
PCG4B48 51-1/4 45-3/4 53
PCG4B60 51-1/4 45-3/4 55
Unit Clearances1 2
1. A 1" clearance must be provided between any combustible material and the supply air duct work.
2. The products of combustion must not be allowed to accumulate within a confined space and recirculate.
Direction Distance (in.) Direction Distance (in.)
Top3
3. Units must be installed outdoors. Over hanging structure or shrubs should not obstruct condenser air discharge outlet.
36 Power Entry (Right Side) 36
Side Opposite Ducts 36 Left Side 24
Duct Panel 0 Bottom4
4. Units may be installed on combustible floors made from class A, B or C roof covering materials.
1
HIGH VOLTAGE
CONNECTION 7/8”
HIGH VOLTAGE
CONNECTION 1-3/32”
COMPRESSOR
ACCESS PANEL
CONDENSATE
DRAIN BLOWER
ACCESS
PANEL CONTROL ACCESS
PANEL
LOW VOLTAGE CONNECTION
GAS SUPPLY
EXHAUST HOOD
COMBUSTION AIR INTAKE
HEAT EXCHANGER ACCESS PANEL
B
A
C
A0296-001
COIL GUARD
5005562-YTG-B-0715
Johnson Controls Unitary Products 11
Indoor Blower Specifications
Model Motor
HP RPM EFF. SF Frame
24050 1/3 Variable 0.8 1.0 48
24075 1/2 Variable 0.8 1.0 48
30050 1/3 Variable 0.8 1.0 48
30075 1/2 Variable 0.8 1.0 48
36050 1/2 Variable 0.8 1.0 48
36075 1/2 Variable 0.8 1.0 48
36100 3/4 Variable 0.8 1.0 48
42075 3/4 Variable 0.8 1.0 48
42100 3/4 Variable 0.8 1.0 48
48065 3/4 Variable 0.8 1.0 48
48100 3/4 Variable 0.8 1.0 48
48125 3/4 Variable 0.8 1.0 48
60065 1 Variable 0.8 1.0 48
60100 1 Variable 0.8 1.0 48
60125 1 Variable 0.8 1.0 48
Sound Performance
Model
(Tons) Sound Rating1
dB (A)
1. Rated in accordance with AHRI Standard 270.
Octave Band Centerline Frequency (Hz)
125 250 500 1000 2000 4000 8000
PCG4A24 75 62.4 61.5 64.2 67.0 61.0 57.3 49.6
PCG4A30 75 60.5 61.6 64.8 66.9 60.9 56.0 49.7
PCG4A36 74 58.5 61.8 65.4 66.5 60.7 54.8 49.8
PCG4A42 74 63.5 63.9 62.3 65.0 64.0 54.1 46.6
PCG4B48 74 63.5 63.9 62.3 65.0 64.0 54.1 46.6
PCG4B60 76 72.3 65.0 63.9 64.0 60.0 55.5 49.0
Electrical Data
Model Voltage Compressor OD Fan
Motor Supply
Blower Motor MCA1
(Amps)
Max Fuse2/
Breaker3 Size
(Amps)
RLA LRA MCC FLA FLA
24050 208/230-1-60 8.7 45.0 14.4 1.3 2.6 14.8 20
24075 208/230-1-60 8.7 45.0 14.4 1.3 3.8 16.0 20
30050 208/230-1-60 9.8 57.0 15.1 1.3 2.6 16.2 25
30075 208/230-1-60 9.8 57.0 15.1 1.3 3.8 17.4 25
36050, 36075 208/230-1-60 13.0 78.0 23.0 1.3 3.8 21.4 30
36100 208/230-1-60 13.0 78.0 23.0 1.3 5.4 23.0 35
42075, 42100 208/230-1-60 17.9 112.0 28.0 1.3 5.4 29.1 45
48065, 48100, 48125 208/230-1-60 21.8 117.0 34.0 1.7 5.4 34.4 50
60065, 60100, 60125 208/230-1-60 24.4 144.2 38.0 1.7 7.0 39.2 60
1. Minimum Circuit Ampacity.
2. Maximum Over Current Protection per standard UL 1995.
3. Fuse or HACR circuit breaker size installed at factory or field installed.
5005562-YTG-B-0715
12 Johnson Controls Unitary Products

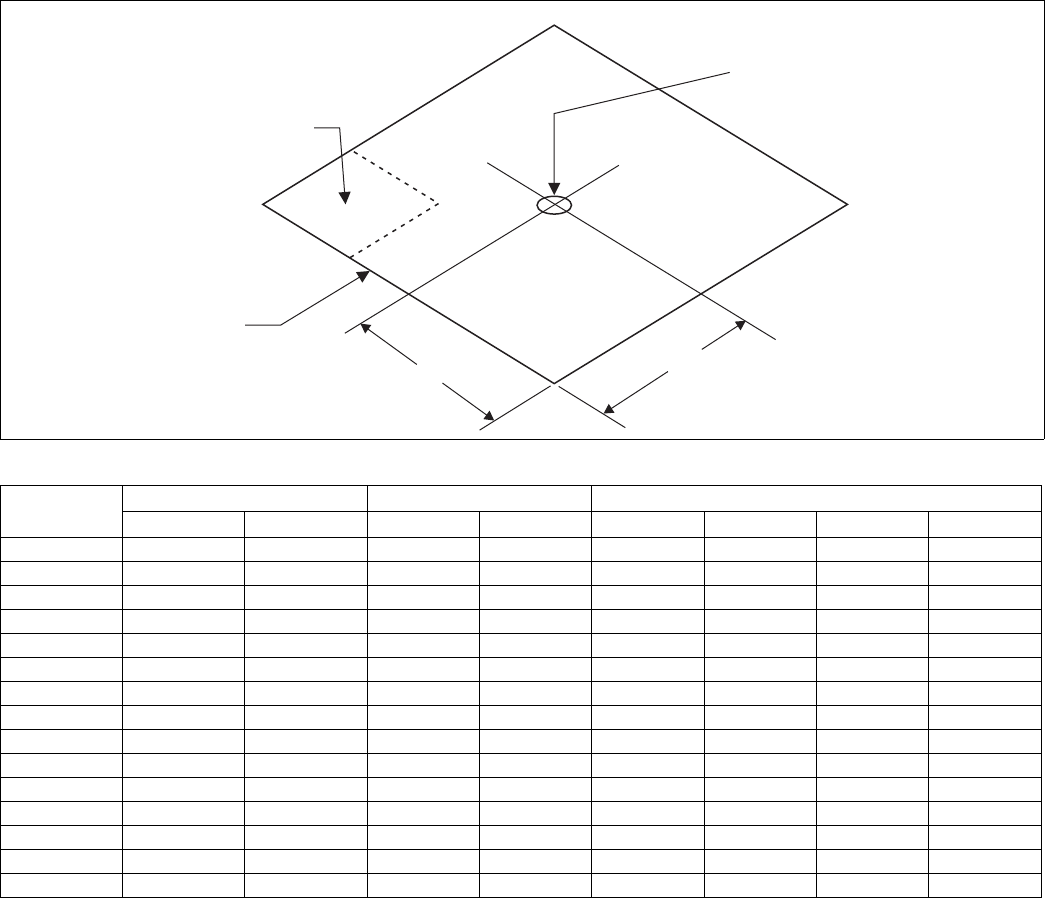

WEIGHTS & DIMENSIONS
Weights and Dimensions
Model Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingXYABCD
24050 372 367 28 15 120 95 81 71
24075 382 377 28 15 124 96 81 76
30050 417 412 28 15 139 99 90 84
30075 421 416 28 15 146 93 82 95
36050 425 420 28 15 141 107 94 78
36075 432 427 28 15 135 115 103 74
36100 436 431 28 15 139 113 99 80
42075 446 441 28 15 145 112 99 85
42100 448 443 28 15 148 110 96 89
48065 520 515 28 15 189 116 93 117
48100 528 523 28 15 169 139 115 100
48125 533 528 28 15 164 145 124 95
60065 537 532 29 15 174 142 124 92
60100 541 536 28 15 177 140 117 102
60125 548 543 27 15 151 167 141 84
X
CENTER OF
GRAVITY
FRONT
OF UNIT
Y
"D"
"C"
"B"
"A"
A0295-001-TG
COMPRESSOR
5005562-YTG-B-0715
Johnson Controls Unitary Products 13
AIRFLOW PERFORMANCE
Airflow - Side Duct Application
Model Motor Speed
External Static Pressure (Inches WC)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM
24050
Low (1) 732 667 624 567 517 470 415 369
Low/Medium (2) 818 771 723 674 628 579 530 482
Medium (3) 823 774 721 676 631 583 533 505
Medium/High (4) 994 948 906 865 823 778 739 700
High (5) 1148 1108 1071 1035 996 960 925 901
24075
Low (1) 887 847 802 750 705 664 613 563
Low/Medium (2) 978 941 898 850 803 759 713 667
Medium (3) 1171 1114 1074 1039 993 949 906 864
Medium/High (4) 1349 1297 1265 1224 1185 1146 1107 1063
High (5) 1487 1462 1392 1331 1318 1281 1241 1201
30050
Low (1) 700 657 599 554 512 461 411 365
Low/Medium (2) 906 868 825 779 735 692 650 608
Medium (3) 992 951 911 868 826 787 747 712
Medium/High (4) 1075 1032 1000 958 918 874 837 800
High (5) 1136 1089 1053 1018 978 941 903 869
30075
Low (1) 1076 1020 984 943 903 859 819 779
Low/Medium (2) 1102 1048 1010 974 934 890 850 810
Medium (3) 1191 1140 1112 1076 1038 1000 958 919
Medium/High (4) 1201 1225 1187 1151 1118 1080 1041 1002
High (5) 1370 1329 1283 1271 1209 1176 1143 1109
36050
Low (1) 1003 952 904 851 790 730 674 633
Low/Medium (2) 1180 1133 1085 1042 995 942 889 834
Medium (3) 1259 1209 1166 1126 1084 1032 980 928
Medium/High (4) 1314 1271 1229 1186 1144 1097 1049 998
High (5) 1506 1471 1403 1389 1345 1305 1262 1216
36075
Low (1) 1225 1174 1131 1090 1046 993 941 888
Low/Medium (2) 1259 1209 1166 1126 1084 1032 980 928
Medium (3) 1314 1271 1229 1186 1144 1097 1049 998
Medium/High (4) 1348 1306 1259 1222 1179 1133 1086 1036
High (5) 1506 1471 1403 1389 1345 1305 1262 1216
36100
Low (1) 1342 1302 1260 1217 1178 1134 1082 1034
Low/Medium (2) 1425 1368 1332 1293 1251 1208 1163 1113
Medium (3) 1554 1503 1465 1423 1386 1346 1302 1257
Medium/High (4) 1658 1599 1588 1530 1495 1454 1414 1373
High (5) 1966 1914 1862 1810 1757 1705 1653 1600
42075
Low (1) 1315 1266 1229 1194 1156 1117 1080 1036
Low/Medium (2) 1436 1382 1342 1304 1262 1220 1179 1131
Medium (3) 1458 1406 1365 1327 1286 1244 1203 1155
Medium/High (4) 1573 1523 1484 1445 1408 1367 1327 1279
High (5) 1966 1914 1862 1810 1757 1705 1653 1600
42100
Low (1) 1436 1382 1342 1304 1262 1220 1179 1131
Low/Medium (2) 1544 1492 1455 1416 1376 1336 1294 1248
Medium (3) 1573 1523 1484 1445 1408 1367 1327 1279
Medium/High (4) 1681 1640 1599 1557 1517 1478 1436 1393
High (5) 1935 1887 1834 1788 1743 1701 1651 1591
48065
Low (1) 1046 1009 980 946 915 878 844 779
Low/Medium (2) 1295 1250 1213 1172 1133 1087 1045 964
Medium (3) 1620 1564 1517 1466 1418 1360 1308 1206
Medium/High (4) 1798 1722 1669 1620 1572 1527 1480 1413
High (5) 2146 2085 2025 1960 1872 1862 1798 1735
Continued on next page.
5005562-YTG-B-0715
14 Johnson Controls Unitary Products
1. Airflow tested with dry coil conditions, without air flitters, at 230 volts
2. Applications above 0.8" w.c. external static pressure are not recommended.
3. Brushless DC high efficiency standard ECM blower motor used for all indoor blower assemblies.
4. Minimal variations in airflow performance data results from operating at 208 volts. Data above may be used in those cases.
5. Heating applications tested at 0.50" w.c. esp, and cooling applications tested at 0.30" w.c.esp per standards.
48100
Low (1) 1620 1564 1517 1466 1418 1360 1308 1206
Low/Medium (2) 1694 1630 1580 1530 1482 1430 1380 1292
Medium (3) 1798 1722 1669 1620 1572 1527 1480 1413
Medium/High (4) 1835 1758 1703 1653 1604 1558 1511 1442
High (5) 2146 2085 2025 1960 1872 1862 1798 1735
48125
Low (1) 1620 1564 1517 1466 1418 1360 1308 1206
Low/Medium (2) 1798 1722 1669 1620 1572 1527 1480 1413
Medium (3) 1922 1863 1804 1754 1724 1658 1612 1559
Medium/High (4) 2001 1952 1890 1839 1820 1742 1696 1651
High (5) 2146 2085 2025 1960 1872 1862 1798 1735
60065
Low (1) 1073 1043 1009 988 963 941 917 892
Low/Medium (2) 1329 1292 1250 1223 1192 1165 1136 1105
Medium (3) 2054 1998 1934 1890 1843 1801 1757 1710
Medium/High (4) 2195 2144 2098 2049 2003 1955 1883 1868
High (5) 2445 2388 2306 2293 2235 2178 2129 2077
60100
Low (1) 1730 1682 1628 1592 1552 1517 1479 1439
Low/Medium (2) 1858 1807 1749 1710 1667 1629 1589 1546
Medium (3) 2054 1998 1934 1890 1843 1801 1757 1710
Medium/High (4) 2195 2144 2098 2049 2003 1955 1883 1868
High (5) 2445 2388 2306 2293 2235 2178 2129 2077
60125
Low (1) 2063 2008 1943 1899 1851 1809 1763 1717
Low/Medium (2) 2130 2084 2032 1983 1927 1951 1860 1815
Medium (3) 2195 2144 2098 2049 2003 1955 1883 1868
Medium/High (4) 2275 2252 2169 2154 2112 2065 1989 1976
High (5) 2445 2388 2306 2293 2235 2178 2129 2077
Airflow - Side Duct Application (Continued)
Model Motor Speed
External Static Pressure (Inches WC)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM
5005562-YTG-B-0715
Johnson Controls Unitary Products 15
Airflow - Bottom Duct Application
Model Motor Speed
External Static Pressure (Inches WC)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM
24050
Low (1) 754 710 665 611 560 491 445 391
Low/Medium (2) 867 815 773 720 677 622 559 505
Medium (3) 951 908 868 828 781 735 686 631
Medium/High (4) 1024 982 942 902 861 817 775 721
High (5) 1204 1159 1121 1085 1051 1013 975 938
24075
Low (1) 899 869 827 782 734 685 630 575
Low/Medium (2) 1033 960 924 879 834 787 735 685
Medium (3) 1186 1133 1095 1056 1016 975 935 891
Medium/High (4) 1357 1322 1284 1248 1211 1174 1127 1087
High (5) 1480 1439 1404 1367 1369 1299 1264 1226
30050
Low (1) 726 676 622 575 520 467 410 376
Low/Medium (2) 928 886 841 795 745 706 658 607
Medium (3) 1021 983 942 900 855 811 770 729
Medium/High (4) 1109 1071 1029 995 949 908 864 826
High (5) 1170 1134 1096 1061 1020 978 938 899
30075
Low (1) 1076 1042 1009 969 930 890 849 808
Low/Medium (2) 1104 1063 1025 987 947 908 869 830
Medium (3) 1205 1170 1136 1098 1060 1025 985 943
Medium/High (4) 1285 1251 1213 1179 1141 1104 1065 1027
High (5) 1406 1375 1341 1306 1271 1236 1198 1163
36050
Low (1) 1008 962 916 861 807 757 700 650
Low/Medium (2) 1190 1148 1106 1055 1008 955 914 863
Medium (3) 1262 1223 1181 1137 1091 1044 994 952
Medium/High (4) 1324 1282 1245 1202 1161 1112 1067 1018
High (5) 1517 1475 1447 1400 1357 1318 1275 1232
36075
Low (1) 1231 1186 1146 1103 1069 1030 977 912
Low/Medium (2) 1270 1225 1189 1140 1098 1046 1008 960
Medium (3) 1317 1286 1245 1198 1151 1110 1064 1024
Medium/High (4) 1358 1317 1275 1238 1197 1148 1105 1057
High (5) 1517 1475 1447 1400 1357 1318 1275 1232
36100
Low (1) 1340 1299 1264 1224 1182 1182 1097 1049
Low/Medium (2) 1409 1368 1334 1291 1253 1201 1173 1128
Medium (3) 1527 1492 1470 1419 1385 1343 1299 1250
Medium/High (4) 1663 1585 1594 1601 1521 1480 1440 1400
High (5) 1930 1892 1853 1805 1760 1696 1625 1553
42075
Low (1) 1332 1295 1263 1222 1185 1148 1110 1063
Low/Medium (2) 1457 1419 1376 1340 1299 1253 1215 1160
Medium (3) 1451 1412 1371 1339 1296 1257 1211 1165
Medium/High (4) 1568 1524 1491 1464 1425 1383 1345 1296
High (5) 1978 1937 1891 1837 1785 1725 1656 1604
42100
Low (1) 1455 1414 1379 1335 1294 1254 1212 1160
Low/Medium (2) 1566 1532 1492 1455 1416 1372 1333 1280
Medium (3) 1565 1530 1491 1458 1419 1381 1336 1290
Medium/High (4) 1675 1641 1606 1578 1535 1495 1455 1412
High (5) 1946 1909 1863 1815 1771 1721 1654 1595
48065
Low (1) 1032 999 970 938 910 879 843 808
Low/Medium (2) 1272 1236 1204 1165 1129 1081 1037 968
Medium (3) 1611 1574 1518 1494 1439 1405 1357 1266
Medium/High (4) 1892 1777 1771 1701 1639 1617 1565 1489
High (5) 2131 2058 1998 1949 1892 1840 1788 1728
Continued on next page.
5005562-YTG-B-0715
16 Johnson Controls Unitary Products
1. Airflow tested with dry coil conditions, without air flitters, at 230 volts
2. Applications above 0.8" w.c. external static pressure are not recommended.
3. Brushless DC high efficiency standard ECM blower motor used for all indoor blower assemblies.
4. Minimal variations in airflow performance data results from operating at 208 volts. Data above may be used in those cases.
5. Heating applications tested at 0.50" w.c. esp, and cooling applications tested at 0.30" w.c.esp per standards.
48100
Low (1) 1598 1548 1502 1454 1410 1362 1307 1251
Low/Medium (2) 1663 1612 1568 1522 1476 1422 1370 1297
Medium (3) 1789 1733 1670 1650 1596 1578 1535 1483
Medium/High (4) 1931 1814 1808 1736 1673 1650 1597 1519
High (5) 2131 2058 1998 1949 1892 1840 1788 1728
48125
Low (1) 1598 1548 1502 1454 1410 1362 1307 1251
Low/Medium (2) 1766 1703 1656 1611 1566 1518 1469 1419
Medium (3) 1912 1875 1805 1787 1750 1713 1672 1636
Medium/High (4) 2105 2014 2006 1931 1898 1845 1793 1739
High (5) 2131 2058 1998 1949 1892 1840 1788 1728
60065
Low (1) 1026 999 989 950 907 907 886 862
Low/Medium (2) 1263 1230 1192 1165 1167 1101 1099 1071
Medium (3) 1987 1933 1861 1817 1820 1715 1725 1651
Medium/High (4) 2114 2050 2047 1974 1899 1889 1920 1866
High (5) 2369 2308 2249 2183 2126 2088 2034 1990
60100
Low (1) 1655 1612 1596 1531 1461 1462 1429 1391
Low/Medium (2) 1766 1720 1667 1629 1632 1539 1537 1498
Medium (3) 1987 1933 1861 1817 1820 1715 1725 1651
Medium/High (4) 2114 2050 2047 1974 1899 1889 1920 1866
High (5) 2369 2308 2249 2183 2126 2088 2034 1990
60125
Low (1) 1973 1924 1905 1826 1743 1744 1703 1660
Low/Medium (2) 2024 1983 1937 1889 1886 1843 1799 1759
Medium (3) 2123 2075 2019 1970 1978 1862 1849 1804
Medium/High (4) 2191 2154 2117 2075 2002 1995 2028 1974
High (5) 2369 2308 2249 2183 2126 2088 2034 1990
Airflow - Bottom Duct Application (Continued)
Model Motor Speed
External Static Pressure (Inches WC)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM
5005562-YTG-B-0715
Johnson Controls Unitary Products 17

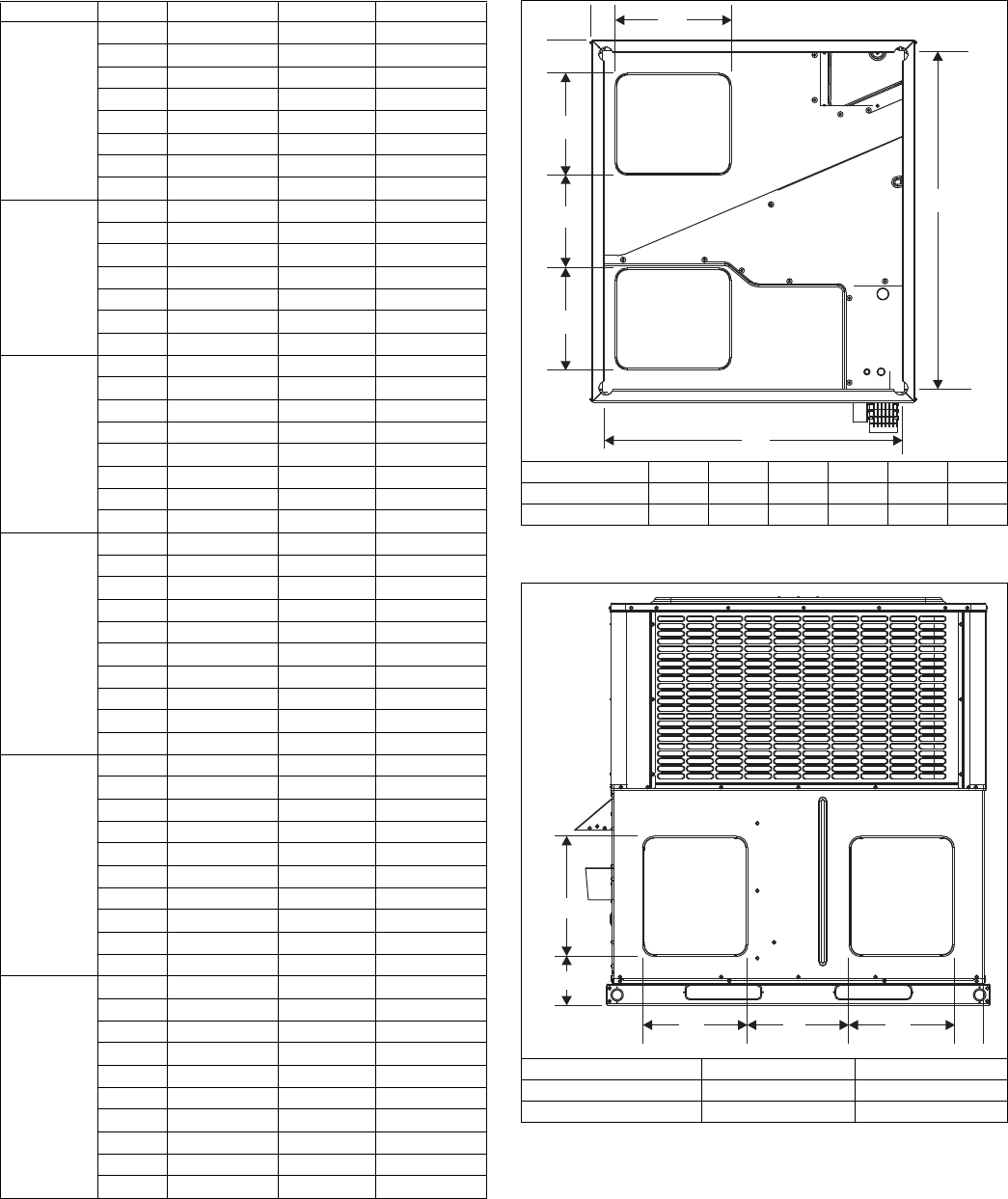

BOTTOM DUCT DIMENSIONS (Inches)
REAR DUCT DIMENSIONS (Inches)
Additional Static Resistance
Size (Tons) CFM Wet Indoor Coil Economizer1
1. The pressure drop through the economizer is greater for 100% outdoor air
than for 100% return air. If the resistance of the return air duct is less than
0.25 IWG, the unit will deliver less CFM during full economizer operation.
2. Filter pressure drop based on standard filter media tested at velocities not to
exceed 300 ft/min.
Filter/Frame Kit
024 (2.0)
500 0.01 0.00 0.01
600 0.01 0.00 0.02
700 0.01 0.00 0.04
800 0.02 0.01 0.06
900 0.03 0.01 0.08
1000 0.04 0.01 0.10
1100 0.05 0.01 0.13
1200 0.06 0.02 0.16
030 (2.5)
700 0.01 0.00 0.04
800 0.02 0.01 0.06
900 0.03 0.01 0.08
1000 0.04 0.01 0.10
1100 0.05 0.01 0.13
1200 0.06 0.02 0.16
1300 0.07 0.03 0.17
036 (3.0)
700 0.01 0.00 0.04
800 0.02 0.01 0.06
900 0.03 0.01 0.08
1000 0.04 0.01 0.10
1100 0.05 0.01 0.13
1200 0.06 0.02 0.16
1300 0.07 0.03 0.17
1400 0.08 0.04 0.18
042 (3.5)
1100 0.02 0.02 0.04
1200 0.03 0.02 0.04
1300 0.04 0.02 0.05
1400 0.05 0.03 0.05
1500 0.06 0.04 0.06
1600 0.07 0.04 0.07
1700 0.07 0.04 0.08
1800 0.08 0.04 0.09
1900 0.09 0.05 0.10
2000 0.09 0.05 0.11
048 (4.0)
1100 0.02 0.02 0.04
1200 0.03 0.02 0.04
1300 0.04 0.02 0.05
1400 0.05 0.03 0.05
1500 0.06 0.04 0.06
1600 0.07 0.04 0.07
1700 0.07 0.04 0.08
1800 0.08 0.04 0.09
1900 0.09 0.05 0.10
2000 0.09 0.05 0.11
060 (5.0)
1100 0.02 0.02 0.04
1200 0.03 0.02 0.04
1300 0.04 0.02 0.05
1400 0.05 0.03 0.05
1500 0.06 0.04 0.06
1600 0.07 0.04 0.07
1700 0.07 0.04 0.08
1800 0.08 0.04 0.09
1900 0.09 0.05 0.10
2000 0.09 0.05 0.11
Model ABCDEF
24, 30, 36, 42 10 21.5 5 4.5 47.5 32
48, 60 14 13.5 5 3.5 47.5 42
Model A B
24, 30, 36, 42 9.6 22
48, 60 13.6 14
D16
C
A
B
A
A0298-001
SUPPLY
AIR DUCT
RETURN
AIR DUCT
F
E
15.6
ABA4.3
A0299-001
6
SUPPLY
AIR DUCT
RETURN
AIR DUCT
5005562-YTG-B-0715
18 Johnson Controls Unitary Products
UNIT TYPICAL DUCT APPLICATIONS
UNIT TYPICAL SLAB ON GROUND INSTALLATION
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
SLAB ON
GROUND
INSTALLATION
A0324-001
A0325-001
SUPPLY
AIR DUCT
TO POWER SUPPLY
RETURN
AIR DUCT
FIELD-SUPPLIED
DISCONNECT
SWITCH
CONTROL WIRING TO
INDOOR THERMOSTAT
TO GAS
SUPPLY LINE
MANUAL GAS
SHUTOFF VAVLE
CONDENSATE
DRAIN
5005562-YTG-B-0715
Johnson Controls Unitary Products 19
UNIT TYPICAL ROOF CURB INSTALLATION
EXTERNAL STATIC PRESSURE SETUP
To measure external static pressure:
• Measure the supply air static pressure
• Record this positive number
• Measure the return air static pressure
• Record this negative number
• Treat the negative number as a positive and add the two numbers together
• This is total system static
SUPPLY
AIR DUCT
TO POWER SUPPLY
RETURN
AIR DUCT
FIELD-SUPPLIED
DISCONNECT
SWITCH
CONTROL WIRING TO
INDOOR THERMOSTAT
TO GAS
SUPPLY LINE
MANUAL GAS
SHUTOFF VAVLE ROOF CURB
ROOF
CONDENSATE
DRAIN
A0326-001
Subject to change without notice. Published in U.S.A. 5005562-YTG-B-0715
Copyright © 2015 by Johnson Controls, Inc. All rights reserved. Supersedes: 5005562-YTG-B-0215
York International Corp.
5005 York Drive
Norman, OK 73069
NOTES
