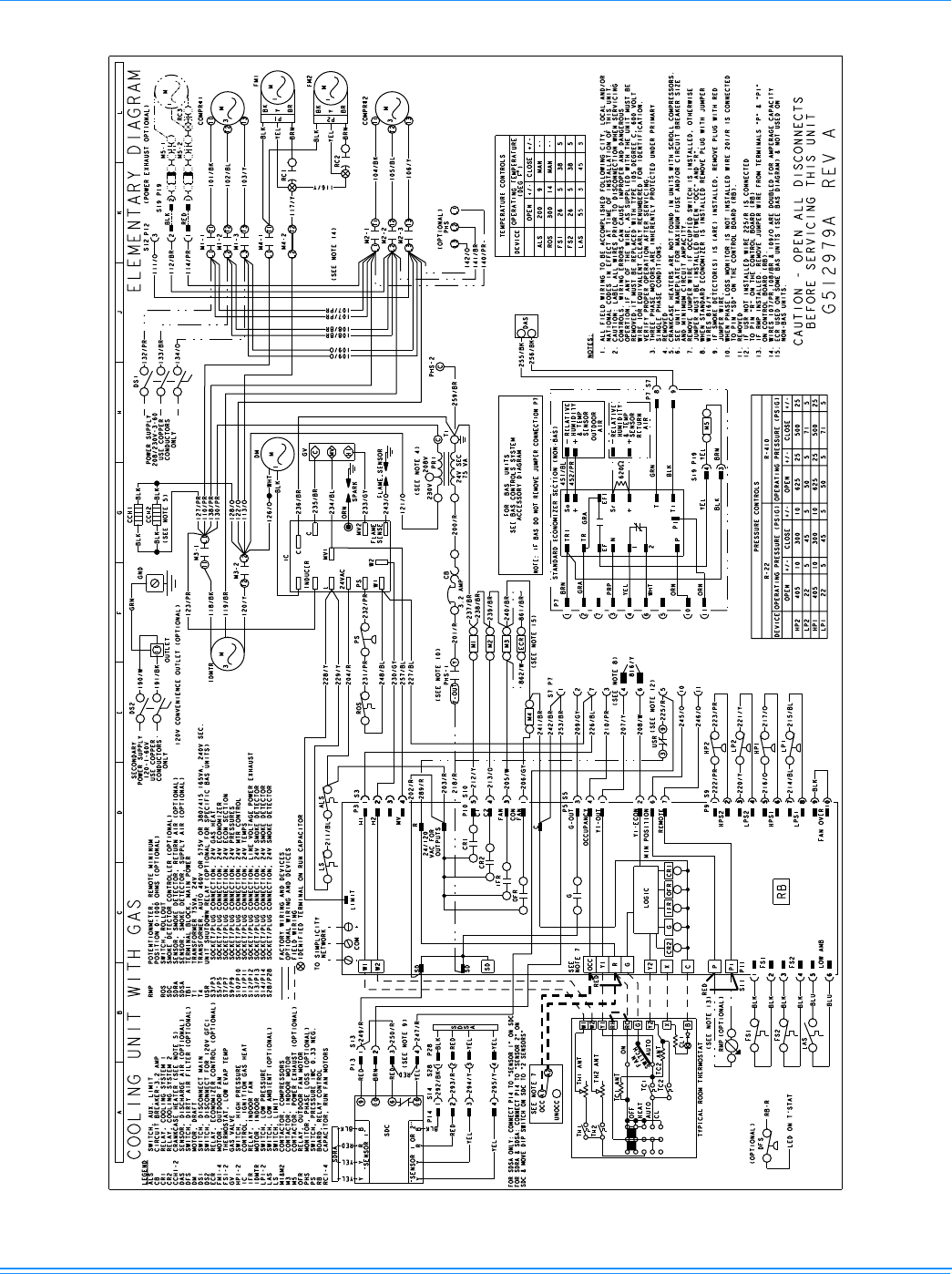

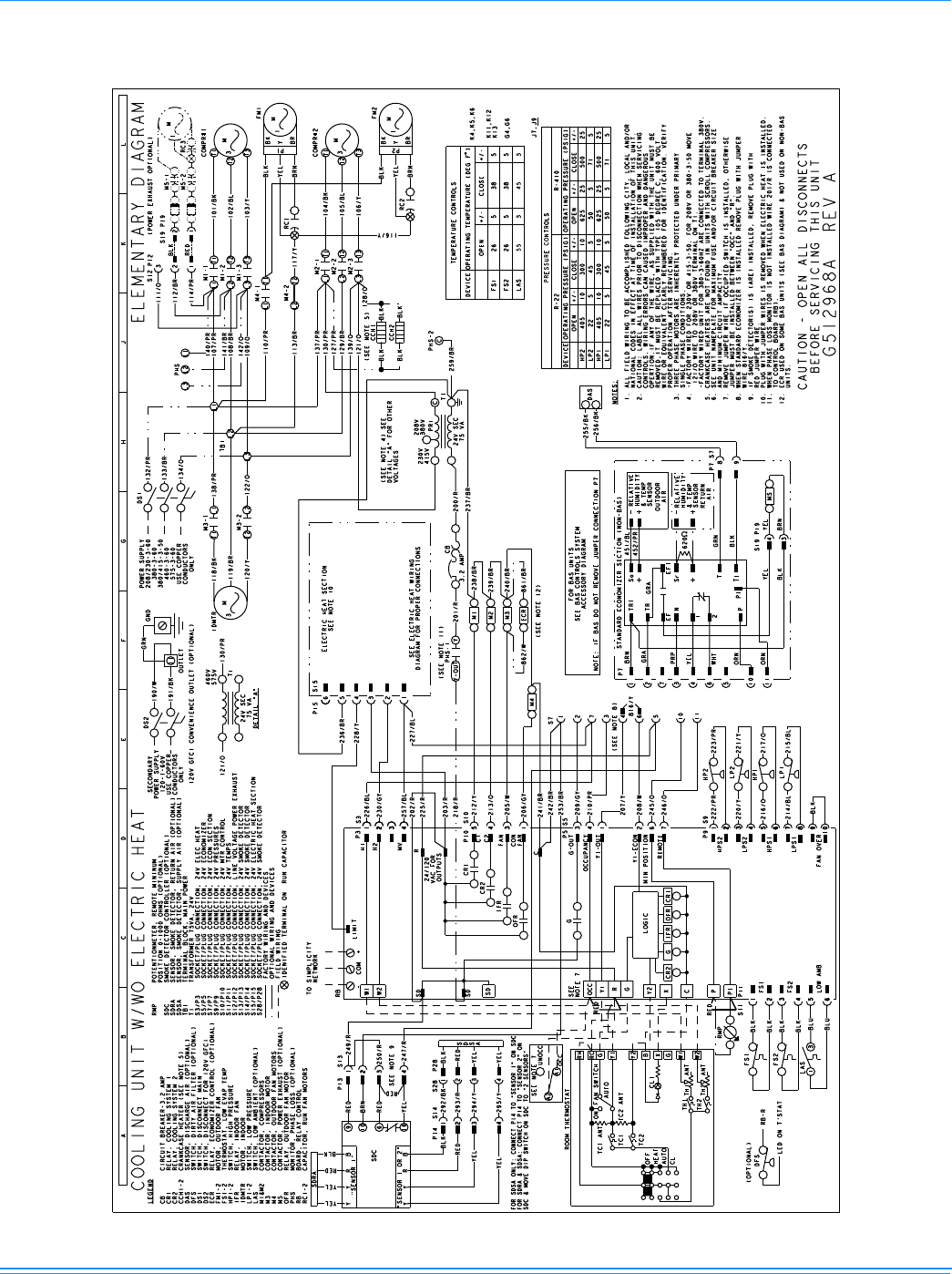

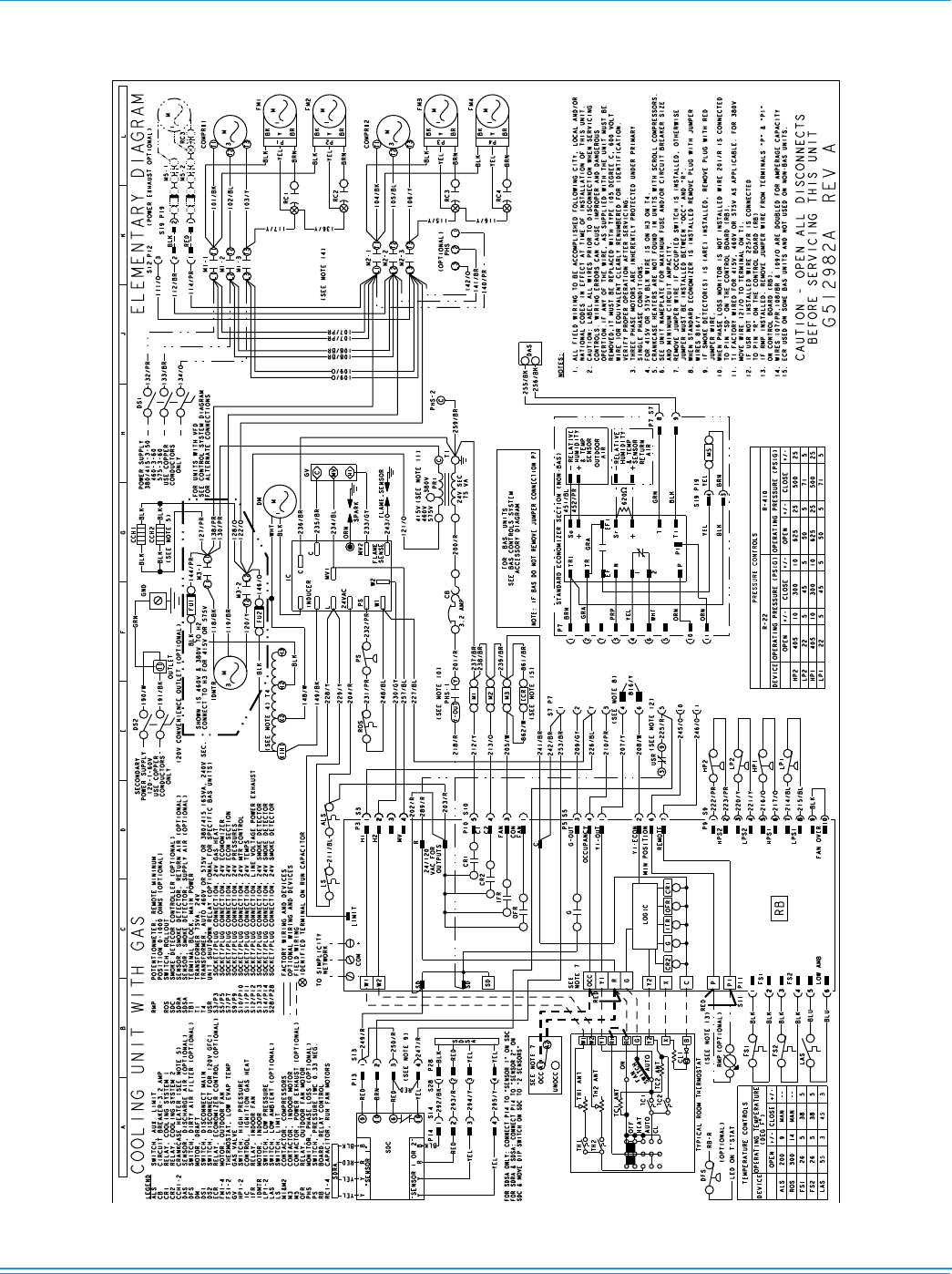

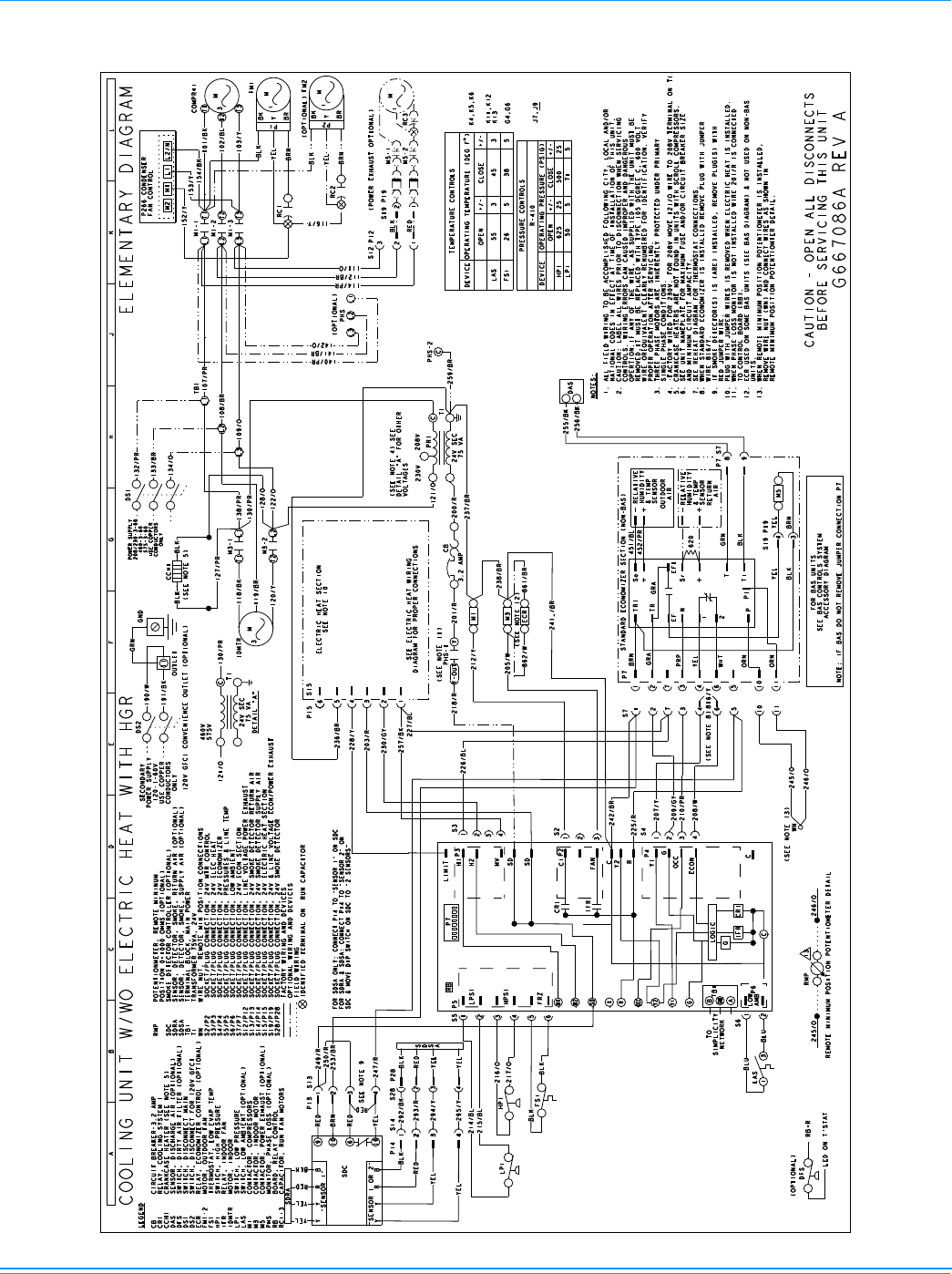

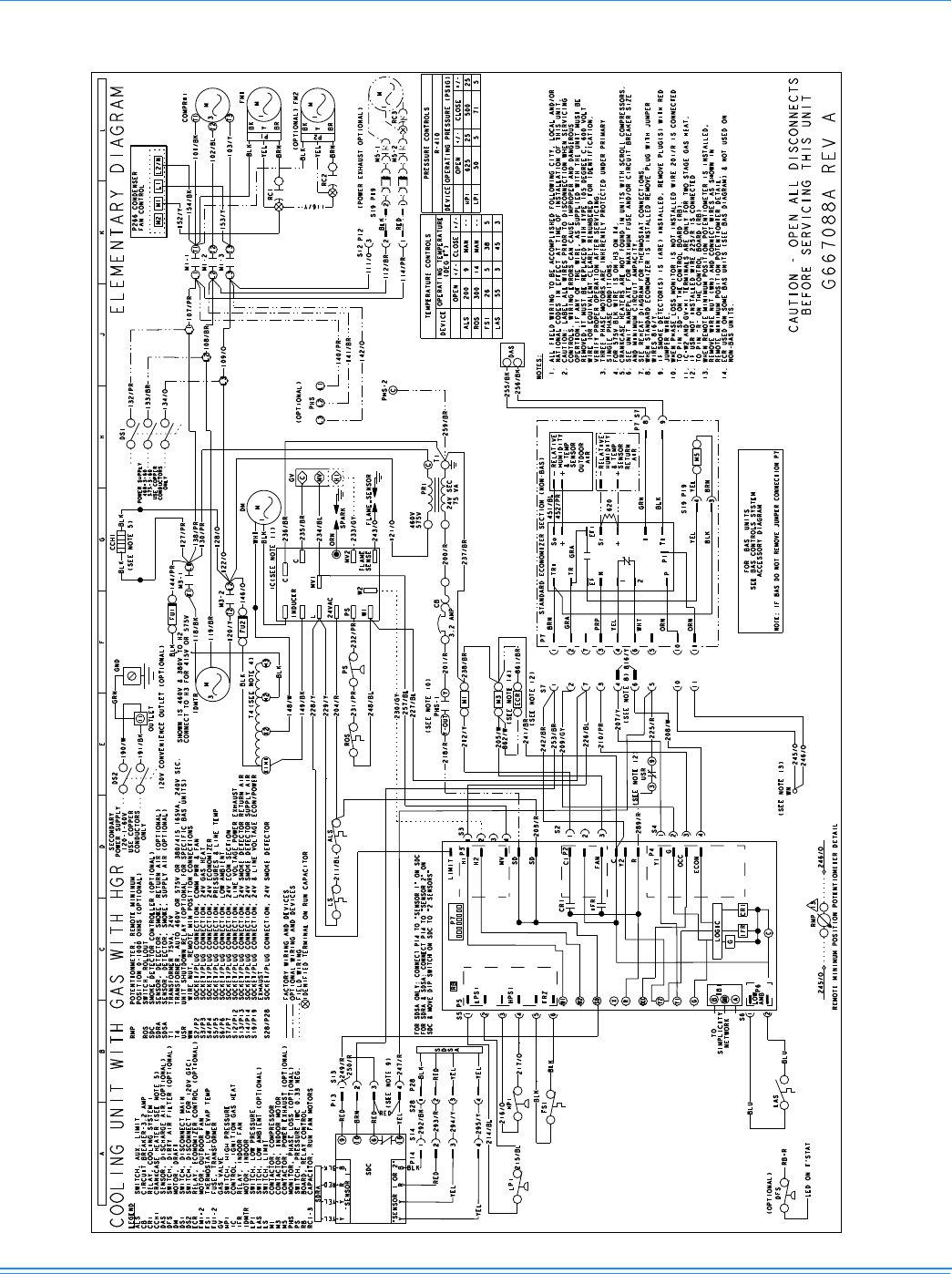

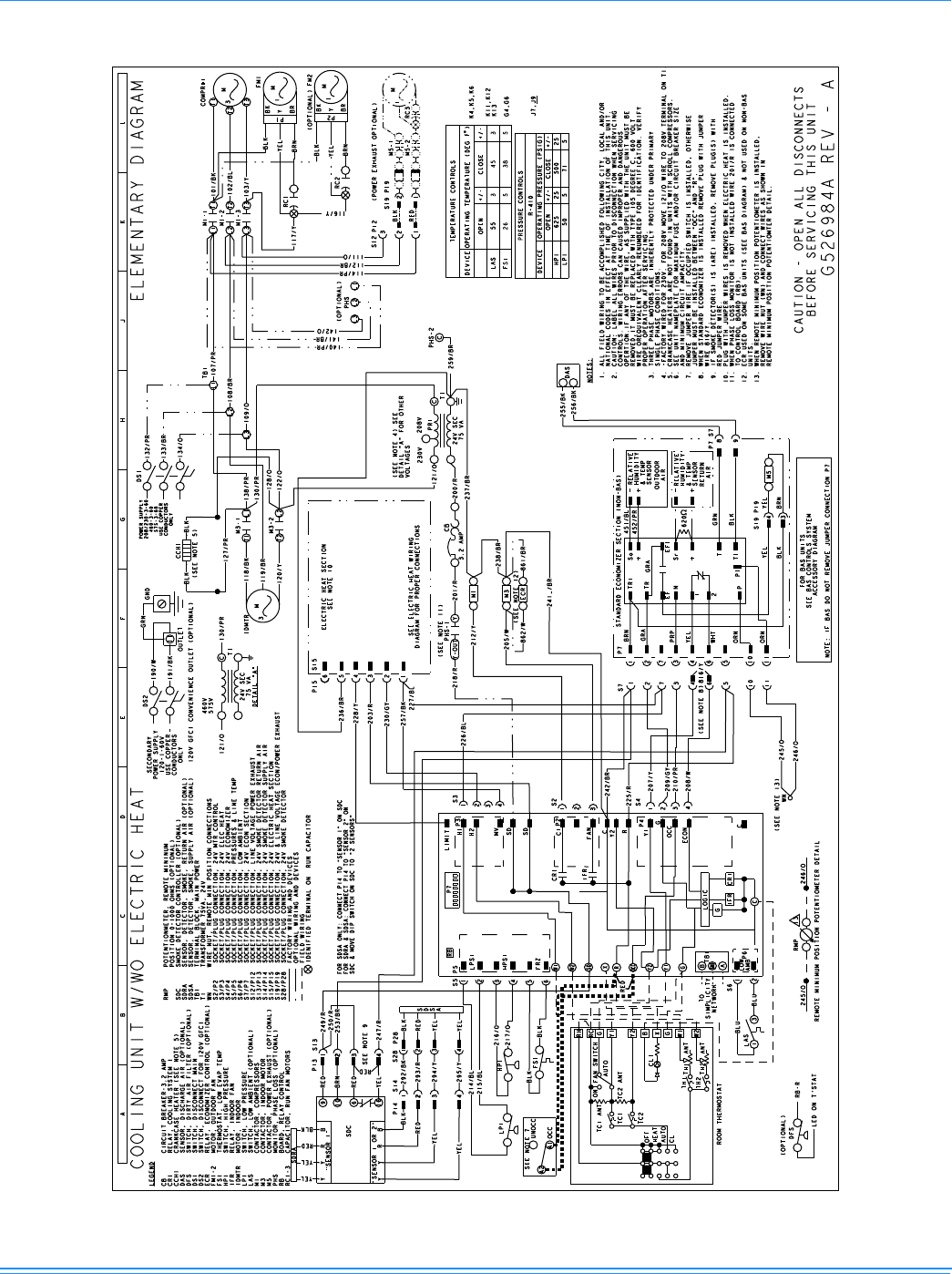

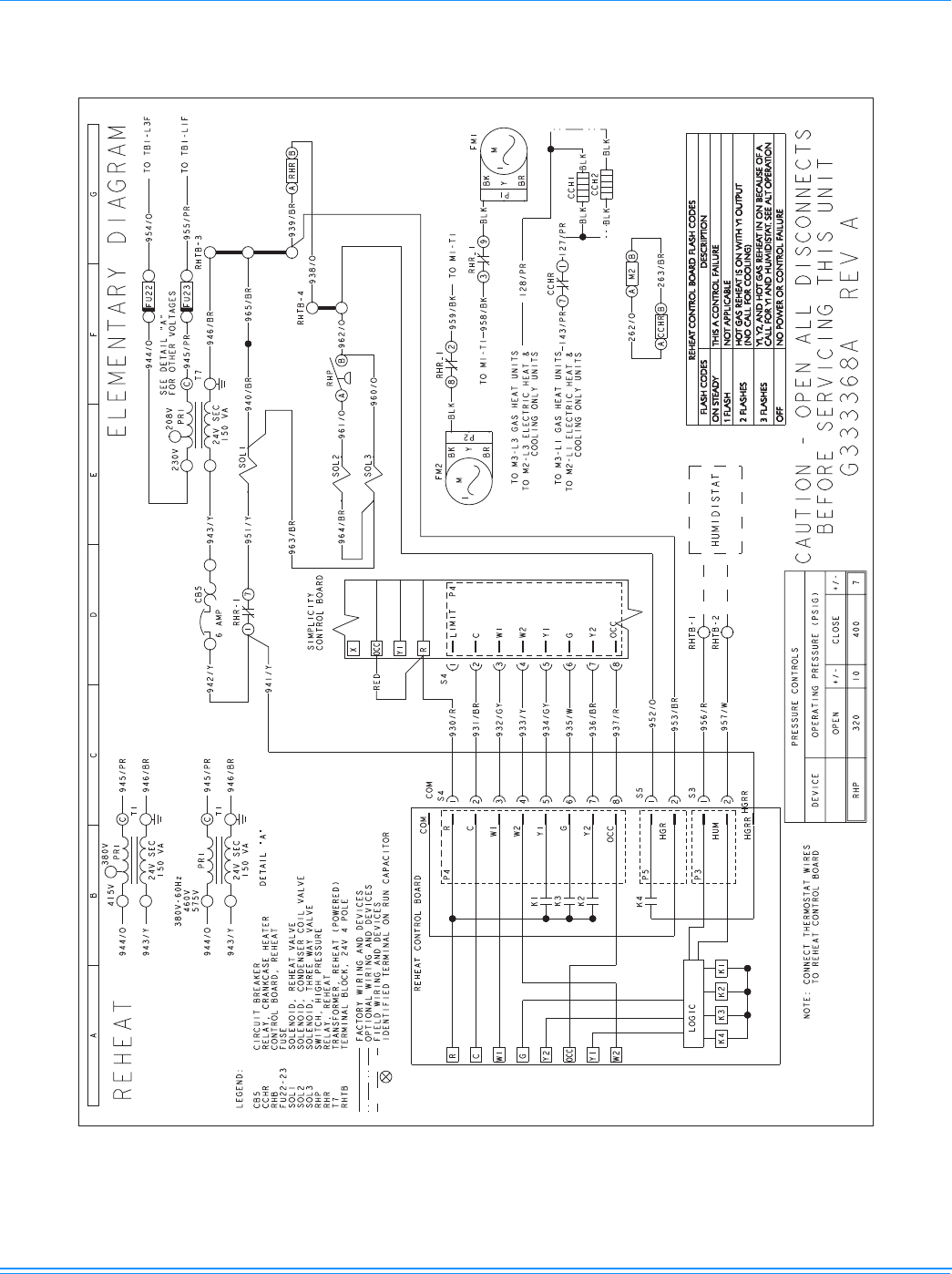

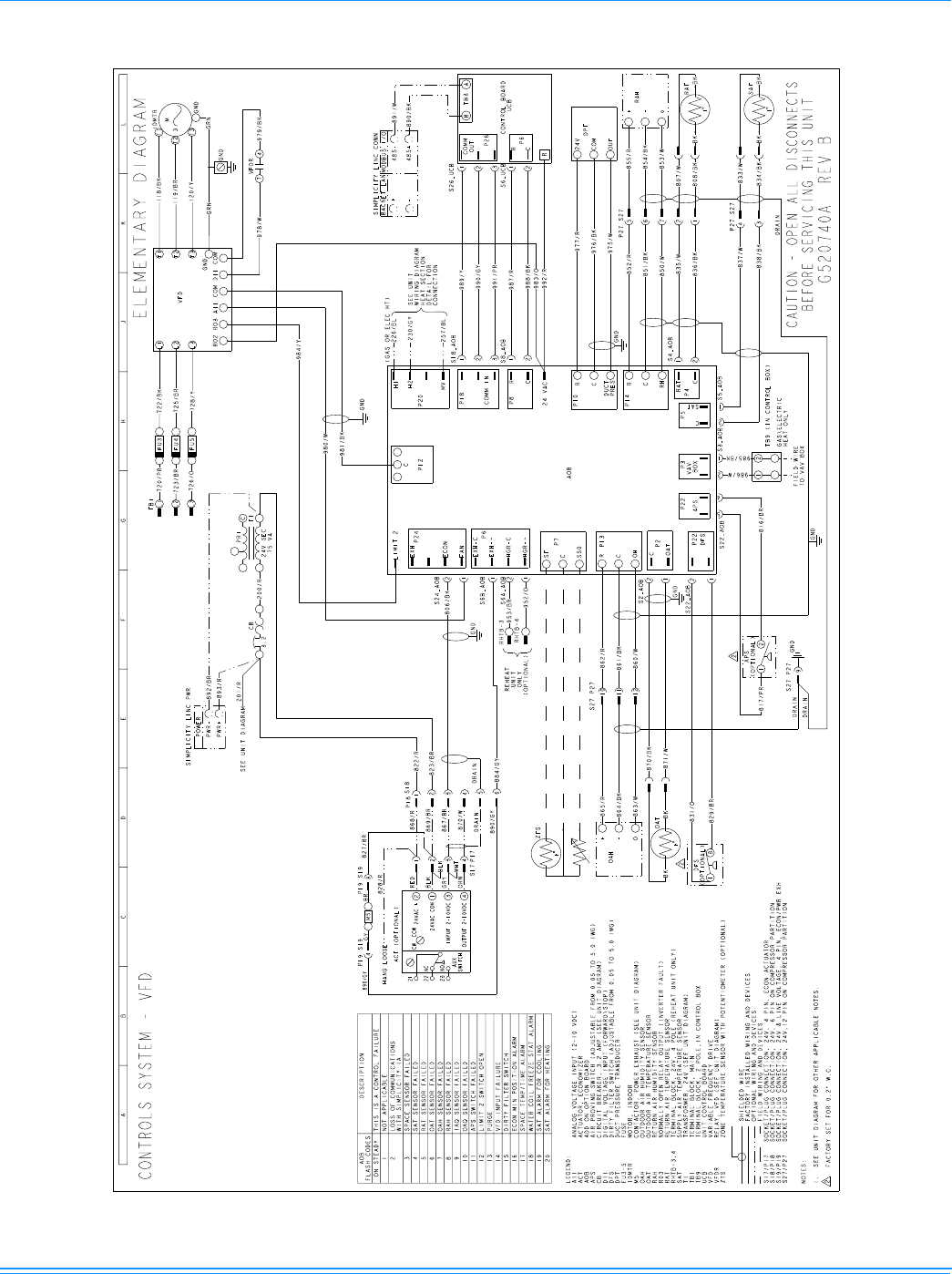

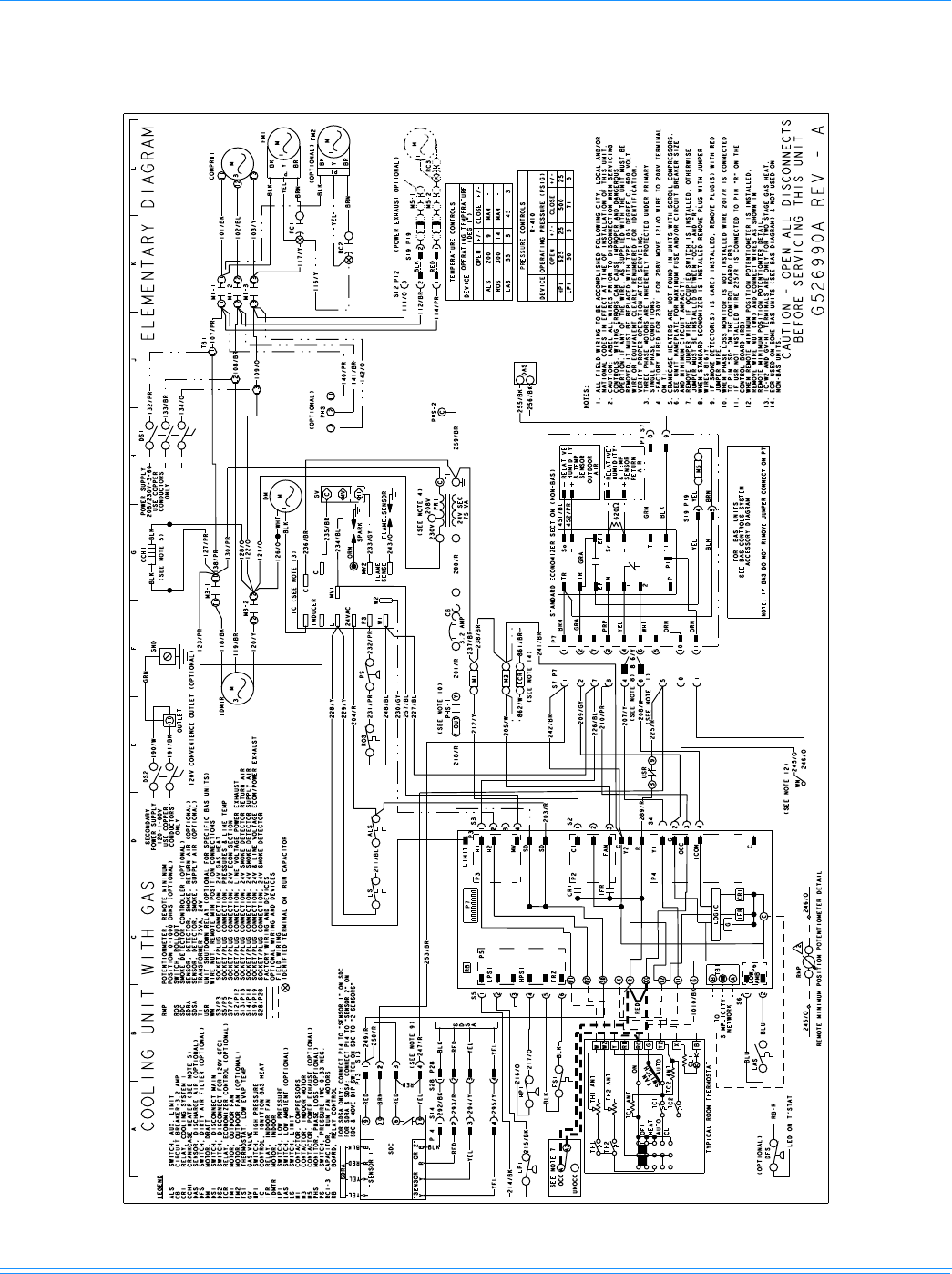

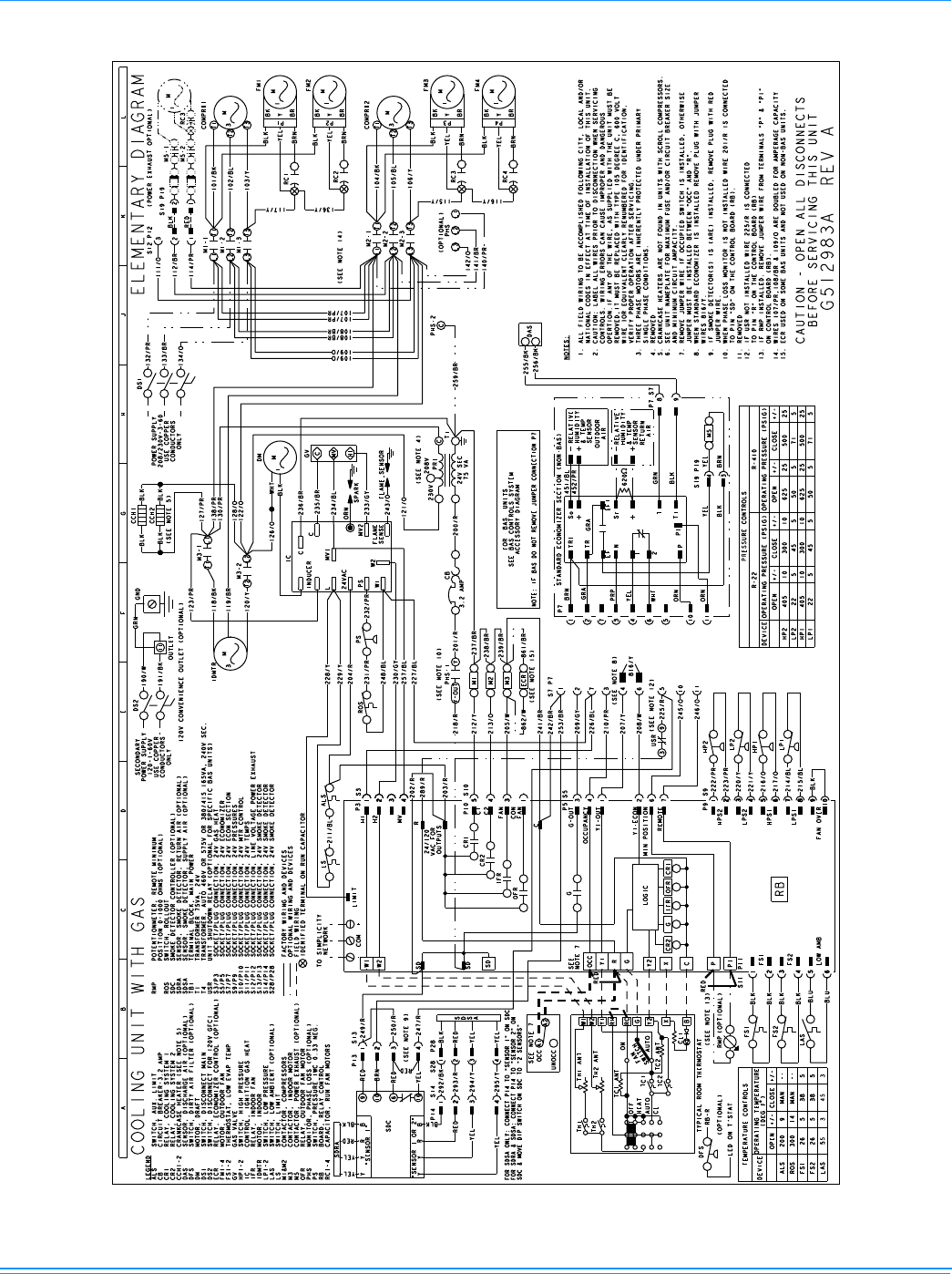

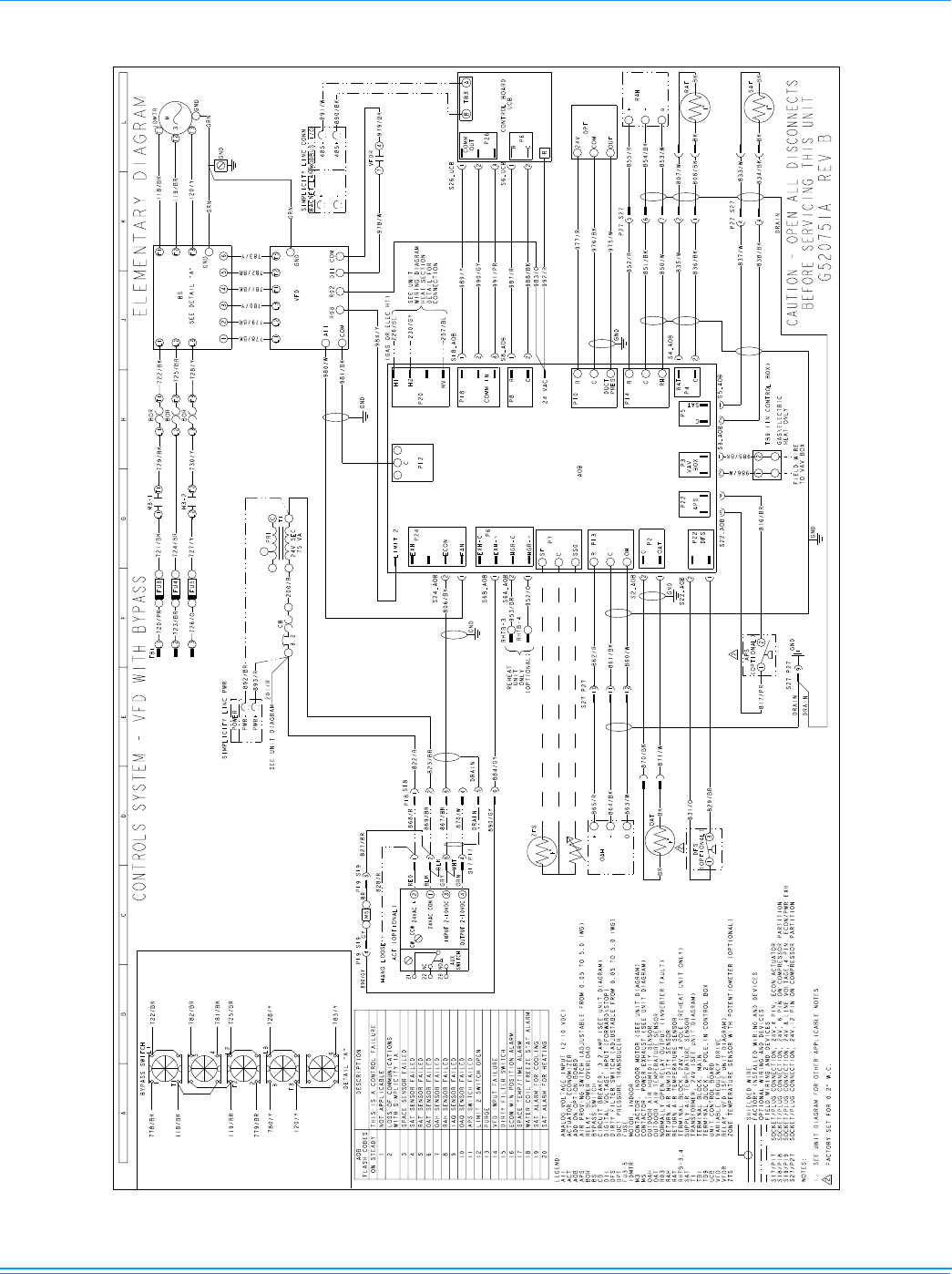

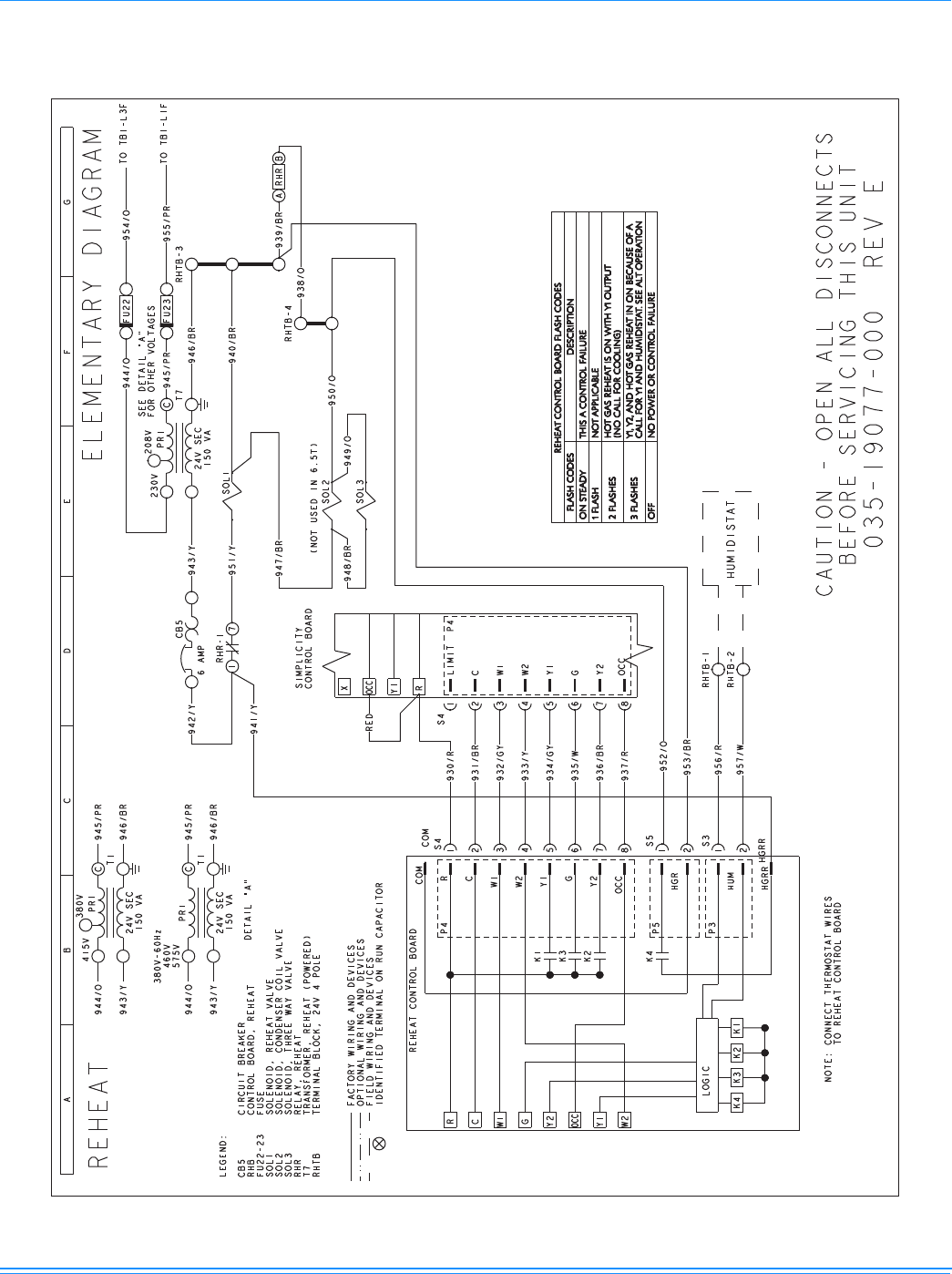

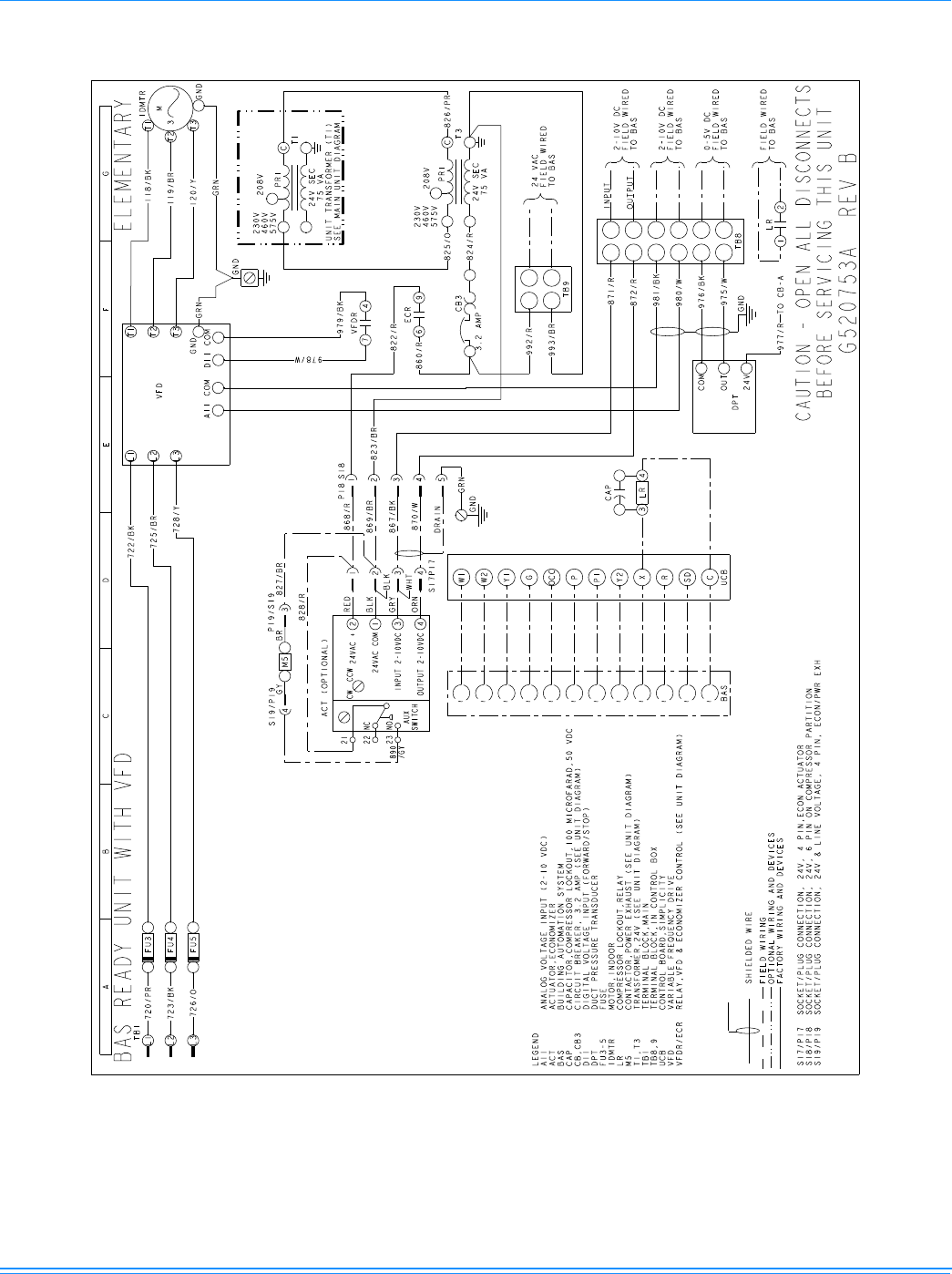

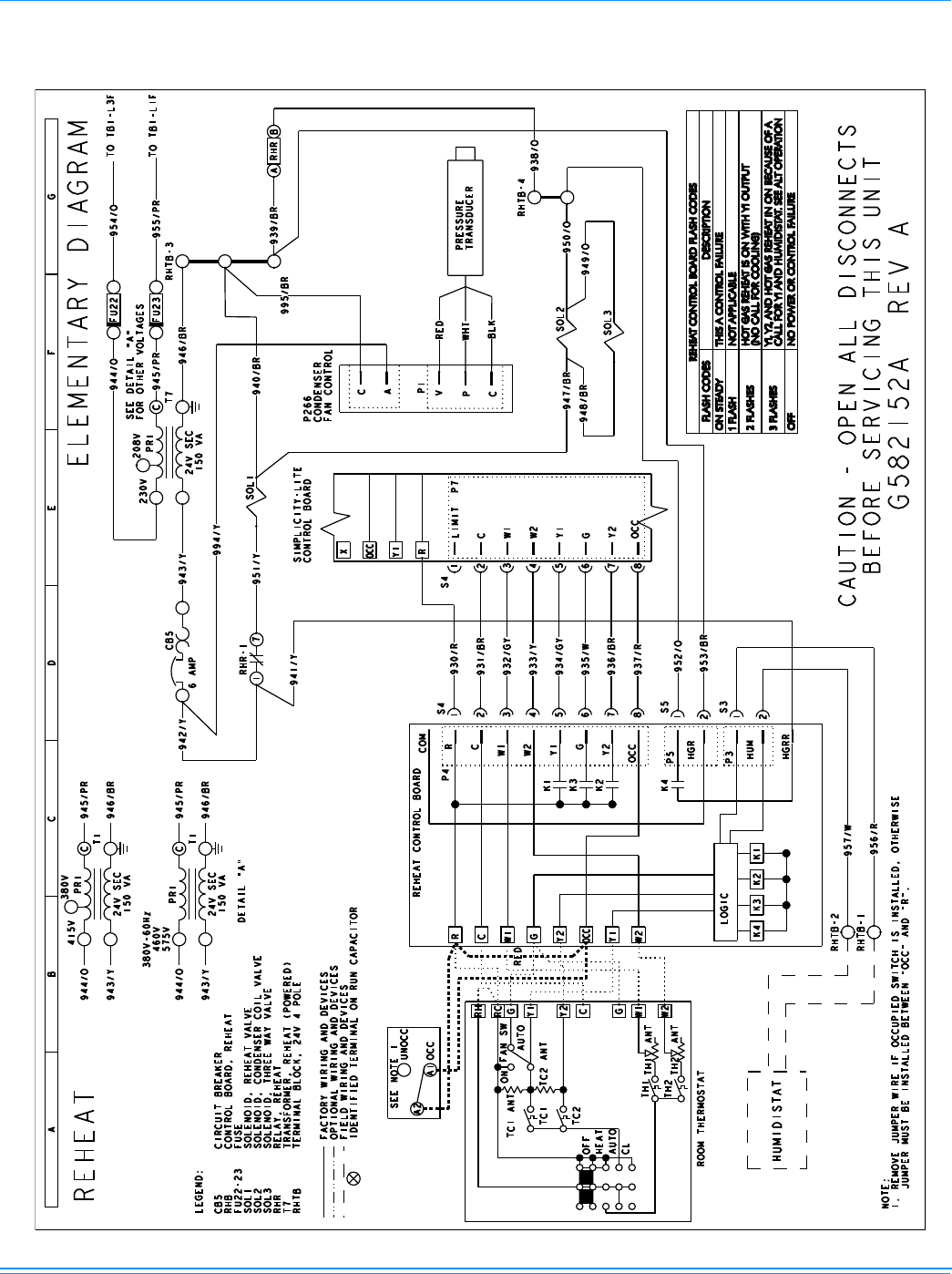

Typical Wiring Diagrams

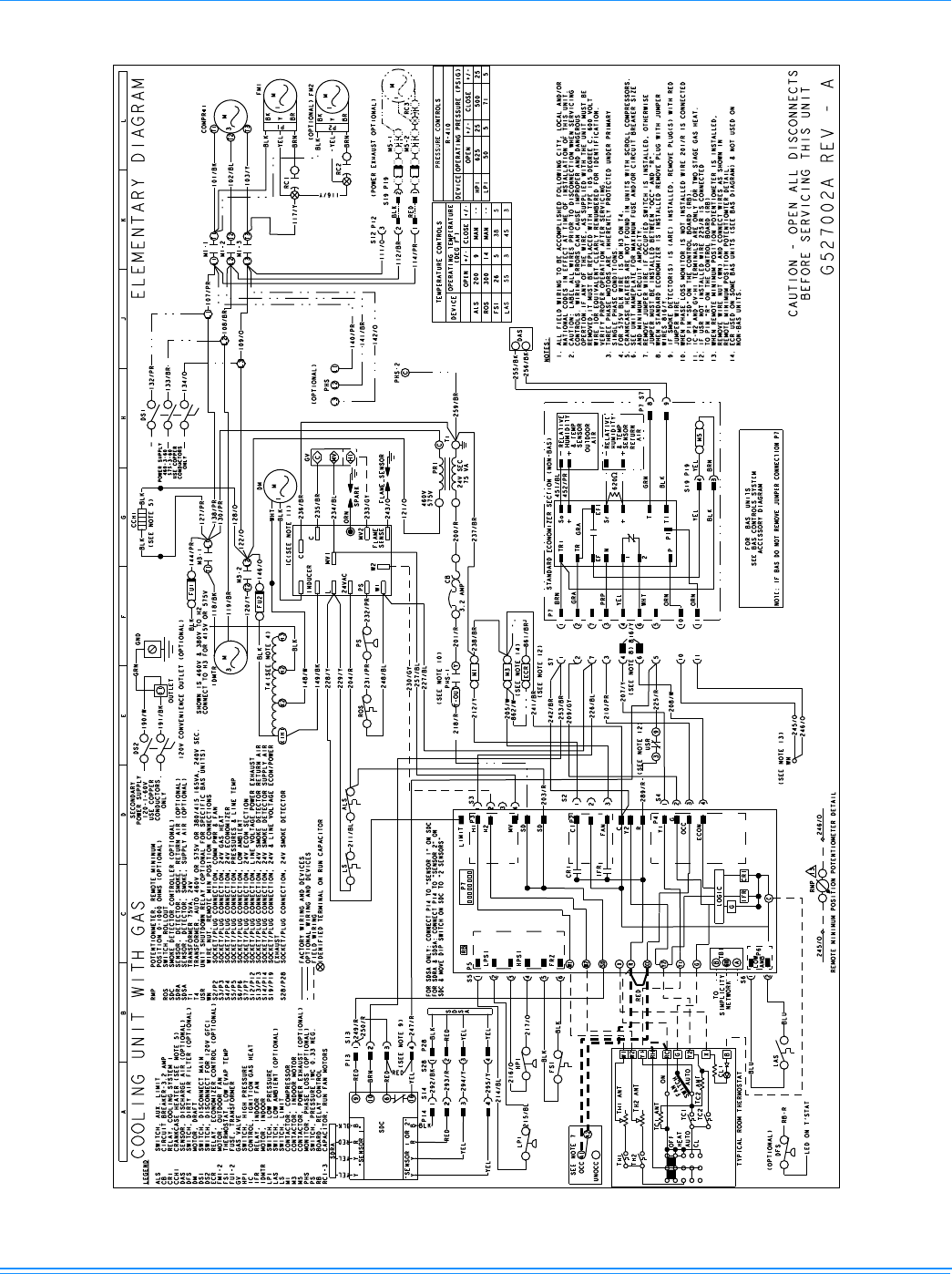

- ZH/ZJ037-150 Typical Wiring Diagrams

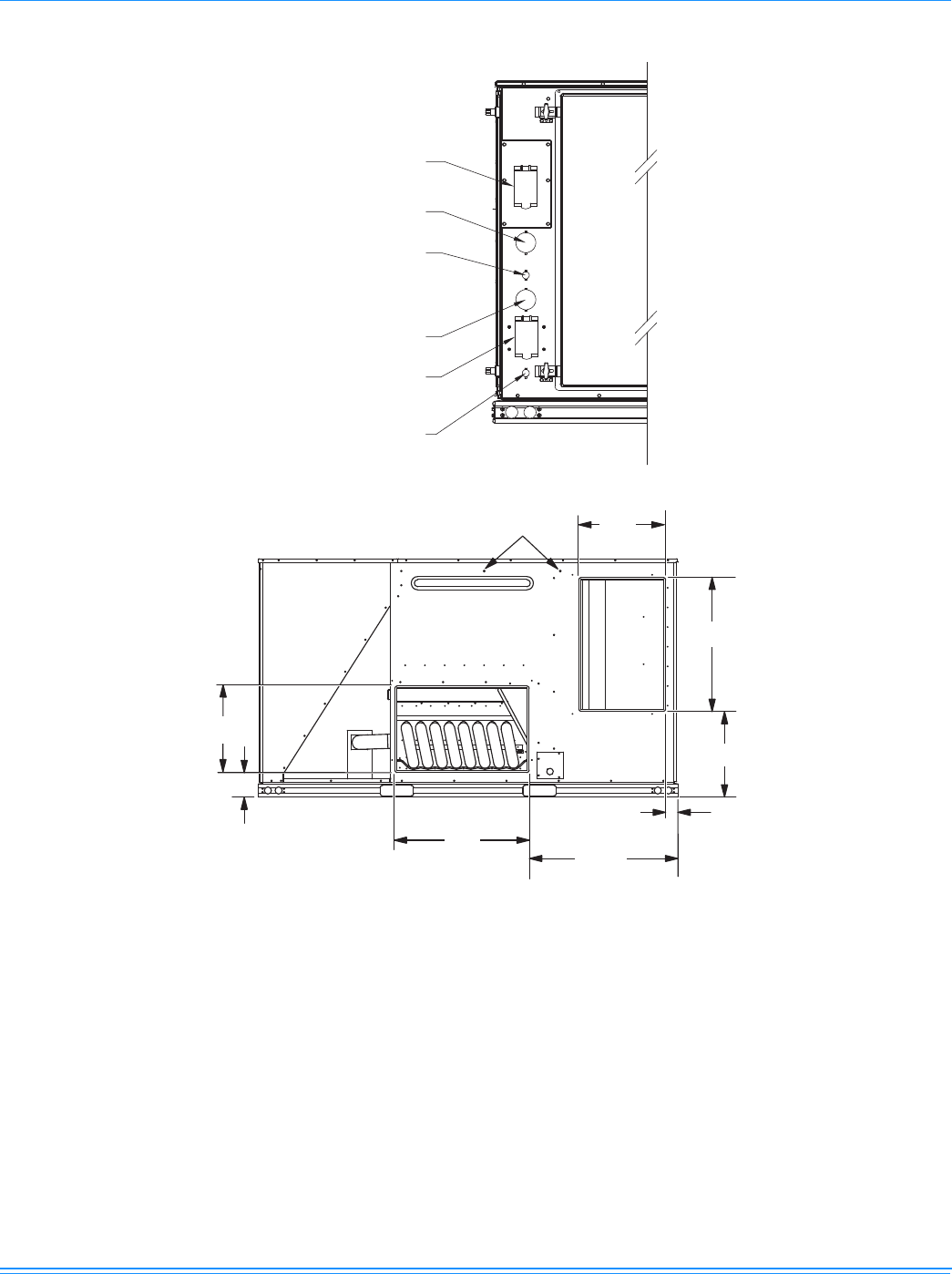

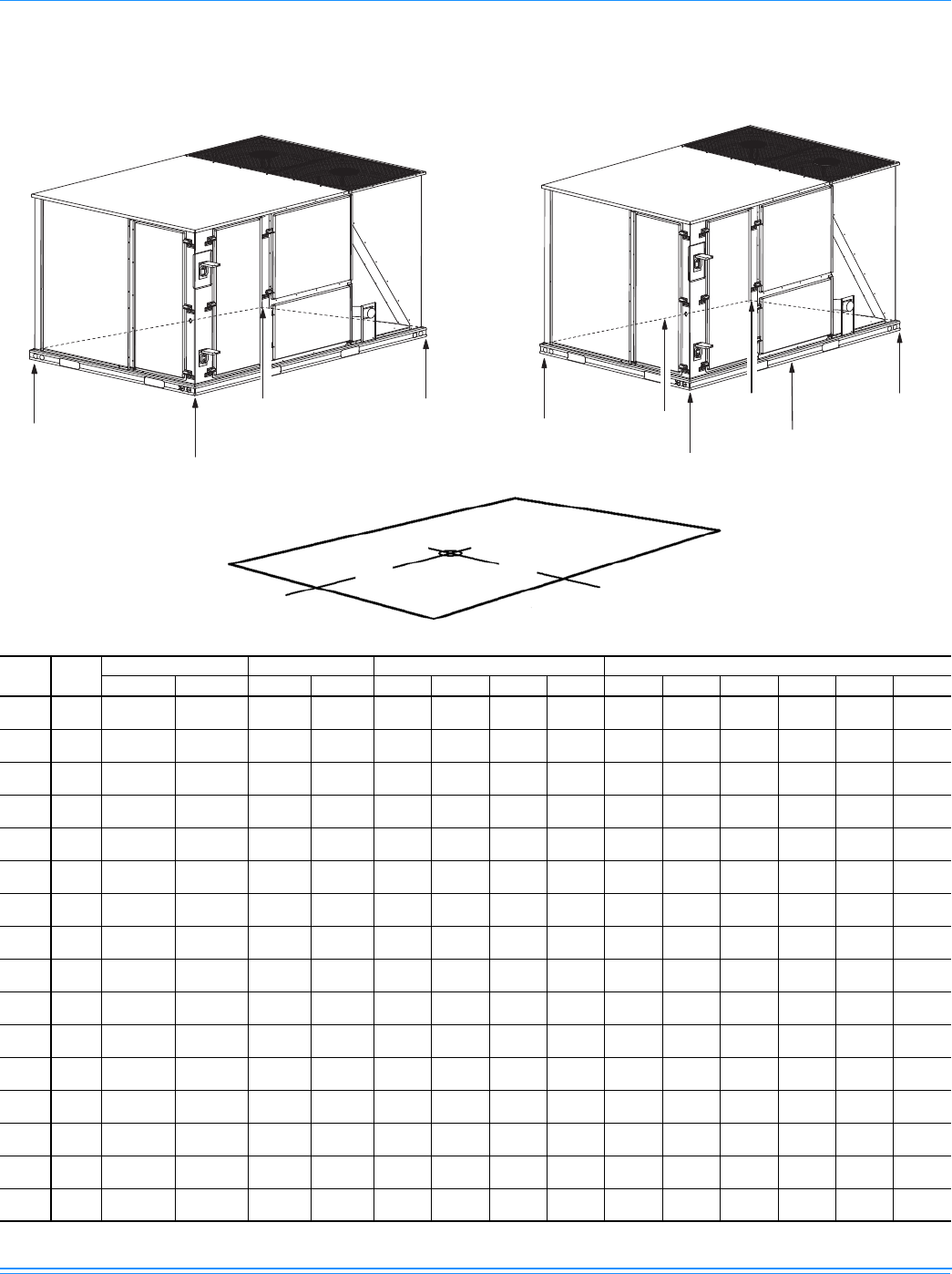

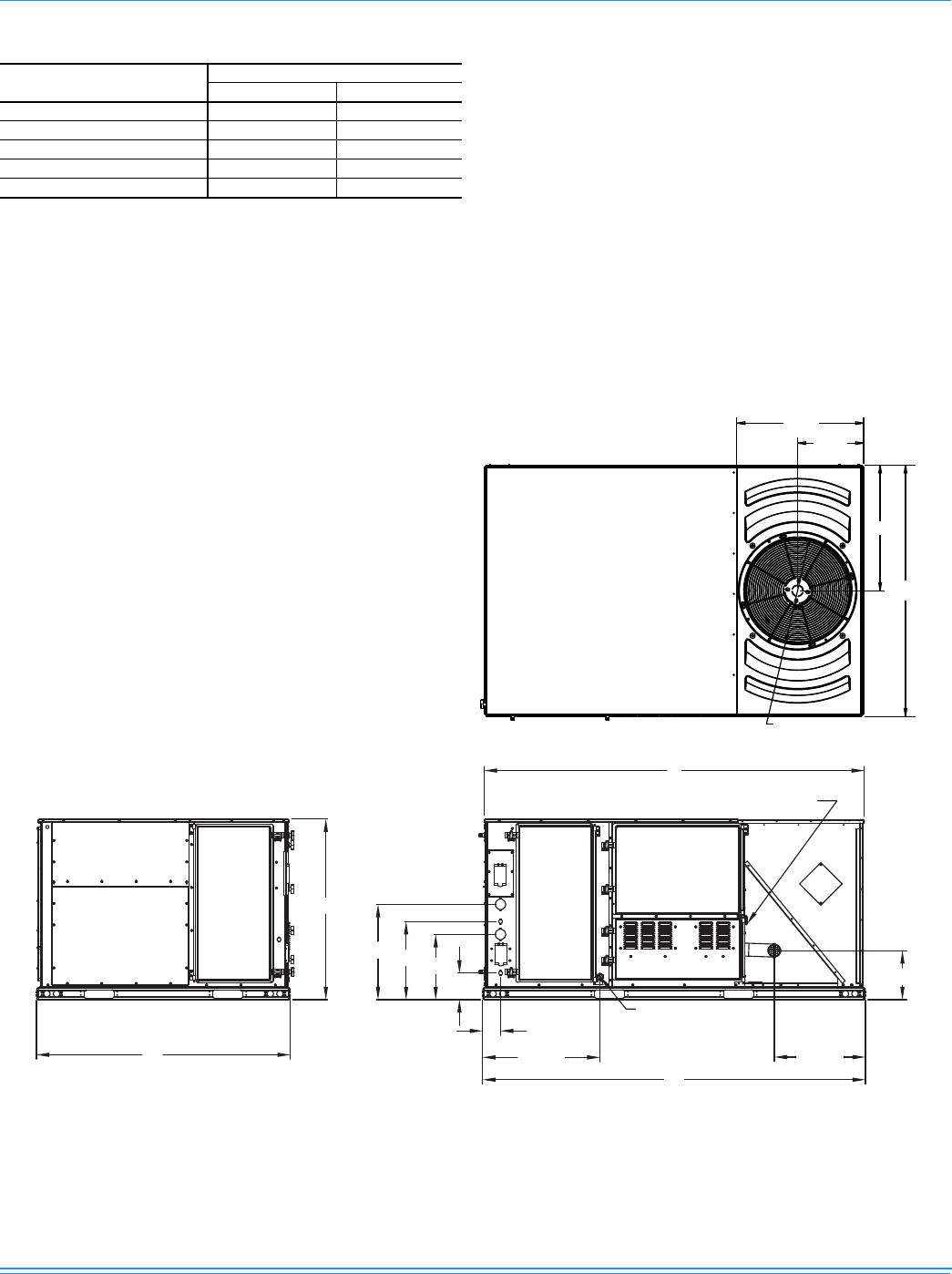

Weights and Dimensions

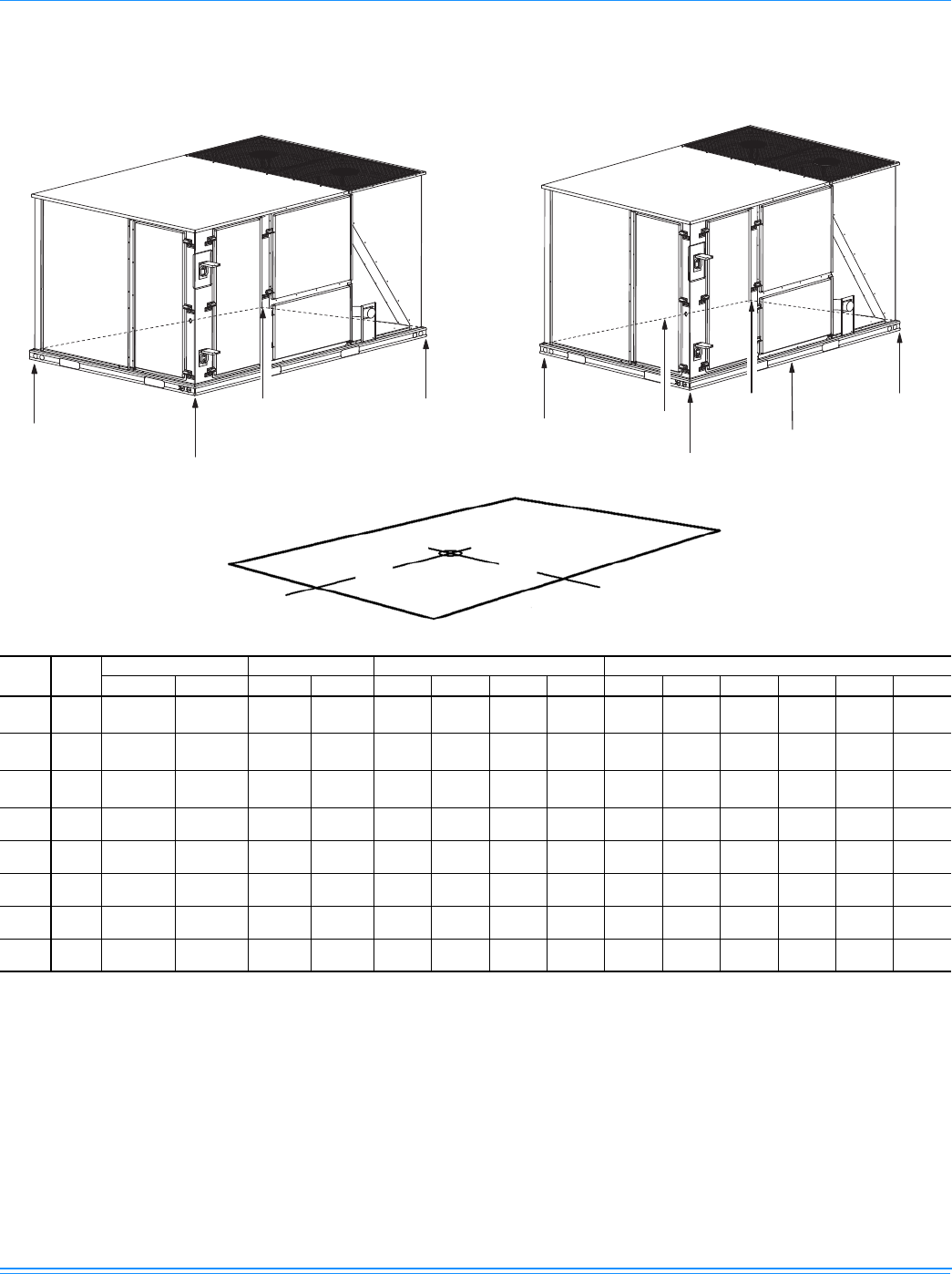

- ZH/ZJ037-150 Unit Weights

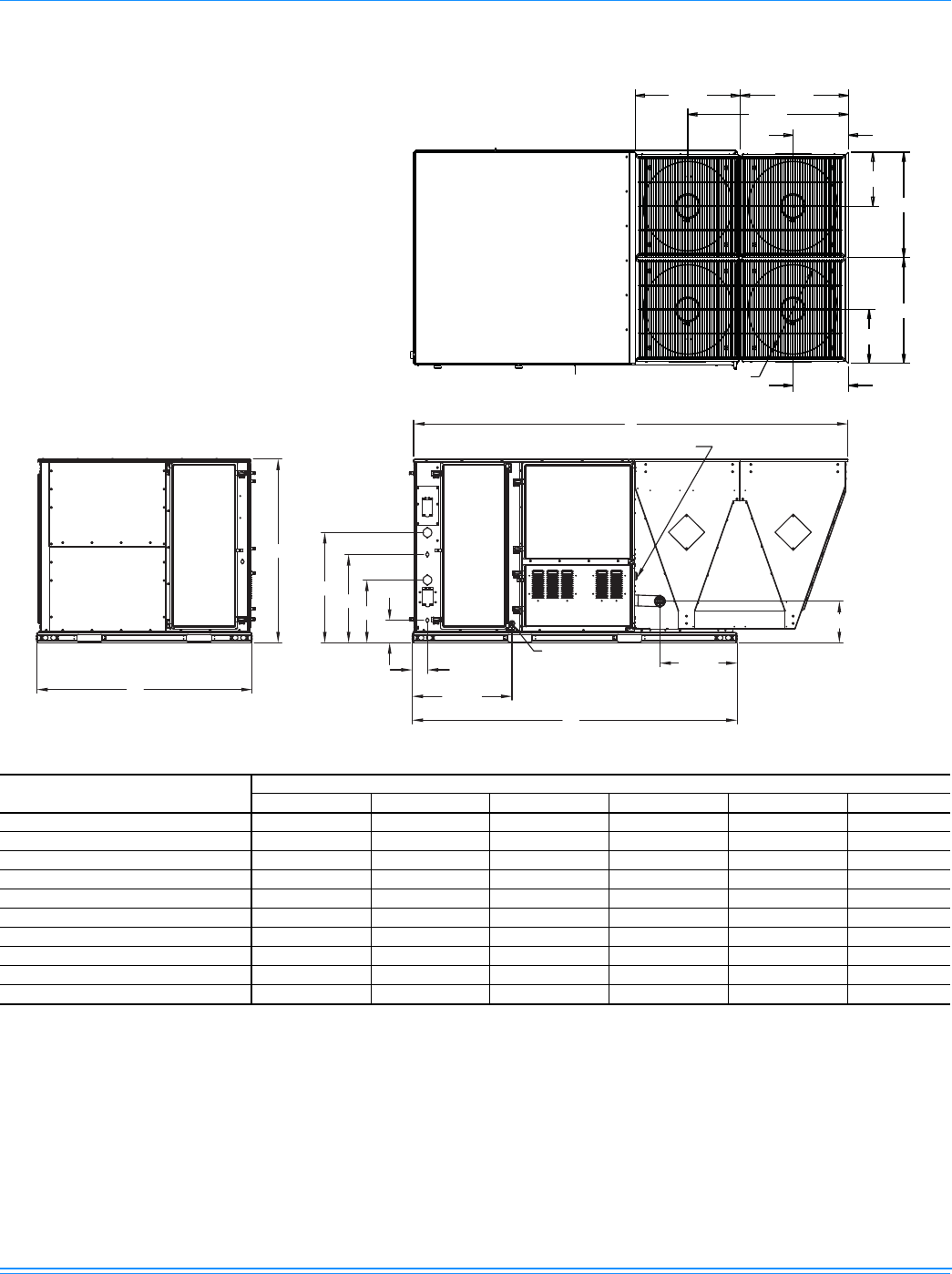

Weights and Dimensions

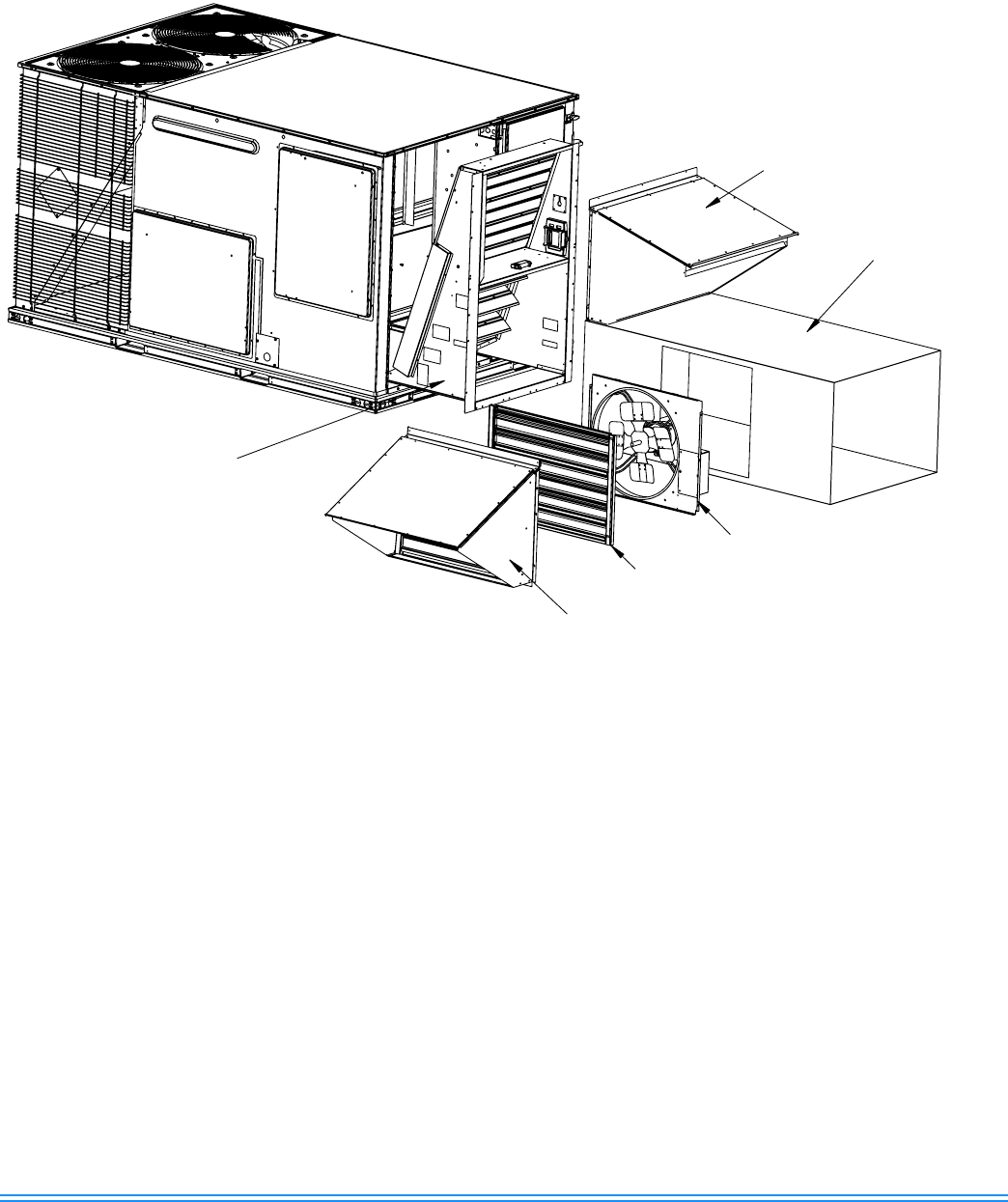

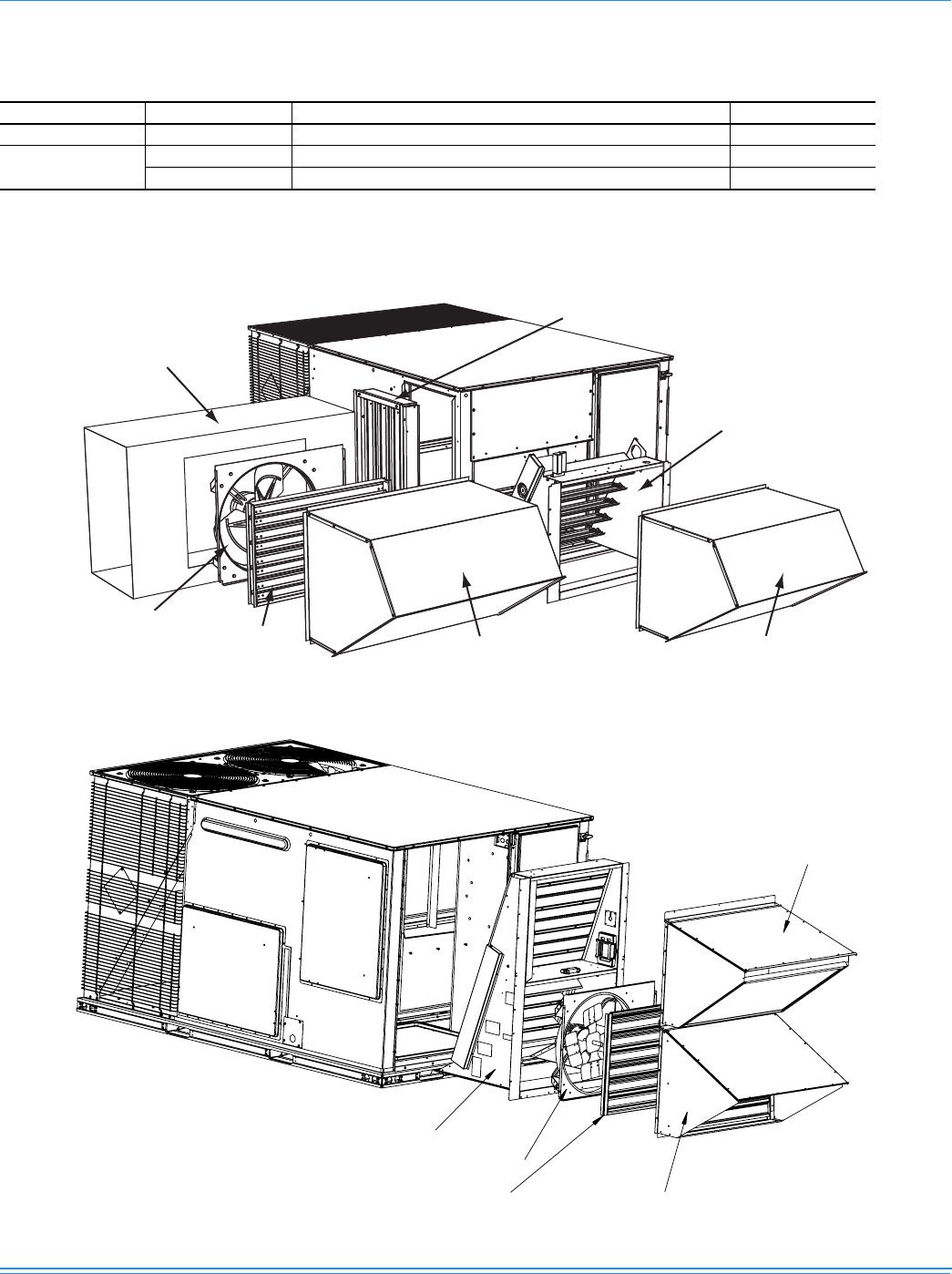

Economizer Options

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

528150-YTG-T-0514

TECHNICAL GUIDE Description

ASHRAE 90.1 COMPLIANT

YORK® Predator® units are convertible single packages with a

common footprint cabinet and common roof curb for all 3

through 12-1/2 ton models. All 6-1/2 through 12-1/2 ton units

have two compressors with independent refrigeration circuits to

provide 2 stages of cooling. The units were designed for light

commercial applications and can be easily installed on a roof

curb, slab, or frame.

All Predator® units are self-contained and assembled on rigid

full perimeter base rails allowing for 3-way forklift access and

overhead rigging. Every unit is completely charged, wired,

piped, and tested at the factory to provide a quick and easy field

installation.

All units are convertible between side and down airflow.

Independent economizer designs are used on side and down

discharge applications, as well as all tonnage sizes.

Predator® units are available in the following configurations:

cooling only, cooling with electric heat, cooling with gas heat,

reheat only, reheat with electric heat and reheat with gas heat.

Electric heaters are available as factory-installed options or

field-installed accessories.

All units provide constant supply air volume. A variable air

volume (VAV) option, featuring a variable frequency drive, is

available on 6-1/2 through 12-1/2 ton ZH/ZJ models only.

Tested in accordance with:

R-410A

ZH/ZJ/ZR SERIES

3 - 12-1/2 TON

60 Hertz

ZH/ZJ/ZR 3 THROUGH 10 TON

ZH/ZJ/ZR 12-1/2 TON

528150-YTG-T-0514

2Johnson Controls Unitary Products

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Airflow Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Typical Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Economizer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

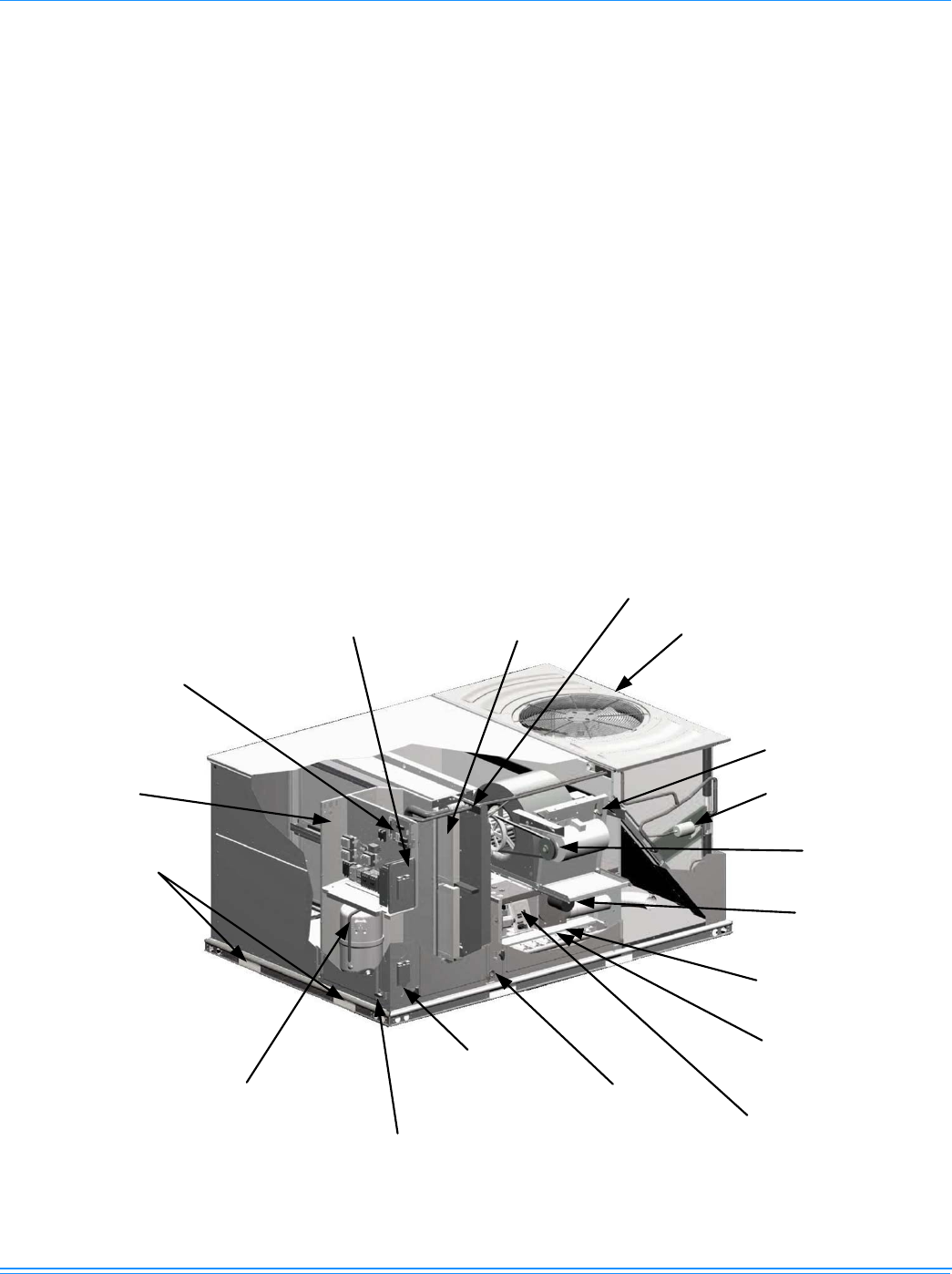

Component Location

Cooling With Gas Heat (3 Through 5 Ton)

Intelligent control board

for safe and efficient

operation

“Simplicity®” Control board w/

screw connectors for T-stat

wiring and Network

Connections

Disconnect location

(optional disconnect switch)

Filter access

(2" or 4”

filter options)

Filter drier (solid core)

3-5 Ton Cooling

Slide out motor and

blower assembly for

easy adjustment

and service

Base rails w/

forklift slots

(three sides)

and lifting

holes

Toolless door

latch

Side entry power

and control wiring

knockouts

Belt-drive blower

motor

Power ventor

motor

20-gauge aluminized

steel tubular heat

exchanger for long life

(stainless steel option)

One or Two stage gas heating to

maintain warm, comfortable

temperature

Slide-out drain pan

with ¾" NPT

connection

Compressor access (high-

efficiency compressor)

Second model nameplate

inside hinged access

panel

Roof curbs in eight-and

fourteen-inch heights.

Roof curbs for transitioning

from York Sunline™ footprint

to the ZH/ZJ/ZR Series footprint

are available

(field-installed accessory)

Micro-Channel Aluminum

Tube/Aluminum Fin

Condenser

(Single Orifice System shown.

See Actual Model Physical Data for details)

Filter drier (solid core)

3-5 Ton Reheat

528150-YTG-T-0514

Johnson Controls Unitary Products 3

Cooling With Gas Heat (6 1/2 Through 10 Tons)

Roof curbs in eight- and

fourteen-inch heights. Roof

curbs for transitioning from

York Sunline™ footprint to

the ZH/ZJ/ZR Series footprints

are also available (field

installed accessory)

Base rails w/forklift

slots (three sides)

and lifting holes

Compressor #2

access (high-

efficiency

compressor)

Dual stage

cooling for

maximum

comfort

Second model

nameplate

inside hinged

access panel

Terminal block for

hi-voltage connection

Simplicity® control board

w/screw connector for T-stat

wiring and network connections

Disconnect location

(optional disconnect switch)

Filter access

(2” or 4” filter options)

Filter drier

(solid core)

Slide-out motor and

blower assembly for

easy adjustment

and service

Belt-drive

blower motor

Power ventor motor

20-gauge alumi-

nized steel tubular

heat exchanger for

long life (stainless

steel option)

Two-stage gas

heating to maintain

warm, comfortable

temperature

Intelligent control

board for safe and

efficient operation

Compressor #1 access

(high-efficiency compressor)

Toolless

door latch

Side entry power

and control wiring

knockouts

VFD location (optional)

Slide-out drain pan

with 3/4” NPT,

female connection

Micro-Channel Aluminum

Tube/Aluminum Fin

Condenser

528150-YTG-T-0514

4Johnson Controls Unitary Products

Nomenclature

Z H 090 N10 A 2 A AA 6 0 1 2 4 A

Product Category

Z = A/C, Single Pkg., R-410A

A = Std. Motor

D = Std. Motor/Motorized Damper (Downow Only)

H = Std Motor/Low Leak Econ/Barometric Relief

(Downow, Slab Economizer Only)

J = Std Motor/Low Leak Econ/Power Exhaust (Downow,

Slab Economizer Only)

E = Std Motor/Horizontal Economizer (No Baro)

N = Hi Static

R = Hi Static/Motorized Damper (Downow Only)

V = Hi Static Mtr/Low Leak Econ/Barometric Relief

(Downow, Slab Economizer Only)

W = Hi Static Mtr/Low Leak Econ/Power Exhaust

(Downow, Slab Economizer Only)

S = Hi Static Mtr/Horizontal Economizer (No Baro)

Airow

Product Generation

6 = Sixth Generation

C00 = Cooling Only. No heat installed

Heat Type and Nominal Heat Capacity

(Unit Size Allowed)

A05 = 49 MBH Output Aluminized Steel,

Single Stage (037, 049)

A07 = 65 MBH Output Aluminized Steel,

Single Stage (037, 049, 061)

A09 = 97 MBH Output Aluminized Steel,

Single Stage (037, 049, 061)

A13 = 129 MBH Output Aluminized Steel,

Single Stage (061)

B05 = 49 MBH Output Stainless Sleel,

Single Stage (037, 049)

B07 = 65 MBH Output Stainless Steel,

Single Stage (037, 049, 061)

B09 = 97 MBH Output Stainless Steel,

Single Stage (037, 049, 061)

B13 = 129 MBH Output Stainless Steel,

Single Stage (061)

N10 = 100 MBH Output Aluminized Steel,

Two Stage (078, 090, 102)

N15 = 150 MBH Output Aluminized Steel,

Two Stage (078, 090, 102, 120, 150)

N20 = 200 MBH Output Aluminized Steel,

Two Stage (120, 150)

S10 = 100 MBH Output Stainless Steel,

Two Stage (078, 090, 102)

S15 = 150 MBH Output Stainless Steel,

Two Stage (078, 090, 102, 120, 150)

S20 = 200 MBH Output Stainless Steel,

Two Stage (120, 150)

E03 = 3 KW (037)

E06 = 6 KW (037, 049, 061)

E08 = 9 KW (037, 049, 061)

E09 = 9 KW (078, 090, 102)

E15 = 15 KW (037, 049, 061)

E18 = 18 KW (078, 090, 102, 120, 150)

E20 = 20 KW (049, 061)

E23 = 24 KW (061)

E24 = 24 KW (078, 090, 102, 120, 150)

E36 = 36 KW (078, 090, 102, 120, 150)

E54 = 54 KW (120, 150)

Single Stage Natural Gas Heat Options

Electric Heat Options

078 = 6.5 Ton

Nominal Cooling Capacity

090 = 7.5 Ton

102 = 8.5 Ton

037 = 3 Ton

049 = 4 Ton

061 = 5 Ton

120 = 10.0 Ton

150 = 12.5 Ton

Product Identifier

H = 11.7-11.8 EER

Voltage

2 = 208/230-3-60

4 = 460-3-60

5 = 575-3-60

Product Style

A = Style A

B = Style B

C = Style C

A = No Options Installed

Installation Options

B = Option 1

C = Option 2

D = Options 1 & 2

E = Option 3

F = Option 4

G = Options 1 & 3

H = Options 1 & 4

J = Options 1, 2 & 3

K = Options 1, 2, & 4

L = Options 1,3 & 4

M = Options 1, 2, 3, & 4

N = Options 2 & 3

P = Options 2 & 4

Q = Options 2, 3, & 4

R = Options 3 & 4

S = Option 5

T = Options 1 & 5

U = Options 1, 3, & 5

V = Options 1, 4, & 5

W = Options 1, 3, 4, & 5

X = Options 3 & 5

Y = Options 4 & 5

Z = Options 3, 4 & 5

1 = Disconnect

2 = Non-Pwr'd Conv. Outlet

3 = Smoke Detector S.A.

4 = Smoke Detector R.A.

5 = Pwr'd Conv. Outlet

Options

SS Drain Pan

Configuration Options (not required for all units)

These four digits will not be assigned until a quote is requested, or an order placed.

CPC Controller, DFS, APS

Johnson Controller UNT 1126 (N2 protocol), DFS, APS

Honeywell Controller, DFS, APS

Novar Controller, DFS, APS

Simplicity IntelliComfort II Controller

Simplicity IntelliComfort II Controller w/Simplicity®LINC

2" Pleated Filters, MERV 7

BAS Ready Economizer (2-10 V.D.C. Actuator without a Controller)

York Commercial Comfort System (YCCS) Rtu Controller

Hot Gas Bypass (Standard on VAV, Optional on CV)

Variable Air Volume, VFD (not available with factory installed BAS options)

Variable Air Volume, VFD with Simplicity®LINC (not available with factory installed BAS options)

Variable Air Volume, VFD (BAS ready)

Variable Air Volume, VFD and Manual Bypass (BAS ready)

Variable Air Volume, VFD Ready (for customer-provided, field-installed drive)

Variable Air Volume, VFD Ready with Simplicity®LINC

(for customer-provided, field-installed drive)

Variable Air Volume, VFD and Manual Bypass with Simplicity®LINC

(not available with factory installed BAS options)

Variable Air Volume, VFD and Manual Bypass

(not available with factory installed BAS options)

Any Combination of Additional Options that Don’t Have an Option Code Pre-assigned

AA = None

AB = Phase Monitor

AC = Coil Guard

AD = Dirty Filter Switch

AE = Phase Monitor & Coil Guard

AF = Phase Monitor & Dirty Filter Switch

Additional Options

RC = Coil Guard, Shipping Bag & American Flag

TA = Technicoat Condenser Coil

TJ = Technicoat Evaporator Coil

TS = Technicoat Evaporator & Condenser Coils

3-12.5 Ton York® Model Number Nomenclature

ZZ = If desired option combination is not listed above, ZZ will be assigned and configuration options will be

located in digits 15-18.

J = 12.2 EER

Two Stage Natural Gas Heat Options

N05 = 49 MBH Output Aluminized Steel,

Two Stage (037, 049)

N07 = 65 MBH Output Aluminized Steel,

Two Stage (037, 049, 061)

N09 = 97 MBH Output Aluminized Steel,

Two Stage (037, 049, 061)

N13 = 129 MBH Output Aluminized Steel,

Two Stage (061)

S05 = 49 MBH Output Stainless Sleel,

Two Stage (037, 049)

S07 = 65 MBH Output Stainless Steel,

Two Stage (037, 049, 061)

S09 = 97 MBH Output Stainless Steel,

Two Stage (037, 049, 061)

S13 = 129 MBH Output Stainless Steel,

Two Stage (061)

AG = Coil Guard & Dirty Filter Switch

AH = Phase Monitor, Coil Guard & Dirty Filter Switch

4" Pleated Filters, MERV 13

R = Reheat

EA = ElectroFin Condenser Coil

EJ = ElectroFin Evaporator Coil

ES = ElectroFin Cond & Evap Coils

IntelliSpeed with VFD

IntelliSpeed, VFD and Manual Bypass

IntelliSpeed, VFD Ready (for customer-provided, field-installed drive)

528150-YTG-T-0514

Johnson Controls Unitary Products 5

Features and Benefits

Standard Features

•High Efficiency – High efficiency units reach as high as

12.2 EER. Gas/electric units have electronic spark ignition

and power vented combustion with steady state efficiencies

of 80%. These efficiencies exceed all legislated minimum

levels and provide low operating costs.

•Service Friendly – The Predator® incorporates a number

of enhancements which improve serviceability.

The motor and blower slide out of the unit as a common

assembly. This facilitates greater access to all the indoor

airflow components, thus simplifying maintenance and

adjustment.

Service time is reduced through the use of hinged,

toolless panels. Such panels provide access to frequently

inspected components and areas, including the control

box, compressors, filters, indoor motor & blower, and the

heating section. The panels are screwed in place at the

factory to prevent access by children or other

unauthorized persons. It is recommended that the panels

be secured with screws once service is complete.

Service windows have been placed in both condenser

section walls. Rotation of the cover allows easy access to

the condenser coils for cleaning or inspection.

Both the unit control board and ignition control board utilize

flash codes to aid in diagnosis of unit malfunctions. Unique

alarm codes quickly identify the source of the unit alarm.

All units use four filters of the same standard size. This

standardization simplifies selections for filter replacement.

The non-corrosive drain pan slides out of the unit to permit

easy cleaning. The drain pan is accessed by removing the

drain pan cover plate on the rear of the unit. Once the plate is

removed, the drain pan slides out through the rear of the unit.

All Predator® units have a second model nameplate

located inside the control access door. This is to prevent

deterioration of the nameplate through weathering.

•Coil Technology – All ZH/ZJ condensers utilize Micro-

Channel “all-aluminum” condensers which provide

improved heat transfer capabilities and reduced charge

volumes. All evaporators utilize a conventional copper

tube/aluminum fin design for proven reliability and

performance. ZR037 thru 061 models utilize Micro-

Channel condenser coils, ZR078 thru 150 models utilize

copper tube/aluminum fin condenser coils.

•Environmentally Aware – For improved Indoor Air

Quality, a combination of foil faced and elastometric

rubber insulation is used exclusively throughout the units.

•Balanced Heating – The Predator® two stage gas heating

offers “Ultimate Heating Comfort” with a balance between

1st and 2nd stage gas heating. The first stage of a gas heat

Predator® unit provides 70% or 75% of the heating capacity

3 thru 5 tons and 60% heating capacity 6-1/2 thru 12-1/2

tons. Balanced heating allows the unit to better maintain

desired temperatures.

•Convertible Airflow Design – The side duct openings

are covered when they leave the factory. If a side supply/

return is desired, the installer simply removes the two side

duct covers from the outside of the unit and installs them

over the down shot openings. No panel cutting is required.

Convertible airflow design allows maximum field flexibility

and minimum inventory.

•System Protection - Suction line freezestats are supplied

on all units to protect against loss of charge and coil frosting

when the economizer operates at low outdoor air

temperatures while the compressors are running. Every unit

has solid-core liquid line filter-driers and high and low-

pressure switches. Internal compressor protection is

standard on all compressors. Scroll compressors do not

require crankcase heaters. Phase Monitors are standard on

units with scroll compressors. This accessory monitors the

incoming power to the unit and protects the unit from phase

loss and reversed phase rotation.

•Advanced Controls - Simplicity® control boards have

standardized a number of features previously available

only as options or by utilizing additional controls.

•Low Ambient - An integrated low-ambient control

allows all units to operate in the cooling mode down to

0F outdoor ambient without additional assistance.

Optionally, the control board can be programmed to

lockout the compressors when the outdoor air tem-

perature is low or when free cooling is available.

•Anti-Short Cycle Protection - To aid compressor life,

an anti-short cycle delay is incorporated into the stan-

dard controls. Compressor reliability is further ensured

by programmable minimum run times. For testing, the

anti-short cycle delay can be temporarily overridden

with the push of a button.

•Fan Delays - Fan on and fan off delays are fully pro-

grammable. Furthermore, the heating and cooling fan

delay times are independent of one another. All units

are programmed with default values based upon their

configuration of cooling and heat.

•Safety Monitoring - The control board monitors the

high and low-pressure switches, the freezestats, the

gas valve, if applicable, and the temperature limit

switch on gas and electric heat units. The unit control

The Simplicity® control board used in this product

will effectively operate the cooling system down to

0°F when this product is applied in a comfort cooling

application for people. An economizer is typically

included in this type of application. When applying

this product for process cooling applications (com-

puter rooms, switchgear, etc.), please reference

applications bulletin AE-011-07 or call the applica-

tions department for Unitary Products @ 1-877-

UPG-SERV for guidance. Additional accessories

may be needed for stable operation at temperatures

below 30° F.

528150-YTG-T-0514

6Johnson Controls Unitary Products

board will alarm on ignition failures, compressor lock-

outs and repeated limit switch trips.

•Nuisance Trip Protection and Strikes - To prevent

nuisance trouble calls, the control board uses a “three

times, you’re out” philosophy. The high and low-pres-

sure switches and the freezestats must trip three times

within two hours before the unit control board will lock

out the associated compressor.

•On Board Diagnostics - Each alarm will energize a

trouble light on the thermostat, if so equipped, and

flash an alarm code on the control board LED. Each

high and low-pressure switch alarm as well as each

freezestat alarm has its own flash code. The control

board saves the five most recent alarms in memory,

and these alarms can be reviewed at any time.

Alarms and programmed values are retained through

the loss of power.

•Reliable – From the beginning – All units undergo

computer automated testing before they leave the factory.

Units are tested for refrigerant charge and pressure, unit

amperage, and 100% functionality. For the long term – All

Predator® units are painted with a long lasting, powder

paint that stands up over the life of the unit. The paint

used has been proven by a 1000 hour salt spray test.

•Flexible Placement – All models and configurations

share the same cabinet/footprint and thus the same roof

curb. You have the flexibility to set one curb and choose

the correct tonnage size and heating option after the

internal loads have been determined.

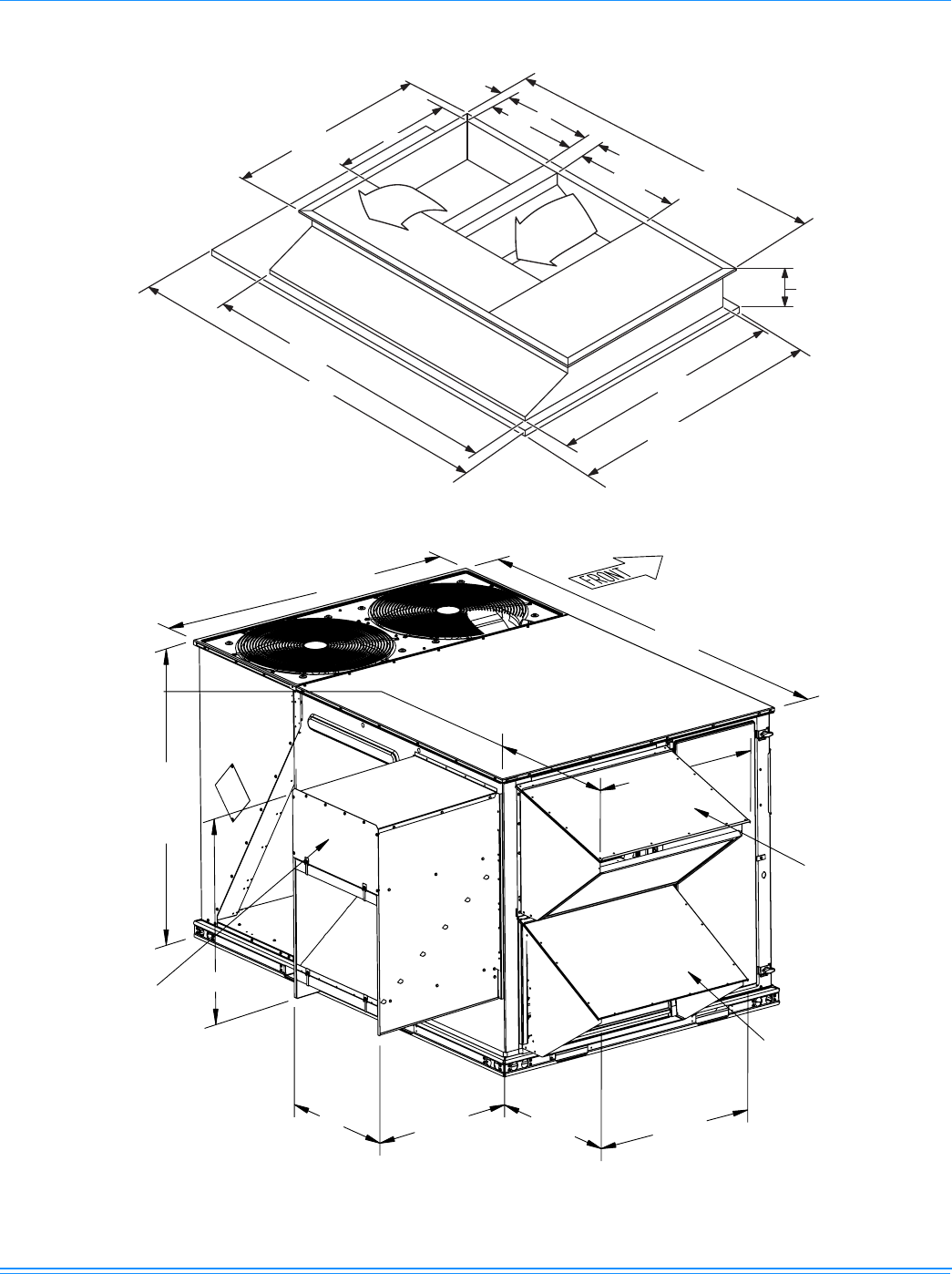

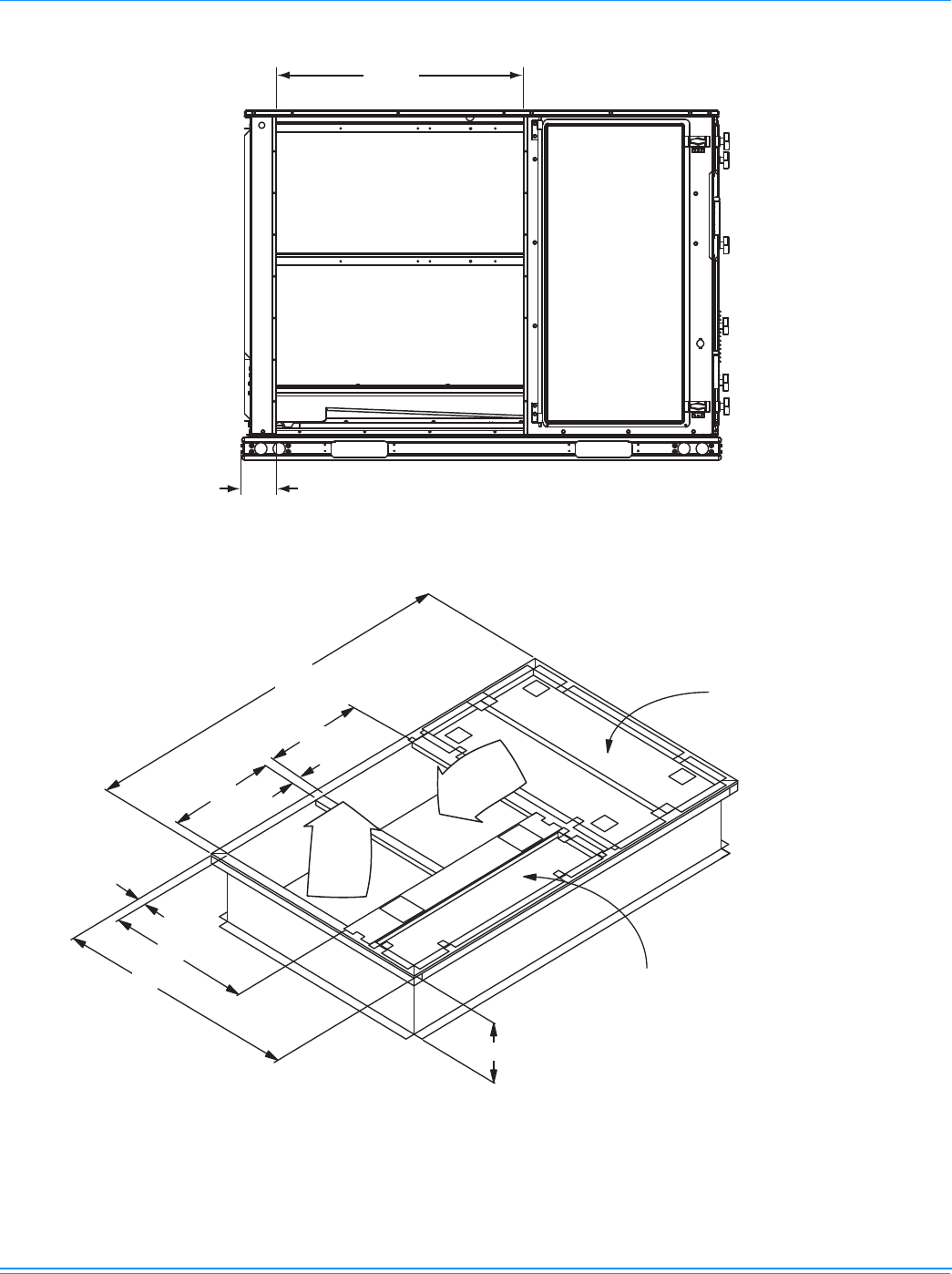

To further simplify planning and installation, Predator®

cabinets are designed to fit your roof. With the optional

roof curb, the unit ductwork is designed to fit around 24”

on-center joists or between 48” on-center joists.

The drain pan can be rotated to drain to either the front or

the rear of the unit. Additionally, the drain pan can be

fitted to drain through the roof curb. As it is sometimes

difficult to have a level installation, the drain pan features

a generous slope to ensure proper drainage.

•Full Perimeter Base Rails – The permanently attached

base rails provide a solid foundation for the entire unit and

protect the unit during shipment. The rails offer forklift

access from 3 sides, and rigging holes are available so that

an overhead crane can be used to place the units on a roof.

•Easy Installation – Gas and electric utility knockouts are

supplied in the unit underside as well as the side of the unit.

A clearly identified location is provided to mount a field

supplied electrical disconnect switch. Utility connections can

be made quickly and with a minimum amount of field labor.

All units are shipped with 2” throw-away filters installed.

•Wide Range of Indoor Airflows – All indoor fan motors

are belt-drive type providing maximum flexibility to handle

most airflow requirements. For high static applications,

factory installed alternate indoor fan motors are available.

With the optional indoor fan motor, all units can supply

nominal airflow at a minimum of 1.5” ESP.

A variable air volume (VAV) option using a variable

frequency drive is available on 6-1/2 through 12-1/2 ton

models for applications requiring a constant supply duct

pressure. A differential pressure transducer is used to

monitor supply duct static pressure while a VAV control

board provides a speed reference signal to the VFD to

control the output of the indoor blower motor.

•Warranty - All models include a 1-year limited warranty

on the complete unit. Compressors and electric heater

elements each carry a 5-year warranty. Aluminized steel

and stainless steel tubular heat exchangers carry a 10-

year warranty.

Factory Installed Options

YORK® offers several equipment options factory installed, for

the Predator®line.

•Optional Factory Installed Economizers - Predator units

offer a variety of optional factory installed economizers

with low leak dampers. The outdoor air enthalpy sensor

enables economizer operation if the outdoor enthalpy is

less than the setpoint of the economizer logic module. See

economizer options section to determine the correct

economizer for your application.

•Downflow Slab Economizers (with barometric relief

and fresh air hood) - All units offer a variety of optional

factory installed down flow economizers that are

shipped, installed and wired with low leak dampers

designed to meet ASHRAE 90.1-2010, AMCA 511

Class 1A damper, and the International Energy

Conservation Code (IECC) certification requirements by

achieving leakage rates of 3 cfm/sq. ft. at 1" of static

pressure. Each economizer goes through a rigorous

60,000 cycle test. Dry bulb, single enthalpy, and dual

enthalpy (with field installed kit) can be selected. The

economizer has spring return, fully modulating damper

actuators and is capable of introducing up to 100%

outdoor air. As the outdoor air intake dampers open, the

return air dampers close. The changeover from

mechanical refrigeration to economizer operation is

regulated by the outdoor air dry bulb temperature or the

outdoor air enthalpy input. The dual enthalpy kit

provides a second input used to monitor the return air

(field installed). The installer needs only to assemble the

outdoor air hood, attach the enthalpy control the hood

and mount the hood to the unit (Hood and control are

provided). When selected with BAS Ready

Economizer Option the actuator requires 2-10 VDC

input from an external source, such as a field-installed

or factory-installed BAS controller. BAS-ready actuators

have an adjustable auxiliary end-switch for optional

power exhaust control.

• Horizontal Economizer - (Without barometric relief) -

All features of the downflow economizer exist except

economizer is not designed with low leak dampers and

you must order the duct mount barometric relief

separately. You must order a 1EH0408 if you are

installing a power exhaust. You can order a 1RD0411

528150-YTG-T-0514

Johnson Controls Unitary Products 7

Barometric Relief for horizontal flow economizers

only.

• For units with optional VAV or Simplicity® Intelli-Comfort

II™ control, a factory-installed, dry bulb sensor

determines if outdoor air temperature is low enough to

provide free-cooling operation. (Field-installed humidity

sensors for either outdoor air or outdoor & return air

streams are available for single enthalpy and differential

enthalpy configurations, respectively).

•VAV or Simplicity® INTELLI-Comfort II™ control, a

factory-installed dry bulb sensor determines if outdoor

air temperature is low enough to provide free-cooling

operation. (Field-installed humidity sensors for either

outdoor air or outdoor & return air streams are available

for single enthalpy and differential enthalpy

configurations, respectively.)

•Power Exhaust (Downflow only) - This accessory

installs in the unit with a down flow economizer.

•Motorized Outdoor Air Damper - The motorized outdoor

air damper includes a slide-in/plug-in damper assembly

with an outdoor air hood and filters. The outdoor air

dampers open to the preset position when the indoor fan

motor is energized. The damper has a range of 0% to

100% outdoor air entry. Factory installed option or field

installed accessory.

•Alternate Indoor Blower Motor - For applications with

high static restrictions, units are offered with optional

indoor motors that provide higher static output and/or

higher airflow, depending upon the installer’s needs.

•Variable Air Volume (VAV; 6-1/2 through 12-1/2 ton,

only - A factory-installed variable frequency drive (VFD),

mounted in the Blower Access compartment, is used to

control the speed of the indoor blower motor in order to

maintain a constant static pressure in the supply duct. A

pressure transducer and VAV control board are mounted

inside the control box. The drive comes completely wired

and pre-programmed from the factory.

An optional, factory-installed manual bypass switch

available with factory-installed VFD can be found in the

Blower Motor Access compartment. The switch can be

used to either route power to the VFD for modulating

control of the blower motor, to bypass the drive and

operate the motor at full speed, or to power the drive (and

not the motor) for diagnostic purposes.

Due to space limitations, VAV is not available with any of

the factory-installed BAS options, but is available with

'BAS-ready' models. Terminal blocks are provided in the

control box for field wiring of the customer-installed BAS.

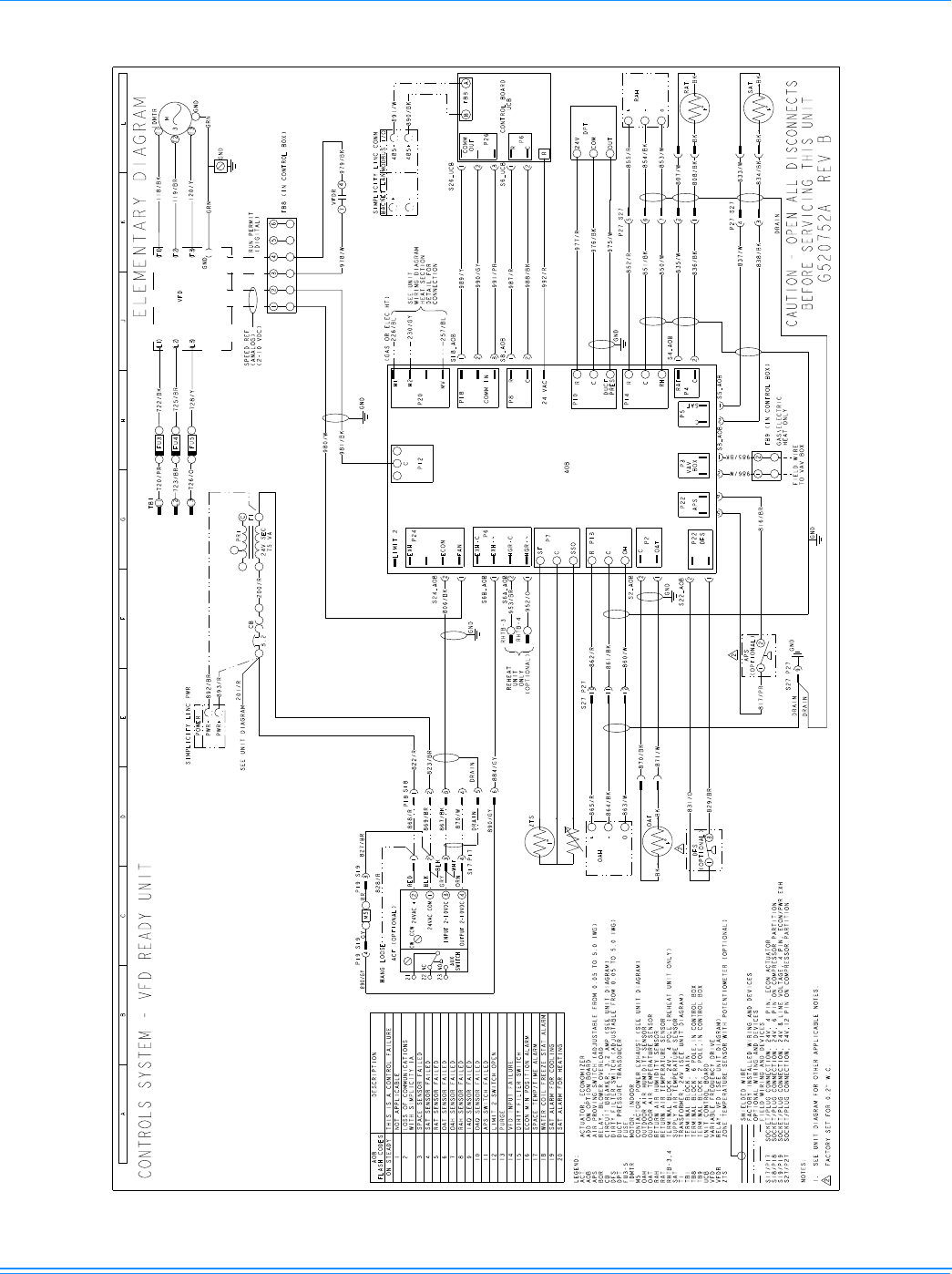

A 'VFD-ready' option provides the provisions for a

customer-installed drive. The unit comes with a mounting

bracket installed in the Blower Access compartment which

may accommodate other vendor's drives depending on

their size. In order to utilize the unit's mounting bracket,

the maximum recommended drive dimensions are limited

to approximately 9" H x 5" W x 7.5" D.

If the drive will not fit in the allotted space, then it will have

to be mounted elsewhere; either within the building on a

perpendicular wall which is not subjected to excessive

temperature, vibration, humidity, dust, corrosive gas,

explosive gas, etc., or within an appropriate enclosure

rated for outside installation to safeguard against

moisture, dust and excessive heat. A terminal block

located in the control box is provided for field connection

of the VFD controls.

• IntelliSpeed™ Supply Fan Control Option (ASHRAE

90.1 compliant, section 6.4.3.10) - Units configured with

the IntelliSpeed™ Supply Fan Option will contain a VFD

for variable volume supply fan operation. This option

allows the supply fan RPM to vary based on the number

of compressors or heating stages energized. The

economizer's minimum position will also be configurable

to vary based on the supply fan VFD frequency output.

•Aluminized Steel Gas Heat Exchanger - For

applications in non-corrosive environments.

•Stainless Steel Gas Heat Exchanger - For applications

in corrosive environments, this option provides a full

stainless steel heat exchanger assembly.

•Stainless Steel Drain Pan - An optional rust-proof

stainless steel drain pan is available to provide years of

trouble-free operation in corrosive environments.

•Electric Heaters - The electric heaters range from 3kW to

54kW and are available in all the voltage options of the

base units. All heaters are intended for single point power

supply.

•Disconnect Switch - For gas heat units and cooling units

with electric heat, a HACR breaker sized to the unit is

provided. For cooling only units, a switch sized to the

largest electric heat available for the particular unit is

provided. Factory installed option only.

•Convenience Outlet - (Non-Powered/Powered) - This

option locates a 120V single-phase GFCI outlet with cover,

on the corner of the unit housing adjacent to the

compressors. The “Non-powered” option requires the

installer to provide the 120V single-phase power source and

wiring. The “Powered” option is powered by a stepdown

transformer in the unit. Factory installed option only.

•Smoke Detectors - The smoke detectors stop operation

of the unit by interrupting power to the control board if

smoke is detected within the air compartment. Available

for both the supply and/or return air configurations.

•Filters - 2” Pleated MERV 7 or 4” Pleated MERV 13 are

available to meet LEED requirements. A 2” Throwaway is

shipped as standard.

•Phase Monitors - Designed to prevent unit damage. The

phase monitor will shut the unit down in an out-of phase

condition. (Standard on units with Scroll Compressors.)

Factory-installed smoke detectors may be subjected to

extreme temperatures during "off" times due to outside air

infiltration. These smoke detectors have an operational

limit of -4°F to 158°F. Smoke detectors installed in areas

that could be outside this range will have to be relocated to

prevent false alarms.

528150-YTG-T-0514

8Johnson Controls Unitary Products

•Coil Guard - Customers can purchase a coil guard kit to

protect the condenser coil from damage. Additionally, this

kit stops animals and foreign objects from entering the

space between the inner condenser coil and the main

cabinet. This is not a hail guard kit.

•Dirty Filter Switch - This kit includes a differential

pressure switch that energizes the fault light on the unit

thermostat, indicating that there is an abnormally high

pressure drop across the filters. Factory installed option or

field installed accessory.

•Technicoat Condenser Coils - The condenser coils are

coated with a phenolic coating for protection against

corrosion due to harsh environments.

•Technicoat Evaporator Coil - The evaporator coils are

coated with a phenolic coating for protection against

corrosion due to harsh environments.

•ElectroFin® E-coat Condenser Coils - The condenser

coils are coated with an epoxy polymer coating to protect

against corrosion.

•ElectroFin® E-coat Evaporator Coils - The evaporator

coils are coated with an epoxy polymer coating to protect

against corrosion.

•Hot Gas Bypass - Allows operation during low load

conditions while avoiding coil frosting and damage to

compressor. When suction pressure falls below valve

setpoint, the valve modulates hot gas to the inlet of the

evaporator. HGBP is standard on all units with VAV and

optional with constant-volume units.

Control Options

•Simplicity® INTELLI-Comfort II™ Control communicates

on a MODBUS RTU protocol network - The York®

Simplicity® INTELLI-Comfort II™ control is factory installed.

It includes a supply air sensor, a return air sensor, and an

outside air sensor. There are provisions for a field installed

dirty filter indicator switch, an air-proving switch, an Outside

Air Humidity sensor, a Return Air Humidity sensor, an

Inside IAQ sensor, and an Outside Air IAQ sensor.

Construction mode operation, 365-day real time clock with

7 day programming plus holiday scheduling is built-in. Two

different modes of demand ventilation are achieved through

the INTELLI-Comfort II™ using CO2 sensors. It uses an

inside CO2 sensor to perform Demand Ventilation. It can

also use an Outside CO2 sensor to perform Differential

Demand Ventilation. It uses a Patented Comfort Ventilation

algorithm to provide comfortable ventilation air

temperature. The patented economizer-loading algorithm

will protect the equipment when harsh operating conditions

exist. Humidity in the occupied space or return duct can be

monitored and controlled via humidity sensors and the on-

board connection for hot gas re-heat system. It uses the

INTELLI-Start™ algorithm to maximize energy savings by

recovering the building from the Unoccupied Setpoints to

the Occupied Setpoints just in time for the Occupied Time

Period to begin. The Simplicity® INTELLI-Comfort II™

balances space temperature, ventilation air temperature,

CO2 and humidity for ultimate comfort.

•Simplicity® INTELLI-Comfort II™ with Simplicity®LINC

Control - The York® Simplicity® INTELLI-Comfort II™

with Simplicity®LINC control is factory installed. It

includes all the features of the INTELLI-Comfort II™

control with an additional control to translate

communications from MODBUS to the BACnet MSTP

protocol.

•Novar® BAS Control - The Novar® building automation

system controller is factory installed. Includes supply air

sensor, return air sensor, dirty filter indicator switch, and

air proving switch.

•Johnson Controls BAS Control - The Johnson Control

YK-UNT-1126 building automation system controller is

factory installed. Includes supply air sensor, return air

sensor, dirty filter indicator switch, and air proving switch.

•CPC BAS Control - The Computer Process Controls

Model 810-3060 ARTC Advanced Rooftop building

automation system controller is factory installed. Includes

supply air sensor, return air sensor, dirty filter indicator

switch and air proving switch.

•Honeywell BAS Control - The Honeywell W7750C

building automation system controller is factory installed.

Includes air supply sensor, return air sensor, dirty filter

indicator switch, and air proving switch.

•York Commercial Comfort System (YCCS) - Provides

rooftop system integration for YCCS single zone and

change-over bypass systems.

Field Installed Accessories

YORK® offers several equipment accessories for field

installation, for the Predator® line.

•Downflow Slab Economizers (with fresh air hood and

without barometric relief) - All units offer a variety of

optional factory installed down flow economizers that are

shipped, installed and wired with low leak dampers designed

to meet ASHRAE 90.1-2010, AMCA 511 Class 1A damper,

and the International Energy Conservation Code (IECC)

certification requirements by achieving leakage rates of 3

cfm/sq. ft. at 1" of static pressure. Each economizer goes

through a rigorous 60,000 cycle test. Dry bulb, single

enthalpy, and dual enthalpy (with field installed kit) can be

selected. The economizer has spring return, fully modulating

damper actuators and is capable of introducing up to 100%

outdoor air. As the outdoor air intake dampers open, the

return air dampers close. The changeover from mechanical

refrigeration to economizer operation is regulated by the

outdoor air dry bulb temperature or the outdoor air enthalpy

input. The dual enthalpy kit provides a second input used to

monitor the return air (field installed). The installer needs only

to assemble the outdoor air hood, attach the enthalpy control

the hood and mount the hood to the unit (Hood and control

are provided).

• Horizontal Economizer - (Without barometric relief) -

All features of the downflow economizer exist except

economizer is not designed with low leak dampers and

you must order the duct mount barometric relief

separately. You must order a 1EH0408 if you are

installing a power exhaust. You can order a 1RD0411

Barometric Relief for horizontal flow economizers

only.

•Dual Enthalpy Control, Accessory - This kit contains

the required components to convert a single enthalpy

economizer to dual enthalpy.

528150-YTG-T-0514

Johnson Controls Unitary Products 9

•Barometric Relief Damper - Zero to 100% capacity

barometric relief dampers for use with horizontal flow, or

field installed slab economizers.

•Power Exhaust - This accessory installs in the unit with a

down flow economizer. Power exhaust plugs into the

connector in the unit bulkhead. You must purchase

1EH0408 barometric relief when applying to a

horizontal flow application.

•Manual Outdoor Air Damper - Like the motorized outdoor

air damper, each manual outdoor air damper includes a

slide-in damper assembly with an outdoor air hood and

filters. Customers have a choice of dampers with ranges of

0% to 100% or 0% to 35% outdoor air entry.

•Motorized Outdoor Air Damper - The motorized outdoor

air damper includes a slide-in/plug-in damper assembly with

an outdoor air hood and filters. The outdoor air dampers

open to the preset position when the indoor fan motor is

energized. The damper has a range of 0% to 100% outdoor

air entry. Factory installed option or field installed accessory.

•Smoke Detectors - The smoke detectors stop operation

of the unit by interrupting power to the control board if

smoke is detected within the air compartment.

•CO2 Sensor - Senses CO2 levels and automatically

overrides the economizer when levels rise above the

preset limits.

•Dirty Filter Switch - This kit includes a differential

pressure switch that energizes the fault light on the unit

thermostat, indicating that there is an abnormally high

pressure drop across the filters.

•Coil Guard - Field installed decorative wire coil guard.

•Hail Guard - This kit includes a sloped hood which installs

over the outside condenser coil and prevents damage to

the coil fins from hail strikes. Field installed accessory only.

•Flue Exhaust Extension Kit - In locations with wind or

weather conditions which may interfere with proper

exhausting of furnace combustion products, this kit can be

installed to prevent the flue exhaust from entering nearby

fresh air intakes.

•-60°F Gas Heat Kit - For installations which require gas

heat units to perform in low ambient temperatures, a gas

section heating kit is available. This kit provides electric

heat in the gas heat controls section to ensure the gas

valve and controls will continue to function properly at

extremely low temperatures.

•Gas Heat High Altitude Kit - This kit converts a gas heat

unit to operate at high altitudes, 2,000 to 6,000 feet.

Conversion kits are available for natural gas and propane.

•Gas Heat Propane Conversion Kit - This kit converts a

gas-fired heater from natural gas to propane. It contains the

main burner orifices and gas valve replacement springs.

•Gas Piping Kit - Contains pipe nipples, fittings and gas cock

required for gas supply connection with external shut off.

•Electric Heaters - The electric heaters range from 3kW to

54kW and are available in all the voltage options of the

base units. The 54kW/208-240 volt, field-installed heater

kit is not available with VAV units due to a lack of space to

accommodate the heater’s fuse block accessory.

All heaters are dual staged. Cooling units include an

adapter panel for easy installation of the electric heaters.

Necessary hardware and connectors are included with the

heaters. All heaters are intended for single point power

supply.

• Low Limit / Compressor Lockout Kit

•Compressor Lockout (CLO): To prevent mechanical

(compressorized) operation of the unit during cold

outdoor conditions where there is a risk of returning

liquid refrigerant back to the compressors.

•Low Limit Control (LLC): To prevent the supply air

from dropping below a specified setpoint by utilizing the

units first stage heating means when there is a demand

for cooling during cold outside conditions.

•Metal Frame Filter Kit - Metal frame with polyester filter

medium.

•Permanent Filters - Permanent filters are available.

•Roof Curbs - The roof curbs have insulated decks and are

shipped disassembled The roof curbs are available in 8” and

14” heights. For applications with security concerns, burglar

bars are available for the duct openings of the roof curbs.

•Roof Curb Transition - Single Piece Adapter (10” High) -

Roof curbs for transitioning from Sunline™ units to

Predator® units. Fits 7.5 to 12.5 Sunline™ roof curbs only.

•Burglar Bars - Mount in the supply and return openings

to prevent entry into the duct work.

•Thermostat - The units are designed to operate with 24-

volt electronic and electro-mechanical thermostats. All 6.5

thru 12.5 ton ZH,ZJ units and all 3 thru 12.5 ton ZR units

(with or without an economizer) operate with two-stage

heat/two-stage cool or two-stage cooling only

thermostats, depending upon unit configuration.

528150-YTG-T-0514

10 Johnson Controls Unitary Products

Accessories

Field Installed Accessories - Non-Electrical

MODEL VOLTAGE DESCRIPTION WHERE USED

1BD0408 All Burglar Bars, Downflow All Cabinets

1CG0419 All Coil Guard

(Electric / Electric Models), 50” Tall Standard

Cabinets

1CG0420 All Coil Guard (Gas / Electric Models), 50" Tall Standard Cabinets

1CG0427 All Coil Guard (Electric / Electric Models), 42” Tall Cabinets

1CG0428 All Coil Guard (Gas / Electric Models), 42" Tall Cabinets

1HG0411 All Hail Guard Kit

All Tall (50") Standard Cabinets, (Excludes 12.5T

"V" cabinets)

1HG0415 All Hail Guard Kit All Short (42") Standard Cabinets

1FE0412 All Flue Exhaust Extension Kit All Cabinets

1FF0414 All 2" only Metal Filter Frame Kit All Tall 50" Cabinets

1FF0415 All 2" only Metal Filter Frame Kit All Tall 42" Cabinets

1FL0402 All Permanent 2" only Filter Kit Includes (4) Four Filters) All Tall 50" Cabinets

1FL0423 All Permanent 2" only Filter Kit (Includes (4) four Filters) All Tall 42" Cabinets

1GP0405 All Gas Piping Kit All Cabinets

1HA0442 All High Altitude Kit for Natural Gas All 6 - 12T Cabinets

1HA0450 All High Altitude Kit for Natural Gas 3 - 5T (80, 120 & 160 MBH Input)

1HA0451 All High Altitude Kit for Natural Gas 3 - 4T (60 MBH Input)

1HA0443 All High Altitude Kit for Propane All 6 - 12T Cabinets

1HA0452 All High Altitude Kit for Propane 3 - 5T (80, 120 & 160 MBH Input)

1HA0453 All High Altitude Kit for Propane 3 - 4T (60 MBH Input)

1NP0442 All Propane Conversion Kit All 6 - 12T Cabinets

1NP0454 All Propane Conversion Kit 3 - 5T (80, 120 & 160 MBH Input)

1NP0455 All Propane Conversion Kit 3 - 4T (60 MBH Input)

1RC0470 All Roof Curb, 8" Height All Cabinets

1RC0471 All Roof Curb, 14" Height All Cabinets

1RC0472 All

Roof Curb, Transition (7.5 T thru 12.5T Sunline to Predator 3-

12T) All Cabinets

1WC0412 All

Wooden Crate for extra protection during shipping and

handling

Standard Cabinets Only (not applicable to units

119" in length)

1LN0407 All Low NOx Kit 3 - 5T (80, 120 & 160 MBH Input)

1LN0408 All Low NOx Kit 3 - 5T (60 MBH Input)

528150-YTG-T-0514

Johnson Controls Unitary Products 11

Field Installed Accessories - Electric Heat

MODEL VOLTAGE DESCRIPTION WHERE USED

2TP04520925 230

9kW Electric Heat All 50" Cabinet 6.5 and 8.5 Ton Models2TP04520946 460

2TP04520958 575

2TP04531825 230

18kW Electric Heat All 50" Cabinet 6.5, 8.5, 10 and 12.5 Ton Models2TP04531846 460

2TP04521858 575

2TP04532425 230

24kW Electric Heat All 50" Cabinet 6.5, 8.5, 10 and 12.5 Ton Models2TP04532446 460

2TP04522458 575

2TP04533625 230

36kW Electric Heat All 50" Cabinet 6.5, 8.5, 10 and 12.5 Ton Models2TP04533646 460

2TP04523658 575

2TP04525425 230

54kW Electric Heat All 50" 10 and 12.5 Ton Models2TP04525446 460

2TP04525458 575

2TP04540925 230

9kW Electric Heat All 42" Cabinet 6.5, 7.5 and 8.5 Ton Models2TP04540946 460

2TP04540958 575

2TP04541825 230

18kW Electric Heat All 42" 6.5, 7.5 and 8.5 Ton Models2TP04541846 460

2TP04541858 575

2TP04542425 230

24kW Electric Heat All 42" Cabinet 6.5, 7.5 and 8.5 Ton Models2TP04542446 460

2TP04542458 575

2TP04543625 230

36kW Electric Heat All 42" Cabinet 6.5, 7.5 and 8.5 Ton Models2TP04543646 460

2TP04543658 575

2TP04510325 230 3kW Electric Heat All 42" Cabinet 3 Ton Models

2TP04510346 460

2TP04510625 230 6kW Electric Heat All 42" Cabinet 3, 4 and 5 Ton Models

2TP04510646 460

2TP04510825 230

9kW Electric Heat All 42" Cabinet 3, 4 and 5 Ton Models2TP04510846 460

2TP04510858 575

2TP04511525 230

15kW Electric Heat All 42" Cabinet 3, 4 and 5 Ton Models2TP04511546 460

2TP04511558 575

2TP04512025 230

20kW Electric Heat All 42" 4 and 5 Ton Models2TP04512046 460

2TP04512058 575

2TP04512325 230

24kW Electric Heat All 42" Cabinet 5 Ton Models2TP04512346 460

2TP04512358 575

Accessories (Continued)

528150-YTG-T-0514

12 Johnson Controls Unitary Products

Guide Specifications

GENERAL

Units shall be manufactured by Unitary Products in an ISO

9001 certified facility. YORK® Predator® units are convertible

single packages with a common footprint cabinet and common

roof curb for all 3 through 12-1/2 ton models. All 6-1/2 through

12-1/2 ton units have two compressors with independent R-

410A refrigeration circuits to provide 2 stages of cooling. The

units were designed for light commercial applications and can

be easily installed on a roof curb, slab, or frame. All Predator®

units are self-contained and assembled on rigid full perimeter

base rails allowing for 3-way forklift access and overhead

rigging. Every unit is completely charged with R-410A, wired,

piped, and tested at the factory to provide a quick and easy

field installation. All units are convertible between side and

down airflow. Independent economizer designs are used on

side and down discharge applications, as well as all tonnage

sizes. Predator® units are available in the following

configurations: cooling only, cooling with electric heat, cooling

with gas heat, reheat only, reheat with electric heat and reheat

with gas heat. Electric heaters are available as factory-installed

options or field-installed accessories.

DESCRIPTION

Units shall be factory assembled, single package, (Elec/Elec, Gas/

Elec), designed for outdoor installation. They shall have built in

field convertible duct connections for down discharge supply/return

or horizontal discharge supply/return and be available with factory

installed options or field installed accessories. The units shall be

factory wired, piped and charged with R-410A refrigerant and

factory tested prior to shipment. All unit wiring shall be both

numbered and color coded. The cooling performance shall be

rated in accordance with DOE and AHRI test procedures. Units

shall be CSA certified to ANSI Z21.47 and UL 1995/CAN/CSA No.

236-M90 standards.

UNIT CABINET

Unit cabinet shall be constructed of galvanized steel with

exterior surfaces coated with a non-chalking, powder paint

finish, certified at 1000 hour salt spray test per ASTM-B117

Field Installed Accessories - Fresh Air

MODEL VOLTAGE DESCRIPTION WHERE USED

1EH0408 All Barometric Relief Kit for Power Exhaust, Horizontal Application All Cabinets

1FA0413 All Manual Outside Air Damper 0-35%, Downflow All Cabinets

1FA0414 All Manual Outside Air Damper 0-100%, Downflow All Cabinets

1RD0411 All Barometric Relief Kit for Horizontal Applications All Cabinets

2EC04700924 All Dual Enthalpy Control All Cabinets

2EE04708324 All Downflow Economizer, Slab type for ERV & Downflow

Applications, (no Barometric Relief or FA hood) All 50" Cabinets

2EE04707524 All Downflow Economizer, Slab type for ERV & Downflow

Applications, (no Barometric Relief or FA hood) All 42" Cabinets

2EE04706024 All Horizontal Economizer without Barometric Relief All Cabinets

2MD04703224 All Motorized Damper, Downflow without Barometric Relief All Cabinets

2MD04703724 All Motorized Damper, Horizontal All Cabinets

2PE04704706* 230 Power Exhaust 230V Downflow or Horizontal All Cabinets

2PE04704746* 460 Power Exhaust 460V Downflow or Horizontal All Cabinets

2PE04704758* 575 Power Exhaust 575V Downflow or Horizontal All Cabinets

* Must be installed in return Duct on Horizontal Applications and a 1EH0408 is required.

Field Installed Accessories - Controls

MODEL VOLTAGE DESCRIPTION WHERE USED

2AP0401 All Air Proving Switch All Units

2AQ04700324B All CO² Space Accessory All Units

2AQ04700424C All CO² Unit Accessory All Units

2DF0402 All Dirty Air Switch All Units

2DH04700024 All Humidistat All Units

2SD04700624 All Smoke Detector for Supply or Return

All Gen 4 or older units with 2" Filter only capable

Cabinets

2SD04700824 All Smoke Detector for Supply All Gen 5 units with 2" & 4" Filters

2SD04700924 All Smoke Detector for Return All Gen 5 units with 2" & 4" Filters

2SD04701024 All Smoke Detector for Supply and Return All Gen 5 units with 2" & 4" Filters

Field Installed Accessories - Electrical

MODEL VOLTAGE DESCRIPTION WHERE USED

2BC04700106 230 Gas heat kit, -60ºF All Units

2BC04700151 460 Gas heat kit, -60ºF All Units

2BC04700154 575 Gas heat kit, -60ºF All Units

2LA04704632 All Low Ambient Kit All 3 - 10T units (excludes 12.5T "V" cabinets)

Accessories (Continued)

528150-YTG-T-0514

Johnson Controls Unitary Products 13

standards. Indoor blower sections shall be insulated with up to

1” thick insulation coated on the airside. Either aluminum foil

faced or elastometric rubber insulation shall be used in the

unit’s compartments and be fastened to prevent insulation from

entering the air stream. Cabinet doors shall be hinged with

toolless access for easy servicing and maintenance. Full

perimeter base rails shall be provided to assure reliable transit

of equipment, overhead rigging, fork truck access and proper

sealing on roof curb applications. Disposable 2” filters shall be

furnished as standard and be accessible through hinged access

door. Fan performance measuring ports shall be provided on

the outside of the cabinet to allow accurate air measurements

of evaporator fan performance without removing panels or

creating bypass of the coils. Condensate pan shall be slide out

design, constructed of a non corrosive material, internally

sloped and conforming to ASHRAE 62-B9 standards.

Condensate connection shall be a minimum of ¾” I.D. female

and be rigid mount connection.

INDOOR (EVAPORATOR) FAN ASSEMBLY

Fan shall be a belt drive assembly and include an adjustable

pitch motor pulley. Job site selected brake horsepower shall not

exceed the motors nameplate horsepower rating plus the ser-

vice factor. Units shall be designed to operate within the service

factor. Fan wheel shall be double inlet type with forward curve

blades, dynamically balanced to operate smoothly throughout

the entire range of operation. Airflow design shall be constant

volume. Bearings shall be sealed and permanently lubricated

for longer life and no maintenance. Entire blower assembly and

motor shall be slide out design.

OUTDOOR (CONDENSER) FAN ASSEMBLY

The outdoor fans shall be of the direct drive type, discharge air

vertically, have aluminum blades riveted to corrosion resistant

steel spider brackets and shall be dynamically balanced for

smooth operation. The outdoor fan motors shall have permanently

lubricated bearings internally protected against overload

conditions and staged independently. A cleaning window shall be

provided on two sides of the units for coil cleaning.

REFRIGERANT COMPONENTS

Compressors:

a. Shall be fully hermetic type, direct drive, internally

protected with internal high-pressure relief and over

temperature protection. The hermetic motor shall be

suction gas cooled and have a voltage range of + or –

10% of the unit nameplate voltage.

b. Shall have internal spring isolation and sound muffling to

minimize vibration and noise, and be externally isolated

on a dedicated, independent mounting.

Coils:

a. Evaporator coils shall have aluminum plate fins

mechanically bonded to seamless internally enhanced

copper tubes with all joints brazed. Special Phenolic

coating shall be available as a factory option.

b. Evaporator coils shall be of the direct expansion, draw-

thru design.

c. Condenser coils shall have aluminum plate fins

mechanically bonded to seamless internally enhanced

copper tubes with all joints brazed or Micro-Channel

aluminum tube, aluminum fins.

d. Condenser coils shall be of the draw-thru design.

Refrigerant Circuit and Refrigerant Safety Components shall

include:

a. Independent fixed-orifice or thermally operated

expansion devices.

b. Solid core filter drier/strainer to eliminate any moisture or

foreign matter.

c. Accessible service gage connections on both suction

and discharge lines to charge, evacuate, and measure

refrigerant pressure during any necessary servicing or

troubleshooting, without losing charge.

d. The 6-1/2 through 12-1/2 ton unit shall have two

independent refrigerant circuits, equally split in 50%

capacity increments.

Unit Controls:

a. Unit shall be complete with self-contained low-voltage

control circuit protected by a resettable circuit breaker on

the 24-volt transformer side.

b. Unit shall incorporate a lockout circuit which provides

reset capability at the space thermostat or base unit

should any of the following standard safety devices trip

and shut off compressor:

• Loss-of-charge/Low-pressure switch.

• High-pressure switch.

• Freeze-protection thermostat, evaporator coil. If any of

the above safety devices trip, an LED (light-emitting

diode) indicator shall flash a diagnostic code that

indicates which safety switch has tripped.

c. Unit shall incorporate “AUTO RESET” compressor over

temperature, over current protection.

d. Unit shall operate with conventional thermostat designs

and have a low voltage terminal strip for easy hook-up.

e. Unit control board shall have on-board diagnostics and

fault code display.

f. Standard controls shall include anti-short cycle and low

voltage protection, and permit cooling operation down to

0 ºF.

g. Control board shall monitor each refrigerant safety switch

independently.

h. Control board shall retain last 5 fault codes in non-

volatile memory, which will not be lost in the event of a

power loss.

GAS HEATING SECTION (IF EQUIPPED)

Heat exchanger and exhaust system shall be constructed of

aluminized steel and shall be designed with induced draft com-

bustion with post purge logic, energy saving direct spark igni-

tion, and redundant main gas valve. The heat exchanger shall

528150-YTG-T-0514

14 Johnson Controls Unitary Products

be of the tubular type, constructed of T1-40 aluminized steel for

corrosion resistance and allowing minimum mixed air entering

temperature of 40 ºF. Burners shall be of the in-shot type, con-

structed of aluminum-coated steel. All gas piping shall enter the

unit cabinet at a single location, through either the side or bot-

tom, without any field modifications. An integrated control board

shall provide timed control of evaporator fan functioning and

burner ignition. Heating section shall be provided with the fol-

lowing minimum protection:

a. Primary and auxiliary high-temperature limit switches.

b. Induced draft pressure sensor.

c. Flame roll out switch (manual reset).

d. Flame proving controls.

e. All two stage gas units shall have two independent

stages of capacity (70% or 75% 1st stage, 100% 2nd

stage) 3 through 5 ton and (60% 1st stage, 100% 2nd

stage) 6-1/2 through 12-1/2 ton.

ELECTRIC HEATING SECTION (IF EQUIPPED)

An electric heating section, with nickel chromium elements,

shall be provided in a range of 3 thru 54KW. The heating sec-

tion shall have a primary limit control(s) (automatic reset) to pre-

vent the heating element system from operating at an

excessive temperature. The Heating Section assembly shall

slide out of the unit for easy maintenance and service. Units

with Electric Heating Sections shall be wired for a single point

power supply with branch circuit fusing (where required).

UNIT OPERATING CHARACTERISTICS

Unit shall be capable of starting and running at 125 ºF outdoor

temperature, exceeding maximum load criteria of AHRI Stan-

dard 340/360. The compressor, with standard controls, shall be

capable of operation down to 0 ºF outdoor temperature. Unit

shall be provided with fan time delay to prevent cold air delivery

before heat exchanger warms up. (Gas heat only)

ELECTRICAL REQUIREMENTS - All unit power wiring shall

enter unit cabinet at a single factory provided location and be

capable of side or bottom entry to minimize roof penetrations

and avoid unit field modifications. Separate side and bottom

openings shall be provided for the control wiring.

STANDARD LIMITED WARRANTIES - Compressor – 5 Years,

Heat Exchanger – 10 Years, Elect. Heat Elem. – 5 Years,

Parts – 1 Year

OPTIONAL OUTDOOR AIR (Shall be made available by either/

or):

•ELECTRONIC ENTHALPY AUTOMATIC ECONOMIZER

- Outdoor and return air dampers that are interlocked and

positioned by a fully-modulating, spring-return damper

actuator. The maximum leakage rate for the outdoor air

intake dampers shall be designed to meet ASHRAE 90.1-

2010, AMCA 511 Class 1A damper, and the International

Energy Conservation Code (IECC) certification

requirements by achieving leakage rates of 3 cfm/sq. ft. at

1" of static pressure. During economizer operation, a

mixed-air temperature control shall modulate the outdoor

and return air damper assembly to prevent the supply air

temperature from dropping below 55°F. Changeover from

compressor to economizer operation shall be provided by

an integral electronic enthalpy control that feeds input into

the basic module. The outdoor intake opening shall be

covered with a rain hood that matches the exterior of the

unit. Water eliminator/filters shall be provided.

Simultaneous economizer/compressor operation is also

possible. Dampers shall fully close on power loss.

Available with barometric relief and power exhaust.

•MOTORIZED OUTDOOR AIR DAMPERS - Outdoor and

return air dampers that are interlocked and positioned by

a 2- position, spring-return damper actuator. A unit-

mounted potentiometer shall be provided to adjust the

outdoor and return air damper assembly to take in the

design CFM of outdoor air to meet the ventilation

requirements of the conditioned space during normal

operation. Whenever the indoor fan motor is energized,

the dampers open up to one of two pre-selected positions

- regardless of the outdoor air enthalpy. Dampers return to

the fully closed position when the indoor fan motor is de-

energized. Dampers shall fully close on power loss.

ADDITIONAL FACTORY INSTALLED OPTIONS

•ALTERNATE INDOOR BLOWER MOTOR – For

applications with high restrictions, units are available with

optional indoor blower motors that provide higher static

output and/or higher airflow.

•VARIABLE AIR VOLUME (VAV) - The VAV option using

a variable frequency drive (VFD) shall be available on

6-1/2 through 12-1/2 ton models for applications requiring

a constant supply-duct static pressure. Units equipped for

VAV shall be controlled by a duct pressure transducer

with a 0 - 5" WC pressure range. The pressure transducer

shall provide a 0 - 5 VDC output signal to a VAV control

board which, in turn shall provide a 2 - 10 VDC speed

reference signal to the VFD. The VAV control board shall

operate using factory-installed Supply Air, Return Air and

Outside Air Temperature Sensors with a nominal

resistance of 10,000 Ohms. Units equipped with VFD's

shall have factory-installed manual bypass as an option.

•CONVENIENCE OUTLET (POWERED/NON-POWERED)–

Unit can be provided with an optional 120VAC GFCI outlet

with cover on the corner of the unit housing the compressors.

•ELECTRIC HEAT - Electric Heaters range from 3kW to

54kW and are available in all the voltage options of the

base unit.

•PHASE MONITOR - Designed to prevent damage in out-

of-phase condition.

•COIL GUARD - Designed to prevent condenser coil

damage.

•BAS CONTROLS - Include supply air sensor, return air

sensor, dirty filter indicator and air proving switch.

•DIRTY FILTER SWITCH – This kit includes a differential

pressure switch that energizes the fault light on the unit

528150-YTG-T-0514

Johnson Controls Unitary Products 15

thermostat, indicating that there is an abnormally high-

pressure drop across the filters.

•BREAKER – An HACR breaker can be factory installed

on gas heat units or cooling units with electric heat.

•DISCONNECT SWITCH - A disconnect can be factory

installed on a cooling only units sized for the largest

electric heat available.

•STAINLESS STEEL HEAT EXCHANGER – For

applications in a corrosive environment, this option

provides a full stainless steel heat exchanger assembly.

•SMOKE DETECTOR – A smoke detector can be factory

mounted and wired in the supply and/or return air

compartments.

OTHER PRE-ENGINEERED ACCESSORIES AVAILABLE

•ROOF CURB - 14” and 8” high, full perimeter knockdown

curb, with hinged design for quick assembly.

•BAROMETRIC RELIEF DAMPER – (Unit mounted –

Downflow, Duct Mounted – Horizontal) – Contains a rain

hood, air inlet screen, exhaust damper and mounting

hardware. Used to relieve internal air pressure through

the unit during economizer operation.

•PROPANE CONVERSION KIT – Contains new orifices

and gas valve springs to convert from natural to L.P. gas.

•-60ºF GAS HEAT KIT – Provides an electric heat kit for

the gas compartment for use in extreme low ambient

conditions.

•ECONOMIZER (Downflow and Horizontal flow)

•POWER EXHAUST – (Unit mount – Downflow, Duct

mount – Horizontal flow)

•DUAL ENTHALPY KIT - Provides a second input to

economizer to monitor return air.

528150-YTG-T-0514

16 Johnson Controls Unitary Products

Physical Data

ZH037-061 Single Stage Gas Physical Data

Component Models

ZH037 ZH049 ZH061

Nominal Tonnage 3.0 4.0 5.0

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (MBh) 37000 50000 61000

AHRI net capacity (MBh) 36000 48000 58000

EER 11.8 11.8 11.8

SEER 14 14 14

IPLV ---

CFM 1200 1600 2000

System power (KW) 3.05 4.07 4.90

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 7-4 6-14 7-12

System 2 ---

AHRI HEATING PERFORMANCE

Heating model A05 A07 A09 A05 A07 A09 A07 A09 A13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 446446468

No. stages 1 1 1 1 1 1 1 1 1

Temperature Rise Range (ºF) 20-50°F 25-65°F 50-80°F 20-50°F 25-65°F 40-70°F 25-65°F 35-65°F 45-75°F

Gas Limit Setting (ºF) 235°F 200°F 255°F 235°F 200°F 255°F 200°F 245°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 595959

Height 42 42 42

OPERATING WT. (lbs.) 723 763 864

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 11.9 18.5 21.1

Rows 111

Fins per inch 23 23 23

Tube diameter (in./MM) 1/25 .71/18 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 8 8 10.6

Rows 333

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 17

CONDENSER FAN DATA

Quantity of fans 1 1 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 1 2

Motor HP each 1/3 1/3 1/3

No. speeds 1 1 1

RPM 850 850 850

Total CFM 3300 3700 6700

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM34 1VL44 1VM34 1VL44 1VL40 1VP56

Blower Sheave AK69 AK69 AK56 AK56 AK61 AK74

Belt A47 A47 A47 A47 A47 A51

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (24 x 16 x 2)1,2 4 - (24 x 16 x 2)1,2 4 - (24 x 16 x 2)1,2

4 - (24 x 16 x 4)34 - (24 x 16 x 4)34 - (24 x 16 x 4)3

1. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

2. 2 In. Pleated, Optional, MERV 7.

3. 4 In. Pleated, Optional, MERV 13.

ZH037-061 Single Stage Gas Physical Data (Continued)

Component Models

ZH037 ZH049 ZH061

Nominal Tonnage 3.0 4.0 5.0

528150-YTG-T-0514

18 Johnson Controls Unitary Products

ZH037-061 Two Stage Gas Physical Data

Component Models

ZH037 ZH049 ZH061

Nominal Tonnage 3.0 4.0 5.0

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (MBh) 37000 50000 61000

AHRI net capacity (MBh) 36000 48000 58000

EER 11.8 11.8 11.8

SEER 14 14 14

IPLV ---

CFM 1200 1600 2000

System power (KW) 3.05 4.07 4.90

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 7-4 6-14 7-12

System 2 ---

AHRI HEATING PERFORMANCE

Heating model N05 N07 N09 N05 N07 N09 N07 N09 N13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 446446468

No. stages 212222212222222222

Temperature Rise Range (ºF) 20-50°F 25-65°F 50-80°F 20-50°F 25-65°F 40-70°F 25-65°F 35-65°F 45-75°F

Gas Limit Setting (ºF) 235°F 200°F 255°F 235°F 200°F 255°F 200°F 245°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 595959

Height 42 42 42

OPERATING WT. (lbs.) 723 763 864

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 11.9 18.5 21.1

Rows 111

Fins per inch 23 23 23

Tube diameter (in./MM) 1/25 .71/18 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 8 8 10.6

Rows 333

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 19

1. 1st Stage Capacity is 75% of Full Capacity.

2. 1st Stage Capacity is 70% of Full Capacity.

3. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

4. 2 In. Pleated, Optional, MERV 7.

5. 4 In. Pleated, Optional, MERV 13.

CONDENSER FAN DATA

Quantity of fans 1 1 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 1 2

Motor HP each 1/3 1/3 1/3

No. speeds 1 1 1

RPM 850 850 850

Total CFM 3300 3700 6700

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM34 1VL44 1VM34 1VL44 1VL40 1VP56

Blower Sheave AK69 AK69 AK56 AK56 AK61 AK74

Belt A47 A47 A47 A47 A47 A51

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (24 x 16 x 2)3,4 4 - (24 x 16 x 2)3,4 4 - (24 x 16 x 2)3,4

4 - (24 x 16 x 4)54 - (24 x 16 x 4)54 - (24 x 16 x 4)5

ZH037-061 Two Stage Gas Physical Data (Continued)

Component Models

ZH037 ZH049 ZH061

Nominal Tonnage 3.0 4.0 5.0

528150-YTG-T-0514

20 Johnson Controls Unitary Products

ZH078-150 Physical Data

Component Models

ZH078 ZH090 ZH102 ZH120 ZH150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (Btu) 81000 93000 107000 125000 156000

AHRI net capacity (Btu) 78000 90000 102000 120000 150000

EER 11.71/11.5211.71/11.5211.71/11.5211.7 11.71/11.52

SEER - - - - -

IEER 12.81/12.6212.81/12.6212.81/12.6212 12.81/12.62

IPLV 13.7 13 13.5 12.9 14.1

CFM 2600 2700 3400 4000 3750

System power (KW) 6.69 7.70 9.0 10.40 12.80

Refrigerant type R-410A R-410A R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 7-0 6-0 7-6 8-8 8-2

System 2 6-0 6-0 7-2 7-7 8-2

AHRI HEATING PERFORMANCE

Heating model 10 15 10 15 10 15 15 20 15 20

Heat input (K Btu) 120 180 120 180 120 180 180 240 180 240

Heat output (K Btu) 96 144 96 144 96 144 144 192 144 192

AFUE % ----- -----

Steady state efficiency (%) 80 80 80 80 80 80 80 80 80 80

No. burners 46464 66868

No. stages 23232323232323232323

Temperature Rise Range (ºF) 20-50 35-65 15-45 30-60 10-40 25-55 20-50 35-65 10-40 25-55

Gas Limit Setting (ºF) 165 165 165 165 215 195 195 160 195 160

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89 89 119-1/2

Width 59 59 59 59 59

Height 42 42 50-3/4 50-3/4 50-3/4

OPERATING WT. (lbs.) 910 910 1047 1090 1280

COMPRESSORS

Type Recip Recip Recip Scroll Scroll

Quantity 2 2 2 2 2

Unit Capacity Steps (%) 50 / 100 50 / 100 50 / 100 50 / 100 50 / 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 23.8 23.8 29.0 29.0 47.5

Rows 1 1 1 1 1

Fins per inch 23 23 23 23 23

Tube diameter (in./MM) 1/25 1/25 1/25 1/25 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 10.6 10.6 13.2 13.2 13.2

Rows 3 3 3 4 4

Fins per inch 15 15 15 15 15

Tube diameter 0.375 0.375 0.375 0.375 0.375

Circuitry Type Intertwined Intertwined Intertwined Intertwined Intertwined

Refrigerant control TXV TXV TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 21

CONDENSER FAN DATA

Quantity of fans 2 2 2 2 4

Fan diameter (Inch) 24 24 24 24 24

Type Prop Prop Prop Prop Prop

Drive type Direct Direct Direct Direct Direct

Quantity of motors 2 2 2 2 4

Motor HP each 1/3 3/4 3/4 3/4 1/3

No. speeds 1 1 1 1 1

RPM 850 1110 1110 1110 850

Total CFM 6700 8600 9400 9400 14000

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1 1 1

Fan Size (Inch) 12 x 12 12 x 12 15 x 15 15 x 15 15 x 15

Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VP56

Blower Sheave AK74 AK64 AK74 AK61 AK94 AK74 AK84 AK74 AK74 BK77

Belt A49 A49 A49 A49 A56 A54 A56 A54 A54 BX55

Motor HP each 1-1/2 2 1-1/2 3 2 3 2 3 3 5

RPM 1725 1725 1725 1725 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56 56 56 56 184T

FILTERS

Quantity - Size 4 - (24 x 16 x 2)4,5 4 - (24 x 16 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5

4 - (24 x 16 x 4)64 - (24 x 16 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)6

1. Cooling Only Unit

2. Cooling Unit with Gas or Electric Heat

3. 1st Stage 60% of Full Capacity.

4. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value) 3.

5. 2 In. Pleated, Optional, MERV 7.

6. 4 In. Pleated, Optional, MERV 13.

ZH078-150 Physical Data (Continued)

Component Models

ZH078 ZH090 ZH102 ZH120 ZH150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

528150-YTG-T-0514

22 Johnson Controls Unitary Products

ZJ037-061 Single Stage Gas Heat Physical Data

Component Models

ZJ037 ZJ049 ZJ061

Nominal Tonnage 3.0 4.0 5.0

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (MBh) 37000 50000 62000

AHRI net capacity (MBh) 36000 48000 60000

EER 12.2 12.2 12.2

SEER 15 15 15

IPLV ---

CFM 1300 1600 2000

System power (KW) 2.95 3.95 4.90

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 6-12 7-8 8-4

System 2 ---

AHRI HEATING PERFORMANCE

Heating model A05 A07 A09 A05 A07 A09 A07 A09 A13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 446446468

No. stages 1 1 1 1 1 1 1 1 1

Temperature Rise Range (ºF) 20-50°F 25-65°F 50-80°F 20-50°F 25-65°F 40-70°F 25-65°F 35-65°F 45-75°F

Gas Limit Setting (ºF) 235°F 200°F 255°F 235°F 200°F 255°F 200°F 245°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 595959

Height 42 42 42

OPERATING WT. (lbs.) 740 775 770

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 18.5 23.8 23.8

Rows 111

Fins per inch 23 23 23

Tube diameter (in./MM) .71/18 .71/18 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 7.9 10.5 10.5

Rows 333

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 23

CONDENSER FAN DATA

Quantity of fans 1 1 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 1 2

Motor HP each 1/3 1/3 1/3

No. speeds 1 1 1

RPM 850 850 850

Total CFM 3300 3700 6300

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM34 1VL44 1VM34 1VL44 1VL40 1VP56

Blower Sheave AK69 AK69 AK56 AK56 AK61 AK74

Belt A47 A47 A47 A47 A47 A51

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (24 x 16 x 2)1,2 4 - (24 x 16 x 2)1,2 4 - (24 x 16 x 2)1,2

4 - (24 x 16 x 4)34 - (24 x 16 x 4)34 - (24 x 16 x 4)3

1. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

2. 2 In. Pleated, Optional, MERV 7.

3. 4 In. Pleated, Optional, MERV 13.

ZJ037-061 Single Stage Gas Heat Physical Data (Continued)

Component Models

ZJ037 ZJ049 ZJ061

Nominal Tonnage 3.0 4.0 5.0

528150-YTG-T-0514

24 Johnson Controls Unitary Products

ZJ037-061 Two Stage Gas Heat Physical Data

Component Models

ZJ037 ZJ049 ZJ061

Nominal Tonnage 3.0 4.0 5.0

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (MBh) 37000 50000 62000

AHRI net capacity (MBh) 36000 48000 60000

EER 12.2 12.2 12.2

SEER 15 15 15

IPLV ---

CFM 1300 1600 2000

System power (KW) 2.95 3.95 4.90

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 6-12 7-8 8-4

System 2 ---

AHRI HEATING PERFORMANCE

Heating model N05 N07 N09 N05 N07 N09 N07 N09 N13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 446446468

No. stages 212222212222222222

Temperature Rise Range (ºF) 20-50°F 25-65°F 50-80°F 20-50°F 25-65°F 40-70°F 25-65°F 35-65°F 45-75°F

Gas Limit Setting (ºF) 235°F 200°F 255°F 235°F 200°F 255°F 200°F 245°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 595959

Height 42 42 42

OPERATING WT. (lbs.) 740 775 770

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 18.5 23.8 23.8

Rows 111

Fins per inch 23 23 23

Tube diameter (in./MM) .71/18 .71/18 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 7.9 23.8 10.5

Rows 333

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 25

1. 1st Stage Capacity is 75% of Full Capacity.

2. 1st Stage Capacity is 70% of Full Capacity.

3. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

4. 2 In. Pleated, Optional, MERV 7.

5. 4 In. Pleated, Optional, MERV 13.

CONDENSER FAN DATA

Quantity of fans 1 1 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 1 2

Motor HP each 1/3 1/3 1/3

No. speeds 1 1 1

RPM 850 850 850

Total CFM 3300 3700 6300

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM34 1VL44 1VM34 1VL44 1VL40 1VP56

Blower Sheave AK69 AK69 AK56 AK56 AK61 AK74

Belt A47 A47 A47 A47 A47 A51

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (24 x 16 x 2)3,4 4 - (24 x 16 x 2)3,4 4 - (24 x 16 x 2)3,4

4 - (24 x 16 x 4)54 - (24 x 16 x 4)54 - (24 x 16 x 4)5

ZJ037-061 Two Stage Gas Heat Physical Data (Continued)

Component Models

ZJ037 ZJ049 ZJ061

Nominal Tonnage 3.0 4.0 5.0

528150-YTG-T-0514

26 Johnson Controls Unitary Products

ZJ078-150 Physical Data

Component Models

ZJ078 ZJ090 ZJ102 ZJ120 ZJ150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (Btu) 80000 93000 106000 124000 154000

AHRI net capacity (Btu) 78000 90000 102000 120000 150000

EER 12.21/12.0212.21/12.0212.21/12.0212.0 12.0

SEER -----

IEER 14.0 13.1 12.2 12.8 13

IPLV 14.9 14.18 13.6 13.4 14.1

CFM 2600 2400 2800 3400 3500

System power (KW) 6.40 7.38 8.30 9.80 12.50

Refrigerant type R-410A R-410A R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 5-10 7-12 8-8 7-14 10-8

System 2 5-12 7-10 8-12 7-14 9-12

AHRI HEATING PERFORMANCE

Heating model 10 15 10 15 10 15 15 20 15 20

Heat input (K Btu) 120 180 120 180 120 180 180 240 180 240

Heat output (K Btu) 96 144 96 144 96 144 144 192 144 192

AFUE % ----------

Steady state efficiency (%) 80 80 80 80 80 80 80 80 80 80

No. burners 4646466868

No. stages 23232323232323232323

Temperature Rise Range (ºF) 20-50 35-65 15-45 30-60 10-40 25-55 20-50 35-65 10-40 25-55

Gas Limit Setting (ºF) 165 165 165 165 215 195 195 160 195 160

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89 89 119-1/2

Width 5959595959

Height 50-3/4 50-3/4 50-3/4 50-3/4 50-3/4

OPERATING WT. (lbs.) 1030 1050 1060 1070 1280

COMPRESSORS

Type Recip Recip Recip Scroll Scroll

Quantity 22222

Unit Capacity Steps (%) 50 / 100 50 / 100 50 / 100 50 / 100 50 / 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 29.0 23.8 29.0 29.0 47.5

Rows 11111

Fins per inch 23 23 23 23 23

Tube diameter (in./MM) .71/18 1/25 1/25 1/25 .71/18

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 13.2 13.2 13.2 13.2 13.2

Rows 34444

Fins per inch 15 15 15 15 15

Tube diameter 0.375 0.375 0.375 0.375 0.375

Circuitry Type Intertwined Intertwined Intertwined Intertwined Intertwined

Refrigerant control TXV TXV TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 27

CONDENSER FAN DATA

Quantity of fans 22224

Fan diameter (Inch) 24 24 24 24 24

Type Prop Prop Prop Prop Prop

Drive type Direct Direct Direct Direct Direct

Quantity of motors 22224

Motor HP each 1/3 3/4 3/4 3/4 1/3

No. speeds 11111

RPM 850 1110 1110 1110 850

Total CFM 7400 8000 9000 9400 14000

BELT DRIVE EVAP FAN DATA

Quantity 11111

Fan Size (Inch) 15 x 15 15 x 15 15 x 15 15 x 15 15 x 15

Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal

Motor Sheave 1VL40 1VM50 1VL40 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VP56

Blower Sheave AK74 AK74 AK69 AK69 AK89 AK74 AK84 AK74 AK74 BK77

Belt A53 A54 A52 A54 A56 A54 A56 A54 A54 BX55

Motor HP each 1-1/2 2 1-1/2 3 2 3 2 3 3 5

RPM 1725 1725 1725 1725 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56 56 56 56 184T

FILTERS

Quantity - Size 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5

4 - (24 x 20 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)6

1. Cooling Only Unit

2. Cooling Unit with Gas or Electric Heat

3. 1st Stage 60% of Full Capacity.

4. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value) 3.

5. 2 In. Pleated, Optional, MERV 7.

6. 4 In. Pleated, Optional, MERV 13.

ZJ078-150 Physical Data (Continued)

Component Models

ZJ078 ZJ090 ZJ102 ZJ120 ZJ150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

528150-YTG-T-0514

28 Johnson Controls Unitary Products

ZR037-061 Single Stage Gas Heat Physical Data

Component Models

ZR037 ZR049 ZR061

Nominal Tonnage 3 4 5

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (Btu) 36500 49000 62000

AHRI net capacity (Btu) 35500 47500 60000

EER 12.2 12.2 12.2

SEER 15 15 14.7

IPLV - --

CFM 1200 1600 2000

System power (KW) 2.88 3.32 4.83

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 12-8 12-0 11-0

System 2 - - -

AHRI HEATING PERFORMANCE

Heating model A05 A07 A09 A05 A07 A09 A07 A09 A13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 4 4 6 4 4 6 4 6 8

No. stages 1 1 1 1 1 1 1 1 1

Temperature Rise Range (ºF) 20-50°F 25-65°F 35-80°F 20-50°F 25-65°F 35-80°F 25-65°F 35-80°F 45-75°F

Gas Limit Setting (ºF) 200°F 235°F 290°F 200°F 235°F 290°F 235°F 290°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 59 59 59

Height 42 42 42

OPERATING WT. (lbs.) 867 880 867

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 11.9 11.9 11.9

Rows 1 1 1

Fins per inch 23 23 23

Tube diameter (in./MM) .98/25 .98/25 .71/18 - .98/25

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 10.56 10.56 10.56

Rows 3 3 4

Fins per inch 15 15 12

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

REHEAT COIL DATA

Face area (Sq. Ft.) 8.9 8.9 8.9

Rows 2 2 2

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control Solenoid Solenoid Solenoid

528150-YTG-T-0514

Johnson Controls Unitary Products 29

Component Models

ZR037 ZR049 ZR061

Nominal Tonnage 3 4 5

CONDENSER FAN DATA

Quantity of fans 1 2 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 2 2

Motor HP each 1/3 1/3 1/3

No. speeds Var. Var. Var.

RPM (max.) 850 850 850

Total CFM 3500 7000 7000

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VP34 1VL44 1VP34 1VL44 1VP34 1VL44

Blower Sheave AK61 AK59 AK61 AK59 AK61 AK59

Belt A47 A47 A47 A47 A47 A47

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (25 x 16 x 2)1, 2 4 - (25 x 16 x 2) 1, 2 4 - (25 x 16 x 2)1, 2

4 - (25 x 16 x 4) 34 - (25 x 16 x 4) 34 - (25 x 16 x 4) 3

1. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

2. 2 In. Pleated, Optional, MERV 7.

3. 4 In. Pleated, Optional, MERV 13.

ZR037-061 Single Stage Gas Heat Physical Data (Continued)

528150-YTG-T-0514

30 Johnson Controls Unitary Products

ZR037-061 Two Stage Gas Heat Physical Data

Component Models

ZR037 ZR049 ZR061

Nominal Tonnage 3 4 5

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (Btu) 36500 49000 62000

AHRI net capacity (Btu) 35500 47500 60000

EER 12.2 12.2 12.2

SEER 15 15 14.7

IPLV - - -

CFM 1200 1600 2000

System power (KW) 2.88 3.32 4.83

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 12-8 12-0 11-0

System 2 - - -

AHRI HEATING PERFORMANCE

Heating model N05 N07 N09 N05 N07 N09 N07 N09 N13

Heat input (K Btu) 60 80 120 60 80 120 80 120 160

Heat output (K Btu) 49 65 97 49 65 97 65 97 129

AFUE % - - - - - -

Steady state efficiency (%) 81.5 81 81 81.5 81 81 81 81 80.5

No. burners 4 4 6 4 4 6 4 6 8

No. stages 212222212222222222

Temperature Rise Range (ºF) 20-50°F 25-65°F 35-80°F 20-50°F 25-65°F 35-80°F 25-65°F 35-80°F 45-75°F

Gas Limit Setting (ºF) 200°F 235°F 290°F 200°F 235°F 290°F 235°F 290°F 240°F

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89

Width 59 59 59

Height 42 42 42

OPERATING WT. (lbs.) 867 880 867

COMPRESSORS

Type Recip Recip Recip

Quantity 1 1 1

Unit Capacity Steps (%) 100 100 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 11.9 11.9 11.9

Rows 1 1 1

Fins per inch 23 23 23

Tube diameter (in./MM) .98/25 .98/25 .71/18 - .98/25

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 10.56 10.56 10.56

Rows 3 3 4

Fins per inch 15 15 12

Tube diameter 0.375 0.375 0.375

Refrigerant control TXV TXV TXV

REHEAT COIL DATA

Face area (Sq. Ft.) 8.9 8.9 8.9

Rows 2 2 2

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Refrigerant control Solenoid Solenoid Solenoid

528150-YTG-T-0514

Johnson Controls Unitary Products 31

Component Models

ZR037 ZR049 ZR061

Nominal Tonnage 3 4 5

CONDENSER FAN DATA

Quantity of fans 1 2 2

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 1 2 2

Motor HP each 1/3 1/3 1/3

No. speeds Var. Var. Var.

RPM 850 850 850

Total CFM 3500 7000 7000

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 9 12 x 9 12 x 9

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VP34 1VL44 1VP34 1VL44 1VP34 1VL44

Blower Sheave AK61 AK59 AK61 AK59 AK61 AK59

Belt A47 A47 A47 A47 A47 A47

Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2

RPM 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56

FILTERS

Quantity - Size 4 - (25 x 16 x 2)3,4 4 - (25 x 16 x 2)3,4 4 - (25 x 16 x 2)3,4

4 - (25 x 16 x 4)54 - (25 x 16 x 4)54 - (25 x 16 x 4)5

1. 1st Stage Capacity is 75% of Full Capacity.

2. 1st Stage Capacity is 70% of Full Capacity.

3. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value)

4. 2 In. Pleated, Optional, MERV 7.

5. 4 In. Pleated, Optional, MERV 13.

ZR037-061 Two Stage Gas Heat Physical Data (Continued)

528150-YTG-T-0514

32 Johnson Controls Unitary Products

ZR078-150 Physical Data

Component Models

ZR078 ZR090 ZR102 ZR120 ZR150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

AHRI COOLING PERFORMANCE

Gross Capacity @ AHRI A point (Mbh) 80000 90000 105000 124000 157000

AHRI net capacity (Mbh) 78000 87000 102000 120000 150000

EER 11.2 11.2 11.2 11.2 11.2

IEER 12.51/12.3211.5 12.2 11.3 11.0

IPLV 13.0

CFM 2200 2775 3350 3750 4450

System power (KW) 6.96 7.77 9.11 10.71 13.39

Refrigerant type R-410A R-410A R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 9-0 6-12 11-10 8-11 20-0

System 2 5-8 6-0 10-3 7-8 19-0

AHRI HEATING PERFORMANCE

Heating model 10 15 10 15 10 15 15 20 15 20

Heat input (K Btu) 120 180 120 180 120 180 180 240 180 240

Heat output (K Btu) 96 144 96 144 96 144 144 192 144 192

AFUE % ----------

Steady state efficiency (%) 80808080808080808080

No. burners 4646466868

No. stages 23232323232323232323

Temperature Rise Range (ºF) 20-50 35-65 15-45 30-60 10-40 25-55 20-50 35-65 10-40 25-55

Gas Limit Setting (ºF) 165 165 165 165 215 195 195 160 195 160

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 89 89 119-7/16

Width 5959595959

Height 42 42 50-3/4 50-3/4 50-3/4

OPERATING WT. (lbs.) 957 965 1200 1200 1465

COMPRESSORS

Type Scroll Scroll Scroll Scroll Scroll

Quantity 2 2 2 2 2

Unit Capacity Steps (%) 50 / 100 50 / 100 50 / 100 50 / 100 50 / 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 23.8 23.8 29.0 29.0 47.5

Rows 2 / 11212

Fins per inch 20 23 20 23 15

Tube diameter (in.) 3/8 - 3/8 - 3/8

Tube diameter (in.)/MM - 1/25 - 1/25 -

Circuitry Type Split-face 2-pass

Microchannel Split-face 2-pass

Microchannel Split-face

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 10.6 10.6 13.2 13.2 13.2

Rows 33444

Fins per inch 15 15 15 15 15

Tube diameter 3/8 3/8 3/8 3/8 3/8

Circuitry Type Split-face Split-face Split-face Split-face Split-face

Refrigerant control TXV TXV TXV TXV TXV

528150-YTG-T-0514

Johnson Controls Unitary Products 33

REHEAT COIL DATA

Face area (Sq. Ft.) 6.66 6.66 10 10 10

Rows 22222

Fins per inch 13 13 13 13 13

Tube diameter (in.) 3/8 3/8 3/8 3/8 3/8

CONDENSER FAN DATA

Quantity of Fans 2 2 2 2 4

Fan diameter (Inch) 24 24 24 24 24

Type Prop Prop Prop Prop Prop

Drive type Direct Direct Direct Direct Direct

Quantity of motors 2 2 2 2 4

Motor HP each 1/3 1/3 1/3 1/3 1/3

No. speeds 1 1 1 1 1

RPM 850 850 850 850 850

Total CFM 6800 6800 6800 6800 14000

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1 1 1

Fan Size (Inch) 12 x 12 12 x 12 15 x 15 15 x 15 15 x 15

Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VM50 1VP56

Blower Sheave AK74 AK64 AK74 AK61 AK89 AK74 AK84 AK74 AK74 BK77

Belt A49 A49 A49 A49 A56 A54 A56 A54 A54 BX55

Motor HP each 1-1/2 2 1-1/2 3 2 3 2 3 3 5

RPM 1725 1725 1725 1725 1725 1725 1725 1725 1725 1725

Frame size 56 56 56 56 56 56 56 56 56 184T

FILTERS

Quantity - Size 4 - (24 x 16 x 2)4,5 4 - (24 x 16 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4,5

4 - (24 x 16 x 4)64 - (24 x 16 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)6

1. Cooling Only or Cooling with Electric Heat Unit

2. Cooling with Gas Heat Unit

3. 1st Stage 60% of 2nd Stage

4. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value) 3.

5. 2 In. Pleated, Optional, MERV 7.

6. 4 In. Pleated, Optional, MERV 13.

ZR078-150 Physical Data (Continued)

Component Models

ZR078 ZR090 ZR102 ZR120 ZR150

Nominal Tonnage 6.5 7.5 8.5 10 12.5

528150-YTG-T-0514

34 Johnson Controls Unitary Products

ZH/ZJ/ZR078-150 Unit Limitations

Size

(Tons) Model Unit Voltage

Unit Limitations

Applied Voltage Outdoor DB Temp

Min Max Max (°F)

037

(3) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

049

(4) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

061

(5) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

078

(6.5) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

090

(7.5) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

102

(8.5) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

120

(10) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

150

(12.5) ZH/ZJ/ZR

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

528150-YTG-T-0514

Johnson Controls Unitary Products 35

Capacity Performance

ZH037-150 Cooling Capacities

ZH037 (3.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

750

77 49.1 2.3 20.2 16.8 13.4 - - - 46.5 2.5 19.1 15.7 12.4 - - -

72 44.4 2.2 25.1 21.7 18.4 15.0 - - 41.7 2.5 23.9 20.5 17.2 13.8 - -

67 39.6 2.2 30.0 26.6 23.3 19.9 16.5 - 36.9 2.5 28.7 25.3 22.0 18.6 15.2 -

62 35.4 2.3 35.4 32.8 27.8 24.5 21.1 17.8 32.6 2.5 32.6 31.3 26.3 22.9 19.6 16.2

900

77 51.2 2.2 22.9 18.8 14.8 - - - 48.2 2.5 21.6 17.6 13.6 - - -

72 46.2 2.2 28.2 24.2 20.2 16.1 - - 43.2 2.5 26.8 22.8 18.9 14.9 - -

67 41.3 2.2 33.6 29.6 25.6 21.5 17.5 - 38.2 2.5 32.1 28.1 24.1 20.2 16.2 -

62 36.9 2.3 36.9 35.1 30.6 26.5 22.5 18.5 33.7 2.5 33.7 32.9 28.9 24.9 20.9 17.0

57 35.4 2.3 35.4 35.4 32.4 28.4 24.3 20.3 33.2 2.5 33.2 33.2 30.2 26.2 22.3 18.3

1050

77 53.3 2.2 25.5 20.8 16.1 - - - 49.9 2.5 24.0 19.4 14.8 - - -

72 48.1 2.2 31.4 26.7 22.0 17.3 - - 44.7 2.5 29.8 25.2 20.6 16.0 - -

67 43.0 2.2 37.3 32.6 27.9 23.2 18.5 - 39.5 2.5 35.5 30.9 26.3 21.7 17.1 -

62 38.3 2.3 38.3 37.5 33.3 28.6 23.9 19.2 34.9 2.5 34.9 34.5 31.5 26.9 22.3 17.7

57 36.8 2.3 36.8 36.8 35.3 30.6 25.9 21.2 34.3 2.5 34.3 34.3 32.9 28.3 23.7 19.2

1200

77 55.4 2.2 28.2 22.8 17.5 - - - 51.5 2.5 26.5 21.3 16.1 - - -

72 50.0 2.2 34.6 29.2 23.8 18.4 - - 46.2 2.5 32.7 27.5 22.3 17.1 - -

67 44.6 2.2 41.0 35.6 30.2 24.8 19.4 - 40.8 2.5 38.9 33.7 28.5 23.3 18.1 -

62 39.8 2.3 39.8 39.8 36.1 30.7 25.3 19.9 36.1 2.5 36.1 36.1 34.1 28.9 23.7 18.5

57 38.3 2.2 38.3 38.3 38.3 32.9 27.5 22.1 35.5 2.5 35.5 35.5 35.7 30.5 25.2 20.0

1350

72 50.1 2.2 37.2 31.3 25.4 19.5 - - 46.5 2.5 35.4 29.6 23.8 18.1 - -

67 44.7 2.2 42.9 38.1 32.2 26.3 20.4 - 41.1 2.5 40.1 36.3 30.5 24.7 19.0 -

62 39.9 2.3 39.9 39.9 38.0 32.1 26.3 20.4 36.3 2.5 36.3 36.3 35.3 29.6 23.8 18.0

57 38.3 2.2 38.3 38.3 38.3 32.4 26.6 20.7 35.7 2.5 35.7 35.7 35.8 30.0 24.3 18.5

1500

72 50.1 2.2 39.7 33.4 27.0 20.6 - - 46.8 2.5 38.0 31.7 25.4 19.1 - -

67 44.8 2.2 44.8 40.6 34.2 27.8 21.5 - 41.3 2.5 41.3 38.8 32.5 26.2 19.9 -

62 39.9 2.3 39.9 39.9 39.9 33.6 27.2 20.8 36.5 2.5 36.5 36.5 36.5 30.2 23.9 17.6

57 38.4 2.3 38.4 38.4 38.4 32.0 25.6 19.2 35.9 2.5 35.9 35.9 35.9 29.6 23.3 17.0

95°F 105°F

750

77 44.0 2.7 18.0 14.7 11.3 - - - 40.2 3.0 15.8 13.5 10.2 - - -

72 39.0 2.7 22.7 19.3 16.0 12.6 - - 35.5 2.9 21.2 18.0 14.7 11.4 - -

67 34.1 2.7 27.4 24.0 20.7 17.3 13.9 - 30.8 2.9 26.6 22.4 19.2 15.9 12.7 -

62 29.8 2.6 29.8 29.8 24.7 21.4 18.0 14.7 27.0 2.8 27.0 27.0 23.2 20.0 16.7 13.5

900

77 45.2 2.7 20.3 16.3 12.4 - - - 41.2 3.0 18.9 15.0 11.2 - - -

72 40.1 2.7 25.4 21.5 17.6 13.6 - - 36.4 3.0 23.8 20.0 16.2 12.4 - -

67 35.1 2.7 30.5 26.6 22.7 18.8 14.9 - 31.5 2.9 28.7 24.9 21.1 17.3 13.5 -

62 30.6 2.7 30.6 30.6 27.2 23.3 19.4 15.4 27.7 2.9 27.7 27.7 25.6 21.8 17.9 14.1

57 30.9 2.7 30.9 30.9 28.0 24.1 20.2 16.2 28.2 2.9 28.2 28.2 26.0 22.2 18.4 14.6

1050

77 46.5 2.8 22.5 18.0 13.5 - - - 42.2 3.0 21.9 16.6 12.3 - - -

72 41.2 2.7 28.1 23.6 19.1 14.7 - - 37.2 3.0 26.4 22.0 17.6 13.3 - -

67 36.0 2.7 33.7 29.2 24.8 20.3 15.8 - 32.3 3.0 30.9 27.4 23.0 18.7 14.3 -

62 31.5 2.7 31.5 31.5 29.7 25.2 20.7 16.2 28.3 2.9 28.3 28.3 27.9 23.5 19.2 14.8

57 31.8 2.7 31.8 31.8 30.5 26.1 21.6 17.1 28.9 2.9 28.9 28.9 28.4 24.0 19.7 15.3

1200

77 47.7 2.8 24.7 19.7 14.7 - - - 43.2 3.1 24.9 18.2 13.3 - - -

72 42.3 2.8 30.8 25.8 20.7 15.7 - - 38.1 3.0 28.9 24.0 19.1 14.2 - -

67 37.0 2.8 36.9 31.8 26.8 21.8 16.7 - 33.1 3.0 33.0 29.9 25.0 20.1 15.1 -

62 32.3 2.7 32.3 32.3 32.1 27.1 22.0 17.0 29.0 2.9 29.0 29.0 30.2 25.3 20.4 15.5

57 32.6 2.7 32.6 32.6 33.1 28.0 23.0 17.9 29.6 2.9 29.6 29.6 30.7 25.8 20.9 16.0

1350

72 42.9 2.8 33.6 27.9 22.3 16.6 - - 38.5 3.0 31.7 26.2 20.7 15.2 - -

67 37.5 2.7 37.4 34.4 28.8 23.2 17.5 - 33.4 3.0 33.4 31.6 27.0 21.5 16.0 -

62 32.7 2.7 32.7 32.7 32.6 27.0 21.3 15.7 29.3 2.9 29.3 29.3 29.9 24.4 18.9 13.4

57 33.0 2.7 33.0 33.0 33.3 27.6 22.0 16.4 29.9 2.9 29.9 29.9 30.5 25.0 19.5 14.0

1500

72 43.4 2.8 36.3 30.1 23.8 17.6 - - 39.0 3.0 34.4 28.3 22.2 16.1 - -

67 37.9 2.7 37.9 37.1 30.8 24.6 18.4 - 33.8 3.0 33.8 33.4 29.0 22.9 16.8 -

62 33.1 2.7 33.1 33.1 33.1 26.9 20.7 14.4 29.6 2.9 29.6 29.6 29.6 23.6 17.5 11.4

57 33.5 2.7 33.5 33.5 33.5 27.2 21.0 14.8 30.2 2.9 30.2 30.2 30.2 24.1 18.0 11.9

528150-YTG-T-0514

36 Johnson Controls Unitary Products

115°F 125°F

750

77 36.4 3.3 13.7 12.3 9.1 - - - 32.6 3.5 12.4 10.7 8.1 - - -

72 31.9 3.2 19.7 16.6 13.4 10.3 - - 28.4 3.4 18.2 15.2 12.2 9.1 - -

67 27.4 3.1 25.8 20.9 17.7 14.6 11.4 - 24.1 3.4 24.1 19.3 16.3 13.2 10.2 -

62 24.2 3.0 24.2 24.2 21.7 18.6 15.4 12.3 21.4 3.2 21.4 21.4 21.4 17.2 14.1 11.1

900

77 37.2 3.3 17.4 13.8 10.1 - - - 33.1 3.6 16.7 12.5 8.9 - - -

72 32.6 3.2 22.2 18.5 14.8 11.1 - - 28.8 3.5 20.6 17.0 13.4 9.8 - -

67 28.0 3.2 26.9 23.2 19.5 15.8 12.1 - 24.5 3.4 24.5 21.5 17.9 14.4 10.8 -

62 24.7 3.1 24.7 24.7 23.9 20.2 16.5 12.8 21.7 3.3 21.7 21.7 21.7 18.7 15.1 11.5

57 25.4 3.1 25.4 25.4 24.0 20.3 16.6 12.9 22.7 3.3 22.7 22.7 22.0 18.4 14.8 11.3

1050

77 37.9 3.3 21.2 15.2 11.0 - - - 33.7 3.6 20.9 14.2 9.7 - - -

72 33.2 3.2 24.6 20.4 16.2 11.9 - - 29.2 3.5 22.9 18.8 14.7 10.6 - -

67 28.6 3.2 28.0 25.6 21.3 17.1 12.9 - 24.8 3.4 24.8 23.7 19.6 15.5 11.4 -

62 25.2 3.1 25.2 25.2 26.1 21.9 17.6 13.4 22.1 3.3 22.1 22.1 22.1 20.2 16.1 12.0

57 26.0 3.1 26.0 26.0 26.2 22.0 17.7 13.5 23.0 3.3 23.0 23.0 23.0 19.9 15.8 11.7

1200

77 38.7 3.3 25.0 16.7 11.9 - - - 34.2 3.6 25.2 15.9 10.5 - - -

72 33.9 3.3 27.1 22.3 17.5 12.7 - - 29.7 3.5 25.2 20.6 15.9 11.3 - -

67 29.1 3.2 29.1 27.9 23.1 18.3 13.6 - 25.2 3.4 25.2 25.2 21.3 16.6 12.0 -

62 25.7 3.1 25.7 25.7 28.3 23.5 18.8 14.0 22.4 3.3 22.4 22.4 22.4 21.8 17.1 12.5

57 26.5 3.1 26.5 26.5 28.4 23.6 18.9 14.1 23.4 3.3 23.4 23.4 23.4 21.5 16.8 12.2

1350

72 34.2 3.3 29.8 24.4 19.1 13.7 - - 29.9 3.6 27.9 22.7 17.4 12.2 - -

67 29.4 3.2 29.4 28.8 25.2 19.8 14.4 - 25.4 3.5 25.4 25.4 23.3 18.1 12.9 -

62 25.9 3.1 25.9 25.9 27.2 21.9 16.5 11.2 22.5 3.3 22.5 22.5 22.5 19.3 14.1 8.9

57 26.7 3.1 26.7 26.7 27.7 22.3 17.0 11.6 23.5 3.4 23.5 23.5 23.5 19.7 14.4 9.2

1500

72 34.5 3.3 32.5 26.5 20.6 14.7 - - 30.1 3.6 30.1 24.8 19.0 13.2 - -

67 29.7 3.2 29.7 29.7 27.2 21.2 15.3 - 25.5 3.5 25.5 25.5 25.4 19.6 13.8 -

62 26.2 3.2 26.2 26.2 26.2 20.2 14.3 8.3 22.7 3.4 22.7 22.7 22.7 16.9 11.1 5.3

57 26.9 3.2 26.9 26.9 26.9 21.0 15.1 9.1 23.7 3.4 23.7 23.7 23.7 17.9 12.1 6.3

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH037 (3.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 37

ZH049 (4.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1000

77 65.4 3.0 28.0 23.5 19.1 - - - 60.3 3.3 25.1 20.8 16.4 - - -

72 59.2 3.0 34.8 30.3 25.9 21.4 - - 54.5 3.3 31.8 27.5 23.2 18.9 - -

67 53.0 2.9 41.6 37.1 32.7 28.3 23.8 - 48.8 3.2 38.6 34.2 29.9 25.6 21.3 -

62 47.0 2.9 47.0 47.0 40.3 35.9 31.4 27.0 43.1 3.2 43.1 43.1 37.1 32.8 28.5 24.1

1200

77 68.3 3.0 30.8 25.6 20.4 - - - 62.9 3.3 27.9 22.9 17.8 - - -

72 61.8 3.0 38.0 32.9 27.7 22.5 - - 56.9 3.3 35.2 30.2 25.1 20.1 - -

67 55.3 2.9 45.3 40.1 35.0 29.8 24.6 - 50.9 3.2 42.5 37.5 32.4 27.4 22.3 -

62 49.1 2.9 49.1 49.1 43.1 38.0 32.8 27.6 45.0 3.2 45.0 45.0 40.2 35.2 30.1 25.1

57 48.9 2.9 48.9 48.9 47.1 42.0 36.8 31.6 44.8 3.2 44.8 44.8 42.3 37.2 32.2 27.1

1400

77 71.2 3.0 33.6 27.7 21.8 - - - 65.5 3.3 30.7 25.0 19.2 - - -

72 64.4 3.0 41.3 35.4 29.5 23.6 - - 59.2 3.3 38.6 32.9 27.1 21.3 - -

67 57.7 2.9 49.0 43.1 37.3 31.4 25.5 - 52.9 3.2 46.5 40.7 35.0 29.2 23.4 -

62 51.1 2.9 51.1 51.1 46.0 40.1 34.2 28.3 46.8 3.2 46.8 46.8 43.3 37.6 31.8 26.0

57 51.0 2.9 51.0 51.0 50.3 44.4 38.5 32.6 46.6 3.2 46.6 46.6 45.5 39.8 34.0 28.2

1600

77 74.1 3.0 36.4 29.8 23.2 - - - 68.1 3.4 33.6 27.1 20.6 - - -

72 67.1 3.0 44.6 38.0 31.4 24.7 - - 61.5 3.3 42.0 35.5 29.0 22.5 - -

67 60.0 2.9 52.8 46.1 39.5 32.9 26.3 - 55.0 3.3 50.5 44.0 37.5 31.0 24.5 -

62 53.2 2.9 53.2 53.2 48.8 42.1 35.5 28.9 48.7 3.2 48.7 48.7 46.5 40.0 33.5 27.0

57 53.1 2.9 53.1 53.1 53.4 46.8 40.2 33.5 48.4 3.2 48.4 48.4 48.8 42.3 35.8 29.3

1800

72 69.2 3.0 48.1 40.9 33.6 26.4 - - 63.4 3.4 45.4 38.3 31.2 24.0 - -

67 62.0 3.0 58.3 49.6 42.4 35.2 28.0 - 56.7 3.3 54.4 47.4 40.2 33.1 26.0 -

62 54.9 3.0 54.9 54.9 52.7 45.5 38.3 31.1 50.1 3.3 50.1 50.1 49.0 41.9 34.8 27.7

57 54.8 2.9 54.8 54.8 54.9 47.7 40.5 33.3 49.9 3.2 49.9 49.9 50.1 43.0 35.8 28.7

2000

72 71.4 3.1 51.6 43.7 35.9 28.1 - - 65.2 3.4 48.8 41.0 33.3 25.6 - -

67 63.9 3.0 63.9 53.1 45.3 37.5 29.7 - 58.3 3.3 58.3 50.7 43.0 35.2 27.5 -

62 56.6 3.0 56.6 56.6 56.6 48.8 41.0 33.2 51.6 3.3 51.6 51.6 51.6 43.9 36.1 28.4

57 56.5 3.0 56.5 56.5 56.5 48.6 40.8 33.0 51.4 3.3 51.4 51.4 51.4 43.6 35.9 28.1

95°F 105°F

1000

77 55.3 3.6 22.2 18.0 13.8 - - - 50.6 4.0 19.3 16.2 12.1 - - -

72 49.9 3.6 28.9 24.7 20.5 16.3 - - 45.4 3.9 26.7 22.7 18.6 14.5 - -

67 44.5 3.5 35.5 31.3 27.1 22.9 18.7 - 40.1 3.8 34.2 29.1 25.1 21.0 16.9 -

62 39.3 3.4 39.3 39.3 33.9 29.7 25.5 21.3 36.2 3.7 36.2 36.2 30.9 26.9 22.8 18.7

1200

77 57.5 3.6 25.1 20.1 15.2 - - - 52.4 4.0 22.9 18.2 13.4 - - -

72 51.9 3.6 32.4 27.5 22.6 17.6 - - 47.0 3.9 30.1 25.3 20.5 15.7 - -

67 46.4 3.5 39.8 34.8 29.9 25.0 20.0 - 41.5 3.8 37.3 32.5 27.7 22.9 18.1 -

62 40.9 3.4 40.9 40.9 37.3 32.4 27.4 22.5 37.5 3.7 37.5 37.5 34.2 29.4 24.6 19.8

57 40.6 3.5 40.6 40.6 37.4 32.4 27.5 22.6 37.1 3.7 37.1 37.1 33.8 29.0 24.2 19.4

1400

77 59.8 3.7 27.9 22.3 16.6 - - - 54.3 4.0 26.6 20.1 14.6 - - -

72 54.0 3.6 35.9 30.3 24.6 19.0 - - 48.6 3.9 33.5 28.0 22.5 17.0 - -

67 48.2 3.6 44.0 38.3 32.6 27.0 21.3 - 43.0 3.8 40.4 35.8 30.3 24.8 19.3 -

62 42.5 3.5 42.5 42.5 40.7 35.1 29.4 23.7 38.8 3.8 38.8 38.8 37.4 31.9 26.4 20.9

57 42.2 3.5 42.2 42.2 40.8 35.1 29.5 23.8 38.4 3.8 38.4 38.4 37.0 31.4 25.9 20.4

1600

77 62.0 3.7 30.8 24.4 18.0 - - - 56.1 4.1 30.3 22.1 15.9 - - -

72 56.0 3.6 39.5 33.1 26.7 20.3 - - 50.2 4.0 36.9 30.6 24.4 18.2 - -

67 50.0 3.6 48.2 41.8 35.4 29.0 22.6 - 44.4 3.9 43.5 39.2 32.9 26.7 20.5 -

62 44.1 3.5 44.1 44.1 44.1 37.8 31.4 25.0 40.1 3.8 40.1 40.1 40.7 34.4 28.2 22.0

57 43.8 3.5 43.8 43.8 44.2 37.8 31.5 25.1 39.7 3.8 39.7 39.7 40.2 33.9 27.7 21.5

1800

72 57.6 3.7 42.7 35.7 28.7 21.7 - - 51.6 4.0 40.1 33.2 26.3 19.5 - -

67 51.4 3.6 50.5 45.1 38.0 31.0 24.0 - 45.6 3.9 45.2 41.9 35.5 28.6 21.8 -

62 45.3 3.5 45.3 45.3 45.3 38.3 31.3 24.3 41.2 3.8 41.2 41.2 41.5 34.6 27.7 20.8

57 45.0 3.6 45.0 45.0 45.2 38.2 31.2 24.2 40.8 3.8 40.8 40.8 41.0 34.1 27.2 20.4

2000

72 59.1 3.7 46.0 38.3 30.7 23.0 - - 53.0 4.1 43.3 35.8 28.3 20.7 - -

67 52.7 3.7 52.7 48.3 40.7 33.0 25.3 - 46.8 4.0 46.8 44.6 38.1 30.6 23.1 -

62 46.5 3.6 46.5 46.5 46.5 38.9 31.2 23.6 42.2 3.9 42.2 42.2 42.2 34.7 27.2 19.6

57 46.2 3.6 46.2 46.2 46.2 38.6 30.9 23.2 41.8 3.9 41.8 41.8 41.8 34.3 26.8 19.2

528150-YTG-T-0514

38 Johnson Controls Unitary Products

115°F 125°F

1000

77 46.0 4.3 16.4 14.3 10.4 - - - 41.4 4.7 13.7 12.1 8.7 - - -

72 40.8 4.2 24.6 20.6 16.7 12.7 - - 36.3 4.5 22.4 18.6 14.8 11.0 - -

67 35.6 4.1 32.8 26.9 23.0 19.0 15.1 - 31.2 4.3 31.2 24.7 20.9 17.1 13.2 -

62 33.1 4.0 33.1 33.1 28.0 24.1 20.1 16.2 29.9 4.3 29.9 29.9 25.1 21.3 17.5 13.7

1200

77 47.4 4.4 20.8 16.2 11.5 - - - 42.3 4.7 19.1 14.2 9.7 - - -

72 42.0 4.2 27.8 23.1 18.5 13.8 - - 37.1 4.5 25.5 21.0 16.5 11.9 - -

67 36.7 4.1 34.8 30.1 25.5 20.8 16.2 - 31.9 4.4 31.9 27.8 23.3 18.7 14.2 -

62 34.0 4.0 34.0 34.0 31.1 26.4 21.8 17.1 30.6 4.3 30.6 30.6 28.0 23.5 19.0 14.4

57 33.6 4.0 33.6 33.6 30.2 25.5 20.8 16.2 30.1 4.3 30.1 30.1 26.6 22.0 17.5 13.0

1400

77 48.7 4.4 25.3 18.0 12.6 - - - 43.2 4.8 24.6 16.2 10.7 - - -

72 43.2 4.3 31.0 25.7 20.3 14.9 - - 37.9 4.6 28.6 23.4 18.1 12.9 - -

67 37.8 4.1 36.8 33.3 28.0 22.6 17.2 - 32.5 4.4 32.5 30.8 25.6 20.4 15.2 -

62 35.0 4.1 35.0 35.0 34.1 28.8 23.4 18.0 31.3 4.3 31.3 31.3 30.9 25.6 20.4 15.2

57 34.6 4.1 34.6 34.6 33.1 27.8 22.4 17.0 30.7 4.3 30.7 30.7 29.3 24.1 18.8 13.6

1600

77 50.1 4.4 29.7 19.9 13.8 - - - 44.1 4.8 30.1 18.3 11.7 - - -

72 44.4 4.3 34.3 28.2 22.1 16.0 - - 38.7 4.6 31.7 25.7 19.8 13.9 - -

67 38.8 4.2 38.8 36.5 30.5 24.4 18.3 - 33.2 4.4 33.2 33.2 28.0 22.1 16.2 -

62 36.0 4.1 36.0 36.0 37.2 31.1 25.0 19.0 31.9 4.4 31.9 31.9 31.9 27.8 21.9 16.0

57 35.5 4.1 35.5 35.5 36.1 30.0 23.9 17.9 31.4 4.4 31.4 31.4 31.4 26.1 20.2 14.2

1800

72 45.6 4.4 37.5 30.7 24.0 17.2 - - 39.7 4.7 34.8 28.2 21.6 15.0 - -

67 39.9 4.2 39.9 38.7 33.0 26.3 19.6 - 34.1 4.5 34.1 34.1 30.5 23.9 17.3 -

62 37.0 4.1 37.0 37.0 37.6 30.8 24.1 17.4 32.8 4.4 32.8 32.8 32.8 27.1 20.5 13.9

57 36.5 4.1 36.5 36.5 36.8 30.0 23.3 16.5 32.2 4.4 32.2 32.2 32.2 25.9 19.3 12.7

2000

72 46.8 4.4 40.6 33.2 25.8 18.4 - - 40.7 4.8 38.0 30.7 23.4 16.2 - -

67 40.9 4.3 40.9 40.9 35.6 28.2 20.8 - 35.0 4.6 35.0 35.0 33.0 25.8 18.5 -

62 37.9 4.2 37.9 37.9 37.9 30.5 23.1 15.7 33.6 4.5 33.6 33.6 33.6 26.4 19.1 11.8

57 37.4 4.2 37.4 37.4 37.4 30.0 22.6 15.2 33.1 4.5 33.1 33.1 33.1 25.8 18.5 11.2

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH049 (4.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 39

ZH061 (5.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1250

77 82.5 3.4 36.6 30.6 25.1 - - - 75.9 3.9 32.9 27.4 21.9 - - -

72 74.3 3.4 43.9 38.3 32.8 27.3 - - 68.3 3.8 40.9 35.3 29.8 24.3 - -

67 66.2 3.4 51.1 46.0 40.5 35.0 29.4 - 60.7 3.8 48.8 43.3 37.8 32.3 26.8 -

62 59.3 3.4 59.3 59.3 49.5 43.9 38.4 32.9 54.5 3.8 54.5 54.5 46.2 40.7 35.2 29.7

1500

77 84.7 3.4 40.0 33.6 27.1 - - - 78.2 3.9 36.6 30.2 23.8 - - -

72 76.3 3.4 48.4 41.9 35.4 29.0 - - 70.4 3.9 45.3 38.9 32.4 26.0 - -

67 68.0 3.4 56.7 50.2 43.8 37.3 30.8 - 62.5 3.8 54.0 47.5 41.1 34.6 28.2 -

62 60.9 3.4 60.9 60.9 53.4 47.0 40.5 34.1 56.1 3.8 56.1 56.1 50.2 43.8 37.4 30.9

57 61.6 3.4 61.6 61.6 54.9 48.4 41.9 35.5 55.2 3.8 55.2 55.2 50.6 44.1 37.7 31.2

1750

77 86.9 3.4 43.5 36.5 29.1 - - - 80.5 3.9 40.4 33.0 25.7 - - -

72 78.4 3.4 52.8 45.5 38.1 30.7 - - 72.4 3.9 49.8 42.4 35.0 27.6 - -

67 69.8 3.4 62.2 54.4 47.0 39.6 32.2 - 64.4 3.8 59.1 51.7 44.4 37.0 29.6 -

62 62.5 3.4 62.5 62.5 57.4 50.0 42.6 35.2 57.8 3.8 57.8 57.8 54.3 46.9 39.5 32.1

57 63.3 3.4 63.3 63.3 58.9 51.6 44.2 36.8 56.8 3.8 56.8 56.8 54.6 47.2 39.8 32.5

2000

77 89.2 3.4 47.0 39.5 31.2 - - - 82.7 3.9 44.2 35.9 27.6 - - -

72 80.4 3.4 57.3 49.0 40.7 32.4 - - 74.5 3.9 54.2 45.9 37.6 29.3 - -

67 71.6 3.4 67.7 58.6 50.3 41.9 33.6 - 66.2 3.8 64.3 56.0 47.7 39.3 31.0 -

62 64.1 3.4 64.1 64.1 61.4 53.1 44.7 36.4 59.4 3.8 59.4 59.4 58.3 50.0 41.7 33.4

57 64.9 3.4 64.9 64.9 63.0 54.7 46.4 38.1 58.5 3.8 58.5 58.5 58.6 50.3 42.0 33.7

2250

72 83.6 3.4 61.7 52.7 43.6 34.5 - - 76.2 3.9 58.5 49.3 40.2 31.1 - -

67 74.5 3.4 72.5 62.9 53.8 44.7 35.7 - 67.7 3.8 66.8 60.1 51.0 41.9 32.7 -

62 66.7 3.4 66.7 66.7 65.3 56.3 47.2 38.1 60.8 3.8 60.8 60.8 60.2 51.1 42.0 32.8

57 67.5 3.4 67.5 67.5 66.5 57.5 48.4 39.3 59.8 3.8 59.8 59.8 59.9 50.8 41.7 32.5

2500

72 86.9 3.4 66.1 56.3 46.5 36.6 - - 77.9 3.9 62.7 52.8 42.8 32.9 - -

67 77.3 3.4 77.3 67.3 57.3 47.5 37.7 - 69.3 3.8 69.3 64.2 54.3 44.4 34.4 -

62 69.3 3.4 69.3 69.3 69.3 59.5 49.6 39.8 62.2 3.8 62.2 62.2 62.2 52.2 42.3 32.3

57 70.0 3.4 70.0 70.0 70.0 60.2 50.4 40.5 61.2 3.8 61.2 61.2 61.2 51.2 41.3 31.3

95°F 105°F

1250

77 69.3 4.3 29.2 24.1 18.6 - - - 62.5 4.7 25.5 21.7 16.3 - - -

72 62.3 4.3 37.9 32.4 26.9 21.4 - - 55.9 4.6 35.3 29.9 24.5 19.0 - -

67 55.2 4.2 46.5 40.6 35.1 29.6 24.1 - 49.4 4.6 45.0 38.1 32.6 27.2 21.8 -

62 49.7 4.1 49.7 49.7 43.0 37.5 32.0 26.5 44.7 4.5 44.7 44.7 40.1 34.7 29.3 23.8

1500

77 71.7 4.3 33.3 26.8 20.4 - - - 64.8 4.8 31.0 24.3 17.9 - - -

72 64.4 4.3 42.3 35.8 29.4 23.0 - - 58.0 4.7 39.6 33.3 26.9 20.5 - -

67 57.1 4.2 51.3 44.8 38.4 32.0 25.6 - 51.1 4.6 48.2 42.3 35.9 29.5 23.2 -

62 51.4 4.2 51.4 51.4 47.1 40.6 34.2 27.8 46.3 4.5 46.3 46.3 44.2 37.8 31.4 25.1

57 48.8 4.2 48.8 48.8 46.3 39.8 33.4 27.0 44.1 4.5 44.1 44.1 42.1 35.7 29.4 23.0

1750

77 74.0 4.3 37.3 29.5 22.2 - - - 67.1 4.8 36.5 26.8 19.5 - - -

72 66.5 4.3 46.7 39.3 31.9 24.6 - - 60.0 4.7 44.0 36.7 29.3 22.0 - -

67 58.9 4.2 56.0 49.1 41.7 34.4 27.0 - 52.9 4.6 51.5 46.5 39.2 31.8 24.5 -

62 53.0 4.2 53.0 53.0 51.1 43.8 36.4 29.0 47.9 4.5 47.9 47.9 48.3 40.9 33.6 26.3

57 50.4 4.2 50.4 50.4 50.2 42.9 35.5 28.2 45.7 4.5 45.7 45.7 45.9 38.6 31.3 23.9

2000

77 76.3 4.4 41.4 32.2 23.9 - - - 69.3 4.8 42.0 29.4 21.1 - - -

72 68.6 4.3 51.1 42.8 34.5 26.2 - - 62.0 4.7 48.4 40.1 31.8 23.5 - -

67 60.8 4.2 60.8 53.3 45.0 36.8 28.5 - 54.7 4.6 54.7 50.7 42.4 34.1 25.9 -

62 54.7 4.2 54.7 54.7 55.2 46.9 38.6 30.3 49.6 4.5 49.6 49.6 52.4 44.1 35.8 27.5

57 52.0 4.2 52.0 52.0 54.2 45.9 37.7 29.4 47.2 4.5 47.2 47.2 49.7 41.4 33.2 24.9

2250

72 68.8 4.3 55.2 46.0 36.9 27.7 - - 62.0 4.7 52.4 43.2 34.0 24.9 - -

67 61.0 4.2 61.0 57.3 48.2 39.0 29.8 - 54.7 4.6 54.7 52.7 45.5 36.3 27.1 -

62 54.9 4.2 54.9 54.9 55.1 45.9 36.7 27.6 49.5 4.5 49.5 49.5 50.9 41.8 32.6 23.4

57 52.2 4.2 52.2 52.2 53.3 44.1 34.9 25.7 47.2 4.6 47.2 47.2 48.5 39.3 30.1 21.0

2500

72 69.0 4.3 59.4 49.3 39.2 29.2 - - 62.0 4.7 56.4 46.4 36.3 26.3 - -

67 61.2 4.2 61.2 61.2 51.3 41.2 31.1 - 54.7 4.6 54.7 54.7 48.5 38.5 28.4 -

62 55.0 4.2 55.0 55.0 55.0 45.0 34.9 24.8 49.5 4.5 49.5 49.5 49.5 39.5 29.4 19.4

57 52.3 4.2 52.3 52.3 52.3 42.3 32.2 22.1 47.2 4.6 47.2 47.2 47.2 37.1 27.1 17.0

528150-YTG-T-0514

40 Johnson Controls Unitary Products

115°F 125°F

1250

77 55.7 5.2 21.9 19.2 13.9 - - - 48.9 5.6 22.6 15.3 11.5 - - -

72 49.6 5.0 32.7 27.4 22.0 16.7 - - 43.3 5.4 30.1 24.9 19.6 14.4 - -

67 43.5 4.9 43.5 35.5 30.2 24.9 19.5 - 37.6 5.3 37.6 33.4 27.7 22.5 17.3 -

62 39.7 4.8 39.7 39.7 37.2 31.8 26.5 21.2 34.7 5.1 34.7 34.7 34.7 29.0 23.8 18.5

1500

77 57.9 5.2 28.8 21.7 15.4 - - - 51.1 5.6 29.5 19.1 12.9 - - -

72 51.6 5.1 37.0 30.7 24.4 18.1 - - 45.2 5.5 34.4 28.1 21.9 15.6 - -

67 45.2 4.9 45.2 39.7 33.4 27.1 20.8 - 39.2 5.3 39.2 37.1 30.9 24.6 18.4 -

62 41.3 4.8 41.3 41.3 41.3 35.0 28.7 22.3 36.2 5.2 36.2 36.2 36.2 32.1 25.9 19.6

57 39.4 4.9 39.4 39.4 37.9 31.6 25.3 19.0 34.7 5.2 34.7 34.7 33.8 27.5 21.3 15.0

1750

77 60.1 5.2 35.7 24.1 16.8 - - - 53.2 5.7 36.4 22.9 14.2 - - -

72 53.5 5.1 41.3 34.0 26.7 19.4 - - 47.1 5.5 38.6 31.4 24.1 16.9 - -

67 46.9 5.0 46.9 43.9 36.6 29.3 22.0 - 40.9 5.3 40.9 40.9 34.1 26.8 19.5 -

62 42.8 4.9 42.8 42.8 45.4 38.1 30.8 23.5 37.8 5.2 37.8 37.8 37.8 35.3 28.0 20.7

57 40.9 4.9 40.9 40.9 41.6 34.3 27.0 19.7 36.2 5.3 36.2 36.2 36.2 30.0 22.7 15.5

2000

77 62.3 5.3 42.7 26.6 18.3 - - - 55.4 5.7 43.3 26.7 15.5 - - -

72 55.5 5.1 45.6 37.4 29.1 20.8 - - 49.0 5.5 42.9 34.6 26.4 18.1 - -

67 48.6 5.0 48.6 48.1 39.8 31.5 23.3 - 42.5 5.4 42.5 42.5 37.2 28.9 20.7 -

62 44.4 4.9 44.4 44.4 49.5 41.2 33.0 24.7 39.3 5.2 39.3 39.3 39.3 38.4 30.1 21.9

57 42.4 4.9 42.4 42.4 45.2 36.9 28.7 20.4 37.6 5.3 37.6 37.6 37.6 32.4 24.2 15.9

2250

72 55.2 5.1 49.5 40.4 31.2 22.1 - - 48.4 5.6 46.7 37.6 28.4 19.3 - -

67 48.4 5.0 48.4 48.1 42.8 33.6 24.5 - 42.1 5.4 42.1 42.1 40.1 31.0 21.8 -

62 44.2 4.9 44.2 44.2 46.7 37.6 28.4 19.3 38.9 5.3 38.9 38.9 38.9 33.4 24.3 15.1

57 42.2 4.9 42.2 42.2 43.6 34.5 25.3 16.2 37.2 5.3 37.2 37.2 37.2 29.6 20.5 11.4

2500

72 54.9 5.2 53.5 43.4 33.4 23.4 - - 47.9 5.6 47.9 40.5 30.5 20.5 - -

67 48.2 5.0 48.2 48.2 45.7 35.7 25.7 - 41.6 5.4 41.6 41.6 41.6 33.0 23.0 -

62 44.0 4.9 44.0 44.0 44.0 34.0 23.9 13.9 38.5 5.3 38.5 38.5 38.5 28.4 18.4 8.4

57 42.0 5.0 42.0 42.0 42.0 32.0 22.0 11.9 36.9 5.4 36.9 36.9 36.9 26.8 16.8 6.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH061 (5.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 41

ZH078 (6.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1625

77 100.1 4.7 38.5 33.6 28.8 - - - 98.1 5.3 39.7 32.9 26.1 - - -

72 92.7 4.7 49.4 44.5 39.7 34.9 - - 89.4 5.3 50.8 44.0 37.2 30.4 - -

67 85.4 4.7 60.2 55.4 50.6 45.7 40.9 - 80.6 5.2 61.9 55.1 48.3 41.5 34.7 -

62 74.8 4.7 74.8 69.6 61.2 56.4 51.6 46.7 72.6 5.2 72.6 68.6 58.8 52.1 45.3 38.5

1950

77 105.7 4.7 47.6 39.7 31.8 - - - 102.0 5.3 44.7 36.8 28.8 - - -

72 97.9 4.7 59.7 51.8 43.9 35.9 - - 92.9 5.3 57.0 49.0 41.0 33.1 - -

67 90.1 4.7 71.7 63.8 55.9 48.0 40.1 - 83.9 5.3 69.2 61.2 53.3 45.3 37.3 -

62 79.0 4.7 79.0 75.6 67.6 59.7 51.8 43.9 75.5 5.2 75.5 72.8 64.9 56.9 48.9 41.0

57 77.8 4.7 77.8 79.4 72.1 64.2 56.3 48.4 75.3 5.2 75.3 75.3 67.7 59.7 51.7 43.8

2275

77 111.4 4.7 56.8 45.8 34.8 - - - 105.9 5.3 49.8 40.6 31.5 - - -

72 103.1 4.7 70.0 59.0 48.0 37.0 - - 96.5 5.3 63.1 54.0 44.8 35.7 - -

67 94.8 4.8 83.2 72.2 61.2 50.2 39.2 - 87.1 5.3 76.5 67.3 58.2 49.1 39.9 -

62 83.3 4.7 83.3 81.5 74.1 63.1 52.1 41.1 78.4 5.2 78.4 77.1 70.9 61.7 52.6 43.5

57 82.0 4.7 82.0 82.8 78.9 67.9 56.9 46.0 78.2 5.2 78.2 78.2 74.0 64.8 55.7 46.5

2600

77 117.0 4.7 66.0 51.9 37.8 - - - 109.8 5.3 54.8 44.5 34.1 - - -

72 108.3 4.7 80.3 66.2 52.2 38.1 - - 100.1 5.3 69.3 58.9 48.6 38.3 - -

67 99.5 4.8 94.6 80.5 66.5 52.4 38.4 - 90.3 5.3 83.8 73.4 63.1 52.8 42.5 -

62 87.5 4.7 87.5 87.5 80.5 66.4 52.4 38.3 81.3 5.2 81.3 81.3 76.9 66.6 56.3 45.9

57 86.2 4.7 86.2 86.2 85.7 71.7 57.6 43.6 81.1 5.2 81.1 81.1 80.2 69.9 59.6 49.3

2925

72 110.3 4.7 82.3 69.0 55.6 42.3 - - 102.7 5.3 74.5 63.2 51.8 40.5 - -

67 101.4 4.8 99.0 84.2 70.9 57.6 44.2 - 92.7 5.3 89.4 78.6 67.3 55.9 44.6 -

62 89.1 4.7 89.1 89.1 85.6 72.3 58.9 45.6 83.4 5.3 83.4 83.4 81.2 69.9 58.5 47.2

57 87.7 4.7 87.7 87.7 87.5 74.2 60.9 47.5 83.3 5.2 83.3 83.3 82.8 71.5 60.1 48.8

3250

72 112.3 4.7 84.4 71.7 59.1 46.5 - - 105.4 5.3 79.8 67.4 55.0 42.7 - -

67 103.3 4.7 103.3 88.0 75.3 62.7 50.1 - 95.1 5.3 95.1 83.8 71.4 59.1 46.7 -

62 90.7 4.7 90.7 90.7 90.7 78.1 65.5 52.8 85.6 5.3 85.6 85.6 85.6 73.2 60.8 48.4

57 89.3 4.7 89.3 89.3 89.3 76.7 64.1 51.4 85.4 5.3 85.4 85.4 85.4 73.1 60.7 48.3

95°F 105°F

1625

77 96.1 5.9 41.0 32.2 23.5 - - - 87.2 6.5 36.1 29.5 21.5 - - -

72 86.0 5.8 52.3 43.5 34.8 26.0 - - 78.4 6.3 48.5 40.4 32.4 24.4 - -

67 75.9 5.8 63.6 54.8 46.1 37.3 28.6 - 69.5 6.2 60.8 51.4 43.4 35.4 27.4 -

62 70.3 5.8 70.3 67.6 56.5 47.7 39.0 30.2 63.1 6.1 63.1 61.7 53.8 45.8 37.8 29.8

1950

77 98.3 6.0 41.8 33.8 25.8 - - - 89.3 6.5 39.9 31.7 23.6 - - -

72 88.0 5.9 54.3 46.2 38.2 30.2 - - 80.2 6.4 51.9 43.8 35.7 27.6 - -

67 77.7 5.8 66.7 58.7 50.6 42.6 34.6 - 71.2 6.3 64.0 55.9 47.8 39.7 31.5 -

62 71.9 5.8 71.9 70.1 62.1 54.1 46.0 38.0 64.6 6.2 64.6 63.7 59.2 51.1 43.0 34.8

57 72.8 5.7 72.8 71.3 63.3 55.3 47.2 39.2 67.1 6.2 67.1 66.3 58.2 50.1 41.9 33.8

2275

77 100.5 6.0 42.7 35.4 28.1 - - - 91.3 6.5 43.6 34.0 25.8 - - -

72 89.9 5.9 56.3 49.0 41.7 34.4 - - 82.1 6.4 55.4 47.2 38.9 30.7 - -

67 79.4 5.8 69.8 62.5 55.2 47.9 40.6 - 72.8 6.3 67.2 60.4 52.1 43.9 35.7 -

62 73.5 5.8 73.5 72.6 67.7 60.4 53.1 45.8 66.1 6.2 66.1 65.6 64.6 56.4 48.1 39.9

57 74.5 5.7 74.5 73.7 69.0 61.7 54.4 47.1 68.7 6.2 68.7 68.3 63.5 55.3 47.0 38.8

2600

77 102.6 6.0 43.6 37.0 30.4 - - - 93.4 6.5 47.4 36.3 27.9 - - -

72 91.9 5.9 58.2 51.7 45.1 38.5 - - 83.9 6.4 58.9 50.6 42.2 33.8 - -

67 81.1 5.8 72.9 66.3 59.8 53.2 46.6 - 74.5 6.3 70.4 64.8 56.5 48.1 39.8 -

62 75.1 5.8 75.1 75.1 73.3 66.7 60.2 53.6 67.5 6.2 67.5 67.5 70.0 61.6 53.3 44.9

57 76.1 5.8 76.1 76.1 74.7 68.1 61.6 55.0 70.2 6.2 70.2 70.2 68.8 60.5 52.1 43.7

2925

72 95.2 5.9 66.8 57.4 48.0 38.7 - - 86.3 6.5 65.6 55.3 45.1 34.8 - -

67 84.0 5.8 79.9 73.0 63.7 54.3 45.0 - 76.6 6.3 74.5 69.9 60.4 50.1 39.9 -

62 77.8 5.8 77.8 77.8 76.9 67.5 58.2 48.8 69.4 6.2 69.4 69.4 70.7 60.4 50.2 39.9

57 78.8 5.8 78.8 78.8 78.1 68.8 59.4 50.1 72.2 6.3 72.2 72.2 71.5 61.2 51.0 40.7

3250

72 98.5 5.9 75.3 63.1 51.0 38.8 - - 88.6 6.5 72.3 60.1 48.0 35.8 - -

67 87.0 5.9 87.0 79.7 67.6 55.4 43.3 - 78.6 6.4 78.6 75.0 64.2 52.1 40.0 -

62 80.5 5.9 80.5 80.5 80.5 68.4 56.2 44.1 71.3 6.3 71.3 71.3 71.3 59.2 47.1 34.9

57 81.6 5.8 81.6 81.6 81.6 69.4 57.3 45.1 74.1 6.3 74.1 74.1 74.1 62.0 49.9 37.7

528150-YTG-T-0514

42 Johnson Controls Unitary Products

115°F 125°F

1625

77 78.3 7.0 31.2 26.7 19.5 - - - 69.4 7.5 24.9 23.7 17.5 - - -

72 70.7 6.8 44.7 37.4 30.1 22.9 - - 63.1 7.3 40.9 34.3 27.8 21.3 - -

67 63.2 6.7 58.1 48.0 40.8 33.5 26.2 - 56.8 7.1 56.8 44.7 38.1 31.6 25.1 -

62 55.8 6.5 55.8 55.8 51.1 43.9 36.6 29.3 48.6 6.9 48.6 48.6 48.6 41.9 35.4 28.9

1950

77 80.3 7.0 37.9 29.7 21.4 - - - 71.3 7.6 36.4 27.6 19.3 - - -

72 72.5 6.9 49.6 41.4 33.2 24.9 - - 64.8 7.4 47.3 39.0 30.7 22.3 - -

67 64.7 6.7 61.4 53.1 44.9 36.7 28.5 - 58.3 7.2 58.3 50.4 42.1 33.7 25.4 -

62 57.2 6.6 57.2 57.2 56.3 48.1 39.9 31.6 49.9 6.9 49.9 49.9 49.9 45.1 36.8 28.5

57 61.4 6.6 61.4 61.3 53.1 44.9 36.7 28.4 55.7 7.1 55.7 55.7 48.0 39.7 31.4 23.1

2275

77 82.2 7.1 44.6 32.6 23.4 - - - 73.1 7.6 47.8 31.5 21.1 - - -

72 74.2 6.9 54.6 45.4 36.2 27.0 - - 66.4 7.4 53.8 43.6 33.5 23.4 - -

67 66.3 6.8 64.6 58.2 49.1 39.9 30.7 - 59.7 7.3 59.7 56.1 46.0 35.9 25.7 -

62 58.6 6.6 58.6 58.6 61.5 52.3 43.1 34.0 51.2 7.0 51.2 51.2 51.2 48.3 38.2 28.0

57 62.9 6.7 62.9 62.9 58.0 48.8 39.6 30.5 57.1 7.1 57.1 57.1 52.5 42.4 32.3 22.1

2600

77 84.1 7.1 51.3 35.5 25.4 - - - 74.9 7.7 59.3 35.4 22.9 - - -

72 76.0 7.0 59.6 49.4 39.3 29.1 - - 68.1 7.5 60.2 48.3 36.4 24.5 - -

67 67.9 6.8 67.9 63.3 53.2 43.1 32.9 - 61.2 7.3 61.2 61.2 49.9 38.0 26.0 -

62 60.0 6.6 60.0 60.0 66.7 56.6 46.4 36.3 52.4 7.1 52.4 52.4 52.4 51.5 39.6 27.6

57 64.4 6.7 64.4 64.4 62.9 52.8 42.6 32.5 58.5 7.2 58.5 58.5 57.0 45.1 33.1 21.2

2925

72 77.4 7.0 64.4 53.3 42.1 31.0 - - 68.5 7.5 63.2 51.2 39.2 27.2 - -

67 69.1 6.8 69.1 66.8 57.0 45.9 34.8 - 61.6 7.3 61.6 61.6 53.7 41.7 29.7 -

62 61.1 6.7 61.1 61.1 64.4 53.3 42.2 31.0 52.7 7.1 52.7 52.7 52.7 46.2 34.2 22.1

57 65.6 6.7 65.6 65.6 64.8 53.7 42.5 31.4 58.9 7.2 58.9 58.9 58.2 46.1 34.1 22.1

3250

72 78.8 7.0 69.2 57.1 45.0 32.9 - - 68.9 7.6 66.2 54.1 42.0 29.9 - -

67 70.3 6.9 70.3 70.3 60.9 48.8 36.6 - 62.0 7.4 62.0 62.0 57.6 45.5 33.3 -

62 62.2 6.7 62.2 62.2 62.2 50.0 37.9 25.8 53.0 7.1 53.0 53.0 53.0 40.9 28.8 16.7

57 66.7 6.8 66.7 66.7 66.7 54.6 42.5 30.3 59.3 7.2 59.3 59.3 59.3 47.2 35.1 23.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH078 (6.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 43

ZH090 (7.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1875

77 113.8 5.8 49.0 41.0 33.1 - - - 112.1 6.5 46.6 38.6 30.6 - - -

72 106.0 5.8 62.6 54.6 46.7 38.7 - - 102.9 6.4 59.9 51.9 43.9 35.9 - -

67 98.1 5.8 76.2 68.3 60.3 52.3 44.4 - 93.8 6.4 73.2 65.2 57.2 49.2 41.2 -

62 86.5 5.8 86.5 80.4 71.9 64.0 56.0 48.1 83.9 6.4 83.9 79.0 68.5 60.5 52.5 44.4

2250

77 121.4 5.8 54.8 45.5 36.3 - - - 116.8 6.5 51.9 42.7 33.5 - - -

72 112.9 5.8 69.7 60.4 51.2 41.9 - - 107.3 6.4 66.5 57.2 48.0 38.8 - -

67 104.5 5.8 84.6 75.3 66.1 56.8 47.5 - 97.7 6.4 81.0 71.8 62.6 53.3 44.1 -

62 92.2 5.8 92.2 88.1 78.8 69.6 60.3 51.0 87.5 6.4 87.5 84.1 74.9 65.7 56.5 47.3

57 90.4 5.8 90.4 91.7 85.4 76.2 66.9 57.6 87.7 6.4 87.7 87.7 80.0 70.7 61.5 52.3

2625

77 128.9 5.8 60.6 50.0 39.4 - - - 121.5 6.5 57.2 46.8 36.3 - - -

72 119.9 5.8 76.8 66.2 55.6 45.0 - - 111.6 6.5 73.0 62.6 52.1 41.7 - -

67 110.9 5.9 93.0 82.4 71.9 61.3 50.7 - 101.7 6.4 88.8 78.4 67.9 57.5 47.1 -

62 97.9 5.9 97.9 95.8 85.7 75.1 64.5 54.0 91.0 6.4 91.0 89.3 81.4 70.9 60.5 50.1

57 96.1 5.8 96.1 96.8 92.9 82.3 71.7 61.1 91.2 6.4 91.2 91.2 86.8 76.4 66.0 55.5

3000

77 136.5 5.8 66.4 54.5 42.6 - - - 126.2 6.5 62.5 50.8 39.2 - - -

72 126.9 5.8 83.9 72.0 60.1 48.2 - - 115.9 6.5 79.5 67.9 56.3 44.6 - -

67 117.3 5.9 101.4 89.5 77.6 65.7 53.8 - 105.6 6.5 96.6 85.0 73.3 61.7 50.0 -

62 103.6 5.9 103.6 103.6 92.6 80.7 68.8 56.9 94.5 6.4 94.5 94.5 87.8 76.1 64.5 52.9

57 101.8 5.9 101.8 101.8 100.4 88.5 76.6 64.6 94.8 6.4 94.8 94.8 93.7 82.1 70.4 58.8

3375

72 128.9 5.8 88.3 75.7 63.2 50.6 - - 118.6 6.5 84.9 72.3 59.8 47.2 - -

67 119.1 5.8 110.1 94.1 81.6 69.0 56.4 - 108.1 6.5 103.0 90.4 77.9 65.3 52.8 -

62 105.2 5.9 105.2 105.2 99.6 87.0 74.4 61.8 96.7 6.4 96.7 96.7 93.2 80.7 68.1 55.6

57 103.4 5.8 103.4 103.4 102.6 90.1 77.5 64.9 96.9 6.4 96.9 96.9 96.4 83.9 71.3 58.8

3750

72 130.9 5.8 92.7 79.5 66.2 53.0 - - 121.2 6.5 90.2 76.7 63.3 49.8 - -

67 121.0 5.8 118.7 98.7 85.5 72.2 59.0 - 110.5 6.5 109.4 95.9 82.4 69.0 55.5 -

62 106.8 5.8 106.8 106.8 106.5 93.2 80.0 66.7 98.9 6.4 98.9 98.9 98.7 85.2 71.8 58.3

57 104.9 5.8 104.9 104.9 104.9 91.7 78.4 65.2 99.1 6.4 99.1 99.1 99.1 85.7 72.2 58.7

95°F 105°F

1875

77 110.3 7.1 44.2 36.2 28.1 - - - 103.5 7.7 38.5 33.2 25.2 - - -

72 99.9 7.0 57.2 49.2 41.1 33.0 - - 93.1 7.6 54.2 46.2 38.2 30.3 - -

67 89.5 7.0 70.2 62.2 54.1 46.0 37.9 - 82.7 7.5 69.8 59.2 51.2 43.3 35.3 -

62 81.3 6.9 81.3 77.5 65.0 57.0 48.9 40.8 78.3 7.4 78.3 75.8 62.2 54.2 46.2 38.3

2250

77 112.2 7.1 49.0 39.8 30.7 - - - 103.5 7.8 45.5 36.5 27.4 - - -

72 101.6 7.1 63.2 54.0 44.9 35.7 - - 93.1 7.7 59.6 50.6 41.5 32.5 - -

67 91.0 7.0 77.4 68.2 59.1 49.9 40.7 - 82.7 7.5 73.7 64.7 55.7 46.6 37.6 -

62 82.7 6.9 82.7 80.2 71.0 61.8 52.7 43.5 78.2 7.4 78.2 76.6 67.5 58.5 49.5 40.4

57 84.9 6.9 84.9 83.7 74.5 65.3 56.1 47.0 80.0 7.4 80.0 78.7 69.7 60.7 51.6 42.6

2625

77 114.1 7.2 53.8 43.5 33.2 - - - 103.5 7.8 52.4 39.7 29.6 - - -

72 103.3 7.1 69.2 58.9 48.6 38.4 - - 93.1 7.7 65.0 54.9 44.8 34.7 - -

67 92.5 7.0 84.6 74.3 64.0 53.8 43.5 - 82.7 7.6 77.6 70.2 60.1 50.0 39.9 -

62 84.1 6.9 84.1 82.8 77.0 66.7 56.4 46.2 78.2 7.5 78.2 77.4 72.9 62.8 52.7 42.6

57 86.3 6.9 86.3 85.7 80.8 70.5 60.2 49.9 79.9 7.5 79.9 79.3 75.2 65.1 55.0 44.9

3000

77 115.9 7.2 58.6 47.2 35.8 - - - 103.4 7.9 59.4 43.0 31.8 - - -

72 105.0 7.1 75.2 63.8 52.4 41.0 - - 93.1 7.7 70.5 59.3 48.1 37.0 - -

67 94.0 7.1 91.7 80.4 69.0 57.6 46.3 - 82.7 7.6 81.6 75.7 64.5 53.3 42.1 -

62 85.5 7.0 85.5 85.5 83.0 71.6 60.2 48.8 78.1 7.5 78.1 78.1 78.2 67.1 55.9 44.7

57 87.8 7.0 87.8 87.8 87.0 75.7 64.3 52.9 79.9 7.5 79.9 79.9 80.8 69.6 58.4 47.2

3375

72 108.3 7.1 81.4 68.9 56.4 43.8 - - 97.2 7.8 76.7 64.4 52.1 39.8 - -

67 97.0 7.1 95.9 86.7 74.2 61.7 49.1 - 86.4 7.6 85.8 81.1 69.8 57.5 45.2 -

62 88.2 7.0 88.2 88.2 86.9 74.4 61.9 49.3 81.6 7.5 81.6 81.6 81.7 69.4 57.1 44.8

57 90.5 7.0 90.5 90.5 90.2 77.7 65.1 52.6 83.5 7.5 83.5 83.5 83.9 71.6 59.3 47.0

3750

72 111.6 7.2 87.7 74.0 60.3 46.6 - - 101.3 7.8 82.8 69.4 56.0 42.6 - -

67 100.0 7.1 100.0 93.1 79.4 65.7 52.0 - 90.0 7.7 90.0 86.6 75.0 61.6 48.2 -

62 90.9 7.0 90.9 90.9 90.9 77.2 63.5 49.9 85.1 7.5 85.1 85.1 85.1 71.7 58.3 44.9

57 93.3 7.0 93.3 93.3 93.3 79.7 66.0 52.3 87.0 7.5 87.0 87.0 87.0 73.6 60.2 46.8

528150-YTG-T-0514

44 Johnson Controls Unitary Products

115°F 125°F

1875

77 96.7 8.4 32.9 30.3 22.4 - - - 89.9 9.0 27.0 24.2 19.6 - - -

72 86.3 8.2 51.1 43.3 35.4 27.5 - - 79.5 8.8 48.1 40.3 32.5 24.8 - -

67 75.9 8.0 69.4 56.2 48.4 40.5 32.6 - 69.1 8.5 69.1 53.3 45.5 37.8 30.0 -

62 75.3 7.9 75.3 74.0 59.3 51.5 43.6 35.7 72.2 8.4 72.2 72.2 56.5 48.7 40.9 33.2

2250

77 94.8 8.4 42.0 33.1 24.2 - - - 86.1 9.1 38.7 29.7 20.9 - - -

72 84.6 8.2 56.0 47.1 38.2 29.3 - - 76.1 8.8 52.4 43.7 34.9 26.1 - -

67 74.4 8.1 70.0 61.1 52.2 43.3 34.4 - 66.1 8.6 66.1 57.6 48.8 40.1 31.3 -

62 73.8 7.9 73.8 73.0 64.1 55.2 46.3 37.4 69.3 8.4 69.3 69.3 60.6 51.8 43.1 34.3

57 75.0 7.9 75.0 73.8 64.9 56.0 47.1 38.2 70.1 8.5 70.1 68.9 60.1 51.3 42.6 33.8

2625

77 92.9 8.5 51.1 35.9 26.0 - - - 82.3 9.1 50.5 35.2 22.3 - - -

72 82.9 8.3 60.9 51.0 41.0 31.1 - - 72.7 8.9 56.8 47.0 37.2 27.5 - -

67 72.9 8.1 70.7 66.0 56.1 46.2 36.2 - 63.1 8.6 63.1 61.9 52.1 42.4 32.6 -

62 72.3 8.0 72.3 71.9 68.8 58.9 48.9 39.0 66.4 8.5 66.4 66.4 64.7 54.9 45.2 35.4

57 73.5 8.0 73.5 72.9 69.7 59.8 49.8 39.9 67.1 8.5 67.1 66.5 64.2 54.4 44.6 34.8

3000

77 91.0 8.5 60.2 38.7 27.8 - - - 78.5 9.2 62.2 40.6 23.7 - - -

72 81.2 8.3 65.8 54.8 43.9 32.9 - - 69.3 8.9 61.2 50.4 39.6 28.8 - -

67 71.4 8.2 71.4 70.9 60.0 49.0 38.0 - 60.1 8.7 60.1 60.1 55.5 44.7 33.9 -

62 70.8 8.0 70.8 70.8 73.5 62.6 51.6 40.6 63.5 8.5 63.5 63.5 63.5 58.1 47.3 36.5

57 72.0 8.0 72.0 72.0 74.5 63.5 52.5 41.6 64.1 8.6 64.1 64.1 64.1 57.5 46.7 35.9

3375

72 86.1 8.4 71.9 59.9 47.8 35.7 - - 75.0 9.0 67.2 55.3 43.5 31.7 - -

67 75.7 8.2 75.7 75.5 65.3 53.3 41.2 - 65.1 8.7 65.1 65.1 60.9 49.1 37.2 -

62 75.1 8.1 75.1 75.1 76.5 64.4 52.3 40.3 68.6 8.6 68.6 68.6 68.6 59.4 47.5 35.7

57 76.4 8.1 76.4 76.4 77.6 65.5 53.5 41.4 69.3 8.6 69.3 69.3 69.3 59.5 47.6 35.8

3750

72 91.0 8.4 78.0 64.9 51.7 38.5 - - 80.7 9.0 73.2 60.3 47.4 34.5 - -

67 80.1 8.2 80.1 80.1 70.7 57.5 44.4 - 70.1 8.8 70.1 70.1 66.3 53.4 40.5 -

62 79.4 8.1 79.4 79.4 79.4 66.2 53.1 39.9 73.6 8.6 73.6 73.6 73.6 60.7 47.8 34.9

57 80.7 8.1 80.7 80.7 80.7 67.6 54.4 41.2 74.4 8.6 74.4 74.4 74.4 61.5 48.6 35.7

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH090 (7.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 45

ZH102 (8.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2125

77 136.4 6.4 58.7 49.1 39.5 - - - 134.8 7.0 57.4 47.9 38.4 - - -

72 127.5 6.3 74.7 65.1 55.5 45.9 - - 122.9 7.0 72.2 62.7 53.1 43.6 - -

67 118.6 6.3 90.7 81.1 71.5 61.9 52.3 - 111.0 6.9 86.9 77.4 67.9 58.4 48.9 -

62 103.1 6.3 103.1 94.8 83.2 73.6 64.0 54.4 99.3 6.9 99.3 92.9 80.2 70.6 61.1 51.6

2550

77 142.1 6.4 65.3 54.2 43.1 - - - 138.4 7.1 63.5 52.6 41.6 - - -

72 132.8 6.3 82.7 71.6 60.6 49.5 - - 126.2 7.0 79.5 68.5 57.5 46.5 - -

67 123.4 6.3 100.2 89.1 78.0 66.9 55.8 - 114.0 6.9 95.5 84.5 73.5 62.5 51.5 -

62 107.3 6.4 107.3 101.8 90.7 79.6 68.6 57.5 102.0 6.9 102.0 97.8 86.8 75.8 64.8 53.8

57 103.7 6.3 103.7 103.7 95.2 84.1 73.1 62.0 98.6 6.9 98.6 98.6 89.8 78.8 67.8 56.8

2975

77 147.8 6.4 71.8 59.3 46.7 - - - 142.1 7.1 69.7 57.2 44.7 - - -

72 138.0 6.4 90.7 78.1 65.6 53.0 - - 129.5 7.0 86.9 74.4 61.9 49.4 - -

67 128.1 6.3 109.6 97.0 84.5 71.9 59.4 - 117.0 7.0 104.0 91.6 79.1 66.6 54.1 -

62 111.6 6.4 111.6 108.8 98.3 85.7 73.2 60.6 104.7 7.0 104.7 102.6 93.4 80.9 68.4 55.9

57 107.8 6.3 107.8 107.8 103.1 90.6 78.0 65.5 101.2 6.9 101.2 101.2 96.7 84.2 71.7 59.2

3400

77 153.6 6.4 78.4 64.3 50.3 - - - 145.7 7.1 75.8 61.8 47.9 - - -

72 143.2 6.4 98.7 84.7 70.6 56.6 - - 132.8 7.1 94.2 80.2 66.3 52.3 - -

67 132.9 6.3 119.0 105.0 91.0 76.9 62.9 - 120.0 7.0 112.6 98.6 84.7 70.7 56.8 -

62 115.8 6.4 115.8 115.8 105.8 91.8 77.7 63.7 107.4 7.0 107.4 107.4 100.0 86.0 72.0 58.1

57 111.9 6.3 111.9 111.9 111.0 97.0 83.0 68.9 103.8 7.0 103.8 103.8 103.5 89.5 75.6 61.6

3825

72 145.4 6.4 105.1 89.8 74.5 59.1 - - 135.6 7.1 101.0 85.8 70.5 55.2 - -

67 135.0 6.3 128.0 111.2 95.9 80.6 65.3 - 122.5 7.0 118.8 105.3 90.1 74.8 59.6 -

62 117.5 6.4 117.5 117.5 112.6 97.2 81.9 66.6 109.6 7.0 109.6 109.6 105.9 90.7 75.4 60.1

57 113.5 6.3 113.5 113.5 113.1 97.8 82.5 67.2 106.0 7.0 106.0 106.0 105.8 90.6 75.3 60.0

4250

72 147.6 6.4 111.5 94.9 78.3 61.7 - - 138.4 7.1 107.8 91.3 74.7 58.2 - -

67 137.0 6.3 137.0 117.5 100.9 84.2 67.6 - 124.9 7.0 124.9 112.0 95.5 78.9 62.4 -

62 119.3 6.4 119.3 119.3 119.3 102.7 86.1 69.5 111.8 7.0 111.8 111.8 111.8 95.3 78.7 62.2

57 115.2 6.3 115.2 115.2 115.2 98.6 82.0 65.4 108.1 7.0 108.1 108.1 108.1 91.6 75.0 58.5

95°F 105°F

2125

77 133.1 7.7 56.1 46.7 37.3 - - - 116.2 8.5 48.4 41.1 31.9 - - -

72 118.2 7.6 69.6 60.2 50.8 41.4 - - 104.5 8.3 63.9 54.7 45.5 36.2 - -

67 103.3 7.6 83.1 73.7 64.3 54.9 45.5 - 92.7 8.2 79.5 68.3 59.0 49.8 40.5 -

62 95.6 7.4 95.6 91.1 77.1 67.7 58.3 48.9 84.7 8.0 84.7 82.5 69.4 60.1 50.9 41.6

2550

77 134.7 7.7 61.8 50.9 40.0 - - - 118.6 8.5 56.1 45.3 34.6 - - -

72 119.6 7.7 76.3 65.4 54.5 43.6 - - 106.6 8.4 70.9 60.1 49.3 38.5 - -

67 104.5 7.6 90.8 79.9 69.0 58.1 47.2 - 94.6 8.2 85.7 74.9 64.1 53.3 42.5 -

62 96.7 7.5 96.7 93.7 82.8 71.9 61.0 50.1 86.5 8.1 86.5 85.0 75.3 64.5 53.7 42.9

57 93.6 7.5 93.6 93.6 84.4 73.5 62.6 51.7 84.8 8.1 84.8 84.8 76.0 65.2 54.4 43.6

2975

77 136.3 7.8 67.5 55.1 42.7 - - - 121.0 8.6 63.9 49.6 37.3 - - -

72 121.0 7.7 83.0 70.6 58.2 45.8 - - 108.8 8.4 77.9 65.5 53.2 40.9 - -

67 105.8 7.7 98.5 86.1 73.7 61.3 48.9 - 96.5 8.3 91.9 81.5 69.2 56.8 44.5 -

62 97.8 7.5 97.8 96.3 88.5 76.1 63.7 51.3 88.3 8.1 88.3 87.5 81.2 68.9 56.5 44.2

57 94.7 7.6 94.7 94.7 90.2 77.8 65.4 53.0 86.5 8.2 86.5 86.5 82.0 69.6 57.3 45.0

3400

77 137.9 7.8 73.2 59.4 45.5 - - - 123.4 8.6 71.6 53.8 39.9 - - -

72 122.4 7.8 89.7 75.8 62.0 48.1 - - 110.9 8.5 84.8 71.0 57.1 43.2 - -

67 107.0 7.7 106.2 92.3 78.4 64.5 50.7 - 98.5 8.3 98.1 88.1 74.2 60.3 46.5 -

62 99.0 7.6 99.0 99.0 94.1 80.2 66.4 52.5 90.0 8.2 90.0 90.0 87.1 73.2 59.4 45.5

57 95.8 7.6 95.8 95.8 95.9 82.1 68.2 54.3 88.3 8.2 88.3 88.3 87.9 74.1 60.2 46.3

3825

72 125.8 7.8 96.9 81.7 66.6 51.4 - - 112.9 8.5 91.2 76.2 61.1 46.1 - -

67 109.9 7.7 109.5 99.4 84.2 69.1 53.9 - 100.2 8.4 100.0 93.4 79.5 64.4 49.4 -

62 101.7 7.6 101.7 101.7 99.3 84.1 68.9 53.7 91.6 8.2 91.6 91.6 90.1 75.1 60.0 45.0

57 98.4 7.6 98.4 98.4 98.5 83.3 68.1 52.9 89.8 8.3 89.8 89.8 89.6 74.6 59.5 44.5

4250

72 129.2 7.8 104.1 87.6 71.2 54.7 - - 114.8 8.6 97.6 81.4 65.2 49.0 - -

67 112.9 7.8 112.9 106.6 90.1 73.6 57.1 - 101.9 8.4 101.9 98.7 84.7 68.5 52.3 -

62 104.4 7.6 104.4 104.4 104.4 87.9 71.4 54.9 93.1 8.3 93.1 93.1 93.1 76.9 60.7 44.5

57 101.0 7.7 101.0 101.0 101.0 84.5 68.0 51.5 91.3 8.3 91.3 91.3 91.3 75.1 58.9 42.7

528150-YTG-T-0514

46 Johnson Controls Unitary Products

115°F 125°F

2125

77 99.3 9.3 40.7 35.5 26.4 - - - 82.4 10.1 33.8 29.9 21.0 - - -

72 90.7 9.0 58.3 49.2 40.1 31.0 - - 76.9 9.7 52.6 43.7 34.8 25.9 - -

67 82.0 8.8 75.8 62.9 53.8 44.7 35.6 - 71.4 9.4 71.4 57.5 48.5 39.6 30.7 -

62 73.9 8.6 73.9 73.9 61.6 52.5 43.4 34.3 63.1 9.2 63.1 63.1 53.8 44.9 35.9 27.0

2550

77 102.5 9.4 50.5 39.8 29.1 - - - 86.4 10.2 45.4 34.2 23.7 - - -

72 93.6 9.1 65.5 54.8 44.1 33.5 - - 80.6 9.8 60.1 49.5 39.0 28.4 - -

67 84.7 8.8 80.5 69.9 59.2 48.5 37.8 - 74.8 9.4 74.8 64.9 54.3 43.7 33.2 -

62 76.3 8.7 76.3 76.3 67.7 57.1 46.4 35.7 66.1 9.3 66.1 66.1 60.2 49.7 39.1 28.5

57 76.1 8.7 76.1 76.1 67.6 56.9 46.2 35.6 67.3 9.3 67.3 67.3 59.2 48.6 38.0 27.5

2975

77 105.7 9.4 60.2 44.0 31.8 - - - 90.4 10.2 57.1 38.5 26.3 - - -

72 96.5 9.1 72.7 60.5 48.2 35.9 - - 84.3 9.8 67.6 55.4 43.2 30.9 - -

67 87.3 8.9 85.3 76.9 64.6 52.3 40.0 - 78.1 9.5 78.1 72.3 60.0 47.8 35.6 -

62 78.7 8.7 78.7 78.7 73.9 61.7 49.4 37.1 69.1 9.3 69.1 69.1 66.7 54.4 42.2 30.0

57 78.4 8.8 78.4 78.4 73.8 61.5 49.2 36.9 70.3 9.4 70.3 70.3 65.5 53.3 41.1 28.9

3400

77 108.9 9.5 69.9 48.3 34.4 - - - 94.4 10.3 68.7 42.8 28.9 - - -

72 99.4 9.2 79.9 66.1 52.2 38.3 - - 87.9 9.9 75.1 61.2 47.3 33.5 - -

67 90.0 8.9 90.0 83.9 70.0 56.1 42.3 - 81.5 9.5 81.5 79.6 65.8 51.9 38.1 -

62 81.1 8.8 81.1 81.1 80.1 66.2 52.4 38.5 72.1 9.4 72.1 72.1 72.1 59.2 45.4 31.5

57 80.8 8.8 80.8 80.8 79.9 66.0 52.2 38.3 73.3 9.4 73.3 73.3 71.9 58.0 44.2 30.3

3825

72 99.9 9.3 85.5 70.6 55.7 40.8 - - 87.0 10.0 79.8 65.0 50.3 35.6 - -

67 90.4 9.0 90.4 87.4 74.7 59.8 44.9 - 80.6 9.6 80.6 80.6 69.9 55.2 40.5 -

62 81.5 8.9 81.5 81.5 81.0 66.1 51.2 36.3 71.4 9.5 71.4 71.4 71.4 57.1 42.4 27.6

57 81.2 8.9 81.2 81.2 80.8 65.9 51.0 36.1 72.6 9.6 72.6 72.6 71.9 57.2 42.4 27.7

4250

72 100.4 9.4 91.0 75.1 59.2 43.3 - - 86.0 10.1 84.5 68.9 53.3 37.6 - -

67 90.8 9.1 90.8 90.8 79.4 63.5 47.6 - 79.8 9.8 79.8 79.8 74.1 58.5 42.9 -

62 81.9 9.0 81.9 81.9 81.9 66.0 50.1 34.2 70.6 9.6 70.6 70.6 70.6 55.0 39.4 23.8

57 81.6 9.0 81.6 81.6 81.6 65.7 49.8 33.9 71.9 9.7 71.9 71.9 71.9 56.3 40.7 25.1

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH102 (8.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 47

ZH120 (10 Ton)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2500

77 148.4 7.2 37.9 39.0 40.1 - - - 145.3 7.9 35.2 36.6 38.0 - - -

72 138.6 7.0 56.2 57.2 58.3 59.4 - - 134.2 7.7 53.1 54.5 55.9 57.3 - -

67 128.8 6.7 74.4 75.5 76.5 77.6 78.7 - 123.2 7.6 70.9 72.3 73.7 75.1 76.5 -

62 119.6 6.7 103.4 95.5 94.1 95.2 96.2 97.3 115.1 7.6 100.5 93.0 90.7 92.1 93.5 94.9

3000

77 155.1 7.2 54.6 49.4 44.1 - - - 150.7 7.9 51.9 46.8 41.8 - - -

72 144.8 7.0 74.7 69.4 64.2 59.0 - - 139.3 7.8 71.5 66.5 61.4 56.4 - -

67 134.6 6.7 94.8 89.5 84.3 79.0 73.8 - 127.8 7.6 91.1 86.1 81.0 76.0 71.0 -

62 124.9 6.7 114.1 108.9 103.6 98.4 93.2 87.9 119.5 7.6 109.7 104.7 99.7 94.6 89.6 84.5

57 122.1 6.7 116.9 111.7 106.4 101.2 95.9 90.7 116.7 7.6 111.4 106.3 101.3 96.3 91.2 86.2

3500

77 161.8 7.2 71.2 59.7 48.2 - - - 156.2 7.9 68.5 57.1 45.6 - - -

72 151.1 6.9 93.2 81.6 70.1 58.6 - - 144.3 7.8 89.9 78.5 67.0 55.5 - -

67 140.3 6.7 115.1 103.6 92.0 80.5 68.9 - 132.5 7.6 111.3 99.8 88.4 76.9 65.4 -

62 130.3 6.7 124.9 122.3 113.2 101.6 90.1 78.6 123.8 7.6 118.9 116.4 108.7 97.2 85.7 74.2

57 127.3 6.7 124.7 122.1 116.2 104.7 93.1 81.6 121.0 7.6 118.3 115.8 110.4 99.0 87.5 76.0

4000

77 168.5 7.2 87.9 70.1 52.2 - - - 161.7 7.9 85.2 67.3 49.4 - - -

72 157.3 6.9 111.7 93.8 76.0 58.2 - - 149.4 7.8 108.4 90.4 72.5 54.6 - -

67 146.1 6.7 135.4 117.6 99.8 81.9 64.1 - 137.1 7.7 131.5 113.6 95.7 77.8 59.9 -

62 135.7 6.6 135.7 135.7 122.7 104.9 87.0 69.2 128.2 7.6 128.2 128.2 117.7 99.8 81.8 63.9

57 132.6 6.6 132.6 132.6 126.0 108.1 90.3 72.5 125.2 7.6 125.2 125.2 119.6 101.7 83.8 65.8

4500

72 157.8 7.0 102.0 89.8 77.6 65.4 - - 150.2 7.8 98.7 86.5 74.4 62.3 - -

67 146.6 6.8 126.3 114.1 101.9 89.7 77.5 - 137.9 7.7 122.4 110.3 98.2 86.0 73.9 -

62 136.1 6.8 136.1 136.1 125.3 113.1 100.9 88.7 128.9 7.6 128.9 128.9 120.7 108.6 96.5 84.3

57 133.0 6.8 133.0 133.0 128.9 116.7 104.5 92.3 125.9 7.6 125.9 125.9 122.7 110.6 98.4 86.3

5000

72 158.3 7.2 92.4 85.8 79.3 72.7 - - 151.1 7.9 89.0 82.6 76.3 69.9 - -

67 147.1 6.9 117.2 110.6 104.1 97.5 91.0 - 138.6 7.8 113.3 107.0 100.6 94.3 87.9 -

62 136.6 6.9 136.6 136.6 128.0 121.4 114.9 108.3 129.6 7.7 129.6 129.6 123.8 117.4 111.1 104.7

57 133.4 6.9 133.4 133.4 131.8 125.2 118.6 112.1 126.6 7.7 126.6 126.6 125.8 119.4 113.1 106.7

95°F 105°F

2500

77 142.1 8.5 32.5 34.3 36.0 - - - 130.2 9.7 26.3 30.7 32.7 - - -

72 129.8 8.5 50.0 51.7 53.4 55.2 - - 120.3 9.7 46.3 48.4 50.4 52.5 - -

67 117.5 8.5 67.4 69.2 70.9 72.6 74.4 - 110.4 9.7 66.3 66.1 68.2 70.2 72.3 -

62 110.7 8.4 97.7 90.5 87.2 88.9 90.7 92.4 104.5 9.6 92.5 85.6 82.2 84.3 86.3 88.4

3000

77 146.4 8.5 49.2 44.3 39.5 - - - 133.8 9.8 45.2 40.5 35.9 - - -

72 133.7 8.5 68.3 63.5 58.7 53.8 - - 123.6 9.7 64.6 59.9 55.3 50.6 - -

67 121.1 8.6 87.5 82.7 77.8 73.0 68.1 - 113.4 9.7 84.0 79.3 74.7 70.0 65.4 -

62 114.0 8.5 105.4 100.5 95.7 90.8 86.0 81.2 107.3 9.6 99.4 94.7 90.1 85.4 80.8 76.1

57 111.4 8.5 105.8 101.0 96.2 91.3 86.5 81.6 104.7 9.6 99.7 95.1 90.4 85.8 81.1 76.5

3500

77 150.6 8.5 65.8 54.4 43.0 - - - 137.3 9.8 64.0 50.3 39.0 - - -

72 137.6 8.6 86.7 75.3 63.9 52.4 - - 126.9 9.8 82.8 71.4 60.1 48.7 - -

67 124.6 8.6 107.6 96.1 84.7 73.3 61.9 - 116.5 9.7 101.6 92.5 81.2 69.8 58.5 -

62 117.3 8.5 113.0 110.6 104.2 92.8 81.3 69.9 110.2 9.7 106.2 103.9 97.9 86.6 75.2 63.9

57 114.6 8.5 111.9 109.4 104.7 93.3 81.9 70.4 107.4 9.6 105.0 102.6 98.3 87.0 75.6 64.3

4000

77 154.9 8.6 82.5 64.5 46.5 - - - 140.9 9.8 82.8 60.2 42.1 - - -

72 141.5 8.6 105.1 87.1 69.1 51.1 - - 130.2 9.8 101.0 83.0 64.9 46.8 - -

67 128.1 8.6 127.6 109.6 91.6 73.6 55.6 - 119.5 9.8 119.2 105.7 87.7 69.6 51.6 -

62 120.7 8.5 120.7 120.7 112.7 94.7 76.7 58.7 113.0 9.7 113.0 113.0 105.8 87.7 69.7 51.6

57 117.9 8.5 117.9 117.9 113.2 95.2 77.2 59.2 110.2 9.6 110.2 110.2 106.2 88.1 70.1 52.0

4500

72 142.7 8.6 95.3 83.2 71.2 59.1 - - 131.2 9.8 91.1 79.1 67.1 55.1 - -

67 129.1 8.6 118.5 106.5 94.4 82.3 70.3 - 120.4 9.8 112.4 102.7 90.7 78.7 66.7 -

62 121.6 8.5 121.6 121.6 116.1 104.0 92.0 79.9 113.9 9.7 113.9 113.9 109.4 97.4 85.4 73.5

57 118.8 8.5 118.8 118.8 116.5 104.5 92.4 80.3 111.0 9.6 111.0 111.0 109.0 97.1 85.1 73.1

5000

72 143.8 8.6 85.5 79.4 73.3 67.1 - - 132.2 9.8 81.2 75.3 69.4 63.4 - -

67 130.2 8.6 109.4 103.3 97.2 91.1 84.9 - 121.3 9.8 105.5 99.6 93.7 87.8 81.9 -

62 122.6 8.5 122.6 122.6 119.5 113.4 107.3 101.1 114.8 9.7 114.8 114.8 113.0 107.1 101.2 95.3

57 119.8 8.5 119.8 119.8 119.8 113.7 107.5 101.4 111.9 9.6 111.9 111.9 111.9 106.0 100.1 94.2

528150-YTG-T-0514

48 Johnson Controls Unitary Products

115°F 125°F

2500

77 118.3 11.0 20.1 27.1 29.5 - - - 106.4 12.3 13.8 23.5 26.2 - - -

72 110.8 10.9 42.7 45.0 47.4 49.8 - - 101.3 12.2 39.0 41.7 44.4 47.1 - -

67 103.3 10.9 65.2 63.0 65.4 67.8 70.2 - 96.2 12.0 64.1 59.9 62.6 65.4 68.1 -

62 98.3 10.8 87.3 80.7 77.2 79.6 82.0 84.4 92.1 12.0 82.1 75.7 72.3 75.0 77.7 80.4

3000

77 121.2 11.0 41.1 36.7 32.2 - - - 108.6 12.3 37.1 32.8 28.6 - - -

72 113.5 10.9 60.8 56.3 51.9 47.4 - - 103.4 12.1 57.0 52.7 48.5 44.2 - -

67 105.8 10.9 80.4 76.0 71.5 67.1 62.6 - 98.2 12.0 76.9 72.6 68.4 64.1 59.8 -

62 100.7 10.8 93.4 88.9 84.5 80.0 75.6 71.1 94.0 12.0 87.3 83.1 78.8 74.6 70.3 66.1

57 97.9 10.7 93.6 89.1 84.7 80.2 75.8 71.3 91.2 11.8 87.5 83.2 79.0 74.7 70.4 66.2

3500

77 124.0 11.0 62.1 46.3 35.0 - - - 110.7 12.3 60.4 42.2 31.0 - - -

72 116.2 10.9 78.9 67.6 56.3 45.0 - - 105.5 12.1 75.0 63.7 52.5 41.3 - -

67 108.3 10.9 95.6 88.9 77.6 66.3 55.0 - 100.2 12.0 89.7 85.3 74.1 62.8 51.6 -

62 103.0 10.8 99.4 97.2 91.7 80.4 69.1 57.8 95.9 12.0 92.6 90.4 85.4 74.2 63.0 51.8

57 100.2 10.7 98.1 95.8 91.9 80.6 69.4 58.1 93.0 11.8 91.2 89.1 85.5 74.3 63.1 51.9

4000

77 126.9 11.0 83.1 55.8 37.7 - - - 112.9 12.3 83.6 51.5 33.3 - - -

72 118.9 11.0 97.0 78.8 60.7 42.6 - - 107.5 12.1 92.9 74.7 56.6 38.4 - -

67 110.8 10.9 110.8 101.8 83.7 65.6 47.5 - 102.2 12.0 102.2 98.0 79.8 61.6 43.4 -

62 105.4 10.8 105.4 105.4 98.9 80.8 62.6 44.5 97.8 12.0 97.8 97.8 92.0 73.8 55.6 37.4

57 102.5 10.7 102.5 102.5 99.2 81.0 62.9 44.8 94.9 11.8 94.9 94.9 92.1 73.9 55.8 37.6

4500

72 119.7 10.9 86.9 75.0 63.1 51.2 - - 108.2 12.1 82.7 70.9 59.1 47.2 - -

67 111.6 10.9 106.2 98.9 87.0 75.1 63.2 - 102.8 12.0 100.1 95.1 83.3 71.4 59.6 -

62 106.2 10.8 106.2 106.2 102.7 90.8 78.9 67.0 98.4 12.0 98.4 98.4 96.0 84.2 72.4 60.6

57 103.3 10.7 103.3 103.3 101.6 89.7 77.8 65.9 95.5 11.8 95.5 95.5 94.1 82.3 70.5 58.6

5000

72 120.5 10.9 76.8 71.1 65.5 59.8 - - 108.9 12.1 72.5 67.0 61.5 56.1 - -

67 112.4 10.9 101.6 95.9 90.2 84.6 78.9 - 103.5 12.0 97.7 92.2 86.8 81.3 75.8 -

62 106.9 10.8 106.9 106.9 106.6 100.9 95.2 89.5 99.0 12.0 99.0 99.0 99.0 94.6 89.2 83.7

57 104.0 10.7 104.0 104.0 104.0 98.3 92.6 86.9 96.1 11.8 96.1 96.1 96.1 90.6 85.2 79.7

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH120 (10 Ton) (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 49

ZH150 (12.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

3125

77 204.4 9.6 82.4 68.5 54.6 - - - 192.2 10.6 77.2 63.6 50.0 - - -

72 186.6 9.3 106.6 92.6 78.7 64.8 - - 176.1 10.4 100.7 87.2 73.6 60.0 - -

67 168.8 9.1 130.7 116.8 102.9 88.9 75.0 - 159.9 10.2 124.3 110.7 97.1 83.6 70.0 -

62 153.0 9.0 153.0 143.5 127.2 113.3 99.4 85.5 144.9 10.0 144.9 138.4 120.1 106.6 93.0 79.4

3750

77 210.2 9.7 89.0 73.6 58.1 - - - 197.5 10.7 84.3 69.1 53.9 - - -

72 191.8 9.4 114.7 99.3 83.9 68.4 - - 180.9 10.5 109.7 94.4 79.2 64.0 - -

67 173.5 9.1 140.4 125.0 109.6 94.2 78.7 - 164.3 10.2 135.0 119.8 104.6 89.4 74.2 -

62 157.2 9.0 157.2 150.9 135.5 120.1 104.7 89.3 148.9 10.1 148.9 144.5 129.3 114.1 98.9 83.7

57 152.9 8.9 152.9 152.9 144.1 128.7 113.3 97.8 146.9 10.0 146.9 146.9 135.2 120.0 104.8 89.6

4375

77 215.9 9.7 95.5 78.6 61.7 - - - 202.8 10.8 91.4 74.5 57.7 - - -

72 197.1 9.4 122.8 105.9 89.0 72.1 - - 185.7 10.5 118.6 101.7 84.9 68.0 - -

67 178.3 9.2 150.1 133.2 116.3 99.4 82.5 - 168.6 10.3 145.8 128.9 112.0 95.2 78.3 -

62 161.5 9.1 161.5 158.4 143.8 126.9 110.0 93.1 152.8 10.1 152.8 150.7 138.5 121.7 104.8 88.0

57 157.1 9.0 157.1 157.1 152.9 136.0 119.1 102.2 150.8 10.1 150.8 150.8 144.8 128.0 111.1 94.3

5000

77 221.6 9.8 102.1 83.7 65.3 - - - 208.0 10.8 98.5 80.0 61.5 - - -

72 202.3 9.5 130.9 112.6 94.2 75.8 - - 190.5 10.6 127.5 109.0 90.5 72.0 - -

67 183.0 9.2 159.8 141.4 123.0 104.6 86.2 - 173.0 10.4 156.5 138.0 119.5 101.0 82.5 -

62 165.8 9.1 165.8 165.8 152.1 133.7 115.3 96.9 156.8 10.2 156.8 156.8 147.8 129.3 110.8 92.3

57 161.2 9.0 161.2 161.2 161.8 143.4 125.0 106.6 154.8 10.1 154.8 154.8 154.5 136.0 117.5 99.0

5625

72 206.6 9.5 140.7 121.0 101.3 81.6 - - 193.5 10.6 136.3 116.5 96.7 76.9 - -

67 186.9 9.2 174.9 152.0 132.3 112.6 92.9 - 175.7 10.4 167.3 147.5 127.7 107.9 88.1 -

62 169.3 9.2 169.3 169.3 162.5 142.8 123.1 103.4 159.3 10.2 159.3 159.3 154.7 135.0 115.2 95.4

57 164.7 9.0 164.7 164.7 165.0 145.3 125.6 105.8 157.2 10.1 157.2 157.2 157.0 137.2 117.5 97.7

6250

72 210.9 9.5 150.5 129.4 108.4 87.4 - - 196.5 10.6 145.1 124.0 102.9 81.8 - -

67 190.8 9.3 190.0 162.7 141.6 120.6 99.6 - 178.4 10.4 178.0 157.0 135.9 114.8 93.7 -

62 172.9 9.2 172.9 172.9 172.9 151.8 130.8 109.8 161.7 10.2 161.7 161.7 161.7 140.6 119.6 98.5

57 168.1 9.0 168.1 168.1 168.1 147.1 126.1 105.0 159.6 10.2 159.6 159.6 159.6 138.5 117.4 96.4

95°F 105°F

3125

77 180.0 11.6 71.9 58.7 45.5 - - - 169.2 13.1 68.8 56.1 43.0 - - -

72 165.5 11.4 94.9 81.7 68.5 55.2 - - 155.1 13.0 91.6 78.5 65.5 52.4 - -

67 151.0 11.3 117.8 104.6 91.4 78.2 65.0 - 140.9 12.8 114.3 100.9 87.9 74.9 61.8 -

62 136.9 11.0 136.9 133.3 113.0 99.8 86.6 73.4 128.7 12.5 128.7 126.9 108.9 95.8 82.8 69.8

3750

77 184.8 11.7 79.6 64.6 49.6 - - - 173.5 13.2 76.3 61.6 46.8 - - -

72 169.9 11.5 104.6 89.6 74.6 59.6 - - 159.0 13.0 100.7 86.0 71.2 56.5 - -

67 155.0 11.4 129.6 114.6 99.6 84.6 69.6 - 144.5 12.8 125.1 110.4 95.6 80.9 66.1 -

62 140.5 11.1 140.5 138.1 123.1 108.1 93.1 78.1 131.9 12.6 131.9 130.7 118.4 103.7 88.9 74.1

57 141.0 11.0 141.0 141.0 126.3 111.3 96.3 81.3 131.4 12.6 131.4 131.4 118.3 103.5 88.8 74.0

4375

77 189.6 11.8 87.3 70.5 53.7 - - - 177.8 13.2 83.9 67.1 50.6 - - -

72 174.3 11.6 114.3 97.5 80.7 63.9 - - 162.9 13.1 109.9 93.4 77.0 60.5 - -

67 159.0 11.5 141.4 124.6 107.8 91.0 74.2 - 148.1 12.9 135.9 119.8 103.3 86.9 70.4 -

62 144.2 11.2 144.2 143.0 133.3 116.5 99.7 82.9 135.2 12.6 135.2 134.6 128.0 111.5 95.0 78.5

57 144.6 11.1 144.6 144.6 136.7 119.9 103.1 86.3 134.6 12.6 134.6 134.6 127.8 111.4 94.9 78.4

5000

77 194.4 11.9 94.9 76.3 57.7 - - - 182.0 13.3 91.5 72.6 54.4 - - -

72 178.7 11.7 124.1 105.5 86.9 68.3 - - 166.8 13.1 119.1 100.9 82.7 64.5 - -

67 163.0 11.6 153.2 134.6 116.0 97.4 78.8 - 151.6 12.9 146.7 129.2 111.0 92.9 74.7 -

62 147.8 11.3 147.8 147.8 143.4 124.8 106.2 87.6 138.4 12.7 138.4 138.4 137.5 119.3 101.1 82.9

57 148.3 11.2 148.3 148.3 147.1 128.5 109.9 91.3 137.8 12.7 137.8 137.8 137.4 119.2 101.0 82.8

5625

72 180.4 11.7 131.9 112.0 92.2 72.3 - - 168.0 13.2 127.6 107.9 88.2 68.6 - -

67 164.5 11.6 159.6 142.9 123.1 103.2 83.3 - 152.7 13.0 150.2 137.8 118.5 98.8 79.1 -

62 149.2 11.3 149.2 149.2 147.0 127.1 107.3 87.4 139.4 12.7 139.4 139.4 138.9 119.3 99.6 80.0

57 149.7 11.2 149.7 149.7 149.1 129.2 109.4 89.5 138.8 12.7 138.8 138.8 138.6 118.9 99.3 79.6

6250

72 182.1 11.8 139.7 118.6 97.4 76.3 - - 169.2 13.2 136.0 114.9 93.8 72.6 - -

67 166.1 11.6 166.1 151.3 130.1 109.0 87.9 - 153.7 13.0 153.7 146.3 125.9 104.8 83.6 -

62 150.6 11.3 150.6 150.6 150.6 129.5 108.3 87.2 140.4 12.7 140.4 140.4 140.4 119.2 98.1 77.0

57 151.1 11.3 151.1 151.1 151.1 130.0 108.8 87.7 139.8 12.7 139.8 139.8 139.8 118.6 97.5 76.4

528150-YTG-T-0514

50 Johnson Controls Unitary Products

115°F 125°F

3125

77 158.4 14.6 65.6 53.5 40.6 - - - 147.6 16.1 60.0 50.8 38.1 - - -

72 144.6 14.5 88.2 75.4 62.5 49.6 - - 134.2 16.0 84.9 72.2 59.5 46.8 - -

67 130.9 14.3 110.9 97.3 84.4 71.5 58.7 - 120.9 15.8 107.4 93.6 80.9 68.2 55.5 -

62 120.5 14.0 120.5 120.5 104.7 91.9 79.0 66.1 112.3 15.6 112.3 112.3 100.7 87.9 75.2 62.5

3750

77 162.2 14.7 73.1 58.6 44.1 - - - 150.8 16.1 69.9 55.6 41.3 - - -

72 148.1 14.5 96.9 82.4 67.9 53.3 - - 137.2 16.0 93.0 78.7 64.5 50.2 - -

67 134.0 14.3 120.6 106.1 91.6 77.1 62.6 - 123.5 15.8 116.2 101.9 87.6 73.4 59.1 -

62 123.3 14.1 123.3 123.3 113.7 99.2 84.7 70.2 114.8 15.6 114.8 114.8 109.0 94.7 80.5 66.2

57 121.8 14.1 121.8 121.8 110.3 95.8 81.2 66.7 112.1 15.6 112.1 112.1 102.2 88.0 73.7 59.4

4375

77 165.9 14.7 80.6 63.7 47.6 - - - 154.1 16.1 79.7 60.3 44.5 - - -

72 151.5 14.5 105.5 89.4 73.2 57.1 - - 140.1 15.9 101.1 85.3 69.5 53.6 - -

67 137.1 14.3 130.4 115.0 98.9 82.7 66.6 - 126.2 15.8 125.0 110.2 94.4 78.6 62.7 -

62 126.2 14.1 126.2 126.2 122.7 106.5 90.4 74.2 117.2 15.5 117.2 117.2 117.2 101.6 85.7 69.9

57 124.6 14.1 124.6 124.6 119.0 102.8 86.7 70.5 114.6 15.6 114.6 114.6 110.1 94.3 78.4 62.6

5000

77 169.7 14.7 88.1 68.8 51.0 - - - 157.3 16.1 89.6 65.1 47.7 - - -

72 155.0 14.5 114.2 96.4 78.6 60.8 - - 143.1 15.9 109.2 91.8 74.4 57.0 - -

67 140.2 14.3 140.2 123.9 106.1 88.3 70.5 - 128.9 15.7 128.9 118.6 101.1 83.7 66.3 -

62 129.1 14.1 129.1 129.1 131.7 113.9 96.1 78.3 119.7 15.5 119.7 119.7 119.7 108.4 91.0 73.6

57 127.4 14.2 127.4 127.4 127.7 109.9 92.1 74.3 117.0 15.6 117.0 117.0 117.0 100.6 83.2 65.7

5625

72 155.6 14.6 123.2 103.8 84.3 64.9 - - 143.2 16.0 118.9 99.7 80.4 61.2 - -

67 140.8 14.4 140.8 132.6 113.9 94.4 74.9 - 128.9 15.8 128.9 127.5 109.3 90.0 70.8 -

62 129.6 14.1 129.6 129.6 130.9 111.4 92.0 72.5 119.8 15.6 119.8 119.8 119.8 103.6 84.3 65.1

57 127.9 14.2 127.9 127.9 128.1 108.6 89.1 69.7 117.0 15.6 117.0 117.0 117.0 98.3 79.0 59.8

6250

72 156.2 14.6 132.3 111.2 90.1 69.0 - - 143.3 16.0 128.6 107.5 86.4 65.3 - -

67 141.4 14.4 141.4 141.4 121.6 100.5 79.4 - 129.0 15.8 129.0 129.0 117.4 96.3 75.2 -

62 130.1 14.2 130.1 130.1 130.1 109.0 87.9 66.8 119.9 15.6 119.9 119.9 119.9 98.8 77.7 56.5

57 128.4 14.2 128.4 128.4 128.4 107.3 86.2 65.1 117.1 15.7 117.1 117.1 117.1 96.0 74.9 53.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZH150 (12.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 51

ZJ037-150 Cooling Capacities

ZJ037 (3.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

750

77 49.2 2.1 19.7 16.4 13.1 - - - 45.1 2.3 18.0 14.8 11.6 - - -

72 43.8 2.0 24.5 21.2 17.9 14.6 - - 40.2 2.3 22.8 19.6 16.4 13.2 - -

67 38.4 2.0 29.4 26.1 22.8 19.5 16.2 - 35.2 2.2 27.5 24.3 21.1 17.9 14.7 -

62 33.2 2.0 33.2 33.2 27.2 23.9 20.6 17.3 30.4 2.2 30.4 30.4 25.3 22.0 18.8 15.6

900

77 51.6 2.0 22.2 18.3 14.5 - - - 47.4 2.3 20.6 16.8 13.0 - - -

72 45.9 2.0 27.6 23.7 19.8 15.9 - - 42.2 2.3 25.9 22.1 18.3 14.4 - -

67 40.3 2.0 33.0 29.1 25.2 21.3 17.4 - 37.0 2.2 31.1 27.3 23.5 19.7 15.9 -

62 34.8 2.0 34.8 34.8 30.1 26.2 22.3 18.4 31.9 2.2 31.9 31.9 28.2 24.4 20.6 16.8

57 29.4 2.0 29.4 29.4 31.7 27.8 23.9 20.0 28.9 2.2 28.9 28.9 28.9 25.1 21.3 17.5

1050

77 54.0 2.0 24.8 20.3 15.8 - - - 49.7 2.3 23.1 18.7 14.3 - - -

72 48.1 2.0 30.7 26.2 21.7 17.3 - - 44.2 2.3 28.9 24.5 20.1 15.7 - -

67 42.2 2.0 36.6 32.1 27.6 23.2 18.7 - 38.7 2.2 34.8 30.4 26.0 21.6 17.2 -

62 36.4 2.0 36.4 36.4 33.0 28.5 24.0 19.5 33.5 2.2 33.5 33.5 31.1 26.7 22.3 17.9

57 30.8 2.0 30.8 30.8 38.9 32.1 29.9 25.4 30.3 2.2 30.3 30.3 33.9 28.4 25.1 20.7

1200

77 56.4 2.0 27.4 22.3 17.2 - - - 52.0 2.3 25.6 20.6 15.6 - - -

72 50.2 2.0 33.8 28.7 23.7 18.6 - - 46.3 2.3 32.0 27.0 22.0 17.0 - -

67 44.1 2.0 40.2 35.2 30.1 25.0 19.9 - 40.5 2.2 38.4 33.4 28.4 23.4 18.4 -

62 38.1 2.0 38.1 38.1 35.9 30.8 25.7 20.6 35.0 2.2 35.0 35.0 34.0 29.0 24.0 19.0

57 32.2 2.0 32.2 32.2 46.0 36.4 35.8 30.7 31.7 2.2 31.7 31.7 38.9 31.7 28.9 23.9

1350

72 51.5 2.0 36.7 31.0 25.4 19.7 - - 47.2 2.3 34.8 29.2 23.6 18.1 - -

67 45.1 2.0 43.2 37.9 32.3 26.6 20.9 - 41.3 2.2 40.3 36.1 30.5 24.9 19.4 -

62 39.0 2.0 39.0 39.0 37.9 32.2 26.6 20.9 35.7 2.2 35.7 35.7 35.2 29.6 24.1 18.5

57 33.0 2.0 33.0 33.0 39.9 31.9 28.6 22.9 32.3 2.2 32.3 32.3 35.9 29.3 24.8 19.3

1500

72 52.7 2.0 39.6 33.3 27.1 20.9 - - 48.1 2.3 37.5 31.4 25.3 19.2 - -

67 46.2 2.0 46.2 40.7 34.4 28.2 22.0 - 42.2 2.2 42.2 38.7 32.6 26.5 20.4 -

62 39.9 2.0 39.9 39.9 39.9 33.7 27.4 21.2 36.4 2.2 36.4 36.4 36.4 30.3 24.2 18.1

57 33.8 2.0 33.8 33.8 33.8 27.5 21.3 15.0 32.9 2.2 32.9 32.9 32.9 26.8 20.7 14.6

95°F 105°F

750

77 41.1 2.6 16.4 13.3 10.2 - - - 36.8 2.8 13.8 11.6 8.6 - - -

72 36.5 2.5 21.0 17.9 14.8 11.7 - - 32.9 2.7 19.3 16.3 13.3 10.3 - -

67 31.9 2.4 25.6 22.5 19.4 16.3 13.2 - 28.9 2.7 24.9 21.0 18.0 15.0 12.0 -

62 27.6 2.4 27.6 27.6 23.3 20.2 17.1 14.0 24.9 2.6 24.9 24.9 21.8 18.8 15.8 12.8

900

77 43.3 2.6 18.9 15.2 11.5 - - - 38.6 2.8 16.9 13.3 9.7 - - -

72 38.5 2.5 24.1 20.4 16.7 13.0 - - 34.5 2.7 22.2 18.6 15.0 11.4 - -

67 33.6 2.4 29.3 25.6 21.9 18.1 14.4 - 30.3 2.7 27.6 24.0 20.4 16.8 13.2 -

62 29.0 2.4 29.0 29.0 26.2 22.5 18.8 15.1 26.1 2.6 26.1 26.1 24.6 21.0 17.4 13.8

57 28.3 2.4 28.3 28.3 26.0 22.3 18.6 14.9 25.5 2.6 25.5 25.5 23.6 20.0 16.4 12.8

1050

77 45.4 2.6 21.4 17.1 12.7 - - - 40.4 2.8 20.0 15.0 10.8 - - -

72 40.4 2.5 27.2 22.8 18.5 14.2 - - 36.1 2.8 25.1 20.9 16.8 12.6 - -

67 35.3 2.5 32.9 28.6 24.3 20.0 15.7 - 31.7 2.7 30.2 26.9 22.7 18.5 14.3 -

62 30.5 2.4 30.5 30.5 29.1 24.8 20.5 16.2 27.3 2.6 27.3 27.3 27.4 23.3 19.1 14.9

57 29.7 2.4 29.7 29.7 29.0 24.6 20.3 16.0 26.7 2.6 26.7 26.7 26.4 22.2 18.0 13.8

1200

77 47.6 2.6 23.9 19.0 14.0 - - - 42.2 2.9 23.1 16.7 11.9 - - -

72 42.3 2.5 30.2 25.3 20.4 15.5 - - 37.7 2.8 28.0 23.3 18.5 13.7 - -

67 37.0 2.5 36.6 31.7 26.8 21.8 16.9 - 33.1 2.7 32.9 29.8 25.0 20.3 15.5 -

62 32.0 2.4 32.0 32.0 32.1 27.2 22.2 17.3 28.5 2.6 28.5 28.5 30.3 25.5 20.7 15.9

57 31.2 2.4 31.2 31.2 31.9 27.0 22.0 17.1 27.9 2.7 27.9 27.9 29.1 24.3 19.5 14.7

1350

72 43.0 2.5 32.8 27.4 21.9 16.5 - - 38.2 2.8 30.5 25.2 19.9 14.6 - -

67 37.6 2.5 37.4 34.2 28.7 23.3 17.9 - 33.6 2.7 33.5 31.6 27.0 21.7 16.4 -

62 32.4 2.4 32.4 32.4 32.5 27.1 21.6 16.2 28.9 2.7 28.9 28.9 29.8 24.5 19.2 13.9

57 31.6 2.4 31.6 31.6 32.0 26.6 21.1 15.7 28.3 2.7 28.3 28.3 28.9 23.6 18.3 13.0

1500

72 43.6 2.5 35.4 29.4 23.4 17.5 - - 38.7 2.8 32.9 27.1 21.3 15.5 - -

67 38.1 2.5 38.1 36.7 30.7 24.8 18.8 - 34.0 2.7 34.0 33.3 28.9 23.0 17.2 -

62 32.9 2.4 32.9 32.9 32.9 27.0 21.0 15.1 29.3 2.7 29.3 29.3 29.3 23.5 17.6 11.8

57 32.1 2.4 32.1 32.1 32.1 26.2 20.2 14.2 28.7 2.7 28.7 28.7 28.7 22.9 17.0 11.2

528150-YTG-T-0514

52 Johnson Controls Unitary Products

115°F 125°F

750

77 32.6 3.1 11.2 9.9 7.0 - - - 28.3 3.3 9.2 7.9 5.4 - - -

72 29.2 3.0 17.7 14.8 11.8 8.9 - - 25.6 3.2 16.0 13.2 10.3 7.5 - -

67 25.9 2.9 24.2 19.6 16.6 13.7 10.8 - 22.9 3.1 22.9 18.1 15.3 12.4 9.6 -

62 22.2 2.8 22.2 22.2 20.3 17.4 14.4 11.5 19.5 3.0 19.5 19.5 19.5 16.0 13.1 10.3

900

77 34.0 3.1 14.9 11.4 7.9 - - - 29.4 3.4 13.4 9.6 6.2 - - -

72 30.5 3.0 20.4 16.9 13.4 9.9 - - 26.5 3.2 18.6 15.2 11.8 8.4 - -

67 27.0 2.9 25.9 22.4 18.9 15.4 11.9 - 23.7 3.1 23.7 20.8 17.4 14.0 10.6 -

62 23.1 2.8 23.1 23.1 23.0 19.5 16.0 12.5 20.2 3.0 20.2 20.2 20.2 18.0 14.7 11.3

57 22.8 2.8 22.8 22.8 21.2 17.8 14.3 10.8 20.0 3.1 20.0 20.0 18.8 15.5 12.1 8.7

1050

77 35.4 3.1 18.7 12.9 8.9 - - - 30.4 3.4 17.6 11.3 7.0 - - -

72 31.8 3.0 23.1 19.1 15.0 10.9 - - 27.5 3.3 21.1 17.2 13.2 9.3 - -

67 28.1 2.9 27.5 25.2 21.1 17.0 13.0 - 24.5 3.1 24.5 23.4 19.5 15.6 11.7 -

62 24.1 2.8 24.1 24.1 25.7 21.7 17.6 13.6 20.9 3.0 20.9 20.9 20.9 20.1 16.2 12.2

57 23.7 2.9 23.7 23.7 23.8 19.7 15.6 11.6 20.7 3.1 20.7 20.7 20.7 17.2 13.3 9.4

1200

77 36.8 3.1 22.4 14.5 9.8 - - - 31.4 3.4 21.9 12.9 7.7 - - -

72 33.0 3.0 25.8 21.2 16.6 12.0 - - 28.4 3.3 23.6 19.1 14.7 10.2 - -

67 29.2 2.9 29.2 28.0 23.3 18.7 14.1 - 25.4 3.1 25.4 25.4 21.6 17.2 12.7 -

62 25.0 2.8 25.0 25.0 28.5 23.8 19.2 14.6 21.6 3.0 21.6 21.6 21.6 21.6 17.7 13.2

57 24.7 2.9 24.7 24.7 26.3 21.6 17.0 12.4 21.4 3.1 21.4 21.4 21.4 19.0 14.5 10.0

1350

72 33.4 3.0 28.2 23.0 17.9 12.7 - - 28.6 3.3 25.9 20.9 15.9 10.9 - -

67 29.6 2.9 29.6 28.9 25.2 20.0 14.9 - 25.6 3.2 25.6 25.6 23.4 18.4 13.4 -

62 25.3 2.9 25.3 25.3 27.0 21.9 16.7 11.6 21.8 3.1 21.8 21.8 21.8 19.3 14.3 9.3

57 24.9 2.9 24.9 24.9 25.7 20.6 15.4 10.3 21.6 3.1 21.6 21.6 21.6 17.6 12.6 7.6

1500

72 33.8 3.1 30.5 24.8 19.2 13.5 - - 28.9 3.3 28.1 22.6 17.0 11.5 - -

67 29.9 3.0 29.9 29.9 27.0 21.3 15.6 - 25.8 3.2 25.8 25.8 25.1 19.6 14.0 -

62 25.6 2.9 25.6 25.6 25.6 19.9 14.3 8.6 22.0 3.1 22.0 22.0 22.0 16.4 10.9 5.4

57 25.2 2.9 25.2 25.2 25.2 19.6 13.9 8.2 21.8 3.2 21.8 21.8 21.8 16.2 10.7 5.2

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ037 (3.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 53

ZJ049 (4.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1000

77 79.0 3.0 29.4 25.1 20.7 - - - 65.9 3.2 26.7 22.4 18.1 - - -

72 68.7 2.9 35.7 31.3 27.0 22.6 - - 58.0 3.2 32.8 28.5 24.2 20.0 - -

67 58.4 2.8 42.0 37.6 33.3 28.9 24.5 - 50.1 3.1 38.9 34.6 30.3 26.1 21.8 -

62 54.5 2.9 54.5 51.1 39.9 35.5 31.2 26.8 45.3 3.1 45.3 43.6 36.8 32.6 28.3 24.0

1200

77 78.9 3.0 32.6 27.5 22.4 - - - 67.5 3.2 29.9 24.8 19.8 - - -

72 68.5 2.9 39.4 34.3 29.2 24.1 - - 59.5 3.2 36.6 31.5 26.5 21.4 - -

67 58.2 2.8 46.2 41.1 36.0 30.9 25.8 - 51.4 3.1 43.2 38.2 33.1 28.1 23.1 -

62 54.4 2.9 54.4 52.2 43.1 38.0 32.9 27.8 46.4 3.1 46.4 45.3 40.3 35.2 30.2 25.1

57 54.2 2.9 54.2 54.2 46.4 41.3 36.2 31.1 46.0 3.1 46.0 46.0 41.6 36.6 31.6 26.5

1400

77 78.8 2.9 35.8 29.9 24.1 - - - 69.2 3.2 33.1 27.3 21.5 - - -

72 68.4 2.9 43.0 37.2 31.4 25.5 - - 60.9 3.2 40.4 34.5 28.7 22.9 - -

67 58.0 2.8 50.3 44.5 38.7 32.8 27.0 - 52.6 3.1 47.6 41.8 36.0 30.2 24.3 -

62 54.4 2.8 54.4 53.2 46.3 40.5 34.7 28.8 47.5 3.1 47.5 47.0 43.7 37.9 32.1 26.2

57 54.2 2.8 54.2 54.2 50.0 44.1 38.3 32.4 47.1 3.1 47.1 47.1 45.2 39.4 33.6 27.8

1600

77 78.7 2.9 38.9 32.4 25.8 - - - 70.8 3.2 36.4 29.8 23.2 - - -

72 68.2 2.9 46.7 40.1 33.6 27.0 - - 62.3 3.2 44.2 37.6 31.0 24.4 - -

67 57.8 2.8 54.5 47.9 41.4 34.8 28.2 - 53.9 3.1 52.0 45.4 38.8 32.2 25.6 -

62 54.3 2.8 54.3 54.3 49.6 43.0 36.4 29.8 48.7 3.1 48.7 48.7 47.1 40.5 33.9 27.4

57 54.1 2.8 54.1 54.1 53.5 46.9 40.3 33.8 48.2 3.1 48.2 48.2 48.7 42.1 35.6 29.0

1800

72 62.0 3.2 44.6 37.0 29.5 22.0 - - 59.3 3.4 44.7 37.3 29.9 22.5 - -

67 52.4 3.1 50.8 43.8 36.2 28.7 21.2 - 51.3 3.3 50.3 44.9 37.5 30.0 22.6 -

62 49.5 3.2 49.5 49.5 47.0 39.5 32.0 24.5 46.3 3.3 46.3 46.3 45.5 38.1 30.7 23.3

57 49.3 3.2 49.3 49.3 49.0 41.5 34.0 26.5 45.9 3.3 45.9 45.9 46.1 38.7 31.3 23.9

2000

72 55.8 3.5 42.4 33.9 25.5 17.0 - - 56.3 3.5 45.3 37.1 28.9 20.6 - -

67 47.0 3.5 47.0 39.6 31.1 22.7 14.2 - 48.7 3.5 48.7 44.4 36.1 27.9 19.6 -

62 44.6 3.5 44.6 44.6 44.4 36.0 27.5 19.1 44.0 3.5 44.0 44.0 43.9 35.6 27.4 19.1

57 44.6 3.5 44.6 44.6 44.6 36.1 27.6 19.2 43.6 3.5 43.6 43.6 43.6 35.3 27.1 18.8

95°F 105°F

1000

77 52.8 3.4 23.9 19.7 15.5 - - - 49.1 3.8 19.3 16.9 13.0 - - -

72 47.4 3.4 29.8 25.6 21.5 17.3 - - 43.6 3.8 27.0 22.9 18.9 14.8 - -

67 41.9 3.4 35.7 31.6 27.4 23.2 19.0 - 38.1 3.7 34.7 28.9 24.7 20.7 16.6 -

62 36.1 3.3 36.1 36.1 33.7 29.6 25.4 21.2 33.9 3.6 33.9 33.9 29.9 25.8 21.8 17.7

1200

77 56.2 3.5 27.2 22.2 17.2 - - - 51.6 3.9 24.5 19.5 14.6 - - -

72 50.4 3.5 33.7 28.8 23.8 18.8 - - 45.8 3.8 31.1 26.1 21.2 16.2 - -

67 44.6 3.4 40.3 35.3 30.3 25.4 20.4 - 40.0 3.7 37.7 32.7 27.8 22.8 17.9 -

62 38.4 3.3 38.4 38.4 37.4 32.4 27.4 22.4 35.6 3.6 35.6 35.6 33.6 28.7 23.7 18.8

57 37.7 3.3 37.7 37.7 36.8 31.9 26.9 21.9 35.2 3.6 35.2 35.2 33.2 28.3 23.3 18.4

1400

77 59.6 3.5 30.5 24.7 18.9 - - - 54.0 3.9 29.6 22.1 16.1 - - -

72 53.4 3.5 37.7 31.9 26.1 20.3 - - 48.0 3.8 35.1 29.3 23.5 17.7 - -

67 47.3 3.5 44.9 39.1 33.3 27.5 21.7 - 42.0 3.8 40.7 36.5 30.8 25.0 19.2 -

62 40.7 3.4 40.7 40.7 41.0 35.2 29.4 23.7 37.3 3.7 37.3 37.3 37.3 31.5 25.6 19.8

57 40.0 3.4 40.0 40.0 40.4 34.6 28.8 23.1 36.8 3.7 36.8 36.8 36.9 31.0 25.2 19.4

1600

77 63.0 3.6 33.8 27.2 20.6 - - - 56.5 3.9 34.7 24.7 17.7 - - -

72 56.5 3.5 41.6 35.0 28.4 21.8 - - 50.2 3.9 39.2 32.5 25.8 19.1 - -

67 50.0 3.5 49.4 42.8 36.2 29.6 23.0 - 43.9 3.8 43.6 40.3 33.9 27.2 20.5 -

62 43.0 3.4 43.0 43.0 44.7 38.1 31.5 24.9 39.0 3.7 39.0 39.0 41.0 34.3 27.6 20.9

57 42.3 3.4 42.3 42.3 44.0 37.4 30.8 24.2 38.5 3.7 38.5 38.5 40.5 33.8 27.1 20.4

1800

72 56.7 3.5 44.9 37.6 30.3 23.0 - - 49.9 3.9 42.3 35.1 27.6 20.2 - -

67 50.1 3.5 49.9 46.0 38.7 31.4 24.0 - 43.7 3.8 43.5 41.6 36.3 28.9 21.5 -

62 43.2 3.4 43.2 43.2 44.0 36.7 29.4 22.1 38.7 3.7 38.7 38.7 39.7 32.3 24.9 17.5

57 42.4 3.4 42.4 42.4 43.3 36.0 28.7 21.3 38.3 3.7 38.3 38.3 39.3 31.9 24.4 17.0

2000

72 56.9 3.5 48.3 40.3 32.2 24.2 - - 49.7 3.9 45.4 37.6 29.5 21.3 - -

67 50.3 3.5 50.3 49.1 41.1 33.1 25.1 - 43.4 3.8 43.4 42.8 38.7 30.6 22.4 -

62 43.3 3.4 43.3 43.3 43.3 35.3 27.3 19.2 38.5 3.7 38.5 38.5 38.5 30.4 22.2 14.1

57 42.6 3.4 42.6 42.6 42.6 34.5 26.5 18.5 38.1 3.7 38.1 38.1 38.1 29.9 21.8 13.6

528150-YTG-T-0514

54 Johnson Controls Unitary Products

115°F 125°F

1000

77 45.4 4.2 14.8 14.2 10.4 - - - 41.7 4.6 12.4 9.6 7.9 - - -

72 39.8 4.1 24.2 20.2 16.3 12.3 - - 36.1 4.4 21.4 17.5 13.6 9.8 - -

67 34.3 4.0 33.7 26.3 22.1 18.1 14.1 - 30.5 4.3 30.5 23.8 19.4 15.5 11.6 -

62 31.6 3.9 31.6 31.6 26.1 22.1 18.1 14.2 29.4 4.2 29.4 29.4 22.3 18.4 14.5 10.6

1200

77 46.9 4.3 21.7 16.8 11.9 - - - 42.3 4.6 20.6 14.1 9.3 - - -

72 41.2 4.1 28.4 23.5 18.6 13.7 - - 36.6 4.5 25.7 20.9 16.0 11.1 - -

67 35.5 4.0 35.1 30.1 25.2 20.3 15.4 - 30.9 4.3 30.9 27.6 22.7 17.8 12.9 -

62 32.7 3.9 32.7 32.7 29.8 24.9 20.0 15.1 29.9 4.2 29.9 29.9 26.0 21.1 16.3 11.4

57 32.6 3.9 32.6 32.6 29.6 24.7 19.8 14.9 30.0 4.2 30.0 30.0 26.0 21.1 16.2 11.3

1400

77 48.5 4.3 28.7 19.5 13.4 - - - 43.0 4.7 28.8 18.7 10.7 - - -

72 42.6 4.2 32.6 26.7 20.9 15.0 - - 37.1 4.5 30.1 24.2 18.3 12.4 - -

67 36.7 4.1 36.4 34.0 28.4 22.5 16.7 - 31.3 4.3 31.3 31.3 25.9 20.0 14.1 -

62 33.8 4.0 33.8 33.8 33.5 27.7 21.8 16.0 30.3 4.3 30.3 30.3 29.8 23.9 18.0 12.1

57 33.7 4.0 33.7 33.7 33.3 27.4 21.6 15.7 30.5 4.3 30.5 30.5 29.7 23.9 18.0 12.1

1600

77 50.1 4.3 35.7 22.1 14.9 - - - 43.6 4.7 37.0 23.2 12.0 - - -

72 43.9 4.2 36.8 30.0 23.2 16.4 - - 37.7 4.5 34.4 27.5 20.6 13.7 - -

67 37.8 4.1 37.8 37.8 31.5 24.7 17.9 - 31.8 4.4 31.8 31.8 29.2 22.3 15.4 -

62 34.9 4.0 34.9 34.9 37.3 30.5 23.7 16.9 30.8 4.3 30.8 30.8 30.8 26.7 19.8 12.9

57 34.8 4.0 34.8 34.8 37.0 30.2 23.4 16.6 31.0 4.3 31.0 31.0 31.0 26.6 19.7 12.8

1800

72 43.2 4.2 39.6 32.5 25.0 17.4 - - 36.5 4.6 36.5 29.9 22.3 14.7 - -

67 37.2 4.1 37.2 37.2 33.9 26.4 18.9 - 30.7 4.4 30.7 30.7 30.7 23.9 16.3 -

62 34.3 4.0 34.3 34.3 35.5 27.9 20.4 12.9 29.9 4.3 29.9 29.9 29.9 23.6 15.9 8.3

57 34.2 4.0 34.2 34.2 35.3 27.8 20.2 12.7 30.1 4.3 30.1 30.1 30.1 23.7 16.0 8.4

2000

72 42.4 4.3 42.4 35.0 26.7 18.5 - - 35.2 4.6 35.2 32.4 24.0 15.6 - -

67 36.5 4.1 36.5 36.5 36.3 28.1 19.8 - 29.7 4.4 29.7 29.7 29.7 25.5 17.1 -

62 33.7 4.0 33.7 33.7 33.7 25.4 17.2 8.9 28.9 4.4 28.9 28.9 28.9 20.5 12.1 3.7

57 33.6 4.0 33.6 33.6 33.6 25.3 17.0 8.8 29.1 4.4 29.1 29.1 29.1 20.7 12.3 3.9

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ049 (4.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 55

ZJ061 (5.0 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1250

77 79.8 3.1 35.0 28.5 22.5 - - - 74.2 3.6 32.0 26.2 20.4 - - -

72 72.2 3.1 42.9 36.9 30.9 24.9 - - 67.2 3.6 40.3 34.4 28.6 22.8 - -

67 64.6 3.2 50.8 45.3 39.3 33.2 27.2 - 60.1 3.6 48.5 42.7 36.9 31.1 25.3 -

62 57.1 3.1 57.1 57.1 47.4 41.4 35.4 29.4 53.6 3.5 53.6 53.6 44.7 38.9 33.0 27.2

1500

77 83.4 3.1 38.6 31.7 24.8 - - - 77.3 3.6 36.0 29.3 22.5 - - -

72 75.5 3.2 47.8 40.9 34.0 27.1 - - 70.0 3.6 45.1 38.4 31.6 24.9 - -

67 67.5 3.2 57.1 50.1 43.2 36.3 29.3 - 62.7 3.6 54.3 47.5 40.8 34.0 27.3 -

62 59.7 3.1 59.7 59.7 52.2 45.2 38.3 31.4 55.9 3.5 55.9 55.9 49.4 42.6 35.9 29.1

57 59.9 3.2 59.9 59.9 55.9 49.0 42.0 35.1 54.8 3.6 54.8 54.8 50.3 43.6 36.9 30.1

1750

77 87.0 3.2 42.3 34.9 27.0 - - - 80.4 3.7 40.0 32.3 24.7 - - -

72 78.8 3.2 52.8 44.9 37.1 29.2 - - 72.8 3.7 50.0 42.3 34.7 27.0 - -

67 70.5 3.2 63.3 55.0 47.1 39.3 31.4 - 65.2 3.6 60.0 52.3 44.7 37.0 29.3 -

62 62.3 3.1 62.3 62.3 56.9 49.1 41.2 33.4 58.1 3.6 58.1 58.1 54.1 46.4 38.7 31.0

57 62.4 3.2 62.4 62.4 61.0 53.2 45.3 37.5 57.0 3.6 57.0 57.0 55.1 47.5 39.8 32.1

2000

77 90.6 3.2 45.9 38.0 29.3 - - - 83.5 3.7 44.0 35.4 26.8 - - -

72 82.0 3.2 57.7 48.9 40.2 31.4 - - 75.6 3.7 54.9 46.3 37.7 29.1 - -

67 73.4 3.2 69.5 59.8 51.1 42.3 33.6 - 67.7 3.7 65.7 57.1 48.5 39.9 31.3 -

62 64.9 3.2 64.9 64.9 61.7 52.9 44.2 35.4 60.4 3.6 60.4 60.4 58.8 50.2 41.5 32.9

57 65.0 3.2 65.0 65.0 66.1 57.4 48.6 39.9 59.2 3.6 59.2 59.2 59.9 51.3 42.7 34.1

2250

72 84.2 3.2 62.2 52.6 43.0 33.4 - - 77.4 3.7 59.3 49.9 40.4 30.9 - -

67 75.4 3.2 73.4 64.3 54.7 45.1 35.5 - 69.3 3.7 68.3 61.5 52.0 42.6 33.1 -

62 66.6 3.2 66.6 66.6 65.0 55.4 45.8 36.2 61.8 3.6 61.8 61.8 61.0 51.5 42.1 32.6

57 66.8 3.2 66.8 66.8 67.3 57.7 48.1 38.5 60.7 3.6 60.7 60.7 61.0 51.5 42.1 32.6

2500

72 86.4 3.2 66.8 56.3 45.9 35.5 - - 79.2 3.7 63.7 53.4 43.1 32.8 - -

67 77.3 3.2 77.3 68.8 58.3 47.9 37.5 - 70.9 3.7 70.9 65.9 55.6 45.2 34.9 -

62 68.4 3.2 68.4 68.4 68.4 57.9 47.5 37.1 63.2 3.6 63.2 63.2 63.2 52.9 42.6 32.3

57 68.5 3.2 68.5 68.5 68.5 58.1 47.6 37.2 62.1 3.6 62.1 62.1 62.1 51.8 41.5 31.1

95°F 105°F

1250

77 68.5 4.1 29.0 23.9 18.2 - - - 63.5 4.5 25.6 22.1 16.6 - - -

72 62.1 4.1 37.6 32.0 26.4 20.8 - - 57.3 4.4 35.7 30.1 24.6 19.1 - -

67 55.7 4.0 46.2 40.1 34.5 28.9 23.3 - 51.0 4.4 45.7 38.1 32.6 27.1 21.5 -

62 50.1 4.0 50.1 50.1 41.9 36.3 30.7 25.1 46.7 4.3 46.7 46.7 38.4 32.8 27.3 21.8

1500

77 71.1 4.1 33.4 26.8 20.3 - - - 65.8 4.5 31.5 25.0 18.5 - - -

72 64.5 4.1 42.4 35.9 29.3 22.7 - - 59.3 4.5 40.4 33.9 27.4 20.9 - -

67 57.8 4.1 51.5 44.9 38.3 31.8 25.2 - 52.8 4.4 49.3 42.8 36.3 29.8 23.3 -

62 52.0 4.0 52.0 52.0 46.6 40.0 33.4 26.9 48.4 4.3 48.4 48.4 42.7 36.2 29.7 23.2

57 49.8 4.0 49.8 49.8 44.8 38.2 31.7 25.1 46.4 4.3 46.4 46.4 41.7 35.2 28.7 22.2

1750

77 73.7 4.2 37.8 29.8 22.3 - - - 68.1 4.6 37.3 27.8 20.4 - - -

72 66.8 4.1 47.3 39.7 32.2 24.7 - - 61.4 4.5 45.1 37.7 30.2 22.7 - -

67 59.9 4.1 56.7 49.7 42.2 34.7 27.2 - 54.7 4.5 52.9 47.5 40.0 32.5 25.1 -

62 53.9 4.0 53.9 53.9 51.2 43.7 36.2 28.7 50.1 4.4 50.1 50.1 47.1 39.6 32.1 24.7

57 51.6 4.0 51.6 51.6 49.3 41.8 34.2 26.7 48.1 4.4 48.1 48.1 45.9 38.5 31.0 23.5

2000

77 76.3 4.2 42.2 32.8 24.3 - - - 70.4 4.6 43.1 30.7 22.3 - - -

72 69.2 4.1 52.1 43.6 35.2 26.7 - - 63.5 4.5 49.8 41.4 33.0 24.6 - -

67 62.0 4.1 62.0 54.5 46.0 37.5 29.1 - 56.5 4.5 56.5 52.1 43.7 35.3 26.9 -

62 55.8 4.0 55.8 55.8 55.9 47.4 38.9 30.5 51.8 4.4 51.8 51.8 51.4 43.0 34.6 26.2

57 53.4 4.0 53.4 53.4 53.7 45.3 36.8 28.4 49.7 4.4 49.7 49.7 50.2 41.7 33.3 24.9

2250

72 70.6 4.2 56.4 47.1 37.7 28.4 - - 64.6 4.6 54.1 44.8 35.5 26.2 - -

67 63.3 4.1 63.3 58.7 49.4 40.1 30.7 - 57.6 4.5 57.6 55.0 47.0 37.8 28.5 -

62 57.0 4.0 57.0 57.0 57.0 47.7 38.3 29.0 52.8 4.4 52.8 52.8 52.6 43.3 34.0 24.7

57 54.5 4.0 54.5 54.5 54.7 45.4 36.0 26.7 50.6 4.4 50.6 50.6 50.8 41.6 32.3 23.0

2500

72 72.0 4.2 60.7 50.5 40.3 30.1 - - 65.8 4.6 58.3 48.2 38.0 27.9 - -

67 64.6 4.1 64.6 63.0 52.8 42.6 32.4 - 58.6 4.5 58.6 57.8 50.4 40.2 30.1 -

62 58.1 4.0 58.1 58.1 58.1 48.0 37.8 27.6 53.7 4.4 53.7 53.7 53.7 43.6 33.4 23.3

57 55.7 4.0 55.7 55.7 55.7 45.5 35.3 25.1 51.5 4.4 51.5 51.5 51.5 41.4 31.2 21.1

528150-YTG-T-0514

56 Johnson Controls Unitary Products

115°F 125°F

1250

77 58.5 4.9 22.3 20.4 14.9 - - - 53.4 5.3 21.9 17.7 13.3 - - -

72 52.4 4.8 33.7 28.3 22.8 17.4 - - 47.6 5.2 31.8 26.4 21.0 15.6 - -

67 46.3 4.7 45.1 36.1 30.7 25.2 19.8 - 41.7 5.1 41.7 34.1 28.7 23.4 18.0 -

62 43.3 4.7 43.3 43.3 34.8 29.3 23.9 18.4 40.0 5.0 40.0 40.0 31.2 25.8 20.5 15.1

1500

77 60.5 4.9 29.6 23.1 16.7 - - - 55.1 5.3 29.6 21.3 14.9 - - -

72 54.2 4.9 38.3 31.9 25.5 19.0 - - 49.1 5.3 36.3 29.9 23.6 17.2 - -

67 47.9 4.8 47.1 40.7 34.3 27.8 21.4 - 43.0 5.2 43.0 38.6 32.2 25.8 19.5 -

62 44.8 4.7 44.8 44.8 38.9 32.4 26.0 19.6 41.2 5.1 41.2 41.2 35.0 28.6 22.3 15.9

57 43.1 4.7 43.1 43.1 38.5 32.1 25.7 19.2 39.7 5.1 39.7 39.7 35.4 29.0 22.6 16.3

1750

77 62.5 5.0 36.8 25.9 18.4 - - - 56.8 5.4 37.4 24.8 16.5 - - -

72 56.0 4.9 43.0 35.6 28.1 20.7 - - 50.6 5.3 40.8 33.5 26.1 18.7 - -

67 49.5 4.8 49.1 45.3 37.8 30.4 23.0 - 44.3 5.2 44.3 43.0 35.7 28.3 20.9 -

62 46.3 4.7 46.3 46.3 42.9 35.5 28.1 20.7 42.5 5.1 42.5 42.5 38.8 31.4 24.1 16.7

57 44.5 4.7 44.5 44.5 42.6 35.1 27.7 20.3 40.9 5.1 40.9 40.9 39.2 31.8 24.5 17.1

2000

77 64.5 5.0 44.1 28.6 20.2 - - - 58.5 5.5 45.1 28.4 18.1 - - -

72 57.8 5.0 47.6 39.2 30.8 22.4 - - 52.1 5.4 45.4 37.0 28.6 20.3 - -

67 51.1 4.9 51.1 49.8 41.4 33.0 24.6 - 45.6 5.3 45.6 45.6 39.2 30.8 22.4 -

62 47.8 4.8 47.8 47.8 47.0 38.6 30.2 21.8 43.8 5.2 43.8 43.8 42.6 34.2 25.9 17.5

57 45.9 4.8 45.9 45.9 46.6 38.2 29.8 21.4 42.2 5.2 42.2 42.2 42.2 34.7 26.3 17.9

2250

72 58.7 5.0 51.8 42.5 33.3 24.0 - - 52.7 5.4 49.5 40.2 31.0 21.8 - -

67 51.9 4.9 51.9 51.3 44.7 35.5 26.2 - 46.2 5.3 46.2 46.2 42.4 33.1 23.9 -

62 48.6 4.8 48.6 48.6 48.2 38.9 29.6 20.4 44.3 5.2 44.3 44.3 43.7 34.5 25.3 16.1

57 46.7 4.8 46.7 46.7 47.0 37.7 28.5 19.2 42.7 5.2 42.7 42.7 42.7 33.9 24.7 15.5

2500

72 59.6 5.0 55.9 45.8 35.7 25.6 - - 53.4 5.4 53.4 43.4 33.4 23.3 - -

67 52.7 4.9 52.7 52.7 48.0 37.9 27.7 - 46.8 5.3 46.8 46.8 45.6 35.5 25.4 -

62 49.3 4.8 49.3 49.3 49.3 39.2 29.1 19.0 44.9 5.2 44.9 44.9 44.9 34.8 24.7 14.6

57 47.4 4.8 47.4 47.4 47.4 37.3 27.1 17.0 43.3 5.2 43.3 43.3 43.3 33.2 23.1 13.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ061 (5.0 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 57

ZJ078 (6.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1625

77 106.7 4.6 46.4 38.6 31.0 - - - 98.2 5.1 42.4 35.0 27.6 - - -

72 97.0 4.5 57.0 49.4 41.7 34.1 - - 89.3 5.0 53.2 45.8 38.4 31.0 - -

67 87.2 4.5 67.6 60.1 52.4 44.8 37.2 - 80.3 5.0 63.9 56.5 49.1 41.7 34.3 -

62 78.3 4.6 78.3 71.0 62.1 54.4 46.8 39.1 72.1 5.0 72.1 67.6 57.7 50.3 42.9 35.5

1950

77 109.7 4.6 50.9 42.2 33.4 - - - 101.0 5.1 47.1 38.5 30.0 - - -

72 99.7 4.6 62.4 53.7 45.0 36.2 - - 91.8 5.1 58.7 50.2 41.7 33.2 - -

67 89.6 4.5 73.9 65.2 56.5 47.8 39.1 - 82.6 5.0 70.4 61.9 53.3 44.8 36.3 -

62 80.4 4.6 80.4 75.6 66.9 58.1 49.4 40.7 74.1 5.0 74.1 71.1 62.6 54.1 45.6 37.1

57 83.1 4.6 83.1 83.1 72.0 63.2 54.5 45.8 74.2 5.0 74.2 74.2 66.9 58.4 49.9 41.4

2275

77 112.6 4.6 55.3 45.7 35.9 - - - 103.8 5.1 51.7 42.0 32.4 - - -

72 102.3 4.6 67.8 58.0 48.2 38.4 - - 94.4 5.1 64.2 54.6 45.0 35.4 - -

67 92.1 4.5 80.3 70.4 60.6 50.8 41.0 - 84.9 5.0 76.8 67.2 57.6 47.9 38.3 -

62 82.6 4.6 82.6 80.2 71.7 61.9 52.1 42.3 76.2 5.0 76.2 74.7 67.6 58.0 48.3 38.7

57 85.3 4.6 85.3 85.3 77.1 67.3 57.5 47.7 76.3 5.0 76.3 76.3 72.2 62.6 53.0 43.4

2600

77 115.6 4.6 59.8 49.2 38.3 - - - 106.6 5.2 56.3 45.5 34.8 - - -

72 105.0 4.6 73.2 62.3 51.4 40.6 - - 96.9 5.1 69.8 59.0 48.3 37.6 - -

67 94.5 4.5 86.6 75.5 64.6 53.7 42.9 - 87.2 5.1 83.3 72.5 61.8 51.1 40.3 -

62 84.8 4.6 84.8 84.8 76.5 65.6 54.7 43.8 78.2 5.1 78.2 78.2 72.6 61.8 51.1 40.3

57 87.6 4.6 87.6 87.6 82.3 71.4 60.6 49.7 78.4 5.0 78.4 78.4 77.6 66.8 56.1 45.3

2925

72 107.5 4.6 78.5 66.6 54.8 43.0 - - 99.1 5.1 74.7 63.0 51.4 39.7 - -

67 96.7 4.6 92.7 80.7 68.8 57.0 45.2 - 89.2 5.1 87.2 77.4 65.7 54.1 42.5 -

62 86.7 4.6 86.7 86.7 82.6 70.8 58.9 47.1 80.0 5.1 80.0 80.0 77.2 65.5 53.9 42.2

57 89.6 4.6 89.6 89.6 87.0 75.2 63.3 51.5 80.1 5.1 80.1 80.1 79.7 68.1 56.4 44.8

3250

72 109.9 4.6 83.7 70.9 58.2 45.4 - - 101.3 5.1 79.5 67.0 54.5 41.9 - -

67 98.8 4.6 98.8 85.8 73.1 60.3 47.5 - 91.2 5.1 91.2 82.2 69.7 57.2 44.6 -

62 88.7 4.6 88.7 88.7 88.7 75.9 63.2 50.4 81.8 5.1 81.8 81.8 81.8 69.2 56.7 44.1

57 91.6 4.6 91.6 91.6 91.6 78.9 66.1 53.3 81.9 5.1 81.9 81.9 81.9 69.3 56.8 44.3

95°F 105°F

1625

77 89.6 5.6 38.5 31.4 24.3 - - - 80.9 6.2 33.0 28.4 21.5 - - -

72 81.5 5.5 49.3 42.2 35.0 27.9 - - 73.1 6.1 45.5 38.6 31.8 25.0 - -

67 73.4 5.5 60.2 52.9 45.8 38.6 31.5 - 65.3 6.0 57.9 48.9 42.1 35.2 28.4 -

62 65.8 5.4 65.8 64.2 53.3 46.1 39.0 31.8 58.3 5.9 58.3 57.5 47.9 41.1 34.2 27.4

1950

77 92.3 5.6 43.2 34.9 26.6 - - - 83.8 6.2 40.0 31.9 23.9 - - -

72 84.0 5.6 55.0 46.7 38.4 30.1 - - 75.7 6.1 51.4 43.3 35.3 27.2 - -

67 75.6 5.5 66.8 58.5 50.2 41.9 33.6 - 67.7 6.0 62.8 54.7 46.7 38.6 30.5 -

62 67.8 5.5 67.8 66.7 58.4 50.1 41.8 33.5 60.4 5.9 60.4 59.9 53.1 45.0 37.0 28.9

57 65.4 5.4 65.4 65.4 61.9 53.6 45.3 37.0 61.0 5.9 61.0 61.0 55.7 47.7 39.6 31.6

2275

77 95.0 5.7 48.0 38.4 29.0 - - - 86.7 6.3 46.9 35.5 26.2 - - -

72 86.4 5.6 60.7 51.2 41.8 32.3 - - 78.4 6.1 57.2 48.0 38.7 29.4 - -

67 77.8 5.5 73.4 64.0 54.6 45.1 35.7 - 70.1 6.0 67.6 60.5 51.2 42.0 32.7 -

62 69.8 5.5 69.8 69.2 63.5 54.1 44.6 35.2 62.5 5.9 62.5 62.2 58.3 49.0 39.7 30.5

57 67.2 5.5 67.2 67.2 67.3 57.9 48.4 39.0 63.2 6.0 63.2 63.2 61.2 51.9 42.6 33.4

2600

77 97.6 5.7 52.7 41.9 31.3 - - - 89.7 6.3 53.8 39.0 28.5 - - -

72 88.8 5.6 66.4 55.8 45.1 34.5 - - 81.0 6.2 63.1 52.6 42.2 31.7 - -

67 80.0 5.6 80.0 69.6 59.0 48.4 37.8 - 72.4 6.1 72.4 66.3 55.8 45.3 34.8 -

62 71.7 5.5 71.7 71.7 68.7 58.1 47.5 36.8 64.6 6.0 64.6 64.6 63.5 53.0 42.5 32.0

57 69.1 5.5 69.1 69.1 72.8 62.2 51.6 40.9 65.3 6.0 65.3 65.3 66.6 56.1 45.7 35.2

2925

72 90.7 5.7 70.9 59.4 47.9 36.5 - - 82.6 6.2 67.2 55.9 44.7 33.4 - -

67 81.7 5.6 81.7 74.1 62.7 51.2 39.7 - 73.8 6.1 73.8 69.5 59.1 47.8 36.6 -

62 73.3 5.5 73.3 73.3 71.7 60.3 48.8 37.4 65.9 6.0 65.9 65.9 65.3 54.0 42.7 31.5

57 70.6 5.5 70.6 70.6 72.5 61.0 49.5 38.1 66.6 6.0 66.6 66.6 67.2 55.9 44.7 33.4

3250

72 92.7 5.7 75.4 63.1 50.7 38.4 - - 84.2 6.2 71.3 59.2 47.2 35.1 - -

67 83.5 5.6 83.5 78.6 66.3 54.0 41.7 - 75.2 6.1 75.2 72.8 62.4 50.4 38.3 -

62 74.8 5.5 74.8 74.8 74.8 62.5 50.2 37.9 67.1 6.0 67.1 67.1 67.1 55.1 43.0 30.9

57 72.1 5.5 72.1 72.1 72.1 59.8 47.5 35.2 67.8 6.0 67.8 67.8 67.8 55.7 43.7 31.6

528150-YTG-T-0514

58 Johnson Controls Unitary Products

115°F 125°F

1625

77 72.1 6.8 27.6 25.3 18.8 - - - 63.3 7.3 26.5 21.1 16.1 - - -

72 64.6 6.6 41.6 35.1 28.6 22.1 - - 56.2 7.1 37.8 31.6 25.4 19.2 - -

67 57.2 6.4 55.6 44.9 38.4 31.9 25.4 - 49.1 6.9 49.1 40.9 34.7 28.5 22.3 -

62 50.7 6.3 50.7 50.7 42.5 36.0 29.5 23.0 43.2 6.8 43.2 43.2 37.2 31.0 24.8 18.6

1950

77 75.3 6.8 36.7 28.9 21.1 - - - 66.8 7.4 36.3 25.9 18.4 - - -

72 67.5 6.6 47.7 39.9 32.1 24.3 - - 59.3 7.2 44.1 36.5 29.0 21.4 - -

67 59.8 6.5 58.7 50.9 43.1 35.3 27.5 - 51.8 7.0 51.8 47.1 39.6 32.1 24.5 -

62 53.0 6.4 53.0 53.0 47.8 40.0 32.2 24.4 45.6 6.8 45.6 45.6 42.5 34.9 27.4 19.8

57 56.6 6.4 56.6 56.6 49.6 41.8 34.0 26.2 52.3 6.9 52.3 52.3 43.4 35.9 28.4 20.8

2275

77 78.5 6.8 45.8 32.5 23.4 - - - 70.2 7.4 46.1 30.7 20.7 - - -

72 70.4 6.7 53.8 44.7 35.6 26.6 - - 62.4 7.2 50.3 41.5 32.6 23.7 - -

67 62.3 6.5 61.8 56.9 47.8 38.8 29.7 - 54.6 7.0 54.6 53.4 44.5 35.6 26.7 -

62 55.3 6.4 55.3 55.3 53.0 43.9 34.9 25.8 48.0 6.8 48.0 48.0 47.8 38.9 30.0 21.1

57 59.1 6.4 59.1 59.1 55.0 46.0 36.9 27.8 55.0 6.9 55.0 55.0 48.9 40.0 31.1 22.2

2600

77 81.7 6.9 54.9 36.1 25.7 - - - 73.7 7.5 56.0 35.5 23.0 - - -

72 73.3 6.7 59.9 49.5 39.2 28.8 - - 65.5 7.2 56.6 46.4 36.2 25.9 - -

67 64.9 6.6 64.9 62.9 52.6 42.2 31.9 - 57.3 7.0 57.3 57.3 49.4 39.1 28.9 -

62 57.5 6.4 57.5 57.5 58.3 47.9 37.5 27.2 50.4 6.9 50.4 50.4 50.4 42.8 32.6 22.3

57 61.5 6.5 61.5 61.5 60.5 50.1 39.7 29.4 57.6 7.0 57.6 57.6 54.3 44.1 33.8 23.6

2925

72 74.5 6.7 63.6 52.5 41.4 30.3 - - 66.4 7.3 59.9 49.0 38.1 27.2 - -

67 65.9 6.6 65.9 65.0 55.6 44.5 33.4 - 58.0 7.1 58.0 58.0 52.0 41.1 30.2 -

62 58.5 6.5 58.5 58.5 58.8 47.7 36.6 25.5 51.1 6.9 51.1 51.1 51.1 41.5 30.6 19.6

57 62.5 6.5 62.5 62.5 62.0 50.9 39.8 28.7 58.4 7.0 58.4 58.4 56.8 45.8 34.9 24.0

3250

72 75.7 6.8 67.3 55.4 43.6 31.8 - - 67.2 7.3 63.2 51.6 40.0 28.4 - -

67 67.0 6.6 67.0 67.0 58.5 46.7 34.9 - 58.8 7.1 58.8 58.8 54.7 43.1 31.5 -

62 59.4 6.5 59.4 59.4 59.4 47.6 35.8 23.9 51.7 7.0 51.7 51.7 51.7 40.1 28.5 16.9

57 63.5 6.5 63.5 63.5 63.5 51.7 39.8 28.0 59.2 7.1 59.2 59.2 59.2 47.6 36.0 24.4

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ078 (6.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 59

ZJ090 (7.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1875

77 125.0 5.7 53.1 44.4 35.6 - - - 116.4 6.3 49.2 40.5 31.7 - - -

72 113.1 5.6 65.8 57.1 48.3 39.5 - - 105.3 6.2 62.2 53.5 44.7 36.0 - -

67 101.1 5.6 78.5 69.8 61.0 52.2 43.5 - 94.3 6.1 75.2 66.5 57.7 49.0 40.3 -

62 88.8 5.5 88.8 88.8 73.3 64.6 55.8 47.0 83.0 6.1 83.0 83.0 70.3 61.5 52.8 44.0

2250

77 131.0 5.7 59.5 49.2 39.0 - - - 121.4 6.4 55.1 45.0 34.8 - - -

72 118.5 5.7 73.4 63.2 52.9 42.7 - - 109.8 6.3 69.4 59.2 49.0 38.8 - -

67 106.0 5.6 87.3 77.1 66.8 56.6 46.4 - 98.3 6.2 83.6 73.4 63.3 53.1 42.9 -

62 93.1 5.6 93.1 93.1 80.4 70.2 59.9 49.7 86.5 6.1 86.5 86.5 77.0 66.8 56.6 46.4

57 93.6 5.5 93.6 93.6 87.2 77.0 66.8 56.5 87.3 6.1 87.3 87.3 79.8 69.6 59.4 49.2

2625

77 137.0 5.7 65.8 54.1 42.4 - - - 126.3 6.4 61.1 49.4 37.8 - - -

72 123.9 5.7 80.9 69.3 57.6 45.9 - - 114.3 6.3 76.5 64.9 53.3 41.7 - -

67 110.8 5.6 96.1 84.4 72.7 61.0 49.3 - 102.3 6.2 92.0 80.4 68.8 57.1 45.5 -

62 97.3 5.6 97.3 97.3 87.5 75.8 64.1 52.4 90.0 6.1 90.0 90.0 83.7 72.0 60.4 48.8

57 97.8 5.6 97.8 97.8 94.9 83.2 71.5 59.8 90.9 6.1 90.9 90.9 86.8 75.1 63.5 51.9

3000

77 142.9 5.8 72.1 59.0 45.8 - - - 131.3 6.5 67.0 53.9 40.8 - - -

72 129.3 5.7 88.5 75.4 62.2 49.1 - - 118.8 6.4 83.7 70.6 57.6 44.5 - -

67 115.7 5.7 104.9 91.7 78.6 65.4 52.3 - 106.3 6.3 100.4 87.4 74.3 61.2 48.1 -

62 101.6 5.6 101.6 101.6 94.5 81.3 68.2 55.0 93.6 6.2 93.6 93.6 90.4 77.3 64.2 51.2

57 102.1 5.6 102.1 102.1 102.5 89.4 76.2 63.1 94.5 6.2 94.5 94.5 93.7 80.6 67.6 54.5

3375

72 132.4 5.7 95.5 80.9 66.2 51.6 - - 121.6 6.4 90.7 76.2 61.6 47.0 - -

67 118.4 5.7 113.0 98.3 83.7 69.0 54.4 - 108.8 6.3 105.8 94.1 79.5 65.0 50.4 -

62 104.0 5.6 104.0 104.0 100.5 85.8 71.2 56.6 95.7 6.2 95.7 95.7 94.1 79.6 65.0 50.5

57 104.6 5.6 104.6 104.6 104.8 90.1 75.5 60.9 96.7 6.2 96.7 96.7 96.3 81.7 67.2 52.6

3750

72 135.5 5.7 102.5 86.4 70.3 54.2 - - 124.3 6.4 97.7 81.7 65.7 49.6 - -

67 121.2 5.7 121.2 104.8 88.7 72.7 56.6 - 111.2 6.3 111.2 100.8 84.7 68.7 52.7 -

62 106.4 5.6 106.4 106.4 106.4 90.3 74.2 58.2 97.9 6.2 97.9 97.9 97.9 81.9 65.8 49.8

57 107.0 5.6 107.0 107.0 107.0 90.9 74.8 58.7 98.8 6.2 98.8 98.8 98.8 82.8 66.8 50.7

95°F 105°F

1875

77 107.8 7.0 45.3 36.6 27.9 - - - 99.1 7.6 39.5 33.4 24.8 - - -

72 97.6 6.9 58.6 49.9 41.2 32.5 - - 89.4 7.5 55.1 46.5 37.9 29.3 - -

67 87.4 6.7 71.9 63.2 54.5 45.8 37.1 - 79.6 7.3 70.7 59.6 51.0 42.4 33.8 -

62 77.1 6.6 77.1 77.1 67.2 58.4 49.7 41.0 70.5 7.1 70.5 70.5 63.1 54.5 45.9 37.3

2250

77 111.8 7.1 50.8 40.7 30.5 - - - 102.3 7.7 47.3 37.3 27.3 - - -

72 101.2 6.9 65.4 55.2 45.1 35.0 - - 92.2 7.5 61.7 51.7 41.7 31.6 - -

67 90.6 6.8 79.9 69.8 59.7 49.5 39.4 - 82.2 7.3 76.1 66.0 56.0 46.0 36.0 -

62 79.9 6.7 79.9 79.9 73.5 63.4 53.2 43.1 72.7 7.2 72.7 72.7 69.3 59.3 49.3 39.3

57 81.1 6.6 81.1 81.1 72.4 62.2 52.1 42.0 75.0 7.2 75.0 75.0 66.9 56.9 46.9 36.9

2625

77 115.7 7.1 56.3 44.7 33.2 - - - 105.4 7.8 55.1 41.1 29.7 - - -

72 104.8 7.0 72.1 60.6 49.0 37.4 - - 95.1 7.6 68.3 56.8 45.4 34.0 - -

67 93.8 6.8 88.0 76.4 64.8 53.3 41.7 - 84.7 7.4 81.4 72.5 61.1 49.6 38.2 -

62 82.8 6.7 82.8 82.8 79.9 68.3 56.8 45.2 75.0 7.2 75.0 75.0 75.5 64.1 52.7 41.2

57 84.0 6.7 84.0 84.0 78.6 67.1 55.5 43.9 77.3 7.2 77.3 77.3 72.9 61.5 50.1 38.6

3000

77 119.7 7.2 61.8 48.8 35.8 - - - 108.6 7.8 62.9 45.0 32.2 - - -

72 108.3 7.0 78.9 65.9 52.9 39.9 - - 97.9 7.6 74.8 62.0 49.1 36.3 - -

67 97.0 6.9 96.0 83.0 70.0 57.0 44.0 - 87.3 7.4 86.7 79.0 66.1 53.3 40.4 -

62 85.6 6.8 85.6 85.6 86.3 73.3 60.3 47.3 77.2 7.3 77.2 77.2 81.8 68.9 56.0 43.2

57 86.8 6.7 86.8 86.8 84.9 71.9 58.9 45.9 79.6 7.3 79.6 79.6 78.9 66.1 53.2 40.4

3375

72 110.7 7.0 86.0 71.5 57.0 42.5 - - 99.7 7.7 81.7 67.4 53.0 38.6 - -

67 99.2 6.9 98.6 89.9 75.4 60.9 46.4 - 88.9 7.5 88.6 83.6 71.3 57.0 42.6 -

62 87.5 6.8 87.5 87.5 87.8 73.3 58.8 44.3 78.7 7.3 78.7 78.7 80.9 66.6 52.2 37.9

57 88.8 6.7 88.8 88.8 87.8 73.3 58.8 44.3 81.1 7.3 81.1 81.1 80.7 66.4 52.0 37.7

3750

72 113.1 7.0 93.0 77.0 61.0 45.0 - - 101.6 7.7 88.6 72.8 56.9 41.0 - -

67 101.3 6.9 101.3 96.7 80.7 64.7 48.7 - 90.5 7.5 90.5 88.2 76.5 60.7 44.8 -

62 89.4 6.8 89.4 89.4 89.4 73.4 57.4 41.4 80.1 7.3 80.1 80.1 80.1 64.3 48.4 32.5

57 90.7 6.8 90.7 90.7 90.7 74.7 58.7 42.7 82.5 7.3 82.5 82.5 82.5 66.7 50.8 34.9

528150-YTG-T-0514

60 Johnson Controls Unitary Products

115°F 125°F

1875

77 90.4 8.3 33.6 30.2 21.8 - - - 81.7 8.9 32.0 25.5 18.7 - - -

72 81.1 8.0 51.6 43.1 34.6 26.2 - - 72.9 8.6 48.1 39.7 31.4 23.0 - -

67 71.9 7.8 69.5 56.0 47.5 39.0 30.6 - 64.1 8.3 64.1 52.4 44.0 35.7 27.3 -

62 63.9 7.6 63.9 63.9 59.0 50.5 42.0 33.6 57.3 8.1 57.3 57.3 57.3 46.5 38.2 29.8

2250

77 92.7 8.3 43.8 33.9 24.0 - - - 83.2 9.0 43.2 30.5 20.7 - - -

72 83.2 8.1 58.0 48.1 38.2 28.3 - - 74.3 8.7 54.3 44.5 34.8 25.0 - -

67 73.7 7.9 72.2 62.3 52.4 42.5 32.6 - 65.3 8.4 65.3 58.5 48.8 39.0 29.3 -

62 65.6 7.7 65.6 65.6 65.1 55.2 45.3 35.4 58.4 8.2 58.4 58.4 58.4 51.1 41.3 31.6

57 68.8 7.7 68.8 68.8 61.5 51.6 41.7 31.8 62.7 8.3 62.7 62.7 56.0 46.3 36.5 26.8

2625

77 95.1 8.4 53.9 37.5 26.3 - - - 84.8 9.1 54.4 35.5 22.8 - - -

72 85.4 8.2 64.4 53.1 41.8 30.5 - - 75.7 8.8 60.5 49.3 38.2 27.0 - -

67 75.6 7.9 74.8 68.6 57.3 46.0 34.7 - 66.5 8.5 66.5 64.7 53.5 42.4 31.2 -

62 67.2 7.7 67.2 67.2 71.2 59.9 48.6 37.3 59.5 8.2 59.5 59.5 59.5 55.6 44.5 33.3

57 70.6 7.8 70.6 70.6 67.2 55.9 44.6 33.3 63.9 8.4 63.9 63.9 61.5 50.4 39.2 28.0

3000

77 97.5 8.5 64.0 41.2 28.5 - - - 86.4 9.1 65.7 40.5 24.8 - - -

72 87.5 8.2 70.8 58.1 45.4 32.6 - - 77.1 8.8 66.7 54.1 41.6 29.0 - -

67 77.5 8.0 77.5 74.9 62.2 49.5 36.8 - 67.8 8.6 67.8 67.8 58.3 45.8 33.2 -

62 68.9 7.8 68.9 68.9 77.2 64.5 51.8 39.1 60.6 8.3 60.6 60.6 60.6 60.2 47.6 35.0

57 72.3 7.9 72.3 72.3 73.0 60.3 47.6 34.8 65.1 8.4 65.1 65.1 65.1 54.4 41.9 29.3

3375

72 88.7 8.3 77.5 63.3 49.1 34.8 - - 77.7 8.9 73.3 59.2 45.1 31.0 - -

67 78.6 8.0 78.6 77.3 67.3 53.1 38.8 - 68.3 8.6 68.3 68.3 63.3 49.2 35.1 -

62 69.9 7.8 69.9 69.9 74.1 59.8 45.6 31.4 61.1 8.4 61.1 61.1 61.1 53.1 39.0 24.9

57 73.4 7.9 73.4 73.4 73.7 59.5 45.2 31.0 65.7 8.5 65.7 65.7 65.7 52.5 38.4 24.3

3750

72 90.0 8.3 84.3 68.5 52.8 37.0 - - 78.4 8.9 78.4 64.3 48.6 33.0 - -

67 79.7 8.1 79.7 79.7 72.4 56.6 40.9 - 68.9 8.6 68.9 68.9 68.2 52.6 37.0 -

62 70.9 7.9 70.9 70.9 70.9 55.1 39.4 23.6 61.6 8.4 61.6 61.6 61.6 46.0 30.4 14.8

57 74.4 7.9 74.4 74.4 74.4 58.7 42.9 27.2 66.3 8.5 66.3 66.3 66.3 50.6 35.0 19.4

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ090 (7.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 61

ZJ102 (8.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2125

77 136.0 6.1 61.5 49.5 38.6 - - - 127.6 6.8 56.3 45.7 35.0 - - -

72 124.0 6.0 74.1 63.2 52.4 41.5 - - 116.0 6.7 70.2 59.6 48.9 38.3 - -

67 112.1 5.9 86.7 77.0 66.1 55.3 44.4 - 104.3 6.6 84.1 73.5 62.8 52.2 41.5 -

62 99.3 6.2 99.3 95.1 77.6 66.8 55.9 45.0 91.6 6.7 91.6 89.5 74.0 63.3 52.7 42.0

2550

77 141.0 6.1 67.2 54.7 42.3 - - - 132.1 6.8 63.0 50.7 38.4 - - -

72 128.6 6.0 82.2 69.8 57.4 44.9 - - 120.0 6.7 78.2 65.9 53.6 41.3 - -

67 116.2 5.9 97.3 84.9 72.5 60.0 47.6 - 107.9 6.6 93.5 81.2 68.9 56.6 44.3 -

62 102.9 6.2 102.9 100.1 85.0 72.6 60.1 47.7 94.8 6.7 94.8 93.4 81.1 68.8 56.5 44.2

57 99.4 8.7 99.4 99.4 91.2 78.7 66.3 53.8 93.6 6.5 93.6 93.6 85.3 73.0 60.7 48.4

2975

77 146.0 6.1 72.8 60.0 46.0 - - - 136.5 6.8 69.7 55.7 41.8 - - -

72 133.1 6.0 90.4 76.4 62.4 48.4 - - 124.0 6.7 86.3 72.3 58.4 44.4 - -

67 120.3 5.9 107.9 92.8 78.8 64.8 50.8 - 111.6 6.6 102.9 88.9 75.0 61.0 47.0 -

62 106.5 6.1 106.5 105.1 92.4 78.4 64.4 50.4 98.0 6.7 98.0 97.3 88.3 74.3 60.4 46.4

57 102.9 8.7 102.9 102.9 99.1 85.1 71.1 57.1 96.7 6.5 96.7 96.7 92.9 78.9 65.0 51.0

3400

77 151.0 6.0 78.5 65.2 49.7 - - - 141.0 6.8 76.4 60.8 45.2 - - -

72 137.7 5.9 98.5 82.9 67.4 51.8 - - 128.1 6.7 94.3 78.7 63.1 47.5 - -

67 124.4 5.8 118.5 100.6 85.1 69.5 53.9 - 115.2 6.6 112.3 96.6 81.0 65.4 49.8 -

62 110.2 6.1 110.2 110.2 99.8 84.3 68.7 53.1 101.2 6.8 101.2 101.2 95.4 79.8 64.2 48.6

57 106.5 8.7 106.5 106.5 107.0 91.5 75.9 60.3 99.9 6.5 99.9 99.9 100.4 84.8 69.2 53.6

3825

72 141.1 6.0 105.2 88.2 71.1 54.0 - - 131.1 6.7 101.2 84.1 67.1 50.0 - -

67 127.5 5.9 124.6 106.8 89.8 72.7 55.6 - 117.9 6.6 116.4 103.2 86.1 69.1 52.0 -

62 112.9 6.2 112.9 112.9 107.7 90.6 73.6 56.5 103.5 6.8 103.5 103.5 100.7 83.6 66.5 49.5

57 109.1 8.7 109.1 109.1 109.4 92.3 75.2 58.2 102.2 6.6 102.2 102.2 102.4 85.4 68.3 51.3

4250

72 144.5 6.1 112.0 93.4 74.8 56.3 - - 134.0 6.8 108.0 89.5 71.0 52.5 - -

67 130.6 6.0 130.6 113.0 94.5 75.9 57.3 - 120.6 6.7 120.6 109.7 91.2 72.7 54.2 -

62 115.6 6.2 115.6 115.6 115.6 97.0 78.4 59.9 105.9 6.8 105.9 105.9 105.9 87.4 68.9 50.4

57 111.7 8.8 111.7 111.7 111.7 93.2 74.6 56.0 104.5 6.6 104.5 104.5 104.5 86.0 67.5 49.0

95°F 105°F

2125

77 119.3 7.4 51.1 41.8 31.4 - - - 108.3 8.2 44.7 38.5 28.3 - - -

72 107.9 7.3 66.3 55.9 45.4 35.0 - - 97.7 8.0 62.2 52.0 41.8 31.6 - -

67 96.5 7.2 81.5 69.9 59.5 49.1 38.6 - 87.1 7.8 79.6 65.5 55.3 45.1 34.9 -

62 84.0 7.3 84.0 84.0 70.3 59.9 49.5 39.1 77.3 7.9 77.3 77.3 65.1 54.9 44.7 34.5

2550

77 123.1 7.5 58.8 46.7 34.5 - - - 111.8 8.2 55.2 43.2 31.2 - - -

72 111.4 7.4 74.2 62.1 49.9 37.7 - - 100.9 8.1 70.1 58.1 46.2 34.2 - -

67 99.7 7.2 89.7 77.5 65.3 53.1 41.0 - 90.0 7.9 85.0 73.0 61.1 49.1 37.2 -

62 86.7 7.3 86.7 86.7 77.2 65.1 52.9 40.7 79.8 7.9 79.8 79.8 71.9 60.0 48.0 36.1

57 87.7 7.1 87.7 87.7 79.5 67.4 55.2 43.0 80.7 7.8 80.7 80.7 72.5 60.5 48.6 36.6

2975

77 127.0 7.5 66.6 51.5 37.6 - - - 115.3 8.3 65.6 47.9 34.2 - - -

72 114.9 7.4 82.2 68.3 54.4 40.5 - - 104.1 8.1 78.0 64.3 50.6 36.9 - -

67 102.8 7.3 97.8 85.1 71.2 57.2 43.3 - 92.8 7.9 90.3 80.6 66.9 53.2 39.5 -

62 89.5 7.4 89.5 89.5 84.1 70.2 56.3 42.4 82.3 7.9 82.3 82.3 78.8 65.1 51.4 37.6

57 90.5 7.2 90.5 90.5 86.6 72.7 58.8 44.9 83.2 7.8 83.2 83.2 79.4 65.7 51.9 38.2

3400

77 130.9 7.6 74.3 56.3 40.7 - - - 118.9 8.3 76.1 52.6 37.2 - - -

72 118.5 7.4 90.2 74.5 58.8 43.2 - - 107.3 8.1 85.9 70.4 55.0 39.5 - -

67 106.0 7.3 106.0 92.7 77.0 61.3 45.7 - 95.7 8.0 95.7 88.2 72.7 57.3 41.8 -

62 92.2 7.4 92.2 92.2 91.0 75.4 59.7 44.1 84.8 8.0 84.8 84.8 85.6 70.2 54.7 39.2

57 93.3 7.2 93.3 93.3 93.8 78.1 62.4 46.8 85.8 7.8 85.8 85.8 86.3 70.8 55.3 39.9

3825

72 121.0 7.5 97.1 80.1 63.0 46.0 - - 109.5 8.2 92.8 75.9 59.0 42.1 - -

67 108.3 7.3 108.3 99.5 82.5 65.4 48.4 - 97.7 8.0 97.7 92.9 78.1 61.2 44.3 -

62 94.2 7.4 94.2 94.2 93.6 76.5 59.5 42.5 86.6 8.0 86.6 86.6 87.0 70.1 53.2 36.3

57 95.3 7.2 95.3 95.3 95.5 78.5 61.4 44.4 87.5 7.9 87.5 87.5 87.8 70.9 54.0 37.1

4250

72 123.5 7.5 104.1 85.6 67.2 48.8 - - 111.7 8.2 99.6 81.3 63.0 44.7 - -

67 110.5 7.4 110.5 106.4 87.9 69.5 51.1 - 99.6 8.0 99.6 97.6 83.4 65.1 46.8 -

62 96.2 7.5 96.2 96.2 96.2 77.7 59.3 40.8 88.4 8.0 88.4 88.4 88.4 70.1 51.7 33.4

57 97.3 7.3 97.3 97.3 97.3 78.8 60.4 41.9 89.3 7.9 89.3 89.3 89.3 71.0 52.7 34.4

528150-YTG-T-0514

62 Johnson Controls Unitary Products

115°F 125°F

2125

77 97.3 9.0 38.3 35.1 25.1 - - - 86.3 9.7 39.4 29.5 21.9 - - -

72 87.5 8.7 58.0 48.0 38.1 28.1 - - 77.4 9.4 53.9 44.1 34.4 24.6 - -

67 77.8 8.5 77.8 61.0 51.1 41.1 31.1 - 68.4 9.1 68.4 56.6 46.8 37.1 27.4 -

62 70.6 8.4 70.6 70.6 59.8 49.8 39.8 29.9 63.9 9.0 63.9 63.9 54.5 44.8 35.0 25.3

2550

77 100.5 9.0 51.5 39.7 28.0 - - - 89.1 9.8 52.8 36.2 24.7 - - -

72 90.4 8.8 65.9 54.1 42.4 30.7 - - 79.9 9.5 61.7 50.2 38.7 27.1 - -

67 80.3 8.5 80.3 68.6 56.9 45.1 33.4 - 70.6 9.2 70.6 64.2 52.6 41.1 29.6 -

62 72.9 8.4 72.9 72.9 66.6 54.9 43.1 31.4 66.0 9.0 66.0 66.0 61.3 49.8 38.2 26.7

57 73.6 8.4 73.6 73.6 65.4 53.7 41.9 30.2 66.6 10.4 66.6 66.6 58.3 46.8 35.3 23.8

2975

77 103.6 9.1 64.7 44.3 30.8 - - - 91.9 9.8 66.2 42.9 27.4 - - -

72 93.2 8.8 73.7 60.2 46.7 33.2 - - 82.4 9.5 69.5 56.2 42.9 29.6 - -

67 82.8 8.6 82.8 76.2 62.7 49.2 35.7 - 72.8 9.2 72.8 71.7 58.4 45.2 31.9 -

62 75.2 8.5 75.2 75.2 73.4 59.9 46.4 32.9 68.0 9.0 68.0 68.0 68.0 54.7 41.5 28.2

57 75.9 8.4 75.9 75.9 72.1 58.6 45.1 31.6 68.7 10.4 68.7 68.7 64.8 51.5 38.2 24.9

3400

77 106.8 9.1 77.9 48.9 33.7 - - - 94.7 9.9 79.6 49.5 30.2 - - -

72 96.1 8.9 81.6 66.3 51.1 35.8 - - 84.9 9.6 77.3 62.3 47.2 32.1 - -

67 85.3 8.6 85.3 83.8 68.5 53.2 38.0 - 75.0 9.3 75.0 75.0 64.2 49.2 34.1 -

62 77.5 8.5 77.5 77.5 80.2 64.9 49.7 34.4 70.1 9.1 70.1 70.1 70.1 59.7 44.7 29.6

57 78.3 8.4 78.3 78.3 78.8 63.5 48.2 33.0 70.7 10.5 70.7 70.7 70.7 56.2 41.1 26.1

3825

72 98.0 8.9 88.4 71.7 55.0 38.2 - - 86.5 9.6 84.0 67.5 50.9 34.4 - -

67 87.0 8.7 87.0 86.3 73.7 57.0 40.3 - 76.4 9.3 76.4 76.4 69.3 52.8 36.2 -

62 79.0 8.6 79.0 79.0 80.4 63.7 46.9 30.2 71.4 9.1 71.4 71.4 71.4 57.2 40.7 24.1

57 79.8 8.5 79.8 79.8 80.1 63.4 46.6 29.9 72.1 10.5 72.1 72.1 72.1 55.8 39.2 22.7

4250

72 99.9 8.9 95.2 77.0 58.8 40.7 - - 88.1 9.7 88.1 72.7 54.7 36.6 - -

67 88.8 8.7 88.8 88.8 78.9 60.7 42.5 - 77.9 9.4 77.9 77.9 74.4 56.3 38.3 -

62 80.6 8.6 80.6 80.6 80.6 62.4 44.2 26.0 72.8 9.2 72.8 72.8 72.8 54.7 36.7 18.6

57 81.4 8.5 81.4 81.4 81.4 63.2 45.0 26.9 73.5 10.6 73.5 73.5 73.5 55.4 37.4 19.3

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ102 (8.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 63

ZJ120 (10 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2500

77 159.5 7.3 63.5 52.6 41.7 - - - 148.2 8.2 61.1 50.3 39.4 - - -

72 145.9 7.2 83.1 72.2 61.3 50.4 - - 136.1 8.1 80.2 69.3 58.4 47.6 - -

67 132.2 7.1 102.7 91.8 80.9 70.0 59.1 - 124.0 8.0 99.3 88.4 77.5 66.6 55.8 -

62 123.1 7.0 123.1 118.4 99.0 88.1 77.2 66.3 114.8 7.9 114.8 112.5 95.6 84.8 73.9 63.0

3000

77 164.8 7.4 71.2 58.4 45.5 - - - 153.7 8.2 68.6 55.9 43.1 - - -

72 150.7 7.2 92.6 79.8 67.0 54.2 - - 141.1 8.1 89.5 76.7 64.0 51.3 - -

67 136.6 7.1 114.0 101.2 88.4 75.6 62.8 - 128.6 8.0 110.4 97.6 84.9 72.2 59.5 -

62 127.2 7.0 127.2 124.1 108.2 95.4 82.6 69.8 119.0 7.9 119.0 117.5 104.8 92.1 79.3 66.6

57 125.9 7.0 125.9 125.9 113.4 100.6 87.8 75.0 118.5 7.9 118.5 118.5 107.1 94.4 81.7 69.0

3500

77 170.1 7.4 78.9 64.2 49.4 - - - 159.1 8.2 76.0 61.5 46.9 - - -

72 155.5 7.3 102.1 87.4 72.7 57.9 - - 146.1 8.1 98.7 84.2 69.6 55.0 - -

67 140.9 7.1 125.4 110.6 95.9 81.2 66.5 - 133.1 8.1 121.5 106.9 92.3 77.7 63.2 -

62 131.2 7.1 131.2 129.7 117.5 102.7 88.0 73.3 123.3 8.0 123.3 122.5 113.9 99.3 84.8 70.2

57 129.9 7.0 129.9 129.9 123.1 108.3 93.6 78.9 122.7 7.9 122.7 122.7 116.5 101.9 87.3 72.8

4000

77 175.4 7.4 86.6 70.0 53.3 - - - 164.5 8.3 83.5 67.1 50.7 - - -

72 160.3 7.3 111.7 95.0 78.4 61.7 - - 151.1 8.2 108.0 91.6 75.2 58.8 - -

67 145.3 7.2 136.7 120.1 103.4 86.8 70.1 - 137.6 8.1 132.5 116.1 99.7 83.3 66.9 -

62 135.3 7.1 135.3 135.3 126.7 110.0 93.4 76.7 127.5 8.0 127.5 127.5 123.0 106.6 90.2 73.8

57 133.9 7.1 133.9 133.9 132.7 116.1 99.4 82.8 126.9 8.0 126.9 126.9 125.8 109.4 93.0 76.6

4500

72 164.1 7.4 118.0 100.1 82.2 64.4 - - 154.0 8.2 115.6 97.7 79.8 61.9 - -

67 148.7 7.2 144.4 126.4 108.5 90.7 72.8 - 140.3 8.1 137.7 123.7 105.8 87.9 70.1 -

62 138.4 7.1 138.4 138.4 134.1 116.3 98.4 80.5 129.9 8.0 129.9 129.9 127.7 109.8 91.9 74.0

57 137.0 7.1 137.0 137.0 136.4 118.6 100.7 82.8 129.3 8.0 129.3 129.3 128.8 110.9 93.0 75.1

5000

72 167.8 7.4 124.3 105.2 86.1 67.0 - - 156.8 8.2 123.1 103.7 84.4 65.0 - -

67 152.0 7.3 152.0 132.7 113.6 94.5 75.5 - 142.9 8.1 142.9 131.3 111.9 92.6 73.2 -

62 141.6 7.2 141.6 141.6 141.6 122.5 103.4 84.3 132.3 8.0 132.3 132.3 132.3 112.9 93.6 74.2

57 140.1 7.2 140.1 140.1 140.1 121.0 101.9 82.9 131.7 8.0 131.7 131.7 131.7 112.4 93.0 73.7

95°F 105°F

2500

77 136.9 9.0 58.8 47.9 37.1 - - - 125.0 10.0 52.9 44.3 33.5 - - -

72 126.4 8.9 77.3 66.5 55.6 44.8 - - 115.5 10.0 73.3 62.5 51.7 40.9 - -

67 115.8 8.9 95.9 85.0 74.1 63.3 52.4 - 105.9 10.0 93.6 80.7 69.9 59.1 48.3 -

62 106.6 8.8 106.6 106.6 92.2 81.4 70.5 59.7 98.2 9.9 98.2 98.2 86.0 75.2 64.5 53.7

3000

77 142.5 9.0 66.0 53.4 40.7 - - - 131.1 10.1 62.3 49.7 37.2 - - -

72 131.5 9.0 86.3 73.7 61.1 48.5 - - 121.1 10.0 82.5 69.9 57.3 44.7 - -

67 120.5 8.9 106.7 94.1 81.4 68.8 56.2 - 111.1 10.0 102.6 90.0 77.5 64.9 52.3 -

62 110.9 8.8 110.9 110.9 101.3 88.7 76.0 63.4 102.9 9.9 102.9 102.9 95.3 82.7 70.2 57.6

57 111.2 8.8 111.2 111.2 100.9 88.2 75.6 63.0 103.1 9.9 103.1 103.1 93.2 80.6 68.0 55.5

3500

77 148.1 9.1 73.2 58.8 44.4 - - - 137.1 10.1 71.7 55.1 40.8 - - -

72 136.7 9.0 95.4 80.9 66.5 52.1 - - 126.7 10.1 91.6 77.3 62.9 48.5 - -

67 125.3 9.0 117.5 103.1 88.7 74.3 59.9 - 116.2 10.1 111.6 99.4 85.0 70.7 56.3 -

62 115.3 8.9 115.3 115.3 110.4 96.0 81.6 67.2 107.7 10.0 107.7 107.7 104.6 90.3 75.9 61.5

57 115.6 8.9 115.6 115.6 109.9 95.5 81.1 66.7 107.9 9.9 107.9 107.9 102.3 87.9 73.5 59.2

4000

77 153.7 9.1 80.4 64.2 48.0 - - - 143.2 10.2 81.1 60.5 44.4 - - -

72 141.9 9.0 104.4 88.2 72.0 55.8 - - 132.3 10.2 100.8 84.7 68.5 52.3 - -

67 130.0 9.0 128.3 112.2 96.0 79.8 63.7 - 121.4 10.1 120.5 108.8 92.6 76.4 60.3 -

62 119.6 8.9 119.6 119.6 119.4 103.3 87.1 70.9 112.5 10.0 112.5 112.5 113.9 97.8 81.6 65.4

57 120.0 8.9 120.0 120.0 118.9 102.7 86.6 70.4 112.6 10.0 112.6 112.6 111.3 95.2 79.0 62.8

4500

72 143.9 9.1 113.1 95.2 77.3 59.4 - - 133.6 10.1 109.0 91.2 73.5 55.7 - -

67 131.8 9.0 131.0 121.0 103.1 85.2 67.3 - 122.6 10.1 122.2 115.3 99.4 81.6 63.8 -

62 121.3 8.9 121.3 121.3 121.2 103.3 85.4 67.5 113.6 10.0 113.6 113.6 114.3 96.6 78.8 61.1

57 121.7 8.9 121.7 121.7 121.1 103.2 85.3 67.5 113.8 10.0 113.8 113.8 113.1 95.4 77.6 59.8

5000

72 145.9 9.1 121.9 102.3 82.7 63.1 - - 134.9 10.1 117.2 97.8 78.5 59.1 - -

67 133.7 9.0 133.7 129.8 110.2 90.6 71.0 - 123.8 10.1 123.8 121.9 106.1 86.8 67.4 -

62 123.0 8.9 123.0 123.0 123.0 103.4 83.8 64.2 114.7 10.0 114.7 114.7 114.7 95.4 76.1 56.7

57 123.4 8.9 123.4 123.4 123.4 103.7 84.1 64.5 114.9 10.0 114.9 114.9 114.9 95.5 76.2 56.8

528150-YTG-T-0514

64 Johnson Controls Unitary Products

115°F 125°F

2500

77 113.0 11.0 47.0 40.7 30.0 - - - 101.1 12.1 44.1 37.0 26.4 - - -

72 104.5 11.0 69.2 58.5 47.8 37.1 - - 93.6 12.1 65.1 54.5 43.9 33.3 - -

67 96.0 11.0 91.4 76.3 65.6 55.0 44.3 - 86.1 12.1 86.1 72.0 61.4 50.8 40.2 -

62 89.7 11.0 89.7 89.7 79.8 69.1 58.4 47.7 81.3 12.1 81.3 81.3 74.1 63.0 52.3 41.7

3000

77 119.6 11.1 58.6 46.1 33.6 - - - 108.1 12.1 57.2 42.5 30.0 - - -

72 110.6 11.1 78.6 66.1 53.5 41.0 - - 100.1 12.2 74.7 62.2 49.8 37.3 - -

67 101.6 11.1 98.5 86.0 73.5 61.0 48.5 - 92.1 12.2 92.1 82.0 69.5 57.1 44.6 -

62 94.9 11.0 94.9 94.9 89.3 76.8 64.3 51.8 87.0 12.2 87.0 87.0 83.3 70.9 58.4 46.0

57 94.9 11.0 94.9 94.9 85.5 73.0 60.5 47.9 86.7 12.0 86.7 86.7 77.8 65.3 52.9 40.4

3500

77 126.1 11.2 70.2 51.5 37.2 - - - 115.1 12.2 70.3 47.9 33.6 - - -

72 116.6 11.2 87.9 73.6 59.3 44.9 - - 106.6 12.3 84.2 69.9 55.6 41.3 - -

67 107.2 11.2 105.6 95.7 81.4 67.0 52.7 - 98.1 12.3 98.1 92.0 77.7 63.4 49.1 -

62 100.1 11.1 100.1 100.1 98.9 84.6 70.2 55.9 92.6 12.3 92.6 92.6 92.6 78.8 64.6 50.3

57 100.1 11.0 100.1 100.1 94.6 80.3 66.0 51.6 92.3 12.1 92.3 92.3 87.0 72.7 58.4 44.1

4000

77 132.7 11.3 81.8 56.9 40.8 - - - 122.2 12.3 83.4 53.3 37.1 - - -

72 122.7 11.3 97.3 81.1 65.0 48.8 - - 113.1 12.4 93.7 77.6 61.5 45.3 - -

67 112.7 11.3 112.7 105.4 89.2 73.1 56.9 - 104.1 12.4 104.1 102.0 85.8 69.7 53.6 -

62 105.3 11.2 105.3 105.3 108.4 92.3 76.1 60.0 98.2 12.4 98.2 98.2 98.2 86.8 70.7 54.5

57 105.3 11.1 105.3 105.3 103.7 87.6 71.5 55.3 98.0 12.2 98.0 98.0 96.2 80.0 63.9 47.8

4500

72 123.4 11.2 104.9 87.3 69.6 52.0 - - 113.1 12.3 100.8 83.3 65.8 48.3 - -

67 113.3 11.2 113.3 109.7 95.6 78.0 60.4 - 104.1 12.3 104.1 104.0 91.9 74.4 56.9 -

62 105.9 11.2 105.9 105.9 107.5 89.8 72.2 54.6 98.2 12.3 98.2 98.2 98.2 83.1 65.6 48.1

57 105.9 11.1 105.9 105.9 105.1 87.5 69.9 52.2 98.0 12.2 98.0 98.0 97.1 79.6 62.1 44.6

5000

72 124.0 11.2 112.5 93.4 74.3 55.2 - - 113.1 12.3 107.8 89.0 70.1 51.3 - -

67 113.9 11.2 113.9 113.9 102.0 82.9 63.8 - 104.1 12.3 104.1 104.1 97.9 79.1 60.3 -

62 106.5 11.2 106.5 106.5 106.5 87.4 68.3 49.2 98.2 12.3 98.2 98.2 98.2 79.4 60.6 41.7

57 106.4 11.1 106.4 106.4 106.4 87.3 68.3 49.2 98.0 12.1 98.0 98.0 98.0 79.1 60.3 41.5

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ120 (10 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 65

ZJ150 (12.5 Ton)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

3125

77 191.5 9.8 80.3 66.9 53.5 - - - 184.5 10.7 76.0 62.6 49.3 - - -

72 178.7 9.5 103.3 89.9 76.4 63.0 - - 171.3 10.5 99.0 85.7 72.3 59.0 - -

67 165.9 9.2 126.3 112.8 99.4 86.0 72.6 - 158.1 10.2 122.1 108.8 95.4 82.1 68.7 -

62 149.9 9.1 149.9 139.5 122.9 109.5 96.1 82.7 143.1 10.1 143.1 135.8 117.5 104.2 90.8 77.5

3750

77 201.3 9.8 89.4 74.2 58.9 - - - 193.5 10.7 85.1 69.8 54.5 - - -

72 187.9 9.5 114.7 99.5 84.2 69.0 - - 179.6 10.5 110.6 95.3 80.0 64.6 - -

67 174.5 9.3 140.0 124.8 109.5 94.3 79.1 - 165.8 10.3 136.1 120.8 105.5 90.1 74.8 -

62 157.6 9.1 157.6 150.7 135.4 120.2 105.0 89.7 150.1 10.1 150.1 145.2 129.9 114.6 99.3 83.9

57 152.3 9.1 152.3 152.3 140.7 125.5 110.2 95.0 145.8 10.1 145.8 145.8 134.0 118.7 103.3 88.0

4375

77 211.1 9.8 98.5 81.5 64.4 - - - 202.4 10.8 94.2 76.9 59.6 - - -

72 197.0 9.6 126.2 109.1 92.0 75.0 - - 187.9 10.6 122.1 104.9 87.6 70.3 - -

67 183.0 9.3 153.8 136.7 119.7 102.6 85.5 - 173.5 10.3 150.1 132.8 115.5 98.2 80.9 -

62 165.3 9.1 165.3 161.8 148.0 130.9 113.8 96.8 157.0 10.1 157.0 154.6 142.3 125.0 107.7 90.4

57 159.7 9.1 159.7 159.7 153.7 136.6 119.6 102.5 152.6 10.2 152.6 152.6 146.7 129.4 112.2 94.9

5000

77 221.0 9.9 107.6 88.8 69.9 - - - 211.4 10.9 103.3 84.1 64.8 - - -

72 206.2 9.6 137.6 118.7 99.8 80.9 - - 196.3 10.6 133.7 114.4 95.2 75.9 - -

67 191.5 9.3 167.5 148.7 129.8 110.9 92.0 - 181.2 10.4 164.1 144.8 125.5 106.3 87.0 -

62 173.0 9.1 173.0 173.0 160.5 141.6 122.7 103.8 164.0 10.2 164.0 164.0 154.6 135.4 116.1 96.9

57 167.2 9.1 167.2 167.2 166.7 147.8 129.0 110.1 159.3 10.2 159.3 159.3 159.5 140.2 121.0 101.7

5625

72 215.4 9.6 150.0 129.1 108.3 87.5 - - 204.6 10.7 146.0 124.7 103.5 82.2 - -

67 200.0 9.3 185.5 161.6 140.8 119.9 99.1 - 188.8 10.4 179.0 157.7 136.5 115.2 93.9 -

62 180.7 9.2 180.7 180.7 174.4 153.6 132.8 111.9 170.9 10.2 170.9 170.9 166.3 145.0 123.7 102.4

57 174.6 9.1 174.6 174.6 174.4 153.5 132.7 111.9 166.1 10.3 166.1 166.1 166.2 144.9 123.6 102.3

6250

72 224.6 9.6 162.3 139.5 116.7 94.0 - - 212.9 10.7 158.4 135.1 111.7 88.4 - -

67 208.5 9.3 203.5 174.5 151.8 129.0 106.2 - 196.5 10.5 194.0 170.7 147.4 124.1 100.8 -

62 188.4 9.2 188.4 188.4 188.4 165.6 142.8 120.0 177.9 10.3 177.9 177.9 177.9 154.6 131.3 108.0

57 182.0 9.2 182.0 182.0 182.0 159.2 136.5 113.7 172.8 10.3 172.8 172.8 172.8 149.5 126.2 102.9

95°F 105°F

3125

77 177.5 11.6 71.6 58.3 45.1 - - - 168.0 12.8 67.5 55.1 42.0 - - -

72 163.9 11.4 94.8 81.5 68.2 55.0 - - 154.2 12.7 90.8 77.7 64.5 51.4 - -

67 150.3 11.2 118.0 104.7 91.4 78.1 64.9 - 140.3 12.6 114.2 100.2 87.1 73.9 60.8 -

62 136.4 11.0 136.4 132.1 112.1 98.9 85.6 72.3 128.6 12.4 128.6 126.4 106.8 93.6 80.5 67.3

3750

77 185.6 11.7 80.8 65.4 50.0 - - - 175.2 12.9 77.1 61.9 46.7 - - -

72 171.4 11.5 106.5 91.1 75.7 60.3 - - 160.8 12.8 102.2 86.9 71.7 56.5 - -

67 157.2 11.3 132.2 116.8 101.4 86.0 70.6 - 146.4 12.7 127.2 112.0 96.8 81.6 66.4 -

62 142.6 11.1 142.6 139.7 124.3 109.0 93.6 78.2 134.1 12.5 134.1 132.7 118.7 103.5 88.2 73.0

57 139.4 11.1 139.4 139.4 127.2 111.8 96.5 81.1 131.5 12.5 131.5 131.5 118.9 103.7 88.5 73.3

4375

77 193.7 11.8 89.9 72.4 54.9 - - - 182.4 13.0 86.7 68.6 51.3 - - -

72 178.9 11.6 118.1 100.6 83.1 65.6 - - 167.4 12.9 113.5 96.2 78.9 61.6 - -

67 164.0 11.4 146.4 128.8 111.3 93.8 76.3 - 152.4 12.8 140.3 123.8 106.5 89.2 71.9 -

62 148.8 11.2 148.8 147.4 136.6 119.1 101.5 84.0 139.6 12.6 139.6 138.9 130.6 113.3 96.0 78.7

57 145.4 11.2 145.4 145.4 139.7 122.2 104.7 87.2 136.9 12.6 136.9 136.9 130.9 113.6 96.3 79.0

5000

77 201.8 11.9 99.1 79.4 59.8 - - - 189.6 13.1 96.3 75.4 56.0 - - -

72 186.3 11.7 129.8 110.2 90.5 70.9 - - 174.0 13.0 124.8 105.5 86.1 66.8 - -

67 170.8 11.5 160.6 140.9 121.3 101.7 82.0 - 158.5 12.9 153.3 135.6 116.2 96.9 77.5 -

62 155.0 11.3 155.0 155.0 148.8 129.2 109.5 89.9 145.1 12.7 145.1 145.1 142.5 123.2 103.8 84.5

57 151.5 11.3 151.5 151.5 152.2 132.6 113.0 93.4 142.3 12.7 142.3 142.3 142.8 123.4 104.1 84.7

5625

72 193.8 11.8 142.1 120.4 98.6 76.9 - - 180.7 13.1 136.9 115.4 94.0 72.5 - -

67 177.7 11.6 172.5 153.9 132.1 110.4 88.7 - 164.5 13.0 161.9 148.3 126.8 105.3 83.9 -

62 161.2 11.3 161.2 161.2 158.1 136.4 114.6 92.9 150.7 12.8 150.7 150.7 149.3 127.9 106.4 84.9

57 157.6 11.4 157.6 157.6 157.9 136.2 114.5 92.7 147.8 12.8 147.8 147.8 148.0 126.5 105.0 83.6

6250

72 201.2 11.9 154.4 130.6 106.7 82.9 - - 187.3 13.2 149.0 125.4 101.8 78.2 - -

67 184.5 11.7 184.5 166.8 143.0 119.2 95.3 - 170.5 13.1 170.5 161.0 137.4 113.8 90.2 -

62 167.4 11.4 167.4 167.4 167.4 143.6 119.7 95.9 156.2 12.9 156.2 156.2 156.2 132.6 109.0 85.4

57 163.6 11.5 163.6 163.6 163.6 139.8 116.0 92.1 153.2 12.9 153.2 153.2 153.2 129.6 106.0 82.4

528150-YTG-T-0514

66 Johnson Controls Unitary Products

115°F 125°F

3125

77 158.4 14.0 63.3 51.9 38.9 - - - 148.8 15.3 56.6 48.7 35.8 - - -

72 144.4 14.0 86.9 73.8 60.8 47.8 - - 134.6 15.3 82.9 70.0 57.1 44.2 - -

67 130.4 14.0 110.4 95.8 82.7 69.7 56.7 - 120.4 15.4 106.6 91.3 78.4 65.5 52.6 -

62 120.7 13.8 120.7 120.7 101.4 88.4 75.3 62.3 112.9 15.2 112.9 112.9 96.0 83.1 70.2 57.3

3750

77 164.8 14.1 73.4 58.4 43.3 - - - 154.3 15.4 69.8 54.9 40.0 - - -

72 150.2 14.1 97.9 82.8 67.8 52.7 - - 139.6 15.4 93.6 78.7 63.8 48.9 - -

67 135.6 14.1 122.3 107.3 92.2 77.2 62.1 - 124.8 15.5 117.4 102.5 87.6 72.7 57.9 -

62 125.6 13.9 125.6 125.6 113.0 98.0 82.9 67.9 117.1 15.3 117.1 117.1 107.3 92.5 77.6 62.7

57 123.7 13.9 123.7 123.7 110.6 95.6 80.5 65.5 115.8 15.3 115.8 115.8 102.3 87.4 72.5 57.7

4375

77 171.1 14.2 83.5 64.8 47.8 - - - 159.8 15.5 82.9 61.1 44.2 - - -

72 156.0 14.2 108.8 91.8 74.7 57.7 - - 144.5 15.5 104.2 87.4 70.5 53.7 - -

67 140.8 14.2 134.2 118.7 101.7 84.6 67.6 - 129.2 15.6 128.1 113.7 96.9 80.0 63.2 -

62 130.4 14.0 130.4 130.4 124.6 107.6 90.5 73.4 121.2 15.4 121.2 121.2 118.6 101.8 85.0 68.1

57 128.4 14.0 128.4 128.4 122.0 104.9 87.9 70.8 119.9 15.5 119.9 119.9 113.1 96.3 79.4 62.6

5000

77 177.5 14.4 93.6 71.3 52.2 - - - 165.3 15.6 96.0 67.2 48.5 - - -

72 161.8 14.3 119.8 100.8 81.7 62.6 - - 149.5 15.7 114.8 96.1 77.3 58.5 - -

67 146.1 14.3 146.1 130.2 111.2 92.1 73.0 - 133.7 15.7 133.7 124.9 106.1 87.3 68.5 -

62 135.3 14.1 135.3 135.3 136.2 117.2 98.1 79.0 125.4 15.5 125.4 125.4 125.4 111.1 92.4 73.6

57 133.2 14.1 133.2 133.2 133.3 114.3 95.2 76.1 124.1 15.6 124.1 124.1 123.9 105.1 86.3 67.5

5625

72 167.6 14.4 131.7 110.5 89.3 68.1 - - 154.5 15.8 126.5 105.6 84.6 63.6 - -

67 151.3 14.4 151.3 142.7 121.5 100.3 79.0 - 138.1 15.8 138.1 137.1 116.1 95.2 74.2 -

62 140.1 14.2 140.1 140.1 140.6 119.4 98.1 76.9 129.6 15.6 129.6 129.6 129.6 110.9 89.9 68.9

57 138.0 14.2 138.0 138.0 138.0 116.8 95.6 74.4 128.2 15.7 128.2 128.2 128.1 107.1 86.1 65.2

6250

72 173.4 14.5 143.6 120.2 96.9 73.5 - - 159.4 15.9 138.2 115.1 91.9 68.8 - -

67 156.5 14.5 156.5 155.2 131.8 108.4 85.0 - 142.5 15.9 142.5 142.5 126.2 103.0 79.9 -

62 145.0 14.3 145.0 145.0 145.0 121.6 98.2 74.8 133.7 15.7 133.7 133.7 133.7 110.6 87.4 64.3

57 142.7 14.3 142.7 142.7 142.7 119.4 96.0 72.6 132.3 15.8 132.3 132.3 132.3 109.1 86.0 62.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZJ150 (12.5 Ton) (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 67

ZR037-150 Cooling and Reheat Capacities

ZR037 (3.0 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

750

77 48.2 0.2 20.1 16.2 13.0 - - - 43.5 1.6 17.0 13.9 10.7 - - -

72 43.9 0.8 24.6 21.3 18.1 14.9 - - 39.8 1.8 22.2 19.1 16.0 12.8 - -

67 39.6 1.3 29.0 26.5 23.3 20.1 16.8 - 36.0 2.0 27.5 24.3 21.2 18.1 14.9 -

62 35.5 1.1 35.5 32.6 28.4 25.1 21.9 18.7 31.4 1.9 31.4 29.6 24.7 21.6 18.4 15.3

900

77 50.4 0.5 22.1 18.2 14.3 - - - 45.5 1.7 19.7 15.9 12.1 - - -

72 45.9 1.1 27.8 23.9 20.0 16.1 - - 41.6 1.9 25.6 21.8 18.0 14.2 - -

67 41.4 1.6 33.4 29.5 25.6 21.7 17.8 - 37.6 2.1 31.5 27.7 23.9 20.1 16.3 -

62 37.1 1.4 37.1 35.2 31.3 27.4 23.5 19.6 32.8 2.0 32.8 31.6 27.8 24.0 20.2 16.4

57 33.3 1.3 33.3 33.4 30.5 26.6 22.7 18.8 29.7 1.9 29.7 29.7 26.4 22.6 18.8 15.0

1050

77 52.7 0.8 24.1 20.3 15.7 - - - 47.4 1.8 22.3 17.9 13.4 - - -

72 47.9 1.3 31.0 26.4 21.8 17.2 - - 43.3 2.0 28.9 24.4 20.0 15.5 - -

67 43.2 1.9 37.8 32.5 27.9 23.4 18.8 - 39.2 2.1 35.4 31.0 26.5 22.1 17.6 -

62 38.7 1.7 38.7 37.8 34.2 29.6 25.0 20.5 34.2 2.1 34.2 33.6 30.9 26.4 21.9 17.5

57 34.7 1.6 34.7 34.8 33.3 28.8 24.2 19.6 31.0 1.9 31.0 31.0 29.3 24.9 20.4 15.9

1200

77 54.9 1.0 26.1 22.3 17.0 - - - 49.4 1.9 25.0 19.9 14.8 - - -

72 50.0 1.6 34.2 28.9 23.6 18.4 - - 45.1 2.1 32.2 27.1 22.0 16.8 - -

67 45.1 2.2 42.2 35.5 30.3 25.0 19.8 - 40.9 2.2 39.4 34.3 29.2 24.0 18.9 -

62 40.4 2.0 40.4 40.4 37.1 31.8 26.6 21.3 35.6 2.2 35.6 35.6 34.0 28.8 23.7 18.6

57 36.2 1.8 36.2 36.2 36.2 30.9 25.7 20.4 32.3 2.0 32.3 32.3 32.3 27.1 22.0 16.9

1350

72 50.0 1.4 36.8 31.0 25.2 19.5 - - 45.0 2.0 34.6 28.9 23.2 17.5 - -

67 45.0 2.0 43.6 38.2 32.3 26.6 20.8 - 40.8 2.1 40.1 36.5 30.8 25.1 19.4 -

62 40.4 1.8 40.4 40.4 38.7 33.0 27.2 21.5 35.5 2.1 35.5 35.5 34.7 29.0 23.3 17.6

57 36.2 1.6 36.2 36.2 36.2 30.4 24.7 18.9 32.2 1.9 32.2 32.2 32.2 26.5 20.8 15.1

1500

72 49.9 1.2 39.3 33.1 26.8 20.6 - - 45.0 1.9 36.9 30.6 24.4 18.1 - -

67 45.0 1.8 45.0 40.9 34.4 28.2 21.9 - 40.7 2.1 40.7 38.6 32.4 26.1 19.9 -

62 40.3 1.6 40.3 40.3 40.3 34.1 27.8 21.6 35.5 2.0 35.5 35.5 35.5 29.2 23.0 16.7

57 36.2 1.5 36.2 36.2 36.2 29.9 23.7 17.4 32.1 1.9 32.1 32.1 32.1 25.9 19.6 13.4

95°F 105°F

750

77 38.8 3.1 13.9 11.6 8.5 - - - 36.4 2.7 12.7 11.2 8.3 - - -

72 35.6 2.8 19.9 16.9 13.8 10.8 - - 32.8 2.7 19.0 16.1 13.1 10.2 - -

67 32.5 2.6 25.9 22.2 19.1 16.1 13.0 - 29.2 2.6 25.3 20.9 17.9 15.0 12.1 -

62 27.3 2.7 27.3 26.6 21.0 18.0 14.9 11.9 25.0 2.6 25.0 24.7 19.5 16.5 13.6 10.7

900

77 40.5 3.0 17.2 13.5 9.8 - - - 37.5 2.7 16.5 13.0 9.4 - - -

72 37.2 2.7 23.4 19.7 16.0 12.3 - - 33.8 2.7 22.0 18.4 14.9 11.3 - -

67 33.9 2.5 29.5 25.8 22.1 18.4 14.7 - 30.1 2.6 27.5 23.9 20.3 16.8 13.2 -

62 28.5 2.7 28.5 28.0 24.3 20.6 16.9 13.2 25.8 2.6 25.8 25.5 22.1 18.5 14.9 11.4

57 26.2 2.4 26.2 26.0 22.3 18.6 14.9 11.2 24.9 2.4 24.9 24.9 21.4 17.8 14.2 10.6

1050

77 42.2 2.8 20.6 15.5 11.2 - - - 38.6 2.7 20.4 14.7 10.5 - - -

72 38.7 2.6 26.8 22.5 18.1 13.8 - - 34.8 2.7 25.0 20.8 16.6 12.4 - -

67 35.3 2.4 33.1 29.4 25.1 20.7 16.4 - 31.0 2.6 29.7 26.9 22.7 18.5 14.3 -

62 29.7 2.6 29.7 29.4 27.6 23.2 18.9 14.5 26.5 2.6 26.5 26.4 24.7 20.5 16.3 12.1

57 27.2 2.3 27.2 27.2 25.3 21.0 16.6 12.3 25.6 2.5 25.6 25.6 23.9 19.6 15.4 11.2

1200

77 43.9 2.7 23.9 17.5 12.5 - - - 39.7 2.7 24.2 16.4 11.6 - - -

72 40.3 2.5 30.3 25.3 20.3 15.3 - - 35.8 2.7 28.0 23.2 18.4 13.5 - -

67 36.7 2.3 36.7 33.1 28.1 23.1 18.1 - 31.9 2.6 31.9 30.0 25.1 20.3 15.4 -

62 30.8 2.5 30.8 30.8 30.8 25.8 20.8 15.8 27.3 2.6 27.3 27.3 27.3 22.5 17.6 12.8

57 28.3 2.2 28.3 28.3 28.3 23.3 18.3 13.3 26.4 2.5 26.4 26.4 26.4 21.5 16.7 11.8

1350

72 40.1 2.5 32.4 26.7 21.1 15.5 - - 35.8 2.6 30.4 24.9 19.5 14.0 - -

67 36.5 2.3 36.5 34.7 29.2 23.6 17.9 - 31.9 2.6 31.9 30.9 26.7 21.2 15.7 -

62 30.7 2.5 30.7 30.7 30.7 25.1 19.5 13.8 27.3 2.5 27.3 27.3 27.3 21.9 16.4 10.9

57 28.2 2.2 28.2 28.2 28.2 22.6 17.0 11.3 26.4 2.4 26.4 26.4 26.4 20.9 15.5 10.0

1500

72 40.0 2.5 34.4 28.2 21.9 15.6 - - 35.8 2.6 32.7 26.7 20.6 14.5 - -

67 36.4 2.3 36.4 36.4 30.3 24.1 17.8 - 31.9 2.5 31.9 31.9 28.2 22.1 16.0 -

62 30.6 2.5 30.6 30.6 30.6 24.3 18.1 11.8 27.3 2.5 27.3 27.3 27.3 21.2 15.2 9.1

57 28.1 2.2 28.1 28.1 28.1 21.8 15.6 9.3 26.4 2.4 26.4 26.4 26.4 20.3 14.2 8.2

528150-YTG-T-0514

68 Johnson Controls Unitary Products

115°F 125°F

750

77 34.0 2.4 11.6 10.9 8.1 - - - 31.5 2.1 11.5 9.9 7.9 - - -

72 30.0 2.5 18.1 15.3 12.4 9.6 - - 27.2 2.3 17.2 14.5 11.7 9.0 - -

67 26.0 2.6 24.6 19.6 16.8 13.9 11.1 - 22.8 2.6 22.8 18.3 15.6 12.9 10.1 -

62 22.8 2.4 22.8 22.8 18.0 15.1 12.3 9.5 20.5 2.2 20.5 20.5 16.5 13.7 11.0 8.3

900

77 34.5 2.5 15.9 12.4 9.0 - - - 31.4 2.3 15.9 11.8 8.5 - - -

72 30.4 2.6 20.7 17.2 13.8 10.3 - - 27.1 2.5 19.3 16.0 12.7 9.3 - -

67 26.4 2.7 25.5 22.0 18.6 15.1 11.7 - 22.7 2.8 22.7 20.1 16.8 13.5 10.2 -

62 23.1 2.5 23.1 23.1 19.9 16.5 13.0 9.6 20.4 2.4 20.4 20.4 17.7 14.4 11.1 7.7

57 23.7 2.5 23.7 23.7 20.4 17.0 13.5 10.1 22.5 2.5 22.5 22.5 19.5 16.2 12.8 9.5

1050

77 35.0 2.6 20.1 13.9 9.8 - - - 31.3 2.5 20.3 13.7 9.2 - - -

72 30.9 2.7 23.2 19.2 15.1 11.0 - - 26.9 2.8 21.4 17.5 13.6 9.7 - -

67 26.8 2.8 26.3 24.4 20.4 16.3 12.2 - 22.6 3.0 22.6 21.9 18.0 14.1 10.2 -

62 23.4 2.6 23.4 23.4 21.8 17.8 13.7 9.6 20.3 2.6 20.3 20.3 19.0 15.0 11.1 7.2

57 24.0 2.6 24.0 24.0 22.4 18.3 14.3 10.2 22.5 2.7 22.5 22.5 21.0 17.0 13.1 9.2

1200

77 35.4 2.7 24.4 15.4 10.7 - - - 31.2 2.7 24.7 15.6 9.8 - - -

72 31.3 2.8 25.8 21.1 16.4 11.8 - - 26.8 3.0 23.6 19.0 14.5 10.0 - -

67 27.2 2.9 27.2 26.9 22.2 17.5 12.8 - 22.4 3.3 22.4 22.4 19.2 14.7 10.2 -

62 23.8 2.7 23.8 23.8 23.8 19.1 14.4 9.7 20.2 2.8 20.2 20.2 20.2 15.7 11.2 6.7

57 24.4 2.7 24.4 24.4 24.4 19.7 15.0 10.3 22.4 2.9 22.4 22.4 22.4 17.9 13.4 8.9

1350

72 31.5 2.7 28.4 23.1 17.9 12.6 - - 27.1 2.9 26.5 21.4 16.3 11.2 - -

67 27.3 2.9 27.3 27.1 24.1 18.8 13.6 - 22.7 3.1 22.7 22.7 21.6 16.5 11.4 -

62 23.9 2.6 23.9 23.9 23.9 18.6 13.3 8.1 20.5 2.7 20.5 20.5 20.5 15.4 10.3 5.2

57 24.5 2.6 24.5 24.5 24.5 19.2 14.0 8.7 22.7 2.8 22.7 22.7 22.7 17.6 12.5 7.4

1500

72 31.6 2.7 31.1 25.2 19.3 13.4 - - 27.4 2.7 27.4 23.7 18.0 12.3 - -

67 27.4 2.8 27.4 27.4 26.0 20.2 14.3 - 23.0 3.0 23.0 23.0 23.0 18.2 12.6 -

62 24.0 2.5 24.0 24.0 24.0 18.1 12.3 6.4 20.7 2.6 20.7 20.7 20.7 15.0 9.3 3.7

57 24.6 2.5 24.6 24.6 24.6 18.8 12.9 7.0 22.9 2.7 22.9 22.9 22.9 17.2 11.5 5.9

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR037 (3.0 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 69

ZR037 (3.0 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

75 75

40 °F 50 °F

1050

62.5 14.1 1.3 8.9 19.7 2.0 8.9

64 15.3 1.3 8.1 21.3 2.0 7.5

65.3 17.0 1.4 7.1 22.5 2.0 6.2

1200

62.5 14.9 1.3 9.7 20.3 2.0 9.8

64 15.6 1.3 8.7 21.2 2.0 8.3

65.3 16.1 1.3 7.8 23.1 2.0 7.1

1350

62.5 21.7 1.9 11.1 21.6 2.0 10.9

64 22.3 1.9 9.3 23.1 2.0 9.7

65.3 22.5 1.8 8.0 24.7 2.0 8.2

60 °F 70 °F

1050

62.5 18.5 2.0 8.1 17.0 2.1 6.8

64 19.7 2.0 6.6 18.4 2.1 5.5

65.3 20.9 2.0 5.4 19.6 2.1 4.4

1200

62.5 19.2 2.0 9.0 17.0 2.1 7.9

64 20.3 2.0 7.6 18.5 2.1 6.6

65.3 22.2 2.0 6.3 19.9 2.1 5.5

1350

62.5 19.8 2.0 9.8 16.1 2.1 8.4

64 21.1 2.0 8.4 17.3 2.1 6.8

62 22.3 2.0 7.2 18.8 2.1 5.7

75 °F 80 °F

1050

62.5 16.3 2.1 7.2 15.0 2.1 5.9

64 17.6 2.1 5.5 16.2 2.1 4.5

65.3 18.8 2.1 4.0 16.6 2.1 3.6

1200

62.5 16.6 2.1 7.4 14.9 2.1 6.7

64 18.0 2.1 6.1 16.1 2.1 5.5

65.3 18.9 2.1 5.0 17.2 2.1 3.9

1350

62.5 15.8 2.1 7.8 14.4 2.1 7.1

64 17.3 2.1 6.7 15.6 2.1 5.8

65.3 18.5 2.1 5.2 16.7 2.1 4.4

85 °F 95 °F

1050

62.5 12.0 2.2 4.5 7.5 2.3 1.7

64 12.5 2.2 3.1 8.5 2.3 0.5

65.3 13.4 2.2 1.9 9.3 2.4 -0.9

1200

62.5 11.8 2.2 5.0 8.8 2.3 -0.6

64 12.9 2.2 3.7 8.0 2.3 0.6

65.3 13.9 2.2 2.3 8.2 2.4 -0.9

1350

62.5 11.7 2.2 5.6 6.0 2.3 1.9

64 12.6 2.2 4.0 6.7 2.3 0.6

62 13.6 2.2 2.7 7.7 2.3 -0.7

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

528150-YTG-T-0514

70 Johnson Controls Unitary Products

ZR049 (4.0 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1000

77 70.8 1.6 27.3 22.8 18.2 - - - 61.5 3.0 26.1 21.6 17.2 - - -

72 62.1 2.0 34.1 29.5 24.9 20.3 - - 55.0 3.0 32.3 27.8 23.4 18.9 - -

67 53.5 2.4 40.8 36.2 31.6 27.0 22.4 - 48.5 2.9 38.5 34.1 29.6 25.2 20.7 -

62 48.3 2.0 48.3 46.8 37.7 33.1 28.5 23.9 43.1 2.9 43.1 42.3 35.8 31.3 26.9 22.4

1200

77 73.1 1.8 30.4 25.1 19.9 - - - 63.8 3.0 29.0 23.9 18.7 - - -

72 64.2 2.2 37.7 32.5 27.3 22.0 - - 57.1 3.0 35.8 30.7 25.5 20.4 - -

67 55.3 2.6 45.1 39.9 34.6 29.4 24.2 - 50.3 2.9 42.6 37.5 32.3 27.2 22.0 -

62 50.0 2.2 50.0 48.9 41.3 36.1 30.9 25.6 44.7 2.9 44.7 44.2 39.1 33.9 28.8 23.6

57 48.7 2.2 48.7 48.7 44.1 38.9 33.7 28.4 44.1 2.9 44.1 44.1 40.5 35.4 30.2 25.1

1400

77 75.5 2.1 33.4 27.5 21.6 - - - 66.1 3.0 32.0 26.1 20.3 - - -

72 66.3 2.4 41.4 35.5 29.6 23.8 - - 59.1 3.0 39.3 33.5 27.7 21.8 - -

67 57.1 2.8 49.4 43.5 37.6 31.8 25.9 - 52.2 2.9 46.7 40.9 35.0 29.2 23.3 -

62 51.6 2.4 51.6 51.1 44.9 39.0 33.1 27.3 46.3 2.9 46.3 46.1 42.3 36.5 30.6 24.8

57 50.2 2.4 50.2 50.2 48.0 42.1 36.2 30.3 45.7 2.9 45.7 45.7 43.9 38.1 32.2 26.4

1600

77 77.9 2.3 36.5 29.9 23.4 - - - 68.4 3.0 34.9 28.4 21.9 - - -

72 68.4 2.6 45.1 38.6 32.0 25.5 - - 61.2 3.0 42.9 36.3 29.8 23.3 - -

67 58.9 3.0 53.7 47.2 40.7 34.1 27.6 - 54.0 2.9 50.8 44.3 37.7 31.2 24.7 -

62 53.2 2.6 53.2 53.2 48.5 42.0 35.4 28.9 47.9 2.9 47.9 47.9 45.6 39.1 32.5 26.0

57 51.8 2.6 51.8 51.8 51.8 45.3 38.7 32.2 47.3 2.9 47.3 47.3 47.3 40.7 34.2 27.7

1800

72 70.3 2.4 48.1 40.9 33.7 26.6 - - 62.2 3.0 46.1 38.9 31.7 24.5 - -

67 60.5 2.8 57.9 50.0 42.8 35.7 28.5 - 54.8 2.9 53.3 47.3 40.2 33.0 25.8 -

62 54.7 2.4 54.7 54.7 52.3 45.1 38.0 30.8 48.7 2.9 48.7 48.7 47.5 40.3 33.2 26.0

57 53.2 2.4 53.2 53.2 53.2 46.1 38.9 31.7 48.0 2.9 48.0 48.0 48.0 40.9 33.7 26.5

2000

72 72.1 2.2 51.0 43.2 35.4 27.7 - - 63.1 3.0 49.3 41.5 33.6 25.8 - -

67 62.1 2.6 62.1 52.8 45.0 37.2 29.4 - 55.7 2.9 55.7 50.4 42.6 34.8 27.0 -

62 56.1 2.2 56.1 56.1 56.1 48.3 40.5 32.7 49.5 2.9 49.5 49.5 49.5 41.6 33.8 26.0

57 54.7 2.2 54.7 54.7 54.7 46.9 39.1 31.3 48.8 2.9 48.8 48.8 48.8 41.0 33.1 25.3

95°F 105°F

1000

77 52.2 4.4 24.8 20.5 16.1 - - - 51.3 4.2 21.3 18.4 14.1 - - -

72 47.9 3.9 30.5 26.2 21.9 17.6 - - 45.4 3.9 28.4 24.1 19.9 15.6 - -

67 43.6 3.4 36.3 31.9 27.6 23.3 19.0 - 39.6 3.6 35.5 29.8 25.6 21.3 17.1 -

62 37.9 3.9 37.9 37.9 33.9 29.5 25.2 20.9 34.1 3.8 34.1 34.1 29.2 25.0 20.7 16.5

1200

77 54.4 4.2 27.7 22.6 17.5 - - - 52.8 4.1 25.3 20.4 15.4 - - -

72 49.9 3.7 33.9 28.8 23.8 18.7 - - 46.8 3.8 31.6 26.6 21.7 16.7 - -

67 45.4 3.2 40.1 35.1 30.0 25.0 19.9 - 40.8 3.5 37.8 32.9 27.9 22.9 18.0 -

62 39.5 3.6 39.5 39.5 36.8 31.7 26.7 21.6 35.1 3.7 35.1 35.1 31.9 26.9 22.0 17.0

57 39.6 3.6 39.6 39.6 36.9 31.8 26.8 21.7 35.7 3.7 35.7 35.7 32.4 27.5 22.5 17.6

1400

77 56.6 4.0 30.5 24.7 18.9 - - - 54.3 4.0 29.4 22.4 16.7 - - -

72 51.9 3.5 37.3 31.5 25.7 19.9 - - 48.2 3.7 34.8 29.1 23.5 17.8 - -

67 47.3 3.0 44.0 38.2 32.4 26.6 20.8 - 42.0 3.4 40.2 35.9 30.2 24.6 18.9 -

62 41.1 3.4 41.1 41.1 39.7 33.9 28.1 22.3 36.2 3.6 36.2 36.2 34.6 28.9 23.2 17.5

57 41.2 3.4 41.2 41.2 39.8 34.0 28.2 22.4 36.8 3.6 36.8 36.8 35.1 29.5 23.8 18.1

1600

77 58.8 3.7 33.4 26.9 20.3 - - - 55.8 3.9 33.5 24.4 18.0 - - -

72 54.0 3.3 40.7 34.1 27.6 21.0 - - 49.5 3.6 38.0 31.7 25.3 18.9 - -

67 49.1 2.9 47.9 41.3 34.8 28.3 21.7 - 43.2 3.4 42.6 39.0 32.6 26.2 19.8 -

62 42.7 3.2 42.7 42.7 42.7 36.1 29.6 23.1 37.2 3.5 37.2 37.2 37.2 30.8 24.5 18.1

57 42.8 3.2 42.8 42.8 42.8 36.2 29.7 23.1 37.9 3.5 37.9 37.9 37.9 31.5 25.1 18.7

1800

72 54.1 3.5 44.1 36.9 29.7 22.5 - - 49.9 3.7 41.5 34.4 27.3 20.3 - -

67 49.2 3.1 48.6 44.7 37.5 30.3 23.1 - 43.5 3.5 43.2 41.1 35.2 28.1 21.1 -

62 42.7 3.4 42.7 42.7 42.7 35.5 28.4 21.2 37.5 3.6 37.5 37.5 37.5 30.4 23.4 16.3

57 42.8 3.4 42.8 42.8 42.8 35.6 28.4 21.3 38.1 3.6 38.1 38.1 38.1 31.1 24.0 16.9

2000

72 54.2 3.7 47.5 39.7 31.8 24.0 - - 50.3 3.9 44.9 37.1 29.4 21.6 - -

67 49.3 3.3 49.3 48.0 40.2 32.3 24.5 - 43.8 3.6 43.8 43.2 37.9 30.1 22.4 -

62 42.8 3.7 42.8 42.8 42.8 35.0 27.1 19.3 37.8 3.7 37.8 37.8 37.8 30.0 22.3 14.5

57 42.9 3.7 42.9 42.9 42.9 35.1 27.2 19.4 38.4 3.7 38.4 38.4 38.4 30.7 22.9 15.2

528150-YTG-T-0514

Johnson Controls Unitary Products 71

115°F 125°F

1000

77 50.4 4.0 17.7 16.3 12.1 - - - 49.5 3.7 16.5 12.8 10.1 - - -

72 43.0 3.9 26.2 22.0 17.8 13.6 - - 40.5 3.9 24.0 19.9 15.8 11.7 - -

67 35.6 3.8 34.6 27.7 23.5 19.3 15.2 - 31.5 4.0 31.5 25.6 21.5 17.4 13.3 -

62 30.3 3.7 30.3 30.3 24.6 20.5 16.3 12.1 26.5 3.6 26.5 26.5 20.0 15.9 11.8 7.7

1200

77 51.2 4.0 23.0 18.1 13.3 - - - 49.6 3.9 22.4 15.9 11.2 - - -

72 43.7 3.9 29.3 24.4 19.5 14.7 - - 40.6 4.0 26.9 22.2 17.4 12.7 - -

67 36.1 3.8 35.5 30.7 25.8 20.9 16.1 - 31.5 4.1 31.5 28.4 23.7 18.9 14.2 -

62 30.8 3.7 30.8 30.8 27.0 22.1 17.3 12.4 26.5 3.8 26.5 26.5 22.1 17.4 12.6 7.8

57 31.9 3.8 31.9 31.9 28.0 23.2 18.3 13.4 28.1 3.8 28.1 28.1 23.6 18.8 14.1 9.3

1400

77 52.0 4.0 28.3 20.0 14.5 - - - 49.7 4.0 28.4 19.0 12.2 - - -

72 44.4 3.9 32.3 26.8 21.3 15.7 - - 40.6 4.1 29.9 24.5 19.0 13.6 - -

67 36.7 3.8 36.4 33.6 28.1 22.5 17.0 - 31.4 4.2 31.4 31.3 25.9 20.5 15.1 -

62 31.3 3.7 31.3 31.3 29.4 23.8 18.3 12.8 26.4 3.9 26.4 26.4 24.2 18.8 13.4 8.0

57 32.4 3.8 32.4 32.4 30.5 24.9 19.4 13.8 28.1 3.9 28.1 28.1 25.8 20.4 15.0 9.6

1600

77 52.9 4.0 33.6 21.9 15.6 - - - 49.9 4.2 34.3 22.2 13.3 - - -

72 45.1 3.9 35.4 29.2 23.0 16.8 - - 40.6 4.3 32.8 26.8 20.7 14.6 - -

67 37.3 3.8 37.3 36.6 30.3 24.1 17.9 - 31.3 4.3 31.3 31.3 28.1 22.0 15.9 -

62 31.8 3.8 31.8 31.8 31.8 25.5 19.3 13.1 26.3 4.0 26.3 26.3 26.3 20.2 14.2 8.1

57 32.9 3.8 32.9 32.9 32.9 26.7 20.5 14.3 28.0 4.1 28.0 28.0 28.0 22.0 15.9 9.8

1800

72 45.7 3.9 38.8 31.9 24.9 18.0 - - 41.6 4.2 36.2 29.4 22.6 15.7 - -

67 37.8 3.9 37.8 37.5 32.9 26.0 19.0 - 32.2 4.3 32.2 32.2 30.6 23.8 17.0 -

62 32.2 3.8 32.2 32.2 32.2 25.3 18.4 11.4 27.0 3.9 27.0 27.0 27.0 20.2 13.4 6.6

57 33.5 3.8 33.5 33.5 33.5 26.5 19.6 12.6 28.8 4.0 28.8 28.8 28.8 21.9 15.1 8.3

2000

72 46.4 4.0 42.2 34.6 26.9 19.3 - - 42.6 4.1 39.5 32.0 24.4 16.9 - -

67 38.4 3.9 38.4 38.4 35.5 27.9 20.2 - 33.0 4.2 33.0 33.0 33.0 25.6 18.1 -

62 32.7 3.8 32.7 32.7 32.7 25.1 17.4 9.8 27.7 3.8 27.7 27.7 27.7 20.1 12.6 5.0

57 34.0 3.8 34.0 34.0 34.0 26.3 18.6 11.0 29.5 3.9 29.5 29.5 29.5 21.9 14.4 6.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR049 (4.0 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

72 Johnson Controls Unitary Products

ZR049 (4.0 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

75 75

40 °F 50 °F

1200

62.5 24.5 2.5 9.1 22.9 2.6 8.0

64 25.7 2.5 7.4 26.9 2.7 7.2

65.3 26.6 2.5 6.1 27.1 2.6 5.5

1600

62.5 24.0 2.5 12.4 24.5 2.6 11.2

64 25.8 2.5 10.0 26.7 2.6 9.2

65.3 27.1 2.5 8.3 28.5 2.6 7.7

2000

62.5 24.3 2.5 12.9 22.7 2.6 11.6

64 26.2 2.5 11.1 24.7 2.6 10.0

65.3 27.1 2.5 9.2 26.5 2.6 8.5

60 °F 70 °F

1200

62.5 21.8 2.6 7.1 19.8 2.7 6.2

64 25.3 2.7 6.3 23.0 2.8 0.0

65.3 26.9 2.7 4.8 23.5 2.7 2.9

1600

62.5 22.7 2.7 9.9 20.6 2.7 8.8

64 25.4 2.7 8.8 22.4 2.8 6.8

65.3 26.9 2.7 7.5 24.4 2.8 5.9

2000

62.5 20.1 2.6 10.2 18.2 2.7 8.9

64 22.3 2.6 8.6 20.5 2.7 7.7

62 23.7 2.6 6.9 21.4 2.7 5.3

75 °F 80 °F

1200

62.5 19.0 2.7 5.5 17.6 2.8 4.7

64 21.5 2.8 5.1 20.9 2.9 3.7

65.3 22.2 2.8 2.8 21.5 2.9 2.3

1600

62.5 19.3 2.8 8.1 17.9 2.9 7.5

64 21.3 2.8 6.3 19.9 2.9 5.7

65.3 22.6 2.8 4.7 21.1 2.9 4.1

2000

62.5 16.9 2.7 7.9 15.1 2.8 7.1

64 18.2 2.7 6.3 16.7 2.8 5.6

65.3 19.9 2.8 4.8 18.3 2.8 4.0

85 °F 95 °F

1200

62.5 17.7 2.9 5.0 12.8 3.1 3.5

64 19.0 2.9 3.4 13.8 3.2 -0.2

65.3 20.4 2.9 2.1 14.0 3.1 -1.5

1600

62.5 16.2 2.9 6.4 9.7 3.1 2.4

64 18.2 3.0 5.0 10.8 3.2 1.0

65.3 19.6 3.0 3.1 12.2 3.2 -0.7

2000

62.5 13.3 2.9 6.6 6.2 3.0 1.4

64 14.8 2.9 4.7 7.2 3.0 -0.1

62 15.8 2.9 3.1 8.0 3.0 -1.5

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

528150-YTG-T-0514

Johnson Controls Unitary Products 73

ZR061 (5.0 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1250

77 81.7 5.9 33.6 27.7 21.9 - - - 76.2 4.8 32.2 26.5 20.8 - - -

72 72.8 5.0 41.9 36.1 30.2 24.3 - - 67.8 4.3 40.1 34.3 28.6 22.9 - -

67 64.0 4.0 50.2 44.4 38.5 32.6 26.7 - 59.4 3.8 47.9 42.1 36.4 30.7 25.0 -

62 57.0 3.6 57.0 57.0 45.7 39.9 33.9 28.1 52.5 3.8 52.5 52.5 43.6 37.8 32.1 26.4

1500

77 85.0 5.4 37.9 31.1 24.3 - - - 79.0 4.6 36.2 29.6 23.0 - - -

72 75.8 4.5 47.1 40.4 33.6 26.8 - - 70.3 4.1 44.8 38.2 31.6 25.0 - -

67 66.6 3.6 56.4 49.6 42.9 36.1 29.3 - 61.6 3.7 53.4 46.8 40.2 33.6 27.0 -

62 59.3 3.2 59.3 59.3 50.9 44.1 37.4 30.6 54.5 3.6 54.5 54.5 48.1 41.4 34.8 28.2

57 58.1 4.1 58.1 58.1 52.1 45.3 38.6 31.8 53.9 4.1 53.9 53.9 48.7 42.1 35.4 28.8

1750

77 88.3 4.9 42.1 34.4 26.8 - - - 81.9 4.3 40.1 32.6 25.1 - - -

72 78.7 4.1 52.3 44.6 37.0 29.4 - - 72.9 3.9 49.5 42.0 34.5 27.0 - -

67 69.2 3.2 62.5 54.8 47.2 39.5 31.9 - 63.9 3.5 59.0 51.5 43.9 36.4 28.9 -

62 61.6 2.8 61.6 61.6 56.0 48.4 40.7 33.1 56.4 3.4 56.4 56.4 52.5 45.0 37.5 30.0

57 60.4 3.7 60.4 60.4 57.3 49.7 42.1 34.4 55.8 3.9 55.8 55.8 53.2 45.7 38.2 30.7

2000

77 91.6 4.4 46.3 37.8 29.3 - - - 84.7 4.1 44.0 35.6 27.2 - - -

72 81.7 3.6 57.5 48.9 40.4 31.9 - - 75.4 3.7 54.3 45.9 37.5 29.1 - -

67 71.8 2.8 68.6 60.1 51.5 43.0 34.5 - 66.1 3.3 64.5 56.1 47.7 39.3 30.9 -

62 63.9 2.5 63.9 63.9 61.2 52.7 44.1 35.6 58.4 3.2 58.4 58.4 57.0 48.6 40.2 31.8

57 62.6 3.2 62.6 62.6 62.6 54.1 45.6 37.0 57.8 3.6 57.8 57.8 57.8 49.4 41.0 32.6

2250

72 82.5 3.9 60.8 51.6 42.4 33.2 - - 75.9 3.9 57.9 48.8 39.7 30.6 - -

67 72.5 3.0 70.9 63.3 54.1 44.9 35.8 - 66.5 3.5 65.7 59.6 50.5 41.4 32.3 -

62 64.5 2.6 64.5 64.5 63.2 54.0 44.8 35.6 58.8 3.5 58.8 58.8 58.1 49.0 39.9 30.8

57 63.3 3.5 63.3 63.3 63.3 54.1 44.9 35.7 58.2 3.9 58.2 58.2 58.2 49.1 39.9 30.8

2500

72 83.4 4.2 64.2 54.3 44.5 34.6 - - 76.4 4.1 61.6 51.7 41.9 32.1 - -

67 73.2 3.3 73.2 66.6 56.7 46.9 37.1 - 66.9 3.7 66.9 63.2 53.4 43.5 33.7 -

62 65.2 2.8 65.2 65.2 65.2 55.3 45.5 35.6 59.2 3.7 59.2 59.2 59.2 49.3 39.5 29.7

57 63.9 3.7 63.9 63.9 63.9 54.0 44.2 34.4 58.5 4.1 58.5 58.5 58.5 48.7 38.9 29.1

95°F 105°F

1250

77 70.7 3.7 30.8 25.3 19.7 - - - 65.8 4.9 25.3 21.7 16.5 - - -

72 62.8 3.7 38.2 32.6 27.0 21.5 - - 57.8 4.6 35.2 29.7 24.3 18.9 - -

67 54.8 3.7 45.5 39.9 34.3 28.8 23.2 - 49.8 4.3 45.1 37.8 32.1 26.6 21.2 -

62 48.1 4.0 48.1 48.1 41.4 35.8 30.3 24.7 43.0 4.6 43.0 43.0 35.7 30.3 24.8 19.4

1500

77 73.1 3.8 34.5 28.0 21.6 - - - 67.2 4.8 31.0 24.5 18.1 - - -

72 64.9 3.7 42.5 36.0 29.5 23.1 - - 59.0 4.5 39.4 33.0 26.6 20.2 - -

67 56.7 3.7 50.5 44.0 37.5 31.1 24.6 - 50.8 4.3 47.7 41.5 35.1 28.7 22.3 -

62 49.7 4.0 49.7 49.7 45.2 38.8 32.3 25.8 43.9 4.6 43.9 43.9 39.1 32.7 26.3 19.9

57 49.7 4.0 49.7 49.7 45.3 38.8 32.3 25.9 44.9 4.6 44.9 44.9 39.9 33.5 27.1 20.8

1750

77 75.5 3.8 38.2 30.8 23.4 - - - 68.6 4.7 36.8 27.3 19.7 - - -

72 67.0 3.7 46.8 39.4 32.1 24.7 - - 60.3 4.5 43.6 36.2 28.9 21.6 - -

67 58.5 3.7 55.4 48.1 40.7 33.3 26.0 - 51.9 4.2 50.4 45.2 38.1 30.8 23.5 -

62 51.3 4.0 51.3 51.3 49.1 41.7 34.3 27.0 44.9 4.5 44.9 44.9 42.5 35.1 27.8 20.4

57 51.3 4.0 51.3 51.3 49.1 41.7 34.4 27.0 45.9 4.5 45.9 45.9 43.4 36.0 28.7 21.4

2000

77 77.9 3.8 41.8 33.5 25.2 - - - 70.0 4.7 42.5 30.0 21.2 - - -

72 69.1 3.8 51.1 42.8 34.6 26.3 - - 61.5 4.4 47.8 39.5 31.2 22.9 - -

67 60.4 3.7 60.4 52.2 43.9 35.6 27.3 - 53.0 4.1 53.0 48.9 41.2 32.9 24.6 -

62 52.9 4.0 52.9 52.9 52.9 44.6 36.4 28.1 45.8 4.4 45.8 45.8 45.8 37.5 29.2 21.0

57 52.9 4.1 52.9 52.9 52.9 44.7 36.4 28.1 46.8 4.4 46.8 46.8 46.8 38.5 30.3 22.0

2250

72 69.3 3.9 55.0 46.0 37.0 27.9 - - 61.6 4.6 51.5 42.5 33.4 24.3 - -

67 60.5 3.9 60.5 56.0 46.9 37.9 28.9 - 53.1 4.3 53.1 50.8 44.1 35.0 26.0 -

62 53.0 4.3 53.0 53.0 53.0 44.0 35.0 25.9 45.9 4.6 45.9 45.9 45.9 36.8 27.7 18.7

57 53.1 4.3 53.1 53.1 53.1 44.0 35.0 26.0 46.9 4.7 46.9 46.9 46.9 37.8 28.7 19.7

2500

72 69.4 4.1 58.9 49.1 39.4 29.6 - - 61.6 4.8 55.3 45.5 35.6 25.8 - -

67 60.7 4.1 60.7 59.8 50.0 40.2 30.4 - 53.1 4.5 53.1 52.7 47.0 37.2 27.3 -

62 53.2 4.5 53.2 53.2 53.2 43.4 33.6 23.8 45.9 4.8 45.9 45.9 45.9 36.1 26.2 16.4

57 53.2 4.5 53.2 53.2 53.2 43.4 33.6 23.8 46.9 4.9 46.9 46.9 46.9 37.1 27.2 17.4

528150-YTG-T-0514

74 Johnson Controls Unitary Products

115°F 125°F

1250

77 60.8 6.1 19.8 18.1 13.3 - - - 55.9 7.3 18.9 12.5 10.1 - - -

72 52.8 5.6 32.2 26.9 21.6 16.2 - - 47.8 6.5 29.2 24.0 18.8 13.6 - -

67 44.7 5.0 44.7 35.7 29.8 24.5 19.1 - 39.6 5.7 39.6 34.3 27.5 22.3 17.1 -

62 37.9 5.3 37.9 37.9 30.0 24.7 19.4 14.0 32.9 5.9 32.9 32.9 24.3 19.1 13.9 8.7

1500

77 61.3 5.9 27.6 20.9 14.6 - - - 55.4 7.0 27.2 17.4 11.1 - - -

72 53.2 5.4 36.3 30.0 23.6 17.3 - - 47.3 6.2 33.2 27.0 20.7 14.4 - -

67 45.0 4.8 45.0 39.0 32.7 26.4 20.0 - 39.2 5.4 39.2 36.5 30.3 24.0 17.8 -

62 38.2 5.1 38.2 38.2 32.9 26.6 20.3 14.0 32.5 5.7 32.5 32.5 26.8 20.5 14.3 8.0

57 40.1 5.2 40.1 40.1 34.6 28.3 22.0 15.6 35.4 5.8 35.4 35.4 29.3 23.0 16.8 10.5

1750

77 61.7 5.7 35.4 23.8 15.9 - - - 54.8 6.7 35.6 22.3 12.2 - - -

72 53.5 5.2 40.4 33.1 25.7 18.4 - - 46.8 5.9 37.2 29.9 22.6 15.3 - -

67 45.3 4.7 45.3 42.3 35.6 28.3 20.9 - 38.8 5.2 38.8 38.8 33.0 25.7 18.4 -

62 38.5 4.9 38.5 38.5 35.8 28.5 21.2 13.9 32.1 5.4 32.1 32.1 29.2 21.9 14.7 7.4

57 40.4 5.0 40.4 40.4 37.7 30.3 23.0 15.7 35.0 5.5 35.0 35.0 31.9 24.7 17.4 10.1

2000

77 62.2 5.5 43.2 26.6 17.2 - - - 54.3 6.4 43.9 27.2 13.2 - - -

72 53.9 5.0 44.4 36.1 27.8 19.5 - - 46.3 5.7 41.1 32.8 24.5 16.1 - -

67 45.7 4.5 45.7 45.7 38.5 30.1 21.8 - 38.3 4.9 38.3 38.3 35.7 27.4 19.1 -

62 38.8 4.8 38.8 38.8 38.8 30.4 22.1 13.8 31.7 5.1 31.7 31.7 31.7 23.4 15.0 6.7

57 40.7 4.8 40.7 40.7 40.7 32.4 24.1 15.8 34.6 5.2 34.6 34.6 34.6 26.3 18.0 9.6

2250

72 53.9 5.2 48.1 38.9 29.8 20.7 - - 46.2 5.9 44.6 35.4 26.3 17.1 - -

67 45.6 4.7 45.6 45.6 41.2 32.1 23.0 - 38.2 5.1 38.2 38.2 38.2 29.3 20.1 -

62 38.7 5.0 38.7 38.7 38.7 29.6 20.5 11.4 31.6 5.4 31.6 31.6 31.6 22.4 13.3 4.1

57 40.7 5.1 40.7 40.7 40.7 31.6 22.5 13.4 34.5 5.5 34.5 34.5 34.5 25.3 16.2 7.1

2500

72 53.8 5.5 51.7 41.8 31.9 22.0 - - 46.0 6.1 46.0 38.1 28.1 18.2 - -

67 45.6 4.9 45.6 45.6 44.0 34.1 24.2 - 38.1 5.3 38.1 38.1 38.1 31.1 21.2 -

62 38.7 5.2 38.7 38.7 38.7 28.8 18.9 9.0 31.5 5.6 31.5 31.5 31.5 21.5 11.5 1.6

57 40.6 5.3 40.6 40.6 40.6 30.7 20.8 10.9 34.4 5.7 34.4 34.4 34.4 24.4 14.5 4.5

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR061 (5.0 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

Johnson Controls Unitary Products 75

ZR061 (5.0 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

(- indicates heating)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

75 75

40 °F 50 °F

1750

62.5 26.8 3.1 8.4 29.3 3.2 10.7

64 28.9 3.1 6.4 32.4 3.2 9.2

65.3 30.0 3.1 4.8 34.7 3.2 7.3

2000

62.5 29.2 3.1 11.0 30.3 3.2 11.9

64 30.8 3.1 8.6 32.3 3.2 9.9

65.3 31.4 3.1 5.8 35.3 3.2 8.4

2250

62.5 29.8 3.1 10.5 29.6 3.2 11.1

64 31.2 3.1 7.6 32.1 3.2 8.5

65.3 31.4 3.1 6.0 34.5 3.2 6.2

60 °F 70 °F

1750

62.5 26.7 3.3 9.2 24.5 3.4 8.0

64 28.9 3.3 6.9 27.0 3.4 6.4

65.3 31.6 3.3 5.4 28.7 3.4 4.3

2000

62.5 27.9 3.3 10.9 25.0 3.4 9.0

64 31.0 3.3 8.4 27.3 3.4 6.9

65.3 32.9 3.3 6.7 29.6 3.4 4.9

2250

62.5 26.8 3.3 9.5 23.6 3.4 7.3

64 29.5 3.3 6.9 26.1 3.4 4.7

62 31.7 3.3 4.5 28.2 3.4 2.7

75 °F 80 °F

1750

62.5 22.8 3.5 7.1 21.3 3.5 6.3

64 25.5 3.5 5.1 23.9 3.5 4.6

65.3 27.8 3.5 3.3 25.8 3.5 2.7

2000

62.5 23.2 3.5 8.0 21.3 3.5 7.3

64 25.7 3.5 5.9 23.7 3.5 5.3

65.3 27.8 3.5 4.3 25.7 3.5 3.6

2250

62.5 21.6 3.4 6.8 19.5 3.5 5.6

64 23.8 3.5 4.5 22.0 3.5 3.1

65.3 26.1 3.5 1.9 24.1 3.5 1.0

85 °F 95 °F

1750

62.5 17.4 3.5 3.9 8.3 3.8 -1.8

64 19.7 3.6 2.0 9.8 3.8 -3.9

65.3 21.6 3.6 -0.3 11.2 3.9 -5.3

2000

62.5 17.3 3.6 5.0 7.1 3.8 -0.9

64 19.4 3.6 2.5 8.8 3.8 -3.0

65.3 20.9 3.6 0.5 10.3 3.9 -5.2

2250

62.5 16.0 3.5 3.5 5.0 3.8 -3.3

64 18.0 3.6 0.4 6.1 3.8 -6.2

62 19.4 3.6 -1.7 8.3 3.9 -8.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

528150-YTG-T-0514

76 Johnson Controls Unitary Products

ZR078 (6.5 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1625

77 99.9 5.1 39.3 33.2 27.1 - - - 90.5 5.8 36.9 30.8 24.7 - - -

72 91.5 5.0 50.3 44.2 38.1 32.1 - - 83.7 5.7 48.0 41.8 35.7 29.6 - -

67 83.0 5.0 61.3 55.2 49.2 43.1 37.0 - 76.9 5.7 59.0 52.9 46.8 40.7 34.5 -

62 72.4 4.9 72.4 70.1 60.9 54.9 48.8 42.7 68.7 5.7 68.7 66.7 57.6 51.5 45.4 39.3

1950

77 106.5 5.1 45.5 37.9 30.3 - - - 96.8 5.9 42.8 35.2 27.7 - - -

72 97.5 5.1 57.8 50.2 42.6 35.1 - - 89.5 5.8 55.1 47.6 40.0 32.5 - -

67 88.5 5.1 70.1 62.5 54.9 47.4 39.8 - 82.2 5.8 67.5 60.0 52.4 44.9 37.3 -

62 77.2 5.0 77.2 75.6 68.1 60.5 52.9 45.4 73.4 5.7 73.4 72.1 64.6 57.0 49.5 41.9

57 78.2 5.0 78.2 78.2 72.6 65.0 57.5 49.9 70.6 5.7 70.6 70.6 65.6 58.0 50.5 43.0

2275

77 113.1 5.2 51.6 42.6 33.5 - - - 103.0 5.9 48.6 39.6 30.7 - - -

72 103.5 5.2 65.2 56.2 47.1 38.0 - - 95.2 5.9 62.3 53.3 44.4 35.4 - -

67 93.9 5.1 78.8 69.8 60.7 51.6 42.6 - 87.5 5.8 76.0 67.0 58.1 49.1 40.1 -

62 81.9 5.1 81.9 81.2 75.2 66.2 57.1 48.0 78.1 5.8 78.1 77.5 71.5 62.6 53.6 44.6

57 83.1 5.1 83.1 83.1 80.3 71.2 62.1 53.1 75.2 5.8 75.2 75.2 72.7 63.7 54.7 45.8

2600

77 119.7 5.3 57.8 47.3 36.7 - - - 109.3 6.0 54.4 44.0 33.6 - - -

72 109.5 5.2 72.7 62.2 51.6 41.0 - - 101.0 6.0 69.5 59.1 48.7 38.3 - -

67 99.4 5.2 87.6 77.0 66.5 55.9 45.3 - 92.8 5.9 84.5 74.1 63.7 53.3 42.9 -

62 86.7 5.1 86.7 86.7 82.4 71.8 61.3 50.7 82.9 5.9 82.9 82.9 78.5 68.1 57.7 47.3

57 87.9 5.2 87.9 87.9 87.9 77.4 66.8 56.2 79.7 5.9 79.7 79.7 79.7 69.3 59.0 48.6

2925

72 109.6 5.2 74.8 64.0 53.1 42.2 - - 100.2 5.9 71.6 60.8 50.0 39.3 - -

67 99.5 5.1 91.9 79.3 68.4 57.5 46.7 - 92.0 5.9 87.0 76.3 65.5 54.7 44.0 -

62 86.8 5.1 86.8 86.8 84.6 73.8 62.9 52.0 82.2 5.8 82.2 82.2 80.0 69.3 58.5 47.7

57 88.0 5.1 88.0 88.0 88.0 77.1 66.2 55.3 79.1 5.8 79.1 79.1 79.1 68.3 57.6 46.8

3250

72 109.7 5.1 76.9 65.7 54.6 43.4 - - 99.4 5.8 73.7 62.5 51.4 40.3 - -

67 99.6 5.1 96.1 81.5 70.3 59.1 48.0 - 91.3 5.8 89.5 78.4 67.3 56.1 45.0 -

62 86.9 5.0 86.9 86.9 86.9 75.7 64.5 53.4 81.5 5.8 81.5 81.5 81.5 70.4 59.3 48.1

57 88.0 5.0 88.0 88.0 88.0 76.8 65.6 54.4 78.5 5.8 78.5 78.5 78.5 67.3 56.2 45.1

95°F 105°F

1625

77 81.2 6.5 34.6 28.4 22.3 - - - 76.9 7.3 31.0 26.2 20.1 - - -

72 75.9 6.5 45.6 39.5 33.3 27.2 - - 70.8 7.3 43.2 37.1 31.0 24.8 - -

67 70.7 6.4 56.7 50.5 44.4 38.2 32.1 - 64.7 7.2 55.3 47.9 41.8 35.7 29.6 -

62 64.9 6.4 64.9 63.3 54.3 48.1 42.0 35.8 59.4 7.2 59.4 58.5 49.9 43.8 37.7 31.6

1950

77 87.0 6.6 40.1 32.5 25.0 - - - 81.8 7.4 37.4 30.0 22.6 - - -

72 81.4 6.5 52.5 45.0 37.5 30.0 - - 75.3 7.4 49.6 42.2 34.8 27.4 - -

67 75.8 6.5 64.9 57.4 49.9 42.4 34.9 - 68.8 7.3 61.8 54.4 47.0 39.6 32.1 -

62 69.7 6.4 69.7 68.6 61.0 53.5 46.0 38.5 63.2 7.3 63.2 62.6 56.1 48.7 41.3 33.9

57 63.0 6.5 63.0 63.0 58.6 51.1 43.5 36.0 61.6 7.3 61.6 61.4 55.5 48.1 40.6 33.2

2275

77 92.9 6.7 45.5 36.7 27.8 - - - 86.7 7.5 43.8 33.8 25.1 - - -

72 87.0 6.6 59.3 50.5 41.6 32.8 - - 79.8 7.5 56.0 47.3 38.6 29.9 - -

67 81.0 6.6 73.2 64.3 55.4 46.6 37.7 - 73.0 7.4 68.3 60.9 52.2 43.5 34.7 -

62 74.4 6.5 74.4 73.8 67.8 59.0 50.1 41.2 67.0 7.3 67.0 66.7 62.3 53.6 44.9 36.2

57 67.3 6.5 67.3 67.3 65.1 56.2 47.3 38.5 65.2 7.4 65.2 65.1 61.6 52.9 44.2 35.5

2600

77 98.8 6.7 51.0 40.8 30.6 - - - 91.6 7.6 50.2 37.6 27.6 - - -

72 92.5 6.7 66.2 56.0 45.8 35.6 - - 84.3 7.6 62.5 52.5 42.5 32.5 - -

67 86.1 6.6 81.4 71.2 61.0 50.8 40.5 - 77.1 7.5 74.7 67.3 57.3 47.3 37.3 -

62 79.1 6.6 79.1 79.1 74.6 64.4 54.2 43.9 70.8 7.4 70.8 70.8 68.5 58.5 48.5 38.5

57 71.5 6.6 71.5 71.5 71.5 61.3 51.1 40.9 68.9 7.4 68.9 68.9 67.7 57.7 47.7 37.7

2925

72 90.8 6.6 68.3 57.6 47.0 36.3 - - 83.1 7.5 64.7 54.2 43.8 33.3 - -

67 84.5 6.6 82.2 73.2 62.6 51.9 41.3 - 75.9 7.4 74.8 69.1 59.1 48.7 38.2 -

62 77.6 6.5 77.6 77.6 75.4 64.7 54.1 43.4 69.7 7.4 69.7 69.7 68.6 58.1 47.7 37.2

57 70.2 6.6 70.2 70.2 70.2 59.6 48.9 38.3 67.9 7.4 67.9 67.9 67.3 56.8 46.4 35.9

3250

72 89.1 6.6 70.4 59.3 48.2 37.1 - - 81.8 7.4 66.9 56.0 45.1 34.2 - -

67 83.0 6.5 83.0 75.3 64.2 53.1 42.0 - 74.8 7.4 74.8 70.9 60.9 50.0 39.1 -

62 76.2 6.5 76.2 76.2 76.2 65.1 54.0 42.9 68.6 7.3 68.6 68.6 68.6 57.7 46.8 35.9

57 68.9 6.5 68.9 68.9 68.9 57.8 46.8 35.7 66.9 7.3 66.9 66.9 66.9 56.0 45.1 34.2

528150-YTG-T-0514

Johnson Controls Unitary Products 77

115°F 125°F

1625

77 72.6 8.1 27.5 24.0 18.0 - - - 68.3 9.0 24.0 21.5 15.8 - - -

72 65.6 8.1 40.7 34.7 28.6 22.5 - - 60.4 8.9 38.3 32.2 26.2 20.2 - -

67 58.6 8.1 54.0 45.3 39.2 33.1 27.1 - 52.6 8.9 52.6 42.6 36.6 30.6 24.6 -

62 53.8 8.0 53.8 53.8 45.6 39.5 33.4 27.4 48.2 8.8 48.2 48.2 41.2 35.2 29.2 23.1

1950

77 76.5 8.2 34.8 27.5 20.2 - - - 71.2 9.1 33.0 25.0 17.8 - - -

72 69.1 8.2 46.7 39.4 32.1 24.8 - - 63.0 9.0 43.9 36.6 29.4 22.2 - -

67 61.8 8.2 58.7 51.4 44.0 36.7 29.4 - 54.7 9.0 54.7 48.3 41.1 33.9 26.7 -

62 56.7 8.1 56.7 56.7 51.2 43.9 36.6 29.3 50.2 8.9 50.2 50.2 46.3 39.1 31.9 24.7

57 60.1 8.1 60.1 59.7 52.4 45.1 37.7 30.4 58.7 8.9 58.7 58.0 49.3 42.1 34.8 27.6

2275

77 80.4 8.4 42.1 31.0 22.4 - - - 74.1 9.2 42.0 28.4 19.7 - - -

72 72.7 8.3 52.7 44.2 35.6 27.1 - - 65.5 9.2 49.4 41.0 32.6 24.2 - -

67 64.9 8.3 63.4 57.4 48.9 40.3 31.8 - 56.9 9.1 56.9 54.0 45.6 37.2 28.8 -

62 59.6 8.2 59.6 59.6 56.8 48.3 39.7 31.2 52.2 9.0 52.2 52.2 51.4 43.0 34.6 26.2

57 63.2 8.2 63.2 63.0 58.1 49.6 41.0 32.5 61.2 9.0 61.2 60.8 54.7 46.3 37.9 29.5

2600

77 84.3 8.5 49.4 34.4 24.6 - - - 77.1 9.3 51.0 31.8 21.6 - - -

72 76.2 8.4 58.8 49.0 39.2 29.4 - - 68.1 9.3 55.0 45.4 35.9 26.3 - -

67 68.1 8.4 68.1 63.5 53.7 43.9 34.1 - 59.1 9.2 59.1 59.1 50.1 40.5 30.9 -

62 62.5 8.3 62.5 62.5 62.5 52.7 42.9 33.1 54.2 9.1 54.2 54.2 54.2 46.8 37.2 27.7

57 66.3 8.3 66.3 66.3 63.9 54.1 44.3 34.5 63.6 9.1 63.6 63.6 60.0 50.5 40.9 31.3

2925

72 75.4 8.3 61.1 50.8 40.6 30.3 - - 67.6 9.2 57.5 47.4 37.4 27.3 - -

67 67.3 8.3 67.3 65.0 55.7 45.4 35.1 - 58.7 9.2 58.7 58.7 52.2 42.1 32.1 -

62 61.8 8.2 61.8 61.8 61.8 51.5 41.3 31.0 53.8 9.0 53.8 53.8 53.8 44.9 34.9 24.8

57 65.5 8.2 65.5 65.5 64.3 54.1 43.8 33.6 63.2 9.0 63.2 63.2 61.4 51.3 41.3 31.2

3250

72 74.5 8.3 63.4 52.7 42.0 31.3 - - 67.2 9.1 59.9 49.4 38.9 28.3 - -

67 66.6 8.2 66.6 66.6 57.6 46.9 36.2 - 58.4 9.1 58.4 58.4 54.3 43.7 33.2 -

62 61.1 8.1 61.1 61.1 61.1 50.4 39.7 28.9 53.5 8.9 53.5 53.5 53.5 43.0 32.5 22.0

57 64.8 8.1 64.8 64.8 64.8 54.1 43.4 32.7 62.7 9.0 62.7 62.7 62.7 52.2 41.7 31.2

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR078 (6.5 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

78 Johnson Controls Unitary Products

ZR078 (6.5 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

35°F 45°F

1625

72 31.6 4.51.61.51.5-- 34.9 5.1 -----

67 32.2 4.6 1.5 1.5 1.4 1.4 - 35.2 4.9 2.5 2.2 1.9 1.7 -

62 28.5 4.4 1.6 1.6 1.5 1.5 1.4 32.0 4.9 5.2 4.9 4.6 4.4 4.1

1950

72 36.1 4.32.21.60.9-- 37.2 4.9 -----

67 36.7 4.5 6.6 5.9 5.3 4.6 - 37.6 4.7 6.2 5.6 4.9 4.2 -

62 32.6 4.3 10.8 10.1 9.4 8.8 8.1 34.2 4.7 13.0 12.4 11.7 11.1 10.4

57 34.2 4.4 17.1 16.4 15.8 15.1 14.5 34.5 4.7 18.2 17.6 16.9 16.3 15.6

2275

72 40.5 4.22.91.70.4-- 39.6 4.7 -----

67 41.2 4.3 11.6 10.4 9.1 7.8 - 39.9 4.5 9.9 8.9 7.9 6.8 -

62 36.7 4.2 19.9 18.6 17.4 16.1 14.8 36.3 4.5 20.9 19.8 18.8 17.8 16.7

57 38.3 4.2 29.8 29.5 28.2 26.9 25.7 36.6 4.5 28.5 28.2 27.2 26.1 25.1

2600

72 45.0 4.13.61.7-0.1-- 41.9 4.5 -----

67 45.7 4.2 16.7 14.8 12.9 11.1 - 42.3 4.3 13.7 12.3 10.8 9.4 -

62 40.8 4.0 29.0 27.1 25.3 23.4 21.6 38.4 4.3 28.7 27.3 25.9 24.5 23.1

57 42.5 4.1 42.5 42.5 40.6 38.7 36.9 38.8 4.4 38.8 38.8 37.4 36.0 34.5

2925

72 42.5 4.04.62.81.0-- 40.8 4.6 -----

67 43.2 4.1 17.5 15.7 13.9 12.1 - 41.1 4.4 15.2 13.7 12.2 10.8 -

62 38.5 4.0 31.6 29.1 27.3 25.5 23.7 37.4 4.4 32.0 30.5 29.1 27.6 26.1

57 40.2 4.0 40.2 40.2 38.3 36.5 34.7 37.7 4.4 37.7 37.7 36.2 34.8 33.3

3250

72 40.0 3.95.73.92.1-- 39.6 4.6 -----

67 40.6 4.0 18.4 16.6 14.8 13.0 - 40.0 4.4 16.7 15.2 13.6 12.1 -

62 36.2 3.9 34.2 31.1 29.3 27.5 25.8 36.3 4.4 35.3 33.8 32.3 30.7 29.2

57 37.9 4.0 37.9 37.9 36.1 34.3 32.5 36.7 4.5 36.7 36.7 35.1 33.6 32.0

55°F 65°F

1625

72 38.2 5.7 ----- 36.3 5.7 -----

67 38.2 5.1 3.4 2.9 2.4 1.9 - 36.2 5.3 2.4 2.1 1.8 1.5 -

62 35.5 5.3 8.8 8.3 7.8 7.3 6.7 33.1 5.2 6.5 6.2 5.9 5.6 5.3

1950

72 38.4 5.5 ----- 36.8 5.6 -----

67 38.4 4.9 5.8 5.2 4.5 3.9 - 36.7 5.2 4.9 4.3 3.8 3.2 -

62 35.7 5.1 15.3 14.7 14.0 13.3 12.7 33.5 5.0 13.9 13.3 12.7 12.2 11.6

57 34.7 5.1 19.4 18.7 18.1 17.4 16.8 32.9 5.0 17.0 16.5 15.9 15.3 14.8

2275

72 38.6 5.2 ----- 37.3 5.4 -----

67 38.6 4.7 8.3 7.5 6.6 5.8 - 37.2 5.0 7.4 6.6 5.8 5.0 -

62 35.9 4.9 21.9 21.0 20.2 19.4 18.6 34.0 4.9 21.2 20.4 19.6 18.8 18.0

57 34.9 4.8 27.2 26.9 26.1 25.3 24.5 33.4 4.9 25.4 25.2 24.3 23.5 22.7

2600

72 38.8 5.0 ----- 37.8 5.3 -----

67 38.9 4.4 10.7 9.7 8.8 7.8 - 37.7 4.9 9.9 8.9 7.8 6.8 -

62 36.1 4.6 28.4 27.4 26.5 25.5 24.6 34.4 4.8 28.5 27.5 26.4 25.3 24.3

57 35.1 4.6 35.1 35.1 34.1 33.2 32.2 33.8 4.8 33.8 33.8 32.8 31.7 30.7

2925

72 39.0 5.2 ----- 38.0 5.4 -----

67 39.1 4.6 12.9 11.7 10.6 9.5 - 38.0 5.0 12.2 10.9 9.7 8.4 -

62 36.3 4.8 32.4 32.0 30.8 29.7 28.6 34.6 4.9 31.7 31.2 29.9 28.7 27.4

57 35.3 4.8 35.3 35.3 34.2 33.0 31.9 34.1 4.9 34.1 34.1 32.8 31.6 30.3

3250

72 39.2 5.3 ----- 38.2 5.5 -----

67 39.3 4.8 15.0 13.7 12.5 11.2 - 38.2 5.0 14.4 13.0 11.6 10.1 -

62 36.5 5.0 36.5 36.5 35.2 33.9 32.6 34.8 4.9 34.8 34.8 33.4 32.0 30.5

57 35.5 5.0 35.5 35.5 34.2 32.9 31.6 34.3 4.9 34.3 34.3 32.8 31.4 29.9

528150-YTG-T-0514

Johnson Controls Unitary Products 79

75°F 85°F

1625

72 34.3 5.7 ----- 32.4 5.6 -----

67 34.2 5.4 1.3 1.2 1.1 1.0 - 32.2 5.6 0.3 0.4 0.5 0.6 -

62 30.6 5.0 4.3 4.2 4.1 4.0 3.9 28.2 4.8 2.1 2.2 2.2 2.3 2.4

1950

72 35.1 5.7 ----- 33.5 5.8 -----

67 35.0 5.4 4.0 3.5 3.0 2.6 - 33.3 5.7 3.0 2.7 2.3 1.9 -

62 31.3 5.0 12.4 12.0 11.5 11.0 10.6 29.1 4.9 11.0 10.6 10.3 9.9 9.5

57 31.2 5.0 14.6 14.2 13.7 13.3 12.8 29.4 4.9 12.2 11.9 11.5 11.2 10.8

2275

72 35.9 5.7 ----- 34.5 5.9 -----

67 35.8 5.4 6.6 5.8 5.0 4.2 - 34.4 5.8 5.7 4.9 4.1 3.3 -

62 32.0 5.0 20.5 19.7 18.9 18.1 17.3 30.1 5.1 19.9 19.1 18.3 17.4 16.6

57 31.9 5.0 23.6 23.4 22.6 21.8 21.0 30.4 5.0 21.8 21.6 20.8 20.0 19.2

2600

72 36.7 5.7 ----- 35.6 6.0 -----

67 36.6 5.4 9.2 8.1 6.9 5.7 - 35.5 5.9 8.5 7.2 6.0 4.7 -

62 32.7 5.0 28.7 27.5 26.3 25.2 24.0 31.0 5.2 28.8 27.5 26.3 25.0 23.8

57 32.6 5.0 32.6 32.6 31.4 30.3 29.1 31.3 5.2 31.3 31.3 30.1 28.8 27.6

2925

72 37.0 5.6 ----- 35.9 5.8 -----

67 36.9 5.4 11.5 10.2 8.8 7.4 - 35.8 5.8 10.9 9.4 7.9 6.4 -

62 33.0 4.9 30.9 30.4 29.0 27.6 26.2 31.3 5.0 30.2 29.6 28.0 26.5 25.0

57 32.8 4.9 32.8 32.8 31.5 30.1 28.7 31.6 5.0 31.6 31.6 30.1 28.6 27.1

3250

72 37.2 5.6 ----- 36.2 5.7 -----

67 37.1 5.3 13.9 12.3 10.7 9.1 - 36.1 5.6 13.3 11.5 9.8 8.0 -

62 33.2 4.9 33.2 33.2 31.6 30.0 28.4 31.6 4.9 31.6 31.6 29.8 28.1 26.3

57 33.1 4.9 33.1 33.1 31.5 29.9 28.3 31.9 4.9 31.9 31.9 30.1 28.4 26.6

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR078 (6.5 Ton) Reheat (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

528150-YTG-T-0514

80 Johnson Controls Unitary Products

ZR090 (7.5 Ton) Cooling

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

1875

77 95.3 5.1 41.7 33.4 25.0 - - - 98.4 5.8 42.5 34.5 26.4 - - -

72 88.9 5.0 49.7 41.3 33.0 24.6 - - 91.0 5.8 52.7 44.7 36.7 28.6 - -

67 82.4 4.9 57.7 49.3 41.0 32.6 24.2 - 83.6 5.7 63.0 54.9 46.9 38.9 30.8 -

62 72.3 4.9 72.3 63.4 49.7 41.3 32.9 24.6 74.5 5.7 74.5 70.1 57.5 49.5 41.5 33.4

2250

77 104.3 5.1 50.1 40.6 31.2 - - - 104.3 5.9 49.0 39.9 30.7 - - -

72 97.2 5.0 60.3 50.9 41.4 32.0 - - 96.4 5.8 60.9 51.8 42.6 33.5 - -

67 90.1 5.0 70.6 61.1 51.7 42.2 32.8 - 88.5 5.8 72.8 63.7 54.5 45.4 36.3 -

62 79.1 4.9 79.1 73.2 62.8 53.3 43.9 34.4 79.0 5.7 79.0 76.0 66.9 57.8 48.6 39.5

57 76.9 4.9 76.9 74.8 63.8 54.3 44.9 35.4 77.6 5.7 77.6 76.5 67.4 58.3 49.1 40.0

2625

77 113.3 5.2 58.4 47.9 37.4 - - - 110.2 5.9 55.5 45.3 35.0 - - -

72 105.5 5.1 70.9 60.4 49.9 39.4 - - 101.9 5.8 69.1 58.9 48.6 38.4 - -

67 97.8 5.0 83.4 72.9 62.4 51.9 41.3 - 93.5 5.8 82.7 72.4 62.2 52.0 41.7 -

62 85.9 5.0 85.9 82.9 75.8 65.3 54.8 44.3 83.4 5.7 83.4 82.0 76.3 66.1 55.8 45.6

57 83.6 5.0 83.6 82.5 77.0 66.5 55.9 45.4 82.0 5.7 82.0 81.4 76.9 66.6 56.4 46.2

3000

77 122.2 5.2 66.8 55.2 43.6 - - - 116.0 5.9 62.0 50.7 39.4 - - -

72 113.8 5.1 81.6 69.9 58.3 46.7 - - 107.3 5.9 77.3 65.9 54.6 43.3 - -

67 105.4 5.1 96.3 84.7 73.1 61.5 49.9 - 98.5 5.8 92.5 81.2 69.9 58.5 47.2 -

62 92.7 5.0 92.7 92.7 88.9 77.3 65.7 54.1 87.9 5.8 87.9 87.9 85.7 74.3 63.0 51.7

57 90.2 5.0 90.2 90.2 90.2 78.6 67.0 55.4 86.3 5.8 86.3 86.3 86.3 75.0 63.7 52.3

3375

72 116.9 5.2 86.8 74.3 61.8 49.4 - - 109.2 5.9 82.5 70.2 58.0 45.8 - -

67 108.2 5.1 103.7 89.9 77.5 65.0 52.5 - 100.3 5.8 97.3 86.4 74.2 62.0 49.7 -

62 95.1 5.1 95.1 95.1 93.3 80.8 68.4 55.9 89.4 5.8 89.4 89.4 88.3 76.1 63.9 51.6

57 92.7 5.1 92.7 92.7 92.7 80.2 67.7 55.3 87.9 5.8 87.9 87.9 87.9 75.6 63.4 51.2

3750

72 119.9 5.2 92.0 78.7 65.3 52.0 - - 111.1 5.9 87.7 74.5 61.4 48.3 - -

67 111.0 5.1 111.0 95.2 81.9 68.5 55.2 - 102.0 5.8 102.0 91.7 78.5 65.4 52.3 -

62 97.6 5.1 97.6 97.6 97.6 84.3 71.0 57.7 91.0 5.8 91.0 91.0 91.0 77.9 64.7 51.6

57 95.1 5.1 95.1 95.1 95.1 81.8 68.4 55.1 89.4 5.8 89.4 89.4 89.4 76.3 63.1 50.0

95°F 105°F

1875

77 101.5 6.6 43.2 35.6 27.9 - - - 94.5 7.5 39.4 33.0 25.5 - - -

72 93.1 6.6 55.7 48.0 40.3 32.7 - - 86.4 7.5 52.8 45.3 37.7 30.2 - -

67 84.7 6.5 68.2 60.5 52.8 45.1 37.4 - 78.3 7.5 66.2 57.5 50.0 42.5 34.9 -

62 76.8 6.5 76.8 76.8 65.4 57.7 50.0 42.3 71.2 7.4 71.2 71.2 60.6 53.1 45.5 38.0

2250

77 104.3 6.6 47.9 39.1 30.3 - - - 96.9 7.5 45.1 36.4 27.7 - - -

72 95.7 6.6 61.5 52.7 43.9 35.0 - - 88.5 7.5 58.4 49.7 41.0 32.3 - -

67 87.0 6.5 75.0 66.2 57.4 48.6 39.8 - 80.2 7.4 71.7 63.0 54.3 45.6 36.9 -

62 78.9 6.5 78.9 78.9 71.0 62.2 53.4 44.6 73.0 7.4 73.0 73.0 65.8 57.1 48.4 39.7

57 78.3 6.5 78.3 78.3 71.1 62.2 53.4 44.6 73.0 7.4 73.0 73.0 66.1 57.4 48.7 40.0

2625

77 107.1 6.6 52.6 42.6 32.7 - - - 99.2 7.5 50.7 39.7 29.8 - - -

72 98.2 6.6 67.2 57.3 47.4 37.4 - - 90.6 7.5 63.9 54.1 44.2 34.3 - -

67 89.3 6.5 81.9 72.0 62.0 52.1 42.1 - 82.1 7.4 77.1 68.4 58.6 48.7 38.8 -

62 81.0 6.5 81.0 81.0 76.7 66.8 56.9 46.9 74.7 7.4 74.7 74.7 70.9 61.1 51.2 41.4

57 80.4 6.5 80.4 80.4 76.7 66.8 56.9 46.9 74.8 7.4 74.8 74.8 71.3 61.4 51.6 41.7

3000

77 109.9 6.6 57.3 46.2 35.1 - - - 101.5 7.5 56.4 43.0 32.0 - - -

72 100.7 6.6 73.0 61.9 50.9 39.8 - - 92.7 7.5 69.5 58.5 47.4 36.4 - -

67 91.6 6.5 88.7 77.7 66.6 55.6 44.5 - 84.0 7.4 82.6 73.9 62.8 51.8 40.8 -

62 83.1 6.5 83.1 83.1 82.4 71.4 60.3 49.2 76.5 7.4 76.5 76.5 76.1 65.1 54.1 43.0

57 82.4 6.5 82.4 82.4 82.4 71.4 60.3 49.3 76.5 7.4 76.5 76.5 76.5 65.5 54.4 43.4

3375

72 101.5 6.6 78.2 66.2 54.2 42.2 - - 93.0 7.4 74.7 62.7 50.8 38.8 - -

67 92.3 6.5 90.9 82.9 70.9 58.9 46.9 - 84.3 7.4 83.5 78.0 67.3 55.3 43.4 -

62 83.7 6.5 83.7 83.7 83.4 71.4 59.4 47.4 76.7 7.4 76.7 76.7 76.5 64.6 52.6 40.6

57 83.1 6.5 83.1 83.1 83.1 71.1 59.1 47.1 76.7 7.4 76.7 76.7 76.7 64.8 52.8 40.8

3750

72 102.3 6.6 83.3 70.4 57.5 44.5 - - 93.3 7.4 79.9 67.0 54.1 41.2 - -

67 93.0 6.6 93.0 88.2 75.2 62.3 49.4 - 84.5 7.4 84.5 82.1 71.7 58.8 46.0 -

62 84.3 6.5 84.3 84.3 84.3 71.4 58.5 45.5 76.9 7.4 76.9 76.9 76.9 64.0 51.1 38.2

57 83.7 6.5 83.7 83.7 83.7 70.7 57.8 44.9 76.9 7.4 76.9 76.9 76.9 64.0 51.1 38.3

528150-YTG-T-0514

Johnson Controls Unitary Products 81

115°F 125°F

1875

77 87.6 8.4 35.5 30.5 23.1 - - - 80.6 9.2 30.9 27.9 20.7 - - -

72 79.7 8.4 49.9 42.5 35.1 27.8 - - 73.0 9.2 47.0 39.8 32.5 25.3 - -

67 71.9 8.4 64.3 54.6 47.2 39.8 32.4 - 65.5 9.3 62.3 51.6 44.4 37.2 29.9 -

62 65.7 8.3 65.7 65.7 55.8 48.4 41.1 33.7 60.2 9.3 60.2 60.2 51.0 43.8 36.6 29.4

2250

77 89.4 8.3 42.2 33.6 25.0 - - - 82.0 9.2 39.3 30.9 22.4 - - -

72 81.4 8.3 55.2 46.7 38.1 29.5 - - 74.3 9.2 52.1 43.7 35.2 26.7 - -

67 73.4 8.4 68.3 59.7 51.1 42.6 34.0 - 66.6 9.3 64.9 56.5 48.0 39.5 31.1 -

62 67.1 8.3 67.1 67.1 60.5 51.9 43.3 34.7 61.2 9.2 61.2 61.2 55.2 46.7 38.3 29.8

57 67.8 8.3 67.8 67.8 61.1 52.5 43.9 35.4 62.5 9.2 62.5 62.5 56.1 47.7 39.2 30.7

2625

77 91.2 8.3 48.9 36.8 27.0 - - - 83.3 9.2 47.7 33.8 24.1 - - -

72 83.1 8.3 60.6 50.8 41.0 31.2 - - 75.5 9.2 57.3 47.6 37.9 28.2 - -

67 74.9 8.3 72.3 64.9 55.1 45.3 35.5 - 67.7 9.2 67.6 61.3 51.6 41.9 32.2 -

62 68.5 8.3 68.5 68.5 65.2 55.4 45.6 35.8 62.2 9.2 62.2 62.2 59.4 49.7 40.0 30.2

57 69.2 8.3 69.2 69.2 65.8 56.0 46.3 36.5 63.6 9.2 63.6 63.6 60.4 50.7 40.9 31.2

3000

77 93.1 8.3 55.5 39.9 28.9 - - - 84.7 9.2 56.1 36.7 25.8 - - -

72 84.7 8.3 66.0 55.0 44.0 33.0 - - 76.7 9.2 62.4 51.5 40.5 29.6 - -

67 76.4 8.3 76.4 70.0 59.1 48.1 37.1 - 68.8 9.2 68.8 66.2 55.3 44.3 33.4 -

62 69.8 8.3 69.8 69.8 69.8 58.8 47.9 36.9 63.2 9.2 63.2 63.2 63.2 52.6 41.6 30.7

57 70.6 8.3 70.6 70.6 70.6 59.6 48.6 37.6 64.6 9.2 64.6 64.6 64.6 53.6 42.7 31.7

3375

72 84.5 8.3 71.2 59.3 47.4 35.5 - - 76.0 9.2 67.8 55.9 44.0 32.1 - -

67 76.2 8.3 76.2 73.0 63.6 51.7 39.8 - 68.1 9.2 68.1 68.1 60.0 48.1 36.2 -

62 69.6 8.3 69.6 69.6 69.6 57.7 45.8 33.9 62.6 9.2 62.6 62.6 62.6 50.9 39.0 27.1

57 70.4 8.3 70.4 70.4 70.4 58.4 46.5 34.6 64.0 9.1 64.0 64.0 64.0 52.1 40.3 28.4

3750

72 84.3 8.3 76.5 63.7 50.8 38.0 - - 75.3 9.1 73.1 60.3 47.5 34.7 - -

67 76.0 8.3 76.0 76.0 68.2 55.4 42.5 - 67.5 9.2 67.5 67.5 64.7 51.9 39.1 -

62 69.5 8.3 69.5 69.5 69.5 56.6 43.8 30.9 62.0 9.2 62.0 62.0 62.0 49.2 36.4 23.6

57 70.2 8.2 70.2 70.2 70.2 57.3 44.5 31.6 63.4 9.1 63.4 63.4 63.4 50.6 37.8 25.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR090 (7.5 Ton) Cooling (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

82 Johnson Controls Unitary Products

ZR090 (7.5 Ton) Reheat

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

35°F 45°F

1875

7757.4 4.6 ------ 58.7 4.9 ------

72 54.9 4.4 7.7 6.3 4.9 3.5 - - 54.6 4.7 5.8 4.5 3.2 1.9 - -

67 52.4 4.3 14.9 13.5 12.1 10.7 9.3 - 50.5 4.5 13.7 12.4 11.1 9.9 8.6 -

62 48.7 4.1 21.7 20.3 18.9 17.5 16.1 14.7 46.6 4.3 21.9 20.7 19.4 18.1 16.8 15.5

2250

7762.8 4.5 ------ 62.7 4.8 ------

72 60.0 4.4 11.2 9.1 7.0 4.9 - - 58.3 4.6 8.3 6.4 4.6 2.7 - -

67 57.2 4.2 22.2 20.1 18.0 15.9 13.8 - 53.9 4.4 19.6 17.7 15.9 14.0 12.1 -

62 53.0 4.0 32.6 30.5 28.4 26.3 24.2 22.1 49.8 4.2 31.3 29.4 27.6 25.7 23.8 22.0

57 49.6 4.0 37.1 35.0 32.9 30.8 28.7 26.6 47.9 4.2 36.2 34.3 32.5 30.6 28.8 26.9

2625

77 68.1 4.5 ------ 66.6 4.8 ------

72 65.0 4.3 14.8 12.0 9.2 6.4 - - 62.0 4.6 10.8 8.4 5.9 3.5 - -

67 61.9 4.2 29.5 26.7 23.9 21.1 18.3 - 57.3 4.4 25.4 23.0 20.6 18.1 15.7 -

62 57.4 4.0 43.6 40.8 38.0 35.2 32.4 29.6 53.0 4.2 40.6 38.2 35.8 33.3 30.9 28.5

57 53.7 3.9 47.5 46.4 44.0 41.2 38.4 35.6 50.9 4.1 45.1 44.1 42.1 39.7 37.3 34.8

3000

77 73.4 4.5 ------ 70.6 4.8 ------

72 70.0 4.3 18.4 14.9 11.4 7.9 - - 65.7 4.6 13.3 10.3 7.3 4.3 - -

67 66.6 4.2 36.8 33.3 29.8 26.3 22.8 - 60.8 4.4 31.3 28.3 25.3 22.3 19.3 -

62 61.8 4.0 54.5 51.0 47.5 44.0 40.5 37.0 56.1 4.2 50.0 47.0 44.0 40.9 37.9 34.9

57 57.8 3.9 57.8 57.8 55.1 51.6 48.1 44.6 54.0 4.1 54.0 54.0 51.8 48.8 45.8 42.8

3375

72 71.8 4.3 18.9 15.5 12.1 8.6 - - 67.4 4.6 14.3 11.1 7.9 4.7 - -

67 68.3 4.2 37.5 34.0 30.6 27.2 23.8 - 62.3 4.4 33.7 30.5 27.3 24.1 20.9 -

62 63.3 4.0 58.3 53.2 48.3 44.9 41.4 38.0 57.6 4.2 53.8 50.6 47.4 44.2 41.0 37.8

57 59.3 3.9 59.3 59.3 57.9 54.5 51.1 47.6 55.3 4.1 55.3 55.3 54.3 51.1 47.9 44.7

3750

72 73.5 4.3 19.4 16.1 12.7 9.4 - - 69.1 4.6 15.2 11.8 8.4 5.1 - -

67 69.9 4.2 38.2 34.8 31.4 28.1 24.7 - 63.9 4.4 36.0 32.6 29.3 25.9 22.5 -

62 64.9 4.0 62.1 55.3 49.1 45.7 42.4 39.0 59.0 4.2 57.6 54.3 50.9 47.5 44.1 40.7

57 60.7 3.9 60.7 60.7 60.7 57.4 54.0 50.6 56.7 4.1 56.7 56.7 56.7 53.3 50.0 46.6

55°F 65°F

1875

7759.9 5.1 ------ 57.9 5.4 ------

72 54.2 4.9 3.9 2.7 1.6 - - - 51.6 5.2 1.5 - - - - -

67 48.5 4.7 12.6 11.4 10.2 9.0 7.9 - 45.3 5.0 11.0 10.0 9.0 7.9 6.9 -

62 44.6 4.5 22.2 21.0 19.9 18.7 17.5 16.4 42.1 4.8 22.4 21.4 20.4 19.3 18.3 17.3

2250

7762.6 5.1 ------ 59.7 5.4 ------

72 56.6 4.9 5.4 3.7 2.1 - - - 53.2 5.2 2.2 - - - - -

67 50.7 4.7 17.0 15.4 13.7 12.1 10.5 - 46.6 4.9 14.3 12.9 11.6 10.2 8.9 -

62 46.6 4.5 29.9 28.3 26.7 25.1 23.5 21.8 43.4 4.7 28.8 27.5 26.1 24.7 23.4 22.0

57 46.2 4.4 35.3 33.7 32.1 30.4 28.8 27.2 42.7 4.7 33.5 32.2 30.8 29.4 28.1 26.7

2625

77 65.2 5.1 ------ 61.4 5.4 ------

72 59.0 4.9 6.8 4.7 2.7 - - - 54.7 5.1 2.9 1.2 - - - -

67 52.8 4.6 21.4 19.3 17.3 15.2 13.1 - 48.0 4.9 17.6 15.9 14.2 12.5 10.8 -

62 48.5 4.4 37.7 35.6 33.6 31.5 29.4 27.3 44.7 4.7 35.2 33.5 31.8 30.1 28.4 26.7

57 48.1 4.4 42.7 41.9 40.3 38.2 36.1 34.1 43.9 4.6 39.3 38.7 37.6 35.9 34.2 32.5

3000

77 67.8 5.1 ------ 63.1 5.3 ------

72 61.4 4.8 8.2 5.7 3.2 - - - 56.2 5.1 3.6 1.5 - - - -

67 54.9 4.6 25.8 23.3 20.8 18.3 15.7 - 49.4 4.9 20.9 18.9 16.8 14.7 12.7 -

62 50.5 4.4 45.4 42.9 40.4 37.9 35.4 32.8 45.9 4.7 41.7 39.6 37.6 35.5 33.5 31.4

57 50.1 4.3 50.1 50.1 48.5 46.0 43.4 40.9 45.2 4.6 45.2 45.2 44.4 42.3 40.3 38.2

3375

72 63.0 4.8 9.6 6.6 3.7 - - - 57.9 5.1 4.1 1.5 - - - -

67 56.4 4.6 29.8 26.9 23.9 21.0 18.0 - 50.8 4.9 25.7 23.2 20.6 18.0 15.5 -

62 51.8 4.4 49.3 48.0 46.5 43.6 40.6 37.6 47.3 4.7 45.2 44.1 43.0 40.4 37.9 35.3

57 51.4 4.3 51.4 51.4 50.6 47.6 44.7 41.7 46.5 4.6 46.5 46.5 46.1 43.6 41.0 38.4

3750

72 64.6 4.8 11.0 7.6 4.2 - - - 59.6 5.1 4.6 1.5 - - - -

67 57.9 4.6 33.9 30.5 27.1 23.7 20.3 - 52.3 4.9 30.5 27.5 24.4 21.3 18.2 -

62 53.2 4.4 53.2 53.2 52.7 49.3 45.9 42.5 48.7 4.7 48.7 48.7 48.4 45.3 42.2 39.2

57 52.7 4.3 52.7 52.7 52.7 49.3 45.9 42.5 47.9 4.6 47.9 47.9 47.9 44.8 41.7 38.6

528150-YTG-T-0514

Johnson Controls Unitary Products 83

75°F 85°F

1875

7756.0 5.7 ------ 54.0 6.0 ------

7249.0 5.5 ------ 46.3 5.8 ------

67 42.0 5.2 9.4 8.6 7.7 6.8 6.0 - 38.7 5.5 7.8 7.1 6.4 5.8 5.1 -

62 39.6 5.0 22.6 21.7 20.9 20.0 19.1 18.3 37.2 5.3 22.7 22.0 21.3 20.7 20.0 19.3

2250

7756.8 5.7 ------ 53.9 6.0 ------

72 49.7 5.5 ------ 46.2 5.7 ------

67 42.6 5.2 11.6 10.5 9.4 8.3 7.2 - 38.6 5.5 8.9 8.1 7.3 6.4 5.6 -

62 40.2 5.0 27.7 26.6 25.5 24.4 23.3 22.2 37.0 5.3 26.5 25.7 24.9 24.0 23.2 22.4

57 39.2 4.9 31.7 30.6 29.5 28.4 27.3 26.2 35.6 5.2 30.0 29.1 28.3 27.4 26.6 25.8

2625

77 57.6 5.7 ------ 53.8 5.9 ------

72 50.4 5.4 ------ 46.1 5.7 ------

67 43.2 5.2 13.8 12.5 11.1 9.8 8.4 - 38.4 5.5 10.0 9.0 8.1 7.1 6.1 -

62 40.8 5.0 32.8 31.5 30.1 28.8 27.4 26.1 36.9 5.3 30.4 29.4 28.4 27.4 26.4 25.5

57 39.7 4.9 36.0 35.5 34.9 33.6 32.2 30.9 35.5 5.2 32.7 32.2 32.2 31.2 30.3 29.3

3000

77 58.4 5.6 ------ 53.6 5.9 ------

72 51.1 5.4 ------ 45.9 5.7 ------

67 43.8 5.2 16.0 14.4 12.8 11.2 9.7 - 38.2 5.4 11.1 10.0 8.9 7.7 6.6 -

62 41.4 5.0 37.9 36.3 34.7 33.2 31.6 30.0 36.8 5.3 34.2 33.0 31.9 30.8 29.7 28.5

57 40.3 4.9 40.3 40.3 40.3 38.7 37.1 35.5 35.4 5.2 35.4 35.4 35.4 35.0 33.9 32.8

3375

72 52.8 5.4 ------ 47.7 5.7 ------

67 45.3 5.2 21.6 19.4 17.3 15.1 12.9 - 39.7 5.4 17.5 15.7 13.9 12.2 10.4 -

62 42.8 5.0 41.0 40.2 39.4 37.3 35.1 32.9 38.2 5.2 36.9 36.3 35.9 34.1 32.4 30.6

57 41.6 4.9 41.6 41.6 41.6 39.5 37.3 35.1 36.7 5.2 36.7 36.7 36.7 35.4 33.6 31.8

3750

72 54.5 5.4 ------ 49.5 5.6 ------

67 46.8 5.1 27.2 24.4 21.7 18.9 16.2 - 41.2 5.4 23.9 21.4 19.0 16.6 14.1 -

62 44.1 4.9 44.1 44.1 44.1 41.4 38.6 35.9 39.6 5.2 39.6 39.6 39.6 37.5 35.0 32.6

57 43.0 4.9 43.0 43.0 43.0 40.2 37.5 34.7 38.1 5.1 38.1 38.1 38.1 35.7 33.3 30.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR090 (7.5 Ton) Reheat (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

84 Johnson Controls Unitary Products

ZR102 (8.5 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2125

77 121.9 6.4 54.3 43.2 32.9 - - - 118.7 7.4 52.3 42.1 32.0 - - -

72 118.1 6.4 71.1 60.8 50.5 40.2 - - 112.8 7.3 69.0 58.8 48.6 38.5 - -

67 114.3 6.3 87.8 78.4 68.1 57.8 47.5 - 106.9 7.2 85.6 75.4 65.3 55.1 45.0 -

62 105.8 6.2 105.8 98.7 83.7 73.4 63.1 52.8 98.9 7.0 98.9 95.3 80.2 70.1 59.9 49.8

2550

77 126.3 6.5 59.7 47.9 36.1 - - - 122.9 7.4 58.7 46.9 35.2 - - -

72 122.4 6.4 79.1 67.3 55.5 43.7 - - 116.8 7.3 77.0 65.3 53.5 41.8 - -

67 118.4 6.4 98.4 86.6 74.8 63.0 51.2 - 110.7 7.2 95.3 83.6 71.9 60.1 48.4 -

62 109.7 6.2 109.7 104.9 92.0 80.2 68.4 56.6 102.4 7.1 102.4 100.1 88.3 76.6 64.9 53.1

57 107.0 6.3 107.0 107.0 97.1 85.3 73.5 61.7 99.6 7.1 99.6 99.6 90.0 78.3 66.5 54.8

2975

77 130.7 6.5 65.1 52.7 39.4 - - - 127.2 7.4 65.0 51.7 38.4 - - -

72 126.6 6.4 87.0 73.7 60.5 47.2 - - 120.9 7.3 85.0 71.7 58.4 45.1 - -

67 122.6 6.4 108.9 94.8 81.5 68.2 54.9 - 114.6 7.2 105.1 91.7 78.4 65.1 51.8 -

62 113.5 6.3 113.5 111.1 100.2 86.9 73.6 60.3 106.0 7.1 106.0 104.8 96.4 83.1 69.8 56.5

57 110.8 6.3 110.8 110.8 105.8 92.5 79.2 65.9 103.0 7.2 103.0 103.0 98.2 84.9 71.6 58.3

3400

77 135.1 6.5 70.6 57.4 42.6 - - - 131.4 7.4 71.4 56.5 41.7 - - -

72 130.9 6.5 95.0 80.2 65.4 50.6 - - 124.9 7.3 93.1 78.2 63.3 48.4 - -

67 126.7 6.4 119.5 103.0 88.2 73.4 58.6 - 118.4 7.2 114.8 99.9 85.0 70.1 55.2 -

62 117.3 6.3 117.3 117.3 108.5 93.7 78.9 64.1 109.5 7.1 109.5 109.5 104.5 89.6 74.7 59.8

57 114.5 6.4 114.5 114.5 114.5 99.7 84.9 70.1 106.5 7.2 106.5 106.5 106.5 91.6 76.7 61.8

3825

72 130.9 6.5 99.4 84.1 68.8 53.5 - - 125.4 7.4 98.3 82.6 66.9 51.2 - -

67 126.8 6.4 123.1 108.1 92.8 77.5 62.2 - 118.8 7.3 117.0 105.4 89.7 74.0 58.4 -

62 117.4 6.3 117.4 117.4 112.9 97.6 82.3 67.0 109.9 7.1 109.9 109.9 107.4 91.7 76.0 60.3

57 114.5 6.4 114.5 114.5 114.5 99.2 83.9 68.6 106.9 7.2 106.9 106.9 106.9 91.2 75.5 59.8

4250

72 131.0 6.5 103.7 87.9 72.1 56.3 - - 125.9 7.4 103.4 86.9 70.4 53.9 - -

67 126.8 6.5 126.8 113.1 97.3 81.5 65.7 - 119.3 7.3 119.3 111.0 94.5 78.0 61.5 -

62 117.4 6.3 117.4 117.4 117.4 101.6 85.8 70.0 110.4 7.2 110.4 110.4 110.4 93.8 77.3 60.8

57 114.6 6.4 114.6 114.6 114.6 98.8 83.0 67.2 107.3 7.2 107.3 107.3 107.3 90.7 74.2 57.7

95°F 105°F

2125

77 115.5 8.3 50.3 41.1 31.1 - - - 108.8 9.3 44.7 38.2 28.2 - - -

72 107.5 8.1 66.9 56.8 46.8 36.8 - - 100.5 9.1 63.5 53.6 43.7 33.8 - -

67 99.5 8.0 83.4 72.5 62.5 52.5 42.4 - 92.1 9.0 82.4 69.0 59.1 49.2 39.3 -

62 91.9 7.9 91.9 91.9 76.8 66.8 56.7 46.7 85.2 8.9 85.2 85.2 70.3 60.4 50.5 40.6

2550

77 119.5 8.3 57.6 46.0 34.3 - - - 112.4 9.3 54.4 42.9 31.3 - - -

72 111.3 8.2 75.0 63.3 51.6 39.9 - - 103.8 9.2 71.5 60.0 48.4 36.8 - -

67 103.0 8.0 92.3 80.6 68.9 57.2 45.6 - 95.1 9.0 88.6 77.1 65.5 53.9 42.3 -

62 95.2 7.9 95.2 95.2 84.7 73.0 61.3 49.7 88.0 8.9 88.0 88.0 77.9 66.3 54.7 43.1

57 92.1 7.9 92.1 92.1 82.9 71.2 59.6 47.9 85.8 9.0 85.8 85.8 76.4 64.9 53.3 41.7

2975

77 123.6 8.3 64.9 50.8 37.5 - - - 115.9 9.4 64.2 47.5 34.3 - - -

72 115.1 8.2 83.1 69.7 56.4 43.1 - - 107.0 9.2 79.5 66.3 53.1 39.8 - -

67 106.5 8.0 101.2 88.7 75.3 62.0 48.7 - 98.1 9.0 94.9 85.1 71.8 58.6 45.4 -

62 98.5 7.9 98.5 98.5 92.6 79.3 65.9 52.6 90.8 8.9 90.8 90.8 85.4 72.2 58.9 45.7

57 95.2 8.0 95.2 95.2 90.7 77.3 64.0 50.7 88.5 9.0 88.5 88.5 83.8 70.6 57.4 44.1

3400

77 127.7 8.4 72.3 55.6 40.7 - - - 119.5 9.4 74.0 52.2 37.3 - - -

72 118.9 8.2 91.2 76.2 61.2 46.3 - - 110.3 9.2 87.6 72.7 57.8 42.9 - -

67 110.1 8.1 110.1 96.7 81.8 66.8 51.8 - 101.2 9.1 101.2 93.1 78.2 63.3 48.4 -

62 101.7 8.0 101.7 101.7 100.5 85.5 70.6 55.6 93.6 8.9 93.6 93.6 93.0 78.1 63.2 48.3

57 98.4 8.0 98.4 98.4 98.4 83.4 68.5 53.5 91.2 9.0 91.2 91.2 91.2 76.4 61.5 46.6

3825

72 119.8 8.3 97.1 81.0 64.9 48.8 - - 111.2 9.3 93.4 77.4 61.3 45.3 - -

67 110.9 8.1 110.9 102.8 86.7 70.6 54.5 - 102.0 9.1 102.0 97.2 83.0 67.0 51.0 -

62 102.5 8.0 102.5 102.5 101.9 85.8 69.7 53.6 94.3 9.0 94.3 94.3 94.0 78.0 61.9 45.9

57 99.2 8.0 99.2 99.2 99.2 83.1 67.0 50.9 92.0 9.1 92.0 92.0 92.0 75.9 59.9 43.9

4250

72 120.8 8.3 103.1 85.9 68.6 51.4 - - 112.1 9.3 99.2 82.1 64.9 47.7 - -

67 111.8 8.1 111.8 108.9 91.7 74.4 57.2 - 102.8 9.1 102.8 101.3 87.8 70.7 53.5 -

62 103.3 8.0 103.3 103.3 103.3 86.1 68.9 51.6 95.1 9.0 95.1 95.1 95.1 77.9 60.7 43.5

57 99.9 8.1 99.9 99.9 99.9 82.7 65.5 48.3 92.7 9.1 92.7 92.7 92.7 75.5 58.4 41.2

528150-YTG-T-0514

Johnson Controls Unitary Products 85

115°F 125°F

2125

77 102.2 10.3 39.0 35.2 25.4 - - - 95.6 11.4 36.2 31.0 22.6 - - -

72 93.5 10.1 60.2 50.4 40.6 30.8 - - 86.5 11.1 56.8 47.1 37.5 27.8 - -

67 84.8 10.0 81.3 65.5 55.8 46.0 36.2 - 77.4 10.9 77.4 62.1 52.4 42.7 33.1 -

62 78.5 9.9 78.5 78.5 63.8 54.0 44.2 34.4 71.8 10.8 71.8 71.8 57.3 47.7 38.0 28.3

2550

77 105.2 10.4 51.2 39.7 28.3 - - - 98.0 11.4 49.9 36.6 25.3 - - -

72 96.2 10.2 68.1 56.6 45.2 33.7 - - 88.7 11.2 64.7 53.3 41.9 30.6 - -

67 87.3 10.0 85.0 73.5 62.0 50.6 39.1 - 79.4 11.0 79.4 70.0 58.6 47.3 35.9 -

62 80.8 9.9 80.8 80.8 71.0 59.6 48.1 36.6 73.6 10.9 73.6 73.6 64.2 52.8 41.5 30.1

57 79.6 10.0 79.6 79.6 69.9 58.5 47.0 35.5 73.3 11.0 73.3 73.3 63.4 52.1 40.7 29.3

2975

77 108.2 10.4 63.4 44.3 31.1 - - - 100.5 11.4 63.7 42.3 28.0 - - -

72 99.0 10.2 76.0 62.9 49.7 36.6 - - 90.9 11.2 72.5 59.5 46.4 33.4 - -

67 89.8 10.0 88.6 81.5 68.3 55.2 42.1 - 81.4 11.0 81.4 77.9 64.8 51.8 38.7 -

62 83.1 9.9 83.1 83.1 78.2 65.1 51.9 38.8 75.4 10.9 75.4 75.4 71.0 58.0 44.9 31.9

57 81.8 10.0 81.8 81.8 77.0 63.9 50.7 37.6 75.1 11.0 75.1 75.1 70.2 57.1 44.1 31.0

3400

77 111.2 10.4 75.7 48.8 34.0 - - - 102.9 11.4 77.4 47.9 30.7 - - -

72 101.7 10.2 84.0 69.1 54.3 39.5 - - 93.1 11.2 80.4 65.6 50.9 36.1 - -

67 92.3 10.0 92.3 89.5 74.6 59.8 45.0 - 83.3 11.0 83.3 83.3 71.1 56.3 41.6 -

62 85.4 9.9 85.4 85.4 85.4 70.6 55.8 41.0 77.3 10.9 77.3 77.3 77.3 63.1 48.4 33.6

57 84.1 10.0 84.1 84.1 84.1 69.3 54.5 39.6 77.0 11.0 77.0 77.0 77.0 62.2 47.5 32.7

3825

72 102.6 10.3 89.7 73.7 57.7 41.8 - - 93.9 11.3 86.0 70.1 54.1 38.2 - -

67 93.0 10.1 93.0 91.6 79.3 63.3 47.4 - 84.0 11.1 84.0 84.0 75.6 59.7 43.8 -

62 86.1 10.0 86.1 86.1 86.1 70.1 54.2 38.2 77.9 11.0 77.9 77.9 77.9 62.3 46.4 30.5

57 84.8 10.1 84.8 84.8 84.8 68.8 52.8 36.9 77.6 11.1 77.6 77.6 77.6 61.7 45.8 29.8

4250

72 103.4 10.3 95.4 78.3 61.1 44.0 - - 94.7 11.4 91.6 74.5 57.4 40.3 - -

67 93.8 10.1 93.8 93.8 84.0 66.9 49.7 - 84.7 11.1 84.7 84.7 80.2 63.1 46.0 -

62 86.8 10.0 86.8 86.8 86.8 69.7 52.6 35.4 78.6 11.1 78.6 78.6 78.6 61.5 44.4 27.3

57 85.5 10.1 85.5 85.5 85.5 68.3 51.2 34.1 78.2 11.2 78.2 78.2 78.2 61.2 44.1 27.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR102 (8.5 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

86 Johnson Controls Unitary Products

ZR102 (8.5 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

35°F 45°F

2125

72 72.0 5.0 8.5 7.1 5.7 - - 62.7 5.5 3.5 2.4 1.3 - -

67 74.0 4.9 11.6 10.2 8.8 7.3 - 61.5 5.3 9.5 8.4 7.2 6.1 -

62 61.6 5.1 21.8 20.4 18.9 17.5 16.1 53.9 5.3 18.2 17.1 16.0 14.9 13.8

2550

72 73.3 4.9 13.4 11.3 9.2 - - 64.8 5.5 5.6 3.8 2.1 - -

67 75.3 4.8 17.9 15.8 13.7 11.6 - 63.6 5.3 14.9 13.2 11.4 9.7 -

62 62.6 5.0 33.6 31.5 29.4 27.3 25.2 55.8 5.2 28.7 26.9 25.2 23.4 21.7

57 58.2 4.7 37.4 35.3 33.2 31.2 29.1 50.7 5.0 33.0 31.2 29.5 27.7 26.0

2975

72 74.5 4.8 18.2 15.5 12.7 - - 66.9 5.4 7.6 5.2 2.8 - -

67 76.7 4.7 24.1 21.4 18.7 15.9 - 65.7 5.2 20.4 18.0 15.6 13.2 -

62 63.6 5.0 45.3 42.6 39.9 37.1 34.4 57.6 5.2 39.2 36.8 34.4 32.0 29.6

57 59.2 4.7 48.8 47.8 45.0 42.3 39.6 52.4 5.0 43.5 42.6 40.2 37.8 35.4

3400

72 75.7 4.7 23.0 19.6 16.2 - - 69.1 5.3 9.7 6.6 3.6 - -

67 78.1 4.6 30.4 27.0 23.6 20.2 - 67.8 5.1 25.8 22.8 19.7 16.7 -

62 64.7 4.9 57.1 53.7 50.4 47.0 43.6 59.5 5.1 49.7 46.6 43.6 40.5 37.5

57 60.2 4.6 60.2 60.2 56.8 53.5 50.1 54.0 4.9 54.0 54.0 51.0 47.9 44.9

3825

72 73.9 4.7 25.8 22.4 18.9 - - 70.1 5.3 10.9 7.5 4.2 - -

67 76.5 4.6 33.7 30.2 26.8 23.3 - 68.7 5.1 29.2 25.8 22.5 19.1 -

62 63.0 4.9 62.0 60.1 56.7 53.2 49.8 60.3 5.1 55.4 52.9 49.5 46.1 42.8

57 58.8 4.6 58.8 58.8 55.4 51.9 48.4 54.8 4.9 54.8 54.8 51.4 48.1 44.7

4250

72 72.0 4.7 28.7 25.1 21.6 - - 71.0 5.3 12.1 8.4 4.7 - -

67 75.0 4.6 37.0 33.5 29.9 26.4 - 69.7 5.1 32.5 28.9 25.2 21.5 -

62 61.4 4.9 61.4 61.4 61.4 59.5 55.9 61.2 5.1 61.2 59.1 55.4 51.7 48.0

57 57.4 4.6 57.4 57.4 53.9 50.4 46.8 55.6 4.9 55.6 55.6 51.9 48.2 44.5

55°F 65°F

2125

72 53.3 6.1 ----- 48.0 6.2 -----

67 49.0 5.8 7.3 6.5 5.7 4.9 - 42.2 6.1 4.4 4.0 3.5 3.1 -

62 46.3 5.4 14.6 13.9 13.1 12.3 11.5 39.1 5.8 9.5 9.1 8.6 8.2 7.7

2550

72 56.3 6.0 ----- 53.6 6.1 -----

67 51.8 5.7 11.9 10.5 9.1 7.7 - 47.0 6.1 9.1 8.0 6.9 5.8 -

62 49.0 5.4 23.8 22.4 21.0 19.6 18.1 43.5 5.7 20.2 19.1 18.0 16.9 15.8

57 43.2 5.3 28.6 27.1 25.7 24.3 22.9 36.3 5.7 22.6 21.5 20.4 19.3 18.2

2975

72 59.4 6.0 ----- 59.2 6.1 -----

67 54.6 5.7 16.6 14.5 12.5 10.4 - 51.7 6.0 13.7 12.0 10.2 8.5 -

62 51.6 5.4 33.0 31.0 28.9 26.8 24.8 47.8 5.7 30.9 29.1 27.4 25.7 23.9

57 45.5 5.3 38.2 37.5 35.4 33.4 31.3 39.8 5.6 33.0 32.4 30.7 28.9 27.2

3400

72 62.4 6.0 ----- 64.8 6.1 -----

67 57.4 5.7 21.3 18.5 15.8 13.1 - 56.5 6.0 18.3 15.9 13.6 11.2 -

62 54.3 5.3 42.2 39.5 36.8 34.1 31.4 52.2 5.7 41.6 39.2 36.8 34.4 32.0

57 47.9 5.2 47.9 47.9 45.2 42.4 39.7 43.3 5.6 43.3 43.3 41.0 38.6 36.2

3825

72 66.2 5.9 ----- 67.4 6.0 -----

67 60.9 5.6 24.7 21.4 18.1 14.9 - 58.8 6.0 22.2 19.2 16.3 13.3 -

62 57.6 5.3 48.8 45.6 42.3 39.0 35.8 54.4 5.6 47.7 45.5 42.6 39.6 36.6

57 50.8 5.2 50.8 50.8 47.5 44.3 41.0 45.2 5.6 45.2 45.2 42.2 39.3 36.3

4250

72 70.1 5.9 ----- 70.0 6.0 -----

67 64.5 5.6 28.1 24.2 20.4 16.6 - 61.1 5.9 26.0 22.5 19.0 15.4 -

62 60.9 5.3 55.5 51.6 47.8 44.0 40.2 56.5 5.6 53.8 51.9 48.3 44.8 41.2

57 53.7 5.2 53.7 53.7 49.9 46.1 42.3 47.1 5.5 47.1 47.1 43.5 40.0 36.4

528150-YTG-T-0514

Johnson Controls Unitary Products 87

75°F 85°F

2125

72 42.8 6.3 ----- 37.6 6.4 -----

67 35.4 6.51.61.51.41.2- 28.6 6.8 -----

62 31.9 6.24.44.34.24.14.024.7 6.5 -----

2550

72 50.9 6.2 ----- 48.3 6.4 -----

67 42.1 6.4 6.2 5.4 4.7 3.9 - 37.3 6.8 3.3 2.9 2.5 2.0 -

62 38.0 6.1 16.6 15.8 15.0 14.3 13.5 32.5 6.5 13.0 12.5 12.1 11.6 11.2

57 29.4 6.1 16.6 15.8 15.0 14.3 13.5 22.5 6.4 10.6 10.1 9.7 9.3 8.8

2975

72 59.1 6.2 ----- 58.9 6.3 -----

67 48.9 6.4 10.8 9.4 8.0 6.6 - 46.0 6.7 7.9 6.8 5.7 4.6 -

62 44.0 6.1 28.7 27.3 25.9 24.5 23.1 40.2 6.4 26.6 25.5 24.4 23.3 22.2

57 34.1 6.0 27.7 27.3 25.9 24.5 23.1 28.4 6.4 22.4 22.2 21.1 20.0 19.0

3400

72 67.2 6.2 ----- 69.6 6.3 -----

67 55.6 6.3 15.4 13.3 11.3 9.2 - 54.7 6.7 12.5 10.7 9.0 7.3 -

62 50.1 6.0 40.9 38.8 36.8 34.7 32.6 48.0 6.4 40.2 38.5 36.7 35.0 33.3

57 38.8 6.0 38.8 38.8 36.8 34.7 32.6 34.3 6.3 34.3 34.3 32.6 30.8 29.1

3825

72 68.6 6.1 ----- 69.7 6.2 -----

67 56.7 6.3 19.7 17.0 14.4 11.7 - 54.6 6.6 17.2 14.9 12.5 10.2 -

62 51.1 6.0 46.5 45.5 42.8 40.1 37.5 47.9 6.3 45.3 45.4 43.1 40.7 38.3

57 39.6 5.9 39.6 39.6 36.9 34.3 31.6 34.0 6.3 34.0 34.0 31.6 29.3 26.9

4250

72 69.9 6.1 ----- 69.8 6.2 -----

67 57.8 6.3 24.0 20.8 17.5 14.2 - 54.5 6.6 22.0 19.0 16.0 13.1 -

62 52.1 5.9 52.1 52.1 48.8 45.6 42.3 47.7 6.3 47.7 47.7 47.7 46.4 43.4

57 40.4 5.9 40.4 40.4 37.1 33.9 30.6 33.7 6.2 33.7 33.7 30.7 27.8 24.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR102 (8.5 Ton) Reheat (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

528150-YTG-T-0514

88 Johnson Controls Unitary Products

ZR120 (10 Ton) Cooling

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

2500

77 137.8 7.3 67.5 55.5 43.9 - - - 132.5 8.2 62.6 51.3 40.0 - - -

72 131.8 7.1 85.5 73.9 62.3 50.6 - - 125.8 8.1 80.7 69.5 58.2 46.9 - -

67 125.8 7.0 103.5 92.3 80.6 69.0 57.4 - 119.1 8.0 98.9 87.6 76.4 65.1 53.9 -

62 113.9 6.9 113.9 112.8 97.5 85.8 74.2 62.6 108.5 7.9 108.5 107.0 91.1 79.8 68.6 57.3

3000

77 143.9 7.4 73.5 60.4 47.3 - - - 138.1 8.3 69.4 56.5 43.6 - - -

72 137.6 7.2 93.3 80.2 67.1 54.0 - - 131.1 8.2 89.1 76.3 63.4 50.5 - -

67 131.3 7.0 113.1 100.0 86.9 73.8 60.7 - 124.1 8.0 108.9 96.0 83.1 70.2 57.4 -

62 118.9 6.9 118.9 118.2 105.1 92.0 78.9 65.8 113.1 8.0 113.1 112.1 99.2 86.3 73.4 60.5

57 114.8 6.9 114.8 114.8 108.3 95.2 82.2 69.1 110.6 7.9 110.6 110.6 102.2 89.3 76.4 63.5

3500

77 150.0 7.4 79.5 65.3 50.8 - - - 143.7 8.3 76.2 61.7 47.1 - - -

72 143.4 7.2 101.1 86.5 72.0 57.4 - - 136.4 8.2 97.6 83.0 68.5 54.0 - -

67 136.9 7.1 122.7 107.7 93.2 78.6 64.0 - 129.1 8.1 119.0 104.4 89.9 75.4 60.9 -

62 123.9 7.0 123.9 123.6 112.7 98.1 83.5 69.0 117.7 8.0 117.7 117.1 107.2 92.7 78.2 63.7

57 119.6 7.0 119.6 119.6 116.2 101.6 87.0 72.5 115.1 8.0 115.1 115.1 110.5 96.0 81.5 67.0

4000

77 156.1 7.4 85.5 70.2 54.2 - - - 149.3 8.4 83.0 66.8 50.7 - - -

72 149.3 7.3 108.9 92.8 76.8 60.8 - - 141.7 8.2 106.0 89.8 73.7 57.5 - -

67 142.5 7.1 132.2 115.4 99.4 83.4 67.4 - 134.1 8.1 129.0 112.8 96.7 80.5 64.4 -

62 129.0 7.0 129.0 129.0 120.2 104.2 88.2 72.2 122.2 8.0 122.2 122.2 115.3 99.2 83.0 66.8

57 124.5 7.0 124.5 124.5 124.0 108.0 91.9 75.9 119.6 8.0 119.6 119.6 118.9 102.7 86.5 70.4

4500

72 151.7 7.3 116.7 99.1 81.6 64.0 - - 143.8 8.2 113.4 95.8 78.1 60.5 - -

67 144.8 7.1 139.7 123.1 105.6 88.0 70.5 - 136.2 8.1 133.6 120.2 102.5 84.9 67.2 -

62 131.1 7.0 131.1 131.1 126.7 109.2 91.6 74.1 124.1 8.0 124.1 124.1 120.6 103.0 85.3 67.6

57 126.6 7.0 126.6 126.6 126.3 108.8 91.2 73.7 121.4 8.0 121.4 121.4 121.0 103.4 85.7 68.1

5000

72 154.2 7.3 124.5 105.4 86.4 67.3 - - 146.0 8.3 120.9 101.7 82.6 63.4 - -

67 147.2 7.2 147.2 130.9 111.8 92.7 73.6 - 138.2 8.1 138.2 127.5 108.3 89.2 70.0 -

62 133.3 7.1 133.3 133.3 133.3 114.2 95.1 76.0 125.9 8.1 125.9 125.9 125.9 106.8 87.6 68.5

57 128.6 7.1 128.6 128.6 128.6 109.6 90.5 71.4 123.2 8.0 123.2 123.2 123.2 104.1 84.9 65.7

95°F 105°F

2500

77 127.3 9.2 57.6 47.1 36.2 - - - 117.5 10.5 52.8 44.2 33.5 - - -

72 119.8 9.1 75.9 65.0 54.1 43.3 - - 110.8 10.4 72.3 61.6 50.9 40.3 - -

67 112.4 9.0 94.3 83.0 72.1 61.2 50.3 - 104.0 10.3 91.8 79.1 68.4 57.7 47.0 -

62 103.2 9.0 103.2 101.2 84.7 73.8 62.9 52.0 96.1 10.2 96.1 95.1 80.3 69.6 58.9 48.2

3000

77 132.4 9.2 65.2 52.5 39.8 - - - 122.4 10.5 61.8 49.3 36.9 - - -

72 124.6 9.1 85.0 72.3 59.6 46.9 - - 115.4 10.4 81.0 68.5 56.1 43.7 - -

67 116.9 9.0 104.8 92.1 79.4 66.7 54.0 - 108.3 10.3 100.2 87.8 75.3 62.9 50.5 -

62 107.3 9.0 107.3 106.0 93.3 80.6 67.9 55.2 100.1 10.2 100.1 99.4 88.5 76.0 63.6 51.2

57 106.5 8.9 106.5 106.5 96.1 83.4 70.7 58.0 99.2 10.2 99.2 99.2 89.5 77.0 64.6 52.2

3500

77 137.4 9.2 72.9 58.0 43.5 - - - 127.3 10.5 70.7 54.5 40.3 - - -

72 129.4 9.2 94.1 79.6 65.1 50.6 - - 120.0 10.4 89.6 75.5 61.3 47.2 - -

67 121.3 9.1 115.3 101.2 86.7 72.2 57.7 - 112.6 10.3 108.6 96.5 82.3 68.1 54.0 -

62 111.4 9.0 111.4 110.7 101.8 87.3 72.8 58.3 104.0 10.2 104.0 103.7 96.6 82.5 68.3 54.2

57 110.6 9.0 110.6 110.6 104.9 90.4 75.9 61.4 103.2 10.2 103.2 103.2 97.7 83.6 69.4 55.3

4000

77 142.5 9.3 80.5 63.5 47.2 - - - 132.1 10.5 79.6 59.6 43.7 - - -

72 134.1 9.2 103.1 86.8 70.5 54.3 - - 124.6 10.4 98.3 82.4 66.5 50.6 - -

67 125.8 9.1 125.8 110.2 93.9 77.6 61.3 - 117.0 10.3 117.0 105.2 89.3 73.4 57.5 -

62 115.5 9.0 115.5 115.5 110.4 94.1 77.8 61.5 108.0 10.2 108.0 108.0 104.8 88.9 73.0 57.1

57 114.7 9.0 114.7 114.7 113.7 97.4 81.1 64.8 107.1 10.2 107.1 107.1 106.0 90.1 74.2 58.3

4500

72 136.0 9.2 110.2 92.4 74.7 56.9 - - 126.1 10.4 105.2 87.8 70.5 53.1 - -

67 127.5 9.1 127.5 117.2 99.4 81.7 63.9 - 118.4 10.3 118.4 111.2 94.6 77.2 59.9 -

62 117.1 9.0 117.1 117.1 114.5 96.7 79.0 61.2 109.4 10.2 109.4 109.4 107.8 90.4 73.1 55.7

57 116.2 9.0 116.2 116.2 115.8 98.0 80.2 62.5 108.4 10.2 108.4 108.4 107.9 90.5 73.2 55.8

5000

72 137.8 9.2 117.3 98.0 78.8 59.5 - - 127.6 10.4 112.0 93.2 74.4 55.6 - -

67 129.2 9.1 129.2 124.2 104.9 85.7 66.4 - 119.8 10.3 119.8 117.3 99.9 81.1 62.2 -

62 118.6 9.0 118.6 118.6 118.6 99.4 80.2 60.9 110.7 10.2 110.7 110.7 110.7 91.9 73.1 54.3

57 117.8 9.0 117.8 117.8 117.8 98.6 79.3 60.1 109.8 10.2 109.8 109.8 109.8 91.0 72.1 53.3

528150-YTG-T-0514

Johnson Controls Unitary Products 89

115°F 125°F

2500

77 107.7 11.9 48.1 41.3 30.8 - - - 98.0 13.2 43.3 38.4 28.1 - - -

72 101.7 11.7 68.7 58.2 47.7 37.3 - - 92.6 13.0 65.1 54.8 44.5 34.3 - -

67 95.6 11.6 89.3 75.1 64.6 54.2 43.7 - 87.3 12.8 86.8 71.2 60.9 50.6 40.4 -

62 89.0 11.4 89.0 89.0 75.9 65.4 54.9 44.4 81.8 12.6 81.8 81.8 71.4 61.2 50.9 40.6

3000

77 112.4 11.8 58.3 46.1 34.0 - - - 102.5 13.1 54.8 42.9 31.1 - - -

72 106.1 11.7 76.9 64.8 52.6 40.5 - - 96.9 13.0 72.9 61.0 49.2 37.3 - -

67 99.8 11.5 95.6 83.4 71.3 59.1 47.0 - 91.3 12.8 91.0 79.1 67.2 55.4 43.5 -

62 92.8 11.3 92.8 92.8 83.7 71.5 59.4 47.2 85.6 12.5 85.6 85.6 78.9 67.0 55.1 43.2

57 91.9 11.4 91.9 91.9 82.8 70.7 58.5 46.4 84.6 12.7 84.6 84.6 76.2 64.3 52.4 40.5

3500

77 117.1 11.8 68.5 51.0 37.2 - - - 107.0 13.1 66.3 47.5 34.0 - - -

72 110.6 11.7 85.2 71.4 57.5 43.7 - - 101.2 12.9 80.8 67.3 53.8 40.3 - -

67 104.0 11.5 101.9 91.8 77.9 64.1 50.3 - 95.3 12.7 95.2 87.1 73.6 60.1 46.6 -

62 96.7 11.3 96.7 96.7 91.5 77.6 63.8 50.0 89.4 12.5 89.4 89.4 86.3 72.8 59.3 45.8

57 95.7 11.4 95.7 95.7 90.5 76.7 62.9 49.1 88.3 12.6 88.3 88.3 83.4 69.9 56.4 42.9

4000

77 121.8 11.8 78.7 55.8 40.3 - - - 111.5 13.0 77.8 52.0 36.9 - - -

72 115.0 11.6 93.4 77.9 62.5 47.0 - - 105.4 12.8 88.6 73.5 58.4 43.3 - -

67 108.2 11.5 108.2 100.1 84.6 69.1 53.6 - 99.3 12.7 99.3 95.0 79.9 64.8 49.7 -

62 100.6 11.3 100.6 100.6 99.3 83.8 68.3 52.8 93.1 12.4 93.1 93.1 93.1 78.6 63.5 48.4

57 99.6 11.4 99.6 99.6 98.3 82.8 67.3 51.8 92.0 12.6 92.0 92.0 90.5 75.4 60.3 45.3

4500

72 116.2 11.6 100.1 83.2 66.2 49.3 - - 106.4 12.9 95.1 78.5 62.0 45.5 - -

67 109.3 11.5 109.3 105.3 89.7 72.8 55.8 - 100.2 12.7 100.2 99.3 84.8 68.3 51.8 -

62 101.7 11.3 101.7 101.7 101.0 84.1 67.1 50.2 94.0 12.4 94.0 94.0 94.0 77.7 61.2 44.7

57 100.6 11.4 100.6 100.6 100.0 83.1 66.1 49.2 92.9 12.6 92.9 92.9 92.1 75.6 59.1 42.5

5000

72 117.5 11.7 106.8 88.4 70.0 51.6 - - 107.3 12.9 101.5 83.6 65.6 47.7 - -

67 110.5 11.5 110.5 110.5 94.8 76.4 58.1 - 101.1 12.7 101.1 101.1 89.8 71.8 53.9 -

62 102.7 11.3 102.7 102.7 102.7 84.4 66.0 47.6 94.8 12.5 94.8 94.8 94.8 76.8 58.9 40.9

57 101.7 11.4 101.7 101.7 101.7 83.3 65.0 46.6 93.7 12.7 93.7 93.7 93.7 75.7 57.8 39.8

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR120 (10 Ton) Cooling (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

90 Johnson Controls Unitary Products

ZR120 (10 Ton) Reheat

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

35°F 45°F

2500

7781.36.2 ------66.76.8 ------

72 75.9 6.1 12.0 9.6 7.1 4.7 - - 65.6 6.5 6.6 4.6 2.7 - - -

67 70.6 6.0 26.3 23.9 21.5 19.1 16.6 - 64.5 6.2 21.3 19.3 17.3 15.4 13.4 -

62 72.8 5.8 42.2 39.7 37.3 34.9 32.5 30.0 62.5 6.0 35.2 33.2 31.3 29.3 27.4 25.4

3000

7782.46.2 ------69.46.8 ------

72 76.7 6.0 15.1 12.1 9.2 6.2 - - 68.3 6.5 8.5 6.0 3.4 - - -

67 71.0 5.9 31.5 28.6 25.6 22.7 19.7 - 67.1 6.2 27.0 24.4 21.8 19.3 16.7 -

62 73.6 5.7 50.1 47.2 44.2 41.3 38.3 35.4 65.0 6.0 44.6 42.0 39.4 36.8 34.2 31.6

57 65.6 5.7 56.8 53.9 50.9 48.0 45.0 42.1 60.6 5.9 51.5 48.9 46.3 43.7 41.1 38.6

3500

77 83.56.1 ------72.16.7 ------

72 77.5 6.0 18.1 14.7 11.2 7.8 - - 70.9 6.5 10.5 7.3 4.1 - - -

67 71.5 5.9 36.6 33.2 29.7 26.3 22.8 - 69.7 6.2 32.8 29.6 26.3 23.1 19.9 -

62 74.3 5.7 58.0 54.6 51.1 47.7 44.2 40.8 67.6 6.0 53.9 50.7 47.5 44.3 41.1 37.8

57 66.1 5.6 61.7 60.2 58.7 55.3 51.8 48.4 63.0 5.9 58.4 57.1 55.9 52.6 49.4 46.2

4000

77 84.76.1 ------74.96.7 ------

72 78.3 6.0 21.2 17.2 13.3 9.3 - - 73.6 6.4 12.5 8.6 4.8 - - -

67 71.9 5.9 41.8 37.8 33.9 29.9 25.9 - 72.4 6.2 38.5 34.7 30.8 27.0 23.1 -

62 75.1 5.7 66.0 62.0 58.0 54.1 50.1 46.1 70.1 5.9 63.3 59.4 55.6 51.7 47.9 44.1

57 66.6 5.6 66.6 66.6 66.6 62.6 58.6 54.7 65.4 5.9 65.4 65.4 65.4 61.5 57.7 53.8

4500

72 79.5 6.0 22.5 18.3 14.1 9.9 - - 73.1 6.5 13.3 9.2 5.1 - - -

67 73.3 5.9 44.3 40.1 35.9 31.7 27.5 - 71.9 6.2 41.1 36.9 32.8 28.7 24.6 -

62 76.3 5.7 71.7 67.7 61.5 57.3 53.1 49.0 69.7 6.0 66.2 63.3 59.2 55.1 50.9 46.8

57 67.8 5.6 67.8 67.8 67.8 63.6 59.4 55.2 64.9 5.9 64.9 64.9 64.9 60.8 56.7 52.6

5000

72 80.8 6.0 23.8 19.4 15.0 10.6 - - 72.6 6.5 14.1 9.8 5.4 - - -

67 74.7 5.9 46.7 42.3 38.0 33.6 29.2 - 71.4 6.2 43.6 39.2 34.8 30.4 26.0 -

62 77.5 5.7 77.5 73.5 65.0 60.6 56.2 51.8 69.2 6.0 69.2 67.2 62.8 58.4 54.0 49.6

57 69.0 5.6 69.0 69.0 69.0 64.6 60.2 55.8 64.5 5.9 64.5 64.5 64.5 60.1 55.7 51.3

55°F 65°F

2500

7752.17.4 ------46.47.7 ------

72 55.3 6.9 1.2 - - - - - 49.0 7.3 - - - - - -

67 58.4 6.5 16.2 14.7 13.2 11.7 10.2 - 51.6 6.9 13.0 11.8 10.6 9.4 8.2 -

62 52.2 6.2 28.2 26.7 25.2 23.7 22.3 20.8 46.1 6.5 23.7 22.5 21.3 20.0 18.8 17.6

3000

7756.57.4 ------51.37.7 ------

72 59.8 6.9 2.0 - - - - - 54.1 7.3 - - - - - -

67 63.2 6.5 22.5 20.3 18.1 15.8 13.6 - 57.0 6.8 19.4 17.4 15.4 13.5 11.5 -

62 56.5 6.2 39.0 36.8 34.5 32.3 30.1 27.8 50.8 6.5 34.9 33.0 31.0 29.0 27.1 25.1

57 55.7 6.1 46.2 44.0 41.7 39.5 37.3 35.0 50.2 6.5 40.6 38.6 36.6 34.7 32.7 30.7

3500

77 60.87.3 ------56.17.7 ------

72 64.4 6.9 2.9 - - - - - 59.2 7.3 - - - - - -

67 68.0 6.5 28.9 25.9 22.9 20.0 17.0 - 62.3 6.8 25.7 23.0 20.2 17.5 14.8 -

62 60.8 6.2 49.8 46.8 43.9 40.9 37.9 34.9 55.6 6.5 46.2 43.5 40.7 38.0 35.3 32.5

57 60.0 6.1 55.2 54.1 53.0 50.0 47.0 44.0 54.9 6.5 50.1 49.1 48.1 45.4 42.6 39.9

4000

77 65.17.3 ------60.97.7 ------

72 69.0 6.9 3.7 - - - - - 64.3 7.2 - - - - - -

67 72.8 6.5 35.3 31.5 27.8 24.1 20.4 - 67.6 6.8 32.0 28.5 25.1 21.6 18.1 -

62 65.2 6.2 60.6 56.9 53.2 49.4 45.7 42.0 60.4 6.5 57.5 54.0 50.5 47.0 43.5 40.0

57 64.2 6.1 64.2 64.2 64.2 60.5 56.8 53.0 59.6 6.5 59.6 59.6 59.6 56.1 52.6 49.1

4500

72 66.7 7.0 4.1 - - - - - 63.3 7.3 - - - - - -

67 70.4 6.6 37.8 33.8 29.7 25.7 21.6 - 66.7 6.9 36.0 32.0 28.0 24.0 20.0 -

62 63.0 6.3 60.7 58.9 56.8 52.8 48.7 44.7 59.5 6.6 58.0 56.3 54.5 50.5 46.5 42.5

57 62.1 6.2 62.1 62.1 62.1 58.0 54.0 49.9 58.8 6.5 58.8 58.8 58.7 54.7 50.7 46.7

5000

72 64.4 7.0 4.5 - - - - - 62.4 7.3 - - - - - -

67 68.0 6.6 40.4 36.0 31.7 27.3 22.9 - 65.7 6.9 40.0 35.5 31.0 26.5 22.0 -

62 60.9 6.3 60.9 60.9 60.5 56.2 51.8 47.4 58.6 6.6 58.6 58.6 58.5 53.9 49.4 44.9

57 60.0 6.2 60.0 60.0 60.0 55.6 51.2 46.8 57.9 6.5 57.9 57.9 57.9 53.4 48.9 44.4

528150-YTG-T-0514

Johnson Controls Unitary Products 91

75°F 85°F

2500

7740.88.0 ------35.18.4 ------

7242.87.6 ------36.68.0 ------

67 44.9 7.2 9.9 9.0 8.1 7.1 6.2 - 38.1 7.5 6.8 6.1 5.5 4.8 4.2 -

62 39.9 6.9 19.1 18.2 17.3 16.3 15.4 14.5 33.8 7.2 14.6 13.9 13.3 12.6 12.0 11.3

3000

7746.18.0 ------40.98.4 ------

72 48.47.6 ------42.77.9 ------

67 50.7 7.2 16.2 14.5 12.8 11.1 9.4 - 44.5 7.5 13.0 11.6 10.2 8.7 7.3 -

62 45.2 6.8 30.9 29.2 27.5 25.7 24.0 22.3 39.5 7.2 26.8 25.3 23.9 22.5 21.0 19.6

57 44.8 6.8 34.9 33.2 31.5 29.8 28.1 26.4 39.3 7.1 29.3 27.9 26.4 25.0 23.6 22.1

3500

77 51.48.0 ------46.78.3 ------

72 54.07.6 ------48.87.9 ------

67 56.6 7.1 22.5 20.0 17.5 15.1 12.6 - 50.9 7.5 19.3 17.1 14.8 12.6 10.4 -

62 50.4 6.8 42.6 40.1 37.6 35.1 32.7 30.2 45.1 7.1 39.0 36.8 34.5 32.3 30.0 27.8

57 49.9 6.8 45.0 44.2 43.2 40.7 38.3 35.8 44.9 7.1 39.9 39.2 38.4 36.1 33.9 31.6

4000

77 56.78.0 ------52.58.3 ------

72 59.67.6 ------54.97.9 ------

67 62.4 7.1 28.8 25.6 22.3 19.0 15.8 - 57.3 7.4 25.6 22.6 19.5 16.5 13.4 -

62 55.6 6.8 54.3 51.1 47.8 44.6 41.3 38.0 50.8 7.1 50.8 48.2 45.1 42.1 39.1 36.0

57 55.1 6.8 55.1 55.1 54.9 51.7 48.4 45.1 50.5 7.1 50.5 50.5 50.3 47.2 44.2 41.2

4500

72 60.07.6 ------56.77.9 ------

67 62.9 7.2 34.2 30.3 26.3 22.4 18.4 - 59.2 7.5 32.4 28.5 24.6 20.7 16.8 -

62 56.0 6.9 55.4 53.7 52.1 48.1 44.2 40.2 52.5 7.2 52.5 51.2 49.7 45.8 41.9 38.0

57 55.5 6.8 55.5 55.5 55.4 51.4 47.5 43.5 52.2 7.1 52.2 52.2 52.1 48.2 44.2 40.3

5000

72 60.57.7 ------58.58.0 ------

67 63.4 7.2 39.7 35.0 30.4 25.7 21.0 - 61.0 7.5 39.3 34.5 29.7 24.9 20.1 -

62 56.4 6.9 56.4 56.4 56.4 51.7 47.1 42.4 54.2 7.2 54.2 54.2 54.2 49.5 44.7 39.9

57 55.9 6.9 55.9 55.9 55.9 51.2 46.6 41.9 53.9 7.2 53.9 53.9 53.9 49.1 44.3 39.5

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR120 (10 Ton) Reheat (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

92 Johnson Controls Unitary Products

ZR150 (12.5 Ton) Cooling

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

3125

77 190.5 9.0 87.6 73.4 59.1 - - - 185.2 10.5 81.6 67.3 53.0 - - -

72 180.7 9.2 111.5 97.2 83.0 68.8 - - 172.9 10.5 105.4 91.1 76.8 62.5 - -

67 171.0 9.3 135.4 121.1 106.9 92.7 78.4 - 160.6 10.5 129.2 114.9 100.6 86.3 72.0 -

62 158.6 9.1 158.6 158.6 158.6 150.5 136.2 122.0 148.0 10.3 148.0 148.0 139.6 125.3 111.1 96.8

3750

77 199.8 9.2 94.7 78.6 62.4 - - - 194.0 10.6 89.0 72.9 56.8 - - -

72 189.6 9.3 119.8 103.7 87.5 71.3 - - 181.1 10.6 114.4 98.3 82.2 66.1 - -

67 179.4 9.4 145.0 128.8 112.6 96.4 80.3 - 168.3 10.6 139.9 123.8 107.7 91.6 75.5 -

62 166.3 9.2 166.3 166.3 166.3 157.9 141.8 125.6 155.1 10.4 155.1 155.1 149.5 133.4 117.3 101.2

57 154.4 9.2 154.4 154.4 148.9 132.7 116.6 100.4 146.9 10.4 146.9 146.9 137.3 121.2 105.2 89.1

4375

77 209.1 9.3 101.9 83.8 65.7 - - - 202.8 10.7 96.3 78.4 60.5 - - -

72 198.4 9.4 128.2 110.1 92.0 73.9 - - 189.3 10.7 123.4 105.5 87.6 69.7 - -

67 187.7 9.6 154.5 136.4 118.3 100.2 82.1 - 175.9 10.7 150.6 132.7 114.8 96.9 79.0 -

62 174.1 9.4 174.1 174.1 174.1 165.4 147.3 129.2 162.1 10.5 162.1 162.1 159.3 141.4 123.5 105.6

57 161.6 9.3 161.6 161.6 156.6 138.5 120.4 102.3 153.5 10.5 153.5 153.5 146.4 128.5 110.6 92.7

5000

77 218.4 9.4 109.0 89.0 68.9 - - - 211.6 10.8 103.6 83.9 64.2 - - -

72 207.3 9.6 136.6 116.5 96.5 76.5 - - 197.5 10.8 132.4 112.7 93.0 73.3 - -

67 196.1 9.7 164.1 144.1 124.1 104.0 84.0 - 183.5 10.8 161.2 141.5 121.8 102.1 82.4 -

62 181.8 9.5 181.8 181.8 181.8 172.9 152.9 132.8 169.1 10.6 169.1 169.1 169.1 149.4 129.7 110.0

57 168.8 9.5 168.8 168.8 164.4 144.3 124.3 104.2 160.2 10.6 160.2 160.2 155.4 135.7 116.0 96.3

5625

72 211.2 9.6 148.0 126.6 105.3 83.9 - - 202.2 10.8 143.3 122.0 100.8 79.5 - -

67 199.9 9.7 179.4 156.7 135.4 114.0 92.7 - 187.8 10.8 174.5 153.2 131.9 110.7 89.4 -

62 185.3 9.5 185.3 185.3 185.3 169.5 148.2 126.8 173.1 10.6 173.1 173.1 173.1 151.9 130.6 109.3

57 172.0 9.5 172.0 172.0 169.8 148.5 127.1 105.8 164.0 10.6 164.0 164.0 161.6 140.3 119.1 97.8

6250

72 215.2 9.5 159.4 136.7 114.0 91.4 - - 206.9 10.8 154.1 131.3 108.5 85.6 - -

67 203.6 9.7 194.6 169.4 146.7 124.0 101.4 - 192.2 10.8 187.7 164.9 142.0 119.2 96.4 -

62 188.8 9.5 188.8 188.8 188.8 166.2 143.5 120.9 177.1 10.6 177.1 177.1 177.1 154.3 131.5 108.6

57 175.3 9.4 175.3 175.3 175.3 152.6 130.0 107.3 167.8 10.6 167.8 167.8 167.8 145.0 122.1 99.3

95°F 105°F

3125

77 180.0 11.9 75.6 61.3 46.9 - - - 168.2 13.3 71.8 58.0 43.9 - - -

72 165.1 11.8 99.3 85.0 70.6 56.3 - - 153.8 13.2 95.1 81.0 66.9 52.8 - -

67 150.2 11.7 123.0 108.6 94.3 80.0 65.6 - 139.5 13.0 118.4 103.9 89.8 75.7 61.6 -

62 137.5 11.5 137.5 133.0 114.6 100.2 85.9 71.5 127.9 12.9 127.9 125.7 110.1 96.0 81.9 67.8

3750

77 188.2 12.0 83.2 67.2 51.2 - - - 175.5 13.3 79.5 63.7 47.8 - - -

72 172.7 11.9 109.0 93.0 77.0 60.9 - - 160.6 13.2 104.5 88.6 72.8 56.9 - -

67 157.1 11.7 134.8 118.8 102.8 86.7 70.7 - 145.6 13.1 129.4 113.6 97.7 81.9 66.0 -

62 143.8 11.6 143.8 140.8 124.8 108.8 92.8 76.8 133.5 12.9 133.5 132.1 119.8 104.0 88.1 72.2

57 139.4 11.6 139.4 139.4 125.8 109.8 93.8 77.7 130.3 13.0 130.3 130.3 117.1 101.2 85.4 69.5

4375

77 196.5 12.0 90.7 73.0 55.4 - - - 182.9 13.4 87.3 69.3 51.7 - - -

72 180.3 11.9 118.6 101.0 83.3 65.6 - - 167.3 13.3 113.9 96.3 78.7 61.0 - -

67 164.0 11.8 146.6 128.9 111.2 93.5 75.8 - 151.8 13.1 140.5 123.3 105.6 88.0 70.4 -

62 150.1 11.6 150.1 148.6 135.1 117.4 99.7 82.0 139.2 13.0 139.2 138.4 129.5 111.9 94.3 76.6

57 145.5 11.7 145.5 145.5 136.1 118.4 100.7 83.1 135.7 13.0 135.7 135.7 126.6 109.0 91.3 73.7

5000

77 204.8 12.1 98.3 78.9 59.6 - - - 190.3 13.4 95.1 75.0 55.6 - - -

72 187.8 12.0 128.3 109.0 89.6 70.2 - - 174.1 13.3 123.3 104.0 84.6 65.2 - -

67 170.9 11.9 158.4 139.0 119.6 100.3 80.9 - 157.9 13.2 151.6 132.9 113.6 94.2 74.8 -

62 156.4 11.7 156.4 156.4 145.3 126.0 106.6 87.2 144.8 13.0 144.8 144.8 139.2 119.8 100.4 81.1

57 151.6 11.7 151.6 151.6 146.4 127.1 107.7 88.4 141.2 13.1 141.2 141.2 136.1 116.7 97.3 77.9

5625

72 193.2 12.0 138.6 117.4 96.2 75.1 - - 178.5 13.3 133.3 112.3 91.2 70.2 - -

67 175.8 11.9 169.6 149.7 128.5 107.3 86.1 - 161.8 13.2 158.7 143.5 122.5 101.5 80.4 -

62 160.9 11.7 160.9 160.9 155.4 134.2 113.0 91.8 148.4 13.0 148.4 148.4 145.6 124.6 103.5 82.5

57 156.0 11.7 156.0 156.0 153.4 132.2 111.0 89.8 144.7 13.1 144.7 144.7 142.2 121.1 100.1 79.1

6250

72 198.6 12.0 148.9 125.9 102.9 79.9 - - 182.8 13.3 143.3 120.6 97.9 75.2 - -

67 180.7 11.9 180.7 160.4 137.4 114.4 91.4 - 165.8 13.2 165.8 154.1 131.4 108.7 86.1 -

62 165.4 11.7 165.4 165.4 165.4 142.4 119.4 96.4 152.0 13.0 152.0 152.0 152.0 129.3 106.6 84.0

57 160.3 11.8 160.3 160.3 160.3 137.3 114.3 91.3 148.3 13.1 148.3 148.3 148.3 125.6 102.9 80.2

528150-YTG-T-0514

Johnson Controls Unitary Products 93

115°F 125°F

3125

77 156.3 14.6 67.9 54.8 40.9 - - - 144.5 16.0 60.9 51.5 37.9 - - -

72 142.6 14.5 90.8 77.0 63.1 49.3 - - 131.3 15.9 86.6 73.0 59.4 45.8 - -

67 128.8 14.4 113.7 99.1 85.3 71.5 57.6 - 118.1 15.7 110.3 94.4 80.8 67.2 53.6 -

62 118.4 14.2 118.4 118.4 105.7 91.8 78.0 64.1 108.8 15.6 108.8 108.8 102.4 87.6 74.0 60.4

3750

77 162.8 14.7 75.9 60.2 44.5 - - - 150.2 16.0 72.3 56.7 41.2 - - -

72 148.5 14.6 100.0 84.3 68.6 52.9 - - 136.4 15.9 95.5 80.0 64.4 48.9 - -

67 134.1 14.4 124.1 108.4 92.7 77.0 61.3 - 122.7 15.8 118.8 103.2 87.7 72.1 56.6 -

62 123.3 14.3 123.3 123.3 114.8 99.1 83.4 67.7 113.0 15.6 113.0 113.0 109.8 94.3 78.7 63.2

57 121.1 14.3 121.1 121.1 108.4 92.7 77.0 61.3 112.0 15.7 112.0 112.0 99.7 84.2 68.6 53.1

4375

77 169.3 14.7 83.9 65.6 48.0 - - - 155.8 16.1 83.6 61.9 44.4 - - -

72 154.4 14.6 109.2 91.6 74.1 56.5 - - 141.5 16.0 104.5 87.0 69.5 52.0 - -

67 139.5 14.5 134.5 117.6 100.1 82.5 65.0 - 127.2 15.8 127.2 112.0 94.5 77.0 59.5 -

62 128.2 14.3 128.2 128.2 124.0 106.4 88.8 71.3 117.3 15.7 117.3 117.3 117.3 100.9 83.4 65.9

57 126.0 14.4 126.0 126.0 117.1 99.5 81.9 64.4 116.2 15.7 116.2 116.2 107.5 90.0 72.6 55.1

5000

77 175.8 14.8 91.9 71.0 51.6 - - - 161.4 16.2 95.0 67.0 47.6 - - -

72 160.3 14.7 118.4 98.9 79.5 60.1 - - 146.6 16.0 113.4 93.9 74.5 55.1 - -

67 144.9 14.5 144.9 126.9 107.5 88.1 68.6 - 131.8 15.9 131.8 120.8 101.4 82.0 62.5 -

62 133.1 14.4 133.1 133.1 133.1 113.7 94.3 74.9 121.5 15.7 121.5 121.5 121.5 107.6 88.1 68.7

57 130.8 14.4 130.8 130.8 125.7 106.3 86.9 67.5 120.4 15.8 120.4 120.4 115.4 95.9 76.5 57.0

5625

72 163.7 14.7 128.0 107.1 86.2 65.3 - - 148.9 16.0 122.7 102.0 81.2 60.4 - -

67 147.9 14.5 147.9 137.4 116.5 95.6 74.7 - 133.9 15.9 133.9 131.3 110.5 89.7 69.0 -

62 135.9 14.4 135.9 135.9 135.9 115.0 94.1 73.2 123.4 15.7 123.4 123.4 123.4 105.4 84.6 63.9

57 133.5 14.4 133.5 133.5 131.0 110.1 89.2 68.3 122.3 15.8 122.3 122.3 119.8 99.0 78.3 57.5

6250

72 167.0 14.7 137.7 115.3 92.9 70.5 - - 151.2 16.0 132.0 110.0 87.9 65.8 - -

67 150.9 14.5 150.9 147.9 125.5 103.1 80.7 - 135.9 15.8 135.9 135.9 119.6 97.5 75.4 -

62 138.6 14.4 138.6 138.6 138.6 116.3 93.9 71.5 125.3 15.7 125.3 125.3 125.3 103.2 81.1 59.0

57 136.2 14.4 136.2 136.2 136.2 113.9 91.5 69.1 124.2 15.7 124.2 124.2 124.2 102.1 80.0 58.0

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR150 (12.5 Ton) Cooling (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

528150-YTG-T-0514

94 Johnson Controls Unitary Products

ZR150 (12.5 Ton) Reheat

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

35°F 45°F

3125

72 87.0 7.7 6.6 4.8 3.1 - - 85.9 8.3 5.6 3.9 2.2 - -

67 84.6 7.3 14.4 12.7 11.0 9.2 - 83.3 8.0 11.8 10.1 8.4 6.7 -

62 82.9 7.3 20.3 18.6 16.9 15.2 13.5 80.8 7.7 17.7 16.0 14.3 12.6 10.9

3750

72 89.0 7.4 11.5 9.2 6.9 - - 88.9 8.0 10.7 8.3 5.9 - -

67 86.5 7.1 26.3 24.0 21.7 19.5 - 86.2 7.7 24.1 21.7 19.3 17.0 -

62 84.8 7.1 36.7 34.4 32.1 29.8 27.5 83.6 7.4 36.6 34.2 31.9 29.5 27.1

57 82.2 7.7 43.1 40.9 38.6 36.3 34.0 79.1 8.2 40.8 38.4 36.0 33.7 31.3

4375

72 90.9 7.2 16.4 13.5 10.7 - - 91.8 7.7 15.8 12.7 9.7 - -

67 88.4 6.9 38.3 35.4 32.5 29.7 - 89.1 7.4 36.3 33.3 30.2 27.2 -

62 86.6 6.8 53.1 50.2 47.4 44.5 41.6 86.4 7.2 55.5 52.5 49.4 46.4 43.3

57 84.0 7.4 63.2 60.0 57.1 54.2 51.4 81.8 7.9 61.9 58.9 55.8 52.8 49.7

5000

72 92.8 6.9 21.3 17.9 14.4 - - 94.8 7.4 20.9 17.2 13.4 - -

67 90.3 6.6 50.2 46.8 43.3 39.9 - 91.9 7.1 48.6 44.9 41.1 37.4 -

62 88.5 6.6 69.5 66.0 62.6 59.1 55.7 89.2 6.9 74.5 70.7 67.0 63.3 59.5

57 85.9 7.1 83.2 79.1 75.6 72.2 68.7 84.4 7.6 83.1 79.4 75.6 71.9 68.2

5625

72 94.1 7.5 15.2 12.5 9.9 - - 96.7 7.8 16.3 13.1 9.9 - -

67 91.5 7.1 35.5 32.8 30.2 27.5 - 93.8 7.6 37.4 34.2 31.0 27.8 -

62 89.7 7.1 48.0 45.4 42.7 40.1 37.4 91.0 7.3 57.1 53.9 50.7 47.5 44.3

57 87.1 7.7 58.0 55.0 52.4 49.7 47.1 86.1 8.0 63.7 60.5 57.3 54.1 50.8

6250

72 95.4 8.0 9.1 7.2 5.4 - - 98.6 8.3 11.7 9.0 6.3 - -

67 92.8 7.7 20.7 18.9 17.0 15.2 - 95.6 8.0 26.2 23.5 20.8 18.1 -

62 91.0 7.6 26.6 24.7 22.9 21.0 19.2 92.8 7.8 39.8 37.1 34.4 31.7 29.0

57 88.3 8.3 32.9 31.0 29.2 27.3 25.5 87.8 8.5 44.3 41.6 38.9 36.2 33.5

55°F 65°F

3125

72 84.8 8.94.62.91.2-- 84.2 9.3 -----

67 81.9 8.7 9.3 7.6 5.9 4.2 - 79.1 8.9 10.4 8.9 7.3 5.8 -

62 78.7 8.2 15.1 13.4 11.7 10.0 8.3 74.6 8.4 24.9 23.4 21.8 20.3 18.7

3750

72 88.8 8.69.97.45.0-- 87.3 9.2 -----

67 85.8 8.3 21.9 19.4 16.9 14.5 - 82.0 8.8 18.2 16.0 13.9 11.8 -

62 82.5 7.8 36.5 34.1 31.6 29.1 26.7 77.4 8.3 40.0 37.9 35.8 33.7 31.5

57 76.1 8.7 38.4 36.0 33.5 31.0 28.6 72.6 9.0 44.1 42.0 39.9 37.8 35.6

4375

72 92.8 8.215.211.98.7-- 90.4 9.1 -----

67 89.7 8.0 34.4 31.2 27.9 24.7 - 85.0 8.7 25.9 23.2 20.5 17.8 -

62 86.2 7.5 58.0 54.7 51.5 48.3 45.0 80.2 8.2 55.1 52.4 49.8 47.1 44.4

57 79.5 8.3 60.7 57.8 54.6 51.3 48.1 75.2 8.9 60.3 57.7 55.1 52.4 49.7

5000

72 96.8 7.8 20.5 16.5 12.4 - - 93.5 9.0 1.1 - - - -

67 93.6 7.6 47.0 42.9 38.9 34.9 - 87.9 8.6 33.6 30.4 27.1 23.8 -

62 89.9 7.1 79.4 75.4 71.4 67.4 63.4 83.0 8.1 70.3 67.0 63.7 60.4 57.2

57 83.0 8.0 83.0 79.6 75.6 71.6 67.6 77.8 8.8 76.4 73.5 70.2 66.9 63.7

5625

72 99.3 8.217.413.69.8-- 97.7 9.2 -----

67 96.0 8.0 39.3 35.5 31.8 28.0 - 91.8 8.8 31.7 28.3 25.0 21.6 -

62 92.2 7.5 66.2 62.4 58.7 54.9 51.1 86.6 8.3 69.4 66.0 62.6 59.3 55.9

57 85.1 8.4 69.3 65.9 62.1 58.4 54.6 81.2 9.0 72.7 70.3 66.9 63.6 60.2

6250

72101.8 8.614.310.87.3--101.9 9.5 -----

67 98.4 8.4 31.7 28.1 24.6 21.1 - 95.7 9.1 29.8 26.3 22.8 19.4 -

62 94.6 7.9 53.0 49.4 45.9 42.4 38.8 90.3 8.6 68.5 65.0 61.6 58.1 54.6

57 87.2 8.8 55.7 52.2 48.7 45.1 41.6 84.7 9.3 68.9 67.1 63.7 60.2 56.8

528150-YTG-T-0514

Johnson Controls Unitary Products 95

75°F 85°F

3125

72 83.6 9.7 ----- 83.0 10.2 -----

67 76.2 9.2 11.5 10.1 8.7 7.3 - 73.4 9.4 12.6 11.4 10.1 8.8 -

62 70.5 8.7 34.8 33.4 32.0 30.6 29.2 66.4 8.9 44.7 43.4 42.1 40.9 39.6

3750

72 85.8 9.9 ----- 84.3 10.5 -----

67 78.2 9.3 14.5 12.7 10.9 9.1 - 74.4 9.7 10.8 9.3 7.9 6.4 -

62 72.3 8.8 43.6 41.8 40.0 38.2 36.4 67.3 9.3 47.1 45.6 44.2 42.7 41.3

57 69.0 9.3 49.8 48.1 46.3 44.5 42.7 65.5 9.7 55.5 54.1 52.7 51.2 49.8

4375

72 88.0 10.0 ----- 85.5 10.9 -----

67 80.2 9.4 17.4 15.2 13.1 10.9 - 75.5 10.1 8.9 7.2 5.6 4.0 -

62 74.2 8.9 52.3 50.2 48.0 45.8 43.7 68.2 9.6 49.5 47.9 46.2 44.6 43.0

57 70.8 9.5 59.9 57.7 55.5 53.4 51.2 66.4 10.0 59.4 57.6 56.0 54.4 52.8

5000

72 90.1 10.1 ----- 86.8 11.3 -----

67 82.2 9.5 20.3 17.8 15.2 12.7 - 76.5 10.5 7.0 5.2 3.4 1.6 -

62 76.0 9.0 61.1 58.5 56.0 53.5 50.9 69.1 10.0 51.9 50.1 48.3 46.5 44.7

57 72.6 9.6 69.9 67.3 64.8 62.3 59.7 67.4 10.4 63.3 61.2 59.4 57.6 55.8

5625

72 96.1 10.3 ----- 94.4 11.3 -----

67 87.6 9.6 24.1 21.1 18.1 15.2 - 83.4 10.5 16.4 13.9 11.3 8.8 -

62 81.0 9.1 72.5 69.6 66.6 63.7 60.7 75.4 9.9 75.4 73.1 70.6 68.0 65.5

57 77.3 9.7 76.0 74.7 71.8 68.8 65.8 73.4 10.4 73.4 73.4 73.4 73.4 71.5

6250

72102.0 10.4 -----102.0 11.3 -----

67 93.0 9.8 27.8 24.5 21.1 17.7 - 90.3 10.4 25.9 22.6 19.3 16.0 -

62 86.0 9.2 84.0 80.6 77.2 73.8 70.5 81.7 9.9 81.7 81.7 81.7 81.7 81.7

57 82.1 9.8 82.1 82.1 78.7 75.3 71.9 79.5 10.3 79.5 79.5 79.5 79.5 79.5

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.

ZR150 (12.5 Ton) Reheat (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh) Total

Capacity1

(MBh)

Total

Input

(kW)2

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

85 80 75 70 65 85 80 75 70 65

528150-YTG-T-0514

96 Johnson Controls Unitary Products

Drive Selection

1. Determine side or bottom supply duct Application.

2. Determine desired airflow.

3. Calculate or measure the amount of external static pressure.

• Add or deduct any additional static resistance from “Additional Static Resistance Table”.

4. Using the operating point determined from steps 1, 2 & 3, locate this point on the appropriate supply air blower performance

table. (Linear interpolation may be necessary.)

5. Noting the RPM and BHP from step 4, locate the appropriate motor and, or drive on the RPM selection table.

6. Review the BHP compared to the motor options available. Select the appropriate motor and, or drive.

7. Review the RPM range for the motor options available. Select the appropriate drive if multiple drives are available for the

chosen motor.

8. Determine turns open to obtain the desired operation point.

Example

1. 2600 CFM

2. 1.6 iwg

3. Using the supply air blower performance table below, the following data point was located: 1268 RPM & 1.95 BHP.

4. Using the RPM selection table below, Size X and Model Y is found.

5. 1.95 BHP exceeds the maximum continuous BHP rating of the 1.5 HP motor. The 2 HP motor is required.

6. 1268 RPM is within the range of the 2 HP drives.

7. Using the 2 HP motor and drive, .5 turns open will achieve 1268 RPM.

Airflow Performance

Example Supply Air Blower Performance

Air Flow

(CFM)

Available External Static Pressure - IWG

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1.5 HP & Field Supplied Drive Standard 1.5 HP & Drive Alternate 2 HP & Drive

2200 804 0.50 866 0.71 925 0.90 982 1.06 1038 1.21 1092 1.35 1147 1.48 1203 1.61 1259 1.73 1317 1.87

2400 835 0.66 897 0.87 956 1.06 1013 1.22 1069 1.37 1124 1.51 1178 1.64 1234 1.77 1290 1.90 1348 2.03

2600 869 0.84 931 1.05 990 1.24 1047 1.40 1103 1.55 1158 1.69 1212 1.82 1268 1.95 1324 2.07 1382 2.21

2800 906 1.03 968 1.25 1027 1.43 1084 1.60 1139 1.75 1194 1.89 1249 2.02 1304 2.14 1361 2.27 - -

Example RPM Selection

Size

(Tons) Model Airflow

Option HP Max

BHP Motor

Sheave Blower

Sheave 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1 Turn

Open Fully

Closed

Std. 1.5 1.73 1VM50 AK74 N/A 897 945 991 1035 1079 1126

H. Static 2 2.30 1VM50 AK64 N/A 1039 1094 1150 1207 1256 1308

Example Additional Static Resistance

Size

(Tons) Model CFM Cooling Only Economizer 4” Pleated Filter Electric Heat kW

3 6 9 15 20 24

900 0.05 -0.05 0.01 0.00 0.00 0.00 0.01 0.01 0.01

1000 0.05 -0.03 0.02 0.00 0.00 0.00 0.02 0.02 0.02

1100 0.04 -0.02 0.03 0.01 0.01 0.01 0.02 0.02 0.02

1200 0.04 0.00 0.04 0.01 0.01 0.01 0.02 0.02 0.02

1300 0.03 0.01 0.05 0.01 0.01 0.01 0.03 0.03 0.03

528150-YTG-T-0514

Johnson Controls Unitary Products 97

Altitude and Temperature Correction for CFM, Static

Pressure and Power.

The information below should be used to assist in application of

product when being applied at altitudes at or exceeding 1000

feet above sea level.

The air flow rates listed in the standard blower performance

tables are based on standard air at sea level. As the altitude or

temperature increases, the density of air decreases. In order to

use the indoor blower tables for high altitude applications,

certain corrections are necessary.

A centrifugal fan is a "constant volume" device. This means

that, if the rpm remains constant, the CFM delivered is the

same regardless of the density of the air. However, since the air

at high altitude is less dense, less static pressure will be

generated and less power will be required than a similar

application at sea level. Air density correction factors are shown

in Table 14 and Figure 27.

The examples below will assist in determining the airflow

performance of the product at altitude.

Example 1: What are the corrected CFM, static pressure, and

BHP at an elevation of 5,000 ft. if the blower performance data

is 6,000 CFM, 1.5 IWC and 4.0 BHP?

Solution: At an elevation of 5,000 ft. the indoor blower will still

deliver 6,000 CFM if the rpm is unchanged. However, Table 13

must be used to determine the static pressure and BHP. Since

no temperature data is given, we will assume an air temperature

of 70°F. Table 15 shows the correction factor to be 0.832.

Corrected static pressure = 1.5 x 0.832 = 1.248 IWC

Corrected BHP = 4.0 x 0.832 = 3.328

Example 2: A system, located at 5,000 feet of elevation, is to

deliver 6,000 CFM at a static pressure of 1.5". Use the unit

blower tables to select the blower speed and the BHP

requirement.

Solution: As in the example above, no temperature

information is given so 70°F is assumed.

The 1.5" static pressure given is at an elevation of 5,000 ft. The

first step is to convert this static pressure to equivalent sea level

conditions.

Sea level static pressure = 1.5 / .832 = 1.80"

Enter the blower table at 6000 sCFM and static pressure of

1.8". The rpm listed will be the same rpm needed at 5,000 ft.

Suppose that the corresponding BHP listed in the table is 3.2.

This value must be corrected for elevation.

BHP at 5,000 ft. = 3.2 x .832 = 2.66

Altitude/Temperature Correction Factors

Air

Temp. Altitude (Ft.)

0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

40 1.060 1.022 0.986 0.950 0.916 0.882 0.849 0.818 0.788 0.758 0.729

50 1.039 1.002 0.966 0.931 0.898 0.864 0.832 0.802 0.772 0.743 0.715

60 1.019 0.982 0.948 0.913 0.880 0.848 0.816 0.787 0.757 0.729 0.701

70 1.000 0.964 0.930 0.896 0.864 0.832 0.801 0.772 0.743 0.715 0.688

80 0.982 0.947 0.913 0.880 0.848 0.817 0.787 0.758 0.730 0.702 0.676

90 0.964 0.929 0.897 0.864 0.833 0.802 0.772 0.744 0.716 0.689 0.663

100 0.946 0.912 0.880 0.848 0.817 0.787 0.758 0.730 0.703 0.676 0.651

0.600

0.650

0.700

0.750

0.800

0.850

0.900

0.950

1.000

1.050

1.100

40 50 60 70 80 90 100

Air Temperature (ºF)

Correction Factor

Sea Level

1000 ft

2000 ft

3000 ft

4000 ft

6000 ft

7000 ft

8000 ft

9000 ft

10000 ft

5000 ft

528150-YTG-T-0514

98 Johnson Controls Unitary Products

Indoor Blower Specifications

Size

(Tons) Model Airflow

Option

Motor Motor Sheave Blower Sheave Belt

HP RPM Eff. SF Frame Datum Dia.

(in.) Bore (in.) Model Datum Dia.

(in.) Bore (in.) Model

037

(3) ZH Std. 1-1/2 1725 0.8 1.15 56 2.0 - 3.0 7/8 1VM34 6.5 1 AK69 A47

H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 6.5 1 AK69 A47

049

(4) ZH Std. 1-1/2 1725 0.8 1.15 56 2.0 - 3.0 7/8 1VM34 5.2 1 AK56 A47

H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 5.2 1 AK56 A47

061

(5) ZH Std. 1-1/2 1725 0.8 1.15 56 2.6 - 3.6 7/8 1VL40 5.7 1 AK61 A47

H. Static 2 1725 0.8 1.15 56 4.2 - 5.2 7/8 1VP56 7.0 1 AK74 A51

078

(6.5) ZH Std. 1-1/2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A49

H. Static 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 6.0 1 AK64 A49

090

(7.5) ZH Std. 1-1/2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A49

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 5.7 1 AK61 A49

102

(8.5) ZH Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 9.0 1 AK94 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

120

(10) ZH Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 8.0 1 AK84 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

150

(12.5) ZH Std. 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

H. Static 5 1725 0.87 1.15 184T 4.3 - 5.3 1-1/8 1VP56 6.7 1 BK77 BX55

037

(3) ZJ Std. 1-1/2 1725 0.8 1.15 56 2.0 - 3.0 7/8 1VM34 6.5 1 AK69 A47

H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 6.5 1 AK69 A47

049

(4) ZJ Std. 1-1/2 1725 0.8 1.15 56 2.0 - 3.0 7/8 1VM34 5.2 1 AK56 A47

H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 5.2 1 AK56 A47

061

(5) ZJ Std. 1-1/2 1725 0.8 1.15 56 2.6 - 3.6 7/8 1VL40 5.7 1 AK61 A47

H. Static 2 1725 0.8 1.15 56 4.2 - 5.2 7/8 1VP56 7.0 1 AK74 A51

078

(6.5) ZJ Std. 1-1/2 1725 0.8 1.15 56 2.6 - 3.6 7/8 1VL40 7.0 1 AK74 A53

H. Static 2 1725 0.8 1.15 56 3.6 - 4.6 7/8 1VM50 7.0 1 AK74 A54

090

(7.5) ZJ Std. 1-1/2 1725 0.8 1.15 56 2.6 - 3.6 7/8 1VL40 6.5 1 AK69 A52

H. Static 3 1725 0.8 1.15 56 3.6 - 4.6 7/8 1VM50 6.5 1 AK69 A54

102

(8.5) ZJ Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 8.5 1 AK89 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

120

(10) ZJ Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 8.0 1 AK84 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

150

(12.5) ZJ Std. 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

H. Static 5 1725 0.87 1.15 184T 4.3 - 5.3 1-1/8 1VP56 6.7 1 BK77 BX55

037 ZR Std. 1-1/2 1725 0.8 1.15 56 1.2 - 2.9 7/8 1VP34 5.7 1 AK61 A47

(3) H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 5.5 1 AK59 A47

049 ZR Std. 1-1/2 1725 0.8 1.15 56 1.2 - 2.9 7/8 1VP34 5.7 1 AK61 A47

(4) H. Static 1-1/2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 5.5 1 AK59 A47

061 ZR Std. 1-1/2 1725 0.8 1.15 56 1.2 - 2.9 7/8 1VP34 5.7 1 AK61 A47

(5) H. Static 2 1725 0.8 1.15 56 3.0 - 4.0 7/8 1VL44 5.5 1 AK59 A47

078

(6.5) ZR Std. 1-1/2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A49

H. Static 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 6.0 1 AK64 A49

090

(7.5) ZR Std. 1-1/2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A49

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 5.7 1 AK61 A49

102

(8.5) ZR Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 8.5 1 AK89 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

120

(10) ZR Std. 2 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 8.0 1 AK84 A56

H. Static 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

150

(12.5) ZR Std. 3 1725 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7.0 1 AK74 A54

H. Static 5 1725 0.87 1.15 184T 4.3 - 5.3 1-1/8 1VP56 6.7 1 BK77 BX55

Power Exhaust Specifications

Model Voltage Motor Motor Fuse Size CFM @

0.1 ESP

HP RPM1

1. Motors are multi-tapped and factory wired for high speed.

QTY LRA FLA MCA

2PE04703225 208/230-1-60 3/4 1075 1 7.8 5 6.3 10 3800

2PE04703246 460-1-60 3/4 1075 1 3.4 2.2 2.8 5 3800

2PE04703258 575-1-60 3/4 1050 1 2.9 1.5 1.9 4 3800

528150-YTG-T-0514

Johnson Controls Unitary Products 99

RPM Selection

Size

(Tons) Model Airflow

Option HP Max

BHP Motor

Sheave Blower

Sheave 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1 Turn

Open Fully

Closed

037

(3) ZH Std. 1.5 1.5 1VM34 AK69 N/A 531 584 637 690 743 796

H. Static 1.5 1.5 1VL44 AK69 N/A 796 849 902 955 1008 1062

049

(4) ZH Std. 1.5 1.5 1VM34 AK56 N/A 663 730 796 863 929 995

H. Static 1.5 1.5 1VL44 AK56 N/A 995 1062 1128 1194 1261 1327

061

(5) ZH Std. 1.5 1.5 1VL40 AK61 N/A 787 847 908 968 1029 1089

H. Static 2 2 1VP56 AK74 N/A 1035 1084 1134 1183 1232 1281

078

(6.5) ZH Std. 1.5 1.73 1VM50 AK74 N/A 887 936 986 1035 1084 1134

H. Static 2 2.30 1VM50 AK64 N/A 1039 1094 1150 1207 1256 1308

090

(7.5) ZH Std. 1.5 1.73 1VM50 AK74 N/A 887 936 986 1035 1084 1134

H. Static 3 3.45 1VM50 AK61 N/A 1088 1147 1205 1265 1312 1365

102

(8.5) ZH Std. 2 2.30 1VM50 AK94 N/A 690 728 767 805 843 882

H. Static 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

120

(10) ZH Std. 2 2.30 1VM50 AK84 N/A 776 819 863 906 949 992

H. Static 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

150

(12.5) ZH Std. 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

H. Static 5 5.75 1VP56 BK77 1052 1095 1136 1175 1216 1272 N/A

037

(3) ZJ Std. 1.5 1.5 1VM34 AK69 N/A 531 584 637 690 743 796

H. Static 1.5 1.5 1VL44 AK69 N/A 796 849 902 955 1008 1062

049

(4) ZJ Std. 1.5 1.5 1VM34 AK56 N/A 663 730 796 863 929 995

H. Static 1.5 1.5 1VL44 AK56 N/A 995 1062 1128 1194 1261 1327

061

(5) ZJ Std. 1.5 1.5 1VL40 AK61 N/A 787 847 908 968 1029 1089

H. Static 2 2 1VP56 AK74 N/A 1035 1084 1134 1183 1232 1281

078

(6.5) ZJ Std. 1.5 1.73 1VL40 AK74 N/A 641 690 739 789 838 887

H. Static 2 2.30 1VM50 AK74 N/A 887 936 986 1035 1084 1134

090

(7.5) ZJ Std. 1.5 1.73 1VL40 AK69 N/A 690 743 796 849 902 955

H. Static 3 3.45 1VM50 AK69 N/A 955 1008 1062 1115 1168 1221

102

(8.5) ZJ Std. 2 2.30 1VM50 AK89 N/A 731 771 812 852 893 934

H. Static 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

120

(10) ZJ Std. 2 2.30 1VM50 AK84 N/A 776 819 863 906 949 992

H. Static 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

150

(12.5) ZJ Std. 3 3.45 1VM50 AK74 N/A 887 936 986 1035 1084 1134

H. Static 5 5.75 1VP56 BK77 1052 1095 1136 1175 1216 1272 N/A

037

(3.0) ZR Std. 1.5 1.5 1VP34 AK61 N/A 575 636 696 757 817 878

H. Static 1.5 1.5 1VL44 AK59 N/A 878 941 1004 1066 1129 1192

049

(4.0) ZR Std. 1.5 1.5 1VP34 AK61 N/A 575 636 696 757 817 878

H. Static 1.5 1.5 1VL44 AK59 N/A 878 941 1004 1066 1129 1192

061

(5.0) ZR Std. 1.5 1.5 1VP34 AK61 N/A 575 636 696 757 817 878

H. Static 2 2 1VL44 AK59 N/A 878 941 1004 1066 1129 1192

078

(6.5) ZR Std. 1.5 1.73 1VM50 AK74 N/A 897 945 991 1035 1079 1126

H. Static 2 2.30 1VM50 AK64 N/A 1039 1094 1150 1207 1256 1308

090

(7.5) ZR Std. 1.5 1.73 1VM50 AK74 N/A 897 945 991 1035 1079 1126

H. Static 3 3.45 1VM50 AK61 N/A 1088 1147 1205 1265 1312 1365

102

(8.5) ZR Std. 2 2.30 1VM50 AK89 N/A 735 775 815 851 889 930

H. Static 3 3.45 1VM50 AK74 N/A 880 928 972 1016 1067 1110

120

(10) ZR Std. 2 2.30 1VM50 AK84 N/A 785 821 858 901 940 980

H. Static 3 3.45 1VM50 AK74 N/A 880 928 972 1016 1067 1110

150

(12.5) ZR Std. 3 3.45 1VM50 AK74 N/A 880 928 972 1016 1067 1110

H. Static 5 5.75 1VP56 BK77 1052 1095 1136 1175 1216 1272 N/A

528150-YTG-T-0514

100 Johnson Controls Unitary Products

Additional Static Resistance - ZH037 thru 061

Size

(Tons) Model CFM Cooling Only1

1. Add these values to the available static resistance in the respective Blower Performance Tables.

Economizer2 3

2. Deduct these values from the available external static pressure shown in the respective Blower Performance Tables.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air duct

is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

4” Pleated Filter2Electric Heat kW2

3 6 9 15 20 24

037 (3)

049 (4) ZH

900 0.05 -0.05 0.01 0.00 0.00 0.00 0.01 0.01 0.01

1000 0.05 -0.03 0.02 0.00 0.00 0.00 0.02 0.02 0.02

1100 0.04 -0.02 0.03 0.01 0.01 0.01 0.02 0.02 0.02

1200 0.04 0.00 0.04 0.01 0.01 0.01 0.02 0.02 0.02

1300 0.03 0.01 0.05 0.01 0.01 0.01 0.03 0.03 0.03

1400 0.03 0.03 0.07 0.02 0.02 0.02 0.03 0.03 0.03

1500 0.03 0.04 0.08 0.02 0.02 0.02 0.04 0.04 0.04

1600 0.02 0.06 0.09 0.02 0.02 0.02 0.04 0.04 0.04

1700 0.02 0.07 0.10 0.03 0.03 0.03 0.05 0.05 0.05

1800 0.01 0.08 0.11 0.03 0.03 0.03 0.05 0.05 0.05

1900 0.01 0.10 0.13 0.04 0.04 0.04 0.06 0.06 0.06

2000 0.00 0.11 0.14 0.04 0.04 0.04 0.07 0.07 0.07

061 (5) ZH

1500 -0.01 0.13 0.07 0.02 0.02 0.02 0.04 0.04 0.04

1600 -0.01 0.14 0.08 0.02 0.02 0.02 0.04 0.04 0.04

1700 -0.01 0.15 0.08 0.03 0.03 0.03 0.05 0.05 0.05

1800 -0.02 0.16 0.09 0.03 0.03 0.03 0.05 0.05 0.05

1900 -0.02 0.17 0.10 0.04 0.04 0.04 0.06 0.06 0.06

2000 -0.02 0.18 0.10 0.04 0.04 0.04 0.07 0.07 0.07

2100 -0.03 0.19 0.11 0.05 0.05 0.05 0.07 0.07 0.07

2200 -0.03 0.20 0.12 0.06 0.06 0.06 0.08 0.08 0.08

2300 -0.04 0.21 0.12 0.06 0.06 0.06 0.09 0.09 0.09

2400 -0.04 0.22 0.13 0.07 0.07 0.07 0.10 0.10 0.10

2500 -0.05 0.23 0.14 0.08 0.08 0.08 0.11 0.11 0.11

Additional Static Resistance - ZJ/ZR037 thru 061

Size

(Tons) Model CFM Cooling Only1

1. Add these values to the available static resistance in the respective Blower Performance Tables.

Economizer2 3

2. Deduct these values from the available external static pressure shown in the respective Blower Performance Tables.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air duct

is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

4” Pleated Filter2Electric Heat kW2

3 6 9 15 20 24

037 (3) ZJ/ZR

900 0.05 -0.05 0.01 0.00 0.00 0.00 0.01 0.01 0.01

1000 0.05 -0.03 0.02 0.00 0.00 0.00 0.02 0.02 0.02

1100 0.04 -0.02 0.03 0.01 0.01 0.01 0.02 0.02 0.02

1200 0.04 0.00 0.04 0.01 0.01 0.01 0.02 0.02 0.02

1300 0.03 0.01 0.05 0.01 0.01 0.01 0.03 0.03 0.03

1400 0.03 0.03 0.07 0.02 0.02 0.02 0.03 0.03 0.03

1500 0.03 0.04 0.08 0.02 0.02 0.02 0.04 0.04 0.04

049 (4)

061 (5) ZJ/ZR

1200 -0.01 0.10 0.05 0.01 0.01 0.01 0.02 0.02 0.02

1300 -0.01 0.11 0.06 0.01 0.01 0.01 0.03 0.03 0.03

1400 -0.01 0.12 0.06 0.02 0.02 0.02 0.03 0.03 0.03

1500 -0.01 0.13 0.07 0.02 0.02 0.02 0.04 0.04 0.04

1600 -0.01 0.14 0.08 0.02 0.02 0.02 0.04 0.04 0.04

1700 -0.01 0.15 0.08 0.03 0.03 0.03 0.05 0.05 0.05

1800 -0.02 0.16 0.09 0.03 0.03 0.03 0.05 0.05 0.05

1900 -0.02 0.17 0.10 0.04 0.04 0.04 0.06 0.06 0.06

2000 -0.02 0.18 0.10 0.04 0.04 0.04 0.07 0.07 0.07

2100 -0.03 0.19 0.11 0.05 0.05 0.05 0.07 0.07 0.07

2200 -0.03 0.20 0.12 0.06 0.06 0.06 0.08 0.08 0.08

2300 -0.04 0.21 0.12 0.06 0.06 0.06 0.09 0.09 0.09

2400 -0.04 0.22 0.13 0.07 0.07 0.07 0.10 0.10 0.10

2500 -0.05 0.23 0.14 0.08 0.08 0.08 0.11 0.11 0.11

528150-YTG-T-0514

Johnson Controls Unitary Products 101

Additional Static Resistance - ZH/ZR078 thru 150

Size

(Tons) Model CFM Cooling Only1

1. Add these values to the available static resistance in the respective Blower Performance Tables.

Economizer2 3

2. Deduct these values from the available external static pressure shown in the respective Blower Performance Tables.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air duct

is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

4” Filter2Electric Heat kW2

09 18 24 36 54

078 (6.5)

090 (7.5) ZHZR

1900 0.00 0.07 0.10 0.05 0.06 0.07 0.08 0.10

2100 -0.01 0.09 0.11 0.06 0.07 0.08 0.09 0.11

2300 -0.01 0.11 0.12 0.07 0.08 0.09 0.10 0.13

2500 -0.02 0.13 0.14 0.08 0.09 0.10 0.11 0.14

2700 -0.03 0.16 0.15 0.09 0.10 0.12 0.13 0.16

2900 -0.04 0.18 0.16 0.10 0.11 0.13 0.14 0.18

3100 -0.05 0.20 0.18 0.12 0.13 0.15 0.16 0.20

3300 -0.06 0.22 0.19 0.13 0.14 0.17 0.18 0.22

3500 -0.07 0.24 0.20 0.15 0.16 0.19 0.20 0.24

3700 -0.08 0.27 0.21 0.17 0.18 0.21 0.22 0.26

3900 -0.09 0.29 0.23 0.19 0.20 0.23 0.24 0.28

4100 -0.09 0.31 0.24 0.21 0.22 0.25 0.26 0.31

4300 -0.10 0.30 0.25 0.23 0.24 0.28 0.29 0.34

4500 -0.11 0.35 0.26 0.25 0.26 0.30 0.31 0.37

102 (8.5)

120 (10)

150 (12.5)

ZH/ZR

1900 0.06 0.02 0.12 0.05 0.06 0.07 0.08 0.10

2100 0.07 0.02 0.13 0.06 0.07 0.08 0.09 0.11

2300 0.08 0.04 0.14 0.07 0.08 0.09 0.10 0.13

2500 0.09 0.11 0.16 0.08 0.09 0.10 0.11 0.14

2700 0.11 0.18 0.17 0.09 0.10 0.12 0.13 0.16

2900 0.12 0.25 0.19 0.10 0.11 0.13 0.14 0.18

3100 0.14 0.31 0.20 0.12 0.13 0.15 0.16 0.20

3300 0.16 0.37 0.22 0.13 0.14 0.17 0.18 0.22

3500 0.18 0.43 0.25 0.15 0.16 0.19 0.20 0.24

3700 0.20 0.49 0.27 0.17 0.18 0.21 0.22 0.26

3900 0.23 0.54 0.29 0.19 0.20 0.23 0.24 0.28

4100 0.25 0.58 0.32 0.21 0.22 0.25 0.26 0.31

4300 0.28 0.65 0.35 0.23 0.24 0.28 0.29 0.34

4500 0.30 0.69 0.38 0.25 0.26 0.30 0.31 0.37

4700 0.33 0.74 0.41 0.28 0.29 0.33 0.34 0.40

4900 0.36 0.78 0.44 0.30 0.31 0.35 0.37 0.43

5100 0.39 0.82 0.47 0.33 0.34 0.38 0.40 0.46

5300 0.42 0.86 0.51 0.35 0.37 0.41 0.43 0.49

5500 0.45 0.89 0.56 0.38 0.40 0.44 0.46 0.53

5700 0.48 0.93 0.58 0.41 0.43 0.47 0.49 0.56

5900 0.52 0.96 0.62 0.44 0.46 0.50 0.53 0.59

6100 0.56 0.98 0.67 0.47 0.49 0.53 0.56 0.62

6300 0.60 1.01 0.71 0.50 0.53 0.56 0.59 0.65

528150-YTG-T-0514

102 Johnson Controls Unitary Products

Additional Static Resistance - ZJ078-150

Size

(Tons) Model CFM Cooling Only1

1. Add these values to the available static resistance in the respective Blower Performance Tables.

Economizer2,3

2. Deduct these values from the available external static pressure shown in the respective Blower Performance Tables.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air duct is

less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

4” Filter2Electric Heat kW2

9 18243654

078 (6.5)

090 (7.5)

102 (8.5)

120 (10)

150 (12.5)

1900 0.06 0.02 0.12 0.05 0.06 0.07 0.08 0.10

2100 0.07 0.02 0.13 0.06 0.07 0.08 0.09 0.11

2300 0.08 0.04 0.14 0.07 0.08 0.09 0.10 0.13

2500 0.09 0.11 0.16 0.08 0.09 0.10 0.11 0.14

2700 0.11 0.18 0.17 0.09 0.10 0.12 0.13 0.16

2900 0.12 0.25 0.19 0.10 0.11 0.13 0.14 0.18

3100 0.14 0.31 0.20 0.12 0.13 0.15 0.16 0.20

3300 0.16 0.37 0.22 0.13 0.14 0.17 0.18 0.22

3500 0.18 0.43 0.26 0.15 0.16 0.19 0.20 0.24

3700 0.20 0.49 0.27 0.17 0.18 0.21 0.22 0.26

3900 0.23 0.54 0.29 0.19 0.20 0.23 0.24 0.28

4100 0.25 0.58 0.32 0.21 0.22 0.25 0.26 0.31

4300 0.28 0.65 0.35 0.23 0.24 0.28 0.29 0.34

4500 0.30 0.69 0.38 0.25 0.26 0.30 0.31 0.37

4700 0.33 0.74 0.41 0.28 0.29 0.33 0.34 0.40

4900 0.36 0.78 0.44 0.30 0.31 0.35 0.37 0.43

5100 0.39 0.82 0.47 0.33 0.34 0.38 0.40 0.46

5300 0.42 0.86 0.51 0.35 0.37 0.41 0.43 0.49

5500 0.45 0.89 0.55 0.38 0.40 0.44 0.46 0.53

5700 0.48 0.93 0.58 0.41 0.43 0.47 0.49 0.56

5900 0.52 0.96 0.62 0.44 0.46 0.50 0.53 0.59

6100 0.56 0.98 0.67 0.47 0.49 0.53 0.56 0.62

6300 0.60 1.01 0.71 0.50 0.53 0.56 0.59 0.65

Electric Heat Minimum Supply Air

528150-YTG-T-0514

Johnson Controls Unitary Products 103

Gas Heat Minimum Supply Air

Size

(Tons) Model Heat Size

Supply Air (CFM)

Heating

Min Max

037

(3) ZH/ZJ/ZR

A05 / N05 890 2220

A07 / N07 915 2370

A09 / N09 1130 1800

049

(4) ZH/ZJ/ZR

A05 / N05 890 2220

A07 / N07 915 2370

A09 / N09 1290 2250

061

(5) ZH/ZJ/ZR

A07 / N07 915 2370

A09 / N09 1380 2570

A13 / N13 1580 2630

078

(6.5) ZH/ZJ/ZR 10 1950 3250

15 1950 3250

090

(7.5) ZH/ZJ/ZR 10 2250 3750

15 2250 3750

102

(8.5) ZH/ZJ/ZR 10 2550 4250

15 2550 4250

120

(10) ZH/ZJ/ZR 15 3000 5000

20 3000 5000

150

(12.5) ZH/ZJ/ZR 15 3750 6250

20 3750 6250

3 thru 5 Tons

Size

(Tons) Model Voltage

Minimum Supply Air (CFM)

Heater kW

369152024

037

(3) ZH/ZJ/ZR

208/230-3-60 960 960 1020 1020 - -

460-3-60 980 960 960 960 - -

600-3-60 - - 960 960 - -

049

(4) ZH/ZJ/ZR

208/230-3-60 - 1280 1420 1420 1420 -

460-3-60 - 1400 1400 1400 1400 -

600-3-60 - - 1400 1400 1400 -

061

(5) ZH/ZJ/ZR

208/230-3-60 - 1600 1600 1600 1600 1600

460-3-60 - 1600 1600 1600 1600 1600

600-3-60 - - 1600 1600 1600 1600

6-1/2 thru 12-1/5 Tons

Size

(Tons) Model Voltage

Minimum Supply Air (CFM)

Heater kW

9 18243654

078

(6.5) ZH/ZJ/ZR

208/230-3-60 1950 1950 1950 1950 -

460-3-60 1950 1950 1950 1950 -

600-3-60 1950 1950 1950 1950 -

090

(7.5) ZH/ZJ/ZR

208/230-3-60 2250 2250 2250 2250 -

460-3-60 2250 2250 2250 2250 -

600-3-60 2250 2250 2250 2250 -

102

(8.5) ZH/ZJ/ZR

208/230-3-60 2550 2550 2550 2550 -

460-3-60 2550 2550 2550 2550 -

600-3-60 2550 2550 2550 2550 -

120

(10) ZH/ZJ/ZR

208/230-3-60 - 3000 3000 3000 3500

460-3-60 - 3000 3000 3000 3000

600-3-60 - 3000 3000 3000 3500

150

(12.5) ZH/ZJ/ZR

208/230-3-60 - 3750 3750 3750 4000

460-3-60 - 3750 3750 3750 3750

600-3-60 - 3750 3750 3750 3750

528150-YTG-T-0514

104 Johnson Controls Unitary Products

Airflow Performance

ZH037-150 Side Duct Application

ZH037 (3.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

900 560 0.29 628 0.35 695 0.42 760 0.51 823 0.61 886 0.72 949 0.82 1011 0.92 1073 1.01 1136 1.09

1000 582 0.29 650 0.34 716 0.42 781 0.51 845 0.61 908 0.71 970 0.82 1032 0.92 1095 1.01 1158 1.08

1100 601 0.30 670 0.35 736 0.43 801 0.52 864 0.62 927 0.72 990 0.83 1052 0.93 1114 1.02 1177 1.09

1200 620 0.32 688 0.37 754 0.45 819 0.54 883 0.64 946 0.74 1008 0.85 1070 0.95 1133 1.04 1196 1.11

1300 638 0.35 706 0.40 772 0.48 837 0.57 901 0.67 964 0.77 1026 0.88 1088 0.98 1151 1.06 1214 1.14

1400 655 0.39 724 0.44 790 0.51 855 0.60 918 0.70 981 0.81 1044 0.91 1106 1.01 1168 1.10 1231 1.18

1500 673 0.43 741 0.48 807 0.56 872 0.65 936 0.75 999 0.85 1061 0.96 1124 1.06 1186 1.15 1249 1.22

1.5 HP & Field Supplied Drive

ZH049 (4.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

FS4Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

1200 620 0.32 688 0.37 754 0.45 819 0.54 883 0.64 946 0.74 1008 0.85 1070 0.95 1133 1.04 1196 1.11

1300 638 0.35 706 0.40 772 0.48 837 0.57 901 0.67 964 0.77 1026 0.88 1088 0.98 1151 1.06 1214 1.14

1400 655 0.39 724 0.44 790 0.51 855 0.60 918 0.70 981 0.81 1044 0.91 1106 1.01 1168 1.10 1231 1.18

1500 673 0.43 741 0.48 807 0.56 872 0.65 936 0.75 999 0.85 1061 0.96 1124 1.06 1186 1.15 1249 1.22

1600 691 0.48 759 0.54 825 0.61 890 0.70 954 0.80 1017 0.90 1079 1.01 1141 1.11 1204 1.20 1267 1.27

1700 709 0.54 777 0.59 843 0.67 908 0.76 972 0.86 1035 0.96 1097 1.07 1160 1.17 1222 1.26 1285 1.33

1800 728 0.60 796 0.66 862 0.73 927 0.82 991 0.92 1053 1.03 1116 1.13 1178 1.23 1241 1.32 1303 1.39

1900 747 0.67 815 0.73 881 0.80 946 0.89 1010 0.99 1073 1.09 1135 1.20 1197 1.30 1260 1.39 1323 1.46

2000 766 0.75 834 0.80 901 0.87 966 0.96 1029 1.06 1092 1.17 1155 1.27 1217 1.37 1279 1.46 - -

ZH061 (5.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1.5 HP & Field Supplied Drive Standard 1.5 HP & Drive Hi Static 2 HP & Drive

1500 659 0.35 719 0.46 780 0.57 843 0.67 905 0.77 964 0.87 1020 0.97 1071 1.07 1116 1.17 1154 1.28

1600 675 0.38 735 0.50 796 0.60 859 0.71 920 0.81 980 0.91 1036 1.01 1087 1.11 1132 1.21 1170 1.32

1700 691 0.42 751 0.54 812 0.64 875 0.75 936 0.85 996 0.95 1052 1.05 1103 1.15 1148 1.25 1186 1.36

1800 707 0.47 767 0.58 829 0.69 891 0.79 953 0.90 1012 0.99 1069 1.09 1120 1.20 1165 1.30 1202 1.41

1900 724 0.53 784 0.64 846 0.75 908 0.85 970 0.95 1029 1.05 1085 1.15 1137 1.25 1182 1.35 1219 1.46

2000 741 0.59 801 0.70 863 0.81 925 0.91 987 1.01 1047 1.11 1103 1.21 1154 1.31 1199 1.41 1236 1.52

2100 759 0.65 819 0.77 881 0.87 943 0.98 1005 1.08 1065 1.18 1121 1.28 1172 1.38 1217 1.48 1254 1.59

2200 778 0.73 838 0.84 900 0.95 962 1.05 1024 1.15 1083 1.25 1139 1.35 1191 1.45 1236 1.56 1273 1.66

2300 797 0.81 857 0.92 919 1.03 981 1.13 1043 1.23 1103 1.33 1159 1.43 1210 1.53 1255 1.64 1292 1.74

2400 817 0.90 877 1.01 939 1.12 1002 1.22 1063 1.32 1123 1.42 1179 1.52 1230 1.62 1275 1.73 1312 1.83

2500 838 1.00 898 1.11 960 1.22 1022 1.32 1084 1.42 1144 1.52 1200 1.62 1251 1.72 1296 1.82 1333 1.93

FS4

528150-YTG-T-0514

Johnson Controls Unitary Products 105

ZH078 (6.5 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 1.5 HP & Drive Hi Static 2 HP & Drive

1800 751 0.22 813 0.43 872 0.62 929 0.78 985 0.93 1040 1.07 1095 1.20 1150 1.33 1206 1.46 1265 1.59

2000 776 0.35 838 0.56 897 0.75 954 0.92 1010 1.07 1064 1.20 1119 1.33 1175 1.46 1231 1.59 1289 1.72

2200 804 0.50 866 0.71 925 0.90 982 1.06 1038 1.21 1092 1.35 1147 1.48 1203 1.61 1259 1.73 1317 1.87

2400 835 0.66 897 0.87 956 1.06 1013 1.22 1069 1.37 1124 1.51 1178 1.64 1234 1.77 1290 1.90 1348 2.03

2600 869 0.84 931 1.05 990 1.24 1047 1.40 1103 1.55 1158 1.69 1212 1.82 1268 1.95 1324 2.07 1382 2.21

2800 906 1.03 968 1.25 1027 1.43 1084 1.60 1139 1.75 1194 1.89 1249 2.02 1304 2.14 1361 2.27 - -

3000 945 1.25 1007 1.46 1066 1.65 1123 1.81 1179 1.96 1234 2.10 1288 2.23 - -----

3200 987 1.48 1048 1.69 1107 1.88 1165 2.04 1220 2.19 - - - - - -----

340010301.7310921.9411512.1212082.29------------

2 HP & Field Supplied Drive

ZH090 (7.5 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 1.5 HP & Drive Hi Static 3 HP & Drive

2000 776 0.35 838 0.56 897 0.75 954 0.92 1010 1.07 1064 1.20 1119 1.33 1175 1.46 1231 1.59 1289 1.72

2200 804 0.50 866 0.71 925 0.90 982 1.06 1038 1.21 1092 1.35 1147 1.48 1203 1.61 1259 1.73 1317 1.87

2400 835 0.66 897 0.87 956 1.06 1013 1.22 1069 1.37 1124 1.51 1178 1.64 1234 1.77 1290 1.90 1348 2.03

2600 869 0.84 931 1.05 990 1.24 1047 1.40 1103 1.55 1158 1.69 1212 1.82 1268 1.95 1324 2.07 1382 2.21

2800 906 1.03 968 1.25 1027 1.43 1084 1.60 1139 1.75 1194 1.89 1249 2.02 1304 2.14 1361 2.27 1419 2.40

3000 945 1.25 1007 1.46 1066 1.65 1123 1.81 1179 1.96 1234 2.10 1288 2.23 1344 2.36 1400 2.48 1458 2.62

3200 987 1.48 1048 1.69 1107 1.88 1165 2.04 1220 2.19 1275 2.33 1330 2.46 1385 2.59 1442 2.71 1500 2.85

3400 1030 1.73 1092 1.94 1151 2.12 1208 2.29 1264 2.44 1319 2.58 1374 2.71 1429 2.84 1485 2.96 1544 3.10

3600 1076 1.99 1138 2.20 1197 2.39 1254 2.56 1310 2.71 1364 2.84 1419 2.97 1475 3.10 1531 3.23 1589 3.36

3800 1124 2.27 1185 2.48 1245 2.67 1302 2.84 1357 2.99 1412 3.12 1467 3.25 1522 3.38 ----

3 HP & Field Supplied Drive

ZH102 (8.5 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 2 HP & Drive Hi Static 3 HP & Drive

2600 628 0.56 678 0.76 730 0.93 781 1.09 833 1.25 883 1.41 933 1.59 980 1.80 1025 2.05 1068 2.35

2800 648 0.67 698 0.87 750 1.04 801 1.20 853 1.36 903 1.52 953 1.70 1000 1.91 1046 2.16 1088 2.46

3000 666 0.80 717 1.00 768 1.17 820 1.33 871 1.49 922 1.65 971 1.83 1019 2.04 1064 2.29 1106 2.59

3200 684 0.95 735 1.15 786 1.32 838 1.48 889 1.63 940 1.80 989 1.98 1037 2.19 1082 2.44 1124 2.74

3400 702 1.11 753 1.31 804 1.48 856 1.64 907 1.79 958 1.96 1007 2.14 1055 2.35 1100 2.60 1142 2.90

3600 721 1.28 772 1.48 824 1.65 875 1.81 927 1.97 977 2.13 1027 2.31 1074 2.52 1119 2.77 - -

3800 742 1.47 793 1.67 844 1.84 896 2.00 947 2.15 998 2.32 1047 2.50 1095 2.71 1140 2.96 - -

4000 765 1.67 815 1.86 867 2.04 918 2.19 970 2.35 1020 2.51 1070 2.70 1117 2.91 ----

4200 789 1.87 840 2.07 891 2.24 943 2.40 995 2.56 1045 2.72 1094 2.90 - -----

3 HP & Field Supplied Drive

528150-YTG-T-0514

106 Johnson Controls Unitary Products

ZH120 (10 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 2 HP & Drive Hi Static 3 HP & Drive

2600 675 0.53 726 0.74 776 0.94 824 1.12 870 1.30 914 1.48 957 1.65 1000 1.82 1041 1.99 1082 2.17

2800 686 0.63 738 0.84 787 1.04 835 1.23 881 1.41 925 1.58 969 1.76 1011 1.93 1052 2.10 1093 2.27

3000 699 0.75 750 0.96 800 1.16 847 1.34 893 1.52 938 1.70 981 1.87 1024 2.04 1065 2.21 1106 2.39

3200 713 0.88 764 1.09 814 1.28 861 1.47 907 1.65 952 1.83 995 2.00 1037 2.17 1079 2.34 1119 2.52

3400 728 1.02 779 1.23 829 1.43 877 1.61 923 1.79 967 1.97 1010 2.14 1053 2.31 1094 2.48 1135 2.66

3600 745 1.18 796 1.39 846 1.59 893 1.77 939 1.95 984 2.13 1027 2.30 1069 2.47 1111 2.64 1152 2.82

3800 763 1.36 815 1.57 864 1.76 912 1.95 958 2.13 1002 2.31 1046 2.48 1088 2.65 1129 2.82 1170 3.00

4000 783 1.55 835 1.76 884 1.96 932 2.15 978 2.33 1022 2.50 1066 2.67 1108 2.84 1149 3.02 1190 3.19

4200 805 1.77 856 1.98 906 2.17 953 2.36 999 2.54 1044 2.72 1087 2.89 1129 3.06 1171 3.23 1211 3.41

4400 828 2.00 879 2.21 929 2.41 976 2.59 1022 2.77 1067 2.95 1110 3.12 1152 3.29 ----

4600 852 2.25 904 2.46 953 2.66 1001 2.85 1047 3.03 1092 3.20 1135 3.37 - -----

4800 879 2.52 930 2.73 980 2.93 1027 3.12 1073 3.30 - - - - - -----

50009062.819583.0210073.2210553.41------------

3 HP & Field Supplied Drive

ZH150 (12.5 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 3 HP & Drive

3200 713 0.88 764 1.09 814 1.28 861 1.47 907 1.65 952 1.83 995 2.00 1037 2.17 1079 2.34 1119 2.52

3400 728 1.02 779 1.23 829 1.43 877 1.61 923 1.79 967 1.97 1010 2.14 1053 2.31 1094 2.48 1135 2.66

3600 745 1.18 796 1.39 846 1.59 893 1.77 939 1.95 984 2.13 1027 2.30 1069 2.47 1111 2.64 1152 2.82

3800 763 1.36 815 1.57 864 1.76 912 1.95 958 2.13 1002 2.31 1046 2.48 1088 2.65 1129 2.82 1170 3.00

4000 783 1.55 835 1.76 884 1.96 932 2.15 978 2.33 1022 2.50 1066 2.67 1108 2.84 1149 3.02 1190 3.19

4200 805 1.77 856 1.98 906 2.17 953 2.36 999 2.54 1044 2.72 1087 2.89 1129 3.06 1171 3.23 1211 3.41

4400 828 2.00 879 2.21 929 2.41 976 2.59 1022 2.77 1067 2.95 1110 3.12 1152 3.29 1194 3.46 1235 3.64

4600 852 2.25 904 2.46 953 2.66 1001 2.85 1047 3.03 1092 3.20 1135 3.37 1177 3.54 1219 3.72 1259 3.89

4800 879 2.52 930 2.73 980 2.93 1027 3.12 1073 3.30 1118 3.47 1161 3.65 1203 3.82 1245 3.99 1285 4.16

5000 906 2.81 958 3.02 1007 3.22 1055 3.41 1101 3.59 1146 3.76 1189 3.94 1231 4.11 1273 4.28 1313 4.45

5200 936 3.12 987 3.33 1037 3.53 1084 3.72 1130 3.90 1175 4.07 1218 4.24 1260 4.42 1302 4.59 1343 4.76

5400 966 3.45 1018 3.66 1067 3.86 1115 4.05 1161 4.23 1206 4.40 1249 4.57 1291 4.74 1333 4.91 1373 5.09

5600 999 3.80 1050 4.01 1100 4.20 1147 4.39 1193 4.57 1238 4.75 1281 4.92 1323 5.09 1365 5.26 1405 5.44

5800 1032 4.16 1084 4.37 1133 4.57 1181 4.75 1227 4.93 1271 5.11 1315 5.28 1357 5.45 1398 5.62 - -

6000 1067 4.54 1119 4.75 1168 4.95 1216 5.13 1262 5.31 1306 5.49 1350 5.66 - -----

6200 1103 4.94 1155 5.15 1204 5.34 1252 5.53 1298 5.71 - - - - - -----

Hi Static 5 HP & Drive 5 HP & Field Supplied Drive

528150-YTG-T-0514

Johnson Controls Unitary Products 107

ZH037-150 Bottom Duct Application

ZH037 (3.0 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

900 605 0.23 671 0.33 738 0.42 804 0.52 869 0.62 933 0.71 995 0.80 1054 0.89 1111 0.98 1164 1.07

1000 621 0.25 688 0.34 754 0.44 820 0.53 885 0.63 949 0.72 1011 0.82 1071 0.91 1127 1.00 1180 1.09

1100 637 0.27 703 0.36 769 0.46 835 0.56 900 0.65 964 0.74 1026 0.84 1086 0.93 1142 1.02 1195 1.11

1200 651 0.30 717 0.39 784 0.49 850 0.58 915 0.68 979 0.77 1041 0.87 1100 0.96 1157 1.05 1210 1.13

1300 666 0.33 732 0.43 799 0.52 865 0.62 930 0.71 994 0.81 1056 0.90 1115 0.99 1172 1.08 1225 1.17

1400 681 0.37 747 0.47 814 0.56 880 0.66 945 0.75 1009 0.85 1071 0.94 1130 1.03 1187 1.12 1240 1.21

1500 697 0.42 763 0.51 830 0.61 896 0.71 961 0.80 1025 0.90 1087 0.99 1146 1.08 1203 1.17 1256 1.26

1.5 HP & Field Supplied Drive

ZH049 (4.0 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

FS4Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

1200 651 0.30 717 0.39 784 0.49 850 0.58 915 0.68 979 0.77 1041 0.87 1100 0.96 1157 1.05 1210 1.13

1300 666 0.33 732 0.43 799 0.52 865 0.62 930 0.71 994 0.81 1056 0.90 1115 0.99 1172 1.08 1225 1.17

1400 681 0.37 747 0.47 814 0.56 880 0.66 945 0.75 1009 0.85 1071 0.94 1130 1.03 1187 1.12 1240 1.21

1500 697 0.42 763 0.51 830 0.61 896 0.71 961 0.80 1025 0.90 1087 0.99 1146 1.08 1203 1.17 1256 1.26

1600 714 0.47 780 0.57 846 0.66 913 0.76 978 0.86 1042 0.95 1103 1.04 1163 1.14 1220 1.22 1273 1.31

1700 732 0.53 798 0.63 864 0.73 930 0.82 996 0.92 1059 1.01 1121 1.10 1181 1.20 1237 1.29 1291 1.37

1800 751 0.60 817 0.70 883 0.79 950 0.89 1015 0.98 1079 1.08 1140 1.17 1200 1.26 1257 1.35 1310 1.44

1900 771 0.68 837 0.77 904 0.87 970 0.96 1035 1.06 1099 1.15 1161 1.25 1220 1.34 1277 1.43 - -

2000 793 0.75 859 0.85 925 0.95 991 1.04 1056 1.14 1120 1.23 1182 1.32 1242 1.42 1298 1.51 - -

ZH061 (5.0 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1.5 HP & Field Supplied Drive Standard 1.5 HP & Drive Hi Static 2 HP & Drive

1500 673 0.47 736 0.54 797 0.63 855 0.72 910 0.82 964 0.92 1016 1.03 1067 1.14 1117 1.25 1166 1.36

1600 693 0.49 756 0.57 817 0.65 874 0.75 930 0.85 984 0.95 1036 1.06 1087 1.17 1137 1.28 1186 1.39

1700 713 0.53 777 0.60 837 0.69 895 0.78 951 0.88 1004 0.98 1057 1.09 1107 1.20 1157 1.31 1207 1.42

1800 734 0.57 797 0.65 858 0.73 916 0.83 971 0.92 1025 1.03 1077 1.14 1128 1.25 1178 1.36 1228 1.47

1900 755 0.62 819 0.70 879 0.79 937 0.88 992 0.98 1046 1.08 1098 1.19 1149 1.30 1199 1.41 1249 1.52

2000 776 0.69 840 0.76 900 0.85 958 0.94 1014 1.04 1067 1.14 1120 1.25 1171 1.36 1221 1.47 1270 1.59

2100 798 0.76 861 0.84 921 0.92 979 1.02 1035 1.11 1089 1.22 1141 1.32 1192 1.44 1242 1.55 1291 1.66

2200 819 0.84 882 0.92 943 1.00 1001 1.10 1056 1.20 1110 1.30 1162 1.41 1213 1.52 1263 1.63 1312 1.74

2300 840 0.93 903 1.01 964 1.10 1022 1.19 1077 1.29 1131 1.39 1183 1.50 1234 1.61 1284 1.72 1334 1.83

2400 861 1.03 925 1.11 985 1.20 1043 1.29 1099 1.39 1152 1.49 1204 1.60 1255 1.71 1305 1.82 1355 1.93

2500 882 1.14 946 1.22 1006 1.30 1064 1.40 1120 1.50 1173 1.60 1226 1.71 1276 1.82 1326 1.93 1376 2.04

3 HP & Field Supplied Drive

528150-YTG-T-0514

108 Johnson Controls Unitary Products

ZH078 (6.5 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 1.5 HP & Drive Hi Static 2 HP & Drive

1800 775 0.31 850 0.53 924 0.72 998 0.89 1072 1.05 1147 1.20 1224 1.35 1303 1.51 1384 1.69 1469 1.89

2000 803 0.45 878 0.67 952 0.86 1026 1.03 1100 1.19 1175 1.34 1252 1.49 1331 1.65 1412 1.83 1497 2.03

2200 838 0.60 913 0.82 986 1.01 1060 1.19 1134 1.34 1210 1.49 1286 1.65 1365 1.81 1447 1.98 1532 2.18

2400 878 0.78 953 1.00 1027 1.19 1100 1.36 1174 1.52 1250 1.67 1327 1.82 1405 1.98 1487 2.16 - -

2600 923 0.98 997 1.20 1071 1.39 1145 1.56 1219 1.72 1294 1.87 1371 2.02 1450 2.18 ----

2800 971 1.20 1046 1.42 1119 1.61 1193 1.78 1267 1.94 1343 2.09 1419 2.24 - -----

3000 1023 1.44 1097 1.66 1171 1.85 1245 2.03 1319 2.18 - - - - - -----

320010771.7111511.9312252.1212992.29------------

340011331.9912082.21----------------

2 HP & Field Supplied Drive

ZH090 (7.5 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 1.5 HP & Drive Hi Static 3 HP & Drive

2000 803 0.45 878 0.67 952 0.86 1026 1.03 1100 1.19 1175 1.34 1252 1.49 1331 1.65 1412 1.83 1497 2.03

2200 838 0.60 913 0.82 986 1.01 1060 1.19 1134 1.34 1210 1.49 1286 1.65 1365 1.81 1447 1.98 1532 2.18

2400 878 0.78 953 1.00 1027 1.19 1100 1.36 1174 1.52 1250 1.67 1327 1.82 1405 1.98 1487 2.16 1572 2.36

2600 923 0.98 997 1.20 1071 1.39 1145 1.56 1219 1.72 1294 1.87 1371 2.02 1450 2.18 1532 2.36 1617 2.56

2800 971 1.20 1046 1.42 1119 1.61 1193 1.78 1267 1.94 1343 2.09 1419 2.24 1498 2.40 1580 2.58 1665 2.78

3000 1023 1.44 1097 1.66 1171 1.85 1245 2.03 1319 2.18 1394 2.33 1471 2.49 1550 2.65 1632 2.82 1717 3.02

3200 1077 1.71 1151 1.93 1225 2.12 1299 2.29 1373 2.45 1448 2.60 1525 2.75 1604 2.91 1686 3.09 1771 3.29

3400 1133 1.99 1208 2.21 1282 2.41 1356 2.58 1430 2.73 1505 2.88 1582 3.04 1661 3.20 1742 3.37 - -

3600 1192 2.30 1267 2.52 1341 2.71 1414 2.88 1489 3.04 1564 3.19 1641 3.34 - -----

3800 1253 2.63 1327 2.85 1401 3.04 1475 3.21 1549 3.37 - - - - - -----

3 HP & Field Supplied Drive

ZH102 (8.5 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

FS4Standard 2 HP & Drive Hi Static 3 HP & Drive

2600 674 0.71 731 0.88 786 1.05 838 1.24 887 1.42 933 1.59 974 1.74 1010 1.87 1040 1.97 1064 2.03

2800 689 0.86 746 1.02 801 1.20 854 1.38 903 1.56 948 1.73 989 1.88 1025 2.01 1056 2.11 1080 2.17

3000 707 1.01 764 1.17 819 1.35 872 1.53 921 1.71 966 1.88 1007 2.03 1043 2.16 1074 2.26 1098 2.32

3200 728 1.17 785 1.33 840 1.51 892 1.69 941 1.87 987 2.04 1028 2.20 1064 2.33 1094 2.42 1118 2.48

3400 751 1.34 808 1.51 863 1.68 915 1.87 964 2.05 1010 2.22 1051 2.37 1087 2.50 1117 2.60 1141 2.66

3600 776 1.53 833 1.70 888 1.87 941 2.06 990 2.24 1035 2.41 1076 2.56 1112 2.69 1142 2.79 1167 2.85

3800 804 1.74 861 1.90 916 2.08 969 2.26 1018 2.44 1063 2.61 1104 2.77 1140 2.90 1170 2.99 - -

4000 835 1.97 892 2.13 947 2.31 999 2.49 1048 2.67 1094 2.84 1135 2.99 - -----

4200 867 2.21 924 2.37 979 2.55 1032 2.73 1081 2.91 1127 3.08 - - - -----

3 HP & Field Supplied Drive

528150-YTG-T-0514

Johnson Controls Unitary Products 109

ZH120 (10 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied

Drive Standard 2 HP & Drive Hi Static 3 HP & Drive

2600 722 0.83 776 0.97 828 1.11 878 1.25 926 1.37 973 1.50 1018 1.62 1063 1.74 1106 1.86 1149 1.99

2800 744 0.97 798 1.12 850 1.26 900 1.39 949 1.52 995 1.64 1041 1.76 1085 1.88 1128 2.00 1171 2.13

3000 769 1.13 823 1.28 875 1.42 925 1.55 974 1.68 1020 1.80 1066 1.92 1110 2.05 1153 2.17 1196 2.29

3200 797 1.32 851 1.46 903 1.60 953 1.74 1001 1.86 1048 1.99 1093 2.11 1138 2.23 1181 2.35 1224 2.48

3400 828 1.52 882 1.67 934 1.81 983 1.94 1032 2.07 1078 2.19 1124 2.32 1168 2.44 1212 2.56 1254 2.68

3600 861 1.75 915 1.90 967 2.04 1017 2.17 1065 2.30 1112 2.42 1157 2.54 1201 2.67 1245 2.79 1287 2.91

3800 897 2.00 951 2.15 1002 2.29 1052 2.42 1101 2.55 1147 2.67 1193 2.80 1237 2.92 1280 3.04 1323 3.16

4000 935 2.27 989 2.42 1041 2.56 1091 2.69 1139 2.82 1186 2.95 1231 3.07 1275 3.19 1319 3.31 1362 3.43

4200 976 2.57 1030 2.72 1082 2.86 1132 2.99 1180 3.12 1227 3.24 1272 3.36 - -----

4400 1019 2.88 1073 3.03 1125 3.17 1175 3.30 1223 3.43 - - - - - -----

460010653.2211193.36----------------

3 HP & Field Supplied Drive

ZH150 (12.5 Ton) Bottom Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Field Supplied Drive Standard 3 HP & Drive Hi Static 5 HP & Drive

3200 797 1.32 851 1.46 903 1.60 953 1.74 1001 1.86 1048 1.99 1093 2.11 1138 2.23 1181 2.35 1224 2.48

3400 828 1.52 882 1.67 934 1.81 983 1.94 1032 2.07 1078 2.19 1124 2.32 1168 2.44 1212 2.56 1254 2.68

3600 861 1.75 915 1.90 967 2.04 1017 2.17 1065 2.30 1112 2.42 1157 2.54 1201 2.67 1245 2.79 1287 2.91

3800 897 2.00 951 2.15 1002 2.29 1052 2.42 1101 2.55 1147 2.67 1193 2.80 1237 2.92 1280 3.04 1323 3.16

4000 935 2.27 989 2.42 1041 2.56 1091 2.69 1139 2.82 1186 2.95 1231 3.07 1275 3.19 1319 3.31 1362 3.43

4200 976 2.57 1030 2.72 1082 2.86 1132 2.99 1180 3.12 1227 3.24 1272 3.36 1316 3.48 1360 3.60 1402 3.73

4400 1019 2.88 1073 3.03 1125 3.17 1175 3.30 1223 3.43 1270 3.55 1315 3.67 1360 3.80 1403 3.92 1446 4.04

4600 1065 3.22 1119 3.36 1171 3.50 1221 3.64 1269 3.76 1316 3.89 1361 4.01 1405 4.13 1449 4.25 1491 4.38

4800 1113 3.57 1167 3.72 1219 3.86 1269 3.99 1317 4.12 1364 4.24 1409 4.36 1453 4.48 1497 4.61 1540 4.73

5000 1163 3.94 1217 4.09 1269 4.23 1319 4.36 1367 4.49 1414 4.62 1459 4.74 1504 4.86 1547 4.98 1590 5.10

5200 1216 4.34 1270 4.48 1321 4.62 1371 4.76 1420 4.88 1466 5.01 1512 5.13 1556 5.25 1600 5.37 1642 5.50

5400 1270 4.75 1324 4.89 1376 5.03 1426 5.17 1474 5.29 1521 5.42 1566 5.54 1611 5.66 ----

5600 1327 5.17 1381 5.32 1433 5.46 1483 5.59 1531 5.72 - - - - - -----

580013855.62------------------

5 HP & Field Supplied Drive

528150-YTG-T-0514

110 Johnson Controls Unitary Products

ZJ037-150 Side Duct Application

ZJ037 (3.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

900 560 0.29 628 0.35 695 0.42 760 0.51 823 0.61 886 0.72 949 0.82 1011 0.92 1073 1.01 1136 1.09

1000 582 0.29 650 0.34 716 0.42 781 0.51 845 0.61 908 0.71 970 0.82 1032 0.92 1095 1.01 1158 1.08

1100 601 0.30 670 0.35 736 0.43 801 0.52 864 0.62 927 0.72 990 0.83 1052 0.93 1114 1.02 1177 1.09

1200 620 0.32 688 0.37 754 0.45 819 0.54 883 0.64 946 0.74 1008 0.85 1070 0.95 1133 1.04 1196 1.11

1300 638 0.35 706 0.40 772 0.48 837 0.57 901 0.67 964 0.77 1026 0.88 1088 0.98 1151 1.06 1214 1.14

1400 655 0.39 724 0.44 790 0.51 855 0.60 918 0.70 981 0.81 1044 0.91 1106 1.01 1168 1.10 1231 1.18

1500 673 0.43 741 0.48 807 0.56 872 0.65 936 0.75 999 0.85 1061 0.96 1124 1.06 1186 1.15 1249 1.22

1.5 HP & Field Supplied Drive

ZJ049 (4.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

FS4Standard 1.5 HP & Drive Hi Static 1.5 HP & Drive

1200 608 0.25 677 0.34 744 0.44 807 0.54 868 0.64 927 0.74 986 0.84 1043 0.93 1101 1.02 1160 1.10

1300 623 0.28 692 0.37 758 0.47 822 0.57 883 0.67 942 0.77 1001 0.86 1058 0.96 1116 1.04 1175 1.13

1400 637 0.31 706 0.40 772 0.50 836 0.60 897 0.70 956 0.80 1015 0.90 1072 0.99 1130 1.08 1189 1.16

1500 650 0.35 720 0.44 786 0.54 849 0.64 911 0.74 970 0.84 1028 0.93 1086 1.03 1144 1.12 1202 1.20

1600 664 0.39 734 0.49 800 0.58 863 0.68 924 0.78 984 0.88 1042 0.98 1100 1.07 1158 1.16 1216 1.24

1700 678 0.44 748 0.54 814 0.63 877 0.73 938 0.83 998 0.93 1056 1.03 1114 1.12 1172 1.21 1230 1.29

1800 693 0.50 763 0.59 829 0.69 892 0.79 953 0.89 1013 0.99 1071 1.08 1129 1.18 1186 1.26 1245 1.35

1900 708 0.56 778 0.65 844 0.75 907 0.85 968 0.95 1028 1.05 1086 1.15 1144 1.24 1202 1.33 1260 1.41

2000 725 0.62 794 0.72 860 0.82 924 0.92 985 1.02 1044 1.12 1102 1.21 1160 1.30 1218 1.39 1277 1.47

ZJ061 (5.0 Ton) Side Duct

Air Flow

(CFM)

Available External Static Pressure - IWG1

1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.

2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.

3. kW = BHP x 0.932.

4. Field Supplied Drive.

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1.5 HP & Field Suplied Drive Standard 1.5 HP & Drive Hi Static 2 HP & Drive
