Youngs Watch MD15367 Bluetooth Smart Watch User Manual 16708 YPM MD16385 101x75P46 Youngs E
Youngs Watch Co., Ltd. Bluetooth Smart Watch 16708 YPM MD16385 101x75P46 Youngs E

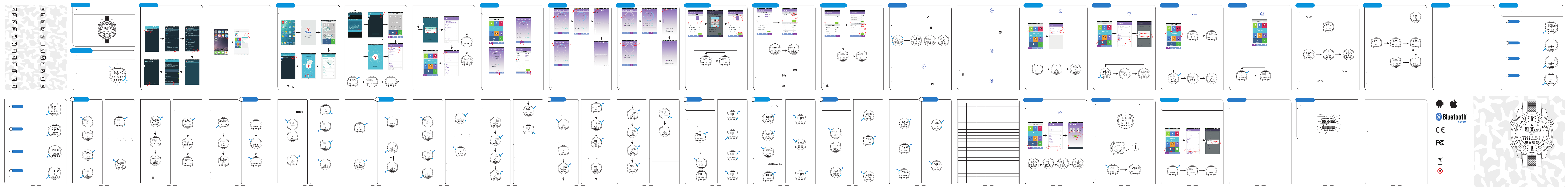

User Manual
![](/img.php?id=3178381&img=bg1.png)
Select
(1) This device may not cause harmful interference, and
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a partic-
ular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Sports type: walking and running
SOS
For SOS number setting see
Page17.
Step
Distance
Speed
Select the type of pedometer
In the pedometer on state,
press and hold "B" switch to
the type of pedometer.
Walking
Running
Sports type:
walking and running.
The goal of step range:
1000~100000.
Distance of walk&run:
30~180cm, 4~118inch.
Weight range: 20~200kg,
44~440lbs.
Height range: 90~221cm,
35~87inch.
Age range: 07~99.
Calories
Time of walking/running
Clear data
2s
When a user continuous walking
/running movement after 10
steps, the watch will record
cumulative step.
Recall
Total record
Total step Record1
Step Clear data
2s
Press and hold
key "C"
After 2s
Record mode
After 3~5s
User opens the APP, and click the icons below, it will open the APP
interface.
Chart A --- Interface for time setting, controlling camera thru BT, watch
locator & other functions.
Chart A
The directions of APP home and icons are shown below.
Chart B --- For browsing sports data.
Chart C --- For browsing sleeping data.
Chart D --- For changing sports parameters & setting the sleep monitoring
& sedentary reminder
When mobile phone and watch are in normal connection state, clicking
"synchronization" button, the APP data will synchronize with the
watch (sync the latest 7 days sports data with the watch); click "Share"
button, user can share the sports data to QQ, WeChat, Facebook......
Click
here
Today sports data Yesterday sports data This month sports data
The sports data
from last month
Click here, the APP data
will synchronize with the
watch data
In the APP sports interface, the user can browse the intraday steps,
distance, calories consumption and time.
In the APP sports interface, the user can browse historical data
(including the daily and monthly sports data).
In the APP sleeping interface, the user can browse intraday deep sleep
time, shallow sleep time, sleep quality and other data(for a single sleep
time less than 2 hours, no sleep statistical data will be recorded).
In the APP sleeping interface, user can browse the historical data
(including the daily and monthly sleeping data).
In this function we can set the age, weight, target steps, tracks the
distance, the same method used in the height function.
The sport parameter setting Adjusting
numeric value
Select
numeric
value
Click
confirm
(Taking height setting
as an example)
Click "confirm" button, the
parameter setting of the
watch user will coincide
with the APP
Setting
sex
When the watch bluetooth function is off, it cannot set the step
parameter by APP, the user can enter pedometer mode to set the
sports parameter (see Page30).
The operation to set the height is the same as setting the sleeping time
on and off (see Page11).
When the watch bluetooth function is off, it can not set the sleeping time ,
on and off for the watch.
Timekeeping mode The setup is successful
After 2s
Click the APP
of "confirm"
button
When the watch display "Done", it means the
sports parameter setting is finished
Slide up
the phone's
screen
Setting up sleep monitor
Sleeping switch
"Confirm" button
Setting the sleeping
time (on and off)
When the watch display "Done", it means the
sleeping monitor setting is finished
For watch sleeping monitor parameter setting, see Page12.
For more details of watch sports parameter setting, see Pages11or 30.
Sports interface When the sleeping monitor setting is "on", & the current time within
sleeping monitor time, the watch will display " " icon, it will
monitor the user sleeping quality;
Can browse the sleeping time and quality by APP (see Page10).
Setting up sedentary reminder
Sedentary switch
Setting the sedentary
on and off time
When the watch display "Done", it means the
sedentary reminder setting is finished
Setting the sedentary on and off as well as time is the same method used
in the height function (see Page11).
When the watch bluetooth function is off, it cannot set the sedentary
on and off as well as time for the watch.
When the watch sedentary reminder setting is "ON", the watch will display
" " icon.
No caller ID
in contacts
With caller ID
in contacts
For callers not in contacts, the watch will display the telephone number
while for those from contacts, the watch will display phone's address
book name(only english name).
USER'S MANUAL
( Bluetooth Smart Watch )
Made in China
Non-professionals, do not disassemble.
The operation of buttons are indicated by using the letters shown
in the illustration.
BUTTONS
A -- S et / Reset
B -- Mode
C -- EL backlight / -
D -- Start / Stop / +
EL (electro-luminescent) is used as backlight to glow for easy reading
in the dark.
Use EL Backlight
In the timekeeping mode,
press "C" to illuminate
the display about 3 seconds.
BACKLIGHT
DAC Dhaka +06
BKK Bangkok +07
HKG Hong Kong +08
Tokyo +09
TYO
Sydney +10
SYD
Noumea +11
NOU
Wellington +12
WLG
Guam, Vladivostok
Seoul, Pyongyang
Singapore, Kuala Lumpur, Beijing, Taipei, Manila
Jakarta, Phnom Penh, Hanoi, Vientiane
Novosibirsk, Colombo
Suva, Christchurch, Nauru Island, Nadi
Port vila
Karachi +05
KHI Male
DXB Dubai +04 Abu Dhabi, Muscat
Jeddah +03
JED
CAI Cairo Cape Town , Sofia, Athens, Helsinki, Istanbul
Paris +01
PAR Milan, Rome, Amsterdam, AlgiersMadrid,
London +00
LON (UTC), Lisbon, Casablanca, Reykjavik
RIO Rio de Janeiro -03
-04
Buenos Aires, Montevideo
La Paz, Port Of Spain
New York -05
NYC Montreal, Detroit, Miami, Boston, Panama City
CHI Chicago -06 Houston, Dallas/Fort Worth, New Orleans
DEN Denver -07 Phoenix, Edmonton, Chihuahua
-08
LAX Los Angeles San Francisco, Las Vegas, Vancouver, Seattle
ANC Anchorage -09 Nome
HNL Honolulu -10 Papeete
Pago Pago -11
PPG Pago Pago
City code City Other major cities in same time zone
Differential
GMT
+02
SCL Santiago
-02
-01
FEN
RAI Praia
Fernando de Noronha
Moscow, Addis Ababa, Aden
Fernando de
Noronha
Praia
World Time Form
BLE off state "Hold" flashing
After 2s
Next page
5. When the watch is connected with the phone, all icons are displayed in
color in the APP main menu.
Click
here
After 2s
Done
Continued from
previous page
BLE on state
Setting menu
Main menu
Press and
hold key "D"
Link
Continued from
previous page
Before using APP, please ensure the mobile phone and watch are already
connected normally.
1. Never try to open the case or remove its back cover.
2. Do not operate buttons underwater.
3. Should moisture appear inside the watch,
have it checked immediately by
your dealer. Otherwise it can cause corrosion of the metal parts of the watch.
4. Though the watch is designed to withstand normal use, you should avoid
rough use or dropping the watch.
5. Avoid exposing the watch to extreme temperatures.
6. Wipe the watch with dry, soft cloth only.
Avoid allowing it to come into direct
contact with chemical materials, which can cause deterioration of the plastic
parts of the watch.
7. Avoid to wear the watch in electromagnetic, static conditions.
A T T E N T I O N
The screen shown in below:
DISPLAY
TROUBLE SHOOTING
3. Click Youngswatch APP, in the APP main menu state, click "setting\
disconnection" to clear current connection;
2. At mobile phone bluetooth menu state , un-pair "ALL" paired device;
When user is unable to connect bluetooth function, please follow the steps
below to re-pair the watch and mobile phone.
"Hold+Clear" flashing Clear connection
User mode
After 2s
1. To enter mobile phone setting menu, check the bluetooth function is
on or not;
Click setting Click disconnect Click ok
5. Please re-pair APP(See Page 5~7).
Press and
hold key "D"
4. In the user mode USER state (when the watch bluetooth function is off),
press and hold "D" to clear historical connection(clear the
display " " );
2. In the world time mode, press
and hold "A" to turn ON/OFF
the Daylight Saving Time.
1. In the world time mode, press "D"
to forward select the time zone,
press "C" to backward select the
time zone, press and hold to
adjust at high speed;
h
WORLD TIME
Countdown Timer Setting
1. In the countdown mode, press
and hold "A" until the hour will
flash (flashing is indicated in the
setting mode);
3. Press "B" to select the next
selection;
2. Press "D" to increase the hour,
press "C" to decrease the hour,
press and hold to adjust at high
speed;
1. Press "D" to start the countdown
timer;
2.To pause, press "D" again.
Use Countdown Timer
6. Press "A" to exit the set state
after setting.
4. Press "D" to increase the
number, press "C" to decrease
the number, press and hold to
adjust at high speed;
g
COUNTDOWN
When the countdown timer reaches
zero, the alarm beeps for about 10
seconds, press any button to
stop it.
5. Repeat steps 3 and 4, the
selection in the following
sequence:
Hour Minutes Seconds;
3. Press "A" to reset the stopwatch.
A Lap Time
1. In the stopwatch mode, press "D"
to start the stopwatch;
3. Press "A" to reset the stopwatch.
2. To stop the stopwatch, press
"D" again;
5. Press "D" to stop the stopwatch;
Split Time
2. Press "A" to display the split
time, stopwatch timing
continues internally;
4. Repeat steps 2 and 3, you can
measure the multi split time;
3. Press "A" to clear the split
time and to continue time
measurement;
1. In the stopwatch mode, press "D"
to start the stopwatch;
f
STOPWATCH
Alarm And Chime
The alarm beeps about 10
seconds at the preset time each
day, press any button to stop it.
Alarm Time Setting
1. In the alarm state, press and
hold "A" until the hour will flash,
the indicator " " appears
(flashing is indicated in the
setting mode);
eALARM
5. Press "A" to exit the set state
after setting.
3. Press "B" to select the minutes;
4. Press "D" to increase the
minutes, Press "C" to decrease
the minutes, press and hold to
adjust at high speed;
2. Press "D" to increase the hour,
press "C" to decrease the hour,
press and hold to adjust at high
speed;
In the alarm mode, press "D" to
turn on/off the alarm and chime
in the following sequences:
Alarm & Chime off Alarm on
Chime on Alarm & Chime on.
a
TIMEKEEPING
Time Setting
2. Press "C" or "D" to select the city
code, press and hold to adjust at
high speed;
1. In the timekeeping mode, press
and hold "A" until the city code
will flash(flashing is indicated in
the setting mode);
3. Press "B" to select the Daylight
Saving Time;
4. Press "C" or "D" to turn ON/OFF
the Daylight Saving Time.
6. Press "A" to exit the set
state after setting (The day
of week is automatically
displayed in accordance with
year, month and date setting).
5. Repeat steps 3 and 4, the
selection in the following
sequence:
City code Daylight Saving Time
Seconds Hour Minutes
12/24H Format Year Month
Date Key Tone(ON/OFF);
BLE off state
"Hold" flashing
Link cartoon
Turn ON The Bluetooth
In the BLE off state, press and
hold "D" to turn on bluetooth
function.
Press and hold
key "D"
After 2s
BLE on state
BLE off
Press and hold
key "D"
After 2s
"Hold" flashing
In the BLE on state, press and
hold "D" to turn off bluetooth
function.
Turn OFF The Bluetooth
When the watch bluetooth is on,
please refer to page5~7 for the
pairing method.
The icon " " is displayed after
the watch pairing is successful.
(Timekeeping mode)
Sleep
Countdown Timer
Battery(CR2032)
Chime
Alarm
EL Backlight
Stopwatch
World Time
11 100 Years Calendar
50 50M Water Resistant
Pacer
Message Notice
E-Mail Notice Event Notice
Call Notice
SOS
SOS
Vibration
Find Camera
Sync Time
Safety Range Notice
Pedometer
Low power indicator
Sedentary Notice
(Timekeeping mode)
FIND, Camera.
b
USER
MODE SELECTION
a
TIMEKEEPING
Hour, Minutes, Seconds, Year,
Month, Date, Day of week;
12/24H Format;
100 years Calendar(2000 ~ 2099).
c
PEDOMETER
Step range: 0~999999;
Press "B" to change the mode in the following sequence:
Timekeeping Mode User Mode Pedometer Mode Record Mode
Alarm Mode Stopwatch Mode Countdown Timer Mode World
Time Mode.
7 Records (Record1~Record7);
Auto storage record.
d
RECORD
SOS FIND
CAMERA
In the BLE on state, press and hold
"B" to perform SOS function.
In the FIND state, press and hold
"D" to perform watch find mobile
phone function (See page18).
In the camera state, press "D" to
perform remote photo shooting
function(See page19).
When the watch bluetooth is off,
the SOS and camera are
disabled.
BLE on state
(Timekeeping mode)
Press and hold
key "B"
After 2s
"Hold" flashing
When the watch bluetooth is off,
the SOS is disabled.
Setting
USER
FIND
b
USER
Select
In the user mode, press "A" to
select USER, FIND, CAMERA
function.
Press key "A"
6. Press "A" to exit the set state
after setting.
1. In the user state, press and hold
"A" until the icon " "
flash (flashing is indicated in the
setting mode);
2. Press "D" to select the remind
methods in the following
sequence:
buzzing vibration buzzing+
vibration silent;
3. Press "C" to select the remind
methods in the following
sequence:
buzzing vibration buzzing+
vibration silent;
Press key "A"
CAMERA
RE-CONNECT
The watch will automatically re-connect with mobile phone after PS wake
up (See page21).
The watch after safe range remind state & back to safe range within 1
minute, it will automatically re-connect with mobile phone (See page20).
The watch and mobile phone are in normal connection state, if short time
disconnections will be encountered (maybe caused by environmental
interference or other causes), this does not mean that there is something
wrong with the watch, after a few seconds the watch will automatically
re-connect with mobile phone.
In the re-connecting state, the watch will automatically connect with the
mobile phone several times, it will automatically close bluetooth function
after 1 minute if still unable to connect with the watch.
At the watch bluetooth function off state, phone, message, e-mail,
event reminder and other functions are disabled, user need to turn
on the watch bluetooth function manually to connect with mobile
phone again(See page6~7).
Enter PS
POWER SAVING
Power saving setting(See page28).
The watch bluetooth function will automatically turn off after entering
power save mode, the mobile phone and watch will automatically
disconnect to save battery power.
Wake up PS
PS mode
Moving
the watch
Moving the
watch after
1 minute
Timekeeping " " flashing
After 2s
After a few
seconds
Timekeeping Connect succeed
At the watch bluetooth function off state, phone, message, e-mail, event
reminder and other functions are disabled.
For receiving reminder of phone call, message, e-mail, event and others
on time, user can turn off the PS function (See page28), please be
reminded it will consume more battery power (shorten battery life).
When PS setting is on, the mobile phone and
watch are in normal connection state, if no
watch activity happens within 10 minutes,
it will automatically enter to power saving mode
( "PS" displayed).
When watch is in PS mode , it will automatically go back to timekeeping
mode, the watch will automatically wake up if an activity happens within 1
minute (the watch will automatically re-connect with mobile phone).
When the distance between watch and mobile phone is beyond the safe
range(around 6 meters), the watch will alarm and/or vibrate to remind
user( " " flashing).
After the beyond safe range reminder, if user is back to safe range within
1~2 minutes, the watch will automatically re-connect with mobile
phone.
SAFE RANGE REMIND
After 2s
Timekeeping mode
Back to
safe range
Connect succeed
Safe range remind
When the watch icon " " is flashing, press any button to stop it (the
watch bluetooth function will automatically turn off ).
The watch will alarm and/or vibrate to remind user( " " flashing)
when the mobile phone bluetooth function is turned off .
1. In the App main menu state, click icon to enter picture taking
screen;
Camera
3. In the user mode camera state, press "D" to perform remote photo
shooting function.
Click camera
2. Aim the camera through the phone screen to take photo;
After 2s
Press key "D"
Remote photo shooting
CAMERA
4. Press "B" to select the PS;
5. Press "C" or "D" to turn ON/OFF
the PS function (PS ON/OFF).
Four methods of reminder setting:
buzzing, vibration, buzzing+
vibration, silent.
F I N D
The Mobile Phone Find Watch
The Watch Find Mobile Phone
In the user mode FIND state, press and hold "D" to perform the watch find
mobile phone function, the mobile phone will alarm and/or vibrate to
remind user.
FIND state "Hold" flashing
After 10s
After 2s
Press and
hold key "D"
The watch find
mobile phone
After 10s
The mobile phone
find watch
Timekeeping mode
In the APP main menu state, click icon to perform the mobile
phone find watch function, the watch will alarm and/or vibrate to
remind user.
Click SOS Input SOS phone number
2. In the setting menu state, click SOS to set the phone number.
SOS Setting
S O S
Click settings
1. In the APP main menu state, click the icon to enter setting menu.
Activate the SOS function
"Hold" flashing
Timekeeping mode
After 10s
Press and
hold key "B" After 2s
SOS Use
In the timekeeping mode, press and hold "B" to activate the SOS function,
the mobile phone will automatically call SOS number.
SOS only available for android system, iOS system do not support this
feature.
SYNC TIME
"AT" flashing Done
After 2s
The watch time will synchronize with mobile phone time after completing
bluetooth time calibration.
Click set clock
Timezone setting
3. The watch will automatically go back to timekeeping mode after
bluetooth time calibration is finished.
1. In the APP main menu state, click the icon to enter bluetooth time
calibration menu;
Sync time
Click sync time
Timekeeping mode
2. In the bluetooth time calibration menu state, click sync time, the watch
time will synchronize with mobile phone;
After a few
seconds
In the APP main menu state, click the icon to turn on/off the message
notice( ).In gray means the function is off
E-mail Notice
In the APP main menu state, click the icon to turn on/off the E-mail
notice ( ).In gray means the function is off
Event Notice
In the APP main menu state, click the icon to turn on/off the event
notice ( ).In gray means the function is off
When having new E-mail on phone, the watch will alarm and/or vibrate
to remind user, at the same time the watch icon " " will be flashing,
press any button to stop it.
After Youngswatch APP event setup, when the event time is up, the watch
will alarm and/or vibrate to remind user, at the same time the watch icon
" " will be flashing, press any button to stop it.
The requirement of E-mail address:
Gmail, yahoo e-mail for android system, iCloud e-mail for iOS system.
Calling Decline
Press
any button
NOTICE
Call rejection only available for android system, iOS do not support
this feature.
When there is an incoming call, the watch will alarm and/or vibrate to
remind user, at the same time the watch icon " + CALL" will be
flashing ("Rolling displayCaller ID and phone's address book") pressing
any button will reject the call.
Call Notice
Message Notice
In the APP main menu state, click the icon to turn on/off the call
notice (In gray means the function is off).
When there is missed call, the watch icon " " will be flashing, press
any button to stop it.
When having new message on phone, the watch will alarm and/or vibrate
to remind user, at the same time the watch icon " " will be flashing,
press any button to stop it.
Press key "D"
c
PEDOMETER
Turn ON/OFF The Pedometer
In the pedometer mode, press
"A" to turn on/off the pedometer.
2. Press "C" or "D" to set the goal
of step;
1. In the pedometer mode, press
and hold "A" until the goal of
step to flash (flashing indicated in
setting mode);
Setting
3. Press "B" to select the sex;
4. Press "C" or "D" to switch the sex
between male and female;
5. Repeat steps 3 and 4, the
selection in the following
sequence:
The goal of step Sex Age
Metric/Imperial Height
Weight Distance of Walk
Distance of Run;
6. Press "A" to exit the set state
after setting.
The Parameter Setting Range
After 3s
Press and hold
key "B"
Recall
In the pedometer mode, press "D"
to browse the information in the
following sequence:
Step distance speed calories
time of walking/running.
Press key "D"
Press key "D"
Press key "D"
Clear Data
In the pedometer mode, press
and hold "C" 2s ("Hold+Clear"
flashing), reset the data (the
total data no change).
Please turn off the pedometer
to save power if you do not use
the pedometer.
When the mobile phone and watch
are in normal connection state,
click APP "sync" button to browse
the updated data(see Page9).
d
RECORD
In the record mode, press"A" to
browse the selection in the
following sequence:
total record record1~record7.
In the total record state, press "D"
to browse the information in the
following sequence:
Total step total distance total
calories total time of walking&
running.
Press key "D"
Press key "D"
Total distance
Total calories
Total time of walking & running
Press key "D"
Press key "D"
In the record1 state, press "D"
to browse the information in the
following sequence:
Step distance calories
time of walking/running.
Press key "D"
Continued from
previous page
Next page
Distance
Press key "D"
Press key "D"
Press key "D"
Calories
Time of walking/running
The way to recall record1~record7
is the same.
Clear
In the record1~record7 state,
press and hold "C" for 2s ( "Hold+
Clear" flashing), clear the current
record and return to total record
(the total record no change).
In the total record state, press
and hold "C" 2s ("Hold+Clear"
flashing), will reset all the data.
The pedometer automatically
store a record for more than
one minute walking when the
date is updated.
The latest day exercise record is
record1 (R01).
NAVIGATION KEY MAUNAL
SPORT
Chart B
Chart C Chart D
Click
here
Click
here
SLEEP
Today sleeping data Yesterday sleeping data This month sleeping data
Click here, the APP data
will synchronize with the
watch data
Sleeping interface
Click
here
Click
here
Click
here
When mobile phone and watch are in normal connection state, clicking
"synchronization" button, the APP data will synchronize with the
watch(sync the latest 7 days sleep data with the watch); click "Share"
button, user can share the sleep data to QQ, WeChat, Facebook......
The sport parameter setting
Click
here
Click
confirm
Setting
units
Setting up sleep monitor
The sports parameter setting
Click the APP
of "confirm"
button
After 2s
The setup is successful
Timekeeping mode
Setting up sedentary reminder
Slide up
the phone's
screen
Setting up sleep monitor
Click
confirm
Otherwise during the exercise, note walking slowly, going along the
brae up and down, walking in the crowded place, standing and sitting
again and again, playing ball, up and down sporting without normal
walking will affect normal step counting, it is not a sign of watch
malfunction .
Exercise may include some risk, especially for those who have been
sedentary.
Before starting a regular exercise program you are recommended to
answer to the following questions for health status checking. If the answer
is YES to any of the questions, we recommend to consult a doctor before
starting an exercise.
Minimising Possible Risks In Exercising
Have you not exercised for the past 5 years?
Do you have high blood pressure?
Do you have high blood cholesterol?
Do you have symptoms of any disease?
Are you recovering from a serious illness or medical treatment?
It is important to be sensitive to your body's reactions during exercise.
If you feel unexpected pain or excessive fatigue when exercising, it is
recommended to stop the exercise or continue at a lighter intensity.
WARNING
19
10
345678
2911 14
13
12 15 16 17 18
120 21 22 23
36 37 38 4224 25 26 27 28 29 30 31 32 33 34 35 39 40 41 43 44
This watch belongs to the general sports and sleeping measure level
meter & does not necessarily replace precision measurement equipment.
PS---Power Saving. The watch is already an electronic precise one for monitoring sports
and sleeping, but due to possible user operation errors, external
interference or failure factors, etc., the results may become inaccurate
which is only for users' reference and we also advise the watch to be
used in conjunction with medical equipment.
W-Time --- Walking Time;
R-Time --- Running Time.
When the user reach the set target
steps, the watch will beep for about
10 seconds ("GOAL" flashing),
press any button to stop it.
Share Share
Sleep Level: very good, good, general, poor, very poor.
The sleeping data
from last month
if the current time is out of sleeping monitor time or the sleeping monitor
setting is "off", the watch icon " " will not be displayed.
When the sleeping monitor setting is "on", the watch will monitor user's
sleeping quality every day.
The pedometer function will be automatically off when the sleeping
monitor setting is "on"(the icon" " is displayed).
For watch sleeping monitor default is off.
Click the APP
of "confirm"
button
The setup is successful
Timekeeping mode
After 2s
h
WORLD TIME
The time for other time zone.
e
ALARM
Chime;
The alarm sounds at the
preset time each day.
f
STOPWATCH
1/100 second unit;
Measuring range:
0'00"00 ~ 99:59'59".
g
COUNTDOWN
Countdown timer range:
99:59'59" ~ 0'00"00.
3, ; Adjust the time in compliance with time of hands, click Confirm
Increase
the number
Decrease
the number
Adjust the time
4, The watch will automatically adjust the time according to hands.
Adjust the time Confirm
After hands calibration synchronize time with phone(See page16), please .
HANDS CALIBRATION
Please ensure the digital time and hands at same time before using this
watch, when they are not the same, please conduct the hands calibration
function.
2. In the setting menu state, click Align Needles;
1. In the APP main menu state, click the button to enter setting menu;
Click Align Needles
Click settings
Timekeeping mode Adjust chieve
In the hands calibration state, user input the time in compliance with time
of hands on APP, the current time setting see page25.
When the digital time and hands
time not the same, please conduct
the hands calibration function
(See page39).
APP INSTALL
Click Youngs
watch.apk Click next
Installing...
Click install
Click confirm
Click done
APP Install For Android System
1. Use mobile phone log in (searching on google
play, find "Youngswatch" APP then follow the instructions to install on you
mobile phone), if you mobile phone already installed "360 assistant" you can
directly search "Youngswatch", then you can install the APP prompt.
https://play.google.com/store
2. To install the "Youngswatch" APP in the following steps:
After a
few
seconds
Bluetooth version: BLE4.0 or above.
Turn on APP Store Search "Youngswatch"
then install
Click install
3. Click finish back to phone desktop, after finished the APP installation.
APP Install For iOS System
Searching on APP store and find "Youngswatch" APP then follow
instructions to install to you phone.
System Requirement For Mobile Phone
Android system:
Samsung mobile phone android version 4.3 above (such as : Note4,Note5,
Galaxy S5, Galaxy S6 and others), other brand mobile phone reference
to use.
iPhone system:
iOS7.0 or above of iPhone 5/5s/6/6s...
After 1s
APP PAIRING
Logo Guide page1
Click start
Notification
access
Click here
Next page
1. Firstly turn on the phone's bluetooth function;
2. Enter into APP search screen follow the steps as below:
Click the icon Youngs
watch on phone desktop
Guide page2Guide page3
Sliding phone
screen to left
Sliding
phone
screen
to left
Please conduct pairing when the watch connect with mobile phone
first time.
3. In the timekeeping mode BLE off state, press and hold "D" to turn on the
watch bluetooth function( "Link" will be displayed);
Click setting
Click ok
Back to
the main
menu
Scanning... Click connect watch
Next page
Continued from
previous page
Notification access
Click here
Click YoungsWatch or 2U Watch
4. When mobile phone locates the watch, click YoungsWatch or 2U Watch,
a few seconds later, the watch will be connected to the phone automatically;
Click Youngswatch
If the battery voltage level is insufficient, the icon " " will appear to
remind to replace a new battery.
Change Battery
Coin can be used to open the battery hatch and change with the
same battery specification.
Caseback of the
watch sketch
Coin
LOW POWER
Press "A" exit to timekeeping mode when the watch 12 o'clock flashing
Press key "A"
"12:00" flashing Timekeeping mode
You may need to hands calibration of the watch(See Page39) after
change battery.
Date
Day of week
Seconds
Alarm
Chime
Low power indicator
Daylight saving time
Minutes
Hour
Buletooth
Buzzer
Vibration
Call Notice
Message Notice E-Mail Notice
Event Notice
Sleep
Sedentary
Walk Run
16708-YPM(MD16385)-E
"C"
"D"
"B"
"A"
