USER’S GUIDE
2W8000FMR
2W8000FMR-2
nd
Young Shin Electronics, Inc.
www.magicar.com
Two-Way FM Remote
2W8000FMR /
2W8000FMR-2nd
FCC ID : O44J2W8000R
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to
operate this device.
![](/img.php?id=504644&img=bg2.png)
Page 2
1. Safety Information Page 3
2. Remote-Pager : 2W8000FMR, 2W8000FMR-2nd W/LCD Page 3
3. Description of Remote Appearance Page 4
4. GLO color LCD Page 4
5. LCD Icons Page 5
6. Remote-Pager Button Functions Page 6
7. More Button Functions Page 7
8. Remote-Pager Learn Routine Page 8
9. Auto-Start Function Page 8
10. Reservation Mode Page 9
11. Canceling Reservation Mode Page 10
12. Valet Mode Page 11
13. Safety Shut Down Features Page 11
14 [
I
-] Auto Arming Page 11
15. Turbo Mode Page 12
16. 2nd car Mode Page 12
17. Limited Lifetime Consumer Warranty Page 13
Your Warranty Page 14
TABLE OF CONTENTS
................
.................................................................
............................................
...........,.........................................................
..........................................................................
...............................................
...........................................................
...................................................
...............................................................
...............................................................
................................................
.......................................................................
..................................................
......................................................................
.....................................................................
.......................................
...................................................................
................................................................
![](/img.php?id=504644&img=bg3.png)
Important!
Under normal circumstances, Reservation Mode is cancelled
when a door or hatchback opens. Please verify that the opening of any door or
hatchback cancels Reservation Mode. If any of the doors or hatch back are not
monitored by Young Shin Electronics, Inc. because of improper installation or a faulty
dome light switch, do not use the Young Shin Electronics, Inc. and take your vehicle
immediately to the dealer for repair. Do not set Reservation Mode if the window(s) are
open or if there is anyone inside the vehicle, this includes animals. Remote start
installation in a manual transmission vehicle with a convertible top is not recommended.
Page 3
Safety Information
Please take these safety precautions into consideration under the following conditions:
1. Servicing the vehicle
When servicing your automobile (i.e. changing the oil, washing your car), the Young Shin Electronics,
Inc. system should be in Valet Mode. There is a safety shutdown switch under the hood that
deactivates the remote start function if the hood is open.
However, if the switch has been damaged or the switch has been installed improperly,
the vehicle may start when button II is pressed for 2 seconds, even if the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar with Young Shin Electronics, Inc.,
you may want to put the system in Valet mode. This will prevent the borrower from accidentally
activating the Young Shin Electronics, Inc. auto-security system.
3. For manual transmission vehicles
If the Young Shin Electronics, In system is installed in a manual transmission vehicle, extra
precautions are required because the Young Shin Electronics, Inc. does not monitor the gear shifter :
Remote-Pager : 2W8000FMR/ 2W8000FMR-2nd w/LCD
The model name, 2W8000FMR, 2W8000FMR -2nd is a
Two Way 447Mhz
Frequency Modulated Remote with Liquid Crystal Display
.
This transmitter allows you to activate multiple functions by pressing different
combinations of the 4 buttons on the unit.
The remote-pager comes with GLO, which is a unique color LCD display
that visually tells you the security status of your vehicle as long as you are in range.
There are differing icons that will appear on your GLO LCD indicating what
your vehicle is currently doing.
GLO color LCD
Page 4

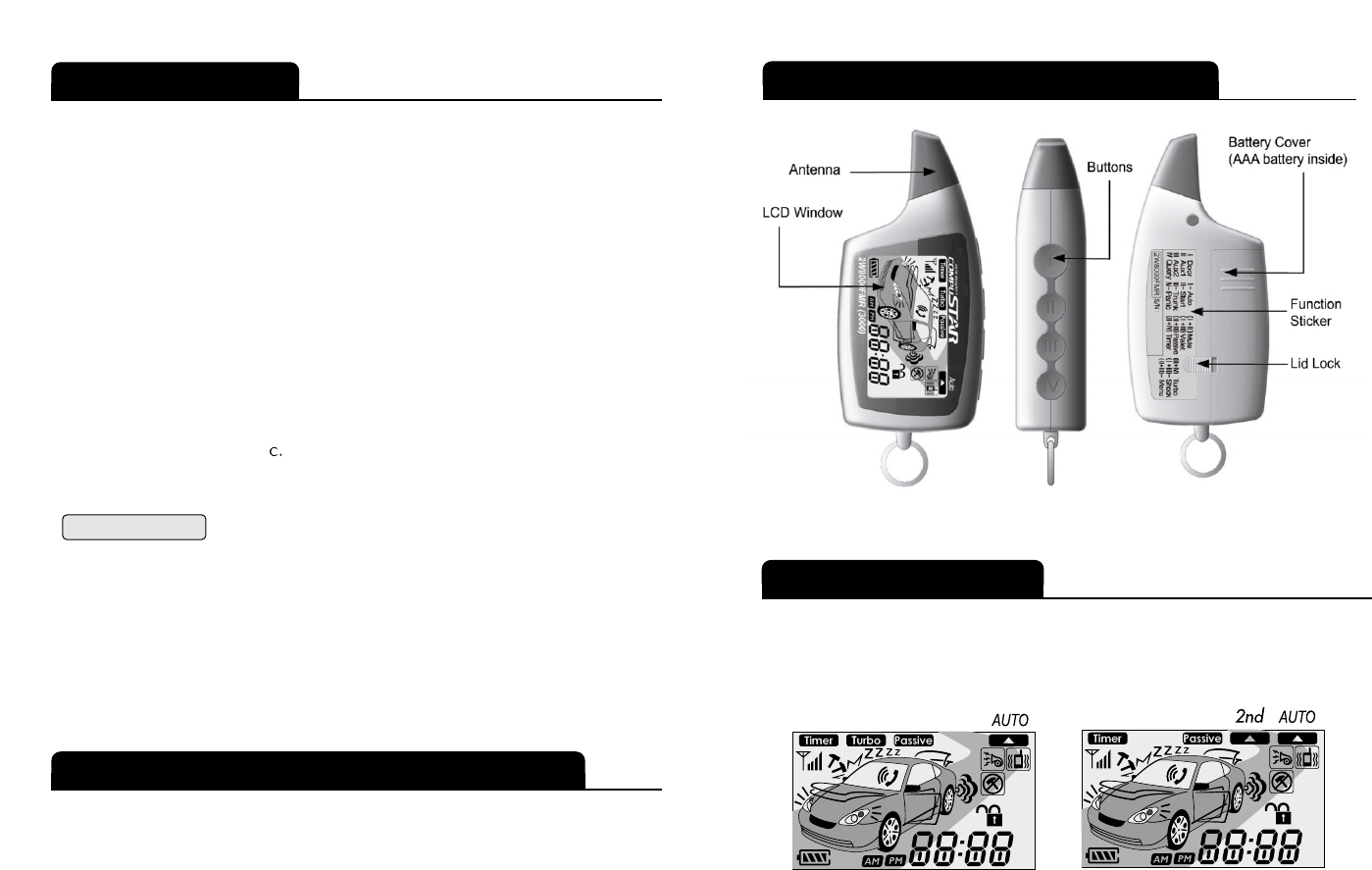

Description of Remote Appearance
Front Side Rear
2W8000FMR-2nd
2W8000FMR
![](/img.php?id=504644&img=bg4.png)
Page 5

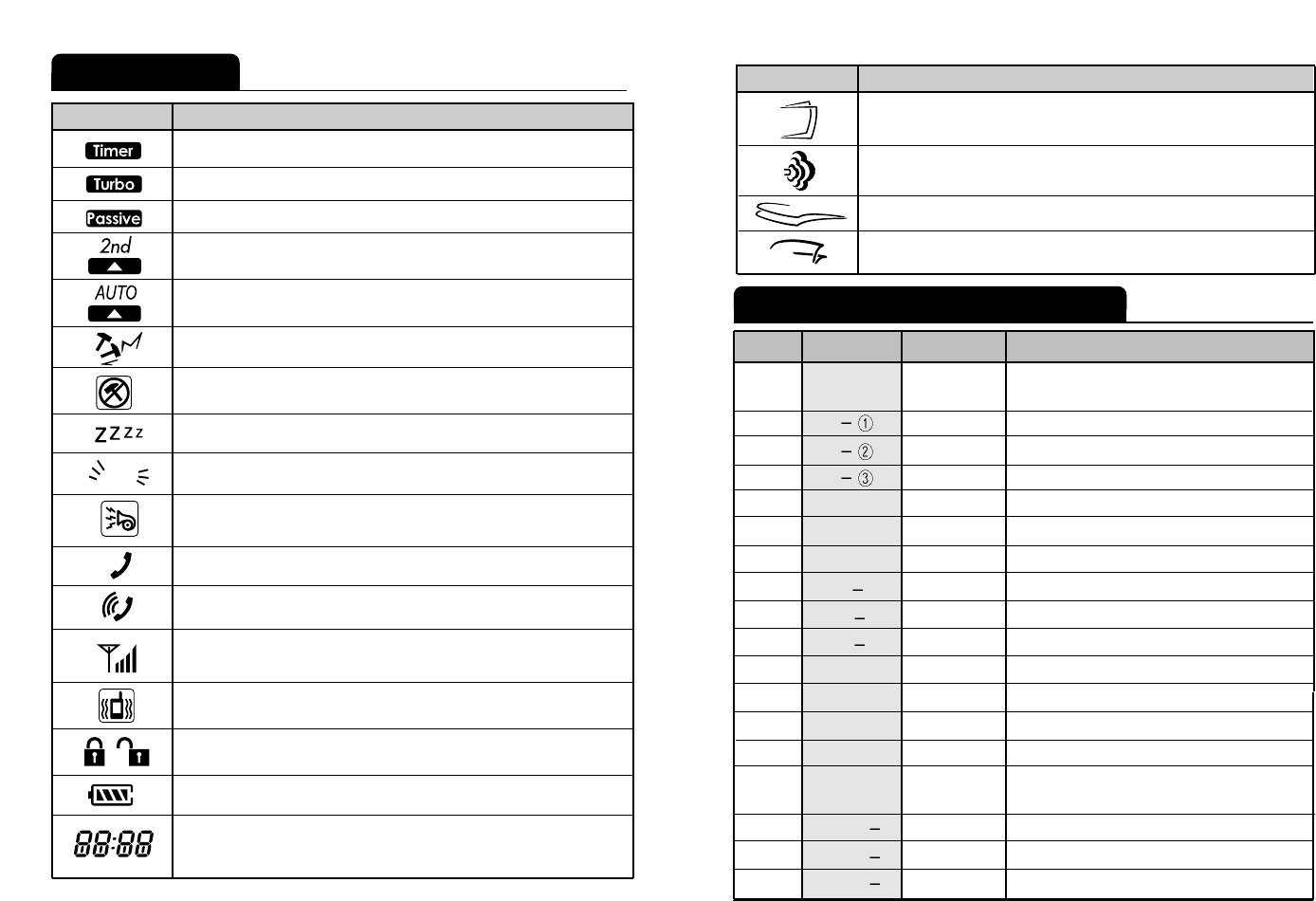

LCD Icons
Indicates that someone is paging you from your vehicle.
Indicates that your car is locked or unlocked.
Indicates that your remote-pager is transmitting signals to the
controller unit.
Indicates that vibration mode is on.
Indicates if RPS is on.
Displays remaining battery life.
1. Time Clock.
2. Remainder of the engine running time.
Indicates that Timer Mode is on.
Indicates that Turbo Mode is on. ( 2W8000FMR )
Indicates that Passive Arming Mode is on.
Indicates that 2nd Vehicle Mode is on. ( 2W8000FMR-2nd )
Indicates that the Shock Sensor has been triggered.
Indicates that Shock sensor is turned off.
Icon Explanation
Indicates that you are in Valet Mode.
Indicates that your parking lights are flashing.
Indicates that your siren is turned on.
(Locking and unlocking only.)
Indicates if the Auto Lock/ Unlock mode is on.
( Icon flashes for longer range.) Remote-Pager Button Functions
Indicates that your vehicle has auto-started properly or that the
ignition is on.
Icon Explanation
Indicates that your trunk is open.
Indicates that your hood is open.
Page 6
5
6
7
8
9
10
11
1/2 sec
1/2 sec
1/2 sec
II
III
IV
II
I
III
IV
(I + II)
1/2 sec
1/2 sec
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Lock / Arm
Unlock / Disarm
AUX 1
AUX 2
Query Function
Trunk Release
Auto-start Function – on/off
Panic, Press
I
to turn off the siren.
Siren Chirp – on/off
Valet Mode – on/off
Passive Arming – on/off
Timer Start Mode – on/off
Turbo Mode - on/off (2W8000FMR)
2nd Car - on/off (2W8000FMR-2nd)
Shock Sensor – on/off
Button(s)
Pressed For
Function
12
14
15
16
17
18
(I + III)
(II + III)
(II + IV)
(III + IV)
(I + III)
(I + II)
(I + IV)
1/2 sec
1/2 sec
2 sec
2 sec
2 sec
Programming Menu 1
Programming Menu 2
13
1
Indicates that your door is open.
2
3
4
I
I
I
2 sec
2 sec
2 sec
Auto Arming turned On.
(Auto icon will be turned on).
Longer range Auto Arming On.
(Auto icon Flashes.)
Auto Arming turned Off
.
![](/img.php?id=504644&img=bg5.png)
Page 7
Note:
" " Represents pressing the button for 2 seconds.
" ( ) " Represents simultaneously pressing the buttons.
" ( ) " Represents simultaneously pressing the buttons for 2 seconds.
More Button Functions

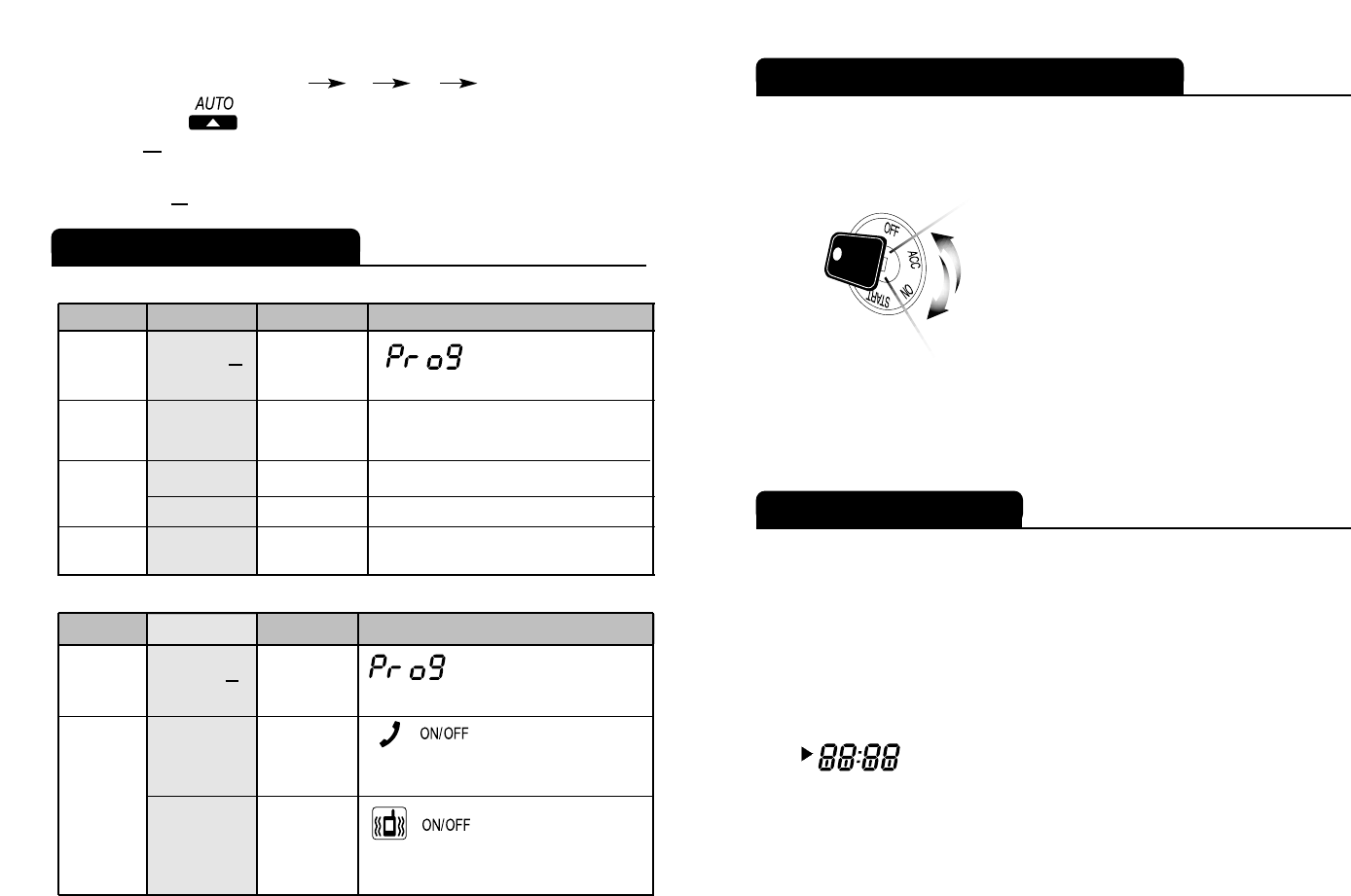

(1) Time Setting
Tones will sound for confirmation
STEP 1
(II+III)
2 sec
Button
PressedFor
Function
Time setting is on. The numbers will
flash, and tones will sound.
STEP 2
(I)
(II+III)
1/2 sec
Change hour.
Change minutes.
Time setting is off. Tones will
sound.
STEP 3
STEP 4
(I)
(II)
1/2 sec
1/2 sec
2 sec
(2) RPS & Vibration mode on or off
Note :
Step 2 must be completed within 15 seconds. If not, start over at step 1.
Tones will sound for confirmation
STEP 1
(II+III)
2 sec
Button
PressedFor
Function
STEP 2
RPS on or off, tones will sound for
confirmation.
Vibration mode on or off, tones will
sound for confirmation.
(III)
(IV)
1/2 sec
1/2 sec
I
button Proceeds in (1) (2) (3) (1)..... repeatedly.
At (2) , the icon will flash.
Note :
Page 8

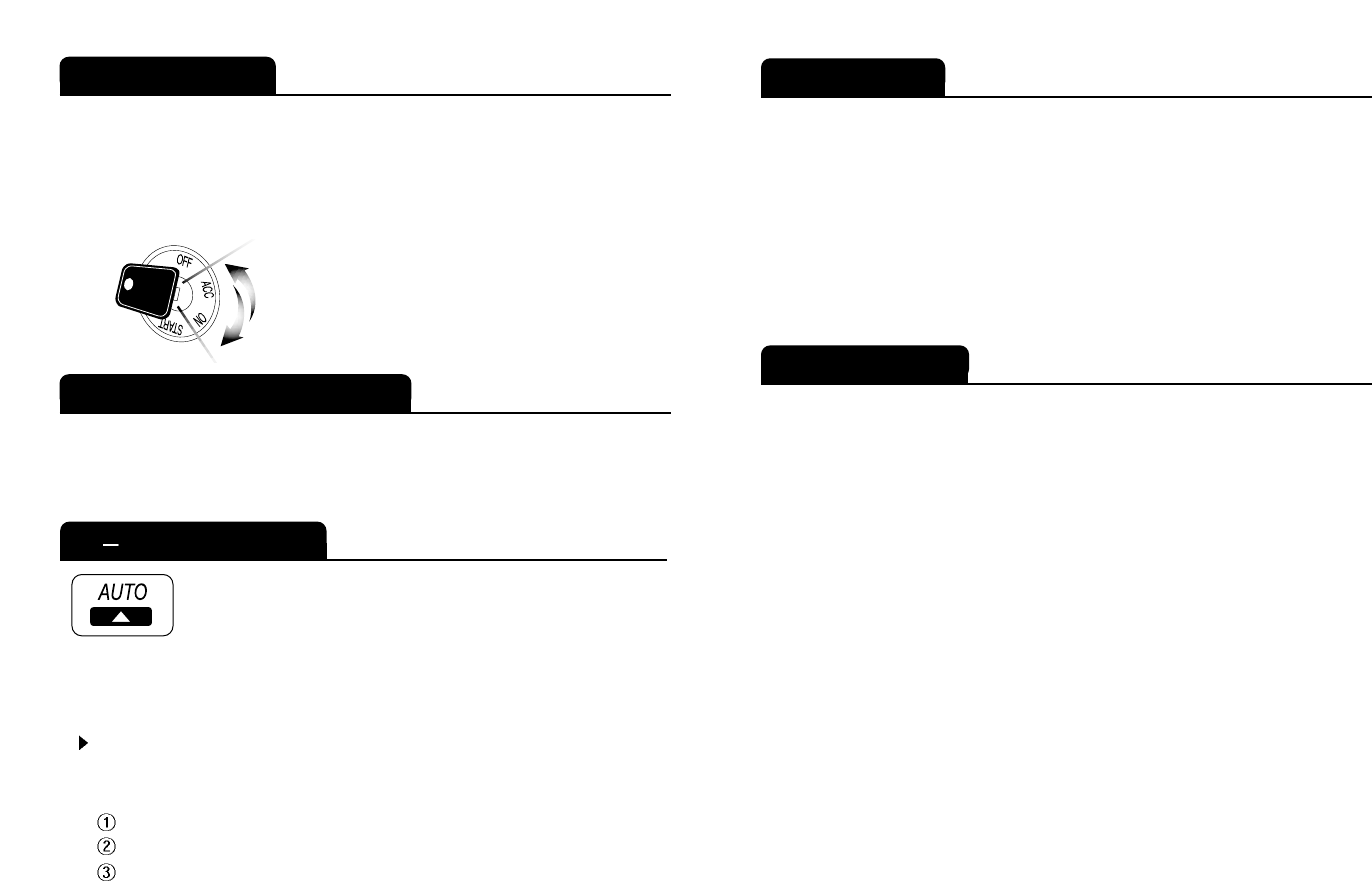

Remote-Pager Learn Routine
The Young Shin Electronics, Inc. system will allow up to three remotes to be
programmed to one vehicle. Please perform the following procedure to add or
reprogram additional remotes.
Step1 :
Activate Valet/Programming mode by manually turning the ignition
on and off five times
(between Acc and On)
with the key within a 7 second period.
The parking light will flash once with successful
completion of this step.
Step2
:
Within a 7 second period after cycling the ignition for the 5th time,
press button I. The parking lights will flash once to confirm that the
transmitter has been programmed. You can continue programming
additional remotes. The parking lights will flash two times when the
programming mode has expired.
shows the amount of run-time left in the remote
start mode.
Press button
II
for 2 seconds to auto-start an automatic transmission engine.
Remember, that a key in the ignition is required to drive the car.
For manual transmission vehicles, please use reservation mode.
Press button
II
for 2 seconds in order to turn off an auto-started car.
The engine will run 15 or 25 minutes (25 or 45 min for diesel) depending on preset
options at the time of installation and then shut off.
Auto-Start Function
Anti-Grind
The anti-grind circuit (an optional feature provided by your installer) prevents you
from engaging the starter on a remote-started vehicle.
![](/img.php?id=504644&img=bg6.png)
Page 9
Diagnosing problems with Auto-Start
If there is a problem in auto-starting your vehicle,the Young Shin Electronics,Inc.
system will do one of two things; if it fails for any of the reasons listed in the table
below, it will flash the parkinglights three times then flash the error number.
Otherwise, it will attempt to start the vehicle three times. If, after three times, the
vehicle will not start or stay running, the Young Shin Electronics,Inc. system will shut
down. In either case, please see your installer to resolve the situation.
1
2
3
4
5
6
7
Error Number
(# of timesparking lights flash) Error Reason
Engine On
Key On
Door Open
Trunk Open
Brake On
Hood Open
Reservation Off (Manual Transmission Only)
Reservation Mode
(manual transmission only)
In order to auto-start your manual transmission vehicle, you must first set the
Young Shin Electronics,Inc. system to Reservation Mode before leaving your vehicle.
The purpose of Reservation Mode is to leave the transmission gear in the neutral
position when you leave your vehicle. Reservation mode is intended for use on
MANUALTRANSMISSIONS ONLY and NOT FOR AUTOMATIC TRANSMISSIONS.
Reservation Mode must be engaged each and every time you leave your manual
transmission vehicle in order to auto-start it.
Note :
The system is not recommended for vehicles with removable tops.
Important requirements to activate Reservation Mode
The transmission must be in the NEUTRAL position.
The vehicle windows must be rolled up.
Do not set the reservation mode with people in the vehicle.
Do not auto-start the vehicle with people in the it.
Page 10
Important!
When the vehicle shuts off after reservation mode, the
Young
Shin Electronics,Inc system will lock/arm the vehicle. Take care to not lock your
keys inside.
Activating Reservation Mode
(Manual Transmission only)
Step1 :
After arriving at your destination, and BEFORE TURNING
YOUR ENGINE OFF, place the transmission in the Neutral position.
Step2 :
Activate the parking brake.
Step3 :
Remove your foot from the foot brake.
Step4 :
Remove the key from the ignition, and the engine will remain running.
Step5 :
Exit the vehicle and close the door within two minutes after
activating the parking brake. The engine will shut off and reservation
mode for the remote-starter is now complete.
Your vehicle is now ready for auto-starting. However, the reservation mode will
be cancelled if a door is opened or the Young Shin Electronics,Inc system is put in
Valet modeafter the reservation has been set. Once cancelled, you will have to start
the vehicle with the key and repeat the above 5 steps if you want to restore
reservation mode.
Important!
If you try to auto-start the vehicle when reservation mode
has not been set, the auto-start feature will not work.
When you press the auto-start button, the remote will beep three times.
The car parking lights will flash three times, pause, then flash seven times.
If you do not want to set reservation mode, shut off the engine before you exit the
vehicle. The engine will shut off for the following reasons:
You did not activate the parking brake or pressed the foot brake when you
turned the key to the off position.
You released the parking brake while the engine was running.
You entered Valet Mode after the Reservation Mode has been completed.
Canceling Reservation Mode
![](/img.php?id=504644&img=bg7.png)
Page 11
While the vehicle is in valet mode, only the keyless entry function will be available.
Valet Mode is very useful when loaning your vehicle or having it serviced.
In order to enter Valet mode, press buttons
(I+III)
simultaneously for a 1/2 second.
In order to manually enter Valet Mode, insert your key into the ignition and turn
the ignition on, then off,
(between ACC and ON)
five times within 10 seconds.
Valet Mode
You can exit Valet Mode only by pressing buttons
(I+III)
simultaneously for a 1/2 second.
Safety Shut Down Features
The Young Shin Electronics,Inc. 2W8000FMR, 2W8000FMR-2nd system has several
shut down safety features. The following actions will shut down the engine or prevent
the car from auto-starting : Opening the hood, pressing the brake, or if Valet Mode is
turned on.
away from the vehicle by more than 50 to 100 ft,
and (3) 15 seconds have passed
since the last Auto Disarm
. Your system will disarm automatically if your remote
comes within a 50 to 100 ft radius from the vehicle.
Setting Auto Arming Function.
The range varies significantly depending on the radio signal environment.
Each time you press button Ifor 2 seconds :
First time : Auto icon is turned on.
Second time : Auto icon flashes - for longer range.
Third time : Auto icon is turned off.
You can turn this function on or off by pressing button [I] for
2 seconds. When Auto arming is set, your security system will arm
automatically after (1) all the doors are closed, (2) your remote is
[ I]Auto Arming
Page 12
Turbo Mode
If this optional Turbo Mode has been programmed at the time of installation,
you can turn this feature on and off by pressing buttons
(III + IV)
for a 1/2 second.
In this mode, if the emergency brake has been set, the engine will continue to run
after the key has been taken out of the ignition. It will run until two minutes after the
emergency brake has been set.
• To utilize this mode, the emergency brake sensing wire has to be connected to the
emergency brake wire of the vehicle. Consult the authorized dealer for this mode.
• This option is ideal for turbo-charged vehicles because it allows the turbo too slowly
cool after operation.
(
2W8000FMR
)
2nd Car Mode
This Remote-Pager is able to operate a 2nd vehicle.
Press buttons
III & IV
simultaneously for 1/2 second. If this mode is turned to 2nd Car,
the Remote-Pager will not communicate with the 1st vehicle. To Exit 2nd Car press
buttons
III & IV
simultaneously again.
(
2W8000FMR-2nd
)
![](/img.php?id=504644&img=bg8.png)
Young Shin Electronics,Inc.
Warrants to the original purchaser that this product shall
be free of defects in material and workmanship under normal use and circumstances for
the period of time that the original owner of this product owns the vehicle in which it is
installed ; except that the remote controller unit for the period of one year from the date of
installation to the original owner of this product.
When the original purchaser returns the product to the retail store where it was
purchased or prepaid postal to
Young Shin Electronics,Inc
, 3415 S. 116th St Seattle,
WA 98168, USA within the warranty period, and if the product is defective,
Young Shin
Electronics,Inc
, will at its option repair or replace such.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES
ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING
IN THE STREAM OF COMMERCE THEREWITH.
THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO, THE EXCLUSION OF ANY
AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY
OF NON-INFRINGEMENT OR PATENTS, IN THE UNITED STATES OF AMERICA
AND/OR ABROAD.
NEITHER THE MANUFACTURER OF ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGES, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING
THE ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE
OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty will last or the
exclusion or limitation on how long an implied warranty will last or the exclusion or
limitation of incidental or consequential damages.
This warranty gives you specific legal rights, and you may also have other rights,
which vary State to State.
Limited Lifetime Consumer Warranty
Page 13
Young Shin Electronics,Inc. is not RESPONSIBLE OR LIABLE FOR ANY DAMAGES
WHATSOEVER,INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL
DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF TIME,
LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC
OPPORTUNITY AND THE LIKE that may or may not resulted from the operation of
Young Shin Electronics,Inc.
NOT WITH STANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED
WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS
DESCRIBED ABOVE.
Your Warranty
The product’s warranty is automatically void if its date code or serial number is defaced,
missing or altered. This warranty will not be valid unless you have completed the
registration card and mailed it to Young Shin Electronics,Inc., within 10 days after the
purchase to the address listed on the registration card.
Page 14
