Yuko Technology TM133WH HINGE 13 DRAW CONVERTIBLE LAPTOP User Manual
Yuko Technology Co., Ltd. HINGE 13 DRAW CONVERTIBLE LAPTOP
User Manual
Quick Start Guide
HINGE 13 DRAWCONVERTIBLE LAPTOP
Tmax
TM133WH710C
FCC ID:
2
Getting Started
This guide has been designed to help familiarize you with the
features and functions of the HINGE 13 DRAW, and get you
‘up-and-running’ as soon as possible.
Visit www.nuvision.com to register your device, and access the
online user manual, how-to-videos, FAQs and more to optimize
your NuVision experience.
Remember to register your device at
www.nuvision.com/product-registration
3

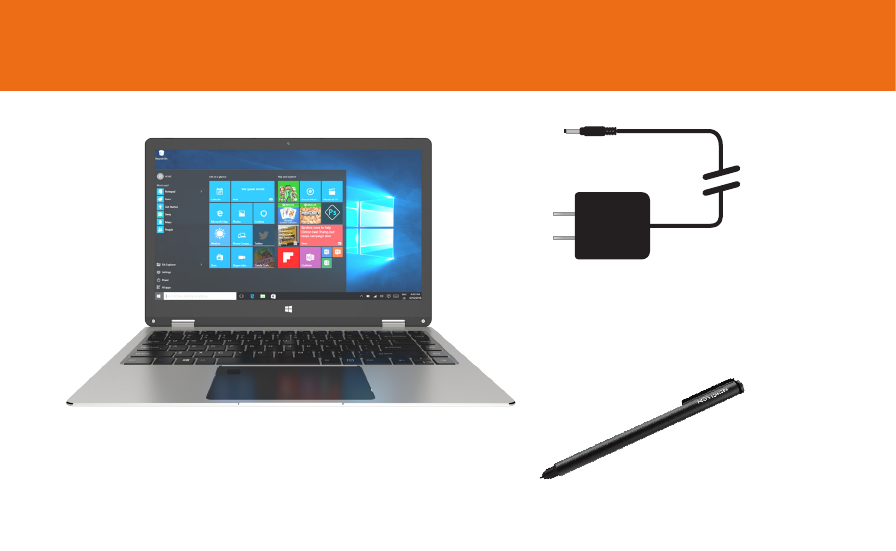

Package Contents
Digital Pen & (1) AAAA
Battery
Device
AC/DC Adapter
4
Device Overview
1
5
6
7
8
9
11
10
4
2
3
DC 1 2V
DC 12V
5
Device Overview
1AC/DC Adapter Connection
2
USB Port
3
Micro HDMI Port
4Front Camera Lens
5Keyboard Indicator Lights
63.5mm Headphone Jack
7USB Port
8Micro TF Card Slot
9Power Button
10 Fingerprint ID Scanner
11 M.2 SSD Slot (Supports
Type B Key, Size 2242. For
installation, please refer to
the online manual)
1
5
6
7
8
9
11
10
4
2
3
6
Keyboard Overview
1Function Key
2Open Active Menu
12
k
k
7
Pen Overview
1Tip
2Pen Head
3Eraser Button
4Alt Button (Mouse Right-Click)
5Clip
6Pen Top
7AAAA Battery (Inserts Positive
End Towards the Tip)
8Use Pen Replacement Tool to
Remove/Replace Tip
1
24
5
6
7
38
8
Connect to the Internet
A Home WiFi Router or a publicly-available WiFi signal
(ie., In a library, coffee shop or school.)
OR
9
Connect to the Internet
The Network Name (SSID) and Network Security Key
(ie., Password) for the Internet Connection
NAME (SSID): XXXXXX
WIFI INFO
PASSWORD: XXXXXX
AND
10
Charge the Device
It is recommended to fully charge the battery before first use.
Note: It is normal for the tablet to become warm while charging.

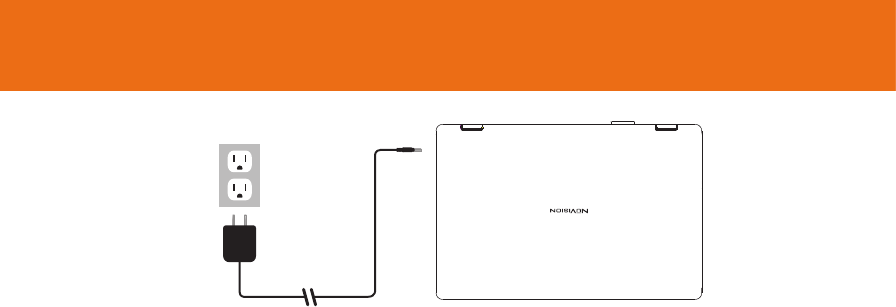

Connect the AC/DC power adapter to a wall outlet, then to the
device’s DC port as shown. A red light next to the Micro HDMI
port will indicate when the device is charging.
11

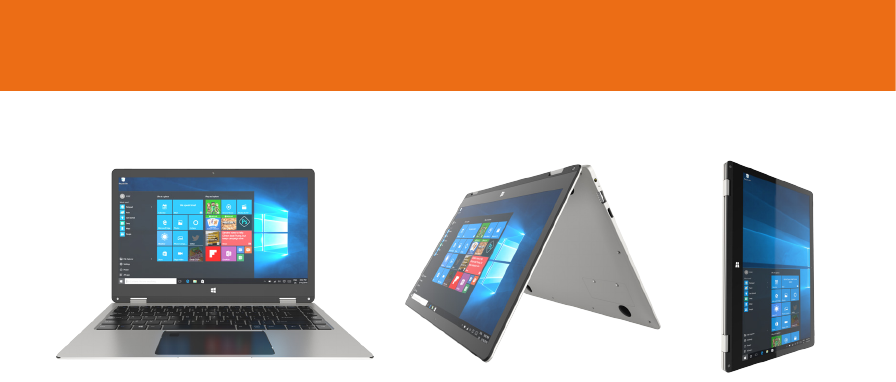

Display Configurations
You can flip the display and adjust to varying degrees of comfort
for use either as a laptop, tent or tablet configuration.
Conventional
Laptop
Tent Tablet
12

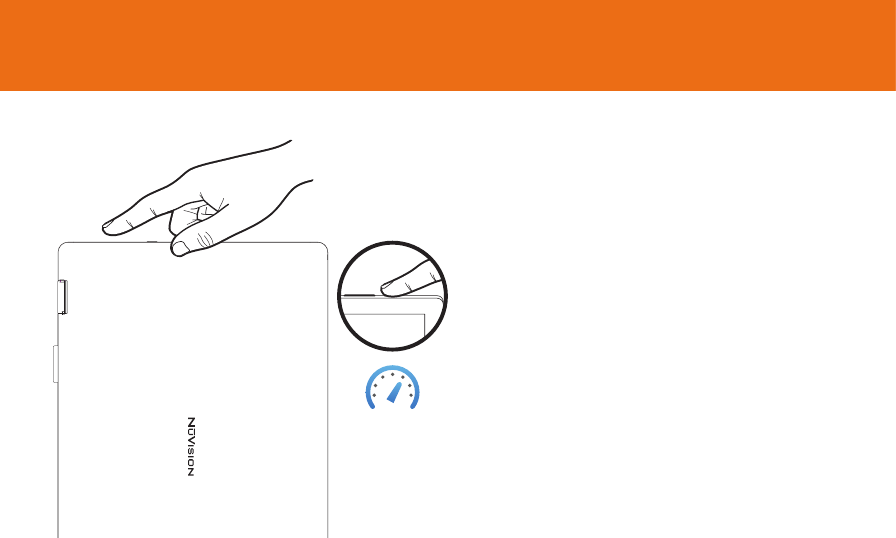

Turn-on and Follow the Prompts
ON: Press and hold until
logo screen appears
OFF: Press and hold until
prompted to shut down
SLEEP: Press and release
quickly to turn off the
display only. All other
functions remain on
5
Seconds
13
Setup Wizard
Hi there.
Select a WiFi Network and type-in the Password
or
Select ‘skip this section’ at the bottom of the list.
You’ll be able to connect later (See page 18)
During the setup process,
you will be able to:
• Create a Microsoft account
• Personalize the device
• Establish a Password.
14
Familiarize Yourself with Windows
Shown in Tablet Mode
15
6 7
5
1
2
3
4
8
12
910 11 13 14
15
Familiarize Yourself with Windows
1Select Pinned tiles or All apps menu
2Account Settings: Change account settings or Sign out
3Settings : View and adjust settings for the System, Internet, Security, etc.
4Power: Sleep, Shut down or restart the device
5Windows: Return to Home screen
6Go to Previous screen
7Activate Cortana
8Task View: View active windows
9Battery: Displays battery level, time remaining, battery saver and brightness
10 WiFi: View network settings or activate Airplane mode
11 Volume: Adjust volume level
12 Windows Ink Workspace: Opens menu featuring Windows Ink apps
13 Keyboard: Opens the virtual keyboard to type on screen
14 Date & Time: Adjust settings for date, time; View calendar
15 Action Center: Opens and closes the Action Center menu
16

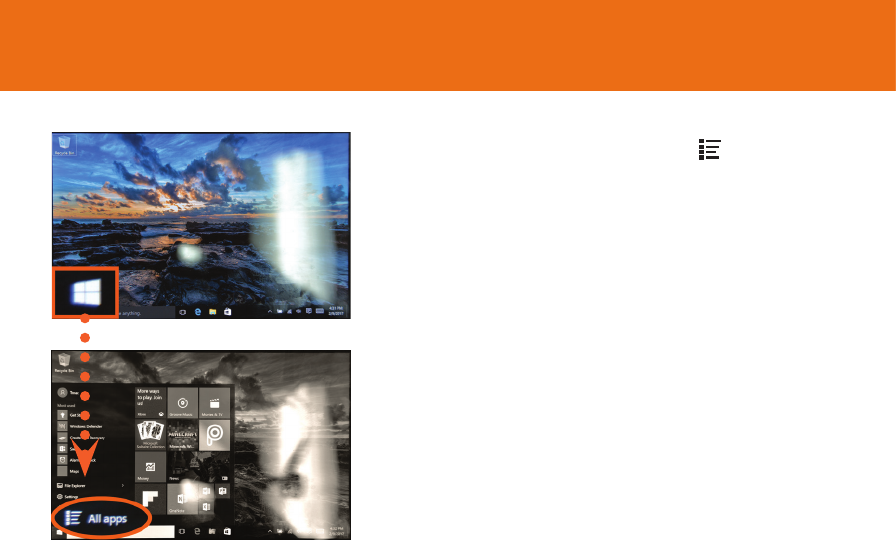

Apps Menu
Tap on the ‘All apps’ icon in the
Windows menu to open a list of all
your available apps.
17
Apps Menu
To customize your Tiles on
the Start Menu, tap
to open your list of apps.
Hold the app for two sec-
onds, then drag and drop
to your Tiles.
18
Connecting to the Internet
Tap on the WiFi icon, and a menu will appear with all available
WiFi signals. Look for and select the Network Name in your WiFi
listing on your device.
MyHomeRouter
Secured
MySmartphone
Secured
Private
Secured
CoffeeShop WiFi
Secured
LibraryInternet
Secured
MyHomeRouter
Secured
MySmartphone
Secured
Private
Secured
CoffeeShop WiFi
Secured
LibraryInternet
Secured
19
Microsoft Edge Browser
Once you have a WiFi
connection, you can go to
the internet using the
Microsoft Edge Browser.
Tip: If you don’t see the Edge
icon on your desktop, tap on
the Windows logo > All apps
Icon and scroll down the list
until you see “Edge”.
20

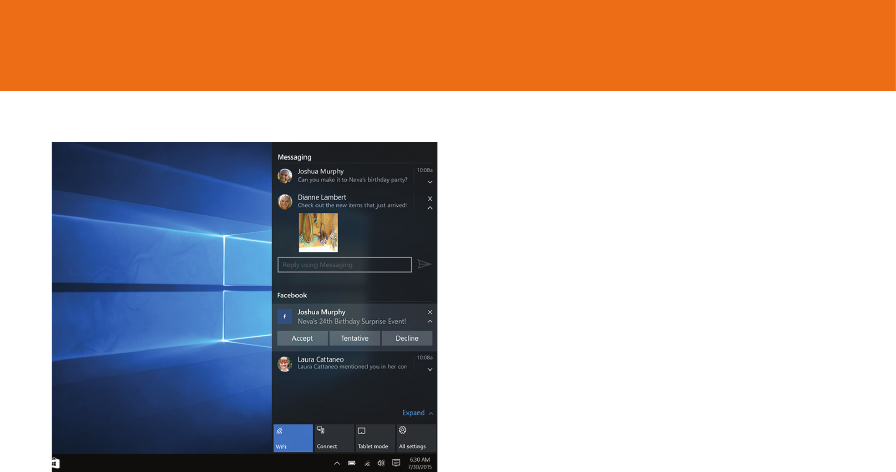

Action Center
The Action Center is the
central location to view alerts,
notifications, user settings, and
more. Swipe your finger inward
from the right edge of the
screen to bring up the Action
Center. Swipe your finger back
towards the edge to hide.
21

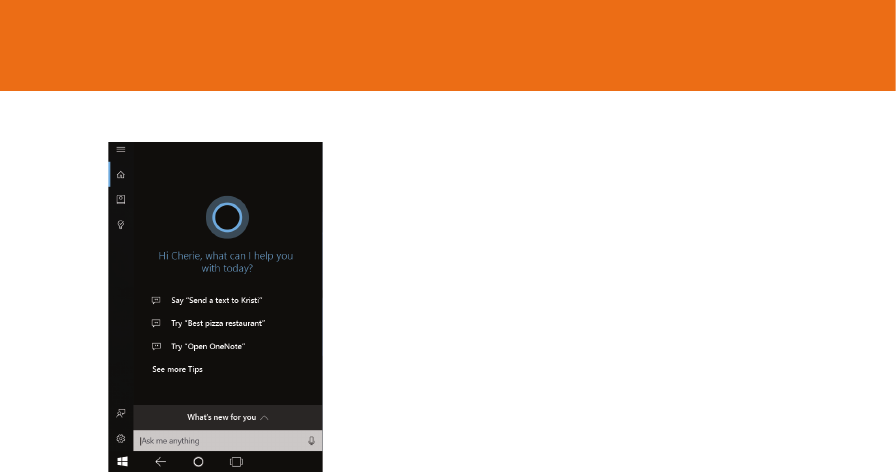

Cortana, Your Voice-Activated Personal Assistant
Speak to Cortana and request the
weather forecast, set personal
reminders, find files, and more.
Tap the “O” icon in the task bar, or
tap the mic and ask her anything.
Summon Cortana by speaking clear-
ly and slowly with a command, “Hey
Cortana!”
22

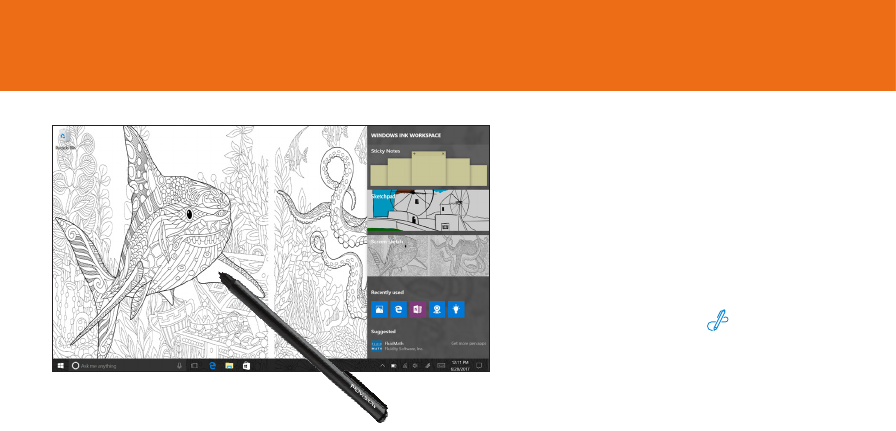

Windows Ink Workspace
The Windows Ink
Workspace is your one-
stop shop for everything
you do with your pen.
Select the pen icon to
open the workspace. From
here, you can open your
Sticky Notes, sketchpad,
or draw over whatever
you’re doing on your PC
using screen sketch.
23
Windows Hello - Fingerprint ID
For Windows Hello compatible devices you can use the fingerprint
reader pad to access. Once you teach Windows to recognize
your fingerprint, you’ll be able to sign in with just a quick swipe
instead of entering a password. In addition you’ll be able to make
purchases in the Windows Store.
Note: You will be asked to add a PIN before you can set
up Windows Hello.
Go to Settings > Accounts > Sign-in options. Tap on Fingerprint
Set Up
Touch the fingerprint reader pad and repeatedly lift and rest your
finger on the sensor until set up is complete.
24
Visit NuVision online!
www.NuVision.com is your online resource for:
• Product registration
• Frequently-Asked Questions (F.A.Qs)
• Information and tips on how to best use your device
• Customer service chat & email support
• B2B Center for corporations, schools, and small businesses
www.shopNuVision.com is your online resource to:
• Order products and accessories
Visit www.NuVision.com
and www.shopNuVision.com
25
Customer Support
Live Chat:
www.nuvision.com
(during normal business hours)
Email:
cs@nuvision.com
Phone:
(800) 890-1288
(Hours: 8:30am to 5:30pm PST M-F)
Support:
www.nuvision.com/support
(Download Center,
How-To Videos, FAQs)
Important Safety Instructions
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Please read the following instructions and notices before using your tablet.
1. Avoid using in extremely hot, cold, dusty, damp or wet environments.
2. The tablet is not moisture or water-resistant. Avoid using the tablet around sources of water.
3. Avoid dropping or forcibly placing the tablet onto a hard surface. This may damage the screen or internal
electronic components and void the warranty.
4. Do not use alcohol, thinner or benzene to clean the surface of the tablet. Use only cleaning products designed
for computer tablet devices.
5. Do not use the tablet while walking or driving.
6. Excessive use of earphones at high volume may lead to hearing impairment. Limit earphone usage, and adjust
the volume to a moderate level only.
7. The images in this manual may vary slightly from the actual product.
8. Charge the tablet battery under any of the following circumstances:
a. Battery level icon indicates low power
b. Tablet powers-off automatically, continuing to do so even after restarting.
c. On-screen keys or display does not function properly.
9. Do not suddenly disconnect the tablet when formatting, uploading or downloading data. This may lead to
program errors (e.g., system or screen “freezing”.)
10. Static discharge is normal and can occur in an electronic device. Although not life threatening, it may corrupt
files or damage memory and its content. Do not use accessories that are not from Nuvision.
11. Dismantling the tablet will void the manufacturer’s warranty. If you are experiencing problems, review this
quick start guide or visit the FAQ online at www.nuvision.com.
12. Device functions, hardware, software, and warranty information may be revised by the manufacturer or their
respective owners, and subject to change without notice.
13. Warning: This product may contain a chemical known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Compliance Information
FCC NOTICE
The following statement applies to all products that have received FCC approval. Applicable products wear the
FCC logo, and /or an FCC ID in the format FCC ID:xx-xxx-xxx on the product label. This mobile device complies
with part 15 of the FCC Rules. Operation is subject to the following two conditions: This mobile device may not
cause harmful interference, and this mobile device must accept any interference received, including interference
that may cause undesired operation. This mobile device has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
Warning Statement
Operation is subject to the following two conditions: this device may not cause interference, and this device must
accept any interference, including interference that may cause undesired operation of the device.
IMPORTANT NOTICE: IC Radiation Exposure Statement
This equipment should be installed and operated with minimum distance 0.5cm between the radiator and your
body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
Limited Warranty
TMAX Digital Inc. warrants this product against defects in material or workmanship for a period of one (1) year from the date of original purchase
(“Limited Warranty period”) and at its own option either to (a) repair your product with new or refurbished parts, or (b) replace it with a new or
a refurbished product. TMAX Digital Inc. will incur no liability whatsoever to provide packaging for warranty items. Upon receipt of the warranty
item, should it be determined that the packaging is insufficient, TMAX Digital Inc may at its discretion, void the warranty. The consumer is
responsible for the transportation cost to TMAX Digital Inc. A nominal handling fee does apply. You must receive a return authorization number
before sending a unit in for service.
TO OBTAIN WARRANTY SERVICE
Should it be necessary to contact Customer Support, call (800) 890-1288 or email at cs@nuvision.com. You will be instructed on how your claim
will be processed. Have pertinent information available including proof of purchase and an understanding of the issue.
You must retain the original bill of sale to provide proof of purchase. Call or email Customer Support to assess the problem. No service or
shipment will be accepted unless an RMA # is provided to you and attached or printed to the shipping carton along with a copy of the bill of
sale.
This warranty is effective only if the product was purchased through an Authorized Retail Seller and the unit is operated in North America. You
are responsible for all tariffs and taxes imposed to ship or receive warranty or replacement units to and from the U.S. Warranty extends only to
defects in materials or workmanship and does not extend to any other products that have been lost, discarded or damaged by misuse, accident,
neglect, acts of God, such as lightning, improper installation, improper maintenance or modification. The Limited Warranty ALSO DOES NOT
COVER damages from having been previously altered, modified, repaired or serviced by anyone other than the service facilities authorized by
TMAX Digital Inc. to render such services. Warranty does not cover cosmetic damage or lost accessories.
TMAX DIGITAL Inc. reserves the right to change the warranty from time to time without written notice to you.
DISCLAIMER OF WARRANTY
EXCEPT FOR THE FOREGOING WARRANTIES, TMAX DIGITAL INC. HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARDS TO ANY CLAIMS OF INFRINGEMENT.
LIMITATION OF LIABILITY
BOTH YOURS AND TMAX’S LIABILITY SHALL BE LIMITED TO THE PRICE PAID FOR PRODUCT. IN NO EVENT SHALL TMAX DIGITAL INC.
BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS OR FOR ANY
OTHER REASON WHATSOEVER.
Contact NuVision Technical Support
Email: cs@nuvision.com
Phone: (800) 890-1288
Hours: 8:30am to 5:30pm PST M-F
