Z Com VG300 AVL TERMINAL User Manual Z300vgtecspec

Z Com Inc AVL TERMINAL Z300vgtecspec

Contents

User Manual 03

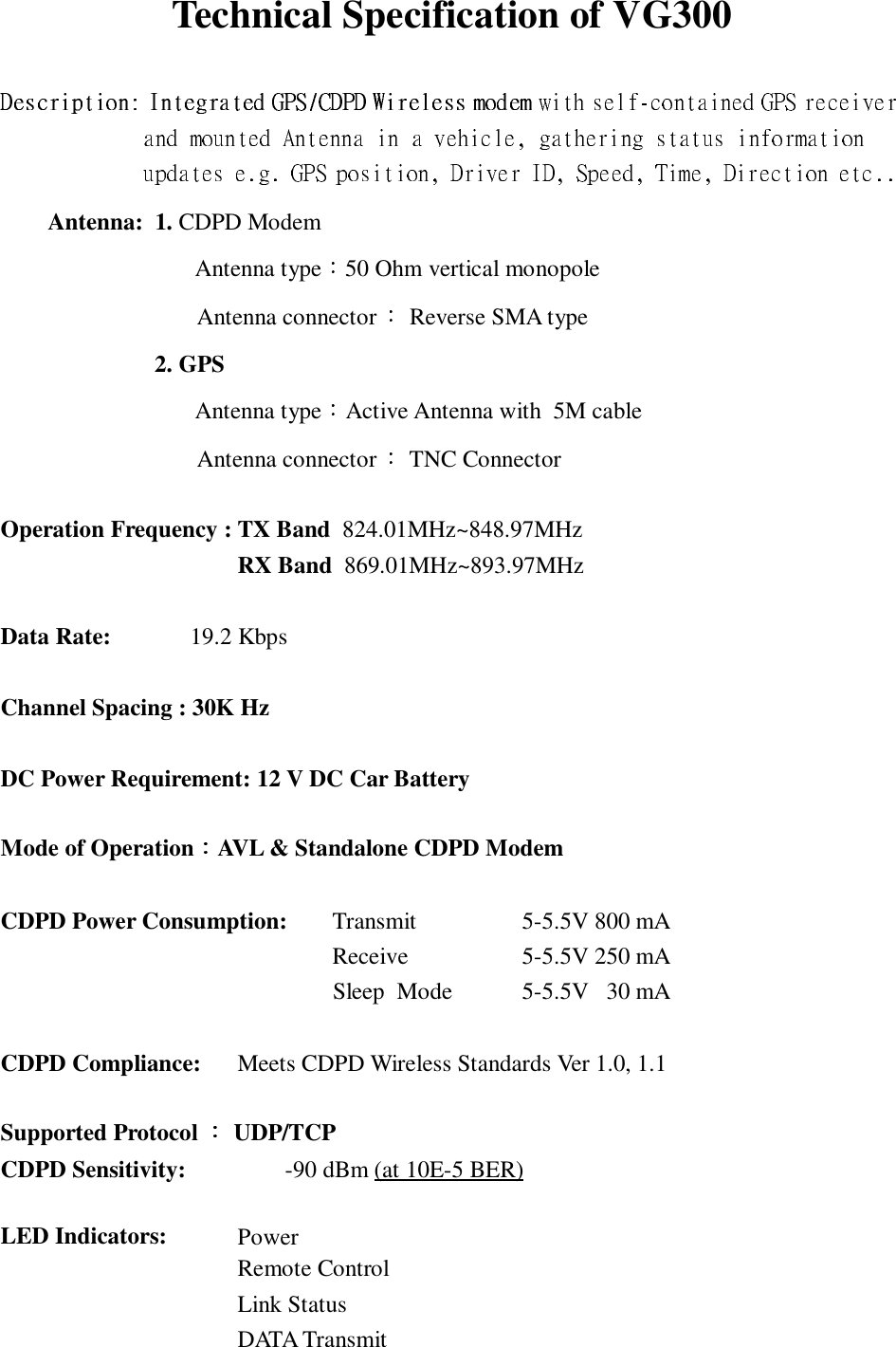

Technical Specification of VG300Antenna: 1. CDPD Modem Antenna type 50 Ohm vertical monopoleAntenna connector Reverse SMA type2. GPS Antenna type Active Antenna with 5M cableAntenna connector TNC ConnectorOperation Frequency : TX Band 824.01MHz~848.97MHzRX Band 869.01MHz~893.97MHzData Rate: 19.2 KbpsChannel Spacing : 30K HzDC Power Requirement: 12 V DC Car BatteryMode of Operation AVL & Standalone CDPD ModemCDPD Power Consumption: Transmit 5-5.5V 800 mAReceive 5-5.5V 250 mA Sleep Mode 5-5.5V 30 mACDPD Compliance: Meets CDPD Wireless Standards Ver 1.0, 1.1Supported Protocol UDP/TCPCDPD Sensitivity: -90 dBm (at 10E-5 BER)LED Indicators: PowerRemote ControlLink StatusDATA Transmit

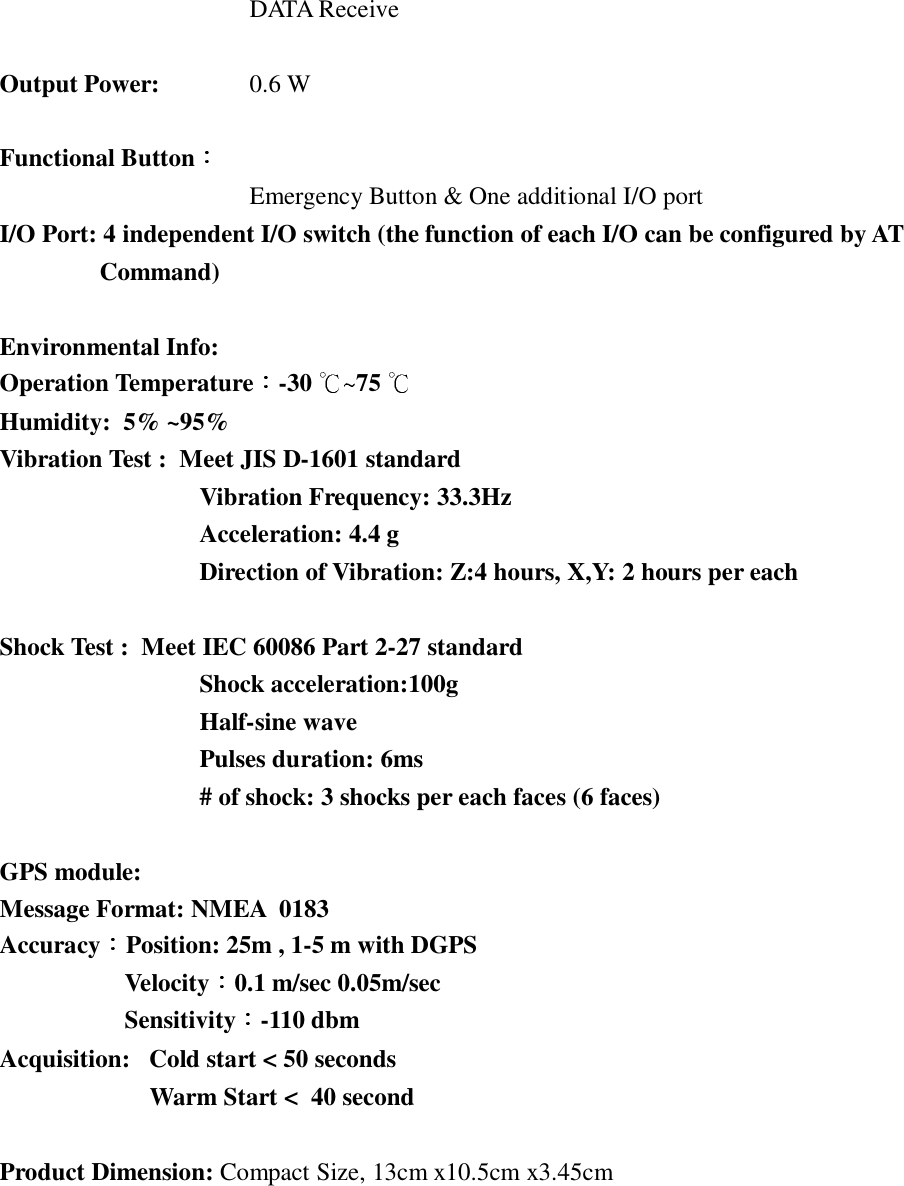

DATA ReceiveOutput Power: 0.6 WFunctional ButtonEmergency Button & One additional I/O portI/O Port: 4 independent I/O switch (the function of each I/O can be configured by ATCommand)Environmental Info:Operation Temperature -30 75Humidity: 5% ~95%Vibration Test : Meet JIS D-1601 standardVibration Frequency: 33.3HzAcceleration: 4.4 gDirection of Vibration: Z:4 hours, X,Y: 2 hours per eachShock Test : Meet IEC 60086 Part 2-27 standardShock acceleration:100gHalf-sine wavePulses duration: 6ms# of shock: 3 shocks per each faces (6 faces)GPS module:Message Format: NMEA 0183Accuracy Position: 25m , 1-5 m with DGPSVelocity 0.1 m/sec 0.05m/secSensitivity -110 dbmAcquisition: Cold start < 50 secondsWarm Start < 40 secondProduct Dimension: Compact Size, 13cm x10.5cm x3.45cm

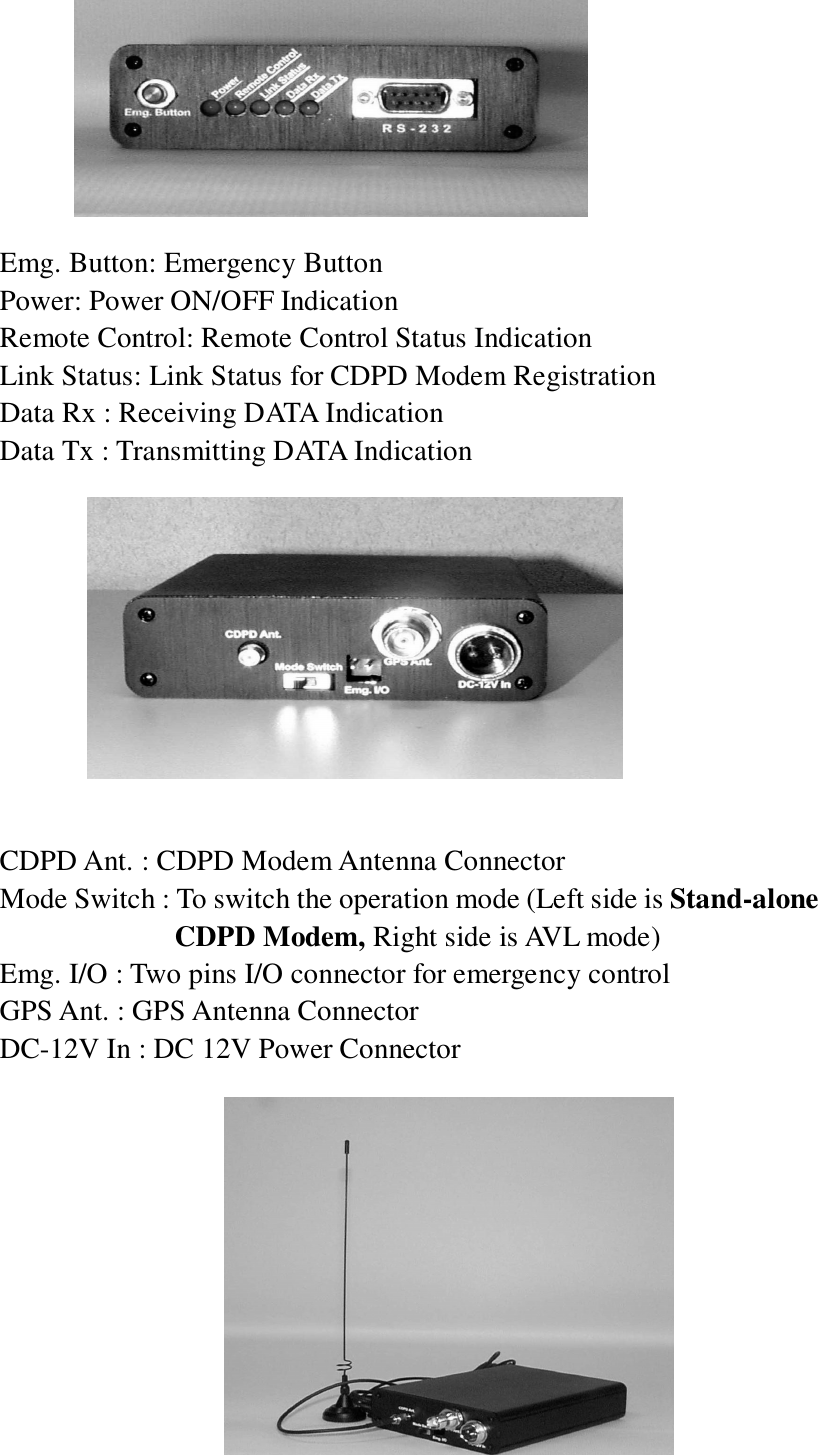

Emg. Button: Emergency ButtonPower: Power ON/OFF IndicationRemote Control: Remote Control Status IndicationLink Status: Link Status for CDPD Modem RegistrationData Rx : Receiving DATA IndicationData Tx : Transmitting DATA IndicationCDPD Ant. : CDPD Modem Antenna ConnectorMode Switch : To switch the operation mode (Left side is Stand-aloneCDPD Modem, Right side is AVL mode)Emg. I/O : Two pins I/O connector for emergency controlGPS Ant. : GPS Antenna ConnectorDC-12V In : DC 12V Power Connector
