Video Doorbell Pro

Download the Ring app

The Ring app will walk you through setting up

and managing your Ring Video Doorbell Pro

and your Chime Pro.

Search for “Ring” in one of the app stores

below, or visit: ring.com/app

Download from

Windows Store

Your Wi-Fi password

Grab your Wi-Fi password

It’s required for the in-app setup. Write it

down below so it’s handy when you need it:

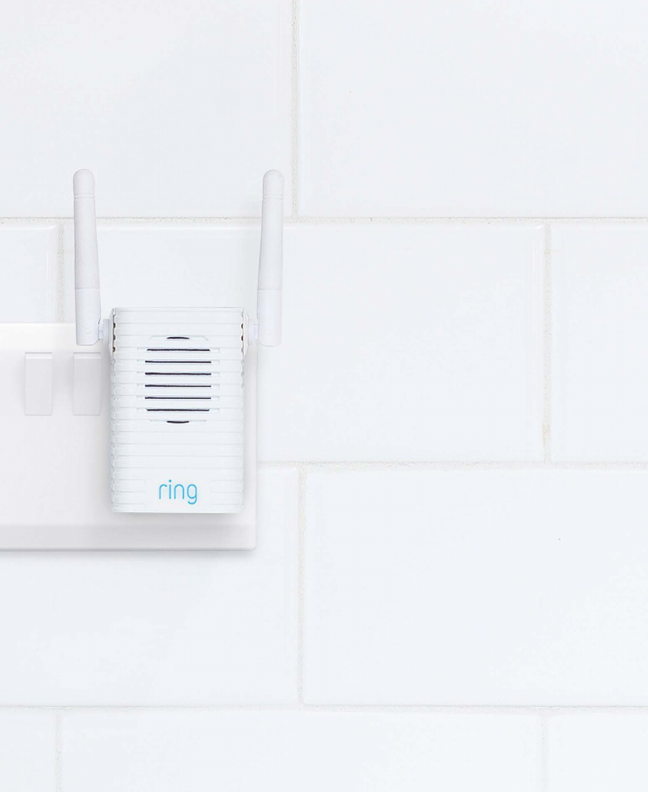

Plug in your

Chime Pro

It serves as a Wi-Fi

extender for your Ring

Doorbell Pro, so set

Chime Pro up first.

Plug Chime Pro in

somewhere between

your Wi-Fi router, and

the location where

you’ll be installing Ring

Doorbell Pro.

3

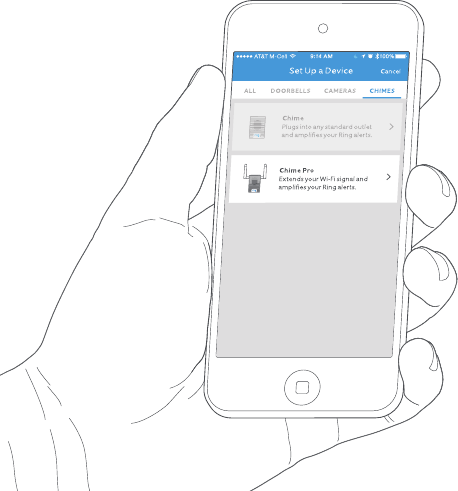

Set up your Chime Pro

In the Ring app, select Set Up Device.

When prompted, select Chime Pro, and follow

the in-app instructions.

4

4 Faceplates

Pick the one that best

matches your home…

or your mood.

Change it any time.

Terminals

Attach the

power wires

here.

Use the

included wire-

extensions if

necessary.

Back

Front

Setup

button

Mounting

holes

Meet your Ring Doorbell Pro

5

Ring Doorbell Pro

installation components

1 Screwdriver - Use the Phillips end for the mounting

screws and star-shaped end for the security screw.

3 Anchors - Use 2 for installing on concrete, stucco,

brick or any other masonry surface.

1 Drill Bit - To drill holes for the (optional) anchors.

3 Mounting Screws - Use two to mount your Ring.

2 Security Screws - Use one to secure the faceplate.

2 Extra Wires - To attach the power wires to your Ring

if necessary.

2 Wire Connectors - To connect the extra wires

(above) to the power wires.

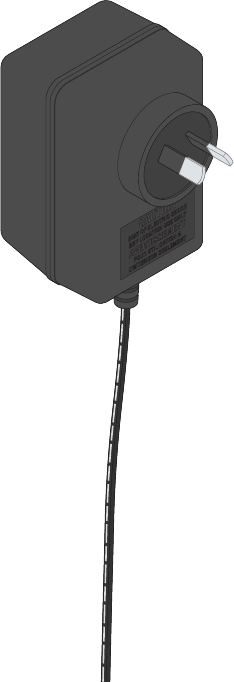

1 Power Adapter - Plug it into an outlet to power your

Ring Doorbell Pro.

6

If you have an

existing doorbell…

If connected to a 16–24VAC

transformer, you can

connect Ring Pro directly to

your existing wiring.

Note: you’ll need a Pro

Power Kit, which you can

order on our website.

If you don’t have an

existing doorbell…

Follow the instructions on

the following pages to use

the plug-in adapter that

we’ve provided.

Ring Pro requires a 16–24VAC transformer. If you have a

doorbell with a transformer that’s rated lower than 16VAC,

hire a licenced electrician to upgrade your existing doorbell and

transformer and install a Pro Power Kit which you can order at ring.

com, or use the provided plug-in adapter. Before touching live wires,

always shut off power at the fusebox.

7

Locate a

power outlet

Locate an outlet as

close to your door

as possible.

NOTE: DON’T PLUG

THE ADAPTER IN

YET!

8

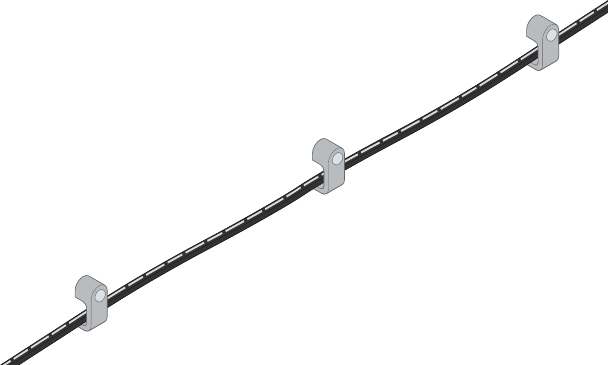

Run the wires

Run the wires to the location you’ll be

installing your Ring Pro.

Run the wires down the wall from the outlet,

and along your moulding.

To get the wires outside, run them through

the wall behind your Ring Pro, through a

doorway or out a window.

NOTE: ALWAYS BE CAREFUL OF EXISTING

ELECTRICAL WIRING AND PIPES IF

DRILLING THROUGH WALLS.

9

Install anchors

(optional)

On stucco, brick, or

concrete, use the

provided bit to drill

two holes in your

wall, and install the

anchors.

If you’re installing on

wood or siding, put

the anchors in that

drawer of stuff you

never use and skip this

step.

10

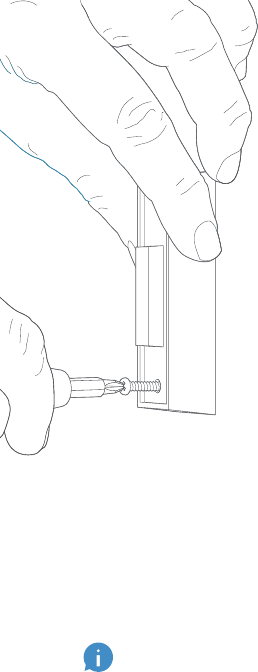

Remove the

Faceplate

Remove the faceplate

on your Ring Doorbell

Pro to access the

mounting holes.

After your Ring Doorbell is installed,

remove the faceplate like this:

11

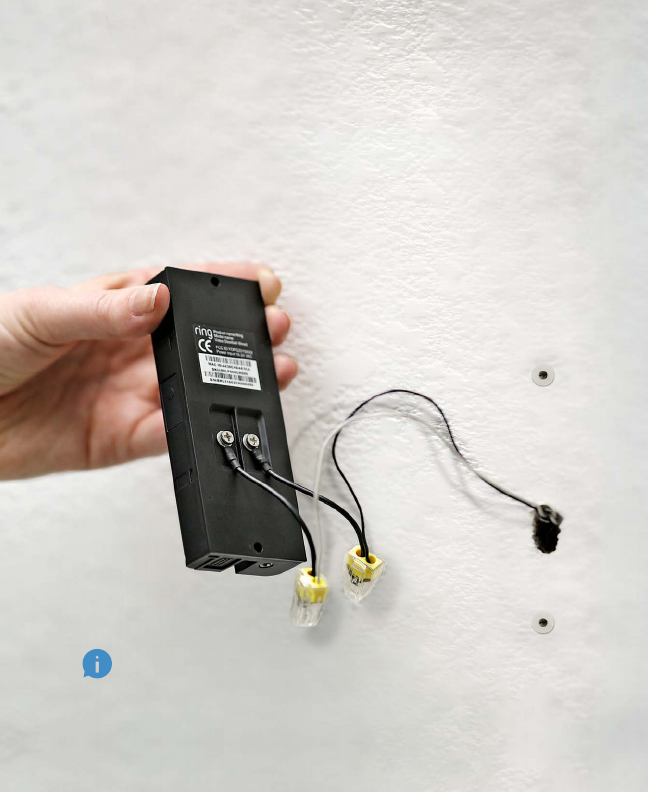

Connect the wires

Connect the wires from your power source

to the terminals on the back of your Ring

Doorbell Pro.

It doesn’t matter which wire connects to which screw.

Use the wire clips and

extra wires if necessary.

12

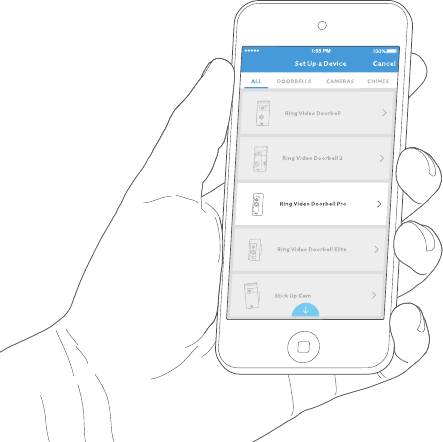

Plug in the power adapter and

perform the in-app setup

In the Ring app, select Set Up Device. Then

select Video Doorbell Pro.

When asked if you want to connect to your

Chime Pro Network, select Yes.

13

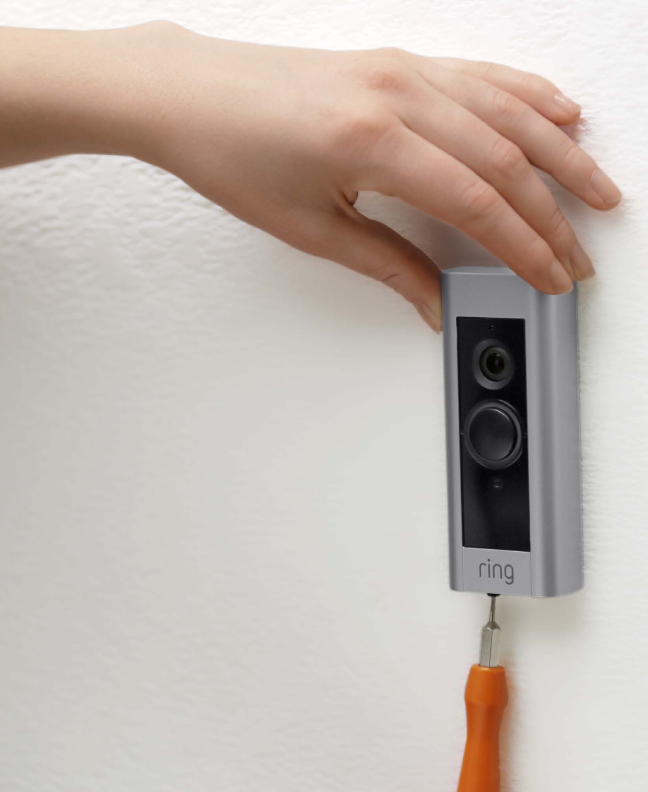

Install the

faceplate

Secure one of the

faceplates with a

security screw, using

the star-shaped

end of your Ring

screwdriver.

14

For additional help, visit: ring.com/help

Or give us a call…

AU 1 300 205 983

NZ +64 9 887 9871

US 1 800 656 1918

UK 01727 263045

Mexico (D.F) 52 55 8526 5445

Worldwide +1 310 929 7085

For a list of all our customer support numbers,

visit: ring.com/callus

15

LIMITED WARRANTY AND PURCHASE PROTECTION FOR AUSTRALIA CONSUMERS

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also

entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to

a major failure. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired.

Refurbished parts may be used to repair the goods.

WHAT THE WARRANTY COVERS

For a period of one year from the date of your purchase of the Ring Video Doorbell, any malfunction caused by defective

parts or workmanship will be corrected at no charge to you. Please keep your dated sales receipt; it is required for all warranty

requests.

WHAT THE WARRANTY DOES NOT COVER

Repair service, damage due to misuse, abuse, negligence, or casualty (e.g., fire), and batteries are not covered by this warranty.

Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This

warranty does not include reimbursement for inconvenience, installation, loss of use, or unauthorized service.

This warranty covers only the Ring Video Doorbell and is not extended to other equipment and components that a customer

uses in conjunction with our products. Bot Home Automation, Inc.’s maximum liability under this warranty is, to the extent

permitted by law, limited to the original purchase price of the Ring Video Doorbell. In addition, Bot Home Automation, Inc.

reserves the right to request any product claimed defective to be returned to Bot Home Automation, Inc. for inspection.

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANTABILITY OR THAT THE PRODUCTS

ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES.

IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, THE DURATION AND REMEDIES FOR SUCH WARRANTIES ARE

LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY AND REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY

OF THE CUSTOMER AND EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW

THERE SHALL BE NO LIABILITY ON THE PART OF BOT HOME AUTOMATION, INC. FOR ANY SPECIAL, INDIRECT, INCIDENTAL

OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT

FORESEEABLE.

To obtain the benefit of the above limited warranty, please contact us at:

Bot Home Automation, Inc.

1523 26th Street

Santa Monica, CA 90404

USA

1 300 205 983
