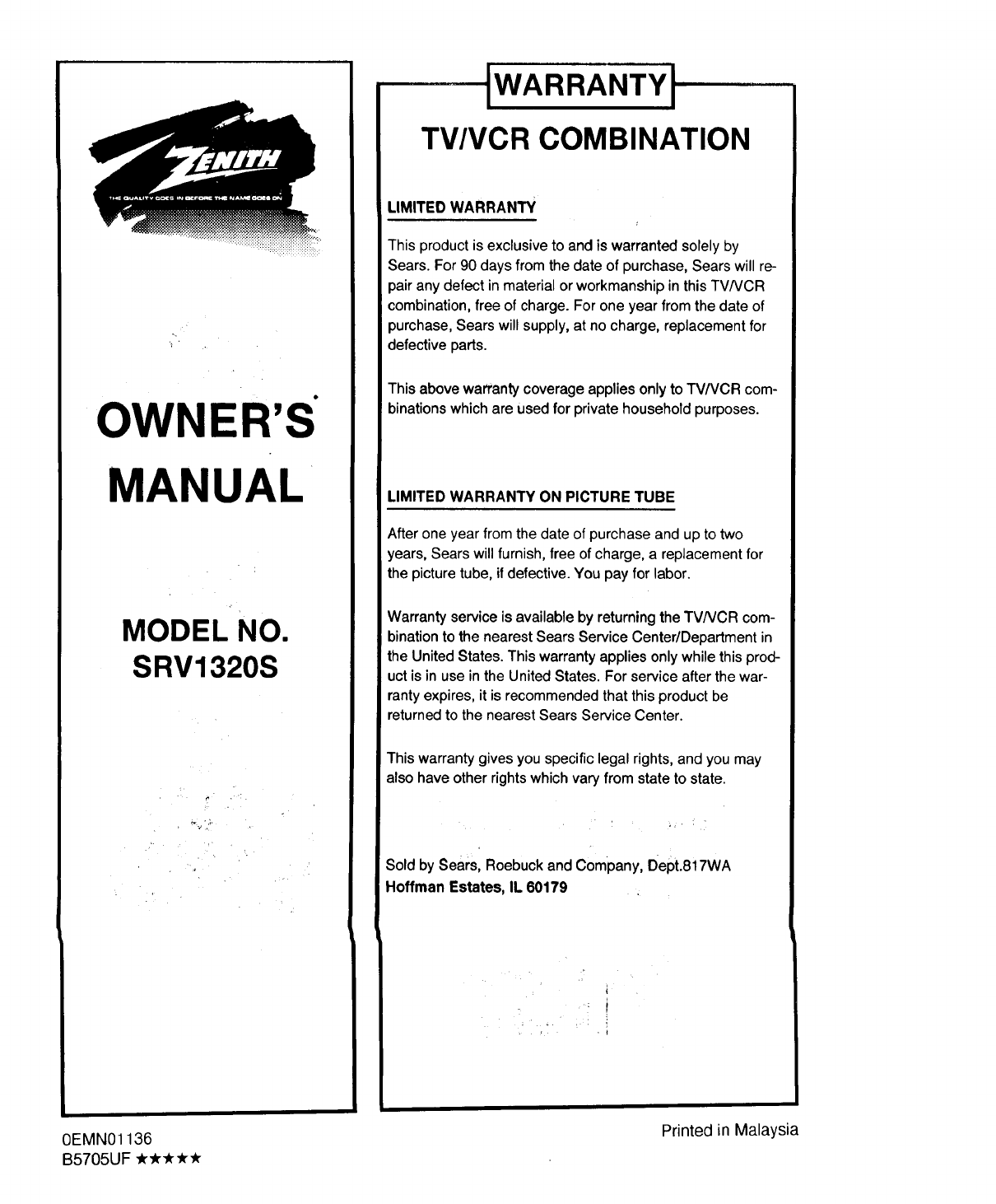

Operating Guide
& Warranty
•• • o o,l=,loo°o°aoQ°ooooooollo°jol,=,,°lI,olooQJloeoo====oooooo°°D°, ,- o°
.....""":':'::::::!:i:!!!iii!iiiii!iii!iii!i!i!i!i!i!!iii.i..
13" ColorTV/VCR Combination
SRV1320S

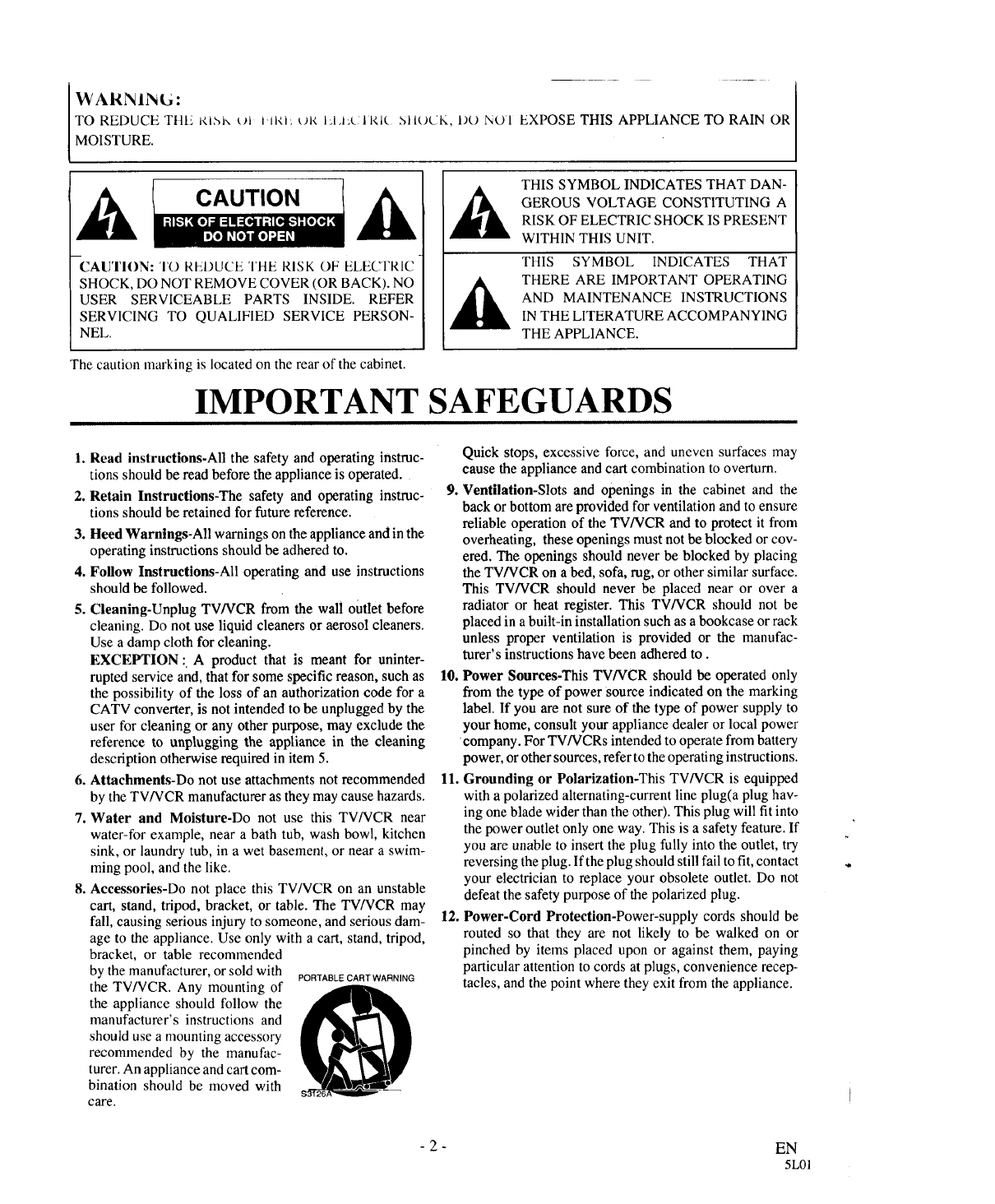

VVARNING:
TO REDUCE THE Kl3_ t_l Hkt: _1< l:l.Lt. |F,i( NIIt)LK, 1)() NOI EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
L
-CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
The caution marking is located on the rear of the cabinet.
IMPORTANT SAFEGUARDS
1. Read instructions-All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TVNCR from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
EXCEPTION : A product that is meant for uninter-
rupted service and, thatfor some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by the
user for cleaning or any other purpose, may exclude the
reference to unplugging the appliance in the cleaning
description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended
by the TV/VCR manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TVNCR near
water-for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swim-
ming pool, and the like.
8. Accessories-Do not place this TVNCR on an unstable
cart, stand, tripod, bracket, or table. The TV/VCR may
fall, causing serious injury to someone, and serious dam-
age to the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended
by the manufacturer, or sold with PORTABLE CART WARNING
the TV/VCR. Any mounting of
the appliance should follow the
manufacturer's instructions and
should use a mounting accessory
recommended by the manufac-
turer. An appliance and cart com-
bination should be moved with
care.
9,
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to ensure
reliable operation of the TV/VCR and to protect it from
overheating, these openings must not be blocked or cov-
ered. The openings should never be blocked by placing
the TV/VCR on a bed, sofa, rug, or other similar surface.
This TV/VCR should never be placed near or over a
radiator or heat register. This TV/VCR should not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac-
turer's instructions have been adhered to.
10. Power Sources-This TVNCR should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local power
company. For TVNCRs intended to operate from battery
power, or other sources, referto the operating instructions.
11. Grounding or Polarization-This TV/VCR is equipped
with a polarized alternating-current line plug(a plug hav-
ing one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
-2- EN
5L01

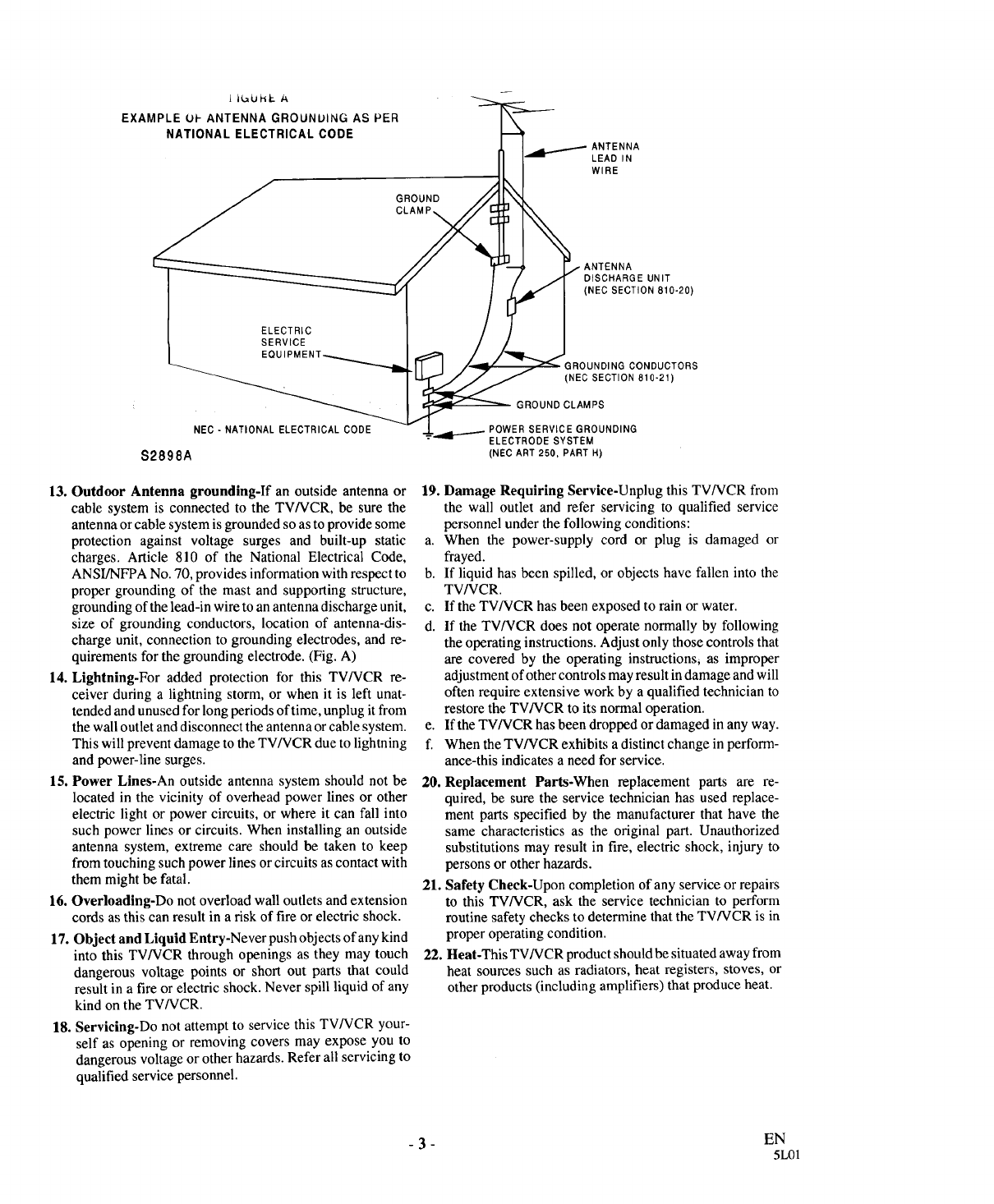

EXAMPLE UP ANTENNA GROUNUING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
NEC - NATIONAL ELECTRICAL CODE
$2898A
13. Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV/VCR, be sure the
antenna or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect to
proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes, and re-
quirements for the grounding electrode. (Fig. A)
14. Lightning-For added protection for this TV/VCR re-
ceiver during a lightning storm, or when it is left unat-
tended andunused for long periods of time, unplug it from
the wall outlet anddisconnect the antenna or cable system.
This will prevent damage to the TV/VCR due to lightning
and power-line surges.
15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with
them might be fatal.
16. Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry-Never push objects of any kind
into this TV/VCR through openings as they may touch
dangerous vokage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the TVNCR.
18. Servicing-Do not attempt to service this TV/VCR your-
self as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
- GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
."_'-=_1-"--" ELECTRODE SYSTEM
(NEC ART 250, PART H)
19. Damage Requiring Service-Unplug this TV/VCR from
the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged or
flayed.
b. If liquid has been spilled, or objects have fallen into the
TV/VCR.
c. If the TVNCR has been exposed to rain or water.
d. If the TV/VCR does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the TV/VCR to its normal operation.
e. If the TVNCR has been dropped or damaged in any way.
f. When the TV/VCR exhibits a distinct change in perform-
ance-this indicates a need for service.
20. Replacement Parts-When replacement parts are re-
quired, be sure the service technician has used replace-
ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.
21. Safety Cheek-Upon completion of any service or repairs
to this TVNCR, ask the service technician to perform
routine safety checks to determine that the TV/VCR is in
proper operating condition.
22. Heat-This TV/VCR product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
-3-EN
5L01
For safe operation and satisfactory performance of your
unit, keep the following in mind when selecting a place •
for its installation:
• Shield it from direct sunlight and keep it away from
sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes
at the top and bottom of the unit. Do not place the
unit on a carpet because this will block the ventilation
holes.
• Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the unit near strong magnetic fields.
• Do not move the unit from a cold to a hot place or
vice versa.
Do not handle the power cord with wet hands.
Do not pull on the power cord when disconnecting it
from an AC wall outlet. Grasp it by the plug.
If, by accident, water is spilled on your unit, unplug
the power cord immediately and take the unit to an
authorized Sears service center for servicing.
Do not put your fingers or objects into the TV/VCR
cassette holder.
Do not place anything directly on top of the unit.
Moisture condensation may occur inside the unit when
it is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high humid-
ity. If a tape is played in a TV/VCR which has moisture,
it may damage the tape and TV/VCR. Therefore when
the condensation occurs inside the unit turn the POWER
button on and allow at least 2 hours for the unit to dry
out.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted
material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication,
use, or other acts which infringe upon the rights of copyright owners.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio commu-
nications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
-4- EN
6D11
•IMPOR_ANI' _'A_E_UARDS ........................... 2
•I)RECAU_ONS ................................................... 4
LOCATION .......................................................... 4
AVOIDING THE HAZARDS OF ELECTRICAL
SHOCK AND FIRE ............................................. 4
WARNING ........................................................... 4
•FEATURES .......................................................... 6
•SUPPLIED ACCESSORIES ............................... 6
• VIDEO CASSETTE ............................................. 7
•OPERA TING CONTROLS AND FUNCTIONS.. 8
•PREPARATION FOR USE ............................... 10
CABLECONNECTIONS .................................. 10

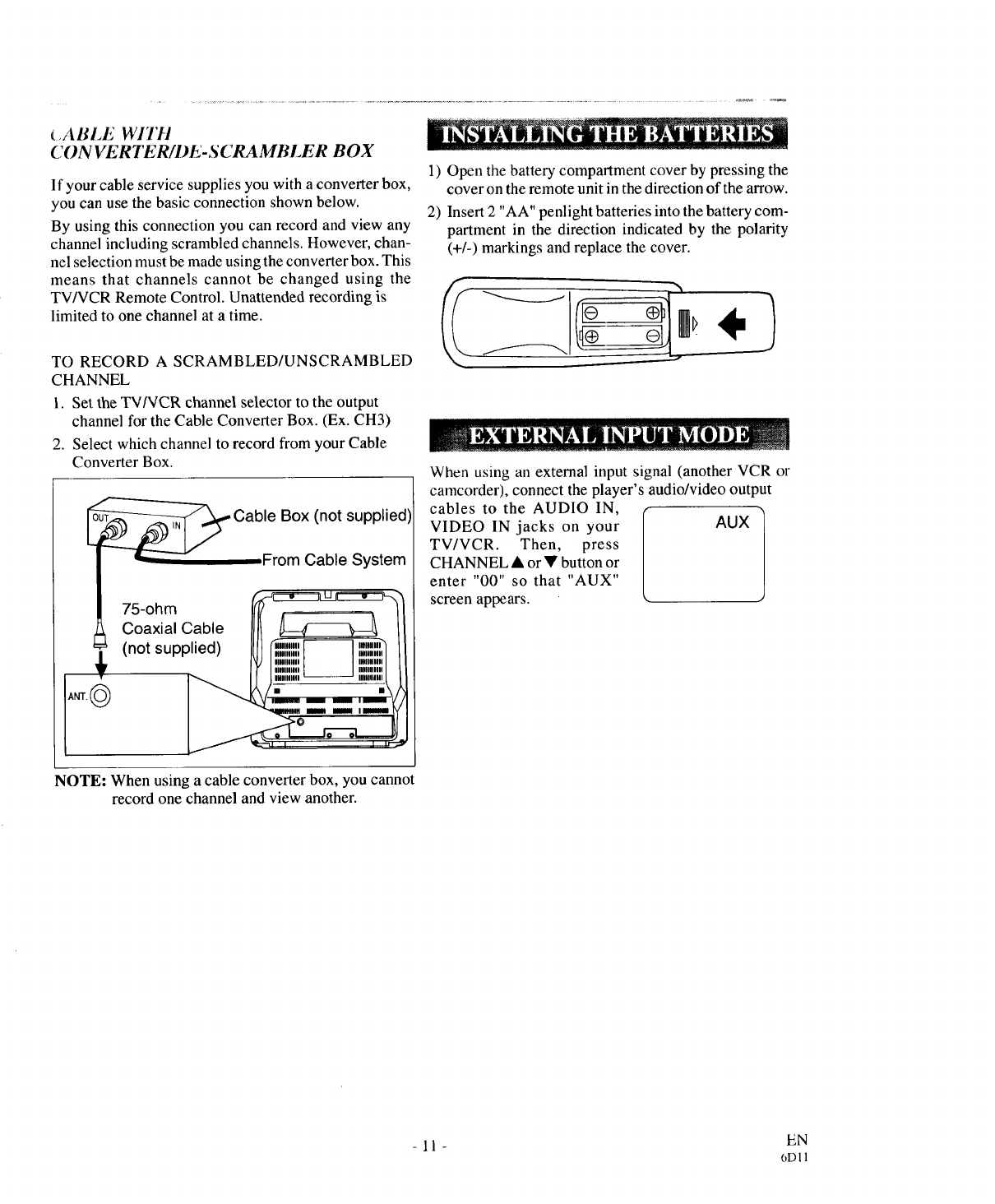

INSTALLING THEBATTERIES ..................... 11
EXTERNALINPUT MODE .............................. II

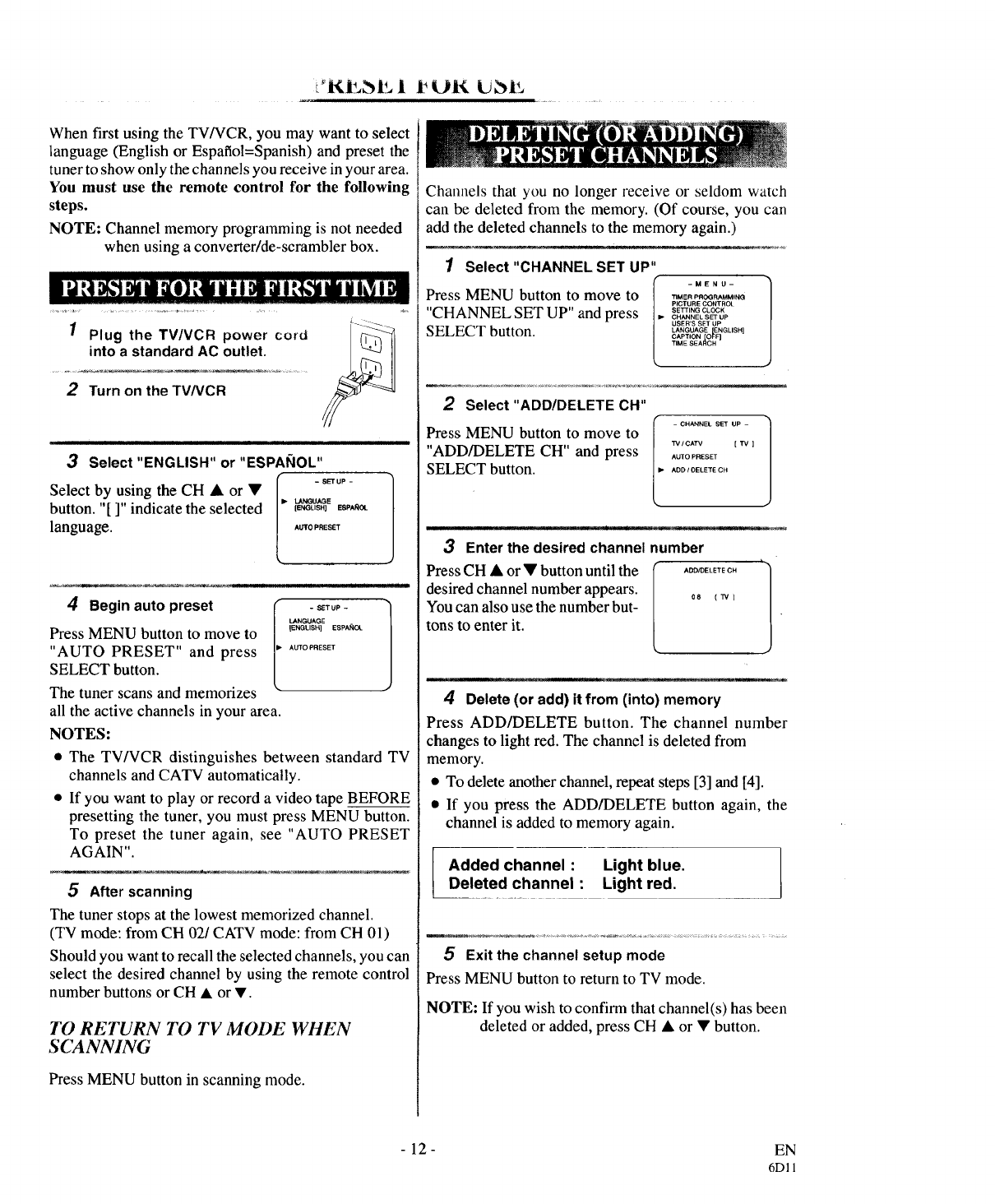

•PRESET FOR USE ............................................ 12
PRESET FOR THE FIRST TIME ..................... 12
DELETING (OR ADDING) PRESET
CHANNELS ....................................................... 12

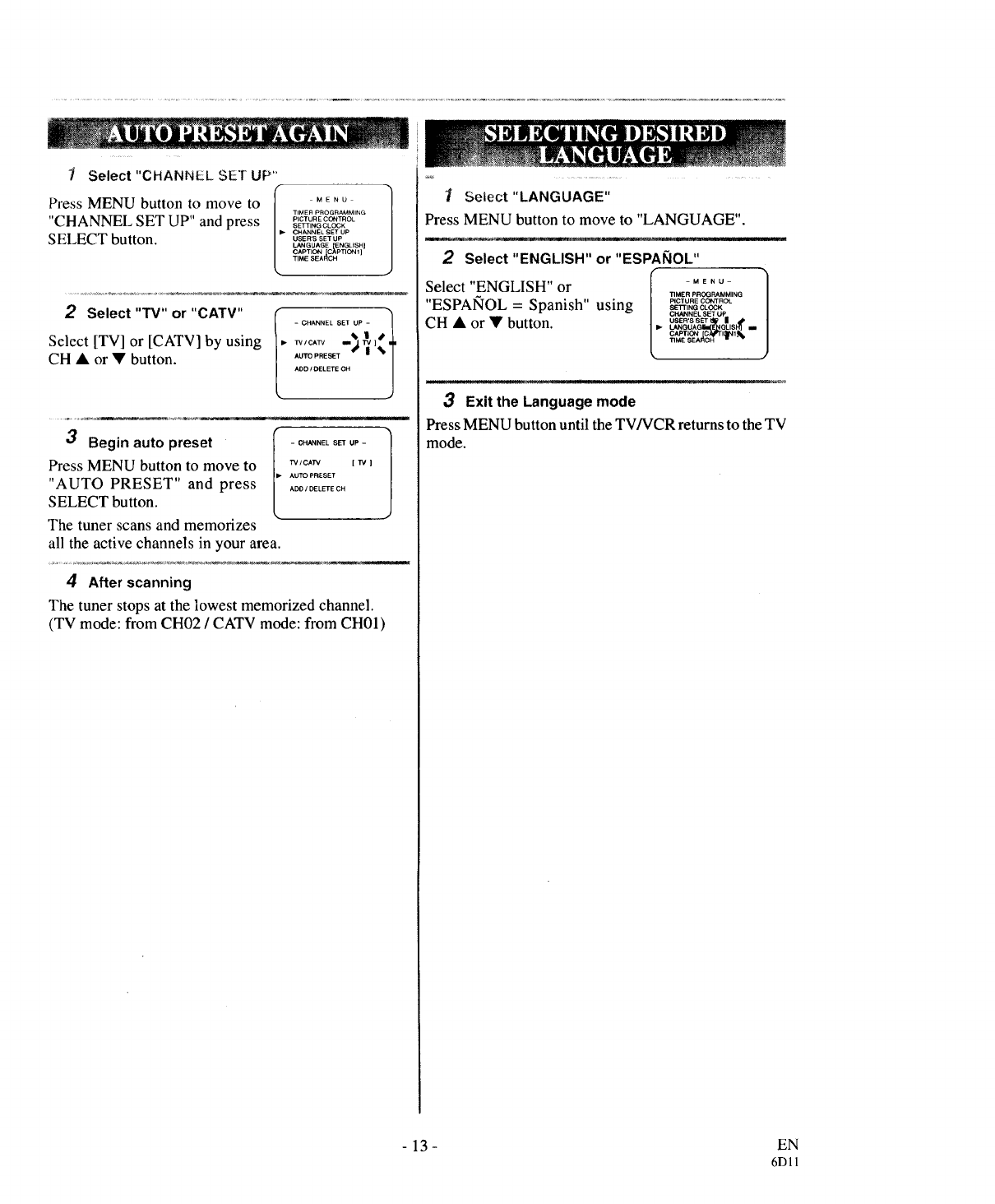

AUTO PRESET AGAIN .................................... 13
SELECTING DESIRED LANGUAGE ............ 13

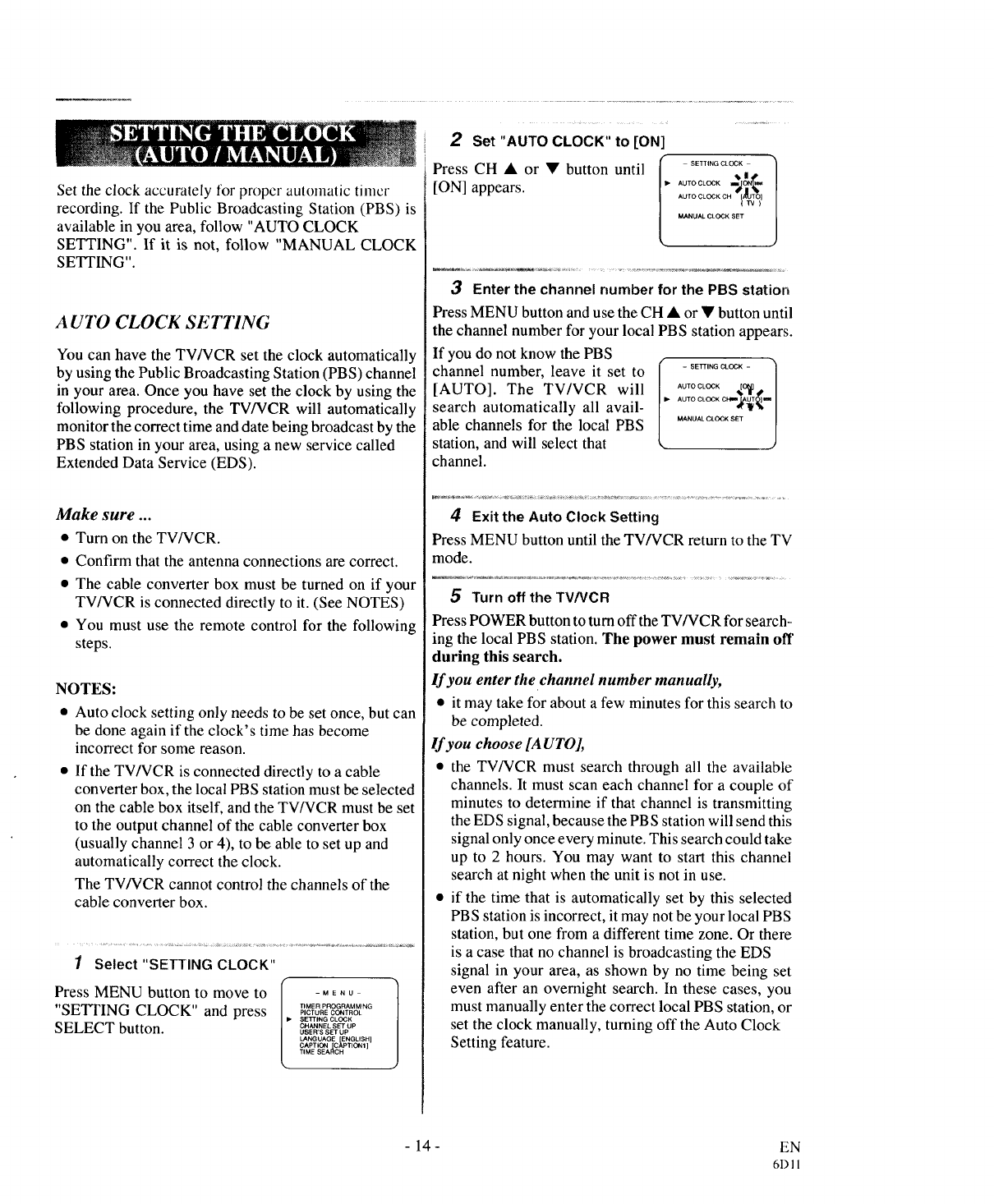

(AUTO /MANUAL) .......................................... 14
•ON-SCREEN DISPLA Y .................................... 16
•SPECIAL FEATURES ...................................... 16
DEGAUSSING ................................................... 16
AUTO REWIND-EJECT ................................... 16
• TVOPERATION ................................................ 17

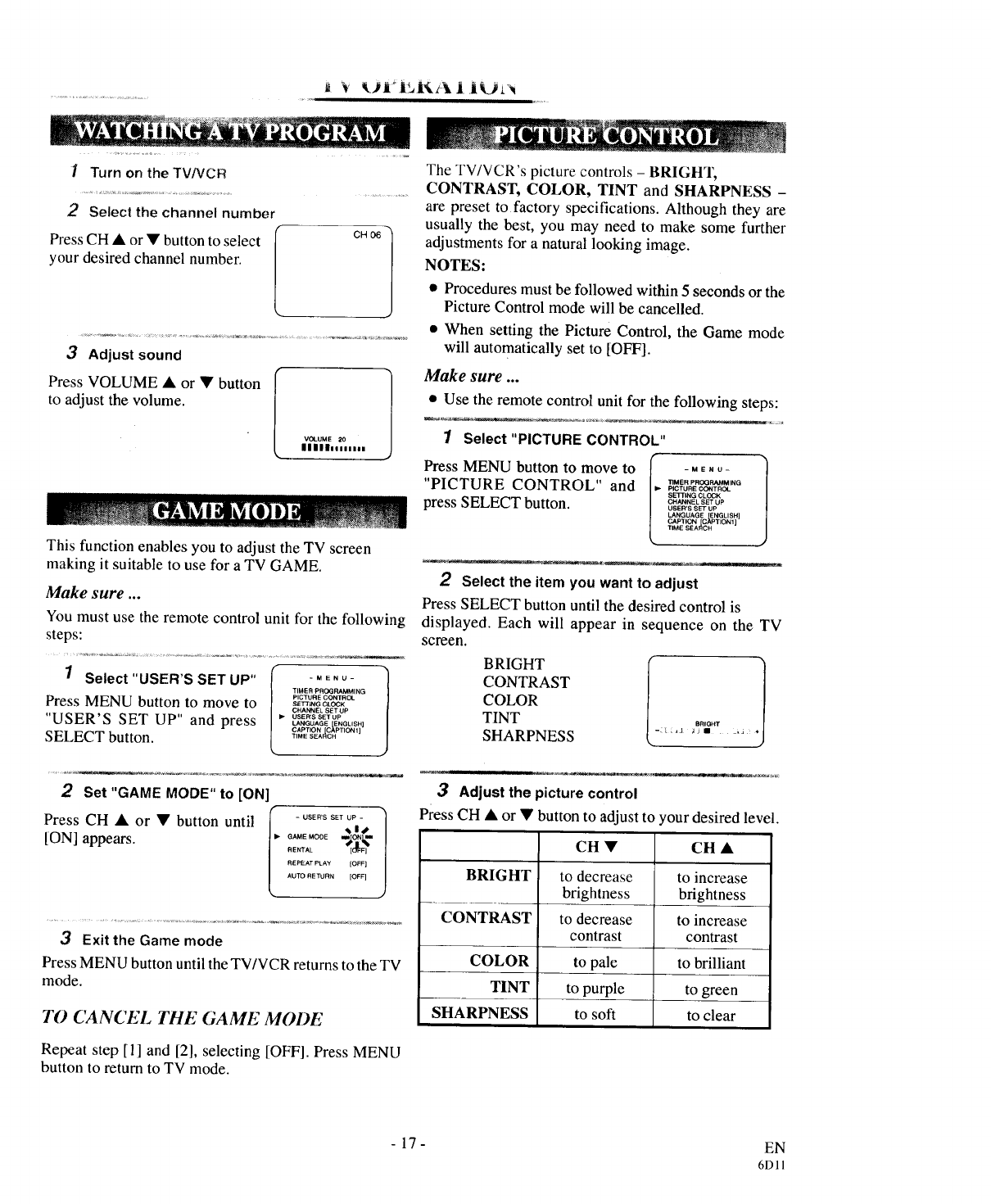

WATCHING A TV PROGRAM ....................... 17
GAME MODE .................................................... 17
PICTURE CONTROL ........................................ 17
CLOSED CAPTION SYSTEM ......................... 18

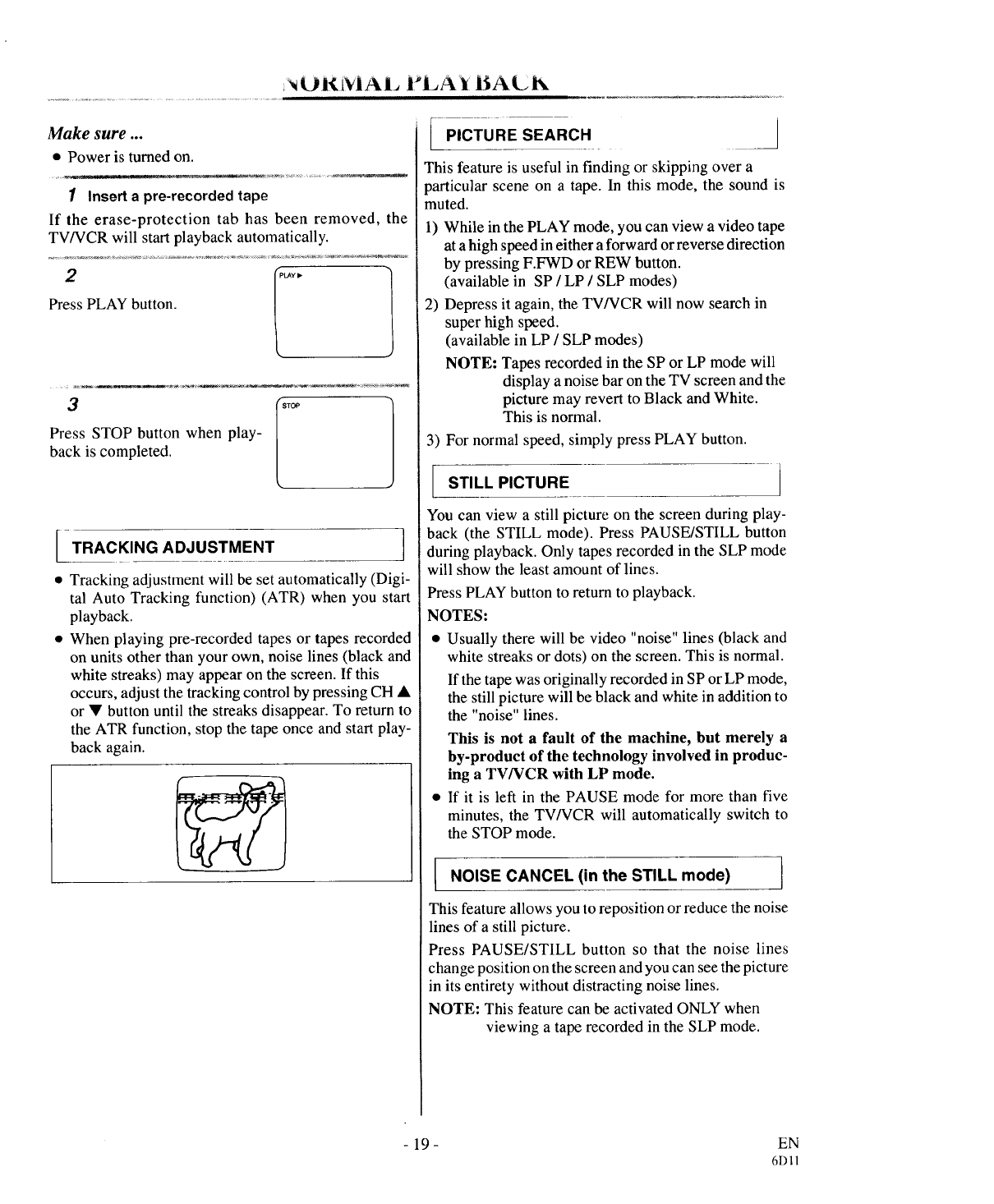

•NORMAL PLAYBACK ...................................... 19
•SPECIAL PLAYBACK ....................................... 20
RENTAL PLAYBACK ...................................... 20
REPEAT PLAYBACK ....................................... 20
•SEARCH ............................................................. 21
COUNTER MEMORY ...................................... 21
TIME SEARCH .................................................. 21
•RECORDING ..................................................... 22
NORMAL RECORDING .................................. 22
SKIPPING SOME MATERIALS DURING
RECORDING ..................................................... 22

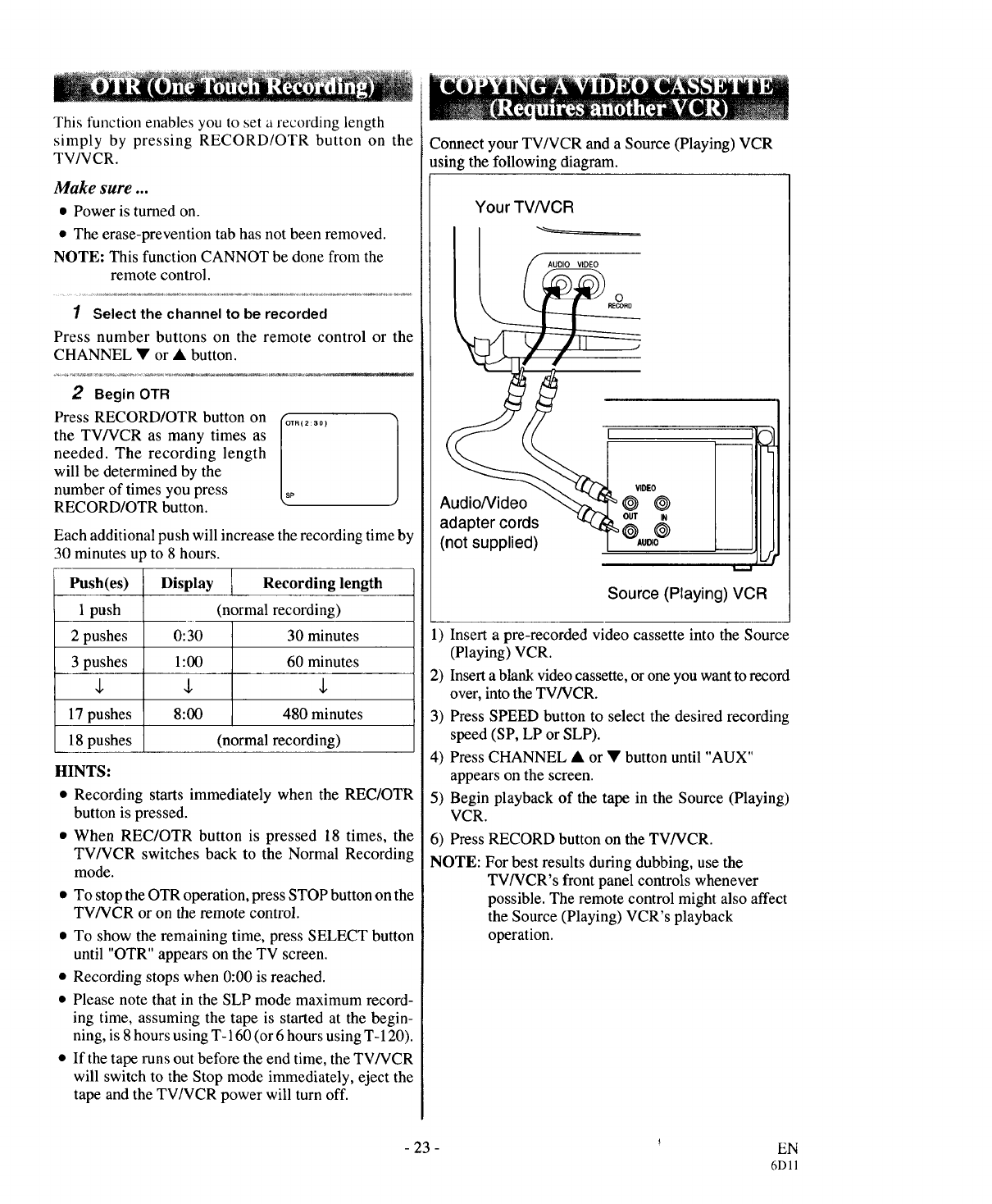

OTR (One Touch Recording) ............................. 23
COPYING A VIDEO CASSETTE
(Requires another VCR) ..................................... 23
•TIMER ................................................................ 24

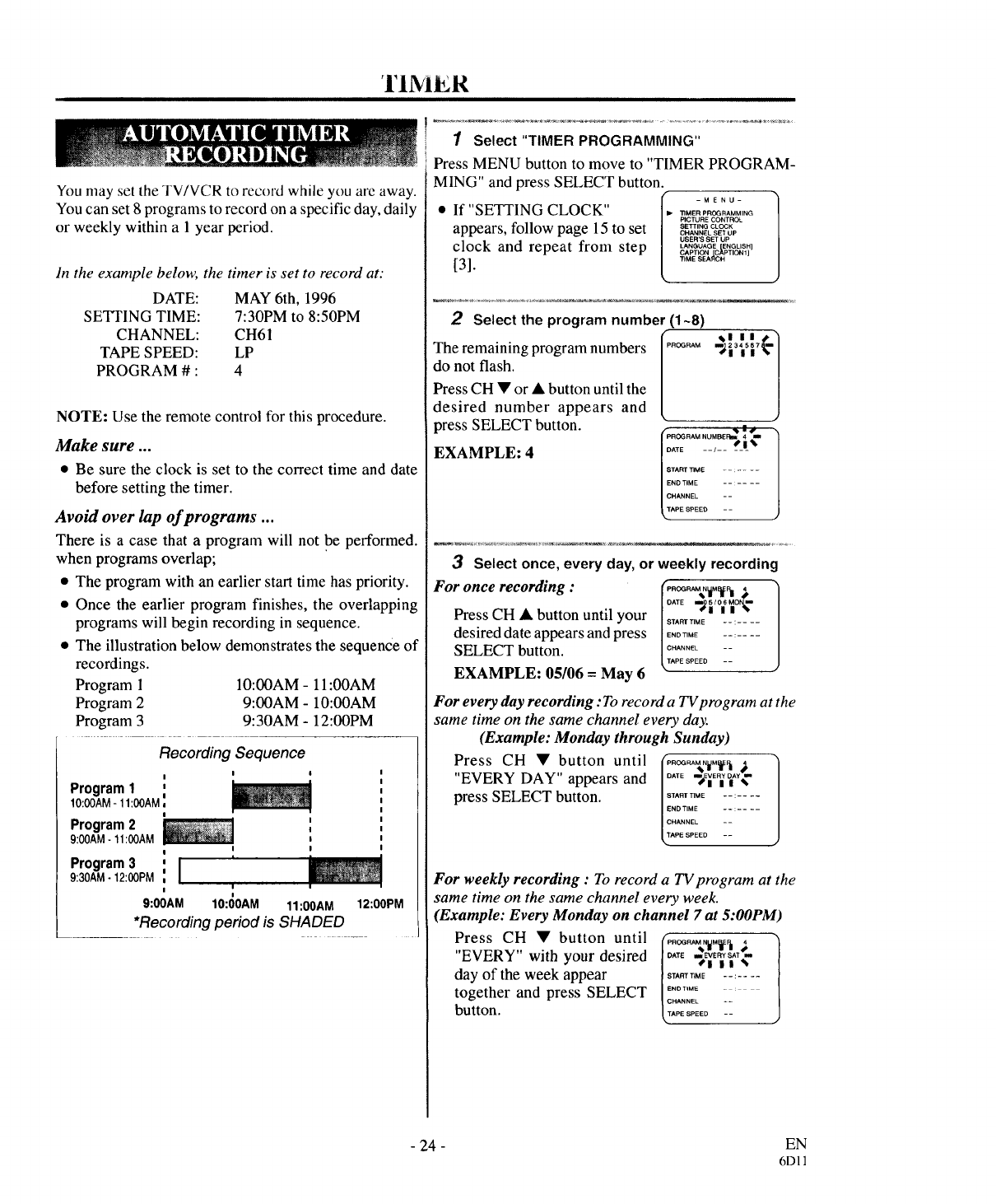

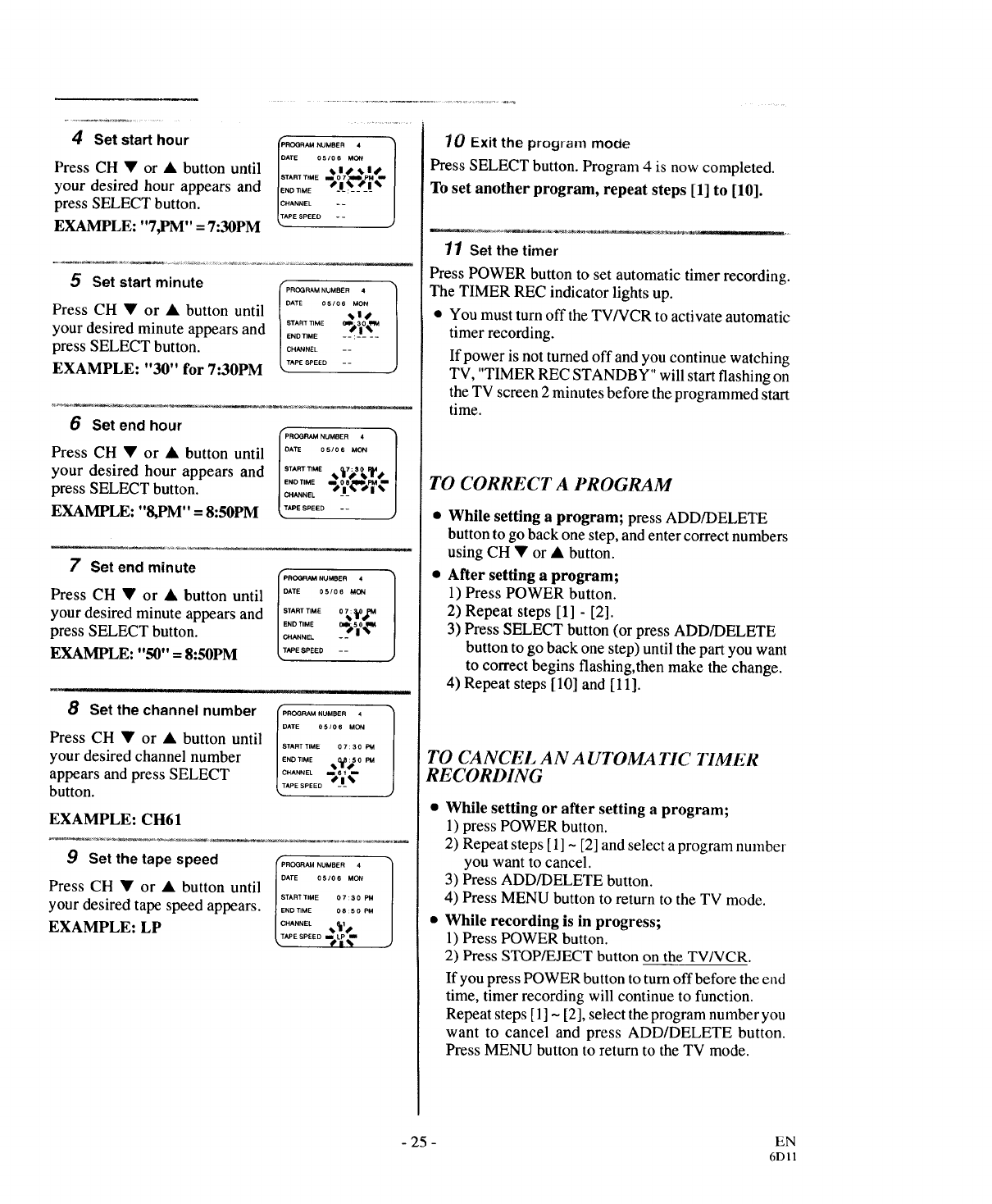

AUTOMATIC TIMER RECORDING .............. 24
AUTO RETURN ................................................ 26

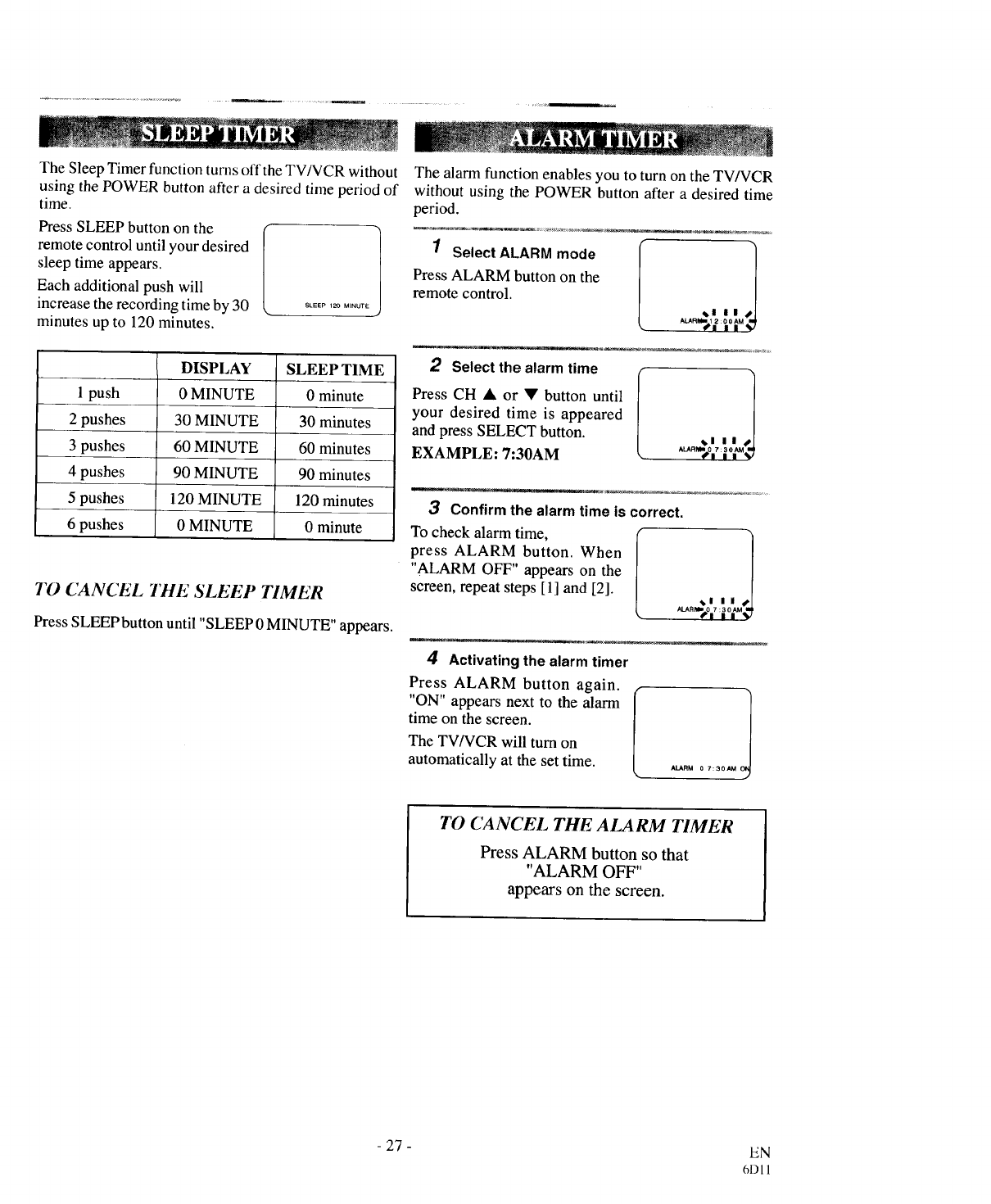

SLEEP TIMER ................................................... 27
ALARM TIMER ................................................ 27

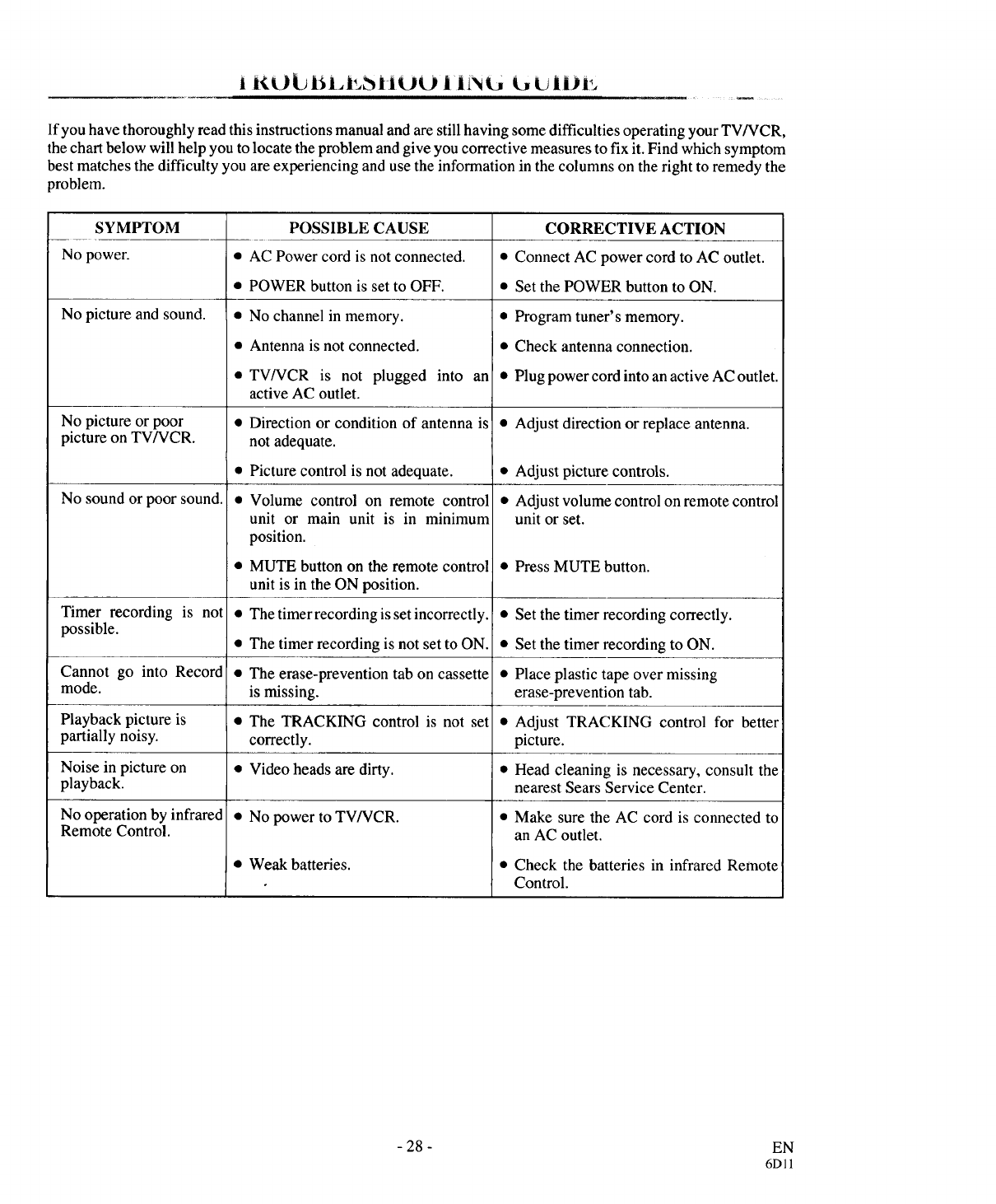

•TROUBLESHOOTING GUIDE ....................... 28

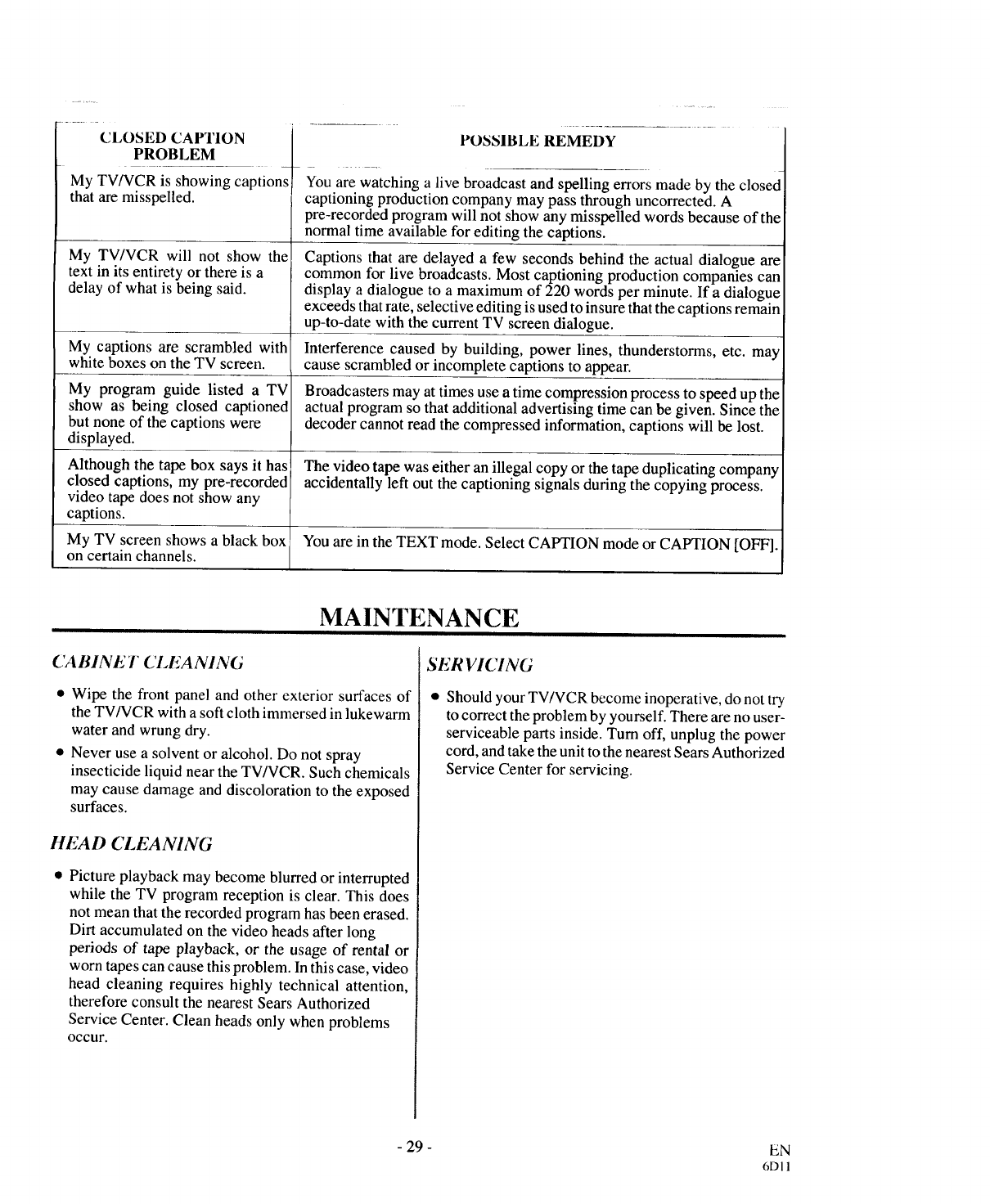

• MAINTENANCE ............................................... 29

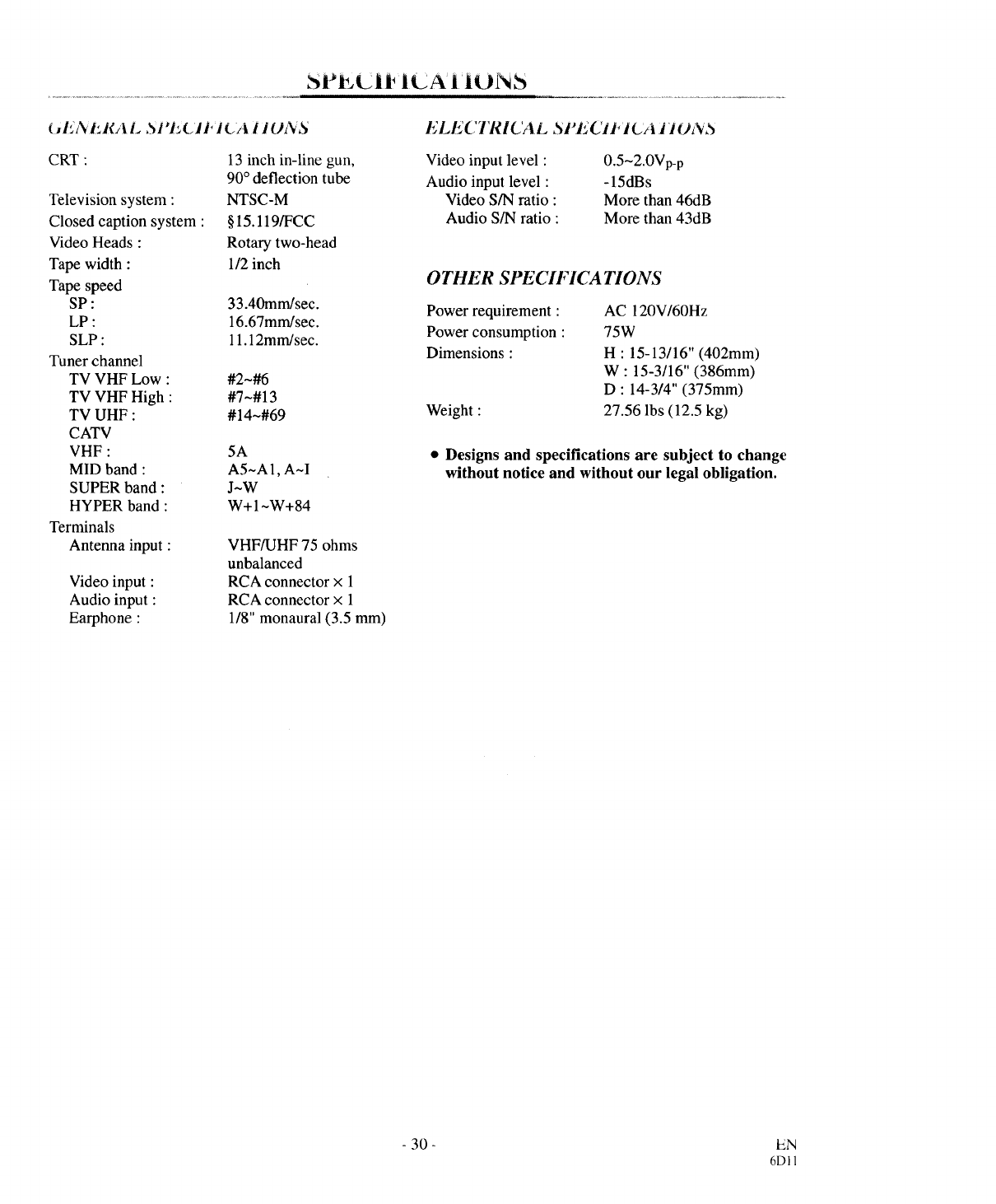

•SPECIFICATIONS ............................................ 30
The serial number of this product is on the back of the unit. Each serial number is unique. You should record
this number and other vital information in this book and keep as a permanent record of your purchase in
the event of theft to aid in its identification.
m ....
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
- 5 - EN
6DI1

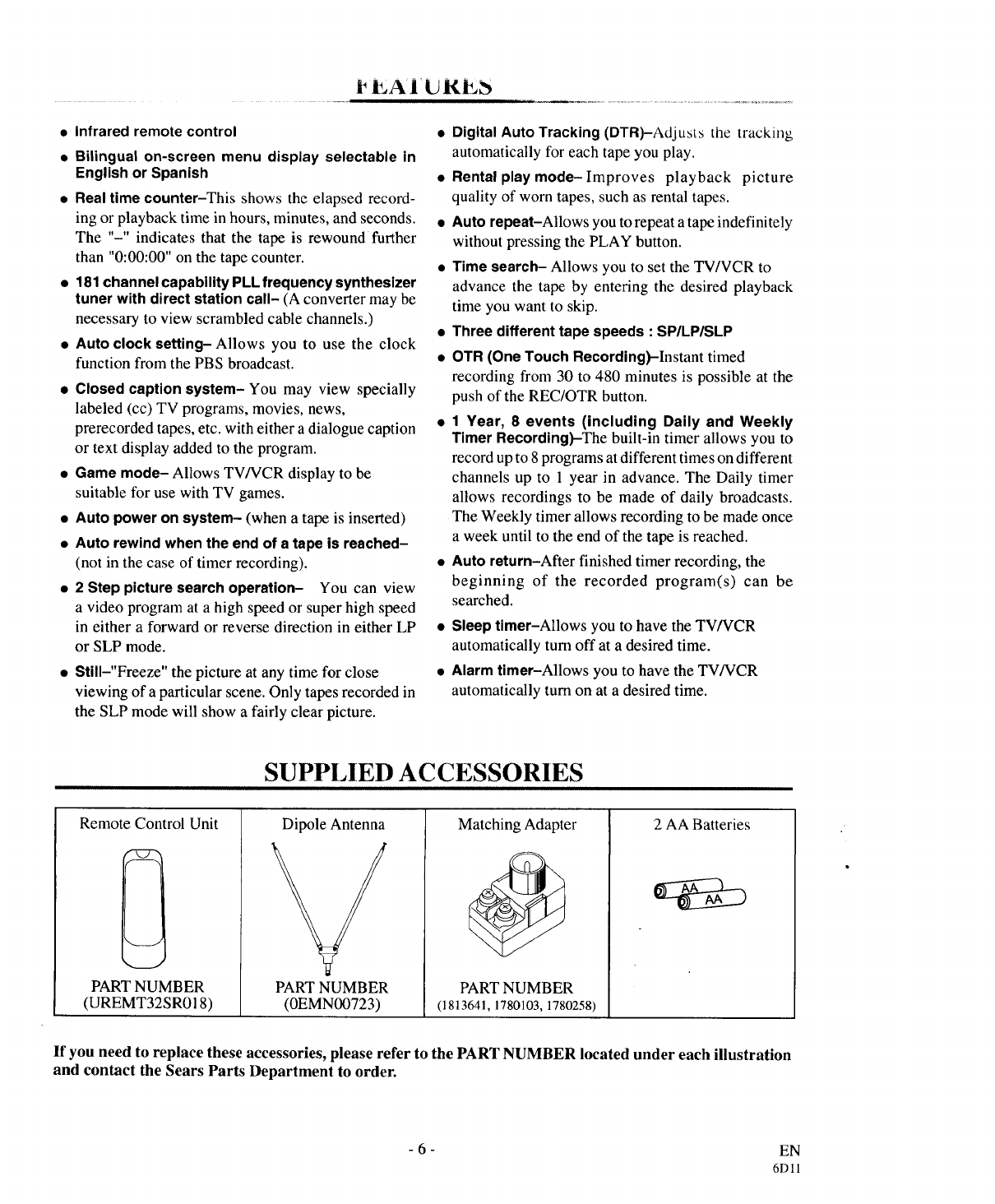

•Infrared remote control
•Bilingual on-screen menu display selectable in
English or Spanish
•Real time counter-This shows the elapsed record-
ing or playback time in hours, minutes, and seconds.
The "-" indicates that the tape is rewound further
than "0:00:00" on the tape counter.
•181 channelcapability PLL frequency synthesizer
tuner with direct station call- (A converter may be
necessary to view scrambled cable channels.)
•Auto clock setting-Allows you to use the clock
function from the PBS broadcast.
•Closed caption system-You may view specially
labeled (cc) TV programs, movies, news,
prerecorded tapes, etc. with either a dialogue caption
or text display added to the program.
•Game mode- Allows TV/VCR display to be
suitable for use with TV games.
•Auto power on system- (when a tape is inserted)
•Auto rewind when the end of a tape is reached-
(not in the case of timer recording).
•2 Step picture search operation- You can view
a video program at a high speed or super high speed
in either a forward or reverse direction in either LP
or SLP mode.
•Still-"Freeze" the picture at any time for close
viewing of a particular scene. Only tapes recorded in
the SLP mode will show a fairly clear picture.
•Digital Auto Tracking (DTR)-Adjusts the tracking
automatically for each tape you play.
•Rental play mode- Improves playback picture
quality of worn tapes, such as rental tapes.
•Auto repeat-Allows you to repeat a tape indefinitely
without pressing the PLAY button.
•Time search- Allows you to set the TV/VCR to
advance the tape by entering the desired playback
time you want to skip.
•Three different tape speeds : SP/LP/SLP
•OTR (One Touch Recording)-Instant timed
recording from 30 to 480 minutes is possible at the
push of the REC/OTR button.
•1 Year, 8 events (including Daily and Weekly
Timer Recording) The built-in timer allows you to
record up to 8 programs at different times on different
channels up to 1 year in advance. The Daily timer
allows recordings to be made of daily broadcasts.
The Weekly timer allows recording to be made once
a week until to the end of the tape is reached.
•Auto return-After finished timer recording, the
beginning of the recorded program(s) can be
searched.
•Sleep timer-Allows you to have the TV/VCR
automatically turn off at a desired time.
•Alarm timer-Allows you to have the TV/VCR
automatically turn on at a desired time.
SUPPLIED ACCESSORIES
Remote Control Unit
PART NUMBER
(UREMT32SR018)
Dipole Antenna
PART NUMBER
(0EMN00723)
Matching Adapter
PART NUMBER
(1813641, 1780103, 1780258)
2 AA Batteries
If you need to replace these accessories, please refer to the PART NUMBER located under each illustration
and contact the Sears Parts Department to order.
- 6 - EN
6Dll
_JJ)I!,U L.it,_3J_ Ji i!,
"lhi.,, 1 V/VCR will operate wi|h ;All) cassette that has the VHS mark. For bcs! results, wc recommend the use ol
high-quality tapes. Please do NOT use poor quality or damaged tapes.
PRECA UTIONS
•Avoid moisture. Moisture condensation may occur
on the tape if it is moved from a cold place to a warm
place. When using a tape under these conditions, wait
until the tape has warmed to room temperature and
the moisture has evaporated to avoid a damage to the
tape and your TV/VCR.
• Avoid exposure to extreme heat, high humidity, and
magnetic fields.
• Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.
INSERTING ACA SSETTE
Insert the cassette in the direction as shown. Gently push
on the back center portion of the cassette continuously
until it is drawn into the TV/VCR.
The TV/VCR will automatically turn on.
CORRECT WRONG
THREE DIFFFRENT TAPE SPEI_I)S
Select the desired tape speed format before recording:
SP Mode:Standard Play
LP Mode:Long Play
SLP Mode: Super Long Play
The table below shows the maximum recording/play-
back time when using a T60, T 120, or T 160 tape in each
mode.
Tape Speed
Type of tape
SP mode
LP mode
SLP mode
Recording/Playback Time
T60 T120 T160
1hour 2 hours 2-2/3 hours
2 hours 4hours 5-1/3 hours
3hours 6 hours 8hours
REMOVING ACASSETTE
1) In the Stop mode, press EJECT button on the remote
control or press STOP/EJECT button on the
TV/VCR. The TV/VCR will eject the tape.
2) Pull the cassette out of the cassette compartment and
store in its case as shown.
ERASE PREVENTION
Breaking off the plastic tab
from the back edge of the
cassette prevents accidental
erasure of your recording.
If you decide to record on ]
the tape again, simply cover [
the hole with tape. ]
Plastic Tape
- 7 - EN
6Dll
_Jl LKAI IfN_ _ON KUL, bAJND i_ U_LliO_
- FRONT VIEW -
1 2 3 4 5 6 78 9 10 11 12 3
- REMOTE CONTROL VIEW -
15
POWER
_REWlND
RECORO
SELECT
(D
ADD/ :
DELETE !
(D--
C.RESET :
),MEMORY
C>--
5
24
23
10
11
1 AUDIO inputlack- Connects audio output jack of
your audioequipment or anotherVCR to theunit.
2 VIDEO inputjack- Connectsvideo outputjack of
your video camera or another VCR to the unit.
3RECORD indicator-Flashes during recording.
Lights up in the Stand-by mode for Timer Recording.
4POWER button-Turns TV/VCR on and off. Press
to activate the Automatic Timer Recording mode.
5STOP button Stops the tape.
EJECT button- Presswhile in the STOP modeto
remove atape from the TV/VCR.
6 REWINDbutton- Rewinds the tape. Press during the
PLAY mode to view the picture rapidly in reverse.
7PLAY button- Begins playback of a recording.
8F.FWD button-Rapidly advances the tape. Press
during the PLAY mode to view the picture rapidly in
forward.
REC button- Begins manual recording.
OTR button- Activates the One Touch Recording.
(located only on the TV/VCR unit)
VOLUME _buttons- Adjusts the volume level.
CHANNEL _buttons- Selects the channel for
viewing or recording.
PICTURE CONTROL function-Adjusts the picture
control. This function is available only from the
remote control. (See page 17)
TRACKING +/- function- Minimizes video 'noise'
(lines or dots on the screen) during the Play mode.
(See page 19)
-8- EN
6D11

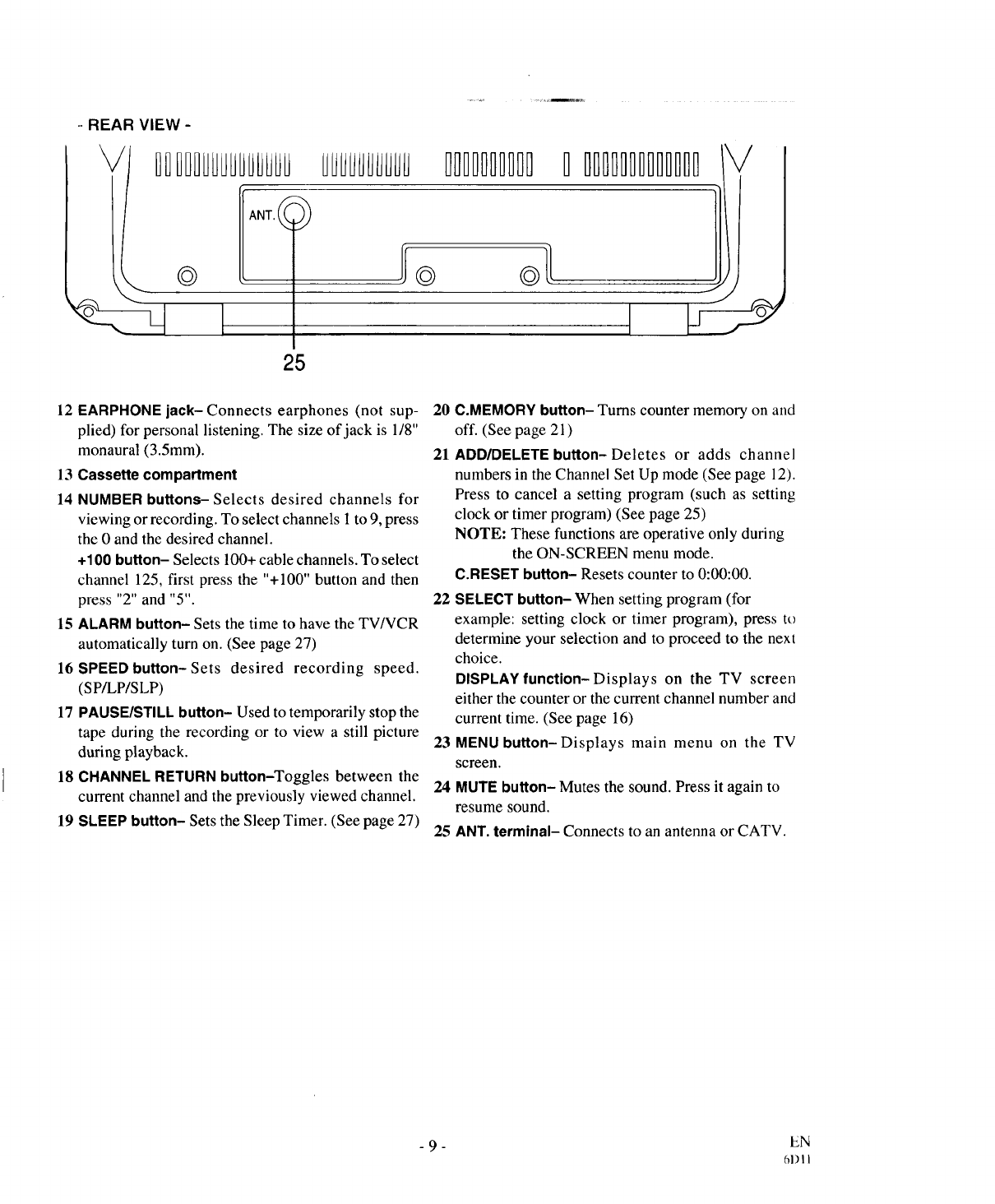

-REAR VIEW-
DIDIIUUUUUUHUUUUUUUUUIUUU
25
11111111111 IIIIIIIIIIIII
12 EARPHONE jack- Connects earphones (not sup- 20
plied) for personal listening. The size of jack is 1/8"
monaural (3.5mm). 21
13 Cassette compartment
14 NUMBER buttons- Selects desired channels for
viewing or recording. To select channels 1 to 9, press
the 0 and the desired channel.
÷100 button- Selects 100+ cable channels. To select
channel 125, first press the "+100" button and then
press "2" and "5". 22
15 ALARMbutton- Sets the time to have the TV/VCR
automatically turn on. (See page 27)
16 SPEED button- Sets desired recording speed.
(SP/LP/SLP)
17 PAUSE/STILL button- Used to temporarily stop the
tape during the recording or to view a still picture 23
during playback.
18 CHANNEL RETURN button-Toggles between the 24
current channel and the previously viewed channel.
19 SLEEP button- Sets the Sleep Timer. (See page 27) 25
C.MEMORY button- Turns counter memory on and
off. (See page 21)
ADD/DELETE button-Deletes or adds channel
numbers in the Channel Set Up mode (See page 12).
Press to cancel a setting program (such as setting
clock or timer program) (See page 25)
NOTE: These functions are operative only during
the ON-SCREEN menu mode.
C.RESET button- Resets counter to 0:00:00.
SELECT button- When setting program (for
example: setting clock or timer program), press to
determine your selection and to proceed to the next
choice.
DISPLAY function-Displays on the TV screen
either the counter or the current channel number and
current time. (See page 16)
MENU button-Displays main menu on the TV
screen.
MUTEbutton- Mutes the sound. Press it again to
resume sound.
ANT. terminal- Connects to an antenna or CATV.
- 9 - EN
61) I 1
VItI,YUttP SEPARA ii_ AA ii_A_AA5
VIII_/UttP 'COMBINIfl) A N11":NNA
q'he VHF/UHF Rod Antenna (supplied) is detachable.
Insert the stem of the antenna into the hole on the upper-
back portion of the TV/VCR.
Connect the VHF/UHF Rod Antenna or VHF/UHF
Combination Antenna to the ANT. terminal of the
TV/VCR as shown in the diagram below.
For the best reception, fully extend the VHF/UHF Rod
Anlenna and make the necessary adjustments.
(Avoid touching the top section when adjusting.)
Dipole Antenna(Supplied) VHF/UHF Antenna
NOTE :
Before plugging the Rod antenna into antenna terminal,
check that the pin is not bent. If it is bent, straighten the
pin first before plugging the cable into antenna terminal.
Bent pin
(Needs to be straightened) (Straight pin)
It is necessary in some area to use an outdoor antenna.
[VHF Antenna
=_ UHF Antenna
VHF/UHF
1__ Combiner II
I I (Notsupplied) II
_ Flat twin-lead cable
CABLE WITHOUT CONVERTER/
DE-SCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/VCR without a converter box.
By using this connection you can:
1) Use the TV/VCR remote to select channels
2) Program one or more unscrambled channels for
Automatic Timer Recording.
From Cable System
75-ohm
Coaxial Cable _t____'_
(not suppli
,I,
ANT.@
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building as close to the point of cable entry as practical.
-10- EN
6DI 1
+,ABLE WITIt
CONVERTER/DE-SCRAMBLER BOX
If your cable service supplies you with a converter box,
you can use the basic connection shown below.
By using this connection you can record and view any
channel including scrambled channels. However, chan-
nel selection must be made using the converter box. This
means that channels cannot be changed using the
TV/VCR Remote Control. Unattended recording is
limited to one channel at a time.
TO RECORD A SCRAMBLED/UNSCRAMBLED
CHANNEL
I. Set the TVNCR channel selector to the output
channel for the Cable Converter Box. (Ex. CH3)
2. Select which channel to record from your Cable
Converter Box.
Cable Box (not supplied)
From Cable System
75-ohm 4_:c:__'_
Coaxial Cable _ II
(not supplied) _ _ :[,",I:,_I I
NOTE: When using a cable converter box, you cannot
record one channel and view another.
1) Open the battery compartment cover by pressing the
cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery com-
partment in the direction indicated by the polarity
(+1-) markings and replace the cover.
When using an external input signal (another VCR or
camcorder), connect the player's audio/video output
cables to the AUDIO IN,
VIDEO IN jacks on your AUX
TV/VCR. Then, press
CHANNEL •or • button or
enter "00" so that "AUX"
screen appears.
- 11 - EN
(_Dll
When first using the TV/VCR, you may want to select
language (English or Espafiol=Spanish) and preset the
tuner to show only the channels you receive in your area.
You must use the remote control for the following
steps.
NOTE: Channel memory programming is not needed
when using a converter/de-scrambler box.
1Plug the TV/VCR power cord ;-_
into a standard AC outlet.
2Turn on the TVNCR
I I U J II II I l I I i lJ J Jll £N I[ I I J] J [
3Select "ENGLISH" or "ESPAI_iOL"
Select by using the CH • or •f -sET0p-
L
LANGUAGE
button. "[ ]" indicate the selected _NG_,SH)_S,A_O_
language. AUtOP.ESEr
4Begin auto preset -SETUP-
LANGUAGE
Press MENU button to move to t_NGE,SN_EsPA_OL
"AUTO PRESET" and press ..........
SELECT button.
The tuner scans and memorizes
all the active channels in your area.
NOTES:
• The TV/VCR distinguishes between standard TV
channels and CATV automatically.
• If you want to play or record a video tape BEFORE
presetting the tuner, you must press MENU button.
To preset the tuner again, see "AUTO PRESET
AGAIN".
5After scanning
The tuner stops at the lowest memorized channel.
(TV mode: from CH 02/CATV mode: from CH 01)
Should you want to recall the selected channels, you can
select the desired channel by using the remote control
number buttons or CH • or V.
TO RETURN TO TV MODE WHEN
SCANNING
Press MENU button in scanning mode.
Channels that you no longer receive or seldom watch
can be deleted from the memory. (Of course, you can
add the deleted channels to the memory again.)
1Select "CHANNEL SET UP"
Press MENU button to move to _M_RR.0_.A_,NG
PICTURE CONTROL
"CHANNEL SET UP" and press s.........CHANNEL SET UP
USER'S SET UP
LANGUAGE ENGLISH]
SELECT button. CART,O.co_
TIME SEARCH
2Select "ADDfDELETE CH"
Press MENU button to move to
"ADD/DELETE CH" and press
SELECT button.
II_ - CHANNEL SET UP -
"W/CA'rV [ TV ]
AUTO PRESET
ADD /OELETE CH
3Enter the desired channel number
Press CH • or • button until the ,SO_ET_C. "_
desired channel number appears. 0_ c_ )J
You can also use the number but-
tons to enter it.
4Delete (or add) it from (into) memory
Press ADD/DELETE button. The channel number
changes to light red. The channel is deleted from
memory.
• To delete another channel, repeat steps [3] and [4].
• If you press the ADD/DELETE button again, the
channel is added to memory again.
ldded channel : Light blue.
Deleted channel : Light red. L
5Exit the channel setup mode
Press MENU button to return to TV mode.
NOTE: If you wish to confirm that channel(s) has been
deleted or added, press CH • or •button.
-12- EN
6DI 1
1Select "CHANNEL SET UP"
TIMER PROGRAMMING
"CHANNEL SET UP" and press SE_,.GOL_K
CHANNEL SET UP
SELECT button, osER......
LANGUAGE ENGLISH]
CAPTION [C_PTION 1]
TIME SEARCH
2Select "TV" or "CATV"
Select [TV] or [CATV] by using
CH • or • button. AUTO PRESET dP" |_I
ADO IDELETE CH I
.J
3Begin auto preset - c ...... ET UP -
Press MENU button to move to ,v,c,_ __
AUTO PRESET
"AUTO PRESET" and press ............
SELECT button.
The tuner scans and memorizes
all the active channels in your area.
4After scanning
The tuner stops at the lowest memorized channel.
(TV mode: from CH02 /CATV mode: from CH01)
ISelect"LANGUAGE"
Press MENU button to move to "LANGUAGE".
2Select "ENGLISH" or "ESPANOL"
[lj
Select "ENGLISH" or _MERPRO_..... G
"ESPAIqOL = Spanish" using s_,,_P'C.... CLO_KCO_T"O_
CHANNEL SET UP
CH • or • button. _ os_.,ss_,_= /
LANGUAG [EP GLISH] la l
CAPTION _11_1 1
_MESEA _ _
3Exit the Language mode
Press MENU button until the TV/VCR returns to the TV
mode.
- 13 - EN
6D11
Settheclockaccuratelyforproperautomatictimer
recording.If thePublicBroadcastingStation(PBS)is
availableinyouarea,follow"AUTOCLOCK
SETTING".If it isnot,follow"MANUALCLOCK
SETTING".
A UTO CLOCK SL 171NG
You can have the TV/VCR set the clock automatically
by using the Public Broadcasting Station (PBS) channel
in your area. Once you have set the clock by using the
following procedure, the TV/VCR will automatically
monitor the correct time and date being broadcast by the
PBS station in your area, using a new service called
Extended Data Service (EDS).
Make sure ...
• Turn on the TV/VCR.
• Confirm that the antenna connections are correct.
• The cable converter box must be turned on if your
TV/VCR is connected directly to it. (See NOTES)
• You must use the remote control for the following
steps.
NOTES:
•Auto clock setting only needs to be set once, but can
be done again if the clock's time has become
incorrect for some reason.
•If the TV/VCR is connected directly to a cable
converter box, the local PBS station must be selected
on the cable box itself, and the TV/VCR must be set
to the output channel of the cable converter box
(usually channel 3 or 4), to be able to set up and
automatically correct the clock.
The TV/VCR cannot control the channels of the
cable converter box.
1Select "SETTING CLOCK"
Press MENU button to move to l" .... u
"SETTING CLOCK" and press ..............._'C'_"E_"TROL
SETTING CLOCK
SELECT button. CH".E_S_T_
USER'S SET UP
LANGUAGE ENGLISH]
CAPTION [C_PTI_N 1
TIME SEARCH
2Set "AUTO CLOCK" to [ON]
Press CH •or • button until ,_TOCLC__._.
[ON] appears. A_TOOLOC_°.lanai
MANUAL CLOCK SET
3Enterthe channel number for the PBS station
Press MENU button and use the CH • or • button until
the channel number for your local PBS station appears.
If you do not know the PBS
channel number, leave it set to
[AUTO]. The TV/VCR will
search automatically all avail-
able channels for the local PBS
station, and will select that
channel.
MANUAL CLOCK SET l
4Exit the Auto Clock Setting
Press MENU button until the TV/VCR return to the TV
mode.
5Turnoff the TV/VCR
Press POWER button to turn offthe TV/VCR for search-
ing the local PBS station. The power must remain off
during this search.
If you enter the channel number manually,
• it may take for about a few minutes for this search to
be completed.
If you choose [A UT01,
• the TV/VCR must search through all the available
channels. It must scan each channel for a couple of
minutes to determine if that channel is transmitting
the EDS signal, because the PBS station will send this
signal only once every minute. This search could take
up to 2 hours. You may want to start this channel
search at night when the unit is not in use.
• if the time that is automatically set by this selected
PBS station is incorrect, it may not be your local PBS
station, but one from a different time zone. Or there
is a case that no channel is broadcasting the EDS
signal in your area, as shown by no time being set
even after an overnight search. In these cases, you
must manually enter the correct local PBS station, or
set the clock manually, turning off the Auto Clock
Setting feature.
-14- EN
61311
Make sure ...
• The remote control needs to be used.
• Power must be turned on.
lit/he eaample below, lhe clock will be sel Io."
March 1st, 1996 at 5:40PM
1Select "SETTING CLOCK"
Press MENU button to move to
"SETTING CLOCK" and press
SELECT button. Ill=* MENU
TLMER PROGRA_MLNG
PICTURE CONTROL
SEI3"ING CLOCK
CHANNEL SET UP
USER'S SET UP
LANGUAGE ENGLISH]
CAPTION [C_PTION1 ]
TIME SEARCH
2Select "MANUAL CLOCK SET"
II_ SETTING CLOCK
Press MENU button to move to AUTOC_OC_to,_
"MANUAL CLOCK SET" and ...... OC_oNtAUTO_
press SELECT button ............ _'
3Select the month
Press CH • or • button until
your desired month appears and
press SELECT button.
EXAMPLE: 03 = March OUR MINUTE
4Select the day
Press CH • or • button until
your desired day appears and
press SELECT button.
EXAMPLE: 01 =1st
- SETTING CLOCK -
MON_H,._, YEA.
o, ._oI¢ ......
HOUR MINUTE
ii iii iii i i ii i i i
5Select the year
Press CH • or • button until
your desired year appears and
press SELECT button.
EXAMPLE: 1996
-8ETTtNG CLOCK -/
MONTH DAY _E_R•
....... -:,%.]
HOUR MINUTE /
J
Select the hour
Press CH • or • button until
your desired hour appears and
press SELECT button.
EXAMPLE: 5PM
- SETTING CLOCK -
MONTH DAY YEAR
03 01 FRI 1996
M'N2
t')l_" -'_1¢
7Select the minute _SETT,N_C_O_,-
MONTH DAY YEAR
Press CH • or • button until the o..........
desired minute appears. ,ous,,_gTE
EXAMPLE: 40 o_._o_
8Start the clock
Press MENU or SELECT button.
Although seconds are not dis-
played, they begin counting from
00 when you press MENU or SE-
LECT button. Use this feature to
synchronize the clock with the
correct time.
540PM 1
• This unit has a built-in calendar up to the year 2010.
TO CHANGE CLOCK SETI7NG
1) Follow steps [1] and [3].
2) Select where you want to change using SELECT but-
ton or ADD/DELETE button.
3) Enter correct numbers using CH • or • button.
4) Press MENU or SELECT button to start the clock.
HINT!
If there is no local PBS station in your area or on your cable system, in step2 above, select "AUTO CLOCK " and
press CH • or • button to show [OFF], then manually adjust clock.
- 15 - EN
6DI 1
rio check the CiouJltcr, Clock a_d Channel number on the TV scrcen, press SELECT button t)_ the remote control.
Each time you press SELECT button on the remote control, the TV screen will change as follows:
When the Closed Caption mode is OFF:
OFF mode Counter mode
• Counter mode: After 5 seconds, only
the counter remains. To clear it, press
SELECT button. [
• Clock mode: After 5 seconds, only the
clock and the channel number remain.
To clear them, press SELECT button.
$P COUNT 0:12:34
COUNT 0:12:34
Counter
remains
Clock mode
STOP 5:40PM
CH2
SP
_After5 seconds
5:40PM
OH2
Clock & Channel
remains
......................... .................. •
When the Closed Caption mode is ON:
•The On-Screen Display disappears after 5seconds.
• This is true even if MUTE button is pressed, or
PAUSE/STILL button is pressed while recording.
OFF mode Clock/Counter mode
SP COUNT 0:12:34
SPECIAL FEAT URES
Magnetism from nearby appliances might affect the
color of the TV picture.
If this happens, move this unit away from the appliance.
If the color is still not correct, disconnect power cord
from AC outlet and reconnect it after 30 minutes.
• When the end of a tape is reached during recording,
playback, or fast-forward, the tape will automatically
rewind to the beginning, eject tape, and turn off.
• This function is operative when Auto Repeat is set to
the [OFF] position.
• The tape will not auto-rewind during timer recording
or One Touch Recording.
• When the tape is rewound to the preset memory po-
sition of the Counter Memory during Auto Rewind,
the tape will not eject and TV/VCR will not turn off.
-16- EN
6DI1
1 Turn on the TVNCR
2Select the channel number
Press CH • or •button to select
your desired channel number.
CH 06
3Adjust sound
Press VOLUME • or • button
to adjust the volume.
VOLUME 20
lllililiilnl
This function enables you to adjust the TV screen
making it suitable to use for a TV GAME.
Make sure ...
You must use the remote control unit for the following
steps:
1Select "USER'S SET UP" I -"_N_-
TIMER PROGRAMMING
PLGTURECONTROL
Press MENU button to move to SE'_,N_0_0CN
CHANNEL SETUP
"USER'S SET UP" and press ..... 'SSE,_LANGUAGE ENGLISH l
CAPTION [C_PTION 1]
SELECT button. ' .........
2Set "GAME MODE"to [ON]
Press CH • or • button until f..... .......
EM _.1_
[ON] appears, l" _AM.ENT,_O0_._o_k-to%
REPEAT PLAY [OFF]
AUTO RETURN [OFF]
3Exit the Game mode
Press MENU button until the TV/VCR returns to the TV
mode.
TO CANCEL TIlE GAME MODE
Repeat step [1] and [2], selecting [OFF]. Press MENU
button to return to TV mode.
The TV/VCR's picture controls -BRIGHT,
CONTRAST, COLOR, TINT and SHARPNESS -
are preset to factory specifications. Although they are
usually the best, you may need to make some further
adjustments for a natural looking image.
NOTES:
• Procedures must be followed within 5 seconds or the
Picture Control mode will be cancelled.
• When setting the Picture Control, the Game mode
will automatically set to [OFF].
Make sure ...
• Use the remote control unit for the following steps:
1Select "PICTURE CONTROL"
Press MENU button to move to _" -M_No-
J
"PICTURE CONTROL" and /" _._"Oa'_',.Gp,0_0RE_T.OL
SETTING CLOCK
press SELECT button. C""NE_osE,SS_S_UPOP
LANGUAGE [ENGLISH
CAP'FION _AP'IION 1
TME SEARCH
COLOR
TINT
SHARPNESS
2Select the item you want to adjust
Press SELECT button until the desired control is
displayed. Each will appear in sequence on the TV
screen.
CONTRAST
BRIGHT
-:l ,,J _JI _J
3Adjust the picture control
Press CH • or • button to adjust to
CH •
BRIGHT to decrease
brightness
CONTRAST to decrease
contrast
to pale
to purple
to soft
COLOR
TINT
SHARPNESS
'our desired level.
CH •
to increase
brightness
to increase
contrast
to brilliant
to green
to clear
-17- EN
6Dll
You can view specially labeled (cc) TV programs,
movies, news and pre-recorded tapes with either a
dialogue caption or text display.
CAPTION mode: By choosing the caption mode, you
can watch dramas, movies and news, while caption-
ing the dialogues and the contents of news.
TEXT mode: By choosing the text mode, you can watch
full screen text information.
1/2: You may get these captions or text information by
selecting either "1" or "2". "2" is used usually for a
second language if available.
NOTE:
Not all programs are broadcast with closed captions.
Your television is designed to provide error free closed
captions from high quality antenna, cable and VCR
signals. Conversely, poor quality signals are likely to
result in caption errors or no captions at all. Common
signal conditions which may cause captions errors are
listed below:
• Automobile ignition noise.
• Electric motor brush noise.
• Weak snowy reception on TV Screen.
• Multiplex signal reception displaying picture ghosts
or airplane flutter.
• Playback of poorly recorded or worn VCR tapes.
Make sure ...
• Use the remote control unit for the following steps.
• Power must be turned on.
1Select "CAPTION"
Press MENU button to move to
"CAPTION".
-MENU- 1
TIMER PROGRAMMING
PICTURE CONTROL
SETTING CLOCK
CHANNEL SET UP
USER'S S P
L AN G UA_l- i_:i'_ L IS H]
CAPTI_ OFF
T,MEsere q
2Select your desired caption menu
Press CH • or • button until -MENU-
your desired caption menu .............. c
PICTURE CONTROL
appears. _E_,N_°LOONCHANNEL SET UP
LANGU AG _E JJG L_H]
([CAPTIONI], [CAPTION2], USER'......
CAP TIOIW*I( PTIONI] _
[TEXT1] or [TEXT2]) ....... _' •
3Exit the caption setting mode
Press MENU button until the TV/VCR returns to the TV
mode.
TO CANCEL 7'HE CLOSED CAPITON
SYSTEM
Repeat steps [1] and [2], selecting [OFF] using CH •
or • button.
If the TV/VCR displays a black box (
on the TV screen, this means that [
the TV/VCR is set to the TEXT
mode. To clear screen, select
[CAPTION1], [CAPTION2] or ,---
[OFF].
WHEN THE CLOSED CAPTION MODE
IS ON
The On Screen Display will disappear after 5 seconds.
• This is true when the MUTE button is pressed and
when PAUSE/STILL button is pressed while record-
ing.
-18- EN
6DII
_UI_NiAL i_LAil itALtk
Make sure ...
•Power is turned on.
1Insert a pre-recorded tape
if the erase-protection tab has been removed, the
TV/VCR will start playback automatically.
2IP_"
Press PLAY button.
3I _
Press STOP button when play-
back is completed.
TRACKING ADJUSTMENT
• Tracking adjustment will be set automatically (Digi-
tal Auto Tracking function) (ATR) when you start
playback.
• When playing pre-recorded tapes or tapes recorded
on units other than your own, noise lines (black and
white streaks) may appear on the screen. If this
occurs, adjust the tracking control by pressing CH •
or • button until the streaks disappear. To return to
the ATR function, stop the tape once and start play-
back again.
[ PIcTuREsEARCH
This feature is useful in finding or skipping over a
particular scene on a tape. In this mode, the sound is
muted.
1) While in the PLAY mode, you can view a video tape
at ahigh speed in either a forward or reverse direction
by pressing F.FWD or REW button.
(available in SP /LP /SLP modes)
2) Depress it again, the TV/VCR will now search in
super high speed.
(available in LP /SLP modes)
NOTE: Tapes recorded in the SP or LP mode will
display a noise bar on the TV screen and the
picture may revert to Black and White.
This is normal.
3) For normal speed, simply press PLAY button.
STILL PICTURE
You can view a still picture on the screen during play-
back (the STILL mode). Press PAUSE/STILL button
during playback. Only tapes recorded in the SLP mode
will show the least amount of lines.
Press PLAY button to return to playback.
NOTES:
• Usually there will be video "noise" lines (black and
white streaks or dots) on the screen. This is normal.
If the tape was originally recorded in SP or LP mode,
the still picture will be black and white in addition to
the "noise" lines.
This is not a fault of the machine, but merely a
by-product of the technology involved in produc-
ing a TV/VCR with LP mode.
•If it is left in the PAUSE mode for more than five
minutes, the TV/VCR will automatically switch to
the STOP mode.
I NOISE CANCEL (in the STILL mode)
This feature allows you to reposition or reduce the noise
lines of a still picture.
Press PAUSE/STILL button so that the noise lines
change position on the screen and you can see the picture
in its entirety without distracting noise lines.
NOTE: This feature can be activated ONLY when
viewing a tape recorded in the SLP mode.
- 19- EN
6DI1
Make sure ...
• Use the remote control lot the following steps.
• Power is turned on.
• Insert a pre-rccorded tape.
This function cuables you to improve the picture quality
when playing back worn cassettes such as rental tapes.
TIMER PROGRAMMING
Press MENU button to move to P,CTU,ECONTROL
SETI"IHG CLOCK
"USER'S SET UP" and press ,. _R'_N_S_+UP_R._,Up
LANGUAGE ENGLISH I
CAPTION [C_PTION1]
SELECT button. _MESE,,C.
2Set "RENTAL" to [ON]
Press MENU button to move to
"RENTAL PLAY". Press CH •
or • button until [ON] appears. II_ - USER'S SET UP -
GAME MODE _1. [OIFF] 1
RENTAL Im [ON] • II_
REPEAT PLAY 10_: F]% I
AUTO RETURN [OF_ J
-- ..... _,¢--.-o_
3Exit the Rental setting
Press MENU button until the TV/VCR returns to the TV
mode.
4Start playback
Press PLAY button to start playback. "RENTAL
PLAYI_" appears.
• The Rental mode stays in effect until it is cancelled.
TO CANCEL THE RENTAL MODE
Repeat steps [1] and [2], selecting [OFF]. Press MENU
button to return to TV mode.
The TV/VCR has an auto repeat function that allows you
to repeat a tape indefinitely without using the PLAY
button. There are two selections for Auto Repeat Play-
back.
ALL REPEAT: Repeats playback from the beginning to
the end of the tape.
BLANK REPEAT:Repeats playback from the begin-
ning to a blank part, which is blank for more than 10
seconds.
NOTE: All buttons except POWER and STOP buttons
do not work during Repeat Playback. Always
set the Repeat Playback to [OFF] when not
using this function.
1Select "USER'S SET UP"
Press MENU button to move to [.... o-
r
TIMER PROGRAMMING
"USER'S SET UP" and press S_,.G_OC_
SELECT button. °OSE.'S..........SETUP
LANGUAGE ENGLISH]
CAPTION [C_PTtON 1]
TIME SEARCH
2Select "ALL" or "BLANK"
PressMENU button to move to
"REPEAT PLAY".
Press CH • or • button until
your desired selection [ALL] or
[BLANK] appears. I o:,::::°°2:1
RENTAL _[O_F] /
3Exit the Repeat Play setting
Press MENU button until the TV/VCR returns to the TV
mode.
4Start playback
Press PLAY button to start the Repeat Play. "REPEAT
PLAY I_" appears.
• The Repeat Play mode stays in effect until it is
cancelled.
• If the Rental mode is set [ON], the "RENTAL
PLAYI_" display has priority.
TO CANCEL THE REi'EA T PIA Y MODE
Press STOP button to stop playback. And repeat steps
[1] and [2], selecting [OFF]. Press MENU button until
the TV/VCR returns to the TV mode.
- 20 - EN
6D11
Make _ure ...
•Use the remt)tc ct).t_t)l lt)_ the lolk)_xiJ_g _tcps.
• Power is turned on.
• Insert a tape.
This feature can be used to memorize the beginning
point that you want to review. You can search for it easily
by rewinding or fast forwarding.
NOTES:
• If the All Repeat or Blank Repeat is set to [ON], the
Counter Memory function does not work.
• If the counter is not displayed, the Counter
Memory will not be activated. Press C.MEMORY
button so that the counter appears on the display.
1Stop tape at desired point
Rewind or fast forward the tape to the beginning point
where you want to review. Press C.RESET button to
reset the counter to 0:00:00
2Select Counter Memory mode
Press C.MEMORY button so
that "MEMORY" appears on the
display.
3Begin recording or playback
Press RECORD or PLAY button.
Press STOP button to end recording or playback.
4To activate the Counter Memory
Press REWIND (or F.FWD) button. The tape will
automatically stop when the counter returns to 0:00:00
(approx.).
7D CANCEL 17tE COUNTER MEMORY
First press C.MEMORY to
display the counter on the
TV/VCR screen. Then, press
C.MEMORY continuously until
"COUNT" appears.
The Time Search function makes it possible to quickly
advance the tape to your desired position from any
position by entering the exact amount of playback time
of the part that you want to skip.
NOTES:
•Time Search can be set up to 9 hours 50 minutes
(9:50) in 10 minutes increments.
• This function is not operative in recording mode.
• Counter Memory function cannot be used in this
mode.
• This function only works when a cassette tape is
inserted in the TV/VCR.
In the example below: A program is viewed 2 hour 50
minutes from the present position of the tape.
1Select"TIME SEARCH"
Press MENU button to move to
"TIME SEARCH" and then
press SELECT button. -MENU-
TIMER PROGRAMMING
PICTURE CONTROL
SEI_ING CLOCK
CHANNEL SET UP
USER'S SET UP
LANGUAGE [E NGLISHI
CAPTION CAPTIONI]
TIME SEAI_CH
2Enter your desired time
Press CH •or • button until
your desired time appears.
EXAMPLE: 2:50 = 2 hrs 50 rain
ImTikql_ S_A P_H
j2 :_ 0%.
3Begin Time Search
Press REWIND or EFWD button. The tape will move
to the specified point in time.
The time counts down as the search progresses. When
0:00 is reached, the tape automatically starts playback.
1"0 CA NCEL THE TIME SEARCH
Press STOP/EJECT button on the TV/VCR or the
remote control. This will delete the selected time.
- 21 - EN
6DI1
Make sure ...
•Power is turned on.
• The erase-prevention tab is still intact on tile cassette tape.
• Rewind or fast forward the tape to the point where you want to begin recording.
You can only watch the same TV program that is being
recorded.
Press the number buttons on the
remote control or CH •or •
button to select the channel to be
recorded.
CH 10 ]
2
Press SPEED button to select the
desired tape speed (SP/LP/SLP).
3 _EC
|
Press RECORD button to begin /
recording. The REC indicator
flashes while recording, p
4
Press STOP button when recording is completed.
Press PAUSE/STILL button to (PAos_
temporarily stop recording. The l's.....
REC indicator blinks.
Press PAUSE/STILL or
RECORD button to resume
recording.
NOTES:
• To prevent tape damage, after five minutes, the
TV/VCR will automatically return to the Recording
mode.
•When in the PauselStill mode, a display showing 5
"I" marks will appear on the screen. Each "I" mark
represents one minute of Pause time. You may refer
to this display for remaining pause time available.
• If "CLOSED CAPTION [ON]" is selected from the
"CLOSED CAPTION SET UP" menu, the
On-Screen Display will appear for 5 seconds, then
disappear.
• If you want to check the remaining pause time
available using the On-Screen Display, press the
SELECT button. The On-Screen Display again will
disappear after 5 seconds.
- 22- EN
61) 11
This function enables you to set a recording length
simply by pressing RECORD/OTR button on the
TV/VCR.
Make sure...
• Power is turned on.
• The erase-prevention tab has not been removed.
NOTE: This function CANNOT be done from the
remote control.
1Select the channel to be recorded
Press number buttons on the remote control or the
CHANNEL • or • button.
2Begin OTR
Press RECORD/OTR button on (,T,_....
the TV/VCR as many times as
needed. The recording length
will be determined by the
number of times you press p
RECORD/OTR button.
Push(es)
1 push
2 pushes
3 pushes
17 pushes
18 pushes
HINTS:
Each additional push will increase the recording time by
30 minutes up to 8 hours.
Display Recording length
(normal recording)
0:30 30 minutes
1:00 60 minutes
8:00 480 minutes
(normal recording)
• Recording starts immediately when the REC/OTR
button is pressed.
• When REC/OTR button is pressed 18 times, the
TV/VCR switches back to the Normal Recording
mode.
• To stop the OTR operation, press STOP button on the
TV/VCR or on the remote control.
• To show the remaining time, press SELECT button
until "OTR" appears on the TV screen.
• Recording stops when 0:00 is reached.
• Please note that in the SLP mode maximum record-
ing time, assuming the tape is started at the begin-
ning, is 8 hours using T- 160 (or 6 hours using T- 120).
• If the tape runs out before the end time, the TV/VCR
will switch to the Stop mode immediately, eject the
tape and the TV/VCR power will turn off.
Connect your TV/VCR and a Source (Playing) VCR
using the following diagram.
Your TV/VCR
AUDIO VIDEO
o
RECORD
VIDEO
Audio/Video @ @
adapter cords OUT ,N
@
(not supplied)
J
Source (Playing) VCR
1) Insert a pre-recorded video cassette into the Source
(Playing) VCR.
2) Insert a blank video cassette, or one you want to record
over, into the TV/VCR.
3) Press SPEED button to select the desired recording
speed (SP, LP or SLP).
4) Press CHANNEL • or • button until "AUX"
appears on the screen.
5) Begin playback of the tape in the Source (Playing)
VCR.
6) Press RECORD button on the TV/VCR.
NOTE: For best results during dubbing, use the
TV/VCR's front panel controls whenever
possible. The remote control might also affect
the Source (Playing) VCR's playback
operation.
- 23 - EN
6Dll
TIMER
i
You may set the TV/VCR to record while you are away.
You can set 8 programs to record on a specific day, daily
or weekly within a 1 year period.
In the example below, the timer is set to record at:
DATE: MAY 6th, 1996
SETTING TIME: 7:30PM to 8:50PM
CHANNEL: CH61
TAPE SPEED: LP
PROGRAM # : 4
NOTE: Use the remote control for this procedure.
Make sure ...
• Be sure the clock is set to the correct time and date
before setting the timer.
Avoid over lap of programs...
There is a case that a program will not be performed.
when programs overlap;
• The program with an earlier start time has priority.
• Once the earlier program finishes, the overlapping
programs will begin recording in sequence.
• The illustration below demonstrates the sequence of
recordings.
Program 1 10:00AM- 11:00AM
Program 2 9:00AM - 10:00AM
Program 3 9:30AM - 12:00PM
Recording Sequence
Program 1 '
IO:00AM- 11:00AM_=
Program 2 I
9:00AM - 11:00AM i
II
!
Program3 ',1 '
9:30AM - 12:00PM = i
I =
9:00AM 10:00AM 11:00AM 12:00PM
*Recording period is SHADED
1Select "TIMER PROGRAMMING"
Press MENU button to move to "TIMER PROGRAM-
MING" and press SELECT button.
I_. -MENU-
• If"SETTING CLOCK" _..... o_......
PICTURE CONTROL
appears, follow page 15 to set s_........
CHANNEL SET UP
USER'S SET UP
clock and repeat from step CAPTIoNLANGUAGE[c_PTICHljENGLISH]
[31. ,....... CH
2Select the program number (1~8)
/
The remaining program numbers [P.O_NA_
do not flash. L
PressCH • or • button until the
desired number appears and
press SELECT button.
EXAMPLE: 4
J
ATE --_-- _S_!%
TARTTIME - - : ....
END TIME --
CHANNEL - -
APE SPEED - -
3Select once, every day, or weekly recording
For once recording : _..O_RA%N_"=
Press CH • button until your |°ATE_,_o_o_-
SIS _m TIME -- : ....
desired date appears and press l!,E........
SELECT button. _'N_EE° --
EXAMPLE: 05106 = May 6
For every day recording: To record a TV program at the
same time on the same channel every day.
(Example: Monday through Sunday)
Press CH • button until _P,O_RA_,,W,M_.t _ "]
"EVERY DAY" appears and IC`'E --_E]Y]A_¢
press SELECT button. :_,_E _:_-__
ITACHANNEL --
PE SPEED --
For weekly recording : To record a TV program at the
same time on the same channel every week.
(Example: Every Monday on channel 7 at 5:00PM
Press CH • button until (P,O_RAMN_ ,
"EVERY" with your desired /°"E ._E,_S,T.
€111%
day of the week appear IS'A"_T'_ .......
together and press SELECT L:T_:_'N_ _-
button. ,PESPEED--
- 24 - EN
6Dll
4Set start hour
Press CH •or • button until
your desired hour appears and
press SELECT button.
EXAMPLE: "7,PM" = 7:30PM
ROGBAM NUMBER 4
DATE 05106 MON
......ME."
IE...... /X__s_!'_
C[:2 ANNEL - -
PE SPEED --)
5Set start minute
Press CH • or • button until
your desired minute appears and
press SELECT button.
EXAMPLE: "30" for 7:30PM
PROGRAM NUMBER 4
DATE 05/06 MON
START _ME _ 30
END TIME -- :
CHANNEL - -
TAPE SPEED - -
6Set end hour
Press CH • or • button until
your desired hour appears and
press SELECT button.
EXAMPLE: "8,PM" = 8:50PM
IIS ROGRAM NUMBER 4
DATE 05/06 MON
..... E ..tV_,Y,
CHANNEL _l_ i
TAPE SPEED - - •
7Set end minute
Press CH • or • button until
your desired minute appears and
press SELECT button.
EXAMPLE: "50" =8:50PM
I'ROQRAM NUMBER 4
DATE 05106 MON
IEND"MEO*_O_
I CHANNEL -- |
TAPE SPEED --
Press CH • or • button until B....... E..... PM
END TIME :50 PM
your desired channel number ...... 2_
appears and press SELECT _.T,....... s___%
button.
EXAMPLE: CH61
9Set the tape speed
Press CH • or • button until
your desired tape speed appears.
EXAMPLE: LP
f =ROGRAM NUMBER 4
DATE 05106 MON
START TIME O7:30 PM
END TIME 08:50 PM
CHANNEL 1
_TAPESPEED i LP ul
SB%
70 Exit the program mo0e
Press SELECT button. Program 4 is now completed.
To set another program, repeat steps [1] to [10].
11 Setthe timer
Press POWER button to set automatic timer recording.
The TIMER REC indicator lights up.
• You must turn off the TV/VCR to activate automatic
timer recording.
If power is not turned off and you continue watching
TV, "TIMER REC STANDBY" will start flashing on
the TV screen 2 minutes before the programmed start
time.
TO CORRECT A PROGRAM
While setting a program; press ADD/DELETE
button to go back one step, and enter correct numbers
using CH • or • button.
After setting a program;
1) Press POWER button.
2) Repeat steps [1] - [2].
3) Press SELECT button (or press ADD/DELETE
button to go back one step) until the part you want
to correct begins flashing,then make the change.
4) Repeat steps [10] and [11].
TO CANCEL AN A UIDMA TIC TIMER
RECORDING
While setting or after setting a program;
1) press POWER button.
2) Repeat steps [ 1] ~[2] and select a program number
you want to cancel.
3) Press ADD/DELETE button.
4) Press MENU button to return to the TV mode.
While recording is in progress;
1) Press POWER button.
2) Press STOP/EJECT button on the TV/VCR.
If you press POWER button to turn off before the end
time, timer recording will continue to function.
Repeat steps [ 1] ~[2], select the program number you
want to cancel and press ADD/DELETE button.
Press MENU button to return to the TV mode.
- 25 - EN
6DII
1) Press POWER button so that the REC indicator goes
off.
2) Press MENU button on the remote control.
3) Press MENU button to point to "TIMER
PROGRAMMING".
4) Select a program number you want to check. The
details of selected program will appear on the TV
screen.
5) Press MENU button. The TV screen returns to the
TV mode.
HINTS:
•Make sure the channel you want to record is properly
set in advance.
•If you are recording using a Timer mode, you may
not operate the unit manually.
• Recording begins automatically at the Start time.
• It is not necessary to press RECORD button for timer
recording.
• The erase-prevention tab on the cassette must be in
place (or you must put tape over the hole).
• If the erasure protection tab is removed, the cassette
will be ejected when the POWER button is pressed
to off.
• If the tape runs out before the end time, the TV/VCR
will switch to the STOP mode immediately, and the
tape will be ejected.
With this feature, after timer recording is finished, the
beginning of the recorded program(s) can be searched
for automatically.
1Select "USER'S SET UP"
Press MENU button to move to
"USER'S SET UP".
I_ -MENU-
TIMER PROGRAMMING
PICTURE CONTROL
SETTING CLOCK
CHANNEL SET UP
USER'S SET UP
LANGUAGE ENGLISH]
CAPTION [C_,_TION 1]
TIME SEARCH
2Set "AUTO RETURN"to [ON]
Press MENU button to point to [ -usE,.sSETuP-
/
"AUTO RETURN". [, _....... to_F]
RENTAL [OFF]
Press CH • or •button until REP_..... _qr_
[ON] appears. , A_OR_OR."d,'_,"
3Auto Returnwill begin
When all the timer recordings are completed, the
TV/VCR will rewind to the beginning of the recorded
program(s).
NOTES:
• If you press POWER button while tape is rewinding,
the Auto Return will stop.
• The Counter Memory function cannot be used in this
mode.
- 26 - EN
6DI 1
The Sleep Timer function turns off the TV/VCR without
using the POWER button after a desired time period of
time.
Press SLEEP button on the
remote control until your desired
sleep time appears.
Each additional push will
increase the recording time by 30
minutes up to 120 minutes.
SLEEP 120 MINUTE I
1 push
2 pushes
3 pushes
4 pushes
5 pushes
6 pushes
DISPLAY
0MINUTE
30 MINUTE
60 MINUTE
90 MINUTE
120 MINUTE
0 MINUTE
SLEEP TIME
0 minute
30 minutes
60 minutes
90 minutes
120 minutes
0 minute
TO CANCEL TIlE SLEEP TIMER
Press SLEEP button until "SLEEP 0 MINUTE" appears.
The alarm function enables you to turn on the TV/VCR
without using the POWER button after a desired time
period.
1Select ALARM mode
Press ALARM button on the
remote control. _1 IIII Ji
ALARiI_I 1 2:0 0 AM
,ll'l I I _
2Select the alarm time
Press CH • or V button until
your desired time is appeared
and press SELECT button.
EXAMPLE: 7:30AM
_1 II I1
w
3Confirm the alarm time is correct.
To check alarm time,
press ALARM button. When
"ALARM OFF" appears on the
screen, repeat steps [1] and [2]. _1 II 1
ALARM=.0 7 : 3OAM 11_
4" I II _J
4Activating the alarm timer
Press ALARM button again.
"ON" appears next to the alarm
time on the screen.
The TV/VCR will turn on
automatically at the set time. ALARM 0 7:30AM I
TO (/ANCEL THE ALARM TIMER
Press ALARM button so that
"ALARM OFF"
appears on the screen.
- 27- EN
6D11
iKO _ bLi_iiOO 1 1_ tJ is Is iiib
If you have thoroughly read this instructions manual and are still having some difficulties operating your TV/VCR,
the chart below will help you to locate the problem and give you corrective measures to fix it. Find which symptom
best matches the difficulty you are experiencing and use the information in the columns on the right to remedy the
problem.
SYMPTOM
No power.
No picture and sound.
No picture or poor
picture on TV/VCR.
No sound or poor sound.
Timer recording is not
possible.
Cannot go into Record
mode.
Playback picture is
partially noisy.
Noise in picture on
playback.
No operation by infrared
Remote Control.
POSSIBLE CAUSE
•AC Power cord is not connected.
• POWER button is set to OFF.
• No channel in memory.
• Antenna is not connected.
• TV/VCR is not plugged into an
active AC outlet.
• Direction or condition of antenna is
not adequate.
•Picture control is not adequate.
• Volume control on remote control
unit or main unit is in minimum
position.
• MUTE button on the remote control
unit is in the ON position.
• The timer recording is set incorrectly.
• The timer recording is not set to ON.
• The erase-prevention tab on cassette
is missing.
• The TRACKING control is not set
correctly.
• Video heads are dirty.
• No power to TV/VCR.
• Weak batteries.
CORRECTIVE ACTION
• Connect AC power cord to AC outlet.
•Set the POWER button to ON.
•Program tuner's memory.
• Check antenna connection.
•Plug power cord into an active AC outlet.
Adjust direction or replace antenna.
• Adjust picture controls.
• Adjust volume control on remote control
unit or set.
• Press MUTE button.
• Set the timer recording correctly.
• Set the timer recording to ON.
• Place plastic tape over missing
erase-prevention tab.
• Adjust TRACKING control for better
picture.
• Head cleaning is necessary, consult the
nearest Sears Service Center.
• Make sure the AC cord is connected to
an AC outlet.
• Check the batteries in infrared Remote
Control.
- 28 - EN
6Dll
CLOSED CAPTION
PROBLEM
My TV/VCR is showing captions
that are misspelled.
My TV/VCR will not show the
text in its entirety or there is a
delay of what is being said.
My captions are scrambled with
white boxes on the TV screen.
My program guide listed a TV
show as being closed captioned
but none of the captions were
displayed.
Although the tape box says it has
closed captions, my pre-recorded
video tape does not show any
captions.
POSSIBLE REMEDY
You are watching a live broadcast and spelling errors made by the closed
captioning production company may pass through uncorrected. A
pre-recorded program will not show any misspelled words because of the
normal time available for editing the captions.
Captions that are delayed a few seconds behind the actual dialogue are
common for live broadcasts. Most captioning production companies can
display a dialogue to a maximum of 220 words per minute. If a dialogue
exceeds that rate, selective editing is used to insure that the captions remain
up-to-date with the current TV screen dialogue.
Interference caused by building, power lines, thunderstorms, etc. may
cause scrambled or incomplete captions to appear.
Broadcasters may at times use a time compression process to speed up the
actual program so that additional advertising time can be given. Since the
decoder cannot read the compressed information, captions will be lost.
The video tape was either an illegal copy or the tape duplicating company
accidentally left out the captioning signals during the copying process.
My TV screen shows a black box You are in the TEXT mode. Select CAPTION mode or CAPTION [OFF].
on certain channels.
MAINTENANCE
CABINE TCLEANING SER VICING
• Wipe the front panel and other exterior surfaces of
the TV/VCR with asoft cloth immersed in lukewarm
water and wrung dry.
• Never use a solvent or alcohol. Do not spray
insecticide liquid near the TV/VCR. Such chemicals
may cause damage and discoloration to the exposed
surfaces.
HEAD CLEANING
•Picture playback may become blurred or interrupted
while the TV program reception is clear. This does
not mean that the recorded program has been erased.
Dirt accumulated on the video heads after long
periods of tape playback, or the usage of rental or
worn tapes can cause this problem. In this case, video
head cleaning requires highly technical attention,
therefore consult the nearest Sears Authorized
Service Center. Clean heads only when problems
occur.
• Should your TV/VCR become inoperative, do not try
to correct the problem by yourself. There are no user-
serviceable parts inside. Turn off, unplug the power
cord, and take the unit to the nearest Sears Authorized
Service Center for servicing.
- 29 - EN
6DII
51q_.,Lli_ iLA i iON 5
(iI_AI:t(A L,51)i:(.It' I(.A 1IONS ELECTRICAL 5t'15C1i,1CA t 107€5
CRT :
Television system :
Closed caption system :
Video Heads :
Tape width :
Tape speed
SP :
LP :
SLP :
Tuner channel
TV VHF Low :
TV VHF High :
TV UHF :
CATV
VHF :
MID band :
SUPER band :
HYPER band :
Terminals
Antenna input :
Video input :
Audio input :
Earphone :
13 inch in-line gun,
90 ° deflection tube
NTSC-M
§15.119/FCC
Rotary two-head
1/2 inch
33.40mndsec.
16.67mm/sec.
11.12mm/sec.
#2-#6
#7-#13
#14~#69
5A
A5~A1, A~I
J~W
W+l ~W+84
VHF/UHF 75 ohms
unbalanced
RCA connector x 1
RCA connector x 1
1/8" monaural (3.5 mm)
Video input level :
Audio input level :
Video S/N ratio :
Audio S/N ratio :
0.5-2.0Vp_p
-15dBs
More than 46dB
More than 43dB
OTHER SPECIFICATIONS
Power requirement :
Power consumption :
Dimensions :
Weight :
AC 120V/60Hz
75W
H : 15-13/16" (402mm)
W : 15-3/16" (386mm)
D : 14-3/4" (375mm)
27.56 lbs (12.5 kg)
•Designs and specifications are subject to change
without notice and without our legal obligation.
- 30 - EN
6DI1
OWNER'S
MANUAL
MODEL NO.
SRV1320S
tWARRANTY I
TV/VCR COMBINATION
LIMITED WARRANTY
This product is exclusive to and is warranted solely by
Sears. For 90 days from the date of purchase, Sears will re-
pair any defect in material or workmanship in this TV/VCR
combination, free of charge. For one year from the date of
purchase, Sears will supply, at no charge, replacement for
defective parts.
This above warranty coverage applies only to TV/VCR com-
binations which are used for private household purposes.
LIMITED WARRANTY ON PICTURE TUBE
After one year from the date of purchase and up to two
years, Sears will furnish, free of charge, a replacement for
the picture tube, if defective. You pay for labor.
Warranty service is available by returning the TVNCR com-
bination to the nearest Sears Service Center/Department in
the United States. This warranty applies only while this prod-
uct is in use in the United States. For service after the war-
ranty expires, it is recommended that this product be
returned to the nearest Sears Service Center.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sold by Sears, Roebuck and Company, Dept.817WA
Hoffman Estates, IL 60179
0EMN01136
B5705UF *#r***
Printed in Malaysia
