ZHIBOTONG ELECTRONICS RP102 wifi repeater User Manual
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. wifi repeater Users Manual
Users Manual
4折页 风琴折
105G铜版纸
1
IT000728154-10000000172
A-0
2018.12.06
Repeater configuration
Use with ZBT OS router,no need to configure
Configure repeater manually
The definition of lights
Indicator light
1. Connect the reseted repeater ethernet port to ZBT router(DHCP is opened) LAN port ,
wait for about one minute
When the repeater blue and red lights flicker together, the repeater is setted ok.
2. Open computer or mobile phone wifi, connect the wifi repeater’s SSID
‘Reperter-XXXXX’(X is the last 6 digits of MAC address)
3. Open web browser，input ‘192.168.1.1’，the default pass word is
‘admin’
4. Click wifi setting’→’repeater setting’to scan wifi signals around，
Choose the SSID you want to repeat, then click ‘connect’. 5. When the green light of wifi repeater flickers rapidly,
indicates repeats SSID successfully, now the ‘Repeater-XXXXX’is signal which is forwarded.
6. If need change pass word, please login ‘192.168.1.1’
2. Disconnect network cable, and place repeater to the location wanted,
then wait for 3 minutes,the green light change to flicker rapidly from slowly.
It indicates the repeater is setted ok.
Reminder: The SSID and pass word of wifi repeater is same as the ZBT OS wifi router
Can realize the seamless roaming between repeater and ZBT OS router
Fast installation Fast installation Fast installation
Fast installation Fast installation
With the initial settings
One SSID is repeated successfully
The cable is connected to wifi repeater LAN port,
and the repeater is in repeater mode
Color
Green
Blue+Red
Green
Blue+Green
Status
Keeps on
Blue keeps on
Red flickers
Flicker rapidly
The two lights
flicker slowly
The repeater LAN port is connected with cable,
and the repeater is on AP mode
None Flicker slowly
or keeps on
Details

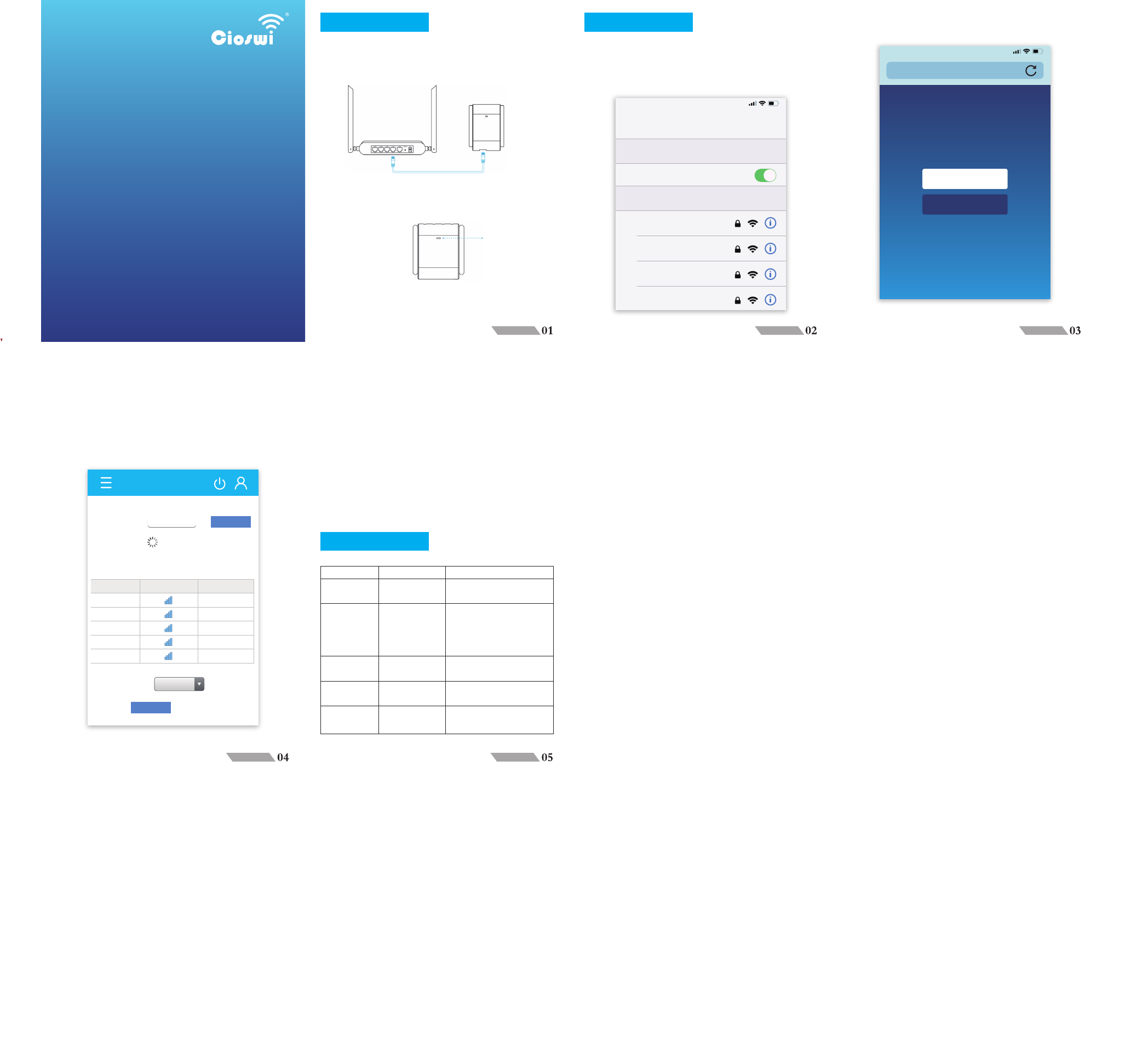

Quick installation guide
Wifi repeater
Please read this guide carefully before using
LAN4 LAN3 LAN2 LAN1 WAN Reset DC
12:08
192.168.1.1
welcome
LOGIN
12:08
Wi-Fi
Repeater-xxxxxx
Wi-Fi
选取网络...
Setting
WIFI-040564
WIFI-5G-68758A
CMCC
Smart repeater
SSID to repeat
Encription way
Waiting.....
Wifi signals:
Scan
Save
None
signal strength Operate
Connect
1. Connect the repeater to power, wait untill the green light is stable.
Connect
Connect
Connect
Connect
The repeater is successfully paired with the
gateway of the OS system.At this time, if the
network cable mode, that is, the Wireless
signal is extended through the etwork cable;
if it is to be switched to the wireless relay
mode, the network cable can be unplugged.
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum 20cm distance between the radiator your body: Use
only the supplied antenna.
