KR610D-RS User manual
1 Overview
KR61*D-RS 13.56MHZ Contactless IC card reader, is based on ISO / EM4001 international
standard protocol development of non-contact smart card serial number reader. It uses the company's own
design of high-performance RF card reader circuit design; with a high degree of integration,
anti-interference ability, small size, stable performance, cost-effective features. Can provide RS485 and
Wiegand communication interface for access control, time and attendance, fees, security, Patrol and other
radio frequency identification applications。
2. Features
The card reader is equipped with a card-reading antenna that works at 13.56MHz.
The effective distance ranges from 0 to 5cm, depending on the working environment and card type.
The data receiving time is less than 80ms within the effective distance.
The card reader adopts the single +12 VDC power supply, and the operating current is less than
100mA.
The data is output in the standard Wiegand34 bits format by default. The format can be converted
between Wiegand34 and Wiegand66.
The card reader is produced using the fully closed rubber injecting operation to achieve the
waterproof and moisture-proof effects.
The effective distance is associated with the voltage of the power supply, used IC cards, and operating
environment.
3. Wire Function Description
Red wire: VCC; +12V
Black wire: GND
Green wire: Wiegand D0
White wire: Wiegand D1
Grey wire: Green LED
Purple wire: Beeper
Yellow wire: NC
Blue wire: 485-
Orange wire :485+
![](/img.php?id=3344941&img=bg2.png)
4. Specifications
4.1 Limit Parameters
4.2 Electrical, mechanical properties (No special instructions TA=25,Vcc=12V)
project Min typical Max unit
+12V,Vcc 7 12 14 V
Working current,Ic 70 110 mA
working frequency,FRES 13.52 13.56 13.58 MHz
effective distance,D * 20 30 40 mm
Decoding time,TDEC 65 100 ms
Data0,Data1,Hold/
ata,Clock,Card,
Present,Output high
potential, VoH
2.4(IoH=80uA), 0.75Vcc(IoH=30uA)
V
0.9Vcc(IoH=12uA)
Data0,Data1,Hold/
ata,Clock,Card,
Present Output low
potential,VoL
0.5
( IoL=20mA,Vcc=5V,IoL=20mA,Vcc=3.3V)
V
R485+,R485-Input voltage
-7<Output<12 V
R485+,R485-output
voltage -7<Output<12 V
project Value unit
+12V,Vcc 12.5 V
Data0,I0/Clock,ICK 20mA
Data1,I1/Data,IC 20mA
R485- 200mA
R485+ 200mA
Hold,IH/Card
Present,ICP 25mA
antenna ,IAN 43mA
Operating
temperature ,TOPR -1070 C
Storage
temperature ,TSTR -55~+125 C
![](/img.php?id=3344941&img=bg3.png)

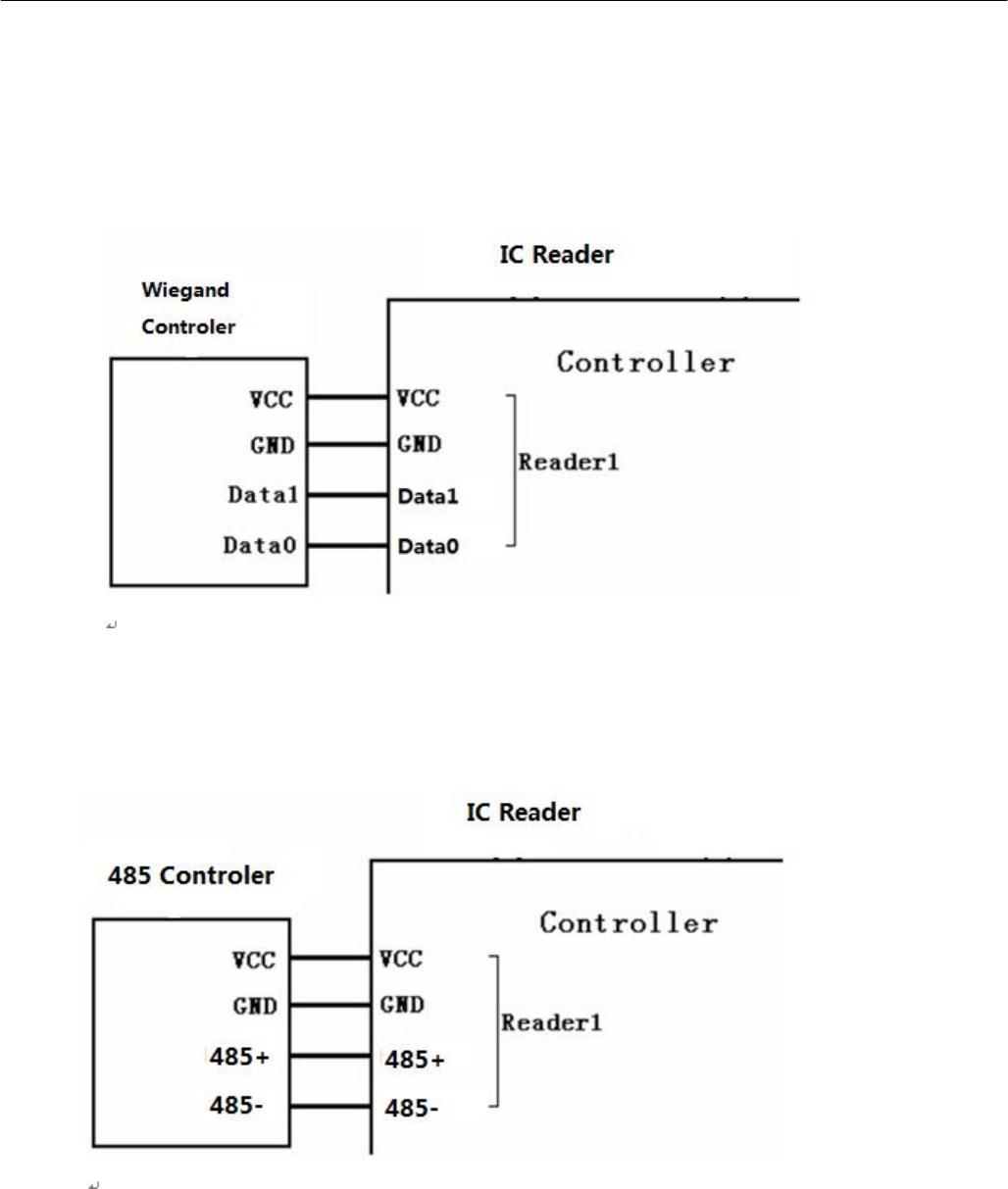

5. Connections
5.1 Wiegand Connections
5.2 485 Connections
6 Precautions
1. The operating frequency of the card reader is 13.56MHz. Therefore, interference frequency ranging
![](/img.php?id=3344941&img=bg4.png)
from 13MHz to 15MHz cannot exist on the site where the card reader is installed.
2. To prevent emission magnetic fields of card readers from affecting each other, the installation distance
between every two card readers must be greater than 10 cm.
Attachment 1
![](/img.php?id=3344941&img=bg5.png)
"Hereby, ZKTECO CO., LTD. declares that this Card Reader is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=3344941&img=bg6.png)
Manufacturer: ZKTECO CO., LTD.
Address: No.26, Pingshan 188 Industry zone, Tangxia Town, Dongguan City, Guangdong Province,
China
Importers: ZKTECO EUROPE SRL
Address: AVDA CAMINO DE LO CORTAO(DE), NUM.10, PLANTA NAV, PUERTA 1
POLIGONO INDUSTRIAL SUR- S SEBASTIAN DE LOS REYES, 28703, MADRID
