ZTE A210 LTE Digital Mobile Handset User Manual

ZTE Corporation LTE Digital Mobile Handset Users Manual

Contents

Users Manual

1
ZTE Blade A210
(BGH Joy A20)
User Manual
2
Appearance
Light/proximity
sensor
Touch screen
Earpiece
Fill light
Recent apps key
Home key
Back key
Front camera
Charging light
3
Headset jack
Microphone
Volume
buttons
Power/
Reset/
Lock button
USB port
Speaker
Flashlight
4

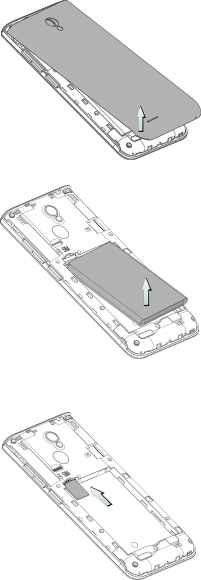

Inserting a micro-SIM card
1. Remove the back cover.
2. Remove the battery.
3. Insert a micro-SIM card into the SIM card
slot.
5
Note
Your phone supports a micro-SIM card ONLY.
Dimensions of a micro-SIM card:
12mm*15mm.

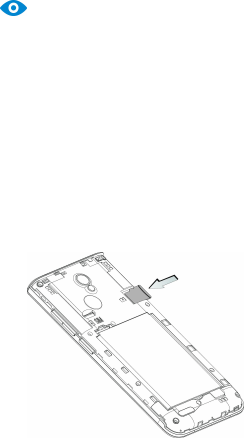

Inserting an SD card
1. Remove the back cover. Refer to step1 in
the section “Inserting a SIM card”.
2. Place your SD card on the card slot. Push
the card along the arrow direction until it
stucks tightly in the slot.
6
Charging the battery
Connect the phone to the power outlet using
the included USB cable and power adapter.
Note
Your phone and power adapter might heat up
while charging.
Use other USB cable or power adapter might
decrease the life span of your phone or cause
fire, explosion and other hazards.
7
Declaration of RoHS
compliance
We’re determined to reduce the impact we have on the
environment and take responsibility for the earth we live
on. So this document allows us to formally declare that
the ZTE Blade A210 (BGH Joy A20), manufactured by ZTE
Corporation fully complies with the European
Parliament’s RoHS (Restriction of Hazardous Substances)
Directive 2002/95/EC, with respect to all the following
substances:
(1) Lead (Pb)
(2) Mercury (Hg)
(3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyl (PBB)
(6) Polybrominated diphenyl ether (PBDE)
Our compliance is witnessed by written declaration from
our suppliers. This confirms that any potential trace
contamination levels of the substances listed above are
below the maximum level set by EU 2002/95/EC, or are
exempt due to their application.
The ZTE Blade A210 (BGH Joy A20) manufactured by ZTE
Corporation meets all the requirements of EU
2002/95/EC.
Disposal of your old phone
1. When the wheelie bin symbol is
attached to a product, it means the
product is covered by the European
Directive 2002/96/CE.
2. All electrical and electronic products
should be disposed of separately from
normal household waste via
designated collection points provided
by government or local authorities.
3. The correct disposal of electrical and electronic
products will help protect the environment and human
health.
8
Health and safety
FCC Regulations:
This mobile phone complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
This mobile phone has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
FCC Note:
Caution: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
9
RF exposure information (SAR)
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission
of the United States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure
in usage against the head with no separation, and near
the body with the separation of 10 mm. Although the
SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels so
as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a
unit of measurement is known as the Specific Absorption
Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and had been tested in
accordance with the measurement methods and
procedures specified in IEEE1528. This device has been
tested and meets the FCC RF exposure guidelines when
tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-A210.
10
For this device, the highest reported SAR value for usage
against the head is 0.336 W/kg, for usage near the body
is 0.747 W/kg.
While there may be differences between the SAR levels
of various phones and at various positions, they all meet
the government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the
human body. Carry this device at least 10 mm away from
your body to ensure RF exposure level compliant or
lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do not
contain metallic components, to maintain a separation
of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory,
which contains metal, was not tested and certified, and
use such body-worn accessory should be avoided.
Note
This device does not support V.O.I.P. function. It
means that the functions of WLAN and
Bluetooth do not have voice capability in the
held to ear mode for phone service
11
Legal notice
Copyright Statement
Copyright © 2016 by ZTE Corporation
All the copyrights of this document herein belong to
ZTE Corporation. Without the written permission of
copyright owner, no part of this publication may be
excerpted, reproduced, translated by any person or
entity in any form or by any means.
This document is subject to change without prior
notice.
ZTE Corporation keeps the right to make the final
explanation to this document.
Trademarks
Android is a trademark of Google, Inc.
All other trademarks remain the property of their
respective owners.
Statement of Third-party Applications
During the installation process of some third-party
applications, the issues of repeated restart or
abnormal use of software might be caused by
incompatibility of the third-party applications,
rather than the phone itself.
