ZTE >
USERS MANUAL
Copyright Statement
Copyright © 2010 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in
any form or by any means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print errors or update
specifications in this manual without prior notice.
Table of Contents
1. Introduction ........................................................................................................ 1
2. Precautions......................................................................................................... 1
3. Appearance......................................................................................................... 3
3.1 Introduction..................................................................................................... 3
3.2 Operation Guide of Data Cable...................................................................... 4
4. Install and Uninstall ........................................................................................... 4
4.1 System Requirements.................................................................................... 4
4.2 Installation ...................................................................................................... 5
4.3 Uninstallation.................................................................................................. 5
5. Run the Application ........................................................................................... 6
6. Open URL............................................................................................................ 8
7. Service................................................................................................................. 8
8. Voice Call............................................................................................................. 8
9. Call Log ..............................................................................................................11
10. SMS.................................................................................................................. 12
11. NetConnect ..................................................................................................... 15
12. NetConnect Log.............................................................................................. 16
13. Phonebook...................................................................................................... 17
14. Settings ........................................................................................................... 19
15. Help.................................................................................................................. 22
16. RF Exposure Information (SAR)................................................................... 23
17. Trouble-shooting............................................................................................ 25
18. FCC Regulations ............................................................................................ 27
1
1. Introduction
Thank you for choosing AC8720 CDMA2000 1X Wireless USB Modem (hereinafter
referred to as USB Modem) of ZTE Corporation.
The USB Modem equips with a standard USB interface and supports CDMA2000
1X network. In the area where there is signal, it allows you to go surf the Internet,
send & receive short messages, and make & receive phone calls.
The USB Modem adopts two designing options: R-UIM and Built-in UIM, which
make your operation more flexible.
The pictures in this guide are only used to demonstrate your USB Modem’s
functions, so they are maybe different from what you see on your USB Modem.
Please refer to your USB Modem if they are differences.
2. Precautions
● Use the original accessories or those authenticated by the manufacturer.
Using any unauthenticated accessories may affect the USB Modem’s
performance, violate the warranty provisions or relevant national regulations
about telecom terminals, or even cause body injury.
● Do not disassemble, modify, frequently pull/plug the antenna, stretch, rotate
or bend the antenna with great force.
● Before pulling out the USB Modem, please use Windows safely removing
the hardware and make sure to exit the application. Do not directly pull out
2
the terminal to avoid the damage of USB Modem or the influence on the
normal operation of operating system.
● Do not forcefully plug/pull the USB Modem to avoid the damage of
connector.
● Do not use your USB Modem near weak signal or high-precision electronic
devices. Radio wave interference may cause misoperation of electronic
devices or other problems.
● Turn off your USB Modem on airplane where it’s forbidden to use it. The
USB Modem may affect the normal operation of electronic devices,
therefore please follow the relevant regulations when using your USB
Modem on airplane.
● Turn off your USB Modem in hospital where it’s forbidden to use it. The USB
Modem may affect the normal operation of medical apparatus, therefore
please follow the relevant regulations when using your USB Modem in
hospital.
● Please do not use the USB Modem near flammable or explosive materials;
otherwise it might cause failure or fire.
● Keep your USB Modem away from water. This may cause overheating or
failure if water or any other kind of liquid enters your USB Modem. Please
do not use your USB Modem near high temperature, damp or dusty place.
● Keep your USB Modem away from children to avoid shock, plunge or
impact. It may cause body injury when the USB Modem is used as a toy.
3

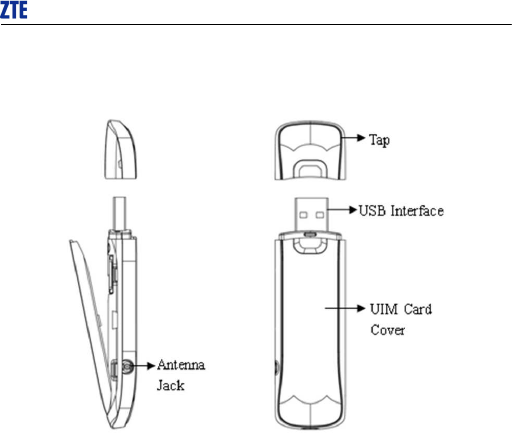

3. Appearance
3.1 Introduction
4

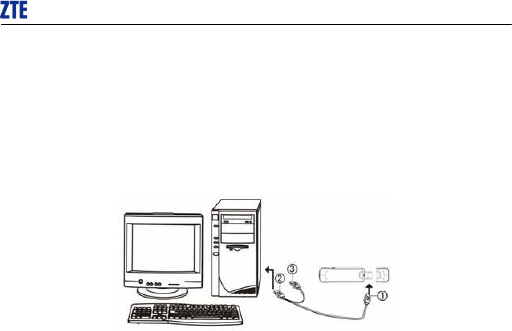

3.2 Operation Guide of Data Cable
Generally, the USB Modem could be directly connected with USB port. You could
also connect the USB Modem with PC by using the accompanying data cable, as
shown in the following figure. Connect Interface with USB Modem, and interface
with PC's USB port. If the power supply from USB port is insufficient, connect both
interface and with USB port together.
4. Install and Uninstall
4.1 System Requirements
The USB Modem supports the following operating system:
Windows 2000/XP/Vista/7
MAC
5
PC minimum configurations:
CPU Pentium-II/233MHz
USB interface
2.0 (USB1.0 and 1.1 compatible)
Optical Drive CD-ROM (for installation only)
Memory 64 MB
Disk Space 50 MB (used for installation of application)
4.2 Installation
Take Windows XP as an example.
1. Please connect USB Modem to PC through USB interface. You could also use
data cable to connect.
2. The installation will automatically start. Please follow installation wizard.
3. The system will automatically find new hardware and install the driver. Wait for
a while. Click “Finish” to complete installation.
4.3 Uninstallation
1. Select Start Programs (Appropriate Uninstall), and system will prompt you to
confirm whether you want to remove the program. Click “Yes” to uninstall.
2. Please wait and then click “OK” to complete uninstall.
6

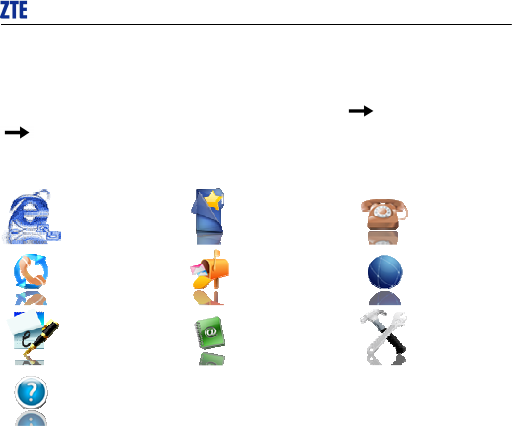

5. Run the Application
After the application is installed successfully, the application icon will appear on
your desktop. Double-click this icon or select from Start Programs
(Appropriate Application). Run the application to display the user interface.
The icons on the interface are used to access the function, which indicate as
below:
Open URL
Service
Voice Call
Call Log
SMS
NetConnect
NetConnect
Log
Phonebook
Settings
Help
7

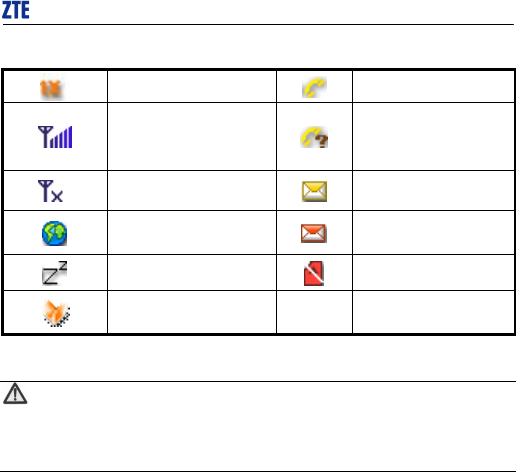

Status Bar:
1X indication Call indication
Signal strength
indication, the more
bars there are, the
stronger the signal is
Missed call indication
CDMA network
unavailable Unread message
indication
Connection indication Inbox full indication
Sleep indication No R-UIM card
inserted indication
Roaming indication
Note:
Some features like Voice Call, Call Log, SMS, and Phonebook may not be
supported by your USB Modem; the corresponding icons will not appear in
the main window.
8
6. Open URL
Click button to directly connect the URL you set in “Settings”. For details
on the URL settings, please refer to Chapter “Settings”.
7. Service
Click icon to enter the value-added services such as Google searching.
8. Voice Call
(If this feature is not supported by your USB Modem, please skip over this
chapter.)
Click to enter Voice Call interface.
Make a call
Click the digits in the right side of the interface, or input the digits directly from
keyboard. Press button or press “Backspace” to delete the previous input
9
digit; press button or press “Esc” to clear all the inputs.
Click button in the right side of the interface or press “Enter” to make a call.
Receive a call
When there is an incoming call, your computer will alert and the incoming caller ID
will appear on the interface.
Click button in the right side of the interface or press “Enter” to receive the
call.
Click button or press “Esc” to reject the call.
Redial the latest outgoing call
Click button in the right side of the interface.
Call Waiting
During a call, you could select to answer the second incoming call, and then you
could switch between the two incoming calls.
Please firstly apply for this service from your local telecom operator.
During a call, if there is a new incoming call, a pop-up window will prompt you that
you have the second incoming call.
10
If you select to answer, please click “Accept waiting call” button. The previous call
won’t be ended, but temporarily paused.
You could switch between two incoming calls by clicking “Switch call”.
Three-way Call
This function allows for the call among three parties. Please firstly apply for this
service from your local telecom operator. You need set “Show 3 way call button
during calling”. Please perform the setting according to “Settings”.
You could click “Dial second call” button during a call, input the third-party number
in the pop-up window, and then press “OK” button to call the third party. In this
case, the original call won’t be ended, but temporarily paused.
If the third party answers the call, click “Start conference” to enter the conference
call.
During three-way conference call, click “Hangup second call” button to end the
conference call, and return to the original call.
11

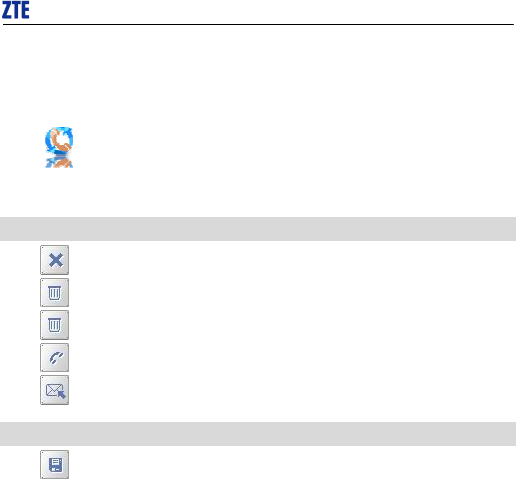

9. Call Log
(If this feature is not supported by your USB Modem, please skip over this
chapter.)
Click icon to view the Call Log. The outgoing/incoming calls are saved in
Call Log, including missed calls, incoming calls, outgoing calls, and talk duration.
You could select the type you want to view.
Missed/Accepted/Called Calls
Click button to delete your selected record.
Click button to delete all records in Missed/ Accepted/Called catalog.
Click button to dial the number.
Click button to send a short message to this number.
Click button to save this number to the phonebook.
Statistic
Click button to clear the talk duration.
12
10. SMS
(If this feature is not supported by your USB Modem, please skip over this
chapter.)
Click icon to enter SMS interface.
Send a Message
1. Input the text and the recipient’s number.
2. Input the recipient’s number or click button to select the recipient from
phonebook.
3. Add more recipients if you like.
4. Click button to send a message.
5. Click button to save the text into Draftbox.
The received messages will be saved in the USB Modem In-box.
You could copy the messages from the USB Modem In-box to PC In-box by
selecting Copy or Copy All; you could also copy the messages from PC In-box to
the USB Modem In-box by selecting Copy.
13
Take USB Modem In-box as an example:
Reply
Click to reply to the sender.
Forward
Click to forward this message to other recipients.
Dial Sender’s Number
Click to dial the sender’s phone number.
Save Sender’s Number
Click to save the sender’s number into phonebook.
Delete
Click to delete your selected records.
Clear
Click to delete all the records in the inbox.
14
Copy
Click to copy your selected record into PC.
Copy All
Click to copy all the records from the USB Modem to PC.
15

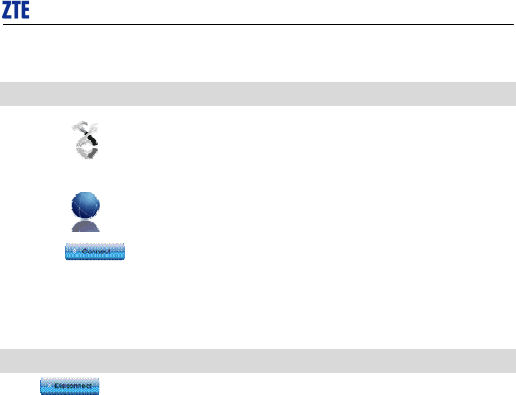

11. NetConnect
Connect

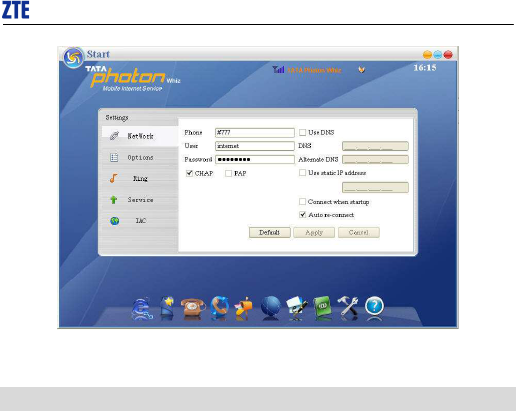

1. Click icon to set the relevant parameters. For details, please refer to
“Settings”.
2. Click to enter the interface.
3. Click .
4. After connecting to Internet, the LED on the interface turns green. Under
Connected status, move the cursor to the LED to display the network flow
information.
Disconnect
Click to disconnect from Internet.
Under this status, the LED on the interface turns red.
16
12. NetConnect Log
Click icon to view NetConnect Log. Connection records save the previous
relevant information including Start at, Duration and Transmit bytes, which will help
you to know the status easily.
By switching among “List”, “Month” and “Statistic”, you could inquire the records
every time, by month or by time.
Note:
The relevant information contained in connection records are just for user’s
reference rather than the charging basis.
Delete Connection Records
Click button to delete the records you have selected on the interface.
Clear Connection Records
Click button to delete all the records.
17
13. Phonebook
(If this feature is not supported by your USB Modem, please skip over this
chapter.)
Click to view the Phonebook. You could select to save the contacts in the
PC, Normal (USB Modem), R-UIM card and Emergent.
Take “Save the call history in PC” for example in the following:
Add
Click then input the contents and select “OK” to add a new contact.
Edit
Click then edit the contents and select “OK” to edit the contact information.
Search for contacts
Click to search for the contacts by name or number.
Delete
Click to delete your selected contact.
18
Delete All
Click to delete all the contacts.
Send messages from the Phonebook
Click to compose the text. You could send the message to multiple
recipients.
Dial from the Phonebook
Click to dial your selected phone number.
Copy
Click to copy your selected contacts to other storage location.
Copy All
Click to copy all contacts to other storage location.
Import the phonebook
Click to import the phonebook (*.txt format) in PC to the terminal.
19
Export the phonebook
Click to export the phonebook (*.txt format) in the terminal to PC.
14. Settings
Click to enter the settings interface.
Network Connection Settings
Set the network parameters (phone number, username, password), work mode,
etc.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Note: The default network setup parameters are as below. Different regions may
have different network setup parameters, so please consult your local telecom
operator.
Phone: #777
User: internet
Password: internet
20
If your USB Modem does not support some following functions, please
neglect relevant description.
Other Settings
Click “Options” to switch the interface, and you could set URL and language, etc. If
you want to use conference call, please select “Show 3 way call button during
calling”;
After the setting, click “Apply” button to save the settings on the current interface.
21
Click “Change Password” button to set lock device. The password is required when
you start the application. The setting has nothing to do with “Default” button.
Click the button “Enable Pin”. PIN code is needed when the application is started.
The setting has nothing to do with “Default” button.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Select ring tone
After clicking “Ring”, you could set different ring tones for Unconditional forwarding,
No answer forwarding, Busy forwarding and Call waiting.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Supplementary Services
After clicking “Service”, you could set “Busy Forwarding”, “No answer forwarding”,
“Unconditional forwarding”, “Call waiting”, etc. Double-click the selected option to
modify the service number and forwarding number.
After the setting, click “call” button to send the corresponding request to the
network system.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
22
15. Help
Click button to view the help file.
Click “Help” button to view the relevant help file; click “Help Online and Technical
Support” to enter our company’s website.
You could view the software version information under “About”.
23
16. RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the
FCC with the device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the
maximum value. This is because the device is designed to operate at multiple
power levels so as to use only the poser required to reach the network. In general,
the closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for body,
as described in this user guide, is 0.896 W/kg for CDMA2000 Cellular band body
SAR with expanded uncertainty 21.9%.
While there may be differences between the SAR levels of various phones and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
24
SAR information on this device is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
Q78-AC8730.
For body operation, this device has been tested and meets the FCC RF exposure
guidelines for use the positions the device a minimum of 0.5cm from the body. Use
of other enhancements may not ensure compliance with FCC RF exposure
guidelines.
25
17. Trouble-shooting
Failures Causes Solutions
Error occurs during
the program
installation. The setup file may be damaged. Please download the program
at website WWW.ZTEMT.COM
and reinstall it.
Directly run the software before
the USB Modem is plugged in. Close the software, plug in the
USB Modem and run it again.
Open port failed. The port is occupied by other
applications, such as “Hyper
terminal”, or the software is
already running.
Close relevant software and
run the software again.
No signal indicated. Out of the network service area. Make sure it is in the CDMA
network service area.
Wrong setting of parameters.
(Phone, User, Password.)
Correct the parameter settings.
Consult your service provider
for details.
Dialing failed
Network congestion or failure. Try again later.
Internet connection
failure. The USB Modem is already
connected. Disconnect and Reconnect.
The program has already been
installed in current system.
Firstly remove the
original program
and insert the
modem again.
The installation
program can't auto
run. (If the USB
Modem supports
auto setup function.)
Autorun function in CD-ROM is
disabled because of installation
of anti-virus software in the
system, or Windows Vista
system itself disables Autorun
function by CD-ROM by default.
Open “My Computer” to enter
CD-ROM disk icon, and
double-click Setup.exe to
install manually.
26
Failures Causes Solutions
CD-ROM icon will automatically
disappear once the program is
installed successfully.
This is normal. If you want to
display CD-ROM disk icon, you
could firstly remove the
program and then insert the
modem again.
No CD-ROM disk
icon in “My
Computer”. The program is not yet installed,
and no other previous version
was installed in the system.
Please restart your computer.
Please contact your local
operator or product technical
support center if CD-ROM disk
icon doesn't appear after your
computer is restarted.
The driver might be
unable to work and
the application is
unable to run
normally if the
modem is pulled out
and plugged in again
when the application
is being used under
Win2000 operating
system (SP4).In this
case, the device in
device manager will
be marked with
yellow exclamation
mark, and the system
must be restarted to
run normally.
The operating system needs
installing Update Roll 1 patch for
Win2K SP4.
Please download the patch
from the following web site and
install it.
http://www.microsoft.com/down
loads/details.aspx?familyid=B5
4730CF-8850-4531-B52B-BF2
8B324C662&displaylang=en
27
18. FCC Regulations
● This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
● This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
