ZTE F870E GPRS/GSM Mobile Handset User Manual F870E
ZTE Corporation GPRS/GSM Mobile Handset F870E
ZTE >
User Manual 1120
F870E
User Manual
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2008 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time : 20091030
Manual No. :
Contents
Confidential and Proprietary Information of ZTE CORPORATION 1
C h a p t e r 1
For Your Safety
General Care
Your handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with
care and give particular attention to the following points:
• Do not allow the handset, battery or accessories to come into contact with liquids or moisture at any time.
Do not immerse the handset in any liquid.
• Do not place the handset alongside computer disks, credit cards, travel cards and other magnetic media.
The information contained on disks or cards may be affected by the handset.
• Do not paint the handset.
• Do not leave the handset or the battery in places where the temperature could exceed 60°C, e.g. on a car
dashboard or a windowsill, behind glass in direct sunlight, etc.
• Do not remove the handset‟s battery while the handset is switched on.
• Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery
terminals.
• Do not dispose of battery in a fire. The handset‟s Li-ION batteries may be safely disposed of at a Li-ION
recycling point. Follow local requirements for recycling.
• Do not put the handset‟s battery in your mouth, as battery electrolytes may be poisonous if swallowed.
• Do not attempt to dismantle the handset or any of its accessories.
• Do not put a battery into a microwave oven, dryer, or high-pressure container.
• Do not contact battery directly to an electric outlet or cigarette lighter charger. Use only approved
charger units.
• Do not pierce battery with a sharp object such as a needle.
• Do not disassemble or modify the battery.
• Do not use a damaged or deformed battery.
• Do not drop, throw, or subject the handset to rough treatment.
• Do not solder the battery directly.
• Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal condition is
detected during use, charge, or storage.
• Remove the battery whose life cycle has expired from equipment immediately.
• This equipment is fitted with an internal battery. Take it to a qualified service engineer when the
replacement of the battery is required.
• The earpiece may become warm during normal use. Also, the handset itself may become warm while the
battery is being charged.
• When a handset is in vibration mode, the vibration can sometimes cause the handset to move.
• Be careful not to place the handset near heat sources (such as a heater) or too close to the edge of the
table.
• Power off your phone before you clean it. Use a damp or anti-static cloth to clean the handset. Do not
use an ordinary dry cloth or electrostatic cloth. Do not use chemical or abrasive cleaners as these could
damage the casing.
F870E User Manual
2 Confidential and Proprietary Information of ZTE CORPORATION
• Remember to make backup copies of all important data on your handset.
• Remember to recycle: the cardboard packing supplied with this handset is ideal for recycling.
Warning:
In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes
or skin. If the leakage does come into contact with the eyes or skin, please flush thoroughly in clean
water and consult with a doctor.
Aircraft Safety
• Power off your phone before the airplane takes off. In order to protect airplane‟s communication system
from interference, it is prohibited to use mobile phone in flight. If you want to use mobile phone before
the airplane takes off, you should get aircrew‟s permission according to safety regulations.
• If the mobile phone has the function of automatic timing power-on, please check your alarm setting to
ensure that your phone will not be automatically powered on during the flight.
Hospital Safety
• Power off your phone and remove the battery in areas where the use of handsets is prohibited.
• Follow the instructions given by the respective medical facility regarding the use of handsets on their
premises.
General Guidelines
• In some countries, national law prohibits private copying of copyrighted material. Please check the
national legislation of the applicable country concerning the use of such material.
• Many jurisdictions have laws and regulations about taking pictures in public or private areas and
regarding the processing and further use of such pictures. The manufacturer encourages its customers to
obey all laws and to respect the personal rights of others.
• Please check roaming agreement availability with your service provider.
• The use of mobile phones is not allowed in some radiation sensitive areas, such as hospitals, research
centers and airplanes. The user is responsible to power-off the device. If there is any uncertainty, you
should remove the battery from the handset.
• Observe any signs that indicate powering off handsets, such as those near gas stations, or explosives, and
power off the handset/device immediately.
• If you have a heart condition, be careful with the settings of call vibration or tone volume.
• Do not allow children to play with the handset, charger or batteries.
• Do not use the handset where blasting is in progress.
• Do not try to make a call or conversation while the temperature of charging battery is above 50°C.
• Take care not to put your handset in the back pocket of your trousers or skirt and then sit on it. Also, do
not put your phone at the bottom of bag where it may subject to excessive weight or pressure. Doing so
may damage the LCD and camera lens and cause them malfunction.
• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected
if a handset is used next to them. Observe any caution signs and the manufacturer‟s recommendations.
• Do not leave the handset discharged or without a battery for a long time, otherwise some data may be
erased.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 3
• Your phone contains metal, which may cause you an itch, a rash or eczema depending on your physical
condition.
Road Safety
• You must exercise proper control of your vehicle at all times. Give your full attention to driving.
• Observe all of the recommendations contained in your local traffic safety documentation.
• Pull off the road and park before making or answering a call, if driving conditions require so. Check if
local laws and/or regulations restrict the use of handsets while driving.
• You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an
emergency.
• Power off your handset at a refueling point, such as a gas station, even if you are not refueling your own
car.
• Do not store or carry flammable or explosive materials in the same compartment as the handset.
• Electronic systems in vehicle, such as anti-lock brakes, speed control and fuel injection systems are not
normally affected by radio transmissions. The manufacturer of such equipment can advise if it is
adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio
transmissions, consult your dealer and do not power on the handset until it has been checked by a
qualified technician.
Vehicles Equipped with an Airbag
An airbag inflates with great force. Do not place objects, including either installed or portable wireless
equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment
is improperly installed and the airbag inflates, serious injury could result.
Third Party Equipment
The use of third party equipment or accessories, not made or authorized by ZTE, may invalidate the
warranty of your handset and also adversely affect the phone‟s safety/operation.
Radio Frequency (RF) Energy
Your handset is a low-power radio transmitter and receiver. When powered on, it intermittently receives
and transmits radio frequency (RF) energy (radio waves). The transmit power level is optimized for the
best performance, and automatically reduces in the areas with better reception.
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information:
• The handset is designed to comply with safely, requirements for exposure to radio waves. This
requirement is based on scientific guidelines that include safety margins designed to assure the safety of
all persons, regardless of age and health.
• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption
Rate, or SAR. Tests for SAR are conducted using a standardized method with the phone transmitting at
its highest certified power level in all used frequency bands.
• While there may be differences between the SAR levels of various ZTE phone models, they are all
designed to meet the relevant guidelines for exposure to radio waves.
F870E User Manual
4 Confidential and Proprietary Information of ZTE CORPORATION
• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection
(ICNIRP), is 2.0 W/kg averaged over ten (10) grams of tissue.
• The highest SAR value for this model phone tested for use at the ear is W/kg (10g).
Emergency Services
To make an emergency call in any country:
1. Ensure that your handset is on and in service.
2. Press End Key as many times as needed to clear the display and ready the device for calls.
3. Enter the official emergency number for your present location, for example, 112 (the international
emergency number).
4. Press Send Key to dial the number. Follow instructions received and do not end the call until told to do
so.
When the (U)SIM card is not inserted, tap SOS and then enter the official emergency number for your
present location. Press Send Key or tap to dial the number. Or you can tap to power on the phone,
and then make the emergency call like any other ordinary call.
Notes:
• Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coastguard or
Mountain Rescue Service. Tell them where you are and remain stationary to maintain contact if
possible.
• Due to the nature of the cellular system, the connection of emergency calls cannot be guaranteed.
You should never rely solely on any wireless device for essential communications like medical
emergencies.
Information on Privacy
Camera usage and photo/audio/video recordings carried out with the handset can offend the
confidentiality of the subjects. The user therefore is held to respect legislation in confidentiality matter
and remains the only responsible subject in case of eventual violations of the enforced norm.
Copyright Notice
The video/audio recordings you make/download are protected by copyright laws. They are for personal
use only and must not be otherwise used without the permission of the copyright owner.
Confidential and Proprietary Information of ZTE CORPORATION 5
C h a p t e r 2
Getting Started
Overview
Thank you for purchasing F870E GSM/GPRS Mobile Phone.
You F870E mobile phone operates in Global System for Mobile Communications (GSM) or 2G, and
General Packet Radio Service (GPRS) or 2.5G networks and achieves seamless handover between these
networks. Empowered by the modern technology, F870E helps you realize high speed connectivity on the
go. In addition, the touchscreen design and accelerometer make F870E a phone easy to maneuver and
ideal for enjoying multimedia entertainment.

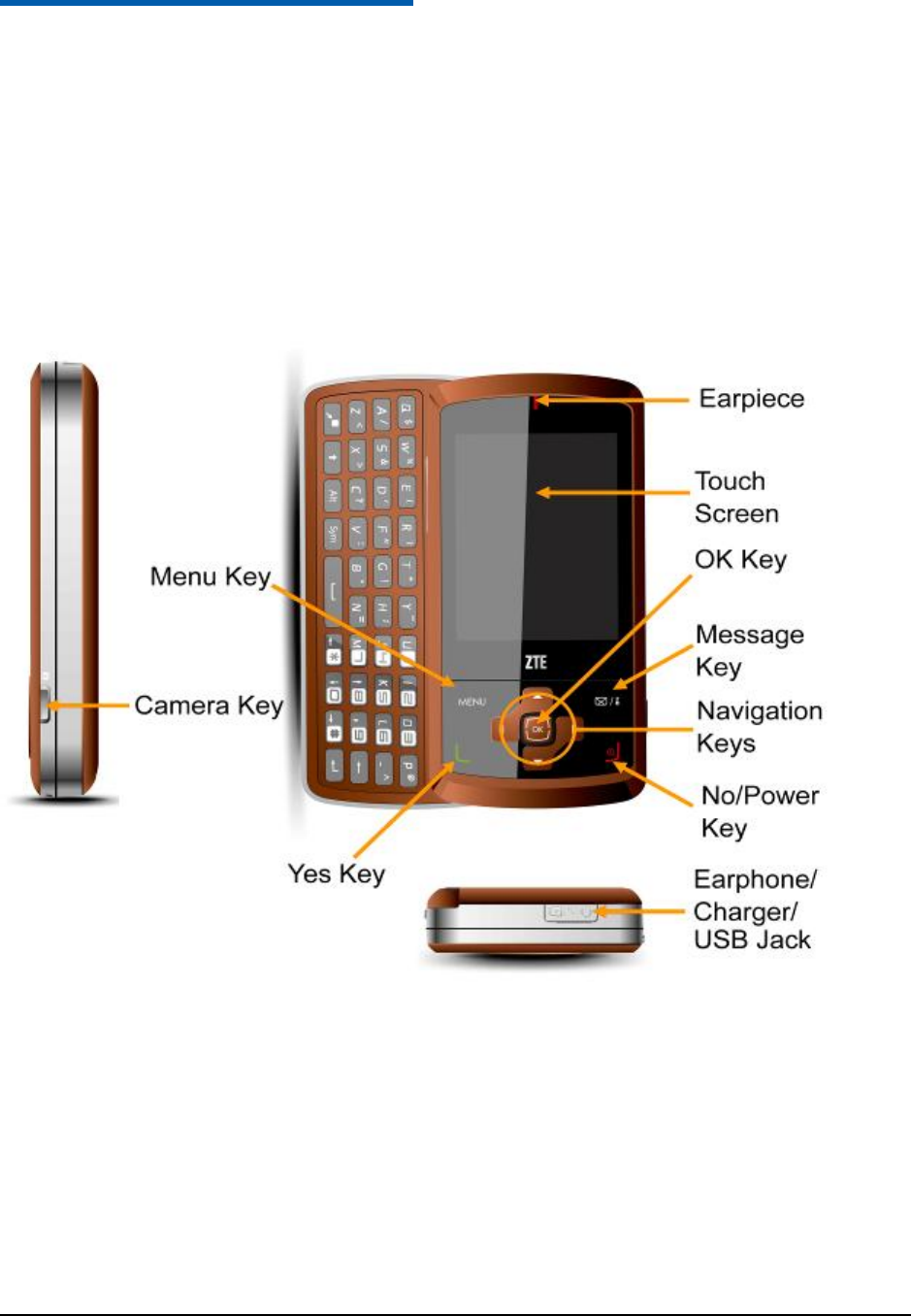

Front View
Back View
F870E User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
Key Definition
Menu Key
• Shortcut to the main menu.
• Hold to lock the screen.
Message Key
• Shortcut to SMS in idle mode.
Yes Key
• Press to make or answer calls.
• In idle mode: Press to enter dial interface.
No/Power Key
• Press to end a call.
• Press to reject an incoming call.
• Hold to turn the phone on/off.
• Press to return to idle mode.
Navigation Keys
Up Key
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
• Scroll up.
• Shortcut to Messenger in idle mode.
Down Key
• Scroll down.
• Shortcut to All contacts in idle mode.
Left Key
• Roll the cursor left.
• Shortcut to Vodafone MTV Music website.
Right Key
• Roll the cursor right.
• Shortcut to Vodafone Pass MTV website.
OK Key — Confirm selections.
Volume Keys
• Adjust the earpiece volume during a call.
• Adjust the volume when playing audio or video.
• Mute the ringtone.
Camera Key
• Take photos and videos.
• Hold to activate the camera and take a photo in idle mode.
Starting Up
Installing the (U)SIM Card
You can obtain a (U)SIM card from a mobile communication service provider when you sign on as a
subscriber.
1. Press and hold End Key to power off the phone.
2. Remove the back cover of the phone.
i. User one fingernail to hook the bottom right corner of the back cover, as shown in the following
picture.
F870E User Manual
8 Confidential and Proprietary Information of ZTE CORPORATION
ii. Lift the cover up, from the bottom of the phone to the top.
3. Remove the battery. See Getting Started-Starting Up-Removing the battery.
4. Insert the (U)SIM card into the card holder with its metal contacts facing the phone, as shown in the
following picture.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9
Notes:
A (U)SIM card can be easily damaged if its metal contacts become scratched. Therefore, take
special care when holding or inserting it.
Disconnect the charger and other accessories from the phone before inserting or removing the
(U)SIM card.
When inserting the (U)SIM card, make sure that the metal contacts face to the phone and the
cut corner is at the top left, as shown on your phone.
Inserting the Memory Card
The memory card gives your phone a larger memory capacity. You can save more multimedia files and
use it to store any other files.
Notes:
Your phone can support a memory card with capacity up to 8GB.
1. Power off the phone and remove its back cover and battery. See Getting Started-Starting Up-Installing
the (U)SIM card.
2. Hold the memory card by the edges and carefully insert it into the memory card slot with the cut edge
oriented as shown in the picture.
F870E User Manual
10 Confidential and Proprietary Information of ZTE CORPORATION
3. Push the card until it clicks into position.
Installing the Battery
The in-box lithium ion battery can be immediately used after unpacking. A new battery will have the best
performance after 3 full charge/discharge cycles.
1. Power off the phone and remove the back cover. See Getting Started-Starting Up-Installing the (U)SIM
card.
2. Insert the battery with the contacts located against the gold springs.
3. Push down the battery until it clicks into place.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
Notes:
The phone automatically switches off if the battery voltage is too low.
When not using the battery for a long period, remove it from the phone and store it in a cool dry
place.
Removing the Battery
1. Make sure the phone is powered off.
2. Use a fingernail to hook the edge of the battery, as shown in the picture.
3. Lift the battery up to remove it.
F870E User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION
Charging the Battery
Your phone is powered by a rechargeable battery. The battery is not fully charged when unpacked, but
there may be enough power to power your phone on. Please use up the power completely before
recharging the battery for the first time.
1. Insert the charger's USB adapter into the USB jack of the phone. See the following picture.
2. Connect the charger to a standard AC wall outlet.
3. Remove the charger from both the wall outlet and the phone once the charging is completed.
Caution:
Charging is only possible within the temperature range of 0℃ to 45℃.
It takes 2~3 hours to fully charge the battery.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 13
Removing the (U)SIM Card
1. Press and hold End Key to power off the phone.
2. Remove the back cover and the battery. See Getting Started-Starting Up-Installing the (U)SIM card.
3. Slide the (U)SIM card out of the card holder, as shown in the following picture.
Removing the Memory Card
1. Make sure the phone is powered off and remove the back cover and the battery.
2. Push the card, as shown in the following picture, so it clicks out.
F870E User Manual
14 Confidential and Proprietary Information of ZTE CORPORATION
3. Slide down gently and remove the card from the slot.
Accessing the Memory Card on the Phone
1. Press Menu Key in standby mode to open the main menu.
2. Tap File manager.
3. From the File manager interface, tap the left drop-down menu and select Tflash card to access the
contents on your memory card.
Standby Mode
When the phone is ready for use after starting up and you have not pressed any button or tapped the screen,
the phone is in standby mode.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 15
1. Indicators and icons
2. Desktop with customizable wallpaper
3. Tab for widgets
4. shortcut icons to All contacts, designated music/tv websites and SMS
Click on the icon to open/close the widget tab. By default, there are 6 widgets on the tab.
• Audio player
• FM radio
• Clock and alarm
• Network status
• Photo player
• Calendar
You can drag and drop these widgets from the tab to any place on the desktop or drag them back to the tab.
Tapping on the widgets you have drop to the desktop will open more options.
For example, you can drag and drop the Clock and alarm widget to the desktop. Tapping on the widget
will show the alarm in effect, as shown in the following picture:
F870E User Manual
16 Confidential and Proprietary Information of ZTE CORPORATION
Indicators and Icons
Signal strength
Low battery
Remaining battery power
EDGE network
2G network
3G network
Missed video call
Missed voice call
Call divert active
Data communication in progress
Data communication available
New voice message
New SMS
New MMS
New Wap Push message
New E-mail
Sending message
Send E-mail
Message inbox full
E-mail inbox full
Downloading backstage
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 17
Meeting mode
Silent mode
Airplane mode
Vibration
Bluetooth active
Bluetooth headset connected
Alarm set
Earphone inserted
Secured webpage
Confidential and Proprietary Information of ZTE CORPORATION 18
C h a p t e r 3
Basic Operations
Navigating the Menus
The various functions of the phone can be accessed through menus and submenus. You can navigate the
menus by tapping on the touch screen or by using the hardware keys.
1. From the standby mode, press Menu Key to open the main menu.
The main menu is divided into four screens, with 9 items in each screen. To switch between each screen,
you can
Tap on one of the four dots below the menu icons.
Flick right or left.
2. Tap on an item, or select the item with the Navigation Keys and then confirm by pressing OK Key to
launch the application or enter into its submenu.
3. In the submenu, go on to tap, flick or drag on the touch screen, or use Navigation Keys to select and
OK Key to confirm.
For example:
1. Press Menu Key to open the main menu in idle mode.
2. Tap Settings.
3. Tap Profiles.
4. Tap Outdoor to change the current profile.
You can also change the profile by using the keypad only:
1. Press Menu Key to open the main menu in idle mode.
2. Use Up/Down Key and Left/Right Key to select Settings.
3. Press OK Key to enter the settings menu.
4. Use Right Key to switch to Profiles tab.
5. Press Down Key to select Outdoor.
6. Press OK Key to change the profile.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 19
Notes:
In this user manual, the steps needed to reach a certain menu or interface are shown in a condensed
form, for example:
Settings > Profiles > Outdoor.
Multitasking
Like a computer, your F870E is capable of handling several applications simultaneously.
When in an application, you can press Menu Key to return to the main menu or the most recent submenu
you accessed. Then you can go to whichever menu you need to launch new applications or just return to
standby mode. The old application would still be running backstage.
To reopen the application, or switch from one application to another, tap to open the list of all running
applications (as shown above) and select the one you need by tapping on it. Tap to cancel and return to
the current interface.
Notes:
Notifications, such as new messages and E-mails, will also be displayed when you tap .
Making a Call
Making a Voice Call
1. Press Yes Key or select Dial in the menu screen to enter into the following interface.
Tips:
You can also from the standby mode to get the dialing interface.
2. Enter the phone number by tapping the on-screen keypad, pressing the hardware keyboard or tapping
the number you dialed before above the keypad. Tap to delete the digits.
3. Tap or press Yes Key to make the voice call, or tap to cancel the call.
4. Press No Key to end the call.
F870E User Manual
20 Confidential and Proprietary Information of ZTE CORPORATION
Making an International Call
1. Tap twice to enter “+”.
2. Enter the country code, area code and phone number.
3. Tap or press Yes Key to make the call.
Calling an Extension Number
1. Enter the phone number with the on-screen keypad.
2. Tap three times to enter “P”.
3. Enter the extension number.
4. Press Yes Key or tap .
Calling a Number from Contacts
1. Press Menu Key and select Contacts.
2. Scroll up and down the contacts list with your finger or Up/Down Key.
3. Touch and hold on the contact you want to call.
4. From the pop-up menu, select to give the contact a voice call.
Tips:
You can also select or to send an SMS or MMS to the contact.
Calling a Previously Dialed Number
1. Tap Calls from the main menu.
2. Tap Last call cost to display the calls you have dialled previously.
3. Tap on a number you dialled.
4. Tap to make a voice call to the selected number, or tap for a video call.
Notes:
Tap or to send an SMS or MMS to the number.
Calling a Speed Dial Number
From the on—screen keypad interface, tap and hold a numeric key (1~9) to make a call to the
corresponding speed dial number.
Notes:
The number key 1 is reserved only for voicemail number.
Set speed dial
1. From the main menu, go to Contacts > All contacts.
2. Tap the options icon and tap Speed dial setting.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 21
3. Select a number that has not been assigned from the screen above by tapping on it or by selecting it
with Navigation Keys and OK Key.
Notes:
Tap on a number that has already been assigned to a phone number will pop up the options to
Replace to the former speed dial setting.
4. Select a contact and his/her phone number on the screen or with Navigation Keys and OK Key.
5. When you are done with the setting, tap to return to the contact list.
Tips:
You can also select a contact in All Contacts and tap from the pop-up menu to set speed dial
for the contact.
Answering a Call
Answering a Voice Call
Press Yes Key or tap on to answer the call.
Tips:
You can tap to mute the ring tone.
When you have inserted an earphone to your F870E, you can use the microphone on the earphone
to talk if there is an incoming call. Just press the button on the earphone cord to answer it.
Caution:
Adjust the volume to a moderate level to avoid injury to your ear. See Basic Operations-Answering a
Call-Setting Volume.
Setting Volume
During a call, press Volume Keys (See Getting Started-Key Definition) to adjust the call volume.
Rejecting a Call
Press End Key or tap to reject the call. You call also tap to reject the call and send an SMS to the
caller.
F870E User Manual
22 Confidential and Proprietary Information of ZTE CORPORATION
Ending a Call
Press No Key or tap to end a call.
In-Call Options
Tap during a call for more options. Options vary depending on the current situation:
/
Mute/Unmute: Turn off/on your microphone. When you
turn the microphone off, the caller cannot hear you while
you can still hear the caller.
/
Hold/Active: Put the call on hold or retrieve the call.
Record: Record the current conversation. When recording,
tap to pause or tap and select to stop and
save the audio record.
Bluetooth headset: Switch between your Bluetooth headset
and your handset earpiece.
/
DTMF on/DTMF off: Enable or disable sending DTMF
tone.
Entering Text
You can enter text with the on-screen keypad or by using the hardware keyboard.
Using the Hardware Keyboard
Your phone comes with a hardware keyboard, which is similar to a standard computer keyboard. To use
the keyboard, slide the screen panel to the right to reveal the keyboard.
• To change input language, press and select the language you need by tapping on the options or
pressing Navigation Keys. You can change among English, French and Spanish.
• To change input case, press . You can change among the following input cases: uppercase mode,
lowercase mode and initial capital mode.
• To enter letters, press the alphabetic keys with your fingers or thumbs.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 23
Notes:
For certain languages, pressing a specific letter key may result in multiple accented character
options (like á, ü, é,ê, etc). Tap on the screen to select the letter you need.
• To enter a single uppercase letter, press before pressing the alphabetic key.
• To enter a number or symbol (labeled at the upper right of each key), press and then press the
corresponding key. Press twice consecutively to enter numbers or symbols.
• Press to open the symbol pad. Tap on a symbol to insert it into the text.
• To move the cursor, press the Navigation Keys or the arrow keys .
• Press to delete the character before the cursor.
• Press to start a new paragraph.
Using the Touch Screen
Your phone provides a small on-screen keypad, as shown above, for you to enter text.
• Tap to change the input language.
• Tap to change input mode between abc, ABC, 123 and En/Es (depending on the input language
you have selected).
• Tap to choose space, symbols and punctuation marks. Tap to return to the original keypad.
Tips:
The symbols and punctuation marks are divided into three pages. Tap Page1, Page2 and Page3 to
switch between pages.
indicates that the symbol keypad is locked and you can input multiple symbols,
punctuations and spaces consecutively. Tap on it to unlock the symbol keypad and you will return
to the original keypad after you have entered one symbol, punctuation mark or space.
• Tap to delete the character before the cursor; hold it to delete all text before the cursor.
• Tap to start a new paragraph.
• Tap to hide the touch keypad.
Locking the Screen
You can use the screen lock to prevent the keys and screens from being pressed accidentally.
From any screen, hold Message Key until the following screen appears.
F870E User Manual
24 Confidential and Proprietary Information of ZTE CORPORATION
Unlocking the Screen
Drag downwards to unlock the screen, as shown in the following picture.
Confidential and Proprietary Information of ZTE CORPORATION 25
C h a p t e r 4
Menus
Browser
Homepage
Tap Homepage in Browser to go to the homepage you set in Connect > Connect settings.
Enter address
Tap Enter address to input web page address that you want to visit. You can also select from past inputs
to visit directly.
Bookmark
All web page addresses can be saved as bookmarks in your phone. This function allows you to view and
edit these bookmarks, and link to the bookmarked web pages.
Tap to add a new bookmark. You need to enter the title and address of the bookmark.
Tap to delete bookmarks.
Tap beside each bookmark to visit that web page.
Tap a bookmark to view its title and address. Tap to go to the web page. Tap to send the
bookmark via SMS, MMS or E-mail.
History
This function allows you to check your browsing history. You can view the titles and addresses of the
pages you visited; you can also delete the history, link to the page again or add the page to Bookmark.
Saved page
This function displays the list of pages saved as off-line files.
When browsing, tap and select Save page to save the current web page.
Browser Settings
• Connections: Select the connection setting the browser uses.
• Advanced Settings: Change the settings related to animation, images, background music, script, autofill,
etc.
• Clear Cache: Delete all cache data.
• Clear Cookies: Delete all cookie information.
• Clear Autofill list: Delete all input history items.
• Certificate: View the certificates provided in the browser, including root certificate, CA certificate and
trusted certificate.
Version info
You can check the edition and copyright information of the browser.
F870E User Manual
26 Confidential and Proprietary Information of ZTE CORPORATION
Calls
Recent Calls
In standby mode, press Menu Key and go to Calls > Recent Calls.
Recent Calls shows all your call log.
• Tap to open options. You can go to dialed call list, received call list, or delete call log or check call
duration.
• Tap to go to missed call list.
• Tap on a call to view the detail of the call. You can also tap on the icons to make voice/video call or send
an SMS/MMS to the number. (See Basic Operations-Making a Call-Calling a Previously Dialed
Number.)
Use the number to create a new contact or update an
existing contact.
Delete the call record.
All contacts
Tap All contacts to go to Contacts. See Menus-Contacts-All contacts.
Tools
In standby mode, press Menu Key and select Tools in the main menu to access the Tools menu interface.
Alarm
You can add, edit and delete alarm settings. The alarms can be one-time alarms or repeating alarms.
Tap to add an alarm and input the new alarm settings. Tap to mute the alarm ringtone. Tap
to save the settings.
Tap on an existing alarm to edit its settings.
Tap to select alarms to delete.
Calendar
You can access Calendar from Tools screen or by tapping from standby mode.
Initially, the cursor appears on today's date on a monthly calendar according to your handset setting. Tap
or to jump to the calendar of last month or next month. Tap on a date to view the schedule of that
day. On a date that schedule is arranged, a blue triangle will be displayed on the top left corner of the date,
and a green one on the bottom right.
To add a new schedule, tap and select schedule type (Appointment, Memo or Anniversary). Input the
schedule information (subject, location, time, etc) and tap to save it.
In the calendar view, tap to change from month view to week view or from week view to month view.
You can also delete schedules, set the calendar view, alarm ringtone and check memory information.
Calculator
The phone provides a simple calculator for addition, subtraction, multiplication and division.
Tap the on-screen keypad to operate.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 27
Notes
You can use Notes to save text memos.
Tap to create a new memo. Input the content with the on-screen keypad or the hardware keyboard.
Tap to save the memo and exit. You can also tap to delete the memo or send it via
SMS/MMS/E-mail/Bluetooth.
In the memo list, tap a memo to view its content or edit it. Tap to delete it. Tap to select memos
and send via Bluetooth.
Converter
Coverter helps you with currency and unit conversion.
Select the item you want to covert, currency, length, area, weight or temperature.
Timer
You can measure time backward from 59'59.99” and take records.
Tap Start to start timing. Tap Stop/Continue to pause the timing or continue with the timing.
Tap Reset to restart the timing.
During timing, tap to minimize the timer and return to the Tools menu. You can go on with other
tasks while the timing continues.
When timing is reset or paused, you can tap to switch to Stopwatch. See Menus-Tools-Stopwatch.
STK
SIM Tool Kit (STK) is available if your (U)SIM card provides this function. For further details, please
contact your service provider.
Contacts
All contacts
You can store contacts with a variety of phone and fax numbers as well as additional address details.
Tap to add a new contact.
Tap to search for contacts by inputting their names.
Tap to open the following options:
• Group: Go to contact groups. The default groups include Family, Friends and Work. Tap on a group to
view all the contacts in that group. You can add/delete/rename group or set photo/voice call
ringtone/video call ringtone for each group.
To add a new group, tap . Then enter group name, set group photo, voice call ringtone and video
call ringtone. Tap to save and exit.
To delete an existing group, tap and select Delete group.
To rename a group or set photo, voice call ringtone or video call ringtone for the group, tap and hold
the group name until a pop-up menu appears, as shown in the following picture. Select the item you
want to change by tapping it. You can also change the settings by tapping .
F870E User Manual
28 Confidential and Proprietary Information of ZTE CORPORATION
Tips:
You can change the order of the groups by tapping and selecting Customize order, or
check memory status by selecting Memory info.
• Filter display: Display phone contacts only or USIM contacts only.
• Copy contacts: Copy contacts from handset to USIM card or vice versa.
• Move contacts: Move contacts from handset to USIM card or vice versa.
• Delete contacts: Delete contacts. Tap the check box on the right of each contact you want to delete and
tap to confirm the selection.
• Speed dial setting: Go to speed dial setting interface. See Basic Operations-Making a Call-Calling a
Speed Dial Number-Set speed dial.
• Default memory: Select the handset or the USIM card as the default place to save contacts.
• Service number: View service numbers. You cannot edit these numbers.
• Own phone number: View your own numbers.
• Memory info: View the used, not used and total space for contacts on your handset and the USIM card.
• Send via Bluetooth: Send the contact information via Bluetooth.
Tap on a contact to view the detail information. Touching and holding on the number will open a
submenu.
You can carry out the following operations through the submenu:
• Tap to make a voice call to the number, , set speed dial for it or edit it. You can also tap to
send the contact information as a business card or move/copy the contact to the handset/USIM card.
• Tap / to send an SMS/MMS.
• Tap to set speed dial.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 29
Tips:
If the contact has an E-mail address, you can tap and hold on the E-mail address and select
to send an E-mail.
Tap to edit the contact information. Tap to delete the contact.
Recent Calls
Tap Recent Calls to view call logs. See Menus-Calls-Recent Calls.
Messaging
New message
You can create a new SMS or MMS.
1. From standby mode, tap or press Menu Key, and select New message.
2. Select SMS or MMS.
3. Tap to select recipients from the contacts, or tap to enter recipients numbers directly. Tap
to delete the recipients.
Tips:
When selecting recipients, you can tap to choose from the favorite numbers, which is based
on how often you contact with that number using your F870E.
4. If you are sending an MMS, you can also enter the title of the message in the subject field or tap to
open Cc field. You can send the message to even more people.
5. If you are sending an SMS, tap to insert business card or Vcalendar to the message. For MMS, tap
Attachments to insert files to the message.
6. Tap the content area and enter the content of the message. See Basic Operations-Entering Text. Tap
and select My words to insert preset sentences. If the message is an MMS, you can enter text, insert
photos, audios and videos.
Notes:
Initially, My words is empty. Tap to add new record.
7. When you are done with message editing, tap .
8. Tap to send the message or tap to save the message and send later.
Handset inbox
Handset inbox contains all of your received SMS and MMS messages. From this folder, you can view or
delete your received messages or move/copy them to other folders. You can also reply or forward
messages to other recipients or call the sender.
F870E User Manual
30 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
You cannot receive new messages if the memory for messages is full.
Outbox
Outbox folder contains all messages that were not successfully sent during the last attempt. From this
folder you can edit, delete or resend the messages.
Drafts
Drafts folder contains drafts and unfinished messages. From this folder, you can edit, delete or send your
messages.
Sent
Sent folder contains messages sent successfully. From this folder, you can delete or forward messages to
other recipients.
User folder
You can move your received messages from handset inbox and (U)SIM inbox to the User folder. You can
also create new folders in User folder.
(U)SIM inbox
You can check the SMS saved in your (U)SIM card.
Settings
You can change the MMS/SMS settings.
SMS settings
SMS center number: Your service provider presets the service center number for you.
Expiration time: Set the length of time in which the message center will attempt to deliver the message
until it is received.
Delivery report: Select ON/OFF to enable or disable message delivery report.
MMS settings
Retrieval settings: Select Immediately or Delay to retrieve new MMS automatically or manually.
Send mode: You can select Immediately or Delay to send the MMS immediately or defer it for a
specified period of time.
Delay send time: Set the time to send MMS when you set Delay in Send mode. The maximum delay is
99 hours.
Slide time: Set the play time of each page of the MMS.
Delivery report: Select ON/OFF to enable or disable message delivery report.
Expiration time: Set the length of time in which the message center will attempt to deliver the message
until it is received.
Receive anonymous message: You can choose to accept or reject anonymous messages.
Receive PUSH message: Select ON or OFF to accept or reject PUSH messages.
Link mode: Select the connection for sending and receiving MMS. Please consult your service provider
for details.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 31
Memory info
You can check the amount of used memory and total space for SMS and MMS in your phone, (U)SIM
card and user folders.
Dial
Dial helps you make your calls. See Basic Operations-Making a call-Making a Voice Call for more
information
File Manager
Select File manager from the main menu to access the File manager interface.
Handset
Photos
You can manage all the still images (including wallpapers, pictures and photos) on your phone. You can
rename, copy, move, delete or send image files and folders. You may also create new folders to store
images. The image files can also be set as wallpaper or set as contact photos.
In Photos folder, tap to create a new folder in Photos; tap to select folders or files and delete
them; tap to display the following menu:
• Search: Search a file by inputting file name as keyword and defining its locations.
• Rename: Rename files and folders.
• Send via Bluetooth: Select folders or files and send them via Bluetooth.
• Copy: Select files in Photos to copy to other locations.
• Move: Select files in Photos to move to other locations.
• Folder info: Check the size, created time and number of content of Photos.
• Memory info: Check used and total space of the handset and the memory card.
Wallpaper
Choose Wallpaper in Photos and then tap to search for a file, check folder information or memory
information.
Tap on a file in Wallpaper to open it, set as wallpaper or set as contact photo.
My Photos/My Pictures
Tap on a file in My Photos/My Pictures to open it, set it as wallpaper or contact photo, delete it, rename
it, send it via Bluetooth/E-mail/MMS, copy or move it to other folders.
After you open the file, you can:
• Tap to send it via MMS/E-mail/Bluetooth, set it as wallpaper, set frame or view the image
properties.
• Tap to view the image files in a slide show.
F870E User Manual
32 Confidential and Proprietary Information of ZTE CORPORATION
Audios
Audios folder contains ringtones, music and audio records. You can set them as ringtones, delete, copy,
move, rename and send them to others.
In Audios folder, tap to create a new folder under Audios or to select files or folders to delete.
Tap to open the following menu:
• Search: Search a file by inputting file name as keyword and defining its locations.
• Rename: Rename files and folders.
• Send via Bluetooth: Select folders or files and send them via Bluetooth.
• Copy: Select files in Audios to copy to other locations.
• Move: Select files in Audios to move to other locations.
• Folder info: Check the size, created time and number of content of Audios.
• Memory info: Check used and total space of the handset and the memory card.
Ring
Choose Ring in Audios and then tap to search for a file, check folder information or memory
information.
Tap on the right of each audio file to play it.
Tap on a file in Ring to play it, set as voicecall ringtone.
My Music/My Audios
Tap on a file in My Music or My Audios to play it, set voicecall ringtone, delete, rename, send via
Bluetooth/MMS, copy or move the file.
• Tap to create a new folder under My Music/My Audios.
• Tap to select files or folders to delete.
Videos
Videos folder allows you to playback prerecorded video files. You can also delete, copy, move, rename
and send them to others.
In Videos folder and its subfolders, tap to create a new folder or to select files or folders to delete.
Tap to open the following menu:
• Search: Search a file by inputting file name as keyword and defining its locations.
• Rename: Rename files and folders.
• Send via Bluetooth: Select folders or files and send them via Bluetooth.
• Copy: Select files in the current folder to copy to other locations.
• Move: Select files in the current folder to move to other locations.
• Folder info: Check the size, created time and number of content of the current folder.
• Memory info: Check used and total space of the handset and the memory card.
Tap on a file in My Videos/My Kinescope /Fixvideo and its subfolders to play it, delete, rename, copy or
move the file, or send it via Bluetooth/MMS.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 33
Others
Others folder is used to save downloaded files other than images, audio and video files. You can also
copy or move files from Photos, Audios, Videos to Others.
Tflash card
In the File manager interface, tap on the top left arrow and select Tflash card to view the files and
folders on your memory card.
Multimedia
Select Multimedia from the main menu to enter Multimedia menu.
Caution:
Your phone has a camera that can be used for taking photos and recording short video clips with
sound. Respect the right of others and obey the local laws, regulations and customs when taking and
using photos or video clips.
Music Player
Starting the Music Player
1. From standby mode, press Menu Key.
2. Select Multimedia > Music player to launch the music player.
Opening an Item to Play
1. Select the view from the top of the interface by dragging the tabs left and right and tapping on the tap
you want. You can view all audio tracks, playlists, or view by folder, album or artist.
2. Flip through the list and find the track or playlist you need. Tap on it to start playing.
Notes:
You can tap and input keyword to search for audio tracks in the list.
More Options
• In the track/playlist/folder/album/artist view, you can tap to refresh the lists.
• In playlist view, tap to add a new playlist.
• When playing an audio track, tap to set the current track as video/voice call ringtone or select
Settings to set the audio player.
• When playing an audio track, tap the artwork area to pause or continue; press Volume Keys to control
the speaker volume.
F870E User Manual
34 Confidential and Proprietary Information of ZTE CORPORATION
Video Player
Starting the Video Player
1. From standby mode, press Menu Key.
2. Select Multimedia > Video Player to launch the video player.
Notes:
When you start the video player, the phone's display will switch automatically from portrait mode
to landscape mode. Hold the phone sideways to enjoy the video clips.
Opening an Item to Play
Select a file to play. Tap Record , Other Local to select video clips from your phone or your memory
card. You can also tap Recent play to select a file or URL you played recently.
Notes:
Tap to sort the local files list by all, created time or folder.
Tap to refresh the video library.
Tap to clear the recently played file list.
Tap to set the parameters for streaming media. Please contact your service provider for
details.
More Options
When playing a video, tap on the screen to find the control panel as shown above.
Tap to pause the playback and tap to continue the playing.
Tap or to play the previous/next video in the list.
Tap and hold or to rewind or fast forward the video.
Tap to open more options. You can open go back to the video library, adjust brightness, send the clip
via MMS/E-mail/Bluetooth or view the property of the video.
Tap to return to the video library.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 35
Picture Browser
Starting the Picture Browser
1. From standby mode, press Menu Key.
2. Select Multimedia > Picture Browser to launch the picture browser.
Opening an Item to Play
The image files will be displayed in thumbnails after you enter Picture Browser. Tap Image to view
images saved in Photos folder on your phone; tap Other to view images saved in Others folder on your
phone and those saved on your memory card.
Tap an image to view it, or tap to view all the images in the list in a slide show.
Tips:
You can tap to refresh the image gallery, or tap to sort the image files by all, created time or
folder.
More Options
After you open an image, tap to find more options.
• Open image library: return to the image list.
• Set as wallpaper: set the current image as the wallpaper for idle desktop.
• Frame settings: add a frame to the current image.
• Play time interval: select the time interval for each image during slide shows.
• Image property: view the name, dimension, size, time of creation and copyright information of the
current image.
Voice Recorder
Starting the Voice Recorder
1. From standby mode, press Menu Key.
2. Select Multimedia > Voice Recorder to launch the voice recorder.
Start Recording
1. Tap to start recording.
F870E User Manual
36 Confidential and Proprietary Information of ZTE CORPORATION
Tips:
You can adjust the recording volume by tapping on the bar.
2. Tap to pause and tap to continue. You can also tap to clear the content and stop the
recording.
Stop Recording
Tap to stop recording and save the audio file in My Audios.
Opening an Item to Play
1. Tap My Audios, where the audio records are saved.
2. Tap a record from the list to start the playing. You can pause, jump to the previous or next record, or
stop the playing and return to the list.
FM radio
With the FM radio, you can search for radio channels, listen to them, and save them on your device. Note
that the quality of the radio broadcast depends on the coverage of the radio station in that particular area.
The earphone works as an antenna, so always connect the earphone when using the radio. When you
receive an incoming call while listening to the radio, the radio will be turned off.
Tap Multimedia > FM radio from the main menu to enter the FM radio function.
• Tap on the screen to start scanning for radio channels.
• Tap or to adjust the frequency.
• Tap to adjust the volume.
• Tap to turn on the loudhailer.
• Tap or to switch to the previous or next radio channel.
• Tap to view all the saved channels (20 channel can be saved at most).
• Tap to save the current channel into the channels list.
Camera
There is an integrated digital camera in your phone. You can take still photos and short video clips with
audio. The photos and videos can be sent via MMS or Bluetooth. Photos can be set as the wallpaper.
Starting the Camera
From the main menu, select Multimedia > Camera to activate the camera.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 37
Taking Photos
1. Aim the camera lens at the object.
2. Press Volume Key to zoom in or zoom out.
3. Press Camera Key to take the photo.
Tap Send to send the photo via MMS, E-mail or Bluetooth.
Tap Setting to set the photo as contact photo or wallpaper.
Tap Delete to delete the photo from the phone memory.
Tips:
When taking photos, you can tap and select to take photos of other people. Settings have
been optimized specifically for taking portrait photos.
Taking Videos
1. Tap and select to switch to video recording.
2. Press Camera Key to start and end video recording.
Tap View to view the video file.
Tap Send to send the video via MMS or Bluetooth.
Tap Delete to delete the video file from the phone memory.
Notes:
You can also select to take video clips for MMS, or select to take video clips for E-mails.
Options
When taking photos and videos, you can tap on the panel on the right to make options. You can tap
Settings to adjust brightness, white balance and effect, or tap More to select Shutter sound, Location,
Size and Quality.
Settings
Screen
• Wallpaper: change the wallpaper for the idle screen.
• Backlight Duration: you can set the duration of backlight.
• Brightness: tap on the bar in the middle of the screen to adjust the screen brightness.
• Time of Keylock: set automatic keylock count down or select Keyguard Forbidden to disable
automatic keylock.
F870E User Manual
38 Confidential and Proprietary Information of ZTE CORPORATION
• Keyboard Light: set keyboard light duration and keyboard light period.
• Idle Greeting: set the greeting that you can see on the idle screen from the network status widget. You
can enter 20 characters at most.
• Greeting: set the greeting you can see when powering on the phone.
• Touch Screen Calibration: follow the on-screen prompt to calibrate the touch screen.
Handset
• Language: select the language for user interface.
• Time and Date: set time and date for your phone. You can select time style and date format, or enable or
disable automatic time update (this function may need the support of your network, please contact your
network supplier for detailed information).
• Main Menu Display Option: select to put some functions in the main menu, instead of only placing
them in submenus.
• Missed Calls Tone: set the time interval for missed call reminder. You can select Not Remind if you do
not want to be reminded.
• Touch screen vibrate feedback: turn on/off the touch screen vibration feedback.
• Default Memory: set default memory.
• Restore Default Settings: restore to original factory settings. You need to enter the handset code. The
default code is 0000.
Profiles
Your phone provides several predefined user profiles. You can choose a profile according to your
surroundings. Supported profiles include: General, Meeting, Outdoors, Silent, and Airplane.
Warning:
Activating Airplane mode will disable your mobile network connection. You cannot make phone
calls or connect to the internet.
Tap Edit beside each profile to edit it. You can customize the tones and volume under each profile.
Connect
• Connect Settings: you can create, edit or delete connection settings for internet access. Contact you
service provider for more information.
• Access Point Settings: this menu shows the access point list. To modify these settings, please contact
your service provider. You can add new access point by tapping .
• Network Settings: the network that your phone uses is configured automatically. When powered on, the
phone automatically connects to the designated network, or automatically connects to a roaming
network when you are outside the coverage of your regular network (in which case, you can manually
select the local network system).
Preferred selection: the default setting is Automatic. You can tap on it and the phone will search and
list all networks for you to choose from manually.
Call
• Videos gateway: set parameters of the video phone, including Gateway number and UUS type. Please
consult your service provider for detailed information.
• Call Forwarding: you can specify the conditions under which the calls should be forwarded to your
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 39
voicemail box or another number. Select Cancel all Call Forwarding to cancel all the forwarding
services.
• Call Waiting: activate this service and you will receive notification from the phone if there is an
incoming call while you are on another call.
• Call Barring: restrict the dialling or receiving of certain calls. To activate or cancel the service, you
must enter the network password provided by your service provider.
• Send My Number: this allows you to send or hide your number when making calls. The default is
Automatic and this function needs network support.
Security
• Activate Security Codes: you can activate and deactivate handset code and PIN code. Whichever code
you turn on, you must input the code when powering on the handset.
• Change Security Codes: you can change PIN code, PIN2 code and handset code. Enter the old code and
then input the new code twice.
• Fixed Dial Numbers: you can define a list of numbers that you can dial. This information is saved in the
(U)SIM card. You cannot dial any number out of the list. Tap Status and enter PIN2 code to turn on/off
this function. Tap Dial list and input PIN2 code to edit the fixed dial number list.
Bluetooth
You can use Bluetooth to connect your handset to wireless earphones, hands free car kits and other
compatible devices. You can also transfer files between your phone and other Bluetooth devices such as
another phone or a laptop. Not all applications or devices can be supported as Bluetooth is an open forum
and different manufacturers adopt different standards and implementation.
• Start Bluetooth/Off Bluetooth: turn on/off the Bluetooth function.
• Display/Hide Bluetooth: make your phone visible/invisible to other Bluetooth devices.
• Find Device: search for Bluetooth devices and create a Bluetooth connection. Tap on a device your
phone has found and press Yes to confirm. Enter the correct password to create the connection.
• My Device: list all the devices you have made Bluetooth connection with. Tap on a device to retrieve
files, authorize the device, delete or rename it, or view the properties of the selected device.
• Local Attribute: view the Bluetooth property of your phone, including device name, type, server, FTP
catalog and device address.
Applications
Select Applications from the main menu to access the applications you have installed or pre-installed.
Select More Games to download and install more applications over the air.
Tap to view the space information or select connection setting.
Tap on an application and select Run to launch it.
Download
You can check the progress of your downloading items.
Confidential and Proprietary Information of ZTE CORPORATION 40
C h a p t e r 5
Specifications
Model
F870E
Bearer
GSM/GPRS, support EDGE
Dimensions (L × W × H)
101mm × 49mm × 15.4 mm
Weight
Approximately 100 g (with the battery)
Battery
800 mAh Li-ion battery
Screen
240*320 pixels,
262 K Color TFT QVGA Screen,
2.4 inch
Memory card
MicroSD card, up to 8 GB
Camera
3M pixels cameras
Capture Image: up to 2048x1536b
Capture Video: up to 176 x 144
Digital Zoom: 5x
Continuous standby time
300 hours (subject to network status)
Continuous talk time (GSM)
240 minutes (subject to network status)
Confidential and Proprietary Information of ZTE CORPORATION 41
C h a p t e r 6
Questions & Answers
If you encounter problems while using the phone, or if it performs erratically, you can consult the
information in the chart below. If your particular problem cannot be resolved using the information in the
chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor reception
• The network signal is too weak at your
current location, for example, in a basement
or near a tall building, because wireless
transmissions can not effectively reach it.
Move to a location where the network signal can
be properly received.
• The network is busy at the current time (for
example, during peak times, there may be
too much network traffic to handle additional
calls).
Avoid using the phone at such times, or try again
after waiting a short time.
• You are too far away from a base station
for your service provider.
You can request a service area map from your
service provider.
Echo or noise
• Poor network trunk quality on the part of
your service provider.
Press End Key and dial again. You may be
switched to a better-quality network trunk or
phone line.
• Poor local telephone line quality.
Press End Key and dial again. You may be
switched to a better-quality network trunk or
phone line.
Unable to select
certain features.
Your service provider does not support these
features, or you have not applied for services
that provide these features.
Contact your service provider.
Battery will not
charge.
• The battery or battery charger is damaged.
Contact the dealer.
• The phone‟s temperature is below 0°C or
higher than 45 °C.
Adjust the battery charging environment to avoid
extremes of temperature.
• Poor contact between the battery and
charger.
Check all connectors to make sure all connections
have been properly made.
Shortened
standby time
• The standby time is related to your service
provider system configuration. The same
phone used with different service providers‟
systems will not provide exactly the same
length of standby time.
If you are located in an area where signaling is
weak, temporarily power off the phone.
• The battery is depleted. In
high-temperature environments, battery life
will be shortened.
Use a new battery.
• If you are not able to connect to the
network, the phone will continue to send out
signals as it attempts to locate a base station.
Doing so consumes battery power and will
consequently shorten standby time.
Change your location to one where the network is
accessible, or temporarily turn off your phone.
You cannot
switch your
phone on.
Battery power has been depleted.
Recharge the phone's battery.
F870E User Manual
42 Confidential and Proprietary Information of ZTE CORPORATION
Problem
Possible causes
Possible solution
USIM card error
• USIM card malfunction or damage.
Take the USIM card to your service provider for
testing.
• USIM card inserted improperly.
Insert the USIM card properly.
• Debris on the USIM card contacts.
Use a soft, dry cloth to clean the USIM card
contacts.
Unable to
connect to the
network.
• USIM card invalid.
Contact your service provider.
• You are not within the network's service
area.
Check the service area with your service
provider.
• Poor signal.
Move to an open space, or if you are inside a
building, move closer to a window.
You cannot
answer incoming
calls.
You have activated the Call Barring feature.
Go to Settings > Call > Call barring, and then
select Cancel all call barring.
You cannot make
outgoing calls.
• You have activated the Call Barring
feature.
Go to Settings > Call > Call barring, and then
select Cancel all call barring.
• You have activated the Fixed Dial
Number feature.
Go to Settings > Security > Fixed dial
numbers and select Status to turn this feature
off.
PIN Code is
blocked.
You have entered an incorrect PIN code
three consecutive times.
Contact your service provider. If the service
provider provides the (U)SIM card's PUK code,
use the PUK code to unlock the (U)SIM card.
Unable to enter
information into
the phone book.
The phone book's memory is already full.
Delete unnecessary data from the Contacts.
Confidential and Proprietary Information of ZTE CORPORATION 43
C h a p t e r 7
Glossary
2G — Second Generation wireless communication system. 2G system supports low quality voice and
low-rate packet-data service. 2G refers to GSM in European countries and CDMA in America.
3G — Third Generation wireless communication system. 3G is the next generation wireless
communication system that offers real-time video streaming services and high-rate packet-data service.
3G is also known as UMTS (Universal Mobile Telephony System).
Access point — Access point refers to a point through which users can connect to the network so that the
users can use the network services.
Multimedia Message Service (MMS) — A message service for the handset environment, that allows
videos, pictures, audio files and text to be sent between phones and dependent on network provider
support, to E-mail addresses.
Roaming — Use of your phone when you are outside your home area, when travelling for example.
(U)SIM — (Universal) Subscriber Identity Module. Your (U)SIM is provided by network provider. It
carries the authentication and service grade data for the network as well as user-specific data such as
contacts and SMS.
Video call — A communication service that enables users to communicate with video and sound instead
of only sound. Video calling is only supported by 3G networks.
Voice mail — An answering service that automatically answers your calls when you are not available.
Others can leave either voice messages for you with this service.
Confidential and Proprietary Information of ZTE CORPORATION 44
C h a p t e r 8
Declaration of RoHS Compliance
To minimize the environmental impact and take more responsibility to the earth we live in, this document
shall serve as formal declaration that the F870E manufactured by ZTE CORPORATION is in compliance
with the Directive 2002/95/EC of the European Parliament - RoHS (Restriction of Hazardous Substances)
with respect to the following substances:
1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)
The F870E manufactured by ZTE CORPORATION, meets the requirements of EU 2002/95/EC.
Confidential and Proprietary Information of ZTE CORPORATION 45
C h a p t e r 9
INFORMATION ON PRODUCTS DISPOSAL
This symbol indicates that all electrical and electronic equipment included
must not be disposed of as household waste. Instead it must be left at the
appropriate collection point for recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more
detailed information about recycling this product, please contact your local
city office, your household waste disposal service or the shop where you
purchased the product.
F870E User Manual
46 Confidential and Proprietary Information of ZTE CORPORATION
C h a p t e r 10
Using Your Phone With a Hearing Aid Device
Your Model name:F870E device is compliant with the FCC Hearing Aid Compatibility (HAC)
requirements. For additional HAC information, including the HAC rating of this product, please
refer to www.zte.com
When some wireless phones are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are
more immune than others to this interference noise, and phones also vary in the amount of
interference they generate. The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing-device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones that have been rated have a label
on the box. Your Model name:F870E has been tested for hearing aid device compatibility and
has an M3 rating.
These ratings are not guarantees. Results will vary, depending on the level of immunity of your
hearing device and the degree of your hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the
phone with your hearing device is the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference with hearing devices than phones that are not labeled. M4 is the better/higher of the
two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more
usable with a hearing device‟s telecoil (“T Switch” or “Telephone Switch”) than unrated phones.
T4 is the better/higher of the two ratings. (Note that not all hearing devices contain telecoils.) The
more immune your hearing aid device is, the less likely you are to experience interference noise
from your wireless phone. Hearing aid devices should have ratings similar to those of phones.
Ask your hearing health-care professional for the rating of your hearing aid.
Hearing devices may also be measured for immunity to this type of interference. Your
hearing device manufacturer or hearing health professional may help you find results for your
hearing device. The more immune your hearing aid is, the less likely you are to experience
interference noise from wireless devices.
For additional information about the FCC's actions with regard to hearing aid compatible
wireless devices and other steps the FCC has taken to ensure that individuals with disabilities
have access to telecommunications services, please go to www.fcc.gov/cgb/dro.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 47
C h a p t e r 11
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user„s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
F870E User Manual
48 Confidential and Proprietary Information of ZTE CORPORATION
RF Exposure Information (SAR)
This mobile phone meets the government‟s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR
are conducted using standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency bands. Although the SAR
is determined at the highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear
is 0.677 W/kg and when worn on the body, as described in this user guide, is 1.24 W/kg
(Body-worn measurements differ among phone models, depending upon available accessories
and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-F870E.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines
for use with an accessory that contains no metal and the positions the handset a minimum of 2.5
cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure
guidelines. If you do no t use a body-worn accessory and are not holding the phone at the ear,
position the handset a minimum of 2.5 cm from your body when the phone is switched on.
