ZTE MF700 HSPA+ TV Modem User Manual MF656

ZTE Corporation HSPA+ TV Modem MF656

Manual

MF700
HSPA+ TV Modem
User Guide
Introduction
The product is a multi-mode 3G modem that works on GSM/GPRS/EDGE/
UMTS/HSPA networks. With a USB interface connecting to your laptop or
desktop computer, it supports data and SMS services through the mobile
USB Modem network as well as mobile TV, helping you realize mobile
communication and entertainment anytime and anywhere.
Specification
The following table shows the specification of your device.
Interface Type
USB 2.0 HIGH SPEED
Systems
supported
Supports most types of laptop and
desktop PC
Operating
systems
supported
Windows XP (SP2 or later), Vista,
Windows 7;
MAC 10.4.11 or later;
Fedora 12 or later, Ubuntu 9.10 or later
Functions
SMS service, data service, applications
management, TV, microSD card, etc.
Transmission
speed (Max)
5.76 Mbps UL
14.4 Mbps DL
Temperature
Storage: -40 ℃ ~ +80 ℃
Operation:-10 ℃ ~ +60 ℃
microSD
capability
Support up to 32 GB microSD card
Notes: microSD is a trademark of SD Card Association.
Hardware Installation

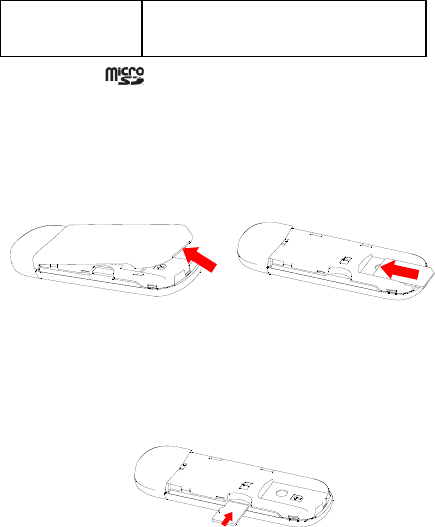

Installing the SIM/USIM Card
1. Remove the back cover on the modem.
2. Hold your SIM/USIM card with the cut corner oriented as shown and then
slide it into the card holder with the metal contacts facing the modem.
3. Replace the back cover.
Installing the Memory Card
Only microSD card is supported by the modem and do not insert other
memory cards into the modem.
Insert the microSD card, orientated as shown, into the holder until you hear a
click.

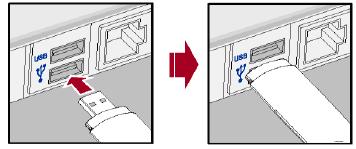

Connecting the USB Modem to Your Computer
Remove the modem cap and plug the modem firmly into a USB port on your
computer.
Software Installation
On different operating systems, the software installation procedures may be
different. Please follow the general guide below and the system prompts
during installation.
• For Windows XP, Vista and Windows 7
When you connect the modem to your PC correctly, the system
automatically recognizes it as a CD-ROM and starts the software
installation wizard. If the system does not launch the installation wizard
automatically, please start it by running the executable file in the new
CD-ROM directory.
• For Mac OS
The system will automatically display a new CD-ROM icon on the desktop,
when you connect the modem to your Mac correctly. Double click the
installation software package in the CD-ROM, and follow the system
prompts to complete the software installation.
• For Linux
The system will automatically display a CD-ROM on the desktop, when
you connect the modem to your computer correctly. Copy and decompress
the installation package from the CD-ROM to another directory.
Root users can double-click the install.sh file and select Run in Terminal
to start the installation.
Non-root users can start Terminal and gain the root user privilege, then run
the install.sh file in the Terminal.
Safe Removal from Your System
Please close the application software, and then you can pull out the USB
Modem safely.
Functions
Click the following buttons to access each function.
Windows
Mac
Linux
LED Lights
Indication
Modem Status
Red
Power on, but not registered to a network
Indication
Modem Status
Blue solid
Registered to a network
Blue blinking
Active data transfer on the network
Warning and notice
To the owner
• Some electronic devices are susceptible to electromagnetic interference
sent by modem if inadequately shielded, such as the electronic system of
vehicles. Please consult the manufacturer of the device before using the
modem if necessary.
• Operating of laptop and desktop PCs and the modem may interfere with
medical devices like hearing aids and pacemakers. Please always keep
them more than 20 centimeters away from such medical devices when they
are turned on. Turn the modem off if necessary. Consult a physician or the
manufacturer of the medical device before using the modem.
• Be aware of the usage limitation when using a modem at places such as oil
warehouses or chemical factories, where there are explosive gases or
explosive products being processed. Turn off your modem if required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol
stations and in hospitals. Please observe and obey all warning signs and
switch off your modem in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will
affect your modem’s performance.
• Store the modem out of the reach of little children. The modem may cause
injury if used as a toy.
Using your USB Modem
• Please use original accessories or accessories that are authorized. Using any
unauthorized accessories may affect your modem’s performance, and
violate related national regulations about telecom terminals.
• Avoid using the modem near or inside metallic structures or establishments
that can emit electromagnetic waves. Otherwise it may influence signal
reception.
• The modem is not waterproof. Please keep it dry and store in a shady and
cool place.
• Do not use the modem immediately after a sudden temperature change. In
such case, it will produce dew inside and outside the modem, so don’t use
it until it becomes dry.
• Handle the modem carefully. Do not drop, bend or strike it. Otherwise the
modem will be damaged.
• No dismantling by non-professionals and only qualified technicians can
undertake repair work.
• Operating temperature range of -10℃ ~ +60℃ and humidity range of 5%
~ 95% are recommended.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or
maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation,
disassembly, storage, servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or
other events outside ZTE’s reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party
products provided that such defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the
Product.
End User shall have no right to reject or return the Product, or receive a
refund for the Product from ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for
defective or nonconforming items, and is in lieu of all other warranties,
expressed, implied or statutory, including but not limited to the implied
warranties of merchantability and fitness for a particular purpose, unless
otherwise required under the mandatory provisions of the law.
FCC Compliance
This device complies with part 15 of the FCC
Rules. Operation is subject to the condition
that this device does not cause harmful
interference.
Caution: Changes or modifications
not expressly approved by the
manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/ TV technician for help.
Health and safety information
Radio Frequency (RF) Energy
This model USB Modem meets the government’s requirements for
exposure to radio waves.
This USB Modem is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S. Government:
The exposure standard for wireless mobile USB Modems employs a
unit of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the FCC
with the USB Modem transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the USB Modem
while operating can be well below the maximum value. This is
because the USB Modem is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the
lower the power output.
The highest SAR value for the model USB Modem as reported to the
FCC when tested for use at the body worn is 1.17 W/kg (Body-worn
measurements differ among USB Modem models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various
USB Modems and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model USB
Modem with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
USB Modem is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after searching
on
FCC ID: Q78-MF700
For body worn operation, this USB Modem has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 0.5 cm
from the body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines. If you do no t use a
body-worn accessory and are not holding the USB Modem at the ear,
position the handset a minimum of 0.5 cm from your body when the
USB Modem is switched on.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental
or consequential damages resulting from or arising out of or in connection
with using of this product, whether or not ZTE had been advised, knew or
should have known of the possibility of such damages, including, but not
limited to lost profits, interruption of business, cost of capital, cost of
substitute facilities or product, or any downtime cost.
Getting More Help
You can get more help on how to use the device through the following ways.
• Clicking the Help button ( in Windows, in Mac, in Linux) on
the software.
• Sending E-mails to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
