User manual

MF971V

Quick Start Guide

Getting to Know Your Device

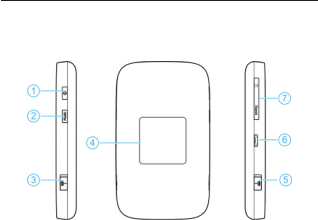

Appearance

The following gure is for your reference only.

1. Power key

2. FUNC key

3. External antenna connector

4. LCD screen

5. External antenna connector

6. Charging/micro-USB jack

7. micro-SIM card slot and reset hole

Getting to Know Your Device

Indicators

When the device is powered on, the following icons

may be displayed on the LCD screen. For a de-

scription of the icons, refer to the following table.

Icon Description

Network signal strength

4G/3G/2G Network type

The user is in roaming status.

Connected to the Internet.

Connected to the Internet in the

Internet Wi-Fi mode.

New message(s)

Wi-Fi status and the number of

connected users

Battery level

Getting to Know Your Device

Connection Scenarios

The device allows multiple clients to surf on the

Internet at the same time. The following gures are

for your reference only.

A micro-SIM card can be used to access the

Internet.

1. Open the micro-SIM card slot cover, and install

a micro-SIM card to the micro-SIM card slot.

NOTE:

Do not remove the cover rudely, because it is con-

nected with the device.

WARNING!

To avoid damage to the device, do not use any oth-

er kind of SIM cards, or any non-standard micro-

SIM card cut from a SIM card. You can get a stan-

dard micro-SIM card from your service provider.

2. Close the micro-SIM card slot cover.

Installing the micro-SIM Card

Connecting to Your Device

Using Wi-Fi

1. Power on your device.

2. Ensure that your computer or other client de-

vices have enabled Wi-Fi, and search for avail-

ab l e wi r e le s s ne t w or k s .

NOTE:

Refer to your Wi-Fi-enabled client device manual

for further details on how to search for wireless net-

works. If you use a computer, you need to set your

computer to obtain an IP address automatically.

3. Select the Wi-Fi name (SSID) of your device,

and click Connect.

4. Enter the Wi-Fi password if necessary, and

click OK.

NOTE:

Refer to the chapter Getting to Know the Wi-Fi

SSID and Password to get the default Wi-Fi SSID

and password.

5. Wait until the client device is connected to your

device successfully.

Connecting to Your Device

Using a USB Cable

1. Connect a computer to your device with a USB

cable.

2. Power on your device. The operating system

detects and identies new hardware, and auto-

matically installs the software.

NOTE:

If the system does not automatically launch instal-

lation, you can Double-click the device installation

icon in My Computer to install the software.

3. Wait until the computer is connected to your

device successfully.

Getting to Know the Wi-Fi SSID and

Password

You can use the following methods to get the de-

fault Wi-Fi SSID and password.

• View the label on the device.

• Press the FUNC key to access the options

menu. Select Device Info and the Wi-Fi SSID

and password are displayed on the screen.

Logging in to the 4G Mobile Hotspot

Conguration Page

1. Ensure that the connection between your de-

vice and the client device is correct.

2. Launch the Internet browser and enter

http://192.168.0.1 or http://u.ztedevice.com

in the address bar.

3. Enter the password to log in to the 4G Mobile

Hotspot conguration page.

NOTE:

The default password is admin.

Changing the Wi-Fi SSID or Password

1. Log in to the 4G Mobile Hotspot conguration

page.

2. Select Settings below Wi-Fi and then click

Main SSID.

3. Change the Network Name (SSID) or the

Password in the Main SSID area.

4. Click Apply.

Accessing the Internet

After a client device is successfully connected to

your device, you can access the Internet in Auto-

matic or Manual mode. The default mode is Auto-

matic.

Mode Operation

Automatic

Your device is automatically connect-

ed to the Internet, and you can surf

on the Internet through the client.

Manual

1. Log in to the 4G Mobile Hotspot

conguration page.

2. Select Settings > Connection

Mode > Manual, and then click

Apply.

3. Click to back to the home

page, and click or .

You can also press the FUNC

key and select Network Connec-

tion. Select Yes or No.

NOTE:

To modify the parameters of your device, log in to

the 4G Mobile Hotspot conguration page.

Accessing the Internet

Using the FUNC Key

• When the screen is off:

Press the FUNC key to turn on the screen.

• When the screen is on:

Press the FUNC key to access the options

menu. You can connect or disconnect with the

Internet, view device information or Wi-Fi QR

code, activate WPS function, enable/disable

global roaming or quick boot function without

logging in to the 4G Mobile Hotspot Congura-

tion Page.

Conguring Your PC

The following describes how to congure the Inter-

net Protocol in the Windows 7 for your Wi-Fi con-

nection.

1. Right-click Network and select Properties.

2. Select Change adapter settings.

3. Right-click Wireless Network Connection and

select Properties.

4. Select Internet Protocol Version 4 (TCP/

IPv4), and click Properties.

5. Select Obtain an IP address automatically

and Obtain DNS server address automati-

cally, and click OK.

Warning and Notice

To the Owner

• If inadequately shielded, some electronic de-

vices, for example, the electronic system of ve-

hicles, may be affected by the electromagnetic

interference caused by the device. Consult the

manufacturers of such devices before using the

device if necessary.

• Operating the device may interfere with medi-

cal instruments such as hearing aids and pace-

makers. Always keep the device more than 20

centimeters away from such medical instru-

ments when your device is powered on. Power

off the device if necessary. Consult a physician

or the manufacturers of medical instruments

before using the device if necessary.

• Be aware of the usage limitation when using

the device at places such as oil warehouses or

chemical factories, where there are explosive

gases or explosive products being processed.

Power off the device if necessary.

• Do not use electronic transmission devices in

aircrafts, at petrol stations or in hospitals. Ob-

serve and obey all warning signs, and power off

the device in these conditions.

• Do not touch the inner antenna area unless

necessary. Otherwise the performance of the

device may be affected.

• Do not use the device in an enclosed environ-

ment or where heat dissipation is poor. Pro-

longed work in such space may cause exces-

sive heat and raise ambient temperature, which

may lead to automatic shutdown of the device

for your safety. In the case of such event, cool

the device in a well-ventilated place before

turning on for normal use.

• Keep the device out of the reach of small chil-

dren. The device may cause an injury if used

as a toy.

• When the device is operating, do not touch

the metallic parts. Failing to do so may cause

burns.

Warning and Notice

To the Users

• Use original accessories or accessories that

are authorized. Using any unauthorized acces-

sories may affect the performance of the device

and violate the related national regulations

about telecom terminals.

• Avoid using the device near or inside metallic

constructions or establishments that can emit

electromagnetic waves, because signal recep-

tion may be affected.

• The device is not waterproof. Keep the device

dry and store it in a shady and cool place.

• Do not use the device immediately after a sud-

den temperature change, because dew may be

generated inside and outside the device. Do

not use it until it becomes dry.

• Handle the device carefully. Do not drop, bend

or strike it. Otherwise the device may be dam-

aged.

• Only qualied personnel can dismantle and re-

pair the device.

Warning and Notice

• An operating temperature between 0°C and

+35°C and humidity between 5% and 95% are

recommended.

Using Battery

Do not change the built-in rechargeable battery in

your device by yourself. The battery can only be

changed by ZTE or ZTE authorized service pro-

vider.

Limited Warranty

This warranty does not apply to defects or errors in

the product caused by:

i. Reasonable abrasion.

ii. End users’ failure to follow ZTE’s installation,

operation or maintenance instructions or proce-

dures.

iii. End users’ mishandling, misuse, negligence,

or improper installation, disassembly, storage,

servicing or operation of the product.

iv. Modications or repairs not provided by ZTE or

a ZTE-certied individual.

Warning and Notice

v. Power failures, surges, re, ood, accidents,

and actions of third parties or other events out-

side ZTE’s reasonable control.

vi. Usage of third-party products or usage in con-

junction with third-party products if such defects

are due to the combined usage.

vii. Any other cause beyond the range of normal

usage intended for the product.

End users have no right to reject or return the prod-

uct, or receive a refund for the product from ZTE

under the above-mentioned situations.

This warranty is end users’ sole remedy and ZTE’

s sole liability for defective or nonconforming items,

and is in lieu of all other warranties, expressed,

implied or statutory, including but not limited to the

implied warranties of merchantability and fitness

for a particular purpose, unless otherwise required

under the mandatory provisions of the law.

Warning and Notice

Limitation of Liability

ZTE shall not be liable for any loss of prots or indi-

rect, special, incidental or consequential damages

resulting from or arising out of or in connection with

using of this product, no matter whether or not ZTE

had been advised, knew or should have known of

the possibility of such damages, including, but not

limited to lost prots, interruption of business, cost

of capital, cost of substitute facilities or product, or

any downtime cost.

Warning and Notice

No part of this publication may be excerpted, re-

produced, translated or utilized in any form or by

any means, electronic or mechanical, including

photocopying and microlm, without the prior writ-

ten permission of ZTE Corporation.

The manual is published by ZTE Corporation. We

reserve the right to make modications on print er-

rors or update specications without prior notice.

Version No.: R1.0

LEGAL INFORMATION

Troubleshooting

Problem Recommended Action

The connection

between your

device and a

PC through

a USB cable

cannot be

established.

• Install the software, and run

the installation program in

the path of My Computer.

• If the driver of your device

is abnormal, reinstall the

software. You need to

uninstall the software rst.

The connection

between your

device and a

client through

Wi-Fi cannot be

established.

• Ensure that the Wi-Fi

function is enabled.

• Refresh the network list and

select the correct SSID.

• Check the IP address, and

ensure that your client can

automatically obtain an IP

address.

• Enter the correct network

key (Wi-Fi password) when

you connect the client to

your device.

Troubleshooting

Problem Recommended Action

The client

connected

to the device

cannot access

the Internet.

• Ensure that your micro-SIM

card is available.

• Change the location and nd

a place with good signal.

• Check the settings of the

WAN connection mode.

• Contact your service

provider and conrm your

APN settings.

The 4G Mobile

Hotspot

conguration

page cannot be

visited.

• Enter the correct address.

The default address is

http://192.168.0.1 or http://

u.ztedevice.com.

• Use only one network

adapter in your PC.

• Do not use any proxy server.

Getting More Help

You can get help by:

• Sending an email to mobile@zte.com.cn

• Visiting www.ztedevice.com

ZTE CORPORATION

NO. 55, Hi-tech Road South, Shenzhen, P.R.China

Postcode: 518057

FCC RF Exposure Information (SAR)

Thisdeviceisdesignedandmanufacturednot

toexceedtheemissionlimitsforexposureto

radiofrequency(RF)energysetbytheFederal

CommunicationsCommissionoftheUnited

States.

DuringSARtesting,thisdevicewassetto

transmitatitshighestcertifiedpowerlevelin

alltestedfrequencybands,andplacedin

positionsthatsimulateRFexposureinusage

nearthebodywiththeseparationof10mm.

AlthoughtheSARisdeterminedatthehighest

certifiedpowerlevel,theactualSARlevelof

thedevicewhileoperatingcanbewellbelow

themaximumvalue.Thisisbecausethedevice

isdesignedtooperateatmultiplepowerlevels

soastouseonlythepowerrequiredtoreach

thenetwork.Ingeneral,thecloseryouaretoa

wirelessbasestationantenna,thelowerthe

poweroutput.

Theexposurestandardforwirelessdevices

employingaunitofmeasurementisknownas

theSpecificAbsorptionRate,orSAR.

TheSARlimitsetbytheFCCis1.6W/kg.This

deviceiscompliedwithSARforgeneral

population/uncontrolledexposurelimitsin

ANSI/IEEEC95.1‐1992andhadbeentestedin

accordancewiththemeasurementmethods

andproceduresspecifiedinIEEE1528.

TheFCChasgrantedanEquipment

Authorizationforthismodeldevicewithall

reportedSARlevelsevaluatedasincompliance

withtheFCCRFexposureguidelines.

Forthisdevice,thehighestreportedSARvalue

forusagenearthebodyis1.372W/kg.

Whiletheremaybedifferencesbetweenthe

SARlevelsofvariouspositions,theyallmeet

thegovernmentrequirements.

SARcomplianceforbody‐wornoperationis

basedonaseparationdistanceof10mm

betweentheunitandthehumanbody.Carry

thisdeviceatleast10mmawayfromyour

bodytoensureRFexposurelevelcompliantor

lowertothereportedlevel.Tosupport

bodywornoperation,choosethebeltclipsor

holsters,whichdonotcontainmetallic

components,tomaintainaseparationof10

mmbetweenthisdeviceandyourbody.

RFexposurecompliancewithanybody‐worn

accessory,whichcontainsmetal,wasnot

testedandcertified,andusesuchbody‐worn

accessoryshouldbeavoided.

FCCRegulations

Thisdevicecomplieswithpart15oftheFCC

Rules.Operationissubjecttothefollowing

twoconditions:(1)Thisdevicemaynotcause

harmfulinterference,and(2)thisdevicemust

acceptanyinterferencereceived,including

interferencethatmaycauseundesired

operation.

Thisdevicehasbeentestedandfoundto

complywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.

Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmful

interferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiate

radiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradio

communications.

CAUTION:Changesormodificationsnot

expresslyapprovedbythepartyresponsible

forcompliancecouldvoidtheuser’sauthority

tooperatetheequipment.

Theantenna(s)usedforthistransmittermust

notbeco‐locatedoroperatinginconjunction

withanyotherantennaortransmitter.

Thedeviceonlybeusedindoor.

ZTE MF971V LTE Ufi User Manual

ZTE Corporation LTE Ufi

Contents

User manual

Navigation menu

Namespaces

Views

Navigation
