ZTE MOVISTARPRIME WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone User Manual San Francisco
ZTE Corporation WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone San Francisco
ZTE >
Movistar Prime uers manual_rev2
1
Movistar Prime
User Manual
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic
or mechanical, including photocopying and microfilm,
without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the
right to make modifications on print errors or update
specifications without prior notice. Every effort has been
made in the preparation of this manual to ensure accuracy of
the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty
of any kind, expressed or implied.
Version No.: R1.0
Edition Time : 201105
Manual No. :
3
Contents
For Your Safety ...................................................... 12
General Safety ............................................................. 12
Radio Frequency (RF) Exposure .................................. 13
General Statement on RF Energy ........................... 13
Specific Absorption Rate (SAR) .............................. 16
Body Worn Operation ............................................. 16
Limiting Exposure to Radio Frequency (RF) Fields . 16
Regulatory Information............................................ 17
Distraction .................................................................... 17
Driving .................................................................... 17
Operating Machinery .............................................. 18
Product Handling ......................................................... 18
General Statement on Handling and Use ................ 18
Small Children ........................................................ 19
Demagnetization ..................................................... 19
Electrostatic Discharge (ESD) ................................. 19

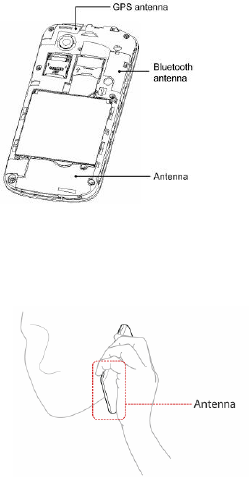

Antenna .................................................................. 20
Normal Use Position ............................................... 20
Air Bags .................................................................. 21
Seizures/ Blackouts ................................................ 21
Repetitive Motion Injuries ........................................ 21
Emergency Calls .................................................... 22
Loud Noise ............................................................. 22
Phone Heating ........................................................ 22
Electrical Safety ........................................................... 22
4
Accessories ............................................................ 22
Connection to a Car ............................................... 23
Faulty and Damaged Products ............................... 23
Interference ................................................................. 23
General Statement on Interface.............................. 23
Pacemakers ........................................................... 23
Hearing Aids .......................................................... 24
Medical Devices ..................................................... 24
Hospitals ................................................................ 24
Aircraft ................................................................... 24
Interference in Cars ................................................ 25
Explosive Environments .............................................. 25
Petrol Stations and Explosive Atmospheres ........... 25
Blasting Caps and Areas ........................................ 25
Getting Started ....................................................... 26
Overview ..................................................................... 26
Keys Explained ............................................................ 27
Starting up ................................................................... 28

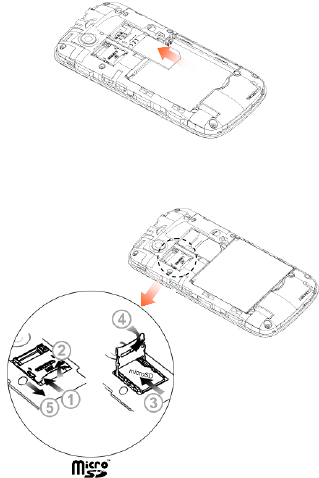

Installing the SIM/microSD Card and Battery .......... 28
Removing the Battery and SIM/microSD Card ........ 30
Charging the Battery .............................................. 31
Switching Your Phone On/Off ...................................... 32
Switching to Sleep Mode ........................................ 32
Waking up Your Phone .......................................... 32
Getting Around MOVISTAR PRIME ............................. 33
Touch Control ........................................................ 33
5
Home Screen.......................................................... 33
Status and Notification Icons................................... 35
Applications and Settings Preview .......................... 37
Phone Calls ............................................................ 43
How to Make Calls ....................................................... 43
Calling from the Dialer ............................................ 43
Calling from Your Contacts ..................................... 43
Calling from Your Call History ................................. 44
Calling from a Text Message .................................. 44
Using Speed Dial .................................................... 44
Making Emergency Calls ........................................ 45
Making International Calls ....................................... 45
How to Receive Calls ................................................... 46

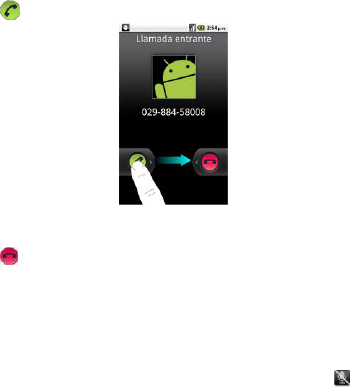

Answering a Call ..................................................... 46
Rejecting a Call ...................................................... 46
Muting a Call........................................................... 46
Putting a Call on Hold ............................................. 47
Turning the Speakerphone On/Off .......................... 47
Ending a Call .......................................................... 47
Adjusting Your Call Settings ......................................... 47

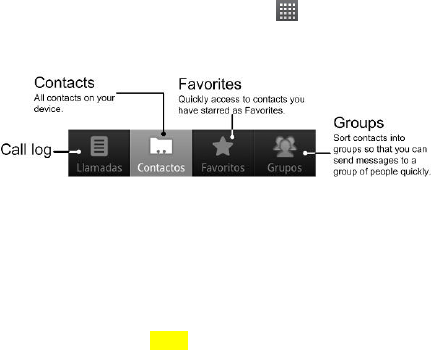

Contacts ................................................................. 49
Importing and Exporting Contacts ................................ 49
Import Contacts from the SIM Card or Export to the
Card ....................................................................... 49
6
Import Contacts from the microSD Card or Export to
the microSD Card ................................................... 50
Creating a Contact ....................................................... 50

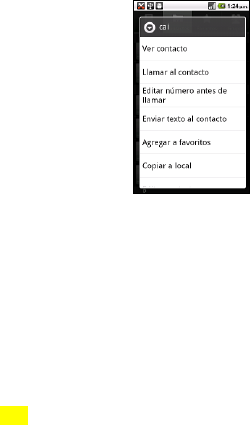

Adding a Contact to Favorites ...................................... 50
Searching for a Contact ............................................... 51
Editing a Contact ......................................................... 51
Deleting a Contact ....................................................... 52
Entering Text .......................................................... 53
Android Keyboard ........................................................ 53
Touchpal Input ............................................................. 54
Entering Numbers and Symbols .................................. 54
Android Keyboard Settings ..................................... 54
TouchPal‘s Settings ............................................... 55
Messaging .............................................................. 56
Sending an SMS.......................................................... 56
Sending an MMS ......................................................... 56
Managing Messages and Their ‗Threads‘ .................... 58
Reply to a Message ............................................... 58
Delete a Message Thread ...................................... 58
Message Settings ................................................... 59
Email ....................................................................... 61
Creating an Email account ........................................... 61
Composing and sending an Email ............................... 62
Reply to or Forward an Email ...................................... 62
Email Settings ............................................................. 63
7
Getting Connected to the Internet ........................ 65
Adding a New GPRS/3G/EDGE Connection ................ 65
Turning on Wi-Fi .......................................................... 66

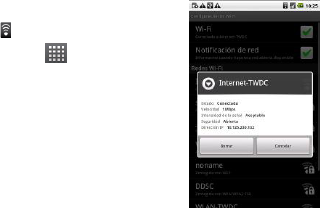

Connecting to a Wi-Fi Network ..................................... 66
Checking the Wi-Fi Network Status .............................. 67
Using the Phone as a Modem ...................................... 67
Enabling the Phone as a Modem ............................ 67
Disabling the Modem Function ................................ 68
Browsing the Internet ............................................ 69
Browsing Options ......................................................... 69
Opening Links in Web Pages ....................................... 70
Downloading Apps from the Web ................................. 71
Using Bookmarks ......................................................... 71
Edit a Bookmark ..................................................... 71
Delete a Bookmark ................................................. 72
Browser Settings .......................................................... 72
Bluetooth® .............................................................. 74
Turning Bluetooth on/off ............................................... 74
Making Your Phone Visible .......................................... 74
Change Your Phone‘s Name ........................................ 75
Hook up with Another Bluetooth Device ....................... 75
Making the Most of Multimedia ............................. 76
Taking Pictures with Your Camera ............................... 76
Adjusting Camera Settings ..................................... 76
Shooting Video with Your Camcorder ........................... 76
8
Adjusting Your Video Settings ................................ 77

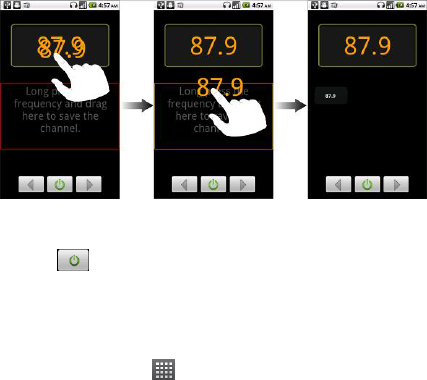

Listening to Your FM Radio ......................................... 77
Playing Your Music ...................................................... 78
Creating Playlists ................................................... 79
Managing Playlists ................................................. 79
Setting a Song as Ringtone .................................... 80
Playing Your Videos .................................................... 80
Opening Your Gallery .................................................. 81
Making Memorable Memos.......................................... 82
Using Your Google™ Applications ...................... 84
Gmail ........................................................................... 84
Using Google Calendar ............................................... 85
Using Google Talk ....................................................... 85
Opening Google Talk ............................................. 85
Adding a New Friend .............................................. 85
Changing Your Online Status ................................. 86
Starting a Chat ....................................................... 86
Places ......................................................................... 86
Latitude ....................................................................... 87
Sorting out Your Phone Settings .......................... 88
Setting Time and Date ................................................. 88
Changing Display Settings ........................................... 88
Adjusting Screen Brightness .................................. 88
Adjusting Screen-timeout ....................................... 89
Switching Screen Orientation Automatically ........... 89
9
Showing Animation when Opening/Closing Windows
............................................................................... 89
Sound Settings ............................................................. 89
Choosing Your Ringtone ......................................... 90
Setting the Default Notification Ringtone ................. 90
Switching Your Phone to Silent Mode ..................... 90
Switching to Vibrate ................................................ 91
Flipping to Turn off Ringtone ................................... 91
‗Haptic‘ (touch) Keypad Feedback .......................... 91
Adjusting Volume .................................................... 91
Turning on Touch Tones ......................................... 92
Turning on Selection Tones .................................... 92
Turning on Screen Lock Sound ............................... 92
Language Settings ....................................................... 92
Mobile Network Services .............................................. 92
Getting Data Services while Roaming ..................... 93
Switching Network Modes ....................................... 93
Switching Networks ................................................ 93
Setting Access Point Names ................................... 93
Security Settings .......................................................... 94
Protecting Your Phone with a Screen Unlock Pattern
............................................................................... 94
Protecting Your Phone with a PIN or Password ...... 96
Protecting Your SIM with a PIN ............................... 96
Setting up Credential Storage ................................. 97
Managing Your Memory Card ...................................... 98
10
Checking Memory Card Space ............................... 98
Unmounting Your Memory Card ............................. 98
Formatting Your Memory Card ............................... 98
Managing Phone Memory ............................................ 99
Privacy: Reset to Factory Settings ............................... 99
Managing Applications and Their Settings ................... 99
Viewing Your Phone‘s Applications ........................ 99
Allowing Installation of Non-market Applications... 100
How to Install an Application ................................ 100
Removing an Application ...................................... 100
Moving an Application to or from the Memory Card
............................................................................ 101
Managing Other Settings ........................................... 101
Search Settings .................................................... 101
Voice Interaction .................................................. 102
Other Applications ............................................... 103
Alarms ....................................................................... 103
Note Pad ................................................................... 103
Calculator .................................................................. 103
Task Manager ........................................................... 103
Stopwatch ................................................................. 104
Specifications....................................................... 105
Declaration of RoHS Compliance ....................... 106
Disposal of Your Old Appliance ......................... 107
12
For Your Safety
General Safety
Don‘t make or receive
handheld calls while
driving. And never text
while driving.
Don‘t use at petrol
stations.
Keep your phone at
least 15mm away from
your ear or body while
making calls.
Your phone may produce
a bright or flashing light.
Small parts may cause
a choking.
Don‘t dispose of your
phone in fire.
Your phone can
produce a loud sound.
Avoid contact with
anything magnetic.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid extreme
temperatures.
Switch off when asked
to in hospitals and
medical facilities.
Avoid contact with
liquids. Keep your phone
dry.
Switch off when told to
in aircrafts and airports.
Don‘t take your phone
apart.
13
Switch off when near
explosive materials or
liquids.
Only use approved
accessories.
Don‘t rely on your phone for emergency communications.
Radio Frequency (RF) Exposure
General Statement on RF Energy
Your phone contains a transmitter and a receiver. When it is
ON, it receives and transmits RF energy. When you
communicate with your phone, the system handling your call
controls the power level at which your phone transmits.
Health and safety information
Radio Frequency (RF) Energy
This model phone meets the government‘s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S.
Government:
The exposure standard for wireless mobile phones employs a unit
unit of measurement known as the Specific Absorption Rate, or
14
SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR
SAR are conducted using standard operating positions accepted
by the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum
maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to a
a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 0.781 W/kg and when worn
on the body, as described in this user guide, is 0.742 W/kg
(Body-worn measurements differ among phone models,
depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after
searching on
FCC ID: Q78-MOVISTARPRIME.
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of
15
1.5 cm from the body. Use of other enhancements may not
ensure compliance with FCC RF exposure guidelines. If you do
no t use a body-worn accessory and are not holding the phone at
the ear, position the handset a minimum of 1.5 cm from your
body when the phone is switched on.
FCC Compliance（FOR PART 15B/PART 15C）
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user‘s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
16
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for
help.
Limiting Exposure to Radio Frequency (RF)
Fields
For individuals concerned about limiting their exposure to RF
fields, the World Health Organization (WHO) provides the
17
following advice:
Precautionary measures: Present scientific information
does not indicate the need for any special precautions for
the use of mobile phones. If individuals are concerned, they
might choose to limit their own or their children‘s RF
exposure by limiting the length of calls, or using ‗hands-free‘
devices to keep mobile phones away from the head and
body.
Further information on this subject can be obtained from the
WHO home page http://www.who.int/peh-emf (WHO Fact
sheet 193: June 2000).
Regulatory Information
The following approvals and notices apply in specific regions
as noted.
Please find the section Declaration of RoHS Compliance
and CE DOC in the end of this manual.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
18
driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care
and keep it in a clean and dust-free place.
Do not expose your phone or its accessories to open
flames or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
Do not paint your phone or its accessories.
19
Do not attempt to disassemble your phone or its
accessories, only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum - [5] and maximum + [50]
degrees Celsius.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could
break when you sit down.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card‘s metal connectors.
20
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to
your ear, with the bottom towards your mouth.
21
Air Bags
Do not place a phone in the area over an air bag or in the air
bag deployment area.
Store the phone safely before driving your vehicle.
Seizures/ Blackouts
The phone can produce a bright or flashing light.
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games
with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize
the times of pressing buttons, such as Message
Templates and Predictive Text.
22
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as
coins or key rings, to contact or short-circuit in the battery
terminals.
23
Connection to a Car
Seek professional advice when connecting a phone interface
to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or
its accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until
you have taken it to be checked at an authorized service
centre.
Interference
General Statement on Interface
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
24
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‗flight mode‘, this
25
must be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off ―two-way radios‖
or ―electronic devices‖ to avoid interfering with blasting
operations.
26
Getting Started
Overview
Power Key
Earpiece
Touch
Screen
Menu Key
Back Key
Home
Key
Headset
Jack
Volume +
Volume -
27
Keys Explained
Key
Function
Power Key
Hold to select phone modes: Silent,
Vibration, Airplane or Power off.
Press to switch your phone to sleep
mode.
Press to wake up your phone.
Home Key
Press to return to the Home Screen from
any application or screen.
Hold to see recent used applications.
Battery Cover
Camera
Charger/
USB Jack
28
Key
Function
Menu Key
Press to get the options on the current
screen.
Back Key
Press to go to the previous screen.
Volume Keys
Press Volume Up Key to turn the volume
up.
Press Volume Down Key to turn the
volume down.
Starting up
Installing the SIM/microSD Card and Battery
Switch off your phone before installing or replacing the battery,
SIM card, or memory card.
1. Remove the back cover.
2. Hold the SIM card with the cut corner oriented as shown
and slip it into the card holder.
29
3. Open the microSD card holder, hold your microSD card
by the cut corner end and slide it in.
4. microSD logo is a trade mark of the SD Card
Association.Insert the battery by aligning the gold
contacts on the battery with the gold contacts in the
30
battery compartment. Gently push down on the battery
until it clicks into place.
5. Press the cover gently back into place until you hear a
click.
Removing the Battery and SIM/microSD Card
1. Make sure that your mobile phone is off.
2. Remove the back cover.
3. Lift the battery up and out.
4. Slide the SIM card out.
5. Open the microSD card holder, sliding it down gently and
remove the microSD card.
31
Charging the Battery
When you first get your new phone you‘ll need to charge the
battery like this…
1. Connect the adapter to
the charger jack.
2. Connect the charger to
a standard AC wall
outlet.
3. Disconnect the charger
when the battery is fully
charged.
how much charge have you got?
If the battery is low, there will be a pop-up message on the
screen and the indicator light will be red. As you charge your
phone, the indicator light will change according to the battery
level:
Indicator color
Battery level
Red
Battery is very low.
Green
Battery is full or partially drained.
If the phone is on, you‗ll see this charging icon appear
on the status bar. As soon as charging is completed, this icon
appears on the status bar.
32
Switching Your Phone On/Off
1. Make sure the SIM card is in your device and the battery
is charged.
2. Hold Power Key to switch on your phone.
3. To switch it off, hold Power Key to get the phone options.
Select Power off, and then tap OK.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to
a low-power-consumption state while the display is off. Your
device also goes into Sleep Mode by itself when the display
is automatically turned off after a certain period of time, which
you can set in Settings > Display > Screen timeout.
Press Power Key to switch to Sleep Mode.
Waking up Your Phone
1. Press Power Key to activate your screen display.
2. Drag the icon to the right.
NOTE: If you have set an ‗unlock pattern‘ for your phone (see
Sorting out Your Phone Settings > Security Settings >
Protecting Your Phone with a Screen > Unlocking the Screen
with Your Pattern) you‘ll need to draw the pattern to unlock
your screen.
33
Getting Around MOVISTAR PRIME
Touch Control
You can use finger gestures to control your phone. The
controls on your touch screen change dynamically
depending on the tasks you‘re performing.
1. Tap the buttons, icons, or applications to select items or
to open applications.
2. Keep your finger on an item to see the available options.
3. Flick the screen to scroll up, down, left or right.
4. Point, drag and drop to move particular items across the
screen – into files etc.
5. Pinch with two fingers to zoom in/out a web page or an
image.
NOTE: You can view the phone screen in portrait or
landscape simply by holding it upright or turning it on its side.
Home Screen
You choose what is shown on your Home Screen. Just add
or remove stuff to make it your own.
34
Extended Home Screen
The Home Screen extends beyond the screen width, giving
you loads more space to add more stuff. Simply slide your
finger to the left or right to see the extended Home Screen.
Choosing Your Wallpaper
1. Tap Home Key to return to the Home Screen.
2. Tap Menu Key and select Wallpaper.
3. Select the wallpaper you want to use from Gallery,
Live wallpapers, or Wallpapers.
4. Tap Save or Set wallpaper.
Adding Things to Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Slide left or right to find an extended Home Screen where
35
there is space to add an item.
3. Tap Menu Key and select Add.
You can also tap and hold the blank area of the Home
Screen to get the Add to Home screen menu.
4. Select an item type and the item you want to add to the
Home Screen.
Removing Things from Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the
icon appears on the screen.
3. Drag the item to .
Status and Notification Icons
Your MOVISTAR PRIME will tell you exactly what‘s going on
by showing you simple icons. Here‘s what they mean.
36
GPRS connected
No signal
GPRS in use
Signal strength
EDGE connected
Roaming
EDGE in use
Phone speaker off
3G connected
Phone microphone off
3G in use
No SIM installed
USB connected
GPS connecting
Battery very low
GPS connected
Battery low
Connected to a Wi-Fi network
Battery full
Alarm set
Battery charging
Wired microphone headset
Vibrate mode
Bluetooth on
Airplane mode
Speaker on
New mail
Problem with SMS/MMS delivery
New SMS/MMS/
voicemail
New instant message
New Gmail message
Upcoming event
Missed call
Song is playing
37
Call in progress
Downloading data
Call on hold
Content downloaded and
installed successfully
Call forwarding
Sending data
More (not displayed)
notifications
USB tethering is on
Using the Notification Panel
Flick the status bar downwards to open the Notification
Panel, where you can see your calendar events, new
messages, and current settings – such as call forwarding or
call status. From here you can also open new messages,
reminders, etc.
TIPS: You can also open the Notification Panel by tapping
Menu Key > Notifications from the Home Screen.
Applications and Settings Preview
Programs Preview
Your MOVISTAR PRIME has lots of functions. Tap to
see the following.
Applications
Benefit
Alarm
Set alarms.
Browser
Browse the Internet.
38
Applications
Benefit
Calculator
Do basic calculation.
Calendar
Schedule appointments and events.
Call log
View the calls you made, received, and missed.
Camcorder
Shoot video clips.
Camera
Take some great pictures.
Contacts
Keep contact details of friends and colleagues.
Dialer
Dial a number.
Email
Send and receive Emails.
Filer
Manage files on your microSD card.
FMRadio
Search, listen to and save radio channels.
Gallery
Manage multimedia files.
Gmail
Access your Gmail account and check your Gmail
on your mobile phone.
Google Search
Search for information online or on your phone.
Latitude
See your friends‘ locations and share yours with
them via Google Maps Latitude.
Maps
Track your current location, view real-time traffic,
and receive detailed directions to your destination.
Market
Access useful applications and fun games to
download.
39
Applications
Benefit
Messages
Open the Messages screen, where you can send
and receive SMS and MMS messages.
Movistar
Only appears on the screen if your SIM provides
this function. Please contact your service provider
for more information.
Music
Browse your audio files and listen to them.
Navigation
Find your way with Google Maps Navigation.
News & Weather
Check out the latest news and weather forecast.
Note pad
Create text notes.
Places
Find restaurants, ATMs, and other businesses or
attractions near you.
Settings
Adjust phone settings.
Sound Recorder
Capture audio clips.
Stopwatch
Measure exactly how long it takes to do something.
Talk
Use Google Talk.
Task Manager
Manage all the programs running on your phone.
Videos
Browse and watch video files.
Voice Search
Use your voice to search, control, and
communicate.
YouTube
Watch YouTube videos and upload your own.
40
Check Your Settings
To change or view your phone‘s settings, tap Home Key >
> Settings.
Or From the Home Screen tap Menu Key > Settings.
Wireless & networks
Configure and manage wireless
connections, such as Wi-Fi, Bluetooth®,
mobile networks, mobile data
connection sharing, and Virtual Private
Networks. You can also select Airplane
mode from here.
Call settings
Set up fixed dialing numbers, voicemail,
speed dial, call barring, call forwarding,
call waiting, and caller ID, etc.
Sound
Set sound settings, such as ringtones
and notifications.
Display
Set display settings, such as screen
brightness.
Location & security
Create you screen unlock pattern, set
the SIM lock, or manage the phone‘s
credential storage. You can also select
the sources to use when determining
locations from My Location.
Applications
Manage your applications and install of
new ones.
41
Accounts & sync
Manage your accounts and configure
synchronization settings.
Privacy
Configure privacy settings, such as
back-up settings, and personal data.
SD card & phone
storage
Check available memory on the
external card and the internal phone
storage.
Search
Set the search options.
Language &
keyboard
Set operating system language and
region, plus text input options.
Voice input & output
Set up voice recognition and
text-to-speech options.
Accessibility
Choose accessibility options after you
have installed accessibility-related
applications and set Power button to
end call.
Date & time
Set the date, time, time zone, and
date/time format.
About phone
View phone status, battery use, and
legal information. You can also check
for system updates.
42
Open Recently Used Applications
1. Hold Home Key from any screen until the following
recently used applications screen appears.
2. Tap the application you want to open.
43
Phone Calls
How to Make Calls
There are many ways to make a call with your MOVISTAR
PRIME. And they‘re all easy to do.
Calling from the Dialer
1. Tap Home Key > > Dialer.
2. Enter the phone number or the contact name you want to
call.
If you make a mistake, tap to erase a wrong entry, or
hold this key to clear all digits. Your phone automatically
lists the matching contacts. You can tap to hide the
keypad and to see if there are more matching numbers or
contacts.
3. Tap .
Calling from Your Contacts
1. Tap Home Key > > Contacts.
2. Slide your finger to scroll the contacts list and tap the
contact you want to call.
You can search for a contact by tapping Menu Key >
Search.
3. Tap .
44
Calling from Your Call History
1. Open Call log by tapping the Call log tab from the
Contacts Screen, or by tapping from Dialer, or Home
Key > > Call log.
2. Tap .
Calling from a Text Message
If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.
1. Tap Home Key > > Messages.
2. Tap the conversation and then the message that contains
the phone number you want to call.
3. Tap the number.
4. Tap .
Using Speed Dial
Press and hold 1 - 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
Assigning a speed dial key:
1. Tap Menu Key > Settings > Call settings > Speed dial
from the Home Screen.
2. Tap a speed dial key.
3. Enter a phone number or tap to select one from the
45
contact list.
4. Tap OK.
Making Emergency Calls
1. Enter the emergency number for your location from the
dialer.
2. Tap .
TIPS: It‘s possible to dial emergency numbers when your
SIM is not inserted. Please call your service provider to
find out more information. For instance, what emergency
numbers are supported.
Making International Calls
1. Hold from the dialer to enter ‗+‘.
2. Enter the full phone number.
For example: +49-123-12345678 in the following format:
+ country code / area code / phone number.
3. Tap .
Whether you can make international calls depends on
network status and/or your tariff. Usually a quick call will
make it possible. Please call your service provider to find out
more.
46
How to Receive Calls
Answering a Call
Drag to the right to answer the call.
Rejecting a Call
Drag to the left to reject the call.
Muting a Call
During a call, you can mute your microphone so that the
person you are speaking to cannot hear you, but you can still
hear them:
Tap Mute to turn your microphone off. The mute icon will
appear on the status bar. To turn your microphone back on,
tap Mute again.
47
Putting a Call on Hold
During a call, you can put it on hold by tapping Menu Key >
Hold. The icon will appear on the screen.
TIPS: If you accept an incoming call while you‘re on another
call, the first call automatically goes on hold. Just tap Menu
Key > to switch between the two callers.
Turning the Speakerphone On/Off
Tap Speaker during a call to turn the speakerphone on. This
icon will appear in the status bar. Tap Speaker again to
turn off the speakerphone.
Ending a Call
Tap to finish a call.
Adjusting Your Call Settings
From the Home Screen, you can open the call settings menu
by going from Menu Key > Settings > Call settings.
Fixed Dialing
Numbers
Restrict outgoing calls to a fixed set of numbers.
To do this you must know your SIM‘s PIN2 code.
Voicemail service
Select a voicemail service provider.
Voicemail settings
Specify a voicemail number.
Speed dial
Set speed dialing keys and numbers.
48
GSM/WCDMA call
settings
Call forwarding
Forward your incoming calls to a
different number. And choose
when to forward: Always
forward; Forward when busy;
Forward when unanswered, or
Forward when unreachable.
Additional
settings
Caller ID
Choose
whether people
you call can see
your number.
Call waiting
See new
incoming calls
while you‘re on
another call.
Call Barring
Settings
Forbid certain types of calls.
Call broadcast
settings
Cell broadcast settingsEnable/disable the receipt
of cell broadcast messages, and set cell
broadcast channel and language.
49
Contacts
You can save contacts to your phone memory or your SIM.
More information can be saved on the phone memory for a
contact than on the SIM. For instance, postal addresses,
pictures, nicknames, websites, etc.
To go your contacts, tap Home Key > > Contacts.
There are four tabs on the Contacts Screen: Call log,
Contacts, Favorites, and Groups.
Importing and Exporting Contacts
You can import/export contacts from/to your SIM card (or
microSD card).
Import Contacts from the SIM Card or Export
to the Card
1. Tap Menu Key > More > Import/Export from the
Contacts Screen.
2. Choose to import or export contacts. Your MOVISTAR
PRIME will automatically read the contacts.
50
3. Select the contacts you want to import/export. Or, just tap
Menu Key > Select all.
4. Tap Done.
Import Contacts from the microSD Card or
Export to the microSD Card
1. Tap Menu Key > More > Import/Export from the
Contacts Screen.
2. Choose to import or export contacts. If you want to import
contacts from the microSD card, you should have vCard
files saved in the microSD card. If there‘s more than one
vCard file, you need to select the vCard file and tap OK.
Creating a Contact
1. Tap Menu Key > New contact from the Contacts Screen.
2. Select where you want to save your contact.
3. Enter their name and phone number(s), email
addresses, postal addresses, Nickname, etc.
4. Tap Done to save the contact.
Adding a Contact to Favorites
1. Tap and hold from the Contacts Screen the contact you want
to add to Favorites.
2. Tap Add to favorites from the shortcut menu.
51
Searching for a Contact
1. Tap Menu Key > Search from the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Editing a Contact
1. Tap the contact you want to edit from the Contacts
Screen.
2. Tap Menu Key > Edit contact.
3. Edit the contact and tap Done.
TIPS: You can also edit a contact by holding it in the
Contacts Screen and selecting Edit contact from the pop-up
shortcut menu.
52
Deleting a Contact
1. Tap and hold the contact you want to delete from the
Contacts Screen.
2. Tap Delete contact from the pop-up shortcut menu.
3. Tap OK.
TIPS: You can also delete contacts by tapping Menu Key >
Delete contacts from the Contacts Screen. Select the
contacts you want and tap Done.
53
Entering Text
When you enter a field that needs text or numbers, a
keyboard automatically appears on the screen. Hold the input
box and select Input method from the pop-up menu to
change input method.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the
keyboard will change from portrait to landscape.
To use the landscape keyboard, just tick the Auto-rotate
screen check box in Settings > Display. (The landscape
keyboard is not supported in all applications.)
Tap or hold to enter letters,
spaces and punctuations.
Tap to switch
between upper-
case and lower-
case. Tap twice
to lock upper-
case input.
Tap to select digits
and symbols.
Tap to Google‘s
networked voice
input.
Tap or hold to input
emoticons.
Tap to delete text
before the cursor.
54
Touchpal Input
Entering Numbers and Symbols
1. Enter a field that needs text or numbers.
2. Tap to open the symbol panel.
3. Select the numbers and symbols.
Android Keyboard Settings
Tap Menu Key > Settings > Language & keyboard from
the Home Screen.
You can tick the check boxes to enable
Vibration on keypress
Sound on keypress
Auto-capitalization of the first letter in each sentence.
You can also select multiple input languages, or set voice
input option.
55
TouchPal’s Settings
You can tick the check boxes to enable
Word prediction
Key press sound
Key press vibration
Mixed language input
Swipe to switch layout
Predict next word
Correct mistyping
Slide-down symbol
Relevant words.
Or select language, layout in portrait mode and landscape
mode.
56
Messaging
Your SMS (text message) and MMS (multimedia messaging
service) files are located in Messages (Home Key > >
Messages).
When you receive a new message, you can open it from the
Notification Panel, or from the Messages Screen. Simply tap
on the new message to read it.
Your phone will tell you when message(s) arrive by showing
this icon in the status bar.
Sending an SMS
1. Tap Home Key > > Messages.
2. Tap New message.
3. Tap the To field and enter the recipient‘s number, or tap
Menu Key > People to select recipients from Contacts.
TIPS: You can also enter the first letters of the
recipient‘s name to display a list of matching names
stored in Contacts, and then select their name from the
list.
4. Tap the Type to compose field and edit your message.
5. Tap Send to send your text.
Sending an MMS
1. Tap Home Key > > Messages.
57
2. Tap New message.
3. Enter the recipient‘s number and, if necessary, message
text, just like you do with a text message.
4. Tap Menu Key > Add subject to enter the subject of your
MMS.
5. Tap Menu Key > Attach if you want to add an attachment
to your MMS.
Pictures: Select a picture to add to your MMS.
Capture picture: Take a photo to attach to your MMS.
Videos: Select a video clip to attach to your MMS.
Capture video: Shoot a video clip and attach to your
MMS.
Audio: Select an audio file to attach to your MMS.
Record audio: Record an audio file to attach to your
MMS.
Slideshow: Edit a slideshow to attach to your MMS.
6. When you‘ve finished, tap Send.
NOTE: Add an attachment to text message and it will be
converted into an MMS automatically. Likewise if you remove
all attachments from an MMS, it‘ll automatically become a
text message.
58
Managing Messages and Their
‘Threads’
SMS and MMS messages sent to and received from the
same contact (or number) are grouped into one message
thread in the Messages Screen. Tap the message thread
and you can see the conversation you have had with
someone (similar to a chat program). Message threads are
sorted by the time when you received them, with the latest
one on the top.
Reply to a Message
1. Tap the message thread you want to reply to from the
Messages Screen.
2. Tap the Type to compose field and edit your message.
3. Tap Send.
Delete a Message Thread
1. Tap Menu Key > Delete threads from the Messages
Screen.
2. Select the threads you want to delete. If you want to
delete all threads, tap All.
3. Tap Delete.
59
Message Settings
To configure your message settings, tap Menu Key >
Settings from the Messages Screen.
Storage settings:
Delete old messages: Select to delete old messages
when your storage limits are reached.
Text message limit: Set the maximum number of text
messages allowed in a single thread.
Multimedia message limit: Set the maximum number of
multimedia messages allowed in a single thread.
Text message (SMS) settings:
Delivery reports: Request a delivery report for every text
message you send.
Manage SIM card messages: Manage the messages
saved in your SIM card.
SMS validity: Set the validity time limit for outgoing text
messages.
SMS priority: Set the priority of outgoing messages.
Service Center: Enables you to view and edit the service
center number.
Multimedia message (MMS) settings:
Delivery reports: Request a delivery report for every
MMS message you send.
Read reports: Request a read report for every MMS
60
message you send.
Auto-retrieve: Automatically retrieve MMS messages.
Roaming auto-retrieve: Automatically retrieve MMS
messages when you‘re roaming.
MMS validity: Set the validity time limit for outgoing
multimedia messages.
MMS creation mode: Select MMS creation restrictions.
An MMS created under restricted mode is more likely to
be displayed properly on other devices than those
created under free mode.
Notification settings:
Notifications: Show message notifications in the status
bar.
Select ringtone: Choose a ringtone for your incoming
messages.
Vibrate: Make your phone vibrate when it notifies you of
new messages.
Signature settings:
Edit signature: Edit your signature, which can be added
automatically to outgoing messages.
Add signature: Add the signature to all outgoing
messages.
61
Email
Tap Home Key > > Email. You can enter the Email
Screen to setup your Email account and exchange Emails.
Creating an Email account
1. Enter your Email address and password. Then tap Next
when you enter the Email Screen for the first time.
2. Select the type of your account, edit the incoming server
settings, and then tap Next or Next [Check].
After you press Next [Check], your phone will check the
incoming server settings. If you are notified that setup could
not be finished, you might need to correct some settings to
finish it. If there is any problem, please contact your mobile
service provider and Email service provider.
3. Edit the outgoing server settings and tap Next or Next
[Check].
After you press Next [Check], your phone will check the
outgoing server settings.
NOTE: Your MOVISTAR PRIME knows the client settings
for lots of Email service providers. If the Email service you
use is from those providers, the phone will automatically
check the incoming and outgoing settings after you enter
your Email account and password.
4. Set the Email checking frequency, select whether to use
62
this account by default or be notified when Email arrives,
and then tap Next.
5. Give your account a name and set a name displayed on
outgoing message, and then tap Done.
Composing and sending an Email
After creating an Email account, you can compose and send
Email messages.
6. Tap Menu Key > Compose from the Email Screen.
7. Tap To field if needed, and enter the recipient‘s address.
When you enter the address, the matching addresses
saved in your Contacts will be displayed. You can tap the
recipient from the list.
TIP: You can also tap Menu Key > Add Cc/Bcc to add
recipients.
8. Enter the subject and the content of your Email.
Tap Menu Key > Add attachment to add files to the
Email.
9. Tap Send.
Reply to or Forward an Email
1. Open the Email you want to reply to or forward from Email
Screen.
2. Tap Reply or Menu Key > Forward to reply to/forward
63
the Email.
You can also tap Reply all to reply to all recipients of the
Email.
3. Enter the contents/recipients of your Email.
4. Tap Send.
Email Settings
Tap the account you want to set from the Email Screen and
tap Menu Key > Account settings. You can get the Email
settings.
General settings
Account name: Set your account name.
Your name: Set the name displayed on outgoing
message.
Email address: View and change your Email address.
Use signature: Select to use signature.
Signature: Set your signature.
Email check frequency: Set the email checking
frequency.
Power-saving mode: Enable the email synchronization
time intelligent adjustment.
Default account: Select the check box to send email from
this account by default.
Sync deleted message: Delete an Email on the phone
64
and the Email will be deleted on the server, too.
Notification settings
Email notifications: Select to be notified in status bar
when Email arrives.
Select ringtone: Select the ringtone for incoming Email
notification.
Vibrate: Select to be notified by vibration when Email
arrives.
Server settings
Incoming settings: Set the incoming server settings.
Outgoing settings: Set the outgoing server settings.
65
Getting Connected to the Internet
Your phone‘s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.
You can use default connection settings to connect to the
web via your mobile network (GPRS/EDGE/3G), or Wi-Fi.
Adding a New GPRS/3G/EDGE
Connection
To get connected via GPRS/EDGE/3G you need a data plan
with your service provider. Also if the GPRS/3G/EDGE
settings are not pre-configured on your phone, please
contact your provider to get the following information.
Changing the settings without talking to your service provider
could stop your phone from working.
Access Point Name (APN).
Your user name and password if needed.
Server IP and the port number if the network uses a proxy
server.
1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks > GSM/UMTS Options >
Access Point Names.
2. Tap Menu Key > New APN.
3. Tap Name to enter your APN name (it can be whatever
you like).
66
4. Tap APN to enter the APN you want to add.
5. Tap Proxy and Port to enter the Server IP and port if the
network uses a proxy server.
6. Tap and enter Username and Password. (If there‘s no
user name or password, leave them blank.)
7. If needed, tap and enter APN type.
8. Tap Menu Key > Save to complete.
TIPS: To set the APN to default settings, tap Menu Key >
Reset to default.
Turning on Wi-Fi
Wi-Fi provides wireless Internet access over distances of up
to 300 feet (100 meters).
1. Tap Home Key > > Settings > Wireless &
networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Tap Home Key > > Settings > Wireless &
networks > Wi-Fi settings.
The Wi-Fi network names and security settings (open or
secured) that your phone has detected are shown in the
Wi-Fi networks section.
2. Tap a network to connect to it.
67
If the network is secured, you‘ll need to enter a password.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by
looking at the icon in the status bar.
Or tap Home Key > > Settings >
Wireless & networks > Wi-Fi
settings. Next, tap the wireless
network that the phone is currently
connected to. You can check the
network status from the pop-up
window.
Using the Phone as a
Modem
You can access the Internet on your PC via your phone as a
modem. Note the function may result in data charges from
your mobile phone carrier. Please contact them for detail.
Enabling the Phone as a Modem
TIP:
Make sure that USB storage is turned off before enabling
the modem function. You can flick down the notification
panel and tap Turn off USB storage > Turn off USB
storage.
68
The PC accesses the Internet via the phone‘s mobile
network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
modem.
1. When you connect your phone to your PC with the
bundled USB cable for the first time, a window will pop up
and prompt you to install the driver.
2. When you connect your phone to your PC with the
provided USB cable for the first time, a window will pop up
and prompt you to install the driver.
3. Double click the executable file (.exe) in the window and
follow the prompt to finish the driver installation.
NOTE: If the window doesn‘t pop up automatically for
some reason, please open the new CD-ROM drive on
your PC manually and find the executable file to run it.
4. Go to Control Panel > Network on your PC to enable the
new network connection.
Now you can launch the Internet browser on your PC and
start surfing.
69
Browsing the Internet
You can use your phone to get on the Internet. Your phone
automatically creates an EDGE or GPRS/3G connection
while you browse web pages.
Tap Home Key > > Browser.
There are different ways to open web pages:
Tap the address bar to enter the website you want to
browse. Then tap Go.
Tap beside the address bar or tap Menu Key >
Bookmarks. Select a bookmark to open.
Tap beside the address bar or tap Menu Key >
Bookmarks. Choose an item from the Most visited
tab or History tab.
Browsing Options
Refresh: Menu Key > Refresh.
Go to the next page: Menu Key > More > Forward.
Add the page to Bookmarks: Menu Key > More > Add
bookmark.
Search: Menu Key > More > Find on page and enter the
search item.
Copy: Menu Key > More > Select text and slide your
finger on the page to select the text you want to copy.
Your phone automatically copies the selected text to the
70
clipboard.
Share pages: Menu Key > More > Share page to send
a page by Bluetooth, Email, Gmail or Messages.
Downloads/page info: Menu Key > More > Page
info/Downloads.
Landscape browser: Menu Key > More > Settings.
Tick the Landscape-only display box and rotate your
phone sideways to view the landscape browser screen.
Open new browser window: Menu Key > New window.
Then tap the address bar to enter the website you want to
browse.
Switch browser windows: If you have more than one
browser windows opened, you can switch between these
windows by tapping Menu Key > Windows. Then tap the
page you want to browse. You can also tap to close a
window.
Opening Links in Web Pages
Tap the link to open the page, or hold on the link to open the
shortcut menu, giving you these options:
Open
Open in new window
Bookmark link
Save link
71
Share link (by Bluetooth, Email, Gmail, or Messages)
Copy link URL
Downloading Apps from the Web
If a web page has link to an application you‘d like to
download, just hold on the link and select Save link. The
application will be saved to your microSD card.
Using Bookmarks
To bookmark a web page, open it and tap or Menu Key >
Bookmarks. Then tap Add or Add bookmark. Give the
bookmark a name and tap OK.
TIPS: You can press Menu Key > List view/Thumbnail
view to change how you view bookmarks on your phone
screen.
Edit a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the
shortcut menu pops up.
4. Select Edit bookmark.
5. Edit the name or location, and then tap OK to save it.
72
Delete a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to delete and hold on it until the
shortcut menu pops up.
4. Select Delete bookmark and tap OK to confirm.
Browser Settings
You can set the browser text size, home page etc. by tapping
Menu Key > More > Settings from a browser window.
Page content settings
Text size
Default zoom
Open pages in overview
Text encoding
Block pop-up windows
Load images.
Auto-fit pages
Landscape-only display
Enable JavaScript
Enable plug-ins
Open in background
73
Set home page
Privacy settings
Clear cache: Delete all cached page contents.
Clear history: Clear the browser navigation history.
Accept cookies: Allow websites to use cookies.
Clear all cookie data: Clear the browser cookies –
deleting all history data.
Remember form data: Remember the data you type in
forms for later use.
Clear form data: Clear all the saved form data.
Enable location: Allow sites to request access to your
location.
Clear location access: Clear location access.
Security settings
Remember passwords: Save usernames and
passwords for web sites.
Clear passwords: Clear saved passwords.
Show security warnings: Warn if there‘s a problem with
a site‘s security.
Advanced settings
Website settings: View advanced settings for individual
websites. (Only available for some websites.)
Reset to default: Clear all browser data and reset all
settings to default.
74
Bluetooth®
Bluetooth® is a short-range wireless communication
technology. Phones or other devices with Bluetooth
capabilities can exchange information wirelessly within a
distance of about 10 meters. The Bluetooth devices must be
paired before the communication is performed.
Turning Bluetooth on/off
Tap Home Key > > Settings > Wireless & networks
and tap the check box by Bluetooth.
When Bluetooth is on, the icon will appear in the status
bar. If you want to turn Bluetooth off, just clear the Bluetooth
check box.
NOTE: If you switch off your phone while Bluetooth is turned
on, when you switch on the phone again, Bluetooth will turn
on automatically.
Making Your Phone Visible
In order to work with other phones or devices that have
Bluetooth, you need to make your phone ‗visible‘ to them.
1. Tap Home Key > > Settings > Wireless &
networks > Bluetooth settings.
2. Tick the Bluetooth check box if it isn‘t already ticked.
3. Tick the Discoverable box to make your device visible.
75
Change Your Phone’s Name
When your phone is visible to other Bluetooth devices it will
be seen by its name, and you can make that anything you
want – like ‗Dave‘s MOVISTAR PRIME‘.
1. Tap Home Key > > Settings > Wireless &
networks > Bluetooth settings.
2. Select the Bluetooth box if it is not already ticked.
3. Tap Device name.
4. Enter the name and tap OK.
Hook up with Another Bluetooth Device
You can pair your phone with another device that has
Bluetooth capabilities. Once you do this, the two devices can
exchange information with Bluetooth turned on but do not
need to be visible to each other.
1. Tap Home Key > > Settings > Wireless &
networks > Bluetooth settings.
2. Tap Scan for devices. Your phone will show all visible
Bluetooth devices (in range) in its Bluetooth devices.
3. Select the device you want to pair with.
4. If required, enter your PIN and tap OK.
If a PIN is required, the same PIN should be entered on the
other device.
76
Making the Most of Multimedia
Taking Pictures with Your Camera
Your phone has a 3.2 megapixel camera. Open it by tapping
Home Key > > Camera.
Aim the camera at the subject and then tap to take a shot.
To view it, just tap the picture in the right corner of the screen.
Or select Menu Key > Gallery to view all your pictures.
Adjusting Camera Settings
From the Camera Screen tap to set up focus mode,
exposure, picture size/quality, color effect, ISO, anti-banding,
saturation, contrast, sharpness, and camera settings.
Tap to enable or disable saving of pictures‘ locations.
Tap to change white balance.
Tap Zoom to zoom in or out.
TIP: To change quickly from camera to camcorder or vice
versa, use the switch icon.
Shooting Video with Your Camcorder
Open the camcorder by tapping Home Key > >
Camcorder. Then select to start shooting, and to
stop. Select the picture in the right corner of the screen to
view the video you‘ve just shot. Or tap Menu Key > Gallery
77
to see all your video clips.
Adjusting Your Video Settings
From the Camcorder Screen, tap to adjust color effect,
video quality, video/audio encoder, video duration, and camera
settings.
Tap to change white balance setting.
Tap to change video quality based on the purpose of the
video.
Listening to Your FM Radio
With the FM Radio, you can search for radio channels, listen
to them, and save them on your phone. Note that the quality
of the radio broadcast depends on the coverage of the radio
station in your area. The wired headset that comes with your
phone works as an antenna, so always connect the headset
when using the radio. When you receive an incoming call
while listening to the radio, the radio will be turned off.
To tune in, plug your headset into your phone. Tap Home
Key > > FMRadio. This icon will pop up in the status
bar.
Tap or to scan for available FM channels. Tap
Menu Key > Adjust, and then tap / to fine tune the
frequency by +/–0.1 MHz manually.
Once you get the best reception of a channel, hold the
78
frequency shown until a red box appears on the screen, and
then drag it into the box to save, as shown in the next
diagram.
Press Volume Keys to adjust the volume.
Tap Menu Key > Sleep to set the FM radio sleep timer.
Tap to switch off the radio.
Playing Your Music
You can play digital audio files from your phone‘s memory
card in Music.
1. Tap Home Key > > Music to open the Music Screen.
2. Select Artists/Albums/Songs/Playlists to see the songs
you want to play.
3. Tap a song from the list to start playing.
79
4. Adjust the volume with Volume Keys.
Creating Playlists
Playlists help you organize your music files:
1. Select a music file you want to add to a new playlist.
2. Tap and hold on the file until a shortcut menu pops up.
3. Tap Add to playlist.
4. Tap New.
5. Type the playlist name and tap Save.
Managing Playlists
1. From the Music Screen tap Playlists to see them all.
2. Hold on the playlist you want to play or edit until a
shortcut menu pops up.
Information (artist,
album and title) of
the track. Tap and
hold to search for
related information.
Tap to play the
previous track.
Drag or tap to jump to
any part of the track.
Tap to pause or
resume the track.
Tap to play the
next track.
Tap to choose
repeating mode
(repeat off,
repeat all, repeat
the current track)
Tap to turn on/off
shuffle.
Tap to view the
Now playing list.
80
3. Tap Play, Delete or Rename.
Adding a Song to a Playlist
1. Open the folder where the song is.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist.
Setting a Song as Ringtone
1. Open the folder where the song is.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.
TIPS: You can also set a song as ringtone when you are
playing it by tapping Menu Key > Use as ringtone.
Playing Your Videos
To play a video file, tap Home Key > > Videos. This will
open the Videos Screen and show the video files saved to
your memory card.
Tap a video file and the video player will open. Tap on the
screen and the control bar will appear as below. So now you
can play, pause, fast forward, etc.
81
Opening Your Gallery
Gallery helps you view pictures and play videos. You can
also do some basic editing of your pictures – such as setting
them as wallpaper or contact icons, and sharing with friends.
Tap to rewind.
Hold and drag to jump to
any part of the video.
Tap to pause/resume
video.
Tap to fast
forward.
82
Making Memorable Memos
Sound Recorder enables you to record your voice memos.
You need a microSD card to use it.
1. Tap Home Key > > Sound Recorder.
2. Make sure your mouth is near the phone‘s microphone.
3. Tap to start recording.
4. Tap to stop recording.
5. Tap to play back the voice recording.
6. Tap OK to save the voice recording, or tap Discard to
delete the recording.
TIPS: You can find your recordings in Home Key > >
Music > Playlists > My recordings. If you want to set an
Tap to return
to Gallery.
Tap to return to the
previous folder
Show the number of
pictures in the folder
Tap to zoom
Tap to view
pictures in
the folder in
a slideshow
83
audio clip as ringtone, hold the recording and select Use as
phone ringtone from the pop-up shortcut menu.
84
Using Your Google™ Applications
Signing in to your Google Account lets you synchronize
Gmail, Calendar, and Contacts between your phone and the
web. And if you don‘t have an account, you can easily create
one.
1. Tap a Google application, such as Market.
2. Read the instructions and select Next.
3. If you‘ve got a Google account, tap Sign in. Enter your
user name and password. Then tap Sign in. (Or tap
Create if you don‘t have a Google account.)
Gmail
Gmail is a web-based email service that‘s configured when
you sign in to your Google account. Depending on your
synchronization settings, the Gmail on your phone can be
automatically synchronized with your Gmail account on the
web.
This is how you create and send a Gmail:
1. Open Gmail by tapping Home Key > > Gmail.
2. Press Menu Key. Then select Compose.
3. Enter the email address of the person you‘re contacting in
the ‘To’ field. If you‘re sending the email to several people,
separate the email addresses with a comma. You can add
as many recipients as you want.
85
4. Enter the email subject, and then write your email.
5. Tap Send.
Using Google Calendar
Tap Home Key > > Calendar to use Google Calendar,
Google‘s time management application. You can use the
calendar to schedule appointments, including meetings and
other events. Your appointments will be displayed on the
screen as are scheduled. You can also synchronize
appointments to your Google account, which enables you to
manage your schedule online on your PC.
Using Google Talk
Google Talk is Google‘s instant messaging program, which
enables you to communicate with other people who also use
Google Talk.
Opening Google Talk
Tap Home Key > > Talk.
Adding a New Friend
You can only add people who have a Google Account.
1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google Talk instant messaging ID or Google
email address of the friend you want to add.
86
Your friend will receive an invitation from Google. Press
Menu Key > More > Invites to see pending invitation.
Changing Your Online Status
1. Tap the online status icon beside your status message,
and then select the status you want on the menu.
2. Tap the status message box and then enter your status
message using the on-screen keyboard.
Starting a Chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Tap Send.
Places
Google Places helps you find all kinds of businesses near
you.
1. Tap Home Key > > Settings > Location & security
and tick the Use GPS satellites or Use wireless
networks check box.
2. Tap Home Key > > Places. Wait while you are being
located. Your location, when found, is shown at the
bottom of the screen.
3. Select a business category and the information of that
type of business near you will be displayed.
87
You can also use the Find places search box on the top
to find the business you need.
Note: Tap Add to add new business categories.
4. Tap a result you are interested in and check out the
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.
Latitude
Google‘s Latitude service is a social tool for sharing your
location information with selected friends.
Tap Home Key > > Maps and, after signing in to your
Google account, tap Menu Key > Join Latitude to enable
Latitude service.
Each time you launch Maps application, your location will be
determined using GPS or the phone network, and your
Latitude status will be updated. You can tap Menu Key >
Latitude in Maps or Home Key > > Latitude to see your
status as well as that of your selected friends.
In Latitude, tap Menu Key to refresh friends status, see them
on Maps, add new friends, or change privacy settings.
You can also turn off Latitude service by tapping Turn off
Latitude in Privacy settings of Latitude.
88
Sorting out Your Phone Settings
Setting Time and Date
1. Tap Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic tick box if you want to set the time
and date by yourself.
3. Tap Set date. Adjust the date, and tap Set to save it.
4. Tap Select time zone and tap where you are in the world.
5. Tap Set time. Adjust the time, and tap Set to save it.
6. Tap the tick box behind Use 24–hour format if you want
to change the time format.
7. Tap Select date format to select the one you prefer.
Changing Display Settings
By tapping Home Key > Menu Key > Settings > Display, you
can adjust the display settings as you like – changing
Auto-rotate screen, Animation, Brightness, and Screen
timeout.
Adjusting Screen Brightness
1. Select Brightness from the display settings.
2. Adjust and tap OK.
89
Adjusting Screen-timeout
When not in use, your phone will turn the screen off after a
set length of time. If that time is too long or short, you can
adjust it.
1. Tap Screen timeout from the display settings.
2. Select your preferred time from the list.
Switching Screen Orientation Automatically
You can select to switch your screen orientation to landscape or
portrait automatically when rotating your phone. Simply tick the
Auto-rotate screen box from the display settings.
If you want to disable this function, just clear the Auto-rotate
screen check box.
Showing Animation when Opening/Closing
Windows
1. Tap Animation in the display settings.
2. Select the animation type you like.
When you want to disable this function, select No
animations.
Sound Settings
By tapping Home Key > Menu Key > Settings > Sound,
you can adjust the sound settings, such as ringtones and
alerts.
90
Choosing Your Ringtone
1. Tap Phone ringtone in sound settings.
2. Select the ringtone you want to use from the pop-up list.
Setting the Default Notification Ringtone
1. Select Notification ringtone from the Sound settings.
2. Scroll through the ringtone list and select one as the default
notification ringtone.
3. Tap OK to save.
Switching Your Phone to Silent Mode
1. In the Sound settings tick the Silent mode box.
2. You can also switch to Silent mode by holding the
Volume Key (down) or – if the screen is locked – by
dragging the Sound off bar to the left, as shown below.
The silent icon will appear in the status bar.
91
Switching to Vibrate
In Sound settings tap Vibrate and choose the condition for
vibration. If your phone is already in Silent mode, the
vibration icon will appear in the status bar.
Flipping to Turn off Ringtone
In Sound settings tick the Turn to forbid phone ring box.
Then you can flip your phone over to mute the ringtone when
there is an incoming call.
‘Haptic’ (touch) Keypad Feedback
If you‘d like your phone to vibrate in response to your key
touch, then you need to turn on the haptic (touch) feedback.
1. Tap Home Key > > Settings > Sound.
2. Tick the Haptic feedback box.
Adjusting Volume
1. Make sure your phone isn‘t in Silent mode.
2. Tap Volume from Sound settings.
3. Adjust the ringtone volume, media volume, and alarm
volume and tap OK to save.
TIPS: You can adjust the ringer volume quickly by pressing
Volume Keys from any screen. And if you‘d like to adjust the
notification volume together with the ringer volume, tick the
Use incoming call volume for notifications box.
92
Turning on Touch Tones
To make your phone play tones whenever you touch the
keys, tick the Audible touch tones box in Sound.
Turning on Selection Tones
Tick the Audible selection box in Sound to set your phone
to play a sound when you touch the screen to make a
selection.
Turning on Screen Lock Sound
Tick the Screen lock sounds box in Sound settings. When
you lock or unlock the screen, sound will be played as a
notification.
Language Settings
You can change the language of your phone‘s operating
system in two simple steps.
1. Tap Home Key > > Settings > Language &
keyboard > Select language.
2. Select a language from the list given.
Mobile Network Services
Both GSM and WCDMA are supported by your phone. You
can configure the network settings according to the phone
service you use.
93
Getting Data Services while Roaming
1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks.
2. Tick the Data roaming box.
Switching Network Modes
1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks > Network Mode.
2. Select one of the following: GSM/WCDMA auto, WCDMA
only or GSM only.
Switching Networks
1. Tap Home Key > > Settings > Wireless &
networks > Mobile Networks > GSM/UMTS Options >
Network operators. The phone automatically searches
for all available networks.
2. Tap a network to register manually, or tap Select
automatically.
Setting Access Point Names
To connect to the Internet you can use the default Access
Point Names (APN). And if you want to add a new APN,
please contact your service provider to find out more.
1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks > GSM/UMTS Options >
Access Point Names.
94
2. Tap Menu Key > New APN.
3. Set the necessary parameters. (See Getting Connected to
the Internet > Adding a New GPRS/3G/EDGE Connection.)
4. Tap Menu Key > Save.
Security Settings
Here‘s how to protect your phone and SIM card from
unauthorized use.
Protecting Your Phone with a Screen Unlock
Pattern
Creating Your Screen Unlock Pattern
1. Tap Home Key > > Settings > Location &
security > Set up screen lock >
Pattern.
2. Read the instructions and tap Next.
3. Watch the example pattern and tap
Next.
4. With a finger, draw your own pattern
and tap Continue.
5. Draw the pattern again and tap
Confirm.
6. Press the Power Key to lock the screen.
95
Unlocking the Screen with Your Pattern
1. Press the Power Key.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Forgot your screen unlock pattern?
If you‘ve forgotten your screen unlock pattern, you have up to
five attempts to unlock your phone. If the pattern has been
drawn incorrectly five times, you can enter your Google
account user name and password to unlock your phone.
1. Draw the unlock pattern on the screen.
2. After the fifth attempt, you‘re prompted to try again in 30
seconds. Then tap OK.
Note: If the display turns off, press the Power Key to
turn the display on.
3. Tap Forgot pattern? on the bottom right of the screen.
4. Enter your Google account user name and password,
96
and then tap Sign in.
5. You will be asked to draw a new unlock pattern. If you do
not need an unlock pattern, tap Cancel.
Protecting Your Phone with a PIN or
Password
Creating a PIN or Password
1. Tap Home Key > > Settings > Location &
security > Set up screen lock.
2. Tap PIN or Password.
3. Enter the numeric PIN or any password you like.
4. Enter it again to confirm.
Unlocking the Screen with Your PIN or Password
1. Press Power Key to wake up the phone.
2. Drag the icon to the right.
3. Enter the PIN or password you set.
4. Tap OK.
Protecting Your SIM with a PIN
Every SIM card comes with a PIN. The initial PIN is provided
by your service provider. It‘s best to lock your SIM as soon as
you can.
1. Tap Home Key > > Settings > Location &
security > Set up SIM/USIM card lock.
97
2. Tick the Lock SIM/USIM card check box.
3. Enter the PIN you‘ve been given and tap OK.
Changing Your SIM PIN
You can change the PIN you‘ve been given to one easier for
you to remember and harder for others to guess.
1. Tap Home Key > > Settings > Location & security >
Set up SIM/USIM card lock.
2. Make sure you already tick the Lock SIM/USIM card
check box.
3. Tap Change SIM/USIM PIN.
4. Enter the old PIN and tap OK.
5. Enter your new PIN and tap OK.
6. Enter the new PIN again and tap OK.
Setting up Credential Storage
This lets you select applications to access secure certificates
and other credentials.
Enabling Secure Credentials
1. Tap Home Key > > Settings > Location & security.
2. Tap Set password and create a password for the
credential storage.
3. Tick the Use secure credentials box.
TIPS: You can also install encrypted certificates from your
microSD card by tapping Install from SD card.
98
Deleting Secure Credentials
1. Tap Home Key > > Settings > Location & security.
2. Tap Clear storage to clear credentials.
Managing Your Memory Card
Checking Memory Card Space
Tap Home Key > > Settings > SD card & phone
storage.
You can view the space information from Total space/
Available space in SD card section.
Unmounting Your Memory Card
Unmounting makes your memory card unavailable to the
phone‘s operating system, and ready for removal or
replacement.
1. Tap Home Key > > Settings > SD card & phone
storage.
2. Tap Unmount SD card.
The icon will appear in the status bar.
Formatting Your Memory Card
1. Unmount your memory card (as above).
2. Tap Format SD card.
3. Tap Format SD card to confirm.
99
4. Tap Erase everything.
Managing Phone Memory
1. Tap Home Key > > Settings > SD card & phone
storage.
2. Scroll down to view the Available space in the Internal
phone storage section.
Privacy: Reset to Factory Settings
1. Home Key > > Settings > Privacy.
2. Factory data reset.
3. Reset phone.
4. Erase everything.
Managing Applications and Their
Settings
Viewing Your Phone’s Applications
Tap Home Key > > Settings > Applications > Manage
applications.
You can check the running applications or view the
applications installed on your phone and memory card.
100
Allowing Installation of Non-market
Applications
1. Tap Home Key > > Settings > Applications.
2. Tick the Unknown sources box.
How to Install an Application
You can install an application from the Android Market
(Home Key > > Market) by selecting the item you want
to download and tapping Install.
You can also install a non-Marketing application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.
1. Tap Home Key > > Filer, and open the folder where
the application you want to install is.
2. Tap the application to start installation.
3. Read the installation instructions that come with the
application and follow it to complete the setup.
Removing an Application
1. Tap Home Key > > Settings > Applications >
Manage applications.
2. Select the application you want to delete.
3. Tap Uninstall and OK to confirm.
101
TIPS: Market applications can also be removed by going to the
Downloads page in Market, selecting the unwanted
application, and tapping Uninstall.
Moving an Application to or from the Memory
Card
You can move the applications downloaded or installed on
your phone to the memory card when the phone memory is
full. You can also move applications to your phone if the
memory card is getting full.
NOTE: Not all applications can be move to your phone or
memory card.
1. Tap Home Key > > Settings > Applications >
Manage applications.
2. Tap the application you want to move on the
Downloaded tab.
3. Tap Move to phone or Move to SD card.
Managing Other Settings
Search Settings
You can manage search settings and search history by
tapping Home Key > > Settings > Search.
Google Search Settings
Show web suggestions: Tick the check box to allow
102
Google to show you search suggestions while you
enter the keywords.
Use My Location: Tick the check box to allow Google to
access your location data.
Search history: Show search history as you type
keywords in the Google search box.
Manage search history: Open the browser to manage
your search history.
Searchable Items
When you search for an item on your phone, only the
searchable items will be looked for.
Tap Home Key > > Settings > Search > Searchable
items.
Clear Search Shortcuts
Clear shortcuts to the recently used search keywords.
Voice Interaction
You can set the text-to-speech and voice recognition options
by tapping Home Key > > Settings > Voice input &
output.
NOTE: You need to download voice data in order to use the
text-to-speech function. Just tap Install voice data in
Text-to-speech settings.
103
Other Applications
Alarms
1. Tap Home Key > > Alarm.
2. Tap the default alarm set to configure it. Or, to create a
new alarm, tap Menu Key > Add alarm.
3. Tick the Turn on alarm box and set up Name, Time,
Repeat, Snooze, Duration, Vibrate, Ringtone, Volume,
Volume crescendo, and Delay.
Note Pad
Note pad is for your memos. Tap Menu Key to add or
delete them. Hold an existing note to edit, delete it or
change its title.
Calculator
Tap Home Key > > Calculator.
TIPS: Tap Menu Key > Advanced panel to use scientific
calculation.
Task Manager
Go to Task Manager to view or stop applications.
104
Stopwatch
1. Tap Home Key > > Stopwatch.
2. Tap Start to start timing, Pause to pause time, and
Resume to continue.
3. Reset will take the stopwatch back to 00:00.0.
105
Specifications
Dimensions
Approx. 115 mm × 57 mm × 12.5
mm
Weight
Approx. 110g (with battery)
Bearer
GSM/WCDMA support
Main display dimension,
resolution
3.5 inches 800*480
Back
Camera
Sensor type
CMOS
Still image
capture
resolution
3.2M Pixels with auto focus
Internal memory
ROM: 512MB, RAM: 256MB
Removable memory card
Support microSD card, max.
capacity 16GB
Battery
Capacity
1250mAh
Standby time
Approx. 165 hours (subject to
network status)
Voice talk time
Approx. 240 min (subject to
network status)
WAP browser version
WAP2.0
106
Declaration of RoHS Compliance
To minimize the environmental impacts and take more
responsibilities to the earth we live on, this document shall
serve as a formal declaration that the MOVISTAR PRIME
manufactured by ZTE CORPORATION is in compliance with the
Directive 2002/95/EC of the European Parliament - RoHS
(Restriction of Hazardous Substances) with respect to the
following substances:
1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)
The MOVISTAR PRIME manufactured by ZTE
CORPORATION, meets the requirements of EU 2002/95/EC.
107
Disposal of Your Old Appliance
1. When this crossed-out wheeled bin
symbol is attached to a product, it means
the product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.
For this product‘s Recycling Manual based on WEEE
directive, please send an e-mail to weee@zte.com.cn, or visit
the website below to download the document:
http://ensupport.zte.com.cn
