1
T54
Rugged Mobile Phone
User Manual
2
PC Software Requirements
Join Me PC Software included supports Microsoft Windows 7, Vista (32 and 64 bit), XP with
Service Pack 2 & 3. A limited version of Join Me is supplied that supports MAC OS 10.5, 10.6
ZTE cannot guarantee that third party hardware or software is compatible with this product.
Warnings and Safety Notices
Please read all the safety notices before using this device.
Do not use the phone near fuel or chemicals or in any prescribed area such as service stations
and refineries.
Do not transport or store flammable gas, liquid or explosives in the same compartment of your
vehicle as your mobile phone and accessories.
Copyright © 2010 ZTE Corporation All rights reserved.
1st Edition October 2010
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the
right to make changes and improvements to any of the products described in this document
without prior notice.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential
damages resulting from or arising out of or in connection with using this product, whether or not
ZTE had been advised, knew or should have known the possibility of such damages. The user
should refer to the enclosed warranty card for full warranty and service information.
3
Contents
Liquid Damage - Important Note ........................................................................................... 4
RF Safety Information ............................................................................................................ 5
Handset Overview ................................................................................................................... 8
Information Bar Icons ........................................................................................................... 10
Menu Quick Reference Guide .............................................................................................. 11
1 Getting Started ........................................................................................... 13
1.1 Insert the (U)SIM Card ................................................................................ 13
1.2 Insert the battery .......................................................................................... 14
1.3 Installing Additional Memory (Optional) ....................................................... 15
1.4 How to switch the phone On or Off ............................................................. 16
1.5 How do I connect the charger? ................................................................... 16
1.6 Tips about charging and battery life ............................................................ 17
1.7 How do I set the time and date? ................................................................. 18
1.8 How do I lock or unlock the keypad? .......................................................... 18
1.9 How to make a voice call ............................................................................. 18
1.10 How to answer an incoming call .................................................................. 18
1.11 How to send a Text Message (SMS) ........................................................... 19
1.12 How to navigate the Menu ........................................................................... 19
1.13 Call Features Summary ............................................................................... 20
2 Contacts ..................................................................................................... 23
3 Messages and Emails ................................................................................ 26
3.1 How to send a Text Message (SMS) ........................................................... 26
3.2 How to view a received Text Message (SMS) ............................................. 26
3.3 How to use Predictive Text .......................................................................... 27
3.4 How to add words to the built in Dictionary (My Words) ............................. 28
4
3.5 Special Characters and SMS Message Length .......................................... 28
3.6 How to send a Multimedia Message (MMS) ............................................... 29
3.7 How to receive a Multimedia Message (MMS) ........................................... 29
3.8 WAP Push Messages .................................................................................. 30
3.9 How to send an Email.................................................................................. 30
3.10 How to retrieve an Email ............................................................................. 31
3.11 How to set up automatic Email Retrieval .................................................... 31
3.12 What are User Folders? .............................................................................. 31
3.13 How to create a new Mailbox ...................................................................... 32
4 Handset Features & Applications ............................................................. 33
5 Installing the Join Me Computer suite ...................................................... 38
6 Troubleshooting, Technical and Warranty Information ........................... 39
6.1 Troubleshooting and FAQ‟s ......................................................................... 39
6.2 Error Messages ........................................................................................... 41
6.3 Technical Parameters .................................................................................. 42
6.4 Support Information ..................................................................................... 43
6.5 Warranty Information ................................................................................... 43
Liquid Damage - Important Note
Your ruggedised handset is compliant with the IP54 Standard which gives limited
protection from dust and liquid ingress. It is not waterproof and should never be immersed
in any liquid. The handset contains liquid detecting stickers and any liquid damage will
void your warranty. To ensure continued protection against liquid damage the battery cover,
antenna port and USB port cover must be properly closed.
5
RF Safety Information
The handset has an internal antenna located at the top of the phone. For optimum
performance with minimum power consumption do not cover the antenna area with your
hand. Hold the handset between thumb and finger in the middle of the device. Covering
the antenna affects call quality, may cause the handset to operate at higher power level
than needed, and may shorten talk and idle times.
Radio Frequency Energy
The handset is a low-power radio transmitter and receiver. When switched on it
intermittently transmits radio frequency (RF) energy (radio waves). The transmit power
level is optimized for best performance and automatically reduces when there is good
quality reception. Maximum power is only used at the edge of network coverage so under
most circumstances the power output is very low. Under poor network conditions the
phone transmits at a higher power, may get hot and have a significantly shorter battery life.
Declaration of Conformity - SAR (Specific Absorption Rate)
We declare that the product(s) detailed in this manual, and in combination with our
accessories, conform with the essential requirements of The Radio Communications
Standard (Electro-magnetic Radiation Human Exposure) 2003 and the Australian
Communications and Media Authority Section 376 of the Telecommunications Act 1997.
N14945 / Z1196
The SAR limit for mobile devices is 1.6 W/kg and the highest SAR value for this device
6
when tested at the ear was 0.821 W/kg* and at the body worn was 1.360 W/kg*
Body Worn Operation
Important safety information regarding radio frequency(RF) radiation exposure.
To ensure compliance with RF exposure guidelines the phone must be used with a
minimum of 15 mm separation from the body.
Failure to observe these instructions could result in your RF exposure exceeding the
relevant guideline limits.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
7
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
8
Consult the dealer or an experienced radio/TV technician for
help.

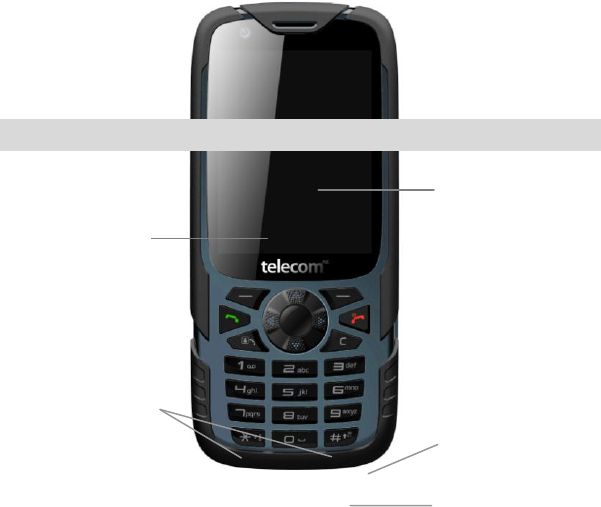

Handset Overview
Left & Right Soft Keys
Performs the function
shown on the display
Power / End Key
Hold down to power
On or Off.
Press to End a call.
Display
C Key
Step back in menus.
Clear text.
Earpiece
9

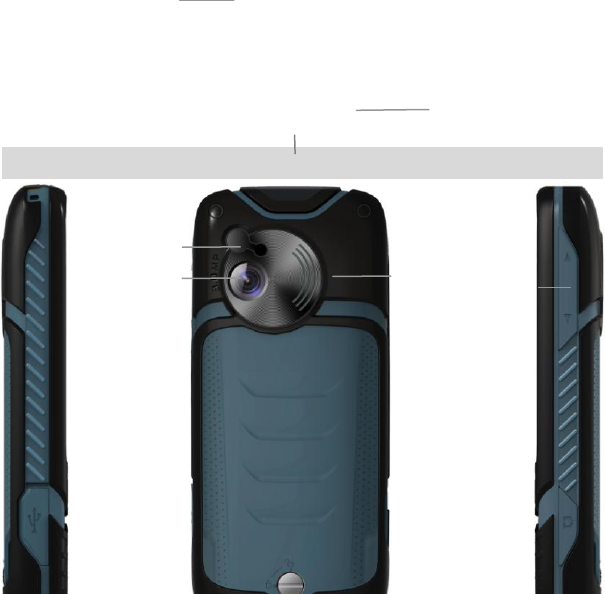

Handset Overview
Volume
USB,
Headphones
& Charging Port
Speaker
aker
Camera
Call Key
Call a number, answer a
call, show Call History
# Key
Switch to Meeting Mode
Change text modes
* Key
Lock / Unlock the keypad.
Access text symbols.
Insert a Pause or Wait
command.
Camera Key
Antenna Port
10

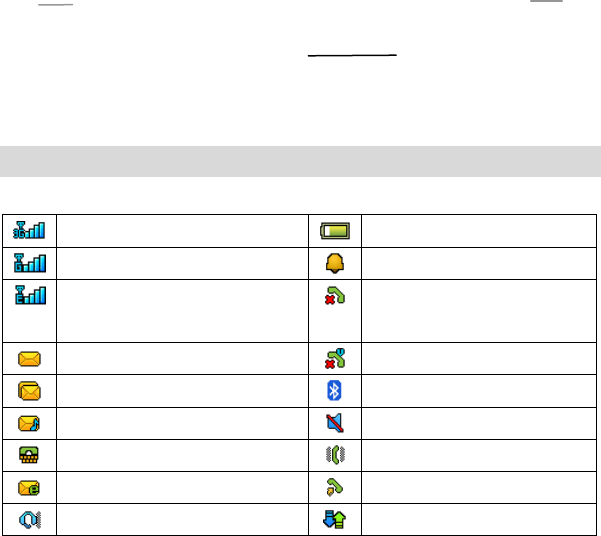

Information Bar Icons
3G Signal Strength
Battery Level Indicator
GSM Signal Strength
Alarm is set
Signal Strength of the EDGE
Network
Missed Call
New SMS Message
Missed Video Call
Message Memory is Full
Bluetooth ON
New MMS Message
Silent Mode
CTM
Vibrate mode enabled
New E-mail
Call Forward is Active
Headset and Vibrate Mode
Data channel available (GPRS)
Right
Left
Rear
Cover lock
11
New Wap Push Message
Data channel active (PDP)
Headset Mode
Roaming

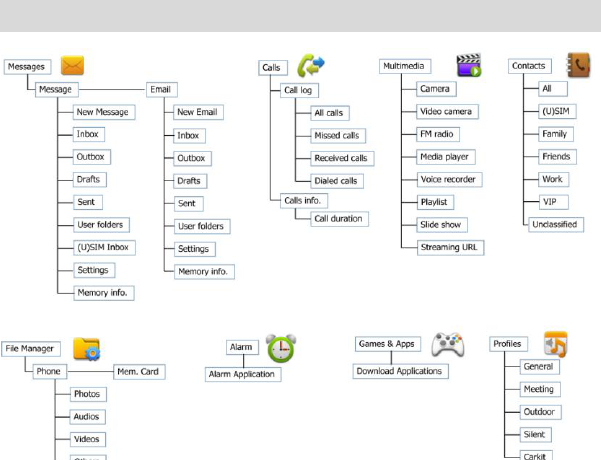

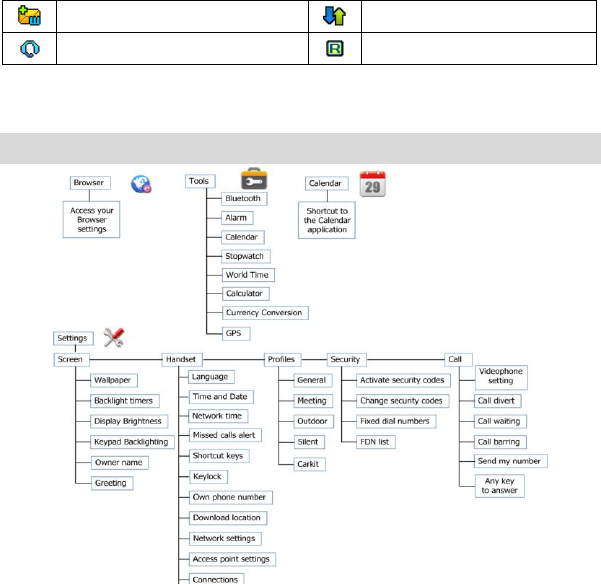

Menu Quick Reference Guide
12
Menu Quick Reference Guide Continued…
13
1 Getting Started
1.1 Insert the (U)SIM Card
The (U)SIM card (UMTS Subscriber Interface Module) is the small plastic smart-card with
gold contacts. It holds account and contact information and can be used to store text
messages. It can be moved between different phones if required.
The (U)SIM card must be inserted before use.
Insert the (U)SIM card with the gold contacts facing down and the bevelled edge on
the top right as shown. Carefully slide it into the housing observing the correct
orientation.
14

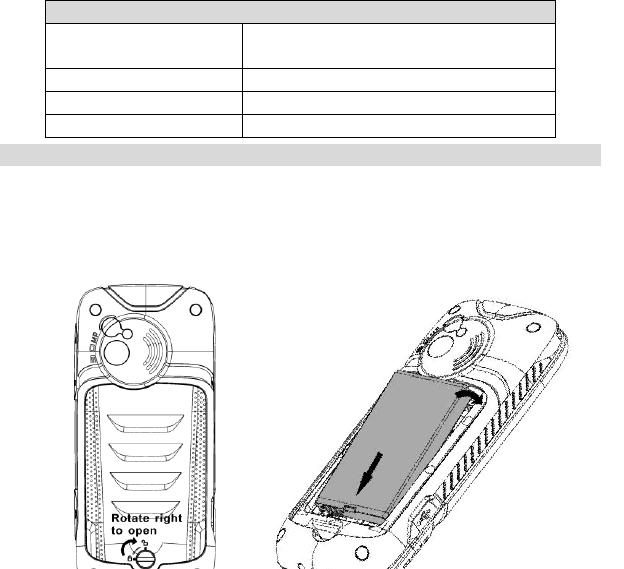

1.2 Insert the battery
1. Rotate the locking screw to the right to unlock the battery cover.
2. Open the battery cover using the thumb notches on the bottom on the cover.
3. Insert the battery as shown with the contacts located against the gold springs.
4. Press the battery down flush into the case
If your handset displays:
Enter Handset unlock
code
The default code is 0000
Enter (U)SIM PIN Code
Enter the PIN supplied with your SIM card
No (U)SIM detected
Check the SIM is inserted correctly.
Enter PUK code
Contact your Service Provider
15
5. Line the battery cover up correctly, close the case and engage the locking
screw.
6. It is important to keep the battery cover, antenna port and USB port cover
properly closed to maintain IP54 protection from liquid and dust.
1.3 Installing Additional Memory (Optional)
Handset memory can be increased by inserting a microSD™ card up to 16GB.
microSD™ cards up to 2GB are supported (FAT 16 format).
microSDHC™ (high capacity) cards up to 16GB are supported (FAT 32 format).
Class 4 Memory cards are required.
Open the back cover, locate the memory card holder, slide and lift to open
16

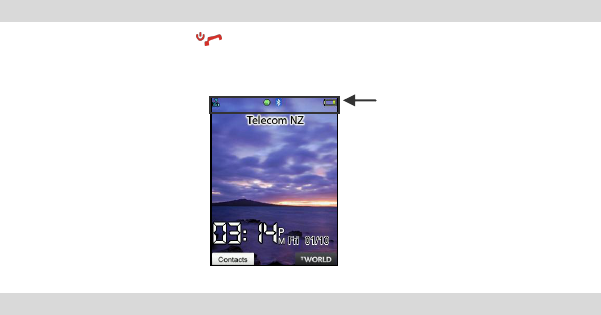

The Information bar
Insert the memory card as shown with the gold contacts facing down
Close the card holder and make sure the card is correctly aligned.
With the microSD™ card inserted the default storage location (for photos etc) is the
External Memory. See Menu > Settings > arrow right ► to Handset > Download
location to change if required.
Go to Menu > File Manager > arrow right ► to Memory Card to access the stored files

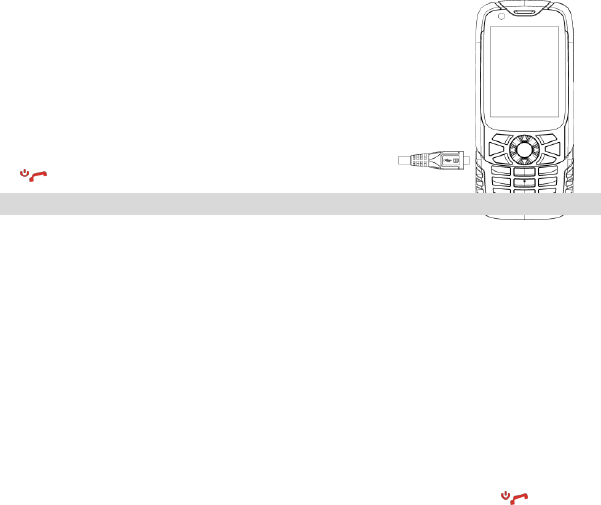

Connect the handset to your computer using the USB lead supplied to transfer files to
and from the memory card.
1.4 How to switch the phone On or Off
Press and hold the red key for two seconds to switch the phone ON or OFF.
Enter (U)SIM PIN code – supplied with your (U)SIM card. The start up screen below is
referred to throughout the manual as the Idle Screen:
The Idle Screen:
1.5 How do I connect the charger?
Charge before initial use. The plug and socket are keyed so they will only fit together one
17
way.
Do NOT use excessive force which may damage the USB port.
Physical damage to the USB port is NOT covered by warranty.
The phone can also be charged by connecting it to a
computer using the USB lead supplied.
A sound is played when the charger or USB cable is
inserted into the handset.
If the phone is off after charging long press the red
End Key to switch it back on.
1.6 Tips about charging and battery life
Only use the AC charger and USB lead supplied.
Insert the charger lead carefully with the plug and socket aligned correctly.
Normal charge time is 3-4 hours. Do not leave on charge for more than 24hrs.
When not using the phone for long periods remove the battery.
Charge the battery between 0°C~45°C. Charge the battery promptly when flat.
With poor network conditions (less than 2 bars) battery life is reduced.
To maximize battery life turn off Bluetooth when not in use and limit multimedia
functions.
Battery life is improved after a few charge / discharge cycles.
The phone can be charged in the ON or OFF state: When OFF the message “Charging
battery…” is displayed. When switched ON the battery icon animates until fully charged.
If charging in the OFF state turn the phone ON by long pressing the red End key.
18
1.7 How do I set the time and date?
The time and date is set automatically from the network. It takes a few seconds to
update when the phone is first switched on. Select 12 or 24 hr format in the Network Time
menu. To manually set the time it is necessary to switch Network Time off: Menu >
Settings > Handset > Network Time > State > Off then set the time and date manually:
Menu > Settings > Handset > Time and Date.
1.8 How do I lock or unlock the keypad?
Manual keylock: Long press the * key then press the Right Soft Key to lock or unlock
the handset. Auto keylock: Menu > Settings > Handset > Keylock
1.9 How to make a voice call
Enter the number on the keypad and press the green key to make the call.
Press OK to activate Speaker (Handsfree) mode
Press the red key to end the call.
1.10 How to answer an incoming call
Press the green key or OK to answer the call, OK to activate Speaker (Handsfree)
mode.
Press the red key or Reject to end the call.
If Voicemail is active pressing Reject forwards the call to Voicemail.
19

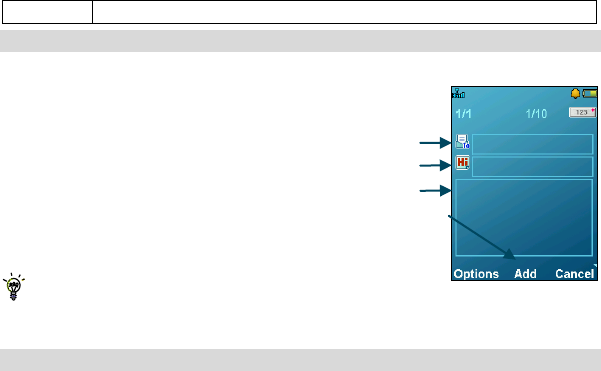

1.11 How to send a Text Message (SMS)
Press the Left Arrow ◄ for Messages
Press OK for New message. Press OK for Text message
Enter the phone number directly or press OK to select from Contacts (Cont.)
Select the Contact then press OK for Done. The Contact number is displayed, press
OK
Press the Down Arrow ▼ once to move the cursor into the text field
Type the message using the letter keys on the keypad (see Chapter 6 on Texting)
Press the OK to send the message.

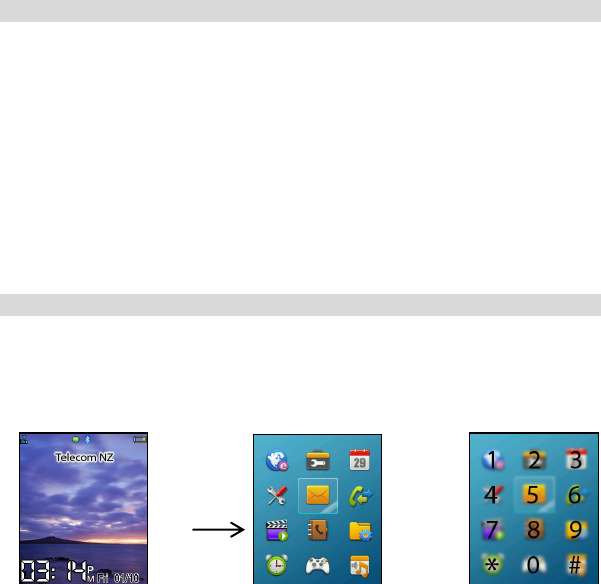

1.12 How to navigate the Menu
The Main Menu is a grid of icons that are used to access key features on the phone.
From the Idle Screen press OK to access the Main Menu. Use the Arrow Keys
▲▼◄►to move the cursor or press the corresponding number key as shown on the
grid below. Eg Menu > 5 = Messages
The icons are described at the bottom of the screen.
OK
20

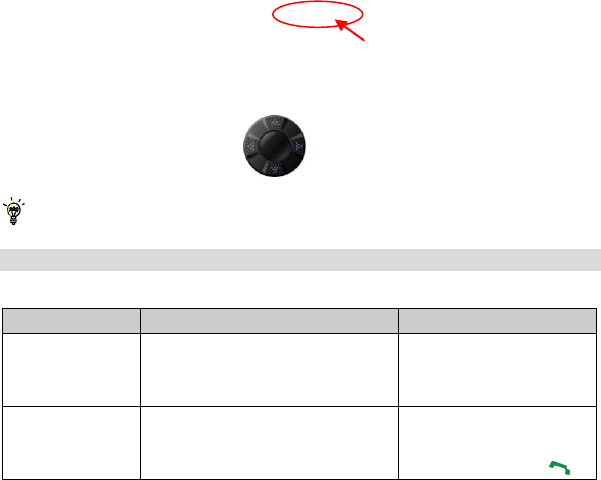

Shortcuts
From the idle screen the Arrow Keys launch the default Shortcuts as shown:
TWorld
Messages File Manager
Calls
|To change default shortcuts: Menu > Settings > arrow right ► to Handset >
Shortcut keys
1.13 Call Features Summary
Check the table below to quickly find the Call Feature you require:
Function
Description
Menu Selection
Any key to
answer
Enable any key to answer for an
incoming call.
Menu > Settings > arrow
right to Call > Any key to
answer
Call a Contact
Access your Contacts list and dial
directly from your chosen
Contact.
Left Soft Key > Scroll up
or down to chose a
Contact > Call Key
Icon
description
21
Call Barring
Restrict various categories of
incoming or outgoing calls.
Menu > Settings > arrow
right to Call > Call barring
Call Divert
Divert incoming calls to another
number.
Menu > Settings > arrow
right to Call > Call divert
Call Waiting
If you are already on the phone
you hear pips to indicate another
incoming call. Press Options to
switch between the two callers.
Menu > Settings > arrow
right to Call > Call waiting
Last number
redial
Press the Green Call Key to bring
up the Call History list.
Press again to dial the first
number in the list.
Call Key , Call Key
Function
Description
Menu Selection
Missed Calls
Alert
Hear an alert tone at your
specified interval to remind you of
a missed call.
Menu > Settings > tab
right to Handset >
Missed calls alert
Send my
number
Show or hide your number when
making calls.
Menu > Settings > arrow
right to Call > Send my
number
Set Speed Dial
Set your Contacts to be called
directly from the idle screen.
Menu > Contacts >
Select the Contact >
Options > Scroll down >
22
Speed Dial
Speed Dial Call
Press and hold the corresponding
key on the number pad to quickly
call a Speed Dial Contact.
From the idle screen
press and hold a number
key.
Voice Call
Enter the number on the keypad
and press the Green Call Key.
Enter the number, .
Press to End the
call
Volume
Use the side volume keys to
adjust the volume during a call
During a call press the
side keys for Volume
23
2 Contacts
There are some numbers that you may want to call again and again so it makes
sense to add these to your Contacts. You can then access these numbers quickly
and easily and add special features such as Speed Dialling a dedicated Ringtone
and Photo.
Function
Description
Menu Selection
Add a Contact
from a received
call
Access your All Calls list and
create a new Contact from an
incoming call record
Press the Call Key >
Select the call record >
Press the Right Soft Key
to Save.
Add a Contact
from an SMS
Go to your Inbox and select the
required SMS. Highlight the
embedded number or object then
select „Use highlighted object‟
from the Options menu
Menu > Messages >
Inbox > OK to view the
SMS > Options > Use
highlighted item > New
contact.
Copy Contacts
from a SIM card
Insert the SIM card. Copy
Contacts from the SIM into the
handset.
Press the Left Soft Key for
Contacts > Right Arrow for
(U)SIM > Options >
Copy > Copy all > OK >
Yes
24
Enter a new
Contact
Enter the number on the keypad
and press the left soft key to Save
Number Entry > Left Soft
Key > Follow the
prompts
Function
Description
Menu Selection
Insert a Pause
or Wait
character while
dialling
„P‟ inserts a 3 seconds delay.
„W‟ waits indefinitely until you enter
the next character.
Used to dial internal extension
numbers or for phone banking
type applications.
When dialling manually
press the * key three
times for a Pause or four
times for a Wait. „P‟ and
„W‟ can also be saved in
Contact numbers.
Search your
Contacts
Search Contacts to find a
particular person. Scroll or use
the letters on the number pad e.g.
press 5 for „J‟
Press the Left Soft Key
for Contacts > Scroll
down or press a letter
key to search
Set a unique
Ringtone or
image to a
Contact
Add a dedicated image and a
ringtone to a Contact. The
Contact must be stored in the
handset memory (see Copy
Contacts from SIM above)
Menu > Contacts >
Select the Contact
(stored on the handset) >
OK > View > Edit >
Options > Add ring and
photo > Select then
Add > Navigate to the
25
folder > Save > Save.
26
3 Messages and Emails
3.1 How to send a Text Message (SMS)
Press the Left Arrow Key as a shortcut to Messages or
Menu > Messages > New message > Text message
Press the OK Key to Add a Contact or enter the number manually.
Scroll to the chosen contact and press OK twice (once to select and once to confirm)
Press the Down Arrow to move into the text field
The default text mode is abc indicated by abc in the top right corner of the display
Enter text by pressing the corresponding multi tap keys for each letter. Press the key
once for the 1st letter shown on the keys, twice for the 2nd letter etc.
Press the # key to toggle between En (Predictive text), ABC, abc and 123 text modes.
When completed press the OK Key to Send the message.
3.2 How to view a received Text Message (SMS)
The envelope icon on the information bar indicates a new SMS message. The
message alert tone and vibrate activate depending on the current profile setting.
Press OK to view.
The envelope icon will clear once all unread messages have been viewed.
Navigate to the Inbox (Menu > Messages > Inbox > OK) to view received messages.
Scroll to the desired message and press OK to View.
27
3.3 How to use Predictive Text
Predictive text allows words to be entered more efficiently using a single keypress for each
letter, as opposed to multiple keypresses in multi-tap text mode. Compare how to write the
word „the‟:
Traditional multi-tap text mode (ABC, abc)
Predictive Text Mode (En)
Press 8 (tuv) once to select „t‟
Press 8 once for „t‟
Press 4 (ghi) twice to select „h‟
Press 4 once for „h‟
Press 3 (def) twice to select „e‟
Press 3 once for „e‟
The default text mode is abc indicated by abc in the top right corner of the display.
Press the # key to toggle between different modes En, ABC, abc and 123
If you change the default mode the handset will remember your last setting.
Predictive text uses a built-in dictionary to generate words from the letters pressed.
When a word is highlighted press the # key to raise the case. Eg. dave > Dave > DAVE
Use the ▲▼keys to choose from available words and press OK to confirm or choose
Spell Word? to insert a new word and save to My Words. Unknown words default to
Spell Word?
In Multi-tap modes (ABC, abc) if the next letter is on the same key, wait until the cursor
appears or press the Right arrow ►to move the cursor on.
To insert a space press the 0 key. To delete letters press the C key.
Press the 1 key for common punctuation marks. Press the * key for special characters.
ABC, abc are multi-tap modes. Press the key once for the 1st letter, twice for the 2nd
letter etc.
In text input screens (eg SMS, MMS and Email) you can add your own words to the
28
SMS Message count
Number of
characters
built-in Dictionary which is called My Words.
Press the Options key to access My Words to Add new words to the available lists
3.4 How to add words to the built in Dictionary (My Words)
From predictive text mode enter words directly by choosing Spell Word?
From the text entry screen press the Options key and select My Words
The first time you use My Words press OK to Add a new word
Type the new word using the ABC, abc or 123 modes then press OK to Save it
In My Words you can press the Options key to Edit, Delete or Delete all words.
3.5 Special Characters and SMS Message Length
€ \ │
[ ] { }
Each time one of these symbols is used 2 standard SMS characters are
transmitted.
…
This symbol is not part of the standard SMS character set. Each time one
of these symbols is used the entire message is converted to Unicode.
29
The maximum number of Unicode characters per SMS is 70.

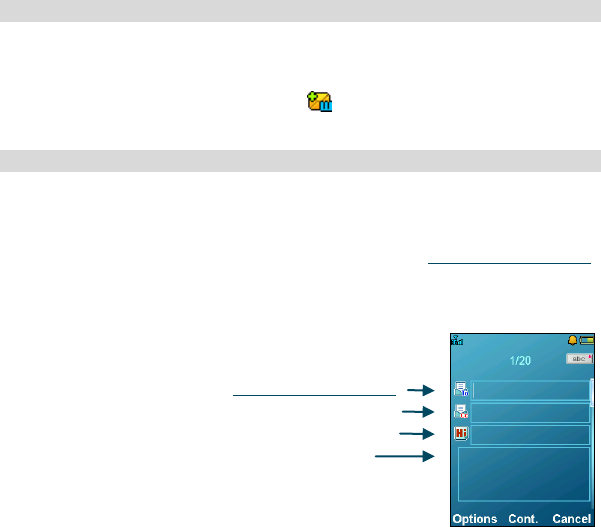

3.6 How to send a Multimedia Message (MMS)
Use a Multimedia Message to send pictures, music or video files.
You can also send an MMS directly to an Email address.
Menu > Messages > New message > Multimedia message
Enter the phone number, email or press OK for Contacts
Press the down arrow ▼to enter the subject field (if required)
Press the down arrow ▼to enter the main message body
From the text area press OK to Insert an Image, Audio or Video file
Browse the folders to select the required file. Press OK
When finished press the Left Soft Key > Options to Send
Each „page‟ can only contain one image, one audio, and one video file. To add more
than one file of the same type, select Options to add a new page.
3.7 How to receive a Multimedia Message (MMS)
Menu > Messages > Inbox
When receiving an MMS you get a standard message alert. Press OK to View.
Press Retrieve to download the message attachment.
When the attachment has downloaded press the Left Soft Key for Options.
Choose Use Highlighted Item to Save the file into File Manager
30
3.8 WAP Push Messages
Menu > Messages > Settings > MMS Settings > Push Message – Accept or Reject
A WAP push message is a formatted SMS that displays a message to the user, giving the
option of connecting directly to a website using the browser.
WAP Push Messages are indicated by the icon on the main display
Use the Browser to view Push Messages. Set to Reject to disable Push Messages.
3.9 How to send an Email
Menu > Messages > tab right to Email > Settings > Mailbox Settings > Edit
The default Email client is configured for Telecom
Add your username, password and My Email address
The username and email address should be the full address: username@domain.com
See How to Create a new Mailbox to Add alternate providers (e.g. internet based
mail)
Sending an Email
Menu > Messages > arrow right ► to Email > New Email
Enter the sender address e.g. username@domain.com
Press the down arrow ▼ to access the Copy To Field
Press the down arrow ▼ to access the Subject Field
Press the down arrow ▼ to enter the Text Field
Press OK to Insert attachments if required
Browse to the appropriate folder to add the attachment
When you are finished press the Left Soft Key > Options to Send.
31
3.10 How to retrieve an Email
Configure the Email Client with your personal settings to enable Emails.
Menu > Messages > arrow right ► to Email > Settings > Mailbox Settings > Edit
The default Email client is configured for your service provider
Add your username, password and My Email address
The username should be the full address: username@domain.com
It is possible to Add other providers under Mailbox Settings
Configure the POP Server details, SSL settings, IP Address etc. by reference to the
other provider.
Menu > Messages > arrow right ► to Email > Inbox > Options > Retrieve
New Email messages are delivered to the handset
3.11 How to set up automatic Email Retrieval
Menu > Messages > arrow right ► to Email > Settings > Automatic Retrieval
Set your required polling time interval to check the server for new Email messages.
3.12 What are User Folders?
User folders can be used to file your incoming SMS, MMS and Email messages
Menu > Messages or Email > Inbox > Options > Move to user folder
Menu > Messages or Email > User folders to view the contents
Rename your folders if required e.g. Work, Personal etc.
32
3.13 How to create a new Mailbox
Create a new Mailbox to set up alternate Email providers:
Menu > Email > Scroll down to Settings > Mailbox Settings > Add
Complete all the required fields for your service provider, example shown is for Gmail:
The fields in bold should not be changed as they are linked to your phone service
provider.
Mailbox name
Google
SMTP Username
Username
john@gmail.com
SMTP Password
Password
xxxxxxxx
Automatic
signature
Optional
My Email address
john@gmail.com
Signature
Optional
Display name
John
Mail type
POP3
Outgoing server
send.xtra.co.nz
Incoming server
pop.gmail.com
Outgoing port
25
Incoming port
995
SSL Type
SSL (Receive Only)
Mail to retrieve
Header or All
Sending options
Foreground sending
Save to server
Save
SMTP
Authentication
OFF
APN
APNWap
Consult your email provider for these settings and make sure everything is set correctly.
33
4 Handset Features & Applications
Function
Description
Menu Selection
Alarms
Set and edit Alarms
Menu > Tools > Alarm > Add (or
View)
Backlighting
Set the backlighting timers
Menu > Settings > Backlight timers
Brightness
Change the display
brightness
Menu > Settings > Display
Brightness
Bluetooth
Switch on, Search and
Connect to compatible
devices nearby. Used for File
transfer, wireless headsets
and car kits
Menu > Tools > Bluetooth >
Bluetooth manager
Calculator
Apply basic maths
calculations
Menu > Tools > Calculator
Calendar
View and set calendar events
Menu > Tools > Calendar > Add
Call Logs
View all your incoming and
outgoing calls history
Menu > Calls
Shortcut: Press the Call Key
Camera
Long press the Camera Key
Menu > Multimedia > Camera
CTM
Cellular Text Modem to use a
Menu > Settings > arrow right to
34
TTY device for people with
impaired sight or hearing
Handset > CTM
Currency
Conversion
Access the Currency
Converter function
Menu > Tools > Currency
Conversion
Function
Description
Menu Selection
Download
location
Sets the default storage
when using a memory card.
Menu > Settings > arrow right to
Handset > Download location
File Manager
Access and manage your
files
Menu > File Manager
FM Radio
You need to insert your
headphones for the FM radio
Menu > Multimedia > FM radio
Games & Apps
Access the Games and
Applications area.
Menu > Games & Apps
Greeting
Displayed during start up
Menu > Settings > Greeting
Keylock
Automatically lock the
keypad or hold * Lock /
Unlock
Menu > Settings > arrow right to
Handset > Keylock
Keypad Light
Set the Keypad Backlighting
Menu > Settings > Keypad
Backlighting
Keypad sounds
Control the keytones
Menu > Profiles > Edit > Keypad
sounds
Keypad Volume
Control the keypad volume
Menu > Profiles > Edit > Keypad
35
volume
Lock Code
Change the Handset Lock
code
(This protects the Handset)
Menu > Settings > arrow right to
Security > Activate security
codes > Handset lock code
Function
Description
Menu Selection
Meeting Mode
Quickly engage Meeting
mode
Long Press the # Key
Message Tone
Change the incoming
message tone
Menu > Profiles > Edit > Message
tone
My Audio
Play your audio files
Menu > File Manager > Audios >
My Audios
Owner name
Displayed on the idle screen
Menu > Settings > Owner name
PC Connection
USB is used for Join Me and
modem functions. Use
Bluetooth for Dial up
networking over Bluetooth
Menu > Settings > arrow right to
Handset > PC Connection
PIN Code
Set your start up PIN code
(This protects the SIM card
only)
Menu > Settings > arrow right to
Security > Activate security
codes > PIN code
Profiles
Group handset behaviours
for ringing, vibrate etc.
Menu > Profiles
Restore
Defaults
Restore your phone to factory
default settings
Menu > Settings > arrow right to
Handset > Restore default
36
settings > 0000 (default Handset
lock code)
Ringtone
Change the incoming ring
Menu > Profiles > Edit > Voicecall
ringtone
Shortcut Keys
Customise the four arrow
keys to your preferred
features
Menu > Settings > arrow right to
Handset > Shortcut keys > OK
Function
Description
Menu Selection
Slide Show
Create a slide show to view
pictures in sequence.
Menu > Multimedia > Slide show >
Add > Photos > My Pictures
Stopwatch
Activate the Stopwatch timer
Menu > Tools > Stopwatch
Vibrate Mode
Switch on vibrate mode
Menu > Profiles > Edit > Ringing
type
Video Camera
Use the Video Camera
Menu > Multimedia > Video
Camera
View Pictures
View your photos
Menu > File Manager > Photos >
My Pictures
View Videos
View your videos
Menu > File Manager > Videos >
My Videos
Voice Recorder
Record voice memos
Menu > Multimedia > Voice
recorder
37
Wallpaper
Set your background image
Menu > Settings > Wallpaper
World Time
Access the World Time
function
Menu > Tools > World Time
38
5 Installing the Join Me Computer suite
Embedded in your handset is a computer connection suite. The computer suite is
compatible with Windows 7, Vista and XP for the PC and MAC OS 10.5 and above. To
install the computer suite you need to connect your handset to your computer using the
USB lead supplied.
When the Join Me installation window appears please run the Autorun file to install the
application.
Follow the prompts to install the software which could take up to 5 minutes to complete.
After Join Me has installed you may need to remove and re-insert your device to complete
the driver installation for your handset.
The software can be used to synchronise phonebook contacts and calendar events and
the PC version can copy pictures, music, videos and applications to and from the handset.
Please see the Join Me help file from within the application for examples of how to use the
features.
The MAC version has limited functionality compared to the PC version. MAC users can
use Bluetooth or Mass Storage Mode to transfer files and pictures etc.
Please visit the FAQ‟s at http://www.zte.co.nz if you require further installation tips.
39
6 Troubleshooting, Technical and Warranty
Information
6.1 Troubleshooting and FAQ‟s
Please check the manual thoroughly before contacting your service provider
Symptom
Solution
No incoming ring
or alarm tone
Check the ring tone and ring volume settings under Profiles
Check the handset is not muted (Long press the # key)
(No) keytones when
pressing keys
Check the key tone settings in the current profile.
Menu > Profiles > Edit
How do I extend the
incoming ring time?
This is not a handset setting. Please contact your Service
Provider to extend the ringing time.
How do I change the
Ringtone?
Edit the current profile and select a new tune from the
Audios directory.
A phone number cannot
be dialled
Check for network coverage
Check whether any call restrictions are set.
Menu > Settings > Calls > Call Barring
MMS messages cannot
be sent or received
Your subscription does not include data services. Check
with your service provider.
40
How do I change to
Predictive Text?
Press the # key to toggle between different text modes.
Symptom
Resolution
I cannot connect to
Join Me
Check: Menu > Settings > Handset > PC Connection >
USB
Press Help in Join Me for more instructions.
Uninstall and re-install the software
See FAQ‟s at http://www.zte.co.nz/ for more assistance
My phone is slow to
respond, handset
storage problems
Restart your phone to refresh the memory.
Delete or archive old SMS messages and other content.
Restore default settings:
Menu > Settings > Handset > Restore default settings >
Enter the Handset lock code, default = 0000
The battery discharges
quickly
Possible network coverage issue. Check the signal
strength. With only 1 or 2 bars, the battery has to work
harder to maintain network contact. Limit multi-media and
Bluetooth usage to save power. The battery may be worn
out.
I cannot charge the
phone
Confirm the charger is properly inserted.
Remove the battery, clean the contacts and check it is
inserted correctly. The battery may be worn out.
Tip: Charge the phone using the supplied USB cable.
41
How do I enter text in
an SMS?
From the phone number field press the down arrow to
move into the text area. Use predictive text or abc mode to
type words using the keypad.
The handset switches
off after charging.
The handset is charging in the off state. Press and hold the
Red key to switch the handset ON or charge it in the ON
state
Symptom
Resolution
The handset switches
on automatically
An alarm or calendar event switches the handset on
automatically.
My phone is not able to
connect to other
Bluetooth devices
Turn Bluetooth on. Set visibility to Show. Possible
compatibility issues. Manufacturers incorporate different
Bluetooth profiles. Not all functionality is supported.
Web pages are not
displayed clearly
Change Smart fit mode in Browser > Settings > Advanced
settings
6.2 Error Messages
Message
Solution
No (U)SIM detected
Check a valid (U)SIM card is inserted
See Getting Started
Enter PIN code
Enter the correct PIN code supplied by your service
provider
Enter PUK code
Contact your service provider to get the PUK code
42
Enter handset lock code
The default handset lock code is 0000
File does not exist or is in
the wrong format
Check the file type is supported by the handset.
On your PC or MAC, make sure the file is closed.
Re-send the file using Join Me, Mass Storage Mode or
Bluetooth transfer.
Insufficient Memory
Handset memory is full. Delete unwanted files,
messages, emails & videos to create more user space.
6.3 Technical Parameters
Network
Compatibility
3G UMTS 850, 1900, 2100 MHz
2G GSM 850, 900, 1800, 1900 MHz
Dimensions
L×W×H
Approx 118mm x 53.5mm x 16mm
Weight
Approx 130g (Including standard battery)
Features
MP4 video, MP3 audio, 3.0MPixel camera, USB, FM Radio,
MIDP 2.0 JAVA, 2.4” 262K colour QVGA LCD display with 240 x
320 pixels, MMS, Email, Calendar, Speakerphone, Voice
Recorder, Bluetooth 2.0 Stereo, CTM, approx 100MB user
memory, microSD up to 16GB.
Battery
1000mA hours, Lithium ion (Li-ion)
Continuous idle
time*
Up to 250 hours (+/- 20% subject to network conditions)
Continuous talk
Up to 150 minutes talk time,
43
time*
Video call >70 minutes (+/- 20% subject to network conditions)
Charge time
Approximately 3-4 hours
Battery Life
Approximately 400 charge cycles
Supported Files
JPG, BMP, GIF, MP3, WAV, MID, WMA, MMF, AMR, MP4, 3GP,
TXT
Bluetooth 2.0
HSP, GOEP, A2DP, FTP, PBAB
*The phone‟s talk and idle time are based on ideal working environments. The use of
extended applications and local network conditions can reduce battery life.
6.4 Support Information
For Warranty Service directions please consult your Service Provider or your Retailer.
All calls for PIN number enquiries, Network problems, Web Access, Account and Billing
Information, (U)SIM card registration and other general enquiries should be directed to
your Service Provider.
6.5 Warranty Information
The warranty does not apply to defects or errors in the product caused by:
(a) Normal wear and tear
(b) Misuse including mishandling, physical damage, improper installation – including
battery, and unauthorized disassembly of the product.
(c) Water, exposure to solvents or any other liquid damage.
(d) Any unauthorised repair or modification.
44
(e) Power surges, lightning, fire, flood or other natural events.
(f) Use of the product with unauthorized third party products such as generic chargers.
(g) Any other cause beyond the range of normal usage for products.
The End User shall have no right to reject, return, or receive a refund for any product
under the above-mentioned situations.
Note: Consult the warranty card for full information
45
Safety and General Information
The handset contains delicate electronic circuitry, magnets and battery systems. You
should treat it with care and pay attention to the following points:
Handle the handset with care. Do not
drop or throw the handset.
Do not immerse in any liquid. The
handset contains a liquid detection
sticker and the warranty will be
voided by any liquid damage.
Do not place the handset near
computer disks, credit cards, and
other magnetic media. The
information contained on disks or
cards may be erased or damaged.
Do not leave the handset or battery in
direct sunlight or near other heat
sources where temperatures could
exceed 45°C.
Keep the handset, battery, charger
and other accessories away from
children.
In the unlikely event of a battery leak
avoid contact with your eyes or skin.
Flush with water and consult a doctor.
Observe and obey warning signs at
petrol stations, airports and hospitals.
The operation of some medical
electronic devices, such as hearing
aids and pacemakers, may be affected
by the handset.
Take care not to allow metal objects
such as coins or keys to come into
contact with the battery terminals.
Do not dispose of batteries in a fire.
Do not throw used batteries into
household rubbish, return them to a
recycling point
Do not connect the handset to non
genuine or 3rd party chargers.
Only use the supplied charger.
Be careful not to pierce the battery
with sharp objects and do not use
damaged batteries.
Do not disassemble or modify the
battery.
Stop using the battery if abnormal heat,
odour, discolouration, deformation, or
abnormal condition is detected during
use, charge, or storage.
46
Do not put the battery in your mouth.
Only use original replacement
batteries.
Do not attempt to dismantle the
handset or any of its accessories.
Do not place the handset close to the
edge of a table in case it moves when
set on vibrate mode.
Do not put the handset into a
microwave oven, dryer, or
high-pressure container.
Don‟t use the handset immediately
after a sudden temperature change
eg. from an air conditioned
environment to high temperature and
humidity outside. In such cases there
could be condensing moisture inside
the handset which can cause internal
damage. Switch off and leave for 30
minutes before use.
Do not use the handset while driving
or operating other machinery.
Do not use the handset where
blasting is in progress.
Switch the phone off when boarding
aircraft.
Do not leave the handset at the bottom
of a bag where it may be damaged by
sharp objects.
At high volume, prolonged listening to
audio devices can cause hearing loss.
Do not leave the handset discharged
or disconnected for a long time,
otherwise your personal data may be
lost.
Remember to make backup copies of
all important data on the handset.
Take care when the phone is in your
pocket. Sitting down may damage the
handset.
It is normal for the handset to become
warm while the battery is being
charged.
Under poor network conditions battery
life is considerably reduced.
When the battery is thrown away cover
the terminals with insulating tape.
Please recycle the packaging and all
parts
Emergency service coverage is
dependant on network availability and
battery status.
47
It is always good practice to switch off
the handset regularly.
Do not expose the handset to oils or
solvents.
If you have an alarm set the handset
switches on at the prescribed time.
