ZTE ZTEV790 WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone User Manual Movistar Motion Chile Movistar V1 0 120827

ZTE Corporation WCDMA/GSM（GPRS） Dual-Mode Digital Mobile Phone Movistar Motion Chile Movistar V1 0 120827

Movistar Motion User Manual& 65288;Chile_Movistar& 65289;V1.0-120827

1
Movistar Motion
WCDMA/GSM Mobile Phone
User Manual
2
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without
the prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on
print errors or update specifications in this guide without prior
notice.
The Bluetooth® trademark and logos are owned by the
Bluetooth SIG, Inc. and any use of such trademarks by ZTE
Corporation is under license. Other trademarks and trade
names are the property of their respective owners.
We offer self-service for our smart terminal device users.
Please visit ZTE official website (at www.zte.com.cn) for
more information on self-service and supported product
models. Information subject to the website.
Version No.: R1.0
Edition Time : 2012.8.13
3
Contents
Getting Started ....................................................... 11
Keys Explained .............................................................. 12
Starting Up ..................................................................... 12

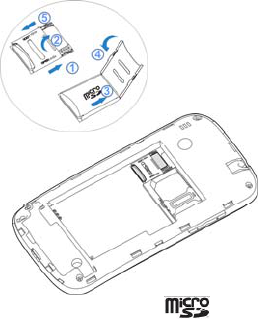

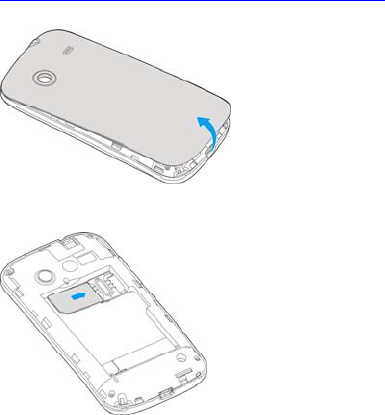

Installing the SIM/microSD Card and Battery ........... 12
Removing the Battery and SIM/microSD Card ......... 15
Charging the Battery ................................................ 15
Switching Your Phone On/Off ........................................ 16
Setting Up Your Phone for the First Time ................ 16
Switching to Sleep Mode .......................................... 17
Waking Up Your Phone ............................................ 17
Getting Around Your Phone ........................................... 18
Touch Control ........................................................... 18
Home Screen ........................................................... 18
Status and Notification Icons .................................... 23
Using the Notification Panel ..................................... 24
Hiding or Displaying the Applications ....................... 25
Adjusting the Place of an Application ....................... 25
Opening Recently-Used Applications ....................... 26
Phone Calls ............................................................ 27
Making Calls .................................................................. 27
Calling From the Dialer ............................................. 27
Calling From Your Contacts ..................................... 27
Calling From Your Call History ................................. 27
Calling From a Text Message .................................. 28
4
Using Speed Dial ..................................................... 28
Receiving Calls .............................................................. 29
Answering a Call ...................................................... 29
Rejecting a Call ........................................................ 29
Muting a Call ............................................................ 29
Putting a Call on Hold .............................................. 29
Turning the Speakerphone On/Off ........................... 30
Ending a Call ............................................................ 30
Call Settings .................................................................. 30
Contacts ................................................................. 32
Importing and Exporting Contacts ................................. 32
Importing/Exporting Contacts (SIM Card) ................ 32
Importing/Exporting Contacts (microSD Card)......... 33
Sharing Contacts Information ........................................ 33
Creating a Contact ........................................................ 33
Adding a Contact to Favorites ....................................... 34
Searching for a Contact ................................................. 34
Creating a New Group ................................................... 34
Entering Text .......................................................... 36
Android Keyboard .......................................................... 36
TouchPal Keyboard ....................................................... 37
Touch Input Settings ..................................................... 42
Messaging .............................................................. 43
The Message Box ......................................................... 43
Sending a Message ....................................................... 43
5
Message Settings .......................................................... 44
Email ....................................................................... 47
Creating an Email Account ............................................ 47
Receiving Emails ........................................................... 48
Composing and Sending an Email ................................ 48
Replying to or Forwarding an Email ............................... 49
Deleting an Email Account ............................................. 49
Email Settings ................................................................ 49
Getting Connected to the Internet ........................ 50
Adding a New GPRS/EDGE/3G Connection ................. 50
Turning On Wi-Fi............................................................ 51
Connecting to a Wi-Fi Network ...................................... 51
Checking the Wi-Fi Network Status ............................... 51
Using the Phone as a Modem ....................................... 52
Enabling the Phone as a Modem ............................. 52
Disabling the Modem Function ................................. 53
Using the Phone as a Wi-Fi Hotspot .............................. 53
Enabling the Wi-Fi Hotspot ....................................... 54
Disabling the Wi-Fi Hotspot ...................................... 54
Browsing the Internet ............................................ 55
Browsing Options ........................................................... 55
Using Bookmarks ........................................................... 56
Editing a Bookmark .................................................. 56
Deleting a Bookmark ................................................ 56
Browser Settings ............................................................ 57
6
Bluetooth® .............................................................. 58
Turning Bluetooth On/Off .............................................. 58
Making Your Phone Visible ........................................... 58
Changing the Device Name .......................................... 59
Pairing With Another Bluetooth Device ......................... 59
Making the Most of Multimedia ............................. 61
Taking Pictures With Your Camera ............................... 61
Adjusting Camera Settings ............................................ 61
Shooting Video With Your Camcorder .......................... 62
Adjusting Camcorder Settings ....................................... 62
Listening to Your FM Radio ........................................... 62
Playing Your Music ........................................................ 63
Creating Playlists ..................................................... 64
Managing Playlists ................................................... 65
Adding a Song to a Playlist ...................................... 65
Setting a Song as Ringtone ..................................... 65
Google Music ................................................................ 66
Playing Your Music .................................................. 66
Creating Playlists ..................................................... 68
Adding a Song to a Playlist ...................................... 68
Managing Playlists ................................................... 68
Playing Your Videos ...................................................... 69
Opening Your Gallery .................................................... 69
Making Voice Memos .................................................... 70
Turning On/Off USB Mass Storage ....................... 72
7
Using Your Google™ Applications ...................... 73
Gmail .............................................................................. 73
Google Calendar ............................................................ 74
Google Talk.................................................................... 74
Opening Google Talk ............................................... 74
Adding a New Friend ................................................ 74
Changing Your Online Status ................................... 75
Starting a Chat ......................................................... 75
Google+ ......................................................................... 75
Organizing Your Contacts ........................................ 76
Getting Updates ....................................................... 76
Chatting With Contacts ............................................. 76
Checking Photos ...................................................... 77
Checking and Managing Your Profile ....................... 77
Places ............................................................................ 77
Latitude .......................................................................... 78
Sorting out Your Phone Settings ......................... 80
Setting Date and Time ................................................... 80
Display Settings ............................................................. 80
Sound Settings............................................................... 80
Language Settings ......................................................... 81
Mobile Network Services ............................................... 82
Getting Data Services When Roaming ..................... 82
Disabling Data Services ........................................... 82
Enabling Always-On Data Services .......................... 82
Switching Network Modes ........................................ 83
8
Switching Networks .................................................. 83
Setting Access Point Names .................................... 83
Security Settings ........................................................... 84
Protecting Your Phone With a Screen Unlock Pattern
................................................................................. 84
Protecting Your Phone With a PIN or Password...... 85
Disabling Screen Lock Settings ............................... 85
Protecting Your SIM Card With a PIN ...................... 86
Setting Up Credential Storage ................................. 87
Managing Your Device Memory .................................... 88
Privacy: Reset to Factory Settings ................................ 88
Managing Applications .................................................. 88
Installing an Application ........................................... 89
Removing an Application ......................................... 89
Moving an Application .............................................. 90
Managing Other Settings ............................................... 90
Search Settings ........................................................ 90
Voice Input and Output ............................................ 90
Accessibility ............................................................. 91
Other Applications ................................................. 92
Alarms ........................................................................... 92
Calculator ...................................................................... 92
Note Pad ....................................................................... 92
Stopwatch ...................................................................... 93
Task Manager ............................................................... 93
9
For Your Safety ...................................................... 94
General Safety ............................................................... 94
Distraction ...................................................................... 95
Driving ...................................................................... 95
Operating Machinery ................................................ 95
Product Handling ........................................................... 95
General Statement on Handling and Use ................. 95
Small Children .......................................................... 97
Demagnetization ...................................................... 97
Electrostatic Discharge (ESD) .................................. 97
Air Bags .................................................................... 97
Seizures/Blackouts ................................................... 97
Repetitive Strain Injuries .......................................... 98
Emergency Calls ...................................................... 98
Loud Noise ............................................................... 98
Phone Heating .......................................................... 99
Electrical Safety ............................................................. 99
Accessories .............................................................. 99
Connection to a Car ................................................. 99
Faulty and Damaged Products ................................. 99
Radio Frequency Interference ..................................... 100
General Statement on Interference ........................ 100
Pacemakers ........................................................... 100
Hearing Aids ........................................................... 100
Medical Devices ..................................................... 100
Hospitals ................................................................. 101
10
Aircraft .................................................................... 101
Interference in Cars ............................................... 101
Explosive Environments .............................................. 102
Petrol Stations and Explosive Atmospheres .......... 102
Blasting Caps and Areas ....................................... 102
FCC Compliance（FOR PART 15B/PART 15C） ...... 102
FCC Compliance （only Part 15B） .......................... 104
Radio Frequency (RF) Energy .................................... 105
11
Getting Started
Volume
Keys
Camera Speaker
Power Key
Earpiece
Touch Screen
Search Key
Back Key
Home Key
Menu Key
Headset Jack
Charger/USB Jack
12
Keys Explained
Key Function
Power Key • Hold to select phone modes: Silent,
Airplane, or to power off.
• Press to switch your phone to Sleep
mode.
• Press to wake up your phone.
Home Key • Touch to return to the Home Screen from
any application or screen.
• Hold to see recently used applications.
Menu Key Touch to get the options for the current
screen.
Back Key Touch to go to the previous screen.
Search Key Touch to search for information.
Volume Keys Press higher end of the key to turn the
volume up and the lower end of the key to
turn it down.
Starting Up
Installing the SIM/microSD Card and Battery
Switch off your phone before installing or replacing the battery
or the SIM card. Without switching off the phone, you can
replace the microSD card after unmounting it. (See Sorting out
13
Your Phone Settings – Managing Your Device Memory.)
1. Remove the back cover.
2. Hold the SIM card with the cut corner oriented as shown
and slip it into the card holder.
14
3. Install your microSD card.
NOTE: microSD logo is a trademark of the SD
Card Association.
4. Insert the battery by aligning the gold contacts on the
battery with the gold contacts in the battery compartment.
Gently push down on the battery until it clicks into place.
15
5. Press the cover gently back into place until you hear a
click.
Removing the Battery and SIM/microSD Card
1. Make sure that your mobile phone is off.
2. Remove the back cover.
3. Lift the battery up and out.
4. Slide the SIM cards out.
5. Take off the microSD card.
Charging the Battery
When you first get your new phone you’ll need to charge the
battery.
1. Connect the adapter to the charger jack. Ensure that the
adapter is inserted with the correct orientation. Do not
force the connector into the charger jack.
16
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
How much charge have you got?
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
If the phone is on, you‘ll see this charging icon / appear
on the status bar. As soon as charging is completed, this icon
appears on the status bar.
Switching Your Phone On/Off
Make sure the SIM card is in your device and the battery is
charged.
• Hold the Power Key to switch on your phone.
• To switch it off, hold the Power Key to get the phone
options. Select Power off, and then touch OK.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or
17
reset it to factory settings (see Sorting out Your Phone
Settings – Privacy: Reset to Factory Settings), you need to
do some settings before using it.
1. Touch Change language to change the language you
want to use, if needed.
2. Touch the Android robot on the screen.
3. Create a Google Account or Sign in to your account.
You can also touch Skip to set up an account later.
4. Configure the Google location options and touch Next.
5. Configure the date and time options, and touch Next.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to
a low-power-consumption state while the display is off. Your
device also goes into Sleep Mode by itself when the display
is automatically turned off after a certain period of time, which
you can set in Settings > Display > Screen timeout.
Press the Power Key to switch to Sleep Mode.
Waking Up Your Phone
1. Press the Power Key to activate your screen display.
2. Touch and hold .
NOTE: If you have set an unlock pattern, PIN or password for
your phone (see chapter Sorting out Your Phone Settings –
Security Settings), you’ll need to draw the pattern or enter the
18
PIN/password to unlock your screen.
Getting Around Your Phone
Touch Control
You can use finger gestures to control your phone. The
controls on your touch screen change dynamically depending
on the tasks you’re performing.
• Touch the buttons, icons, or applications to select items
or to open applications.
• Keep your finger on an item to see the available options.
• Flick the screen to scroll up, down, left or right.
• Point, drag and drop to move particular items across the
screen.
• Pinch with two fingers or double-tap the screen to zoom
in/out on a web page or an image.
NOTE: You can view the phone screen in portrait or
landscape orientation simply by holding it upright or turning it
on its side. Not all screens are viewable in landscape.
Home Screen
You choose what is shown on your Home Screen. Set your
own wallpaper, add the widgets or application shortcuts you
need, or remove them as you like.
19
Extended Home Screen
The Home Screen extends beyond the screen width, giving
you loads more space to add more stuff. Simply slide your
finger to the left or right, or touch the dots on the bottom
corners of the screen, to see the extended Home Screen.
To add or remove an extended Home Screen:
1. Touch the Home Key to return to the Home Screen.
2. Touch the Menu Key > Personalization > Screen.
3. Touch to add more extended Home Screens.
Touch on a thumbnail to remove an extended Home
Screen.
Status &
Notifications
Shortcuts &
Widgets
Touch to view all
applications.
Contacts
Dialer Messages
20
To adjust the place of an extended Home Screen:
1. Touch the Home Key to return to the Home Screen.
2. Touch the Menu Key > Personalization > Screen.
3. Touch and hold a thumbnail and drag it to the place you
need.
Choosing Your Wallpaper
1. Touch the Home Key to return to the Home Screen.
2. Touch the Menu Key > Wallpaper.
3. Touch Gallery, Live wallpapers, or Wallpapers and
choose the image or animation you want to use as the
wallpaper. Some cropping may be needed for Gallery
images.
4. Touch Save or Set wallpaper.
Adding Items to Your Home Screen
1. Touch the Home Key to return to the Home Screen.
2. Slide left or right to find an empty spot on the Home
Screen.
3. Touch the Menu Key > Personalization > Add to home
screen.
TIP: You can also touch and hold the blank area of the Home
Screen to get the Add to Home screen menu.
4. Select a category (shortcuts, widgets or folders).
5. Choose the item you want to add to the Home Screen.
21
Removing Items From Your Home Screen
6. Touch the Home Key to return to the Home Screen.
7. Touch and hold the item you want to delete until the
icon appears on the screen.
8. Drag the item to and release it when the item turns
red.
Using Folders on Your Home Screen
You can create folders on the Home Screen and add several
shortcuts in a folder.
To create a folder on the Home Screen:
1. Touch the Home Key to return to the Home Screen. You
22
can slide left or right to find empty area on the Home
Screen.
2. Touch and hold the shortcut you want to add into a folder
until the icon appears.
3. Drag the shortcut to and release it. A new folder will
be created and the shortcut is added into the folder.
To open or close a folder:
• Touch a folder to open it.
• Touch Close to close it.
To add a shortcut into a folder:
1. Touch and hold a shortcut and then drag it onto a folder
icon.
2. Release the shortcut and it will be added into the folder.
To remove a shortcut from a folder:
1. Touch a folder to open it.
2. Touch and hold the shortcut you want to remove and
then drag it to the Home Screen.
3. Release the shortcut and it will be removed from the folder.
To rename a folder:
1. Touch a folder to open it.
2. Touch the folder name field and enter a new name.
3. Touch OK.
23
Status and Notification Icons
GPRS connected No signal
GPRS in use Signal strength
EDGE connected Phone speaker off
EDGE in use Phone microphone off
3G connected No SIM card installed
3G in use Error or warning
HSPA connected GPS on
3G/HSPA in use Recording phone call
USB connected microSD card unmounted
Battery flat Preparing microSD card
Battery very low Connected to a Wi-Fi network
Battery low Alarm set
Battery partially
drained Wired headset inserted
Battery full Bluetooth on
24
Battery charging Speaker on
Syncing Problem with SMS/MMS delivery
Vibrate mode New instant message
Airplane mode Upcoming event
New mail Playing song
New SMS Downloading data
New MMS Content downloaded and
installed successfully
New Google Mail
message Sending data
Missed call Portable Wi-Fi hotspot on
Call in progress New Wi-Fi network detected
Call on hold More (not displayed) notifications
Using the Notification Panel
Flick the status bar downwards from across the top of the
screen to open the Notification Panel, where you can see
your calendar events, new messages, and current settings
– such as call forwarding or call status. From here you can
25
also open new messages, reminders, etc.
TIP: You can also open the Notification Panel by touching
the Menu Key > Notifications from the Home Screen.
Hiding or Displaying the Applications
You can hide or display applications in the application list.
1. Touch the Home Key > .
2. Touch the Menu Key > Hide Applications.
3. To hide the applications, tick the check boxes next them.
To display the applications, just clear their check boxes.
4. Touch the Back Key to go back to the application list.
Adjusting the Place of an Application
You can adjust the place of applications as you like in the
application list.
1. Touch the Home Key > .
2. Touch the Menu Key > Edit.
3. Touch and hold an application and then drag it to the
place you need.
4. Release the application and then touch the Menu Key >
Save to save the editing. You can touch the Menu Key >
Discard > OK to cancel the editing.
TIP: You can search for an application by touching the
Search Key or the Menu Key > Apps Search in the
application list screen.
26
Opening Recently-Used Applications
1. Hold the Home Key from any screen. The phone will
display icons of applications you used recently.
2. Touch the application you want to open, or touch Task
Manager to manage running apps.
27
Phone Calls
Making Calls
There are many ways to make a call with your phone. And
they’re all easy to do.
Calling From the Dialer
1. Touch the Home Key > .
2. Enter the phone number with the on-screen keypad.
Touch to delete wrong digits.
3. Touch .
TIP: To make international calls, hold 0 to enter the “+”.
Calling From Your Contacts
1. Touch the Home Key > .
2. Flick up or down to scroll the contacts list and touch the
contact you want to call.
TIP: You can search for a contact by touching on the
bottom of the screen or the Search Key.
3. Touch next to the number you want to call.
Calling From Your Call History
1. Touch the Home Key > > Call log.
2. Touch next to the number you want to call.
28
Calling From a Text Message
If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.
1. Touch the Home Key > .
2. Touch the conversation and then the message that
contains the phone number you need.
3. If the message contains multiple numbers, select the one
you need.
4. Touch .
Using Speed Dial
Touch and hold 1 ~ 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
Assigning a speed dial key:
1. Touch the Home Key > Menu Key > Settings > Call
settings > Speed dial from the Home Screen.
2. Touch a speed dial key.
3. Enter a phone number or touch to select one from the
contact list.
4. Touch OK.
29
Receiving Calls
Answering a Call
Drag to the right to answer the call.
Rejecting a Call
Drag to the left to reject the call.
You can also touch the Menu Key > Sms reject to reject the
call and send a preset message to the caller.
Muting a Call
During a call, you can mute your microphone so that the
person you are speaking to cannot hear you, but you can still
hear them.
Touch Mute to turn your microphone off. The mute icon
will appear on the status bar. To turn your microphone back
on, touch Mute again.
Putting a Call on Hold
During a call, you can put it on hold by touching the Menu
Key > Hold. The icon will appear on the screen.
30
TIP: If you accept an incoming call while you’re on another
call, the first call automatically goes on hold. Just touch the
Menu Key > Swap calls to switch between the two callers.
Turning the Speakerphone On/Off
Touch Speaker during a call to turn the speakerphone on.
This icon will appear in the status bar. Touch Speaker
again to turn off the speakerphone.
Ending a Call
Touch End to finish a call.
Call Settings
From the Home Screen, you can open the call settings menu
by touching the Menu Key > Settings > Call settings.
Fixed Dialing
Numbers
Restrict outgoing calls to a fixed set of numbers. To
do this you must know your SIM’s PIN2 code.
Voicemail service Select a voicemail service provider.
Voicemail
settings Specify a voicemail number.
Speed dial Set speed dialing keys and numbers.
Cell broadcast
settings Set cell broadcast channel and language.
Call Barring Forbid certain types of calls.
31
Settings
Call forwarding
Forward your incoming calls to a different number.
And choose when to forward: Always forward;
Forward when busy; Forward when
unanswered, or Forward when unreachable.
Additional
settings
Caller ID Choose whether people you call can
see your number.
Call
waiting
See new incoming calls while you’re on
another call.
Accounts Set up Internet calling (SIP) accounts.
Use Internet
calling Choose when to use the Internet calling function.
32
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > . From
there, you can touch the tabs on the top to quickly switch to
dialer, call log, favorite contacts, or contact groups.
Importing and Exporting Contacts
You can import or export contacts from/to your SIM card or
microSD card. This is especially useful when you need to
transfer contacts between different devices.
Importing/Exporting Contacts (SIM Card)
Import the contacts from the SIM card or export them to the
SIM card as follows.
1. Touch the Menu Key > Import/Export from the Contacts
Screen.
2. Choose Import from SIM card or Export to SIM card.
Your phone will automatically display the contacts.
3. Touch the contacts you want to import or export. Or, just
touch .
4. Touch .
33
Importing/Exporting Contacts (microSD
Card)
Import the contacts from the microSD card or export them to
the microSD card as follows.
1. Touch the Menu Key > Import/Export from the Contacts
Screen.
2. Choose Import from SD card or Export to SD card.
• For import, you should have vCard files saved in the
microSD card. If there’s more than one vCard file, you
need to select the vCard file and touch OK.
• For export, the phone will prompt you with the name of
the vCard file. Touch OK to create the file in the microSD
card.
Sharing Contacts Information
1. Touch the Menu Key > Share from the Contacts Screen.
2. Touch the contacts you want to share.
3. Touch > OK. Your phone will export all information of
the selected contacts to a temporary vCard file.
4. Choose how you want to send the vCard file. You can
send it via Bluetooth, Email, Gail or Messages.
Creating a Contact
1. Touch at the bottom of the Contacts Screen.
34
2. Touch Contact type to choose where to save the contact.
3. Enter the contact name, phone numbers, and other
information.
4. Touch to save the contact.
Adding a Contact to Favorites
1. In the Contact Screen, touch and hold the contact you want
to add to Favorites.
2. Touch Add to favorites from the pop-up menu.
TIP: You can also touch a contact and then touch next to
the contact’s name to add it to Favorites.
Searching for a Contact
1. Touch at the bottom of the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Creating a New Group
1. Touch the Groups tab from the Contacts Screen.
2. Touch the icon at the bottom of the screen.
3. Enter the group name and touch .
4. Touch the new group and touch to add group
members.
35
5. Tick the check boxes next to the contacts you want. Then
touch .
36
Entering Text
When you enter a field that needs text or numbers, a
keyboard automatically appears on the screen. Hold the input
box and select Input method from the pop-up menu to
change input method.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the
keyboard will change from portrait to landscape.
To use the landscape keyboard, just tick the Auto-rotate
screen check box in Settings > Display. (The landscape
QWERTY keyboard is not supported in all applications.)
• Touch the alphabetic keys to enter letters. Touch and
hold some specific keys to enter associated accented
letters or numbers. For example, to enter È, touch and
37
hold and the available accented letters and number 3
appear. Then slide to choose È.
• Touch to use uppercase or lowercase. This key also
changes to indicate the current case you are using:
for lowercase, for uppercase, and when locked
in uppercase.
• Touch to delete the text before the cursor.
• Touch to select numbers and symbols. You can
then touch to find more. Also, often used symbols
are displayed on top of the keyboard. Flick left or right to
find the one you need and touch to enter.
• Touch to enter a smiley face; touch and hold the key
and then swipe to choose more emoticons.
• Touch to change the input method or set up the
Android keyboard.
• Touch to use Google’s networked voice input.
TouchPal Keyboard
TouchPal Keyboard offers three layouts: Full QWERTY,
12-Key PhonePad and CooTek T+. You can swipe left or
right on the TouchPal keyboard to switch the layout.
You can also use TouchPal CurveTM to speed up text input
by replacing the key tapping motion of input with a tracing
gesture where you move your finger from letter to letter
38
without lifting the finger until you reach the end of the word.
To switch the keyboard layout:
1. Touch the Home Key > Menu Key > Settings >
Language & keyboard > TouchPal Keyboard >
Keyboard layout.
2. Tick the Swipe layout check box.
3. In the TouchPal keyboard screen, touch and clear
the Curve box, and then touch Close.
4. Swipe left or right on the TouchPal keyboard to select
the Full QWERTY, 12-Key PhonePad or CooTek T+
layout.
Full QWERTY
• Touch the alphabetic keys to enter letters.
• Touch to use uppercase or lowercase. This key also
39
changes to indicate the current case you are using:
for lowercase, for uppercase, and when locked in
uppercase.
• Slide right on to enable word prediction. Slide left
on to disable word prediction.
• Touch to change input language.
• Touch to enter digits, symbols, emoticons and other
pre-defined texts. Touch to find more. Touch /
to lock or unlock the inputting. Touch to go back to
enter letters.
• Touch to start a new line.
• Touch or hold to delete text before the cursor.
• Touch to access the quick settings of TouchPal
keyboard.
• Touch to set the TouchPal keyboard options.
• Touch to open text editing options. You can select,
cut, copy, paste, and delete text, or move the cursor.
• Touch to use voice input.
• Touch to hide the onscreen keyboard. You can touch
the text field again to show the keyboard.
40
12-Key PhonePad
Touch a key repeatedly until the desired letter or symbol
appears. If word prediction is enabled ( ), just touch the
keys once and choose the right word.
CooTek T+
41
Touch to enter the left letter on the key; Double-tap or flick
right to enter the right letter/symbol on the key. If word
prediction is enabled ( ), just touch the keys and choose
the right word.
To enable and use TouchPal Curve:
1. In the TouchPal keyboard screen, touch and tick
the Curve check box, and then touch Close.
2. Move your finger from letter to letter on the keyboard to
trace a word without lifting the finger until you reach the
end of the word.
NOTE: TouchPal Curve is only available in the Full
QWERTY layout.
Tips for using TouchPal Curve:
• Touch when you want to. If you want to enter a single letter,
go ahead and touch.
• Lift your finger at the end of the word. A space is added
automatically when you begin to trace the next word.
Start of the word
End of the word
42
Touch Input Settings
Choose the touch input settings by touching the Menu Key >
Settings > Language & keyboard from the Home Screen.
In the Keyboard settings section, you can choose the
settings for TouchPal and Android keyboard.
43
Messaging
Your SMS (text message) and MMS (multimedia messaging
service) are combined into one menu in in Messages .
The Message Box
Instead of an inbox and outbox, your phone organizes all
messages you sent and received into one box, where
messages exchanged with the same number are grouped
into one message thread in the Messages Screen. You can
touch a thread to see the conversation you have had with
someone.
Message threads are sorted in chronological order with the
latest one on top.
Sending a Message
1. Touch the Home Key > > .
2. Touch the To field to enter the recipient’s number or
name. As you type, matching contacts will appear. Touch
a suggested contact to add as a recipient.
3. Touch the Type to compose field and enter your
message.
• Touch the Menu Key to insert Quick Text, signature,
smiley, or contact.
• If you are sending an MMS, touch the Menu Key to
44
add a subject, or attach pictures, videos, audio, other
types of files, or slideshows.
• You can also touch to add smiley, contact
information, quick text, signature, pictures, videos,
audios, slideshows or files to the message.
4. Touch Send to send your message.
NOTE: Add an attachment to text message and it will be
converted into an MMS automatically. Likewise if you remove
all attachments and the subject from an MMS, it’ll
automatically become a text message.
Message Settings
The phone’s message settings are pre-configured for you to
use immediately. To change them, touch the Menu Key >
Settings from the Messages Screen.
Storage settings:
• Delete old messages: Select to delete old messages
when your storage limits are reached.
• Text message limit: Set the maximum number of text
messages allowed in a single thread.
• Multimedia message limit: Set the maximum number of
multimedia messages allowed in a single thread.
Text message (SMS) settings:
• Delivery reports: Request a delivery report for every text
45
message you send.
• Manage SIM card messages: Manage the messages
saved in your SIM card.
• SMS validity: Set the validity time limit for outgoing text
messages.
• Service Center: Enable you to view and edit the service
center number.
Multimedia message (MMS) settings:
• Delivery reports: Request a delivery report for every
MMS message you send.
• Read reports: Request a read report for each MMS
message you send.
• Auto-retrieve: Automatically retrieve MMS messages.
• Roaming auto-retrieve: Automatically retrieve MMS
messages when you’re roaming.
• MMS validity: Set the validity time limit for outgoing
multimedia messages.
• MMS creation mode: Select to create an MMS message
with or without restriction, or receive warning when
adding restricted attachment to an MMS message.
Display settings
• Font size: Set the size of the displayed text.
• Dialog patterns: Set the style for dialog display.
46
Notification settings:
• Notifications: Show message notifications in the status
bar.
• Select ringtone: Choose a ringtone for your incoming
messages.
• Vibrate: Make your phone vibrate when a new message
arrives.
Signature settings:
• Edit signature: Edit your signature, which can be added
automatically to outgoing messages.
• Add signature: Add the signature to all outgoing
messages.
NOTE: Touch the Menu Key > Restore default settings to
change all the message settings back to the original.
47
Email
Touch the Home Key > > Email. You can enter the Email
Screen to set up your Email account and exchange Emails.
Creating an Email Account
1. When you open Email for the first time, enter your Email
address and password and then touch Next.
2. Select the type of your account and touch Next.
3. Edit the settings for incoming server and outgoing server,
and then touch Next or Next [Check].
NOTE: Touch Next [Check] and your phone will connect
to the Internet and verify the settings before proceeding to
the next step. Please contact your mobile service provider
and Email service provider for more help.
Your phone knows the client settings for lots of Email
service providers. If the Email you use is from those
providers, the phone will automatically configure the
incoming and outgoing settings after you enter your Email
address and password.
4. Set the Email checking frequency, download options,
account name and other settings. Touch Done when you
finish.
Your phone will show the inbox of the Email account and
start to download Email messages.
48
TIP: To add more Email accounts, open Email to get the
Inbox screen. Then touch the Menu Key > More >
Accounts > Menu Key > Add account.
Receiving Emails
Touch the Menu Key > Refresh to download recent Emails.
You can select Load more messages at the bottom of the
Email list to download earlier messages.
Composing and Sending an Email
After creating an Email account, you can compose and send
Email messages.
1. Touch the Menu Key > Compose from the Inbox Screen.
2. Touch To field and enter the recipient’s address. When
you enter the address, matching contacts on the phone will
be displayed. Separate each recipient with a comma.
TIP: You can also touch the Menu Key > Add Cc/Bcc to add
more recipients.
3. Enter the subject and the content of your Email. If
necessary, change the email priority.
4. Touch the Menu Key > Add attachment to add files to
the Email.
5. Touch Send.
49
Replying to or Forwarding an Email
1. Open the Email you want to reply to or forward from Inbox
Screen.
2. Touch Reply or the Menu Key > Forward to reply
to/forward the Email.
NOTE: You can also touch Reply all to reply to all recipients
of the Email.
3. Enter the contents and recipients of your Email.
4. Touch Send.
Deleting an Email Account
1. Open the Email application. In the Inbox screen, touch the
Menu Key > More > Accounts to get the Accounts list.
2. Touch and hold the account you want to delete and select
Remove account from the pop-up menu.
3. Touch OK to confirm.
Email Settings
Touch the account you want to set from the Accounts Screen
and touch the Menu Key > More > Account settings. You
can get the settings for the Email account. You can also
touch the Menu Key > More > System setting to set up
storage, exchange and other settings.
50
Getting Connected to the Internet
Your phone’s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.
You can use default connection settings to connect to the
Internet via your mobile network (GPRS/EDGE/3G), or Wi-Fi.
The GPRS/EDGE/3G connection can be enabled/disabled
manually. Just touch the Menu Key > Settings > Wireless
& networks > Mobile networks from the Home Screen
and tick or clear the Data enabled check box.
Adding a New GPRS/EDGE/3G
Connection
To get connected via GPRS/EDGE/3G you need a data plan
with your service provider. Also if the GPRS/EDGE/3G
settings are not pre-configured on your phone, please
contact your provider to get the necessary information.
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Mobile networks > Network
Settings > Access Point Names.
2. Touch New APN.
3. Touch each item to enter the information you get from
your service provider of that SIM card.
4. Touch Save to complete.
TIP: To set the APN to default settings, touch Reset to
51
default.
Turning On Wi-Fi
Wi-Fi provides wireless Internet access over distances of up
to 300 feet (100 meters).
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Wi-Fi settings.
The Wi-Fi access points, or “hotspots”, that your phone
has detected are displayed with their names and
security settings.
2. Touch an access point.
3. Enter the password if security features are implemented.
Then touch Connect.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by looking at the icon
in the status bar.
Or touch the access point that the phone is currently
connected to in Wi-Fi settings. You can then check the
52
network status from the pop-up window.
Using the Phone as a Modem
You can access the Internet on your PC via your phone as a
modem. Note the function may result in data charges from
your mobile phone carrier. Please contact them for detail.
Enabling the Phone as a Modem
TIPS:
• Make sure that USB storage is turned off before enabling
the modem function. If the USB storage is already turned
on, slide down the status bar and touch Turn off USB
storage > Turn off USB storage.
• The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the GPRS/EDGE/3G connection
correctly before you try to use the phone as a modem.
1. When you connect your phone to your PC with the
provided USB cable for the first time, a window will pop up
and prompt you to install the driver.
2. Double click the executable file (.exe) in the window and
follow the prompts to finish the driver installation.
NOTE: If the window doesn’t pop up automatically for some
reason, please open the new CD-ROM drive on your PC
manually and find the executable file to run it.
3. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Tethering & portable hotspot
53
and tick the USB tethering check box. A new network
connection will be created on your PC.
4. Go to Control Panel > Network on your PC to enable the
new network connection.
Now you can launch the Internet browser on your PC and
start surfing.
Disabling the Modem Function
Touch the Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
USB tethering check box.
You can also just pull out the USB cable.
Using the Phone as a Wi-Fi Hotspot
You can use the phone as a portable Wi-Fi hotspot, providing
Wi-Fi connection for one or multiple PC or other devices. The
function need data connection on a mobile network and may
result in data charges.
TIPS:
• The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
Wi-Fi hotspot.
• When the portable Wi-Fi hotspot function is enabled, you
cannot access the Internet with any application on your
phone via its Wi-Fi connection.
54
Enabling the Wi-Fi Hotspot
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Tethering & portable hotspot
and tick the Portable Wi-Fi hotspot check box.
2. Touch Portable Wi-Fi hotspot settings > Configure
Wi-Fi hotspot.
3. Change the name of the hotspot (Network SSID) and its
security setting, if necessary.
You can touch the Security field and choose WPA2 PSK
to set up a password. The password must have at least 8
characters.
4. Touch Save. Now you can find the hotspot on other
devices and connect to it.
Disabling the Wi-Fi Hotspot
Touch the Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
Portable Wi-Fi hotspot check box.
55
Browsing the Internet
You can use your phone to get on the Internet via a GPRS,
EDGE, 3G, or Wi-Fi connection.
Touch the Home Key > > Browser.
There are different ways to open web pages:
• Touch the address bar to enter the website you want to
browse and then touch .
• Touch beside the address bar or touch the Menu
Key > More > Bookmarks. Select a bookmark to open.
• Touch beside the address bar or touch the Menu
Key > More > Bookmarks. Choose an item from the
Most visited tab or History tab.
Browsing Options
Touch the Menu Key to access the following options when
browsing web pages.
• Open a New window for web browsing.
• Exit the Browser application.
• Add bookmark for the current web page.
• Switch browsing Windows.
• Refresh the current web page, or stop loading it.
56
• Touch More to forward to the next web page, access
bookmarks, search for text, select text, share page URL,
check page info or download history, or configure browser
settings.
Touch and hold a URL link in a web page to open, bookmark,
save, share the link, or to copy the link URL.
Using Bookmarks
1. Open a web page to be added to bookmarks.
2. Touch the Menu Key > Add bookmark.
3. Give the bookmark a name and touch OK.
TIP: You can touch the Menu Key > List view/Thumbnail
view to change how you view bookmarks on your phone
screen.
Editing a Bookmark
1. Open the browser.
2. Touch or the Menu Key > More > Bookmarks.
3. Select an item you want to edit and hold it until the shortcut
menu pops up.
4. Select Edit bookmark.
5. Edit the name or location, and then touch OK to save it.
Deleting a Bookmark
1. Open a Browser window.
57
2. Touch or the Menu Key > More > Bookmarks.
3. Select an item you want to delete and hold it until the
shortcut menu pops up.
4. Select Delete bookmark and touch OK to confirm.
Browser Settings
Touch the Menu Key > More > Settings from a browser
window to change browser settings.
58
Bluetooth®
Bluetooth® is a short-range wireless communication
technology. Phones or other devices with Bluetooth
capabilities can exchange information wirelessly within a
distance of about 10 meters. The Bluetooth devices must be
paired before the communication is performed.
Turning Bluetooth On/Off
Touch the Home Key > Menu Key > Settings > Wireless &
networks and tick the Bluetooth check box. When
Bluetooth is on, the icon will appear in the status bar.
If you want to turn Bluetooth off, just clear the Bluetooth
check box.
NOTE: If you switch off your phone while Bluetooth is turned
on, when you switch on the phone again, Bluetooth will turn
on automatically.
Making Your Phone Visible
In order to work with other phones or devices that have
Bluetooth, you need to make your phone ‘visible’ to them.
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Bluetooth settings.
2. Tick the Bluetooth check box if it isn’t already ticked.
3. Tick the Discoverable check box to make your device
59
visible for 120 seconds.
NOTE: To make your phone ‘invisible’, simply clear the
Discoverable check box.
Changing the Device Name
When your phone is visible to other Bluetooth devices it will
be seen by its name, and you can make that anything you
want – like ‘Ben’s Phone’.
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Bluetooth settings.
2. Tick the Bluetooth box if it is not already ticked.
3. Touch Device name.
4. Edit the name and touch OK.
Pairing With Another Bluetooth Device
To pair with another Bluetooth device, you need to turn the
Bluetooth function of both devices on and make the other
Bluetooth device visible.
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Bluetooth settings.
2. Touch Scan for devices. Your phone will show all
visible Bluetooth devices (in range) in its Bluetooth
devices list.
3. Select the device you want to pair with.
60
4. If required, enter your PIN and touch Pair.
If a PIN is required, the same PIN should be entered on the
other device.
61
Making the Most of Multimedia
Taking Pictures With Your Camera
1. Open the camera by touching the Home Key > >
Camera.
2. Find the view and touch to take a shot.
3. Touch the thumbnail in the right corner of the screen to
view the picture you’ve just taken. Or touch the Menu
Key > Gallery to view all your pictures and videos.
Adjusting Camera Settings
From the Camera Screen, you can do the following settings:
• Touch to set up exposure, picture size/quality, color
effect, ISO, anti-banding, saturation, contrast, sharpness, or
restore camera settings.
• Touch or to choose whether to save photo’s
geographic location.
• Touch to change white balance.
• Touch 1x to zoom in or out.
TIP: To quickly switch from camera to camcorder or
vice-versa, flick between . Also, use
to adjust brightness.
62
Shooting Video With Your Camcorder
1. Open the camcorder by touching the Home Key > >
Camcorder.
2. Touch to start shooting, and touch to stop.
3. Touch the thumbnail in the right corner of the screen to
view the video you’ve just shot. Or touch the Menu Key >
Gallery to see all your video clips and pictures.
Adjusting Camcorder Settings
From the Camcorder Screen, you can do the following
settings:
• Touch to adjust color effect, video quality,
video/audio encoder, video duration, and restore
camcorder settings.
• Touch to change white balance.
• Touch to change video quality, video/audio encoder,
and video duration together, including High, Low, MMS,
and custom mode.
Listening to Your FM Radio
With the FM radio, you can search for radio channels, listen
to them, and save them on your phone. Note that the quality
of the radio broadcast depends on the coverage of the radio
63
station in your area. The wired headset that comes with your
phone works as an antenna, so always connect the headset
when using the radio. When you receive an incoming call
while listening to the radio, the radio will be turned off.
1. To tune in, plug your headset into your phone.
2. Touch the Home Key > > FM Radio. This icon
will pop up in the status bar.
3. Touch the Menu Key > Scanning for all FM Stations.
The available FM channels will be listed.
4. Touch or to select the previous or next FM
channel in the list. Or touch the channel you like in the list
to listen to it.
In the FM radio screen, you can:
• Press the Volume Keys to adjust the volume.
• Touch the Menu Key > Sleep to set the FM radio sleep
timer.
• Touch the Menu Key > Select Regional Band to select
your region.
• Touch the Menu Key > Enable/Disable Speaker to turn
on or off the phone speaker.
• Touch to switch off the radio.
Playing Your Music
You can play digital audio files from your phone’s memory
64
card in Music.
1. Touch the Home Key > > Music to open the Music
Screen.
2. Select Artists/Albums/Songs/Playlists/Favorite to find
the songs you want to play.
3. Touch an item from the list to start playing.
NOTE: You can adjust the volume with the Volume Keys.
Creating Playlists
Playlists help you organize your music files:
View the Now
playing list.
Turn on/off shuffle.
Choose the
repeating mode.
Touch to play the
next track; hold to
fast forward.
Play/Pause
Drag or touch to
jump within the
track.
Touch to restart the
playing; hold to
rewind.
Add the track to
Favorite.
65
1. Select a song in Music you want to add to a new playlist.
2. Touch and hold the song until a shortcut menu pops up.
3. Touch Add to playlist.
4. Touch New.
5. Type the playlist name and touch Save.
Managing Playlists
1. From the Music Screen touch Playlists to see them all.
2. Hold on the playlist you want to play or edit until a
shortcut menu pops up.
3. Touch Play, Delete or Rename.
Adding a Song to a Playlist
1. Open Music and find the song you need under Artists,
Albums, Songs, Playlists, or Favorite.
2. Hold the song until a shortcut menu pops up.
3. Touch Add to playlist.
4. Select a playlist.
Setting a Song as Ringtone
1. Open Music and find the song you need under Artists,
Albums, Songs, Playlists, or Favorite.
2. Hold the song until a shortcut menu pops up.
3. Touch Use as phone ringtone.
66
Google Music
You can play digital audio files stored in your phone’s
microSD card and the songs from the Android Market using
Google Music .
NOTE: For more information about Google Music, touch
Menu Key > Settings > Help in Google Music screen to view
the online instructions.
Playing Your Music
Touch Home Key > > Play Music to open Google
Music.
1. In the music library screen, swipe left or right to select
RECENT/ARTISTS/ALBUMS/SONGS/PLAYLISTS/
GENRES and view the songs you want to play.
TIP: You can rotate the device sideways to view the music
library in landscape mode. In landscape mode, touch the
name of current view on the top-left of the screen to select
Recent, Albums, Artists, Songs, Playlists or Genres.
2. Touch a song in your library to listen to it.
When playing the music, you can touch the album cover to
view more player options. The following options of the music
player are available:
67
1. Touch to view the Now playing list.
2. Touch the album cover to hide the onscreen options.
Touch again to show the options.
3. Information (title, artist and album) of the current track:
Touch and hold to search for related information.
4. Progress bar: Drag or touch to jump to any part of the
track.
5. Touch to turn on/off shuffle.
6. Touch to play the previous track.
7. Touch to pause/resume the playing.
8. Touch to play the next track.
9. Touch to switch the repeating mode.
68
10. Touch to search for music files.
Creating Playlists
Music playlists help you organize your music files.
1. Touch Home Key > > Play Music .
2. Touch the triangular menu button to the right of an
album, artist or song, and touch Add to playlist.
3. Touch New playlist.
4. Enter the playlist name and touch OK.
Adding a Song to a Playlist
1. Touch Home Key > > Play Music .
2. Touch the triangular menu button to the right of an
album, artist or song, and touch Add to playlist. You can
also add the currently playing song from the Now playing
screen by touching the menu button to the right of the
song title and touching Add to playlist.
3. Touch the name of the playlist to add the song to it.
Managing Playlists
You can play, rename or delete the playlists.
4. Touch Home Key > > Play Music .
5. Open the Playlist library and touch the triangular menu
button to the right of the playlist you want to play or
edit.
69
6. Touch Play, Rename or Delete.
Playing Your Videos
1. To play a video file, touch the Home Key > > Video
Player. This will open the video library and show the
video files.
2. Touch the ALL, Recently add or Camera videos tab
and then touch a video file to start playing.
3. Touch on the screen and the control bar will appear as
below. You can pause or continue the video play and use
the progress bar.
Opening Your Gallery
Touch the Home Key > > Gallery. You can use Gallery
to view pictures and play videos. You can also do some
basic editing of your pictures – such as setting them as
wallpaper or contact icons, and sharing with friends.
70
Making Voice Memos
Sound Recorder enables you to record your voice memos.
You need a microSD card to use it.
1. Touch Home Key > > Sound Recorder.
2. Touch to start recording.
3. Touch to stop recording.
4. Touch to play back the voice recording.
Touch to return to the
previous folder. Show the number of
pictures in the folder.
Touch to return to
Gallery.
Touch to
zoom in or
out.
Touch to view
pictures in the
folder in a
slideshow.
71
You can touch to delete the recording. Otherwise, it is
automatically saved.
NOTE: You can find your recordings in the Recording list
tab in Sound Recorder or by touching the Home Key >
> Music > Playlists > My recordings.
72
Turning On/Off USB Mass Storage
You can use the USB mass storage feature to transfer data
between the microSD card and PC.
To turn on USB mass storage:
1. Insert the microSD card into your phone and connect
the phone to the PC with a USB cable.
2. Flick down the notification panel and touch USB
connected > Turn on USB storage > OK.
To turn off USB mass storage:
Just flick down the notification panel and touch Turn off USB
storage > Turn off USB storage.
73
Using Your Google™ Applications
Signing in to your Google Account lets you synchronize
Gmail, Calendar, and Contacts between your phone and the
web. And if you don’t have an account, you can easily create
one.
1. Touch a Google application that needs a Google account,
such as Talk.
2. Read the instructions and select Next.
3. If you’ve got a Google account, touch Sign in. Enter your
user name and password and then touch Sign in. (Or
touch Create if you don’t have a Google account.)
4. Set the backup and restore option, and touch Next >
Finish setup.
Gmail
Gmail is a web-based email service that’s configured when
you sign in to your Google account. Depending on your
synchronization settings, the Gmail on your phone can be
automatically synchronized with your Gmail account on the
web.
This is how you create and send a Gmail.
1. Open Gmail by touching the Home Key > > Gmail.
2. Touch the Menu Key > Compose.
3. Enter the email address of the person you’re contacting in
74
the ‘To’ field. If you’re sending the email to several people,
separate the email addresses with commas. You can add
as many recipients as you want.
4. Enter the email subject, and then write your email.
5. Touch the Menu Key > Send.
Google Calendar
Touch the Home Key > > Calendar to use Google
Calendar, Google’s time management application. You can
use the calendar to schedule appointments, including
meetings and other events. Your appointments will be
displayed on the screen as are scheduled. You can also
synchronize appointments to your Google account, which
enables you to manage your schedule online on your PC.
Google Talk
Google Talk is Google’s instant messaging program, which
enables you to communicate with other people who also use
it.
Opening Google Talk
Touch the Home Key > > Talk.
Adding a New Friend
You can only add people who have a Google Account.
75
1. In the Friends list, touch the Menu Key > Add friend.
2. Enter the Google email address of the friend you want to
add.
Your friend will receive an invitation from Google. Touch the
Menu Key > More > Invites to see pending invitations.
Changing Your Online Status
1. Touch the Talk status bar above the Friends list.
2. Touch to change status and then enter your status
message in the text box.
Starting a Chat
1. Touch a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Touch Send.
Google+
Google+ is a social networking service offered by Google.
The Google+ application on your device enables you to
manage your data, chat with online contacts, organize them
in different circles, and share your selected information.
Touch the Home Key > > Google+ and select the
account you want to use to sign in to Google+.
76
Organizing Your Contacts
1. Open the Google+ app.
2. Touch Circles.
3. Touch People > Find & invite people.
4. Touch next to a suggested person.
5. Touch an existing circle or select Create a new circle.
Getting Updates
1. Open the Google+ app.
2. Touch Stream.
3. Swipe left or right to see different information shared with
you by other users. Touch the Menu Key > Choose
circles to choose what groups of information are shown.
X WHAT’S HOT shows popular posts on Google+.
X NEARBY shows posts shared with you by users near
your current location.
X ALL CIRCLES, ACQUATANCES, FAMILY and
FRIENDS show updates from people you’ve added to
your circles.
Chatting With Contacts
You can chat with your Google+ contacts through instant
messaging, similar to sending a text with the Messages app.
1. Touch Messenger in the Google+ app.
77
2. Touch to create a new message.
3. Touch to add recipients, they can be contacts or
circles.
4. Enter the message.
5. Touch to send the message.
Checking Photos
You can see your own photo albums and those shared by
other users.
Touch Photos in the Google+ app to see all available
albums.
Checking and Managing Your Profile
1. Touch Profile in the Google+ app.
2. Swipe left or right to see your posts, personal info, and
photos.
X Touch the ABOUT tab and you can change your
profile photo.
X Touch the PHOTOS tab and open a photo. You can
add comments to it, delete it, or set it as your profile
photo.
Places
Google Places helps you find all kinds of businesses near
you.
78
1. Touch the Home Key > Menu Key > Settings >
Location & security and tick the Use GPS satellites or
Use wireless networks check box.
2. Touch the Home Key > > Places. Wait while you are
being located. Your location, when found, is shown on the
screen.
3. Select a business category and the information of that
type of business near you will be displayed.
NOTE: Touch the Menu Key >Add a search to add new
business categories.
4. Touch a result you are interested in and check out the
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.
Latitude
Google’s Latitude service is a social tool for sharing your
location information with selected friends.
Touch the Home Key > > Latitude to enable Latitude
service.
Each time you launch Maps application, your location will be
determined using GPS or the wireless networks, and your
Latitude status will be updated. You can touch the Menu
Key > More > Latitude in Maps or the Home Key > >
Latitude to see your status as well as that of your selected
friends.
79
In Latitude, touch the Menu Key to refresh friends’ status,
see them on Maps, add new friends, show/hide stale friends,
or set the location settings.
You can also turn off Latitude service by touching the Menu
Key > Location Settings > Sign out of Latitude in the
Latitude screen.
80
Sorting out Your Phone Settings
Setting Date and Time
1. Touch the Home Key > Menu Key > Settings > Date &
time.
2. Clear the Automatic check box if you want to set the time
and date by yourself.
3. Set date, time, time zone, and date/time format.
Display Settings
By touching the Home Key > Menu Key > Settings > Display,
you can adjust the display settings as you like.
• Brightness: Adjust brightness of the screen.
• Auto-rotate screen: Rotate the screen display as you
rotate the phone.
• Animation: Choose window animation.
• Screen timeout: Set the delay for the screen to
automatically turn off.
Sound Settings
By touching the Home Key > Menu Key > Settings >
Sound, you can adjust the sound settings, such as ringtones
and alerts.
81
• Silent mode: Tick the check box to mute all sounds
except media and alarms.
• Vibrate: Select the condition for vibration.
• Volume: Touch to adjust volume levels for ringtone,
media, alarm, and notification.
• Phone ringtone: Select the default ringtone for incoming
calls.
• Notification ringtone: Select the default ringtone for
notifications.
• Audible touch tones: Tick the check box and the phone
will play tones when you touch the dial pad.
• Audible selection: Tick the check box and the phone will
play a sound when you touch the screen to make a
selection.
• Screen lock sounds: Tick the check box and the phone
will play a sound when you lock or unlock the screen.
• Haptic feedback: Tick the check box and the phone will
vibrate when you touch soft keys or on certain user
interface interactions.
To quickly switch to silent mode, hold the Volume Key
(down).
Language Settings
You can change the language of your phone system in two
simple steps.
82
1. Touch the Home Key > Menu Key > Settings >
Language & keyboard > Select language.
2. Select a language from the list given.
Mobile Network Services
Touch the Home Key > Menu Key > Settings > Wireless &
networks > Mobile networks to enable or disable data
service, allow data services when roaming, or set access
point names for data access.
Getting Data Services When Roaming
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Mobile networks.
2. Tick the Data roaming box.
IMPORTANT: Data roaming may incur significant roaming
charges.
Disabling Data Services
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Mobile networks.
2. Clear the Data enabled check box.
Enabling Always-On Data Services
1. Touch the Home Key > Menu Key > Settings > Wireless
& networks > Mobile networks.
83
2. Tick the Enable always-on mobile data box to allow
applications to update data automatically.
IMPORTANT: When you enable this option, more data traffic
will be generated for automatic updates of applications data.
And your phone will consume more power.
Switching Network Modes
1. Touch the Home Key > Menu Key > Settings >
Wireless & networks > Mobile networks > Network
Settings > Network Mode.
2. Select one of the following: GSM/WCDMA auto, WCDMA
only, or GSM only.
Switching Networks
1. Touch the Home Key > Menu Key > Settings > Wireless
& networks > Mobile Networks > Network Settings >
Network operators. The phone automatically searches
for all available networks.
2. Touch a network to register manually, or touch Select
automatically to select preferred network automatically.
Setting Access Point Names
To connect to the Internet you can use the default Access
Point Names (APN). And if you want to add a new APN,
please contact the service provider to find out more.
1. Touch the Home Key > Menu Key > Settings >
84
Wireless & networks > Network Settings > Access
Point Names.
2. Touch New APN.
3. Set the necessary parameters. (See Getting Connected
to the Internet - Adding a GPRS/EDGE/3G Connection in
this guide.)
4. Touch Save.
Security Settings
Here’s how to protect your phone and SIM card from
unauthorized use.
Protecting Your Phone With a Screen Unlock
Pattern
Creating Your Screen Unlock Pattern
1. Touch the Home Key > Menu Key > Settings >
Location & security > Set up screen lock > Pattern.
2. Read the instructions and touch Next.
3. Watch the example pattern and touch Next.
4. Draw your own pattern and touch Continue.
5. Draw the pattern again and touch Confirm.
6. Press the Power Key to lock the screen.
TIP: Clear the Use visible pattern box if you want to hide
the pattern as you draw it on the screen.
85
Unlocking the Screen With Your Pattern
1. Press the Power Key to wake up the screen.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Protecting Your Phone With a PIN or
Password
Creating a PIN or Password
1. Touch the Home Key > Menu Key > Settings >
Location & security > Set up screen lock.
2. Touch PIN or Password.
3. Enter the numeric PIN or any password you like, and
touch Continue.
4. Enter it again and touch OK to confirm.
Unlocking the Screen With Your PIN or Password
1. Press the Power Key to wake up the phone.
2. Touch and hold .
3. Enter the PIN or password you set.
4. Touch OK.
Disabling Screen Lock Settings
If you have created an unlock pattern, PIN or password, you
can disable it.
86
1. Touch the Home Key > Menu Key > Settings >
Location & security > Change screen lock.
2. Draw the screen unlock pattern or enter your PIN/
password you have created.
3. Touch None.
Protecting Your SIM Card With a PIN
Every SIM card comes with a PIN. The initial PIN is provided
by your mobile phone carrier. It’s best to lock your SIM card
as soon as you can.
1. Touch the Home Key > Menu Key > Settings >
Location & security > Set up SIM card lock.
2. Tick the Lock SIM card check box.
3. Enter the PIN you’ve been given and touch OK.
Changing Your SIM PIN
You can change the PIN you’ve been given to one easier for
you to remember and harder for others to guess.
1. Touch the Home Key > Menu Key > Settings >
Location & security > Set up SIM card lock.
2. Make sure you already tick the Lock SIM card check box.
3. Touch Change SIM PIN.
4. Enter the old PIN and touch OK.
5. Enter your new PIN and touch OK.
6. Enter the new PIN again and touch OK.
87
Restoring a Locked SIM Card
Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than allowed,
your SIM card will be locked and you cannot access the
mobile phone network. Contact your operator for a PIN
Unlock Key (PUK) to restore the SIM card.
Setting Up Credential Storage
This lets you select applications to access secure certificates
and other credentials.
Enabling Secure Credentials
1. Touch the Home Key > Menu Key > Settings >
Location & security.
2. Touch Set password and create a password for the
credential storage.
3. Tick the Use secure credentials box.
TIP: You can also install encrypted certificates from your
microSD card by touching Install from SD card.
Deleting Secure Credentials
1. Touch the Home Key > Menu Key > Settings >
Location & security.
2. Touch Clear storage to clear credentials.
88
Managing Your Device Memory
Touch the Home Key > Menu Key > Settings > Storage.
You can view the space information of the microSD card as
well as the phone storage.
• Unmount/Mount SD card: You can unmount the
microSD card to safely remove it, or mount the card.
• Erase SD card: Erase all data on the microSD card.
Privacy: Reset to Factory Settings
Touch the Home Key > Menu Key > Settings > Privacy >
Factory data reset > Reset phone > Erase everything.
WARNING: All your personal information and downloaded
applications on your phone will be erased after the resetting.
Managing Applications
Touch the Home Key > Menu Key > Settings >
Applications.
• Unknown sources: Tick the check box if you want to
installed applications from sources other than the Android
Market. Note that you may risk your phone and personal
data by installing such applications.
• Manage applications: Manage or remove installed
applications.
• Running services: Check currently running services and
stop them if needed.
89
• Storage use: View storage used by applications.
• Battery use: See what has been using the battery.
• Development: Set options for application development.
Installing an Application
You can install an application from the Play Store (the Home
Key > > Play Store) by selecting the item you want to
download and touching Download or the price field.
You can also install a non-Market application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.
1. Copy the application file to the microSD card and install
the card on your phone.
2. Touch the Home Key > > Filer, and open the folder
where the application file is.
3. Touch the file to start installation.
4. Read the installation instructions that come with the
application and follow it to complete the setup.
Removing an Application
1. Touch the Home Key > Menu Key > Settings >
Applications > Manage applications.
2. Select the application you want to delete.
3. Touch Uninstall and OK to confirm.
90
Moving an Application
You can move the applications downloaded or installed on
your phone to the microSD card when the phone memory is
full. You can also move applications to your phone if the
microSD card is getting full.
NOTE: Not all applications can be move to your phone or
microSD card.
1. Touch the Home Key > Menu Key > Settings >
Applications > Manage applications.
2. Touch the application you want to move below the
Downloaded tab.
3. Touch Move to phone or Move to SD card.
Managing Other Settings
Search Settings
You can manage search settings and search history by
opening the Search application and touching the Menu
Key > Search settings.
Voice Input and Output
You can set the text-to-speech and voice recognition options
by touching the Home Key > Menu Key > Settings > Voice
input & output.
NOTE: You need to download voice data in order to use the
text-to-speech function. Just touch Install voice data in
91
Text-to-speech settings.
Accessibility
You can configure accessibility options for accessibility-related
applications by touching the Home Key > Menu Key >
Settings > Accessibility.
92
Other Applications
Alarms
1. Touch the Home Key > > Alarm.
2. Touch a default alarm to configure it. Or, to create a new
alarm, touch .
3. Tick the Turn on alarm box and set up the alarm options.
TIP: You can also touch the Menu Key in the Alarm Screen
to set up and use bed clock.
Calculator
Touch the Home Key > > Calculator.
TIP: Slide right and left on the screen or touch / to
switch between basic and advanced panels.
Note Pad
Touch the Home Key > > Note pad. Note pad is for
your memos.
Touch to add a new memo; touch the Menu Key to
delete existing memos, or to export the text to a txt file in
the microSD card. Hold an existing note to edit, delete,
share or export, or to change its title.
93
Stopwatch
1. Touch the Home Key > > Stopwatch.
2. Touch Start to start timing, touch Pause to pause, and
touch Resume to continue.
3. Touch Reset to reset the stopwatch to 00:00.0.
Task Manager
Touch the Home Key > > Task Manager to view or stop
applications.
Touch a task in the Tasks tab to switch to its screen, abort it,
or see its detail. Touch the Resources tab to view the
real-time system resources information.
94
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. And never text
while driving.
Don’t use at petrol
stations.
Keep your phone at
least 15 mm away from
your ear or body while
making calls.
Your phone may produce
a bright or flashing light.
Small parts may cause
a choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
Avoid contact with
anything magnetic.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid extreme
temperatures.
Switch off when asked
to in hospitals and
medical facilities.
Avoid contact with
liquids. Keep your phone
dry.
Switch off when told to
in aircrafts and airports.
Don’t take your phone
apart.
95
Switch off when near
explosive materials or
liquids.
Only use approved
accessories.
Don’t rely on your phone for emergency communications.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
96
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
• Always treat your phone and its accessories with care
and keep it in a clean and dust-free place.
• Do not expose your phone or its accessories to open
flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid,
moisture or high humidity.
• Do not drop, throw or try to bend your phone or its
accessories.
• Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its
accessories, only authorized personnel can do so.
• Do not expose your phone or its accessories to extreme
temperatures, minimum - [5] and maximum + [50]
degrees Celsius.
• Please check local regulations for disposal of electronic
products.
• Do not carry your phone in your back pocket as it could
break when you sit down.
97
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Air Bags
Do not place a phone in the area over an air bag or in the air
bag deployment area as an airbag inflates with great force
and serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when
98
exposed to flashing lights or light patterns such as when
playing games or watching video. If you have experienced
seizures or blackouts or have a family history of such
occurrences, please consult a physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when
texting or playing games with your phone:
• Do not grip the phone too tightly.
• Press the buttons lightly.
• Use the special features which are designed to minimize
the times of pressing buttons, such as Message
Templates and Predictive Text.
• Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.
99
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as
coins or key rings, to contact or short-circuit in the battery
terminals.
Connection to a Car
Seek professional advice when connecting a phone interface
to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or
its accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until
you have taken it to be checked at an authorized service
centre.
100
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
101
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‘flight mode’, this
must be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
102
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
FCC Compliance（FOR PART 15B/PART
15C）
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
103
Caution: Changes or modifications not expressly approved
by the manufacturer could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/ TV technician
for help.
104
FCC Compliance （only Part 15B）
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does not
cause harmful interference.
Caution: Changes or modifications not expressly approved
by the manufacturer could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
105
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/ TV technician
for help.
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government:
The exposure standard for wireless mobile phones employs
a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station, the lower the power output.
106
The highest SAR value for the model phone as reported to
the FCC when tested for use at the ear is 0.785 W/kg and
when worn on the body, as described in this user guide, is
1.16 W/kg (Body-worn measurements differ among phone
models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on
FCC ID: Q78-ZTEV790.
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the
handset a minimum of 1 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn
accessory and are not holding the phone at the ear, position
the handset a minimum of 1 cm from your body when the
phone is switched on.

Navigation menu
