ZTE ZTEV831W WCDMA/GSM(GPRS)Dual-Mode Digital Mobile Phone User Manual 1920 Dtac Manual User Cre 4 5Ver
ZTE Corporation WCDMA/GSM(GPRS)Dual-Mode Digital Mobile Phone 1920 Dtac Manual User Cre 4 5Ver
ZTE >
User manual
-1-
Dtac Trinet Phone Joey Fit Selfie 4.5
-2-
ก
-3-
ด์รากมิซ
ะลง
และ
ะ
3G/WCDMA
GSM
-9-
การเปิดปิดโทรศัพท์
•
>
อุปกรณ์
การแพทย์
โรงพยาบาน
บน
1
Dtac Trinet Phone
Joey Fit Selfie 4.5
Quick Start Guide
2

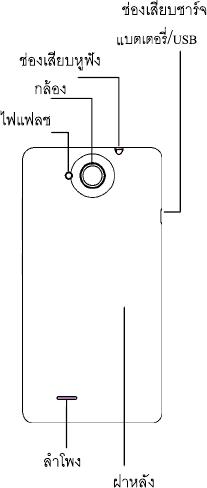

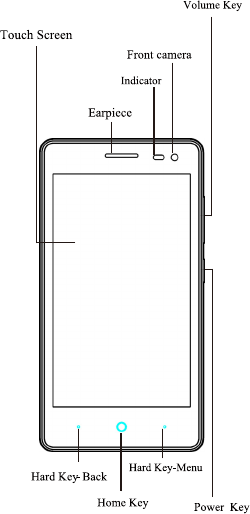

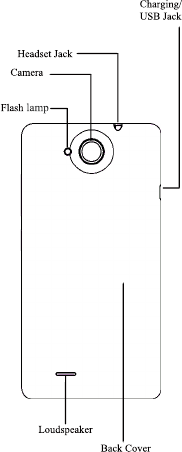

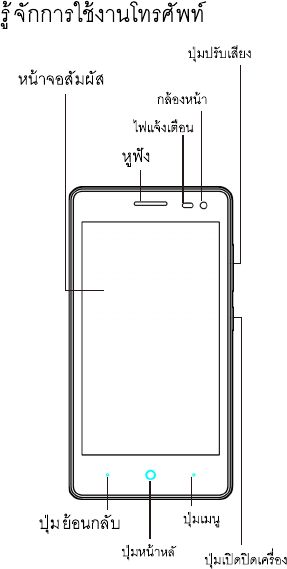

Getting to Know Your
Phone
3
4

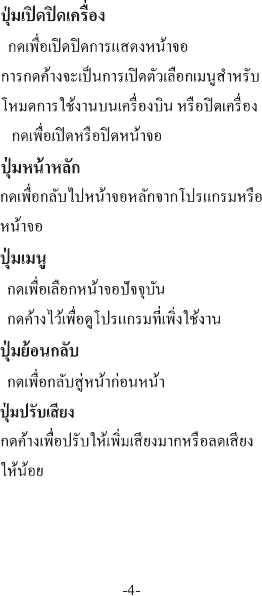

Power Key
Press and hold to power on,
select phone modes, turn on/off
airplane mode, reboot your
phone, or power off.
Press to turn off or on the
screen display.
Home Key
Touch to return to the home
screen from any application or
screen.
Menu Key
Touch to get the options for the
current screen.
Touch and hold to see recently
used applications.
Back Key
Touch to go to the previous
screen.
Volume Key
Press or hold to turn the volume
up or down.
5

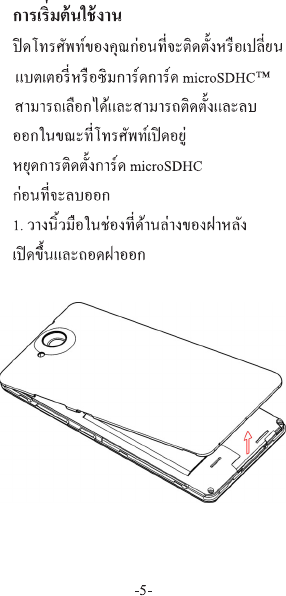

Starting Up
Switch off your phone before
installing or replacing the battery or
the SIM card. The microSDHC™
card is optional and can be installed
and removed while the phone is
turned on. Unmount the
microSDHC card before removing
it.
1.
Place your finger in the slot at
the bottom of the back cover to
lift and remove the cover.
6

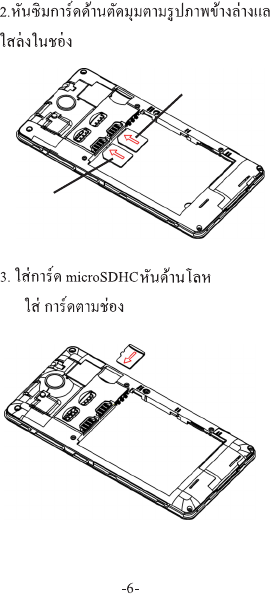

2.
Hold the SIM card with its cut
corner oriented as shown and
slip it into the card holder.
3.
Hold your microSDHC card with
the metal contacts facing down
and slide it into the microSDHC
card slot.
3G/WCDMA
GSM
7

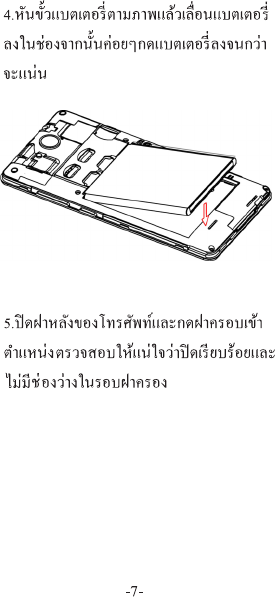

4.
Align the connectors on the
phone and the battery and slide
the battery into the
compartment. Then gently
press the battery down until it is
secured.
5.
Align the back cover with the
back of the phone and press the
cover back into place. Make
sure all the tabs are secure and
there are no gaps around the
cover.
8

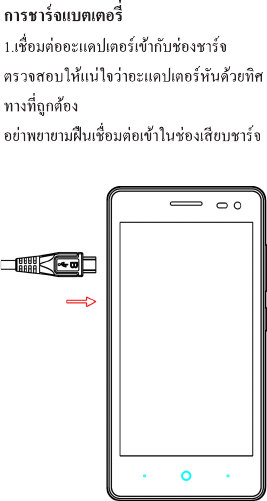

Charging the Battery
1.
Connect the adapter to the
charging jack. Ensure that the
adapter is inserted with the
correct orientation. Do not force
the connector into the charging
jack.
2.
Connect the charger to a
standard AC power outlet.
3.
Disconnect the charger when
the battery is fully charged.
9
Powering On/Off Your
Phone
Make sure the battery is charged
before powering on.
Press and hold the Power Key
to turn on your phone.
To turn it off, press and hold the
Power Key to open the options
menu. Touch Power off > OK.
10

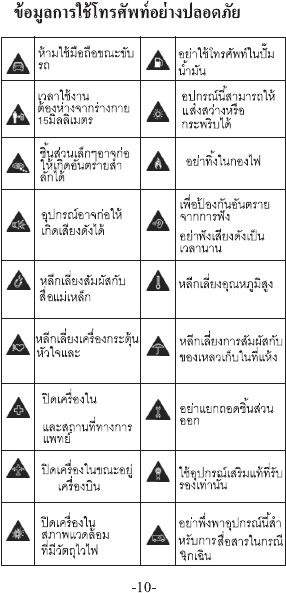

Product Safety
Information
Do not use hand-held
while driving
Do not use while
re-fuelling
For body-worn
operation maintain a
separation of 15 mm
This device may
produce a bright or
flashing light
Small parts may cause
a choking hazard
Do not dispose of it in
a fire
This device may
produce a loud sound
11
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
magnetic media
Avoid Extreme
Temperatures
Keep away from
pacemakers and other
personal medical
devices
Avoid any contact with
liquid, keep it dry
Switch off when
instructed in hospitals
and medical facilities
Do not attempt to
disassemble
Switch off when
instructed in aircrafts
and airports
12
Only use approved
accessories
Switch off in explosive
environments
Do not rely on this
device for emergency
communications
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s authority to
operate the equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head with
no separation, and near the body with the separation of 10 mm.
Although the SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be well below
the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had
been tested in accordance with the measurement methods and
procedures specified in IEEE1528. This device has been tested and
meets the FCC RF exposure guidelines when tested with the device
directly contacted to the body.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: SRQ-ZTEV831W.
For this device, the highest reported SAR value for usage against
the head is 0.62 W/kg, for usage near the body is 0.99 W/kg.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirements.
SAR compliance for body-worn operation is based on a separation
distance of 10 mm between the unit and the human body. Carry this
device at least 10 mm away from your body to ensure RF exposure
level compliant or lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10 mm between
this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
