Zebex Z-2121 Portable Data Collector User Manual Z 2121 series revie

Zebex Industries Inc Portable Data Collector Z 2121 series revie

user manual

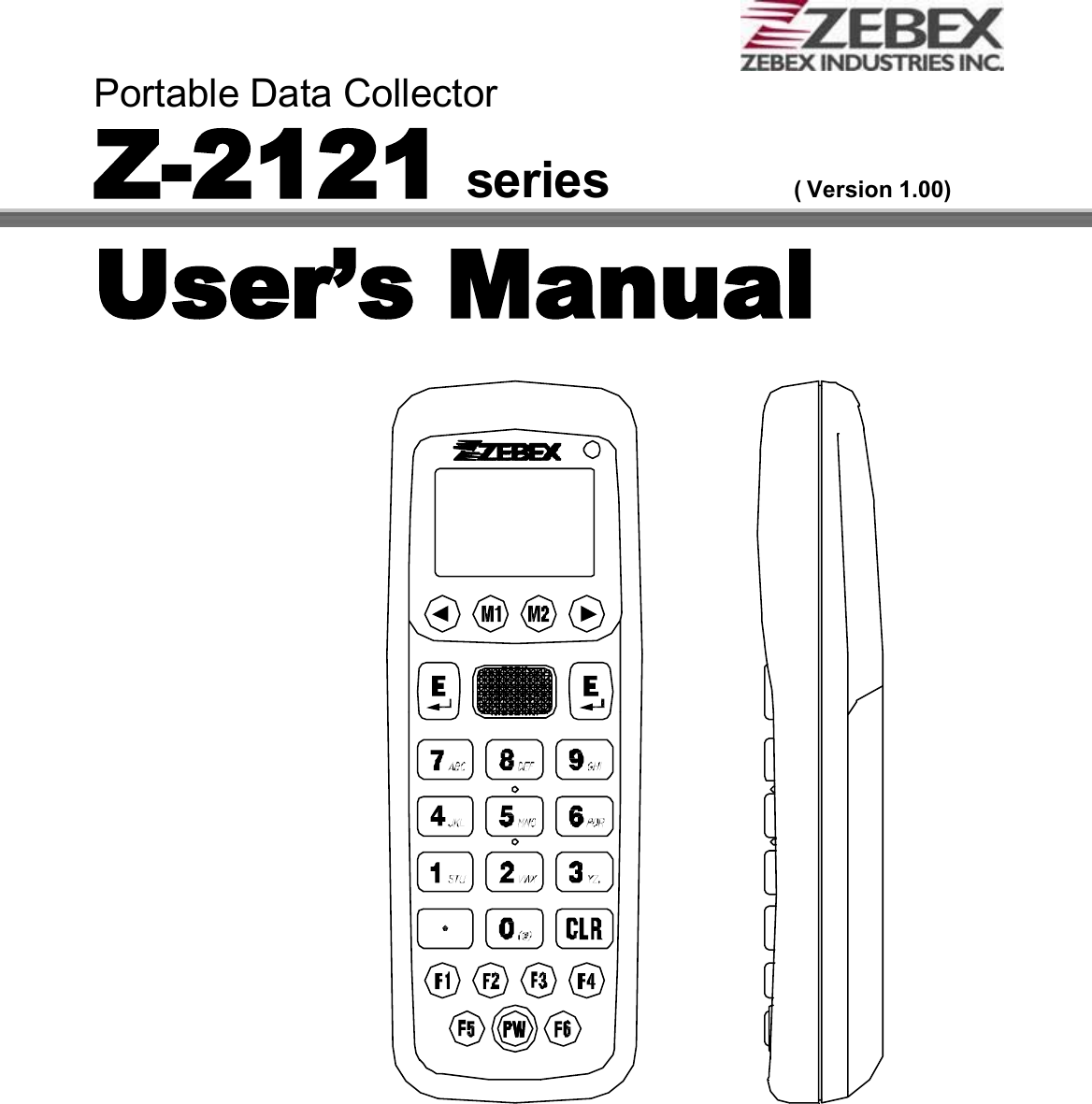

Portable Data CollectorZ-2121 series ( Version 1.00)User’s Manual

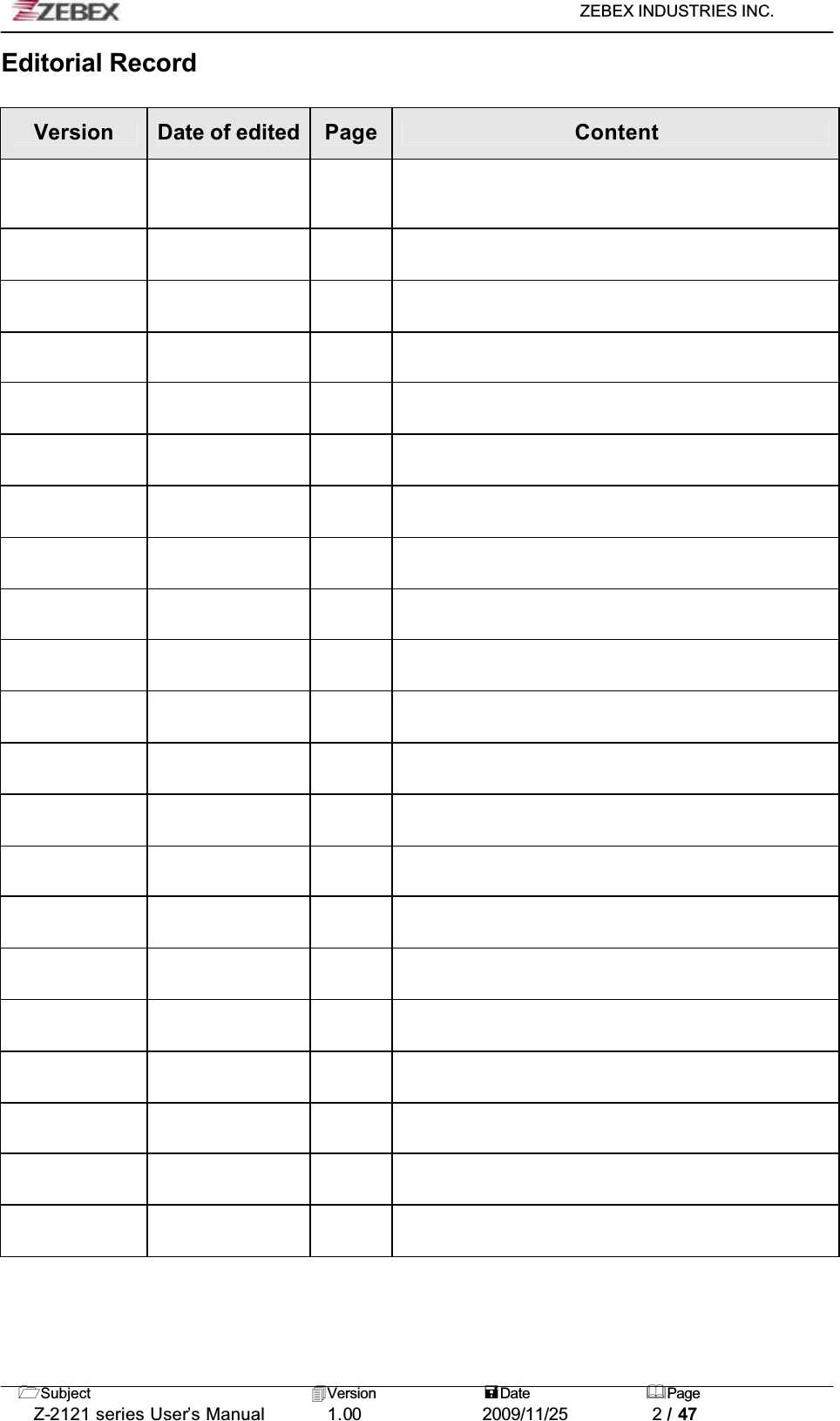

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 2 / 47Editorial RecordVersion Date of edited Page Content

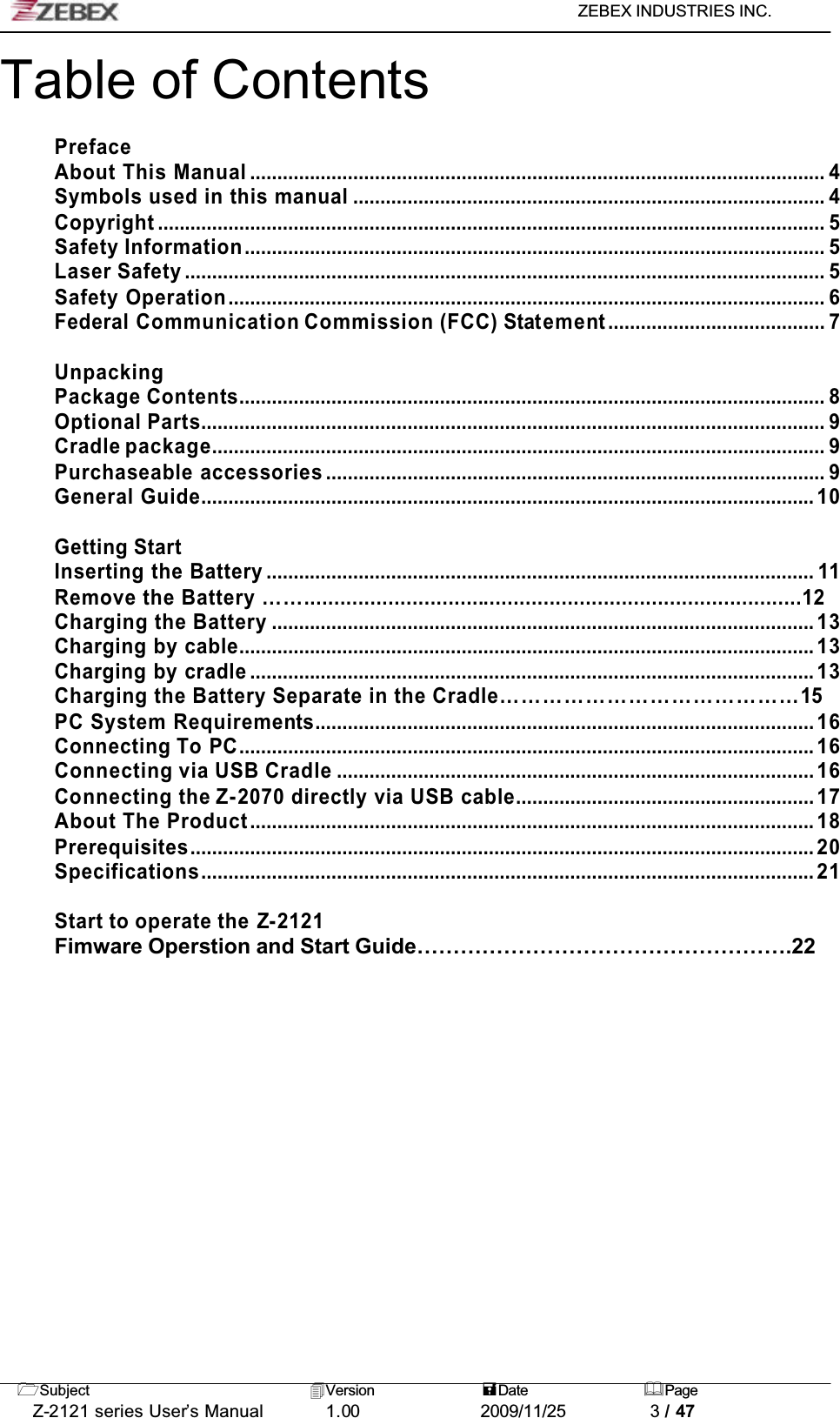

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 3 / 47Table of ContentsPrefaceAbout This Manual .......................................................................................................... 4Symbols used in this manual ....................................................................................... 4Copyright ........................................................................................................................... 5Safety Information........................................................................................................... 5Laser Safety ...................................................................................................................... 5Safety Operation.............................................................................................................. 6Federal Communication Commission (FCC) Statement........................................ 7UnpackingPackage Contents............................................................................................................ 8Optional Parts................................................................................................................... 9Cradle package................................................................................................................. 9Purchaseable accessories ............................................................................................ 9General Guide................................................................................................................. 10Getting StartInserting the Battery ..................................................................................................... 11Remove the Battery ……...................................................................................12Charging the Battery .................................................................................................... 13Charging by cable.......................................................................................................... 13Charging by cradle ........................................................................................................ 13Charging the Battery Separate in the Cradle……………………………………15PC System Requirements............................................................................................ 16Connecting To PC.......................................................................................................... 16Connecting via USB Cradle ........................................................................................ 16Connecting the Z-2070 directly via USB cable....................................................... 17About The Product........................................................................................................ 18Prerequisites................................................................................................................... 20Specifications................................................................................................................. 21Start to operate the Z-2121Fimware Operstion and Start Guide…………………………………………….22
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 4 / 47PrefaceAbout This ManualThank you for  your purchase of the ZEBEX Z-2121 Portable DataCollector. ZEBEX Z-2121 product is at the forefront of data collectortechnology, and this manual will provide the necessary information on the many and varied options available to you.The Z-2121 product is a compact, ergonomic, modular and durable data collector. It is designed for easy upgrade with an integrated BTcommunication, 1D barcode scanner and vibration. The design is idealfor the mobile worker as it simple and easy to use anywhere along a supply chain.Symbols used in this manualA triangular shape indicates you should exercisecaution.A circle shape indicates something you should not to do.A black circle indicates something you must to do. A note symbol indicates you the information that is important and you should be observed.

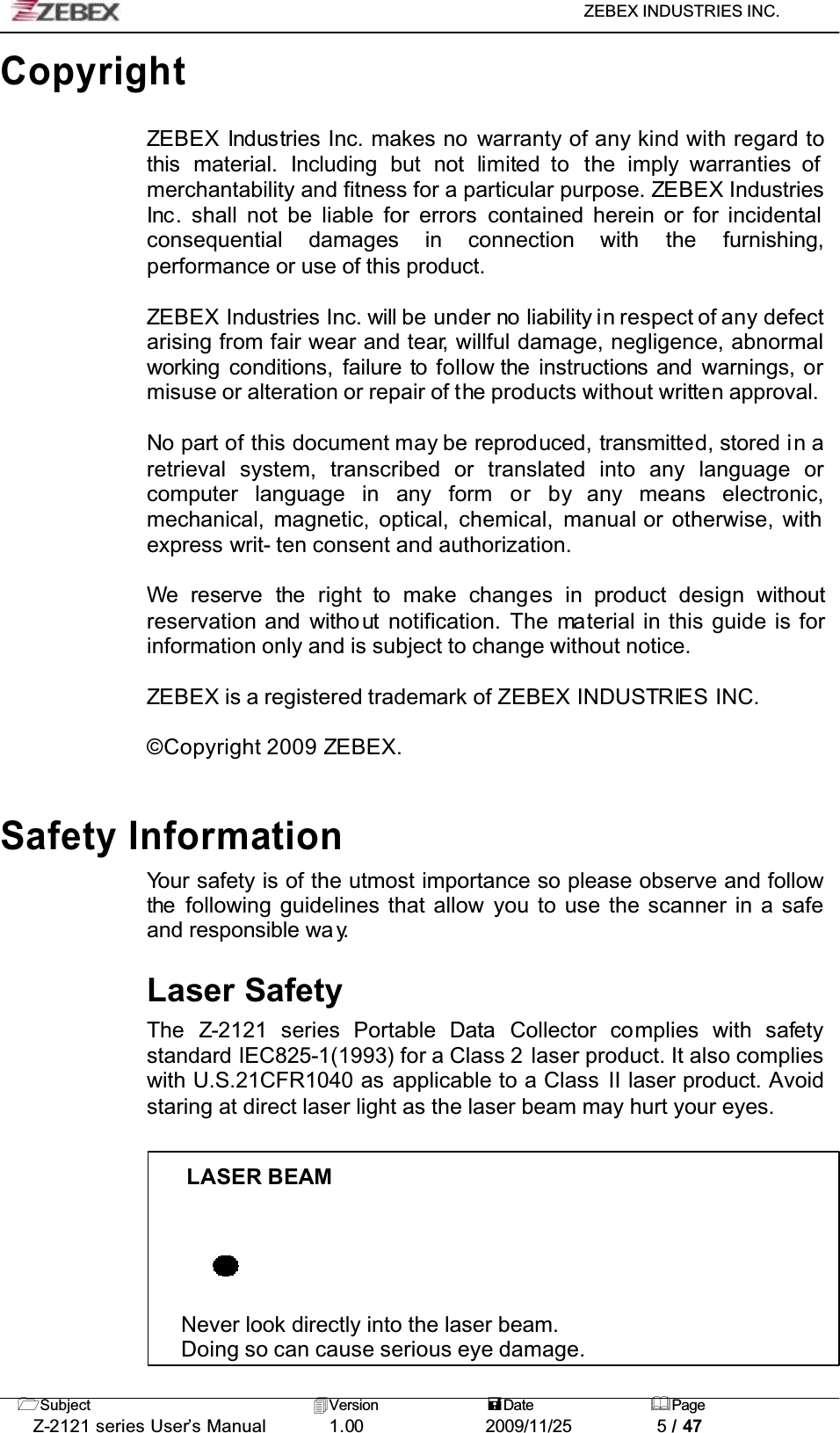

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 5 / 47CopyrightZEBEX Industries Inc. makes no warranty of any kind with regard to this material. Including but not limited to  the imply warranties of merchantability and fitness for a particular purpose. ZEBEX Industries Inc. shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing,performance or use of this product.ZEBEX Industries Inc. will be under no liability in respect of any defectarising from fair wear and tear, willful damage, negligence, abnormal working conditions, failure to follow the instructions and warnings, ormisuse or alteration or repair of the products without written approval.No part of this document may be reproduced, transmitted, stored in aretrieval system, transcribed or translated into any language orcomputer language in any form or by any means electronic,mechanical, magnetic, optical, chemical, manual or otherwise, with express writ- ten consent and authorization.We reserve the right to make changes in product design withoutreservation and witho ut  notification. The material in this guide is for information only and is subject to change without notice.ZEBEX is a registered trademark of ZEBEX INDUSTRIES INC.© Copyright 2009 ZEBEX.Safety InformationYour safety is of the utmost importance so please observe and follow the following guidelines that allow you to use the scanner in a safe and responsible wa y.Laser SafetyThe Z-2121 series Portable Data  Collector complies with safetystandard IEC825-1(1993) for a Class 2 laser product. It also complies with U.S.21CFR1040 as applicable to a Class II laser product. Avoidstaring at direct laser light as the laser beam may hurt your eyes.LASER BEAMNever look directly into the laser beam. Doing so can cause serious eye damage.

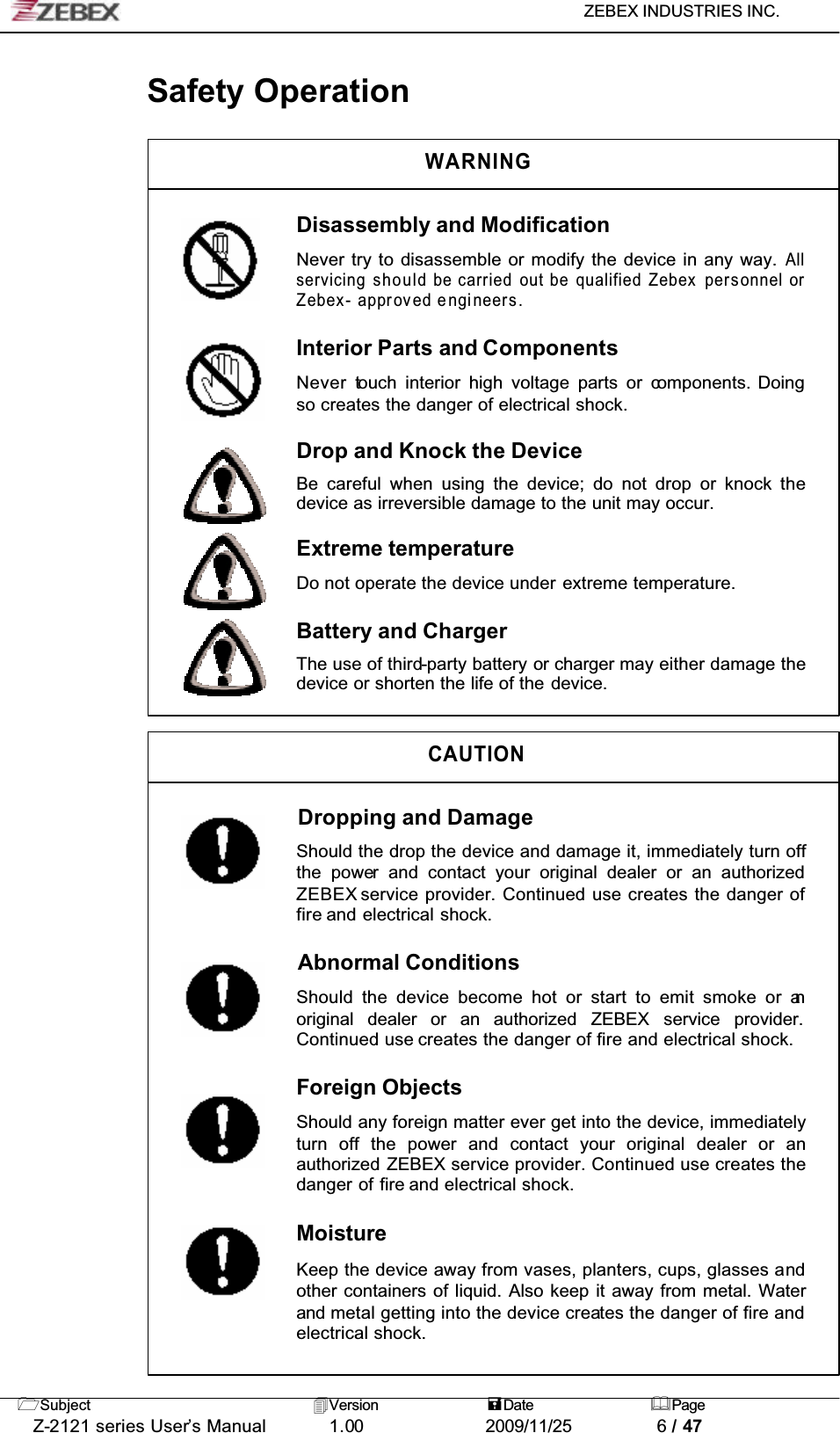

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 6 / 47Safety OperationWARNINGDisassembly and ModificationNever try to disassemble or modify the device in any way. Allservicing should be carried out be qualified Zebex personnel orZebex- approved engineers.Interior Parts and ComponentsNever touch interior high voltage parts or components. Doing so creates the danger of electrical shock.Drop and Knock the DeviceBe careful when using the device; do not drop or knock thedevice as irreversible damage to the unit may occur.Extreme temperatureDo not operate the device under extreme temperature.Battery and ChargerThe use of third-party battery or charger may either damage the device or shorten the life of the device.CAUTIONDropping and DamageShould the drop the device and damage it, immediately turn offthe power and contact your original dealer or an authorizedZEBEX service provider. Continued use creates the danger of fire and electrical shock.Abnormal ConditionsShould the device become hot or start to emit smoke or anoriginal dealer or an authorized ZEBEX service provider.Continued use creates the danger of fire and electrical shock.Foreign ObjectsShould any foreign matter ever get into the device, immediatelyturn off the power and contact your original dealer or anauthorized ZEBEX service provider. Continued use creates the danger of fire and electrical shock.MoistureKeep the device away from vases, planters, cups, glasses andother containers of liquid. Also keep it away from metal. Waterand metal getting into the device creates the danger of fire andelectrical shock.

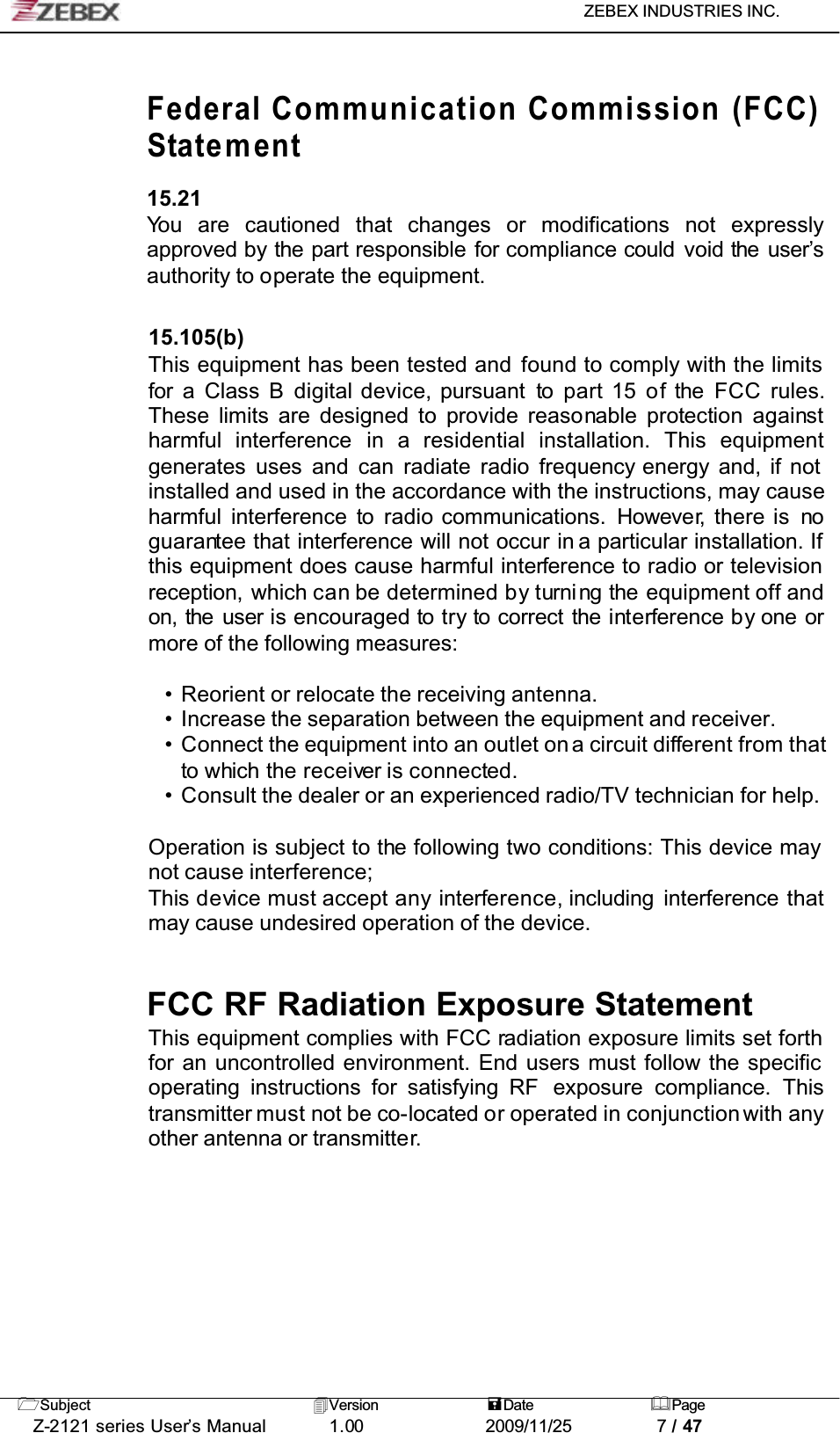

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 7 / 47Federal Communication Commission (FCC)Statement15.21You are cautioned that changes or modifications not expresslyapproved by the part responsible for compliance could void the user’sauthority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates uses and can radiate radio frequency energy and, if not installed and used in the accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ormore of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet ona circuit different from thatto which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Operation is subject to the following two conditions: This device may not cause interference;This device must accept any interference, including interference thatmay cause undesired operation of the device.FCC RF Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF  exposure compliance. Thistransmitter must not be co-located or operated in conjunction with anyother antenna or transmitter.

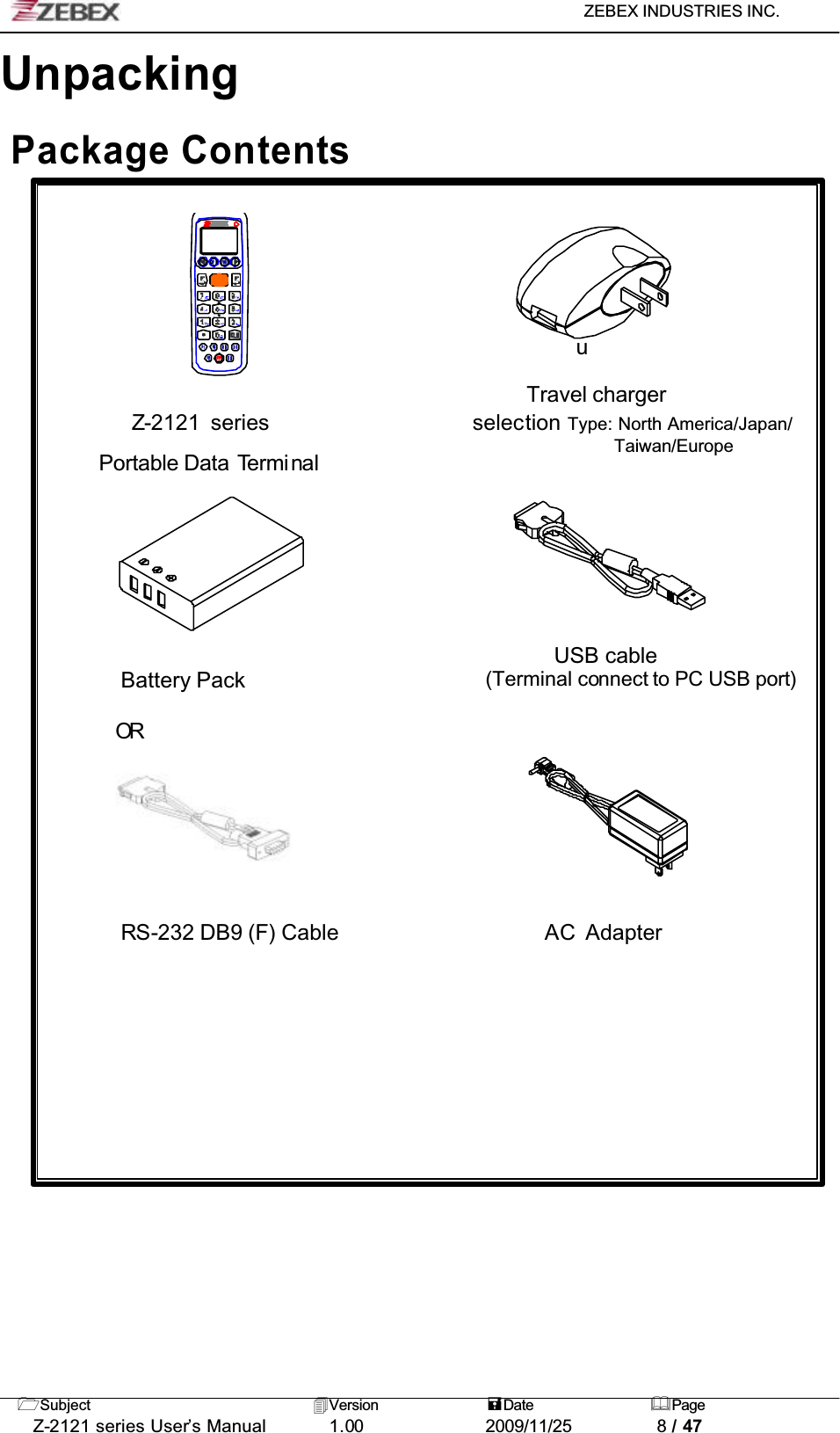

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 8 / 47UnpackingPackage ContentsuTravel chargerZ-2121 series                   selection Type: North America/Japan/Taiwan/EuropePortable Data TerminalUSB cable Battery Pack (Terminal connect to PC USB port)ORRS-232 DB9 (F) Cable                   AC Adapter

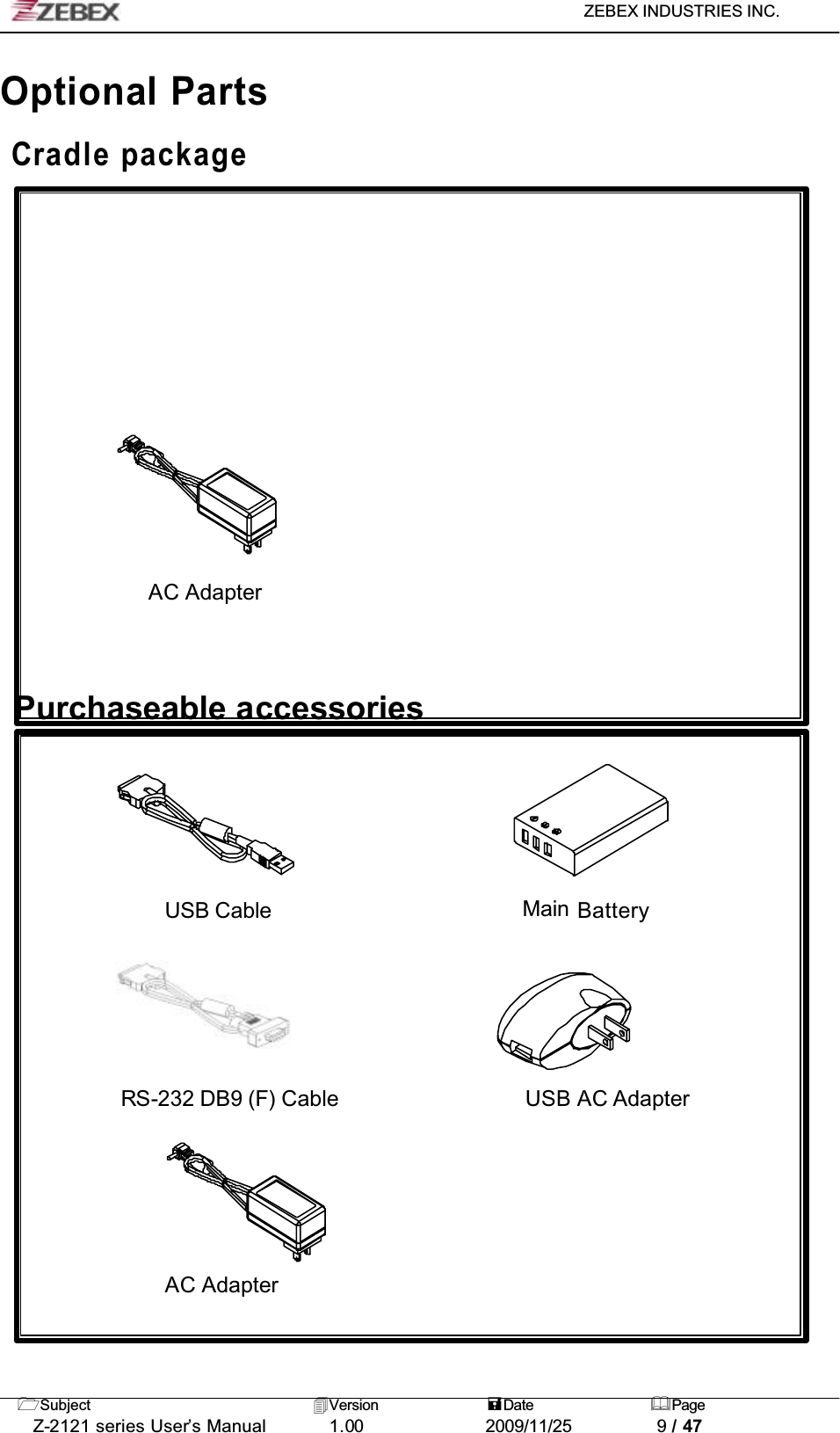

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 9 / 47Optional PartsCradle packageAC AdapterPurchaseable accessoriesUSB Cable  Main BatteryRS-232 DB9 (F) Cable USB AC AdapterAC Adapter
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 10 / 47General Guide1 LED indicator (Right) Indicates the status of battery charge : Red for battery just on charging and Green for full.2 LCD screen Display various data when a program is being run.3 Scan button The trigger of Barcode reading.4 Keypad A total of 26 keys are provided to the power and otherfunction keys.5 Scan windows Emits a laser for bar code reading.6 Battery Main battery7Communication port  Communication with PC or charge by USB port3421

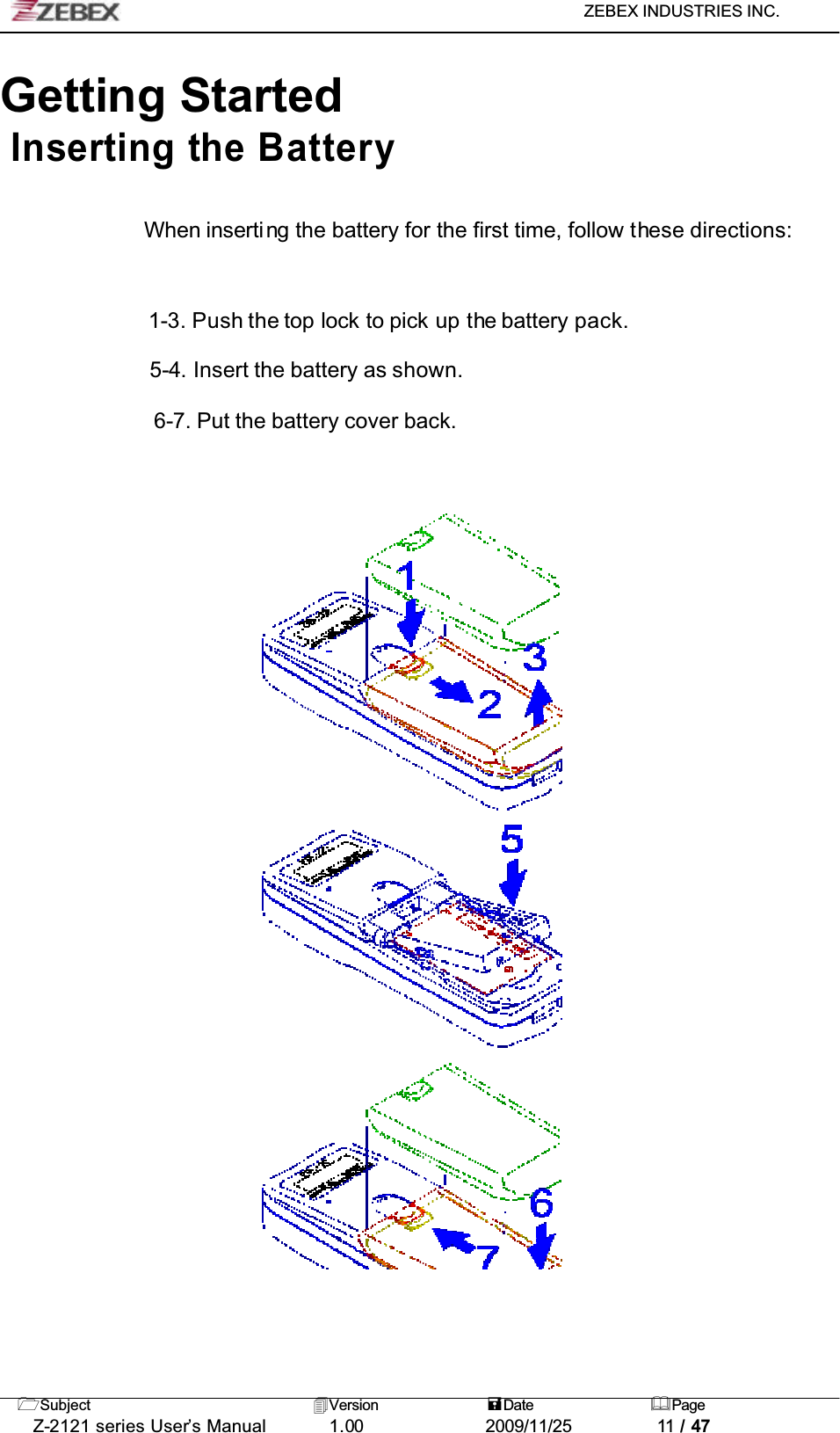

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 11 / 47Getting StartedInserting the BatteryWhen inserti ng the battery for the first time, follow these directions:1-3. Push the top lock to pick up the battery pack.5-4. Insert the battery as shown.6-7. Put the battery cover back.

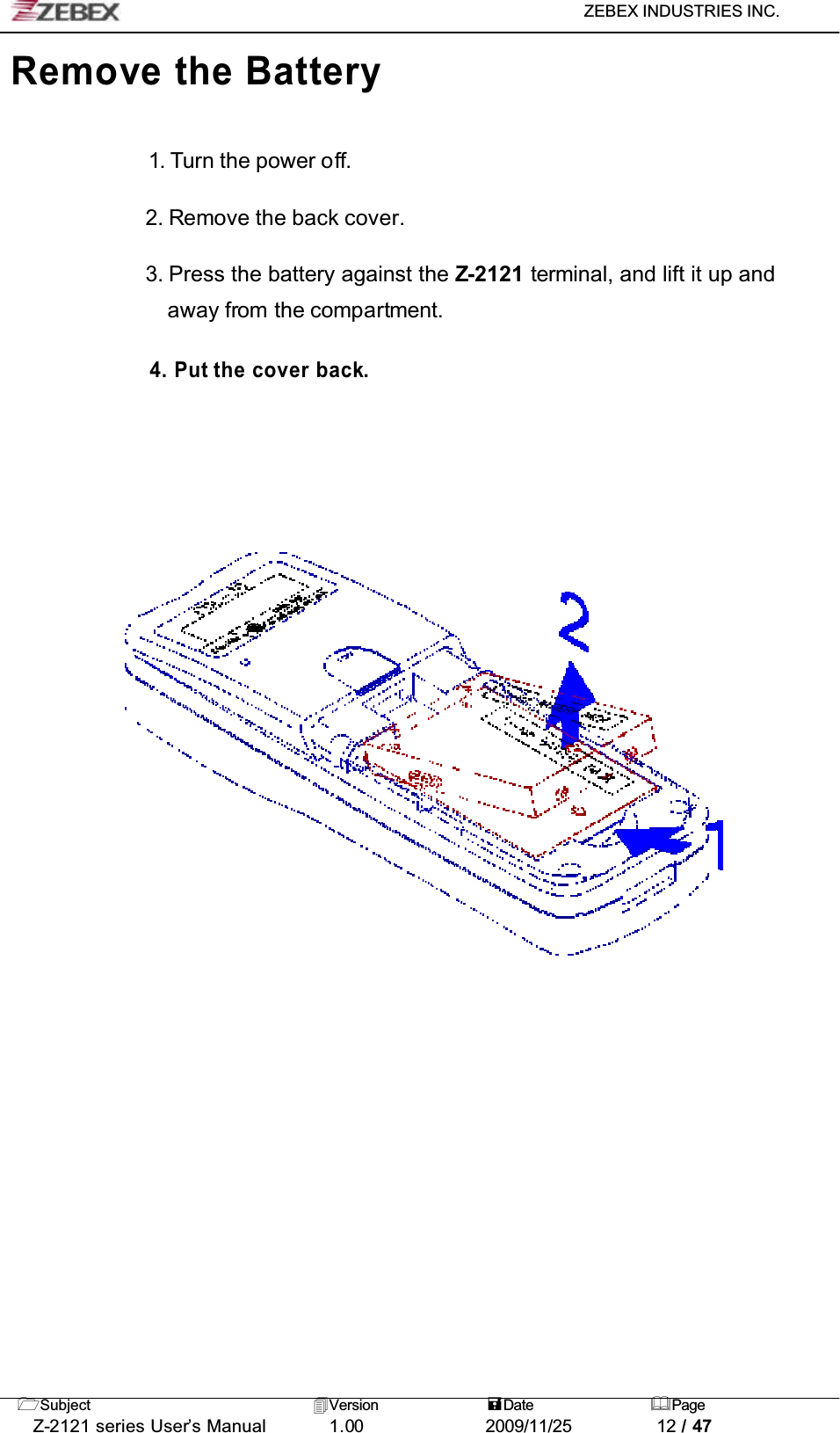

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 12 / 47Remove the Battery1. Turn the power off.2. Remove the back cover.3. Press the battery against the Z-2121 terminal, and lift it up and away from the compartment.4. Put the cover back.

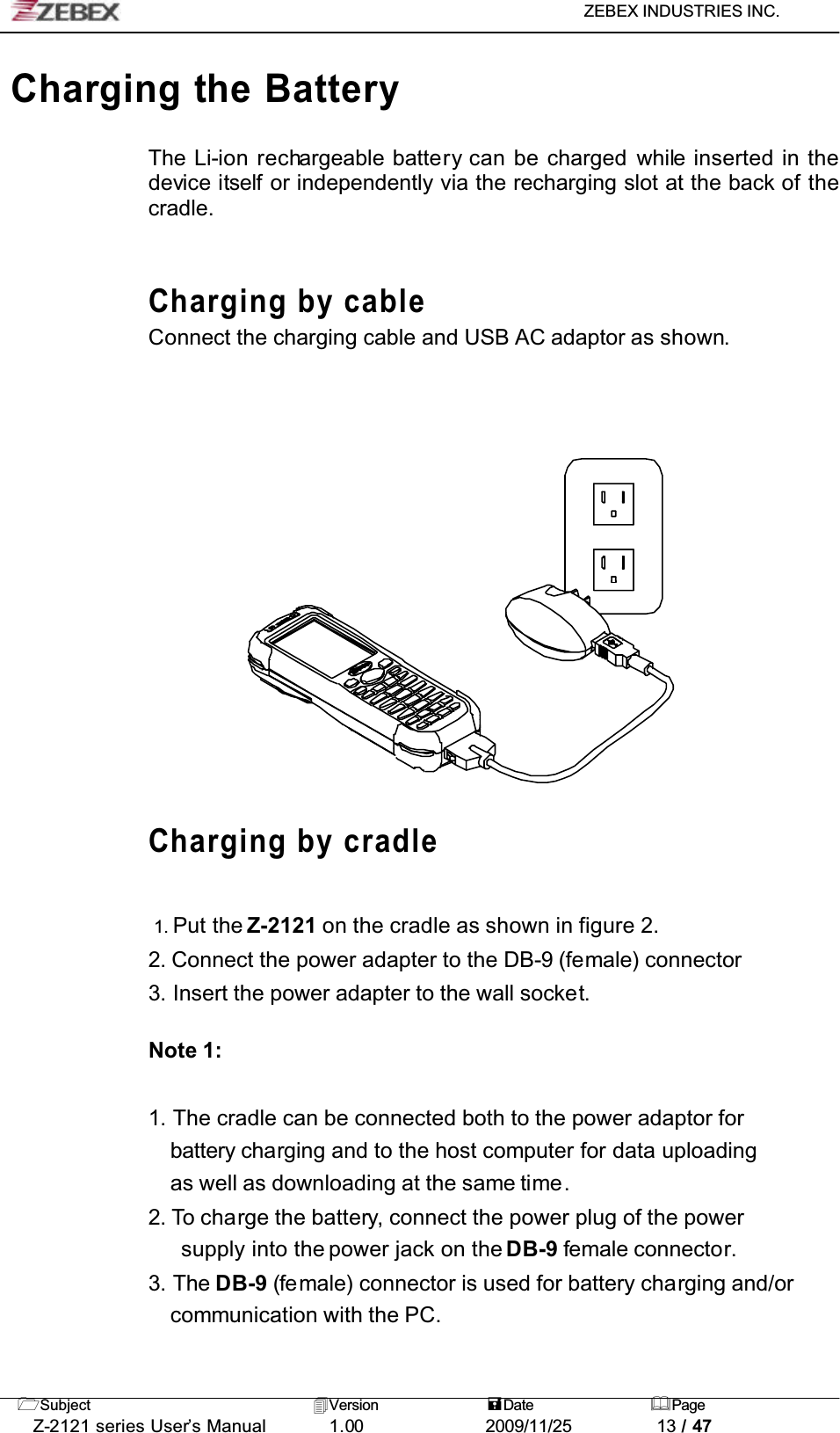

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 13 / 47Charging the BatteryThe Li-ion rechargeable battery can be charged while inserted in the device itself or independently via the recharging slot at the back of the cradle.Charging by cableConnect the charging cable and USB AC adaptor as shown.Charging by cradle1. Put the Z-2121 on the cradle as shown in figure 2.2. Connect the power adapter to the DB-9 (female) connector3. Insert the power adapter to the wall socket.Note 1:1. The cradle can be connected both to the power adaptor for battery charging and to the host computer for data uploading as well as downloading at the same time.2. To charge the battery, connect the power plug of the power supply into the power jack on the DB-9 female connector.3. The DB-9 (female) connector is used for battery charging and/orcommunication with the PC.

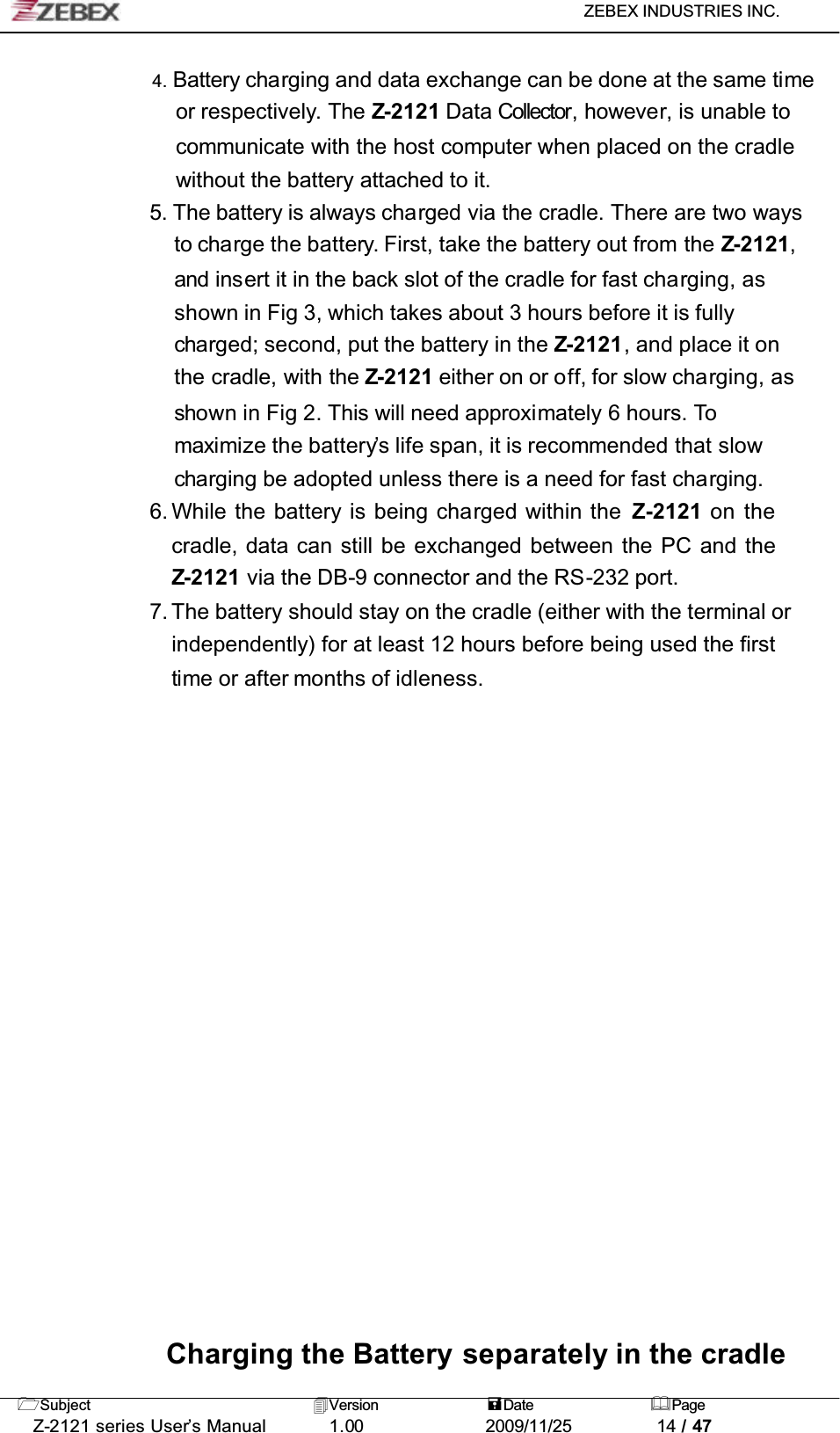

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 14 / 474. Battery charging and data exchange can be done at the same timeor respectively. The Z-2121 Data Collector, howeve r, is unable to communicate with the host computer when placed on the cradle without the battery attached to it.5. The battery is always charged via the cradle. There are two ways to charge the battery. First, take the battery out from the Z-2121,and insert it in the back slot of the cradle for fast charging, as shown in Fig 3, which takes about 3 hours before it is fully charged; second, put the battery in the Z-2121, and place it on the cradle, with the Z-2121 either on or off, for slow charging, as shown in Fig 2. This will need approximately 6 hours. Tomaximize the battery’s life span, it is recommended that slow charging be adopted unless there is a need for fast charging.6. While the battery is being charged within the Z-2121 on the cradle, data can still be exchanged between the PC and the Z-2121 via the DB-9 connector and the RS-232 port.7. The battery should stay on the cradle (either with the terminal or independently) for at least 12 hours before being used the first time or after months of idleness.Charging the Battery separately in the cradle

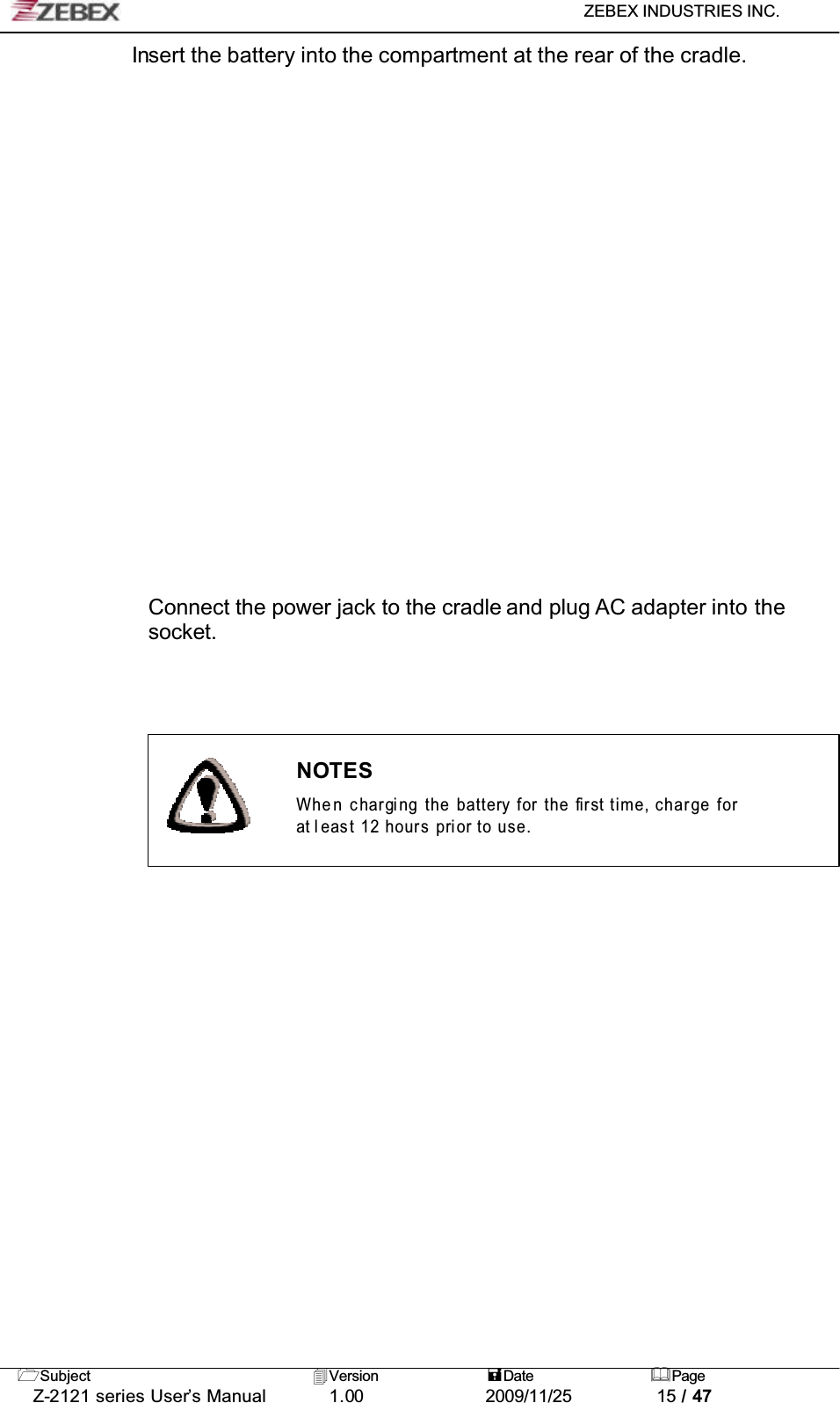

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 15 / 47Insert the battery into the compartment at the rear of the cradle.Connect the power jack to the cradle and plug AC adapter into the socket.NOTESWhe n charging the battery for the first time, charge forat least 12 hours prior to use.

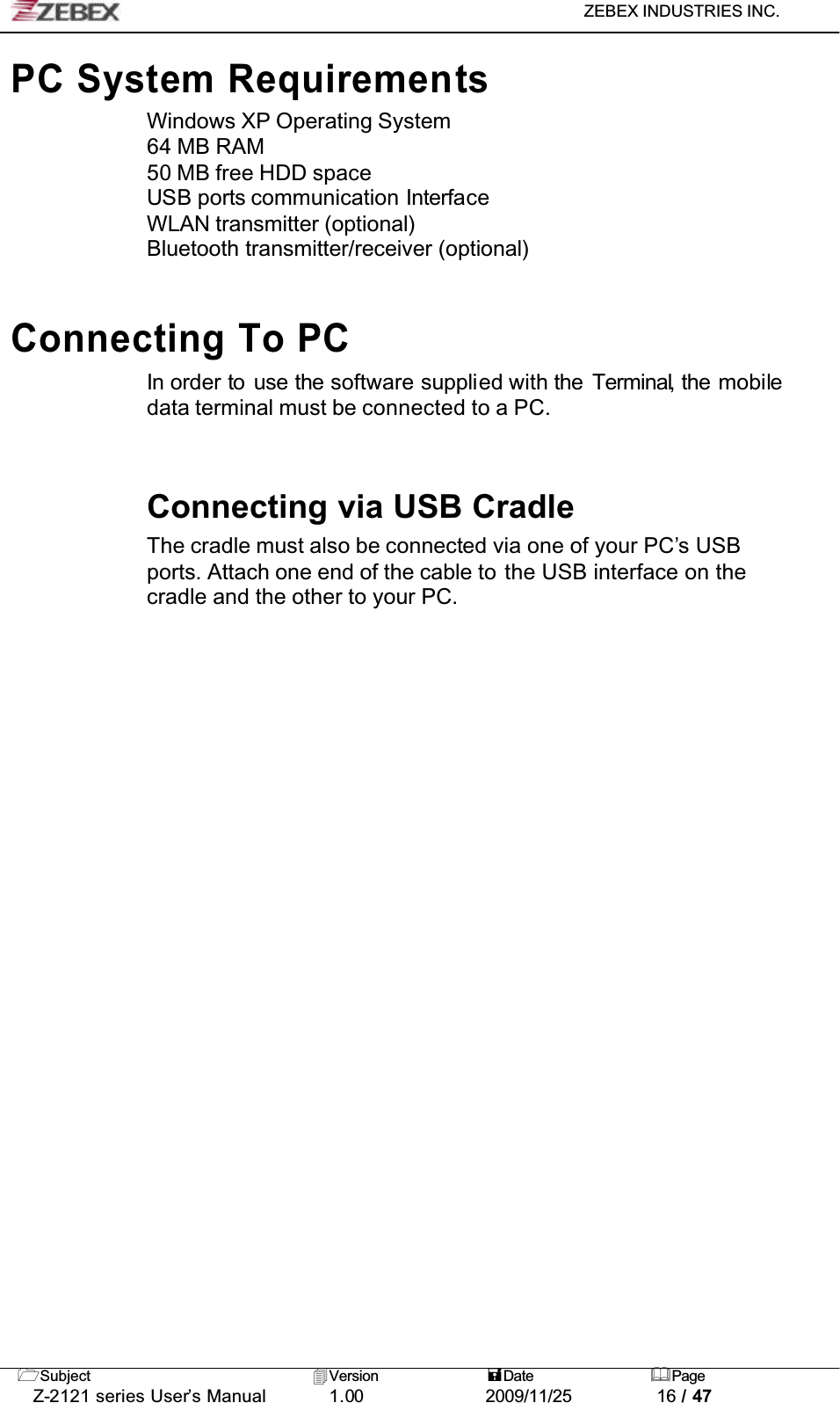

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 16 / 47PC System RequirementsWindows XP Operating System64 MB RAM50 MB free HDD spaceUSB ports communication InterfaceWLAN transmitter (optional)Bluetooth transmitter/receiver (optional)Connecting To PC In order to use the software supplied with the Terminal, the mobiledata terminal must be connected to a PC.Connecting via USB CradleThe cradle must also be connected via one of your PC’s USB ports. Attach one end of the cable to the USB interface on the cradle and the other to your PC.

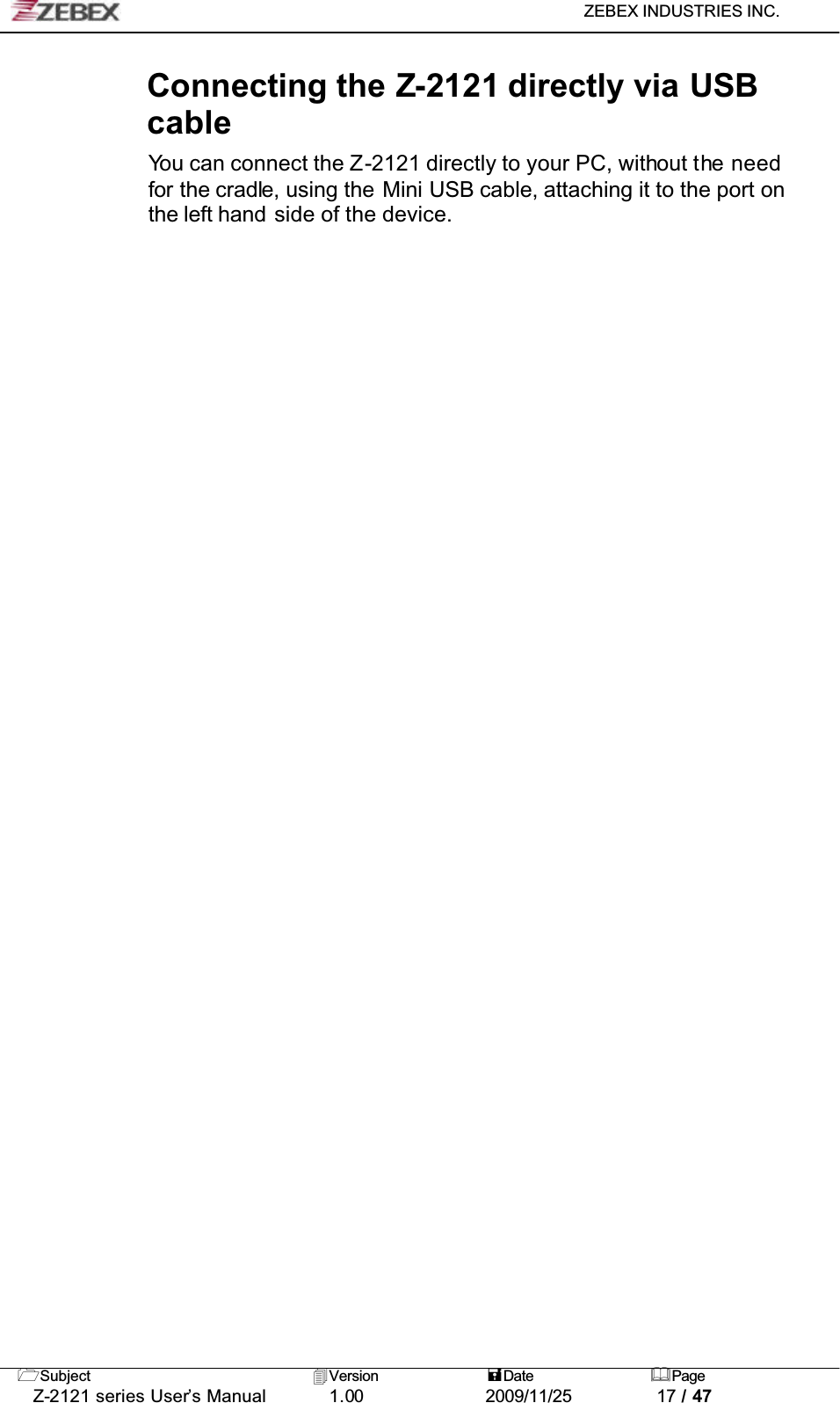

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 17 / 47Connecting the Z-2121 directly via USBcableYou can connect the Z-2121 directly to your PC, without the need for the cradle, using the Mini USB cable, attaching it to the port on the left hand side of the device.

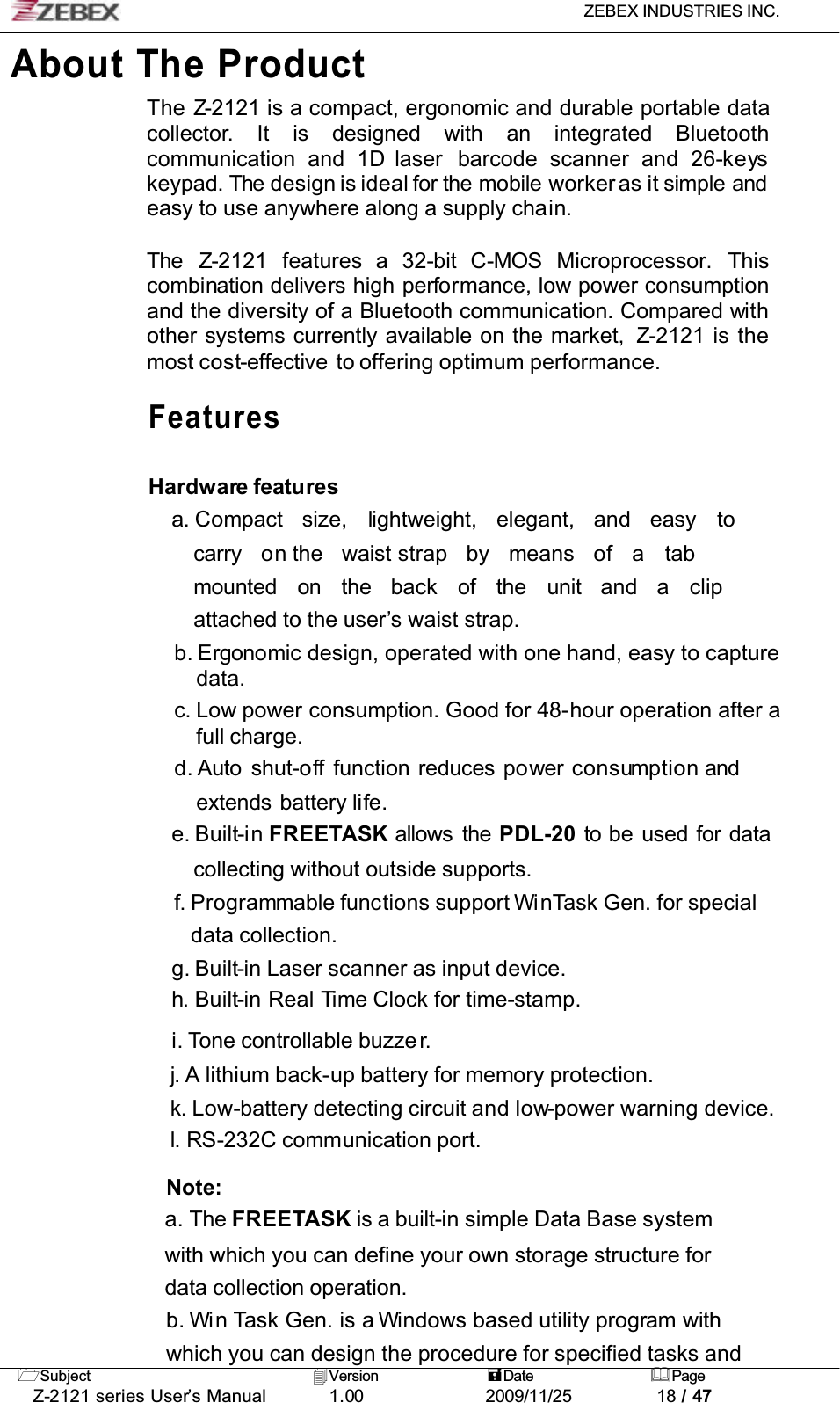

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 18 / 47About The ProductThe Z-2121 is a compact, ergonomic and durable portable data collector. It is designed with an integrated Bluetoothcommunication and 1D laser  barcode scanner and 26-keyskeypad. The design is ideal for the mobile worker as it simple andeasy to use anywhere along a supply chain.The Z-2121 features a 32-bit C-MOS Microprocessor. Thiscombination delivers high performance, low power consumption and the diversity of a Bluetooth communication. Compared withother systems currently available on the market,  Z-2121 is the most cost-effective to offering optimum performance.FeaturesHardware featuresa. Compact size, lightweight, elegant, and easy tocarry on the waist strap  by means of a tabmounted on the back of the unit and a clipattached to the user’s waist strap.b. Ergonomic design, operated with one hand, easy to capture data.c. Low power consumption. Good for 48-hour operation after a full charge.d. Auto shut-off function reduces power consumption andextends battery life.e. Built-in FREETASK allows the PDL-20 to be used for datacollecting without outside supports.f. Programmable functions support WinTask Gen. for special data collection.g. Built-in Laser scanner as input device.h. Built-in Real Time Clock for time-stamp.i. Tone controllable buzze r.j. A lithium back-up battery for memory protection.k. Low-battery detecting circuit and low-power warning device.l. RS-232C communication port.Note:a. The FREETASK is a built-in simple Data Base systemwith which you can define your own storage structure for data collection operation.b. Win Task Gen. is a Windows based utility program withwhich you can design the procedure for specified tasks and

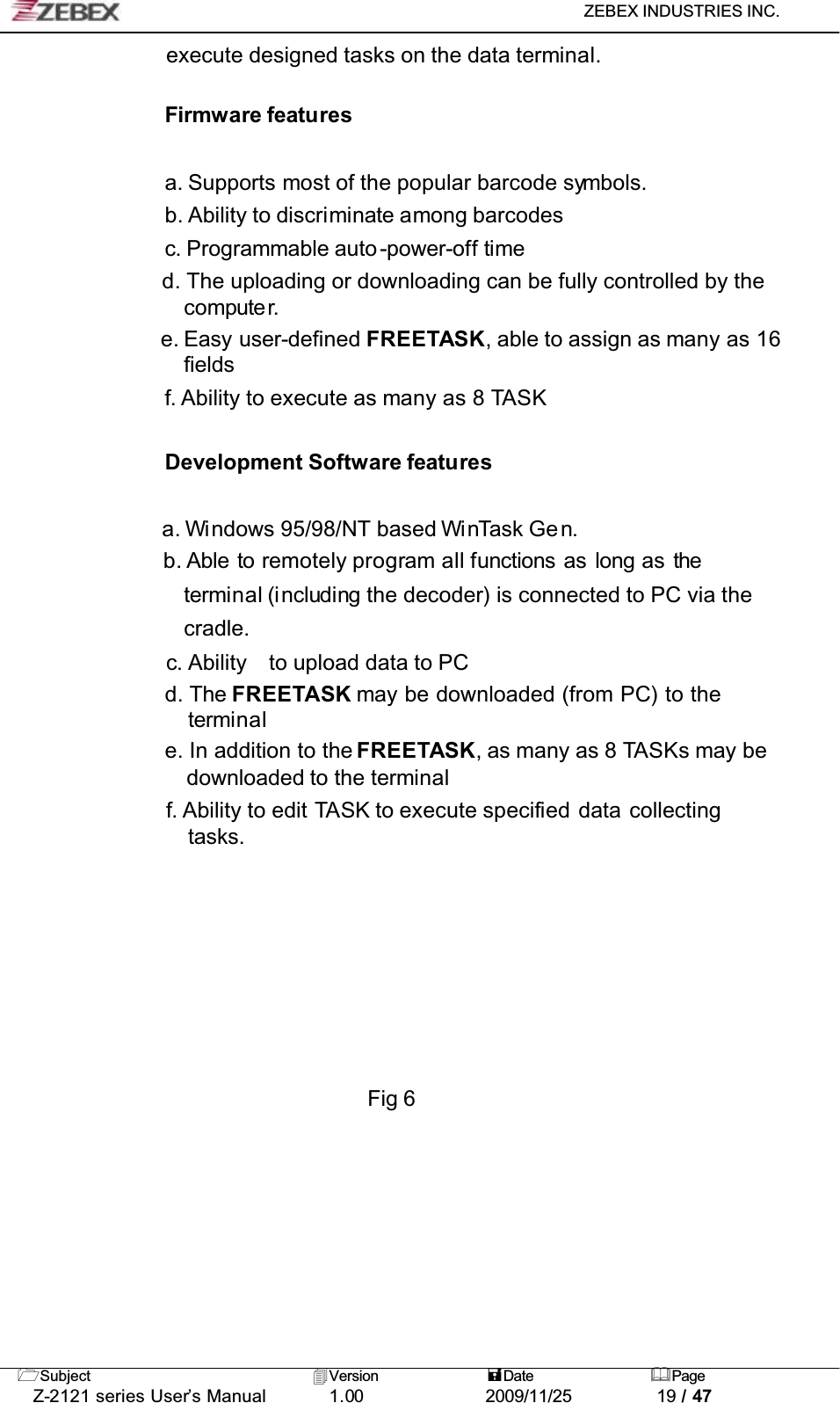

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 19 / 47execute designed tasks on the data terminal.Firmware featuresa. Supports most of the popular barcode symbols.b. Ability to discriminate among barcodesc. Programmable auto -power-off timed. The uploading or downloading can be fully controlled by the compute r.e. Easy user-defined FREETASK, able to assign as many as 16 fieldsf. Ability to execute as many as 8 TASKDevelopment Software featuresa. Windows 95/98/NT based WinTask Gen.b. Able to remotely program all functions as long as theterminal (including the decoder) is connected to PC via the cradle.c. Ability to upload data to PCd. The FREETASK may be downloaded (from PC) to theterminale. In addition to the FREETASK, as many as 8 TASKs may be downloaded to the terminalf. Ability to edit TASK to execute specified data collectingtasks.Fig 6

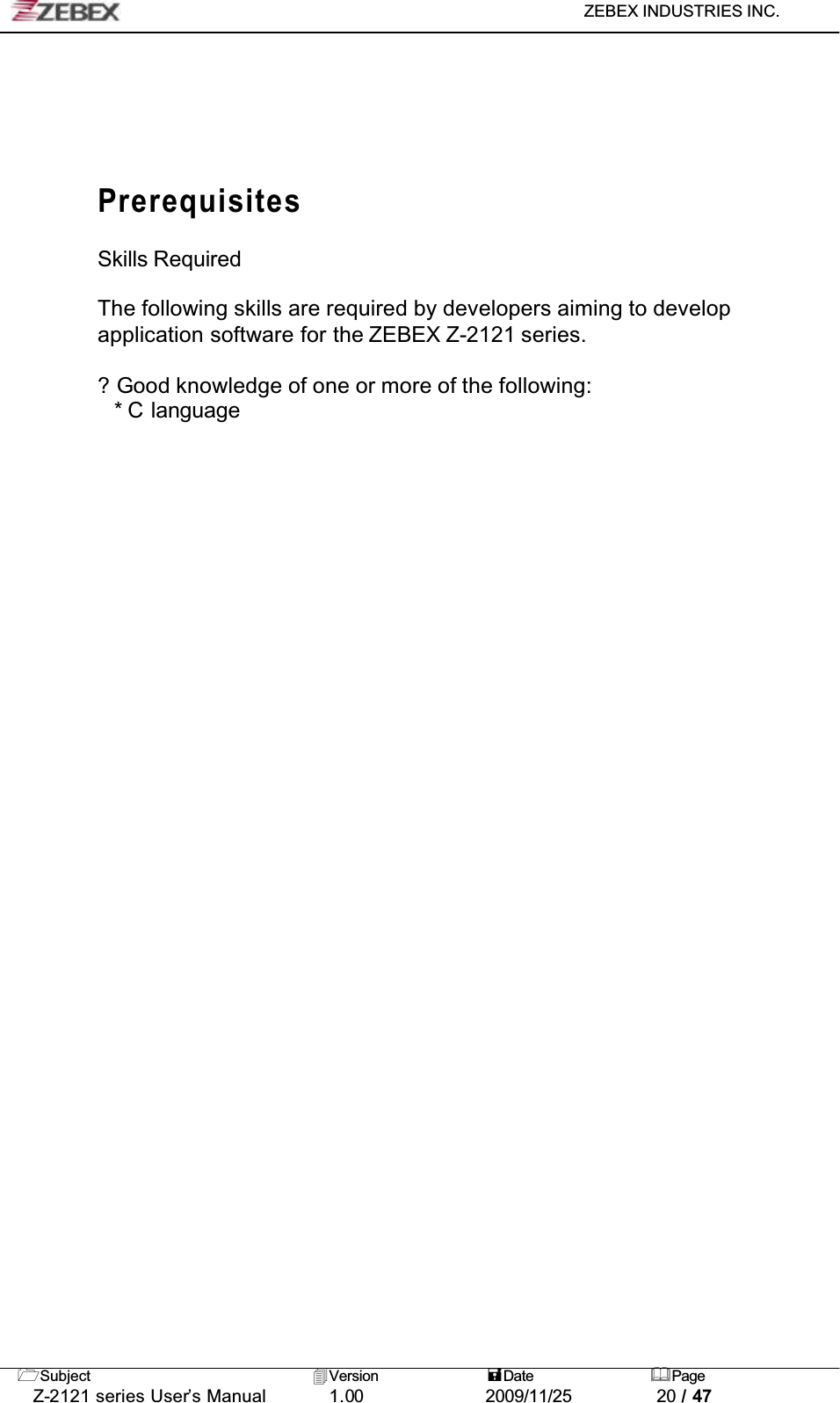

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 20 / 47PrerequisitesSkills RequiredThe following skills are required by developers aiming to developapplication software for the ZEBEX Z-2121 series.? Good knowledge of one or more of the following: * C language

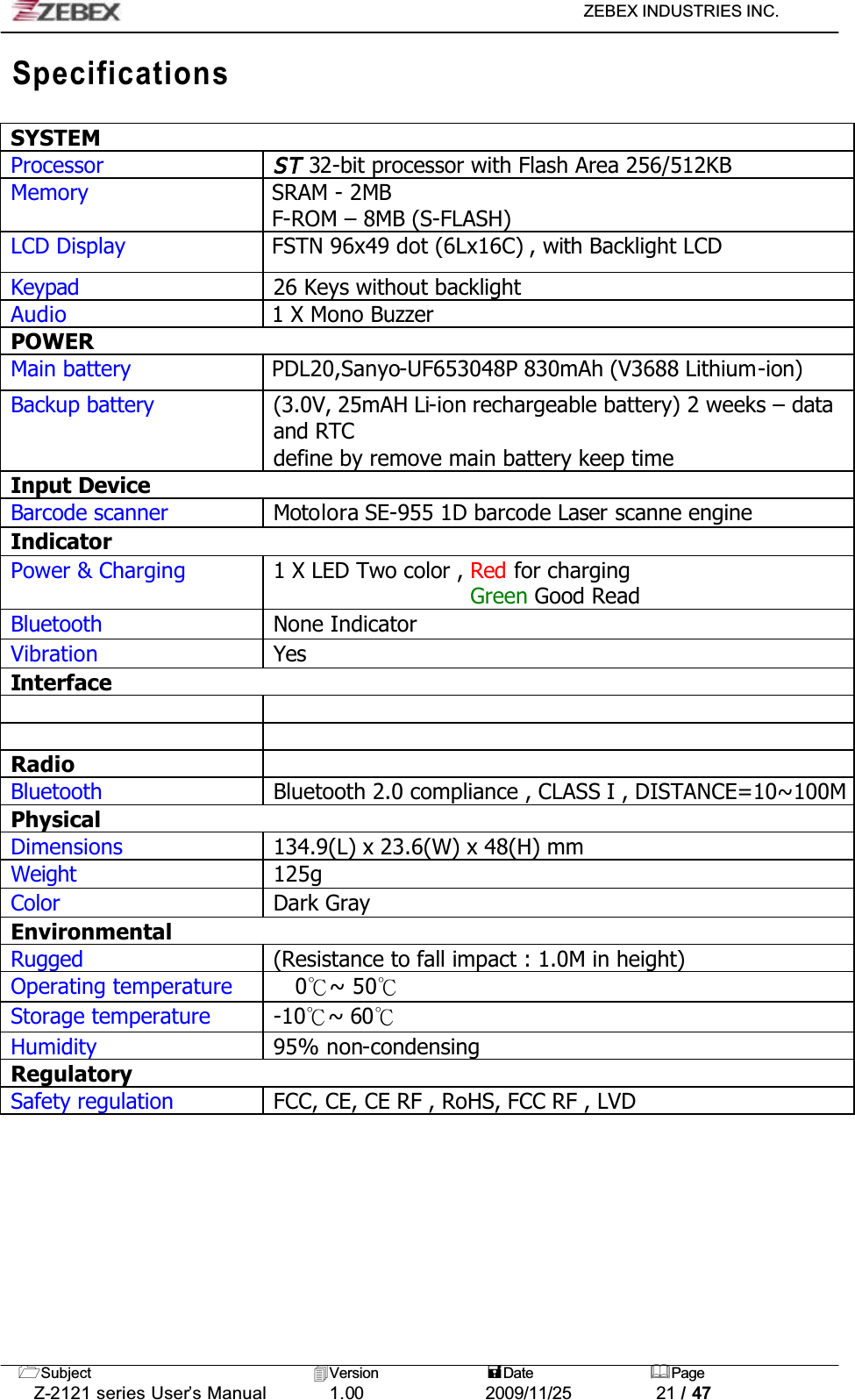

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 21 / 47SpecificationsSYSTEMProcessorST 32-bit processor with Flash Area 256/512KBMemory SRAM - 2MBF-ROM – 8MB (S-FLASH)LCD Display FSTN 96x49 dot (6Lx16C) , with Backlight LCD Keypad 26 Keys without backlightAudio 1 X Mono BuzzerPOWERMain battery PDL20,Sanyo-UF653048P 830mAh (V3688 Lithium-ion)Backup battery (3.0V, 25mAH Li-ion rechargeable battery) 2 weeks – data and RTCdefine by remove main battery keep timeInput DeviceBarcode scanner Motolora SE-955 1D barcode Laser scanne engineIndicatorPower & Charging 1 X LED Two color , Red for chargingGreen Good ReadBluetooth None IndicatorVibration YesInterfaceRadioBluetooth Bluetooth 2.0 compliance , CLASS I , DISTANCE=10~100MPhysicalDimensions 134.9(L) x 23.6(W) x 48(H) mmWeight 125gColor Dark GrayEnvironmentalRugged (Resistance to fall impact : 1.0M in height) Operating temperature 0к~ 50кStorage temperature -10к~ 60кHumidity 95% non-condensingRegulatorySafety regulation FCC, CE, CE RF , RoHS, FCC RF , LVD

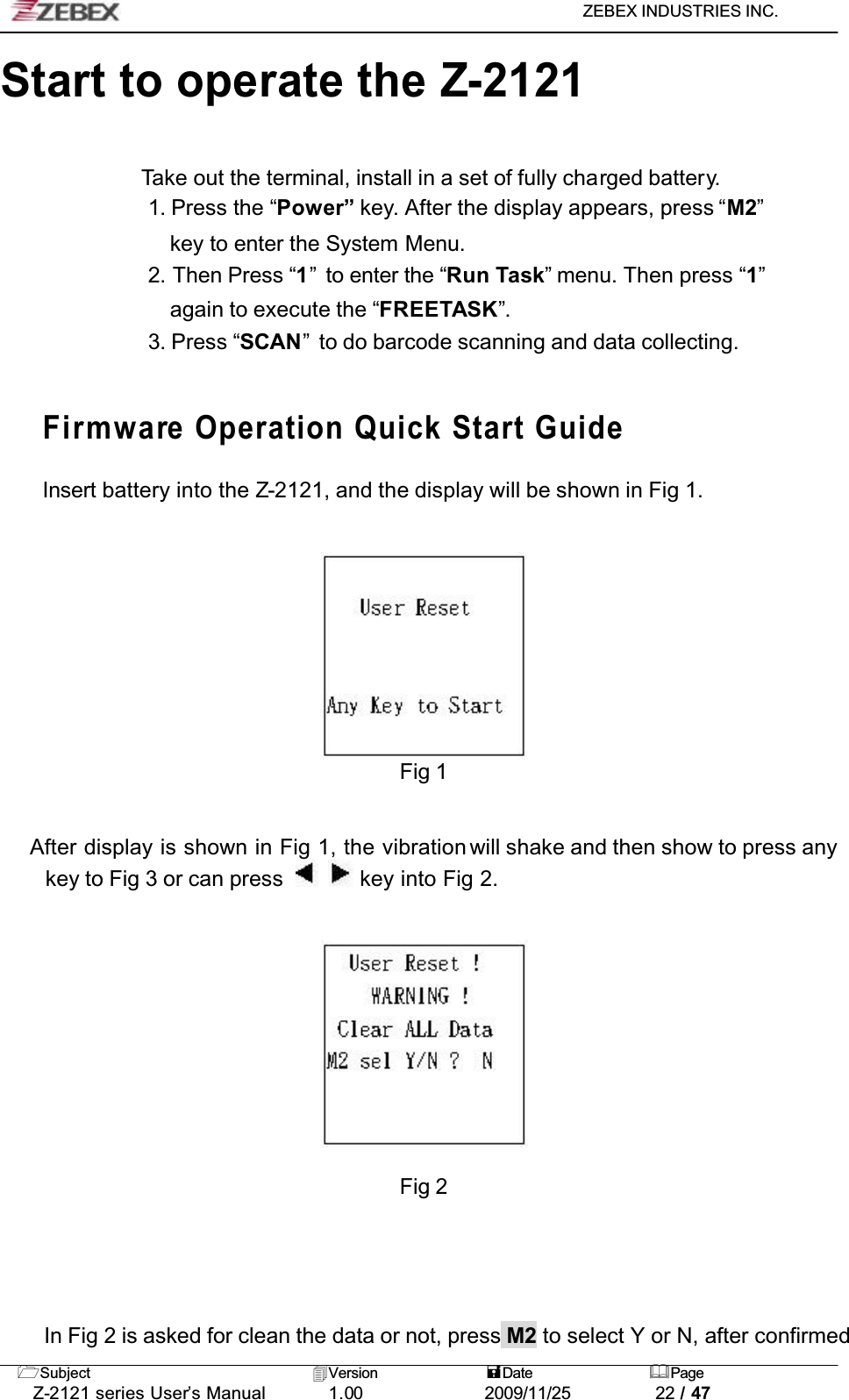

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 22 / 47Start to operate the Z-2121Take out the terminal, install in a set of fully charged battery.1. Press the “Power” key. After the display appears, press “M2”key to enter the System Menu.2. Then Press “1”  to enter the “Run Task” menu. Then press “1”again to execute the “FREETASK”.3. Press “SCAN”  to do barcode scanning and data collecting.Firmware Operation Quick Start Guide!!!!Insert battery into the Z-2121, and the display will be shown in Fig 1.Fig 1    After display is shown in Fig 1, the vibration will shake and then show to press any key to Fig 3 or can press   key into Fig 2. Fig 2In Fig 2 is asked for clean the data or not, press M2 to select Y or N, after confirmed
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 23 / 47to press   into Fig 4                         Fig 3                 Fig 4    In Fig 3 is shown of Z-2121 standard Firmware, press M2 can enter into System Menu as Fig 4, and also can press M1 back to Fig 3    The following is the description of each function:1. Press enter into Run Task function test.2. Press enter into Task Utility function test.3. Press enter into Parameter Set function test.
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 24 / 47Run Task Function TestFig 5In Fig 5 is shown in barcode scan, press SCAN to read barcode data, and the vibration will shake once when press SCAN key. If want to revise the barcode data, please press F6 to show on the data and key in the number, or can press F4 to delete the data or number. And then press F1back Fig 5.Task Utility Function TestFig 6In Fig 6 is shown for Task Utility function, the following is the description of each function:2-1.Press enter into File Status function test.2-2.Press enter into Delete Data function test.2-3.Press enter into Backup function test.

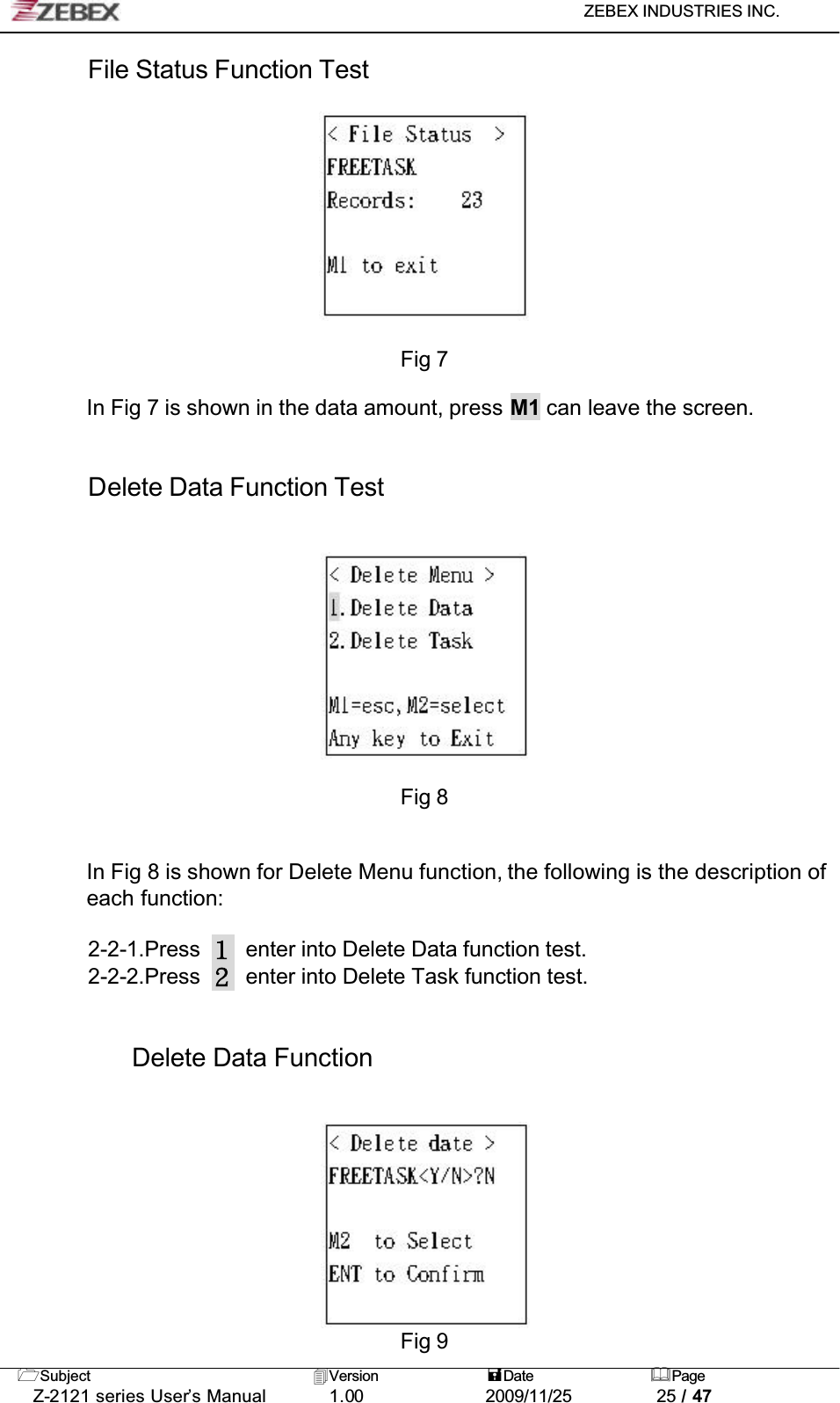

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 25 / 47File Status Function TestFig 7In Fig 7 is shown in the data amount, press M1 can leave the screen.Delete Data Function TestFig 8In Fig 8 is shown for Delete Menu function, the following is the description of each function:2-2-1.Press enter into Delete Data function test.2-2-2.Press enter into Delete Task function test.Delete Data FunctionFig 9

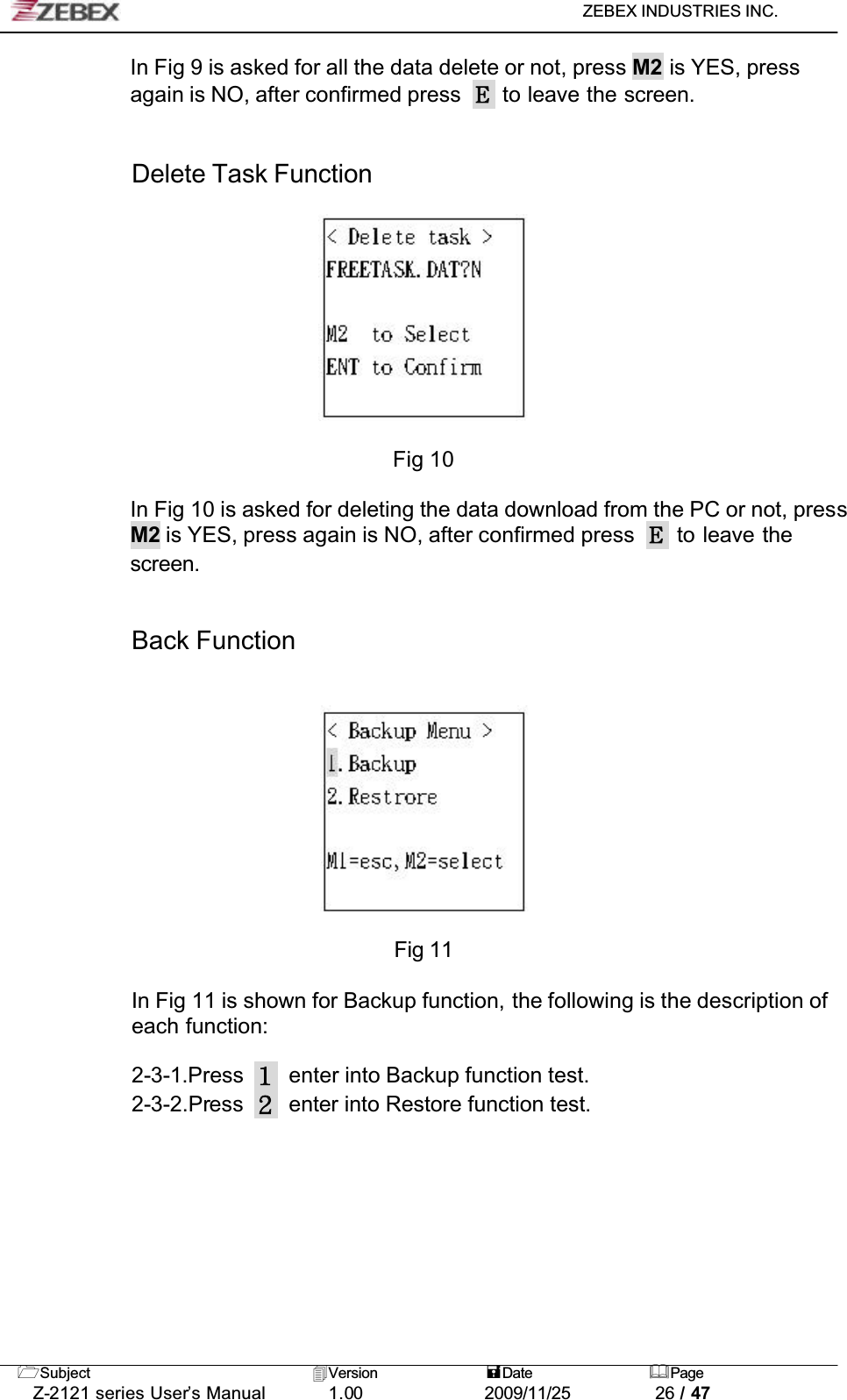

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 26 / 47In Fig 9 is asked for all the data delete or not, press M2 is YES, press again is NO, after confirmed press   to leave the screen.Delete Task FunctionFig 10In Fig 10 is asked for deleting the data download from the PC or not, pressM2 is YES, press again is NO, after confirmed press   to leave the screen.!!Back FunctionFig 11In Fig 11 is shown for Backup function, the following is the description of each function:2-3-1.Press enter into Backup function test.2-3-2.Press enter into Restore function test.

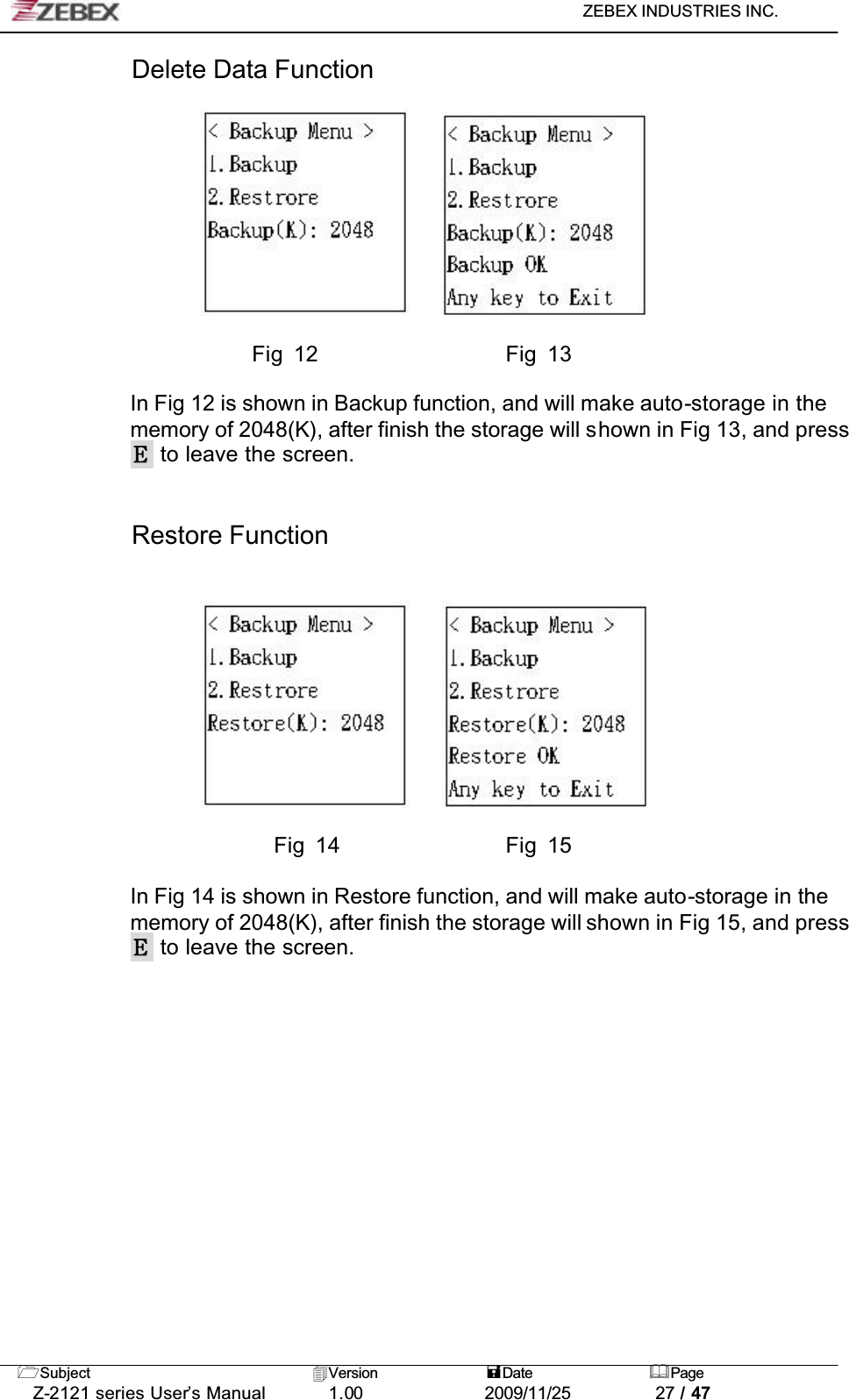

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 27 / 47Delete Data Function                       Fig 12                  Fig 13In Fig 12 is shown in Backup function, and will make auto-storage in the memory of 2048(K), after finish the storage will shown in Fig 13, and press  to leave the screen.!!Restore Function                         Fig 14                Fig 15In Fig 14 is shown in Restore function, and will make auto-storage in the memory of 2048(K), after finish the storage will shown in Fig 15, and press  to leave the screen.!!

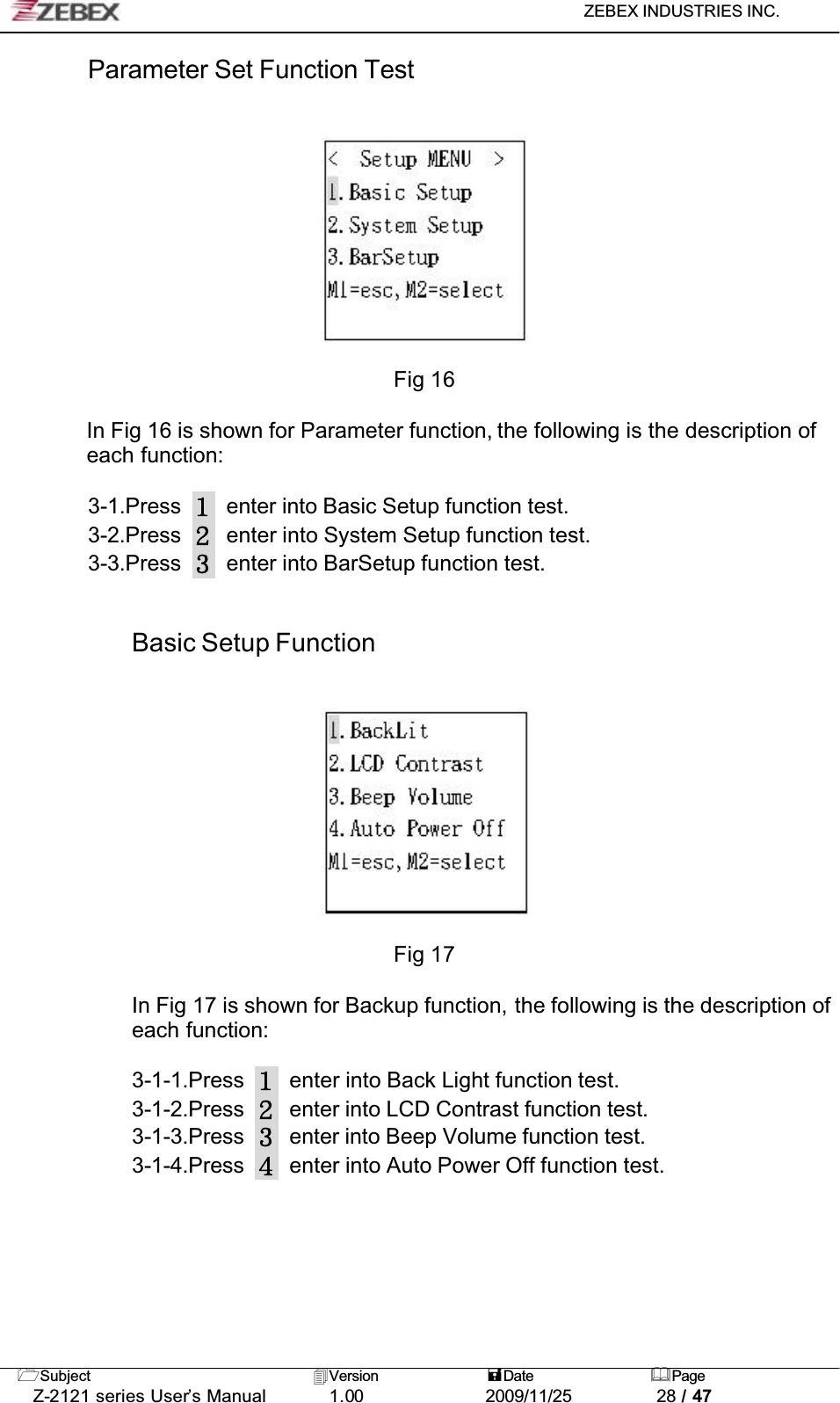

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 28 / 47Parameter Set Function TestFig 16In Fig 16 is shown for Parameter function, the following is the description of each function:3-1.Press enter into Basic Setup function test.3-2.Press enter into System Setup function test.3-3.Press enter into BarSetup function test.Basic Setup FunctionFig 17In Fig 17 is shown for Backup function, the following is the description of each function:3-1-1.Press enter into Back Light function test.3-1-2.Press enter into LCD Contrast function test.3-1-3.Press enter into Beep Volume function test.3-1-4.Press enter into Auto Power Off function test.

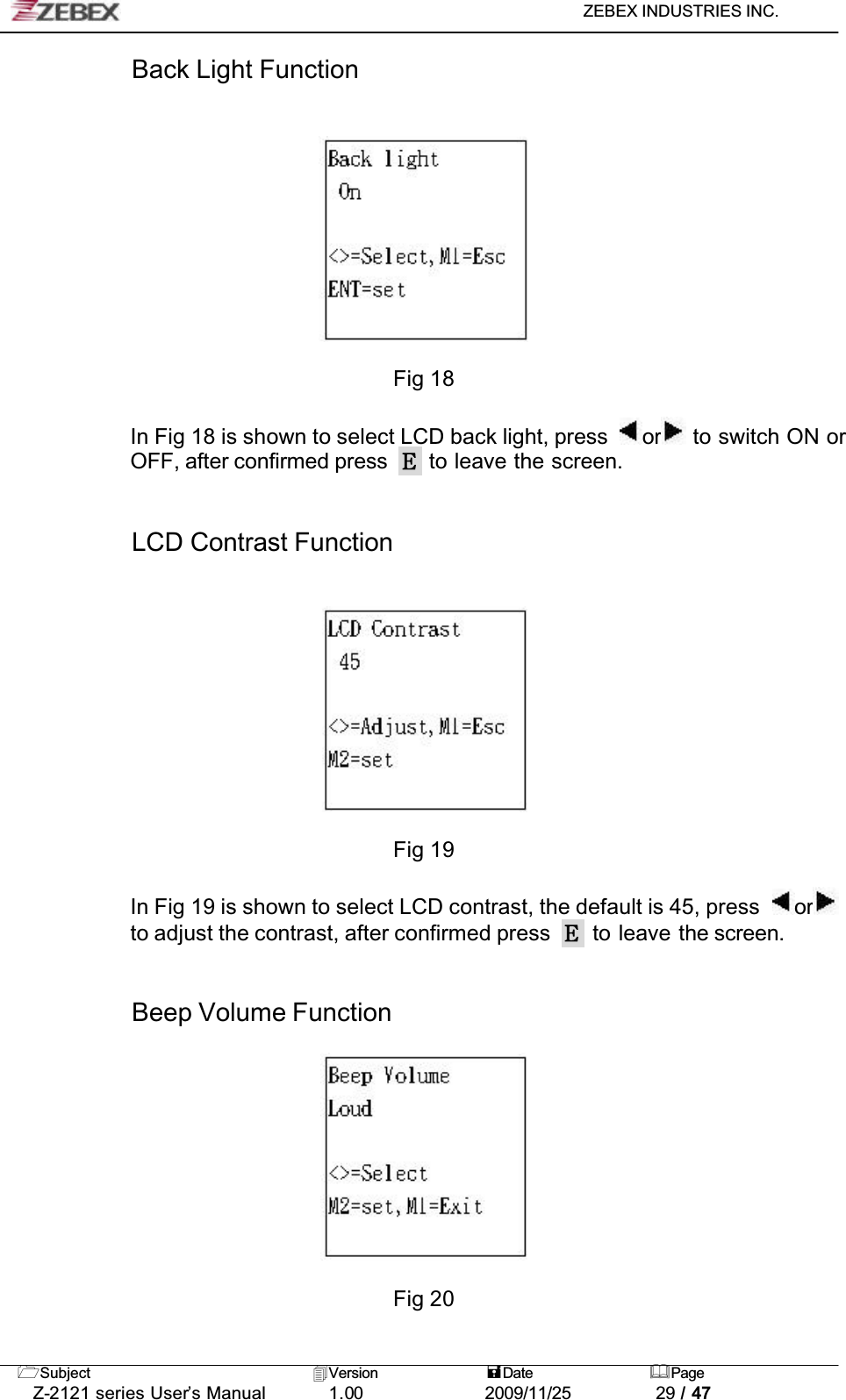

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 29 / 47Back Light FunctionFig 18In Fig 18 is shown to select LCD back light, press  or  to switch ON or OFF, after confirmed press   to leave the screen.LCD Contrast FunctionFig 19In Fig 19 is shown to select LCD contrast, the default is 45, press  orto adjust the contrast, after confirmed press   to leave the screen.Beep Volume FunctionFig 20
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 30 / 47In Fig 20 is shown to select Beep Volume, the default is Lound, press or  to adjust Quite, Low or Medium, after confirmed press   to leave the screen.Auto Power Off FunctionFig 21In Fig 21 is shown to set Auto Power Off, the default is 10mins, press or  to adjust 15mins, 20mins, 30mins or Disable, after confirmed press  to leave the screen.System Setup Function TestFig 22In Fig 22 is shown for System Setup function, the following is the description of each function:3-2-1.Press enter into Communication function test.3-2-2.Press enter into System Timer function test.3-2-3.Press enter into ID/PW/Data Mode function test.

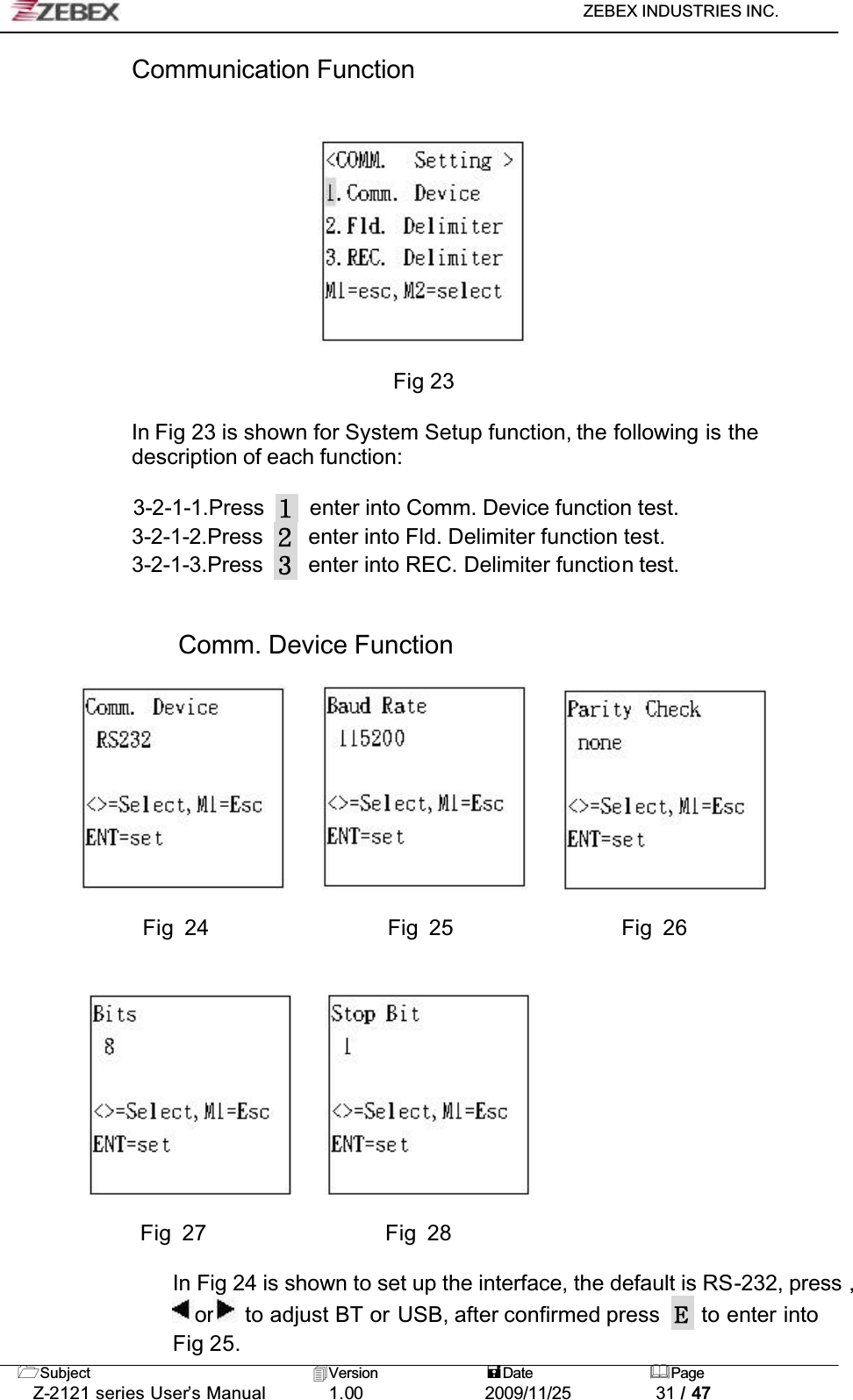

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 31 / 47Communication Function Fig 23In Fig 23 is shown for System Setup function, the following is the description of each function:3-2-1-1.Press enter into Comm. Device function test.3-2-1-2.Press enter into Fld. Delimiter function test.3-2-1-3.Press enter into REC. Delimiter function test.Comm. Device Function             Fig 24                 Fig 25                Fig 26     Fig 27                 Fig 28In Fig 24 is shown to set up the interface, the default is RS-232, press ,or  to adjust BT or USB, after confirmed press   to enter into Fig 25.

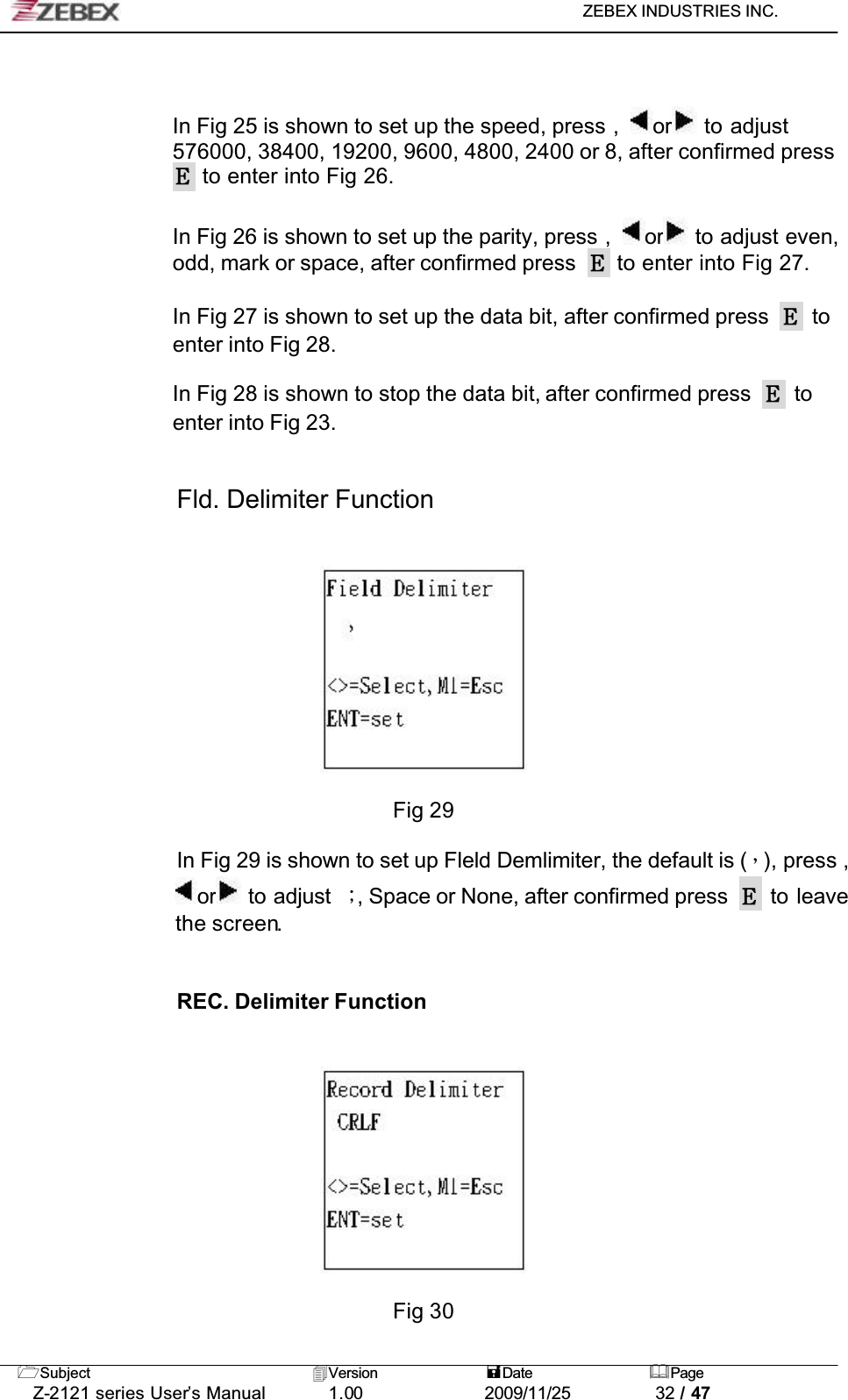

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 32 / 47In Fig 25 is shown to set up the speed, press , or  to adjust 576000, 38400, 19200, 9600, 4800, 2400 or 8, after confirmed press  to enter into Fig 26.In Fig 26 is shown to set up the parity, press , or  to adjust even, odd, mark or space, after confirmed press   to enter into Fig 27.In Fig 27 is shown to set up the data bit, after confirmed press   to enter into Fig 28.In Fig 28 is shown to stop the data bit, after confirmed press   to enter into Fig 23.Fld. Delimiter FunctionFig 29In Fig 29 is shown to set up Fleld Demlimiter, the default is (Ǵ), press , or  to adjust  ǹ, Space or None, after confirmed press   to leave the screen.!!REC. Delimiter FunctionFig 30

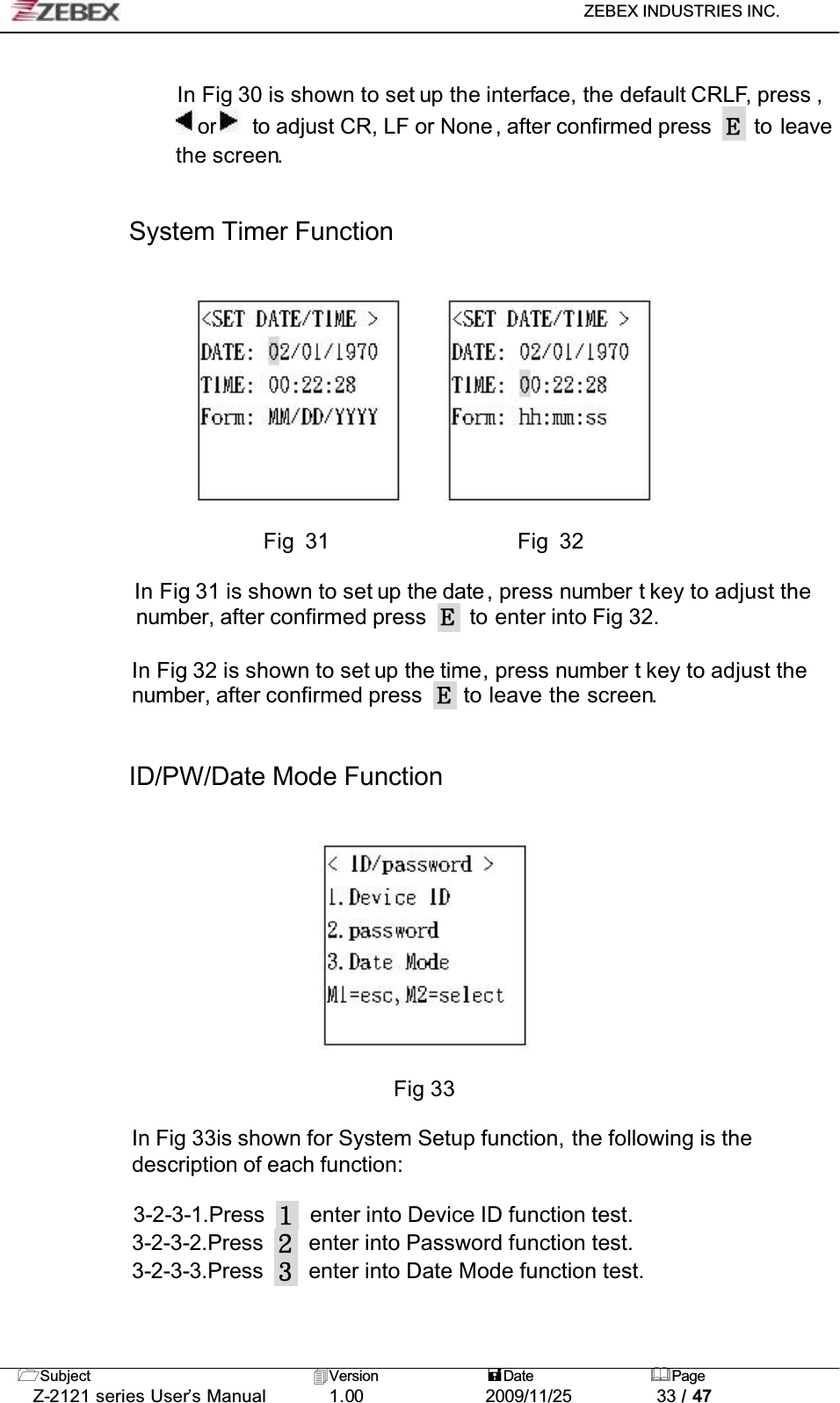

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 33 / 47In Fig 30 is shown to set up the interface, the default CRLF, press , or   to adjust CR, LF or None, after confirmed press   to leave the screen.!!System Timer Function                        Fig 31                  Fig 32In Fig 31 is shown to set up the date , press number t key to adjust the number, after confirmed press    to enter into Fig 32.In Fig 32 is shown to set up the time, press number t key to adjust the number, after confirmed press   to leave the screen.ID/PW/Date Mode FunctionFig 33In Fig 33is shown for System Setup function, the following is the description of each function:3-2-3-1.Press enter into Device ID function test.3-2-3-2.Press enter into Password function test.3-2-3-3.Press enter into Date Mode function test.

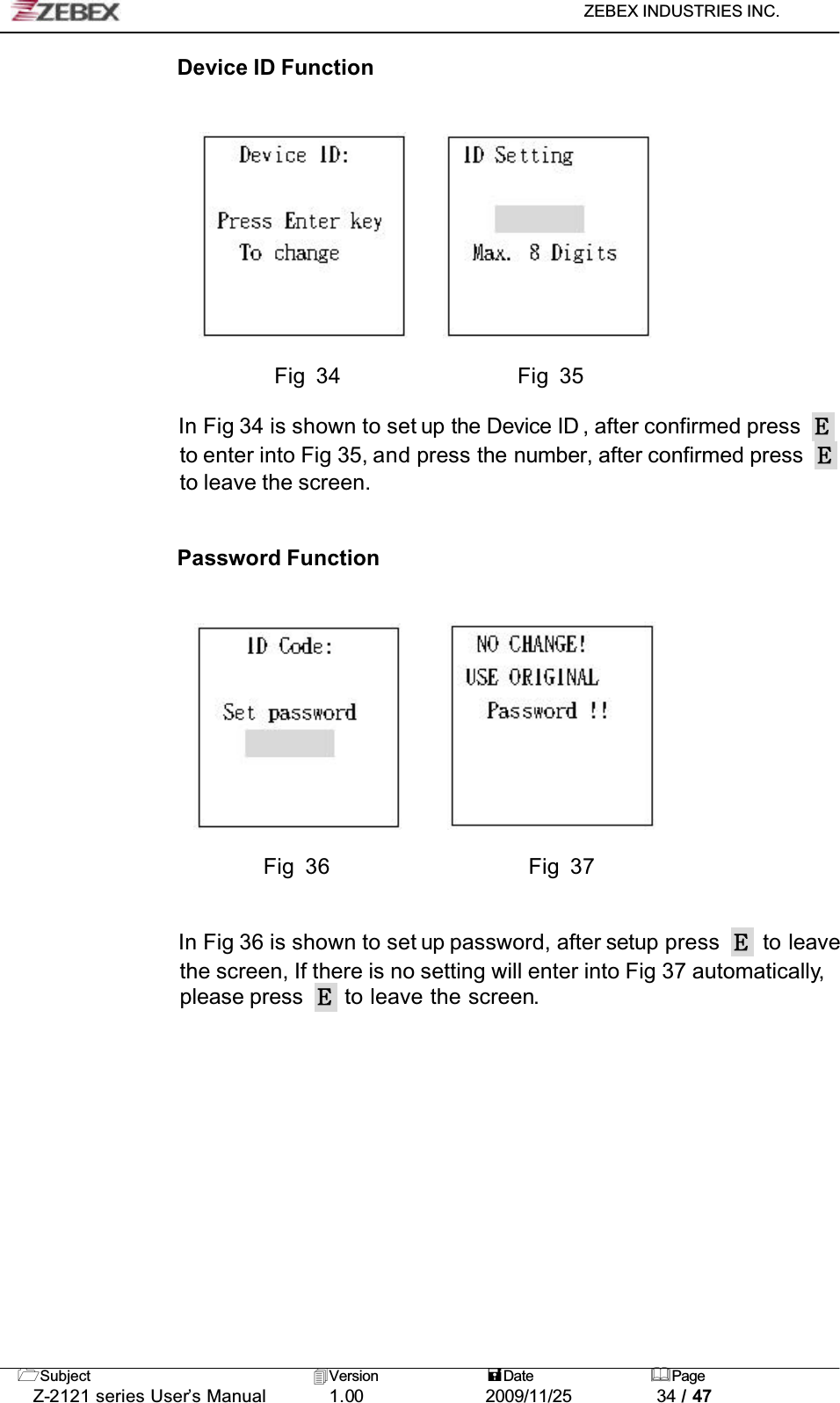

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 34 / 47Device ID Function                         Fig 34                 Fig 35In Fig 34 is shown to set up the Device ID , after confirmed press to enter into Fig 35, and press the number, after confirmed press to leave the screen.Password Function                        Fig 36                   Fig 37In Fig 36 is shown to set up password, after setup press   to leavethe screen, If there is no setting will enter into Fig 37 automatically,please press   to leave the screen.

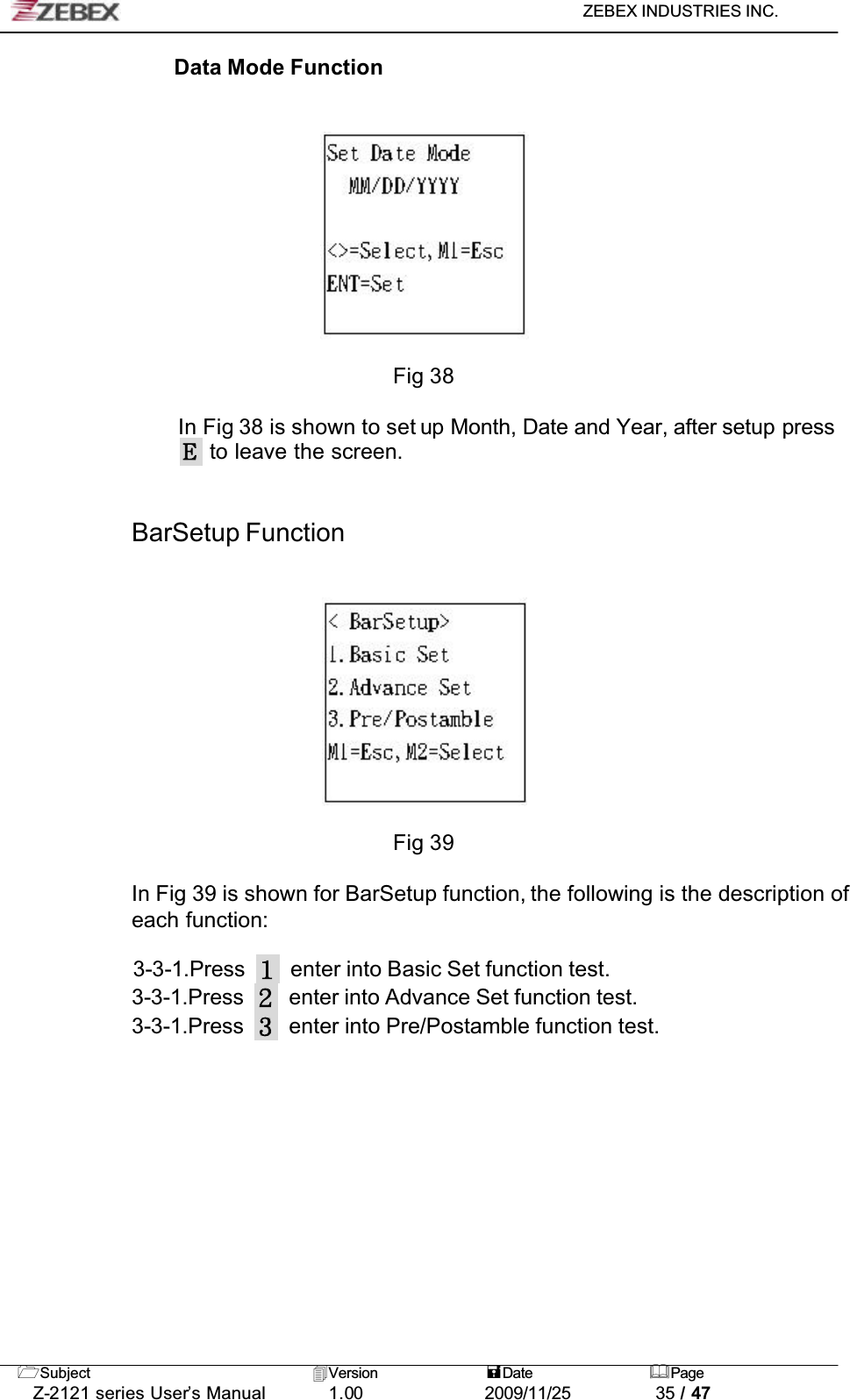

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 35 / 47Data Mode FunctionFig 38In Fig 38 is shown to set up Month, Date and Year, after setup press to leave the screen.BarSetup FunctionFig 39In Fig 39 is shown for BarSetup function, the following is the description of each function:3-3-1.Press enter into Basic Set function test.3-3-1.Press enter into Advance Set function test.3-3-1.Press enter into Pre/Postamble function test.

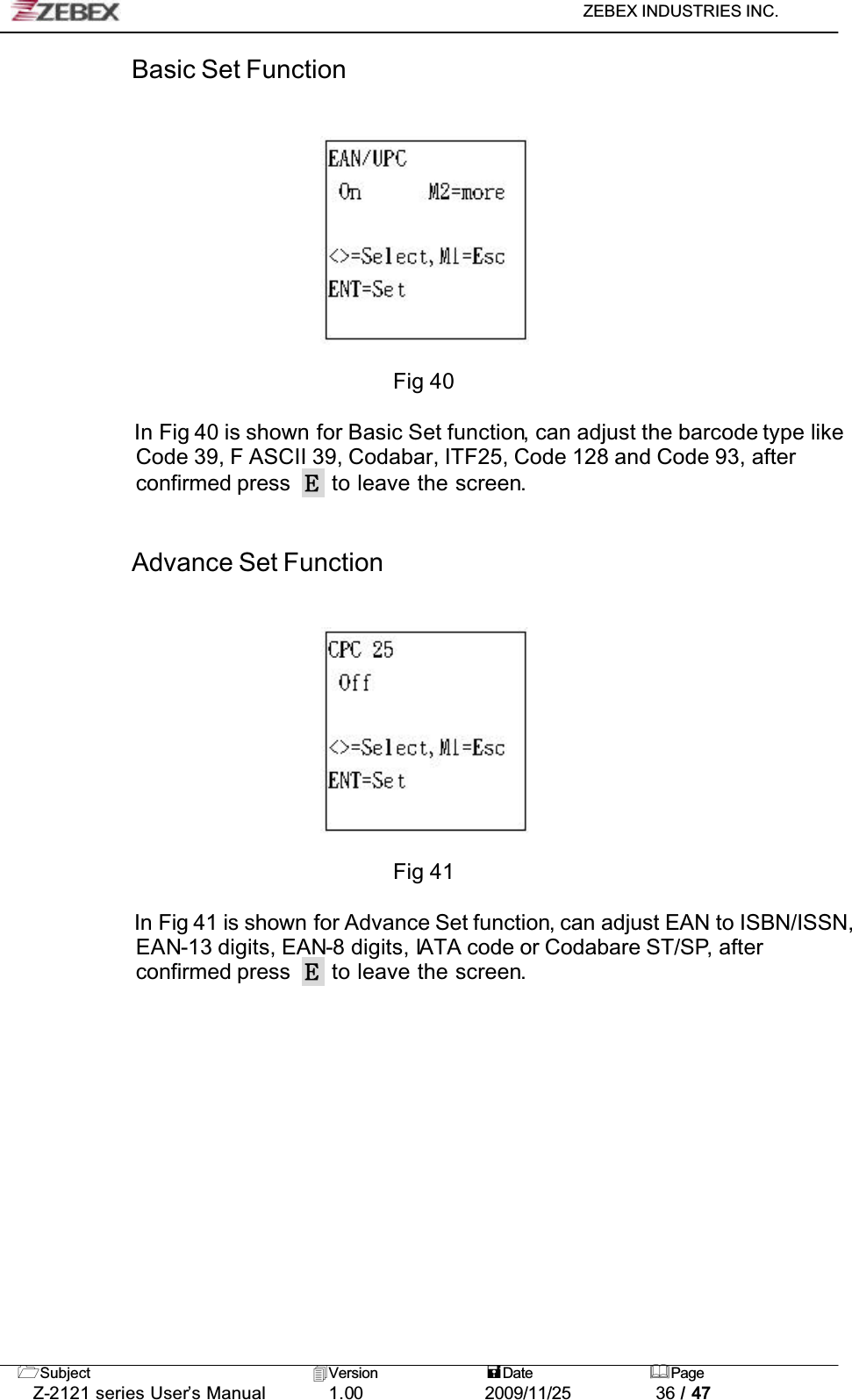

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 36 / 47Basic Set FunctionFig 40In Fig 40 is shown for Basic Set function, can adjust the barcode type like Code 39, F ASCII 39, Codabar, ITF25, Code 128 and Code 93, after confirmed press   to leave the screen.!!Advance Set FunctionFig 41In Fig 41 is shown for Advance Set function, can adjust EAN to ISBN/ISSN, EAN-13 digits, EAN-8 digits, IATA code or Codabare ST/SP, after confirmed press   to leave the screen.

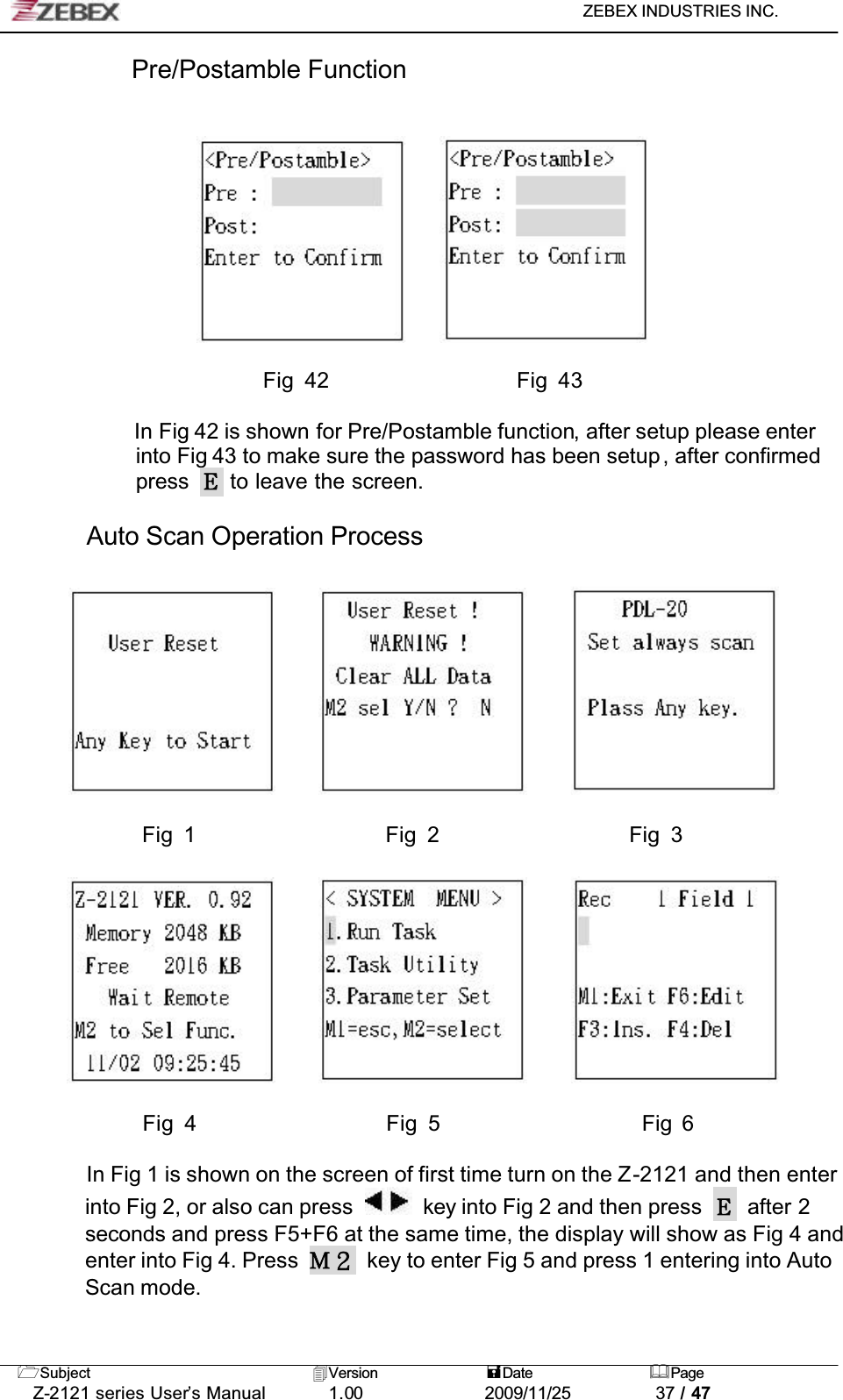

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 37 / 47Pre/Postamble FunctionFig 42                  Fig 43In Fig 42 is shown for Pre/Postamble function, after setup please enter into Fig 43 to make sure the password has been setup, after confirmed press  to leave the screen.Auto Scan Operation Process!!!!! !!!! !!!!!!!!!!!!!! Fig 1                  Fig 2                  Fig 3!!!!! !!!! !!Fig 4       Fig 5    Fig 6In Fig 1 is shown on the screen of first time turn on the Z-2121 and then enter into Fig 2, or also can press  !key into Fig 2 and then press  after 2 seconds and press F5+F6 at the same time, the display will show as Fig 4 and enter into Fig 4. Press  key to enter Fig 5 and press 1 entering into Auto Scan mode.

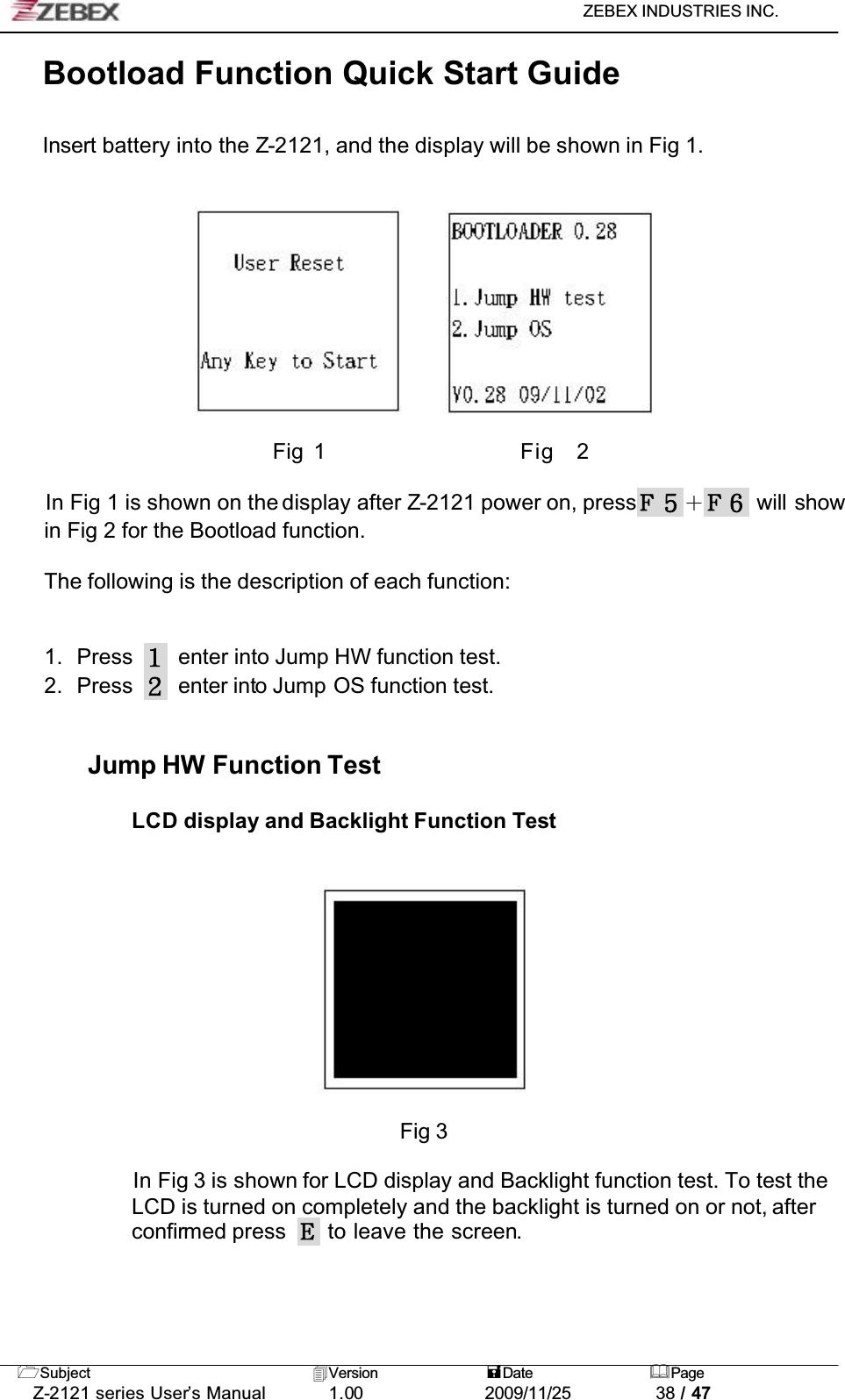

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 38 / 47Bootload Function Quick Start GuideInsert battery into the Z-2121, and the display will be shown in Fig 1. Fig 1                 Fig  2In Fig 1 is shown on the display after Z-2121 power on, press ɠ will show in Fig 2 for the Bootload function.The following is the description of each function:1. Press enter into Jump HW function test.2. Press enter into Jump OS function test.Jump HW Function TestLCD display and Backlight Function TestFig 3In Fig 3 is shown for LCD display and Backlight function test. To test the LCD is turned on completely and the backlight is turned on or not, afterconfirmed press   to leave the screen.!!

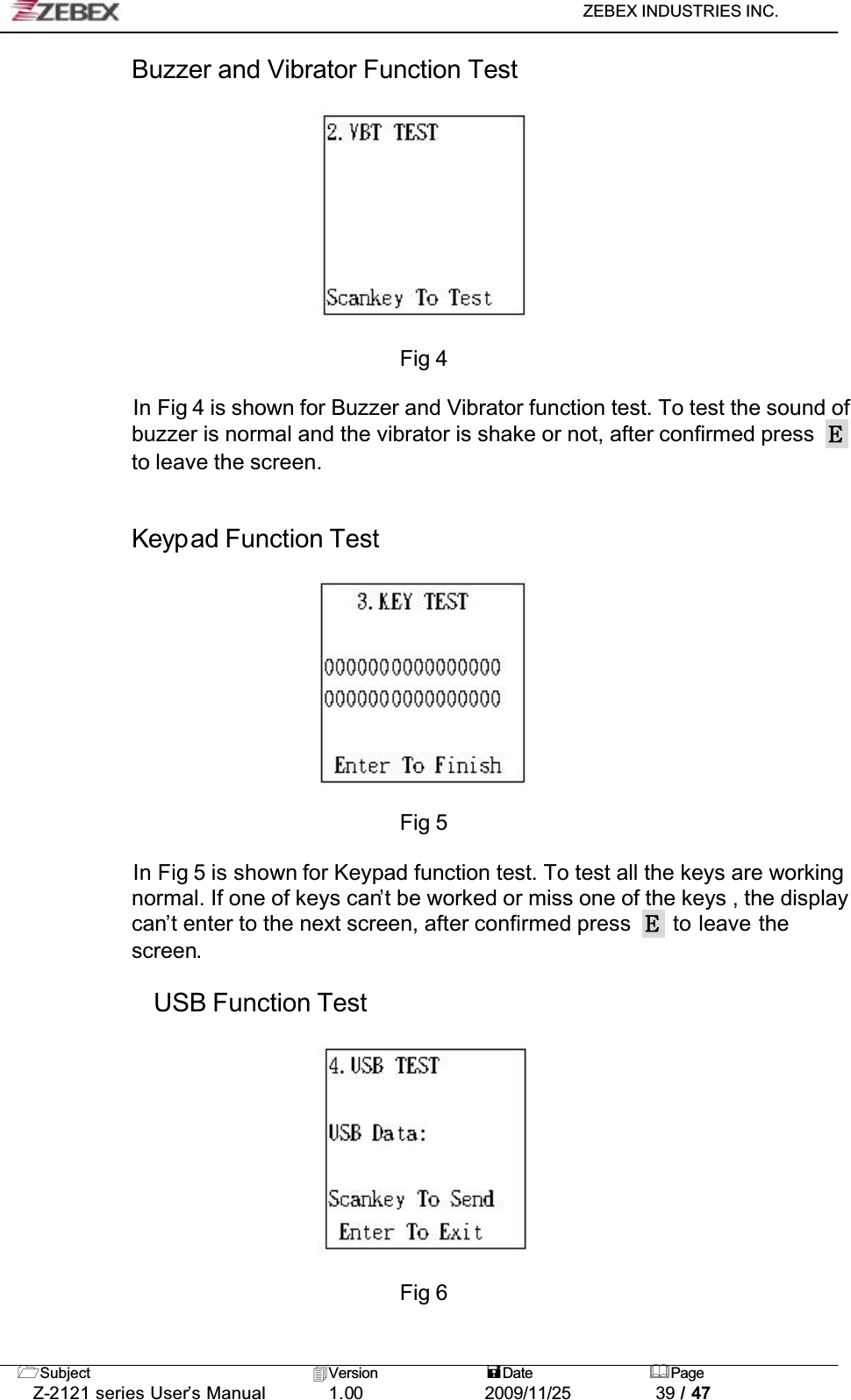

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 39 / 47Buzzer and Vibrator Function TestFig 4In Fig 4 is shown for Buzzer and Vibrator function test. To test the sound of buzzer is normal and the vibrator is shake or not, after confirmed press to leave the screen.!!Keypad Function TestFig 5In Fig 5 is shown for Keypad function test. To test all the keys are working normal. If one of keys can’t be worked or miss one of the keys , the display can’t enter to the next screen, after confirmed press   to leave the screen.USB Function TestFig 6
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 40 / 47In Fig 6 is shown for USB function test. Please install USB driver named vcpdriver_v1.1_setup first, plug USB cable with PC; open Device Manager in the PC and click Com and LPT will be shown on STM Viratual COM PortȐCOM3ȑ, and then set the COM PORT in COM 3 for the Hyper Terminal.Fig 7Fig 8Each PC will be different

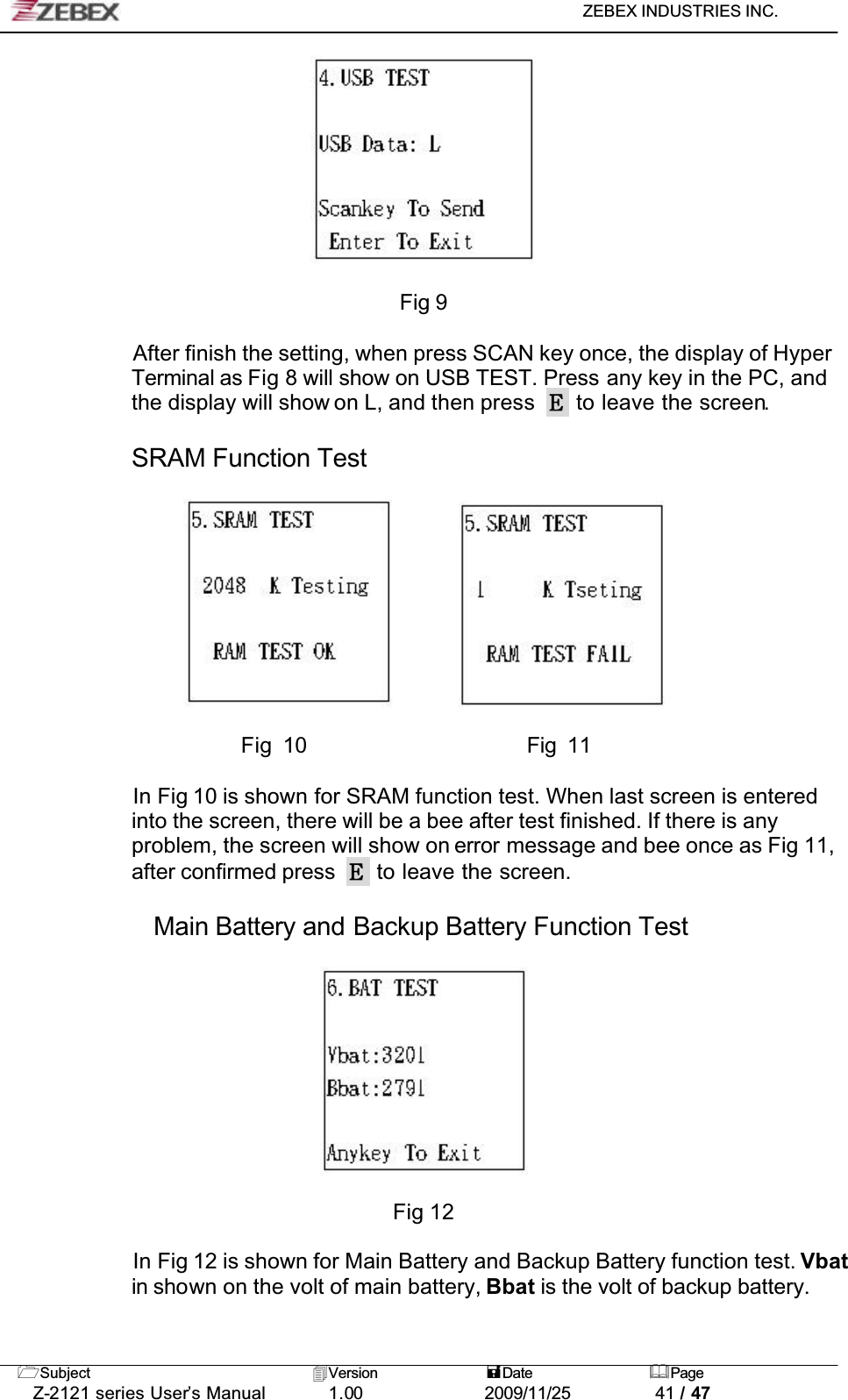

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 41 / 47Fig 9After finish the setting, when press SCAN key once, the display of Hyper Terminal as Fig 8 will show on USB TEST. Press any key in the PC, and the display will show on L, and then press   to leave the screen.SRAM Function Test                      Fig 10                     Fig 11In Fig 10 is shown for SRAM function test. When last screen is entered into the screen, there will be a bee after test finished. If there is any problem, the screen will show on error message and bee once as Fig 11, after confirmed press   to leave the screen.Main Battery and Backup Battery Function TestFig 12In Fig 12 is shown for Main Battery and Backup Battery function test. Vbatin shown on the volt of main battery, Bbat is the volt of backup battery.

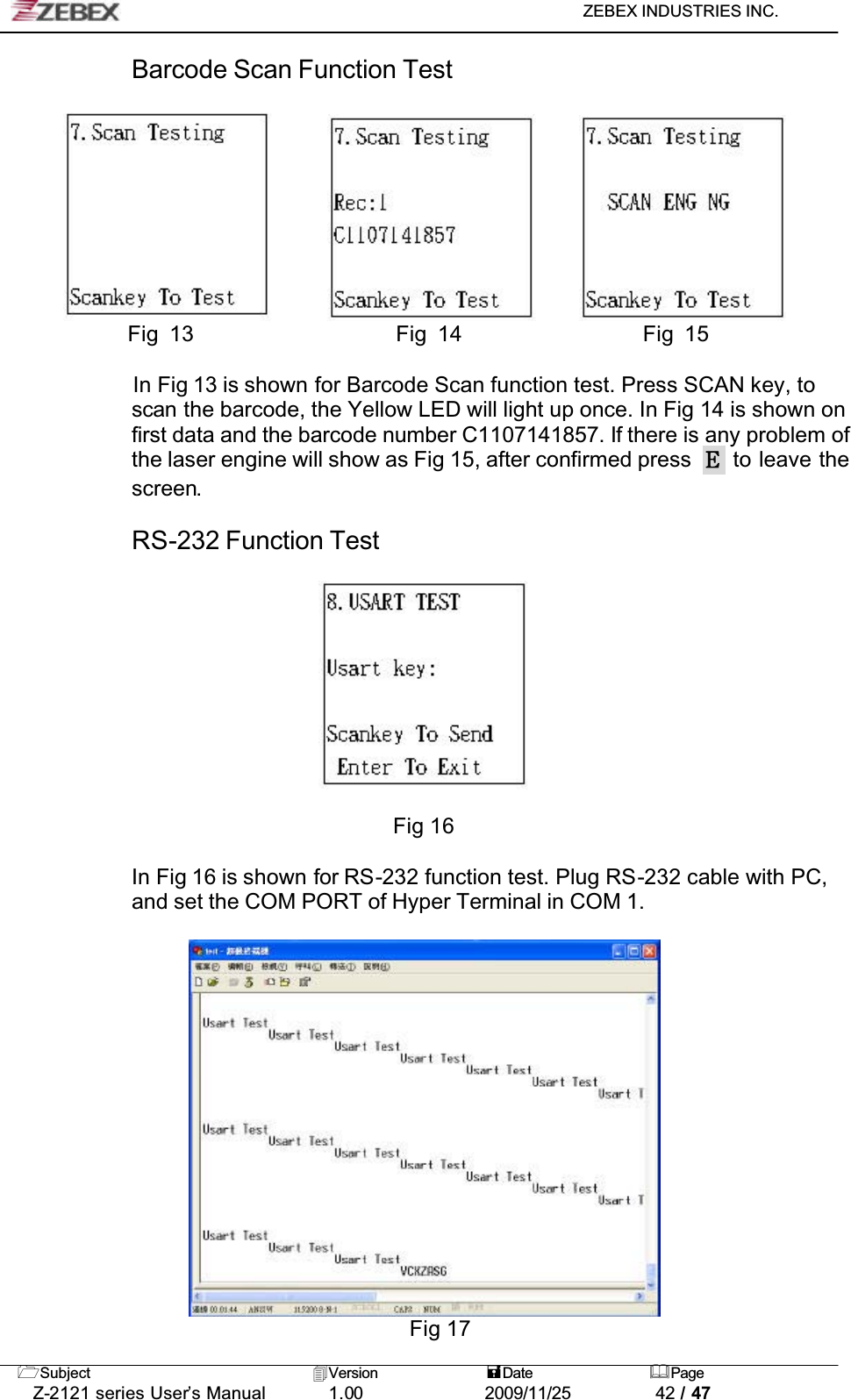

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 42 / 47Barcode Scan Function Test             Fig 13                   Fig 14                 Fig 15In Fig 13 is shown for Barcode Scan function test. Press SCAN key, to scan the barcode, the Yellow LED will light up once. In Fig 14 is shown on first data and the barcode number C1107141857. If there is any problem of the laser engine will show as Fig 15, after confirmed press   to leave the screen.RS-232 Function TestFig 16In Fig 16 is shown for RS-232 function test. Plug RS-232 cable with PC, and set the COM PORT of Hyper Terminal in COM 1.Fig 17

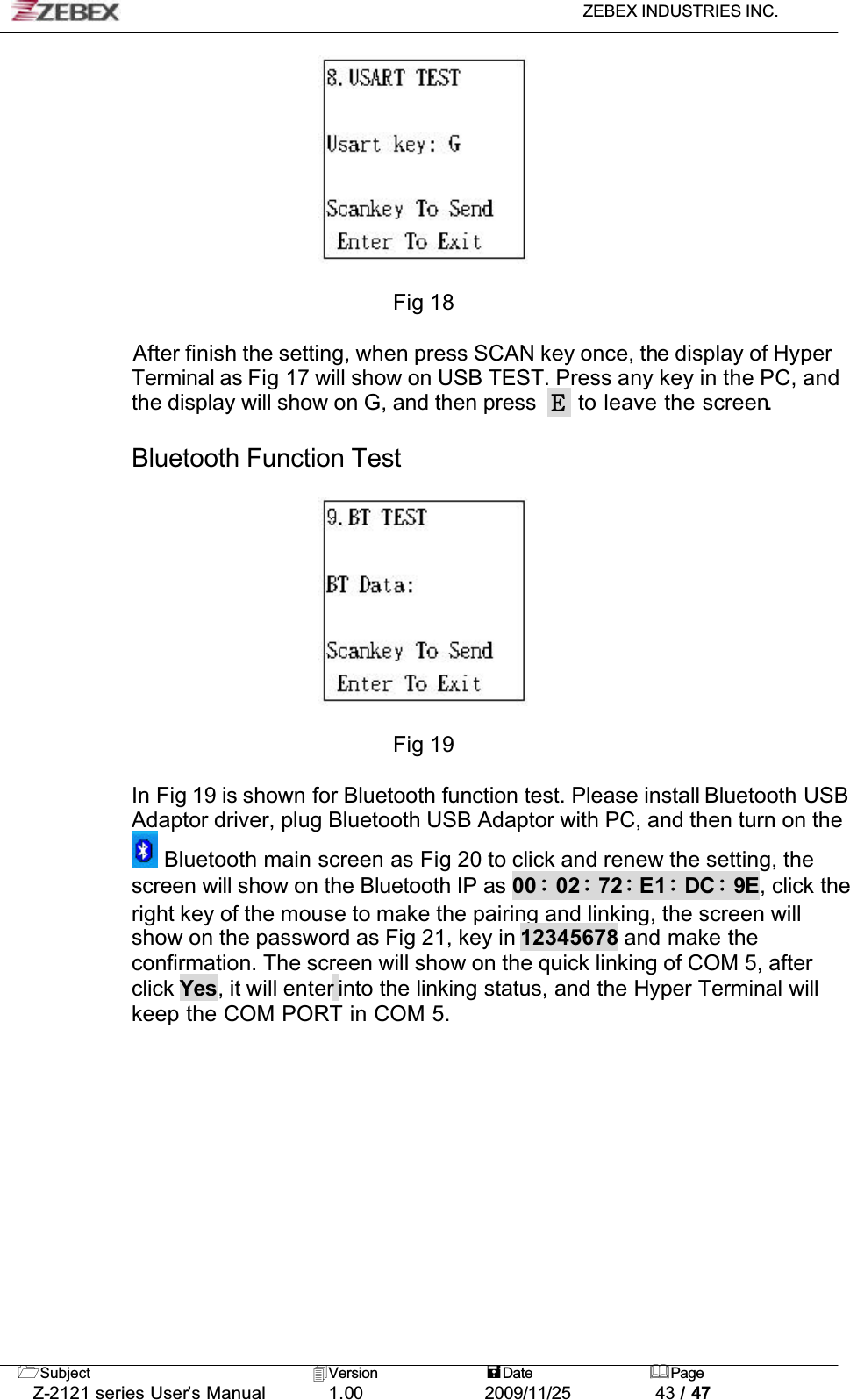

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 43 / 47Fig 18After finish the setting, when press SCAN key once, the display of Hyper Terminal as Fig 17 will show on USB TEST. Press any key in the PC, and the display will show on G, and then press   to leave the screen.Bluetooth Function TestFig 19In Fig 19 is shown for Bluetooth function test. Please install Bluetooth USB Adaptor driver, plug Bluetooth USB Adaptor with PC, and then turn on the  Bluetooth main screen as Fig 20 to click and renew the setting, the screen will show on the Bluetooth IP as 00 02 72 E1 DC 9E, click the right key of the mouse to make the pairing and linking, the screen will show on the password as Fig 21, key in 12345678 and make the confirmation. The screen will show on the quick linking of COM 5, after click Yes, it will enter into the linking status, and the Hyper Terminal will keep the COM PORT in COM 5.
ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 44 / 47Fig 20Fig 21Fig 22 Each PC will be differentEachBluetooth IP is differentPasswordConfirmedYes

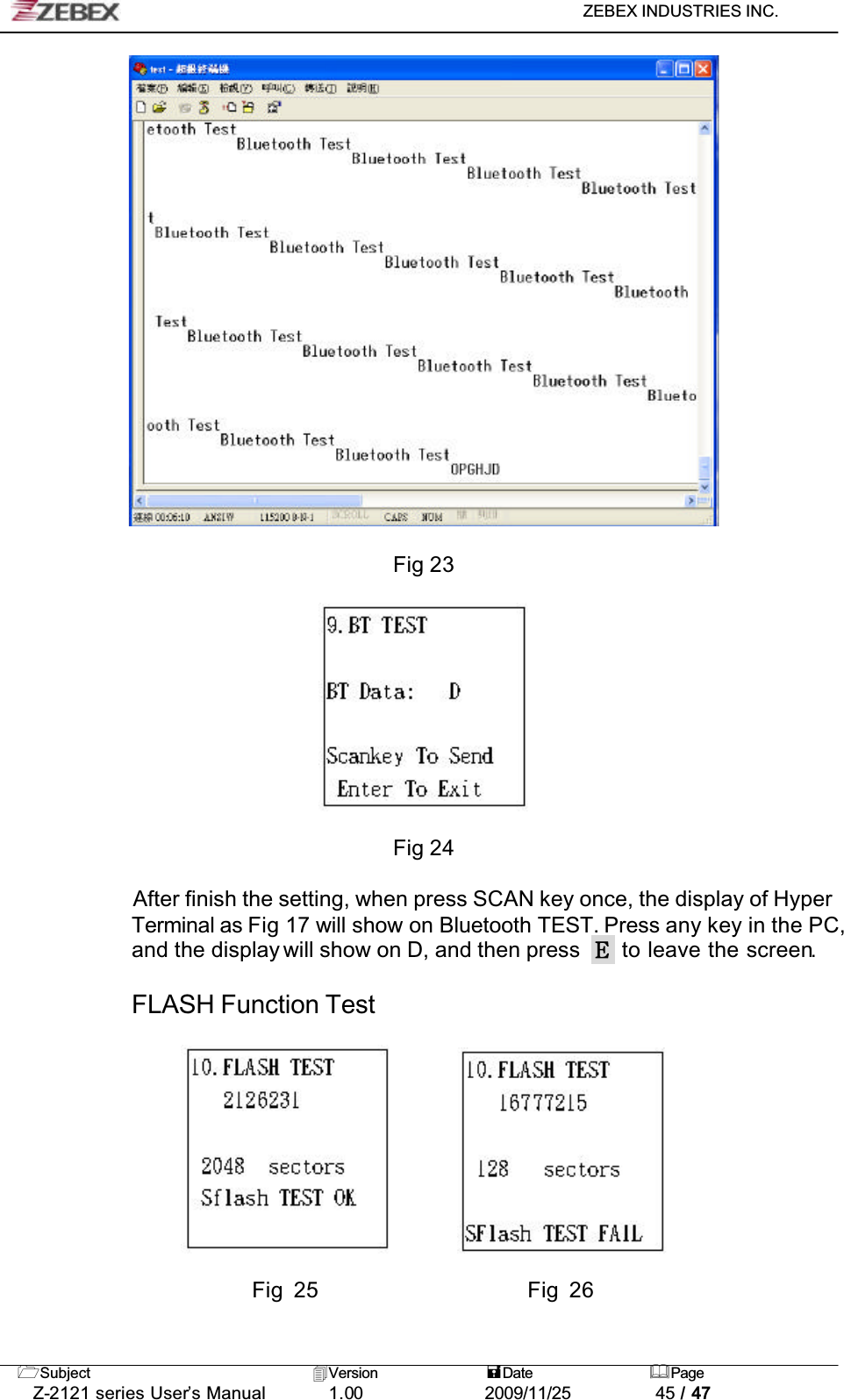

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 45 / 47Fig 23Fig 24After finish the setting, when press SCAN key once, the display of Hyper Terminal as Fig 17 will show on Bluetooth TEST. Press any key in the PC, and the display will show on D, and then press   to leave the screen.FLASH Function Test                       Fig 25                    Fig 26

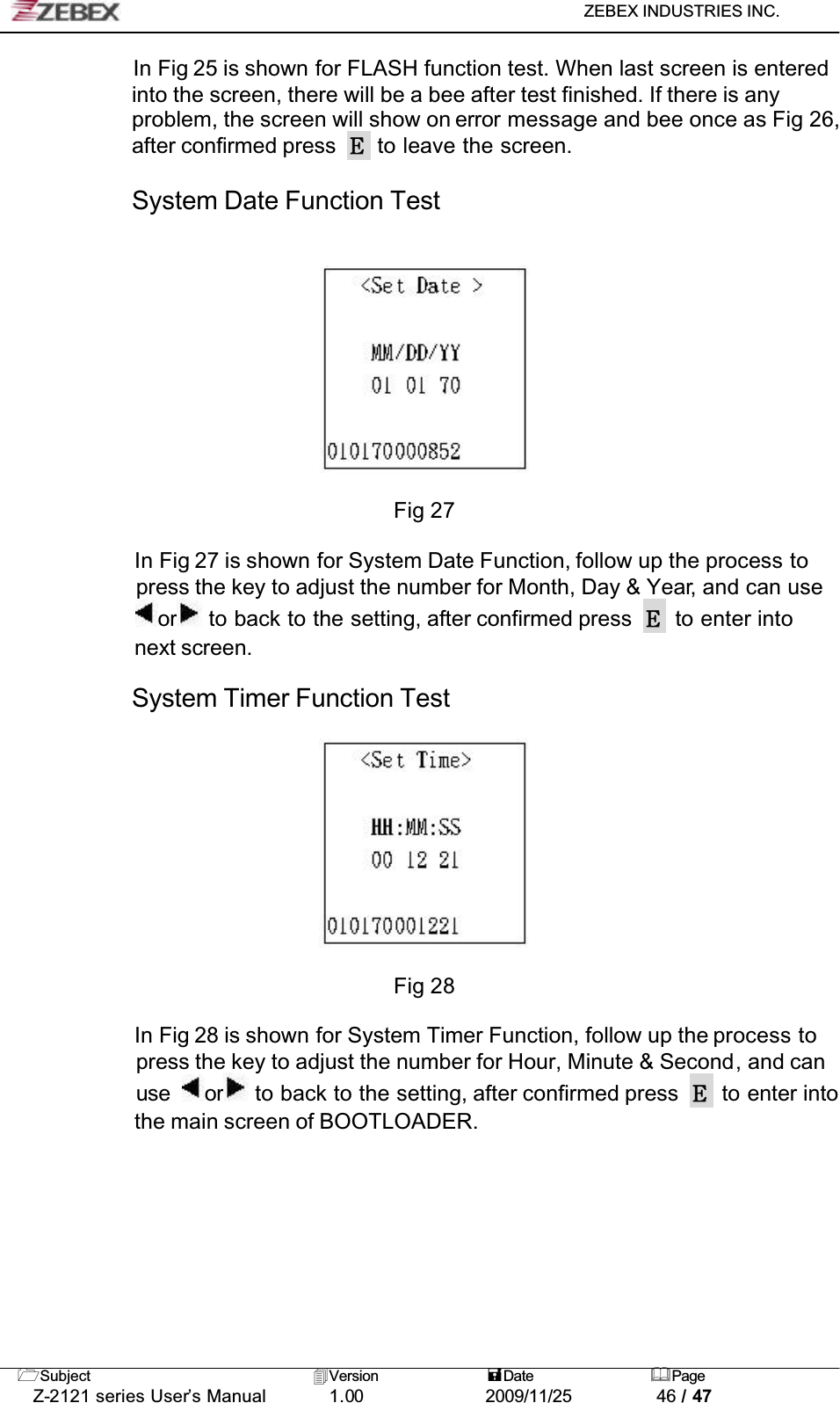

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 46 / 47In Fig 25 is shown for FLASH function test. When last screen is entered into the screen, there will be a bee after test finished. If there is any problem, the screen will show on error message and bee once as Fig 26, after confirmed press   to leave the screen.System Date Function TestFig 27In Fig 27 is shown for System Date Function, follow up the process to press the key to adjust the number for Month, Day & Year, and can use or  to back to the setting, after confirmed press   to enter into next screen.System Timer Function TestFig 28In Fig 28 is shown for System Timer Function, follow up the process to press the key to adjust the number for Hour, Minute & Second, and can use or  to back to the setting, after confirmed press   to enter into the main screen of BOOTLOADER.!!!

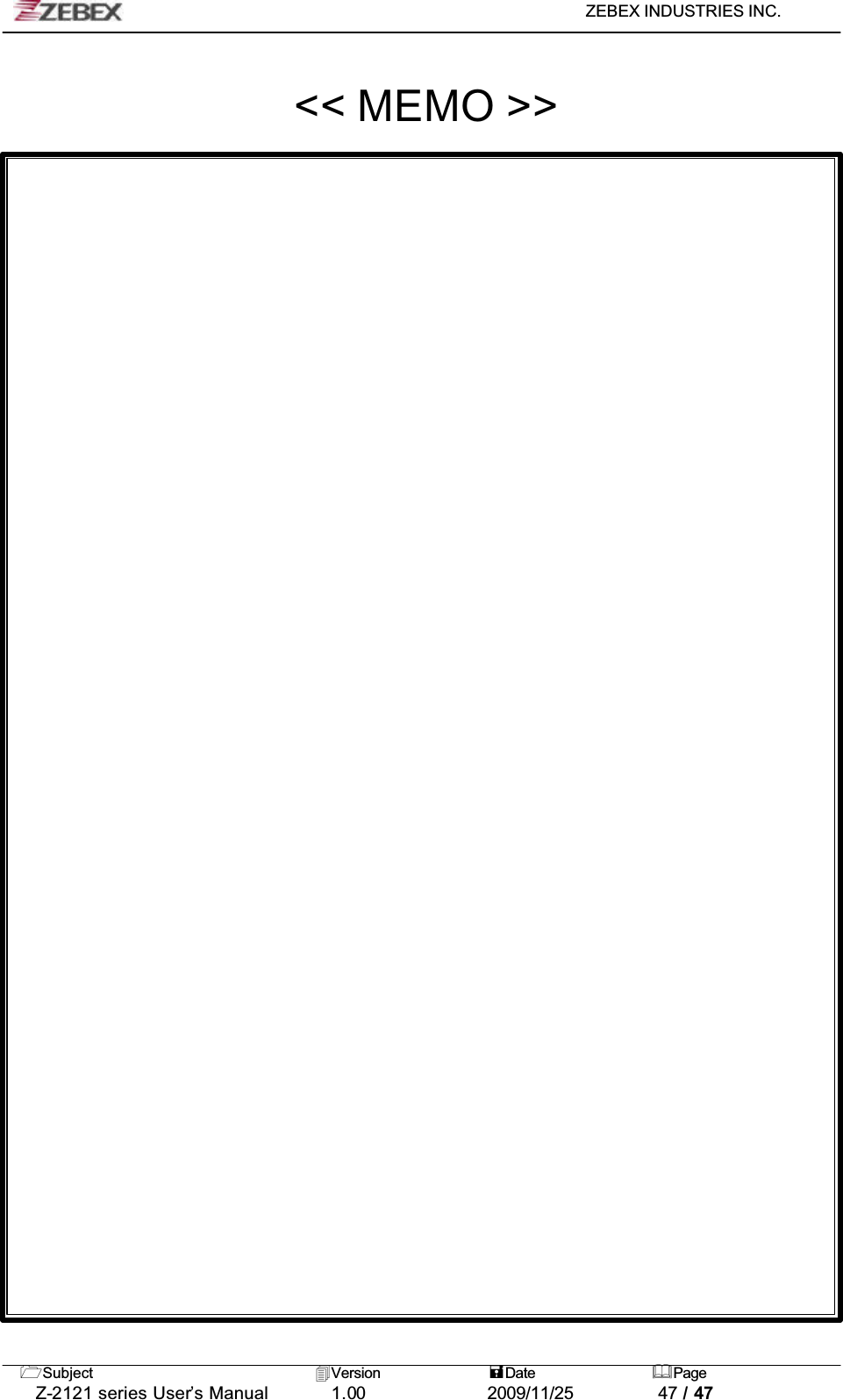

ZEBEX INDUSTRIES INC. Subject Version Date PageZ-2121 series User’s Manual 1.00             2009/11/25 47 / 47<< MEMO >>

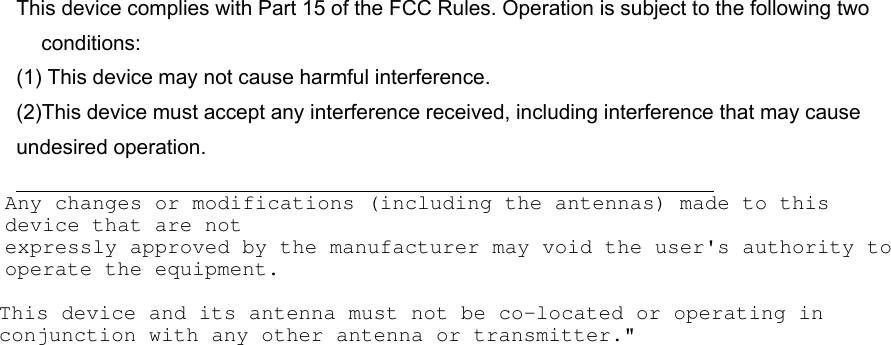

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter."Any changes or modifications (including the antennas) made to this device that are notexpressly approved by the manufacturer may void the user's authority to operate the equipment.
