1 Introduction
The AP-7602 11AC Wireless Wallplate is designed for installation over a structured cable
telecom box, or installed flat to a wall surface. The AP-7602 is ideally suited for 802.11
micro-cell networks in hotels, dormitory housing and similar multi-tenant buildings.
If new to the Wireless Wallplate’s Access Point technology, refer to the WiNG Access Point
System Reference Guide to familiarize yourself with the feature set supported by the WiNG
operating system. The guide is available at www.zebra.com/support.
This document is written for the qualified network device installer.
1.1 Document Conventions
The following graphical alerts are used in this document to indicate notable situations:
1.2 Warnings
• Read all installation instructions and site survey reports, and verify correct equipment
installation before connecting the Wireless Wallplate.
• Remove jewelry and watches before installing this equipment.
• Verify any device connected to this unit is properly wired and grounded.
• Verify there is adequate ventilation around the device, and that ambient temperatures
meet equipment operation specifications.
NOTE Tips, hints, or special requirements that you should take
note of.
CAUTION Care is required. Disregarding a caution can result in
data loss or equipment malfunction.
WARNING! Indicates a condition or procedure that could result in
personal injury or equipment damage.
!
6AP-7602 Wireless Wallplate
1.3 Site Preparation
• Consult your site survey and network analysis reports to determine specific
equipment placement, power drops, and so on.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located.
• Ensure adequate, dust-free ventilation to all installed equipment.
• Identify and prepare Ethernet connections.
• Verify cable lengths are within the maximum allowable distances for optimal signal
transmission.
1.4 AP-7602 Package Contents
An AP-7602 is available in internal antenna (AP-7602) configurations. An AP-7602 ships with
the following:
• AP-7602 Wireless Wallplate
• AP-7602 Quick Install Guide
• 10cm RJ-45 cable
• Mounting bracket
• One security screw
1.4.1 Features
An AP-7602 supports the following feature set:
• Two RJ-45 connectors (GE1/GE2)
• Three LED indicators (2.4GHz, 5GHZ and BLE)
• One 2.4 GHz 802.11n radio and one 5 GHz 802.11ac radio
• One BT/BLE radio
GE1/POE accepts 802.3at or 802.3af compliant power from an external source.
NOTE When operating in a Gigabit Ethernet environment, CAT-5e
or CAT-6 cable is recommended for Gigabit operation.
Installation Guide 7
1.5 AP-7602 Antennas
An AP-7602 internal antenna Wireless Wallplate supports the following:
2.4 GHZ Gain (dBi) 5 GHZ Gain (dBi)
3.76dBi 5.95dBi
8AP-7602 Wireless Wallplate
2 Hardware Installation
2.1 Installation Instructions

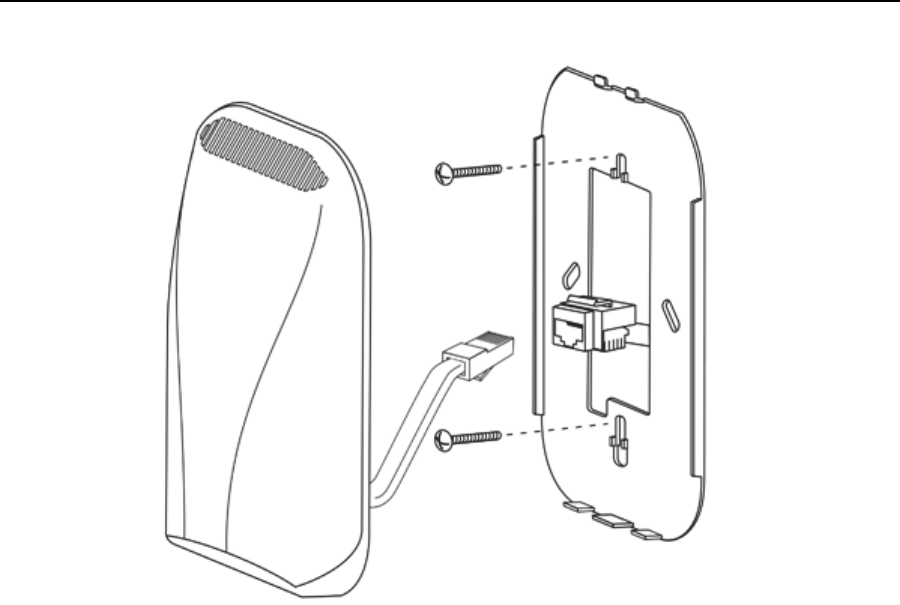

The AP-7602 includes a wall mounting bracket suitable to install the unit to a flush wall surface
or to a standard telecommunications junction box.
To prepare for the installation:
1. Match the part number on the purchase order with the part numbers in the packing list
and on the case of the AP-7602.
2. Verify the contents of the box include the intended AP-7602, and the included
hardware matches the package contents
(see AP-7602 Package Contents on page 6).
3. Review site survey and network analysis reports to determine the location and
mounting position for the AP-7602.
4. Connect a CAT-5 or better Ethernet cable to a compatible 802.3at or 802.3af power
source and run the cable to the installation site. Ensure there is sufficient slack on the
cable to perform the installation steps.
Part Number Description
AP-7602-68B30-US 802.11ac dual band radio 1x1; or single band radio 2x2, internal antenna, BLE,
2xGE (US only)
AP-7602-68B30-EU 802.11ac dual band radio 1x1; or single band radio 2x2, internal antenna, BLE,
2xGE (EU only)
AP-7602-68B30-IL 802.11ac dual band radio 1x1; or single band radio 2x2, internal antenna, BLE,
1xGE (Israel only)
AP-7602-68B30-WR 802.11ac dual band radio 1x1; or single band radio 2x2, internal antenna, BLE,
2xGE (WR)
NOTE When operating in a Gigabit Ethernet environment, CAT-5e
or CAT-6 cable is recommended for Gigabit operation.
Installation Guide 9
2.2 Precautions
Before installing an AP-7602, verify the following:
• You are using the correctly rated power solution for the AP-7602 (either the power
injector or the external power supply)
• Do not to install the AP-7602 in wet or dusty areas.
• Verify the environment has a continuous temperature range between 32° F to 104°
(0-40°C).
• This product is intended for indoor use only.
2.3 Placing the AP-7602
For optimal performance, install the AP-7602 away from transformers, heavy-duty motors,
fluorescent lights, microwave ovens, refrigerators and other industrial equipment. Signal loss
can occur when metal, concrete, walls or floors block transmission. Install the AP-7602 in an
open area or add Wireless Wallplates as needed to improve coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not
bright enough. An area lit sharply might minimize coverage and create dark areas. Uniform
antenna placement in an area (like even placement of a light bulb) provides even, efficient
coverage.
To maximize the radio coverage area, Zebra recommends conducting a site survey to define
and document radio interference obstacles before installing the AP-7602.

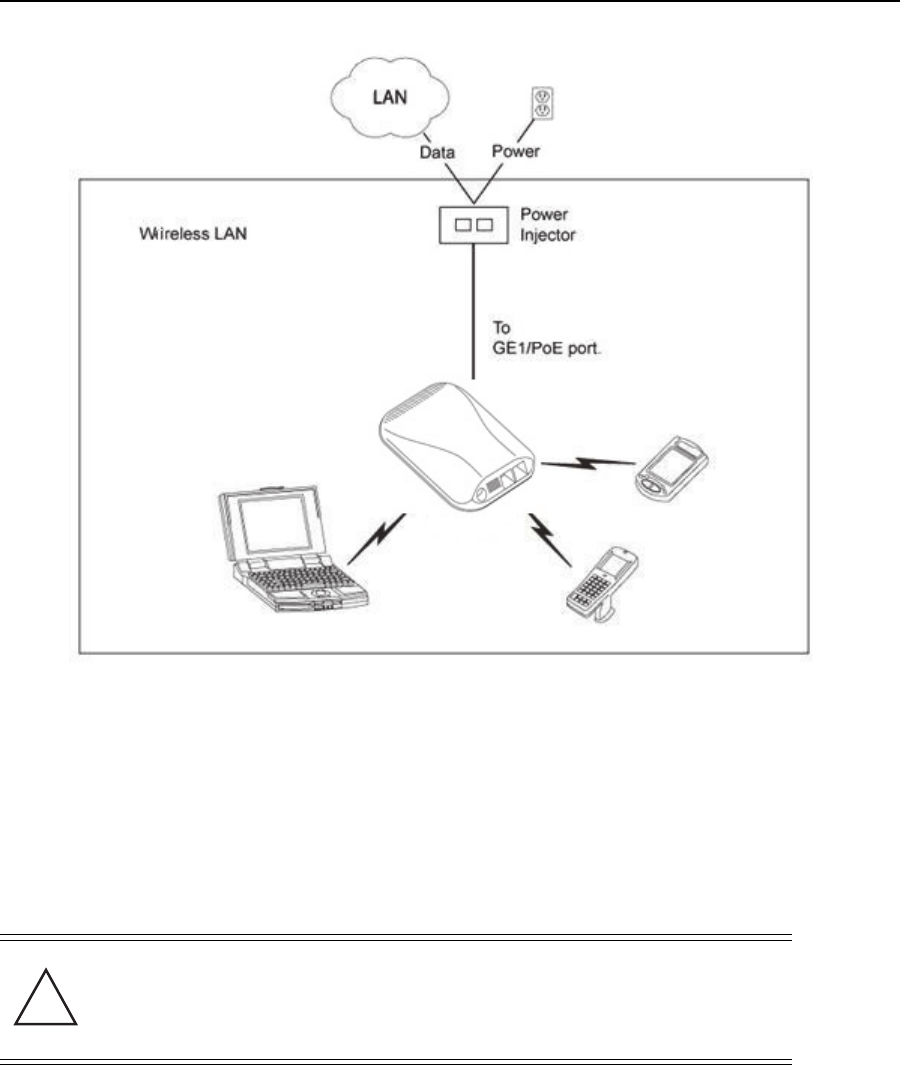

2.4 Power Injector System
An AP-7602 can receive power via an Ethernet cable connected to the GE1/POE (LAN) port.
The AP-7602 can receive power from either a standard 802.3af PSE connected to GE1, or a
12VDC power supply.
When users purchase a WLAN solution, they often need to place units in obscure locations.
In the past, a dedicated power source was required for each AP-7602 in addition to the
Ethernet infrastructure. This often required an electrical contractor to install power drops at
each AP-7602 location. The Power Injector merges power and Ethernet into one cable,
AP-PSBIAS-2P3-ATR PWR INJECTOR: SINGLE PORT
HI-PWR 802.3AT
PWR SPLY:100-240 VAC, 12VDC,
1.0A min, 2.5mm barrel, center
positive, maximum operating
temperature at least 40°C
AC/DC Power Supply
10 AP-7602 Wireless Wallplate
reducing the burden of installation and allowing optimal AP-7602 placement in respect to the
intended coverage area.
The Power Injector is a high power POE Injector delivering up to 30 watts. The AP-7602 can
only use a Power Injector when connecting the unit to the AP-7602’s GE1/POE port. The
Power Injector is separately ordered and not shipped with an existing AP SKU.
The Power Supply is not included with the AP-7602 and is orderable separately as an
accessory. Disconnecting AC power from the Wireless Wallplate causes the unit to re-boot
before sourcing power from a POE power injector. If the AP is operating using injector supplied
power, the AP will not automatically reboot if an AC adapter is connected. The AP-7602
continues to operate with power supplied from the AC adapter without change to the operating
configuration. If using AC adapter supplied power and a change to the AP’s operating
configuration is warranted, the AP-7602 needs to be manually rebooted by the customer.
CAUTION Using a non-compliant injector, or an injector supporting
legacy modes will not allow the AP-7602 to function at
optimum performance levels.
CAUTION The AP-7602 supports any standards-based compliant
power source. However, using the wrong solution
(including a POE system used on a legacy device) could
either limit functionality or severely damage the AP-7602
and void the product warranty.
!
!
Installation Guide 11
A separate Power Injector is required for each AP-7602 comprising the network.
The Power Injector can be installed free standing, on an even horizontal surface or wall
mounted using the power injector’s wall mounting key holes. The following guidelines should
be adhered to before cabling the Power Injector to an Ethernet source and an AP-7602:
• Do not block or cover airflow to the Power Injector.
• Keep the Power Injector away from excessive heat, humidity, vibration and dust.
•The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For
optimal performance, ensure the Power Injector is placed as close as possible to the
data port.
CAUTION To avoid problematic performance and restarts, disable
POE from a wired switch port connected to an AP-7602 if
mid-span power sourcing equipment (PSE) is used
between the two, regardless of the manufacturer of the
switch.
!
12 AP-7602 Wireless Wallplate
To install the Power Injector to an Ethernet data source and an AP-7602:
1. Connect the Power Injector to an AC outlet (100VAC to 240VAC).
2. Connect an RJ-45 Ethernet cable between the Power Injector Data & Power Out
connector and the AP-7602’s GE1/POE port.
3. Connect an RJ-45 Ethernet cable between the network data supply (host) and the
Power Injector Data In connector.
Ensure the cable length from the Ethernet source (host) to the Power Injector and
AP-7602 does not exceed 100 meters (333 ft).
The Power Injector has no On/Off power switch. The Injector receives power and is
ready for device connection and operation as soon as AC power is applied. Refer to
the Installation Guide shipped with the Power Injector for a description of the LEDs.
2.5 Mounting Instructions
An AP-7602 can be mounted to a flat wall surface or over an existing telco junction box.
2.5.1 Wall Mount Procedure
To mount an AP-7602 Access Point to a wall surface (no telco box):
1. Place the mounting bracket against the wall.
2. Mark the screw hole locations.
CAUTION Ensure AC power is supplied to the Power Injector using
an AC cable with an appropriate ground connection
approved for the country of operation.
NOTE Before mounting and installing the AP-7602, obtain the
unit’s default IP address from the backside of the unit. This
default IP address is needed when connecting to the
Access Point.
NOTE When pre-drilling a hole the recommended hole size is 4mm
(0.16in.).
!
Installation Guide 13
3. At each point, drill a hole in the wall and attach the mounting bracket.
4. Cable the AP-7602 using either the Power Injector solution, an approved AP-7602
power supply or a POE enabled switch.
For Power Injector installations:
a. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the Power Injector
Data & Power Out connector and the AP-7602’s GE1/POE port.
b. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data
supply (host) and the Power Injector Data In connector.
c. Ensure the cable length from the Ethernet source (host) to the Power Injector and
AP-7602 does not exceed 100 meters (333 ft). The Power Injector has no On/Off
power switch. The Power Injector receives power as soon as AC power is applied.
For standard power adapter (non Power Injector) and line cord installations:
a. Connect a RJ-45 Ethernet cable between the network data supply (host) and the
AP-7602’s GE1/POE port.
b. Connect the power supply line cords to the power adapter.
c. Attach the power adapter cable into the power connector on the AP-7602.
d. Attach the power supply line cord to a power supply.
5. Once cabled, snap the AP-7602 on the mounting plate
14 AP-7602 Wireless Wallplate
6. Verify the AP-7602 is receiving power by observing the LEDs are lit or flashing. For
more information on AP-7602 LED behavior, see LED Indicators on page 17.
7. The AP-7602 is ready to configure.
CAUTION Using an incorrectly rated power supply could damage
the AP-7602 and void the product warranty. Do not
actually connect to the power source until the cabling
portion of the installation is complete.
!
Installation Guide 15
2.5.2 Telco Box Installation
For telco Box installations, the Wireless Wallplate is installed directly over the standard wall
plate supplying Ethernet. All cabled electrical connections are made within a recessed well in
the housing of the Access Point. To install the Wireless Wallplate over a telco box:

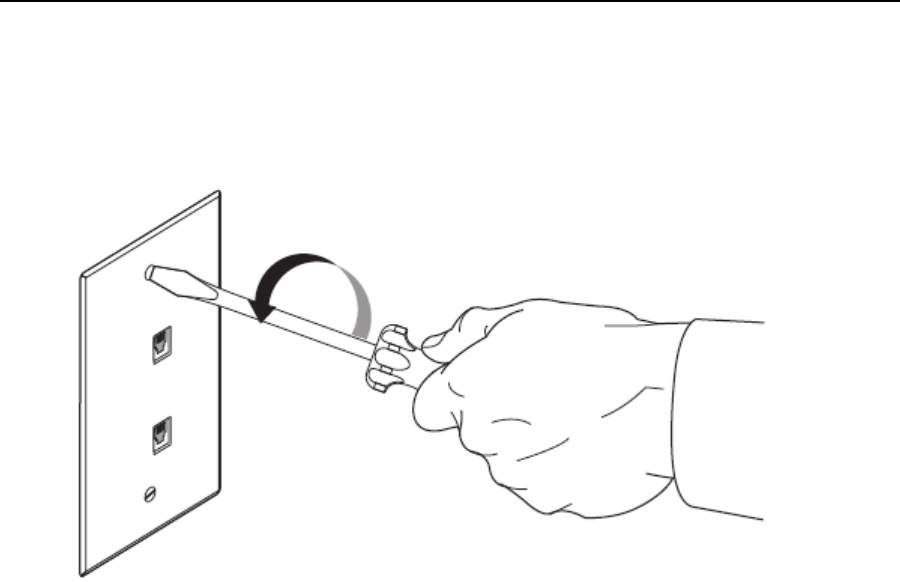

1. Remove the existing screws and the existing wallplate cover.
16 AP-7602 Wireless Wallplate
2. Gently push RJ-45 outlets into telco box.
3. Reuse the existing screws to screw the mounting plate to the telco box.
4. Connect one end of the 10cm RJ-45 cable into GE1.
5. Route the GE1 cable back through the routing channel on the underside of the
Wireless Wallplate.
6. Plug the other end of the 10cm RJ-45 cable into the RJ-45 outlet.
7. Snap the Wireless Wallplate to the mounting plate.
8. Verify the unit has power by observing the LEDs. For more information on AP-7602
LED behavior, see LED Indicators on page 17.
9. The AP-7602 is ready to configure.
Installation Guide 17
2.6 LED Indicators

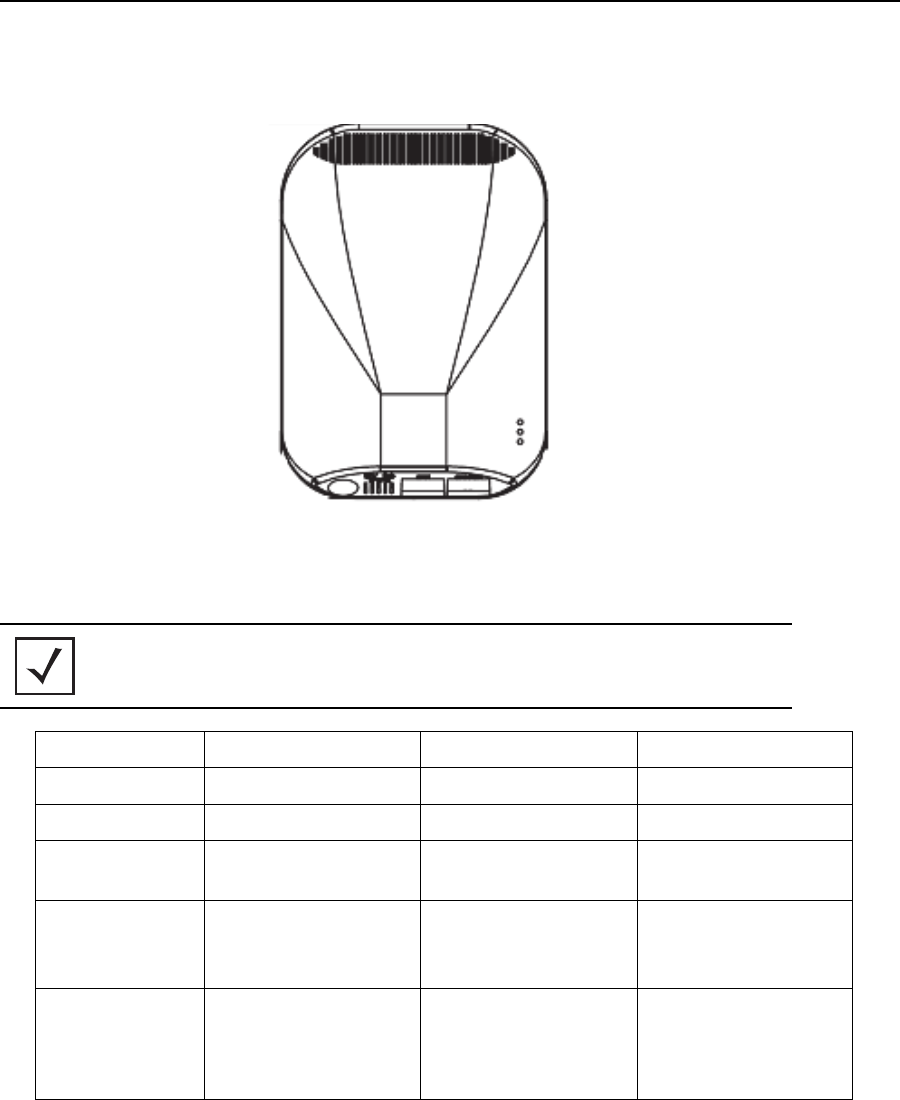

The AP-7602’s three LED activity indicators are located on the front of the housing and are
visible through the enclosure.
The LEDs provide a status display indicating error conditions, transmission, and network
activity for the 5 GHz 802.11ac (amber) radio, 2.4 GHz 802.11n (green) radio and Bluetooth
activity (blue) radio.
NOTE LED behavior for the AP-7602 are identical in both WLAN
and client bridge modes.
Task Green Amber Blue
Firmware Update Off On Off
Radio Disabled Off Off N/A
Radio Enabled
Not Configured
Solid Green Solid Amber N/A
Radio Enabled
and Configured
Blink 500ms
Out of sync with
Amber LED
Blink 500ms
Out of sync with
Green LED
N/A
Sensor with
Server
Connected
On 1 second, Off 1
second
Synced with Amber
LED
On 1 second, Off 1
second
Synced with
Green LED
N/A
18 AP-7602 Wireless Wallplate
Sensor with
Server Not
Connected
On 1 second, Off 5
seconds
Synced with Amber
LED
On 1 second, Off 5
seconds
Synced with Green
LED
N/A
Locate AP Mode Irregular Blink Rate,
Green/Amber/Blue
Irregular Blink Rate,
Green/Amber/Blue
Irregular Blink Rate,
Green/Amber/Blue
Bluetooth Radio
Enabled
N/A N/A Solid Blue
Bluetooth Radio
Disabled
N/A N/A Off
Task Green Amber Blue
Installation Guide 19
3 Basic Configuration
Once the AP-7602 is installed and powered on, complete the following WiNG Assist
configuration steps to get the AP-7602 up and running with minimal administrative
intervention.
Startup Assist updates existing settings. To delete or revise existing Startup Assist settings,
either rerun Startup Assist or navigate to where those parameters appear in the user interface
and update them accordingly. Refer to the more advanced configuration documentation
available on the Zebra support site for updating the management interface beyond the scope
of the WiNG Assist configuration described in this guide. For more information, see
www.zebra.com/support.
1. Power the AP-7602 using an appropriate power adapter, PoE injector, or PoE
switch.
2. Connect to the AP-7602. The default IP address is located on the backside of the
AP-7602.

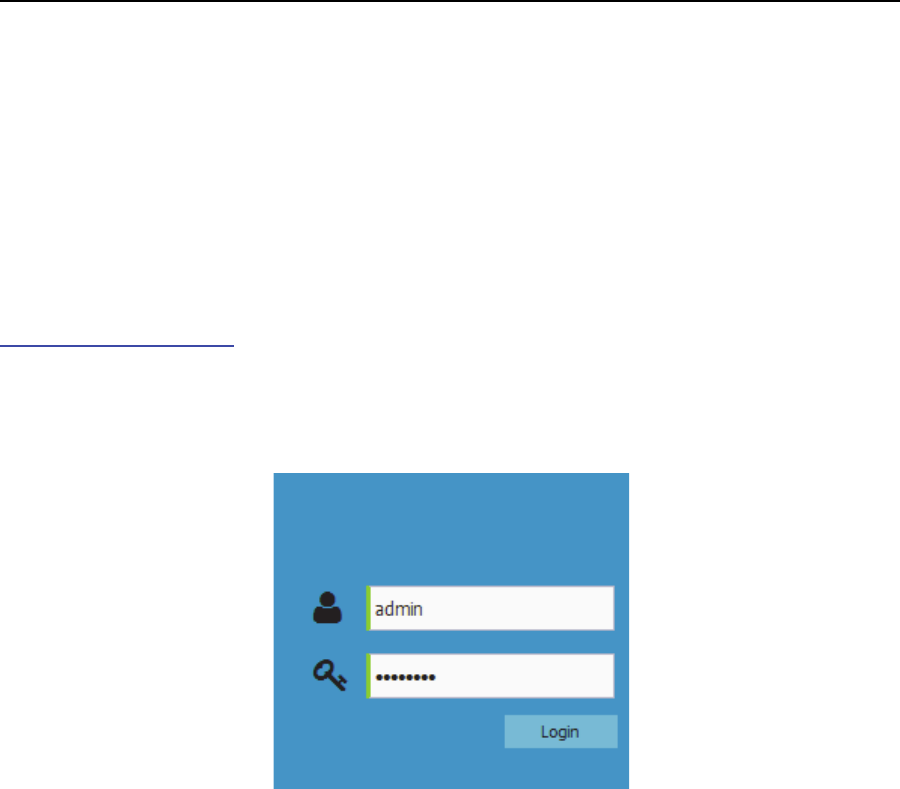

3. Enter the default username admin in the Username field.
4. Enter the default password admin123 in the Password field.
5. Select the Login button to load the management interface.
If logging in using a factory default configuration, Startup Assist automatically
displays.
20 AP-7602 Wireless Wallplate
If Startup Assist does not automatically display, it can be invoked at any time from
the upper-left of the Basic Configuration screen.

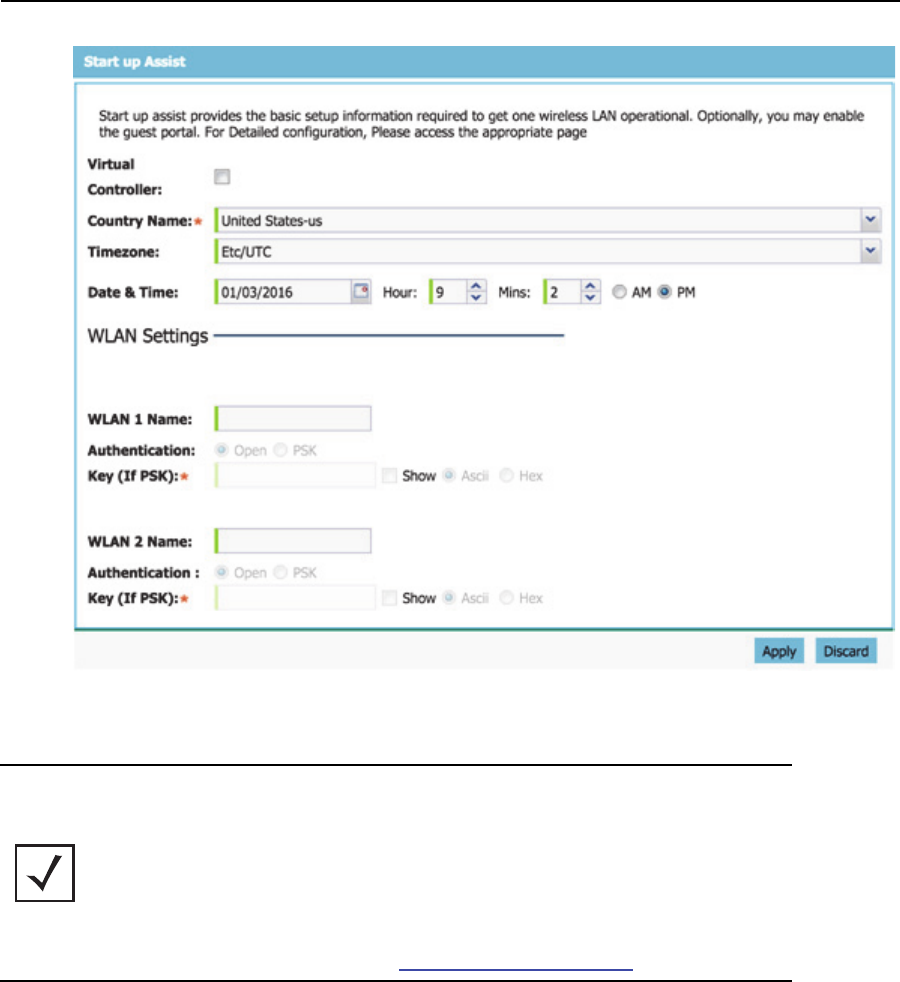

6. Set the following Startup Assist parameters:
•Virtual Controller - Select this option to set this AP-7602 as a Virtual Controller
capable of managing and provisioning up to 64 AP-7602 models. Those AP-7602
NOTE Startup Assist automatically sets the radio transmit power and
enables Auto Channel selection. The AP-7602's name is
automatically assigned based on the device type and the last
three octets of the device's hardcoded MAC address. WLAN 1
and WLAN 2 both use VLAN ID 2200 by default. To adjust any of
these parameters, edit the appropriate configuration screen
directly. Refer to the reference material available on Zebra
Support for configuring the AP-7602 beyond the scope of the
minimal WiNG Assist configuration described in this guide. For
more information, go to www.zebra.com/support.
Installation Guide 21
Wireless Wallplates managed by this Virtual Controller list this AP-7602's Name
as its own. Only one Virtual Controller can be designated.
•Country Name - Set the country specific to this AP-7602's deployment location.
Selecting the correct country is central to legal operation. Each country has its
own regulatory restrictions concerning electromagnetic emissions and the
maximum RF signal strength that can be transmitted.
•Timezone - Use the drop-down menu to specify the geographic timezone where
the AP-7602 is deployed. Different geographic time zones have daylight savings
clock adjustments, so specifying the timezone correctly is important to account for
geographic time changes.
•Date & Time -Set the date, hour and minute for the AP-7602's current system
time. Specify whether the current time is in the AM or PM.
•WLAN 1 Name - Provide a unique name for this WLAN as its network identifier.
This is a required setting. The name is used for the SSID and is assigned to both
of the AP-7602's radios.
•Authentication - Select PSK to apply a 64 character maximum passphrase.
Provide the passphrase in either ASCII or Hex format.The authenticating device
must use the same PSK algorithm during authentication. Selecting Show displays
the key in exposed plain text (not recommended).
Selecting Open is not a recommended authentication scheme, as it would
provide the AP-7602's WLAN no security via credential exchange and would
only make sense in a network where no sensitive data is either transmitted or
received.
7. Select Apply to save and commit the Startup Assist changes to the AP-7602's
configuration. Select Discard to revert to the last saved configuration.
The Virtual Controller, Country Name, Timezone and Date & Time portions of the
Basic Settings screen update with the settings applied and saved in the Startup
Assist screen. WLAN updates made in Startup Assist are displayed in Wireless
screen, not the Basic Configuration screen.
NOTE Country Name can not be changed when deployed in the
United States or Canada.
22 AP-7602 Wireless Wallplate
4 AP-7602 Wireless Wallplate Specifications
4.1 Electrical Characteristics
An AP-7602 has the following electrical characteristics:
4.2 Physical Characteristics
An AP-7602 has the following physical characteristics:
Operating Current
& Voltage
12VDC, 1A, 2.5mm barrel connector, center positive
Power over
Ethernet
48VDC, .25A, PoE
Dimensions 4.01 in. L x 5.70 in. W x 1.10 in. H
102 mm L x 145 mm W x 28 mm H
Weight 0.5 lbs/0.23 kg
Operating
Temperature
32° F to 104° F/0° C to 40° C
Storage
Temperature
-40° F to 158° F/-40° C to 70° C
Operating
Humidity
85% RH non-condensing
Operating Altitude
(maximum)
8,000 ft @ 28C
Storage Altitude
(maximum)
30,000 ft
Electrostatic
Discharge
8KV air, 6KV contact
Installation Guide 23
4.3 Radio Characteristics
The AP-7602 has the following radio characteristics:
Data Rates
Supported
802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps
802.11a: 6,9,12,18,24,36,48, and 54 Mbps
802.11n: MCS 0-15 up to 300 Mbps
802.11ac: MCS 0-9 up to 866.7 Mbps
Wireless Medium Direct Sequence Spread Spectrum (DSSS)
Orthogonal Frequency Division Multiplexing (OFDM)
Network
Standards
IEEE 802.11a/b/g/n/ac
802.11d and 802.11i WPA2
WMM and WMM-UAPSD
Transmit Power
Adjustment
1dB increments
24 AP-7602 Wireless Wallplate
5 Regulatory Information
5.1 Regulatory Information
This guide applies to the following Model Number AP-7602.
Zebra devices are designed to be compliant with rules and regulations in locations they are
sold and will be labeled as required.
Local language translations are available at the following Website: www.zebra.com/support
Any changes or modifications to Zebra equipment, not expressly approved by Zebra could
void the user's authority to operate the equipment.
Zebra devices are professionally installed, the Radio Frequency Output Power will not exceed
the maximum allowable limit for the country of operation.
Antennas: Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could cause damage and may violate regulations.
Bluetooth® Wireless Technology
This is an approved Bluetooth® product. For more information or to view the End Product
Listing, please visit https://www.bluetooth.org/tpg/listings.cfm.
5.2 Wireless Device Country Approvals
Regulatory markings subject to certification are applied to the device signifying the radio(s)
is/are approved for use in the following countries and continents: United States, Canada,
Japan, China, South Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This
is available at: www.zebra.com/doc
Note: For 2.4GHz or 5GHz Products: Europe includes Austria, Belgium, Bulgaria, Croatia,
Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland,
and the United Kingdom.
Operation of the device without regulatory approval is illegal.
Installation Guide 25
5.2.1 Country Selection
Select only the country in which the device will be used. Any other selection will make the
operation of this device illegal.
Country Roaming
This device incorporates the International Roaming feature (IEEE802.11d) which will ensure
the product operates on the correct channels for the particular country of use.
Ad-Hoc Operation (2.4 GHz band)
Ad-Hoc operation is limited to Channels 1-11 (2412-2462 MHz).
5.2.2 Frequency of Operation – FCC and IC
5 GHz Only
Industry Canada Statement:
Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential
for harmful interference to co-Channel mobile satellite systems. High power radars are
allocated as primary users (meaning they have priority) over other frequencies and these
could cause interference and/or damage to LE-LAN devices.
Attention: Le dispositif pour la bande 5150-5250 MHz est uniquement destiné à une
utilisation en intérieur afin de réduire les Pour les brouillages préjudiciables aux systèmes de
satellites mobiles co-canaux. Les radars haute puissance sont Alloués en tant qu'utilisateurs
principaux (c'est-à-dire qu'ils ont la priorité) par rapport aux autres fréquences et qui pourraient
causer des interférences et / ou endommager les dispositifs LE-LAN.
2.4 GHz Only
The available channels for 802.11bg operation in the US are Channels 1 to 11. The range of
channels is limited by firmware.
NOTE Country Name can not be changed when deployed in the
United States or Canada.
26 AP-7602 Wireless Wallplate
5.3 Health and Safety Recommendations
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the
recommendations below. Consult with your local Health & Safety Manager to ensure that you
are adhering to your company's safety programs to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures
Wireless devices transmit radio frequency energy and may affect medical electrical
equipment. When installed adjacent to other equipment, it is advised to verify that the
adjacent equipment is not adversely affected.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained
between a handheld wireless device and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with independent research and
recommendations by Wireless Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their
pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimise the potential for
interference.
• If you have any reason to suspect that interference is taking place, turn OFF your
device.
Installation Guide 27
Other Medical Devices
Please consult your physician or the manufacturer of the medical device to determine if the
operation of your wireless product may interfere with the medical device.
5.4 RF Exposure Guidelines
5.4.1 Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
5.4.2 International
The device complies with internationally recognized standards covering human exposure to
electromagnetic fields from radio devices. For information on “International” human exposure
to electromagnetic fields refer to the Zebra Declaration of Conformity (DoC) at:
www.zebra.com/doc.
For further information on the safety of RF energy from wireless devices, see
https://www.zebra.com/us/en/about-zebra/company-information/corporate-responsibility.html
located under Corporate
5.4.3 Access Points
Access Points must conform to U.S. Federal Communications Commission's (FCC)
limitations. FCC has now stipulated a 21dBm EIRP limit for power directed 30 degrees above
the horizon.
5.5 Power Supply
Use ONLY a Zebra approved UL LISTED ITE (IEC/EN 60950-1, LPS/SELV) power supply with
electrical ratings: Output 12 VDC, min 1A with a maximum ambient temperature of at least 40
degrees C. Use of alternative power supply will invalidate any approvals given to this unit and
may be dangerous.
Alternately this device may be powered from a 802.3af compliant power source which has
been certified by the appropriate agencies, or by a Zebra approved UL LISTED ITE (IEC/EN
60950-1, LPS/SELV) power supply with electrical ratings: Output 48Vdc, min 0.25A, with a
recommended ambient temperature greater than 50 degrees C. Use of alternative power
supply will invalidate any approvals given to this unit and may be dangerous.
The product is to be connected to PoE networks without routing to the outside plant.
28 AP-7602 Wireless Wallplate
5.6 Radio Frequency Interference Requirements—FCC
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
5.6.1 Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The equipment shall be subject to professional engineering personnel to install and configure,
it just can be used, and may not be sold directly to the general consumer.Based on 20cm
separation distance to assess the amount of electromagnetic exposure (MPE).
MPE limit 1mW/cm²; Test result is 0.39207 mW/cm²
When using this device, it is recommended to have a separation distance of 20 cm.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Installation Guide 29
5.6.2 Radio Frequency Interference Requirements - Canada
CAN ICES-3 (B)/NMB-3(B)
Radio Transmitters
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to
the following two conditions: (1) This device may not cause interference; and (2) This device
must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radio électrique subi même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Label Marking: The Term 'IC:' before the radio certification only signifies that Industry Canada
technical specifications were met.
Etiquette de marquage: Le terme "IC" avant la certification radio signifie que le produit est
compatible avec le spécification Industrie Canada
The equipment shall be subject to professional engineering personnel to install and
configure, it just can be used, and may not be sold directly to the general consumer. Based
on 20cm separation distance to assess the amount of electromagnetic exposure (MPE).
2.4GHz Band: MPE limit 5.4039 W/m²; Test result is 1.5215 W/m²
5GHz Band: MPE limit 9.7564 W/m²; Test result is 2.2977 W/m²
When using this device, it is recommended to have a separation distance of 20 cm.
L'équipement doit être assujetti au personnel d'ingénierie. Configurer, il peut seulement être
utilisé, et ne peut pas être vendu directement au consommateur général.
Basé sur une distance de séparation de 20 cm pour évaluer la quantité d'exposition
électromagnétique (MPE).
2.4GHz Band: MPE limite 5.4039 W / m²; Le résultat du test est de 1.5215 W / m²
5GHz Band: MPE limite 9.7564 W / m²; Le résultat du test est de 2.2977 W / m²
Lors de l'utilisation de cet appareil, il est recommandé d'avoir une distance de séparation de
20 cm.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet émetteur ne doit pas être co-implanté ou fonctionner en conjonction avec une autre
antenne ou émetteur
30 AP-7602 Wireless Wallplate
5.7 CE Marking and European Economic Area (EEA)
The use of 2.4GHz RLAN’s, for use through the EEA, have the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range
2.400 -2.4835 GHz.
Bluetooth® Wireless Technology for use throughout the EEA has the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range
2.400 -2.4835 GHz.
5.8 Statement of Compliance
Zebra hereby declares that this radio equipment is in compliance with Directive 2011/65/EU
and 1999/5/EC or 2014/53/EU (2014/53/EU supersedes 1999/5/EC from 13th June 2017).
The full text of the EU Declaration of Conformity is available at the following internet address
www.zebra.com/doc.
5.9 Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
This is a Class B product based on the standard of the Voluntary Control Council for
Interference from Information Technology Equipment (VCCI). If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference. Install and use
the equipment according to the instruction manual.

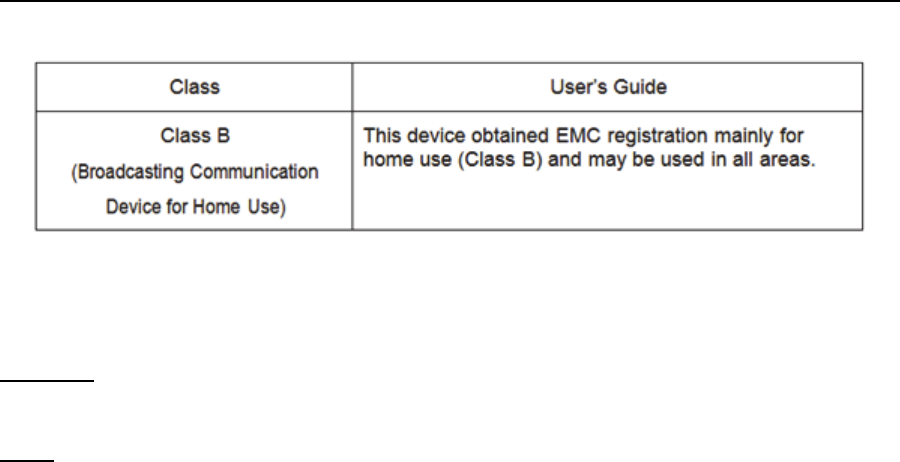

5.10 Korea Warning Statement for Class B ITE
Installation Guide 31
5.11 Other Countries
All 2.4GHz and 5GHz Wireless Devices:
Australia
Use of 5GHz RLAN’s in Australia is restricted in the following band 5.50 – 5.65GHz.
Chile
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de
telecomunicaciones, relativa a radiaciones electromagnéticas.
This device complies with the Resolution Not 403 of 2008, of the Undersecretary of
telecommunications, relating to electromagnetic radiation.
Chile: (Devices with a WLAN Radio)
The device will comply with Chile's Resolution 755, part j.1) which states that the device is set
to operate in the following bands for indoor use only with maximum radiated power not greater
than 150mW:
2.400 hasta 2.483,5 MHz
5.150 hasta 5.250MHz
5.250 hasta 5.350MHz
5.725 hasta 5.850MHz
as well as that band 5150-5250MHz will be restricted to the indoor use and the maximum
radiated power density does not exceed 7.5MW / MHz in any 1 MHz band and 0.1875mW /
25kHz in any 25kHz band.
Conforme a Resolución 755 parte j.1), se ajustará el dispositivo a operar en interiores en las
siguientes bandas con una potencia máxima radiada no superior a 150mW:
2.400 hasta 2.483,5 MHz
5.150 hasta 5.250MHz
32 AP-7602 Wireless Wallplate
5.250 hasta 5.350MHz
5.725 hasta 5.850MHz
Además, de acuerdo con Resolución 755, para la banda 5150-5250MHz la operación del
equipo estará restringida al interior de inmuebles y la densidad de potencia radiada máxima
no supera 7,5mW/MHz en cualquier banda de 1MHz y 0.1875mW/25kHz en cualquier banda
de 25kHz.
China
www.zebra.com/support
Eurasian Customs Union
Hong Kong
In accordance with HKTA1039, the band 5.15GHz - 5.35GHz is for indoor operation only.
Mexico
Restrict Frequency Range to: 2.450 – 2.4835 GHz.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
Installation Guide 33

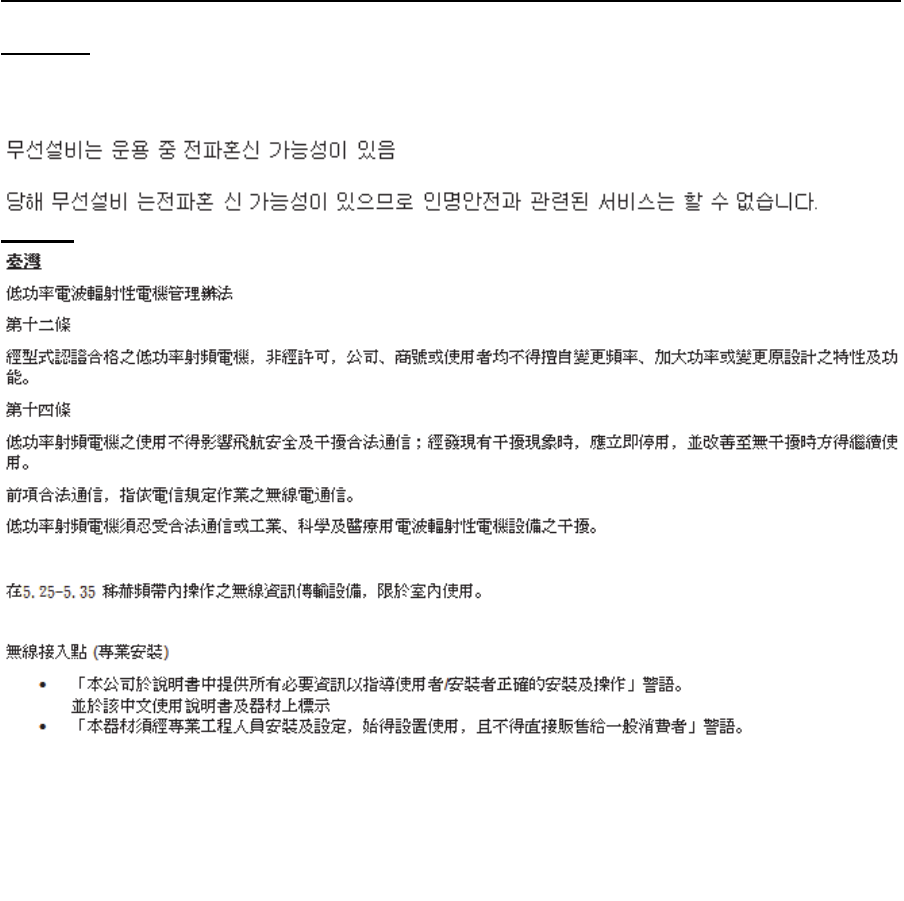

S. Korea
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following two
expressions should be displayed:
Taiwan
電磁波曝露量MPE標準值 1mW/cm² ; 送測產品實測值為 : 0.39207 mW/cm²
本產品使用時建議應距離人體 20cm
34 AP-7602 Wireless Wallplate
Turkey
For terminals that support Turkish characters in SMS Release 8 services, the following
statement should be printed on the packages and manual of the device:
Bu cihaz Türkçe karakterlerin tamam?n? ihtiva eden ETSI TS 123.038 V8.0.0 (veya sonraki
sürümün kodu) ve ETSI TS 123.040 V8.1.0 (veya sonraki sürümün kodu) teknik özelliklerine
uygundur.
This device conforms to technical specification in ETSI TS 123.038 V8.0.0 (or the code of any
subsequent release) and ETSI TS 123.040 V8.1.0 (or the code of any subsequent release)
which contain all Turkish characters.
Thailand
5.12 Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling. For
information on how to return product, please go to: www.zebra.com/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être retournés à Zebra
pour recyclage. Pour de plus amples informations sur le retour de produits, consultez : www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de su ciclo
de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite:
www.zebra.com/weee.
Български: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщат на
Zebra за рециклиране. За информация относно връщането на продукти, моля отидете на адрес:
www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling an
Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter
www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere
restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il
seguente sito Web: www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para
reciclagem. Para obter informações sobre como devolver o produto, visite: www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra te
worden teruggezonden voor recycling. Raadpleeg www.zebra.com/weee voor meer informatie over het
terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do firmy Zebra w
celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie internetowej
www.zebra.com/weee.
Installation Guide 35
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti Zebra
k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce: www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil Zebra'ile.
Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi: www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni újrahasznosítás
céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a www.zebra.com/weee
weboldalra.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för återvinning.
Information om hur du returnerar produkten finns på www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Zebra-yhtiöön, kun
tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs oplysningerne
om returnering af produkter på: www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται
στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε
τη διεύθυνση www.zebra.com/weee στο Διαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu rritornati għand
Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk jogħġbok żur:
www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie returnate la Zebra
pentru reciclare. Pentru informaţii despre returnarea produsului, accesaţi: www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za reciklažo. Za
informacije o vračilu izdelka obiščite: www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti vrátené
spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na: www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į kompaniją
„Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite: www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra otrreizējai
pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet: www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade edilmelidir.
Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin: www.zebra.com/weee.
5.13 TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
36 AP-7602 Wireless Wallplate
6 Support
If you have a problem with your equipment, contact support for your region.
Contact information is available at: www.zebra.com/support
When contacting support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Support responds to calls by e-mail, telephone, or fax within the time limits set forth in support
agreements. If you purchased your product from a business partner, contact that business
partner for support.
Customer Support Web Sites
The Support site, located at www.zebra.com/support provides information and online
assistance including developer tools, software downloads, product manuals and online repair
requests.
Installation Guide 37
7 Zebra Technologies Corporation ("Zebra")
End-User Software License Agreement
BY INSTALLING AND/OR USING THIS PRODUCT, YOU ACKNOWLEDGE THAT
YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE
BOUND ITS TERMS. IF YOU DO NOT AGREE TO THE TERMS OF THIS
AGREEMENT, ZEBRA IS NOT WILLING TO LICENSE THE PRODUCT TO YOU,
AND YOU MUST NOT INSTALL OR USE THIS PRODUCT.
Definitions
Grant of License
Zebra Technologies Corporation ("Zebra") grants you ("Licensee" or "you") a
personal, nonexclusive, nontransferable, revocable, nonassignable, limited license
to use the software and documentation ("Product(s)") subject to the terms and
conditions of this Agreement. You shall use the Products only for your internal
business purposes, exclusively to support Zebra devices. Any use of the Products
outside of the conditions set forth herein is strictly prohibited and will be deemed a
breach of this Agreement resulting in immediate termination of your License. In the
event of a breach of this Agreement, Zebra will be entitled to all available remedies
at law or in equity (including immediate termination of the license without notice,
immediate injunctive relief and repossession of all Products unless Licensee is a
Federal agency of the United States Government).
You shall not distribute, sublicense, rent, loan, lease, export, re-export, resell, ship or
divert or cause to be exported, re-exported, resold, shipped or diverted, directly or
indirectly, the Products under this Agreement. You shall not, and shall not permit
others to: (i) modify, translate, decompile, bootleg, reverse engineer, disassemble, or
extract the inner workings of the Products, (ii) copy the look-and-feel or functionality
of the Products; (iii) remove any proprietary notices, marks, labels, or logos from the
Products; (iv) rent or transfer all or some of the Products to any other party without
Zebra's prior written consent; or (v) utilize any computer software or hardware which
is designed to defeat any copy protection device, should the Products be equipped
with such a protection device.
Title to all copies of Products will not pass to Licensee at any time and remains vested
exclusively in Zebra. All intellectual property developed, originated, or prepared by
Zebra in connection with the Products remain vested exclusively in Zebra, and this
Agreement does not grant to Licensee any intellectual property rights.
38 AP-7602 Wireless Wallplate
Portions of the Products are protected by United States patent and copyright laws,
international treaty provisions, and other applicable laws. Therefore, you must treat
the Products like any other copyrighted material (e.g., a book or musical recording)
except that you may make one copy of the Product solely for back-up purposes.
Unauthorized duplication of the Products constitutes copyright infringement, and in
the United States is punishable in federal court by fine and imprisonment.
Limited Warranty
Zebra warrants for a period of ninety (90) days from your receipt of the Products to
you that the Software, under normal use, will perform substantially in accordance with
Zebra's published specifications for that release level of the Software. The written
materials are provided "AS IS" and without warranty of any kind. Zebra's entire
liability and your sole and exclusive remedy for any breach of the foregoing limited
warranty will be, at Zebra's option, the provision of a downloadable patch or
replacement code, or a refund of the unused portion of your bargained for contractual
benefit up to the amount paid for the Products.
Disclaimer
THIS LIMITED WARRANTY IS THE ONLY WARRANTY PROVIDED BY ZEBRA,
AND ZEBRA MAKES, AND YOU RECEIVE, NO OTHER WARRANTIES OF ANY
KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR IN ANY
COMMUNICATION WITH YOU. ZEBRA SPECIFICALLY DISCLAIMS ANY
WARRANTY INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILTY,
NONINFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. ZEBRA
DOES NOT WARRANT THAT THE PRODUCTS WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF THE PRODUCTS WILL BE
UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE PRODUCTS
WILL BE CORRECTED. ZEBRA MAKES NO WARRANTY WITH RESPECT TO
THE CORRECTNESS, ACCURACY, OR RELIABILITY OF THE PRODUCTS. Some
jurisdictions do not allow the exclusion of implied warranties, so the above exclusion
may not apply to you.
Limitation of Liability
THE TOTAL LIABILITY OF ZEBRA UNDER THIS AGREEMENT FOR DAMAGES
SHALL NOT EXCEED THE FAIR MARKET VALUE OF THE PRODUCTS
LICENSED UNDER THIS AGREEMENT. IN NO EVENT WILL ZEBRA BE LIABLE IN
ANY WAY FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR
PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION,
LOST BUSINESS PROFITS, OR LIABILITY OR INJURY TO THIRD PERSONS,
WHETHER FORESEEABLE OR NOT, REGARDLESS OF WHETHER ZEBRA HAS
Installation Guide 39
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some jurisdictions
do not permit limitations of liability for incidental or consequential damages, so the
above exclusions may not apply to you. This Limitation of Liability provision survives
the termination of this Agreement and applies notwithstanding any contrary provision
in this Agreement. Licensee must bring any action under this Agreement within one
(1) year after the cause of action arises.
Maintenance
Unless provided for in a separate agreement, Zebra shall not be responsible for
maintenance or field service of the Products.
High Risk Activities
The Products are not fault-tolerant and are not designed, manufactured or intended
for use or resale as on-line control software in hazardous environments requiring
fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation
or communication systems, air traffic control, direct life support machines, or
weapons systems, in which the failure of the Products could lead directly to death,
personal injury, or severe physical or environmental damage ("High Risk Activities").
Zebra and its suppliers specifically disclaim any express or implied warranty of fitness
for High Risk Activities, and if you elect to use the Products in any High Risk Activities,
you agree to indemnify, defend, and hold Zebra harmless from and against any and
all costs, damages, and losses related to that use.
U.S. Government
If you are acquiring the Products on behalf of any unit or agency of the U.S.
Government, the following shall apply. Use, duplication, or disclosure of the Products
is subject to the restrictions set forth in subparagraphs (c) (1) and (2) of the
Commercial Computer Software - Restricted Rights clause at FAR 52.227-19 (JUNE
1987), if applicable, unless being provided to the Department of Defense. If being
provided to the Department of Defense, use, duplication, or disclosure of the
Products is subject to the restricted rights set forth in subparagraph (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at DFARS 252.227-7013
(OCT 1988), if applicable. Products may or may not include a Restricted Rights
notice, or other notice referring specifically to the terms and conditions of this
Agreement. The terms and conditions of this Agreement shall each continue to apply,
but only to the extent that such terms and conditions are not inconsistent with the
rights provided to you under the aforementioned provisions of the FAR and DFARS,
as applicable to the particular procuring agency and procurement transaction.
40 AP-7602 Wireless Wallplate
Assignment
Except as otherwise provided in this section, neither party may assign this
Agreement, or any of its rights or obligations under this Agreement, without the prior
written approval of the other party, which will not be unreasonably withheld. Any
attempted assignment, delegation, or transfer without the necessary approval will be
void. Notwithstanding the foregoing, for any Zebra acquisition, merger,
consolidation, reorganization, or similar transaction, or any spin-off, divestiture, or
other separation of a Zebra business, Zebra may, without the prior written consent of
the other party: (i) assign its rights and obligations under this Agreement, in whole or
in part, or (ii) split and assign its rights and obligations under this Agreement so as to
retain the benefits of this Agreement for both Zebra and the assignee entity(ies) (and
their respective Affiliates) following the split.
Governing Law
This Agreement shall be governed by the laws of the United States of America to the
extent that they apply and otherwise by the laws of the State of New York without
regard to its conflict of laws provisions or by the internal substantive laws of the
country to which the Products is shipped if end-user customer is a sovereign
governmental entity. The terms of the U.N. Convention on Contracts for the
International Sale of Goods do not apply. In the event that the Uniform Computer
information Transaction Act, any version of this Act, or a substantially similar law
(collectively "UCITA") becomes applicable to a Party's performance under this
Agreement, UCITA does not govern any aspect of this End User License Agreement
or any license granted under this End-User License Agreement, or any of the parties'
rights or obligations under this End User License Agreement. The governing law will
be that in effect prior to the applicability of UCITA.
Compliance with Laws
Licensee will comply with all applicable laws and regulations, including export laws
and regulations of the United States. Licensee will not, without the prior authorization
of Zebra and the appropriate governmental authority of the United States, in any form
export or re-export, sell or resell, ship or reship, or divert, through direct or indirect
means, any item or technical data or direct or indirect products sold or otherwise
furnished to any person within any territory for which the United States Government
or any of its agencies at the time of the action, requires an export license or other
governmental approval. Violation of this provision will be a material breach of this
Agreement, permitting immediate termination by Zebra.
Installation Guide 41
Third Party Software
The Products may contain one or more items of Third-Party Software. The terms of
this Agreement govern your use of any Third-Party Software UNLESS A SEPARATE
THIRD-PARTY SOFTWARE LICENSE IS INCLUDED, IN WHICH CASE YOUR USE
OF THE THIRD-PARTY SOFTWARE WILL THEN BE GOVERNED BY THE
SEPARATE THIRD-PARTY LICENSE.
Open Source Software
The Products may contain one or more items of Open Source Software. Open Source
Software is software covered by a publicly available license governed solely under
Copyright law, whereas the complete terms and obligations of such license attach to
a licensee solely through the act of copying, using and/or distribution of the licensed
software, such obligations often include one or more of attribution obligations,
distribution obligations, copyright obligations, and intellectual property
encumbrances. The use of any Open Source Software is subject to the terms and
conditions of this Agreement as well as the terms and conditions of the corresponding
license of each Open Source Software package. If there is a conflict between the
terms and conditions of this Agreement and the terms and conditions of the Open
Source Software license, the applicable Open Source Software license will take
precedence. Copies of the licenses for the included Open Source Software, if any, as
well as their attributions, acknowledgements, and software information details, are
provided in the electronic copy of this Agreement, which is available in the Legal
Notices or README file associated with the Product. Zebra is required to reproduce
the software licenses, acknowledgments and copyright notices as provided by the
authors and owners, thus, all such information is provided in its native language form,
without modification or translation. Depending on the license terms of the specific
Open Source Software, source code may not be provided. Please reference and
review the entire Open Source Software information to identify which Open Source
Software packages have source code provided or available. For instructions on how
to obtain a copy of any source code made publicly available by Zebra related to Open
Source Software distributed by Zebra, you may send your request (including the
Zebra Product name and version, along with the Open Source Software specifics) in
writing to: Zebra Technologies Corporation, Open Source Software Director, Legal
Department, 3 Overlook Point, Lincolnshire, IL 60069 USA.
©2016 ZIH Corp and/or its affiliates. All rights reserved. Zebra and the stylized Zebra
head are trademarks of ZIH Corp., registered in many jurisdictions worldwide. All
other trademarks are the property of their respective owners.
42 AP-7602 Wireless Wallplate
8 AP-7602 China ROHS Compliance
本表格依据 SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量 要求以下。
X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定 的限量要求。
(企业可在此处，根据实际情况对上表中打“×”的技术原因进 行进一步说明。）
This table was created to comply with China RoHS requirements for the AP-7602.
部件名称
(Parts)
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联
苯
(PBB)
多溴二苯
醚
(PBDE)
金属部件
(Metal Parts) OOOO O O
电路模块
(Circuit Modules) XOOO O O
电缆及电缆组件
(Cables and Cable Assemblies) OOOO O O
塑料和聚合物部件
(Plastic and Polymeric Parts) OOOO O O
光学和光学组件
(Optics and Optical Components) OOOO O O
电池
(Batteries) OOOO O O
Installation Guide 43
MN-002948-01 Revision A December 2016
Zebra Technologies Corporation
Lincolnshire, IL 60069 USA
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The
Symbol logo is a registered trademark of Symbol Technologies, Inc. a Zebra
Technologies company.
© 2016 Symbol Technologies, Inc.
