Zebra Technologies DS2278 Cordless 1D/2D Handheld Imager User Manual

Zebra Technologies Corporation Cordless 1D/2D Handheld Imager

User Manual

OPOS (IBM HAND-HELD with FULL DISABLE)
ICL RS-232
NIXDORF RS-232 MODE A
*STANDARD RS-232 NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
IBM PC/AT and IBM PC COMPATIBLE*IBM AT NOTEBOOK
NON-IBM SCANNER EMULATION (PORT 5B) TABLE-TOP SCANNER EMULATION (PORT 17)
HAND-HELD SCANNER EMULATION (PORT 9B)
IBM HAND-HELD USB
SYMBOL NATIVE API (SNAPI) WITH IMAGING
STEP 1 - CONNECT HOST INTERFACE
DIGITAL SCANNER FEATURES
See Product Reference Guide
for detailed information
NOTE: Cables may vary depending on configuration
STEP 2 - SET UP INTERFACE (Scan Host Bar Codes)
1
Scan Window
2
3
USB
KEYBOARD WEDGE
USB
Scan ONE of the bar codes below
Keyboard Wedge
Scan a bar code below
*USB KEYBOARD (HID)
IBM 46XX
IBM 46XX
Scan ONE of the bar codes below
The Auto-Host Detect Cable feature automatically detects the host interface type,
but there is no default setting. Scan one of the bar codes below to select the
appropriate port.
The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another
host bar code below.
The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another
host bar code below.
The Auto-Host Detect Cable feature automatically detects the host interface type
and uses the default setting. If the default (*) does not meet your requirements,
scan the IBM PC/AT and IBM PC COMPATIBLE bar code below.
USB - OVERRIDE CAPS LOCK KEY (ENABLE)
*USB - DO NOT OVERRIDE CAPS LOCK KEY (DISABLE)
RS-232
RS-232
Scan ONE of the bar codes below
http://www.zebra.com/DS2278
USB CAPS LOCK OVERRIDE BAR CODE
ADD A TAB KEY
To add a Tab key after scanned data, scan
the bar code below.
ADD A TAB KEY
RETURN TO FACTORY DEFAULTS
USEFUL BAR CODES
ADD AN ENTER KEY
To add an Enter key after scanned data, scan
the bar code below.
(Carriage Return/Line Feed)
ADD AN ENTER KEY (CARRIAGE RETURN/LINE FEED)

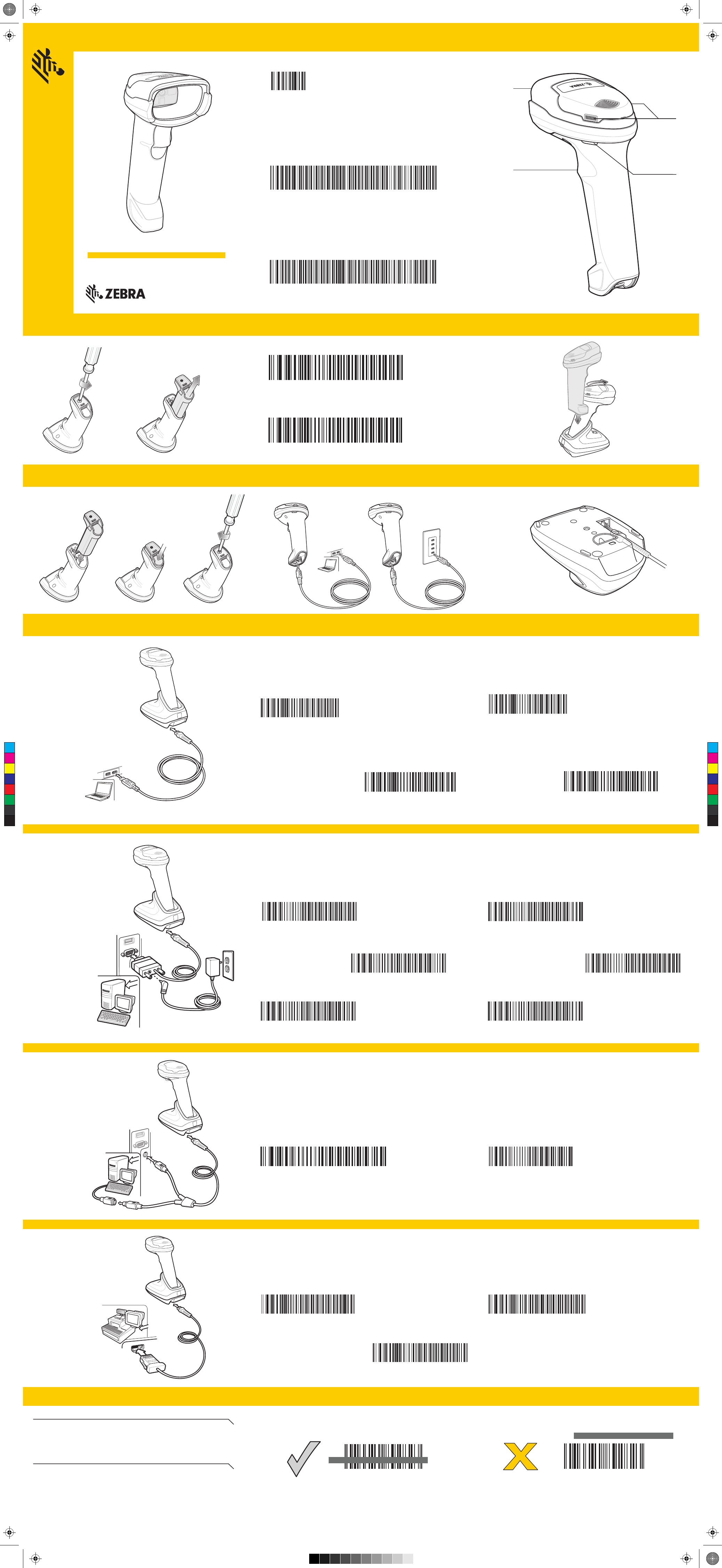

DS2278 DIGITAL SCANNER
Quick Start Guide
Digital Scanner
POST IN WORK AREAPOST IN WORK AREA
123
S
can
4 Beeper
ABOUT 123Scan
123Scan is an easy-to-use, PC-based software tool that enables rapid
and easy customized setup of a scanner via a bar code or USB cable.
For more information, visit: http://www.zebra.com/123Scan.
UTILITY FUNCTIONALITY
- Device configuration
- Electronic programming (USB cable)
- Programming bar code(s)
- Data view – scan log (display scanned bar code data)
- Access asset tracking information
- Upgrade firmware and view release notes
- Remote management (SMS package generation)
Note: Standard range digital scanner pictured.
Scan LEDs
Scan Trigger
FACTORY DEFAULTS
Aiming
012345012345
Note: For best performance, it is recommended to use Zebra accessories.
CRADLE CABLE CONNECTION
Host Port
CRADLE INSERTION
2
1
3
4
BATTERY REMOVAL
1
Unscrew Remove Battery
Note: It is recommended to fully charge the battery before use.
2
BATTERY INSERTION
1
Replace
Battery
Push
Down
2
Screw to
Tighten
3
CHARGE ONLY MICRO USB CONNECTION
C
M
Y
CM
MY
CY
CMY
K
MN-002916-01a_ds2278front-qsg-en_print.pdf 1 4/17/2017 10:18:36 AM
MN-002916-01 Revision A April 2017
Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
http://www.zebra.com
© 2017 ZIH Corp and/or its affiliates. All rights reserved.
ZEBRA and the stylized Zebra head are trademarks of ZIH Corp,
registered in many jurisdictions worldwide. All other trademarks
are the property of their respective owners.

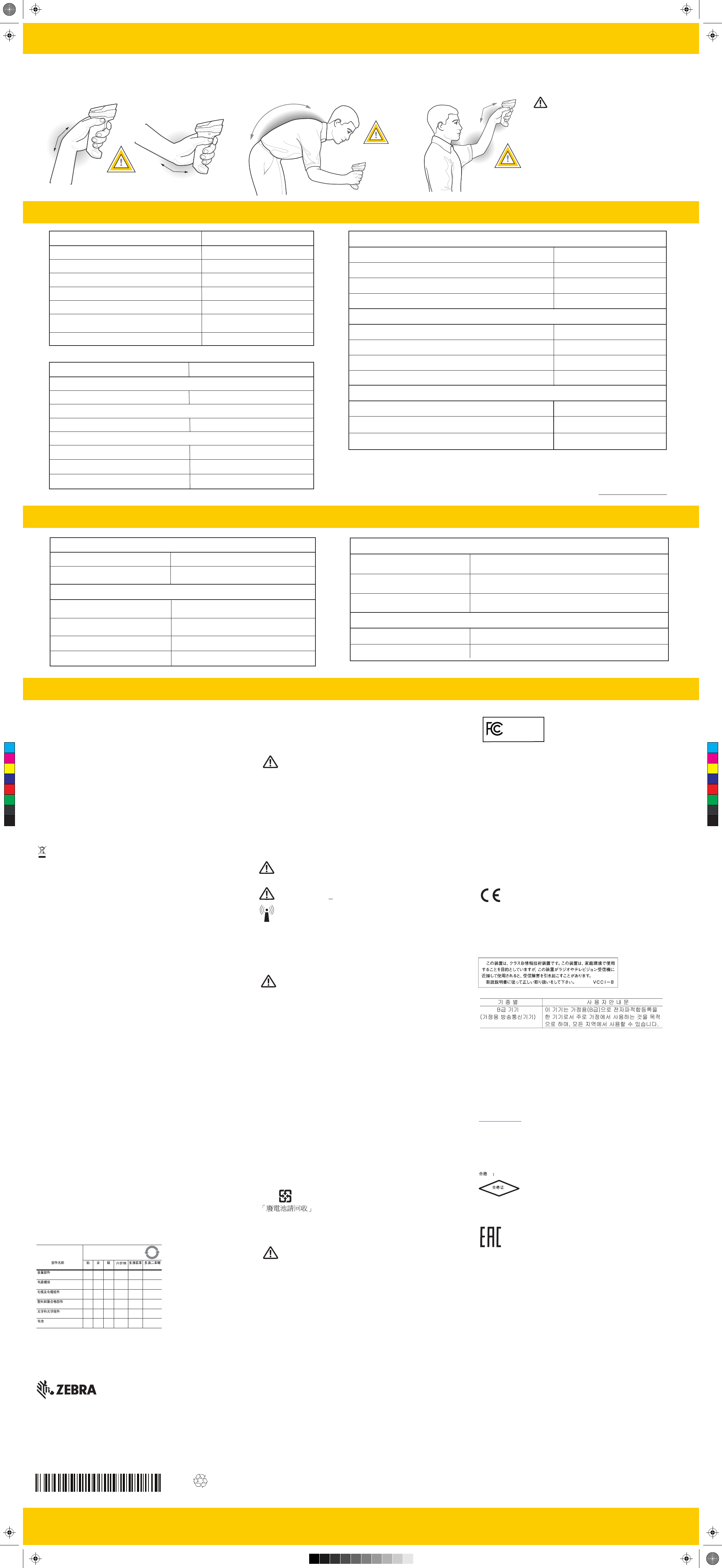

Health and Safety Recommendation
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury
follow the recommendations below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your company's safety programs
to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling.
For information on how to return product, please go to: http://www.zebra.com/weee.
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се
връщат на Zebra за рециклиране. За информация относно връщането на продукти, моля отидете
на адрес: http://www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti
Zebra k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce:
http://www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: http://www.zebra.com/ weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum
Recycling an Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie
unter http://www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να
επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή
ενός προϊόντος, επισκεφθείτε τη διεύθυνση http://www.zebra.com/weee στο Διαδίκτυο.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil
Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi:
http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de
su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto,
visite: http://www.zebra.com/weee.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie doivent être retournés
à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits, consultez :
http://www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono
essere restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di
restituzione, visitare il seguente sito Web: http://www.zebra.com /weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra
otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet:
http://www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į
kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite: http://www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni
újrahasznosítás céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el
a http://www.zebra.com/weee weboldalra.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu
rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk
jogħġbok żur: http://www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra
te worden teruggezonden voor recycling. Raadpleeg http://www.zebra.com/weee voor meer informatie
over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do firmy
Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie internetowej
http://www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para
reciclagem. Para obter informações sobre como devolver o produto, visite: http://www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie
returnate la Zebra pentru reciclare. Pentru informaţii despre returnarea produsului, accesaţi:
http://www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti
vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na:
http://www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za
reciklažo. Za informacije o vraèilu izdelka obišèite: http://www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi
Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
http://www.zebra.com/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för
återvinning. Information om hur du returnerar produkten finns på http://www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade
edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
http://www.zebra.com/weee.
CMM Disclosure
Waste Electrical and Electronic Equipment (WEEE)
© 2017 Zebra Technologies, Inc.
Zebra reserves the right to make changes to any product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Zebra products might be used. An implied license
exists only for equipment, circuits, and subsystems contained in Zebra products.
Service Information
If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a
problem with the equipment, they will contact the Zebra Global Customer Support Center at:
http://www.zebra.com/support. For the latest version of this guide go to: http://www.zebra.com/support.
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
Korea Warning Statement for Class B ITE
Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
Marking and European Economic Area (EEA)
Regulatory Information
This guide applies to Model Number: DS2278. All Zebra devices are designed to be compliant
with rules and regulations in locations they are sold and will be labeled as required.
Local language translations are available at the following website:
http://www.zebra.com/support.
Any changes or modifications to Zebra equipment, not expressly approved by
Zebra, could void the user’s authority to operate the equipment.
Radio Frequency Interference Requirements -FCC
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Con sult the dealer or an experienced radio/TV technician for help.
LED Devices
For LED devices which have been evaluated to IEC 62471 and comply with the Exempt Risk Group,
no product labeling requirements apply. However, the following statement is required to comply with US and
international regulations:
LED Compliance Statement:
Classified as ‘EXEMPT RISK GROUP’ according to IEC 62471:2006 and EN 62471:2008.
Pulse duration: 9 ms.
Statement of Compliance
Ukraine
Warranty
For the complete Zebra hardware product warranty statement, go to: http://www.zebra.com/warranty.
For Australia Only.
This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71 Robinson Road, #05-02/03,
Singapore 068895, Singapore. Our goods come with guarantees that cannot be excluded under the
Australia Consumer Law. You are entitled to a replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Zebra Technologies Corporation Australia’s limited warranty above is in addition to any rights and
remedies you may have under the Australian Consumer Law. If you have any queries, please call Zebra
Technologies Corporation at+65 6858 0722. You may also visit our website: http://www.zebra.com for the
most updated warranty terms.
China
Chile
This device is approved under Zebra Technologies Corporation.
Radio Transmitters
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions: (1) This device may not cause interference; and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radio électrique subi même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Radio Frequency Interference Requirements - Canada
CAN ICES-3 (B)/NMB-3(B)
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Bluetooth
®
Wireless Technology for use through the EEA has the following restrictions:
•
Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400-2.4835 GHz.
臺灣
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、
商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，
應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之 無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Taiwan
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following expression should
be displayed:
당해 무선설비는 운용 중 전파혼신 가능성이 있음
당해 무선설비 는전파혼 신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.
S. Korea
Thailand
Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)
Caution:
Only use Zebra approved and UL listed accessories, battery packs, and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or batteries. All components must be
dry before connecting to an external power source.
Declared maximum operating temperature: 50ºC
Bluetooth
®
Wireless Technology
This is an approved Bluetooth
®
product. For more information or to view the End Product Listing,
visit https://www.bluetooth.org/tpg/listings.cfm.
Wireless Device Country Approvals
Note: this section is only applicable to WW/WR/EU configurations.
Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved
for use in the following countries: United States, Canada, Japan, China, South Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at
http://www.zebra.com/doc.
Note: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
Caution:
Please observe all warning notices with regard to the usage of wireless devices.
Caution:
Operation of the device without regulatory approval is illegal.
Warnings for Use of Wireless Devices
Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect medical electrical equipment.
Pacemakers
Persons with Pacemakers:
Other Medical Devices
Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible interference with sensitive medical equipmet.
Please consult your physician or the manufacturer of the medical device, to determine if the operation of your
wireless product may interfere with the medical device.
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld
wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless Technology Research.
To satisfy US and Canadian RF exposure requirements, a transmitting device must operate with a minimum
separation distance of 0 cm or more from a person’s body.
Zebra hereby declares that this radio equipment is in compliance with Directive 2011/65/EU and 1999/5/EC
or 2014/53/EU (2014/53/EU supersedes 1999/5/EC from 13th June 2017). The full text of the EU Declaration
of Conformity is available at the following internet address: http://www.zebra.com/doc.
(Parts) (Pb) (Hg) (Cd) (PBB) (PBDE)
(Metal Parts)
(Circuit Modules)
(Cables and Cable Assemblies)
(Plastic and Polymeric Parts)
(Optics and Optical Components)
(Batteries)
O O O O O
O O O O
O O O O
O O O O OO
O
O O O O O
OO O O O O
O O
有害物质
(Cr (VI))
本表格依据SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11364--2014 规定
的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出SJ/T 11364--2014
规定的限量要求。(企业可在此处，根据实际情况对上表中打“×”的技术原
因进行进一步说明。）
25
X
X
X
This table was created to comply with China RoHS requirements.
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE
Other Countries
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de telecomunicaciones,
relativa a radiaciones electromagnéticas.
通
过访问以下网址可下载当地语言支持的产品说明书
w
ww.zebra.com/support
锂
电池安全警示语:
警
告：请勿拆装，短路，撞击，挤压或者投入火中及水中；
注
意：如果电池被不正确型号替换，或出现鼓胀，会存在爆炸及其他危险
请
按说明处置使用过的电池
电
池浸水后严禁使用
合
格证：
Mexico
Restrict Frequency Range to: 2.450 – 2.4835 GHz.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o
dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia,
incluyendo la que pueda causar su operación no deseada.
Дане обладнання відповідає вимогам технічного регламенту №1057, № 2008 на обмеження щодо
використання деяких небезпечних речовин в електричних та електронних пристроях.
เครื่องโทรคมนาคมและอุปกรณ์นี้ มีความสอดคล้องตามข้อกำหนดของ กทช.
Eurasian Customs Union
Евразийский Таможенный Союз
Данный продукт соответствует требованиям знака EAC.
Hrvatski: Za kupce u Europskoj uniji: Svi se proizvodi po isteku vijeka trajanja moraju vratiti tvrtki Zebra
na recikliranje. Informacije o načinu vraćanja proizvoda potražite na web-stranici:
http://www.zebra.com/weee
RF Exposure Guidelines
Safety Information
• Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.
• International
• Europe - Handheld Devices
• US and Canada
The device complies with internationally recognized standards covering human exposure to electromagnetic
fields from radio devices. For information on “International” human exposure to eletromagnetic fields refer to
the Zebra Declaration of Conformity (DoC) at http://www.zebra.com/doc.
To comply with EU RF exposure requirements, this device must be operated in the hand with a minimum
separation distance of 0 cm or more from a person’s body. Other operating configurations should be avoided.
To comply with FCC RF exposure compliance requirement, the antenna used for this transmitter must not be
co-located or operating in conjunction with any other transmitter/antenna except those already approved in this filling.
For further information on the safety of RF energy from wireless devices, see
https://www.zebra.com/us/en/about-zebra/company-information/corporate-responsibility.html, which is
located under Corporate Responsibility.
• Co-located Statement
This device was tested for typical body worn or handheld operation. Use only Zebra tested and approved belt-clips,
holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt clips, holsters, and similar
accessories may not comply with FCC RF exposure compliance requirements, and should be avoided.
• Handheld Devices
Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux radio fréquences, un
dispositif de transmission doit fonctionner avec une distance de séparation minimale de 0 cm ou plus
de corps d'une personne.
SCANNING
Avoid Extreme Wrist Angles Avoid ReachingAvoid Bending
RECOMMENDED USAGE GUIDE - OPTIMUM BODY POSTURE
POST IN
WORK AREA
BEEPER INDICATIONS SCANNER LED INDICATIONS
Local Contact:
Indication Beeper Sequence
Power up Low/medium/high beeps
Medium beepBar code decoded
4 long low beeps
Transmission error detected; data is ignored
High/low/high/low beeps
Successful parameter setting
Correct programming sequence performed High/low beeps
Long low/long high beeps
Incorrect programming sequence, or Cancel
bar code scanned
Hand-Held Scanning
Hands-Free (Presentation) Scanning
Indication LED Indicator
OffDigital scanner is on and ready to scan, or no power to scanner
Green flashBar code is successfully decoded
Red
Transmission error
Off
Green
Off momentarily
Red
No power to scanner
Digital scanner is ready to scan
Bar code is successfully decoded
Transmission error
TROUBLESHOOTING
Digital scanner not working
No power to scanner
Interface cable is loose
Host interface not configured properly
Digital scanner is disabled
Check system power; ensure battery is charged.
Invalid ADF Rule Program the correct ADF rules.
Ensure that correct host interface cable is used.
Digital scanner decoding bar code, but data not transmitting to host
Scan appropriate host parameter bar codes.
Ensure all cable connections are secure.
Digital scanner not decoding bar code
Digital scanner not programmed for
bar code type
Host interface not configured properly
Distance between scanner and bar
code incorrect
Bar code unreadable
Ensure scanner is programmed to read
type of bar code being scanned.
Ensure bar code is not defaced; try scanning
test bar code of same bar code type.
Scanned data incorrectly displayed on host
Move scanner closer to, or further from
bar code.
Scan appropriate host parameter bar codes.
Region improperly configured Select appropriate country and language encoding scheme.
REGULATORY INFORMATION
DS2278 DIGITAL SCANNER
Regulatory declarations for DS2278 - BRAZIL
NOTA: A marca de certificação se aplica ao Equip. de Radiação Restrita, modelo DS2278.
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.” Para maiores consultas sobre ANATEL consulte o site: www.anatel.gov.br.
For more information consult the website www.anatel.gov.br
Batteries
Taiwan - Recycling
Battery Information
Battery Safety Guidelines
Use only Zebra approved batteries. Accessories which have battery charging capability are approved for use
with the following battery models: Part Number BT-000317-01 (4.2 Vdc, 2400 mAh).
EPA (Environmental Protection Administration) requires dry battery producing or importing firms in accordance with
Article 15 of the Waste Disposal Act are required to indicate the recycling marks on the batteries used in sales,
giveaway or promotion. Contact a qualified Taiwanese recycler for proper battery disposal.
Zebra approved rechargeable battery packs are designed and constructed to the highest standards within
the industry.
However, there are limitations to how long a battery can operate or be stored before needing replacement.
Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh environmental
conditions and severe drops.
When batteries are stored over six months, some irreversible deterioration in overall battery quality may
occur. Store batteries at half of full charge in a dry, cool place, removed from the equipment to prevent loss
of capacity, rusting of metallic parts and electrolyte leakage. When storing batteries for one year or longer,
the charge level should be verified at least once a year and charged to half of full charge.
Replace the battery when a significant loss of run time is detected.
Standard warranty period for all Zebra batteries is one year, regardless if the battery was purchased
separately or included as part of the mobile computer or bar code scanner. For more information on Zebra
batteries, please visit: http://www.zebra.com/batterybasics.
The area in which the units are charged should be clear of debris and combustible materials or chemicals. Particular
care should be taken where the device is charged in a non commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures must be between +32ºF and +104ºF
(0ºC and +40ºC).
• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a risk of fire,
explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a charger,
contact Zebra support.
• For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water
or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle
or near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been
made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Zebra support to arrange for inspection.
Caution:
Risk of expolosion if battery is replaced by an incorrect type. Dispose of batteries
according to instructions.
Digital scanner not paired to cradle Scan cradle pairing bar code.
Low battery indication (on trigger release) 4 short high beeps
DS2278 DIGITAL SCANNER
Cradle Indication Cradle LED Indicator
Standard Use
Power up Green (stays on)
Radio Indications
Green (off, then on)Bluetooth connection established
Battery Indications
Amber blinkingCharging
Fully charged
Charging error
Green (solid)
Amber fast blinking
Charging with Micro USB Connection
Digital scanner is charging
Digital scanner is fully charged
Charge error
Green flash (fast continuous)
Green (solid)
Red (solid)
AVOID REACHING
AVOID BENDING
AVOID EXTREME
WRIST ANGLES
C
M
Y
CM
MY
CY
CMY
K
MN-002916-01a_ds2278back-qsg-en.pdf 1 4/17/2017 10:16:41 AM

Navigation menu
