Using WLAN 5 - 3
To switch from WZC to Fusion:
1. Tap the Start > > Wireless Launcher > Options.
2. Select WLAN Management from the drop-down list.
3. Select Fusion Manages WLAN radio button.
4. Tap Save.
5. Tap OK.
6. Perform a reset.
Supported Applications
The Fusion menu items and their corresponding applications are summarized in Table 5-1.
Table 5-1
Supported Applications
Application Description Fusion
Support WZC
Support
Find WLANs Invokes the Find WLANs application which
displays a list of the WLANs active in your area. Yes No
Manage Profiles Invokes the Manage Profiles application
(which includes the Profile Editor Wizard) to
manage and edit your list of WLAN profiles.
Yes No
Wireless Zero Config Invokes the Wireless Zero Config application to
configure the WLAN. No Yes
Manage Certs Invokes the Certificate Manager application
which allows you to manage certificates used
for authentication.
Yes Yes
Manage PACs Invokes the PAC Manager application which
helps you manage the list of Protected Access
Credentials used with EAP-FAST
authentication.
Yes No
Options Invokes the Options application which allows
you to configure the Fusion option settings. Yes Yes
Wireless Status Invokes the Wireless Status application which
allows you to view the status of the current
wireless connection.
Yes Yes
Wireless Diagnostics Invokes the Wireless Diagnostics application
which provides tools with which to diagnose
problems with the wireless connection.
Yes Yes
Log On/Off Invokes the Network Login dialog which
allows you to log on to a particular profile or to
log off from the currently active profile
Yes No
Fusion Help Invokes the Fusion Help application which
provides detailed explanations on all the
available Fusion applications
Yes No
DRAFT 9
5 - 4 MC45 User Guide
Fusion Setup
To setup WLAN using Fusion refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version
H3.40 for detailed information on using and configuring Fusion.
To setup WLAN using Fusion:
1. Tap the Start > > Wireless Configuration Editor > Manage Profiles. The Manage Profiles window
appears.
2. Tap and hold in the window and select Add from the pop-up menu. The Wireless LAN Profile Entry
window appears.
3. In the Profile Name text box enter a name for the profile.
4. In the ESSID text box enter the ESSID.

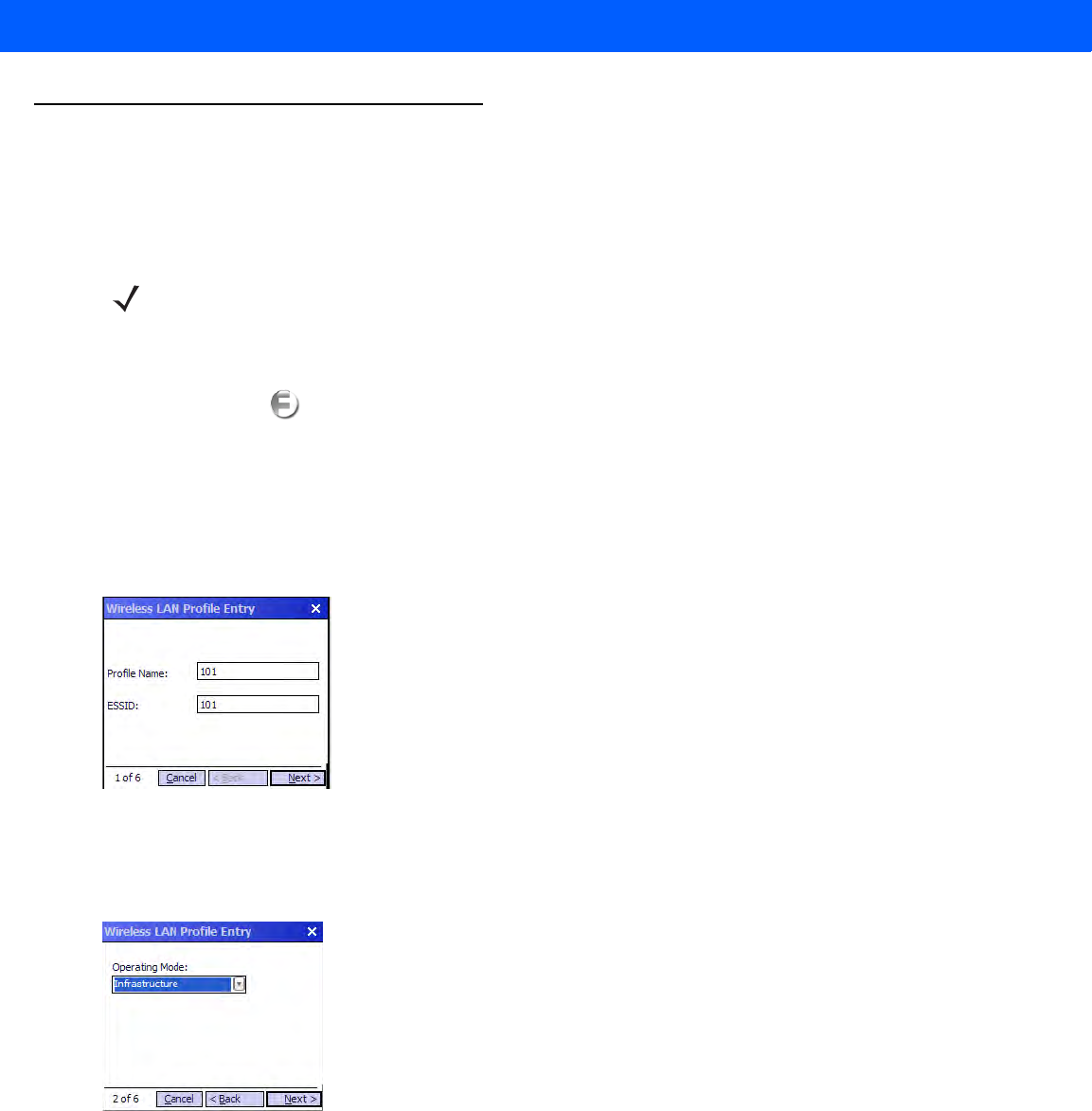

Figure 5-2
Profile ID Dialog Box
5. Tap Next. The Operating Mode dialog box displays.
6. In the Operating Mode drop-down list, select Infrastructure or Ad-hoc.
Figure 5-3
Operating Mode Dialog Box
7. Tap Next. The Security Mode dialog box displays.
8. In the Security Mode drop-down list, select Legacy (Pre-WPA).
NOTEObtain the proper WLAN configuration information from your system administrator prior to performing the
Fusion setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
DRAFT 9
Using WLAN 5 - 5

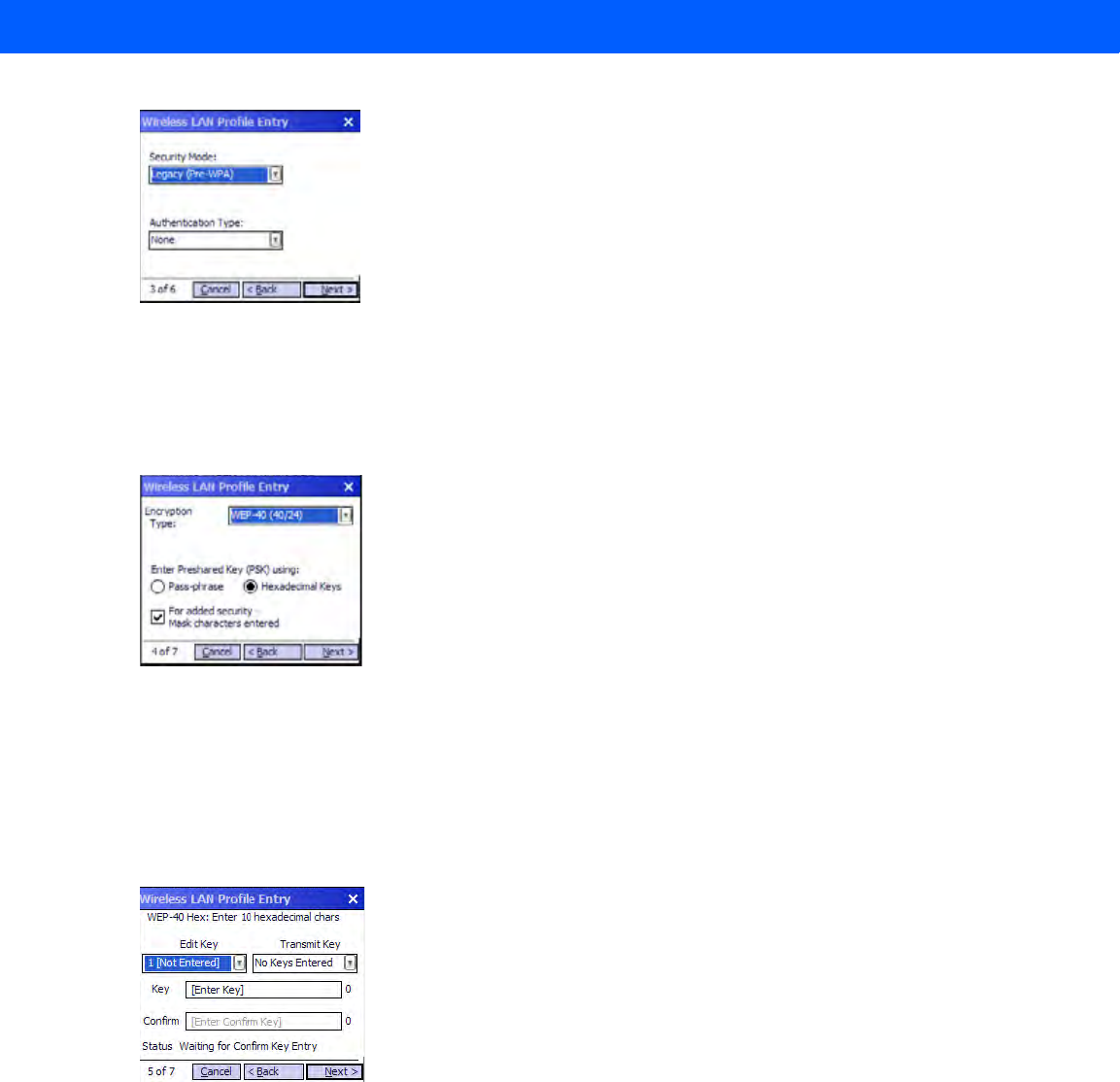

Figure 5-4
Security/Authentication Dialog Box
9. In the Authentication drop-down list, select None.
10. Tap Next. The Encryption dialog box displays.
11.In the Encryption Type drop-down list, select WEP-40 (40/24).
Figure 5-5
Encryption Dialog Box
12. Select the Pass-phrase or Hexadecimal Keys radio button to indicate whether a pass-phrase or
hexadecimal keys will be entered on the next page.
13. Select the For added security - Mask characters entered check box to hide characters entered.
Deselect this to show characters entered.
14. Tap Next.
Figure 5-6
WEP-40 WEP Keys Dialog Box
15. In the Edit Key drop-down list, select the key to enter.
16. In the Key field, enter 10 hexadecimal characters.
17. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys
match.
18. Repeat for each WEP key.
19. In the Transmit Key drop-down list, select the key to transmit.
20. Tap Next. The IPv4 Address Entry dialog box displays.
DRAFT 9
5 - 6 MC45 User Guide

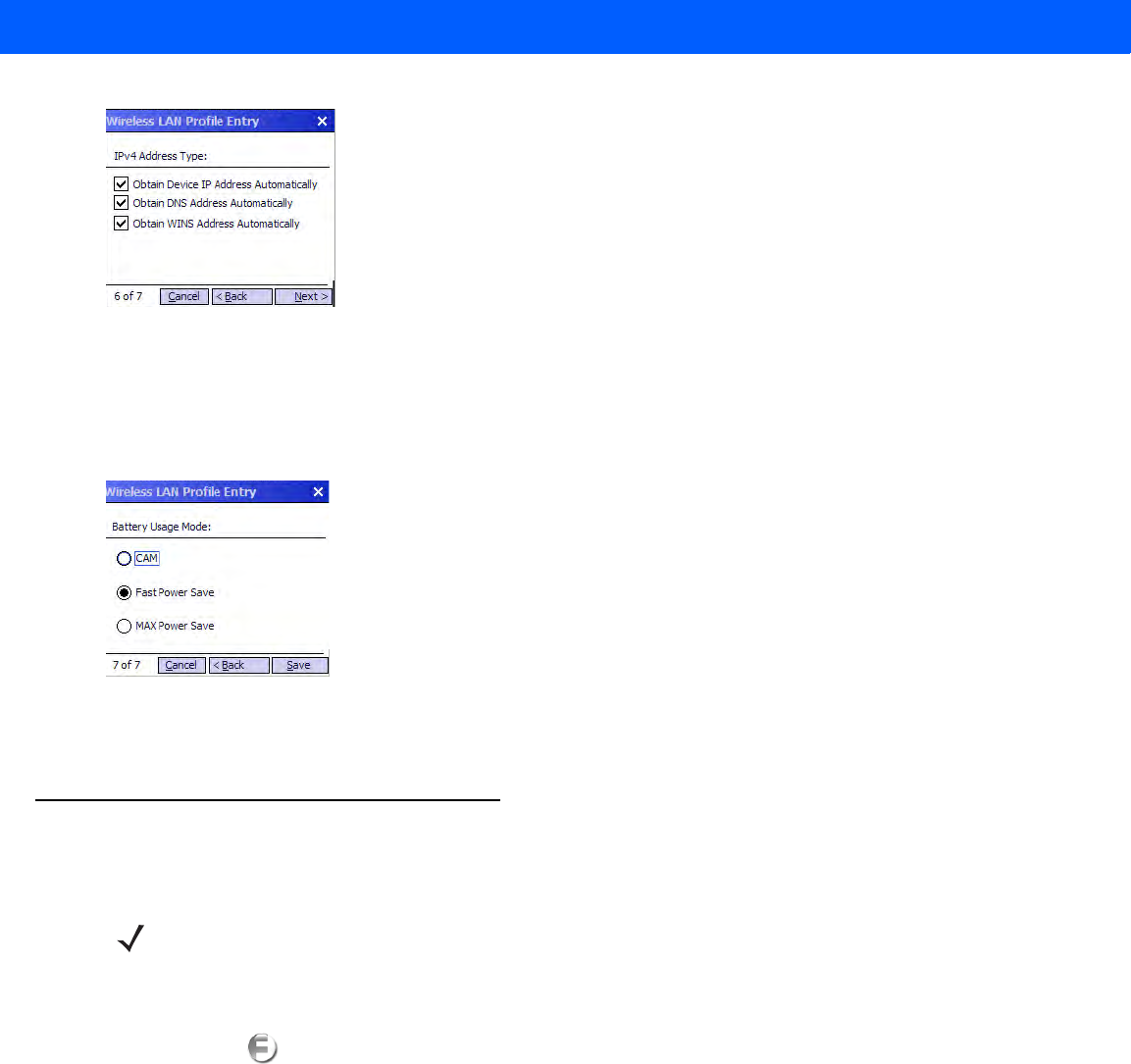

Figure 5-7
IP Address Entry Dialog Box
21. Ensure that all three check boxes are selected.
22. Tap Next. The Battery Usage dialog box appears.
23. In the Battery Usage Mode dialog box select a power consumption option.
Figure 5-8
Battery Usage Dialog Box
24. Tap Save.
Wireless Zero Config Setup
To setup WLAN using WZC:
1. Tap Start > > Wireless Launcher > Wireless Zero Config.
NOTEObtain the proper WLAN configuration information from your system administrator prior to performing the
WZC setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
DRAFT 9
Using WLAN 5 - 7
Figure 5-9
Wireless Zero Config Window
2. The MC45 searches for wireless networks in the area and displays them in the window.
3. Tap a network name.
Figure 5-10
Configure Wireless Network Window
4. In the Connects to drop-own list, select either The Internet or Work.
5. Check the This is a hidden network checkbox if the network is a hidden network.
6. Tap Next.
DRAFT 9
5 - 8 MC45 User Guide
Figure 5-11
Configure Network Authentication Window
7. In the Authentication drop-down list, select the authentication type.
8. In the Data Encryption drop-down list, select the data encryption type.
9. If WEP encryption is selected, enter an encryption key in the Network key text box.
10. Tap Next.
Figure 5-12
Configure Network Authentication Window
11.If required, select Use IEEE 802.1x network access control check box.
12. In the EAP type drop-down list box, select the EAP type.
13. Tap Finish.
More Information on WZC
For more information on Microsoft Wireless Zero Config, see the Microsoft Software Developer Network
(MSDN) at http://msdn.microsoft.com.
DRAFT 9
Chapter 6 Using GPS Navigation
Introduction
The MC45 includes Global Positioning System (GPS) technology using the QC Modem Solution chipset. GPS
technology is based on a worldwide system of GPS satellites orbiting the earth that continuously transmit digital
radio signals. These radio signals contain data on the satellites’ locations and their exact clock time and are used
to determine your location on the earth.
Software Installation
Third-party GPS navigation software is required. Evaluation software is available from various suppliers. For
example; VisualGPS, visit: http://www.visualgps.net/VisualGPSce/
If interested in purchasing GPS navigation software check with the GPS software vendor (before purchasing,
downloading, or installing any software) to determine that the application is compatible with the MC45. Refer to the
application’s user guide for application installation and setup information.
MC45 GPS Setup
By default, the MC45 has the following settings:
1. Tap Start > Settings > System > External GPS icon.
2. In the Programs tab, the GPS program port is set to COM6.
3. In the Hardware tab, the GPS hardware port is set to None.
Multiple programs can simultaneously access GPS data. Each program must use Microsoft GPS API or COM8 to
access the GPS data.
WARNING!When using the MC45 in a vehicle, it is the user’s responsibility to place, secure and use in a
manner that will not cause accidents, personal injury or property damage or obstruct their view. It
is the responsibility of the driver to operate the vehicle in a safe manner, maintain observation of
all driving conditions at all times, and not become distracted by the device to the exclusion of safe
driving practices. It is unsafe to operate the controls of the device while driving.
DRAFT 9
6 - 2 MC45 User Guide
Operation
Acquiring satellite signals may take several seconds to a few minutes. It is best to be outside and have a clear,
unobstructed view of the sky. Without a clear view, acquisition takes much longer and could result in the MC45
being unable to compute the initial position quickly. When operating the device indoors access to the GPS signals
may be limited or unavailable.
GPS Maps on microSD Cards
GPS navigation software vendors may sell maps on microSD cards. If using a microSD card with the GPS
navigation software:
1. Remove the Memory Card Cover on the side of the MC45.
2. Insert the microSD card into the slot.
3. Replace the Memory Card Cover.
Answering a Phone Call While Using GPS
If you receive a phone call while using your GPS navigation software:
1. Answer the phone call by pressing the Answer button.
2. Once you end the phone call, press the End Call button to resume the audio on the GPS software.
Losing the GPS Signal While in a Vehicle
GPS performance on the MC45 may be affected if the vehicle has thermal glass windows and windshields, which
can block the MC45 from receiving a GPS signal from satellites. To improve GPS signal strength, place the MC45
where there is a clear view of the sky. A direct line of sight is required between the MC45 and the GPS satellites to
access information from the satellites.
Assisted GPS
GPS can be used in stand-alone or Assisted GPS (A-GPS) modes. A Stand-alone GPS receiver downloads data
from GPS satellites. It can take several minutes to get a fix. By using GPS Location servers, A-GPS dramatically
improves the performance of the Time To First Fix (TTFF) of GPS receivers by providing them with data that they
would ordinarily have to download from the GPS satellites and other aiding data that helps the acquisition. With the
A-GPS data, GPS receivers can operate faster and more reliably.
The GPS Assist application provides the ability to modify the settings associated with obtaining GPS data.
Tap Start > Connections > GPS Assist icon.
NOTEWhen using a GPS navigation application, ensure that the MC45 does not go into suspend mode. If the MC45
suspends then the power to the GPS radio is removed. Upon resume the GPS receiver must reacquire a valid GPS
signal, resulting in a a delay of positional information.
NOTEAnytime you are using GPS on the MC45 and you receive a phone call, the audio on the GPS navigation software
is muted until you finish the call.
DRAFT 9
Using GPS Navigation 6 - 3
Figure 6-1
GPS Assistance Window
To set the source of the data tap Source and select one of the options: Any (default), None.
To set the frequency of updating the data tap Update Frequency and select one of the options: On Demand
(default), 1 Day, 2 Days, 4 Days, 7 Days.
To manually update the data tap the Update Now button.
GPS Reset
To perform a factory reset of the GPS function:
1. Close all applications that are using GPS.
2. Tap the Reset GPS Hardware button. The Reset GPS Hardware dialog box appears indicating that the GPS
chip has been reset.
3. Tap OK.
DRAFT 9
6 - 4 MC45 User Guide
DRAFT 9
Chapter 7 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.4). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
MC45 with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, printers, access points, and other mobile computers. To use the MC45
as a modem, create a dial-up modem connection between a computer and MC45.
The MC45 with Bluetooth technology uses the Microsoft Bluetooth stack. To write an application that uses the
Microsoft Bluetooth stack APIs, refer to the Enterprise Mobility Developer Kit (EMDK) Help.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•
Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined
channel mask.
•
Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
•
Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
•
Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Motorola mobile computers to operate in any infrastructure.
DRAFT 9
7 - 2 MC45 User Guide
The Bluetooth radio in this MC45 operates as a Class 2 device power class. The maximum output power is 2.5mW
and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult to obtain
due to power and device differences, and whether one measures open space or closed office space.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified. This
allows application developers to define security mechanisms tailored to their specific need. Link-level security
occurs between devices, not users, while application-level security can be implemented on a per-user basis. The
Bluetooth specification defines security algorithms and procedures needed to authenticate devices, and if needed,
encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth
while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates the
initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with no key
when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices
is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or passkey that is used to
create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to
authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the
Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
•
Perform pairing in a secure environment
•
Keep PIN codes private and don't store the PIN codes in the mobile computer
•
Implement application-level security.
The Microsoft stack supports Smart-pairing. For detailed information, refer to the Microsoft MSDN.
NOTE It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is
required.
DRAFT 9
Using Bluetooth 7 - 3
Bluetooth Configuration
The following services are supported
•
A2DP/AVRCP Services
•
Dial-Up Networking Services
•
File Transfer profile
•
General Audio/Video Distribution Profile
•
Generic Access Profile
•
Generic Object Exchange Profile
•
Hands-Free Audio Gateway Services
•
Headset Profile
•
HID Client Services
•
PBAP Services
•
Personal Area Networking Services
•
Serial Port Services
•
Service Discovery Access profile
•
SIM Access Profile.
COM2 through COM4 and COM8 are available unless being used by another service.
Bluetooth Power States
Suspend
When there is an active Bluetooth connection, the Bluetooth radio goes into low power mode maintaining the active
connection. When there is no active connection, the Bluetooth radio turns off.
Resume
When the MC45 resumes, Bluetooth turns on if it was on prior to suspend.
NOTE If there is an active Bluetooth connection between the MC45 and another Bluetooth device and there is no
data activity, the MC45 will timeout. However, if the user presses the Power button on the MC45, the MC45
will suspend (except when on a call) and upon receiving data from a remote Bluetooth device, the MC45 will
wake from suspend mode. For example, headset redial or Bluetooth scanner sending data to the MC45.
DRAFT 9
7 - 4 MC45 User Guide
Turning Bluetooth On and Off
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the
radio is off, other Bluetooth devices cannot see or connect to the MC45. Turn on the Bluetooth radio to exchange
information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.
Enabling Bluetooth
To enable Bluetooth:
1. Tap Wireless Manager and then tap the Bluetooth bar or
Tap Start > Settings > Connections > Wireless Manager > Bluetooth bar.
Figure 7-1
Wireless Manager Window
2. Tap on the Bluetooth bar to turn on Bluetooth.
NOTE To achieve the best battery life turn off radios not in use.
DRAFT 9
Using Bluetooth 7 - 5
Disabling Bluetooth
To disable Bluetooth:
1. Tap Wireless Manager and then tap the Bluetooth bar or
Tap Start > Settings > Connections > Wireless Manager > Bluetooth bar.
2. Tap on the Bluetooth bar to turn off Bluetooth.
Discovering Bluetooth Device(s)
The MC45 can receive information from discovered devices without bonding. However, once bonded, the MC45
and a bonded device exchange information automatically when you turn the Bluetooth radio on. To find Bluetooth
devices in the area:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 30 feet (10 meters) of one another.
4. Tap Start > Settings > Connections > Wireless Manager >Menu > Bluetooth Settings > Devices.
Figure 7-2

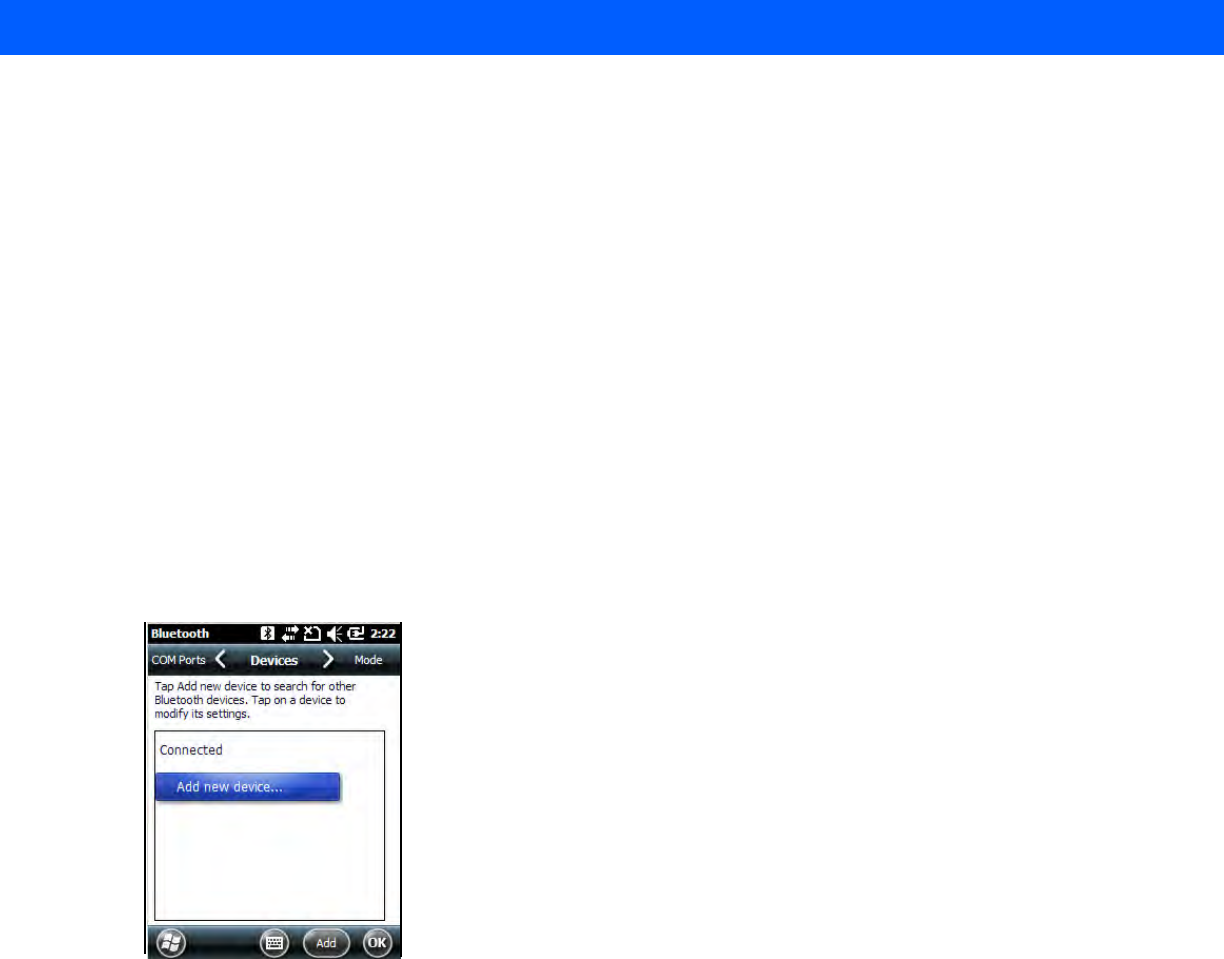

Bluetooth - Devices Tab
5. Tap Add new device. The MC45 begins searching for discoverable Bluetooth devices in the area.
DRAFT 9
7 - 6 MC45 User Guide
Figure 7-3
Searching for Bluetooth Devices
6. Select a device from the list.
Figure 7-4
Select a Bluetooth Device
7. Tap Next. The Enter Passcode window appears.
NOTEIf Smart-pairing is configured and the device is requesting one of the pre-defined PINs, the Enter
Passcode window does not appear.
DRAFT 9
Using Bluetooth 7 - 7
Figure 7-5
Enter Passcode
8. Enter the Passcode on the other device. The device is added to the Bluetooth list.
Figure 7-6
Bluetooth Connection Confirmation
You are prompted to enter a passcode. If the device has a specific passcode, enter it in the Passcode field and
tap Next. If the device does not have a specific passcode, enter a passcode in the Passcode field and tap
Next. The Bluetooth radio tries to connect with the device.
9. If you created a passcode, you will be prompted by the other device to enter the same passcode. Enter the
created passcode to establish a paired connection. (If you entered a passcode from the device, you shouldn’t
have to do anything on the other device.)
10. When the connection is complete, a list of matching and supported services on the device appears.
11.Select the services you want to use and tap Finish. The services on the new devices have to be selected or
else the pairing won’t include those services, even though the devices are paired. If services are not selected,
you will be continually reprompted for the passcode from the device.
12. The device appears in the list on the main window.
After the passcodes have been accepted on both sides, you have a trusted (“paired”) connection.
DRAFT 9
7 - 8 MC45 User Guide
Available Services
See the following sections for information on available services.
Object Push Services via Beam
Use the OBEX Push Service to send files and contacts to another Bluetooth device. To transfer files between the
MC45 and another Bluetooth enabled device:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. Tap Start > File Explorer.
4. Navigate to the file to transfer.
5. Tap and hold on the filename until the pop-up menu appears.
Figure 7-7
File Explorer Window
6. Select Beam File. The MC45 searches for Bluetooth devices in the area.
7. TapTap to send next to the Bluetooth device to send the file to. The MC45 communicates with the device and
send the file. When completed, Tap to send changes to Done.
NOTESome devices might not require a PIN. This depends upon the device’s authentication.
NOTEYou can only send files to a remote device using the Beam function.
DRAFT 9
Using Bluetooth 7 - 9
Figure 7-8
Beam File Window
To transfer a contact between the MC45 and another Bluetooth enabled device:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. Tap Start > Contacts
4. Navigate to the contact to transfer.
5. Tap and hold on the contact until the pop-up menu appears.
Figure 7-9
Contact Window
6. Select Send Contact > Beam. The MC45 searches for Bluetooth devices in the area.
7. TapTap to send next to the Bluetooth device to send the file to. The MC45 communicates with the device and
send the contact. When completed, Tap to send changes to Done.
Internet Sharing
Internet Sharing allows the user to connect a computer or laptop to the MC45 and use the MC45 as a modem to
connect to an office network or ISP.
To use MC45 as a modem using Bluetooth:
DRAFT 9
7 - 10 MC45 User Guide
1. Ensure that the device is not connected to the computer or laptop.
2. On the MC45, ensure that the Phone is on and a data connection is configured.
3. Tap Start > Internet Sharing.
4. In the PC Connection list, select Bluetooth PAN.
5. In the Network Connection list, select the connection type.
Select the network connection that the device should use to connect to the Internet.
6. Tap Connect.
7. On the computer or laptop, setup a Bluetooth PAN with your device.
a. Select Start > Control Panel > Network Connections.
b. Under Personal Area Network, select Bluetooth Network Connection.
c. Right-click on Bluetooth Network Connection and select View Bluetooth network devices.
d. In the Bluetooth Personal Area Network Devices window select your device.
e. Click Connect. The computer connects to the device via Bluetooth.
8. To verify, on the PC or laptop, launch Internet Explorer and open a web site.
9. To end dial-up networking, on the MC45 tap Disconnect.
Hands-free Services
To connect to a Bluetooth headset:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. Tap Start > Settings > Connections > Wireless Manager >Menu > Bluetooth Settings > Devices.
4. Tap New device. The MC45 searches for Bluetooth devices in the area.
5. Select the headset name and tap Next. The Passcode window appears.
6. Enter the headset’s passcode.
7. Tap Next. The MC45 connects to the headset. Refer to the headset user manual for instructions on
communicating with a Bluetooth device.
NOTEIf your computer is Bluetooth-enabled and you select Bluetooth as the PC connection, you must initiate and
complete the Bluetooth PAN partnership before Internet Sharing will work. For more information, refer to
Windows Help and Support.
NOTENewer Bluetooth headsets are device dependant and remember the last device they connected to. If problems
occur while connecting to the headset, place the headset in discovery mode. Refer to the headset user manual
for more information.
Only WAN audio is routed to the headset. System audio is still emitted through the MC45 speaker.
You can accept calls and re-dial using the Hands-free profile.
DRAFT 9
Using Bluetooth 7 - 11
Serial Port Services
Use the wireless Bluetooth serial port connection as you would a physical serial cable connection. Configure the
application that will use the connection to the correct serial port.
To establish a serial port connection:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. Tap Start > Settings > Bluetooth > Devices.
4. Tap Add new device. The MC45 begins searching for discoverable Bluetooth devices in the area.
5. Select a device from the list.
6. Tap Next. The Enter Passcode window appears.
7. Enter the Passcode and the tap Next. The device is added to the Bluetooth list.
8. In the device list, tap the serial device. The Partnership Settings window displays.
9. Select the Serial Port checkbox.
10. Tap Save.
11.Tap COM Ports tab.
12. Tap New Outgoing Port. The add device window appears.
13. Select the serial device in the list and then tap Next.
14. Select a COM port from the drop-down list.
15. Tap Finish.
ActiveSync Using Serial Port Services
Use the wireless Bluetooth serial port connection for ActiveSync just as you would a physical serial cable
connection. You must configure the application that will use the connection to the correct serial port.
To set up a Bluetooth ActiveSync connection:
Before setting up a Bluetooth ActiveSync connection, configure the Bluetooth function of your device.
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. On the computer, click Start > Settings > Control Panel.
NOTENo connection is made at this point. An application must open the selected COM port to trigger Microsoft
Bluetooth stack to open the connection.
NOTEFor additional security, disable network bridging on the computer (specifically, bridging to a Remote NDIS
adapter) before connecting to the computer to pass though to the Internet or a network. For more information
on network bridging, see Windows Help on your computer.
The instructions below are for computers that support the Windows XP SP2 or later version operating system.
DRAFT 9
7 - 12 MC45 User Guide
4. Double-click Bluetooth Devices.
5. On the Options tab, select the Turn discovery on and Allow Bluetooth devices to connect to this
computer checkboxes.
Figure 7-10
Computer Bluetooth Devices Window
6. On the COM Ports tab, click Add.
7. Select the Incoming (device initiates the connection) option, then click OK.
Note the number of the COM port that was added.
8. Click OK.
9. Click Start > All Programs > Microsoft ActiveSync.
10. Click File > Connection Settings.
Figure 7-11
ActiveSync Connection Settings
11.On the Allow connections to one of the following drop-down list, select the COM port with the number you
noted earlier.
12. On the MC45, tap Start > ActiveSync.
DRAFT 9
Using Bluetooth 7 - 13
13. Tap Menu > Connect via Bluetooth.
Synchronization is automatically initiated. The ActiveSync icon appears on the lower right corner of the Today
screen.
If an Authentication is required, the Enter Passcode screen appears, type an alphanumeric passkey (PIN
code), then tap Next; enter the same passkey on the other device.
The passkey is recommended for enhanced security. Your passkey must be between 1 to 16 alphanumeric
characters.
If you do not want to use a passkey, tap Next.
14. To disconnect the ActiveSync connection, tap My Apps > Active Sync.
15. Tap Disconnect.
Phone Book Access Profile Services
Phone Book Access profile (PBAP) is used to synchronize contacts between a remote device and the MC45. To
establish an PBAP synchronization:
1. Ensure that Bluetooth is enabled and discoverable on both devices.
2. Ensure that the two devices are within 30 feet (10 meters) of one another.
3. Tap Start > Settings > Bluetooth > Devices.
4. Tap Add New Device.The MC45 searches for a Bluetooth device, such as a Car Kit.
5. Select a device from the list.
6. Tap Next. The Enter Passcode window appears.
7. Enter the Passcode and the tap Next. The device is added to the Bluetooth list.
8. A dialog box appears requesting if you want to transfer contacts to the car kit.
9. Select Yes or No.
10. If Yes is selected, contacts from the MC45 are transferred to the car kit.
Dial-Up Networking Services
Dial-up networking allows the user to connect a PC or laptop to the MC45 and use the MC45 as a modem to
connect to an office network or ISP.
Before setting up dial-up networking, obtain dial-up information and other necessary settings (username, password
and domain name, if required) for the office network or ISP. To create a new Bluetooth connection:
1. Ensure the MC45 is discoverable and connectable.
2. On the PC or laptop, set up Bluetooth according to the manufacturer’s instructions.
3. On the PC or laptop Bluetooth software, search for the MC45 and select the Dial-up Networking service.
4. Using dial-up software on the PC or laptop, connect to the MC45.
5. The MC45 phone function dials the ISP number and connects to the ISP.
6. To verify, on the PC or laptop, launch Internet Explorer and open a web site.
DRAFT 9
7 - 14 MC45 User Guide
Connect to a HID Device
The MC45 can connect to an Human Interface Device (HID) device such as a Bluetooth keyboard or mouse:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 30 feet (10 meters) of one another.
4. Tap Start > Settings > Bluetooth > Devices.
5. Tap Add new device. The MC45 begins searching for discoverable Bluetooth devices in the area.
6. Select a HID device from the list.
7. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
8. Tap Connect. The MC45 connects to the HID device.
A2DP/AVRCP Services
A2DP/AVRCP is used to connect to a high-quality stereo headset:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 30 feet (10 meters) of one another.
4. Tap Start > Settings > Bluetooth > Devices.
5. Tap Add new device. The MC45 begins searching for discoverable Bluetooth devices in the area.
6. Select a stereo headset from the list.
7. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
8. Tap Connect. The MC45 connects to the stereo headset.
For stereo headsets that can use hands-free services, connect to the hands-free service after connecting to the
A2DP service:
1. Tap Start > Settings > Bluetooth > Devices.
2. Tap Add new device. The MC45 begins searching for discoverable Bluetooth devices in the area.
3. Select a stereo headset from the list.
4. Tap Next. The Enter Passcode window appears. Refer to the device’s User Manuals for more information.
5. Tap Connect. The MC45 connects to the stereo headset.
NOTEIf Smart-pairing is configured and the device is requesting one of the pre-defined PINs, the Enter
Passcode window does not appear.
DRAFT 9
Chapter 8 Accessories
Introduction
MC45 accessories, listed below, provide a variety of product support capabilities.
Table 8-1
MC45 Accessories
Accessory Part Number Description
Cradles
Single Slot Charge Cradle CRDMC45-1000CR Charges the MC45 device.
Multi Slot Universal
Charge Only Cradle CRDUNIVSL-5000R Charges five MC45 devices simultaneously or four MC45
devices when configured with a Four Slot Battery Charger.
Charger Cup and Power Supply sold separately.
Vehicle Charge Cradle VCD4500-1000R Installs in a vehicle and charges the MC45 battery.
Chargers
Four Slot Battery Charger SAC4500-4000CR Charges four MC45 batteries simultaneously.
Cables
Auto Charge Cable 25-70979-01R Charges the MC45 using a vehicle’s cigarette lighter.
DEX Cable 25-45793-01R For use with electronic data exchange. For example,
connecting MC45 to a vending machine.
USB Rapid Charge Cable 25-128458-01R Charges the MC45 and provides USB communication with
a host computer.
Miscellaneous
Power Supply PWRS-124306-01R Provides power to the MC45 or Single Slot Charge Cradle
using the USB Rapid Charge Cable.
Power Supply PWRS-14000-148C Provides power to the Multi Slot Universal Charge Only
Cradle.
DRAFT 9
8 - 2 MC45 User Guide
USB Rapid Charge Cable
Use the USB Rapid Charge cable to connect the MC45 to the power supply for charging or to a host computer for
communication.
Figure 8-1
USB Rapid Charge Cable
Spare 3080 mAh
lithium-ion battery BTRY-ES40EAB02 Replacement 3080 mAh battery.
MC45 Battery Door KT-MC45-BTRYD-01R Replacement battery door.
Mount Bracket KT-UNIVLBRKT-01R Rack mount bracket for the Multi Slot Universal Charge
Only Cradle.
Charger Cup CUPMC45XX-1000R Charger cup for the Multi Slot Universal Charge Only
Cradle.
Charger Cup CUPMC45XX-5000R Package of 5 charger cups for the Multi Slot Universal
Charge Only Cradle.
Blank Slot Cover CUPUNICVR-5000R Package of 5 blank slot covers for the Multi Slot Universal
Charge Only Cradle charge slot.
Four Slot Battery Charger
Cup Adapter CUPUNIBTRY-1000R Mounts the Four Slot Battery Charger onto the Multi Slot
Universal Charge Only Cradle.
Handstrap SG-MC45-STRAP-01R Single pivot handstrap.
Soft Holster SG-MC45-HLSTR-01R Soft case holder for added protection.
Stylus with Tether Kit KT-MC45-STYTH-01R Replacement Stylus and Tether (10-pack)
micro USB adapter ADP4500-100R Rugged micro USB adapter that connects to the MC45
micro USB port.
Screen Protector Package of 3 screen protectors.
Table 8-1
MC45 Accessories (Continued)
Accessory Part Number Description
DRAFT 9
Accessories 8 - 3
Communication with Host Computer
To communicate with a host computer:
1. Ensure ActiveSync is installed and configured on the host computer. See ActiveSync on page 8-12 for more
information.
2. Connect USB Rapid Charge cable to the microUSB port on the side of the MC45.
3. Connect the USB connector of the USB Rapid Charge Cable to the USB Port on the host computer .
4. The USB Connect dialog box appears.
5. Tap ActiveSync RNDIS or ActiveSync Serial.
6. Tap Connect.
DRAFT 9
8 - 4 MC45 User Guide
Single Slot Charge Cradle
Charging the MC45 Battery
To charge the MC45 battery:

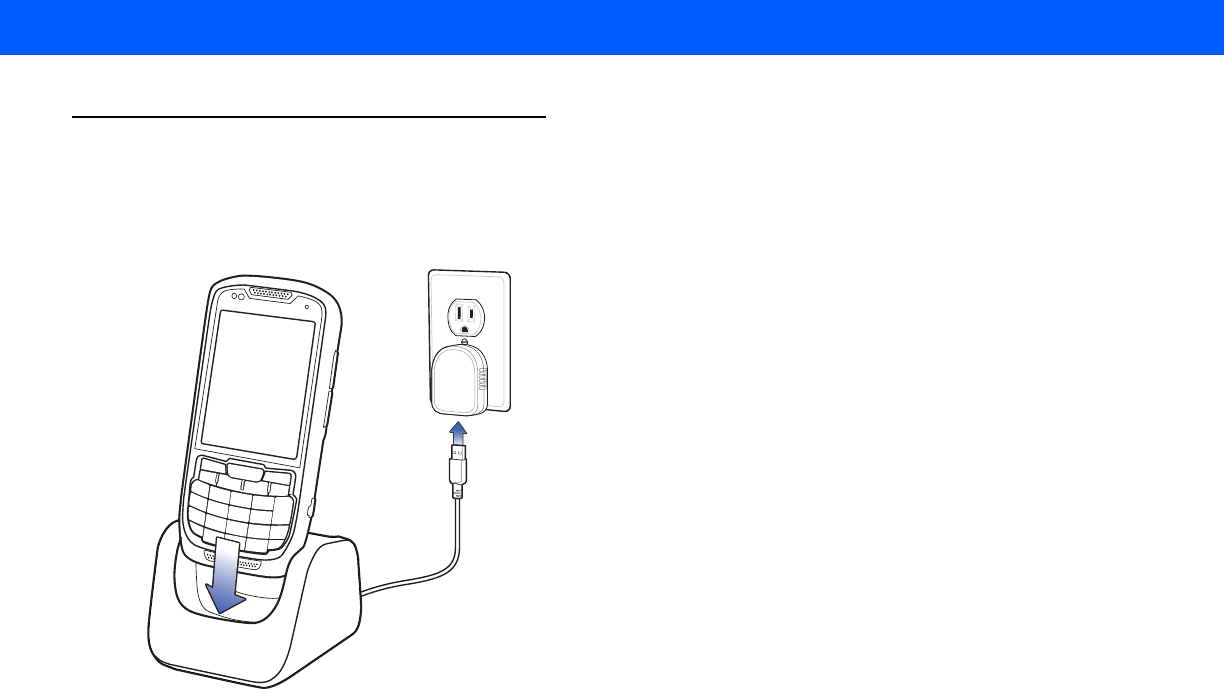

Figure 8-2
Charging the MC45 Using the Single Slot Charge Cradle
1. Place the MC45 into the cradle.
The MC45’s LED indicates the status of the battery charging in the MC45. See Table 1-1 on page 1-7 for charging
status indications. The 3080mAh battery fully charges in less than six hours at room temperature of approximately
25 °C (77°F). Charging time may vary at different temperatures.
DRAFT 9
Accessories 8 - 5
Multi Slot Universal Charge Only Cradle
To charge the MC45 batteries:
1. Place the MC45 into the cradle.
Figure 8-3
Multi Slot Universal Charge Only Cradle
The MC45’s LED indicates the status of the battery charging in the MC45. See Table 1-1 on page 1-7 for charging
status indications. The 3080mAh battery fully charges in less than six hours at room temperature of approximately
25 °C (77°F). Charging time may vary at different temperatures.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC45.
To accomplish this, for small periods of time, the MC45 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC45 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1 on page 1-7.
NOTEThe Multi Slot Universal Charge Only Cradle
charges five MC45 devices simultaneously or four MC45 devices
when configured with a Four Slot Battery Charger.
NOTEThe Four Slot Battery Charger can be attached to the Multi Slot Universal Charge Only Cradle using a Battery
Charger Cup Adapter. The cup adapter angles the Battery Charger so that the user can see the LED
indicators easily.
The Four Slot Battery Charger requires a separate power supply. See Four Slot Battery Charger on page 8-10
for more information
DRAFT 9
8 - 6 MC45 User Guide
Vehicle Charge Cradle
Install the vehicle mount on the surface of the vehicle that is reasonably flat and free of dirt and oil. Clean the
mounting surface with a glass cleaner and a clean cotton cloth. Install the vehicle mount on the windshield or other
flat car surface using the supplied mounting disc.
Windshield Installation

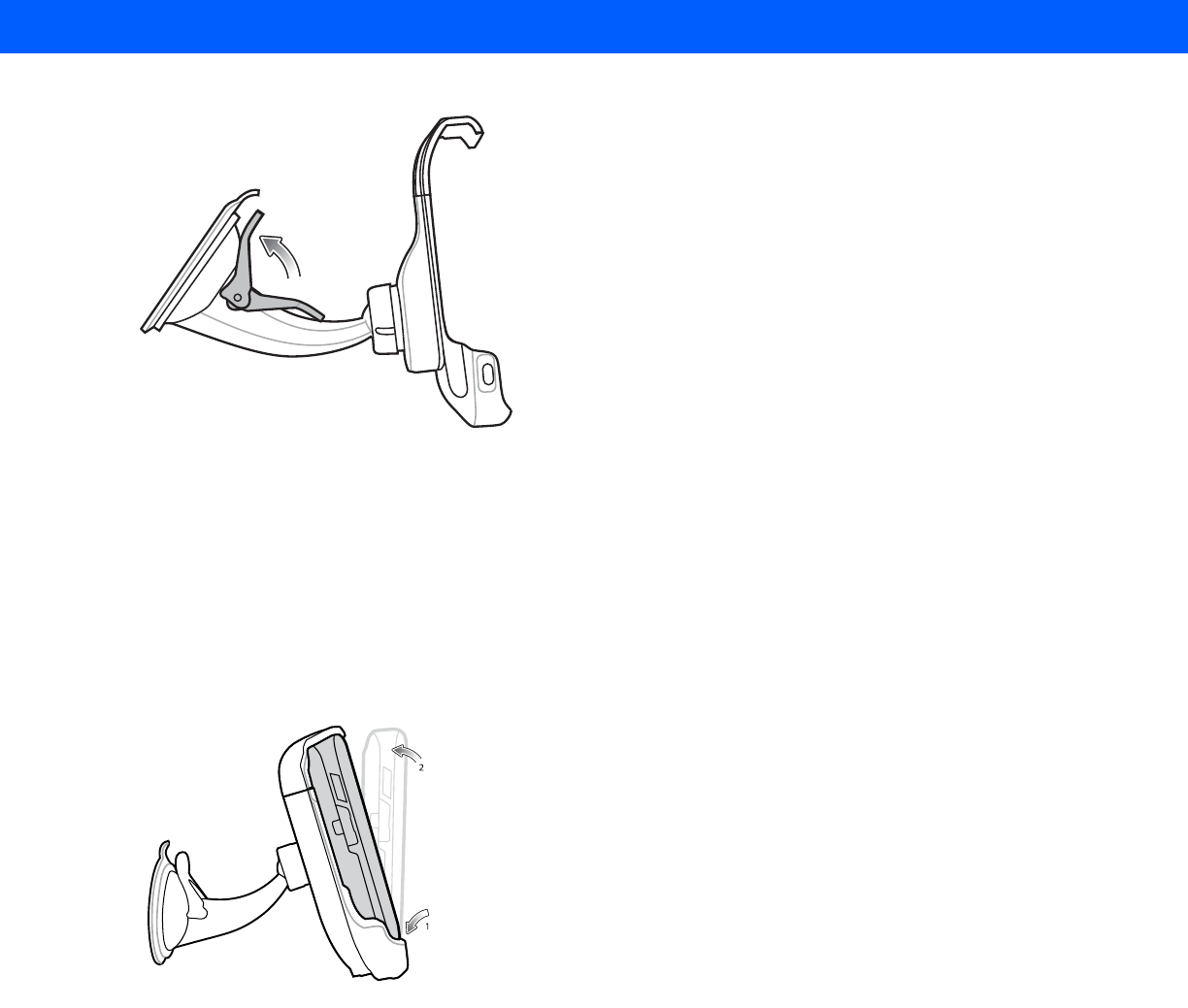

1. Fix the suction cup mount to the selected area with the suction lever facing up.
Figure 8-4
Install on Windshield
2. Flip the lever down to create a vacuum between the suction cup and the mounting surface.
WARNING!Some countries prohibit the mounting of any electronic device in any location on the vehicle
dashboard. Be sure to check with local laws acceptable mounting areas before installing the
auto mounting kit.
DRAFT 9
Accessories 8 - 7
Figure 8-5
Move lever Toward Windshield
3. Make sure that the suction bond is strong enough before proceeding to the next step.
Install the MC45
To install the MC45 into the Vehicle Holder:
1. Place the MC45 bottom first into the holder.
2. Push the MC45 back until it snaps into place.
Figure 8-6
Insert MC45 into Vehicle Holder
3. Position the MC45 for best viewing.
4. Tighten the nuts to lock the holder in place.
DRAFT 9
8 - 8 MC45 User Guide
Figure 8-7
Tighten Nut
Connect Power
To connect power to the Vehicle Holder:
1. If required, connect the micro-USB connector of the auto charger to the input power connector in the vehicle
holder.
Figure 8-8
Commercial Grade Auto-Charger
Figure 8-9
Consumer Grade Auto Charger
DRAFT 9
Accessories 8 - 9
Figure 8-10
Connect Auto-Charge Cable to Vehicle Holder
1. Connect the other end to the cigarette lighter socket.
The LED indicator flashes green indicating the MC45 is charging.
Remove the MC45

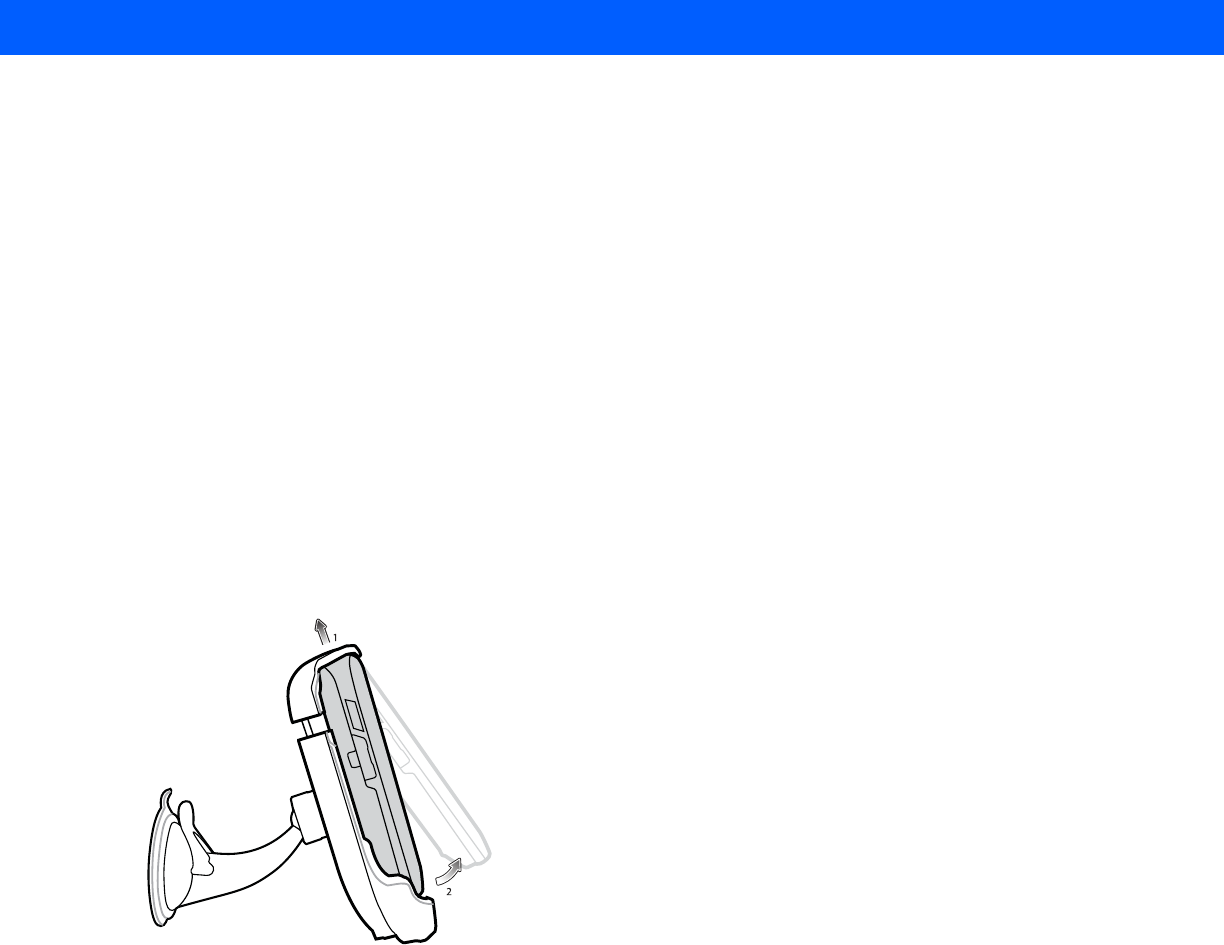

To remove the MC45 from the Vehicle Holder lift the MC45 up and then remove from the bottom of the holder.
Figure 8-11
Remove MC45 from Vehicle Holder
Pending picture
DRAFT 9
8 - 10 MC45 User Guide
Four Slot Battery Charger
To charge the MC45 batteries:
1. Connect the charger to a power source.
2. Insert the spare battery into a spare battery charging well and gently press down on the battery to ensure the
battery is safely lock under the latch.

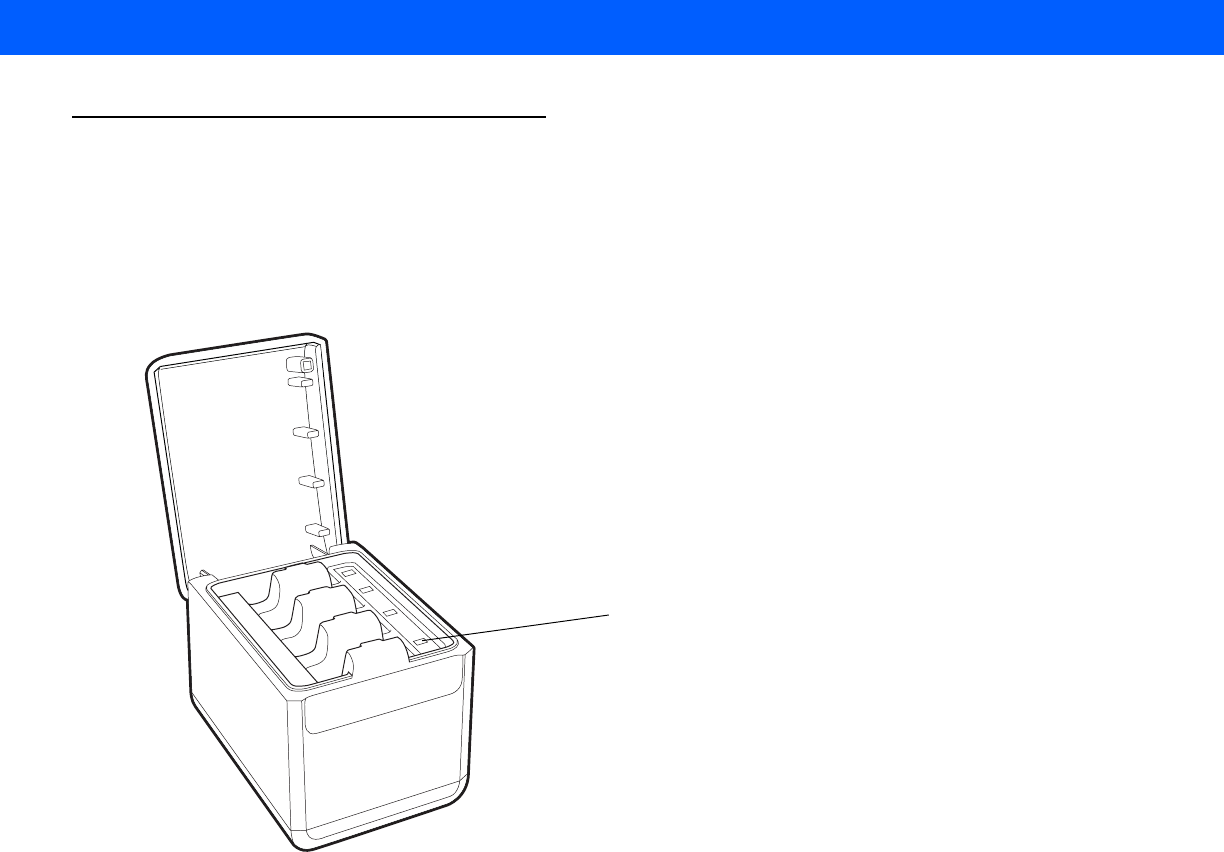

Figure 8-12
Four Slot Battery Charger
To remove the spare battery from the Four Slot Battery Charger:
1. Gently push the battery located in the spare battery charging well towards the back of the charger. The latch
unlocks.
2. Remove the battery by pulling it upwards from the spare battery charging well.
Battery Charging Indicators
The charger has a green LED for each battery charging well. See Table 8-2 for charging status indications. The
3080 mAh battery fully charges in less than six hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC45.
To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep
the battery at acceptable temperatures. The charger indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 1-1 on page 1-7.
Spare Battery
Charging LEDs (4)
DRAFT 9
Accessories 8 - 11
micro USB Adapter
Use the micro USB Adapter to connect accessory devices (such as printers or USB flash drives) to the MC45.
Figure 8-13
micro USB Adapter Connection
1. Connect an accessory device’s USB connector to the micro USB Adapter.
Table 8-2
Spare Battery LED Charging Indicators
LED Indication
Off No spare battery in slot; battery is not charging; battery is not inserted correctly in
the charger; charger is not powered.
Slow Blinking Green Spare battery is charging.
Solid Green Charging complete.
Fast Blinking Red Charging error.
NOTEThe micro USB Adapter can only be connected to the MC45 and not the Single Slot Charge Cradle.
The micro USB Adapter is intended to provide extension of the MC45 micro USB port. Use the micro USB
Adapter to minimize mechanical wear and failures of the MC45.
CAUTION Do not connect a USB device that draws more than 100 mA. If a device that draws more than 100mA is
connected, the MC45 displays a Warning dialog box. Remove the USB device from the micro USB
Adapter.
NOTE When connecting a USB Flash drive to the micro USB Adapter, the USB Flash Drive appears in File Explorer
as Hard Drive under My Device folder.
DRAFT 9
8 - 12 MC45 User Guide
ActiveSync
To communicate with various host devices, install Microsoft ActiveSync (version 4.5 or higher) on the host
computer. Use ActiveSync to synchronize information on the MC45 with information on the host computer.
Changes made on the MC45 or host computer appear in both places after synchronization.
ActiveSync software:
•
Allows working with mobile computer-compatible host applications on the host computer. ActiveSync
replicates data from the mobile computer so the host application can view, enter, and modify data on the
mobile computer.
•
Synchronizes files between the mobile computer and host computer, converting the files to the correct
format.
•
Backs up the data stored on the mobile computer. Synchronization is a one-step procedure that ensures the
data is always safe and up-to-date.
•
Copies (rather than synchronizes) files between the mobile computer and host computer.
•
Controls when synchronization occurs by selecting a synchronization mode, e.g., set to synchronize
continually while the mobile computer is connected to the host computer, or set to only synchronize on
command.
•
Selects the types of information to synchronize and control how much data is synchronized.
Installing ActiveSync
To install ActiveSync on the host computer, download version 4.5 or higher from the Microsoft web site at
http://www.microsoft.com. Refer to the installation procedures included with the ActiveSync software.
MC45 Setup
The MC45 can be set up to communicate with a USB connection. The MC45 communication settings must be set
to match the communication settings used with ActiveSync.
1. On the MC45 tap Start > ActiveSync.
2. Tap Menu > Connections.
3. Select the connection type from the drop-down list.
4. Tap OK to exit the Connections window
5. Tap OK to exit the ActiveSync window.
6. Proceed with setting up a partnership with a host computer with ActiveSync installed.
NOTEWhen the MC45 is connected to a host computer and an ActiveSync connection is made, the WLAN radio is
disabled. This is a Microsoft security feature to prevent connection to two networks at the same time.
NOTEMicrosoft recommends installing ActiveSync on the host computer before connecting the MC45.
DRAFT 9
Accessories 8 - 13
Setting Up an ActiveSync Connection on the Host Computer
To start ActiveSync:
1. Select Start > Programs > Microsoft ActiveSync on the host computer.
2. In the ActiveSync window, select File > Connection Settings. The Connection Settings window appears.
3. Select Allow USB connections check box.
4. Select the Show status icon in Taskbar check box.
5. Select OK to save any changes made.
Synchronization with the MC45
To synchronize with the MC45:
1. If the Get Connected window does not appear on the host computer, select Start > Active Sync and then
click Next.
2. Select the check box to synchronize with a server running Microsoft Exchange if applicable and then click
Next.
3. Select the appropriate settings and click Next and then click Finish.
During the first synchronization, information stored on the MC45 is copied to the host computer. When the copy is
complete and all data is synchronized, the MC45 can be disconnected from the host computer.
For more information about using ActiveSync, start ActiveSync on the host computer, then see ActiveSync Help.
NOTEAssign each MC45 a unique device name. Do not try to synchronize more than one MC45 to the same name.
NOTEWhen the MC45 is connected to a host computer and an ActiveSync connection is made, the WLAN radio
(if applicable) is disabled. This is a Microsoft security feature to prevent connection to two networks at the
same time.
NOTEThe first ActiveSync operation must be performed with a local, direct connection. Windows Mobile retains
partnerships information after a cold boot.
DRAFT 9
8 - 14 MC45 User Guide
DRAFT 9
Chapter 9 Maintenance &
Troubleshooting
Introduction
This chapter includes instructions on cleaning and storing the MC45, and provides troubleshooting solutions for
potential problems during MC45 operation.
Maintaining the MC45
For trouble-free service, observe the following tips when using the MC45:
•
Do not scratch the screen of the MC45. When working with the MC45, use the supplied stylus or
plastic-tipped pens intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other
sharp object on the surface of the MC45 screen.
•
A screen protector, p/n KT-67525-01R, is applied to the MC45. Motorola recommends using this to minimize
wear and tear. Screen protectors enhance the usability and durability of touch screen displays. Benefits
include:
•Protection from scratches and gouges
•Durable writing and touch surface with tactile feel
•Abrasion and chemical resistance
•Glare reduction
•Keeping the device’s screen looking new
•Quick and easy installation.
•
The touch-sensitive screen of the MC45 is glass. Do not to drop the MC45 or subject it to strong impact.
•
Protect the MC45 from temperature extremes. Do not leave it on the dashboard of a car on a hot day, and
keep it away from heat sources.
•
Do not store or use the MC45 in any location that is dusty, damp, or wet.
•
Use a soft lens cloth to clean the MC45. If the surface of the MC45 screen becomes soiled, clean it with a soft
cloth moistened with a diluted window-cleaning solution.
•
Periodically replace the rechargeable battery to ensure maximum battery life and product performance.
Battery life depends on individual usage patterns.
DRAFT 9
9 - 2 MC45 User Guide
Removing the Screen Protector
A screen protector is applied to the MC45. Motorola recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays.
To remove the screen protector, lift the corner using a thin plastic card, such as a credit card, then carefully lift it off
the display.
Figure 9-1
Removing the Screen Protector
Battery Safety Guidelines
•
The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
•
Follow battery usage, storage, and charging guidelines.
•
Improper battery use may result in a fire, explosion, or other hazard.
•
To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and
+104 ºF (0 ºC and +40 ºC)
•
Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a risk
of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a
charger, contact Motorola Solutions Global Customer Support.
•
For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
•
To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will
carry a Motorola hologram. Do not fit any battery without checking it has the Motorola authentication
hologram.
•
Do not disassemble or open, crush, bend or deform, puncture, or shred.
Lift Screen
Protector
Corner
CAUTION Do not use a sharp object to remove the protector. Doing so can damage the display.
NOTE Not using a screen protector can affect warranty coverage. To purchase replacement protectors, contact your
local account manager or Motorola, Inc. These include screen protector installation instructions. Part number:
KT-67525-01R Screen Protector 3/pk.
DRAFT 9
Maintenance & Troubleshooting 9 - 3
•
Severe impact from dropping any battery-operated device on a hard surface could cause the battery to
overheat.
•
Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
•
Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water
or other liquids, or expose to fire, explosion, or other hazard.
•
Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or
near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
•
Battery usage by children should be supervised.
•
Please follow local regulations to promptly dispose of used re-chargeable batteries.
•
Do not dispose of batteries in fire.
•
Seek medical advice immediately if a battery has been swallowed.
•
In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has
been made, wash the affected area with large amounts of water and seek medical advice.
•
If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to arrange
for inspection.
Cleaning
Materials Required
•
Alcohol wipes
•
Lens tissue
•
Cotton tipped applicators
•
Isopropyl alcohol
•
Can of compressed air with a tube.
Cleaning the MC45
Housing
Using the alcohol wipes, wipe the housing including keys and in-between keys.
WARNING!Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure
occurs, unplug the device and clean the product immediately in accordance with these guidelines.
CAUTION Always wear eye protection.
Read warning label on compressed air and alcohol product before using.
If you have to use any other solution for medical reasons please contact Motorola for more information.
DRAFT 9
9 - 4 MC45 User Guide
Display
The display can be wiped down with the alcohol wipes, but care should be taken not to allow any pooling of liquid
around the edges of the display. Immediately dried the display with a soft, non-abrasive cloth to prevent streaking.
Scanner Exit Window
Wipe the scanner exit window periodically with a lens tissue or other material suitable for cleaning optical material
such as eyeglasses.
Connector
1. Remove the main battery from mobile computer. See Replacing the Battery on page 1-8.
2. Close battery door.
3. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
4. Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the
MC45. Do not leave any cotton residue on the connector.
5. Repeat at least three times.
6. Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.
7. Use a dry cotton tipped applicator and repeat steps 4 through 6.
8. Spray compressed air on the connector area by pointing the tube/nozzle about ½ inch away from the surface.
9. Inspect the area for any grease or dirt, repeat if required.
Cleaning Cradle Connectors
To clean the connectors on a cradle:
1. Remove the DC power cable from the cradle.
2. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3. Rub the cotton portion of the cotton tipped applicator along the pins of the connector. Slowly move the
applicator back-and-forth from one side of the connector to the other. Do not let any cotton residue on the
connector.
4. All sides of the connector should also be rubbed with the cotton tipped applicator.
5. Spray compressed air in the connector area by pointing the tube/nozzle about ½ inch away from the surface.
6. Ensure that there is no lint left by the cotton tipped applicator, remove lint if found.
7. If grease and other dirt can be found on other areas of the cradle, use lint free cloth and alcohol to remove.
CAUTION Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
CAUTION Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
DRAFT 9
Maintenance & Troubleshooting 9 - 5
8. Allow at least 10 to 30 minutes (depending on ambient temperature and humidity) for the alcohol to air dry
before applying power to cradle.
If the temperature is low and humidity is high, longer drying time is required. Warm temperature and dry
humidity requires less drying time.
Cleaning Frequency
The cleaning frequency is up to the customer’s discretion due to the varied environments in which the mobile
devices are used. They may be cleaned as frequently as required. However when used in dirty environments it
may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.
Troubleshooting
MC45
Table 9-1
Troubleshooting the MC45
Problem Cause Solution
MC45 does not turn
on. Battery not charged. Charge or replace the battery.
Battery not installed
properly. Install the battery properly. See
Installing the Battery on page 1-5
.
System crash. Perform a warm boot. If the MC45 still does not turn on, perform a
cold boot. See
Resetting the MC45 on page 2-17
.
Rechargeable battery
did not charge. Battery failed. Replace battery. If the MC45 still does not operate, perform a warm
boot, then a cold boot. See
Resetting the MC45 on page 2-17
.
MC45 removed
from cradle while
battery was
charging.
Insert MC45 in cradle and allow to charge.
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 40°C (104°F).
Cannot see characters
on display. MC45 not powered
on. Press the red
Power
button.
DRAFT 9
9 - 6 MC45 User Guide
During data
communication, no
data transmitted, or
transmitted data was
incomplete.
MC45 removed
from cradle or
disconnected from
host computer
during
communication.
Replace the MC45 in the cradle, or reattach the communication
cable and re-transmit.
Incorrect cable
configuration. See the system administrator.
Communication
software was
incorrectly installed
or configured.
Perform setup. Refer to the MC45 Enterprise Digital Assistant
Integrator Guide for details.
No sound. Volume setting is
low or turned off. Adjust the volume. See
Adjusting Volume on page 2-14
.
MC45 shuts off. MC45 is inactive. The MC45 turns off after a period of inactivity. If the MC45 is
running on battery power, set this period from 1 to 5 minutes, in
one-minute intervals. If the MC45 is running on external power, set
this period to 1, 2, 5, 10, 15, or 30 minutes.
Check the
Power
window by selecting
Start
>
Settings
>
Power
icon. Select the
Advanced
tab and change the setting for a longer
delay before the automatic shutoff feature activates.
Battery is depleted. Recharge or replace the battery.
Battery is not
inserted properly. Insert the battery properly. See
Installing the Battery on page 1-5
.
Tapping the window
buttons or icons does
not activate the
corresponding feature.
Screen is not
calibrated correctly. Re-calibrate the screen. See
Calibrating the Screen on page 1-8
.
The system is not
responding. Warm boot the system. See
Resetting the MC45 on page 2-17
.
A message appears
stating that the MC45
memory is full.
Too many files
stored on the MC45. Delete unused memos and records. If necessary, save these
records on the host computer (or use an SD card for additional
memory).
Too many
applications
installed on the
MC45.
Remove user-installed applications on the MC45 to recover
memory. Select
Start
>
Settings
>
System
and tap the
Remove
Programs
icon. Select the unused program and tap
Remove.
MC45 keeps powering
down to protect
memory contents.
The MC45’s battery
is low. Recharge or replace the battery. Configure the MC45 to conserve
power. Refer to
Battery Management on page 1-9
for more
information.
Table 9-1
Troubleshooting the MC45 (Continued)
Problem Cause Solution
DRAFT 9
Maintenance & Troubleshooting 9 - 7
The MC45 does not
accept data capture
input.
Scanning
application is not
loaded.
Load a scanning application on the MC45. See the system
administrator.
Unreadable bar
code. Ensure the symbol is not defaced.
Distance between
exit window and bar
code is incorrect.
Place the MC45 within proper scanning range.
MC45 is not
programmed for the
bar code.
Program the MC45 to accept the type of bar code being scanned.
MC45 is not
programmed to
generate a beep.
If the MC45 does not beep on a good decode, set the application to
generate a beep on good decode.
Battery is low. If the scanner stops emitting a laser beam upon a trigger press,
check the battery level. When the battery is low, the scanner shuts
off before the MC45 low battery condition notification. Note: If the
scanner is still not reading symbols, contact the distributor or
Motorola.
MC45 cannot find any
Bluetooth devices
nearby.
Too far from other
Bluetooth devices. Move closer to the other Bluetooth device(s), within a range of 10
meters.
The Bluetooth
device(s) nearby
are not turned on.
Turn on the Bluetooth device(s).
The Bluetooth
device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to discoverable mode. If needed, refer
to the device’s user documentation for help.
Table 9-1
Troubleshooting the MC45 (Continued)
Problem Cause Solution
DRAFT 9
9 - 8 MC45 User Guide
Single Slot Charge Cradle
Table 9-2
Troubleshooting the Single Slot Charge Cradle
Symptom Possible
Cause Action
LEDs do not light
when MC45 is
inserted.
Cradle is not
receiving power. Ensure the power cable is connected securely to both the cradle
and to AC power.
MC45 is not seated
firmly in the cradle. Remove and re-insert the MC45 into the cradle, ensuring it is firmly
seated.
MC45 battery is not
charging. MC45 was removed
from cradle or
cradle was
unplugged from AC
power too soon.
Ensure cradle is receiving power. Ensure MC45 is seated correctly.
Confirm battery is charging under
Start
>
Settings
>
Power
.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC45 is not
fully seated in the
cradle.
Remove and re-insert the MC45 into the cradle, ensuring it is firmly
seated.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 40°C (104°F).
During data
communication, no
data transmits, or
transmitted data was
incomplete.
MC45 removed
from cradle during
communications.
Replace MC45 in cradle and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC45 Enterprise Digital
Assistant Integrator Guide.
DRAFT 9
Maintenance & Troubleshooting 9 - 9
Multi Slot Universal Charge Only Cradle
Vehicle Charge Cradle
Table 9-3
Troubleshooting the Multi Slot Universal Charge Only Cradle
Symptom Possible
Cause Action
LEDs do not light
when MC45 is
inserted.
Cradle is not
receiving power. Ensure the power cable is connected securely to both the cradle
and to AC power.
MC45 is not seated
firmly in the cradle. Remove and re-insert the MC45 into the cradle, ensuring it is firmly
seated.
MC45 battery is not
charging. MC45 was removed
from cradle or
cradle was
unplugged from AC
power too soon.
Ensure cradle is receiving power. Ensure MC45 is seated correctly.
Confirm battery is charging under
Start
>
Settings
>
Power
.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC45 is not
fully seated in the
cradle.
Remove and re-insert the MC45 into the cradle, ensuring it is firmly
seated.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 40°C (104°F).
Table 9-4
Troubleshooting the Vehicle Charge Cradle
Symptom Possible
Cause Action
LEDs do not light up
when MC45 is inserted Cradle is not
receiving power. Ensure the power input cable is securely connected to the cradle’s
power port.
MC45 battery is not
charging. MC45 was removed
from the cradle too
soon.
Replace the MC45 in the cradle.
Battery is faulty. Replace the battery.
DRAFT 9
9 - 10 MC45 User Guide
Four Slot Battery Charger
r
MC45 is not placed
correctly in the
cradle.
Remove the MC45 from the cradle, and re-insert correctly. If the
battery still does not charge, contact customer support.
The MC45 battery charging LED slowly blinks amber when the
MC45 is correctly inserted and charging.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
MC45 removed
from cradle during
communication.
Replace MC45 in cradle and retransmit.
Table 9-4
Troubleshooting the Vehicle Charge Cradle
Symptom Possible
Cause Action
Table 9-5
Troubleshooting The Four Slot Battery Charger
Symptom Possible
Cause Action
LEDs do not light
when MC45 is
inserted.
Charger is not
receiving power. Ensure the power cable is connected securely to both the charger
and to AC power.
MC45 battery is not
seated firmly in the
charger.
Remove and re-insert the MC45 battery into the charging well,
ensuring it is firmly seated.
MC45 battery is not
charging. Battery was
removed from the
charger or charger
was unplugged from
AC power too soon.
Re-insert the battery in the charger or re-connect the charger’s
power supply.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
Battery contacts not
connected to
charger.
Verify that the battery is seated in the charging well correctly with
the contacts facing down.
Ambient
temperature of the
cradle is too warm.
Move the charger to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
DRAFT 9
Maintenance & Troubleshooting 9 - 11
Cables
Table 9-6
Troubleshooting the Cables
Symptom Possible
Cause Action
MC45 battery is not
charging. MC45 was
disconnected from
AC power too soon.
Connect the power cable correctly. Confirm main battery is charging
under
Start
>
Settings
>
Power
.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC45 is not
fully attached to
power.
Detach and re-attach the power cable to the MC45, ensuring it is
firmly connected.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
Cable was
disconnected from
MC45 during
communications.
Re-attach the cable and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC45 Integrator Guide.
DRAFT 9
9 - 12 MC45 User Guide
DRAFT 9
Appendix A Technical Specifications
MC45 Technical Specifications
The following tables summarize the MC45’s intended operating environment and technical hardware
specifications.
Table A-1
MC45 Technical Specifications
Item Description
Physical Characteristics
Dimensions Length: 14.2 cm (5.6 in.)
Width: 6.6 cm (2.6 in.)
Depth: 2.5 cm (1.0 in.)
Weight 247.4 g (8.73 oz)
Display 16 bit color 3.2” QVGA with backlight, TFT-LCD, 65K colors,
240 W x 320 L (QVGA size)
Touch Panel Glass analog resistive touch
Backlight LED backlight
Battery Rechargeable Lithium Ion 3.7V, 3080 mAh Smart Battery
Expansion Slot User accessible microSD slot with UHS-I SDHC support up to 32GB
Network Connections USB 2.0 High Speed (host and client), WLAN, WWAN and Bluetooth
Notification Vibrator and audible tone plus multi-color LED
Keypad Options Numeric
Audio VoWWAN: handset mode with active noise reduction, speaker phone mode,
Bluetooth wireless headset mode
Performance Characteristics
CPU
600 MHz, ARM 11 processor, MSM 7627
DRAFT 9
A - 2 MC45 User Guide
Operating System Microsoft
®
Windows Embedded Handheld™ 6.5.3 Professional Edition
Memory 256 MB RAM / 1GB Flash
Interface/Communications USB 2.0
Output Power USB: 5 VDC @ 300mA max.
User Environment
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 32°F to 104°F / 0° C to 40° C
Humidity 5% to 95% non-condensing
Drop Specification Multiple 1.5 m (5 ft.) drop per MIL-STD 810F
Multiple 0.9 m (3 ft.) drop to concrete, over operating temperature range
Tumble 250, 0.5 m (1.5 ft.) tumbles with standard batteries installed; per applicable IEC
tumble specifications
Electrostatic Discharge (ESD) +/-15kVdc air discharge, +/-8kVdc direct discharge, +/-8kVdc indirect discharge
Sealing IP64 per applicable IEC sealing specifications
Vibration .02g2/Hz Random, Non-Operating, 1 hour duration per axis
Termal Shock -40°C to 70°C rapid transition
Wireless WAN Data and Voice Communications
Radio GSM and UMTS/HSDPA
Frequency Band GSM – Quad Band : 850 / 900 / 1800 / 1900 MHz
UMTS/HSDPA – MC4597-A: 2100 MHz
UMTS/HSDPA – MC4597-B: 850 / 1900 MHz
GPS Integrated, Autonomous and Assisted-GPS (A-GPS)
Wireless LAN Data and Voice Communications
Radio Tri-mode IEEE
®
802.11a/b/g
Data Rates Supported 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Operating Channels Chan 8-169 (5040 – 5845 MHz)
Chan 1-13 (2412-2472 MHz) Chan 14 (2484 MHz) Japan only
Actual operating frequencies depend on regulatory rules and certification
agency
Table A-1
MC45 Technical Specifications (Continued)
Item Description
DRAFT 9
Technical Specifications A - 3
Security WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP
v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2),
AES, LEAP, CCXv4 certified; FIPS 140-2 certified
Spreading Technique Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division
Multiplexing (OFDM)
Antenna Internal
Wireless PAN Data and Voice Communications
Bluetooth Class II, V2.0 with EDR
Data Capture Specifications
Options 1D laser, color camera
Laser 1D Scanner (SE965) Specifications
Optical Resolution 0.005 in. minimum element width
Roll +/- 30° from vertical
Pitch Angle +/- 65° from normal
Skew Tolerance +/- 60° from normal
Ambient Light Sunlight: 8,000 ft. candles (86,112 Lux)
Artificial Light: 450 ft. candles (4,844 Lux)
Shock 2,000 +/- 5% G
Scan Rate 50 (+/- 6) scans/sec (bidirectional)
Scan Angle 46.5° (typical)
Laser Power 1.0 mW nominal
Camera Specifications
Resolution 3.2 Mega pixel with auto focus and flash
Table A-1
MC45 Technical Specifications (Continued)
Item Description
Bluetooth Class II, V2.1 with EDR
DRAFT 9
A - 4 MC45 User Guide
MC45 Accessory Specifications
Single Slot Charge Cradle
Table A-2
Data Capture Options
Item Description
Camera Decode Capability
1-D Bar Codes
Codabar Code 11 Code 39
Code 93 Code 128 Chinese 2 of 5
Coupon Code Discrete 2 of 5 EAN 8
EAN 13 Interleaved 2 of 5 ISBT 128
Korean 3 of 5 MSI RSS
RSS 14 RSS Limited RSS Expanded
Trioptic Code 29 UCC / EAN 128 UPCA
UPCE UPCE1 Web Code
2-D Bar Codes
Australian Postal Aztec Composite AB
Composite C Data Matrix Dutch Postal
Image Japan Postal Linked Aztec
Macro Micro PRF Micro PDF Micro QR
PDF QR Code Signature
UK Postal UK Intellimail US Planet
US Postnet
Table A-3
Single Slot Charge Cradle Technical Specifications
Feature Description
Dimensions Length: 9.6 cm (3.8 in.)
Width: 8.30 cm (3.3 in.)
Height: 6.8 cm (2.7 in.)
Weight 245 g (8.6 oz)
Input Power 5 VDC
Power Consumption 6 watts
Interface USB
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
DRAFT 9
Technical Specifications A - 5
Multi Slot Universal Charge Only Cradle
Four Slot Battery Charger
Humidity 5% to 95% non-condensing
Drop 76 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-3
Single Slot Charge Cradle Technical Specifications (Continued)
Feature Description
Table A-4
Multi Slot Universal Charge Only Cradle Technical Specifications
Feature Description
Dimensions Length: 45.0 cm (17.7 in.)
Width: 11.8 cm (4.7 in.)
Height: 7.7 cm (3.0 in.)
Weight 1292 g (45.57 oz)
Input Power 12 VDC
Power Consumption 100 watts
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-5
Four Slot Battery Charger Technical Specifications
Feature Description
Dimensions Length: 11.9 cm (4.7 in.)
Width: 8.7 cm (3.4 in.)
Height: 9.4 cm (3.7 in.)
Weight 366 g (12.91 oz)
Input Power 12 VDC
Power Consumption 30 watts
DRAFT 9
A - 6 MC45 User Guide
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
Table A-5
Four Slot Battery Charger Technical Specifications (Continued)
Feature Description
DRAFT 9
Appendix B Keypads
Numeric Keypad Configuration
The numeric keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to
indicate the alternate function key (blue) values. Note that an application can change keypad functions so the
MC45’s keypad may not function exactly as described. See Table B-1 for key and button descriptions and Table
B-2 on page B-4 for the keypad’s special functions.

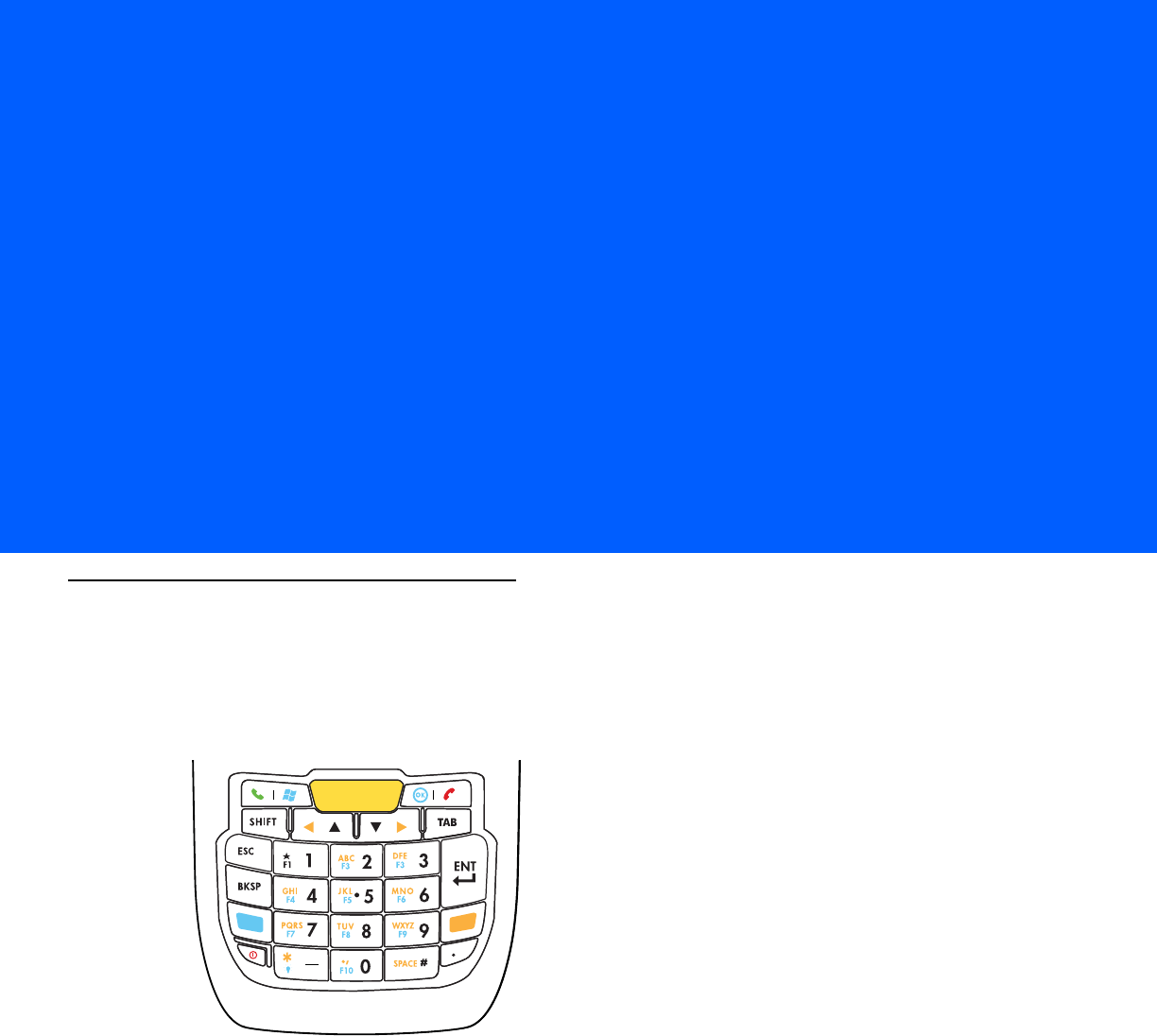

Figure B-1
MC45 Numeric Keypad
DRAFT 9
B - 2 MC45 User Guide
Table B-1
MC45 Numeric Keypad Descriptions
Key Description
Blue Key (left)
Use this key to access function keys shown on the keypad in blue.
Press the Blue key once to activate this mode, followed by another key.
A single press illuminates the key and displays the following icon at the bottom of the
screen until a second key is pressed:
Press the Blue key twice to lock the keypad in the blue keys mode. This displays the
following icon at the bottom of the screen.
Press the Blue key again to return to the normal state.
Orange Key
Use this key to access the secondary layer of characters and actions shown on the keypad
in orange.
Press the Orange key once to activate this mode, followed by another key.
A single press illuminates the key and displays the following icon at the bottom of the
screen until a second key is pressed:
Press the Orange key twice to lock the keypad in the orange keys mode.This displays the
following icon at the bottom of the screen.
Press the Orang key twice, then press the Shift key to add a permanent shift (that applies
until the Shift is pressed again). This displays the following icon at the bottom of the
screen.
Press the Orange key again to return to the normal state.
Talk / Start Menu
Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
When on a phone call, press to place the call on hold.
Use this key in conjunction with the Blue key to instantly display the Start menu from any
application without tapping the screen. This function is user programmable.
End / OK
End (Red Phone) : press when the phone keypad window displays to stop dialing or end a
call.
Use this key in conjunction with the Blue Key as an OK or close button. This function is user
programmable.
Scan (yellow)
Activates the scanner in a scan enabled application.
Scroll Up and Down
/ Scroll Left and
Right
Moves up one item.
Moves left one item when pressed with the Orange key.
Moves down one item.
Moves right one item when pressed with the Orange key.
DRAFT 9
Keypads B - 3
Star / Backlight
Produces a dash in default state.
Produces an asterisk when pressed with the Orange key.
Use this key in conjunction with the Blue Key to toggle the backlight on or off.
Alphanumeric
In default state, produces the numeric value on the key.
When pressed with the Orange key, produces the lower case alphabetic characters on the
key. Each key press produces the next alphabetic character in sequence. For example,
press and release the Orange key and then press the ‘4’ key once to produce the letter ‘g’;
press and release the Orange key and then press the ‘4’ key three times to produce the
letter ‘i’.
Press the SHIFT key in Alpha state to produce the upper case alphabetic characters on the
key. For example, press and release the Orange key, press and release the SHIFT key, and
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key,
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter
‘I’.
Pound / SPACE
Produces a pound / number in default state.
Produces a space when pressed with the Orange key.
BACKSPACE
Produces a backspace.
SHIFT
Press and release the SHIFT key to activate the keypad alternate SHIFT functions.
A single press displays the following icon at the bottom of the screen, until a second
key is pressed:
Press the Shift key twice to lock the keypad in the Shift mode.This displays the following icon
at the bottom of the screen.
Press the Orang key twice, then press the Shift key to add a permanent shift (that applies
until the Shift is pressed again). This displays the following icon at the bottom of the
screen.
ENT (Enter)
Executes a selected item or function.
Table B-1
MC45 Numeric Keypad Descriptions (Continued)
Key Description
DRAFT 9
B - 4 MC45 User Guide
Special Character Key
To add special characters using the MC45 áü key, press the Orange key twice first then type the related character
followed by the áü (P) key. Continue pressing the áü key until the special character displays. To modify an existing
character, move the cursor to the right of the character then press the Orange key twice and then press the áü key
until the special character replaces the original character. Table B-3 lists the special characters you can generate.
Table B-2
Numeric Keypad Input Modes
Key
Numeric Mode Orange Key
(Alpha Lowercase Mode) Orange + Shift Keys
(Alpha Uppercase Mode)
Blue+
Key SHIFT
+ Key 1st
Press 2nd
Press 3rd
Press 4th
Press 1st
Press 2nd
Press 3rd
Press 4th
Press
11F1!
22F2@a bc A BC
33F3# d ef D EF
44F4$ g hi G HI
55F5%j kl J KL
66F6^ m no MNO
77F7& p qr sP QRS
88F8* t uv T UV
99F9( w xyzWXYZ
00F10) . >
Up Up Up Hilight
Up Left Left
Down Down Down Hilight
Down Right Right
Enter Action Action Action Action Action
Note: An application can change the key functions. The keypad may not function exactly as described.
Table B-3
Special Characters
Key Special Characters Key Special Characters
aA
cC
dD
eE
iI
DRAFT 9
Keypads B - 5
lL
nN
oO
pP
rR
sS
tT
uU
yY
zZ
$/
“(
)+
!.
*@
%,
#&
_‘
?:
-
Table B-3
Special Characters (Continued)
Key Special Characters Key Special Characters
DRAFT 9
B - 6 MC45 User Guide
DRAFT 9
Glossary
A
API. An interface by means of which one software component communicates with or controls another. Usually used to refer
to services provided by one software component to another, usually via software interrupts or function calls
Application Programming Interface. See API.
AKU. (Adaptation Kit Update) Updates to the Windows Mobile operating system.
AFH. Adaptive Frequency Hopping.
ActiveSync. ActiveSync is a data synchronization program developed by Microsfot for use with Windows Mobile operating
systems.
B
Bar. The dark element in a printed bar code symbol.
Bar Code. A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable
form. The general format of a bar code symbol consists of a leading margin, start character, data or message character,
check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses
its own unique format. See Symbology.
Bar Code Density. The number of characters represented per unit of measurement (e.g., characters per inch).
Bit. Binary digit. One bit is the basic unit of binary information. Generally, eight consecutive bits compose one byte of data.
The pattern of 0 and 1 values within the byte determines its meaning.
Bits per Second (bps). Bits transmitted or received.
boot or boot-up. The process a computer goes through when it starts. During boot-up, the computer can run self-diagnostic
tests and configure hardware and software.
DRAFT 9
Glossary - 2 MC45 User Guide
bps. See Bits Per Second.
Byte. On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a pattern to represent a specific
character or numeric value. Bits are numbered from the right, 0 through 7, with bit 0 the low-order bit. One byte in
memory is used to store one ASCII character.
C
Codabar. A discrete self-checking code with a character set consisting of digits 0 to 0 and six additional characters (“-”, ”$”,
”:”, ”/”, ”,” and “+”).
Code 128. A high density symbology which allows the controller to encode all 128 ASCII characters without adding extra
symbol elements.
Code 3 of 9 (Code 39). A versatile and widely used alphanumeric bar code symbology with a set of 43 character
types,including all uppercase letters, numerals from 0 to 9 and 7 special characters (“-”, “.”, “/”, “+”, “%”, “$” and space).
The code name is derived from the fact that 3 of 9 elements representing a character are wide, while the remaining 6
are narrow.
Code 93. An industrial symbology compatible with Code 39 but offering a full character ASCII set and a higher coding
density than Code 39.
COM port. Communication port; ports are identified by number, e.g., COM1, COM2.
Cradle. A cradle is used for charging the terminal battery and for communicating with a host computer, and provides a
storage place for the terminal when not in use.
D
Decode. To recognize a bar code symbology (e.g., UPC/EAN) and then analyze the content of the specific bar code
scanned.
Discrete 2 of 5. A binary bar caode symbology representing each character by a group of five bars, two of which are wide.
The location of wide bars in the group determines which character is encoded; spaces are insignificant. Only numberic
characters (0 to 9) and START/STOP characters may be encoded.
E
EAN. European Article Number. This European/International version of the UPC provides its own coding format and
symbology standards. Element dimensions are specified metrically. EAN is used primarily in retail.
EMDK. Enterprise Mobility Developer’s Kit.
ESD. Electro-Static Discharge
DRAFT 9
Glossary - 3
F
File Transfer Protocol (FTP). A TCP/IP application protocol governing file transfer via network or telephone lines. See
TCP/IP.
FTP. See File Transfer Protocol.
G
GPS (Global Positioning System). A satellite-based navigation system made up of a network of 24 satellites. GPS
satellites circle the earth and transmit signal information to earth. GPS receivers take this information and use
triangulation to calculate the user's exact location.
H
Hz. Hertz; A unit of frequency equal to one cycle per second.
Host Computer. A computer that serves other terminals in a network, providing such services as computation, database
access, supervisory programs and network control.
High-Speed Downlink Packet Access (HSDPA). A 3G (third generation) mobile telephony communications protocol in the
High-Speed Packet Access (HSPA) family, which allows networks based on Universal Mobile Telecommunications
System (UMTS) to have higher data transfer speeds and capacity.
I
Interleaved 2 of 5. A binary bar code symbology representing character pairs in groups of five bars and five interleaved
spaces. Interleaving provides for greater information density. The location of wide elements (bar/spaces) within each
group determines which characters are encoded. This continuous code type uses no intercharacter spaces. Only
numeric (0 to 9) and START/STOP characters may be encoded.
Internet Protocol Address. See IP.
IP. Internet Protocol. The IP part of the TCP/IP communications protocol. IP implements the network layer (layer 3) of the
protocol, which contains a network address and is used to route a message to a different network or subnetwork. IP
accepts “packets” from the layer 4 transport protocol (TCP or UDP), adds its own header to it and delivers a “datagram”
to the layer 2 data link protocol. It may also break the packet into fragments to support the maximum transmission unit
(MTU) of the network.
IP Address. (Internet Protocol address) The address of a computer attached to an IP network. Every client and server
station must have a unique IP address. A 32-bit address used by a computer on a IP network. Client workstations have
either a permanent address or one that is dynamically assigned to them each session. IP addresses are written as four
sets of numbers separated by periods; for example, 204.171.64.2.
DRAFT 9
Glossary - 4 MC45 User Guide
L
LASER. Light Amplification by Stimulated Emission of Radiation.The laser is an intense light source. Light from a laser is
all the same frequency, unlike the output of an incandescent bulb. Laser light is typically coherent and has a high energy
density.
laser scanner. A type of bar code reader that uses a beam of laser light.
LCD. See Liquid Crystal Display.
LED Indicator. A semiconductor diode (LED - Light Emitting Diode) used as an indicator, often in digital displays. The
semiconductor uses applied voltage to produce light of a certain frequency determined by the semiconductor's particular
chemical composition.
Light Emitting Diode. See LED.
Liquid Crystal Display (LCD). A display that uses liquid crystal sealed between two glass plates. The crystals are excited
by precise electrical charges, causing them to reflect light outside according to their bias. They use little electricity and
react relatively quickly. They require external light to reflect their information to the user.
M
MC. Mobile Computer.
MDN. Mobile Directory Number. The directory listing telephone number that is dialed (generally using POTS) to reach a
mobile unit. The MDN is usually associated with a MIN in a cellular telephone -- in the US and Canada, the MDN and
MIN are the same value for voice cellular users. International roaming considerations often result in the MDN being
different from the MIN.
Mobile Computer. In this text, mobile computer refers to the MC45. It can be set up to run as a stand-alone device, or it can
be set up to communicate with a network, using wireless radio technology.
N
Nominal. The exact (or ideal) intended value for a specified parameter. Tolerances are specified as positive and negative
deviations from this value.
Nominal Size. Standard size for a bar code symbol. Most UPC/EAN codes are used over a range of magnifications (e.g.,
from 0.80 to 2.00 of nominal).
NVM. Non-Volatile Memory.
DRAFT 9
Glossary - 5
P
PAN . Personal area network. Using Bluetooth wireless technology, PANs enable devices to communicate wirelessly.
Generally, a wireless PAN consists of a dynamic group of less than 255 devices that communicate within about a 33-foot
range. Only devices within this limited area typically participate in the network.
Parameter. A variable that can have different values assigned to it.
PING. (Packet Internet Groper) An Internet utility used to determine whether a particular IP address is online. It is used to
test and debug a network by sending out a packet and waiting for a response.
R
RAM. Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read.
Reset. Restarts the mobile computer by closing all running programs. All data that is not saved to flash memory is lost.
Resolution. The narrowest element dimension which is distinguished by a particular reading device or printed with a
particular device or method.
RF. Radio Frequency.
ROM. Read-Only Memory. Data stored in ROM cannot be changed or removed.
Router. A device that connects networks and supports the required protocols for packet filtering. Routers are typically used
to extend the range of cabling and to organize the topology of a network into subnets. See Subnet.
S
Scanner. An electronic device used to scan bar code symbols and produce a digitized pattern that corresponds to the bars
and spaces of the symbol. Its three main components are: 1) Light source (laser or photoelectric cell) - illuminates a bar
code,; 2) Photodetector - registers the difference in reflected light (more light reflected from spaces); 3) Signal
conditioning circuit - transforms optical detector output into a digitized bar pattern.
Shared Key. Shared Key authentication is an algorithm where both the AP and the MU share an authentication key.
Subnet. A subset of nodes on a network that are serviced by the same router. See Router.
Subnet Mask. A 32-bit number used to separate the network and host sections of an IP address. A custom subnet mask
subdivides an IP network into smaller subsections. The mask is a binary pattern that is matched up with the IP address
to turn part of the host ID address field into a field for subnets. Default is often 255.255.255.0.
Symbology. The structural rules and conventions for representing data within a particular bar code type (e.g. UPC/EAN,
Code 39, PDF417, etc.).
DRAFT 9
Glossary - 6 MC45 User Guide
T
TCP/IP. (Transmission Control Protocol/Internet Protocol) A communications protocol used to internetwork dissimilar
systems. This standard is the protocol of the Internet and has become the global standard for communications. TCP
provides transport functions, which ensures that the total amount of bytes sent is received correctly at the other end.
UDP is an alternate transport that does not guarantee delivery. It is widely used for real-time voice and video
transmissions where erroneous packets are not retransmitted. IP provides the routing mechanism. TCP/IP is a routable
protocol, which means that all messages contain not only the address of the destination station, but the address of a
destination network. This allows TCP/IP messages to be sent to multiple networks within an organization or around the
world, hence its use in the worldwide Internet. Every client and server in a TCP/IP network requires an IP address, which
is either permanently assigned or dynamically assigned at startup.
Terminal. See Mobile Computer.
Tolerance. Allowable deviation from the nominal bar or space width.
Transmission Control Protocol/Internet Protocol. See TCP/IP.
U
UDP. User Datagram Protocol. A protocol within the IP protocol suite that is used in place of TCP when a reliable delivery
is not required. For example, UDP is used for real-time audio and video traffic where lost packets are simply ignored,
because there is no time to retransmit. If UDP is used and a reliable delivery is required, packet sequence checking and
error notification must be written into the applications.
UPC. Universal Product Code. A relatively complex numeric symbology. Each character consists of two bars and two
spaces, each of which is any of four widths. The standard symbology for retail food packages in the United States.
DRAFT 9
Index
Numerics
1-D bar codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
1-D laser scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
A
A2DP/AVRCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
accessories
auto charge cable . . . . . . . . . . . . . . . . . . . . . . . . 8-1
battery door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
blank slot cover . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
charger cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
DEX cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
four slot battery charger . . . . . . . . . . . . . . .8-1, 8-10
four slot battery charger cup adapter . . . . . . . . . 8-2
handstrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
micro USB adapter . . . . . . . . . . . . . . . . . . .8-2, 8-11
microSD card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
multi slot universal charge only cradle . 1-6, 8-1, 8-5
power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
screen protector . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
single slot charge cradle . . . . . . . . . . . . 1-6, 8-1, 8-4
soft holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
spare battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
stylus with tether kit . . . . . . . . . . . . . . . . . . . . . . . 8-2
USB rapid charge cable . . . . . . . . . . . . 1-6, 8-1, 8-2
vehicle charge cradle . . . . . . . . . . . . . . 1-6, 8-1, 8-6
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9, 8-12
icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
setting up a connection . . . . . . . . . . . . . . . . . . . 8-13
synchronization . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
adaptive frequency hopping . . . . . . . . . . . . . . . . . . . 7-1
adaptive scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
adjusting audio volume . . . . . . . . . . . . . . . . . . . . . . . 4-4
adjusting volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Adobe Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
AFH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
AirBEAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
assisted GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
audio icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
auto charge cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
B
bar codes
one dimensional . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6, 8-4
check status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
management . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
battery charger
charging indicators . . . . . . . . . . . . . . . . . . . . . . 8-10
charging temperature . . . . . . . . . . . . . . . . . . . . 8-10
battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
using single slot charge cradle . . . . . . . . . . . . . . 8-4
battery cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
battery door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
battery icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4, 2-15
battery status indications . . . . . . . . . . . . . . . . . . . . . 2-15
Bing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
blank slot cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
adaptive frequency hopping . . . . . . . . . . . . . . . . 7-1
DRAFT 9
Index - 2 MC45 User Guide
configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
discovering devices . . . . . . . . . . . . . . . . . . . . . . . 7-5
power states . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
turning off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
bluetooth
turning on and off . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
bullets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
buttons
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7, 2-20
scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
up and down . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
C
cables
auto charge cable . . . . . . . . . . . . . . . . . . . . . . . . 8-1
DEX cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
USB rapid charge cable . . . . . . . . . . . . 1-6, 8-1, 8-2
calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
calibrating the screen . . . . . . . . . . . . . . . . . . . . . . . . 1-8
call log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6, 4-13
camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
charger cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
chargers
four slot battery charger . . . . . . . . . . . . . . .8-1, 8-10
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
spare batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
using single slot charge cradle . . . . . . . . . . . . . . 8-4
charging indicators
four slot battery charger . . . . . . . . . . . . . . . . . . 8-10
charging temperature . . . . . . . . . . . . . . . . . . . . .1-7, 8-5
four slot battery charger . . . . . . . . . . . . . . . . . . 8-10
Classic Today Screen . . . . . . . . . . . . . . . . . . . . . . . . 2-6
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
command bar
icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5, 2-7
conference call . . . . . . . . . . . . . . . . . . . . . . . .4-17, 4-19
configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
connectivity icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
contacts application . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
conventions
notational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
cradles
multi slot universal charge only cradle . 1-6, 8-1, 8-5
single slot charge cradle . . . . . . . . . . . . 1-6, 8-1, 8-4
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6, 8-1, 8-6
D
data capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
adaptive scanning . . . . . . . . . . . . . . . . . . . . . . . . 3-3
camera scanning . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
linear scanning . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
one dimensional bar codes . . . . . . . . . . . . . . . . . 3-1
scan angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
scan button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
scan range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
DataWedge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Device Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
DEX cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
dialer
phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
display orientation . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
E
e-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
emergency calls . . . . . . . . . . . . . . . . . . . . 2-17, 2-19, 4-7
entering data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
F
file explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
four slot battery charger . . . . . . . . . . . . . . . . . . 8-1, 8-10
charging indicators . . . . . . . . . . . . . . . . . . . . . . 8-10
charging temperature . . . . . . . . . . . . . . . . . . . . 8-10
four slot battery charger cup adapter . . . . . . . . . . . . . 8-2
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Fusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
G
games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
global positioning system . . . . . . . . . . . . . . . . . . . . . . 6-1
GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
DRAFT 9
Index - 3
GPS assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
H
handset mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
handstrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
headset mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
hexadecimal keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
High-Speed Downlink Packet Access . . . . . . . . . . . . 4-1
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Human Interface Device (HID) . . . . . . . . . . . . . . . . 7-14
I
icons
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4, 2-15
connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
DataWedge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
task tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
wireless connection status . . . . . . . . . . . . . . . . . 2-7
indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
radio status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
information, service . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2, 1-3
Internet Explorer Mobile . . . . . . . . . . . . . . . . . . . . . . 2-8
internet sharing . . . . . . . . . . . . . . . . . . . . . . . . . .2-9, 7-9
IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
K
key descriptions
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
alphanumeric . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
backspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
blue key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Enter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
input modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
key descriptions . . . . . . . . . . . . . . . . . . . . . . . . . B-2
numeric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
orange key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
pound/space . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
SHIFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
special character key . . . . . . . . . . . . . . . . . . . . . . B-4
star / backlight key . . . . . . . . . . . . . . . . . . . . . . . . B-3
talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
L
laser scanning
See data capture . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
LEDs
battery status . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
charging . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16, 8-10
indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
scan and decode . . . . . . . . . . . . . . . . . . . . . 3-2, 3-4
left and right key . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
lithium-ion battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
locking MC45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
password locking . . . . . . . . . . . . . . . . . . . . . . . . 2-18
M
maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
marketplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
masked characters . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
MC4587 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
MC4597 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Windows Live Messenger . . . . . . . . . . . . . . . . . . 2-9
micro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
micro USB adapter . . . . . . . . . . . . . . . . . . . . . . 8-2, 8-11
microSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
MSN Money . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
MSN Weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
MSP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
multi slot universal charge only cradle . . . . . 1-6, 8-1, 8-5
muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
N
navigation bar
icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
network activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
GSM/UMTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
notational conventions . . . . . . . . . . . . . . . . . . . . . . . . . xv
notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
notifications icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
input modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
key descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
DRAFT 9
Index - 4 MC45 User Guide
O
Object Push Services . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Office Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
operating environment . . . . . . . . . . . . . . . . . . . . . . . . A-1
operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
P
pass-phrase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
hint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
answering a call . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
call log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
conference call . . . . . . . . . . . . . . . . . . . . .4-17, 4-19
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
MMS messaging . . . . . . . . . . . . . . . . . . . . . . . . 4-22
muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
SMS messaging . . . . . . . . . . . . . . . . . . . . . . . . 4-20
speed dial
adding entry . . . . . . . . . . . . . . . . . . . . . . . . 4-10
calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
deleting entry . . . . . . . . . . . . . . . . . . . . . . . 4-12
editing entry . . . . . . . . . . . . . . . . . . . . . . . . 4-12
three-way call . . . . . . . . . . . . . . . . . . . . . .4-17, 4-19
turning on and off . . . . . . . . . . . . . . . . . . . . . . . . 4-2
using call log . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
using keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Voice Commander . . . . . . . . . . . . . . . . . . . . . . 4-24
Phone Book Access profile . . . . . . . . . . . . . . . . . . . 7-13
pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
power button . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7, 2-20
power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
R
radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
rapid deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
recording video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
remote desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
replacing battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
resetting the MC45 . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
S
scan button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
scan/decode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
scanning
button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
See data capture . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
screen protector . . . . . . . . . . . . . . . . . . . . . . . . . 8-2, 9-2
search phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
security
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
service information . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8, 2-11
about . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
clock & alarms . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
connections folder . . . . . . . . . . . . . . . . . . . . . . . 2-11
customer feedback . . . . . . . . . . . . . . . . . . . . . . 2-12
DataWedge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
device information . . . . . . . . . . . . . . . . . . . . . . . 2-12
domain enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
error reporting . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
external GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
GPS assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
keylight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
KeyRemap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
managed programs . . . . . . . . . . . . . . . . . . . . . . 2-13
master reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
owner information . . . . . . . . . . . . . . . . . . . . . . . 2-12
personal folder . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
phone network setup . . . . . . . . . . . . . . . . . . . . . 2-11
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
regional settings . . . . . . . . . . . . . . . . . . . . . . . . 2-13
remove programs . . . . . . . . . . . . . . . . . . . . . . . 2-13
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
sounds & notifications . . . . . . . . . . . . . . . . . . . . 2-11
system folder . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
system info . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
task manager . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
USB connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Voice Commander settings . . . . . . . . . . . . . . . . 2-12
wireless manager . . . . . . . . . . . . . . . . . . . . . . . 2-12
WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
SIM card
DRAFT 9
Index - 5
accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
single slot charge cradle . . . . . . . . . . . . . . . 1-6, 8-1, 8-4
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
smart dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
SMS Staging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
soft holster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
soft keys bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
spare battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
speaker icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
speaker mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
special character key . . . . . . . . . . . . . . . . . . . . . . . . . B-4
speed dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7, 4-10
start screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
AirBEAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Bing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
contactsl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
e-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
file explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Internet Explorer Mobile . . . . . . . . . . . . . . . . . . . 2-8
internet sharing . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
marketplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
MSN Money . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
MSN Weather . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
MSP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Office Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
rapid deployment . . . . . . . . . . . . . . . . . . . . . . . 2-10
remote desktop . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
search phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
SMS Staging . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
task manager . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
today . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Windows Live . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
wireless companion . . . . . . . . . . . . . . . . . . . . . . 2-9
starting the MC45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
status icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4, 2-15
connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Streaming Player . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2, 2-21
stylus with tether kit . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
subscriber identification module . . . . . . . . . . . . . . . . . 1-4
suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20, 7-3
synchronize with PC
using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
T
taking photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
task manager . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9, 2-13
task tray icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
technical specifications . . . . . . . . . . . . . . . . . . . . . . . A-1
accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
charging . . . . . . . . . . . . . . . . . . . . . . . . 1-7, 8-5, 8-10
text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
three-way call . . . . . . . . . . . . . . . . . . . . . . . . . 4-17, 4-19
Time To First Fix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
today . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Today Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
toolbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Adobe Reader . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Streaming Player . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Voice Commander . . . . . . . . . . . . . . . . . . . . . . . 2-10
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
U
unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
up and down button . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
up and down key . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
USB rapid charge cable . . . . . . . . . . . . . . . . . . . 8-1, 8-2
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
using Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . 4-3
using stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
V
vehicle charge cradle . . . . . . . . . . . . . . . . . . 1-6, 8-1, 8-6
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
viewing photos and videos . . . . . . . . . . . . . . . . . . . . 2-23
DRAFT 9
Index - 6 MC45 User Guide
Voice Commander . . . . . . . . . . . . . . . . . . . . . .2-10, 4-24
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
W
wakeup conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
waking the MC45 . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
WAN icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Windows Live . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Windows Live Messenger . . . . . . . . . . . . . . . . . . . . . 2-9
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10, 4-2
wireless companion . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
wireless connection status
icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Wireless Manager . . . . . . . . . . . . . . . . . . . . . . .1-10, 4-2
wireless manager . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Wireless Zero Config . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
802.11a/b/g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
WWAN
GSM/HSDPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
DRAFT 9
DRAFT 9
72E-164159-01 Revision 1 - August 2012
Motorola Solutions, Inc.
1301 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
http://www.motorolasolutions.com
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of
Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2012 Motorola Solutions, Inc.
All Rights Reserved.
