Zebra Technologies RFID-R4CXNG-01 P4T with Zcomax WiFi plus RFID radio User Manual UMAN P4TB3

Zebra Technologies Corporation P4T with Zcomax WiFi plus RFID radio UMAN P4TB3

User Manual 2 of 3

P4T/RP4T
User Guide
21
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Adjustable Shoulder Strap
Refertogureabove.Snapeachendoftheshoulderstrapintotheretainingfeaturesontopoftheprinter.Holdthebuckleandadjust
the strap as shown until you achieve the desired length.
Figure 11- Shoulder Strap
Section Continues
Hold Buckle
Pull Strap here
to lengthen
Pull Strap here
to shorten
Snap into feature on
printer
P4T/RP4T
User Guide
22
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Verify the Printer Is Working
Before you connect the printer to your computer or
portabledataterminal,makesurethattheprinterisin
properworkingorder.Youcandothisbyprintingacon-
gurationlabelusingthe“twokeyreset”method.Ifyou
can’t get this label to print, refer to the “Troubleshooting”
section of this manual
Printing a Configuration Label
1.Turntheprinteroff.Loadthemediacompartment
withjournalmedia(mediawithnoblackbarsprinted
ontheback)
2.PressandholdtheFeedButton.
3.PressandreleasethePowerbuttonandkeepthe
Feed button pressed. When printing starts, release
the Feed button.
 Theunitwillprintalineofinterlocking“x”characters
toensureallelementsoftheprintheadareworking,print
out the version of software loaded in the printer and then
print two reports.
The first report indicates the printer model, ROM ver-
sion, serial number, baud rate, etc. The second report
prints out more detailed information on the printer’s con-
figuration and parameter settings. If no second report
appears, there is no application loaded.
See the Troubleshooting Section for a further discussion
on how to interpret the configuration label as a diagnostic
tool.

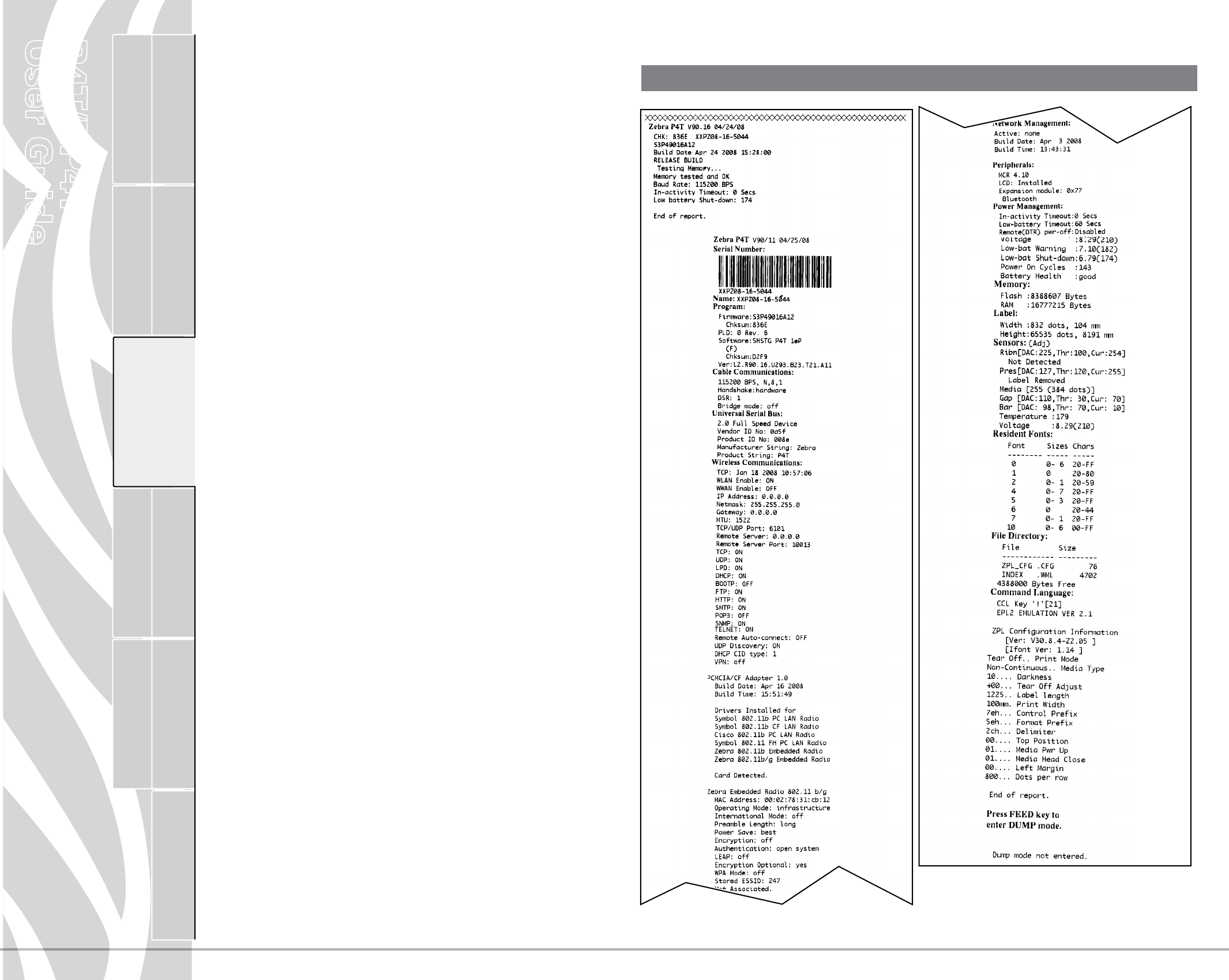

Figure 12 -Sample P4T Series Configuration Label
P4T/RP4T
User Guide
23
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Connecting the Printer
The printer must establish communications with a host device which sends the data to be printed. Communications occur in three
basic ways:
• ByacablebetweentheprinteranditshostterminalusingeitherRS232CorUSBprotocols
• BymeansofaBluetoothshort-rangeradiofrequencylink
• BymeansofawirelessLAN(LocalAreaNetwork)per802.11b/gspecications
Cable Communications
 Caution•Theprintershouldbeturnedoffbeforeconnectingordisconnectinganycommunicationscable.
 Note•AllP4Tseriesprinterscancommunicatebycable;thespeciccableusedwithyourprintercanvarywiththehost
terminal.
Serial (RS232C) or USB Port
The10-pinmodularconnectoronyourcommunicationscableplugsintothecombinationRS232C/USBcommunicationsportonthe
side of the printer. Signals and pin assignments for both communications ports are in the Specifications section of this manual.
The protocol used with this port is determined by the communications cable you are using. Refer to Appendix A for more information
onthecommunicationscablesofferedwiththeP4TSeries.
PlugtheconnectorintotheRS232portandensureitslockingdevicehasclickedintoposition.
TheotherendofthecablemustbepluggedintothehostterminalasshowninFigure14,ortoaserialportonacomputerasshown
inFigure15.
Figure 13: P4T Series Communication Ports
Section Continues
RS232/USB Port
USB Port
Battery Charging
Receptacle
Align Locking Plug
features with these
cutouts.
Rotate clockwise
to lock the cable
in place; counter-
clockwise to un-
lock the cable.
P4T/RP4T
User Guide
24
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
USB
P4TSeriesPrintersalsohaveaUSBtypeBportlocateddirectlyaboveandtotherightoftheRS232Cport.(RefertoFigure13)
The USB port is configured with the USB Open HCI interface driver allowing it to communicate with Windows® based devices. USB
driversareincludedintheZebraUniversalDriverwhichcanbedownloadedfromwww.zebra.com.Otherterminalsorcommunications
devices may require the installation of special drivers to use the USB connection. Consult your Zebra re-seller or the factory for further
details.
Section Continues
Figure 14- Connecting to a Terminal Figure 15- Connecting to a PC
RS232C or USB
Communications Cable
to Terminal
Terminal
RS232
Connector
USB
Connector
Communications Ports
RS-232C or USB
Communications Cable to
Computer
Refer to Appendix A for part numbers.
USB
Connector
RS232
Connector
Communications Ports
RS232
Connector
USB
Connector
P4T/RP4T
User Guide
25
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Connect the Printer by Radio
IfyourP4TSeriesprinterhasaradiooption,youcanconnectwirelesslytoeitheraterminalorawirelessnetwork(WLAN.)Refertothe
MobilePrinterWirelessCongurationGuideavailableontheproductCDoratwww.zebra.com/manuals for help on setting up wireless
communications with your printer.
Figure 16- Connecting Wirelessly to a Terminal
Section Continues
P4T Series printer with
Wireless option
Terminal with wireless
communications
capability
P4T/RP4T
User Guide
26
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Wireless Communications
Wireless Communications with Bluetooth®
“Bluetooth” is a worldwide standard for the exchange of data
between two devices via radio frequencies. Bluetooth radios are
relatively low powered to help prevent interference with other de-
vices running at similar radio frequencies. This limits the range of
aBluetoothdevicetoabout10meters(about32feet).
Both the printer and the device it communicates with must follow
the Bluetooth standard.
BluetoothNetworkingOverview
EachBluetoothenabledP4TseriesprinterhasauniqueBluetooth
DeviceAddress(BDA)loadedintoitsradiomodulewhenmanu-
factured.
Bluetoothsoftwareisalwaysrunninginthebackground,readyto
respondtoconnectionrequests.Onedevice(knownasthemaster
ortheclient)mustrequestaconnectionwithanother.Thesecond
device(theslaveortheserver)thenacceptsorrejectstheconnec-
tion.ABluetoothenabledP4Tseriesprinterwillnormallyactas
aslavecreatingaminiaturenetworkwiththeterminalsometimes
referred to as a “piconet.”
For the most part, communications using Bluetooth are initiated
and processed without any operator intervention.
P4TSeriesprinterscanbeequippedwithbothaBluetoothand
an802.11b/gradio,allowingcommunicationswithbothBluetooth
enableddevicesandaWirelessLocalAreaNetwork(WLAN)(see
discussionbelow).
Wireless Local Area Network Overview
P4TSeriesprinterscanbeequippedwithseveralradiooptions
whichusetheindustrystandard802.11borgWLANprotocols.
• P4TSeriesWirelessNetworkPrinterswiththeZebra802.11b/g
WLAN radio module can be identied by the Product Con-
gurationCode(PCC)ontheserialnumberlabelontheback
of the printer. Printers with this option will have a “K” as the
seventh character of the PCC Code. Printers with this option
mayalsobeidentiedbytheFCCID:TBDon printers built for
the North American region.
• P4T printers  with both an 802.11b/g WLAN radio and a
Bluetooth radio running in the same unit are considered to be
dual radio devices. Printers with this option will have an “A”
as the seventh character of the PCC Code.
 RP4Tmodelprinterscannotbeconguredwiththe802.11g/
Bluetoothdualradiooption.
 DualradioequippedP4TunitswillhaveaBluetoothradioFCC
ID“T.B.D.”and802.11bCompactashradioFCCID“T.B.D.”.
TheFCCIDnumbersandotherregulatoryinformationforboth
radios are also located on the serial number label of printers
built for the North American region.
 RefertoAppendixDofthismanualformoreinformationon
locatingtheProductCongurationCode.
Printersequippedwitheitherofthe802.11b/gradiooptionsallow
wirelesscommunicationasanodewithinaWLANanditswireless
capabilitiesallowcommunicationsfromanypointwithintheWLAN’s
perimeter.P4TprintersequippedwiththedualBluetooth/802.11b/g
WLAN radiocongurationcanbelinkedtobothaWLANanda
Bluetoothnetworksimultaneously.
Methods of establishing communications to P4T Series print-
erswillvarywitheachLANapplication.Generalinformationon
establishing WLAN communications can be found in either the
”CPCLProgrammersManual”orthe“QuickStartGuideforMobile
Wireless Printers” both available on-line at the Zebra Web site
www.zebra.com/manuals.MoreinformationandLANcongura-
tionutilitiesmayalsobefoundinZebra’sLabelVista™program
(version2.8andlater).ThelatestversionofLabelVistamaybe
downloaded from Zebra’s Web site.
Setting Up the Software
P4T Series printers use Zebra’s CPCL Programming language
whichwasdesignedformobileprintingapplications.CPCLisfully
described in the ”CPCLProgrammersManual”,availableon-line
at the Zebra Web site.
You can also use LabelVista™,Zebra’sWindowsbasedlabelcre-
ation program which uses a graphical interface to create and edit
labelsintheCPCLlanguage.
AllP4TSeriesprinterssupportaninterpreterfortheZPLIIpro-
gramminglanguage.RP4Tprinters(withRFIDencoding/reading
capabilities)usetheZPLprogramminglanguage’sextensivesetof
RFIDcommands.
IfyouplantouseZPLII,refertotheappropriateProgramming
Guides available on-line from Zebra’s Web site.
If you have a printer with wireless capabilities, you can refer to
the “Wireless Configuration Guide.” also available on the Zebra
web site.
If you choose to use a third party label preparation system, follow
theinstallationinstructionsincludedinthepackage.
P4T/RP4T
User Guide
27
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Bluetooth ZBR4 Radio
The following section only applies when the Bluetooth ZBR4 module is installed in a P4T
series printer. This radio configuration has demonstrated compliance to FCC regulations.
P4T series printers with this configuration sold in North America will have the FCC ID
number for this radio module on a label on the back of the printer.
Caution • Exposure to Radio Frequency Radiation.
The radiated output power of this internal Bluetooth radio
is far below the FCC radio frequency exposure limits. The
internal Bluetooth radio operates within guidelines found
in radio frequency safety standards and recommendations.
Do not use the printer in an unauthorized manner.
 Note•ThefollowingsectiononlyapplieswhentheZBR4
BluetoothRadioisinstalledinaP4TSeriesprinter.Unless
specified elsewhere in this manual, the antenna used for this
transmitter must not be co-located or must not operate in
conjunction with any other antenna.
EuropeanRegulatoryInformationfortheZBR4BluetoothRadio
This device is intended for use in all EU and EFTA member states.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
 •EN60950:2000SafetyofInformationTechnologyEquipment
 •EN300328-2V1.4.1(2003-04)Technicalrequirementsforspread-spectrum
radio equipment
 •EN301489-1/-17V1.4.1/1.2.1(2002-08)EMCrequirementsforspread-
spectrum radio equipment.
Thisdeviceisa2.4GHzwirelessLANtransceiver,intendedforindoorhomeand
office use in all EU and EFTA member states.
WLAN Module Using 802.11b/g Radio
The following section only applies when the 802.11b/g WLAN module is installed in a P4T
series printer. Other than conditions specified elsewhere in this manual, only one of the
radio options can be installed in the printer at one time and the antenna used for these
transmitters must not be co-located or must not operate in conjunction with any other
antenna.
P4T Series printers for sale in North America will have the 802.11b/g radio FCC ID number
on a label on the back of the unit.
Caution•Theradiatedoutputpowerofthisinternal802.11b/g
WLAN radio is far below the FCC radio frequency exposure
limits. The internal radio operates within guidelines found
in radio frequency safety standards and recommendations.
Do not use the printer in an unauthorized manner.
European Regulatory Information for this Radio
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT
SK SI ES SE GB
Note:-MemberstatesintheEUwithrestrictiveuseforthisdeviceare
crossed out!
ThisdeviceisalsoauthorizedforuseinallEFTAmemberstates(CH, IS, LI, NO)
Important Notice:
This device is a portable RF printer intended
for commercial and industrial use in all EU
and EFTA member states.
0336
Important Notice:
This device is a portable RF printer
intended for commercial and industrial use
in all EU and EFTA member states except in
France where restrictive use applies
Radio Regulatory Information
SectionContinues
P4T/RP4T
User Guide
28
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Europe–EUDeclarationofConformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
 •EN55022:1998
EuropeanEmissionsStandard
 •EN60950:2000
SafetyofInformationTechnologyEquipment
 •EN300328-2V1.2.1(2001-12)
Technicalrequirementsforspread-spectrumradioequipment
 •EN301489-17V1.2.1(2002-08)
EMCrequirementsforspread-spectrumradioequipment.
Thisdeviceisa2.4GHzwirelessLANtransceiver,intendedforindoorhomeand
ofceuseinallEUandEFTAmemberstates,exceptinFrancewhererestrictive
use applies.
The use of this frequency band in France is subject to restrictions. You may only
usechannels10and11(2457and2462MHz)onFrenchterritory,exceptinthose
Frenchdepartmentsaslistedinthetablebelowwherechannels1-13(2412-
2472MHz)maybeused.Formoreinformationseehttp://www.anfr.fr/and/or
http://www.art-telecom.fr
01 Ain 36 Indre 69 Rhone
02 Aisne 37 IndreetLoire 70 HauteSaone
03 Allier 39 Jura 71 SaoneetLoire
05 HautesAlpes 41 LoiretCher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariege 45 Loiret 77 SeineetMarne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurtheet
Moselle 79 DeuxSievres
12 Aveyron 55 Meuse 82 TarnetGaronne
16 Charente 57 Moselle 84 Vaucluse
19 Correze 58 Nievre 86 Vienne
2A CorseSud 59 Nord 88 Vosges
2B HauteCorse 60 Oise 89 Yonne
21 Cote d’Or 61 Orne 90 TerritoiredeBelfort
24 Dordogne 63 Puy de Dome 91 Essonne
25 Doubs 64 Pyrenees
Atlantique 92 HautsdeSeine
26 Drome 65 HautesPyrenees 93 SeineStDenis
27 Eure 66 Pyrenees
Orientales 94 ValdeMarne
32 Gers 67 BasRhin
35 IlleetVilaine 68 HauteRhin
RepublicofChinaRegulatoryInformationforthe802.11b/gRadio
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發
現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。低功率射頻
電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備
之干 擾。
Accordingto“AdministrativeRegulationsonLowPowerRadioWavesRadiated
Devices”WithoutpermissiongrantedbytheDGT,anycompany,enterprise,or
userisnotallowedtochangefrequency,enhancetransmittingpoweroralter
originalcharacteristicaswellasperformancetoaapprovedlowpowerradio-
frequencydevices.Thelowpowerradio-frequencydevicesshallnotinuence
aircraftsecurityandinterferelegalcommunications;Iffound,theusershall
cease operating immediately until no interference is achieved. The said legal
communications means radio communications is operated in compliance with
the Telecommunications Act.
Thelowpowerradio-frequencydevicesmustbesusceptiblewiththe
interferencefromlegalcommunicationsorISMradiowaveradiateddevices.
SectionContinues
P4T/RP4T
User Guide
29
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
802.11b/g and Bluetooth Co-located Radio
Modules
The following section only applies when the CF (Compact Flash) WLAN module and
Bluetooth ZBR4 module are installed in a P4T printer. This co-located radio configuration
has demonstrated compliance to FCC regulations. P4T printers with this configuration
sold in North America will have the FCC ID numbers for both radios on a label on the back
of the printer.
Caution•Use ofaP4Tprinterwiththeco-locatedZBR4
Bluetooth radio module and the 802.11b/g WLAN radio
module meets the FCC requirements for radio frequency (RF)
radiation exposure in the standard body worn configuration
with no minimum separation. In this configuration, which
applies whether the belt clip or shoulder strap is used, the
face of the printer from which paper is transported is facing
away from the user’s body. The standard configuration must
always be used when the printer is body worn.
 P4TprinterswiththisradiooptionhavebeenSARtested.
ThemaximumSARvaluemeasuredwas TBDW/kgaveraged
over1gram.
EuropeanRegulatoryInformationfortheCompactFlash802.11bRadio
and Bluetooth Co-located Radio Modules
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT
SK SI ES SE GB
Note:-MemberstatesintheEUwithrestrictiveuseforthisdeviceare
crossed out!
ThisdeviceisalsoauthorizedforuseinallEFTAmemberstates(CH, IS, LI, NO)
Europe–EUDeclarationofConformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
 •EN60950:2000
SafetyofInformationTechnologyEquipment
 •EN300328-2V1.2.1(2001-12)
Technicalrequirementsforspread-spectrumradioequipment
 •EN301489-17V1.2.1(2002-08)
EMCrequirementsforspread-spectrumradioequipment.
Thisdeviceisa2.4GHzwirelessLANtransceiver,intendedforindoorhomeand
ofceuseinallEUandEFTAmemberstates,exceptinFrancewhererestrictive
use applies.
The use of this frequency band in France is subject to restrictions. You may only
usechannels10and11(2457and2462MHz)onFrenchterritory,exceptinthose
Frenchdepartmentsaslistedinthetablebelowwherechannels1-13(2412-
2472MHz)maybeused.Formoreinformationsee http://www.anfr.fr/ and/or
http://www.art-telecom.fr
01 Ain 36 Indre 69 Rhone
02 Aisne 37 IndreetLoire 70 HauteSaone
03 Allier 39 Jura 71 SaoneetLoire
05 HautesAlpes 41 LoiretCher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariege 45 Loiret 77 SeineetMarne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurtheet
Moselle 79 DeuxSievres
12 Aveyron 55 Meuse 82 TarnetGaronne
16 Charente 57 Moselle 84 Vaucluse
19 Correze 58 Nievre 86 Vienne
2A CorseSud 59 Nord 88 Vosges
2B HauteCorse 60 Oise 89 Yonne
21 Cote d’Or 61 Orne 90 TerritoiredeBelfort
24 Dordogne 63 Puy de Dome 91 Essonne
25 Doubs 64 Pyrenees
Atlantique 92 HautsdeSeine
26 Drome 65 HautesPyrenees 93 SeineStDenis
27 Eure 66 Pyrenees
Orientales 94 ValdeMarne
32 Gers 67 BasRhin
35 IlleetVilaine 68 HauteRhin
SectionContinues
P4T/RP4T
User Guide
30
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
RFID Encoder
ThefollowingsectiononlyapplieswhentheRFIDencoderisin-
stalledinanRP4Tprinter.TheRFIDencodermaybeinstalledincon-
junctionwitheithertheBluetoothor802.11gradiooptionsdetailed
previously, but may not be installed with the Bluetooth/802.11g
dual radio option.
P4T Series printers will have the fth character of the Product
CongurationCode(PCC)perthefollowingtable:
RFID option PCC digit “4” Printer Model
No RFID 0 P4T
US 1RP4T
EU 2RP4T
Japan 3 RP4T
China 4RP4T
Korea 5RP4T
UnitsbuiltfortheNorthAmericanregionwillhavetheRFID
encoderFCCIDnumberonalabelonthebackoftheunit.
Caution • Exposure to Radio Frequency Radiation.
The radiated output power of this RFID encoder is far below
the FCC radio frequency exposure limits. The RFID encoder
operates within guidelines found in radio frequency safety
standards and recommendations. Do not use the printer
in an unauthorized manner.
P4T/RP4T
User Guide
31
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
The information in this section is provided for your
convenience only and is subject to change. Go to
http://www.epcglobalinc.org for the late s t EPC
information.
TheRP4TprinterisequippedwithanRFIDencoder/reader,which
isintegratedintotheprinter’sprintheadassembly.TheRP4Ten-
codes (writes) information on ultra-thin UHF RFID transponders
thatareembeddedin“smart”labels,tickets,andtags.Theprinter
encodes the information; verifies proper encoding; and prints bar
codes,graphics,and/ortextonthelabel’ssurface.TheRP4Tprinter
usesZebra’sextensivesetofRFIDcommendsrunningunderZPL
programming language emulation.
TheRFIDtransponderissometimescalledtheRFIDtagoraninlay.
The transponder is usually made of an antenna that is bonded to
anintegratedcircuit(IC)chip.TheICchipcontainstheRFcircuit,
coders,decoders,andmemory.IfyouholdanRFIDlabeluptothe
light, you can see the transponder’s antenna, and you can feel a
bump in the label where the IC chip is located.
TheRP4TcanencodeandverifyEPC(ElectronicProductCode)
Generation2Class1UHFpassiveRFIDtags,inadditiontoprinting
humanreadabletextandconventional1and2-Dbarcodeinforma-
tiononZebrasuppliedRFIDthermaltransfermedia.
EPC is a product numbering standard that can be used to identify
avarietyofitemsbyusingRFIDtechnology.EPCGeneration2tags
offeradvantagesoverothertagtypes.Thetagidentication(TID)
memoryinaGeneration2tagincludesthechipmanufacturerand
model number information, which can be used to identify which
optional features are present on the tag. These optional features
include those for data content and security.
Gen2tagstypicallyhavea96-bitEPCidentier,whichisdifferent
fromthe64-bitidentierscommoninearlyEPCtags.The96-bit
EPCcodelinkstoanonlinedatabase,providingasecurewayof
sharing product-specific information along the supply chain.
Gen2tagsalsosupportmuchlargerdatastructures.Thesizeof
usermemoryavailable(ifany)variesbythemodelandmanufac-
turer of the tag.
 Printqualitywillbereducedwhenattemptingtoprintover
thetransponderportionofanRFIDlabel.Itisrecommended
thatRFIDlabellayoutsshouldnotallowprintingoverthe
RFIDtransponderportionofalabel.
Generation2Class1UHFPassiveTagsSupportedByTheP4T
AlienSquiggle
AveryDennison
RaatacOnetenna
OmronWave
EncodingandprintingofanRFIDlabelusuallyarecompletedonthe
first try, but some failures may occur. If you experience consistent
encodingfailures,itmaysignalaproblemwiththeRFIDtags,your
label formats, or with the transponder placement.
IfanRFIDtagcannotbeencoded,“VOID”willbeprintedonthe
label. The printer then attempts to read/encode “n” labels before
the next format is attempted, where “n” is specied by the ZPL
programming language “^R S ” command. Acceptable values of “n”
are1to10andthedefaultis3.Afterprintingthedenednumberof
voidedRFIDlabels,printerwillgointoanerrormode.Theprinter
responsetoanerrorisdenedbytheRFIDSetupcommandand
will allow:
1.NoAction(Labelformatcausingtheerrorisdropped)
2.NoticationtotheHostofthedetailsoftheerror(Labelformat
causingtheerrorisdropped).
TheuserhascontrolofwhereonthelabeltheVOIDisprinted.
More information on the “^R S ” command may be found in Zebra’s
RFIDProgrammingGuideavailableonthecorporateWebsite.
Model RP4T RFID Encoder
P4T/RP4T
User Guide
32
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Extending Battery Life
• Avoidexposingthebatterytodirectsunlightortemperatures
over104°F(40°C).
• AlwaysuseaZebrachargerdesignedspecicallyforLithium-
Ionbatteries.Useofanyotherkindofchargermaydamage
the battery.
Caution • Do not print while an LI72 Single Charger is
plugged into the unit.  Unreliable battery charging can
result.
• Usethecorrectmediaforyourprintingrequirements.Anau-
thorized Zebra re-seller can help you determine the optimum
media for your application.
• Ifyouprintthesametextorgraphiconeverylabel,consider
using a preprinted label.
• Choosethecorrectprint darknessandprintspeedforyour
media.
• RP4Tprinters(withtheRFIDencoder/reader):adjusttheen-
coder settings to use the minimum power required for the
RFIDmediainuse.
• Usesoftwarehandshaking(XON/XOFF)wheneverpossible.
• UsetheLCDdisplaybacklightonlywhennecessary.Turnit
off whenever it is not needed.
• Removethebatteryfromtheprinterifitwon’tbeusedforaday
or more and you’re not performing a maintenance charge.
• Considerpurchasinganextrabattery.
• Rememberthatanyrechargeablebatterywillloseitsability
to maintain a charge over time and can be recharged only a
finite number of times before it must be replaced. The “Smart
Battery”featureoftheP4TSeriesmonitorsthebatterypack’s
conditionandwillpromptyouwhenabatterypackisnearing
the end of its useful life.
 Alwaysdisposeofusedbatteriesproperly.RefertoAppendixE
formoreinformationonproperbatterydisposal.
• Whentheprinterdisplays“PleaseReconditionTheBattery”
and beeps five times, the user should recondition the battery
to return it to optimal capacity Refer to the OperatorControls
section of this manual for information in reconditioning the
battery.
General Cleaning Instructions
 Caution•Alwaysturntheprinteroffbeforecleaning.
 Toavoidpossiblepersonalinjuryordamagetotheprinter,neverinsertanypointedorsharpobjectsintotheprinter.
 UsecarewhenworkingneartheTearBar.Theedgesareverysharp.
 Caution•Theprintheadcanbecomeveryhotafterprolongedprinting.Allowittocooloffbeforeattemptinganycleaning
procedures.
 Caution•UseonlycleaningagentsspeciedintheP4TSeriescleaninginstructions.ZebraTechnologiesCorporationwillnot
beresponsiblefordamagecausedbyanyothercleaningmaterialsusedonthisprinter.
 Cleantheprinterwitheitherthecleaningpensuppliedwiththeprinteroracottonswabsaturatedwithalcohol.
Section Continues
Preventive Maintenance
P4T/RP4T
User Guide
33
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
P4T Series Cleaning
 Caution•Toavoidpossiblepersonalinjuryordamagetotheprinterneverinsertsharporpointedobjectsintotheprinter
mechanism.
Area Cleaning Method Interval
Printhead Elements
Use the supplied cleaning pen to clean the print
elements from end to end (the print elements are
located in the thin gray line on the printhead). After every five rolls of media (or more often,
if needed)
Platen Surface Rotate the platen roller and clean it thoroughly with the
cleaning pen.
Peeler Bar Clean thoroughly with the cleaning pen.
As needed
Tear Edge
Exterior Wipe with water-dampened cloth
Interior Brush/air blow. Ensure the Bar Sensor, Gap Sensor and
Label Present Sensor windows and the Media Support
Disks are free of dust.
Figure 17.1- P4T Series Cleaning
Printhead
Elements
Label Presence
Sensor
Gap Sensor
Platen Surface
Peeler Bar
Media
Support Disks
Tear Edge
Bar
Sensor
Figure 17.2- Cleaning the P4T Series Peeler Assembly
P4T/RP4T
User Guide
34
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Troubleshooting
LCD Control Panel
Thetopofthedisplayshowsiconsindicatingthestatusofvariousprinterfunctions.Checktheicon’sstatusandrefertothereferenced
Troubleshooting topic on the following pages.
Icon Status Indication Ref. to Troubleshooting
Topic
On Bluetooth link established n/a
Off No Bluetooth link 6,8
On 802.11b/g RF Link established n/a
Off No 802.11b/g RF Link 6,8
Number of bars indicates 802.11g signal strength n/a
Outer icon element flashing Low Battery 4, 6,
Number of bars indicates battery charge level.
Display will cycle through the battery icons if it is undergoing a charge
from the AC Adapter.
n/a
Flashing Battery too hot or too cold to charge 2
Flashing Out of Media 9
Flashing Ribbon Cartridge depleted 9
Flashing Data transfer in process n/a
Blank Screen n/a Battery voltage too low to turn printer
on or no application loaded 1,14
Troubleshooting Topics
1.Nopower:
•Checkthatbatteryisinstalledproperly.
•Rechargeorreplacebatteryasnecessary.
•Ifthebatteryvoltageisoutsideoftherangeatwhichtheprinter
will turn on and the AC Adapter is plugged into printer, the
printer will not turn on. The battery will start to charge, but
the user will have no indication that the battery is charging.
When the battery reaches a valid operating voltage range, the
printer will still not turn on unless the user manually turns it
on, or unplugs and re-plugs the charge cable.
2.ACAdapterispluggedinandthebatteryiconis
alternatelyashing and .
•Indicatesthatthebatteryisoutofitssafechargingtemperature
range. Charging will resume when the battery reaches a safe
charging temperature.
3.Mediadoesnotfeed:
•Besureprintheadisclosedandlatched.
•Checkmediasupportcomponentsforanybinding.
•Ifunitisequippedwithlabelpresencesensor,ensurethemost
recently printed label is removed.
•Ensurelabelsensorisnotblocked.
Section Continues
P4T/RP4T
User Guide
35
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
4.Poororfadedprintorlowbatteryicon( )
ashing:
•Cleanprinthead.
•Checkbatterypack.Rechargeorreplaceasnecessary.
 Alwaysdisposeofusedbatterypacksproperly.Referto
AppendixEformoreinformation.
•Checkqualityofmedia.
5.Partial/missingprint:
•CheckRibbonCartridgeand/orlabelmediaalignment.
•Cleanprinthead.
•Ensureprintheadisproperlyclosedandlatched.
6.Noprint:
•Replacebatterypack.
•Checkcabletoterminal.
•Wirelessunitsonly:Restorewirelessconnection.
•UnitsusingThermalTransfermedia:EnsureRibbonCartridge
has been installed.
7.Reducedbatterylife:
•Checkbatterypackdatecode.Ifbatteryisonetotwoyears
old, short life may be due to normal aging.
•Checkprinterdisplay.Ifbatteryhasexceededafactoryset
number of charge cycles the printer will display a message
that the battery needs re-conditioning or replacing.
•Replacebatterypack.
8. or iconoff:
•UnitswithBluetoothor802.11goptiononly:indicatesnoradio
linkhasbeenestablished.
9. or ashing:
•Checkthatlabelmediaisloaded.
•ReplaceRibbonCartridgeifdepleted.
•Checkthattheprintheadisclosedandsecurelylatched.
10.Skipslabels:
•Ensurecorrectmediaisbeingused.
•Ensurebar/orgapsensorisnotblocked.
•Ensurelabeldesigndoesnotexceedactualmedialength.
11.Prints“wrinklepattern”orpartialcharacters:
•EnsureRibbonCartridgehasbeentensionedpriortoinstallation.
Problem will self-correct after printing a few labels.
•Ensurelabelmediatracksproperlywhenemergingfromprinter.
Usethealignmentmarksontheprintercovertoensurewrinkle
free operation when loading media into the peeler assembly.
Correct media alignment if necessary.
12.Printsmultiple“Void”messages:
•RP4T printers only: Ensure you have installed RFID media.
PrintercannotverifyRFencodingonnon-RFIDmediaandwill
print“Void”onapre-setnumberoflabelsbeforestopping.
13.CommunicationError:
•Checkmediaisloaded,headisclosedandallerrorindicators
are off.
•Replacecabletoterminal.
14.Screenblank
•No application loaded.  Attempt to re-load application and
restart printer.
•Nopower.SeeTopic“1”ofthissection.
Section Continues
Troubleshooting Topics (continued)
P4T/RP4T
User Guide
36
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Printing a Configuration Label
To print out a listing of the printer’s current configuration follow
these steps:
1.Turntheprinteroff.Loadthemediacompartmentwithjournal
media(mediawithnoblackbarsprintedontheback)
2.PressandholdtheFeedButton.
3.PressandreleasethePowerbuttonandkeeptheFeedbutton
pressed. When printing starts, release the Feed button.
4.Theprinterwillcreatetworeports.Therstreportisabasic
functionaltestoftheprinter.Itprintsaseriesofinterlocking
“X”characterswhichactsasatestoftheprintheadelements
and reports on basic features of the printer including memory
installed.
The second report is a detailed list of the printer’s configura-
tion,includinganyoptionsinstalled(suchasradios)andcur-
rent status of system settings.
 RefertoFigures18.1through18.2forasampleconguration
label printout.
Performing a Forced Shutdown
Ittheprinterhaslockedupandisnotrespondingtoanyoperator
inputs or external commands, from either a connected terminal or
alinkedLAN,youcanperformaforcedshutdown.
•Iftheprintersoftwarelocksupduringnormaloperation,force
the printer to shut down by pressing and holding the Power
Button for 3 seconds.
•If you try to turn the printer off normally and the software
locksup,theprinterwillautomaticallyshutitselfoffaftera10
second delay.
•Ifyoutrytoturntheprinteroffanditdoesnotrespond,you
can force an immediate shut down by pressing and holding
thePowerButtonagainwithin10seconds.
A forced shutdown will preserve the printer’s data and settings.
Communications Diagnostics
Ifthere’saproblemtransferringdatabetweenaterminalorWLAN,
placingtheprinterintheCommunicationsDiagnosticsMode(also
referredtoasthe“DUMP”mode)willallowdiagnosticanalysis.The
printer will print transmitted data as ASCII characters and their text
representation(oraperiod“.”ifnotaprintablecharacter)forany
datareceivedfromthehostterminalornetwork
ToenterCommunicationsDiagnosticsMode:
1.Printacongurationlabelasdescribedabove.
2.Attheendof2nddiagnosticsreport,theprinterwillprint:
“PressFEEDkeytoenterDUMPmode.”
3.PresstheFEEDkey.Theprinterwillprint:“EnteringDUMP
mode.”
 Note•IftheFEEDkeyisnotpressedwithin3seconds,the
printerwillprint“DUMPmodenotentered”andwillresume
normaloperation.
4.Atthispoint,theprinterisinDUMPmodeandwillprinttheASCII
hexcodesofanydatasenttoit,andtheirtextrepresentation(or
“.”ifnotaprintablecharacter).
Additionally, a file with a “.dmp” extension containing the ASCII
information will be created and stored in the printer’s memory. It
canbeviewed,“cloned”ordeletedusingtheLabelVistaapplica-
tion.(RefertheLabelVistadocumentationformoreinformation.)
ToterminatetheCommunicationsDiagnosticsMode:
1.TurntheprinterOFF.
2.Wait5seconds.
3. Turn the printer ON.
The printer will resume normal operation.
Calling Technical Support
If the printer fails to print the configuration label, or you encounter
problems not covered in the Troubleshooting Guide, contact Zebra
Technical Support. You will need to supply the following informa-
tion:
•Modelnumber/type(e.g.P4T,RP4T)
•Unit serial number (14 digit number, including dashes) and
ProductCongurationCode(PCC)(15digitnumber,including
dashes).RefertoAppendixDforthelocationofthesenum-
bers.
•TechnicalsupportcontactinformationmaybefoundinAp-
pendixDofthismanual.
Troubleshooting Techniques
Section Continues
P4T/RP4T
User Guide
37
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Figure 18.1- P4T Series Configuration Label Sample
Second diagnostic report for a printer with a
Bluetooth radio
Second diagnostic report for a printer with an
802.11b/g radio
First diagnostic report for all P4T
Series printers
Section Continues
End of First Report
Print Head Test
Unit Serial Number
Installed software and
firmware
Settings for RS232
and USB communi-
cations via cable
Wireless
Communications
section with a
Bluetooth radio
installed.
Units with no
wireless options will
print an empty line
and resume printing.
Wireless Communi-
cations section for a
P4T Series with an
802.11 radio installed
Information on TCP/
IP and LAN address-
es and settings.
Information on
any installed
802.11b/g wire-
less devices.
In this example,
an 802.11b WLAN
card has been
detected.
P4T/RP4T
User Guide
38
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Figure 18.2- P4T Series Configuration Label Sample
Second diagnostic report continued
End of second diagnostic report
Resident Fonts
Installed
Files Loaded in
Printer Memory.
Will include file for
LCD prompts (.wml
format)
Amount of Memory
Available
End of Configura-
tion Report
Command languges
supported. P4T
Series supports
both CPCL languge
and emulates ZPLII.
Configuration
settings for
ZPL language
emulation
Maximum label
dimensions and
label sensor
settings
Flash Memory Size
RAM Size
P4T/RP4T
User Guide
39
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Specifications
Note.- Printer specifications are subject to change without
notice.
Printing Specifications
Maximum Print Width 4.09 in. [103,8 mm]
Print Speed @ 30% density
2.0 in. /sec. [50,8 mm/second ]
Direct Thermal mode
1.5 in/sec. [38,1 mm/second]
Thermal Transfer mode
Distance from Print Element to Tear
Edge 0.39 in. [9,91 mm] 41 dots
Print Head Life 1,000,000 inches (25.4 Km) min.
Print Density 203 dots/inch (8 dots/mm)
Memory/Communications Specifications
Flash Memory 8 MB flash (standard)
RAM Memory 16 MB RAM)
Standard Communications
RS-232C serial port (RJ-45 connector) Configurable
Baud rate (from 9600 to 115.2 Kbps), parity and data
bits. Software (X-ON/X-OFF) or hardware (DTR/STR)
communication handshake protocols.
Two USB 2.0 Full Speed Interface connections:
(1) a “B” type USB connector, and
(2) USB signals are also integrated into the RJ-45
connector.
Refer to the Communications Ports specifications and
Appendix A for information on USB cables.
Optional Wireless Communications
Bluetooth 2.0 compatible 2.4 GHz SRRF link
Wireless LAN capabilities comply with 802.11b or 802.11g
protocols
Co-located Bluetooth 2.0 + 802.11b/g radios (P4T only)
Real Time Clock (RTC)
Time and date under application control. Refer to CPCL
Programming Manual, available at www.zebra.com for
RTC commands.
Communications Ports
USB
Signal Description
Pin# Name Type
1VBUS USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4USB _ ID Identifies A/B connector
5Return Ground
RS232/USB
Signal Description
Pin# Name Type
1 USB D- bi-directional I/O signals
2 USB D+ bi-directional I/O signals
3RXD input Receive Data
4TXD output Transmit Data
5DTR output Data Terminal Ready- set high
when printer is on.
6GND Ground
7DSR input Data Set Ready- low to high
8RTS output Request To Send- set high when
printer is ready to accept a
command or data
9CTS input Clear To Send from host
10 VBUS USB Bus Power
Figure 19- P4T Series Communication Ports
Section Continues
1
10
1
USB
RS232/USB
Combination
Port
5
P4T/RP4T
User Guide
40
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
P4T Series Media Specifications
Media Width 2.0 in. to 4.12 in. (50,8 to 104,6 mm)
Max. continuous receipt (w/std. memory) Continuous, dependent on installed memory
Inter-label Gap. 0.08 in. to 0.16 in. (0.12 in. preferred)(2 mm to 4 mm
[3 mm preferred])
Label Thickness 0.032 in to 0.007” (0,064 mm to 0,165 mm)
RFID Label Thickness (RP4T only) 032 in to 0.007” (.064 mm to .165 mm), Thickness
over RFID element- .023 in. [0,58 mm]
Max. Label Roll diameter. 2.25 in. (57 mm) O.D.
Label Inner Core .75 in. (19 mm) minimum diameter;
1.38 in. (35 mm) RFID Media
Black Mark Dimensions The reflective media black marks should extend past
the centerline of the roll.
Media Requirements
Minimum mark width: 1.0 in. (25,4 mm)
perpendicular to edge of media, centered within the
width of the roll.
Mark length: 0.094 in. (2,4 mm) parallel to edge of
media
Use Zebra brand direct or thermal transfer media that is outside wound. Media may be
reflective (black mark) sensing, or transmissive (gap) sensing, die-cut, or continuous. P4T
Series units configured with the External Media option will accept fanfold media used
with an external media supply.
For die-cut labels, use only full auto dies.
P4T Series Font and Bar Code Specifications
Linear & 2-D Bar
Codes Available
Codabar (NW-7)
UCC/EAN 128
Code 39
Code 93
EAN 8/JAN 8, 2 and 5 digit extensions
EAN 13/JAN 13, 2 and 5 digit extensions
EAN 14/JAN 14, 2 and 5 digit extensions
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
QR Code
MaxiCode
PDF 417
Aztec
DataMatrix (using ZPL emulation)
RSS (Reduced Space Symbology®):
RSS-14 Truncated
RSS-14 Stacked
RSS-14 Stacked Omnidirectional
RSS Limited
RSS Expanded
TLC-39/Micro PDF
Rotation Angles0°, 90°, 180°, and 270°
Fonts Available
Standard Fonts: 25 bit-mapped fonts; 1 scalable (CG Trimvirate
Bold Condensed*)
Downloadable optional bit-mapped & scalable fonts via Label
Vista software
International character sets:
Chinese 16 x 16 (trad.), 16 x 16 (simplified), 24 x 24 (simplified);
Japanese 16 x 16, 24 x 24
Korean Myang 16 x 16
Greek
Hebrew/Arabic
*Contains UFST from Agfa Monotype Corporation
*Contains UFST from Agfa Monotype Corporation
Section Continues
P4T/RP4T
User Guide
41
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Physical/Environmental/Electrical Specifications
P4T Series
Weight w/ battery, and TT ribbon
excluding media and radio option
2.9 lbs. (1,32 Kg.)
Operating Temperature Direct Thermal: -4 °F to 122 °F (-20 °C to 50 °C)
Thermal Transfer: 32 °F to 113 °F (0 °C to 45 °C)
Charging Temperature 32 °F to 104 °F (0°C to 40 °C)
Storage Temperature -22 °F to 149 °F (-30 °C to 65 °C)
Relative Humidity
Operating: 10% to 90%
(non-condensing)
Storage: 10% to 90%
(non-condensing)
Battery 7.4V Lithium-Ion 4.2 AHr.
Intrusion Protection (IP) Rating 14
(54 w/ optional soft case)
Figure 20-P4T Series Overall Dimensions
AppendixA
2.92 in.
[74,2 mm]
4.25 in.
[108,0 mm]
3.16 in.
[80,2 mm]
0.57 in.
[14 ,5mm]
1.60 in.
[40,6 mm]
8.68 in.
[220,5 mm]
3.38 in.
[85,9 mm]
3.14 in.
[79,7 mm]
6.53 in.
[165,9 mm]
#8-32 x .30 DP.
x2
External Media
Supply Loading Slot
P4T/RP4T
User Guide
42
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Interface Cables
PartNumberAK17463-008;RWModPlugto9-PinDBPCCable
PartNumberAK18666-1;RWModPlugtoUSBACable
PartNumberAT17010-1;USBAtoUSBMiniBCable
 Contact the Factory or your Zebra Sales Representative
for more information on interface cables to most major
manufacturer’sdataterminals.
 YoumayalsovisittheZebraWebsiteatwww.zebra.com
foralistingofinterfacecablesforallseriesofZebramobile
printers
Appendix A
PIN 1 PIN 10
6
(DSR)
SHIELD
(GND)
(DTR)
(CTS)
(RTS)
5
4
8
7
(RXD)
(TXD)
2
3
5(DTR)
SHIELD
6(GND)
7(DSR)
8
9
(RTS)
(CTS)
10 PIN MOD Plug
(Printer Signals)
4
3
(TXD)
(RXD)
PIN 9
PIN 1
PIN 10
2 (USB D+)3 (USB D+)
6 (GND)4 (GND)
10 PIN MOD Plug
(Printer Signals)
4 PIN USB
(Type A Plug)
1 (USB D-)2 (USB D-)
1 (VBUS) 10 (VBUS)
PIN 1
RS232 Download Cable
USB Download Cable
USB Cable
AppendixB&C
P4T/RP4T
User Guide
43
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Media Supplies
To insure maximum printer life and consistent print quality and
performance for your individual application, it is recommended
that only media produced by Zebra be used.
Advantages include:
• Consistentqualityandreliabilityofmediaproducts.
• Largerangeofstockedandstandardformats.
• In-housecustomformatdesignservice.
• Largeproductioncapacitywhichservicestheneedsofmany
large and small media consumers including major retail chains
world wide.
• Mediaproductsthatmeetorexceedindustrystandards.
For more information about standard or custom media contact your
re-seller or Zebra Technologies Corporation at +1.866.230.9495
(U.S.,CanadaandMexico)andasktospeaktoaMediaSalesRep-
resentative.
Maintenance Supplies
In addition to using quality media provided by Zebra, it is recom-
mended that the printer be cleaned as prescribed in the Mainte-
nance section. The following items are available for this purpose:
• CleaningPen(12pack),ReorderNo.AN11209-1
• CleaningKitwithCleaningPen,andCottonSwabs,Reorder
No.AT702-1
Appendix B Appendix C
AppendixD
P4T/RP4T
User Guide
44
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Product Support
When calling with a specific problem regarding your printer, please
have the following information on hand:
• Modelnumber/type(e.g.P4T,RP4T)
• Unitserialnumber
• ProductCongurationCode(PCC)
For on-line product support and the most recent versions of down-
loadable user documentation, firmware and software utilities, go
to the Zebra Web site: www.zebra.com
In the Americas, contact
Regional Headquarters Technical Support Customer Service Dept
Zebra Technologies International, LLC
333 Corporate Woods Parkway Vernon
Hills, Illinois 60061-3109 U.S.A
T: +1 847 793 2600
Toll-free +1 800 423 0422
F: +1 847 913 8766
T: +1 847 913 2259
F: +1 847 913 2578
Hardware:
ts1america@zebra.com
Software:
ts3america@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +1 877 275 9327
E: clientcare@zebra.com
In Europe, Africa, the Middle East, and India, contact
Regional Headquarters Technical Support Internal Sales Dept.
Zebra Technologies Europe Limited
Zebra House
The Valley Centre,
Gordon Road
High Wycombe
Buckinghamshire HP13 6EQ, UK
T: +44 (0)1494 472872
F: +44 (0) 1494 450103
T: +44 (0) 1494 768298
F: +44 (0) 1494 768210
Germany:
Tsgermany@zebra.com
France: Tsfrance@zebra.com
Spain/ Portugal:
Tsspain @zebra.com
All other areas:
Tseurope@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us
T: +44 (0) 1494 768316
F: +44 (0) 1494 768244
E: cseurope@zebra.com
In the Asia Pacific region, contact
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Pacific, LLC
Go to www.zebra.com/contact for
complete contact information
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838
E: (China):
tschina@zebra.com
All other areas:
tsasiapacific@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us
T: +65 6858 0722
F: +65 6885 0836
E: (China)
order-csr@zebra.com
All other areas:
csasiapacific@zebra.com
Appendix D
Serial and PCC Number Locations for P4T Series Printers
AppendixE
P4T Series Serial
Number
P4T Series Product
Configuration Code
(PCC)
P4T/RP4T
User Guide
45
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Battery Disposal
The EPA certified RBRC® Battery Recycling Seal on the
Lithium-Ion (Li-ion) battery supplied with your printer
indicates Zebra Technologies Corporation is voluntarily
participating in an industry program to collect and recycle
thesebatteriesattheendoftheirusefullife,whentaken
out of service in the United States or Canada. The RBRC program
providesaconvenientalternativetoplacingusedLi-ionbatteries
into the trash or the municipal waste stream, which may be illegal
in your area.
 Insulate depleted battery terminals with tape before
disposal.
Please call +1 800 8BATTERY for information on Li-ion battery
recycling and disposal bans or restrictions in your area. Zebra
Technologies Corporation’s involvement in this program is part of
our commitment to preserving our environment and conserving
our natural resources.
Outside North America, please follow local battery recycling
guidelines.
Product Disposal
Donotdisposeofthisproductinunsortedmunicipalwaste.
This product is recyclable. Please recycle according to your
local standards. For more information, please see our web
site at: http://www.zebra.com/environment
Appendix E
AppendixF
P4T/RP4T
User Guide
46
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Using zebra.com
The following examples use the search functions on Zebra’s Web
site for finding specific documents .
Example1: Find the Mobile Printer Wireless Configuration Guide.
Go to www.zebra.com/manuals.
Select as a manual type “Networking Manual” then click on “Submit”.
At the resulting screen, select Wireless Mobile as the networking type. Then select the
desired language. (Best choices are “All” or “English”)
At the resulting screen, select “Zebra Mobile Printers - Wireless Configuration Guide” then
click on “Download” to begin the download process.
Example 2: Find the Label Vista Download page:
Go to www.zebra.com/software and select “Label Vista”, then click “Submit”.
At the resulting window select “Download a free Label Vista demo now “
Appendix F
AppendixG
Select manual
type
Click on
“SUBMIT”
Select networking
type (Wireless Mobile
in this example)
Click on
“SUBMIT”
Select
language
Select the
“Label Vista
demo
P4T/RP4T
User Guide
47
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Appendix G- Patents
D275,286
D347,021
D389,178
D430,199
D433,702
D549,768
3,964,673
4,019,676
4,044,946
4,360,798
4,369,361
4,387,297
4,460,120
4,496,831
4,593,186
4,607,156
4,673,805
4,736,095
4,758,717
4,816,660
4,845,350
4,896,026
4,897,532
4,923,281
4,933,538
4,992,717
5,015,833
5,017,765
5,021,641
5,029,183
5,047,617
5,103,461
5,113,445
5,140,144
5,132,709
5,142,550
5,149,950
5,157,687
5,168,148
5,168,149
5,180,904
5,229,591
5,230,088
5,235,167
5,243,655
5,247,162
5,250,791
5,250,792
5,262,627
5,267,800
5,280,163
5,280,164
5,280,498
5,304,786
5,304,788
5,321,246
5,335,170
5,364,133
5,367,151
5,372,439
5,373,148
5,378,882
5,396,053
5,396,055
5,399,846
5,408,081
5,410,139
5,410,140
5,412,198
5,415,482
5,418,812
5,420,411
5,436,440
5,444,231
5,449,891
5,449,893
5,468,949
5,479,000
5,479,002
5,479,441
5,486,057
5,503,483
5,504,322
5.519,381
5,528,621
5,532,469
5,543,610
5,545,889
5,552,592
5,570,123
5,578,810
5,589,680
5,612,531
5,642,666
5,657,066
5,680,459
5,726,630
5,768,991
5,790,162
5,791,796
5,806,993
5,813,343
5,816,718
5,820,279
5,848,848
5,860,753
5,872,585
5,874,980
5,909,233
5,976,720
5,978,004
5,995,128
5,997,193
6,004,053
6,010,257
6,020,906
6,034,708
6,036,383
6,057,870
6,068,415
6,068,415
6,095,704
6,109,801
6,123,471
6,147,767
6,151,037
6,201,255 B1
6,231,253 B1
6,261,009
6,261,013
6,267,521
6,270,072 B1
6,285,845 B1
6,292,595
6,296,032
6,364,550
6,379,058 B1
6,409,401 B1
6,411,397 B1
6,428,227 B2
6,480,143
6,530,705
6,540,122
6,540,142
6,607,316
6,609,844
6,655,593
6,784,787
6,874,958
6,899,477
6,908,034
7,126,716
7,137,000
7,172,122
7,190,270
This product and/or its use may be covered by one or more of the
following US patents and corresponding international patents
worldwide
Index
P4T/RP4T
User Guide
48
Printer Preparation Connecting the
Printer
Radio Regulatory
Information
RP4T Printers Maintenance Troubleshooting Specifications Appendices Index
P4T Overview
Manual
Introduction
Index
B
Batterypack
installing 12
life, tips for extending 32
reconditioning 18
Smart Battery, features 6
C
Cable Communications 23
Combination Port 23
USB 24
Charger, battery
AC Adapter 10
LI72singlecharger8
AT17696-xx9
Listofapproved8
UCLI72-4QuadCharger11
battery charge times 11
indicators 11
Cleaning
general instructions 32
methods & intervals
table of 33
Communications, Wireless
802.11b/g26
Bluetooth 26
Controls, Operator
functions illustrated 18
LCDfunctions,extended19
E
Encoder option
RFID5,6
L
Label,Conguration22
use as a diagnostic tool 22
LabelVista
settingWLANparameterswith26
M
Manual
CPCLProgramming26
RFIDProgrammingGuide31
Wireless Configuration Guide 25
Media, loading
adjusting for core diameter 16
external media
media Spacer, use of 14
Internal roll 13
thermal transfer film 17
use of label peeler 15
using external supply 14
P
P4TMedia40
Printing Method
DirectThermal6
thermal transfer
Loadingthermaltransferlm17
Thermal Transfer 6
thermal transfer film 6
Programming language
CPCL4
ZPLII4,31
R
Radio Regulatory Information
802.11b/gRadio27
Republic of China 28
Bluetoothradio(ZBR4)27
Co-located802.11b&Bluetooth26,29
RFIDEncoder30
RFID
label types supported 31
ModelRP4T6
S
Safety
Battery 7
Charger 7
Shoulder Strap, Adjustable 21
Specifications
Font/bar Codes 41
Media 40
Memory/communications 39
communications ports 39
Physical 41
overall dimensions 41
printing 39
T
Technical Support
contacting 36
Troubleshooting
entering communications diagnostic mode 36
forced shutdown 36
LCDControlPanel34
printing a configuration label 22,36,37,38
Troubleshooting Topics 34
UMAN-P4T-001 Rev.B July, 2008

Navigation menu
