Zebra Technologies WMC63000303 Wireless PCMCIA Modem Card User Manual MEA WMC6300 pocket pc 2002 rb
Zebra Technologies Corporation Wireless PCMCIA Modem Card MEA WMC6300 pocket pc 2002 rb
Contents
PPC Manual
DMM000016-02 Copyright 2002-2003, MeshNetworks, Inc. All Rights Reserved
Draft
WMC6300
Wireless Modem Card
User’s Guide
(PocketPC 2002)
WMC6300 PocketPC 2002 User’s Guide
iii
Foreword
This document describes in detail the confidential and proprietary technology of MeshNetworks’
™ Architecture. MeshNetworks products and technology are protected by US and
international patent and patent pending technology. This document represents the current
design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc.
, MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of
MeshNetworks, Inc. Microsoft, Windows, Windows XP, and PocketPC are registered
trademarks of Microsoft Corporation. All other product names and services identified
throughout this publication are trademarks or registered trademarks of their respective
companies. No such uses or the use of any trade name is intended to convey endorsement or
other affiliation with this publication. Copyright 2002-2003, MeshNetworks, Inc. All Rights
Reserved.
MeshNetworks
iv
WMC6300 PocketPC 2002 User’s Guide
v
Table of Contents
1
Introduction........................................................................................................................1
System Requirements .......................................................................................................1
General System Requirements........................................................................................1
What’s in the Box...............................................................................................................2
WMC6300 External Connections and Lights....................................................................3
INSTALLING THE WMC6300 WIRELESS MODEM CARD .......................................................4
Install Software (PocketPC 2002 Clients Only).....................................................4
Connect the Antenna Assembly .......................................................................................6
Connect the Magnetic Antenna Assembly (Optional Equipment) ..................................6
Insert the WMC6300 Wireless Modem Card.....................................................................8
Configuring the DNS Address...........................................................................................9
Removing the WMC6300 Wireless Modem Card............................................................10
Uninstalling Application Software..................................................................................11
OVERVIEW OF THE MESHTRAY APPLICATION...................................................................12
MeshTray™ ......................................................................................................................12
MeshTray Status..............................................................................................................13
Starting MeshTray............................................................................................................13
Terminating MeshTray.....................................................................................................13
CUSTOMER SERVICE INFORMATION...................................................................................14
LICENSE AND WARRANTY INFORMATION..........................................................................15
REGULATORY INFORMATION...............................................................................................20
FCC Information...............................................................................................................20
MeshNetworks
vi
FCC RF Radiation Exposure Statement .........................................................................20
Safety Information for the WMC6300...................................................................21

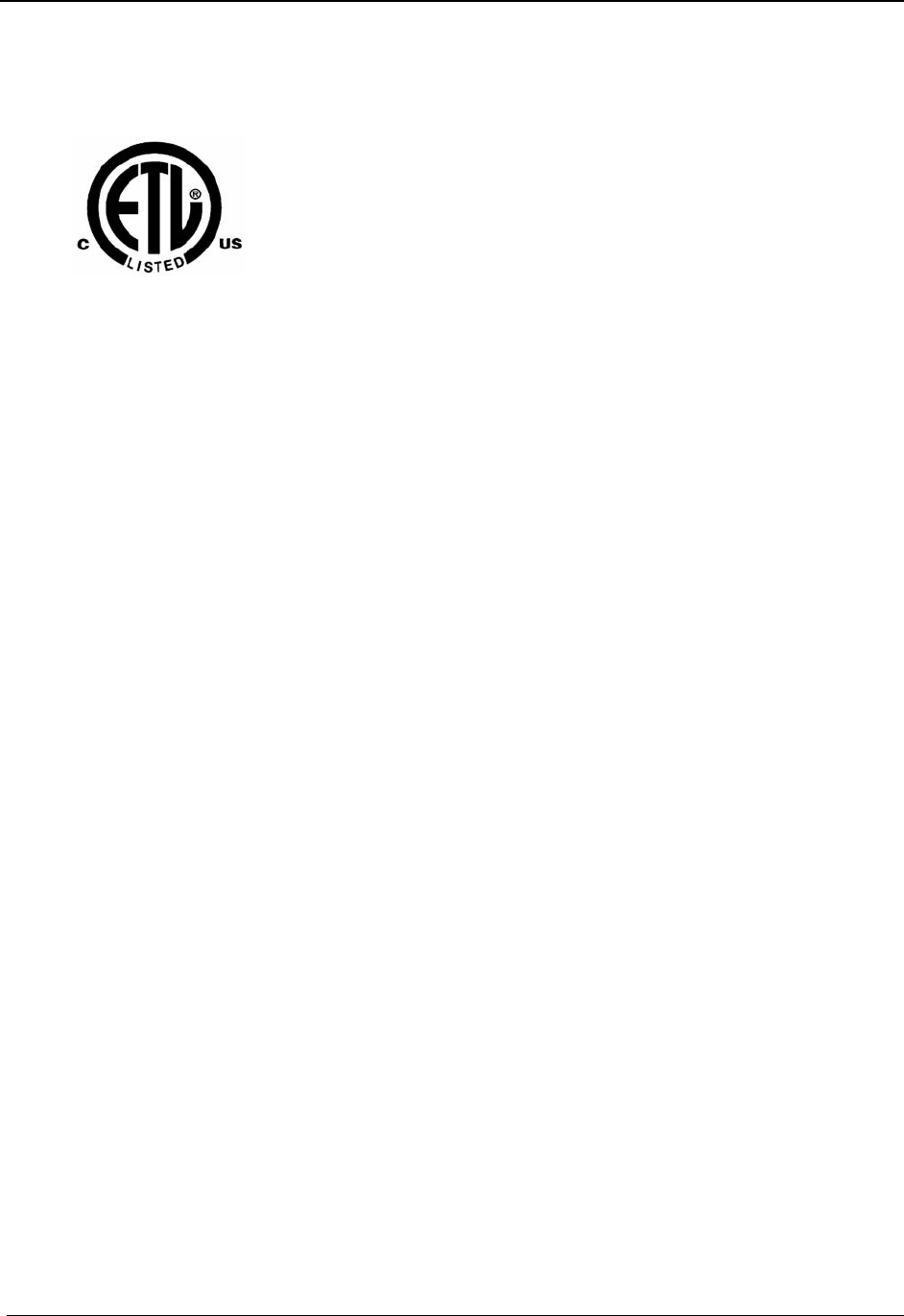

Safety Certification ..........................................................................................................22
WMC6300 Pocket PC 2002 User’s Guide
1
Introduction
Thank you for purchasing the WMC6300 Wireless Modem Card. To get started
proceed to the Installing the WMC6300 Wireless Modem Card section of this
document.
is a wireless communication system capable of supporting high data rate
mobile communication at vehicular speeds. The system is designed to
allow standard client hosts with a PCMCIA interface to have a mobile broadband
Ethernet connection. The system works transparently to the client host in a
manner similar to an Ethernet connection. provides Internet Protocol based
data and location services. Its geo-location accuracy and availability is better
than ±10 meters within 1 second. It is capable of supporting subscribers
traveling up to 100 miles per hour.

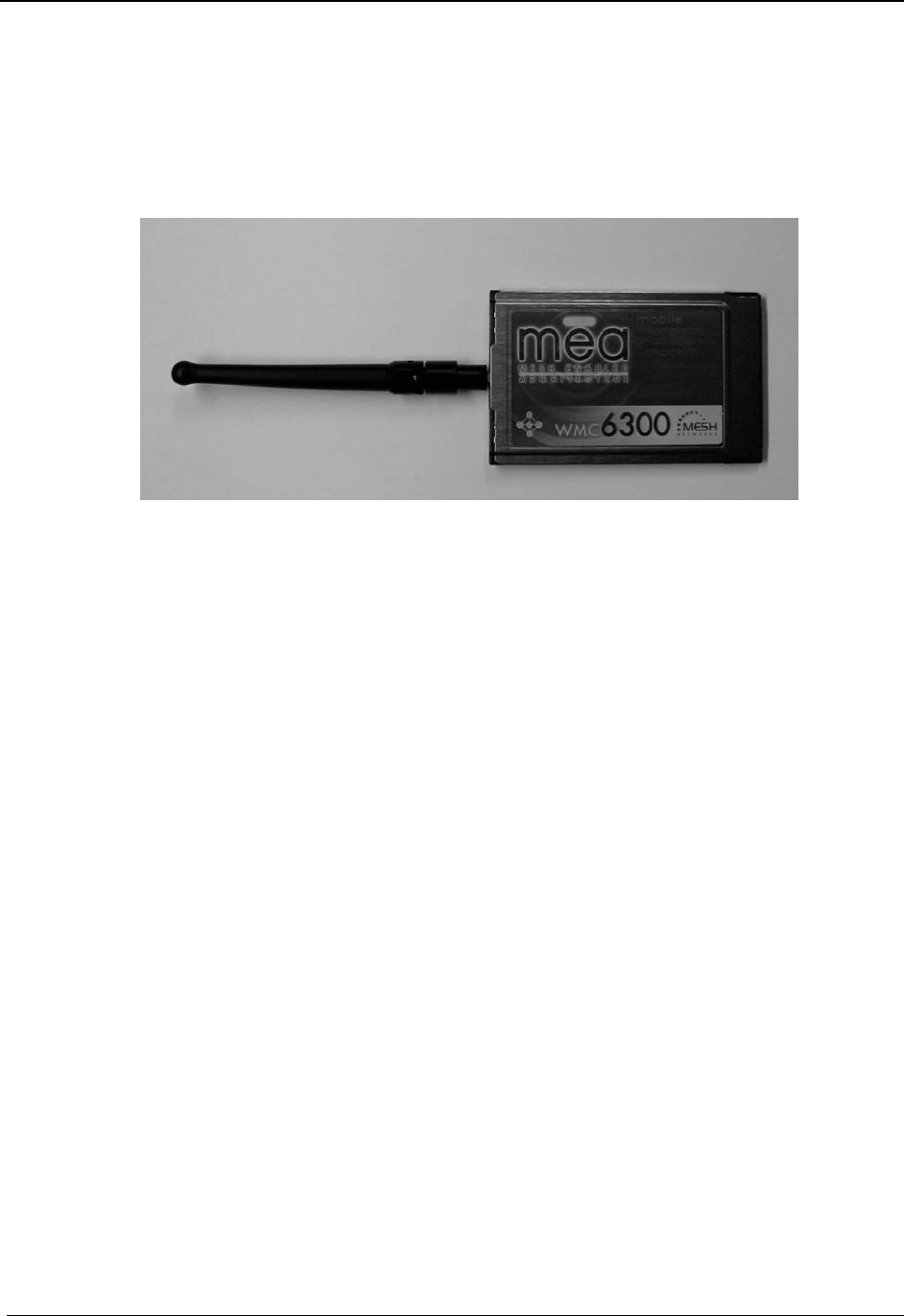

Figure 1. MeshLAN WMC6300 Wireless Modem Card
The system provides a secure and reliable transport for the client host. The
client host may still require configuration and authentication before it will be
allowed to access services on the core network. Access to the core network is
controlled by the network administrator according to current operating practice.
This document provides detailed installation and configuration instructions for
use when installing the WMC6300 Wireless Modem Card and its Software.
System Requirements
General System Requirements
For best results, ensure the computers meet the following minimum
requirements:
• PDA running the Microsoft PocketPC 2002 operating systems, with an
available Type II PCMCIA slot
• Intel based laptop computer running the Microsoft Win2000 or WinXP
operating system, with the following:
• Keyboard
• Mouse
• CD-ROM drive or DVD drive
• ActiveSynch utility program installed
MeshNetworks
2
• Cable to connect the PC and the PDA
What’s in the Box
Each WMC6300 Wireless Modem Card is a full-featured wireless
networking interface. The following is a list of the items provided with each
WMC6300 card:
• WMC6300 Wireless Modem Card
• Antenna
• WMC6300 Software and Documentation CD
WMC6300 Pocket PC 2002 User’s Guide
3

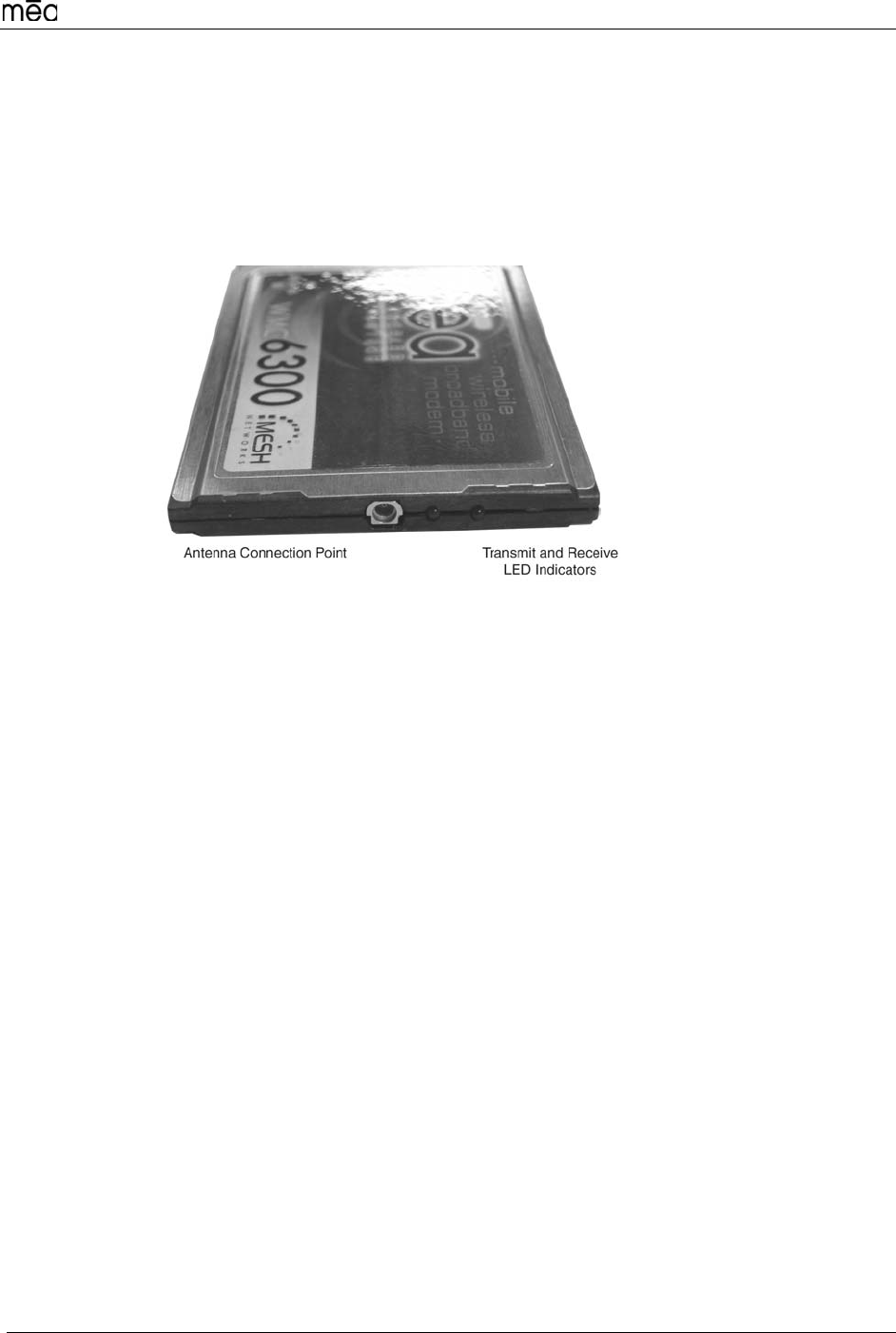

WMC6300 External Connections and Lights
The WMC6300 Wireless Modem Card is designed for insertion into an industry-
standard Type II PCMCIA card slot located in a Host device. The WMC6300 has
an antenna port to connect the external antenna and two LED Indicators. The
Red LED is the transmit indicator and the Green LED is the receive indicator as
shown in Figure 2.
Figure 2. WMC6300 Antenna Port and LED Indicators
MeshNetworks
4
Installing the WMC6300 Wireless Modem Card
Install Software (PocketPC 2002 Clients Only)
Please install the mea Software before you insert the WMC6300 card. Complete
the following procedure to install the mea software:
1. Connect the PC to the PDA with the cable supplied by the PDA
manufacturer. Initiate an ActiveSynch session between the computer and
the PDA. Note: Refer to the PDA manufacturer’s documentation for
connection and operational instructions..
2. Insert the mea Software and Documentation for PocketPC CD into the
PC’s CD-ROM drive.
3. On the PC, navigate to the CD-ROM drive using “My Computer.” Double
click on “mea_pocketpc2002_setup.exe” to start the software installation
process.
4. The mea “Welcome” installation window will be displayed as shown in
Figure 3. Click on the “Next” button to continue the software installation
process.
Figure 3. Installation Welcome Window
WMC6300 Pocket PC 2002 User’s Guide
5
5. The “License Agreement” window will be displayed. Please review the
End User License Agreement. Use the scroll bar located at the right side
of the window to display the complete text message.
Note: If you do not agree with the terms of the license agreement, click
on “Cancel” and the installation will be terminated.
To continue with the installation process, click on the “YES” button as
shown in Figure 4 and then click on “Next” to continue the installation.

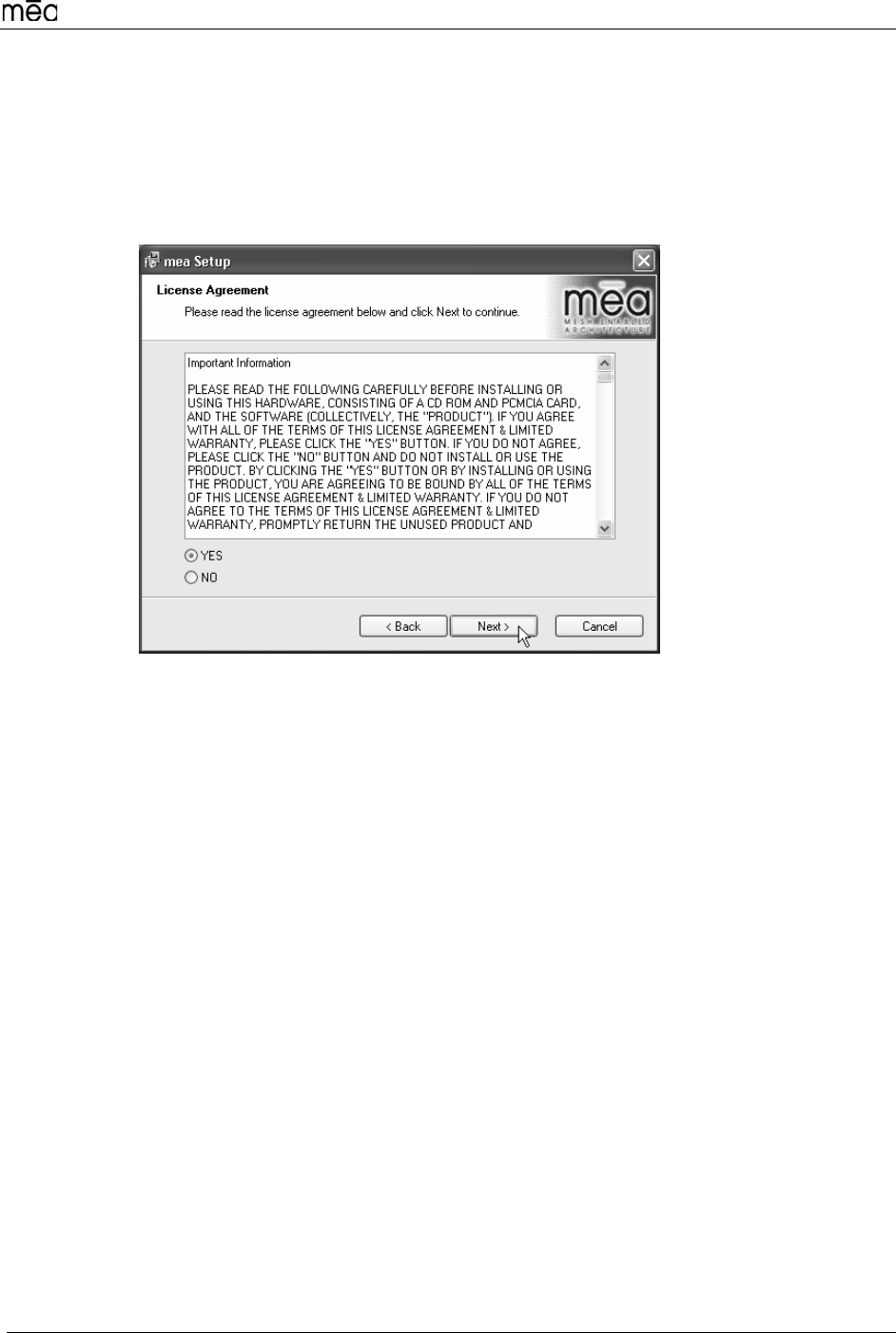

Figure 4. Agree with License Agreement Window
6. The Start Installation window will be displayed as shown in Figure x.
Verify that you have an active connection to the PDA, and then click on
“Next” to continue.
<insert new figures>
7. The Install Program will connect to your PocketPC 2002 device to
complete the installation.
8. A window will be displayed asking for permission to install the drivers to
the default directory. Select the “yes” button to continue the process.
9. The Installer will now move all of the necessary files onto the PocketPC
device The installation will then ask you to verify that there are no
additional steps required on the PocketPC. None are required. Select
the “OK” button.
10. The ‘Installation Complete” window will be displayed as shown in Figure
x. Click on the “Finish” button to complete the procedure.
11. Reboot the PDA.
MeshNetworks
6
Connect the Antenna Assembly
Complete the following procedure to connect the Antenna Assembly to the
WMC6300..
1. Locate the Antenna and insert the connector into the WMC6300 antenna
port as shown in Figure 5.
Note: The connector will “snap” into place when fully inserted.
Figure 5. Attach Antenna to the WMC6300
Warning
Use only the MeshNetworks supplied antenna.
Use of another antenna is prohibited and violates FCC regulations.
Never use the WMC6300 with the Antenna disconnected from the Card.
Connect the Magnetic Antenna Assembly (Optional Equipment)
Complete the following procedure to install the Magnetic Mount Antenna on the
rooftop of a vehicle. (The cable length of the Antenna is approximately 12-feet.)
1. Attach the Magnetic Antenna to the metal rooftop of the vehicle so that
the antenna is in a vertical orientation.
Caution: The base of the antenna contains a powerful magnet that
secures the antenna to the rooftop. Use care when attaching the antenna
2. Route the remaining 12-foot cable as required to arrive at the Host
Computer.
Warning
Never use the WMC6300 with the Antenna disconnected from the Card.
3. Insert the Antenna Cable Connector into the WMC6300 antenna port as
shown in Figure 6. Note: The connector will “snap” into place when fully
inserted.
WMC6300 Pocket PC 2002 User’s Guide
7

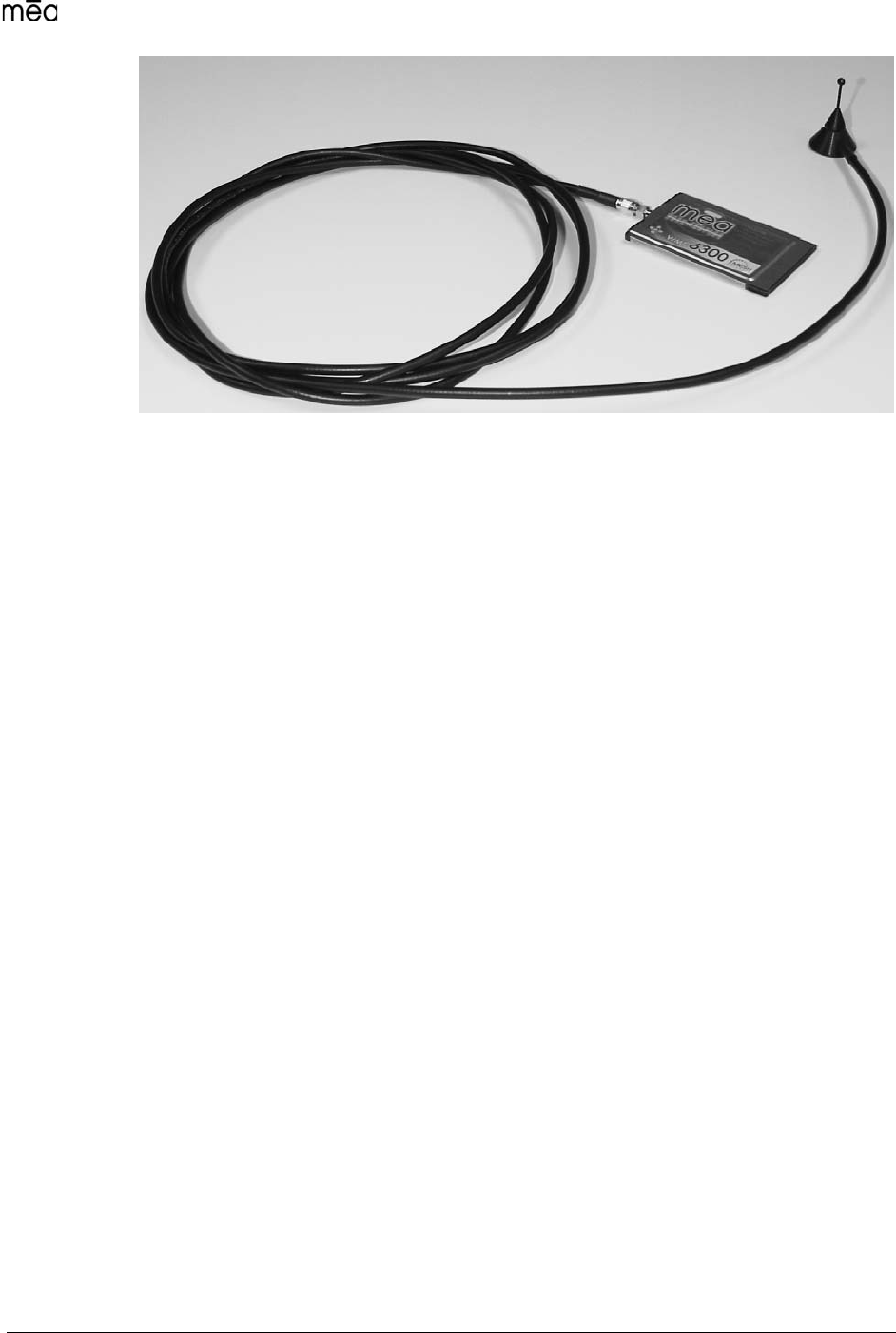

Figure 6. Attach Magnetic Mount Antenna to the WMC6300
MeshNetworks
8
Insert the WMC6300 Wireless Modem Card
Complete the following procedure to install the WMC6300 Wireless Modem Card
in the computer.
1. Locate an available Type II PCMCIA card slot in the PDA. If necessary,
remove the slot dust cover from the slot.
2. To ensure the correct orientation of the card, insert the WMC6300
Wireless Modem Card into the computer’s PCMCIA card slot with the
label side up as shown in Figure 7.
CAUTION - Never force the card into the slot.
Figure 7. Installing the WMC6300 Wireless Modem Card
3. When the WMC6300 card is detected, a “Start” window is displayed as shown.
The “Use server-assigned IP address” radio button should be selected. Click on “OK”
located in the upper right corner of the window.

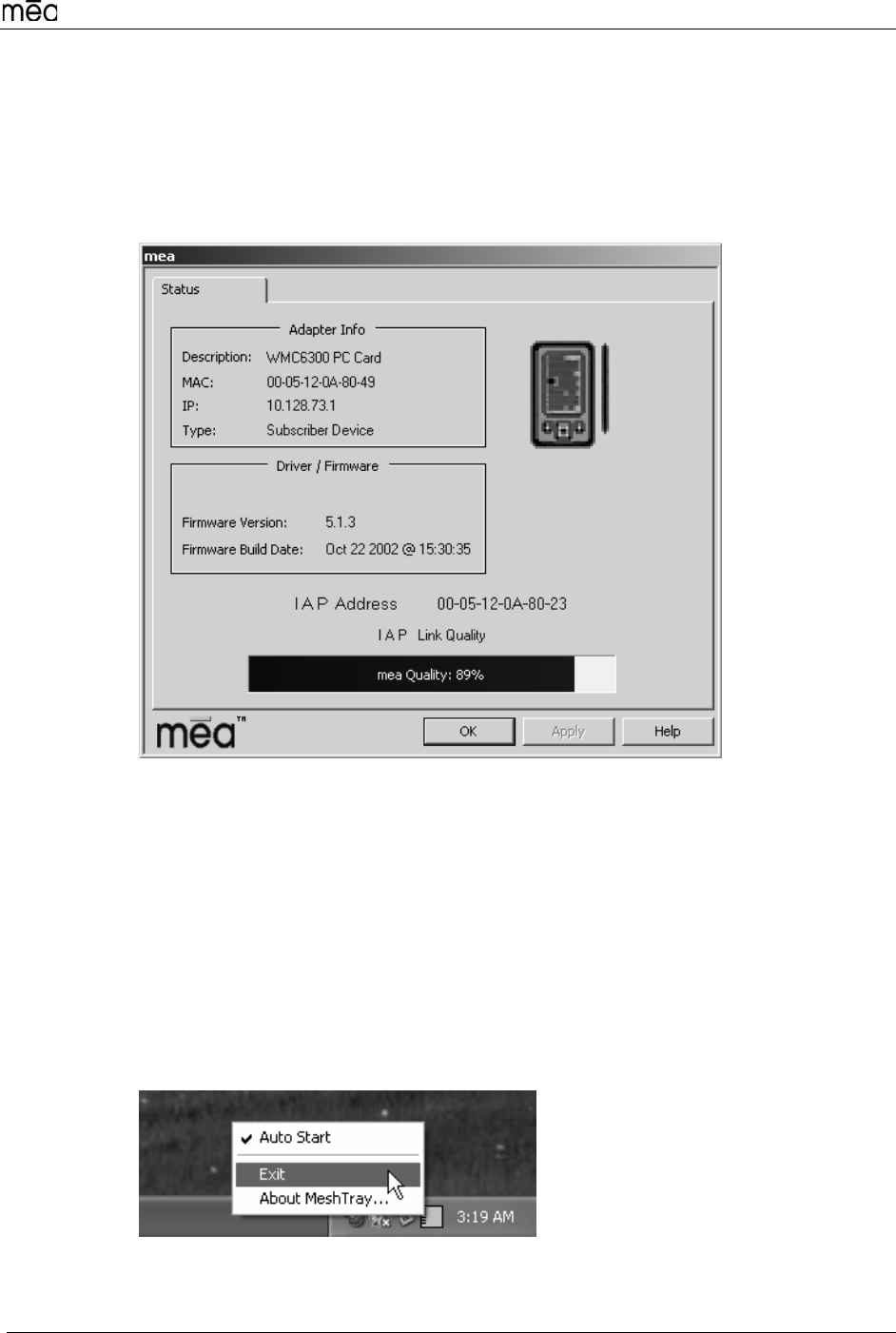

4. A MeshTray icon will be displayed on the screen of the PocketPC. A “green” icon
indicates successful connection to the network.
5. MeshTray executes automatically whenever the WMC6300 card is inserted into a
PocketPC device. Tap on the MeshTray icon to display status information for the
WMC6300 card as shown below.
WMC6300 Pocket PC 2002 User’s Guide
9
Configuring the DNS Address
The Network Operator must supply the DNS IP address for an Internet
connection. This address must be manually configured in order for web URLs
such as www.meshnetworks.com to be resolved. Complete the following
procedure to configure the address:
<need new procedure>
1.
This configuration should remain in the PocketPC host.
MeshNetworks
10
Removing the WMC6300 Wireless Modem Card
The WMC6300 should be ejected using the following procedure to ensure that
power to the card is disabled prior to removal.
Warning
Always eject card when not in use.
1. Click on the Unplug or Eject Hardware icon in the system task bar
2. Select “Safely remove mea PC Card” from the popup menu as shown in
Figure 8.

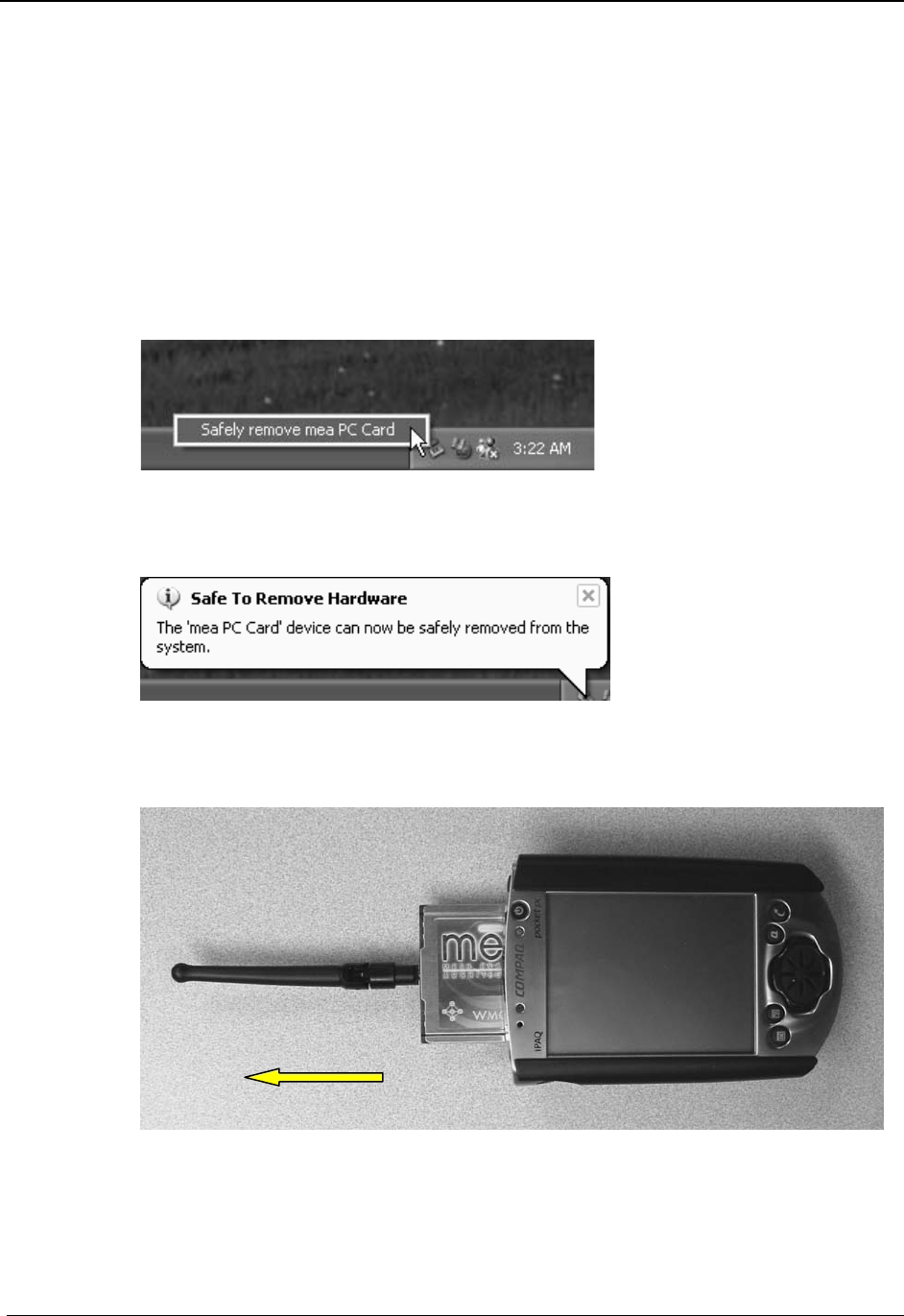

Figure 8. Eject the Hardware
3. Wait for a message that indicates that the device may be safely removed
from the system as shown in Figure 9.
Figure 9. Safe to Remove the WMC6300 Card
4. Eject the WMC6300 from the PCMCIA slot as shown in Figure 10. Do not
pull out by the antenna.
Figure 10. Removing the WMC6300 from the PCMCIA slot
WMC6300 Pocket PC 2002 User’s Guide
11

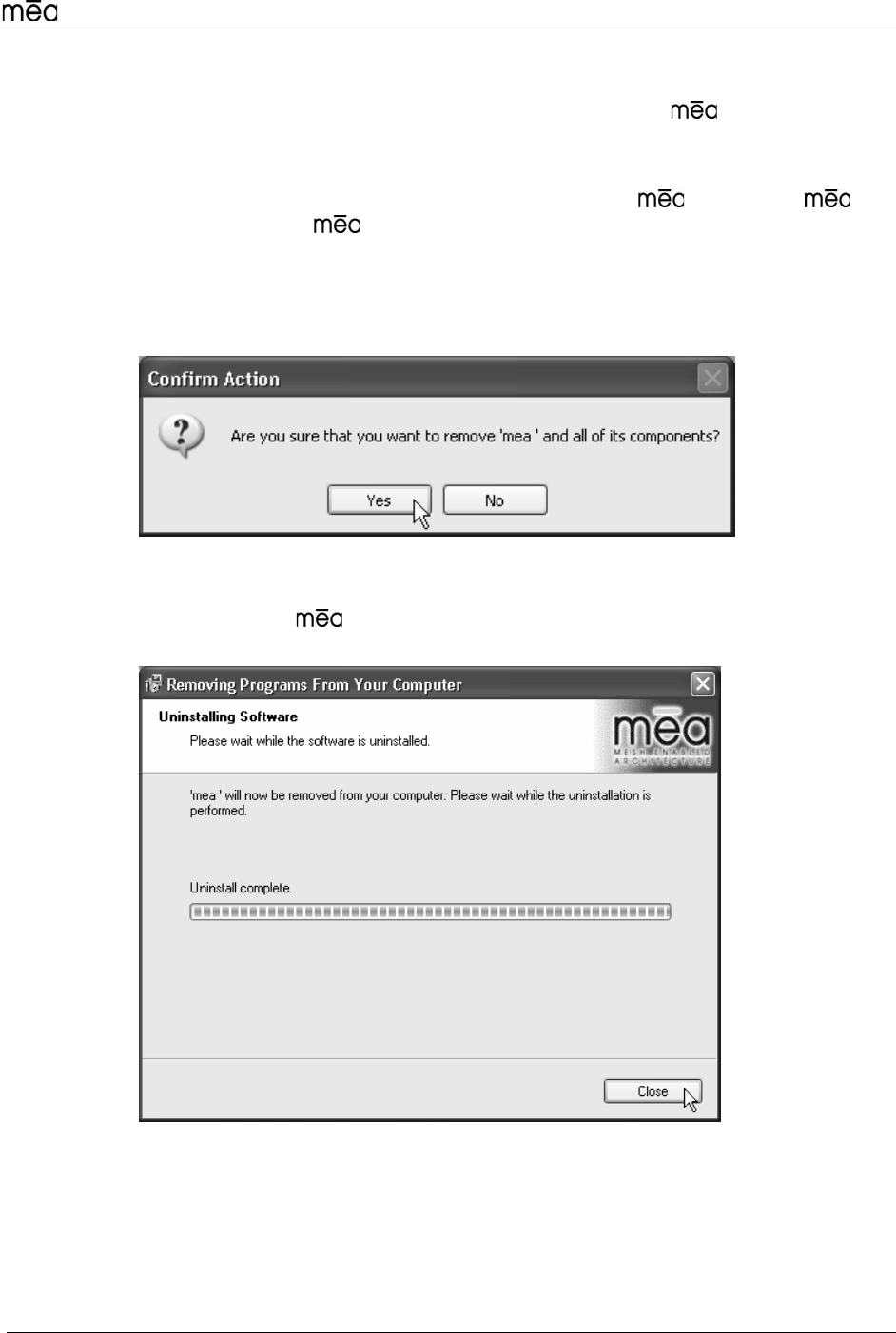

Uninstalling Application Software
Complete the following procedure to “Uninstall” the Ad Hoc Routing
Software:
<update procedure>
1. From the Start menu, select Program Files→ →Uninstall .
Note: The software can also be uninstalled using “Add/Remove
Programs” located in the Control Panel.
2. The Uninstall program will ask, “Are you sure you want to remove
MeshNetworks Software…” as shown in Figure 11. Click on “Yes” to
continue.
Figure 11. Confirm Uninstall
3. The “Removing Programs From Your Computer” window will be displayed
while the software is uninstalled as shown in Figure 12. When the
Uninstalling Software Process is complete, click on the “Close” button.
Figure 12. Removing Programs From Your Computer Window
MeshNetworks
12
Overview of the MeshTray Application
MeshTray™
MeshTray is a status application that reports vital and statistical information
about the card. Because MeshTray is a “tray” application, it stays in the
desktop system status tray when it is minimized as shown in Figure 13 and
Figure 14. The MeshTray icon changes to indication of the state of the wireless
interface. In Figure 13 the MeshTray icon is in an inactive or disconnected state.
Inactive MeshTray Icon
Figure 13. Inactive MeshTray Icon
The MeshTray icon shown in Figure 14 is currently associated with an AP400.
The MeshTray icon displays the Link Strength to the associated IAP as color-
coded bars. (More bars indicate greater Link Quality.)
MeshTray Icon
Figure 14. MeshTray Link Strength Indicator
Clicking on the MeshTray icon restores the application to a property sheet
interface as shown in Figure 15.
WMC6300 Pocket PC 2002 User’s Guide
13
MeshTray Status
When the utility is launched, MeshTray displays useful system information such
as a description of the device, the MAC address of the node, the IP address of
the currently associated IAP, and the type of device (i.e., Subscriber Device,
Wireless Router or IAP). The Driver and Firmware version and the IAP Address
are also displayed.
Figure 15. MeshTray Status Page
Starting MeshTray
During the software installation process, a MeshTray shortcut icon is installed on
the users’ desktop. To start the MeshTray application, double-click on the
MeshTray icon.
Terminating MeshTray
If desired, the MeshTray application can be terminated by positioning the curser
over the MeshTray icon that is located in the Toolbar. Then, right-click on the
MeshTray icon and select “Exit” as shown in Figure 16. The task is terminated
and the icon is removed until the application is started again from the Start menu.
Figure 16. Exit MeshTray
MeshNetworks
14
Customer Service Information
For information about solving difficulties in setting up your mea WMC6300, please see the
Frequently Asked Questions in the support page at http://www.meshnetworks.com/.
If you have read this document, reviewed the FAQ, and made every effort to resolve installation
or operation issues and require assistance, please contact your WMC6300 supplier.
WMC6300 Pocket PC 2002 User’s Guide
15
License and Warranty Information
MeshNetworks, Inc.
End User License Agreement
IMPORTANT NOTICE TO END USERS: This End User License Agreement (this “Agreement”) is a
legal agreement between the licensee of the Licensed Software being made available for use with the
MeshNetworks Equipment (either an individual person or a single legal entity, who will be referred to in
this Agreement as “You”) and MeshNetworks. Inc.
DEFINITIONS. In this Agreement, “Licensed Software” means the computer programs, in machine-
readable, interpreted, compiled or other form, furnished to You for use with the MeshNetworks
Equipment, whether owned or licensed by MeshNetworks, and including without limitation, (i) computer
programs residing on any medium and all materials or contained in any download supplied by
MeshNetworks in connection with the Licensed Software, (ii) related user manuals and explanatory
written materials or files (“Documentation”); and (b) upgrades, modified versions, updates, additions,
and copies of the Licensed Software, if any, provided to You by MeshNetworks, either directly or
indirectly (collectively, “Updates”). The “MeshNetworks Equipment” means the equipment on which
the Licensed Software is intended to operate. “Source” means the party from whom you purchased the
MeshNetworks Equipment and obtained the Licensed Software. “MeshNetworks” means
MeshNetworks, Inc., 485 N. Keller Road, Suite 250, Maitland, FL 32751. “Support Services” has the
meaning set forth in Section 7.
LICENSE. As long as You comply with the terms of this Agreement, MeshNetworks grants You a
personal, non-exclusive, non-transferable (except as provided in Section 11) license to use the Licensed
Software (in object code form only) for Your own use in the operation on the MeshNetworks Equipment.
The license granted hereunder is perpetual.
SOFTWARE TITLE. MeshNetworks is not selling You the Licensed Software. Title to the Licensed
Software, including all translations, compilations, derivative works and copies remain with
MeshNetworks or its licensors, as the case may be.
INTELLECTUAL PROPERTY AND CONFIDENTIALITY. You acknowledge that the Licensed
Software and Documentation contain copyrighted material, trade secrets and other material that is
proprietary to MeshNetworks, and that except as expressly provided in this Agreement, MeshNetworks
retains all rights, title and interests in and to the Licensed Software and all proprietary rights in it. You
further acknowledge that unauthorized use of such material may cause serious and irreparable loss or
damage to MeshNetworks and its licensors, and therefore you agree that in the event of a breach of this
Agreement MeshNetworks will be entitled to injunctive relief to restrain such breach, in addition to
monetary damages and its reasonable attorneys’ fees, charges and costs in enforcing the Agreement.
You will keep the Licensed Software, any backup copy of the Licensed Software and the Documentation
strictly confidential and will not disclose or provide them (or any information relating to them) to any
other person or entity. You will also take all reasonable steps to safeguard the Licensed Software to
ensure that unauthorized personnel do not have access to the Licensed Software, and You will notify
MeshNetworks of any unauthorized use of the Licensed Software. Except as expressly stated herein, this
Agreement does not grant You any intellectual property rights in the Licensed Software and all rights not
expressly granted herein are reserved by MeshNetworks.
RESTRICTIONS. You will not:
MeshNetworks
16
Use the Licensed Software in conjunction with any other equipment or for any purpose other than for the
operation and monitoring of the MeshNetworks Equipment and for your internal business purposes in
accordance with the operating instructions MeshNetworks or the Source may provide to you from time to
time;
Decompile, reverse engineer, disassemble, translate or reduce the Licensed Software to a human-
perceivable form;
Modify, adapt, or translate or create derivative works based upon the Licensed Software in whole or in
part;
Lease, rent, sublicense, share, lend, distribute, disclose, network, or pledge the Licensed Software to or
for the benefit of any third party;
Use the Licensed Software in a client-server environment, electronically transmit the Licensed Software
from one computer to another or over a network or otherwise allow a third party to remotely access or
use the Licensed Software;
Transfer any of your rights in the Licensed Software or the Documentation to another party;
Use the Licensed Software for any unlawful or harmful purpose;
Make copies of the Licensed Software, other than a reasonable number of copies of the Licensed
Software for back-up or archival purposes and such other copies as are necessary for You to use the
Licensed Software as described in the Documentation;
Remove or alter any trademark, copyright, confidentiality or other proprietary right notice in the
Licensed Software or Documentation or any copy made by You; or
Circumvent any access control mechanism that effectively controls access to the Licensed Software for
any purpose.
LIMITED WARRANTY.
Software Warranty. MeshNetworks warrants that the Licensed Software will operate substantially in
compliance with the Documentation for a period of ninety (90) days after delivery to You. Any
supplements or Updates to the Licensed Software provided to You after the expiration of ninety (90)
days limited warranty period are not covered by any warranty or condition, express or implied. In the
event of a breach of the foregoing warranty, You must notify the Source within such 90-day period. In
the event that you notify the Source of a breach of the foregoing warranty within such 90-day period, the
Source will, at the Source’s option, either (i) use commercially reasonable efforts to correct any
substantial non-conformity, (ii) replace the non-conforming item of Licensed Software, or (iii) return the
fee paid by You for such item of Licensed Software. The foregoing will be entire liability of
MeshNetworks and the Source and your sole and exclusive remedy for a breach under the foregoing
limited warranty. Neither the Source, nor MeshNetworks will have no liability under this warranty to the
extent that (a) the Licensed Software has been misused or exposed to environmental or operating
conditions beyond those specified by MeshNetworks, (b) the Licensed Software has been damaged,
altered by accident, neglect, misuse or other abuse, (c) the claimed defect has been caused, in whole or in
part, by a person or persons other than MeshNetworks, by other products or software not provided by
MeshNetworks, or by circumstances not under MeshNetworks' control, or (d) You fail to incorporate all
error fix releases that MeshNetworks or the Source has provided. In the event the Source fails to
perform its responsibilities as described in this Section 6.1 within a reasonable period of time,
MeshNetworks or one of its independent contractors will perform such obligations. The warranty period,
but not the scope of obligations described above, may be extended by a written agreement between You
and the Source.
WMC6300 Pocket PC 2002 User’s Guide
17
DISCLAIMER OF PERFORMANCE WARRANTIES. EXCEPT AS SET FORTH IN SECTION 6.1
ABOVE, THE LICENSED SOFTWARE IS LICENSED TO YOU “AS IS.” MESHNETWORKS
DOES NOT REPRESENT OR WARRANT, AND EXPRESSLY DISCLAIMS ANY
REPRESENTATION OR WARRANTY, THAT:
THE OPERATION OF THE LICENSED SOFTWARE WILL BE UNINTERRUPTED OR ERROR
FREE; AND
THE FUNCTIONS OR FEATURES OF THE LICENSED SOFTWARE WILL MEET YOUR
REQUIREMENTS, OR THAT THE LICENSED SOFTWARE WILL OPERATE IN THE
HARDWARE AND SOFTWARE COMBINATIONS SELECTED BY YOU. YOU ASSUME ALL
RESPONSIBILITY FOR THE SELECTION OF PRODUCTS AND THE LICENSED SOFTWARE TO
ACHIEVE YOUR INTENDED RESULTS, AND FOR YOUR USE OF AND RESULTS OBTAINED
FROM THE LICENSED SOFTWARE.
DISCLAIMER OF IMPLIED WARRANTIES. EXCEPT AS SET FORTH IN SECTION 6.1 ABOVE,
THE LICENSED SOFTWARE IS LICENSED TO YOU “AS IS.” MESHNETWORKS EXPRESSLY
DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY AND
ALL REPRESENTATIONS AND WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING REPRESENTATIONS OR WARRANTIES OF NON-INFRINGEMENT OF ANY
THIRD PARTY INTELLECTUAL PROPERTY RIGHTS, OWNERSHIP, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, SYSTEM INTEGRATION, AND
DATA ACCURACY. MESHNETWORKS’ EXPRESS WARRANTY WILL NOT BE ENLARGED,
DIMINISHED OR AFFECTED BY, AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF,
THE RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE BY MESHNETWORKS
OR THE SOURCE IN CONNECTION WITH THE LICENSED SOFTWARE.
NO CONSEQUENTIAL DAMAGES. UNDER NO CIRCUMSTANCES WILL EITHER PARTY BE
LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING IN
ANY WAY OUT OF THIS AGREEMENT OR THE USE OF THE LICENSED SOFTWARE AND
DOCUMENTATION HOWEVER CAUSED (WHETHER ARISING UNDER A THEORY OF
CONTRACT, TORT (INCLUDING NEGLIGENCE), OR OTHERWISE), INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR LOST PROFITS, LOSS OF DATA, OR COSTS OF
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES. THE LIMITATIONS ON LIABILITY
SET FORTH IN THIS SECTION WILL APPLY NOTWITHSTANDING THE FAILURE OF
ESSENTIAL PURPOSE OF ANY OF THE LIMITED REMEDIES SET FORTH IN SECTION 6.1
ABOVE.
LIMITATION OF LIABILITY. THE TOTAL LIABILITY OF MESHNETWORKS, THE SOURCE
AND MESHNETWORKS’ LICENSORS ARISING OUT OF OR RELATING TO THIS
AGREEMENT WILL NOT EXCEED THE LICENSE FEES AND PURCHASE PRICE RECEIVED
BY THE SOURCE FROM YOU IN THE TWELVE (12) MONTHS PRIOR TO THE EVENT GIVING
RISE TO THE LIABILITY.
SUPPORT SERVICES. The Source may provide You with support services related to the Licensed
Software (“Support Services”). Use of Support Services is governed by the Source’s policies and
programs or in other materials from the Source. Any Updates or other supplemental software code
provided to You as part of the Support Services are considered part of the Licensed Software and subject
to the terms and conditions of this Agreement. You acknowledge and agree that MeshNetworks and its
licensors, contractors, resellers and distributors may use technical information You provide to them as
part of the Support Services for its business purposes, including for product support and development.
INDEMNIFICATION. MeshNetworks will defend, indemnify and hold You harmless from any liability
arising from any third party claim or proceeding against You to the extent that such claim or proceeding
MeshNetworks
18
is based on an assertion that the Licensed Software infringes any issued United States patent or any trade
secret or copyright of any third party; provided, however, that You notify MeshNetworks promptly in
writing of any such claim or proceeding and give MeshNetworks full and complete authority,
information and assistance to defend such claim or proceeding at the expense of MeshNetworks; and
further provided that You give MeshNetworks sole control of the selection of counsel and the defense of
any such claim or proceeding and all negotiations for its compromise or settlement. Should the Licensed
Software become, or in MeshNetworks’ opinion be likely to become, the subject of a claim of
infringement, MeshNetworks will have the right, at MeshNetworks’ option and expense, (i) to procure
for You the right to continue using the Licensed Software, or (ii) to replace or modify the Licensed
Software with a non-infringing version of substantially equivalent function and performance.
LIMITATION. MeshNetworks will have no liability to You hereunder for any infringement based upon
(i) the combination of the Licensed Software with other products not provided by MeshNetworks; (ii) the
use of other than a current, unaltered version of the Licensed Software; (iii) the use of any derivative
works, modification or improvement of the Licensed Software not created by MeshNetworks; (iv) any
use of the Licensed Software in the practice of a process not specified by MeshNetworks. Section 8 and
9 state the sole, exclusive and entire liability of MeshNetworks, and the sole, exclusive and entire
remedy with respect to any claim of intellectual property infringement by the Licensed Software.
TERMINATION. If You breach any provision of this Agreement, then MeshNetworks may, in addition
to any other remedies it may have under law, terminate any license granted hereunder effective
immediately without liability after ten (10) days written notice to You, and You will promptly cease all
use of the Licensed Software and will return to MeshNetworks all copies of the Licensed Software. In
such event, at the request of MeshNetworks you will certify in writing that the original and all copies of
the Licensed Software has been destroyed or returned to MeshNetworks.
ASSIGNMENT AND MESHNETWORKS EQUIPMENT TRANSFER. You may not sublicense or
assign this Agreement or any interest or right granted herein without MeshNetworks’ prior written
consent. The Licensed Software is designed and configured for the sole purpose of operating with the
MeshNetworks Equipment, and accordingly this Agreement will be automatically assigned on the sale or
transfer of the MeshNetworks Equipment with which the Licensed Software operates to the person or
entity who takes title to such MeshNetworks Equipment; provided, however, that such assignee or
transferee abides by the obligations and restrictions set forth in this Agreement.
GOVERNMENT LICENSEE. The MeshNetworks Equipment and Licensed Software and
accompanying documentation were developed at private expense and no part of them is in the public
domain. The Licensed Software is “Restricted Computer Software” and “Commercial Computer
Software” and if You are acquiring the Licensed Software for the United States Government, then it is
acquiring only “restricted rights” in the Licensed Software and its Documentation, all as defined in the
applicable provisions of the Department of Defense Federal Acquisition Regulation Supplement and the
Federal Acquisition Regulations. Such unit will include a “restricted rights legend” on the
MeshNetworks Equipment and Licensed Software as may be necessary to insure the limitation of rights
acquired by the government. Notwithstanding the foregoing, this Agreement will not become effective
with respect to the United States Government without MeshNetworks’ prior written approval.
EXPORT CONTROLS. This Agreement is subject to the laws, regulations, orders, and decrees of the
United States that may be imposed from time to time restricting the import/export of the Products
to/from the United States. You will not export or re-export the Licensed Software, or any part of the
Licensed Software, directly or indirectly, prohibited by or in violation of the laws, rules or regulations of
the United States or any applicable jurisdiction. Nor will You export or re-export the Licensed Software,
or any part of the Licensed Software, directly or indirectly without first obtaining the required permission
to do so from the applicable governmental agencies.
WMC6300 Pocket PC 2002 User’s Guide
19
COMPLIANCE WITH LICENSES. You agree that upon request from MeshNetwork or the Source,
You will within fifteen (15) days fully document and certify in writing that use of any and all Licensed
Software at the time of the request is in conformity with this Agreement or some other valid license from
MeshNetworks.
MISCELLANEOUS. This Agreement is governed by the laws of the state of Florida, United States of
America. The state or federal courts located in or having jurisdiction over Orlando, Florida, United
States of America will have exclusive jurisdiction over all maters pertaining to this Agreement. If any
term or condition of this Agreement is or will become invalid or unenforceable, then such part will be
ineffective to the extent of such invalidity only, without affecting this Agreement’s remaining provisions.
Those rights and obligation, which by their nature are intended to survive the expiration or termination of
this Agreement, will survive. The remedies at law of either party in the event of default or impending
default by the other party in the performance of any terms of this Agreement will not be adequate, and
such terms may be specifically enforced by a decree for specific performance, injunction or other
appropriate equitable relief. The failure of MeshNetworks to enforce at any time any provision of this
Agreement will in no way be construed to be a present or future waiver of such provision, nor will it
affect MeshNetworks ability to enforce any provisions of this Agreement. This Agreement is the entire
agreement between the parties with respect to the subject matter set forth herein and supersedes all prior
oral written agreements between the parties with respect thereto and may only be amended in writing by
the parties.
MeshNetworks
20
Regulatory Information
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement:
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the WMC6300 and radio or television receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the supplier of the WMC6300 or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
1. CAUTION: This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment.
2. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Although this device complies with the FCC RF Exposure limits in multiple configurations of the
antenna, we suggest that the antenna be positioned away from the body when transmitting in
order to minimize the level of RF Exposure.
WMC6300 Pocket PC 2002 User’s Guide
21
Safety Information for the WMC6300
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted
a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted
by FCC certified equipment. MeshNetworks’ products meet the uncontrolled
environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio
according to the instructions found in this manual and the hardware and software guides on the
CD will result in user exposure that is substantially below the FCC recommended limits.
• Do not touch or move the antenna(s) while the unit is transmitting or receiving.
• Do not hold any component containing a radio such that the antenna is very close to or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
• Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment unless it is a type especially qualified for such use.
• Do not operate the radio or attempt to transmit data unless the antenna is connected;
otherwise, the radio may be damaged.
WARNING
Use the antenna supplied by MeshNetworks.
Use of other antennas is prohibited may violate FCC regulations.
NOTE: The manufacturer is not responsible for any unauthorized modifications to this
equipment. Unauthorized modifications could void user’s authority to operate
device.
MeshNetworks
22
Safety Certification
3041788
Conforms to UL STD ANSI/UL 60950 3rd Edition
Certified to CAN/CSA C22.2 NO. 60950-00
Equipment shall be suitable for use in Air pressure: 86kPa to106kPa.
