1

6000USERMANUAL

ELECTRONICRFID&KEYPADLOCKS

ZEPHYRLOCK

1. Summary

1.1 What are 6000 Locks?

6000locksaretheRFIDandkeypadintegratedlockerlockcanoperatedbyeitherRFIDCardsor

passwordkeypads.

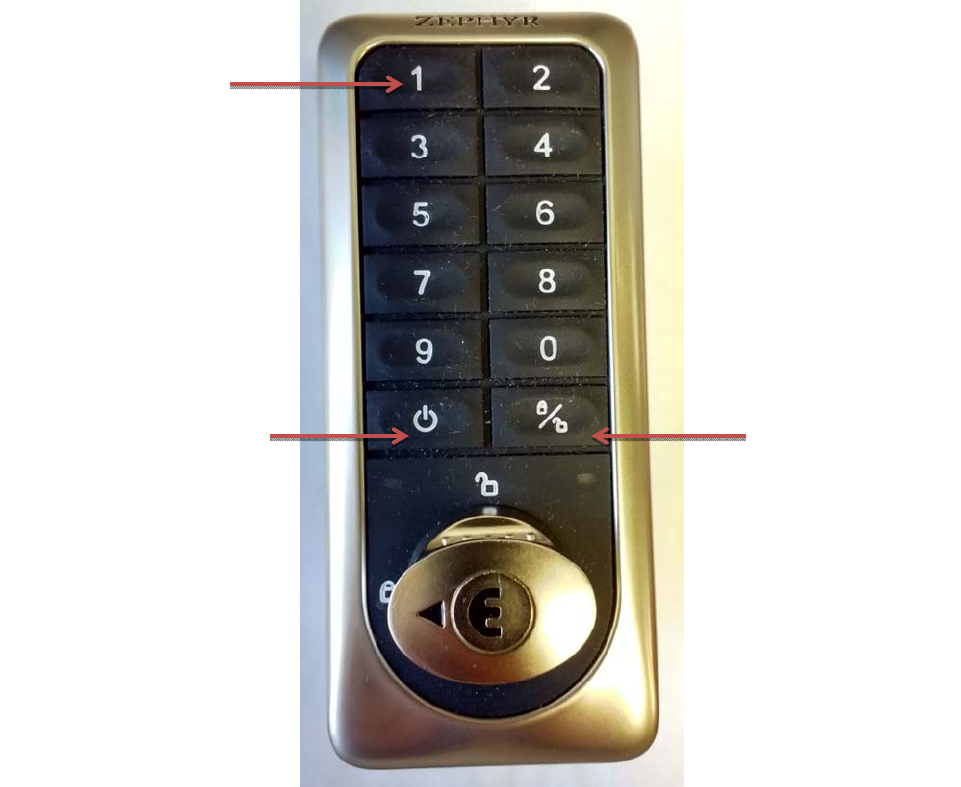

Lock

Button/Unlock

Button

PowerButton

DigitalButton(0–9)

2

1.2 RFID Card Types and Functions

Item Card Types Functions

1 UserCard Thiscardcanopenregisteredlockonly

2 DataCard Readtheopenlockrecordandlockinformation

3 TimeChangeCard Setuplockclock

4 SetupCard Writepresetfunctionsintolock

5 ManagementCard Openanylockdoesnotcleartheregisteredcard/password

6 ControlCard ➊Openanylock➋ Clearregisteredcard/password

7 AuthorizationCard AuthorizeELMSsoftwareandlocks

1.3 Lock Operation System Composition

LockOperationSystemconsistedofPCbasedElectronicLockManagementSystem(ELMS)softwareand

RFIDCardreader/writer,andenabletheoperatortoissueUsercard,settingthelockinformation,lock

statusandtoproducethestatisticalreport.

SystemRequirements:

*OS:WindowsXP/Windows7/Windows8/Windows10

*USBportforCardreader/writerinterface

3



2. Operation Type

6000LockerLocksaredesignedtoworkforthevariousoperationrequirementsbysimplesetupprocess.

Followingoperationmodescanbeprogrammedbeforeorafterlockinstallation.



2.1 Shared Use Mode

2.1.1Usercanselectanyavailablelocker



2.1.2LEDlamptoshowthestatusoflocks



2.1.3Programmabletousemultiplelockswithoneusercard



2.1.4Programmablefortimebasedoperation



2.2 Permanent Use Mode

2.2.1Lockerassignedtoeachusercardinadvance



2.2.2Programmabletousemultipleassignedlockerswithonecard



2.2.3Programmableformultipleusersperlocker



4

3. Lock Operations

3.1 Shared Use Mode

‐‐ Storage Personal belongings

3.1.1Userapproachesthelocker;lockerdoorisopenandnolightisflashing,whichmeansthelockeris

available

3.1.2Useropensthelockerdoor;placesdevice(s)insidethelocker,thenclosesthedoor.

3.1.3PressesthePowerButton,GreenLEDstartsflashingfor6seconds,thelockisreadytoacceptuser

inputbyscanuserRFIDcardorkeycodecombination.

3.1.4Userthenrefocusesonthekeypadandbeginsenteringhisown4‐digitpasscode.

3.1.5Ashepressesthefirstnumberbutton,thegreenLEDflashingturnsoff.

3.1.6Afterthefourthnumberisentered,andpressestheLockButtonwithin5seconds,

3.1.7MotorwillruntheredLEDflashesonceandtheuserneedstoturntheknobcounterclockwiseto

lockthelock.

3.1.8TheredLEDcontinuestoflashingred,showingthatthelockerisinuse.

‐‐ Take Personal belongings

3.1.9Userapproachesthelocker,pressthePowerButtonandstartsenterthe4‐digitpasscodethen

presstheUnlockButton.

3.1.10RedLEDturnsoff,motorwillruntoreleasetheknobandtheuserneedstoturntheknob

clockwisetounlockthelock.

3.1.11Useropensthelockerdoorandtakesouthispersonalbelongingsthenwalkaway,keepthe

lockerdooropen.

3.1.12Thelockerisnowavailableforthenextuser.

3.2 Permanent Use Mode

3.2.1Userapproachesthelocker;lockerdoorisclosedandnolightisflashing,whichmeansthelockerisonly

availableforPermanentUse.

3.2.2UserpushesthePowerButtonandswipesregisteredUserCard.

3.2.3GreenLEDstartsflashingmotorwillruntoreleasetheknobandtheuserneedtoturntheknobclockwiseto

unlockthelock.

3.2.4Useropensthelockerdoorwithin3seconds,places(ortakes)Personalbelongingsthenclosesthelocker

door.Themotorturnsagainafter3secondsandtheuserneedtoturntheknobcounterclockwisetolockthelock.

5



3.2.5AllLEDturnsoffshowingthatthelockerisinuse.

4. Lock Setting and Emergency open

4.1 Lock Setting



4.1.1UsetheELMSsoftwaretopre‐setthelock’sfunction,thenissuesCards.



4.1.2SwipetheAuthorizationCard.



4.1.3SwipetheSetupCard,Locksettingisnowcompleted.



4.2 Emergency open

Incaseuserforgotthepassword,orlosthisUsercard



4.2.1OperatorcanswipetheManagementCardtoopenthelock.



4.2.2OrswipetheControlCardtoopenthelock.



Note: If the lock worked in Shared Use mode, after swiped the Control Card, the registered card

/ password will be clear

6



5. Indication of sound and light

5.1 Shared Use Mode Operations

5.1.1Allthepasscodeis4‐digit0–9.



5.1.2Keytone:1shortbeep.



5.1.3UnlockorLock:1shortbeep.



5.1.4Lessthan4‐digitareenteredpressesLockButton:4shortbeeps.



5.1.5Morethan4‐digitareenteredpressesLockButton:3shortbeeps.



5.1.6Availablestatus:NoLEDlights.



5.1.7Inusestatus:RedLEDflashes.



5.1.8PowerButton:1shortbeep,greenLEDflashing5seconds.



5.2 Permanent Use Mode operations

5.2.1SwipeUserCard:1shortbeep,greenLEDflashingonce.



5.2.2SwipeManagementCard:1shortbeep,greenLEDflashing5seconds.



5.2.3SwipeControlCard:1shortbeep,greenLEDflashing5seconds.



5.2.4SwipeDataCard:StartReading:1shortbeep,FinishReading:2shortbeeps,greenLEDflashing.



5.2.5SwipeTimeChangeCard:2shortbeeps.



5.2.6SwipeSetupCard:2shortbeeps.



5.2.7SwipeAuthorizationCard:1shortbeep.



7



FCCInformationandCopyright



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeused

inportableexposureconditionwithoutrestriction.



FCC-ID:XLY-6000
