Dahua K Series Cube Network Camera Quick Start Guide
V 1.0.0
Dahua Technology CO., LTD
1
1
11
1 Packing List
Packing List Packing List
Packing List
Device × 1 QSG ×1
Power Adapter ×1 Screw Package ×1
Installation Position Map ×1
2
2
22
2 Product Appearance
Product Appearance Product Appearance
Product Appearance
Figure 2-1 Figure 2-2
Figure 2-3

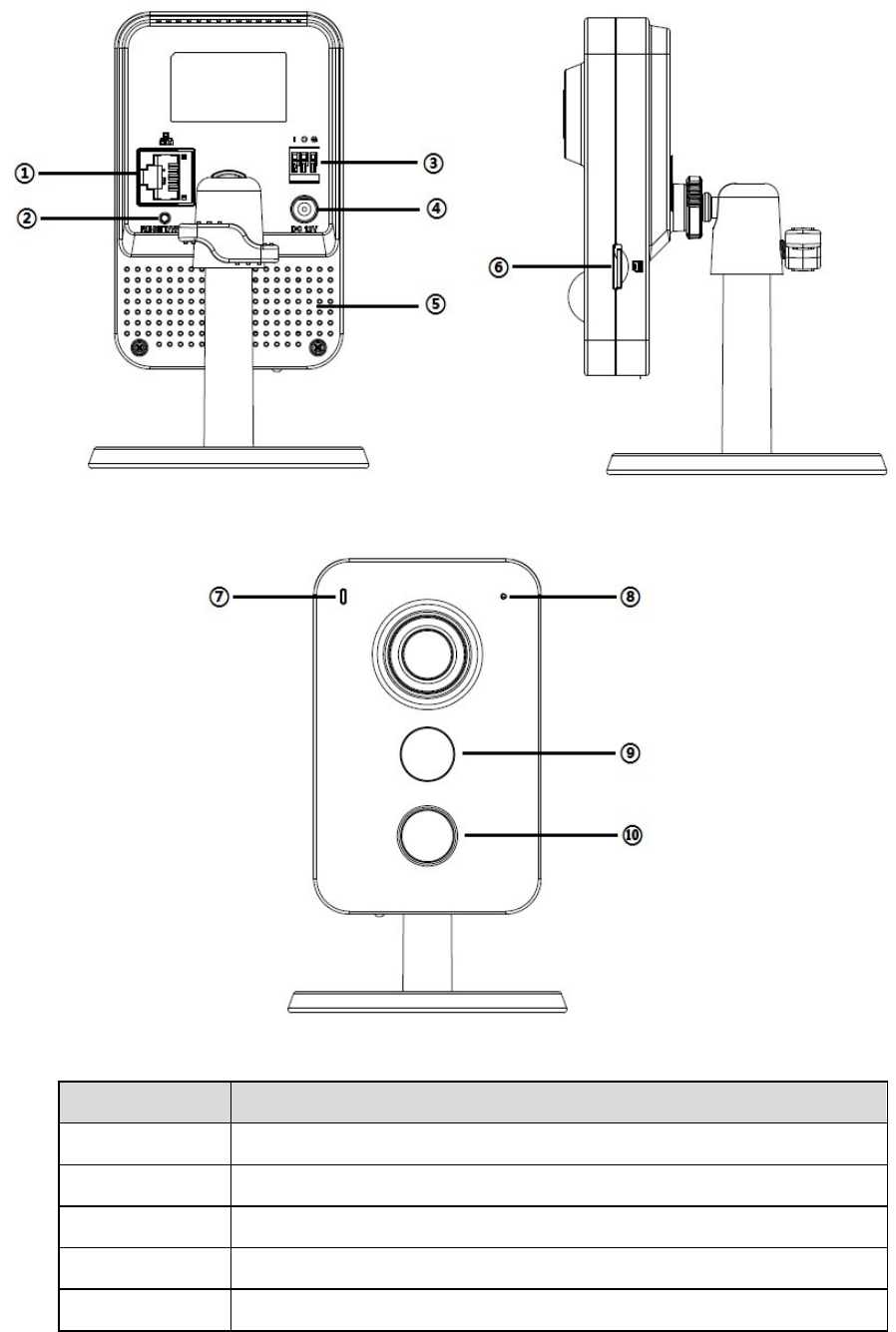

Please refer to the following sheet for more details about each port.
SN Name
1 Network port
2 Reset/WPS button
3 Digital input/output
4 Power port
5 Built-in speaker
3
Sheet 2-1
Note:
For reset, long press for 8 seconds and then the light off; For WPS, one quick press.
Please refer to the following sheet for more details about status of indicator light.
Indicator light status Device status
Red light normally on Booting
Green light slow flashing Booting completed, await wifi config, enter smart
config status;
Green light quick flashing Wifi smart config in progress, including WPS,
management frame and etc.
Green light normally on Wifi connection succeeded, operate normally.
Red and green lights flash
alternately
Device upgrade
Red light slow flashing Network connection failure or disconnection after
network connection success.
Red light quick flashing Device malfunction, fail to boot up; alarm or SD card
malfunction
Sheet 2-2
6 Micro SD card slot
7 Indicator light
8 Built-in MIC
9 IR LED
10 PIR
3
33
3
Operate by Easy4ip
Operate by Easy4ip Operate by Easy4ip
Operate by Easy4ip
1.
Power on the device with power adapter.
2. Connect your smart
phone to your WiFi network.
download and install the
3. Open Easy4ip APP (take
IOS

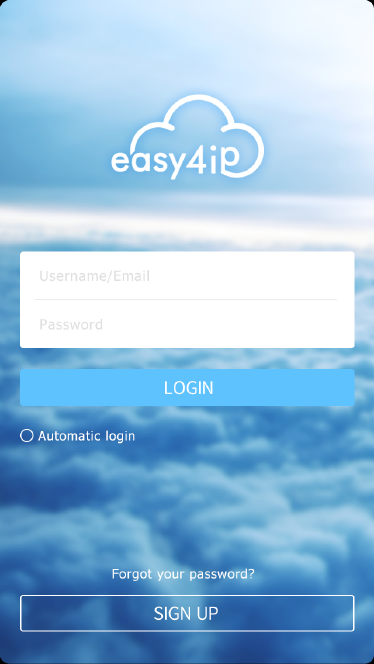

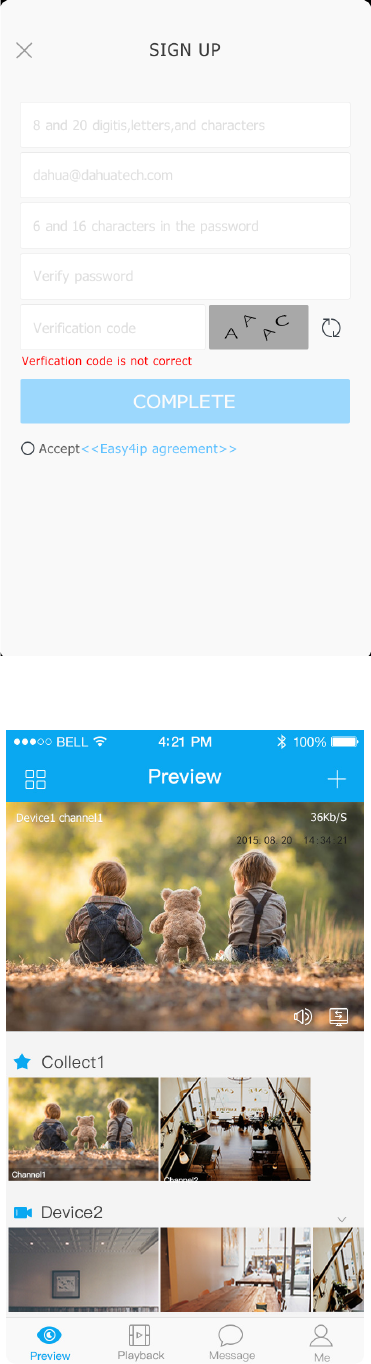

4. Tap “register” for first use.
Operate by Easy4ip
Operate by Easy4ip Operate by Easy4ip
Operate by Easy4ip
APP
APPAPP
APP
Power on the device with power adapter.
phone to your WiFi network.
Scan the
“Easy4ip APP”
Easy4ip APP
.
IOS
as an example), tap login to login the APP
, see
Figure 3-1
4
“Easy4ip APP”
QR on the packing box,
, see
Figure 3-1.

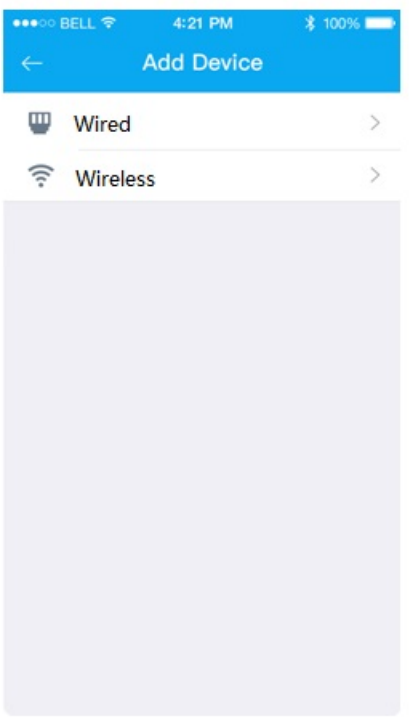

5. Tap “+” to add devices.
6. Choose “Wireless”.
Figure 3-2
Figure 3-3
5
6
Figure 3-4

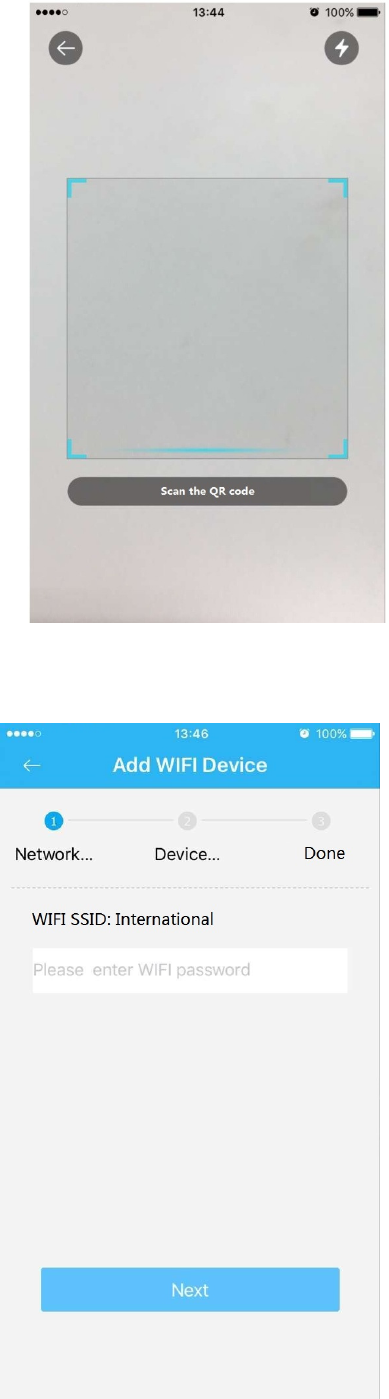

7. Name the camera and scan the QR code on camera.
7
Figure 3-5
8. Input the Wi-Fi password.
Figure 3-6
8

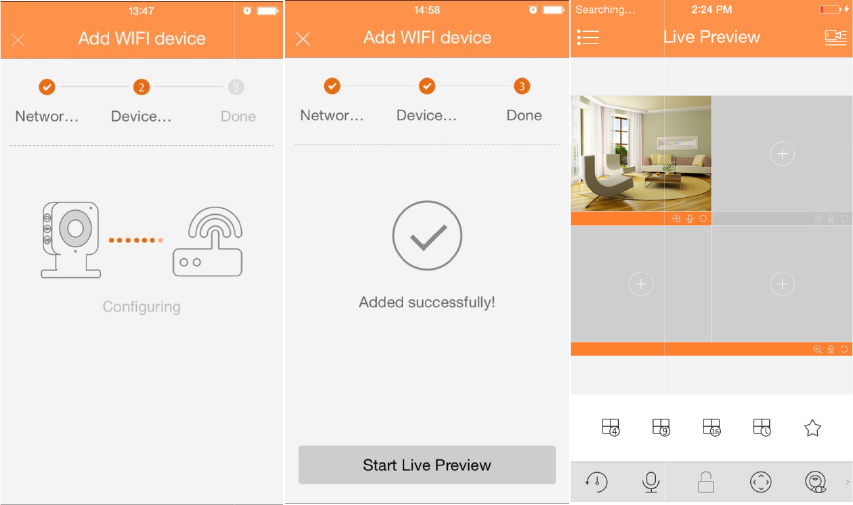

9. Waiting for 60s to finish the Wi-Fi connection.
Figure 3-7
Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat
step 6-9;
Figure 3-8
9
4
44
4 Operate
Operate Operate
Operate by DMSS APP
by DMSS APPby DMSS APP
by DMSS APP
Step 1
Power on the camera.
Step 2
Connect iphone to a WiFi signal.
Step 3

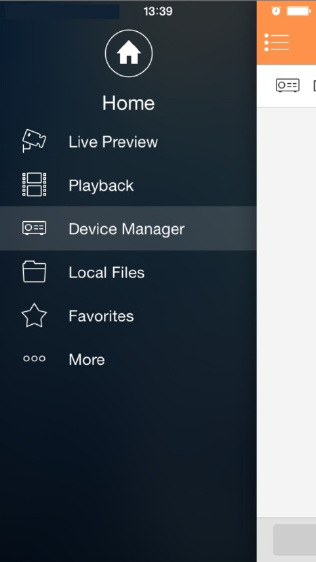

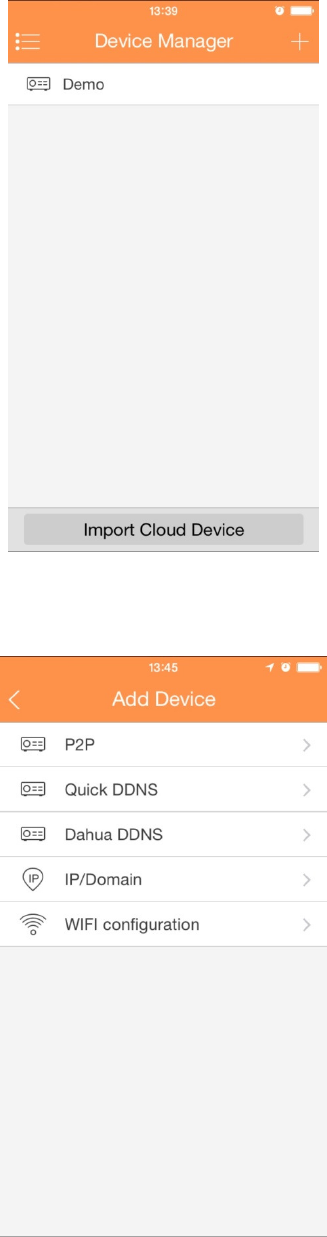

Open DMSS (downloaded from APP Store), choose Device Manager.
Figure 4-1
Step 4
Click “+”.
10
Figure 4-2
Step 5
Choose “WiFi configuration”.
Figure 4-3
Step 6

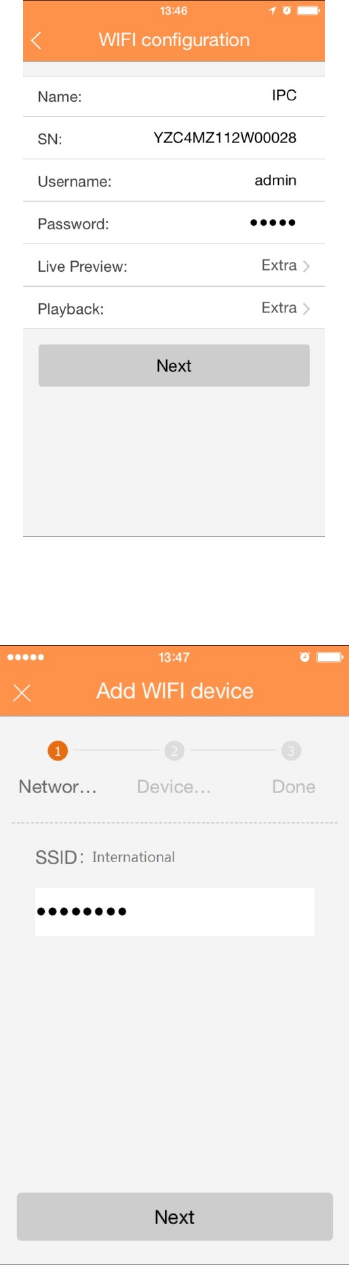

Input a device name and scan the QR code on camera, then “next”.
11
Figure 4-4
Step 7
Input the WiFi password, then “next”.
Figure 4-5
Step 8
Connection succeeds.
Figure 4-
6 Figure 4
Note:
Please try again or check the WiFi password if it failed.
The WiFi configuration will be closed if activat
need to configure WiFi via DMSS App.
6 Figure 4
-
7 Figure 4
Please try again or check the WiFi password if it failed.
The WiFi configuration will be closed if activat
ing WPS function,
Please reset
need to configure WiFi via DMSS App.
12
7 Figure 4
-8
Please reset
the device if you still
13
5
5 5
5 Device Installation
Device InstallationDevice Installation
Device Installation4
4 4
4 Network Configuration
Network Configuration Network Configuration
Network Configuration
The IP address of all the cameras is the same when leaving factory (default IP 192.168.1.108). To
make the camera access to the network smoothly, please plan the available IP segment reasonably
according to the actual network environment.
NOTE:
The camera can be configured only when the IP addresses of the camera and the computer are in the
same network segment.
Step 1
Power on the device with power adapter,Connect the device to computer.
Step 2

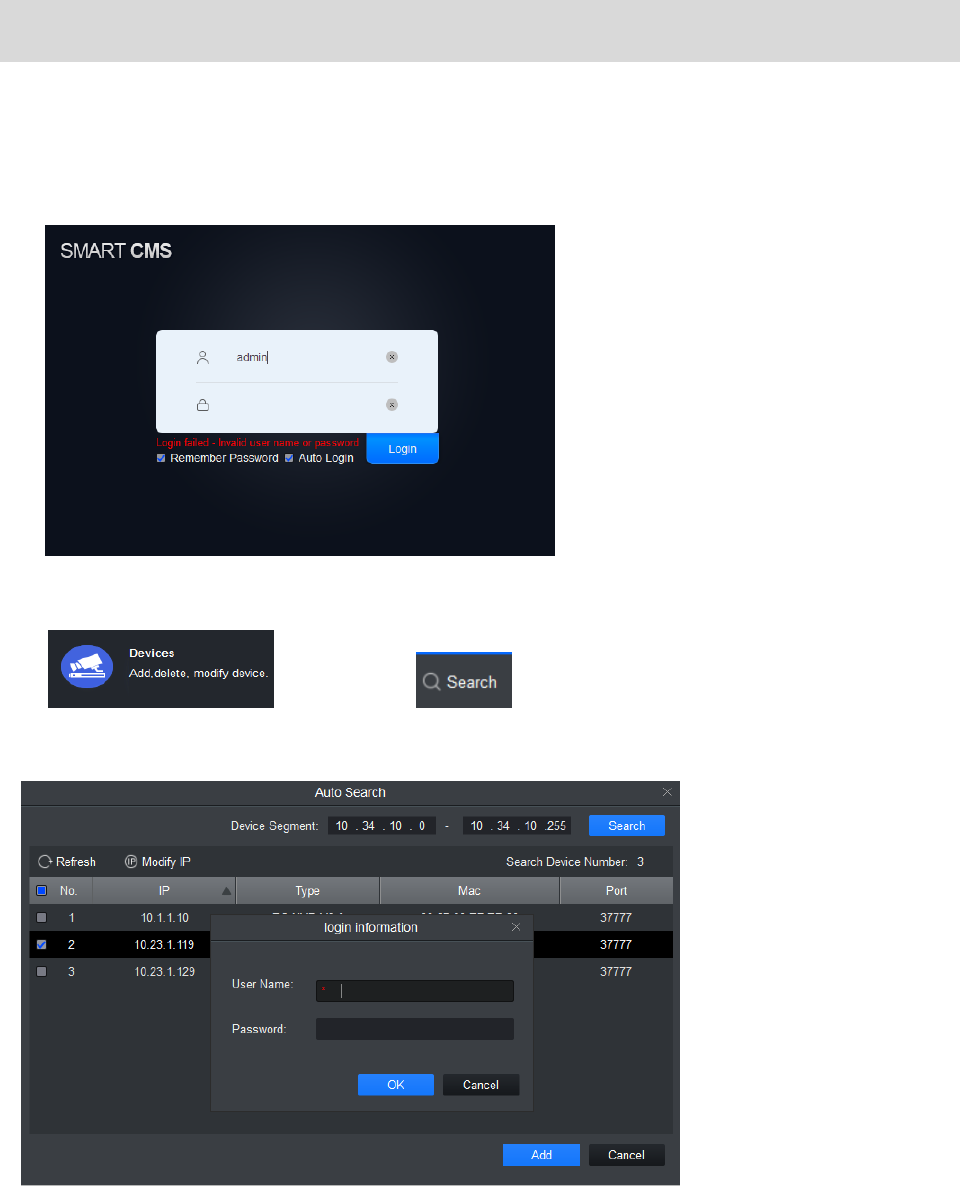

Double click the “smart cms.exe”，The user name and password are admin and admin .
Shown in Figure 4-1.
Figure 4-1
Step 3
Click , and then click to enter the interface where you can find IP
address.Shown in figure 4-2.
Input your username and password (Default username is admin and password is admin respectively).
Figure 4-2
14
Step 4

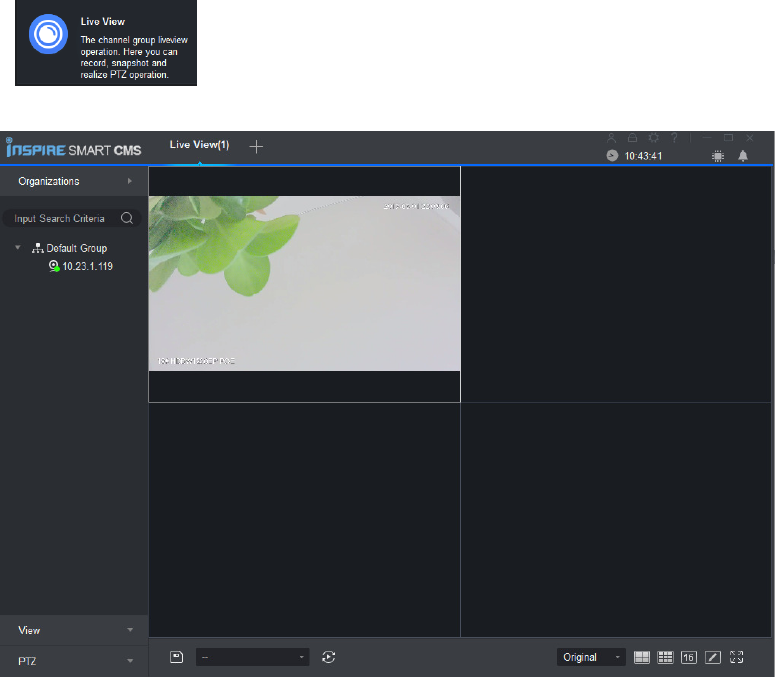

Click ,and double click the default IP, See Error! Reference source not found. for
the main interface.
Error! Reference source not found.
Dahua A Series HD Wi-Fi Network Camera
Quick Start Guide
15
6
66
6
Important
Please make sure the installation surface can min support the 3X weight of the camera and the
bracket.
Figure 5-1
Step 1
Paste the installation map on the installation surface such as wall, ceiling or the wood.
Step 2
Dig holes in the installation surface according to the installation map.
Step 3
Insert the expansion bolts from the accessories bag to the holes you just dug. If it is the wood surface
you can skip to the next step.
Step 4
Fix the device with screw in the accessories bag.
Step 5
Connect the cable and then boot up the device.
Step 6
Loosen the adjust knob for a little bit, adjust the camera to proper surveillance position according to
your practical requirements.
Step 7
Secure the knob of the bracket to fix the camera.
16
7
77
7
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this product does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body
