Preface

Note: Each device must be tested before leaving factory. If there are some residues in extruder

or some tiny scratches on the build tape, it is normal and won’t affect the printing quality.

On the completion of this User Guide, thanks all Flashforge engineers and the

Flashforge 3D printer users for their unremitting efforts and sincere assistance.

The Flashforge InventorⅡ User Guide is designed for the InventorⅡ users to start

their printing journey with Flashforge InventorⅡ. Even if you are familiar with earlier

Flashforge machines or 3D printing technology, we still recommend that please read

this guide, as there is lots of important information about the InventorⅡ for you to get

a better 3D experience.

For a better and more successful printing experience, you can refer to the following

materials:

(1) Quick Start Guide

Users will find the Quick Start Guide together with the printer accessories. The Quick

Start Guide will help you start your print journey as soon as possible.

(2) Official Flashforge Website: http://www.flashforge.com

The official Flashforge website contains the up-to-date information concerning

Flashforge software, firmware, device maintenance and so on. Users are also able to

get the contact information from there.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

4

Introduction

Notes：

The Flashforge Inventor

Ⅱ

3D Printer User Guide contains the information

needed for you to set up and use this device.

This User Guide includes the following parts: Preface, Introduction, after-sale

service.

The Preface section includes resource acquisition channel, the overall framework

of the manual, and the problems that should be paid attention to.

The introduction section contains the presentation of 3D printing technology,

equipment introduction, unpacking and installation of equipment, software installation

an usage.

After-sale section tells the user how to get the support and help.

·Please read Flashforge Inventor

Ⅱ

3D Printer User Guide carefully before use.

·The User Guide is written based on Windows 7 OS.

·The version of the Flashprint is latest.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

5

Notice

Safety Notice

! Notices: Read all the instructions in the manual and familiarize yourself with the

Flashforge InventorⅡ User Guide before setting-up and using. Failure to comply with

the warning and instructions may result in individual injury, fire, equipment damage or

property damage.

PLEASE STRICTLY FOLLOW ALL THE SAFETY WARNINGS AND NOTICE

BELOW ALL THE TIME.

· Work Environment Safety

Keep your work place tidy.①

Do not operate ②InventorⅡ in the presence of flammable liquids, gases or dust.

③InventorⅡ should be placed out of children and untrained people’ reach.

· Electrical Safety

Always use the ①InventorⅡ with a properly grounded outlet. Do not refit InventorⅡ

plug.

Do not use ②InventorⅡ in damp or wet locations. Do not expose InventorⅡ to

burning sun.

Do n③ot abuse the cord.

Avoid using the device during an thunderstorm.④

In case of uncertain accident, please unplug the device if you do not use it for long.⑤

·Personal Safety

Do not touch the nozzle and build plate during printing.①

Do not touch the nozzle ②after finishing printing.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

6

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and ③

gloves away from moving parts.

Do not operate the device while you are tired or under the influence of drugs, ④

alcohol or medication.

· Cautions

Do not leave the device unattended for long.①

Do not make any modifications to the device.②

To lower the build plate before loading/unloading filament. (The distance between ③

the nozzle and build plate should be kept for at least 50mm)

Operate the device in a well④-ventilated environment.

Never use the device for illegal activities.⑤

Never use the device to make any food storage vessels.⑥

Never use the device to make any electrical appliance.⑦

Never put the model into y⑧our mouth.

Do not remove the models with force.⑨

· Environment Requirements

Temperature: RT 15-30℃

Moisture: 20%-70%

· Filament Requirements

Do not abuse the filament. Please make sure you use the Flashforge filament or the

filament from the brands accepted by Flashforge.

· Filament Storage

All polymers degrade with time. Do not unpack until filament is needed. Filament

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

7

should be stored in clean and dry conditions.

Legal Notice

All the information in this document is subject to any amendment or change without

the official authorization from Flashforge.

FLASHFORGE CORPORATION MAKES NO WARRANTY OF ANY KIND WITH

REGARD TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRATIES OF MERCHANTA- BILITY AND FITNESS FOR A

PARTICULAR PURPOSE.

Flashforge shall not be liable for errors contained herein for incidental consequential

damages in connection with furnishing, performance or use of this material

This document contains proprietary information protected by copyright.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

8

Chapter 1: 3D Printing Technology

3D printing refers to transforming three-dimensional models into physical objects that

you can hold and touch. It is also called additive manufacturing because the 3D model is

created by “adding” layers upon layers of material until the object is fully formed.

Fused Filament Fabrication(FFF) is the most common method of 3D printing. It is also

the method that the InventorⅡ uses. It works by melting plastic material called filament

onto a print surface in high temperature. The filament solidifies after it cools down,

which happens instantaneously after it is extruded from the nozzle. 3D objects are

formed with the filament laying down multiple layers.

1.1 Process

3D printing involves three steps:

1.) Make or download a 3D model

2.) Slice and export the 3D model

3.) Build the 3D model

1.1.1 Make a 3D Model:

Currently, there are three ways of creating a 3D model.

·Designing From Scratch You can use free CAD (computer-aided design) software

such as 3DTADA, AutoCAD, SolidWorks, Pro-E, and our own software Happy 3D to

design your own 3D model.

·3D Scanners An alternative method to creating a 3D model is to scan an

object. 3D scanners work by digitizing a physical object, collecting its geometric data,

and saving it to a file on your PC. There are also apps that can turn a mobile device into

a 3D scanner.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

9

·From the Cloud The most popular way of obtaining a 3D model is to download it

from websites that allow users to upload 3D models that they designed.

E.g. : www. thingiverse.com

1.1.2 Slice and Export the 3D Model:

Slice software is the software that prepares 3D models for printing and turns them into

instructions for the 3D printers. FlashPrint is the slicing software used for the

FlashForge InventorⅡ.

Using FlashPrint, you can prepare stl. files to be g. or gx. files for printing. Then the

files can be transferred to your InventorⅡ via USB cable, USB stick or Wi-Fi.

1.1.3 Build the 3D Model:

Once the output file has been transferred to your InventorⅡ, it will start to turn the 3D

model into a physical object by laying down layers of filament.

InventorⅡ

2.1 About Your

2.1.1 Views

InventorⅡ

User Guide |

Chapter 2: About

2.1 About Your

2.1.1 Views

Front Top

1. Touch screen

2. Power Switch

3. Nozzle

4. Z-

axis guide rod

5.

Build plate

User Guide |

www.f

lashforge.com

Chapter 2: About

2.1 About Your

Inventor

Ⅱ

Front Top

Right Back

1. Touch screen

2. Power Switch

axis guide rod

Build plate

lashforge.com

Chapter 2: About

Inventor

Ⅱ

Front Top

Right Back

axis guide rod

6. Leveling knob

7. Filament cartridge

8. Extruder

9. Filament intake

10. X

10

Chapter 2: About

Front Top

Right Back

6. Leveling knob

7. Filament cartridge

8. Extruder

9. Filament intake

10. X

-

axis guide rod

Chapter 2: About

Inventor

Ⅱ

Front Top

Right Back

6. Leveling knob

7. Filament cartridge

9. Filament intake

axis guide rod

0086-

0579

Inventor

Ⅱ

Front Top

Right Back

11. Spring presser

12.

USB cable input 13.

USB stick input

14. Power input

0579

-82273989

Inventor

Ⅱ

11. Spring presser

USB cable input 13.

USB stick input

14. Power input

11. Spring presser

USB cable input 13.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

11

2.1.2 Terms

Build Plate The glass surface on which the InventorⅡ builds an

object.

Build Tape The blue tape that covers InventorⅡ’s build plate so

that the object can adhere to the build plate well.

Build Volume The three dimensional amount of space that an object

will use once it is completed. The largest build volume

of InventorⅡ is 140*140*140mm.

Leveling Knobs Knobs under the build platform that are used for

adjusting the distance between the nozzle and build

plate.

Extruder The device that draws the filament from the spool,

melts it and pushes it through a nozzle into the build

plate.

Nozzle Also called “print head”, which located at the bottom

of the extruder where heated filament is squeezed out.

Extruder Fan To cool the outer assembly of the extruder and gear

motor

Filament Intake An opening located at the top of the extruder .

Filament Guide Tube A black plastic piece that guides the filament from the

filament box to the filament intake

Filament Cartridge A specific box for placing Flashforge filament

PVP Glue Stick A solid adhesive used for making the model stick to the

build plate firmly

Unclog Tool A tool that used for cleaning the extruder

Stamping Wrench A tool that used for seizing the nozzle’s metal cube

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

12

2.1.3 Reference

Name InventorⅡ

Number of Extruder Single

Print Technology Fused Filament Fabrication(FFF)

Screen Size 3.5’’ color IPS Touch Screen

Build Volume 140×140×140mm

Layer Resolution 0.1 - 0.5mm

Build Accuracy ±0.1mm

Positioning Accuracy Z axis 0.0025mm; XY axis 0.011mm

Filament Diameter 1.75mm（±0.07）

Nozzle Diameter 0.4mm

Build Speed 30~150 mm/s

Software FlashPrint

Support Formats Input:3MF/ STL/OBJ/FPP/BMP/PNG/JPG/JPEG

Output:GX/G

OS Win xp/Vista/7/8/10、Mac OS、Linux

Prodcut Dimensions 420*420*420mm

Net Weight 11Kg

AC Input Input:100V-240VAC, 47-63Hz Power65W

Connectivity USB cable, USB stick, WIFI

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

13

2.1.4 Interface Menus

Click Build

Read the print file from

Ÿ The local memory card

Ÿ The USB stick

Ÿ Return arrow

Select the target print file among the list

Ÿ Build: To begin printing

ŸCopy: To copy the files to the local

memory card from the USB stick.(The

button is not available while printing from

local memory card )

Ÿ Delete: To delete the print file

Print interface

Ÿ Abort: To abort the print job.

Ÿ Pause/Resume: To suspend or resume the

print job.

Ÿ More: To change filament and set up auto

shutdown during printing.

InventorⅡ

User Guide |

www.f

lashforge.com

14

Tools in print interface

Ÿ

Filament: To change filament during

printing.

(Note: You need to suspend the operation

first)

Ÿ

Finish

Ÿ

Cancel: To end the tool orders and

to the print interface.

Tap the [Preheat] button to enter the preheat

interface. Tap the [Start] button to heat up to

the setting temperature.

The default temperature is 220.

℃

Tap the temperature display bar to set the

temperature.

To set the preheat temperature.

Tap [Yes] to save the setting while tap [No]

to cancel the setting.

Tools in print interface

Filament: To change filament during

printing.

(Note: You need to suspend the operation

first)

Finish

-

Shut: To start auto shutdown

Cancel: To end the tool orders and

to the print interface.

Tap the [Preheat] button to enter the preheat

interface. Tap the [Start] button to heat up to

the setting temperature.

The default temperature is 220.

℃

Tap the temperature display bar to set the

temperature.

To set the preheat temperature.

Tap [Yes] to save the setting while tap [No]

to cancel the setting.

0086-

0579

Tools in print interface

Filament: To change filament during

(Note: You need to suspend the operation

Shut: To start auto shutdown

Cancel: To end the tool orders and

to the print interface.

Preheat

Tap the [Preheat] button to enter the preheat

interface. Tap the [Start] button to heat up to

the setting temperature.

The default temperature is 220.

℃

Tap the temperature display bar to set the

To set the preheat temperature.

Tap [Yes] to save the setting while tap [No]

to cancel the setting.

0579

-82273989

Filament: To change filament during

(Note: You need to suspend the operation

Shut: To start auto shutdown

Cancel: To end the tool orders and

return

Preheat

Tap the [Preheat] button to enter the preheat

interface. Tap the [Start] button to heat up to

The default temperature is 220.

℃

Tap the temperature display bar to set the

To set the preheat temperature.

Tap [Yes] to save the setting while tap [No]

Filament: To change filament during

(Note: You need to suspend the operation

return

Tap the [Preheat] button to enter the preheat

interface. Tap the [Start] button to heat up to

Tap the temperature display bar to set the

Tap [Yes] to save the setting while tap [No]

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

15

The picture displays the preheat interface. It

shows the actual temperature and the target

temperature. Tap the [Abort] button to abort

the preheat job.

Tools

Tap [Tools] to enter tool options.

Ÿ Filament: To load/unload the filament.

Ÿ Level: To adjust the build plate.

Ÿ Home: To make the X, Y and Z axes back

to the zero point.

Ÿ Manual: To manually adjust the positions

of X, Y and Z axes.

ŸSetting: To implement relevant function

setups.

ŸStatus: The check the real-time status of

the printer.

Ÿ About: Information about the printer.

Ÿ Return arrow

Manual adjustment

Ÿ Y+: The extruder moves to the zero point,

that is, the back of the machine

Ÿ Y-: The extruder moves to the direction

opposite to the Y+.

Ÿ X+: The extruder moves to the zero

points, that is, to the right direction

ŸX-: The extruder moves to the direction

opposite to the X+.

Ÿ Z+: The build plate elevates.

Ÿ Z-: The build plate descends.

Ÿ Return arrow

InventorⅡ

User Guide |

www.f

lashforge.com

16

Tap [Setting] to enter the setting interface

Ÿ

Language: To set the display language

Ÿ

TP Adjust: Adjust the touch screen

Ÿ

WIFI: To turn on/down the WIFI

Ÿ

Servo on: To turn on/down the servo

Ÿ

Printhead Adjust:

distance between the extruder and the

build plate

Ÿ

Filament Check Off: To turn on/off the

filament check

Ÿ

Factory Reset

Ÿ

Return arrow

TP Adjust

To tap the “+” on the touch screen to

adjust the touch

0086-

0579

Tap [Setting] to enter the setting interface

Language: To set the display language

TP Adjust: Adjust the touch screen

WIFI: To turn on/down the WIFI

Servo on: To turn on/down the servo

Printhead Adjust:

distance between the extruder and the

build plate

Filament Check Off: To turn on/off the

filament check

Factory Reset

：

Return arrow

TP Adjust

To tap the “+” on the touch screen to

adjust the touch

0579

-82273989

Tap [Setting] to enter the setting interface

Language: To set the display language

TP Adjust: Adjust the touch screen

WIFI: To turn on/down the WIFI

Servo on: To turn on/down the servo

Printhead Adjust:

To adjust the initial

distance between the extruder and the

Filament Check Off: To turn on/off the

：

return to factory setting

To tap the “+” on the touch screen to

adjust the touch

screen.

Tap [Setting] to enter the setting interface

Language: To set the display language

TP Adjust: Adjust the touch screen

WIFI: To turn on/down the WIFI

Servo on: To turn on/down the servo

To adjust the initial

distance between the extruder and the

Filament Check Off: To turn on/off the

return to factory setting

To tap the “+” on the touch screen to

Tap [Setting] to enter the setting interface

To adjust the initial

distance between the extruder and the

Filament Check Off: To turn on/off the

return to factory setting

To tap the “+” on the touch screen to

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

17

Servo On:

Actually, the present servo status is off.

And the servo’s swing arm withdraws.

Tap ‘+’ or ‘-’ to adjust the status of swing

arm. Tap ‘+’, the arm swings down while

tap ‘-’ , the arm swings up.

Servo OFF:

Actually, the present servo status is on.

And the servo’s swing arm withdraws.

Tap ‘+’ or ‘-’ to adjust the status of swing

arm. Tap ‘+’, the arm swings down while

tap ‘-’ , the arm swings up.

WIFI:

ŸReset: Reset the WIFI

ŸTurn on WIFI: Turn on the WIFI,

release the WIFI hotspot and set the

WIFI on computer

ŸReturn arrow

Printhead Adjust:

After the build plate and extruder

finish the initial movement, you can

tap ‘+’or ‘-’ to adjust the distance

between the build plate and nozzle.

Z：0. 00 stands for the position where

the servo is precisely triggered.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

18

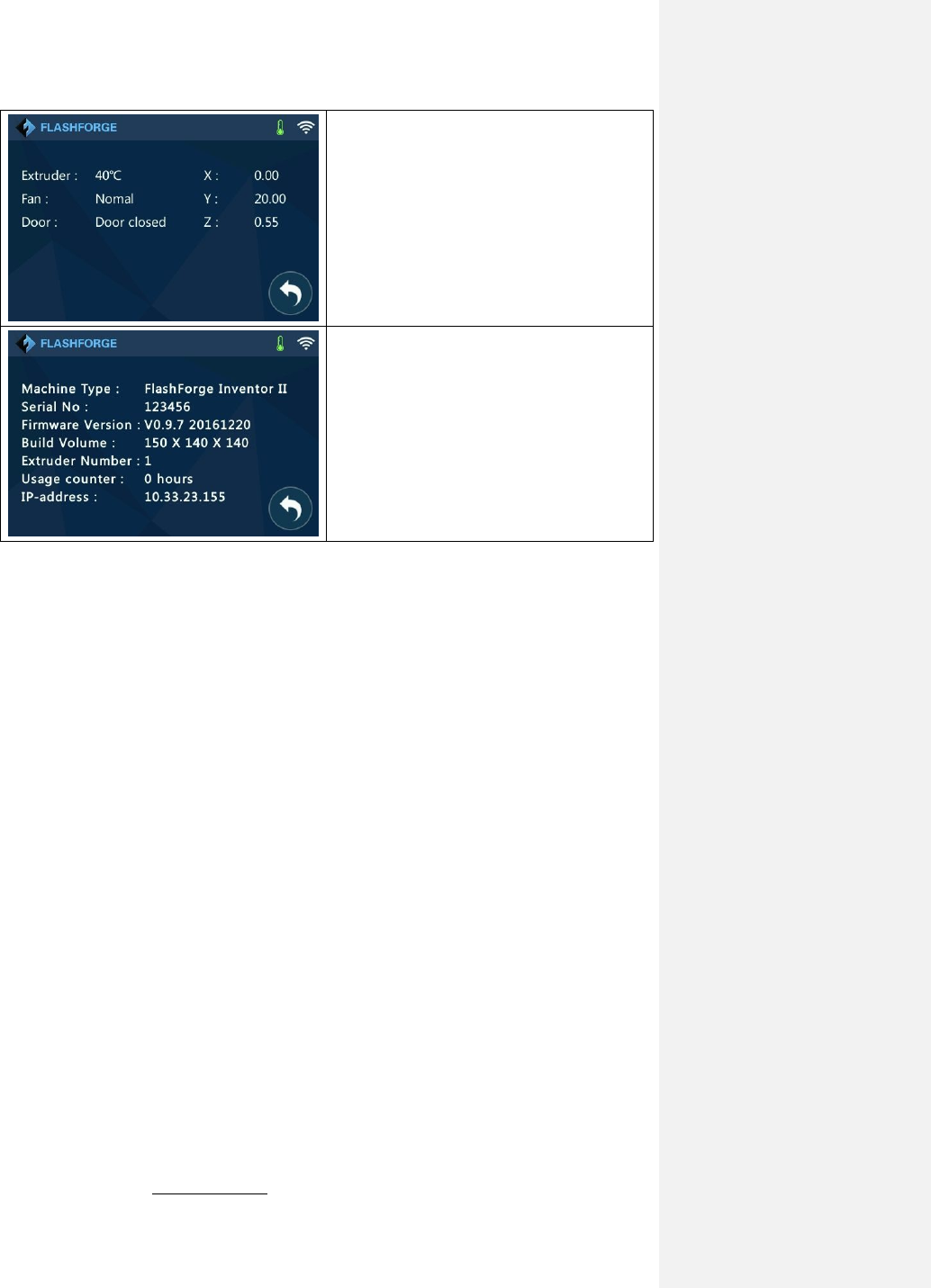

Status:

It displays the real-time status of the extruder

temperature, fan and filament.

About:

It displays the basic information about the

device.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

19

Chapter 3: Hardware Assembly

Your Inventor Ⅱhas been installed before leaving factory, you can start up the

InventorⅡ for printing after mounting the filament spool and completing leveling.

3.1 Filament Installation

3-1

(3-1) The filament cartridge is at the rear of InventorⅡ. Lift the cartridge out of the

InventorⅡ.

3-2

(3-2) Take out the filament and thread it through the filament detecting equipment.

(Note: The filament should feeds from the bottom of the spool towards the top )

After installing the filament, put the cartridge back to the printer.

3.2 Printer Start-up

3-3

Black Filament Detecting

Equipment

pwoer Power in

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

20

(3-3)Insert the power supply into the power input on the back of the InventorⅡ and

plug the power cord into an electrical outlet.

(3-4) Press the starter button to start the device.

3.3 Loading Filament

For stable filament loading and proper device protection, you need to install the

filament guide tube properly.

(3-5) Take out the filament guide tube, thread the filament from the filament

cartridge through the tube.

3-5

(3-6) Insert the filament from the filament guide tube into the filament intake.

3-4

3

-

6

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

21

Next, we will load the Flashforge filament.(Note: Please lower the build plate to

increase the distance between the nozzle and build plate to 50mm at least for

avoiding nozzle jam.)

(3-7) Tap [Tool].

3-8

(3-8) Tap [Filament]--[Load]

3-9

（3-9）After the extruder’s temperature reaches 220, the printer will sound a beep to℃

3-7

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

22

prompt you to load the filament into the extruder.

3-10

（3-10）Insert the filament into the extruder at an upright angle. Then the filament will

be drawn through the extruder. Do not tap [Cancel] until the filament load the extruder

steadily.

3.4 Unloading Filament

3-11

(3-11) Tap [Tool]-[Unload] and the extruder starts heating up.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

23

3-12

(3-12) After the extruder reaches 220, the printer will sound a beep to ℃prompt you to

unload the filament from the extruder. Press the spring presser, press down the

filament for about three seconds and gently pull the filament out.

Note: Do not pull out the filament with force as it will damage the gears. If the

melted filament has cooled down in the extruder, please repeat the steps above.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

24

Chapter 4: Build Plate Leveling

InventorⅡ creatively adopts three-point intelligent leveling system, which will give

clear and comprehensive feedback to users. There are three spring-loaded knobs under

the build platform. The distance between the plate and nozzle increases while

tightening the knobs. On the contrary, the distance reduces.

(4-1) Tap [Tools] - [Level] on your InventorⅡ touch screen. Please wait while the

extruder and platform finish initial movements. After that, operate according to the

guide on the touch screen.

4-1

(4-2) After tapping [Yes], the extruder starts to move towards the first point and the

plate moves up and down to verify the distance between nozzle and plate.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

25

4-2

(4-3) When it shows that the distance is too big, please unscrew corresponding nut

under platform clockwise until hearing a steady beep and the [Verify] button appears.

5-4

4-3

(4-4) If the distance is appropriate, tap [OK] to second point leveling. If still not,

please follow the prompts to adjust again till you see [OK] button.

4-5

(4-5) Repeat steps 2 through 4 above to complete second and third points leveling and

then Tap [Finish] to exit.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

26

Leveling Emergency Plan：

Some leveling spare parts may be damaged after being used for a period of time.

Now users could adopt the emergency plan for leveling.

（1）Insert the USB stick to the USB port.

（2）Tighten each of the three knobs underneath the build platform until they go no

further

（3）Tap [Build] on the touch screen, tap the USB icon and then select Leveling.g

file.

（4）Tap [Build], then the build plate and the extruder start moving.

（5）After they stop moving, you can adjust the distance between the build plate and

the nozzle manually. Move the extruder to the position right over the front-left knob,

and adjust the knob individually. Use a A4 paper to check the distance. As you adjust

the knob, make sure the paper just slides between the nozzle and build plate. There

will be somewhat friction on the paper but still can easily pass the paper between the

plate and the nozzle without tearing or damaging the paper.

（6）Then move to the positions right over the right-front and rear knobs successively,

and then adjust the distance according to the descriptions above.

（7）Then move to the center of the build plate for a check. Confirm that the paper

slides between the nozzle and build with a moderate amount friction.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

27

（8）Tap the Abort button and finish leveling.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

28

Chapter 5: About Software

5.1 Software Installation

5.1.1 Software Acquisition

Method 1: To get the installation package from the USB disk in the toolkit.

Method 2: Open the link below to download the installation package:

http://www.flashforge.com

Steps:

Support---Downloads---Flashprint---chose the software version---download

5.1.2 Software Installation and Start-up

1. Decompress the zipped file or start the installation program, and then install the

software according to the direction.

2. Start the software with the start menu shortcut or by clicking the software icon.(See

5-1)

5-1

5.2 Exploring FlashPrint

5. 2.1 Machine Type Selection

! After starting FlashPrint, you need to select the target machine type first.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

29

When you start FlashPrint, a dialog box will pop up. Just select Flashforge InventorⅡ

in the machine type list and click [OK]. You can also change the machine type via

clicking [Print]--[Machine type]. See graphic 5-2:

5-2

5.2.2 Software Introduction

5-3

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

30

Load one or multiple files.

Enter the support edit mode

Print it directly with your InventorⅡ or export to your USB Stick

View FlashPrint home screen from one of six viewing angles

Move model around on xy-plane; shift+click to move along z axis

Turn and rotate your model

Scale the size of your object

Cut model into several parts

5.2.3 Loading

You can load a model file or Gcode file into your Flashprint by the following six

methods:

Method 1: Click the Load icon on the main interface. Then select the object

file.

Method 2: Select the file for loading and drag the file to the main interface of the

software.

Method 3: Click [File]--[Load File]. Then select the object file for loading.

Method 4: Click [File]--[Examples] to load the example files

Method 5: Click [File]--[Recent Files] to load the files opened recently.

Method 6: Select and drag the target file to the icon of Flashprint.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

31

Note: .STL, .OBJ, and .FPP, ways to store 3D models, are supported by Flashprint

for editing.

Generating Rilievo

Loading a png, jpg, jpeg, bmp picture file into the FlashPrint. And the following

dialogue box(5-3) will pop up. The setting box includes settings for shape, mode,

maximum thickness, base thickness, bottom thickness,width, height, top diameter and

bottom diameter.

Shape: including plane, tube, canister and lamp.

Mode: including “darker is higher”and “lighter is higher”.

Maximum thickness: Z value of the model

Base thickness: The minimum raft thickness and the default value is 0.5mm

Width: X value of the model

Depth: Y value of the model

Bottom thickness: For tube, canister and lamp to set up bottom thickness

Top diameter: For tube, canister lamp and steal to set up the top diameter

Bottom diameter: For tube, canister, lamp and steal to set up the bottom diameter

5-4

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

32

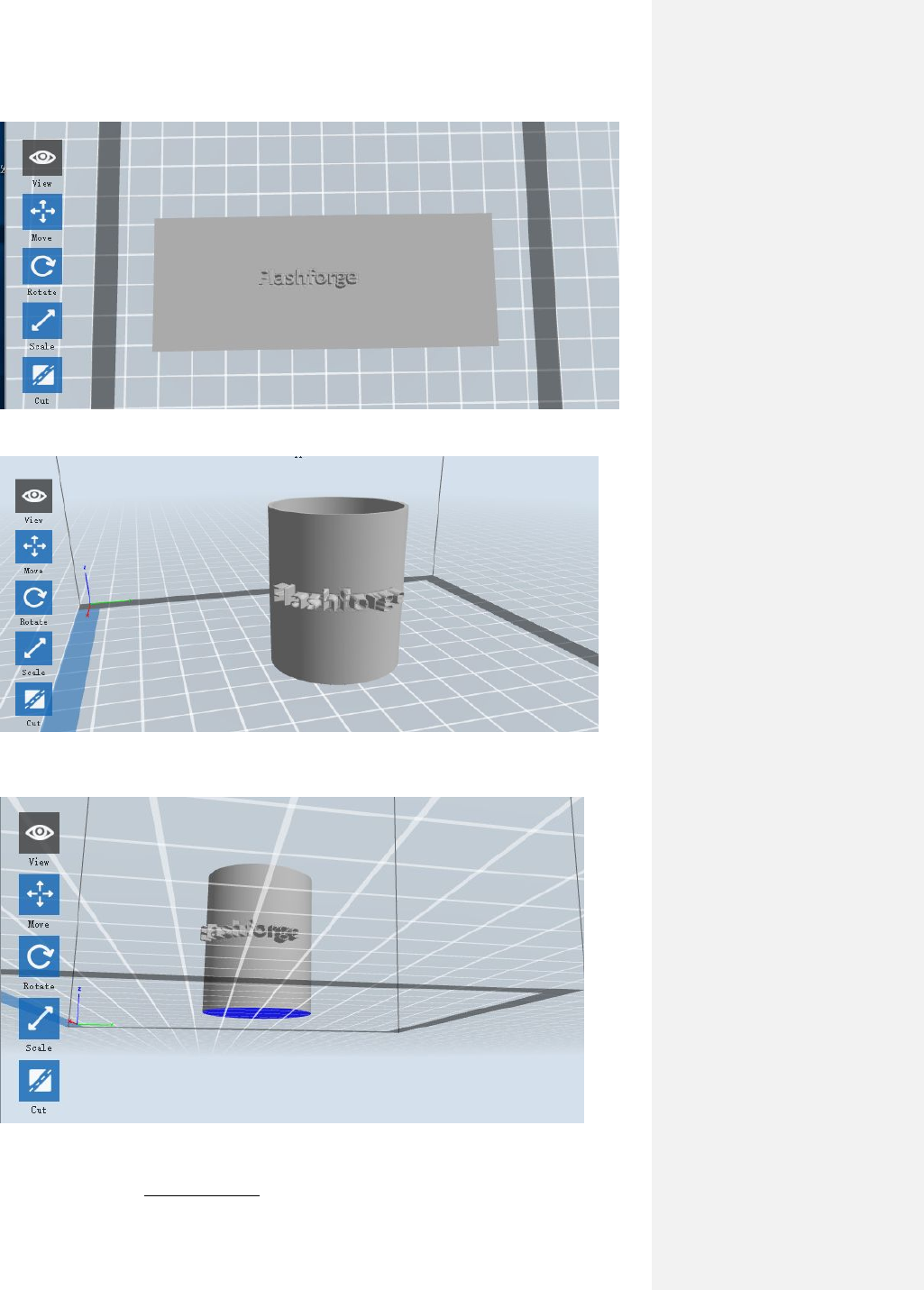

Plane(5-5)

Tube（5-6）

Cansiter(5-7)

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

33

Lamp(5-8)

Seal(5-9)

5.2.4 Views

Changing views①

Change model views by moving, rotating, scaling.

● Drag

Click the [View] icon and then you can move the object by the following three

methods:

Method 1: Hold down the left mouse button and drag.

Method 2: Hold down the middle mouse button and drag.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

34

Method 3: Hold down the Shift key, hold down the right mouse button and drag.

● Rotate

Click the [View] icon and then you can rotate the object by the following two

methods:

Method 1. Hold down the right mouse button and drag.

Method 2. Hold down the Shift key, hold down the left mouse button and drag.

● Scale

Rotate the mouse wheel to enlarge or shrink the build plate.

②Set View

Allows users to view the object on the build plate. Six views are under the view menu,

that is, home view, bottom view, top view, front view, back view, left view and right

view.

Method 1: Click the the [View] button, there are six views in the drop- down list

Method 2: Click the the [Look] icon on the left, click it again and a submenu

will appear with six views for selecting.

③Reset View

Allow users to reset views by the following two methods:

Method 1: Click the [View] menu and select [Home View]

Method 2: Click the [View] button on the left, click it again and you will see the

viewing options, you can click [Reset].

④Show Model Outline

Click [View]--[Show Model Outline], it will highlight the yellow border of the object

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

35

⑤Show Steep Overhang

Click [View]--[Show Steep Overhang]. When the intersection angle between the

model surface and horizontal line is within the overhang threshold value, the surface

has steep overhang and it becomes red in the software. Overhang threshold value

could be set as needed. The default value is 45 degree.

5.2.5 Move

Select the object and move the object by the following two methods:

Method 1: Click the [Move] icon on the left, hold down the left mouse button and

drag to adjust the location of the model in XY direction. Hold down the Shift key,

hold down the left mouse button and drag to adjust the location of the model in Z

direction. The distance and the direction of the movement shall be displayed.

Method 2: Click the [Move] button on the left and then enter the distance value. Click

[Reset] to reset distance values.

Note: Users shall click [Center] and [On Platform] after the location adjustment to

ensure the model(s) be within the build area and on the build platform. If a specified

position is needed, only to click [On Platform].

5.2.6 Rotate

Select the target object and rotate the object by the following two methods:

Method 1: Click the [Rotate] icon on the left and three mutually perpendicular rings

appear around the object Click one ring and rotate on the present axis, you will see the

rotation angle and direction in the center of circle. In this way, you could make the

model rotate on X/Y/Z axis.

Method 2: Click the [Rotate] icon on the left, and then enter into rotating angel

values in X/Y/Z axes positioning. Click [Reset] to reset rotating angel values.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

36

5.2.7 Scale

Select the target object and scale the object by the following two methods:

Method 1: Click the [Scale] icon on the left, hold down the left mouse button and

scale the model. The corresponding values will display near the object.

Method 2: Click the [Scale] icon on the left and then enter into scale values in X/Y/Z

axes positioning. Click the [Maximum] button to get largest size possible for building.

Click [Reset] to reset the size of model.

Note: If the [Uniform Scaling] radio button is clicked, it will scale the model in equal

proportion when changing value in any positioning of the model. Otherwise it will

only change the value of the corresponding positioning.

5.2.8 Cut

Left-click on the model to select it and double-click on the Cut icon to set the cut

plane. The direction and position are available for setting.

Draw with Mouse①

X Plane②

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

37

Y③ Plane

Z Plane④

5.2.9 Supports

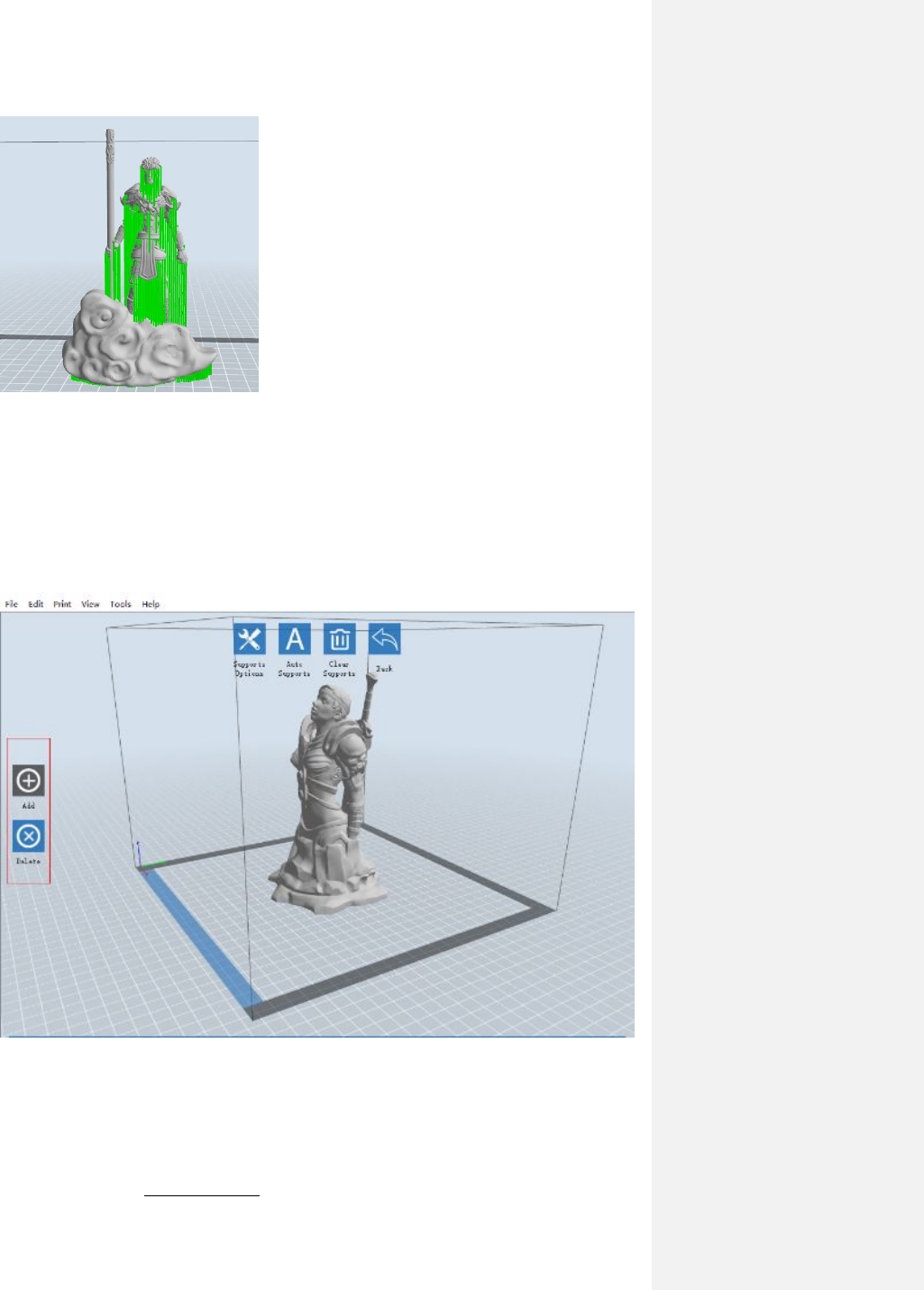

After loading the model, click [Edit]--[Supports] or click the Supports icon directly,

then you will enter the support edit mode(as shown in the picture below). Click [Back]

to exit when you finish editing.

5-10

Support Options①

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

38

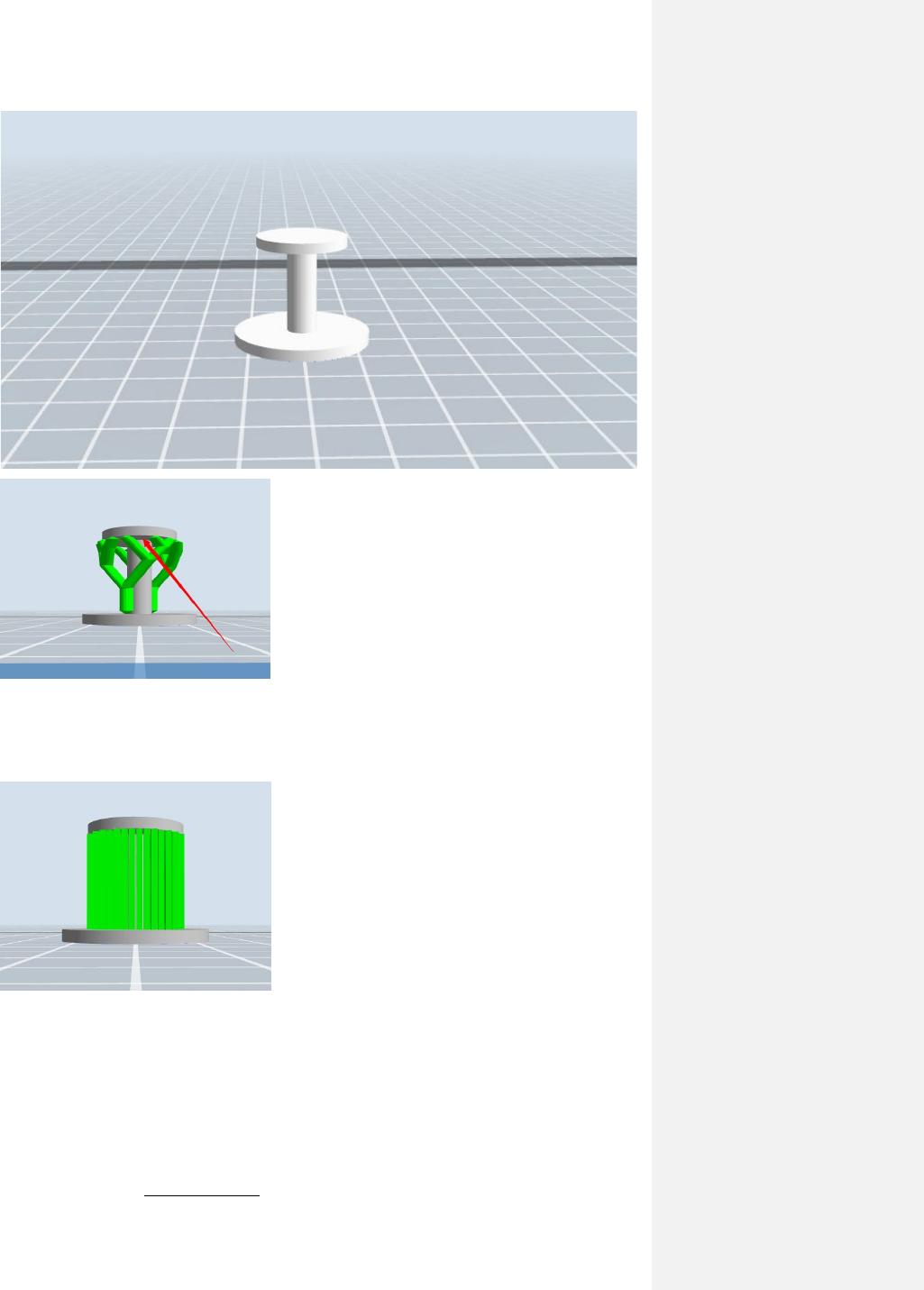

Click the Support Options, an option box will appear, supports options include

“treelike”and “linear”, when choose “treelike”, click [OK], then it will generate

treelike structure; when choose “linear”, click [OK], then it will generate linear

structure; if it is a model with supports, when you choose one of the supports options,

software will judge whether existing supports need to be deleted or not on the basis of

the type of existing support, and will pop up the corresponding prompt to let you make

the choice.

②Auto Supports

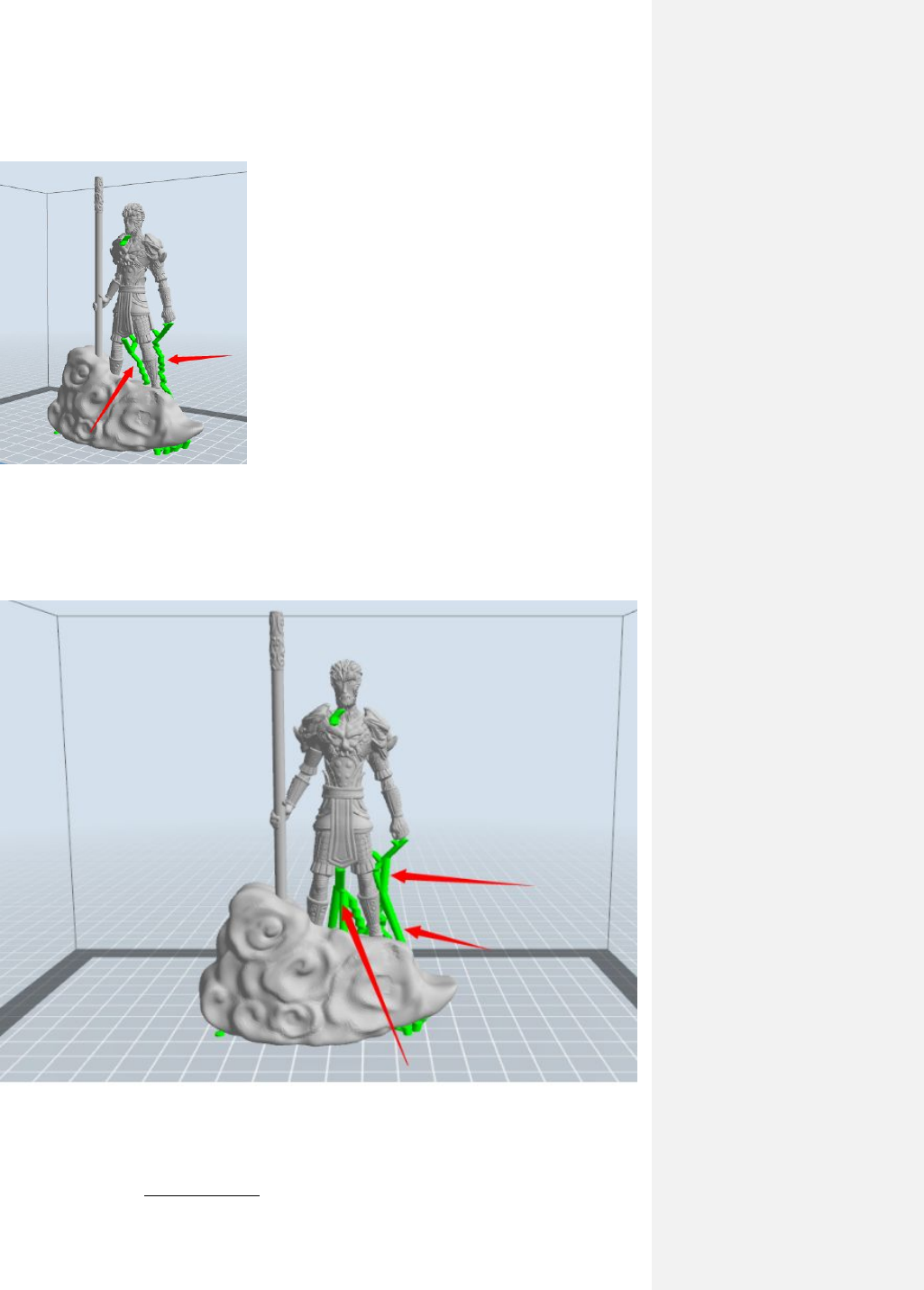

Click the [Auto Supports] button, the software will judge the position where supports

are needed and generate corresponding treelike or linear supports. If it is a model with

supports, the existing supports will be deleted and new supports will be generated.

③Add Supports

Supports will be added once clicking the [Add] button. Move the cursor to the

position where supports needed, left-click to choose the starting point of supports, hold

down the left mouse button and drag the mouse the supports preview will show up(if

support surface doesn’t need support or the support column angle is too large, will

highlight the support review ). Loosen the left mouse button, if support column

doesn’t meet with model, then support will be generated on origin and terminal

5-11

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

39

point(the highlighted preview support won’t generate support structure )

④ Clear Supports

Click [Clear Supports], all supports will be deleted. The operation can be repealed

via clicking [Undo] or pressing the shortcut key Ctrl+Z.

⑤Delete Supports

Supports will be deleted once clicking the [Delete] button. Move the cursor to the

supports needed deleting, current supports and its subnode support will be highlighted,

click the left mouse button to delete these highlighted support.

5.2.10 Print

Preview:① Choose to enter preview interface or not

Print when slice done: ②Print or not when slice done

5-12

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

40

Material type:③ Choose according to the type of model

Supports:④ When print suspended structure models, support is necessary. Click

[supports] to create support part for the printing.

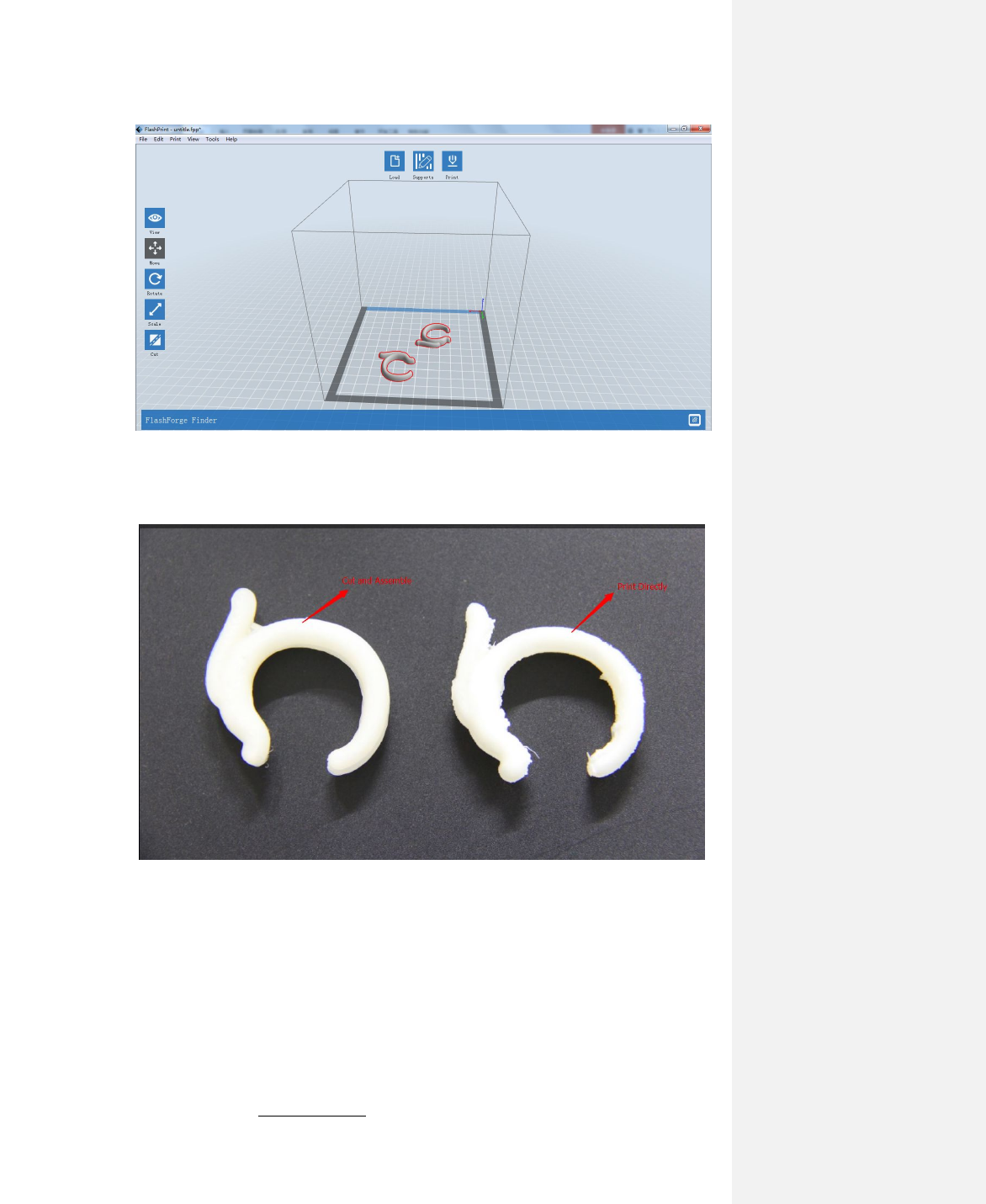

Raft:⑤ This function will help the model to stick well on the platform.

Wall:⑥ During dual color printing, this function will help to clear the leaking

filament of another extruder.

Vase Mode: ⑦No capping for the model

Resolution⑧：You have three resolution solution(with default setting)to choose from,

high resolution is corresponding with slow printing speed, opposite for the low

resolution. For PLA printing, an extra solution “Hyper” is available.

More options:⑨ Click [More options] to set for layer, shell, infill, speed and

temperature. Different resolution solution is corresponding to different defaults, click

[Restore Defaults] to back to default setting.

●Layer

a. Layer: Layer thickness of the printing model. With a small value, the surface

of the model will be more smooth.

b. First Layer Height: This is the first layer of the model, which will affect the

sticking performance between the model and platform. Maximize is 0.4mm, usually

the default is ok.

c. Shell: Contains the outside shell value, capping layer value (under vase pattern,

top solid layer setting is invalid.)

● Primeter Shells: Maximize is 10

a. Top Solid Layer: Maximize is 10, minimum is 1.

b. Bottom Solid Layer: Maximize is 10, minimum is 1.

● Infill

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

41

a. Fill Density means fill rate.

b. Fill Pattern is the pattern of filling shape which effects printing duration.

c. Combine Infill: You can select the layers for combining according to the layer

thickness. The combined thickness should not exceed 0.4mm. “Every N layers” is for all the

infills while “Every N inner layers” is only for inner infills, which generally can save print

time.

5-13

● Speed

a. Print Speed is the moving speed of the extruder. Generally, the lower speed is,

the better print you will get. For PLA printing, 80 is recommended.

b. Support Print Speed is needed to set when choosing Slic3r as the

slice engine which can control the moving speed of the extruder when printing

the supports.

c. Travel Speed is to control the moving speed of the extruder under non-printing

Status during work. For PLA printing, 100 is recommended.

Note: Modify parameters settings to get better prints as different models need different

parameters.

● Temperature

Extruder Temperature: Recommended extruder temperature is 220.℃

Note: Different temperatures have subtle influences in prints. Please adjust the

temperature according to the condition in order to get a good print.

● Others

Pause At Heights: Allows users to pre-set a height in which the print will

suspend automatically. The function usually applied when you want to change the

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

42

filament at a certain point.

(5-13) Click[Edit], then you can add or remove a height.

5.2.11 File Menus

①New Project

Click [File]--[New Project] can build a blank project. If there is an unsaved

modification on previous project, then it will inform you whether the modification

needs to be saved or not. Click [Yes] will save the modification, click [No] will

abandon it. If click [Cancel] or close tool tip, then will cancel the new project.

②Saving

After finishing the model edit and adjustment, there are two ways below to save all

models in the scene.

Method 1:

Click [File]--[Save Project] in the menu bar to save the file as a project file with the

“.fpp”suffix, all models in the scene (include support) are independent . After

reloading the files, extruder configuration information and model position will be the

same as the configuration during saving.

5-15

5-14

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

43

Method 2:

Click on [File]--[Save as...] to save the model as project file .fpp or .stl and .obj.

For .stl and .boj, models are integrated as one(include support part). If load it again,

only the position of the model was saved, not included the printing parameters.

③Preferences

Click [File]--[Preferences], you can choose language and if needs detecting update

when start

● Language: The software supports six languages, namely, Chinese(simplified

Chinese and traditional Chinese), English, French, Korean, Japanese and Russian.

● Printing Window Type: Including Base Mode and Expert Mode

● Check for Update after start up: It is used to preset if it is necessary to activate the

online automatic update function, if choose yes, every time when you open software, it

can online detect if it is a new version software, once new version found, it will

reminds users to download and install new version firmware.

5.2.12 Edit Menus

①Undo

Allows users to undo the recent edits by the following two methods:

Method 1: Click [Edit]--[Undo].

5-16

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

44

Method 2: Press the shortcut Ctrl+Z.

② Redo

Allows users to redo the most recent edit you have undone to your model file by the

following two methods

Method 1: Click [Edit]--[Redo]

Method 2: Press the shortcut Ctrl+Y.

③Empty Undo-stack

To clean up the recorded operating steps so as to release the memory.

④Select All

By the following two methods, you could select all models in the scene. (When

models are too small to be seen or out of viewing scope, please click [Center] and

[Scale] buttons to adjust the model.)

Method 1: Click [Edit]--[Select All].

Method 2: Press the shortcut Ctrl+A.

⑤Duplicate

Select the object and duplicate the object through the following two methods:

Method 1: Click [Edit]--[Duplicate]

Method 2: Press the shortcut Ctrl+D

⑥ Delete

Select the object and delete the object through the following two methods:

Method 1: Click [Edit]--[Delete]

Method 2: Press the shortcut Delete

⑦ Surface to Platform

After selecting the model, you can make the model surface to platform via the

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

45

following operation.

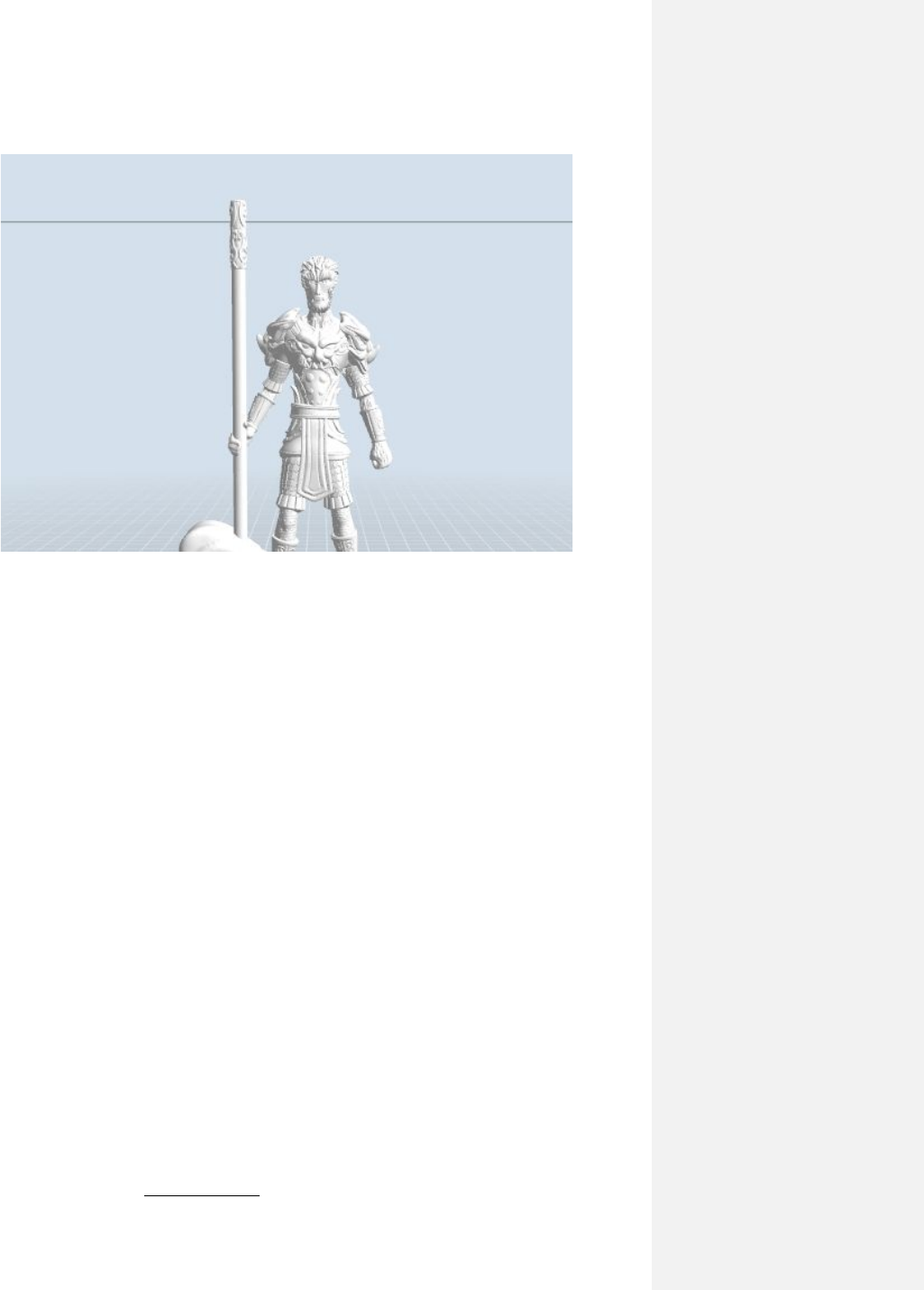

Click [Edit]--[Surface to Platform] into surface to platform mode(As

shown in the picture)

（Surface to Platform）

⑧Auto Layout All

Click [Edit]--[Auto Layout All] after loading one or more than one models, all

models will be placed automatically as automatic placement rule.

5.2.13 Print Menus

Connect Machine①

You can connect the InventorⅡ with your PC via a USB cable or WIFI.

Note: The machine icon on the bottom right displays the connection status:

Connected

Disconnected

5-17

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

46

Method 1：Connect Via USB Cable

a. Connect your InventorⅡ with your PC via an USB cable.

b. Turn on your InventorⅡ and start Flashprint.

c.Click [Print]--[Connect Machine], then select USB in the [Connection Mode]

option and select machine you want to connect in [Select Machine] option. If you can

not find your machine, click the [Rescan] button to scan your machine and select it.

Finally click [Connect] button to connect to the printer. If you still can not find your

machine after rescan, it means you haven’t installed the driver in the software.

5-18

Method 2： Connect Via WIFI

Connect ①InventorⅡ with your PC under AP mode

a.Turn on your InventorⅡ

b.Tap [Tools]-[Setting]-[WIFI]-[WIFI ON]

c. Click on the wireless network on the left bottom, and find the wireless

signal-“InventorⅡ”. Click [Connect] to finish network connection.

d. Click[Print]-[Connect Machine] on Flashprint. Then the following dialog box

pops up. You need to select “Wi-Fi” in Connect Mode. Enter into the IP Address

shown on the interface and then click [Connect].

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

47

5-19

If successfully connected, you will see the following red mark.

Connect ②InventorⅡ with your PC under STA mode

a. Turn on the WIFI of InventorⅡ and connect your PC with InventorⅡ via the

WIFI. Press [ Tools ], [ Setting ], [ WIFI ], and [ WIFI ON].

b.“InventorⅡ” continuous signal will be found available on the network list.

c. Once your PC is connected with your InventorⅡ. Open the Internet browser

and enter “10.10.100.254” and enter the default user name(admin) and

password(admin).

5-20

ƒ You will enter the WIFI setting panel, it displays as follows:

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

48

5-21

d. Select WIFI mode as STA mode, and then complete the corresponding setups, you

can change the SSID(the WIFI’s name) and the password, select [Enable] in DHCP

auto get IP, then click [Save]. The following interface will appear.

5-22

e. Click the [Restart] button. You need to restart your InventorⅡ’s WIFI. And then

your InventorⅡ will connect with your computer via the WIFI that you’ve set up.

Disconnect ②InventorⅡ

Click [Print]--[Disconnect] to disconnect your PC and InventorⅡ.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

49

5.2.14 Tool Menus

①Control Panel

After connecting PC with InventorⅡ, click [Tools]--[Control Panel] to open the

control panel.

5-23

● Jog Controls

a. Jog Mode：Select the distance that extruder/ build plate move a single time (that is,

the distance extruder/ build plate move upon your single click).

b. Six blue arrow direction button: Control the move along X/Y/Z axis. X/Y axis

button control extruder move, Z axis button control build plate move. Click X-,

extruder will move leftward a specified distance; Click X+, extruder will move a

specified distance rightward. Click Y-, extruder will move forward a specified distance;

Click Y-, extruder will move backward a specified distance. Click Z-, build plate will

move upward a specified distance; Click Z-, build plate will move downward a

specified distance. (Specified distance refers to the move distance you set in Jog

Mode.

c. Stop: Click the [stop] button to abort the current movement. d. XYZ coordinate

frame on the right side: Show the current position of extruder/build plate.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

50

e. Make Current Position Zero button: Set the current position of the

extruder/build plate as (0, 0, 0). (NOTE: X, Y, and Z boxes are for display purposes.

Changing the value in the boxes will not affect anything.

f. Center X/Y/Z button: Extruder and build platform will back to the zero (0, 0, 0)

you set last time.

g. X/Y Speed and Z Speed: Set the move speed of extruder/ build platform.

● Limit Switch: In order to protect your InventorⅡ, three limit switches are equipped

to control the maximum position, and the three limit switches corresponding to X/Y/Z

axis limit switch. It has two status:

a. Not Triggered: If the extruder/build plate don’t move to its maximum, X/Y/Z axis

limit switch is not triggered, and shows “Not Triggered”.

b. Triggered: If the extruder/build plate moves to its maximum, X/Y/Z axis limit

switch is triggered, and shows “Triggered”.

● Stepper Motor Controls: Allows users to control to stepper motor. Click [Enable],

and lock the motor so it does not allow any movement; click [Disable], and unlock the

motor to be controlled manually.

● LED Color: Allows users to change the LED color of InventorⅡ.

● Extruder Controls: You can set the value of “Motor Speed(RPM)”, which can

control the rotation speed of filament feeding wheel. The motor rotation time can be

controlled via setting the value of “Extruder Duration”.Generally we suggest the

users choose option of continuous time 60 seconds. The filament must loaded in the

extruder before motor starts. Therefore, do not start rotation operation until the

extruder temperature reaches to the printing temperature of filament. For PLA

filament, the extruder temperature should reach 200, after reaching the extruder ℃

temperature, click the [Forward]/[Reverse] rotation button to control filament load

and filament unload. Furthermore, if you want to stop filament load and unload, you

can click [Stop].

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

51

● Temperature Control: Input the temperature you want to get in the left frame, click

[Apply], the printer will automatically heat the corresponding part, the right side

shows the current actual temperature of corresponding part. After starting heating, the

below curve of temperature form will start to change, different color correspond

different parts’ temperatures

②Update Firmware

Every time when you start Flashprint, it will automatically detect and download the

up-to-date firmware. If any update is available, a dialog box will pop up for reminding

the users to update.

Step 1: Click [Tools]--[Update firmware]. It needs to cut off connection before

updating firmware. If software and printer are already in connection, it reminds you

cutting off the connection, choose [Yes] and go on to the next step.

Step 2: Choose corresponding printer type and firmware version and click [OK] in the

firmware updating box. After confirming the printer is in free state, the software will

automatically update the firmware

5-24

Step 3：Reboot you InventorⅡ and wait for 4-5 seconds, then you can see the update

process bar. When the update finishes, it will go back to the main interface.

Step 4：Tap[Tools]--[About] to check] to check whether the updated version is right.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

52

③On Board Preferences

When the computer and printer are in connection, click [Tools]--[On Board

Preferences], you can check the printer name.

④Machine information

When the computer and printer are in connection state, click [Tools]--[Machine

information], you can check the machine type, machine name and firmware etc.

5.2.15 Help Menus

Help Contents①：Click [Help]--[Help Contents], you can read the help contents.

Check for Updates②：Click [Help]--[Check for Update] to detect the available

updates online.

About FlashPrint③：Click [Help]--[About Flashprint], the software information

box will pop up. The contents include the current software version and copyright

information.

5-25

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

53

Chapter 6: Basic Printing

This chapter will provide a step-by-step guide on turning a 3D model into a physical

reality. Before proceeding, it is recommended that you’d better go over prior chapters

on loading/unloading filament, leveling the build platform, and the functions and

capabilities of FlashPrint.

6.1 Generate a Gcode

(6-1)Double-click the icon of Flashprint to start the software.

6-1

(6-2)Click[Print]--[Machine Type] to select Flashforge InventorⅡ

6-2

(6-3)Click the [Load] icon to load a .stl model file and the object will display on the

build area.

6-3

（6-4）Click [Edit]--[Surface to Platform] to make your model perfectly positioned

on the build area. Click [Back] and double-click the Move icon again, then click [On

the Platform] and [Center] to ensure the model be on the platform.

34

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

54

6-4

Note：If you’ve place your model in a right place, you can skip the step above.

(6-5) Click the Print icon on the top, you should make some setups for your print job.

Preview: If you check the [Preview] box, you can preview your model after slicing is

done.

Print When Slice Done: If you print via USB cable, you can check the box, while if

you print via USB, you should not check the box.

Machine Type: Flashforge InventorⅡ

6-5

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

55

Supports: If you print a model with supports, you should click the inverted triangle

and select [Enable].

Raft: You are suggested to select [Enable].

Resolution: You are suggested to select [Standard]

More Options: You are suggested to keep them default.

Click [OK] to select the path to save the Gcode file. You can rename the file as you

like and save it as a .g or .gx file, click [Save] to generate a Gcode file.

6-6

Note: .gx files are available for preview while the .g files are not. They are displaying

as follows:

g. Files gx. Files

6-7

Next, we are going to print the model.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

56

6.2 Print Methods

After generating the Gcode file, you can transfer it to your InventorⅡ. You can

transfer the file through USB cable and USB stick.

6.2.1 Print from Computer (USB connection)

Connect your ①InventorⅡ with your PC via a USB cable.

Turn on your ②InventorⅡ, level the build plate and load the filament.

③ Click [Print] and transfer your Gcode file to your InventorⅡ. After

completing transference, the printer will heat up automatically. And when heating

finishes, the print will start to build the model.

6-8

④When your PC connects with FlashPrint successfully. The status box on the

bottom right displays the real-time nozzle temperature. After finishing preheating,

your InventorⅡ starts the print job directly.

6.2.2 Print from Computer (WIFI connection)

① Connect your InventorⅡ with your PC via WIFI.

② Turn on your InventorⅡ, level the build plate and load the filament.

③ Click [Print] and transfer your Gcode file to your InventorⅡ. After

completing transference, the printer will heat up automatically. And when heating

finishes, the printer will start to build the model.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

57

If you want to print a Gcode from a local folder, you just need to load the file into

Flashprint at the status of USB connection or WIFI connection, then click the [Print]

button on the top-right.

● Load the target Gcode file into FlashPrint.

6-9

● Click the [Print] button, the PC will transfer the Gcode file to the printer.

7-10

● After finishing transferring, the printer will heat up automatically. And when heating

finishes, the print will start to build the model.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

58

6.2.3 Print from USB Flash Disk

①Insert your USB flash disk with target .g or .gx file to your InventorⅡ.

②Turn on the InventorⅡ. Make sure the build plate has been leveled and the filament

is loaded.

③Tap [Print] and then tap the SD Card icon in the middle. The file(s) will be

displayed on the screen. Select the file you want to print and tap [Print]. The file will

be transferred to the printer.

⑥And the printer will heat up the nozzle automatically and start to print after the

nozzle reaches the aimed temperature.,

Abort：To stop heating and printing. Once you tap [Abort], the process is irreversible.

Pause：To suspend the print job, you can tap it again to resume it. You can use this

function when you want to change the filament halfway.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

59

Chapter 7 : Advanced Printing

When you get familiar with your InventorⅡ, you will definitely want to accomplish

some advanced prints. This chapter will take you to get to know the advanced printing

skills.

Expert Mode grants the users more freedom of parameter edition. There are two

modes are available for users, one is “Basic Mode” and the other is “Expert Mode”.

7-1

Select Profile: Allows users to select the required scheme. There are three options for

users (low/standard/high/high) and the default is PLA standard. Different schemes

correspond to different parameter settings. High-quality scheme produces

high-resolution object but at a low speed. On the contrary, low-quality scheme

produces low-resolution object but at a high speed. When printing with PLA, users

will find a “hyper” option available.

General:

a. Layer Height

Thickness of each layer. The less thickness of layers, the more time will be used and

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

60

the better model will be printed.

b. First Layer Height

When printed with thinner layers, comparative thicker bottom layer could improve

adhesion and tolerance for non-perfect build plates.

2）Speed

a. Base Print Speed: The fiducial value of extuder’s movement speed during

printing(For subsequent speeds counting ). With a lower speed, the printer can build an

objects with higher resolution and more smoothness.

b. Speed at which extruder moves when not extruding filament.

c. Minimum Speed: The minimum extruder’s movement speed during printing

d. First Layer Maximum Speed: The max printing speed for printing the first

layer(Note: It’s invalid to the model which has a raft )

e. First Layer Maximum Travel Speed: The max travel speed for printing the first

layer(Note: It’s invalid to the model which has a raft )

3）Temperature

It displays the temperature of “Extruder”.

4）Retraction

a. Retraction Length: Amount of retraction. Retraction can help users reduce stringing

or oozing during printing. (The default value shall be suggested.)

b. Speed: Speed at which the filament is retracted. The default value shall be

suggested.

7-2

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

61

Perimeter

1）Thickness

a . Shell Count: Numbers of laps for each layer’s shell. Maximum: 10; Minimum: 1.

b. Maximum Path Overlap: Max amount of overlapping extrusion for some models,

especially small models.

2）Speed:

a. Exterior Speed: Speed at which the exterior shell is printed.

b. Visible Interior Speed: Speed at which the visible interior shell is printed.

c. Invisible Interior Speed: Speed at which the invisible interior shell is printed.

3） Start Points

a. Mode: There are two options for Start Point mode. One is “closest to specific

location”, the other is “use random start points”.

b. X: The coordinate value of X

c. Y: The coordinate value of Y

Infill

General

7-3

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

62

a. Top Solid Layer: Number of solid layers on the upper surface of model.

b. Bottom Solid Layer: Number of solid layers on the under surface of model.

c. Fill Density: Determines the interior solidity of the model.

d. Fill Pattern: Determines the infill pattern used for the interior of part, Hexagon infill

has higher strength and Line infill take less print time.

e. Start Angle: Angle of the infill’s first layer

f. Overlap Perimeter: The overlap width between the infill and the shell.

g. Vase Mode: When enabled, the interior infill and top solid infill will not

printed.(Using this option will force 0% infill with only a single perimeter)

2) Speed

a . Solid Speed: Speed at which the top/bottom parts are printed.

b. Sparse Speed: Speed at which the infill is printed.

3）Combine Infill

a. Maximum Combine Layers: Select the layer amount according to the layer height.

The total height shall not be over 0.4mm.

b. Combine Mode: Including “Sparse and Solid” and “Sparse Only”. “Sparse Only”

mode only applies for the inner infill layers.

7-4

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

63

Support

1）General

a. Enable Support: Allows users to turn on/off the support option. Support structure

can prevent the model from collapsing. If choosing “Yes”, then both treelike and linear

supports are available for setting up. If choosing “No”, then both treelike and linear

supports are unavailable for setting up.

2）Treelike

a. Speed: Speed at which the treelike supports are printed.

b. Space to Model(X/Y): The gap between the treelike supports and the model contact

surface (in the X/Y directions).

c. Shell Count: To control the printing laps for support’s outer shell.

3）Linear

a. Speed: Speed at which the linear supports are printed.

b. Space to Model(X/Y): The gap between the treelike supports and the model contact

surfaces (in the X/Y directions).

c. Space to Model(Z): The distance between the treelike supports and the model

contact surface (in the Z direction).

d. Path Space: The distance between the adjoining paths.

8

-

5

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

64

Additions

1）Raft

a . Enable Raft: Enable to print raft during printing. Raft could help the model stick to

the build plate.

b. Margin: The distance between raft’s outline and outline of model’s first layer. If the

raft is enabled, the extra raft area around the object is also enabled. Increasing the

margin will create a stranger raft while using more materials and leaving less area for

your object.

c. Space to Model(Z): The gap between the raft top and the model’s first layer.

2）Pre-extrusion

a . Enable Pre-extrusion: Enable the extruder to pre-extrusion until .

b. Space to Model: The maximum distance between the pre-extruded filament and

model’s first layer.

C.Path Length: The filament length of pre-extrusion.

d. Speed: The printing speed of pre-extrusion.

3）Wall

a. Enable Wall: Enable the extruder to print wall during printing. Enabling wall can

prevent the object from stringing or oozing to some extent.

b. Shell Count: To control the printing laps for support shell.

c. Space to Model: The minimum distance between the wall and model.

d. Speed: Speed at which the wall is printed.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

65

Advanced

1）Stepper Motor Voltage(Usually keep default)

a. X-Axis: Voltage parameter of X-axis stepper motor. The bigger the value is, the

more heater will produce.

b. Y-Axis: Voltage parameter of Y-axis stepper motor. The bigger the value is, the

more heater will produce.

c. Z-Axis: Voltage parameter of Z-axis stepper motor. The bigger the value is, the

more heater will produce.

d. A-Axis: Voltage parameter of right-extruder stepper motor. The bigger the value is,

the more heater will produce.

e. B-Axis: Voltage parameter of left-extruder stepper motor. The bigger the value is,

the more heater will produce.

2）Others

a.Extrusion Ratio: The filament amount extruded by the extruder. Default: 109%

7

-

6

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

66

Max:125% (Usually the default ratio is suggested)

b. Path Width: The width of the path, the default value is 0.4mm. Keeping default is

suggested.

c. Path Resolution: The default value is 0.1mm. The bigger the value is, the lower the

extrusion resolution is. On the contrary, the extrusion resolution is much higher.

Others

Dimensional Adjustment

a. Enable Adjustments: Enable software to make compensation for errors.

b. External Compensation: Enable software to make compensation for the outer

diameter error.

c. Internal Compensation: Enable software to make compensation for the inner

diameter error.

7-8

7-7

带格式的: 字体: (默认) Times New

Roman

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

67

Save as new

Allows users to save the model as a new file after parameter modification.

How to do?

After getting all the required parameters modified, click [Save as new], then a

dialogue box will pop up. Users need to enter the file name into the box, then click

[OK]. Click the drop-down menu of [Select Profile], the new added scheme can be

found in the list.

Remove

Allows the users to delete the added scheme(s). Select one of the added schemes, click

[Remove] and a dialogue box will pop up for confirmation. Click [Yes] to remove it or

click [No] to cancel the current operation.

Restore Default: Allows users to restore to the default settings.

Save Configuration: Allows users to save the present configuration.

7.1 Skills on Supports

(Reference Video：Skills on Supports)

Support structures enable the printing of models with steep overhangs and cantilevered

sections. The InventorⅡ 3D printer utilizes Fused Filament Fabrication (FFF)

technology, which works on the additive manufacturing principle of heating and laying

down material layer by layer to create an object. Many sophisticated 3D print designs

require materials to be deposited on a layer where there was not a previous layer, or

the designs have steep angles which might cause undesired drooping during the print.

In these cases, support structures are needed to ensure objects integrity and print

quality.

Principle of 45 Degrees①

Generally speaking, if the 3D model has an overhang of more than 45 degrees, you

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

68

will need supports. This angle is determined by the material, layer height, extrusion

width, and temperature. It is critical to adjust the support structures accordingly to

ensure the best print result, especially for large 3D prints.The principle is raised by a

stage designer and widely accepted among the 3D printing industry.

Principle of P②roportionality

As for the application of supports, users are suggested to comply with the principle of

proportionality. Even though the supports algorithm has been developing, adding

supports intelligently cannot be realized at present. Therefore, users are always

oriented in adding the supports. As we all know, excessive supports will definitely

result in difficulty in supports removal, while limited supports cannot ensure the

stability of the model. Since FashPrint has the function of manual modification, users

can add proper supports to their models according to the daily experience and the

academic principles.

●Support Types

Linear Support Structure：Suitable for models with large-area overhang(s).

Features：Full coverage of supports improves the model stability. But the supports on

the surface are difficult to be removed and will definitely reduce the print quality.

Treelike Support Structure：Suitable for models with small area overhang(s).(You

are suggested printing a raft)

Features：Treelike support structure is proprietary to Flashforge Corporation. And this

structure can save support material and can be easily removed. However, compared

with the linear support structure, it’s of less stability. So you are suggested to manually

add more supports after auto-generating treelike supports.

Auto-supports

Eg：1) Model with Large-area Overhang

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

69

Right:Treelike support structure

Wrong:Linear support structure

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

70

2) Model with Small-area Overhang

Right:Treelike support structure

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

71

Wrong:Linear support structure

Manual Modification

7-9

For the experienced 3D printer users, the [Add] and [Delete] buttons are suggested

using for manually adding or deleting supports.

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

72

1）Manual Add

7-10

You can add the support structure manually to according to the actual shape of the

model.

Left click [Add] on the left, and then click on the position when support structure is

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

73

needed. Press down the left mouse button and drag to generate the support.

2）Manual Delete

7-11

Like the picture above, a hole inside the model doesn’t need any supports.

Left click the [Delete] button and then left click the supports needed deleting. And the

support will be deleted.

7.2 Control over Printing Quality

Enhance the build plate adhesiveness①

● Leveling the build plate

● Keeping the build plate smooth and tidy

● Using the build tape or glue

Adjusting the printing speed②

● Low (Fast) (Print Speed 80mm/s Travel Speed 100mm/s)

● Standard (Print Speed 60mm/s Travel Speed 80mm/s)

● High (Slow) (Print Speed 50mm/s Travel Speed 70mm/s)

● Hyper (Print Speed 50mm/s Travel Speed 70mm/s)

7.3 Skills of Model Placement

Not all the models are in the right positions after being loaded. Therefore, you need to

InventorⅡ User Guide | www.flashforge.com 0086-0579-82273989

74

place it in an appropriate position for better print quality. Such as the models below,

you need to put one of the surfaces onto the platform.(Please refer to 5.1.12- Surface ⑦

to Platform)

①

②

③

Zhejiang Flashforge 3D Technology INVENTOR2 InventorII (3D printer) User Manual Inventor2 Englishx

Zhejiang Flashforge 3D Technology CO., Ltd. InventorII (3D printer) Inventor2 Englishx

Manual

Navigation menu

Namespaces

Views

Navigation
