Getting started
1. Brief introduction
Welcome to use this Bluetooth car kit BTC009. It adopts echo cancellation
technology and provides high-level sound quality. At the same time it
offers easy to use hands-free functions. Please read this user manual
carefully before using it.

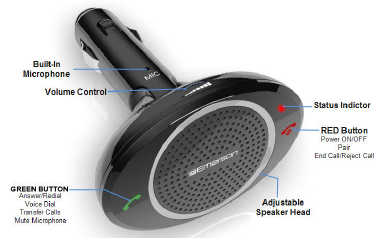

2. Overview
3. Installation
1) Insert the car kit into your car’s cigarette lighter socket;
2) Align microphone and speaker so that they face the driver without any
barriers that might reduce conversation quality;
Using the car kit
1. Pairing with a Bluetooth cell phone
Please make sure your cell phone is Bluetooth-enabled. Specific pairing
steps may vary with different cell phones. Please refer to your cell phone’s
user manual for further information. The pairing steps are as follows:
1
![](/img.php?id=1349779&img=bg3.png)
1) Insert the car kit into your car’s cigarette lighter socket;
2) Make sure your car kit is off, otherwise turn off the car kit first (please
refer to “turning the car kit on/off”);
3) Press and hold the red button for 7-8 seconds and release it when
the red and blue LEDs flash alternately. The car kit entered pairing mode;
4) Switch on your cell phone’s Bluetooth function and search for Bluetooth
devices. After the search has been completed, select “BTC009” from the
Bluetooth device list.
5) According to indication, enter password or PIN No:”0000” and
press ”Yes” or “confirm”;
6) After successful pairing, select “BTC009” from the Bluetooth device list
and press “connect”. The blue LED will flash once every 5 seconds when
the connection is established.
Remarks:
Pairing mode will last 2 minutes. The car kit will exit pairing mode
automatically if it can’t be connected to any device within 2 minutes. If
you want to continue to pair the car kit with a Bluetooth device, please
turn it off first and re-pair according to steps 1-6 mentioned above.
After successful pairing the car kit and your cell phone will remember
each other. The devices don’t have to be re-paired at next use unless the
pairing information is deleted because of a new pairing.
The car kit can remember 8 paired devices. When the number of paired
devices exceeds 8, the old ones will be replaced starting with the first.
Every time you turn on BTC009 it will try to connect to the last
connected device automatically. If you want to pair it with another device,
please switch off the paired device’s Bluetooth function first and pair the
car kit with the new device according to steps 1 6 mentioned above.
2. Turning the car kit on/off
Function Operation
Turn on the
car kit
Press and hold the red button for about 3-5 seconds
until the blue LED flashes
Turn off the
car kit
Press and hold the red button for about 3-5 seconds
until the red LED flashes
2
![](/img.php?id=1349779&img=bg4.png)
3. Making a call with the car kit
Function Status of
BTC009 Operation
Answer call Ringing Short press green button once
Reject call Ringing Short press red button once
Cancel
calling Calling Short press red button once
End call Conversation
mode Short press red button once
Adjust
volume
Conversation
mode Adjust volume wheel
Transfer
call
Conversation
mode
Short press green button once
to transfer the call to cell phone,
press it again to transfer the call to
the car kit
Remark: On some cell phones you
have to transfer the call by selecting
the appropriate option in the phone’s
menu.
Microphone
mute
Conversation
mode
Press and hold green button for
about 2 seconds until hearing an
indication tone. When the
microphone is muted, the car kit
sounds an indication tone every 5
seconds
Cancel
mute
Conversation
mode
Press and hold green button for
about 2 seconds until hearing an
indication tone
Redial last
number
Standby mode
(connected to a
Bluetooth
device)
Press and hold green button for
about 2 seconds until hearing an
indication tone
Voice dial
Standby mode
(connected to a
Bluetooth
device)
Short press green button once
3
![](/img.php?id=1349779&img=bg5.png)
Remarks:
Not all the cell phones support all the functions listed above. Please refer
to your cell phone user manual for further information.
For some cell phones, when you press the answer button on the phone,
the call will be transferred to cell phone firstly. At this time, you need to
transfer the call to the car kit through operating on your cell phone.
Please refer to your cell phone user manual for further information.
4. Automatic connecting to a Bluetooth device
Every time the car kit is turned on it will try to connect to the last
connected device automatically.
Remarks:
The car kit will only try to connect to the last connected device.
Please switch on your Bluetooth device’s Bluetooth function before
trying to connect to it.
On certain Bluetooth devices like some Nokia cell phones, you have to
allow automatic connecting.
5. LED indicator
LED indicator Status of the car kit
Red and blue LEDs flash alternately Pairing mode
Blue LED flashes once every 1
second
Not connected to a Bluetooth
device
Blue LED flashes once every 5
seconds
Connected to a Bluetooth
device or conversation mode
Blue LED flashes quickly Incoming call/calling
Care and maintenance
Read the following recommendations before using BTC009 Following these
you will be able to enjoy our product for many years.
Keep it dry and don’t take it to damp places to avoid the product’s
internal circuit being affected.
4
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. Why can’t my cell phone find the car kit?
Your cell phone will not be able to find the car kit if it is not in pairing
mode. Please make sure the car kit is in pairing mode and in the effective
working range.
2. Why is the conversation quality bad?
a) Make sure the cell phone has a strong signal;
b) Ensure the car kit is in the effective working range.
3. How far is the effective range between the car kit and cell phone?
According to the Bluetooth standard, the max. controllable range of a
Class2 car kit is 10 meters. It varies under different environments.
4. Why is there no sound from the car kit’s loudspeaker during
conversation?
a) Please make sure the car kit is successfully connected to the cell phone;
b) Ensure the car kit’s volume has been set to a proper position.
5
![](/img.php?id=1349779&img=bg7.png)
Specification
Bluetooth version Bluetooth V 2.0
Bluetooth profiles Headset and Hands-free
Effective range 10 meter
Power supply DC 12-24V 100 mA
Working temperature -10 45
Storage temperature -20~60
Dimensions 72×50×38mm
Weight 48g
