Welcome to use this Bluetooth headset,BTE001.Before using
it,pleaseread this instruction carefully.
■ Brief instruction
1、Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology
which was drawn up by Ericsson,IBM,Intel,Nokia,Tohiba.Through Bluetooth
technology,the purpose is to achive the highest transmission rate among
mobile phone,computer,printer,PDA and other devices.The transmission
range is 10 meters,even more,the max.radio-communication range can reach
up to 100 meters.
2、Bluetooth wireless headset
By using BTE001，you can enjoy the happiness that is brought by Bluetooth
wireless technology.It has the following functions:
● Handsfree receiver/end a call/reject coming call
● Dial last call with headset
● Voice dial(It needs your mobile phone to support)
● Adjust volume
● Switch freely the conversation between mobile phone and headset
● Mute operation during the conversation to keep the conversation
secret with the third party.
3
■ Before using the headset
1、Overview of the headset
Chart 1 Chart 2
1) 、 Multifunction button:on/off/Pair/receive coming call/reject
coming call/dial last call
2)、The LED indicator of the headset
3)、Volume down/microphone mute
4)、Volume up/conversation switch/microphone mute
5)、Ear hook
6)、Mini USB port for charging
7)、Ear cap
8)、Microphone
9)、Speaker
2、Charging the headset
The headset should be used built-in rechargable battery.You must
charge the headset fully when you use it for the first time
During using it,if you see the red light to flash and hear the indicaton
sound(the headset sound 3 tones of “DU”every 20 seconds and a tone of
“DU” every 5 seconds)，it means the headset is low power,at this time,you
have to recharge the headset.
1) Plug charger into standard AC power socket
2) Connect the end of charger with USB charing port of headset
When the red light is always bright,it is charging
When the red light is off,it is charging fully
3) It will take about 1.5 hours to charge the headset full.
4
Chart 3
■ Basic operation
1、Switching on/off the headset
Function Operation LED indicator Indication sound
Switch on
headset
Press the multifunction button
for 3-5 seconds, and release the
button until you see the blue
LED is bright
Blue LED is on A tone of
“DI”and”DU”
Switch off
headset
Press the multifunction
buttonfor 2-3 secends ， and
release the button until you see
the blue LED is long bright
Blue LED is
bright and then
is off
A tone of “DI”
Remark：After switching on for 10 minutes, the headset cannot still connect with
any devices, the headset will switch off automatically, in order to save power.
2、The LED indicator of the headset
1)Plug charging device, the headset will enter into charging status
LED indicator Status of headset
Red LED is on It is charging
Red LED is off Charging finished
2 )Pair with Bluetooth device(mobile phone)
LED indicator Status of headset
Red LED flashes every second Standy mode(disconnect with Bluetooth
device)
Blue LED flashes 2 times every 4
seconds
Standy mode(already connected with
Bluetooth device)
Blue LED flashes continously
and quickly
Conversation mode
Red and blue LEDs flash
alternately
Pairing mode
Red LED flashes Low power
3、Pair headset with Bluetooth mobile phone
When you use BTE001 for the first time,please pair headset with your
mbile phone,and make sure your mobile phone has Bluetooth function
which can be used.The steps are as follows:
1) Keep headset and your mobile phone within 1 meter.
2) Please make sure your headset is off(All lights is off)
3) Press multifunction button for 7-8 seconds and release the button
after you hear the third indicated tone(the first one is a tone of
“DI”,the second one is “DU”,and the third one is “DONG,DONG”)or
see the red LED and blue LED flash alternately,the headset enters
5
pairing mode.
4) Turn on the Bluetooth function of mobile phone,search Bluetooth
device,after searching is finished,pleast select “BTE001” on the
device list.
5) According to indication,enter password or PIN No:”1234”,and
press”Yes”or “Confirm” to confirm.
6) It mobile phone reminds you to connect device,select “Yes”
or”confirm” to confirm(It depends on mobile phone).After
successful connecting,the blue LED of headset will flash 2 times
every 4 seconds.
Remark:
● Pairing mode will last for 2 seconds,If it can not pair with any devices after
exceeding 2 mimutes,the headset will switch to standby mode automatically.If
need to pair contimuously,pleast switch off headset firstly,and then refer to
1-6 steps to pair again.
● After successful pairing,Bluetooth headset and mobile phone will remenber each
other.Unless pairing information is deleted owing to new pairing,no need to
pair next time.
● In the status of standy and disconnect with any devices,press multifunction
of headset,after hearing a tone of “DU”,headset will connect with last
pairing device.
● The headset will connect with last pairing device after switching on each
time.It you need it to pair with other devices,please switch off Bluetooth
function of device that currently paired with headset.and then refer to 1-6
steps to pair with new device.
4、Wearing headset

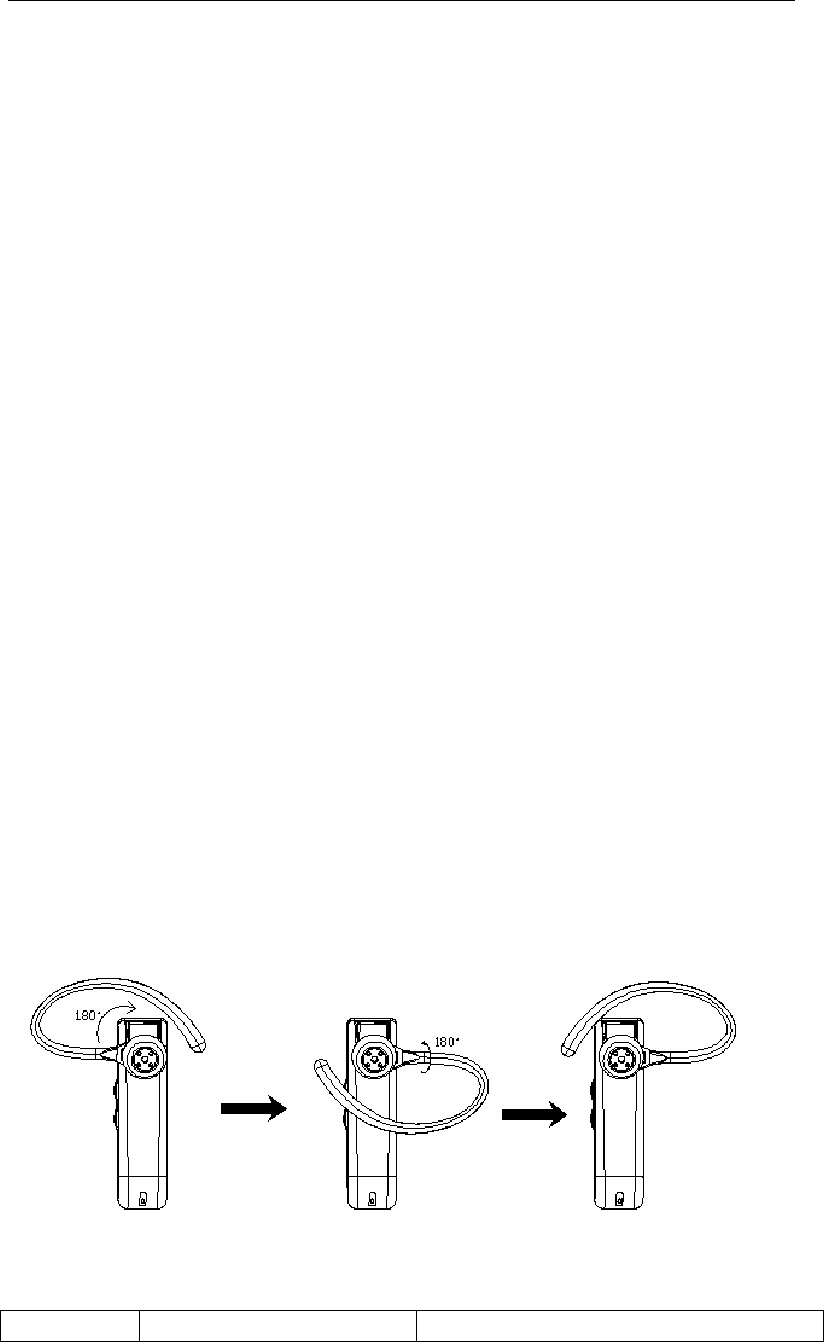

This headset is suitable for both ears.The ear hook can turn
freely,please adjust according to the following charts .After wearing the
headset well ,please turn the microphone of headset towards the mouth of
user,then you can enjoy the best comfort and conversation.
suitable for right ear suitable for left ear
Telephoning with headset
Function Status of device Steps of Operation
6
Mobile phone headset Operation of headset
Voice dial Standby mode switch on
Press volume down for 2 seconds,and
release the key after you hear the
indication tone
Dial last
call Standby mode switch on Press multifunction key quickly for 2
times
Adjust
volume
Conversation
mode
Conversation
mode Press volume up/down to adjust volume
End a call Conversation
mode
Conversation
mode Short press multifunction key for 1 times
Receive
coming call ringing switch on Short press multifunction key for 1 times
Reject
coming call ringing switch on
Press multifunction key for 2
seconds,andrelease the key after you
hear the indication tone
Conversation
switch
Conversation
mode switch on
Press volume up for 2 seconds,and
releasethe key after you hear a tone of
“DU”,the conversation will be
transferred to mobile phone from
headset.Do same operation,the
conversation will be transferred to
headset
Microphone
mute
Conversation
mode
Conversation
mode
Press simultaneously volume up and down
for 2 seconds,andrelease the key after
you hear a tone of “DU”,the
microphone of headset will be mute.When
it is in mute mode，the headset will sound
a tone of “DI” every 5 seconds
Cancellation
mute
Conversation
mode
Conversation
mode (mute)
Press simultaneously volume up and down
for 2 seconds,and release the key after
you hear a tone of “DU”
Remark：
● Some mobile phones don’t support parts of function of list.Pleast refer to
your instruction manual of mobile phone
● When volume of headset is adjusted to Max. or Min.You will hear a tone of “DING
DONG”.
● For parts of mobile phone,when you press the receiving key to receive a
call ,the conversation will be transferred to mobile phone firstly.At this
time,you can use the function of conversation switch or operate on mobile
phone to switch the conversation to headset.Please refer to your instruction
of mobile phone for further imformation.
7
■ Care and maintenance
Before using the Bluetooth adaptor, please read the following recommendations ,It
will help you to enjoy the product for many year.
z Keep dry and don’t put it in the wet place, in case of effecting the interior
circuit of product.
z Don’t put the product under the sunlight or place in hot areas. High
temperature will shorten the life of electronic device and deform certain
plastic.
z Don’t expose the adaptor to extreme temperatures, which may damage the
internal circuit board.
z Don’t try to take apart the product. It may damage the product if you are not
professional
z Don’t fall off on the floor, or knock the hard substance, it may damage
interior circuit.
z Don’t use intensify chemical or detergent to clean the product
z Don’t scrap the surface with sharp things
z If the product can’t work normally, please send it to the regularly asserted
store, the staff will help you to solve problem warmly.
■ Specification
Bluetooth version Compatibility Bluetooth V2.0+EDR；
Bluetooth profiles Headset, Hands free
Effective range 10m；
Working time of headset 5-6 hrs；
Standby time of headset 120hrs；
Charging input voltage DC：+5.0±0.25VA
Charging time of headset About 1.5rs；
Dimension 55*15*8.5mm
Weight 9.5g (include ear hook)
8.5g (not include ear hook)
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance will void the user’s authority to operate the equipment. Any change to
the equipment will avoid FCC grant.
8
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
The equipment compliance with FCC radiation exposure limits set forth for
uncontrolled Environment.
Manufacturer my avoid users authority to operate this device.
