Zhongshan K mate General Electronics BTE004 Bluetooth Mono Headset User Manual 4 BTE004 BC4
Zhongshan K-mate General Electronics Co., Ltd Bluetooth Mono Headset 4 BTE004 BC4
User Manual
BTE004
Bluetooth mono headset
User Manual
Brief introduction……………………………………….2
1. Bluetooth Wireless communication technology…………….2
2. About BTE004………………………………………………….2
Before using……………………………………………..2
1. Overview…………………………………………………………2
2. Charging the battery of the headset………………………….3
Basic operation…………………………………………..3
1. Switching on/off the headset……………………………………3
2. Pairing the headset with Bluetooth mobile phone…………….3
3. Wearing the headset……………………………………………..4
4. Changing the faceplate…………………………………………..5
5. The operation of the headset……………………………………6
6. LED indicator……………………………………………………..7
7. Indication tone…………………………………………………….7
Care and maintenance……………………………………7
Specification……………………………………………….8
Welcome to use this Bluetooth headset, BTE004. Please read this uer manual
carefully before using it.
Brief introduction
1. Bluetooth Wireless communication technology
Bluetooth is a standard of close range radio communication technology that was
drawn up by Ericsson, IBM, Internet, Nokia and Toshiba. Through Bluetooth
technology, we can achieve the highest transmission rate among mobile phone,
computer, printer, PDA and other devices. The max transmit range of class 2 is 10
meters while the max radio-communication range of class 1 can reach up to 100
meters.
2. About BTE004
BTE004 is a Bluetooth headset. It has the following features:
Answer call, end call and reject call
Redial last call
Voice dial (The function needs your mobile phone to support)
Adjust volume
Voice transfer
Microphone mute
The function of changing faceplate
Before using

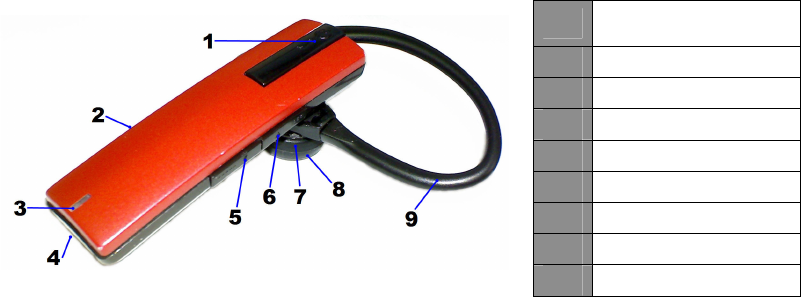

1. Overview
1
Multi-function button
(MFB)
2
Charging socket
3
LED indicator light
4
Microphone
5
Volume up
6
Volume down
7
Loudspeaker
8
Ear cap
9
Ear hook

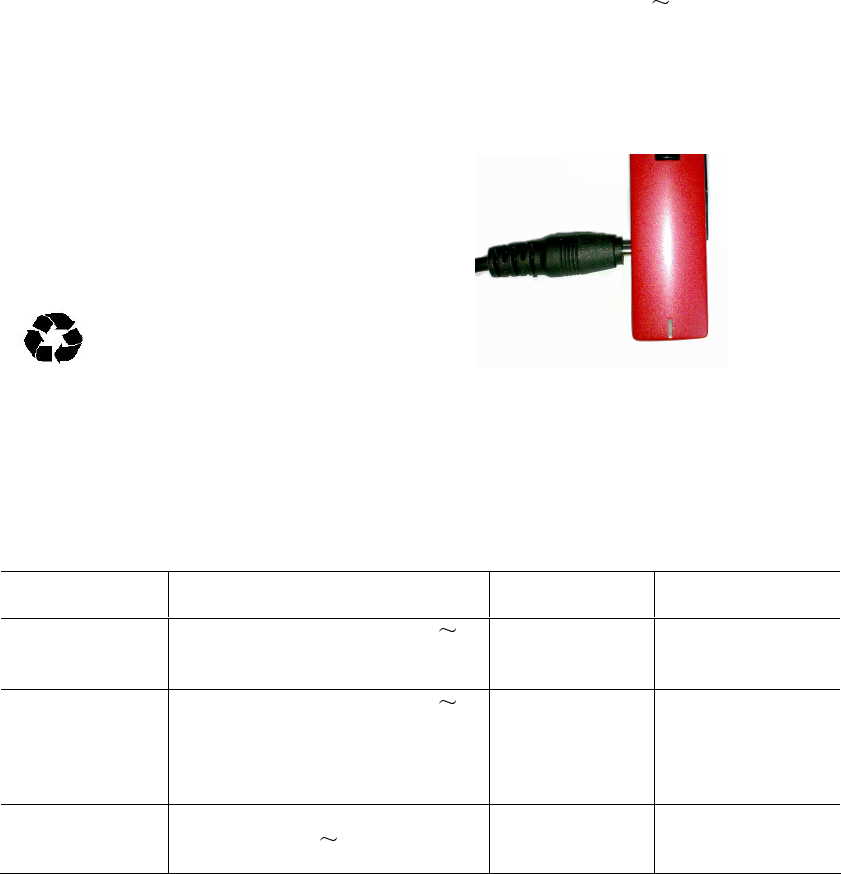

2. Charging the bettary of the headset
First using—You must charge the battery of the headset fully before first using.
Low power—The red indicator light will flash and you can also hear 3 tones of “DU”
every 20 seconds. At this time, you have to charge the battery of the headset.
The charging steps are as follows:
Step1: Connect charger or charging cable to standard power outlet;
Step2: Connect the end of charger or charging cable to charging socket of the
headset;
Step3: When charging, red indicator light is on. It takes about 1 1.5 hours to
charge the battery fully;
Step4: When charging has completed, the red indicator light will switch off.
Note: If charging via a USB port, this USB port is used only for charging purposes, no
any data is transferred over the USB port.
Warning: 1. The battery is recycled.
2. Do not dispose of the battery in fire, as it may cause
Explosion.
Basic operation
1. Switching on/off the headset
Remark: The headset will switch off automatically if no devices can be connected after 10
minutes in order to save power.
2. Pairing the headset with Bluetooth mobile phone
You have to pair the Bluetooth headset with Bluetooth mobile phone before first using the
headset. Please make sure your mobile phone has bluetooth function that is available.
Specific pairing procedures may vary with different mobile phones. Please refer to your
Function Operation LED indicator
light Indication tone
Switch on the
headset
Long press MFB for 3 5
seconds, and release it till
indicator light is on
Blue indicator
light is on for 1
second
A long “DI” and a
long “DU” tones
Switch off the
headset
Long press MFB for 3 5
seconds, and release it till
indicator light is off
Red indicator
light is on for 1
second and
then all indicator
lights are off
A long “DI” tone
Enter into
pairing mode
When the headset is off, long
press MFB for 7 8 seconds
Red and blue
LEDs flash
alternately
Nothing
mobile phone user manual for further information. The steps are as follows:
1) Keep the headset and Bluetooth mobile phone within 1 meter when pairing.
2) Make sure your headset is off.
3) Press MFB for about 7 8 seconds, then release it till you see the red and blue
indicator lights to flash alternately or hear indication tone for three times (The first
tone is “DI”, the second one is “DU” and the third one is “Dong-dong”). The headset
entered into pairing mode.
4) Switch on Bluetooth function of mobile phone and search the Bluetooth device. After
searched, select “BTE004” in the Bluetooth device list.
5) According to indication, enter password or PIN No:”1234”, and press the key of ” Yes”
or “confirm”.
6) After successful pairing, select “BTE004” in the Bluetooth device list, and press
“connect”. After successful connecting, the indicator light will flash twice every 4
seconds.
Remark:
The pairing mode will last 2 minutes. The headset will switch to standby mode
automatically if it can’t pair with any devices after 2 minutes. If you want to continue
to pair the headset with Bluetooth device, please switch off the headset firstly, and
then re-pair according to steps 1 6 mentioned above.
After pairing is successful, the headset and mobile phone will remember each other,
no need to re-pair when use next time.
When you switch on the headset every time, it will connect with last connected
device automatically. If you want to pair it with other devices, please switch off
Bluetooth function of last connected devices firstly, then pair the headset with new
device according to steps 1 6 mentioned above.
3. Wearing the headset
This headset is suitable for both ears. The ear hook can turn freely. After wearing
the headset well, please turn the microphone of the headset towards to the mouth of
user, the effect of conversation will be better.
Suitable for right ear Suitable for left ear

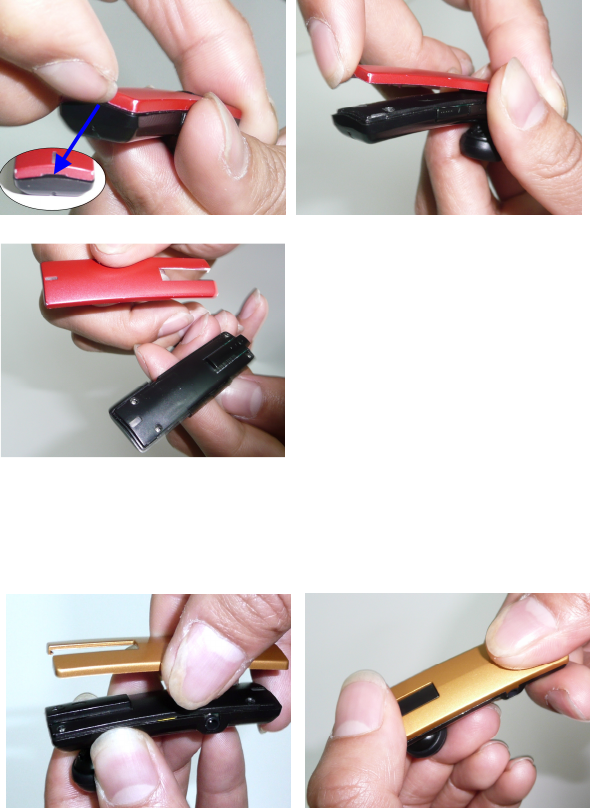

4. Changing the faceplate
1) . Take down the faceplate
2) . Install new faceplate
5. The operation of the headset
Function The status of the
headset Operation
Cancel calling
Calling Short press MFB once to cancel calling
Answer call Ringing Short press MFB once
Reject call Ringing Long press MFB for about 2 seconds, and
release it till hearing indication tone
End call Conversation mode Short press MFB once
Volume up Conversation mode Short press volume +
Volume down
Conversation mode Short press volume -
Voice transfer
Conversation mode Long press volume+ button for about 2
seconds, and then release it till hearing
indication tone
Microphone
mute
Conversation mode Press simultaneously volume+ button and
volume – button for about 2 seconds, and
then release them till hearing indication
tone. When the microphone is mute, the
headset sounds a short “DU” tone every 5
seconds
Cancel mute
Conversation mode
(microphone mute)
Press simultaneously volume+ button and
volume - button for about 2 seconds, and
then release them till hearing indication tone
Voice dial
Standby mode (already
connected with Bluetooth
device)
Long press VOL + button for about 2
seconds, and then release it till hearing
indication tone
Redial last
call
Standby mode (already
connected with Bluetooth
device)
Short press MFB 2 times
Warning: Excessive pressure from earphones and headsets can cause hearing loss.
Remarks:
Not all the mobile phones support all the functions listed above. Please refer to your
mobile phone user manual for further information.
Some functions and indication tones may vary with different mobile phones.
For some mobile phones, when you press the answer button on the phone, the
conversation will be sent to the mobile phone. At this time, you may switch the call
to the headset through the conversation switching function of the headset or
operating on your mobile phone. Please refer to your mobile phone user manual for
further information.
6. LED indicator light
1) When it is charging
LED indicator light The status of the headset
The red indicator light is on Charging
The red indicator light is off Finish charging
2) When it is not charging
LED indicator light The status of the headset
The red and blue indicator lights
flash alternately
Pairing mode
The blue indicator light flashes 1
time every 1 seconds
Standby mode (not connected with
Bluetooth device)
The blue indicator light flashes 2
times every 4 seconds
Standby mode (already connected
with Bluetooth device)
The blue indicator flashes 1 time
every 1 seconds
Coming call/calling
The blue indicator light flashes
quickly
Conversation mode
The red indicator light flashes Low power
7. indication tone
Indication tone The status of the headset
It sounds a tone of “DU” every 5
seconds Microphone mute
It sounds three tones of ‘’DU”
every 20 seconds Low power
Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill any warranty
obligations and enjoy this product for many years.
Keep dry and don’t put it in the dump place, so as not to affecting the interior circuit of
product.
Don’t put the product under the sunlight or place in hot areas. High temperature will
shorten the life of electronic device, destroy the battery, or distort certain plastic.
Don’t expose the product in the cold areas. It may damage the internal circuit board.
Don’t try to take apart the product. It may damage the product if you are not
professional.
Don’t fall off on the floor or knock the hard substance. It may damage interior circuit.
Don’t use intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things.
If the product can’t work normally, please send it to the regularly asserted store. The
staff will help you to solve the problem warmly.
Specification
Bluetooth version Bluetooth V2.0
Bluetooth profiles Headset, Handsfree
Frequency response 2.4GHz 2.4835GHz
Effective range 10m
Working time 6-7hours
Standby time 100 hours
Charging input DC 5V 90mA
Charging time About 1.5 hours
Working temperature -20 55
Storage temperature -20~70
Dimension 57*16*9mm
Weight Headset: 9g
Ear hook: 1g
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
