Users Manual
BTE010
Bluetooth mono headset
User’s manual
Brief introduction………………………………………..1
1. Bluetooth wireless communication technology…………………...1
2. About BTE010…………………………………………….………….1
Before use....……………………………………………..1
1. Overview…………………………………………………………..….1
2. Charging the battery of BTE010…………………………..…….....2
Basic operation………………………………………….3
1. Switching on/off BTE010………………………………….……...…3
2. Pairing BTE010 with a Bluetooth cell phone………….……….….3
3. Wearing BTE010……………………………………………………..4
4. Making calls with BTE010…………..………………………………4
5. LED indicator………………………………………………………….5
6. Indication tone……………………………………………………..…5
Care and maintenance……………………………….…5
FAQs…………………………………………………….…6
Specifications…………………………………………….6
Welcome to use this Bluetooth mono headset, BTE010. Please read this
user’s manual carefully before use.
Brief introduction
1.
Bluetooth Wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth
technology, we can achieve the highest transmission rate among cell phones,
computers, printers, PDAs and other devices. The max transmission range of
class 2 is 10 meters while the max transmit range of class 1 can reach up to
100 meters.
2.
About BTE010
BTE010 is a Bluetooth mono headset. It has the following features:
Answer call, end call and reject call
Redial last number
Voice dial (This function needs to be supported by your cell phone)
Adjust the volume
Call transfer between BTE010 and your Bluetooth cell phone
Microphone mute
Noise filtering function to ensure a clearer conversation
Before using
1.

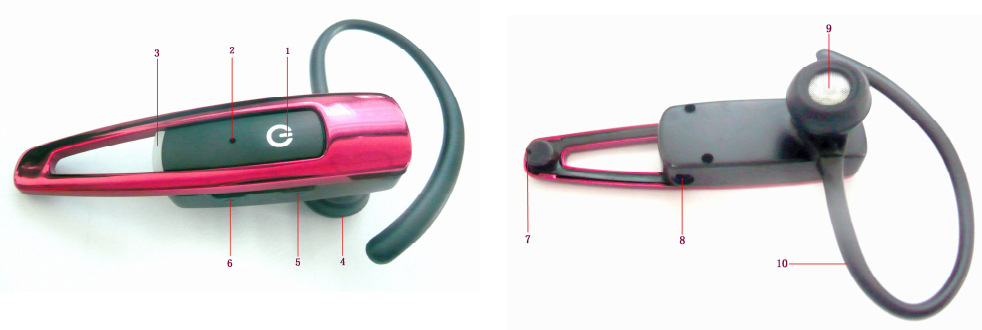

Overview
1
Multi-function button (MFB Switch on/off, dial number, answer
call, reject call and end call
2
Vice microphone noise filtering
3
LED indicator
4
Ear cap
5
VOL + —Volume up
6
VOL - —Volume down
7
Main microphone
8
Charging port
9
Loudspeaker
10
Ear hook
2.
Charging the battery of BTE010
First use—You must charge the battery of BTE010 fully before first use.
Low power—When you hear a string of indication tones every 30 seconds and
see the red LED flashing, the battery is low power and needs to be charged.
The charging steps are as follows:
Step1: Connect the charger or charging cable to standard power outlet;
Step2: Connect the end of charger or charging cable to charging port of
BTE010;
Step3: The red LED is on while charging. It takes about 1.5 hours to fully
charge the battery;
Step4: When charging has completed, the blue LED will switch on.
Warning:
1) The battery is recycled.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Basic operation
1. Switching on/off BTE010
Remark:
In order to save power, BTE010 will switch off automatically if no
devices can be connected after 5 minutes.
2. Pairing BTE010 with a Bluetooth cell phone
You have to pair BTE010 with your Bluetooth cell phone before first use.
Please make sure your cell phone is Bluetooth-enabled. Specific pairing steps
may vary with different cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing steps are as follows:
1) Keep BTE010 and Bluetooth cell phone within 1 meter when pairing;
2) Make sure BTE010 is off, otherwise switch it off first;
3) Press and hold MFB button for about 6 7 seconds, until the red and blue
LEDs are flashing alternately. BTE010 successfully entered pairing mode;
4) Switch on your cell phone’s Bluetooth function and search for Bluetooth
devices. After the search is completed select “BTE010” from the Bluetooth
device list;
5) According to the indication, enter password or PIN No:”1234” and press ”
Yes” or “confirm”;
6) After successful pairing, select “BTE010” from the Bluetooth device list,
and press “connect”. The LED indicator will flash twice every 5 seconds if
connected successfully.
Remarks:
Pairing mode will last 2 minutes. BTE010 will switch to standby mode
automatically if it can’t connect to any device after 2 minutes. If you want to
continue pairing BTE010 with a Bluetooth device, please switch off
BTE010 first and then re-pair according to steps 1 6 mentioned above.
BTE010 can remember 8 paired devices. When the number of devices
exceeds 8, the first one will be replaced.
Every time you switch on BTE010, and it doesn’t connect to any device,
press MFB button once, BTE010 will connect to the last connected device.
Every time you switch on BTE010, it will connect to the last connected
device automatically. If you want to pair it with other devices, please switch
off the Bluetooth function of the last connected devices first and pair
BTE010 with the new device according to steps 1 6 mentioned above.
Function Operation LED indicator
Indication tone
Switching
on BTE010
Press and hold MFB
button for 3 5 seconds
Blue LED is on
for 1 second
Four rising tones
Switching
off BTE010
Press and hold MFB
button for 3 5 seconds
Red LED is on
for 1 second
Four falling tones
Entering
pairing
mode
Make sure BTE010 is off,
then press and hold MFB
button for 6 7 seconds
Red and blue
LEDs flash
alternately
Six falling tones
3. Wearing BTE010
The headset is suitable for both ears, because you can freely turn the ear hook.
After putting on the headset, align the microphone towards the user’s mouth to
get the best conversation quality.
4. Making calls with BTE010
Function Operation Indication tone
Voice dial Press and hold MFB button
for 2 seconds Two short tones
Redial last number Double click MFB button One short tone
Cancel calling Short press MFB button One short tone
Volume up Short press VOL + button One short tone
Volume down Short press VOL– button One short tone
End call Short press MFB button One short tone
Answer call Short press MFB button One short tone
Reject call Press and hold MFB button
for about 2 seconds
One long “DU” tone
and then two falling
tones
Call transfer (from
headset to cell
phone)
Press and hold VOL+ button
for about 2 seconds One short tone
Call transfer (from
cell phone to
headset)
Press and hold VOL+ button
for about 2 seconds One short tone
Microphone mute Short press VOL+ button and
VOL- button simultaneously Two rising tones
Cancel mute Short press VOL+ button and
VOL- button simultaneously Two falling tones
Re-connect Short press MFB button Two long “DI” tones
Warning: Don’t turn up the headset’s volume too much as this may cause
hearing loss.
Remarks:
Not all cell phones support all functions listed above. Please refer to your
cell phone’s user’s manual for further information.
When the volume is adjusted to max. you will hear a rising “DU” tone;
when the volume is adjusted to Min. you will hear a falling “DU” tone.
When pressing the answer button on some cell phones, the call will be
transferred to the cell phone. You have to transfer the call to BTE004
manually then. Please refer to your cell phone’s user’s manual for further.
Please be advised to switch off your cell phone’s Bluetooth function if you
are not going to make a call with BTE010 in anytime soon.
5. LED indicator
1) While it is charging
LED indicator Status of the headset
Red LED is on Charging in progress
Blue LED is on Charging finished
2) While it is not charging
LED indicator Status of the headset
Red and blue LEDs flash
alternately
Pairing mode
Blue LED flashes once
every 2 seconds
Standby mode (not connect to a
Bluetooth device)
Blue LED flashes twice
every 5 seconds
Standby mode (connected to a
Bluetooth device)
Blue LED flashes quickly Incoming call/calling
Blue LED gradually turns on
and off
Conversation mode
Red LED flashes Low power
6. Indication tone
Indication tone Status of the headset
Two continuous DU
tones every 10 seconds Microphone mute
A string of indication tones
every 30 seconds Low power
Care and maintenance
Read the following recommendations before using BTE010. Following
these you will be able to enjoy our product for many years.
Keep it dry and don’t take it to damp places to avoid the product’s internal
circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. What to do when there are some noises?
Please put your cell phone and BTE001 on one side of you to get the best
sound quality.
2. Why is there no sound coming from BTE010?
a) Ensure BTE010 has been switched on and has power;
b) Ensure BTE010 has been successfully paired with your cell phone;
c) Check the connection with your cell phone.
3. Why can’t my cell phone connect to BTE010?
a) Ensure BTE010 has been switched on and has power;
b) Switch on your cell phone’s Bluetooth function;
c) Ensure BTE010 and your cell phone are within 10 meters and there are
no barriers between them, such as walls and other electric devices.
4. I can’t turn off BTE010. What shall I do now?
When you start charging BTE010, it will turn off automatically.
Specifications
Bluetooth version Bluetooth V2.1
Bluetooth profiles Headset Profile (HSP), Hands-free
Profile (HFP)
Effective range Up to 10 meters
Working time Up to 4 hours
Standby time Up to 100 hours
Charging input voltage DC 5V
Charging time About 1.5 hours
Working temperature -10-45
Storage temperature -20~70
Dimensions 64.2×15.6×10mm
Weight Headset: 7.8g
Ear hook: 0.9g
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
