Zhongshan K mate General Electronics BTH002 Bluetooth Stereo Headset User Manual BTH002 rev3
Zhongshan K-mate General Electronics Co., Ltd Bluetooth Stereo Headset BTH002 rev3
User Manual
BTH002
Stereo Bluetooth headset
User Manual V2.0
Welcome to use this Bluetooth stereo headset (BTH002).Please read the user
Manual carefully before using it .
■
■■
■ Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology
which was drawn up by Ericsson,IBM,Internet,Nokia,Tohiba.Through Bluetooth
technology, we can achieve the highest transmission rate among mobile
phone,computer,printer,PDA and other devices,and the max. transmission
range of class2 is 10 meters ,the max.radio-communication range of class1
can reach up to 100 meters.
2. About BTH002
BTH002 is a stereo Bluetooth headset. It supports the following
Bluetooth profiles.
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
HSP —— Headset Profile
HFP —— Hands free Profile
You can enjoy music wirelessly by using the BTH002.Steps as
following:
1) Pairing with the Bluetooth mobile phone and PDA which support HFP.
Answer, end and reject call from the headset.
Redial last number
Voice dial
Adjust volume
Switch the conversation between the headset and the mobile
phone
Microphone mute
2) Pairing with Bluetooth music devices and Bluetooth transmitter
which support A2DP,
Enjoy music wirelessly
Adjust volume
Remote control the function of pause/revert to play
Remote control last/next song
3) Easy to switch between conversation and music, you will not miss the
incoming call during listening to music.
4) Automatic connecting with the last paired device when turn on the
headset.
Note::
Even though the paired device and headset support the same
Bluetooth profiles, the functions may be different due to the
specification difference of the paired devices.
Before using

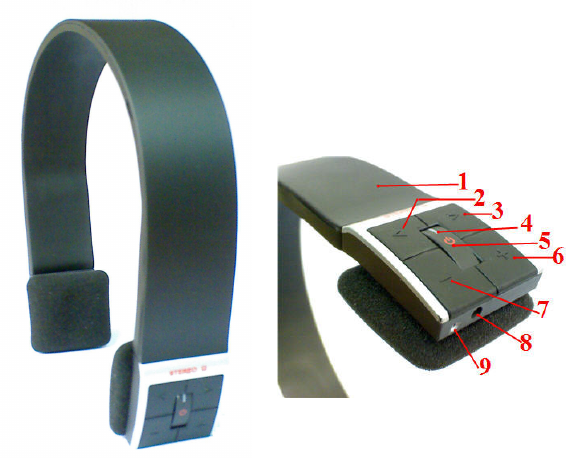

1 Overview
1) Retractable string
2) < key :last song
3) > key :next song
4) LED Indicator
5) Multifunction button (MFB):turn on/off the
headset, answer, end and reject call, mute,
voice dial and switch conversation, redial
last number, pause and revert to play.
6) + key: volume up
7) –key: volume down
8) Charging port
9) Built-in microphone
2 Charging the headset
First time charging
Before you use this Bluetooth headset, please charge the battery of
BTH002 full.
Next time
When you hear a warning tone of “beep” every 20 seconds, at the same
time, the red light blinks. It means the battery is low power and need to
be charged. There is one way to charge as below:
Charging the battery with USB cable
Step1: Insert USB charging cable into USB outlet of PC.
Step2: Connect charging cable with the charging port of headset.
When the red light is on, the headset is charging.
When the red light is off, the headset is charged full.
Step3: It takes about 2.5 hours to charge the headset full.
Warning:
1,The battery is recycled.
2,Do not dispose of the battery in fire, as it may cause explosion.
How to use
1. Switching on / off headset
Function Operation LED indicator Tone indication
Switch on Press the MFB for
3-5 seconds, and
release till the
blue light blinks.
The blue light
blinks quickly 4s
a time.
A “DI” tone
Switch off Press the MFB for
3-5 seconds, and
release till the red
light blinks.
The red light
blinks quickly 4s
a time.
A “DI” tone
Remark: The headset will switch off automatically if no devices was connected
after 5 minutes, in order to save power.
2 Pairing with Bluetooth device
1) How to enter into pairing mode
Function Operation LED indicator
Tone indication
Enter into pairing
mode
Make sure the headset
is off. Or switch off the
headset firstly. Press
and hold the MFB for
5-7 seconds, and
release the key till the
red and blue light blink
alternately’
The red and
blue lights
blink
alternately.
Two tone “Du Du”
Note: The pairing mode will last 2 minutes, If the headset still can’t pair with
any Bluetooth devices after 2 minutes, it will switch into standby mode
automatically.
2) Pairing with Bluetooth mobile phone
Please make sure your mobile phone has Bluetooth function that can be used.
Specific pairing procedures may vary with different mobile phone. Please refer
to your mobile phone manual for further information. Steps as follows:
a) Please keep the headset and mobile phone in the range of 1 meter when
pairing.
b) Make the headset enter into pairing mode.(Please refer to “how to enter
into pairing mode”)
c) Start the Bluetooth function of mobile phone and search the Bluetooth
devices. After searched, select “BTH002”in the Bluetooth device list.
d) According to indication, enter password or PIN No:”0000”,and press the
key of” Yes” or “confirmed”.
e) After successful pairing, select “BTH002”.in the Bluetooth device list. and
press “connect”.
f) After successful connecting, the blue light of the headset blinks twice
every 4 seconds..
Note:
If the pairing is not successful, please switch off headset firstly, and then
re-pair according to the step a-f mentioned above..
After pairing is successful, paired devices will remember each other.
Unless pairing information is deleted because of new pairing, no need to
pair when use next time.
The headset will connect with the latest paired device. If you want to pair
with other Bluetooth devices, please switch off the Bluetooth function of
the current Bluetooth device, and then pair and connect it with the new
Bluetooth device according to steps a-f mentioned above.
3) Pairing with Bluetooth transmitter
You can enjoy music wirelessly through connecting headset with stereo
Bluetooth transmitter,. Here take BH1000-6 (single sale) iPod general
Bluetooth transmitter for example. Pairing steps as follows:
a) Keep the Bluetooth transmitter and headset in the range of 1 meter when
pairing.
b) Make the headset enter into pairing mode (refer to “How to enter into
pairing mode)
c) Turn on the Bluetooth transmitter. It will search Bluetooth device
automatically and start pairing.
d) When the headset requests PIN No, the Bluetooth transmitter need to
respond “0000” automatically
e) After successful pairing and connecting, the blue (or red) light of headset
blinks twice every 4 seconds.
Note:
1. The pairing password of BTH002 is “0000”, so, the headset can’t pair with
the Bluetooth transmitter which pairing password is not “0000”.
2. If the pairing is still not successful after trying several times, please refer to
your Bluetooth transmitter manual carefully..
4) Pairing with several Bluetooth devices
The headset can connect with two devices at most. One is the mobile phone
with HFP profile, another is the devices with A2DP profiles. If you want to
finish the pairing of several Bluetooth devices, please refer to the following
steps.:
Step1 Firstly, pair the headset with Bluetooth transmitter (refer to “pairing
headset with Bluetooth transmitter).
Step2 Switch off the Bluetooth transmitter.
Step3 Pair and connect the headset with the Bluetooth mobile phone (refer to
“pairing headset with Bluetooth mobile phone”)
Step4 Restart Bluetooth transmitter, it will connect with headset automatically.
Note:
After successful pairing with several Bluetooth devices, the paired devices
will remember each other. Unless pairing information is deleted because
of new pairing, otherwise make mobile phone and headset set up hands
free connection next time, and re-start the Bluetooth transmitter, then the
connection of several devices can be performed.
For the mobile phone which supports the HSP and A2DP at the same time.
It may set up connection with HSP and A2DP simultaneously. At this time,
start Bluetooth transmitter may not connect with the headset again.
3 Wearing headset

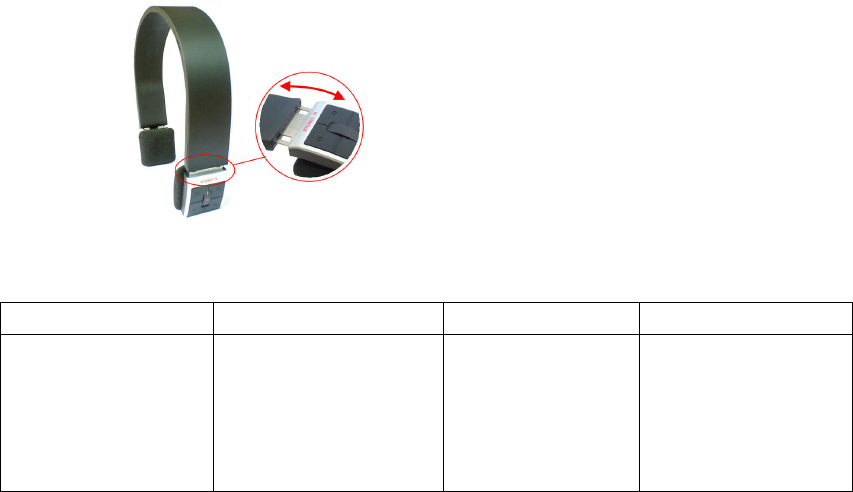

The string of this headset is retractable, please adjust according to the actual
use. Logo “L” of headset represents left ear, Logo “R” of headset represents
right ear. Please wear the headset according to the indication of the Logo.
4 Making call with the headset
Function Status of headset Operation Tone indication
Voice dial Standby mode Press and hold
the MFB for 2s,
release the key
till you hear
indication sound
A short tone “DU”
Redial last
number
Standby mode press the MFB
twice
A short tone “DU”
Turn up volume Conversation mode
Short press or
long press + key
Nothing
Turn down
volume
Conversation mode
Short press or
long press - key
Nothing
Answer calling Ringing Short press the
MFB
A short tone “DU”
Reject calling Ringing Press and hold
the MFB for 2s,
and release the
key till you hear
the indication
sound
A short tone “DU”
End calling Conversation mode
Short press the
MFB
A short tone “DI”
Switch
conversation
between headset
and cell phone
Conversation mode
Press and hold
the MFB for 2s,
release the key
till you hear the
indication sound
A short tone “DU”
Microphone mute
Conversation mode
Quickly press
the MFB twice
“Du”” Du” tone
every 5s
Cancel mute Conversation mute
Quickly press
the MFB twice
Nothing
Warning:
Warning: Warning:
Warning: :
::
:
E
EE
Excessive pressure form earphones and headphones can cause hearing loss.
xcessive pressure form earphones and headphones can cause hearing loss.xcessive pressure form earphones and headphones can cause hearing loss.
xcessive pressure form earphones and headphones can cause hearing loss.
Remark:
Not all the mobile phones support all the functions listed above. Please
refer to the instruction of your mobile phone.
When the volume is adjusted to max or min, you will hear a indication
sound of “Ding-Dong”.
For some mobile phones, when you press the key of accepting on the
phone, the conversation will be sent to the mobile phone. At this time,
you can switch the call to headset by using the conversation switch
button or through operating on the mobile phone. Please refer to the
instruction of your mobile phone for further information.
5 Playing music
When the headset connects with the mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music through headset wirelessly..
Function Status of headset Operation Indication
Volume up Playing music Short press or
long press + key
nothing
Volume down Playing music Short press or
long press - key
nothing
Pause Playing music Short press the
MFB
A short tone “du”
Revert Pause Short press the
MFB
A short tone “du”
Last song Playing music Short press <
key
A short tone “du”
Next song Playing music Short press>
key
A short tone “du”
Warning:
Warning: Warning:
Warning: E
EE
Excessive pressure form earphones and headphones can cause hearing loss.
xcessive pressure form earphones and headphones can cause hearing loss.xcessive pressure form earphones and headphones can cause hearing loss.
xcessive pressure form earphones and headphones can cause hearing loss.
Remark:
For some of mobile phones, when they are playing music, the music
will transmit to the speaker of mobile phone, you have to choose
“transmit the sound through Bluetooth” in the “setting” of music play
interface, and then choose “BTH002” in the device list, the music will
be transmitted to the headset. Please refer to the instruction of your
mobile phone for further information.
When the volume of headset is adjusted to max. or min, you will hear a
tone of “Ding-Dong”
Remote control the function of last song/next song/pause/revert, it
needs your mobile phone or Bluetooth transmitter supports AVRCP.
Please refer to the instruction of your mobile phone or Bluetooth
transmitter. for further information.
6 LED indicator
1) Charging
LED indicator Status of headset
Red light is on Charging
Red light is off Finish charging
2) Pairing with the Bluetooth devices
LED Indicator Status of headset
Red and blue light blink alternately Pairing mode
Blue light (blue light will turn red if low
power) blinks twice every 2 seconds.
Standby mode (paired, but not
connected with the Bluetooth device)
Blue light (blue light will turn red if low Standby mode(connected with the
power,) blinks twice every 4 seconds Bluetooth device)
Blue light blinks (blue light will turn red
as low power,) 3 times every second
Ringing
Red light (blue light will turn red if low
power) blinks 1 time every 2 seconds
Conversation mode
7 Tune Indications
Indication tune Status of headset
Two tones every 5 seconds Conversation mode and microphone
mute
A tone “DU” every 20 seconds Low power
Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill
any warranty obligations and to enjoy this product for many years.
Keep dry and don’t put it in the dump place, in case of effecting the
interior circuit of product
Don’t put the product under the sunlight or place hot areas. High
temperature will short the life of electronic device, destroy the battery,
or distort certain plastic.
Don’t expose the product in the cold areas. This may damage the
internal circuit board.
Don’t try to take apart the product. It may damage the product if you
are not professional.
Don’t fall off on the floor or knock the hard substance, it may damage
interior circuit.
Don’t use intensify chemical or detergent to clean the product.
Don’t scrap the surface with sharp things
If the product can’t work normally, please sent it to the regularly
asserted store, the staff will help you to solve problem warmly.
FAQ
1 Q: What does it mean when red indicator light is on ?
A: Battery is low, need to be recharged
2 Q: Why is not the red light bright when charging?
A: a) Please make sure the charging device connects with
headset. well
b) You didn’t use the headset for a long time, the battery may
dry up. At this time, you have to charge the battery for 30 minutes, and
then the red light will be bright.
3 Q: How far is the effective rang between the headset and mobile
phone?
A: According to the Bluetooth standard, the max. controllable
range of Class2 headset is 10 meters. It varies under different
environment.
4 Q: Why can not my cell phone search and find the headset?
A: The mobile phone will not find the headset if headset and
mobile phone are not under the pairing mode, Make sure the
headset is under the pairing mode and in the effective working
range, and then the headset can be paired and connected.
5 Q: Why can not hear the voice?
A: a) Make sure the headset has been switched on.
b) Make sure the volume is not too low or muted
c) Make sure the headset connects with the mobile phone correctly.
d) Make sure the distance between the headset and the cell phone
is in the normal working scope.
6 Q: Why is the voice not clear in conversation.
A: a) Make sure the mobile phone is in the strong signal area.
b) Make sure the headset is in the function range of this
product.
7 Q: Why can’t control the function of pause, revert, control last song
and next song when playing music?
A: This function needs your Bluetooth device supports
AVRCP(Audio/Video Remote Control profile).
Specification
Bluetooth version Bluetooth V2.1
Bluetooth profile Headset, Hands free，A2DP, AVRCP
Effective range 10m
Working time：
：：
： Music: Up to 10 hrs
Talk: Up to 11hrs
Standby time：
：：
： Up to 250 hrs
Input voltage: DC5.0V 130mA
Charging time：
：：
：
Approx 2.5
hrs
Operator temperature -10~+45℃
℃℃
℃
Dimension 162*153.5*32 mm
Weight
Approx
. 103 g
Note: This Bluetooth stereo headset complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1)
This Bluetooth stereo headset may not cause harmful interference,
and (2) it must accept any interference received, including
interference that may cause undesired operation.
Note
NoteNote
Note
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
