Zhongshan K-mate General Electronics Co., Ltd BLUETOOTH INTER-COMMUNICATION HEADSET BTH009 User s manual
Users Manual
BTH009
Bluetooth intercommunication headset
User’s manual
Brief introduction…..………………………………………1
1. Bluetooth wireless communication technology………………….…...1
2. About BTH009…………………………………………………………...1
Getting started……………………………………………...2
1. Overview…………………………………………………………………2
2. Installation…………………..……………………………………………2
3. Charging the battery of BTH009……………………………….………4
Basic operation……………………………………………..4
1. Turning on/off BTH009………………………………..…………..…….4
2. Pairing BTH009 with a Bluetooth device……………………………...5
3. Intercommunication function………………………………….….…….6
4. Making calls with BTH009……………………………………………...7
5. LED Indicator……………………………………………………..….…..7
Care and maintenance………………………………….….8
FAQs…………………………………………………………..9
Specifications…………………………………………….....9
Welcome to use this Bluetooth intercommunication headset, BTH009. Please
read this user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth
technology, we can achieve the highest transmission rate among cell phones,
computers, printers, PDAs and other devices. The max transmission range of
class Ⅱ is 10 meters while the max transmit range of class I can reach up to
100 meters.
2. About BTH009
BTH009 is a Bluetooth intercommunication headset, which is used on the
helmet to enable people to communicate clearly and conveniently while driving
a motorcycle. It can also connect with a Bluetooth cell phone for hands-free
communication. It has the following features:
1) Two intercommunication headsets connected to each other:
Send out intercommunication
Answer intercommunication and reject intercommunication
End intercommunication
Adjust the volume
2) BTH009 paired with a Bluetooth cell phone:
Answer call, end call and reject call
Redial last number
Adjust the volume
3) BTH009 intercommunication headset connected to another BTH009 and
to a Bluetooth cell phone at the same time:
Dial a number during intercommunication
Answer a call during intercommunication
Getting started

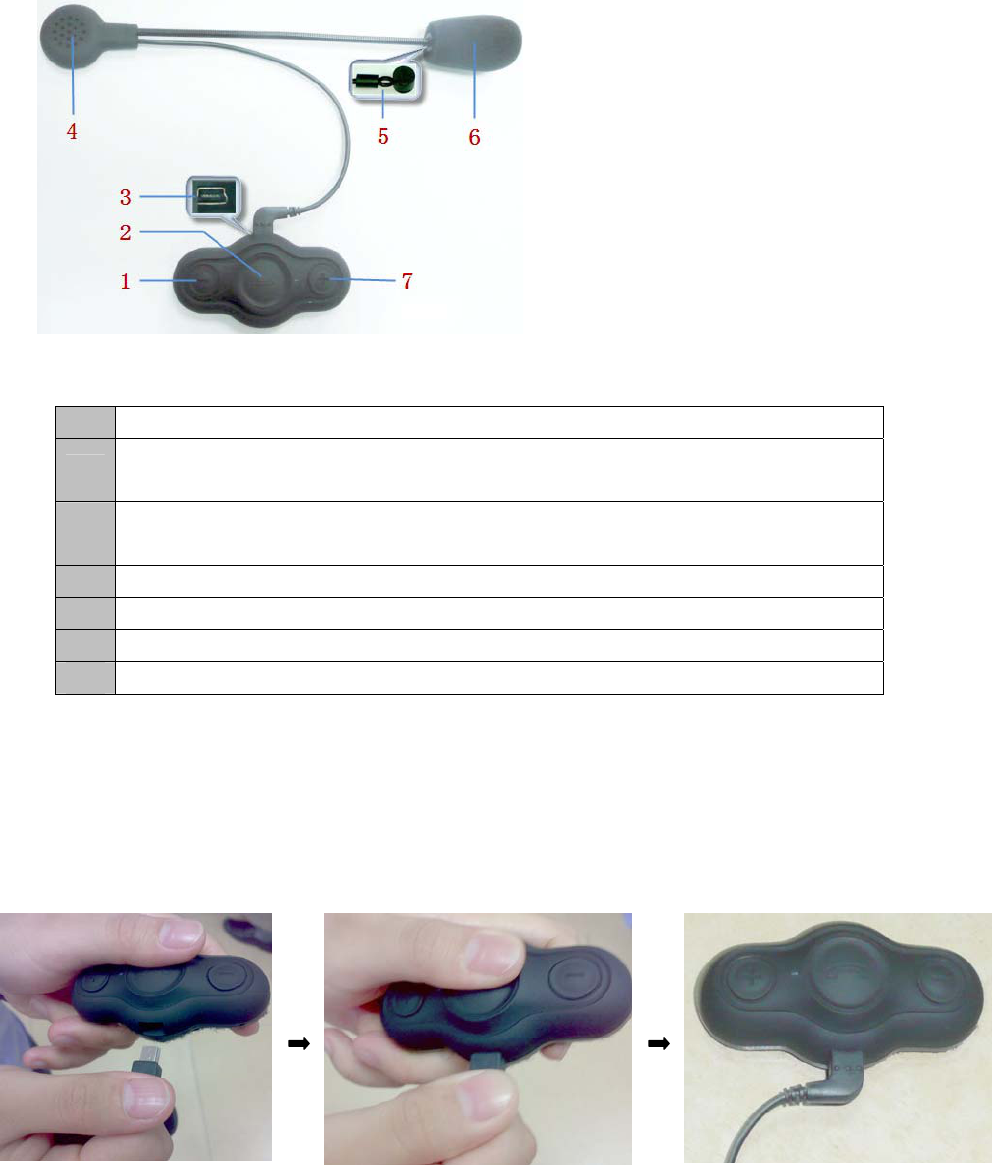

1. Overview
1 VOL- ——Turn down the volume and send out intercommunication
2 MFB button——Turn on/off, redial last number, answer/reject call,
answer/reject intercommunication
3 USB port——It is a charging port and is used as connection port to
microphone and loudspeaker
4 Loudspeaker
5 Microphone
6 The protector of microphone
7 VOL+ ——Turn down the volume and send out intercommunication
2. Installation
1) Install the microphone and loudspeaker to the main body of BTH009 as
the following pictures show:

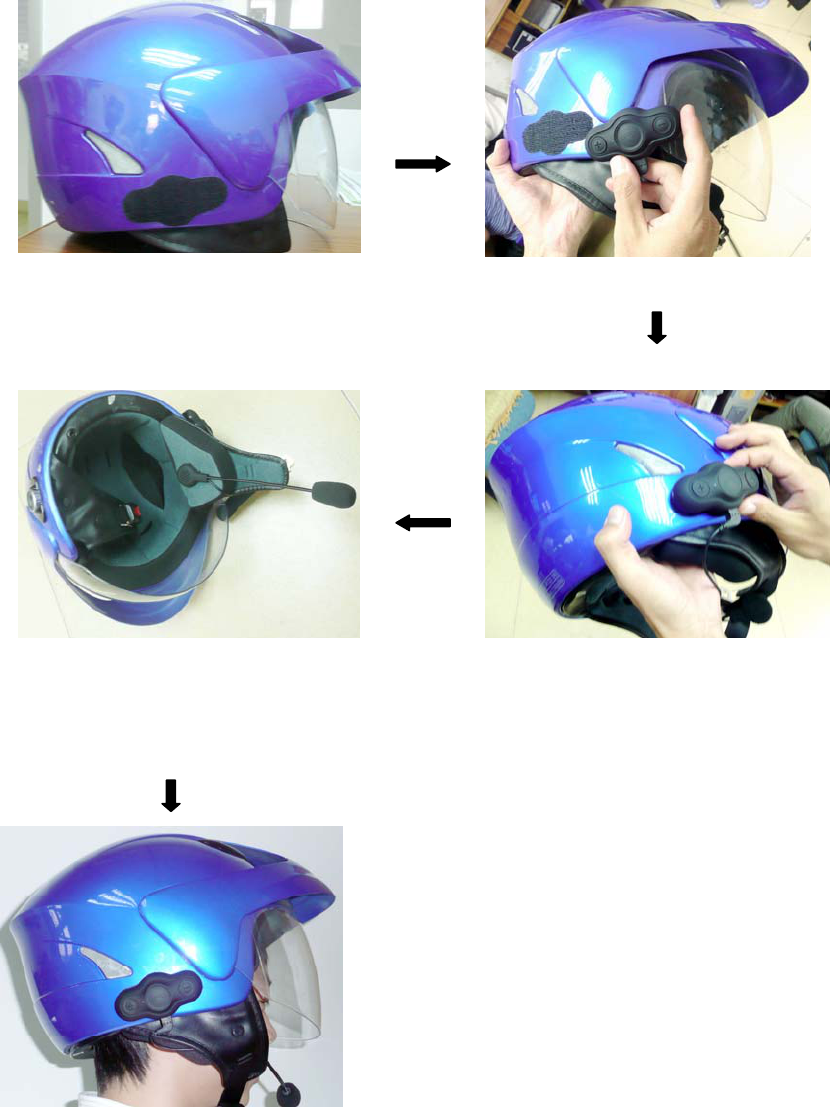

2) Install BTH009 onto the helmet as the following pictures show:
Install the magic tape Install the main body of BTH009
Install the loudspeaker of BTH009 Install the main body of
BTH009
Installation completed
3. Charging the battery of BTH009
First use—The Bluetooth intercommunication headsets have built-in
rechargeable batteries, you must charge their batteries fully before first use.
Low power—When you hear 3 “DU” tones every 30 seconds and see the red
LED flashing, the battery is low power and needs to be charged.
The charging steps are as follows:
Step1: Pull out USB cable from the main body of BTH009;
Step2: Connect one end of charger to standard power outlet and connect the
other end of charger to the main body of BTH009;
Step3: The red LED is on while charging. It takes about 2 hours to fully charge
the battery;
Step4: When charging has completed, the red LED will switch off.
Warning:
1) The battery is recycled.
2） Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place such as sunshine, fire or the like.
Basic operation
1. Turning on/off BTH009
Functions Operations LED indicator Indication tone
Turning on
BTH009
Press and hold
MFB button for 3
seconds
Blue LED is on for 1
second and then
flashes twice
1 long tone
Turning off
BTH009
Press and hold
MFB button for 7-8
seconds
Red LED is on for 1
second and then
flashes twice
1 long tone
Entering
pairing
mode
Press and hold
MFB button for 3-5
seconds
Red and blue LEDs
flash alternately
2 short tones
Remark: If you want the intercommunication headset to enter pairing mode,
you have to press and hold MFB button for 3-5 seconds when the headset is
turned off or in standby mode (not connected to a device).
2. Pairing BTH009 with a Bluetooth device
A. Pairing with a Bluetooth cell phone
You have to pair the intercommunication headset with a Bluetooth cell phone
before first use. Please make sure your cell phone is Bluetooth-enabled.
Specific pairing steps may vary with different cell phones. Please refer to your
cell phone’s user’s manual for further information. The general pairing steps
are as follows:
1) Keep BTH009 and Bluetooth cell phone within 1 meter when pairing;
2) Ensure BTH009 is turned off, otherwise turn off BTH009 first
3) Press and hold MFB button for about 3～5 seconds, the red and blue
LEDs will flash alternately. BTH009 now entered pairing mode;
4) Turn on your cell phone’s Bluetooth function to search for Bluetooth
devices. After the search is completed, select “BTH009” from the
Bluetooth device list;
5) According to the indication, enter password or PIN No:”1234”, and
press ”Yes” or “confirm”;
6) After successful pairing, select “BTH009” from the Bluetooth device list,
and press “connect”. The indicator light of BTH009 will flash twice every 4
seconds if connected successfully.
B. Pairing two intercommunication headsets together
If you want to use the Bluetooth intercommunication function, you have to pair
two intercommunication headsets together first. The general pairing steps are
as follows:
1) Keep two intercommunication headsets within 1 meter when pairing;
2) First press and hold MFB buttons of both headsets simultaneously, then
release MFB button of one headset until the headset enters pairing mode,
and release MFB button of the other headset until blue LED is on;
3) The headset whose blue LED is on will search and connect the headset
which entered pairing mode automatically. After successfully connecting,
the blue LEDs of both headsets will flash twice every 4 seconds.
Remarks:
Pairing mode will last 2 minutes. BTH009 will switch to standby mode
automatically if it can’t pair with any device after 2minutes. If you want to
continue to pair the BTH009 with a Bluetooth device, please switch off
BTH009 first and re-pair according to steps 1～6 mentioned above.
BTH009 will turn off automatically when it can’t connect to any device after
5 minutes.
BTH009 can remember 8 paired devices, when the number of paired
devices exceeds 8, the first one will be replaced.
Every time you switch on BTH009, it will connect to the last connected
device automatically. If you want to pair it with other devices, please switch
off the current device’s Bluetooth function first and try to pair BTH009 with
the new device according to steps 1～6 mentioned above.
BTH009 can connect with two devices simultaneously, either two
Bluetooth cell phones or two intercommunication headsets or one cell
phone and one headset.
When BTH009 gets out of range of the connected devices it will
automatically reconnect to the devices as soon as it is in range again,
either if it was connected to a intercommunication headset or a Bluetooth
phone or both of them.
3. Intercommunication function
If you connect two intercommunication headsets to each other, you are able to
intercommunicate between the devices. Specific operations are as follows:
Functions Operations or Status Indication tone
Receiving
intercommunication Ringing Ring
Send out
intercommunication
Press and hold Volume + or
Volume - for about 2 seconds, and
release it after hearing “DU”
tone
1 short tone
Cancel
intercommunication Short press MFB button 1 short tone
Answer
intercommunication Short press MFB button 1 short tone
Reject
intercommunication
Press and hold MFB button for
about 2 seconds 1 short tone
End
intercommunication Short press MFB button 1 short tone
4. Making calls with BTH009
If BTH009 is connected to a Bluetooth cell phone, you can make calls with
BTH009. The specific operations are as follows:
Functions Basic Operations Indication tone
Incoming call Automatically ringing Ringing
Redial last
number Short press MFB button twice quickly 1 short tone
Cancel calling Short press MFB button when the call
is not connected 1 short tone
Answer a call Short press MFB button 1 short tone
Reject a call Long press MFB button for 2 seconds 1 short tone
End a call Short press MFB button 1 short tone
Volume up Short or long press Volume + button None
Volume down Press Volume - button None
Remarks:
When the volume is adjusted to max. or min. you will hear two “DU-DU”
tones.
When two intercommunication headsets are connected to each other and
a Bluetooth cell phone is also connected, you can answer incoming calls
with the headset or dial a number with the Bluetooth cell phone during
intercommunication and the intercommunication will be kept. After ending
the call, the headset will recover to intercommunication. You can’t
intercommunicate during a phone conversation though.
5. LED Indicator
1) When it is charging
LED indicator Status of intercommunication headset
Red LED is on Charging in progress
LED indicator is off Charging finished
2) When it is not charging
LED indicator Status of intercommunication
headset
Red and blue LEDs flash
alternately
Pairing mode
Blue LED flashes once every 3
seconds
Standby mode (not connected)
Blue LED flashes twice every
4seconds quickly
Standby mode (connected)
Blue LED flashes twice every
4seconds quickly
Incoming call/calling
Blue LED flashes slowly Conversation mode
Red LED flashes Low power
Care and maintenance
Read the following recommendations before using BTH009. Following these
you will be able to enjoy our product for many years.
Keep it dry and don’t take it to damp places to avoid the product’s internal
circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the battery
or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
Don’t remove the microphone’s protector, so the microphone won’t be
damaged.
Please take down the headset from the helmet when you don’t use it for a
long time.
If the product can’t work normally, please send it to the regularly asserted store.
The staff will help you to solve the problem warmly.
FAQs
1. I can’t connect BTH009 to my Bluetooth cell phone. What to do now?
a) Please make sure BTH009 has been paired with a Bluetooth cell
phone;
b) Enable your cell phone’s Bluetooth function, please refer to your cell
phone’s user’s manual for further information;
c) Please make sure BTH009 and your cell phone are in the effective
working range and that there are no barriers between them, such as
walls and other electronic devices etc.
2. What to do when two intercommunicating headsets can’t be
connected together?
a) Please make sure one headset is in pairing mode while the other one
should be in searching mode;
b) Ensure the headsets are in their working range and that there are no
barriers between them.
3. What to do when BTH009 can’t connect with my Bluetooth device
after being out of its working range for a short time?
a) Please make sure you bring the devices back into their working range
within 1 minute;
b) Press MFB button once to connect BTH009 with device again
Specifications
Bluetooth specification Bluetooth V2.1
Bluetooth profiles Headset Profile and Hands-free Profile
Operating distance 10 meters
Working time Up to 7 hours
Standby time Up to 80 hours
Charging time About 2 hours
Charging voltage DC 5V
Dimensions Main body:81×42×18m
The length of boom microphone: 230mm
Weight 49.5g
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
